Quick Start Guide
Thank you for purchasing the iON Air Pro 3 HD sports video camera.
This QSG contains the common functions and features of Air Pro 3 and Air Pro 3 Wi-Fi. For additional
features and functions of Air Pro 3 Wi-Fi, please refer to the back part of the manual.
The iON Air Pro 3 can be mounted with the Bike & Helmet Kit or the Board Kit for the ultimate
adventure HD recording experience.
EN-1
Getting to know your camera
Common features:
9 iON Air Pro 3 is a Professional, High Quality Digital Video Recorder that records Full HD videos
with the flip of an easy slide switch
9 It has the latest 12 Mega Pixel Sensor for you to take great digital photographs
9 A 180 degree high quality lens provides a super wide angle field of view
9 Your camera supports a MicroSD card up to 64GB, allowing you to take videos in 1080p with 30
frames per second for approximately 4 Hours.
9 Equipped with the microphone jack for connection with an external microphone.*
9 The Waterproof Housing enables you to operate the camera up to 10 meters under water.
9 iON Air Pro 3 is about 4.51 ounces or 128g.
* When an external microphone (not included) is connected, audio cannot be recorded through
the built-in microphone.

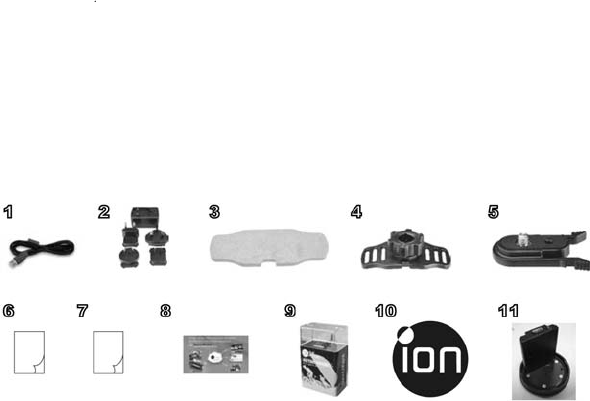

1. Package Contents of Air Pro 3
Carefully unpack the package and ensure that you have the following items:
EN-2
1USB Cable
1. Connect the camera to a computer for data transfer or
camera setup.
2. Charge your camera.
2Universal Power
Adapter
Attach the correct international wall plug to the adapter block
and connect to the camera with the USB cable
3Double Faced
Adhesive - Helmet Adhere to the helmet mount and/or helmet.
4Helmet Mount with
removable ball join nut
Enables you to mount the camera on different types of
helmets by tightening and loosening the ball joint nut
5CamLOCK Mount or remove the camera quickly from the CamLOCK
socket.
6Quick User Guide Provides quick information for easy camera operation
7Warranty Card Please retain for manufacturers warranty period which is
limited to 1 year.
8Mi-media Card Provides guidance on how to sign up for your free iON cloud
storage.
9
Package - Plastic
Display Tinbox and
Paper Sleeve
10 ION Logo Label
11 WiFi Podz
EN-3

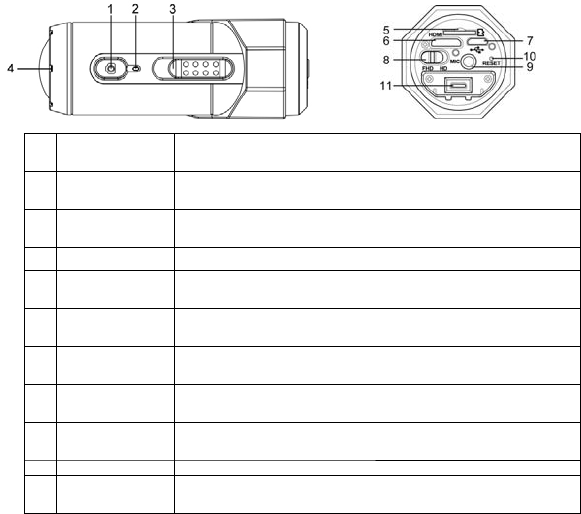

2. Functional Parts of Air Pro 3
1 Power 1. Turns the camera on or off
2. Takes a single photograph
2 LED Indicator Shows the camera status
3Recording Slide
Switch Slide to start or stop video recording
4 Lens High quality lens
5 MicroSD Card Slot MicroSD card storage location.
6 Mini HDMI Jack To enable you to connect the camera to an HDTV with an HDMI
cable (not included)
7 USB Port 1. Connect to your computer for data transfer or camera setup
2. Charge your camera
8Video Resolution
Switch Select video resolution: FHD (Full HD) or HD.
9 Mic Jack To enable you to connect to an external microphone (not included)
10 Reset Button Reset the camera
11 PODZ Socket Connect the PODZ to the camera to perform additional functions
EN-4
3. Using Your Camera
3.1 Charging up Your Camera
Charge your camera with either the USB cable or AC/DC adapter. The red LED will light up to indicate
the camera is charging and it will turn off once the camera has been fully charged. It takes about 3
hours to fully charge the camera.
3.2 Inserting a Memory Card
Insert a MicroSD card up to 64GB (not included) before using your camera. Ensure that the camera
power is turned OFF before inserting the card into the slot.
Notes:
1. There is only one correct direction to insert the MicroSD card into the slot. Do not force the card
into the card slot as it may damage both the camera and the MicroSD card.
2. A new MicroSD card should be formatted before using. For more information, please see section
4.2.
3. We recommend a class 10 SDHC card.
3.3 Setting up Date and Time
Connect your camera to a computer and run the iON software from the MicroSD card folder. You can
set the date and time on the camera via the settings page. Please see
section 4.1 to open iON software

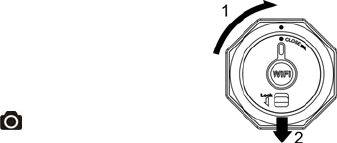

3.4 Installing the PODZ
1. Attach the PODZ to the back of the camera and rotate clockwise until
the two dots are aligned.
2. Slide the latch on the PODZ to lock it.
WARNING: The latch must be locked in place to ensure the waterproof
is activated – failure to do so may cause water leakage.
seal
3.5 Recording Videos
Before starting to record, select the video resolution using the Video Resolution Switch.
There are two methods for starting the video recording function. When the camera starts recording,
there will be a short vibration indicating recording has started. The LED indicator illuminates GREEN
throughout recording.
1. Whether the camera power is ON or OFF, simply slide the Recording Slide Switch
from STOP to REC to start recording.
EN-5
2. When your camera is OFF and the Recording Slide Switch is at REC location, it will
start recording.
To stop Recording, move the Recording Slide Switch from REC to STOP. The camera will
then enter the Standby mode.
An additional option is to hold the Power button to stop the recording and turn the camera off.
Notes:
1. An additional 432x240 (w/ 1080p/720p) video file will be created simultaneously with the
recording of an HD/FHD video file. The smaller video file size allows for more efficient uploading
of content to social media platforms and email.
2. Changing video resolution is disabled during video recording.
3. There will be around 1-2 seconds delay before the camera starts recording.
4. The various video resolution options for HD and FHD can be changed under the “Settings”
selection in the iON software. (see 4.1)
3.6 Taking Photos
1. Turn on the camera by pressing the Power button.
2. After the camera power has been turned on, press the Power button very briefly to take a
photo. A short vibration and a flash of the green LED indicates that the action was successful.
Note: Change photo resolutions and shooting mode (Single Shot, Burst Mode and Time Lapse)
through the “Settings” section on the iON software.
4. Mounting Your Camera

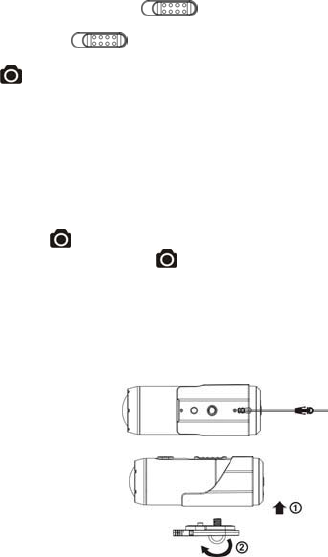

4.1 Secure Strap
1. Loop one end of the secure strap through the strap
hole of the camera. You may use a pin to help
thread it through the hole.
2. Attach the other half to the mount.
3. Clip both ends together when camera is mounted.
4.2 CamLOCK
iON’s versatile CamLOCK Mount System allows you to
attach the camera to any type of helmet (bike, motorcycle,
ski, skydive etc.), pole, board (surf, skate, ski etc) and
handlebar (bike and motorcycle).
EN-6
Please refer to the specific mounting guides for instructions on how to install your mounts with your
camera for particular activities.
1. Fit the screw of the CamLOCK to the tripod socket of the camera.
2. Screw the CamLOCK until it is tight on the camera.
4.3 Mounting on Your Helmet
Before mounting, make sure the surface of the helmet on
which the double faced adhesive will be adhered is clean
so that the helmet mount can be affixed strongly on the
helmet.
1. Loosen the ball joint nut from the helmet mount.
2. Install the ball joint to the helmet mount and tighten the nut.
3. Adhere one side of the double faced adhesive to the base of
the helmet mount, then peel and stick the other side to the
helmet to permanently secure the mount to the helmet.
4. Attach the CamLOCK and camera into the CamLOCK socket.
Ensure that the ball joint nut is tightened securely.
Notes:
1. The CamLOCK system allows you to change the angle of the camera. Simply loosen the nut,
adjust the camera angle and retighten the nut.
2. You can use the same helmet mount to mount the camera on a motorcycle helmet by
purchasing the other optional mounting kit.
5. iON Software Application
The iON Software Application for Windows or Mac lets you connect to a computer by USB to:
1. View and copy the files stored on the camera
2. Change the camera settings (Mac is not supported)
3. Set the Date & Time (Mac is not supported)
4. Format the camera's card
5. Link to the iON website and cloud service
6. Check the firmware update
5.1 Windows Software Application
The Windows iON.exe Software Application comes installed on the camera. To run the application:
1. Insert a MicroSD card with at least 2MB free space into the camera.
2. Press the Power button to turn the camera on.
EN-7
3. Connect your camera to the PC via the camera’s USB cable.
4. Open the MicroSD folder and you will find the file “iON.exe”.
5. Double click the file to open
5.2 Mac Software Application
1. Visit the ion website (www.iontheaction.com) to download the latest Mac software application
version.
2. Insert a MicroSD card with at least 2MB free space into the camera.
3. Press the Power button to turn the camera on.
4. Connect your camera to the Mac via the camera’s USB cable.
4. Use Finder to locate and open the camera as a new device usually called “No Name”. You should
see a folder “DCIM” and the file iON.exe when you open it.
6. Drag the downloaded file to the new device and put it with DCIM and iON.exe.
7. Double click the newly loaded file to run the Mac Application. The application will not run if it is not in
on the camera’s card.
Note: The camera can be connected to any plug & play Windows or Mac system and accessed as a
removable disk drive. Files can be viewed and copied without the use of the application.
6. Signing Up for Free iON Cloud Storage
You can sign up for your 8GB of free Cloud storage simply go to www.iontheaction.com/ioncloud and
follow the steps. The iON Cloud is a great way to store and share your photos and video footage for
free.
7. Connecting Your Camera to a HDTV
You can connect your camera to a HDTV with an HDMI cable (not included). Once it is connected you
can:
1. Take photos or videos by using your HDTV as a viewfinder
2. Playback any photo or video files saved in your camera
3. Delete any files saved on the camera
4. Format the MicroSD Card
EN-8
8. Air Pro 3 Wi-Fi (this section applies to Air Pro 3
WiFi model or optional WiFi PODZ accessory
ONLY)
A Wi-Fi PODZ turns your iON Air Pro 3 into a Wi-Fi access point. View the camera’s videos/photos and
change camera settings from your mobile phone, tablet or computer. Transfer files back to your
computer or mobile device. You can also live-stream the camera view, start/stop recording or take a
photo.
8.1 Air Pro 3 WiFi Package Content
In addition to the package contents of Air Pro 3 (Refer to section 1), the Air
Pro 3 Wi-Fi has included a Wi-Fi PODZ for performing the Wi-Fi
functionality.

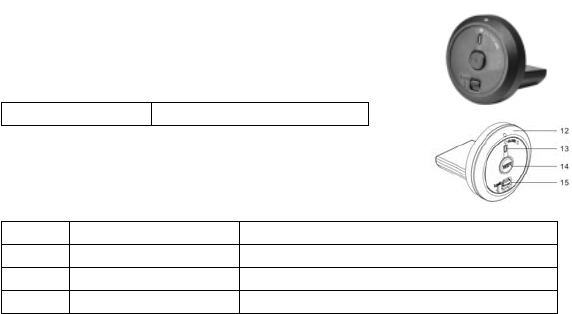

.2 Wi-Fi PODZ Functional Parts
efer to items 1 to11 in
ARNING:The latch must be locked in place to ensure the waterproof seal is activated – failure to
Wi-Fi PODZ Rotate to seal the camera.
8
In addition to the functional parts of Air Pro 3(R
section 2), Air Pro 3 Wi-Fi has additional functional parts on the Wi-Fi
PODZ.
12 Wi-Fi PODZ Rotate to seal the camera
13 Wi-Fi LED indicator Shows the Wi-Fi status
14 Wi-Fi Power button Turns the Wi-Fi on or off
15 PODZ Latch Locks the PODZ
W
do so may cause water leakage.
EN-9
8.3. Using the Wi-Fi PODZ
8.3.1 Installing and turning on the Wi-Fi PODZ
1. Remove your standard PODZ from the back of the camera
and place your Wi-Fi PODZ into the camera PODZ socket.
(follow steps 1 and 2 under section 3.4)
2. Press and hold the Power button to turn on your
camera.
your Wi-Fi. The blue LED lights up
3. Press the Wi-Fi power button on the Wi-Fi PODZ to turn on
to indicate the Wi-Fi is warming up. It will take around 15-20 seconds for the Wi-Fi to warm up
ote: Wi-Fi will drain your camera battery more rapidly when activated. Turn the Wi-Fi off if you are
.2
. ord “123456789” and to connect to your camera.
be able to view the files stored
8.3.3 C vice (App)
-Fi settings. Search the network, find
and become connectable. The LED will flash when the Wi-Fi function is active or connected.
4. Press the Wi-Fi power button to turn off the Wi-Fi anytime.
N
not using it to change settings or upload content.
8.3 Connecting the Camera to Your Computer
1. Turn on your camera and Wi-Fi PODZ.
2. Go to the network settings of your PC and choose Wi-Fi settings. Search the network, find and
click “WIFIPODZ”.
Enter passw3
4. Open your Internet browser and input “192.168.1.2”. You will then
in your camera.
onnecting the Camera to Your Smart De
1. Search iontheaction app in your devices app store.
2. Download and install the app to your smart device.
3. Turn on your Wi-Fi PODZ.
k settings of your device and choose Wi4. Go to the networ
and click “WIFIPODZ”.
5. Enter password “123456789” to connect to your camera.
6. Open your app.
7. Please refer to the app page for detailed operating instructions.
EN-10
9. Sealing Your Camera to prevent water damage
rproof Housing (standard PODZ on iON Air Pro 3 camera and Wi-Fi PODZ in Air Pro 3 Wi-Fi)
ht
te
1.
ust keep this seal clean as a single strain of hair or grain of sand
e leakage into the product.
with
al, in
War
rrectly before using the
camera to avoid water damage. Failure to properly seal your camera can
ge or destroy your camera. Your warranty does not
user damage.
1
ms Causes Solutions
The Wate
owsall you to operate the camera up to 10 meters or 30 feet under water. You must seal the camera
wit he PODZ in order to protect the camera when using it in wet or moist conditions.
No s:
The rubber seal on the PODZ forms the waterproof barrier to protect the camera in wet and
underwater conditions. You m
can caus
2. After every use in salt water, you will need to rinse the outside of the product and the seal
non-salt water and dry. Not doing this can cause corrosion in the product or failure in the se
turn, damaging the product.
ning:
Please ensure you install and lock the PODZ co
result in leaks that dama
co damage resuver water lting from
0. Troublesho
Proble
oting
1. LED flashes and t
camera turns off
he
Battery is depleted Recharge the camera
2. The iON camera will
not turn on.
Green LED flashes Recharge the camera
during recording Low battery
Cannot take photo
video (Blu
sor
e LED
flashes)
Memory full Replace with a memory card with
space available .
Cannot take photos or
video (Blue LED
flashes)
1. MicroSD card is
2. MicroSD card has not been
not inserted
formatted properly. on a PC
1. Insert a MicroSD card
2. Format the MicroSD card
Cannot find removable
disk after connecting
the camera to the
comp
.
1. Make sure all cable connections are
secured and restart the computer if
necessary.
2. Try a different USB port. uter.
Connection failure
EN-11
11. a
Sensor ega pixel sensor
Specific tions
12 M
Lens 180º super wide angle field of view
Focus range 0.4m -
FHD
1080p30+432x240p15 (Dual Stream), PIV size 1920x1080
1920x1080p60
HD
720p30+432x240p30 (Dual Stream), PIV size 1280x720
QVGAp120, WQVGAp1201280x720p120, 1280x720p60,
Format: H.264 compression, saved as MOV file
Video
for easy sharing Dual video files
12.0 Mega Pixels (4000x3000)
5.0 Mega Pixels: (2560x1920)
Format: JPEG
Capture Modes: Single, Burst-shot*, Time lapse*
Built-in high quality microphone
2.5mm External microphone (not included)
Audio
AAC Compression, Automatic Gain Control
MicroSD/MicroSDHC with minimum Class 6 up to 64GB (not included)
Storage Average Recording Times: about 4 hours (using 64GB mSD card in
1080p30/720p60)
USB2.0 (for data connection and battery charging)
HDMI
Connection
External Microphone
Built-in 1200 mAH Rechargeable Li-Polymer Battery
Power Battery Life: Approx. 2 hrs/( 1 hr when operating with Wi-Fi PODZ in Air Pro 3
Wi-Fi)
High quality Aluminum barrel and rubberized finishing
Housing Depth up to 30 feet / 10 meters
Dimension 40 x 40 x 108 mm
Weight ~127.8(w/ PODZ), ~133.2g (w/ Wi-Fi PODZ)
* ngedSettings can be cha through iON software or Mobile Apps.
EN-12
12. System Requirements
stem s® 7/XP SP3 /Vista and Mac 10.5 or aboveOperating sy Window
CPU Pentium III or above
RAM At least 64MB
Interface USB 2.0 port
IMP
re.
under
water.
ater after use and keep it dry for storage.
ailed operation instructions in the user manual
CamLOCK, PODZ, Shoot/Share and Air Pro 3 and their respective logos are
egistered trademarks of World Wide Licenses Limited in the
her countries. Copyright © 2013. All Rights Reserved.
ORTANT
Keep the lens clean. Dirt and fingerprints will affect the quality of the pictu
Close the PODZ properly for optimum water sealing. Do not open
Rinse the camera with clean w
Please refer to the det
TRADEMARK INFORMATION
© 2013 World Wide Licenses Limited.
® The iON logo is a registered trademark of World Wide Licenses Limited.
trademarks or r
United States and ot
a
ts are
FCC Statement
Caution Statement
“Modifications not approved by the party responsible for compliance could void
the user’s authority to operate the equipment.”
Instruction Statement
NOTE: This equipment has been tested and found to comply with the limits for
Class B digital device, pursuant to Part 15 of the FCC Rules. These limi
designed to provide reasonable protection against harmful interference in a
EN-13
residential installation This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
o radio or television reception,
e user is
BLE FOR ANY RADIO
OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO
THE DEVICE. ANY SUCH MODIFICATIONS COULD VOID THE USER’S
PMENT.
instructions, may cause harmful interference t
which can be determined by turning the equipment off and on, th
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.
WARNING: THE MANUFACTURER IS NOT RESPONSI
AUTHORITY TO OPERATE THE EQUI
EN-14
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
RF Exposure Information (SAR)
This device meets the government’s requirements for exposure to radio waves.
This device is designed and manufactured not to exceed the emission limits for
exposure to radio frequency (RF) energy set by the Federal Communications
Commission of the U.S. Government.
The exposure standard employs a unit of measurement known as the Specific
Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. Tests for
SAR are conducted using standard operating positions accepted by the FCC with
the EUT transmitting at the specified power level in different channels.
The highest SAR value for the device as reported to the FCC is 0.98 W/kg when
placed next to the body.
Questions?
Need Some Help?
This manual should
help you understand
your new product.
If you still have
questions,
visit our website:
www.iontheaction.com
Like Us:
www.facebook.com/iontheaction
Tweet Us:
www.twitter.com/iontheaction
EN-15
