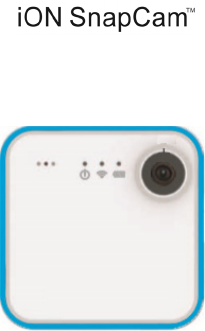

World Wide Licenses 1045 Snap Cam Wearable HD Video Camera, Snap Cam HD Sport Camera User Manual AM W01 8L 1 EN
World Wide Licenses Ltd. Snap Cam Wearable HD Video Camera, Snap Cam HD Sport Camera AM W01 8L 1 EN
User manual
Quick Start Guide
EN-2
1. Introduction
SnapCam is a HD wearable camera. It allows user to take and
share photos and videos on social media.
2. Key Features
z Ultra Slim and Light-weight
z HD Video (720p @ 30fps)
z 8mp Photos
z Auto rotate.
z Upload and Share Photos and Videos using built-in Wi-Fi
z Magnetic Clip included to wear on clothes, bags, hats etc.
EN-3
3. Function
1. Camera LED (Red) Indicate the camera reaction
2. Wi-Fi LED (Blue) Indicate Wi-Fi status
3. Battery LED (Green) Indicate the camera battery
status
4. Lens Wide angle lens
5. Power Button
Turn on and off the camera
Turn on and off the Wi-Fi
Reset the camera
6. Magnet For attaching camera to clothing
etc.
7. Microphone
EN-4
8. MicroSD Card Slot For MicroSD card
9. Micro USB Port Connection for charging and
mass storage
10. Touch Panel To use camera.
11. Silicon Bumper Protect the camera and
decoration
12. Back Clip Mount
Attach to the camera by magnet
and can clip on anywhere
4. First Time to Use
4.1 Charging your SnapCam
Charge the built-in battery before starting to use your SnapCam. When
the SnapCam is off, the charging time from empty to full is approximately
EN-5
1.5 hours.
The LED will turn solid GREEN once the SnapCam is fully charged.
Note :
Charge your SnapCam every time before use.
To charge your SnapCam more efficiently, ensure the Time Lapse Switch
is at OFF position.
4.2 Inserting a MicroSD Memory Card
You must insert a MicroSD Card (not included) before using the
SnapCam. The SnapCam supports MicroSD Card from 2GB to 32GB
Class 6 or higher is recommended.
Note :
EN-6
There is only one direction to insert the MicroSD Card into the slot. Do
not force the MicroSD Card into the slot as this may damage both the
scanner and the MicroSD Card.
The MicroSD Card must be formatted before first time use.
4.3 Setting Date & Time
When the SnapCam is used for the first time, or it has been restored to
default settings, it is necessary to set the SnapCam’s clock to ensure the
captured photo and video files are saved with correct date and time
information.
To set-up the SnapCam’s clock :
1. Insert a MicroSD Card into the SnapCam.
2. Connect the SnapCam to PC as mass storage device (please
refer to Section 5.7).
3. Open the MicroSD file folder, create a file in any format (eg. txt
file) and name it with the format “set-YYYYMMDD-HHMM”, YYYY,
MM, DD, HH, MM represent the year, month and day, hour,
minute of existing time. (eg : set-20150618-1100.txt)
4. Disconnect the SnapCam from the PC, one tap on SnapCam
surface, the SnapCam will scan the file and write it to system
clock.
EN-7
5. Using the SnapCam

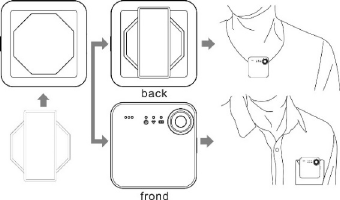

5.1 Wearing your SnapCam
This method is suitable for wearing your SnapCam on a jacket or
relatively thick clothes.
EN-8
Note : Wear your SnapCam vertically, otherwise, the SnapCam may slip
and produce a tilted view.
EN-9

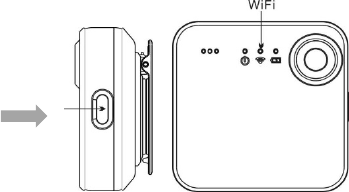

5.2 Power On your SnapCam.
Press the Power On button for 3-4 seconds, the SnapCam will
automatically search for the Wi-Fi network.
EN-10
5.3 Take a Single Photo
Simply tap the surface of your SnapCam to take a photo. You may also
take a single photo using iON SnapCam App by click “Take Photo” button
EN-11
5.4 Take Time Lapse Photos
1. Set your SnapCam with Time Lapse Photo function on iON
SnapCam App using a smartphone.
2. Simply click “Start Time Lapse Photo” on the iON SnapCam App,
then your SnapCam will start to take photo with set time interval.
3. You may cancel the Time Lapse Photo function through iON
SnapCam App
EN-12
5.5 Video Recording
1. Simply tap the surface of your SnapCam 2 times then it will start
video recording. You may also start video recording through iON
SnapCam App by clicking “Start Video” button.
2. Tap the surface of your SnapCam 2 times to stop the video
recording, or click “Stop Video” button on iON SnapCam App.
EN-13
5.6 Short Video Recording
1. Set the duration of Short Video Recording on iON SnapCam App
through smartphone. (Default is 15sec)
2. Simply touch the surface of your SnapCam and hold to start short
video recording. You may also take short video recording through
iON SnapCam App by click “Start Short Video” button.
EN-14

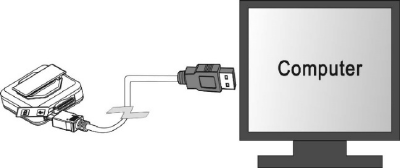

5.7 Connecting your SnapCam to PC
The SnapCam can be connected to computer as mass storage device
(MS Mode) and transfer the photos and video files for storage, if it is not
under recording. If the SnapCam is recording when connected to a PC, it
will not enter to the mass storage mode but will begin charging.
EN-15
6. Specifications
Lens Wide angle lens
Water Resistance IPX4
Still Image resolution 8MP (Default), 2MP
Video Resolution 720p 30fps , WVGA : 848 x 480
Video Format MPEG4 (H.264) .MP4 File
Photo Format JPG
Memory Slot MicroSD card
Support System Windows XP, Vista, 7, and 8 ;
Mac OS X 10.6 or later
Microphone Built-in
Battery Life 2 hours continuous recording
Dimension (L x H x W) 40 x 40 x 12.5 mm
Weight 32g
Operation
Temperature -10°C - 45°C
Storage Temperature -20°C - 70°C
EN-16
7.Troubleshooting
Problem Cause Solution
Unable to record
videos or photos
1. MicroSD card is not
inserted.
2. Memory is full.
Camera malfunction.
1. Insert a MicroSD
card. Supports 2GB
– 32GB class 6 or
higher.
2. Replace a memory
card with space
available for content.
3. Reset the camera.
Cannot find removable
disk after connecting
the camera to the
computer
Connection failure.
1. Check all cable
connections.
2. Restart the
computer if
necessary.
Blurry images The lens of camera is
dirty
Clean the lens with soft
and dry cloth
EN-17
FCC Statement
Warning: Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user’s authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that
may cause undesired operation.
Shielded cables must be used with this unit to ensure compliance with the Class B
FCC limits.
EN-18
TRADEMARK INFORMATION
© 2015 World Wide Licenses Limited.
® The iON logo is a registered trademark of World Wide Licenses Limited
Questions?
Need Some Help?
This manual should
help you understand
your new product.
If you still have
questions,
visit our website:
www.ioncamera.com
Like Us:
www.facebook.com/ioncamera
Tweet Us:
www.twitter.com/ioncamera
Specific Absorption Rate (SAR) information:
This equipment meets the government's requirements for exposure to radio
waves. The guidelines are based on standards that were developed by
independent scientific organizations through periodic and thorough evaluation of
scientific studies. The standards include a substantial safety margin designed to
assure the safety of all persons regardless of age or health.
FCC RF Exposure Information and Statement The SAR limit of USA (FCC) is 1.6
W/kg averaged over one gram of tissue. Device types: FCC ID: NW71045 has
also been tested against this SAR limit. The highest SAR value reported under
this standard during product certification for use when properly worn on the body
is 1.288 W/kg or head is 1.478 W/kg. This device was tested for typical body-
worn operations with the back of the handset kept 0 cm from the body or
head. The use of accessories that do not satisfy these requirements may not
comply with FCC RF exposure requirements, and should be avoided.
Information sur le taux spécifique d'absorption (SAR):
Cet appareil est conforme aux réglementations gouvernementales en rapport aux
émissions d'ondes radio. Les directives sont basées sur des standards
développés par des organisations scientifiques indépendantes à travers des
évaluations poussées et périodiques d'études scientifiques. Ces standards
incluent une marge de sécurité substantielle destinée à assurer la sécurité des
toutes les personnes, indépendemment de leur âge ou de leur santé.
Déclaration et Information d'exposition de la FCC: La limite du taux spécifique
d'absorption des États-Unis (FCC) est de 1.6 W/kg en moyenne pour une
gramme de matière. Types d'appareils: FCC ID: NW71045 a également été testé
contre les limites du taux spécifique d'absorption. Le plus haut taux spécifique
d'absorption observé sous ces standards durant la certification du produit pour
une utilisation appropriée sur le corps est de 1.288 W/kg. Cet appareil a été testé
pour des opérations typiques de port au corps, avec la partie arrière située à 0
cm du corps.. L'utilisation d'accessoires qui ne répondent pas à ces exigences
pourraient ne pas être conformes avec les exigences d'exposition de la FCC RF
et doivent être évités.
Tasa de Absorción Específica (SAR):
Este equipo cumple con las exigencias del gobierno para la exposición a ondas
de radio. Las directrices se basan en normas desarrolladas por organizaciones
científicas independientes mediante la evaluación periódica y exhaustiva de
estudios científicos. Los estándares incluyen un margen de seguridad diseñado
para garantizar la seguridad de todas las personas independientemente de su
edad o salud.
FCC exposición a radiofrecuencias de la Información y la Declaración de El límite
SAR de EE.UU. (FCC) es de 1,6 W/kg promediado sobre un gramo de tejido.
Tipos de dispositivos: FCC ID: NW71045 también ha sido probado contra este
límite SAR. El valor SAR más elevado informado según este estándar durante la
certificación del producto para su uso cuando se lleva cerca del cuerpo es 1.288
W/kg. Este dispositivo fue probado para operaciones con contacto al cuerpo con
la parte trasera del teléfono a 0 cm del cuerpo. El uso de accesorios que no
cumplan estos requisitos no pueden cumplir con los requisitos de exposición RF
de la FCC y deben evitarse.
AM-W01-CARD-2
