Worldwide Accessories BP1483 POWERED SPEAKER User Manual 1
Worldwide Accessories POWERED SPEAKER 1
Users Manual

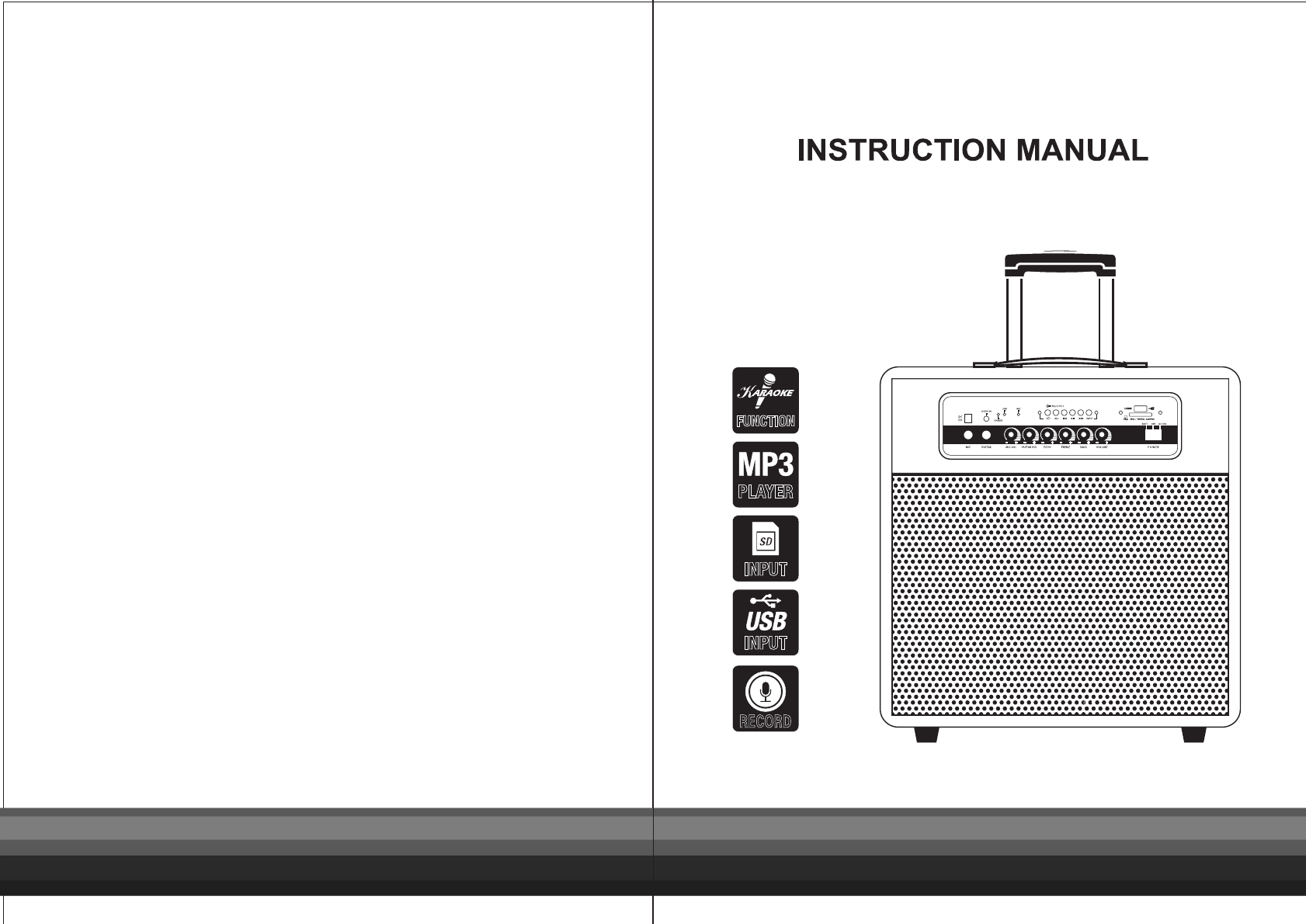

BP1483 POWERED SPEAKER
FCC Statement
Changes or modifications not expressly approved by the
party responsible for compliance could void the user's
authority to operate the equipment.
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates uses
and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and
receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician
for help
This device complies with part 15 of the FCC rules. Operation
is subject to the following two conditions (1)this device may
not cause harmful interference, and (2) this device must
accept any interference received, including interference
that may cause undesired operation.
1
Thank you for purchasing this drawbar active speaker system from our company. We have
done lots of researches on the external design, manufacturing craft, operating convenient which
can satisfy our customers. You can obtain our best service. At the same time, you can put
forward and check the accessoriesyour suggest and opinion. Please open the case carefully
attached, preserve them in case losing.
Please spend a little time on reading this operation manual before your installation and
operation, so that you can operate this system correctly and get the best enjoyment with it.
We suggest you preserve the carton and package materials, which are to keep for future
moving.
If you find this system can’t work correctly or has some brokenness, please inform your local
sale’s shop in which you buy it, and they will help you. If this system is sent you directly, please
check if it is spoiled when it is hauled. Then please contact with the transport company quickly.
Only the customers have the right for compensating on spoied problems from the freighter.
To ensure operating this machine safely, please read the explantion carefully which as below.
Pay attention
To ensure to operate safly, please read this explanation carefully.
Before using installation, please read over the safely operating notice item of page.
Warn
To avoid that fire and electric shock are danerous, do not make this machines get wet in
the rain or is made moist!
Power cord protection!
Caution electric shock!
No press !
It is hot!
Cabinet
disassemble.
Do use duration!
Firework is strictly forbade!
Liquid vessel.
Must avoid to pull out
or insert power supply/cord
with wet hands. In order to
avoid accident of electric shock, must use 110V~220V 50/60HZ power
supply/
cord that supplied
with package.
Do not step or heavy load on power cord, and must avoid to pull power cord.
This unit
can not be pressed
by weight. Must avoid to expose to the sun, and
keep far away from any heat
sources, such as stove, radiator, heat register,
or other
devices
that produce heat.
Must avoid to disassemble the cabinet, it has
dangerous voltage
inside
the unit.
Do not open the unit for non-professional people. Please contact professional
technician who is qualified, or contact our company.
Long time no
use, please pull out the power plug from power source.
Please
charge the unit at least once a month.
Keep the unit away from water drop or splash. Do not put liquid or liquid vessel
on the top of the unit.
Do not put a fire and combustible material on the unit.
This equipment complies with FCC radiation exposure limits set
forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance 20cm between the
radiator & your body
Record
Guitar Jack-input
Micvolume adjust-
DC 15V power input
Power switch Main volume adjust
Main treble adjust
AUX IN Repeat
Guitar volume adjust
10
SD card input
USB input
Next: To play next song
Play/Pause FMradio station scan/
Previous : To play previous song
INPUT: To select function
Main bass adjust Micecho adjust-
Mic Jack-input
19
310
10
2
145678910
16 4
18
19 14 13 12 11
17 15
FRONT PANEL INSTRUCTION
32
OPERATION
General Operation:
1. Connect the supplied DC power cord to the unit and AC to wall outler.
2. Press the power switch on the rear of the unit to BATTERY when no charge, and to
DC 15V In when charging.
3. Press INPUT button on the front of unit repeatedly to select the input source as:
Line in mode, FM mode, Bluetooth mode.USB/SD card mode,
Bluetooth Pairing:
1. Press INPUT button and select BT mode.
2. Enable the bluetooth feature on your audio device and set it to discover the wireless
3. Once the speaker apears listed under the newly found bluetooth devices (BP1483)
device. Clip to connect.
of your wireless
speaker.
1. Press MODE button and select AUX.
2.
3. Play music file from your phone or other music player.
4. When pairing is successful, a tone will be heard through the speaker.
5. You can now start streaming audio through the speaker wirelessly from your favorite
devices.
6. The speaker will re-pair automatically with memorize devices after being turned off
FM (radio):
1. Press INPUT button and select FM mode.
2. Press button to search and stored the avaiable FM station.
3. Press the or button to select and plays the desired stored FM station.
bluetooth enable
and on again.
REMOTE OPERATION:
SCAN
Mode
Mute
Last folder
Next folder
Last song/last
FM channel
Play/Pause
FM auto search
Digit adjustment
Song scan
Standby
Folder repeat
Volume up
Next song/next
FM channel
Volume down
EQ
Repeat play
REMOTE CONTROL OPERATION

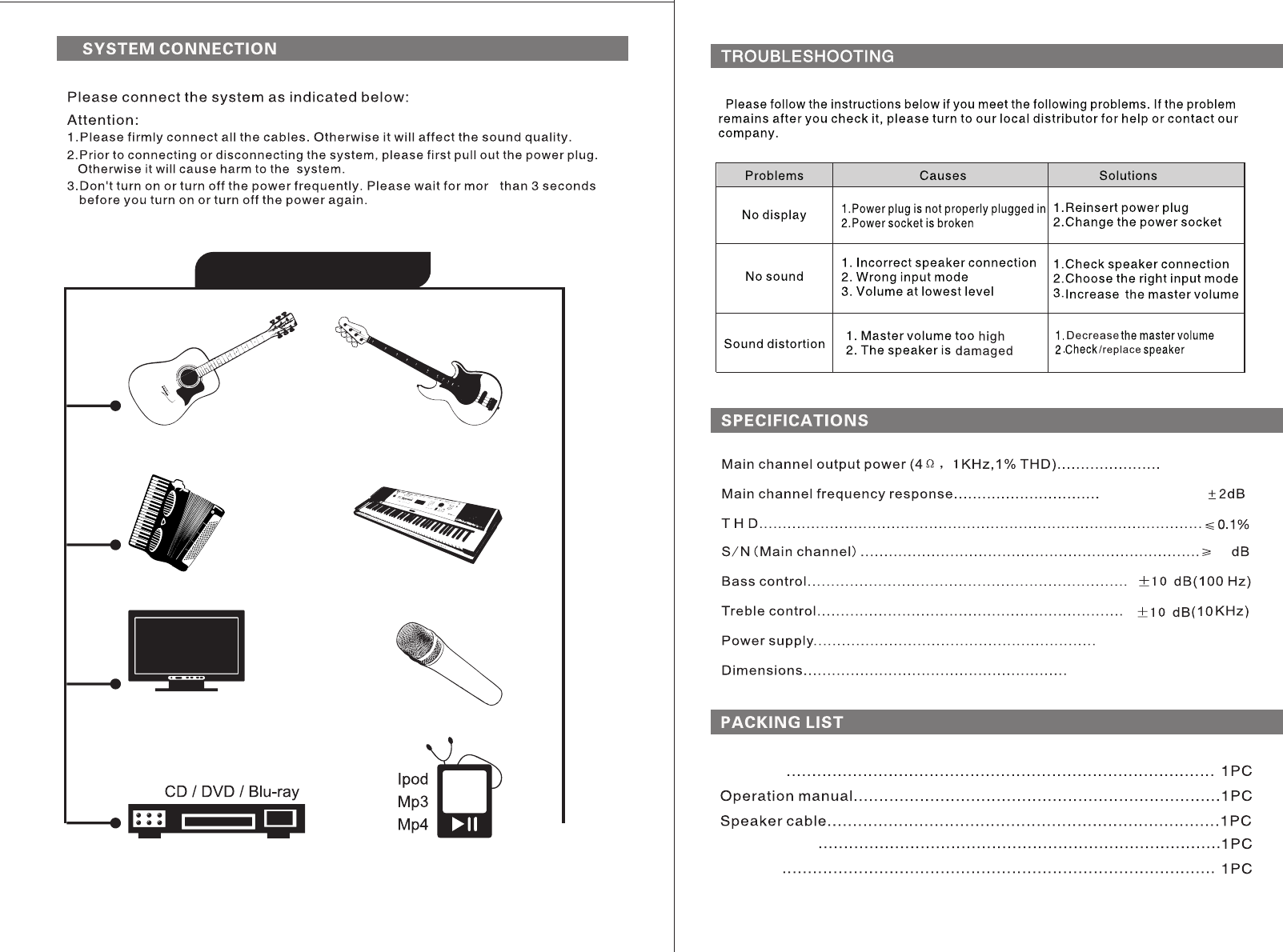

MULTIFUNCTION
accordion keyboard
television microphone
guitar bass
4
e
Speaker
Remote control
46.0x27.0x52.5cm(WxDxH)
Adapter
....
30W RMS
AC 110-220V 50/60Hz
50Hz18KHz-
80
5
