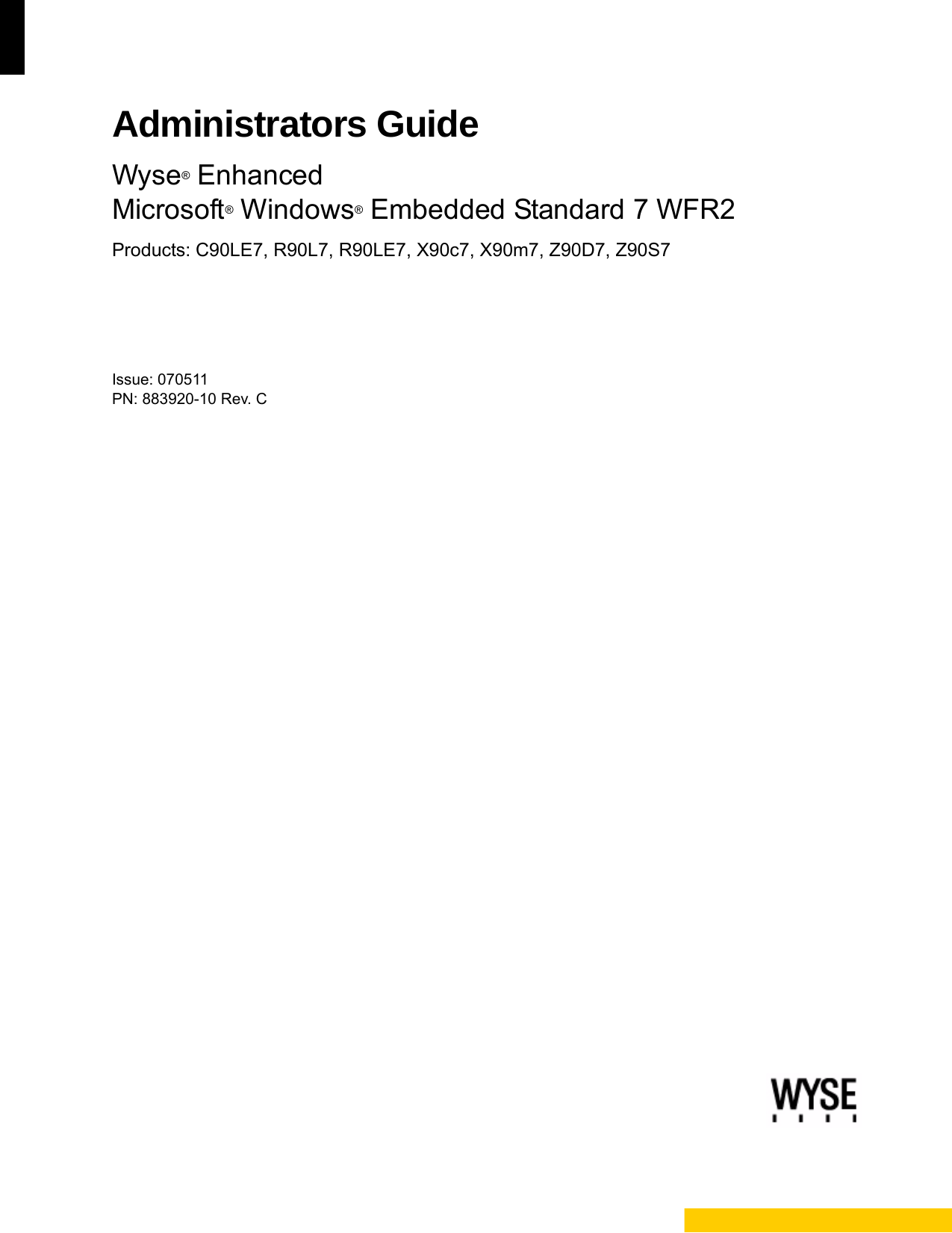

Administrators GuideWyse® Enhanced Microsoft® Windows® Embedded Standard 7 WFR2Products: C90LE7, R90L7, R90LE7, X90c7, X90m7, Z90D7, Z90S7Issue: 070511 PN: 883920-10 Rev. C

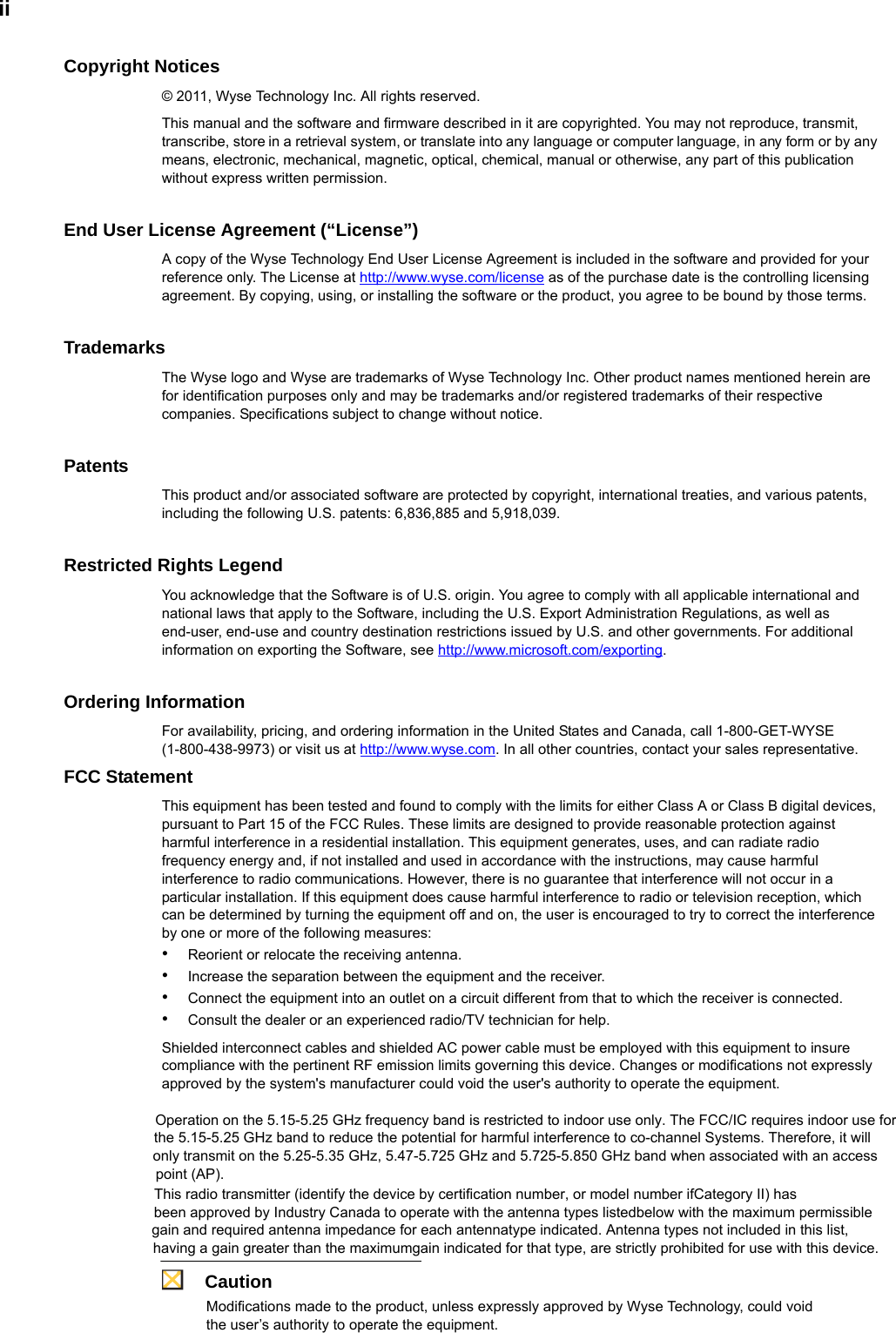

iiCopyright Notices© 2011, Wyse Technology Inc. All rights reserved.This manual and the software and firmware described in it are copyrighted. You may not reproduce, transmit, transcribe, store in a retrieval system, or translate into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, any part of this publication without express written permission.End User License Agreement (“License”)A copy of the Wyse Technology End User License Agreement is included in the software and provided for your reference only. The License at http://www.wyse.com/license as of the purchase date is the controlling licensing agreement. By copying, using, or installing the software or the product, you agree to be bound by those terms.TrademarksThe Wyse logo and Wyse are trademarks of Wyse Technology Inc. Other product names mentioned herein are for identification purposes only and may be trademarks and/or registered trademarks of their respective companies. Specifications subject to change without notice.PatentsThis product and/or associated software are protected by copyright, international treaties, and various patents, including the following U.S. patents: 6,836,885 and 5,918,039.Restricted Rights LegendYou acknowledge that the Software is of U.S. origin. You agree to comply with all applicable international and national laws that apply to the Software, including the U.S. Export Administration Regulations, as well as end-user, end-use and country destination restrictions issued by U.S. and other governments. For additional information on exporting the Software, see http://www.microsoft.com/exporting.Ordering InformationFor availability, pricing, and ordering information in the United States and Canada, call 1-800-GET-WYSE (1-800-438-9973) or visit us at http://www.wyse.com. In all other countries, contact your sales representative.FCC StatementThis equipment has been tested and found to comply with the limits for either Class A or Class B digital devices, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:•Reorient or relocate the receiving antenna.•Increase the separation between the equipment and the receiver.•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.•Consult the dealer or an experienced radio/TV technician for help.Shielded interconnect cables and shielded AC power cable must be employed with this equipment to insure compliance with the pertinent RF emission limits governing this device. Changes or modifications not expressly approved by the system's manufacturer could void the user's authority to operate the equipment. Operation on the 5.15-5.25 GHz frequency band is restricted to indoor use only. The FCC/IC requires indoor use for the 5.15-5.25 GHz band to reduce the potential for harmful interference to co-channel Systems. Therefore, it will on only transmit on the 5.25-5.35 GHz, 5.47-5.725 GHz and 5.725-5.850 GHz band when associated with an access point (AP). This radio transmitter (identify the device by certification number, or model number ifCategory II) has been approved by Industry Canada to operate with the antenna types listedbelow with the maximum permissible gain and required antenna impedance for each antennatype indicated. Antenna types not included in this list, having a gain greater than the maximumgain indicated for that type, are strictly prohibited for use with this device. CautionModifications made to the product, unless expressly approved by Wyse Technology, could void the user’s authority to operate the equipment.

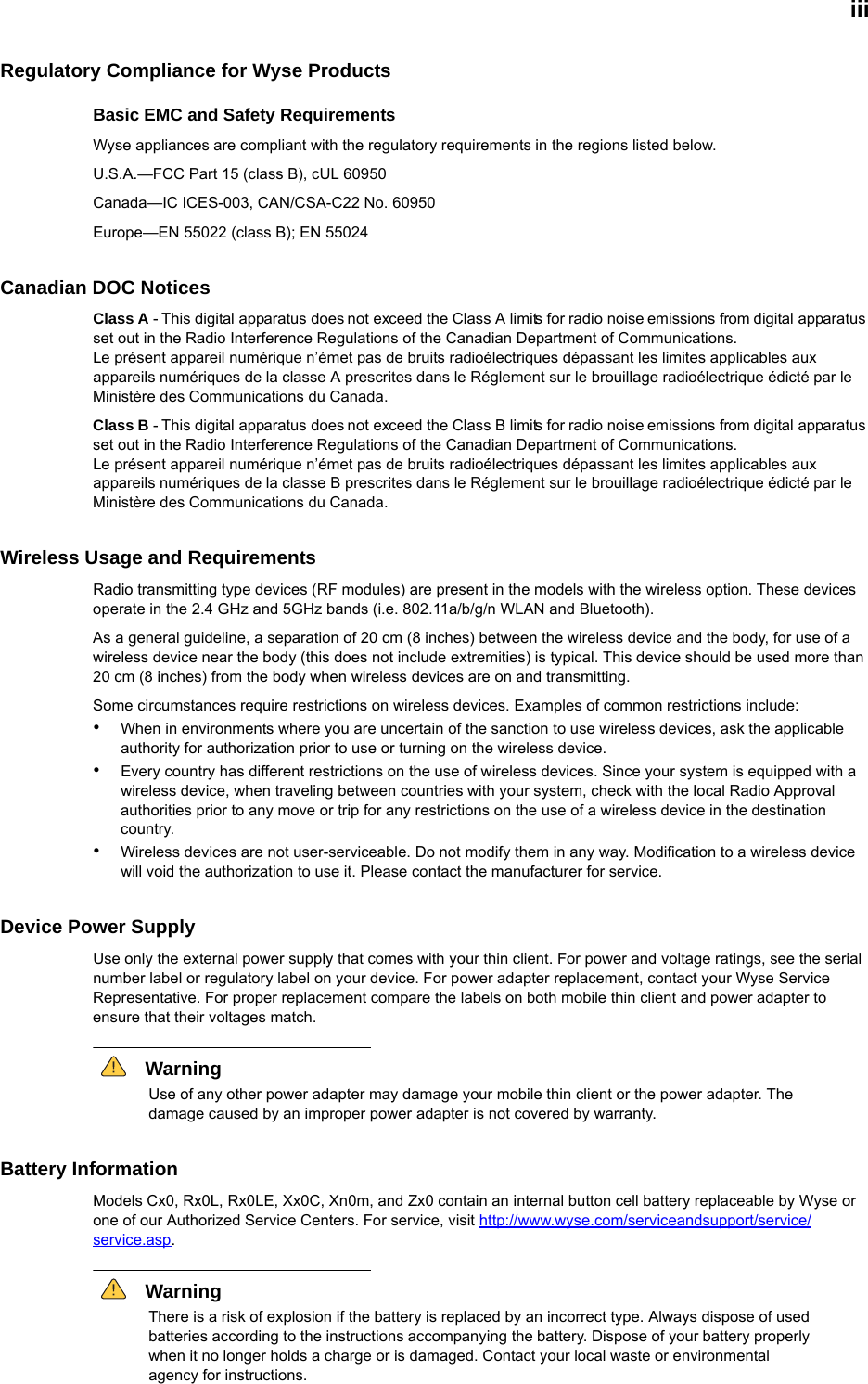

iiiRegulatory Compliance for Wyse ProductsBasic EMC and Safety RequirementsWyse appliances are compliant with the regulatory requirements in the regions listed below.U.S.A.—FCC Part 15 (class B), cUL 60950Canada—IC ICES-003, CAN/CSA-C22 No. 60950Europe—EN 55022 (class B); EN 55024Canadian DOC NoticesClass A - This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la classe A prescrites dans le Réglement sur le brouillage radioélectrique édicté par le Ministère des Communications du Canada.Class B - This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la classe B prescrites dans le Réglement sur le brouillage radioélectrique édicté par le Ministère des Communications du Canada.Wireless Usage and RequirementsRadio transmitting type devices (RF modules) are present in the models with the wireless option. These devices operate in the 2.4 GHz and 5GHz bands (i.e. 802.11a/b/g/n WLAN and Bluetooth). As a general guideline, a separation of 20 cm (8 inches) between the wireless device and the body, for use of a wireless device near the body (this does not include extremities) is typical. This device should be used more than 20 cm (8 inches) from the body when wireless devices are on and transmitting.Some circumstances require restrictions on wireless devices. Examples of common restrictions include:•When in environments where you are uncertain of the sanction to use wireless devices, ask the applicable authority for authorization prior to use or turning on the wireless device.•Every country has different restrictions on the use of wireless devices. Since your system is equipped with a wireless device, when traveling between countries with your system, check with the local Radio Approval authorities prior to any move or trip for any restrictions on the use of a wireless device in the destination country.•Wireless devices are not user-serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it. Please contact the manufacturer for service.Device Power SupplyUse only the external power supply that comes with your thin client. For power and voltage ratings, see the serial number label or regulatory label on your device. For power adapter replacement, contact your Wyse Service Representative. For proper replacement compare the labels on both mobile thin client and power adapter to ensure that their voltages match. WarningUse of any other power adapter may damage your mobile thin client or the power adapter. The damage caused by an improper power adapter is not covered by warranty.Battery InformationModels Cx0, Rx0L, Rx0LE, Xx0C, Xn0m, and Zx0 contain an internal button cell battery replaceable by Wyse or one of our Authorized Service Centers. For service, visit http://www.wyse.com/serviceandsupport/service/service.asp.WarningThere is a risk of explosion if the battery is replaced by an incorrect type. Always dispose of used batteries according to the instructions accompanying the battery. Dispose of your battery properly when it no longer holds a charge or is damaged. Contact your local waste or environmental agency for instructions.

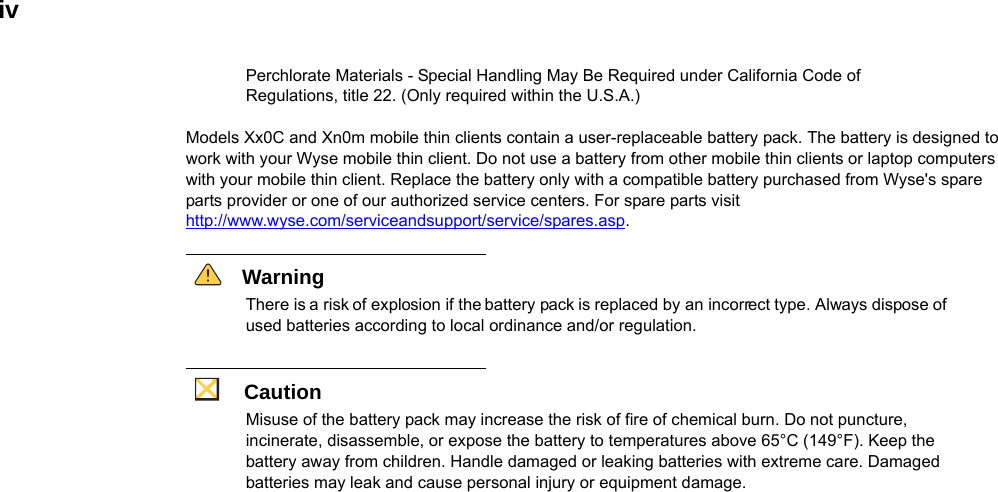

ivPerchlorate Materials - Special Handling May Be Required under California Code of Regulations, title 22. (Only required within the U.S.A.)Models Xx0C and Xn0m mobile thin clients contain a user-replaceable battery pack. The battery is designed to work with your Wyse mobile thin client. Do not use a battery from other mobile thin clients or laptop computers with your mobile thin client. Replace the battery only with a compatible battery purchased from Wyse's spare parts provider or one of our authorized service centers. For spare parts visit http://www.wyse.com/serviceandsupport/service/spares.asp. WarningThere is a risk of explosion if the battery pack is replaced by an incorrect type. Always dispose of used batteries according to local ordinance and/or regulation.CautionMisuse of the battery pack may increase the risk of fire of chemical burn. Do not puncture, incinerate, disassemble, or expose the battery to temperatures above 65°C (149°F). Keep the battery away from children. Handle damaged or leaking batteries with extreme care. Damaged batteries may leak and cause personal injury or equipment damage.

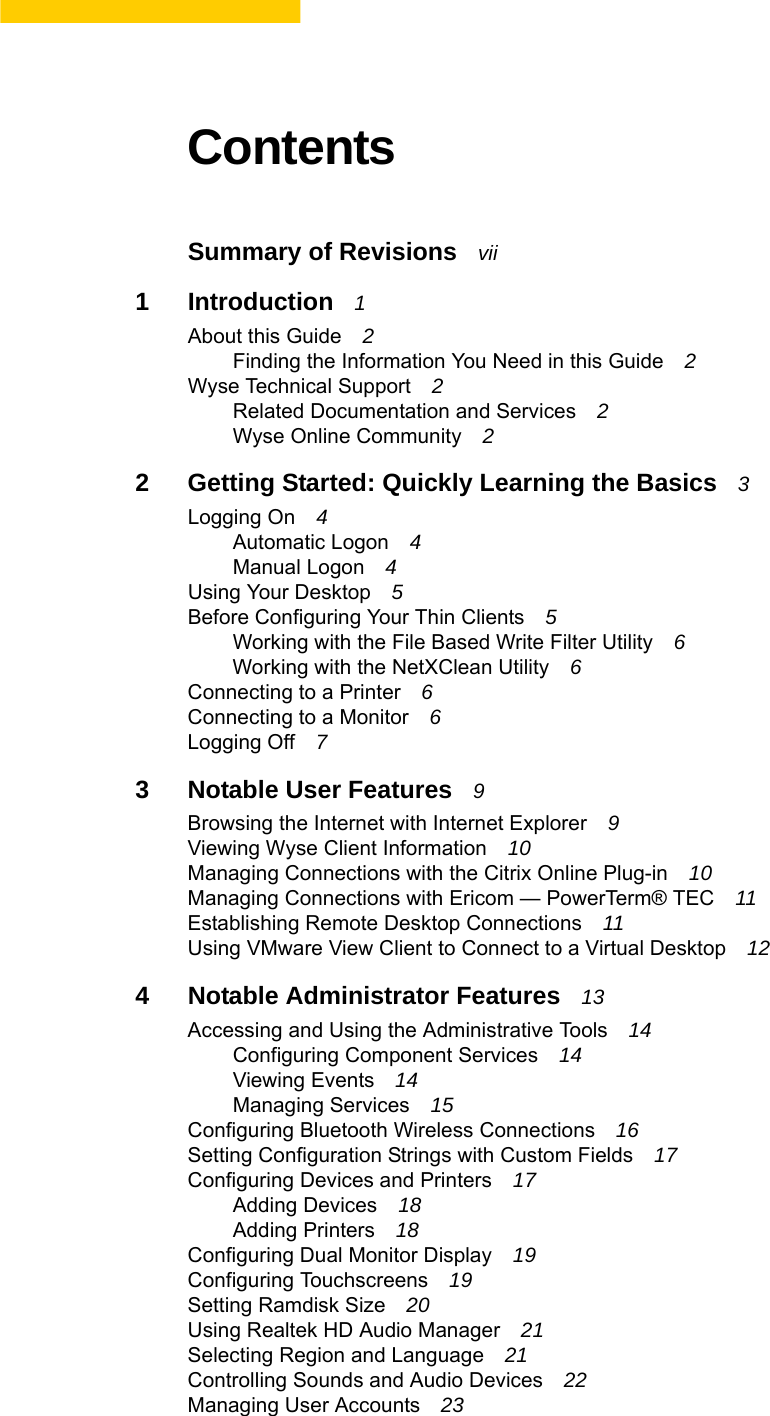

ContentsSummary of Revisions vii1 Introduction 1About this Guide 2Finding the Information You Need in this Guide 2Wyse Technical Support 2Related Documentation and Services 2Wyse Online Community 22 Getting Started: Quickly Learning the Basics 3Logging On 4Automatic Logon 4Manual Logon 4Using Your Desktop 5Before Configuring Your Thin Clients 5Working with the File Based Write Filter Utility 6Working with the NetXClean Utility 6Connecting to a Printer 6Connecting to a Monitor 6Logging Off 73 Notable User Features 9Browsing the Internet with Internet Explorer 9Viewing Wyse Client Information 10Managing Connections with the Citrix Online Plug-in 10Managing Connections with Ericom — PowerTerm® TEC 11Establishing Remote Desktop Connections 11Using VMware View Client to Connect to a Virtual Desktop 124 Notable Administrator Features 13Accessing and Using the Administrative Tools 14Configuring Component Services 14Viewing Events 14Managing Services 15Configuring Bluetooth Wireless Connections 16Setting Configuration Strings with Custom Fields 17Configuring Devices and Printers 17Adding Devices 18Adding Printers 18Configuring Dual Monitor Display 19Configuring Touchscreens 19Setting Ramdisk Size 20Using Realtek HD Audio Manager 21Selecting Region and Language 21Controlling Sounds and Audio Devices 22Managing User Accounts 23
vi ContentsUsing the WCM Client 23Configuring WDM Properties 24Enabling and Disabling Automatic Logon Using Winlog 24Configuring Wireless Local Area Network (LAN) Settings 25Preserving Wireless Connections with the Regpersistence Tool 26Using PEAP Fast Reconnect 27Using the Regpersistence Tool to Configure PEAP Wireless Connections 275 Additional Administrator Utility and Settings Information 29Automatically Launched Utilities 29Utilities Affected by Log Off, Restart, and Shut Down 30Using the File Based Write Filter (FBWF) 31Changing Passwords with the File Based Write Filter 32Running File Based Write Filter Command Line Options 33Enabling and Disabling the File Based Write Filter Using the Desktop Icons 34Setting the File Based Write Filter Controls 34Understanding the NetXClean Utility 36Saving Files and Using Local Drives 37Mapping Network Drives 38Participating in Domains 38Using the WinPing Diagnostic Utility 39Using the Net and Tracert Utilities 40Managing Users and Groups with User Accounts 40Creating User Accounts 40Editing User Accounts 41Configuring User Profiles 42Changing the Computer Name of a Thin Client 426 System Administration 43Restoring Default Settings 43Accessing Thin Client BIOS Settings 44Imaging Devices with the Wyse USB Firmware Tool 44Using Wyse Device Manager Software for Remote Administration 44Configuring and Using Peripherals 44Using TightVNC to Shadow a Thin Client 45Configuring TightVNC Server Properties 46A Establishing a Server Environment 47Understanding How to Configure Your Network Services 47Using Dynamic Host Configuration Protocol (DHCP) 47Using FTP File Servers 49Using Domain Name System (DNS) 49Understanding Session Services 50Configuring ICA Session Services 50Configuring RDP Session Services 51Using VMware View Manager Services 51Implementing View Client Support on Wyse Thin Clients 52Tables 53

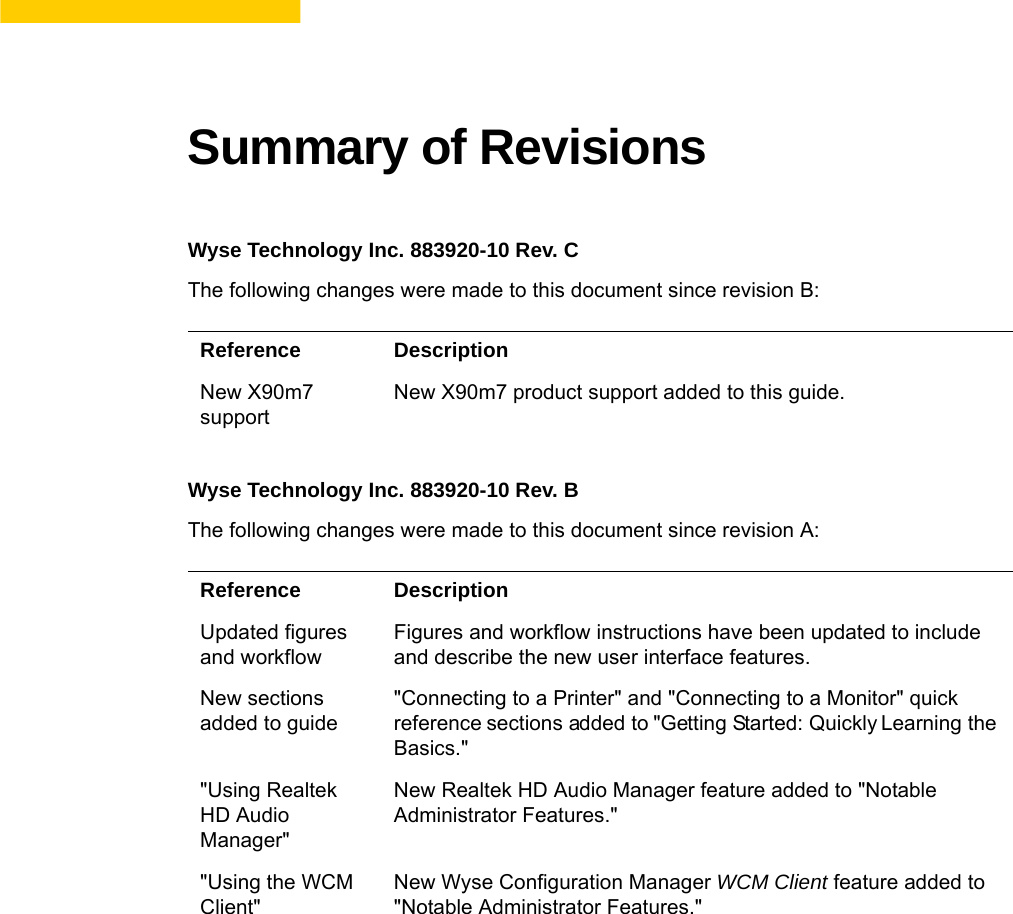

Summary of RevisionsWyse Technology Inc. 883920-10 Rev. CThe following changes were made to this document since revision B:Wyse Technology Inc. 883920-10 Rev. BThe following changes were made to this document since revision A:Reference DescriptionNew X90m7 supportNew X90m7 product support added to this guide.Reference DescriptionUpdated figures and workflowFigures and workflow instructions have been updated to include and describe the new user interface features.New sections added to guide"Connecting to a Printer" and "Connecting to a Monitor" quick reference sections added to "Getting Started: Quickly Learning the Basics.""Using Realtek HD Audio Manager"New Realtek HD Audio Manager feature added to "Notable Administrator Features.""Using the WCM Client"New Wyse Configuration Manager WCM Client feature added to "Notable Administrator Features."
viii Summary of RevisionsThis page intentionally blank.

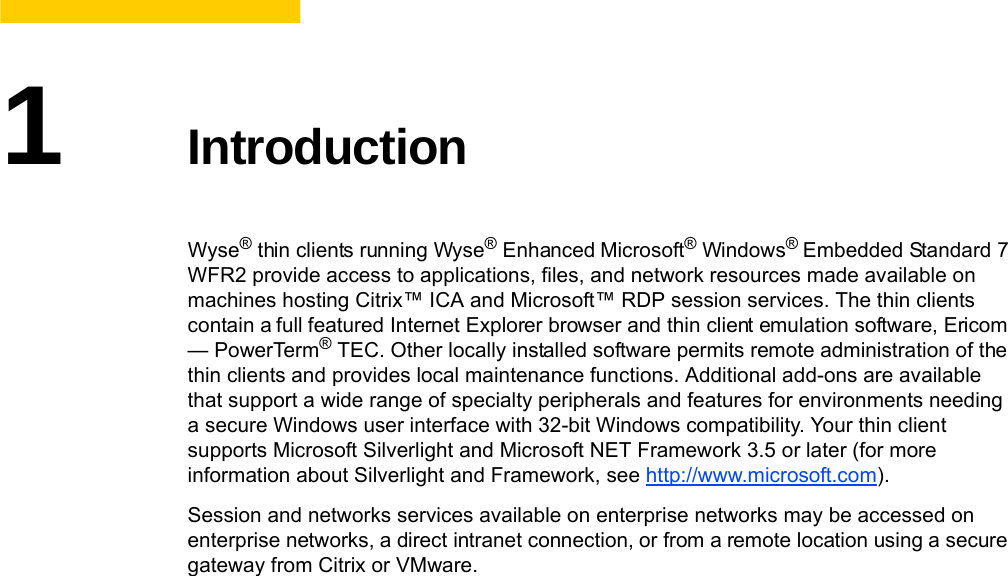

1IntroductionWyse® thin clients running Wyse® Enhanced Microsoft® Windows® Embedded Standard 7 WFR2 provide access to applications, files, and network resources made available on machines hosting Citrix™ ICA and Microsoft™ RDP session services. The thin clients contain a full featured Internet Explorer browser and thin client emulation software, Ericom — PowerTerm® TEC. Other locally installed software permits remote administration of the thin clients and provides local maintenance functions. Additional add-ons are available that support a wide range of specialty peripherals and features for environments needing a secure Windows user interface with 32-bit Windows compatibility. Your thin client supports Microsoft Silverlight and Microsoft NET Framework 3.5 or later (for more information about Silverlight and Framework, see http://www.microsoft.com).Session and networks services available on enterprise networks may be accessed on enterprise networks, a direct intranet connection, or from a remote location using a secure gateway from Citrix or VMware.

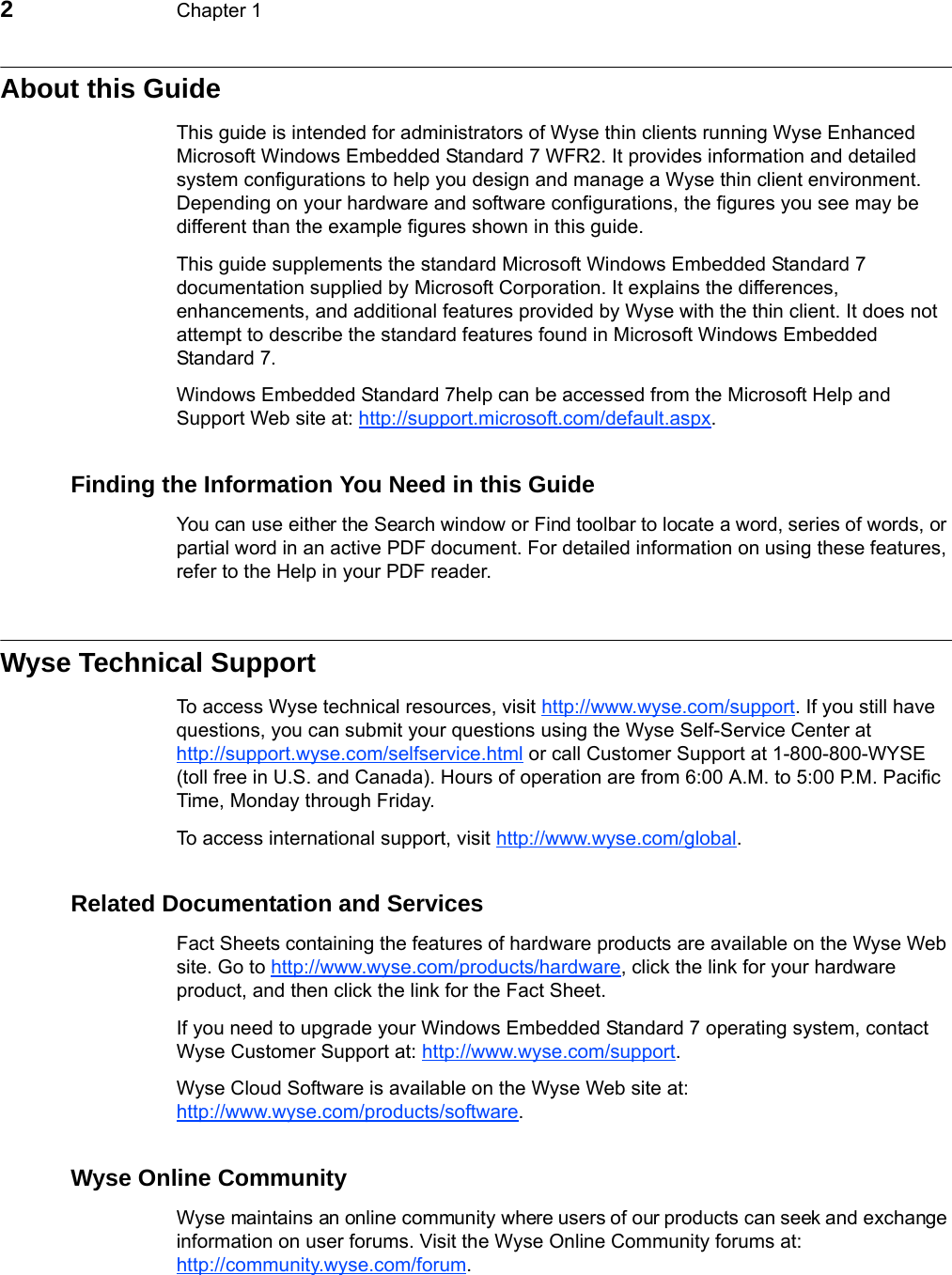

2Chapter 1About this GuideThis guide is intended for administrators of Wyse thin clients running Wyse Enhanced Microsoft Windows Embedded Standard 7 WFR2. It provides information and detailed system configurations to help you design and manage a Wyse thin client environment. Depending on your hardware and software configurations, the figures you see may be different than the example figures shown in this guide.This guide supplements the standard Microsoft Windows Embedded Standard 7 documentation supplied by Microsoft Corporation. It explains the differences, enhancements, and additional features provided by Wyse with the thin client. It does not attempt to describe the standard features found in Microsoft Windows Embedded Standard 7.Windows Embedded Standard 7help can be accessed from the Microsoft Help and Support Web site at: http://support.microsoft.com/default.aspx.Finding the Information You Need in this GuideYou can use either the Search window or Find toolbar to locate a word, series of words, or partial word in an active PDF document. For detailed information on using these features, refer to the Help in your PDF reader.Wyse Technical SupportTo access Wyse technical resources, visit http://www.wyse.com/support. If you still have questions, you can submit your questions using the Wyse Self-Service Center at http://support.wyse.com/selfservice.html or call Customer Support at 1-800-800-WYSE (toll free in U.S. and Canada). Hours of operation are from 6:00 A.M. to 5:00 P.M. Pacific Time, Monday through Friday.To access international support, visit http://www.wyse.com/global.Related Documentation and ServicesFact Sheets containing the features of hardware products are available on the Wyse Web site. Go to http://www.wyse.com/products/hardware, click the link for your hardware product, and then click the link for the Fact Sheet. If you need to upgrade your Windows Embedded Standard 7 operating system, contact Wyse Customer Support at: http://www.wyse.com/support.Wyse Cloud Software is available on the Wyse Web site at: http://www.wyse.com/products/software.Wyse Online CommunityWyse maintains an online community where users of our products can seek and exchange information on user forums. Visit the Wyse Online Community forums at: http://community.wyse.com/forum.

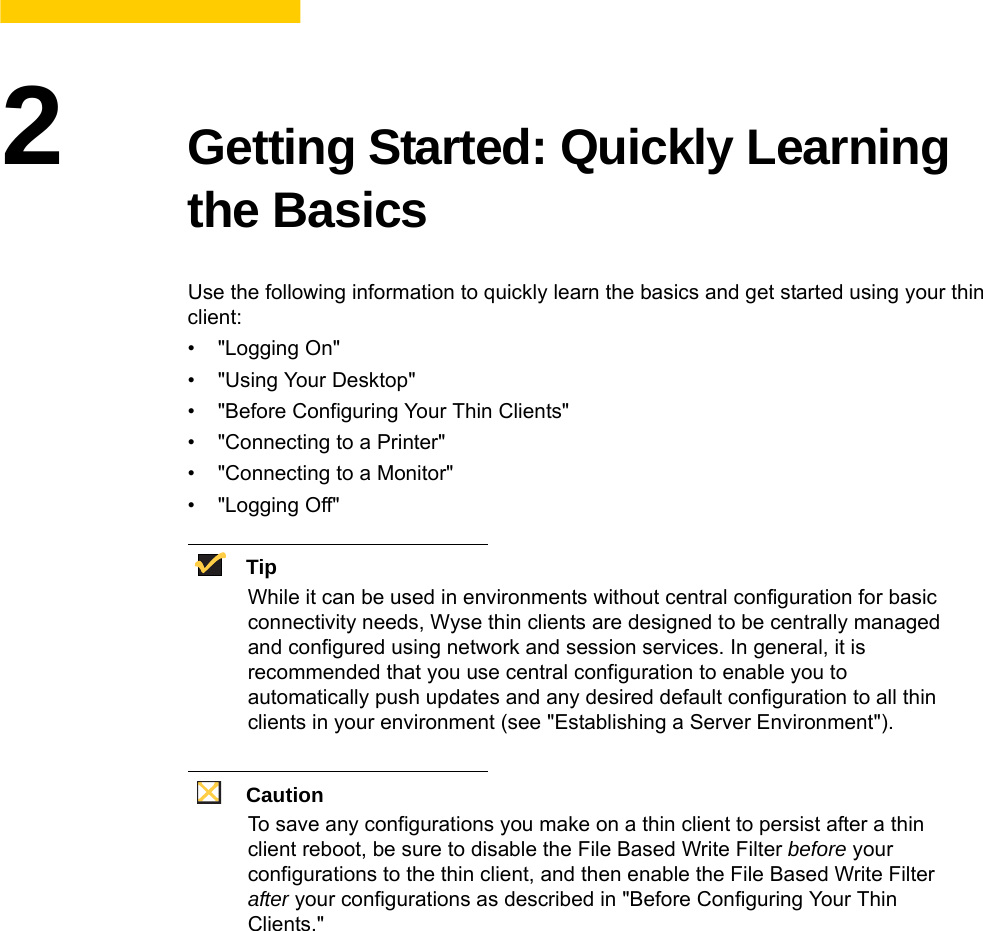

2Getting Started: Quickly Learning the BasicsUse the following information to quickly learn the basics and get started using your thin client:•"Logging On"•"Using Your Desktop"•"Before Configuring Your Thin Clients"•"Connecting to a Printer"•"Connecting to a Monitor"•"Logging Off"TipWhile it can be used in environments without central configuration for basic connectivity needs, Wyse thin clients are designed to be centrally managed and configured using network and session services. In general, it is recommended that you use central configuration to enable you to automatically push updates and any desired default configuration to all thin clients in your environment (see "Establishing a Server Environment").CautionTo save any configurations you make on a thin client to persist after a thin client reboot, be sure to disable the File Based Write Filter before your configurations to the thin client, and then enable the File Based Write Filter after your configurations as described in "Before Configuring Your Thin Clients."

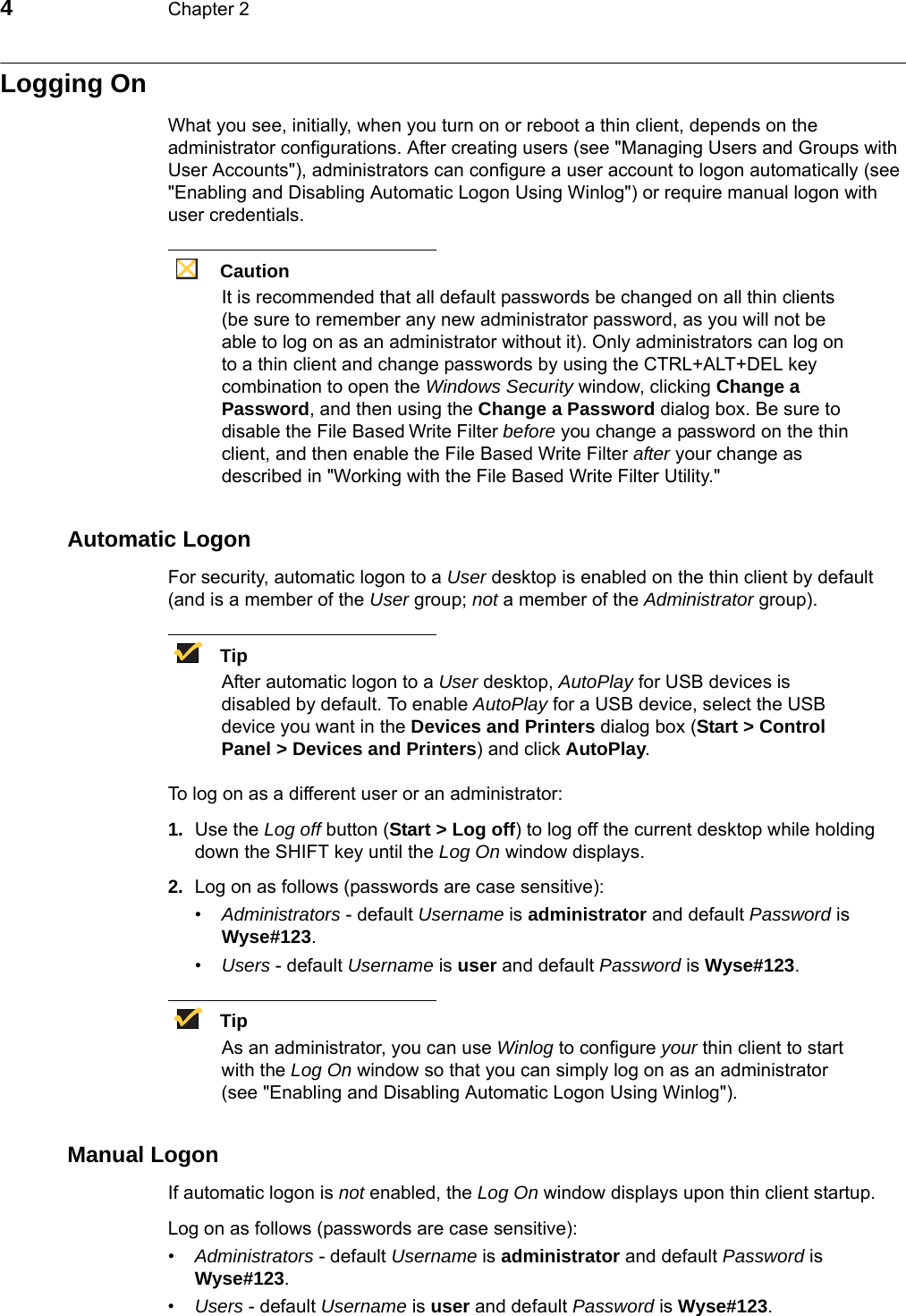

4Chapter 2Logging OnWhat you see, initially, when you turn on or reboot a thin client, depends on the administrator configurations. After creating users (see "Managing Users and Groups with User Accounts"), administrators can configure a user account to logon automatically (see "Enabling and Disabling Automatic Logon Using Winlog") or require manual logon with user credentials.CautionIt is recommended that all default passwords be changed on all thin clients (be sure to remember any new administrator password, as you will not be able to log on as an administrator without it). Only administrators can log on to a thin client and change passwords by using the CTRL+ALT+DEL key combination to open the Windows Security window, clicking Change a Password, and then using the Change a Password dialog box. Be sure to disable the File Based Write Filter before you change a password on the thin client, and then enable the File Based Write Filter after your change as described in "Working with the File Based Write Filter Utility."Automatic LogonFor security, automatic logon to a User desktop is enabled on the thin client by default (and is a member of the User group; not a member of the Administrator group). TipAfter automatic logon to a User desktop, AutoPlay for USB devices is disabled by default. To enable AutoPlay for a USB device, select the USB device you want in the Devices and Printers dialog box (Start > Control Panel > Devices and Printers) and click AutoPlay.To log on as a different user or an administrator:1. Use the Log off button (Start > Log off) to log off the current desktop while holding down the SHIFT key until the Log On window displays.2. Log on as follows (passwords are case sensitive):•Administrators - default Username is administrator and default Password is Wyse#123. •Users - default Username is user and default Password is Wyse#123. TipAs an administrator, you can use Winlog to configure your thin client to start with the Log On window so that you can simply log on as an administrator (see "Enabling and Disabling Automatic Logon Using Winlog"). Manual LogonIf automatic logon is not enabled, the Log On window displays upon thin client startup. Log on as follows (passwords are case sensitive):•Administrators - default Username is administrator and default Password is Wyse#123. •Users - default Username is user and default Password is Wyse#123.

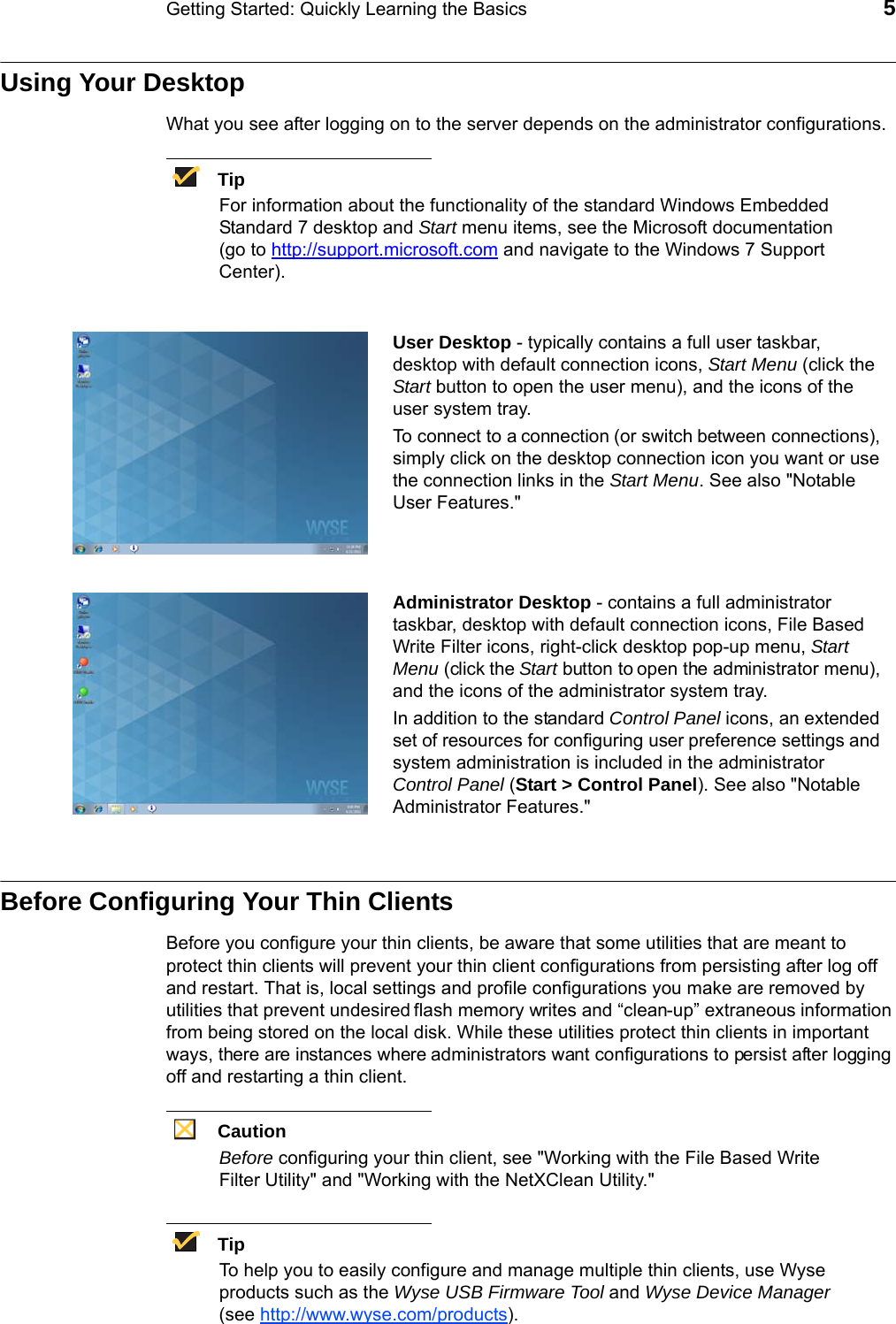

Getting Started: Quickly Learning the Basics 5Using Your DesktopWhat you see after logging on to the server depends on the administrator configurations.TipFor information about the functionality of the standard Windows Embedded Standard 7 desktop and Start menu items, see the Microsoft documentation (go to http://support.microsoft.com and navigate to the Windows 7 Support Center).User Desktop - typically contains a full user taskbar, desktop with default connection icons, Start Menu (click the Start button to open the user menu), and the icons of the user system tray.Administrator Desktop - contains a full administrator taskbar, desktop with default connection icons, File Based Write Filter icons, right-click desktop pop-up menu, Start Menu (click the Start button to open the administrator menu), and the icons of the administrator system tray.Before Configuring Your Thin ClientsBefore you configure your thin clients, be aware that some utilities that are meant to protect thin clients will prevent your thin client configurations from persisting after log off and restart. That is, local settings and profile configurations you make are removed by utilities that prevent undesired flash memory writes and “clean-up” extraneous information from being stored on the local disk. While these utilities protect thin clients in important ways, there are instances where administrators want configurations to persist after logging off and restarting a thin client. CautionBefore configuring your thin client, see "Working with the File Based Write Filter Utility" and "Working with the NetXClean Utility."TipTo help you to easily configure and manage multiple thin clients, use Wyse products such as the Wyse USB Firmware Tool and Wyse Device Manager (see http://www.wyse.com/products). To connect to a connection (or switch between connections), simply click on the desktop connection icon you want or use the connection links in the Start Menu. See also "Notable User Features."In addition to the standard Control Panel icons, an extended set of resources for configuring user preference settings and system administration is included in the administrator Control Panel (Start > Control Panel). See also "Notable Administrator Features."

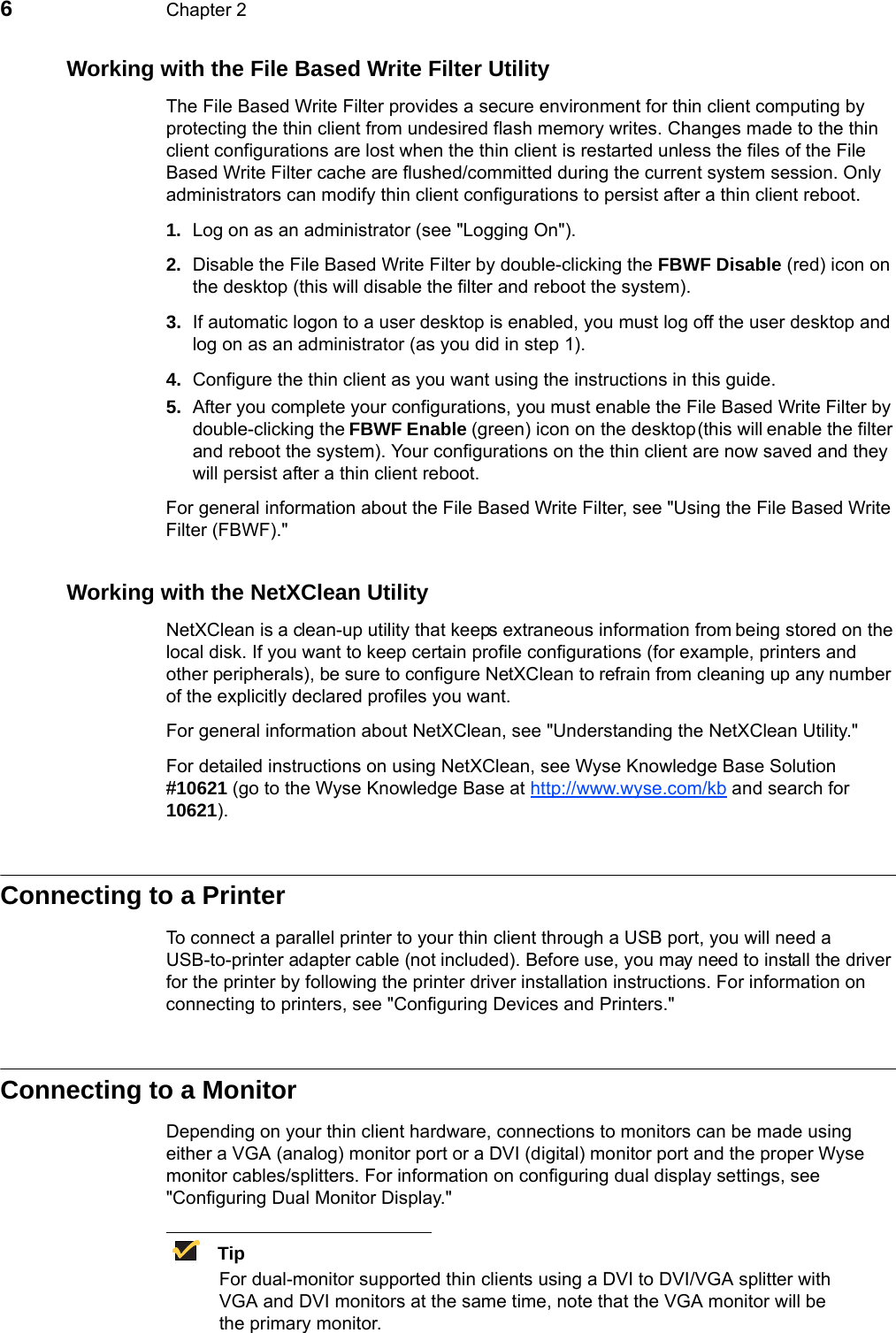

6Chapter 2Working with the File Based Write Filter UtilityThe File Based Write Filter provides a secure environment for thin client computing by protecting the thin client from undesired flash memory writes. Changes made to the thin client configurations are lost when the thin client is restarted unless the files of the File Based Write Filter cache are flushed/committed during the current system session. Only administrators can modify thin client configurations to persist after a thin client reboot.1. Log on as an administrator (see "Logging On").2. Disable the File Based Write Filter by double-clicking the FBWF Disable (red) icon on the desktop (this will disable the filter and reboot the system).3. If automatic logon to a user desktop is enabled, you must log off the user desktop and log on as an administrator (as you did in step 1).4. Configure the thin client as you want using the instructions in this guide.5. After you complete your configurations, you must enable the File Based Write Filter by double-clicking the FBWF Enable (green) icon on the desktop (this will enable the filter and reboot the system). Your configurations on the thin client are now saved and they will persist after a thin client reboot.For general information about the File Based Write Filter, see "Using the File Based Write Filter (FBWF)."Working with the NetXClean UtilityNetXClean is a clean-up utility that keeps extraneous information from being stored on the local disk. If you want to keep certain profile configurations (for example, printers and other peripherals), be sure to configure NetXClean to refrain from cleaning up any number of the explicitly declared profiles you want.For general information about NetXClean, see "Understanding the NetXClean Utility."For detailed instructions on using NetXClean, see Wyse Knowledge Base Solution #10621 (go to the Wyse Knowledge Base at http://www.wyse.com/kb and search for 10621).Connecting to a PrinterTo connect a parallel printer to your thin client through a USB port, you will need a USB-to-printer adapter cable (not included). Before use, you may need to install the driver for the printer by following the printer driver installation instructions. For information on connecting to printers, see "Configuring Devices and Printers."Connecting to a MonitorDepending on your thin client hardware, connections to monitors can be made using either a VGA (analog) monitor port or a DVI (digital) monitor port and the proper Wyse monitor cables/splitters. For information on configuring dual display settings, see "Configuring Dual Monitor Display."TipFor dual-monitor supported thin clients using a DVI to DVI/VGA splitter with VGA and DVI monitors at the same time, note that the VGA monitor will be the primary monitor.

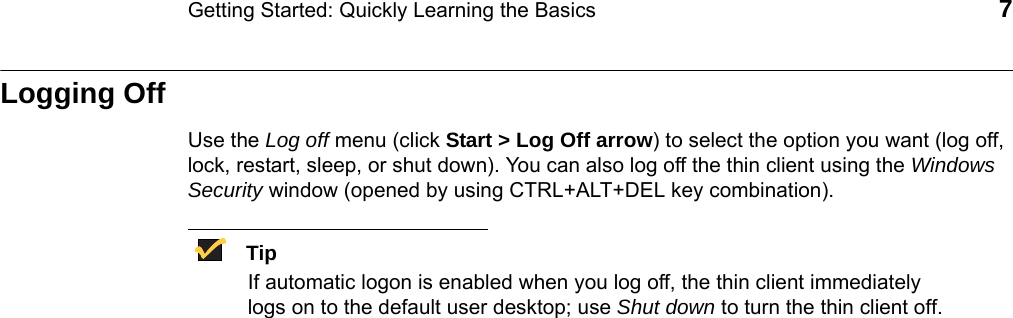

Getting Started: Quickly Learning the Basics 7Logging OffUse the Log off menu (click Start > Log Off arrow) to select the option you want (log off, lock, restart, sleep, or shut down). You can also log off the thin client using the Windows Security window (opened by using CTRL+ALT+DEL key combination).TipIf automatic logon is enabled when you log off, the thin client immediately logs on to the default user desktop; use Shut down to turn the thin client off.

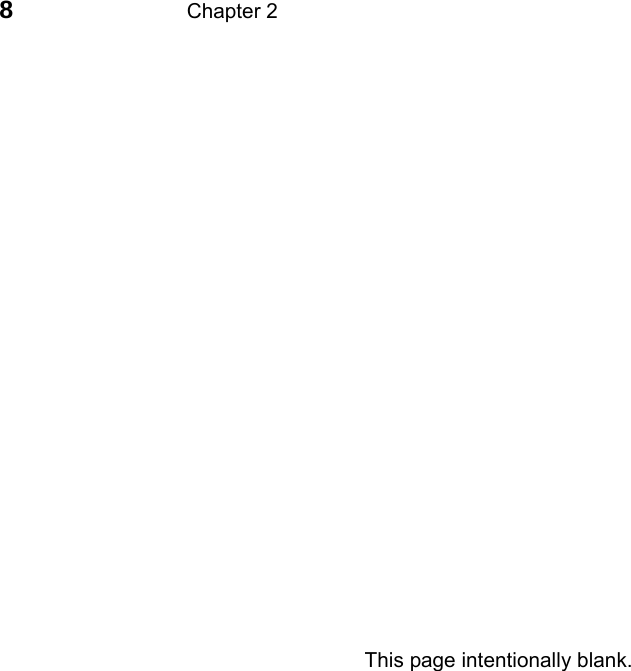

8Chapter 2This page intentionally blank.

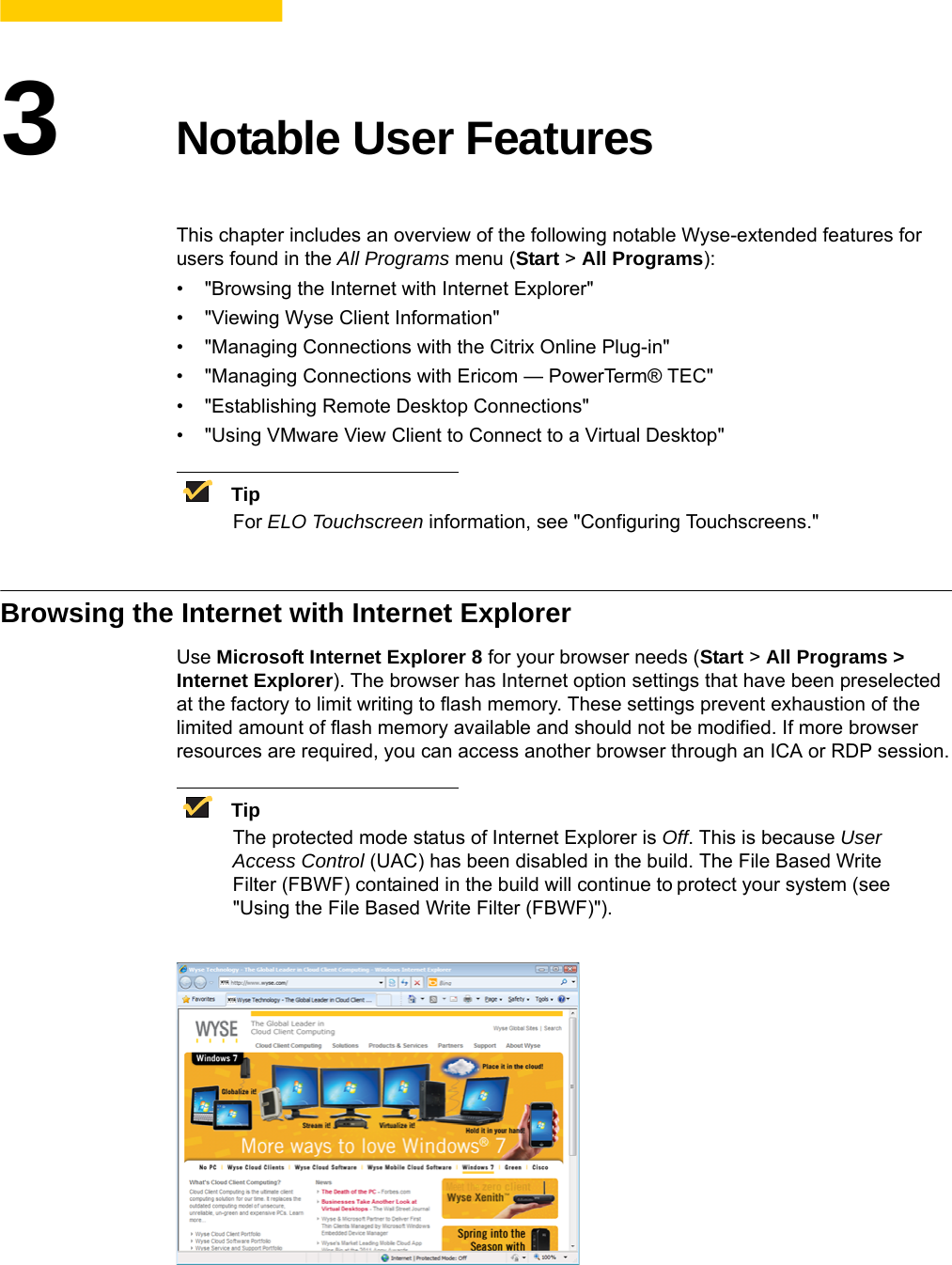

3Notable User FeaturesThis chapter includes an overview of the following notable Wyse-extended features for users found in the All Programs menu (Start > All Programs):•"Browsing the Internet with Internet Explorer"•"Viewing Wyse Client Information" •"Managing Connections with the Citrix Online Plug-in"•"Managing Connections with Ericom — PowerTerm® TEC" •"Establishing Remote Desktop Connections"•"Using VMware View Client to Connect to a Virtual Desktop"TipFor ELO Touchscreen information, see "Configuring Touchscreens."Browsing the Internet with Internet ExplorerUse Microsoft Internet Explorer 8 for your browser needs (Start > All Programs > Internet Explorer). The browser has Internet option settings that have been preselected at the factory to limit writing to flash memory. These settings prevent exhaustion of the limited amount of flash memory available and should not be modified. If more browser resources are required, you can access another browser through an ICA or RDP session.TipThe protected mode status of Internet Explorer is Off. This is because User Access Control (UAC) has been disabled in the build. The File Based Write Filter (FBWF) contained in the build will continue to protect your system (see "Using the File Based Write Filter (FBWF)").

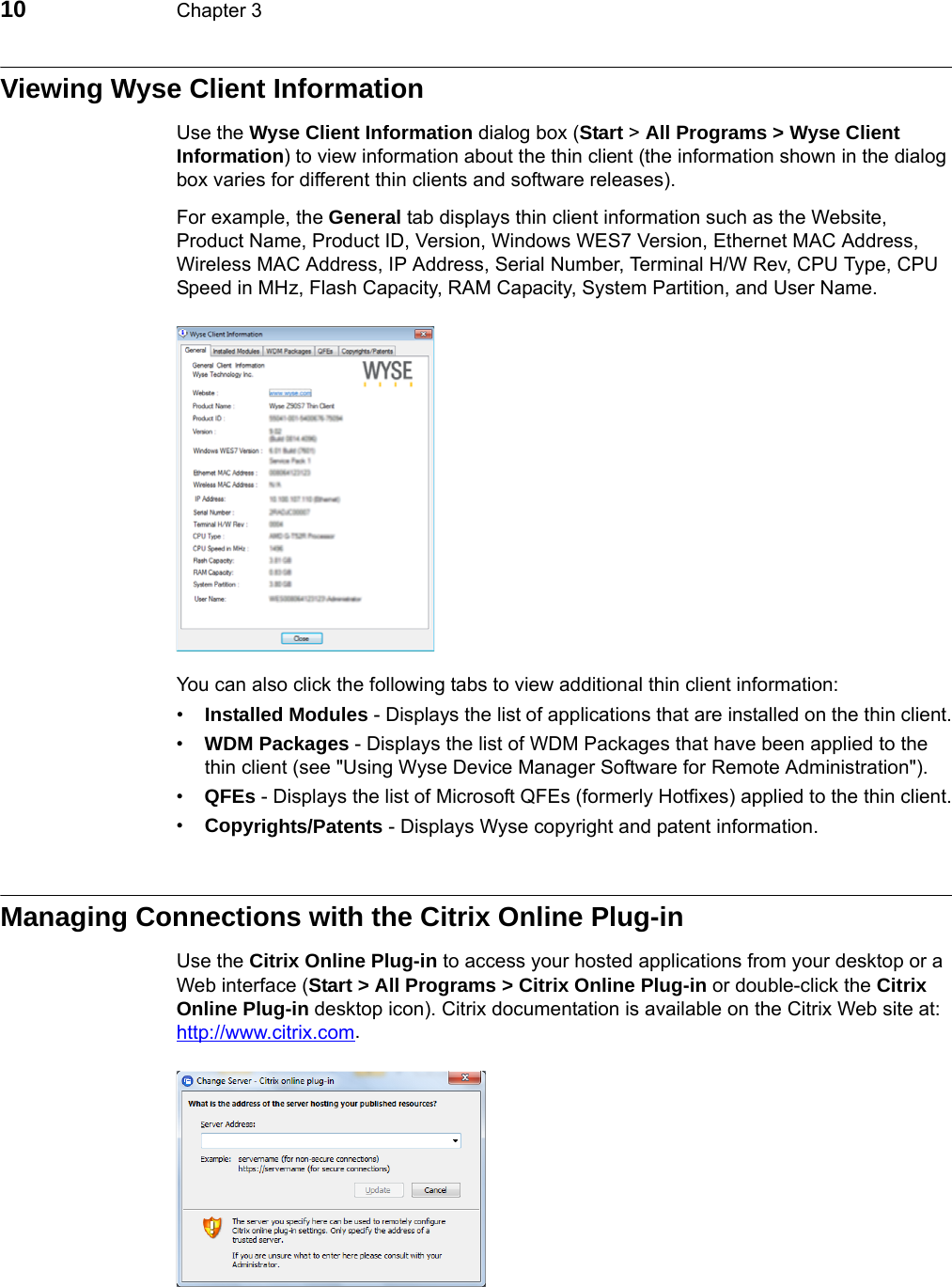

10 Chapter 3Viewing Wyse Client InformationUse the Wyse Client Information dialog box (Start > All Programs > Wyse Client Information) to view information about the thin client (the information shown in the dialog box varies for different thin clients and software releases).For example, the General tab displays thin client information such as the Website, Product Name, Product ID, Version, Windows WES7 Version, Ethernet MAC Address, Wireless MAC Address, IP Address, Serial Number, Terminal H/W Rev, CPU Type, CPU Speed in MHz, Flash Capacity, RAM Capacity, System Partition, and User Name.You can also click the following tabs to view additional thin client information:•Installed Modules - Displays the list of applications that are installed on the thin client.•WDM Packages - Displays the list of WDM Packages that have been applied to the thin client (see "Using Wyse Device Manager Software for Remote Administration").•QFEs - Displays the list of Microsoft QFEs (formerly Hotfixes) applied to the thin client.•Copyrights/Patents - Displays Wyse copyright and patent information.Managing Connections with the Citrix Online Plug-inUse the Citrix Online Plug-in to access your hosted applications from your desktop or a Web interface (Start > All Programs > Citrix Online Plug-in or double-click the Citrix Online Plug-in desktop icon). Citrix documentation is available on the Citrix Web site at: http://www.citrix.com.

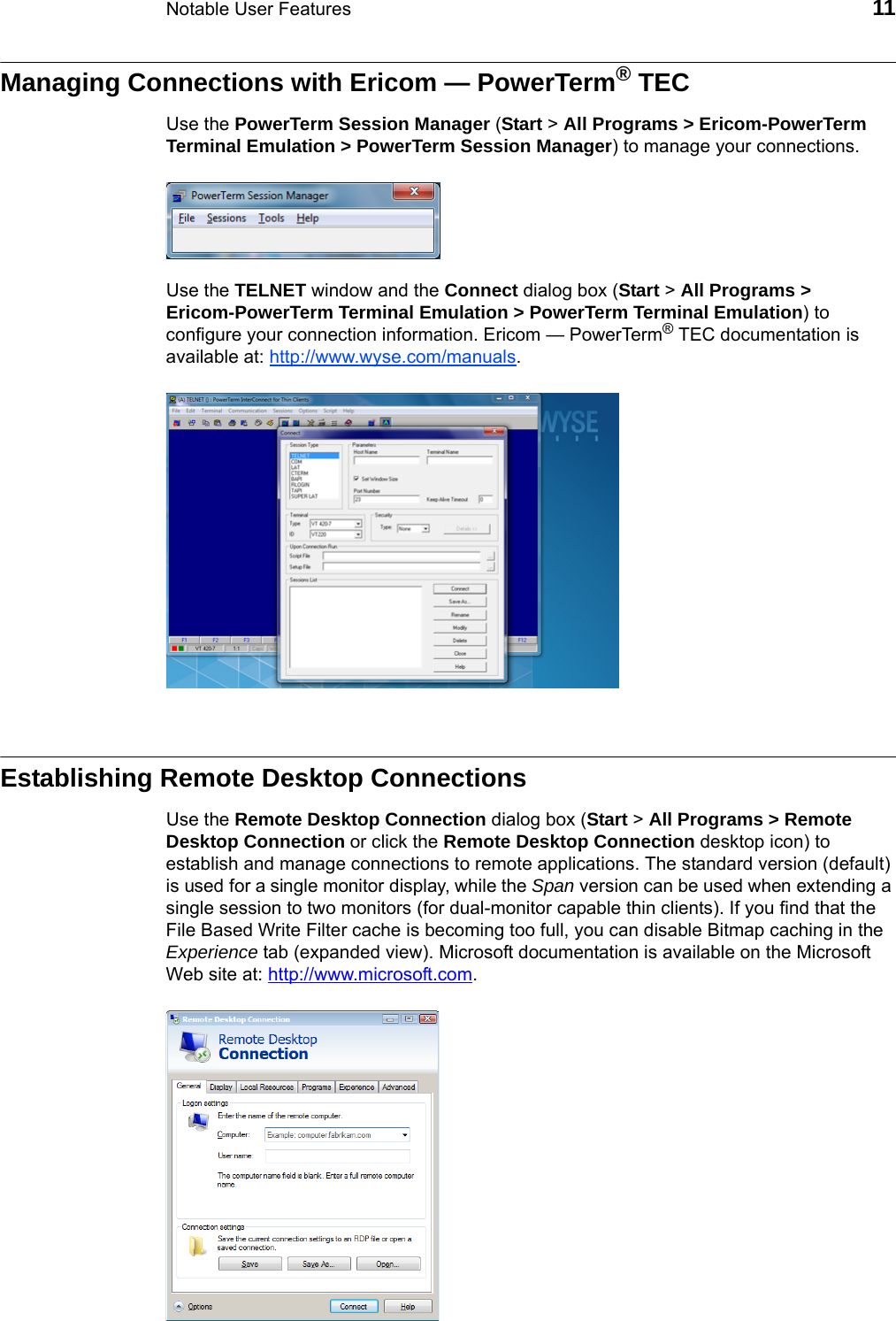

Notable User Features 11Managing Connections with Ericom — PowerTerm® TECUse the PowerTerm Session Manager (Start > All Programs > Ericom-PowerTerm Terminal Emulation > PowerTerm Session Manager) to manage your connections.Use the TELNET window and the Connect dialog box (Start > All Programs > Ericom-PowerTerm Terminal Emulation > PowerTerm Terminal Emulation) to configure your connection information. Ericom — PowerTerm® TEC documentation is available at: http://www.wyse.com/manuals.Establishing Remote Desktop ConnectionsUse the Remote Desktop Connection dialog box (Start > All Programs > Remote Desktop Connection or click the Remote Desktop Connection desktop icon) to establish and manage connections to remote applications. The standard version (default) is used for a single monitor display, while the Span version can be used when extending a single session to two monitors (for dual-monitor capable thin clients). If you find that the File Based Write Filter cache is becoming too full, you can disable Bitmap caching in the Experience tab (expanded view). Microsoft documentation is available on the Microsoft Web site at: http://www.microsoft.com.

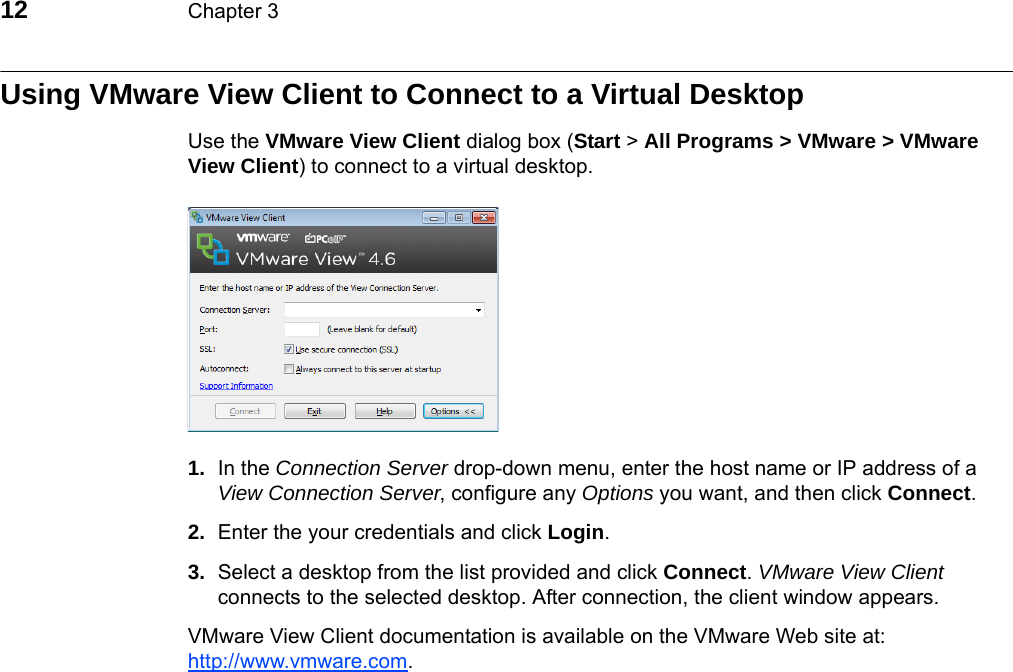

12 Chapter 3Using VMware View Client to Connect to a Virtual DesktopUse the VMware View Client dialog box (Start > All Programs > VMware > VMware View Client) to connect to a virtual desktop.1. In the Connection Server drop-down menu, enter the host name or IP address of a View Connection Server, configure any Options you want, and then click Connect. 2. Enter the your credentials and click Login.3. Select a desktop from the list provided and click Connect. VMware View Client connects to the selected desktop. After connection, the client window appears.VMware View Client documentation is available on the VMware Web site at: http://www.vmware.com.

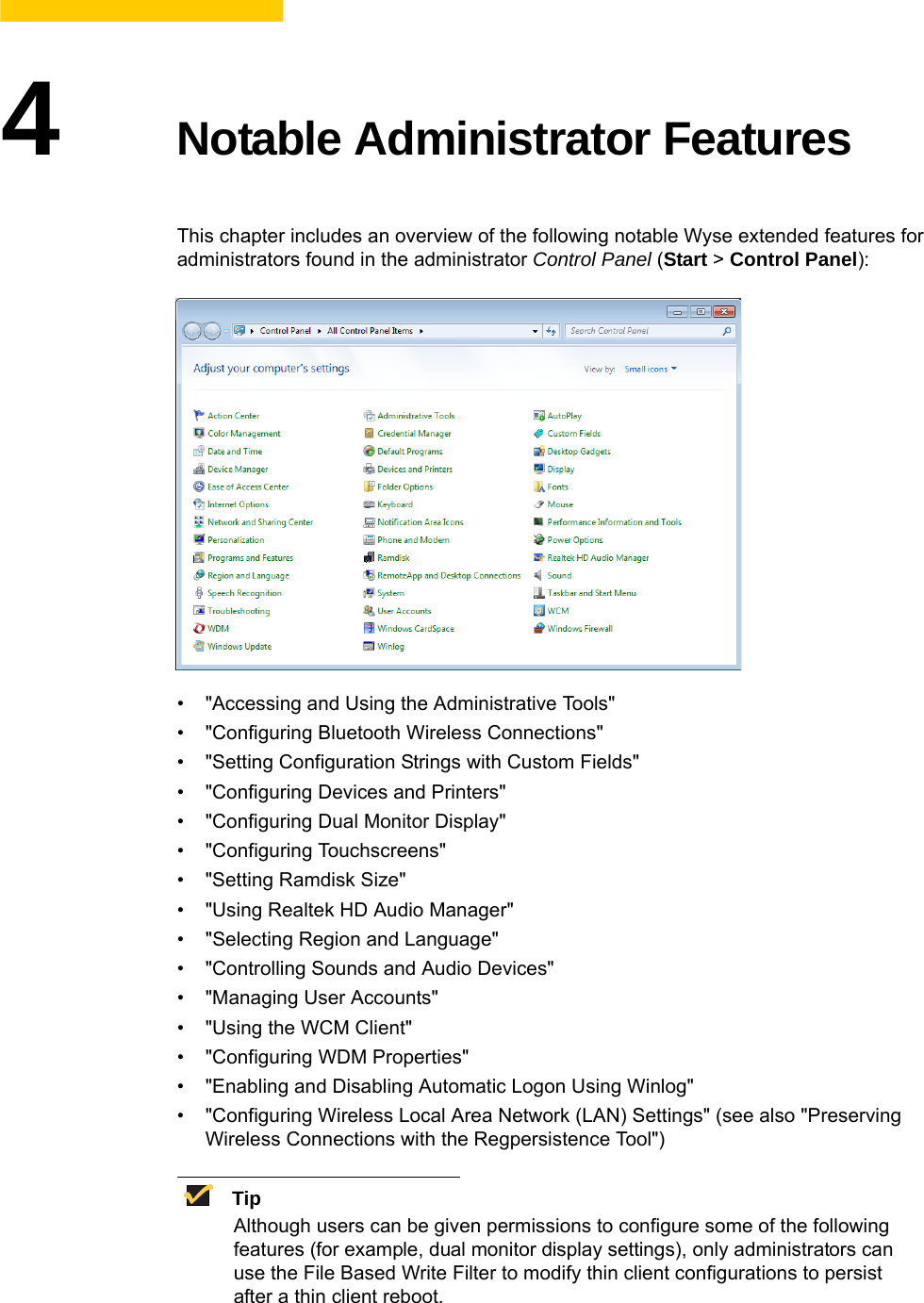

4Notable Administrator FeaturesThis chapter includes an overview of the following notable Wyse extended features for administrators found in the administrator Control Panel (Start > Control Panel):•"Accessing and Using the Administrative Tools"•"Configuring Bluetooth Wireless Connections"•"Setting Configuration Strings with Custom Fields"•"Configuring Devices and Printers" •"Configuring Dual Monitor Display" •"Configuring Touchscreens" •"Setting Ramdisk Size"•"Using Realtek HD Audio Manager" •"Selecting Region and Language" •"Controlling Sounds and Audio Devices" •"Managing User Accounts"•"Using the WCM Client"•"Configuring WDM Properties"•"Enabling and Disabling Automatic Logon Using Winlog"•"Configuring Wireless Local Area Network (LAN) Settings" (see also "Preserving Wireless Connections with the Regpersistence Tool")TipAlthough users can be given permissions to configure some of the following features (for example, dual monitor display settings), only administrators can use the File Based Write Filter to modify thin client configurations to persist after a thin client reboot.

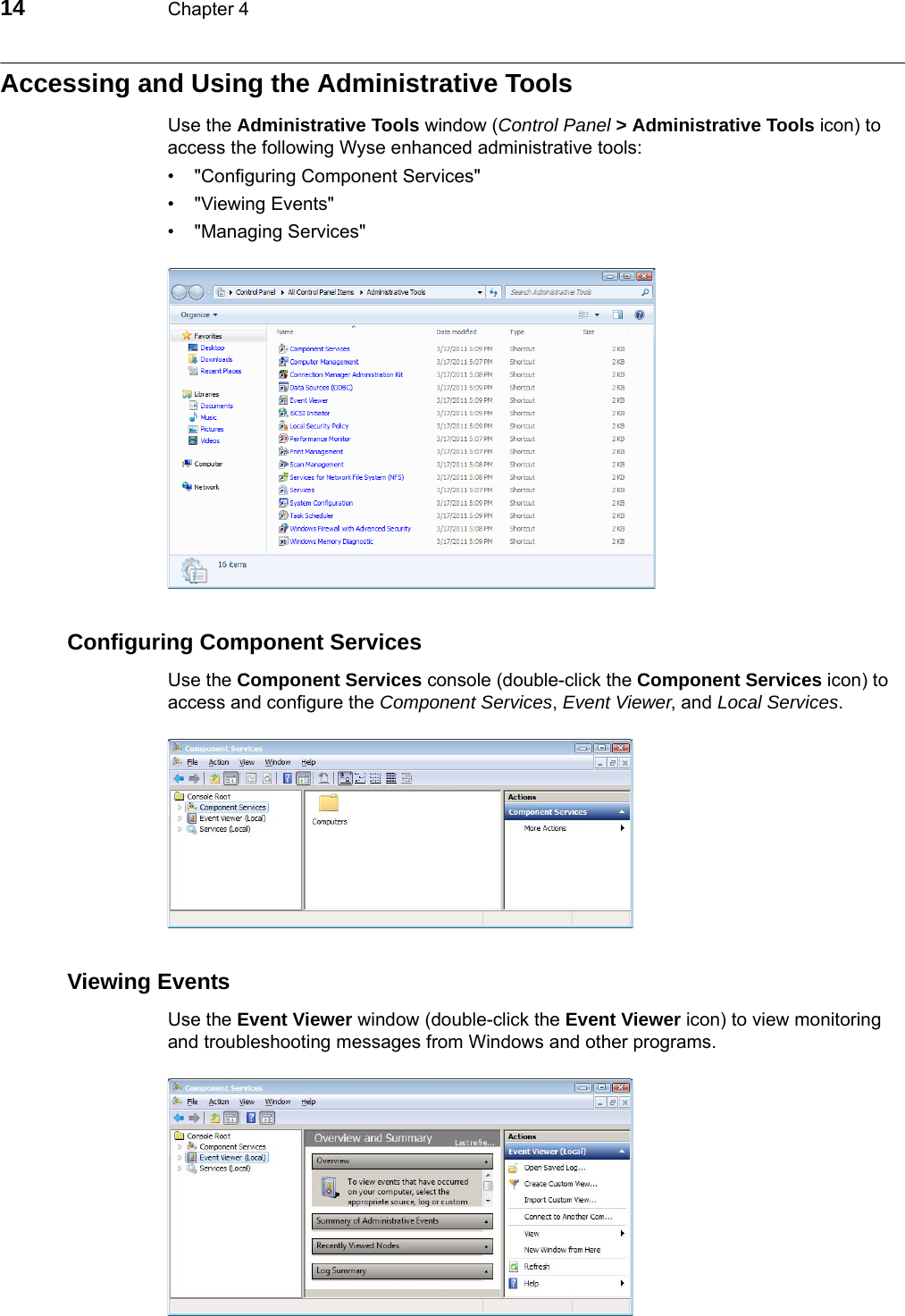

14 Chapter 4Accessing and Using the Administrative ToolsUse the Administrative Tools window (Control Panel > Administrative Tools icon) to access the following Wyse enhanced administrative tools:•"Configuring Component Services"•"Viewing Events"•"Managing Services"Configuring Component ServicesUse the Component Services console (double-click the Component Services icon) to access and configure the Component Services, Event Viewer, and Local Services.Viewing EventsUse the Event Viewer window (double-click the Event Viewer icon) to view monitoring and troubleshooting messages from Windows and other programs.

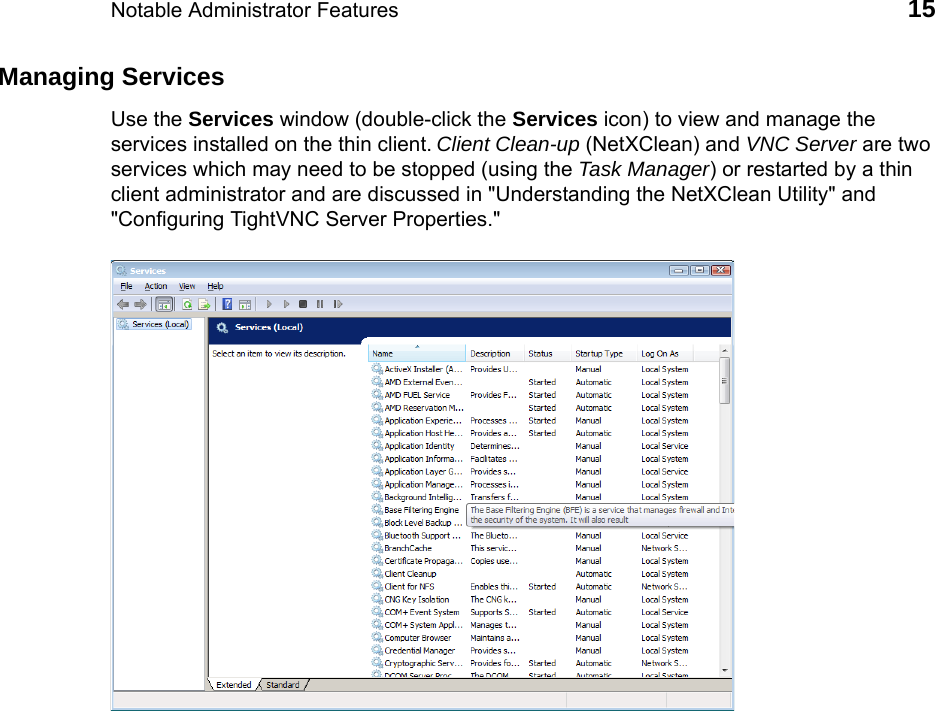

Notable Administrator Features 15Managing ServicesUse the Services window (double-click the Services icon) to view and manage the services installed on the thin client. Client Clean-up (NetXClean) and VNC Server are two services which may need to be stopped (using the Task Manager) or restarted by a thin client administrator and are discussed in "Understanding the NetXClean Utility" and "Configuring TightVNC Server Properties."

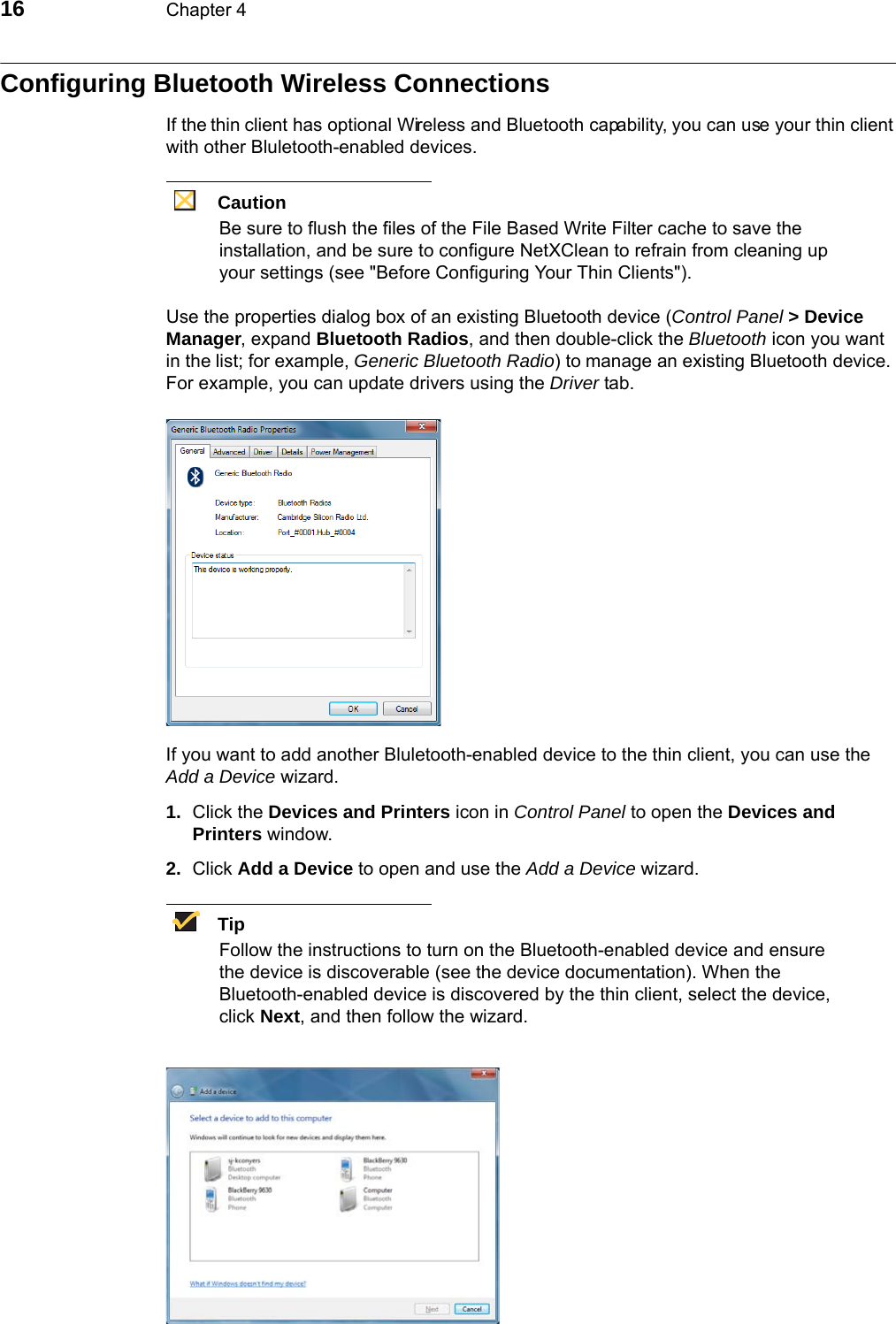

16 Chapter 4Configuring Bluetooth Wireless Connections If the thin client has optional Wireless and Bluetooth capability, you can use your thin client with other Bluletooth-enabled devices.CautionBe sure to flush the files of the File Based Write Filter cache to save the installation, and be sure to configure NetXClean to refrain from cleaning up your settings (see "Before Configuring Your Thin Clients").Use the properties dialog box of an existing Bluetooth device (Control Panel > Device Manager, expand Bluetooth Radios, and then double-click the Bluetooth icon you want in the list; for example, Generic Bluetooth Radio) to manage an existing Bluetooth device. For example, you can update drivers using the Driver tab.If you want to add another Bluletooth-enabled device to the thin client, you can use the Add a Device wizard.1. Click the Devices and Printers icon in Control Panel to open the Devices and Printers window.2. Click Add a Device to open and use the Add a Device wizard.TipFollow the instructions to turn on the Bluetooth-enabled device and ensure the device is discoverable (see the device documentation). When the Bluetooth-enabled device is discovered by the thin client, select the device, click Next, and then follow the wizard.

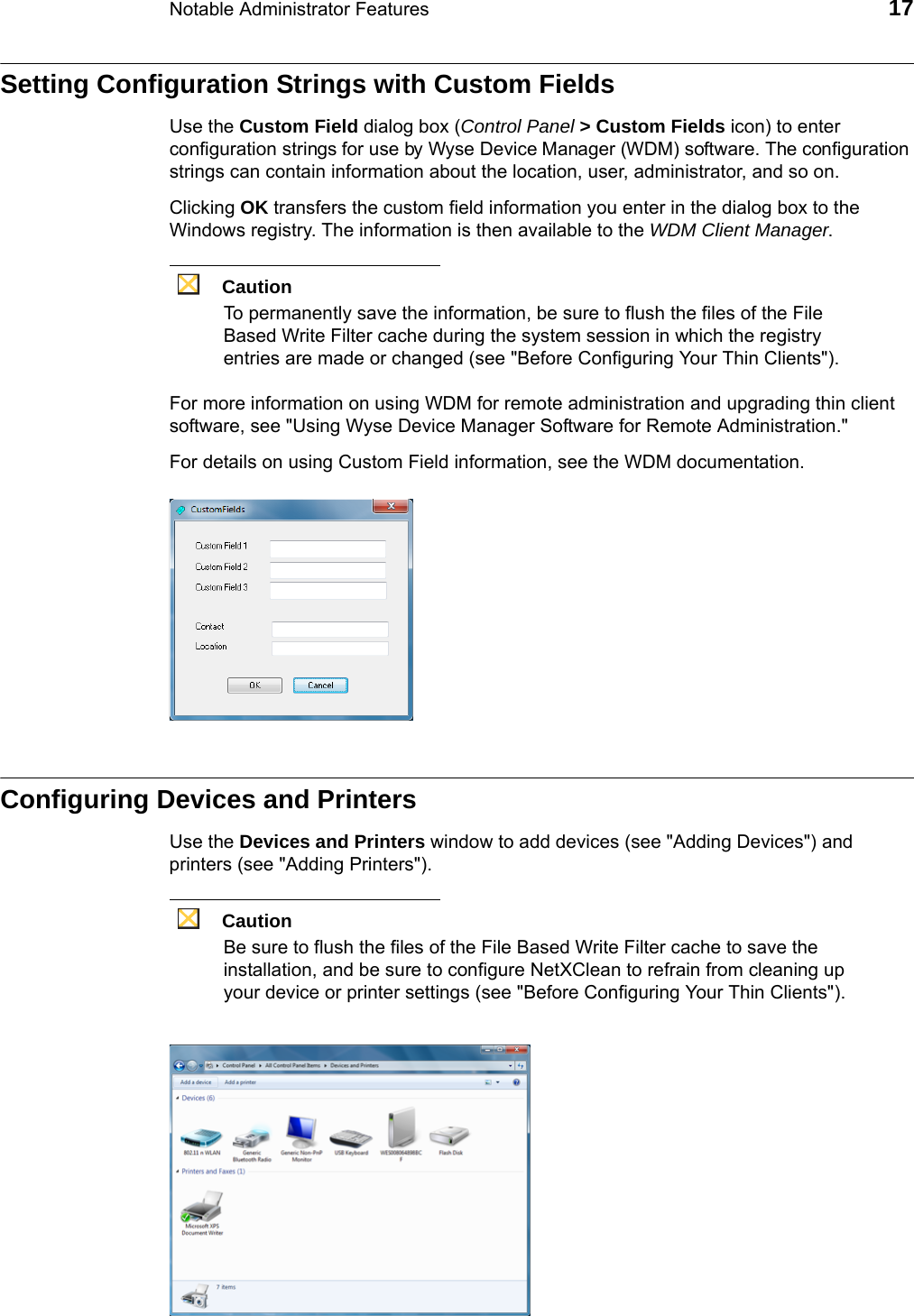

Notable Administrator Features 17Setting Configuration Strings with Custom FieldsUse the Custom Field dialog box (Control Panel > Custom Fields icon) to enter configuration strings for use by Wyse Device Manager (WDM) software. The configuration strings can contain information about the location, user, administrator, and so on.Clicking OK transfers the custom field information you enter in the dialog box to the Windows registry. The information is then available to the WDM Client Manager. CautionTo permanently save the information, be sure to flush the files of the File Based Write Filter cache during the system session in which the registry entries are made or changed (see "Before Configuring Your Thin Clients").For more information on using WDM for remote administration and upgrading thin client software, see "Using Wyse Device Manager Software for Remote Administration."For details on using Custom Field information, see the WDM documentation.Configuring Devices and PrintersUse the Devices and Printers window to add devices (see "Adding Devices") and printers (see "Adding Printers").CautionBe sure to flush the files of the File Based Write Filter cache to save the installation, and be sure to configure NetXClean to refrain from cleaning up your device or printer settings (see "Before Configuring Your Thin Clients").

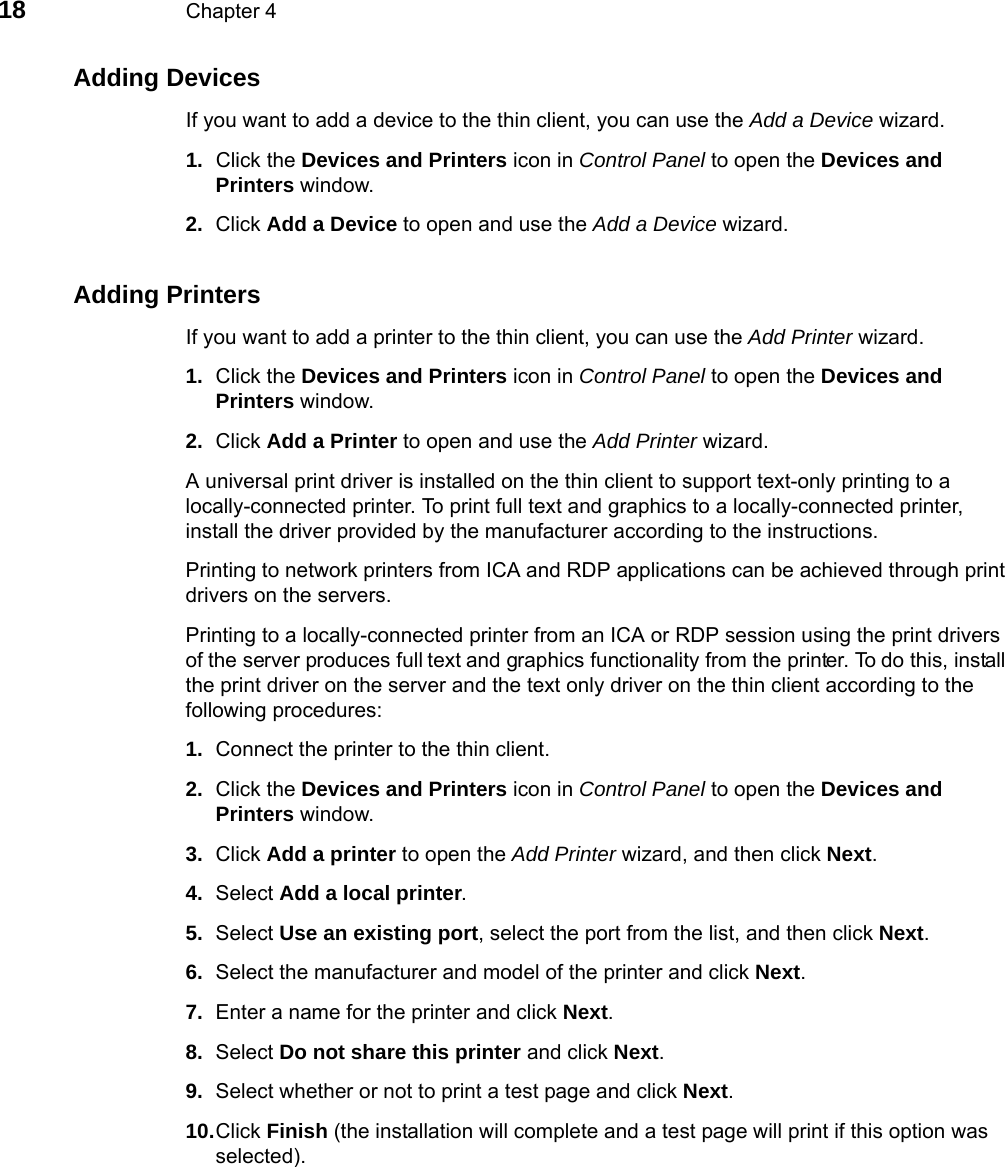

18 Chapter 4Adding DevicesIf you want to add a device to the thin client, you can use the Add a Device wizard.1. Click the Devices and Printers icon in Control Panel to open the Devices and Printers window.2. Click Add a Device to open and use the Add a Device wizard.Adding PrintersIf you want to add a printer to the thin client, you can use the Add Printer wizard.1. Click the Devices and Printers icon in Control Panel to open the Devices and Printers window.2. Click Add a Printer to open and use the Add Printer wizard.A universal print driver is installed on the thin client to support text-only printing to a locally-connected printer. To print full text and graphics to a locally-connected printer, install the driver provided by the manufacturer according to the instructions. Printing to network printers from ICA and RDP applications can be achieved through print drivers on the servers.Printing to a locally-connected printer from an ICA or RDP session using the print drivers of the server produces full text and graphics functionality from the printer. To do this, install the print driver on the server and the text only driver on the thin client according to the following procedures:1. Connect the printer to the thin client.2. Click the Devices and Printers icon in Control Panel to open the Devices and Printers window.3. Click Add a printer to open the Add Printer wizard, and then click Next.4. Select Add a local printer.5. Select Use an existing port, select the port from the list, and then click Next.6. Select the manufacturer and model of the printer and click Next.7. Enter a name for the printer and click Next.8. Select Do not share this printer and click Next.9. Select whether or not to print a test page and click Next.10.Click Finish (the installation will complete and a test page will print if this option was selected).

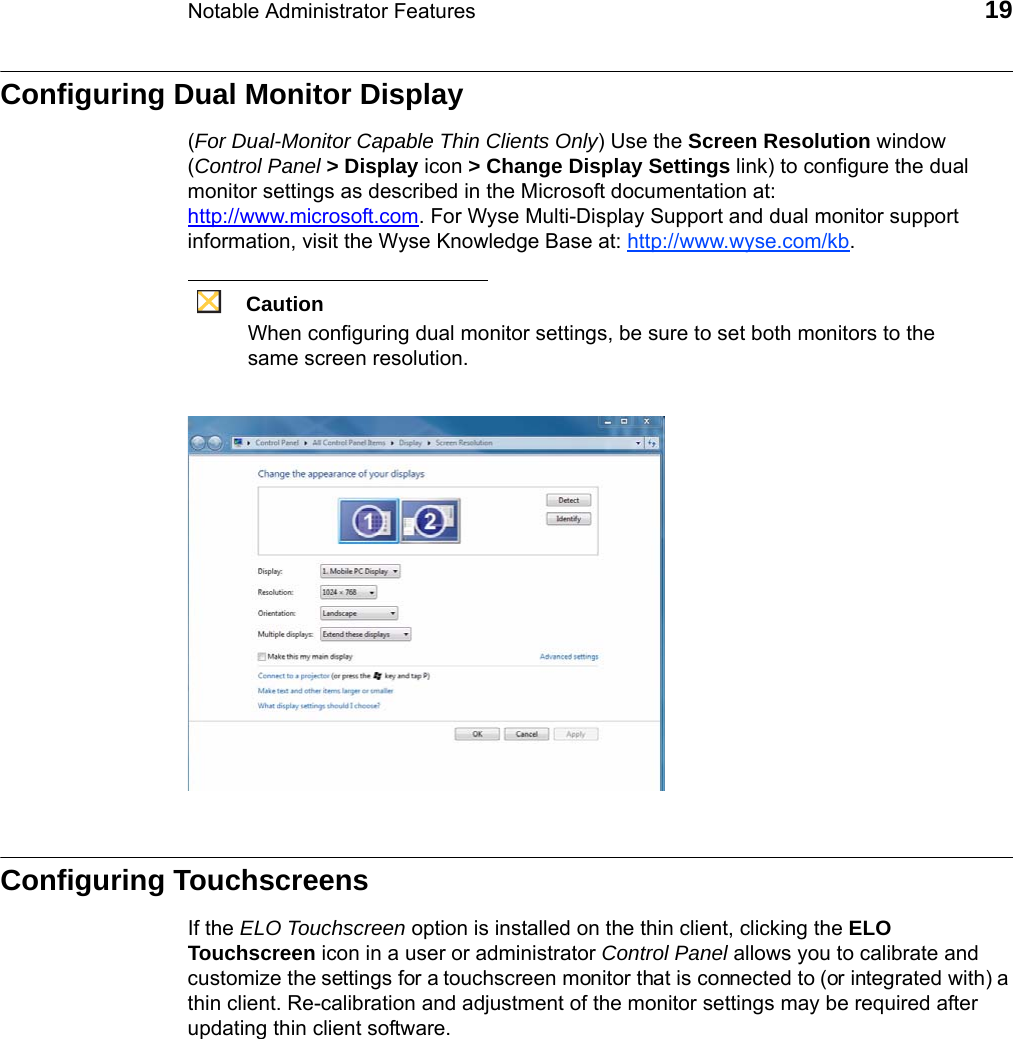

Notable Administrator Features 19Configuring Dual Monitor Display(For Dual-Monitor Capable Thin Clients Only) Use the Screen Resolution window (Control Panel > Display icon > Change Display Settings link) to configure the dual monitor settings as described in the Microsoft documentation at: http://www.microsoft.com. For Wyse Multi-Display Support and dual monitor support information, visit the Wyse Knowledge Base at: http://www.wyse.com/kb.CautionWhen configuring dual monitor settings, be sure to set both monitors to the same screen resolution.Configuring TouchscreensIf the ELO Touchscreen option is installed on the thin client, clicking the ELO Touchscreen icon in a user or administrator Control Panel allows you to calibrate and customize the settings for a touchscreen monitor that is connected to (or integrated with) a thin client. Re-calibration and adjustment of the monitor settings may be required after updating thin client software.

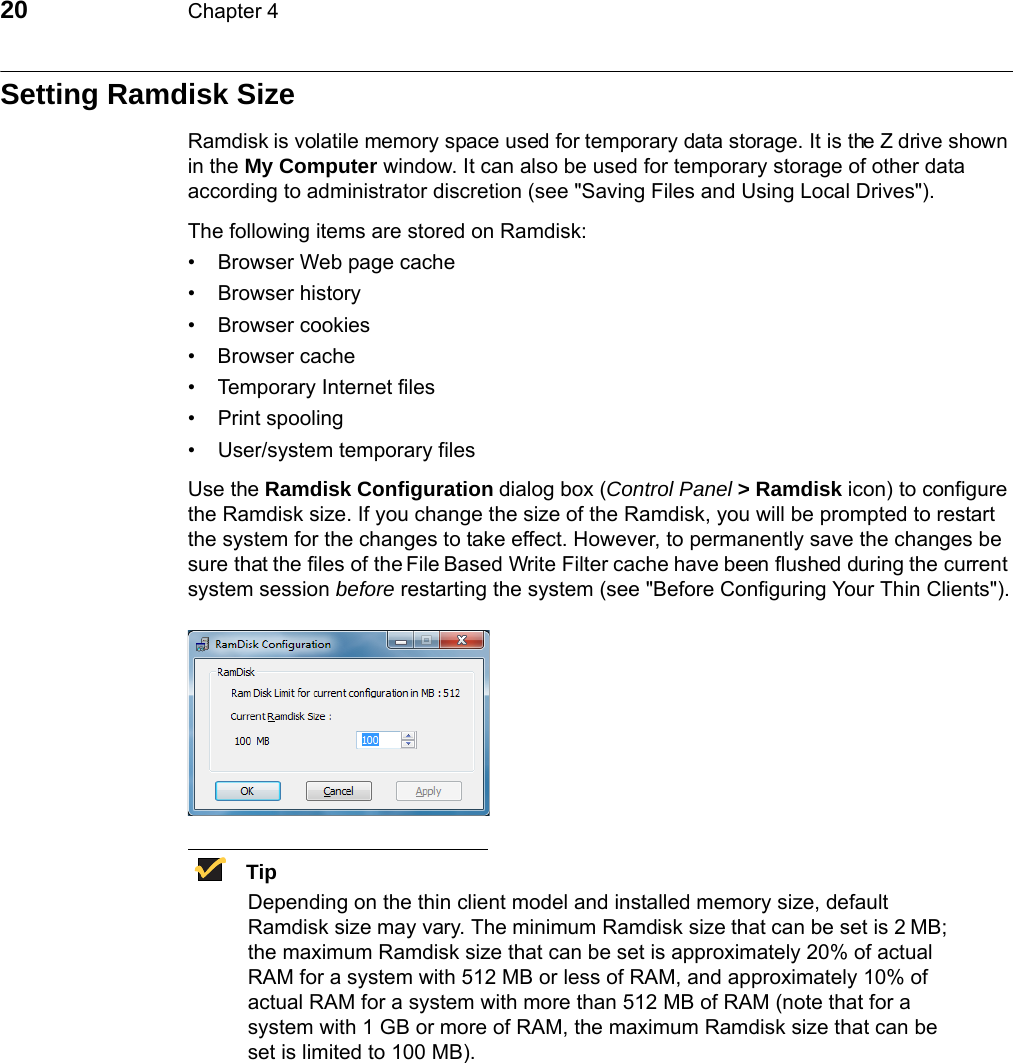

20 Chapter 4Setting Ramdisk SizeRamdisk is volatile memory space used for temporary data storage. It is the Z drive shown in the My Computer window. It can also be used for temporary storage of other data according to administrator discretion (see "Saving Files and Using Local Drives").The following items are stored on Ramdisk:• Browser Web page cache• Browser history• Browser cookies• Browser cache• Temporary Internet files• Print spooling• User/system temporary filesUse the Ramdisk Configuration dialog box (Control Panel > Ramdisk icon) to configure the Ramdisk size. If you change the size of the Ramdisk, you will be prompted to restart the system for the changes to take effect. However, to permanently save the changes be sure that the files of the File Based Write Filter cache have been flushed during the current system session before restarting the system (see "Before Configuring Your Thin Clients").TipDepending on the thin client model and installed memory size, default Ramdisk size may vary. The minimum Ramdisk size that can be set is 2 MB; the maximum Ramdisk size that can be set is approximately 20% of actual RAM for a system with 512 MB or less of RAM, and approximately 10% of actual RAM for a system with more than 512 MB of RAM (note that for a system with 1 GB or more of RAM, the maximum Ramdisk size that can be set is limited to 100 MB).

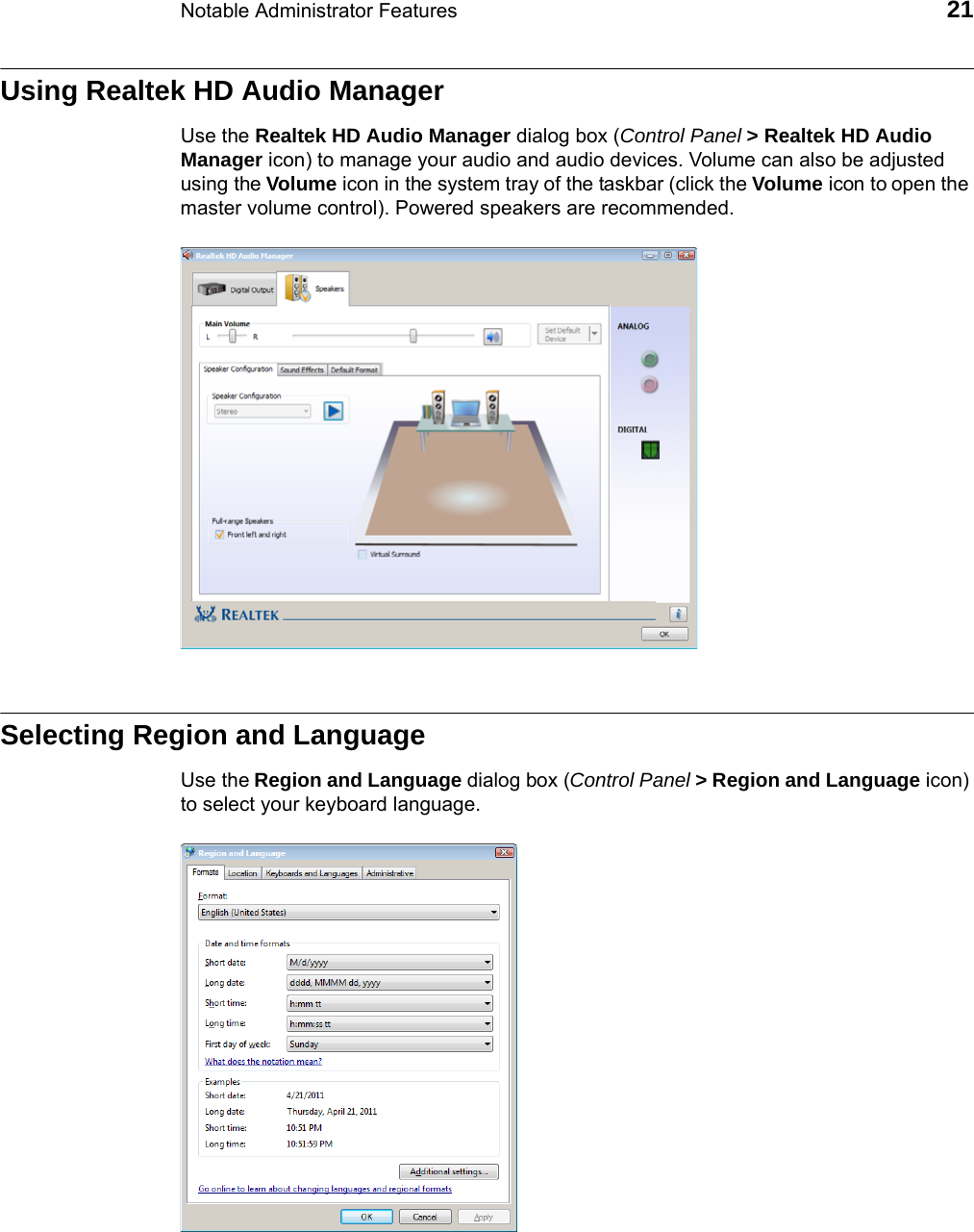

Notable Administrator Features 21Using Realtek HD Audio ManagerUse the Realtek HD Audio Manager dialog box (Control Panel > Realtek HD Audio Manager icon) to manage your audio and audio devices. Volume can also be adjusted using the Volume icon in the system tray of the taskbar (click the Volume icon to open the master volume control). Powered speakers are recommended.Selecting Region and LanguageUse the Region and Language dialog box (Control Panel > Region and Language icon) to select your keyboard language.

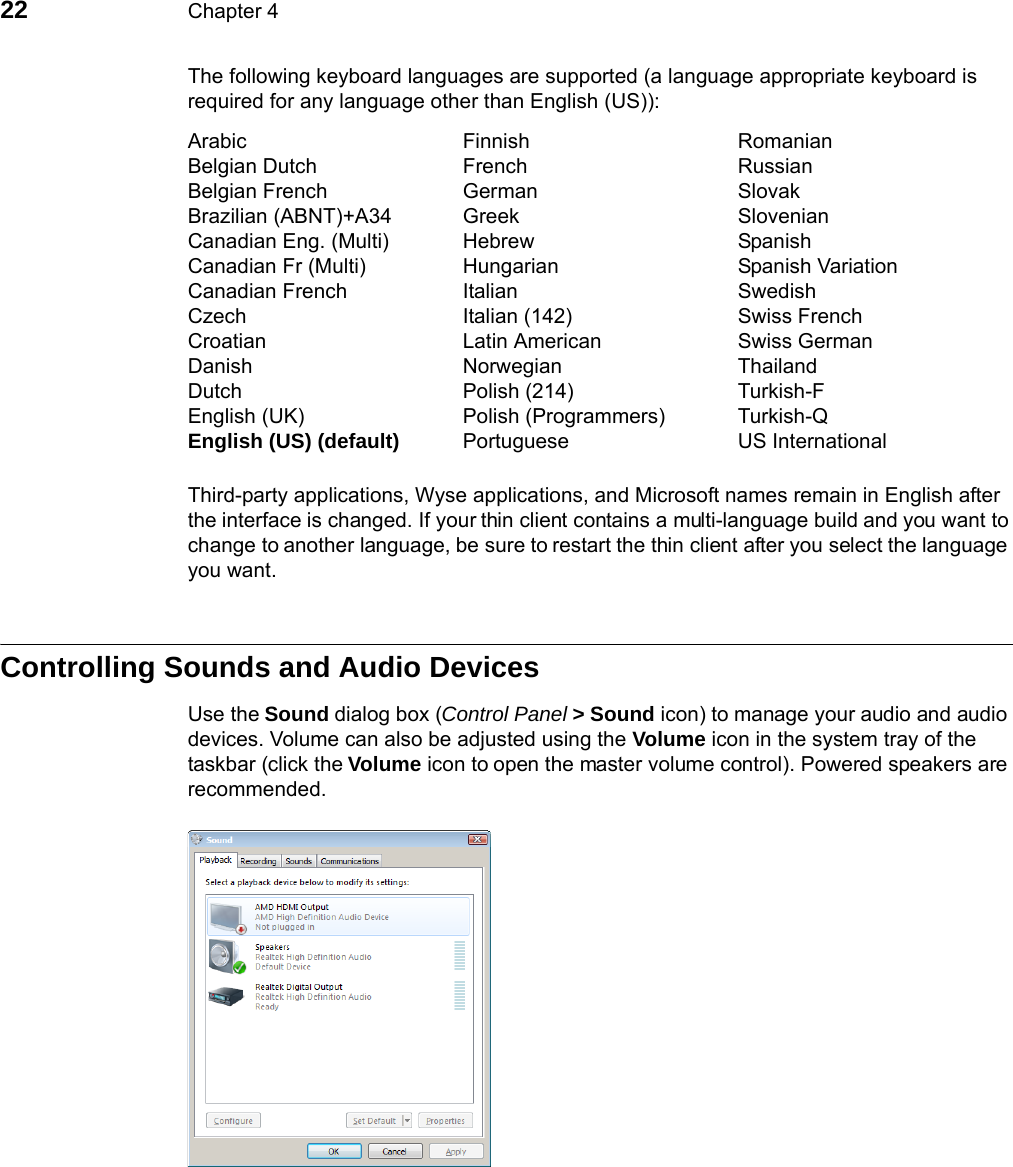

22 Chapter 4The following keyboard languages are supported (a language appropriate keyboard is required for any language other than English (US)):Third-party applications, Wyse applications, and Microsoft names remain in English after the interface is changed. If your thin client contains a multi-language build and you want to change to another language, be sure to restart the thin client after you select the language you want.Controlling Sounds and Audio DevicesUse the Sound dialog box (Control Panel > Sound icon) to manage your audio and audio devices. Volume can also be adjusted using the Volume icon in the system tray of the taskbar (click the Volume icon to open the master volume control). Powered speakers are recommended.Arabic Belgian Dutch Belgian French Brazilian (ABNT)+A34 Canadian Eng. (Multi) Canadian Fr (Multi) Canadian French Czech Croatian Danish Dutch English (UK) English (US) (default)Finnish French German Greek Hebrew Hungarian Italian Italian (142) Latin American Norwegian Polish (214) Polish (Programmers) PortugueseRomanian Russian Slovak Slovenian Spanish Spanish Variation Swedish Swiss French Swiss German Thailand Turkish-F Turkish-Q US International

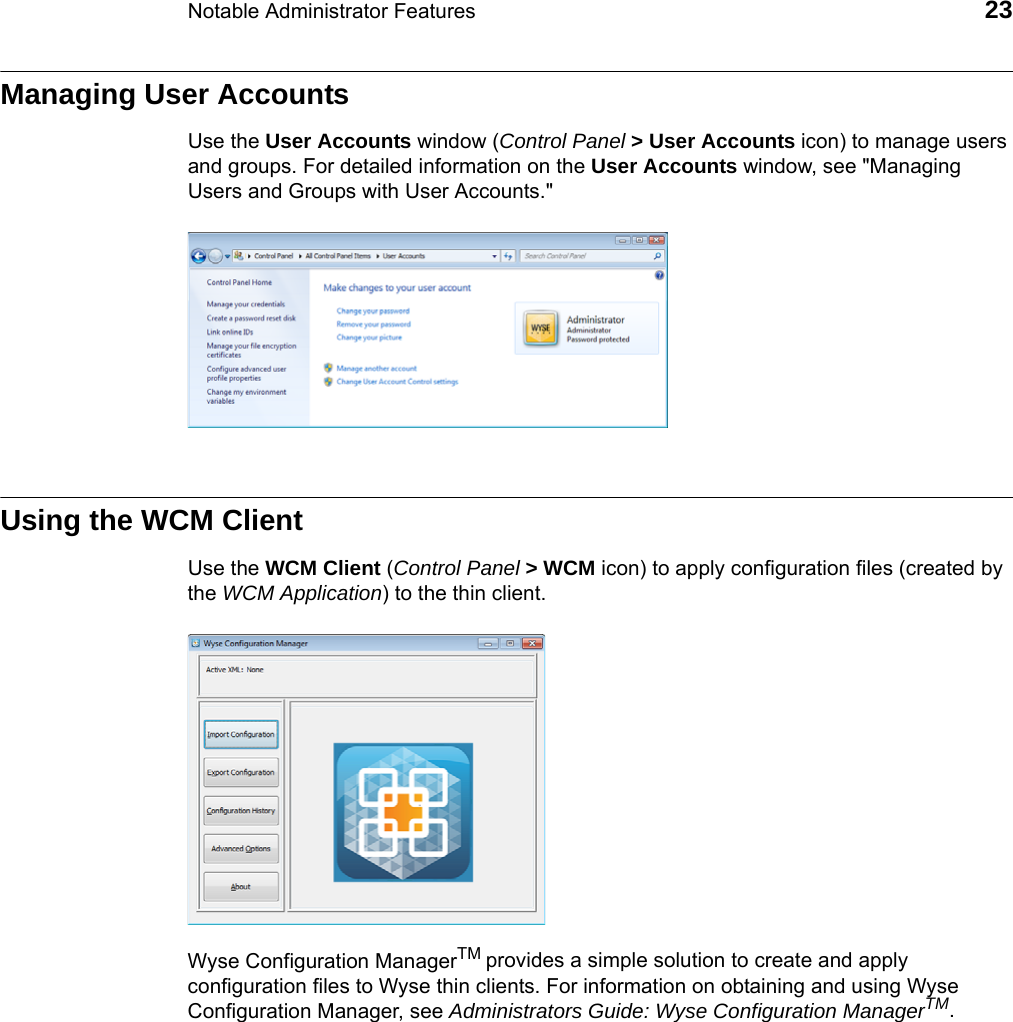

Notable Administrator Features 23Managing User AccountsUse the User Accounts window (Control Panel > User Accounts icon) to manage users and groups. For detailed information on the User Accounts window, see "Managing Users and Groups with User Accounts."Using the WCM ClientUse the WCM Client (Control Panel > WCM icon) to apply configuration files (created by the WCM Application) to the thin client. Wyse Configuration ManagerTM provides a simple solution to create and apply configuration files to Wyse thin clients. For information on obtaining and using Wyse Configuration Manager, see Administrators Guide: Wyse Configuration ManagerTM.

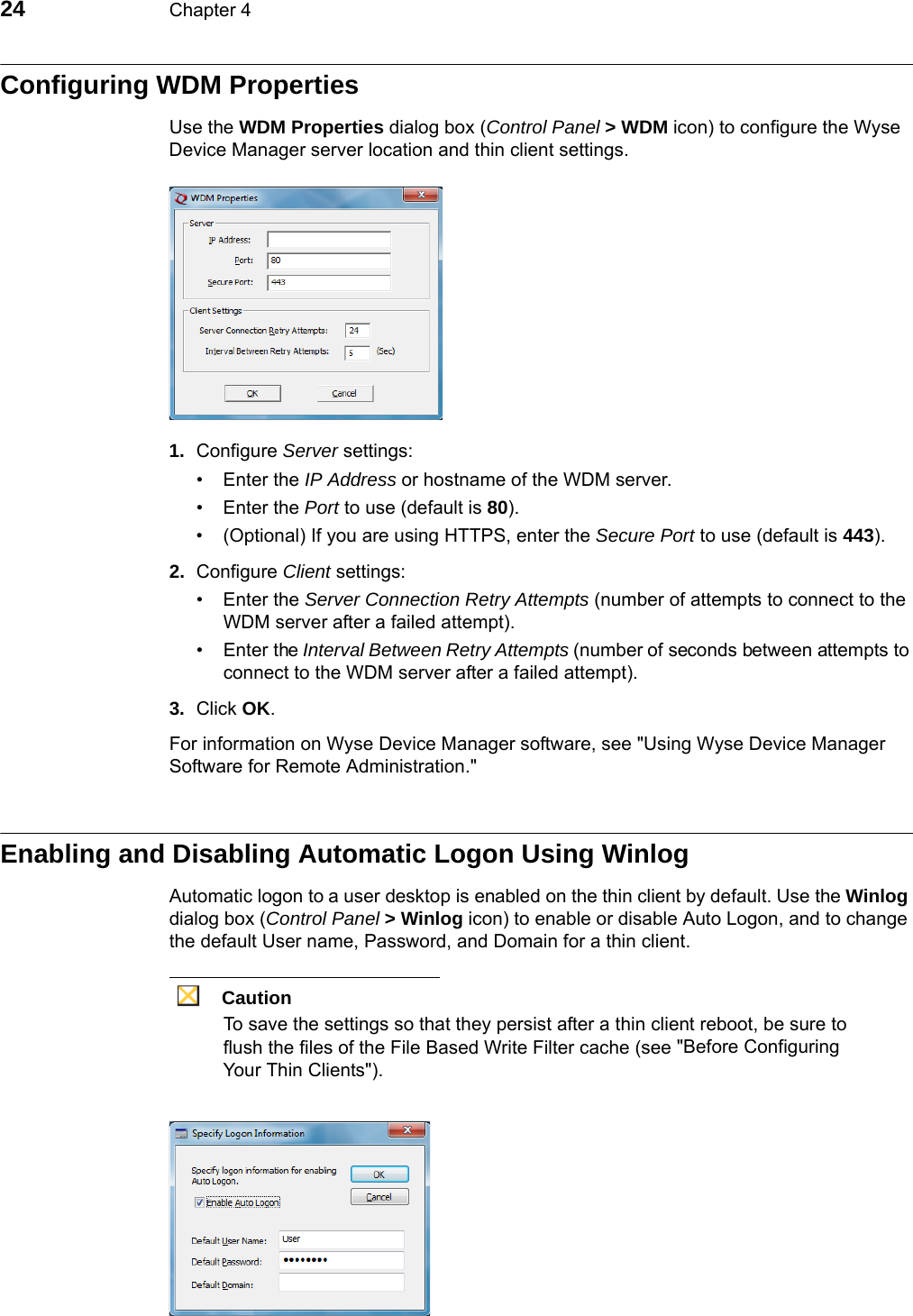

24 Chapter 4Configuring WDM PropertiesUse the WDM Properties dialog box (Control Panel > WDM icon) to configure the Wyse Device Manager server location and thin client settings.1. Configure Server settings:• Enter the IP Address or hostname of the WDM server.• Enter the Port to use (default is 80).• (Optional) If you are using HTTPS, enter the Secure Port to use (default is 443).2. Configure Client settings:• Enter the Server Connection Retry Attempts (number of attempts to connect to the WDM server after a failed attempt).• Enter the Interval Between Retry Attempts (number of seconds between attempts to connect to the WDM server after a failed attempt).3. Click OK.For information on Wyse Device Manager software, see "Using Wyse Device Manager Software for Remote Administration."Enabling and Disabling Automatic Logon Using WinlogAutomatic logon to a user desktop is enabled on the thin client by default. Use the Winlog dialog box (Control Panel > Winlog icon) to enable or disable Auto Logon, and to change the default User name, Password, and Domain for a thin client.CautionTo save the settings so that they persist after a thin client reboot, be sure to flush the files of the File Based Write Filter cache (see "Before Configuring Your Thin Clients").

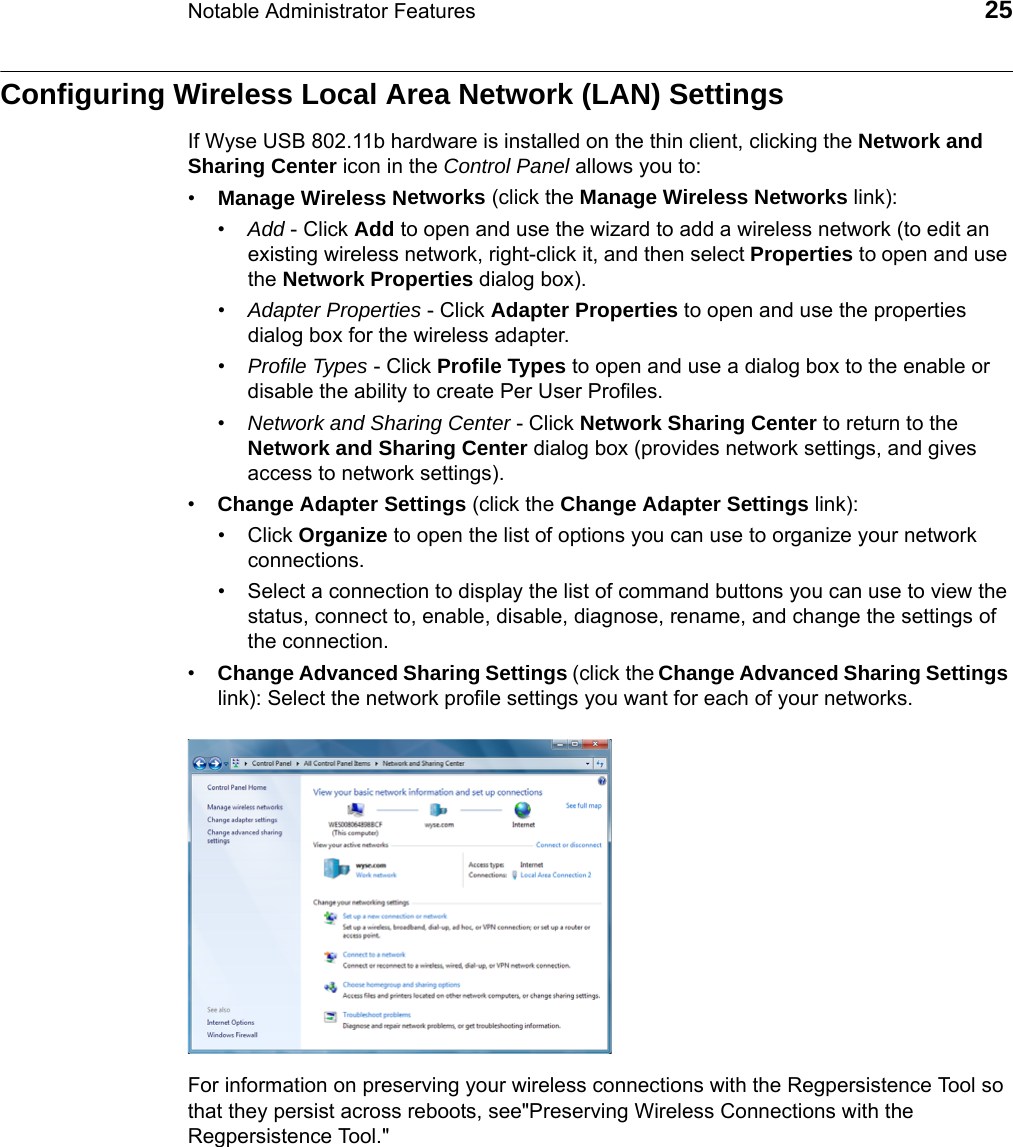

Notable Administrator Features 25Configuring Wireless Local Area Network (LAN) SettingsIf Wyse USB 802.11b hardware is installed on the thin client, clicking the Network and Sharing Center icon in the Control Panel allows you to:•Manage Wireless Networks (click the Manage Wireless Networks link):•Add - Click Add to open and use the wizard to add a wireless network (to edit an existing wireless network, right-click it, and then select Properties to open and use the Network Properties dialog box).•Adapter Properties - Click Adapter Properties to open and use the properties dialog box for the wireless adapter.•Profile Types - Click Profile Types to open and use a dialog box to the enable or disable the ability to create Per User Profiles.•Network and Sharing Center - Click Network Sharing Center to return to the Network and Sharing Center dialog box (provides network settings, and gives access to network settings).•Change Adapter Settings (click the Change Adapter Settings link):• Click Organize to open the list of options you can use to organize your network connections.• Select a connection to display the list of command buttons you can use to view the status, connect to, enable, disable, diagnose, rename, and change the settings of the connection.•Change Advanced Sharing Settings (click the Change Advanced Sharing Settings link): Select the network profile settings you want for each of your networks.For information on preserving your wireless connections with the Regpersistence Tool so that they persist across reboots, see"Preserving Wireless Connections with the Regpersistence Tool."

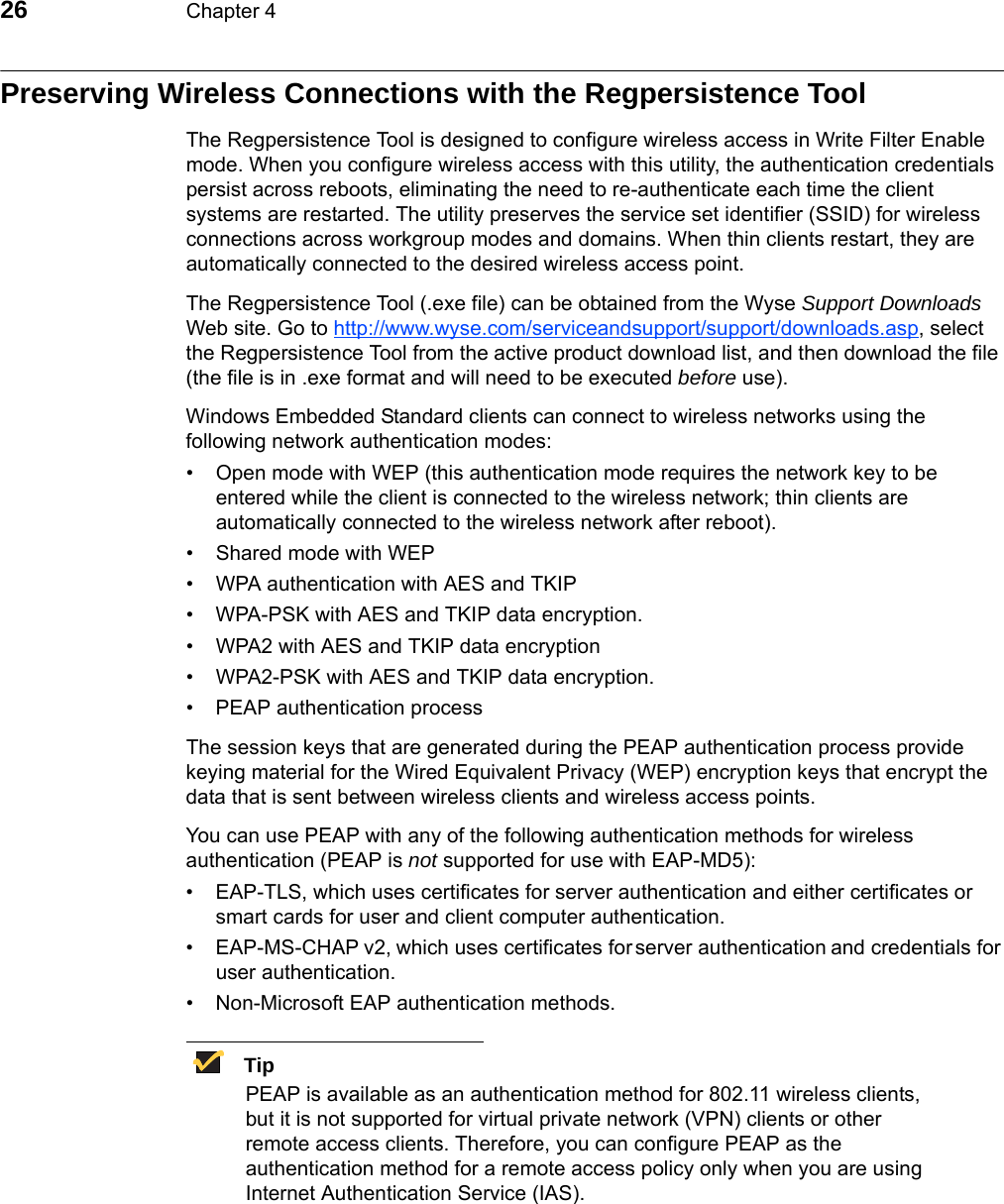

26 Chapter 4Preserving Wireless Connections with the Regpersistence ToolThe Regpersistence Tool is designed to configure wireless access in Write Filter Enable mode. When you configure wireless access with this utility, the authentication credentials persist across reboots, eliminating the need to re-authenticate each time the client systems are restarted. The utility preserves the service set identifier (SSID) for wireless connections across workgroup modes and domains. When thin clients restart, they are automatically connected to the desired wireless access point.The Regpersistence Tool (.exe file) can be obtained from the Wyse Support Downloads Web site. Go to http://www.wyse.com/serviceandsupport/support/downloads.asp, select the Regpersistence Tool from the active product download list, and then download the file (the file is in .exe format and will need to be executed before use).Windows Embedded Standard clients can connect to wireless networks using the following network authentication modes:• Open mode with WEP (this authentication mode requires the network key to be entered while the client is connected to the wireless network; thin clients are automatically connected to the wireless network after reboot).• Shared mode with WEP• WPA authentication with AES and TKIP• WPA-PSK with AES and TKIP data encryption.• WPA2 with AES and TKIP data encryption• WPA2-PSK with AES and TKIP data encryption.• PEAP authentication processThe session keys that are generated during the PEAP authentication process provide keying material for the Wired Equivalent Privacy (WEP) encryption keys that encrypt the data that is sent between wireless clients and wireless access points.You can use PEAP with any of the following authentication methods for wireless authentication (PEAP is not supported for use with EAP-MD5):• EAP-TLS, which uses certificates for server authentication and either certificates or smart cards for user and client computer authentication.• EAP-MS-CHAP v2, which uses certificates for server authentication and credentials for user authentication.• Non-Microsoft EAP authentication methods.TipPEAP is available as an authentication method for 802.11 wireless clients, but it is not supported for virtual private network (VPN) clients or other remote access clients. Therefore, you can configure PEAP as the authentication method for a remote access policy only when you are using Internet Authentication Service (IAS).

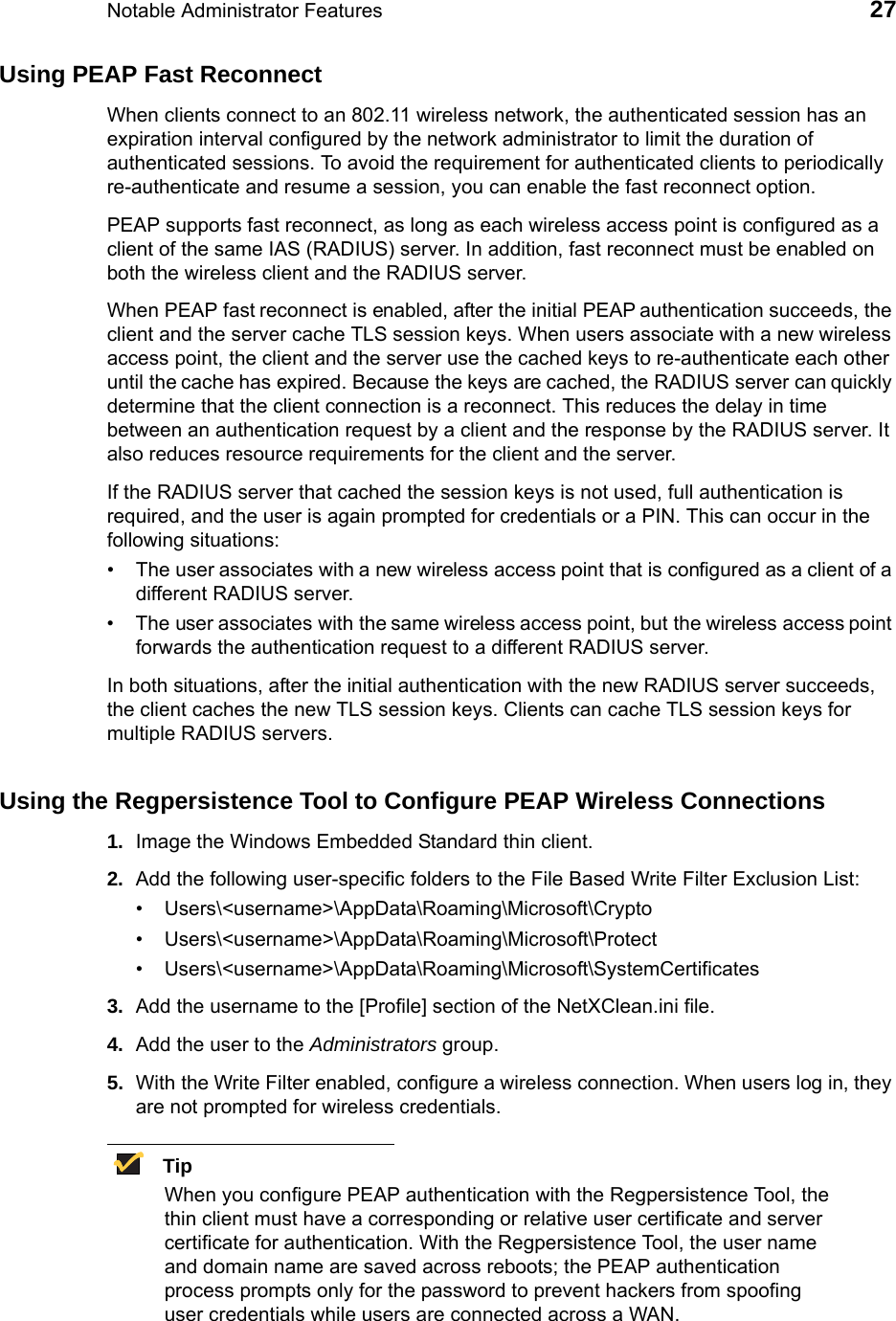

Notable Administrator Features 27Using PEAP Fast ReconnectWhen clients connect to an 802.11 wireless network, the authenticated session has an expiration interval configured by the network administrator to limit the duration of authenticated sessions. To avoid the requirement for authenticated clients to periodically re-authenticate and resume a session, you can enable the fast reconnect option. PEAP supports fast reconnect, as long as each wireless access point is configured as a client of the same IAS (RADIUS) server. In addition, fast reconnect must be enabled on both the wireless client and the RADIUS server.When PEAP fast reconnect is enabled, after the initial PEAP authentication succeeds, the client and the server cache TLS session keys. When users associate with a new wireless access point, the client and the server use the cached keys to re-authenticate each other until the cache has expired. Because the keys are cached, the RADIUS server can quickly determine that the client connection is a reconnect. This reduces the delay in time between an authentication request by a client and the response by the RADIUS server. It also reduces resource requirements for the client and the server.If the RADIUS server that cached the session keys is not used, full authentication is required, and the user is again prompted for credentials or a PIN. This can occur in the following situations:• The user associates with a new wireless access point that is configured as a client of a different RADIUS server.• The user associates with the same wireless access point, but the wireless access point forwards the authentication request to a different RADIUS server.In both situations, after the initial authentication with the new RADIUS server succeeds, the client caches the new TLS session keys. Clients can cache TLS session keys for multiple RADIUS servers.Using the Regpersistence Tool to Configure PEAP Wireless Connections 1. Image the Windows Embedded Standard thin client.2. Add the following user-specific folders to the File Based Write Filter Exclusion List:• Users\<username>\AppData\Roaming\Microsoft\Crypto• Users\<username>\AppData\Roaming\Microsoft\Protect• Users\<username>\AppData\Roaming\Microsoft\SystemCertificates3. Add the username to the [Profile] section of the NetXClean.ini file.4. Add the user to the Administrators group.5. With the Write Filter enabled, configure a wireless connection. When users log in, they are not prompted for wireless credentials.TipWhen you configure PEAP authentication with the Regpersistence Tool, the thin client must have a corresponding or relative user certificate and server certificate for authentication. With the Regpersistence Tool, the user name and domain name are saved across reboots; the PEAP authentication process prompts only for the password to prevent hackers from spoofing user credentials while users are connected across a WAN.

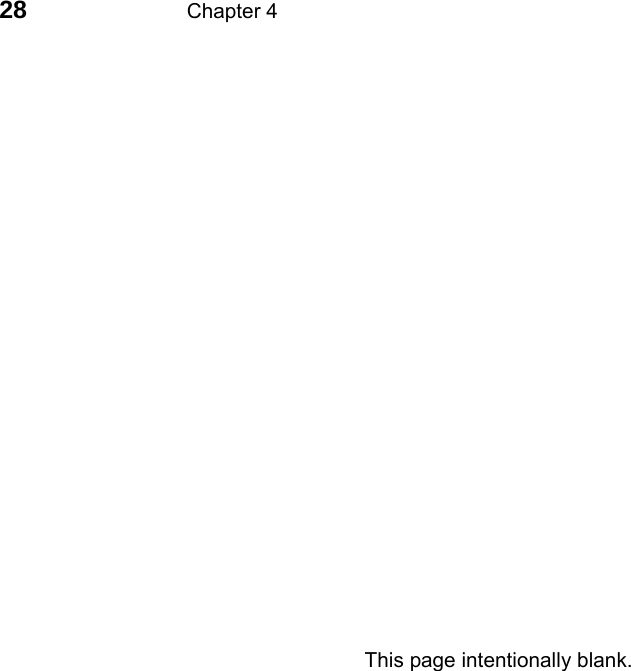

28 Chapter 4This page intentionally blank.

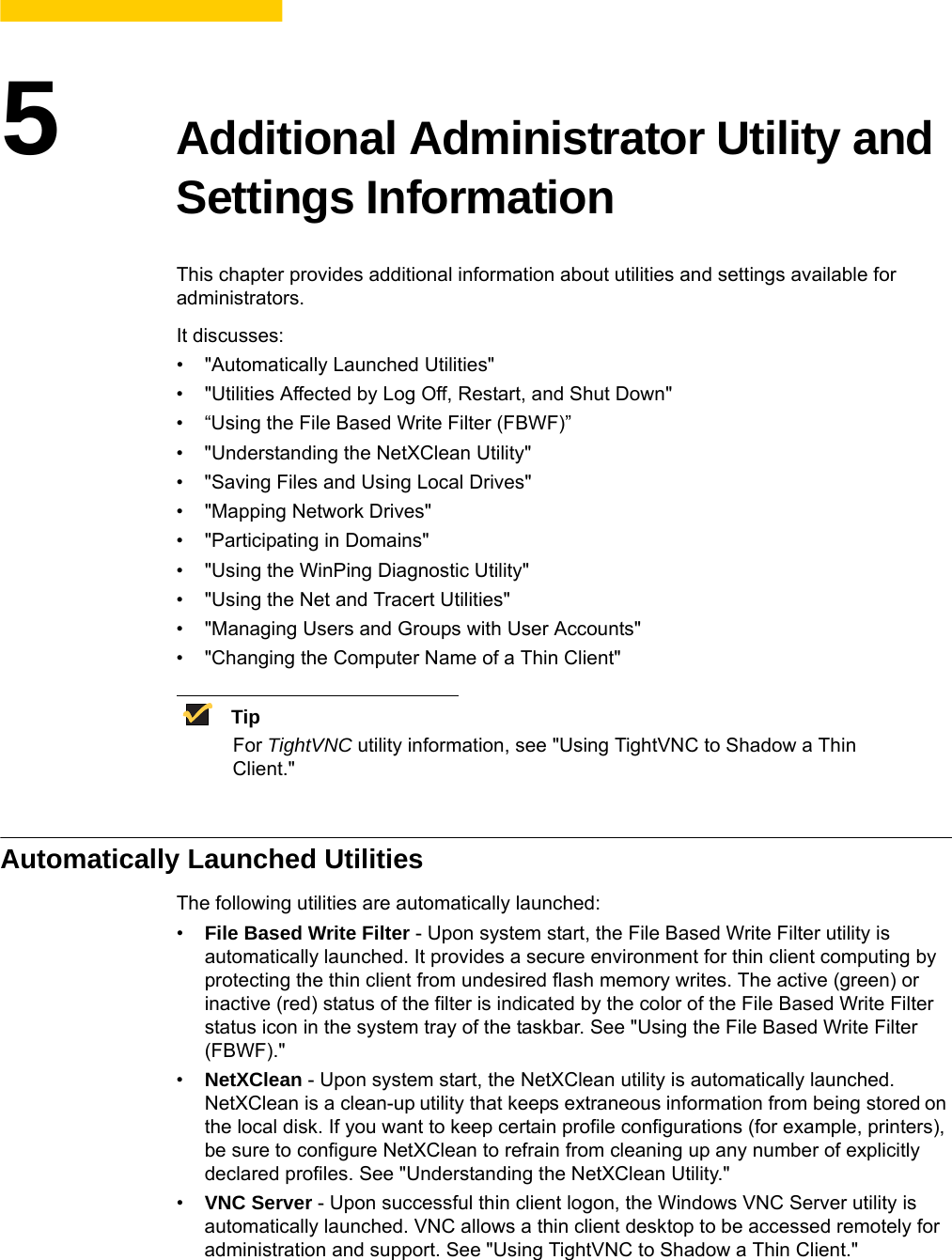

5Additional Administrator Utility and Settings InformationThis chapter provides additional information about utilities and settings available for administrators.It discusses:•"Automatically Launched Utilities"•"Utilities Affected by Log Off, Restart, and Shut Down"•“Using the File Based Write Filter (FBWF)” •"Understanding the NetXClean Utility"•"Saving Files and Using Local Drives"•"Mapping Network Drives"•"Participating in Domains"•"Using the WinPing Diagnostic Utility"•"Using the Net and Tracert Utilities"•"Managing Users and Groups with User Accounts"•"Changing the Computer Name of a Thin Client"TipFor TightVNC utility information, see "Using TightVNC to Shadow a Thin Client."Automatically Launched UtilitiesThe following utilities are automatically launched:•File Based Write Filter - Upon system start, the File Based Write Filter utility is automatically launched. It provides a secure environment for thin client computing by protecting the thin client from undesired flash memory writes. The active (green) or inactive (red) status of the filter is indicated by the color of the File Based Write Filter status icon in the system tray of the taskbar. See "Using the File Based Write Filter (FBWF)."•NetXClean - Upon system start, the NetXClean utility is automatically launched. NetXClean is a clean-up utility that keeps extraneous information from being stored on the local disk. If you want to keep certain profile configurations (for example, printers), be sure to configure NetXClean to refrain from cleaning up any number of explicitly declared profiles. See "Understanding the NetXClean Utility."•VNC Server - Upon successful thin client logon, the Windows VNC Server utility is automatically launched. VNC allows a thin client desktop to be accessed remotely for administration and support. See "Using TightVNC to Shadow a Thin Client."

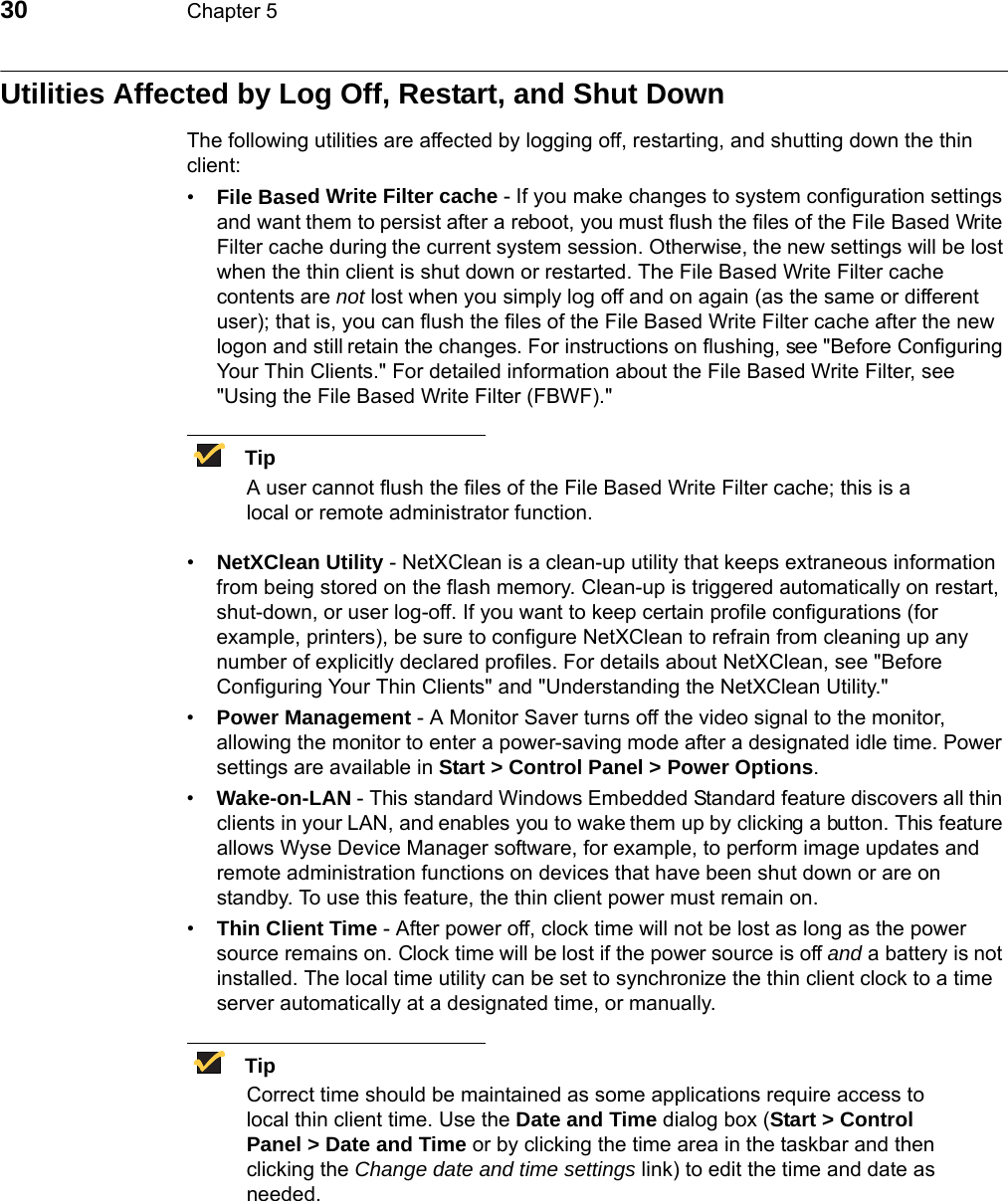

30 Chapter 5Utilities Affected by Log Off, Restart, and Shut DownThe following utilities are affected by logging off, restarting, and shutting down the thin client:•File Based Write Filter cache - If you make changes to system configuration settings and want them to persist after a reboot, you must flush the files of the File Based Write Filter cache during the current system session. Otherwise, the new settings will be lost when the thin client is shut down or restarted. The File Based Write Filter cache contents are not lost when you simply log off and on again (as the same or different user); that is, you can flush the files of the File Based Write Filter cache after the new logon and still retain the changes. For instructions on flushing, see "Before Configuring Your Thin Clients." For detailed information about the File Based Write Filter, see "Using the File Based Write Filter (FBWF)."TipA user cannot flush the files of the File Based Write Filter cache; this is a local or remote administrator function.•NetXClean Utility - NetXClean is a clean-up utility that keeps extraneous information from being stored on the flash memory. Clean-up is triggered automatically on restart, shut-down, or user log-off. If you want to keep certain profile configurations (for example, printers), be sure to configure NetXClean to refrain from cleaning up any number of explicitly declared profiles. For details about NetXClean, see "Before Configuring Your Thin Clients" and "Understanding the NetXClean Utility."•Power Management - A Monitor Saver turns off the video signal to the monitor, allowing the monitor to enter a power-saving mode after a designated idle time. Power settings are available in Start > Control Panel > Power Options.•Wake-on-LAN - This standard Windows Embedded Standard feature discovers all thin clients in your LAN, and enables you to wake them up by clicking a button. This feature allows Wyse Device Manager software, for example, to perform image updates and remote administration functions on devices that have been shut down or are on standby. To use this feature, the thin client power must remain on.•Thin Client Time - After power off, clock time will not be lost as long as the power source remains on. Clock time will be lost if the power source is off and a battery is not installed. The local time utility can be set to synchronize the thin client clock to a time server automatically at a designated time, or manually.TipCorrect time should be maintained as some applications require access to local thin client time. Use the Date and Time dialog box (Start > Control Panel > Date and Time or by clicking the time area in the taskbar and then clicking the Change date and time settings link) to edit the time and date as needed.

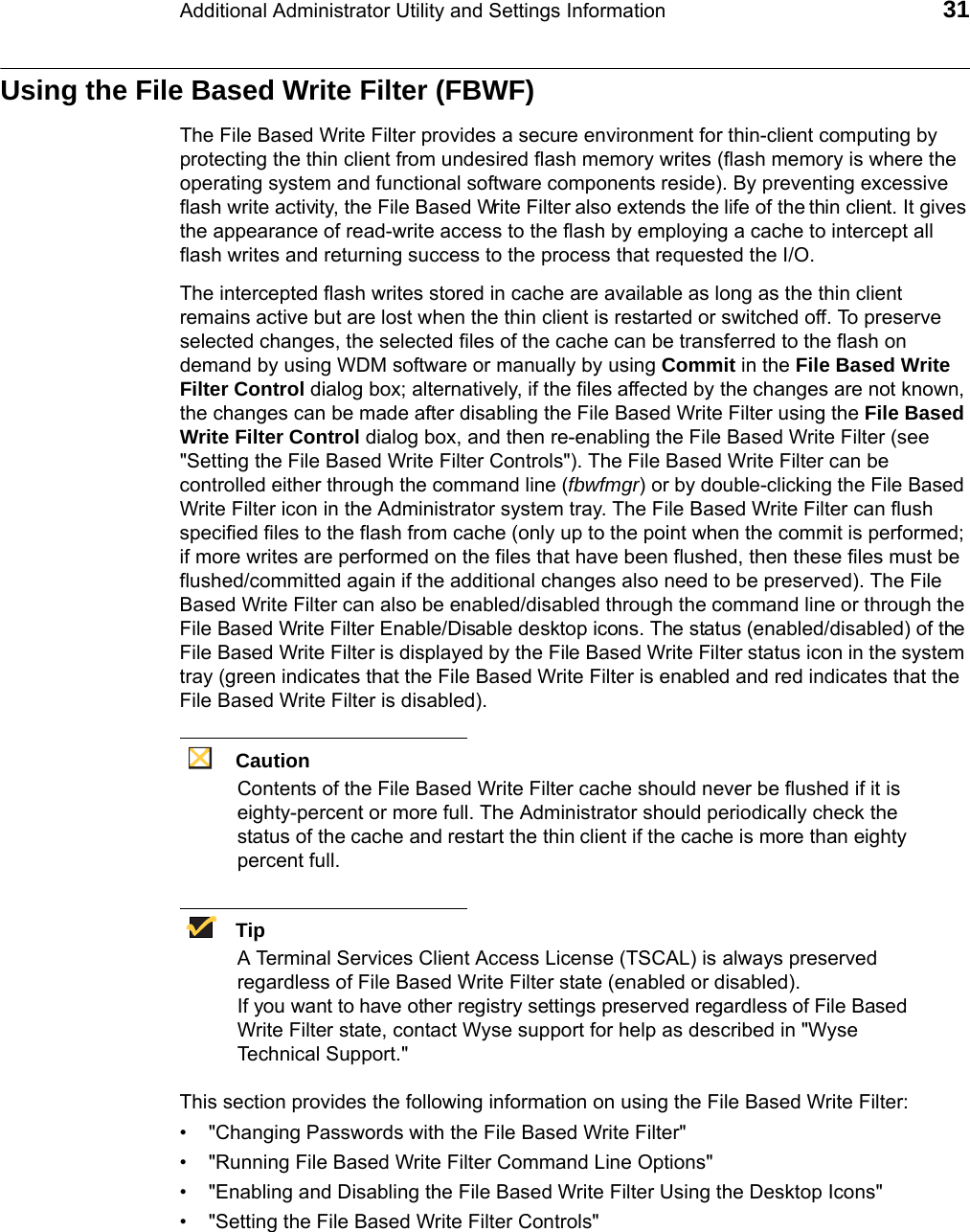

Additional Administrator Utility and Settings Information 31Using the File Based Write Filter (FBWF)The File Based Write Filter provides a secure environment for thin-client computing by protecting the thin client from undesired flash memory writes (flash memory is where the operating system and functional software components reside). By preventing excessive flash write activity, the File Based Write Filter also extends the life of the thin client. It gives the appearance of read-write access to the flash by employing a cache to intercept all flash writes and returning success to the process that requested the I/O.The intercepted flash writes stored in cache are available as long as the thin client remains active but are lost when the thin client is restarted or switched off. To preserve selected changes, the selected files of the cache can be transferred to the flash on demand by using WDM software or manually by using Commit in the File Based Write Filter Control dialog box; alternatively, if the files affected by the changes are not known, the changes can be made after disabling the File Based Write Filter using the File Based Write Filter Control dialog box, and then re-enabling the File Based Write Filter (see "Setting the File Based Write Filter Controls"). The File Based Write Filter can be controlled either through the command line (fbwfmgr) or by double-clicking the File Based Write Filter icon in the Administrator system tray. The File Based Write Filter can flush specified files to the flash from cache (only up to the point when the commit is performed; if more writes are performed on the files that have been flushed, then these files must be flushed/committed again if the additional changes also need to be preserved). The File Based Write Filter can also be enabled/disabled through the command line or through the File Based Write Filter Enable/Disable desktop icons. The status (enabled/disabled) of the File Based Write Filter is displayed by the File Based Write Filter status icon in the system tray (green indicates that the File Based Write Filter is enabled and red indicates that the File Based Write Filter is disabled).CautionContents of the File Based Write Filter cache should never be flushed if it is eighty-percent or more full. The Administrator should periodically check the status of the cache and restart the thin client if the cache is more than eighty percent full.TipA Terminal Services Client Access License (TSCAL) is always preserved regardless of File Based Write Filter state (enabled or disabled). If you want to have other registry settings preserved regardless of File Based Write Filter state, contact Wyse support for help as described in "Wyse Technical Support."This section provides the following information on using the File Based Write Filter:•"Changing Passwords with the File Based Write Filter"•"Running File Based Write Filter Command Line Options"•"Enabling and Disabling the File Based Write Filter Using the Desktop Icons"•"Setting the File Based Write Filter Controls"

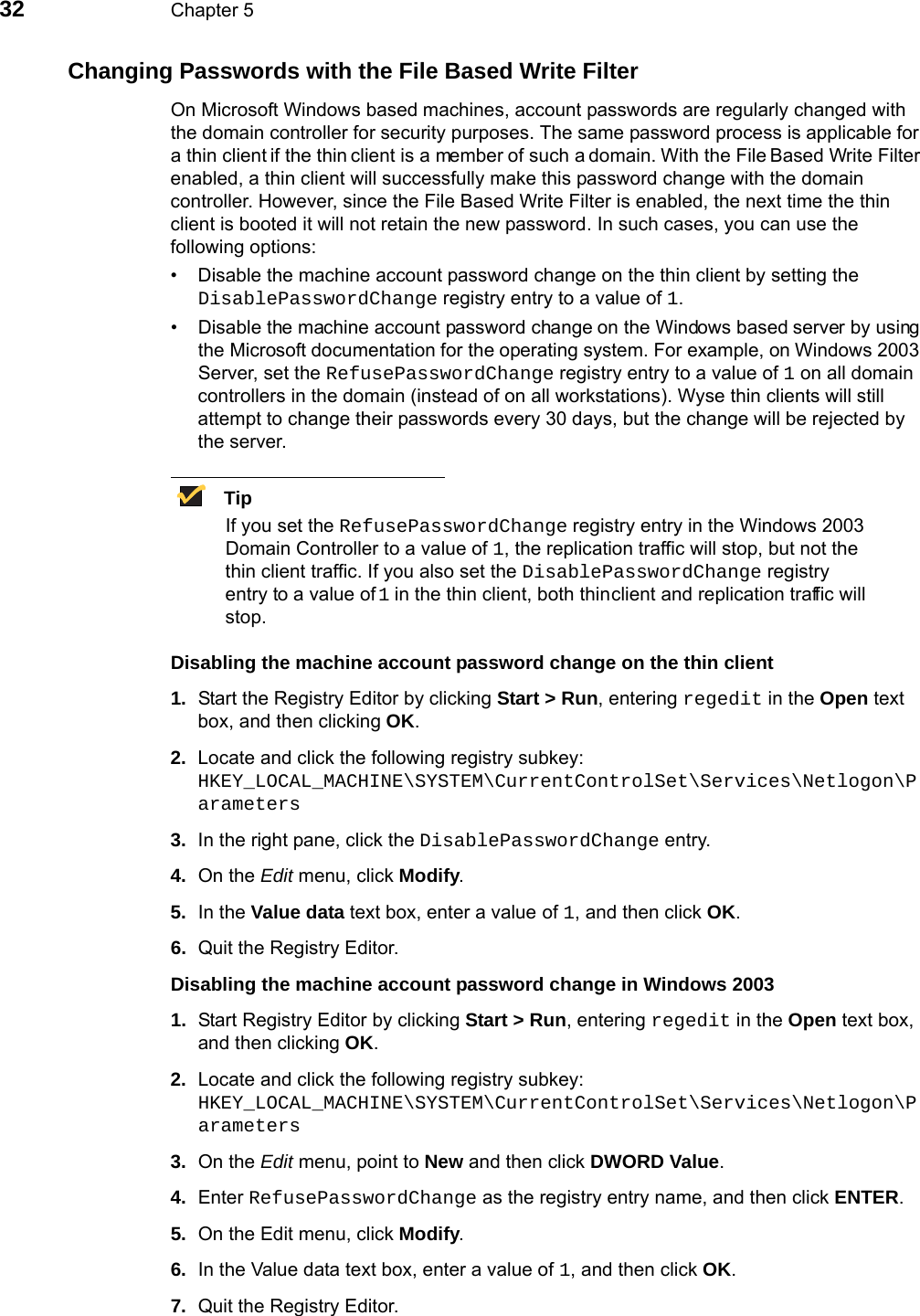

32 Chapter 5Changing Passwords with the File Based Write FilterOn Microsoft Windows based machines, account passwords are regularly changed with the domain controller for security purposes. The same password process is applicable for a thin client if the thin client is a member of such a domain. With the File Based Write Filter enabled, a thin client will successfully make this password change with the domain controller. However, since the File Based Write Filter is enabled, the next time the thin client is booted it will not retain the new password. In such cases, you can use the following options:• Disable the machine account password change on the thin client by setting the DisablePasswordChange registry entry to a value of 1.• Disable the machine account password change on the Windows based server by using the Microsoft documentation for the operating system. For example, on Windows 2003 Server, set the RefusePasswordChange registry entry to a value of 1 on all domain controllers in the domain (instead of on all workstations). Wyse thin clients will still attempt to change their passwords every 30 days, but the change will be rejected by the server.TipIf you set the RefusePasswordChange registry entry in the Windows 2003 Domain Controller to a value of 1, the replication traffic will stop, but not the thin client traffic. If you also set the DisablePasswordChange registry entry to a value of 1 in the thin client, both thin client and replication traffic will stop.Disabling the machine account password change on the thin client1. Start the Registry Editor by clicking Start > Run, entering regedit in the Open text box, and then clicking OK.2. Locate and click the following registry subkey: HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Netlogon\Parameters3. In the right pane, click the DisablePasswordChange entry. 4. On the Edit menu, click Modify.5. In the Value data text box, enter a value of 1, and then click OK.6. Quit the Registry Editor.Disabling the machine account password change in Windows 20031. Start Registry Editor by clicking Start > Run, entering regedit in the Open text box, and then clicking OK.2. Locate and click the following registry subkey: HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Netlogon\Parameters3. On the Edit menu, point to New and then click DWORD Value. 4. Enter RefusePasswordChange as the registry entry name, and then click ENTER. 5. On the Edit menu, click Modify.6. In the Value data text box, enter a value of 1, and then click OK.7. Quit the Registry Editor.

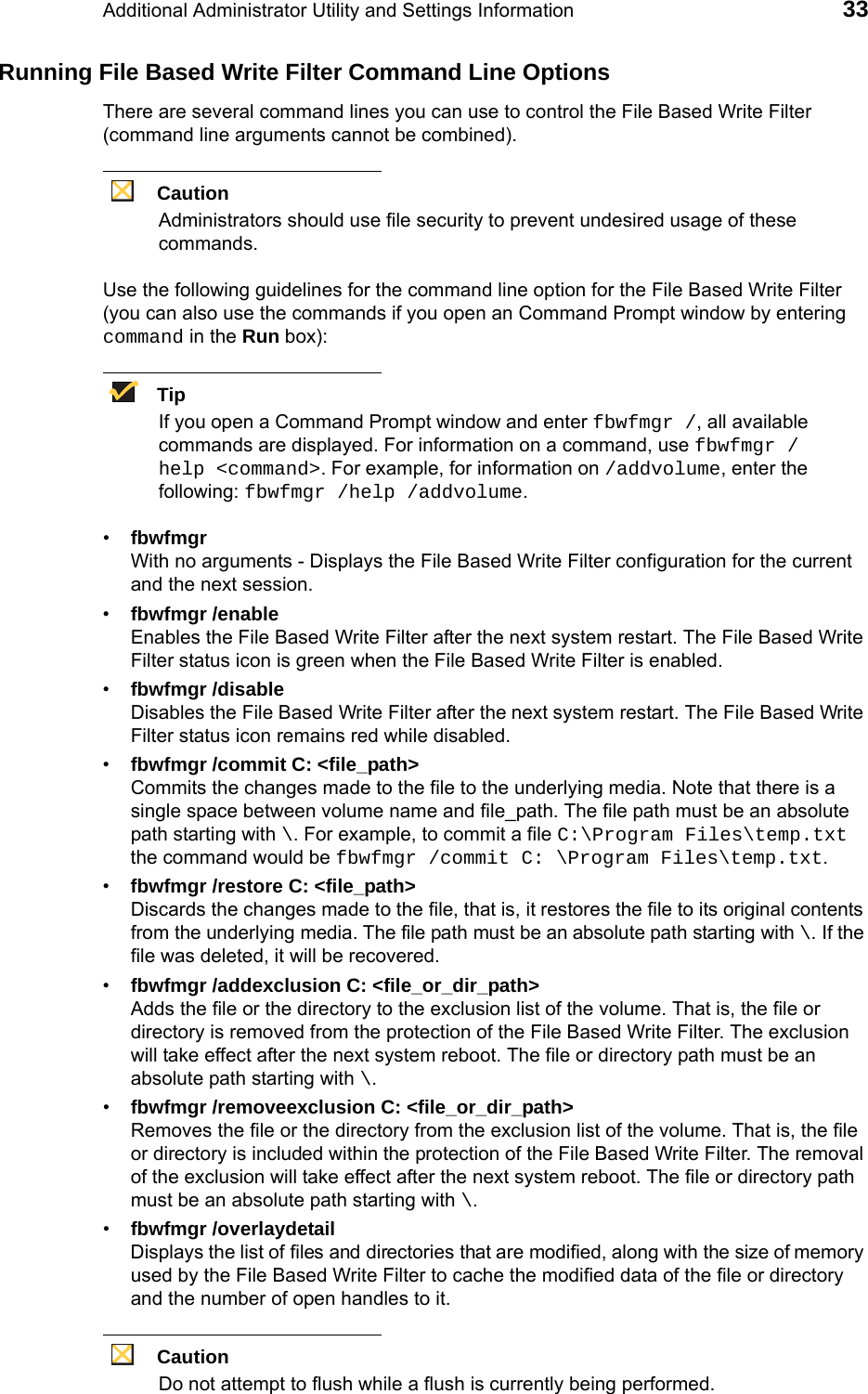

Additional Administrator Utility and Settings Information 33Running File Based Write Filter Command Line OptionsThere are several command lines you can use to control the File Based Write Filter (command line arguments cannot be combined).CautionAdministrators should use file security to prevent undesired usage of these commands.Use the following guidelines for the command line option for the File Based Write Filter (you can also use the commands if you open an Command Prompt window by entering command in the Run box):TipIf you open a Command Prompt window and enter fbwfmgr /, all available commands are displayed. For information on a command, use fbwfmgr /help <command>. For example, for information on /addvolume, enter the following: fbwfmgr /help /addvolume.•fbwfmgr With no arguments - Displays the File Based Write Filter configuration for the current and the next session.•fbwfmgr /enable Enables the File Based Write Filter after the next system restart. The File Based Write Filter status icon is green when the File Based Write Filter is enabled.•fbwfmgr /disable Disables the File Based Write Filter after the next system restart. The File Based Write Filter status icon remains red while disabled.•fbwfmgr /commit C: <file_path> Commits the changes made to the file to the underlying media. Note that there is a single space between volume name and file_path. The file path must be an absolute path starting with \. For example, to commit a file C:\Program Files\temp.txt the command would be fbwfmgr /commit C: \Program Files\temp.txt.•fbwfmgr /restore C: <file_path> Discards the changes made to the file, that is, it restores the file to its original contents from the underlying media. The file path must be an absolute path starting with \. If the file was deleted, it will be recovered.•fbwfmgr /addexclusion C: <file_or_dir_path> Adds the file or the directory to the exclusion list of the volume. That is, the file or directory is removed from the protection of the File Based Write Filter. The exclusion will take effect after the next system reboot. The file or directory path must be an absolute path starting with \.•fbwfmgr /removeexclusion C: <file_or_dir_path> Removes the file or the directory from the exclusion list of the volume. That is, the file or directory is included within the protection of the File Based Write Filter. The removal of the exclusion will take effect after the next system reboot. The file or directory path must be an absolute path starting with \.•fbwfmgr /overlaydetail Displays the list of files and directories that are modified, along with the size of memory used by the File Based Write Filter to cache the modified data of the file or directory and the number of open handles to it.CautionDo not attempt to flush while a flush is currently being performed.

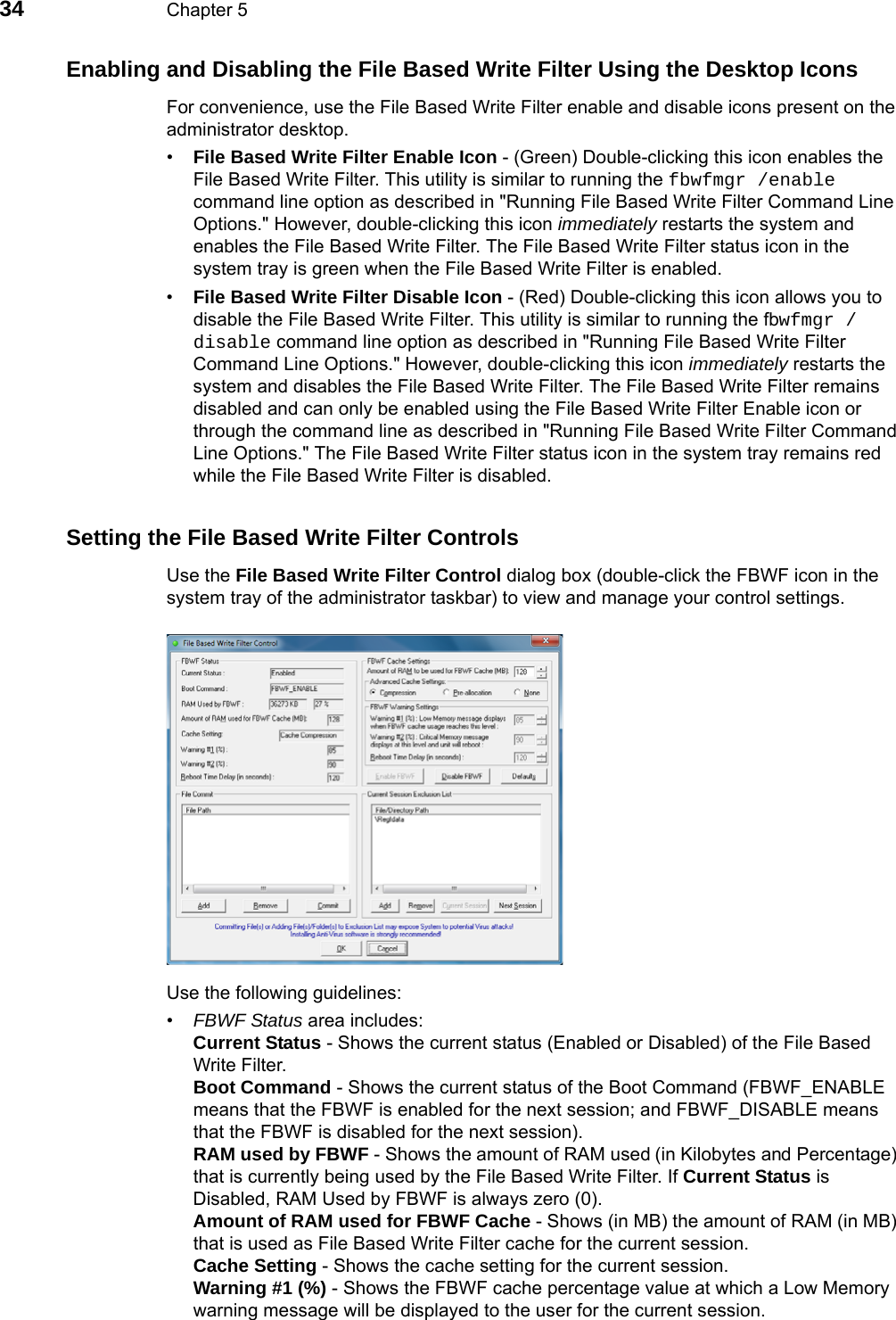

34 Chapter 5Enabling and Disabling the File Based Write Filter Using the Desktop IconsFor convenience, use the File Based Write Filter enable and disable icons present on the administrator desktop.•File Based Write Filter Enable Icon - (Green) Double-clicking this icon enables the File Based Write Filter. This utility is similar to running the fbwfmgr /enable command line option as described in "Running File Based Write Filter Command Line Options." However, double-clicking this icon immediately restarts the system and enables the File Based Write Filter. The File Based Write Filter status icon in the system tray is green when the File Based Write Filter is enabled.•File Based Write Filter Disable Icon - (Red) Double-clicking this icon allows you to disable the File Based Write Filter. This utility is similar to running the fbwfmgr /disable command line option as described in "Running File Based Write Filter Command Line Options." However, double-clicking this icon immediately restarts the system and disables the File Based Write Filter. The File Based Write Filter remains disabled and can only be enabled using the File Based Write Filter Enable icon or through the command line as described in "Running File Based Write Filter Command Line Options." The File Based Write Filter status icon in the system tray remains red while the File Based Write Filter is disabled.Setting the File Based Write Filter ControlsUse the File Based Write Filter Control dialog box (double-click the FBWF icon in the system tray of the administrator taskbar) to view and manage your control settings.Use the following guidelines:•FBWF Status area includes: Current Status - Shows the current status (Enabled or Disabled) of the File Based Write Filter. Boot Command - Shows the current status of the Boot Command (FBWF_ENABLE means that the FBWF is enabled for the next session; and FBWF_DISABLE means that the FBWF is disabled for the next session). RAM used by FBWF - Shows the amount of RAM used (in Kilobytes and Percentage) that is currently being used by the File Based Write Filter. If Current Status is Disabled, RAM Used by FBWF is always zero (0). Amount of RAM used for FBWF Cache - Shows (in MB) the amount of RAM (in MB) that is used as File Based Write Filter cache for the current session. Cache Setting - Shows the cache setting for the current session. Warning #1 (%) - Shows the FBWF cache percentage value at which a Low Memory warning message will be displayed to the user for the current session.

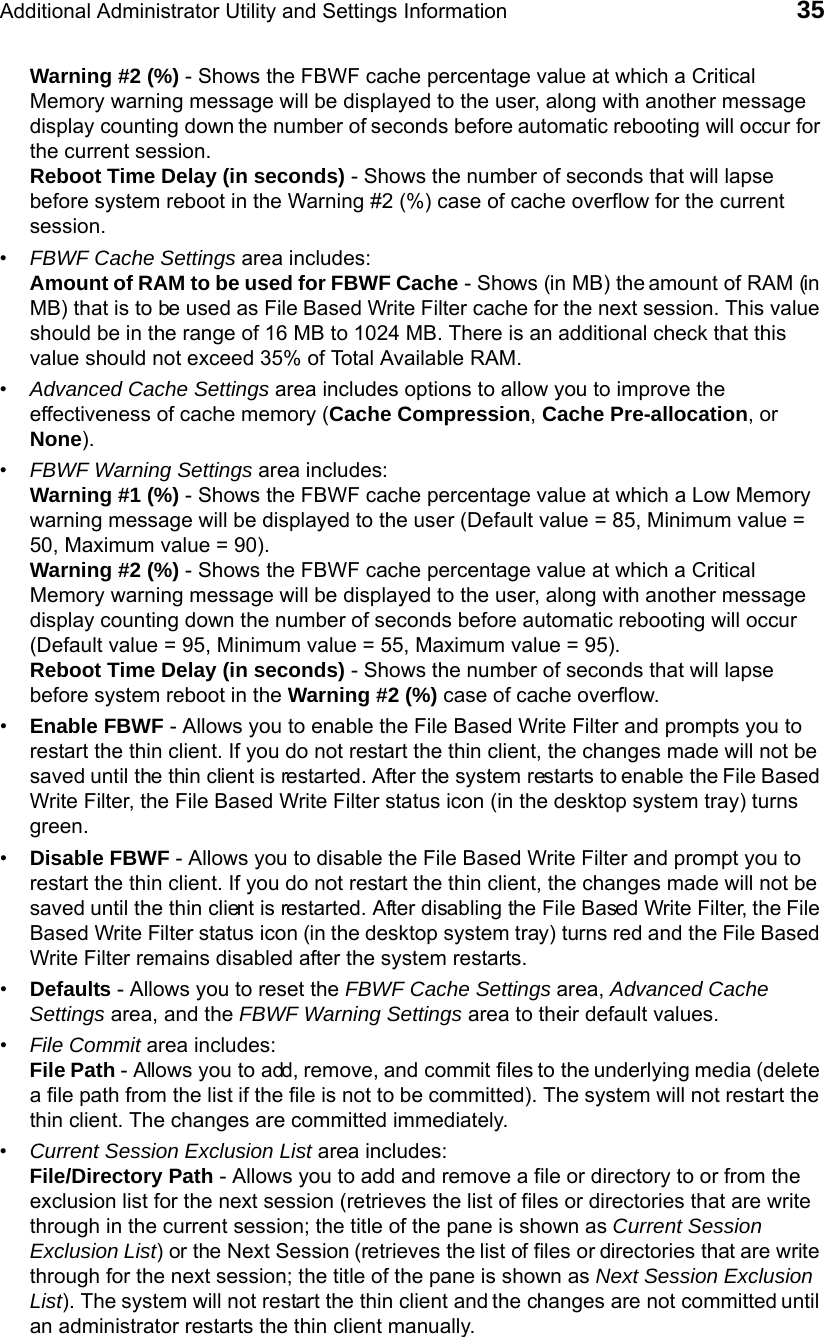

Additional Administrator Utility and Settings Information 35Warning #2 (%) - Shows the FBWF cache percentage value at which a Critical Memory warning message will be displayed to the user, along with another message display counting down the number of seconds before automatic rebooting will occur for the current session. Reboot Time Delay (in seconds) - Shows the number of seconds that will lapse before system reboot in the Warning #2 (%) case of cache overflow for the current session.•FBWF Cache Settings area includes: Amount of RAM to be used for FBWF Cache - Shows (in MB) the amount of RAM (in MB) that is to be used as File Based Write Filter cache for the next session. This value should be in the range of 16 MB to 1024 MB. There is an additional check that this value should not exceed 35% of Total Available RAM.•Advanced Cache Settings area includes options to allow you to improve the effectiveness of cache memory (Cache Compression, Cache Pre-allocation, or None).•FBWF Warning Settings area includes: Warning #1 (%) - Shows the FBWF cache percentage value at which a Low Memory warning message will be displayed to the user (Default value = 85, Minimum value = 50, Maximum value = 90). Warning #2 (%) - Shows the FBWF cache percentage value at which a Critical Memory warning message will be displayed to the user, along with another message display counting down the number of seconds before automatic rebooting will occur (Default value = 95, Minimum value = 55, Maximum value = 95). Reboot Time Delay (in seconds) - Shows the number of seconds that will lapse before system reboot in the Warning #2 (%) case of cache overflow.•Enable FBWF - Allows you to enable the File Based Write Filter and prompts you to restart the thin client. If you do not restart the thin client, the changes made will not be saved until the thin client is restarted. After the system restarts to enable the File Based Write Filter, the File Based Write Filter status icon (in the desktop system tray) turns green.•Disable FBWF - Allows you to disable the File Based Write Filter and prompt you to restart the thin client. If you do not restart the thin client, the changes made will not be saved until the thin client is restarted. After disabling the File Based Write Filter, the File Based Write Filter status icon (in the desktop system tray) turns red and the File Based Write Filter remains disabled after the system restarts.•Defaults - Allows you to reset the FBWF Cache Settings area, Advanced Cache Settings area, and the FBWF Warning Settings area to their default values.•File Commit area includes: File Path - Allows you to add, remove, and commit files to the underlying media (delete a file path from the list if the file is not to be committed). The system will not restart the thin client. The changes are committed immediately.•Current Session Exclusion List area includes: File/Directory Path - Allows you to add and remove a file or directory to or from the exclusion list for the next session (retrieves the list of files or directories that are write through in the current session; the title of the pane is shown as Current Session Exclusion List) or the Next Session (retrieves the list of files or directories that are write through for the next session; the title of the pane is shown as Next Session Exclusion List). The system will not restart the thin client and the changes are not committed until an administrator restarts the thin client manually.

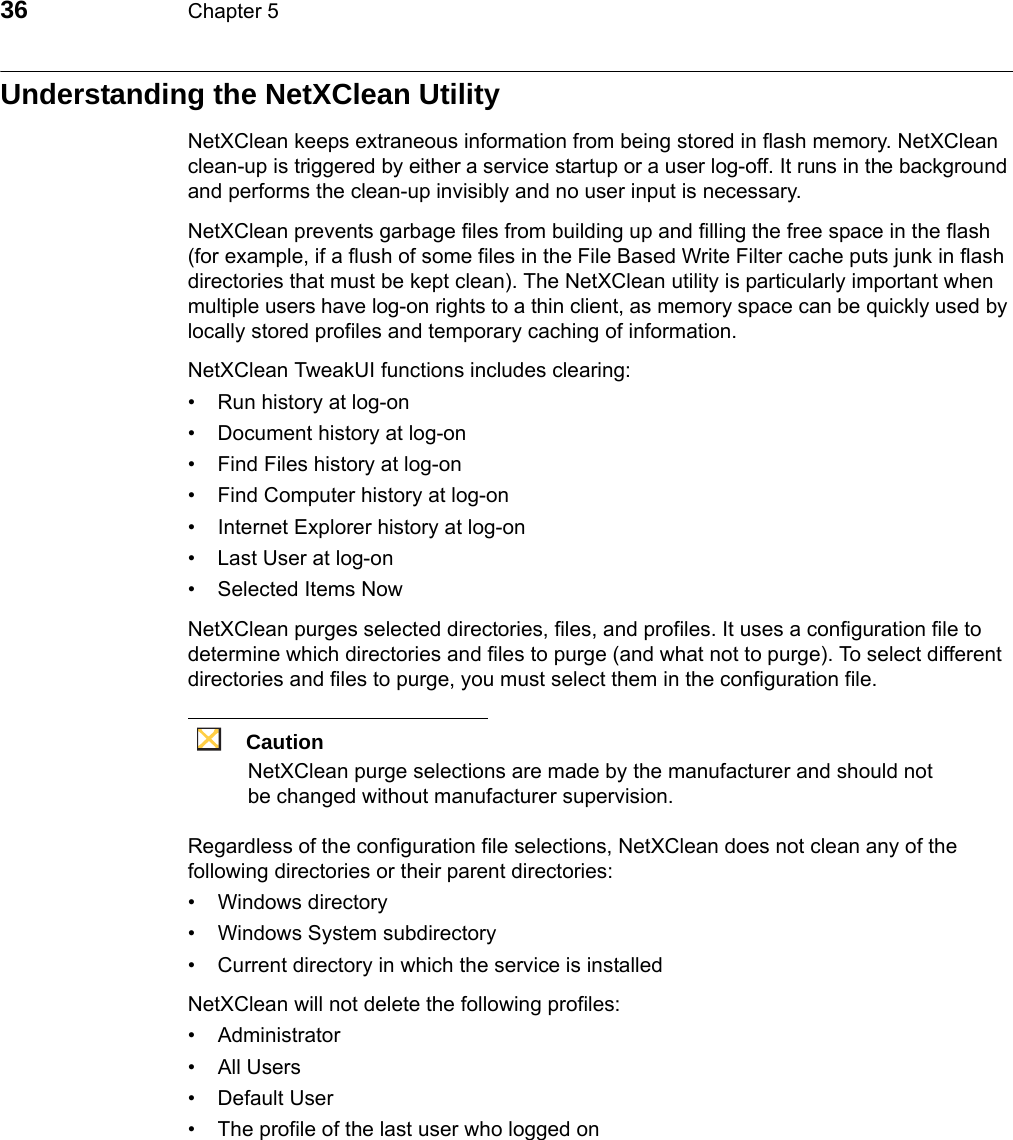

36 Chapter 5Understanding the NetXClean UtilityNetXClean keeps extraneous information from being stored in flash memory. NetXClean clean-up is triggered by either a service startup or a user log-off. It runs in the background and performs the clean-up invisibly and no user input is necessary.NetXClean prevents garbage files from building up and filling the free space in the flash (for example, if a flush of some files in the File Based Write Filter cache puts junk in flash directories that must be kept clean). The NetXClean utility is particularly important when multiple users have log-on rights to a thin client, as memory space can be quickly used by locally stored profiles and temporary caching of information.NetXClean TweakUI functions includes clearing:• Run history at log-on • Document history at log-on • Find Files history at log-on • Find Computer history at log-on • Internet Explorer history at log-on • Last User at log-on • Selected Items Now NetXClean purges selected directories, files, and profiles. It uses a configuration file to determine which directories and files to purge (and what not to purge). To select different directories and files to purge, you must select them in the configuration file. CautionNetXClean purge selections are made by the manufacturer and should not be changed without manufacturer supervision.Regardless of the configuration file selections, NetXClean does not clean any of the following directories or their parent directories:• Windows directory• Windows System subdirectory• Current directory in which the service is installedNetXClean will not delete the following profiles:• Administrator• All Users• Default User• The profile of the last user who logged on

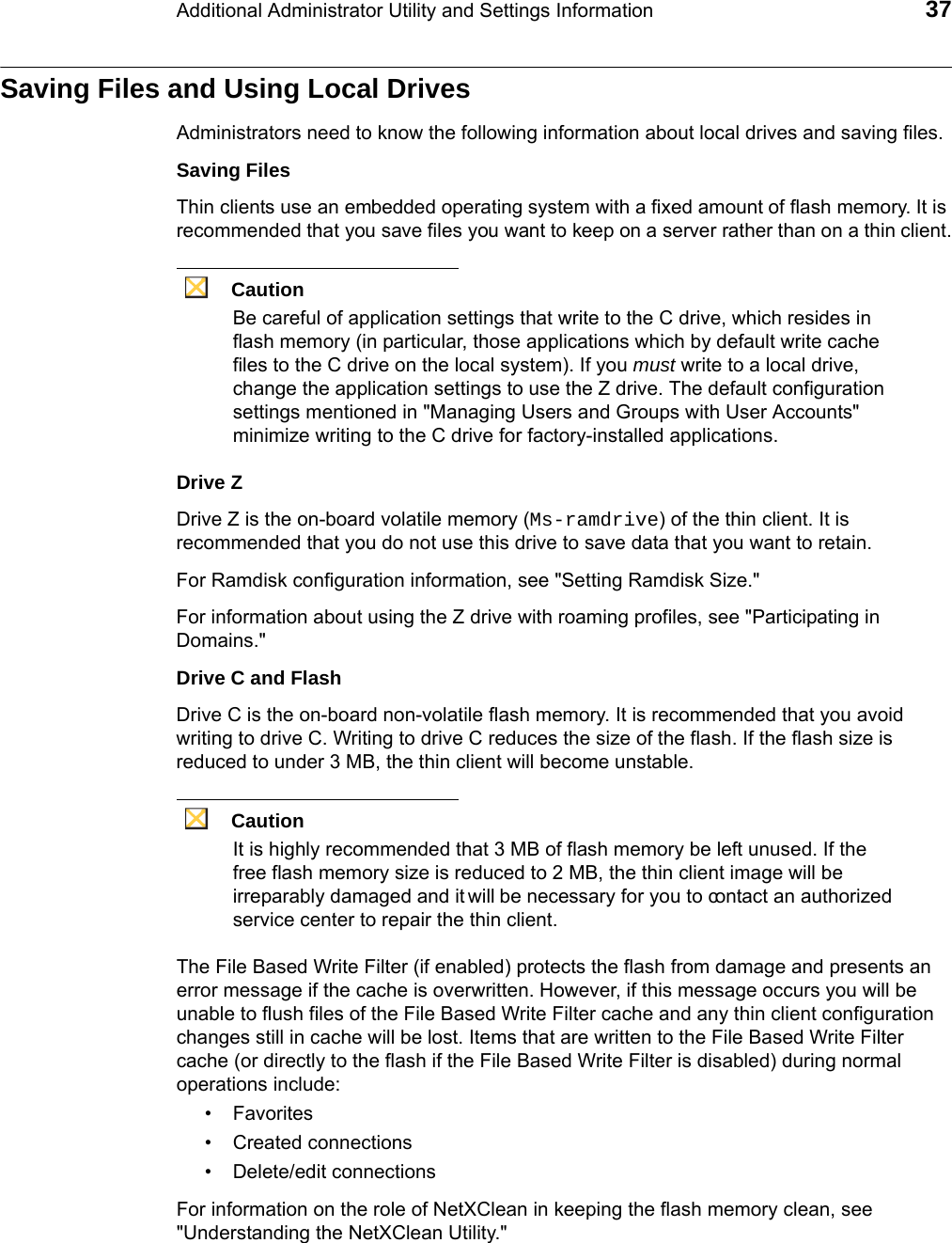

Additional Administrator Utility and Settings Information 37Saving Files and Using Local DrivesAdministrators need to know the following information about local drives and saving files.Saving FilesThin clients use an embedded operating system with a fixed amount of flash memory. It is recommended that you save files you want to keep on a server rather than on a thin client.CautionBe careful of application settings that write to the C drive, which resides in flash memory (in particular, those applications which by default write cache files to the C drive on the local system). If you must write to a local drive, change the application settings to use the Z drive. The default configuration settings mentioned in "Managing Users and Groups with User Accounts" minimize writing to the C drive for factory-installed applications.Drive ZDrive Z is the on-board volatile memory (Ms-ramdrive) of the thin client. It is recommended that you do not use this drive to save data that you want to retain.For Ramdisk configuration information, see "Setting Ramdisk Size."For information about using the Z drive with roaming profiles, see "Participating in Domains."Drive C and FlashDrive C is the on-board non-volatile flash memory. It is recommended that you avoid writing to drive C. Writing to drive C reduces the size of the flash. If the flash size is reduced to under 3 MB, the thin client will become unstable. CautionIt is highly recommended that 3 MB of flash memory be left unused. If the free flash memory size is reduced to 2 MB, the thin client image will be irreparably damaged and it will be necessary for you to contact an authorized service center to repair the thin client. The File Based Write Filter (if enabled) protects the flash from damage and presents an error message if the cache is overwritten. However, if this message occurs you will be unable to flush files of the File Based Write Filter cache and any thin client configuration changes still in cache will be lost. Items that are written to the File Based Write Filter cache (or directly to the flash if the File Based Write Filter is disabled) during normal operations include:• Favorites• Created connections• Delete/edit connectionsFor information on the role of NetXClean in keeping the flash memory clean, see "Understanding the NetXClean Utility."

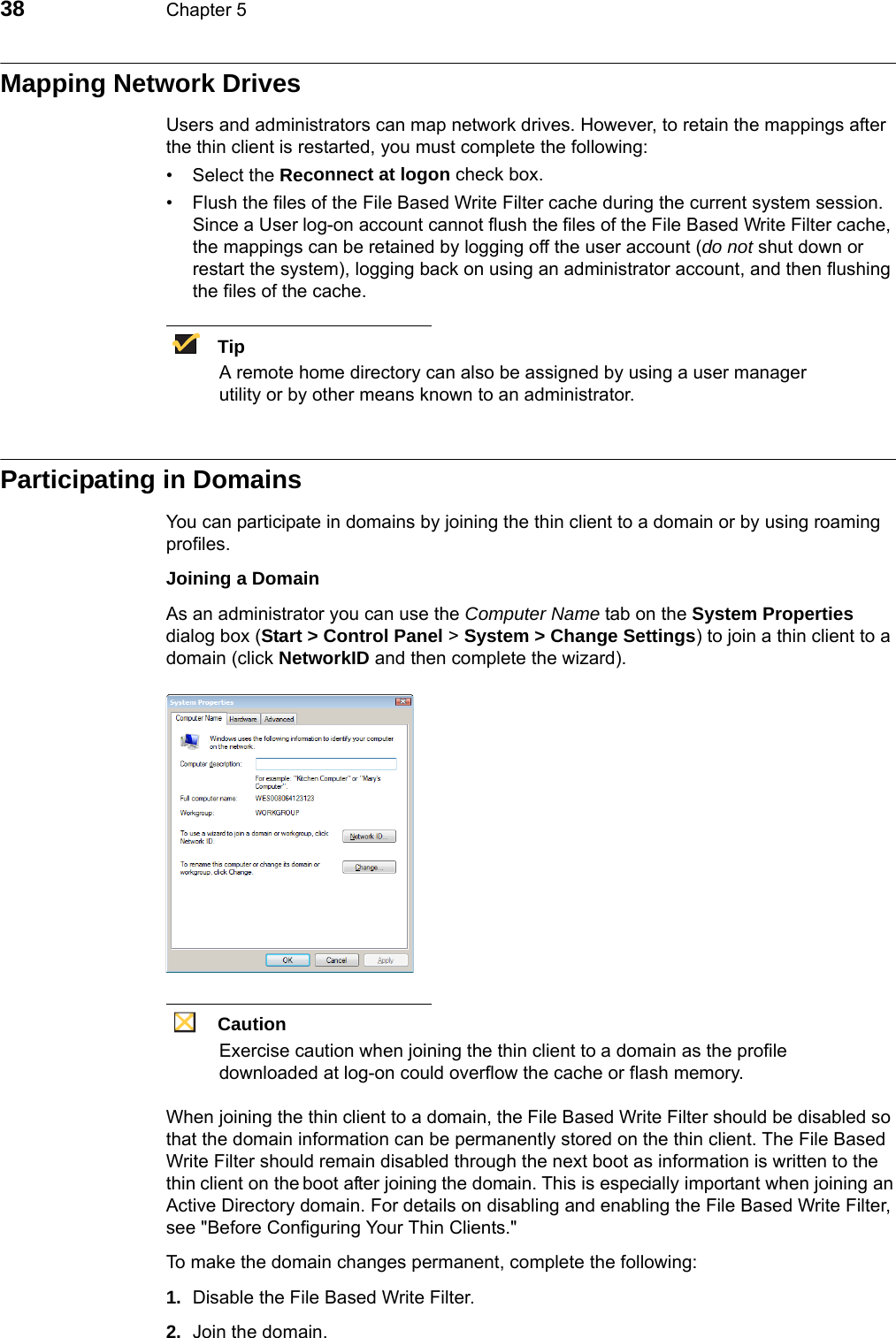

38 Chapter 5Mapping Network DrivesUsers and administrators can map network drives. However, to retain the mappings after the thin client is restarted, you must complete the following:• Select the Reconnect at logon check box.• Flush the files of the File Based Write Filter cache during the current system session. Since a User log-on account cannot flush the files of the File Based Write Filter cache, the mappings can be retained by logging off the user account (do not shut down or restart the system), logging back on using an administrator account, and then flushing the files of the cache.TipA remote home directory can also be assigned by using a user manager utility or by other means known to an administrator.Participating in DomainsYou can participate in domains by joining the thin client to a domain or by using roaming profiles.Joining a DomainAs an administrator you can use the Computer Name tab on the System Properties dialog box (Start > Control Panel > System > Change Settings) to join a thin client to a domain (click NetworkID and then complete the wizard).CautionExercise caution when joining the thin client to a domain as the profile downloaded at log-on could overflow the cache or flash memory.When joining the thin client to a domain, the File Based Write Filter should be disabled so that the domain information can be permanently stored on the thin client. The File Based Write Filter should remain disabled through the next boot as information is written to the thin client on the boot after joining the domain. This is especially important when joining an Active Directory domain. For details on disabling and enabling the File Based Write Filter, see "Before Configuring Your Thin Clients."To make the domain changes permanent, complete the following:1. Disable the File Based Write Filter.2. Join the domain.

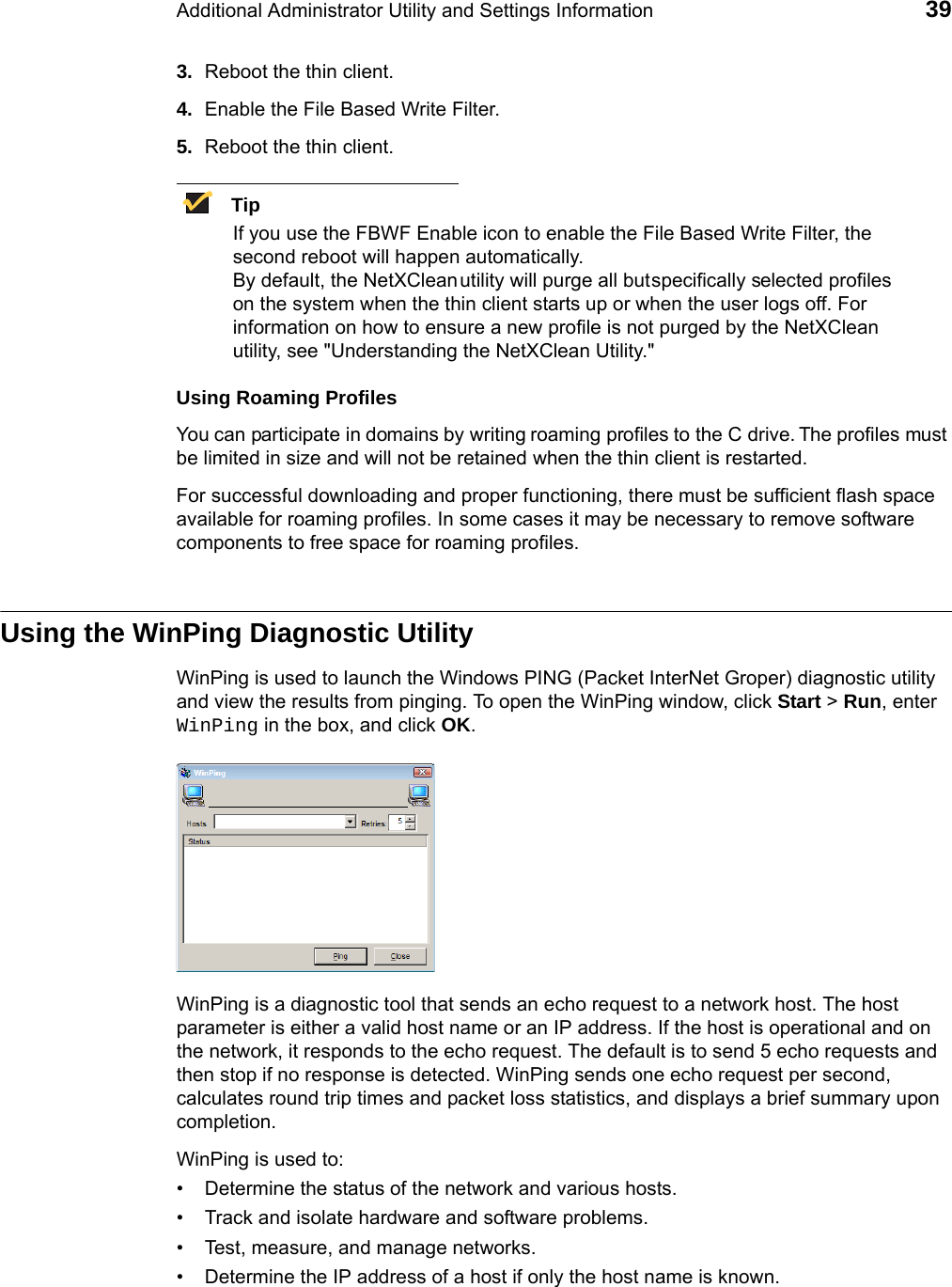

Additional Administrator Utility and Settings Information 393. Reboot the thin client.4. Enable the File Based Write Filter.5. Reboot the thin client.TipIf you use the FBWF Enable icon to enable the File Based Write Filter, the second reboot will happen automatically. By default, the NetXClean utility will purge all but specifically selected profiles on the system when the thin client starts up or when the user logs off. For information on how to ensure a new profile is not purged by the NetXClean utility, see "Understanding the NetXClean Utility."Using Roaming ProfilesYou can participate in domains by writing roaming profiles to the C drive. The profiles must be limited in size and will not be retained when the thin client is restarted.For successful downloading and proper functioning, there must be sufficient flash space available for roaming profiles. In some cases it may be necessary to remove software components to free space for roaming profiles.Using the WinPing Diagnostic UtilityWinPing is used to launch the Windows PING (Packet InterNet Groper) diagnostic utility and view the results from pinging. To open the WinPing window, click Start > Run, enter WinPing in the box, and click OK.WinPing is a diagnostic tool that sends an echo request to a network host. The host parameter is either a valid host name or an IP address. If the host is operational and on the network, it responds to the echo request. The default is to send 5 echo requests and then stop if no response is detected. WinPing sends one echo request per second, calculates round trip times and packet loss statistics, and displays a brief summary upon completion.WinPing is used to:• Determine the status of the network and various hosts.• Track and isolate hardware and software problems.• Test, measure, and manage networks.• Determine the IP address of a host if only the host name is known.

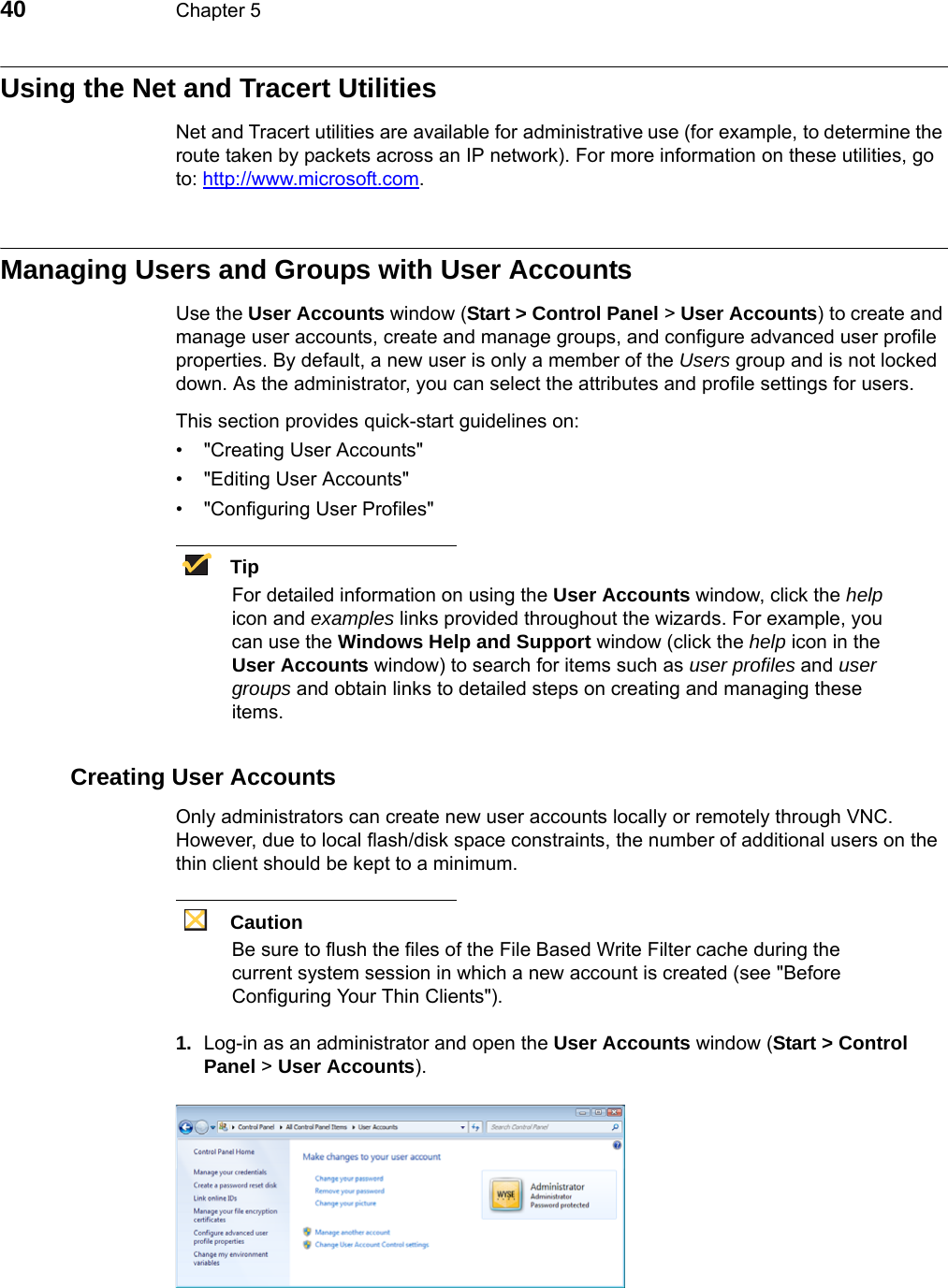

40 Chapter 5Using the Net and Tracert UtilitiesNet and Tracert utilities are available for administrative use (for example, to determine the route taken by packets across an IP network). For more information on these utilities, go to: http://www.microsoft.com.Managing Users and Groups with User AccountsUse the User Accounts window (Start > Control Panel > User Accounts) to create and manage user accounts, create and manage groups, and configure advanced user profile properties. By default, a new user is only a member of the Users group and is not locked down. As the administrator, you can select the attributes and profile settings for users.This section provides quick-start guidelines on:•"Creating User Accounts"•"Editing User Accounts"•"Configuring User Profiles"TipFor detailed information on using the User Accounts window, click the help icon and examples links provided throughout the wizards. For example, you can use the Windows Help and Support window (click the help icon in the User Accounts window) to search for items such as user profiles and user groups and obtain links to detailed steps on creating and managing these items.Creating User AccountsOnly administrators can create new user accounts locally or remotely through VNC. However, due to local flash/disk space constraints, the number of additional users on the thin client should be kept to a minimum.CautionBe sure to flush the files of the File Based Write Filter cache during the current system session in which a new account is created (see "Before Configuring Your Thin Clients").1. Log-in as an administrator and open the User Accounts window (Start > Control Panel > User Accounts).

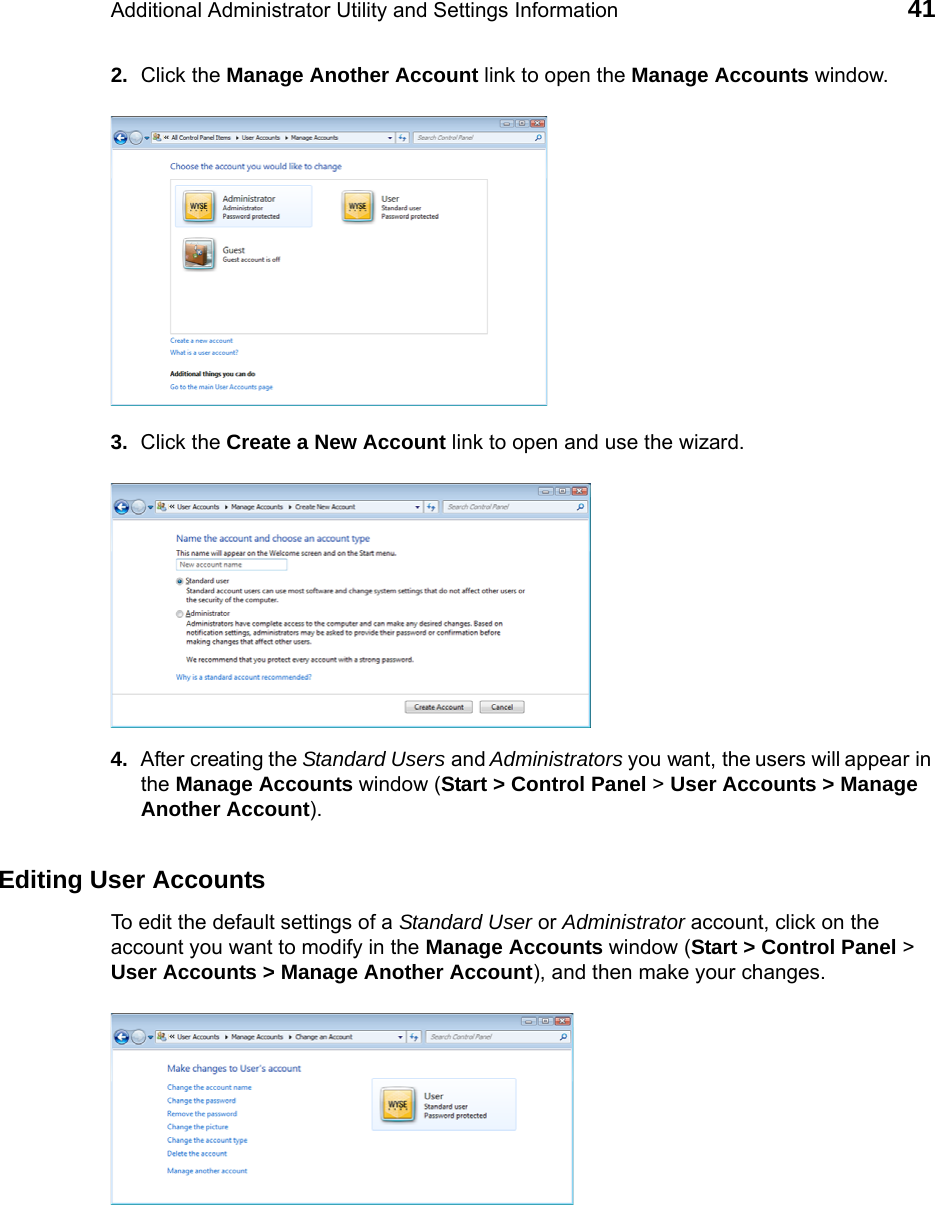

Additional Administrator Utility and Settings Information 412. Click the Manage Another Account link to open the Manage Accounts window.3. Click the Create a New Account link to open and use the wizard.4. After creating the Standard Users and Administrators you want, the users will appear in the Manage Accounts window (Start > Control Panel > User Accounts > Manage Another Account).Editing User Accounts To edit the default settings of a Standard User or Administrator account, click on the account you want to modify in the Manage Accounts window (Start > Control Panel > User Accounts > Manage Another Account), and then make your changes.

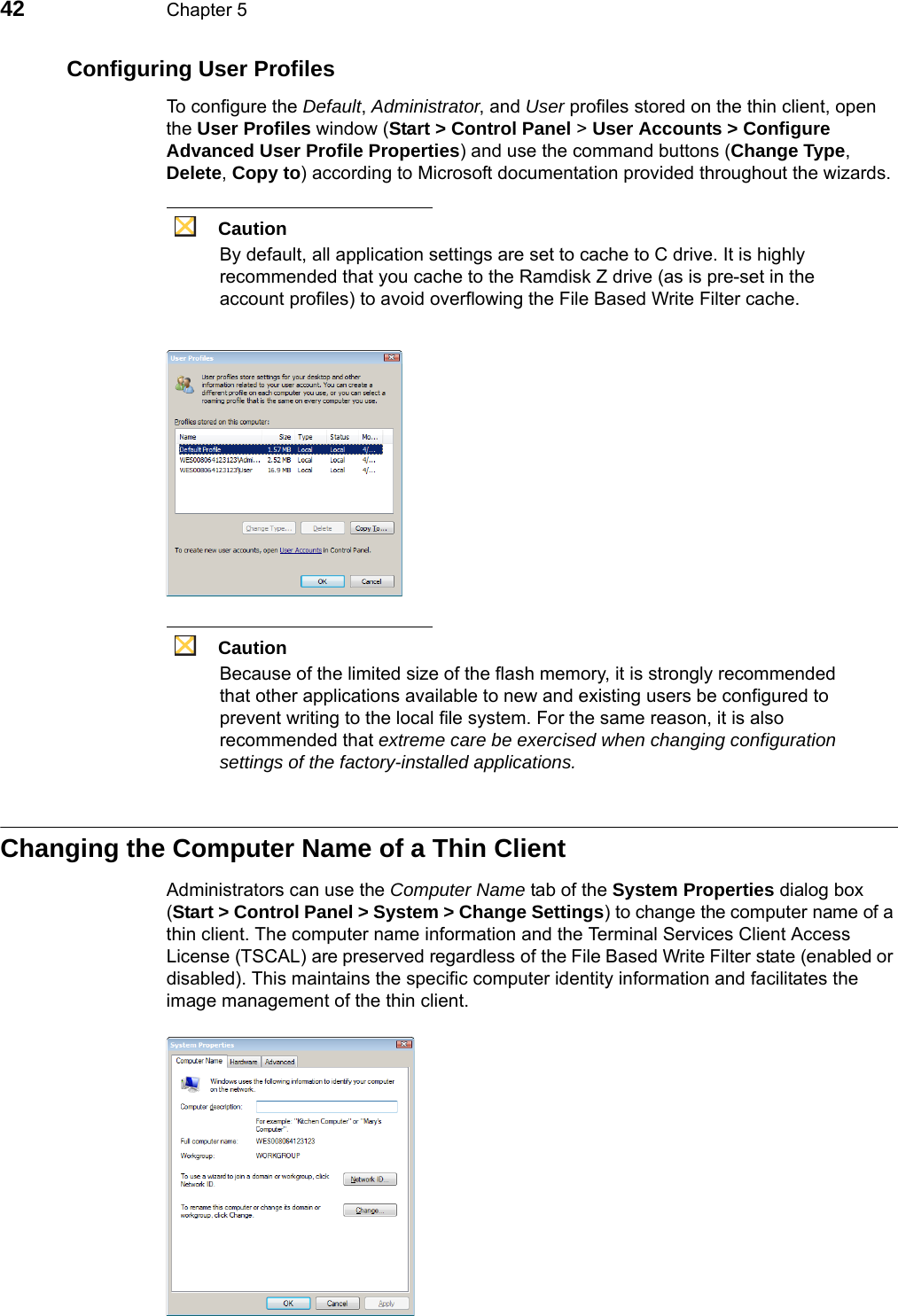

42 Chapter 5Configuring User Profiles To configure the Default, Administrator, and User profiles stored on the thin client, open the User Profiles window (Start > Control Panel > User Accounts > Configure Advanced User Profile Properties) and use the command buttons (Change Type, Delete, Copy to) according to Microsoft documentation provided throughout the wizards.CautionBy default, all application settings are set to cache to C drive. It is highly recommended that you cache to the Ramdisk Z drive (as is pre-set in the account profiles) to avoid overflowing the File Based Write Filter cache.CautionBecause of the limited size of the flash memory, it is strongly recommended that other applications available to new and existing users be configured to prevent writing to the local file system. For the same reason, it is also recommended that extreme care be exercised when changing configuration settings of the factory-installed applications.Changing the Computer Name of a Thin ClientAdministrators can use the Computer Name tab of the System Properties dialog box (Start > Control Panel > System > Change Settings) to change the computer name of a thin client. The computer name information and the Terminal Services Client Access License (TSCAL) are preserved regardless of the File Based Write Filter state (enabled or disabled). This maintains the specific computer identity information and facilitates the image management of the thin client.

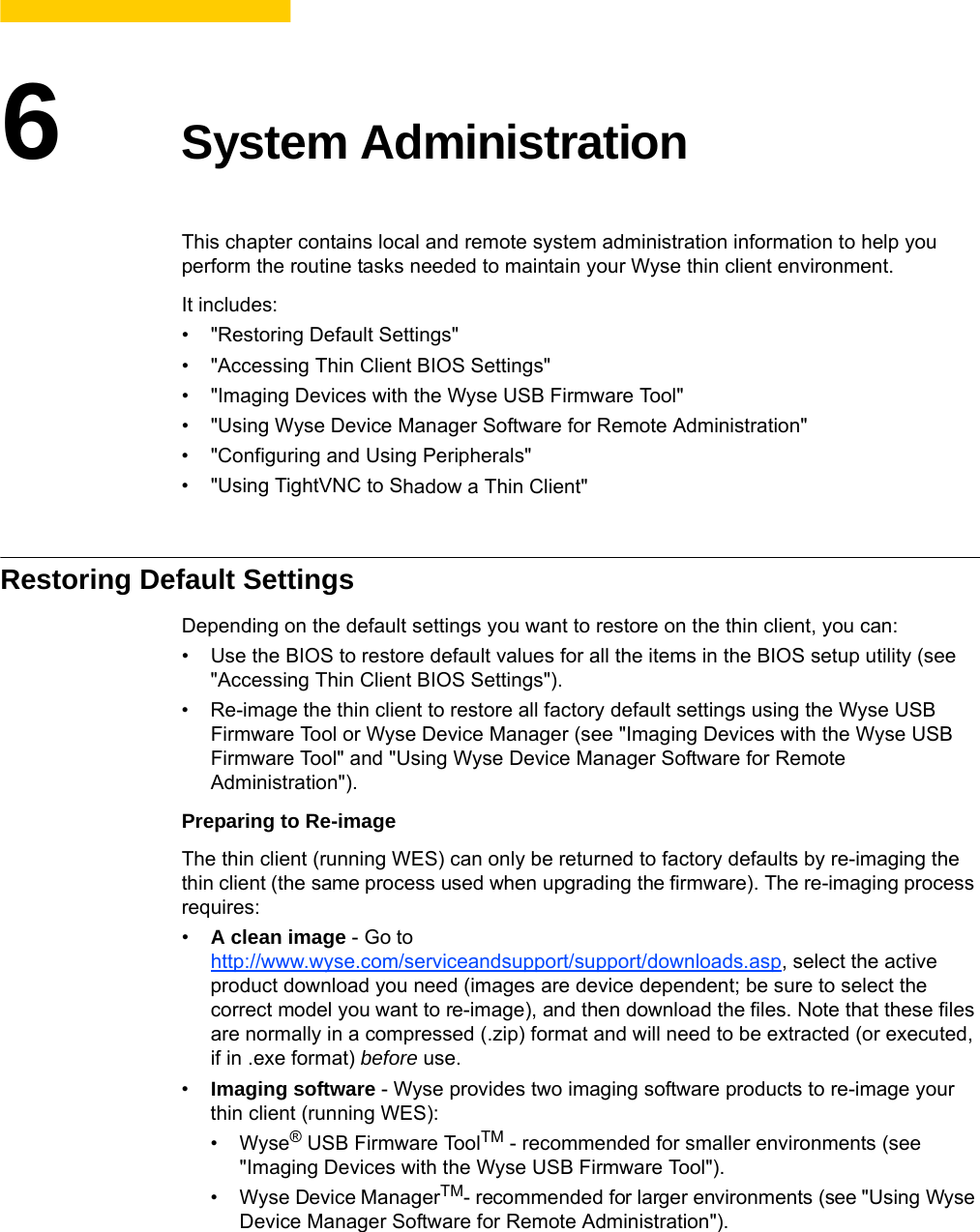

6System AdministrationThis chapter contains local and remote system administration information to help you perform the routine tasks needed to maintain your Wyse thin client environment.It includes:•"Restoring Default Settings"•"Accessing Thin Client BIOS Settings"•"Imaging Devices with the Wyse USB Firmware Tool"•"Using Wyse Device Manager Software for Remote Administration"•"Configuring and Using Peripherals"•"Using TightVNC to Shadow a Thin Client"Restoring Default SettingsDepending on the default settings you want to restore on the thin client, you can:• Use the BIOS to restore default values for all the items in the BIOS setup utility (see "Accessing Thin Client BIOS Settings").• Re-image the thin client to restore all factory default settings using the Wyse USB Firmware Tool or Wyse Device Manager (see "Imaging Devices with the Wyse USB Firmware Tool" and "Using Wyse Device Manager Software for Remote Administration").Preparing to Re-imageThe thin client (running WES) can only be returned to factory defaults by re-imaging the thin client (the same process used when upgrading the firmware). The re-imaging process requires:•A clean image - Go to http://www.wyse.com/serviceandsupport/support/downloads.asp, select the active product download you need (images are device dependent; be sure to select the correct model you want to re-image), and then download the files. Note that these files are normally in a compressed (.zip) format and will need to be extracted (or executed, if in .exe format) before use.•Imaging software - Wyse provides two imaging software products to re-image your thin client (running WES):• Wyse® USB Firmware ToolTM - recommended for smaller environments (see "Imaging Devices with the Wyse USB Firmware Tool").• Wyse Device ManagerTM- recommended for larger environments (see "Using Wyse Device Manager Software for Remote Administration").

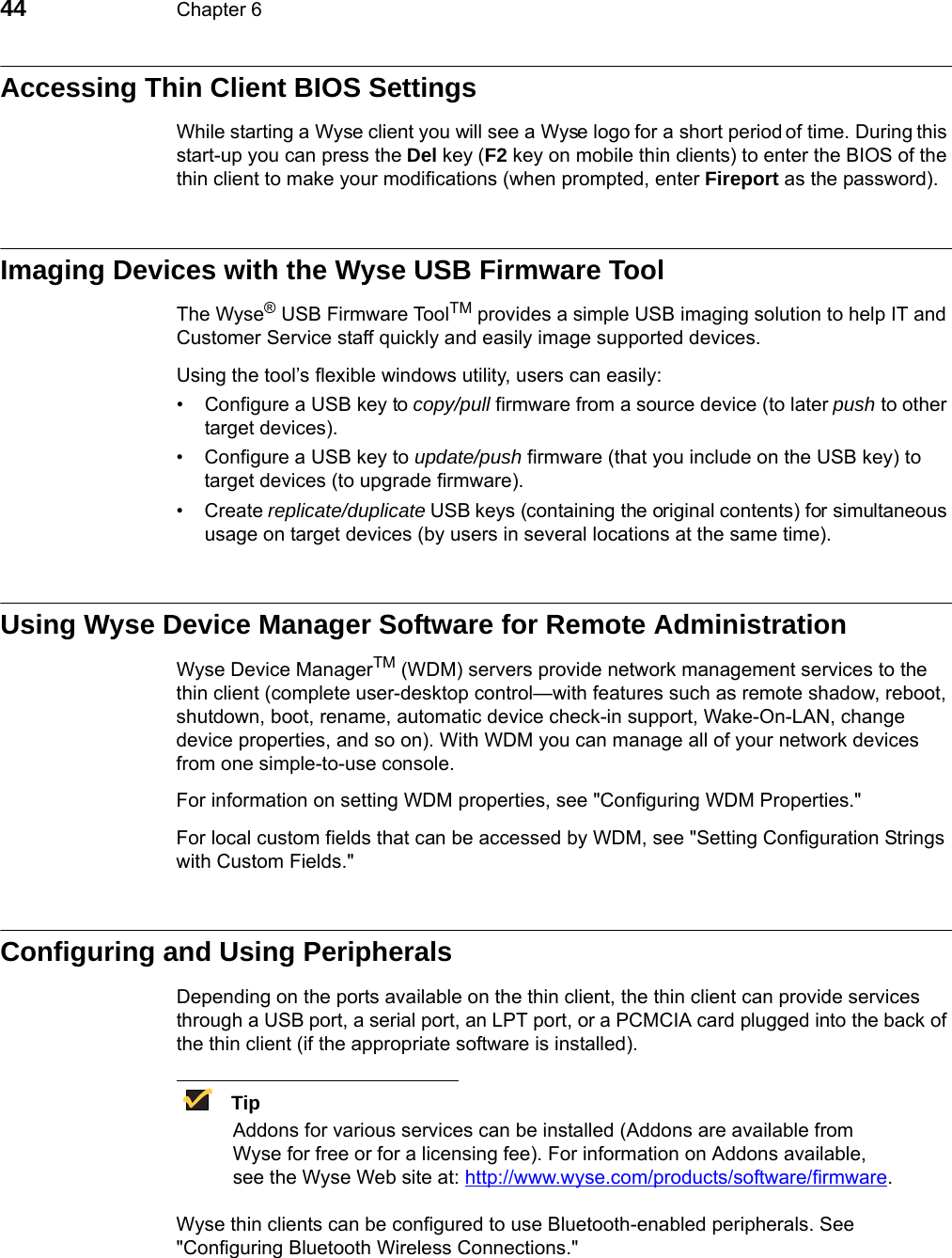

44 Chapter 6Accessing Thin Client BIOS SettingsWhile starting a Wyse client you will see a Wyse logo for a short period of time. During this start-up you can press the Del key (F2 key on mobile thin clients) to enter the BIOS of the thin client to make your modifications (when prompted, enter Fireport as the password).Imaging Devices with the Wyse USB Firmware ToolThe Wyse® USB Firmware ToolTM provides a simple USB imaging solution to help IT and Customer Service staff quickly and easily image supported devices.Using the tool’s flexible windows utility, users can easily: • Configure a USB key to copy/pull firmware from a source device (to later push to other target devices).• Configure a USB key to update/push firmware (that you include on the USB key) to target devices (to upgrade firmware).• Create replicate/duplicate USB keys (containing the original contents) for simultaneous usage on target devices (by users in several locations at the same time).Using Wyse Device Manager Software for Remote AdministrationWyse Device ManagerTM (WDM) servers provide network management services to the thin client (complete user-desktop control—with features such as remote shadow, reboot, shutdown, boot, rename, automatic device check-in support, Wake-On-LAN, change device properties, and so on). With WDM you can manage all of your network devices from one simple-to-use console.For information on setting WDM properties, see "Configuring WDM Properties."For local custom fields that can be accessed by WDM, see "Setting Configuration Strings with Custom Fields."Configuring and Using PeripheralsDepending on the ports available on the thin client, the thin client can provide services through a USB port, a serial port, an LPT port, or a PCMCIA card plugged into the back of the thin client (if the appropriate software is installed).TipAddons for various services can be installed (Addons are available from Wyse for free or for a licensing fee). For information on Addons available, see the Wyse Web site at: http://www.wyse.com/products/software/firmware.Wyse thin clients can be configured to use Bluetooth-enabled peripherals. See "Configuring Bluetooth Wireless Connections."

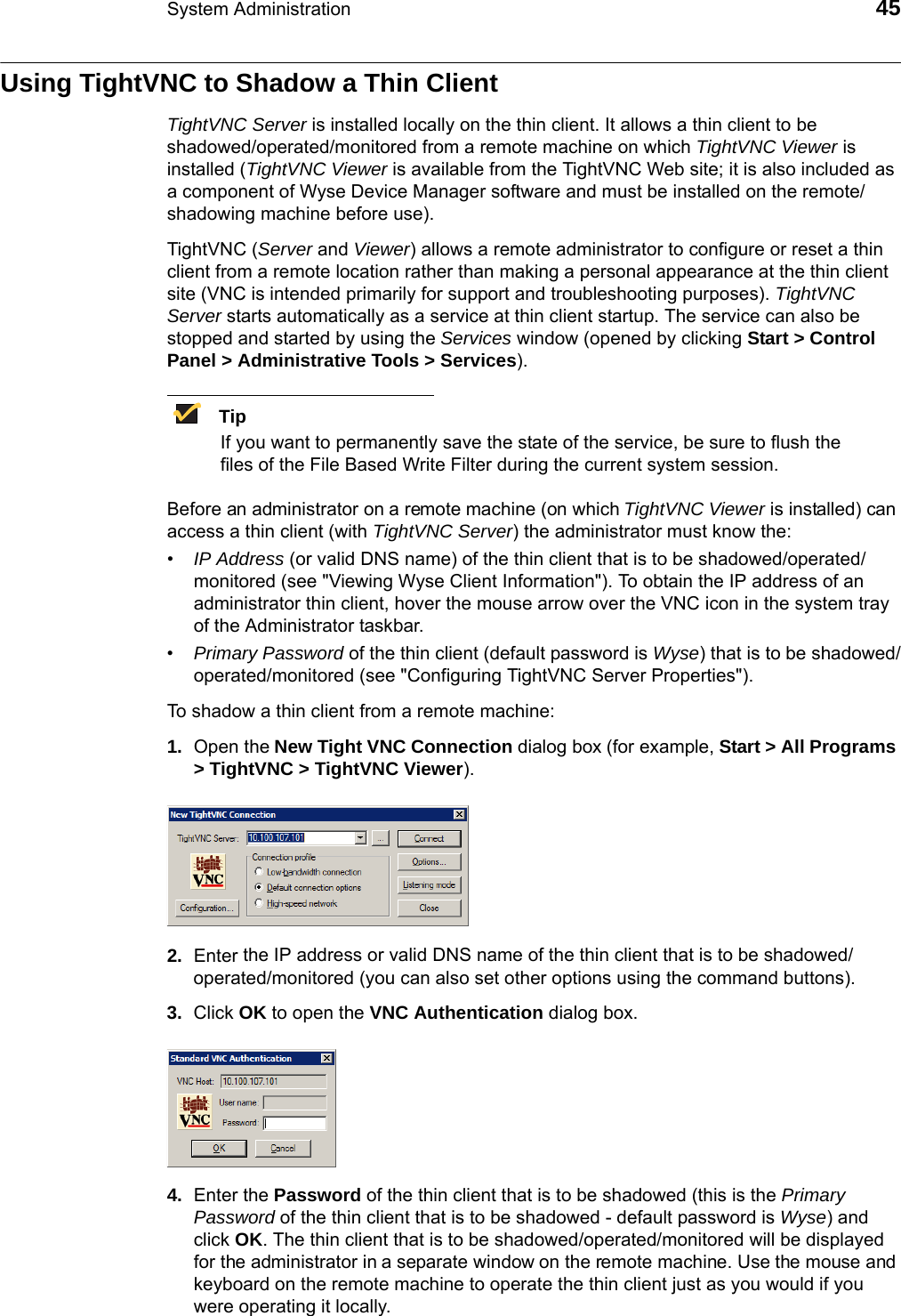

System Administration 45Using TightVNC to Shadow a Thin ClientTightVNC Server is installed locally on the thin client. It allows a thin client to be shadowed/operated/monitored from a remote machine on which TightVNC Viewer is installed (TightVNC Viewer is available from the TightVNC Web site; it is also included as a component of Wyse Device Manager software and must be installed on the remote/shadowing machine before use). TightVNC (Server and Viewer) allows a remote administrator to configure or reset a thin client from a remote location rather than making a personal appearance at the thin client site (VNC is intended primarily for support and troubleshooting purposes). TightVNC Server starts automatically as a service at thin client startup. The service can also be stopped and started by using the Services window (opened by clicking Start > Control Panel > Administrative Tools > Services).TipIf you want to permanently save the state of the service, be sure to flush the files of the File Based Write Filter during the current system session.Before an administrator on a remote machine (on which TightVNC Viewer is installed) can access a thin client (with TightVNC Server) the administrator must know the:•IP Address (or valid DNS name) of the thin client that is to be shadowed/operated/monitored (see "Viewing Wyse Client Information"). To obtain the IP address of an administrator thin client, hover the mouse arrow over the VNC icon in the system tray of the Administrator taskbar.•Primary Password of the thin client (default password is Wyse) that is to be shadowed/operated/monitored (see "Configuring TightVNC Server Properties").To shadow a thin client from a remote machine:1. Open the New Tight VNC Connection dialog box (for example, Start > All Programs > TightVNC > TightVNC Viewer). 2. Enter the IP address or valid DNS name of the thin client that is to be shadowed/operated/monitored (you can also set other options using the command buttons).3. Click OK to open the VNC Authentication dialog box. 4. Enter the Password of the thin client that is to be shadowed (this is the Primary Password of the thin client that is to be shadowed - default password is Wyse) and click OK. The thin client that is to be shadowed/operated/monitored will be displayed for the administrator in a separate window on the remote machine. Use the mouse and keyboard on the remote machine to operate the thin client just as you would if you were operating it locally.

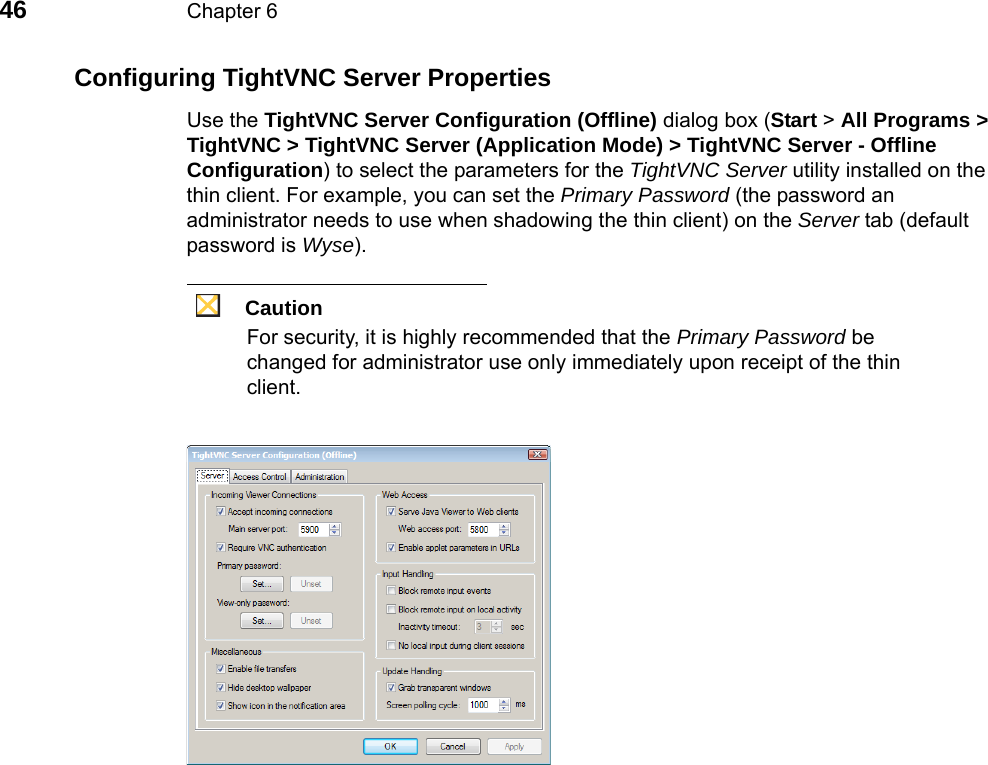

46 Chapter 6Configuring TightVNC Server PropertiesUse the TightVNC Server Configuration (Offline) dialog box (Start > All Programs > TightVNC > TightVNC Server (Application Mode) > TightVNC Server - Offline Configuration) to select the parameters for the TightVNC Server utility installed on the thin client. For example, you can set the Primary Password (the password an administrator needs to use when shadowing the thin client) on the Server tab (default password is Wyse). CautionFor security, it is highly recommended that the Primary Password be changed for administrator use only immediately upon receipt of the thin client.

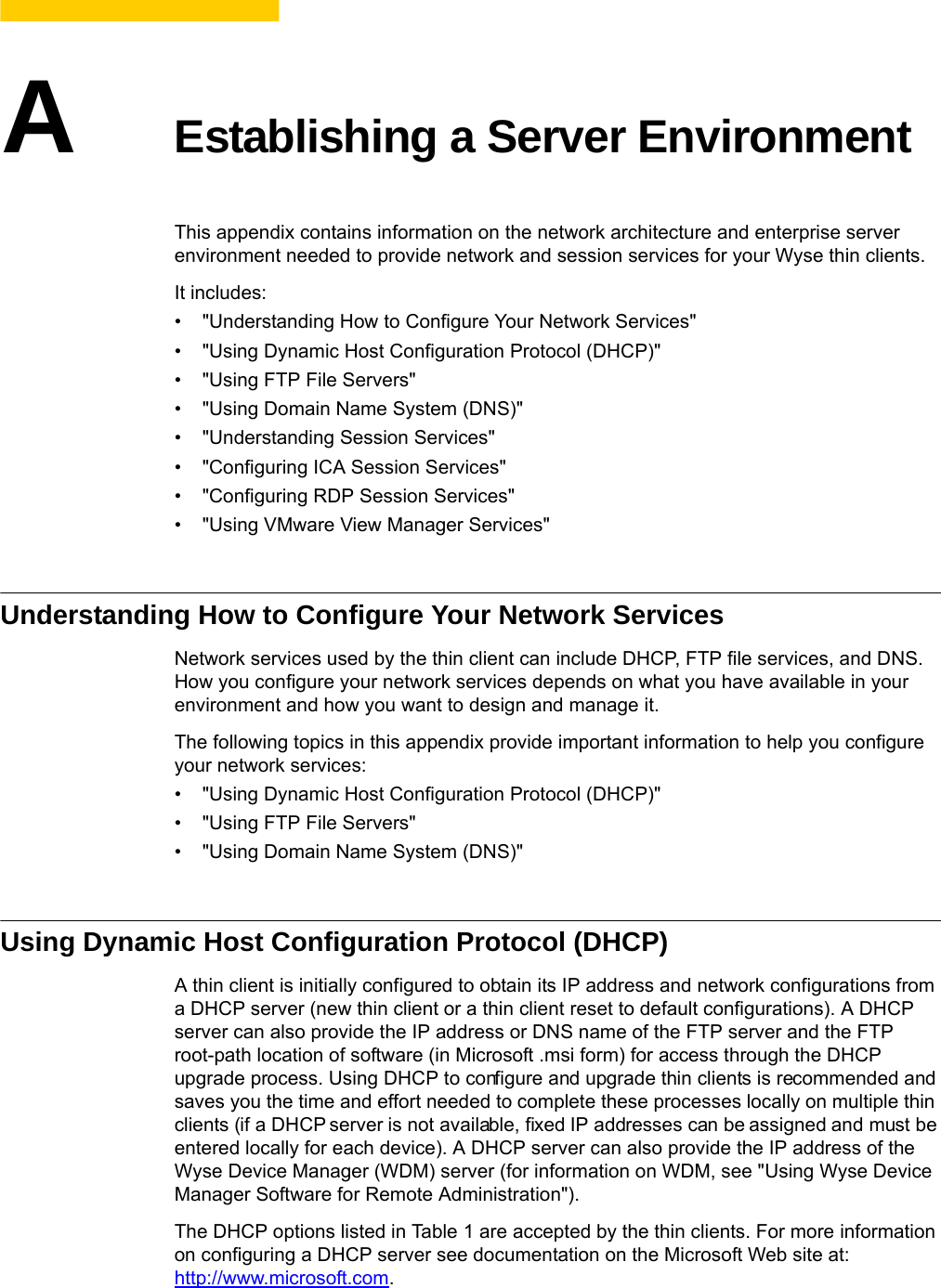

AEstablishing a Server EnvironmentThis appendix contains information on the network architecture and enterprise server environment needed to provide network and session services for your Wyse thin clients. It includes:•"Understanding How to Configure Your Network Services"•"Using Dynamic Host Configuration Protocol (DHCP)"•"Using FTP File Servers"•"Using Domain Name System (DNS)"•"Understanding Session Services"•"Configuring ICA Session Services"•"Configuring RDP Session Services"•"Using VMware View Manager Services"Understanding How to Configure Your Network ServicesNetwork services used by the thin client can include DHCP, FTP file services, and DNS. How you configure your network services depends on what you have available in your environment and how you want to design and manage it.The following topics in this appendix provide important information to help you configure your network services:•"Using Dynamic Host Configuration Protocol (DHCP)"•"Using FTP File Servers"•"Using Domain Name System (DNS)"Using Dynamic Host Configuration Protocol (DHCP)A thin client is initially configured to obtain its IP address and network configurations from a DHCP server (new thin client or a thin client reset to default configurations). A DHCP server can also provide the IP address or DNS name of the FTP server and the FTP root-path location of software (in Microsoft .msi form) for access through the DHCP upgrade process. Using DHCP to configure and upgrade thin clients is recommended and saves you the time and effort needed to complete these processes locally on multiple thin clients (if a DHCP server is not available, fixed IP addresses can be assigned and must be entered locally for each device). A DHCP server can also provide the IP address of the Wyse Device Manager (WDM) server (for information on WDM, see "Using Wyse Device Manager Software for Remote Administration").The DHCP options listed in Table 1 are accepted by the thin clients. For more information on configuring a DHCP server see documentation on the Microsoft Web site at: http://www.microsoft.com.

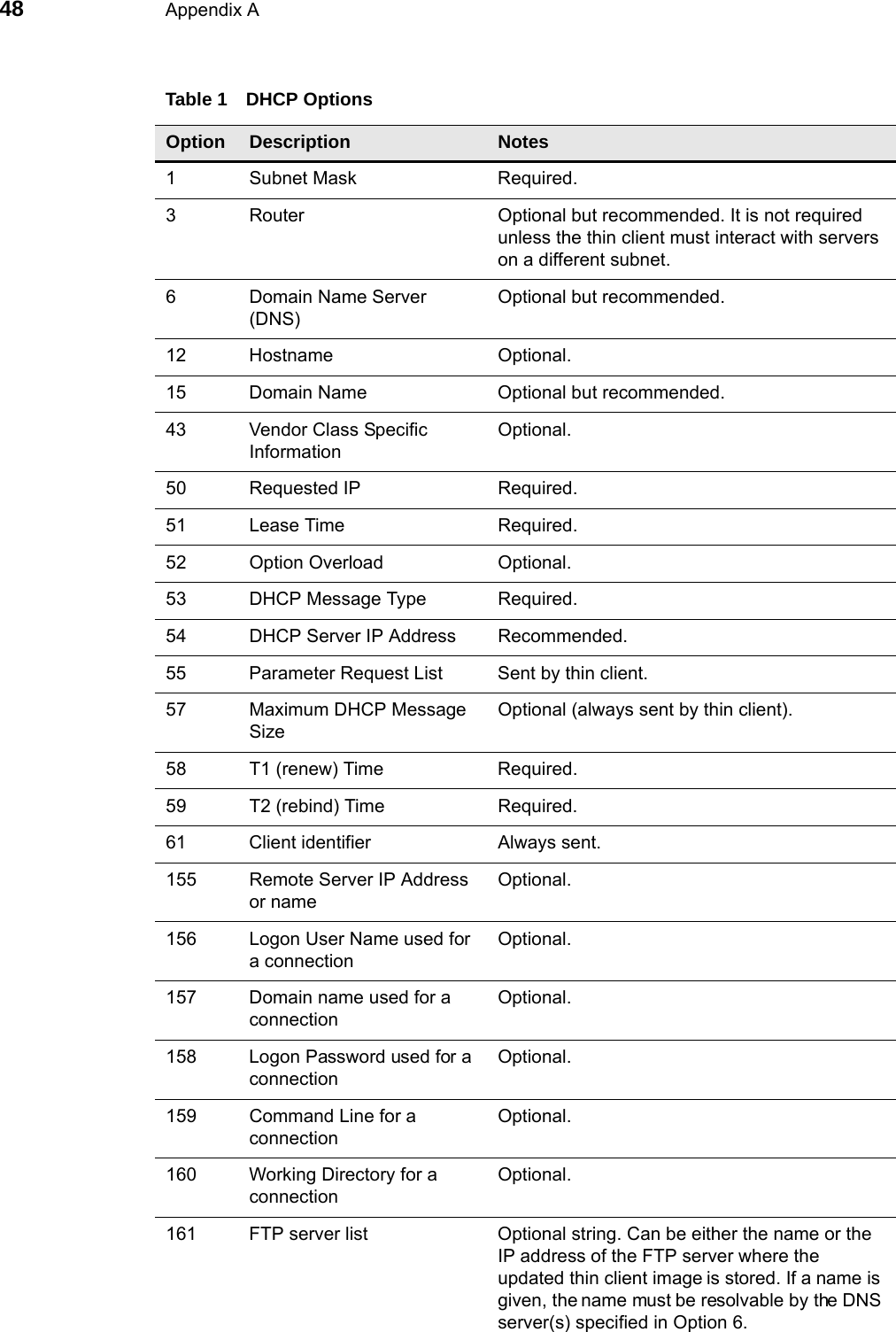

48 Appendix ATable 1 DHCP Options Option Description Notes1 Subnet Mask Required.3 Router Optional but recommended. It is not required unless the thin client must interact with servers on a different subnet.6 Domain Name Server (DNS)Optional but recommended.12 Hostname Optional.15 Domain Name Optional but recommended. 43 Vendor Class Specific InformationOptional. 50 Requested IP Required.51 Lease Time Required.52 Option Overload Optional.53 DHCP Message Type Required.54 DHCP Server IP Address Recommended.55 Parameter Request List Sent by thin client.57 Maximum DHCP Message SizeOptional (always sent by thin client).58 T1 (renew) Time Required.59 T2 (rebind) Time Required.61 Client identifier Always sent.155 Remote Server IP Address or nameOptional.156 Logon User Name used for a connection Optional.157 Domain name used for a connection Optional.158 Logon Password used for a connection Optional.159 Command Line for a connection Optional.160 Working Directory for a connection Optional.161 FTP server list Optional string. Can be either the name or the IP address of the FTP server where the updated thin client image is stored. If a name is given, the name must be resolvable by the DNS server(s) specified in Option 6.

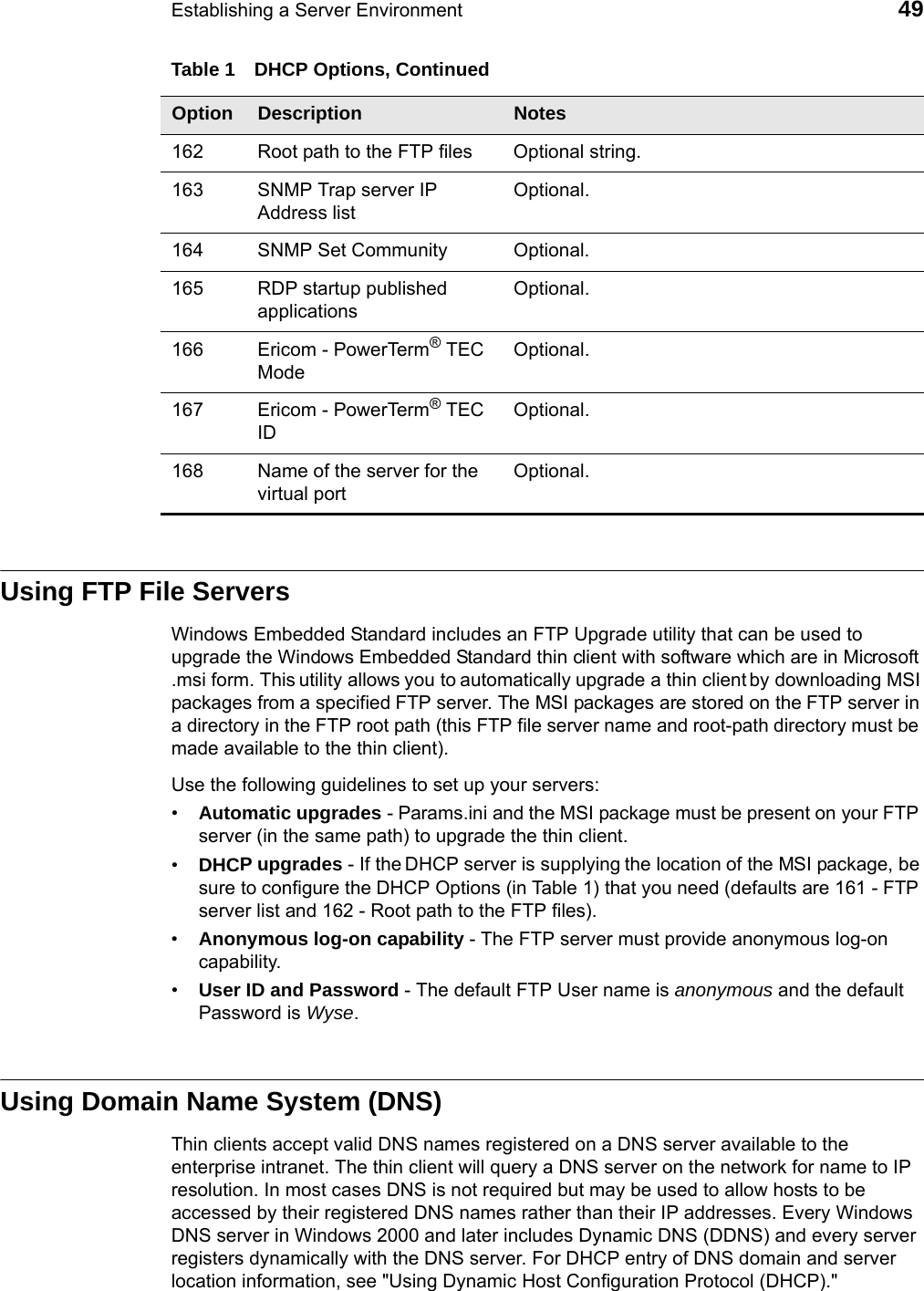

Establishing a Server Environment 49Using FTP File ServersWindows Embedded Standard includes an FTP Upgrade utility that can be used to upgrade the Windows Embedded Standard thin client with software which are in Microsoft .msi form. This utility allows you to automatically upgrade a thin client by downloading MSI packages from a specified FTP server. The MSI packages are stored on the FTP server in a directory in the FTP root path (this FTP file server name and root-path directory must be made available to the thin client). Use the following guidelines to set up your servers:•Automatic upgrades - Params.ini and the MSI package must be present on your FTP server (in the same path) to upgrade the thin client.•DHCP upgrades - If the DHCP server is supplying the location of the MSI package, be sure to configure the DHCP Options (in Ta b le 1) that you need (defaults are 161 - FTP server list and 162 - Root path to the FTP files). •Anonymous log-on capability - The FTP server must provide anonymous log-on capability.•User ID and Password - The default FTP User name is anonymous and the default Password is Wyse.Using Domain Name System (DNS)Thin clients accept valid DNS names registered on a DNS server available to the enterprise intranet. The thin client will query a DNS server on the network for name to IP resolution. In most cases DNS is not required but may be used to allow hosts to be accessed by their registered DNS names rather than their IP addresses. Every Windows DNS server in Windows 2000 and later includes Dynamic DNS (DDNS) and every server registers dynamically with the DNS server. For DHCP entry of DNS domain and server location information, see "Using Dynamic Host Configuration Protocol (DHCP)."162 Root path to the FTP files Optional string.163 SNMP Trap server IP Address listOptional.164 SNMP Set Community Optional.165 RDP startup published applicationsOptional.166 Ericom - PowerTerm® TEC Mode Optional.167 Ericom - PowerTerm® TEC IDOptional.168 Name of the server for the virtual portOptional.Table 1 DHCP Options, ContinuedOption Description Notes

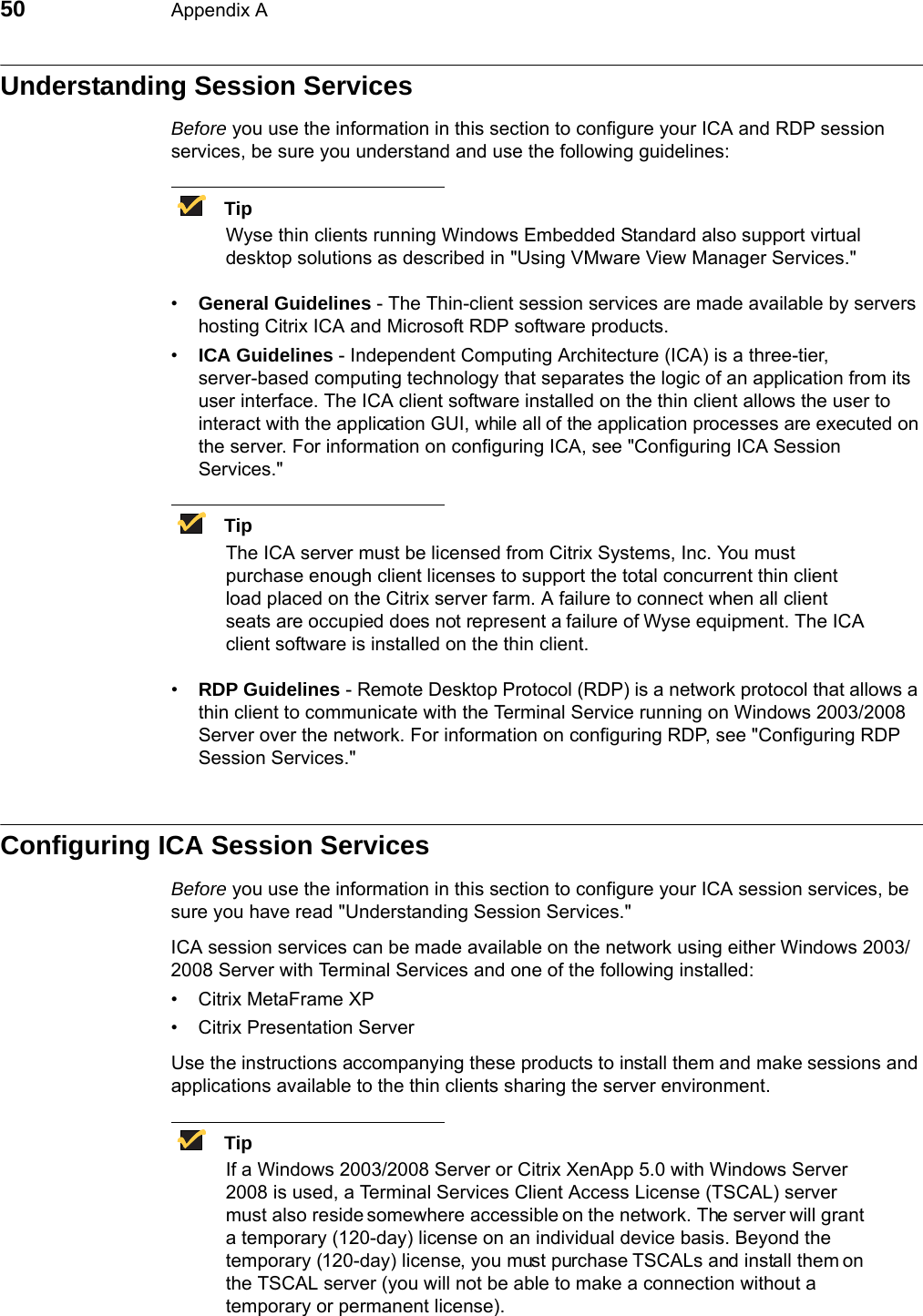

50 Appendix AUnderstanding Session ServicesBefore you use the information in this section to configure your ICA and RDP session services, be sure you understand and use the following guidelines:TipWyse thin clients running Windows Embedded Standard also support virtual desktop solutions as described in "Using VMware View Manager Services."•General Guidelines - The Thin-client session services are made available by servers hosting Citrix ICA and Microsoft RDP software products.•ICA Guidelines - Independent Computing Architecture (ICA) is a three-tier, server-based computing technology that separates the logic of an application from its user interface. The ICA client software installed on the thin client allows the user to interact with the application GUI, while all of the application processes are executed on the server. For information on configuring ICA, see "Configuring ICA Session Services."TipThe ICA server must be licensed from Citrix Systems, Inc. You must purchase enough client licenses to support the total concurrent thin client load placed on the Citrix server farm. A failure to connect when all client seats are occupied does not represent a failure of Wyse equipment. The ICA client software is installed on the thin client.•RDP Guidelines - Remote Desktop Protocol (RDP) is a network protocol that allows a thin client to communicate with the Terminal Service running on Windows 2003/2008 Server over the network. For information on configuring RDP, see "Configuring RDP Session Services."Configuring ICA Session ServicesBefore you use the information in this section to configure your ICA session services, be sure you have read "Understanding Session Services." ICA session services can be made available on the network using either Windows 2003/2008 Server with Terminal Services and one of the following installed:• Citrix MetaFrame XP• Citrix Presentation ServerUse the instructions accompanying these products to install them and make sessions and applications available to the thin clients sharing the server environment.TipIf a Windows 2003/2008 Server or Citrix XenApp 5.0 with Windows Server 2008 is used, a Terminal Services Client Access License (TSCAL) server must also reside somewhere accessible on the network. The server will grant a temporary (120-day) license on an individual device basis. Beyond the temporary (120-day) license, you must purchase TSCALs and install them on the TSCAL server (you will not be able to make a connection without a temporary or permanent license).

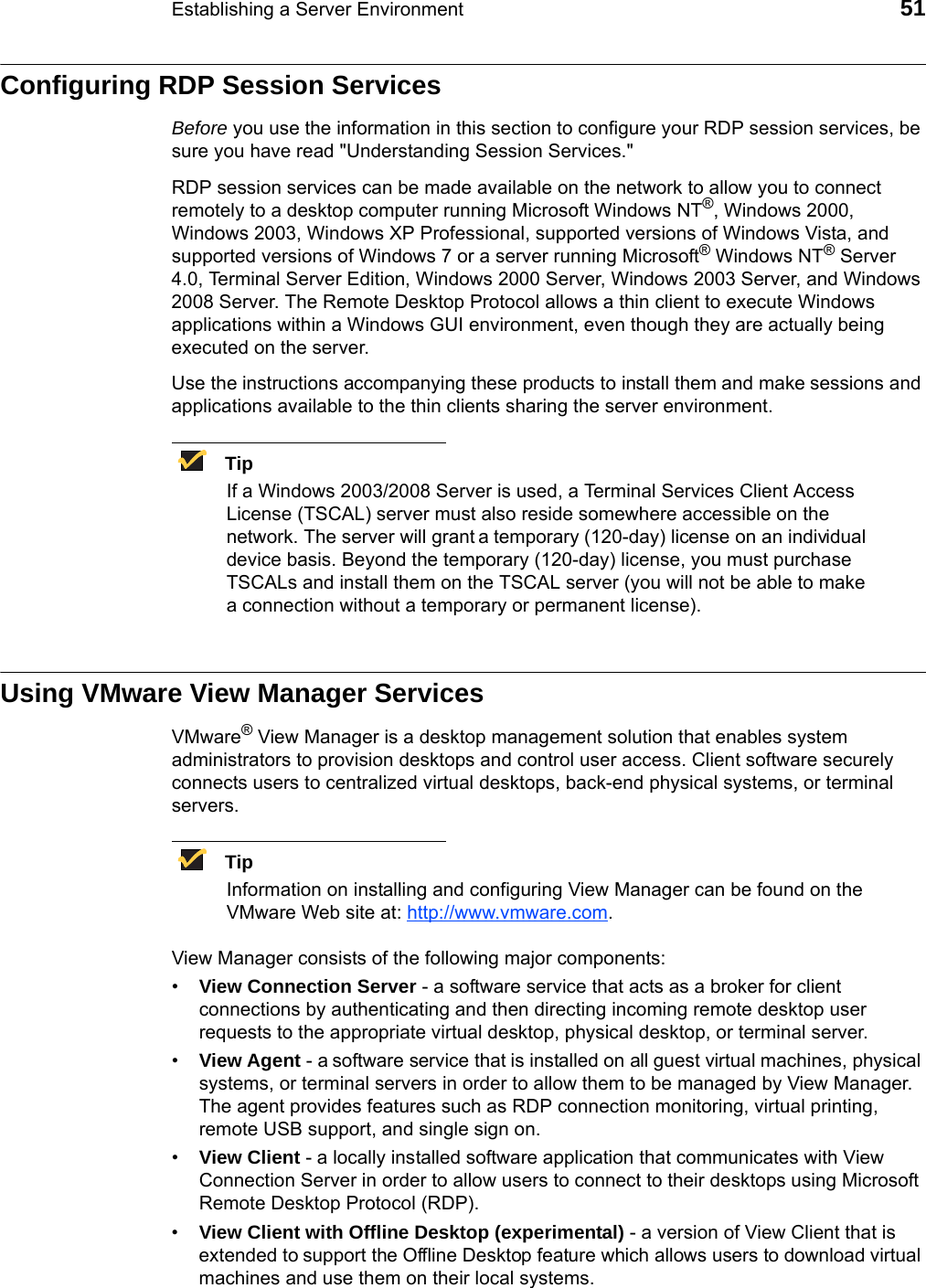

Establishing a Server Environment 51Configuring RDP Session ServicesBefore you use the information in this section to configure your RDP session services, be sure you have read "Understanding Session Services." RDP session services can be made available on the network to allow you to connect remotely to a desktop computer running Microsoft Windows NT®, Windows 2000, Windows 2003, Windows XP Professional, supported versions of Windows Vista, and supported versions of Windows 7 or a server running Microsoft® Windows NT® Server 4.0, Terminal Server Edition, Windows 2000 Server, Windows 2003 Server, and Windows 2008 Server. The Remote Desktop Protocol allows a thin client to execute Windows applications within a Windows GUI environment, even though they are actually being executed on the server.Use the instructions accompanying these products to install them and make sessions and applications available to the thin clients sharing the server environment.TipIf a Windows 2003/2008 Server is used, a Terminal Services Client Access License (TSCAL) server must also reside somewhere accessible on the network. The server will grant a temporary (120-day) license on an individual device basis. Beyond the temporary (120-day) license, you must purchase TSCALs and install them on the TSCAL server (you will not be able to make a connection without a temporary or permanent license).Using VMware View Manager ServicesVMware® View Manager is a desktop management solution that enables system administrators to provision desktops and control user access. Client software securely connects users to centralized virtual desktops, back-end physical systems, or terminal servers.TipInformation on installing and configuring View Manager can be found on the VMware Web site at: http://www.vmware.com.View Manager consists of the following major components:•View Connection Server - a software service that acts as a broker for client connections by authenticating and then directing incoming remote desktop user requests to the appropriate virtual desktop, physical desktop, or terminal server.•View Agent - a software service that is installed on all guest virtual machines, physical systems, or terminal servers in order to allow them to be managed by View Manager. The agent provides features such as RDP connection monitoring, virtual printing, remote USB support, and single sign on.•View Client - a locally installed software application that communicates with View Connection Server in order to allow users to connect to their desktops using Microsoft Remote Desktop Protocol (RDP).•View Client with Offline Desktop (experimental) - a version of View Client that is extended to support the Offline Desktop feature which allows users to download virtual machines and use them on their local systems.

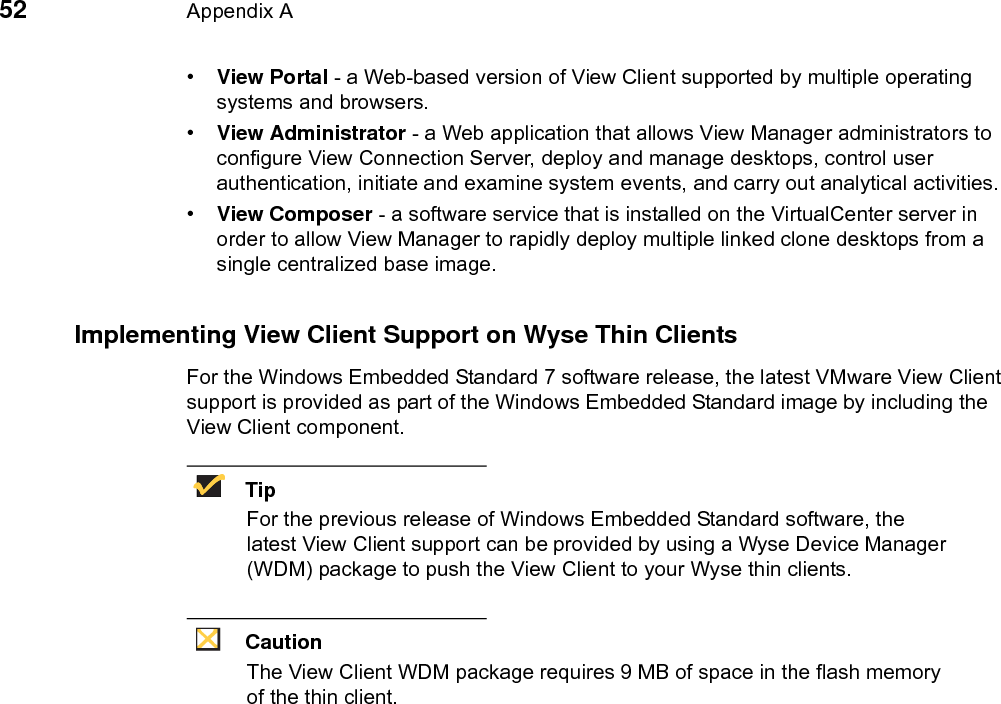

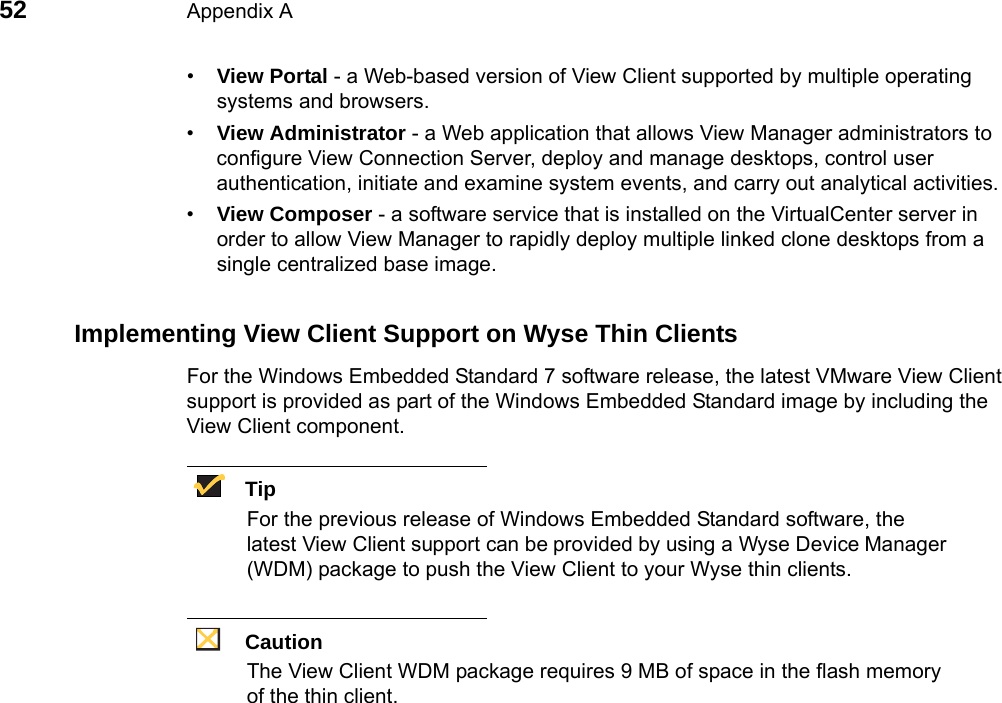

52 Appendix A•View Portal - a Web-based version of View Client supported by multiple operating systems and browsers.•View Administrator - a Web application that allows View Manager administrators to configure View Connection Server, deploy and manage desktops, control user authentication, initiate and examine system events, and carry out analytical activities.•View Composer - a software service that is installed on the VirtualCenter server in order to allow View Manager to rapidly deploy multiple linked clone desktops from a single centralized base image.Implementing View Client Support on Wyse Thin ClientsFor the Windows Embedded Standard 7 software release, the latest VMware View Client support is provided as part of the Windows Embedded Standard image by including the View Client component.TipFor the previous release of Windows Embedded Standard software, the latest View Client support can be provided by using a Wyse Device Manager (WDM) package to push the View Client to your Wyse thin clients.CautionThe View Client WDM package requires 9 MB of space in the flash memory of the thin client.
53Tables1 DHCP Options 48

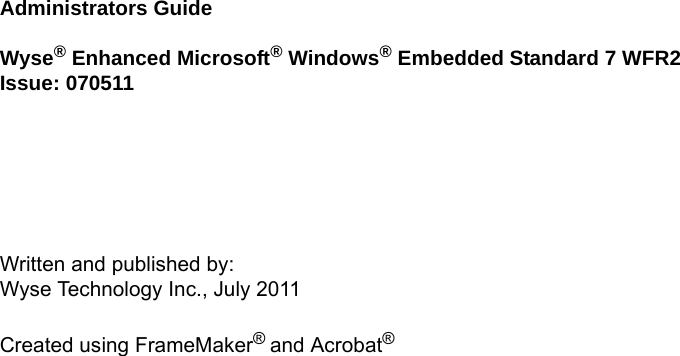

Administrators Guide Wyse® Enhanced Microsoft® Windows® Embedded Standard 7 WFR2 Issue: 070511Written and published by: Wyse Technology Inc., July 2011Created using FrameMaker® and Acrobat®
