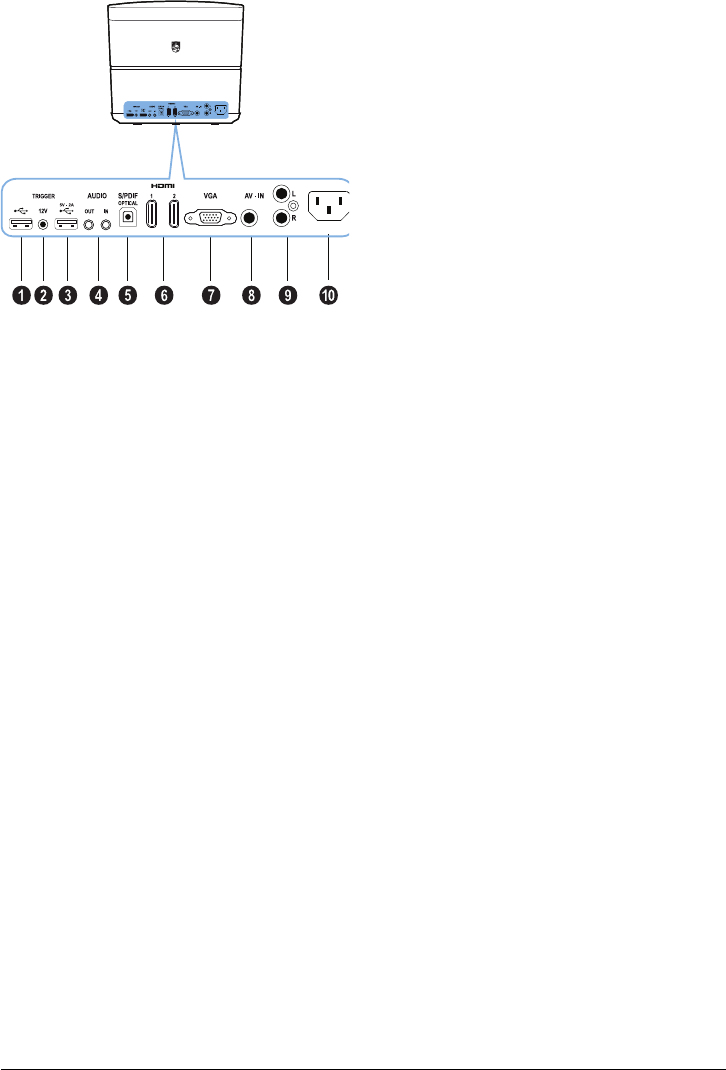

Rear view ...................................................................... 7
Remote control ...........................................................8

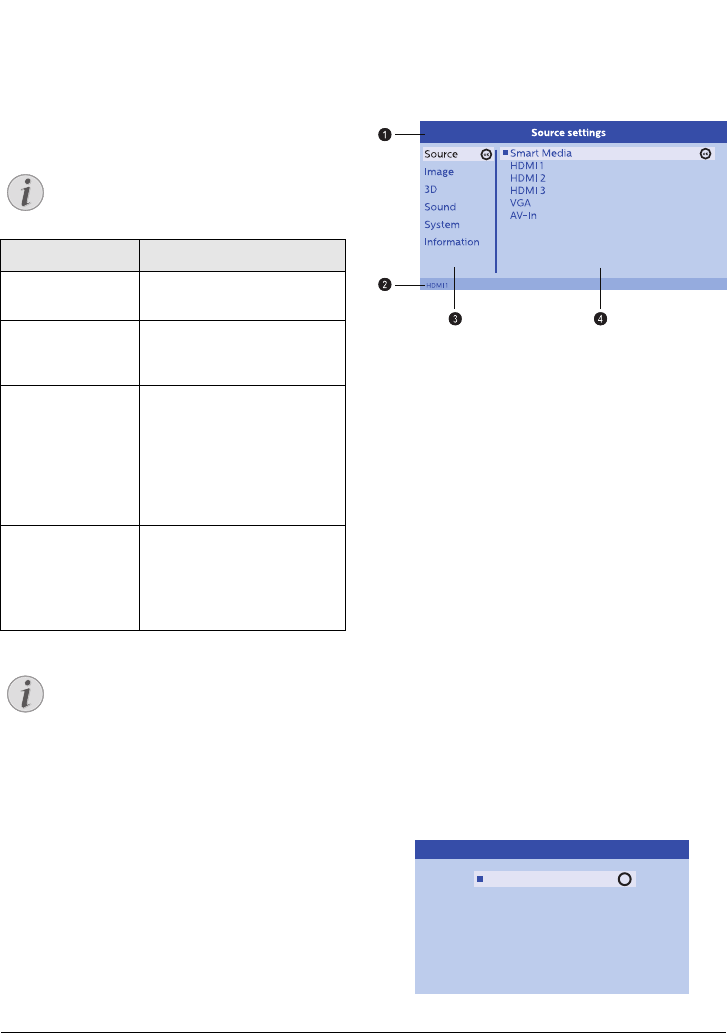

Browsing the user interface ....................................9
Option menu and Shortcut menus ......................9
Overview of the Main menu functions ..............10
3 Initial operation ..................................... 11

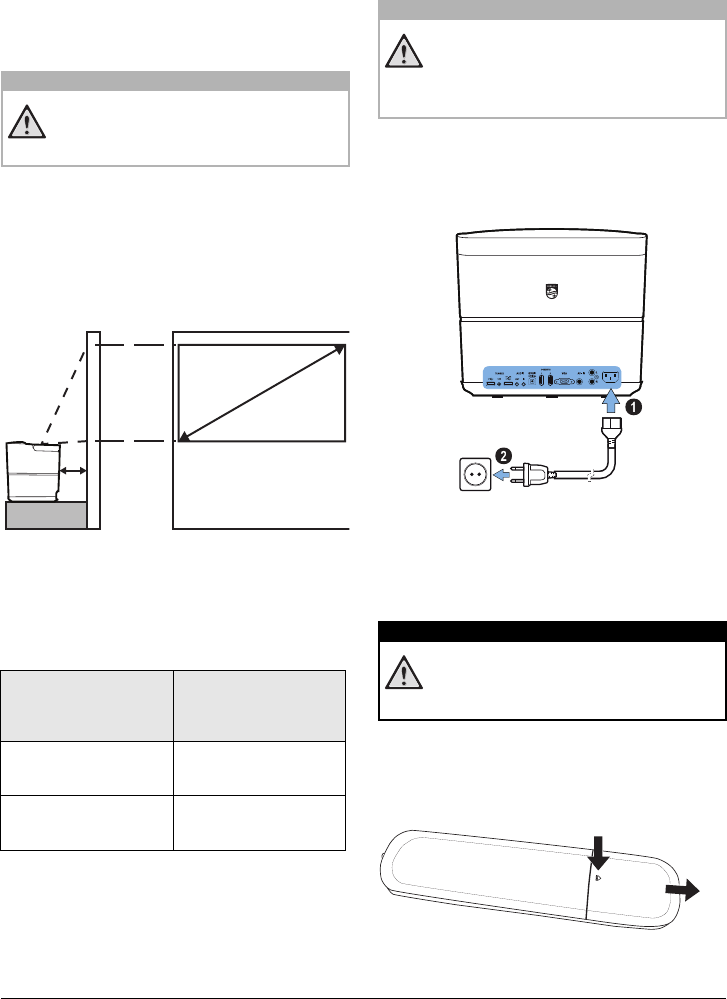

Setting up the device ............................................... 11
Connecting power supply ...................................... 11

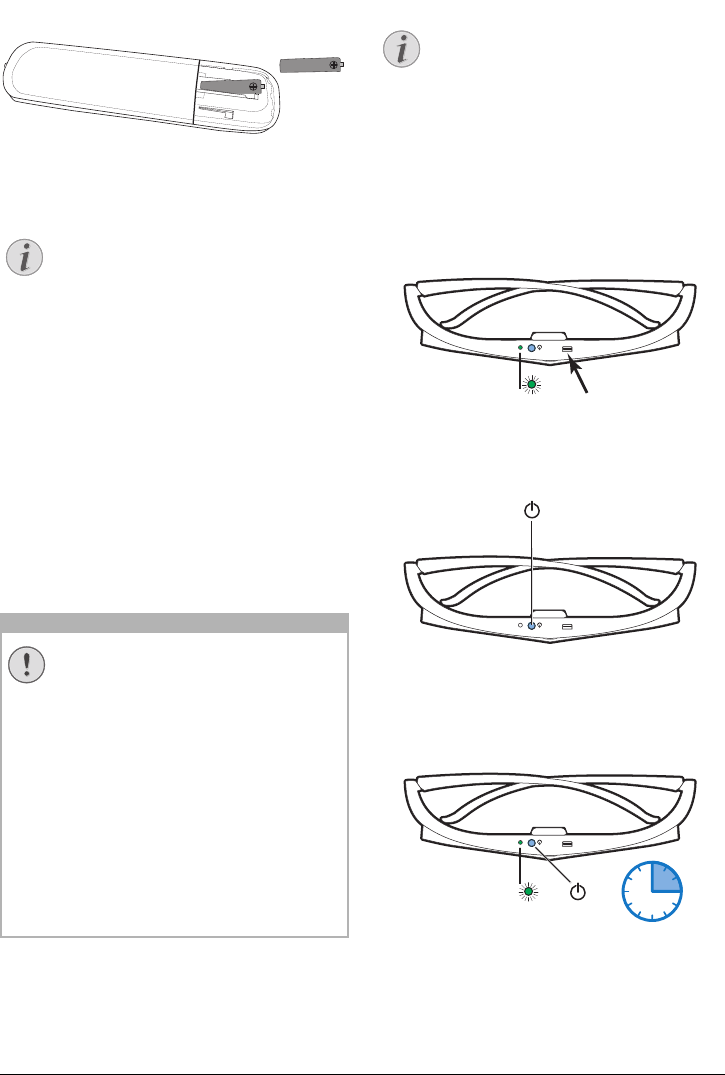

Installing or changing the batteries of the IR re-
mote control ...............................................................12
Using the remote control .......................................12
3D glasses (optional) ...............................................12
Initial installation ...................................................... 14
4 Connect to the playback device ........ 16
Connecting to devices with HDMI output ........ 16
Connecting to a computer (VGA) ....................... 16
Connecting a screen using the automatic Trigger
input ..............................................................................17
Connecting using an audio/video (CVBS) adapt-
er cable ........................................................................17
Connecting to external devices via analogue ca-
ble ..................................................................................17
Connecting to a home cinema amplifier .......... 18
Connecting to headphones .................................. 18
5 Bluetooth speaker ............................... 20
Activating Bluetooth speaker ..............................20
Pairing mode ............................................................ 20
6 Media playback (optional) ................. 21
Navigation for media playback .............................21

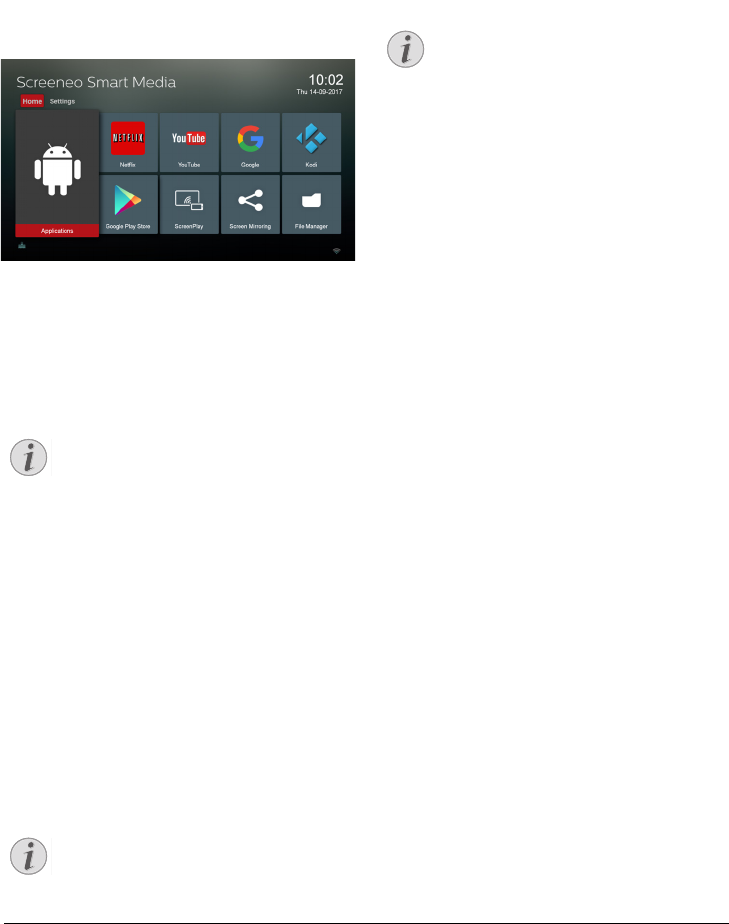

Activating media player .........................................22
Movie playback ........................................................22
Photo playback (optional) ....................................23
Music playback (optional) ................................... 24
7 Settings ...................................................25
Overview of the menu functions ........................25
Reset functions ......................................................... 27
8 Service .....................................................29
Cleaning ......................................................................29
Replacing the lamp .................................................29
Troubleshooting ........................................................31
9 Appendix ................................................33
Technical data ..........................................................33
Accessories ................................................................33
3
Overview
Dear customer
Thank you for purchasing our projector.
We hope you enjoy your device and its many
functions!
About this user manual
With the quick start guide that is supplied with
your device, you can start using your device
quickly and easily. Detailed descriptions can be
found in the following sections of this user
manual.
Read the entire user manual carefully. Follow
all safety instructions in order to ensure proper
operation of your device (see General safety
information on page 4). The manufacturer
accepts no liability if these instructions are not
followed.
This user manual describes several versions of
the product.
Symbols used
Troubleshooting
This symbol designates tips that will
help you to use your device more effec-
tively and easily.
Damage to the device or loss of data!
This symbol gives warning of damage to
the device and possible loss of data.
This damage can result from improper
handling.
Danger of personal injury!
This symbol gives warning of danger of
personal injury. Physical injury or dam-
age can result from improper handling.
What's in the box
‚ Projector
ƒ Infrared remote control
(with two AAA batteries)
„ A/C power cable
… Quick start guide
† Warranty card
‡ Transport bag (depending on model)
f
e
d
c
b
a
Quick Start
Guide
a
d
c
g
h
i
j
ƒ
f
e
b
Customer service centre
You can find the support hotline in the warranty
card or online:
Web: www.philips.com/support
Mail: support.service@xgem.com
International Phone: +43 1 66155 5129
Please ask your provider for international call
costs!
Notice
CAUTION!
DANGER!
4Philips · HDP3550
1 General safety information
Do not make any changes or settings that are
not described in this user manual. Physical
injury or damage to the device or loss of data
can result from improper handling. Take note of
all warning and safety notes indicated.
Setting up the device
The device is for indoor use only. The device
should be placed securely on a stable, flat sur-
face. Position all cables in such a way that no
one will stumble on them, thus avoiding possi-
ble injuries to persons or damage to the device
itself. The device shall not be installed on bare
ground.
Do not plug in the device in moist rooms. Never
touch the main cable or the main connection
with wet hands.
Never operate the projector immediately after
moving it from a cold location to a hot location.
When the device is exposed to such a change in
temperature, moisture may condense on the
crucial internal parts.
The device must have sufficient ventilation and
may not be covered. Do not put your device in
closed cabinets or boxes.
Do not place the device on soft surfaces such
as tablecloths or carpets and do not cover the
ventilation slits. Otherwise the device could
overheat or catch fire.
Protect the device against direct sunlight, heat,
intense temperature fluctuations and moisture.
Do not place the device in the vicinity of heaters
or air conditioners. Observe the information on
temperature and humidity in the technical data
(see Technical data on page 35).
Do not allow liquids to enter into the device.
Turn off the device and disconnect it from the
main supply if liquids or foreign substances end
up inside the device. Have the device inspected
by a technical service centre.
Always handle the device with care. Avoid
touching the lens. Never place heavy or sharp
objects on the device or the power cable.
If the device gets too hot or emits smoke, shut it
down immediately and unplug the power cable.
Arrange for your device to be investigated by a
technical service centre. To minimize the risk of
fire, keep the device away from open flames.
Under the following conditions, a layer of mois-
ture can appear inside the device which can
lead to malfunctions:
•if the device is moved from a cold to a
warm location;
•after a cold room is heated;
•when this device is placed in a damp
room.
Proceed as follows to avoid any moisture build-
up:
1Seal this device in a plastic bag before
moving it to another room, in order for it to
adapt to room conditions.
2Wait one to two hours before you take the
device out of the plastic bag.
The device should not be used in a very dusty
environment. Dust particles and other foreign
objects may damage the device.
Do not expose the device to extreme vibrations.
It may damage the internal components.
Do not allow children to handle the device
without supervision. The packing materials
should be kept out of the hands of children.
Repairs
Do not repair the device yourself. Improper
maintenance can result in injuries or damage to
the device. Your device must be repaired by an
authorised service centre.
Find details of authorised service centres on
the warranty card.
Do not remove the type label from your device;
this would void the warranty.
General safety information 5
Power supply
Before turning on your device, check that the
outlet that you are going to plug it into con-
forms to the indications shown on the informa-
tion plate (voltage, current, power network fre-
quency) located on your device. This device
shall be connected to a single phase power
network.
Only use the power cable that is supplied with
your device. Your device is delivered with a
grounded power cable. It is imperative to con-
nect a grounded connector to a grounded out-
let connected to the building earthing.
The socket outlet shall be installed near the
device and shall be easily accessible.
To remove all electrical power from the device,
disconnect the power cable from the electrical
outlet. Only in case of danger, the power cable
is the disconnect device for this projector.
Always use the ] button to turn off the
projector. This is essential to allow the
necessary cooling-down time for the
UHP lamp!
Turn off the device and unplug from the power
outlet before cleaning the surface. Use a soft,
lint-free cloth. Never use liquid, gaseous or eas-
ily flammable cleansers (sprays, abrasives, pol-
ishes, alcohol). Do not allow any moisture to
reach the interior of the device.
Risk of eye irritation!
This device is equipped with a long-life
UHP lamp, which emit very bright light.
Do not look directly into the projector
lens during operation. This could cause
eye irritation or damage.
3D glasses use
When using 3D glasses at home, keep in mind:
•3D glasses must be kept out of reach from
small children, due to risk of small parts
being ingested;
•3D glasses are not intended for use by
children under the age of six;
•children between age six and adulthood
should not use the glasses for longer than
the duration of one film;
•the same time limit is also recommended
for adults;
•3D glasses are intended strictly for watch-
ing 3D content only;
•undertake a thorough and regular clean-
ing and disinfection in case of eye infec-
tion, head-lice infestation, etc. In cases
where disinfection of the 3D glasses is not
possible, as it may damage the functional-
ity of the 3D glasses, the user must be
informed that use of the 3D glasses is not
recommended until the issues have been
resolved;
•3D glasses are to be used together with
the regular eye-wear of the user (eye-
glasses or contact lenses).
You should stop watching 3D in the
event of the occurrence of eye prob-
lems or discomfort, and in the event of
a persistence of any issues, consult a
doctor.
Dolby digital
Manufactured under license from Dolby Labo-
ratories. Dolby and the corresponding logo are
trademarks of Dolby Laboratories.
CAUTION!
DANGER!
CAUTION!
6Philips · HDP3550
2Overview
Top view
Always use the ] button to turn off the
projector. This is essential to allow the
necessary cooling-down time for the
UHP lamp!
‚ OPTION / ē
Opens the Option menu.
ƒ BACK / '
Goes one level back in menu / cancels a
function.
„–‡ Navigation keys / ¡/¢/À/Á
Navigate in menu / modify settings / con-
firms selection (?).
ˆ OK
Goes one level down in menu / confirms se-
lection.
‰ FOCUS Ö/×
Adjusts the focus for image sharpness.
Š Bluetooth / Ù
Turns on and off the Bluetooth speaker.
‚ POWER / ]
Short press: Turns on and off the projector.
Double press: Turns the projector to stand-
by mode.
ƒ Lens
Side view
ab 3
1 Handle (retractable)
2 HDMI
HDMI port for a playback device.
3
Ï
– Audio output
Headphone connection or connection for
external speakers.
Notice
The Bluetooth speaker can only be
turned on when the device is in stand-
by or off mode.
CAUTION!
Overview 7
Rear view
‚ ý
USB port for Android update.
ƒ TRIG OUT
Remote screen connection.
„ ý 5V · 2A
USB port for firmware update.
… AUDIO
AUDIO OUT: Connection for external
speakers.
AUDIO IN: Connection for external audio
devices — only with VGA input.
5 SPDIF OPTICAL
Digital audio connector.
‡ HDMI 1 and 2
HDMI port for a playback device.
ˆ VGA
Personal computer input.
‰ AV-IN
RCA plug for composite video.
Š AUDIO
Analogue audio connector.
‹ Power supply socket.
8Philips · HDP3550
Remote control
a
d
c
g
h
i
j
ƒ
f
e
b
Always use the ] button to turn off the
projector. This is essential to allow the
necessary cooling-down time for the
UHP lamp!
‚/ƒ/„/‰/Š/‹
These keys belong to the projector only.
…/†/‡/ˆ
The navigation keys and OK shared between
projector and Android depending on the ac-
tive state.
Œ
These keys belong to Android only.
‚ POWER / ]
Short press: Turns on and off the projector.
Double press: Turns the projector to stand-
by mode.
ƒ SOURCE / ÿ
Opens the Source shortcut menu.
„ OPTION / ē
Opens the Option menu.
… OK
Goes one level down in menu /
confirms selection.
† Navigation keys / ¡/¢/À/Á
Navigate in menu / modify settings / con-
firms selection.
‡ BACK / '
Goes one level back in menu / cancels a
function.
ˆ HOME / Ā
Switches to Android surface.
‰ FOCUS / Ö/×
Adjusts the focus for image sharpness.
Š VOLUME / Ö/ñ/×
Adjusts the volume level (decreases/increas-
es and mutes the sound).
‹ FORMAT
Changes the aspect ratio.
SMART
Displays the Smart settings menu.
Ø
Fits the screen.
Bluetooth / Ù
Turns on and off the Bluetooth speaker.
ƒ Colour keys (Android only)
RED — Page up
GREEN — Mouse function
YELLOW — Options
BLUE — Page down
CAUTION!
Notice
The Bluetooth speaker can only be
turned on when the device is in stand-
by or off mode.
Overview 9
Browsing the user interface
Navigation for menu
1Navigation can be done by navigation keys
(¡/¢/À/Á), OK and ' on the panel
control of your device or on the remote
control.
2The chosen setting is always highlighted with
a bar and the font is changed to black.
Below the navigation with the infrared
remote control (IR) is described.
Keys Action
¡ or ¢Scrolls through the menu
level up and down.
À or ÁModifies settings / con-
firms selection (depending
on which menu).
OK Confirms selection / goes
one level down.
In the final level, OK ac-
cepts a setting and goes
back to the last sub menu
(depending on which
menu).
'Goes one level up.
The ' button aborts a
setting or exits the menu
(depending on which
menu).
The navigation keys and OK are shared
between projector and Android
depending on the active state (see
Remote control on page 8).
Option menu and Shortcut
menus
Settings can be done in the Option menu or in
the various Shortcut menus.
Option menu
1Select the Option menu using the OPTION/
ē button.
‚ Top bar
Displays the currently selected setting with
detailed description.
ƒ Status bar
After changing the Source the currently se-
lected status is displayed in the status bar.
„ Main menu
Select the desired setting with ¡/¢ and
confirm with OK.
… Sub menu
Additional settings can be done. Select the
desired setting with ¡/¢/À/Á and con-
firm with OK.
Shortcut menus
For quick selection the following Shortcut
menus can be used: Source, Smart Settings,
Format.
The corresponding Shortcut window always
opens in the right corner.
1Select the desired Shortcut menu using the
related button (for example the SOURCE/ÿ
button).
Smart Media
HDMI 1
HDMI 2
HDMI 3
VGA
AV-IN
OK
Source
Notice
Notice
10 Philips · HDP3550
Overview of the Main menu
functions
Source
Displays the available sources.
Displays the image setting related functions.
3D
Displays all settable 3D functions.
Sound
Displays the sound functions.
System
Displays the content of all system related
functions.
Information
Displays an overview of the status and ver-
sion of the device.
Initial operation 11
3Initial operation
Setting up the device
Before installing your device, make sure that
the projector is turned off and the power cable
is unplugged from the power outlet.
Remove protection foil before operating!
Do not place any objects in front of the
lens!
1Turn the device with the rear side towards a
suitable projection surface or wall. Make sure
the projector is in a secure position.
2Check that the projection surface is appropri-
ated to the projector. The distance between
the projector and the screen determines the
actual size of the image.
a
b
To change the size of the screen, just move
the projector towards or away from the wall.
The size of the screen (b) is comprised
between 0.1 and 0.42 metres depending on
the projection distance (a), as described in
the following table.
Diagonal size (b)
(mm)
[inch]
Projection distance
(a)
(mm)
1270
[50]
108
3048
[120]
420
Connecting power supply
Always use the ] button to turn off the
projector. This is essential to allow the
necessary cooling-down time for the
UHP lamp!
1Connect the power cable into the socket on
the rear side of your device (‚).
2Plug the power cable to outlet near the
device (ƒ).
Installing or changing the
batteries of the IR remote
control
Risk of explosion with incorrect type of
batteries!
Only use the AAA type battery.
1To access the battery, press to unlock the
locking mechanism (‚) and slide out the
battery compartment (ƒ).
b
a
2Insert the new batteries into the battery com-
partment with the positive and negative
CAUTION!
CAUTION!
DANGER!
12 Philips · HDP3550
poles as shown. Make sure the polarities
(+ and -) are aligned correctly.
3Push the battery compartment back into the
remote control until the locking mechanism
engages.
Normally the batteries will last for
around one year. If the remote control
stops working, replace the batteries. If
the device is not used for a long time,
take out the batteries. This will prevent
leakage and possible damage to the
remote control.
The used batteries should be disposed
of according to the recycling regula-
tions of your country.
Using the remote control
The remote control can be used within an angle
of 22.5 degrees and up to 10 meters from the
device. When using the remote control, there
should be no obstacles between the remote
control and the remote sensor.
The improper use of batteries can lead
to overheating, explosion, risk of fire
and injury. Leaking batteries can possi-
bly damage the remote control.
Never expose the remote control to
direct sunlight.
Avoid deforming, dismantling or charg-
ing the batteries.
Avoid exposure to open fire and water.
Replace empty batteries immediately.
Remove the battery from the remote
control if not in use for long periods of
time.
3D glasses (optional)
You can purchase Screeneo 3D glasses
on the Philips website:
www.philips.com
The 3D glasses are equipped with a battery,
which has to be charged before first use. Charg-
ing takes several hours and is complete when
the LED on the glasses is on green.
When the LED turns red, do a new charge.
1Take a USB mini cable, connect the USB mini
plug to the 3D glasses and the other end of
the cable to a USB port.
Activate 3D glasses
1Press the ON / OFF button on the top of the
glasses.
2On the remote control, press the 3D key.
3The 3D menu appears, select your choice and
press OK.
4Press the ON/OFF button on the top of the
glasses for one and a half seconds.
3x
1.5 SEC
The LED flashes green three times and then
stays on. Your glasses are ready.
Notice
CAUTION!
Notice
Initial operation 13
Initial installation
1Place the device securely on a stable, flat
surface (see Setting up the device on page 4).
2To turn on the projector, press the ] button
on the panel control of the device or on the
remote control once.
The turning on and off of the projector
requires some time, as the UHP lamp
must reach the operational tempera-
ture. After a few minutes the brightness
reaches its full capacity.
3The image can be optimally fitted to the pro-
jection surface with the adjustment of the
feet under the projector.
The device compensates for the distortion
from the slanted projection (pincushion dis-
tortion).
4Use the FOCUS buttons Ö/× to adjust the
image sharpness. Confirm with OK.
The first time you turn on the device, you need
to set the following settings.
During the first installation, use OK to
validate your choice and continue to
the next step, and ' to return to the
previous step.
5Use ¡/¢ to select the language and confirm
with OK.
Please choose your Language
Český
Dansk
Deutsch
English
Español
Francais
Italiano
OK
Language
6Use ¡/¢ to select the location and confirm
with OK.
Please choose the location where your Screeneo
should be placed
Shop
Home
OK
Location
Home: For normal use.
Shop: When you choose this option, the pro-
jector starts in shop mode. In this mode
Notice
Notice
14 Philips · HDP3550
default settings are made and can’t be
changed.
The shop mode can be activated or
deactivated on the Option menu (see
Shop Mode Switches the shop mode
On and Off. on page 27).
Network configuration
Sie können Ihr Gerät über Wi-Fi oder VPN mit
einem lokalen Drahtlosnetzwerk verbinden.
1Select Network configuration and confirm
with OK.
2Use ¡/¢ to select Wi-Fi and confirm with
OK.
3Enter the password using ¡/¢/À/Á and
confirm each selection with OK.
Die Passworteingabe erfolgt mit
Android Tastatur.
Turning off the projector
1To turn off the projector, press the ] button
on the panel control of the device or on the
remote control once.
2A message displays asking if you really want
to turn off the device. Confirm with the
] button or stop shutting down with any
other key.
For shutting down the system please click
again the Power button â
Or any other key to stop shutting down the
system.
Shut down system
Setting up the language
The device has already been installed. In order
to change the menu language, proceed as fol-
lows:
1Press the OPTION/ē button and use ¡/¢
to select System.
2Confirm with OK.
3Use ¡/¢ to select Language/Language.
4Confirm with OK.
5Use ¡/¢ to select your desired language.
6Confirm with OK.
7Exit with the BACK/' button.
Notice
Notice
Initial operation 15
Android surface
Das Gerät ist mit einem Android Betriebssystem
ausgestattet. Sie können auf Apps im Google
Play Store zugreifen und die Bedienung erfolgt
auf der gewohnten Android Bedienoberfläche
mit eingebetteten App-Kacheln.
Über Screen
Android homescreen
Werkseitig ist das Startmenü vorkonfiguriert.
1Press the HOME / Ā button das Android
Startemenü aus allen Anwendungen auf.
2Wählen Sie mit den Navigationstasten die
gewünschten Anwendungen, Apps und
Dokumente aus.
3Confirm with OK.
Sie können über USB eine externe
Maus anschließen. Mit der linken
Maustaste rufen Sie Anwendungen und
Apps auf, mit der rechten Maustaste
gehen Sie einen Schritt zurück.
4Exit with the BACK/' button.
Anordnung der Bedienberfläche
Neben den App-Kacheln im Startmenü stehen
Ihnen im Submenü noch weitere Apps zur
Verfügung.
1Use À/Á to select Applications.
2Confirm with OK.
3Use ¡/¢ to select your desired app.
4Confirm with OK.
5Exit with the BACK/' button.
Über den Google Play Store können Sie
weitere Apps beziehen.
Bluetooth speaker
The projector can be used as Bluetooth
speaker. In this mode, you can play music from
smart phones, tablets or other devices.
In this mode it is not possible to do anything
else than playing music. The projector can only
connect to, and play audio from one device at
a time.
The bluetooth speaker can only be
turned on when the device is in stand-
by or off mode.
1Press the Ù button. The projector is now
visible for the near external Bluetooth
devices.
2Select on your external device the Screeneo
projector to start the pairing mode.
Notice
Notice
Notice
16 Philips · HDP3550
4 Connect to the playback device
If no input source is detected the fol-
lowing message appears: NO SIGNAL
Connecting to devices with
HDMI output
Use a HDMI cable to connect the projector to a
Blu-ray player, set top box or gaming console.
Use any of the HDMI sockets to connect
the projector to a playback device
when a 3D signal is broadcasted.
1Connect the cable to one of the projector's
HDMI sockets on the rear or side of the
device.
2Connect the HDMI plug to the HDMI socket of
the playback device.
3 In the Options menu, select HDMI 1,2 or 3
depending on which outlet is being used for
the external device
Connecting to a computer
(VGA)
Use a VGA cable to connect the projector to a
computer, laptop or other devices.
Many laptops do not activate the exter-
nal video output automatically when
you connect a second display such as a
projector. Check your laptop's user
manual to find out how to activate the
external video output.
1Connect the VGA cable to the projector's VGA
socket.
2Connect the VGA plug to the VGA socket of
the computer.
3Adjust the computer's resolution to the cor-
rect setting and switch the VGA signal to an
external monitor. The following resolutions
are supported:
Resolution Image refresh
rate
VGA 640 x 480 60 Hz
SVGA 800 x 600 60 Hz
XGA 1024 x 768 60 Hz
WXGA 1280 x 768 60 Hz
HD 1280 x 720 60 Hz
FULL HD 1920 x 1080 60 Hz
Notice
Notice
Notice
Screen Resolution
The projector supports the following
resolutions: VGA/SVGA/WXGA, HD and
FULL HD. For best results, please check
the best resolution.
Connect to the playback device 17
4In the Option menu, select VGA.
Connecting a screen using
the automatic Trigger input
Use a Trigger cable to connect the projector to
a screen.
1Connect the Trigger cable to the projector's
TRIGGER outlet.
2Connect the other end of the cable to the
outlet of the screen.
3The screen automatically moves down and
up when the projector is turned on or off.
Connecting using an audio/
video (CVBS) adapter cable
Use an audio/video adapter cable (A/V cable)
to connect a camcorder or digital camera. The
jacks for these devices are yellow (video), red
(audio right) and white (audio left).
1Connect the A/V adapter to the projector's
AV-IN socket.
2Connect the video device's audio/video
sockets to the A/V cable using a conventional
composite video (RCA) cable.
3In the Option menu, select AV-IN.
Connecting to external
devices via analogue cable
Use a analogue cable to connect the projector
to external audio devices.
1Connect the analogue cable to the
projector's AUDIO outlet.
AUDIO OUT: Connection for external
speakers.
AUDIO IN: Connection for external audio
devices – only with VGA input.
2Connect the other end of the cable to the
outlet of you external audio device.
Notice
18 Philips · HDP3550
Connecting to a home
cinema amplifier
Use a S/PDIF optical cable to connect the DIGI-
TAL AUDIO output on the projector to the input
of your home cinema amplifier.
For example, to show digital channels in DOLBY
DIGITAL quality sound.
Connecting to headphones
Danger of hearing damage!
Do not use the device over a longer
time at high volume — especially when
using headphones. This could lead to
the risks of hearing damage. Before
connecting the headphones, turn down
the volume on the device.
1Connect the headphones to the headphone
slot on the side of the device. The device
speakers deactivate automatically when the
headphones are connected.
2After connecting the headphones, increase
the volume to a comfortable level using the
VOLUME buttons Ö/×.
DANGER!
Connect to the playback device 19
Update firmware and Android
system with USB storage medium
You can find the Screeneo firmware version on
the Philips website: www.philips.com
You must download the file on USB storage
medium in order to update your projector.
Do not turn off the device during the
update process!
Download from website
1Launch an Internet browser, in the address
bar, type the address: www.philips.com
2Select your country and your language.
3In the search bar, type the device Screeneo
and your model HDP3550.
4The Screeneo HDP3550 projector screen
appears. In the new screen, research Support
and click on Software & drivers.
5In the Software & drivers screen select your
language and click Download file. (für
beide?)
The file on the website is a zip file. It has
to be unpacked and put on the root
folder of the USB stick.
Update firmware
1Check that the device is connected to power
supply.
2Connect the USB storage medium to the left
USB socket.
Never pull out the digital media while
the device is accessing it. This could
cause data to be damaged or lost.
Turn the device off in order to make
sure that the device does not access
the USB storage medium.
3To turn on the projector, press the ] button
on the panel control of the device or on the
remote control once.
4Press the OPTION/ē button and use ¡/¢
to select System.
5Confirm with OK.
6Use ¡/¢ to select Firmware update.
7Confirm with OK.
A message displays asking if you want to
update the new firmware. Confirm with OK
(YES).
If no firmware was found on the USB stick or
if no USB stick is plugged in a message
appears.
If you do not wish to update the firmware at
this point, you can exit the menu by pressing
À/Á to select NO and confirming with OK
or exit with the BACK/' button.
8A message displays informing you that the
installation process will take some minutes
and that the projector will reboot during
installation. Confirm with OK.
9The device turns off and on again. After a
short time the Language selection screen
and Location selection screen appear. Use
¡/¢ to select the language and location
and confirm both with OK.The firmware
update is now completed.
If an error occurs during the firmware
update process retry the procedure or
contact your dealer.
Notice
Notice
CAUTION!
Notice
20 Philips · HDP3550
Update Android system
1Check that the device is connected to power
supply.
2Connect the USB storage medium to the right
USB socket.
Never pull out the digital media while
the device is accessing it. This could
cause data to be damaged or lost.
Turn the device off in order to make
sure that the device does not access
the USB storage medium.
3To turn on the projector, press the ] button
on the panel control of the device or on the
remote control once.
4Press the Application button and use ¡/¢/
À/Á to select Upgrade.
5Confirm with OK.
6Use ¡/¢ to select Local update.
7Confirm with OK.
A message displays informing if you want to
update the new Android system. Confirm
with OK.
If you do not wish to update the Android sys-
tem at this point, you can exit the menu by
pressing À/Á to select CANCEL and con-
firming with OK.
8The Android update screen appears. Please
mind that the installation process will take
some minutes.
9After a short time the initial installation
screens appear (see Initial installation on
page 13).
If an error occurs during the firmware
update process retry the procedure or
contact your dealer.
CAUTION!
Notice
Media playback (optional) 21
5 Media playback (optional)
Read the informations on the best set-
tings for optimal use of your device (see
Settings on page 25).
Navigation for media
playback
Navigation can be done by navigation keys ¡/
¢/À/Á, OK, ¿, Āand colour keys on the
remote control.
Keys Action
¡ or ¢Selects folders or files in
the displayed list.
Á or OK Goes one level down in
the directory.
Starts the selected media
file.
À or ¿Goes one level up in the
directory.
Additionally you can also
use the BACK button on
the screen.
ĀExits to homescreen.
Sie können über USB eine externe
Maus anschließen. Mit der linken
Maustaste rufen Sie Anwendungen und
Apps auf, mit der rechten Maustaste
gehen Sie einen Schritt zurück.
Navigation by colour keys
Keys Action
Music and movie player:
Allows to set the repeat
mode: off, song, direc-
tory, all
: Play mode deacti-
vated (greyed).
: Plays only the
selected song or movie in
loop.
: Plays all songs or
movies in the selected
directory in loop.
: Plays all songs or
movies in the media in
loop.
Photo viewer:
Allows to set the slide
speed: off, 3 sec, 5 sec,
10 sec
GREEN key Music player:
Allows to set the shuffle
mode: on, off
: Shuffle mode deac-
tivated (greyed).
: Shuffle mode acti-
vated.
YELLOW key Music player:
Fast forward for music.
BLUE key Music player:
Fast rewind for music.
Notice
Notice
RED key RED —
Page up
GREEN —
Mouse func-
tion
YELLOW —
Options
BLUE — Page
down
22 Philips · HDP3550
Activating media player
1Press the OPTION/ē button and use ¡/
¢ to select Source.
2Confirm with OK.
3Use ¡/¢ to select Smart media.
OK
Source
3D
Sound
System
Information
HDMI1
HDMI2
HDMI3
VGA
AV-In
Bluetooth speaker
Media Player OK
Source settings
4Confirm with OK.
5The media player main screen appears.
Media Player
Photo Movie Music
You can choose between the following
media players:
Photo: For showing photos
Movie: For watching movies
Music: For listening to music.
6Use À/Á to select the desired media player.
7Confirm with OK.
The chosen icon is highlighted in white and it
is bigger than the unselected icon.
Movie playback
Supported file formats
Supported file formats are *.avi, *.mov, *.mp4,
*.mkv, *.flv, *.ts, *.m2ts, *.3gp.
1To display the movies content, select Movie
using the keys À/Á.
Media Player
Photo Movie Music
1Use À/Á or ¡/¢ to select the movie file
that you wish to play.
Movie
i
USB/Movie1 1/1
Movie MovieMovie
Only those movies that are compati-
ble with the projector will be dis-
played.
2Press OK or Á to start playback. The status
bar is shown. If no key is pressed it disap-
pears after three seconds.
3Press the BACK/¿ button to end the play-
back and return to the overview.
4When you press the BACK/¿ button again or
the HOME/Î button, you will
return to the media player main screen.
5Press OK on the remote control to show the status bar again. The movie pauses.
Fast forward/rewind (2x, 4x, 8x with
each click) using :/;. Press OK or Á
to return to normal speed.
Press OK or Á to continue playback.
Notice
Notice
Media playback (optional) 23
Navigation by colour keys
Keys Action
RED key Allows to set the repeat
mode: off, song, direc-
tory, all
: Play mode deacti-
vated (greyed).
: Plays only the
selected song or movie in
loop.
: Plays all songs or
movies in the selected
directory in loop.
: Plays all songs or
movies in the media in
loop.
During playback you can adjust the volume
using the VOLUME buttons î/ï. Press ÷ or î
repeatedly to shut off the volume completely.
Photo playback (optional)
Supported file formats
Supported file formats are JPEG, BMP, PNG and
GIF.
1To display the photos content, select Photo
using the keys À/Á.
Media Player
Photo Movie Music
1Use ¡/¢ to select the photo file that you
wish to play.
USB/Picture2 1/1
Picture PicturePicture
Pi t
Only those photos that are compati-
ble with the projector will be dis-
played.
2The list of photos are displayed on the screen
as an overview. On the left side of the screen
the image is shown as a pre-image.
3Use À/Á or ¡/¢ to select the image that
you want to start the slide show with. The
image is shown as a preview in the left win-
dow.
4Press OK to start the slide show.
The slide show can be paused with
OK.
Press À/Á to choose an option:
each click on OK rotates the picture
90°
Notice
Notice
24 Philips · HDP3550
5When you press the HOME/Î button, you will
return to the media player main screen.
Navigation by colour keys
Keys Action
RED key Allows to set the slide
speed: off, 3 sec, 5 sec,
10 sec
Music playback (optional)
The projector can be used as Bluetooth
speaker. In this mode, you can play music from
smart phones, tablets or other devices (see
Bluetooth speaker on page 21).
Supported file formats
Supported file formats are MP3 and WAV..
Only those songs that are compati-
ble with the projector will be dis-
played.
6When you press the HOME/Ā button, you
will return to the homescreen.
During playback you can adjust the volume
using the VOLUME buttons N/O. Press O or
N repeatedly to shut off the volume com-
pletely.
ScreenPlay
Teilen von Inhalten mit iOS-Geräten
Screen Mirroring
Teilen von Inhalten mit Android-Geräten
File Manager
Notice
Settings 25
6Settings
Sie können Einstellungen entweder direkt mit
dem Option menu des Projektors vornehmen
oder über die Android Oberfläche.
Projector settings
1Select the Option menu using the OPTION/
ē button.
2Use ¡/¢ to select from the main settings.
3Confirm with OK.
4Modify the settings in the Sub menu using
À/Á.
5Confirm the settings with OK (if requested).
6The BACK/' button takes you one step up
in the menu.
Select the Shortcut menu using the
related button (for example the
SMART or FORMAT button (see
Option menu and Shortcut menus on
page 9).
Overview of the projector settings
Source settings
OK
Source
3D
Sound
System
Information
Smart Media
HDMI 1
HDMI 2
HDMI 3
VGA
AV-In
Source settings
Source
The projector supports the following sourc-
es: HDMI 1,2,3, VGA, AV-IN, Media Player
(optional).
Image settings
Source
3D
Sound
System
Information
OK
Smart settings
Format
Brightness
Contrast
Saturation
Sharpness
Lamp power mode
Flow motion
Wall colour correction
Advanced colour settings
Standard
Original
50
50
50
16
Standard
Middle
O
Image settings
Smart Settings
Selects predefined settings for brightness /
contrast / colour saturation: Bright, Stand-
ard, Cinema, Game, Presentation or User.
Format
Adjusts the screen format:
Original, Full screen, 16:9, 4:3.
Brightness
Adjusts the brightness: 0 – 100.
Contrast
Adjusts the contrast: 0 – 100.
Saturation
Adjusts the saturation: 0 – 100.
Sharpness
Adjusts the sharpness: 0 – 100.
Lamp power mode
Modifies the lamp power mode:
Cinema – for very dark rooms and smaller
screen sizes.
Daylight – for bright environment.
Primetime – for semi-darkness.
Flow motion
Switches the MEMC (Motion estimation/mo-
tion compensation) for motion interpolation:
Low, Middle, High and Off.
Notice
Notice
Depending on which Source you have
selected the settings in the Sub menu
may change.
Notice
If no input source is detected the fol-
lowing message appears: NO SIGNAL
Notice
The default setting depends on the
choice of Shop mode or Home mode
(see Initial installation on page 13).
The default settings of all related set-
tings (except Wall colour correction
and White point) are changed accord-
ingly.
26 Philips · HDP3550
Wall colour correction
Colour correction of the projected image to
adjust to coloured projection surface: Off,
White, Beige, Green, Gray.
Advanced colour settings
Adjust detailed colour corrections.
Colour temperature – set to Warm to
enhance hotter colours such as red, set to
Cool to make picture bluish or set to Natural.
Dynamic contrast – adjusts the contrast to
keep it at the best level according to the
brightness of the screen.
Gamma – adjusts the gamma correction
according to the type of the projected
image: Gamma 2P2/2P4/2P4, Linear,
Enhanced, MaxBright, Enphoto, Photo,
Gamma 1, 2, 3.
Black level – set the black and white level to
Full range (RGB), Limit range (YCbCr and
RGB) or to Auto.
Manual white point – manually adjusts the
white point calibration according to your
needs: Colour, Offset, Gain.
Manual colours RGB CMY – manually
adjusts colours in RGB CMY mode according
to your needs: Colour, Hue, Saturation,
Brightness.
3D settings
OK
Source
3D
Sound
System
Information
2D/3D
L/R Swap
2D
O
3D settings
3D
Sets the picture modes with 2D/3D options.
L/R Swap
Changes the side of the screen display.
Sound settings
OK
Source
3D
Sound
System
Information
Volume
Deep bass
Wide sound
Equalizer
Audio output
6
On
O
Normal
SPDIF
Sound settings
Volume
Adjusts the volume: 0 – 20.
Deep bass
Switches the deep bass On and Off.
Wide sound
Switches the wide sound On and Off.
Equalizer
Selects the equalizer mode:
Normal, Pop, Rock, Jazz, Classic, Voice.
Audio output
Switches the audio output between Internal
Speakers and SPDIF.
System settings
OK
Source
3D
Sound
System
Information
Key stone
Projection mode
Sleep mode
Screen saver
Auto power down
Reset lamp timer
Language/language
High altitude mode
Shop mode
Firmware update
0
Front
O
1 min
On
English
O
O
System settings
Keystone
Minimizes the Keystone effect.
Projection mode
Adjusts the projection mode.
Front — normal projection; the device is
located in front of the projection surface/
screen.
Rear — rear projection; the device is located
behind the projection surface; the image is
reflected horizontally.
The default setting is depending on the
choice of Shop mode or Home mode
(see Initial installation on page 13).
Do not reset the lamp timer if the lamp
has not been replaced as this could
cause damage (see Resetting the lamp
timer on page 32).
Settings 27
Front Ceiling – the device is hanging from
the ceiling in an upside-down position; the
image is rotated by 180 degrees.
Rear ceiling – the device is located behind
the projection surface, hanging from the ceil-
ing in an upside-down position; the image is
rotated by 180 degrees and reflected hori-
zontally.
Sleep mode
Adjusts the time until the projector should go
into sleep mode and powers off after ten
seconds if user doesn’t stop it. The following
options are available: Off, 15 min, 30 min.,
45 min., 60 min., 120 min.
Screen saver
Adjusts the time until the system should
power down the lamp if no source is con-
nected to system. The followings options are
available: Off, 1 min., 2 min., 5 min., 10 min.,
30 min.
Auto power down (APD)
Switches the auto power down On and Off.
When the function is switched on, the pro-
jector should go into off mode after three
hours.
If a video is displayed, the APD should take
place three hours after last user action,
meaning that a pop-up will appear after
2:58 hours for two minutes, indicating that
the device will go into off mode.
Reset lamp timer
Resets the lamp timer of the system.
Language/language
Selects the desired language.
High altitude mode
To prevent overheating due to low air density
the projector switches On and Off.
Shop Mode
Switches the shop mode On and Off.
In this mode, the Screeneo logo is continu-
ously displayed on the screen and system
powers on after power is available. System is
set to shop mode conditions and settings are
set back to default settings after a certain
period of time.
Firmware update
Updates firmware (see Update firmware and
Android system with USB storage medium
on page 19).
Information
OK
Source
3D
Sound
System
Information
Source
Smart settings
3D settings
Lamp hour
Resolution
Firmware version
Engine version
MCU version
Model
Smart Media
Standard
2D
0 h
1920 x 1080
V1.0
1002010600
V1.101
HDP3550
Information
Information
Displays an overview of the status and ver-
sion of the device.
Notice
CAUTION!
28 Philips · HDP3550
Reset functions
You can select between two different reset
functions:
Reset image settings
This function resets the current chosen Smart
settings back to default mode.
Reset current image settings
Source
3D
Sound
System
Information
Smart settings
Format
Brightness
Contrast
Saturation
Sharpness
Lamp power mode
Flow motion
Wall colour correction
Advanced colour settings
Standard
Original
50
50
50
16
Standard
Middle
O
Image settings
1Press the OPTION/ē button and use ¡/¢
to select Image.
2Confirm with OK.
3Use ¡/¢ to select Smart settings.
4In the status bar appears Reset current
image settings.
5Use À/Á to select Standard*.
6Confirm with the RED key.
7A message displays asking if you want to
reset smart mode to default. Confirm with OK
(YES). (umgekehrt)
If resetting of the settings is not desired at
this point, exit the menu by pressing À/Á
to select NO and confirming with OK.
Reset all settings
This function resets the complete System set-
tings back to default mode – starting with the
initial installation again.
Reset all settings
OK
Source
3D
Sound
System
Information
Key stone
Projection mode
Sleep mode
Screen saver
Auto power down
Reset lamp timer
Language/language
Shop mode
Firmware update
0
Front
O
1 min
On
English
O
O
System settings
1Press the OPTION/ē button and use ¡/¢
to select System.
2Confirm with OK.
3Use ¡/¢ to select Keystone.
4In the status bar appears Reset all settings.
5Confirm with the RED key.
6A message displays asking if you want to
reset all settings to default. Confirm with OK
(YES). (auf NO standardmäßig?)
If resetting of the settings is not desired at
this point, exit the menu by pressing À/Á
to select NO and confirming with OK.
7The device turns off and on again. After a
short time the Language selection screen
and Location selection screen appear. The
resetting process is now completed.
Android settings
1Use À/Á to select Applications on the
Homescreen.
2Confirm with OK.
3Use ¡/¢ to select Settings.
4Confirm with OK.
Die aktuell gewählte Einstellung ist mit einem
Punkt markiert.
Sie können Einstellungen für Device, Prefer-
ences, Remote & accessories and Personal
vornehmen.
Android device settings
Network
1Use ¡/¢ to select between Wi-Fi and VPN.
Display
Screen resolution
Adjusts the screen resolution: auto switch to
best resolution, deep colour mode, 1080p-
60hz, 1080p-50hz, 720p-60hz, 720p-50hz,
1080p-27hz, 576p-50hz, 480p-60hz,
1080i-50hz, 1080i-60hz.
Confirm change to mode with Cancel / OK.
Screen position
Changes the current scaling.
Settings 29
Zoom in screen vergrößert die Projektions-
fläche. Zoom out screen verkleinert die Pro-
jektionsfläche. Mit OK nehmen Sie die
Änderung vor.
Screen geometry
Fits the projections surface and adjusts the
image sharpness (see Initial installation on
page 13).
Daydream
Hinterlegt einen Bildschirmschoner wenn der
Projektor in Standby wechselt: Clock, Col-
ours
Adjusts the time until the projector should go
into daydream or sleep mode.
Im Daydream-Modus können einige Funk-
tionen ausgeführt werden (z.B. Settings und
Bluetooth?)
HDR
Displays pictures in High Dynamic Range Im-
age: Auto, On, Off.
Sounds
System sounds: On, Off (macht was?)
Dolby sounds: DRC mode (dynamic range com-
pression - lets the viewer watching TV with-
out disturbing neighbours)
Digital sounds: Auto detection, PCM HDMI, SP-
DIF (Unterschied?)
Sound output devices:
Gibt den Sound über extern angeschlossene
Geräte aus: hdmi_output, usbaudio_out-
put (see Connect to the playback device on
page 16).
Sound input devices:
Sendet Audiosignale an ein Mikrofon:
mic_input, LineIn-input, usbaudio-input
Apps
Verwaltet und optimiert die System Apps: Open,
Uninstall, Storage used, Clear data, Clear
cache, Clear defaults
Storage & reset
Internal storage:
Speichert Anwendunge, Apps und Daten auf
dem internen Speicher (max. 4,8 GB): Apps,
Photos & videos, Audio, Downloads, Cached
data, Misc., Available
Factory data reset: (?)
About
Displays an overview of the status and version of
the device and system.
Android preferences settings
[Screenshot]
Date & time
Date and time sind voreingestellt. Angepasst
(set) werden können Time zone und 24-hour
format.
Language
Sets the language of the Android surface.
Keyboard
Configures the current keyboard: Android
keyboard settings (AOSP), Remote control-
ler input method. (mehr in die Tiefe gehen?)
HMI CEC
Adjusts the komponentenübergreifende
(gerätübergreifende) CED switch (Consumer
Electronics Control).
Playback settings
Turns on and off the HDMI self-adaption.
(hilft gegen Bilder, die ruckeln?)
Search
(?)
More settings
Turns on and off the HDMI self-adaption.
(hilft gegen Bilder, die ruckeln?)
Android remote & accessories
[Screenshot]
Bluetooth
Turns on and off Bluetooth (see Bluetooth
speaker on page 15).
Remote
(?)
Notice
Die hier eingestellte Sprache hat keine
Auswirkung auf die Sprache der
Geräteeinstellungen (see Setting up the
language on page 14).
30 Philips · HDP3550
Android personal
[Screenshot]
Location
Allows apps to use your location information
(after asking).
Security & restrictions
Unknown sources: Allows or disallows in-
stallation of apps from sources other than
the Play Store.
Verify apps: dissallows and warns before in-
stallation of apps that may cause harm.
Add account
Creates a Wi-Fi guest account.
Service 31
7 Service
Cleaning
Instructions for cleaning!
Use a soft, lint-free cloth. Never use liq-
uid or easily flammable cleansers
(sprays, abrasives, polishes, alcohol,
etc.). Do not allow any moisture to
reach the interior of the device. Do not
spray the device with any cleaning flu-
ids.
Wipe over the surfaces gently. Be care-
ful that you do not scratch the surfaces.
Cleaning the lens
Use a brush or lens cleaning paper for cleaning
the lens of the projector.
Do not use any liquid cleaning agents!
Do not use any liquid cleaning agents
for cleaning the lens, to avoid damaging
the coating film on the lens.
Replacing the lamp
The UHP lamp will last up to 10,000 hours. It
will mature during its life time, so some loss in
brightness is a normal part of the process and
should be expected. We recommend that the
lamp is replaced between 5,000 and 10,000
hours, depending which lamp mode is used.
You can check the elapsed lamp time from the
Option menu / Information / Equivalent lamp
hour(see Information on page 27). A replace-
ment lamp can be ordered from our customer
service centre.
Do not operate the lamp beyond the
rated lamp life. Excessive operation of
lamps could cause a lamp to break on
rare occasions.
Instructions for cleaning!
1Turn off the projector and disconnect the
device from the power outlet.
The lamp becomes extremely hot dur-
ing operation. Allow the device to cool
for approximately 45 minutes prior to
removing the lamp.
2Loosen the two screws that secure the lamp
cover on the side of the projector until the
lamp cover loosens.
3Remove the lamp cover from the projector.
DANGER!
DANGER!
CAUTION!
DANGER!
• To reduce the risk of electrical
shock, always turn the projector off
and disconnect the power cable
before changing the lamp.
• To reduce the risk of severe burns,
allow the projector to cool for at
least 45 minutes before replacing
the lamp.
• To reduce the risk of injuries to fin-
gers and damage to internal com-
ponents, use caution when remov-
ing lamp glass that has shattered
into sharp pieces.
• To reduce the risk of injuries to fin-
gers and/or compromising image
quality by touching the lens, do not
touch the empty lamp compart-
ment when the lamp is removed.
• This lamp contains mercury. Con-
sult your local hazardous waste
regulations to dispose of this lamp
in a proper manner.
Notice
32 Philips · HDP3550
1Loosen the two screws that secure the lamp.
1Pull out the lamp by inserting your fingers in
the two slots.
.
2Gently insert the new lamp.If it doesn’t fit
easily, make sure its facing the correct way.
3Tighten the two screws that secure the lamp.
4Replace the lamp cover on the projector.
5Tighten the two screws that secure the lamp
cover.
6Plug the power cable to outlet.
Resetting the lamp timer
Do not reset the lamp timer if the lamp
has not been replaced as this could
cause damage.
1To turn on the projector, press the B button
on the panel control of the device or on the
remote control once.
2Press the OPTION/? button and use ¡/¢
to select System.
3Confirm with OK.
4Use ¡/¢ to select Reset lamp timer.
5Confirm with OK.
6A message displays asking if you want to
reset the lamp timer. Confirm with OK. The
lamp time will be reset to “0”.
CAUTION!
• Do not turn the power on while the
lamp cover is removed.
• Do not insert your fingers between
the lamp and the projector.
• The sharp edges inside the projec-
tor may cause injuries.
CAUTION!
• Pulling it too quickly may cause the
lamp to break and scatter broken
glass in the projector.
• Do not place the lamp in locations
where water might splash on it,
children can reach it, or near flam-
mable materials.
• Do not insert your hands into the
projector after the lamp is
removed.
• If you touch the optical compo-
nents inside, it could cause colour
unevenness and distortion of the
projected images.
CAUTION!
• Loose screws may cause a bad
connection, which could result
malfunction.
• Do not overtighten the screws.
CAUTION!
Service 33
Troubleshooting
Power cycling
If a problem occurs that cannot be corrected
with the instructions in this user manual, follow
the steps given here.
1Turn the device off by pressing the â button
twice.
2Wait at least ten seconds.
3Turn the device on by pressing the â button
once.
4If the problem persists, please contact our
technical service centre or your dealer.
Problems Solutions
The projector cannot be turned on • Disconnect and connect the power cable and
try to turn it on again.
The projector cannot be turned off • Push the â button longer than ten seconds. If
it does not work, disconnect the power cable.
No sound • Check that the speaker is activated (see
Sound settings on page 26).
• Adjust the volume using the VOLUME but-
tons (î/ï).
No sound from the external connected device • Check the cables to the external device.
• Check that the sound is activated on the
external device.
• Only the original cables from the device man-
ufacturer may function.
No sound from external HDMI output device • Set the audio setting to Multichannel (Raw
data) & Stereo (PCM).
No sound when you connect your computer via
HDMI cable
• Check that the sound is activated on the
computer.
Video display problem when the source is a 3D
signal from a Blu-ray player
• Check that the 3D mode is activated on the
projector (see 3D settings on page 26).
• If the Blu-ray player is connected to the pro-
jector via HDMI, use any of the HDMI sockets.
Only the initial screen appears and not the image
from the external device
• Check if the cables are connected to the right
sockets.
• Check that the external device is turned on.
• Check if the video output of the external
device is turned on.
• Check that the HDMI source selected on the
user interface corresponds to HDMI connec-
tor where the external device is connected.
Only the initial screen appears and not the image
from the connected computer
• Check that the VGA-output of the computer
is turned on.
• Check if the resolution of the computer is set
to 1920*1080 (for VGA-connection) or 1080P
(for HDMI-connection).
34 Philips · HDP3550
The device turns itself off • When the device is running for a long period
of time, the surface becomes hot and a warn-
ing symbol appears.
•Check that the power cable is connected cor-
rectly.
• Check the sleep mode status in the setting
menu. When the sleep mode is activated, the
device turns off after the programmed dura-
tion.
The device cannot read the USB stick • The device does not support the exFAT file
system.
• Format the USB key in FAT format, then use it.
The projector does not react to remote control
commands
• Check the batteries of the remote control.
Problems Solutions
Appendix 35
8 Appendix
Technical data
Technology / optical
Display technology ........ Single 0.65” DarkChip3
1080p DLP® Technology by Texas Instruments
Light source ............ Philips UHP Image life lamp
Lamp type .................................................... 250 watt
UHP light source ........... lasts over ?10000 hours
Colour wheel segment .....6 segment (RGBRGB)
Contrast ratio .......................................... 200 000: 1
Brightness ................................ 2000 colour lumen
Displayable colours ..............................1.07 billions
Resolution ....................................1920 x 1080 pixel
Throw ratio .......................................................... 0.21:1
Screen size ....................................................50–120”
Screen distance from device backside
............................................................... 10–42 cm
Keystone correction .............................................yes
Aspect ratio ............................................ 4:3 and 16:9
Projection modes ...................................front, rear,
....................................front ceiling, rear ceiling
Wall colour correction .........................................yes
Focus adjustment ......................................electrical
Frame rate.........................................................720 Hz
3D technology ........................... converts 2D in 3D,
...................................... supports all 3D modes
Image lag time .................................................. 50 ms
Image response time .................................. < 0.1 ms
Noise level...................... 32 dB(A) daylight mode/
....................................<25 dB(A) cinema mode
Supported formats/ resolutions
PAL (50Hz)/SECAM (50Hz)/NTSC (60Hz)/
........................ 480i/p/576i/p/720p/1080i/p
Sound
Built-in speakers ................................2+subwoofer
Output power .................................................... 26 W
Sound System ................................Dolby Digital 2.1
Connection
Bluetooth ........stream music from smart-phone
..............or tablet to Screeneo via Bluetooth
................................................. aptX® Standard;
operated frequency band 2400–2483.5 MHz
.................. max. transmitted power 100 mW
Connectivity ...2x back HDMI, 1 side HDMI, VGA,
................ composite, 1x back standard USB,
.............................headphone out side, Audio
........................in & out, AV in, S/PDIF optical,
.............................................................. trigger out
Power source
Power consumption ... operating: 190 to 300 W
................................................ power off: <0.5 W
Power supply ......... power adapter 90 V–264 V,
.................................... 47–63Hz for EU and UK
Logistic data
Packaging dimensions ......... packed (W x D x H):
.......................................... 408 x 340 x 385 mm
....................................... unpacked (W x D x H):
................................... 315.5 x 248.8 x 281.9 mm
Weight ...............................................packed: 10.5 kg
..................................................unpacked: 8.3 kg
Temperature range ................ operation: 5–35° C
Storage packed .........................................-10–60°C
Storage unpacked .......................................0–45° C
Relative humidity ............. operation: 15–85% RH
..............................storage packed: 5–93% RH
....................... storage unpacked: 15–85% RH
Standard package includes ....................HDP2510
..................................................... remote control
.................................................. quick start guide
.......................................................... power cable
.....................................................2 x AAA battery
........................................................ transport bag
........................................................warranty card
Accessories
Following accessories are available for your
device:
PVideo-(CVBS) cable......... PPA1320 / 253526178
3D glasses ............................PPA5610 / 253569764
IR remote control.............. PPA5650 / 253588194
All data is provided for reference purposes
only. X-GEM SAS reserves the right to make any
changes without prior notice.
36 Philips · HDP3550
The CE marking certifies that the product meets
the main requirements of the European Parlia-
ment and Council directives 1999/5/CE, 2006/
95/CE, 2004/108/CE and 2009/125/CE on
information technology equipment, regarding
safety and health of users and regarding elec-
tromagnetic interference.
The declaration of compliance can be con-
sulted on the site www.screeneo.philips.com.
Preservation of the environment as part of a
sustainable development plan is an essential
concern of X-GEM SAS. The desire of X-GEM
SAS is to operate systems observing the envi-
ronment and consequently it has decided to
integrate environmental performances in the
life cycle of this products, from manufacturing
to commissioning use and elimination.
Federal Communications Commission (FCC)
Statement: You are cautioned that changes or
modifications not expressly approved by the
party responsible for compliance could void the
user's authority to operate the equipment.
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC rules.
These limits are designed to provide reasona-
ble protection against harmful interference in a
residential installation. This equipment gener-
ates, uses and can radiate radio frequency
energy and, if not installed and used in accord-
ance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interfer-
ence will not occur in a particular installation.If
this equipment does cause harmful interfer-
ence to radio or television reception, which can
be determined by turning the equipment off
and on, the user is encouraged to try to correct
the interference by one or more of the follow-
ing measures:
•Reorient or relocate the receiving
antenna.
•Increase the separation between the
equipment and receiver.
•Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.
•Consult the dealer or an experienced
radio/TV technician for help.
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions:
1this device may not cause harmful
interference;
2this device must accept any interference
received, including interference that may
cause undesired operation.
FCC RF Radiation Exposure Statement: This
transmitter must not be co-location or operat-
ing in conjunction with any other antenna or
transmitter. This equipment complies with FCC
RF radiation exposure limits set forth for an
uncontrolled environment.
This equipment should be installed and oper-
ated with a minimum distance of 20 centime-
tres between the radiator and your body.
Canada Regulatory Compliance
This device complies with Industry Canada CAN
ICES-3 (B)/NMB-3(B)
RSS-Gen & RSS-247 statement: This device
complies with Industry Canada RSS standard(s).
Operation is subject to the following two con-
ditions:
1this device may not cause interference, and
2this device must accept any interference,
including interference that may cause unde-
sired operation of the device.
RF Radiation Exposure statement: The device
meets the exemption from the routine evalua-
tion limits in section 2.5 of RSS102 and users
can obtain Canadian information on RF expo-
sure and compliance.
This equipment should be installed and oper-
ated with a minimum distance of 7.8 inches
(20 centimetres) between the radiator and your
body.
Appendix
Packaging: The presence of the logo (green
dot) means that a contribution is paid to an
approved national organisation to improve
package recovery and recycling infrastructures.
Please respect the sorting rules set up locally
for this kind of waste.
Batteries: If your product contains batteries,
they must be disposed of at an appropriate
collection point.
Product: The crossed-out waste bin symbol on
the product means that the product belongs to
the family of electrical and electronic equip-
ment. In this respect, the European regulations
ask you to dispose of it selectively;
•At sales points in the event of the pur-
chase of similar equipment
•At the collection points made available to
you locally (drop-off centre, selective col-
lection, etc.).
In this way you can participate in the re-use
and upgrading of Electrical and Electronic
Equipment Waste, which can have an effect on
the environment and human health.
The paper and cardboard packaging used can
be disposed of as recyclable paper. Have the
plastic wrapping recycled or dispose of it in the
non-recyclable waste, depending on the
requirements in your country.
Trademarks: The mentioned references in this
manual are trademarks of the respective com-
panies. The lack of the trademarks É and Ë
does not justify the assumption that these ded-
icated terminologies are free trademarks. Other
product names used herein are for identifica-
tion purposes only and may be trademarks of
their respective owners. X-GEM SAS disclaims
any and all rights in those marks.
Neither X-GEM SAS nor its affiliates shall be lia-
ble to the purchaser of this product or third
parties for damages, losses, costs, or expenses
incurred by the purchaser or third parties as a
result of accident, misuse, or abuse of this
product or unauthorized modifications, repairs,
or alterations to this product, or failure to
strictly comply with X-GEM SAS operating and
maintenance instructions.
X-GEM SAS shall not be liable for any damages
or problems arising from the use of any options
or any consumable materials other than those
designated as original X-GEM SAS / PHILIPS
products or X-GEM SAS / PHILIPS approved
products.
X-GEM SAS shall not be held liable for any
damage resulting from electromagnetic inter-
ference that occurs from the use of any inter-
face cables other than those designated as X-
GEM SAS / PHILIPS products.
All rights reserved. No part of this publication
may be reproduced, stored in a retrieval system
or transmitted in any form or by any means,
electronic, mechanical, photocopying, record-
ing, or otherwise, without the prior written per-
mission of X-GEM SAS. The information con-
tained herein is designed only for use with this
product. X-GEM SAS is not responsible for any
use of this information as applied to other
devices.
This user manual is a document that does not
represent a contract.
Errors, printing errors and changes are reserved.
Copyright È 2016 X-GEM SAS
ISED Statement
English: This device complies with Industry
Canada license exempt RSS standard(s).
Operation is subject to the following two
conditions: (1) This device may not cause
interference, and (2) This device must
accept any interference, including
interference that may cause undesired
operation of the device.The digital
apparatus complies with Canadian
CAN ICES-03 (B)/NMB03(B).
French:Le pr¨|sentappareilestconforme aux
CNR d'Industrie Canada applicables
aux appareils radio exempts de licence.
L'exploitationestautoris¨|e aux deux
conditions suivantes: (1) l'appareil
ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareildoit
accepter tout brouillageradio¨|lectriquesubi,
m¨omesi le brouillageest susceptible
d'encompromettre le fonctionnement
HDP3550
EN
253662678-A
