User Manual
User’s guide
WLAN 11g USB Dongle
Model: XWL-11GUZX
Important: Please do not connect your Company USB Wireless LAN Dongle
to the USB port of your computer before installing the Company WLAN Utility
and Driver.
System Requirements
– Notebook PC or desktop PC with one free USB port
– 32MB memory or greater
– 300MHz processor or higher
– Microsoft Windows XP / Windows 2000 / Windows Millennium Edition /
Windows 98 Second Edition
Driver Installation
Important: Please do not connect your Company USB Wireless LAN Dongle
to the USB port of your computer before installing the Company WLAN Utility
and Driver.

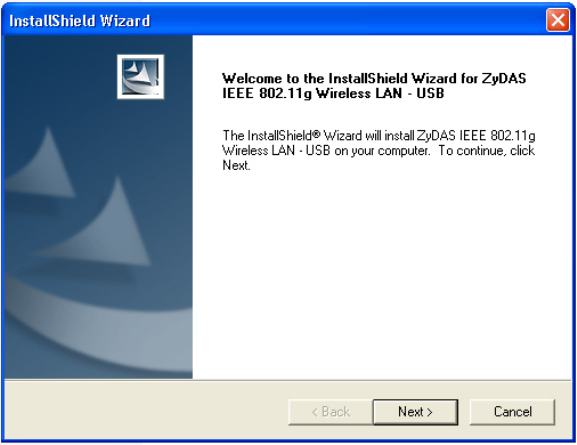

1. Insert the Company WLAN Utility and Driver CD in the CD-ROM drive and
wait until the following welcome screen appears on your screen. Click [Next].
Note: In case this screen does not appear, in Windows Explorer browse to
your CD-ROM and double-click the Setup.exe file.

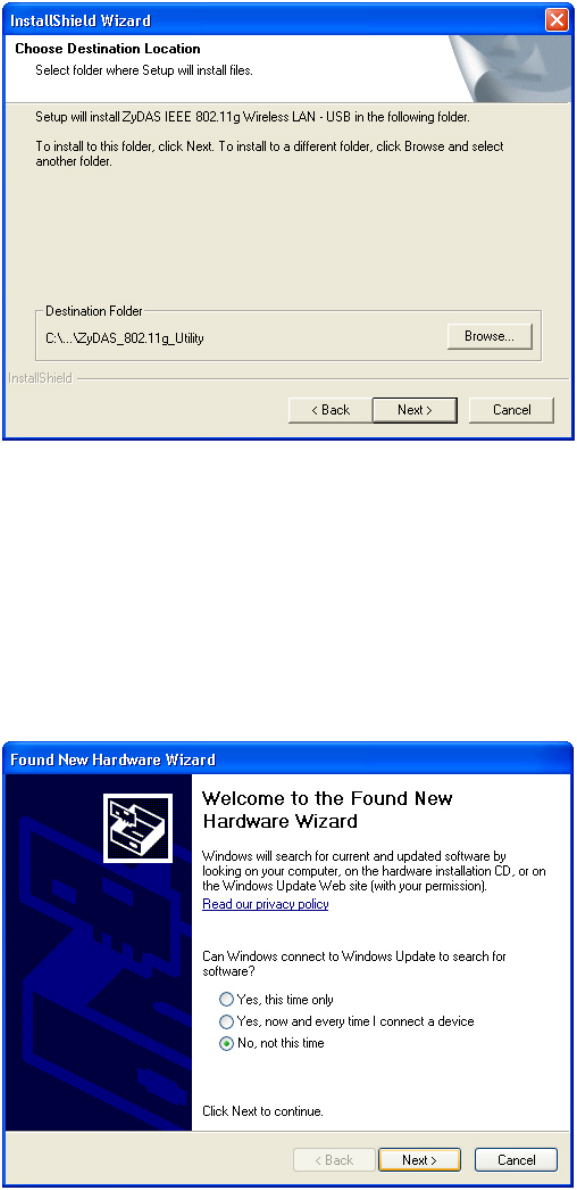

2. Click [Next] to accept, or [Browse] to change the default destination folder.
Note: In some setups of Windows 2000 and Windows XP a Microsoft Digital
Signature warning may appear on your screen. Click [Yes] or
[Continue anyway] to continue the installation.
3. Now connect your Company USB Wireless LAN Dongle to a USB port of
your computer. In the Find New Hardware Wizard that appears on your
screen select [No, not this time], and click [Next].

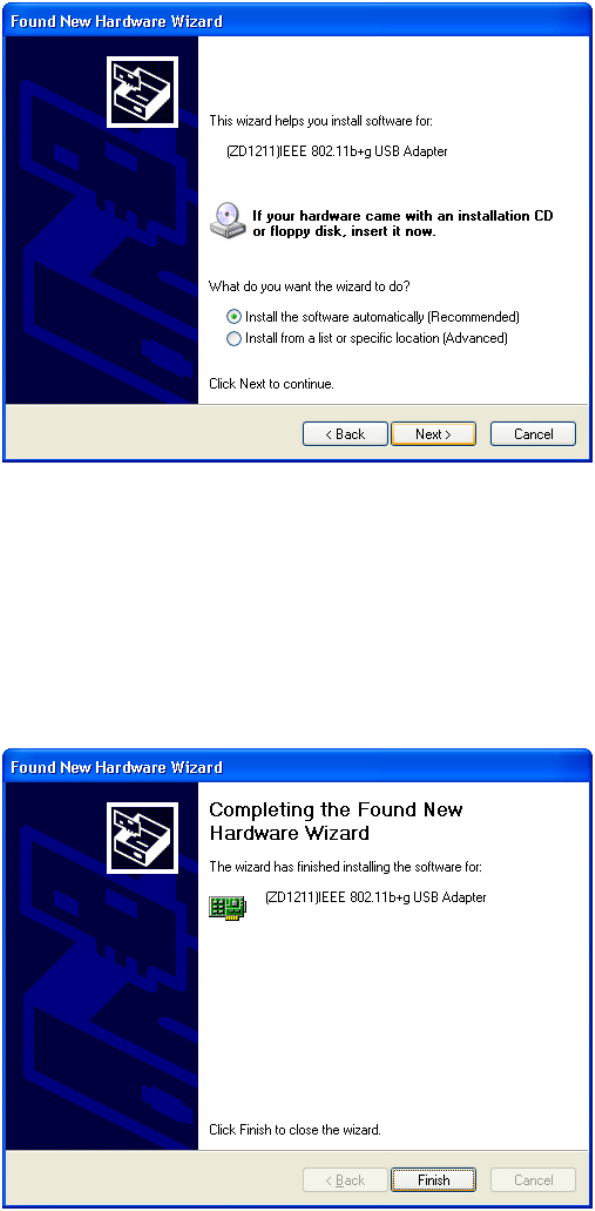

5. Select [Install the software automatically (Recommended)], and click [Next].
Note: In some setups of Windows 2000 and Windows XP a Microsoft Digital
Signature warning may appear on your screen. Click [Yes] or
[Continue anyway] to continue the installation.
6. Click [Finish] to finalize the installation. Your Company USB Wireless LAN
Dongle is now ready for use. Please refer to the electronic user’s guide on the
Company WLAN Utility and Driver CD-ROM for further directions as to the
configuration of your dongle.

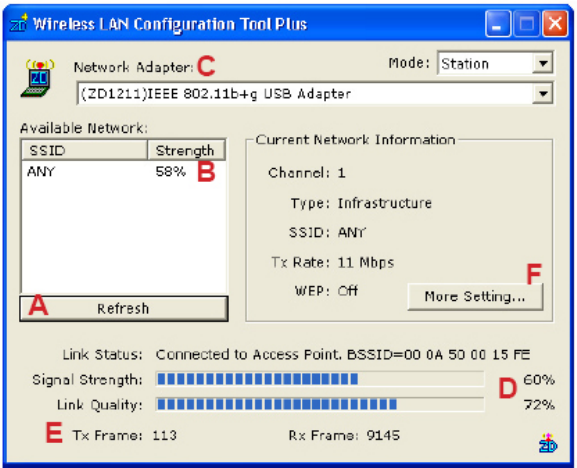

Using the Company WLAN utility
Open the Company WLAN utility by double-clicking the Company icon in the
system tray, or by clicking [Start] > [Programs] > [Company WLAN Utility].
Note: In Windows XP, please disable the Zero Configuration feature when
prompted to do so.
A. Click on the Refresh button to see all available SSID networks.
B. You can select an SSID network by clicking ot its name in the Available
Network field. Details will then be shown in the Current Network Information
field.
C. The Network Adapter field shows the name of the wireless network adapter.
D. The Signal Strength and Link Quality values are shown in block diagrams
as well as in percentages.
E. At the lower end of this screen you can see the number of transmitted and
received frames.

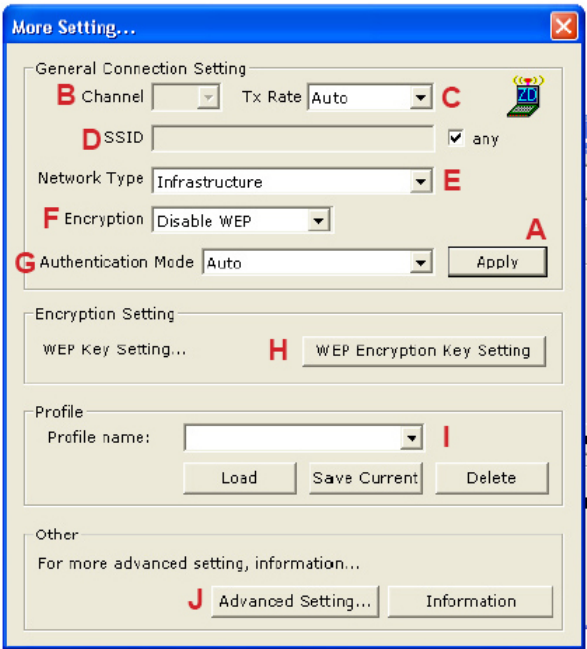

F. Click on the More Settings button to bring op the following screen:
A. Click on the Change/Apply button to modify the settings in the General
Connection Setting field.
B. Select the channel in ad-hoc mode from the Channel drop-down menu.
C. Select the transmission speed from the Tx Rate drop-down menu.
D. Untick the Any box to select another SSID network.
E. Select Infrastructure or Ad-hoc mode from the Network Type drop-down
menu.
F. Select Enable WEP or Disable WEP from the Encryption drop-down menu.
G. Select Open System, Shared Key, or Auto from the Authenticication Mode
drop-down menu.
H. Click on the WEP Encryption Key Setting button to modify the WEP key
settings. A new screen will appear (see hereafter).
I. Select a previously saved profile from the Profile Name drop-down menu,
and click on the Load button to load the profile into memory. Alternatively, key
in the profile name and click on the Save Current or Delete button to
respectively save or remove the profile.
J. For advanced settings or information about the software, click on the
Advanced Settings or the Information button.

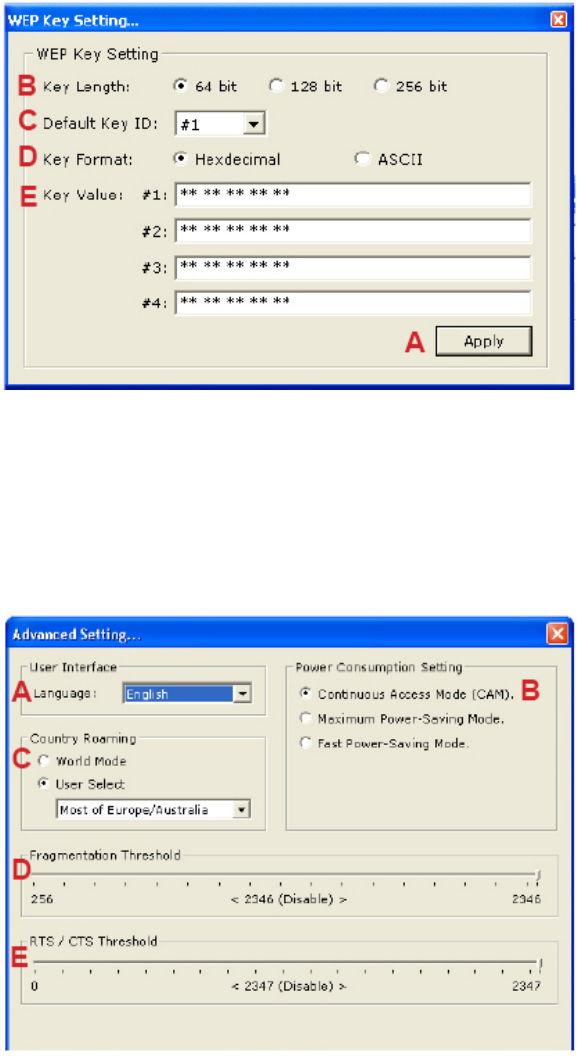

A. Click on the Change/Apply button to modify the WEP key settings.
B. Select an encryption key lenght of 64-bit, 128-bit, or 256-bit.
C. Select the default key ID.
D. Select Hexadecimal or ASCII in the Key Format field.
E. Key in the values of the WEP keys in the Key Value field.
A. Select English from the Language drop-down menu.
B. Select the power saving mode. Power consumption is related to the data
throughput. CAM mode (default) gives the highest power consumtion/data
throughput ratio, whereas Fast and Maximum offer resp. better and best
power savings (but less performance).
C. Select World Mode or your region from the User Select drop-down menu in
the Country Roaming field, and experiment to get the best results.
D. Move the slider in the Fragmentation Threshold bar to adjust the threshold
between 256-bytes and 2346-bytes.
E. Move the slider in the RTS / CTS Threshold bar to adjust the RTS
threshold between 0 and 2347-bytes.

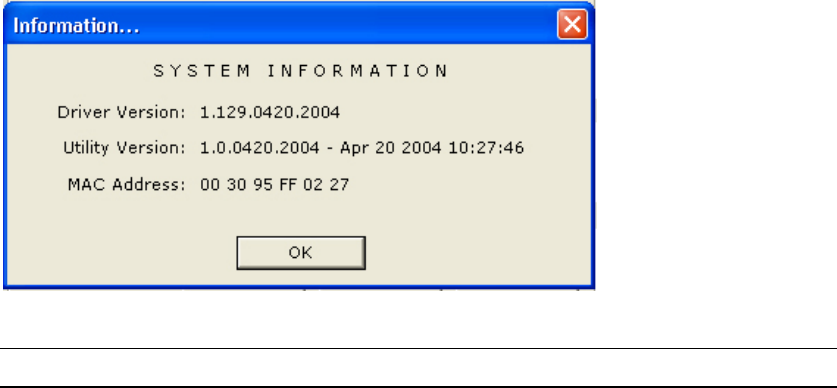

Click on the Information button in the More Settings screen to check the driver
and utility version, and the MAC address in this screen:
Federal Communication Commission Interference Statement
Federal Communications Commission
(FCC) Requirements, Part 15
This equipment has been tested and found to comply with the limits for a class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may
cause undesired operation.
FCC Caution:
FCC RF Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This device and its antenna must not be co-located or
operating in conjunction with any other antenna or transmitter.
Use only with supplied antenna. Unauthorized antenna, modification, or attachments
could damage the transmitter and may violate FCC regulations.
Regulatory information / Disclaimers
Installation and use of this Wireless LAN device must be in strict accordance with the
instructions included in the user documentation provided with the product. Any
changes or modifications (including the antennas) made to this device that are not
expressly approved by the manufacturer may void the user’s authority to operate the
equipment. The manufacturer is not responsible for any radio or television
interference caused by unauthorized modification of this device, or the substitution of
the connecting cables and equipment other than manufacturer specified. It is the
responsibility of the user to correct any interference caused by such unauthorized
modification, substitution or attachment. Manufacturer and its authorized resellers or
distributors will assume no liability for any damage or violation of government
regulations arising from failing to comply with these guidelines.
CE Warning:
Regulatory statement ( R&TTE / WLAN IEEE 802.11 b/g )
European Standards dictate maximum radiated transmit power of 100mW EIRP and
frequency range 2.400-2.4835GHz; In France, the equipment must be restricted to the
2.4465-2,4835GHzfrequency range and must be restricted to indoor use.
CE Declaration of Conformity:
For the following equipment: Wireless LAN Card Bus
Is herewith confirmed to comply with the requirements set out in the Council
Directive on the Approximation of the Laws of the Member States relating to
Electromagnetic Compatibility (89/336/EEC),
Is herewith confirmed to comply with the requirements set out in the Council
Directive on the Approximation of the Laws of the Member States relating to
Electromagnetic Compatibility (89/336/EEC), Low-voltage Directive (73/23/EEC)
and the Amendment Directive (93/68/EEC), the procedures given in European
Council Directive 99/5/EC and 89/3360EEC. The equipment was passed. The test was
performed according to the following European standards:
EN 300 328-2 V1.2.1 (2001-08)
EN 301 489-1 V.1.4.1 (2002-04) / EN 301 489-17 V.1.2.1 (2002-04)
EN 50371: 2002
EN 60950: 2000
