X Z LAB 110 RadTarge II User Manual

X-Z LAB, INC. RadTarge II Users Manual

Users Manual

RadTarge II
Users Manual
CONTENT
1.Introduction ................................................................................................................................... 3
2.Device Highlight ............................................................................................................................. 3
3. specifications ................................................................................................................................. 4
4.Applications .................................................................................................................................... 5
5.Benifit Statement ........................................................................................................................... 5
6.Operation ....................................................................................................................................... 6
7.Electromagnetic Compatibility ....................................................................................................... 8
8.Safety ............................................................................................................................................. 9
9.Trouble shooting ........................................................................................................................... 11
10. The package contain .................................................................................................................. 11
1.Introduction

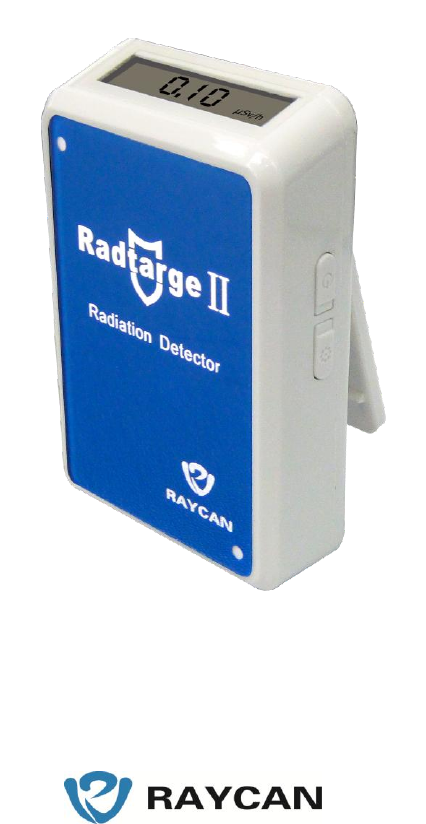

The RadTarge II | Personal Alarming Dosimeter is an all digital Alarming Dosimeter with the
basic function of detecting radiated emission, which covers a wide range of Gamma, X-Ray and
Beta.
2.Device Highlight
Digital Data Acquisition
All Digital solid-state detection
High-performance Detection
Design
High performance YSO crystal
Miniaturized SiPM
High-speed chip enables fast response and the smallest dead
time in industry
Patented MVT Digital signal processing technology, excellent
performance and stability
Background radiation virtually eliminated
Rapid Response
Full range reading and Alarm response in less than 2 seconds
Higher Sensitivity - our devices allows our users to detect much
earlier
An audible output will quickly alert responders of rapidly
changing radiation levels.
Real-Time “Active Self Reading”
Quality Control System
Auto-calibrating
Virtually eliminated False Alarms
Ability to discriminate between Background radiation and
man-made source
Programmable chips enable firmware updates and system
upgrades*
Ultra-low power consumption
High system stability and reliability
Accurate and reliable data
Precise quantitative analysis
3. specifications
Specifications
RadTarge II | Personal Alarming Dosimeter
Detector
YSO Scintillator + SiPM
Type of Radiation Detected
Beta, Gamma and X-Ray radiation
Energy Range
20keV~3MeV
Dose equivalent rate Range
0.01μSv/h~1mSv/h
Accumulated Dose Range
0.01μSv~100Sv
Sensitivity
5cps/μSv/h
Energy Response
+ 15%
Dose Rate Linearity Error
≤±10%
Accurate Dose Rate
Accumulated Dose Rate Error < 3%
Alarm Threshold
adjustable threshold through entire range (1μSv/h~1mSv/h)
Display
LCD Display
Display Unit
(μ~m)Sv/h; μSv~Sv
Alarm
Audible, visible and vibrating alarms
Full Range Reading and Alarm Response
<2 Seconds
Data Storage
Accumulated Dose Data
Data Transfer
USB
Power Supply
Lithium Ion Rechargeable Battery
Battery Life
240 h Run Time
Temperature
-10-60
Dimensions
2.7x1.8x0.7 inches / 69x46x17 mm
Weight
60 g / 2.1 oz
Regulatory
FCC Part 15 compliant
4.Applications
Dental Office: Over time, even low levels of ionizing radiation from X-Ray machines present
potential health hazards. Although dental technicians or hygienists may stand outside the
examination room during X-Rays administration, the risk of overexposure still exists and should
be monitored to ensure the health of your employees. RAYCAN RadTarge II can give your staff
real-time protection.
Veterinary Practice: Extra care is required in X-Raying animals, because human intervention is
needed. Therefore, the possibility of radiation exposure is higher than in other medical practices.
The best way to monitor radiation is with reliable, quality radiation monitoring service from
RAYCAN. Use RAYCAN RadTarge II to know the cumulative exposure levels of your employees to
ensure their safety.
Hospital: The multitudes of diagnostic equipment in the modern hospital environment have
varying levels of radiation exposure risks. For example, hospital staff in radiation oncology and
radiology departments need to accurately measure the dose of radiation they receive while
working near medical equipment containing radioisotopes, and to ensure that the radioactive
sources in the equipment are not leaking and emitting hazardous radiation levels. RAYCAN
RadTarge II ensures that you assess risk levels appropriately and that the proper dosimetry
monitoring is implemented in a cost-efficient manner.
Radiological Center: X-ray or diagnostic equipment in your office have varying levels of radiation
exposure risks. RAYCAN Dosimetry Solutions can ensure that you assess risk levels appropriately
and that the proper dosimetry monitoring is implemented in a cost-efficient manner.
High-energy Physics: High-energy nuclear physics and high-energy physics experiments (HPE)
frequently require scintillator detectors that are immune to both static and changing magnetic
fields. In most cases, this precludes the use of photomultiplier tubes. RAYCAN RadTarge II
provides the required immunity to magnetic disturbances, plus the extremely high photon
sensitivity and speed required to capture the decay-chain characteristics of nuclear
disintegrations and high-energy particle collisions.
5.Benifit Statement
As an “Active Self Reading” device, BOTH dose rate AND accumulated dose are
measured in real time enabling user to always be aware of current exposure.
Ergonomic Upward facing large backlit LCD display offers user readability in dark or
bright environments
Pocket-sized portability with convenient belt clip
3 types of alarms - our users are alerted by a multitude of ways: vibration, audible and
visible
Alarm level - either preset or user programmable through entire measurement range
Intuitive menu-driven navigation allows user to adjust settings in the field
Easy operation with one hand with just two buttons allowing total control with a thumb
Proportional real-time “Detection and Measurement” provides meaningful readouts
which focus on the awareness and safety of the user during critical times
Patented MVT sampling method resulting in no signal loss and high signal to noise ratio
Low-power CMOS digital electronics combined with digital silicon photomultiplier chip
(SiPM)
Dose and dose rate alarm provides additional awareness of high radiation levels.
Blue acrylic tamper proof label prevents user from opening instrument thus ensuring
operational integrity for compliance and liability concerns
6.Operation
1. Basic operation: Two key operation is simple, easy to operate and easy to use.
Powering on and off: Press the power key for 2 seconds until screen lights up.
Automatically enters the main interface/dose equivalent rate after the machine starts.
Automatic and instant measurement of exposure level while displaying the current
real time dose equivalent rate. Pressing power button for 2 seconds to power off when
screen turns off.

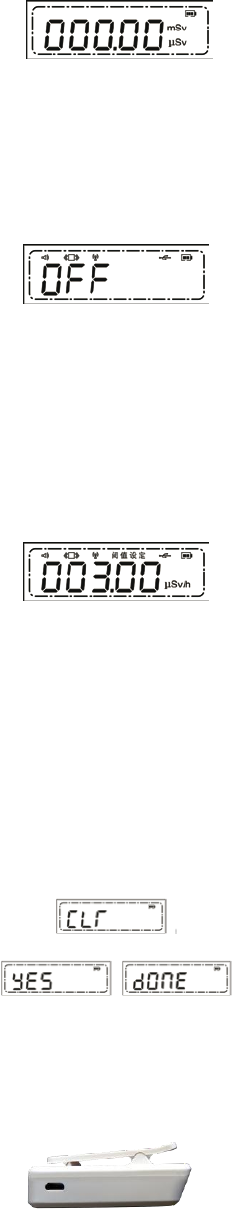

(top line):Icons from left to right are: sound alarm, vibration alarm function and wireless
communication function in the open position
Left line: Digital real-time display Image 000.00 ---1st right line: the charging
and battery indicator
the dose equivalent rate, accurate to 10nSv/h--
---- 2nd right line: According to different radiation intensity, automatically choose the
appropriate unit for display.
Bottom line: The main interface (real-time dose equivalent rate interface)
2. The cumulative dose interface: press settings button (directly under power key)
and switch to cumulative dose, the interface displays the cumulative dose
equivalent.
I
Setup mode: Press the settings button until settings interface is displayed. Press
the settings button to change settings for sound alarm, vibration alarm and wireless
communication. Press power button to turn on / off.
Threshold settings: enter setup mode, press the settings button 3 times,
"threshold" will flash in display; then press power button to setup, threshold level
values will start flashing; press the settings button to choose values, press power
button to apply changes.
3. Dose clearing: enter setup mode, press settings button 4 times to display
dose-clearing interface, "CLR" is displayed: press the power button to clear
dose, when "yes" is displayed press the power key to confirm. "done” is
displayed when dose is cleared. Press settings button at any time to cancel.
Press the setting button in any setting interface to exit setup mode and return to
main interface.
4. Charging function: Insert MicroUSB line, charging light indicates charging
status.
5. Real time setting: enter setup mode, press the Settings button 5 times, "RTC" is
displayed; press power button to enter setup; press the settings button to choose
Year, month, day and time; press power button to apply changes. Press settings
button until "done" is displayed to complete.
Press settings button to return to the main interface.
7.Electromagnetic Compatibility
This product complies with relevant international and national laws and standards on EMC
(electromagnetic compatibility) for this type of product when used as intended. Such laws and
standards define both the permissible electromagnetic emission levels from equipment and its
required immunity to electromagnetic interference from external sources.
Other electronic products exceeding the limits defined in such EMC standards could, under
unusual circumstances, affect the operation of the product.
• Information Technology Equipment (ITE) need special precautions regarding EMC, and need to
be installed and put into service according to EMC information provided in the accompanying
documents.
Please use the shielding USB port which is meant to connect with PC, the use of accessories
and cables other than those specified may result in increased emission or decreased immunity
levels.
• The product should not be used adjacent to or stacked with other products and that if adjacent
or stacked use is necessary, it should be observed to verify normal operation.
This equipment is intended for use in a hospital environment. Operation in other than hospital
environments may compromise electromagnetic compatibility.
RadTarge II | Personal Alarming Dosimeter complies with part 15 of the FCC Rules. Operation is
subject to the following conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Changes or modifications to the equipment not expressly approved by the party responsible for
compliance could void the users authority to operate the equipment.
8.Safety
Important safety directions
If the product is not functioning correct or damage is visible, please contact your RAYCAN
representative, who will take appropriate actions in order not to create harm. Handle the
product with care. Make sure that the product is used and stored in a secured environment to
prevent unauthorized access.
Maintenance & faults
WARNING Do not use the product for any application until you are sure that the user
routine‐checks have been satisfactorily completed, and that the periodic maintenance of the
product is up to date. If any part of the product is known (or suspected) to be defective or
wrongly adjusted, DO NOT USE the product until a repair has been made. Operation of the
product with defective or wrongly adjusted components could expose the user or the patient to
radiation or other safety hazards. This could lead to fatal or other serious personal injury.
Safety awareness
WARNING Do not use the product for any application until you have read, understood and know
all the safety information, safety procedures and emergency procedures contained in this Safety
section. Operation of the product without a proper awareness of how to use it safely could lead
to fatal or other serious personal injury.
Adequate training
WARNING Do not use the product for any application until you have received adequate and
proper training in its safe and effective operation. If you are unsure of your ability to operate this
product safely and effectively, DO NOT USE IT. Operation of this product without proper and
adequate training could lead to fatal or other serious personal injury.
Safety devices
Warning Never attempt to remove, modify, override or frustrate any safety device on the
product. Interfering with safety devices could lead to fatal or other serious personal injury.
Intended use and compatibility
Warning Do not use the product for any purpose other than those for which it is intended. Do
not use the product with products other than that which RAYCAN recognizes as compatible.
Operation of the product for unintended purposes, or with incompatible products, could lead to
fatal or other serious injury.
Electrical safety
WARNING Do not remove covers or cables from this product. Dangerous electrical voltages are
present within this product. Removing covers or cables could lead to serious or fatal personal
injury. Covers or cables should only be removed by qualified and authorized service personnel.
Use this product in rooms or areas that comply with all applicable laws (or regulations having the
force of law) concerning electrical safety for this type of product. Electrically isolate this product
from the mains electrical supply before cleaning, disinfecting or sterilizing it.
Mechanical safety
WARNING Do not remove covers from this product. Removing covers could lead to serious or
fatal personal injury. Covers should only be removed by qualified and authorized service
personnel. In this context, qualified means those legally permitted to work on this type of
medical electrical product in the jurisdiction(s) in which the product is being used, and
authorized means those authorized by the user of the product.
Explosion safety
WARNING Do not use this product in the presence of explosive gases or vapors.
WARNING Do not use flammable or potentially explosive disinfecting sprays.
WARNING Use of this product in an environment for which it was not designed can lead to fire or
explosion.
Fire safety
Use of electrical product in an environment for which it was not designed can lead to fire or
explosion. Fire regulations for the type of medical area being used should be fully applied,
observed and enforced. Fire extinguishers should be available for both electrical and
non‐electrical fires.
WARNING Only use extinguishers on electrical or chemical fires, which are specifically labeled for
those purposes. Using water or other liquids on an electrical fire can lead to fatal or other serious
personal injury. If it is safe to do so, attempt to isolate the product from electrical and other
supplies before attempting to fight a fire. This will reduce the risk of electric shocks.
Electrostatic discharge (ESD)
CAUTION Always wait at least ten seconds after the product is switched OFF before switching the
product back to ON.
CAUTION Always use proper static procedures, protection, and product prior to opening and
during handling of this product. This product contains components that are electrostatic
sensitive. Failure to use ESD procedures may cause damage to these components. Such damage
to components is not covered by RAYCAN warranties.
ESD can amount to a significant voltage, which may cause damage to PCBs or other system
components.
ESD damage is cumulative and may not be apparent at first, as indicated by a hard failure, but
can cause degraded performance. Therefore, always use proper ESD handling procedures. ESD
can result from low humidity conditions, use of electrical equipment on carpeting, linens, and
clothing.
9.Trouble shooting
Problems
Solutions
Unable to start up
Check whether Power button was pressed for longer than 2 seconds and if
charged.
Automatic shutdown
Check if electricity is sufficient, if insufficient, please charge it
Insufficient power Indicator
Check if charging is completed, if not, continue charging
Charging indicator light is not
blinking
Confirm whether power supply has power and connection is connected
Alarm continuously
rings
Confirm whether there is a radiation source nearby
Alarm is not ringing when a
radiation source nearby
Check if the threshold range is set up correctly
* If the problem listed
above can’t be solved, please
contact us
10. The package contain
Name
Number
Host
1
USB charging cable N.A
The warranty card
1
Certificate
1
Users manual
1
Branch office
2440 Camino Ramon, Suite 264
San Ramon, CA 94583,USA
Headquarters
Bldg 17, 8 Jinfeng Rd, Suzhou New
District, Suzhou, 215163, China
1-925-359-6908 (T)
1-925-380-6784 (F)
Web: http://www.x-zlab.com/
Version:A-3-000001

Navigation menu
