XAC Automation C200 Contactless Reader User Manual
XAC Automation Corporation Contactless Reader
User Manual
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Underwriters Laboratories Inc. (“UL”) has not tested the performance or reliability of
the security of Radio Frequency Identification (RFID) or other aspects of this product. UL has only
tested for fire, shock and/or casualty hazards as outlined in UL's Standard(s) for Safety of U.S.
and Canadian (Bi-National) Standard for Information Technology Equipment - Safety - Part 1:
General Requirements, CAN/CSA-C22.2 No. 60950-1-03 * UL 60950-1, First Edition. UL
Certification does not cover the performance or reliability of the security or signaling aspects of
this product. UL MAKES NO REPRESENTATIONS, WARRANTIES OR CERTIFICATIONS
WHATSOEVER REGARDING THE PERFORMANCE OR RELIABILITY OF ANY SECURITY OR
SIGNALING RELATED FUNCTIONS OF THIS PRODUCT.
XAC Automation Corporation
886-3-577-2738
www.xac.com.tw
The above information is the exclusive intellectual property of XAC Automation
Corporation and shall not be disclosed, distributed or reproduced without permission
of XAC Automation Corporation.
XAC CONTACTLESS READER
INSTALLATION GUIDE
1. READER DEVICE SETUP

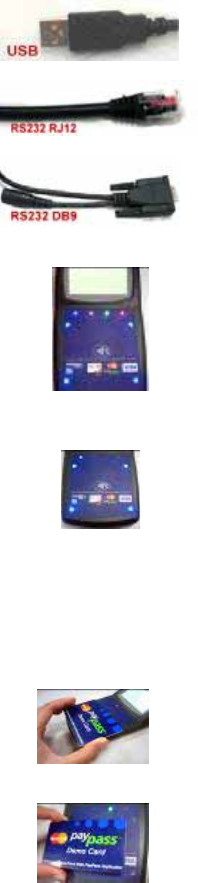

Plug the USB (Figure 1), RS232 RJ12 (Figure 2) or RS232
DB9 (Figure 3) of the contactless reader C200 to the host
(PC or terminal).
Note: Please also plug power cord to cable if it’s RS232
RJ12 type.
One is power input; another is a port for devices connected
to terminal (Figure 3). (Adapter: Leader Electronics Inc.
/MU12-2050200-C5, MU12-2050200-A1; Input: 100-240V,
50/60Hz, 0.5A; Output: 5V, 2A)
Input voltage/ Current: 5V/500mA for USB,
12V/1A for RS232 RJ12,
5V/1A for RS232 DB9
Operating/ Storage temperature: Operating: 0℃~40
Storage: -20℃~60℃
All lights (blue, yellow, green, red and four blue boundary
lights) turn on as soon as the USB is connected (Figure 4).
Caution: Risk of explosion if the battery is replaced by an
incorrect type. Please dispose of used battery according to
the instructions.
When only blue light and boundary lights (Figure 5) are on
and the monitor shows “XAC CityPass”, C200 is ready to
use.
2. TEST TRANSACTION
A test transaction should be performed upon installation to
ensure trouble-free operation of the device.
Yellow light turns on when card is not yet detected well.
(Figure 6)
Green light turns on when card is detected (Figure 7)
Red light turns on when system error occurs.
Figure 1
Figure 2
Figure 3
Figure4
Figure 5
Figure 6
Figure 7
3. MAINTENANCE
Stringent quality-control standards are followed in manufacturing
all reader devices.
Numerous tests are performed on each unit before leaving the
factory to ensure quality and reliability.
4. RETURNING READER DEVICE
If you need to return your device for service or replacement,
contact your service provider or sales representative for
instructions.
Note: Do not try to service, repair or adjust the device in any
way; doing so will void your warranty.
