1. BEFORE STARTING

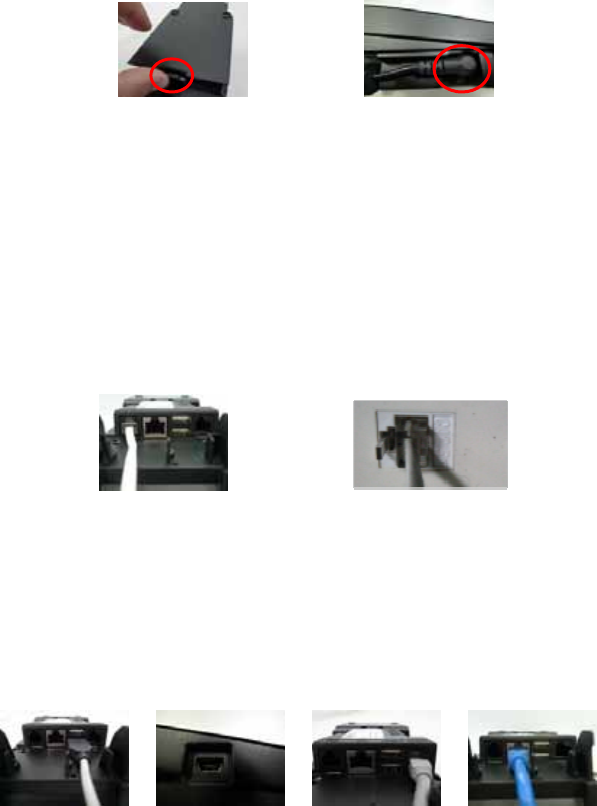

Open the gate behind the device (Figure 1), and find the power input on the right side of the
terminal. Connect the plug from the power adapter into the power input (Figure 2). Plug the
power adapter into a 120-volt electrical outlet or into a surge suppressor (recommended) after the
power cord is connected to the power adapter.
Figure 1 Figure 2
Operating Temperature: 0 °C to 40 °C
Modem Speed: V.22bis 2400bps/ V.32bis 14400bps
RTC battery spec. : 3V, CR2032
Caution: Risk of explosion if the battery is replaced by an incorrect type. Please dispose of used battery
according to the instructions.
Warning: A shielded-type power cord is required in order to meet FCC emission limits and also to prevent
interference to the nearby radio and television reception. It is essential that only the supplied power cord be
used.
Connect one end of the phone cord into one of the jacks on the back of the terminal (Figure 3).
Plug the other end of the cord into a modular wall jack (Figure 4). Use only a jack for an analog
line like a fax line or a standard telephone.
Figure 3 Figure 4
(Optional) This terminal supports three USB ports. Two USB host ports locate on the back of the
terminal (Figure 5). One USB device port locates on the left side of the terminal (Figure 6). If the
terminal uses a peripheral device with USB connector, plug it into the USB host port.
(Optional) This terminal supports one RS-232 ports of RJ-12 offset keyed connector. If the terminal
uses a peripheral device with this type of connector and interface, plug it into the RS-232 port on
the back of the terminal (Figure 7).
(Optional) If the terminal needs communication over Ethernet, plug cable into the RJ-45 port on
the back of the terminal (Figure 8).
Figure 5 Figure 6 Figure 7 Figure 8
2. POWER ON THE TERMINAL
Plug the power cord into the power jack and plug the power adapter into a 120-volt electrical
outlet or into a surge suppressor (recommended) after the power cord is connected to the power

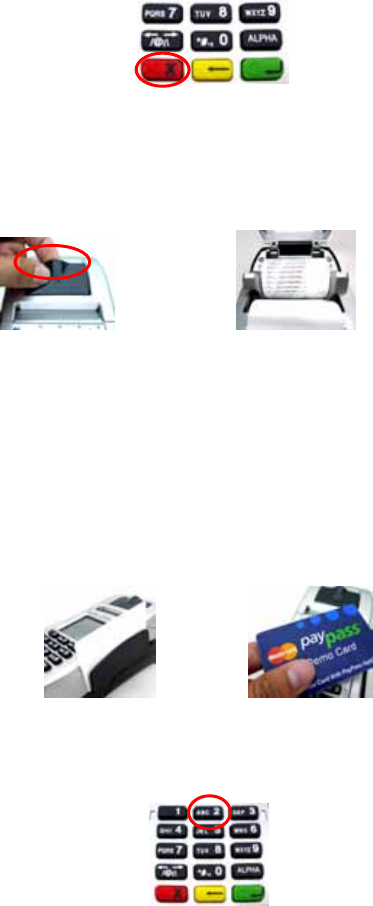

adapter. Press the “Cancel” button at the front of device (Figure 9) until the system is booted up.
Figure 9
3. LOADING THE PAPER
Gently pop the printer cover’s latch to open the cover (Figure 10); then lift the cover. Load a roll of
thermal paper (Appleton 1012 recommended) into the printer (Figure 11). Load it so that the
print-side of the paper will feed out facing the operator. Close the cover by pressing down evenly
on both side tabs, or by pressing on the center of the printer cover. Use the serrated bar to tear off
any excess paper.
 
Figure 10 Figure 11
4. USING THE MAGNETIC CARD READER
Magnetic Card Reader
Find the card reader slot at the right side of terminal. Slide the card in either direction through the
slot without stopping. If the card swipe fails, check the position of the magnetic stripe and slide
the card again (Figure 12).
Contactless Card Reader
Contactless reader antenna is around the display and PIN pad. It will light up with blue color
signal when FD130 is powered on and that means reader is working normally. Put contactless
card to approach the antenna of card reader (Figure 13) for reading the card data during
transaction.
Figure 12 Figure 13
5. USING THE KEY PAD
To enter numbers or letters, simply press the appropriate key. For example, to type the letter B:
Press and release [B] twice times, then display shows B (Figure 14).
Figure 14
6. INSTALLING THE SAM CARD

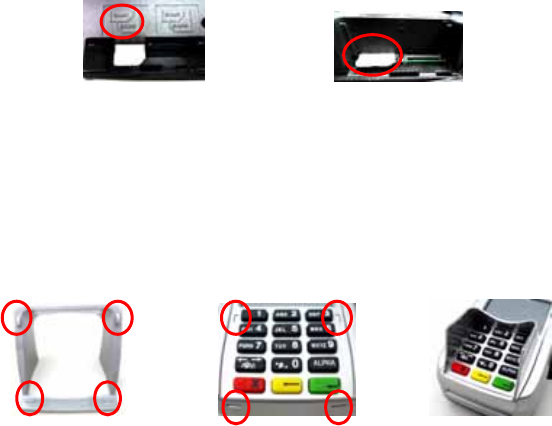

There are four SAM slots located on the left side of the device (Figure 15). Before insert the SAM
card, please turn off the device. Insert the SAM card in the slot in figure 16. Make sure SAM cards
inserted in the right direction (Figure 16).
Figure 15 Figure 16
7. INSTALLING THE PRIVACY SHIELD
The privacy shield of the FD130 is shown as figure 17. To install, place the privacy shield over the
terminal and hook the top hooks to the device basins beside keypad number 1 and 3. Whilst
hooked on, apply pressure to the bottom part of the shield so that it clicks into the bottom hooks
shown on figure 18. Figure 19 shows the completion of the privacy shield installation.
The device, FD130, is compliant with PCI privacy screen design requirement when the detachable
privacy shield is installed on the device. Any change to or removal of this privacy shield will
cause security concerns.
Figure 17 Figure 18 Figure 19
NOTICE: This equipment meets the applicable Industry Canada Terminal Equipment Technical Specifications. This is confirmed by the registration number. The
abbreviation, IC, before the registration number signifies that registration was performed based on a Declaration of Conformity indicating that Industry Canada
technical specifications were met. It does not imply that Industry Canada approved the equipment.
NOTICE: The Ringer Equivalence Number (REN) for this terminal equipment is 0.1. The REN assigned to each terminal equipment provides an indication of the
maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject
only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed five.
AVIS : Le présent matériel est conforme aux spécifications techniques d’Industrie Canadaapplicables au matériel terminal. Cette conformité est confirmée par le
numérod'enregistrement. Le sigle IC, placé devant le numéro d'enregistrement, signifie quel’enregistrement s’est effectué conformément à une déclaration de
conformité et indique queles spécifications techniques d'Industrie Canada ont été respectées. Il n’implique pasqu’Industrie Canada a approuvé le matériel.
AVIS : L'indice d'équivalence de la sonnerie (IES) du présent matériel est de 0.1. L'IESassigné à chaque dispositif terminal indique le nombre maximal de
terminaux qui peuvent êtreraccordés à une interface téléphonique. La terminaison d'une interface peut consister en unecombinaison quelconque de dispositifs, à la
seule condition que la somme d'indicesd'équivalence de la sonnerie de tous les dispositifs n'excède pas 5.
Caution: When removing bottom cover for the purposes of cable or SAM card installation, remember to reinstallation the protective cover and make sure to keep it
in place.
Caution: To reduce the risk of fire, use only No. 26 AWG or larger UL Listed or CSA Certified Telecommunication Line Cord.
Caution: Use only shielded signal cables to connect I/O devices to this equipment. You are cautioned that changes or modifications not expressly approved by the
party responsible for compliance could void your authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause undesired operation.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this
equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Warning: This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate
measures.
Industry Canada Statement
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions:
(1) this device may not cause interference and
(2) this device must accept any interference, including interference that may cause undesired operation of the device
Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux
conditions suivantes:
(1) le dispositif ne doit pas produire de brouillage préjudiciable, et
(2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable.
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
Declaration d'exposition aux radiations:
Cet equipement est conforme aux limites d'exposition aux rayonnements IC etablies pour un environnement non controle. Cet equipement doit etre installe et
utilise avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.
FCC REQUIREMENTS
This equipment complies with Part 68 of FCC Rules. On the base unit of this equipment is a label that contains, among other information, the FCC Registration
Number and Ringer Equivalence Number (REN) for this equipment. IF REQUESTED, THIS INFORMATION MUST BE GIVEN TO THE TELEPHONE
COMPANY.
This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the bottom of this equipment is a label that contains,
among other information, a product identifier in the format US: N7KMM01BFD130DUO. If requested, this number must be provided to the telephone company.
The REN is used to determine the number of devices that may be connected to a telephone line. Excessive RENs on a telephone line may result in the devices not
ringing in response to an incoming call. In most but not all areas, the sum of RENs should not exceed five (5.0). To be certain of the number of devices that may be
connected to a line, as determined by the total RENs, contact the local telephone company. For products approved after July 23, 2001, the REN for this product is
part of the product identifier that has the format N7KMM01BFD130DUO. The digits represented by 01B are the REN without a decimal point (e.g., 03 is a REN of
0.3). For earlier products, the REN is separately shown on the label. If your equipment causes harm to the telephone network, the telephone company may
discontinue your service temporarily. If possible, they will notify you in advance. But if advance notice is not practical, you will be notified as soon as possible. You
will be informed of your right to file a complaint with the FCC. Your telephone company may make changes in its facilities, equipment, operations or procedures
that could affect the proper functioning of your equipment. If they do, you will be notified in advance to give you an opportunity to maintain uninterrupted
telephone service. If you experience trouble with this telephone equipment, please contact the following address and phone number for information on obtaining
service or repairs. The telephone company may ask that you disconnect this equipment from the network until the problem has been corrected or until you are sure
that the equipment is not malfunctioning. This equipment may not be used on coin service provided by the telephone company. Connection to party lines is subject
to state tariffs.
COMPANY: Zakus, INC.
ADDRESS: 146 Main Street, suite 208 Los Altos, CA 94022 U.S.A.
TEL NO: 650-917-9158
A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and
requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible
modular jack that is also compliant. See installation instructions for details.
Warning: If the device, FD130, is used without the detachable privacy shield, the following criteria needs to be met by the Installed Environment of the PED for
complying with the PCI privacy screen design requirement:
A. Positioning of the PED on the check-stand in such way as to make visual observation of the PIN-entry process infeasible.
Visual shields designed into the check-stand.
Position the PED so that it is angled in such a way to make PIN spying difficult.
B. Pop-up (temporary) privacy shield attached to the PED mounting stand. Consumer (through education & prompting) or merchant would put the shield in place
during PIN entry.
C. Installing PED on an adjustable stand that allows consumers to swivel the terminal sideways and/or tilt it forwards/backwards to a position that makes visual
observation of the PIN-entry process difficult.
D. Positioning of in-store security cameras such that the PIN-entry keypad is not visible.
E. Instructing the cardholder regarding safe PIN-entry, done with a combination of:
Signage on the PED.
Prompts on the display, possibly with a "click-through" screen.
Potentially literature at the point of sale.
A logo for safe PIN-entry process.
Table A1: Matrix of Observation Corridors and PIN Protection Method
Observation Corridors
Method Cashier
Customers
in Queue Customers
Elsewhere On-Site
Cameras Remote
Cameras
PED Stand A M H L L L
PED Stand B H H H L M
Check-Stand A L M M L H
Check-Stand B H H M H H
Customer Instruction H* H* H* H* H*
z Customer Instruction methods are less repeatable and therefore should be used in combination with other methods. L = low, M = medium, H =
high.
