XAC Automation FD400TI Portable Terminal User Manual 100607
XAC Automation Corporation Portable Terminal Users Manual 100607
User manual
First Data Corporation
c/o Tasq Technology
800-835-3362 Ext. 0
http://www.firstdata.com/
Printed in the United States of America.
© Copyright 2006 First Data Corporation. All rights reserved.
" Federal Communications Commission (FCC) Statement “
This Equipment has been tested and found to comply with the limits for
a Class A digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications.
Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct
the interference at his own expense.
© 2009 First Data Corporation.
P
ORTABLE
T
ERMINAL

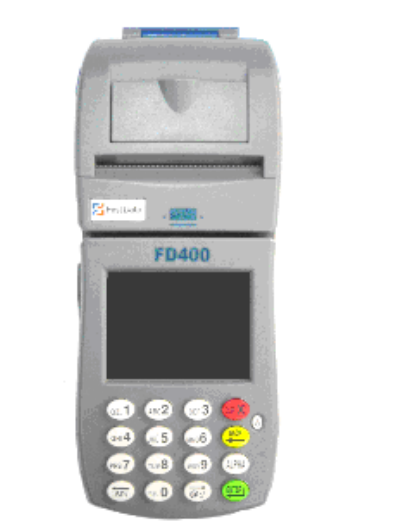

FD-400
INSTALLATION GUIDE
1. POWER ON TERMINAL
There are two holes under a plastic cover on the right
side of terminal (Figure 1).
One is power input; another is a port for devices
connected to terminal (Figure 2).
(Adapter: LI SHIN INT. / LSE0107A1240: Input:
100-240Vac, 50/60Hz 1A; Output: 12Vdc, 3.33A)
(Car Charger: EDAC POWER ELECTRONICS CO.,
LTD./ED1025: Input : 11-16Vdc, 5A. Output: 12Vdc,
2.5A)
“Caution: For continued protection against fire, replace
only with same type same rating fuse.” Marking is
located on the enclosure of cigarette lighter plug or
located on the input cable near cigarette lighter plug.
Fuse rating (voltage and ampere) shall also marked on
the enclosure of cigarette lighter plug near the fuse.
Rechargeable battery is on the back side of terminal
(Figure 3). (attery pack: Cheng Uei/FD-400 7.4V, 2.3Ah)
After plugged power cord or installed the battery, press
the power button on the front to power on it (Figure 4).
Caution: Risk of explosion if the battery is replaced by an
incorrect type. Please dispose of used battery according
to the instructions.
Environment:
Operating Temperature: 0°C to 40°C
Storage Temperature: - 20°C to 60°C
2. LOADING THE PAPER
Pop the printer cover’s latch to open the cover (Figure 5);
then lift the cover.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Load a roll of paper (Appleton 1012 recommended) into
the printer (Figure 6).
The print-side of the paper will feed out facing the
operator.
Close the cover and tear off any excess paper (Figure 7).
The printer is now ready to use.
3. USING THE CARD READER
Find the reader slot in the middle of surface. Swipe card
through slot in left to right or the opposite direction with
stripe face to us (Figure 8).
4. USING THE KEY PAD
The keypad allows you to select transaction types and
enter information. Its 16 keys can be used to select
numbers, letters, and to enter data (Figure 9).
To enter numbers or letters, simply press the appropriate
key. For example, to type the letter A, press [ALPHA],
then [A] (the Void key) (Figure 10)
Caution:
A shielded-type power cord is required in order to meet
FCC emission limits and also to prevent interference to
the nearby radio and television reception. It is essential
that only the supplied power cord be used.
Use only shielded signal cables to connect I/O devices to
this equipment.
You are cautioned that changes or modifications not
expressly approved by the party responsible for
compliance could void your authority to operate the
equipment."
Figure 6
Figure 7
Figure 8
Figure 9
Figure 10
Federal Communications Commission Notice
This device complies with part 15 of the FCC Rules. Operation is subject to the foll
owing two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that m
ay cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B d
igital device, pursuant to Part 15 of the FCC Rules. These limits are designed to pro
vide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if no
t installed and used in accordance with the instructions, may cause harmful interfe
rence to radio communications. However, there is no guarantee this equipment do
es not cause harmful interference to radio or TV reception. This can be determined
by turning the equipment on and off. The user is encouraged to try to correct the in
terference by one or more of the following measures:
zReorient or relocate the receiving antenna.
zIncrease the separation between the equipment and receiver.
zConnect the equipment into an outlet on a circuit different from that to whi
ch the receiver is connected.
zConsult the dealer or an experienced radio or television technician for hel
p.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USERS
AUTHORITY TO OPERATE THE EQUIPMENT.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment . End users must follow the specific operating
instructions for satisfying RF exposure compliance. To maintain compliance with
FCC RF exposure compliance requirements, please follow operation instruction as
documented in this manual.
For hand-held or desktop operation only. This PORTABLE TERMINAL meets
FCC RF exposure guidelines when used in hand-held or desktop operation. The
minimum distance from antenna to human body should be maintained in 20cm at
least.
