XAC Automation Corporation RFID Unattended Payment Terminal
User Manual
UNATTENDED TERMINAL XUPT-303
INSTALLATION GUIDE

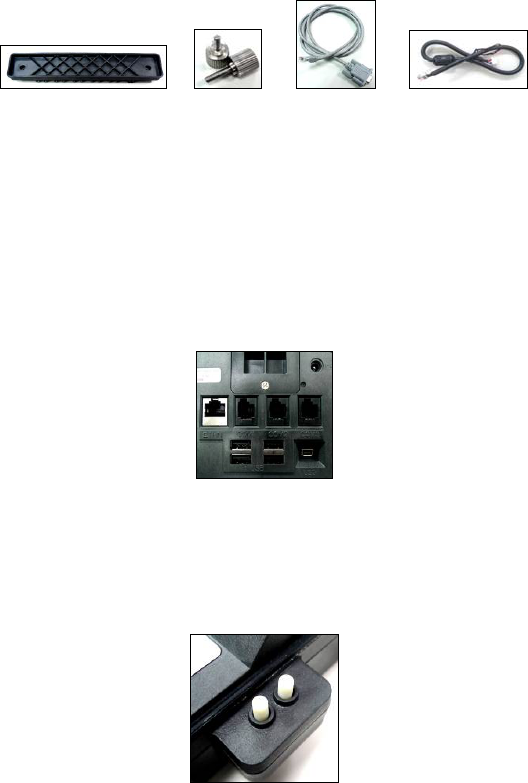

1. XUPT-303 PACKAGE CONTAINS
- xUPT-303
- Cable clamp (Figure 1)
- 2 Hand screws (Figure 2)
- 2 RS232 to RJ 12 cable (Figure 3)
- P90 dedicated cable (Figure 4) – Used to connect and supply power to XAC P90 (Optional)
Figure 1 Figure 2 Figure 3 Figure 4
2. PORT CONFIGURATION
There are several ports at the back side of terminal (Figure 5).
- Power jack
- 1 Ethernet port
- 3 COM port
- 4 USB port
- 1 mini USB port
NOTE: COM3 port is dedicated to XAC Secure Hybrid Reader module.
Figure 5
Power Input Requirement:
Input: 12Vdc/3A
3. REMOVAL PROTECTION
Two “Removal Protection” sensors (Figure 6) are located at the right side of front. When install
this module, make sure these two sensors are pressed firmly against kiosk bezel.
Figure 6
4. CABLE MANAGEMENT

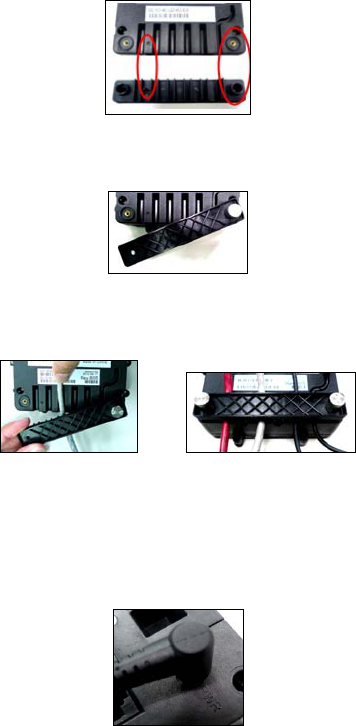

Step 1: Place the cable clamp on top of cable management channels. The tip on clamp should be
aligned to the hole on xUPT-303 (Figure 7)
Figure 7
Step 2: Tight the hand screw on the right side of cable clamp (Figure 8) until the cable clamp can
move loosely.
Figure 8
Step 3: Plug each cable into corresponding port, and collect each cable into cable channel (Figure
9). To secure the cables, fasten two hand screws (Figure 10).
Figure 9 Figure 10
5. POWER ON THE TERMINAL
Step 1: Connect the power cord to the power adapter
Step 2: Plug the power adapter into an electrical outlet or into a surge suppressor (recommended).
Step 3: Plug the power cord into the power jack (Figure 11)
Figure 11
Note: If P90 is required, connecting P90 to xUPT-303 before power on xUPT-303, or P90 will
initiate fail.
6. USING THE CONTACTLESS CARD READER
Contactless reader antenna is around the display. It will light up and blinking the 1st LED when
xUPT-303 is powered on and that means reader is working normally.

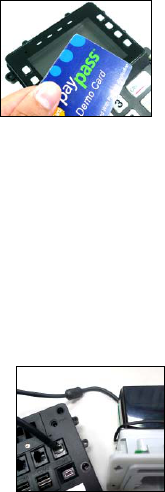

Place contactless card near the display (Figure 14). The contactless antenna should detect the card
and read the card data.
Note: Make sure the xUPT-303 contactless antenna is away from other contactless antenna at least
8 inches to avoid interfere.
Figure 14
7. CONNECTING XAC SECURE HYBRID READER (P90)
COM3 port is dedicated to XAC Secure Hybrid Reader module. When connecting P90 to xUPT-
303, please using the P90 dedicated cable (Figure 4), and make sure plug the RJ connector into
COM3 port of xUPT-303 (Figure 15); otherwise, P90 will not function.
Note: Connecting P90 to xUPT-303 before power on the xUPT-303, otherwise P90 will initiate fail.
Note: Do not plug any other module or connector into COM3 port, this will cause unpredictable
error.
Figure 15
FCC statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
RF exposure warning
The equipment complies with FCC RF exposure limits set forth for an uncontrolled environment.
The equipment must not be co-located or operating in conjunction with any other antenna or
transmitter.
NOTE: Any changes or modifications not expressly approved by the grantee of this device could
void the user's authority to operate the equipment.
IC Radiation Exposure Statement for Canada
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to
the following two conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit
pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
"CAUTION: Risk of Explosion if Battery is replaced by an Incorrect Type. Dispose of Used
Batteries According to the Instructions."
