X5669WUP3 User’s Manual Version 1.0
1
Chapter 1
Getting Started
I. Overview
The X5668 is a multi-mode ADSL2+ router/modem, which is designed to
interoperate with DSLAMs from major vendors to meet the worldwide
ADSL CPE market requirements.
It complies with ANSI T1.413 issue 2, ITU-T G.dmt, G.lite, G.dmt.bis
(ADSL2) and ADSL2+ with up to 24 Mbps downstream link rate. The
integrated Ethernet switch features automatic crossover-correction and
speed sensing for easily connecting to user’s PCs or LAN environment.
X5669WUP3 User’s Manual Version 1.0
2
II. Features
Support up to ADSL2+ (G.992.5) with 24 Mbps downstream and 1
Mbps upstream rates
Integrated one Ethernet port with automatic speed-sensing and
crossover correction
Support Networking protocols such as PPP, NAT, Routing, DHCP
server/relay/client
Configuration and management by Web-browser through the Ethernet
interface and remotely through ADSL interface
Firmware upgradeable through HTTP/TFTP
X5669WUP3 User’s Manual Version 1.0
3
III. Packaging

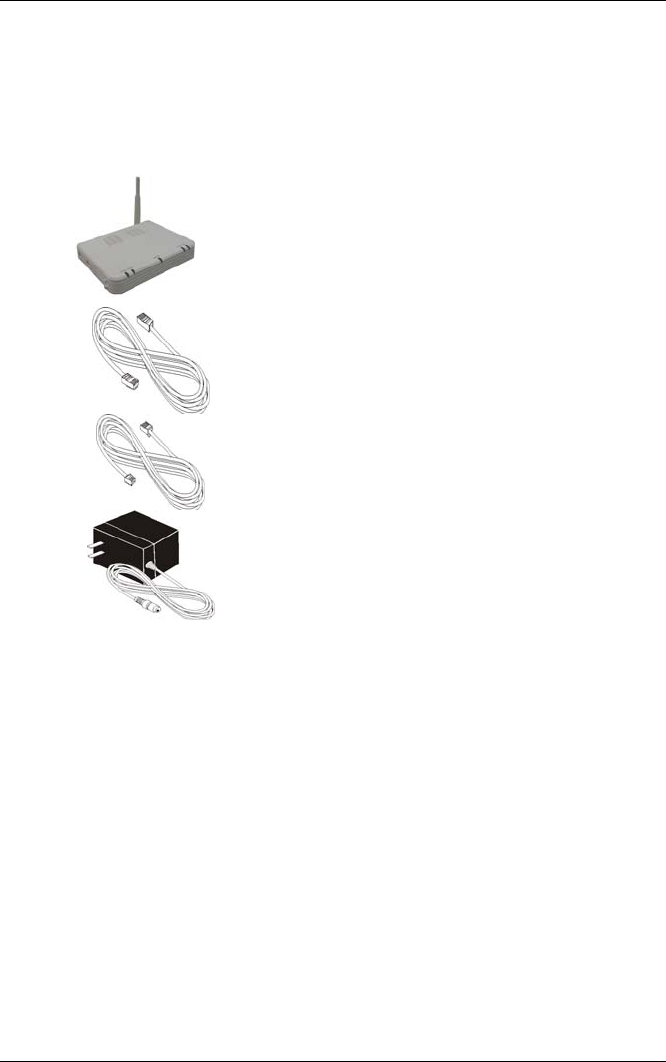

This package consists of the following items:
X5668 ADSL device unit
RJ-45 Cable
RJ-11 Cable
AC Adapter
X5669WUP3 User’s Manual Version 1.0
4
IV. Safety Guidelines
In order to reduce the risk of fire, electric shock and injury, please adhere
to the following safety guidelines.
Carefully follow the instructions in this manual; also follow all
instruction labels on this device.
Except for the power adapter supplied, this device should not be
connected to any other adapters.
Do not spill liquid of any kind on this device.
Do not place the unit on an unstable stand or table. This unit may
drop and become damaged.
Do not expose this unit to direct sunlight.
Do not place any hot devices close to this unit, as they may
degrade or cause damage to the unit.
Do not place any heavy objects on top of this unit.
Do not use liquid cleaners or aerosol cleaners. Use a soft dry
cloth for cleaning.
X5669WUP3 User’s Manual Version 1.0
5
V. Appearance

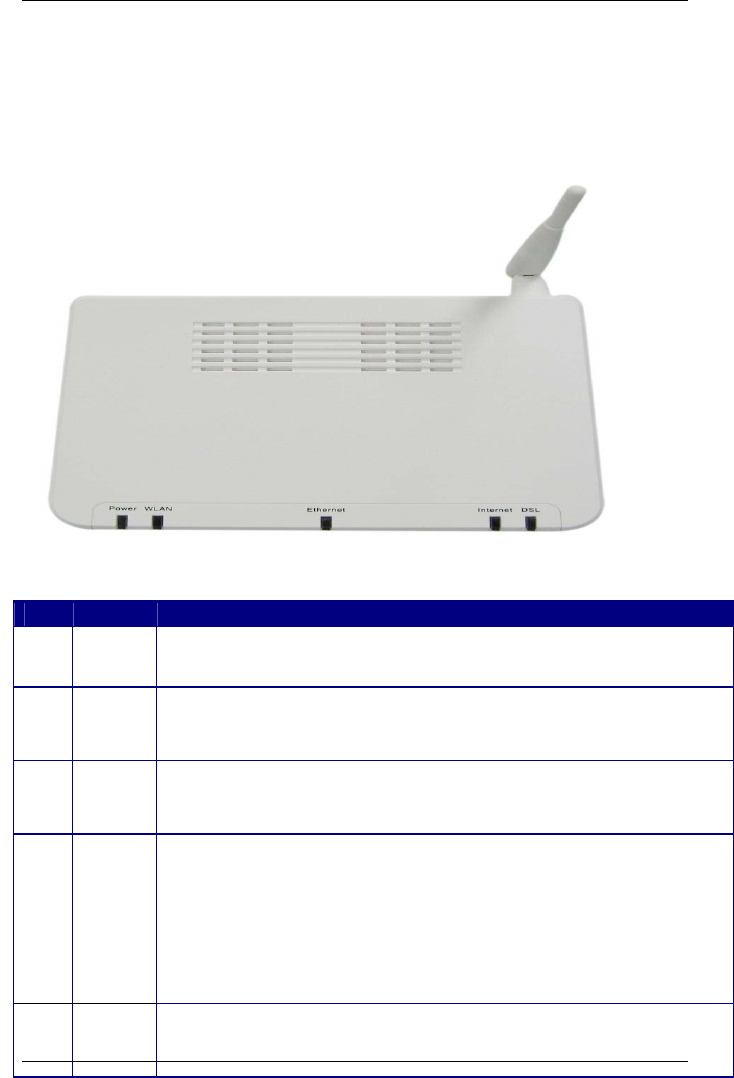

Front Panel
Label Description
1 Power
GREEN off: No power or user forgets to plug power adapter
GREEN on: Power on then GREEN lights on
RED on: test fail RED lights on
2 WLAN
GREEN off: WLAN disable
GREEN on: WLAN enable and stand by
GREEN blinking: packets transmitted through
3
Ethernet
GREEN off: No ethernet connected on LAN side
GREEN on: 4 ethernet ports, any port connected
GREEN blinking: packets transmitted through
4
Internet
GREEN off: No connection to Internet
GREEN on: No bridge mode and router mode successes to get IP, then
GREEN ON
GREEM blinking: Any mode when packets transmitted then GREEN LED
blinking.
RED on: router mode connection failed to get IP or box is set to be
bridge mode then RED lights on
5 DSL
GREEN on: phsical layer sync successes
GREEN blinking: sync progress
GREEN off: cable not connected or no sync
1 2 3 4 5
X5669WUP3 User’s Manual Version 1.0
6

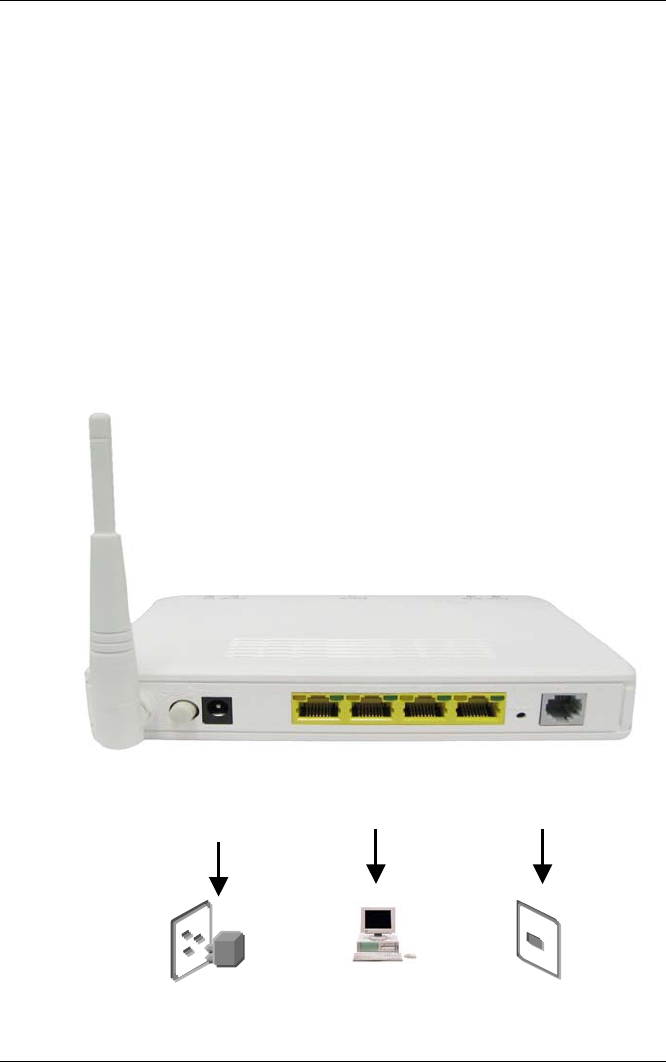

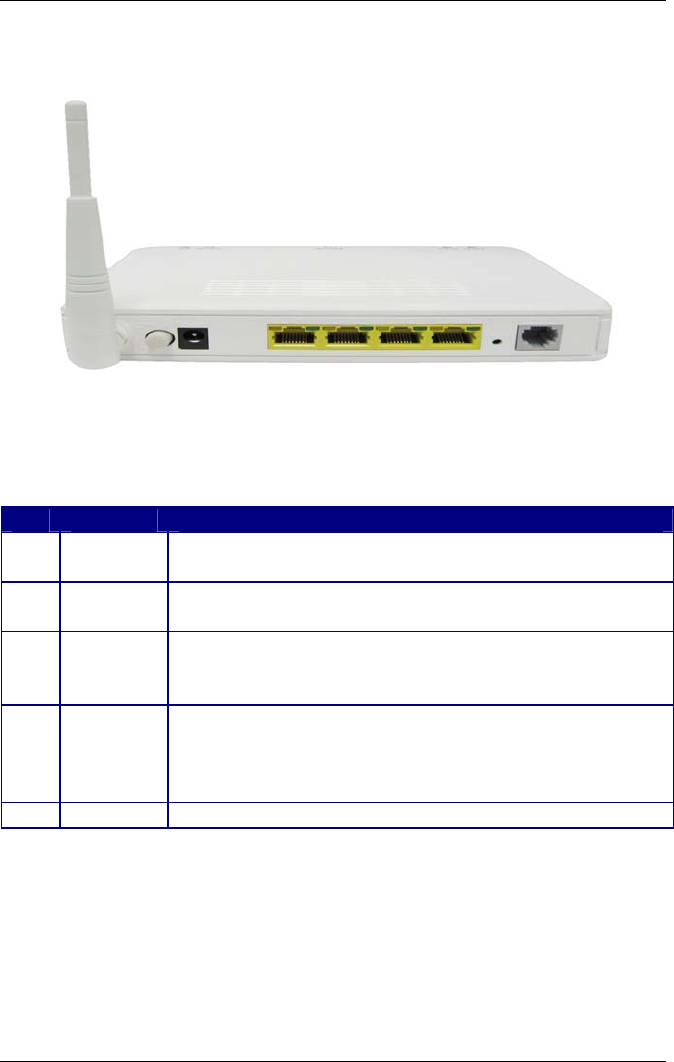

Rear Panel
Label Description
1 SWITCH To turn on / off the power.
2 POWER Power interface, Connect with power adaptor.
3 LANs
To be connected to a PC network card by a straight-through
network cable, also can use a crossover cable to connect to
Hub, Switch or Router.
4 Reset
Reset to default settings is located at bottom of router.
Press the reset button for 5 seconds while the router is up and
running.
Then you can reset the modem with the default setting.
DSL Connected with phone line or “ ADSL” port of the splitter.
1
2
3 4
X5669WUP3 User’s Manual Version 1.0
7
VI. Hardware Installation
Follow the steps below to set up your device:
Step 1: Connect one end of the ADSL cable to the LINE port of X5668 and
the other end to the ADSL wall outlet.
Step 2: Use a RJ-45 cable to connect one end to an ETHERNET port of
X5668 and the other end to the LAN or a PC with an Ethernet
adapter installed.
Step 3: Plug in the AC adapter to the AC power socket, and then
connect the DC jack to the POWER inlet of X5668. Push the
SWITCH button to turn it on.
12
3
ADSL Outlet
Management
Terminal/
4 PC
Power Su
pp
l
y
X5669WUP3 User’s Manual Version 1.0
8
VII. Management
There are several ways that you can make the configuration:
Local Ethernet Port (telnet) – connect the Ethernet port to your
local area network or directly to a PC, “telnet” X5668 from any
workstation in the LAN. The default local Ethernet IP address is
“192.168.1.1”. See Chapter 2, Command Line Interface, for more
details.
Local Ethernet Port (Web browser) – connect the Ethernet port
to your local area network or directly to a PC. Launch your Web
browser and enter default local Ethernet IP address “192.168.1.1”
into the address bar.
ADSL Port from Remote Site – while the ADSL connection is in
service and it is set to router mode, you may remotely “telnet”
X5668 from a workstation connected to the equipment.
Note: As operating an ADSL device requires technical know-how and
experience, it is recommended that only qualified technical staff manage
X
5
6
68 Therefore, a password authentication is required when you ente
r
the command line and Web interface. See the Default Values section to
obtain the password.
X5669WUP3 User’s Manual Version 1.0
9
VIII. Default Values
X5668 is pre-configured with the following parameters; you may also
re-load the default parameters by pressing the reset button on the real
panel or by using the System Commands link on the Web interface.
Note: The Username and Password are case-sensitive.
Username/Password: admin/admin
Default IP Address WAN and ADSL
Ethernet (local) IP: 192.168.1.1 Local Line Code: Multi Mode
Subnet mask: 255.255.255.0 DHCP Server: Disable
Protocol DHCP start IP: 192.168.1.2
RFC1483 Bridge: VPI/VCI: NA/NA DHCP end IP: 192.168.1.254
Class (QoS): NA
X5669WUP3 User’s Manual Version 1.0
10
IX. Software Upgrade
You may easily upgrade X5668 embedded software by obtaining the
compressed upgrade kit from the service provider and then following the
steps for upgrading through a Web-browser:
Step 1: Extract the ZIP file for updated firmware.
Step 2: Connect X5668 via the local Ethernet port or remote ADSL link,
making sure that the X5668 Ethernet IP address and your
terminal are properly configured so that you can successfully
“ping” X5668. The default local IP address is “192.168.1.1”.
Step 3: Launch the Web browser (IE or Netscape), and enter the default
IP address 192.168.1.1 into the address bar to access the Web
management page.
Step 4: Click on the Management link on the navigation bar and then on
the Update Software link below it.
Step 5: Click on the Browse to select the appropriate firmware and then
click on the Update Software button. The upgrade process
may take about 60 seconds. Do not reset the device while
X5669WUP3 User’s Manual Version 1.0
11
Chapter 2
Web Management Interface
I. Overview
The Web Management Interface is provided to let the configuration of
X5668 as easily as possible. It provides a user-friendly graphical interface
through a Web platform. You can configure bridge or router functions to
accommodate your needs. In the section below, each configuration item is
described in detail.
II. Preparation
Step 1: Please refer to the hardware installation procedure in
Chapter 1 to install X5668.
Step 2: You should configure your PC to the same IP subnet as the
X5668.
Example: X5668: 192.168.1.1
Your PC: 192.168.1.2
Step 3: Connect your PC to X5668 and make sure that the PING
function is working properly. The default IP address of this
device is 192.168.1.1
Step 4: Launch the Web browser (IE or Netscape), and enter the
default IP address 192.168.1.1 into the address bar to
access the Web management page.
Step 5: The Login dialog box will appear first.
X5669WUP3 User’s Manual Version 1.0
12
1. Login
The Enter Network password window will appear when starting the
configuration. With the window active, type admin for both User
name and Password, and then click on the OK button.
Note: The username and password are case-sensitive.
X5669WUP3 User’s Manual Version 1.0
13
2. Quick Setup
This model supports Quick Setup for user to set up the modem/router
to work with the provide service from ISP or TELCO.
STEP1> Click the “Quick Setup”, This Quick Setup will guide you
through the steps necessary to configure your DSL Router.
STEP2> Select the check box “DSL Auto-connect” to enable DSL
Auto-connect process. If you want to input VPI/VCI and choose the
protocol to connect your service, just leave this check box disable, then
input VPI, and VCI numbers. Click “Next” to go to next step.
STEP3> Choose the Connect Type, the specific page will show up,
refer to chapter “WAN Setup” to go ahead next STEP for different
configuration.
<Note> If the configuration is bridge encapsulation, there is no need
to configure any more parameters. Only need to use the third party dial-up
software to connect the Internet.
This model supports：PPPoA、PPPoE、MER、IPoA、Bridging. For detail
configuration information, please check the following chapters
configuration guide.
X5669WUP3 User’s Manual Version 1.0
14

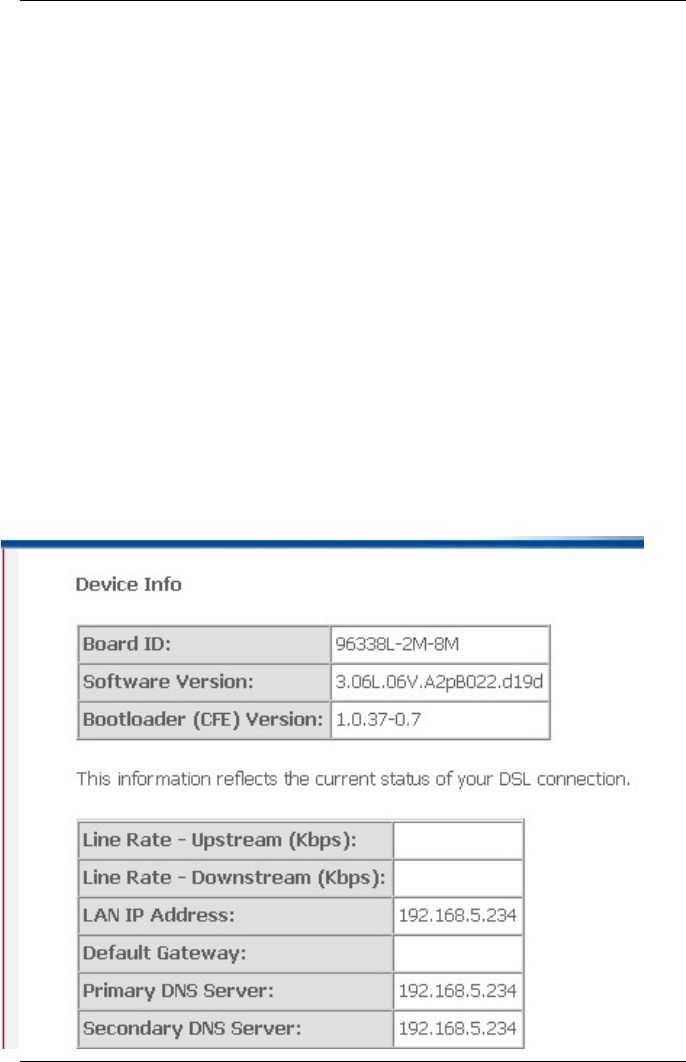

3. Device Info
Device Info is used to show the main information inside the router. There
are few pages below will be provided for the detailed data.
“Summary” will show
a. Board ID
b. Software Version
c. Bootloader Version
d. Line Rate
e. LAN IP Address
f. Default Gateway
g. Primary DNS Server
h. Secondary DNS Server
X5669WUP3 User’s Manual Version 1.0
15
“WAN Info” will show the related information about connection ID, ATM
QoS setting if the VPI/VCI is configured already.

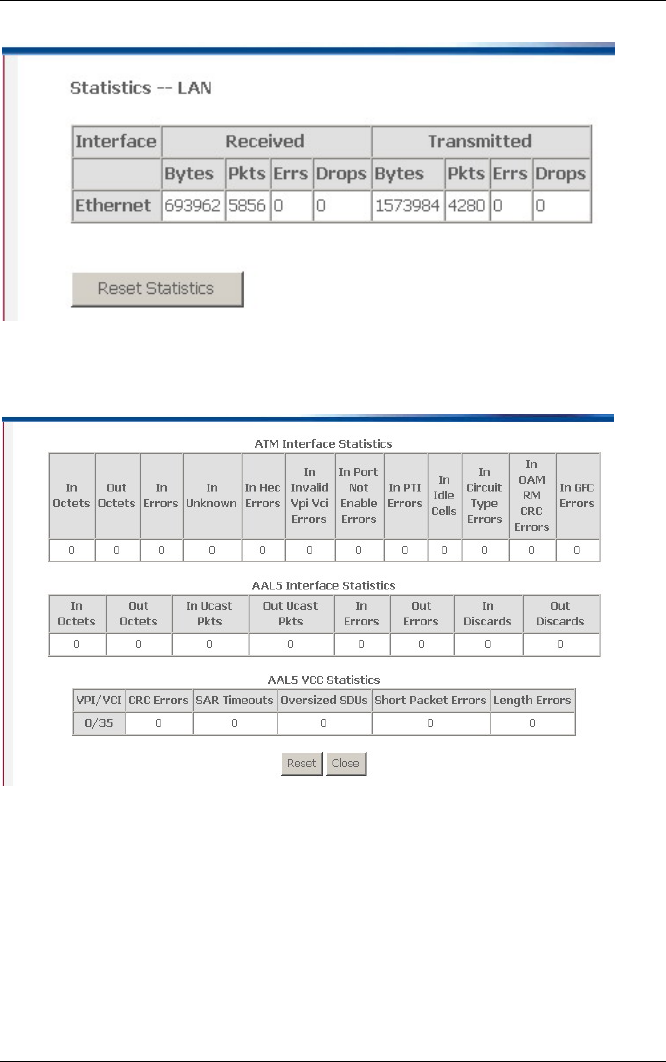

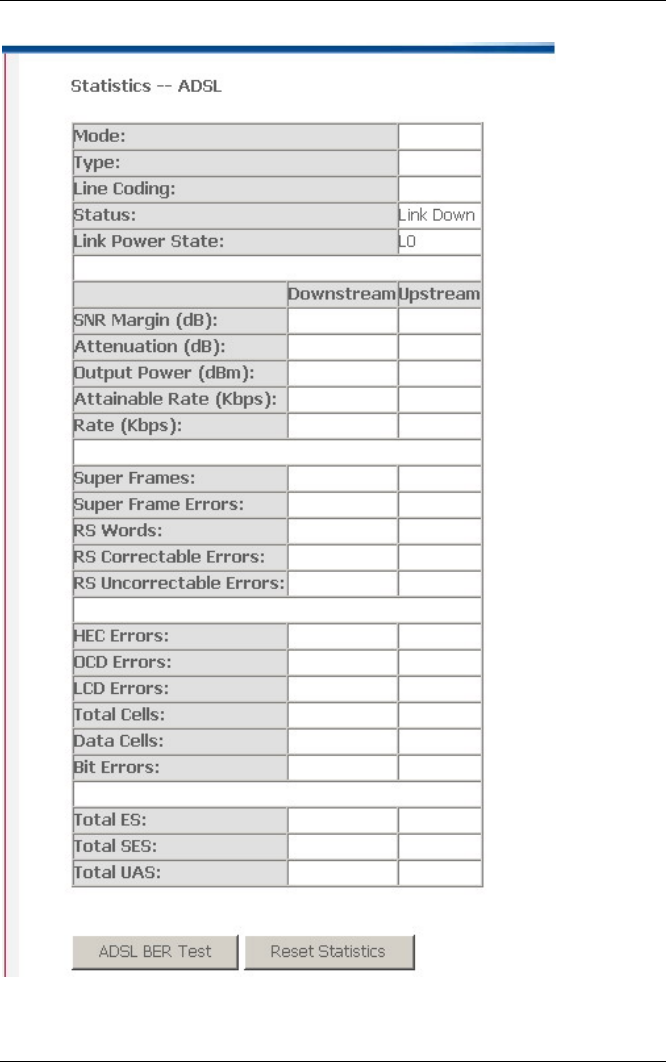

“Statistics” will show the receive/transmit packets on LAN side and WAN
side, ATM related interface statistics, ADSL physical layer related data. On
the page, BER test on ADSL can be done by click the button “ADSL BER
Test”
X5669WUP3 User’s Manual Version 1.0
16
X5669WUP3 User’s Manual Version 1.0
17
X5669WUP3 User’s Manual Version 1.0
18

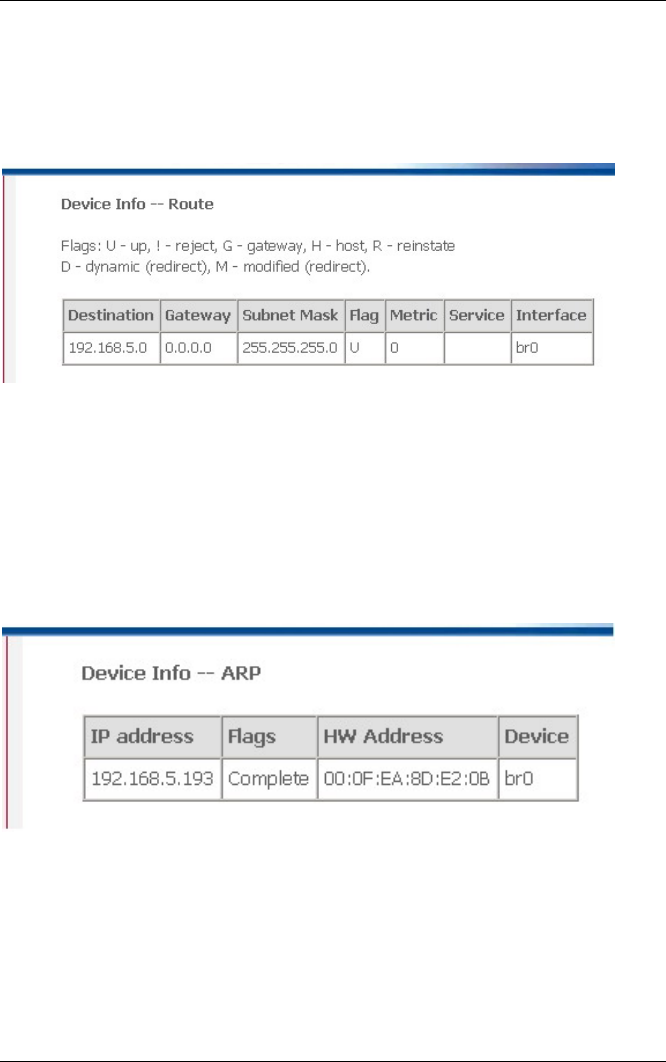

“Route” will show the configured routing rules.
“ARP” will show the current ARP data.
X5669WUP3 User’s Manual Version 1.0
19
4. Advanced Setup
To check “Advance Setup”, several sub-menus will show up. They
are “WAN”, “LAN”, “Routing”, “DSL”, etc. Depending different
setting mode, the sub-menus will be different. The sections below
introduce the setting for each page.
4.1 WAN

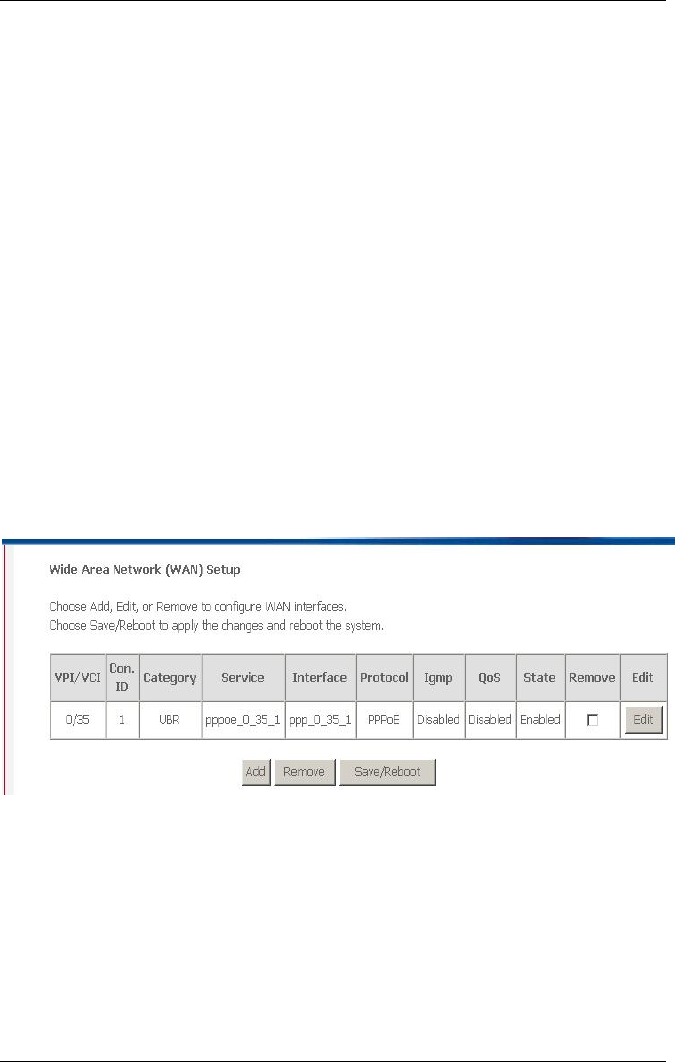

Click “WAN” on the left manual. Access “WAN” configuration page.
Note: At most eight connections can be set. If you need to add a new
connection, please delete or modify an existing connection.
X5669WUP3 User’s Manual Version 1.0
20
Click on the next connection, which you want to modify. Press “Edit”
button, enter the configure guide.
X5669WUP3 User’s Manual Version 1.0
21

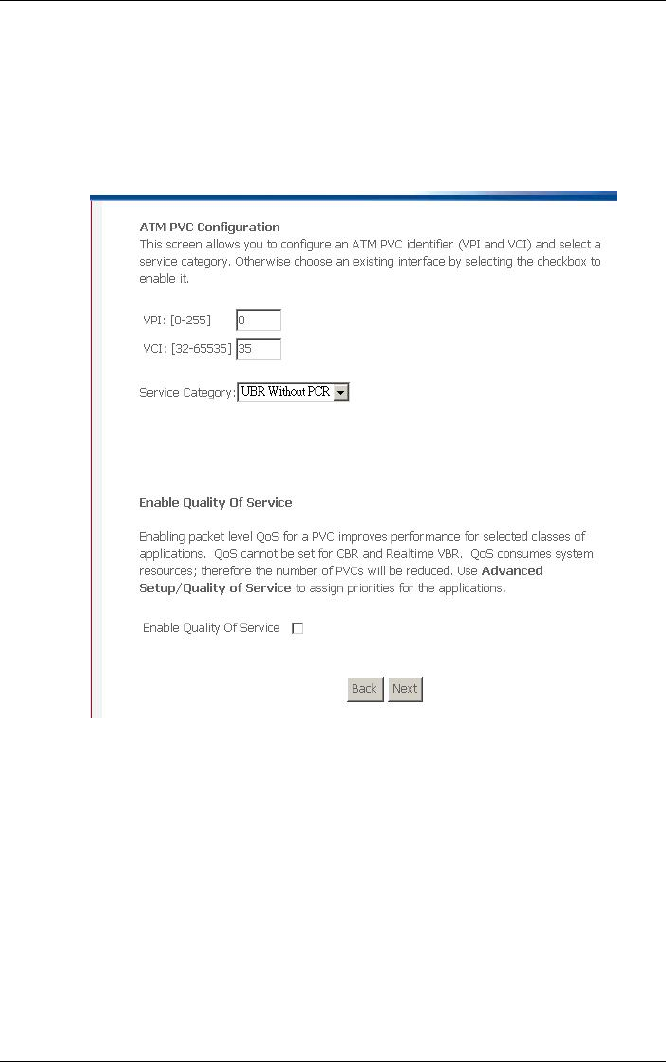

The value of VPI and VCI should be provided by your ISP. After to
input the PVC value, press “Next” into “connection type”.

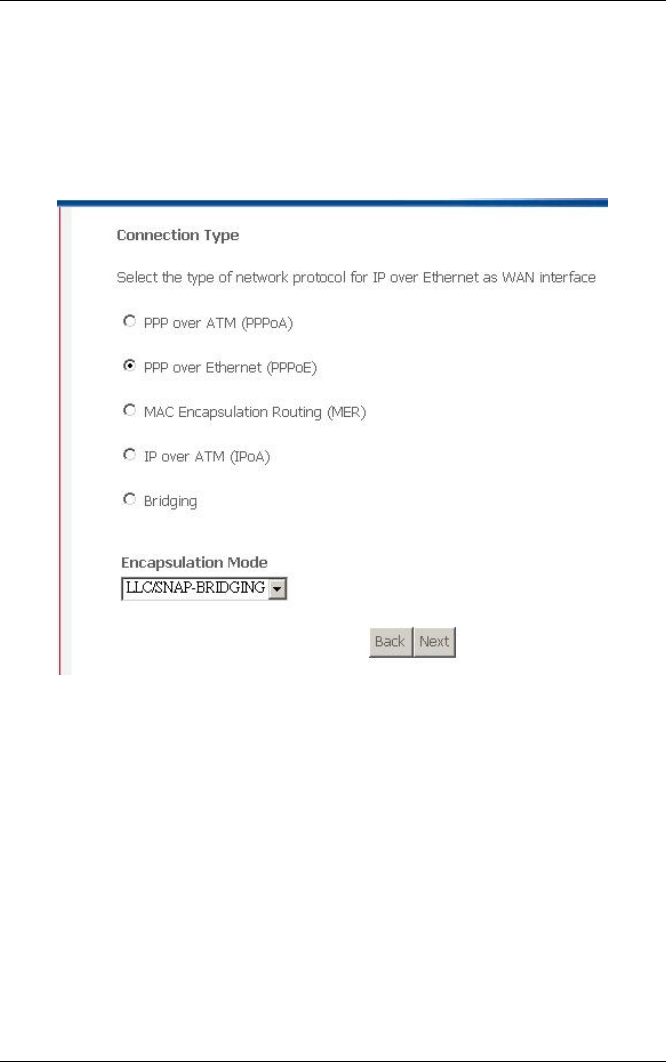

The model supports five protocols. Choose the protocol which is
provided by ISP and PVC encapsulation, click “Next” enter to the
protocol configure. Below, the configuration of the five protocols is
introduced.
• PPP over ATM (PPPoA)
• PPP over Ethernet (PPPoE)
• MAC Encapsulated Routing (MER)
• IP over ATM (IPoA)
• Bridging
X5669WUP3 User’s Manual Version 1.0
22
Some connection lines need to confirm the LLC or VC, if you can’t
confirm, please don’t modify the default value or ask your ISP.

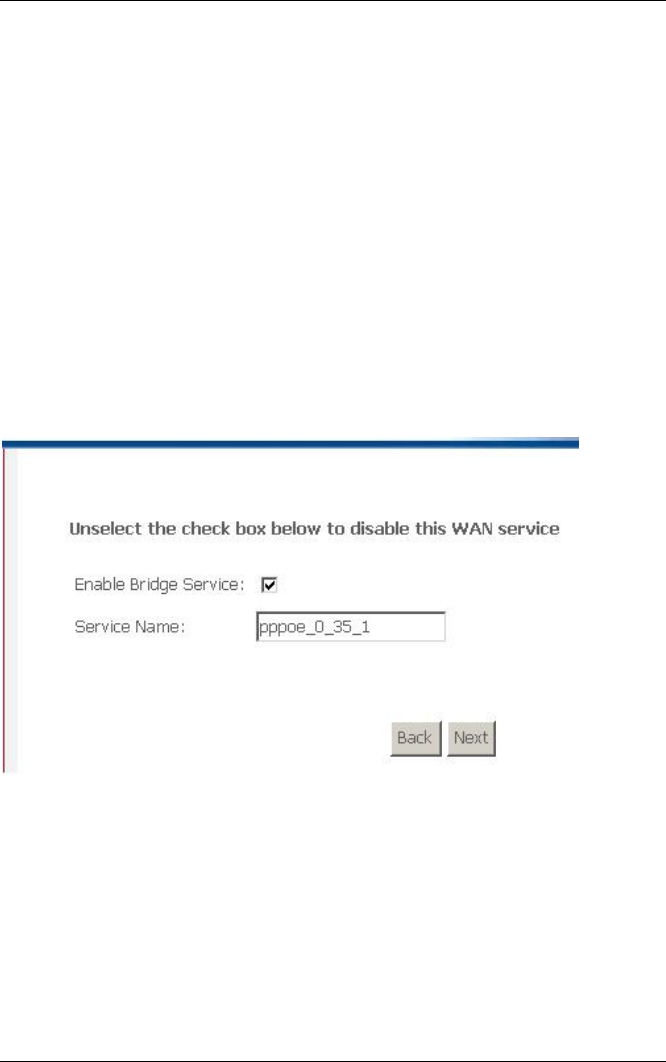

4.1.1 BRIDGE CONFIGURATION
Select the Bridging mode. Then press “Next” to specify the Service Name,
and select the “Enable Bridge Service”.
X5669WUP3 User’s Manual Version 1.0
23

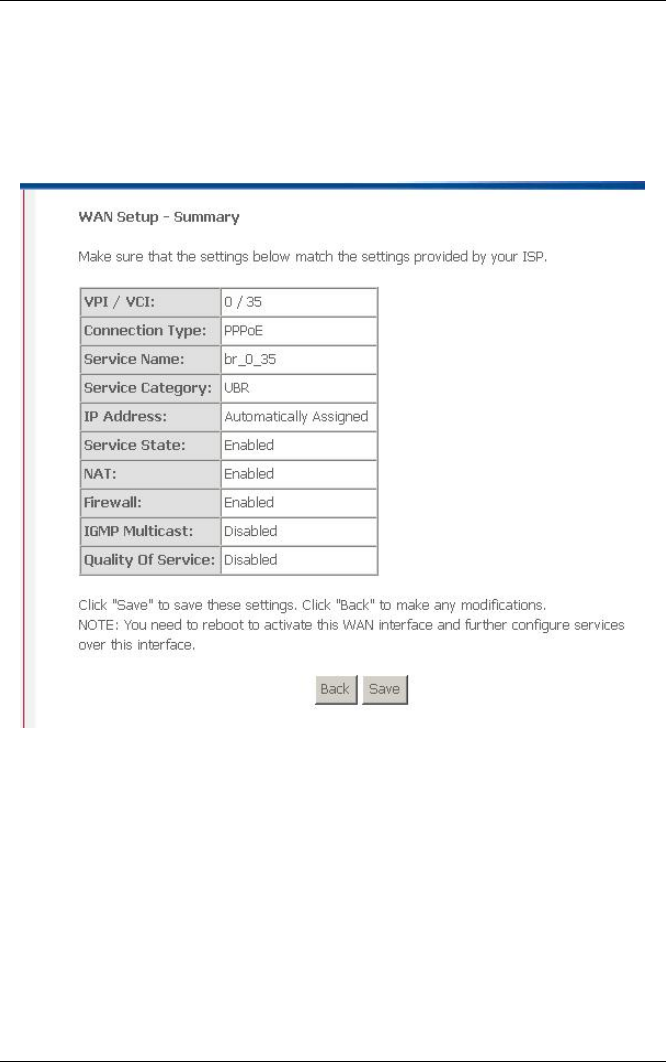

Press “Next” to “WAN configuration”, click “save” to save configuration,
if you need to modify the parameter, click “back”.
Note：When you use bridge mode, please close “DHCP SERVER”.
X5669WUP3 User’s Manual Version 1.0
24
X5669WUP3 User’s Manual Version 1.0
25
4.1.2 PPPoE CONFIGURATION
PPPoE is also known as RFC 2516. It is a method of encapsulating
PPP packets over Ethernet.
PPPoA is also known as RFC2364 and named as Peer to Peer
Protocol over ATM. As PPPoE, it also includes all the features of PPP.
Although it’s based on ATM protocol, the setting of all the other
parameters is similar with PPPoE. So we only describe PPPoE in detail
here.
In Figure 3.4, select PPP over Ethernet (PPPoE), press “Next step”
entering the configuring
interface.
X5669WUP3 User’s Manual Version 1.0
26

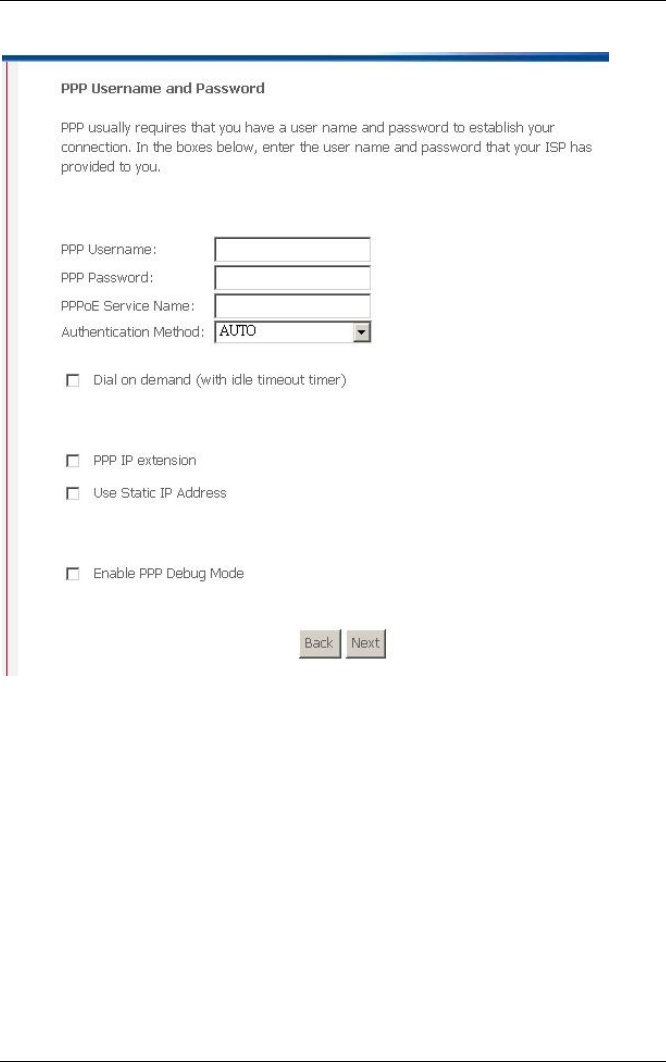

PPP Account: Your account from ISP to access Internet.
Password: Input the password assigned by your ISP.
PPPoE server name: Server name of network ISP. No need to set.
Authentication Mode: Authentication mode of network ISP. Default is
AUTO.
Connection on demand: When this mode is selected, the connection
X5669WUP3 User’s Manual Version 1.0
27
that has no traffic within assigned
disconnect timeout (e.g. 1 minute) will be automatically
disconnected. The connection will be activated again when traffic
arrives. This function is advantageous for users who are charged
with online time. It should be noticed that some programs
automatically link to Internet. Computer will send data to network
when infected by virus. Connection will not be disconnected under
these data streams.
Disconnect timeout: When “Connection on demand” is selected, this
input box indicates that after how
long the connection will be disconnected in the absence of traffic. If
the value is 0, connection will not be disconnected.
Press “Next step” when configuration is finished. The following operation is
same with Figure 3.5. Notice that PPPoE mode does not work until the
modem is reset.
4.1.3 MAC Encapsulation Routing (MER)
Selecct MAC Encapsulation Routing (MER), press “Next”, and the
configuration can be queried from your ISP.
X5669WUP3 User’s Manual Version 1.0
28

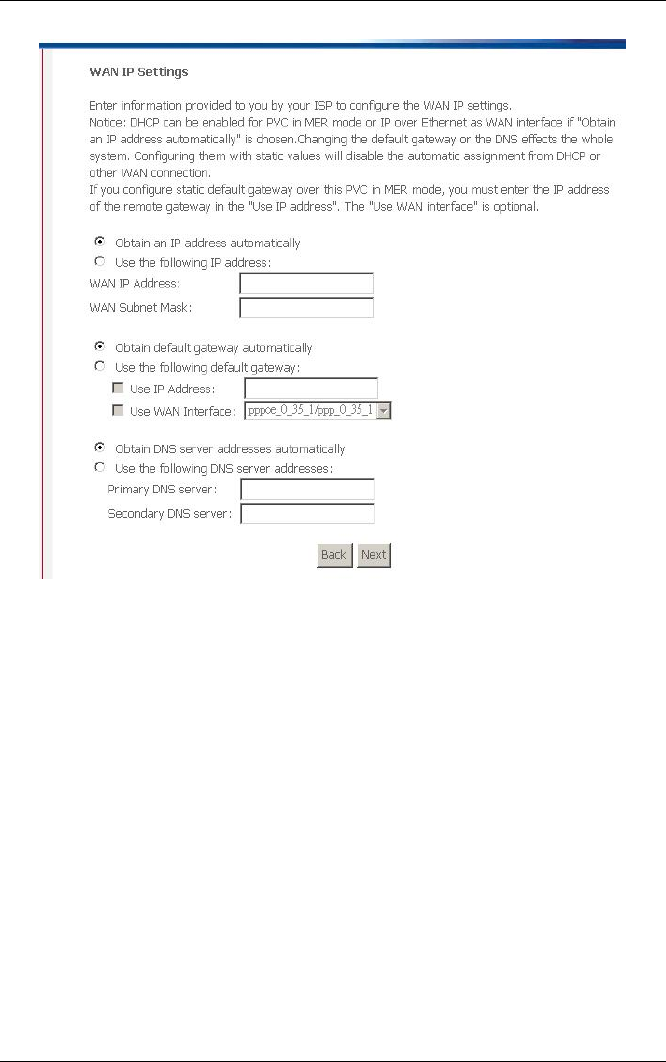

Enter information provided to you by your ISP to configure the WAN IP
settings.
Notice: DHCP can be enabled for PVC in MER mode or IP over Ethernet
as WAN interface if "Obtain an IP address automatically" is chosen.
Changing the default gateway or the DNS, this will affect the whole system.
Configuring them with static values will disable the automatic assignment
from DHCP or other WAN connection.
If you configure static default gateway over this PVC in MER mode, you
must enter the IP address of the remote gateway in the "Use IP address".
The "Use WAN interface" is optional.
X5669WUP3 User’s Manual Version 1.0
29

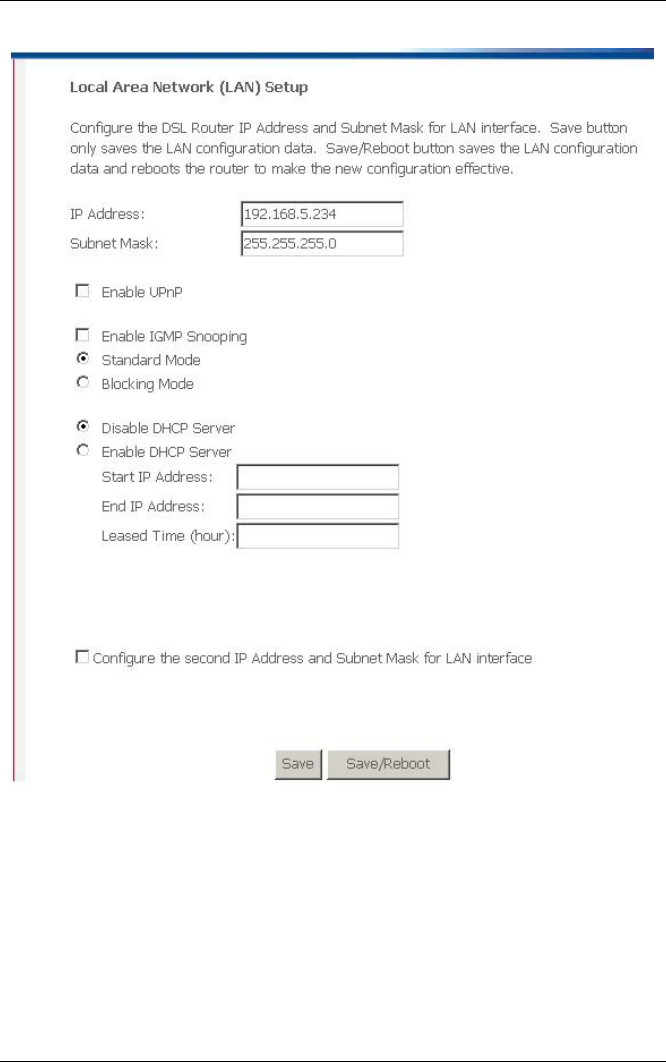

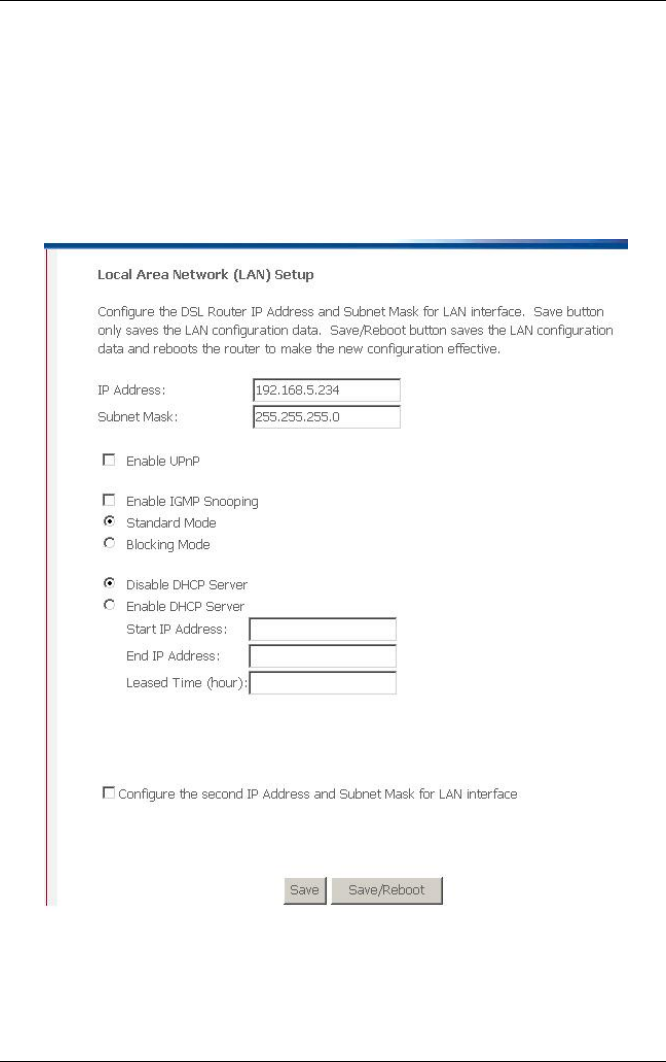

4.2 LAN
Click “LAN” below “Advanced Setup” on the manual. Access “LAN”
configuration page. The local port settings are used to
X5669WUP3 User’s Manual Version 1.0
30
configure the LAN IP address, DHCP server and relay settings.
IP Address: Enter the IP address.
Netmask: Enter the subnet mask for the IP address.
Enable IGMP Snooping: To enable or disable IGMP Snooping by
this setting. When the setting is enalbe, the model will snoop IGMP
packets and set the related setting on switch to make sure the
packets form video server will be multi-casted to the join port not all
ports. This way will prevent the video streams generate packets
storm.
Enable DHCP Server: This setting to enable/disable DHCP server.
Start IP Address: Enter the first IP for the address pool.
End IP Address: Enter the last IP for the address pool.
Lease Time: Enter the value in hours definign how long an IP
address can be assigned to a host.
Enable DHCP Relay: This setting to enable/disable DHCP server.
Relay IP: Enter the IP address of the DHCP relay server.
4.3 NAT
There are three pages to set NAT related functions include
Virtual Servers, Port Triggering, DMZ Host. The following
sections will describe page by page.

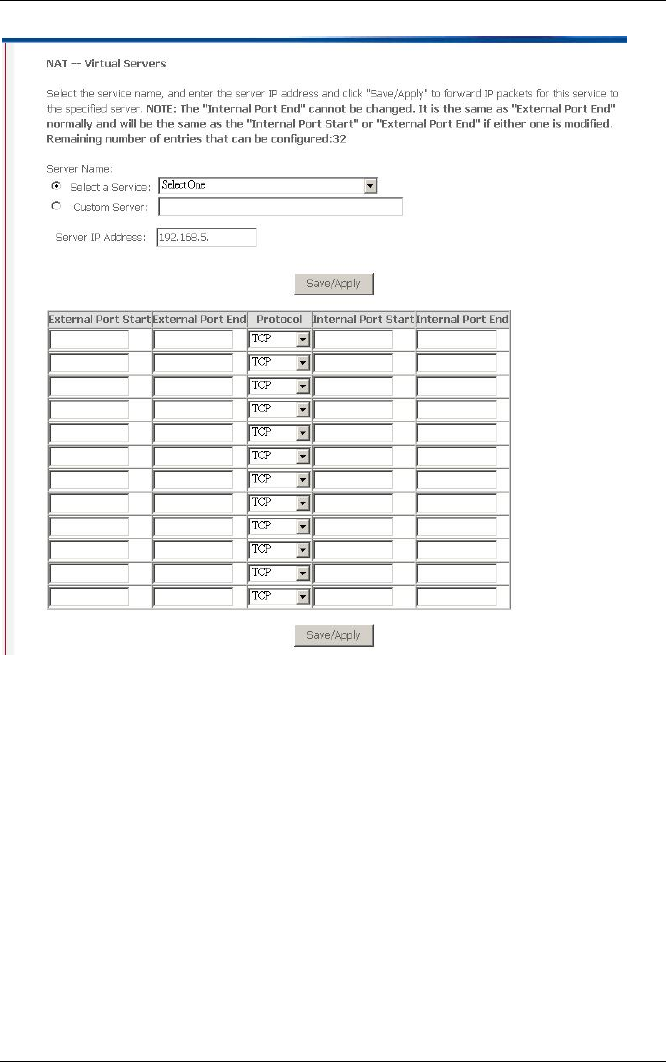

4.3.1 Virtual Servers
Access “Virtual Servers” to enter the page below. This page is
used to open related ports for specific applications. This page
allows you to configure the port forwarding feature of this device.
This feature works in conjuction with NAT/PAT and the firewall.
X5669WUP3 User’s Manual Version 1.0
31
Port fowarding can be used to provide local services for
networks or node on the Internet in order to use special
applications or play games.

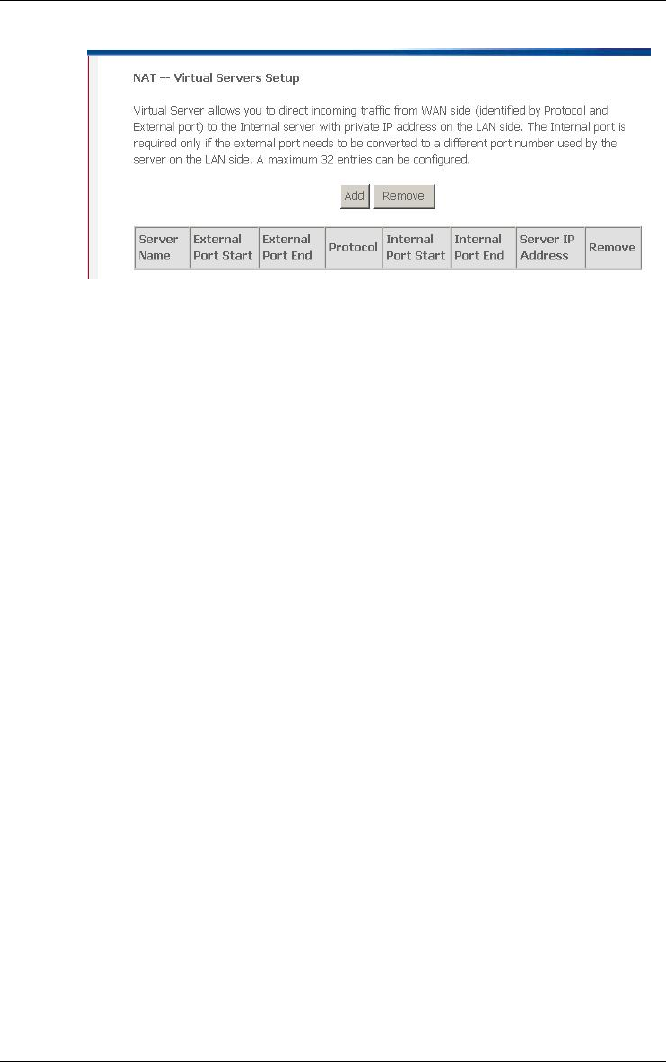

Virtual Server allows you to direct incoming traffic from WAN
side (identified by Protocol and External port) to the Internal
server with private IP address on the LAN side. The Internal port
is required only if the external port needs to be converted to a
different port number used by the server on the LAN side. A
maximum 32 entries can be configured.
X5669WUP3 User’s Manual Version 1.0
32

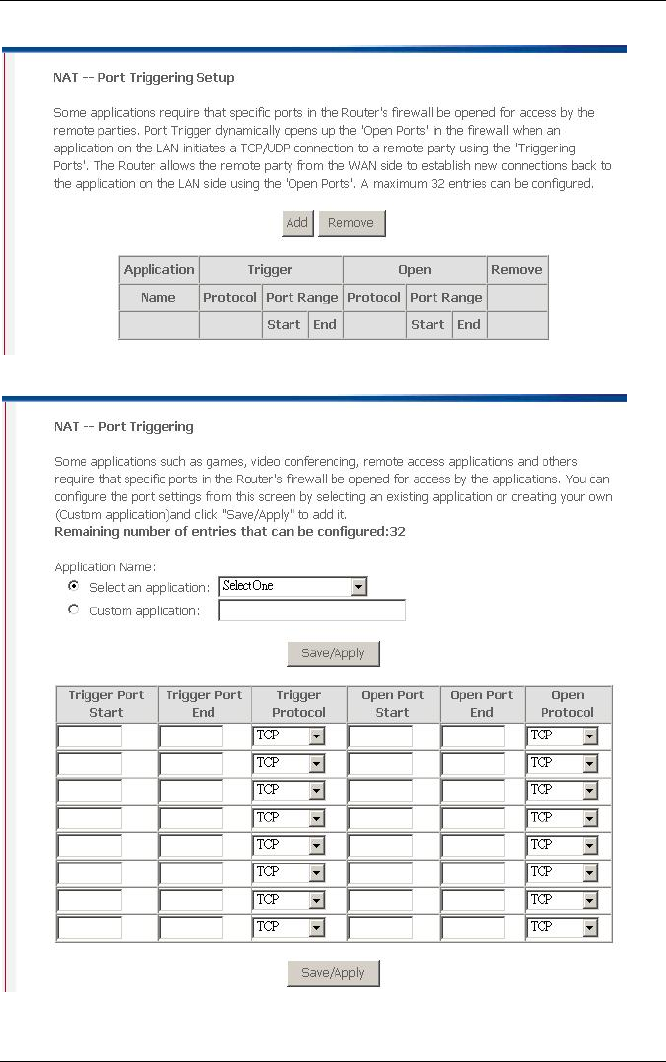

4.3.2 Port Triggering
Some applications require that specific ports in the Router's firewall be
opened for access by the remote parties. Port Trigger dynamically opens
up the 'Open Ports' in the firewall when an application on the LAN initiates
a TCP/UDP connection to a remote party using the 'Triggering Ports'. The
Router allows the remote party from the WAN side to establish new
connections back to the application on the LAN side using the 'Open Ports'.
A maximum 32 entries can be configured.
X5669WUP3 User’s Manual Version 1.0
33
X5669WUP3 User’s Manual Version 1.0
34

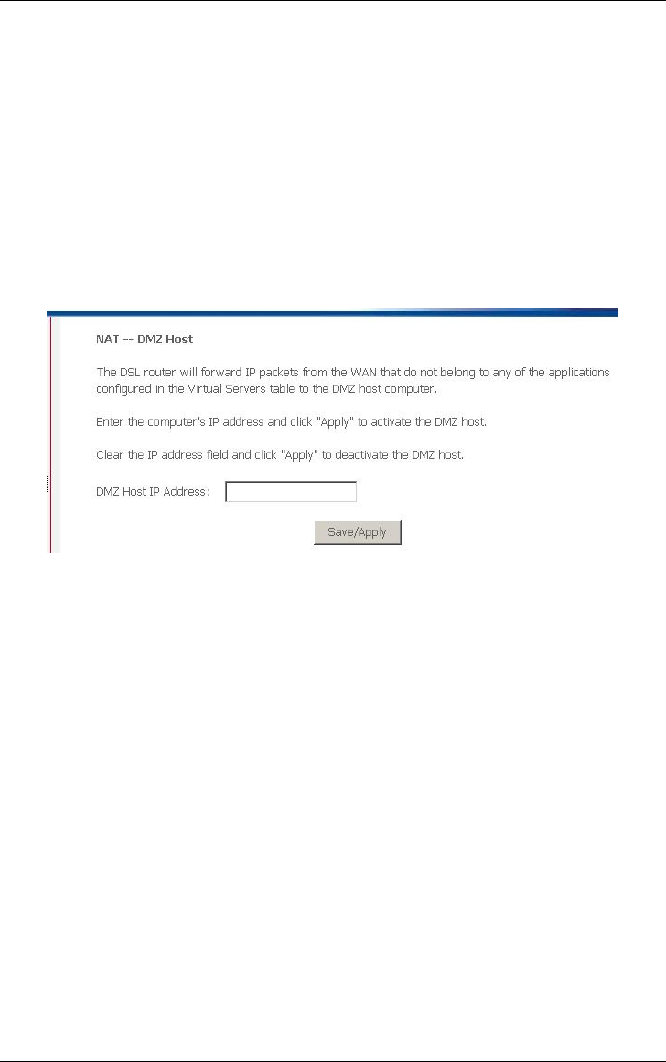

4.3.3 DMZ Host
The DSL router will forward IP packets from the WAN that do not belong
to any of the applications configured in the Virtual Servers table to the
DMZ host computer. Enter the computer's IP address and click "Apply" to
activate the DMZ host. Clear the IP address field and click "Apply" to
deactivate the DMZ host.
4.4 Security
Click “Security” below “Advanced Setup” on the left manual.
There are two setting items, MAC Filtering or IP Filtering and
Parental Control. MAC Filter and IP filtering are exclusive. If the
model is set to router mode, then IP Filtering page will show up.
If the model is set to bridge mode, the MAC Filtering page will
show up.
X5669WUP3 User’s Manual Version 1.0
35
4.5 Routing
Click “Routing” below “Advanced Setup” on the left manual. Access
“Routing” configuration page. There are two sub-pages, “Default Gateway”
and “Static Route”.
4.5.1 Default Gateway
If Enable Automatic Assigned Default Gateway checkbox is selected, this
router will accept the first received default gateway assignment from one
of the PPPoA, PPPoE or MER/DHCP enabled PVC(s). If the checkbox is
not selected, enter the static default gateway AND/OR a WAN interface.
Click 'Save/Apply' button to save it.
NOTE: If changing the Automatic Assigned Default Gateway from
“unselected” to “selected”, you must reboot the router to get the automatic
assigned default gateway.
X5669WUP3 User’s Manual Version 1.0
36

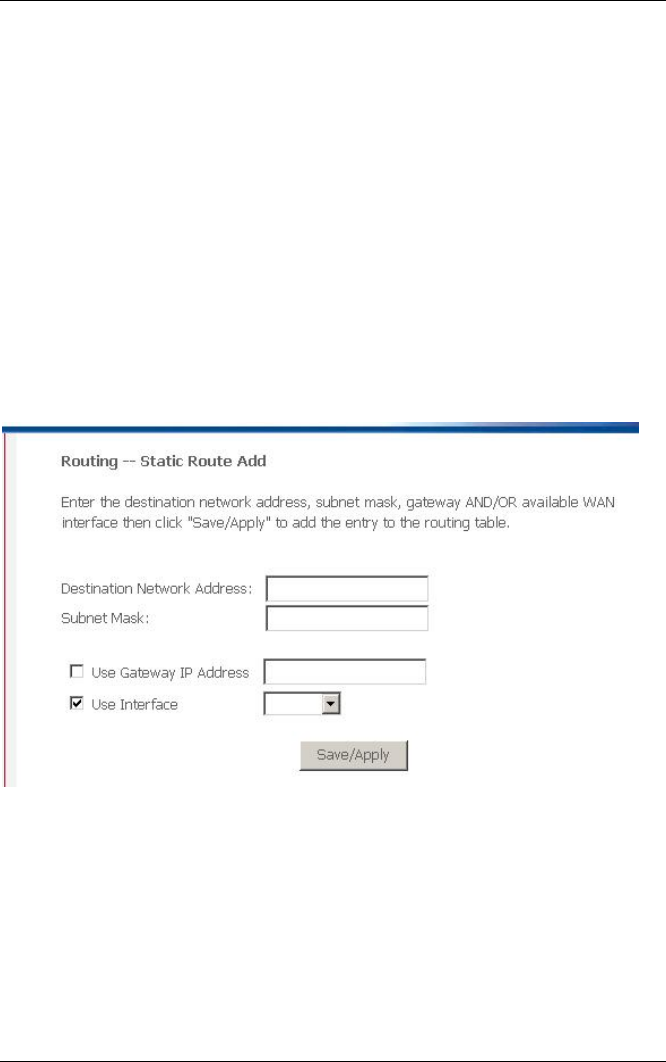

4.5.2 Static Route
Click on the Static Routes link on the navigation bar to view the
static routes table and configure this setting.
Press “Add” to add the routing table for static routing.
Enter the destination network address, subnet mask, gateway
AND/OR available WAN interface then click "Save/Apply" to add the
entry to the routing table.
X5669WUP3 User’s Manual Version 1.0
37
4.6 DNS

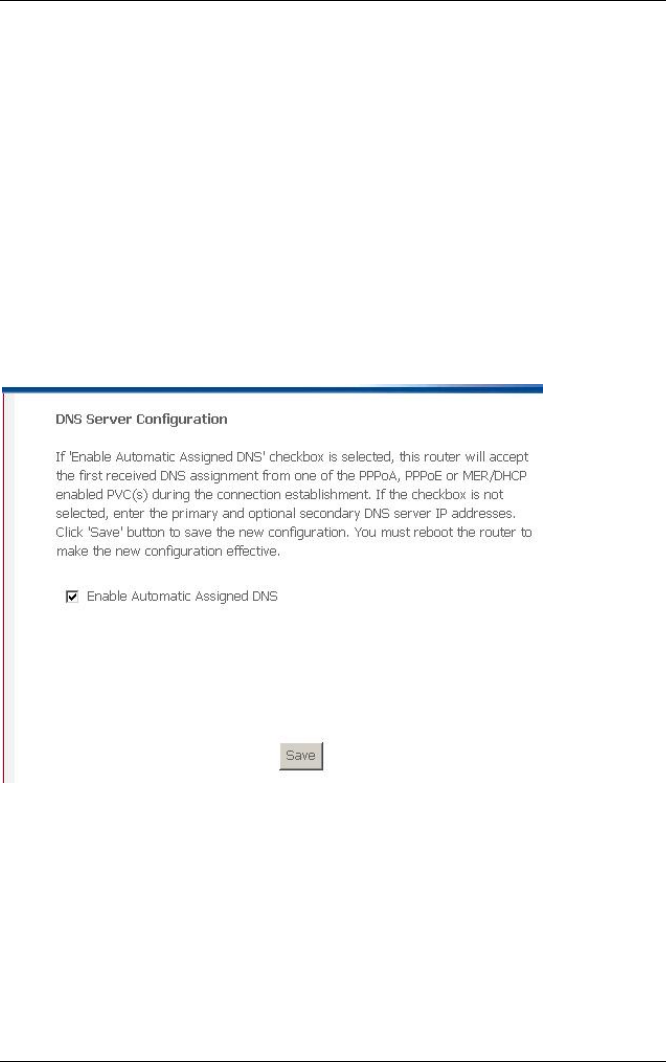

4.6.1 DNS Server
If 'Enable Automatic Assigned DNS' checkbox is selected, this router will
accept the first received DNS assignment from one of the PPPoA, PPPoE
or MER/DHCP enabled PVC(s) during the connection establishment. If the
checkbox is not selected, enter the primary and optional secondary DNS
server IP addresses. Click 'Save' button to save the new configuration.
You must reboot the router to make the new configuration effective.
X5669WUP3 User’s Manual Version 1.0
38

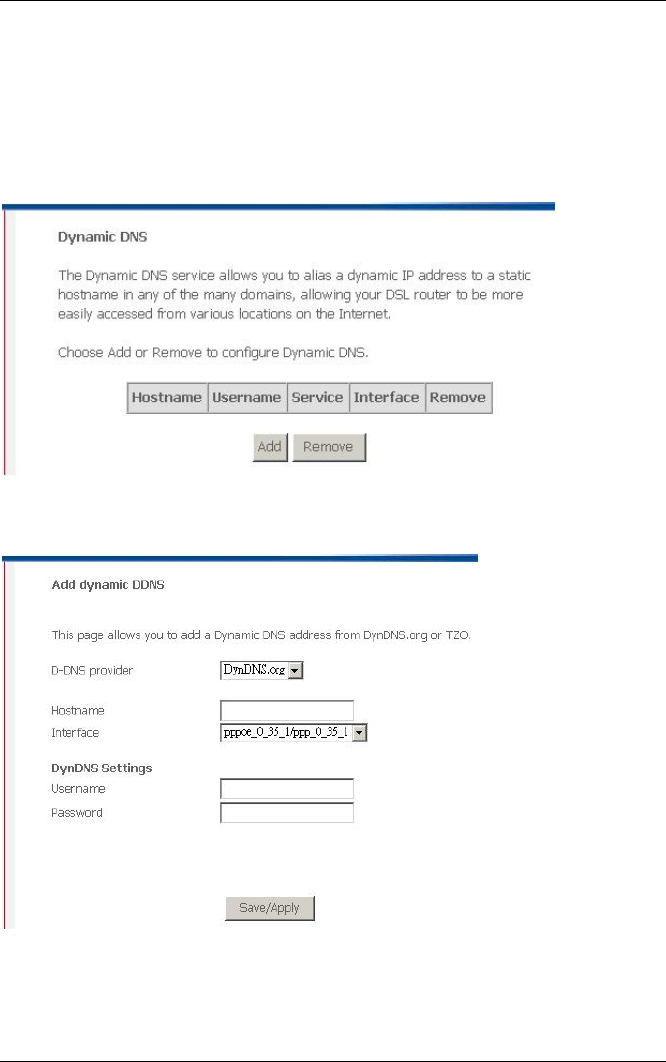

4.6.2 Dynamic DNS
The Dynamic DNS service allows you to alias a dynamic IP address to a
static hostname in any of the many domains, allowing your DSL router to
be more easily accessed from various locations on the Internet.
Choose Add or Remove to configure Dynamic DNS.
X5669WUP3 User’s Manual Version 1.0
39

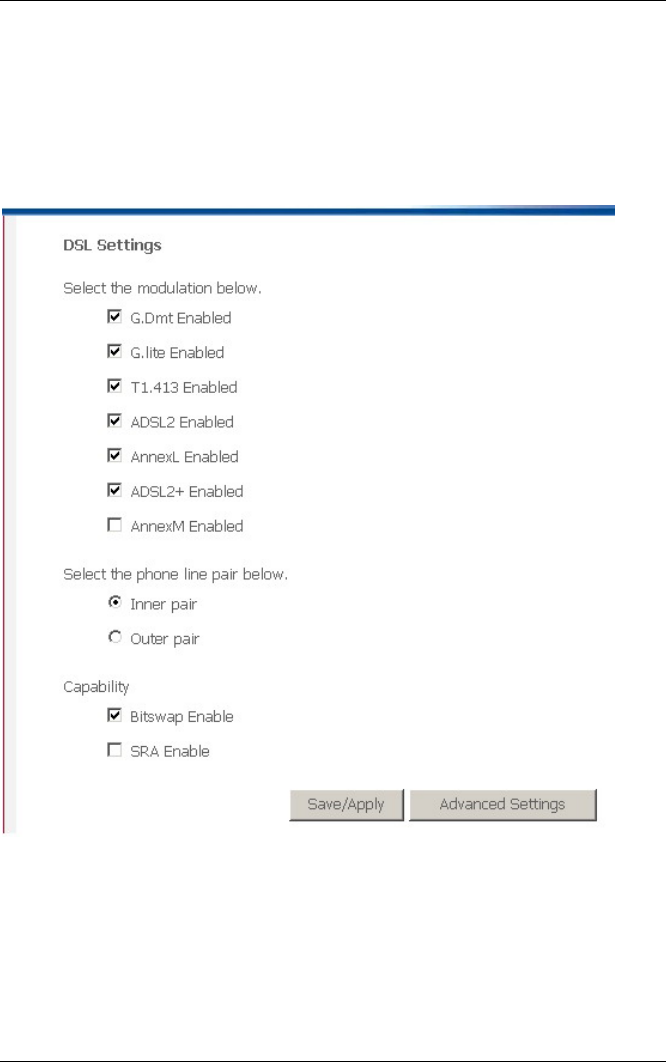

4.7 DSL
Click “DSL” below “Advanced Setup” on GUI. There are DSL related
settings on the page. The detailed, please check to your service provider.
X5669WUP3 User’s Manual Version 1.0
40

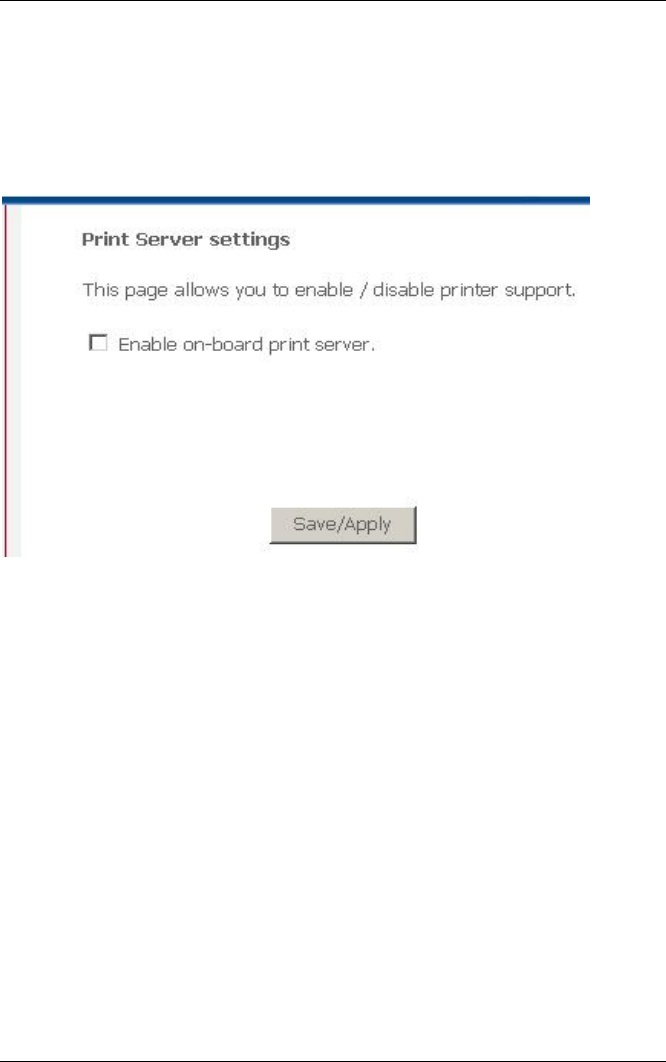

4.8 Print Server
This page allows you to enable / disable printer support. To connect the
USB printer with USB host connector and check “Enable on-board print
server”. The printer can be shared on LAN side.
4.9 Port Mapping
A maximum 16 entries can be configured

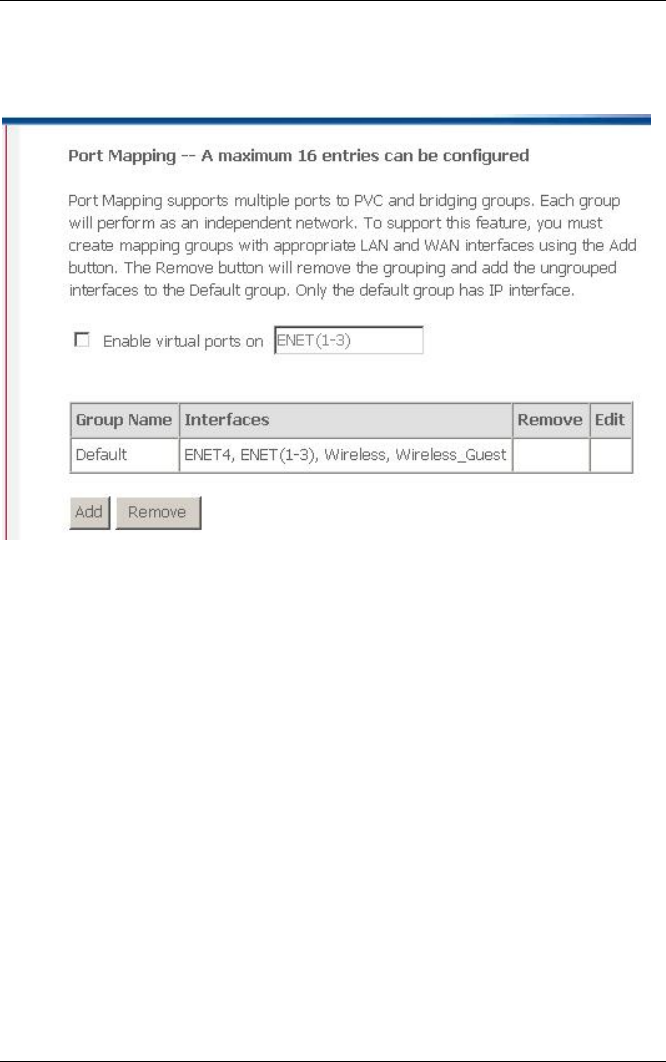

Port Mapping supports multiple ports to PVC and bridging groups. Each
group will perform as an independent network. To support this feature, you
must create mapping groups with appropriate LAN and WAN interfaces
using the Add button. The Remove button will remove the grouping and
add the ungrouped interfaces to the Default group. Only the default group
has IP interface.
X5669WUP3 User’s Manual Version 1.0
41

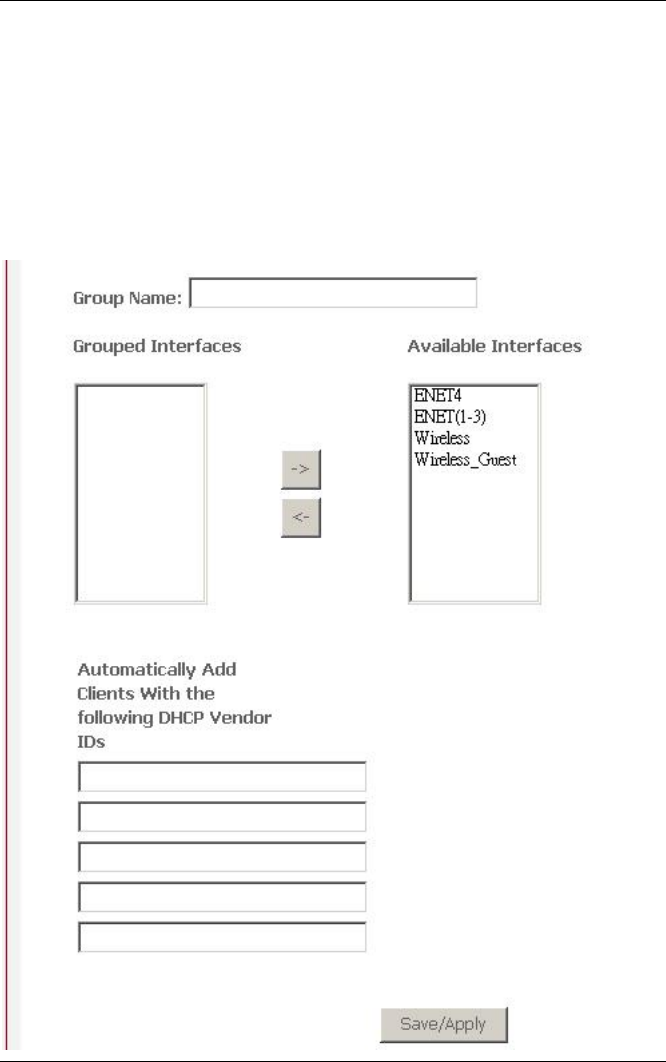

4.9.1 Port Mapping Configuration
To create a new mapping group:
1. Enter the Group name and select interfaces from the available interface
list and add it to the grouped interface list using the arrow buttons to
create the required mapping of the ports. The group name must be
unique.
2. If you like to automatically add LAN clients to a PVC in the new group
add the DHCP vendor ID string. By configuring a DHCP vendor ID string
any DHCP client request with the specified vendor ID (DHCP option 60)
will be denied an IP address from the local DHCP server.
Note that these clients may obtain public IP addresses
3. Click Save/Apply button to make the changes effective immediately
X5669WUP3 User’s Manual Version 1.0
42
Note that the selected interfaces will be removed from their existing
groups and added to the new group.
IMPORTANT If a vendor ID is configured for a specific client device,
please REBOOT the client device attached to the modem to allow it
to obtain an appropriate IP address.
X5669WUP3 User’s Manual Version 1.0
43
4.10 IPSec
Tunnel Mode Connections

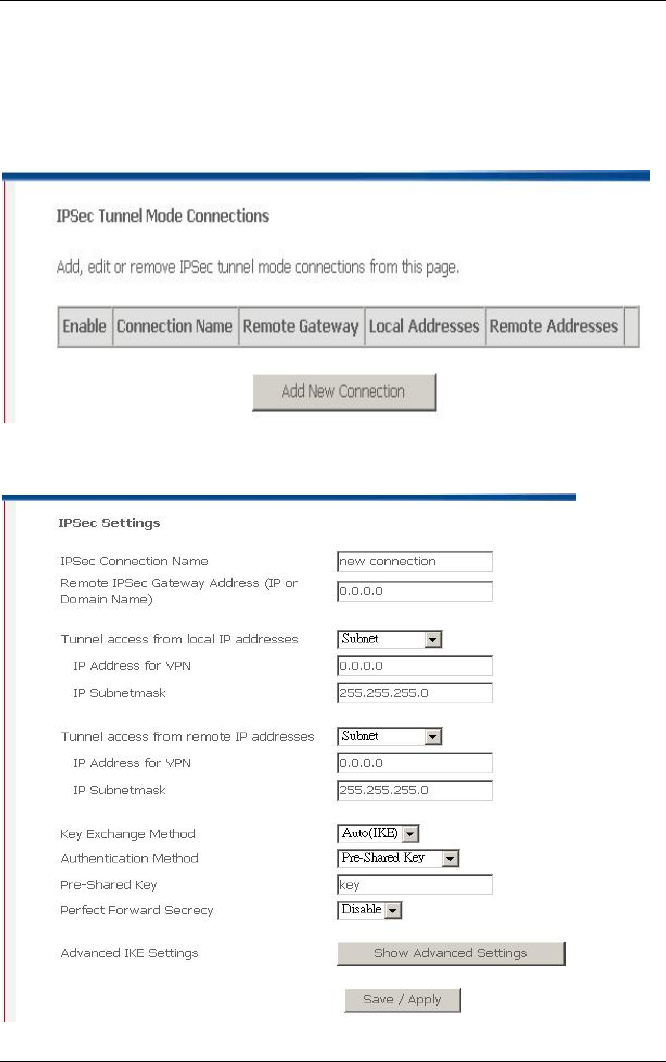

Add, edit or remove IPSec tunnel mode connections from this page.
4.10.1 IPSec Settings
X5669WUP3 User’s Manual Version 1.0
44

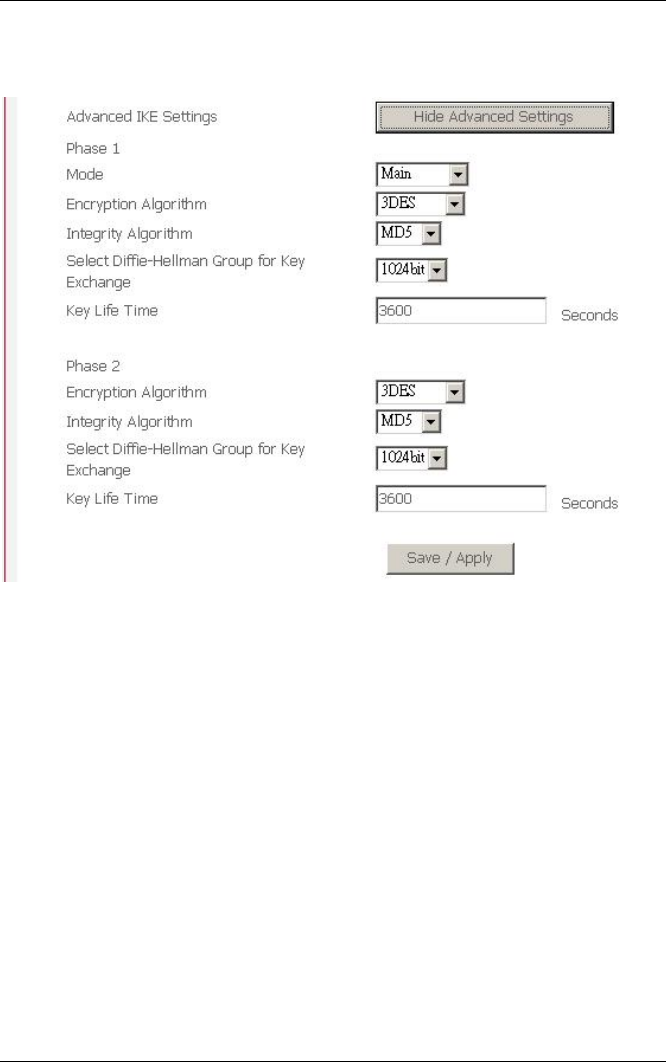

4.10.2 Show Advanced Settings
X5669WUP3 User’s Manual Version 1.0
45
5. Wireless

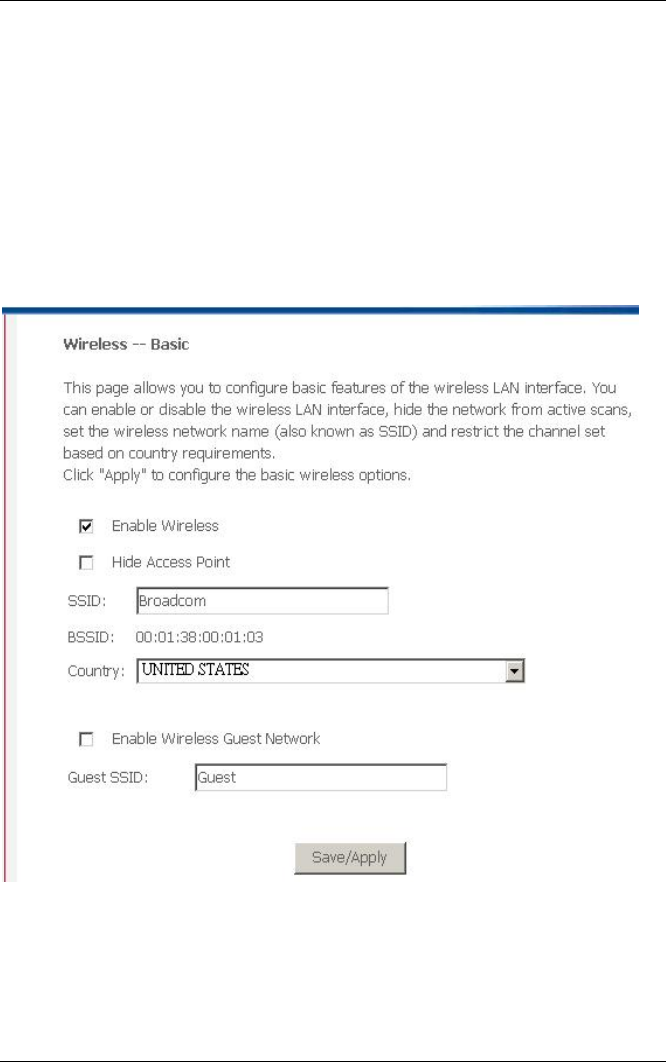

Basic--This page allows you to configure basic features of the wireless
LAN interface. You can enable or disable the wireless LAN interface, hide
the network from active scans, set the wireless network name (also known
as SSID) and restrict the channel set based on country requirements.
Click "Apply" to configure the basic wireless options.
X5669WUP3 User’s Manual Version 1.0
46

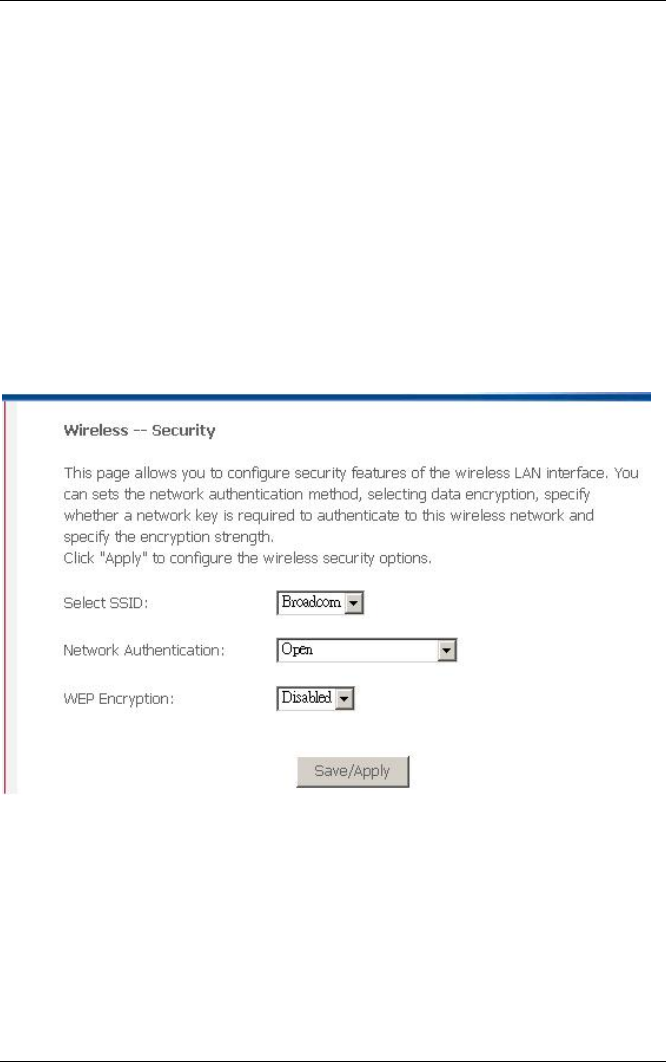

5.1 Security
This page allows you to configure security features of the wireless LAN
interface. You can sets the network authentication method, selecting data
encryption, specify whether a network key is required to authenticate to
this wireless network and specify the encryption strength.
Click "Apply" to configure the wireless security options.
X5669WUP3 User’s Manual Version 1.0
47
5.2 MAC Filter
5.2.1

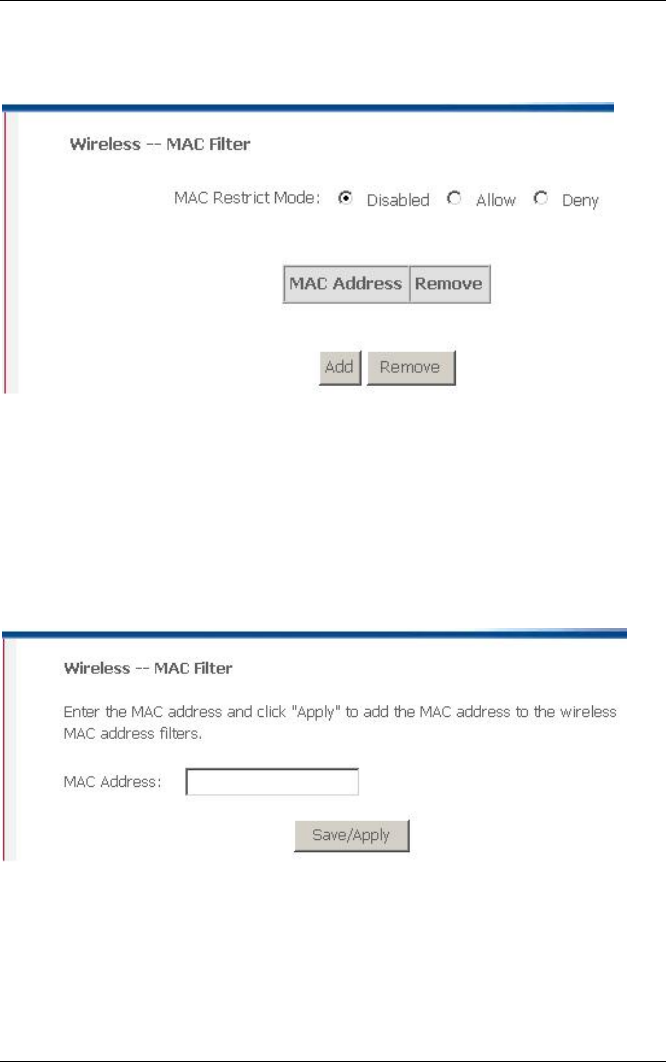

Enter the MAC address and click "Apply" to add the MAC address to the
wireless MAC address filters.
X5669WUP3 User’s Manual Version 1.0
48

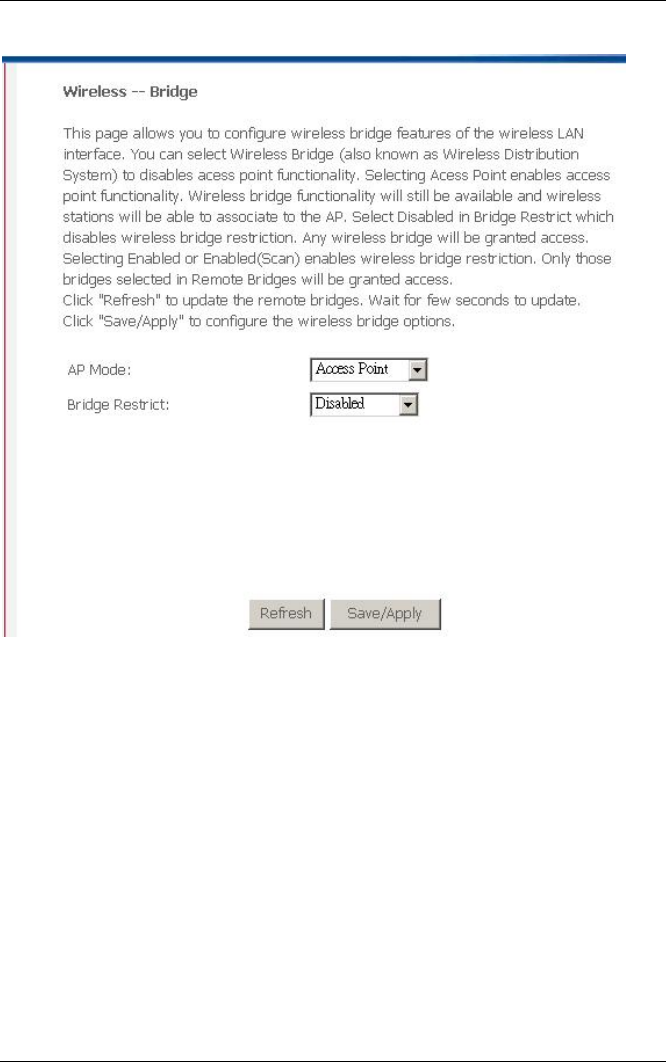

5.3 Wireless Bridge
This page allows you to configure wireless bridge features of the wireless
LAN interface. You can select Wireless Bridge (also known as Wireless
Distribution System) to disables acess point functionality. Selecting Acess
Point enables access point functionality. Wireless bridge functionality will
still be available and wireless stations will be able to associate to the AP.
Select Disabled in Bridge Restrict which disables wireless bridge
restriction. Any wireless bridge will be granted access. Selecting Enabled
or Enabled(Scan) enables wireless bridge restriction. Only those bridges
selected in Remote Bridges will be granted access.
Click "Refresh" to update the remote bridges. Wait for few seconds to
update.
Click "Save/Apply" to configure the wireless bridge options.
X5669WUP3 User’s Manual Version 1.0
49
X5669WUP3 User’s Manual Version 1.0
50

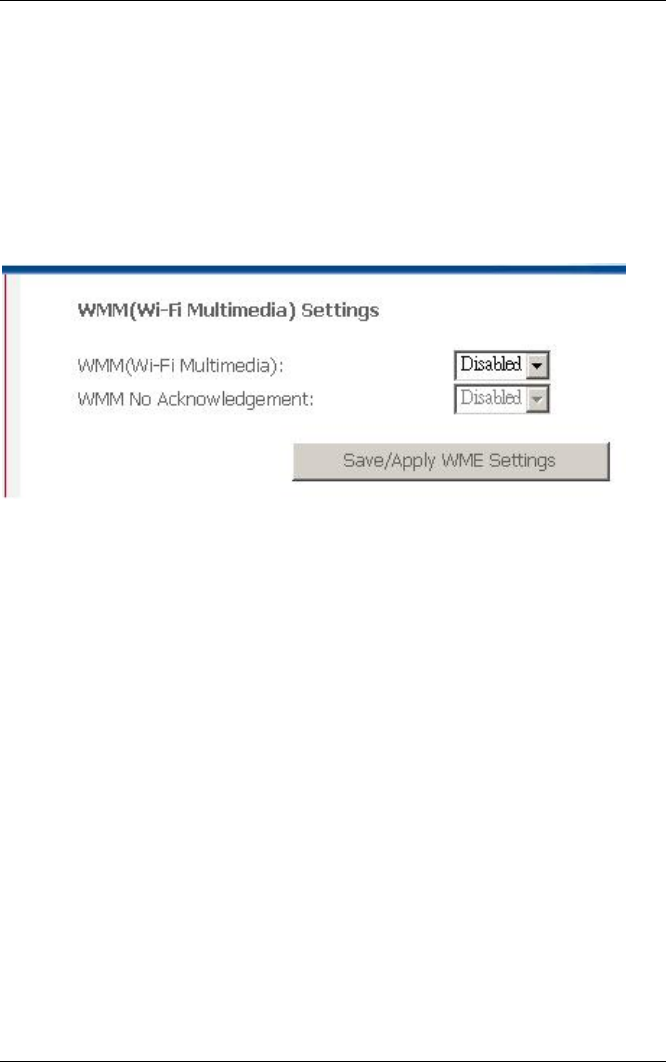

5.4 Quality of Service
WMM(Wi-Fi Multimedia) Settings
X5669WUP3 User’s Manual Version 1.0
51

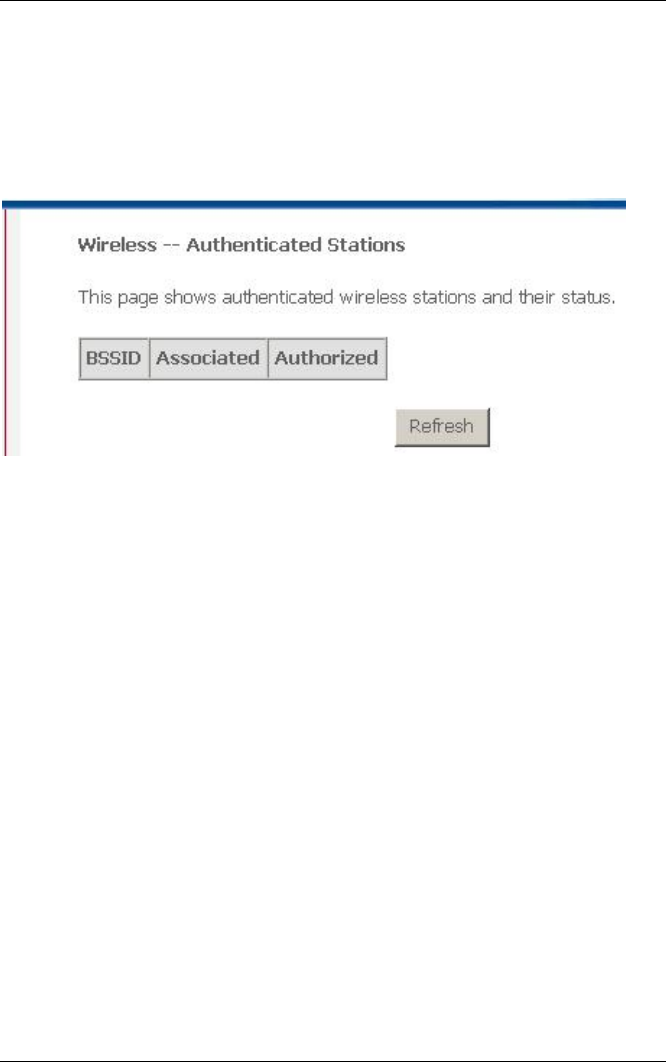

5.5 Station Info
Authenticated Stations
X5669WUP3 User’s Manual Version 1.0
52

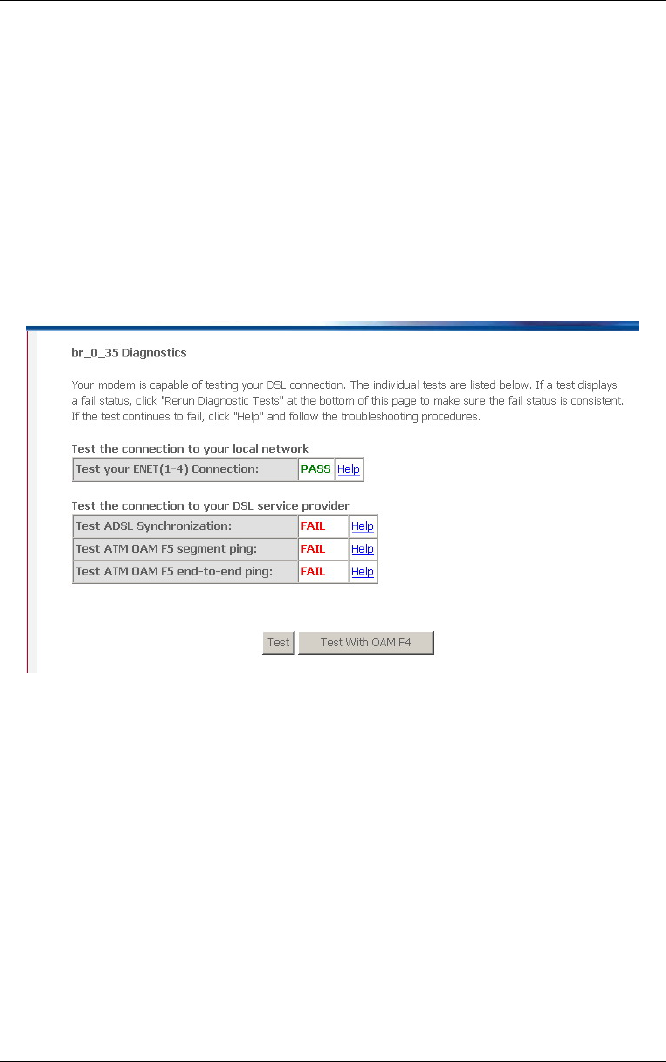

6.Diagnostics
Your modem is capable of testing your DSL connection. The individual
tests are listed as the table on web GUI. If a test displays a fail status, click
"Rerun Diagnostic Tests" at the bottom of this page to make sure the fail
status is consistent. If the test continues to fail, click "Help" and follow the
troubleshooting procedures.
X5669WUP3 User’s Manual Version 1.0
53
7.Management
The model supports 5 management setting. They are
1) Settings Backup
2) System Log
3) Access Control

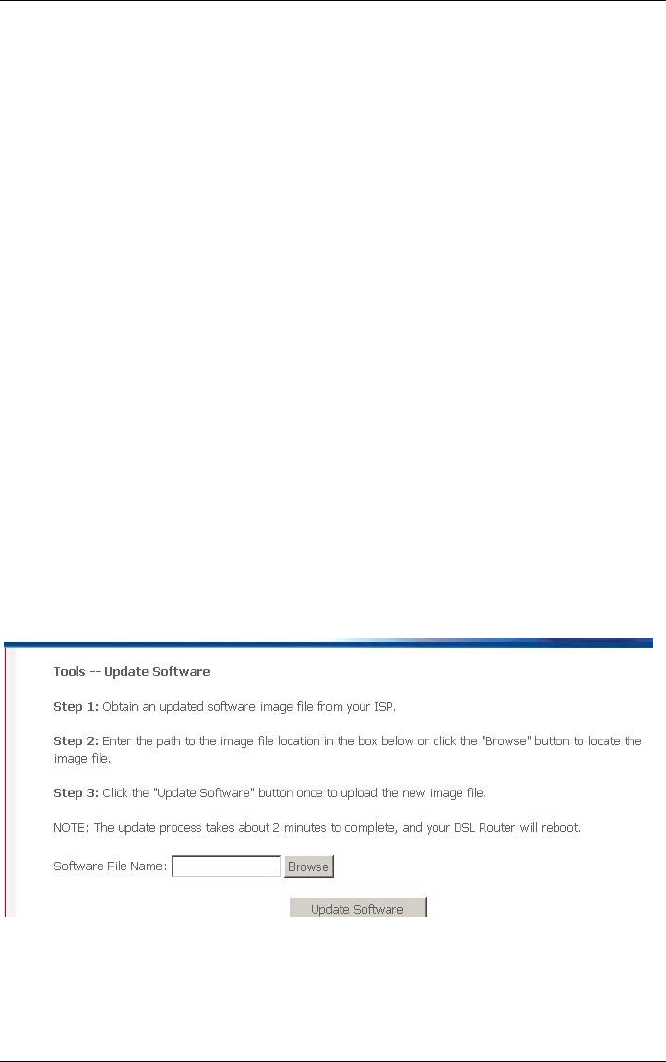

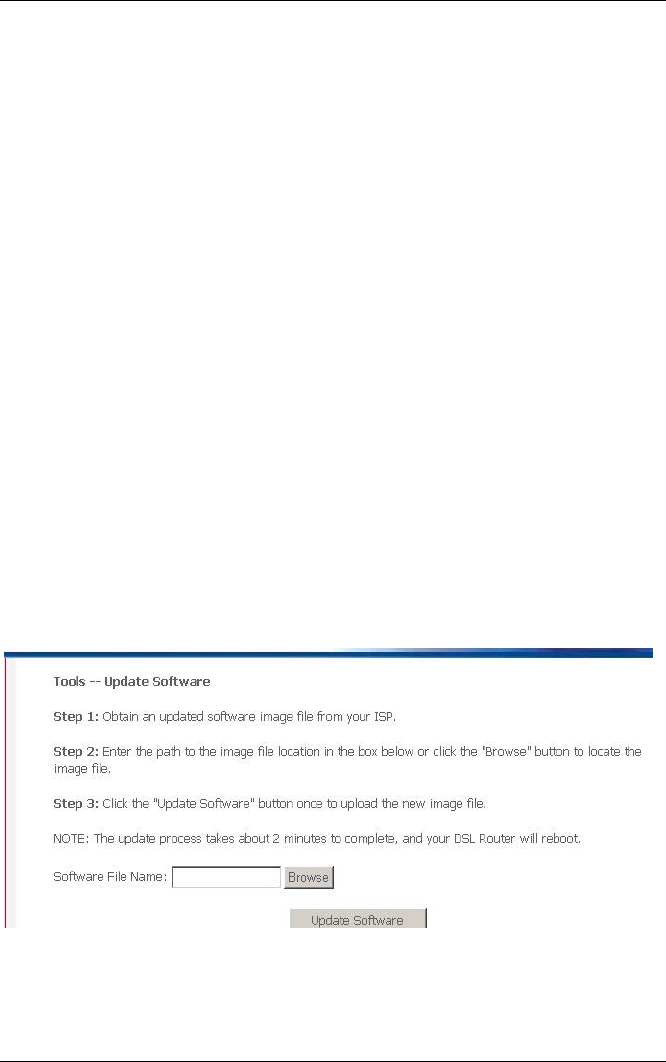

4) Update Software
5) Save/Reboot
The sections below will describe these setting page by page.
7.1 Settings
When you click Settings, another 3 items will show up, there are
1) Backup
2) Update
3) Restore Default
First one, the page “Backup” is used to backup DSL router configurations.
You may save your router configurations to a file on your PC.
To access page “Update”, this is use to update DSL router settings. You
may update your router settings using your saved files.
To restore all setting to factory default, you can access page “Restore
Default” to recovery all setting as factory initialised values.

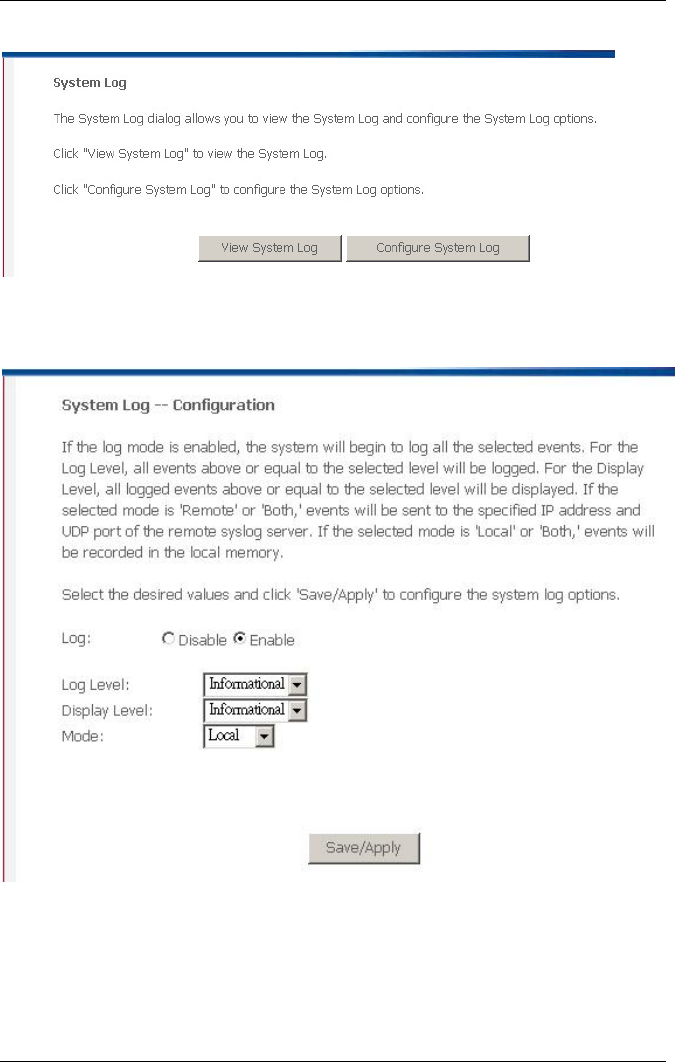

7.2 System Log
To use System Log function, user must at first enable the feature by
button “Configure Syslog”. The page below will show up.
X5669WUP3 User’s Manual Version 1.0
54
To check “Enable” to enable this function and choose Log Level, Display
Level, Mode, then press “Save/Apply”. Access “View System Log” to
check the logged data on table.
X5669WUP3 User’s Manual Version 1.0
55
7.3 TR-069 Client
Configuration
WAN Management Protocol (TR-069) allows a Auto-Configuration Server
(ACS) to perform auto-configuration, provision, collection, and diagnostics
to this device.
Select the desired values and click "Apply" to configure the TR-069 client
options.
7.4 Internet Time
To check “Automatically synchronize with Internet time servers”, two NTP
server setting will show up for user to choose one of servers in list or
assign by self.
“Time zone offset” must be assigned your time zone for your
router/modem to get your real local time.
X5669WUP3 User’s Manual Version 1.0
56

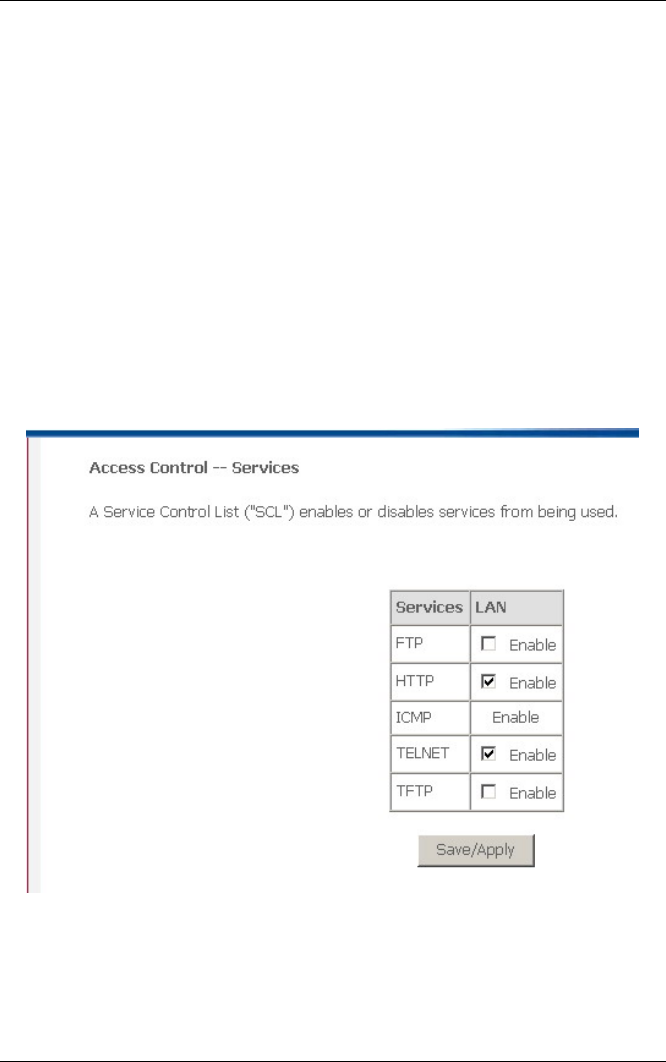

7.5 Access Control
A Service Control List ("SCL") enables or disables services from being
used.
Page “Service” is used to enable/disable the specified service such as
FTP, HTTP, ICMP, TELNET and TFTP. User also can specify the service
is from LAN to WAN or WAN to LAN.
Page “IP address” is used to specify the permission of the local IP address
to access web GUI and re-edit the configuration for the managed
router/modem. If to leave it blank, then every LAN address can access the
X5669WUP3 User’s Manual Version 1.0
57
device.

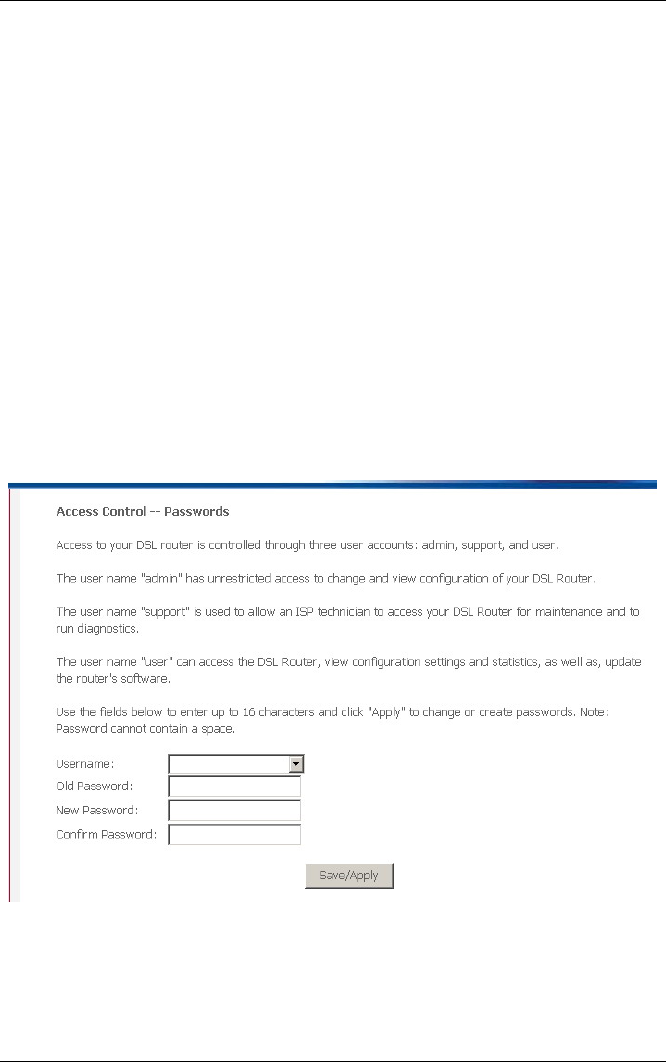

Page “Passwords”, Access to your DSL router is controlled through three
user accounts: admin, support, and user.
The user name "admin" has unrestricted access to change and view
configuration of your DSL Router.
The user name "support" is used to allow an ISP technician to access your
DSL Router for maintenance and to run diagnostics.
The user name "user" can access the DSL Router, view configuration
settings and statistics, as well as, update the router's software.
Use the fields below to enter up to 16 characters and click "Apply" to
change or create passwords. Note: Password cannot contain a space.
X5669WUP3 User’s Manual Version 1.0
58
7.6 Update Software
You may easily upgrade X5668 embedded software by obtaining the
compressed upgrade kit from the service provider and then following the
steps for upgrading through a Web-browser:
Step 1: Extract the ZIP file for updated firmware.
Step 2: Connect X5668 via the local Ethernet port or remote ADSL link,
making sure that the X5668 Ethernet IP address and your
terminal are properly configured so that you can successfully
“ping” X5668. The default local IP address is “192.168.1.1”.
Step 3: Launch the Web browser (IE or Netscape), and enter the default
IP address 192.168.1.1 into the address bar to access the Web
management page.
Step 4: Click on the Management link on the navigation bar and then on
the Update Software link below it.
Step 5: Click on the Browse to select the appropriate firmware and then
click on the Update Software button. The upgrade process
may take about 60 seconds. Do not reset the device while
X5669WUP3 User’s Manual Version 1.0
59
7.7 Save/Reboot
Click “Save/Reboot” button to store the setting before and reboot
system to use the setting.
Chapter 3 Supplementary Services
3.1 Call Forward
3.1.1 Call Forward Unconditional
Call Forward Unconditional (CFU), this enables the customer
to have all incoming calls, which are addressed to his number,
forwarded to another number.
To configure CFU to any number :
Activation: * 21 * number #
X5669WUP3 User’s Manual Version 1.0
60
Deactivation: # 21 #
For the duration that Call Forward Unconditional is enabled a
stuttering dial tone shall be played instead of the normal dial
tone when picking up the phone.
3.1.2 Call Forward No Response
Call Forward No Response (CFNR) enables the customer to
have all incoming calls, which meet with no reply and are
addressed to his number, forwarded to another number.
To configure CFNR to any number :
Activation: * 61 * number # (forwarding after 30 s)
or: * 61 * number * ss # where ss (5-60 s) is the
time until forwarding
Deactivation: # 61 #
3.1.3 Call Forward on Busy
Call Forward Busy Subscriber (CFBS) enables the customer
to have all incoming calls, which meet with busy and are
addressed to his number, forwarded to another number.
To configure CFBS to any number :
Activation: * 67 * number #
Deactivation: # 67 #
X5669WUP3 User’s Manual Version 1.0
61
3.2 Secret Number, Calling Line
Identification Restriction (CLIR)
CLIR must work together with all bonus services. All calls
origination from the subscriber in conjunction with services
Call Forwarding, Enquiry service, CCBS and *69# must be
marked secret for a subscriber with secret number.
3.2.1 Static Configuration
Secret Number is an extra service and customers are
charged an additional monthly fee. It must be possible to
provision from remote if CLIR is enabled or disabled for each
call on the Analog Telephone Adapter (ATA).
3.2.2 On per call basis
Caller Line Identification Restriction (CLIR) enables a calling
party to prevent presentation, on a call by call basis, of his
number to the called party. This is in Sweden a regulatory
requirement for an operator to provide.
Activation: # 31 # is dialed immediately before the called party
number.
3.3 Call Waiting
X5669WUP3 User’s Manual Version 1.0
62
Call Waiting (CW) enables a busy customer to be notified of a
new incoming call that is in a waiting position. This feature
must be provisioned to disabled. The customer has the choice
to enable this service.
The customer then has the choice of accepting, rejecting or
ignoring the waiting call, making use of switching orders
based on R.
When the user presses R (hook flash) a new dial tone shall
be sent to the customer.
3.3.1 Call Waiting customer configuration
Activation: * 43 #
Deactivation: # 43 #
Call Waiting is permanently enabled or disabled until disabled
/ enabled again. E.g. not on a per call basis. These setting
shall survive a reboot, reconfiguration, software upgrade and
any other imaginable actions that can be performed with the
ATA.
3.3.2 Force Busy
To reject the new call without answering it: R (dial tone) 0. The
CPE will send a Busy signal to the calling party.
R0 shall also temporarily deactivate the call waiting service
for the rest of the active call. When the subscriber hangs up
the service shall automatically be activated again.
X5669WUP3 User’s Manual Version 1.0
63
3.3.3 Pickup and Release old
To release the old call and take the new call: R (dial tone) 1
3.3.4 Pickup and put old on hold
To place the old (current) call on hold and take the new call: R
(dial tone) 2
3.3.5 Switch between 2 active calls
To switch between the old and the new call: R (dial tone) 2
3.3.6 Timeout
When the customer receives a call when in a conversation,
and chooses to ignore the call waiting notification, the calling
party will receive a Busy signal after 24 seconds.
R0 shall also temporarily deactivate the call waiting service
for the rest of the active call. When the subscriber hangs up
the service shall automatically be activated again.
3.4 Three Party Conference
Three party conference can be invoked from Call waiting or
Enquiry services.
When the subscriber has two active calls, one on hold and
X5669WUP3 User’s Manual Version 1.0
64
one in conversation state, it shall be possible to connect all
three into a three party conference.
To connect to both the old and the new call: R (dial tone) 3
This shall not be possible in Call waiting state, i.e. before the
subscriber has answered the waiting call. Both calls must be
answered before they are connected into a conference.
When a three party conference is invoked the conference
warning tone shall be sent to all three parties every 15
seconds throughout the call.
It must be possible for the controlling subscriber (the one
invoking the service) to switch back to a two party state with
one call on hold and one in conversation mode by R (dial tone)
2 in conference state. All other actions (R plus any other digit)
shall be disregarded in this state.
If the controlling subscriber hangs up the calls are released
immediately.
If any of the non-controlling subscribers hang up in
conference state the disconnection rules for normal calls shall
be followed, i.e. a calling subscriber is released immediately
and a called subscriber is disconnected after 90 seconds
X5669WUP3 User’s Manual Version 1.0
65
3.5 Call Transfer
The Call Transfer enables the customer to transfer the current
call to another third party.
Procedure: When A and B are engaged in a call, if A wants to
transfer the call to C, so B and C can make a conversation. A
presses R and dial *90*Number#, when B hear the ring back
tone, the call will be disconnected and A hears the reorder
tone and hangs up the call. The call is transferred.
3.6 Enquiry service
The Enquiry service ENQ enables the customer to interrupt
communications on an existing call, make a new call and then
subsequently, switch between the old and new call, release
one call or connect all three parties into a three party
conference..
Procedure: Two parties are engaged in a call. One of the
parties (the active party) places the other on hold by pressing
R. The active party receives dial tone and makes a call to a
new party. After the new party has replied, the active party
may return to the old party by pressing R1 and switch
between the old and new party by pressing R2. If the new
party does not reply, the active party may stop the call attempt
X5669WUP3 User’s Manual Version 1.0
66
and return to the party on hold by pressing R.
3.7 Call Back Busy Subscriber (Busy)
Call Back Busy Subscriber (CCBS) enables a calling
customer (A), encountering a busy destination (B), to have
the retry dialing automatically until destination becomes idle,
without having to make a new call attempt.
Activation: press 5 when encountering a busy tone
Deactivation: # 37 # deactivates all CCBS
The ATA shall reattempts the last made call every 60 seconds.
The B Party alerts the original calling customer (A) with a
ringing signal when the busy destination (B) becomes idle, if
within 30 minutes. When the original calling customer
answers, the former busy called party will start ringing.
Timeout for call back ringing signal to A and B-side shall be 60
seconds. After the timeout both sides must be disconnected
from the call.
B must have the possibility to make a new call before A
answers the call back.
X5669WUP3 User’s Manual Version 1.0
67
3.8 Call Back last number called (Call
Return)
The customer has the possibility to press *69# to call back the
last number that called. It is not possible to call secret
numbers.
If the subscriber calling *69# has a secret number (CLIR) the
A-number must be sent as secret number.
The call shall be made only with the user part of the stored
FROM header toward the default proxy server. This call shall
be screened through the dial plans to screen any call blocking
functionality enabled.
Appendix A – Technical Specifications
Hardware
Local Interface
• Four 10/100 Base-T Ethernet ports in RJ-45 connector, comply
with IEEE 802.3u
• Integrated 802.11g WLAN Access Point with external antenna,
X5669WUP3 User’s Manual Version 1.0
68
backward compatible with 802.11b
WAN Interface
• 2-wire loop with 100 ohms line impedance in RJ-11 connector
• G.994 compliant
• G.992.1 (G.dmt) – Annex A, B, and C compliant
• G.992.2 (G.lite) – Annex A and C compliant
• ANSI T1.413 compliant
• G.992.3 (ADSL2) compliant, supporting Annex A, B, C, L and M
• G.992.5 (ADSL2+) compliant, supporting Annex A, B, C and M
• I.432 ATM physical layer compliant
Indicators
Front panel (all LEDs in green color)
• PWR – ON when the power supply is properly connected.
• WLAN – Blinking while WLAN is transmitting data, and ON when
WLAN port is active.
• Ethernet-
• Internet-
• DSL-
Rear panel
• Each Ethernet port got speed (10/100) and activity indicators.
OAM&P
• Through Web browser, remotely or locally
• One hidden console port (RS-232) for maintenance
Environment
• Operation Temperature: 0°C ~ 45°C
• Operation Humidity: 5% ~ 95% (non-condensing)
• Storage Temperature: -20°C ~ +85°C
• Storage Humidity: 5% ~ 95% (non-condensing)
Power
• AC adapter :Input 120 VAC/60Hz or 230VAC/50Hz; Output 12VDC
1A
• Power consumption: Less than 15 watts
Physical Dimensions
• (W × D × H) t.b.d
Certificates
• CE, CB (TBD)
X5669WUP3 User’s Manual Version 1.0
69
Software
ATM
• AAL0, AAL5, OAM, RM and Transparent cell types
• Traffic shaper/scheduler: priority scheduling; per-VCC queuing;
UBR/CBR/VBR shaping based on Peak Cell Rate(PCR), Sustained
Cell Rate (SCR), and Maximum Burst Tolerance; Minimum Cell Rate
Shaping; Multi-priority AAL Queuing
• Full 24-bit Virtual Port Identifier (VPI)/Virtual Circuit Identifier (VCI)
support
• 16 Virtual Channel Connections (VCCs)
• Payload Encapsulation:
− RFC2684 / RFC1483, Multiprotocol Encapsulation over ATM
Adaptation Layer 5
− RFC2225 / RFC1577, Classical IP and ARP over ATM (IPoA)
− RFC2364, PPP over AAL5 (PPPoA)
Bridging
• RFC2684 / RFC1483 bridged PDU encapsulation
• Transparent bridging (IEEE 802.1D) with at least 32 MAC
addresses
• Bridge filtering with per-port extensions
Routing
• RFC2684 / RFC1483 bridged and routed PDU encapsulations
• MAC Encapsulated Routing (MER)
• Support Point-to-Point Protocol (including PPPoA and PPPoE) and
user authentication via PAP, CHAP or MS-CHAP
• Routing Information Protocol (RIP) v1 and v2, static route
• DHCP client, server and relay agent
• NAT / PAT – RFC1631 with support for extensive ALGs
• DNS relay
Firewall
• NAT: 16 sessions, DMZ and ALGs
• Stateful Packet Inspection (SPI) with DOS protection - Ping of
Death, SYN Flood LAND
• Protection against IP and MAC address spoofing
• UPnP NAT traversal and VPN / IPSec pass-through
Wireless
• Supports 802.1x; WEP; WEP2; WPA; WPA2; TKIP; AES; 802.11i
• Hidden SSID
• WMM for advanced Quality of Service
X5669WUP3 User’s Manual Version 1.0
70
• AES in hardware
• 125 High Speed Mode: Standards-plus performance enhancement
delivers best real-world performance as the client card use the same
125 High Speed Mode
Configuration and Network Management
• SNMP GETs, SETs and TRAPs for four groups in MIB-II
• Embedded syslog; SNTP with DHCP options
• UPnP Internet Gateway Device (IGD) compliance
• Management and configuration via Web / HTTP
• Firmware upgrade using HTTP or TFTP
• Support TR-069 and with parameters: DeviceInfo,
ManagementServer, Time, IPPingDiagonostic, etc
• Support TR-104
Note:
Not every listed feature will be included in the shipping product.
Appendix B – Warranties
B1. Product Warranty
XAVi Technologies warrants that the ADSL unit will be free from
defects in material and workmanship for a period of twelve (12)
X5669WUP3 User’s Manual Version 1.0
71
months from the date of shipment.
XAVi Technologies shall incur no liability under this warranty if
－ The allegedly defective goods are not returned prepaid to
XAVi Technologies within thirty (30) days of the discovery of the
alleged defect and in accordance with XAVi Technologies’ repair
procedures; or
－ XAVi Technologies’ tests disclose that the alleged defect is
not due to defects in material or workmanship.
XAVi Technologies’ liability shall be limited to either repair or
replacement of the defective goods, at XAVi Technologies’ option.
XAVi Technologies MARKS NO EXPRESS OR IMPLIED
WARRANTIES REGARDING THE QUALITY, MERCHANTABILITY,
OR FITNESS FOR A PARTICULAR PURPOSE BEYOND THOSE
THAT APPEAR IN THE APPLICABLE USER’S DOCUMETATION.
XAVi SHALL NOT BE RESPONSIBLE FOR CONSEQUENTIAL,
INCIDENTAL, OR PUNITIVE DAMAGE, INCLUDING, BUT NOT
LIMITED TO, LOSS OF PROFITS OR DAMAGES TO BUSINESS
OR BUSINESS RELATIONS. THIS WARRANTY IS IN LIEU OF ALL
OTHER WARRANTIES.
X5669WUP3 User’s Manual Version 1.0
72
B2. Warranty Repair
1. During the first three (3) months of ownership, XAVi Technologies
will repair or replace a defective product covered under warranty
within twenty-four (24) hours of receipt of the product. During the
fourth (4th) through twelfth (12th) months of ownership, XAVi
Technologies will repair or replace a defective product covered
under warranty within ten (10) days of receipt of the product. The
warranty period for the replaced products shall be ninety (90) days
or the remainder of the warranty period of the original unit,
whichever is greater. XAVi Technologies will ship surface freight.
Expedited freight is at customer’s expense.
2. The customer must return the defective product to XAVi
Technologies within fourteen (14) days after the request for
replacement. If the defective product is not returned within this
time period, XAVi Technologies will bill the customer for the
product at list price.
B3. Out-of-Warranty Repair
XAVi Technologies will either repair or, at its option, replace a
defective product not covered under warranty within ten (10) working
days of its receipt. Repair charges are available from the Repair
Facility upon request. The warranty on a serviced product is thirty (30)
days measured from date of service. Out-of-warranty repair charges
are based upon the prices in effect at the time of return.
X5669WUP3 User’s Manual Version 1.0
74
C2. IC CS-03 Notice
The Industry Canada label identifies certified equipment. This
certification means that the equipment meets certain
telecommunications network protective, operational, and safety
requirements as prescribed in appropriate Terminal Equipment
Technical Requirements document(s). The Department does not
guarantee that the equipment will operate to the user’s satisfaction.
Before installing this equipment, users should make sure that it is
permissible to be connected to the facilities of the local
telecommunications company. An acceptable method of connection
must be used to install the equipment. The customer should be
aware that compliance with the above conditions might not prevent
degradation of service in some situations.
Repairs to certified equipment should be coordinated by a
representative designated by the supplier. Any repairs or alterations
made by the user to this equipment, or equipment malfunctions, may
give the telecommunications company cause to request the user to
disconnect the equipment.
Users should ensure for their own protection that the electrical
ground connections of the power utility, telephone lines, and internal
metallic water pipe system, if present, are connected together. This
precaution may be particularly important in rural areas.
C3. UL Safety Regulations
Warning: Users should not attempt to make such connections
themselves, but should contact the appropriate electrical inspection
authority or an electrician.
X5669WUP3 User’s Manual Version 1.0
75
Disconnect TNV circuit connector or before removing cover or
equivalent.
Disconnect TNV circuit connector(s) before disconnecting power.
Do not use this product near water for example, near a bathtub,
washbowl, and kitchen sink or laundry tub, in a wet basement, or near
a swimming pool.
Avoid using a telephone (other than a cordless type) during an
electrical storm. There may be a remote risk of electric shock from
lightening.
Do not use the telephone to report a gas leak in the vicinity of the leak.
Use only the power cord batteries indicated in this manual. Do not
dispose of batteries in a fire, as they may explode. Check with local
codes for possible special disposal instructions.
No. 26 AWG Telephone Line Cord shall either be provided with the
equipment or shall be described in the safety instruction. If fuse (F1) is not
present, see the caution statement listed below:
CAUTION: To reduce the risk of fire, use only No. 26 AWG or large
r
UL Listed or CSA Certified Telecommunication Line Cord.
X5669WUP3 User’s Manual Version 1.0
76
Contact Information
You can help us serve you better by sending us your comments and
feedback. Listed below are the addresses, telephone and fax numbers of
our offices. You can also visit us on the World Wide Web at
www.xavi.com.tw for more information. We look forward to hearing from
you!
WORLD HEADQUARTER
XAVi Technologies Corporation
9F, No. 129 Hsing Te Road, Sanchung City
Taipei County 241, Taiwan
Tel: +886-2-2995-7953 Fax: +886-2-2995-7954
USA BRANCH OFFICE
53 Parker
Irvine, CA 92618
Tel: +1-949-380-7550 Fax: +1-949-380-9204
S.AMERICA OFFICE
Tel: +55 -11-4485-3143
EUROPEAN BRANCH OFFICE
Oehleckerring 6B, 22419 Hamburg, Germany
Tel: +49-40-514400-53 Fax: +49-40-514400-79
5, Place de la Pyramide
Tour Ariane, La Defense 9
92088 Paris-La Defense Cedex
France
Tel 1: +33-1-55-68-11-08 Fax: +33-1-55-68-10-00
Tel 2: +33-1-55-68-11-09
CHINA SUBSIDIARY
Room 401, Floor 4, #608 ZhaoJiaBang Road,
Shanghai, 200031
Tel: +86-21-6431-8800 Fax: +86-21-6431-7885
Issued Date: October 10, 2006
