XAVi Technologies X7967 ADSL2+Modem User Manual Manual X7968r X7967r X7927r X7922r Eng 20070305
XAVi Technologies Corp. ADSL2+Modem Manual X7968r X7967r X7927r X7922r Eng 20070305
Users Manaul
I
Broadband Wireless Gateway
ADSL2+ (802.11g WLAN) Bridge/Router
With 4-port Ethernet switch
Issue 1.0
05th Mar. 2007
X7968r / X7967r / X7927r / X7922r User’s Guide
II
XAVi Technologies Corporation
Tel: +886-2-2995-7953
9F, No. 129, Hsing Te Road, Sanchung City,
Taipei County 241,
Taiwan
Copyright © 2007, XAVi Technologies Corporation
Information in this manual is subject to change without notice. No part of this manual may be reproduced
or transmitted in any form or by any means, electronic or mechanical, including photocopying or scanning,
for any purpose, without the written permission of XAVi Technologies Corporation.
XAVi Technologies Corporation provides this documentation without warranty of any kind, implied or
expressed, including, but not limited to, the implied warranties of merchantability and fitness for a particular
purpose.
X7968r / X7967r / X7927r / X7922r User’s Guide
III
1 Introduction ................................................................................................... 1
Features ................................................................................................................................ 1
Device Requirements ...........................................................................................................2
Using this Document.............................................................................................................2
Notational conventions ......................................................................................................................2
Typographical conventions ...............................................................................................................2
Special messages .............................................................................................................................2

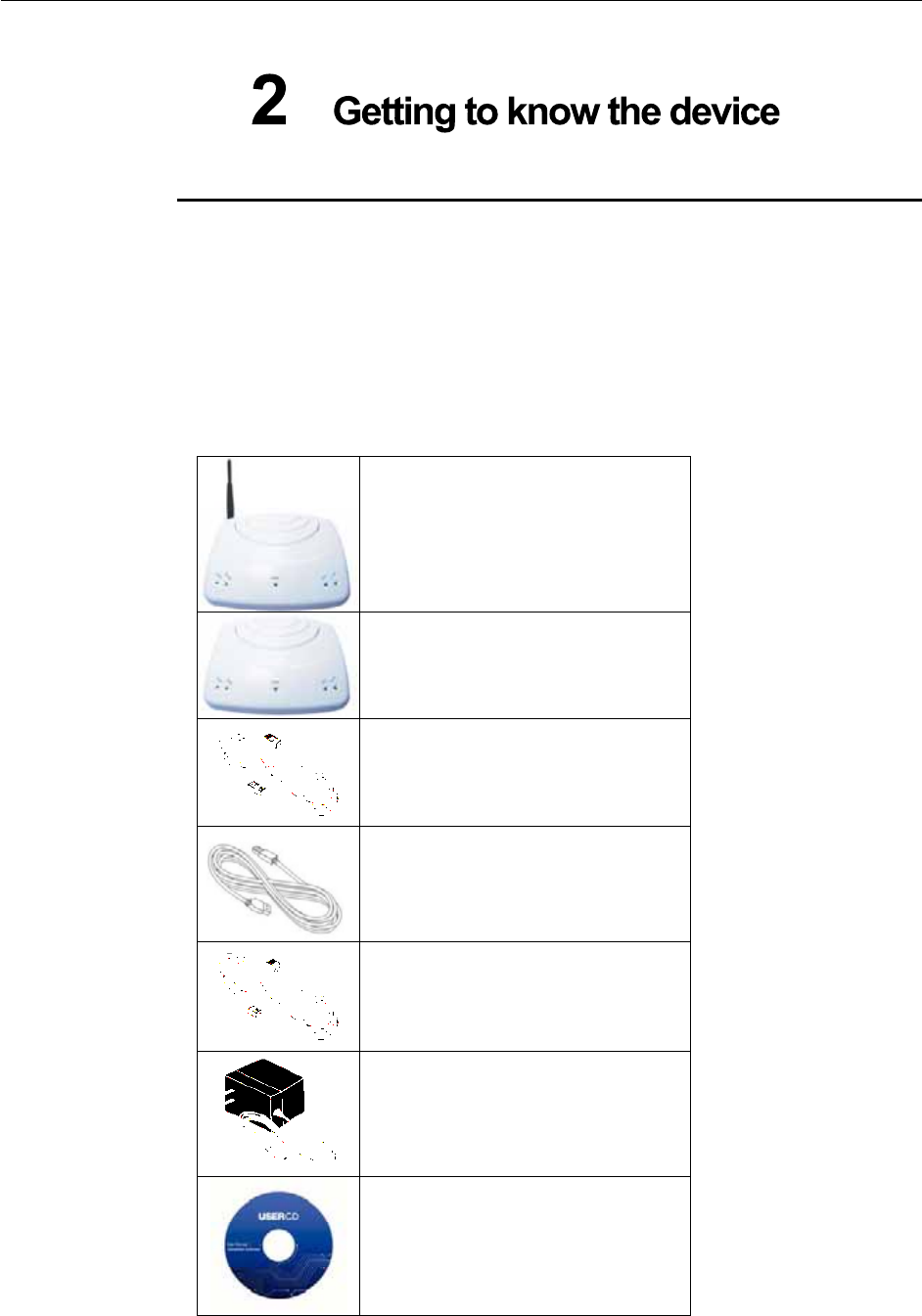

2 Getting to know the device ......................................................................... 3
Parts Check........................................................................................................................... 3
X7968r / X7967r Front Panel................................................................................................ 4

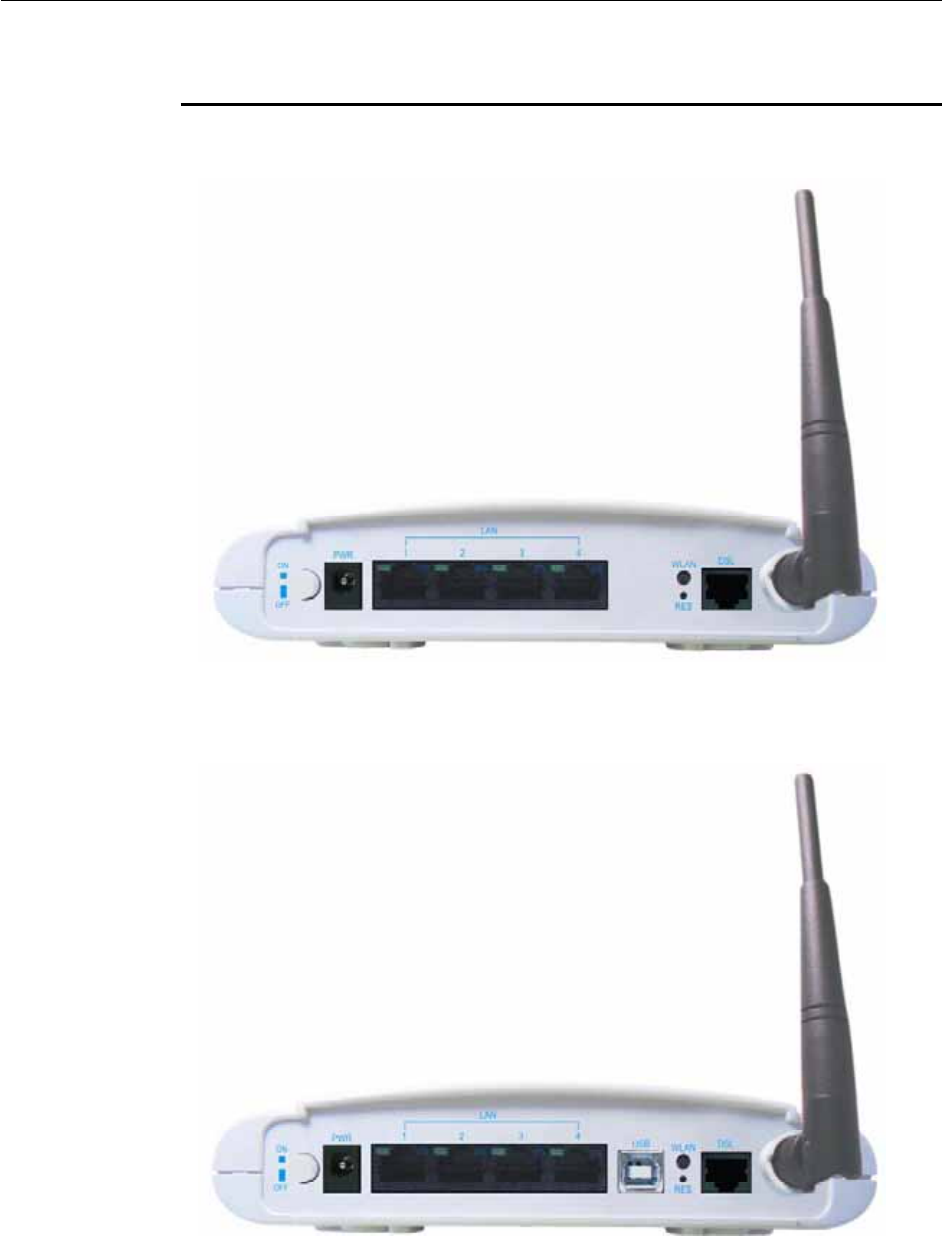

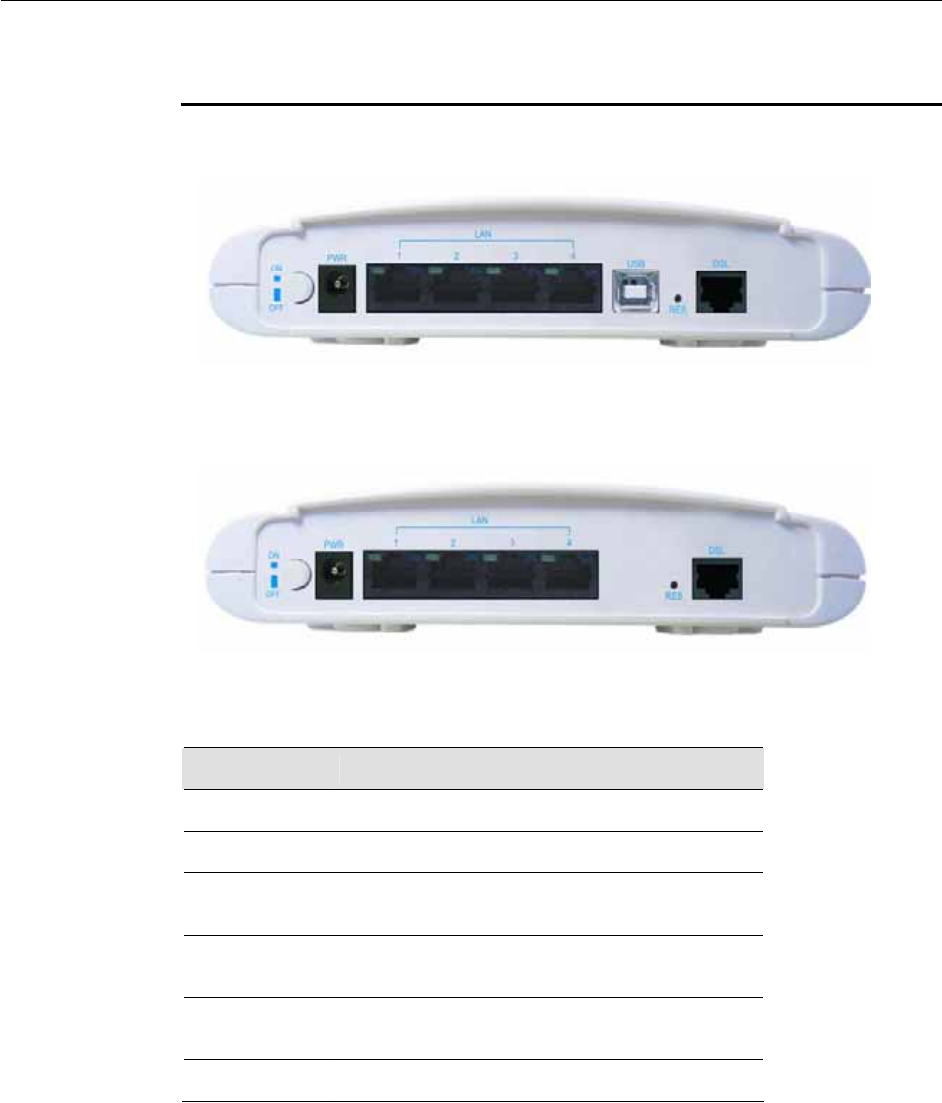

X7968r / X7967r Rear Panel ................................................................................................ 5
X7927r / X7922r Front Panel................................................................................................ 7
X7927r / X7922r Rear Panel ................................................................................................ 8

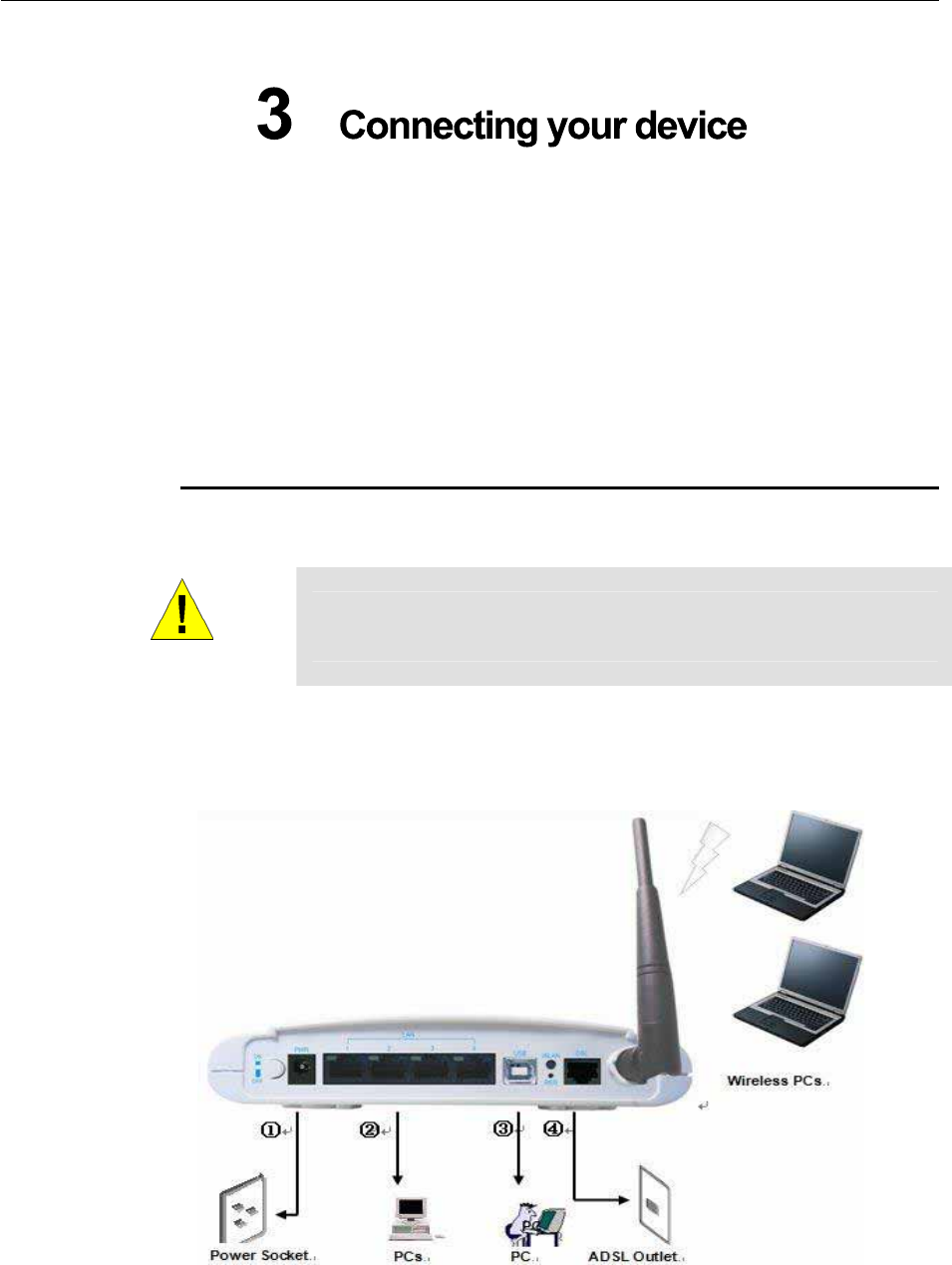

3 Connecting your device .............................................................................. 9
Connecting the Hardware.....................................................................................................9
Step 1. Connect the DSL cable and optional telephone line ........................................................10
Step 2. Connect the Ethernet cable ...............................................................................................10
Step 3. Attach the power connector ...............................................................................................10
Step 4. Configure your Ethernet PCs .............................................................................................10
Step 5. Install a Wireless card and connect Wireless PCs ...........................................................10
Step 6. Install an USB driver (for X7967r and X7927r only) .........................................................10
Next step ..........................................................................................................................................10

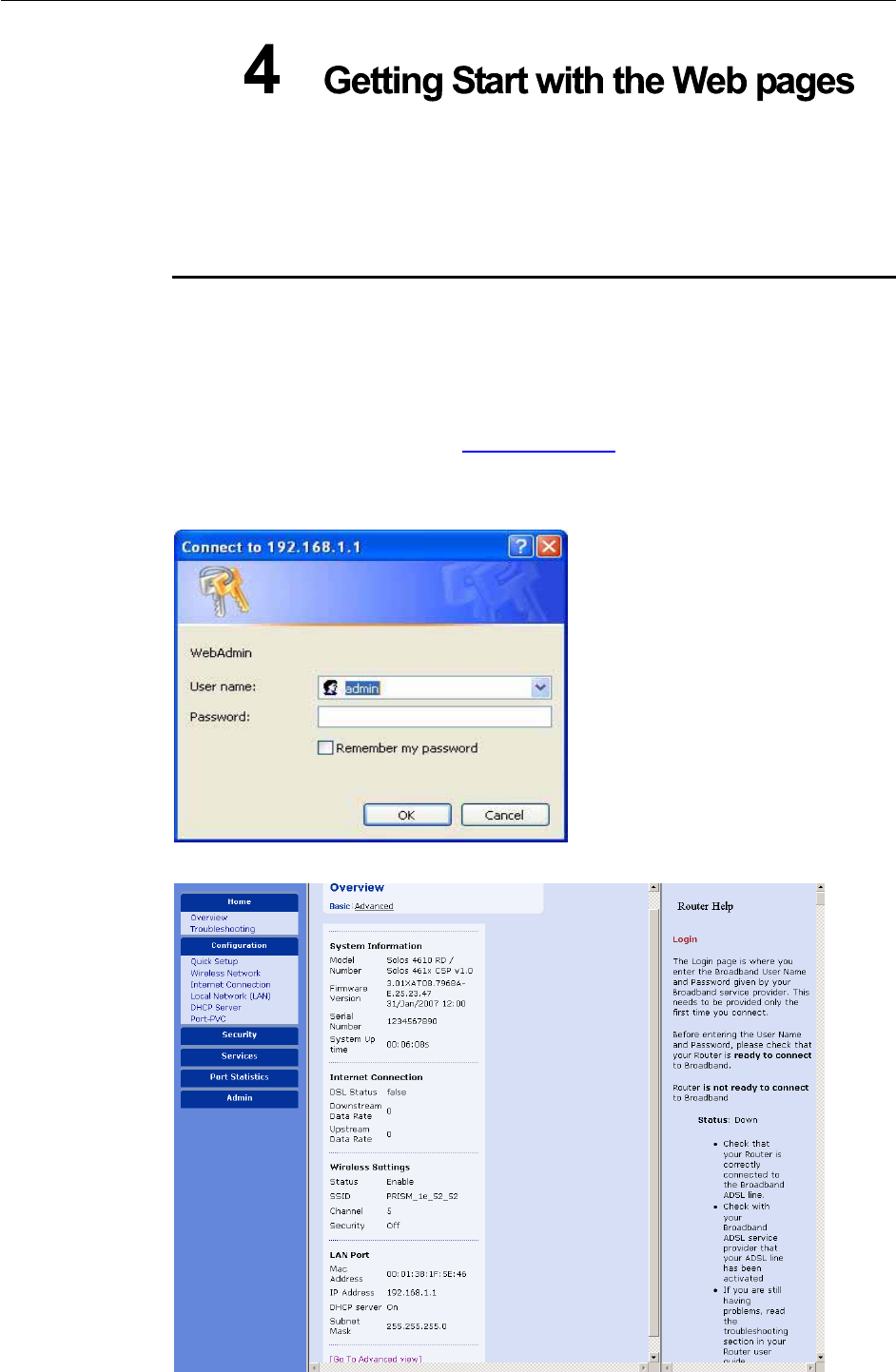

4 Getting Start with the Web pages ............................................................11
Accessing the Web pages..................................................................................................11

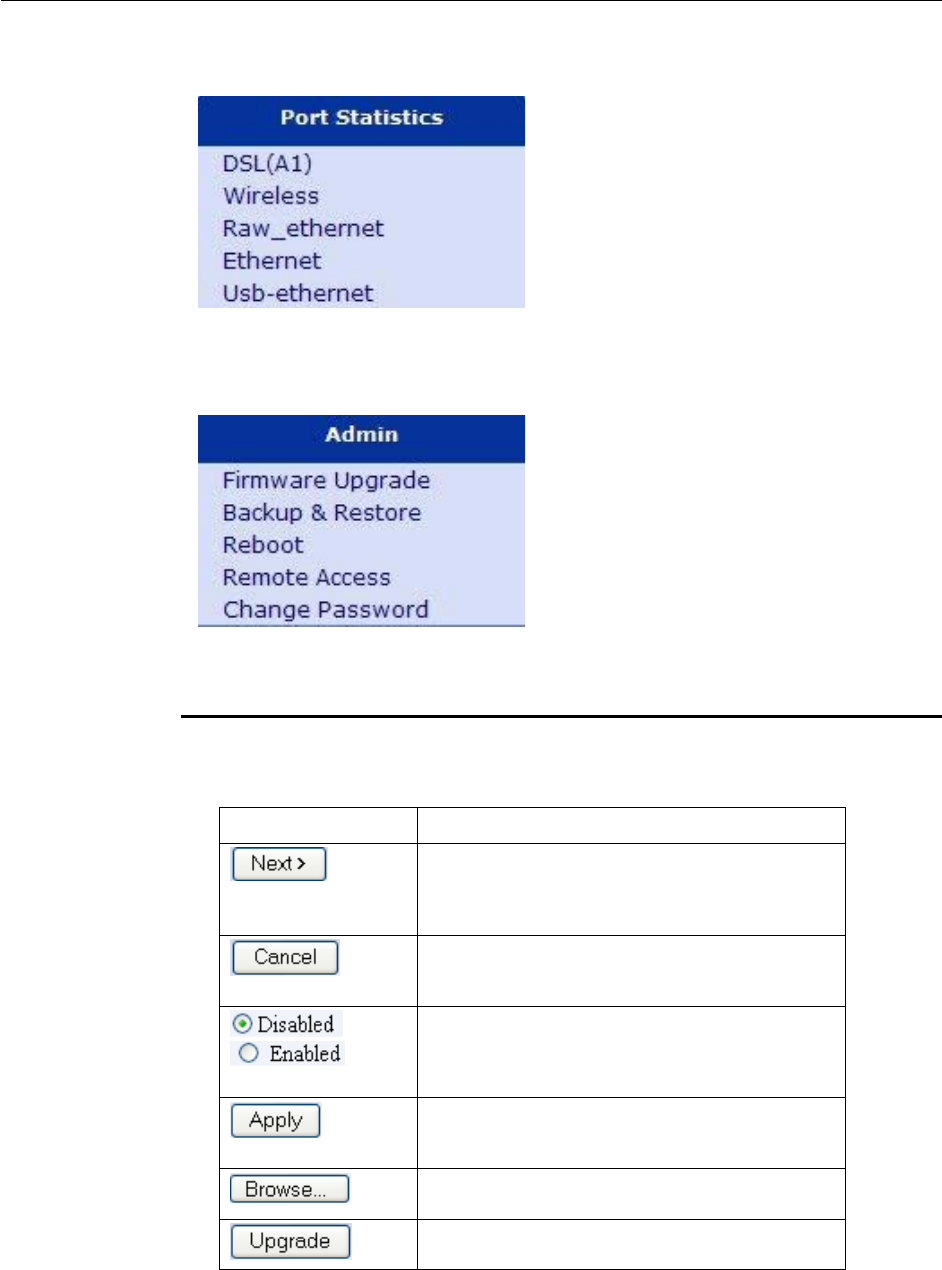

Commonly used buttons.....................................................................................................13
Help information..................................................................................................................14
Testing your Setup..............................................................................................................14
Default device settings........................................................................................................15

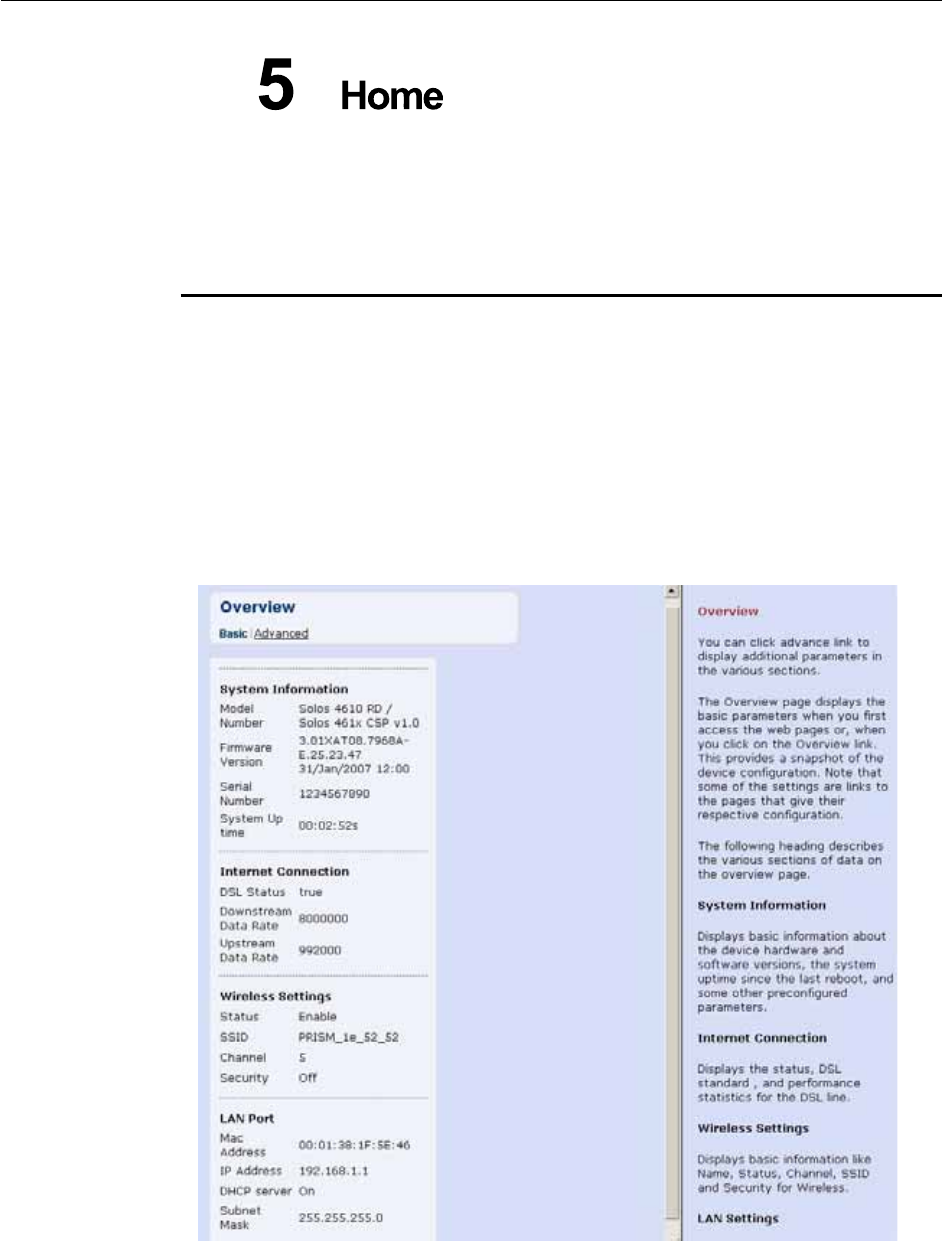

5 Home ............................................................................................................ 16
Overview Page....................................................................................................................16
Basic Overview ................................................................................................................................16

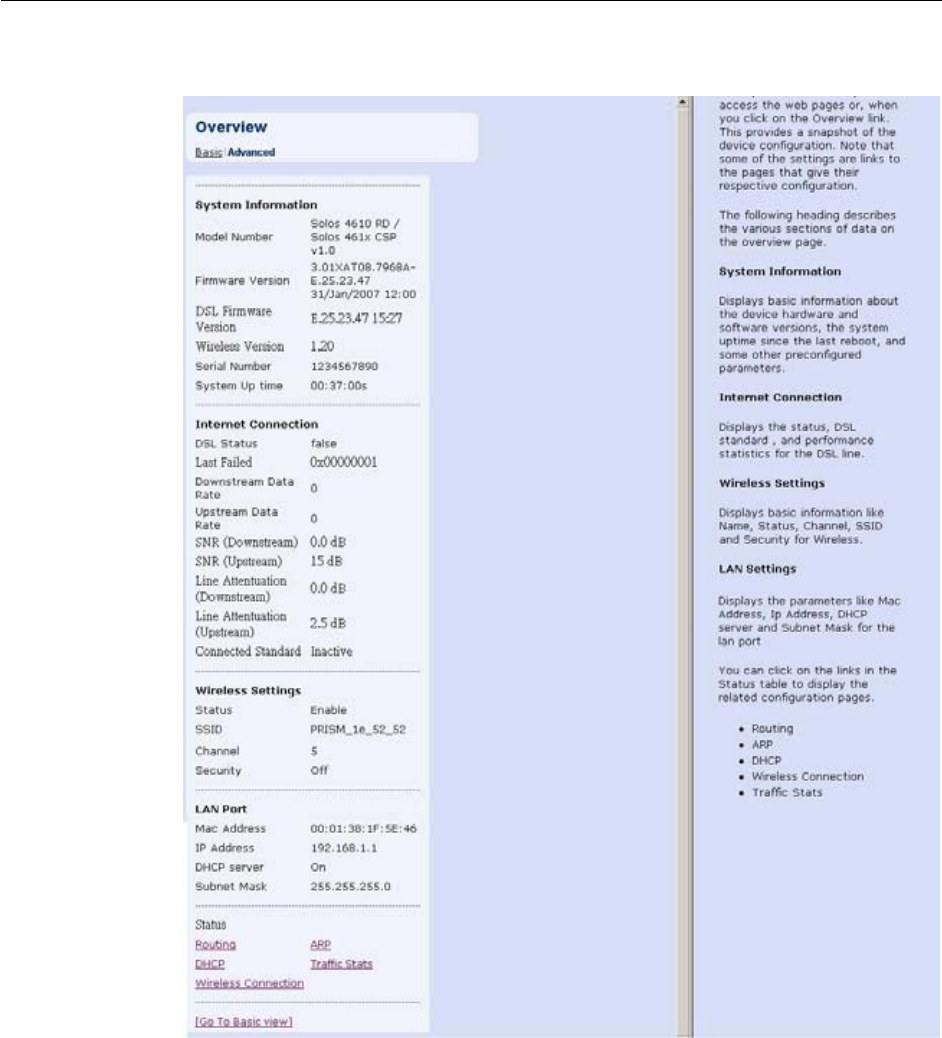

Advanced Overview ........................................................................................................................17

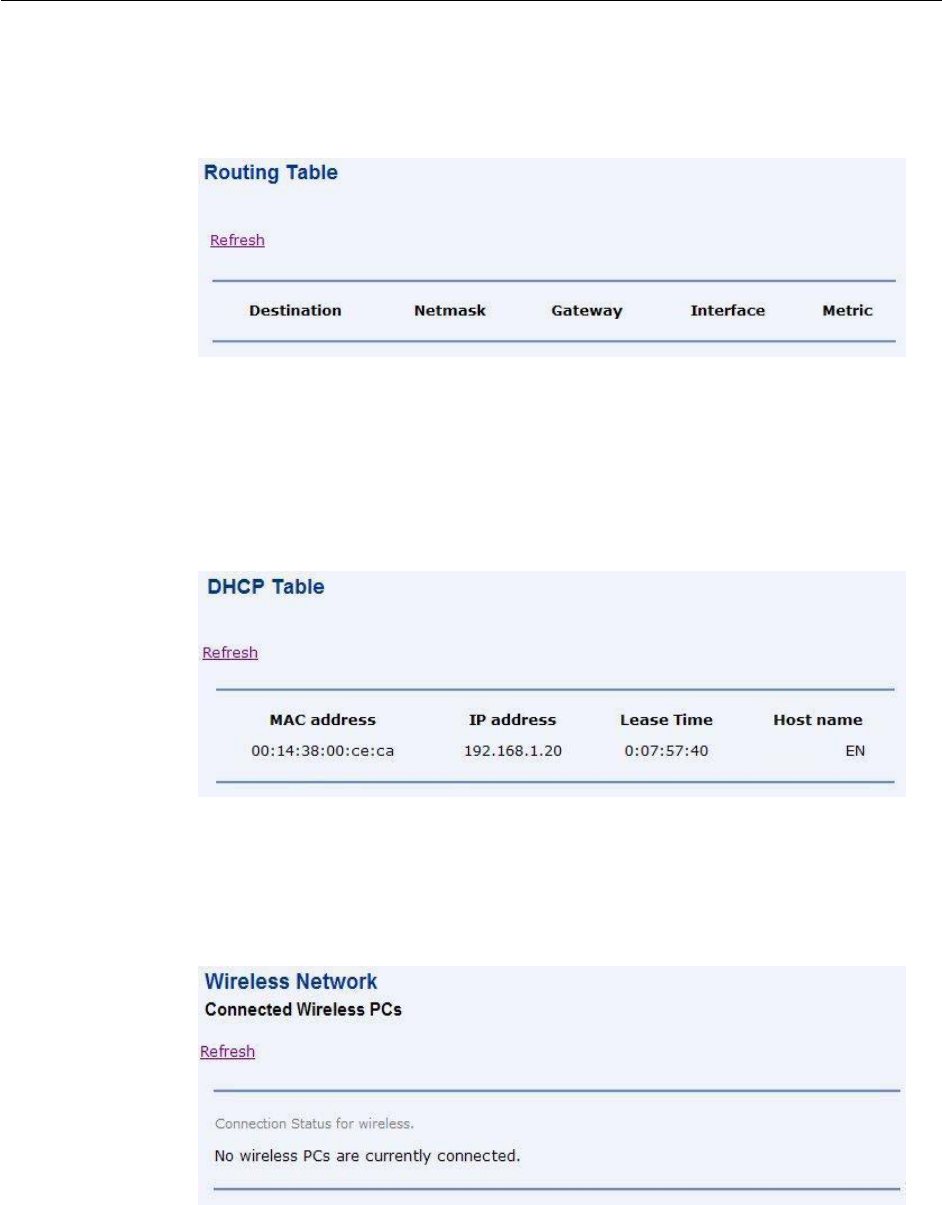

Status – Routing Table....................................................................................................................18
Status – DHCP Table......................................................................................................................18
Status – Wireless Connection.........................................................................................................18

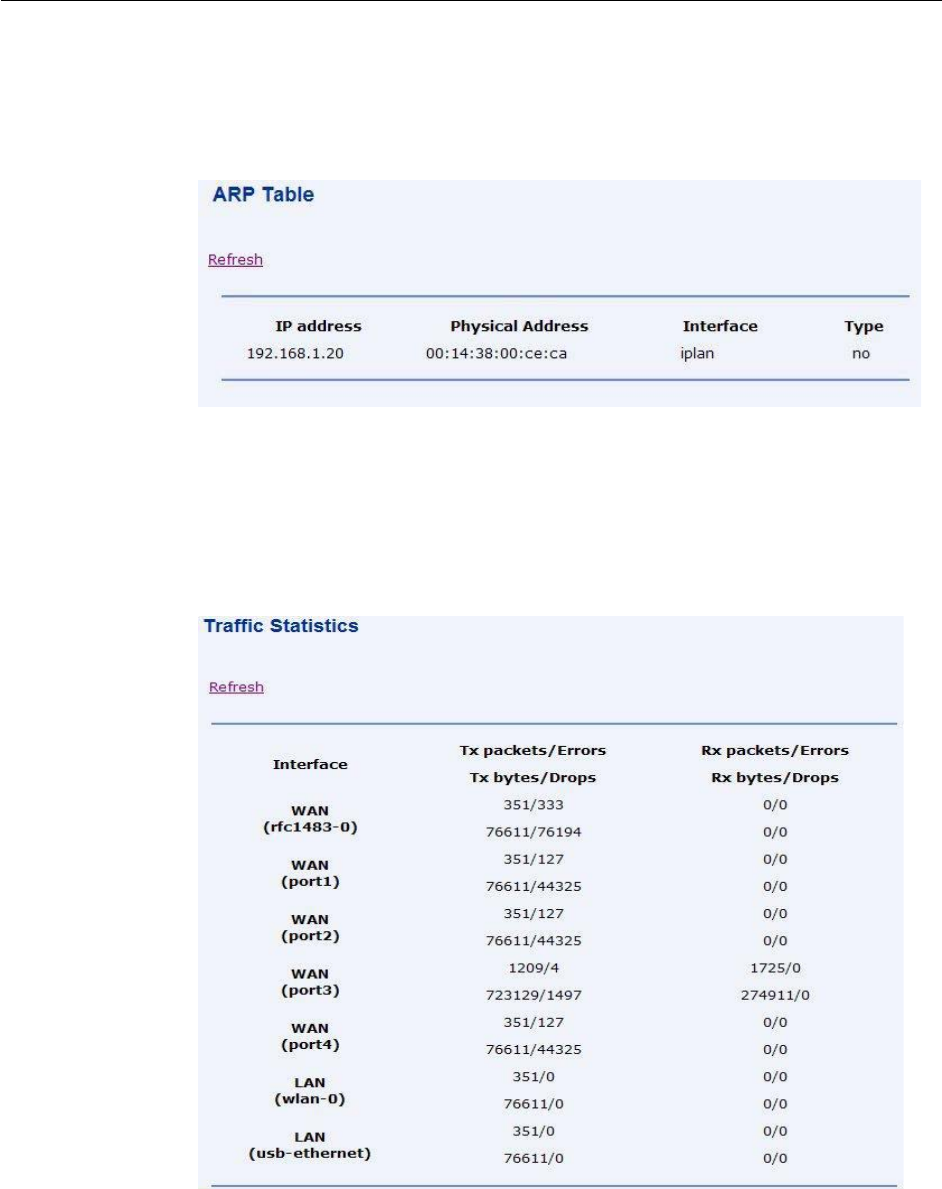

Status – ARP Table.........................................................................................................................19
Status – Traffic Statistics.................................................................................................................19
X7968r / X7967r / X7927r / X7922r User’s Guide
IV

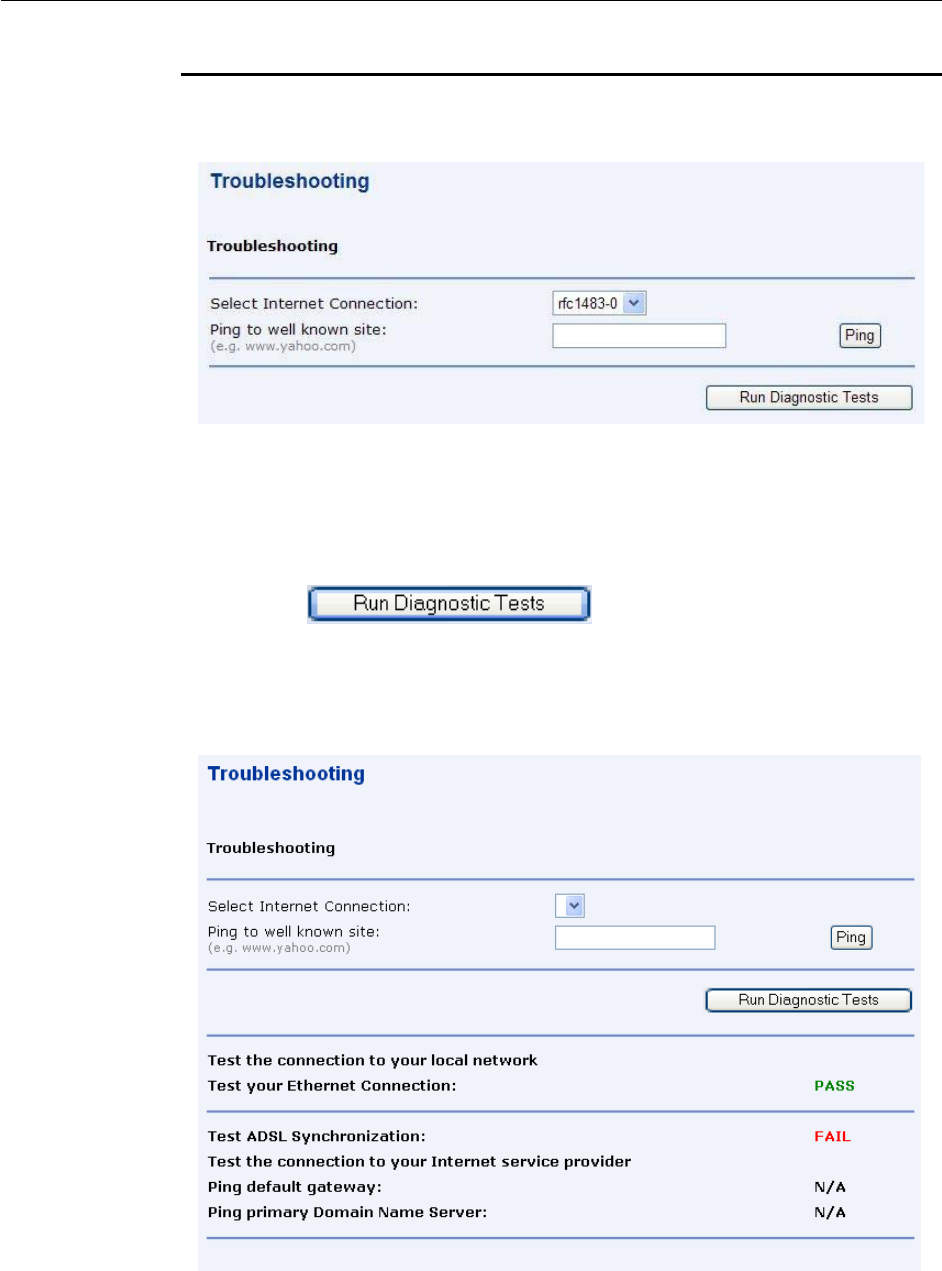

Trouble Shooting.................................................................................................................20
6 Configuration .............................................................................................. 21

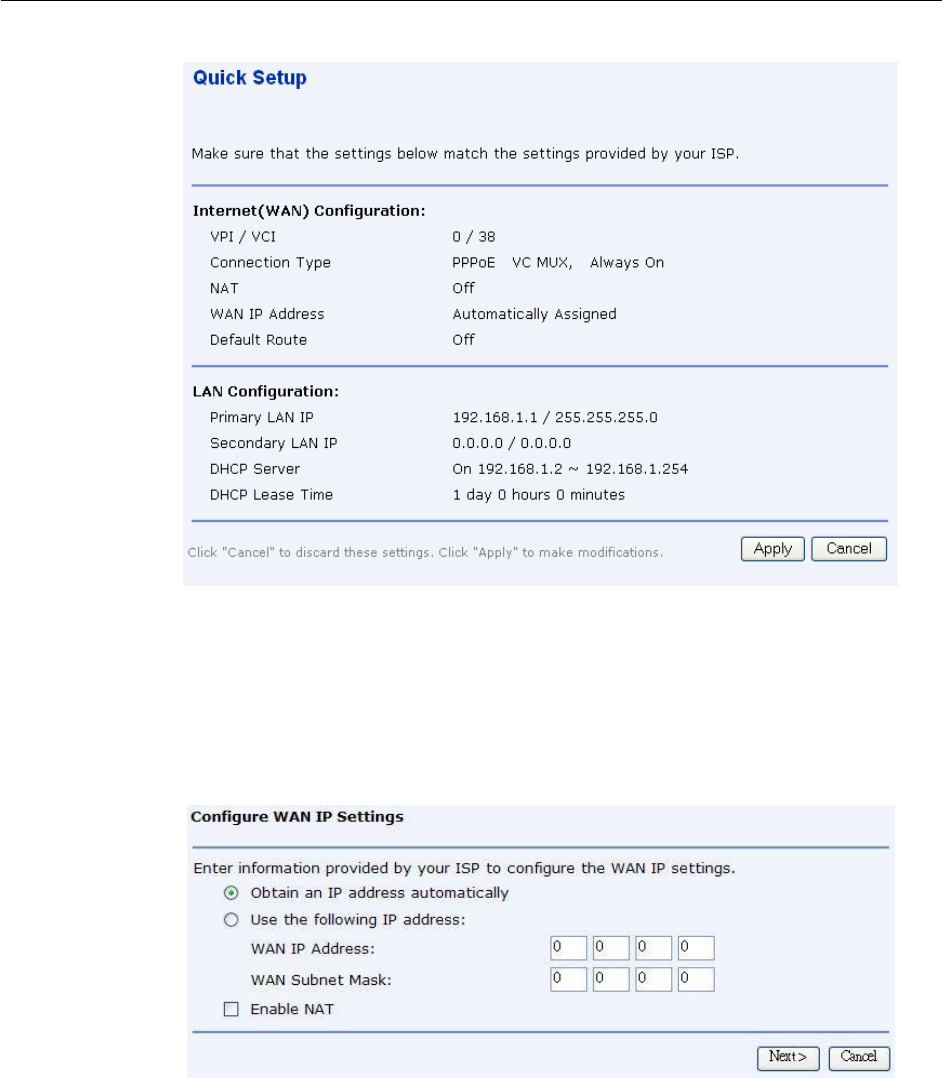

Quick Setup.........................................................................................................................21

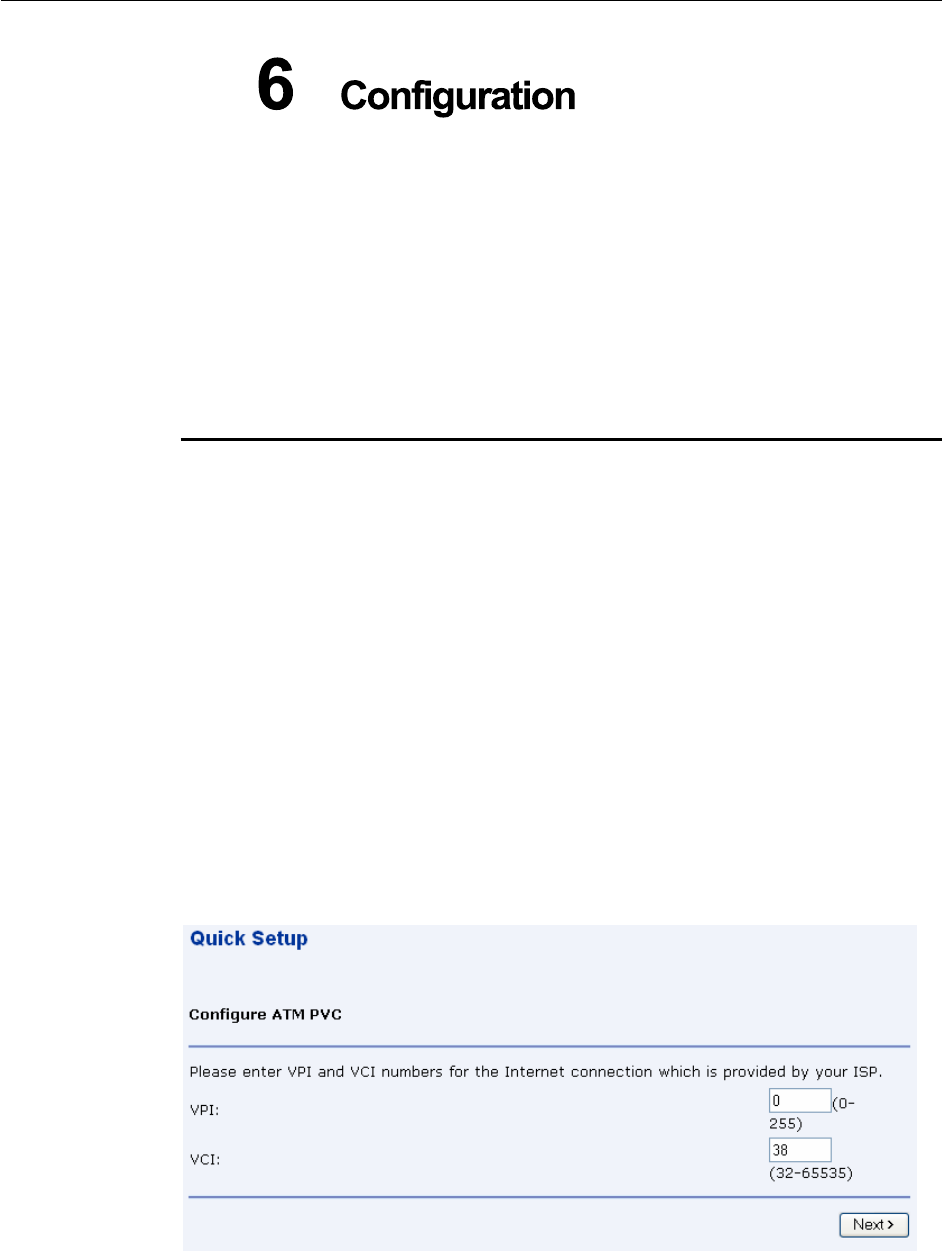

Configuring ATM PVC.....................................................................................................................22

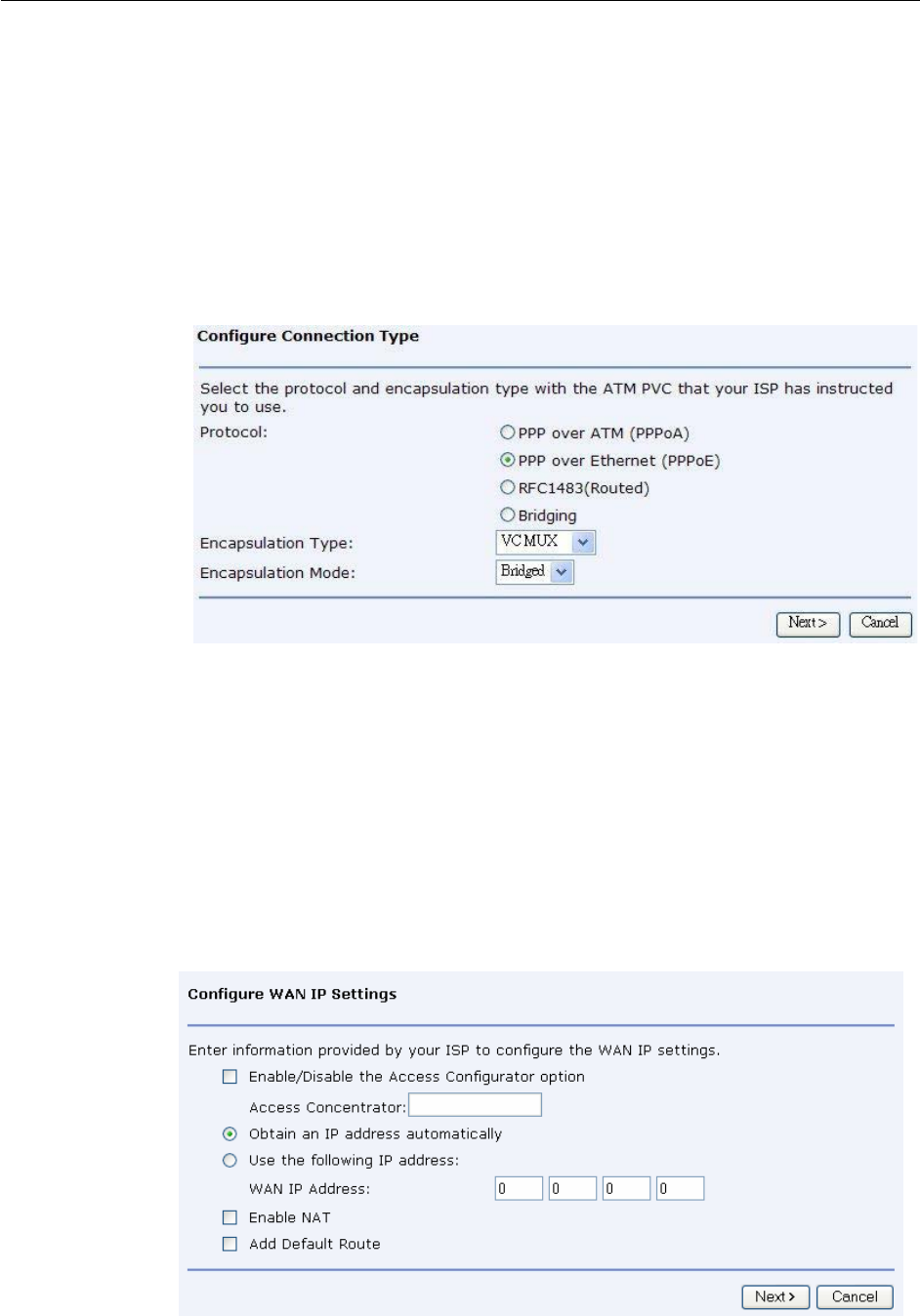

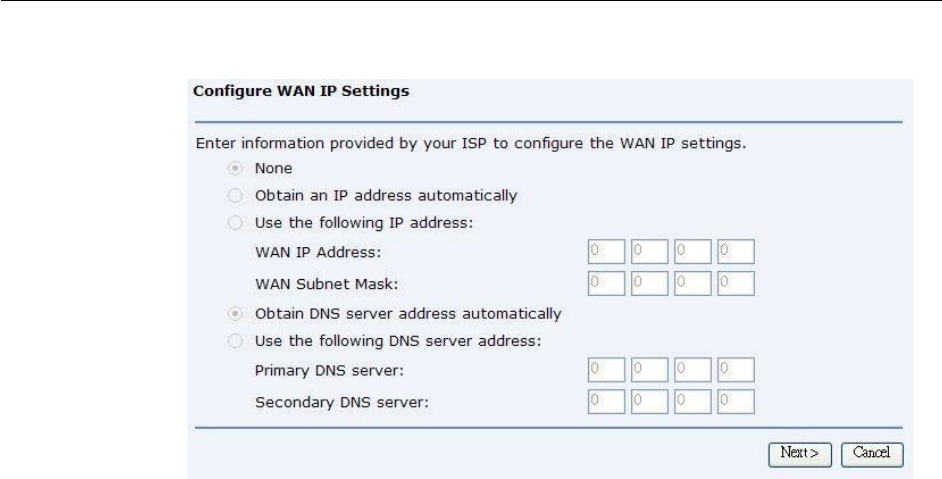

Configuring the Connection Type ...................................................................................................22

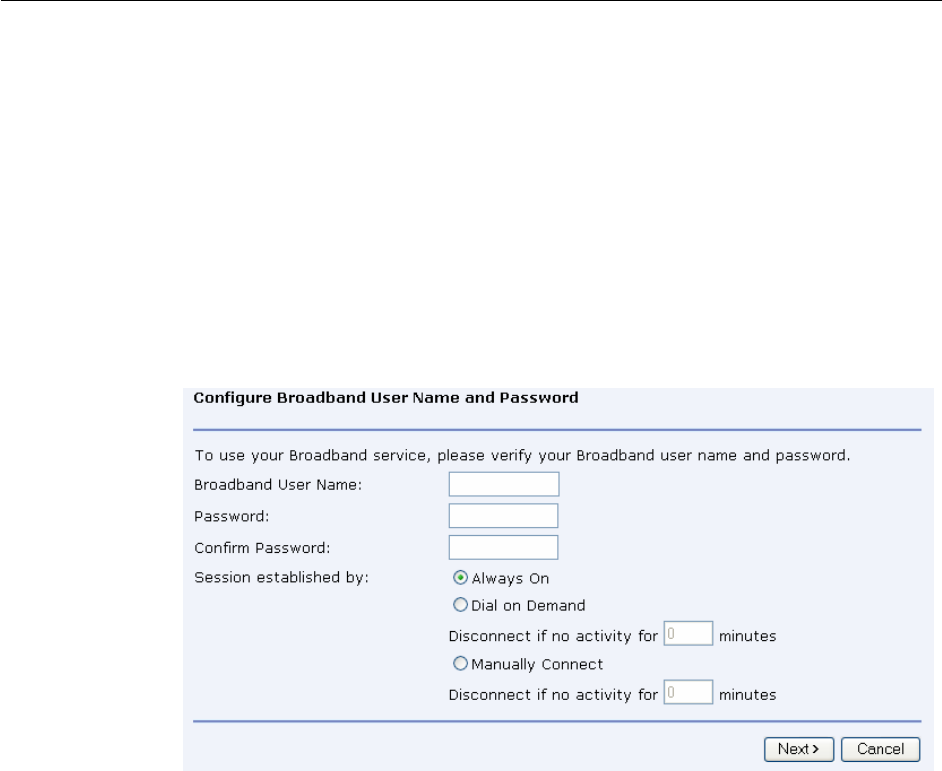

Configuring the WAN IP Settings if PPP over ATM (PPPoA) or PPP over Ethernet (PPPoE) ..22
Configuring the WAN IP Settings if RFC1483 (Routed)................................................................25
Configuring the WAN IP Settings if Bridging..................................................................................26
Wireless Network Page for X7968r and X7967r only........................................................27

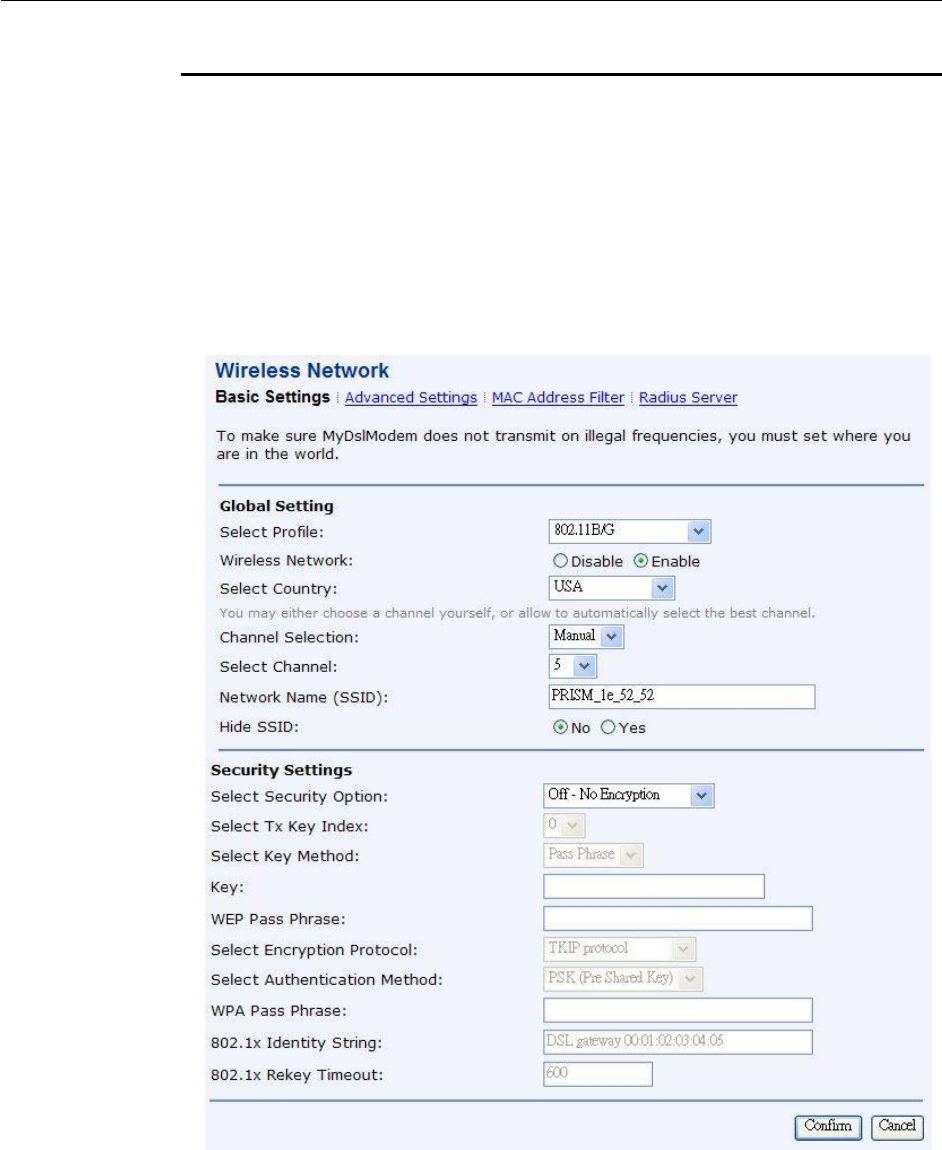

Basic Settings ..................................................................................................................................27

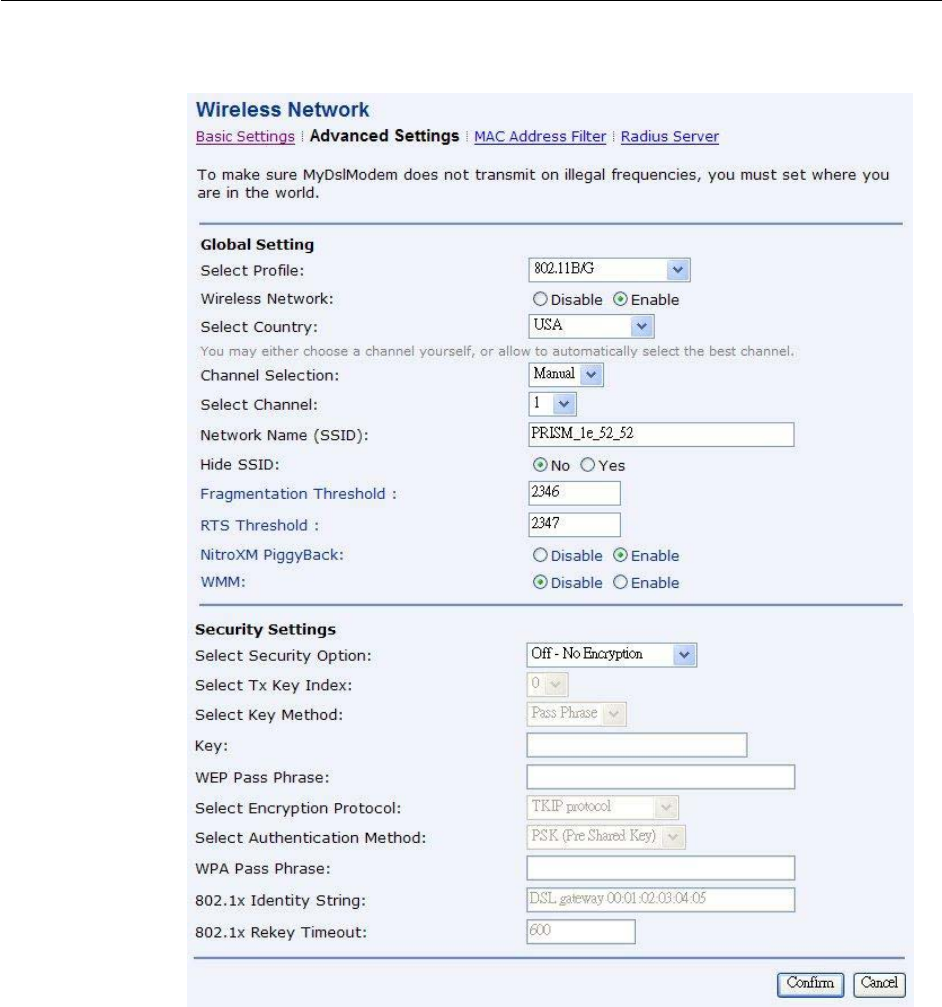

Advanced Settings...........................................................................................................................29

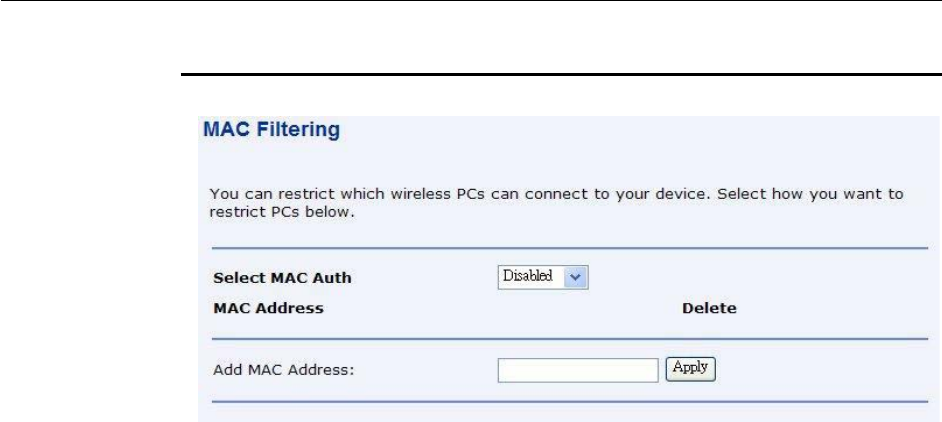

MAC Filtering ...................................................................................................................................30

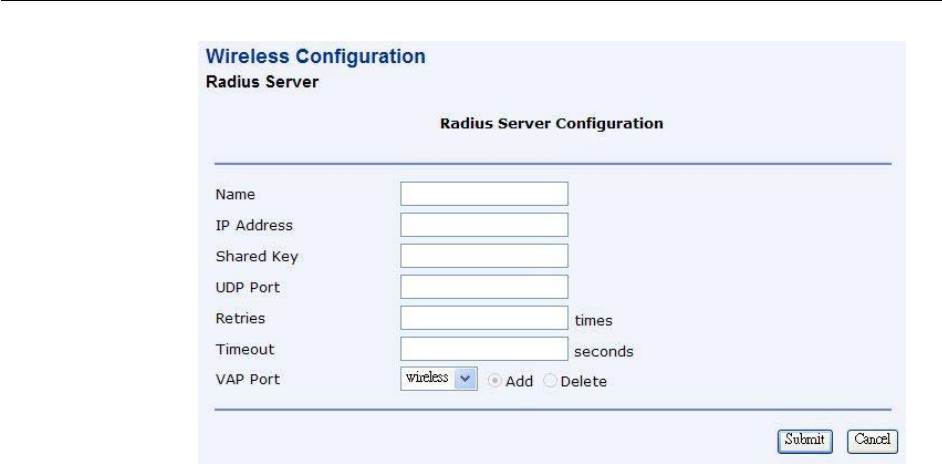

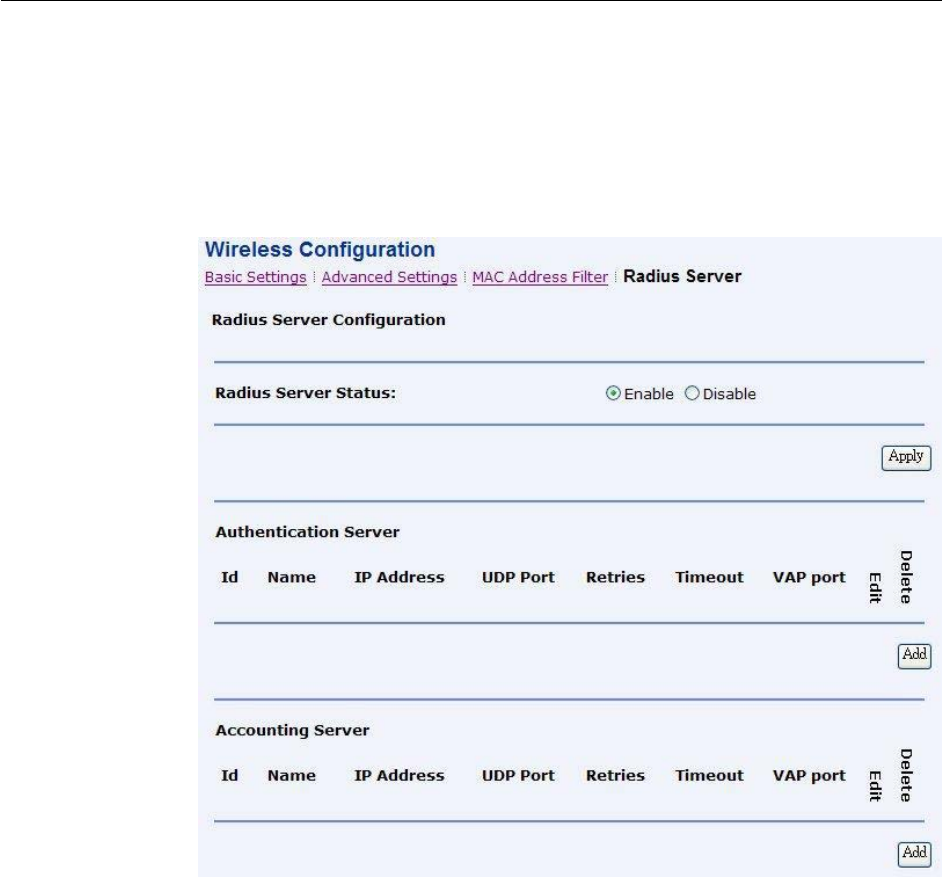

Radius Server ..................................................................................................................................31
Internet Connection Page...................................................................................................33

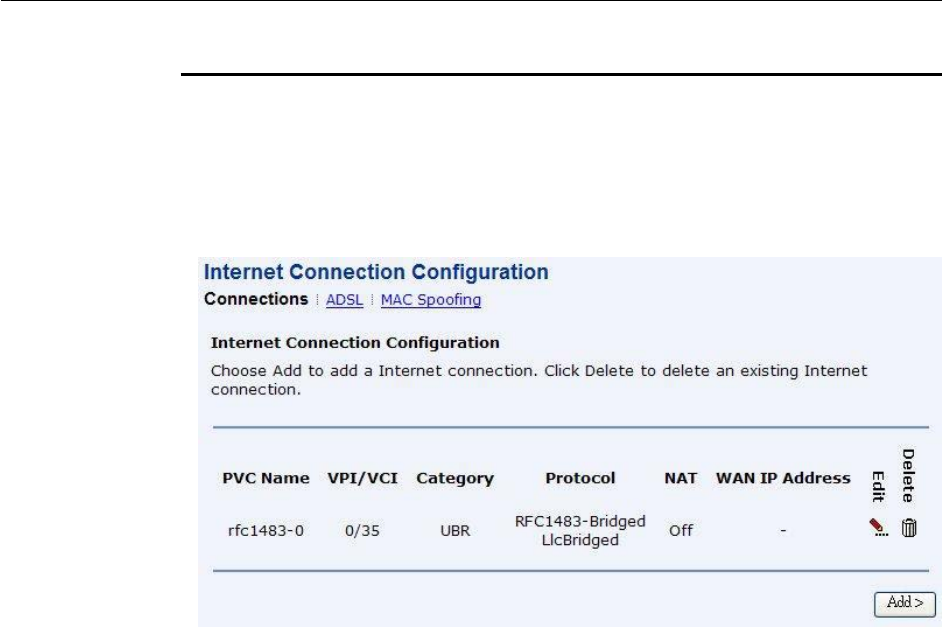

Connections .....................................................................................................................................33

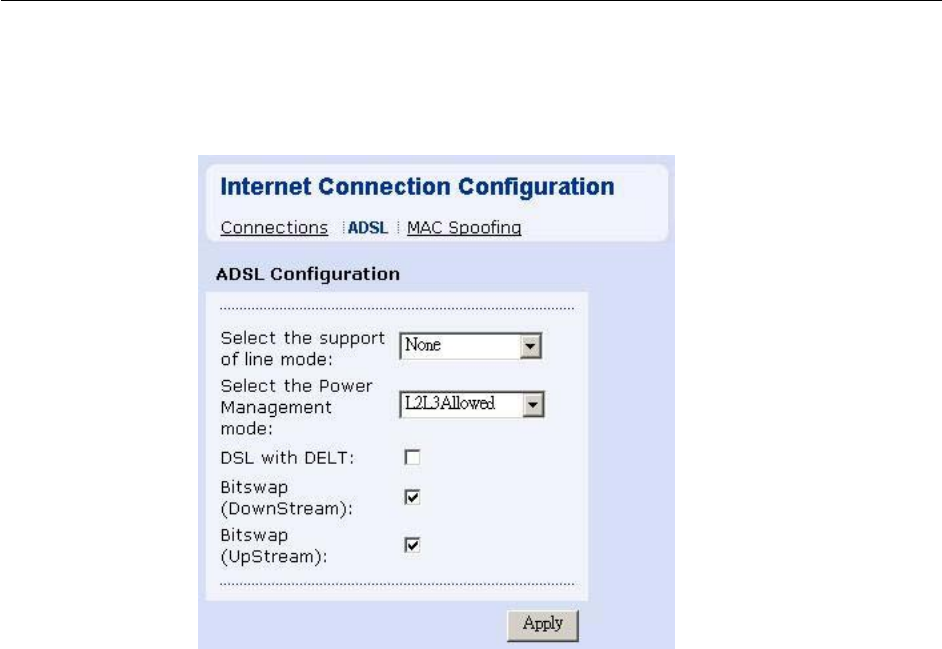

ADSL Configuration.........................................................................................................................34

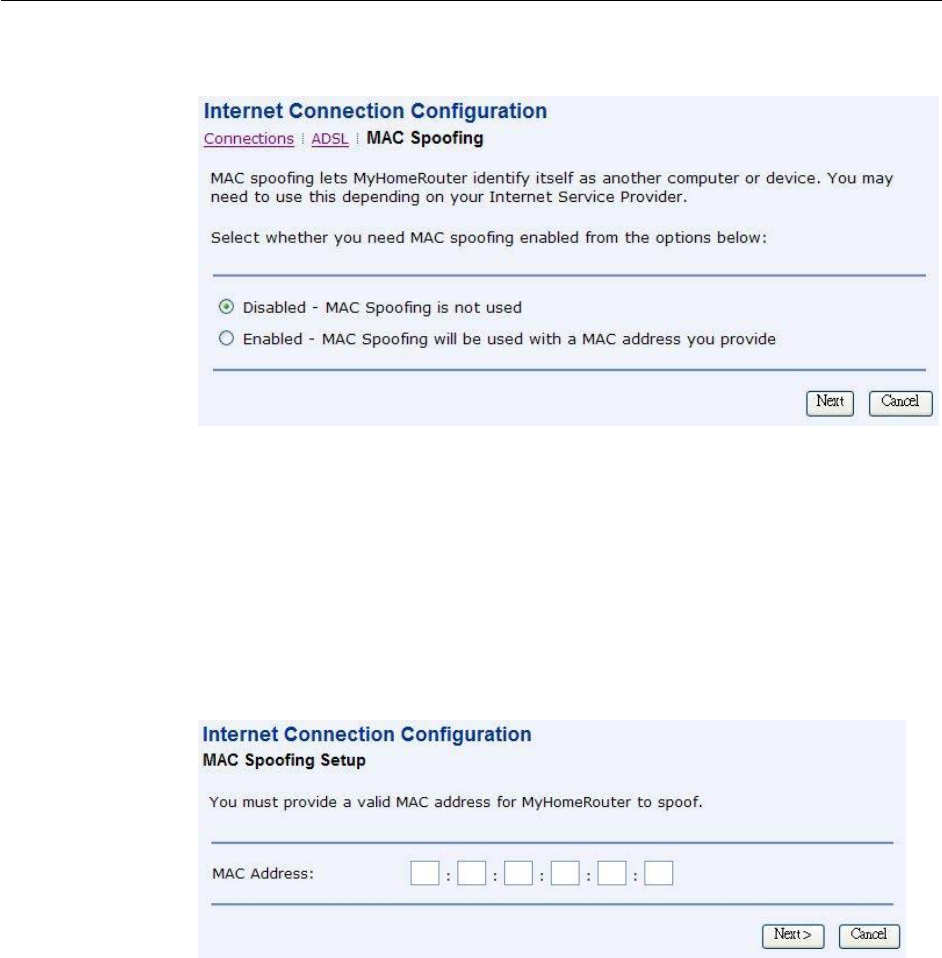

MAC Spoofing..................................................................................................................................35

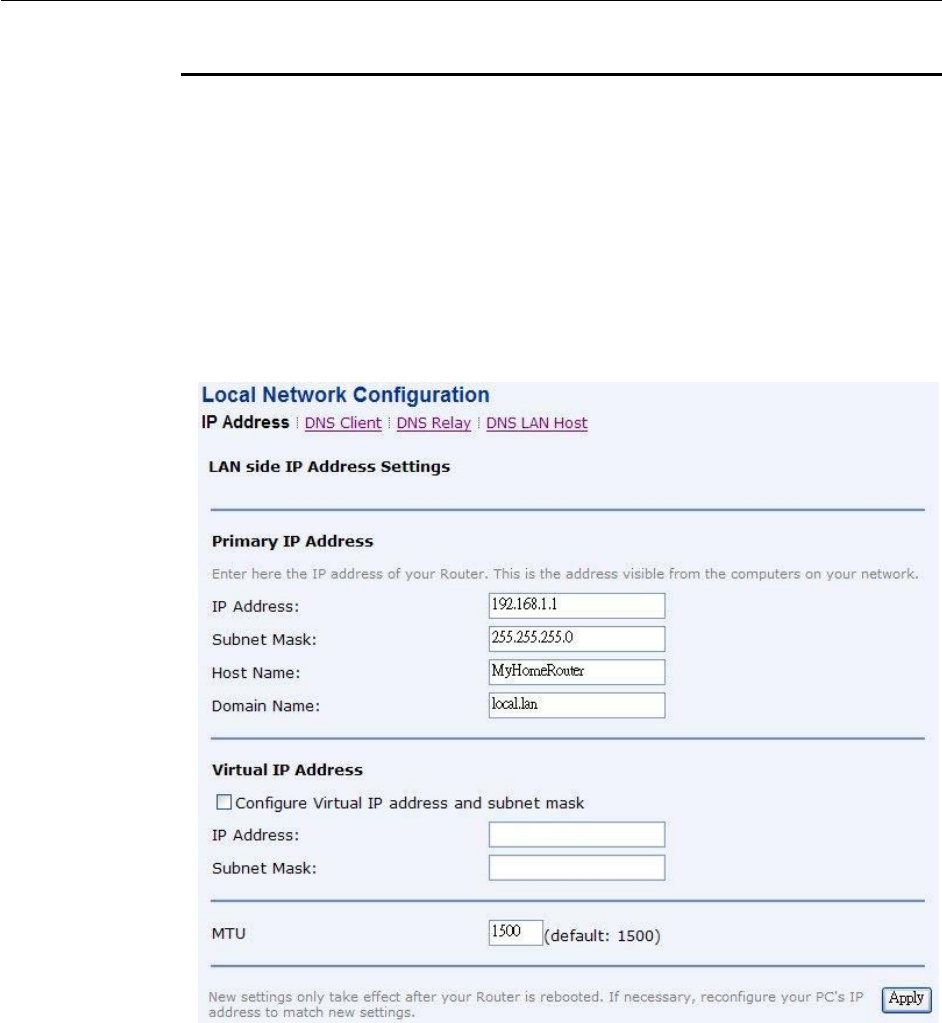

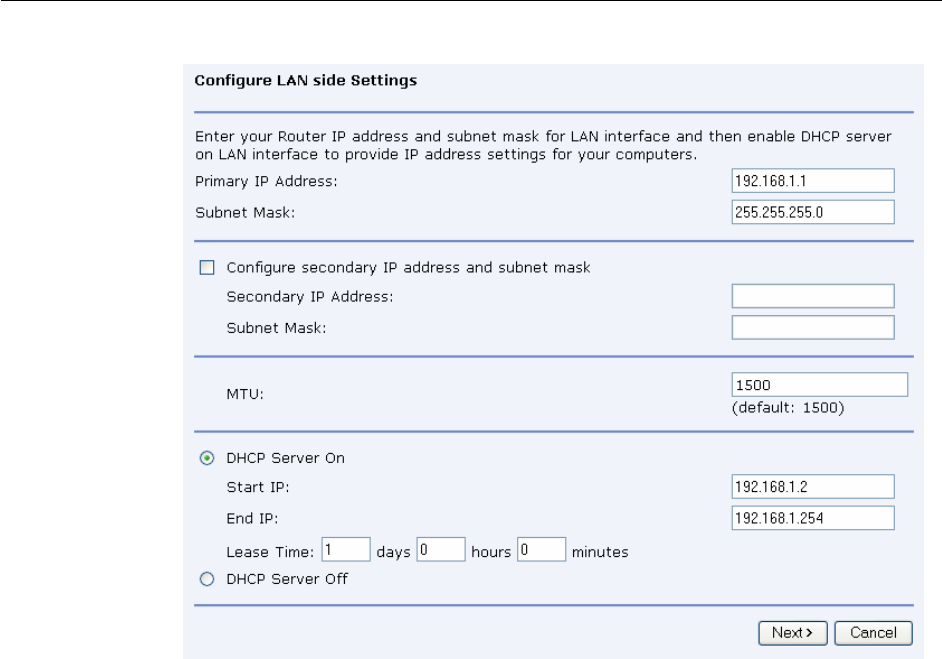

Local Network (LAN) Page .................................................................................................36
IP Address........................................................................................................................................36

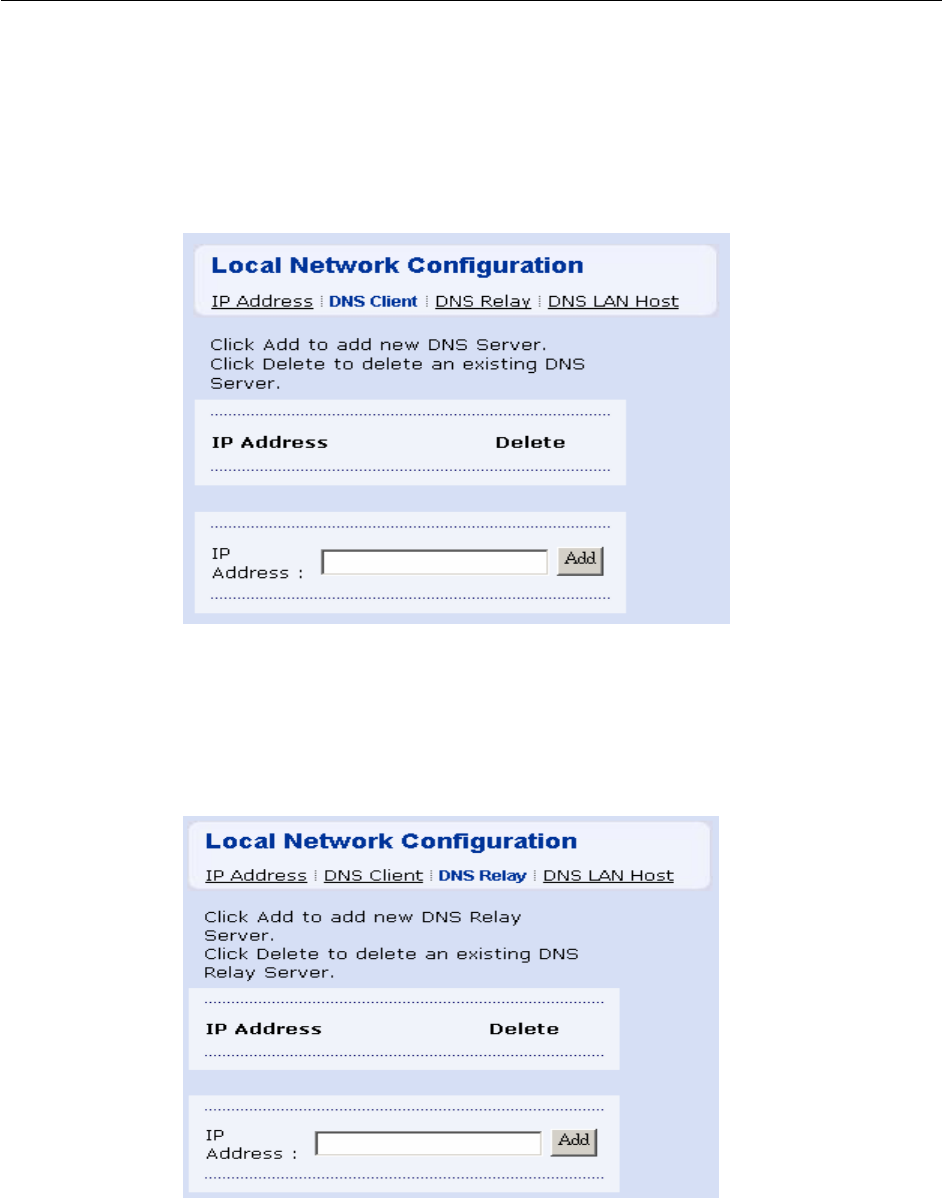

DNS Client .......................................................................................................................................37
DNS Relay .......................................................................................................................................37

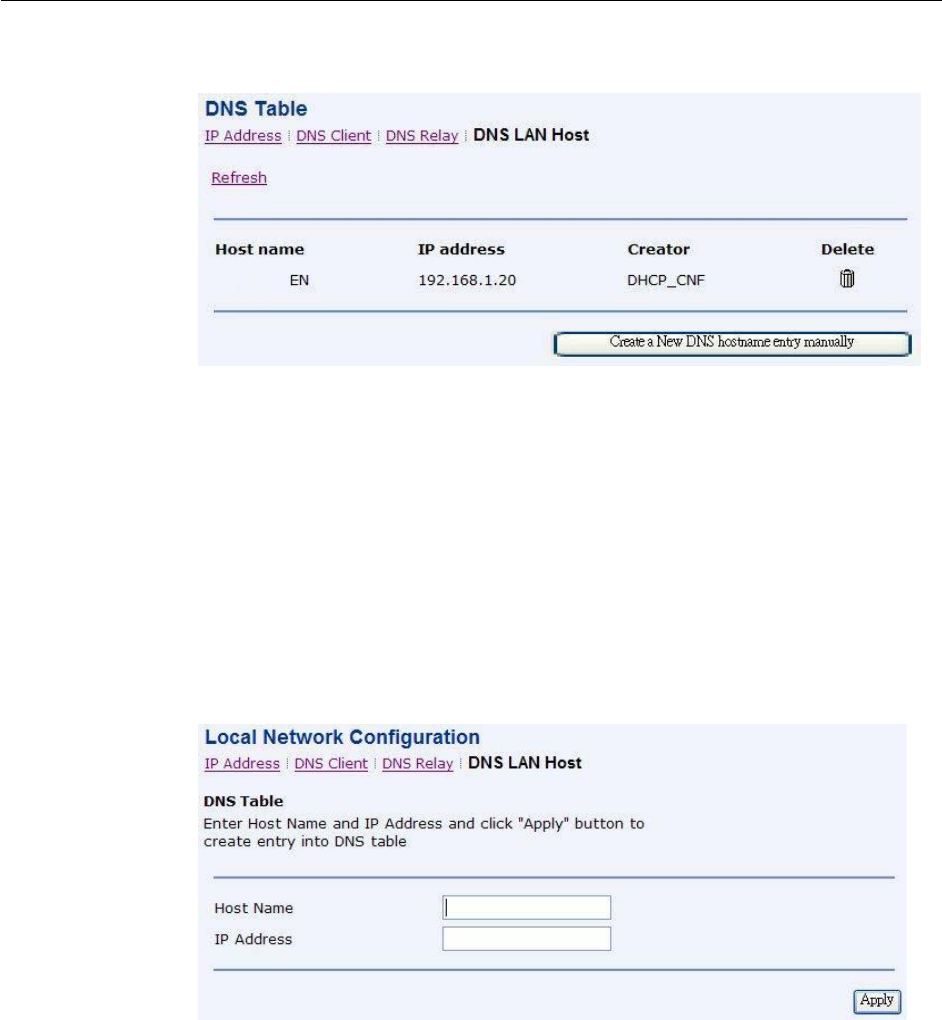

DNS Local Host ...............................................................................................................................38

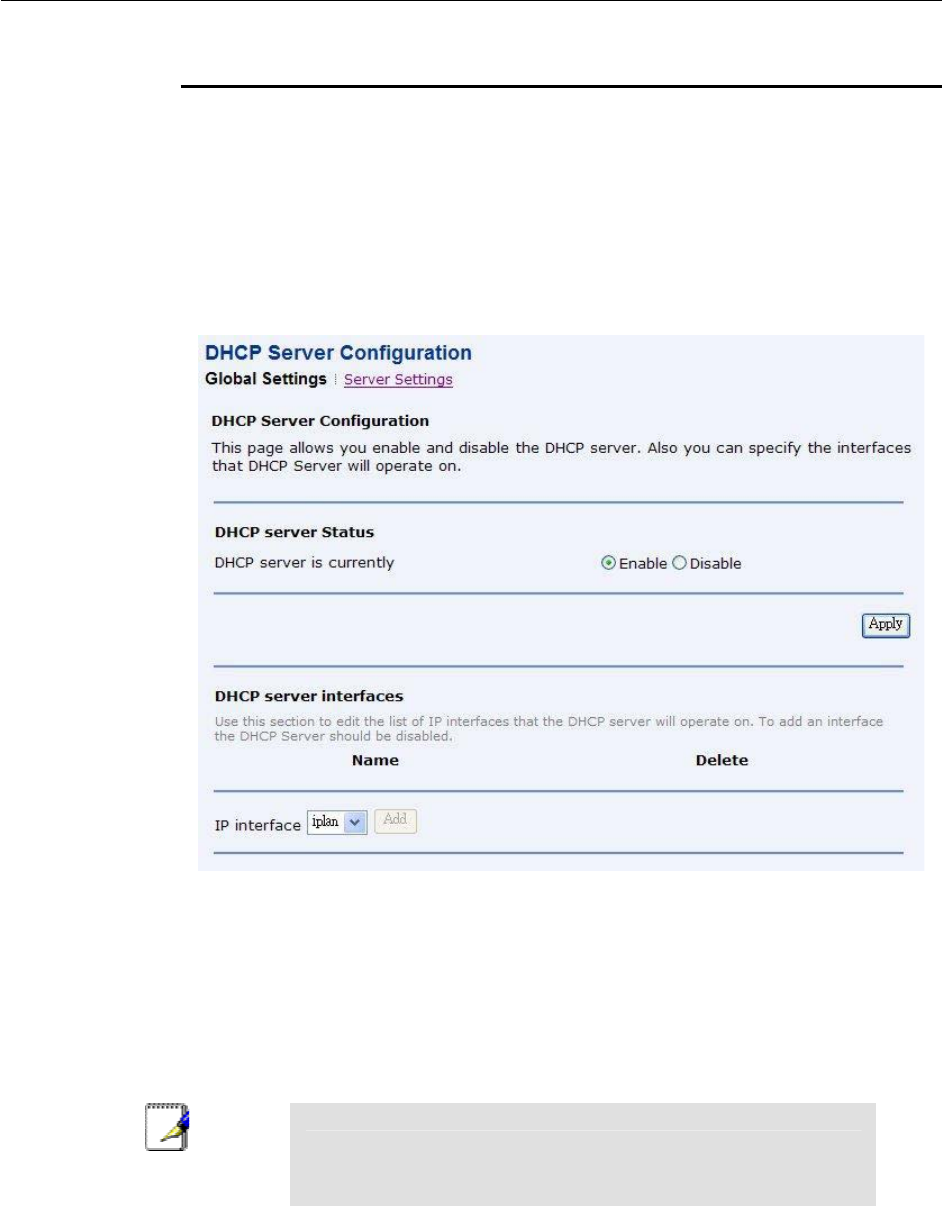

DHCP server Page .............................................................................................................39
Global Settings ................................................................................................................................39

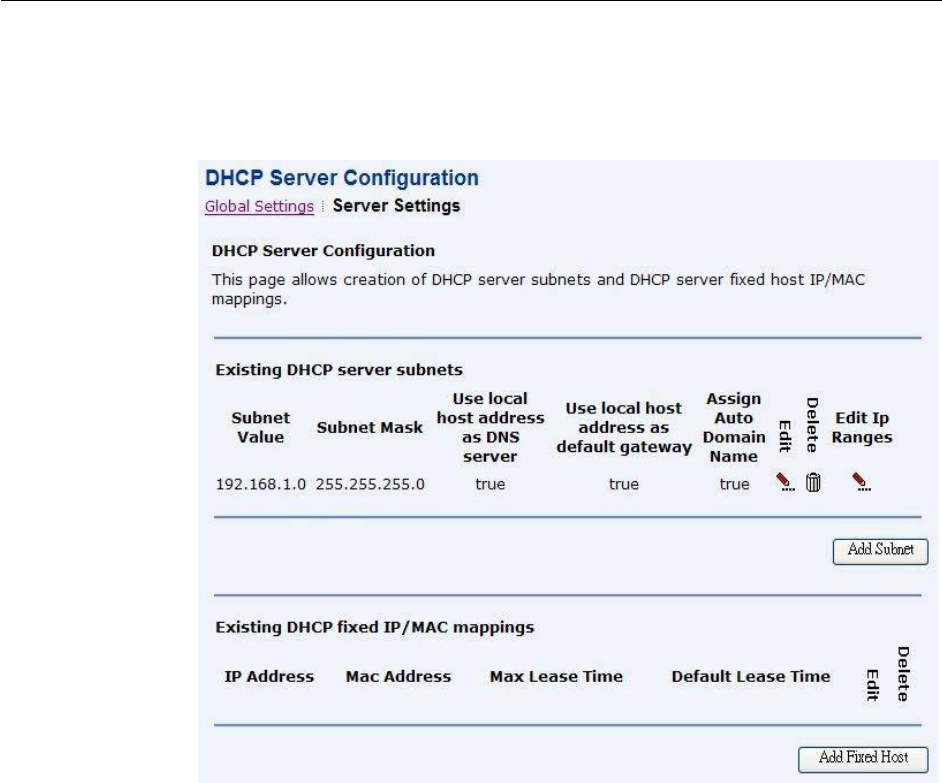

Server Settings ................................................................................................................................40

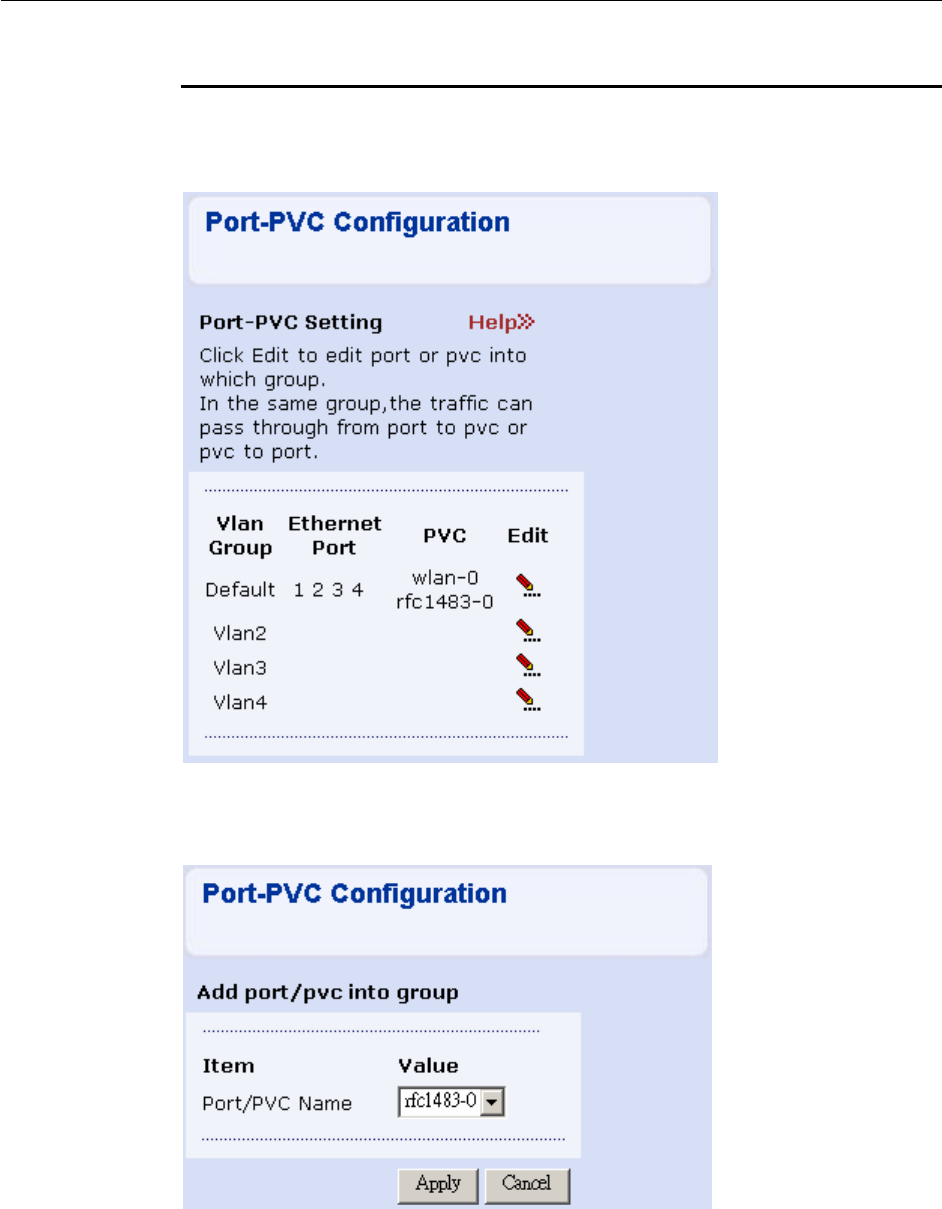

Port - PVC Page .................................................................................................................42
7 Security ........................................................................................................ 43
IP Filtering ...........................................................................................................................43

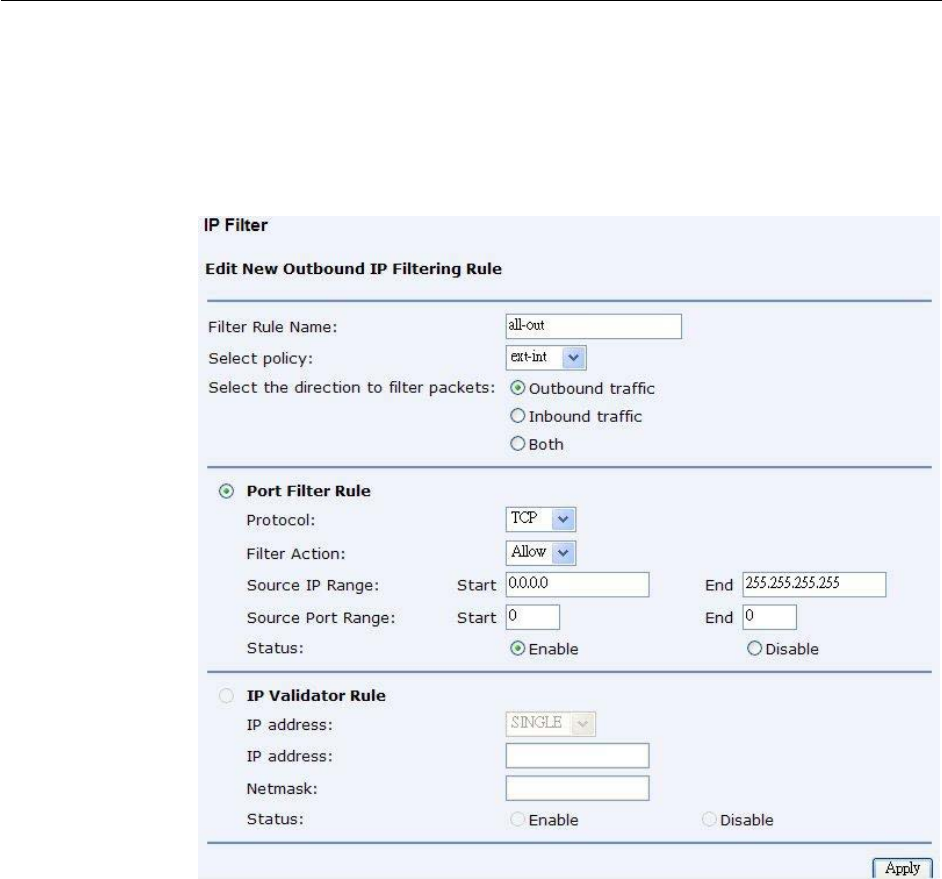

IP Filter Settings...............................................................................................................................43
Port Filters ........................................................................................................................................44
IP Filters ...........................................................................................................................................44

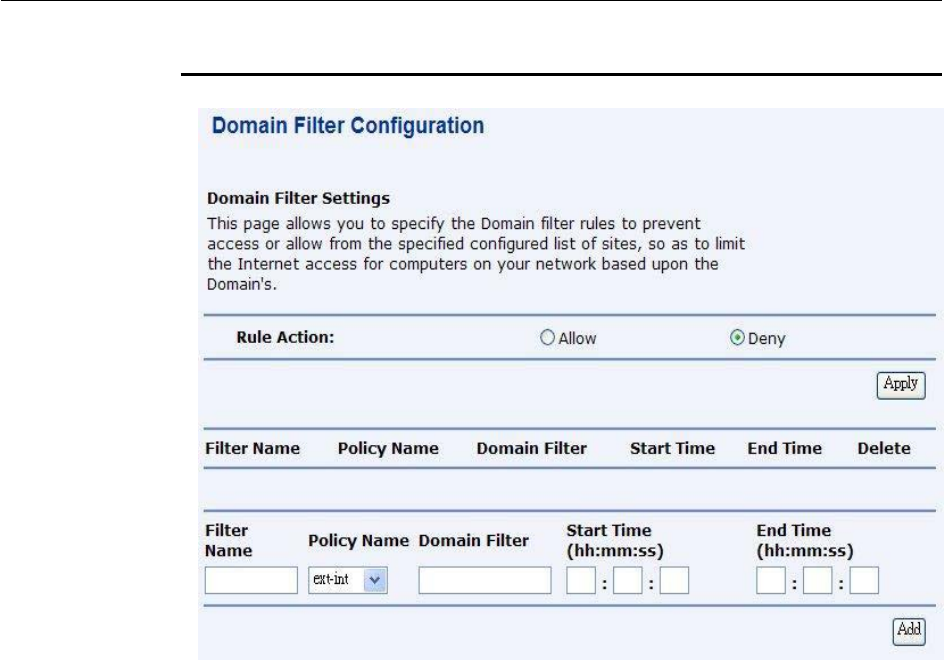

Domain Filtering..................................................................................................................45

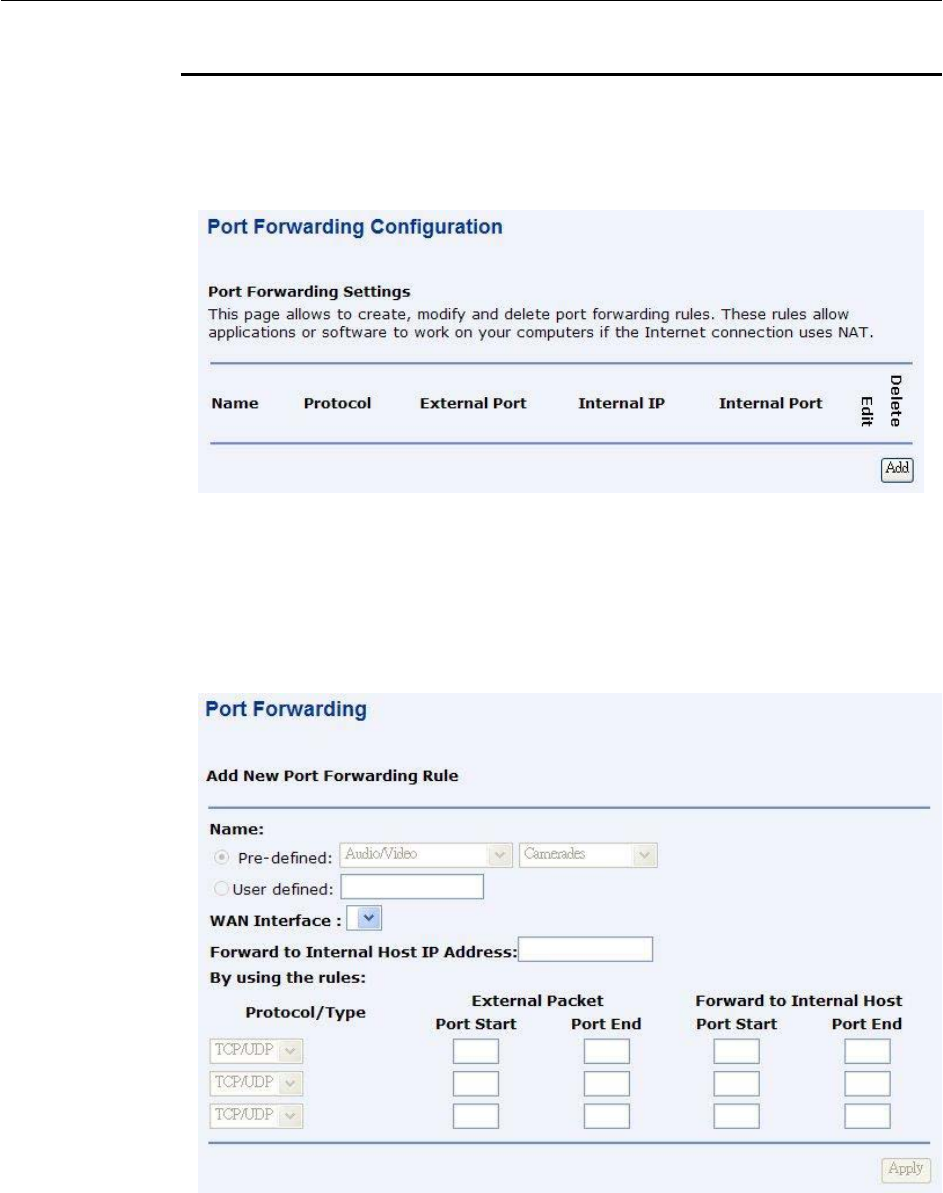

Port Forwarding Configuration ........................................................................................... 46

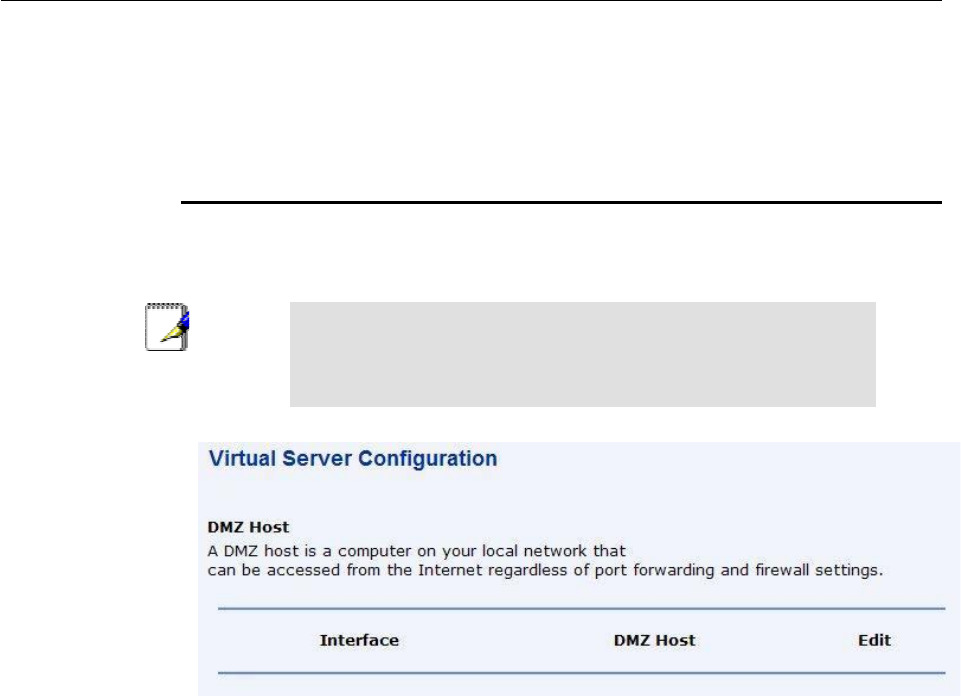

Virtual Server ......................................................................................................................47
MAC Filtering ......................................................................................................................48
8 Services ....................................................................................................... 49
IGMP Proxy......................................................................................................................... 49
IP Routing ........................................................................................................................... 49

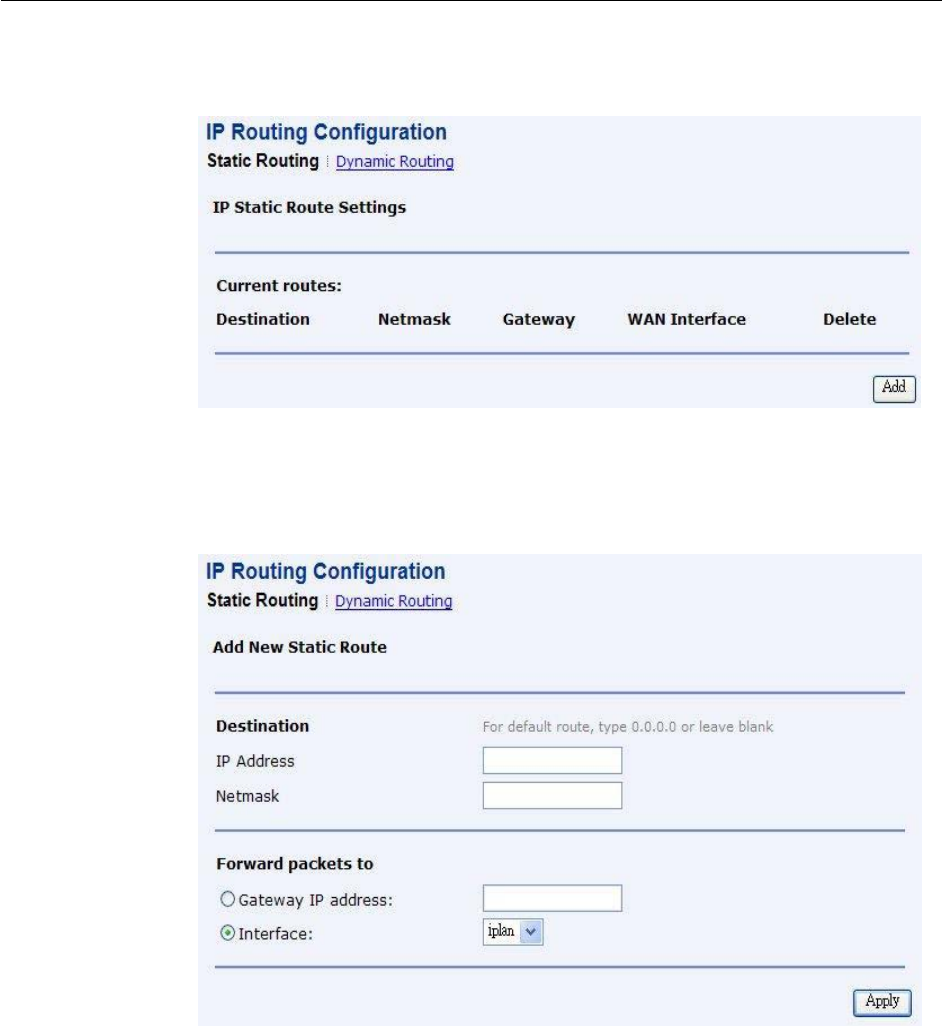

Static Routing...................................................................................................................................50

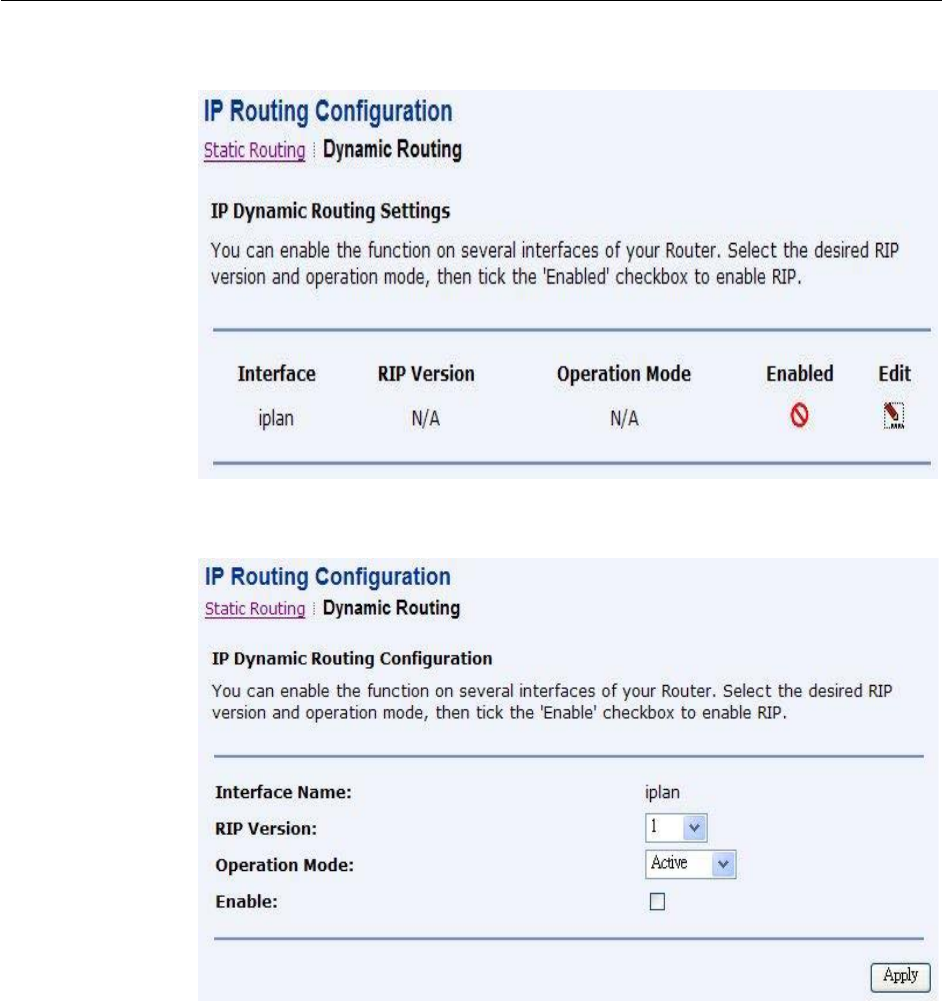

Dynamic Routing .............................................................................................................................51
Scan PVC............................................................................................................................52
Quality of Service................................................................................................................53
X7968r / X7967r / X7927r / X7922r User’s Guide
V

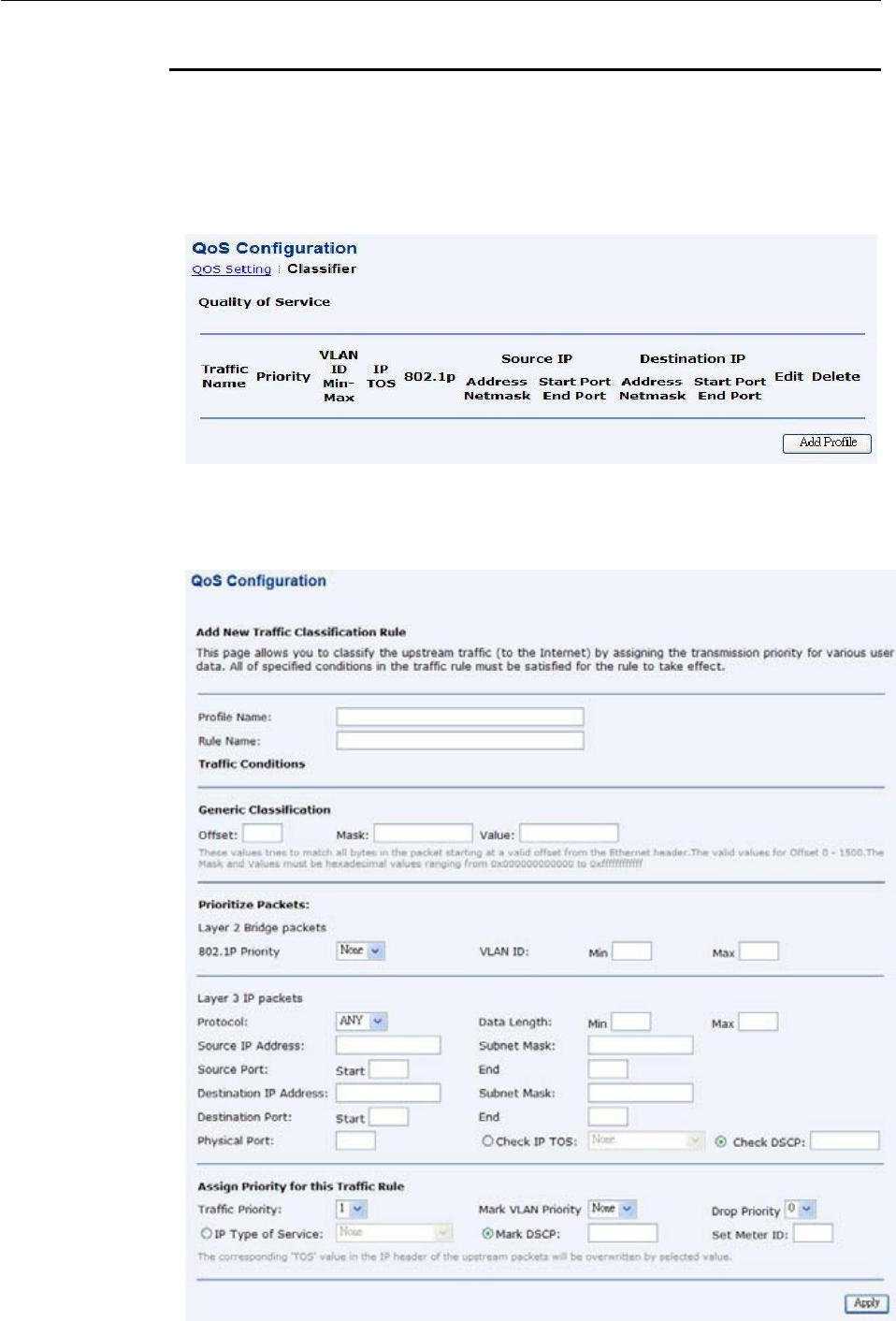

Classifier...........................................................................................................................................53

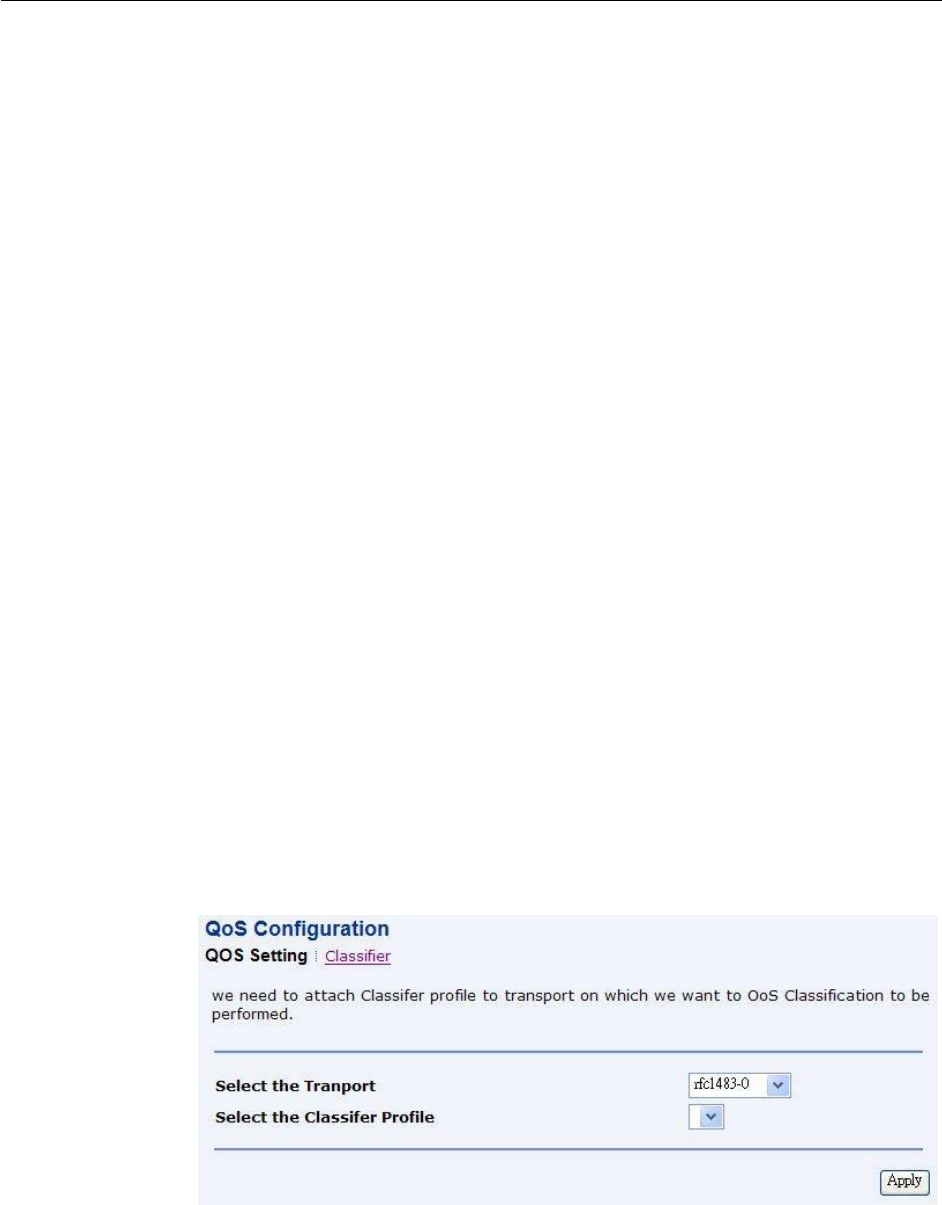

QOS Setting.....................................................................................................................................54
UPnP ...................................................................................................................................55

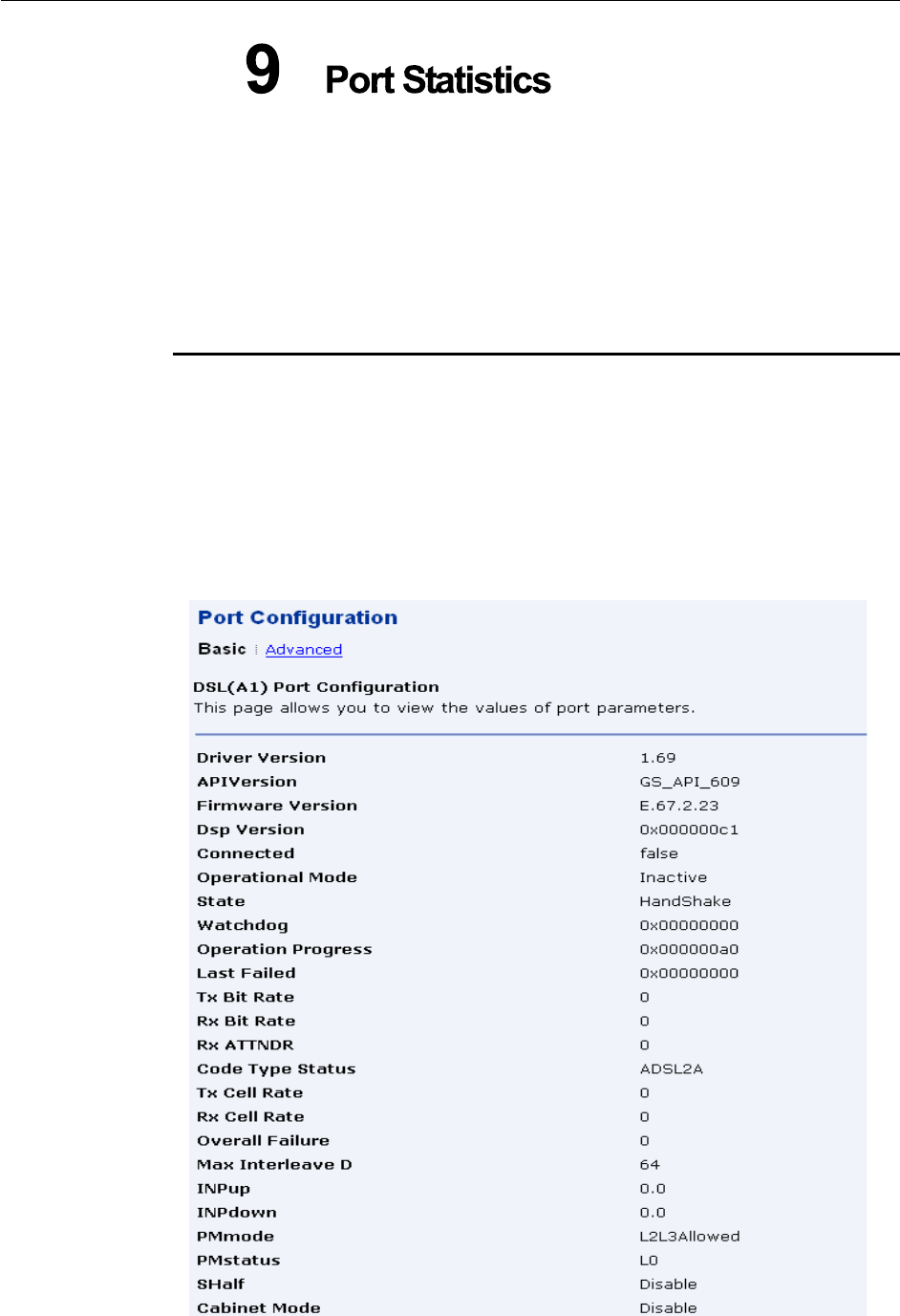

9 Port Statistics..............................................................................................56
DSL (A1) ............................................................................................................................. 56
Basic:................................................................................................................................................56

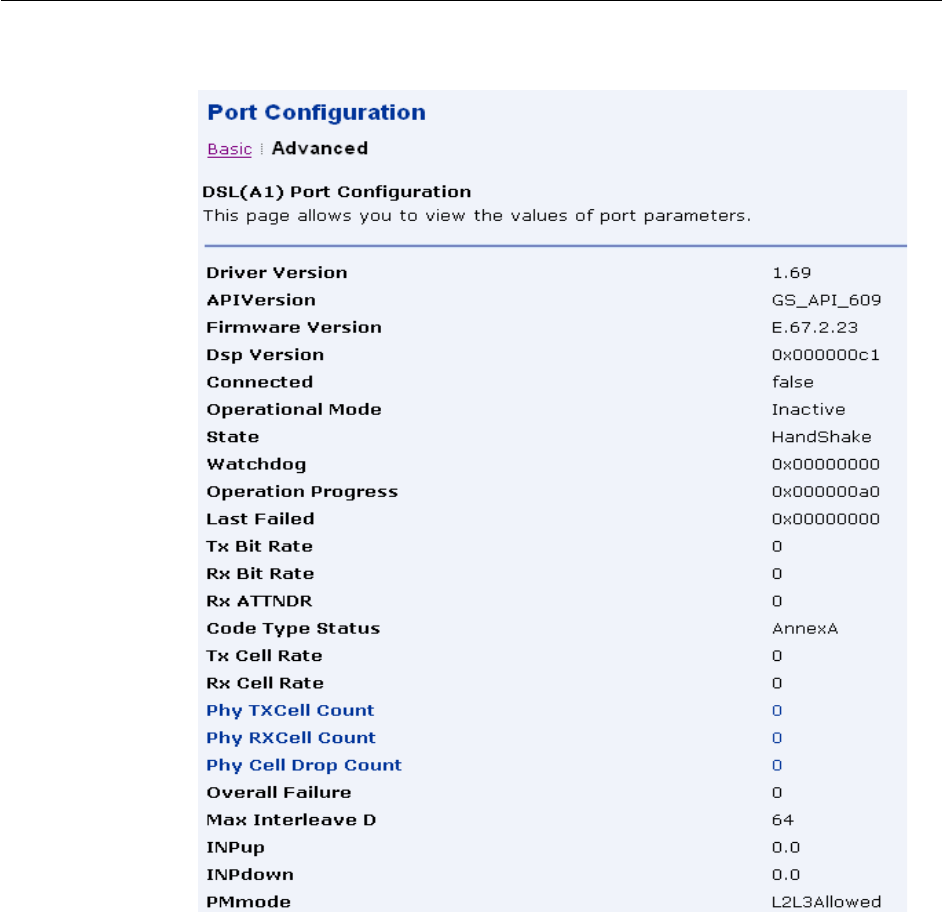

Advanced: ........................................................................................................................................57

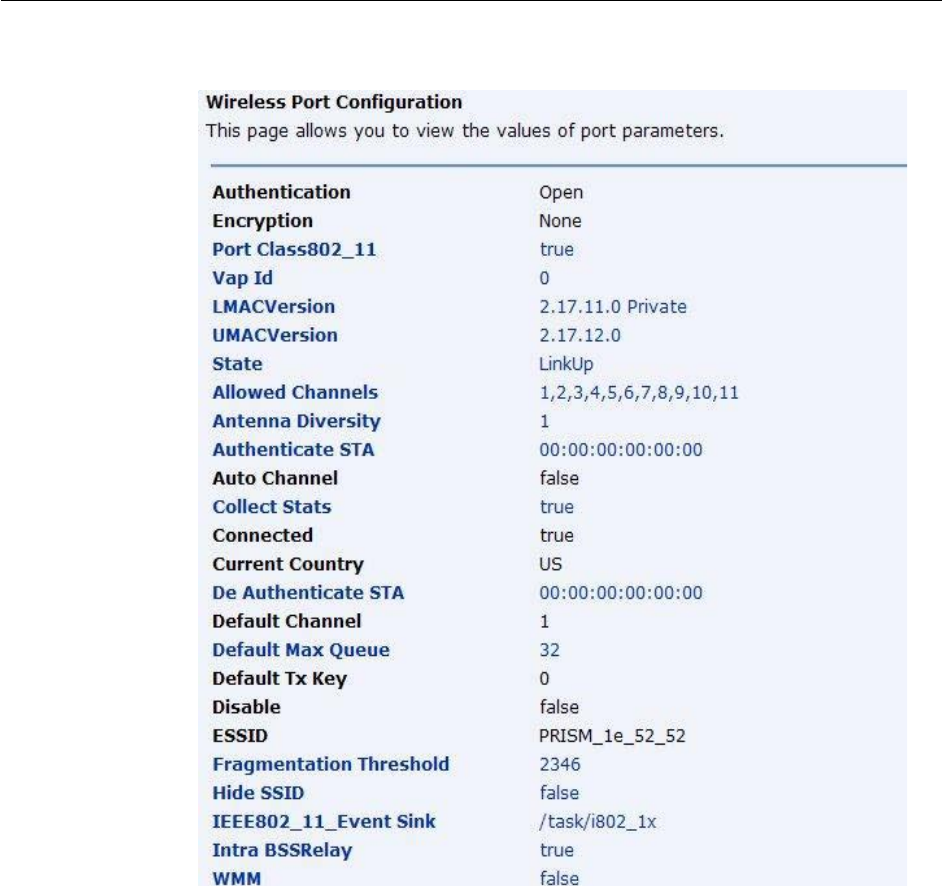

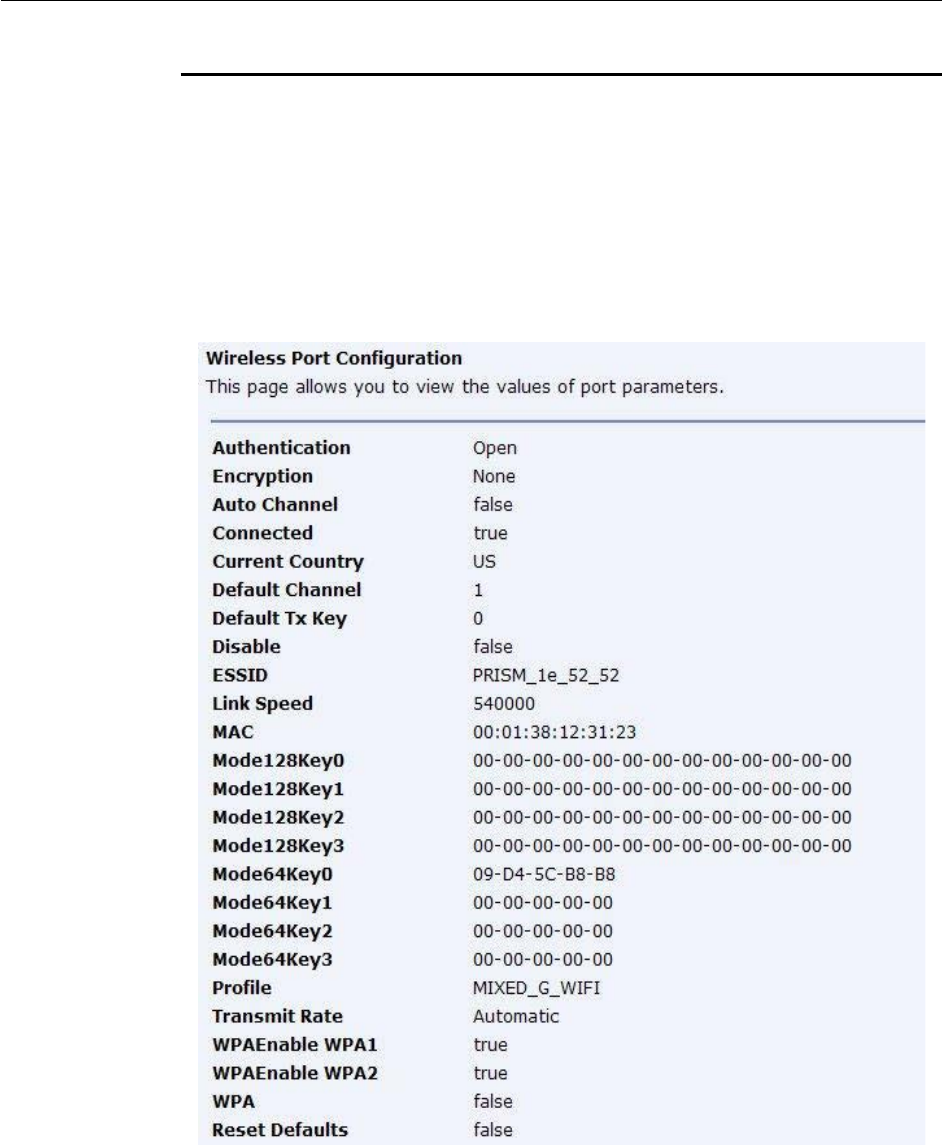

Wireless............................................................................................................................... 58
Basic:................................................................................................................................................58
Advanced: ........................................................................................................................................59

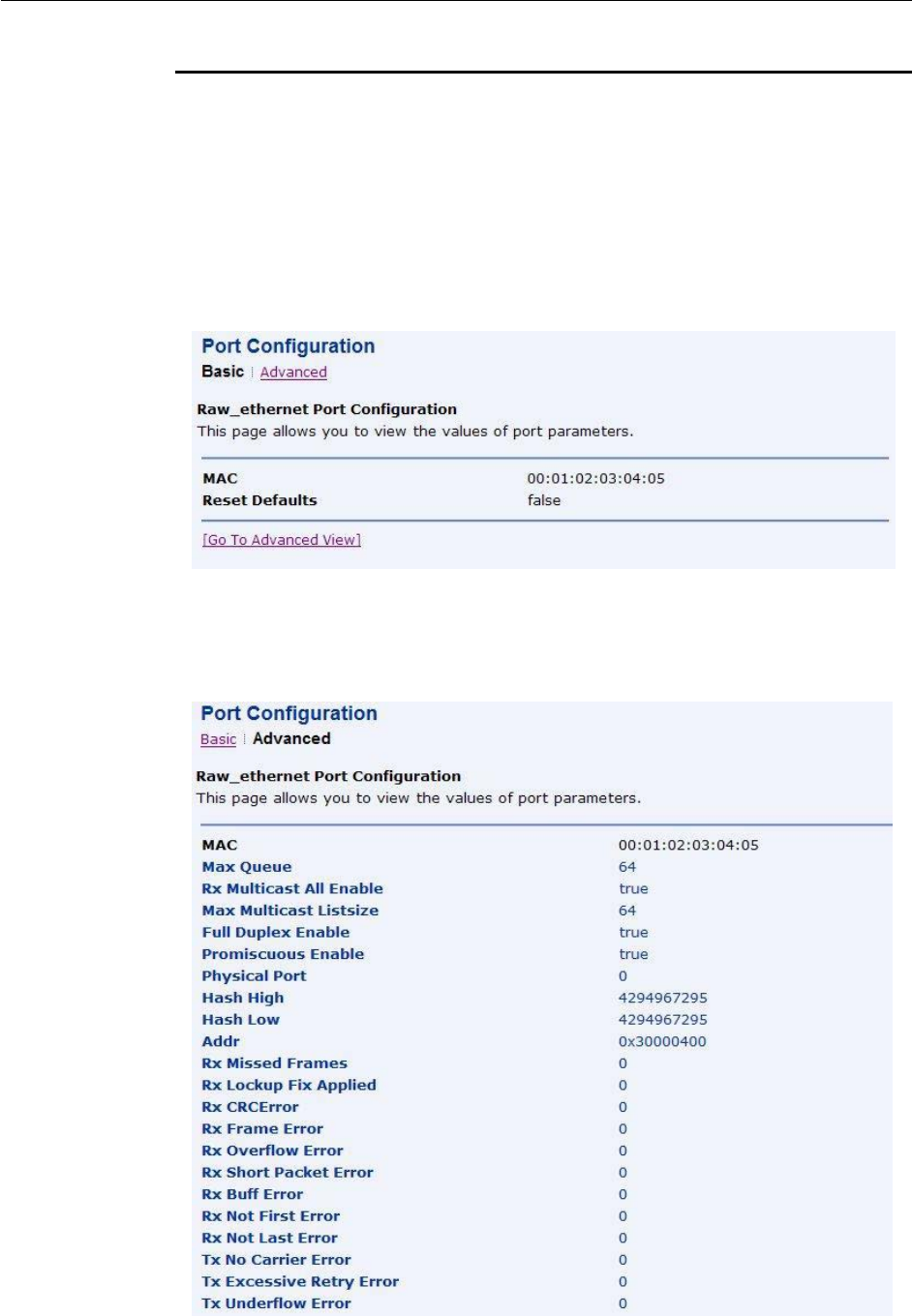

Raw-Ethernet ......................................................................................................................60
Basic:................................................................................................................................................60
Advanced: ........................................................................................................................................60

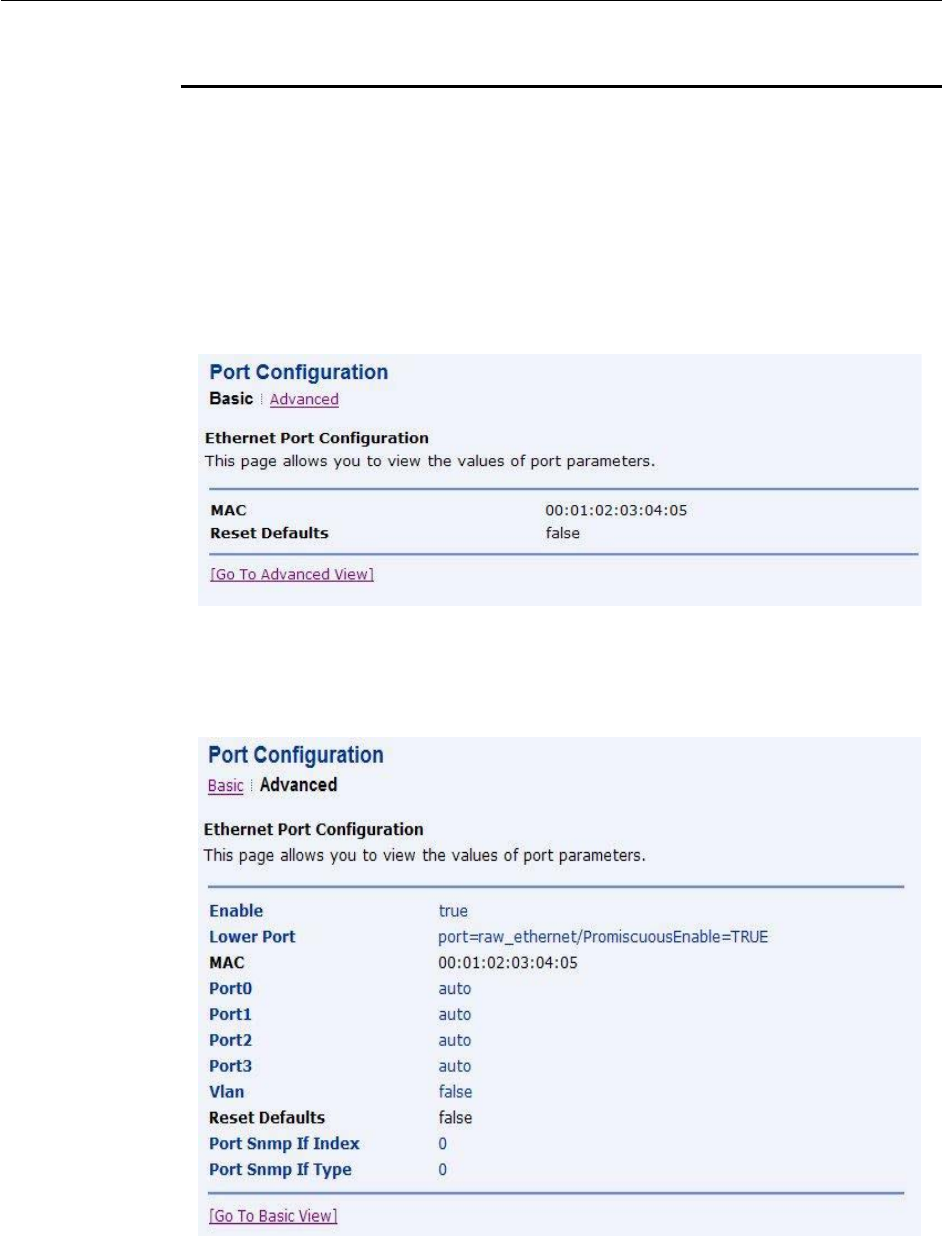

Ethernet............................................................................................................................... 61
Basic:................................................................................................................................................61
Advanced: ........................................................................................................................................61

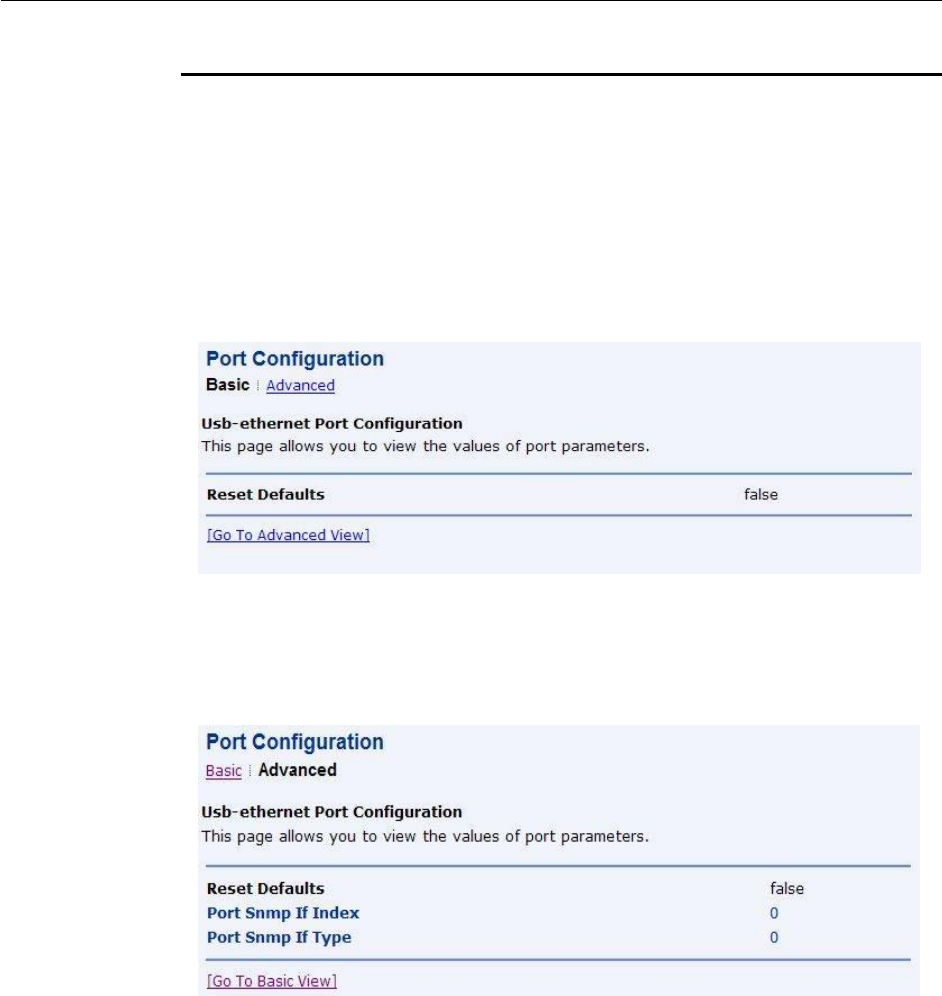

USB-Ethernet......................................................................................................................62
Basic:................................................................................................................................................62
Advanced: ........................................................................................................................................62
10 Admin ........................................................................................................... 63

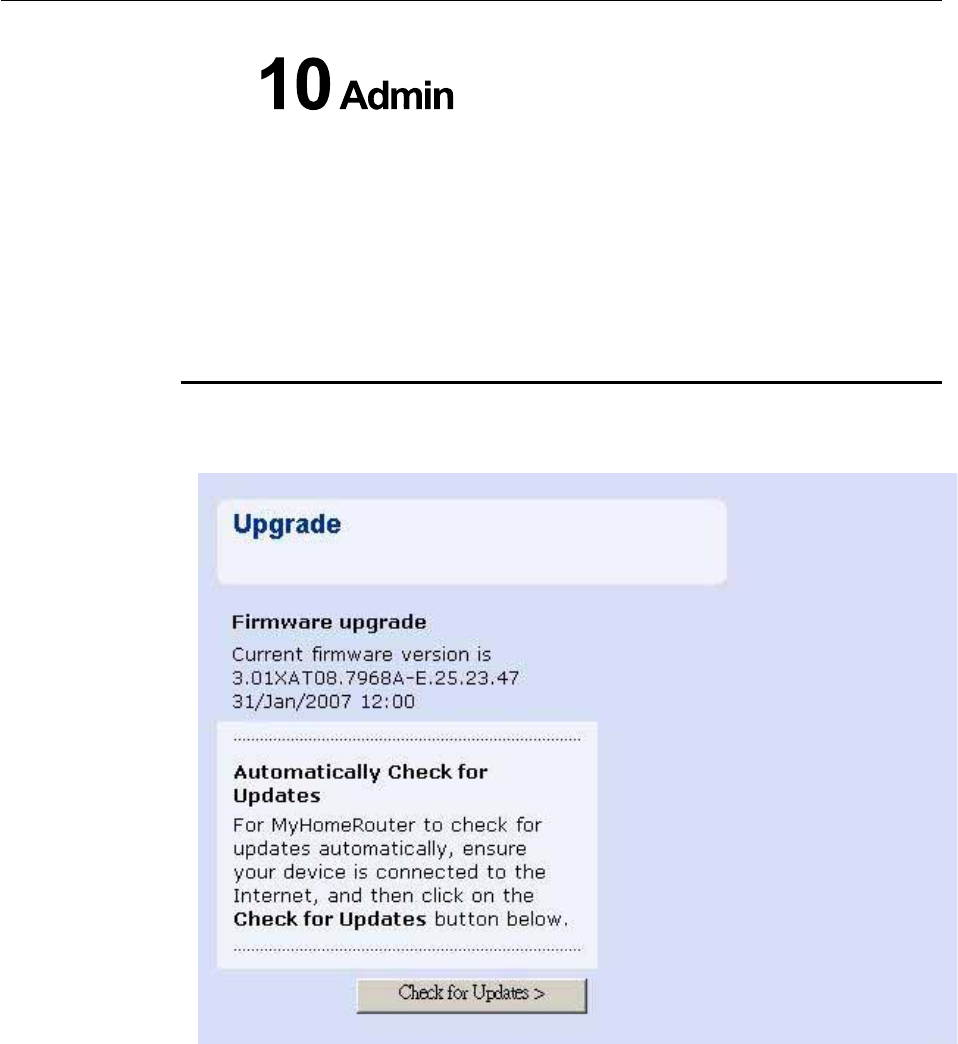

Firmware Upgrade ..............................................................................................................63

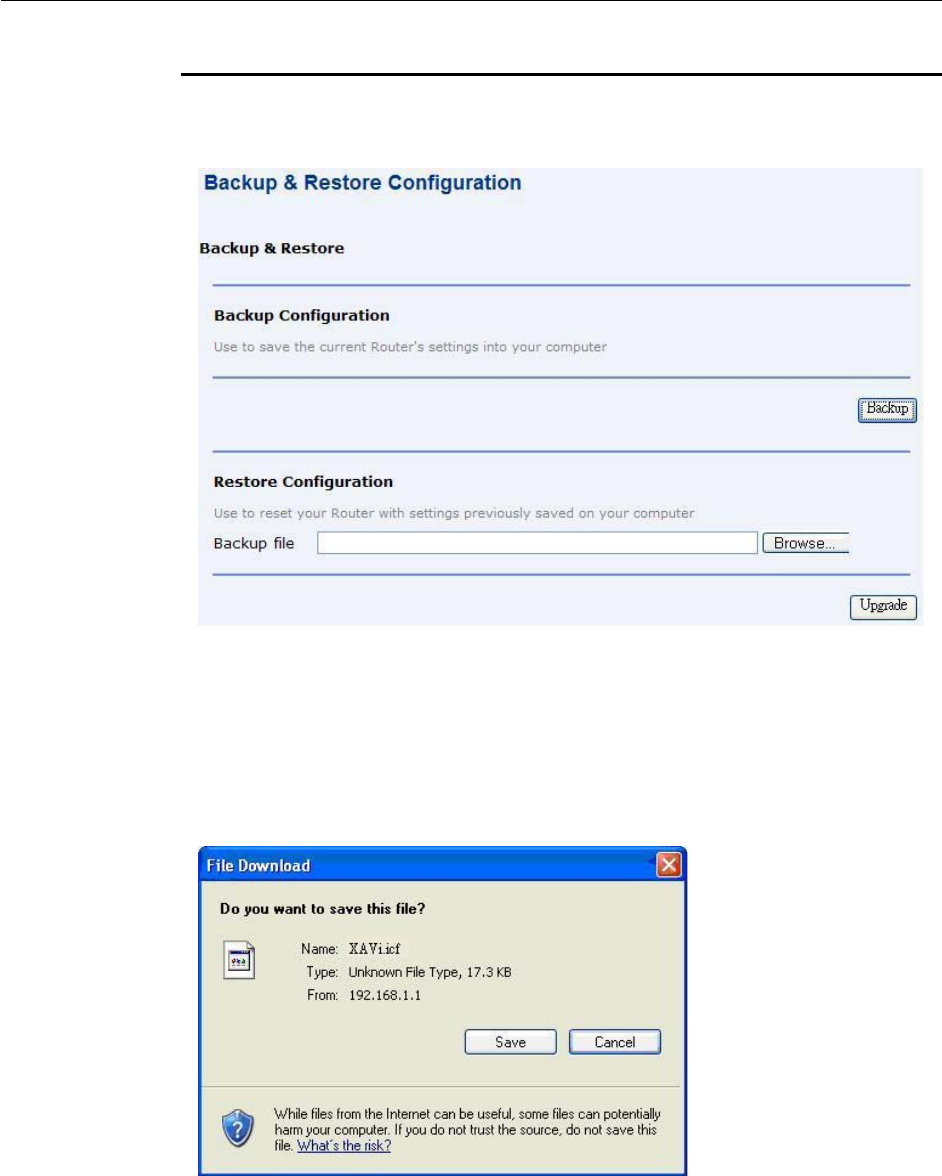

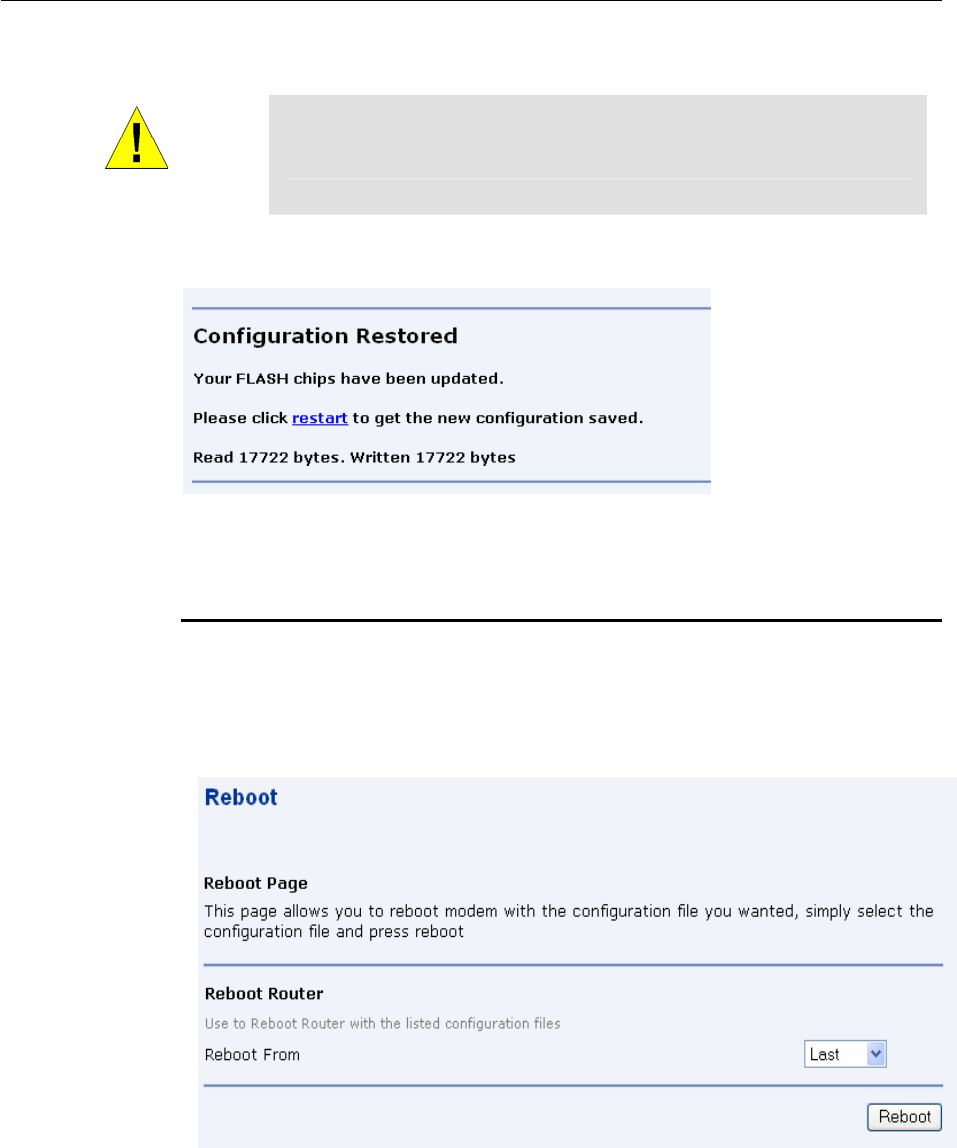

Backup & Restore...............................................................................................................64
Reboot.................................................................................................................................65
Remote Access...................................................................................................................66

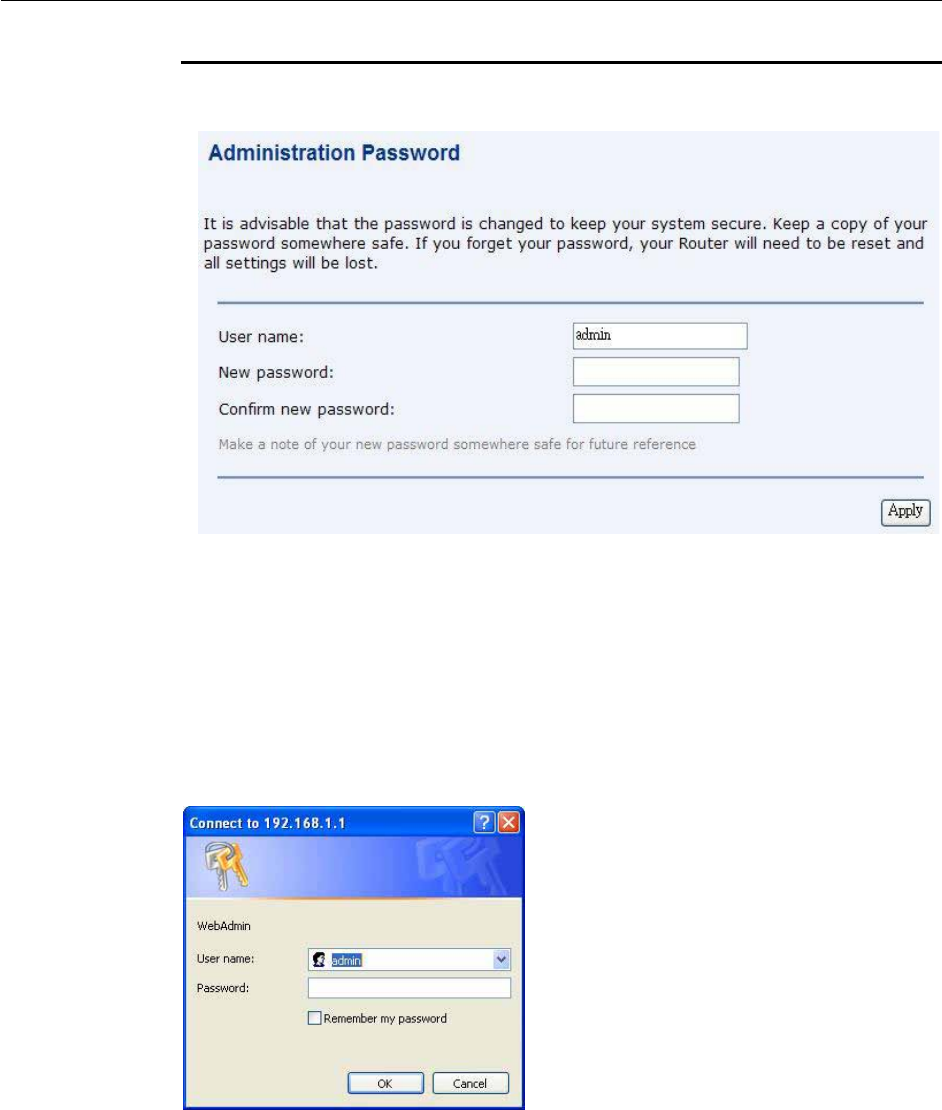

Change Password ..............................................................................................................67
11 Appendix A - Configuring the Internet Settings..................................... 68
Configuring Ethernet PCs...................................................................................................68
Before you begin .............................................................................................................................68
Windows® XP PCs .........................................................................................................................68
Windows 2000 PCs .........................................................................................................................68
Windows Me PCs ............................................................................................................................69
Windows 95, 98 PCs .......................................................................................................................70
Windows NT 4.0 workstations ........................................................................................................70
Assigning static Internet information to your PCs ..........................................................................71
Configuring Wireless PCs...................................................................................................72
Positioning the wireless PCs...........................................................................................................72
Wireless PC cards and drivers .......................................................................................................72
Configuring PC access to your Wireless device ............................................................................72
Configuring USB PC ...........................................................................................................73

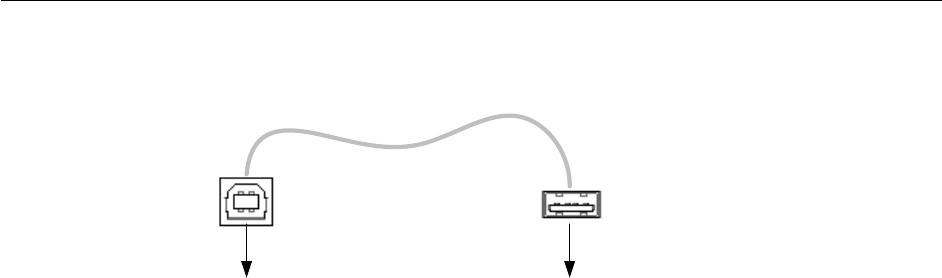

Connecting a computer to the USB port ........................................................................................73

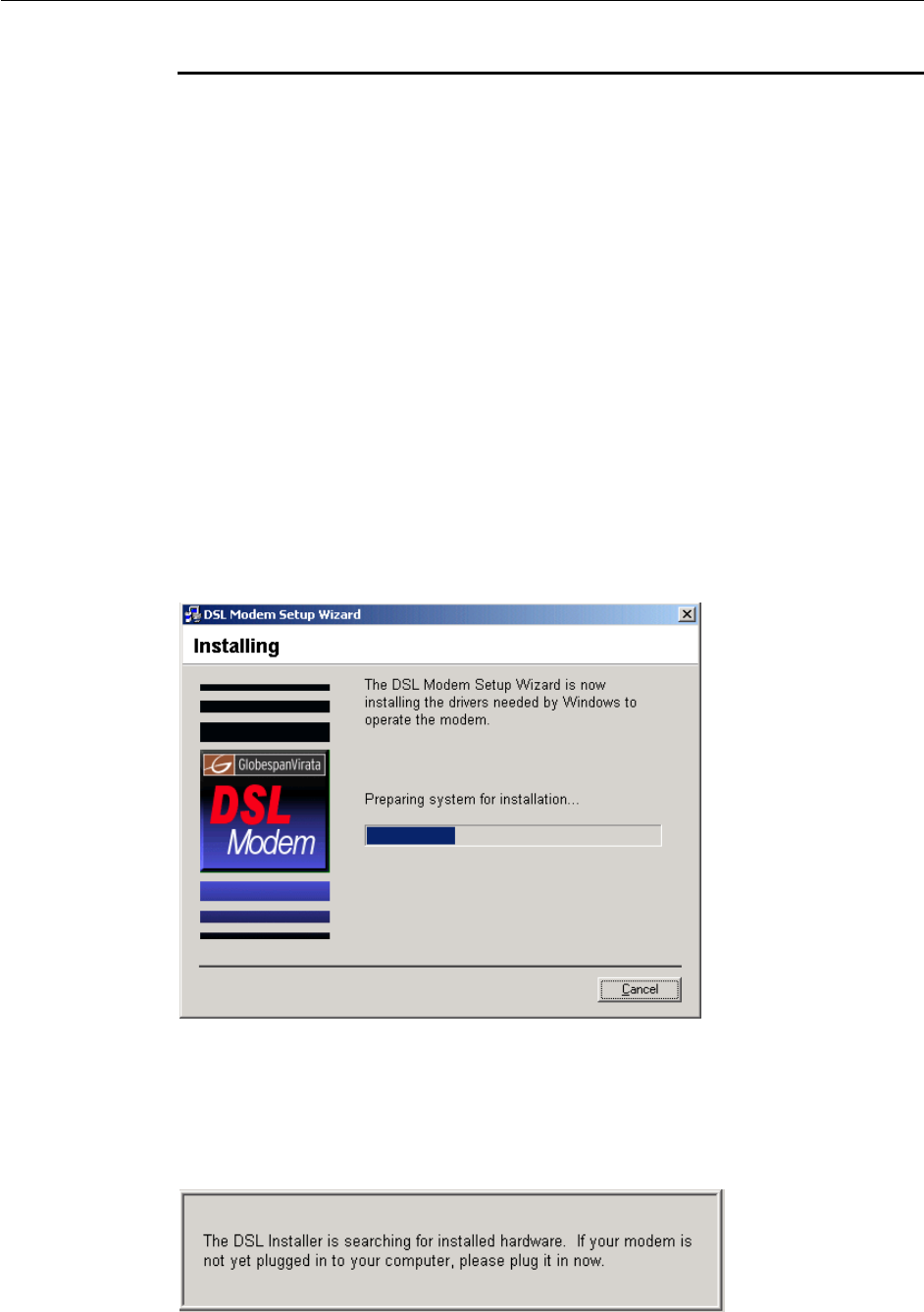

Part 1. Installing the USB Driver .....................................................................................................73
Part 2. Configuring IP properties on the USB PC..........................................................................74
X7968r / X7967r / X7927r / X7922r User’s Guide
VI
12 Appendix B - IP Addresses, Network Masks, and Subnets ................. 75
IP Addresses....................................................................................................................... 75
Structure of an IP address ..............................................................................................................75
Network classes...............................................................................................................................75
Subnet masks ..................................................................................................................... 76
13 Appendix C - Troubleshooting .................................................................77
Troubleshooting Suggestions............................................................................................. 77

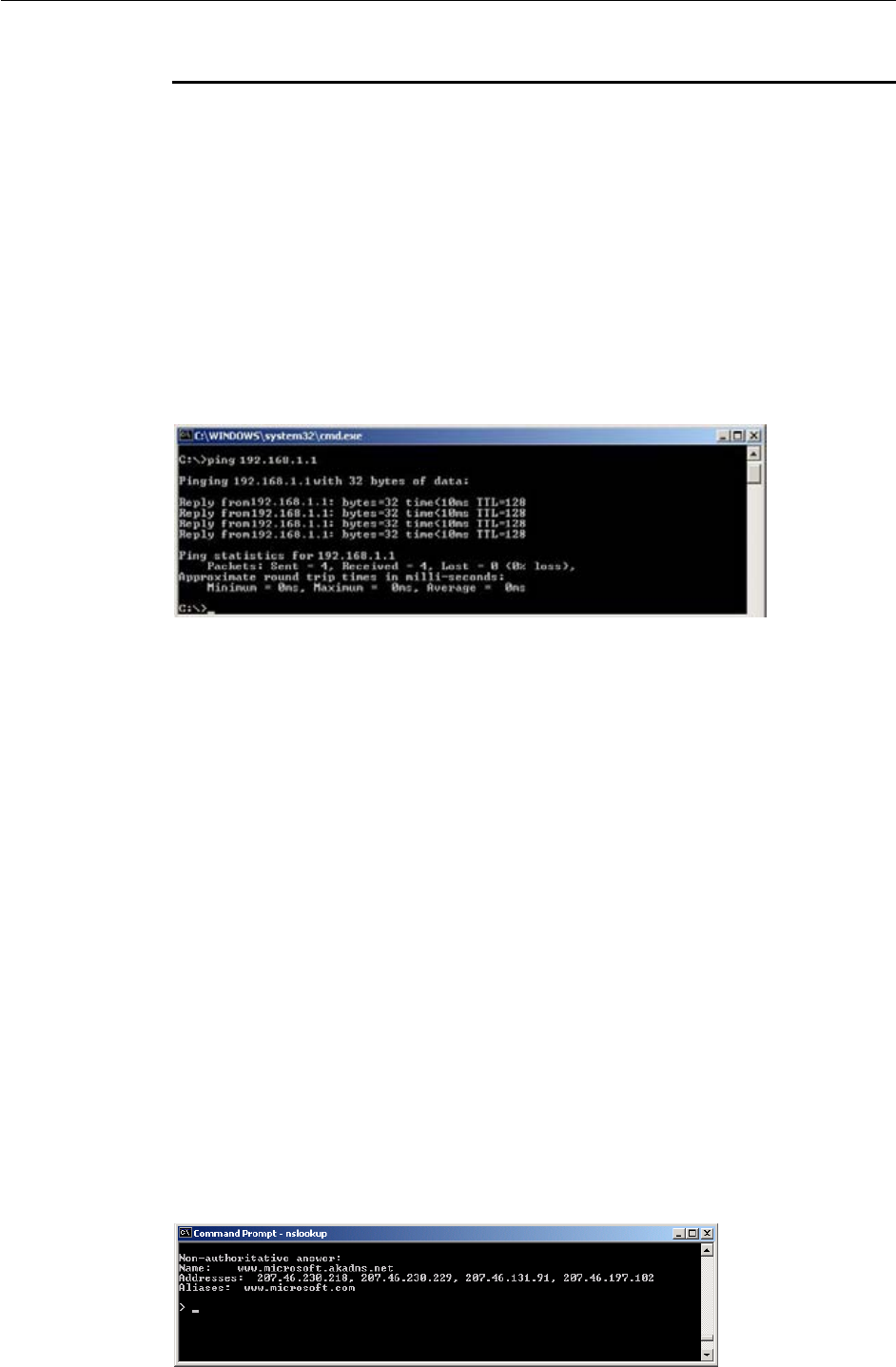

Diagnosing Problem using IP Utilities ................................................................................79
Ping ..................................................................................................................................................79
nslookup...........................................................................................................................................79
14 Appendix D - Advanced DSL port attributes .......................................... 81
15 Appendix E - Glossary ............................................................................... 86
16 Appendix F - Specification ........................................................................ 95

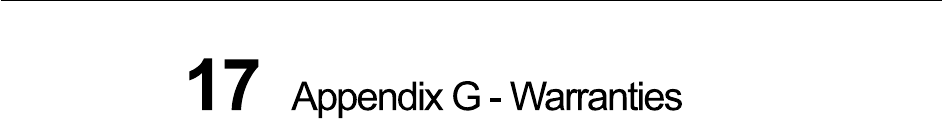

17 Appendix G - Warranties ........................................................................... 97
18 Appendix H - Regulation ........................................................................... 99
19 Appendix I - Contact information ...........................................................102
X7968r / X7967r / X7927r / X7922r User’s Guide
1
Congratulations on becoming the owner of the X7968r series, ADSL router. You will now be
able to access the Internet using your high-speed DSL connection.
This User Guide will show you how to connect your X7968r series DSL Modem, and how to
customize its configuration to get the most out of your new product.
These four models are covered by this user manual:
X7968r : ADSL2+, WLAN 802.11b/g, and 4 port switch.
X7967r : ADSL2+, WLAN 802.11b/g, USB port and 4 port switch.
X7927r : ADSL2+, USB port and 4 port switch.
X7922r : ADSL2+ and 4 port switch.
(The model name, X79xxx-M is a powerful device supporting upstream speed up to 3Mbps.)
Features
The list below contains the main features of the device and may be useful to users with
knowledge of networking protocols. If you are not an experienced user, the chapters
throughout this guide will provide you with enough information to get the most out of your
device.
The features include:
High Speed Asymmetrical Data Transmission on Twisted Copper Pair Wire
Service providers can deploy ADSL rapidly over existing wire infrastructure
(POTS or ISDN line)
Compatible and interoperable with most central office site ADSL DSLAM or
Multi-service Access Systems.
RFC 1483 Bridge, MER and Routing over ATM over ADSL
PPPoE, and IPoA, and PPPoA Routing over ADSL
Interchangeable between Bridge and Router mode
Network address translation (NAT) functions to provide security for your LAN
Network configuration through DHCP Server and DHCP Client
Services including IP route and DNS configuration, RIP, and IP and DSL
performance monitoring
Built-in four-port 10/100BaseTX Ethernet switch for PC or LAN connection
802.11b/g WLAN supports up to 54Mbps
Provides Allow/Deny Wireless MAC address list for wireless access control
64 and 128,bit WEP key lengths are supported
Supports Wi-Fi WPA and WPA2 in PSK mode
Supports 802.1Q tagged VLAN and 802.1p as well as standard compliant IP
QoS for multiple services and triple play deployment.
Configuration and management with Telnet through the Ethernet interface, and
remote Telnet through ADSL interface
Firmware upgradeable through TFTPor HTTP
User-friendly configuration program accessed via a web browser
X7968r / X7967r / X7927r / X7922r User’s Guide
2
Device Requirements
In order to use the X7968r series, you must have the following:
DSL service up and running on your telephone line
Instructions from your ISP on what type of Internet access you will be using, and
the addresses needed to set up access
One or more computers, each containing an Ethernet card (10Base-T/100Base-T
network interface card (NIC)).
For system configuration using the supplied web-based program: a web browser
such as Internet Explorer v4 or later, or Netscape v4 or later. Note that version 4
of each browser is the minimum version requirement – for optimum display
quality, use Internet Explorer v5, or Netscape v6.1
Note
You do not need to use a hub or switch in order to connect more than one
Ethernet PC to the device. Instead, you can connect up to four Ethernet
PCs directly to the device using the ports labeled LAN1 to LAN4 on the
rear panel.
Using this Document
Notational conventions
Acronyms are defined the first time they appear in the text and also in the glossary.
For brevity, the X7968r series is referred to as “the device”.
The term LAN refers to a group of Ethernet-connected computers at one site.
Typographical conventions
Italic text is used for items you select from menus and drop-down lists and the names
of displayed web pages.
Bold text is used for text strings that you type when prompted by the program, and to
emphasize important points.
Special messages
This document uses the following icons to draw your attention to specific instructions or
explanations.
Note
Provides clarifying or non-essential information on the current topic.
Definition
Explains terms or acronyms that may be unfamiliar to many readers.
These terms are also included in the Glossary.
WARNING
Provides messages of high importance, including messages relating to
personal safety or system integrity.
X7968r / X7967r / X7927r / X7922r User’s Guide
3
Parts Check
In addition to this document, your package should arrive containing the following:
The device (X7968r, X7967r, X7927r, or X7922r)
Ethernet cable
USB cable (for X7967r and X7927r only)
Standard phone/DSL line cable
Power adapter
User Manual CD
Figure 1: DSL Modem Package Contents
X7968r / X7967r
ADSL device unit
or X7927r / X7922r
ADSL device unit
RJ-45 Cable
USB Cable
RJ-11 Cable
Power adapter
User’s Manual CD
X7968r / X7967r / X7927r / X7922r User’s Guide
4
X7968r / X7967r Front Panel
The front panel contains lights called Light Emitting Diodes (LEDs) that indicate the status of
the unit.
Figure 2: Front Panel and LEDs
Label Color Function
LAN Green On: LAN link established and active
Off: No LAN link
Blink: Data being transmitted
Wireless
(WLAN)
Green On: Wireless function enabled
Off: Wireless function disabled
Power Green On: device is powered on
Off: device is powered off
DSL Green On: DSL link reaches showtime, which means
that your device has successfully connected
to your ISP’s DSL network.
Off: DSL link not in showtime, your device has
not successfully connected to your ISP’s DSL
network.
Blink: Try to connect to ISP’s DSL network
ALM Red Lit or blinking after device booting up indicates
data error, no ADSL sync up or operation
fault.
X7968r / X7967r / X7927r / X7922r User’s Guide
5
X7968r / X7967r Rear Panel
The X7968r/X7967r rear panel contains the ports for the unit's data and power connections.
Figure 3: X7968r Rear Panel Connections
Figure 4: X7967r Rear Panel Connections
X7968r / X7967r / X7927r / X7922r User’s Guide
6
Label Function
Power Switch ON/OFF switch
Power Jack Connects to the supplied power adapter
LAN1 ~ LAN4 Connects the device via Ethernet to your devices in
LAN
USB Connects the device via USB cable to your PC (for
X7967r only)
WLAN Press and hold this button for at least 6 seconds to
enable Wireless AP function or disable it
RES A reset button to reset the device or reset to default
settings
DSL Jack Connects to the ISP DSL network
Wireless Antenna Connects to your devices with wireless 802.11b/11g
capability
X7968r / X7967r / X7927r / X7922r User’s Guide
7
X7927r / X7922r Front Panel
The front panel contains lights called Light Emitting Diodes (LEDs) that indicate the status of
the unit.
Figure 5: Front Panel and LEDs
Label Color Function
LAN Green On: LAN link established and active
Off: No LAN link
Blink: Data being transmitted
Wireless
(WLAN)
Green On: Wireless function enabled
Off: Wireless function disabled
Power Green On: device is powered on
Off: device is powered off
DSL Green On: DSL link reaches showtime, which means
that your device has successfully connected
to your ISP’s DSL network.
Off: DSL link not in showtime, your device has
not successfully connected to your ISP’s DSL
network.
Blink: Try to connect to ISP’s DSL network
ALM Red Lit or blinking after device booting up indicates
data error, no ADSL sync up or operation
fault.
X7968r / X7967r / X7927r / X7922r User’s Guide
8
X7927r / X7922r Rear Panel
The X7927r/X7922r rear panel contains the ports for the unit's data and power connections.
Figure 6: X7927r Rear Panel Connections
Figure 7: X7922r Rear Panel Connections
Label Function
Power Switch ON/OFF switch
Power Jack Connects to the supplied power adapter
LAN1 ~ LAN4 Connects the device via Ethernet to your devices in
LAN
USB Connects the device via USB cable to your PC (for
X7927r only)
RES A reset button to reset the device or reset to default
settings
DSL Jack Connects to the ISP DSL network
X7968r / X7967r / X7927r / X7922r User’s Guide
9
This chapter provides basic instructions for connecting the device to a computer or LAN and
to the Internet.
In addition to configuring the device, you need to configure the Internet properties of your
computer(s). For more details, see the following sections in Appendix A:
Configuring Ethernet PCs section
Configuring Wireless PCs section
This chapter assumes that you have already established a DSL service with your Internet
service provider (ISP). These instructions provide a basic configuration that should be
compatible with your home or small office network setup. Refer to the subsequent chapters
for additional configuration instructions.
Connecting the Hardware
This section describes how to connect the device to the power outlet and your computer(s)
or network.
WARNING
Before you begin, turn the power off for all devices. These include
your computer(s), your LAN hub/switch (if applicable), and the device.
The diagram below illustrates the hardware connections. The layout of the ports on your
device may vary from the layout shown. Refer to the steps that follow for specific
instructions.
Figure 8: Overview of Hardware Connections for X7967r
X7968r / X7967r / X7927r / X7922r User’s Guide
10
Step 1. Connect the DSL cable and optional telephone line
Connect one end of the provided phone cable to the port labeled DSL on the rear panel of the
device. Connect the other end to ADSL spliter.
Step 2. Connect the Ethernet cable
Connect up to four single Ethernet computers or to a HUB/Switch directly to the device via
Ethernet cable(s).
Note that the cables do not need to be crossover cables.
Step 3. Attach the power connector
Connect the AC power adapter to the Power connector on the back of the device and plug
the adapter into a wall outlet or power strip. Turn on and boot up your computer(s) and any
LAN devices such as hubs or switches.
Step 4. Configure your Ethernet PCs
You must also configure the Internet properties on your Ethernet PCs. See Configuring
Ethernet PCs section.
Step 5. Install a Wireless card and connect Wireless PCs
You can attach a Wireless LAN that enables Wireless PCs to access the Internet via the
device.
You must configure your Wireless computer(s) in order to access your device. For complete
instructions, see Configuring Wireless PCs section.
Step 6. Install an USB driver (for X7967r and X7927r only)
You can attach a single computer to the device using a USB cable. The USB port is useful if
you have an USB-enabled PC that does not have a network interface card for attaching to
your Ethernet network.
Before attaching the USB cable, you must install an USB driver on your PC and configure the
computer. For complete instructions, see Configuring an USB PC section.
Next step
After setting up and configuring the device and PCs, you can log on to the device by
following the instructions in “Getting Started with the Web pages” on chapter 4. The chapter
includes a section called Testing your Setup, which enables you to verify that the device is
working properly.
X7968r / X7967r / X7927r / X7922r User’s Guide
11
The DSL Modem includes a series of Web pages that provide an interface to the
software installed on the device. It enables you to configure the device settings to
meet the needs of your network. You can access it through a web browser on a PC
connected to the device.
Accessing the Web pages
To access the web pages, you need the following:
A laptop or PC connected to the LAN or WLAN port on the device.
A web browser installed on the PC. The minimum browser version requirement is
Internet Explorer v4 or Netscape v4. For the best display quality, use latest version of
Internet Explorer, Netscape or Mozilla Firefox. from any of the LAN computers, launch
your web browser, type the URL, http://192.168.1.1 in the web address (or location)
box, and press [Enter]. Then enter the default username and password: admin/admin
to access the configuration web page, if you have not changed the username and
password.
The home page opens displaying the overview of device:
Figure 9: Overview –Home
X7968r / X7967r / X7927r / X7922r User’s Guide
12

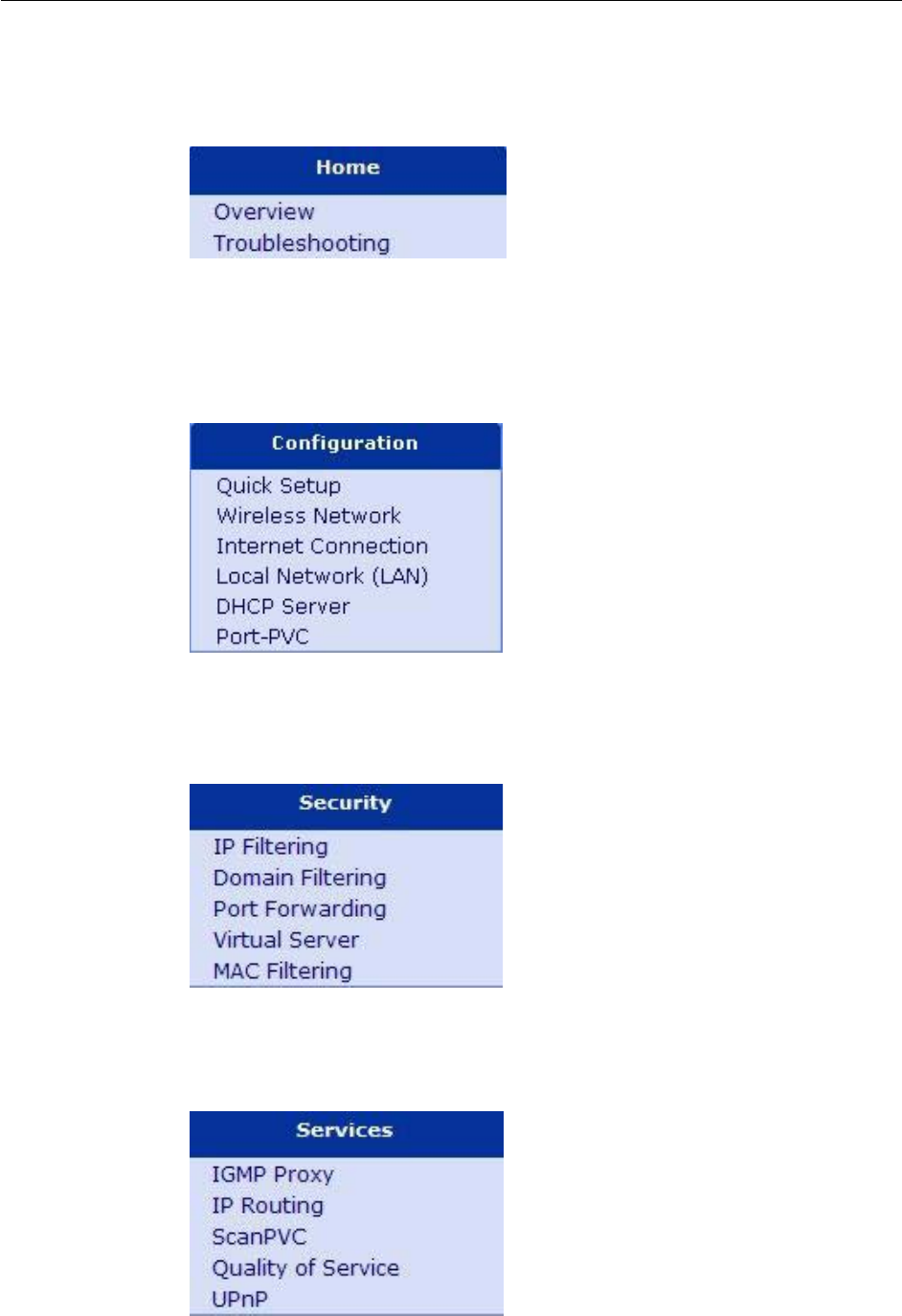

The Menu comprises:
Home:provides overview and troubleshooting of the system. It includes the sub
menus Overview and Troubleshooting. By default, the page Overview is displayed
after the login.
Configuration: provides information about the current configuration of various system
features with options to change the configuration. It includes the sub menus Quick
Setup, Wireless Network, Internet Connection, Local Network, DHCP Server, Vlan
Config and Port-PVC.
Security: provides filtering, forwarding, and setting up the virtual server. It includes
the sub menus IP Filtering, Domain Filtering, Port Filtering, Virtual Server, and MAC
Filtering.
Service: provides services such as IGMP Proxy (enabling the system to issue IGMP
host messages on behalf of hosts that the system discovered through standard IGMP
interfaces), IP Routing, ScanPVC, QoS (Quality of Service), and UPnP.
X7968r / X7967r / X7927r / X7922r User’s Guide
13
Port Statistics: Let you view the values of port parameters (DSL, Wireless, Ethernet
and USB-Ethernet interfaces).
Admin: provides the administration utilities such as firmware upgrade, backup &
restore, reboot, remote access, and change password.
Commonly used buttons
The following buttons are used throughout the web pages:
Button Function
You may need to configure the default settings on
more than one Web page. Click on this button once
you have changed the configuration on your current
page and are ready to move on to the next.
This button appears on every configuration page.
Click on this button if at any time you decide that you
do not want to change the existing settings.
Radio buttons –these appear on many configuration
pages. You will be asked to select one radio button
from the selection of two or more available. You
cannot select more than one radio button at a time.
This button appears on every configuration page.
Click on this button once you are through with the
changes and decide to apply the made changes.
You may need to browse to find a file which needs to
be uploaded for new configuration.
This button allows you to upgrade to the new
configuration file attached using the Browse button.
The following terms are used throughout this guide in association with these buttons:
Click – point the mouse arrow over the button, menu entry or link on the screen and click the
left mouse button. This performs an action, such as displaying a new page or performing the
action specific to the button on which left mouse button is clicked.
Select –usually used when describing which radio button to select from a list, or which entry
to select from a drop-down list. Point the mouse arrow over the entry and left-click to select it.
X7968r / X7967r / X7927r / X7922r User’s Guide
14
This does not perform an action –you will also be required to click on a button, menu entry
or link in order to proceed.
Help information
To view the help, click the desired menu or submenu. The related help information appears
in the right pane.
Testing your Setup
Once you have connected your hardware and configured your PCs, any computer on your
LAN should be able to use the device’s DSL connection to access the Internet.
To test the connection, turn on the device, wait for 30 seconds and then verify that the LEDs
are illuminated as follows:
LED Behavior
Power
(PWR)
Solid green to indicate that the device is turned on. If
this light is not on, check the power cable
attachment.
Wireless
(WLAN)
Solid green to indicate that the Wireless LAN
function is operational.
LAN Solid green to indicate that the device can
communicate with your LAN.
DSL Flashing on/off while trying to SYNC UP with ISP CO
site. Solid green to indicate that the device has
successfully established a connection with your ISP.
Alarm (ALM) Lit or blinking after device booting up indicates data error,
no ADSL sync up or operation fault.
Table 1. LED Indicators
If the LEDs illuminate as expected, test your Internet connection from a LAN computer. To
do this, open your web browser, and type the URL of any external website (such as
http://www.yahoo.com).
If the LEDs do not illuminate as expected, you may need to configure your Internet access
settings using the information provided by your ISP. If the LEDs still do not illuminate as
expected or the web page is not displayed, see Troubleshooting section or contact your ISP
for assistance.
X7968r / X7967r / X7927r / X7922r User’s Guide
15
Default device settings
In addition to handling the DSL connection to your ISP, the DSL Modem can provide a
variety of services to your network. The device is preconfigured with default settings for use
with a typical home or small office network.
The table below lists some of the most important default settings; these and other features
are described fully in the subsequent chapters. If you are familiar with network configuration,
review these settings to verify that they meet the needs of your network. Follow the
instructions to change them if necessary. If you are unfamiliar with these settings, try using
the device without modification, or contact your ISP for assistance.
WARNING
We strongly recommend that you contact your ISP prior to changing the
default configuration.
Option Default Setting Explanation/Instructions
User/Password admin/admin User name and password to
access the device
DSL Port IP
Address
Unnumbered
interface:
192.168.1.1
Subnet mask:
255.255.255.255
This is the temporary public IP
address of the WAN port on the
device. It is an unnumbered
interface that is replaced as soon
as your ISP assigns a ‘real’IP
address. See Quick Setup
section.
LAN Port
IP Address
Assigned static IP
address:
192.168.1.1
Subnet mask:
255.255.255.0
This is the IP address of the LAN
port on the device. The LAN port
connects the device to your
Ethernet network. Typically, you
will not need to change this
address. See Local Network
section.
DHCP
(Dynamic Host
Configuration
Protocol)
DHCP server enabled
with the following pool
of addresses:
192.168.1.2
through
192.168.1.21
(Please be noted that
the default DHCP IP
address pool may be
different in each
firmware version.)
The device maintains a pool of
private IP addresses for dynamic
assignment to your LAN
computers. To use this service,
you must have set up your
computers to accept IP
information dynamically, as
described in DHCP Server
section.
X7968r / X7967r / X7927r / X7922r User’s Guide
16
The Home web page menu includes the following submenus:
Overview
Trouble Shooting
Overview Page
The overview of the device contains most of the basic information like
System Information (equipment vendor, model number, chipset part number, chipset version
number),
Internet Information (ADSL port, downstream rate, upstream rate, default Gateway, Primary
DNS Server, Secondary DNS server),
Wireless Setting Information (Status, SSID, Channel, Security),
LAN Port information (MAC address, IP address, Subnet Mask and DHCP server).
Basic Overview
Figure 10: Overview –Basic
X7968r / X7967r / X7927r / X7922r User’s Guide
17
Advanced Overview
Figure 11: Overview –Advanced
The Advanced information of the device includes the following:
System Information – In addition to the information displayed as under Basic, it
also displays the DSL Firmware Version and Wireless Version.
Internet Connection – In addition to the information displayed as under Basic, it
also displays Last Failed internet connection, SNR (Downstream), SNR
(Upstream), Line Attenuation (Downstream), Line Attenuation (Upstream), and
the Connected Standard.
Wireless Settings - displays the wireless settings for the modem.
LAN Port – displays the same information as displayed under Basic.
Status – displays the status of Routing,DHCP,ARP,Wireless Connection, and
Traffic.
X7968r / X7967r / X7927r / X7922r User’s Guide
18
Status – Routing Table
This web page shows the routing table of the device which shows the packet flow when the
device receives incoming packets from WAN port and LAN port.
Figure 12: Routing Table
Status – DHCP Table
This web page shows all the PCs who request an IP address from the device. Those
messages show in the web page, MAC address of PC, assigned IP address, Lease Time and
the host name of PC.
Figure 13: DHCP Table
Status – Wireless Connection
This web page shows current connected Wireless PCs.
Figure 14: Status of Connected Wireless PCs
X7968r / X7967r / X7927r / X7922r User’s Guide
19
Status – ARP Table
This web page shows the relationship between MAC address and IP address where the
device learns from the data traffic. Besides, it also records the interface where the device
learns this information.
Figure 15: ARP Table
Status – Traffic Statistics
This web page shows traffic statistics of TX&RX both directions including wireless port, four
Ethernet ports, HPNA port and WAN ports.
Figure 16: Traffic Statistics
X7968r / X7967r / X7927r / X7922r User’s Guide
20
Trouble Shooting
This page provides you an option to troubleshoot (ping websites and run diagnostic tests) in
case of some error.
Figure 17: Trouble Shooting
Select the type of internet connection from Select Internet Connection drop down
menu. The internet connections currently valid for your device are displayed in
the drop down list. For example pppoa, pppoe, or Rfc1483Up.
Click on to run the diagnostic test on the
internet connection. For example, you may get diagnostic information as
displayed in the following screenshot. In this case, the ADSL connection is failed
that you have to check the ADSL line is well connected and installed before you
go for next step.
Figure 18: Trouble Shooting – Running Diagnostic Tests
X7968r / X7967r / X7927r / X7922r User’s Guide
21
The Configuration web page menu comprises:
Quick Setup
Wireless Network
Internet Connection
Local Network (LAN)
DHCP Server
VLAN Configuration
Port-PVC
Quick Setup
The Quick Setup page available under Configuration menu option is required to setup your
device if it is not yet connected to internet. Before accessing quick setup, you should ask for
the following information from your ISP:
VPI/VCI
Protocol: PPPoA, PPPoE, IPoA, RFC1483 (Routed), or Bridging
Encapsulation Type: VCMUX or LLC/SNAP
IP settings: Dynamic or Fixed. If fixed, then your ISP should also provide you an
IP address
NAT: Disabled or Enabled
Add Default Route: Disabled or Enabled
PPP User Name and Password (also known as Broadband User Name and
Password)
To display quick setup page:
Click Quick Setup under Configuration.
Configure ATM PVC page opens:
Figure 19: Quick Setup
X7968r / X7967r / X7927r / X7922r User’s Guide
22
The information displayed on this page and the pages that follow are explained in detail in
the following sub sections.
Configuring ATM PVC
To configure ATM PVC:
Configure the ATM PVC by entering the VPI and VCI values provided by the
ISP.
Click Next.
Configuring the Connection Type
Figure 20: Configuring the Connection Type
To configure the connection type:
Select the Protocol by selecting the radio button for the desired protocol type.
Select the Encapsulation Type from the drop down list (VCMUX or LLC/SNAP).
Select the Encapsulation Mode from the drop down list (Bridged or Rotued).
Configuring the WAN IP Settings if PPP over ATM (PPPoA) or PPP over Ethernet
(PPPoE)
Figure 21: Configuring WAN IP Settings
To configure the WAN IP settings:
X7968r / X7967r / X7927r / X7922r User’s Guide
23
Select/Unselect to enable or disable the Access Configurator option. In case, you
enable the access configurator, enter the value in Access Concentrator.
Select one of the following options:
Obtain an IP address automatically.
Use the following IP address: specify the WAN IP Address.
Click to Enable NAT.
Click to Add Default Route
Click Next.
Configuring the Broadband User Name and Password
Figure 22: Configuring Broadband User Name and Password
To configure the broadband user name and password:
Enter the user name in Broadband User Name.
Enter the password in Password and confirm it by entering again in Confirm
Password.
Specify the network session by selecting Always On,Dial on Demand or
Manually Connect option. You can also opt to disconnect after a specified period
when no user activity is detected. By default, the option Always On is selected.
Click Next.
X7968r / X7967r / X7927r / X7922r User’s Guide
24
Configure LAN side settings
Figure 23: Configuring LAN
To configure LAN:
Enter the primary IP address. For example, enter 192.168.1.1
Enter the subnet mask. For example, enter 255.255.255.0
You have the option to set up the secondary IP address. Enter the IP address
and subnet mask in Secondary IP Address and Subnet Mask respectively.
Enter the value of MTU. The default value is 1500.
Select on one of the option: DHCP Server On or DHCP Server Off. In case, you
selected the option DHCP Server On, then specify the Start IP,End IP, and
Lease Time in Days:Hours:Minutes format. The DHCP server ON feature will
enable this device to assign IP address automatically to PC in LAN if PC
requests an IP address by DHCP client protocol.
Click Next.
X7968r / X7967r / X7927r / X7922r User’s Guide
25
The following page opens to confirm the settings:
Figure 24: Configuring LAN - Confirm Settings
A summary of the WAN and LAN configuration is displayed. Click Apply to make the
changes else click Cancel to discard the changes.
Configuring the WAN IP Settings if RFC1483 (Routed)
Figure 25: Configuring WAN IP Settings
To Configure WAN IP settings,
select one of the following options:
Obtain an IP address automatically.
Use the following IP address: specify the WAN IP Address and subnet mask.
Click to Enable NAT.
Click Next.
The same procedure as configuring PPPoA or PPPoE, the configuring the LAN site settings
and confirming setting pages will be shown, please follow up above descriptions to finish
the settings.
X7968r / X7967r / X7927r / X7922r User’s Guide
26
Configuring the WAN IP Settings if Bridging
Figure 26: Configuring WAN IP Settings
In this mode, the device is a bridge and passes all raw data traffic between WAN and LAN
ports. There is no need for any settings.
Click Next.
The same procedure as configuring PPPoA or PPPoE, the configuring the LAN site settings
and confirming setting pages will be shown, please follow up above descriptions to finish
the settings. But be noted, the IP addresses in the PC of LAN side are visible to the WAN site
in the bridging mode, those IP addresses are not blocked by NAT feature.
X7968r / X7967r / X7927r / X7922r User’s Guide
27
Wireless Network Page for X7968r and X7967r only
This page allows you to setup the wireless connection. The following are the types of
settings allowed:
Basic
Advanced
MAC Address Filter
Radius Server
Basic Settings
Figure 27: Wireless Network – Basic Settings
Global Setting
Select the wireless profile: 802.11b/g, 11b only, 11g only, or mixed_long.
Enable/disable the Wireless network.
Select Country where you are located.
Select the wireless communication channel by AUTO or MANUAL. If manual
selection, enter the channel you wish the wireless network to use.
Specify the Network Name (SSID) used among the device and the wireless
X7968r / X7967r / X7927r / X7922r User’s Guide
28
clients.
You may choose to Hide SSID (Yes/No). The SSID will not be broadcasted to
wireless clients if you select to hide it.
Security Settings
Select the one of security options: OFF, WEP 64bits, WEP 128bits, WPA, WPA2,
WPA mixed mode.
Select TX key index: if you select the 64bits or 128bits as your wireless security
method, there are 4 keys can be used. You could specify the one for usage.
Select Key Method: you could select Direct_Key to enter the key in the KEY field
or Pass Phrase to generate the key automatically. Enter the strings in the WEP
Pass Phrase field if you select the Pass Phrase as your Key Method.
Select Encryption Protocol (TKIP or AES –CCMP) if you select the WPA and
WPA2.
Specify Authentication Method, PSK (pre-share key) or EAP.
Enter the key in the WPA Pass Phrase field if you select PSK.
Enter 802.1x Identify String and 802.1x Relay Timeout if you selects EAP.
X7968r / X7967r / X7927r / X7922r User’s Guide
29
Advanced Settings
Figure 28: Wireless Network – Advanced Settings
Global Setting
In addition to the settings provided under basic settings, you can specify Fragmentation,
RTS Threshold, NitroXM PiggyBack and WMM.
Security Settings
The advanced security settings are same as provided under the basic settings.
X7968r / X7967r / X7927r / X7922r User’s Guide
30
MAC Filtering
Figure 29: Wireless Network - MAC Filtering Configuration
You can specify which wireless PCs can connect or can not connect to your device.
Select MacAuth: You can select which MAC authorization option as Disable (MAC filtering
disabled), White List (allow those PCs to connect) or Black List (deny those PCs to connect).
Add MAC Address: Enter the MAC address and click Apply. You can also delete the existing
MAC address by clicking Delete.
X7968r / X7967r / X7927r / X7922r User’s Guide
31
Radius Server
Radius server configuration is required when user configures the wireless network for
Radius Authentication (802.1x EAP) for WPA/WPA2 security.
It allows user to configure different accounting and authentication servers or configure the
same server for both authentication and accounting. It allows you to configure (Name, IP
Address, UDP Port, Retries, Timeout) settings for the Radius server.
Figure 30: Wireless Network - Radius Server Configuration
To enable/disable the radius server:
Select Enable or Disable and click Apply.
To set the authentication server:
Click Add.
X7968r / X7967r / X7927r / X7922r User’s Guide
32
Figure 31: Radius Server Configuration
Enter the Name,IP Address,Shared Key,UDP Port,Retries (connection retry
time),Timeout, and VAP Port details.
Click Submit.
To set the accounting server:
Enter the details as described above.
Click Submit.
X7968r / X7967r / X7927r / X7922r User’s Guide
33
Internet Connection Page
You can configure your internet connection from this page. This page displays the details of
existing internet connection, if any. You can perform the following functions from this page:
Configure internet connection
Configure ADSL
Specify MAC Spoofing
Figure 32: Internet Connection Configuration
Connections
To configure the internet connection:
Click Add. Follow the steps described under Quick Setup section to setup the
internet connection. If there is existing Internet connection, you may use the Edit or
Delete to edit the connection profile or delete it.
X7968r / X7967r / X7927r / X7922r User’s Guide
34
ADSL Configuration
In this web page, you can configure the basic ADSL parameters like enable/disable ADSL
port, ADSL mode and some specific values.
Figure 33: ADSL Configuration
To configure ADSL:
Click to enable the ADSL Port.
Select the support of line mode from the drop down list. You have the option to
select from ADSL 2, ADSL2PlusAuto, ADSL2Plus Only and Annex A.
You can enable/disable DSL with DELT, Bitswap (Downstream), and Bitswap
(UpStream).
Click Apply.
X7968r / X7967r / X7927r / X7922r User’s Guide
35
MAC Spoofing
Figure 34: MAC Spoofing
MAC spoofing lets the MyDslModem identify itself as another computer or device. You may
need to use this depending on your Internet Service Provider.
To specify MAC Spoofing:
Select either Disabled - MAC Spoofing is not used or Enabled - MAC Spoofing
will be used with a MAC address you provide. MAC Spoofing Setup/Confirm
page opens based on the option you selected earlier.
Specify the MAC address in case you enabled the MAC Spoofing.
Figure 35: MAC Spoofing Setup
Click Next and Confirm to confirm the specified MAC Spoofing settings.
X7968r / X7967r / X7927r / X7922r User’s Guide
36
Local Network (LAN) Page
This page allows you to setup the Local Network (LAN) connection. The following are the
types of settings allowed:
IP Address
DNS Client
DNS Relay
DNS LAN Host
Click on Local Network under Configuration from the left-hand side pane. The following page
opens:
Figure 36: Local Network Configuration - IP address
IP Address
This page displays the local network configuration allowing you to configure:
IP Address
Subnet Mask
Host Name
Domain Name
Secondary IP Address and Subnet Mask
MTU
X7968r / X7967r / X7927r / X7922r User’s Guide
37
DNS Client
To specify DNS Client:
Configure the DNS client by specifying the primary and secondary DNS server.
Click Apply.
Figure 37: DNS Client
DNS Relay
Figure 38: DNS Relay
To add the fixed DNS servers for getting the IP address from domain name:
Enter the primary and secondary DNS server IP addresses in Primary DNS
Server and Secondary DNS Server respectively.
Click Apply.
X7968r / X7967r / X7927r / X7922r User’s Guide
38
DNS Local Host
Figure 39: DNS Local Host
Existing local host name and IP address will be shown in this page, you can refresh the
details by clicking Refresh.
To create a new DNS Hostname:
Click Create a New DNS Hostname entry manually.
DNS Table page opens:
Enter the Host Name and IP Address.
Click Apply.
Figure 40: Add New DNS Local Host
X7968r / X7967r / X7927r / X7922r User’s Guide
39
DHCP server Page
This page allows you to setup the DHCP server. The following are the types of settings
allowed:
Global Settings
Server Settings
Global Settings
Figure 41: DHCP Server Configuration – Global Settings
To configure the DHCP Server:
Global Settings:
Enable/disable the DHCP server by clicking Enabled/Disabled. The current
status of the DHCP sever is changed accordingly.
Specify the IP Interface by selecting it from the drop down list and clicking Add.
Note To add an interface, the DHCP Server should be disabled.
X7968r / X7967r / X7927r / X7922r User’s Guide
40
Server Settings
This page allows you to create DHCP server subnets and DHCP server fixed host IP/MAC
mappings.
Figure 42: DHCP server Configuration – Server Settings
You may click the Add Subnet to open below page.
Enter the Subnet value, Subnet mask, Maximum lease time, and Default lease
time. By default, the maximum and default lease time are specified as 86400 and
43200 seconds respectively.
Specify the IP Address range by entering the Start of address range and End of
address range. You can select the option Use a default range. to specify a default
range.
You may select Use local host address as DNS server to allow DHCP server to
specify its own IP address.
You may select Use local host as default gateway to specify the local host as
default gateway.
Click Apply.
X7968r / X7967r / X7927r / X7922r User’s Guide
41
Figure 43: DHCP Server Configuration – Server Subnet Settings
You may click the Add Fixed Host to open below page to specify a dedicated IP
address for a specified PC (MAC address). Please make sure this IP is in the service
range and does not clash an IP address already presented in a dynamic address
range.
Figure 44: DHCP Server Configuration –Fixed Host IP and MAC Mapping
X7968r / X7967r / X7927r / X7922r User’s Guide
42
Port - PVC Page
To set the filter rules between port and PVC, you should select and create the
mapping between the port and PVC. Those data traffics in the paths will be filtered by
the rules.
Figure 45: Port-PVC Configuration
Figure 46: Add port/pvc into group
You can use the VLAN technology to create different VLAN group to separate the data
traffic to different ports to eliminate the duplicated packets folding to other LAN ports
and to make the local network more efficiency. There are four ports in the device, 4
LAN ports which are named from port 1 to port 4.
X7968r / X7967r / X7927r / X7922r User’s Guide
43
The Security web page menu includes the following submenus:
IP Filtering
Domain Filtering
Port Forwarding
Virtual Server
MAC Filtering
IP Filtering
Figure 47: IP Filtering Configuration
IP Filter Settings
To specify the IP filter settings:
Enable/disable the IP filter by selecting Enabled/Disabled.
Click Apply.
X7968r / X7967r / X7927r / X7922r User’s Guide
44
Port Filters
Edit or delete the port filters by clicking Edit or Delete. Please refer below page for details.
IP Filters
Add or edit the IP filter by Clicking Add or Edit. Please refer below page for details.
Figure 48: IP Filtering Settings
Global settings:
Enter the name of filter rule in Filter Rule Name.
Select the filter policy from the Select Policy drop down list.
The ext-int means the path is between the WAN port and LAN ports including
WLAN and USB-Ethernet ports.
The ext-dmz means the path is between the WAN port and the specified DMZ
port.
The dmz-int means the path is between the specified DMZ port and other LAN
ports.
Select one of the option for the direction of filter packets: Outbound traffic,
Inbound traffic, Both.
Specify the Port Filter Rule by specifying the Protocol, Source IP Range, Source
Port Range, and Status (Enabled/Disabled).
Specify the IP Validator Rule by specifying the IP Address type (Single, Subnet),
IP Address, Netmask, and Status (Enabled/Disabled).
Click Apply.
X7968r / X7967r / X7927r / X7922r User’s Guide
45
Domain Filtering
Figure 49: Domain Filtering Configuration
To specify domain filter settings:
Specify the rule action as Allow or Deny and click Apply.
Enter the filter details such as Filter Name,Policy Name (refer the description in
IP Filtering), Domain Filter (enter the domain name that you want to allow or deny
user to surf it), Start Time (hh:mm:ss),End Time (hh:mm:ss).
Click Add.
X7968r / X7967r / X7927r / X7922r User’s Guide
46
Port Forwarding Configuration
Port forwarding enables you to run a server on your local network that can be accessed from
the Internet. You need to set up port forwarding to tell the device on which computer the
server is held. When port forwarding is enabled, your router (the device) routes all the
inbound traffic on a particular port to the chosen computer on your network.
Figure 50: Port Forwarding Configuration
To configure port forwarding:
Click Add.
Add New Part Forwarding Rule page opens:
Figure 51: Port Forwarding Settings
Specify the new port forwarding rule name either by selecting from the
Pre-defined drop down lists or typing a name in User defined text box.
Select the WAN Interface from the drop down list where the incoming packet
coming from.
Enter the IP address in Forward to Internal Host IP Address which the server is
held.
X7968r / X7967r / X7927r / X7922r User’s Guide
47
Specify the rules by specifying the information such as Protocol/Type, External
Packet (Port Start, Port End), and Forward to Internal Host (Port Start, Port End).
Click Apply.
Virtual Server
A DMZ (DeMilitarized Zone) host is a computer on your network that can be accessed from
the Internet regardless of NAT, port forwarding and IP filter settings. A DMZ is often used to
host Web servers, FTP servers etc that need to be accessible from the Internet.
Note
Setting up a DMZ has implications on the security of your
network. Set-up a DMZ only if you understand the consequences.
Port forwarding settings will override your DMZ setting.
Figure 52: Virtual Server – DMZ Configuration
To setup a DMZ Host:
Select the WAN interface and click Edit.
Select Forwarded to the DMZ Host
Enter the IP address of the computer you wish to place in the DMZ
Click Apply.
X7968r / X7967r / X7927r / X7922r User’s Guide
48
MAC Filtering
Figure 53: MAC Filtering Configuration
You can specify which PCs can connect or can not connect to your device.
Select MacAuth: You can select which MAC authorization option as Disable (MAC filtering
disabled), White List (allow those PCs to connect) or Black List (deny those PCs to connect).
Add MAC Address: Enter the MAC address and click Apply. You can also delete the existing
MAC address by clicking Delete.
X7968r / X7967r / X7927r / X7922r User’s Guide
49
The Services web page menu includes the following submenus:
IGMP Proxy
IP Routing
Scan PVC
Quality of Service
UPnP
IGMP Proxy
Configure this proxy to run a server on your local network that can be accessed from
the Internet. See Help for more information
Figure 54: IGMP Proxy Configuration
To enable IGMP proxy:
Select the connection from Internet Connection drop down list.
Select IGMP Proxy Enabled.
Click Apply.
IP Routing
You can configure the packet routing table by static routing or dynamic routing.
Static Routing
Dynamic Routing
X7968r / X7967r / X7927r / X7922r User’s Guide
50
Static Routing
Figure 55: IP Routing Configuration
Under static routing web page, click the ADD button to add the static routing table.
Figure 56: Static IP Routing Configuration
Global settings:
Specify the destination IP address and its subnet
Specify the gateway IP address or the interface (LAN or WAN port) where above
destination packets to be forwarded
X7968r / X7967r / X7927r / X7922r User’s Guide
51
Dynamic Routing
Figure 57: IP Routing - Dynamic IP Routing Configuration
Figure 58: Dynamic IP Routing Configuration
To enable the dynamic routing:
Select the Interface where to share and exchange the routing table. Click Edit.
Select the RIP Version as 1,2 or both.
Select the Operation Mode as Active, Passive, or Send Only.
Select Enabled.
Click Apply.
X7968r / X7967r / X7927r / X7922r User’s Guide
52
Scan PVC
The Scan PVC feature enables modem to automatically detect ATM Permanent
Virtual Circuit (PVCs) configuration at CO side and accordingly configure its own
PVCs and protocol stack for them.
While probing PVCs at the CO side if the modem does not find the default vpi/vci for a
PVC, it tries to find a possible vpi/vci pair that can be configured from the SearchList.
The vpi/vci string looks like “0/35, 8/35, 0/43, 0/51, 0/59, 8/43, 8/51, 8/59”. However,
you can add your own values and click save button on the scan pvc page.
Figure 59: Scan PVC Configuration
To start or stop the scanning of PVC:
Enter the search list in the format "0/36 0/37..." or "0/40-45 0/78-80" separated by
space/tab or the mixed combination of the above two.
Click Save to save the configuration.
Click Start/Stop to start or stop the servers.
X7968r / X7967r / X7927r / X7922r User’s Guide
53
Quality of Service
You can configure the priority of packets through this web page. By default the
Classifier details are displayed.
Classifier
Figure 60: Quality of Service
Click Add Profile to create the packet classifier.
Figure 61: Rule of Quality of Service
X7968r / X7967r / X7927r / X7922r User’s Guide
54
Quality of Service, global settings:
Enter the profile name and rule name for this classifier (rule)
Generic Classification: These values tries to match all bytes in the packet starting
at a valid offset from the Ethernet header. The valid values for Offset 0 -
1500.The Mask and Values must be hexadecimal values ranging from
0x000000000000 to 0xffffffffffff. All the incoming packets will be matched against
the configured values of offset, mask and values. If the incoming packet values
matches than the configured action will perform.
Prioritize packets in Layer 2: All the incoming packets will be matched against the
configured values of VLAN-ID and VLAN-ID min- max values. If any of the rule
matches than the corresponding action will be performed.
•802.1p priority bits
•VLAN ID value
Prioritize packets in Layer 3: All the incoming packets will be matched against the
configured values of the layer 3 fields (source/destination IP address, mask,
DSCP values etc.). If any of the rule matches than the corresponding action will
be performed.
•Packet type which is prioritized and data length
•Source IP address and subnet
•Source port range from start to end
•Destination IP address and subnet
•Destination port range from start to end
•Enter the physical port
•Check one of IP TOS (Type of Service) and DSCP
Assign the traffic priority, Mask VLAN Priority, Drop Priority, Mark IP TOS or
DSCP, and set Meter-ID. The corresponding IP TOS in IP header of packet will
be overwritten by this new value.
Click Apply to add this QoS rule.
QOS Setting
Figure 62: QoS - Attaching Classifier Profile
Select the transport from Select the Transport drop down list.
Select the classifier profile to be attached to the transport from Select the
Classifier Profile drop down list.
Click Apply.
X7968r / X7967r / X7927r / X7922r User’s Guide
55
UPnP
Figure 63: UPnP Configuration
To enable or disable the UPnP service:
Select/unselect Enable UPnP to enable/disable the UPnP service
Click Apply.
X7968r / X7967r / X7927r / X7922r User’s Guide
56
The Port Statistic web page menu comprises:
DSL (A1)
Wireless
Raw-Ethernet
Ethernet
USB-Ethernet
DSL (A1)
This web page shows the ADSL status in details. If you are interesting in the
parameters, please contact technical support to get the description. You can view two
types of values for DSL(A1) port statistics. These are:
Basic
Advanced
Basic:
Figure 64: View Basic DSL Port Parameters
X7968r / X7967r / X7927r / X7922r User’s Guide
57
Advanced:
Figure 65: View Advanced DSL Port Parameters
X7968r / X7967r / X7927r / X7922r User’s Guide
58
Wireless
This web page shows the Wireless status in details. If you are interesting in the
parameters, please contact technical support to get the description. You can view two
types of values for wireless port statistics. These are:
Basic
Advanced
Basic:
Figure 66: View Basic Wireless Port Parameters
X7968r / X7967r / X7927r / X7922r User’s Guide
59
Advanced:
Figure 67: View Advanced Wireless Port Parameters
X7968r / X7967r / X7927r / X7922r User’s Guide
60
Raw-Ethernet
This web page shows the raw Ethernet status in details. If you are interesting in the
parameters, please contact technical support to get the description. You can view two
types of values for raw Ethernet port statistics. These are:
Basic
Advanced
Basic:
Figure 68: View Basic Raw-Ethernet Port Parameters
Advanced:
Figure 69: View Advanced Raw-Ethernet Port Parameters
X7968r / X7967r / X7927r / X7922r User’s Guide
61
Ethernet
This web page shows the Ethernet status in details. If you are interesting in the
parameters, please contact technical support to get the description. You can view two
types of values for Ethernet port statistics. These are:
Basic
Advanced
Basic:
Figure 70: View Basic Ethernet Port Parameters
Advanced:
Figure 71: View Advanced Ethernet Port Parameters
X7968r / X7967r / X7927r / X7922r User’s Guide
62
USB-Ethernet
This web page shows the USB-Ethernet status in details. If you are interesting in the
parameters, please contact technical support to get the description. You can view two
types of values for USB-Ethernet port statistics. These are:
Basic
Advanced
Basic:
Figure 72: View Basic USB-Ethernet Port Parameters
Advanced:
Figure 73: View Advanced USB-Ethernet Port Parameters
X7968r / X7967r / X7927r / X7922r User’s Guide
63
The System web page menu comprises:
Firmware Upgrade
Backup & Restore
Reboot
Remote Access
Change Password
Firmware Upgrade
This page displays the current version of the firmware and lets you upgrade to the latest
version.
Figure 74: Upgrading Firmware
To upgrade the firmware, you have two options:
Automatically check for the updates –Click Check for Updates button to pick up the
latest updates.
Specify the location of firmware file –Click Browse to specify the path where the
firmware files are located and click Upgrade.
X7968r / X7967r / X7927r / X7922r User’s Guide
64
Backup & Restore
This web page allows you to restart your device or reset all settings to factory default
settings.
Figure 75: Backup & Restore Configuration
Backup Configuration
To save the backup configuration file:
Click Backup.
A message window opens prompting you to save the file:
Click Save.
Specify the path where the file is to be saved and click Save.
Restore Configuration
To restore the previously saved configuration:
Click Browse to specify the path of the saved configuration file and click Open.
Click Upgrade.
X7968r / X7967r / X7927r / X7922r User’s Guide
65
WARNING
Do not restart your router during configuration restore process.
A message appears indicating the status of restoration:
Click restart to save new configuration.
Reboot
This submenu lets you reboot the modem. You can reboot form the following
configurations:
Last Configuration
Factory Configuration
Figure 76: Reboot the Device
To reboot the modem:
Select Reboot From as Last or Factory.
Click Reboot.
A message appears displaying the status of rebooting:
X7968r / X7967r / X7927r / X7922r User’s Guide
66
Figure 77: Reboot Status
A page displaying the overview of device information opens.
Remote Access
This submenu provides you remote access to a router. This may help the IT support staff to
configure the router remotely.
Figure 78: Remote Access
To enable the remote access:
Specify the method by which you wish to access the router remotely by selecting it.
The following are the methods available for remote access:
Web Browser
Telnet
FTP
SNMP
TFTP
Ssh
PING
Specify the Start IP Address and End IP Address for the selected method.
X7968r / X7967r / X7927r / X7922r User’s Guide
67
Change Password
This web page lets you change the user name and password.
Figure 79: Administration Password
To change the password:
Enter the user name in User name.
Enter the new password in New password.
Confirm the password by retyping it in Confirm New password.
Click Apply.
A window opens prompting you re-login with your new username or password:
Click OK.
X7968r / X7967r / X7927r / X7922r User’s Guide
68
This appendix provides instructions for configuring the Internet settings on your computers
to work with the device.
Configuring Ethernet PCs
Before you begin
By default, the device automatically assigns the required Internet settings to your PCs. You
need to configure the PCs to accept this information when it is assigned.
Note
In some cases, you may want to assign Internet information
manually to some or all of your computers rather than allow the
device to do so. See
Assigning static Internet information to your PCs section.
If you have connected your LAN PCs via Ethernet to the device, follow the
instructions that correspond to the operating system installed on your PC:
Windows® XP PCs
Windows 2000 PCs
Windows Me PCs
Windows\ 95, 98 PCs
Windows NT 4.0 workstations
If you want to allow Wireless PCs to access your device, follow the instructions in
Configuring Wireless PCs below..
Windows® XP PCs
In the Windows task bar, click the Start button, and then click Control Panel.
Double-click the Network Connections icon.
In the LAN or High-Speed Internet window, right-click on the icon corresponding to
your network interface card (NIC) and select Properties. (Often, this icon is labelled
Local Area Connection).The Local Area Connection dialog box is displayed with a list
of currently installed network items.
Ensure that the check box to the left of the item labelled Internet Protocol TCP/IP is
checked and click Properties.
In the Internet Protocol (TCP/IP) Properties dialog box, click the radio button labelled
Obtain an IP address automatically. Also click the radio button labelled Obtain DNS
server address automatically.
Click OK twice to confirm your changes, and then close the Control Panel.
Windows 2000 PCs
First, check for the IP protocol and, if necessary, install it:
In the Windows task bar, click the Start button, point to Settings, and then click Control
Panel.
X7968r / X7967r / X7927r / X7922r User’s Guide
69
Double-click the Network and Dial-up Connections icon.
In the Network and Dial-up Connections window, right-click the Local Area Connection
icon, and then select Properties. The Local Area Connection Properties dialog box is
displayed with a list of currently installed network components. If the list includes
Internet Protocol (TCP/IP), then the protocol has already been enabled. Skip to step
10.
If Internet Protocol (TCP/IP) does not display as an installed component, click Install.
In the Select Network Component Type dialog box, select Protocol, and then click
Add.
Select Internet Protocol (TCP/IP) in the Network Protocols list, and then click OK.You
may be prompted to install files from your Windows 2000 installation CD or other
media. Follow the instructions to install the files.
If prompted, click OK to restart your computer with the new settings. Next, configure
the PCs to accept IP information assigned by the device.
In the Control Panel, double-click the Network and Dial-up Connections icon.
In the Network and Dial-up Connections window, right-click the Local Area Connection
icon, and then select Properties.
In the Local Area Connection Properties dialog box, select Internet Protocol (TCP/IP),
and then click Properties.
In the Internet Protocol (TCP/IP) Properties dialog box, click the radio button labelled
Obtain an IP address automatically. Also click the radio button labelled Obtain DNS
server address automatically.
Click OK twice to confirm and save your changes, and then close the Control Panel.
Windows Me PCs
In the Windows task bar, click the Start button, point to Settings, and then click Control
Panel.
Double-click the Network and Dial-up Connections icon.
In the Network and Dial-up Connections window, right-click the Network icon, and
then select Properties. The Network Properties dialog box displays with a list of
currently installed network components. If the list includes Internet Protocol (TCP/IP),
then the protocol has already been enabled. Skip to step 11.
If Internet Protocol (TCP/IP) does not display as an installed component, click Add.
In the Select Network Component Type dialog box, select Protocol, and then click
Add.
Select Microsoft in the Manufacturers box.
Select Internet Protocol (TCP/IP) in the Network Protocols list, and then click OK. You
may be prompted to install files from your Windows Me installation CD or other media.
Follow the instructions to install the files.
If prompted, click OK to restart your computer with the new settings. Next, configure
the PCs to accept IP information assigned by the device.
In the Control Panel, double-click the Network and Dial-up Connections icon.
In Network and Dial-up Connections window, right-click the Network icon, and then
select Properties.
In the Network Properties dialog box, select TCP/IP, and then click Properties.
In the TCP/IP Settings dialog box, click the radio button labelled Server assigned IP
address. Also click the radio button labelled Server assigned name server address.
Click OK twice to confirm and save your changes, and then close the Control Panel.
X7968r / X7967r / X7927r / X7922r User’s Guide
70
Windows 95, 98 PCs
First, check for the IP protocol and, if necessary, install it:
In the Windows task bar, click the Start button, point to Settings, and then click Control
Panel.
Double-click the Network icon. The Network dialog box displays with a list of currently
installed network components. If the list includes TCP/IP, and then the protocol has
already been enabled. Skip to step 9.
If TCP/IP does not display as an installed component, click Add. The Select Network
Component Type dialog box displays.
Select Protocol, and then click Add…The Select Network Protocol dialog box
displays.
Click on Microsoft in the Manufacturers list box, and then click TCP/IP in the Network
Protocols list box.
Click OK to return to the Network dialog box, and then click OK again. You may be
prompted to install files from your Windows 95/98 installation CD. Follow the
instructions to install the files.
Click OK to restart the PC and complete the TCP/IP installation. Next, configure the
PCs to accept IP information assigned by the device.
Open the Control Panel window, and then click the Network icon.
Select the network component labelled TCP/IP, and then click Properties. If you have
multiple TCP/IP listings, select the listing associated with your network card or
adapter.
In the TCP/IP Properties dialog box, click the IP Address tab.
Click the radio button labelled Obtain an IP address automatically.
Click the DNS Configuration tab, and then click the radio button labelled Obtain an IP
address automatically.
Click OK twice to confirm and save your changes. You will be prompted to restart
Windows.
Click Yes.
Windows NT 4.0 workstations
First, check for the IP protocol and, if necessary, install it:
In the Windows NT task bar, click the Start button, point to Settings, and then click
Control Panel.
In the Control Panel window, double click the Network icon.
In the Network dialog box, click the Protocols tab. The Protocols tab displays a list of
currently installed network protocols. If the list includes TCP/IP, then the protocol has
already been enabled. Skip to step 9.
If TCP/IP does not display as an installed component, click Add.
In the Select Network Protocol dialog box, select TCP/IP, and then click OK. You may
be prompted to install files from your Windows NT installation CD or other media.
Follow the instructions to install the files. After all files are installed, a window displays
to inform you that a TCP/IP service called DHCP can be set up to dynamically assign
IP information.
Click Yes to continue, and then click OK if prompted to restart your computer. Next,
configure the PCs to accept IP information assigned by the device.
Open the Control Panel window, and then double-click the Network icon.
In the Network dialog box, click the Protocols tab.
In the Protocols tab, select TCP/IP, and then click Properties.
X7968r / X7967r / X7927r / X7922r User’s Guide
71
In the Microsoft TCP/IP Properties dialog box, click the radio button labelled Obtain an
IP address from a DHCP server.
Click OK twice to confirm and save your changes, and then close the Control Panel.
Assigning static Internet information to your PCs
If you are a typical user, you will not need to assign static Internet information to your LAN
PCs because your ISP automatically assigns this information for you.
In some cases however, you may want to assign Internet information to some or all of your
PCs directly (often called “statically”), rather than allowing the device to assign it. This
option may be desirable (but not required) if:
You have obtained one or more public IP addresses that you want to always
associate with specific computers (for example, if you are using a computer as a
public web server).
You maintain different subnets on your LAN (subnets are described in Appendix
B).
Before you begin, you must have the following information available:
The IP address and subnet mask of each PC
The IP address of the default gateway for your LAN. In most cases, this is the
address assigned to the LAN port on the device. By default, the LAN port is
assigned the IP address 192.168.1.1. (You can change this number or another
number can be assigned by your ISP.)
The IP address of your ISP’s Domain Name System (DNS) server.
On each PC to which you want to assign static information, follow the instructions relating
only to checking for and/or installing the IP protocol. Once it is installed, continue to follow
the instructions for displaying each of the Internet Protocol (TCP/IP) properties. Instead of
enabling dynamic assignment of the IP addresses for the computer, DNS server and default
gateway, click the radio buttons that enable you to enter the information manually.
Note
Your PCs must have IP addresses that place them in the same
subnet as the device’s LAN port.
X7968r / X7967r / X7927r / X7922r User’s Guide
72
Configuring Wireless PCs
You need to configure the operating system installed on your Wireless PCs using the same
procedure described for Configuring Ethernet PCs section.
Positioning the wireless PCs
The wireless network cards used determine the maximum distance between your wireless
PCs and your device. Guidelines on positioning the hardware components of your wireless
network should be provided by your network card provider.
Wireless PC cards and drivers
Each PC on your wireless LAN must be fitted with a wireless access card. You must also
install the corresponding driver files for your particular wireless card on your PC. You
should receive driver files and instructions on how to install them together with your
wireless card.
Configuring PC access to your Wireless device
Before you start configuring your Wireless PC, you must ensure that you have:
A Wireless access card for each of the PCs
Corresponding wireless access card driver software files
The configuration steps below will vary depending on both the operating system and
wireless card installed on the PC. These steps provide a basic outline, however you should
refer to the documentation provided with your wireless access card for specific instructions.
To configure Wireless PCs:
Install the wireless access card.
Install the wireless driver software files.
Configure the following wireless parameters on each of the wireless PCs:
•Set the adapter to use infrastructure mode. This configures the PCs to access each
other and the Internet via the device.
•Configure the SSID and channel to match the SSID and channel previously configured
on the device.
Your wireless network can now communicate with the Internet via the device.
X7968r / X7967r / X7927r / X7922r User’s Guide
73
Configuring USB PC
Connecting a computer to the USB port
If you use the device’s USB port to connect to a PC, you must install the provided USB driver
software on the PC. The driver enables Ethernet-over-USB communication with the device.
Configuring the USB computer is a two-part process:
In Part 1, you install the USB driver on the PC.
If your computer is running Windows 2000, 98, 98 SE, XP or ME, follow the
instructions given below.
In Part 2, you configure the IP properties on the USB PC.
Part 1. Installing the USB Driver
Ensure that the USB cable is not connected to the USB port on the PC. The installation
program will prompt you when to connect the cable.
This USB driver supports Windows 2000, 98, 98 SE, XP or ME
1. Find the USB driver in the CD, double-click on setup.exe to start the DSL
Modem Setup Wizard.
The Installing window displays as the Wizard prepares your system for the installation:
Figure 83: USB Setup Wizard: Installing Window
If a Microsoft digital signature dialog box is displayed, click Yes to continue.
The installation program will begin copying the necessary installation files to the required
locations. When complete, a window displays to prompt you to connect the USB cable to
your computer.
Figure 84: Prompt for USB Cable Plug-in
2. Plug the USB cable from the device into the USB port of the PC.
X7968r / X7967r / X7927r / X7922r User’s Guide
74
The USB cable provided has a flat connector on one end (called Type A) and a square
connector on the other (Type B). Connect the flat connector to your PC and the square
connector to the device.
To ADSL-
Ethernet router
To PC
Figure 85: USB Cable Connectors
If a Microsoft digital signature dialog box is displayed, click Yes to continue.
A window displays briefly, indicating that the system has found new hardware, and the
Installing window displays as the installation finishes.
You have now finished installing the driver. You do not need to restart your computer.
Proceed to Part 2. Configuring IP properties on the USB PC.
Part 2. Configuring IP properties on the USB PC
Now that the USB driver installation is complete, you must configure the USB PC so that its
IP properties place it in the same subnet as the device’s USB port. There are two ways to do
this:
The device is configured to assign an appropriate IP address to the USB PC. If you want to
use this automatic assignment feature, called “DHCP server,”you must configure the USB
PC to accept dynamically assigned IP information. Follow the instruction on Configuring
Ethernet PC section that corresponds to the operating system installed on your PC.
If you want to assign a static IP address to the PC, follow the instructions on Configuring
Ethernet PC section and use the following information:
In the Network and Dial-up Connections window, be sure to select the icon that corresponds
to your new USB connection (not the one that corresponds to your Ethernet NIC). When you
display properties for the icon, the following text should display in the Connect Using text
box:
USB IAD LAN Modem #n
The USB port on the device is preconfigured with these properties:
USB port IP address:192.168.1.100 (for example)
USB port subnet mask: 255.255.255.0
Therefore, your PC must be configured as follows:
IP address: 192.168.1.n where n is a number from 2 to 254 that does not conflict with the
DHCP address range.
Subnet mask: 255.255.255.0
X7968r / X7967r / X7927r / X7922r User’s Guide
75
IP Addresses
Note
This section refers only to IP addresses for IPv4 (version 4 of the Internet
Protocol). IPv6 addresses are not covered.
This section assumes basic knowledge of binary numbers, bits, and bytes.
IP addresses, the Internet's version of telephone numbers, are used to identify individual
nodes (computers or devices) on the Internet. Every IP address contains four numbers, each
from 0 to 255 and separated by dots (periods), e.g. 20.56.0.211. These numbers are called,
from left to right, field1, field2, field3, and field4.
This style of writing IP addresses as decimal numbers separated by dots is called dotted
decimal notation. The IP address 20.56.0.211 is read "twenty dot fifty-six dot zero dot
two-eleven."
Structure of an IP address
IP addresses have a hierarchical design similar to that of telephone numbers. For example, a
7-digit telephone number starts with a 3-digit prefix that identifies a group of thousands of
telephone lines, and ends with four digits that identify one specific line in that group.
Similarly, IP addresses contain two kinds of information:
Network ID
Identifies a particular network within the Internet or intranet
Host ID
Identifies a particular computer or device on the network
The first part of every IP address contains the network ID, and the rest of the address
contains the host ID. The length of the network ID depends on the network's class (see
following section). The table below shows the structure of an IP address.
Field1 Field2 Field3 Field4
Class A Network ID Host ID
Class B Network ID Host ID
Class C Network ID Host ID
Here are some examples of valid IP addresses:
Class A: 10.30.6.125 (network = 10, host = 30.6.125)
Class B: 129.88.16.49 (network = 129.88, host = 16.49)
Class C: 192.60.201.11 (network = 192.60.201, host = 11)
Network classes
The three commonly used network classes are A, B, and C. (There is also a class D but it has
a special use beyond the scope of this discussion.) These classes have different uses and
characteristics.
Class A networks are the Internet's largest networks, each with room for over 16 million
hosts. Up to 126 of these huge networks can exist, for a total of over 2 billion hosts. Because
of their huge size, these networks are used for WANs and by organizations at the
infrastructure level of the Internet, such as your ISP.
Class B networks are smaller but still quite large, each able to hold over 65,000 hosts. There
can be up to 16,384 class B networks in existence. A class B network might be appropriate
for a large organization such as a business or government agency.
X7968r / X7967r / X7927r / X7922r User’s Guide
76
Class C networks are the smallest, only able to hold 254 hosts at most, but the total possible
number of class C networks exceeds 2 million (2,097,152 to be exact). LANs connected to the
Internet are usually class C networks.
Some important notes regarding IP addresses:
The class can be determined easily from field1:
field1 = 1-126: Class A
field1 = 128-191: Class B
field1 = 192-223: Class C
(field1 values not shown are reserved for special uses)
A host ID can have any value except all fields set to 0 or all fields set to 255, as
those values are reserved for special uses.
Subnet masks
Definition
mask
A mask looks like a regular IP address, but contains a pattern of
bits that tells what parts of an IP address are the network ID and
what parts are the host ID: bits set to 1 mean "this bit is part of the
network ID" and bits set to 0 mean "this bit is part of the host ID."
Subnet masks are used to define subnets (what you get after dividing a network into smaller
pieces). A subnet's network ID is created by "borrowing" one or more bits from the host ID
portion of the address. The subnet mask identifies these host ID bits.
For example, consider a class C network 192.168.1. To split this into two subnets, you would
use the subnet mask:
255.255.255.128
It's easier to see what's happening if we write this in binary:
11111111. 11111111. 11111111.10000000
As with any class C address, all of the bits in field1 through field3 are part of the network ID,
but note how the mask specifies that the first bit in field4 is also included. Since this extra bit
has only two values (0 and 1), this means there are two subnets. Each subnet uses the
remaining 7 bits in field4 for its host IDs, which range from 1 to 126 hosts (instead of the
usual 0 to 255 for a class C address).
Similarly, to split a class C network into four subnets, the mask is:
255.255.255.192 or 11111111. 11111111. 11111111.11000000
The two extra bits in field4 can have four values (00, 01, 10, 11), so there are four subnets.
Each subnet uses the remaining six bits in field4 for its host IDs, ranging from 1 to 62.
Note
Sometimes a subnet mask does not specify any additional
network ID bits, and thus no subnets. Such a mask is called a
default subnet mask. These masks are:
Class A: 255.0.0.0
Class B: 255.255.0.0
Class C:255.255.255.0
These are called default because they are used when a network is
initially configured, at which time it has no subnets.
X7968r / X7967r / X7927r / X7922r User’s Guide
77
This appendix suggests solutions for problems you may encounter in installing or using the
device, and provides instructions for using several IP utilities to diagnose problems.
Contact Customer Support if these suggestions do not resolve the problem.
Troubleshooting Suggestions
Problem Troubleshooting Suggestion
LEDs
Power LED does not illuminate
after product is turned on.
Verify that you are using the power cable
provided with the device and that it is securely
connected to the device and a wall
socket/power strip.
Internet LED does not illuminate
after phone cable is attached.
Verify that a standard telephone cable (called
an RJ-11 cable) like the one provided is
securely connected to the DSL port and your
wall phone port. Allow about 30 seconds for the
device to negotiate a connection with your ISP.
LINK LAN LED does not
illuminate after Ethernet cable is
attached.
Verify that the Ethernet cable is securely
connected to your LAN hub or PC and to the
device. Make sure the PC and/or hub is turned
on.
Verify that your cable is sufficient for your
network requirements. A 100 Mbit/sec network
(10BaseTx) should use cables labeled CAT 5.
A 10Mbit/sec network may tolerate lower
quality cables.
Internet Access
My PC cannot access the Internet Run a health check on your device. Use the
ping utility (discussed in the following section)
to check whether your PC can communicate
with the device’s LAN IP address (by default
192.168.1.1). If it cannot, check the Ethernet
cabling.
If you statically assigned a private IP address to
the computer, (not a registered public address),
verify the following:
Check that the gateway IP address on the
computer is your public IP address (see
Current Status on page 1 for instructions
on viewing the IP information.) If it is not,
correct the address or configure the PC to
receive IP information automatically.
Verify with your ISP that the DNS server
specified for the PC is valid. Correct the
address or configure the PC to receive
this information automatically.
My LAN PCs cannot display
web pages on the Internet.
Verify that the DNS server IP address specified
on the PCs is correct for your ISP, as
discussed in the item above. If you specified
that the DNS server be assigned dynamically
from a server, then verify with your ISP that the
address configured on the device is correct,
and then you can use the ping utility, discussed
on page 79, to test connectivity with your ISP’s
DNS server.
Web pages
X7968r / X7967r / X7927r / X7922r User’s Guide
78
Problem Troubleshooting Suggestion
I forgot/lost my user ID or
password.
If you have not changed the password from the
default, try using “admin” as both the user ID
and password. Otherwise, you can reset the
device to the default configuration by pressing
three times the Reset Default button on the
front panel of the device. Then, type the default
User ID and password shown above.
WARNING: Resetting the device removes any
custom settings and returns all settings to their
default values.
I cannot access the web pages
from my browser.
Use the ping utility, discussed in the following
section, to check whether the PC can
communicate with the device’s LAN IP address
(by default 192.168.1.1). If it cannot, check the
Ethernet cabling.
Verify that you are using Internet Explorer or
Netscape Navigator v4.0 or later.
Verify that the PC’s IP address is defined as
being on the same subnet as the IP address
assigned to the LAN port on the device.
My changes to the web pages
are not being retained. Be sure to use the Confirm Changes function
after any changes.
X7968r / X7967r / X7927r / X7922r User’s Guide
79
Diagnosing Problem using IP Utilities
Ping
Ping is a command you can use to check whether your PC can recognize other computers
on your network and the Internet. A ping command sends a message to the computer you
specify. If the computer receives the message, it sends messages in reply. To use it, you
must know the IP address of the computer with which you are trying to communicate.
On Windows-based computers, you can execute a ping command from the Start menu. Click
the Start button, and then click Run. In the Open text box, type a statement such as the
following:
ping 192.168.1.1
Click OK. You can substitute any private IP address on your LAN or a public IP address for
an Internet site, if known.
If the target computer receives the message, a Command Prompt window is displayed:
If the target computer cannot be located, you will receive the message Request timed out.
Using the ping command, you can test whether the path to the device is working (using the
preconfigured default LAN IP address 192.168.1.1) or another address you assigned.
You can also test whether access to the Internet is working by typing an external address,
such as that for www.yahoo.com (216.115.108.243). If you do not know the IP address of a
particular Internet location, you can use the nslookup command, as explained in the
following section.
From most other IP-enabled operating systems, you can execute the same command at a
command prompt or through a system administration utility.
nslookup
You can use the nslookup command to determine the IP address associated with an Internet
site name. You specify the common name, and the nslookup command looks up the name in
on your DNS server (usually located with your ISP). If that name is not an entry in your ISP’s
DNS table, the request is then referred to another higher-level server, and so on, until the
entry is found. The server then returns the associated IP address.
On Windows-based computers, you can execute the nslookup command from the Start
menu. Click the Start button, and then click Run. In the Open text box, type the following:
Nslookup
Click OK. A Command Prompt window displays with a bracket prompt (>). At the prompt,
type the name of the Internet address that you are interested in, such as
www.microsoft.com.
The window will display the associate IP address, if known, as shown below:
X7968r / X7967r / X7927r / X7922r User’s Guide
80
There may be several addresses associated with an Internet name. This is common for web
sites that receive heavy traffic; they use multiple, redundant servers to carry the same
information.
To exit from the nslookup utility, type exit and press [Enter] at the command prompt.
X7968r / X7967r / X7927r / X7922r User’s Guide
81
The following table displays detailed information about the advanced DSL port attributes.
Note
You should only need to refer to these attributes if your ISP has
asked you to check something or if you are experienced in DSL
port configuration.
Attribute Value
Line Rate DSL down stream trained rate (cells/sec)
TxCellTransmitted Number of transmitted ATM cells
RxCellReceived Number of received ATM cells
Cbr_CPS Bit rate for CBR QoS Class
Rvbr SCR_CPS Sustained cell rate for rt-vbr
Vbr SCR_CPS Sustained cell rate for nrt-vbr
Rvbr PCR_CPS Peak cell rate for rt-vbr
Vbr PCR_CPS Peak cell rate for nrt-vbr
Ubr_CPS Cell rate for UBR+
Ubr MCR_CPS Minimum Cell rate for UBR+
CACMode Gives CAC Mode
CACFunction Call Admission control function
Port Speed Hook Function to accommodate the port speed
changes
Vpi Range Range of valid VPI
Vci Range Range of valid VCI
Default Pcr Default Peak Cell Rate
Traffic Shaping Gives weather traffic shaping is
enabled/disabled
Ni Type Network Interface Type
Is Dsl Dma Up Operational Status of DSL DMA block
Enabled Channels Number of enabled channels
DSP Firmware Version DSP code version number
DSP Version DSL driver version number
Connected Current connected state:
True – modem is connected to a remote modem
False – modem is not connected to a remote
modem
Operational Mode Current operating (connected) mode
(modulation)
X7968r / X7967r / X7927r / X7922r User’s Guide
82
Attribute Value
State Current state of the device:
Idle – not connected or attempting to connect
HandShake – connecting/hunting for remote
modem
Training – connecting/found a remote modem
Showtime – connected to remote modem
Watchdog Watchdog timer which confirms that the DSP is
executing a program correctly
Operation Progress Detailed startup information to be used for
debugging
Last Failed This value is reset to 0 each time a startup is
attempted. If there is a failure, it indicates the
reason for the failure.
Tx Bit Rate Transmit rate (bits per second) of the device
Rx Bit Rate Receive rate (bits per second) of the device
Tx Cell Rate Transmit rate (cells per second) of the device
Rx Cell Rate Receive rate (cells per second) of the device
Phy TXCell Count Transmit ATM cell counter
Phy RXCell Count Receive ATM cell counter
Phy Cell Drop Count UTOPIA cell drop counter
Overall Failure Indicates the cause of failure
Local ITUCountry Code Country code used by the device (modulation
specific)
Local SEF Number of severely errored frame defects
received by the device
Local End LOS Number of loss of signal defects received by the
device
Local SNRMargin The local Signal to Noise Ration margin
Local Line Attn The local attenuation values
Local Tx Power Current transmit power attenuation of the device
Local Fast Channel Rx
Rate
Receive rate (bits per second) of the device on
the fast path
Local Fast Channel Tx
Rate
Transmit rate (bits per second) of the device on
the fast path
Local Fast Channel FEC Instances of Forward Error Correction required
by the device on the fast channel
Local Fast Channel CRC Number of CRC errors received by the device
on the fast channel
Local Fast Channel HEC Number of ATM Cell Header errors corrected by
the device on the fast channel
Local Fast Channel NCD Number of no cell delineation received by the
device on the fast channel
Local Fast Channel
OCD
Number of out of cell delineation received by the
device on the fast channel
Local Interleaved
Channel Rx Rate
Receive rate (bits per second) of the device on
the interleaved path
Local Interleaved
Channel Tx Rate
Transmit rate (bits per second) of the device on
the interleaved path
X7968r / X7967r / X7927r / X7922r User’s Guide
83
Attribute Value
Local Interleaved
Channel FEC
Instances of Forward Error Correction required
by the device on the interleaved channel
Local Interleaved
Channel CRC
Number of CRC errors received by the device
on the interleaved channel
Local Interleaved
Channel HEC
Number of ATM Cell Header errors corrected by
the device on the interleaved channel
Local Interleaved
Channel NCD
Number of no cell delineation received by the
device on the interleaved channel
Local Interleaved
Channel OCD
Number of out of cell delineation received by the
device on the interleaved channel
Remote SEF Number of severely errored frame defects
received by the device
Remote LOS Number of loss of signal defects received by the
device
Remote Line Attn The remote attenuation values
Remote SNRMargin The remote Signal to Noise Ration margin
Remote Fast Channel
FEC
Instances of Forward Error Correction required
by the device on the fast channel
Remote Fast Channel
CRC
Number of CRC errors received by the device
on the fast channel
Remote Fast Channel
HEC
Number of ATM Cell Header errors corrected by
the device on the fast channel
Remote Fast Channel
NCD
Number of no cell delineation received by the
device on the fast channel
Remote Interleaved
Channel FEC
Instances of Forward Error Correction required
by the device on the interleaved channel
Remote Interleaved
Channel CRC
Number of CRC errors received by the device
on the interleaved channel
Remote Interleaved
Channel HEC
Number of ATM Cell Header errors corrected by
the device on the interleaved channel
Remote Interleaved
Channel NCD
Number of no cell delineation received by the
device on the interleaved channel
Activate Line Abort – deactivates the DSL link
None – signifies that this parameter has been
read
Start – activates the DSL link
Host Control Disable – terminates any host/API interaction
with the DSP (for testing purposes)
Enable – enables host/API interaction with the
DSP
Auto Start “True”- A Connection will be established at
power up.
“False”- The modem will remain in Idle mode
at power up.
Failsafe True – a failsafe timer is activated when a
startup request is made. Once a connection has
been established, the failsafe timer is disabled
False – a failsafe timer is not activated when a
startup request is made
X7968r / X7967r / X7927r / X7922r User’s Guide
84
Attribute Value
Whip Possible Values if compiled for Whip Serial:
Serial or Inactive
Possible Values if compiled for Whip TCP:
TCP or Inactive
Possible Values if compiled for Whip Serial/TCP:
Serial, TCP or Inactive
Whip Active Indicated state of whip. Possible values are
Inactive, SerialActive and TCPActive
Action An action given when ActivateLine is set to Start.
Possible values are Startup, SpectrumReverb,
SpectrumMedely or SpectrumPilot
Standard Indicates the preferred standard compliance.
Multimode indicates that the device
automatically detects the other end as one of the
supported standards.
Utopia Interface Level1 – Utopia Level 1 internal framing is used
with the DSP
Level2 – Utopia Level 2 internal framing is used
with the DSP
EC FDM Mode EC – enables Echo Cancellation. This setting is
necessary if your device is connected to a high
speed CO.
FDM – enables Frequency Division Multiplexing
Max Bits Per Bin The maximum number of bits per bin. This can
be any value between 1 and 15
Tx Start Bin A value that indicates the lowest bin number
allowed for transmit signal
Tx End Bin A value that indicates the highest bin number
allowed for transmit signal
Rx Start Bin A value that indicates the lowest bin number
allowed for receive signal
Rx End Bin A value that indicates the highest bin number
allowed for receive signal
Rx Auto Bin Adjust Disable – the bin settings configured as the
RxStartBin/RxEndBin parameters are used
Enable – DSP automatically adjusts the bin
selection for receive signal
Tx Attenuation A value between 0dB and 12dB that indicates
the transmit power attenuation
Bit Swap Disable – disables the adjustment of the
number of bits assigned to a subcarrier without
interrupting data flow
Enable – enables the adjustment off the number
of bits assigned to a subcarrier without
interrupting data flow
Max Down Rate A value that sets the maximum downstream rate
for those applications where it is necessary to
limit the downstream data rate
Physical Port A value between 0 and 14 that sets the Utopia
Level 2 Utopia address
Retrain Disable – disables full retrain capability
Enable – enables full retrain capability
X7968r / X7967r / X7927r / X7922r User’s Guide
85
Attribute Value
Detect Noise Enables/disables noise detection (only valid for
Annex AHS)
Capability This parameter controls whether the CPE will
attempt to startup using alternate standards if
the CO does not support G.Span (High Speed
(HS)).
The CPE has the ability to connect in either
ADSL Annex A or G.Span. This is provided by
the ADSL/Annex A /G.Span Auto Detect feature.
The standard used depends on the capability of
the CO.
Using Auto Detect, startup at the CPE is first
attempted in Annex A. The CO is the master and
the CPE is the slave. If the result of handshake
with the CO is G.Span (HS), then the CPE will
switch to G.Span. If the CO does not support
G.Span, then the resultant connection will be
ADSL Annex A.
This parameter must be set to AHS to configure
the modem for A & HS ‘two-speed’ Auto Detect.
For Auto Detect, all other parameters should be
set to the Annex A profile. If UTOPIA Level 2
framing is set (using the UtopiaInterface
parameter), ensure that the UTOPIA address is
set (using the PhysicalPort parameter) as there
is no default value. If the result of handshake
with the CO is G.Span (HS), then the CPE will
switch to G.Span and the appropriate CPE
parameters will be automatically re-configured
by the DSP for G.Span operation.
A: Annex A capable
AHS: Annex A or High Speed capable
Disable: the device does not send any standards
capability information to the CO.
Coding Gain The gain due to trellis/RS coding. Its value
ranges from 0-7 dB. Auto automatically selects
the coding gain.
Framer Type Value can be set to Type 0 – 3 or Type3ET. To
enable DataBoost set FramerType to Type3ET
Dying Gasp Enables/disables dying gasp.
Defaults Sets the recommended default parameters for a
given Standard.
Reset Defaults Reset device to use default port configuration
X7968r / X7967r / X7927r / X7922r User’s Guide
86
Term Description
802.11 A family of specifications for wireless
LANs developed by a working group of the
IEEE. This inan Ethernet protocol, often called
Wi-Fi.
10BASE-T A designation for the type of wiring used by
Ethernet networks with a data rate of 10 Mbps.
Also known as Category 3 (CAT 3) wiring. See
data rate, Ethernet.
100BASE-T A designation for the type of wiring used by
Ethernet networks with a data rate of 100 Mbps.
Also known as Category 5 (CAT 5) wiring. See
data rate, Ethernet.
ADSL Asymmetric Digital Subscriber Line
The most commonly deployed "flavor" of DSL for
home users is asymmetrical DSL. The term
asymmetrical refers to its unequal data rates for
downloading and uploading (the download rate is
higher than the upload rate). The asymmetrical
rates benefit home users because they typically
download much more data from the Internet than
they upload.
Analog An analog signal is a signal that has had its
frequency modified in some way, such as by
amplifying its strength or varying its frequency, in
order to add information to the signal. The voice
component in DSL is an analog signal. See digital.
ATM Asynchronous Transfer Mode
A standard for high-speed transmission of data,
text, voice, and video, widely used within the
Internet. ATM data rates range from 45 Mbps to
2.5 Gbps. See data rate.
Authenticate To verify a user’s identity, such as by prompting for
a password.
Binary The "base two" system of numbers that uses only
two digits, 0 and 1, to represent all numbers. In
binary, the number 1 is written as 1, 2 as 10, 3 as
11, 4 as 100, etc. Although expressed as decimal
numbers for convenience, IP addresses in actual
use are binary numbers; e.g., the IP address
209.191.4.240 is
11010001.10111111.00000100.11110000 in binary.
See bit, IP address, network mask.
Bit Short for "binary digit," a bit is a number that can
have two values, 0 or 1. See binary.
X7968r / X7967r / X7927r / X7922r User’s Guide
87
Bps bits per second
Bridging Passing data from your network to your ISP and
vice versa using the hardware addresses of the
devices at each location. Bridging contrasts with
routing which can add more intelligence to data
transfers by using network addresses instead. The
device can perform both routing and bridging.
Typically, when both functions are enabled, the
device routes IP data and bridges all other types of
data. See routing.
Broadband A telecommunications technology that can send
different types of data over the same medium. DSL
is a broadband technology.
Broadcast To send data to all computers on a network.
DHCP Dynamic Host Configuration Protocol
DHCP automates address assignment and
management. When a computer connects to the
LAN, DHCP assigns it an IP address from a
shared pool of IP addresses; after a specified time
limit, DHCP returns the address to the pool.
DHCP relay Dynamic Host Configuration Protocol relay
A DHCP relay is a computer that forwards DHCP
data between computers that request IP
addresses and the DHCP server that assigns the
addresses. Each of the device's interfaces can be
configured as a DHCP relay. See DHCP.
DHCP server Dynamic Host Configuration Protocol server
A DHCP server is a computer that is responsible
for assigning IP addresses to the computers on a
LAN. See DHCP.
Digital Of data, having a form based on discrete values
expressed as binary numbers (0's and 1's). The
data component in DSL is a digital signal. See
analog.
DNS Domain Name System
The DNS maps domain names into IP addresses.
DNS information is distributed hierarchically
throughout the Internet among computers called
DNS servers. For example, www.yahoo.com is the
domain name associated with IP address
216.115.108.243. When you start to access a web
site, a DNS server looks up the requested domain
name to find its corresponding IP address. If the
DNS server cannot find the IP address, it
communicates with higher-level DNS servers to
determine the IP address. See domain name.
Domain name A domain name is a user-friendly name used in
place of its associated IP address. Domain names
must be unique; their assignment is controlled by
the Internet Corporation for Assigned Names and
Numbers (ICANN). Domain names are a key
element of URLs, which identify a specific file at a
X7968r / X7967r / X7927r / X7922r User’s Guide
88
web site. See DNS.
Download To transfer data in the downstream direction, i.e.,
from the Internet to the user.
DSL Digital Subscriber Line
A technology that allows both digital data and
analog voice signals to travel over existing copper
telephone lines.
Encryption keys See network keys
Ethernet The most commonly installed computer network
technology, usually using twisted pair wiring.
Ethernet data rates are 10 Mbps and 100 Mbps.
See also 10BASE-T, 100BASE-T, twisted pair.
FTP File Transfer Protocol
A program used to transfer files between
computers connected to the Internet. Common
uses include uploading new or updated files to a
web server, and downloading files from a web
server.
Gbps Abbreviation of Gigabits per second, or one billion
bits per second. Internet data rates are often
expressed in Gbps.
Host A device (usually a computer) connected to a
network.
HTTP Hyper-Text Transfer Protocol
HTTP is the main protocol used to transfer data
from web sites so that it can be displayed by web
browsers. See web browser, web site.
Hub A hub is a place of convergence where data
arrives from one or more directions and is
forwarded out in one or more directions. It
connects an Ethernet bridge/router to a group of
PCs on a LAN and allows communication to pass
between the networked devices.
ICMP Internet Control Message Protocol
An Internet protocol used to report errors and
other network-related information. The ping
command makes use of ICMP.
IEEE The Institute of Electrical and Electronics
Engineers is a technical professional society that
fosters the development of standards that often
become national and international standards.
Internet The global collection of interconnected networks
used for both private and business
communications.
X7968r / X7967r / X7927r / X7922r User’s Guide
89
Intranet A private, company-internal network that looks like
part of the Internet (users access information using
web browsers), but is accessible only by
employees.
IP See TCP/IP.
IP address Internet Protocol address
The address of a host (computer) on the Internet,
consisting of four numbers, each from 0 to 255,
separated by periods, e.g., 209.191.4.240. An IP
address consists of a network ID that identifies the
particular network the host belongs to, and a host
ID uniquely identifying the host itself on that
network. A network mask is used to define the
network ID and the host ID. Because IP addresses
are difficult to remember, they usually have an
associated domain name that can be specified
instead. See domain name, network mask.
ISP Internet Service Provider
A company that provides Internet access to its
customers, usually for a fee.
LAN Local Area Network.
A network limited to a small geographic area, such
as a home or small office.
LED Light Emitting Diode
An electronic light-emitting device. The indicator
lights on the front of the device are LEDs.
MAC address Media Access Control address
The permanent hardware address of a device,
assigned by its manufacturer. MAC addresses are
expressed as six pairs of hex characters, with
each pair separated by colons. For example;
NN:NN:NN:NN:NN:NN.
Mask See network mask.
Mbps Abbreviation for Megabits per second, or one
million bits per second. Network data rates are
often expressed in Mbps.
NAT Network Address Translation
A service performed by many routers that
translates your network’s publicly known IP
address into a private IP address for each
computer on your LAN. Only your router and your
LAN know these addresses; the outside world
sees only the public IP address when talking to a
computer on your LAN.
Network A group of computers that are connected together,
allowing them to communicate with each other and
share resources, such as software, files, etc. A
network can be small, such as a LAN, or very
large, such as the Internet.
X7968r / X7967r / X7927r / X7922r User’s Guide
90
Network keys (Also known as encryption keys.) 64-bit and
128-bit encryption keys used in WEP wireless
security schemes. The keys encrypt data over the
WLAN, and only wireless PCs configured with
WEP keys that correspond to the keys configured
on the device can send/receive encrypted data.
Network mask A network mask is a sequence of bits applied to an
IP address to select the network ID while ignoring
the host ID. Bits set to 1 mean "select this bit"
while bits set to 0 mean "ignore this bit." For
example, if the network mask 255.255.255.0 is
applied to the IP address 100.10.50.1, the network
ID is 100.10.50, and the host ID is 1. See binary,
IP address, subnet.
NIC Network Interface Card
An adapter card that plugs into your computer and
provides the physical interface to your network
cabling. For Ethernet NICs this is typically an
RJ-45 connector. See Ethernet, RJ-45.
Packet Data transmitted on a network consists of units
called packets. Each packet contains a payload
(the data), plus overhead information such as
where it came from (source address) and where it
should go (destination address).
Ping Packet Internet (or Inter-Network) Groper
A program used to verify whether the host
associated with an IP address is online. It can also
be used to reveal the IP address for a given
domain name.
Port A physical access point to a device such as a
computer or router, through which data flows into
and out of the device.
PPP Point-to-Point Protocol
A protocol for serial data transmission that is used
to carry IP (and other protocol) data between your
ISP and your computer. The WAN interface on the
device uses two forms of PPP called PPPoA and
PPPoE. See PPPoA, PPPoE.
PPPoA Point-to-Point Protocol over ATM
One of the two types of PPP interfaces you can
define for a Virtual Circuit (VC), the other type
being PPPoE. You can define only one PPPoA
interface per VC.
PPPoE Point-to-Point Protocol over Ethernet
One of the two types of PPP interfaces you can
define for a Virtual Circuit (VC), the other type
being PPPoA. You can define one or more PPPoE
interfaces per VC.
Protocol A set of rules governing the transmission of data.
In order for a data transmission to work, both ends
of the connection have to follow the rules of the
protocol.
Remote In a physically separate location. For example, an
employee away on travel who logs in to the
company’s intranet is a remote user.
X7968r / X7967r / X7927r / X7922r User’s Guide
91
RIP Routing Information Protocol
The original TCP/IP routing protocol. There are
two versions of RIP: version I and version II.
RJ-11 Registered Jack Standard-11
The standard plug used to connect telephones, fax
machines, modems, etc. to a telephone port. It is a
6-pin connector usually containing four wires.
RJ-45 Registered Jack Standard-45
The 8-pin plug used in transmitting data over
phone lines. Ethernet cabling usually uses this
type of connector.
Routing Forwarding data between your network and the
Internet on the most efficient route, based on the
data’s destination IP address and current network
conditions. A device that performs routing is called
a router.
SDNS Secondary Domain Name System (server)
A DNS server that can be used if the primary DSN
server is not available. See DNS.
Subnet A subnet is a portion of a network. The subnet is
distinguished from the larger network by a subnet
mask that selects some of the computers of the
network and excludes all others. The subnet's
computers remain physically connected to the rest
of the parent network, but they are treated as
though they were on a separate network. See
network mask.
Subnet mask A mask that defines a subnet. See network mask.
TCP See TCP/IP.
TCP/IP Transmission Control Protocol/Internet Protocol
The basic protocols used on the Internet. TCP is
responsible for dividing data up into packets for
delivery and reassembling them at the destination,
while IP is responsible for delivering the packets
from source to destination. When TCP and IP are
bundled with higher-level applications such as
HTTP, FTP, Telnet, etc., TCP/IP refers to this
whole suite of protocols.
Telnet An interactive, character-based program used to
access a remote computer. While HTTP (the web
protocol) and FTP only allow you to download files
from a remote computer, Telnet allows you to log
into and use a computer from a remote location.
TFTP Trivial File Transfer Protocol
A protocol for file transfers, TFTP is easier to use
than File Transfer Protocol (FTP) but not as
capable or secure.
TKIP Temporal Key Integrity Protocol (TKIP) provides
WPA with a data encryption function. It ensures
that a unique master key is generated for each
packet, supports message integrity and
X7968r / X7967r / X7927r / X7922r User’s Guide
92
sequencing rules and supports re-keying
mechanisms.
Triggers Triggers are used to deal with application
protocols that create separate sessions. Some
applications, such as NetMeeting, open secondary
connections during normal operations, for
example, a connection to a server is established
using one port, but data transfers are performed
on a separate connection. A trigger tells the device
to expect these secondary sessions and how to
handle them.
Once you set a trigger, the embedded IP address
of each incoming packet is replaced by the correct
host address so that NAT can translate packets to
the correct destination. You can specify whether
you want to carry out address replacement, and if
so, whether to replace addresses on TCP packets
only, UDP packets only, or both.
Twisted pair The ordinary copper telephone wiring used by
telephone companies. It contains one or more wire
pairs twisted together to reduce inductance and
noise. Each telephone line uses one pair. In
homes, it is most often installed with two pairs. For
Ethernet LANs, a higher grade called Category 3
(CAT 3) is used for 10BASE-T networks, and an
even higher grade called Category 5 (CAT 5) is
used for 100BASE-T networks. See 10BASE-T,
100BASE-T, Ethernet.
Unnumbered
interfaces
An unnumbered interface is an IP interface that
does not have a local subnet associated with it.
Instead, it uses a router-id that serves as the
source and destination address of packets sent to
and from the router. Unlike the IP address of a
normal interface, the router-id of an unnumbered
interface is allowed to be the same as the IP
address of another interface. For example, the
WAN unnumbered interface of your device uses
the same IP address of the LAN interface
(192.168.1.1).
The unnumbered interface is temporary – PPP or
DHCP will assign a ‘real’ IP address automatically.
Upstream The direction of data transmission from the user to
the Internet.
VC Virtual Circuit
A connection from your DSL router to your ISP.
VCI Virtual Circuit Identifier
Together with the Virtual Path Identifier (VPI), the
VCI uniquely identifies a VC. Your ISP will tell you
the VCI for each VC they provide. See VC.
VPI Virtual Path Identifier
Together with the Virtual Circuit Identifier (VCI), the
VPI uniquely identifies a VC. Your ISP will tell you
the VPI for each VC they provide. See VC.
X7968r / X7967r / X7927r / X7922r User’s Guide
93
WAN Wide Area Network
Any network spread over a large geographical
area, such as a country or continent. With respect
to the device, WAN refers to the Internet.
Web browser A software program that uses Hyper-Text Transfer
Protocol (HTTP) to download information from
(and upload to) web sites, and displays the
information, which may consist of text, graphic
images, audio, or video, to the user. Web browsers
use Hyper-Text Transfer Protocol (HTTP). Popular
web browsers include Netscape Navigator and
Microsoft Internet Explorer. See HTTP, web site,
WWW.
Web page A web site file typically containing text, graphics
and hyperlinks (cross-references) to the other
pages on that web site, as well as to pages on
other web sites. When a user accesses a web site,
the first page that is displayed is called the home
page. See hyperlink, web site.
Web site A computer on the Internet that distributes
information to (and gets information from) remote
users through web browsers. A web site typically
consists of web pages that contain text, graphics,
and hyperlinks. See hyperlink, web page.
WEP Wired Equivalent Privacy (WEP) encrypts data
over WLANs. Data is encrypted into blocks of
either 64 bits length or 128 bits length. The
encrypted data can only be sent and received by
users with access to a private network key. Each
PC on your wireless network must be manually
configured with the same key as your device in
order to allow wireless encrypted data
transmissions. Eavesdroppers cannot access your
network if they do not know your private key. WEP
is considered to be a low security option.
Wireless Wireless is a term used to describe
telecommunications in which electromagnetic
waves (rather than some form of wire) carry the
signal over part or the entire communication path.
See wireless LAN.
Wireless LAN A wireless LAN (WLAN) is one in which a mobile
user can connect to a local area network (LAN)
through a wireless (radio) connection. A standard,
IEEE 802.11, specifies the technologies for
wireless LANs.
WPA Wi-Fi Protected Access
WPA is an initiative by the IEEE and Wi-Fi Alliance
to address the security limitations of WEP. WPA
provides a stronger data encryption method
(called Temporal Key Integrity Protocol (TKIP)). It
runs in a special, easy-to-set-up home mode
called Pre-Shared Key (PSK) that allows you to
manually enter a pass phrase on all the devices in
your wireless network. WPA data encryption is
based on a WPA master key. The master key is
derived from the pass phrase and the network
name (SSID) of the device.
X7968r / X7967r / X7927r / X7922r User’s Guide
94
It provides improved data encryption and stronger
user authentication. The mode of WPA supported
on your device is called Pre-Shared Key (PSK),
which allows you to manually enter a type of key
called a pass phrase.
WWW World Wide Web
Also called (the) Web. Collective term for all web
sites anywhere in the world that can be accessed
via the Internet.
X7968r / X7967r / X7927r / X7922r User’s Guide
95
A1. Hardware Specifications
LAN Interface
•Four port 10/100BaseT Ethernet switch HUB, IEEE 802.3u with MDI/MDIX
auto-detection
•Connector – RJ-45
•Integrated 802.11b/g WLAN Access Point (for X7968r and X7967r only)
•Integrated USB port (for X7967r and X7927r only)
WAN ADSL Line Interface
•Compliant with ADSL ITU G.992.1, G.992.2, G.992.3, G992.4, G.994.5 and
ANSI T1. 413 Issue 2
•Line Impedance: 100 Ω
•Connection Loops: One (pair wire)
•Connector: RJ-11
Indicators
•LAN –Green LED indicates LAN data transmitting / receiving
•Wireless –Green LED indicates wireless AP enabled
•PWR –Green LED indicates power and operation
•DSL – Green LED indicates ADSL connection
•ALM –Red LED indicates system failure
OAM&P
•Local: Telnet or Web management via Ethernet
•Remote: Telnet or Web Management
Environment
•Operation Temperature: 0°C ~ 45°C
•Operation Humidity: 5% ~ 95%
•Storage Temperature: -20 ~ +85°C
•Storage Humidity: 5%~95%
Power
•AC Adapter: Input 110/220VAC, 50/60Hz; Output 12VDC 1.25A
Certificates
•CE, CB
X7968r / X7967r / X7927r / X7922r User’s Guide
96
A2. Software Specifications
ATM
ATM Cells over ADSL, AAL5
Bridge mode: Supports 8 PVCs
Router mode: Supports 5 PVCs
Supports UBR, CBR, VBR-nrt, and VBR-rt traffic classes
ATM Forum UNI 3.0, UNI 3.1, UNI 4.0
ILMI 4.0
Payload encapsulations:
RFC2684 (RFC1483), multi-protocol encapsulation
RFC2225 (RFC1577), Calssical IP and ARP over ATM
RFC2364, PPP over ATM
Bridging
Transparent Bridging and spanning(IEEE 802.1D)
RFC2684 (RFC 1483) Bridged
Supports 802.1p/q prioritized tagged VLAN
IP and PPPoE packet filtering
ZIPB (Zero installation PPP Bridge)
Port to PVC binding
Routing
IP routing: RIP1 and RIP2, and static routing
PPPoE and IP over ATM, PPP over ATM
PAP and CHAP for user authentication in PPP connection
RFC2684 (RFC1483) Routed
NAT/PAT with extensive ALG support
DNS relay
IP multicasting, IGMP v1/v2 and IGMP proxy
Multihoming, IP aliasing and unnumbered IP interfaces
Virtual interface and secondary IP addresses
Supports IP QoS per RFC2472/2475 Routing
Wireless LAN
WEP: 64 or 128 bits key length
WPA (Wi-Fi Protected Access) and WPA2 in PSK mode or using the EAP with
Radius
WME/WMM to support media service
Access control list based on MAC address
Virtual AP supports multiple BSSID
Configuration and Network Management Features
TR-037 compliant auto-configuration using ILMI
SNMP V1, V2, and V3 agent – over IP, EOC and IMLI VCC
SNMP MIB II, DSL MIB, AToM MIB and WLAN MIB
DHCP client, server and reply for IP management
UPnP Internet Gateway Device (IGD v1)
System Log capability
WEB, SNMP and Telnet for local or remote management
TFTP or HTTP for firmware upgrade and configuration
TR-069 for local and remote configuration and management
Note: The hardware and software s
p
ecifications are sub
j
ected to chan
g
e without notices.
X7968r / X7967r / X7927r / X7922r User’s Guide
97
B1. Product Warranty
XAVi Technologies warrants that the ADSL unit will be free from defects in material and
workmanship for a period of twelve (12) months from the date of shipment.
XAVi Technologies shall incur no liability under this warranty if
The allegedly defective goods are not returned prepaid to XAVi Technologies within
thirty (30) days of the discovery of the alleged defect and in accordance with XAVi
Technologies’ repair procedures; or
XAVi Technologies’tests disclose that the alleged defect is not due to defects in
material or workmanship.
XAVi Technologies’ liability shall be limited to either repair or replacement of the defective
goods, at XAVi Technologies’ option.
XAVi Technologies MARKS NO EXPRESS OR IMPLIED WARRANTIES REGARDING
THE QUALITY, MERCHANTABILITY, OR FITNESS FOR A PARTICULAR PURPOSE
BEYOND THOSE THAT APPEAR IN THE APPLICABLE USER’S DOCUMETATION.
XAVi SHALL NOT BE RESPONSIBLE FOR CONSEQUENTIAL, INCIDENTAL, OR
PUNITIVE DAMAGE, INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS OR
DAMAGES TO BUSINESS OR BUSINESS RELATIONS. THIS WARRANTY IS IN LIEU
OF ALL OTHER WARRANTIES.
X7968r / X7967r / X7927r / X7922r User’s Guide
98
B2. Warranty Repair
1. During the first three (3) months of ownership, XAVi Technologies will repair or
replace a defective product covered under warranty within twenty-four (24) hours of
receipt of the product. During the fourth (4th) through twelfth (12th) months of
ownership, XAVi Technologies will repair or replace a defective product covered
under warranty within ten (10) days of receipt of the product. The warranty period for
the replaced products shall be ninety (90) days or the remainder of the warranty
period of the original unit, whichever is greater. XAVi Technologies will ship surface
freight. Expedited freight is at customer’s expense.
2. The customer must return the defective product to XAVi Technologies within fourteen
(14) days after the request for replacement. If the defective product is not returned
within this time period, XAVi Technologies will bill the customer for the product at list
price.
B3. Out-of-Warranty Repair
XAVi Technologies will either repair or, at its option, replace a defective product not
covered under warranty within ten (10) working days of its receipt. Repair charges are
available from the Repair Facility upon request. The warranty on a serviced product is
thirty (30) days measured from date of service. Out-of-warranty repair charges are
based upon the prices in effect at the time of return.
X7968r / X7967r / X7927r / X7922r User’s Guide
99
FCC Part 15 Notice
Warning: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 to the FCC rules. These limits are designed
to provide reasonable protection against harmful interference when the equipment is
operated in a residential environment. This equipment generates, used, and can
radiate radio frequency energy, and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is unlikely to cause harmful
interference. But if it does, the user will be required to correct the interference at his or
her own expense. The authority to operate this equipment is conditioned by the
requirement that no modifications will be made to the equipment unless XAVi
expressly approves the changes or modifications.
FCC Part 15 Notice with Wireless
NOTE: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/ TV technician for help.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user‘s authority to operate the equipment.
The antenna(s) used for this transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
Warning: Operation is subject to the following two conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received including interference that may cause
undesired o
p
eration.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
X7968r / X7967r / X7927r / X7922r User’s Guide
100
FCC Part 68 Notice
This equipment complies with Part 68 of FCC Rules. On the base unit of this
equipment is a label that contains, among other information, the FCC Registration
Number and Ringer Equivalence Number (REN) for this equipment. IF REQUESTED,
THIS INFORMATION MUST BE GIVEN TO THE TELEPHONE COMPANY.
The REN is useful to determine the quantity of devices you may connect to your
telephone line and still have all of those devices ring when your telephone number is
called. In most, but not all areas, the sum of the REN of all devices connected to one
line should not exceed five (5.0). To be certain of the number of devices you may
connect to you line, as determined by the REN, you should contact your local
telephone company to determine the maximum REN for your calling area.
If your equipment causes harm to the telephone network, the telephone company may
discontinue your service temporarily. If possible, they will notify you in advance. But if
advance notice is not practical, you will be notified as soon as possible. You will be
informed of your right to file a complaint with the FCC. Your telephone company may
make changes in it is facilities, equipment, operations or procedures that could affect
the proper functioning of your equipment. If they do, you will be notified in advance to
give you an opportunity to maintain uninterrupted telephone service.
If you experience trouble with this telephone equipment, Please contact the following
address and phone number for information on obtaining service or repairs.
The telephone company may ask that you disconnect this equipment from the
network until the problem has been corrected or until you are sure that the equipment
is not malfunctioning.
This equipment may not be used on coin service provided by the telephone company.
Connection to party lines is subject to state tariffs.
NOTICE: The Telephone Consumer Protection Act of 1991 makes it unlawful for any
person to use a computer or an electronic device to send any message via a
telephone fax machine, unless such a message clearly contains in a margin at the top
or bottom of each transmitted page or on the first page of the transmission the
following information:
The date and time of transmission
Identification of either business, business entity or individual sending message
Telephone number of either the sending machine, business entity or individual
Warning: Users should not attempt to make such connections themselves, but should
contact appropriate electric inspection authority, or electrician, as appropriate.
Do not use any other power adapter except the one that accompanies the unit. Use of other
adapter could result in damage to the unit. To prevent electronic shock, please do not open
the cover.
X7968r / X7967r / X7927r / X7922r User’s Guide
101
UL Safety Regulations
Disconnect TNV circuit connector or before removing cover or equivalent.
Disconnect TNV circuit connector(s) before disconnecting power.
Do not use this product near water for example, near a bathtub, washbowl, and
kitchen sink or laundry tub, in a wet basement, or near a swimming pool.
Avoid using a telephone (other than a cordless type) during an electrical storm.
There may be a remote risk of electric shock from lightening.
Do not use the telephone to report a gas leak in the vicinity of the leak.
Use only the power cord batteries indicated in this manual. Do not dispose of
batteries in a fire, as they may explode. Check with local codes for possible
special disposal instructions.
No. 26 AWG Telephone Line Cord shall either be provided with the equipment or shall
be described in the safety instruction. If fuse (F1) is not present, see the caution
statement listed below:
CAUTION: To reduce the risk of fire, use only No. 26 AWG or larger UL Listed or CSA
Certified Telecommunication Line Cord.
X7968r / X7967r / X7927r / X7922r User’s Guide
102
