XAVi Technologies XW604B10 IEEE802.11b/g/n 1T1R USB Module User Manual DS XW604B10 WLAN 11262009
XAVi Technologies Corp. IEEE802.11b/g/n 1T1R USB Module DS XW604B10 WLAN 11262009
manual
XW604B10 IEEE802.11b/g/n 1T1R USB Module Page 1 of 9
Product Specification
XW604B10
IEEE802.11b/g/n 1T1R USB Module
Version: 1.0
Date: Nov, 26, 2009
XW604B10 IEEE802.11b/g/n 1T1R USB Module Page 2 of 9
Release History
DATE REVDescription of Change
2009/11/26 1.0Initial release
XW604B10 IEEE802.11b/g/n 1T1R USB Module Page 3 of 9
XW604B10
IEEE802.11b/g/n 1T1R USB Module
1Introduction
XB604B10 is an integrated the Ralink RT3070 single-chip 2.4GHz IEEE802.11b/g/n 1T1R
MAC/Baseband/Radio with USB2.0 interface. XW604B10 fully complies with IEEE802.11n
and IEEE802.11b/g feature rich wireless connectivity at high standards, delivers reliable,
cost-effective, throughput from an extended distance.
2Features
Interoperable with IEEE802.11b/g/n WLAN.
Reverse direction grant data flow and frame aggregation.
Support 65 Mbps for 20MHz and 150Mbps for 40MHz channel operations.
Wireless multimedia enhancements quality of service support (QoS).
Legacy and high throughput modes.
Multiple BSSID support.
WEP 64/128, WPA, WPA2, TKIP, and AES hardware encryption.
USB 2.0 compliant.
Cisco CCX support.
Low power with advanced power management.
Support for Bluetooth coexistence.
Operating systems – Windows XP 32/64, 2000, Vista 32/64, Linux, Macintosh.

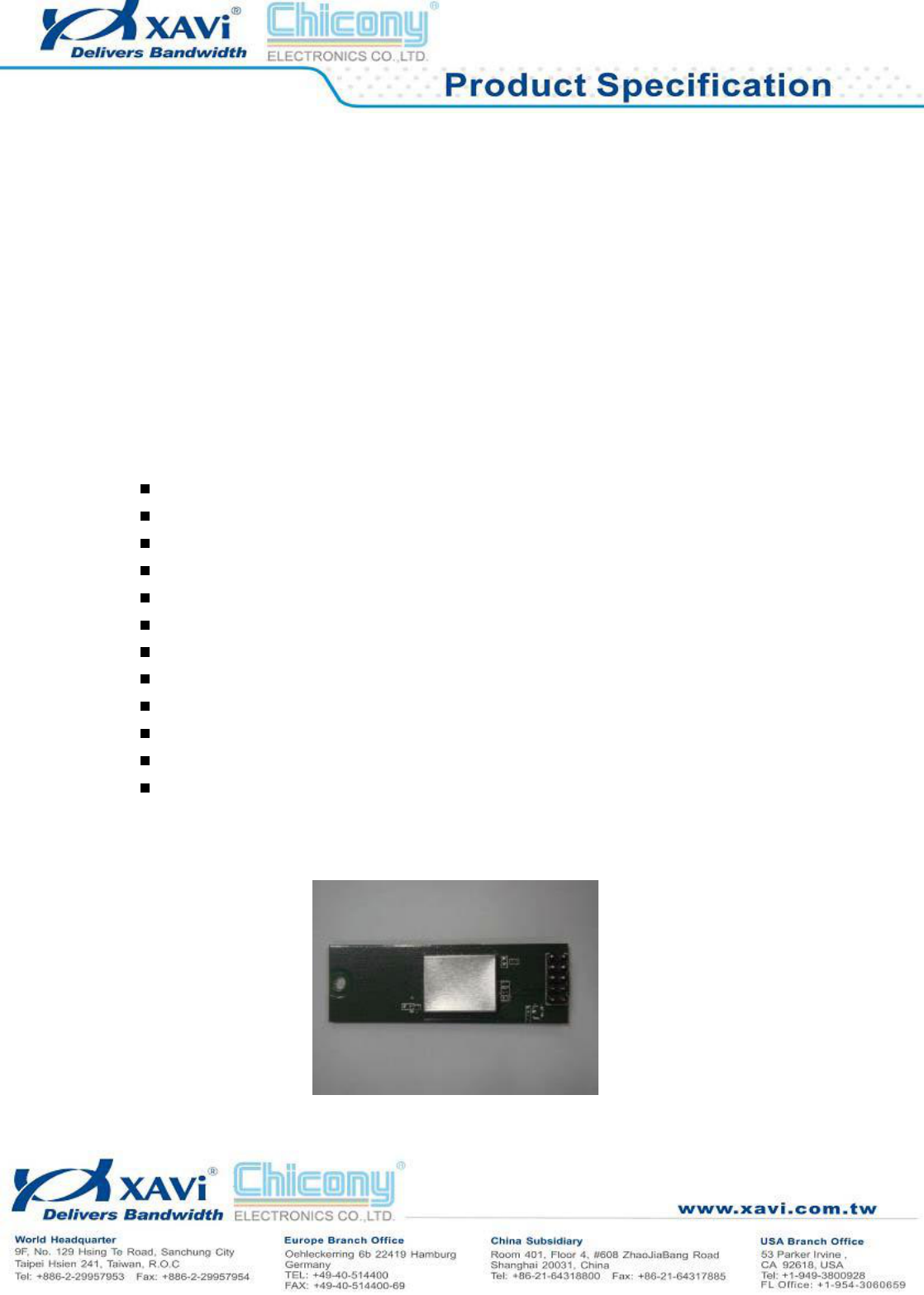

3Module Photo
XW604B10 IEEE802.11b/g/n 1T1R USB Module Page 4 of 9

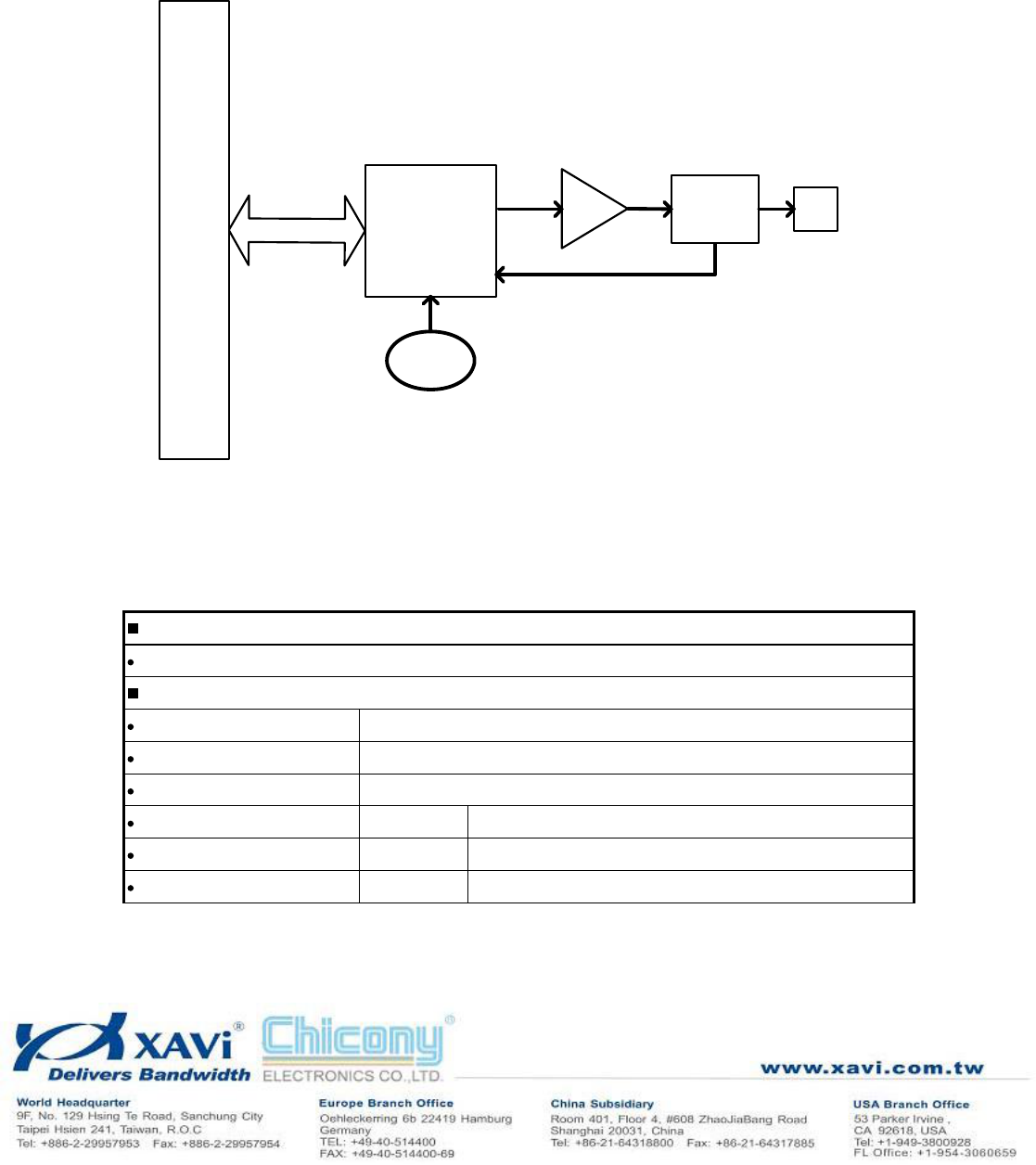

4Block Diagram
40MHz
Ralink
RT3070
PA SPDT
USB/+5.0V
Antenna
Connector
10 pin
Header
SST12LP07A
5General Specifications
Module Name
XW604B10, Wi-Fi Module
Product Specification
WLAN Standard IEEE 802.11b/g/n, 1T1R
Host interface USB2.0 compatible
Major Chipset Ralink RT3070
PID 7030Product ID. Ralink defined
VID 8F14Vendor ID. Ralink defined
RID 0101Revision ID. Ralink defined
XW604B10 IEEE802.11b/g/n 1T1R USB Module Page 5 of 9
Dimensions
MinimumTypicalMaximumUnit
Length65mm
Width20mm
Height TBDmm
Weight TBDg
Antenna Connector Single antenna
Operating Condition
MinimumTypicalMaximumUnit
Voltage DC3.153.33.45V
Temperature -1070 °C
Storage temperature -2070 °C
Humidity Non-Operating 580%
Electrical Specification
Frequency Range 2400 – 2472MHz
Modulation BPSK, QPSK, 16QAM, 64QAM, DBPSK, DQPSK, and CCK
Output power
MinimumTypicalMaximumUnit
802.11b Mode 11MHz15.51718dBm
802.11g Mode 54MHz12.51415dBm
802.11n Mode HT20-MCS711.51314dBm
802.11n Mode HT40-MCS711.51314dBm
Receiver Sensitivity
MinimumTypicalMaximumUnit
802.11b Mode 11Mbps -83 dBm
802.11g Mode 54Mbps -65 dBm
802.11n Mode HT20 MCS7 -64 dBm
802.11n Mode HT40 MCS7 -61 dBm
Data Rate
MinimumTypicalMaximumUnit
802.11b CCK Mode 11, 5.5, 2, 1 Mbps
802.11g OFDM Mode 54, 48, 36, 24, 18, 12, 9, 6 Mbps
802.11n HT20 Mode 800ns GI 65, 58.5, 52, 39, 26, 19.5, 13, 6.5 Mbps
802.11n HT20 Mode 400ns GI 72.2, 65, 57.8, 43.3, 28.9, 21.7, 14.4, 7.2 Mbps
XW604B10 IEEE802.11b/g/n 1T1R USB Module Page 6 of 9
802.11n HT40 Mode 800ns GI 135, 121.5, 108, 81, 54, 40.5, 27, 13.5 Mbps
802.11n HT40 Mode 400ns GI 150, 135, 120, 90, 60, 45, 30, 15 Mbps
Operation Range
Open Space TBD
Indoor TBD
Security
WEP, TKIP, and AES hardware encryption
Operating System Compatibility
Windows XP 32/64
Windows Vista 32/64
Windows 7 32/64
6Absolute Maximum Rating
Maximum I/O supply voltage +3.6 V
Maximum RF input level (reference to 50Ohm)+10dBm
XW604B10 IEEE802.11b/g/n 1T1R USB Module Page 7 of 9
7Power Consumption
Current (3.3V)
Item Description (mA)
Continue TX B mode 1Mbps 232
Continue TX B mode 11Mbps 233
Continue TX G mode 6Mbps 239
Continue TX G mode 54Mbps 209
Continue TX N mode HT20 MCS0 240
Continue TX N mode HT20 MCS7 208
Continue TX N modeHT40 MCS0 248
Continue TX N modeHT40 MCS7 220
Continue RX B mode 1Mbps 138
Continue RX B mode 11Mbps 138
Continue RX G mode 6Mbps 138
Continue RX G mode 54Mbps 138
Continue RX N mode HT20 MCS0 138
Continue RX N mode HT20 MCS7 138
Continue RX N modeHT40 MCS0 161
Continue RX N modeHT40 MCS7 161
IdleAssociated withAPN/A
IdleUnassociated withAPN/A
Radio off Hotkey turn off WiFi radio N/A
Driver disable Disable DUT on device Mgmt 53
XW604B10 IEEE802.11b/g/n 1T1R USB Module Page 8 of 9

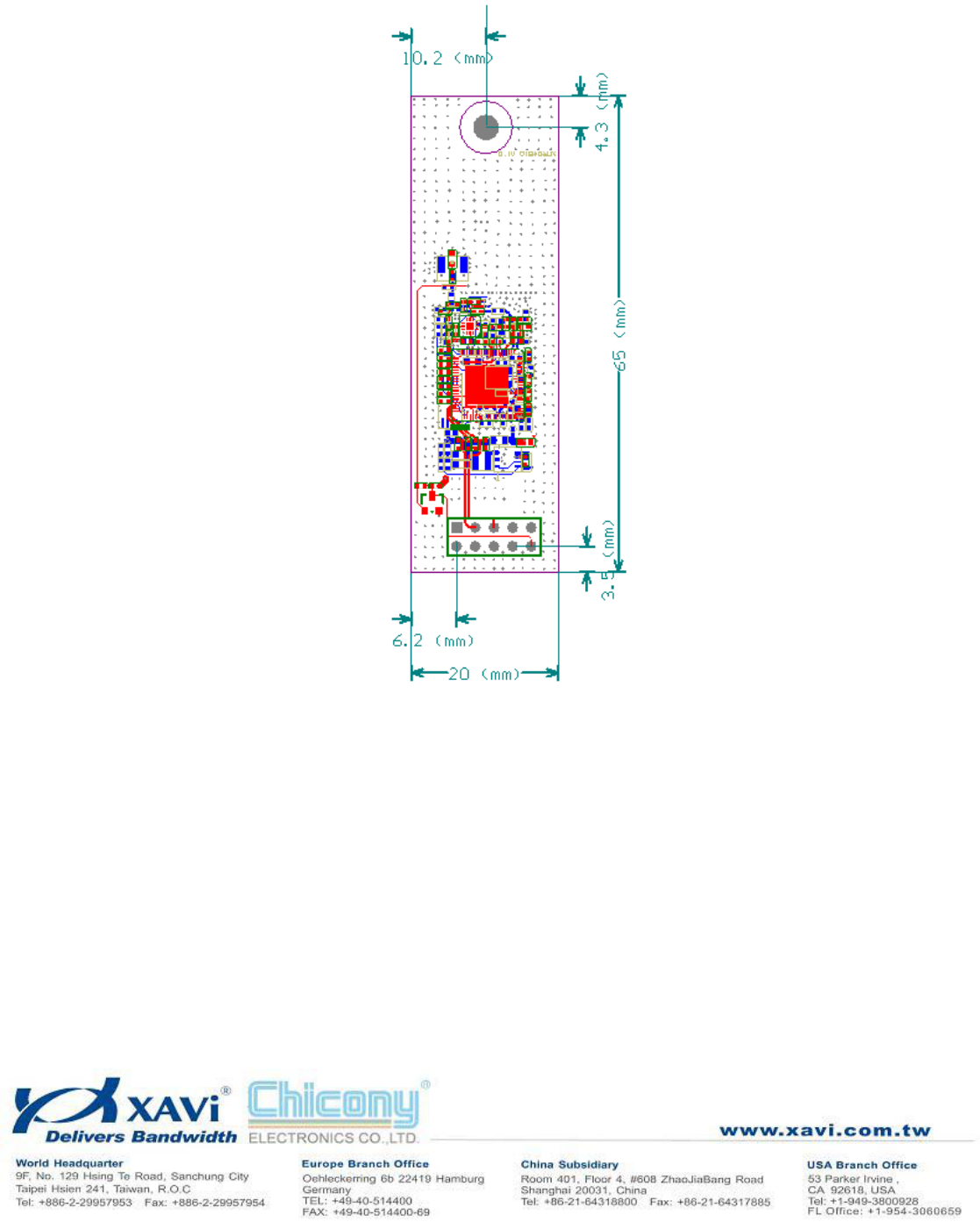

8Mechanical Dimensions
The I-PEX connecter is on the bottom side of the PCB.
Pin Definition Type
Radio
1 VBUS P USB +5V power supply.
2 GND P Ground.
3 UDM IO USB data minus
4 GND P Ground.
5 UDP IO USB data plus
6 GND P Ground.
7 GND P Ground.
8 GND P Ground.
9 NC No connect.
10 ACT O LED indicator.
XW604B10 IEEE802.11b/g/n 1T1R USB Module Page 9 of 9
9 Connector Pin-out Definitions

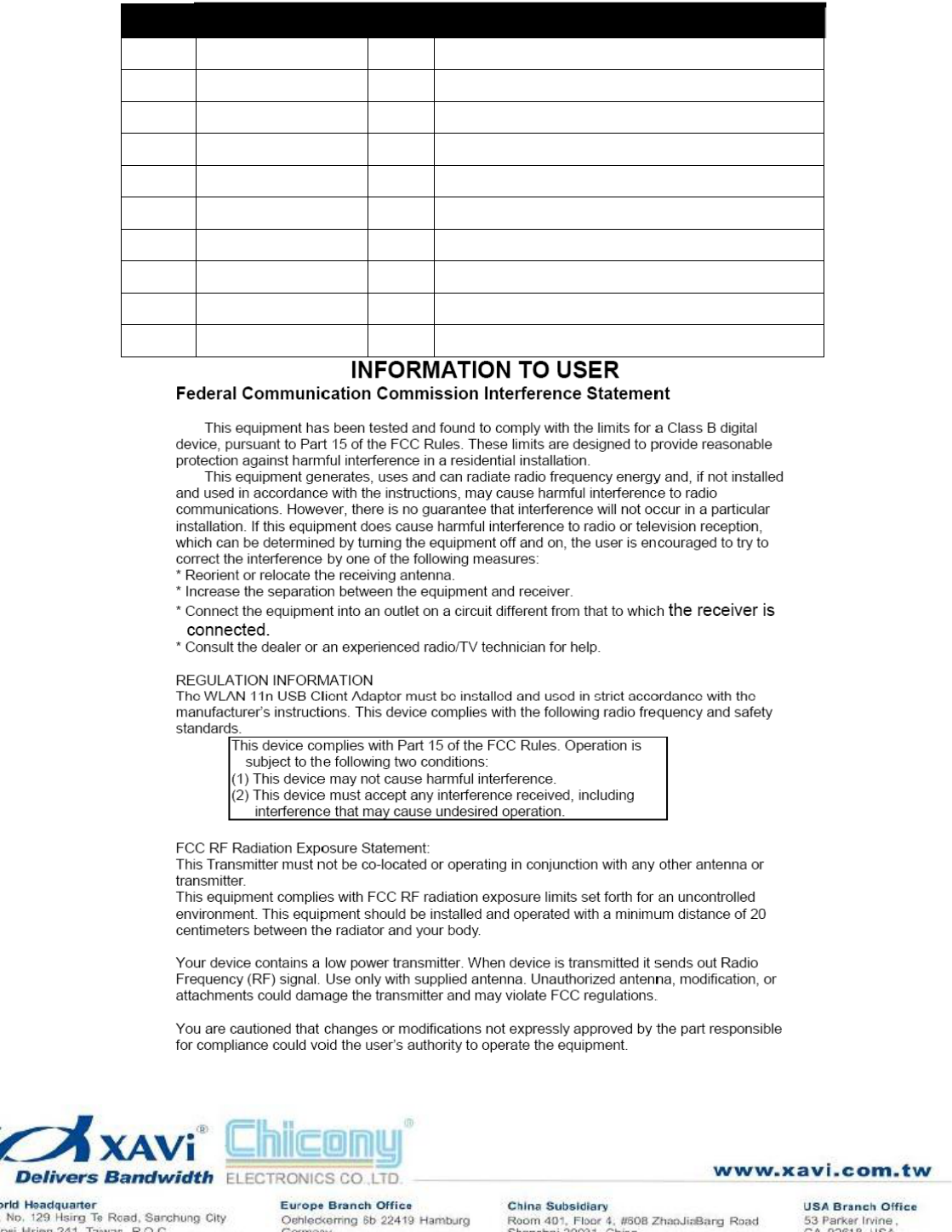

If the label of the module wouldn’t be visible after integration in a device, the label
of the device must include “contains FCC ID: RYU-XW604B10 “
