XPLORER ELL Portable metal detector User Manual Manual UK V5 octobre 2018

XPLORER Portable metal detector Manual UK V5 octobre 2018

User Manual

USER'S MANUAL
MADE IN FRANCE
Page 02
Page 03
Page 05
Page 06
Page 07
Page 08
Page 09
Page 09
Page 09
Page 10
Page 10
Page 12
Page 12
Page 12
Page 13
Page 14
Page 14
Page 15
Page 15
Page 16
Page 17
Page 19
Page 19
Page 20
Page 20
Page 21
Page 21
Page 21
Page 22
Page 23
Page 23
01
WIRELESS HEADPHONES
Menu 
Discrimination-Sensitivity-Ground
Frequency-Tones-Volume-Coil
Pairing with a new coil 
Delete coil 
Factory Programs 
Save or delete a modied program 
Replacement of the backphone 
Pairing / Remove PINPOINTER 
POWER SUPPLY  BATTERIES
Battery status 
Battery life 
Charging time and charging progress 
Charge 
Battery durability 
Replacement 
Precautions 
EXPERT
Multi-Tones 
Pitch 
Full Tones
Multi-Tones, thresholds and tones 
TX Power 
Audio Overload 
Frequency shift 
Silencer 
Multi-Notch 
Notch Ground / Ground sensitivity 
Page 25
Page 26
Page 26
Page 27
Page 27
Page 27
Page 27
Page 28
Page 28
Page 28
Page 29
Page 29
Page 30
Page 30
Page 31
Page 31
Page 31
Page 32
Page 32
Page 33
Page 33
Page 34
Page 34
Page 35
Page 35
Page 37
Page 38
Page 39
Page 40
Page 41
Page 42
Page 44
Page 46
Page 46
Page 48
TECHNICAL INTRODUCTION
LIST OF PARTSASSEMBLY
USE
Remote control 
Factory programs, Description 
Starting up 
MENU
Discrimination 
Discrimination IAR (Gold Field) 
Sensitivity 
Frequency 
Iron Level 
Reactivity 
Audio Response 
Notch 
GROUND
General 
Manual Mode 
Pumping Mode 
Prog.10 Gold Field 
Tracking Mode 
Beach Mode 
NONMOTION
OPTION
Pinpointer
Remote control programs 
Coils 
Pairing with a new coil
Delete coil 
Conguration 
Speakers - Back light - Contrast 
Clock setting - Prole 
ID Norm 
Smartphone app - GO TERRAIN 
Update 
PRACTICAL INFORMATION
PRECAUTIONS FOR USE
TROUBLESHOOTING AND SOLUTIONS
SPECIFICATIONS
ACCESSORIES
SPARE PARTS
FACTORY PROGRAMS
YOUR SETTINGS
RECOMMENDATIONS / LAW
DECLARATION OF CONFORMITY
WARRANTY  AIR TRANSPORT
TABLE OF CONTENTS
CONGRATULATIONS ON THE PURCHASE OF YOUR XP METAL DETECTOR
AND WELCOME TO THE WORLD OF RESEARCH AND EXPLORATION!
02
TECHNICAL INTRODUCTION
The XP Dēus
is innovative in terms of metal detector design as it oers a unique design based on three
elements communicating via a digital radio link. The search coil, remote control and headphones
have each been made independent through the integration of very compact, high-capacity lithium
batteries.
An ultra-miniature electronic circuit, incorporated into the search coil, digitises and analyses the
signals. Data is then sent to the headphones and remote control in real time via a digital radio link.
With this method, the signal is processed at source and not conveyed via a wire link, which greatly
improves data quality.
Incorporating components from leading-edge technologies such as scientic instrumentation has
enabled us to produce a powerful, rapid, lightweight, compact and fully controllable digital detector.
Whether you are an experienced user or a beginner, the Dēus lets you decide whether or not to
modify any of its settings. Powerful pre-congured factory programs enable all users to get started
immediately, while expert detectorists can choose more advanced parameters via the intuitive inter-
face.
What is described in this manual as the "Remote Control" is in fact the user interface, known as the
‘control box’ on conventional detectors. It enables the detector’s many functions to be precisely
adjusted via a graphical interface. It can also receive program updates (via internet) through its USB
socket.
The Dēus
is also exceptional in being able to function without the remote control, with just the
coil and the wireless headphones, for an even more compact, lightweight conguration !
Like the remote control, the headphones contain all the components needed for detection, they
are a genuine control unit in themselves, but on an ultra-miniature scale and rain proof. They take
over in the absence of the remote control for adjusting the detector settings.With the headphones
you can turn the Dēus on and o, change the main detection settings such as sensitivity, discrimina-
tion, ground balance, tone, frequency (from 4 to 80 kHz depending on the selected search coil ),
volume, etc. as well as selecting the factory programs or those previously congured with the remote
control !
Performance is identical whether you are searching with or without the remote control !
Lastly, the new patented XP stem has the combined advantages of an S-shaped stem and a straight
telescopic stem. It enables you to deploy or fold away the device in just a few seconds, and to change
the coil in an instant. Its user-friendly design ensures comfort and convenience for the user: length
adjustable by millimetre increments, improved operating angle and shaped rubber handle for a rm,
controlled grip.
So now you’re ready for a new adventure!
You have invested in a high-tech metal detector capable of exceptional performance, which has
been designed and developed in France. You are therefore helping our Company to further
expand our research in the eld of metal detecting and we thank you for your contribution.
1
23

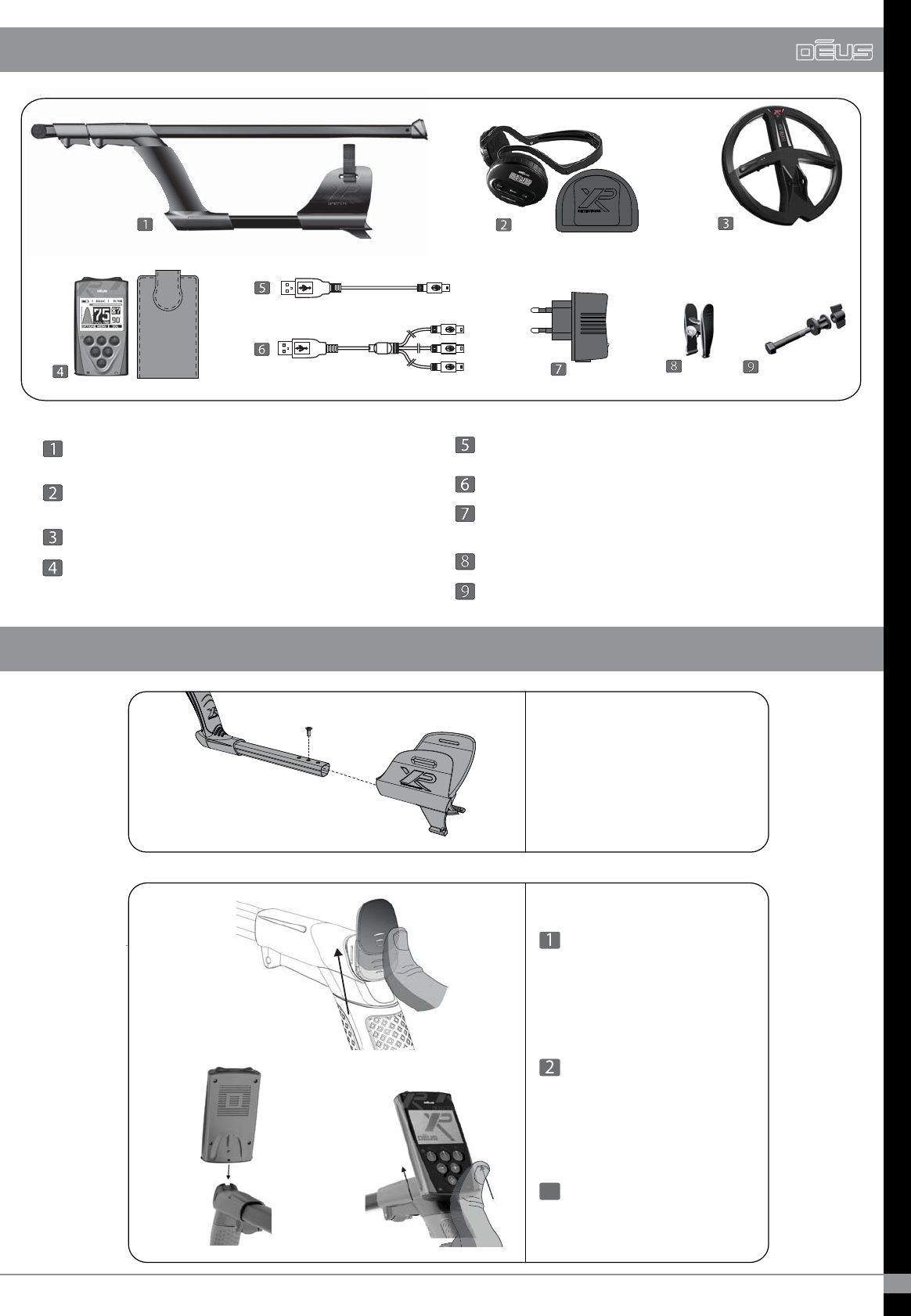

One assembled fully telescopic stem
(
subject to version purchased)
One set of wireless headphones with
storage case (
subject to version purchased
)
One search coil with coil cover
One user interface
(only with remote control)
with case
One connection cable: USB / one mini-B plug
(Only when purchased with remote control)
One connection cable: USB / three mini-B plugs
One mains power supply transformer-charger
(Only when purchased with remote control)
One connection clamp for recharging the coil
One set of fastenings
The box for your Dēus metal detector (subject to version purchased) contains the following parts:
03

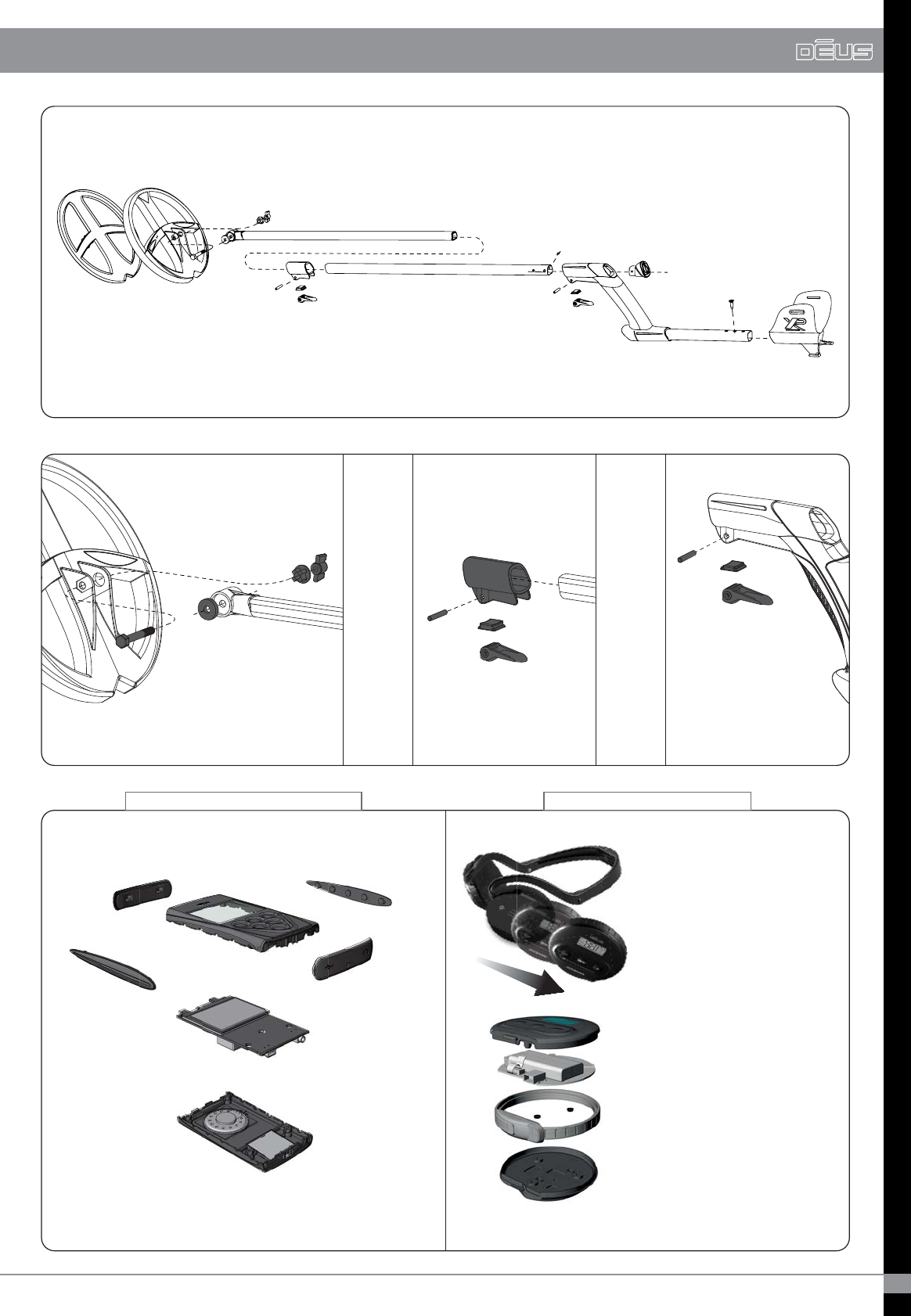

ASSEMBLY
LIST OF PARTS full version)
Arm rest assembly
Remote control assembly
Remove the Protection cover
Unlock the remote control
3
04
ASSEMBLY
STANDARD COIL
HF COIL
1
2
3
1
2
1
2
3
12
3
4
5
Fitting the coil on the stem
Insert the single rubber
washer in the lower shaft.
Line up the lower stem with
the coil t the two parts
together.
Install bolt and nut.
3
05

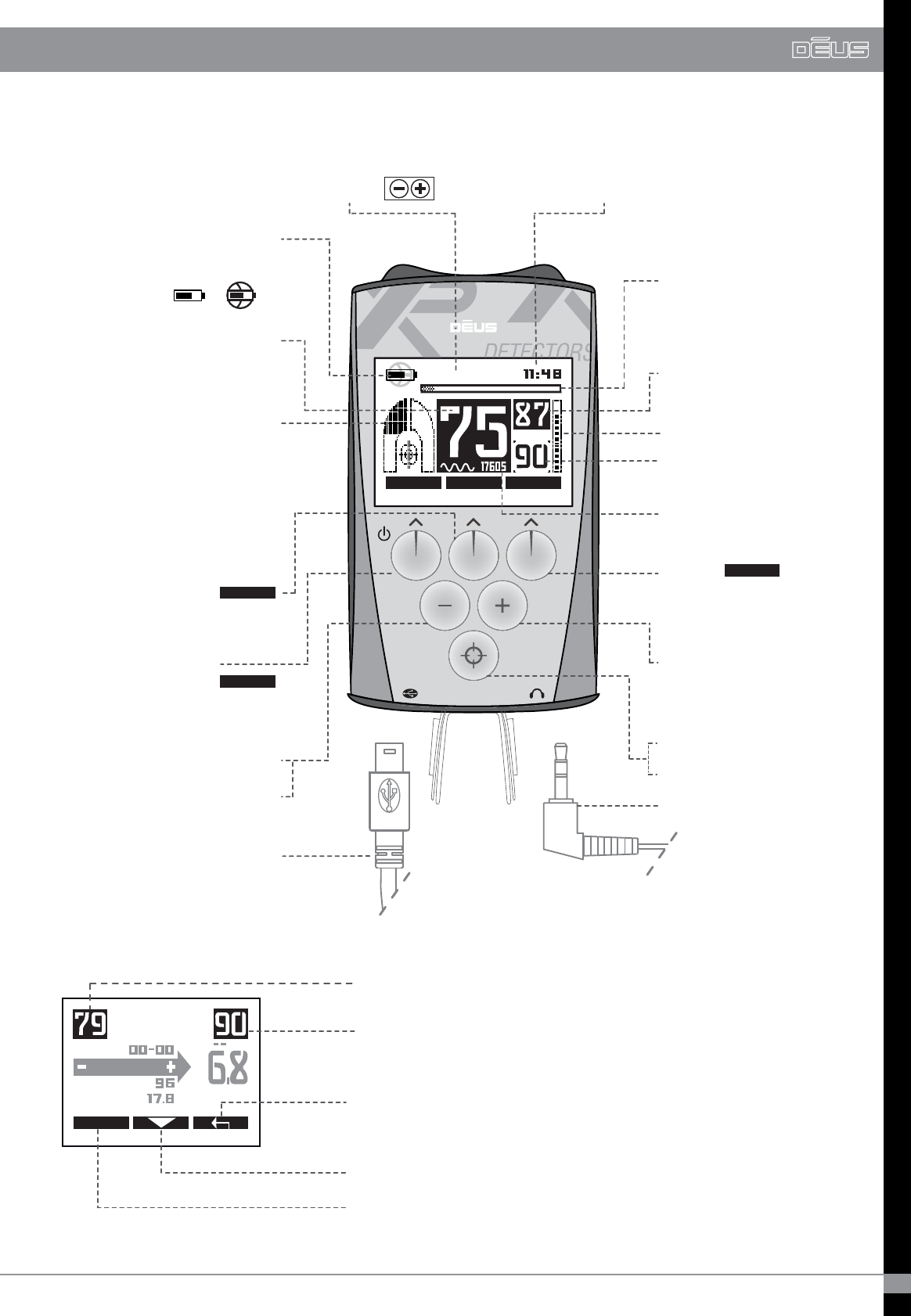

Access to
(Ground Balance)
Manual / Pumping / Beach / Tracking
ON/OFF
Access to menu
Conguration / Programs /Coils
Pinpointer XP
Decrease values
Change program
USB connection for charging
the lithium battery or for updating
the software via internet
Increase values
Change program
Non-motion mode (Pinpoint)
3.5 plug: 3.5mm
audio output jack
MENU
MENU
G.B.
OPTION
OPTION
1 - BASIC 1
Battery level
of coil and remote control
(displayed alternately)
Name of active program
Change program with Time
Analog scale
of target conductivity
Digital scale of target conductivity,
from 0 to 99
Detection frequency used
The ground mineralisation index
(phase measured constantly
for information)
The actual level of ground eect
corrections (phase adjustment
underway)
Choose your own prole for this area with
OPTION>CONFIGURATION>PROFILE
G.B.
Displays the target conductivity index to help you optimise your settings
The ground mineralisation index
Valid and return to main menu
To scroll through the menu
Access to expert menu
Access to
DISCRI - SENS - FREQ ...
/
Example of secondary page
Mineralisation strength
Value capture prog. 10
MENU
EXPERT
NOTCH
SENS.
FREQ.
DISC
REMOTE CONTROL
General use.
Similar settings to the XP Gold Maxx Power detector, powerful and fast.
More selective to small targets in iron-infested ground and deeper on
mineralised ground
Responsive pitch that varies in frequency and amplitude according to
the signal’s strength.
Medium speed, particularly eective for large masses and highly conductive
coins.
Pro setting for locating deep targets, with moderate discrimination and
specic signal processing
Wet beaches, although in situ adjustments are needed for the ground
eect, either by pumping or manually adjusting. (pg 13).
Suitable for dry sand.
HOT «The Pro setting» this is a nd everything program,based on the Full
Tone audio mode with a very low discrimination. Hot is a very interactive
program oering excellent feedback and target information.
GOLD FIELD uses another detection method designed for searching
highly mineralised ground which is often where gold nuggets are
found. In these conditions, targets can be seen as ground mineralisa-
tion or ferrous objects, especially when they are deep. To go deeper in
these dicult conditions, the "Gold Field" program uses a true All Metal
mode that allows you to accept a zone of ground that is usually not
available. Instead of rejecting all the ground values below a predened
value (as on conventional detectors), it rejects only the specic value
of ground in which you are searching, which means you have to adjust
precisely. To facilitate the ground balance (essential in this program),
*pressing will make an immediate acquisition of the ground value
within one or 2 pumps of the coil.
In this program certain settings are not active or are replaced by the
another specic setting such as:
- The IAR discrimination (Iron Amplitude Rejection): A range of
discrimination that can be applied from 0 to 5. It applies only to targets
that produce strong signals – typically shallow ferrous items. It will
not reject deeper targets which may come across as ferrous when
they are buried in mineralised ground to ensure good targets are
notrejected by mistake.
* Immediate acquisition of the ground value (Grab) is performed simply
by pressing (while pumping the coil to & from the ground).
The digital target display is active, this allows the operator to
work in All Metal mode with a visual recognition (valid on shallow targets).
06
1 - BASIC
2 - GM POWER
3 - DEUS FAST
4 - PITCH
5 - G-MAXX
6 - DEEP
7 - WET BEACH
8 - DRY BEACH
9 - HOT
10 - GOLD FIELD
FACTORY PROGRAMS

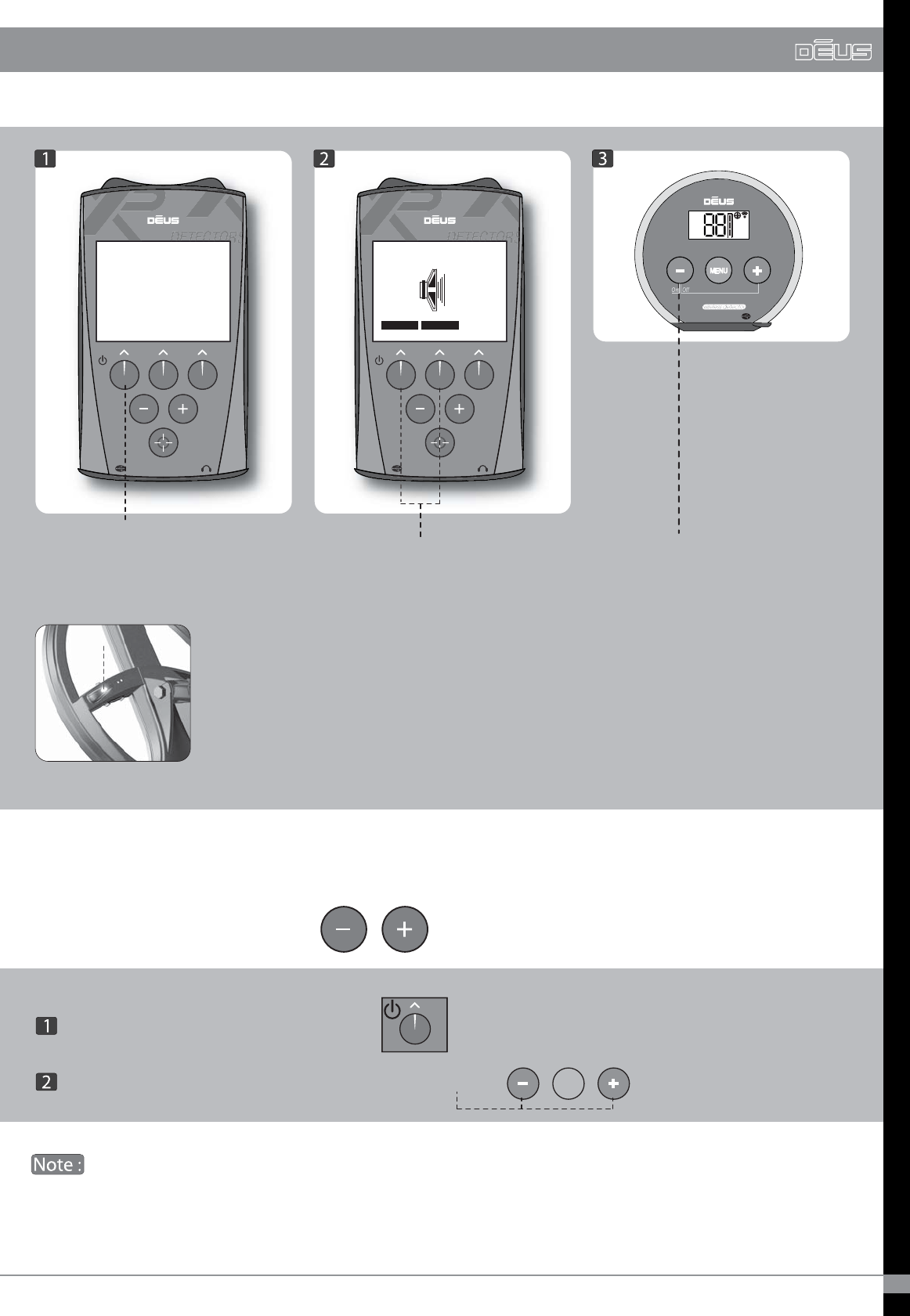

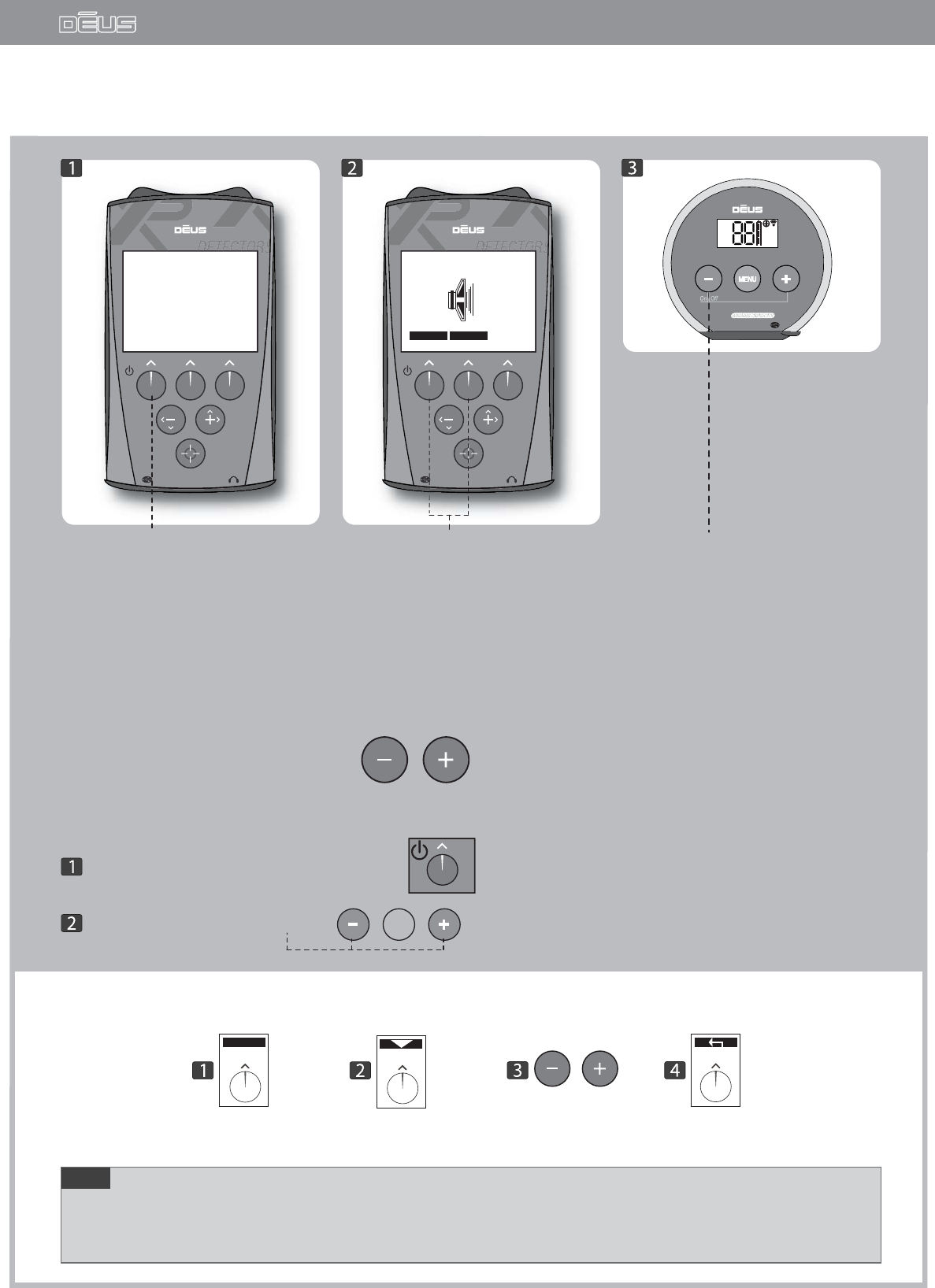

To switch o the Dēus
Hold down Power for two seconds on the remote control.
Press left- and right-hand buttons simultaneously on the headphones.
-
-
YES
NO
After charging your device. (pg 29)
Switch on
the remote control
(after extending stems and holding the coil
away from the ground and any metal)
Switch on
the headphones
Validate or not the use
of the loudspeaker
-
-
-
-
-
-
Do not switch the Dēus on when the coil is near metal, inside a car, or when the stem is collapsed,
as this may interfere with calibration and lead to abnormal performance. If this should occur, switch
o and move away from any metal masses before switching it on again. Nevertheless, this does not
represent any risk to the equipment or its electronics. But may give abnormal results !
By default you begin by using the 1 - BASIC
factory program which is suitable for general use.
If you wish to test one of the 10 other factory programs,
simply scroll through them with
The LED on the coil gives 20 long, successive ashes to indicate that it is waking
up and recalibrating.
Once recalibration is complete, the coil becomes operational and its LED ashes
every second.
DISC
SENS
GND
FREQ
TONE
VOL
COIL
07
STARTING UP

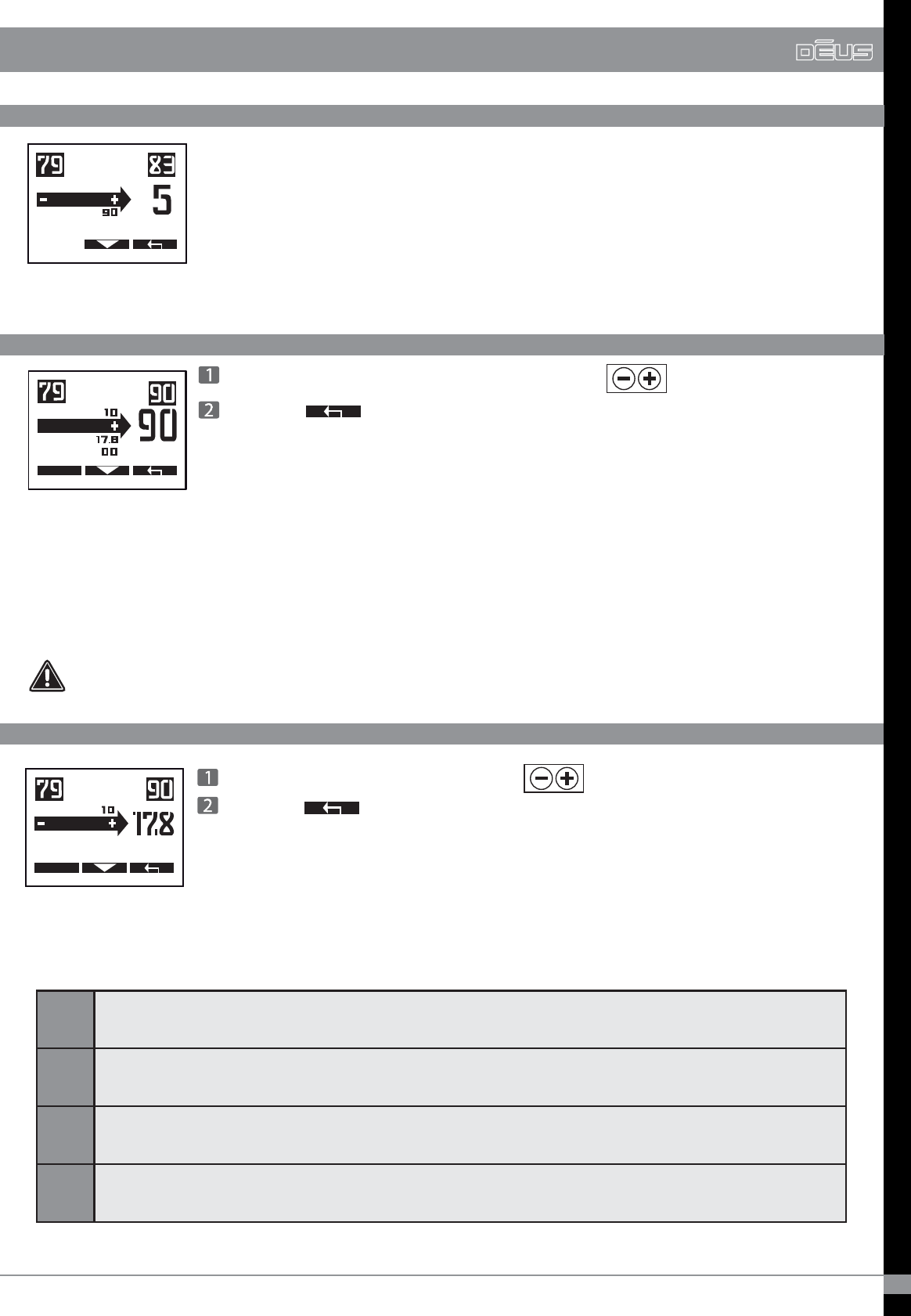

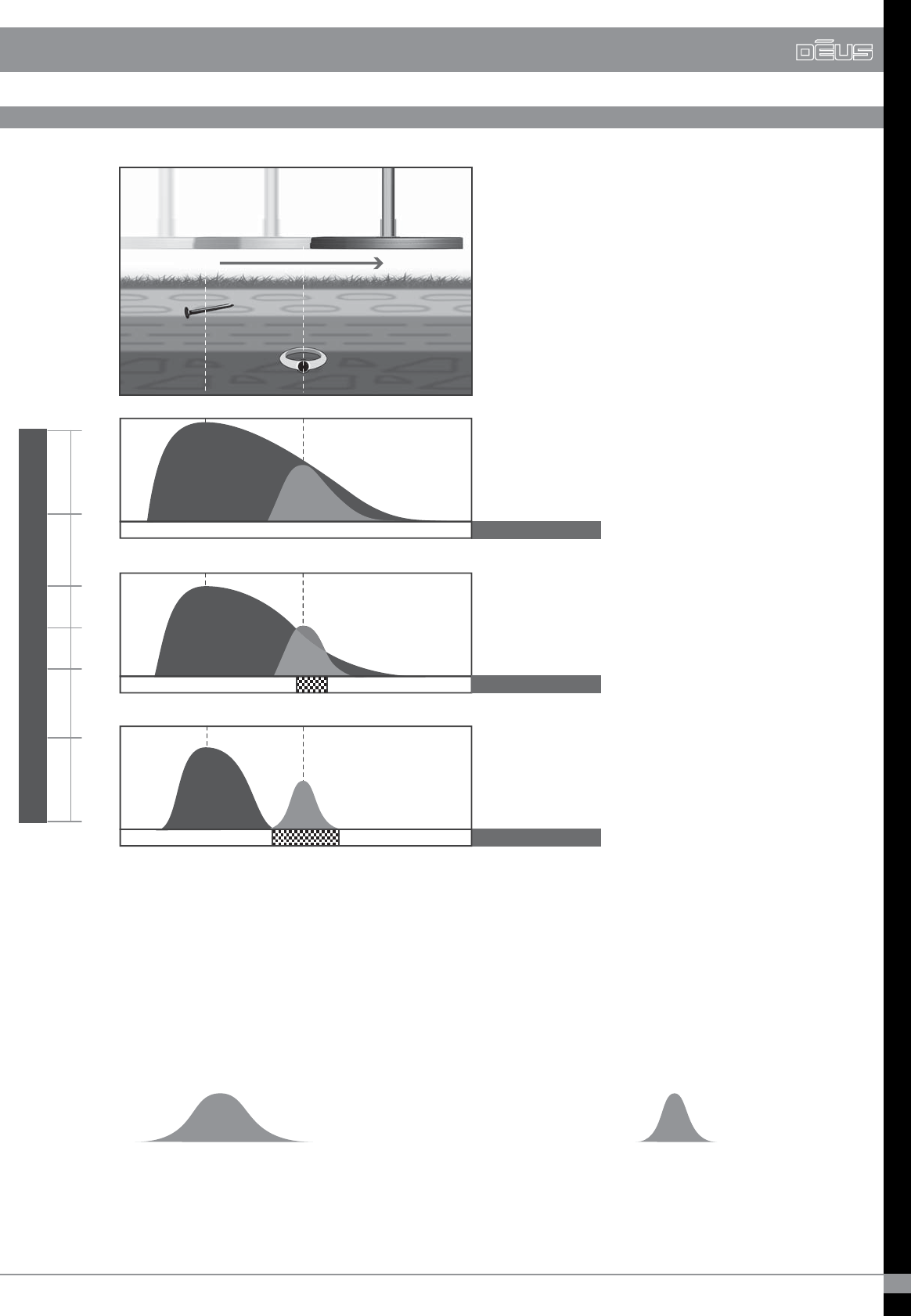

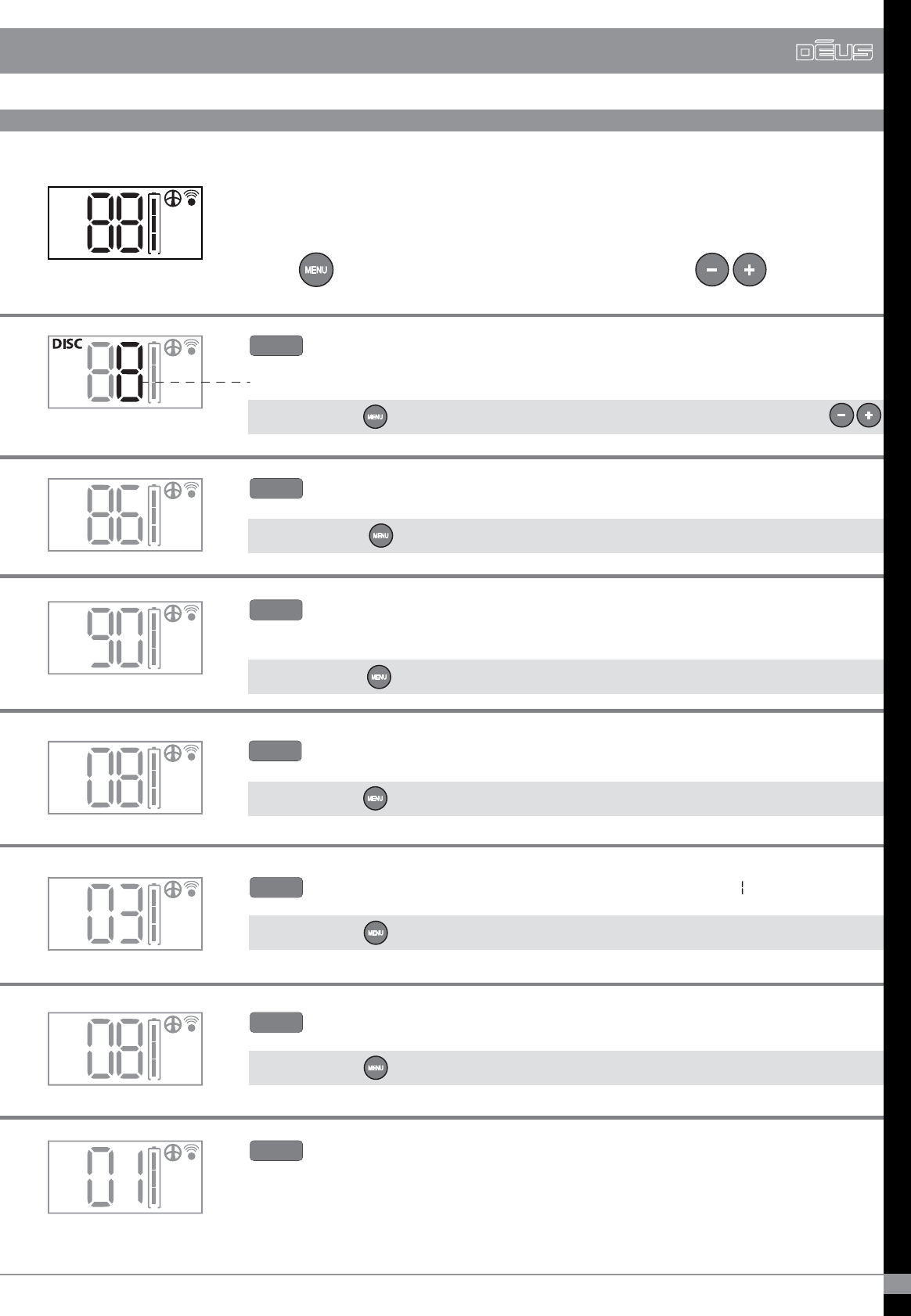

Discrimination enables undesirable targets to be rejected by raising or
lowering a threshold below which certain metals are dierentiated.
The conductivity scale (0 to 99) for metal targets shown below will help
you better understand the discrimination range and its limits, and see
how it corresponds to the digital display of target conductivity on the
remote control main menu.
08
Conguring the main detection settings.
Press
Scroll through the menu by pressing
MENU
MENU
MENU
EXPERT
NOTCH
SENS.
FREQ.
DISC
MENU G.B.
OPTION
1 - BASIC
Foil
Bronze coins
(medium size) Large silver and
copper coins
Small targets
Small jewellery
Fine coins
Poor alloys Small pure silver coins
MENU
Adjust the Discrimination level (from -6.4 to 99) with
Exit with to return to the main menu.
Increasing the discrimination value enables you to gradually reject any target whose conductivity is
lower than the setting. For example, if you tune the discrimination level to 10, you will reject iron with
a value of between 0 and 10. If you tune it to 40 you will also eliminate small pieces of aluminium
foil whose conductivity is less than 40.If you wish to reject other rubbish with higher conductivity, such
as pull tabs from aluminium drinks cans, lead shot or copper hunting cartridges (whose conductivity is
60-75), you must also be prepared to accept the elimination of certain good metals with similar conduc-
tivity.If you are particularly bothered by contamination registering as highly conductive on the digital
screen, and you still wish to reject it, it is betterto do so using the NOTCH rejection setting.
Two alternatives involve selecting a low level of discrimination, between 5 and 10, then using either:
- 1/ The digital target display to more or less visually discriminate a target category.
- 2/ The Multi-tone mode to discriminate undesirable targets using a selected audio tone.
In both cases the decision then lies with you on whether or not to dig.
MENU
EXPERT
NOTCH
SENS.
FREQ.
DISC
Depending on the frequency setting used, a target’s conductivity
is perceived dierently by the detector. The digital conductivity display
may therefore vary depending on the frequency.
The 0 to 10 range relates to the rejection of iron. To achieve greater
precision in this range there is a digit after the decimal point (from -6.4 to 9.9).
In several menus, particularly at the top left of the Discrimination
screen, a reminder of the target conductivity index is displayed, which helps
you when adjusting the discrimination level.
Coke
Ferrous
Hot rock
Ground -
Ceramic
- 6.4 - 5 - 4 0 10 20 30 40 50 60 70 80 90 99
DISCRIMINATION
09
MENU
MENU
EXPERT
DISC
FREQ.
IRON VOL.
SENS
Adjust the Sensitivity level (from 0 to 99) with
Exit with
MENU
SENS.
DISC IAR
The program N°10 GOLD FIELD uses another discrimination method, called IAR (Iron
Amplitude Rejection): the range of discrimination can be applied from 0 to 5. It
applies only to targets that produce strong signals – typically shallow ferrous items. It
will not reject deeper targets which may come across as ferrous when they are buried
in mineralised ground, to ensure good targets are not rejected by mistake. Higher
discrimination values, enable the detector to reject deeper ferrous. Gold nuggets
buried deep in mineralised ground can generate a similar signal to a ferrous item, so
in this case it is better to reduce the level of discrimination.
Sensitivity is often simplistically described as the setting which adjusts the
device’s power level. However this is incorrect. As its name indicates, it actually
determines the device’s sensitivity level. It reacts after receiving a signal via the
receiver coil. Nevertheless, the results are somewhat similar in practice, as increasing a device’s sensiti-
vity enables it to detect the presence of more distant targets. However it must be noted that this
setting has no eect on the power emitted.
The most commonly used sensitivity levels range from 70 to 90. It may be necessary to reduce the
level if there is too much interference, as is often the case near overhead or buried power lines, fences,
radio-relay stations, mobile telephones, computers, televisions, etc.
Do not test your device in your home as there is considerable electromagnetic and metal interference
in urban environments.
Scroll through the frequencies with
Exit with
MENU
EXPERT
SENS.
IRON VOL.
REACTIVITY
FREQ.
KHZ
18 to 80
kHz
4 kHz
8 kHz
Large, mainly ferrous and non-ferrous masses. Coins of sucient conductivity and size. All other medium or relatively
small targets in non-mineralised ground relatively uncontaminated by iron.Good for ferrous masses and militaria.
General use. Coins and large masses, militaria. Medium and small targets in low-mineralised ground.
General use, small coins. Coins of all sizes in medium to highly mineralised ground.
12 to 15
kHz
Small coins made from any alloy (gold, silver, copper, etc.) and very ne coins, low conductivity target , gold nuggets,
lead, rings, thin metal, aluminium foil.
Discriminates (distinguishes) coke more easily. Can be more unstable on non-mineralised and moist ground
The Dēus gives you the choice of several detection frequencies from 4 to 80 kHz
depending on the selected coil. The frequencies enable you to adapt your
research more closely to the characteristics of the ground and desired targets.
Here is a brief list of the most likely targets that may be detected according to the frequency:
DISCRIMINATION IAR (prog 10 GOLD FIELD)
SENSITIVITY
FREQUENCY

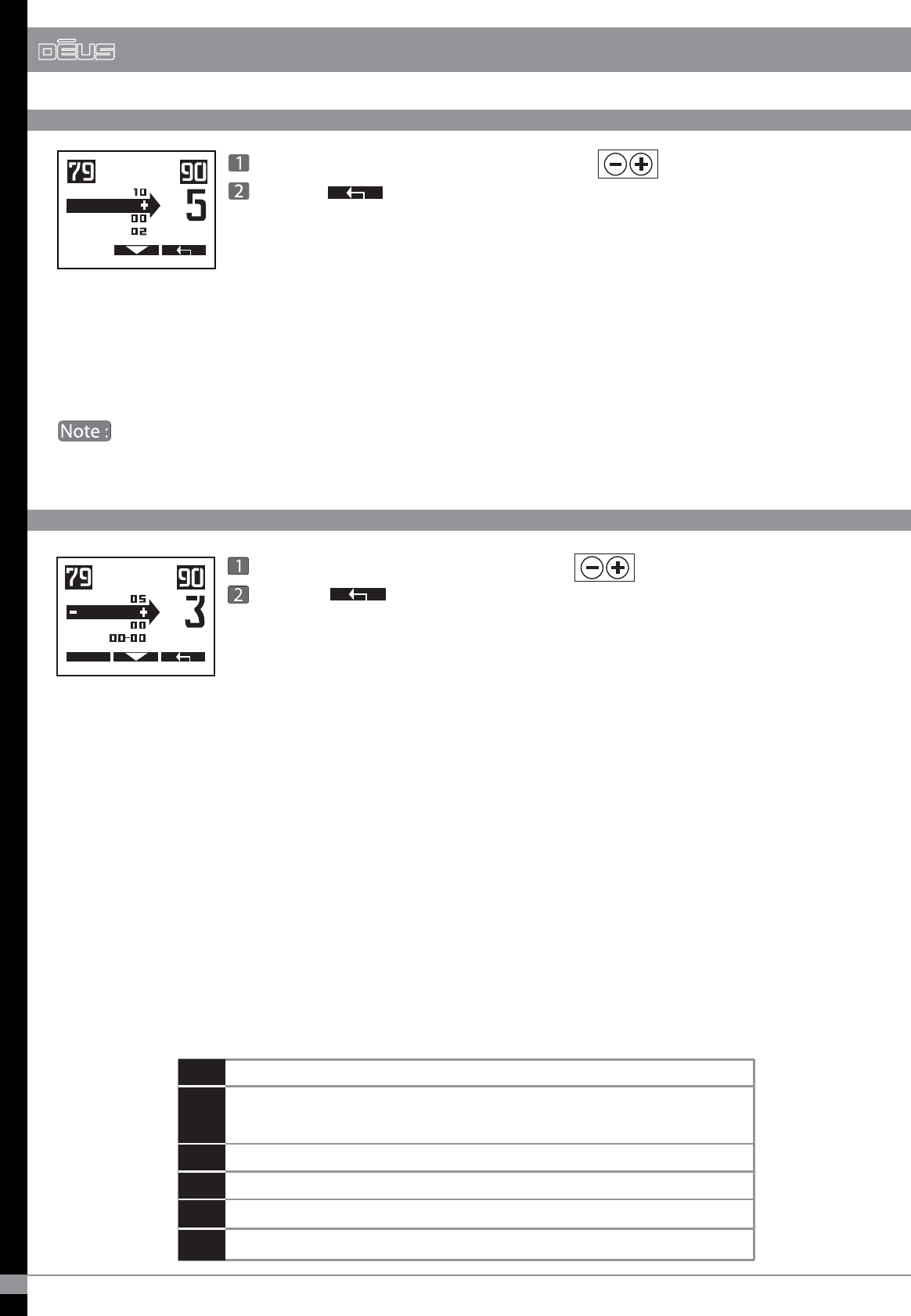

Adjust the Reactivity from 0 to 5 with
Exit with
EXPERT
MENU
IRON VOL.
AUDIO RESP.
NOTCH
REACTIV.
Most likely nds with the recommended settings are as follows:
MENU
FREQ.
REACTIVITY
AUDIO RESP.
IRON VO.
Adjust the Iron Volume (from 0 to 5) with
Exit with
- At 0 the low-pitched tone is cut o.
- At 5 the low-pitched tone will have a sound level equivalent to other non ferruos targets.
If the discrimination threshold is too low, 0 or 2 for example, most iron will generate not
low- but medium-pitched tones, as you will practically be in the All Metal mode. In this case,
the iron level setting will have very little function.
10
MENU
On the other hand, some users prefer to make the low-pitched signals from iron more audible, as they
know that some good targets at the detector’s depth limit in mineralised ground can sometimes
generate a low-pitched sound.
You have the option of controlling the volume of the low-pitched tone which
generally corresponds to iron . Depending on the circumstances, sometimes
reducing the iron volume can make the user more aware of non ferrous targets.
If the soil contains a great deal of iron, hot rocks or other mineralised debris, soil penetration can be
drastically reduced. In these conditions, The Dēus enables you to select a high degree of reactivity
which will help you speed up the analysis of signals.
On the other hand, if the ground is "clean", it is better to reduce the Reactivity and sweep slowly, in
order to make the machine more sensitive to deep masses and obtain better soil penetration.
Users familiar with the Gold Maxx Power have already experienced the advantages of the XP Reacti-
vity (recovery speed). And even though the Dēus is a particularly fast and selective detector, you now
have the option of adjusting the reactivity setting to make it even more selective!
To help you better understand the reactivity levels available, you should note that the reactivity of
most detectors on the market, generally only have an equivalent to level of 1 compared to the the
Dēus.
The Gold Maxx Power has a reactivity equivalent to level 2 of the Dēus.
The Reactivity is a vital setting that determines the detector’s performance in
terms of how quickly it analyses the signal from detected objects and its ability
to separate the signal response from two targets located close together. This is
also known as Recovery speed.
Large masses and coins, in ground uncontaminated by iron.
Large masses and coins, in ground with little iron contamination,
and general use.
General use, and mineralised soils contaminated with iron.
General use, dicult soils contaminated with iron
Dicult soils contaminated with iron, hot rocks, etc.
Very dicult soils, highly contaminated with iron and hot rocks.
0
1
2
2.5
3
4/5
IRON VOLUME
REACTIVITY
Example
Passing the coil over an iron object close to
the surface then over a good metal target
(ring).
With a low Reactivity level, the iron is detected
for a longer duration, to the extent that it
completely hides the ring.
A high Reactivity level enables you to
distinguish the ring completely from the iron.
The audio signal fully indicates the target.
Full sound
Short sound
No sound
0
1
2
2.5
3
4
5
3
&
"
$
5
*
7
*
5
:
In terms of pure performance, the greatest detection ranges are obtained with low reactivity
levels. However, you will nd more targets and will detect deeper on mineralised ground
with medium or high reactivity levels.
For optimum performance adjust your reactivity to suit your search conditions.
Depending on the reactivity level, you will notice that the length of the audio signal varies
when it passes over a target:
Low reactivity (0 to 2) = long sound High reactivity (2.5 to 5) = short sound
Evidently the length of any false signals (the crackling of iron for example) will vary proportionately
as well.
You are therefore advised not to constantly change the reactivity level, as this may interfere
with your ability to distinguish good and bad sounds.
With a medium Reactivity level, you begin
detecting the ring.
The audio signal partially indicates the target.
11
MENU
REACTIVITY

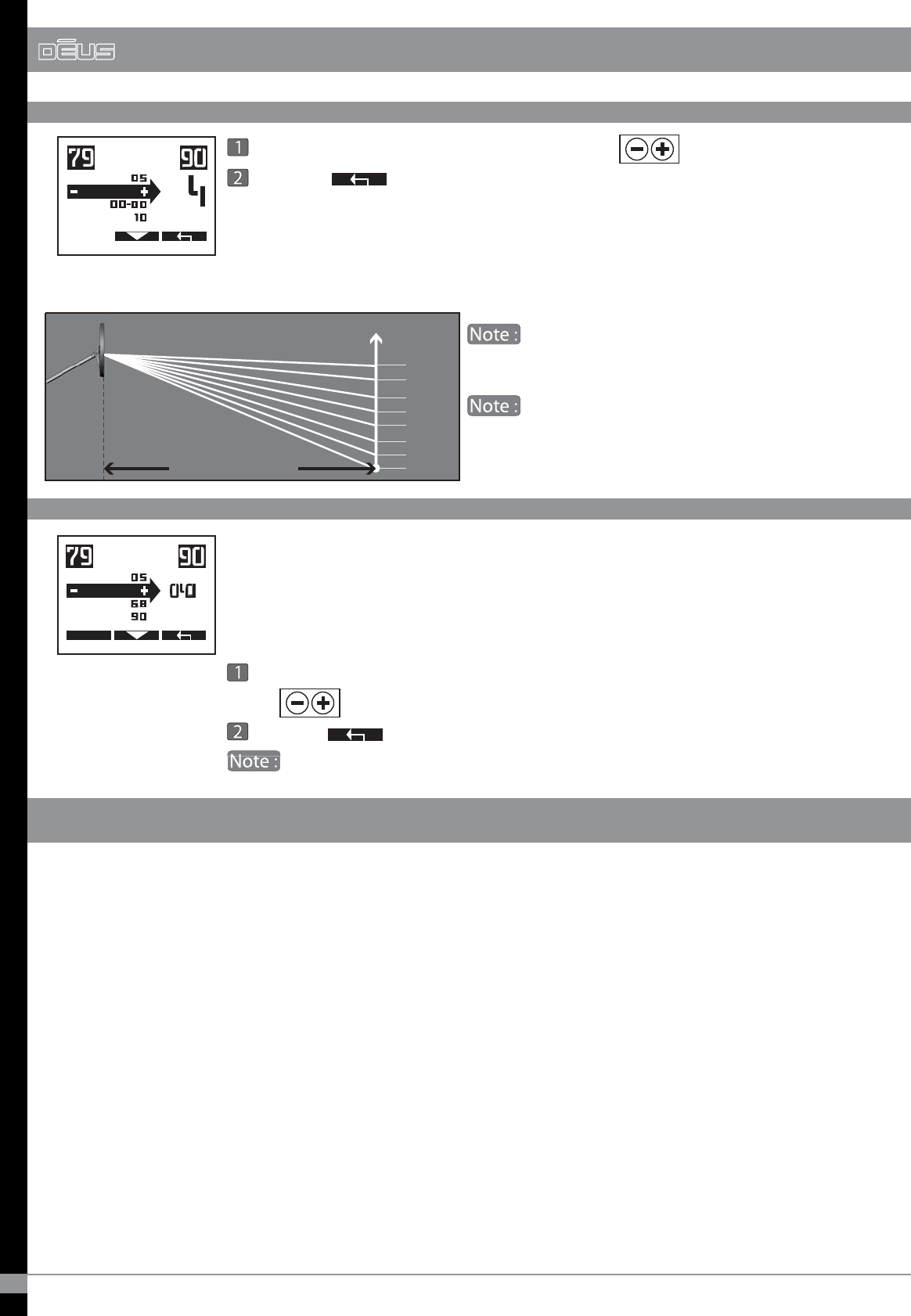

12
MENU
7
6
5
4
3
2
1
0
By amplifying small signals you will also
be amplifying small spurious false signals.
By increasing the sound response you will
compress the dynamic range and thus reduce the
appreciation of a target’s depth.
If the reference target has a conductivity of 37, adjust the Notch value to 34-40
using . All targets with a conductivity between 34 and 40 will then be silenced.
Exit with
By default, the width of the rejection window is 6 points.
EXPERT
MENU
AUDIO RESP.
DISC
SENS
NOTCH
Adjust the Audio Response from 0 to 7 with
Exit with
MENU
REACTIVITY
NOTCH
DISC
AUDIO R.
Audio Level
Distance to target
The Audio Response enables you to amplify the volume of deep targets . It gives
the impression of greater power, however it does not provide any additional
depth as this setting only aects the sound curve (the dynamic range of
sounds).Lower Audio response levels give a good perception of depth
The Notch complements the discrimination: it enables a "target window" to be
rejected whereas discrimination rejects all targets below a selected threshold.
For example, if you detect a redundant, undesirable target in the ground, you
can decide just to reject the corresponding conductivity group and continue to
detect targets with a conductivity higher or lower than those in the group.
The dierent levels of soil mineralisation you encounter when prospecting can sometimes aect the
performance of your detector. For example, this may be due to natural magnetic mineralisation such as
iron oxide, hot rocks and magnetite, or sporadic mineralisation from sites of former human settlement
(also magnetic): hearths, pottery, hot rocks, slag, etc. At the seashore this may also involve mineralisation
ranging from magnetic grade (black sand) to electrical conductor grade (salt water) depending on
the beach or region.
If you are an experienced detectorist you may wish to optimise your searches to achieve better
penetration in some of these mineralised soils.
In magnetic ground with relatively uniform mineralisation, a setting which is adjusted according to
the ground eect will improve penetration by reducing the amplitude of the ground signals sent back by
the receiver circuits. This ‘adapted setting’ involves adjusting your ground balance value to the
average value of the ground being detected, while adding
1 so as not to hear the ground signals as much. The tracking and pumping modes do this automatically
if the ground conditions allow it. With the Prog.10 Gold Field it is vital to set the machine exactly to
the value of the ground.
GROUND
AUDIO RESPONSE
NOTCH
13

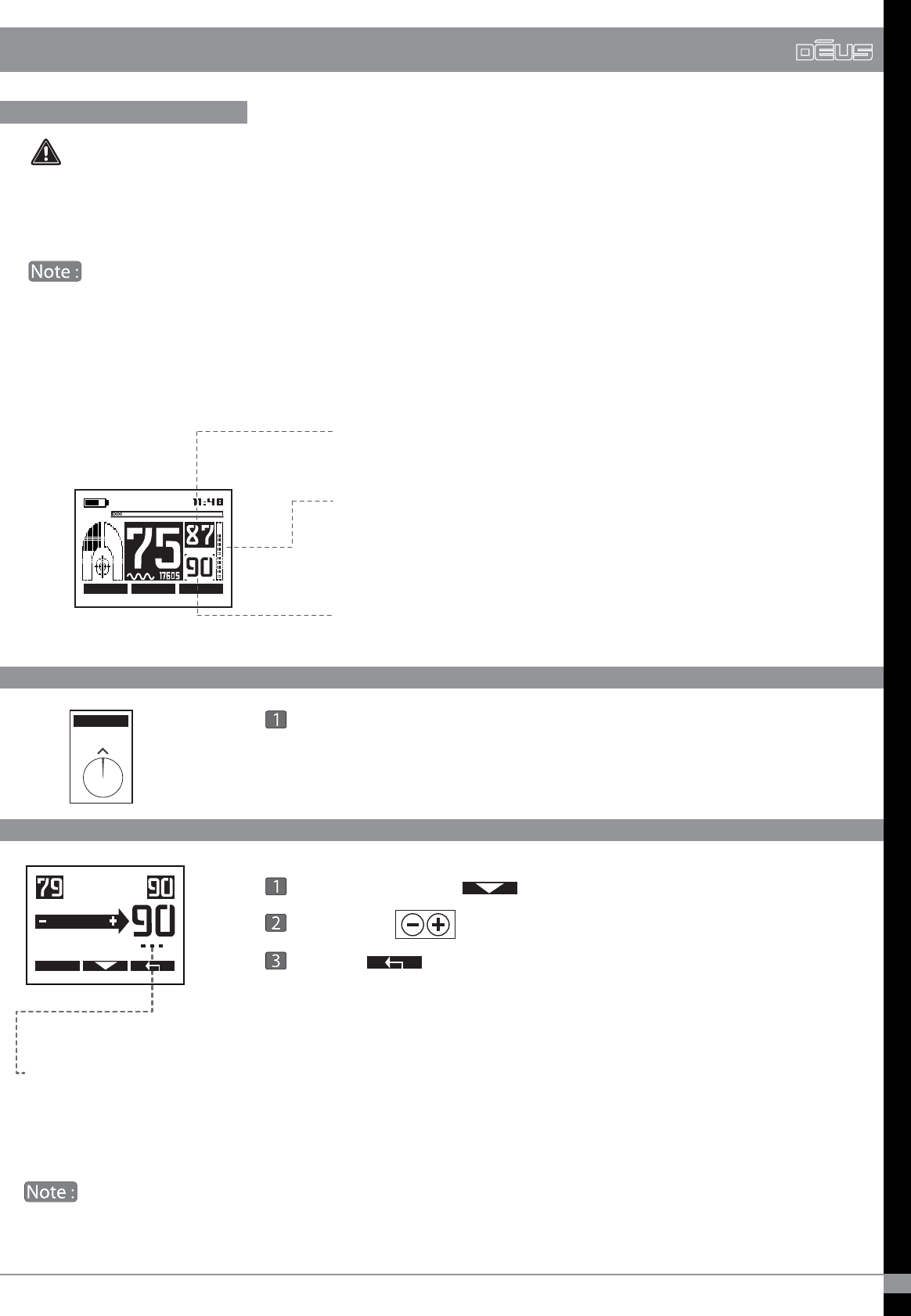

As the ground balance setting is the one requiring the most experience, we recommend that
you read this chapter and use the dierent ground balance modes carefully, while acquiring your
own experience of the ground. By default, remain in manual mode at level 90 for inland or dry sand.
On wet beach reduce the level from 25 to 27.
If the ground is not mineralised (see below the bargraph : Mineralisation strength) there is no
need to adjust your ground balance to a level other than 90: since the ground does not send back
any signicant spurious echo, the performance will be optimal even at level 90 and you will reduce
interference resulting from knocks to the coil.
On the main menu, two values are permanently displayed:
The ground mineralisation index (phase measured constantly
for information).
The actual level of ground eect corrections
(phase adjustment underway).
General features
MENU G.B.
OPTION
1 - BASIC 1
Mineralisation strength. The higher this value, the
more mineralised the ground is. Pump the coil up and down
several times to evaluate the mineralisation strength. If the level
is low, there is less of a need to make any adjustments.
GROUND
You can manually adjust the ground rejection levels from 60 to 95 (Beach O mode) or from 0 to 30 (Beach On mode)
Each ground rejection level from 60 to 95 receives additional units of ne adjustment to allow better
ground tracking.
By reducing G.B towards 87 you will begin detecting hot rocks, and knocks to the coil may result in false
signals. Even lower, between 75/85, pottery and the ground itself will begin interfering with your device.
If you are inexperienced in working with ground eects, we strongly suggest that you limit yourself to
a Ground Balance level of 90, which is the default setting, and is the most stable reference level recom-
mended for inland ground. Levels lower than 90 will result in increasing instability.
G.B.
TRACKING
PUMPING
BEACH
MANUAL
Go to Manual with
Adjust with
Exit with
Press Ground
4 modes are available:
MANUAL - PUMPING - TRACKING - BEACH (ON / OFF)
G.B.
EXPERT
GB
MANUAL MODE
14
Pumping is a semi-automatic process which allows you to adjust the ground
balance in a zone that you wish to search and have determined it as being an
overall average soil type. Henceforth, the measured value of the ground is
entered into the memory and used as the new active ground balance value.
If this value is unsuitable, or if it generates too much instability, you can repeat
the process in a dierent zone or switch to manual mode adding several extra
rejection points.
15 cm (6")
~
15 cm
~
6 inches
Go to Pumping with
Press and pump the coil on the ground
several times until you obtain the display G.B OK
Exit with
START
G.B.
MANUAL
BEACH
TRACKING
PUMPING
START
G.B.
MANUAL
BEACH
TRACKING
IN PROGRESS
G.B OK
GROUND
If a metal target is detected while you are pumping, the Dēus will recognise this and display the
message " GB FAIL" It will then retain the previous ground balance value. This problem is generally caused
by iron being present. If this is the case then move to another location and restart the pumping
In low- or non-mineralised ground, there is no need to adjust the ground balance and you are
advised to remain on 90 for greater stability.
The program 10 GOLD FIELD is adapted specically to search for gold nuggets in
mineralised soils or likely gold areas. These areas are dicult to prospect with
conventional detectors. The reason for this being the presence of ferromagnetic
metals, they hide gold nuggets. Program n°10 GOLD FIELD uses another
technique dierent from conventional detectors which cannot achieve an
accurate ground balance in such extreme conditions.
You have the possibility to ground balance using the remote control or the headphone.
Press to grab the ground value while pumping the coil on the ground to
calibrate and stabilise the DEUS. The number on the lower right of the screen
shows you the new ground value.
Restart the operation if the ground changes or it becomes unstable.
Press to reach Program
(P1...), Select Program 10 (P 10) with or
Press to reach "GND".
Press while pumping the coil on the ground to grab the ground value.
MENU
MENU
Restart the operation if the ground changes or it will becomes unstable
MENU SOL
OPTION
10 - GOLD FIELD
Controlling via remote control
Controlling via the headphone
DISC
SENS
GND
FREQ
TONE
VOL
COIL
GND
15 cm
~
6 inches
PUMPING MODE
PUMPING MODE PROG 10 GOLD FIELD

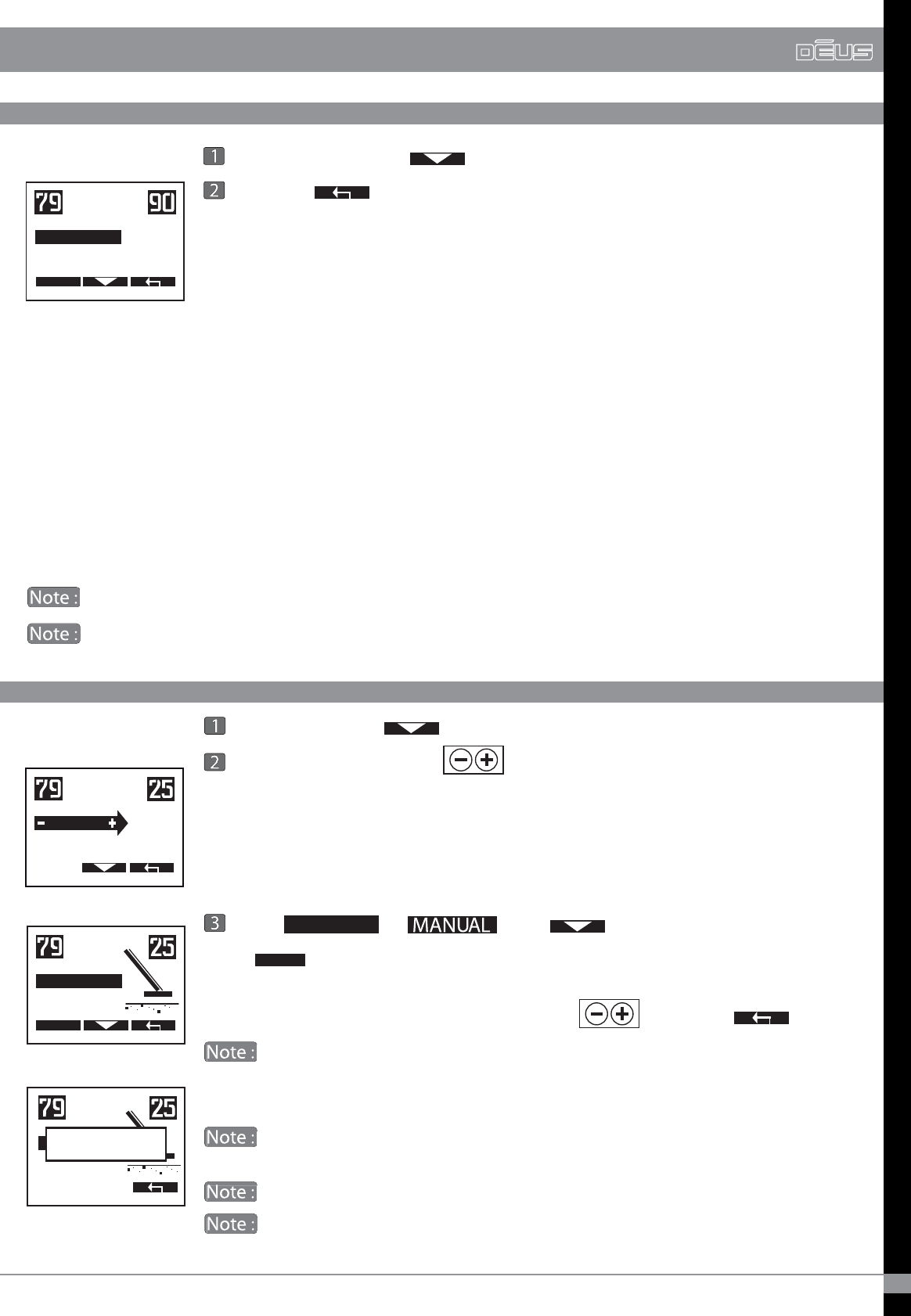

Go to Beach with
Choose YES
(00-30), with
Activates calculation of the ground balance on the zone corresponding to
highly saline wet ground, so as to reduce interference caused by conductive
salt water. After selecting Beach ON, you need to adjust the ground balance
manually or by pumping on the wet zone concerned, in order to cancel out
the ground signal.
Go to or with
Press and pump the coil on the ground several times until you obtain
the display " GB OK ".
In Manual Mode, adjust it from 00 to 30 with . Exit with
To improve stability on wet beach
(salt water)
:
Reduce Audio Response (0-1) / Increase Reactivity (4)
Power: Level 1 maximum. / Sensitivity: (70-85).
In wet zones (salt water), it is important to sweep while keeping the
coil parallel to the ground, yet not touching it.
In wet zones select the Wet Beach factory programme.
If you see the G.B FAIL screen. It is possible that the soil is irregular or
not mineralised. Adjust the ground balance from 25 manually.
This mode is not available in Beach mode, as the Pumping mode is more eective.
Go to Tracking with
Exit with
MANUAL
PUMPING
G.B.
BEACH
TRACKING
EXPERT
15
G.B. BEACH
PUMPING
MANUAL
BEACH
YES
PUMPING
START
G.B. BEACH
MANUAL
BEACH
PUMPING
START
G.B BEACH
MANUAL
PLAGE
POMPAGE
G.B FAIL
GROUND
However, in ground where mineralisation is a result of human presence (ancient settlements, for
example) this mode may be unsuitable due to ever changing ground conditions.
Indeed, within the
same sweep of just one meter, a considerable variety of ground conditions may be encountered,
ranging from one extreme to the other (values between 70 and 90): hot rocks, brick, slag, pottery
interspersed with soil that is neutral or characterised by diverse mineralisation. This may be to such an
extent that any mean value would be meaningless. You must then determine an acceptable level of
rejection for the ground based on your own experience of the site, your detection methods and the
interference that you are prepared to tolerate.
In this mode, the Dēus repeatedly scans the ground and digitally lters the
extracted signals to determine the mean value on a continual basis. This mode
may be useful in soils with relatively uniform mineralisation, and where the
mineralisation varies gradually from zone to zone, which is often the case in
naturally mineralised ground. In this case, the Dēus automatically readjusts the
ground balance according to the most recent value measured.
Low ground balance levels also generate the clearest signals on certain irons targets that are
already dicult to eliminate.
TRACKING MODE
BEACH MODE
16

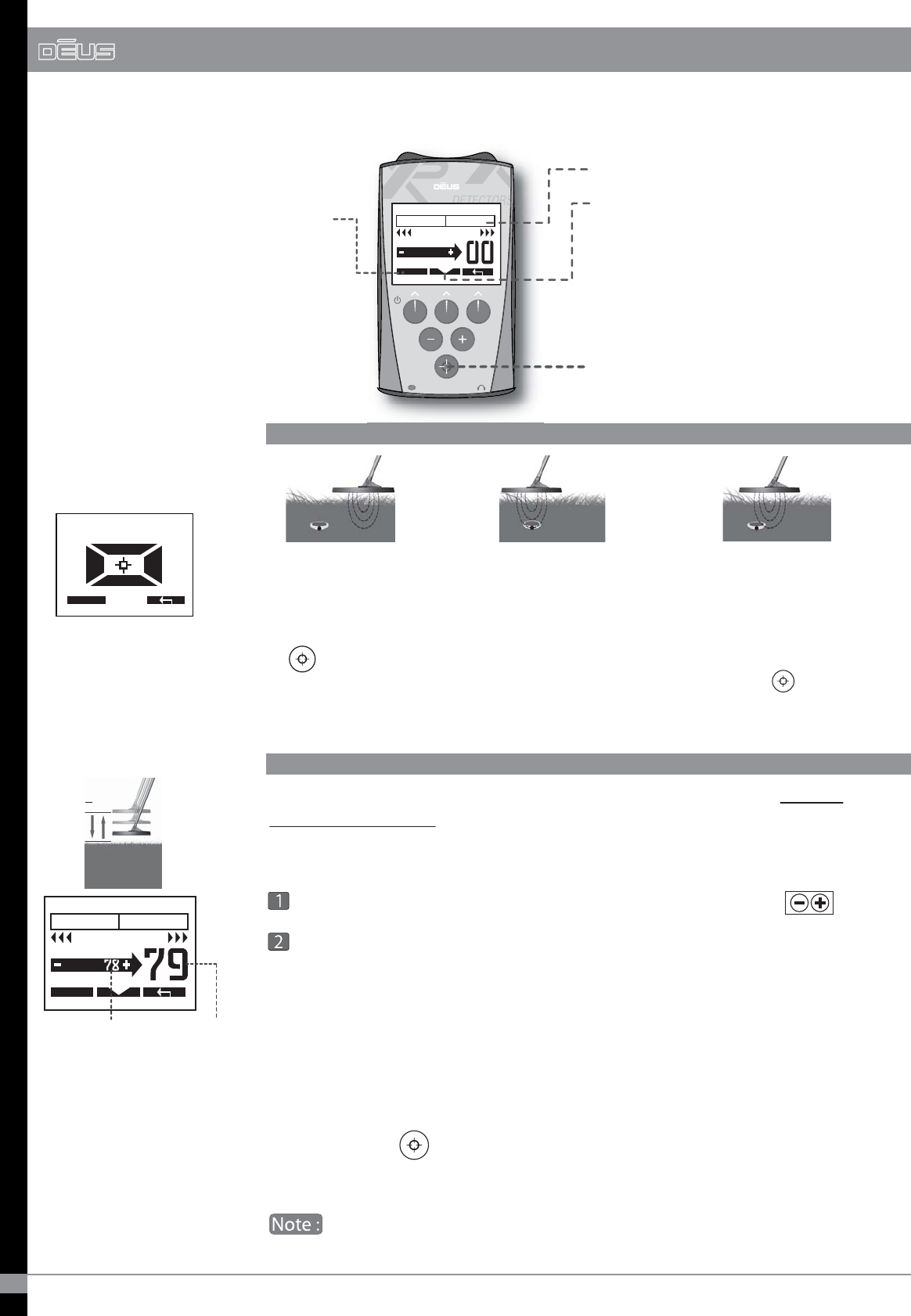

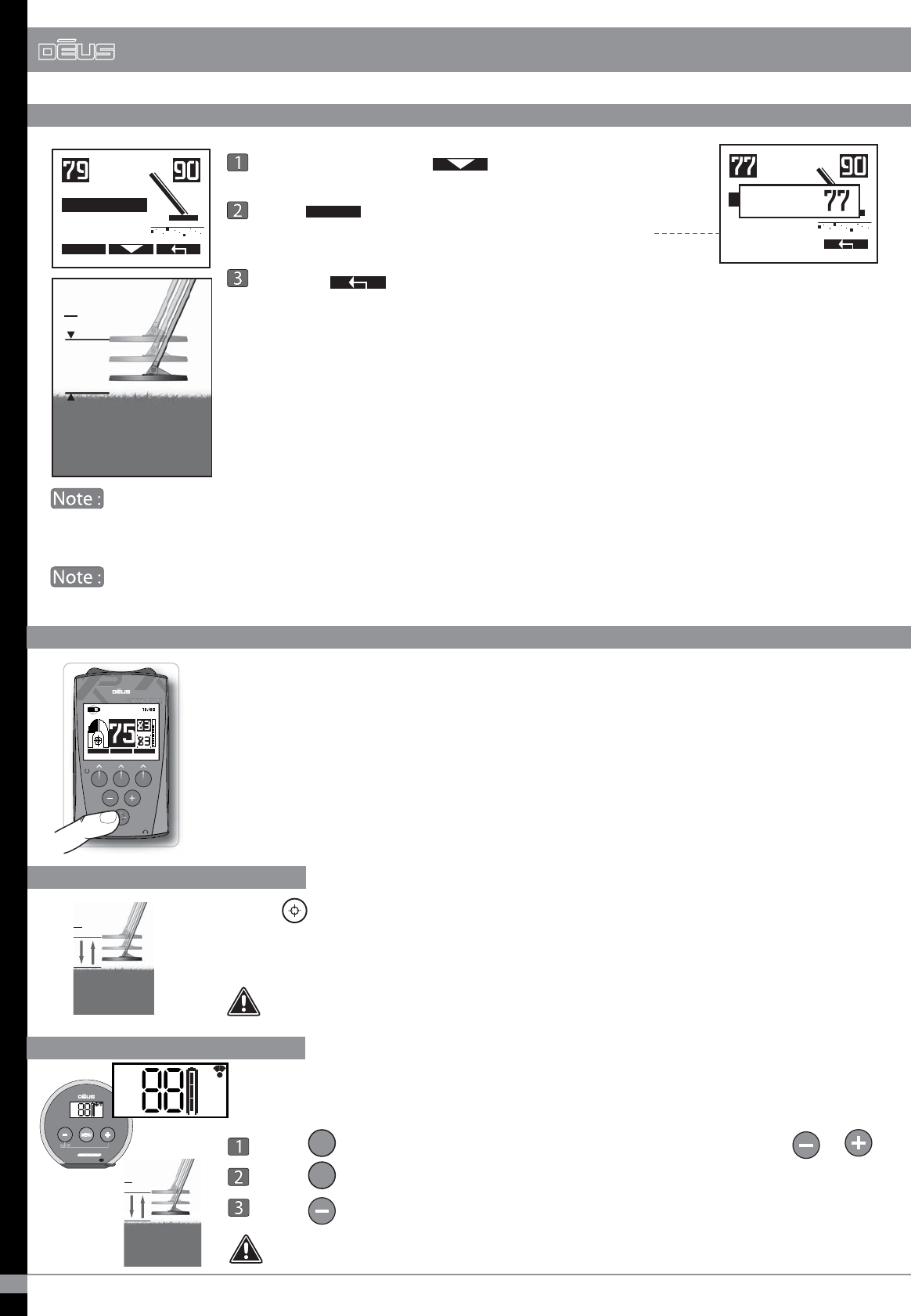

Regularly, press to re-Tune the threshold (coil barely o the ground
2 to 5 cm/ 1 to 2 inches)
. How frequently you recalibrate will be linked to
ground variations or temperature.
On Wet Beach, select program 7 before using the Non Motion Mode
and use Non-Motion Audio Disc mode with G.B. at 15/27.
Position the coil barely o the ground (2 to 5 cm/ 1 to 2 inches).
Set the Sensitivity to stabilize the detector during sweeping. Then
adjust the Tune to obtain an audio threshold barely audible.
Position the coil barely
o the ground (2 to 5
cm/ 1 to 2 inches) and
to the side of the target.
Press to calibrate the
threshold.
PINPOINT
MODE
Move the coil slowly across
the target. The loudest
sound and highest audio
pitch indicates the target
position.
To narrow the eld of
detection and to improve
the target location:
Position the coil, close to
the target but not on the
center. Press to re-tune
the threshold then locate
the target as step 2.
Meter Accept/Reject
- TUNE : allows to calibrate threshold to
the ground.
- SENS : adjust the depth.
MODE : allow to choose between 4 modes :
Used to access the NON-MOTION mode
and/or to update the threshold(re-TUNE).
The non - motion mode allows the user to operate the coil motionless above a target. It is useful
to locate metal targets inside houses, cellars; also it is widely used to follow underground metal pipes.
1-Pinpoint: to locate metal targets
2-Non-motion Audio Disc: audio
tone upwards for good targets and
down for ferrous. Application: general
use, mineralised ground
3-Non-motion All Metal : All Metal +
will also detect anomalies in ground
minerals plus some ceramics
4-Non-motion Disc : discrimination
with single tone. Application: search
inside walls.
-
-
OUI
-
- GROUND : adjust the ground balance.
- DISCRI: adjust the rejection of undesirable
targets.
NON MOTION AUDIO DISC
TUNE
SENS
MODE
GND
REJECT ACCEPT
"Ground value" Adjust value
manually
15 cm
~
Non-motion Audio Disc and Non-motion All Metal both require
ne ground balance adjustments in order to keep a stable operation.
Pump the coil, and enter the observed "ground value" with
12 3
NON-MOTION DISC requires no ground balance adjustment, it is
useful to locate metal targets inside walls, and gives a good distinc-
tion between ferrous and non-ferrous. Set this mode, as indicated in
step 2.
NON MOTION AUDIO DISC
SENS
G.B
MODE
TUNE
REJECT ACCEPT
Press arrow to scroll through the functions:
6 inches
NON  MOTION
PINPOINT (LOCALISATION)
NON MOTION DISC - NON MOTION AUDIO DISC & ALL METAL
PINPOINTER MI-6
17

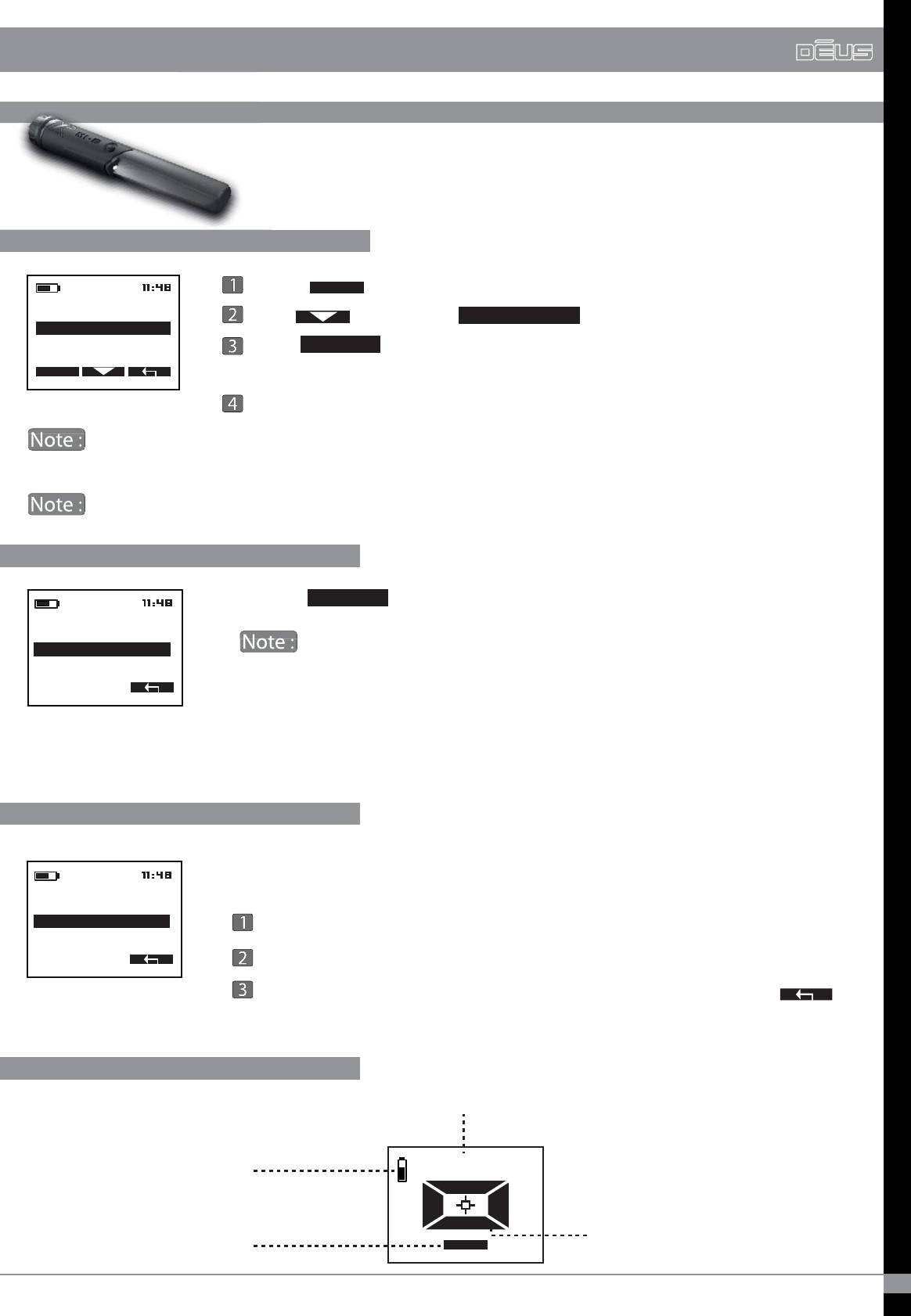

Find your pinpointer within a radius of 25 meters, even if switched o and
missing after several weeks.
Press RESEARCH
The pinpointer will start sounding with a ashing LED.
Press the pinpointer button and return to the search mode with
When connected the MI-6 pinpointer transmits its audio signal directly
to the DEUS, a new menu will now be available with extended functions.
OPTION
COILS
PINPOINTERS
CONFIGURATION
PROGRAMS
SELECT
REMOVE
RESEARCH
PINPOINTER
Choose
Press and select
Select
Turn on the MI-6 , then hold the button down for 8 seconds
Once paired the MI-6 will operate with the DEUS.
When pairing, the MI-6 automatically switches to program 7 (DEUS). This program will only
work with the DEUS. Program 7 will not generate any sound or vibration.
You can paire your MI-6 only with the XP wireless headphone ( pg 27)
OPTION
PINPOINTERS
PAIRING
Pairing the remote control with Pinpointer
PRG 2
MENU
Target zoom screen.
Program
Access to:
SENS - TONES - AUDIO...
MI-6 Battery condition
Recover a lost MI-6
MI-6 active display screen
REMOVE
RESEARCH
PINPOINTER
Choose REMOVE and press YES.
To use the MI-6 without the DEUS, select programs 1 to 6 on the
MI-6 menu. To change program: Switch MI-6 on - press the button for 5
seconds, a melody indicates that you have entered the program selection
mode, press to correspond with the desired program number (eg press 2
times for program 2). After 2 seconds the melody indicates the MI-6 has
returned to the search mode.
Remove the MI-6 from the Menu
W
t
o
Pairing the remo
t
e
c
o
n
t
r
o
l
w
i
t
h
OPTION
PRG 2
MENU
MENU
AUDIO
SENS
TONE
30
SAVE
PINPOINTER
CONFIG

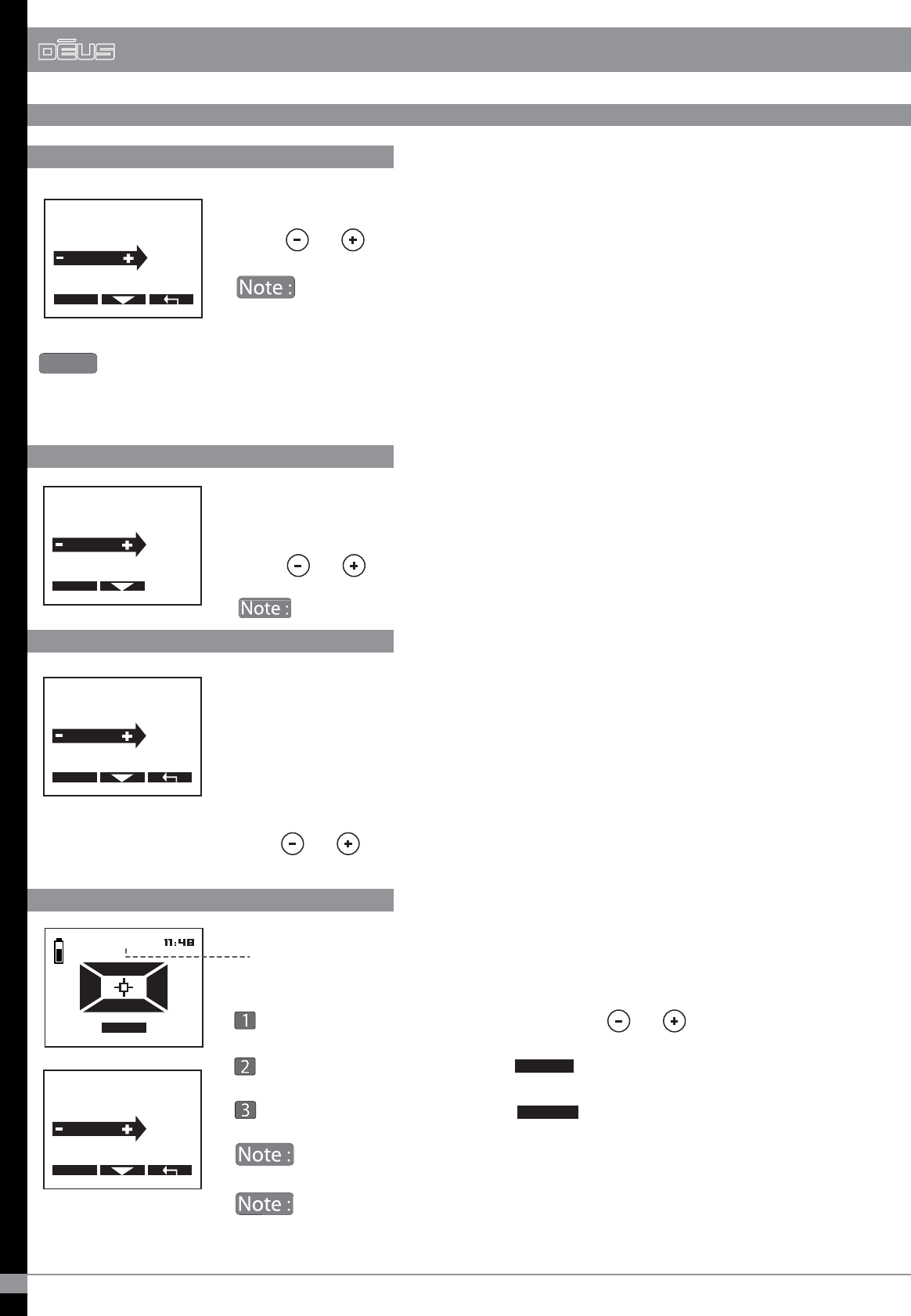

The MI-6 has 50 levels of sensitivity via the remote control.
Press or The MI-6 has 50 levels of sensitivity via the remote control.
For precise object location, low sensitivity levels, such as prog 1 and 2,
are recommended. The high sensitivity level (prog 3) is for cache location or
searching in walls and furniture.
The MI-6 audio PULSE tone can be adjusted from the remote control, tones range
from 120 to 1582 Hz. (Audio PULSE mode only)
Press or to adjust the tone.
Tone is available only with the Audio PULSE mode
- Audio PITCH: The sound varies in tone and intensity, it is the default mode, it
oers fast target location.
- Audio PULSE: Has a higher sound, intended for noisy environments. Target
location is not as precise as PITCH mode. Pitch and Pulse mode both have the same
performance.
Choose from one of the 3 factory pre-set programs in the menu to make
your own custom program which can then be saved as (prg4).
Select the program you want by pressing or
Enter the settings by pressing
Save your settings by pressing
When rst used the MI-6 will start on program 2. After this it will start
on the last used program.
The 4 programs on the remote control are separate from the programs
inside the pinpointer. When used independently the MI-6 (unpaired) will
always use it’s factory programs.
Sensitivity
Tone
Audio PITCH / Audio PULSE
Making and saving a custom program
AUDIO
SENS
TONE
30
SAVE
PINPOINTER
CONFIG
SENS
TONE
AUDIO
1582 HZ
SAVE
PINPOINTER
CONFIG
TONE
AUDIO
SENS
PITCH
SAVE
PINPOINTER
CONFIG
SAVE
Press or to switch from one mode to another.
Retune At any time, you can re-calibrate the MI-6 by pressing the button very briey while away from
any metallic source. On mineralized soil, salt water, re-calibrate it in contact with the ground. To
localize detection range, re-calibrate (de-tune) near to the object.
18
THE MI-6 - EXTENDED FUNCTIONS
OPTION
When rst purchased, the
Dēus
is only congured to operate with its original coil.
If you have one or more optional coils which have already been paired (see
below), you can select which one you want to use from the menu list.
Press
Choose with then press
Switch on the headphones close to the remote control.
On the remote control, press to scroll through the list of available
coils and stop on the one you wish to activate. This coil automatically becomes
active within 4 seconds, while the previous coil reverts to standby mode.
Press X2 to return to the main menu.
If you switch on the headphones after changing the coil via the remote
control, the headphones will not automatically register this change. You will
therefore need to change the coil manually via the headphones. (pg 25)
19
Choose the program to delete in main menu with
Press then select .
Select and press , the program is deleted.
Press
Choose with then press
OPTION
PROGRAMS
PROGRAMS
SELECT
OPTION
CONFIGURATION
COILS
PINPOINTERS
PROGRAMS
SELECT
Choose stop on the program you wish to modify then press
Replace "name program" press
Scroll through the characters
And to advance to the next data entry zone. Or to delete the
previous character. Press
Modify the name of a program (11 to 18)
Delete a modied program (11 to 18)
VALID
PROGRAMS
DELETE
EDIT NAME
SAVE
SELECT
PROGRAMS
EDIT NAME
SAVE
DELETE
SELECT
Choose . Press on
Select an unused slot (11-,...) with then press
Edit the name and press , your program is saved
Save a modied program (11 to18)
SELECT
SELECT
PROGRAMS
EDIT NAME
SAVE
SELECT
SAVE
SELECT
VALID
SAVE
YES
YES
OPTION
DELETE
OPTION
REMOTE CONTROL'S PROGRAMS
From 10 programs factory (P1 to P10) , you can modify them and create
8 additional user programs. (P11 to P18).
2
OPTION
2
COILS
SELECT
OPTION
PROGRAMS
CONFIGURATION
COILS
SELECT
Example
COILS
SELECT
01 043AB7
02 ---------
COILS
If the headphones do not recognise this coil, for example because they were switched o while
the serial number was being entered in the remote control, You then have 2 options to pair it:
1: Turn on the headphones and the remote control with the previous coil (for example the original
one). The list of coils from the remote control will be sent automatically to the headphones.
2: Enter this new coil’s serial number manually in the headphones as well (pg 26).
A coil’s serial number is unique. The headphones or remote control cannot function with a coil
if the number entered does not correspond to the actual serial number printed on the coil.
20
OPTION

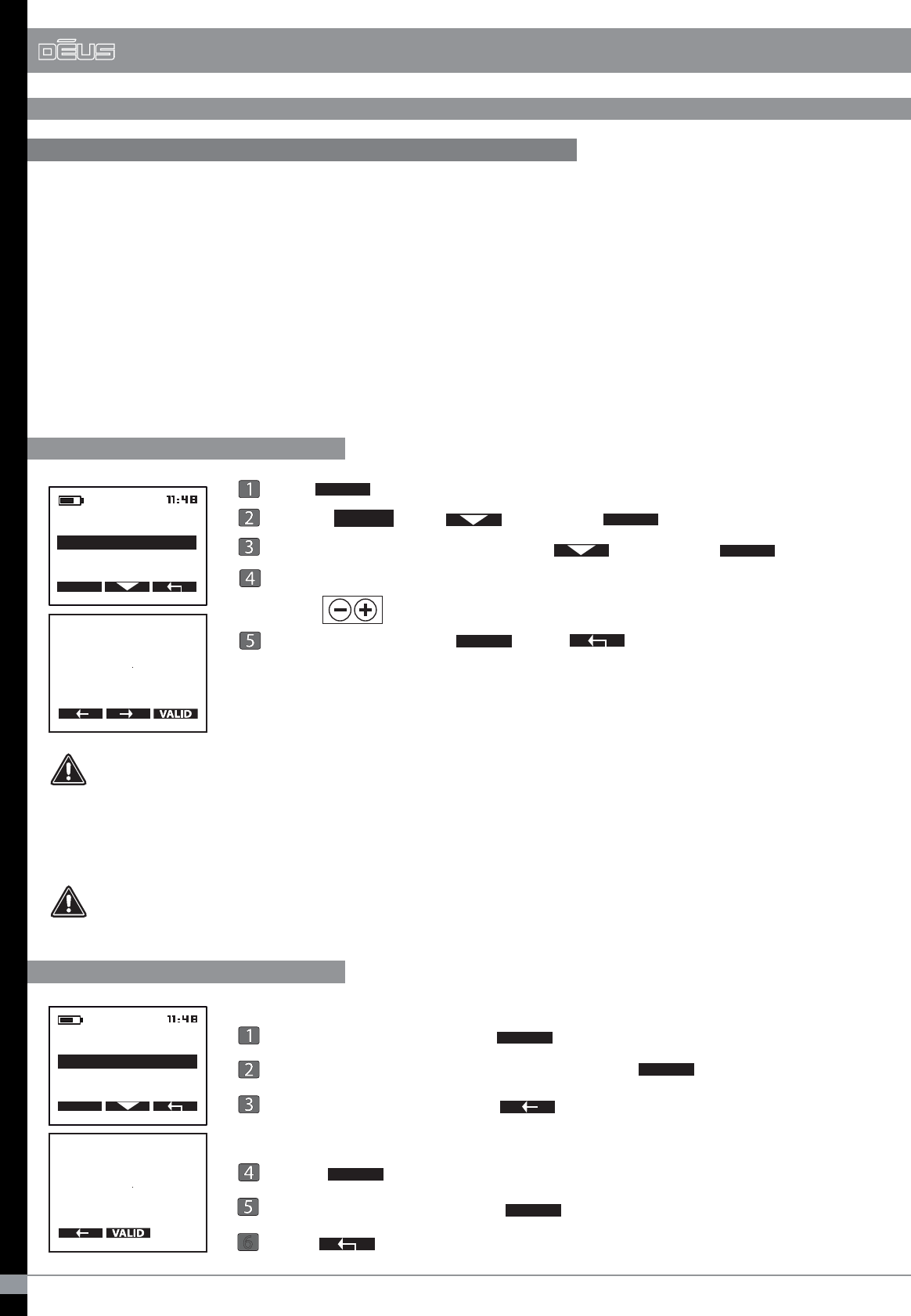

Pairing the remote control and the headphones with a new coil
If you purchase an additional coil, it will need to be paired with the remote control and the
headphones. You can then switch between coils with a simple click via the remote control. To pair a
new coil enter its serial number into the remote control and headphones. The serial number is
printed on the coil and is sometimes found on the invoice as well.
- Before you pair a new coil, turn on the headphones and remote control.
- Check that they both work correctly with your original coil.
- Keep the headphones, remote control and also the new coil close to each
other and follow the following steps:
COIL continued...
VALID
Press
Choose with then press
Select an unused slot ( -------) with then press
At the point where the cursor is ashing, scroll through the characters
using to make your choice.
At the sixth digit press then X2 to return
to the main menu.
The remote control now adds this new coil to its list, then transfers the
updated list to the headphones.
OPTION
SELECT
COILS
1- 043AB7
2-----------------
COILS
EDIT SERIAL NUMBER
0403B6
Entering the serial number
SELECT
SELECT
Delete coil from the list
Choose the coil and press
Select EDIT SERIAL NUMBER and press
Delete all characters with Choose "space"
(the previous character 0)
Press the coil is deleted.
DELETE CONFIRM select
Press
x 2 to return to the main menu.
VALID
YES
EDIT NAME
000000
COILS
2-COIL 34 CM (13'')
3 -----------------------
1-COIL 22.5 CM (9'')
SELECT
SELECT
SELECT
6

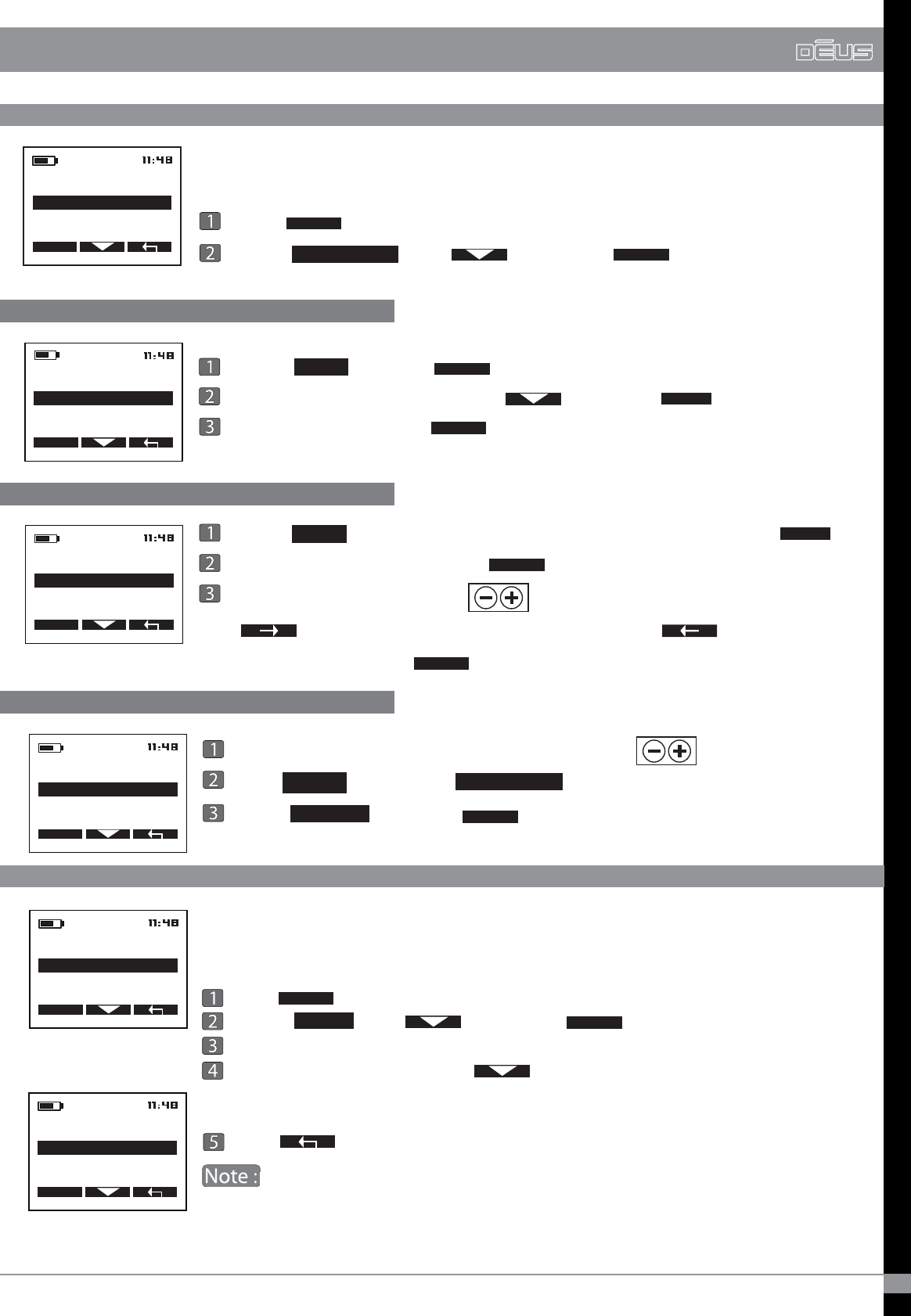

To improve readability in all lighting conditions you can adjust the contrast
of the display.
The remote control screen has a backlighting function which switch on
as soon as any button is pressed and goes o automatically after a certain
length of time. You can dene this time in seconds:
OFF - 3s - 10s - 60s -120s - ON (permanent)
Enables the remote control’s loudspeaker to be activated or not.
You can leave the backlighting on permanently (ON) as this function
uses very little power and only aects the remote control’s battery life by
about 10%.
CONFIG
UPDATE
BACKLIGHT
CONTRAST
SPEAKER.
OFF
CONFIG
SPEAKER
CONTRAST
CLOCK SETTING
BACKLIG.
3s
CONFIG
BACKLIGHT
CLOCK SETTING
PROFILE
CONTRAS.
3
Duration of backlighting
Loudspeaker
Contrast
Clock
This changes the clock setting that is displayed on the main menu.
CONFIG
CONTRAST
PROFILE
GO DETECT
CLOCK S.
Prole
This option enables you to customise the
main screen.
You have several prole choices:
Fast Slow and Deep
CONFIG
SPEAKER
GO DETECT
UPDATE
PROFILE
MENU G.B.
OPTION
1 - BASIC 1
21
This allows you to modify the remote control’s general technical settings.
Press Choose with then press
OPTION
CONFIGURATION
SELECT
OPTION
SELECT
- CURVE:
Representative curve for the detector's active settings
relating to Sensitivity.
- IRON HORSE SHOE
Ferrous/Non-Ferrous target strength (or depth indicator), at the left strength of
the ferrous, at the right strength of the non-ferrous.
PROFILE
GRAPHIC
PROFILE
GRAPHIC
ID NORM.
ID NORM.
CONFIGURATION
22
OPTION
OSCILLOSCOPE DISPLAY XY: The target signature is displayed as an oscilloscope.
The XY screen provides a visual assistance and may improve the identication of
dicult targets. For example: The identication of targets that do not have a
precise signature (some ferrous, cans ...). The XY prole can be selected as the
default display. The display magnication of the XY trace has 10 levels of adjust-
ment using the Zoom function.
MENU GB
OPTION
3 - DEUS FAST
PROFILE
GRAPHIC
XY
ID NORM.
zoom 4x
XY screen target examples :
MENU GB
OPTION
NF
NF
F
F
6 - DEEP
Typical signature from
ferrite and ceramics.
MENU GB
GB OPTION
6 - DEEP
MENU GB
OPTION
6 - DEEP
MENU GBOPTION
6 - DEEP
Typical signature for cans and dicult to reject large ferrous items.
Typical non ferrous
signature for foil.
Typical signature for
rejected ferrous.
Typical non ferrous
Signature for coins.
MENU GB
OPTION
6 - DEEP
MENU GB
OPTION
6 - DEEP
6 - DEEP
Alternating display
Between target reading
and battery level.
Display Area for
Non-ferrous targets
Ground phase reading
Display Area for
Ferrous targets Display Area for
Non-ferrous targets
Display Area for
Ferrous targets
Zoom XY mode
Prole continued...
Press the Pinpoint button for 2 seconds to display the zoom function.
Adjust the zoom by pressing the or key
ID norm
ID NORM (Standardization of the target ID) Allows the target value range to
indicate the same for all the frequencies. Based on the 18Khz setting.
This function is not available with the HF coils.
PROFILE
ID NORM
YES
GRAPHIC
23
OPTION

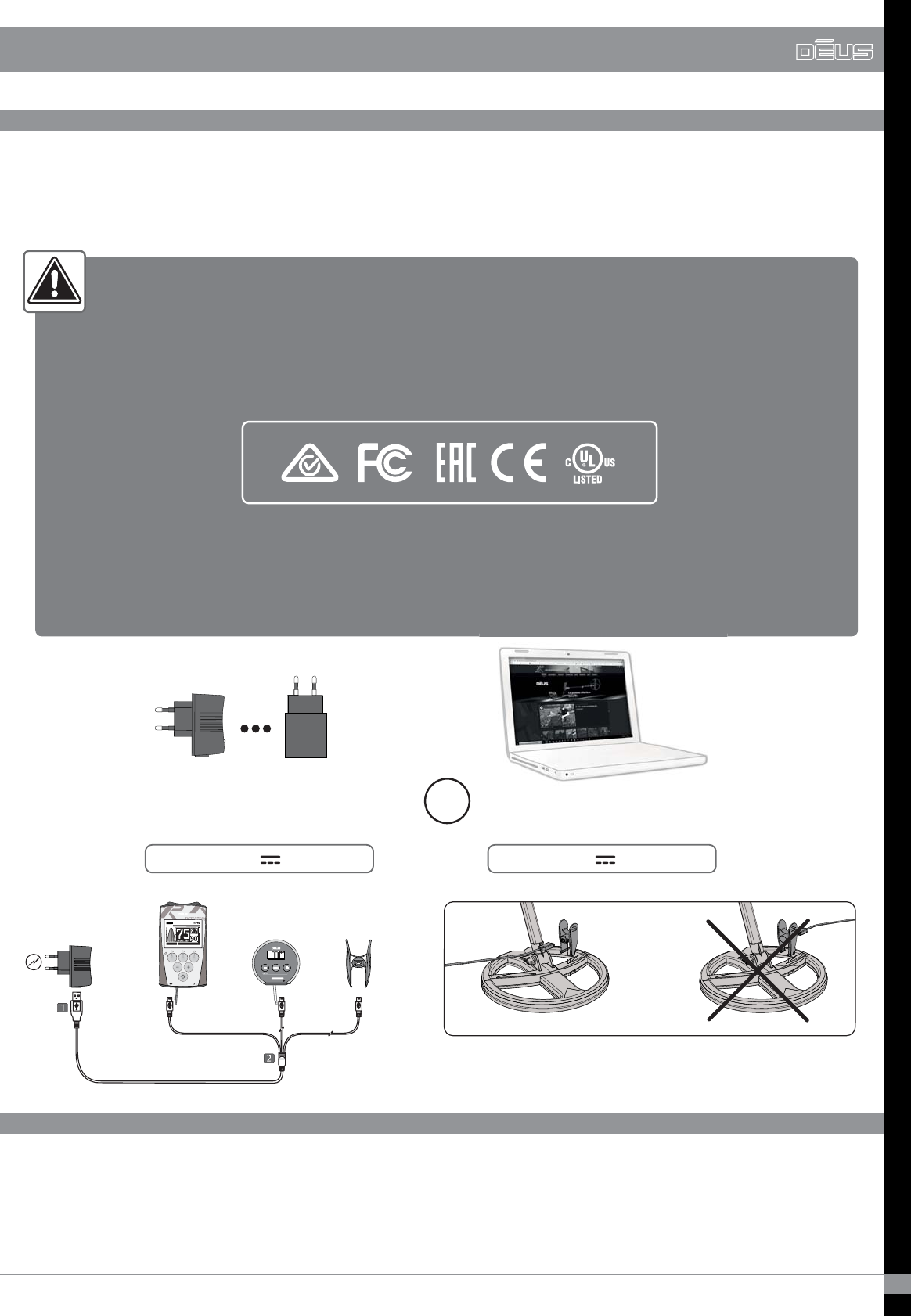

Use the single USB cable for the update
www.xpmetaldetectors.com
DETECTORS > DEUS > DEUS UPDATE
Smartphone application GO TERRAIN
-
-
MENU SOL
OPTION
1 - BASIC 1
Updates
The software can be updated via the
Dēus
USB interface and an internet connection. Full
information is available on our website:
GO TERRAIN is an application for IOS or Android smartphones, designed to optimize your Deus expe-
rience. Key features are : Geo-locate, a real time map and the ability to make an inventory of your nds.
More information on our website available coming soon.
DISC
SENS
GND
FREQ
TONE
VOL
COIL
Control pads
Increase / decrease values
To switch ON : Press
To switch OFF : Press simultaneously
and
Displayed : Coil battery level
Not displayed : Headphones battery level
Used to scroll through the detection
menus and their setting values:
DISC ---------------------
SENS --------------------------
GND ------------------------------
FREQ -------------------------
TONE -----------------
VOL -----------------------
COIL ---------------
P1 to P10 -------
USB/mini-B charging connection
Indicates the setting value
or the number of the factory
program P1, P2, etc
Indicates the battery charge level of the coil
and the headphones (alternates every 4 seconds)
Indicates that the radio link
with the coil is active
Discrimination
Sensitivity
Ground
Frequency
Number of Tones
Audio volume
Selected coil or MI-6
Factory programs
24
WS4 and WS5 have the same functions
45
5

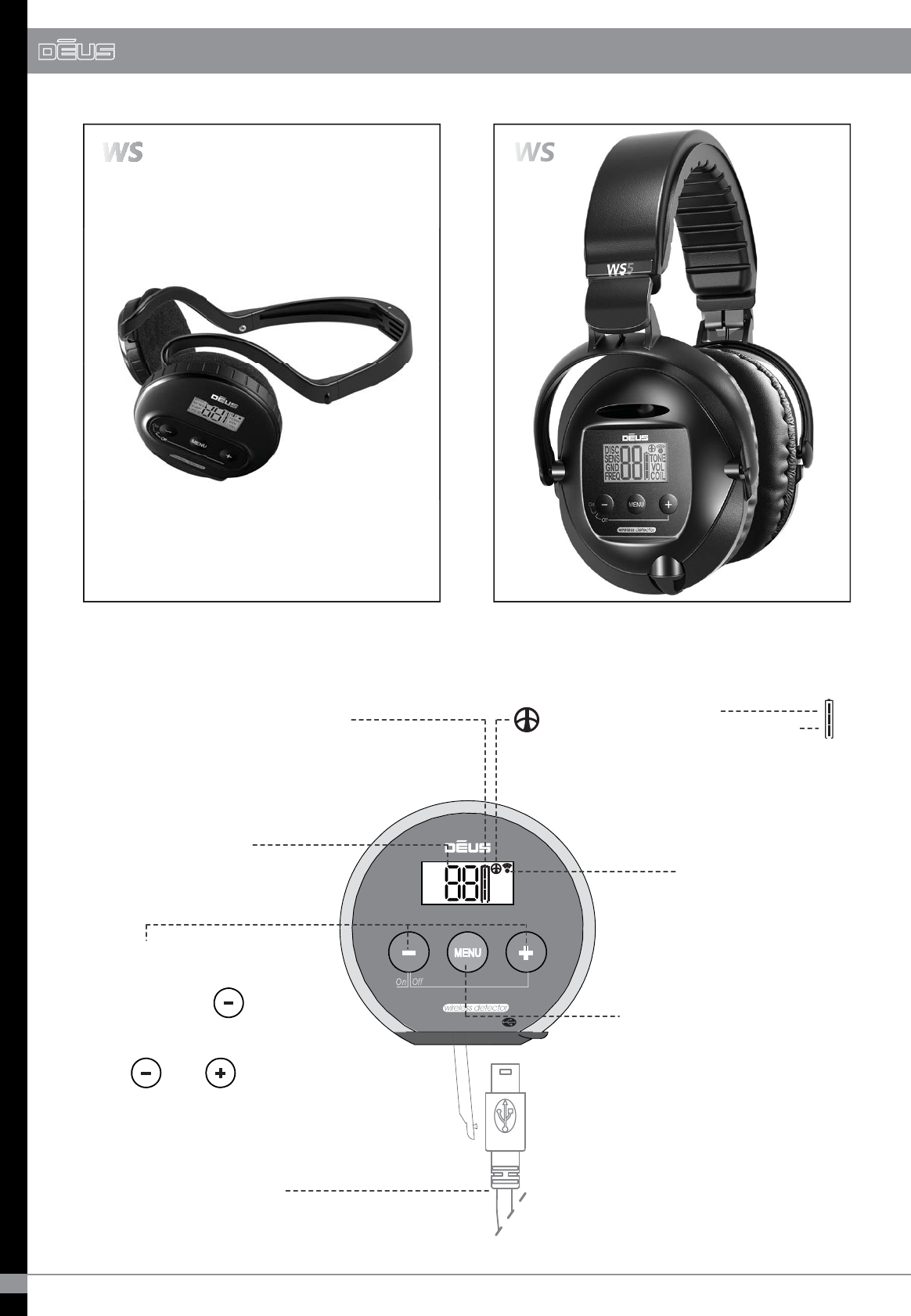

WIRELESS HEADPHONES
Menus accessed via the headphones have the same range of settings as
the remote control.
Remote control ON: Only the volume control can be adjusted.
Remote control OFF: All settings can be adjusted.
Press to access the dierent menus. Adjust with
FREQ
DISC
SENS
GND
FREQ
TONE
VOL
COIL
SENS
COIL
GND
TONE
VOL
25
GND Ground balance (pg 12).
60-95: (inland ground) 0-30: (Only with program N°7, for beach, wet zone)
WIRELESS HEADPHONES
SENS Sensitivity: 0-99 (pg 09).
DISC Discrimination: -6-99 (pg 08).
A ashing digit represents a digit after the decimal point.
EXPERT:
Press 2 sec to blink "DISC" and adjust the REACTIVITY (page 10) with .
EXPERT:
Press 2 sec to blink "SENS" and adjust the TX POWER (page 32).
EXPERT:
Press 2 sec to blink "GND" to activate the TRACKING MODE (page 15) .
EXPERT:
Press 2 sec to blink "FREQ" and adjust the FREQUENCY SHIFT (page 33) .
EXPERT:
Press 2 sec to blink "TONE" and adjust the IRON VOLUME (page 10) .
EXPERT:
Press 2 sec to blink "VOL" and adjust the AUDIO RESPONSE (page 12) .
FREQ Choice of frequency used (pg 09).
TONE Choice of number of tones: 2, 3, 4, 5 tones, Full tones, P (PITCH) (pg 31).
VOL Adjusts sound volume in headphones: 0-9.
COIL Choice of coil used when several are available.
The coils are numbered according to the order in which they were entered:
01 = Original coil
02= Coil 2
PP = Pinpointer (pg 17-18)

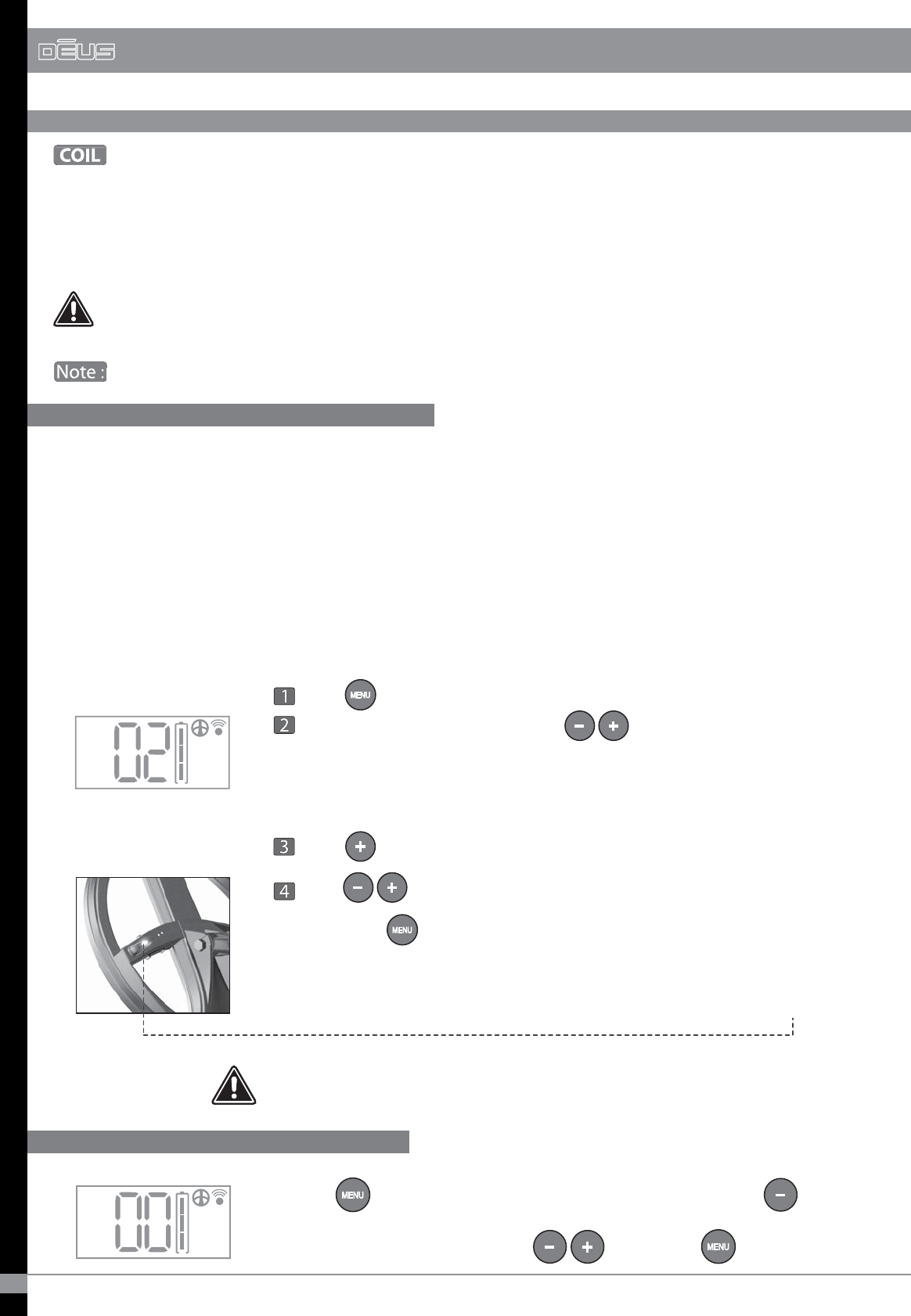

MENU
If you are detecting with the remote control and you use it to change to a new coil, the
headphones will automatically register this change (if they are switched on). Otherwise it can be done
manually with this menu. Always leave the headphones switched on when you are changing the coil via
the remote control, otherwise they will not register the change and will remain connected to the
previous coil. If this should occur, use the remote control to return to the previous coil (with the
headphones switched on) and switch to the new coil again to re-register it with the headphones.
Remember that before you can use a new coil for the rst time, you need to enter its serial number
into the headphones and remote control (pg 24/30).
When turning OFF the remote control to use only the wireless headphone, the coil restart
Press until you reach COIL
Choose the ashing free slot with for example 02
(01 is already assigned to the original coil).
If this coil has already been paired with the remote control, ensure you choose
the same slot number in the headphones.
Press for 5 seconds to switch to serial number entry mode.
With enter the rst digit of the serial number then
validate it with
Continue in this way until you reach the sixth digit.
The new coil is now operational in this slot and should become active.
COIL
COIL
Pairing the Headphones with a new Coil
26
A coil’s serial number is unique. The Dēus cannot use a coil if the number entered
does not correspond to the actual serial number printed on the coil
(and sometimes appearing on the invoice as well).
Delete coil
WIRELESS HEADPHONES
When delivered, the headphones and remote control have already been paired with the original coil, so no
action is required on your part. However, if you purchase an additional coil, before using it for the rst time
you need to pair it with the remote control and the headphones, to enable it to recognise and communi-
cate with them.You can then change coils with a simple click using the remote control (pg 19)
or your headphones (pg 26).
If you leave the headphones switched on when you pair the remote control with a new coil, they are also
paired with this new coil, which is then added automatically to the list in the headphones menu
If you do not have the remote control, or in the event of a problem, you can manually pair the headphones
with a new coil. To do this you need the serial number of the coil to be paired:
COIL
Press until you reach
COIL, then for 5 seconds press . Choose
the ashing coil to delete with , and press to validate.
Press until you reach
PROGRAMS (P1,...), then for 5 seconds press . Choose the ashing
program to delete with , and press to validate.

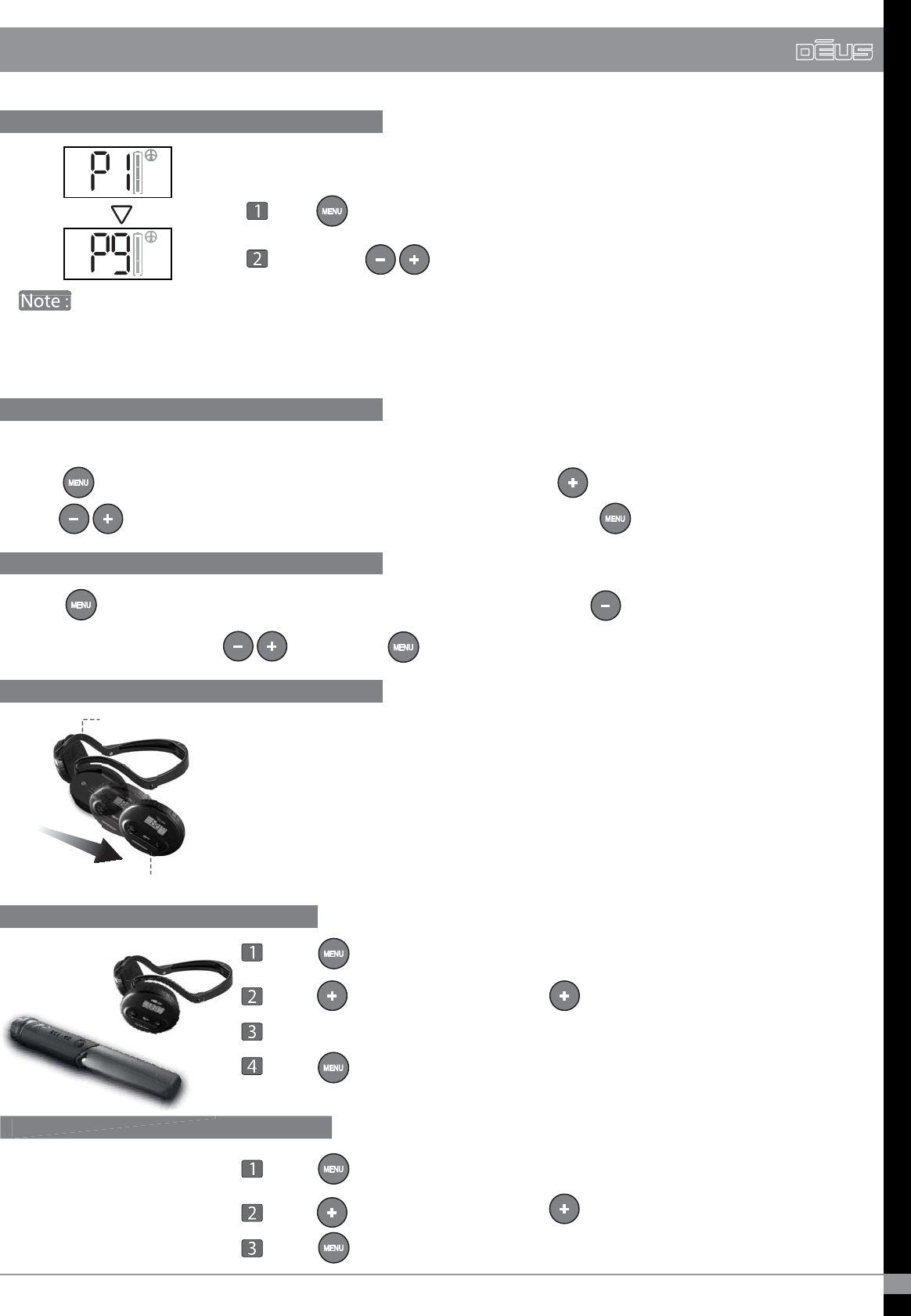

Programs are identical to those in the remote control and are numbered in the same way from 1
to 10. e.g. P3 headphone = factory program 3 in the remote control. Each time the remote control is
switched on next to its accompanying headphones, all the remote control’s settings are loaded into
the headphones, which are then stored in the memory even when switched o.
Choose one of the 10 pre-congured factory programs.
Press until you reach P1/10 screen.
Scroll with and choose the program number.
Programs P1 to P10
Save a modied program (P11 to P18)
Delete a modied program (P11 to P18)
Replacement of the backphone
27
WS4 Electronics
Backphone
WIRELESS HEADPHONES
Pairing the headphones at the MI-6
Remove the MI-6 at the headphones
Rem
o
v
e
t
h
e
M
I
6
a
t
t
h
Press until you reach COIL.
Press to reach PP, then press 3 seconds. PP ashing.
Turn on the MI-6 , then hold the button down for 8 seconds. PP is paired.
Press
Press until you reach COIL.
Press to reach PP, then press 3 seconds; PP ashing.
Press
Save a program after changing a few settings:
Press until you reach PROGRAMS (P1,...), then
for 5 seconds press .
Choose the ashing free slot
with (from P11 to P18), nally save your programs by pressing .
The electronics housing of the wireless headphones contains all the electro-
nics and the lithium battery, it represents your headphone’s brain! (ref:
D091) Fitted on a sliding support, it has the advantage of being able to
disconnect from the backphone with a single click. This backphone is an
inexpensive spare part that can easily be replaced by yourself (ref: D096).
Available from all our resellers.

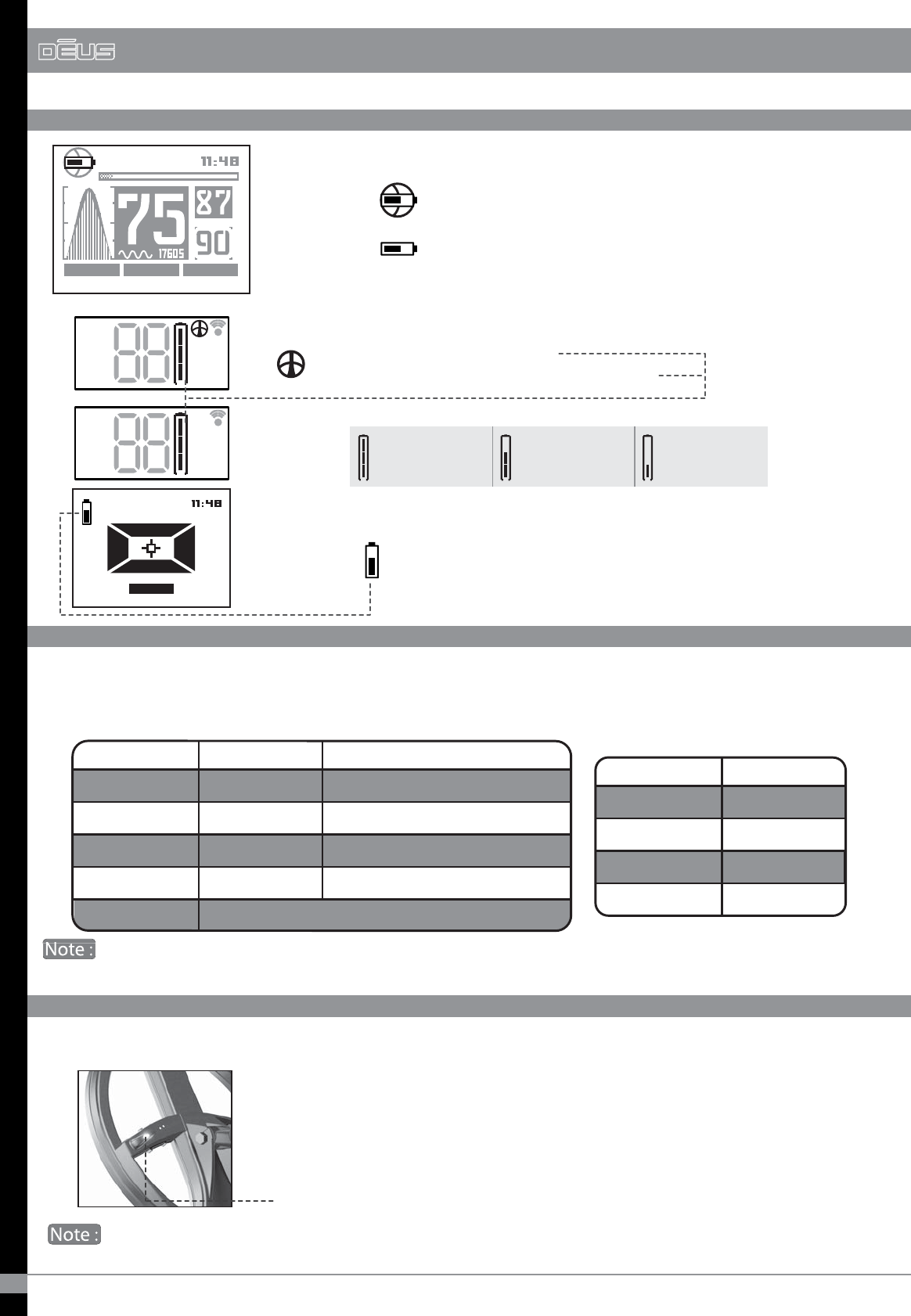

The search coil’s battery life may vary depending on the modes used. The table below shows battery
life according to frequency and power selected
The Dēus is regulated in such a way that avoids any deterioration in performance even when
the battery level is low !
The remote control alternately displays :
The symbol which indicates the coil’s charge level.
The symbol which indicates its own charge level.
If you only use the headphones without the remote control, you will also
need to know the coil’s charge level.
Displayed = coil’s charge level.
Not displayed = headphone's charge level.
HEADPHONES: 22 hours / REMOTE CONTROL: 19 hours / COIL :± 15 hours
DISC
SENS
GND
FREQ
TONE
VOL
COIL
100% charged 60% charged 30% charged
DISC
SENS
GND
FREQ
TONE
VOL
COIL
COIL: 2h30 / REMOTE CONTROLand HEADPHONES: 3h00.
LiPo batteries (Lithium polymer) do not suer from the ‘memory eect’ so you
can recharge them at any time without rst having to wait for them to fully
discharge.
The LED on the coil is on continually when charging is underway.
When charging is complete, the LED reverts to ashing intermittently.
(3 seconds ON, 3seconds OFF)
MENU G.B.
OPTION
1 - BASIC 1
28
POWER SUPPLY  BATTERIES
PRG 2
MENU
When the pinpointer is switch ON and paired with the remote control,
The symbol which indicates the MI-6's charge level.
Frequency 14 kHz
Frequency 30 kHz
Frequency 55 kHz
Frequency 80 kHz
20 hours
27 hours
28 hours
28 hours
HF COIL Battery life
The charging time varies depending of the battery condition, the HF COIL battery has more
capacity, it will require a longer charge time.
Frequency 4 kHz
Frequency 8 kHz
Frequency 12 kHz
Frequency 18 kHz
DEUS COIL TX POWER 1 TX POWER 2 or 3
TX Power TX NORMAL:12 hours - TX BOOST: 6 hours
≈ 18 hours
≈ 22 hours
≈ 24 hours
≈ 14 hours
≈ 19 hours
≈ 21 hours
Frequency 25 kHz ≈ 25 hours ≈ 21 hours
BATTERY STATUS
BATTERY LIFE
CHARGING TIME
MENU
OPTION
1 - BASIC 1
MEN
OPTION
M
N
EN
M
N
IO
PTI
OP
O
N
DISC
SENS
GND
FREQ
TONE
VOL
COIL
29
POWER SUPPLY  BATTERIES
The search coil, remote control and headphones are all powered by lithium polymer batteries. These miniature,
high-capacity batteries can be recharged quickly. The dierent Dēus elements can be charged while switched
on or o, but switching them o speeds up the process.You should use the power adaptor supplied, which
enables all three elements to be charged simultaneously when used with the USB/3 mini-B cable, also supplied.
The LiPo batteries are designed to bear hundreds of charges and to last several years in your detec-
tor, thus resulting in signicant savings in terms of purchase of batteries. After 300 to 400 charging
cycles the battery still has 80% of its capacity, which then gradually begins to decrease over subse-
quent cycles. As an indication, the batteries should last for around 3 to 4 years when used on
a weekly basis.
CHARGE
LITHIUM POLYMER (LIPO) BATTERY DURABILITY
USB Charger
( Apple™, Samsung™, Sony™,Huawei™ ...) USB 2.0 port on laptop
Output 5V 0.5A or +
Output 5V 1A or +
OR
Ensure that the clamp is the right way round before
connecting it to the coil. It can take up to 10 seconds for
the led to activate.
The DEUS can be charged using any standard USB 5V certied charger with a minimum capa-
city of 1A and 5V
output. 1A 5V USB
charger is enough to charge the 3 elements together
(coil/remote/headphone). A computer USB output (0.5A 5V) is also suitable and can charge 2
elements at a time (eg :coil + remote).
Take care about the quality of the charger and never use unknown or unbranded cheap products.
It is important to check that the charger has the correct symbols of certication :
By purchasing this product, the buyer/user agrees that he/she has read and understood the battery
& charger safety precautions printed in this document, that he/she bares full responsibilities of these
risks, and does not hold Xplorer, or its retailers responsible for any accidents, loss of life, injury to
persons, or property damage that may occur as a result of : Incorrect use of the battery including
charging with a non-approved or non-certied charger.
*
*
Only when purchased with remote control
30
PRECAUTIONS RELATING TO USE OF THE POWER ADAPTOR AND BATTERY
The batteries are tted with internal protection systems which shields them from extreme
overloads and discharges. They must not be dismantled or short-circuited, which is dangerous
and could destroy the protection systems or cause the batteries to ignite.
Do not leave batteries charging unnecessarily and disconnect the power adaptor
when the charge cycle is complete or after 3hrs.
If you notice any perforation, odour or other anomaly, please return the battery
to the seller in a sealed plastic bag and don't try to charge again.
Never dispose of lithium batteries with your household waste: return them to
your XP seller or take them to a designated collection point.
Do not place the batteries near heat sources and never throw them onto a re
Never perforate the battery cover or try and weld/solder the battery.
Do not short-circuit the battery terminals.
Risk o explosion if battery is incorrectly replaced. Replacing the battery with another of the
incorrect type can lead to an explosion risk. Only use LiPo batteries supplied by XP (ref : D088).
The power adaptor is only designed for indoor use and should not be exposed
to water or humidity.
Always connect your power adaptor in an accessible, visible place to ensure that
it can be unplugged quickly in the event of overheating or other problems.
Do not charge close to inammable parts.
Do not charge the devices during a thunderstorm and unplug the power adaptor
from the supply.
Use the special XP USB charger in the recommended charging method or use a certied
USB charger:
Batteries
Power adaptor
Acceptable ambient temperature during charging: 0° to 35°C Maximum
Recommended storage temperature: 25°C
Xplorer shall not be held liable for any consequences arising from a failure to comply with
the precautions for use.
POWER SUPPLY  BATTERIES
The batteries for the wireless headphones and the remote control are easy to replace as they are
connected to the circuit with a mini-connector and double-sided adhesive tape.The search coil battery is
sealed for obvious reasons - safety and impermeability. It must be returned to our service department or
an XP distributor for replacement.
How to replace the coil battery: www.xpmetaldetectors.com
VIDEO XP > DEUS > 05 - DEUS BATTERY KIT
The HF coil's battery is inside the lower stem, please nd the assembly page 4
The batteries are guaranteed 2 years parts and labour.
CHARGE
REPLACING BATTERIES
PRECAUTIONS RELATING TO USE OF THE POWER ADAPTOR AND BATTERY
You can use the Multi-tones menu to sort targets into categories according to their
conductivity, by assigning a specic audio tone to each category. The higher
the target’s conductivity, the higher the pitch of the tone.Take some time to become familiar with the 2
Tones, 3 Tones, 4 Tones, 5 Tones modes using dierent targets, such as an iron nail and some aluminium
foil, dierent coins, etc. The lowest pitched tone is assigned to iron. If you do not wish to hear it, select
“Iron Volume” from the menu and reduce its volume to 0.
If you are in 2 Tones mode (low/medium tone) and you reduce the iron level (low-pitched
tone) to 0, you then nd yourself in 1 tone mode (medium), which is why there is no 1 tone mode
in this scrolling menu.
31
P
ress
Choose DISC with
Press
Choose 2 Tones - 3 Tones - 4 Tones - 5 Tones using
This section covers the advanced settings. You should ensure that you have studied all the basic
parameters before moving on to this section.
2 TONES - 3 TONES - 4 TONES - 5 TONES
PITCH
MENU
EXPERT
MULTI TONES
2 TONES
4 TONES
5 TONES
3 TONES
EXPERT
The range of setting can be changed with or from 150 to 603 Hz.
-+
MULTI TONES
2 TONES
3 TONES
PITCH
FULL TONES
HZ
EXPERT
Pitch mode is completely dierent from the others. It does not take into
account the target’s conductivity: the strength of the signal generates an
audio signal that varies both in volume and height (the audio frequency).
This means that a more distant target will generate a low-pitched, weak
sound whereas a closer target will generate a high-pitched, strong sound.
Pitch mode gives a dynamic signal. It also makes the detector appear
more reactive. However, it does not fundamentally aect reactivity, just
the audio.
FULL TONES
MULTI TONES
2 TONES
PITCH
FULL TONES
5 TONES
The FULL TONE mode will produce a slightly dierent tone for each target ID
value based on a sliding scale. The higher the target’s conductivity, the higher
the tone will be. Iron typically will produce a low tone, while silver produces a
high tone. See the gure on page 9 to see where specic types of targets fall in
terms of conductivity.

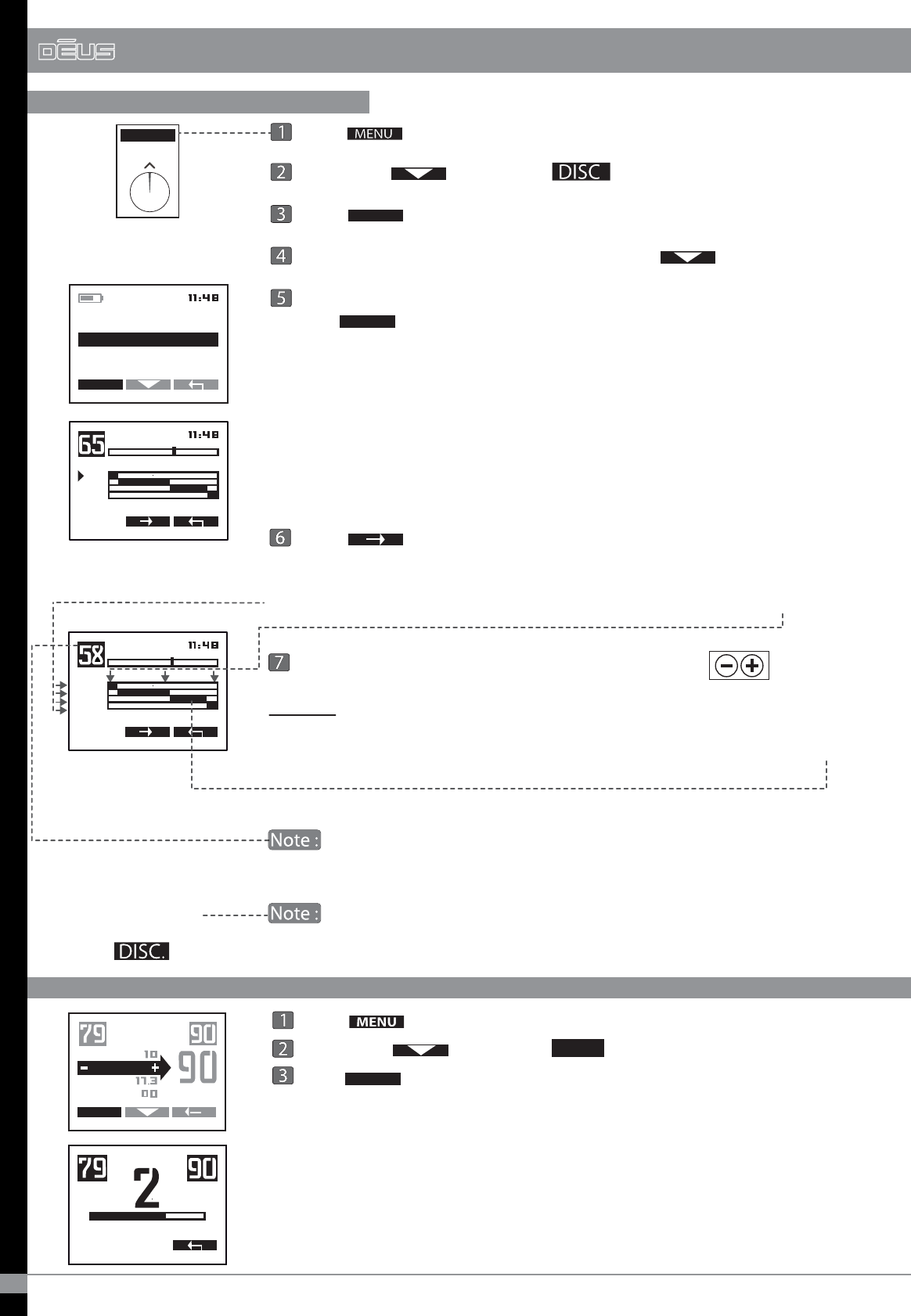

MULTI TONES
Press
Scroll with and select
Press
Choose 2 tones - 3 tones - 4 tones - 5 tones with
Once you have selected the number of tones (for example: 4 tones)
Press
You have the option of customising the sound partitioning of the
discrimination range.
A sound frequency (comparatively low or high-pitched) is assigned to
each part of the discrimination range. In this example, a low-pitched
sound (202 Hz) is assigned to the signals from 0 to 10, a higher-pitched
sound (518 Hz) is assigned to the part from 10 to 60, then 644 Hz is
assigned to 60 to 87 and lastly a very high-pitched sound (725Hz) is
assigned to the part from 87 to 99.
Press in order to move the cursor (black triangle) from one
setting zone to another.
Note that the cursor rst moves up and down to indicate the sound
frequencies used, then from left to right to indicate each threshold.
Adjust the sound frequencies and thresholds with
Example: If a coin type, which your device registers as 58 on the conductivity
index, signals as “medium low” (518 Hz) and you wish it to be signalled
as “medium high” (644 Hz), you simply lower the threshold from 60 to 57
or less.
Now, all coins with this conductivity value will register at 644 Hz.
The black bar showing the index of the target is displayed in the
top left of the screen (black bar) for help. This enables you to directly
adjust the sound responses for targets you select as references.
The threshold 1 separating the low-pitched tone (tone 1) from
the medium tone (tone 2) is the same as the Discrimination value.
These are the same settings.
MENU
EXPERT
EXPERT
MULTI TONES
5 TONES
FULL TONES
4 TONES
EXPERT
3 TONES
4 TONES
202
518
644
725
10
60 87
TONE1 202 HZ
THRESH 1T / 2T
=
4 TONES
202
518
644
725
10
87
THRESH. 2T/3T 57
57
10
87
MULTI TONES, Thresholds and Tones
32

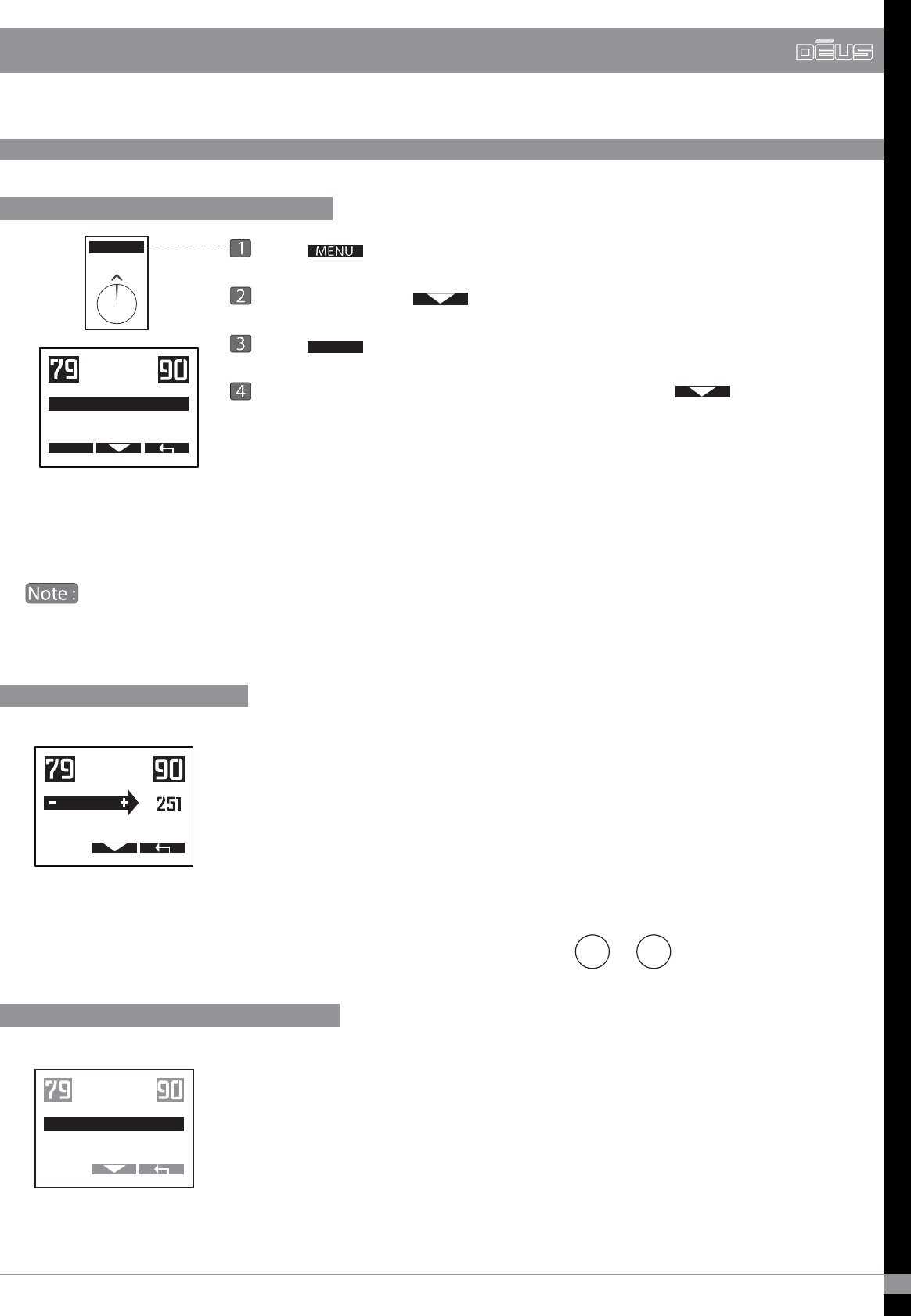

Press
Scroll with and select
Press
The Dēus enables you to adjust the strength of the emitted electromagnetic
eld according to three levels (from 1 to 3).
Lower frequencies - When using frequencies between 3.7KHz to 4.4kHz,
there are 2 TX power levels available, TX NORMAL and TX BOOST (X35 Coil).
TX BOOST oers an enhanced performance and a good choice for locating targets
with a high conductivity, such as large masses, treasure and some currencies.
EXPERT
SENS
TX POWER
MENU
EXPERT
DISC.
FREQ.
IRON VOL.
SENS
EXPERT
TX POWER
33
EXPERT
The XP 34 / 28cm coil will give optimum performance providing the terrain is suitable and a correct
ground balance is used.The Gold Field program combined with the lower frequencies and the 34 / 28 cm
coil may be a good choice for locating specic deep targets.
The power increases your detector’s power
consumption as well as alter its stability on dicult ground.On iron-infested, mineralised ground, there is
no need to use a high power setting, level 1 will be sucient as in any case it is impossible to detect
deeply in this kind of ground.It is therefore better to limit the saturation caused by iron and the ground
by lowering the setting. In this way you will improve analysis and will ultimately nd as many, if not
more, targets since you will be better able to hear them.
The HF coil also has a xed TX Power.
Lower frequencies such as 4kHz + TX BOOST mode will
reduce the coil battery life to around 6 hours.
AUDIO
OVERLOAD
Press
Scroll through the menu to reach the AUDIO RESPONSE
EXPERT
Press
Adjust AUDIO OVERLOAD with
Press x2 to exit.
Allow the user to choose an overload sound when a target is close
to the coil.
Press
Scroll with and select
Press
Choose with one of the 7 frequencies ( X35 and HF COIL)
Press x2 to return to the main menu.
You can shift your operational frequency slightly to avoid occasional
interference, particularly that generated by another detector nearby.
MENU
EXPERT
FREQ
MENU
EXPERT
SENS.
IRON VOL.
REACTIVITY.
FREQ.
FREQ SHIFT
HZ
AUDIO OVERLOAD
FREQUENCY SHIFT
The Reactivity menu takes precedence over the silencer, so if you change the reactivity
value this automatically imposes an appropriate silencer value. This is designed to avoid the silencer
being set to a value that could reduce the eectiveness of the reactivity setting.
34

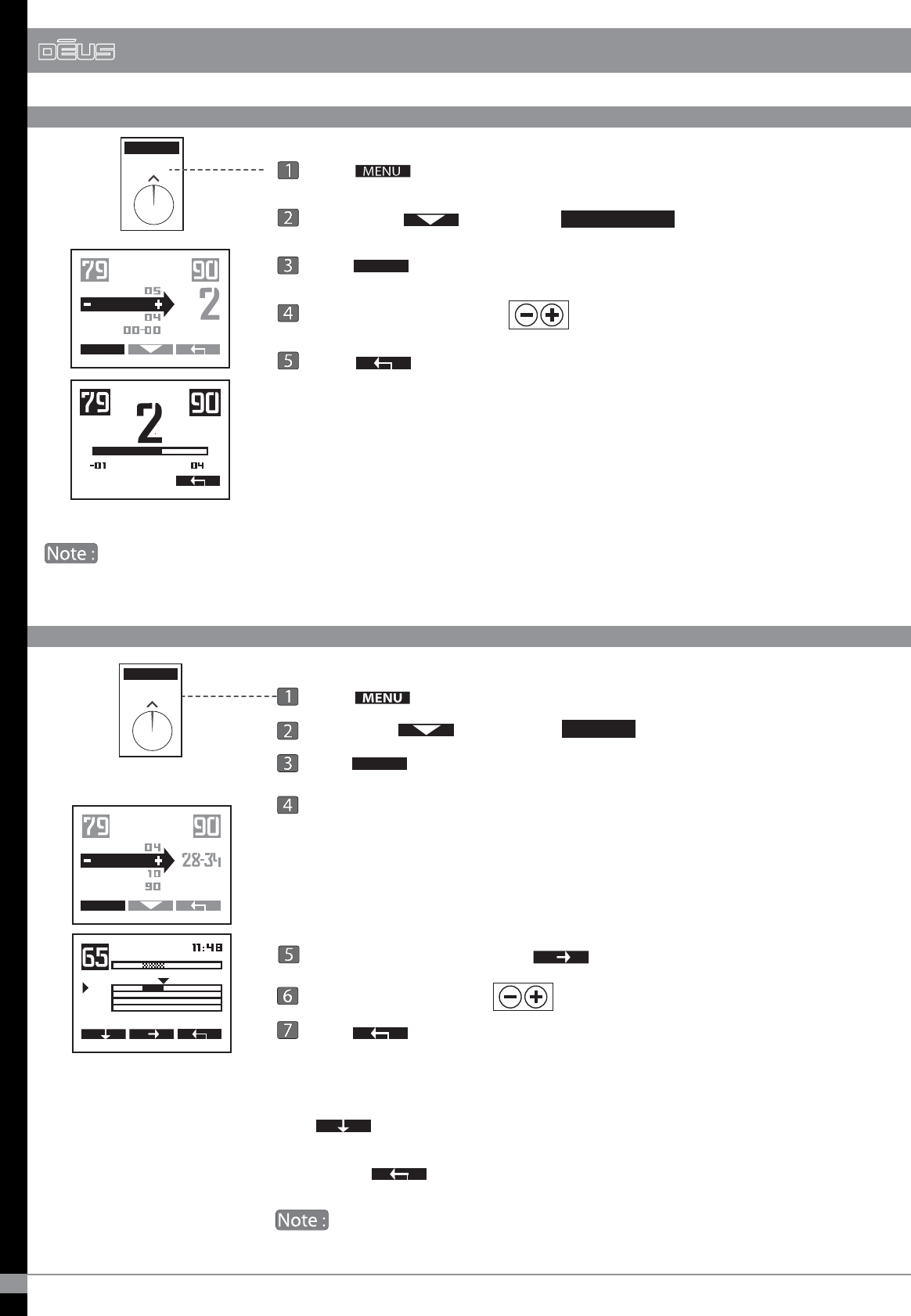

Press
Scroll with and select
Press
Adjust the Silencer with
Press x2 to return to the main menu.
A few large iron objects or unusual shapes are often more dicult
to discriminate. Often iron objects generate a few audible remnants
of broken, or inconsistent signals (crackling). When you increase
the silencer you are applying a lter which eliminates the crackling
caused by ferrous. Level 2 represents a good compromise, but if
you have diculty identifying bottle caps, use level 4.
MENU
EXPERT
REACTIVITY
SILENCER
EXPERT
MENU
IRON VOL.
AUDIO RESP.
NOTCH.
REACTIV.
Press
Scroll with and select
Press and go to NOTCH screen.
This advanced notch function enables you to widen the rejection window
in the event that the undesirable target(s) have a wider conductivity range
than the standard 6-point window.
For example, if the undesirable target is generating a ID ranging
from 28 to 46, you can use this option to lower the value of Threshold
1 to 28 and increase Threshold 2 to 46.
Select threshold 1 or 2 with
Adjust the values with
Press X2 to return to the main menu.
If several targets with dierent conductivity levels are a problem, you
can activate two other notches: N2 and N3
Use to select N2 or N3, and adjust as for N1.
To exit use
You will note that the notched zones are greyed out in the conductivity
bar on the main page.
MENU
EXPERT
NOTCH
EXPERT
MENU
AUDIO RESP.
DISC.
SENS.
NOTCH
NOTCH
N 1
46
THRESH 1
28
THRESH 2
46
EXPERT
SILENCER
MULTI NOTCH AND WINDOW WIDTH
35

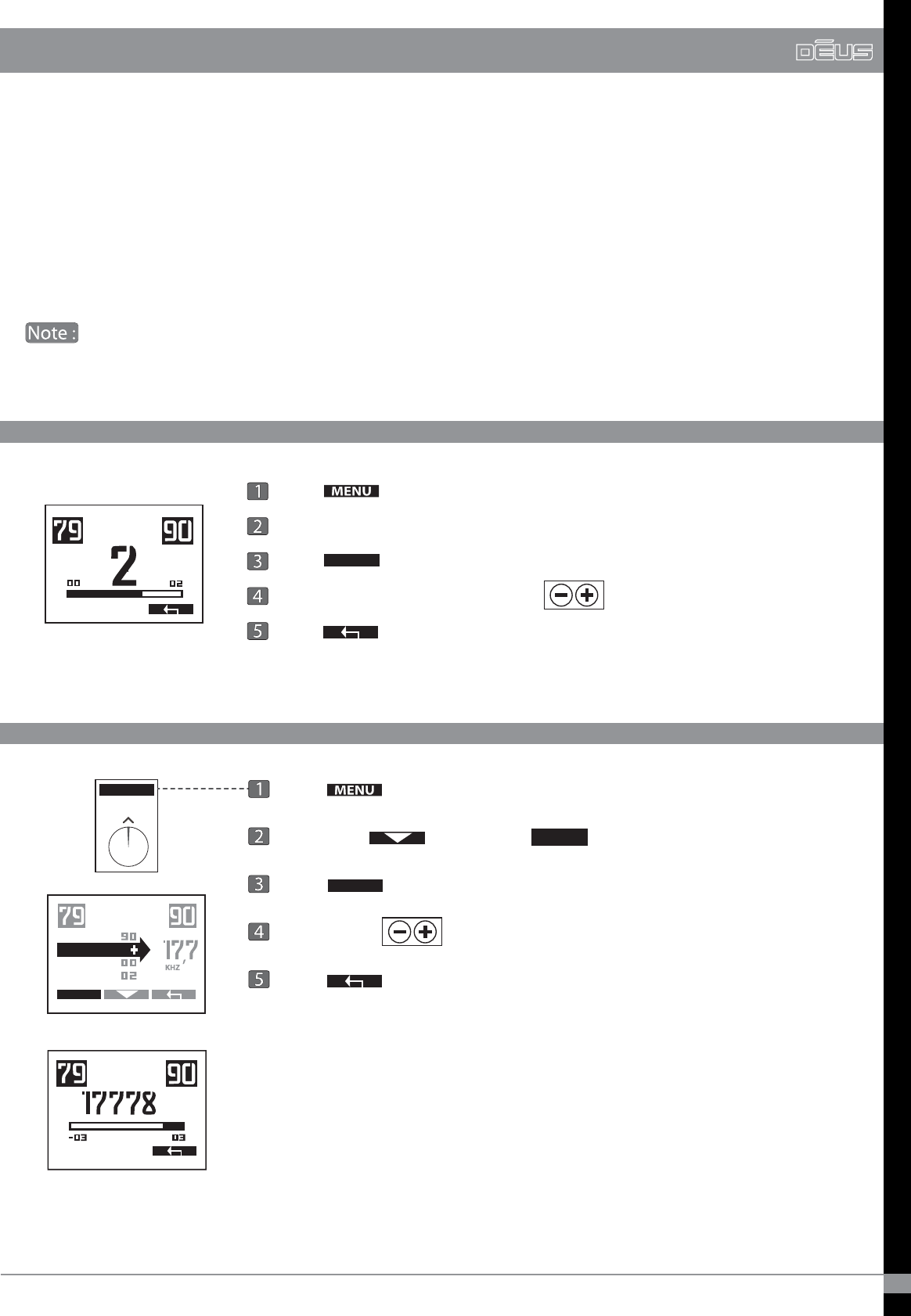

Press
Press and go to NOTCH GROUND (
only in MANUAL/ TRACKING
).
Adjust the NOTCH GROUND with
Exit with
MANUAL
PUMPING
G.B.
BEACH
TRACKING
EXPERT
EXPERT
NOTCH
GROUND
60 90
85
G.B.
G.B.
The Ground Notch complements the ground balance settings : it
enables a "window" of ground value to be rejected rather than rejec-
ting all the ground values below the setting. You can for example
adjust the ground balance on the value of the prospected ground
(eg: 78), then reject the false signals due to hot-rocks by adjusting
the NOTCH GROUND between 83-90 only, thus you will not reject
the ground value from 78 to 83.
To search for meteorites, the majority of which have values
from 84 to 89, disable the NOTCH GROUND, so as to detect them.
EXPERT
1 - BASIC
GB
60 90
GROUND NOTCH

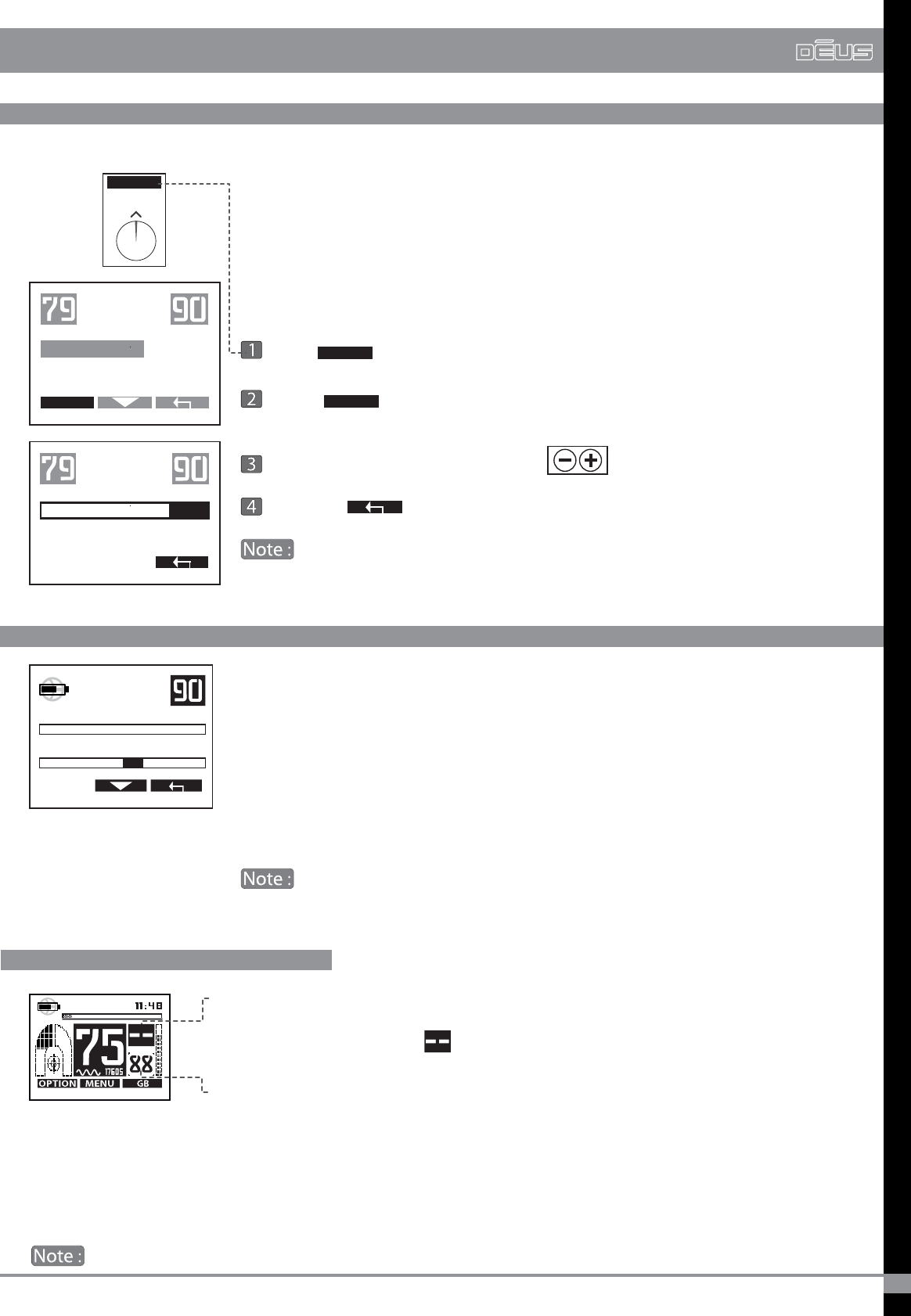

GROUND SENS
6
For example the ground value will revert to default if: The soil is not mineralized enough or if the level of
mineralization is lower than your set "GROUND SENS", or simply if you stop detecting.
As soon as you resume detecting or if the soil becomes suciently mineralized again, the DEUS will continue
to track the soil and the display will show the measured value.
HF coils do not require software updates for the moment, they are ignored during the update.
Adjust the machines ability to track soils according to their intensity. This
makes it possible to avoid tracking on soils with a low mineralisation.
t(306/%4&/4MPXUP Slightly mineralized soils are ignored and
the DEUS does not track and will not display ground values, the Deus will
default to the recommended level.
t(306/%4&/4IJHIUP The DEUS will track even low mineralized
soils.
GROUND EFFECT
Do not be tempted to adjust the "GROUND SENS" too high as this
may introduce more instability and false ground readings. Levels of 1 to 5
are recommended, they will give you better stability .
t
Ground measurement display: If the DEUS does not register a ground eect for 7
seconds or receives a level lower than the set "GROUND SENS" for more than 7
seconds it will now display
t
Ground Tracking: If the DEUS no longer measures a suitable ground eect for 30
seconds it will default the tracking to a setting value of 88 for more stability.
GROUND SENSITIVITY
NOTCH GROUND

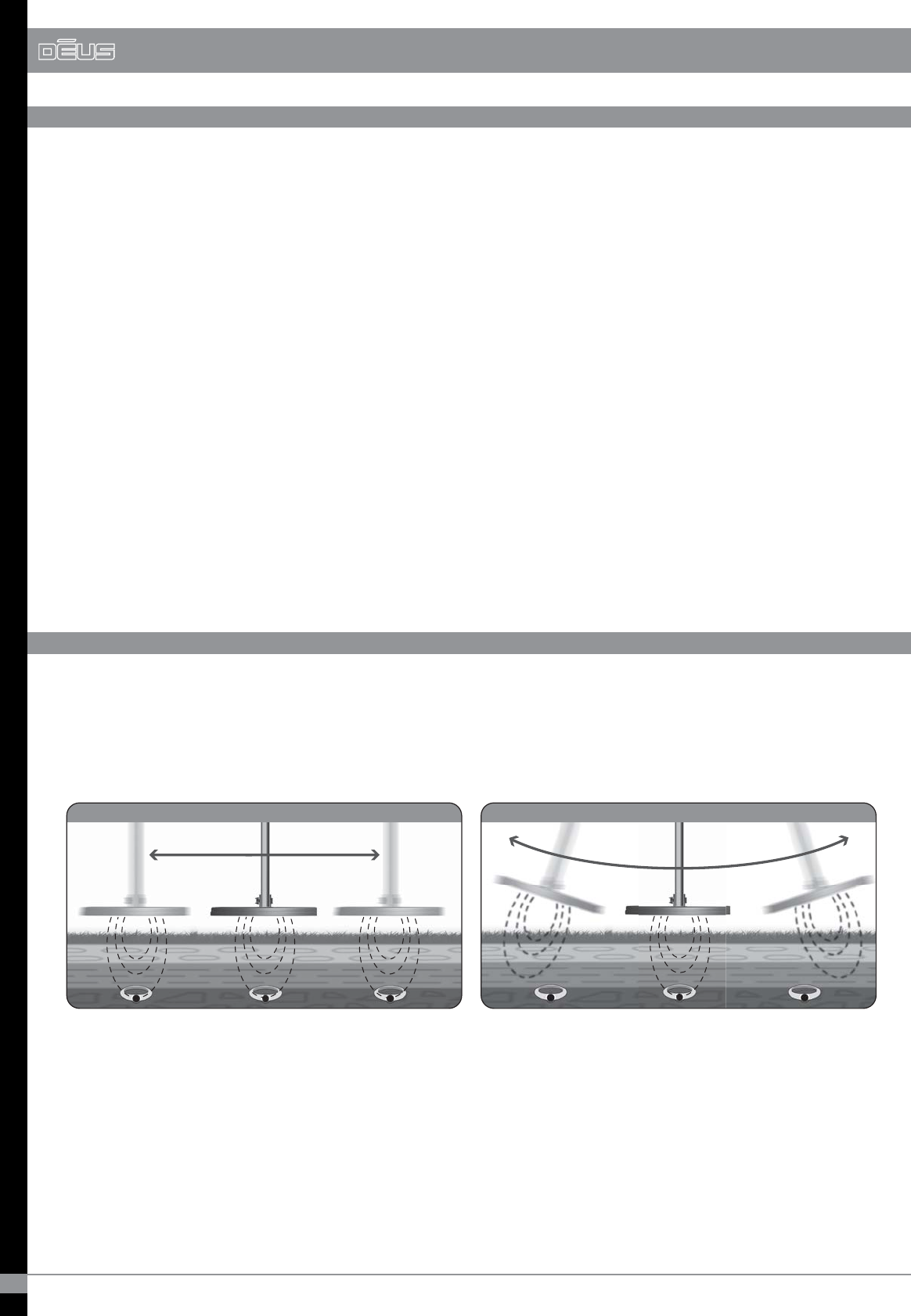

INCORRECTCORRECT
When detecting, it is important that you sweep the coil parallel to the ground, using wide movements,
as close as possible to the surface (without actually touching it). Proximity to the ground will increase
the likelihood of detecting a deep target and will enable the most discreet objects to be identied
more easily. You are advised to avoid knocking the coil, as although it is designed to tolerate this kind of
stress, careful treatment will prolong the life of the device and guarantee you better perception of targets.
Metal detecting is a fascinating leisure activity that can bring you a lot of satisfaction. However, it
requires a minimum of learning in order to get the most enjoyment.
Begin by familiarising yourself with your equipment and its operation on a suitable practice ground.
To do this, we recommend that you take an assortment of dierent objects: coins, everyday
items, metal rubbish, etc. Then nd a patch of ground relatively free from metal pollution and far
away from any electromagnetic interference (high voltage power lines, electric fences, domestic
appliances, etc.). For instance your garden would probably be one of the most unsuitable places
to begin as there is too much domestic waste in the vicinity.
To ensure that the site is suitable for practising, swing the coil over the ground as if detecting.
If you hear a multitude of sounds then move to another place.
Once you have found a suitable spot, arrange your objects on the ground, spacing them approximately
two coil widths apart. Before placing an object, use the device to check that there is no metal
already in the ground.
Then, take some time to observe your device’s reactions when it passes over each target. You can
then sort them according to the sound response type and try and understand what makes them
similar or dierent. If you feel comfortable with this exercise, you can also try out some of the
pre-congured settings.
36
PRACTICAL INFORMATION
When you are detecting, you are free to choose the rate at which you move.
For example, if you prefer to cover a zone at high speed while detecting, this will certainly give you
a global ‘snapshot’ of the site. However, it is clear that this way of detecting will also leave large
areas of ground unexplored between each sweep. On the other hand, if you insist on closely
scrutinising every inch of the ground, you should ensure that each sweep slightly overlaps the
previous one, in order to reduce to a minimum the area that your coil has not scanned.
You should also bear in mind that you will further increase your chances of nding and identifying
a target by sweeping more slowly. This particularly applies in metal-infested ground (when there
are more targets to be sorted) or when you are searching for deeper targets.
ADVICE BEFORE BEGINNING DETECTING
OPTIMISE YOUR SEARCHING
37

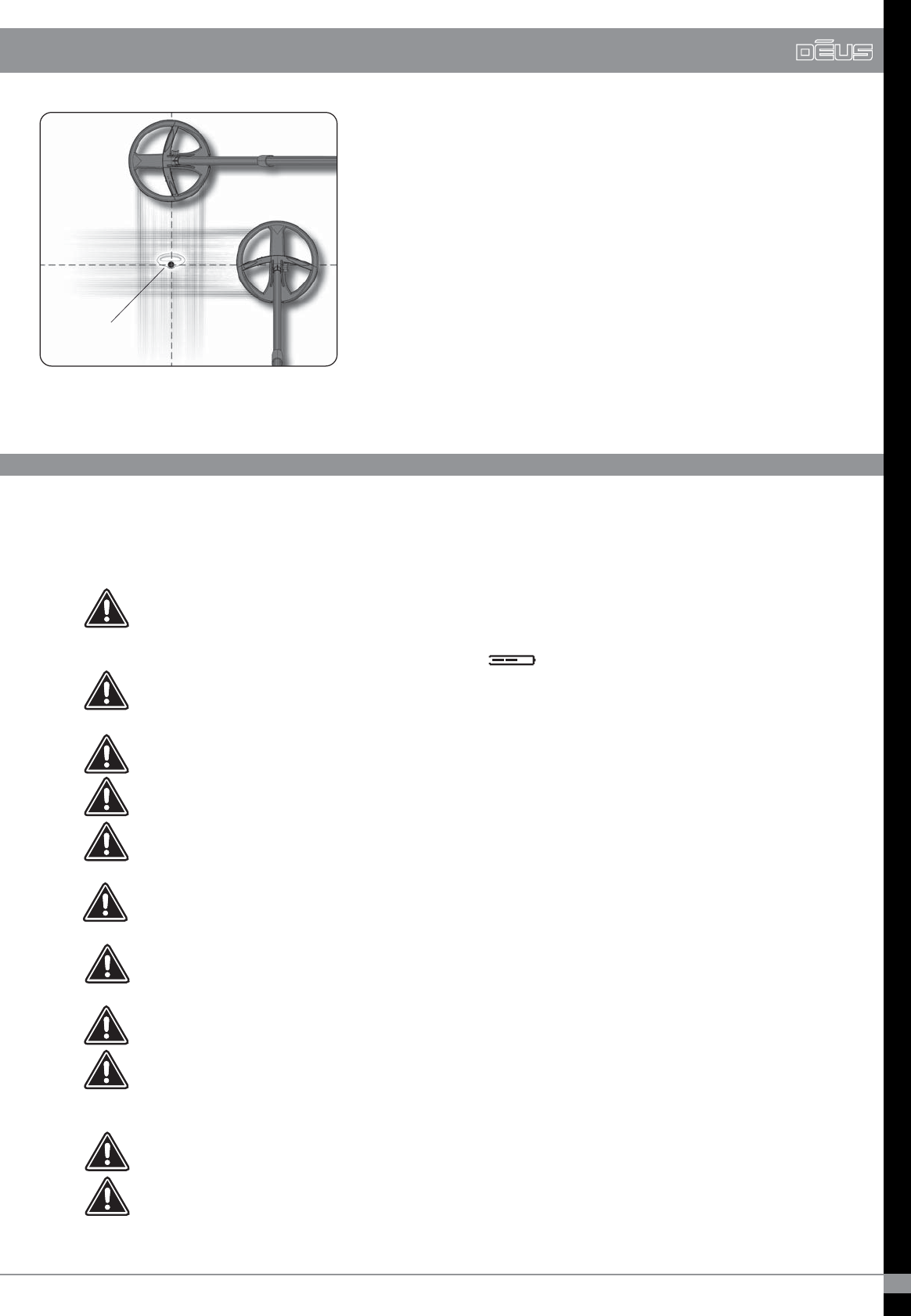

Target
Once the detector has indicated the approximate presence
of a target in Motion mode, if you are having diculty
locating the target then sweep the place where you heard
the sound. Slowly reduce the amplitude of your move-
ments and make a mental note of the spot where the
sound is loudest. If necessary, indicate it with a mark on
the ground. Then move a quarter turn around the spot and
begin sweeping again in the same way (at 90° to the rst
sweep). You should then locate the precise zone contai-
ning your target at the intersection of the two sweeps,
where the sound is loudest. Continue with crossed
sweeps over the target. The loudest and highest pitched
audio signal indicates the centre of the coil and therefore
the position of the target.
Dēus is a precision device, designed to be as robust as possible. Despite this, it is important to take
care of it and exercise certain precautions in order to prolong its life:
Do not store your device for long periods with discharged batteries.
Ideally you should discharge/recharge the batteries at least once a month, and
if possible store them 40 to 70% charged.
Do not expose your detector to extreme temperatures, particularly inside a car
in full sun.
Do not expose your detector to the sun without reason when it is not being used.
When you switch on the detector ensure that the coil is not near any metal objects.
The remote control of your detector is not waterproof. In wet weather be sure to
protect it !
Use the storage case that is supplied with the headphones and never carry them
at the bottom of a bag without protection.
Use the case that is supplied with the remote control to protect it in adverse
conditions, and when the detector is stored away.
Do not use solvents or alcohol to clean the detector. Soapy water is sucient.
Depending on how you use your detector, it may be advisable to clean its
elements regularly. A damp cloth can be used to clean the non-waterproof parts
(headphones and remote control).
After use, remove any dirt from the stem’s locking mechanisms.
The equipment must be recharged using a SELV LPS power supply
LOCATING A TARGET USING CROSSED SWEEPS IN MOTION MODE
PRECAUTION FOR USE
38
CAUSES SOLUTIONS
Sensitivity is too high.
You are in a zone with a lot of interference
(high-voltage power lines, electric transformer, electric fence).
There is a storm nearby and the electromagnetic
discharges of lightning are interfering with the detector.
You are close to other working metal detectors.
The ground balance is set too low. Reset it
The ground is heavily infested with iron and other metals.
Lower it.
Lower the sensitivity change frequency/
frequency shift or move to a dierent zone.
Switch o and wait for the storm to pass
Change or shift the frequency (pg 33).
or move further away.
Manual mode
Find a less infested place.
Don’t practice in your garden!
The backphone is faulty.
The earpiece is faulty, for example its keypad was poorly
reconnected to the circuit after being removed, or the
audio contacts are faulty or dirty.
Change it, it is easy to replace
(pg 27 ).
Contact your reseller
You become aware of abnormal performance, instability, false signals, interference, for no apparent reason
There is no sound in the headphones when passing over a target and pressing the buttons generates no audible beep
CAUSES SOLUTIONS
TROUBLESHOOTING
CAUSES SOLUTIONS
CAUSES SOLUTIONS
You have a dierent coil selected in the menu :
OPTION / COIL ON the remote control or in the menu
COIL on the headphones.
The serial number of the coil that you had entered in
the remote control was incorrect or was changed
inadvertently.
The coil battery is discharged
The coil is defective.
Check that you do not have a dierent coil selected
in the COIL menu (pg 26). (headphone)
The headphones have not yet been paired with the
coil.
The coil’s serial number was changed inadvertently
in the headphones and the headphones are no
longer paired with the coil.
Select the right coil (pg26).
Pair them (pg 26).
Pair them (pg 26).
There is no detection sound in the headphones despite them being switched on (and pressing the buttons generates an audible beep)
The coil does not switch on, unlike the remote control and the headphones
Select the corresponding coil
(pg 19 and 26).
Check the coil’s serial number
(pg 19).paying attention to D & O
also B & 8.
Recharge it.
Contact your reseller.
39
Radio
General Features Settings
 Digital wireless
 36 automatic channels
 2.4 GHz / 0.56 mW
 4 - 8 - 12 - 18 - 25 kHz + shifts ( X35 coils)
 15 - 30 - 50 or 80 kHz + shifts (depending HF coils)
 99 levels
 3 levels ( X35 coils)
 6 levels
 8 levels
 6 levels
 1, 2, 3, 4, 5, Full tones, Pitch,+ Expert
Tracking, Pumping, Manual, Wet beach
Yes, with adjustable window width
 Motion/None Motion
Yes, audio and visual
 audio and visual
 164 levels
 90 levels
 x10 + 8 customizable programs
Yes on wireless headphones
 8192 pixels
Yes, very low power consumption
Yes, via USB / Internet connection
Yes (can also serve as control unit), weatherproof.
 DD - 6 meters / 20 feet Waterproof - Wireless
Yes
Yes
Yes
 Fully telescopic, S-shaped
 3 x Lithium ion polymer 630 mA (830mA HF coils)
Yes: Remote control / Headphones / Coils / MI-6
 19 hours
 22 hours
 15 hours on average depending frequency
Yes - rapid and simultaneous charging of all 3
elements. Input 100-200V 50/60Hz, Output 5V 1A
 Optional, with 1 AA battery & torch function
 Optional
 Coil: 2h15 , Headphones/Remote control: 3h00
 975g (875g without remote control)
 455 g
— 100 g
— 86 g (WS4), 255 g (WS5)
— 345 g with coil cover
 58 cm
 130 cm
 -5°C to 40°C
 0°C to 35°C
 25°C
Yes, but need the optional antenna for use with the coil submerged
 5 years parts and labour. Batteries, chargers &
connectors have a 2 years warranty.
 US 7940049 B2 - EP 1990658 B1
Link
Channels
Radio frequencies and Radio power
Detection frequencie
Sensitivity
Transmitter Power
Reactivity
Sound Curve
Iron level
Multi tones
Ground balance
Multi-notch
Mode
Non motion Pinpoint
Discrimination
Iron discrimination range
Non-iron discrimination range
Factory programmes
Audio volume
Display screen
Backlighting
Software updates
Wireless headphones
Coil
Coil cover
Belt-mounted remote control case
Headphones storage case
Stem
Batteries
Battery level indicator
Remote control battery life
Wireless headphones battery life
Coil battery life
Mains power charger
Field charger
Car cigarette lighter charger
Charging time
Total weight with batteries
Total weight of stem
Weight of remote control with battery
Weight of headphones with battery
Weight of coil
Length of folded stem
Length of deployed stem
Operating T°
Max ambiant T° during charging
Recommended storage T°
Waterproof coil
Guarantee
Patents
SPECIFICATIONS
40

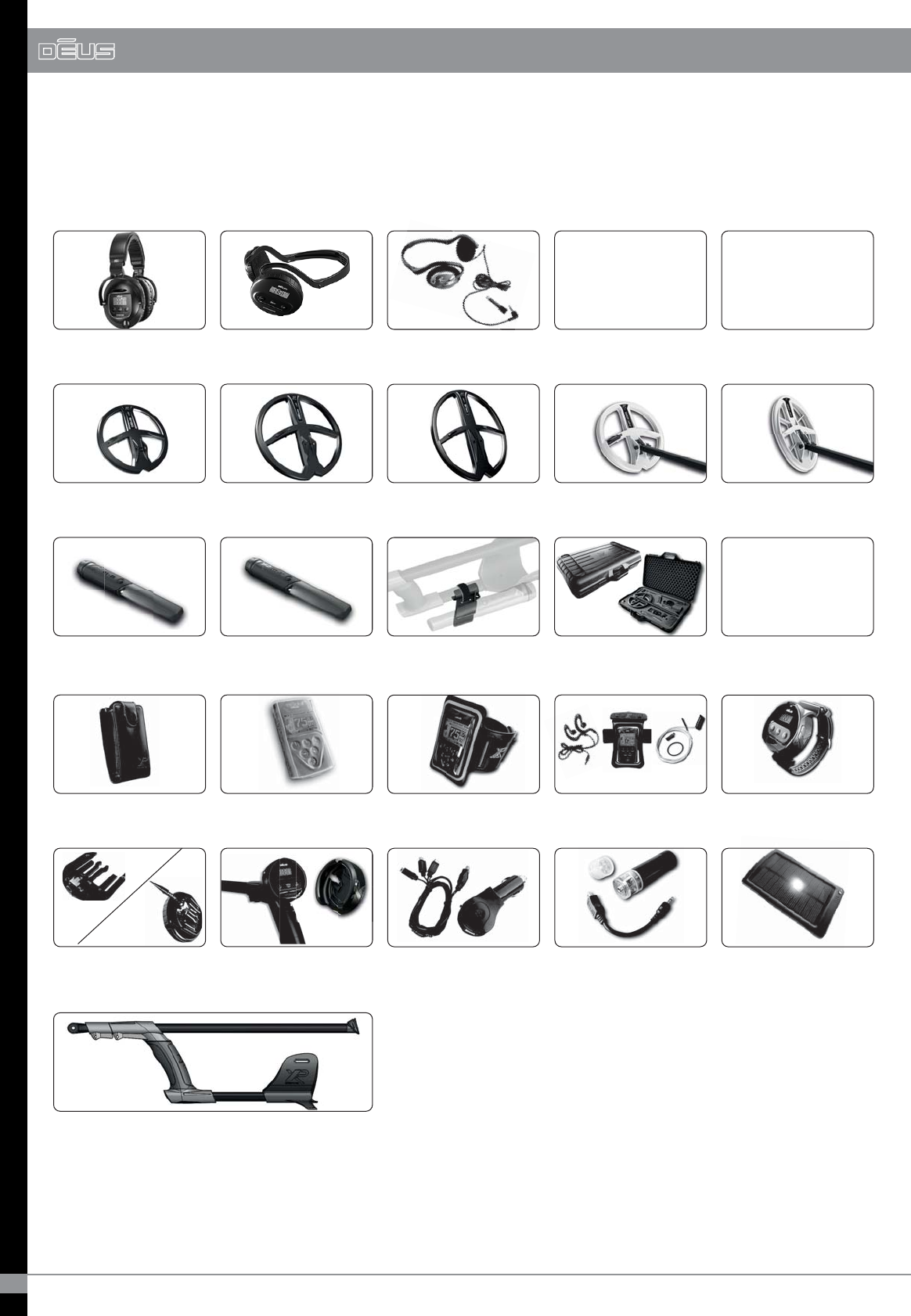

ACCESSORIES
Coil X35
22.5 cm - 9''
Car charger
Solar charger
Emergency charger with
with torch function
( AA battery (x1) not
provided)
S-TELESCOPIC STEM PRO
Coil X35
28 cm - 11''
Coil X35
34 x 28 cm - 13'' x 11''
WS4 Clip jack adaptor
Connect your own
headphone
WS5 WS4 FX-02
WS4 wirstband
WS4 stem support
Armband case
Protective silicone case
Hipmount case
Kits: Waterproof armband 5 m
+ Aerial antenna
(available in 1m15 or 2m50)
Pinpointer MI-6
HF Coil
22.5 cm - 9"
Pinpointer MI-4 MI-4 / MI-6 Stem Support
(end of 2018)
HF coil elliptical
24 x 13 cm - 10'' x 5"
XP case
41
Screwing kit for search coil
Ref: D038D
Top part
(with keyboard)
Ref: D081
Rubber
Ref: D086
Rubber Top
Ref: D084
Rubber
Ref: D086
Rubber Bottom
Ref: D085
Top part (with LCD and keypad) Ref: D092B
Backphone
Ref: D096
Board PCB
Ref: D083
(with LCD and battery)
Bottom part
Ref: D082B
(with speaker)
LCD - Ref: D087
Battery - Ref: D088
Speaker - Ref: D089
Full camlock
Ref: D041
Coil cover
Ref: D02
Coil
Ref: D01
Lower stem
Ref: D03
Middle part of aluminium stem
Ref: D04
Plastic holder
for remote control
(with screws)
Ref: D05B
Handle
Ref: D06
Armrest
Ref: D07
Locking parts for handle
Ref: D061
Full electronic box
Ref: D091
PCB (with Battery) Ref: D093
Bottom part
Ref: D094B
Circular Rubber & 2 orings
Ref: D095B
Battery - Ref: D088
FULL HEADPHONES -
Ref: D09
FULL REMOTE CONTROL -
Ref: D08
Top part
Aluminium stem
Ref: D042
Arm rest screw
Ref: D072
Bac
k
Re
f:
SPARE PARTS
42
program 1 program 2 program 3
MENU MENU EXPERT SETTINGS BASIC GM POWER DEUS FAST
DISCRI DISCRI (thrs 1 tone / 2 tones) -6.4 to 99 10 6.1 6.1
2 TONES switch on
3 TONES switch on
4 TONES switch on
5 TONES switch on
FULL TONES switch on
PITCH switch on
THRESHOLD 2T/ 3 TONES 0 to 99 76 76 76
THRESHOLD 3T/ 4 TONES 0 to 99 84 84 84
THRESHOLD 4T/ 5 TONES
FREQUENCY TONE 1 202 202 202
FREQUENCY TONE 2 518 518 518
FREQUENCY TONE 3 644 644 644
FREQUENCY TONE 4
FREQUENCY TONE 5
)
SENSITIVITY 0 to 99 90 90 90
TX POWER (DEUS)
DEPENDING COIL USED
1 to 3 2 2 2
FREQUENCY 4 to 80 kHz 12K 18K 18K
FREQUENCY SHIFT -3 to 3 0 0 0
IRON LEVEL 0 to 5 0 3 3
REACTIVITY 0 to 5 2 2 3
SILENCER -1 to 4 2 2 -1
AUDIO.R 0 to 7 4 4 4
NOTCH 1 00-00 to 99-99 00-00 00-00 00-00
NOTCH 2 00-00 to 99-99 00-00 00-00 00-00
NOTCH 3 00-00 to 99-99 00-00 00-00 00-00
GROUND MANUAL 0-30(
beach
) 60-95(
normal
90 90 90
BEACH switch on
switch on
0 to 99
725 725 725
800 800 800
100 to 993 Hz
100 to 993 Hz
100 to 993Hz
100 to 993 Hz
100 to 993 Hz
92 92 92
FREQUENCY PITCH
150 to 603 Hz 362 362 362
Mineralised
and iron infested
grounds
Smalls targets
Faster than
GMPOWER
Mineralised
grounds
Smalls targets
General use
Discri IAR prog 10 only
THRESHOLD
0 to 5
0 to 20
TRACKING (Except beach mode)
00-00 to 99-99NOTCH GROUND
FACTORY PROGRAMS
43
program 4 program 5 program 6 program 7 program 8 program 9 program 10
PITCH G-MAXX DEEP WET BEACH DRY BEACH HOT GOLD FIELD
IAR 0
6.1 6.1 5.5 10 10 - 6.4
76 76 76 76 76 76
84 84 84 84 84 84
202 202 202 202 202 202
518 518 710 518 518 518
644 644 644 644 644 644
90 90 90 85 90 90 95
2231222
12K 8K 8K 18K 18K 18K 18K
0000000
303000
2.512323
-1
2 - 1 -1 4 -1
444143
00-00 00-00 00-00 00-00 00-00 00-00
00-00 00-00 00-00 00-00 00-00 00-00
00-00 00-00 00-00 00-00 00-00 00-00
90 90 88 27 90 90 90
2
2
725725 725 725 725 725
800 800 800 800 800 800
92 92 92 92 92 92
362 362
362 362 362 362 362
General use
Audio signal
varies both in
amplitude
and height
Fo
r large
masses
and highly
conductive coins
Pro setting for
locating
deep targets,
with moderate
discrimination
and specic signal
processing
.
More eective
for wet sand
More eectivel
for dry sand
Search of gold
nuggets in highly
mineralised soil -
All Metal
program
0
0
The Pro setting
based on the Full
Tone audio mode
with a very low
discrimination.
FACTORY PROGRAMS
44
MENU MENU EXPERT SETTINGS
DISCRI DISCRI (thrs 1 tone / 2 tones) - 6.4 to 99
2 TONES switch on
3 TONES switch on
4 TONES switch on
5 TONES switch on
FULL TONES switch on
PITCH switch on
THRESHOLD 2T/ 3 TONES 0 to 99
THRESHOLD 3T/ 4 TONES 0 to 99
THRESHOLD 4T/ 5 TONES
FREQUENCY TONE 1
FREQUENCY TONE 2
FREQUENCY TONE 3
FREQUENCY TONE 4
FREQUENCY TONE 5
SENSITIVITY 0 to 99
1 to 3
FREQUENCY
FREQUENCY SHIFT -1 to 1
IRON LEVEL
0 to 5
REACTIVITY
0 to 5
SILENCER -1 to 4
AUDIO.R 0 to 7
NOTCH 1 00-00 to 99-99
NOTCH 2 00-00 to 99-99
NOTCH 3 00-00 to 99-99
GROUND MANUAL 0-30(
beach
) 60-95(
normal
)
BEACH switch on
switch on
0 to 99
FREQUENCY PITCH
150 to 603 Hz
program 11
Discri IAR (prog 10 only)
0 to 5
TRACKING (Except beach mode)
00-00 to 99-99NOTCH GROUND
TX POWER (DEUS)
DEPENDING COIL USED 4 to 80 kHz
100 to 993 Hz
100 to 993 Hz
100 to 993Hz
100 to 993 Hz
100 to 993 Hz
THRESHOLD
0 to 20
YOUR SETTINGS
45
program 14 program 15 program 16 program17 program 18program 13program 12
YOUR SETTINGS
46
DECLARATION OF CONFORMITY EU
RECOMMENDATIONS TO DETECTORISTS / THE LAW
Detecting is an activity which, like other leisure activities, requires a few general guidelines. These
recommendations will enable everyone to enjoy their hobby to the full while respecting laws, places,
the environment and other people.
- Ensure you are informed of current legislation relating to discovery of treasure in order to abide by the law.
- Declare any fortuitous archaeological discoveries to the local authorities (town hall) of the discovery
site within 48 hours.
- Before prospecting on a site, obtain permission from its owner(s) or guardian(s).
- Respect the natural environment in which you are prospecting and any other places to which you
need access.
- Systematically back-ll any holes you make so as to leave a site exactly how you found it.
- Keep any rubbish you nd in order to dispose of it in a dustbin.
Avoid detecting in areas where battles are known to have taken place during wartime. Exercise
extreme caution with any suspect object resembling munitions, grenades, mines, shells,
bombs, etc. and notify the relevent authorities (police, local authorities, etc.) of any such
object you nd.
Remember that you are an ambassador for metal detecting and it is important that you convey a
positive image!
This declaration is made under the responsibility of the manufacturer:
XPLORER SARL - 8 rue du Développement – F-31320 CASTANET-TOLOSAN
We, XPLORER, hereby certify that this detector complies with the essential requirements of
European Directives RED 2014/53/EU, SECURITY 2014/35/EU, EMC 2014/30/EU, which aims to
harmonise legislation in member states on the use of the radio spectrum, electromagnetic
compatibility and electrical safety. Assessment of the device’s compliance was carried out in
accordance with the essential requirements of this directive and the harmonised standards:
- SECURITY (art 3.1.a) :
NF EN 60950-1 :2006 +A1:2013+A2:2014+A11:2009+A12:2012
,
EN50366:2003 and EN50371:2002
- EMC (art 3.1.b) :
ETSI EN 301 489-3 : 2013 v1.6.1 and ETSI EN 301 489-1 : 2011 v1.9.2
,
EN61326-1:1997 + A1 +A2 +A3, EN55011:2007
- RADIO SPECTRUM (art 3. 2) :
EN 300 440-2 V1.4.1, EN 300 440-1 V1.6.1 and AS/NZS 4268:2012
- OTHERS : EN300330-1:V1.5.1
Declaration date : 09 . 10 . 2018
For more information please contact:
XPLORER SARL - 8 rue du Développement – F-31320 CASTANET-TOLOSAN - FRANCE
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
NOTE: The grantee is not responsible for any changes or modications not expressly approved
by the party responsible for compliance. Such modications could void the user’s authority to
operate the equipment
CERTIFICATION FCC
If this symbol is displayed on the product or its packaging, it means that the product
must not be disposed of with your household waste. You must take it to a designated
collection point for recycling electrical and electronic waste. This selective waste
sorting and recycling helps to preserve natural resources and avoid any potential
The accessories delivered with these detectors may vary, and similarly the menus and certain
features described in this manual may dier slightly from the product purchased.
This detector is not suitable for applications involving the search for dangerous targets such as
munitions, mines, etc.
© 2018 Xplorer sarl
This document contains information that is protected by existing legislation on copyright,
brands and royalties.
Any reproduction, even partial, of this document, the logos or the XP and Dēus brands is
prohibited without the agreement of:
XPLORER SARL - 8 rue du Développement – F-31320 CASTANET-TOLOSAN - FRANCE
47
This product complies with standards for user safety with regard to electromagnetic waves.
The strength of the radio signals used is considerably weaker and on a much smaller scale than
those emitted by mobile telephones (2,000 to 4,000 times weaker), as well as being much
less than those used by Wi-Fi systems.
Moreover, when the complete system is used, the audio headphones only act as a passive radio
receiver.
CERTIFICATION IC
Recycling of electrical and electronic waste in the European Union and the other
countries / regions in accordance with selective waste sorting procedures
Safety relating to electromagnetic radio waves
risks for human health and the environment that could result from inappropriate scrapping,
due to the possible presence of dangerous substances in the electric and electronic equip-
ment. For more information on places where you can take your electrical waste, please contact
the shop where you purchased this product. Alternatively you can return it to your supplier, or
directly to XP. The same is true for the lithium batteries which must be recycled appropriately.
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innova-
tion, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is
subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause
undesired operation of the device.
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme
aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux
appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions
suivantes :
1) L’appareil ne doit pas produire de brouillage;
2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d’en compromettre le fonctionnement.
WARNING
XP DEUS - 5 YEARS LIMITED WARRANTY
t91XBSSBOUTUIBUJUTQSPEVDUT%&64XJMMCFGSFFGSPNEFGFDUTJONBUFSJBMTPSXPSLNBOTIJQGPSZFBST
t5IJTDPOUSBDUVBMXBSSBOUZGPSQBSUTBOEMBCPVSUBLFTFòFDUGSPNUIFJOJUJBMEBUFPGQVSDIBTF
This warranty does not cover:
t#SFBLBHFDBVTFECZGBMMTJNQBDUTPSBDDJEFOUBMEBNBHF
t%BNBHFDBVTFECZBCOPSNBMVTFPSSFTVMUJOHGSPNOPODPNQMJBODFXJUIUIFDPOEJUJPOTPGVTFTUJQVMBUFEJO
the device’s instructions
t"MUFSBUJPOPGUIFFMFDUSPOJDDJSDVJUCZBOZVOBVUIPSJ[FEQFSTPO
t6TJOHXJUIPVUDPJMDPWFSPSVTJOHEFGFDUJWFDPJMDPWFS
t$PSSPTJPOPGFMFDUSPOJDDJSDVJUTEVFUPXBUFSJOHSFTT
t"SFEVDUJPOJOCBUUFSZMJGFEVFUPCBUUFSZBHFJOH
t#SFBLBHFPGDBCMFTPSXJSFT
Spare parts are not cover by the 5 years warranty:
t1BSUTUIBUBSFTVCKFDUUPOPSNBMXFBSBOEUFBSMJLFIFBEQIPOFTFBSQBETDPJMCPMUTöUUJOHTDBTFTFUDy
(These parts must be replaced in case of wear and tear, in such a way that no damage will be caused to the
device).
t#BUUFSJFTDIBSHFSTDPOOFDUPSTIBWFBZFBSTXBSSBOUZ
In the event of any fault or malfunction please contact your XP dealer for advice, should any part require returning
to them or the distributor it must be accompanied by a note explaining the fault, carriage/shipping cost is the
customer’s responsibility. Proof of Purchase is required to make a claim under this warranty. If a faulty device has
been replaced by a new or reconditioned one, the warranty will continue from the original purchase date.
Contacts
Website : www.xpmetaldetectors.com
e-mail : contact@xpmetaldetectors-media.com
XPLORER sarl
8 rue du développement
F-31320 CASTANET TOLOSAN
France
XP and Dēus are trademarks of Xplorer sarl.
Xplorer reserves the right to modify its detectors’ characteristics or specications without notice.
48
WARRANTY
BATTERY SPECIFICATIONS FOR AIR TRANSPORT
Quantity Type Power battery weight
Coil DEUS 1630mA 2.30 watts/hour 13.7 g
HF COIL 1830mA 3.14 watts/hour 16.3 g
1630mA 2.30 watts/hour 13.7 g
DEUS remote control 1630mA 2.30 watts/hour 13.7 g
Wireless headphone WS4 /WS5
TRANSPORTING LITHIUM BATTERIES: Following strict regulations regarding transportation of lithium batteries,
some airlines will ask you these specications:
QUICK START
By default you begin by using the 1 - BASIC factory program which is suitable for general use.
If you wish to test one of the 10 other factory programs,
simply scroll through them with
-
-
After charging your device. (pg 29)
Validate or not the use
of the loudspeaker
-
-
-
-
OUI
-
-
You’re now ready for detecting!
Note Do not switch on Dēus when the coil is near metal , inside a car, or when the stem is collapsed,
as this may interfere with calibration and lead to abnormal performance. If this should occur, switch
Dēus o and move away from any metal masses before switching it on again. Nevertheless, this does
not represent any risk to the equipment or its electronics. But may give abnormal results !
If you wish to change the main detection settings:
MENU
Press arrow to scroll
through the functions
Press Menu Set with - / + Press return arrow
to return to the main menu
Switch on
the headphones
To switch o Dēus
Hold down Power for two seconds on the remote control
Press left and right buttons on the headphone.
YES
NO
Switch on
the remote control
(after extending stems and holding the coil
away from the ground and any metal)
DISC
SENS
GND
FREQ
TONE
VOL
COIL
22.10.18

Navigation menu
