XTOOLTECH MFIBT iOBD2 User Manual

SHENZHEN XTOOLTECH CO. ,LTD iOBD2 Users Manual

Manual

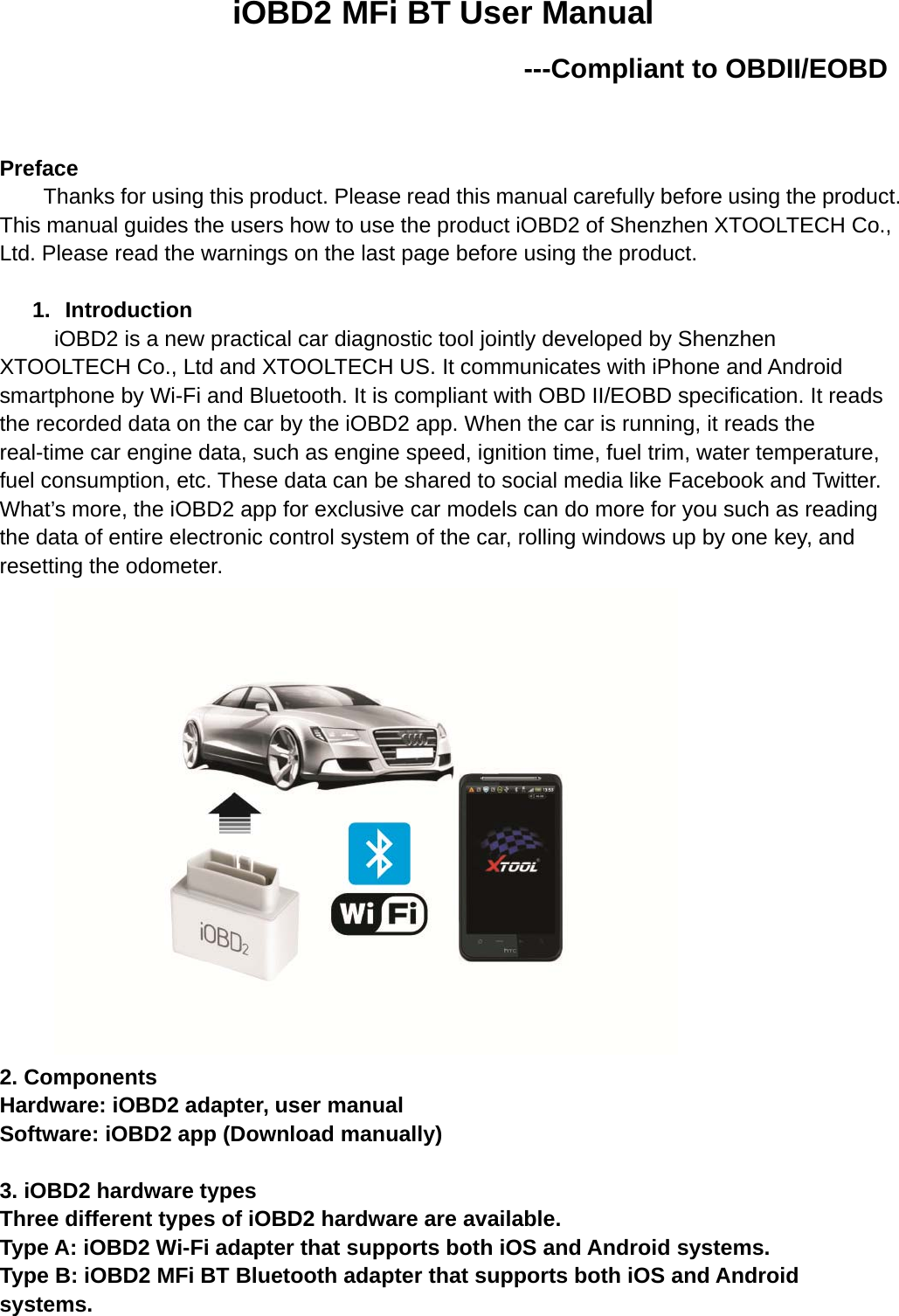

iOBD2 MFi BT User Manual---Compliant to OBDII/EOBDPrefaceThanks for using this product. Please read this manual carefully before using the product.This manual guides the users how to use the product iOBD2 of Shenzhen XTOOLTECH Co.,Ltd. Please read the warnings on the last page before using the product.1. IntroductioniOBD2 is a new practical car diagnostic tool jointly developed by ShenzhenXTOOLTECH Co., Ltd and XTOOLTECH US. It communicates with iPhone and Androidsmartphone by Wi-Fi and Bluetooth. It is compliant with OBD II/EOBD specification. It readsthe recorded data on the car by the iOBD2 app. When the car is running, it reads thereal-time car engine data, such as engine speed, ignition time, fuel trim, water temperature,fuel consumption, etc. These data can be shared to social media like Facebook and Twitter.What’s more, the iOBD2 app for exclusive car models can do more for you such as readingthe data of entire electronic control system of the car, rolling windows up by one key, andresetting the odometer.2. ComponentsHardware: iOBD2 adapter, user manualSoftware: iOBD2 app (Download manually)3. iOBD2 hardware typesThree different types of iOBD2 hardware are available.Type A: iOBD2 Wi-Fi adapter that supports both iOS and Android systems.Type B: iOBD2 MFi BT Bluetooth adapter that supports both iOS and Androidsystems.

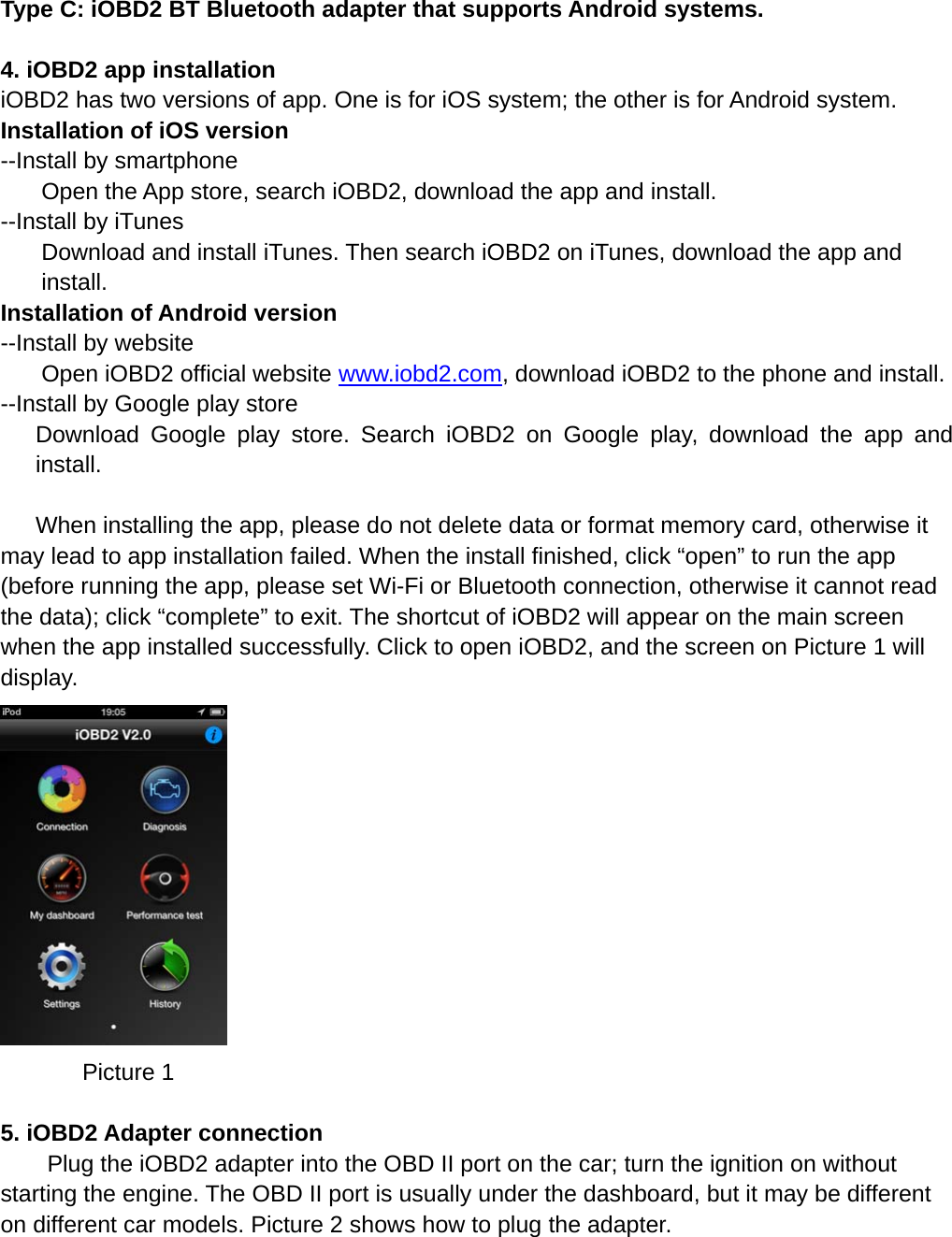

Type C: iOBD2 BT Bluetooth adapter that supports Android systems.4. iOBD2 app installationiOBD2 has two versions of app. One is for iOS system; the other is for Android system.Installation of iOS version--Install by smartphoneOpen the App store, search iOBD2, download the app and install.--Install by iTunesDownload and install iTunes. Then search iOBD2 on iTunes, download the app andinstall.Installation of Android version--Install by websiteOpen iOBD2 official website www.iobd2.com, download iOBD2 to the phone and install.--Install by Google play storeDownload Google play store. Search iOBD2 on Google play, download the app andinstall.When installing the app, please do not delete data or format memory card, otherwise itmay lead to app installation failed. When the install finished, click “open” to run the app(before running the app, please set Wi-Fi or Bluetooth connection, otherwise it cannot readthe data); click “complete” to exit. The shortcut of iOBD2 will appear on the main screenwhen the app installed successfully. Click to open iOBD2, and the screen on Picture 1 willdisplay.Picture 15. iOBD2 Adapter connectionPlug the iOBD2 adapter into the OBD II port on the car; turn the ignition on withoutstarting the engine. The OBD II port is usually under the dashboard, but it may be differenton different car models. Picture 2 shows how to plug the adapter.

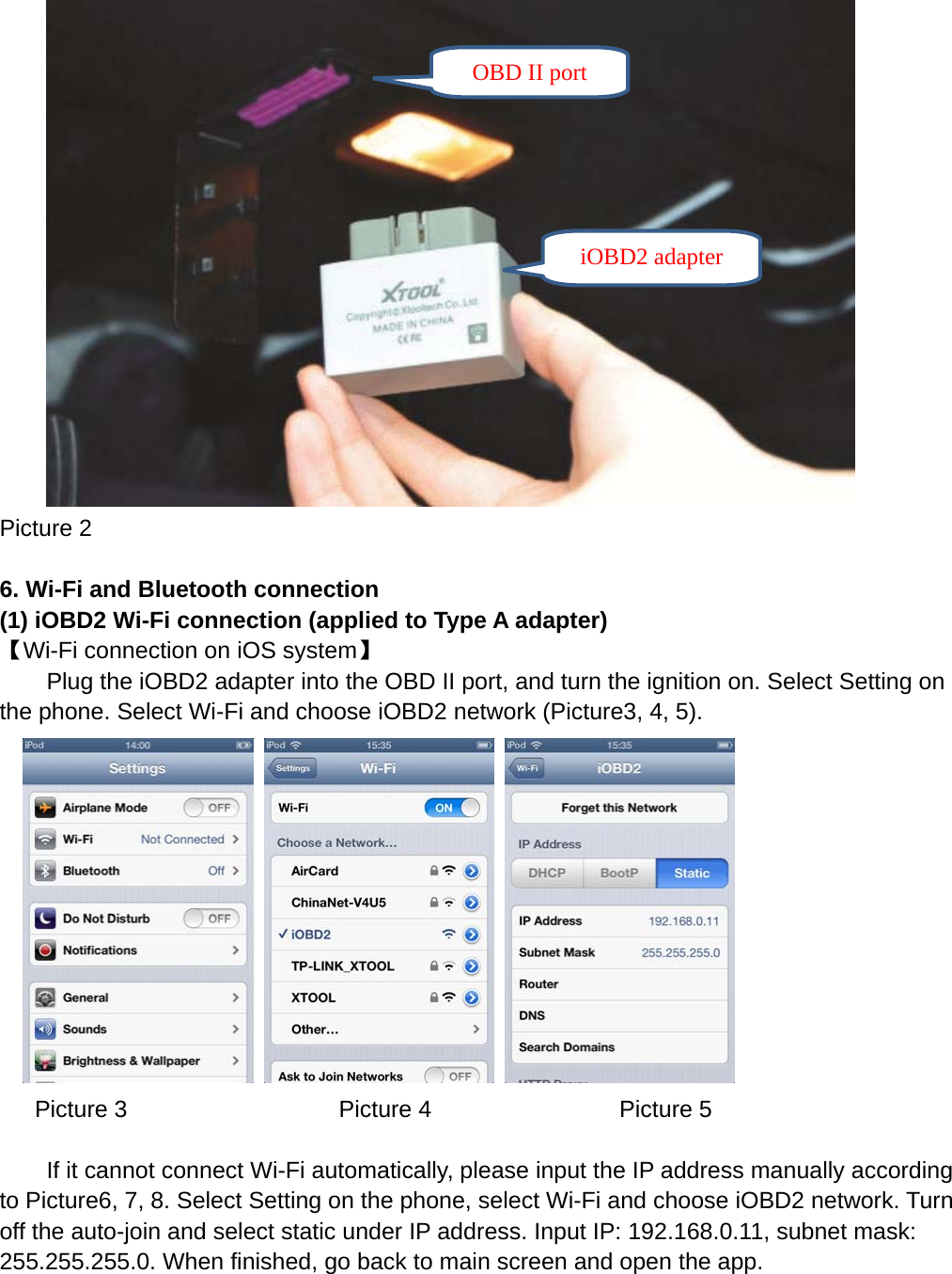

Picture 26. Wi-Fi and Bluetooth connection(1) iOBD2 Wi-Fi connection (applied to Type A adapter)【Wi-Fi connection on iOS system】Plug the iOBD2 adapter into the OBD II port, and turn the ignition on. Select Setting onthe phone. Select Wi-Fi and choose iOBD2 network (Picture3, 4, 5).Picture 3 Picture 4 Picture 5If it cannot connect Wi-Fi automatically, please input the IP address manually accordingto Picture6, 7, 8. Select Setting on the phone, select Wi-Fi and choose iOBD2 network. Turnoff the auto-join and select static under IP address. Input IP: 192.168.0.11, subnet mask:255.255.255.0. When finished, go back to main screen and open the app.OBD II portiOBD2 adapter

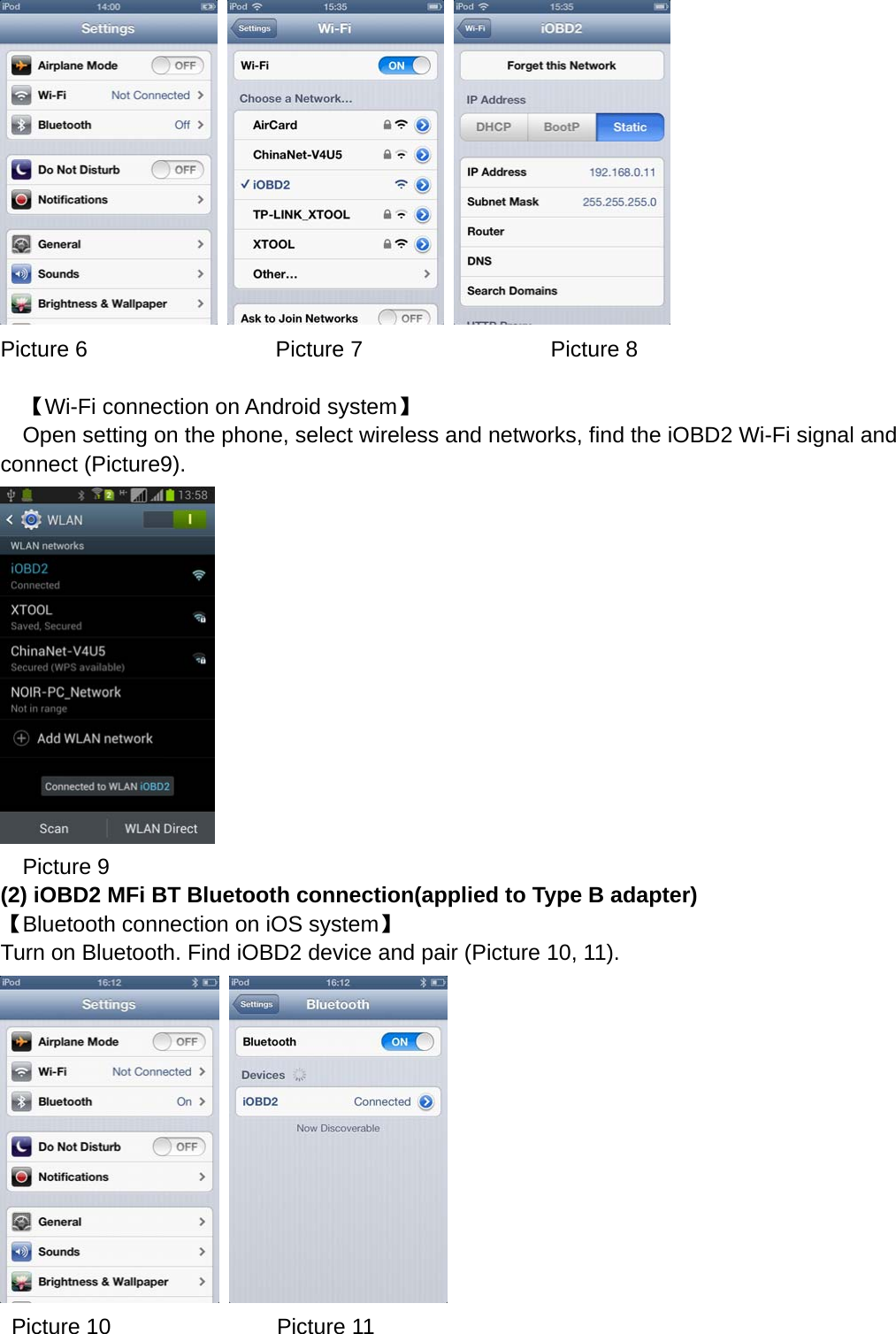

Picture 6 Picture 7 Picture 8【Wi-Fi connection on Android system】Open setting on the phone, select wireless and networks, find the iOBD2 Wi-Fi signal andconnect (Picture9).Picture 9(2) iOBD2 MFi BT Bluetooth connection(applied to Type B adapter)【Bluetooth connection on iOS system】Turn on Bluetooth. Find iOBD2 device and pair (Picture 10, 11).Picture 10 Picture 11

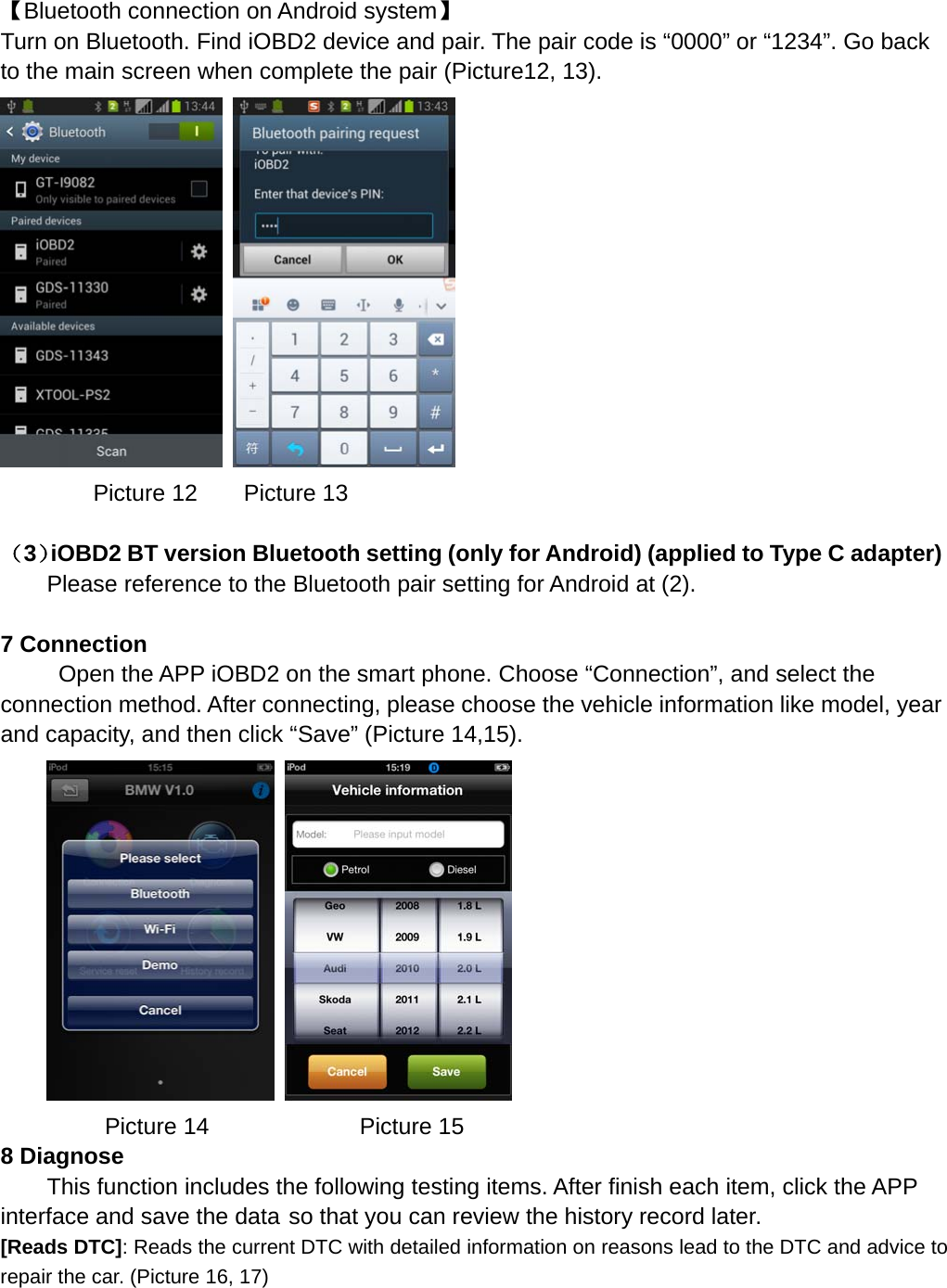

【Bluetooth connection on Android system】Turn on Bluetooth. Find iOBD2 device and pair. The pair code is “0000” or “1234”. Go backto the main screen when complete the pair (Picture12, 13).Picture 12 Picture 13（3）iOBD2 BT version Bluetooth setting (only for Android) (applied to Type C adapter)Please reference to the Bluetooth pair setting for Android at (2).7 ConnectionOpen the APP iOBD2 on the smart phone. Choose “Connection”, and select theconnection method. After connecting, please choose the vehicle information like model, yearand capacity, and then click “Save” (Picture 14,15).Picture 14 Picture 158 DiagnoseThis function includes the following testing items. After finish each item, click the APPinterface and save the data so that you can review the history record later.[Reads DTC]: Reads the current DTC with detailed information on reasons lead to the DTC and advice torepair the car. (Picture 16, 17)

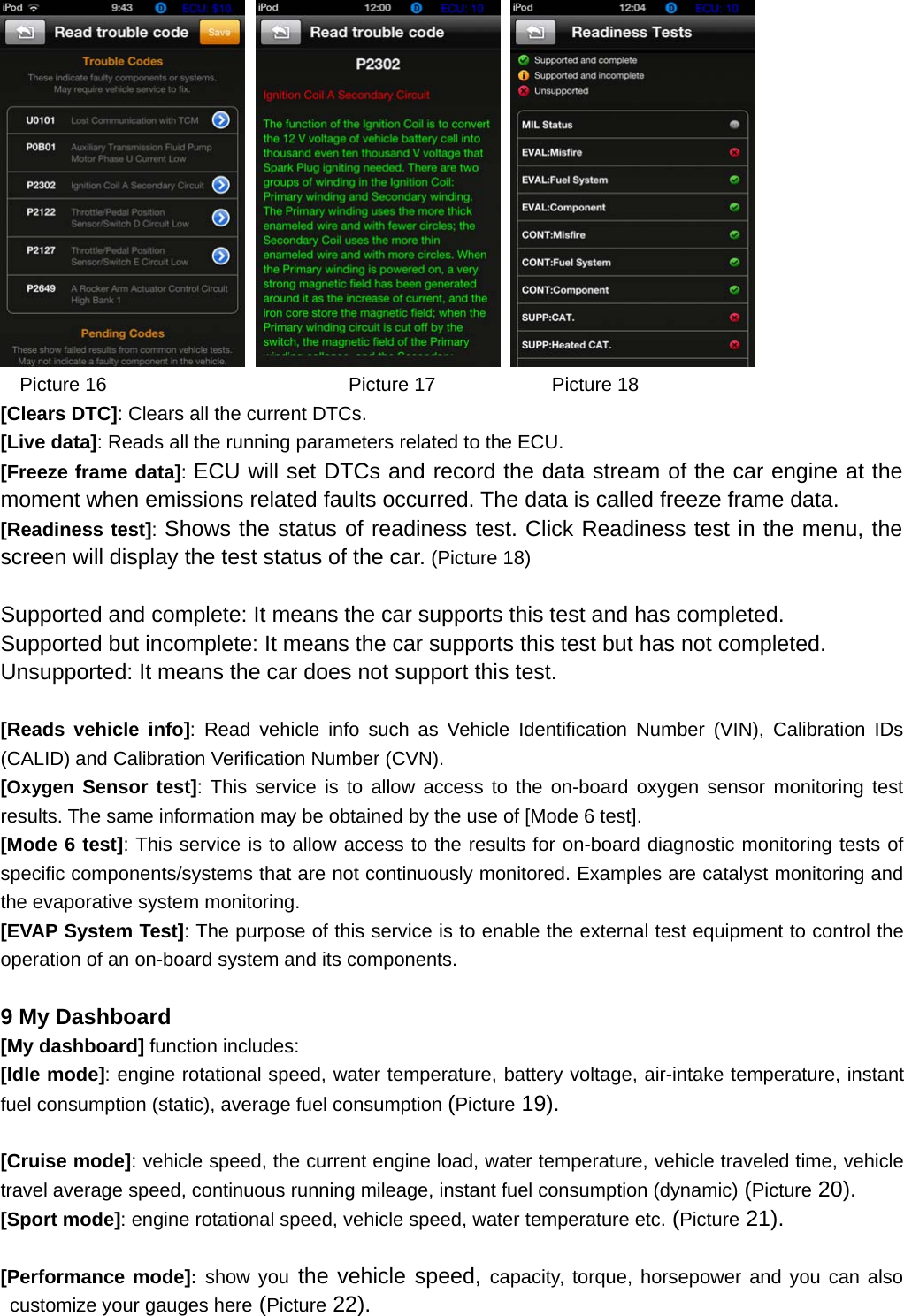

Picture 16 Picture 17 Picture 18[Clears DTC]: Clears all the current DTCs.[Live data]: Reads all the running parameters related to the ECU.[Freeze frame data]:ECU will set DTCs and record the data stream of the car engine at themoment when emissions related faults occurred. The data is called freeze frame data.[Readiness test]:Shows the status of readiness test. Click Readiness test in the menu, thescreen will display the test status of the car. (Picture 18)Supported and complete: It means the car supports this test and has completed.Supported but incomplete: It means the car supports this test but has not completed.Unsupported: It means the car does not support this test.[Reads vehicle info]: Read vehicle info such as Vehicle Identification Number (VIN), Calibration IDs(CALID) and Calibration Verification Number (CVN).[Oxygen Sensor test]: This service is to allow access to the on-board oxygen sensor monitoring testresults. The same information may be obtained by the use of [Mode 6 test].[Mode6test]: This service is to allow access to the results for on-board diagnostic monitoring tests ofspecific components/systems that are not continuously monitored. Examples are catalyst monitoring andthe evaporative system monitoring.[EVAP System Test]: The purpose of this service is to enable the external test equipment to control theoperation of an on-board system and its components.9 My Dashboard[My dashboard] function includes:[Idle mode]: engine rotational speed, water temperature, battery voltage, air-intake temperature, instantfuel consumption (static), average fuel consumption (Picture 19).[Cruise mode]: vehicle speed, the current engine load, water temperature, vehicle traveled time, vehicletravel average speed, continuous running mileage, instant fuel consumption (dynamic) (Picture 20).[Sport mode]: engine rotational speed, vehicle speed, water temperature etc. (Picture 21).[Performance mode]: show you the vehicle speed, capacity, torque, horsepower and you can alsocustomize your gauges here (Picture 22).

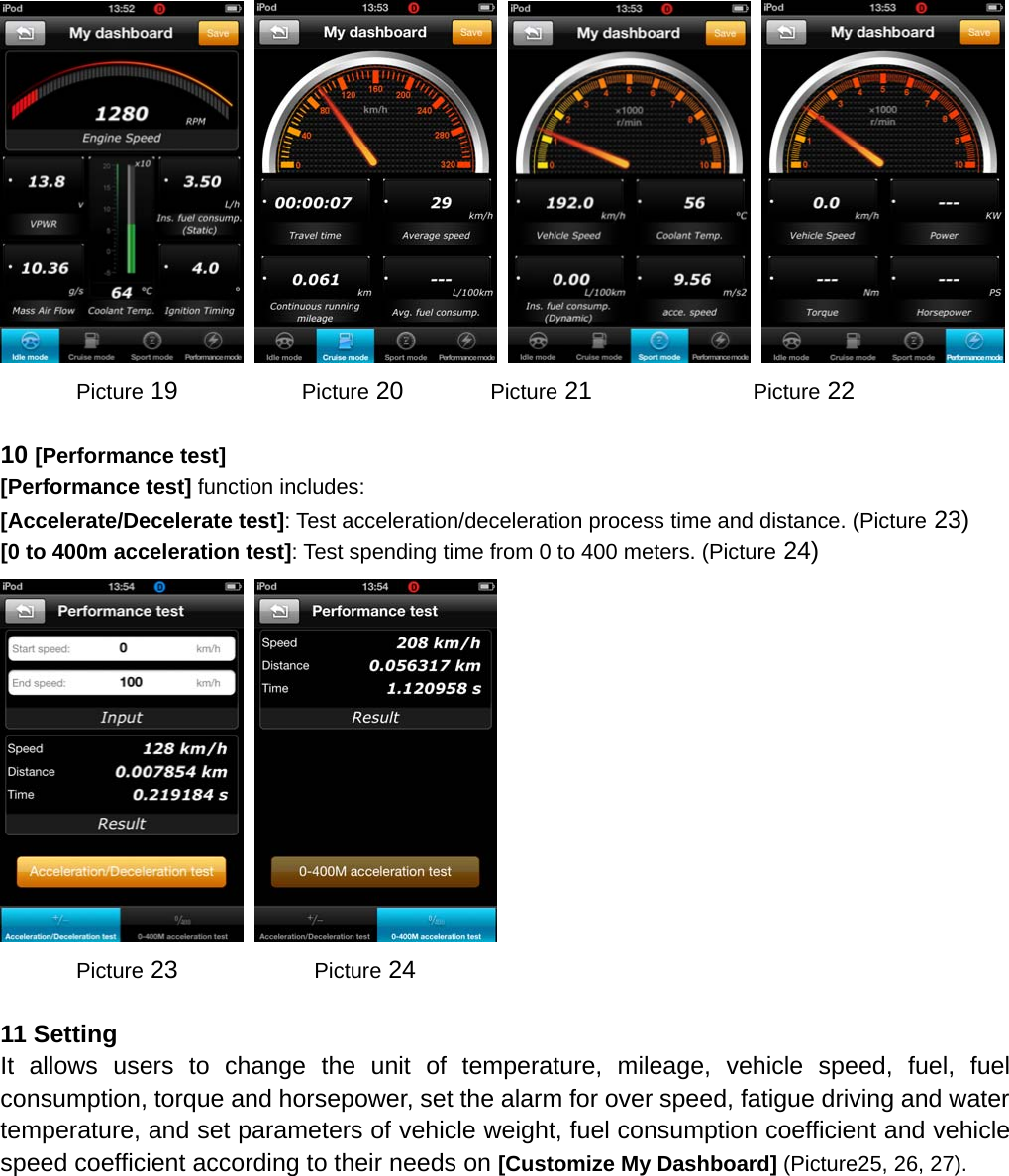

Picture 19 Picture 20 Picture 21 Picture 2210 [Performance test][Performance test] function includes:[Accelerate/Decelerate test]: Test acceleration/deceleration process time and distance. (Picture 23)[0 to 400m acceleration test]: Test spending time from 0 to 400 meters. (Picture 24)Picture 23 Picture 2411 SettingIt allows users to change the unit of temperature, mileage, vehicle speed, fuel, fuelconsumption, torque and horsepower, set the alarm for over speed, fatigue driving and watertemperature, and set parameters of vehicle weight, fuel consumption coefficient and vehiclespeed coefficient according to their needs on [Customize My Dashboard] (Picture25, 26, 27).

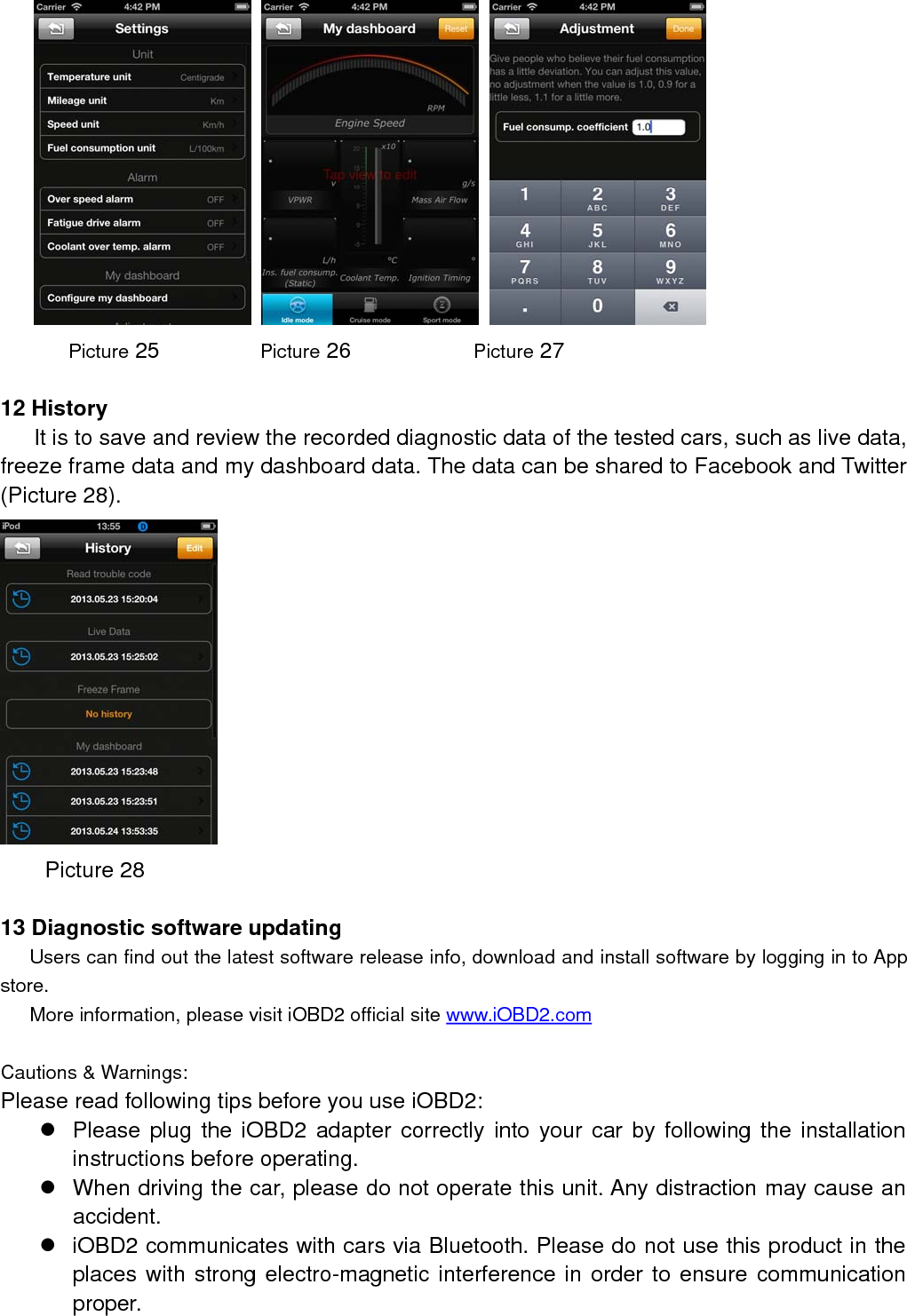

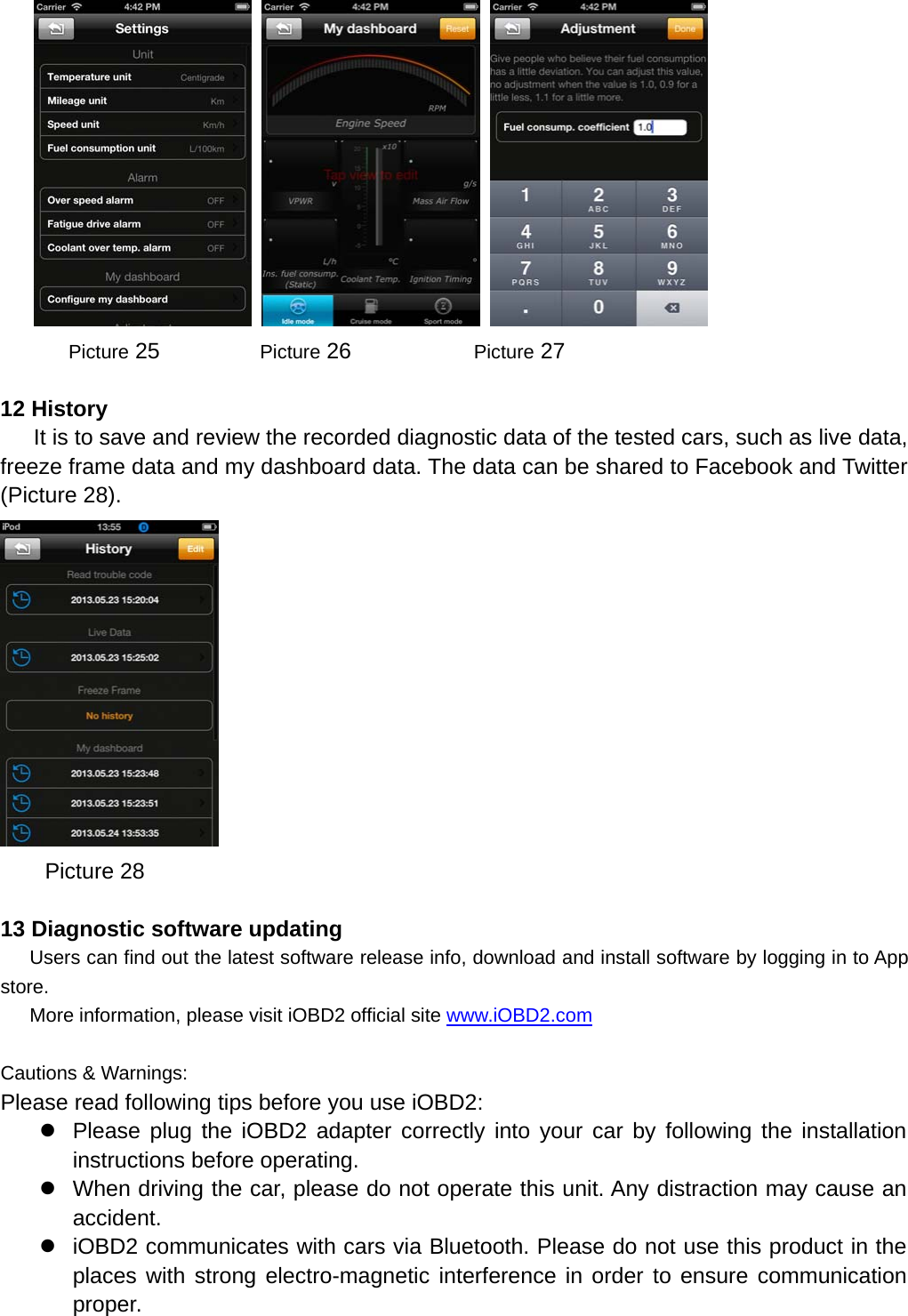

Picture 25 Picture 26 Picture 2712 HistoryIt is to save and review the recorded diagnostic data of the tested cars, such as live data,freeze frame data and my dashboard data. The data can be shared to Facebook and Twitter(Picture 28).Picture 2813 Diagnostic software updatingUsers can find out the latest software release info, download and install software by logging in to Appstore.More information, please visit iOBD2 official site www.iOBD2.comCautions & Warnings:Please read following tips before you use iOBD2:Please plug the iOBD2 adapter correctly into your car by following the installationinstructions before operating.When driving the car, please do not operate this unit. Any distraction may cause anaccident.iOBD2 communicates with cars via Bluetooth. Please do not use this product in theplaces with strong electro-magnetic interference in order to ensure communicationproper.
All information on this manual is based on the latest iOBD2 version. XTOOLTECH reservesthe right to make changes at any time without notice.

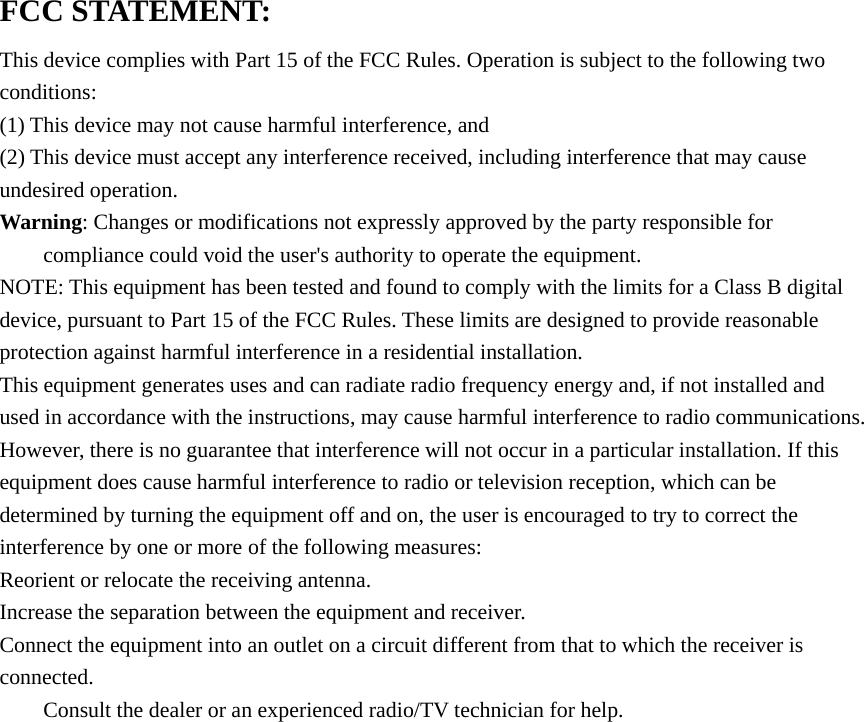

FCC STATEMENT:This device complies with Part 15 of the FCC Rules. Operation is subject to the following twoconditions:(1) This device may not cause harmful interference, and(2) This device must accept any interference received, including interference that may causeundesired operation.Warning: Changes or modifications not expressly approved by the party responsible forcompliance could void the user's authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digitaldevice, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonableprotection against harmful interference in a residential installation.This equipment generates uses and can radiate radio frequency energy and, if not installed andused in accordance with the instructions, may cause harmful interference to radio communications.However, there is no guarantee that interference will not occur in a particular installation. If thisequipment does cause harmful interference to radio or television reception, which can bedetermined by turning the equipment off and on, the user is encouraged to try to correct theinterference by one or more of the following measures:Reorient or relocate the receiving antenna.Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that to which the receiver isconnected.Consult the dealer or an experienced radio/TV technician for help.
