XTREAMER >
User Manual
Why Pay More?
Xtreamer
WinKey

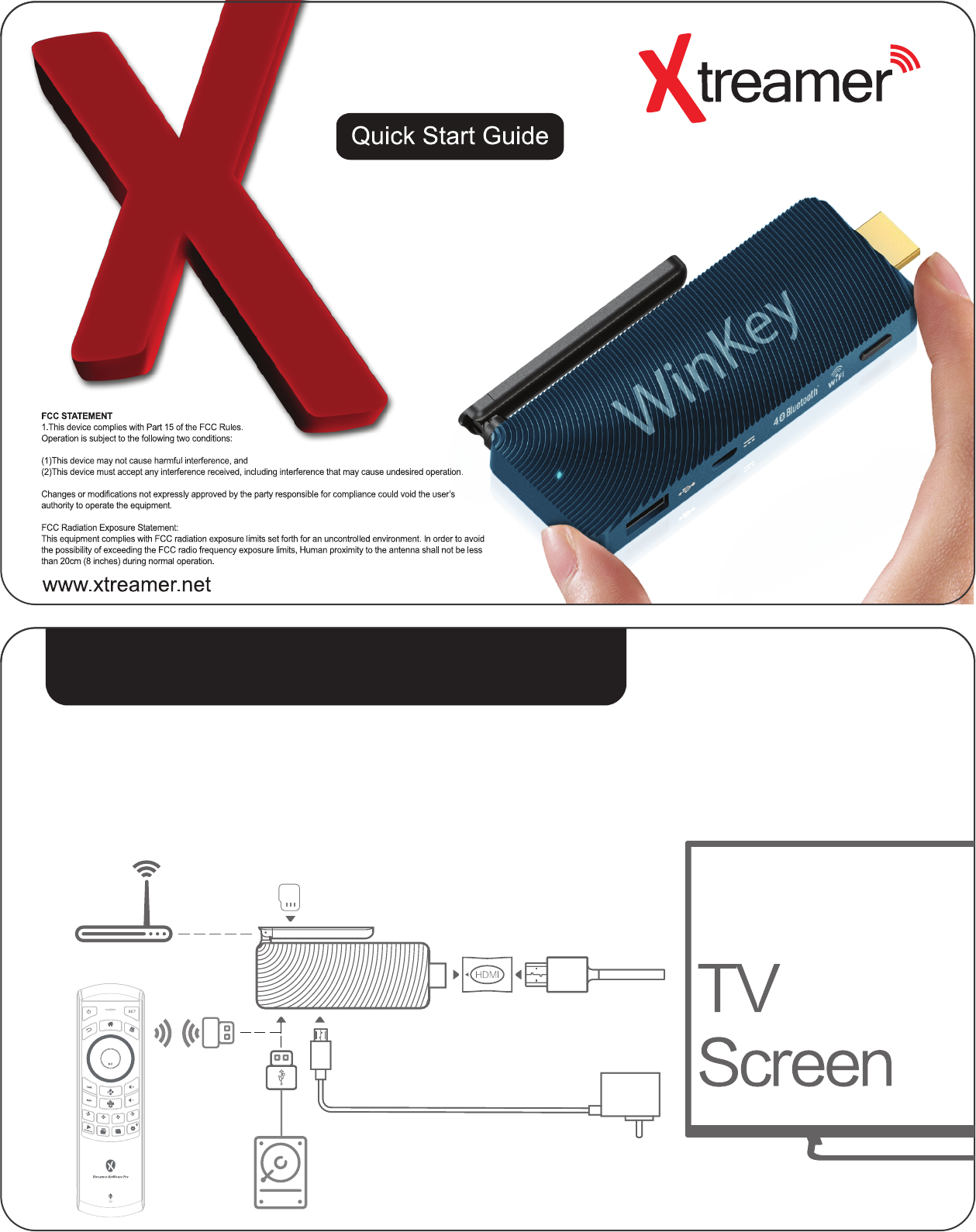

Welcome & Connecting
Thank you for choosing Xtreamer WinKey – a premium micro-PC you can connect to any HDMI capable TV/monitor and the one you can take with you everywhere.
This Quick Installation Guide will provide you with basic knowledge about connecting and operating the device as well as some useful tips and essential links.
Connect Xtreamer WinKey to an HDTV or an HDMI capable monitor and to power and press the Power button. The device will start and Microsoft Windows 10 will
boot to initiate the Setup Wizard. Use Xtreamer AirMouse Pro or another controller device to operate Xtreamer WinKey.
Addons
Favorites
Settings
TV
Back
Home
Menu
Files
OK
External Hard Drive
AirMouse Pro
(not included)
Micro SD Card
Micro USB Power Adaptor
HDMI Cable
WiFi Router
Parts Name & Specs
Operating System:
Windows 10
Processor:
Intel® AtomTM Z3735F(Quad-core)
Base Frequency:
1.33 GHz
Burst Frequency:
1.83 GHz
System Memory:
2 GB DDR3L memory, 1.35V, 1333 MHz
Flash Storage:
32 GB eMMC storage soldered down,
Micro SD slot
Graphics:
Intel® HD Graphics, 1x HDMI 1.4a
24/7 Operation:
Full speed
Cooling methods:
Fanless
Audio:
Intel® HD Audio via HDMI, supporting
multi-channel digital audio
Peripheral Connectivity:
802.11b/g/n Wireless Connection, USB 2.0 Host×1,
Micro USB 2.0 Host×1, Bluetooth 4.0, Micro SD card slot×1
Measurements:
110 mm x 39 mm x 12 mm
Power Requirements:
5V, 2A wall-mount AC-DC power adapter
Environment Operating Temperature:
-5°C to +50° C
Storage Temperature:
-20° C to +40° C
Package Content:
Xtreamer Winkey (Licensed Windows 10 pre-installed)
HDMI extender
OTG micro USB cable
Power Adapter
Quick start guide
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment o and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit dierent from that to which
the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
Changes or modications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Power LED
USB 2.0 Host x 1
DC IN (5V2A)
Power button
WiFi Antenna
TF CardMicro USB
Necessary Settings
Connect to a Wireless network via Start → Settings → Networks&Internet
Adjust your graphic settings via Start → Settings → System → Display → Advanced Display Settings
Audio\Sound settings are available from the system tray.
Interface Language change
You can change Windows display language by going to Start → Settings → Time&Language →
Region&Language.
Please note that Windows will need to download additional language pack.
You can also download the Language Interface Packs directly from the Microsoft site.
Using USB Hub
Please note that if you connect a powered USB hub to your WinKey, you will be able to add peripheral
devices, USB storage device etc.
Manage your Storage
Since Xtreamer WinKey has limited internal storage we strongly advise to purchase and install
a micro-SD card and/or connect an external USB drive.
This will allow you to save all les and install all nonessential programs to these additional
storage devices and keep your internal storage clean and your device fast.
Useful Links
Main cmpany website: www.xtreamer.net
Forum: http://forum.xtreamer.net
Knowledge base: http://forum.xtreamer.net/Support/
If you have any questions about the Windows 10 functions and features,
please refer to the Microsoft Support Site: https://support.microsoft.com/en-us
Useful Tips
