XYZprinting W01 Wheeled Robot User Manual 1
XYZprinting, Inc. Wheeled Robot 1
Users Manual
Wheeled Robot
UserManul
Camera
LED Matrix
IR Sensors (obstacle)
IR Sensors (line
tracking)
Battery
Bluetooth
Product Functions & Dimensions
142 mm 170 mm
235 mm
Eyes Interactions by LED Matrix
Line Tracking
Hand Gesture
Camera
APP to share info from cell
phone
Product Features
LED Matrix
Show different emotions to interact with users,
users can program its eyes expression.
Happy Upset
Angry Confused
Dislike Excited
Line Tracking
Use black pen to draw and make it follow your path.
Hand Gesture
•Touch its back’s sensor, it turns around.
•Touch its front sensor, it follows you.
•Get in touch its head sensor, it plays music.

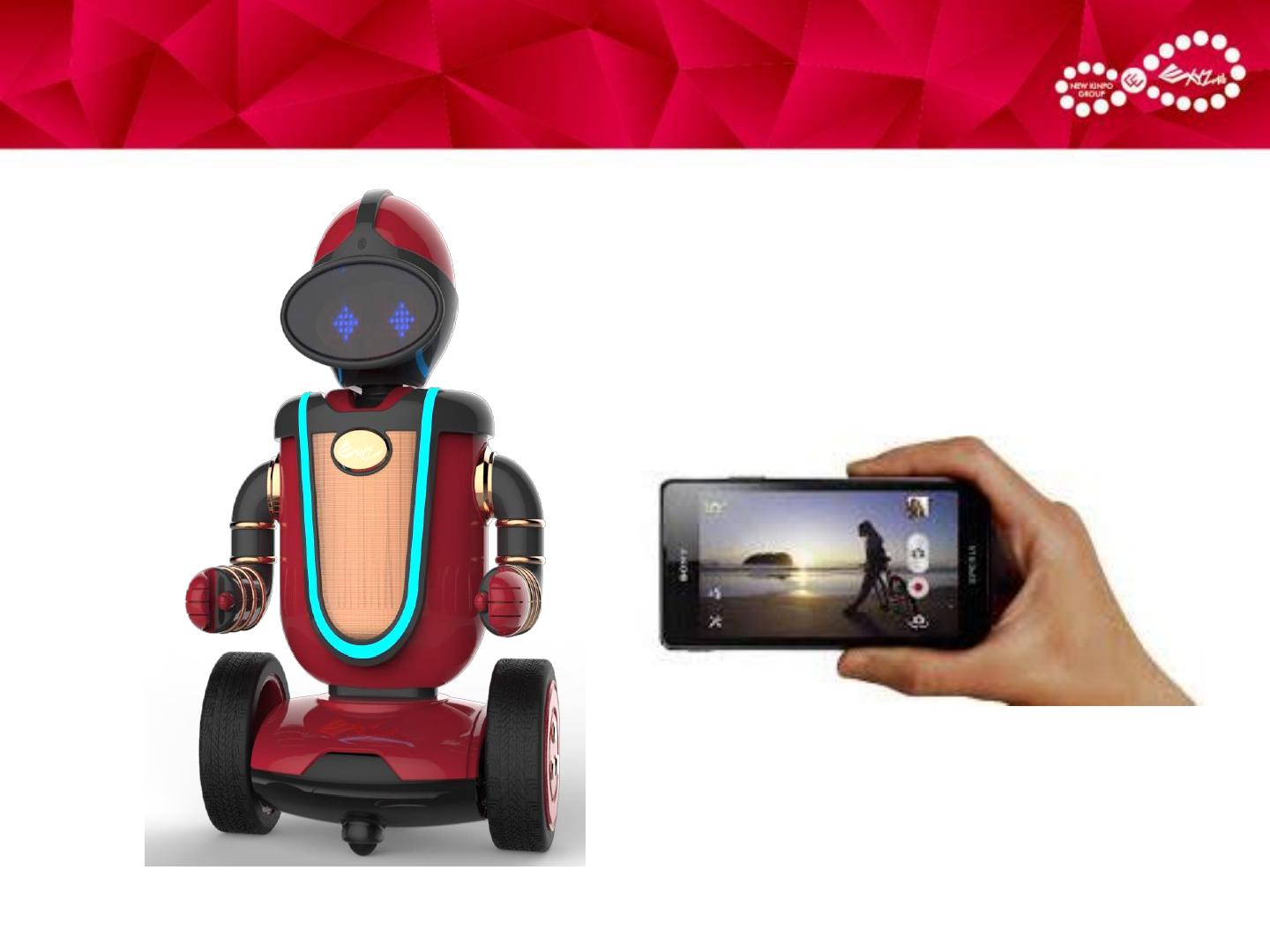

Camera for Different View Angles
See what it sees and save on your
camera . Great use to see from
different point of view.
APP to link with cell
phone ,
Time
Temperature
Alarm……
Info from cell phone
APP Applications
Free Driving
Use app to control its
direction and movement.
Catch Me If You Can

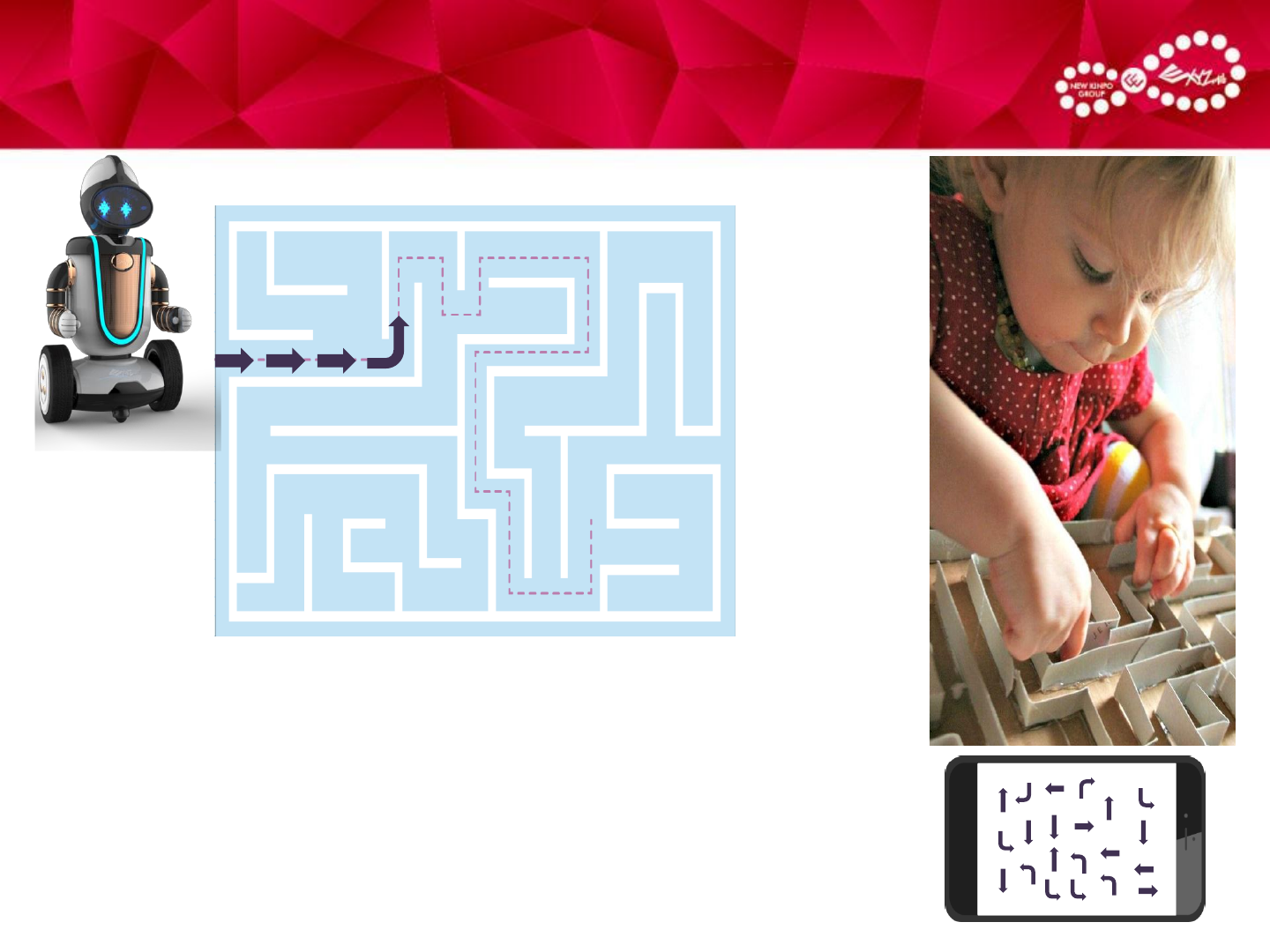

Puzzle Maze
1. Use paper board to place maze , command
robot to find the way out.
2. If user choose the wrong path or hit the wall,
robot will react.
3. Use APP to give direction to robot
4. Create your own maze and share with
others.
FCC Caution:
FCC ID :2AB9WW01
FCC Part 15.19 Warning Statement
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION
IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY
NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST
ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT
MAY CAUSE UNDESIRED OPERATION.
FCC Part 15.21 Warning Statement
NOTE: THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE
PARTY RESPONSIBLE FOR COMPLIANCE. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE
EQUIPMENT.
FCC Part 15.05 Warning Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
RF warning statement:
The device has been evaluated to meet general RF exposure requirement.
To maintain compliance with FCC's RF exposure guidelines, this equipment should be installed and operated with a minimum
distance of 20cm between the radiator and your body.
