General Description
Schlage • MT20 Enrollment Reader User Guide • 5
General Description
The MT20 Reader is a multi-tech ISO14443 and ISO15963 contactless credential access reader. The included hardware and
rmware will enable the use of many 125kHz and 13.56 MHz credentials and applications.
Specificiations

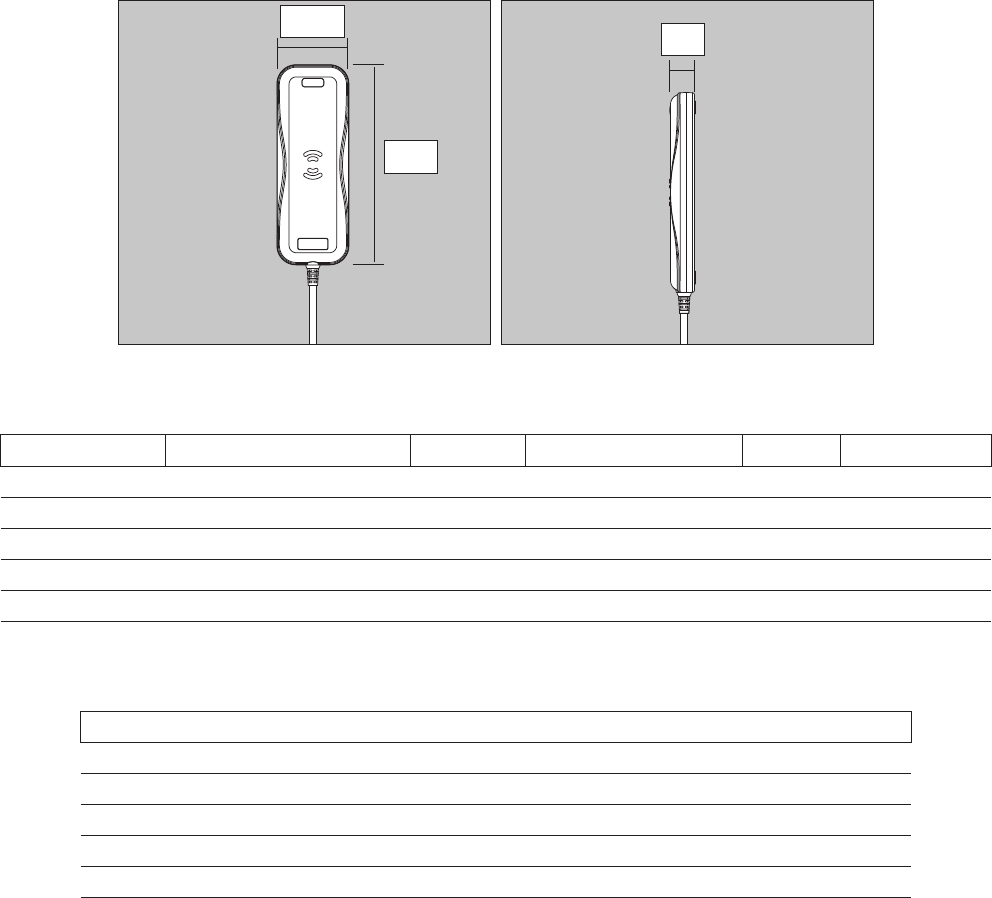

Physical Dimensions
Case height: 5Z\x” long; width: 1ZB\zn“; thickness: B\,”; cable length: 5’ 5” long.
Electrical Specifications
Symbol Parameter Min Typical Max Units
TOperating Temperature 0 25 40 Celsius
F Frequency 125kHz and 13.56 MHz +2.4 GHz
USB Voltage Input 4.75 5 5.25 Volts
IAVG Average System Current 160 mAmps
IMAX Maximum System Current 200 mAmps
Card Specifications
Card Read Ranges
Card Frequency Card Type Read Range
125 kHz ASK, FSK Up to 2.5” (6.3 cm)
13.56 MHz ISO 15693 Up to 3.0” (7.6 cm)
13.56 MHz
ISO 14443A MIFARE® Standard Up to 2.0” (5.1 cm)
13.56 MHz
ISO 14443A MIFARE® DESFire EV1 Up to 1” (2.5 cm)
5Z\x”
B\,”
1ZB\zn”
6 • Schlage • MT20 Enrollment Reader User Guide
Card Technologies Supported
Card Technologies Supported
125kHz Technologies
GE®/CASI® Proximity
HID® Proximity (except Long Format)
AWID® Proximity
LenelProx®
13.56MHz Technologies
ISO14443 MIFARE DESFire EV1 with PACSA enabled (format in the card - up to 48 bits)
ISO14443 Secure MIFARE Classic:
XCeedID MIFARE app enabled (format in the card - up to 48 bits)
OESM (dormant - ready to be enabled by end-user)
ISO14443 PIV enabled 75-bit format (other formats available)
iClass/Inside UID enabled 40-bit format
ISO15693 UID enabled 40-bit format
ISO14443 UID disabled (can be enabled if PIV, EV1, and MIFARE are all disabled)
Felica CSN
aptiQmobile
Operational Behavior
Communication
The MT20 Reader can communicate over USB or BLE. USB is the preferred default communication channel.
Output
The USB connection uses Human Iinterface Device (HID) Keyboard Interface that requires the user to put the cursor in the desired
eld to receive the output. The default output of the enrollment reader will be Facility Code followed by Badge ID in a 9 digit form. If
you require a different output, please contact Allegion Technical Support at 1-877-671-7011, option 2.
RF Field
Every 100ms the RF eld turns on and the reader polls for cards. The 13.56 MHZ eld is on for approximately 42 ms in the
default reader conguration, which is maximum complexity. The 125 kHZ eld is on for approximately 20 ms in the default reader
conguration, which is maximum complexity.
Design References
ISO14443
ISO15963
OSDP Specication
Application Note Micore Reader IC Family from NXP Semiconductors - See XceedID website (www.allegion.com/us).
Design References
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation
est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit
accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
Appendix A
Schlage • MT20 Enrollment Reader User Guide • 7
Appendix A
Terms and Abbreviations
125 kHz: Radio waves operating at 125 thousand cycles per second. This technology has historically been the
standard in proximity card/reader but is beginning to be replaced by faster, more secure 13.56 MHz technology.
13.56 MHz: Radio waves operating at 13.56 million cycles per second allowing read/write and secure, encrypted
card and reader communication. Because of the faster communication (compared to 125 kHz proximity technology)
between a card and reader, this technology is better suited for biometrics and secure, authenticated transactions.
ASK: Amplitude Shift Keying or modulation – Refers to the process of altering the height of the radio waves to
signify the zeros and ones in the binary communication
– ASK is the most common form of modulation used in RFID. It is used in both ISO 14443 and ISO 15693
specications for reader to card communication.
CSN: Card Serial Number. Also known as the UID or Unique Identier which is specied in the ISO specications.
DESFire®: A exible, high security, ISO 14443 compliant, contactless smart card technology by NXP.
Firmware: Essentially software in the form of ROM or EEPROM that does not lose memory when power is not
maintained.
FSK: Frequency Shift Keying or modulation – the process of altering the frequency of radio waves to signify the
zeros and ones in the binary communication.
ISO 14443: International standard regulating contactless, proximity technology, typically representing a read range
distance up to 10 centimeters. The advantage products utilizing ISO 14443 have over those utilizing ISO 15693 is
that the transaction speed is faster, making security and transaction speed superior for large packets of information
such as biometric templates. ISO 14443 is actually divided into two sub-divisions of the standard, A & B. ISO
14443A has grown to be the leading standard for access control and transportation and 14443B for banking.
ISO 15693: International standard regulating contactless, vicinity technology, typically representing a distance over
10 centimeters. The advantage ISO 15693 has over ISO 14443 is greater convenience due to longer read ranges
and less power consumption.
MIFARE®: A proprietary contactless and dual interface smart card chip technology produced by NXP. Mifare is a
well proven RF communication technology for transmitting data between a card and a reader device and is fully
compliant with ISO 14443A.
Modulation: The changing of radio waves in a specic manner in order to represent data.
OSDP (Open Supervised Device Protocol): OSDP is a communication protocol for interfacing one or more
Peripheral Devices to a Control Panel.
Protocol: How computers talk to each other – a communication system.
Proximity: A card/credential and reader system utilizing RFID technology in which the credential and reader
utilize microprocessors and antennas to communicate without having to come in contact with one another. This
technology is usually associated with 125 kHz frequency readers, the historical standard RFID technology in
access control.
Smart Card: A card or credential that contains a built-in microprocessor and memory used for identication and
transactions in a number of applications (security, nancial, etc.). The card has read/write capability to transfer
data from a reader typically to a panel or computer.
UID: See CSN above.
Wiegand Format: The most common data format in an access control system consisting of 26 bits of information.
