Xeek X1 Deep breathing training device User Manual
Xeek (Xiamen) Medical Equipment Co., Ltd Deep breathing training device Users Manual
Xeek >
User manual
Instruction for use
Intelligent breathing training apparatus
1 A quick manual
1. Try to mouth pieces into the mouth, to avoid we instinctively use
facial muscles to exhale and inhale, make diaphragmatic muscle
test result affected.
2. To breathe in the test, including live mouth pieces, slowly
expiratory, abdominal adduction, will try to empty the lungs, then
as quickly as possible, hard breath deep, until the air is full of lung
and stomach.
3. To take breath test, first take a deep breath, holds the mouth
pieces, and then forced expiratory, until no gas can spit.
Boot: unpack easy breathing X1, assemble the valve head
connection good mouth pieces, with a USB charger to charge, after
filling the electricity long press machine as shown on the cover of
the product on the left side of the power button for five seconds,
when using this product for the first time into the startup wizard to
set (if you have WIFI link, convenient data timely upload the cloud),
set up after to get into the main interface.
Personal information registration, enter the main interface, click on
the screen at the top of the default account, add members to the
registration of personal information, in order to understand their
own breathing actual indicators and normal age differences. Can
also click Settings > account management for the registration of
personal information.
Personal information changes: long press personal nickname, can
modify personal information.
Login: wifi link, first enter the home side pull order click login, online
registration account. So on WeChat management and check your
account and the account of the training.
Breathing detection: enter the breath test page, select breathe in
test mode or out detection mode, began to test.
Note:

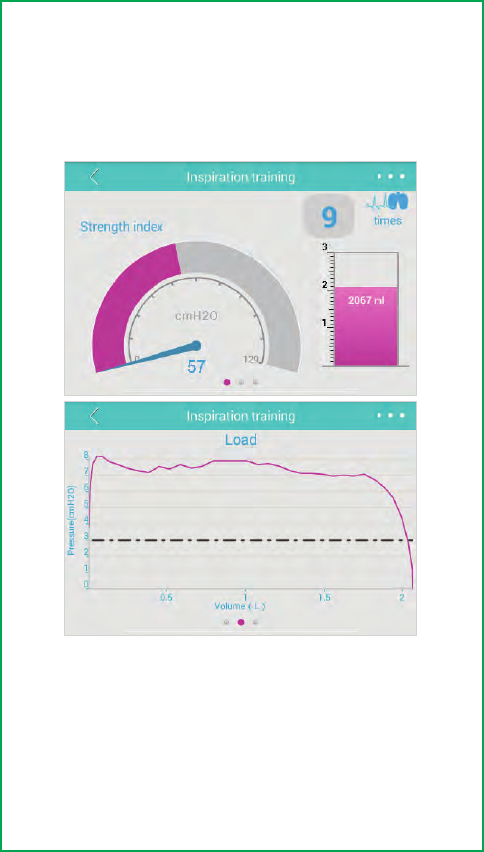

Inspiratory training: click on the home page below to begin training,
can choose automatic or manual mode, start training.
Prepare training:
1. Training: after the mouth pieces into the mouth, deep inspiration
as quickly as possible, then slowly exhale, until you feel lung has no
air after stop, wait for after hint sound for the next breath, repeat 30
times and complete breath cycle.
2. View the results: after 30 breaths when you finish, you can click
on view report, check your respiratory health level.
3. Clean the valve head: training is completed, remove the valve
head with warm water immersion, reoccupy warm water is rinsed
valve head, finally on the dry towel dry.
2 Product overview
Dear customer:
Thank you for purchasing easy breathing X1 deep breathing
training apparatus, easy breathing X1 deep breathing training can
help you strengthen the well, reduce the sport or activity when
breathing difficult situations. As we want to strengthen our biceps
is using dumbbell exercise load, we use easy breathing X1 deep
breathing training apparatus, through the built-in science algorithm
on your breathing function testing, according to your actual ability to
breathe, and then gives a scientific exercise prescription, make
scientific exercise, this will help you enhance your breathing
capacity, improve your breathing when motion fatigue, asthma, etc.
When you breathe through easy X1 deep breathing training
trainers, gradually noted to be more effort to breathe in, this is
inspiratory muscle (diaphragm and intercostals muscles), the
influence of load impedance, there is no impedance when exhaling,
can exhale, relax naturally will discharge air from the lungs.
Easy breathing X1 is a professional intelligent well trainers,
features of diaphragmatic muscle training (climb building can make
him not asthma, climbing more strong), and through training the
impedance value increasing, exercise the user's core abdominal
muscles (such as for long-distance running and cycling, help him to
better control their own body, balance, etc.), allowing the user to
restore respiratory muscle strength, enhance and improve the
respiratory muscle strength and endurance.
Valve head
front shell
suction After the export
back cover
bellmouth orifice
USB port
Power key
HOME
display screen
accessories
①instruction book ②adapter ③Mouth pieces ④Nose clip
⑤iphone ⑥Draw string bag ⑦warranty card ⑧certificate of quality
① ② ③ ④
⑤⑥ ⑦ ⑧
3 Product components
赛客(厦门)医疗器械有限公司
Xeek (Xiamen) Medical Equipment Co., Ltd
本产品经严格测试：合格
www.xeek.cn
赛
客
（
厦
门
）
医
疗
器
械
有
限
公
司
4 The product installation
and dismantling

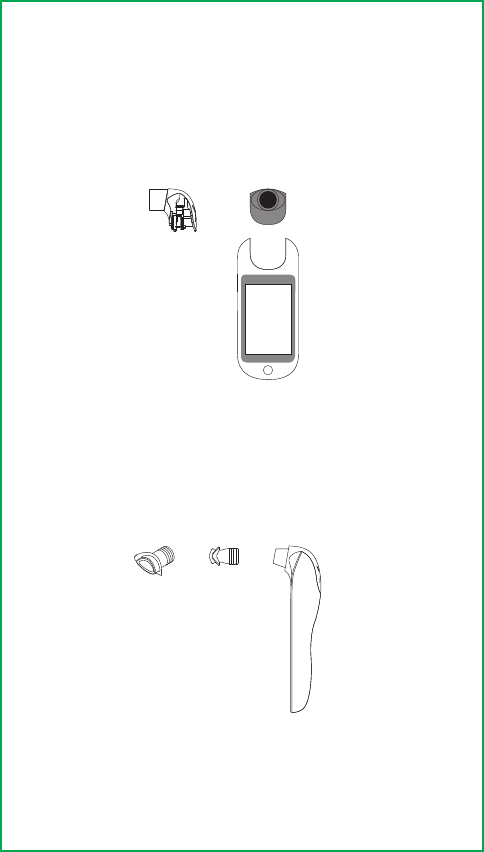

1, the installation of the valve head and remove
1. When installing a valve head, valve head first left button (a) and
right button (b), respectively, and the host button (d) and (e), and
then will deduct a embedded into the host (c) a (f).
(2) when removing valve head, hold the host, and then under the
force of valve head up button bits (c) with the host button bits out,
then remove the valve head.
2, the installation of the mouth pieces and remove
(1) when installing a mouth pieces, first the mouth pieces on
bearing (a) and (b) the azimuth alignment valve head (c and d),
respectively, and then hard to make the mouth pieces into the
valve head.
(2) when removing mouth pieces, one hand hold the host and the
valve head, another hand holding the mouth pieces on bearing (a),
then the force bearing on the mouth pieces (c) with the host from,
then remove the mouth pieces.
a
a
b
b
c
d
a
d e
f
b
c
c
b
5 Products applicable to people
◆Mixer was feeble old man elder
——Elderly home elders can use this product real-time
monitor their respiratory condition, and thus the diaphragmatic
muscle strength and endurance training, which can effectively
improve asthma, unsustainable phenomenon.
◆Love activists in pieces
——meet and use in respiratory characteristics of various
kinds of sports, with periodic impedance to training, enhance well
power effectively, improve ventilation efficiency, reduce energy
consumption, eliminate fatigue to breathe.
- warm up before the movement, the tools to help sports
personnel to quickly adapt to the intense exercise of breathe easier
and reduce the flank soreness.
- relaxation tool after exercise, improve caused by lactic acid
accumulation ache after strenuous exercise.
◆Mixer sub-health white-collar office
——people in the office white-collar work pressure big,
lack of exercise, often in a weak breathing, lack of oxygen, can't
concentrate of sub-health state, this product can effectively help
promote effective ventilation of such people and improve the
quality of life.
◆Mixer music singers, performers, speakers, teachers
——for deep breathing muscle, through scientific training
can let users become slow, deep breathing, let blood oxygen
exchange rate is better, such as singer or performer, can better
learning control breath, maintain good physical stamina, which bear
the high intensity and long training time, to achieve training
purpose, allowing for more efficient before a rehearsal or
performance.
7 Add a sub account
6 Interconnection of fun
◆WIFI Internet
On the front page Settings, select Settings > system Settings, link
WLAN, will the machine access wifi environment, can be
convenient for you to breathe data timely access to the cloud
server, allowing you and your family through WeChat remote pick
up you and your family and kinship care of respiratory health.
◆Mixer registered individual account
You use this machine for the first time, strongly recommend you to
register the personal account. To wifi link, enter the home side pull
order click login, online registration account. So on WeChat
management and check your account and the account of the
training.
◆In pieces on the guest WeChat public number
You can scan the guest WeChat public (qr code in the description
on the last page), through WeChat public, look at you and your
family's respiration exercise ranking and personal training report
detailed situation.
Click on the home page of the drop-down menu ,
Click on add members set up account information. Set the account
information is to help you supervise and understand family
member's breathing.

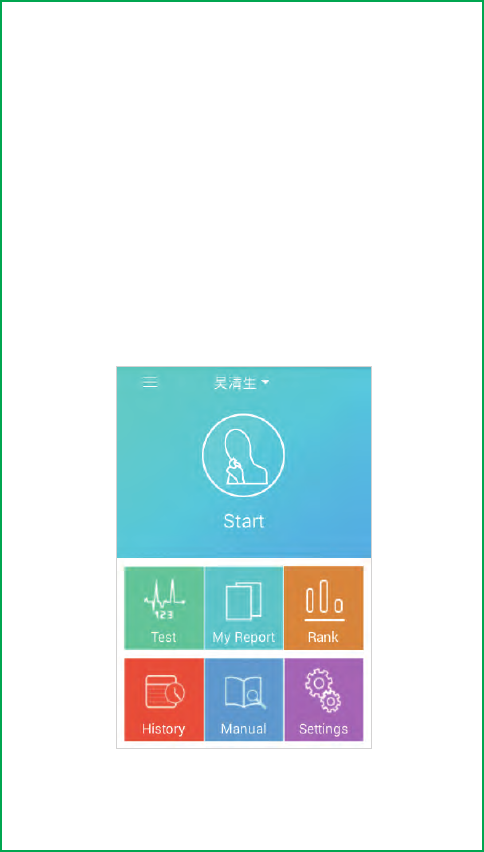

8 The home page interface
When you play kick off the guest easy breathing X1, set up the
personal information, you will enter into software home page:

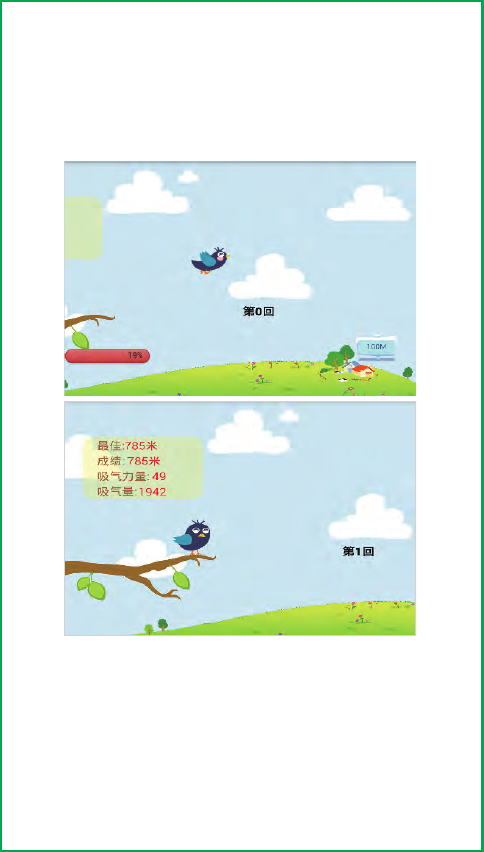

Began training: from here you can begin your interesting and novel
journey to breathe.
Breathing detection: here you can be tested to inhale and exhale
detection, an overall inspection your breathing indexes, compare
your breathing function of the level.
My breath: when you check out, you can view your breathing report
here, know all information about your breathing.
Row row list: can see you all kinds of indexes and other users of
breathing breathing out data.
History: here you can view your breathing training history condition.
User guide: allows you to better and faster to understand and use
this product.
Set: buy our product management and Settings.
Tip:
In the middle of the top and can be modified after you click in your
personal information, also can add users.
9 The user guide

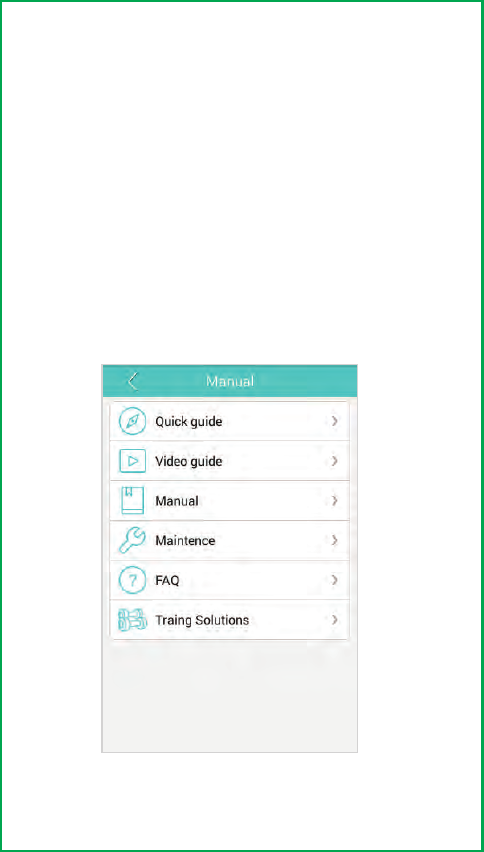

Home page, click on the user guide, choose you want to view the
contents of the:
Quick guide: you can quickly understand this product from here.
Video tutorial: we prepared scientific video tutorial for you, you can
learn to breathe, and learn how to more effective breathing
exercise.
Full manual: you can view the detailed product introduction and the
matters needing attention.
Maintenance: this product is related to personal hygiene, please
refer to the maintenance of the products in a reasonable manner.
Common problem: in this section for your common problems that
should pay attention to this equipment is in use and taboos.
Training plan: you can understand how different people do
breathing exercises of the scientific method.
10 Breath test

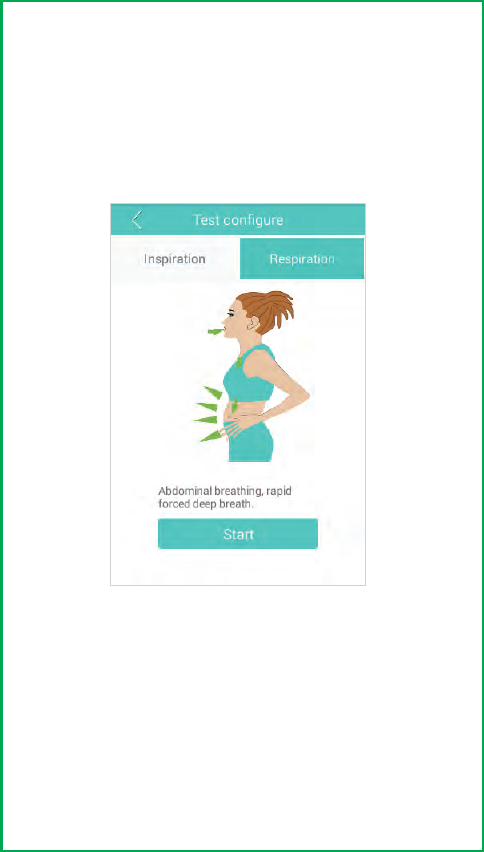

When you click on the front page breath test to get into the test
interface, testing interface into exhale and inhale testing two parts.
Suction test: select suction test click start, breathe in the test.
Breath test: select a breath test click start, breathing test.
Tip:
If you still don't know how to test, you can see in the test set up small
animation teaching you the correct way of training.
Inhale and exhale testing is divided into 3 times each test, the system
will be according to the synthesis of 3 to your test results.
11 My breath
When you enter the page of my breath, you can see your actual
respiratory index with people of similar age, height, with your
comparison.
Tip:
If you see indicators have a down arrow beside, mean to say you the
index on the low side, want to draw attention to improve.
Click on each index, can see detailed instructions for each indicator,
and breathing for you comments and Suggestions.
Push up the interface, you can see more of your breathing index
analysis and Suggestions.
When click on each index in detail into the interface, you can see the
indicators scientific explanation, and your actual level and close to your
age, shape differences in quite a crowd, Suggestions according to the
guest to give you the exercise prescription of scientific breathing exercise,
so as to improve the quality of your breathing.
12 Start training
Began training in the click on the home page can enter the training
Settings page, click start training, each group 30 training, enhance
your diaphragmatic muscle strength and endurance.
Tip:
Training in the page divided into two kinds of muscle stamina and
muscle strength training methods, you can click the icon to switch muscle
strength and muscle endurance.
Training mode is divided into automatic and manual mode, can
according to own situation and the difficulty level of the mode.
13 Breathe in training
Click start training, you can see your each breath exercise real-time
interactive situation:
Tip:
Use abdominal breathing exercise better (abdominal breathing:
abdominal huddle, exhale, all internal gas discharge, and then quickly
forcibly inspiratory, drum abdomen).
After each breath, can contain the mouth pieces slowly expiratory,
also can remove the equipment, such as mouth is completed, you will
mouth pieces into his mouth, ready to breathe again after inhalation of
exercise;
End of each breath waiting system hint sound, then exhale, would be
better to exercise our breathing rhythm control ability, help to improve our
performance in sports.
Exercise this product requirements to breathe in through your mouth,
when use nose clip can assist in training to prevent in through the nose
and get better training effect, some people do not use the nose clip
training will feel more comfortable, so whether choose nose clip depends
on user's situation.
Can slide around training images, replace the display surface.
14 The game interface
Click start training, breathe into the training, click on the button in
the top right corner of the interface, select game into the interface,
you can experience the inspiratory muscle training combined with
bird free flight pleasure:
Tip:
The farther the inspiratory capacity, the greater the birds fly;
The inspiratory muscle strength strong bird fly higher;
To share your scores to the circle of friends, let your friends share your
health and happiness.
15 Common problems
◆Mixer can people use the same a breathing training unit?
For reasons of health, we recommend that users don't share the
same breath valve head. But if the user use bacteria/viral filters, you
can share.
◆Training on the inhale resistance is too big, patients cannot
breathe through the equipment?
If the patient feels resistance is too large, cannot breathe through
easy X1 deep breathing training apparatus in gas, please take out
the valve head and check whether the valve is free to open and
close. And then to connect the valve head to respiration training
device host, make sure it is installed in the correct position. If the
valve to move around freely, still feel resistance is too large, cannot
pass on the inhale gases, can choose a lower difficulty level in the
training set to reduce resistance training, or manually set to lower
the load.
◆In pieces the guest take a deep breath can't start the training?
If the guest cannot begin deep breathing training apparatus may be
run out of battery. You can use with the charger to charge, charge
to a certain capacity, can continue to use.
◆Mixer mouth pieces change color or dirty?
When the mouth pieces long soak in water or disinfectant, a small
amount of water could be absorbed by materials, lead to cloudy or
discoloration. If this happens, the mouth pieces on a clean towel
dry, cloudy will gradually disappear.
◆Feeling when training has a lot of saliva in his mouth, how to
improve?
Do breathing exercises, mouth saliva accumulate ministries, it is a
natural phenomenon, can stop the training at this time and clear
saliva, or can be in when exhaling out through the mouth, to reduce
the accumulation of saliva, it won't reduce inspiratory training
effect.
◆How long a clean valve head pieces should be?
If without bacteria/viral filters use, under the protection of the
recommendations should be cleaned after each training valve head.
◆In pieces why breaths before resistance is small when feeling
training?
The guest take a deep breath before through scientific training
algorithm for the users to breaths inhaling resistance to maintain in
low level, the goal is to make users have a gradually adapt to climb,
not caused by sudden increasing difficulty breathing side stitches
to suffer damage, this is the human nature setting of the
equipment.
◆In pieces if the user training for a period of time not much
improved?
If users feel didn't see improvement in training or testing, should be
the difficulty of the training is too low, suggested increasing training
load, can be trained through the automatic mode to choose higher
difficulty level setting higher impedance difficulty or manual training
mode.
16 Caution-1
Easy breathing X1 intelligent breathing training apparatus is suitable
for most people, under normal use without any side effects. Please
read the following precautions to ensure safe and correct use:
Contraindications:
Use easy respiration X1 smart breath training of trainers in the
chest, throat, ears and negative pressure is formed in venous sinus,
if you have the following conditions, please do not use:
◆Mixer spontaneous pneumothorax (not by fractured ribs or other
trauma atelectatic lungs) history.
◆In pieces because of trauma lung collapse has yet to recover.
◆Pieces of broken ear drum not heal or any middle ear disease.
USES:
◆Mixer easy breathing X1 intelligent breathing training apparatus is
designed for inspiratory muscle training, no other purposes.
◆Not in pieces of this product to diagnose, treat, cure or prevent
any disease. Fitness, perception, mental reduce people are not
suitable for use, or to be used under the guidance of the
supervision can be responsible for the safety of personnel.
◆Pieces of youth under the age of 16 or children must use under
adult supervision
◆Products containing smaller components, so the young children
under the age of 3 are not suitable for use.
Warning!
◆In pieces if you use easy respiration X1 intelligent trainer training
feel dizziness or vertigo, please slow down the respiratory rate or
pause until fully recovered.
◆Pieces in the case of a cold, sinusitis, or respiratory tract
infection, strong suggestion easy respiration X1 smart trainers until
symptoms disappear, if in doubt, please consult a doctor.
◆Ear pieces of users will feel a slight discomfort, especially in cold
recovery period, this is due to the mouth, due to unbalanced
pressure if the situation continues, consult a doctor.
◆To prevent the spread of potential danger, not recommended to
share with family or other people mouth pieces or valve head.
◆Mixer inspiratory feel resistance when using, but you don't feel
uncomfortable, if you are unwell, please stop immediately and
consult your doctor. If without the consent of the doctor, please do
not change any prescription medication or treatment.
◆Mixer easy respiration X1 smart trainers clean mouth pieces
advice before use.
◆This equipment is designed for non waterproof, shockproof,
walking, running, diving, or participate in other activities do not use.
◆In pieces if the body of heart rhythm or other containing magnetic
or electronic medical implants, please consult a doctor before use.
If the use of easy respiration X1 smart trainers have any questions,
please contact our customer service line, if you have health
concerns please consult your doctor.
17 Caution-2
Can only use the charger.
The charger will be the primary voltage (100-240 volts) to a safe
voltage (5 v).
Before cleaning easy breath X1 intelligent breathing training
apparatus, please pull out the plug.
(1) use: do not throw, dismantling, open, rolling, piercing, cutting,
bending, deformation, microwave, burning, graffiti, easy breathing
X1 intelligent respiration training device or insert any foreign
objects.
(2) easy to breath X1 intelligent breathing training apparatus design
of valve head can be normal cleaning and disinfection, to maintain
health and correct operation, holding a body part not waterproof,
however, should not be flooded into or exposure to liquid.
20 Privacy protection
◆To understand how we protect your personal information, please
visit the guest officer network, understand our privacy policy.
◆Mixer using unauthorized third-party software upgrade firmware
to the unit and system, there may be the machine can not use or
disclose your personal information and other security risks.
18 Product guarantee
◆This product under normal use provide one year free
replacement service. This service does not include due to improper
use, man-made destruction, commercial use, accident or improper
maintenance (components from obstacles blocking). This warranty
does not apply to the battery, mouth pieces or nose clip. Without
the guest the original factory repair damaged or indirect damage
caused by this limited warranty does not apply.
After-sales service center:
◆In pieces please send defective product and service card to the
following address:
Name: "guest (xiamen) medical instrument co., LTD
Address: room 893, fujian xiamen haicang district 893 haicang
avenue
◆Customer service line: + 86-592-6800190
◆Fax: + 86-592-6800190
◆Website: www.xeek.cn
◆Email: service@xeek.cn
◆This product is not toy, can only use in detect respiratory training,
not recommended for other purposes, can replace the diagnosis,
cure or prevent any disease.
19 Detailed parameters
salient
features
name content parameter
±10% @≥180LPM
±18LPM @＜180LPM
±5% @≥2000mL
±100mL @＜2000mL
Peak flow
accuracy
cubage
Peak flow：1L/min
sensitivity
cubage：1ml
Peak flow：0～840L/min
scope
cubage：0～8L
display
screen
screen size
3.5in
TFT
TFT LCD
distingui-
shability
480 × 320
touch
panel
Touch
screen type
capacitive touch screen
WIFI norm
802.11 b/g/n Wireless network card
Environm-
ental req-
uirements
Working
temperature
5～40℃
Working
humidity
35%～85%
Storage
temperature
-10～60℃
Store
humidity
Storage
conditions
20%～93%
dry Prevent bask in
Electrical
specifica-
tions
adapter
AC 100～240V; DC 5V/1A
output
power ≤5W
FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules and
Industry Canada licence-exempt RSS standard(s) . Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
—Consult the dealer or an experienced radio/ TV technician for
help.
FCC Radiation Exposure Statement:
The device has been evaluated to meet general RF exposure
requirement.
The device can be used in portable exposure condition without RF
striction.
◆
◆
◆
◆
◆
◆
◆
◆
21 For more
Refer to the quick guide inside the box
Open the easy breathing X1 deep breathing training apparatus,
you can:
Refer to the manual
Through the video knowledge of breathing exercises
By artificial service, problem, feedback and so on the many kinds
of ways to get help
Through the website problem feedback for consultation
Visit: www.xeek.cn, download the product manual, refer to the
common problems and so on
Call the service hotline: + 86-592-6800190
Scan the qr code on the official guest WeChat public
number And download android, ios, APP client
The official WeChat public number
