- User’s Guide

Version 5.0, July 2006

FreeFlow™

VI PDF Originator

User’s Guide

Xerox®, FreeFlow™and all identifying numbers used in connection with the products mentioned in this publication are trademarks of

XEROX CORPORATION. GlossMark® is a Registered Trademark of XEROX CORPORATION. Copyright protection claimed includes

all forms and matters of copyrightable material and information now allowed by statutory or judicial law or hereinafter granted, including

without limitations, material generated from the software programs which are displayed on the screen such as styles, templates, icons,

screen displays looks, etc.

While every care has been taken in the preparation of this material, no liability will be accepted by Xerox Corporation arising out of any

inaccuracies or omissions.

Microsoft, Windows, Windows 2000, and Windows XP are registered trademarks of Microsoft Corporation.

Macintosh is a registered trademark of Apple Computer, Inc., registered in the US and other countries. Elements of Apple's Technical

User Documentation used by permission from Apple Computer, Inc.

PostScript is a registered trademark of Adobe Systems Incorporated. All instances of the name PostScript in the text are references to

the PostScript language as defined by Adobe Systems Incorporated unless otherwise stated. The name PostScript also is used as a

product trademark for Adobe Systems' implementation of the PostScript language interpreter, and other Adobe products. Adobe,

Acrobat, Distiller, Illustrator, InDesign, and Photoshop are registered trademarks of Adobe Systems, Inc. This product is not endorsed

or sponsored by Adobe Systems, publisher of Adobe Photoshop.

All other product names and services mentioned in this publication are trademarks or registered trademarks of their respective

companies. They are used throughout this publication for the benefit of those companies, and are not intended to convey endorsement

or other affiliation with the publication.

Companies, names, and data used in examples herein are fictitious unless otherwise noted.

This publication and the information herein are furnished AS IS, subject to change without notice, and should not be construed as a

commitment by Xerox Corporation. Xerox Corporation assumes no responsibility or liability for any errors or inaccuracies, makes no

warranty of any kind (expressed, implied, or statutory) with respect to this publication, and expressly disclaims any and all warranties

of merchantability, fitness for particular purposes, and non-infringement of third party rights. Changes are periodically made to the

document contained herein. Changes, technical inaccuracies, and typographic errors will be corrected in subsequent editions.

Produced in the United States of America.

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-3

Table of contents

Using VI PDF Originator 7

VI PDF Originator................................................................................................................8

The VIPO Server and Client .................................................................................................9

Using the VIPO Local Server..............................................................................................10

File menu options ..................................................................................................11

Accounting file format................................................................................. 11

Job Selection menu options....................................................................................12

Help menu options................................................................................................. 12

Using the VIPO Job Submission Client ................................................................................13

Window elements .................................................................................................. 13

Job creation area field descriptions.......................................................................... 15

Profile files ................................................................................................18

Specifying PDF output file names............................................................................ 19

Template syntax ........................................................................................19

Examples..................................................................................................21

Template field descriptions.......................................................................... 21

Specifying an index file...........................................................................................23

Template syntax ........................................................................................24

Examples..................................................................................................26

Template field descriptions .....................................................................................27

Using the VIPO Watched Folders Client............................................................................... 28

Window elements .................................................................................................. 30

Adding watched folders .......................................................................................... 31

File ready check ....................................................................................................32

Command line options for the VIPO Watched Folders Client ......................................33

Bulk Processing ................................................................................................................34

Table of contents

VI PDF Originator User’s Guide

VIPO-4 FreeFlow Variable Information Suite 5.0 (7/2006)

Using VIPO Web 35

Accessing VIPO via your web browser.................................................................................35

Job Submission/View/Retrieval........................................................................................... 37

Job Submission - upper frame.................................................................................37

Job Submission - lower frame .................................................................................40

Change Password............................................................................................................. 42

Administration...................................................................................................................42

User Administration................................................................................................ 43

Changing passwords.................................................................................. 44

Adding new users ...................................................................................... 44

Assigning users to groups........................................................................... 44

Server Administration............................................................................................. 45

Cluster Administration ............................................................................................ 47

Basic Authentication Quick Step.............................................................................. 51

Disable Basic Authentication...................................................................................51

Web browser notes............................................................................................................52

Using VIPO and Adobe Distiller 53

PDF security options..........................................................................................................53

Adobe Distiller and fonts .................................................................................................... 55

Acrobat Distiller versions prior to 6.0........................................................................ 55

Acrobat Distiller 6.0 and later ..................................................................................55

Assigning a Distiller job options file......................................................................................56

Using BOOKMARK, PDF features, and Project Containers 57

Using the VIPP BOOKMARK command...............................................................................57

Extended bookmarks ............................................................................................. 58

Using VIPP PDF interactive features ...................................................................................59

Using VI Project Containers................................................................................................59

Using lpr to submit VIPO jobs 61

lpr command syntax for Windows 2000................................................................................ 61

Parameter definitions.........................................................................................................62

Parameter defaults ............................................................................................................ 63

Example lpr job submissions .............................................................................................. 63

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-5

Table of contents

Using VIPO Dispatch 65

Dispatch filters ..................................................................................................................66

Dispatch Rule files.............................................................................................................67

System built-in macros........................................................................................... 74

Rule file variable references.................................................................................... 74

Special Character Sequences in CSV and XML Index Files ...................................................75

VIPO Dispatch window....................................................................................................... 76

Pending Jobs ........................................................................................................77

Eligible Jobs..........................................................................................................78

Conflict Jobs ......................................................................................................... 79

Ineligible Jobs .......................................................................................................79

Held Jobs ............................................................................................................. 80

Completed Jobs .................................................................................................... 80

File menu..............................................................................................................81

Edit menu ............................................................................................................. 82

IncomingFolders Filters ..............................................................................82

AutoRun Filters.......................................................................................... 84

Dispatch Rules ..........................................................................................86

Trace menu...........................................................................................................88

Using VIPO Dispatch - a simple example............................................................................. 89

Using VIPO Services 97

Definitions ........................................................................................................................97

VI PDF Originator Server........................................................................................ 97

VI PDF Originator Service.......................................................................................98

Constraints .......................................................................................................................98

FreeFlow VI PDF Originator Secure Web Service.................................................................98

Index 99

Table of contents

VI PDF Originator User’s Guide

VIPO-6 FreeFlow Variable Information Suite 5.0 (7/2006)

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-7

Using VI PDF Originator

This User’s Guide is designed to provide information about how to use a properly installed

version of the FreeFlow VI PDF Originator (VIPO). For information about installing or

updating the software refer to the Variable Information Suite Installation Guide

(VISInstallation.pdf) provided as a part of the FreeFlow VI Suite Documentation CD

included in the VI Suite Ship kit.

“Using VI PDF Originator” describes the VI PDF Originator, and explains how to use VIPO

features, menus, and dialogs. These topics are covered:

•VI PDF Originator

•The VIPO Server and Client

•Using the VIPO Local Server

—File menu options

—Accounting file format

—Job Selection menu options

—Help menu options

•Using the VIPO Job Submission Client

—Window elements

—Job creation area field descriptions

—Specifying PDF output file names

—Specifying an index file

—Template field descriptions

•Using the VIPO Watched Folders Client

—Window elements

—Adding watched folders

—File ready check

•Bulk Processing

NOTE — SOFTWARE SUPPORT

The VI PDF Originator supports Acrobat Distiller 5.x, 6.x and Acrobat

Distiller Professional 7.0. The VI PDF Originator does not support

Acrobat Elements 7.0

Beginning with version 4.0, VIPO is not supported on Solaris systems.

VI PDF Originator User’s Guide

VIPO-8 FreeFlow Variable Information Suite 5.0 (7/2006)

VI PDF Originator

VI PDF Originator is a client/server application that allows you to generate Adobe PDF

documents from VIPP-based variable data applications and forward them to other

processes within your environment. VIPO extends the VIPP workflow into electronic

distribution and archive by providing the ability to generate Adobe PDF files from the

same data files sent to a VIPP-enabled print device. The PDF files, along with information

from the data record that produced them, can then be passed to a user defined process

using the VIPO Dispatch module. The files can be integrated into processes within your

environment, which can include E-mail servers or archive systems. In addition, the VIPO

Server can forward the data submission file to an identified VIPP-enabled print device for

hard copy output.

A standard VIPP application that is submitted to a VIPP-enabled print device can be

submitted directly to the VI PDF Originator server. No changes in the data or VIPP

resources are required. VIPP resources are installed on the VIPO Server just as they are

installed on a printer disk. VIPO uses the same resource management structures.

VIPO operates like any other VIPP-enabled printer. A job submitted to the print device

using lpr can use the VIPO lpr client to submit to VIPO. In addition, VIPO provides three

other job submission clients:

• Watched Folder client

• Web submission client

• Job Submission client

A VIPP job processed by the VIPO Server results in the generation of an Adobe PDF file.

This PDF file will be output to a named directory on the server. A print path can also be

specified. The data file processed by VIPO will be forwarded to the print device after

being processed by VIPO. This allows both electronic and hard copy printing from a single

job submission.

Any job that uses the VIPP BOOKMARK command can be further enhanced to create

individual sets of PDF files. For example, a statement run containing 10,000 customer

records can be split into 10,000 individual variable length customer PDF statements.

These PDF files, along with additional information contained in the bookmark, can be

dispatched to a “user defined” process that may include, but is not limited to, web

presentment, archive or viewing systems, all without making any changes to the data or

your workflow.

PDF Interactive features such as PDF Bookmarks, PDF notes, or URL's, can be added to

the PDF output file using the VIPP SETPIF command. In the statement example above

several additional PDF bookmarks can be set to guide the user to different sections within

the statement. PDF notes can be placed in the PDF file and a URL can be inserted into

the PDF that can link the user to additional web sites.

NOTE

This book, which is part of the FreeFlow VI Suite Documentation,

describes the VI PDF Originator and provides information on using VI

PDF Originator and its features. For instructions on installing VI PDF

Originator or any other VI Suite information, refer to the appropriate

book, which can be located from the FreeFlow VI Suite Documentation

“Master Table of Contents.”

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-9

The VIPO Server and Client

A VIPO Server must be running and accessible by the Job Submission Client in order for

VIPP jobs to be processed via VIPO. Each VIPO Server automatically starts when the

workstation on which it is installed boots, and it subsequently runs as a background

process.

You can tell a VIPO Server is running by the presence of its icon in the Windows task bar

(by default, this is in the lower-right corner of the desktop). Right-click the VIPO Local

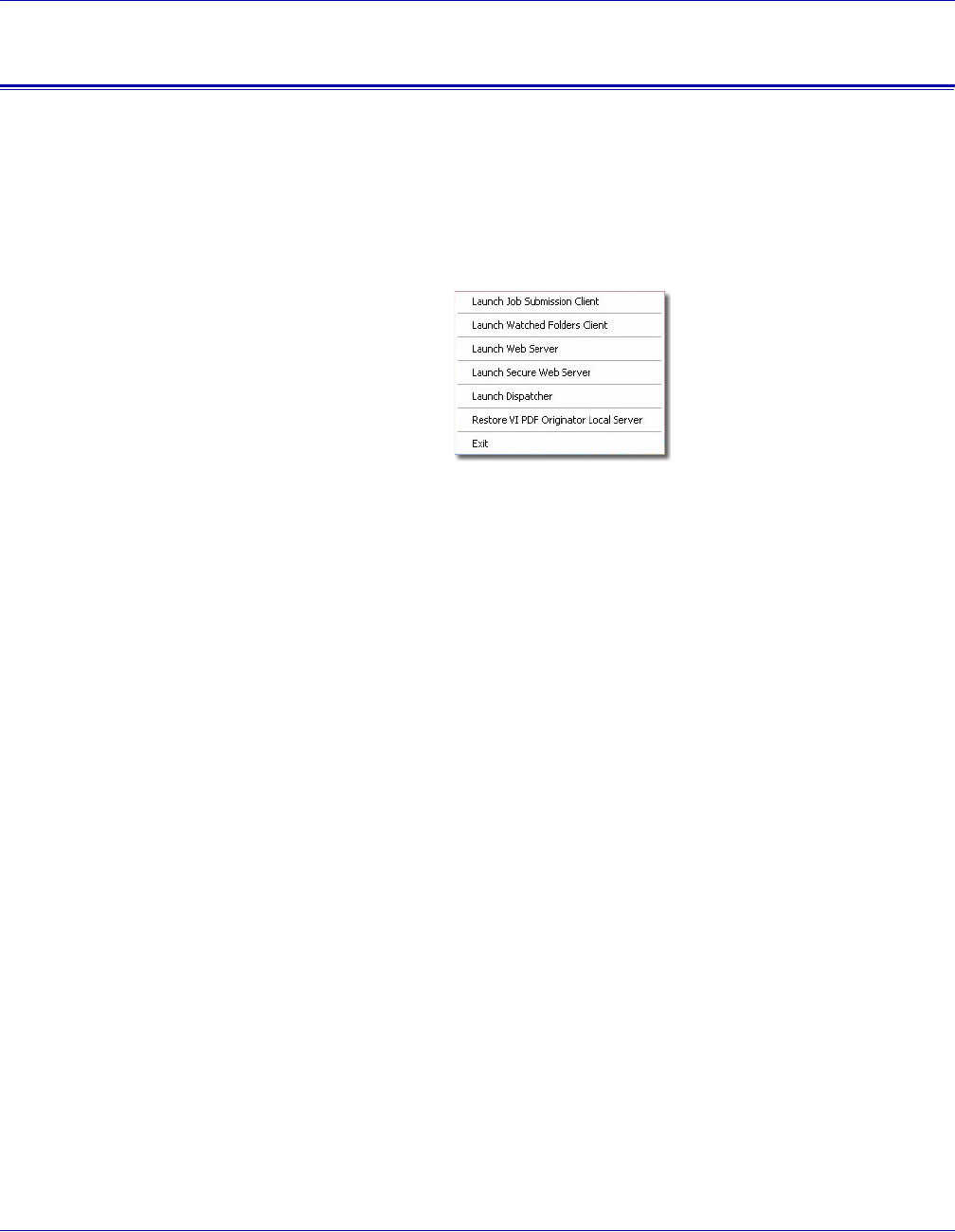

Server icon to display these options:

•Launch Job Submission Client — Select this option to open the VI PDF Originator

Job Submission Client window.

•Launch Watched Folders Client — Select this option to open the VIPO Watched

Folders Client window. For more information on the VIPO Watched Folders feature,

see “Using the VIPO Watched Folders Client.”

•Launch Web Server — Select this option to open the VI PDF Originator Web Server

Window. For information on the VIPO Web Server, see “Using VIPO Web.”

•Launch Secure Web Server — Select this option to open the VI PDF Originator

Secure Web Server Window. For information on the VIPO Secure Web Server, see

“Using VIPO Web.”

•Launch Dispatcher — Select this option to open the VI PDF Originator Dispatch

Window. For information on the VIPO Dispatch option, see “Using VIPO Dispatch.”

•Restore VI PDF Originator Local Server — Select this option to maximize the VI

PDF Originator Local Server window, allowing access to more Server options.

•Exit — Select this option to exit the Server. If you exit the Server, VIPO jobs will not

be processed by that workstation until the Server is restarted. You can restart the

Server from the workstation's Start menu (Start > Programs > VI PDF Originator >

Start VI PDF Originator Server).

VI PDF Originator User’s Guide

VIPO-10 FreeFlow Variable Information Suite 5.0 (7/2006)

Using the VIPO Local Server

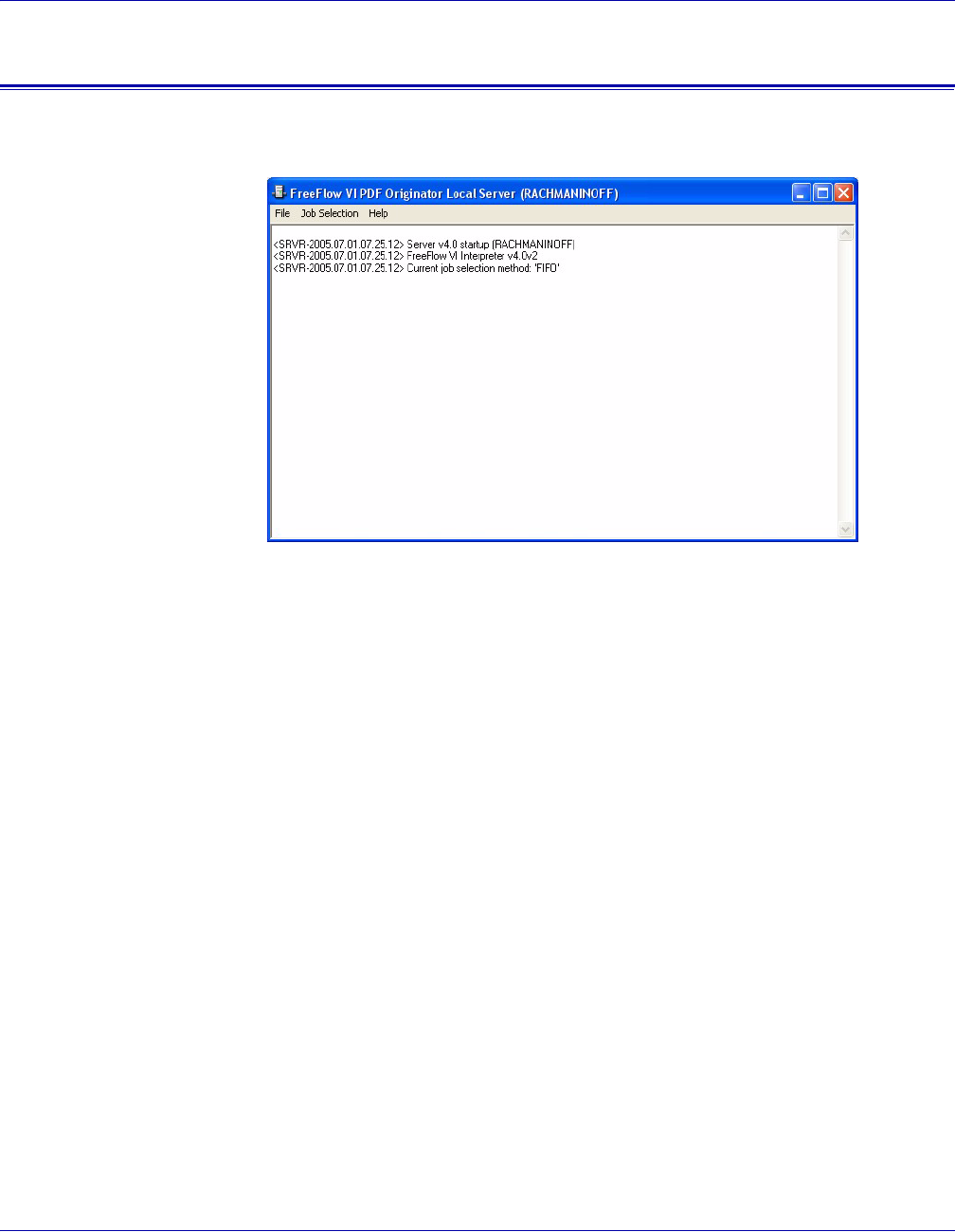

The VI PDF Originator Local Server window provides access to the File, Job Selection,

and Help drop-down menu options.

You can maximize the VIPO Local Server window in one of two ways:

• By double-clicking its task bar icon

• By right-clicking its task bar icon, then choosing Restore VI PDF Originator Local

Server from the menu

Clicking the X button in the upper right corner of the window does not cause the Server

to exit; instead, it minimizes the Server (that is, it returns to the task bar icon). Jobs will

still be processed.

To exit the VIPO Local Server, either select Exit from the File drop-down menu or select

Exit from the task-bar icon's right-click menu.

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-11

File menu options

These options are available from the File drop-down menu:

• Hide Server — Returns the VIPO Local Server window to a task-bar icon.

• Pause Server — Pauses/unpauses the Server. You must pause the Server before

dumping an accounting file.

• Save Logfile — Used when reporting software problems.

• Clear Logfile — Used when diagnosing software problems.

• Dump Accounting File — Saves accounting information to a file, then clears. See

“Accounting file format” for a list of fields included in accounting files.

• Show Billing Meters — Tracks the number of pages distilled, pages split, and PDF

files generated on the Server.

• Exit — Exits the Server; jobs will not be processed.

Accounting file format

The accounting file is a field delimited format file. There is no header on the accounting

file. Each record in the accounting file is delimited with commas. These fields are included

in each record:

• VIPO Server Name

• User Name

• Input Job Name

• Distill Start Date

• Distill End Date

• Distill Start Time

• Distill End Time

• Distill CPU Time Used — in seconds (this field is not yet available)

• Distill Result — “Completed” or “Failed”

• Distill Message — empty if Result is “Completed,” otherwise within double quotes

• Number Distill Pages

• Distill PDF Name

• Split Start Date

• Split End Date

• Split Start Time

• Split End Time

• Split CPU Time used — in seconds (this field is not yet available)

• Split Result — “Completed” or “Failed”

• Split Message — empty if result is “Completed,” otherwise within double quotes

• Number Split Pages

• Number Split Files

The following is an example accounting file record:

MYSERVER,John_Doe,bigjob.ps,2001-09-18,2001-09-18,16:35:39,16:36:19,0,

Completed,,1060,bigjob.pdf,2001-09-18,2001-09-18,16:36:20,16:37:05,0,

Completed,,1060,1060

VI PDF Originator User’s Guide

VIPO-12 FreeFlow Variable Information Suite 5.0 (7/2006)

In addition to the standard Server Accounting file created when you select Dump

Accounting File from the File menu on the VIPO Local Server window, a corresponding

XML-formatted Accounting file is also created automatically. Both accounting files have

the same filename except for the file extension (*.acct and *.xml).

The following is an example of an XML-formatted Accounting file.

<?xml version="1.0" encoding="ISO-8859-1" ?>

<XVTP_Server_Name>XRX-MAVILES-W2K</XVTP_Server_Name>

<User_Name>maviles</User_Name>

<Input_Job_Name>credit.vpc</Input_Job_Name>

<Distill_Start_Date>2002-07-16</Distill_Start_Date>

<Distill_End_Date>2002-07-16</Distill_End_Date>

<Distill_Start_Time>01:14:45</Distill_Start_Time>

<Distill_End_Time>01:14:53</Distill_End_Time>

<Distill_CPU_Time_Used>0</Distill_CPU_Time_Used>

<Distill_Result>Completed</Distill_Result>

<Distill_Message />

<Number_Distill_Pages>14</Number_Distill_Pages>

<Distill_PDF_Name>credit.pdf</Distill_PDF_Name>

<Split_Start_Date>2002-07-16</Split_Start_Date>

<Split_End_Date>2002-07-16</Split_End_Date>

<Split_Start_Time>01:14:53</Split_Start_Time>

<Split_End_Time>01:14:53</Split_End_Time>

<Split_CPU_Time_Used>0</Split_CPU_Time_Used>

<Split_Result>Completed</Split_Result>

<Split_Message />

<Number_Split_Pages>14</Number_Split_Pages>

<Number_Split_Files>8</Number_Split_Files>

</XVTPDOC>

</XVTPAF>

Job Selection menu options

Select one of these options from the Job Selection drop-down menu to determine the

order in which the VIPO Server processes jobs:

• First In First Out (FIFO)

• Shortest Job First (SJF)

• Longest Job First (LJF)

The length of a job is based on the size of the VIPP file submitted for processing.

Help menu options

These options are available from the Help drop-down menu:

• VIPO Help — Provides access to the online help facility.

• About — Displays the VIPO Server version information.

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-13

Using the VIPO Job Submission Client

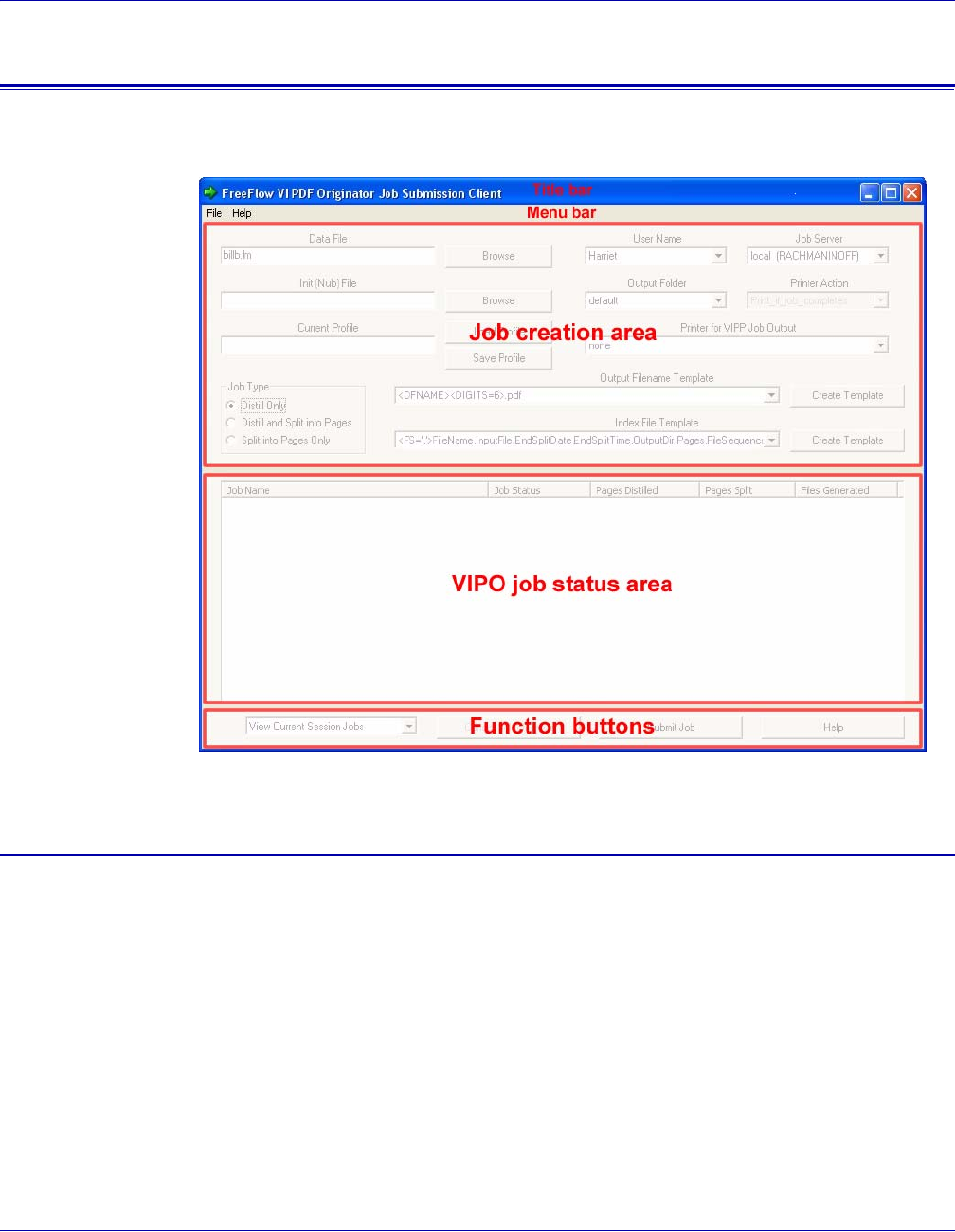

You can use the VI PDF Originator Job Submission Client window, shown below, to select

and configure a job for submission.

Window elements

The VI PDF Originator Job Submission Client window consists of these elements:

Title bar

Displays the product name.

Menu bar

Provides access to the File and Help menus.

The File drop-down menu provides access to the Exit option. Select this option to close

the Job Submission Client window. Closing this window while a job is in progress will not

cancel the job; it will continue to process to completion unless explicitly canceled.

The Help drop-down menu provides access to the About option, which displays the

version information of the VIPO Job Submission Client.

VI PDF Originator User’s Guide

VIPO-14 FreeFlow Variable Information Suite 5.0 (7/2006)

Job creation area

Contains the fields necessary to select and configure a job for submission. See “Job

creation area field descriptions” for a description of each of the fields.

VIPO job status area

Provides the status of each job submitted, including the number of pages distilled and/or

split, and the number of files split.

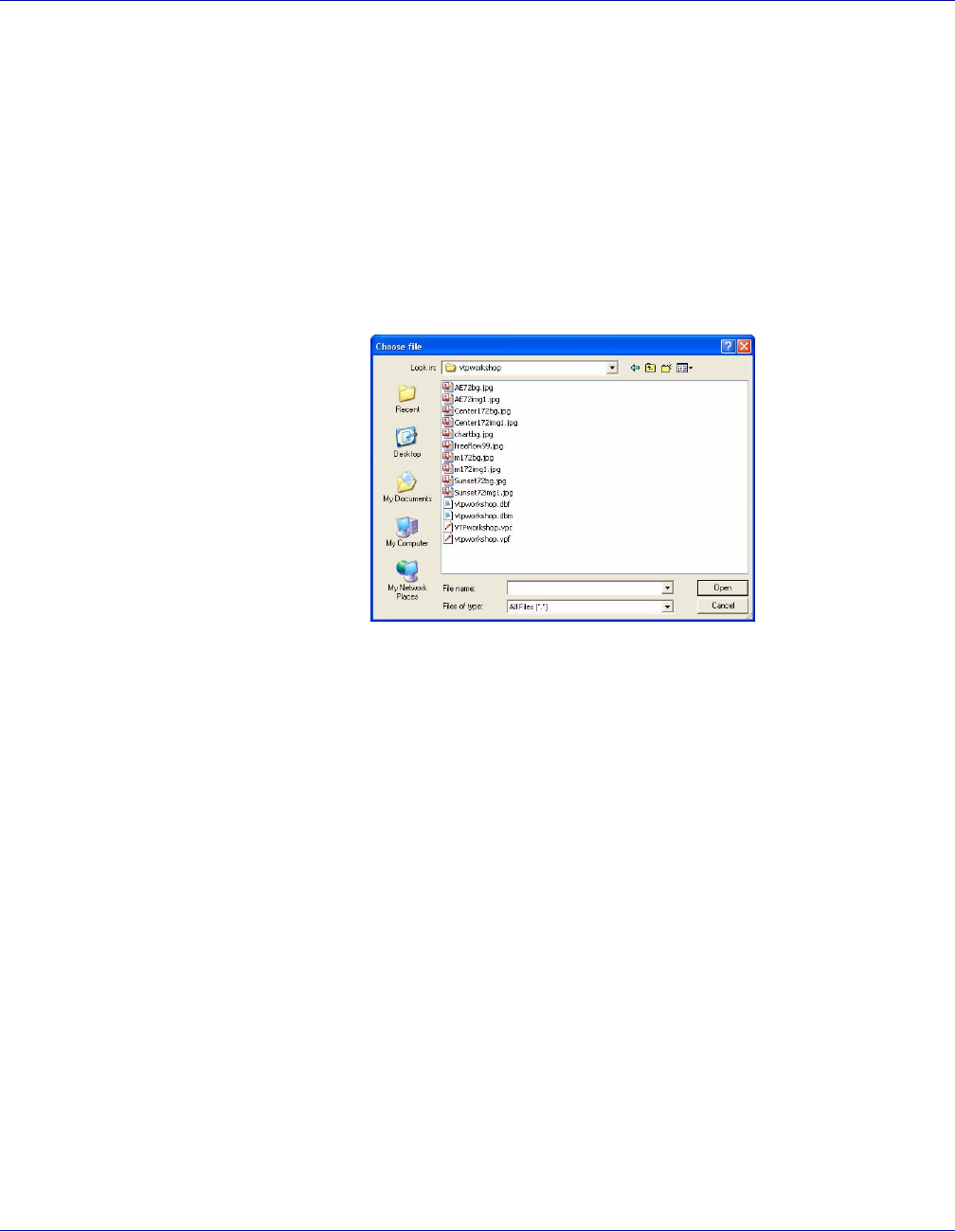

When a job submission has been successfully completed, the PDF documents generated

can be found and viewed using Acrobat Reader by selecting the job folder entry in the

Job Status list and double-clicking to invoke a File Selection dialog. If Acrobat Reader is

not present or the file cannot be opened, an error message will be displayed.

Function buttons

These buttons appear at the bottom of the VIPO Job Submission Client window:

• View Current Session Jobs/View All Pending Jobs/View All Jobs — Choose to view:

— Current session jobs that are submitted only within the current session

— All pending jobs from the currently selected user's folder that have not yet been

processed and completed, or whose Cancel requests have not yet been

acknowledged by the Server, whether the jobs were submitted before or after

the current session began

— All jobs from the currently selected user's folder, whether they were submitted

before or after the current session began

• Cancel Selected Job — Click this button to cancel your job during processing.

Select your job in the VIPO job status area before clicking this button. Depending on

the job processing status at the time of cancellation, the job may run to completion

before the cancellation request is initiated by VIPO.

Multiple jobs can be selected and a request to cancel them as a group can be

submitted. By default, you can cancel only the jobs from your own folders and from

the folders of the “default_user.” Use one of these valid settings in the VIPO

Configuration file (xvtp.ini) to change the default:

— ## User may cancel jobs ONLY from his own folders ##

jsc_cancel_job_scope=1

— ## User may also cancel jobs from the folders of “default_user” ##

jsc_cancel_job_scope=2

— ## User may also cancel jobs from any other users' folders ##

jsc_cancel_job_scope=8

NOTE

Acrobat Reader is not supplied with VIPO. It can be obtained from the

Adobe website at www.adobe.com.

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-15

• Job Name and Job Status column headers — Left-click either of these headers to

sort the list of jobs.

— Left-clicking Job Name sorts the job list by the job name or by the job date/time

stamp, in ascending or descending order, one sorting type per mouse left-button

click in the following sequence:

– Sort by Job Name, alphabetic ascending order (A to Z, from top)

– Sort by Job Name, alphabetic descending order (Z to A, from top)

– Sort by Date/Time stamp, ascending order (latest at the bottom)

– Sort by Date/Time stamp, descending order (latest at the top) (default)

— Left-clicking Job Status sorts the job list alphabetically based on the status

string in ascending or descending order, one sorting type per mouse left-button

click.

• Submit Job — Click this button to submit your job after completing the appropriate

fields in the job creation area.

• Help — Click this button to access the VIPO online help facility.

Job creation area field descriptions

The following fields/buttons are located in the job creation area of the VIPO Job

Submission Client window.

Data File

Enter the name of the data file, or use browse to locate the VIPP data file (or print file) to

be submitted. This can be a VIPP line mode, database mode, native mode, or XML mode

print file (.lm, .dbf, .nm, .xml); a VI Project Container (.vpc); or a PDF file with bookmarks.

Init (Nub) File

Enter the name of the init file to be used when processing the job. This file must be

specified for each “raw” data file (one without a VIPP preamble such as STARTLM. For

these jobs, the init (nub) file supplies the appropriate VIPP preamble.

Current Profile

Optional. Load or save a profile using the Load Profile or Save Profile buttons. Profiles

are sets of previously used job submission options, which save you from re-entering the

data. The default folder for loading and saving profiles is the Profiles folder belonging to

NOTE

Job cancellation requests are only submitted by the client; in order for

jobs to be cancelled they must be processed by the VIPO Server. A

cancellation request submitted by the client while the Server is not

running, or is in a paused state, will not be processed until the Server is

executing a VIPO job.

VI PDF Originator User’s Guide

VIPO-16 FreeFlow Variable Information Suite 5.0 (7/2006)

the current VIPO user (as selected in the Job Submission Client dialog). However, you

may browse any other directories on the VIPO Client system for loading or saving profiles,

including the virtual printers profile directory located in the VIPO<server_root>/Profiles

folder.

For more information, see “Profile files.”

Job Type

Select one of these job types:

• Distill Only

•Distill and Split into Pages — Requires that bookmarks be present in the VIPP job

(via the BOOKMARK command). If bookmarks are not present in the VIPP job, the

job will be processed successfully, however, no splitting will occur.

•Split into Pages Only — PDF files that must contain one or more bookmark.

User Name

Enter the user name. This will most often be the logon name of the current user

(default_user is used by lpr and is not normally used from within the Job Submission

Client).

Job Server

Select either local (Server is installed on your local workstation and is using your

workstation's CPU and disk resources) or remote (use a network VIPO Server's CPU and

disk resources).

Output Folder

Select the destination folder for the job. These are “named” folders, meaning that you do

not browse for a path on your disk(s), but choose from named directories that you or an

administrator already created in a special pre-designated location under control of the

VIPO Server.

Printer Action

Conditional action of optional job printing is selected. Select one of these options:

•print_always — Sends the job to the selected printer no matter what the outcome

of the VIPO job submission.

•print_if_job_completes — Sends the job to the selected printer only if it

successfully completes to VIPO.

Printer for VIPP Job Output

Specify the printer for printing the job that was submitted to VIPO for processing. If you

do not want the job to print, select none.

Only PostScript printers will be listed. You must ensure that the VI Interpreter is installed

on the printer selected for VIPP job output, as well as any resources the VIPP job may

need.

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-17

Output Filename Template

Select a pre-defined Output Filename template from a drop down list or create an Output

Filename template using the Output Filename template wizard. The template you select

will be applied to the job being processed. The output file name of the PDF files being

produced will be controlled via this Output Filename template.

This option is only available when the VI PDF Originator Job Type option is set to “Distill

and Split into Pages” or “Split into Pages Only.”

For more information on this option, see “Specifying PDF output file names.”

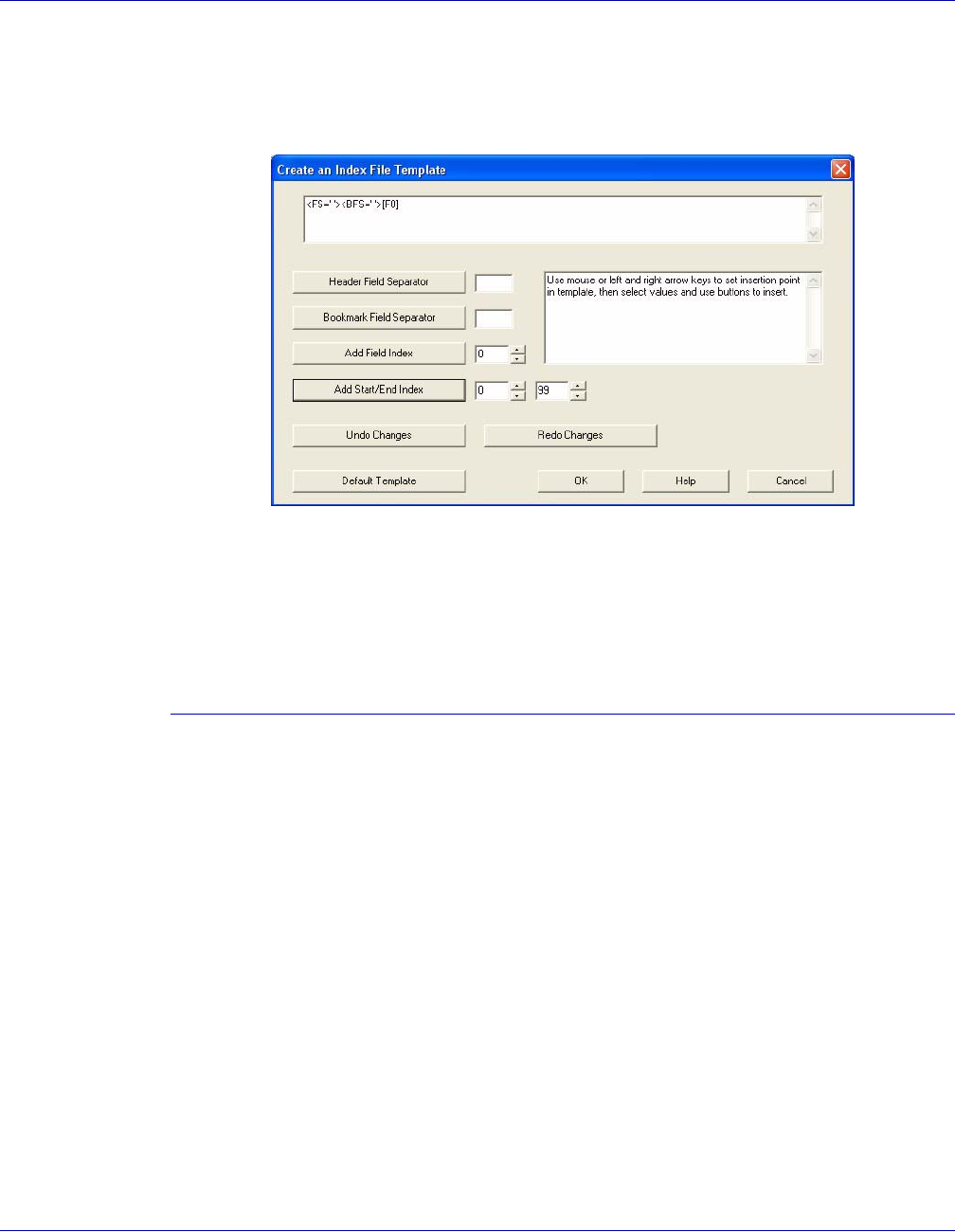

Index File Template

Select the default index template or define an Index file template using the Index template

wizard. The Index template will be applied to the job being processed. Use the Index

Template wizard to add additional fields, from the VIPP BOOKMARK, to the index file

generated by VIPO when the job type option is set to “Distill and Split into Pages” or “Split

into Pages only.” VIPO generates a comma separated and an XML index file. The index

files are used by VIPO Dispatch, or other third party components, to identify individual

PDF records and additional data contained in the BOOKMARK for that record, for

example, an e-mail address, location ID or printer address.

This option is only available when the VIPO Job Type option is set to “Distill and Split into

Pages” or “Split into Pages Only.”

For more information, see “Specifying an index file.”

NOTE

The PDF filename is based on the name of the data submission file.

When using the “Distill Only” Job Type, the output PDF filename uses the

data submission filename as the output PDF filename. If a single “.”

character is included as part of the data file filename, VIPO considers this

a file extension and replaces this information with the .pdf file extension.

If the “.” character is a part of the filename, you must include an

additional “.” character followed by at least one other valid character. The

second period character will be treated as the file extension. VIPO

replaces this with the .pdf file extension, and maintains the first period in

the filename.

For example, if the submission filename is:

•P31199-SS.234, the resulting PDF filename is P31199-SS.pdf

•P31199-SS.234.xx, the resulting PDF filename is P31199-SS.234.pdf

Using the other Job Type options allows you to use the Output Filename

Template. When doing so, the value “DFNAME,” or the option “Add Data

Filename,” result in the same filename as the job submission data file

being used as part of the filename template.

VI PDF Originator User’s Guide

VIPO-18 FreeFlow Variable Information Suite 5.0 (7/2006)

Profile files

A Profile file must contain the necessary job parameters for the VIPO job submitted via

lpr. The table below lists the valid job parameters.

The default location for loading and saving the profiles is your user Profiles directory.

However, you may select any other directory on the Client for loading and saving profiles,

including the virtual printers profile directory located in VIPO <server_root>/profiles.

Job parameter Parameter default Parameter description

InitFile=text No default (Optional) VIPP startup file that

prepends to the submitted data file.

JobType=text distill_only Valid values are:

• distill_only

• distill_and_split into PDF files

• split_only into PDF files

OutputFolderName=text Default Folder location of the VIPO job output.

OutputFilenameTemplate=text <DFNAME><DIGITS=6>.pdf Controls the name(s) created for the

PDF output file(s).

IndexFileTemplate=text <FS=’:’>FileName:InputFile:

EndSplitDate:EndSplitTime:

OutputDir:Pages:

FileSequence:Bookmark

Controls header creation and bookmark

extraction in the index file that is

generated as part of the VIPO

file-splitting output.

PrinterName=text None Specifies the printer for printing the job

submitted to VIPO for processing. If you

do not want the job to print, select none.

Ensure that VI Interpreter is installed on

the printer selected for VIPP job output,

as well as any resources the VIPP job

may need. Only PostScript printers will

be listed.

PrinterAction=print-action print_if_job_completes Conditional action if optional job printing

is selected. Select one of these options:

print_always — Sends the job to the

selected printer no matter what the

outcome of the VIPO job submission.

print_if_job_completes — Sends the

job to the selected printer only if it is

successfully completed by the VIPO

server.

DistillJobOptions=filename Default filename is an existing Acrobat Distiller

job options file. See “Assigning a

Distiller job options file“

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-19

Specifying PDF output file names

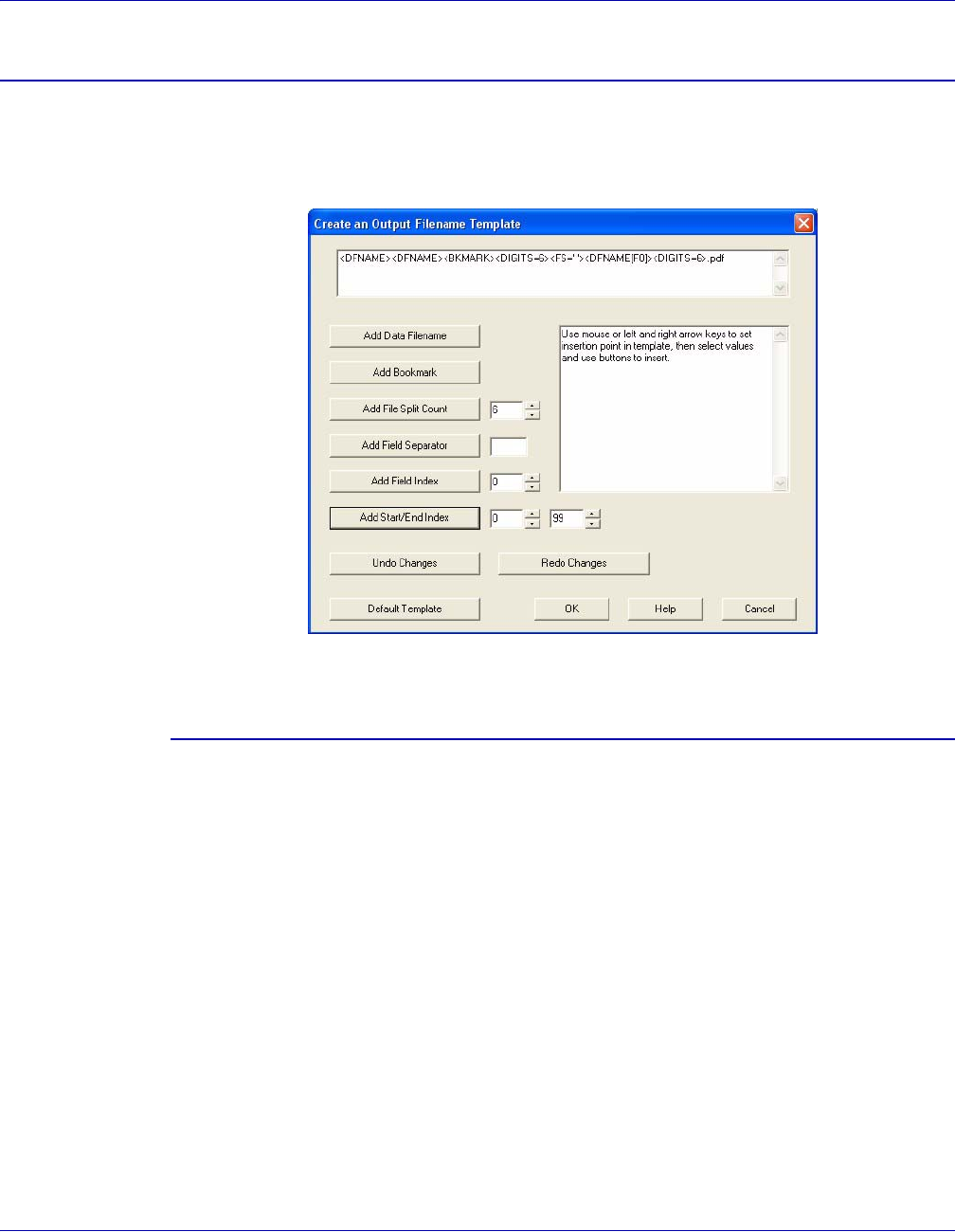

You can use a template to specify how PDF file names are formatted during the PDF split

operation. To create a template, click Create Template next to the Output Filename

Template field on the VIPO Job Submission Client window. The Create an Output

Filename Template window appears.

Template syntax

Template syntax must be enclosed within matching < >. All other characters, other than

characters that are invalid for file names and those described here, are treated as literal

characters in the resulting output file name generated by VIPO.

By default, “strict filename checking” is performed on filename templates. These

characters are considered invalid:

\ / : * ? " < > | ' ` ~ ! $ ^ & , ; [ ] { } ( ) % # = + @ tab and blank space

You can modify the default behavior by setting the following value in the VIPO

configuration file (xvtp.ini):

output_filename_strict_checking=false

VI PDF Originator User’s Guide

VIPO-20 FreeFlow Variable Information Suite 5.0 (7/2006)

By setting the value to false, these invalid characters will be considered valid literals in

the filename template:

[ ] { } ( ) % # = + @

<DFNAME[x..y][Fn]>

Uses the data file name. [x..y] and [Fn] are optional. When producing multiple files, this

is the first part of the file name.

<BKMARK[x..y][Fn]>

Uses the bookmark field. [x..y] and [Fn] are optional.

[x..y]

An optional range modifier that can appear in any order or number after a DFNAME or

BKMARK; for example, [0..5] indicates to use character 0 through character 5 of

DFNAME or BKNAME. Valid values for x and y are 0 through 99.

[Fn]

An optional field number that can appear in any order or number after a DFNAME or

BKMARK; for example, [F2] indicates to use field 2 of DFNAME or BKMARK. Valid values

for n are 0 through 99.

<FS=‘char’>

A field separator character that must be specified if [Fn] is used. Valid values for char are

any printable ASCII character except: [ ] < >.

You can use more than one FS designation. If used within [ ], it only has an effect within

those [ ]. If used outside of the [ ], it takes effect until the next FS is encountered outside

of the [ ].

<DIGITS=n>

The number of digits to use in the output file names when multiple files are produced. If

only a single PDF file is produced, no digits are used in the output file name. Valid values

for n are 1 through 10.

NOTE

The square brackets, [ ] , must be “escaped” (preceded by a backslash

character “\”) to be valid literals in the template syntax (for example:

“filename_\[OK\].pdf”). Use the other characters without the “escape”

backslash.

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-21

<GET_INDEX_WITHOUT_SPLIT>

Indicates that the resulting PDF file will go through the split process without actually being

split into smaller PDF child files. However, the corresponding CSV/XML index files will be

generated, which then allows the job to be processed by the VIPO Dispatch server.

You can submit a “Distill Only” VIPP job with the non-split option to generate the job index

files needed to process the distilled PDF file with the Dispatch module.

Examples

The following data file name and bookmarks will produce the named files in the table

below when the indicated templates are used:

data file name = mybigjob.lm

pg1 bookmark = account number 01234:xyz

pg2 bookmark = account number 43210:abc

In the last example, the syntax specifies to extract field number 2 (zero based) from the

bookmark using a space as the field delimiter, then extract digits 0 through 4 from that

result and use that as the first part of the file name. Then append the literal character “_”,

followed by 4 digits that increment with each file produced.

Template field descriptions

Use the buttons on the Create an Output Filename Template window to build your

template; as you click the buttons, your selections appear in the display window. The

default template is:

<DFNAME><DIGITS=6>.pdf

You can manually edit the template shown in the display window; just make sure you

follow the template syntax rules.

Add Data Filename

Adds <DFNAME> to the displayed template at the current insertion point, if legal;

otherwise adds it at the most logical insertion point.

Template syntax Output file names

<DFNAME><DIGITS=3>.pdf mybigjob001.pdf

mybigjob002.pdf

...

<DFNAME[0..4]><DIGITS=5>.pdf mybig00001.pdf

mybig00002.pdf

...

<FS=' '><BKMARK[F2][0..4]>_<DIGITS=4>.pdf 01234_0001.pdf

43210_0002.pdf

...

VI PDF Originator User’s Guide

VIPO-22 FreeFlow Variable Information Suite 5.0 (7/2006)

Add Bookmark

Adds <BKMARK> to the displayed template at the current insertion point, if legal;

otherwise adds it at the most logical insertion point.

Add File Split Count

Adds <DIGITS=n> to the displayed template at the current insertion point, if legal;

otherwise adds it at the most logical insertion point. n is specified in the box to the right

of the button.

Add Field Separator

Adds <FS=‘char’> to the displayed template at the current insertion point, if legal;

otherwise adds it at the most logical insertion point. char is specified in the box to the right

of the button.

Add Field Index

Adds <Fn> to the displayed template at the current insertion point, if legal; otherwise adds

it at the most logical insertion point. n is specified in the box to the right of the button.

Add Start/End Index

Adds [x..y] to the displayed template at the current insertion point, if legal; otherwise adds

it at the most logical insertion point. x (start index) and y (end index) are specified in the

boxes to the right of the button.

Undo Changes

Undoes your last change. You can undo multiple changes by clicking this button multiple

times.

Redo Changes

Redoes your last change. You can redo multiple changes by clicking this button multiple

times.

Saves your changes and closes the template window. The template created appears in

the window under the Output Filename Template field on the Job Submission Client

window.

Help

Provides access to the online help facility.

Cancel

Closes the template window without saving any changes.

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-23

Specifying an index file

During the PDF splitting process, two index files are automatically created: an ASCII file

formatted in Comma Separated Values (CSV) and a corresponding XML-formatted index

file. Both have the same file name, except for the file extension (*.csv and *.xml).

This is a sample of output for an automatically generated XML-formatted index file:

<?xml version="1.0" encoding="ISO-8859-1" ?>

<FileName>credit000000.pdf</FileName>

<InputFile>credit.pdf</InputFile>

<OutputDir>C:\xvtp\users\maviles\incoming\default\

maviles_credit_vpc_2002_07_15_17_20_09</OutputDir>

<Bookmark>David Kirk</Bookmark>

</XVTPDOC>

<FileName>credit000001.pdf</FileName>

<InputFile>credit.pdf</InputFile>

<OutputDir>C:\xvtp\users\maviles\incoming\default\

maviles_credit_vpc_2002_07_15_17_20_09</OutputDir>

<Bookmark>Michael Sotelo</Bookmark>

</XVTPDOC>

<FileName>credit000002.pdf</FileName>

<InputFile>credit.pdf</InputFile>

<OutputDir>C:\xvtp\users\maviles\incoming\default\

maviles_credit_vpc_2002_07_15_17_20_09</OutputDir>

<Bookmark>Carolyn Cliff</Bookmark>

</XVTPDOC>

</XVTPIF>

VI PDF Originator User’s Guide

VIPO-24 FreeFlow Variable Information Suite 5.0 (7/2006)

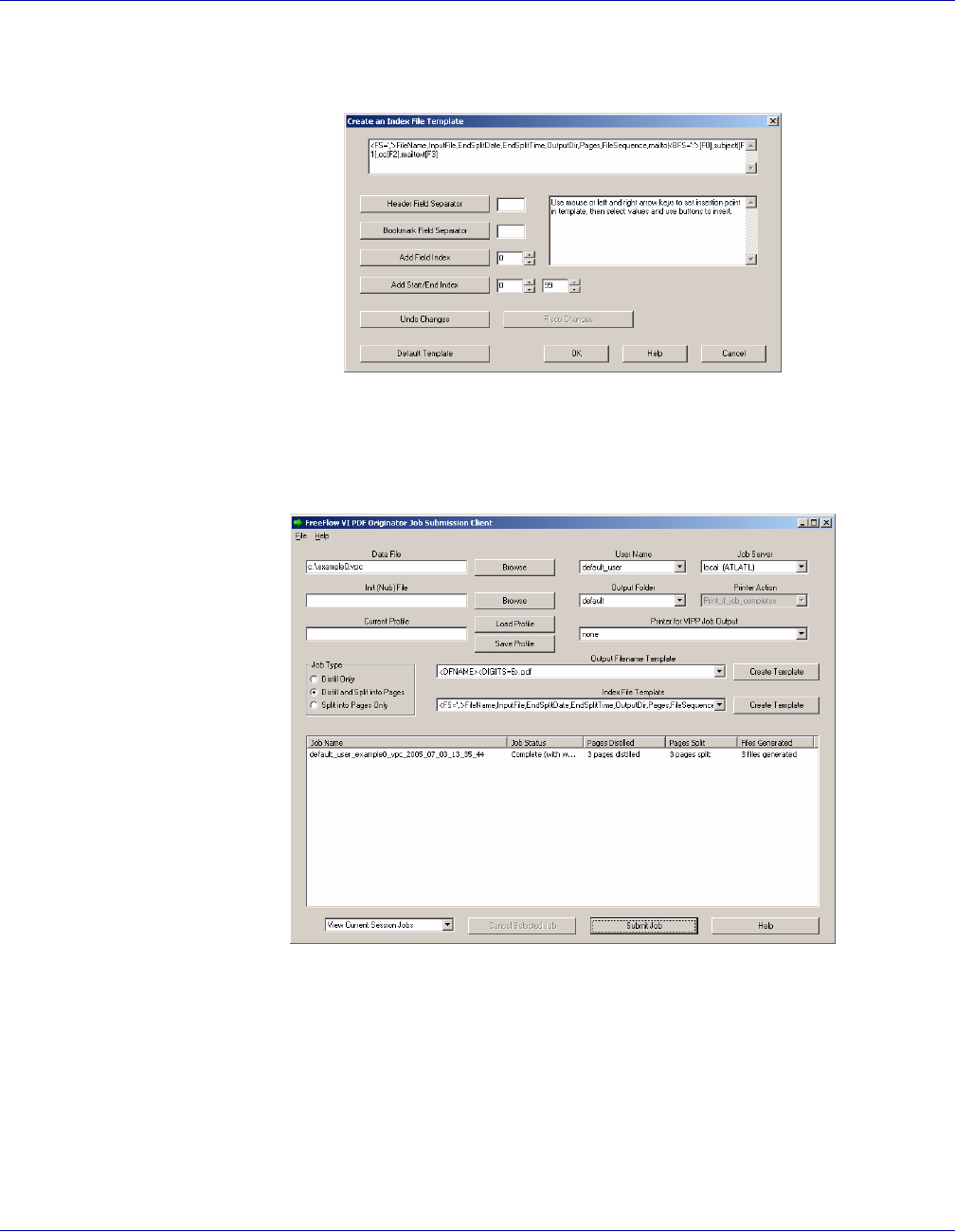

You can also use a template to specify the contents of the index file header and index file

record. To create a template, click Create Template next to the Index File Template field

on the VIPO Job Submission Client window. The Create an Index File Template window

appears; the default template appears in the display window.

Additional checks are made when creating and supplying an Index File Template to make

sure the field names have the appropriate syntax for XML tag creation. These characters

are invalid for template field names:

\ / : * ? " < > | ( ) [ ] { } ' ` ~ ! @ # $ % ^ & + = , ; tab and blank space.

Template syntax

The Create an Index File Template window consists of the following eight fields (seven

index file fields and a bookmark field). A defined character separates each field; see

“Field separator” for more information.

1. FileName

2. InputFile

3. EndSplitDate

4. EndSplitTime

5. OutputDir

6. Pages

7. FileSequence

8. Bookmark

The first seven fields are names of corresponding fields in each line of the index file

generated by VIPO. Only the names of these seven fields can be changed in the Index

File Template.

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-25

The bookmark field (the eighth field) can be replaced with as many field names as

needed, each separated by the defined field separator. For more information, see

“Bookmark field.”

Field separator

A field separator is a single character that separates the index file fields and bookmark

fields. The separator is used to generate the field separators in the index file header and

in each index file record. You can change the field separator used in the template. The

syntax for the field separator is:

<FS=‘char’>

where char is any printable ASCII character except: [ ] < >. The field separator in the

default template is a comma (,).

Bookmark field

You can replace the bookmark field with an unlimited number of field names. Each

bookmark field name appears in the index file header.

Use the following syntax with any bookmark field name in the template to control which

portions of the bookmark are extracted and placed into the corresponding fields in each

index file entry generated by VIPO.

[x..y]

Uses a substring of Bookmark from zero-based indices x to y. This is an optional range

modifier that can appear in any order or number after the fixed fields in the template. Valid

values for x and y are 0 through 99.

[Fn]

Uses field number n of the bookmark according to BFS. This is an optional field number

that can appear in any order or number after the fixed fields in the template. Valid values

for n are 0 through 99.

NOTE

All fields in the index file header and index file record are enclosed in

double quotes. This feature cannot be turned off.

NOTE

The default template places the entire bookmark into the last field of each

index file.

VI PDF Originator User’s Guide

VIPO-26 FreeFlow Variable Information Suite 5.0 (7/2006)

<BFS=‘c’>

A bookmark field separator (BFS) that must be specified if [Fn] is used. Valid values for

c are any printable ASCII character except: [ ] < >.

You can use more than one BFS designation. If used within [ ], it only has an effect within

those [ ]. If used outside of the [ ], it takes effect until the next BFS is encountered outside

of the [ ].

Examples

The following bookmark contents will produce the index file headers and index file

records below when the indicated templates are used:

bookmark contents = John Doe 123-45-456

Example 1:

Example 2:

Example 3:

Template <FS=':'>Fld1:Fld2:Fld3:Fld4:Fld5:Fld6:Fld7:BookFld1|<BFS=' '>[F1]:BookFld2|[0..2]:

BookFld3|[F2][0..2]

Index file header

produced Fld1:Fld2:Fld3:Fld4:Fld5:Fld6:Fld7:BookFld1:BookFld2:BookFld3

Index file record

produced outfile_001.pdf:infile:10-2-01:“23:56:34”:“c:\user\...”:5:1-50:Doe:Joh:123

Template <FS=':'>FldA:FldB:FldC:FldD:FldE:FldF:FldG:Bookfield1|<BFS=' '>[F1]:

Bookfield2|[F2][<BFS='-'>[F2]]

Index file header

produced FldA:FldB:FldC:FldD:FldE:FldF:FlgG:Bookfield1:Bookfield2

Index file record

produced outfile_003.pdf:infile:10-2-01:“13:06:14”:“c:\user\...”:7:3-80:Doe:456

Template <FS=','>Fld1,Fld2,Fld3,Fld4,Fld5,Fld6,Fld7,FirstNam|<BFS=' '>[F0],LastNam|[F1],

Num|[F2][<BFS='-'>[F0]]

Index file header

produced Fld1,Fld2,Fld3,Fld4,Fld5,Fld6,Fld7,FirstNam,LastNam,Num

Index file record

produced file_xyz.pdf,infile,10-7-01,14:29:14,c:\user\...,4,10-100,John,Doe,123

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-27

Template field descriptions

Use the buttons on the Create an Index File Template window to build your template; your

selections appear in the display window. The default template is:

<FS=':'>FileName:InputFile:EndSplitDate:EndSplitTime:OutputDir:

Pages:FileSequence:Bookmark

Header Field Separator

Adds the index field separator to the displayed template at the current insertion point, if

legal; otherwise, adds it at the appropriate insertion point. Specify the field separator in

the box to the right of the button.

Bookmark Field Separator

Adds the bookmark field separator to the displayed template at the current insertion point,

if legal; otherwise, adds it at the appropriate insertion point. Specify the field separator in

the box to the right of the button.

Add Field Index

Adds <Fn> to the displayed template at the current insertion point, if legal; otherwise adds

it at the most logical insertion point. n is specified in the box to the right of the button.

Add Start/End Index

Adds [x..y] to the displayed template at the current insertion point, if legal; otherwise adds

it at the most logical insertion point. x (start index) and y (end index) are specified in the

boxes to the right of the button.

Undo Changes

Undoes your last change. You can undo multiple changes by clicking this button multiple

times.

Redo Changes

Redoes your last change. You can redo multiple changes by clicking this button multiple

times.

Saves your changes and closes the template window. The template created appears in

the window under the Index File Template field on the Job Submission Client window.

NOTE

You can manually edit the template shown in the display window; just

make sure you follow the template syntax rules.

VI PDF Originator User’s Guide

VIPO-28 FreeFlow Variable Information Suite 5.0 (7/2006)

Help

Provides access to the online help facility.

Cancel

Closes the template window without saving any changes.

Using the VIPO Watched Folders Client

The VIPO Watched Folders Client (WFC) allows you to specify one or more directories

where VIPP jobs can be placed for automatic submission to VIPO. A VIPO user (remote

or local) and an optional profile are associated with each watched folder, which controls

the processing of all jobs submitted from that folder. Submitted jobs can be monitored

using the Job Submission Client in the same manner as for lpr-submitted jobs. All VIPP

jobs found in each watched folder are checked at each watch interval to determine file

readiness.

Start the Watched Folders Client either from the VIPO program folder or from the

right-click menu of the VIPO Local Server icon. The Client runs as a background process.

A VIPO Server must be running in order for watched folders to be processed.

You can tell the Watched Folders Client is running by the presence of its icon in the

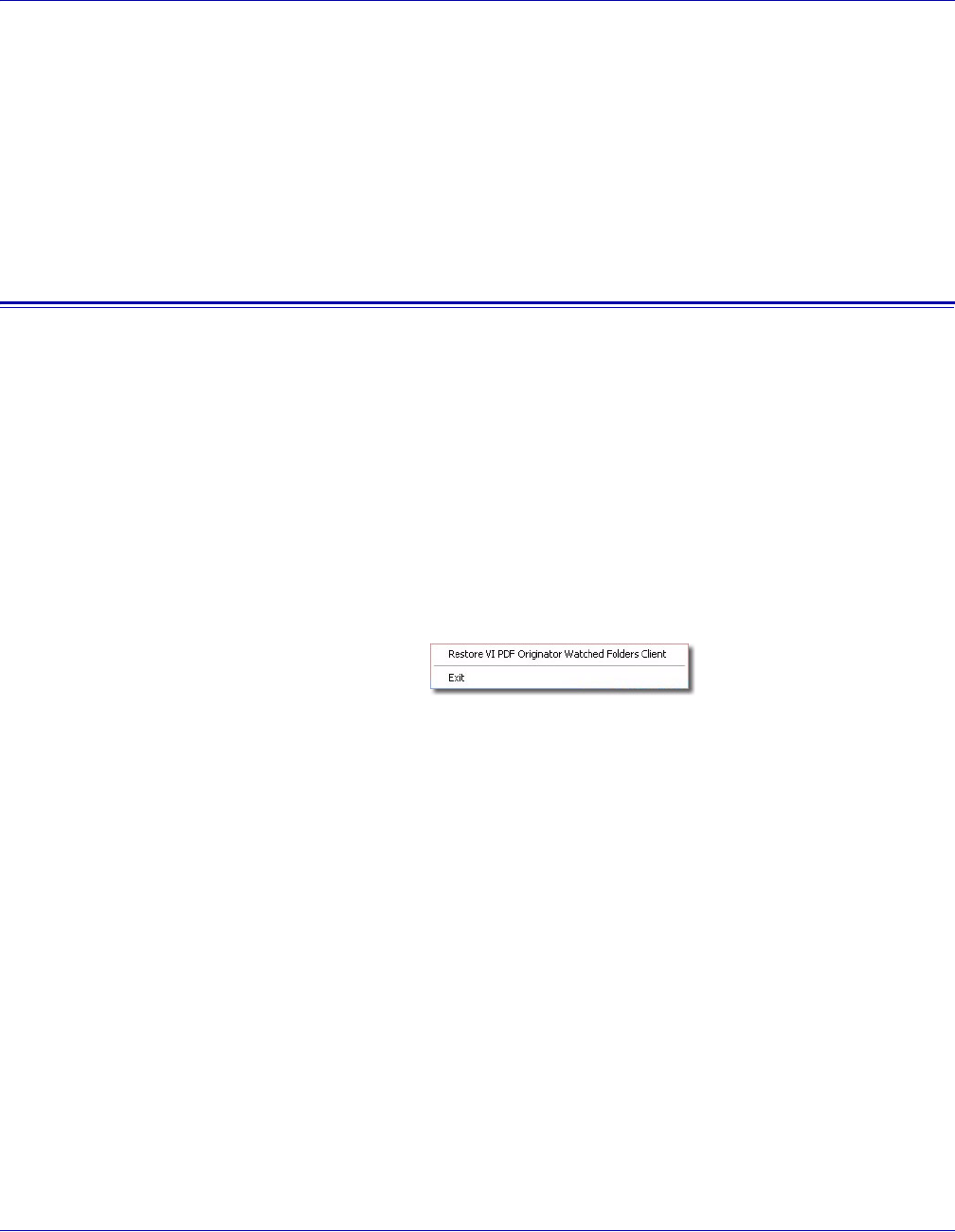

Windows task bar. Right click the VIPO Watched Folders Client icon to display these

options:

•Restore VI PDF Originator Watched Folders Client — Maximizes the VIPO

Watched Folders Client window.

•Exit — Exits the Watched Folders Client. If you exit the Client, folders will not be

watched until the Client is restarted.

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-29

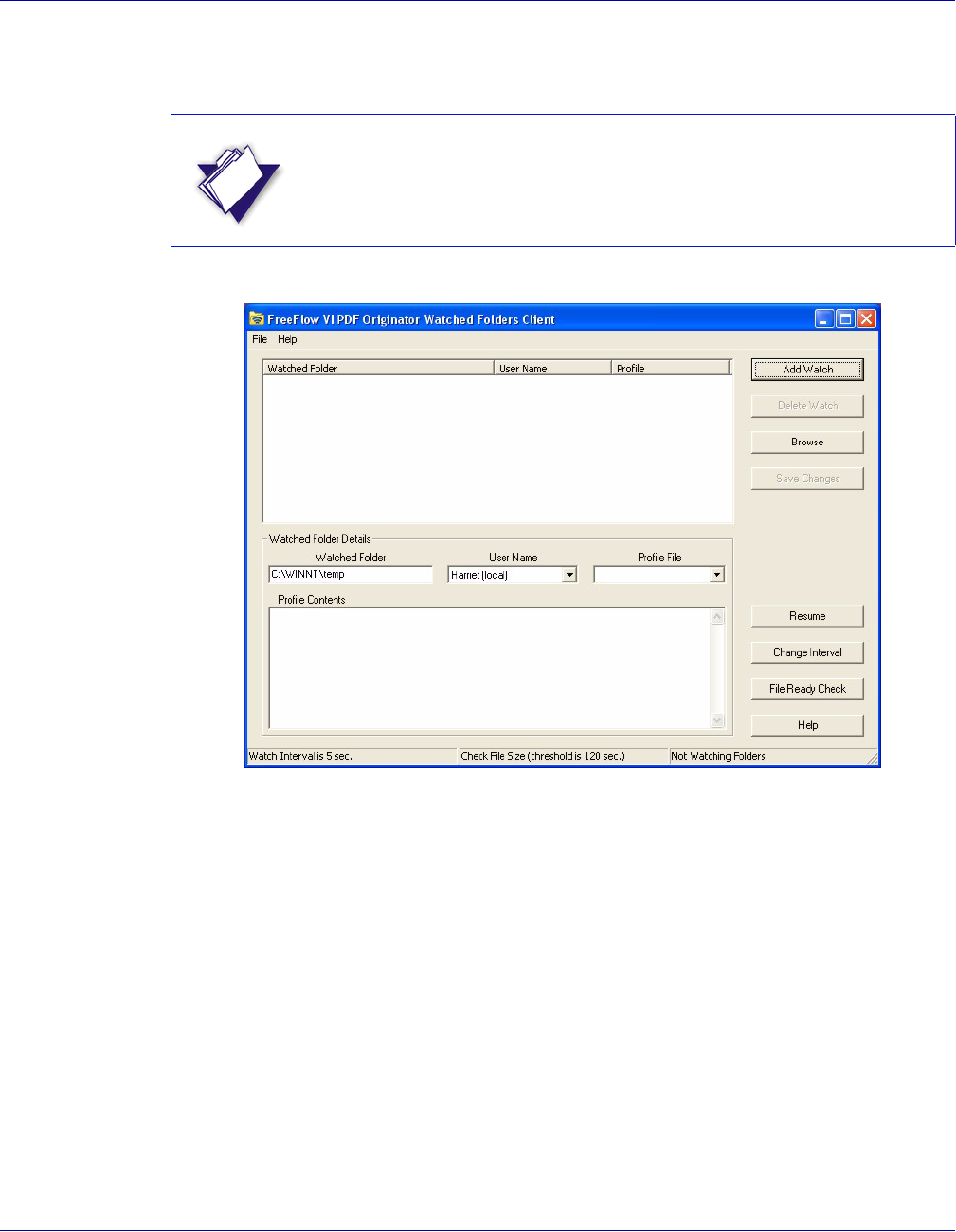

The VI PDF Originator Watched Folders Client window is used to control and monitor

watched folders.

NOTE

When the Client is invoked, the watch process is inactive.

VI PDF Originator User’s Guide

VIPO-30 FreeFlow Variable Information Suite 5.0 (7/2006)

Window elements

The VIPO Watched Folders Client window consists of these elements:

Title bar

Displays the product name (VI PDF Originator Watched Folders Client).

Menu bar

Provides access to the File and Help menus. These options are available from the File

drop-down menu:

• Hide Watched Folders Client — Returns the VIPO Watched Folders Client window

to a task-bar icon.

• Input File Disposition — Controls what happens to watched jobs after they are

submitted to VIPO. There are two sub-menu choices:

— Delete Input File: Deletes the job from the watched folder (default).

— Move Input File to Saved Jobs Folder: Moves the job to the Saved Jobs folder

contained under each watched folder.

• Exit — Exits the Watched Folders Client; folders will no longer be watched.

The Help drop-down menu provides access to the About option, which displays the

version information of the VIPO Watched Folders Client.

Watched folders list

Lists the folders currently defined for watching.

Watched folder details area

Shows the details for the selected watched folder (folder name, VIPO user associated

with the folder, and profile file (optional)) in the watched folders list. If a profile file is

specified, the contents of the file display in the Profile Contents box.

Status area

Displays the current watch interval, which can be changed using the Change Interval

button, and the current method used to check file readiness. It also indicates if folders are

currently being watched.

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-31

Function buttons

These buttons appear on the right side of the VIPO Watched Folders window:

• Add Watch — Allows you to add a folder to the watched list.

• Delete Watch — Allows you to delete the selected folder from the watched list.

• Browse — Allows you to browse for the folder you want to add to the watched list.

• Save Changes — Saves the current changes for the selected folder.

• Resume/Pause — Resume starts or resumes watched folder processing; Pause

pauses processing.

• Change Interval — Changes the current watch interval. When you click this button,

a Change Watched Folders Interval pop-up window appears, which allows you to

change the interval in seconds. The status area on the VIPO Watched Folders

window shows the watch interval.

• File Ready Check — Used to select the method used to determine when a file is

actually ready for job submission, thus preventing processing and submitting files

that are not yet ready for job submission. This selection is indicated in the Status

area of the window. See “File ready check” for more information.

• Help — Provides access to the VIPO online help facility.

Adding watched folders

To add a new watched folder:

1Click the Browse button and select the new folder. The folder appears in the

Watched Folder box in the watched folder details area.

2Select the user from the XVTP User selection box in the watched folder details area.

This will be the user for all the jobs submitted from that new watched folder.

3Select the profile file from the Profile File selection box for the jobs that will be

submitted to this watched folder.

4Click the Add Watch button to add the new watched folder to the current list of

watched folders.

VI PDF Originator User’s Guide

VIPO-32 FreeFlow Variable Information Suite 5.0 (7/2006)

File ready check

The file ready check feature allows you to choose the method you want VIPO to use to

determine if a file is ready for use in a VIPO application. Using this feature prevents

problems that may occur when the WFC encounters a file that may not be ready for

submission. For example, a very large file that is still being transferred or copied from a

remote location or files being built “on the fly” by an automated process.

The File Ready Check button invokes this dialog:

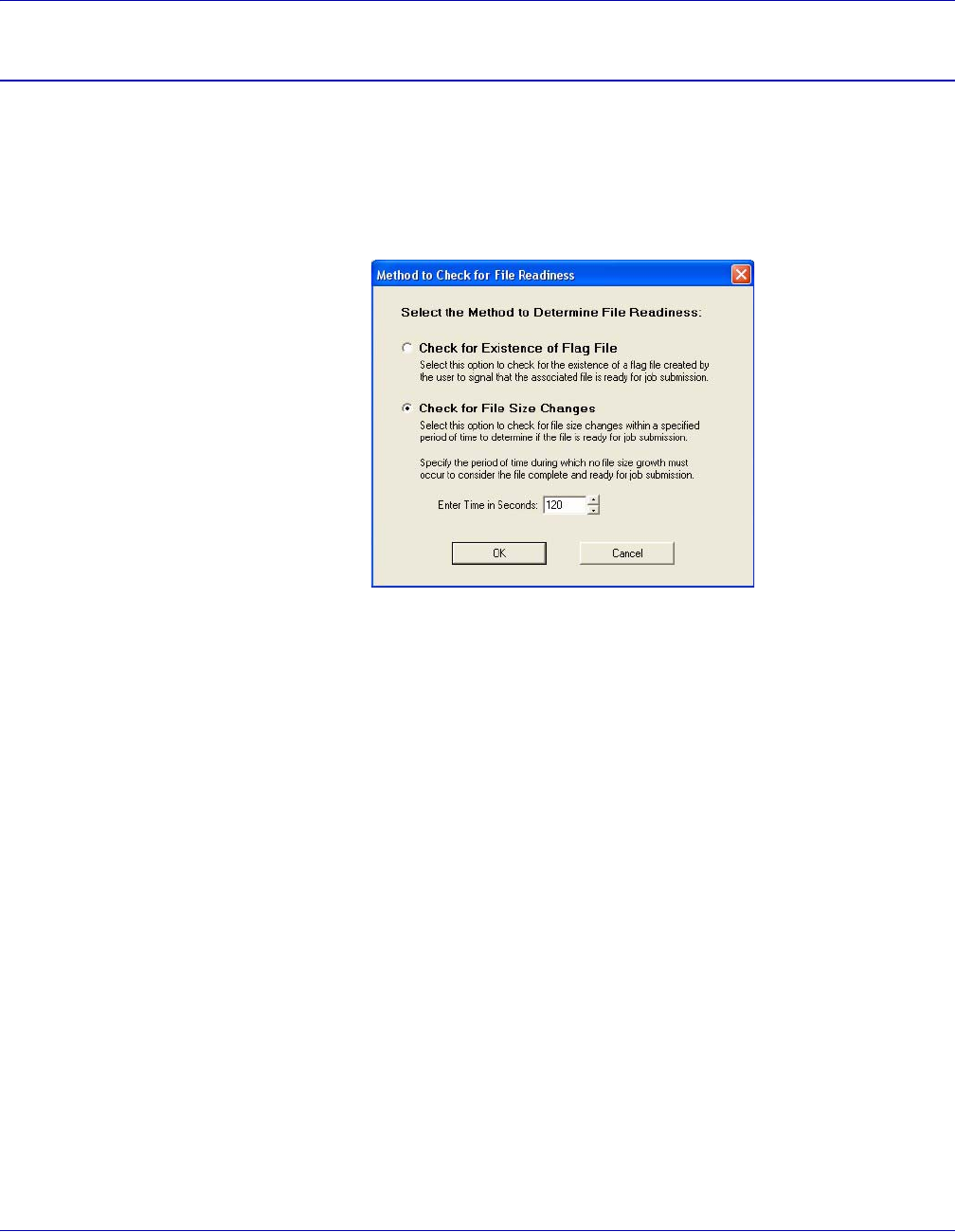

The dialog offers two choices to check for file readiness before a file is actually picked up

for job submission:

• Check for Existence of Flag File — Used to directly signal the WFC when a file is

ready for job submission by creating a “flag” file. The flag file is an empty file you

create. In addition to having the same name as the job file, this file must have the

additional extension: ._File_Ready_For_Submission_.

Thus, the flag file for myVIProject.vpc, becomes:

myVIProject.vpc._File_Ready_For_Submission_

You must create the flag file associated with the job file in the watched folder after

the file is ready for submission. If no flag file is found while this option is active, the

job file will not be processed for job submission and is ignored by the file search at

every watch interval.

• Check for File Size Changes — This is the default setting in which the WFC checks

and monitors changes in the file size at every watch interval. If the size of the file to

be submitted does not change at all within the specified period of time, the file is

considered to be ready for job submission and is processed at that time, whether or

not a flag file exists. The range of time is from 5 to 1800 seconds, the default

threshold is 120 seconds.

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-33

When using the Check for File Size Changes option, if very large files are transferred or

copied from a remote location to the watched folder, and the time it takes for the file

transfer to be completed is longer than the current watch interval, the file size changes

during the transfer are monitored and the file will not be picked up for job submission until

file size growth is not detected within the specified time. You must choose a period of time

for the watch interval, taking this information into consideration:

• The file size changes to be detected by the operating system

• The speed of file transfer or copy

When the Check for File Size option is active, files may no longer be picked up and

submitted for processing when found at every watch interval. The effective submission

rate is based on the file size check threshold as well as the watch interval. Even for small

files, job submission takes place after the threshold is reached, assuming the watch

interval is smaller than the threshold time.

A very small threshold (for example, five seconds) can be used for very small files, but

for large files this might not be long enough; change the threshold accordingly.

Command line options for the VIPO Watched Folders Client

The VIPO Watched Folders Client has two command parameters:

v2vwatch autostart noshow

These parameters are optional and can appear in any order or case on the command line.

• autostart — the VIPO Watched Folders Client will start watching folders

immediately. Normally, you need to press the Resume button on the Watched

Folders Client dialog.

• noshow — the VIPO Watched Folders Client will start in iconized size (minimized).

Both of these options are to facilitate automatic command-line starting of the VIPO

Watched Folders Client.

NOTE

The full path name of the VIPO Watched Folders Client executable may

need to be specified depending on the system environment (e.g.,

C:\xvtp\bin\v2vwatch.exe param1 param2).

VI PDF Originator User’s Guide

VIPO-34 FreeFlow Variable Information Suite 5.0 (7/2006)

Bulk Processing

Bulk Processing allows a VIPO user to direct the PDF output of multiple jobs to a single

“bulk” directory, typically to facilitate batch or other automated post-processing of the

VIPO-generated output.

The VIPO system administrator must ensure that your system is upgraded to a VIPO

software version that supports Bulk Processing. If you do not upgrade, jobs submitted to

the bulk folder will be processed in the same manner as non-bulk jobs and the results will

be generated in individual subfolders on a per-job basis.

To enable Bulk Processing, if not automatically created during installation, each user

must create two additional directories, \incoming\bulk and \incoming\bulk_status, as

shown:

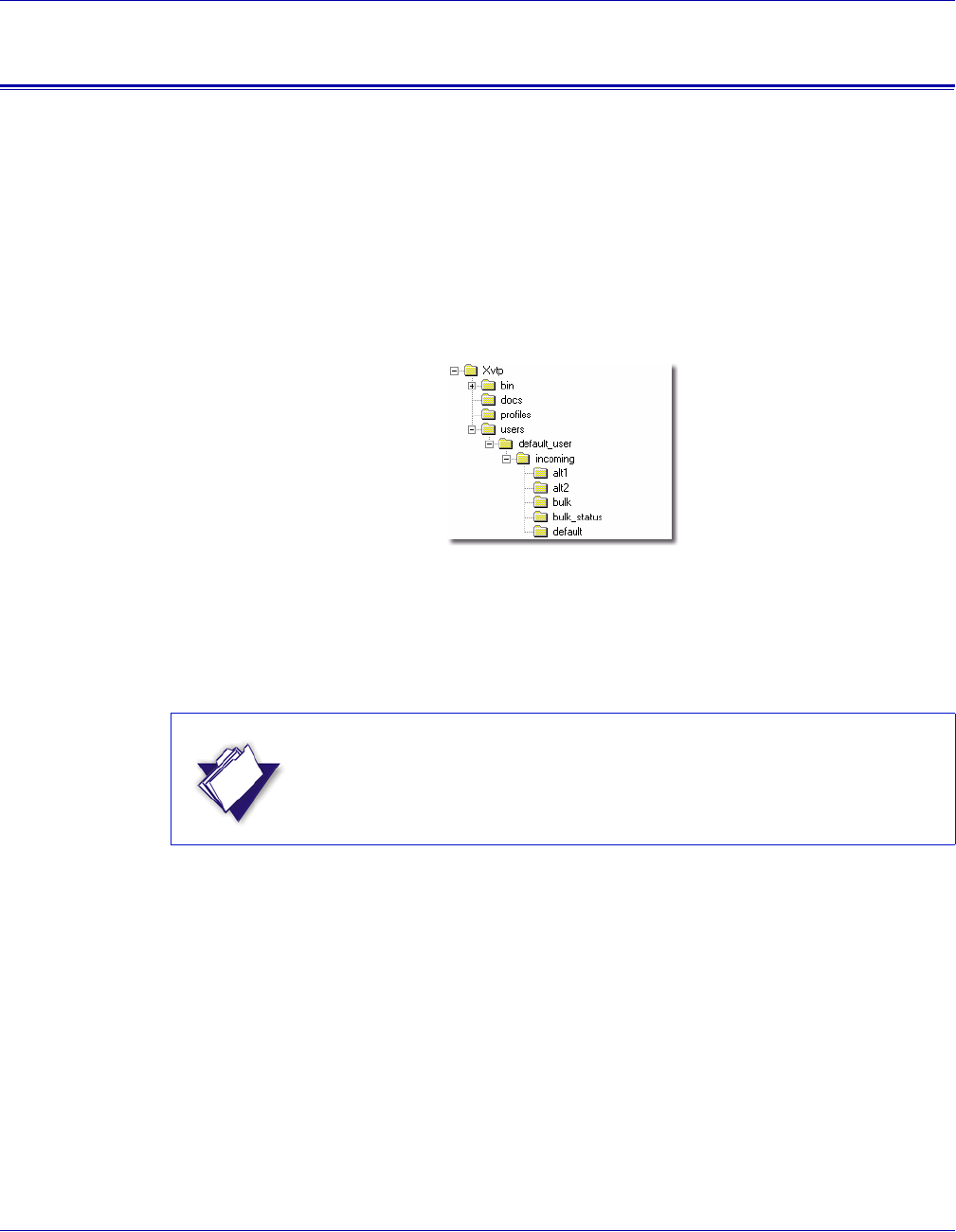

Jobs sent to a bulk destination folder will have their PDF output sent to

\user\incoming\bulk, while the status folders and files for those jobs accumulate in

\user\incoming\bulk_status. All PDFs generated using Distill Only, Distill and Split, and

Split Only options, and the index file for each submitted job, are placed in

\user\incoming\bulk.

NOTE

Ensure that your job and file naming conventions and split templates do

not cause output file name clashes that result in overwritten files.

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-35

Using VIPO Web

VIPO Web allows you to use your web browser to:

• Submit VIPP jobs

• Create new or additional VIPO user accounts

• Administer VIPO Servers remotely

• Administer VIPO Web passwords and other security functions

Instructions are based on sessions using Internet Explorer; you may have to make

adjustments to the instructions if you are using Netscape or other web browser.

Accessing VIPO via your web browser

For instructions on web-enabling your VIPO Server and obtaining the Server’s IP

address, see “Web-enabling your VIPO Server” in the Variable Information Suite

Installation Guide.

To begin using VIPO Web to administer your VIPO jobs:

• Open your web browser.

• Enter the IP or web address (URL) of the web-enabled VIPO Server in the address

field.

• Click on Go.

VI PDF Originator User’s Guide

VIPO-36 FreeFlow Variable Information Suite 5.0 (7/2006)

VIPO Web finds your server and opens a session.

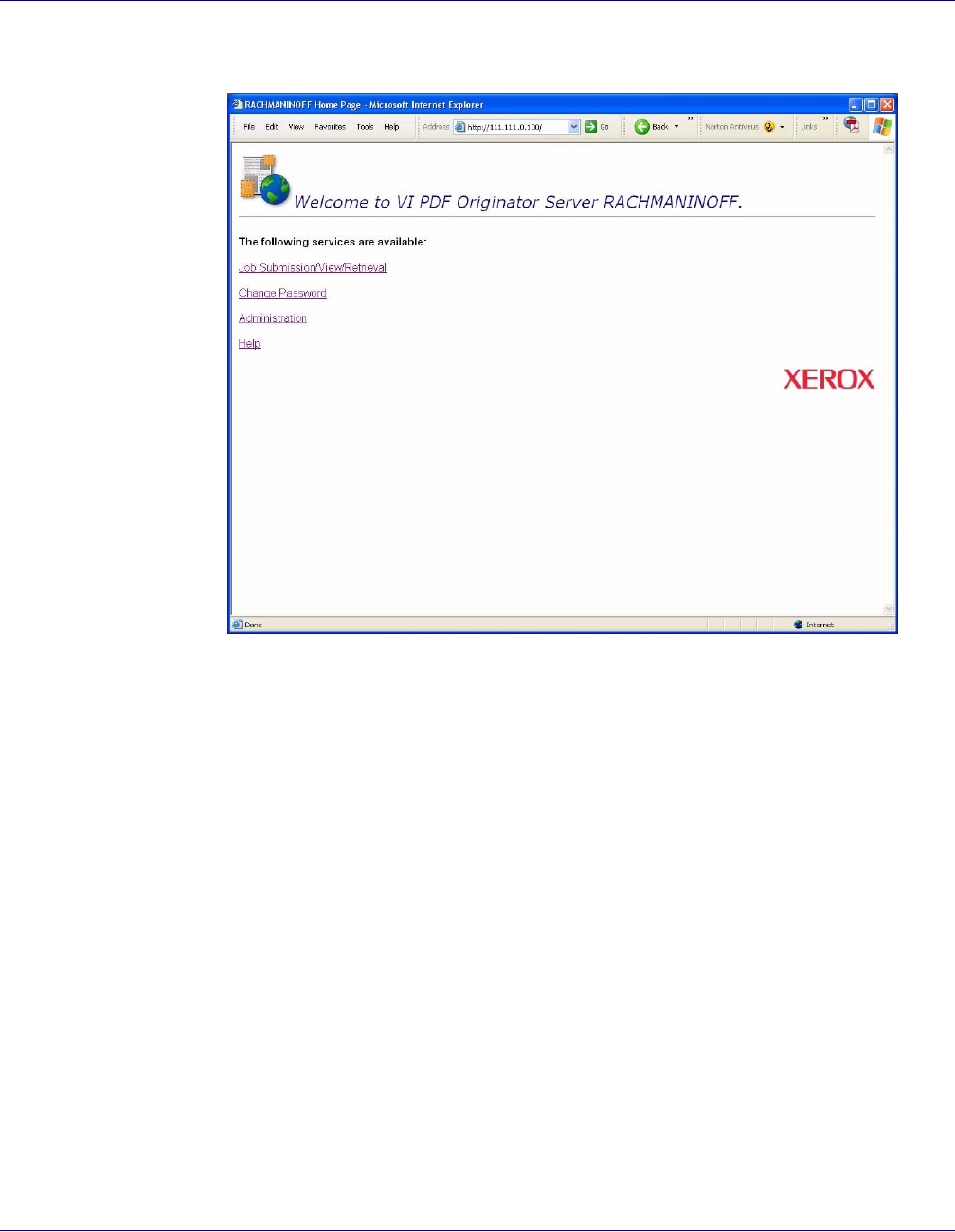

The Welcome to VI PDF Originator Server page provides these options:

•Job Submission/View/Retrieval — Provides access to VIPO jobs and functions.

•Change Password — Allows you to change your password.

• Administration — Provides access to these administrative tasks:

—User Administration

—Server Administration

—Cluster Administration

—Basic Authentication Quick Step

—Disable Basic Authentication

• Help — Provides access to the online VIPO Web Help.

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-37

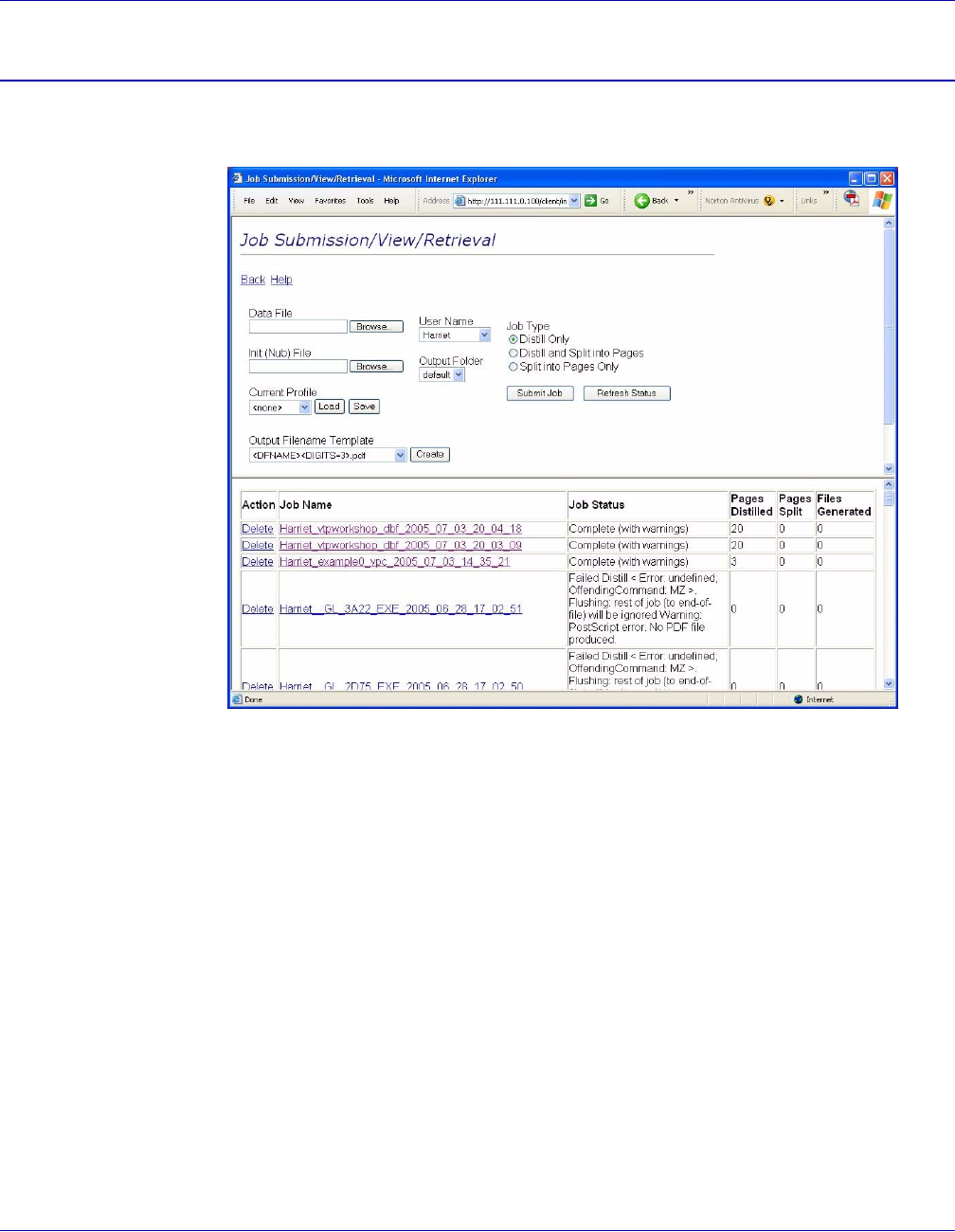

Job Submission/View/Retrieval

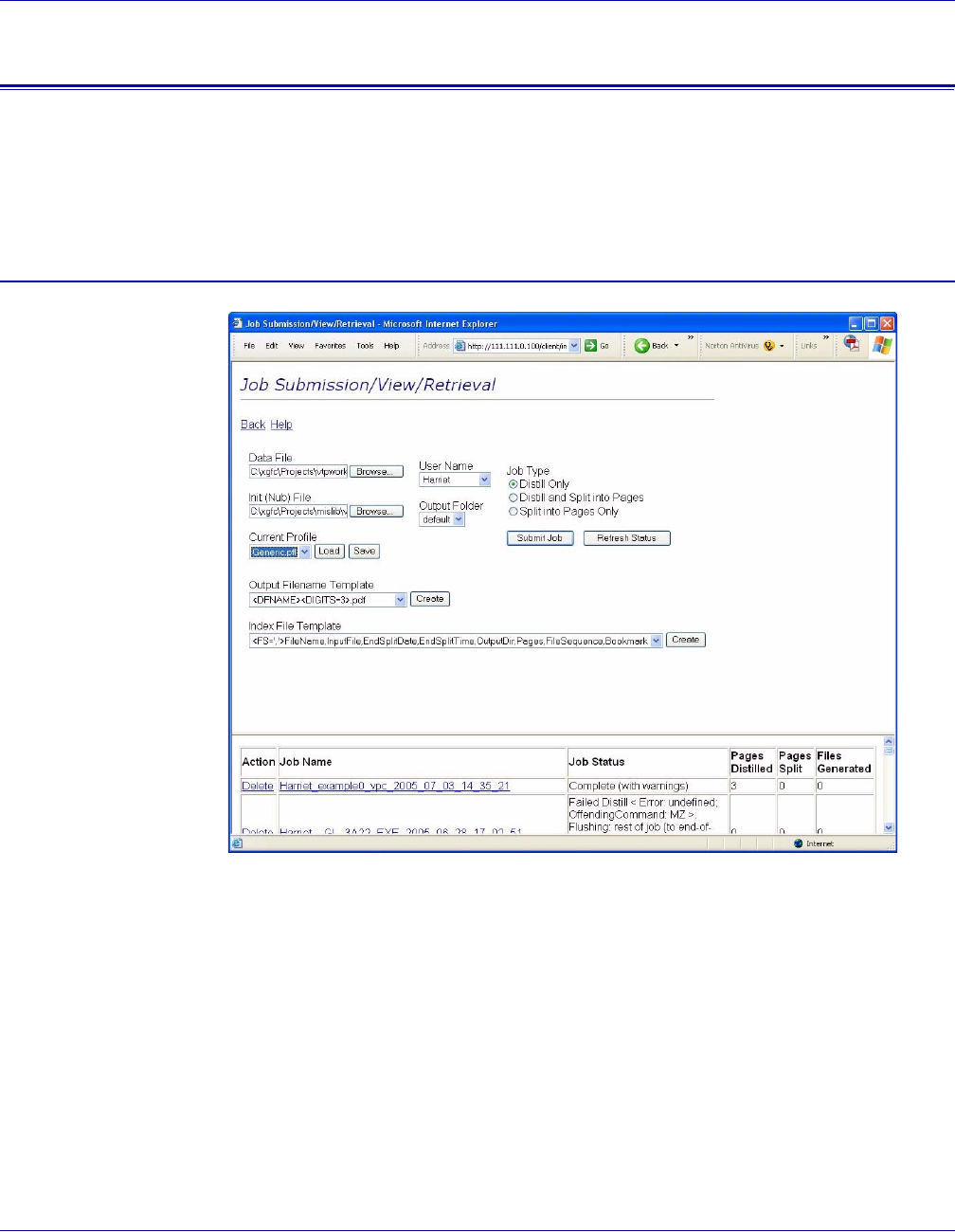

The Job Submission/View/Retrieval page provides access to the VIPO job submission

functions. The page contains two frames. The upper frame provides access to the VIPO

functions you will need to submit your job. The lower frame contains system-generated

information about the jobs you have submitted.

Job Submission - upper frame

For descriptions of the files and templates found on this page, see “Job creation area field

descriptions.” Use these options to submit a job to VIPO:

VI PDF Originator User’s Guide

VIPO-38 FreeFlow Variable Information Suite 5.0 (7/2006)

Data File

Allows you to Browse for the file to be submitted to VIPO. When you click Browse, the

Choose File window will open. Use this window to browse for and select the file or job for

submission.

Retrieved files are pulled from VIPO Web as the result of dynamic queries, and NOT by

direct links to files on the VIPO Server. This means that if your browser prompts you with

a choice to either open or save a file, you should always choose to open the file rather

than save it. Once the file is open you can save it using the Save option in the application

your browser used to open the file. If you inadvertently choose Save, the web page that

generated the query may be saved, rather than the file itself. When saving files, make

sure the destination path and type are appropriate for the file.

Init (Nub) File

Allows you to Browse for the appropriate init file for your job. When you click Browse, the

Choose File window will open. Use this window to browse for and select the file.

Current Profile (Load/Save)

The Current Profile drop-down contains a list of the available profiles. Choose the

appropriate profile, then click Load to load the selected profile or Save to save the profile

name entered. The profile file is located in your profiles directory (the same one used by

the Job Submission Client). Only the file name, not any path information, is entered in the

name field. See “Profile files” for more information on these files.

Output Filename Template (Create)

Select from the drop-down list of existing options or create a new Output Filename

Template. For more information on creating these templates, see “Specifying PDF output

file names.”

Index File Template (Create)

Select from the drop-down list of existing options or create a new Index File Template.

For more information on creating these templates, see “Specifying an index file.”

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-39

User Name

Select the user name appropriate for this job. If you have administrative privileges, all

user names will appear, as the job can be submitted for another user.

Output Folder

Choose one of the available directories as a repository for your completed job files.

Job Type

Click one of these three options for your job type:

• Distill Only

• Distill and Split into Pages

• Split into Pages only

These options are discussed in “Job creation area field descriptions.”

Submit Job

Submits your job to the VIPO Server.

Refresh Status

Refreshes the entries in the Job Status column of the table on the lower frame of this

page.

VI PDF Originator User’s Guide

VIPO-40 FreeFlow Variable Information Suite 5.0 (7/2006)

Job Submission - lower frame

When a job is submitted to the VIPO Server, the table on the lower frame of the Job

Submission page is filled with information on the submitted job.

This information is produced for each submitted job:

Action

You will be able to Cancel a pending job or Delete a completed job using the option

displayed in this column. Clicking Delete deletes the entire job, including the output and

the folder.

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-41

Job Name

The name of the job you submitted. When the job is complete, you can display the job

files generated via VIPO Web by clicking the Job Name link for the desired job. Clicking

a displayed file link causes the file to be displayed on your system; how it is displayed

depends on how your system is configured to handle the various file types.

Job Status

The Job Status of your submitted job is displayed in this part of the table. If the job failed

or did not process properly, this entry will contain an explanation of the failure, including

information about errors and how VIPO handled the job.

Pages Distilled

The total number of pages created in PDF format.

Pages Split

The number of pages split in the job. A split file may have more than one page within it. For

example, an original PDF containing three bookmarks is split into three PDF files. If each split

PDF file consists of four pages, the total of the split pages is twelve.

Files Generated

The number of files generated by your job.

VI PDF Originator User’s Guide

VIPO-42 FreeFlow Variable Information Suite 5.0 (7/2006)

Change Password

The Change Password option allows you to change your password, the password

associated with the user name under which you logged into the system. Use the “User

Administration” option to change passwords other than your own.

Administration

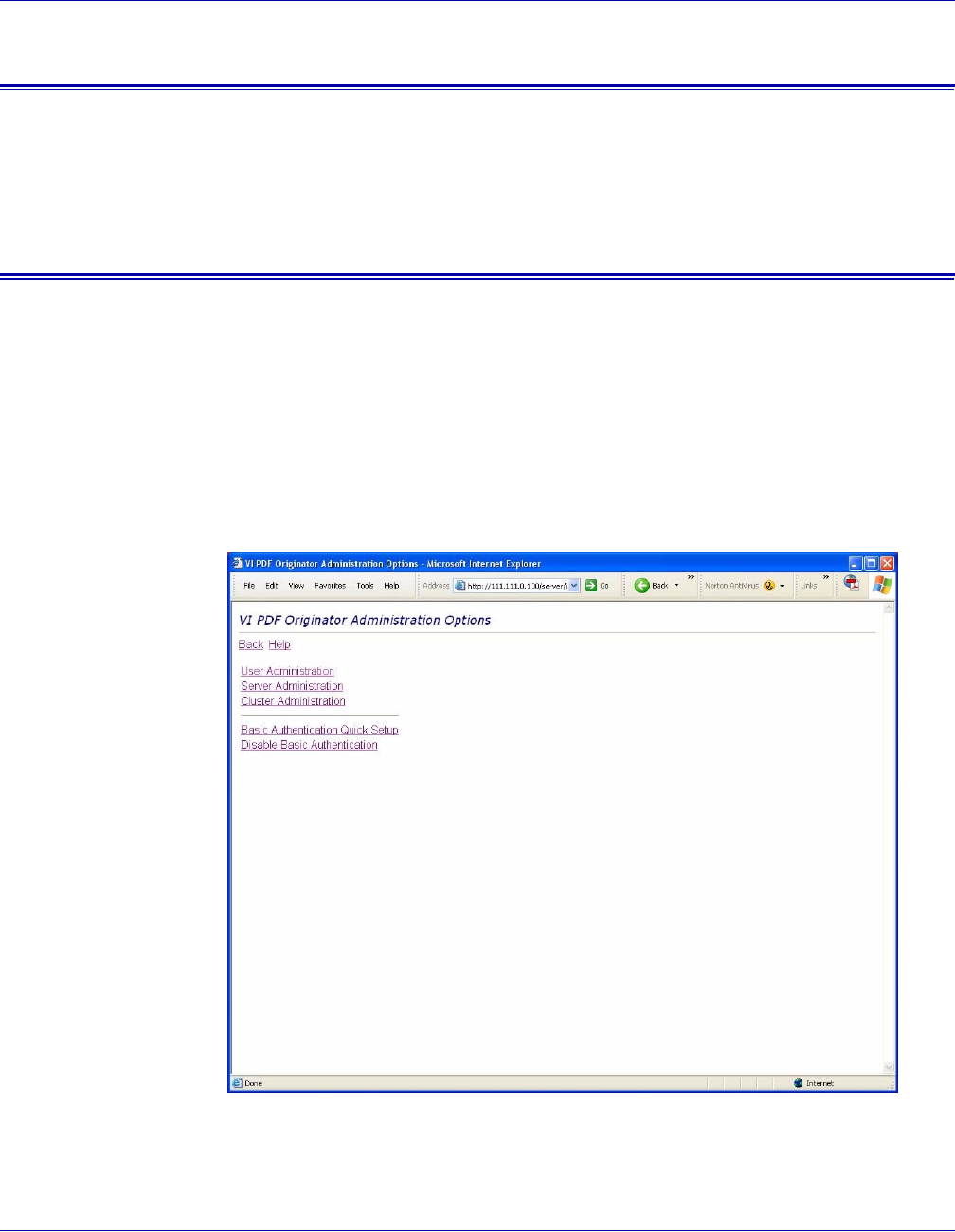

The VI PDF Originator Administration Options page provides access to these

administrative functions:

•User Administration

•Server Administration

•Cluster Administration

•Basic Authentication Quick Step

•Disable Basic Authentication

For a discussion on the four available security levels supported by VIPO, see “Defining

the VIPO Web security levels” in the Variable Information Suite Installation Guide. Xerox

strongly recommends setting security levels for this application.

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-43

User Administration

VIPO Web allows the creation of new or additional VIPO user accounts. The default

incoming folders produced for each user are:

•alt1

•alt2

• bulk (mandatory)

• default (mandatory)

Additional incoming folders can be added manually for any user on the User

Administration page, or the VIPO Web administrator can add an additional line to the

X:\Winnt\xvtp.ini file in the following format:

vtpw_addtl_user_folders=first_directory_name|second_directory_name|...

As an example, after adding this line to the xvtp.ini file:

vtpw_addtl_user_folders=example1|example2|example3

adding a new user via the VIPO Web User Administration Add New User option will result

in the creation of these directories for that user:

•example1

•example2

•example3

•bulk

• default

VI PDF Originator User’s Guide

VIPO-44 FreeFlow Variable Information Suite 5.0 (7/2006)

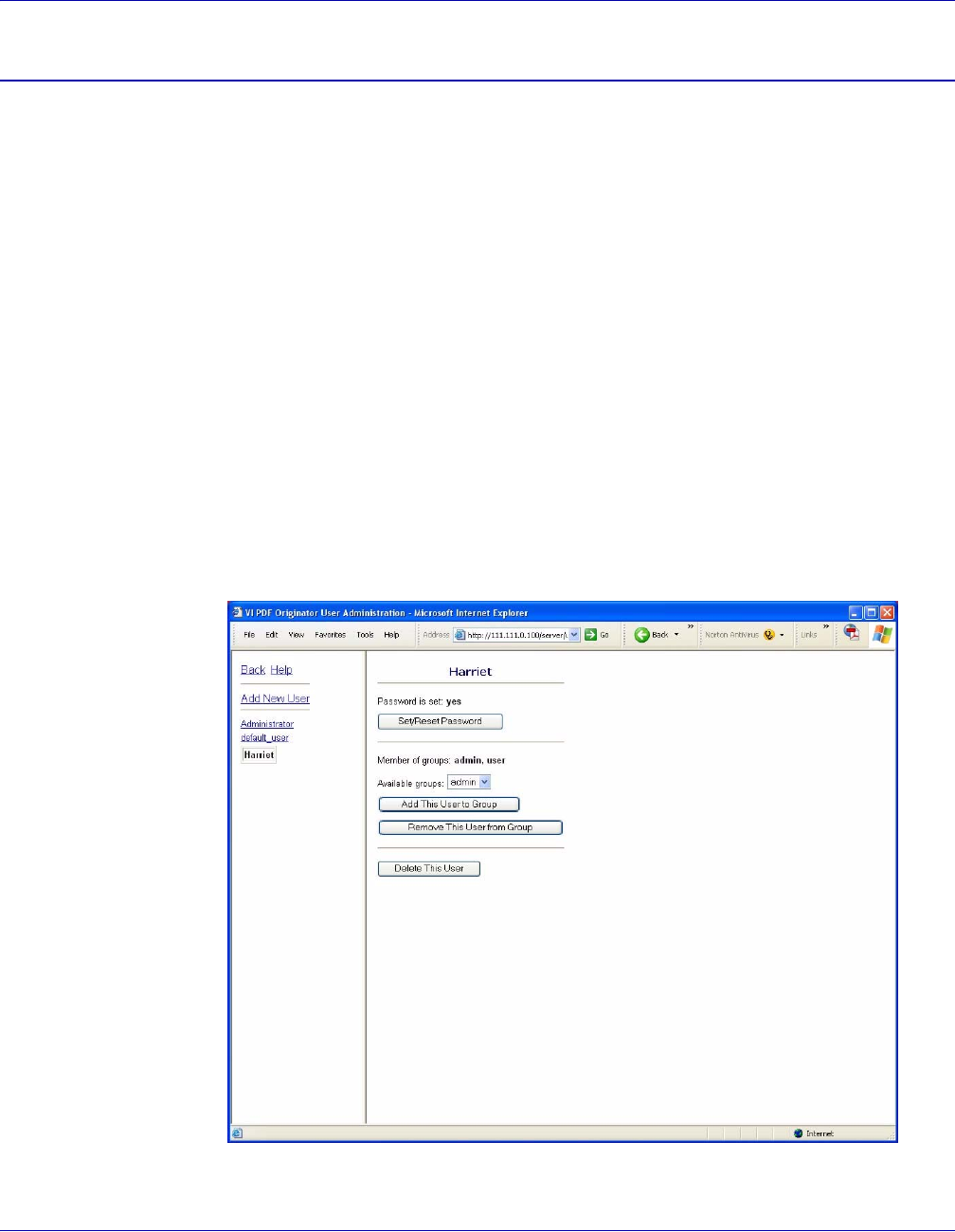

Changing passwords

To change a user’s password, double-click the user name on the left frame, then click the

Set/Reset Password button. Enter the new password in the New Password window, then

enter the same password in the Repeat new password window. Once entered, click the

Set Password button. A message giving the status of the password change will be

generated in the right frame of the page.

Adding new users

To enter a new user, click the Add New User link in the left frame of the page. A pop-up

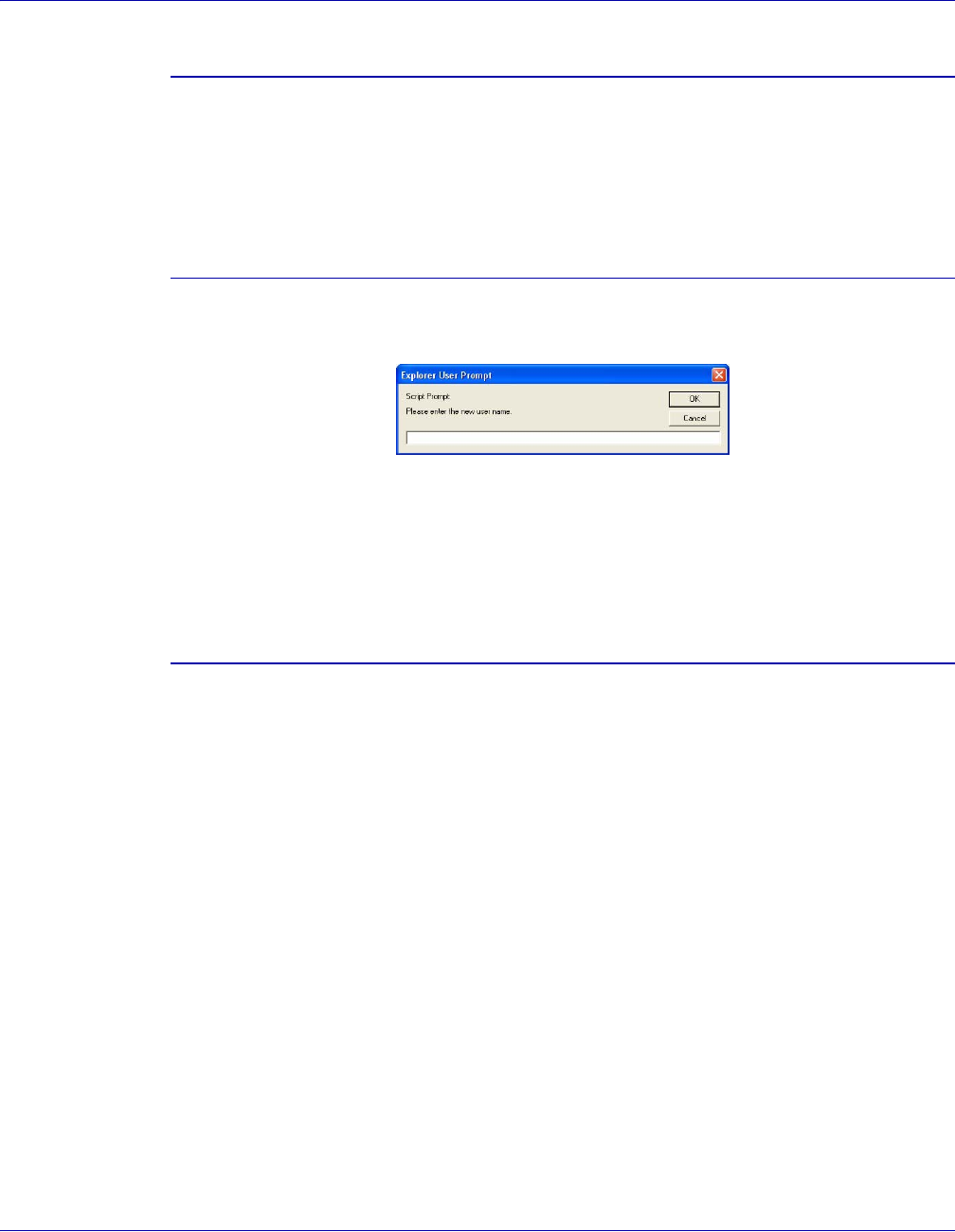

is produced. Enter the new user name in the New User field and press OK.

The new user name will appear in list of user names in the left frame.

When a new user is created, the new user does not belong to a group and must be

explicitly added to the user group (to be able to submit jobs) or to the admin group (to

perform administrative functions) by the Administrator.

Assigning users to groups

The User Administration feature allows you to classify each user into one or both of the

defined user groups, admin and user. Users associated with the admin group are able to

access and complete the administrative tasks found on the VI PDF Originator

Administration Options page. Users associated with the user group can submit jobs to the

VIPO Servers accessible from VIPO Web.

To assign a user to one or both groups, double-click the user name on the left frame, then

click the Available groups drop-down and highlight the name of the group to which the

user will be added. Next, click Add This User to Group. Repeat this process to add the

user to a second group. As the groups are assigned, the “Member of groups:” list will be

updated.

To remove the user from a specified group, select the user, highlight the group you want

the user removed from, and click Remove This User From Group.

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-45

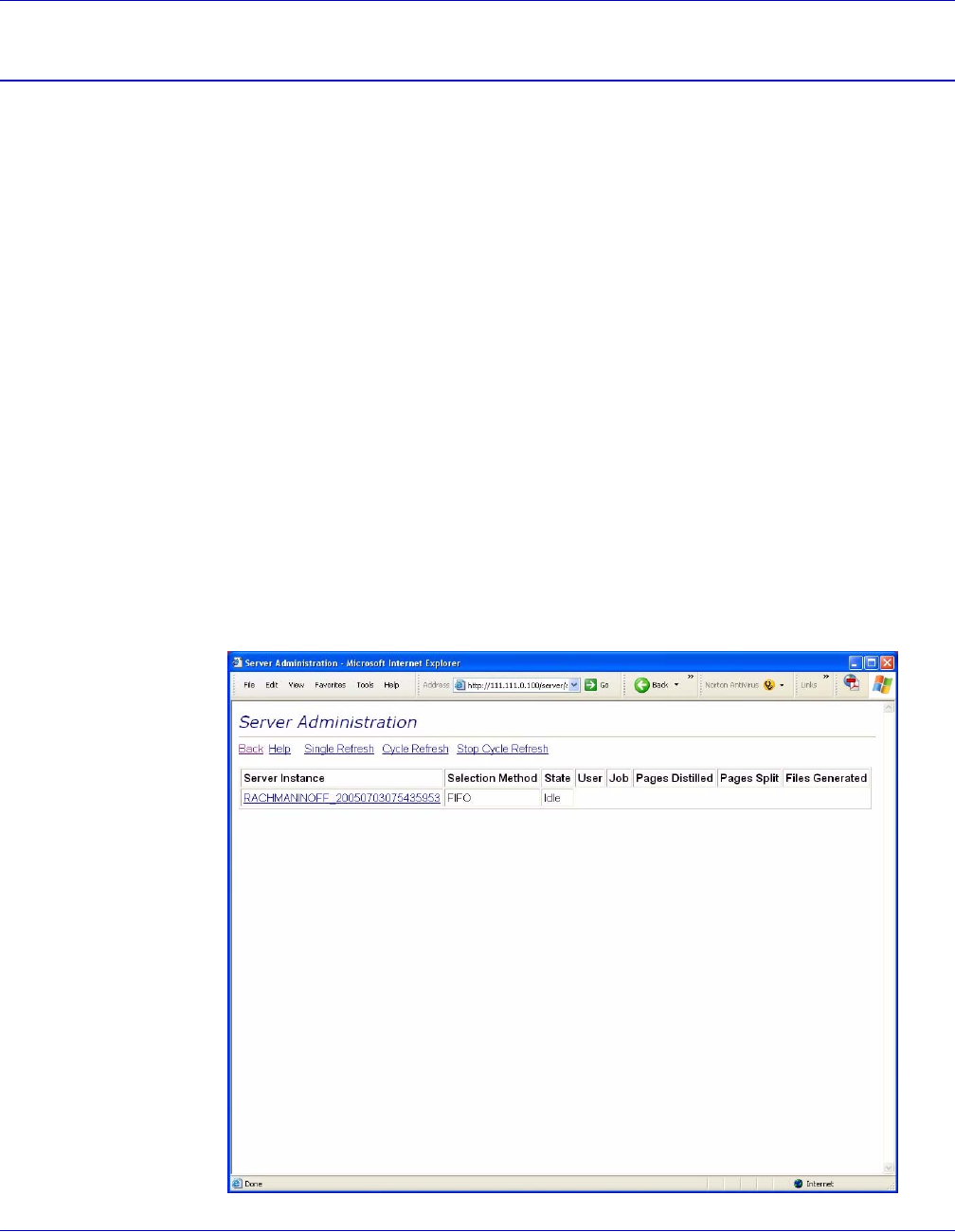

Server Administration

The Server Administration feature of VIPO Web allows you to set preferences for the

Servers that are part of the cluster of servers accessible from your VIPO Web Server. The

primary Server Administration page contains this information:

•Server Instance — the names of the servers in the cluster.

•Selection Method — the way job submission order is determined on each server.

•State — usually idle or active, the activity state of each server.

•User — the user assigned to the currently processing job.

•Job — the name of the currently processing job.

•Pages Distilled — total number of pages distilled in the currently processing job.

•Pages Split — total number of pages split in the job that the Server is presently

processing.

•Files Generated — total number of files generated in the job that the Server is

currently processing.

In addition to the above information, you can choose to:

•Single Refresh — refresh (reset) the job information for the selected Server.

•Cycle Refresh — poll the Server(s) for its status at a short, fixed interval.

•Stop Cycle Refresh — stop the polling of the Cycle Refresh option. Click Cycle

Refresh to return to continuous polling.

VI PDF Originator User’s Guide

VIPO-46 FreeFlow Variable Information Suite 5.0 (7/2006)

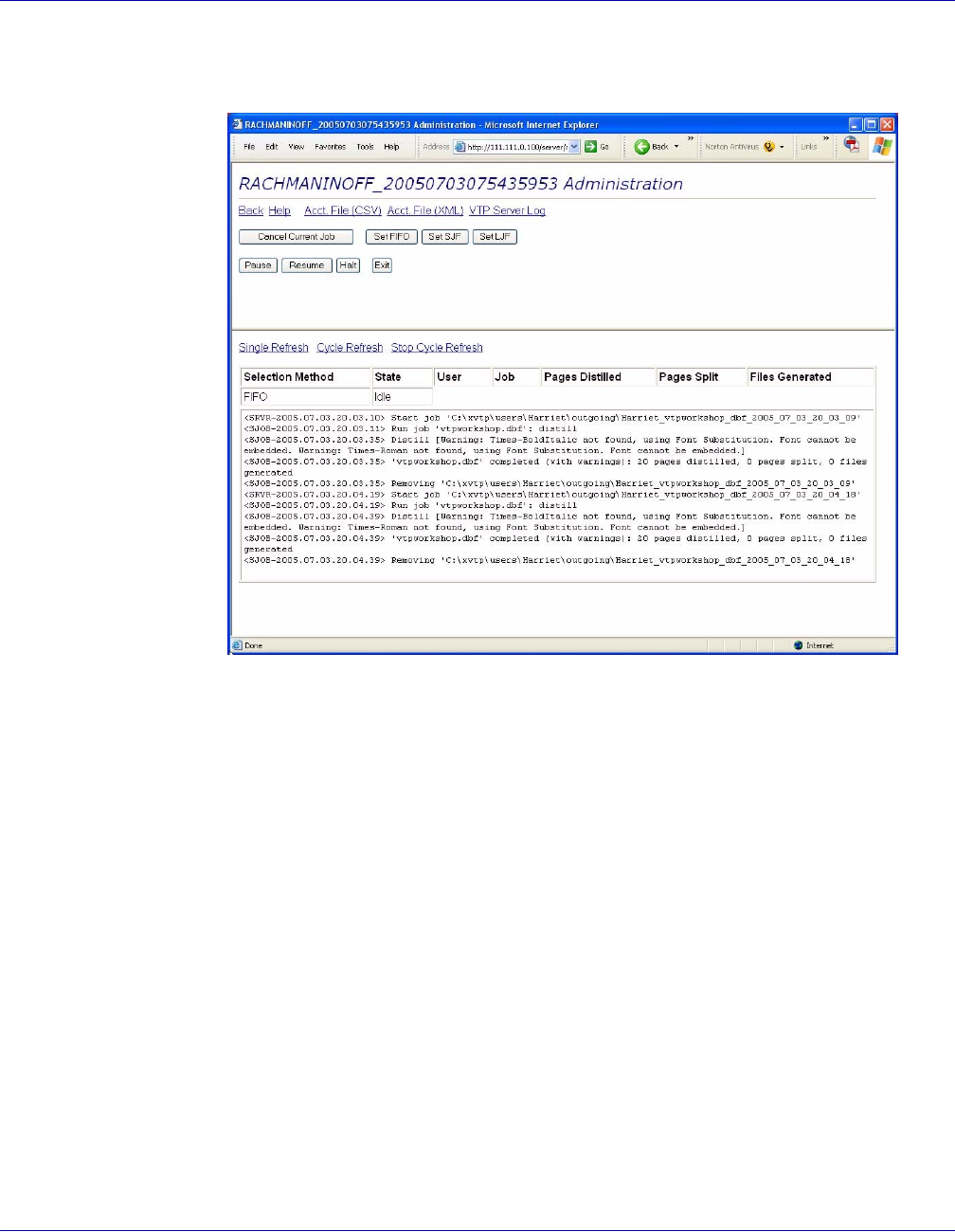

To view information specific to a Server in the cluster, click the Server name link in the

Server Instance field. A new Server Administration page will open.

From the Server Administration page, you can:

• View the VIPO Server Log.

• View the accounting file in CSV or XML format.

• Cancel the current job.

• Set the Server’s selection method to:

— FIFO (First In First Out)

— SJF (Shortest Job First)

— LJF (Longest Job First)

• Pause processing on the Server (if the Server is in a busy state, the pause will not

occur until it becomes idle).

• Resume processing on the Server.

• Halt (cancel) the current job and place the Server in a paused state.

• Exit the current job and terminate the process for the Server. You will not be able to

restart the Server via VIPO Web; it must be restarted by someone with physical

access to the Server.

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-47

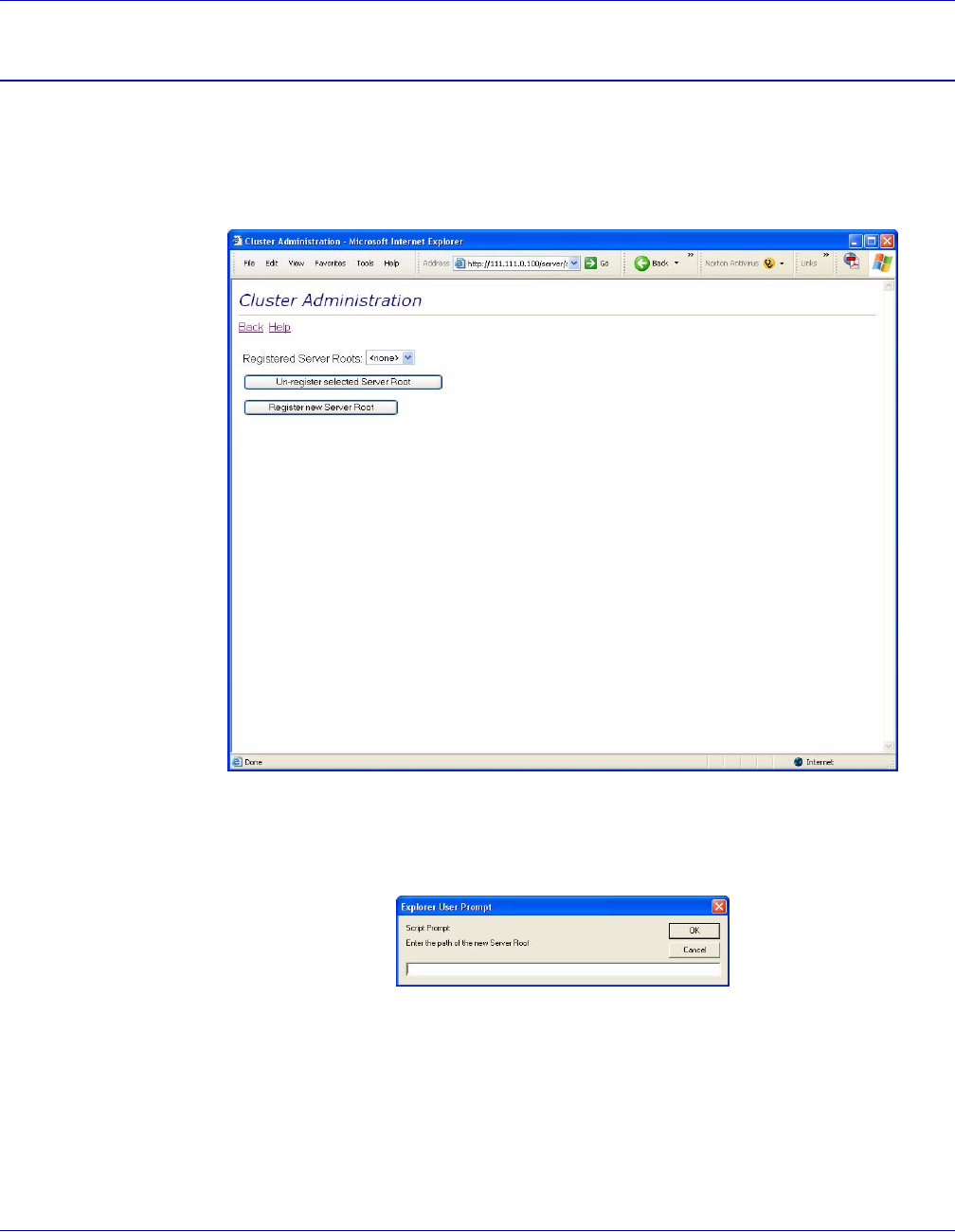

Cluster Administration

The VIPO Web Cluster Administration window allows you to register the paths of drives

that have been mapped or mounted in order to allow access to the root path(s) of VIPO

Servers. VIPO Web displays these additional Cluster Servers on the VIPO Web Server

Administration window, where they can be administered in the same way as the primary

VIPO Server administered by VIPO Web.

When you click the Register New Server Route button, the system will prompt you to

enter the path of the new Server Root. Once entered, click OK to add the new Server root

to the drop-down list.

Refer to “VIPO configuration options” in the Variable Information Suite Installation Guide

and use the following discussion to help determine how to set up your VIPO Web Server

Clusters:

VI PDF Originator User’s Guide

VIPO-48 FreeFlow Variable Information Suite 5.0 (7/2006)

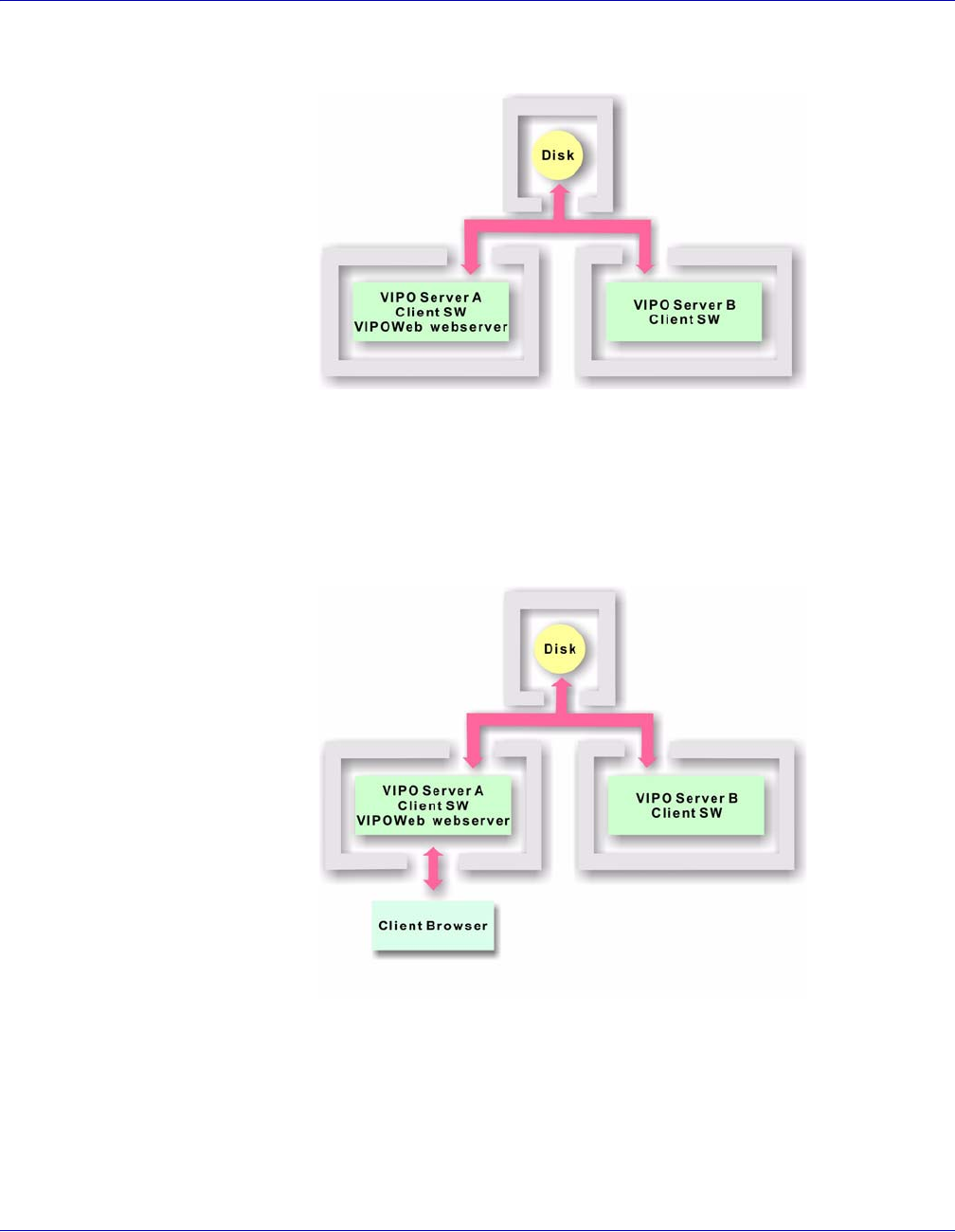

Assume that you have a two-node cluster set up as follows:

In this configuration, both VIPO Servers service a common job pool resident on a disk,

which is shared over a network. Before VIPO Web, administering the VIPO Server nodes

(server pause, server resume, examining logs, etc.) required physical access to the

individual VIPO Servers.

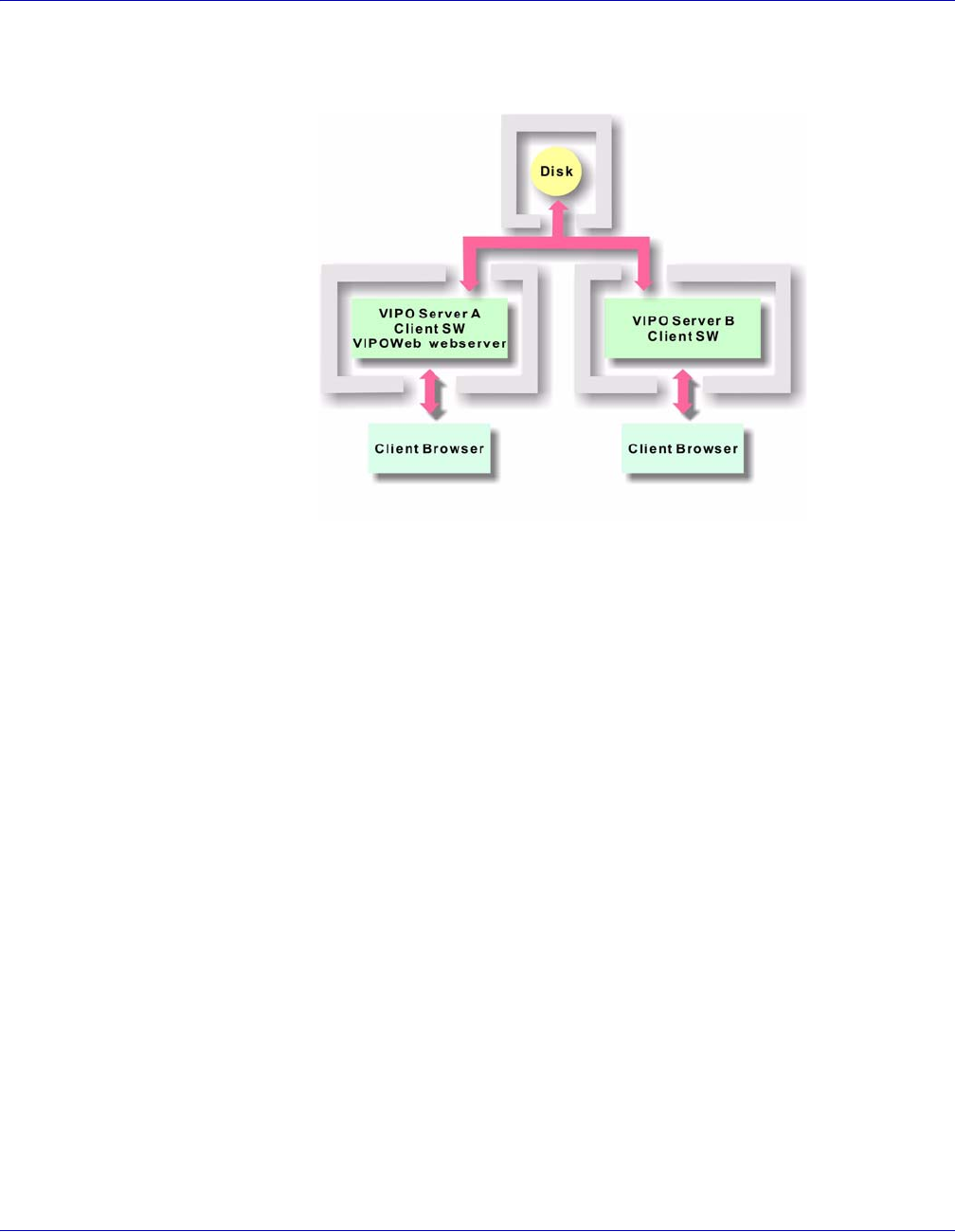

With the addition of VIPO Web, VIPO Server A can now be administered via your web

browser:

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-49

Without Cluster Administration, however, the only way to remotely administer VIPO

Server B is to run an additional VIPO Web Server where:

This configuration is inconvenient for several reasons:

• VIPO Web administration with regard to SSH Certificates

• User account passwords

• Multiple access points to monitor with regard to network security, etc.

The complexity and issues multiply in direct proportion to the number of additional nodes

added to the cluster.

Cluster Administration via VIPO Web addresses these issues. To enable Cluster

Administration for VIPO Server B, the administrator makes VIPO Server B's X:\xvtp

directory (or VIPO Server B's server root directory) sharable or mountable by VIPO

Server A.

VI PDF Originator User’s Guide

VIPO-50 FreeFlow Variable Information Suite 5.0 (7/2006)

Then, from the Cluster Administration window of the VIPO Web web server hosted by

VIPO Server A, VIPO Server B is added to the Cluster Server Root list of the VIPO Web

web server hosted by VIPO Server A, which results in:

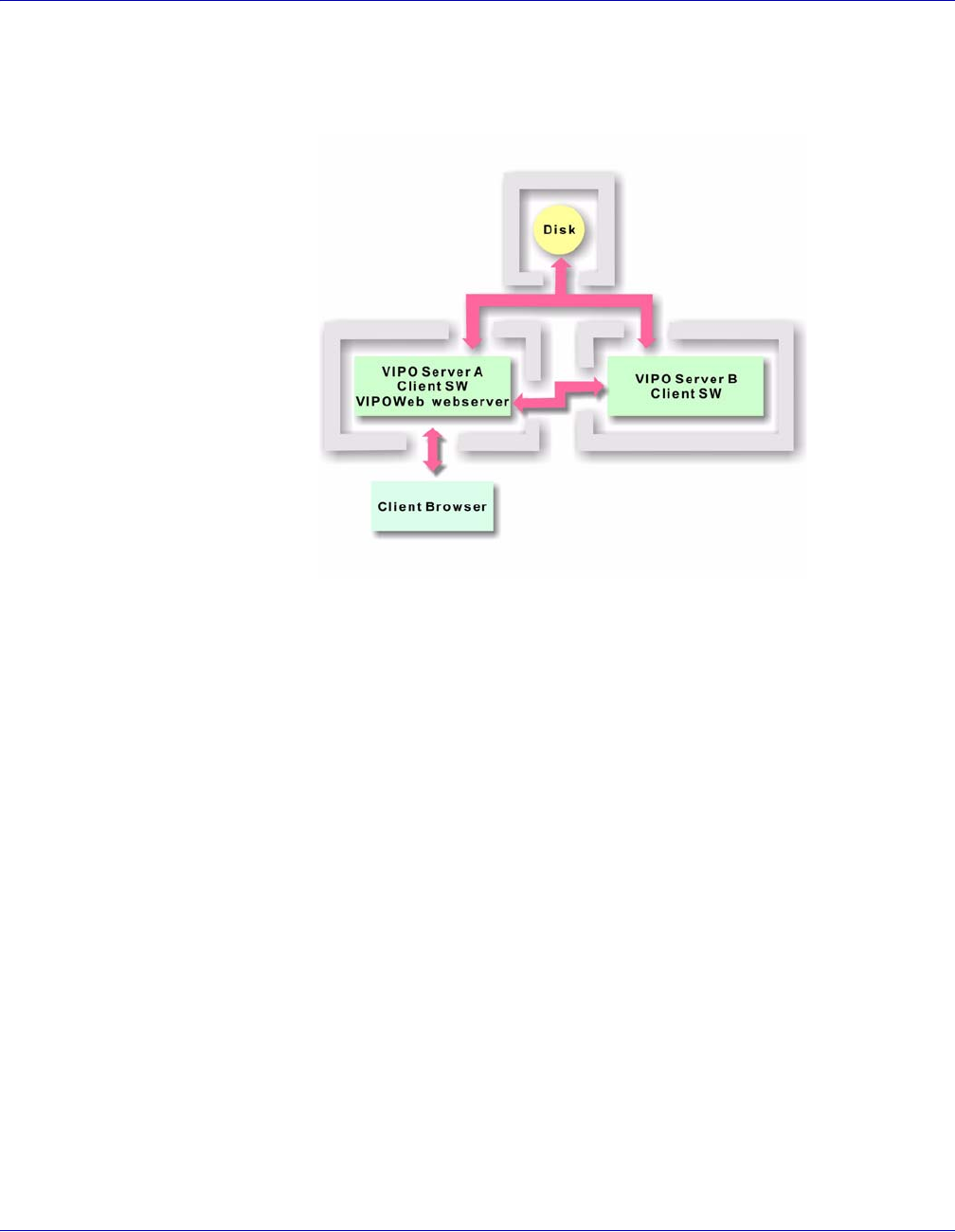

VIPO Server B can be remotely administered over the HTTP connection to the VIPO Web

web server hosted by VIPO Server A, which acts as an intermediary and interacts with

VIPO Server B on behalf of the client browser session.

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-51

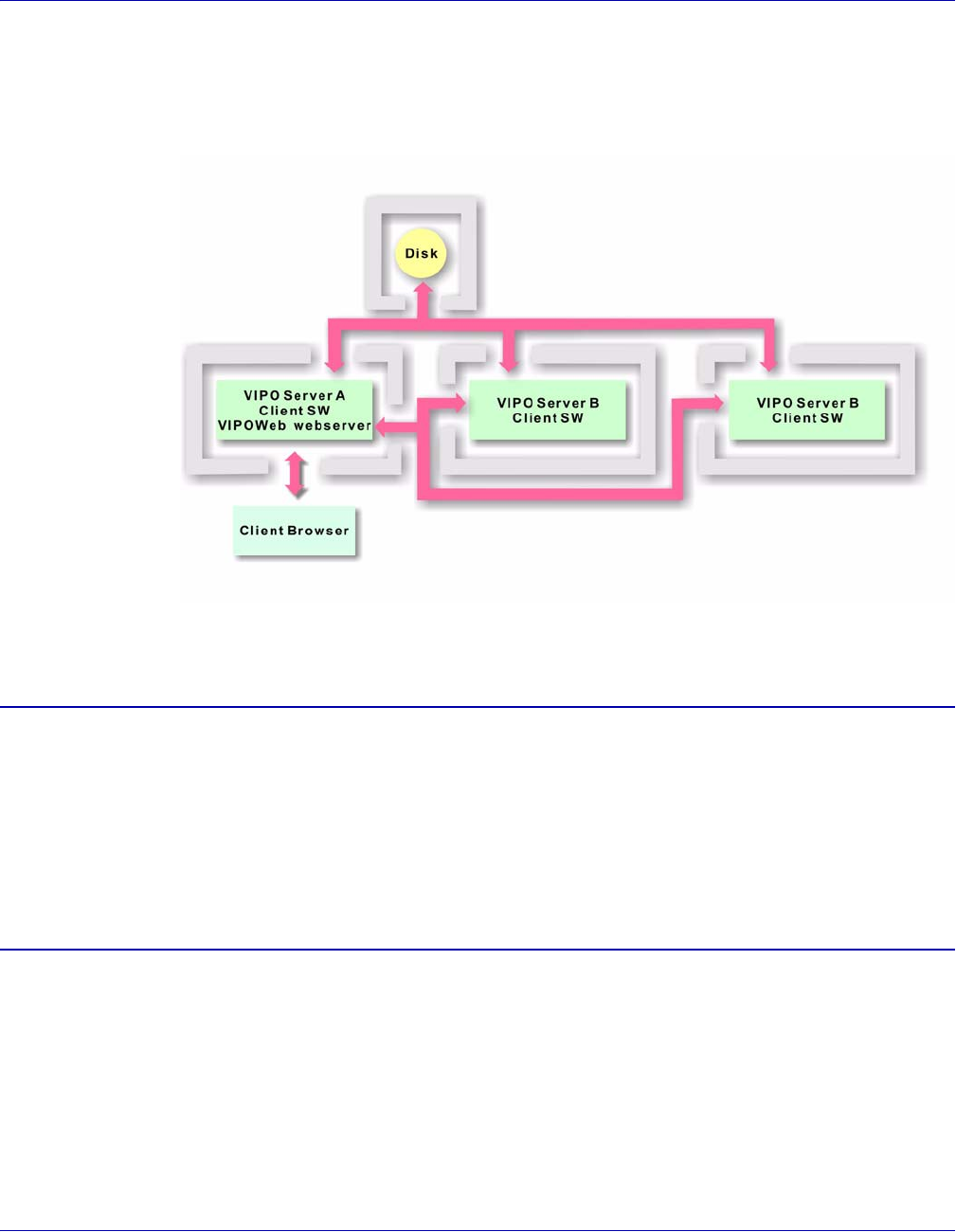

Even if additional nodes are added to the cluster, as long as their server root paths are

accessible by the VIPO web server hosted by VIPO Server A, and added to its cluster

server root list, they can all be administered remotely from the single client browser

session:

Basic Authentication Quick Step

The Basic Authentication Quick Step process allows user-account level security with user

passwords, as well as group security on an area-by-area basis. If your site requires a

higher level of security, refer to “Defining the VIPO Web security levels” in the Variable

Information Suite Installation Guide for more information.

A description of the Basic Authentication Quick Step, “HTTP Basic Authentication,” can

be found in the Variable Information Suite Installation Guide.

Disable Basic Authentication

You can disable the HTTP basic authentication level on your web server by choosing

Disable Basic Authentication on the Administration page, then clicking the Disable

button. You will receive confirmation of the change.

Xerox strongly recommends that you maintain an appropriate level of security on your

VIPO Server network.

VI PDF Originator User’s Guide

VIPO-52 FreeFlow Variable Information Suite 5.0 (7/2006)

Web browser notes

When using Internet Explorer, be aware of these notes:

• PDF files — When Acrobat Reader is installed, clicking on a PDF file link causes the

PDF file to be displayed in Acrobat Reader. PDFs encountered as the result of

dynamic queries disable the Save As option in Acrobat. To save the PDF file from

within Acrobat Reader:

—Use the Shift-Ctrl-S command

— Click the small floppy icon on the upper left of the IE-embedded Acrobat display

• XML files — Unless some other tool is associated with XML files, they will be

opened in a new Internet Explorer window.

• CSV files — CSV files will be opened in Notepad, or other tool associated with plain

text.

When using Netscape, be aware that when a file type is opened for the first time,

Netscape will prompt you to select the application to use to open that file type.

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-53

Using VIPO and Adobe Distiller

“Using VIPO and Adobe Distiller” explains how to use VIPO with Acrobat Distiller. These

topics are covered:

•PDF security options

•Adobe Distiller and fonts

PDF security options

The PDF Splitter module supports PDF Security features.

You can set one of these password options in PDF documents generated with Acrobat

Distiller:

•User passwords

• Owner or Master passwords

A User password “locks” the file and restricts file open and read access. If this password

is set, the document cannot be opened unless the password is supplied.

An Owner or Master password “locks” all of the PDF document security settings in the

file. If this password is set, none of the document’s security options can be changed

unless the password is supplied.

To configure Acrobat Distiller to generate PDF files with security settings and optional

password protection, the passwords must be supplied to VIPO so that the original file can

be processed and split into smaller PDF “child” documents.

A User password must be defined in the VIPO Configuration file for VIPO to use it to open

and read the PDF files that have file open and read access restrictions. The User

password is used only to open and read PDF documents for splitting purposes; VIPO will

not transfer this password to any PDF file generated as a result of the split process. This

means that while the original PDF file may have been produced with a User password,

none of the split files generated will have the User password set.

This allows you to generate “parent” PDF files using Distiller, which contains a

site-specific “global” User password for security purposes; however, the generated split

files will not inherit the password.

If an Owner/Master password is defined in the VIPO Configuration file, VIPO will use this

password to process the original PDF file and will transfer the password to each of the

split files generated. Thus, all “child” PDF documents will inherit not only all the security

settings of the “parent” PDF file, but will also have the Owner/Master password set

(security settings passed on to “child” PDF documents do NOT include the User/Open

password). Those security settings are “locked;” regular users cannot change the settings

unless they know the password.

VI PDF Originator User’s Guide

VIPO-54 FreeFlow Variable Information Suite 5.0 (7/2006)

If you choose not to set any passwords in Acrobat Distiller but define an Owner/Master

password in the VIPO Configuration file, VIPO will still transfer this password to all files

generated during the split process. This means that while the original file may not have

an Owner/Master password set, all the split files generated will. However, in order to

transfer the Owner/Master password, the original PDF file must have at least one of the

other security options set. If a parent PDF file has no security restrictions defined, no

password will be transferred to any generated split files.

To inform VIPO to use a User and/or Owner Password when processing PDF files, the

following entries must be defined in the VIPO Configuration file (C:\WINNT\xvtp.ini for

Windows 2000, or C:\Windows\xvtp.ini for Windows XP):

## User/Open Password Entry Example ##

pdf_user_password=ExampleOfUserOpenPwd

## Owner/Master Password Entry Example ##

pdf_owner_password=ExampleOfOwnerMasterPwd

VIPO will not use the password when processing PDF files if an entry is:

• left blank

• commented out (by using # character)

• completely removed

The password string(s) defined above must exactly match the corresponding password(s)

set for Acrobat Distiller, if any. These password strings can contain any printable ASCII

characters except for blank spaces. Currently, encryption/decryption of passwords is not

supported in VIPO.

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-55

Adobe Distiller and fonts

All the fonts required for your VIPP job must be in a location where Distiller can find them.

Failure to do so will result in font substitution warnings in the VIPO Server log and console

display.

Example:

<SJOB-2002.03.14.10.26.13> Run job 'billb.lm': distill

<SJOB-2002.03.14.10.26.17> Distill Warning: Helvetica-Condensed not found,

using Font Substitution. Font cannot be embedded.

<SJOB-2002.03.14.10.26.17> 'billb.lm' complete (with warnings):1 pages

distilled, 0 pages split, 0 files generated

Even though the VIPP job may have been processed successfully, any font substitution

can affect the appearance of your finished job.

Acrobat Distiller versions prior to 6.0

Specify where Distiller will look for fonts via the Distiller graphical user interface (GUI).

Select Start>Programs>Acrobat Distiller x.x to invoke the Distiller GUI, then choose

Font Locations from the Settings drop-down menu. More information about Distiller

options can be accessed through the Distiller GUI; select Acrobat Guide from the Help

drop-down menu.

Acrobat Distiller 6.0 and later

With version 6.0 the Distiller Server installer no longer installs fonts in the C:\Program

Files\Adobe\Acrobat x.x\Resource\Font directory as in previous versions. Instead, fonts

are installed in C:\Program Files\Adobe\Acrobat 6.0\Distillr\Data\Fonts, and Asian fonts

in C:\Program Files\Adobe\Acrobat 6.0\Distillr\Data\psdisk\fonts.

This change in font setup can cause some VI PDF Originator job submissions to fail for

one of these reasons:

• The Distiller installation does not set these font folders as part of the “Font

Locations” setting; it sets the default font location to the ..\Resource\Font directory.

The fix for this is to manually add the two new font locations using the Distiller GUI

menu.

• There may be references in your job to the Symbol font (/NSY), which does not exist

in the Distiller 6.0 fontset, and has no font substitution. The references to the

Symbol font may cause job submission failure even after adding the new font

locations. A simple fix for this problem is to copy the Symbol font files from the

Acrobat Reader fontset.

Job submission failures due to the change in font setup will not occur if Acrobat Reader

is installed in the same program folder as Acrobat Distiller because the ..\Resource\Font

directory installed with Acrobat Reader is shared with Distiller.

VI PDF Originator User’s Guide

VIPO-56 FreeFlow Variable Information Suite 5.0 (7/2006)

Assigning a Distiller job options file

You can assign a particular Distiller job options file to be used for generating a PDF

document when submitting a VIPP job to the VI PDF Originator. The DistillJobOptions

entry found in a Profile file is set by default to use whatever job options file has been set

as the default in the Distiller GUI.

When the VIPO Profile file is set to

DistillJobOptions=<default>

VI PDF Originator will use the default job options file set in the Distiller GUI Default

Settings” selection. This Profile entry can be modified to specify an existing Distiller job

options file, which VI PDF Originator will use when invoking Distiller.

For instance, the following entry in the Profile file will use the High Quality job options file

for distillation:

DistillJobOptions=High Quality.joboptions

The Profile entry must exactly match one of the option files available in the Distiller GUI

Default Settings menu options.

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-57

Using BOOKMARK, PDF features, and

Project Containers

Descriptions of using VIPO with the BOOKMARK command and Project Containers are

found in these sections:

•Using the VIPP BOOKMARK command

•Using VIPP PDF interactive features

•Using VI Project Containers

Using the VIPP BOOKMARK command

The VIPP BOOKMARK command can be used in any VIPP mode to generate a bookmark

on the PDF document. The syntax is:

(bookmark contents) BOOKMARK

Where:

bookmark contents

is the text that will appear on the PDF bookmark generated by VIPO. Variables are

allowed.

The following example will create a PDF bookmark containing “John Doe 687863456”

(John Doe’s name and social security number) on the specified page.

DBF file:

XGF

FNAME:NAME:SS#

John:Doe:687863456

DBM file:

600 300 MOVETO

($$FNAME. $$NAME. $$SS#.) VSUB BOOKMARK

PAGEBRK

VI PDF Originator User’s Guide

VIPO-58 FreeFlow Variable Information Suite 5.0 (7/2006)

Extended bookmarks

An extended bookmark is a transparent PDF note, which is usually visible from the

“Comment” section of the completed PDF only. Extended bookmarks are only used with

the Dispatch function of VIPO.

Extended bookmarks can contain information up to 64K in size, regular bookmarks

contain up to 256 characters. The contents of the extended bookmark is:

• appended to the contents of the regular bookmark

• always linked to a regular bookmark

• created after the regular bookmark

Several extended bookmarks may be created in a sub-document (between two

consecutive regular bookmarks).

This syntax is used to create an extended bookmark:

(

bookmark contents

) [ /EX

opt1 opt2

] BOOKMARK

Where:

/EX tells BOOKMARK to create an “extended bookmark” rather than a regular bookmark.

opt1is an integer that tells the VIPO splitter how to handle the child PDF file:

• 0 — Do not produce the child PDF file

• 1— Produce the child PDF file but do not include bookmark in it.

• 2— Produce the child PDF file and include bookmark in it. This is the default.

All extended bookmarks within a sub-document must carry the same opt1 value

opt2is an integer that tells the VIPO splitter how to handle the extended bookmark:

• 0 — Do nothing with this extended bookmark

• 1 — Merge the extended bookmark with the associated regular bookmark (for

index file processing), but do not include it in the child PDF

• 2— Merge the extended bookmark with the associated regular bookmark (for

index file processing) and include it in the child PDF

opt2=0 can be used to insert comments or instructions in the main PDF file present

only in this file.

The combination opt1=0 and opt2=2 is irrelevant. It will act as opt2=1.

This example creates an extended bookmark that instructs the VIPO splitter to produce

a child PDF that does not contain the extended bookmark. However, this extended

bookmark will be included in the VIPO index file and, with appropriate VIPO Dispatch and

mail server settings, will trigger an e-mail to John Smith with the child PDF attached.

(John Smith@isp.com:April invoice:Dear John,\nAttached you will find your

invoice for April.\nBest regards,\nPaul Martin) [ /EX 2 1 ] BOOKMARK

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-59

Using VIPP PDF interactive features

A complete set of VIPP PDF Interactive Features (PIF), available in VIPP 4.0 and later,

allow you to create interactive elements when the VIPP job is rendered into a PDF

document. For an overview of VIPP PIF and details about each related command, refer

to the VIPP Language Reference Manual.

Using VI Project Containers

VI Project Containers (VPC or .vpc) are a convenient way to archive, exchange, and

deploy VIPP applications. VPCs are created with VI Designer.

When creating an application with VI Designer, you typically work with a sample print file

containing a limited number of records (the sample print file is shown as a local resource

in the notebook display; it is the one with the blue gear icon). By definition, this is sample

data and is not intended for use in a production run.

However, VIPO is intended for use in a production environment; it knows about VI Project

Containers and will not use the VPCs sample data.

Follow these steps to add a production submission file to your VI Project from within VI

Designer:

1From the notebook display, right click on the Local folder icon. A pop-up menu

appears.

2Select Add Resource To Project from the pop-up menu to add your production

submission file to the project (submission files must have an extension of .lm, .nm,

or .dbf). Your submission file will have a small number “1” in its icon, indicating that

it is submission file 1.

3Export your project as a VPC from VI Designer by clicking the Export VI Project

Container button on the VI Designer tool bar.

NOTE

A VPC sent to the VIPO Server must contain a production submission

file; any VPC submitted to the VIPO Server with only a sample data file

will be rejected.

NOTE

VI Designer allows you to add multiple submission files to your project,

but the VIPO Server only processes submission file 1.

VI PDF Originator User’s Guide

VIPO-60 FreeFlow Variable Information Suite 5.0 (7/2006)

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-61

Using lpr to submit VIPO jobs

“Using lpr to submit VIPO jobs” provides the lpr command syntax for Windows 2000.

Also included are:

•Parameter definitions

•Parameter defaults

•Example lpr job submissions

lpr command syntax for Windows 2000

lpr –S

servername

–P

printername

printfilename

Windows 2000 does not accept the -T option or parameters on the lpr command line. Any

lpr jobs will only be able to use the defaults as described in “Parameter defaults.”

For submission of .pdf, .vpc, or other non-text type jobs, be sure to use the -o l option on

the lpr command line as the last parameter before the job file name as in this example:

lpr -P

HostName

-P

XVTPrinterName

-o l

BinaryJobFile

For more information on lpr command parameters, type lpr on the command line.

NOTE

Job files to be submitted through an lpr command cannot contain blank

spaces, pound signs (#), equal signs (=), or colons (:) in their names.

NOTE

In order to use lpr printing, the TCP/IP Print Server must be installed and

started.

When submitting jobs to VIPO through lpr commands the VIPO Server

console will show the job names with extra numeric tags, or IDs,

appended to the file extension. Because all lpr jobs are sent to a common

spool area, the extra tags are needed to avoid file name collisions and

guarantee unique name identifiers. The unique tags generated by the

system are appended to the original files before file submission and

processing by the VIPO Server. The resulting files do not have the extra

numeric tags.

VI PDF Originator User’s Guide

VIPO-62 FreeFlow Variable Information Suite 5.0 (7/2006)

Parameter definitions

VIPO_user

[:local|remote]

Defines the scope of the VIPO user, either local or remote.

•VIPO_user :local — a local-scope VIPO user defined on the lpd print server

associated with printername.

•VIPO_user :remote — a remote-scope VIPO user reachable from the lpd print

server associated with printername.

• If neither local nor remote is specified, local scope is searched first; if the user is not

found, then remote scope is searched. If the user is not found in either, the job

receives a submission error.

profile_name

Specifies the name of a profile belonging to the VIPO_user on the lpd print server

associated with printername.

print_file_name

Specifies the same name as the printfilename parameter of the lpr command. This

parameter is required if any -T options are present. This duplicated name is an artifact of

the non-standard Windows 2000 lpd implementation.

printername

This is an lpr-to-VIPO printer defined on a VIPO Client on Windows 2000 running an lpd

server.

servername

This is an IP address or hostname of a VIPO Client running lpd. The host name is defined

in the file winnt/system32/drivers/etc/hosts.

NOTE

If the –T option is omitted, this parameter is not needed and

printfilename is passed correctly to lpd.

NOTE

The initial printername must be created using the Install VI PDF

Originator LPR Option in the VIPO program folder or by checking the lpr

option when installing VIPO.

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-63

Parameter defaults

If any or all of the –T or –C parameters are omitted from the lpr command, the following

defaults are used:

• If user= is undefined in the lpr command, then the VIPO_user defaults to

default_user (local-scope) on the lpd server associated with printername.

• If profile= is undefined in the lpr command, the following defaults are tried in this

order:

1. The user defined default lpr profile (lpr_default.pfl) belonging to the

VIPO_user[:scope] as defined on (local-scope) or reachable from

(remote-scope) the lpd server associated with printername.

2. The profile printername.pfl in the XVTP <server_root>/Profiles directory (virtual

printer profile) as defined by the lpd server associated with printername.

• Virtual printer and user default lpr profiles must be supplied by the VIPO user, and

can be created and modified using the VIPO Job Submission Client (Load and Save

Profile functions).

• If printfile= is undefined and other –T options are supplied, then no print file name is

supplied and the job receives a submission error. If no -T options are present, then

printfile= is not necessary.

Example lpr job submissions

This section provides three examples of jobs submitted via lpr.

• This job prints the xyz.lm file using lpr_default.pfl of the default_user if a profile

exists; otherwise it uses xvtprinter.pfl from the generic profile directory:

lpr –P XVTPrinter xyz.lm

• This job prints the xyz.lm file using lpr_default.pfl of the user johndoe if a profile

exists; otherwise it uses xvtp3.pfl from the generic profile directory:

lpr –P XVTP3 –T “user=johndoe printfile=xyz.lm” xyz.lm

• This job prints the xyz.lm file using newjob.pfl of the user johndoe:

lpr –P XVTPrinter –T “user=johndoe profile=newjob.pfl printfile=xyz.lm” xyz.lm

VI PDF Originator User’s Guide

VIPO-64 FreeFlow Variable Information Suite 5.0 (7/2006)

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-65

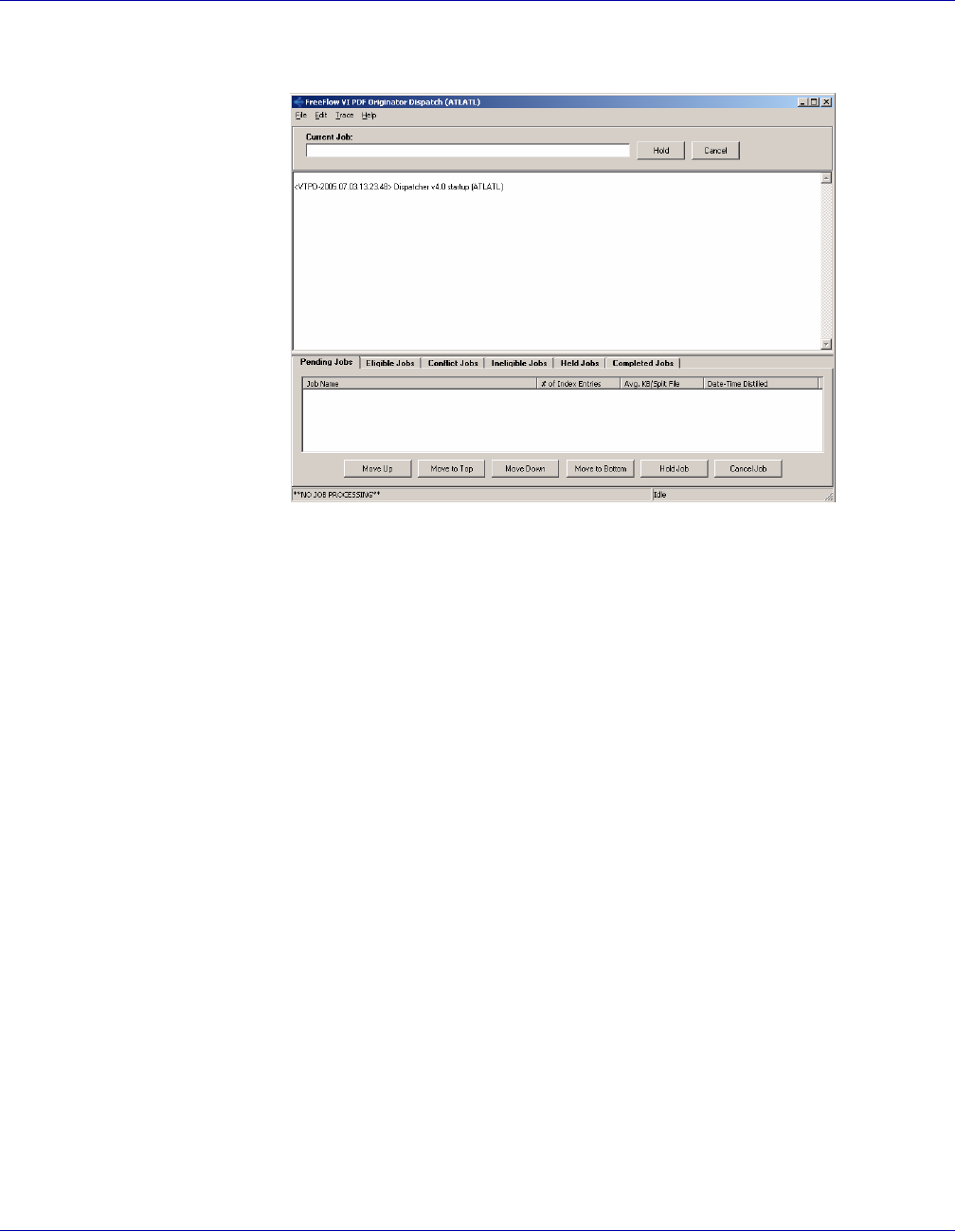

Using VIPO Dispatch

VIPO Dispatch (VIPOD) is the generic mechanism by which VIPO jobs that have been

distilled and split, or split into pages are sent, or dispatched, to other programs or

functions such as:

• E-mail

•Fax

• DocuShare repository

VIPOD monitors VIPO output and performs post-processing via a customer-specified

back-end. Post-processing is completed in accordance with parameters and other data

embedded in a job, and is communicated to the dispatch mechanism via the index file

(specifically the splitfile index record field names and values) of completed VIPO jobs.

Because different applications require different workflows, VIPOD handles these types of

workflow simultaneously:

• Jobs in which the entire VIPO-to-VIPOD process runs automatically, such as an

interface with a DocuShare repository

• Jobs that require verification of the VIPO output before the dispatch proceeds, such

as an interface with an e-mail disbursement system

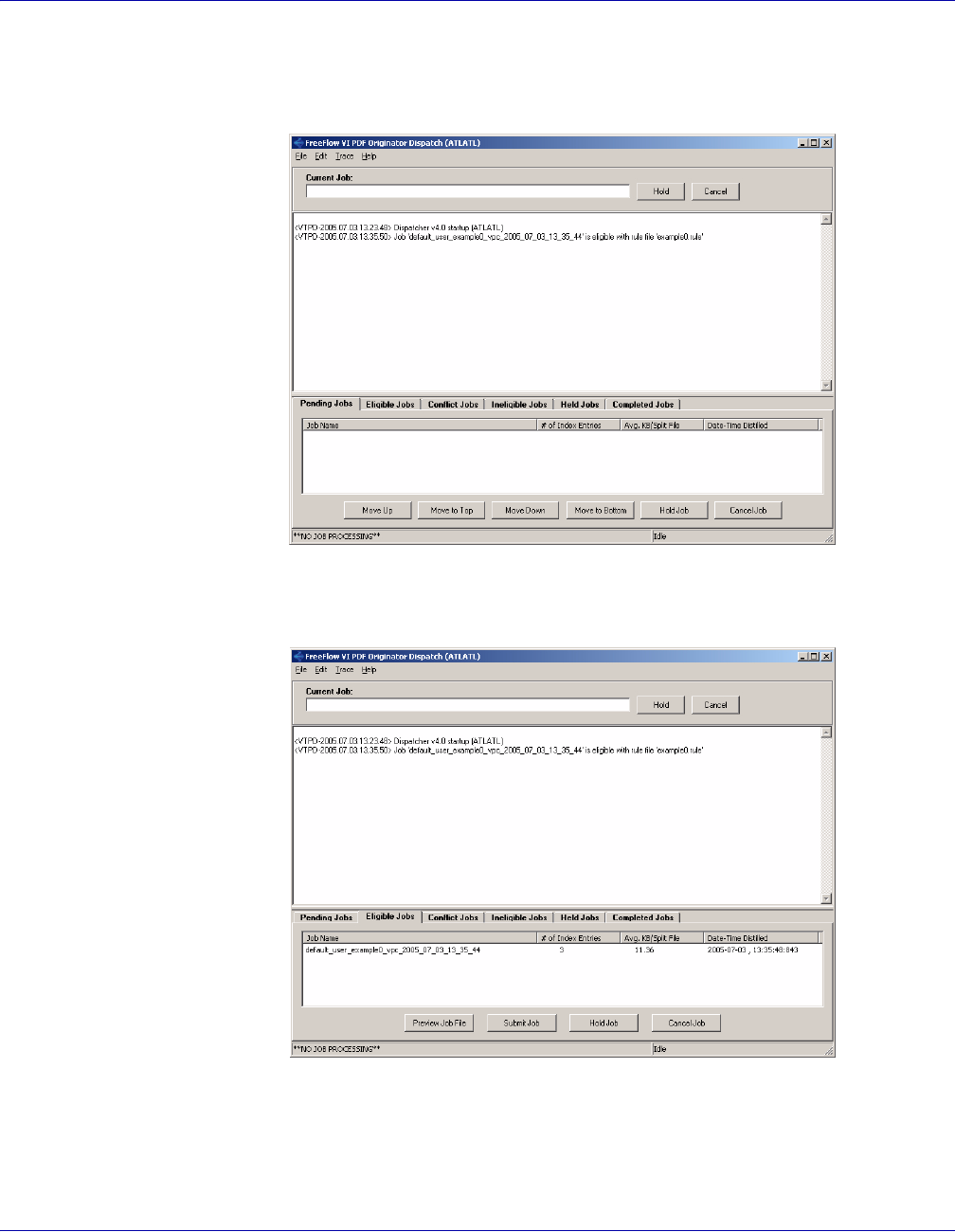

VIPOD inspects, or polls, the VIPO Incoming Folders directories in the context of a

user-specified filter and compares the field names of the first record from the VIPO job's

splitfile index against a repository of Dispatch Rules. If a completed VIPO job is

associated with a single Dispatch Rule, it is considered eligible for dispatch and becomes

a VIPOD job. If a VPTD job is either manually approved for processing or meets the

user-specified criteria for autorun (via another filter), VIPOD resolves and applies the

appropriate Dispatch Rule for each record of the VIPO job's splitfile index.

Each of the VIPOD job's splitfile records in the context of a Dispatch Rule effectively

defines a subtask of the VIPOD job. Processing of each subtask first (optionally) writes

the contents of one or more splitfile index records to disk and then performs a single

invocation of a rule-specified external program (for example, an e-mail client interface).

The results of subtask processing are accumulated in a log file in the VIPO job's Incoming

directory and represent the results of the overall VIPOD job.

VI PDF Originator User’s Guide

VIPO-66 FreeFlow Variable Information Suite 5.0 (7/2006)

Dispatch filters

A filter file can have up to 100 user/folder pair entries, with a maximum of 2048 characters

for each entry. Only one AutoRun filter and one IncomingFolders filter can be active

during a current invocation of the application. The active filter(s) can be set with the Set

Active Filter button found in the Editing dialog panel. This button is greyed out when the

currently active filter is displayed.

All filter files must have a file extension of .filter and must be placed in the corresponding

directory shown below for the application to find them and be available for editing:

•The AutoRun filter files must be in:X:\xvtp\dispatch\filters\AutoRun\

•The IncomingFolders filter files must be in: X:\xvtp\dispatch\filters\IncomingFolders\

Where X is the disk drive where VIPO was initially installed.

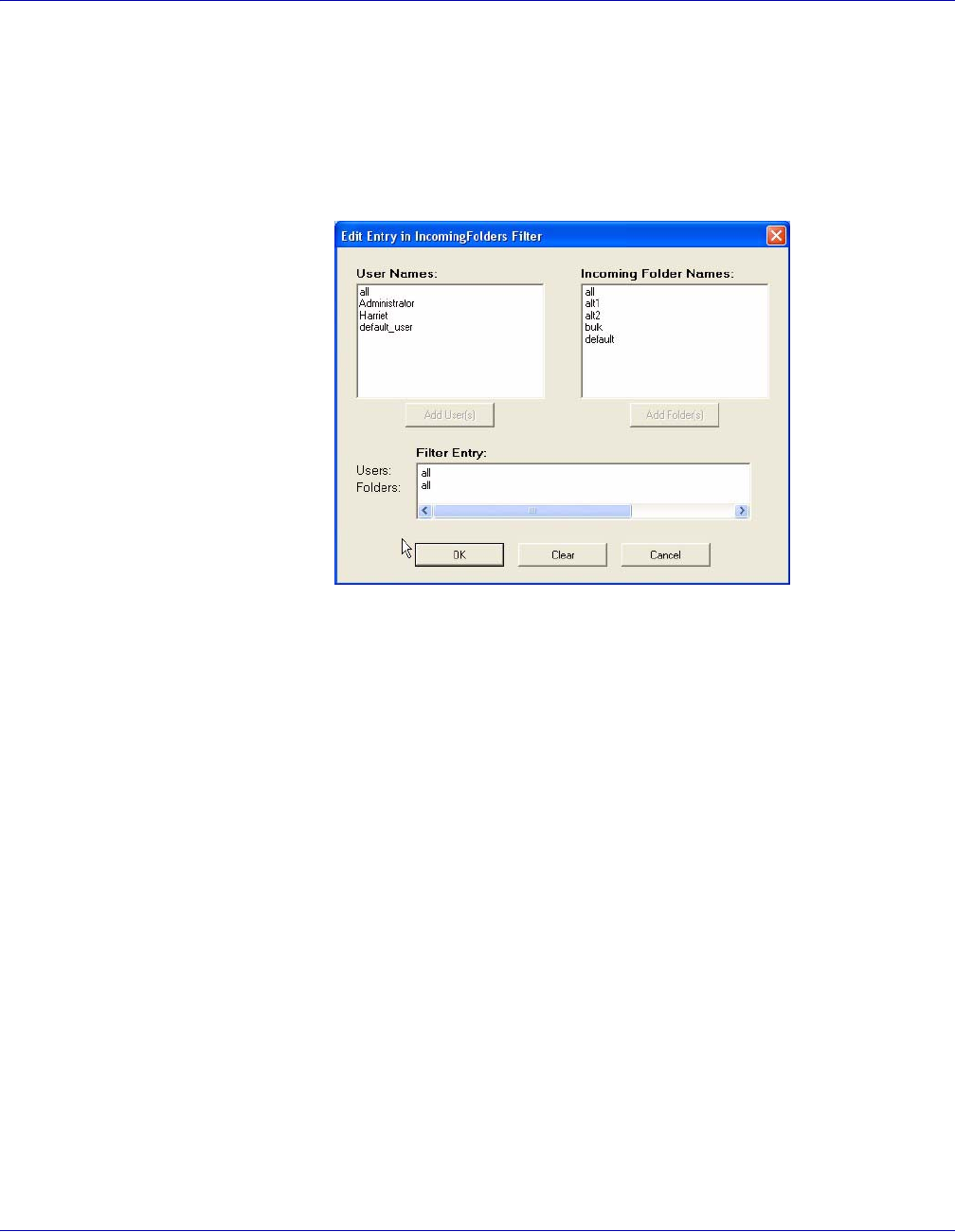

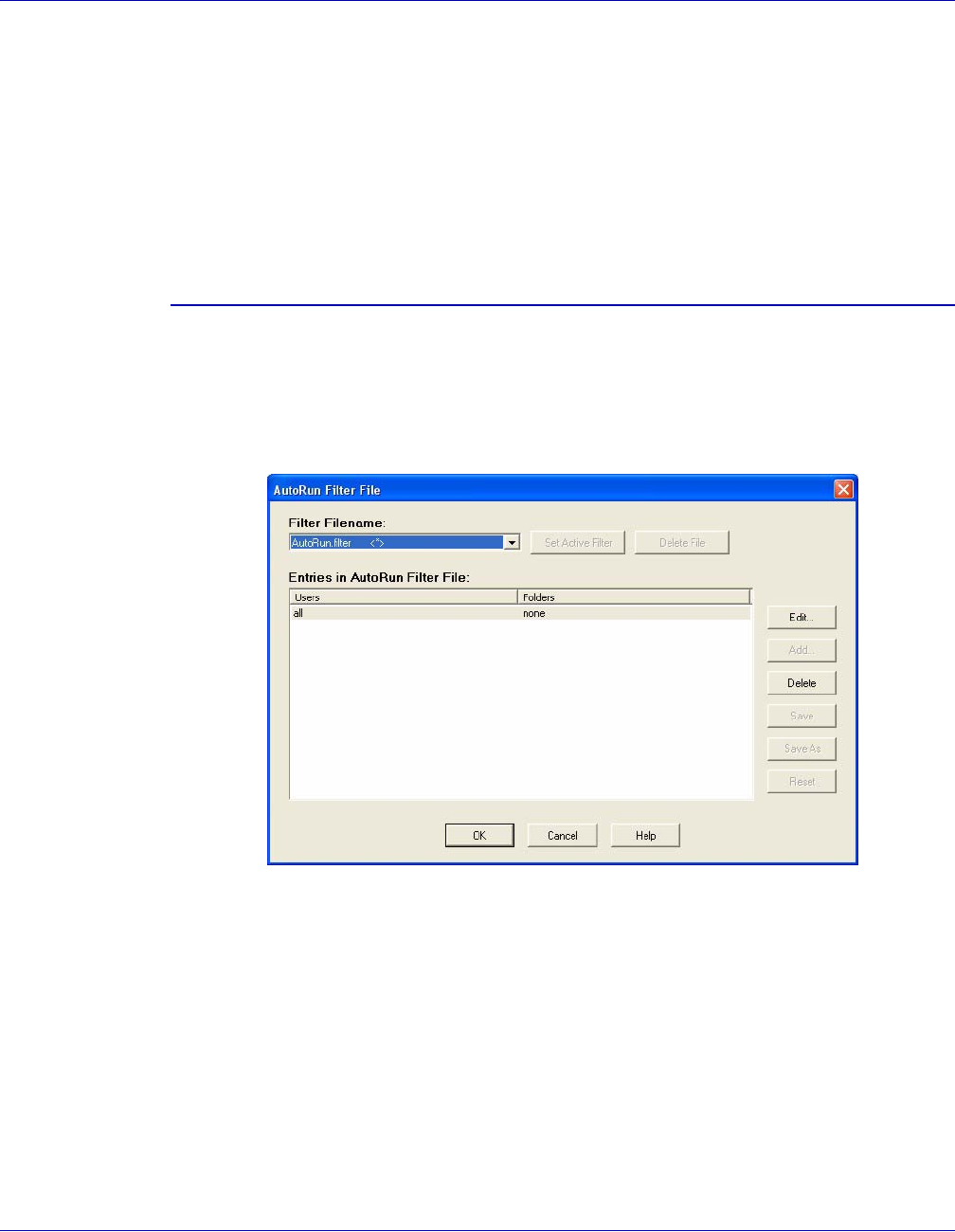

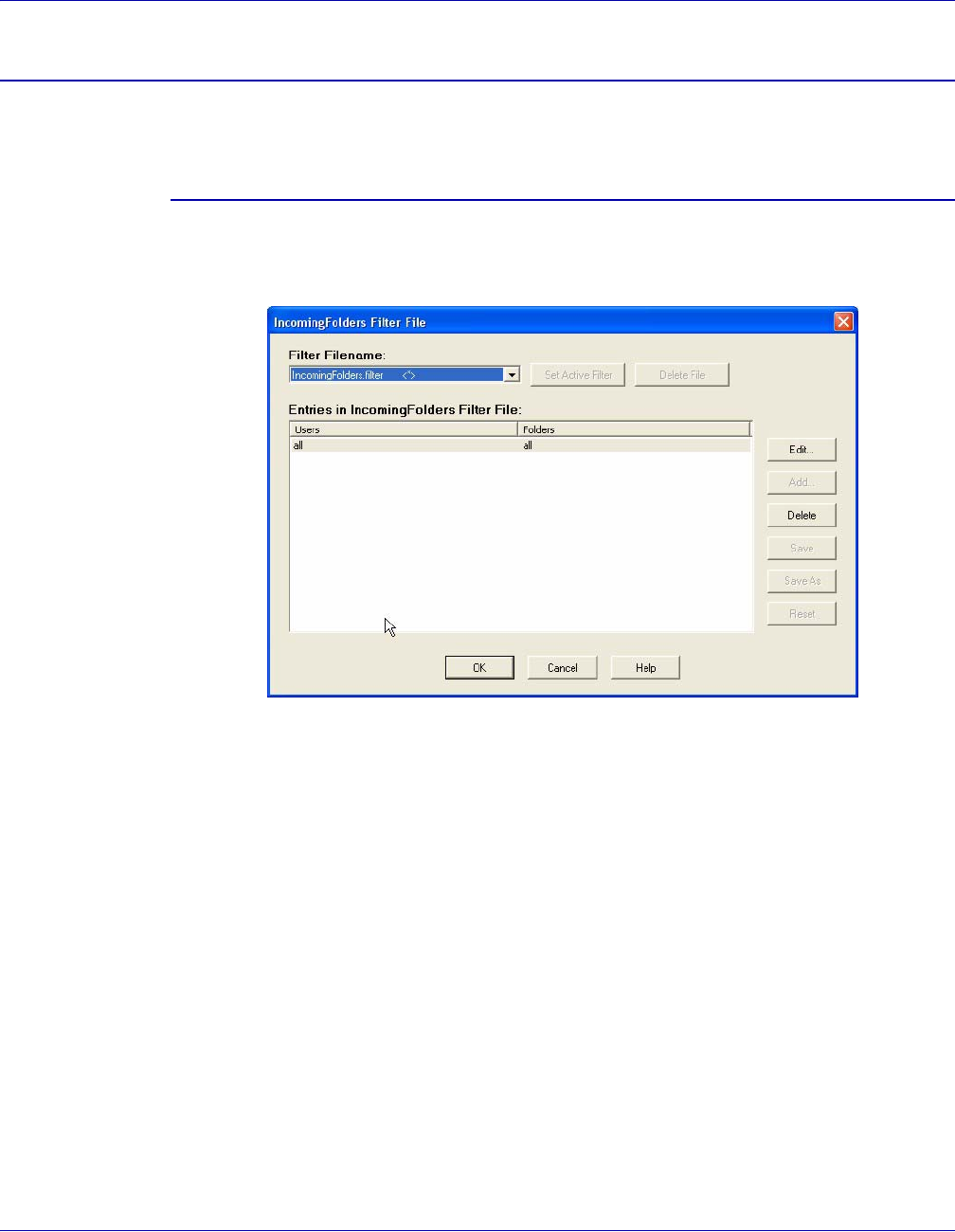

To edit Dispatch Filter files, click the Edit drop-down menu and select either AutoRun or

IncomingFolders filters.

One default AutoRun filter and one default IncomingFolders filter are provided with this

installation.

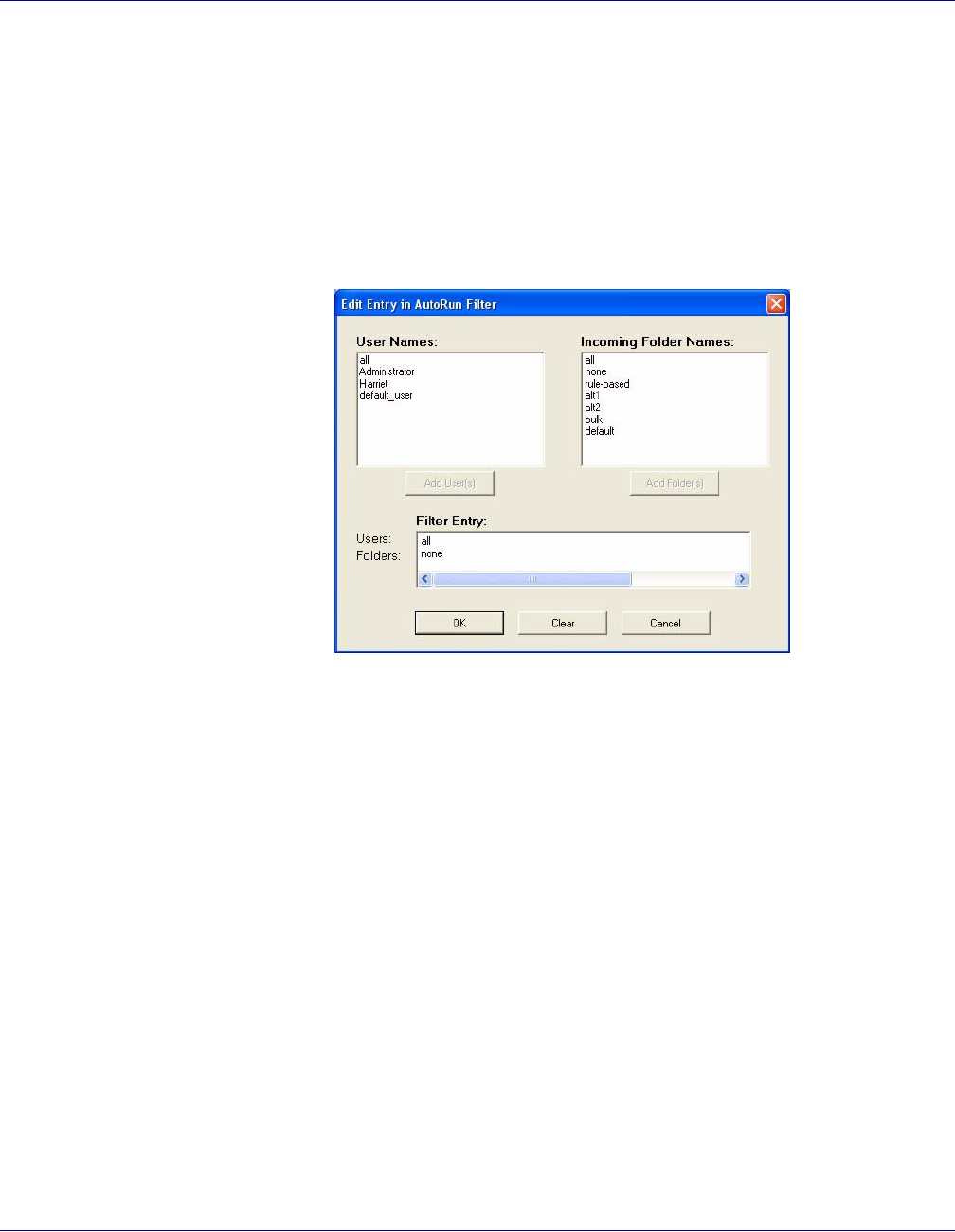

A filter entry of all or none for either the “user” or “folder” key will effectively disable all

other options from being selected. To change an all or none setting, either delete or clear

the entry before selecting a new option. In addition, filter entries such as the following are

special filter entries that are allowed as the only single entry in a filter. No other entries

can be found along with it in the same filter file.

user=all

folder=all

user=all

folder=none

user=all

folder=rule-based

NOTE

Always use the GUI editing facilities to modify filter files; manual edits

may introduce errors in the file that can result in unpredictable behavior.

NOTE

All, none, and rule-based are reserved words used for special filter

entries. Do not use these words to define a user name or an incoming

folder name. If you do, VIPO Dispatch will interpret the reserved words

as special filter entries rather than a user name or an incoming folder

name, and unexpected results will occur.

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-67

Dispatch Rule files

All rule files must have a file extension of .rule and must be placed in the

X:\xvtp\dispatch\rules\ directory for the application to find them and for editing. X is the

disk drive where VIPO was initially installed.

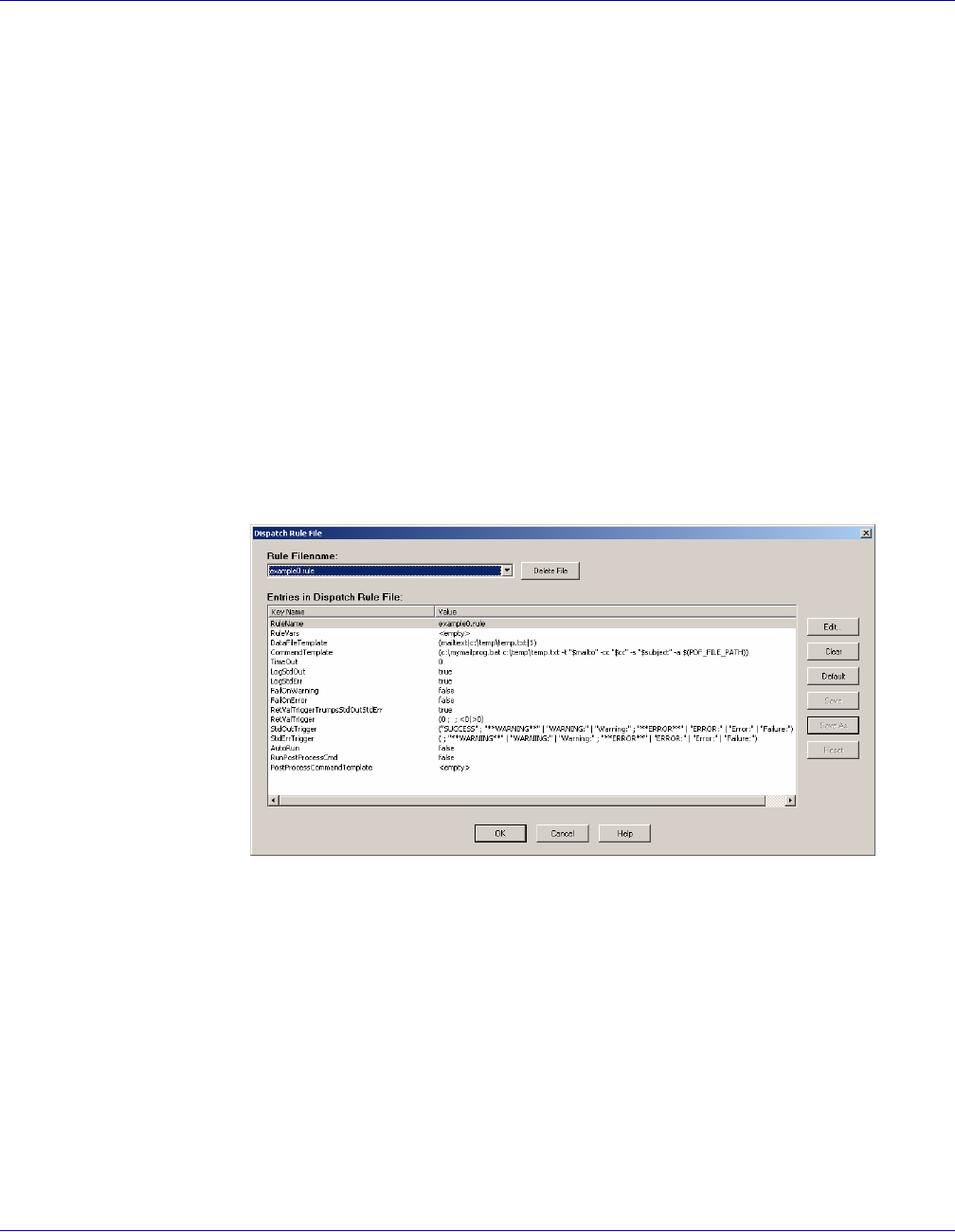

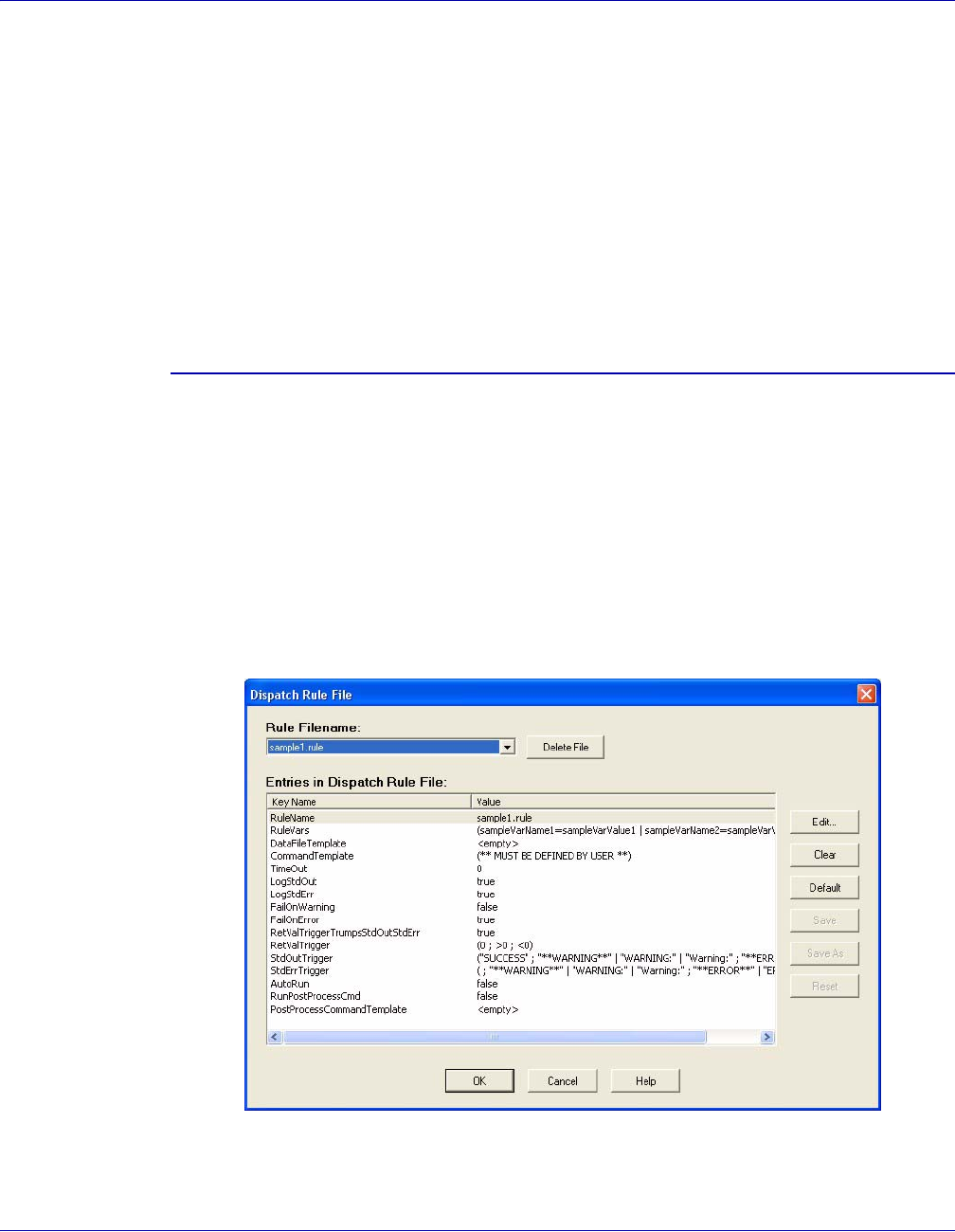

To edit Dispatch Rule files, click the Edit drop-down menu and select the Dispatch Rules

option. Some sample rule files are provided with this installation and can be used as a

template to create your own customized rule files.

The following are defaults and limits imposed on Dispatch Rule settings.

NOTE

Always use the GUI editing facilities to modify rule files because doing

manual edits may introduce errors in the file that can result in

unpredictable behavior.

Key name Factory defaults Maximum length or value

RuleName Rule Filename 75 characters

Invalid characters:

\ / : * ? < > | ' ` ~ ! $ ^ & , ; % # = + @ ”

RuleVars <empty> (optional) Variable Name: 25 characters

Invalid characters:

\ / : * ? < > | ' ` ~ ! $ ^ & , ; % # = + @ ”

blank space

Variable Value: 70 characters

Invalid characters:

* ? < > | ' ` ~ ! ^ & , ; = +

(There is a maximum of 25 Name/Value

sets)

DataFileTemplate <empty> (optional) Field Name: 25 characters

Invalid characters:

\ : * ? < > | ' ` ~ ! $ ^ & , ; % # = + @ ”

blank space

Destination File Path: 90 characters

Invalid characters:

* ? < > | ' ` ~ ! ^ & , ; = + @ " blank space

(There is a maximum of 20

FieldName/FilePath sets)

VI PDF Originator User’s Guide

VIPO-68 FreeFlow Variable Information Suite 5.0 (7/2006)

CommandTemplate NO default and NOT

optional (must be

defined by user)

1024 characters

TimeOut 0 (ZERO=infinite wait) 32,400 sec. (~9.0 hours)

LogStdOut true (boolean)

LogStdErr true (boolean)

FailOnWarning false (boolean)

FailOnError true (boolean)

RetValTriggerTrumpsStdOutStdErr true (boolean)

RetValTrigger <empty> (optional) 100 characters for each of the three integer

triggers

Valid characters:

0 1 2 3 4 5 6 7 8 9 < = > - | * blank space

StdOutTrigger <empty> (optional) 256 characters for each of the three string

triggers

Invalid characters: \ / ;

StdErrTrigger <empty> (optional) 256 characters for each of the three string

triggers

Invalid characters: \ / ;

AutoRun false (boolean)

RunPostProcessCmd false (boolean)

PostProcessCommandTemplate <empty> (optional) 1024 characters

Key name Factory defaults Maximum length or value

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-69

Dispatch Rule entries are defined as follows:

RuleName

The user-specified name by which the rule is identified to the user. Examples might be

“E-mail via Exchange” or “Submit to DocuShare.”

RuleVars

A set of name-value pair definitions that define the specified field names for use in the

CommandTemplate. When a RuleVars name is the same as a field name encountered in

a VIPOD job's splitfile index record, the field name contents of the splitfile index record

takes precedence over the RuleVars value.

Example:

RuleVars=(profileName="Bill Walker-Test2" | password=wazoo)

The RuleVars entry can be empty, indicating that no RuleVars name or value pairs are

defined for the given Dispatch Rule.

DataFileTemplate

The template from which the data file preprocessing step(s) are defined.

These steps specify the writing to disk of zero or more files containing the contents of one

or more splitfile index fields. This is required to support external programs like some

batch e-mail clients, where the body of an e-mail message must be specified as a file

name on the client's command line.

The template consists of a set of rules internally delimited by the “|” character and

interstitially delimited by the “;” character of the form:

FieldName|DestinationFilePath|deleteOnExit;...

where the fieldName is the name of a field in the splitfile index (i.e., “body” or “mailtext”),

the path resolves to the full path of a destination file. The boolean deleteOnExit indicates

whether the destination file is deleted by VIPOD upon successful processing of the

subtask. An example:

DataFileTemplate=(body | c:\xvtp\bin\bodytemp.txt | 1)

results in the contents of the body field of the splitfile index record being written to the file

c:\xvtp\bin\bodytemp.txt, which would then be deleted after the execution of the rule's

command. This example:

DataFileTemplate=(body | c:\xvtp\bin\$(destFilename) | 0)

where destFilename is a field of the splitfile index record having the value “jones.txt,”

results in the contents of the body field of the splitfile index record being written to the file

c:\xvtp\bin\jones.txt. The file is not deleted after the execution of the rule's command.

A DataFile Template can be empty, indicating that no file creation is to take place.

VI PDF Originator User’s Guide

VIPO-70 FreeFlow Variable Information Suite 5.0 (7/2006)

CommandTemplate

The template from which the command (passed to the operating system representing the

execution of the subtask) is derived. An example:

blat c:\xvtp\bin\bodytemp.txt -t $mailto

where mailto is a field of the splitfile index record or RuleVars name having the value

jones@ip.com would result in the file c:\xvtp\bin\bodytemp.txt being mailed to

jones@ip.com via the SMTP batch tool, blat, (assuming that blat.exe was somewhere on

the execution path of the VIPOD process).

The command template is preprocessed to produce the actual command string that is

passed to the OS. Command template fields that begin with the reserved character “$”

are substituted by the respective splitfile index record field or RuleVars value. VIPOD

assumes that a single target executable will be called when the command is executed.

Multi-step executions are not supported by VIPOD. If a multi-step subtask is desired for

a given VIPOD job, it should be realized by calling a single batch process, which is

responsible for executing the multiple steps and reporting status back to VIPOD.

A command template cannot be empty and to be valid, must contain at least one index

file record fieldname reference beginning with the reserved character “$.” Otherwise, the

Dispatch Rule will not be associated with any job when evaluating the job's eligibility

against the Dispatch Rule's CommandTemplate definition.

TimeOut

Specifies the length of time between when the OS command is executed and a timeout

error is declared, in seconds. A timeout value of “0” indicates an infinite waiting period.

An OS command that triggers a timeout should be terminated by VIPOD and treated as

having returned with an error return value.

LogStdOut

A boolean (.INI false: 0, or true: 1) indicating whether the stdout of the executing OS

command should be appended to the log file for the VIPOD job associated with this

Dispatch Rule.

LogStdErr

A boolean (.INI false: 0, or true: 1) indicating whether the stderr of the executing OS

command should be appended to the log file for the VIPOD job associated with this

Dispatch Rule.

FailOnWarning

A boolean (.INI false: 0, or true: 1) indicating whether detection of a warning during

execution of the OS command should cause the VIPOD job to halt processing (transition

from “current” to “complete,” with a status of “failure”) at the record that generated the

warning.

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-71

FailOnError

A boolean (.INI false: 0. or true: 1) indicating whether detection of an error during

execution of the OS command should cause the VIPOD job to halt processing (transition

from “current” to “complete,” with a status of “failure”) at the record that generated the

error.

RetValTriggerTrumpsStdoutStderr

If true (.INI true: 1), indicates that the RetValTrigger value takes precedence over any

return value indication returned by either StdOutTrigger or StdErrTrigger. If false (0), then

the return value indication from either StdOutTrigger or StdErrTrigger takes precedence

over that returned by RetValTrigger.

RetValTrigger

The definition of the integer value(s) returned by the executed OS command, which are

interpreted in the context of success, warning, or failure. These are presented as a set of

rules internally delimited by the “|” character and interstitially delimited by the “;” character

of the form:

trigger(s);trigger(s);trigger(s)

where the first set (highest precedence) defines those return values that indicate

success, the second set defines those that indicate warning, and the third (lowest

precedence) defines those indicating failure. In a trigger definition, the “*” (asterisk)

character indicates any value that causes a trigger, except those values defined in a

trigger with higher precedence. An empty value indicates that no triggers exist at that

precedence. A simple example:

RetValTrigger=(0 ; ; *)

indicates that a zero return value indicates success, that no values indicate warning, and

that any value other than those values defined for success or warning indicates failure.

Within a trigger definition, multiple sets of conditions can be separated by the “|”

character, as in:

RetValTrigger=(0 ; 1 | 2 ; <0)

meaning that a zero return value indicates success, a one or two value indicates a

warning, and any negative value indicates failure.

Within a trigger definition, the following operators are recognized:

<, <=, >, >=.

For example:

RetValTrigger=(0 ; >0 ; <0)

meaning that a zero return value indicates success, values greater than zero indicate a

warning, and values less than zero indicate failure.

A RetValTrigger definition may be empty, indicating that return values are ignored - the

OS command is assumed to have completed with “success” regardless of the return value

(unless trumped by the stdout or stderr triggers, see below).

Any value returned by the OS command not covered by the RetValTrigger definitions

shall be treated as a “warning” return value.

VI PDF Originator User’s Guide

VIPO-72 FreeFlow Variable Information Suite 5.0 (7/2006)

If RetValTrumpsStdOutStdErr is false, the RetValTrigger return value indication is

trumped by those detected via either a StdOutTrigger or a StdErrTrigger. A trumped

RetValTrigger return value indication should not preclude the RetValTrigger value from

being considered for inclusion in the log file.

StdOutTrigger

The definition of substring value(s) whose presence in the stdout stream emitted by the

executed OS command are interpreted in the context of success, warning, or failure.

These are presented as a set of rules internally delimited by the “|” character and

interstitially delimited by the “;” character of the form:

trigger(s);trigger(s);trigger(s)

where the first set (highest precedence) defines those substrings whose presence

indicates success, the second set defines those that indicate warning, and the third

(lowest precedence) defines those indicating failure. In a trigger definition, an empty

value indicates that no triggers exist at that precedence. A simple example:

StdOutTrigger=(; ; "Error:")

means that the presence of the substring “Error:” in the OS command's stdout indicates

an error.

Another example:

StdOutTrigger=(; "Warning:" ; "Error:" | "Fatal:")

means that the presence of the substring “Warning:” in stdout indicates a warning, while

the presence of either “Error:” or “Fatal:” indicates an error.

A StdOutTrigger definition may be empty, indicating that the contents of the stdout stream

is ignored for purposes of determining the return status of the OS command.

A StdOutTrigger return value indication is trumped by those detected via a StdErrTrigger,

or by a RetValTrigger return value indication if RetValTrumpsStdOutStdErr is true. A

trumped StdOutTrigger return value indication should not preclude the StdOutTrigger

value from being considered for inclusion in the log file.

StdErrTrigger

The definition of substring value(s) whose presence in the stderr stream emitted by the

executed OS command are interpreted in the context of success, warning, or failure.

These are presented as a set of rules internally delimited by the “|” character and

interstitially delimited by the “;” character of the form:

trigger(s);trigger(s);trigger(s)

where the first set (highest precedence) defines those substrings whose presence

indicates success, the second set defines those that indicate warning, and the third

(lowest precedence) defines those indicating failure. In a trigger definition, an empty

value indicates that no triggers exist at that precedence. A simple example:

StdErrTrigger=(; ; "Error:")

means that the presence of the substring “Error:” in the OS command's stderr indicates

an error.

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-73

Another example:

StdErrTrigger=(; "Warning:" ; "Error:" | "Fatal:")

means that the presence of the substring “Warning:” in stderr indicates a warning, while

the presence of either “Error:” or “Fatal:” indicates an error.

A StdErrTrigger definition may be empty, indicating that the contents of the stderr stream

is ignored for purposes of determining the return status of the OS command.

A StdOutTrigger return value indication is trumped by a RetValTrigger return value

indication if RetValTriggersStdoutStdErr is true. A trumped StdErrTrigger return value

indication should not preclude the StdErrTrigger value from being considered for

inclusion in the log file.

AutoRun

If the current AutoRun filter is set to give rules control of automatic job processing, the

AutoRun entry in Dispatch Rules allows you to control automatic processing of eligible

jobs on a rule-by-rule basis. For example, if the AutoRun filter entry for “folder” has been

set to “rule-based” value, automatic job processing is controlled by the setting of the

“AutoRun” rule entry.

RunPostProcessCmd=[true/false]

This boolean entry indicates whether to execute the command string found in the

PostProcessCommandTemplate entry (if not empty). Use this entry to turn the

“post-processing” command on and off without having to remove or comment out the

actual command string.

PostProcessCommandTemplate=(...command string...)

This optional free-format rule entry can specify a command string that will be executed

after the job has been processed successfully by the VIPO Dispatch server. Use this entry

to perform post-processing tasks on a per-job basis. The post-processing command

string has a maximum length of 1024 bytes, and can include field name variable

references and built-in macros that will be resolved before the command is sent for

execution.

NOTE

The AutoRun setting in Dispatch Rules is completely ignored if the

AutoRun filter has not been set to yield control to Dispatch Rules. The

AutoRun filter setting acts as a global on/off switch that can take or give

control of the automatic processing of all jobs.

NOTE

Once the command string is sent to the operating system for execution,

VIPO Dispatch does not wait for success or failure; it simply sends the

post-processing command string to execute and moves on to process the

next job.

VI PDF Originator User’s Guide

VIPO-74 FreeFlow Variable Information Suite 5.0 (7/2006)

System built-in macros

Use these built-in macros as variables in a rule file for DataFileTemplate and

CommandTemplate definitions:

• PDF_DIR_PATH — Full path of the directory location where the distilled PDF file

associated with the job can be found.

• PDF_FILE_PATH — Full path of the individual split PDF file associated with the

index file record currently being processed.

• PDF_FILE_NAME — File name only of the individual split PDF file associated with

the index file record currently being processed.

• USER_NAME_ID — User ID associated with the job being processed.

• JOB_NAME_ID — Job Name ID associated with the job being processed.

Rule file variable references

The DataFileTemplate, CommandTemplate, and PostProcessingCommandTemplate

definitions allow the use of variable references. The variable names used can be field

names from the header of the job index file, variable names defined within the rule file

itself (RuleVars) or system built-in macros. The reserved character “$” is used to indicate

a variable reference. Only these two syntax forms are supported:

$varname

$(varname)

Examples:

The following are examples only and are not intended to work in all conditions.

These DataFileTemplate definitions have variable references:

body | C:\xvtp\bin\$(TempFolder)\bodytemp.txt | 0

body | C:\xvtp\bin\temp\$(BodyFileName) | 0

These CommandTemplate definitions have variable references:

blat C:\xvtp\bin\$(TempFolder)\bodytemp.txt -t $mailto

blat C:\xvtp\bin\$(TempFolder)\$(BodyFileName) -t $mailto

xcopy $(OutputDir)\$(FileName) C:\xvtp\dispatch\MyArchiveFolder /y

xcopy $(PDF_FILE_PATH) C:\xvtp\dispatch\MyArchiveFolder /y

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-75

Special Character Sequences in CSV and XML Index

Files

All new line characters (<CR> and <LF>) found in bookmark fields extracted from the

distilled PDF file are first converted to a special sequence of characters before placing

the bookmark string in the CSV and XML index files.The character sequence
 is

used to replace all new line characters found in the bookmark fields. This allows the index

files to carry line break information within the bookmark contents without breaking the

format of the index file record, and to pass the information to any utility being used to

parse and extract information from the index file records.

All double quotes (") found in the bookmark fields are also converted to a special

sequence of characters before placing the bookmark string in the CSV file. For

consistency, the standard XML character sequence " is used to replace all double

quotes in CSV index files.

The following INI entries can be modified to change the default character sequences used

to convert new lines and double quotes in a CSV index file:

• csv_newline_char_seq=(
)

• csv_dquotes_char_seq=(")

NOTE

These settings apply only to CSV index files; they do not change the

character sequences used in the XML index file. Be careful when

redefining these character sequences as some characters are invalid

and may corrupt the format of the CSV file. These characters should not

be used in the special character sequences: < > ' " and blank space.

CAUTION

Some sequences that appear to be valid may in fact prevent the index

file from being processed by VIPP. For instance, the following sequence

appears as if it is a place holder delimiter for the VSUB command: [=...=].

Do not modify the default character sequences unless absolutely

necessary.

VI PDF Originator User’s Guide

VIPO-76 FreeFlow Variable Information Suite 5.0 (7/2006)

VIPO Dispatch window

The VI PDF Originator Dispatch window provides access to dispatch functions.

The upper portion of the Dispatch window consists of these elements:

Title bar

Displays the name of the program and your computer’s name. It also contains the

standard minimize, maximize, and cancel buttons.

Menu bar

Provides access to these functions, which are described in more detail below:

•File menu

— Pause Dispatcher

— Save Logfile

— Clear Logfile

— Hide Dispatcher

•Edit menu

— IncomingFolders Filters

— AutoRun Filters

— Dispatch Rules

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-77

•Trace menu

— Clear Display

— Job Selection Loop

— Job Selection Trace

• Help menu

—Help

— About

Current Job

Lists the job currently being processed.

Hold

Places the current job on hold.

Cancel

Cancels processing of the current job.

Log file window

Contains the logged information for the VIPO jobs being processed.

The lower portion of the VI PDF Originator Dispatch window consists of these six tabs,

with corresponding windows and buttons for each function:

•Pending Jobs

•Eligible Jobs

•Conflict Jobs

•Ineligible Jobs

•Held Jobs

•Completed Jobs

Pending Jobs

When the Pending Jobs tab is selected, VIPO produces a window containing a list of all

VIPO jobs pending processing.

When any entry in the Pending Jobs list is highlighted, these buttons can be used to alter

how the selected job will be processed:

Move Up

Moves the selected file up one position on the Pending Jobs list. This affects the

processing order of your jobs.

Move to Top

Moves the selected file to the top of the Pending Jobs list. The selected job will be the

next job processed.

VI PDF Originator User’s Guide

VIPO-78 FreeFlow Variable Information Suite 5.0 (7/2006)

Move Down

Moves the selected file down one position on the Pending Jobs list. This affects the

processing order of your jobs.

Move to Bottom

Moves the selected file to the end of the Pending Jobs list. The selected job will be the

last job processed.

Hold Job

Holds the selected job. Once placed on hold, the job appears on the Held Jobs window

until you choose to release or cancel that job.

Cancel Job

Cancels the selected job. Once selected for cancellation, the job is removed from the list

and placed in the Completed Jobs queue with a “Cancelled” status.

Eligible Jobs

When the Eligible Jobs tab is selected, VIPO produces a window containing a list of all

VIPO jobs eligible for processing.

When any entry in the Eligible Jobs list is highlighted, these buttons can be used to alter

how the selected job will be processed:

Preview Job File

Previews the PDF file. Adobe Acrobat Reader is launched and the original, unsplit,

distilled master PDF will be previewed. This option is used to visually inspect and verify

the job before submitting it to the Pending Jobs queue.

Submit Job

Submits the selected job for processing. Once selected the job will appear on the Pending

Jobs window.

Hold Job

Holds the selected job. Once placed on hold, the job appears on the Held Jobs window

until you choose to release or cancel that job.

Cancel Job

Cancels the selected job. Once selected for cancellation, the job is removed from the list

and placed in the Completed Jobs queue with a “Cancelled” status.

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-79

Conflict Jobs

When the Conflict Jobs tab is selected, VIPO produces a window containing a list of all

VIPO jobs with conflicts. Conflict jobs are jobs where more than one Dispatch Rule can

be applied.

When any entry in the Conflict Jobs list is highlighted, these buttons can be used to alter

how the selected job will be processed:

Select Dispatch Rule

Allows you to select the appropriate Dispatch Rule from a list.

Cancel Job

Cancels the selected job. Once selected for cancellation, the job is removed from the list

and placed in the Completed Jobs queue with a “Cancelled” status.

Ineligible Jobs

When the Ineligible Jobs tab is selected, VIPO produces a window containing a list of all

ineligible VIPO jobs. Ineligible jobs are jobs for which no existing Dispatch Rules could

be applied at the time the job was accessed by VIPO Dispatch.

When any entry in the Ineligible Jobs list is highlighted, these buttons can be used to alter

how the selected job will be processed:

View IndexRecord Field Names

Allows you to inspect the field names in the CSV index file header to determine why no

existing Dispatch Rule can be applied.

Cancel Job

Cancels the selected job. Once selected for cancellation, the job is removed from the list

and placed in the Completed Jobs queue with a “Cancelled” status.

NOTE

It is possible that one or more of the listed Dispatch Rules may not apply

because of modifications made between the time the conflict was

identified and the time at which the Dispatch Rule file is selected. In this

situation, the job may remain in the Conflict Jobs queue or be moved to

the Ineligible Jobs queue.

VI PDF Originator User’s Guide

VIPO-80 FreeFlow Variable Information Suite 5.0 (7/2006)

Held Jobs

When the Held Jobs tab is selected, VIPO produces a window containing a list of all VIPO

jobs on hold.

When any entry in the Held Jobs list is highlighted, these buttons can be used to alter how

the selected job will be processed:

Release Job

Releases the selected job from the “Hold” status. The job’s eligibility is re-evaluated

against the current set of Dispatch Rules, which may result in the job moving to the

“Ineligible,” “Eligible,” or “Conflict” state.

Cancel Job

Cancels the selected job. Once selected for cancellation, the job is removed from the list

and placed in the Completed Jobs queue with a “Cancelled” status.

Completed Jobs

When the Completed Jobs tab is selected, VIPO produces a window containing a list of

all completed VIPO jobs.

When any of the entries in the Completed Jobs list is highlighted, these buttons can be

used to alter how the selected job will be processed:

Review Job Status

Provides the status of the selected job.

Resubmit Job

Resubmits a job for processing, at which point the job’s eligibility is re-evaluated against

the current set of Dispatch Rules. This may result in the job moving to the “Ineligible,”

Eligible,” or “Conflict” state.

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-81

File menu

The File menu provides drop-down access to these functions:

Hide Dispatcher

Minimizes the VIPO Dispatch window. The window can be reopened by double-clicking

the VIPO Dispatch icon on the lower right menu bar.

Pause Dispatcher

Pauses the VIPO Dispatch program. To restart VIPO Dispatch, remove the check mark.

The status of the program is displayed in the upper logfile window.

Save Logfile

Saves the current logfile to your disk. You will be prompted to browse for the directory in

which to save the logfile.

Clear Logfile

Clears the entries that appear on the logfile window.

VI PDF Originator User’s Guide

VIPO-82 FreeFlow Variable Information Suite 5.0 (7/2006)

Edit menu

The Edit menu provides drop-down access to the following functions.

IncomingFolders Filters

Selecting this option produces a pop-up window that allows you to select and edit the

IncomingFolders Filters. These filters are used to decide which VIPO jobs will make it into

the VIPO Dispatch for evaluation against the Dispatch Rules.

These options are available on the IncomingFolders Filter File window:

Filter Filename

Contains a list of all defined IncomingFolders Filter files found in the VIPO Dispatch

Server IncomingFolders directory. Highlight the file name you want to edit; the entries in

the highlighted filter file will appear in the lower dialog.

Set Active Filter

Sets the highlighted filter to active status to get potential VIPO jobs into the dispatcher.

Delete File

Deletes the selected filter file from the list and from the disk.

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-83

Edit

Produces a dialog that lists user names and incoming folder names for the selected filter

file. Use the entries to select new users and/or folder file names. When the correct

settings for your filter appear in the Filter entry field, select OK to edit the selected entry

and store it in memory; it will not alter the filter file on the disk. The filter file is only

modified and stored on the disk when the Save or Save As buttons are pressed.

Add

Adds new users and folders for processing. Adding information and selecting OK stores

the change in memory only. Select the Save or Save As button after making changes to

store the addition to disk.

Delete

Deletes an entry in the Incoming Folder filter list. You cannot leave the list empty.

Deleting information and selecting OK stores the change in memory only. Select the Save

or Save As button after making changes to store the deletion to disk.

Save

Saves all the modified entries (not just the selected information) into the existing file on

disk.

Save As

Saves all the entries into a new Filter file.

Reset

Resets the values of the selected entries to their original state (not the factory defaults).

VI PDF Originator User’s Guide

VIPO-84 FreeFlow Variable Information Suite 5.0 (7/2006)

OK/Cancel

Approves or cancels your changes. Unless you select Save or Save As, the changes are

stored in memory only, not to the filter file saved on disk.

Pressing OK after making changes to filter entries without saving them invokes a pop-up

window prompting you to approve all changes and then to confirm overwriting the file with

the modified entries. Pressing Yes will store the changes into the file on disk. Pressing

No aborts all changes from memory and leaves filter file unchanged.

AutoRun Filters

Selecting this option produces a pop-up window that allows you to select and edit the

AutoRun Filters, which are used to automatically determine which jobs are moved from

the eligible job queue to the pending jobs queue. When the correct settings for your filter

appear in the Filter entry field, press OK to edit the selected entry and store it in memory.

It does not alter the filter file on the disk; the filter file is only modified and stored on the

disk when the Save or Save As buttons are pressed.

These options are available on the IncomingFolders Filter File window:

Filter Filename

This drop-down contains a list of all defined AutoRun filters. Highlight the file name you

want to edit; the entries in the highlighted filter file will appear in the lower dialog.

Set Active Filter

Sets the highlighted filter to active status.

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-85

Delete File

Deletes the selected filter file from the list and from the disk.

Edit

Select a filter file name and click Edit to produce a dialog that lists user names and

incoming folder names. Use the entries to select new users and/or folder file names.

When the correct settings for your filter appear in the Filter entry field, select OK to save

the setting to memory without altering the actual filter file.

Add

Adds new users and folders for processing. Adding information and selecting OK stores

the change in memory only. Select the Save or Save As button after making changes to

store the addition to disk.

Delete

Deletes an entry in the Incoming Folder filter list. You cannot leave the list empty.

Deleting information and selecting OK stores the change in memory only. Select the Save

or Save As button after making changes to store the deletion to disk.

Save

Saves all the modified entries (not just the selected information) into the existing file on

disk.

Save As

Saves all the entries into a new Filter file.

VI PDF Originator User’s Guide

VIPO-86 FreeFlow Variable Information Suite 5.0 (7/2006)

Reset

Resets the values of the selected entries to their original state (not the factory defaults).

OK/Cancel

Approves or cancels your changes.

Pressing OK after making changes to filter entries without saving them invokes a pop-up

window prompting you to approve all changes and then to confirm overwriting the file with

the modified entries. Pressing Yes will store the changes into the file on disk. Pressing

No aborts all changes from memory and leaves filter file unchanged.

Dispatch Rules

Select this option from the Edit drop-down menu to edit the DispatchRule File.

Rule Filename

The primary Dispatch Rule file window contains a drop-down box from which you can

select any of the Rule files found in the VIPO Dispatcher rules directory. When a Rule file

name is highlighted, the lower window will display a list of all the entries found for the

selected rule file.

Delete File

Select this option to delete the selected Rule file from the disk.

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-87

These options are available on the Entries in Dispatch Rule File window:

Edit

When a Rule file name is selected, a key name is highlighted. Click Edit to produce a

dialog where you can edit the saved values for the selected key name. Each dialog varies

according to the type of key name (string, boolean, value, etc.). The dialogs produced

contain a description of the key name being edited, helpful information such as invalid

characters for that field, and a description of how VIPO Dispatch will work when settings

are changed.

Clear

Clears all selected entries.

Default

Sets the values of the selected entries to the “factory defaults.”

Save

Saves all the modified entries (not just the selected information) into the existing file on

disk.

Save As

Saves all the entries into a new Dispatch Rule file.

Reset

Resets the values of the selected entries to their original state (not the factory defaults).

OK/Cancel

Approves or cancels your changes.

Pressing OK after making changes to rule entries without saving them invokes a pop-up

window prompting you to approve all changes and then to confirm overwriting the file with

the modified entries. Pressing Yes will store the changes into the file on disk. Pressing

No aborts all changes from memory and leaves rule file unchanged.

VI PDF Originator User’s Guide

VIPO-88 FreeFlow Variable Information Suite 5.0 (7/2006)

Trace menu

Trace menu options allow you to see more detailed information regarding the job

selection process. It can be especially useful to determine why a job is ineligible for

processing.

The Trace menu has three options:

Clear Display

Clears the log console window of all current messages. It does not delete messages

placed in the log file.

Job Selection Loop

Displays trace messages generated within the scanning portion of the job selection

process where jobs are searched to be picked up for processing.

Job Selection Trace

Displays trace messages generated during the job eligibility portion of the job selection

process where each job is reconciled with every existing dispatch rule to determine if it's

eligible for processing.

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-89

Using VIPO Dispatch - a simple example

Acme Telephone company (a fictitious company) uses VIPO to generate their delinquent

account notices in PDF format. They want to have the notices e-mailed to their delinquent

customers, as well as to the lawyer at the collection agency nearest the customer's

location.

Acme uses a batch file interface to their e-mail program called mymailprog.bat. Currently,

after VIPO generates their PDF files, someone must manually look up the customer data

in their database, collect the generated PDF's, generate the mail note bodies, and finally

invoke their e-mail front-end to send each e-mail, attachment, and copy. The interface to

their e-mail program looks like this:

mymailprog path_of_email_body -t to_address -cc cc_address -s subject

-a path_of_attachment

With VIPO Dispatch available, you can extend the VIPO job that generates the PDF files

to produce the e-mail bodies and other information required to have the e-mails sent

automatically.

VI PDF Originator User’s Guide

VIPO-90 FreeFlow Variable Information Suite 5.0 (7/2006)

The first step in using VIPOD is to add some additional fields (like e-mail addresses, and

other things that may be useful as their application becomes more sophisticated) to

their .dbf file:

XGF

[(vtpdispatch) (example0)] SETPROJECT

500 SETBUFSIZE

(:) SETDBSEP

(example0.dbm) STARTDBM

NAME:ACCOUNTNUMBER:AMOUNTDUE:EMAIL:LAWYERNAME:LAWFIRM:LAWYEREMAIL:WEBADDRESS :ACC

TSMGR

Brian:0001:12.95:brian@hotmail.com:Phil:CollectionsRUs

:phil@collectionsrus.com:www.youoweus.com:Susie

Gretta:0002:3.27:gretta@yahoo.com:Lil:CollectionsRThem

:lil@collectionsrthem.com:www.youoweus.com:Susie

Rosie:0003:5.95:rosie@netzero.com:Angelica:WeDoCollections

:angelica@wedocollections.com:www.youoweus.com:Biff

%%EOF

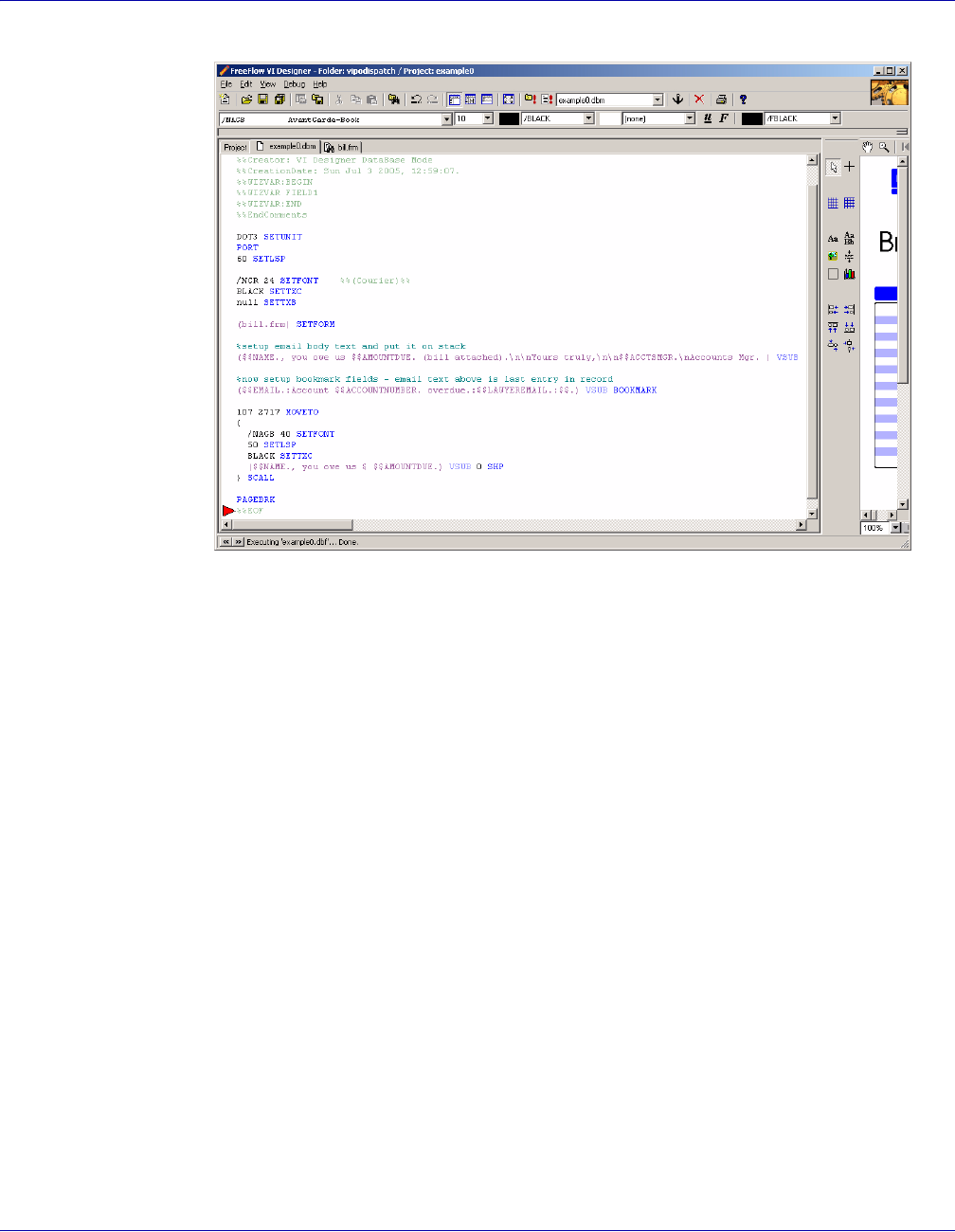

Next, in the .dbm, compose the additional information required to process each record,

which is placed in the PDF's bookmark via the BOOKMARK command:

%setup email body text and put it on stack

($$NAME., you owe us $$AMOUNTDUE. (bill attached).\n\nYours truly,\n\n$$ACCTSMGR.\n

Accounts Mgr. ) VSUB

%now setup bookmark fields - email text above is last entry in record

($$EMAIL.:Account $$ACCOUNTNUMBER. overdue.:$$LAWYEREMAIL.:$$.)

VSUB BOOKMARK

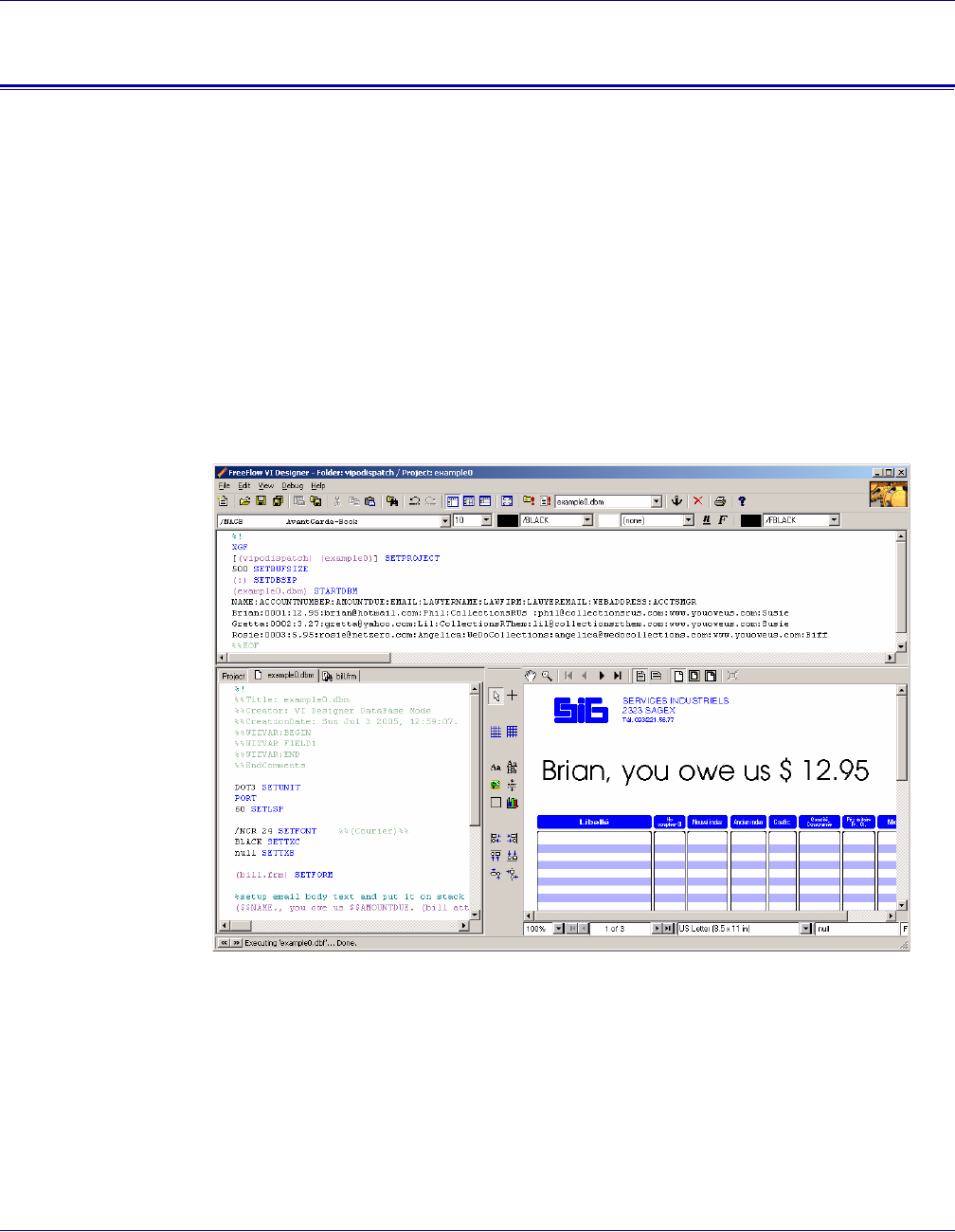

Verify that the job looks as expected in VI Designer and generate a VI Project Container

containing the production data.

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-91

Start up VIPO Dispatch to build a Dispatch Rule that will handle the job.

Begin editing a new rule by selecting Edit>Distpatch Rules from the top menu.

Edit one of the sample rules by selecting it in the Rule Filename drop-down box.

The contents of the “mailtext” field for each record needs to be placed into a temporary

file so that mymailprog can read it, therefore, double-click on the DataFileTemplate line

and add a new entry:

Field Name: mailtext

Destination File Path: c:\temp\temp.txt

Delete-On-Exit Setting: True

then choose OK twice.

Next, format the invocation of mymailprog by double-clicking on the CommandTemplate

entry of the Dispatch Rule. Enter the following for the CommandTemplate:

c:\mymailprog.bat c:\temp\temp.txt -t "$mailto" -cc "$cc" -s "$subject"

-a $(PDF_FILE_PATH)

In the entry shown above, the first parameter is the path of the program that will be

handling the record information. This “back-end” program is not supplied by Xerox; it

could be an off-the-shelf program or an application developed by the customer or a third

party.

The other parameters are those required by the (fictitious) mymailprog, as follows:

c:\temp\temp.txt

the path where the e-mail body for each e-mail record is written.

-t a flag indicating that the next entry is the recipient's e-mail address.

"$mailto"

indicates that the “mailto” field of the record will be placed here.

VI PDF Originator User’s Guide

VIPO-92 FreeFlow Variable Information Suite 5.0 (7/2006)

-cc is a flag indicating that the next entry is the e-mail address of the person being

carbon-copied.

"$cc"

indicates that the “cc” field of the record will be placed here.

-s is a flag indicating that the next entry is the subject line of the e-mail.

"$subject"

indicates that the “subject” field of the record will be placed here.

-a is a flag indicating that the next entry is the path of the PDF file to be attached.

$(PDF_FILE_PATH)

is the VIPOD macro indicating to place the PDF file associated with the record here.

All that mymailprog does is echo its command arguments to stdout in order to verify that

what was passed was, in fact, intended to pass.

Once the CommandTemplate is built, click OK and Save As to save the Dispatch Rule.

It is saved as example0.rule.

The rule should look as follows.

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-93

The job is almost ready to submit to VIPO. The next step is to start up the VIPO Job

Submission Client and create the index file template for the job:

<FS=','>FileName,InputFile,EndSplitDate,EndSplitTime,OutputDir,Pages,

FileSequence,mailto|<BFS=':'>[F0],subject|[F1],cc[F2],mailtext[F3]

After entering the information shown above, click OK to submit the job for Distill and Split:

VI PDF Originator User’s Guide

VIPO-94 FreeFlow Variable Information Suite 5.0 (7/2006)

VIPO Dispatch, meanwhile, is monitoring VIPO jobs for those that complete and match a

Dispatch Rule; because of this, VIPO Dispatch picks up the job and indicates that it is

eligible for processing.

Click the Eligible Jobs tab on the VI PDF Originator Dispatch window to show the list of

eligible jobs:

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-95

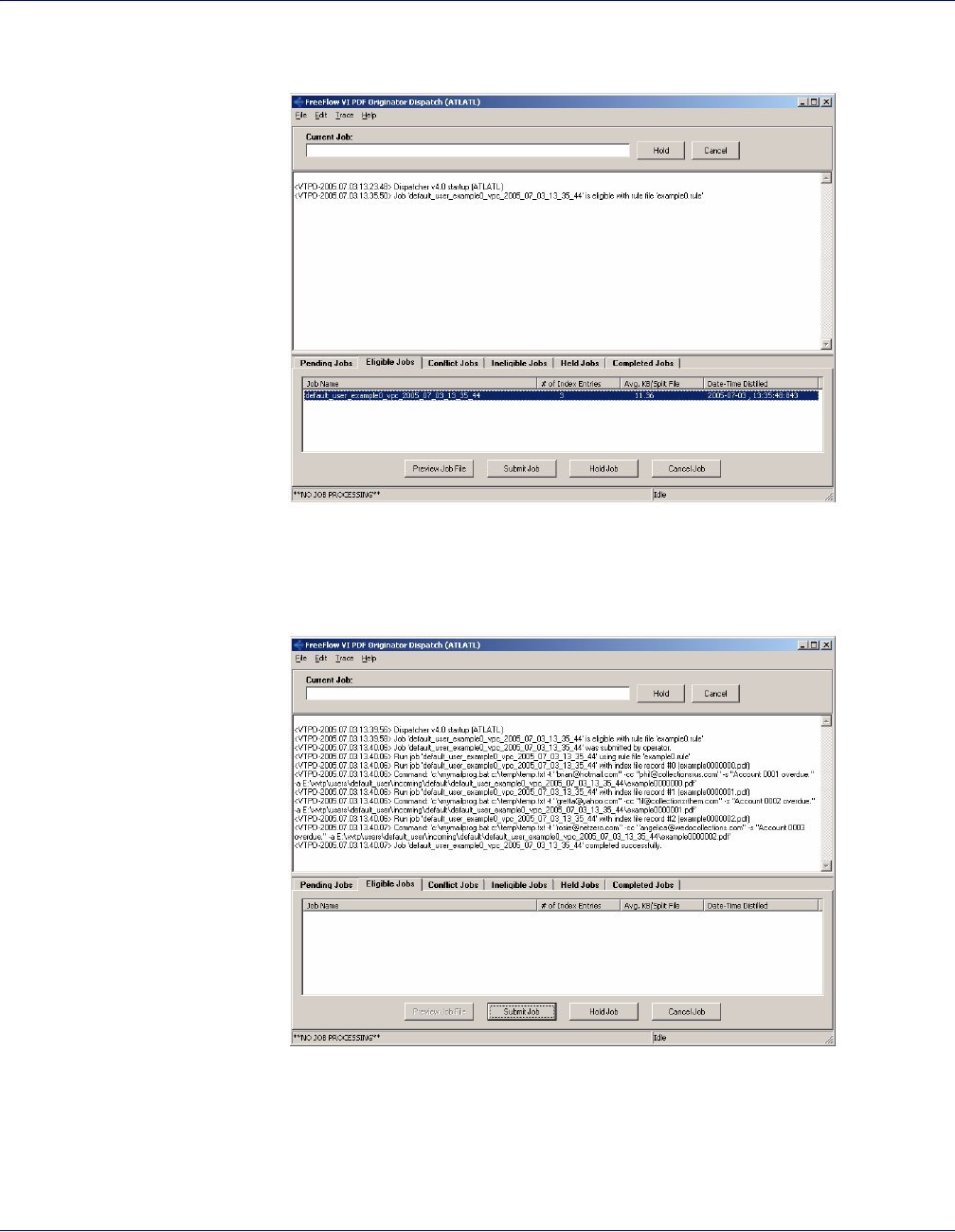

Highlight the job and then click to select it:

Finally, click the Submit Job button to submit the job.

The job is processed and displayed in the dialog. The display allows you to verify that the

arguments were passed to mymailprog correctly.

VI PDF Originator User’s Guide

VIPO-96 FreeFlow Variable Information Suite 5.0 (7/2006)

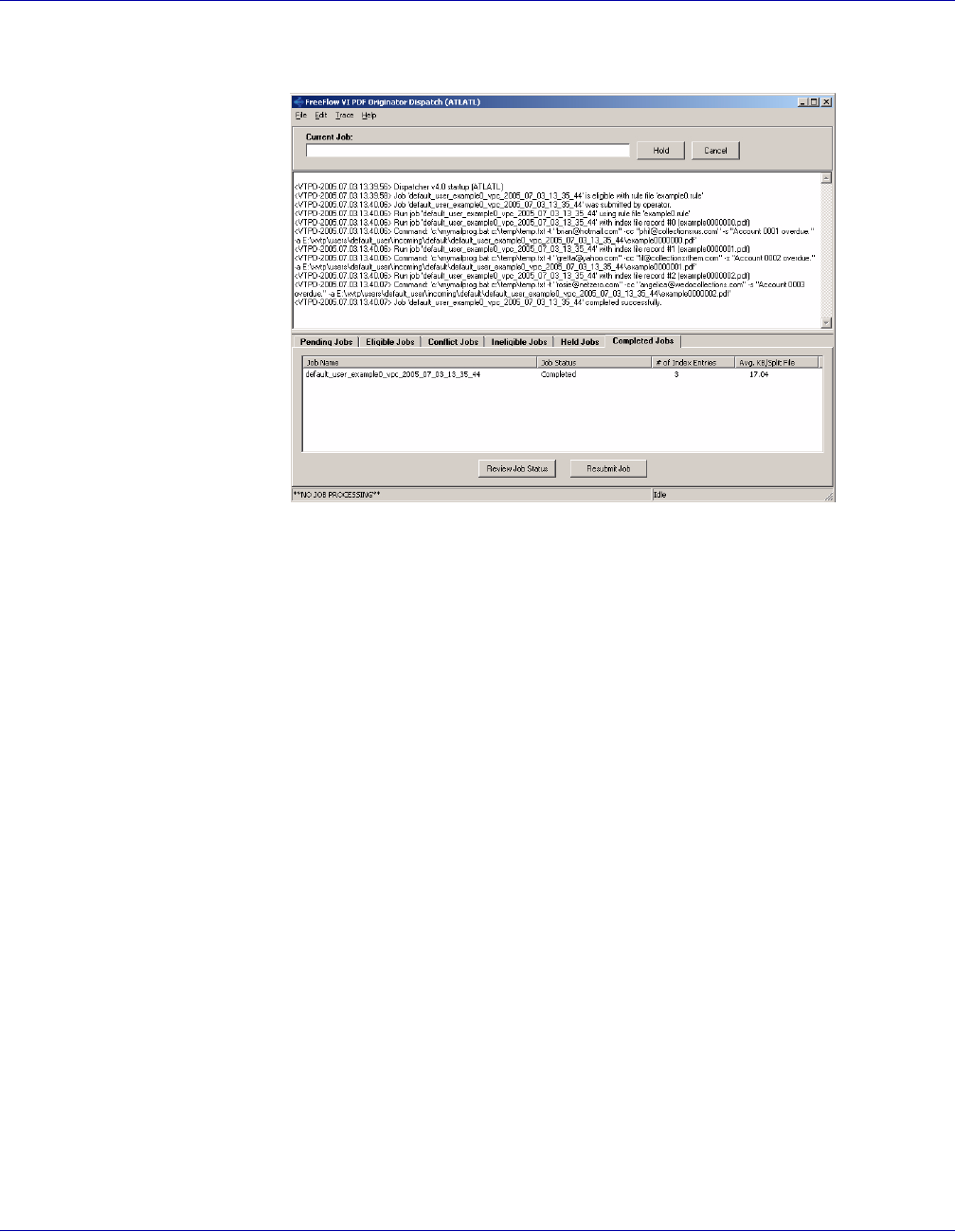

Click on the Completed Jobs tab to see that the job is now in the “Completed” category.

Had mymailprog been a real e-mail front-end, the PDF's would have been e-mailed as

attachments to each delinquent account holder and the appropriate collection agencies.

The body of each e-mail, its subject, and all other information would have been generated

from within the VIPP application itself.

You can replace the fictitious mymailprog with whatever custom back-end you desire, as

long as it has a definite path in your file system and has a command-line interface.

Some back-end programs cannot be accessed directly via command-line, or require

extensive startup time per record if accessed in that fashion. In these cases, a custom

“bridge” and/or session entity must be placed between VIPO Dispatch and the back-end

program.

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-97

Using VIPO Services

VIPO and VIPO Servers can be initiated from a Windows Service, which allows the

various servers to be initiated and to perform operations without requiring a manual

logon. Launching and activating VIPO and VIPO servers when the system is booted up

allows a “hands-off” VIPO system.

Use of VIPO Services depends entirely upon the proper installation of the functionality.

For a complete description of the installation process, and related background

information, refer to the Variable Information Suite Installation Guide.

Definitions

In the context of VI PDF Originator, a server is the component that performs some sort of

VI PDF Originator work and/or function, and its associated service performs the startup

and shutdown operations appropriate for a Windows Service.

VI PDF Originator Server

A VI PDF Originator Server is one of the following VI PDF Originator components:

• FreeFlow VI PDF Originator

• FreeFlow VI PDF Originator Watched Folders Client

• FreeFlow VI PDF Originator Dispatch

• FreeFlow VI PDF Originator Secure Web Server

• FreeFlow VI PDF Originator Web Server

These components, once running, perform various operations related to VI PDF

Originator.

VI PDF Originator User’s Guide

VIPO-98 FreeFlow Variable Information Suite 5.0 (7/2006)

VI PDF Originator Service

A VI PDF Originator Service is one of the following service components:

• FreeFlow VI PDF Originator Service

• FreeFlow VI PDF Originator Watched Folders Service

• FreeFlow VI PDF Originator Dispatch Service

• FreeFlow VI PDF Originator Secure Web Service

• FreeFlow VI PDF Originator Web Service

These components are Windows Services, which in turn are responsible for starting and

stopping their associated VI Originator Servers.

Constraints

Windows Services must not rely on a user interface for their normal operation because

for a “hands-off” configuration there will not be anyone logged into the machine, thus no

desktop is available for displaying a user interface.Therefore, when initiated by their

associated VI PDF Originator services, the VI PDF Originator servers will suppress their

user interfaces entirely.

As a consequence of running in this manner, access for control or configuration of the

servers is reduced. For example, the user interface for job selection and activation or rule

editing and configuration for VI PDF Originator Dispatch is not available. Therefore, only

jobs that successfully meet the qualifications of the AutoRun specifications in effect at

startup will be processed.

Some remote configuration and control functionality for the VI PDF Originator server is

available if one of the VI PDF Originator Web Servers is running. In general, if direct

interaction with a server user interface is required, it will be necessary to first shut down

the associated Windows Service and then start the server application manually from the

desktop. After the required interactions are performed the server application should be

shut down (exited), and then the associated Window Service can be restarted.

FreeFlow VI PDF Originator Secure Web Service

The VI PDF Originator Secure Web Service requires a PEM Passphrase as part of its

startup procedure (this is a kind of password, and is required to validate use of the web

server's SSL certificate). Normally, this is entered via a dialog box when the web server

starts up, however, that option is not available when the web server has been initiated by

its associated Windows Service. When the web server is initiated by a Windows Service,

upon startup it will instead look for a file named vtpws_service.pphrase in the bin

directory, and use those contents as the passphrase. A default passphrase file is included

with the VI PDF Originator distribution, and it already contains the default passphrase

(pass). If you are using your own SSL certificate, alter the contents of that file to contain

the correct passphrase.

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-99

Index

Add Field Index

Index File Template

Add Field Index, VIPO-27

Add Start/End Index, VIPO-27

Adobe Acrobat Distiller, VIPO-53

fonts, VIPO-55

BOOKMARK command, VIPO-57

bookmark field

examples, VIPO-26

specifying, VIPO-25

Bookmark Field Separator, VIPO-27

bookmarks

extended, VIPO-58

built-in macros

JOB_NAME_ID, VIPO-74

PDF_DIR_PATH, VIPO-74

PDF_FILE_NAME, VIPO-74

PDF_FILE_PATH, VIPO-74

USER_NAME_ID, VIPO-74

Bulk Processing, VIPO-34

changing passwords, VIPO-42, VIPO-44

Cluster administration, VIPO-47

CommandTemplate, VIPO-70

completed jobs, VIPO-80

conflict jobs, VIPO-79

Current Profile, VIPO-15

Data File, VIPO-15

DataFileTemplate, VIPO-69

Dispatch

filters, VIPO-66

AutoRun, VIPO-73

RunPostProcessCmd, VIPO-73

window, VIPO-76

Edit menu, VIPO-82

File menu, VIPO-81

Dispatch Rules, VIPO-67, VIPO-86

CommandTemplate, VIPO-70

DataFileTemplate, VIPO-69

FailOnError, VIPO-71

FailOnWarning, VIPO-70

LogStdErr, VIPO-70

LogStdOut, VIPO-70

PostProcessCommandTemplate, VIPO-73

RetValTrigger, VIPO-71

RetValTriggerTrumpsStdoutStderr, VIPO-71

RuleName, VIPO-69

RuleVars, VIPO-69

StdErrTrigger, VIPO-72

StdOutTrigger, VIPO-72

TimeOut, VIPO-70

Dispatcher

opening window for, VIPO-9

Distiller, VIPO-53

fonts, VIPO-55

eligible jobs, VIPO-78

FailOnError, VIPO-71

FailOnWarning, VIPO-70

field separator, VIPO-25

filters

AutoRun, VIPO-84

IncomingFolders, VIPO-82

VI PDF Originator User’s Guide

VIPO-100 FreeFlow Variable Information Suite 5.0 (7/2006)

Index

fonts, VIPO-55

Header Field Separator, VIPO-27

held jobs, VIPO-80

index file

bookmarks, VIPO-25

creating a template for, VIPO-24

field separator, VIPO-25

Index File Template, VIPO-17

Add Start/End Index, VIPO-27

bookmark field, VIPO-25

Bookmark Field Separator, VIPO-27

field descriptions, VIPO-27

field separator, VIPO-25

Header Field Separator, VIPO-27

template syntax, VIPO-24

ineligible jobs, VIPO-79

Init (Nub) File, VIPO-15

Job Server, VIPO-16

Job Submission

Current Profile, VIPO-15

Data File, VIPO-15

Index File Template, VIPO-17

Init (Nub) File, VIPO-15

Job Server, VIPO-16

Job Type, VIPO-16

Output Filename Template, VIPO-17

Output Folder, VIPO-16

Printer Action, VIPO-16

Printer for VIPP Job, VIPO-16

User Name, VIPO-16

job submission, VIPO-37

Job Submission Client

field descriptions, VIPO-15

opening window for, VIPO-9

window elements, VIPO-13

Job Type, VIPO-16

job types

distill and split into pages, VIPO-16

distill only, VIPO-16

split into pages only, VIPO-16

JOB_NAME_ID, VIPO-74

LogStdErr, VIPO-70

LogStdOut, VIPO-70

lpr command syntax

Windows 2000, VIPO-61

lpr job submission

examples, VIPO-63

lpr parameter defaults, VIPO-63

Output Filename Template, VIPO-17

creating, VIPO-19

Output Folder, VIPO-16

PDF output file name

creating a template for, VIPO-19

examples, VIPO-21

PDF security, VIPO-53

PDF_DIR_PATH, VIPO-74

PDF_FILE_NAME, VIPO-74

PDF_FILE_PATH, VIPO-74

PEM Passphrase, VIPO-98

pending jobs, VIPO-77

PostProcessCommandTemplate, VIPO-73

Printer Action, VIPO-16

Printer for VIPP Job Output, VIPO-16

RetValTrigger, VIPO-71

RetValTriggerTrumpsStdoutStderr, VIPO-71

RuleName, VIPO-69

RuleVars, VIPO-69

Secure Web Server

opening window for, VIPO-9

Server administration, VIPO-45

software support, VIPO-7

VI PDF Originator User’s Guide

FreeFlow Variable Information Suite 5.0 (7/2006) VIPO-101

Index

StdErrTrigger, VIPO-72

StdOutTrigger, VIPO-72

submitting VIPO jobs using lpr, VIPO-61

TimeOut, VIPO-70

User Name, VIPO-16

USER_NAME_ID, VIPO-74

using lpr to submit VIPO jobs, VIPO-61

using VIPO, VIPO-7

VI PDF Originator Server, VIPO-97

VI PDF Originator Service, VIPO-98

VIPO description, VIPO-8

VIPO Dispatch (VIPOD)

filters, VIPO-66

AutoRun, VIPO-84

IncomingFolders, VIPO-82

Rules, VIPO-67

window, VIPO-76

Edit menu, VIPO-82

File menu, VIPO-81

VIPO job submission, VIPO-37

VIPO Local Server

exiting, VIPO-9, VIPO-10

File menu, VIPO-11

Job Selection menu, VIPO-12

maximizing window for, VIPO-9

VIPO Secure Web Service, VIPO-98

VIPO Server and Client

installing, VIPO-9

options available, VIPO-9

VIPO Services, VIPO-97

VIPO Web

adding new users, VIPO-44

administrative functions, VIPO-42

changing passwords, VIPO-42, VIPO-44

Cluster administration, VIPO-47

Server administration, VIPO-45

Web browser notes, VIPO-47

Watched Folders Client

adding watched folders, VIPO-31

opening window for, VIPO-9

window elements, VIPO-30

Web Server

opening window for, VIPO-9

Windows Services

VIPO Service constraints, VIPO-98

VI PDF Originator User’s Guide

VIPO-102 FreeFlow Variable Information Suite 5.0 (7/2006)

Index

Xerox 5 Users Manual VIPOUsersGuide

5 to the manual 2cd01985-c6c2-0734-d961-7571c0f0b3eb

Navigation menu

Versions of this User Manual:

Views

Navigation
