Xerox® IntegratedPLUS

Finishing Solution

Brochure

Xerox® IntegratedPLUS

Finishing Solution

A New Chapter in Finishing Convenience and Flexibility

2

The Xerox® IntegratedPLUS Finishing Solution transforms your most challenging job

stream into efficient, highly automated and predictable production with one touch

prepress and automatic finishing setup.

Jobs come in all shapes and sizes, and may include perfect

bound books, booklets, business cards, catalogs, greeting cards

and more, each requiring unique prepress and finishing options.

Skilled operators who understand prepress, job layout and

finishing requirements dependent on sheet sizes must handle

prepress tasks on a job-by-job basis to ensure these complex

steps are completed accurately and quickly. As the number of

jobs coming into the shop goes from a handful to dozens or

even hundreds a day, you just can’t afford to have manual

labor handling each job.

With the Xerox® IntegratedPLUS Finishing Solution, job

preparation and finishing setup are automatic. Xerox integrates

a broad range of finishing options from world-class finishing

partners to provide automation that keeps you productive while

saving you time and reducing costly errors. This breakthrough

solution enables end-to-end prepress and finishing automation

that spans a variety of applications.

Conventional finishing can tie up valuable assets on your shop

floor. It’s also time consuming. The Xerox® IntegratedPLUS

Finishing Solution supports inline, offline and the exclusive

Xerox® dual-mode finishing that combines the efficiency of

inline finishing with the flexibility of offline finishing in a single

solution that’s compatible with both Xerox® FreeFlow® Print

Server and EFI® Fiery® print server. Offline solutions can include

integrity checking from the internal barcode scanner, so you can

validate that the expected number of booklets is completed and

that each includes the correct number of pages in the correct

sequence. You’ll find that the Xerox® IntegratedPLUS Finishing

Solution is a smart and flexible way to dramatically increase your

productivity, your customer satisfaction and your profitability.

Reduce cost and accelerate production with

a streamlined, end-to-end finishing solution.

Get more work done faster, automatically.

The Xerox® IntegratedPLUS Finishing Solution takes your

job from input to finished output with virtually no operator

involvement. Xerox® FreeFlow® Core enables simple and

flexible integration with upstream order entry whether you

receive jobs via a Web-to-Print solution, FTP, order entry or MIS.

FreeFlow Core automates all job preparation, including prepress

operations, and it also automates prepress operator decisions

about how a given job should be processed. During prepress,

job information is captured and communicated to your entire

supported digital printing and finishing fleet—automatically.

By avoiding manual prepress and manual finisher setup,

you’ve eliminated two major bottlenecks from your

production print workflow. Jobs automatically print and finish

to customer specifications. With no manual intervention,

the next job is already underway. You can even feed covers

into the run automatically. What once took up to 30 minutes

or more with trained personnel, now takes just minutes.

Incredible productivity increases of up to 30% or more

can be yours by removing dozens of work steps from your

end-to-end finishing process.

Xerox® IntegratedPLUS Finishing Solution can

increase productivity up to 30% or more.

Process Step Manual Finishing IntegratedPLUS Finishing Solution

Prepress

• Preflight

• Imposition

• Paper stock

• Set number of copies

• Specify printer

• Specify finisher

• And more…

• Skilled operator

• Up to 20+ minutes

• Manual entry

• Prone to error

• One-Touch prepress

• 1 to 2 minutes

• Improved job integrity

• 24/7 operation

• Consistent job processing decisions

Setup

• Finished dimensions

• Stitching

• Bleeds

• Slitting

• Cover insertions

• Folding

• Binding

• And more…

• Skilled operator

• Up to 10+ minutes

• Manual entry

• Prone to error

• Automatic setup

• < 1 minute

• Little or no operator intervention

• Accurate—utilizing internal barcode

integrity check for offline modes

• Efficient

– Automatically group jobs with

identical finishing requirements

– Finish offline booklets with different

requirements with no operator

intervention

Drive more booklet jobs through your shop with less cost and faster turnarounds.

3

4

Take your jobs from “to do” to “done”

more efficiently with the Xerox®

IntegratedPLUS Finishing Solution.

Benefits

Produce More Jobs

• Streamline prepress operations and remove

production bottlenecks

• Manage a mix of jobs that includes diverse finishing

requirements with shorter turnaround times

• Run finishing devices at rated production speeds

Reduce Costs

• Reduce errors

• Reduce labor costs

• Some configurations combine convenience of inline finishing

and the flexibility of offline finishing

Grow Your Business

• Optimize asset utilization even with diverse, short-run

job streams

• Reassign skilled operators to perform higher-value tasks

• Increase revenue through growth and enhanced profitability

Increase Quality and Efficiency

• Reduce errors and costly reprints—internal barcode scanner

ensures every document has the right number of pages in the

expected sequence for content produced offline.

• Integrity also helps you keep track of booklets of varying

page counts.

• Increase productivity by finishing multiple jobs in a single

offline stack—finishing information for each job is retrieved

without operator intervention.

• Increase efficiency of multiple jobs with varied finishing

requirements—intelligent batching capability will

automatically sort the jobs into groups with identical finishing

requirements to enable better productivity of the finisher.

No matter where the press sheets come from, you’ll

enjoy the time and labor savings of the Xerox®

IntegratedPLUS Finishing Solution.

Enjoy inline convenience and offline

booklet-making flexibility in a single

automated finishing solution.

With the Xerox® Dual-Mode Sheet Feeder option by C.P. Bourg,

you have end-to-end automation, inline and offline. Our labor-

saving solution gives you three ways to take advantage of the

automation: inline, offline or both.

You can even incorporate non-Xerox® printers into an

IntegratedPLUS Finishing Solution workflow.

The Straight-line Convenience of Automatic

Inline Finishing

With this option, FreeFlow® Core takes care of job setup during

prepress. Press sheets pass directly from the printer to the

booklet maker, along with the Job Definition Format (JDF) data

required for automatic finishing setup. Other than loading paper

and unloading booklets, the operator is free to take care of other

tasks and let the IntegratedPLUS Finishing Solution handle

the details.

Typically, you have a tough choice to make when it comes to booklet making:

inline or offline. Inline means dedicating one booklet maker per print engine. Offline

finishers can delay the process and are not as convenient as inline. With the Xerox®

IntegratedPLUS Finishing Solution, you no longer have such tough choices.

The Straight-line Convenience of

Automatic Inline Finishing

With this option, One-Touch Prepress takes care of job setup

during prepress. Press sheets pass directly from the printer

to the booklet maker, along with the Job Definition Format

(JDF) data required for automatic finishing setup. Other

than loading paper and unloading booklets, the operator is

free to take care of other tasks and let the IntegratedPLUS

Finishing Solution handle the details.

5

6

Maximize productivity with efficient

inline and offline booklet finishing.

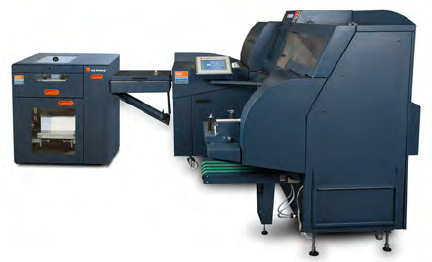

When the Xerox® Dual-Mode Sheet Feeder is attached directly

to a Xerox® production print engine and an inline finisher, you

can automatically switch between inline or offline workflows—

no operator intervention is required.

The Dual-Mode Sheet Feeder can also be used as input to

an offline booklet maker. A handheld scanner is used to read

a barcode from a job-specific banner sheet that prints and

travels with the printed stacks. The barcode is used to retrieve

JDF information required for finishing. This ensures that the

finisher is automatically configured correctly for every job.

The Dual-Mode Sheet Feeder is a an exclusive Xerox® offering

and it works with the entire Xerox® production fleet of

engines. It combines the benefits of an inline booklet maker

(as configurations permit) with the convenience and cost

effectiveness of a shared offline finisher.

Your printer can be equipped with the exclusive Xerox® Dual-Mode Sheet Feeder and

send sheets directly to an inline finisher. In addition, when the attached printer is not

using the finisher, stacks from other printers or offset presses can be fed into the

Dual-Mode Sheet Feeder to use the inline booklet maker as an offline booklet maker.

The Flexibility of Automatic Offline Finishing

With this option, you can use Xerox® FreeFlow® Core to distribute

the time and labor savings of automatic setup among multiple

print engines. Your printers output booklet jobs to stack carts as

usual, with the addition of a barcoded banner sheet matched

to each job.

At the finisher, an operator simply delivers a stack cart to the

exclusive Xerox® Dual-Mode Sheet Feeder, scans the barcode

with the handheld reader, presses “Start” and walks away to

perform other tasks. If the optional internal barcode reader is

used, the operator can load the stack with multiple jobs, which

may have different finishing requirements. Based on the JDF

information, the sheet feeder will scan the banner page barcode,

retrieve job information and finish the job all while feeding

sheets from one or more trays. The internal barcode also enables

finishing of variable length booklets that have been prepared

with FreeFlow Core. The sheet feeder is even smart enough to

suspend the job and alert an operator if covers are missing.

The Best of Both Worlds with Automatic

Inline Finishing Combined with Automatic

Offline Finishing

For the ultimate in convenience and flexibility, this option

enables automation of both inline and offline jobs using the

Xerox® sheet feeder in its dual-mode capacity. The printer

to which the finisher is connected can print non-booklet jobs

to its stack cart even while the booklet maker is producing

booklets from other engines.

Suppose you receive booklet jobs such as provider directories

or benefit booklets. The jobs will be automatically prepared

for printing and sent to a printer directly attached to the

booklet maker, where the booklets are created without

operator intervention.

You could also receive a calendar job. The system

understands the required prepress and layout procedures

and performs them automatically. Once this process

is complete, you can then send that job to a different

printer where it will be printed to a stack cart, along with

a barcoded banner sheet. You can simply wheel the stack

cart over to the printer that hosts the booklet maker, scan

the barcode and the calendars are finished. The dual-

mode feature provides automation for inline or offline

configurations and is compatible with FreeFlow® or EFI®

Fiery® print servers. It’s the ultimate in asset utilization.

7

Efficient, On-Demand Perfect Binding

When used as part of the Xerox® IntegratedPLUS Finishing Solution, book binding is

as simple and error free as scanning a barcode. Barcode readers on perfect binders

and trimmers enable streamlined and automated setup for optimized short run book

production. Finishers that are part of the Xerox® IntegratedPLUS Finishing Solution

include the C.P. Bourg® 3002 Series of Perfect Binders with the Challenge® CMT

trimmers and the Standard Horizon BQ Series of perfect binders with the HT Series

of trimmers.

Automated Job Preparation

The Xerox® IntegratedPLUS Finishing Solution can automate

book production from prepress through finished product.

During prepress, Xerox® FreeFlow® Core automates job

preparation functions including imposition and the creation of

matching banner sheets. The sheets contain Job ID barcodes

that provide unique job setup information to the finishers.

FreeFlow Core submits both covers and content pages for

simultaneous printing, so covers and book blocks are efficiently

stacked in sequential order for proper matching from job to

job. This effectively eliminates “work in process.” This level of

automation is especially important when processing significant

quantities of book orders per day, regardless of the quantities

of books per order.

Xerox® FreeFlow Core, combined with our partners’ solutions,

will streamline perfect bound book production to help you

maximize productivity and profitability.

8

Automation to Fit Your Needs

The C.P. Bourg 3002 Series of Perfect Binders (BB3002/BB3102/

BB3202) offers customers a highly automated solution aimed

at minimizing the time and cost of book production, even for

short runs. The flexibility of the Xerox® FreeFlow Core prepress

automation software and the speed of these binders make it

possible to produce a wide variety of soft-cover bound books

from digital print streams with minimal operator intervention.

At the heart of the solution is FreeFlow Core’s ability to directly

control automated finishing workflows. It seamlessly connects

order entry systems to simple automated prepress functions.

FreeFlow Core also powers the sheet level integrity and cover/

book block matching capabilities of the Bourg systems as well

as automated trimmer setup with the Challenge CMT 130/330.

When configured with the Challenge CMT 130 or 330 trimmers,

the Xerox® IntegratedPLUS Finishing Solution delivers a highly

automated full-bleed workflow—with reduced touchpoints from

sheet to book! For the first time, cut-sheet stacks from the BSFEx

can be matched with preprinted color covers with little or no

operator intervention.

Xerox and its partners have collaborated to create a powerful

offline perfect bound book solution featuring minimal

operator involvement, increased efficiencies and incredible

user-friendliness.

Flexible Perfect Binding

The Standard Horizon BQ-270V single-clamp binder offers

high-quality production perfect binding with fully automated

operation, push-button simplicity and on-demand production

of variable thickness books. It’s flexible, so it can handle a wide

variety of stocks and coatings. It’s efficient, so a single operator

can produce up to 500 books per hour.

The Standard Horizon BQ-470 fully-automated four-clamp

perfect binder is easy to operate, with minimal operator training

required. It produces up to 1,350 perfect bound books per hour.

The BQ-470 can bind books up to 2.5" thick and can support both

EVA and PUR adhesives. This production-class binder is designed

for short to medium run-lengths. Its automated features enable

fast changeover between setups.

The optional trimmers include the offline HT-30C Three-Side

Trimmer featuring automated job setups and quick changeovers

and the HT-80 Three-Knife Trimmer that can be used inline

with the Standard BQ-470 perfect binder or offline with either

perfect binder.

With the Standard Horizon binders, FreeFlow® Core delivers a

JDF description of the job to Ultimate Bindery. Ultimate Bindery

validates the JDF description against the binder’s requirements

and generates finishing instructions that are used by pXnet-lite

to automatically configure the perfect binder and the trimmer.

9

The pXnet-lite bindery control system for

digital production printing offers enhanced

automated offline workflows for Xerox®

FreeFlow® devices.

As part of FreeFlow Core, the new pXnet-lite features

simple, automated setup of your JDF-enabled Horizon

finishers. Finishing instructions for each job are

automatically converted to JDF, stored and then retrieved

at the finisher by scanning the barcode on the banner

sheet that accompanies the print job. pXnet-lite can

support multiple JDF-enabled finishing devices.

Customers can grow with the solution to the full-

featured pXnet as needed. Horizon pXnet-lite delivers the

automated finishing setups you need today for profitable

short-run production, integrated within your existing

Xerox® workflow.

10

The Convenience of Inline Finishing

As run sizes get closer to one, inline finishing can be the most

cost effective option. The IntegratedPLUS Finishing solution’s

enhanced automation makes a true one-touch workflow possible.

The solution uses job ticketing and JDF control supported by a

wide range of Xerox® production printers and finishers. During

prepress, FreeFlow® Core takes care of job imposition and

preflight tasks. It even sends a complete job ticketed, ready-

to-print PDF file to the print server without any operator

intervention. Press sheets then pass directly from the printer

to the booklet maker, along with the JDF data required for

automatic finishing setup. Other than loading paper and

unloading booklets, the operator is free to take care of other

tasks and let the IntegratedPLUS Finishing Solution handle

the details.

Horizon ColorWorks PRO/PRO Plus

The Horizon ColorWorks PRO and the Horizon ColorWorks

PRO Plus are compact multifunctional finishers that perform

booklet making, creasing, bleed trimming, folding, stitching

and stacking. This finishing system performs corner, side and

center stapling along with booklet folding and face trimming.

Finished booklets are delivered to a motorized integrated

vertical stacker.

Plockmatic Pro 50/35 Booklet Makers

The Plockmatic Pro 50 or Pro 35 Booklet Maker is the

production inline option for professional users who require

booklets of highest quality at rated speed —including the

option to add color covers. The Pro 50/35’s compact design

allows customers to choose only the modules they need

based on their applications. It can also be used as a walk-up

device in offline mode. A small footprint saves floor space and

enables a smooth workflow environment delivering booklets

with a professional look and feel at an affordable cost.

C.P. Bourg® BDFEx and BMEx Booklet Makers

Now you can stitch, fold and trim while producing booklets

and other finished documents faster, at full press size and

with guaranteed set integrity for zero waste. With the award-

winning C.P. Bourg E-Series Booklet Makers on your line,

creating anything from CD jackets to oversized stitch-fold-trim

booklets and calendars in quantities of one to thousands, on

demand, is achieved automatically.

When Inline Booklet Making Pays for Itself

Eliminate manual slitting, cutting and creasing

setup when finishing a wide variety of full-

bleed applications with the Duplo DC-645.

Effortlessly produce a wide variety of applications such as brochures, pamphlets,

greeting cards, postcards and business cards when using the JDF-enabled Duplo

DC-645 Offline cutter/slitter/creaser with the Xerox® IntegratedPLUS Finishing Solution.

The DC-645 provides unparalleled versatility to slit, cut and crease documents in a

single pass at 26 sheets per minute.

Ease of Operation

The Xerox® IntegratedPLUS Finishing Solution automates

production from prepress through printing and finishing.

As part of the automated prepress, Xerox® FreeFlow® Core

automates job preparation, including imposition and creation

of a job banner sheet. The banner sheet, which accompanies

each job, includes operator instructions on how to load the job

into the finisher. It also provides the name of the job for easy

identification in the Duplo JDF console.

FreeFlow Core then delivers a JDF description of the job to

Ultimate Bindery. Ultimate Bindery validates the JDF description

against the finisher’s requirements, and translates and enhances

the job description to create finishing instructions for slitting,

cutting and creasing operations.

Consistent Accuracy

To finish a job, the operator simply loads the stack in the feeder

per instructions printed on the banner page and releases the

matching job in the Duplo Console. Instead of requiring an

operator to inspect every job and define the placement for each

cut, crease and slit, the finisher setup is automatically performed

based on JDF instructions.

This flexible and efficient finisher helps maximize productivity

and reduces the chance of operator error.

Versatile Productivity

The DC-645 is capable of performing 6 slits, 15 cuts and 10

creases per sheet to maximize productivity. The finisher can

accommodate substrates up to 350 gsm as well as larger

sheet sizes. It’s fast and it’s designed for heavy-duty production

environments. Optional modules for additional applications are

also available.

Perforation

(Optional)

Crease Cut Slit Margin Trim Feed

Feed Direction =

11

Turn your finisher bottlenecks into

profit-building opportunities.

Only Xerox gives you this unique opportunity to optimize your

investment and your operation with end-to-end automation,

not just automating prepress but finishing operations as well.

• Xerox® FreeFlow® Core eliminates manual programming

and skilled labor normally required for job setup and

finishing options and reduces the risk of error because the

necessary parameters (such as page imposition, page

ordering and trimming) are set automatically when a job

enters your workflow.

• The exclusive Xerox® Dual-Mode Sheet Feeder combines

the convenience of inline finishing with the flexibility of

offline finishing so you can share one finisher with multiple

printers including Xerox® and non-Xerox® printers, in the

same shop.

• With the Xerox® IntegratedPLUS Finishing Solution, you

get the best of both finishing worlds—the convenience of

inline with the flexibility of offline, plus unsurpassed labor

savings. And, it’s compatible with a number of devices

across the production fleet for both FreeFlow® and EFI®

Fiery® print servers.

• The IntegratedPLUS Finishing Solution is backed by a

worldwide professional services team, trained and ready

to make the most of your investment. This team includes

experienced systems architects, programmers and

consultants, plus dedicated integration engineers available

to provide a wide range of services and training.

Start managing a diverse mix of finishing requirements and short print runs,

without dedicating a finisher to just one engine.

Produce perfect bound books, saddle-stitched

booklets, greeting cards, postcards, business

cards and more with Xerox plus prepress and

finishing partners.

©2014 Xerox Corporation. All rights reserved. Xerox®, Xerox and Design® and FreeFlow®

are trademarks of Xerox Corporation in the United States and/or other countries.

09/14 CHENA167 BR9632 FFSBR-42UC

610P730341B

For more information on finishing options,

call 1-800-ASK-XEROX or visit us at

www.xerox.com/integratedplusfinishing
