January 1999
600P86176
Xerox Laser Printing Systems
Tape formats
manual
Prepared by:
Xerox Corporation
701 S. Aviation Boulevard
El Segundo, CA 90245
USA
©1999 by Xerox Corporation. All rights reserved.
Copyright protection claimed includes all forms and matters of copyrightable material and information
now allowed by statutory judicial law or hereinafter granted, including without limitation, material generated
from the software programs displayed on the screen such as icons, screen displays, or looks.
Printed in the United States of America.
XEROX® and all Xerox product names mentioned in this publication are trademarks of XEROX CORPORATION.
Other company trademarks are also acknowledged.
Changes are periodically made to this document. Changes, technical inaccuracies, and typographic
errors will be corrected in subsequent editions.
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL iii
Notice
This manual describes the characteristics of various tape formats
which can be processed by Xerox laser printing systems Operating
System Software (OSS). Printer carriage control conventions are
also included. The information is organized into chapters by vendor.
Laser safety
WARNING: Use of controls or adjustments, or performances other
than specified herein, may result in hazardous radiation exposure.
Xerox laser printing systems are certified to comply with laser
performance standards set by the U.S. Department of Health,
Education, and Welfare as Class 1 laser products. This is a class of
laser products that does not emit hazardous radiation. This is
possible only because the laser beam is totally enclosed during all
modes of customer operation.

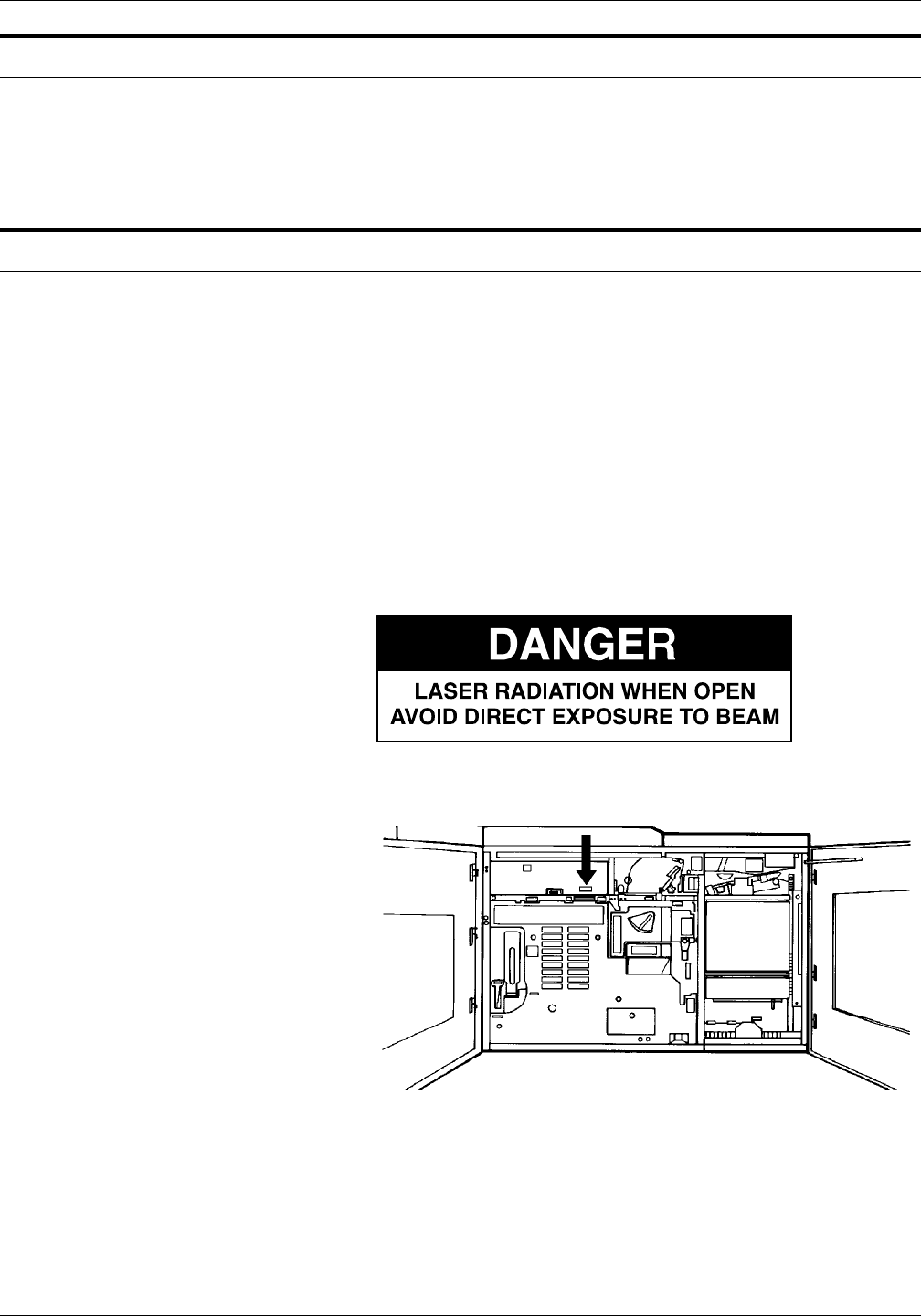

When performing operator functions, laser warning labels may be
visible. These labels are to alert and remind the service
representative and are placed on or near panels or shields which
require a tool for removal. THE PANELS TO WHICH THESE
LABELS ARE FIXED OR NEAR ARE NOT TO BE REMOVED BY
ANYONE OTHER THAN A XEROX SERVICE REPRESENTATIVE.
This label is located inside the left door, on the machine frame just
above the directions for clearing a jam in area 4.
iv XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
Operation safety
Your Xerox equipment and supplies have been designed and tested
to meet strict safety requirements. These include safety agency
examination and approval, and compliance with established
environmental standards. Attention to the following notes will ensure
the continued safe operation of your equipment.
Always connect equipment to a properly grounded power source
receptacle. If in doubt, have the receptacle checked by a qualified
electrician.
!Warning: WARNING: Improper connection of the equipment
grounding conductor can result in electrical shock.
!!
Always place equipment on a solid support surface with adequate
strength for the weight of the machine.
Always use materials and supplies specifically designed for your
Xerox equipment. Use of unsuitable materials may result in poor
performance and can possibly create a hazardous situation.
Never move or relocate either the printer or the system controller
without first contacting Xerox for approval.
Never use a ground adapter plug to connect equipment to a power
source receptacle that lacks a ground connection terminal.
Never attempt any maintenance function that is not specifically
described in your operator guide.
Never remove any covers or guards that are fastened with screws.
There are no operator-serviceable areas within these covers.
Never override or “cheat” electrical or mechanical interlock devices.
Never use supplies or cleaning materials for other than their intended
purposes. Keep all materials out of the reach of children.
Never operate the equipment if unusual noises or odors are noticed.
Disconnect the power cord from the power source receptacle and call
Xerox service to correct the problem.
If you need any additional safety information concerning the
equipment or materials Xerox supplies, call Xerox Product Safety at
the following toll-free number:
1-800-828-6571
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL v
Related publications
A number of related documents are listed below for your
convenience. For a complete list and description of available Xerox
documentation, please refer to the Xerox Documentation Catalog
(Publication 610P17517) or call the Xerox Document Subscription
Service (XDSS) at 1-800-445-5554.
Publication Number
Xerox Laser Printing Systems
Message Guide—Version 3 720P10661
Xerox 4850 HighLight Color
Laser Printing System
Reference Set
720S90680
Xerox 4850 HighLight Color
Laser Printing System
Product Guide
720P86211
Xerox 4850 HighLight Color
Laser Printing System
Applications Guide
720P86231
Xerox 4850 HighLight Color
Laser Printing System
System Guide
720P86241
Xerox 4850 HighLight Color
Laser Printing System
System Operator Guide
720P86160
Xerox 4850 HighLight Color
Laser Printing System
Operations Reference
720P87140
Xerox 4850 HighLight Color
Laser Printing System
PDL/DJDE Reference
720P87161
Xerox 4850 HighLight Color
Laser Printing System
Operator Command Summary
720P85990
Xerox 4135 Laser Printing
System Product Guide 720P85931
Xerox 4135 Laser Printing
System Operator Guide 720P85961
Xerox 4135 Laser Printing System
PC User Interface Reference 720P86751
Xerox 4135 Laser Printing
System Operations Reference 720P87151
Xerox 4135 Laser Printing
System PDL/DJDE Reference 720P87171
Xerox Laser Printing Systems
Forms Creation Guide 720P90081
Xerox Laser Printing Systems
System Generation Guide 720P90061
vi XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
*Contact the Xerox Document Subscription Service (XDSS) at 1-800-
445-5554 for special ordering instructions.
* *Order directly from the Xerox Systems Institute at 1-408-737-4652.
Xerox Laser Printing Systems
Standard Font Library
Font User Guide
600P86175
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL vii
Table of Contents
Notice iii
Laser safety iii
Operation safety iv
Related publications v
1. American National Standards Institute (ANSI) labeled tapes 1-1
Tape marks 1-1
Labels 1-1

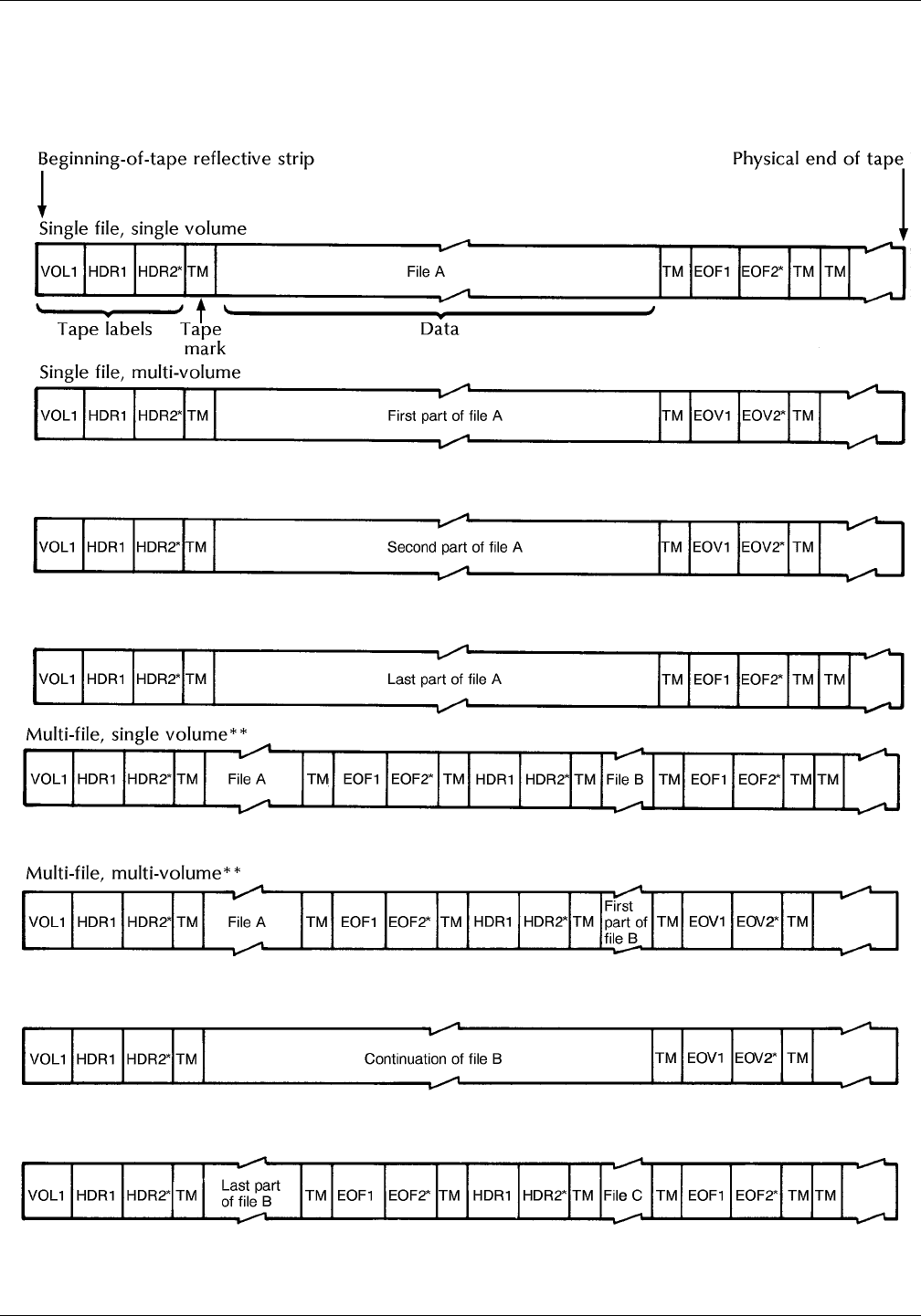

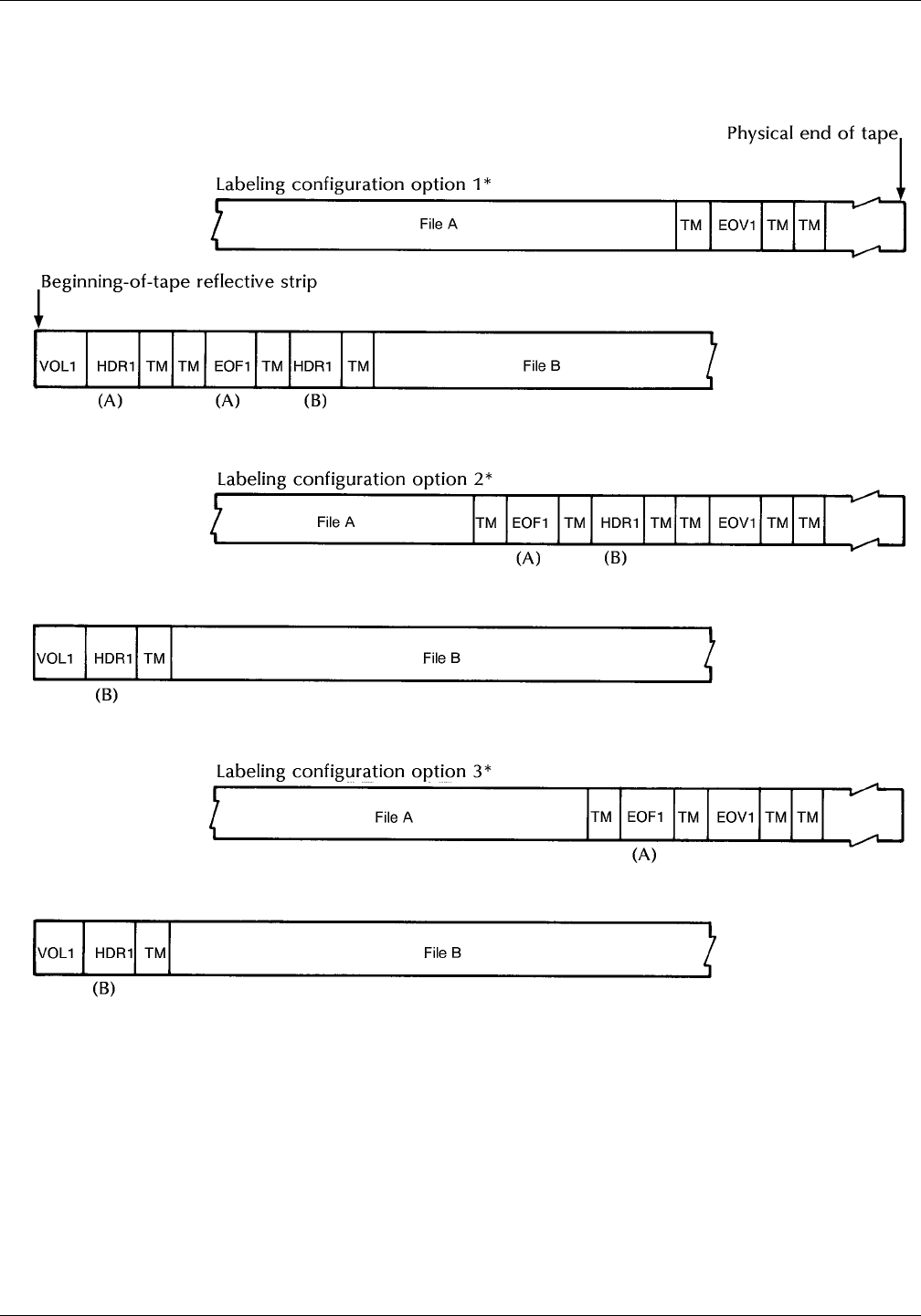

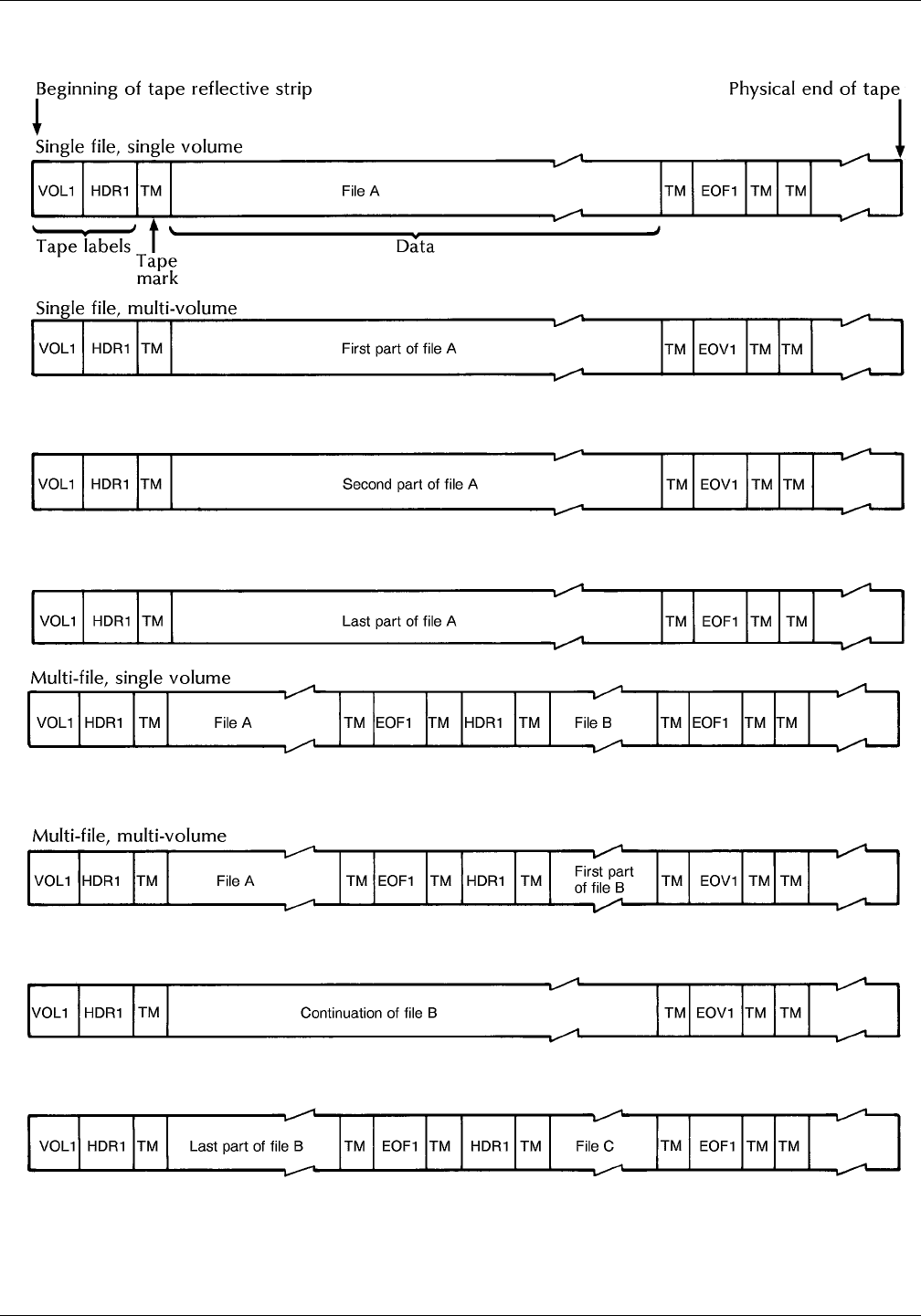

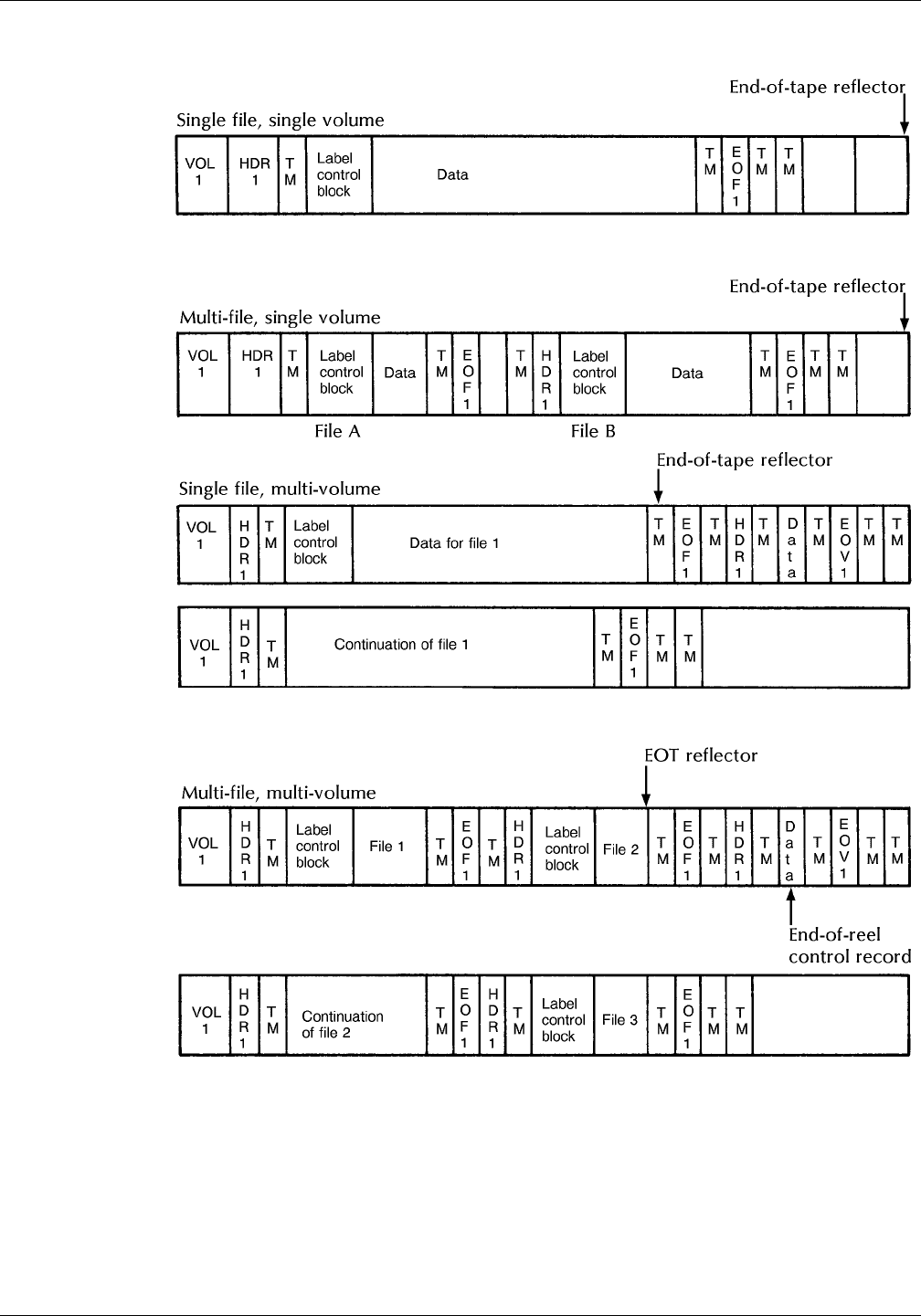

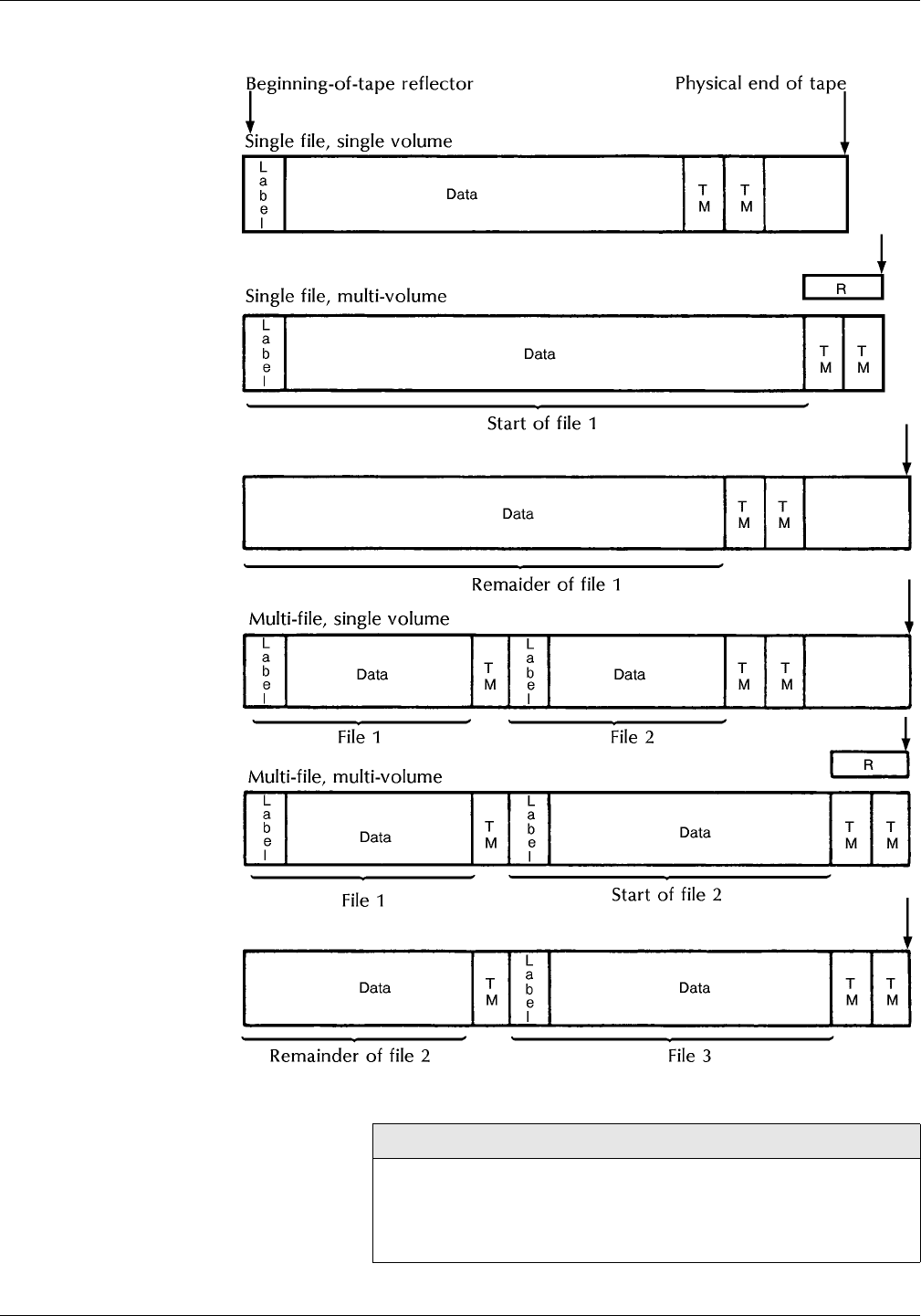

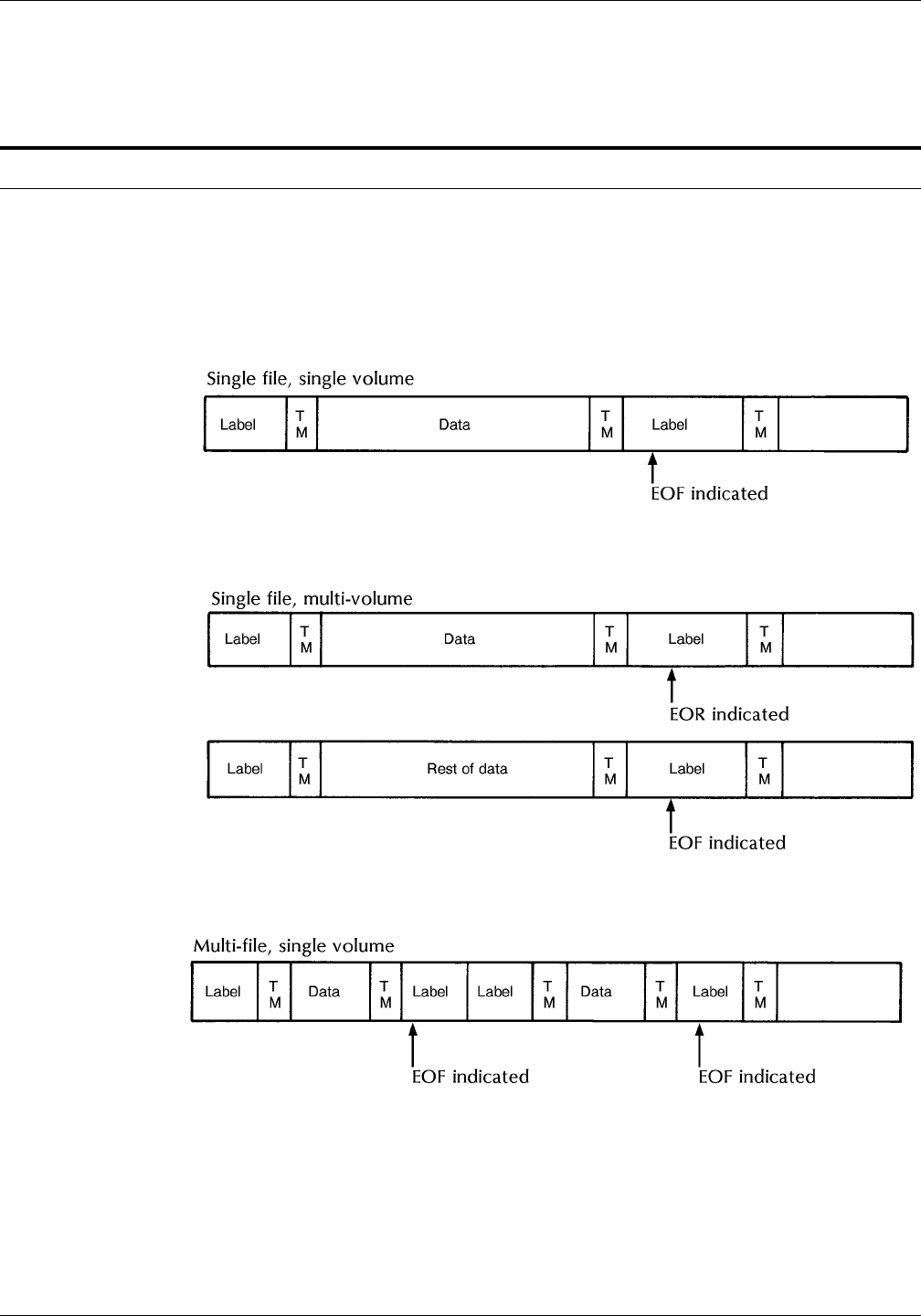

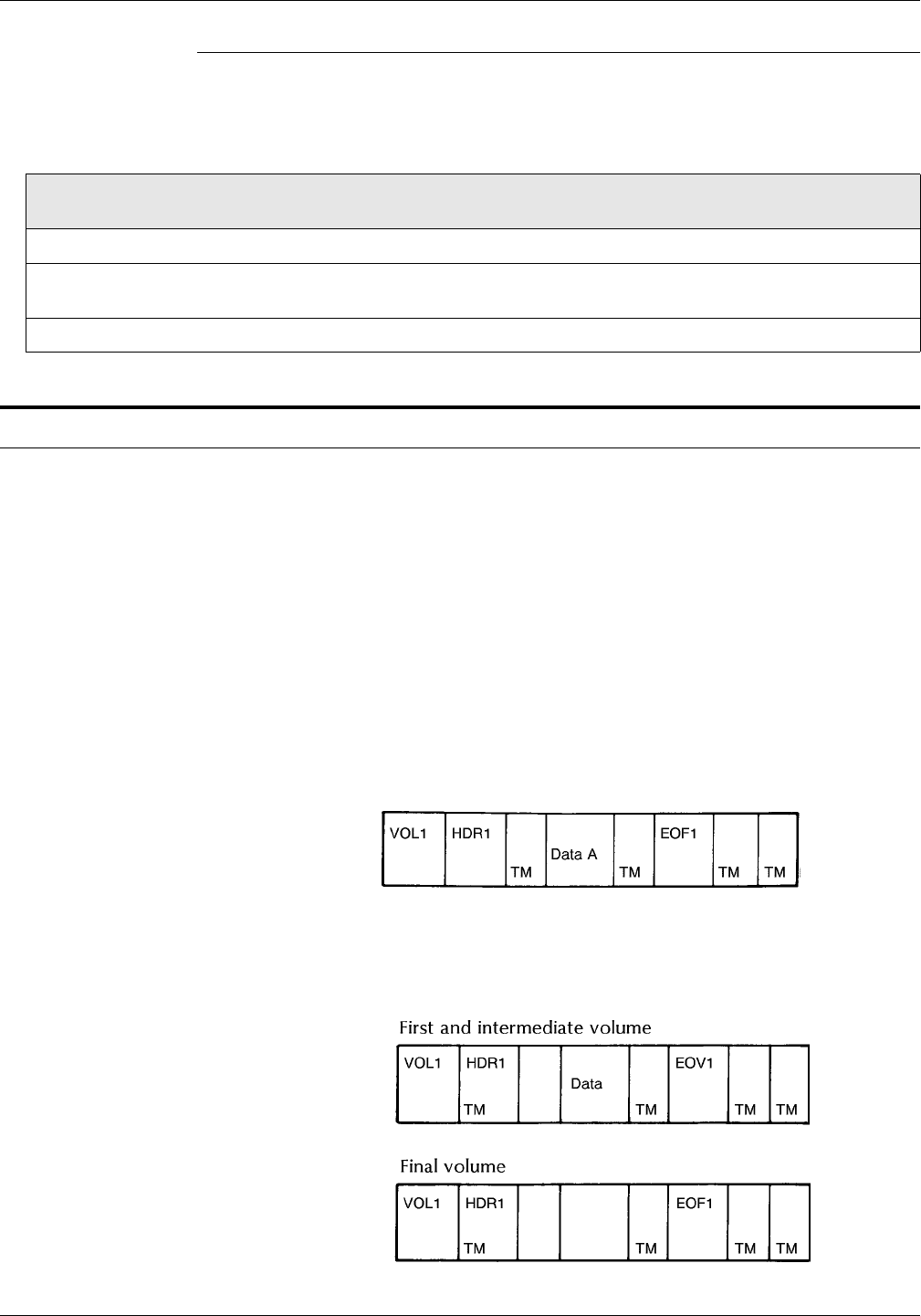

ANSI labeled tape structures 1-2
VOL1 label 1-7
HDR1, EOV1, EOF1 labels 1-8
HDR2, EOV2, EOF2 labels 1-10
HDR3-9, EOV3-9, EOF3-9 labels 1-11
UVL, UHL, UTL labels 1-11

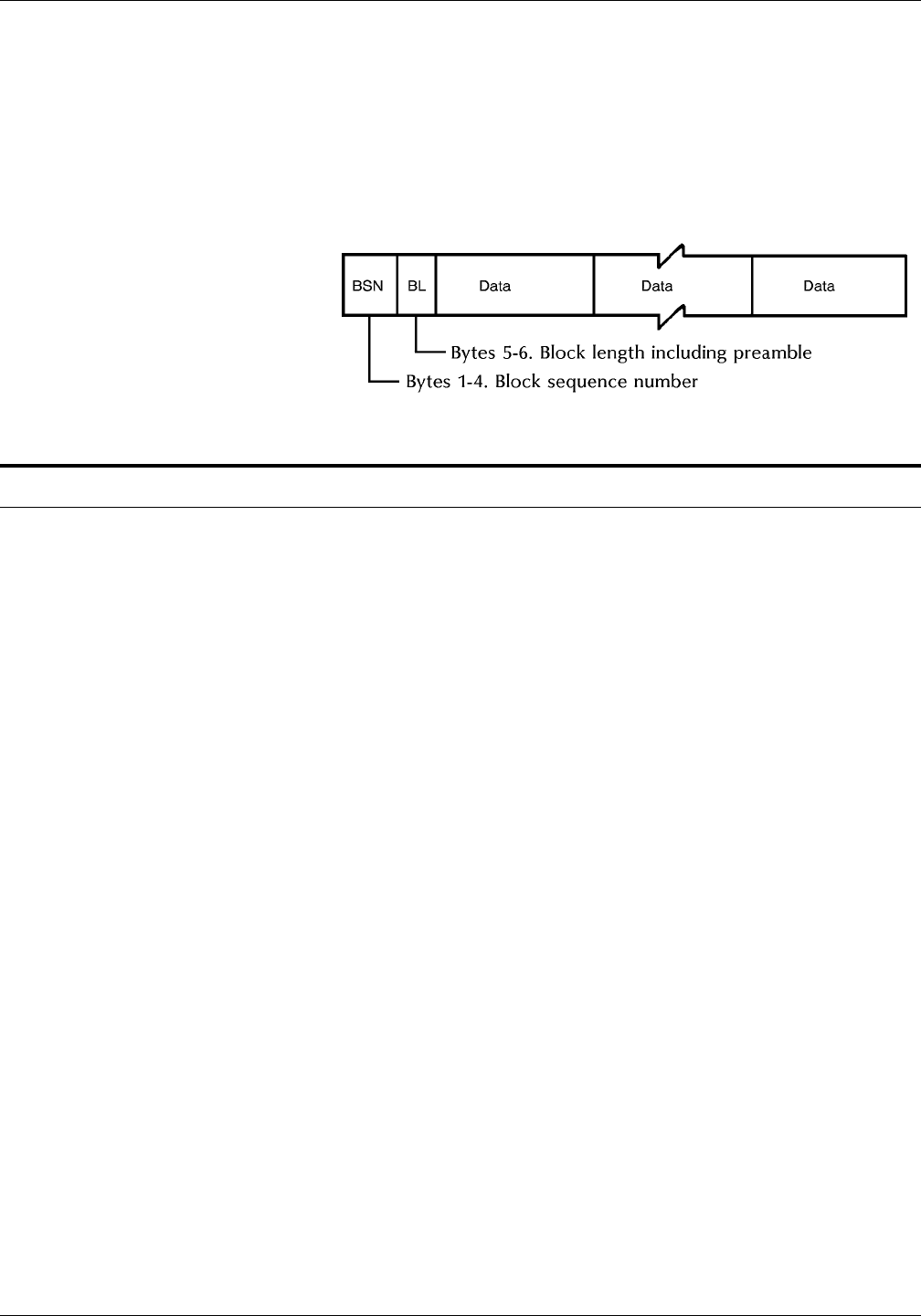

Block sequence indicator 1-11
Printer carriage control conventions 1-12
ANSI tape JSL sample 1-13
2. IBM OS/360 and DOS/360 standard labeled tapes 2-1
IBM labeled tapes 2-1
OS/360 ANSI labeled tapes 2-1

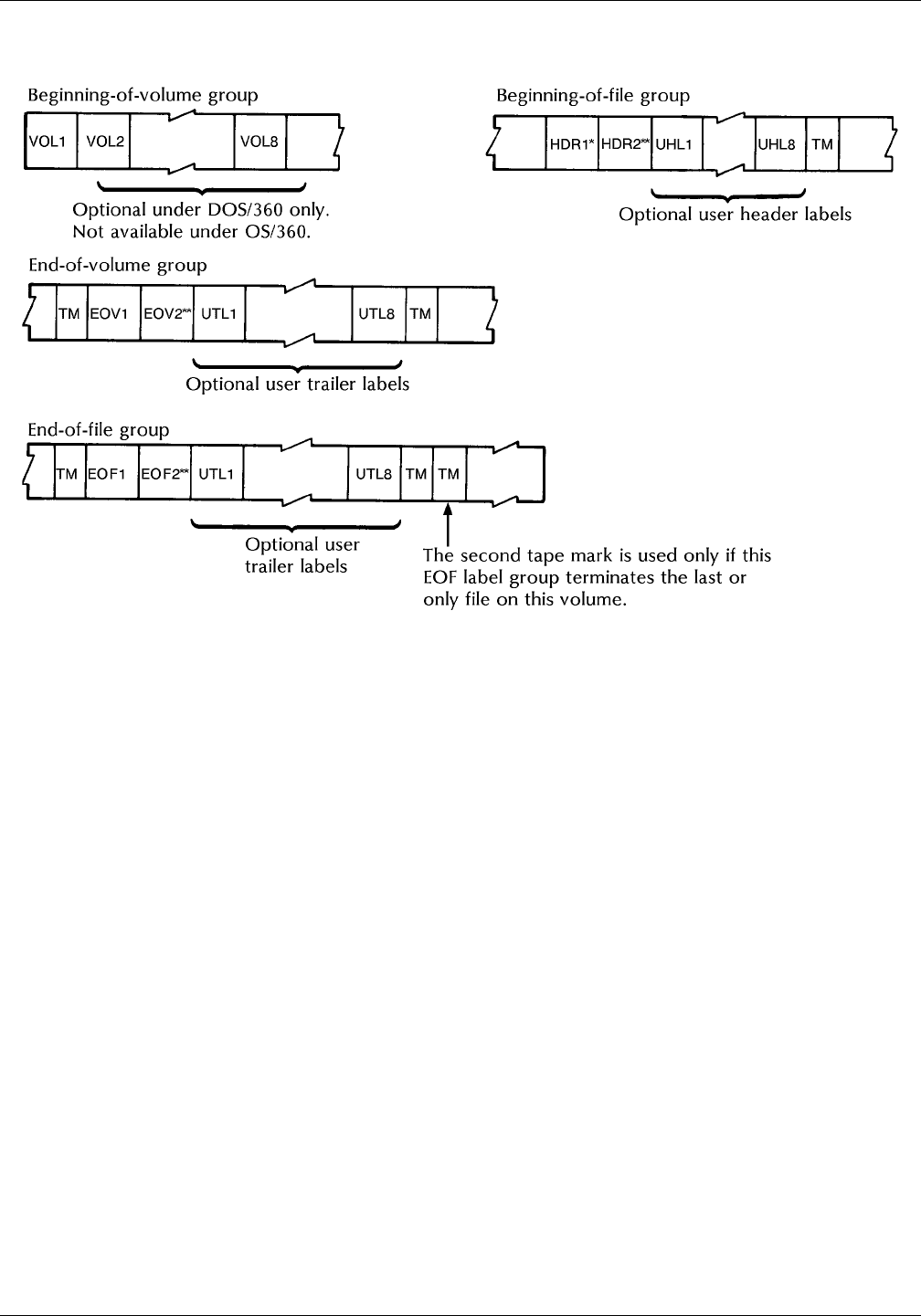

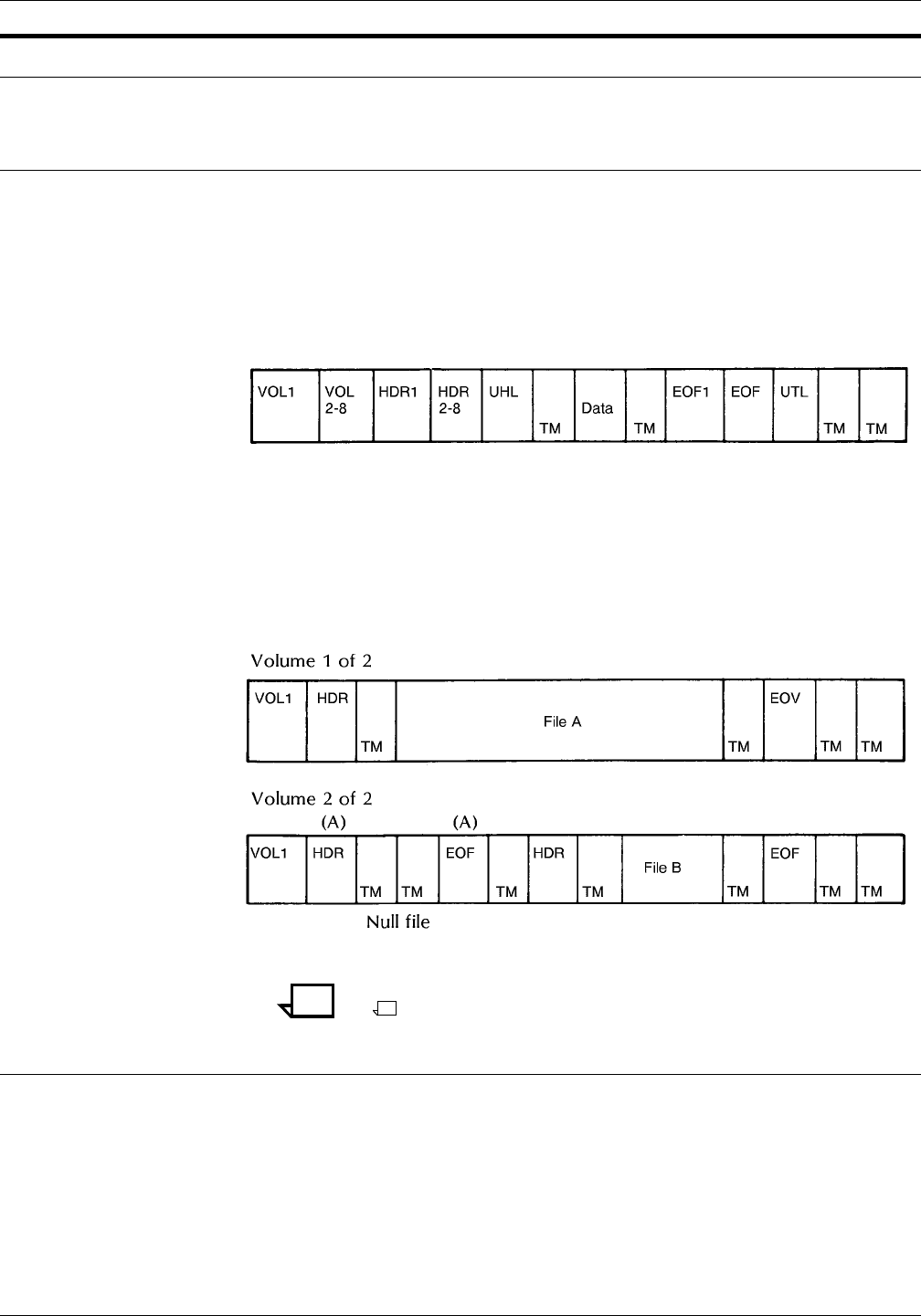

IBM standard labeled tapes 2-1
VOL1 label 2-5
VOL2 through VOL8 labels 2-5
HDR1, EOV1, EOF1 labels 2-6
HDR2, EOV2, EOF2 labels 2-7
UHL1-8, UTL1-8 labels 2-9
Printer carriage control conventions 2-9
IBM OS and DOS tape JSL sample 2-11
3. IBM DOS/360 GRASP tape organization 3-1
Record format 3-1
Identification segment 3-2
Data records 3-2
Line-up records 3-2
Physical record size 3-2
Sample data block 3-3
GRASP carriage control conventions 3-3
TABLE OF CONTENTS
viii XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
GRASP interspersed block tapes 3-4
POWER and GRASP tapes 3-5
4. IBM DOS/360 POWER II tape organization 4-1
Tape formats 4-1
Block version characteristics (4.0, 4.1, 4.2) 4-1
Version 4.1 4-2
Version 4.2 4-2
Tape format examples 4-3
POWER and GRASP tape JSL sample 4-4
5. IBM POWER/VS and POWER/VSE tape organization 5-1
Tape formats 5-1
File formats 5-1
Data formats 5-2
POWER and GRASP tape JSL sample 5-5
6. UNIVAC Series 70 (US70) magnetic tape organization 6-1
Labeled tapes 6-1
Label groups and sets 6-1

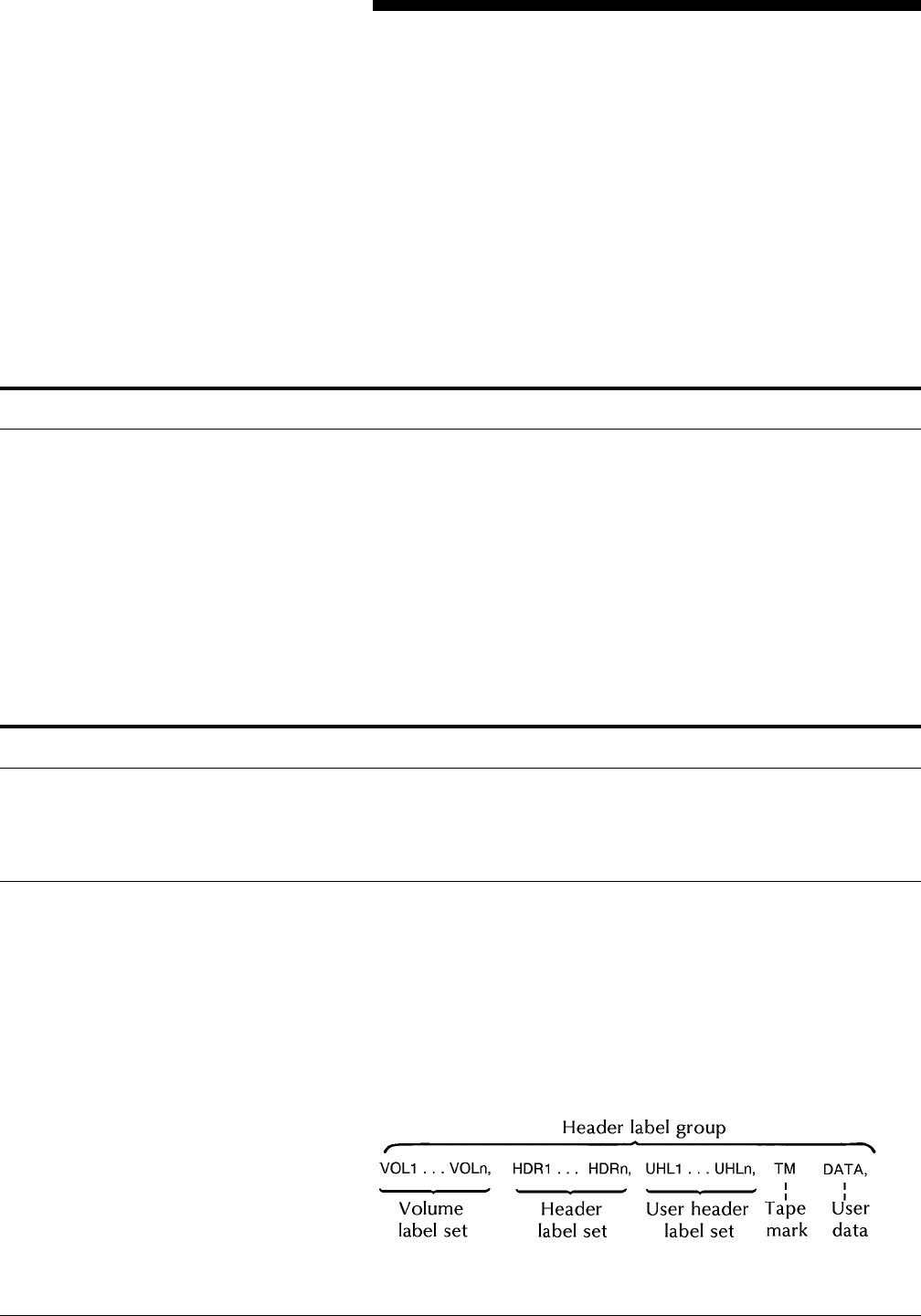

Header label group 6-1
Header label sets 6-2
Volume label 6-2
File header label 6-2
User header label 6-4
Trailer labels 6-4
Trailer label sets 6-5
File trailer labels 6-5
User trailer label 6-6
Tape configurations 6-6
Unlabeled tapes 6-7
Tape marks 6-8
Labeled tapes 6-8
Unlabeled tapes 6-8
Data formats 6-9
US70 labeled and unlabeled tape formats 6-9
Alternate device tapes 6-9
Tape organization 6-9
Carriage control byte 6-10
COBOL print tapes 6-10
Format 1 6-10
Format 2 6-11
TABLE OF CONTENTS
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL ix
Format 3 6-11
Format 4 6-11
US70 printer control conventions 6-11
Printer control byte 6-12
Printer carriage control tape 6-13
UNIVAC tape JSL sample 6-14
7. Xerox ANSI standard labeled tapes and unlabeled tapes 7-1
Xerox labeled tapes 7-1
Control Program-Five (CP-V) and ANSI labeled tapes 7-1
Unlabeled tapes 7-1
Nonstandard labels 7-2
Carriage control conventions 7-3
Xerox tape JSL sample 7-6
8. Medium Burroughs system tapes 8-1
Record format 8-1
Label types 8-2

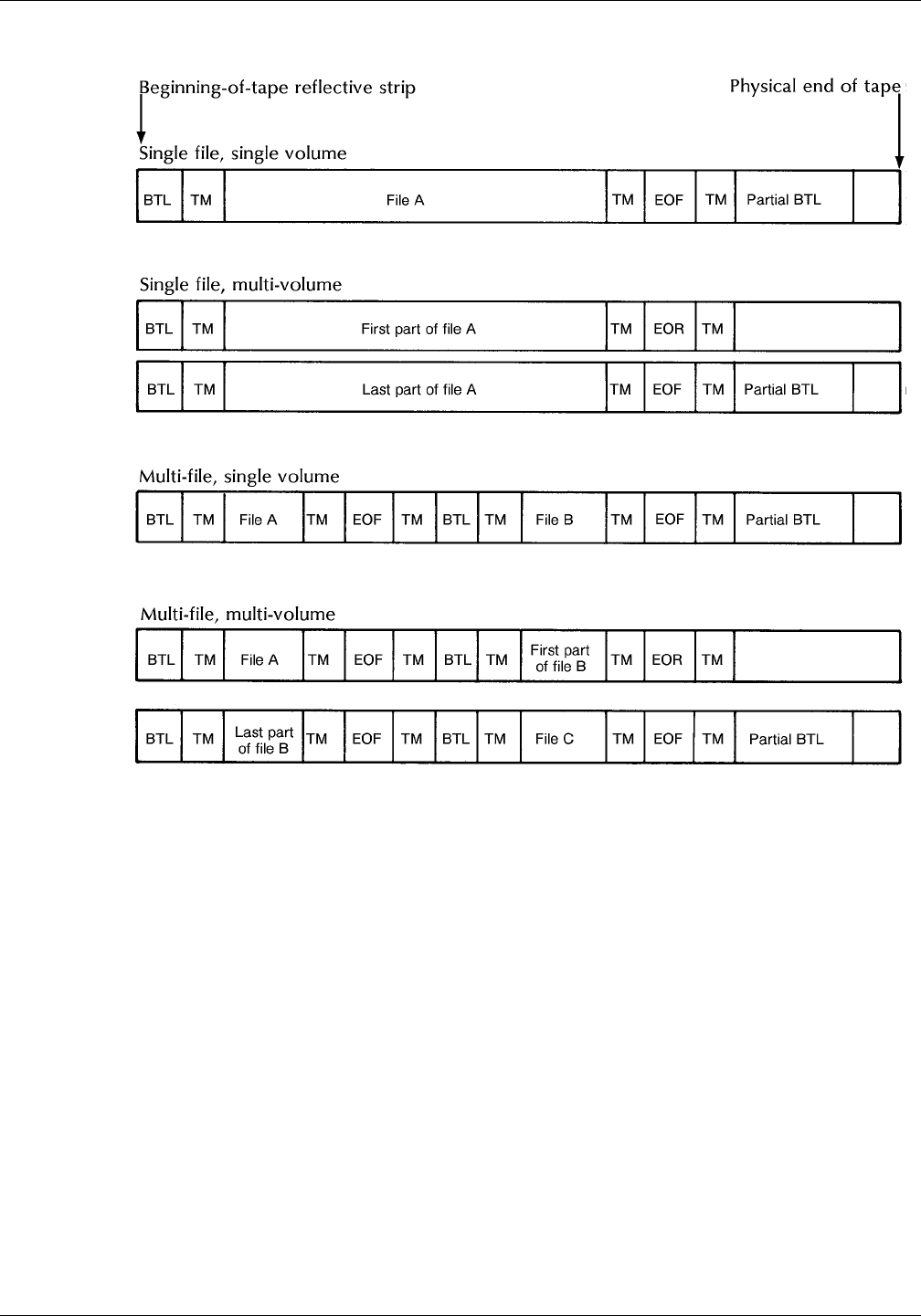

Tape configurations 8-3
Carriage control conventions 8-3
Burroughs tape JSL sample 8-5
9. Large Burroughs system tapes 9-1
Burroughs labeled tapes 9-1
Record format 9-1
Line-up records 9-2
Carriage control 9-3
Character set 9-4
Burroughs tape JSL sample 9-4
10. Honeywell tapes 10-1

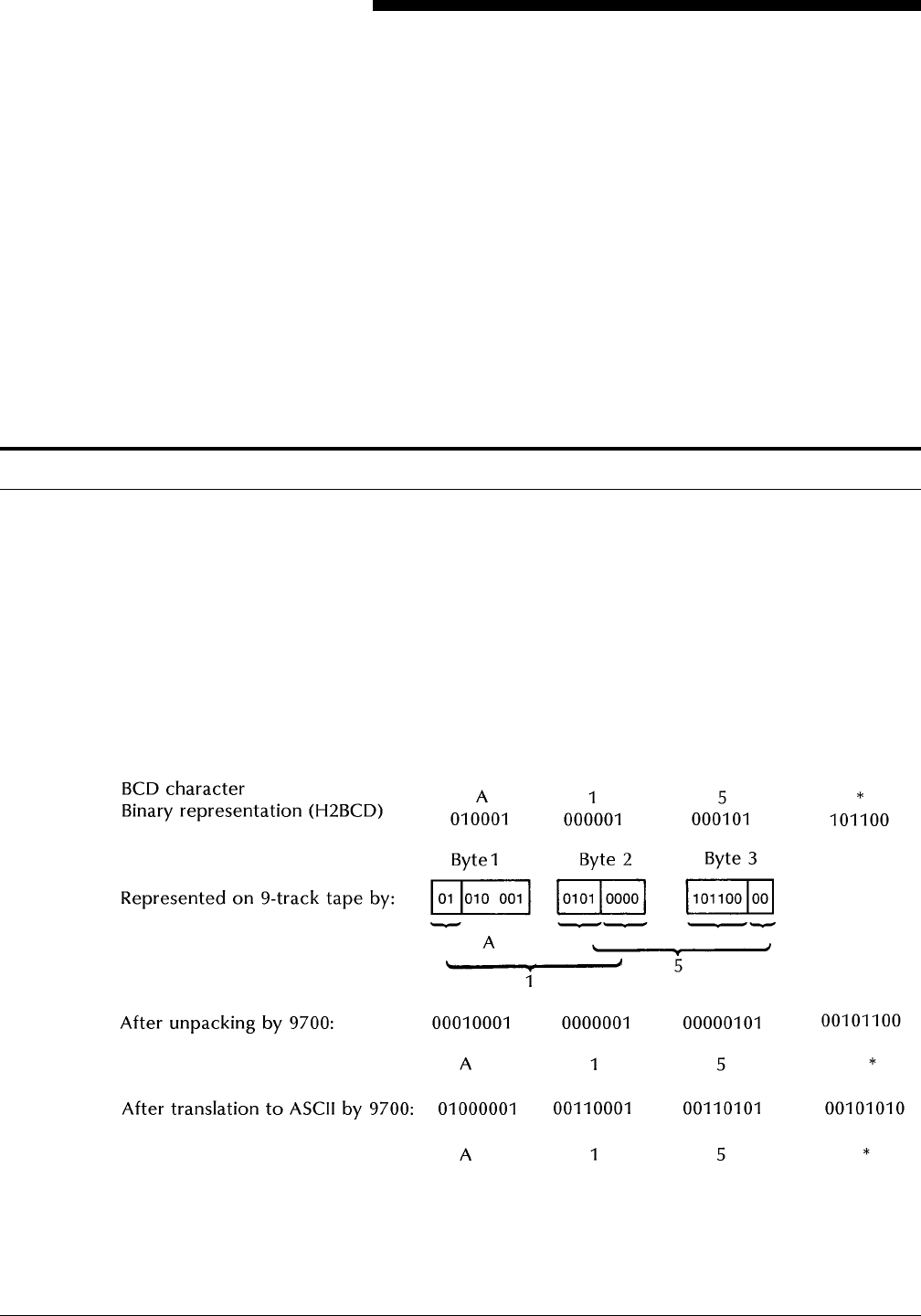

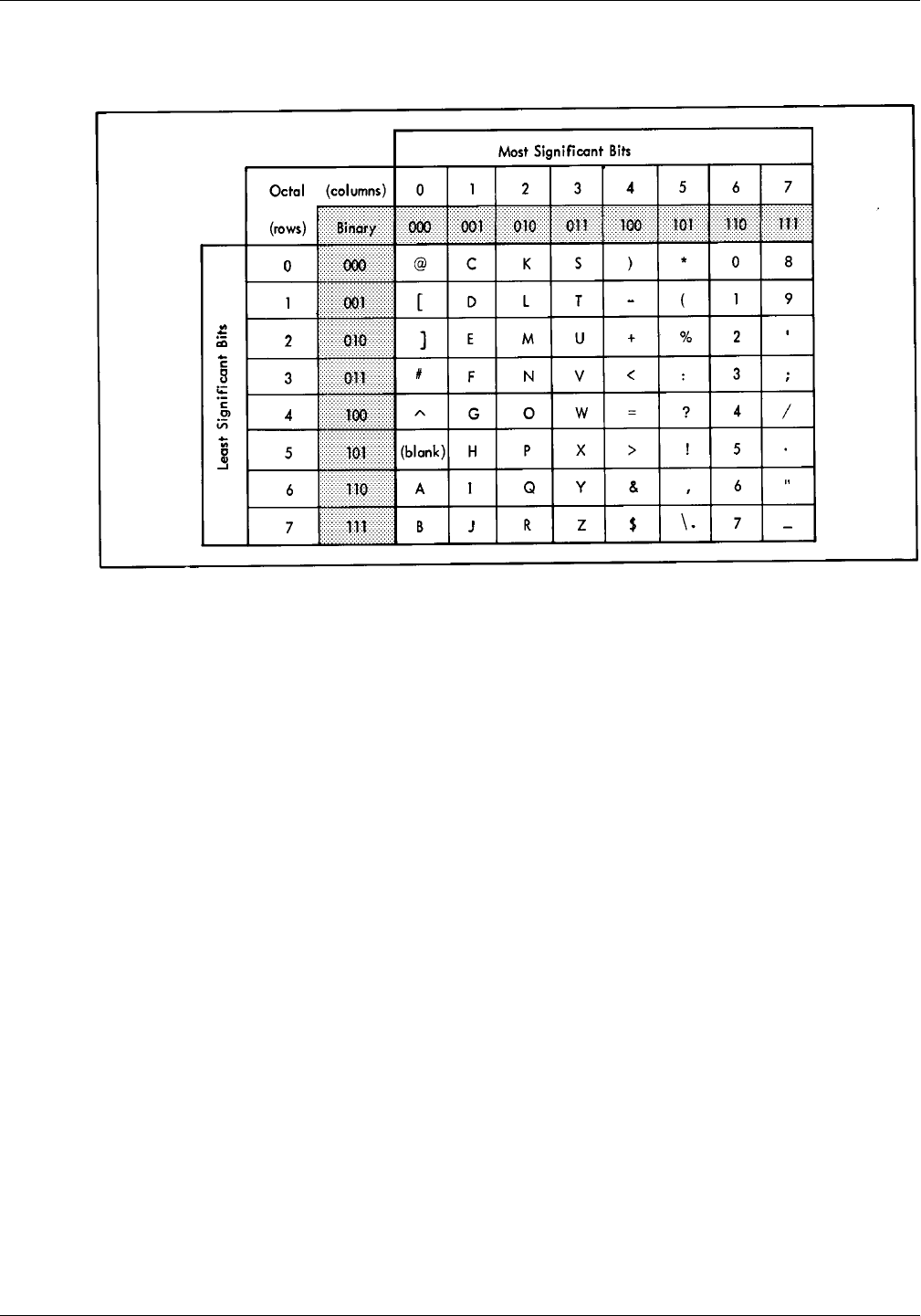

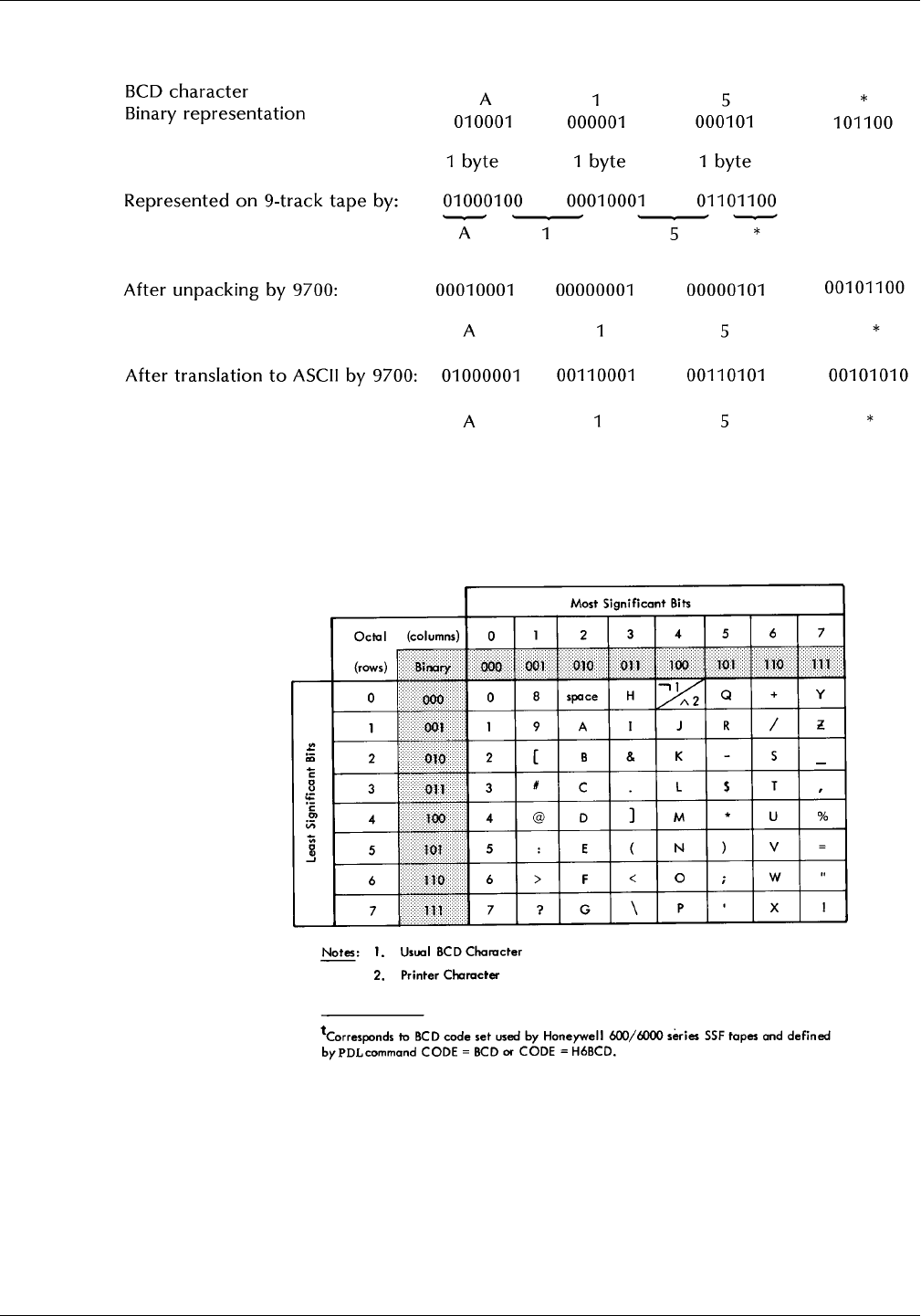

4 x 3 packed 6-bit character format 10-1
Honeywell 200/2000 tape formats 10-3
Honeywell 200/2000 data formats 10-8

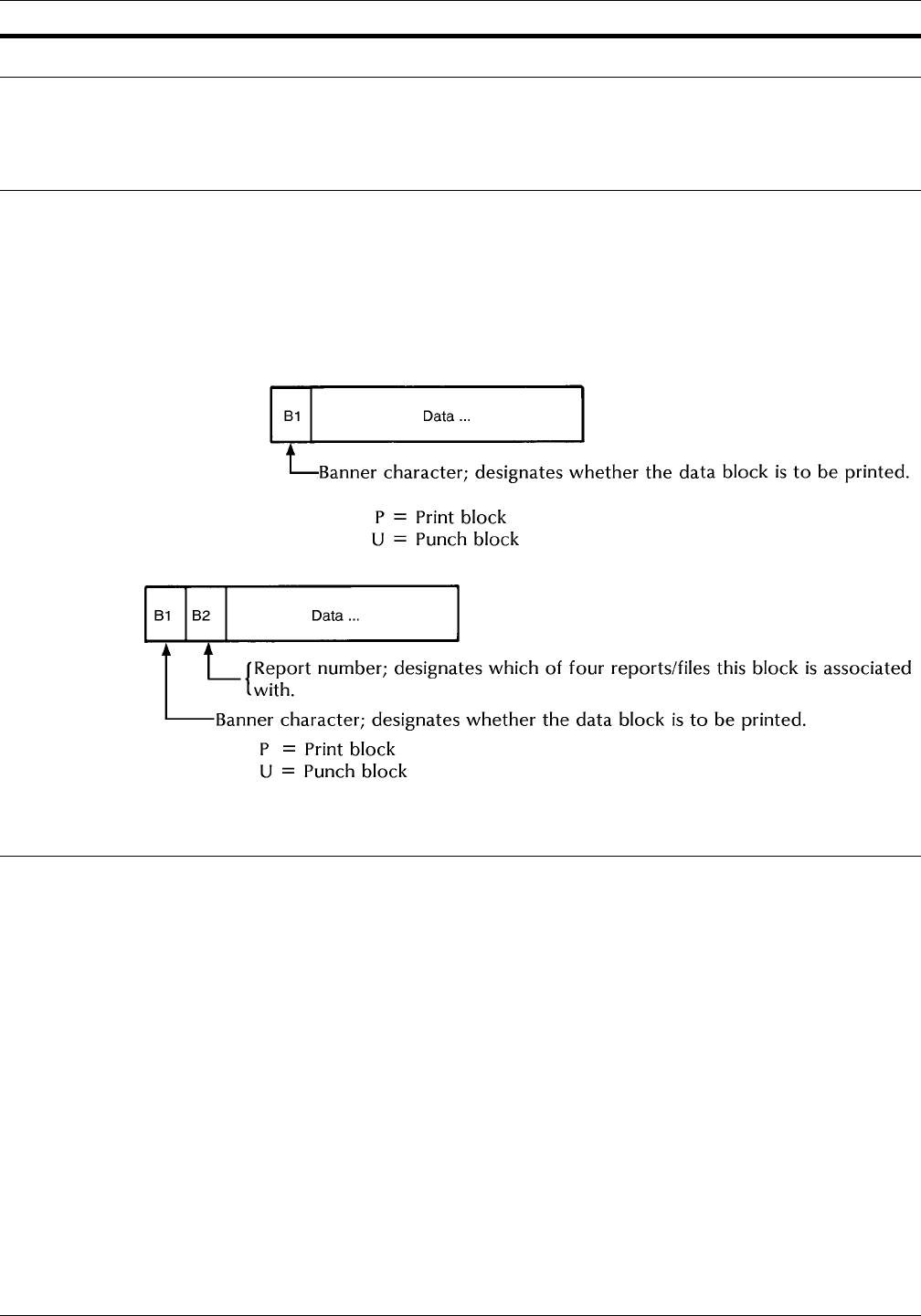

Bannered data format 10-8
Variable length record format 10-8
Fixed length record format 10-9
System print tape data format 10-10
Honeywell 200/2000 carriage control 10-10
Honeywell 600/6000 tape formats 10-12
Honeywell 600/6000 data formats 10-16
Variable length record format, Honeywell 6000 standard system tapes
10-16
TABLE OF CONTENTS
xXEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
Data format with embedded control characters, normal edit mode (4
x 3 packed BCD) 10-17
Single control characters 10-18
Paired control characters 10-18
Data format with embedded control characters, normal edit mode (9
x 8 packed ASCII) 10-19
Single control characters 10-19
Paired control characters 10-20
Carriage control (Honeywell 600/6000) 10-21
Honeywell 2000 and 6000 tape JSL samples 10-23
11. Univac SDF tape format 11-1
Univac ASCII character set 11-1
Control records 11-4
Print image control record 11-8
Heading string “H” 11-8
Setup string “S” 11-9
Margin string “M” 11-9
Line string “L” 11-9
Data records 11-10
Appropriate JSL coding for Univac tapes 11-11
12. IBM OS Writer tape organization 12-1
OS Writer report tape format 12-1
Job Descriptor Library (JDL) specification 12-2
Sample report creation under an OS Writer 12-2
Procedure 12-3
Steps to creating an OS Writer tape 12-4
WRITER tape JSL sample 12-5
13. NCR tapes 13-1
Carriage control conventions 13-1

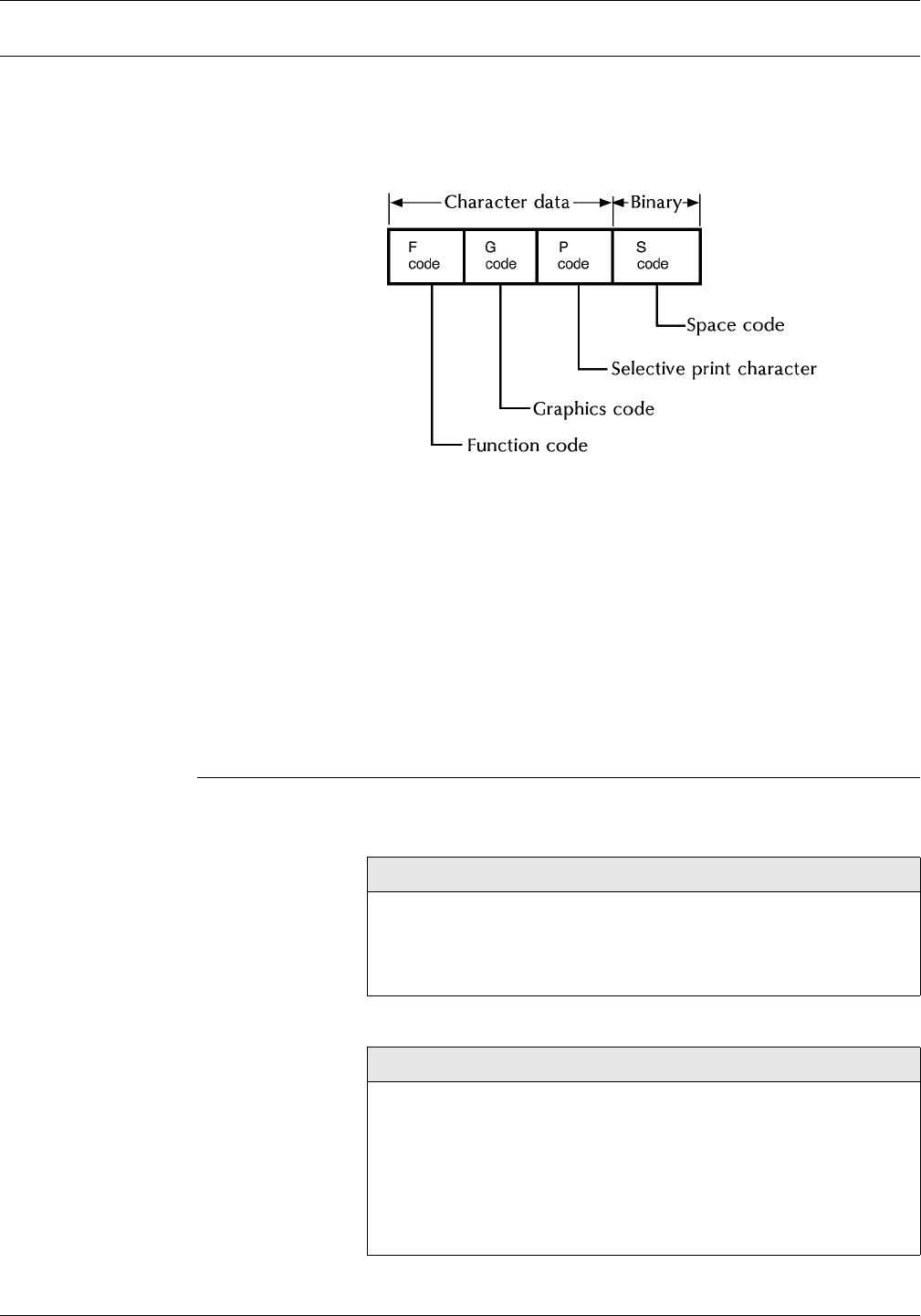

Printer control block codes 13-2
Function code (F) 13-2
Graphics code (G) 13-3
Selective print character (P) 13-3
Space code (S) 13-3
14. Undefined tapes 14-1
File format 14-1
Data format 14-2
Undefined tape JSL sample 14-3
15. DEC PDP-11 tapes 15-1
TABLE OF CONTENTS
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL xi
Tape formats 15-1
File formats 15-1
ANSI labeled tapes 15-3
Data formats 15-3
Data structure characteristics 15-3
Operating system operations 15-4
FONTINDEX 15-4
Control codes 15-4
Points to note 15-5
PDP-11 (RSX) tape JSL sample 15-7
16. ICL 2900 VME/B tape format 16-1
Tape formats 16-1
Data block formats 16-1
Carriage control conventions 16-2
Normal format effectors 16-3
Embedded format effectors 16-4
ICL tape JSL sample 16-5
Glossary GLOSSARY-1
Index INDEX-1
TABLE OF CONTENTS
xii XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 1-1
1. 1American National Standards
Institute (ANSI) labeled tapes
The American National Standards Institute has defined standard
labeled magnetic tapes in ANSI Standard X3.27—1969. The
structure of these tapes is described in the following sections on tape
marks and labels.
Tape marks
The tape mark is used on ANSI tapes in the following places:
•Following every file header label group
•Preceding and following the end-of-life label group (a double
tape mark follows the last, or only, file on tape)
•Preceding and following the end-of-volume label group (a
double tape mark follows the last volume).
Used in the manner described above, the tape mark identifies the
boundaries between the data and label groups of a file, and the label
groups in consecutive files.
Double tape mark A double tape mark (two consecutive tape marks) indicates that no
further data follows on the tape. A double tape mark also occurs
between a header label group and a trailer label group when a file
containing no information (a null file) is written. This null file double
tape mark is formed by the tape mark following the file header label
group and the one preceding the end-of-file label group.
Labels
There are two general classes of labels for ANSI tapes: operating
system labels and user labels. Operating system labels are
generated and processed by the operating system. User labels are
generated and processed by user programs.
Four types of labels Within these general classes, there are four types of labels, each 80
characters long. They are beginning-of-volume, beginning-of-file,
end-of-volume, and end-of-file. The names of the various classes
and types of labels are defined in table 1-1.
Note: In user labels, the letter ’a’ refers to any of the graphic
characters defined in ANSI Standard X3.4-1968.
AMERICAN NATIONAL STANDARDS INSTITUTE (ANSI) LABELED TAPES
1-2 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
The beginning-of-volume label identifies the volume and its owner
and is often referred to as a volume label. Other labels are called “file
labels” and are either header labels (if they precede the file) or trailer
labels (if they follow the file).
The Xerox/OSS can process four tape configurations:
•Single file, single volume
•Single file, multiple volume
•Multiple file, single volume
•Multiple file, multiple volume.
ANSI labeled tape structures
The locations of the types and classes of labels in these
configurations are shown in figures 1-1, 1-2, and 1-3. Figure 1-1
shows ANSI labeled tape structure when no optional labels are used.
Figure 1-2 shows ANSI labeled tape structures with end-of-file (EOF)
and end-of-volume (EOV) marks coinciding.
•In general, the pattern shown in option 1, figure 1-2, occurs
when the end-of-tape reflective strip is reached while writing the
last block of a file. Usually, the operating system does not yet
know that this is the last block, and the EOV label group is
recorded at this time.
•On the other hand, the pattern shown in option 2, figure 1-2,
occurs when the reflective strip is reached after the EOF label
group has been started.
•The pattern shown in option 3, figure 1-2, permits the initiation
of any file within a file set at the beginning of a volume. When
this configuration is used, the block count (field 12) of the end-
of-volume label is undefined. File sets are not terminated by an
end-of-volume label group.
Table 1-1.ANSI labels
Type Operating system labels User labels
Beginning-of-volume VOL1 (required (Additional VOL labels
prohibited) UVL1 to UVL9 (optional)
Beginning-of-file HDR1 (required) HDR2 to HDR9
(optional) UHLa (optional; unlimited number
allowed)
End-of-volume EOV1 (required) EVO2 to EOV9
(optional) UTLa (optional; unlimited number
allowed)
End-of-file EOF1 (required) EOF2 to EOF9
(optional) UTLa (optional; unlimited number
allowed)
AMERICAN NATIONAL STANDARDS INSTITUTE (ANSI) LABELED TAPES
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 1-3
Structures with optional labels Figure 1-3 shows ANSI labeled tape structure when optional labels
are used. Optional operating system and user labels are used to
structure files, as follows, without otherwise modifying the
relationship between the required labels and files.
•Optional operating system labels of a given type follow a
required label of the same type.
•User labels of a given type directly follow a consecutive group of
operating system labels of the same type. When no optional
operating system labels are used in the label group, the user
labels directly follow a required label of the same type.
•There are no tape marks within a group of labels.
•Every label is completed on the volume where the first label of a
group was reached.
AMERICAN NATIONAL STANDARDS INSTITUTE (ANSI) LABELED TAPES
1-4 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL

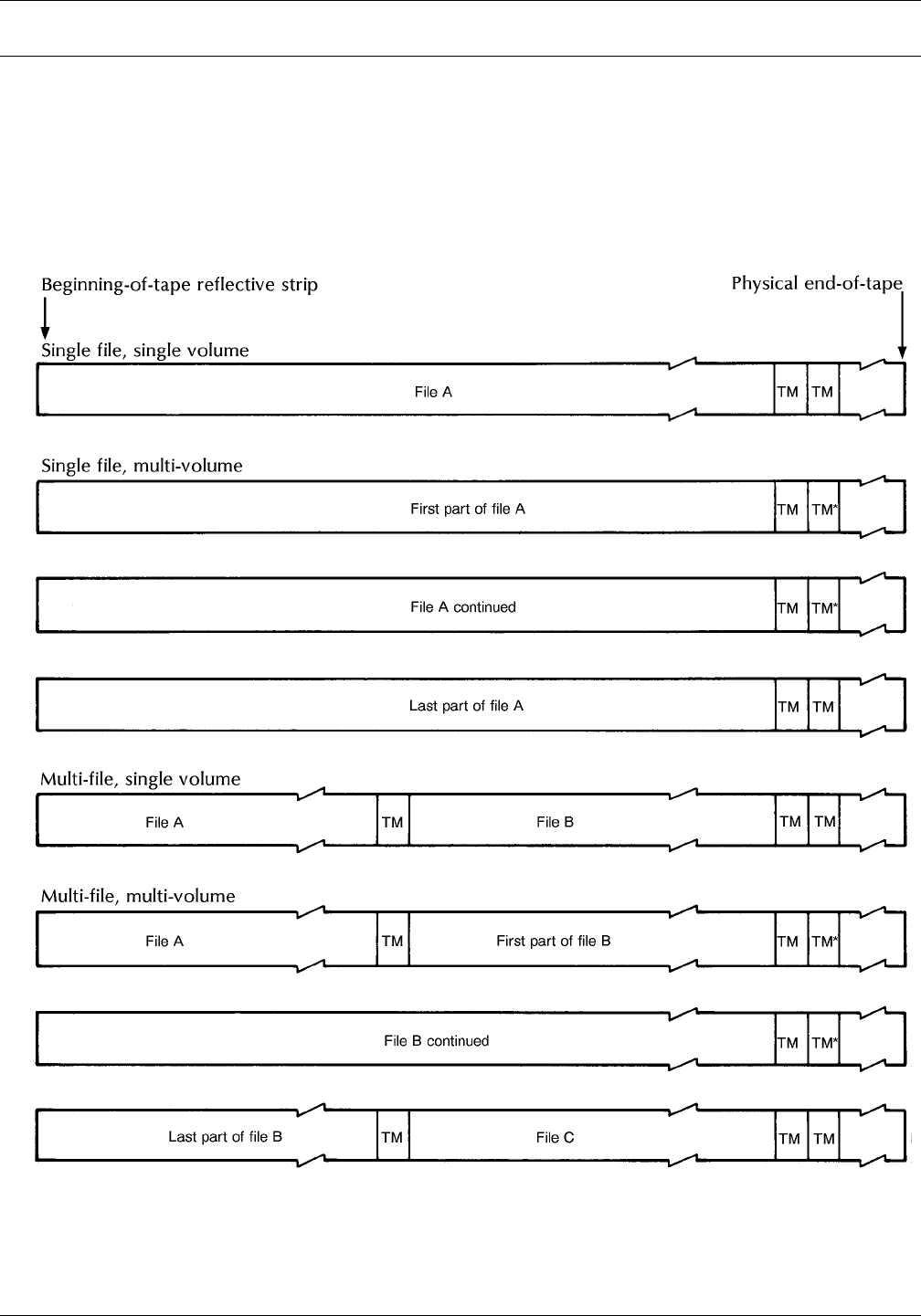

Figure 1-1. ANSI labeled tape structure
AMERICAN NATIONAL STANDARDS INSTITUTE (ANSI) LABELED TAPES
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 1-5
Figure 1-2. ANSI labeled tape structure-assuming coincident
end-of-life and end-of-volume where a continuation
volume exists
*If end-of-volume and end-of-file coincide, the labeling configuration is
as shown above. The letters (A) and (B) indicate to which file the
labels belong. These tapes assume no optional operating system or
user labels are used
AMERICAN NATIONAL STANDARDS INSTITUTE (ANSI) LABELED TAPES
1-6 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL

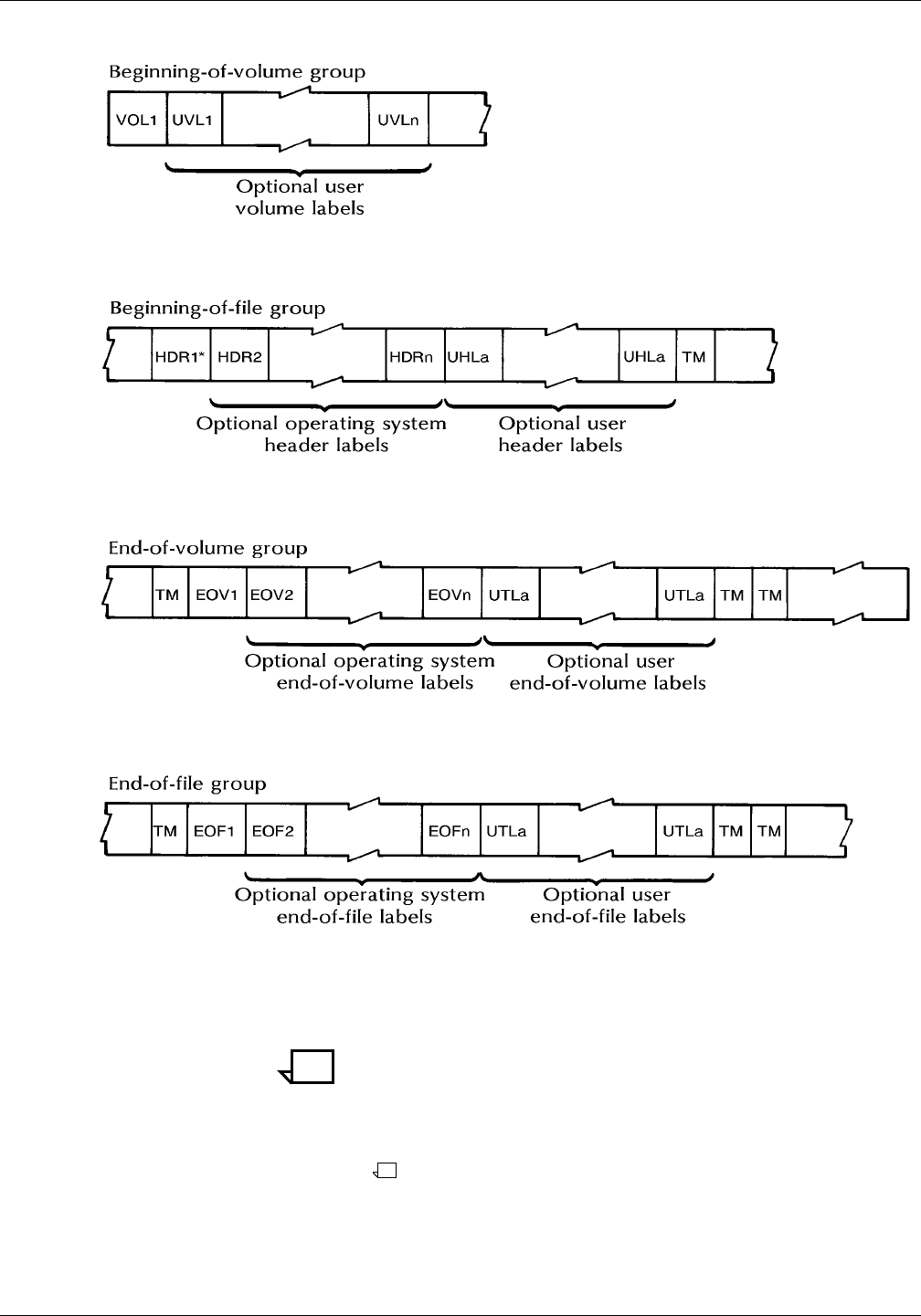

Figure 1-3. ANSI label groups with optional labels
*For the first file on a volume, HDR1 immediately follows the last
volume label without an intervening tape mark.
Note:
1. The letter “a” refers to any of the graphic characters defined in
the ANSI Standard X3.4—1968.
2. The letter “n” refers to a number 2 through 9.
AMERICAN NATIONAL STANDARDS INSTITUTE (ANSI) LABELED TAPES
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 1-7
VOL1 label
The VOL1 label must appear as the first block on every ANSI labeled
tape and in no other position. It provides the identification for a
particular reel of tape. No other label is permitted whose identifier
(first three characters) is VOL. The VOL1 label is described in table
1-2.
Table 1-2.VOL1 label (ANSI tapes)
Name Character
position(s) Field Description
Label identifier 1-3 1 This is the 3-character identifier VOL.
Label number 4 2 This is the number 1.
Volume serial —number 5-10 3 This is a 6-character code assigned by the owner to
identify this reel (physical volume) of tape. These
characters must be those defined in ANSI Standard
X3.27—1969 as “a” characters.
Accessibility 11 4 This is an access code. Any of the characters
specified for the volume serial number may be used.
A space means unlimited access; any other character
means special handling.
Reserved 12-31 5 Spaces.
Reserved 32-37 Spaces.
Owner identification 38-51 8 This is an owner identification code composed of
characters defined in ANSI Standard X3.27—1969 as
“a” characters.
Reserved 52-79 8 Spaces.
Label standard level 80 9 This is a standard level code. A number 1 indicates
that the labels and data formats on this volume
conform to ANSI Standard X3.27—1969. A space
indicates that they do not.
AMERICAN NATIONAL STANDARDS INSTITUTE (ANSI) LABELED TAPES
1-8 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
HDR1, EOV1, EOF1 labels
Note: The formats and contents of these labels are identical except
for the block count. The formats are shown in table 1-3.
Table 1-3.HDR1, EOV1, and EOF1 labels (ANSI) tapes
Name Character
position(s) Field Description
Label identifier 1-3 1 This is the 3-character identifier HDR, EOV, or EOF.
Label number 4 2 This is the number 1.
File identifier 5-21 3 This may be made up of any of the characters defined
in the ANSI Standard X3.27—1969 as “a” characters.
Set identification 22-27 4 This identifies the set of files to which this belongs and
may be any of the characters defined in the ANSI
Standard X3.27—1969 as “a” characters. The
identification is the same for all files of a multi-file set.
File section number* 28-31 5 This number is 0001 for the first header label of each
file. This applies to the first or only file on a volume
and to subsequent files on a multi-file volume. The
field is incremented by 1 on each subsequent volume
of the file.
File sequence number 32-35 6 This is a 4-digit numeric field that specifies the
sequence number of files within the volume or set of
volumes. Within all the labels for a given file, this field
contains the same number.
Generation number (optional) 36-39 7 This is a 4-digit numeric field that specifies the
sequence number of files within the volume or set of
volumes. Within all the labels for a given file, this field
contains the same number.
Generation version (optional) 40-41 8 This is a 2-digit numeric field that specifies successive
iterations of the same generation. The generation
version number of the first attempt to produce a file is
00.
Creation date 42-47 9 This consists of a space, followed by two numeric
digits for the year, followed by three numeric digits for
the day (001 to 365) within the year.
Expiration date 48-53 10 This field has the same format as field nine. An
“expired” file is one in which today's date is equal to,
or later than, the date given in this field. If this
condition is satisfied, the remainder of this volume
may be overwritten. To be effective on multi-file
volumes, the expiration date of a file must be less
than or equal to the previous “expire from” date of all
previous files on the volume.
* Fields 3, 5, and 12 are used by the operating system.
AMERICAN NATIONAL STANDARDS INSTITUTE (ANSI) LABELED TAPES
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 1-9
The HDR1 label is required for all files and for continuation of files on
succeeding reels. It identifies the file and contains operating system
information that relates to the file.
The EOV1 label is required following the last data block on a tape
when the file or file set is continued on a succeeding tape. It is
separated from the last data block by the tape mark that must
precede every end-of-volume label group.
The EOF1 label is required following the last data block of every file.
It is separated from the last data block by the tape mark that must
precede every end-of-file group.
Accessibility 54 11 This indicates any restriction on who may have
access to information in this file and may be any one
of the characters defined in the ANSI Standard
X3.27—1969 as “a” characters. A space indicates
unlimited access; any other character indicates
special handling.
Block count* 55-60 12 For HDR1, this field contains zeros. For EOV1 and
EOF1, it is a 6-digit numeric field specifying the
number of data blocks (exclusive of labels and tape
marks) since the preceding HDR group.
System code (optional) 61-73 13 This is a 13-character field specifying the operating
system that recorded this file. Any of the characters
defined in ANSI Standard X3.27—1969 as “a”
characters may be used
Reserved 74-80 14 Spaces
Table 1-3.HDR1, EOV1, and EOF1 labels (ANSI) tapes (continued)
Name Character
position(s) Field Description
* Fields 3, 5, and 12 are used by the operating system.
AMERICAN NATIONAL STANDARDS INSTITUTE (ANSI) LABELED TAPES
1-10 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
HDR2, EOV2, EOF2 labels
These labels are optional. EOF2 and EOV2 may be formatted
differently by different operating systems.
The HDR2 label is optional but is provided automatically by some
operating systems. When used, it must directly follow HDR1. HDR2
generally provides data relating to the physical parameters of the
recorded file, including record format, record length, and block
length. Table 1-4 describes the format of HDR2 labels.
The EOV2 label is optional and is provided automatically by some
operating systems. When used, it must directly follow EOV1. In some
operating systems, EOV2 is identical to HDR2. Table 1-4 describes
the format of these labels. In other operating systems, EOV2 has the
format described in table 1-5. (Refer to next section.)
The EOF2 label is optional but is provided automatically by some
operating systems. When used, it must follow EOF1 directly. In some
operating systems, EOF2 is identical to HDR2. Table 1-4 describes
the format of these labels. In other operating systems, EOF2 has the
format described in table 1-5. (Refer to next section.)
Table 1-4.HDR2, EOV2, and EOF2 labels (ANSI tapes)
Name Character
position(s) Field Description
Label identifier 1-3 1 This is the 3-character identifier HDR, EOV, or EOF.
Label number 4 2 This is the number 2.
Record format* 5 3 F = fixed length.
D = variable length with the number of characters in
the record specified in decimal.
U = undefined length.
Block length* 6-10 4 This specifies the maximum number of characters per
block and is a 5-digit numeric field.
For Burroughs large systems ANSI format, this field
represents Burroughs' words (6 characters per word)
rather than a character count.
Record length* 11-15 5 This specifies record length if record format is F,
maximum record length including any count fields if
record format is D or V, or undefined if record format
is undefined. Record length is a 5-digit numeric field.
Reserved for operating
systems 16-49 6 This field may have any of the characters defined in
the ANSI Standard X3.27—1969 as “a” characters.
Block attribute*
(IBM only)
50 7 In the HDR2 label for IBM labels only, this field is the
block attribute.
Buffer offset* 51-52 8 This is a 2-digit numeric field specifying the character
length of any additional field inserted before a data
block (e.g., block length). This length is included in
block length (field 4).
Reserved 53-80 9 Spaces
* Fields 3, 4, 5, 7, and 8 are used by the operating system.
AMERICAN NATIONAL STANDARDS INSTITUTE (ANSI) LABELED TAPES
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 1-11
HDR3-9, EOV3-9, EOF3-9 labels
These operating system labels are optional. The formats of the labels
are shown in table 1-5.
UVL, UHL, UTL labels
These are optional user labels. Their format is described in table 1-6.
Block sequence indicator
Tapes recorded with the optional block sequence indicator referred
to by the appendix of the ANSI Standard X3.27—1969 cannot be
printed.
Table 1-5.HDR3-9, EOV3-9, EOF3-9 labels
Name Character
position(s) Field Description
Label identifier 1-3 1 This is the 3-character identifier HDR, EOV, or EOF.
Label number 4 2 This is a 1-digit number from 3 to 9.
Operating system option 5-80 3 This field may have any of the characters defined as
“a” characters in ANSI Standard X3.37—1969.
*In some operating systems, EOF2 and EOV2 may use this format.
Table 1-6.UVL, UHL, and UTL labels (ANSI tapes)
Name Character
position(s) Field Description
Label identifier 1-3 1 This is the 3-character identifier UVL, UHL, or UTL.
Label name 4 2 For UVL, this may be a number from 1 to 9. For UHL
and UTL, this may be any of the characters defined in
ANSI Standard X3.27-1969 as “a” characters.
User option 5-80 3 This may be any character defined in ANSI Standard
X3.27-1969 as “a” characters.
AMERICAN NATIONAL STANDARDS INSTITUTE (ANSI) LABELED TAPES
1-12 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
Printer carriage control conventions
The ANSI control characters for IBM tapes are shown in table 1-7.
The processing parameters for ANSI carriage control are as follows.
Table 1-7.ANSI control characters for IBM tapes
Hexadecimal control characters
USASCII GRAPHIC USASCII TAPES EBCDIC TAPES Control function
blank 20 40 Space one line before printing.
0 30 F0 Space two lines before
printing.
- 2D 60 Space three lines before
printing.
+ 2B 4E Suppress space before
printing.*
1 31 F1 Skip to channel 1 and print.
2 32 F2 Skip to channel 2 and print.
3 33 F3 Skip to channel 3 and print.
4 34 F4 Skip to channel 4 and print.
5 35 F5 Skip to channel 5 and print.
6 36 F6 Skip to channel 6 and print.
7 37 F7 Skip to channel 7 and print.
8 38 F8 Skip to channel 8 and print.
9 39 F9 Skip to channel 9 and print.
A 40 C1 Skip to channel 10 and print.
B 42 C2 Skip to channel 11 and print.
C 43 C3 Skip to channel 12 and print.
*A record with a write-type control character immediately followed by a record with the
“Write (no space)” control character will be processed according to the job descriptor entry
option selected for overprint handling.
ANSI
INITIAL BOF
DEFAULT (OVR,SP1P)
ADVTAPE YES
MASK X’FF’
ASSIGN See values in table 1-7
AMERICAN NATIONAL STANDARDS INSTITUTE (ANSI) LABELED TAPES
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 1-13
ANSI tape JSL sample
Figure 1-4. JSL sample for IBM OS, DOS, ANSI, WRITER tapes.
IBMRCA:JDL; 000010
/* */ 000020
/* SYSTEM TO PRINT IBM OS STANDARD AND DOS STANDARD */ 000030
/* LABELED TAPES, IBM ANSI LABELED TAPES, IBM OS */ 000040
/* WRITER TAPES, AND US70 (RCA) LABELED TAPES. */ 000050
/* */ 000060
V1: VFU ASSIGN=(1,5), ASSIGN=(2,10), ASSIGN=(3,15), 000070
ASSIGN=(4,20), ASSIGN=(5,25), ASSIGN=(6,30), 000080
ASSIGN=(7,35), ASSIGN=(8,40), ASSIGN=(9,45), 000090
ASSIGN=(10,50), ASSIGN=(11,55), ASSIGN=(12,60), 000100
TOF=5, BOF=66; 000110
/* */ 000120
/* VFU FOR OS WRITER WITH CHANNEL 9 ASSIGNED TO LINE 66 */ 000130
/* */ 000140
WR: VFU ASSIGN=(1,5), ASSIGN=(2,10), ASSIGN=(3,15), 000150
ASSIGN=(4,20), ASSIGN=(5,25), ASSIGN=(6,30), 000160
ASSIGN=(7,35), ASSIGN=(8,40), ASSIGN=(10,45), 000170
ASSIGN=(11,50), ASSIGN=(12,60), ASSIGN=(9,66), 000180
TOF=5, BOF=66; 000190
/* */ 000200
VOLUME HOST=IBMOS, LABEL=STANDARD, CODE=EBCDIC, PLABEL=YES; 000210
LINE DATA=(1,132), PCCTYPE=ANSI, PCC=(0,NOTRAN), 000220
OVERPRINT=(MERGE,NODISP), VFU=V1; 000230
ACCT USER=(BIN,TRAY); 000240
/* */ 000250
/* CATALOG FOR OS VARIABLE BLOCKED TAPES */ 000260
/* */ 000270
OSVB:CATALOG; 000280
BLOCK LENGTH=2660, PREAMBLE=4, LTHFLD=2, FORMAT=BIN; 000290
RECORD LENGTH=136, PREAMBLE=4, STRUCTURE=VB, 000300
LTHFLD=2, OFFSET=0, FORMAT=BIN; 000310
/* */ 000320
/* CATALOG FOR OS WRITER TAPES */ 000330
/* */ 000340
OS:CATALOG; 000350
VOLUME HOST=OSWTR, OSCHN=9, OSTLP=0, OSHDP=1, 000360
PLABEL=YES; 000370
BLOCK LENGTH=2400, PREAMBLE=4, LTHFLD=2, FORMAT=BIN; 000380
RECORD LENGTH=136, PREAMBLE=4, STRUCTURE=VB, 000390
LTHFLD=2, FORMAT=BIN; 000400
LINE DATA=(1,132), PCCTYPE=ANSI, PCC=(0,NOTRAN), 000410
OVERPRINT=(MERGE,NODISP), VFU=WR; 000420
AMERICAN NATIONAL STANDARDS INSTITUTE (ANSI) LABELED TAPES
1-14 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
/* */ 000430
/* CATALOG FOR UNIVAC SERIES 70 */ 000440
/* (FORMERLY RCA) */ 000450
/* */ 000460
US:CATALOG; 000470
VOLUME HOST=US70, LABEL=STANDARD, PLABEL=YES; 000480
BLOCK LENGTH=1330, PREAMBLE=0; 000490
RECORD LENGTH=133, STRUCTURE=FB; 000500
LINE DATA=(1,132), PCCTYPE=US70, PCC=(0,NOTRAN), 000510
OVERPRINT=(MERGE,NODISP), VFU=V1; 000520
/* */ 000530
/* IBM OS/DOS STANDARD LABELED TAPES */ 000540
/* ------------------------------------------- */ 000550
/* */ 000560
/* THE FOLLOWING JDES PROVIDE SUPPORT FOR IBM OS STANDARD */ 000570
/* AND IBM DOS STANDARD LABELED TAPES */ 000580
/* */ 000590
/* CHARACTERISTICS JOB */ 000600
/* --------------- -------- */ 000610
/* */ 000620
/* OS STANDARD LABELS, 1403 PCC 1 */ 000630
/* OS STANDARD LABELS, ANSI PCC 2 */ 000640
/* OS STANDARD LABELS, 1401 PCC 3 */ 000650
/* OS STANDARD LABELS, NO PCC 4 */ 000660
/* DOS STANDARD LABELS, 1403 PCC 5 */ 000670
/* DOS STANDARD LABELS, ANSI PCC 6 */ 000680
/* DOS STANDARD LABELS, 1401 PCC 7 */ 000690
/* DOS STANDARD LABELS, NO PCC 8 */ 000700
/* */ 000710
1:JOB INCLUDE=(OSVB); 000720
VOLUME HOST=IBMOS, LABEL=STANDARD, CODE=EBCDIC; 000730
LINE PCCTYPE=IBM1403; 000740
2:JOB INCLUDE=(OSVB); 000750
VOLUME HOST=IBMOS, LABEL=STANDARD, CODE=EBCDIC; 000760
LINE PCCTYPE=ANSI; 000770
3:JOB INCLUDE=(OSVB); 000780
VOLUME HOST=IBMOS, LABEL=STANDARD, CODE=EBCDIC; 000790
LINE PCCTYPE=IBM1401; 000800
4:JOB INCLUDE=(OSVB); 000810
VOLUME HOST=IBMOS, LABEL=STANDARD, CODE=EBCDIC; 000820
LINE PCCTYPE=NONE; 000830
5:JOB; 000840
VOLUME HOST=IBMDOS, LABEL=STANDARD, CODE=EBCDIC; 000850
LINE PCCTYPE=IBM1403; 000860
6:JOB; 000870
VOLUME HOST=IBMDOS, LABEL=STANDARD, CODE=EBCDIC; 000880
LINE PCCTYPE=ANSI; 000890
7:JOB; 000900
VOLUME HOST=IBMDOS,LABEL=STANDARD, CODE=EBCDIC; 000910
LINE PCCTYPE=IBM1401; 000920
8:JOB; 000930
VOLUME HOST=IBMDOS, LABEL=STANDARD, CODE=EBCDIC; 000940
LINE PCCTYPE=NONE; 000950
/* */ 001100
AMERICAN NATIONAL STANDARDS INSTITUTE (ANSI) LABELED TAPES
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 1-15
/* */ 000960
/* IBM ANSI LABELED AND OS WRITER TAPES */ 000970
/* ---------------------------------------------- */ 000980
/* */ 000990
/* THE FOLLOWING JDES PROVIDE SUPPORT FOR IBM ANSI LABELED */ 001000
/* TAPES AND OS WRITER TAPES. */ 001010
/* */ 001020
/* CHARACTERISTICS JOB */ 001030
/* --------------- -------- */ 001040
/* */ 001050
/* ANSI LABELS, ASCII CODE, ANSI PCC 21 */ 001060
/* ANSI LABELS, ASCII CODE, NO PCC 22 */ 001070
/* OS WRITER, ANSI PCC 23 */ 001080
/* OS WRITER, 1403 PCC 24 */ 001090
21:JOB; 001110
VOLUME HOST=IBMOS, LABEL=ANSI, CODE=ASCII, LCODE=ASCII; 001120
LINE PCCTYPE=ANSI; 001130
22:JOB; 001140
VOLUME HOST=IBMOS, LABEL=ANSI, CODE=ASCII, LCODE=ASCII; 001150
LINE PCCTYPE=NONE; 001160
23:JOB INCLUDE=(OS); 001170
VOLUME HOST=OSWTR; 001180
LINE PCCTYPE=ANSI; 001190
24:JOB INCLUDE=(OS); 001200
VOLUME HOST=OSWTR; 001210
LINE PCCTYPE=IBM1403; 001220
/* */ 001230
/* US70 (RCA) STANDARD LABELED TAPES */ 001240
/* ------------------------------------------- */ 001250
/* */ 001260
/* JDES 41 AND 42 PROVIDE SUPPORT FOR US70 (FORMERLY RCA) */ 001270
/* STANDARD LABELED TAPES. */ 001280
/* */ 001290
41:JOB INCLUDE=(US); 001300
VOLUME HOST=US70, LABEL=STANDARD; 001310
END;END; 001320
AMERICAN NATIONAL STANDARDS INSTITUTE (ANSI) LABELED TAPES
1-16 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 2-1
2. 2IBM OS/360 and DOS/360
standard labeled tapes
This chapter describes the standard labeled tapes for the IBM OS/
360 and DOS/360.
IBM labeled tapes
The Xerox/OSS accepts any of the following IBM 360 9-track tapes:
•ANSI labeled tapes created under OS/360
•OS/360 standard labeled tapes
•DOS/360 standard labeled tapes
•Nonstandard unlabeled tapes whose data files conform to the
record format, blocking factor, and carriage control
requirements as described within this section.
OS/360 ANSI labeled tapes
ANSI labeled tapes created under OS/360 conform to ANSI Standard
X3.27—1969. These tapes always have the HDR2, EOF2, and
EOV2 labels.
The EOF2 and EOV2 labels are always identical to the HDR2 and the
actual count in EOF2 and EOV2. The recording code for both labels
and data files is ASCII.
IBM standard labeled tapes
OS/360 and DOS/360 standard labeled tapes are similar in principle
to ANSI labeled tapes but differ enough in detail to require separate
processing. The labels created by these operating systems and,
optionally, by users, are shown in table 2-1. The location of these
labels in the various tape configurations are illustrated in figures 2-1
and 2-2.
Table 2- 1. IBM OS/360 and DOS/360 tape labels
Class and originator
Type OS/360 DOS/360 User (optional)
Beginning-of-volume VOL1 VOL1 OS: None permitted
DOS:VOL2—VOL8.
Beginning-of-file HDR1, HDR2 HDR1 UHL1—UHL8
End-of-volume EOV1, EOV2 EOV1 UTL1—UTL8
End-of-file EOF1, EOF2 EOF1 UTL1—UTL8
IBM OS/360 AND DOS/360 STANDARD LABELED TAPES
2-2 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
Table 2-2 shows the principal differences between IBM standard
labeled tape structures and ANSI tape structures.

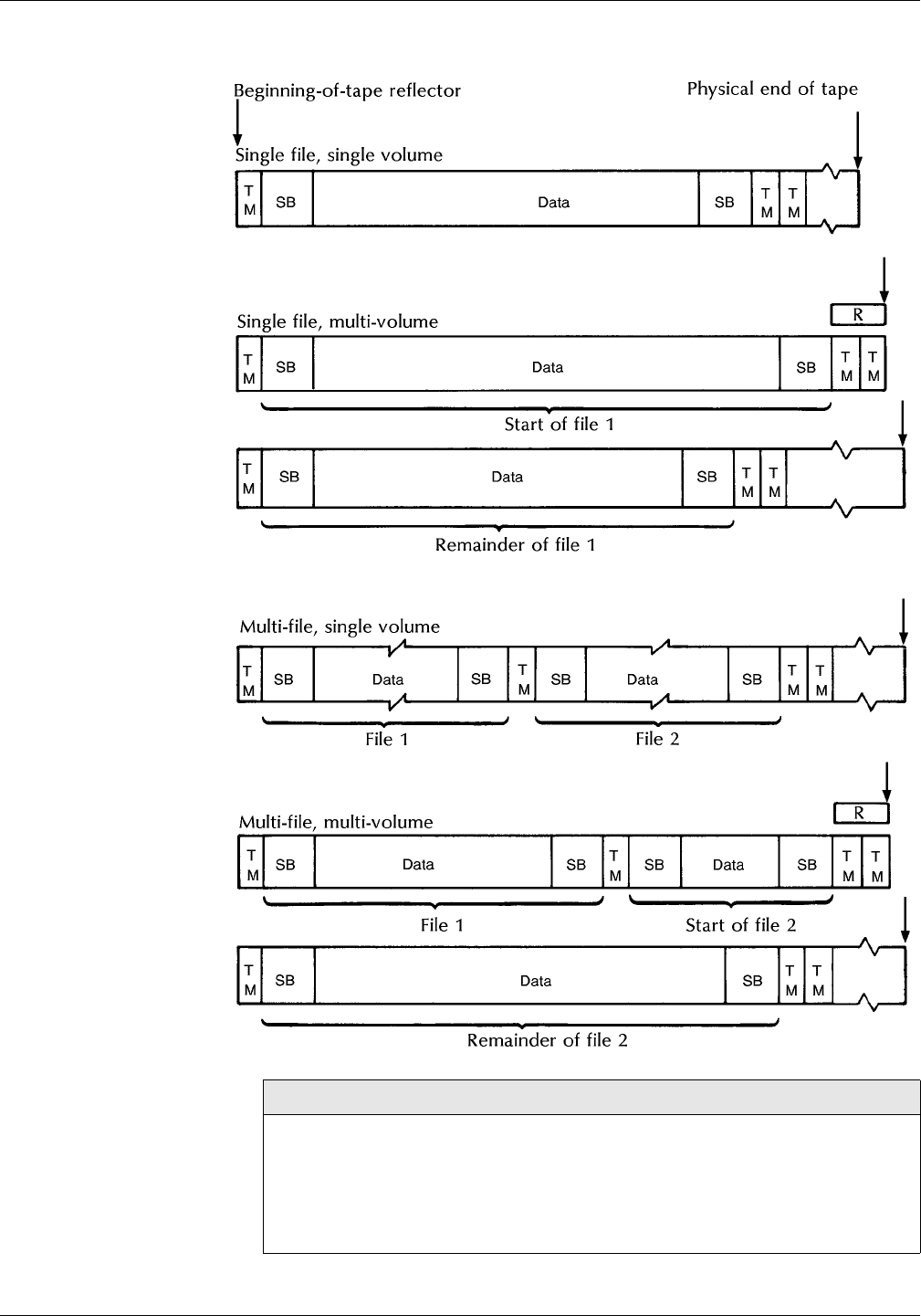

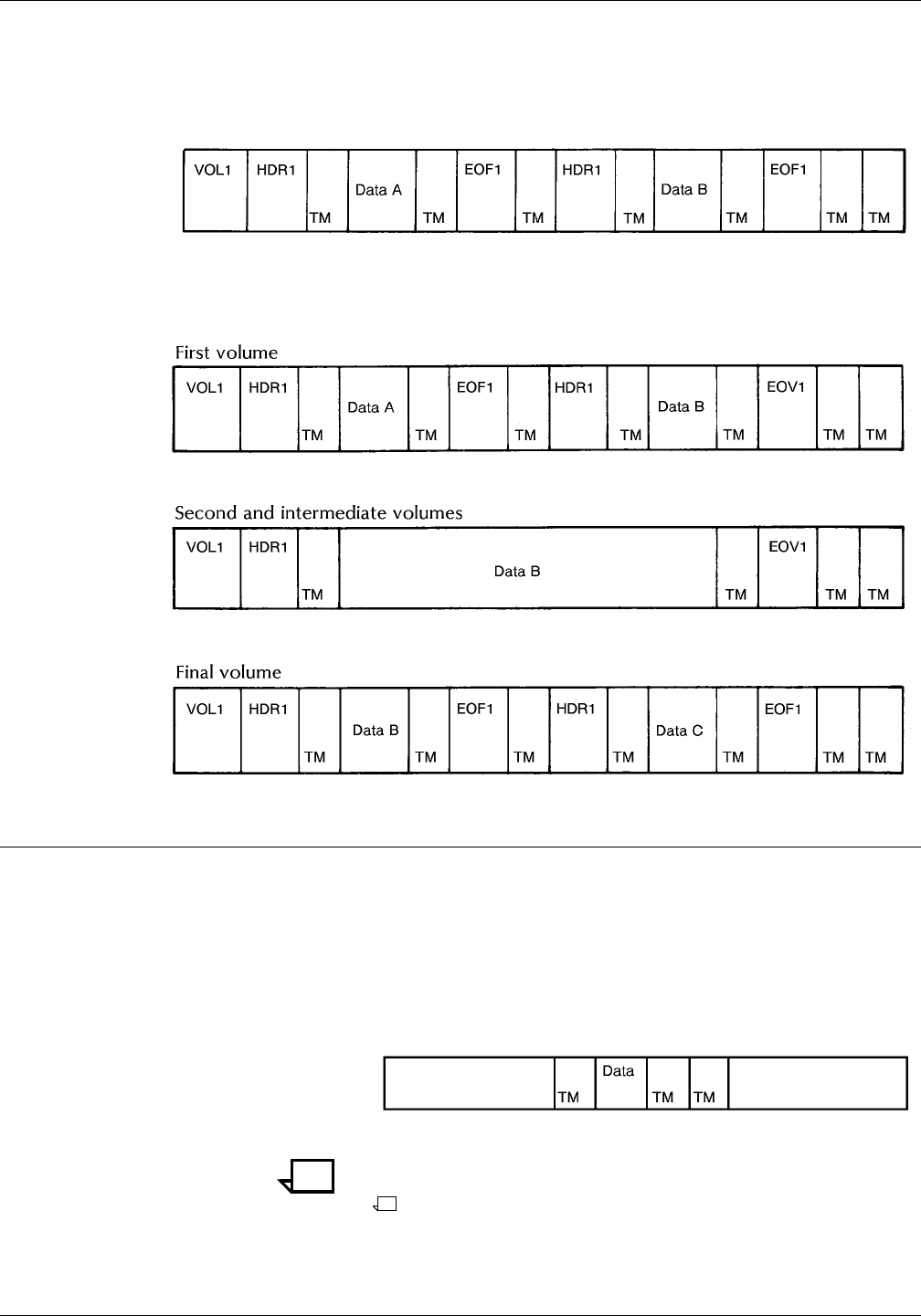

Figure 2-1. IBM labeled tape structure
IBM OS/360 AND DOS/360 STANDARD LABELED TAPES
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 2-3
*HDR2, EOV2, and EOF2 are provided under OS/360 but not under
DOS/360. Note that optional labels are not shown.
** Multiple file tapes created under DOS/360 must be created with the
DTF TPMARK = NO specification to avoid incorrectly placing two
tape marks between files.
Table 2- 2. ANSI and IBM labeled tape structure
Feature ANSI labels IBM OS/360 standard labels
Tape marks A double tape mark follows the last EOF
or EOV label group on a tape to indicate
the end of recorded data on the tape.
A double tape mark follows only the last
EOF label group on a tape. This
indicates that end of recorded data has
been encountered, and there is not a
continuation reel.
VOL VOL1 only. OS:VOL1 only
DOS:VOL1 provided.
VOL2-9 permitted.
UVL 1-9 allowed. None allowed
HDR, EOF, EOV 1 required; 2-9 optional. OS:1 and 2 provided.
DOS:1 provided; additional labels not
used.
UHL, UTL These are limited only by the 63
USASCII graphics available as “a”
characters for the label “number.”
Only UHL 1-8 allowed.
Recorded code USASCII EBCDIC
IBM OS/360 AND DOS/360 STANDARD LABELED TAPES
2-4 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL

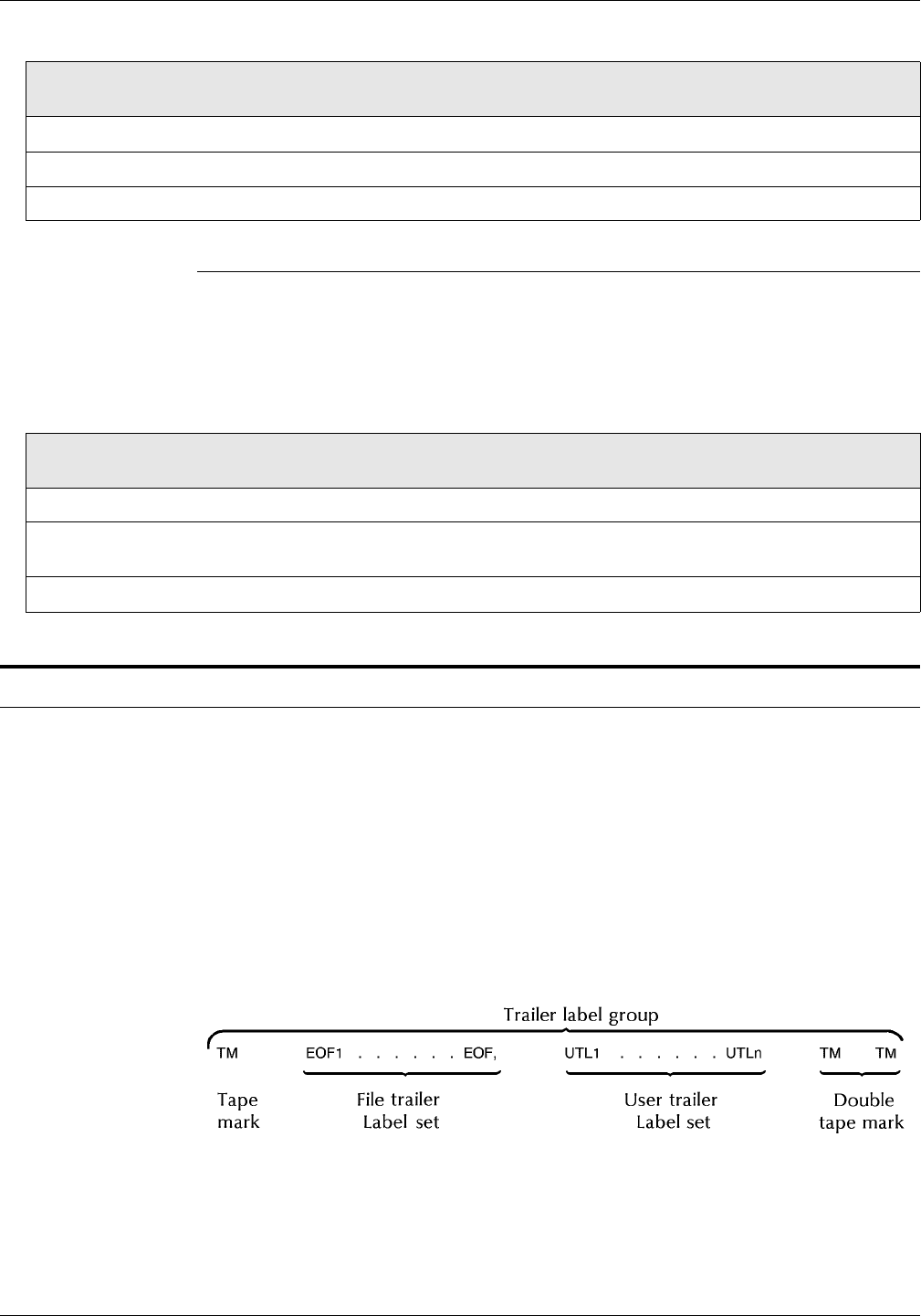

Figure 2-2. IBM standard label groups
*For the first file on a volume, HDR1 immediately follows the last
volume label without an intervening tape mark.
** HDR2, EOV2, and EOF2 are created by OS/360 but not DOS/360.
IBM OS/360 AND DOS/360 STANDARD LABELED TAPES
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 2-5
VOL1 label
This label is always the first record on a tape. The format is described
in table 2-3.
VOL2 through VOL8 labels
These labels are optional under DOS/360 and are bypassed by the
Xerox/OSS.
Table 2- 3. VOL1 label (IBM tapes)
Name Character
position(s) Field Description
Label identifier 1-3 1 This is the 3-character identifier VOL.
Label number 4 2 This is the number 1.
Volume serial number 5-10 3 This is an identification code assigned to the volume
when it enters the system.
Reserved 11 4 Zero.
VTO pointer (direct access
only) 12-21 5 Blanks.
Reserved 22-31 6 Blanks.
Reserved 32-41 7 Blanks.
Owner name and address
code 42-51 8 This identifies the owner of the volume.
Reserved 52-80 9 Blanks.
IBM OS/360 AND DOS/360 STANDARD LABELED TAPES
2-6 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
HDR1, EOV1, EOF1 labels
The formats of these labels are identical except for block count. The
formats are shown in table 2-4.
Table 2- 4. HDR1, EOV1, and EOF1 labels (IBM tapes)
Name Character
position(s) Field Description
Label identifier 1-3 1 This is the 3-character identifier HDR, EOV, or EOF.
Label number 4 2 This is the number 1.
File identifier* 5-21 3 These are the rightmost 17 bytes of the file name and
includes GnnnVnn if part of a generation data group.
File serial number 22-27 4 This is the volume serial number of the tape volume
containing the file.
Volume sequence number* 28-31 5 This number (0001-9999) indicates the order of the
volume within the multi-volume group created at the
same time.
File sequence 32-35 6 This number (0001-9999) indicates the relative
position of the file within a multi-file group.
Generation number 36-39 7 This field contains a number from 0000 to 9999
indicating the absolute generation number if the file is
part of a generation data group (the first generation is
0000).
Version number 40-41 8 This field contains a number from 00 to 99 indicating
the version number of the generation if the file is part
of a generation data group (the first version is 00).
Creation date 42-47 9 This is the year and day the file was created and is of the
form: byyddd
b = blank
yy = year (00-99)
ddd = day (001-366)
Expiration date 48-53 10 This is the year and day when the file may be
scratched or overwritten. The data is of the same form
as described for creation date
File security 54 11 0 means no security.
1 means security protection; additional ID of file
required before it can be read, written, or deleted.
3 means security protection; additional ID of file
required before it can be read, written, or deleted.
Block count* 55-60 12 This is the number of data blocks in the file on the
current volume (exclusive of labels and tape marks).
For HDR1, this field contains zeros.
System code 61-73 13 This code identifies the system.
Reserved 74-80 14 Blanks.
*Fields 3, 5, and 12 are used by the operating system.
IBM OS/360 AND DOS/360 STANDARD LABELED TAPES
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 2-7
The HDR1 label is always the first beginning-of-file label. When the
file is the first on the tape, the HDR1 label immediately follows the last
VOL label without an intervening tape mark. When the file is not the
first on the tape, HDR1 is the first block following the tape mark that
followed the previous end-of-file label group. The HDR1 label is
created by both OS/360 and DOS/360.
The EOV1 label is always the first (or only) label following the last
data block on a tape when a file is continued on a succeeding tape.
It is separated from the final data block by a tape mark.
The EOF1 label is always the first (or only) label following the last
data block of a file. It is separated from the final data block by a tape
mark.
HDR2, EOV2, EOF2 labels
The formats of these labels are identical and are described in table
2-5. Only HDR2 labels are processed. EOV2 and EOF2 are
bypassed.
Table 2- 5. HDR2, EOV2, and EOF2 labels (IBM tapes)
Name Character
position(s) Field Description
Label identifier 1-3 1 This is the 3-character identifier HDR, EOV, or EOF.
Label number 4 2 This is the number 2.
Record format* 5 3 This is an alphabetic character that indicates the
format of the records in the associated file. The
characters are:
F = fixed length.
V = variable length.
U = undefined length.
Block length* 6-10 4 This is a binary number (up to 32,764) that indicates
the block length in bytes.
Format F—Must be an integral multiple of record
length (field 5).
Format V—Indicates maximum block length in file,
including the 4-byte length field.
Format U—Indicates maximum block length.
Record length* 11-15 5 This is a number that indicates record length in bytes.
Format F—Indicates actual record length.
Format V—Indicates maximum record length in file,
including the 4-byte length field.
Format U—Zeros.
Tape density 16 6 This is a code that indicates the recording density of
the tape.
2 = 800 bpi
3 = 1600 bpi
* Fields 3, 4, 5, and 12 are used by the operating system.
IBM OS/360 AND DOS/360 STANDARD LABELED TAPES
2-8 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
The HDR2 label is always created by OS/360 and immediately
follows HDR1 on OS/360 standard labeled tapes. It is not created by
DOS/360. The HDR2 label provides data relating to the physical
parameters of the recorded file such as record format, record length,
and block length.
The EOV2 label is always created by OS/360 and immediately
follows EOV1 on OS/360 standard labeled tapes. It is not created by
DOS/360.
The EOF2 label is always created by OS/360 and immediately
follows EO1 on OS/360 standard labeled tapes. It is not created by
DOS/360.
File position 17 7 This is a code that indicates a volume switch.
0 indicates no volume switch has occurred;
1 indicates a volume switch has occurred.
Job/job step identification 18-34 8 This is an indication of the job/job step that created
the file.
Tape recording technique 35-36 9 This is either a code for 7-track tapes or blanks for 9-
track tapes.
Printer control character 37 10 This is a code indicating whether a control character
set was used to create the file, and the type of control
characters used:
A = ANSI control characters.
M = machine control characters.
blank = no control characters.
Reserved 38 11 Blank.
Block attribute* 39 12 This is a code indicating the block attribute used to
create the file. The codes are:
B = blocked records.
S = spanned records.
R = blocked and spanned records.
blank = not blocked and not spanned records.
Reserved 40-80 13 Blanks.
Table 2- 5. HDR2, EOV2, and EOF2 labels (IBM tapes)
(continued)
Name Character
position(s) Field Description
* Fields 3, 4, 5, and 12 are used by the operating system.
IBM OS/360 AND DOS/360 STANDARD LABELED TAPES
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 2-9
UHL1-8, UTL1-8 labels
These are optional user labels and are bypassed by the Xerox/OSS.
Their formats are described in table 2-6.
The UHLn labels immediately follow HDR2 for OS/360 and HDR1 for
DOS/360.
The UTLn labels immediately follow EOV2 for OS/360 and EOV1 for
DOS/360.
Printer carriage control conventions
The Xerox/OSS accepts IBM 1401 “Emulation” control characters,
IBM 1403 “Machine” control characters, and IBM ANSI control
characters.
Table 2- 6. UHL and UTL labels (IBM tapes)
Name Character
position(s) Field Description
Label identifier 1-3 1 This is the 3-character identifier UHL or UTL.
Label number 4 2 This is a number from 1 to 8.
User option 5-80 3 Specified by user
Table 2- 7. IBM 1401 emulation control codes
Code (hexadecimal) 1401 function Code (hexadecimal) 1401 function
E1 Print, space 1 line. D1 No print, space 1 line.
E2 Print, space 2 lines. D2 No print, space 2 lines.
E3 Print, space 3 lines. D3 No print, space 3 lines.
C1 Print, skip to channel 1. F1 No print, skip to channel 1.
C2 Print, skip to channel 2. F2 No print, skip to channel 2.
C3 Print, skip to channel 3. F3 No print, skip to channel 3.
C4 Print, skip to channel 4. F4 No print, skip to channel 4.
C5 Print, skip to channel 5 F5 No print, skip to channel 5.
C6 Print, skip to channel 6. F6 No print, skip to channel 6.
C7 Print, skip to channel 7 F7 No print, skip to channel 7.
C8 Print, skip to channel 8. F8 No print, skip to channel 8.
C9 Print, skip to channel 9 F9 No print, skip to channel 9.
C0 Print, skip to channel 10. F0 No print, skip to channel 10.
4B Print, skip to channel 11. 7B No print, skip to channel 11.
4C Print, skip to channel 12. 7C No print, skip to channel 12.
IBM OS/360 AND DOS/360 STANDARD LABELED TAPES
2-10 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
The processing parameters for IBM 1401 and IBM 1403 carriage
control are as follows:
Table 2- 8. IBM 1403 emulation control codes
Code
(hexadecimal) 1403 function Code
(hexadecimal) 1401 function
01 Write (no automatic space)* 0B Space 1 line immediately.
02 Write and space 1 line after printing. 13 Space 2 line immediately.
11 Write and space 2 line after printing. 1B Space 3 line immediately.
19 Write and space 3 line after printing 8B Skip to channel 1 immediately.
89 Write and skip to channel 1 after printing. 93 Skip to channel 2 immediately.
91 Write and skip to channel 2 after printing. 9B Skip to channel 3 immediately.
99 Write and skip to channel 3 after printing. A3 Skip to channel 4 immediately.
A1 Write and skip to channel 4 after printing. AB Skip to channel 5 immediately.
A9 Write and skip to channel 5 after printing. B3 Skip to channel 6 immediately.
B1 Write and skip to channel 6 after printing. BB Skip to channel 7 immediately.
B9 Write and skip to channel 7 after printing. C3 Skip to channel 8 immediately.
C1 Write and skip to channel 8 after printing. CB Skip to channel 9 immediately.
C9 Write and skip to channel 9 after printing. D3 Skip to channel 10 immediately.
D1 Write and skip to channel 10 after printing. DB Skip to channel 11 immediately.
D9 Write and skip to channel 11 after printing. E3 Skip to channel 12 immediately.
E1 Write and skip to channel 12 after printing. 03 No operation.
*A record with a write-type control character immediately preceded by a record with the “Write (no automatic
space)” control character is processed according to the option selected for overprint handling.
IBM 1401 IBM 1403
INITIAL TOF TOF
DEFAULT (OVR,PSPI) (OVR,PSPI)
ADVTAPE YES NO
MASK X‘FF‘ X‘FF‘
ASSIGN See values in table 2-7 See values in table 2-8.
IBM OS/360 AND DOS/360 STANDARD LABELED TAPES
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 2-11
IBM OS and DOS tape JSL sample
The following figure provides a JSL sample.
Figure 2-3. JSL sample for IBM OS, DOS, ANSI, WRITER tapes.
IBMRCA:JDL; 000010
/* */ 000020
/* SYSTEM TO PRINT IBM OS STANDARD AND DOS STANDARD */ 000030
/* LABELED TAPES, IBM ANSI LABELED TAPES, IBM OS */ 000040
/* WRITER TAPES, AND US70 (RCA) LABELED TAPES. */ 000050
/* */ 000060
V1: VFU ASSIGN=(1,5), ASSIGN=(2,10), ASSIGN=(3,15), 000070
ASSIGN=(4,20), ASSIGN=(5,25), ASSIGN=(6,30), 000080
ASSIGN=(7,35), ASSIGN=(8,40), ASSIGN=(9,45), 000090
ASSIGN=(10,50), ASSIGN=(11,55), ASSIGN=(12,60), 000100
TOF=5, BOF=66; 000110
/* */ 000120
/* VFU FOR OS WRITER WITH CHANNEL 9 ASSIGNED TO LINE 66 */ 000130
/* */ 000140
WR: VFU ASSIGN=(1,5), ASSIGN=(2,10), ASSIGN=(3,15), 000150
ASSIGN=(4,20), ASSIGN=(5,25), ASSIGN=(6,30), 000160
ASSIGN=(7,35), ASSIGN=(8,40), ASSIGN=(10,45), 000170
ASSIGN=(11,50), ASSIGN=(12,60), ASSIGN=(9,66), 000180
TOF=5, BOF=66; 000190
/* */ 000200
VOLUME HOST=IBMOS, LABEL=STANDARD, CODE=EBCDIC,PLABEL=YES; 000210
LINE DATA=(1,132), PCCTYPE=ANSI, PCC=(0,NOTRAN), 000220
OVERPRINT=(MERGE,NODISP), VFU=V1; 000230
ACCT USER=(BIN,TRAY); 000240
/* */ 000250
/* CATALOG FOR OS VARIABLE BLOCKED TAPES */ 000260
/* */ 000270
OSVB:CATALOG; 000280
BLOCK LENGTH=2660, PREAMBLE=4, LTHFLD=2, FORMAT=BIN; 000290
RECORD LENGTH=136, PREAMBLE=4, STRUCTURE=VB, 000300
LTHFLD=2, OFFSET=0, FORMAT=BIN; 000310
/* */ 000320
/* CATALOG FOR OS WRITER TAPES */ 000330
/* */ 000340
OS:CATALOG; 000350
VOLUME HOST=OSWTR, OSCHN=9, OSTLP=0, OSHDP=1, 000360
PLABEL=YES; 000370
BLOCK LENGTH=2400, PREAMBLE=4, LTHFLD=2, FORMAT=BIN; 000380
RECORD LENGTH=136, PREAMBLE=4, STRUCTURE=VB, 000390
LTHFLD=2, FORMAT=BIN; 000400
LINE DATA=(1,132), PCCTYPE=ANSI, PCC=(0,NOTRAN), 000410
OVERPRINT=(MERGE,NODISP), VFU=WR; 000420
IBM OS/360 AND DOS/360 STANDARD LABELED TAPES
2-12 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
/* */ 000430
/* CATALOG FOR UNIVAC SERIES 70 */ 000440
/* (FORMERLY RCA) */ 000450
/* */ 000460
US:CATALOG; 000470
VOLUME HOST=US70, LABEL=STANDARD, PLABEL=YES; 000480
BLOCK LENGTH=1330, PREAMBLE=0; 000490
RECORD LENGTH=133, STRUCTURE=FB; 000500
LINE DATA=(1,132), PCCTYPE=US70, PCC=(0,NOTRAN), 000510
OVERPRINT=(MERGE,NODISP), VFU=V1; 000520
/* */ 000530
/* IBM OS/DOS STANDARD LABELED TAPES */ 000540
/* ------------------------------------------- */ 000550
/* */ 000560
/* THE FOLLOWING JDES PROVIDE SUPPORT FOR IBM OS STANDARD */ 000570
/* AND IBM DOS STANDARD LABELED TAPES */ 000580
/* */ 000590
/* CHARACTERISTICS JOB */ 000600
/* --------------- -------- */ 000610
/* */ 000620
/* OS STANDARD LABELS, 1403 PCC 1 */ 000630
/* OS STANDARD LABELS, ANSI PCC 2 */ 000640
/* OS STANDARD LABELS, 1401 PCC 3 */ 000650
/* OS STANDARD LABELS, NO PCC 4 */ 000660
/* DOS STANDARD LABELS, 1403 PCC 5 */ 000670
/* DOS STANDARD LABELS, ANSI PCC 6 */ 000680
/* DOS STANDARD LABELS, 1401 PCC 7 */ 000690
/* DOS STANDARD LABELS, NO PCC 8 */ 000700
/* */ 000710
1:JOB INCLUDE=(OSVB); 000720
VOLUME HOST=IBMOS, LABEL=STANDARD, CODE=EBCDIC; 000730
LINE PCCTYPE=IBM1403; 000740
2:JOB INCLUDE=(OSVB); 000750
VOLUME HOST=IBMOS, LABEL=STANDARD, CODE=EBCDIC; 000760
LINE PCCTYPE=ANSI; 000770
3:JOB INCLUDE=(OSVB); 000780
VOLUME HOST=IBMOS, LABEL=STANDARD, CODE=EBCDIC; 000790
LINE PCCTYPE=IBM1401; 000800
4:JOB INCLUDE=(OSVB); 000810
VOLUME HOST=IBMOS, LABEL=STANDARD, CODE=EBCDIC; 000820
LINE PCCTYPE=NONE; 000830
5:JOB; 000840
VOLUME HOST=IBMDOS, LABEL=STANDARD, CODE=EBCDIC; 000850
LINE PCCTYPE=IBM1403; 000860
6:JOB; 000870
VOLUME HOST=IBMDOS, LABEL=STANDARD, CODE=EBCDIC; 000880
LINE PCCTYPE=ANSI; 000890
7:JOB; 000900
VOLUME HOST=IBMDOS,LABEL=STANDARD, CODE=EBCDIC; 000910
LINE PCCTYPE=IBM1401; 000920
8:JOB; 000930
VOLUME HOST=IBMDOS, LABEL=STANDARD, CODE=EBCDIC; 000940
LINE PCCTYPE=NONE; 000950
IBM OS/360 AND DOS/360 STANDARD LABELED TAPES
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 2-13
/* */ 000960
/* IBM ANSI LABELED AND OS WRITER TAPES */ 000970
/* ---------------------------------------------- */ 000980
/* */ 000990
/* THE FOLLOWING JDES PROVIDE SUPPORT FOR IBM ANSI LABELED */ 001000
/* TAPES AND OS WRITER TAPES. */ 001010
/* */ 001020
/* CHARACTERISTICS JOB */ 001030
/* --------------- -------- */ 001040
/* */ 001050
/* ANSI LABELS, ASCII CODE, ANSI PCC 21 */ 001060
/* ANSI LABELS, ASCII CODE, NO PCC 22 */ 001070
/* OS WRITER, ANSI PCC 23 */ 001080
/* OS WRITER, 1403 PCC 24 */ 001090
/* */ 001100
21:JOB; 001110
VOLUME HOST=IBMOS, LABEL=ANSI, CODE=ASCII, LCODE=ASCII; 001120
LINE PCCTYPE=ANSI; 001130
22:JOB; 001140
VOLUME HOST=IBMOS, LABEL=ANSI, CODE=ASCII, LCODE=ASCII; 001150
LINE PCCTYPE=NONE; 001160
23:JOB INCLUDE=(OS); 001170
VOLUME HOST=OSWTR; 001180
LINE PCCTYPE=ANSI; 001190
24:JOB INCLUDE=(OS); 001200
VOLUME HOST=OSWTR; 001210
LINE PCCTYPE=IBM1403; 001220
/* */ 001230
/* US70 (RCA) STANDARD LABELED TAPES */ 001240
/* ------------------------------------------- */ 001250
/* */ 001260
/* JDES 41 AND 42 PROVIDE SUPPORT FOR US70 (FORMERLY RCA) */ 001270
/* STANDARD LABELED TAPES. */ 001280
/* */ 001290
41:JOB INCLUDE=(US); 001300
VOLUME HOST=US70, LABEL=STANDARD; 001310
END;END; 001320
IBM OS/360 AND DOS/360 STANDARD LABELED TAPES
2-14 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 3-1
3. 3 IBM DOS/360 GRASP tape
organization
This chapter describes the IBM DOS/360 GRASP tape organization.
It also includes a sample JSL.
Record format
Each physical record on a GRASP tape consists of two basic
elements: the identification segment and a segment containing a
variable number of logical data records (refer to figure 3-1).

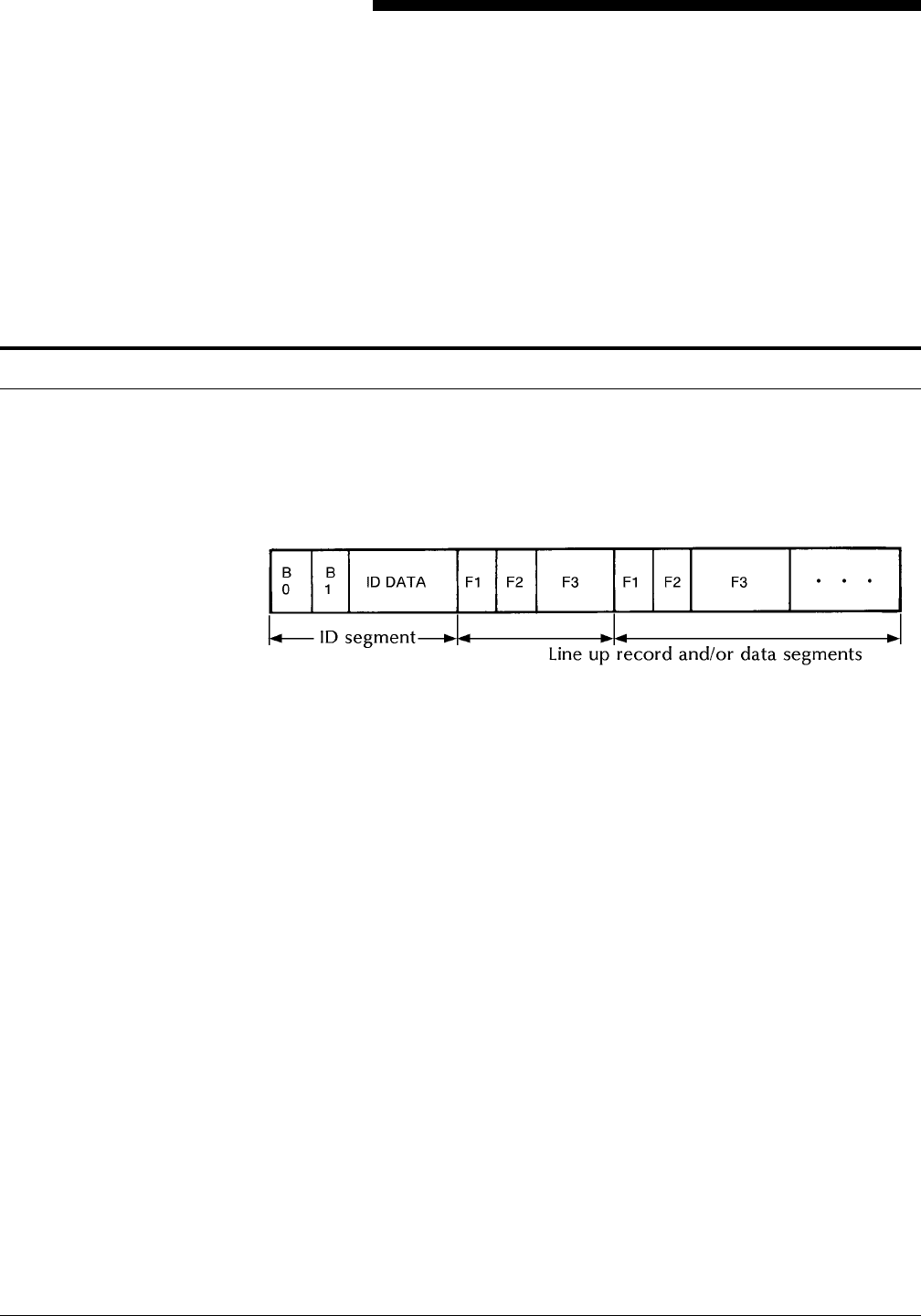

Figure 3-1. GRASP physical record format
•B0 is a byte which contains the length of the ID segment in
binary.
•B1 is used as a flag byte. If bit zero of byte 1 is set to 1, then the
first logical record following the ID segment contains a line up
message-to be used for job control information by the operator.
•ID DATA, bytes 26 and 27 (zero-indexing from the start of the
block) contain the address of the phantom printer device to be
used for block selection/deletion criteria, if desired.
•F1 is a one-byte binary value which gives the length of F3. A
zero value implies end of logical records in block.
•F2 is the channel control word after resetting bit 5 to zero. In a
line-up record, the channel control word stored here is treated
as a “no operation” (NOP) by the printer.
•F3 is either a line-up message or a line of print data.
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 3-2
Identification segment
The identification segment is a logical record used by GRASP. It
consists of a length byte (byte 0), a flag byte (byte 1), and
identification data used only by GRASP.
•The length byte contains the length of the identification
segment, including the length byte, flag byte, and identification
data.
•Bit 0 of the flag byte is set to one if the current data block
contains a line-up record. This line-up record, if present,
appears as the first logical data record in the block.
Data records
The logical data records consist of three fields.
•Field one contains a one-byte binary value which specifies the
length of field three. If zero is specified, the end of logical
records in the current physical record is indicated.
•Field two contains a one-byte code which, after turning off bit
five, should be used as the IBM System 360/370 (1403) printer
carriage control code.
•Field three is the print line data. The length of the data is
specified in field one.
GRASP tapes are single file tapes ending with a single tape mark.
Multiple reel tapes are signified by an ending tape mark coinciding
with an EOT reflector.
Line-up records
Line-up records conform to the field three format mentioned
previously. The length byte of the line-up record includes the length
of the message identifier and the length of the message text. To
locate the message text, scan the record for a hexadecimal 15
(X'15'). The text of the message begins with the character
immediately following the hexadecimal 15. The channel control word
in the line-up record is the code for a printer “no operation” (NOP).
Physical record size
The physical record size for each block of data on a GRASP tape is
equal to the GRASP disk buffer size. This buffer size is specified at
GRASP generation time and must be obtained from the user
installation's software support group.
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 3-3
Sample data block

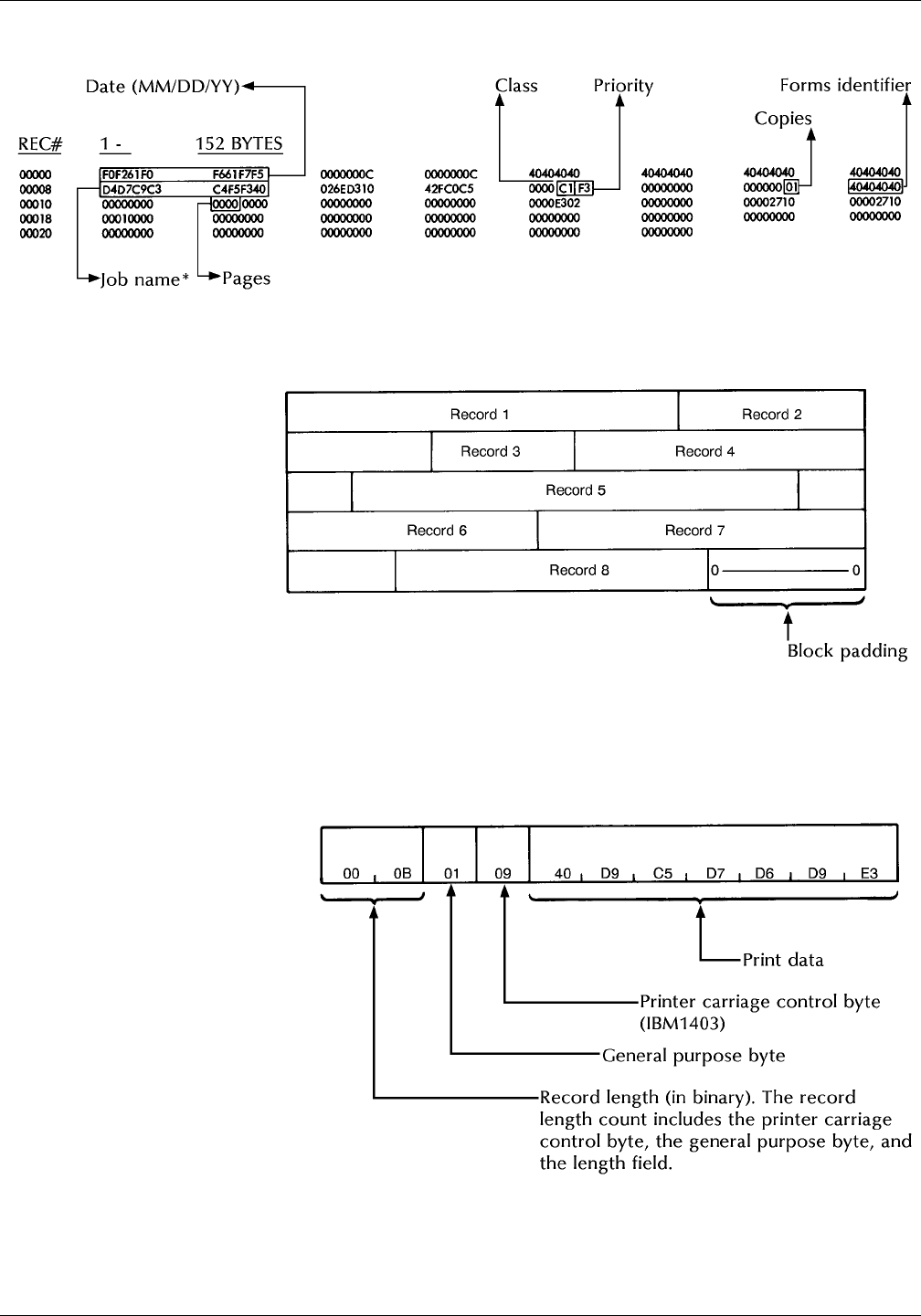

A sample GRASP data block is shown in figure 3-2.

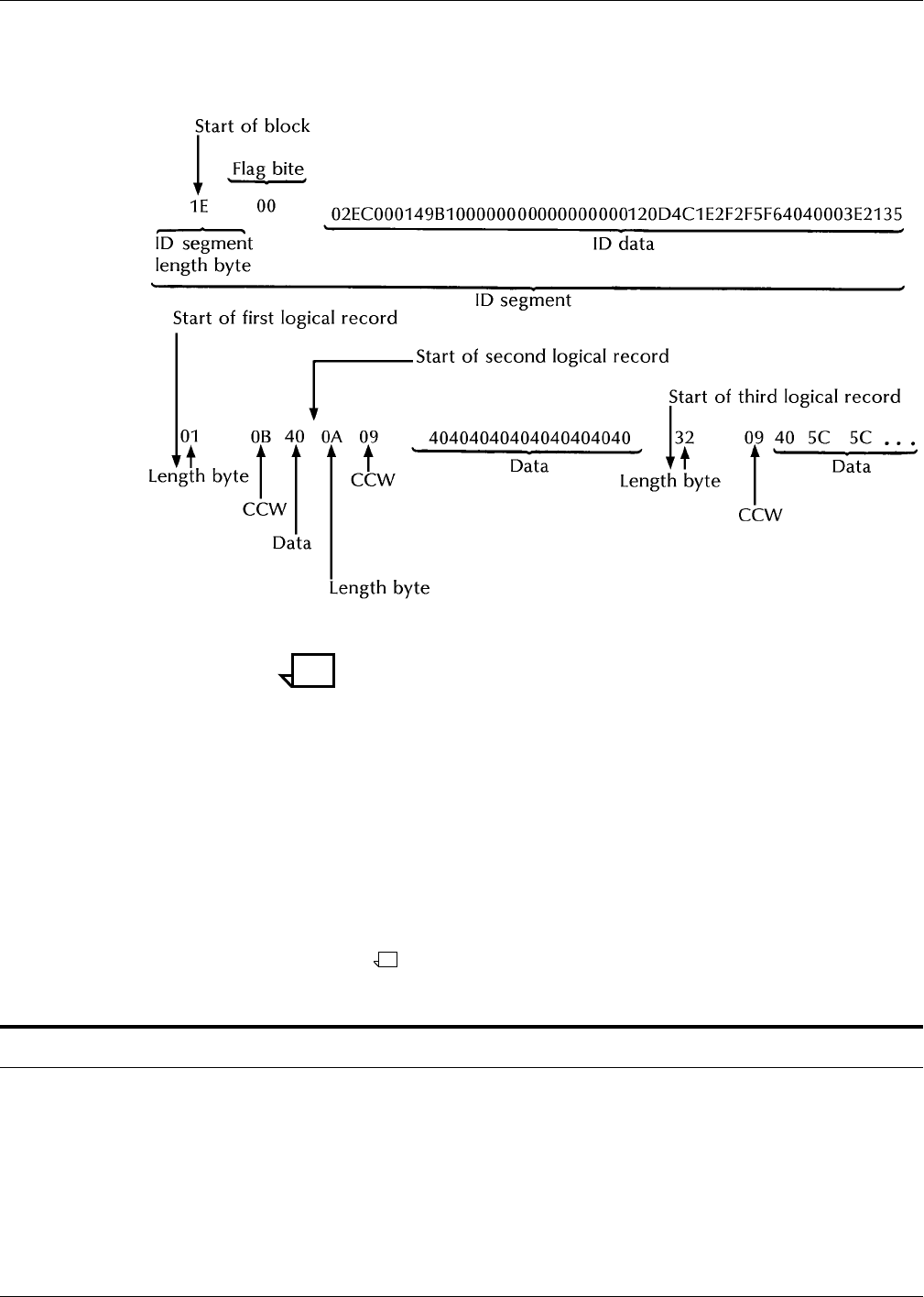

Figure 3-2. Sample GRASP data block
Note:
1. This block does not contain a line-up record. If it did, the line-up
record would be in the first logical record position and it would
have the same format as all other logical records in the block.
2. The identification segment length byte includes itself in the
length count, while the data record length byte gives the length
of the print data within the logical record.
3. The carriage control bytes shown in this example could be used
directly without resetting bit 5 (it is already 0). “0B” indicates
space 1 immediate (no printing), “09” indicates space 1 after
printing, and so on.
4. CCW indicates channel control word.
GRASP carriage control conventions
GRASP carriage control is identical to IBM 1403 carriage control
except bit five (counting from the left of the byte) is set. This is
equivalent to adding binary four to each of the IBM 1403 control
codes. For example, GRASP code X'0D' is processed as 1403 code
X'09', or “print and space one line.”
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 3-4
GRASP interspersed block tapes
GRASP can produce interspersed block tapes by using multiple
phantom printers. Byte 27 of each block (in the ID segment of each
block) contains the address of a phantom printer. To process these
requests, the user should set up a block selection/deletion function.
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 3-5
POWER and GRASP tapes
The following figure provides a JSL sample.
Figure 3-3. JSL sample for POWER and GRASP tapes
POWGRP:JDL; 000010
/* */ 000020
/* SYSTEM FOR POWER, POWER VS, AND GRASP */ 000030
/* */ 000040
V1: VFU ASSIGN=(1,5), ASSIGN=(2,10), ASSIGN=(3,15), 000050
ASSIGN=(4,20), ASSIGN=(5,25), ASSIGN=(6,30), 000060
ASSIGN=(7,35), ASSIGN=(8,40), ASSIGN=(9,45), 000070
ASSIGN=(10,50), ASSIGN=(11,55), ASSIGN=(12,60), 000080
TOF=4, BOF=66; 000090
/* */ 000100
/* TABLES AND CRITERIA FOR LOGICAL PROCESSING */ 000110
/* FOR GRASP INTERLEAVED TAPES */ 000120
/* */ 000130
T1: TABLE CONSTANT=('B'); 000140
T2: TABLE CONSTANT=('C'); 000150
/* */ 000160
C1: CRITERIA CONSTANT=(27,1,EQ,T1); 000170
C2: CRITERIA CONSTANT=(27,1,EQ,T2); 000180
/* */ 000190
/* SYSTEM FOR POWER VS */ 000200
/* */ 000210
VOLUME HOST=POWERVS, PLABEL=YES; 000220
BLOCK LENGTH=2048; 000230
RECORD LENGTH=136, STRUCTURE=VB, LTHFLD=2, OFFSET=0, 000240
ADJUST=0, FORMAT=BIN, PREAMBLE=3; 000250
LINE DATA=(1,132), PCCTYPE=IBM1403, PCC=(0,NOTRAN), 000260
OVERPRINT=(MERGE,NODISP), VFU=V1; 000270
ACCT USER=(BIN,TRAY); 000280
/* */ 000290
/* CATALOG FOR POWER VERSIONS */ 000300
/* */ 000310
PW:CATALOG; 000320
VOLUME HOST=POWER; 000330
BLOCK LENGTH=2048, PREAMBLE=6, LTHFLD=2, FORMAT=BIN, 000340
OFFSET=4; 000350
RECORD LENGTH=135, STRUCTURE=VB, PREAMBLE=2, 000360
LTHFLD=2, FORMAT=BIN, OFFSET=0, ADJUST=3; 000370
/* */ 000380
/* CATALOG FOR GRASP */ 000390
/* */ 000400
GR:CATALOG; 000410
VOLUME HOST=GRASP; 000420
BLOCK LENGTH=4096, PREAMBLE=0, ZERO=YES; 000430
RECORD LENGTH=135, STRUCTURE=VB, PREAMBLE=1, 000440
LTHFLD=1, FORMAT=BIN, OFFSET=0, ADJUST=2; 000450
/* */ 000460
RSTACK TEST=(C1,OR,C2), DELIMITER=YES, PRINT=TRAY; 000470
/* */ 000480
/* */ 000490
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 3-6
/* POWER VS, POWER 4.0, AND POWER 4.1/4.2 */ 000500
/* -------------------------------------- */ 000510
/* */ 000520
/* THE FOLLOWING JDES PROVIDE SUPPORT FOR IBM POWER VS TAPES,*/ 000530
/* POWER VERSION 4.0 TAPES, AND POWER VERSIONS 4.1/4.2 TAPES */ 000540
/* */ 000550
/* CHARACTERISTICS JOB */ 000560
/* --------------- -------- */ 000570
/* */ 000580
/* POWER VS TAPES 1 */ 000590
/* POWER VERSION 4.0 TAPES 2 */ 000600
/* POWER VERSIONS 4.1/4.2 TAPES 3 */ 000610
/* */ 000620
1:JOB; 000630
VOLUME HOST=POWERVS; 000640
2:JOB INCLUDE=(PW); 000650
VOLUME HOST=POWER; 000660
RECORD LTHFLD=1, PREAMBLE=1, ADJUST=2; 000670
3:JOB INCLUDE=(PW); 000680
VOLUME HOST=POWER; 000690
/* */ 000700
/* IBM DOS GRASP TAPES */ 000710
/* ------------------- */ 000720
/* */ 000730
/* THE FOLLOWING JDES PROVIDE SUPPORT FOR GRASP TAPES */ 000740
/* */ 000750
/* CHARACTERISTICS JOB */ 000760
/* --------------- -------- */ 000770
/* */ 000780
/* NORMAL GRASP TAPES 21 */ 000790
/* GRASP WITH INTERSPERSED REPORTS - SELECT 22 */ 000800
/* REPORTS FROM PHANTOM DEVICE B */ 000810
/* GRASP WITH INTERSPERSED REPORTS - DELETE 23 */ 000820
/* REPORTS FROM PHANTOM DEVICE C */ 000830
/* */ 000840
21:JOB INCLUDE=(GR); 000850
VOLUME HOST=GRASP; 000860
22:JOB INCLUDE=(GR); 000870
VOLUME HOST=GRASP; 000880
BSELECT TEST=(C1); 000890
23:JOB INCLUDE=(GR); 000900
VOLUME HOST=GRASP; 000910
BSELECT TEST=(C2); 000920
/* */ 000930
/* END OF POWER AND GRASP SYSTEM */ 000940
END;END; 000950
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 4-1
4. 4IBM DOS/360 POWER II tape
organization
This chapter describes the IBM DOS/360 POWER II tape
organization. It also includes tape format examples and a sample
JSL.
Tape formats
The Xerox/OSS accepts labeled tapes produced by IBM
DOS/360 POWER II, Versions 4.0, 4.1, and 4.2. POWER
II produces tapes with one 20-byte header label, variable
length blocks up to 1024 bytes long, and blocks with
variable length records. Each block is preceded by a 6-
byte prefix which contains the block size in bytes
(including the block prefix). Each record has a prefix
which contains the record length field and carriage control
information.
Block version characteristics (4.0, 4.1, 4.2)
The block Version 4.0 format is shown in figure 4-1.

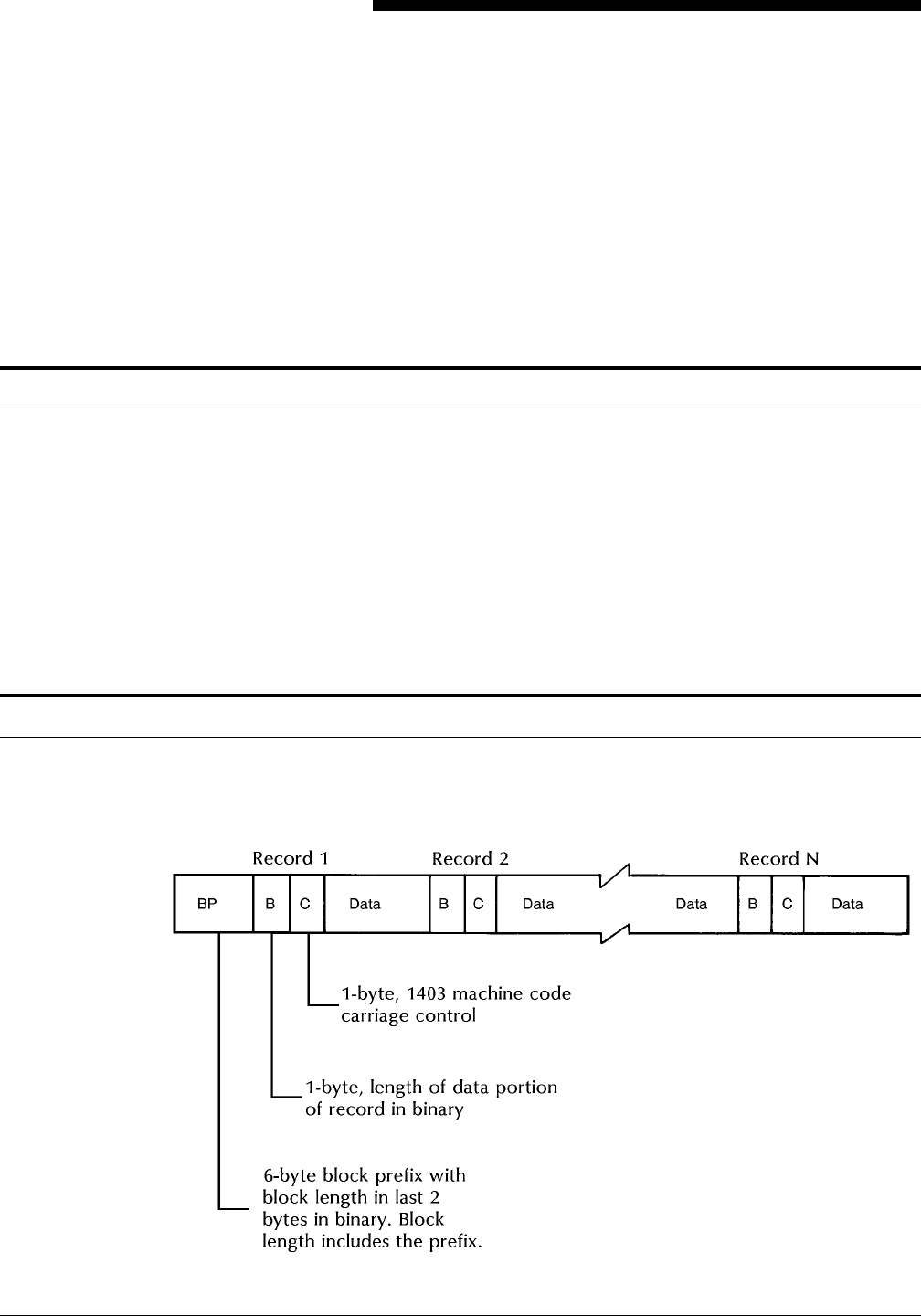

Figure 4-1. POWER Version 4.0, block format
IBM DOS/360 POWER II TAPE ORGANIZATION
4-2 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
•The 20-byte header label contains the characters
PRTRDRPUN in the first 9 positions followed by 11 blanks.
(This is the same as Version 4.0.)
•Each block begins with a 6-byte block prefix which contains the
block length in bytes in the last 2 bytes of the prefix. (This is the
same as Version 4.0.)
•Each record is prefaced with a 2-byte field. The first byte is the
length of the data portion of the record in bytes, and the second
byte is an IBM 1403 Machine Control Code used for carriage
control.
Version 4.1

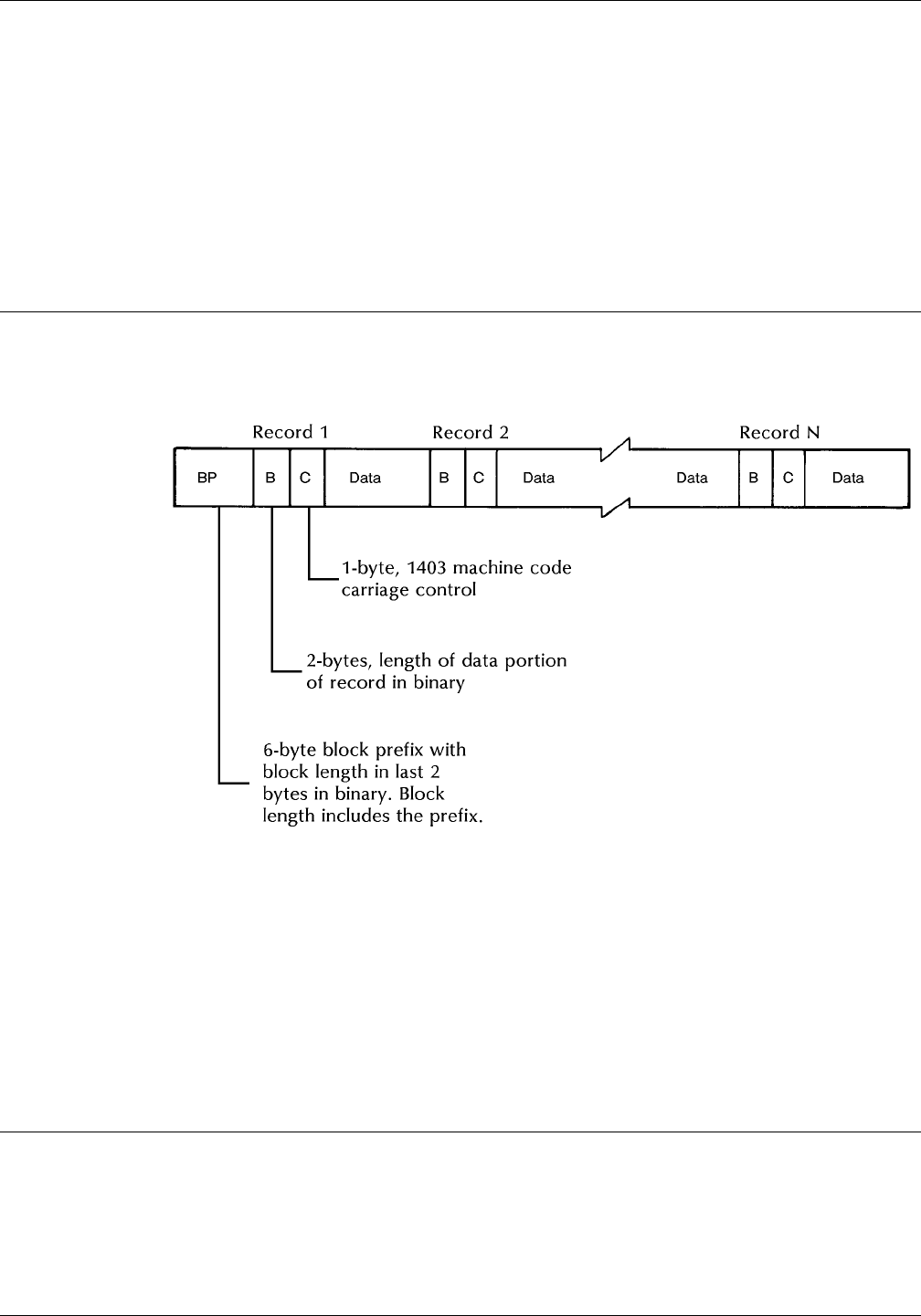

The block Version 4.1 is shown in figure 4-2.
Figure 4-2. POWER Version 4.1 and 4.2, block format
•The 20-byte header label contains the characters
PRTRDRPUN in the first 9 positions followed by 11 blanks.
(This is the same as Version 4.0.)
•Each block begins with a 6-byte block prefix which contains the
block length in bytes in the last 2 bytes of the prefix. (This is the
same as Version 4.0.)
•Each record is prefaced with a 3-byte field. The first two bytes
contain the length of the data portion of the record in bytes, and
the third byte is an IBM 1403 Machine Control Code used for
carriage control.
Version 4.2
The block and record format for Version 4.2 is identical to Version
4.1. (Refer to previous section.)
IBM DOS/360 POWER II TAPE ORGANIZATION
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 4-3

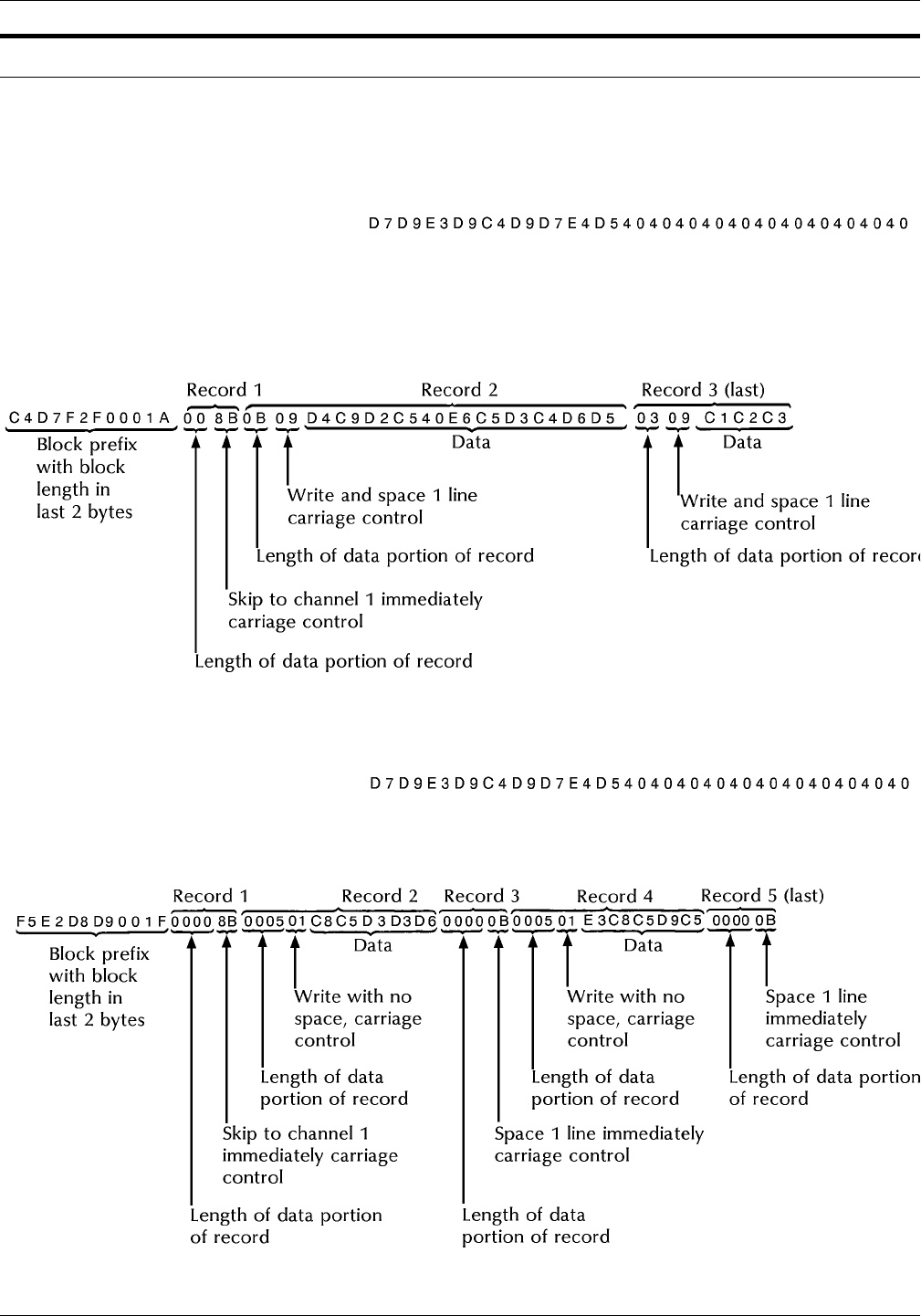

Tape format examples
An example of a Version 4.0 POWER II tape is shown in figure 4-3.
An example of a Version 4.1 POWER II tape is shown in figure 4-4.
Figure 4-3. POWER II, Version 4.0 sample tape format
*Header label contents shown are in hexadecimal.
Figure 4-4. POWER II, Version 4.1 sample tape format
*Header label contents shown are in hexadecimal.
First record, header label*
Second record, block of data records
First record, header label*
IBM DOS/360 POWER II TAPE ORGANIZATION
4-4 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
POWER and GRASP tape JSL sample
The following figure provides a JSL sample.
Figure 4-5. JSL sample for POWER and GRASP tapes.
POWGRP:JDL; 000010
/* */ 000020
/* SYSTEM FOR POWER, POWER VS, AND GRASP */ 000030
/* */ 000040
V1: VFU ASSIGN=(1,5), ASSIGN=(2,10), ASSIGN=(3,15), 000050
ASSIGN=(4,20), ASSIGN=(5,25), ASSIGN=(6,30), 000060
ASSIGN=(7,35), ASSIGN=(8,40), ASSIGN=(9,45), 000070
ASSIGN=(10,50), ASSIGN=(11,55), ASSIGN=(12,60), 000080
TOF=4, BOF=66; 000090
/* */ 000100
/* TABLES AND CRITERIA FOR LOGICAL PROCESSING */ 000110
/* FOR GRASP INTERLEAVED TAPES */ 000120
/* */ 000130
T1: TABLE CONSTANT=('B'); 000140
T2: TABLE CONSTANT=('C'); 000150
/* */ 000160
C1: CRITERIA CONSTANT=(27,1,EQ,T1); 000170
C2: CRITERIA CONSTANT=(27,1,EQ,T2); 000180
/* */ 000190
/* SYSTEM FOR POWER VS */ 000200
/* */ 000210
VOLUME HOST=POWERVS, PLABEL=YES; 000220
BLOCK LENGTH=2048; 000230
RECORD LENGTH=136, STRUCTURE=VB, LTHFLD=2, OFFSET=0, 000240
ADJUST=0, FORMAT=BIN, PREAMBLE=3; 000250
LINE DATA=(1,132), PCCTYPE=IBM1403, PCC=(0,NOTRAN), 000260
OVERPRINT=(MERGE,NODISP), VFU=V1; 000270
ACCT USER=(BIN,TRAY); 000280
/* */ 000290
/* CATALOG FOR POWER VERSIONS */ 000300
/* */ 000310
PW:CATALOG; 000320
VOLUME HOST=POWER; 000330
BLOCK LENGTH=2048, PREAMBLE=6, LTHFLD=2, FORMAT=BIN, 000340
OFFSET=4; 000350
RECORD LENGTH=135, STRUCTURE=VB, PREAMBLE=2, 000360
LTHFLD=2, FORMAT=BIN, OFFSET=0, ADJUST=3; 000370
/* */ 000380
/* CATALOG FOR GRASP */ 000390
/* */ 000400
GR:CATALOG; 000410
VOLUME HOST=GRASP; 000420
BLOCK LENGTH=4096, PREAMBLE=0, ZERO=YES; 000430
RECORD LENGTH=135, STRUCTURE=VB, PREAMBLE=1, 000440
LTHFLD=1, FORMAT=BIN, OFFSET=0, ADJUST=2; 000450
/* */ 000460
RSTACK TEST=(C1,OR,C2), DELIMITER=YES, PRINT=TRAY; 000470
/* */ 000480
/* */ 000490
IBM DOS/360 POWER II TAPE ORGANIZATION
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 4-5
/* POWER VS, POWER 4.0, AND POWER 4.1/4.2 */ 000500
/* -------------------------------------- */ 000510
/* */ 000520
/* THE FOLLOWING JDES PROVIDE SUPPORT FOR IBM POWER VS TAPES,*/ 000530
/* POWER VERSION 4.0 TAPES, AND POWER VERSIONS 4.1/4.2 TAPES */ 000540
/* */ 000550
/* CHARACTERISTICS JOB */ 000560
/* --------------- -------- */ 000570
/* */ 000580
/* POWER VS TAPES 1 */ 000590
/* POWER VERSION 4.0 TAPES 2 */ 000600
/* POWER VERSIONS 4.1/4.2 TAPES 3 */ 000610
/* */ 000620
1:JOB; 000630
VOLUME HOST=POWERVS; 000640
2:JOB INCLUDE=(PW); 000650
VOLUME HOST=POWER; 000660
RECORD LTHFLD=1, PREAMBLE=1, ADJUST=2; 000670
3:JOB INCLUDE=(PW); 000680
VOLUME HOST=POWER; 000690
/* */ 000700
/* IBM DOS GRASP TAPES */ 000710
/* ------------------- */ 000720
/* */ 000730
/* THE FOLLOWING JDES PROVIDE SUPPORT FOR GRASP TAPES */ 000740
/* */ 000750
/* CHARACTERISTICS JOB */ 000760
/* --------------- -------- */ 000770
/* */ 000780
/* NORMAL GRASP TAPES 21 */ 000790
/* GRASP WITH INTERSPERSED REPORTS - SELECT 22 */ 000800
/* REPORTS FROM PHANTOM DEVICE B */ 000810
/* GRASP WITH INTERSPERSED REPORTS - DELETE 23 */ 000820
/* REPORTS FROM PHANTOM DEVICE C */ 000830
/* */ 000840
21:JOB INCLUDE=(GR); 000850
VOLUME HOST=GRASP; 000860
22:JOB INCLUDE=(GR); 000870
VOLUME HOST=GRASP; 000880
BSELECT TEST=(C1); 000890
23:JOB INCLUDE=(GR); 000900
VOLUME HOST=GRASP; 000910
BSELECT TEST=(C2); 000920
/* */ 000930
/* END OF POWER AND GRASP SYSTEM */ 000940
END;END;
IBM DOS/360 POWER II TAPE ORGANIZATION
4-6 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 5-1
5. 5IBM POWER/VS and POWER/
VSE tape organization
This chapter describes the IBM POWER/VS and POWER/VSE tape
organization. It also includes example file formats and a sample JSL.
Tape formats
The Xerox printing system accepts tapes produced by IBM DOS/VS
POWER and DOS/VSE POWER as illustrated in figure 5-1. These
tapes have no labels per se; however, the first and last blocks of a
file, which are identical, have a special length and content and, in a
limited sense, act as labels. Figure 5-2 presents an example of one
such special block or POWER/VS.
File formats
A tape mark precedes the first file on the tape. A single tape mark
separates files, and two tape marks end the tape. A tape mark
encountered in conjunction with an end-of-tape reflector denotes an
end-of-volume condition. (Refer to figure 5-1.)
For POWER VS, the file consists of one 152-byte special block,
followed by data blocks as described below in the section “Data
formats.” The last block in the file is another 152-byte special block.
For POWER/VSE, both special blocks are 184 bytes long, although
their format remains the same otherwise.
For POWER/VSE II, both special blocks are 216 bytes long, although
their format remains the same otherwise.
IBM POWER/VS AND POWER/VSE TAPE ORGANIZATION
5-2 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
Data formats
The data formats are fixed length blocks with variable length records;
no block length fields are present. The record format has a 2-byte
length field, a general purpose byte, a carriage control byte from the
1403 carriage control set, and zero to 132 print characters. (See
figures 5-3 and 5-4 which illustrate block and record formats,
respectively.)
A general purpose byte gives record or block identification; the codes
and functions of this byte are listed and described in table 5-1.
Table 5-1. General purpose byte-codes and functions
Codes Functions
00,01 Normal record
02 3540 (floppy disk) record
04 End-of-data (occurs in the last record of
the last print data block in the file)
08 Break record
0C,0D End-of-block for Version 30.1 of DOS/
VS POWER
10,11 End-of-block for Version 31 of DOS/VS
POWER and subsequent releases
20 End of 3540 records
IBM POWER/VS AND POWER/VSE TAPE ORGANIZATION
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 5-3
Figure 5-1. POWER VS and POWER/VSE file formats
Interpretation
TM = Tape mark
DATA = One or more data blocks (see figure 5-3 for further details)
SB = Special block (see figure 5-2 for further details)
R = Reflector
IBM POWER/VS AND POWER/VSE TAPE ORGANIZATION
5-4 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
Figure 5-2. Format of a POWER VS special block
Figure 5-3. POWER VS data block format
Blocks are fixed in length with variable length records. There is no
block length field, block offset, or block postamble.
Figure 5-4. POWER VS record format
See table 5-1, earlier in this chapter, for general purpose byte codes
and functions.
IBM POWER/VS AND POWER/VSE TAPE ORGANIZATION
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 5-5
POWER and GRASP tape JSL sample
The following figure provides a JSL sample.
Figure 5-5. JSL sample for POWER and GRASP tapes
POWGRP:JDL; 000010
/* */ 000020
/* SYSTEM FOR POWER, POWER VS, AND GRASP */ 000030
/* */ 000040
V1: VFU ASSIGN=(1,5), ASSIGN=(2,10), ASSIGN=(3,15), 000050
ASSIGN=(4,20), ASSIGN=(5,25), ASSIGN=(6,30), 000060
ASSIGN=(7,35), ASSIGN=(8,40), ASSIGN=(9,45), 000070
ASSIGN=(10,50), ASSIGN=(11,55), ASSIGN=(12,60), 000080
TOF=4, BOF=66; 000090
/* */ 000100
/* TABLES AND CRITERIA FOR LOGICAL PROCESSING */ 000110
/* FOR GRASP INTERLEAVED TAPES */ 000120
/* */ 000130
T1: TABLE CONSTANT=('B'); 000140
T2: TABLE CONSTANT=('C'); 000150
/* */ 000160
C1: CRITERIA CONSTANT=(27,1,EQ,T1); 000170
C2: CRITERIA CONSTANT=(27,1,EQ,T2); 000180
/* */ 000190
/* SYSTEM FOR POWER VS */ 000200
/* .*/ 000210
VOLUME HOST=POWERVS, PLABEL=YES; 000220
BLOCK LENGTH=2048; 000230
RECORD LENGTH=136, STRUCTURE=VB, LTHFLD=2, OFFSET=0, 000240
ADJUST=0, FORMAT=BIN, PREAMBLE=3; 000250
LINE DATA=(1,132), PCCTYPE=IBM1403, PCC=(0,NOTRAN), 000260
OVERPRINT=(MERGE,NODISP), VFU=V1; 000270
ACCT USER=(BIN,TRAY); 000280
/* */ 000290
/* CATALOG FOR POWER VERSIONS */ 000300
/* */ 000310
PW:CATALOG; 000320
VOLUME HOST=POWER; 000330
BLOCK LENGTH=2048, PREAMBLE=6, LTHFLD=2, FORMAT=BIN, 000340
OFFSET=4; 000350
RECORD LENGTH=135, STRUCTURE=VB, PREAMBLE=2, 000360
LTHFLD=2, FORMAT=BIN, OFFSET=0, ADJUST=3; 000370
/* */ 000380
/* CATALOG FOR GRASP */ 000390
/* */ 000400
GR:CATALOG; 000410
VOLUME HOST=GRASP; 000420
BLOCK LENGTH=4096, PREAMBLE=0, ZERO=YES; 000430
RECORD LENGTH=135, STRUCTURE=VB, PREAMBLE=1, 000440
LTHFLD=1, FORMAT=BIN, OFFSET=0, ADJUST=2; 000450
/* */ 000460
RSTACK TEST=(C1,OR,C2), DELIMITER=YES, PRINT=TRAY; 000470
/* */ 000480
/* */ 000490
IBM POWER/VS AND POWER/VSE TAPE ORGANIZATION
5-6 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
/* POWER VS, POWER 4.0, AND POWER 4.1/4.2 */ 000500
/* -------------------------------------- */ 000510
/* */ 000520
/* THE FOLLOWING JDES PROVIDE SUPPORT FOR IBM POWER VS TAPES, */ 000530
/* POWER VERSION 4.0 TAPES, AND POWER VERSIONS 4.1/4.2 TAPES*/ 000540
/* */ 000550
/* CHARACTERISTICS JOB */ 000560
/* --------------- -------- */ 000570
/* */ 000580
/* POWER VS TAPES 1 */ 000590
/* POWER VERSION 4.0 TAPES 2 */ 000600
/* POWER VERSIONS 4.1/4.2 TAPES 3 */ 000610
/* */ 000620
1:JOB; 000630
VOLUME HOST=POWERVS; 000640
2:JOB INCLUDE=(PW); 000650
VOLUME HOST=POWER; 000660
RECORD LTHFLD=1, PREAMBLE=1, ADJUST=2; 000670
3:JOB INCLUDE=(PW); 000680
VOLUME HOST=POWER; 000690
/* */ 000700
/* IBM DOS GRASP TAPES */ 000710
/* ------------------- */ 000720
/* */ 000730
/* THE FOLLOWING JDES PROVIDE SUPPORT FOR GRASP TAPES */ 000740
/* */ 000750
/* CHARACTERISTICS JOB */ 000760
/* --------------- -------- */ 000770
/* */ 000780
/* NORMAL GRASP TAPES 21 */ 000790
/* GRASP WITH INTERSPERSED REPORTS - SELECT 22 */ 000800
/* REPORTS FROM PHANTOM DEVICE B */ 000810
/* GRASP WITH INTERSPERSED REPORTS - DELETE 23 */ 000820
/* REPORTS FROM PHANTOM DEVICE C */ 000830
/* */ 000840
21:JOB INCLUDE=(GR); 000850
VOLUME HOST=GRASP; 000860
22:JOB INCLUDE=(GR); 000870
VOLUME HOST=GRASP; 000880
BSELECT TEST=(C1); 000890
23:JOB INCLUDE=(GR); 000900
VOLUME HOST=GRASP; 000910
BSELECT TEST=(C2); 000920
/* */ 000930
/* END OF POWER AND GRASP SYSTEM */ 000940
END;END; 000950
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 6-1
6. 6UNIVAC Series 70 (US70)
magnetic tape organization
This chapter describes the UNIVAC Series 70 (formerly RCA Spectra
70 Magnetic Tapes) magnetic tape organization. It also describes
header and trailer labels, tape configurations, data formats, and
includes a sample JSL.
Labeled tapes
A minimum set of US70 standard labels includes a volume label
(VOL 1), one standard file header label (HDR1), and one end-of-file
trailer label (EOF1) or one standard end-of-volume label (EOV1).
The minimum set of labels may be expanded by adding up to seven
of each label type. For example, a file label could contain eight file
header labels, HDR1, HDR2, HDR3, up to and including HDR8.
Additionally, the user may include both user header labels (UHL) and
user trailer labels (UTL). Up to eight of each of these labels may be
used. For example, UHL1 through UHL8 and UTL1 through UTL8
can be added.
Label groups and sets
This section describes header label groups and sets, and trailer label
sets.
Header label group
The header label group consists of the volume label, file header
label, and user header label sets. These label sets are contiguous
within the header label. For example, if a HDR2 label is used, it must
follow a HDR1 label.
The header label group is always ended with a tape mark (see figure
6-1).
Figure 6-1. Header label organization
UNIVAC SERIES 70 (US70) MAGNETIC TAPE ORGANIZATION
6-2 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
Header label sets
This section describes volume, file, and user labels.
Volume label
Volume labels provide a means of identifying a given tape. The
volume label set is the first label set on a tape. There may be up to
eight volume labels per tape, but the data field in volumes two (VOL2)
through eight (VOL8) are undefined. The contents of a VOL1 label
are contained in table 6-1. The contents of VOL2 through VOL8
labels are contained in table 6-2.
Note: Unused and reserved fields should be recorded as EBCDIC
spaces (hexadecimal 40).
File header label
The standard file header label (HDR1) identifies a file and indicates
the sequence of the file within a multi-file set. Additionally, it contains
the volume serial number (identical to the volume one [VOL1] serial
number) and the sequence of a volume in a file for multi-volume files.
Each file on a volume with standard labels contains a standard
header label (see table 6-3). Additionally, the standard label may be
Table 6-1. Volume label format (VOL1)
Field Character
position(s) Name Length Description
1 1-3 Label identifier 3 VOL
2 4 Volume label number 1 1
3 5-10 Volume serial number 6 Identifies the volume
4 11 Volume security 1 0=No security
1=The volume has or had security protection
5 12-21 Not used for tape files 10 Ten spaces
6 22-31 Reserved 10 Ten spaces
7 32-41 Reserved 10 Ten spaces
8 42-51 Owner’s name and
address code 10 Identifies the owner of the volume
9 52-80 Reserved 29 Twenty-nine spaces
Table 6-2. Volume label format (VOL2 through VOL8)
Field Character
position(s) Name Length Description
1 1-3 Label identifier 3 VOL
2 4 Volume label number 1 2 through 8 in ascending sequence
3 5-80 Unidentified 76 Any characters the user wishes
UNIVAC SERIES 70 (US70) MAGNETIC TAPE ORGANIZATION
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 6-3
followed by up to seven file header labels, HDR2 through HDR8 (see
table 6-4).
Table 6-3. Standard header label format (HDR1)
Field Character
position(s) Name Length Description
1 1-3 Label indentifier 3 HDR
2 4 File header label
number 11
3 5-21 File identifier* 17 Identifies the entire file.
4 22-27 File serial
number 6 Identifies a file/volume relationship. This field is
identical to the volume label (field 3). On a multi-
volume file, this field is identical to the volume
serial number on the first volume.
5 28-31 Volume
sequence
number*
4 Indicates the sequence of a volume in file (0001-
9999). Used with multi-volume files.
6 32-35 File sequence
number 4 Indicates the sequence of a file in a multifile set
(0001-9999).
7 36-39 Generation
number 4 Indicates the editions of the file (0001-9999).
8 40-41 Version number
of generation 5 Indicates the version of a generation of a file (01-
99).
9 42-47 Creation date 6 Indicates the year and the day of the year the file
was created. The format is:
Position Content Meaning
1 Space None
2-3 00-99 Year
4-6 001-366 Day of the year
March 4, 1967 would be entered as 6 7 0 6 3
10 48-53 Expiration date 6 Indicates the year and the day of the year the
volume may be written on. This field has the
same format as Field 9.
11 54 File security 1 0 = No security protection
1 = This file has security protection.
12 55-60 Block count 6 Six spaces. This field in the file header label is
not used.
13 61-70 Reserved 13 Thirteen spaces.
14 74-80 Reserved 7 Seven spaces.
* Fields 3 and 5 are used by the operating system.
UNIVAC SERIES 70 (US70) MAGNETIC TAPE ORGANIZATION
6-4 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
User header label
The user has the option of including up to eight user header labels on
a labeled volume. A user header label contains one field which
consists of any characters the user wishes to include. User header
labels, if included, follow the file header labels. Their contents are
contained in table 6-5.
Trailer labels
The trailer label group consists of the end-of-file or end-of-volume
trailer label sets and the user trailer label set. The end-of-file trailer
label set indicates the end of a file. It is followed by one tape mark
unless the file under consideration is the last file on the volume. In
this case, the end-of-file trailer label set is followed by two tape
marks. The end-of-volume trailer label set is used when a file is
continued on a subsequent volume. This label set is followed by two
tape marks.
The trailer label group format is shown in figure 6-2.
Figure 6-2. Trailer label organization
Table 6-4. Header label format (HDR2 through HDR8)
Field Character
position(s) Name Length Description
1 1-3 Label indentifier 3 HDR
2 4 File header label number 1 2 through 8 in ascending sequence
3 5-80 Undefined 76 Reserved
Table 6-5. User header label format (UHL)
Field Character
position(s) Name Length Description
1 1-3 Label identifier 3 UHL
2 4 User label number 1 1 through 8 in ascending sequence within the
UHL set or UTL set.
3 5-80 User’s option 76 May contain any characters
UNIVAC SERIES 70 (US70) MAGNETIC TAPE ORGANIZATION
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 6-5
Trailer label sets
File trailer labels
The first label of a trailer label set is called the standard trailer label.
This is either an end-of-file (ECF1) label or an end-of-volume (EOV1)
label. An end-of-file label indicates the end of a given file; an end-of-
volume label indicates the end of useful data on a tape volume. The
contents of the standard trailer label are contained in table 6-6.
In addition to the standard trailer label, the user may specify up to
seven additional file trailer labels, EOF2 through EOF8 or EOV2
through EOV8. These labels, if used, would follow the standard trailer
label. Their contents are shown in table 6-7.
Table 6-6. Standard file trailer label format
Field Character
position(s) Name Length Description
1 1-3 Label identifier 3 EOF=End-of-file trailer label
EOV=End-of-volume trailer label
2 4 File trailer label number 1 1
3-11 5-54 Same as corresponding
fields in file header label 50 Same as corresponding fields in file header
label
12 55-60 Block count* 6 Indicates the number of data blocks written on
the file from the last file header label to the first
file trailer label, excluding tape marks and
checkpoint records.
13 61-73 Same as corresponding
fields in file header label 13 Same as corresponding fields in file header
label
14 74-80 Same as corresponding
fields in file header label 7 Same as corresponding fields in file header
label
* Field 12 is used by the operating system.
Table 6-7. File trailer label format
Field Character
position(s) Name Length Description
1 1-3 Label identifier 3
EOF=End-of-file trailer label
EOV=End-of-volume trailer label
2 4 File trailer label number 1 2 through 8 in ascending sequence within the
EOF set or EOV set.
3 5-80 Undefined 76 Reserved
UNIVAC SERIES 70 (US70) MAGNETIC TAPE ORGANIZATION
6-6 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
User trailer label
The user optionally may specify up to eight user trailer labels, UTL1
through UTL8. If used, these labels follow the file trailer labels. The
contents of these labels are contained in table 6-8.
Tape configurations
The organization of standard labeled tapes varies from user to user.
For example, optional labels may or may not be included, and tape
files may occupy many volumes. The four basic configurations that
can be processed by the printing system are enumerated below. An
example of a standard label tape for each configuration is contained
in the figure referenced.
•Single file, single volume (figure 6-3)
•Single file, multi-volume (figure 6-4)
•Single file, multi-volume (figure 6-5)
•Multi-file, multi-volume (figure 6-6)
Figure 6-3. Standard labeled tape example: Single file, single
volume
Figure 6-4. Standard labeled tape example: Single file, multi-
volume
Table 6-8. User trailer label format (UTL)
Field Character
position(s) Name Length Description
1 1-3 Label identifier 3 UTL
2 4 User label number 1 1 through 8 in ascending sequence within the
UHL set or UTL set.
3 5-80 User’s option 76 May contain any characters
UNIVAC SERIES 70 (US70) MAGNETIC TAPE ORGANIZATION
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 6-7
Figure 6-5. Standard labeled tape example: Multi-file, single
volume

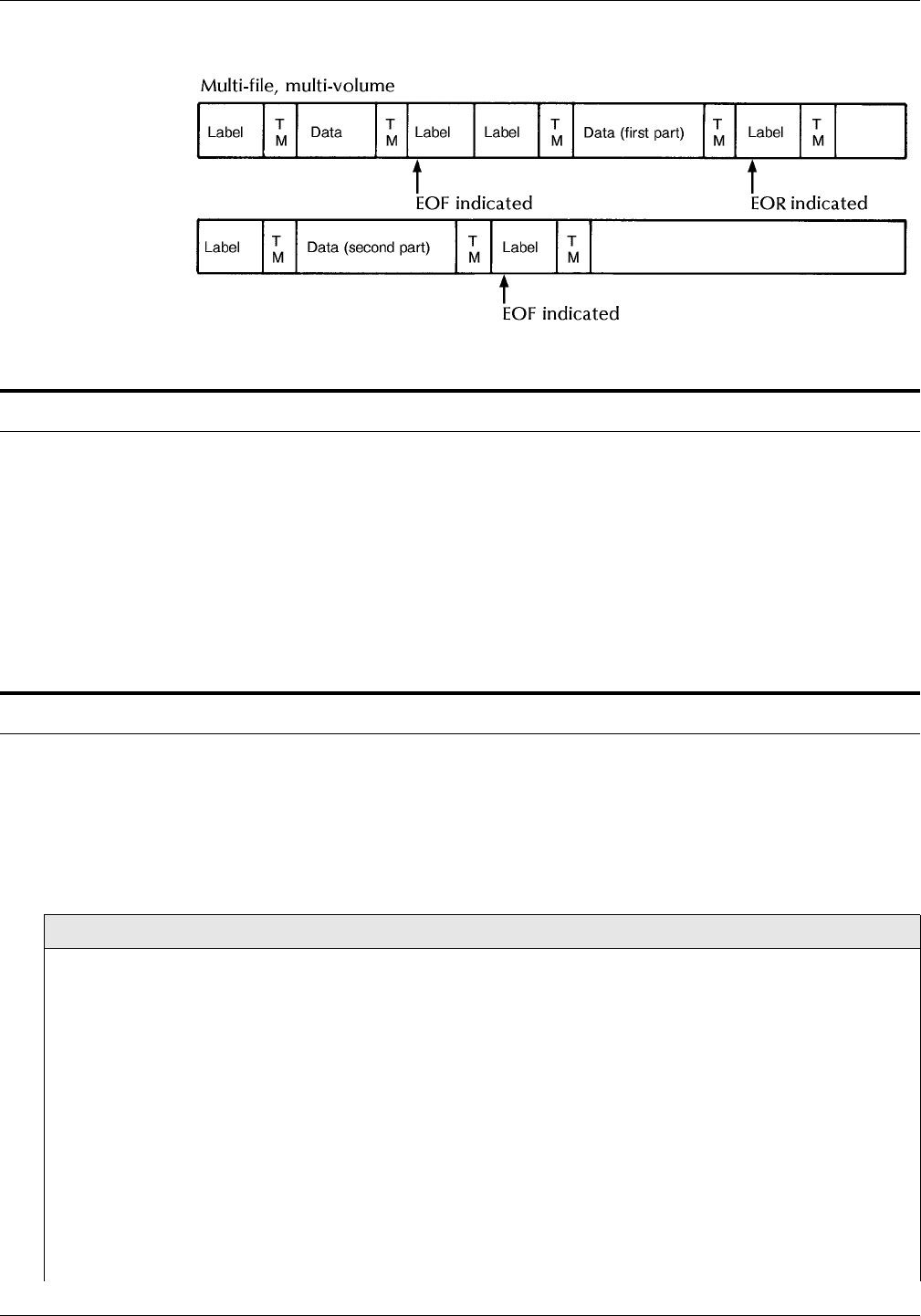

Figure 6-6. Standard labeled tape example: Multi-file, multi
volume
Unlabeled tapes
Magnetic tapes that contain no labels may also be processed on the
printing system. Unlabeled tapes optionally may begin with a tape
mark. Files are separated by a tape mark and two tape marks follow
the last data file. An example of an unlabeled tape is shown in figure
6-7.
Figure 6-7. Standard labeled tape example: Multi-file, multi
volume
Note: The first tape mark in this illustration is normally written on
output but may be omitted at the programmer's option.
UNIVAC SERIES 70 (US70) MAGNETIC TAPE ORGANIZATION
6-8 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
Tape marks
This section describes labeled and unlabeled tape marks.
Labeled tapes
A tape mark follows every header label group and precedes and
follows every trailer label group. Two tape marks following a trailer
label group indicate the end of data on a volume. Figure 6-8 shows
an example of tape mark placement for standard labeled tapes.
Figure 6-8. Tape mark placement: Tapes with standard labels,
additional labels, and user labels
Null files It is possible, however, for two consecutive tape marks to appear on
tape and not signify the end of useful data on the volume. This
condition (null file) occurs when the end-of-volume and end-of-file
coincide (see figure 6-9).
Figure 6-9. Tape mark placement: Null files
Note: The notation (A) indicates the labels are part of File A.
Unlabeled tapes
Tapes using no labels optionally may begin with a single tape mark.
Files on these tapes normally are separated by tape marks. Two
adjacent tape marks signify the end of data on the tape (see figure 6-
7).
UNIVAC SERIES 70 (US70) MAGNETIC TAPE ORGANIZATION
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 6-9
Data formats
Users may generate magnetic tape files composed of fixed length,
variable length, and undefined length records. The fixed and variable
length records may be collected further into fixed or variable length
blocks. All data blocks must contain 13 or more bytes.
US70 labeled and unlabeled tape formats
Listed below are the record formats that may appear on US70
labeled and unlabeled tapes.
Description Record lengths, blocked/unblocked
•Fixed length, unblocked
•Fixed length records, blocked (block lengths are variable, so
that the block length parameter is present)’
•Variable length, unblocked
•Variable length, blocked
•Undefined length, unblocked.
Note:
1. The US70 system does not create blocked, undefined record
format.
2. Block and record length values always include the block or
record length field (4 bytes each) in the count.

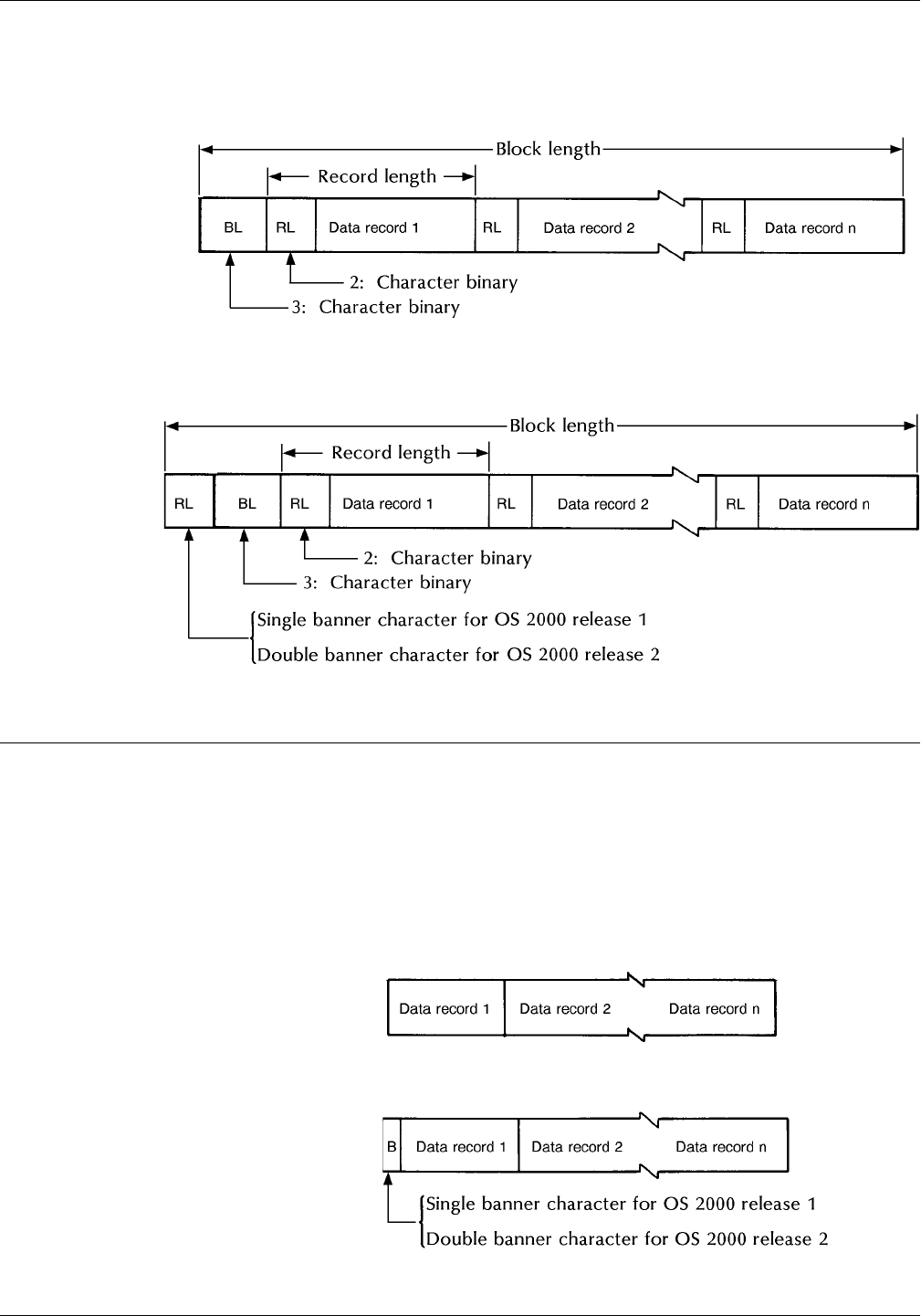

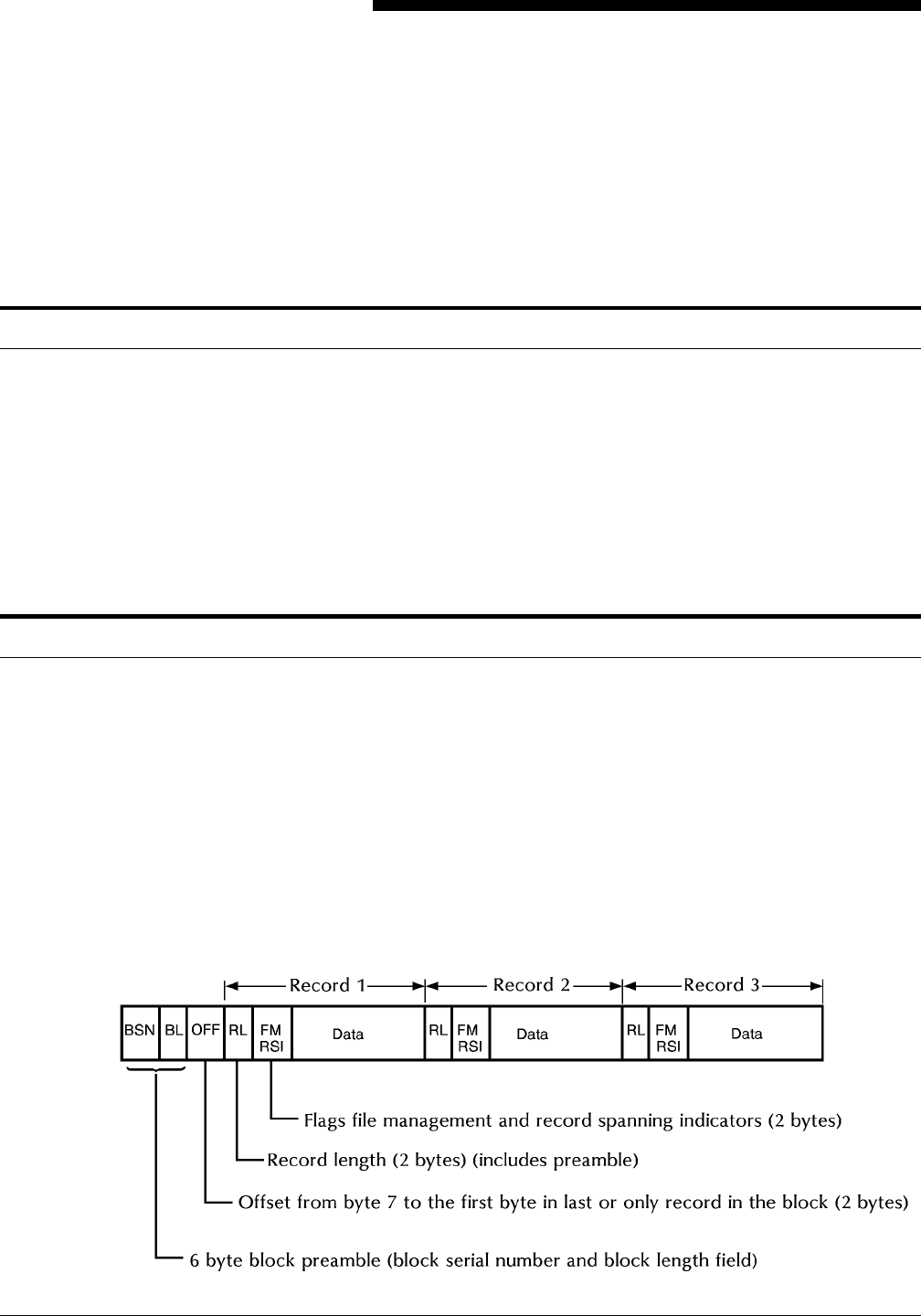

3. The record or block length is of binary format and is contained
in the first 2 bytes of the 4-byte field. For example, variable
length blocked records have the format shown in figure 6-10.
Alternate device tapes
The US70 operating system contains a facility for allocating devices
to files at execution time. One situation in which this might be used is
when a file that is generally printed on-line is written alternatively to
magnetic tape.
A file printed on-line may not generally contain printer cartridge
control information as a part of the file. Alternate device print tapes,
however, must contain carriage control characters. The programmer
is responsible for including them in each print line.
Tape organization
Alternate device tapes may be generated with standard labels, non-
standard labels, or no labels. Similarly, these tapes may contain fixed
or variable length records and may be blocked or unblocked.
UNIVAC SERIES 70 (US70) MAGNETIC TAPE ORGANIZATION
6-10 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
Carriage control byte
Fixed length and variable length print records are described as
follows:
Fixed length print records The carriage control byte for fixed length records is the first byte of
each fixed length record.
Variable length print records The carriage control byte in variable length records immediately
follows the record length for each record.
In both fixed and variable length records, the carriage control byte is
considered part of the data of the record and not part of any other
control bytes associated with the record.
COBOL print tapes
COBOL language programs executed under the US70 operating
system may produce print tapes with up to four different formats.
These formats are a result of changes in device assignments at run
time. Also, reports written by the Report Writer feature of COBOL
may be written to magnetic tape.
Subsequent paragraphs discuss possible formats that may be
processed on the printed system and how they are produced. Use
the following code to interpret the examples:
Note: If the records are variable length, the block and record
counts precede the first character in the examples shown below.

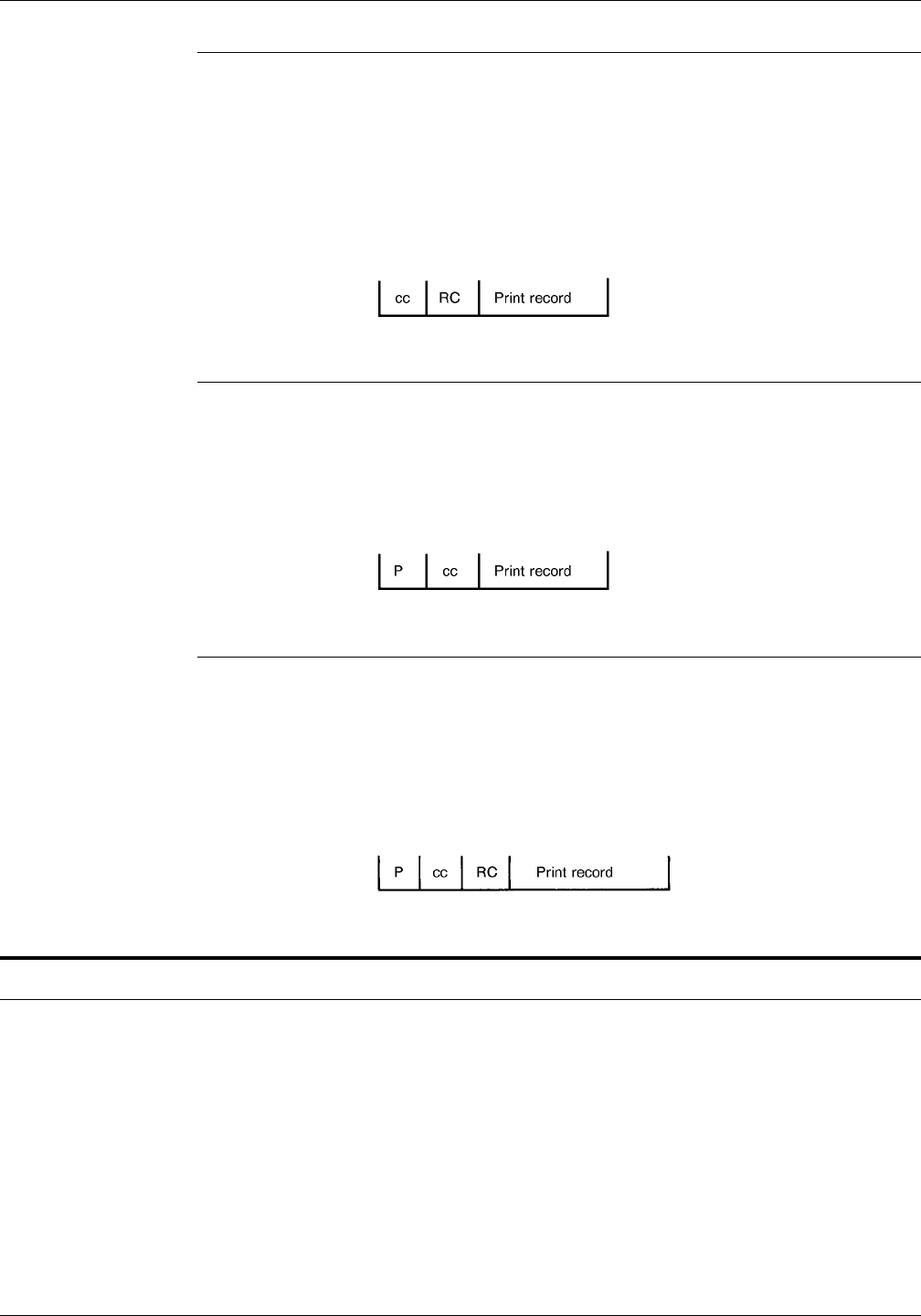

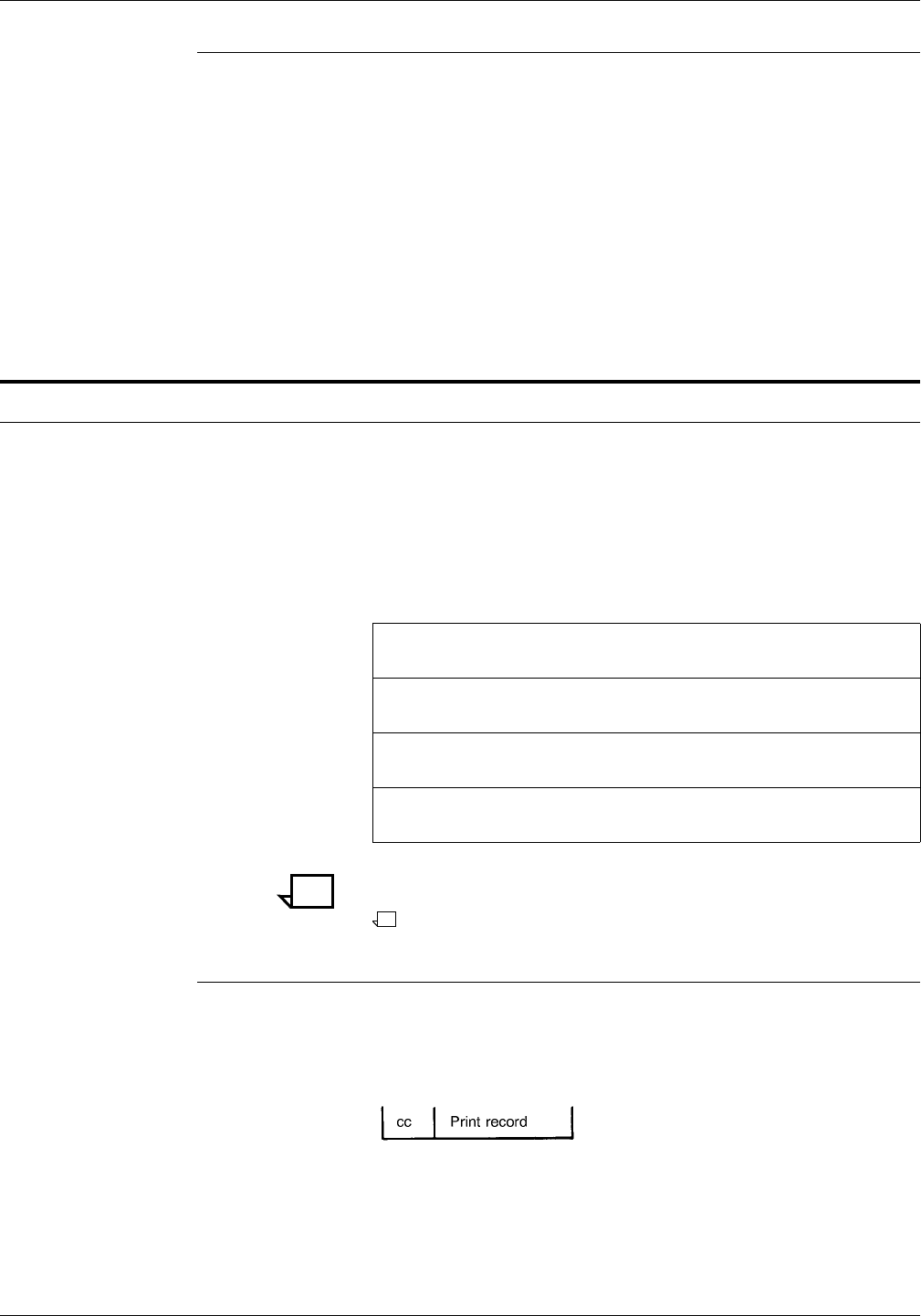

Format 1
This is a printer-destined file assigned to the external name SYSnn
or a report written by Report Writer to the external name SYSnn.
Records of these types of files have a single byte carriage control
character appended to the front of the record.
cc A single byte code for controlling carriage spacing on the
printer.
P COBOL Monitor output code of one byte appended to the
record; indicates the record is to be printed.
c COBOL Monitor output code of one byte appended to the
record; indicates the record is to be punched onto a card.
RC The report code specified in Special Names for the WITH
CODE option on the Report Writer.
UNIVAC SERIES 70 (US70) MAGNETIC TAPE ORGANIZATION
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 6-11
Format 2
These are reports written to the external name SYSnn when the
WITH CODE of the Report Writer is specified.
Records with this format include a single byte report, which is
specified in Special Names for the WITH CODE option.
When more than one report is written on a file, this report code is
used by a user on utility routine (US70's TPPR Utility) to select a
specific report for printing. The report code lies between the carriage
control byte and the beginning of the print data.
Format 3
This is a printer-destined file assigned to S (or a report written to)
SYSLST/SYSOUT and executed under Monitor control.
Print tapes of this type have a single byte appended at the beginning
of the print record. The byte is added by the Monitor to indicate that
the record is to be printed. The byte precedes the carriage control
byte.
Format 4
These are reports written to SYSLST/SYSOUT and executed under
Monitor control specified with the WITH CODE option.
Print records in this form have three control bytes preceding the print
data. The first byte is the Monitor output code, indicating the record
is to be printed. The second byte is the carriage control byte. The
third byte is the report code produced by the WITH CODE option of
Report Writer.
US70 printer control conventions
US70 printer models 242, 243, and 246 accept a 1-byte command to
control printer spacing. When printing is performed on-line, this
control byte is sent to the printer before the print record and is not part
of the print record. When printing is performed off-line, the control
byte becomes part of the record (see “Alternate device tapes”).
UNIVAC SERIES 70 (US70) MAGNETIC TAPE ORGANIZATION
6-12 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
Printer control byte
Line spacing may be performed before or after printing the current
file. From 0 to 15 lines may be spaced at one time (refer to table 6-
10).
Table 6-9. US70, 242, 243, and 246 machine codes
Code (hexadecimal) Printer function
00 Advance paper 0 lines after printing.
. . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . .
0F Advance paper 15 lines after printing.
40 Advance paper 0 lines immediately, print, then automatic upspace one line.
41 Advance paper 1 line immediately, print, then automatic upspace one line.
. . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . .
4F Advance paper 15 lines immediately, print, then automatic upspace one line.
80* Skip to channel 0 after printing.
81 Skip to channel 1 after printing.
. . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . .
88 Skip to channel 8 after printing.
89* Skip to channel 9 after printing.
8A Skip to channel 10 after printing.
8B Skip to channel 11 after printing.
8C Skip to channel 12 after printing.
C0* Skip to channel 0 immediately, print, automatic upspace one line.
C1 Skip to channel 1 immediately, print, automatic upspace one line.
. . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . .
C8 Skip to channel 8 immediately, print, automatic upspace one line.
C9* Skip to channel 9 immediately, print, automatic upspace one line.
CA Skip to channel 10 immediately, print, automatic upspace one line.
* This skip command is valid only for printers equipped with Special Forms Control F5278.
UNIVAC SERIES 70 (US70) MAGNETIC TAPE ORGANIZATION
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 6-13

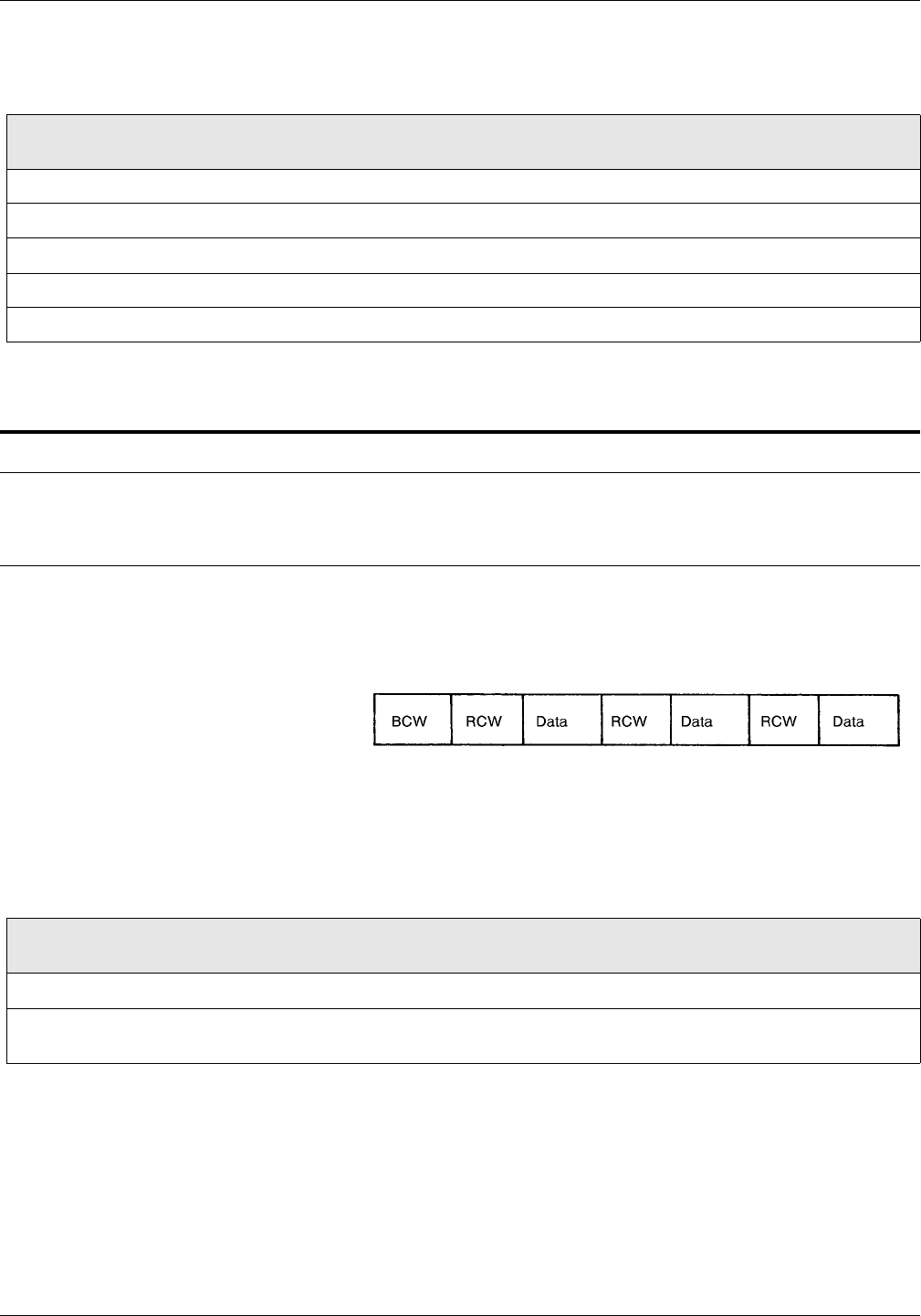

Figure 6-10. US70 variable length block records
Printer carriage control tape
Printer spacing may be performed by a skip-to-channel command in
which the control byte directs the printer to skip to the next hole
punched in a given channel of the carriage control tape. The control
byte may request a skip to channels 1 through 8, 10, and 11.
Skipping may be performed before or after printing the current line.
Note: A request to skip to channels 0, 9, or 12 through 15 is illegal
and should not appear on print tapes generated for standard US70
printers. US70 printers fitted with Special Forms Control F5278-10-
10, -30, however, can accept a skip to channel 0, 9, or 12 command,
and these control commands may appear on the print tapes.
The US70 carriage control conventions are shown in table 6-9.
The processing parameters for US70 carriage control are as follows:
CB Skip to channel 11 immediately, print, automatic upspace one line.
CC Skip to channel 11 immediately, print, automatic upspace one line.
Table 6-9. US70, 242, 243, and 246 machine codes (continued)
Code (hexadecimal) Printer function
* This skip command is valid only for printers equipped with Special Forms Control F5278.
US70
INITIAL TOF
DEFUALT (OVR,PSP1)
ADVTAPE YES
MASK X’FF’
ASSIGN See values in table 6-10.
UNIVAC SERIES 70 (US70) MAGNETIC TAPE ORGANIZATION
6-14 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
UNIVAC tape JSL sample
The following figure provides a JSL sample
Figure 6-11. JSL sample for UNIVAC tapes
UNIVAC:JDL; 000010
/* */ 000020
/* SYSTEM FOR UNIVAC SDF */ 000030
/* */ 000040
V1: VFU TOF=4, BOF=63; 000050
/* */ 000060
VOLUME HOST=UNIVAC, LABEL=STANDARD, UNPACK=T4X3, 000070
CODE=ASCII, LCODE=ASCII; 000080
BLOCK LENGTH=1344, FORMAT=PACK; 000090
RECORD LENGTH=400, FORMAT=PACK, PREAMBLE=6 STRUCTURE=VB, 000100
LTHFLD=1; 000110
LINE DATA=(0,132), PCCTYPE=NONE, VFU=V1; 000120
/* */ 000130
/* TABLES AND CRITERIA FOR LOGICAL PROCESSING */ 000140
/* */ 000150
T1: TABLE CONSTANT=O'77'; 000160
T2: TABLE CONSTANT=O'3056'; 000170
/* */ 000180
C1: CRITERIA CONSTANT=(0,1,EQ,T1); 000190
C2: CRITERIA CONSTANT=(0,2,EQ,T2); 000200
/* */ 000210
BDELETE TEST=(C1); 000220
/* */ 000230
/* */ 000240
/* */ 000250
/* UNIVAC SDF */ 000260
/* */ 000270
/* THE FOLLOWING JDES WILL SUPPORT 9 TRACK LABELED AND NON */ 000280
/* LABELED UNIVAC SDF FORMATS. LABEL=STANDARD IS USED TO */ 000290
/* PROVIDE INPUT PROCESSOR WITH INFORMATION CONCERNING THE */ 000300
/* PRESENCE OF A LABEL CONDITION ONLY. THE LABEL FORMAT IS */ 000310
/* EXPECTED AS UNPACKED. CODE=ASCII IS REQUIRED IN ORDER TO */ 000320
/* OBTAIN THE ASCII TABLE FROM DISC, HOWEVER THE DATA FORMAT */ 000330
/* WITHIN THE REPORTS CAN BE EITHER FIELD DATA OR ASCII. */ 000340
/* PREAMBLE=6 IS REQUIRED IN ORDER TO PROCESS THE UNIVAC */ 000350
/* DATA CONTROL WORD PROCEEDING EACH DATA RECORD. */ 000360
/* BLOCKS SATISFYING CRITERIA C1 WILL BE DELETED. */ 000370
/* */ 000380
/* CHARACTERISTICS JOB */ 000390
/* */ 000400
/* LABELED TAPE 1 */ 000410
/* NON-LABELED, STACKED REPORTS, DJDE'S 2 */ 000420
/* NON-LABELED 3 */ 000430
/* NON-LABELED, RECORD LENGTH=400 4 */ 000440
/* */ 000450
UNIVAC SERIES 70 (US70) MAGNETIC TAPE ORGANIZATION
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 6-15
/* */ 000450
1:JOB; 000460
2:JOB; 000470
VOLUME LABEL=NONE; 000480
RSTACK TEST=(C2); 000490
IDEN PREFIX=O'74', OFFSET=0, SKIP=4; 000500
3:JOB; 000510
VOLUME LABEL=NONE; 000520
4:JOB; 000530
VOLUME LABEL=NONE; 000540
RECORD LENGTH=400; 000550
END;END;/* END OF UNIVAC SDF JDL */ 000560
UNIVAC SERIES 70 (US70) MAGNETIC TAPE ORGANIZATION
6-16 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 7-1
7. 7Xerox ANSI standard labeled
tapes and unlabeled tapes
This chapter describes Xerox ANSI standard labeled and unlabeled
tapes. It also includes carriage control conventions and a sample
JSL.
Xerox labeled tapes
The Xerox/OSS accepts any of the following Xerox 9-track tapes:
•ANSI labeled tapes created under the CP-V system
•Unlabeled tapes whose data files conform to record formats,
blocking factor, and carriage control requirements of this
printing system
•Tapes with other label conventions if the data files conform to
the record format, blocking factor, and carriage control
requirements when these nonstandard labels are bypassed by
operator procedures.
Control Program-Five (CP-V) and ANSI labeled tapes
ANSI labeled tapes created under CP-V conform to the requirements
of ANSI Standard X3.27–1969 (refer to the ANSI tape section at the
beginning of this manual). Labels processed by CP-V and the
optional user labels are described in table 7-1.
Unlabeled tapes
Unlabeled tapes whose data files conform to the requirements of this
printing system can be processed by Xerox/OSS. Unlabeled file
arrangements and formats are shown in figure 7-1.
Table 7-1. CP-V ANSI labels
Type Operating system labels User labels
Beginning-of-volume VOL1 None permitted
Beginning-of-file HDR1, HDR2 UHL1 (optional)
End-of-volume EOF1, EOF2 UTL1 (optional)
End-of-file EOF1, EOF2 UTL1 (optional)
XEROX ANSI STANDARD LABELED TAPES AND UNLABELED TAPES
7-2 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
Nonstandard labels
Tapes that have nonstandard labels, but whose data files conform to
the requirements of this printing system can be processed by the
Xerox/OSS. This is done by bypassing the labels using a simple
operator procedure, then treating the data file as unlabeled.
Nonstandard labeled tapes can also be processed as undefined
tapes (see chapter 14, “Undefined tapes”).

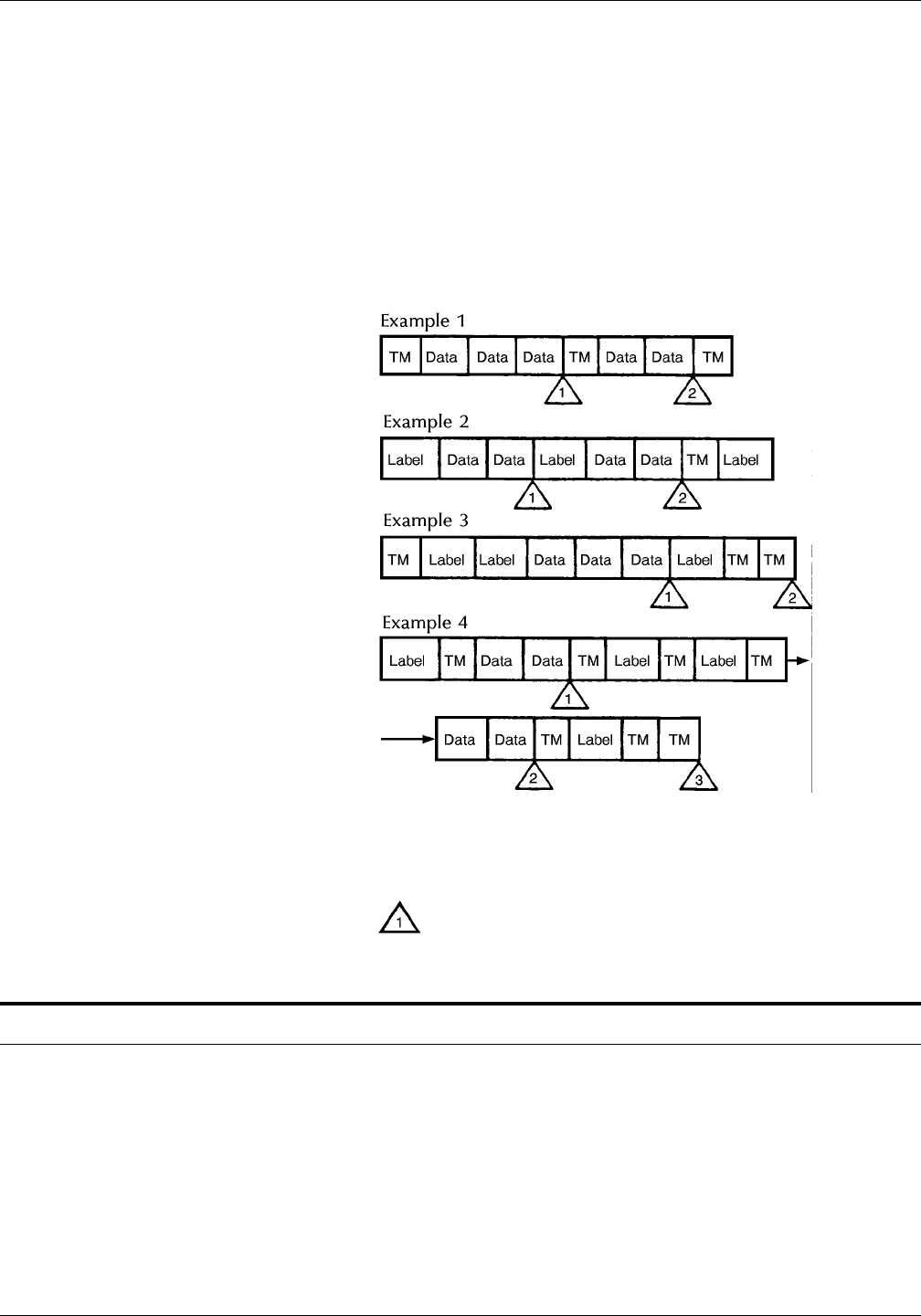

Figure 7-1. Unlabeled tape structure
*The tape marks must appear after the end-of-tape reflective strip
XEROX ANSI STANDARD LABELED TAPES AND UNLABELED TAPES
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 7-3
Carriage control conventions
The Xerox/OSS accepts Xerox 7440, 7445, and 7446 printer carriage
control characters (Xerox tapes). These conventions are shown in
table 7-2.
Table 7-2. Xerox printer control characters
Code
(hexadecimal) Function
60 or E0 Inhibit automatic upspace after printing.*
C0 or 40 Space 0 lines, print, and upspace 1 line.
C1 Space 1 line, print, and upspace 1 line.
C2 Space 2 line, print, and upspace 1 line.
C3 Space 3 line, print, and upspace 1 line.
C4 Space 4 line, print, and upspace 1 line.
C5 Space 5 line, print, and upspace 1 line.
C6 Space 6 line, print, and upspace 1 line.
C7 Space 7 line, print, and upspace 1 line.
C8 Space 8 line, print, and upspace 1 line.
C9 Space 9 line, print, and upspace 1 line.
CA Space 10 line, print, and upspace 1 line.
CB Space 11 line, print, and upspace 1 line.
CC Space 12 line, print, and upspace 1 line.
CD Space 13 line, print, and upspace 1 line.
CE Space 14 line, print, and upspace 1 line.
CF Space 15 line, print, and upspace 1 line.
D0 Skip to channel 0, print, and inhibit upspace.
D1 Skip to channel 1, print, and inhibit upspace.
D2 Skip to channel 2, print, and inhibit upspace.
D3 Skip to channel 3, print, and inhibit upspace.
D4 Skip to channel 4, print, and inhibit upspace.
D5 Skip to channel 5, print, and inhibit upspace.
D6 Skip to channel 6, print, and inhibit upspace.
D7 Skip to channel 7, print, and inhibit upspace.
E0 Space 0 lines, print, and inhibit automatic
upspace after printing.
* These characters in combination with the characters that inhibit
automatic upspace will be processed according to the job descriptor
entry selected for overprint handling.
XEROX ANSI STANDARD LABELED TAPES AND UNLABELED TAPES
7-4 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
E1 Space 1 lines, print, and inhibit automatic
upspace after printing.
E2 Space 2 lines, print, and inhibit automatic
upspace after printing.
E3 Space 3 lines, print, and inhibit automatic
upspace after printing.
E4 Space 4 lines, print, and inhibit automatic
upspace after printing.
E5 Space 5 lines, print, and inhibit automatic
upspace after printing.
E6 Space 6 lines, print, and inhibit automatic
upspace after printing.
E7 Space 7 lines, print, and inhibit automatic
upspace after printing.
E8 Space 8 lines, print, and inhibit automatic
upspace after printing.
E9 Space 9 lines, print, and inhibit automatic
upspace after printing.
EA Space 10 lines, print, and inhibit automatic
upspace after printing.
EB Space 11 lines, print, and inhibit automatic
upspace after printing.
EC Space 12 lines, print, and inhibit automatic
upspace after printing.
ED Space 123lines, print, and inhibit automatic
upspace after printing.
EE Space 14 lines, print, and inhibit automatic
upspace after printing.
EF Space 15 lines, print, and inhibit automatic
upspace after printing.
F0 Skip to channel 0, print, and upspace 1 line.
F1 Skip to channel 1, print, and upspace 1 line.
F2 Skip to channel 2, print, and upspace 1 line.
F3 Skip to channel 3, print, and upspace 1 line.
F4 Skip to channel 4, print, and upspace 1 line.
F5 Skip to channel 5, print, and upspace 1 line.
F6 Skip to channel 6, print, and upspace 1 line.
Table 7-2. Xerox printer control characters (continued)
Code
(hexadecimal) Function
* These characters in combination with the characters that inhibit
automatic upspace will be processed according to the job descriptor
entry selected for overprint handling.
XEROX ANSI STANDARD LABELED TAPES AND UNLABELED TAPES
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 7-5
Note: Under Xerox carriage control, a special case of page
overflow processing can occur. If the bottom-of-form line number is
encountered as the result of a skip-to-channel command, then print-
and-space commands below bottom-of-form are allowed.
The processing parameters for Xerox carriage control are as follows:
F7 Skip to channel 7, print, and upspace 1 line.
Table 7-2. Xerox printer control characters (continued)
Code
(hexadecimal) Function
* These characters in combination with the characters that inhibit
automatic upspace will be processed according to the job descriptor
entry selected for overprint handling.
Xerox
INITIAL TOF
DEFAULT (IGN, PSP1)
ADVTAPE YES
MASK X‘FF’
ASSIGN Use values in table 7-2
XEROX ANSI STANDARD LABELED TAPES AND UNLABELED TAPES
7-6 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
Xerox tape JSL sample
The following figure provides a JSL sample.
Figure 7-2. JSL sample for Xerox tapes
XEROX:JDL; 000010
/* SYSTEM FOR XEROX TAPES */ 000020
/* */ 000030
V1: VFU ASSIGN=(1,5), ASSIGN=(2,10), ASSIGN=(3,15), 000040
ASSIGN=(4,20), ASSIGN=(5,25), ASSIGN=(6,30), 000050
ASSIGN=(7,35), ASSIGN=(8,40), ASSIGN=(9,45), 000060
ASSIGN=(10,50), ASSIGN=(11,55), ASSIGN=(12,60), 000070
TOF=5, BOF=66; 000080
/* */ 000090
VOLUME HOST=XEROX, LABEL=ANSI, CODE=EBCDIC, PLABEL=YES; 000100
BLOCK LENGTH=4096, PREAMBLE=0, LTHFLD=0; 000110
RECORD PREAMBLE=0, STRUCTURE=FB; 000120
LINE DATA=(1,132), PCCTYPE=XEROX, PCC=(0,NOTRAN), 000130
OVERPRINT=(MERGE,NODISP), VFU=V1; 000140
ACCT USER=(BIN,TRAY); 000150
PR:CATALOG; 000160
BLOCK LENGTH=4000, LTHFLD=2, PREAMBLE=4, FORMAT=BIN; 000170
RECORD LENGTH=136, PREAMBLE=4, STRUCTURE=VB, LTHFLD=2, 000180
FORMAT=BIN; 000190
UU:CATALOG; 000200
VOLUME LABEL=NONE; 000210
BLOCK LENGTH=133; 000220
RECORD STRUCTURE=U; 000230
LINE PCCTYPE=NONE, DATA=(0,132); 000240
U4:CATALOG; 000250
VOLUME LABEL=NONE; 000260
BLOCK LENGTH=4096; 000270
RECORD STRUCTURE=U; 000280
LINE PCCTYPE=NONE, DATA=(0,132); 000290
FB:CATALOG; 000300
VOLUME LABEL=NONE; 000310
BLOCK LENGTH=3990; 000320
RECORD LENGTH=133, STRUCTURE=FB; 000330
LINE PCCTYPE=NONE, DATA=(0,132); 000340
/* */ 000350
/* */ 000360
/* XEROX ANSI LABELED AND UNLABELED TAPES */ 000370
/* ------------------------------------------------*/ 000380
/* */ 000390
/* THE FOLLOWING JDES WILL PRINT A VARIETY OF XEROX TAPES - */ 000400
/* BOTH ANSI LABELED AND UNLABELED */ 000410
/* */ 000420
/* CHARACTERISTICS JOB */ 000430
/* --------------- -------- */ 000440
/* */ 000450
/* ANSI-LABELED, FB, BLOCKED 3990, XEROX 11 */ 000460
/* PCC */ 000470
/* ANSI-LABELED, U, BLOCKED 133, XEROX PCC 12 */ 000480
/* UNLABELED, BLOCKED 3990, FB, XEROX PCC 13 */ 000490
/* UNLABELED, BLOCKED 3960, FB, XEROX PCC 14 */ 000500
/* UNLABELED, BLOCKED 133, U, XEROX PCC 15 */ 000510
/* */ 000520
XEROX ANSI STANDARD LABELED TAPES AND UNLABELED TAPES
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 7-7
11:JOB; 000530
VOLUME HOST=XEROX, LABEL=ANSI; 000540
BLOCK LENGTH=3990; 000550
RECORD LENGTH=133, STRUCTURE=FB; 000560
12:JOB; 000570
VOLUME HOST=XEROX, LABEL=ANSI; 000580
BLOCK LENGTH=133; 000590
RECORD LENGTH=133, STRUCTURE=FB; 000600
13:JOB; 000610
VOLUME HOST=XEROX, LABEL=NONE; 000620
BLOCK LENGTH=3990; 000630
RECORD LENGTH=133, STRUCTURE=FB; 000640
14:JOB; 000650
VOLUME HOST=XEROX, LABEL=NONE; 000660
BLOCK LENGTH=3960; 000670
RECORD LENGTH=132, STRUCTURE=FB; 000680
15:JOB; 000690
VOLUME HOST=XEROX, LABEL=NONE; 000700
BLOCK LENGTH=133; 000710
RECORD LENGTH=133, STRUCTURE=U; 000720
/* */ 000730
/* JDES FOR UTILITY PRINTOUTS */ 000740
/* -------------------------- */ 000750
/* */ 000760
/* THE FOLLOWING JDES WILL ALL0W PRINTOUTS OF MOST TAPES */ 000770
/* WITHOUT ATTEMPTING TO PROPERLY DEBLOCK THE TAPE. */ 000780
/* */ 000790
/* CHARACTERISTICS JOB */ 000800
/* --------------- ------- */ 000810
/* */ 000820
/* UNBLOCKED, NO PCC 31 */ 000830
/* BLOCKED 4096, U. NO PCC 32 */ 000840
/* BLOCKED 3990, FB, NO PCC 33 */ 000850
/* */ 000860
31:JOB; 000870
VOLUME LABEL=NONE; 000880
BLOCK LENGTH=133; 000890
RECORD STRUCTURE=U; 000900
LINE PCCTYPE=NONE, DATA=(0, 132); 000910
32:JOB; 000920
VOLUME LABEL=NONE; 000930
BLOCK LENGTH=4096; 000940
RECORD STRUCTURE=U; 000950
LINE PCCTYPE=NONE, DATA=(0, 132); 000960
33:JOB; 000970
VOLUME LABEL=NONE; 000980
BLOCK LENGTH=3990; 000990
RECORD LENGTH=133, STRUCTURE=FB; 001000
LINE PCCTYPE=NONE, DATA=(0, 132); 001010
END;END; /* END OF JDL */ 001020
XEROX ANSI STANDARD LABELED TAPES AND UNLABELED TAPES
7-8 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 8-1
8. 8Medium Burroughs system
tapes
The Xerox/OSS accepts two basic tape formats from the Medium
Burroughs systems (B2500, B2700, B3500, B3700, and B4700
computers): printer backup and non-printer backup ANSI. The
features which distinguish printer backup tapes are:
•“BACKUP” in the label field
•Block length is 136 words (6 characters per word)
•Record structure is FB
•Carriage control is a 4-byte field.

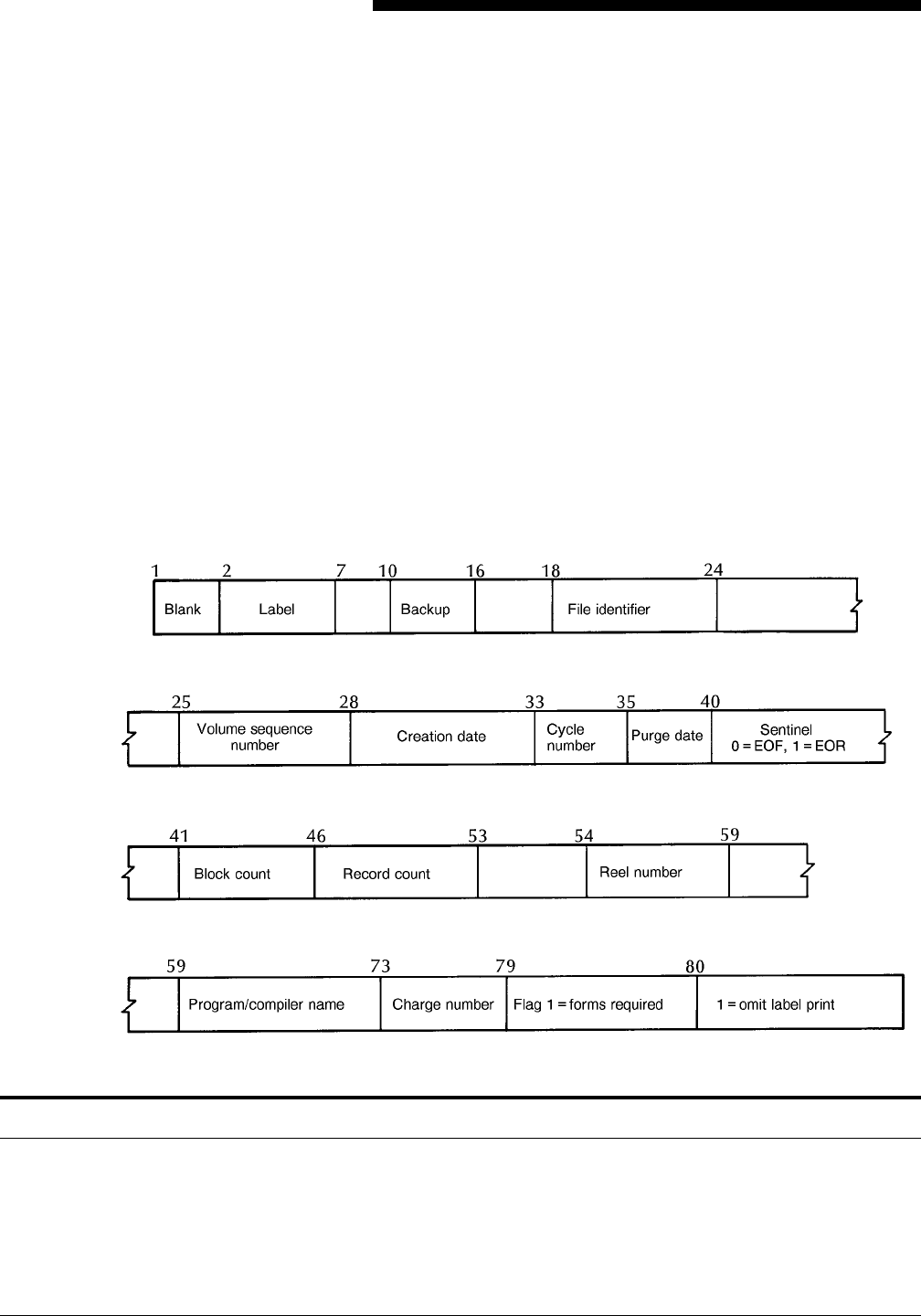

Figure 8-1. Format of the Burroughs standard label for a
printer backup tape
Record format
The record structure is “FB” for blocked, fixed length records. The
block has no header, length indicator, or postamble; it may be
truncated to less than maximum block size, but always contains a
number of bytes equal to an exact multiple of the record length.
MEDIUM BURROUGHS SYSTEM TAPES
8-2 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
The record structure consists of 4 bytes of carriage control
information followed by 132 bytes of print data (which may not be
used if the carriage control code selects a “no-print” option).
Label types
ANSI labeled tapes created under a Burroughs operating system
conform to the requirements of ANSI labels detailed at the beginning
of this manual. Burroughs standard labels are shown in figures 8-2
through 8-5.
Figure 8-2. Standard label tape example #1 (Burroughs)
Figure 8-3. Standard label tape example #2 (Burroughs)
Figure 8-4. Standard label tape example #3 (Burroughs)
MEDIUM BURROUGHS SYSTEM TAPES
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 8-3
Figure 8-5. Standard label tape example #4 (Burroughs)

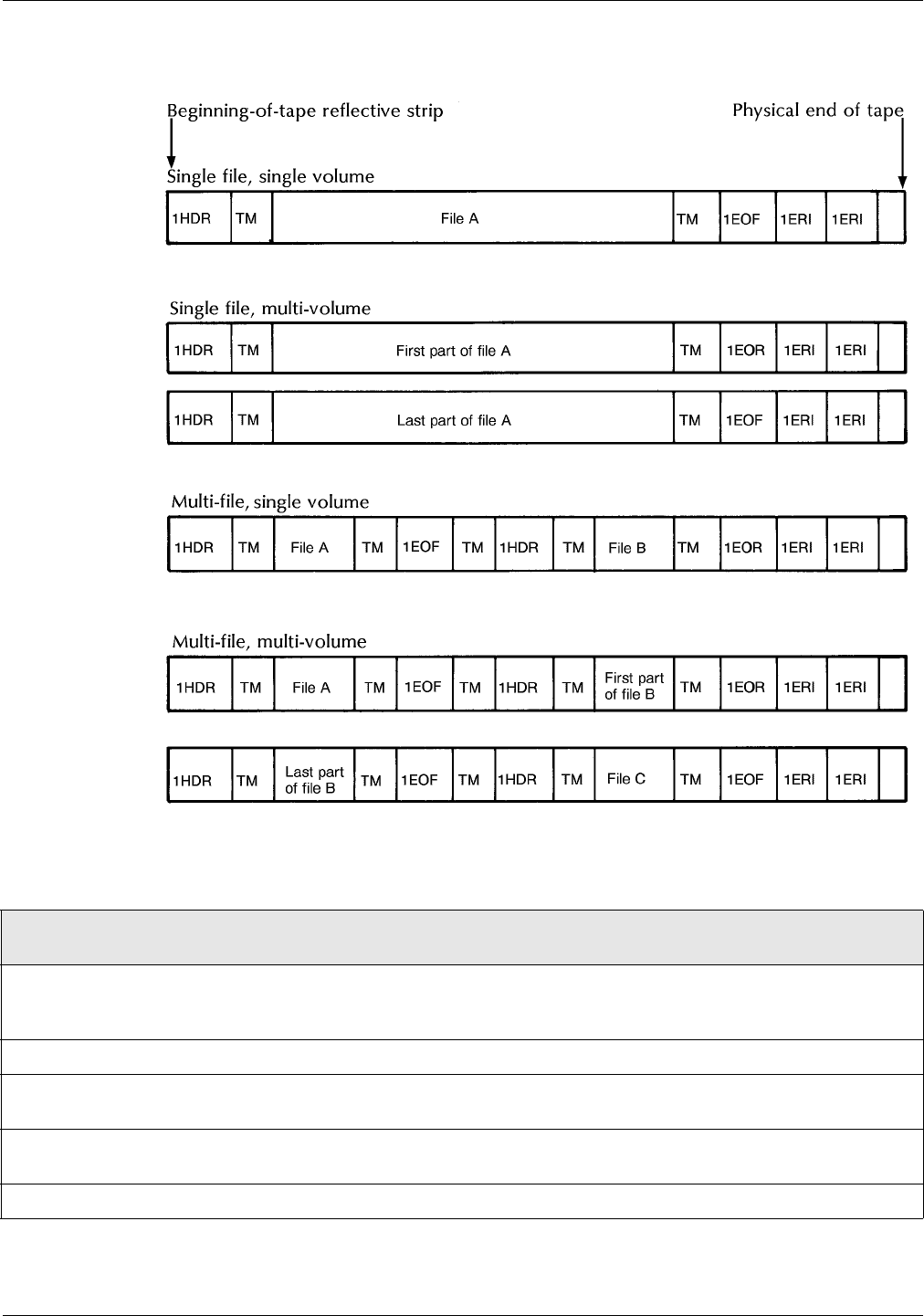

Tape configurations
The four basic configurations which can be processed by the printing
system are listed below; an example of a standard label tape for each
configuration is contained in the figure which is referenced.
•Single-file, single-volume (figure 8-2)
•Single-file, multi-volume (figure 8-3)
•Multi-file, single-volume (figure 8-4)
•Multi-file, multi-volume (figure 8-5).
Carriage control conventions
The Xerox/OSS accepts Burroughs printer carriage control
conventions as shown in table 8-1. Note that the values listed are
represented as EBCDIC characters: for example, the hexadecimal
equivalent for the first listing is X'F0F0F2F0' (no print and space zero
lines).
Table 8-1. Burroughs 4700 four-byte printer carriage
control
Value Function Value Function
0020 No print, space 0 lines (No
operation) 0021 No print, skip to channel 1
0120 No print, space 1 line 0022 No print, skip to channel 2
0220 No print, space 2 line 0023 No print, skip to channel 3
.. ..
.. ..
.. ..
9820 No print, space 98 line 0028 No print, skip to channel 8
9920 No print, space 99 line 0029 No print, skip to channel 9
0030 No print, skip to channel 10
MEDIUM BURROUGHS SYSTEM TAPES
8-4 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
The processing parameters for all medium Burroughs carriage
control are as follows:
1. During label processing the printing software ascertains
whether or not a tape is a printer backup tape. Therefore, no
special specification for printer backup is needed in the LABEL
left/right parts.
2. The label is printed on a printer backup tape if one or more of
the following is true
•The JDE contains the specification PLABEL = YES.
•The label print flag in the label is zero.
•The forms required flag in the label is set.
In the first case above, the ending labels as well as the start-of-file
labels are printed.
0031 No print, skip to channel 11
0000 0001 Print, skip to channel1
0100 Print, space 1 lines 0002 Print, skip to channel2
0200 Print, space 2 lines 0003 Print, skip to channel3
.. ..
.. ..
.. ..
9800 Print, space 98 lines 0009 Print, skip to channel9
9900 Print, space 99 lines 0010 Print, skip to channel10
0011 Print, skip to channel11
Table 8-1. Burroughs 4700 four-byte printer carriage
control (continued)
Value Function Value Function
medium Burroughs B2500, B2700,
B3500, B3700, or B4700
INITIAL TOF
DEFAULT (OVR, PSP1)
ADVTAPE YES
MASK X'FF
ASSIGN Use values in table 8-1.
MEDIUM BURROUGHS SYSTEM TAPES
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 8-5
Burroughs tape JSL sample
The following figure provides a JSL sample.
Figure 8-6. JSL sample for Burroughs tapes
BUR:JDL; 000010
/* */ 000020
/* SYSTEM TO PRINT BURROUGHS MEDIUM SYSTEM AND BURROUGHS */ 000030
/* LARGE SYSTEM PRINTER BACKUP TAPE FORMATS */ 000040
/* */ 000050
/* */ 000060
V1: VFU ASSIGN=(1,5), ASSIGN=(2,10), ASSIGN=(3,15), 000070
ASSIGN=(4,20), ASSIGN=(5,25), ASSIGN=(6,30), 000080
ASSIGN=(7,35), ASSIGN=(8,40), ASSIGN=(9,45), 000090
ASSIGN=(10,50), ASSIGN=(11,55), TOF=5, BOF=66; 000100
/* */ 000110
/* USER TRANSLATION TABLE FOR BURROUGHS ALTERS LEFT AND */ 000120
/* RIGHT BRACKETS AND EXCLAMATION MARK */ 000130
/* */ 000140
CODE DEFAULT=EBCDIC, ASSIGN=(X'4A',X'B4'), ASSIGN=(X'5A', 000150
X'B5'), ASSIGN=(X'D0',X'5A'); 000160
/* */ 000170
VOLUME HOST=B4700, LABEL=STANDARD, CODE=US LCODE=USER, 000180
PLABEL=YES; 000190
BLOCK LENGTH=816, PREAMBLE=0, POSTAMBLE=0; 000200
RECORD LENGTH=136, STRUCTURE=FB; 000210
LINE DATA=(4,132), PCCTYPE=B4700, PCC=(0,NOTRAN), 000220
OVERPRINT=(MERGE,NODISP), VFU=V1; 000230
ACCT USER=(BIN,TRAY); 000240
/* */ 000250
/* */ 000260
/* CATALOG TO PRINT BURROUGHS LARGE SYSTEM (B6700 AND B7700)*/ 000270
/* PRINTER BACKUP TAPES */ 000280
/* */ 000290
LB:CATALOG; 000300
VOLUME HOST=B6700, LABEL=ANSI,CODE=USER, LCODE=USER, 000310
BMULT=6, RMULT=6, PLABEL=YES; 000320
BLOCK LENGTH=1800, LTHFLD=0, PREAMBLE=0, POSTAMBLE=0; 000330
RECORD LENGTH=138, STRUCTURE=VB, LTHFLD=2, OFFSET=4, 000340
LMULT=6, FORMAT=BIN, ADJUST=6, PREAMBLE=6; 000350
LINE MARGIN=1, DATA=(0,132), PCCTYPE=B670 PCC=(0,NOTRAN), 000360
OVERPRINT=(MERGE,NODISP), VFU=V1; 000370
/* */ 000380
/* */ 000390
/* */ 000400
/* BURROUGHS MEDIUM SYSTEM SUPPORT */ 000410
/* ------------------------------------------ */ 000420
/* */ 000430
/* THE FOLLOWING JDES WILL PRINT BOTH LABELED AND UNLABELED */ 000440
/* TAPES FROM THE BURROUGHS MEDIUM SYSTEMS (B2500, B2700, */ 000450
/* B3500,B3700, AND B4700. */ 000460
/* */ 000470
MEDIUM BURROUGHS SYSTEM TAPES
8-6 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
/* CHARACTERISTICS JOB */ 000480
/* --------------- -------- */ 000490
/* */ 000500
/* LABELED PRINTER BACKUP TAPE 1 */ 000510
/* UNLABELED PRINTER BACKUP TAPE 2 */ 000520
/* NON-PRINTER BACKUP ANSI TAPE 3 */ 000530
/* */ 000540
1:JOB; 000550
VOLUME HOST=B4700, LABEL=STANDARD, CODE=USER, LCODE=USER; 000560
2:JOB; 000570
VOLUME HOST=B4700, LABEL=NONE, CODE=USER; 000580
3:JOB; 000590
VOLUME HOST=B4700, LABEL=STANDARD, CODE=USER, LCODE=USER; 000600
BLOCK LENGTH=1330; 000610
RECORD LENGTH=133, STRUCTURE=FB 000620
LINE DATA=(1, 132), PCCTYPE=ANSI, PCC=(0,NOTRAN 000630
/* /* 000640
/* /* 000650
/* BURROUGHS LARGE SYSTEM SUPPORT */ 000660
/* ---------------------------------------- */ 000670
/* */ 000680
/* THE FOLLOWING JDES WILL PRINT BOTH LABELED PRINTER BACKUP*/ 000690
/* AND STANDARD ANSI-LABELED TAPES FROM THE BURROUGHS LARGE */ 000700
/* SYSTEMS (B6700 AND B7700). */ 000710
/* */ 000720
/* CHARACTERISTICS JOB */ 000730
/* --------------- -------- */ 000740
/* */ 000750
/* LABELED PRINTER BACKUP TAPE 31 */ 000760
/* STANDARD ANSI LABELED TAPE 32 */ 000770
/* */ 000780
31:JOB INCLUDE=(LB); 000790
VOLUME HOST=B6700, LABEL=ANSI; 000800
32:JOB; 000810
VOLUME HOST=B6700, LABEL=ANSI, CODE=USER, LCODE=USER, 000820
BMULT=6, RMULT=6; 000830
BLOCK LENGTH=1330; 000840
RECORD LENGTH=133, STRUCTURE=FB; 000850
LINE DATA=(1,132), PCCTYPE=ANSI, PCC=(0,NOTRAN); 000860
END;END; /* END OF BURROUGHS JDL */ 000870
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 9-1
9. 9Large Burroughs system tapes
The Xerox/OSS accepts Burroughs large system printer backup
tapes generated on the B6700 computer.
Burroughs labeled tapes
With the exception that labels may be multiples of six bytes in length,
Burroughs printer backup tapes are labeled following the
specifications for ANSI standard labels described previously in this
manual.
Record format
Records are variable in length and are blocked into fixed length
blocks of 300 6-byte words each. Each record begins with a 6-byte
Input/Output Control Word (IOCW). The IOCW contains the printer
carriage control, record length, and residual character count (variable
length of record postamble). There is no block length given since
each block is fixed at 300 6-byte words. Partially filled blocks are
padded with zeros. An IOCW of all zeros signifies the end of data
within a given block. (Refer to figure 9-1.)
LARGE BURROUGHS SYSTEM TAPES
9-2 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL

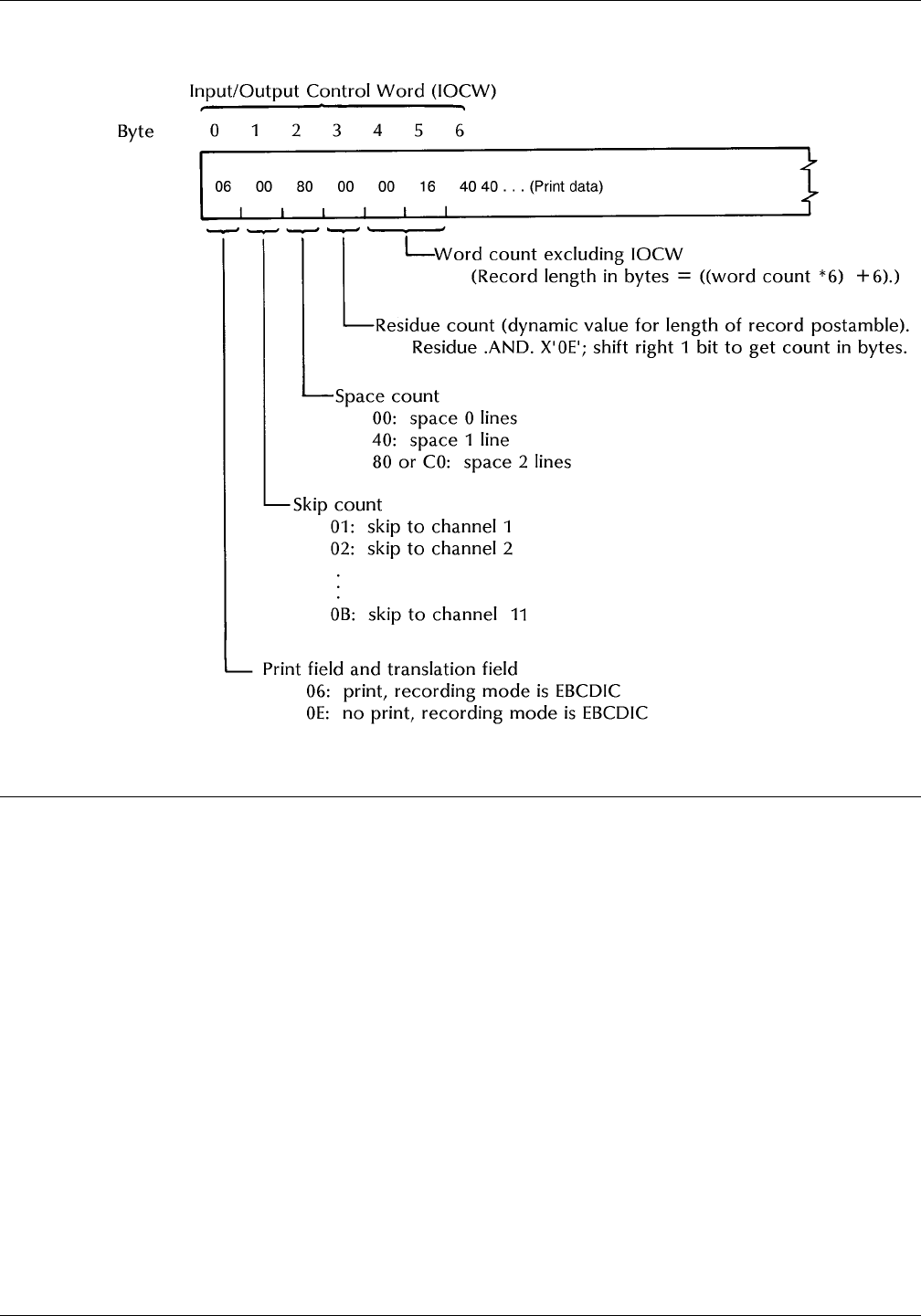

Figure 9-1. Printer backup tape record format (Burroughs)
Line-up records
The first record of the first block in a Burroughs 6700 printer backup
tape may be a line-up record containing a forms message.
•If this record is longer than 12 6-byte words and if a flag bit is
set (bit 47 in the third 6-byte word following the IOCW), then the
record does contain a forms message.
•The length byte of the line-up record includes the length of the
forms message identifier and the length of the forms message
text.
•The text of the message begins with the character immediately
following the hexadecimal 15 (X‘15’).
• The channel control word in the line-up record is the code for a
printer “no operation” (NOP).
The line-up record is recognized automatically as a stacked report
delimiter by the Xerox/OSS. Furthermore, the line-up record is
displayed to the operator when the printer is printing in single-report
mode.
LARGE BURROUGHS SYSTEM TAPES
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 9-3
Carriage control
Burroughs carriage control does not have a character representative
but, rather, is represented by a bit pattern in the IOCW. Refer to table
9-1 for the carriage control actions induced by each of the carriage
control codes. Pre-job forms alignment is to top of form; the default
for an invalid carriage control is to print and space one line.
The processing parameters for large Burroughs carriage control are
as follows:
Table 9-1. Burroughs B6700 carriage control (IOCW*)
I O C W *
Byte 0 Byte 1 Byte 2 Function
06 01 00 Print, skip to channel 1
06 02 00 Print, skip to channel 2
06 03 00 Print, skip to channel 3
06 04 00 Print, skip to channel 4
06 05 00 Print, skip to channel 5
06 06 00 Print, skip to channel 6
06 07 00 Print, skip to channel 7
06 08 00 Print, skip to channel 8
06 09 00 Print, skip to channel 9
06 0A 00 Print, skip to channel 10
06 0B 00 Print, skip to channel 11
06 00 00 Print, skip to channel 1
06 00 00 Print, np space or skip
06 00 40 Print, space 1 line
06 00 80 or C0 Print, space 2 lines
The above series may also appear with byte 0 equal to 0E which
means “no print.”
*IOCW is the input/output control word.
B6700
INITIAL TOF
DEFAULT (OVR,PSPI)
ADVTAPE YES
MASK X‘FF‘
ASSIGN Values are decoded from the IOCW
when the print record is processed (see
table 9-1).
LARGE BURROUGHS SYSTEM TAPES
9-4 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
Character set
The Burroughs EBCDIC character set is used. This character set
differs from the Xerox EBCDIC character set for the following
characters:
[ (left bracket) = X‘4A’
] (right bracket) = X‘5A’
! (exclamation mark) = X‘D0’
Burroughs 6700 printer backup tapes may be written either in
EBCDIC or BCD. Only EBCDIC mode printer backup tapes are
supported.
Burroughs tape JSL sample
The following figure provides a JSL sample.
Figure 9-2. JSL sample for Burroughs tapes
/* */ 000250
/* */ 000260
/* CATALOG TO PRINT BURROUGHS LARGE SYSTEM (B6700 AND B7700)*/ 000270
/* PRINTER BACKUP TAPES */ 000280
/* */ 000290
LB:CATALOG; 000300
VOLUME HOST=B6700, LABEL=ANSI,CODE=USER, LCODE=USER, 000310
BMULT=6, RMULT=6, PLABEL=YES; 000320
BLOCK LENGTH=1800, LTHFLD=0, PREAMBLE=0, POSTAMBLE=0; 000330
RECORD LENGTH=138, STRUCTURE=VB, LTHFLD=2, OFFSET=4, 000340
LMULT=6, FORMAT=BIN, ADJUST=6, PREAMBLE=6; 000350
LINE MARGIN=1, DATA=(0,132), PCCTYPE=B6700,PCC=(0,NOTRAN), 000360
OVERPRINT=(MERGE,NODISP), VFU=V1; 000370
/* */ 000380
/* */ 000390
/* */ 000400
BUR:JDL; 000010
/* */ 000020
/* SYSTEM TO PRINT BURROUGHS MEDIUM SYSTEM AND BURROUGHS */ 000030
/* LARGE SYSTEM PRINTER BACKUP TAPE FORMATS */ 000040
/* */ 000050
/* */ 000060
V1: VFU ASSIGN=(1,5), ASSIGN=(2,10), ASSIGN=(3,15), 000070
ASSIGN=(4,20), ASSIGN=(5,25), ASSIGN=(6,30), 000080
ASSIGN=(7,35), ASSIGN=(8,40), ASSIGN=(9,45), 000090
ASSIGN=(10,50), ASSIGN=(11,55), TOF=5, BOF=66; 000100
/* */ 000110
/* USER TRANSLATION TABLE FOR BURROUGHS ALTERS LEFT AND */ 000120
/* RIGHT BRACKETS AND EXCLAMATION MARK */ 000130
/* */ 000140
CODE DEFAULT=EBCDIC, ASSIGN=(X'4A',X'B4'),ASSIGN=(X'5A', 000150
X'B5'), ASSIGN=(X'D0',X'5A'); 000160
LARGE BURROUGHS SYSTEM TAPES
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 9-5
/* */ 000170
VOLUME HOST=B4700, LABEL=STANDARD, CODE=USER,LCODE=USER, 000180
PLABEL=YES; 000190
BLOCK LENGTH=816, PREAMBLE=0, POSTAMBLE=0; 000200
RECORD LENGTH=136, STRUCTURE=FB; 000210
LINE DATA=(4,132), PCCTYPE=B4700, PCC=(0,NOTRAN), 000220
OVERPRINT=(MERGE,NODISP), VFU=V1; 000230
ACCT USER=(BIN,TRAY); 000240
/* BURROUGHS MEDIUM SYSTEM SUPPORT */ 000410
/* ------------------------------------------ */ 000420
/* */ 000430
/* THE FOLLOWING JDES WILL PRINT BOTH LABELED AND UNLABELED */ 000440
/* TAPES FROM THE BURROUGHS MEDIUM SYSTEMS (B2500, B2700, */ 000450
/* B3500,B3700, AND B4700. */ 000460
/* */ 000470
/* CHARACTERISTICS JOB */ 000480
/* --------------- -------- */ 000490
/* */ 000500
/* LABELED PRINTER BACKUP TAPE 1 */ 000510
/* UNLABELED PRINTER BACKUP TAPE 2 */ 000520
/* NON-PRINTER BACKUP ANSI TAPE 3 */ 000530
/* */ 000540
1:JOB; 000550
VOLUME HOST=B4700, LABEL=STANDARD, CODE=USER,LCODE=USER; 000560
2:JOB; 000570
VOLUME HOST=B4700, LABEL=NONE, CODE=USER; 000580
3:JOB; 000590
VOLUME HOST=B4700, LABEL=STANDARD, CODE=USER,LCODE=USER; 000600
BLOCK LENGTH=1330; 000610
RECORD LENGTH=133, STRUCTURE=FB; 000620
LINE DATA=(1,132), PCCTYPE=ANSI, PCC=(0,NOTRAN); 000630
/* */ 000640
/* */ 000650
/* BURROUGHS LARGE SYSTEM SUPPORT */ 000660
/* ---------------------------------------- */ 000670
/* */ 000680
/* THE FOLLOWING JDES WILL PRINT BOTH LABELED PRINTER BACKUP*/ 000690
/* AND STANDARD ANSI-LABELED TAPES FROM THE BURROUGHS LARGE */ 000700
/* SYSTEMS (B6700 AND B7700). */ 000710
/* */ 000720
/* CHARACTERISTICS JOB */ 000730
/* --------------- -------- */ 000740
/* */ 000750
/* LABELED PRINTER BACKUP TAPE 31 */ 000760
/* STANDARD ANSI LABELED TAPE 32 */ 000770
/* */ 000780
31:JOB INCLUDE=(LB); 000790
VOLUME HOST=B6700, LABEL=ANSI; 000800
32:JOB; 000810
VOLUME HOST=B6700, LABEL=ANSI, CODE=USER, LCODE=USER, 000820
BMULT=6, RMULT=6; 000830
BLOCK LENGTH=1330; 000840
RECORD LENGTH=133, STRUCTURE=FB; 000850
LINE DATA=(1,132), PCCTYPE=ANSI, PCC=(0,NOTRAN); 000860
END;END; /* END OF BURROUGHS JDL */ 000870
LARGE BURROUGHS SYSTEM TAPES
9-6 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 10-1
10. 10Honeywell tapes
The Xerox/OSS accepts magnetic tapes generated on Honeywell
200/2000 and 600/6000 systems. Supported label formats include
standard 80-character labels, standard 120-character COBOL
labels, System Print Type (SPR) labels, and standard system tape
labels. Fixed-length records (bannered or unbannered) are
supported on 9-track tapes in EBCDIC or 4 x 3 packed BCD; the SPR
data format is a subset of this format. Variable-length records
(bannered or unbannered) are supported on 9-track tapes in 4 x 3
packed BCD.
4 x 3 packed 6-bit character format
Octal data, 6-bit binary, or 6-bit character may be written on 9-track
tape in a compressed 4 x 3 format. That is, four 6-bit data bytes are
compressed into three 8-bit data bytes when the data is written to 9-
track tape. Each 6-bit data byte is extracted and two high-order zeros
are appended.
Two separate methods are used on Honeywell tapes to pack and
code 6-bit characters. Figure 10-1 shows an example of how BCD
characters on Honeywell 200/2000 tapes are translated to ASCII by
the Xerox/OSS.
Figure 10-1. Pictorial representation of T4X3H2 packing
HONEYWELL TAPES
10-2 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
Table 10-1 shows the BCD to ASCII translation correspondences for
Honeywell 200/2000. The corresponding packing and coding
methods for Honeywell 600/6000 tapes are described later in this
chapter.

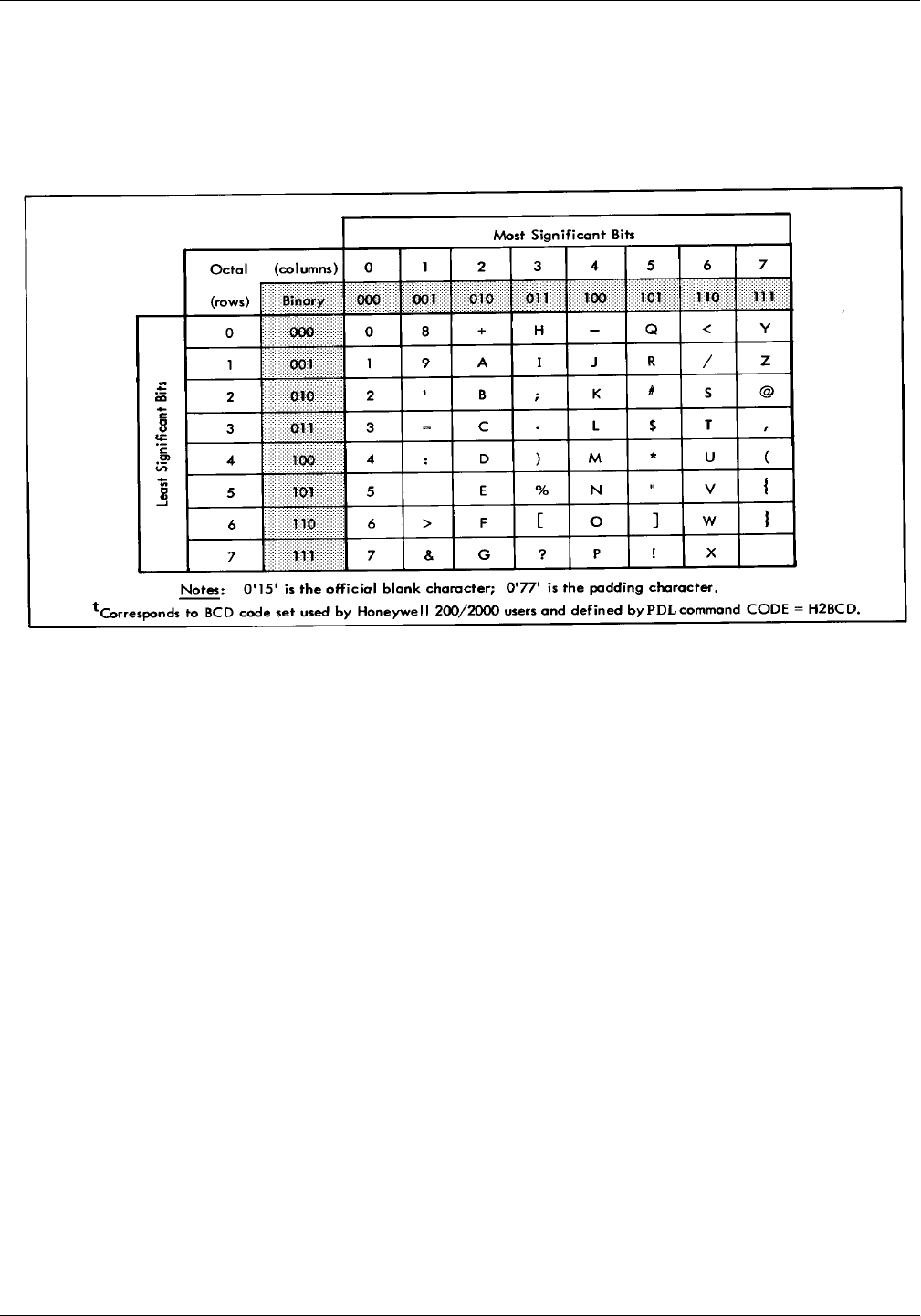

Table 10-1. Honeywell 200/2000 BCD table (6-bit
representation)t
HONEYWELL TAPES
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 10-3
Honeywell 200/2000 tape formats
The organization of Honeywell 200/2000 standard, COBOL, and
SPR labeled tapes varies from user to user. The four basic file
configurations are:
•Single-file, single-volume
•Single-file, multi-volume
•Multi-file, single-volume
•Multi-file, multi-volume.
These are illustrated in figure 10-2. The different label formats are
shown in tables 10-2 through 10-7. Note that the tape marks shown
in figure 10-2 are optional for the Honeywell 200/2000 formats.
Table 10-2.Standard 1HDR label (Honeywell 200/2000 standard
80-character labeled tapes
Name Character
position(s) Description
Label identifier 1-5 This is the 5-character identifier 1HDRb.
Volume serial number 6-10 This is the serial number unique to the physical tape reel.
File sequence number 11-16 This number is the same for all reels of a file, but is unique for
each file.
Volume sequence number* 17-19 This number identifies the order of processing for this particular
reel within the file
Reserved 20 Unspecified contents.
File identifier* 21-30 File name.
Creation date 31-35 This is the date the file was created (yyddd where yy = year and
ddd = day).
Expiration date 36-40 This is the number of days the tape is to be retained before it
may be scratched or overwritten (-ccc b where ccc = days).
Reserved 41-8 Unspecified contents.
* Used by the operating system.
HONEYWELL TAPES
10-4 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
Figure 10-2. Standard, COBOL, and SPR labeled tape structure
(Honeywell 200/2000)
Table 10-3. Standard 1EOF, 1EOR, 1ERL labels (Honeywell
200/2000 standard 80-character labeled tapes
Name Character
position(s) Description
Label identifier 1-5 This is the 5-character identifier 1EOFb, 1EORb, or 1ERIb. 1EOFb denotes
the end of a completed file. 1EORb denotes that the file continues onto
another tape reel. 1ERIb denotes the end of all information on this reel.
Block count* 6-10 This is the number of data blocks contained on this reel of this file.
Record count 11-20 This is the number of data records (items) processed on this reel of this file.
This field is blank for COBOL trailer labels.
Hash total 21-30 This is a host computer-generated value, which is altered each time the tape
file is updated.
Reserved 31-80 Unspecified contents.
* Used by the operating system.
HONEYWELL TAPES
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 10-5
Table 10-4. COBOL 1EOF, 1HDR, 1EOR labels (Honeywell 200/
2000 standard 120-character labeled tapes)
Name Character
position(s) Description
Label identifier 1-5 This is a 5-character identifier 1HDRb, 1EOFb, or 1EORb. 1HDRb denotes
the beginning-of-file. 1EOFb denotes the end of a completed file. 1EORb
denotes that the file continues onto another tape reel.
Reserved 6 Unspecified contents.
Expiration date 7-10 This is the number of days the tape is to be retained before it may be
scratched or overwritten (cccc in days).
Creation date 11-15 This is the date the file was created (yyddd where yy = year and ddd = day).
File identifier* 16-25 File name.
File sequence
number 26-30 This number is the same for all reels of a file, but is unique for each file.
Volume serial
number 31-35 This is the serial number unique to the physical tape reel.
Reserved 36 Unspecified contents.
Volume sequence
number* 37-40 This number identifies the order of processing for this particular reel within
the file.
Reserved 41-50 Unspecified contents.
System identifier 51-54 This identifies the operating system used to create this file.
Record structure 55 F indicates fixed format.
V indicates variable format.
Record length* 56-60 This is a number that indicates the record length in characters.
Block length* 61-65 This is a number that indicates the block length in characters.
Checkpoint indicator 66 Checkpoint indicator (IBM format).
Block count* 67-72 This is the number of data blocks contained on this reel of a file. This field is
processed from the 1EOF and 1EOR labels only.
Reserved 73-120 Unspecified contents.
* Used by the operating system.
HONEYWELL TAPES
10-6 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
Table 10-5. SPR 1HDR label (Honeywell 200/2000 system print
tapes)
Name Character
position(s) Description
Label identifier 1-5 This is a 5-character identifier 1HDRb.
Reserved 6-20 Unspecified contents.
Program-segment
name 21-28 Program-segment name in the host EXEC statement for this job step.
Job step number 29 Octal number which denotes this job step.
Form type 30
31
32
33
Denotes printed paper form type (f) to be used for reports 1 through 4, where
f = type (0-9, A-Z).
Reserved 34-40 Unspecified contents.
Record length 41-42 Octal number that indicates maximum record (item) length in bytes (always
0205).
Blocking factor 43-44 Octal number that indicates tape blocking factor.
Fixed record-length
indicator 45 Fixed record-length indicator (always 1).
Block length 46-48 Octal number that indicates maximum block (physical record) length.
Reserved 49 Unspecified contents
Banner length* 50 Banner character length.
Volume sequence
number* 51 Octal number (1-63) that indicates the tape reel number. This number is the
order of the volume within the multi-volume group created at the same time.
File identifier* 52-61 ob name.
Job step part number 62 Octal number which denotes the job step part.
Beginning volume
sequence number 63 Octal number (1-63) that indicates the tape reel number on which this job
step part started.
Reserved 64-76 Unspecified contents.
File designator 77 Octal number which designates a file (always 40).
Peripheral control
character length 78 Peripheral control character length (always 1).
Peripheral control
character position 79-80 Relative position of the peripheral control character within each record (item)
of the file (always 1).
* Used by the operating system.
HONEYWELL TAPES
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 10-7
Table 10-6. SPR 1EOF, 1EOR labels (Honeywell 200/2000
system print tapes)
Name Character
position(s) Description
Label identifier 1-5 This is a 5-character identifier 1EOFb or 1EORb. 1EOFb denotes the end of
a completed file. 1EORb denotes that the file continues onto another tape
reel.
Reserved 6-10 Unspecified contents.
Block count (SPR)* 11-15 Decimal number that indicates SPR tape block count. Note that SPR tapes
are written in odd parity.
Block count (SPU)* 16-20 Decimal number that indicates the SPU block count.
Program-segment
name 21-30 Program-segment name in the host EXEC statement for this job step.
Reserved 31-80 Unspecified contents.
* Used by the operating system.
Table 10-7. SPR 1ERL, labels (Honeywell 200/2000 system
print tapes)
Name Character
position(s) Description
Label identifier 1-5 This is a 5-character identifier 1ERIb which denotes the end of recorded
information on this tape reel.
Reserved 6-80 Unspecified contents
HONEYWELL TAPES
10-8 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
Honeywell 200/2000 data formats
Records may be fixed or variable, blocked or unblocked, bannered or
unbannered.
Bannered data format
Files with fixed and variable length records may be bannered. The
banner characters appear as the first characters in the data block.
Bannered files must be written in odd parity. The second banner
character may contain a report number (refer to figure 10-3).
Figure 10-3. Honeywell 200/2000 records with banner
characters
Variable length record format
Variable length tape blocks may be bannered or unbannered and
may contain one or more variable length logical records (refer to
figure 10-4). The actual block length is given by a three octal
character binary number if the input tape is recorded in odd parity.
The actual block length is given by a four octal character decimal
number if the input tape is recorded in even parity. The block length
includes its own length plus the banner character, if present.
The actual record length for a record is given by a two octal character
binary number if the input tape is recorded in odd parity. The record
length is given by a three octal character number if the input tape is
recorded in even parity.
HONEYWELL TAPES
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 10-9
Figure 10-4. Honeywell 200/2000 variable length bannered and
unbannered record format
Fixed length record format
Fixed length tape blocks may be bannered or unbannered; they may
contain one or more fixed length logical records. Each block contains
the same number of records. The structure of fixed length records, as
shown in figure 10-5, does not vary with the parity in which the input
file is recorded.
Figure 10-5. Honeywell 200/2000 fixed length record structure
Variable length unbannered records
Variable length bannered records
Fixed length unbannered records
Fixed length bannered records
HONEYWELL TAPES
10-10 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
System print tape data format
System print tape (SPR) data consists of bannered data blocks. The
record format is fixed, with 133 characters per record. The printer or
carriage control character is the first character of the block. The
number of records per block is set at system generation time.
Honeywell 200/2000 carriage control
Printer carriage control codes used on a system print (SPR) tape are shown in table 10-8.
Table 10-8. Printer carriage control (Honeywell 200/2000
system printer tapes
Code
Octal Hexadecimal Function
00 00 Print, space 0 lines.*
01 01 Print, space 1 lines.*
02 02 Print, space 2 lines.*
03 03 Print, space 3 lines.*
04 04 Print, space 4 lines.
05 05 Print, space 5 lines.
06 06 Print, space 6 lines.
07 07 Print, space 7 lines.
10 08 Print, space 8 lines.
11 09 Print, space 9 lines.
12 0A Print, space 10 lines.
13 0B Print, space 11 lines.
14 0C Print, space 12 lines.
15 0D Print, space 13 lines.
16 0E Print, space 14 lines.
17 0F Print, space 15 lines.
20 10 Print, space 0 lines.*
21 11 Print, space 1 lines.*
22 12 Print, space 2 lines.*
23 13 Print, space 3 lines.*
24 14 Print, space 4 lines.*
25 15 Print, space 5 lines.*
26 16 Print, space 6 lines.*
* If bottom-of-form (BOF) detected during spacing, skip to top-of-form (TOF) and discontinue spacing.
HONEYWELL TAPES
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 10-11
27 17 Print, space 7 lines.*
30 18 Print, space 8 lines.*
31 19 Print, space 9 lines.*
32 1A Print, space 10 lines.*
33 1B Print, space 11 lines.*
34 1C Print, space 12 lines.*
35 1D Print, space 13 lines.*
36 1E Print, space 14 lines.*
37 1F Print, space 15 lines.*
40 20 Print, skip to channel 3.
41 21 Print, skip to channel 4.
42 22 Print, skip to channel 5.
43 23 Print, skip to channel 1.
44 24 Print, skip to channel 6.
45 25 Print, skip to channel 7.
46 26 Print, skip to channel 8.
47 27 Print, skip to channel 1.
50 28 No print, skip to channel 3.
51 29 No print, skip to channel 4.
52 2A No print, skip to channel 5.
53 2B No print, skip to channel 1.
54 2C No print, skip to channel 6.
55 2D No print, skip to channel 7.
56 2E No print, skip to channel 8.
57 2F No print, skip to channel 1.
60 30 No print, space 0 lines.
61 31 No print, space to 1 line.
62 32 No print, space to 2 lines.
63 33 No print, space to 3 lines.
64 34 No print, space to 4 lines.
65 35 No print, space to 5 lines.
Table 10-8. Printer carriage control (Honeywell 200/2000
system printer tapes (continued)
Code
Octal Hexadecimal Function
* If bottom-of-form (BOF) detected during spacing, skip to top-of-form (TOF) and discontinue spacing.
HONEYWELL TAPES
10-12 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
Processing parameters for Honeywell 200/2000 carriage control are
as follows:
Honeywell 600/6000 tape formats
Standard system format tape labels, which are described in the
following section, are the only Honeywell 6000 tape labels supported.
Variable length records on labeled tapes are supported on 9-track
tapes when the data code is 4 x 3 packed BCD. The packing method
and BCD coding used on Honeywell 6000 tapes are described in
figure 10-6 and table 10-9. This tape format includes embedded
control characters and normal edit printer carriage control.
66 36 No print, space to 6 lines.
67 37 No print, space to 7 lines.
70 38 No print, space to 8 lines.
71 39 No print, space to 9 lines.
72 3A No print, space to 10 lines.
73 3B No print, space 11 lines.
74 3C No print, space 12 lines.
75 3D No print, space 13 lines.
76 3E No print, space 14 lines.
77 3F No print, space to 15 lines.
Table 10-8. Printer carriage control (Honeywell 200/2000
system printer tapes (continued)
Code
Octal Hexadecimal Function
* If bottom-of-form (BOF) detected during spacing, skip to top-of-form (TOF) and discontinue spacing.
H200/H2000
INITIAL TOF
DEFAULT (OVR, PSP1)
ADVTAPE YES
MASK ’FF’
ASSIGN Values shown in table 10-8.
HONEYWELL TAPES
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 10-13
Figure 10-6. Pictorial representation of T4X3 packing
The basic file configurations which are supported for Honeywell 6000
tapes are illustrated in figure 10-7. Label formats are shown in tables
10-10 through 10-12.
Table 10-9. BCD to EBCDIC input/output correspondence (6-
bit representation)t
HONEYWELL TAPES
10-14 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
Figure 10-7. Honeywell 6000 standard labeled tape structure
Key BLT
TM
EOF
EOR
Basic
Tape Mark
End-of-File
End-of-Record
HONEYWELL TAPES
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 10-15
Table 10-10. Standard basic tape label (Honeywell 600/6000
standard system format labeled tapes)
Name Character
position Description
Label identifier 1-12 This is a 12-character identifier: GEbb600bBTLb
Installation identification 13-18 This is constant information for a given user installation.
Volume serial number 19-24 This is the serial number of the physical tape reel.
Volume sequence
number* 31-36 This is the number of the reel within a given file.
Creation date 37-42 This is the date the file was created (byyddd where yy = year and
ddd = day).
Expiration date 43-48 This is the number of days the tape is to be retained before it may
be scratched
Expiration date 43-48 This is the number of days the tape is to be retained before it may
be scratched or overwritten (bbbxxx where xxx = days).
File identifier* 49-60 File name.
Reserved 61-78 Unspecified contents.
Reel number error 79-84 Reel number in preceding EOR label is erroneous (always bbbbbb
or PRVERR).
* Used by the operating system.
Table 10-11. Standard EOR, EOF labels (Honeywell 600/6000
standard system format labeled tapes)
Name Character
position(s) Description
Label identifier 1-6 This is a 6-character identifier bEORbb or bEOFbb. bEORbb
denotes that the file continues onto another tape reel. bBEOFbb
denotes the end of a completed file.
Block count* 7-12 This is the number of data blocks contained on this reel of this file.
Reserved 13-78 Unspecified contents.
Next volume serial
number 79-84 This is the serial number of the next physical tape reel if the tape
contains an EOR label.
*Used by the operating system.
HONEYWELL TAPES
10-16 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
Honeywell 600/6000 data formats
This section describes the data formats for the Honeywell 600/6000.
Variable length record format, Honeywell 6000 standard system tapes
Variable length records are limited to those files recorded in the
binary mode (refer to figure 10-8).
Figure 10-8. Honeywell 600/6000 variable length record format
The Block Control Word (BCW) exists as the first word of each
physical tape block. It is structured as shown in table 10-13.
Table 10-12. Standard partial basic tape label (Honeywell 600/
6000 standard system format labeled tapes)
Name Character
position(s) Description
Label identifier 1-12 This is a 12-character identifier: GEbb600bBTLb.
Installation identification 13-18 This is constant information for a given user installation.
Volume serial number 19-24 This is the serial number of the physical tape reel.
Zeros* 26-60 Must be all zeros.
Reserved 61-84 Unspecified contents.
*Checked by the operating system.
Key BCW
RCW Block Control Word
Record Control Word
Table 10-13. Honeywell 600/6000 block control word format
Character
position(s) Bits Description
1-3 0-17 Block serial number is the sequential number of this physical block.
4-6 18-35 Block size is the size of the block in words of (6 characters/word), not including this
block control word BCW (octal).
HONEYWELL TAPES
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 10-17
The Record Control Word (RCW) is the first word of each logical
record. It is structured as shown in table 10-14
Data format with embedded control characters, normal edit mode (4 x 3 packed BCD)
Embedded control characters appear within the print line image and
may appear singly or in pairs. These control characters must be
processed on a left-to-right scan basis.
Note: Hexadecimal character codes have the 6-bit octal character
in the rightmost six bits with the leftmost two bits set to zero, for
example, the unpacked data format. References to character codes
refer to the character value prior to translation to EBCDIC.
Table 10-14. Honeywell 600/6000 record control word
format
Character
position(s) Bits Description
1-3 0-17 Record size is the size of the record in words (6 characters/word), not including this
record control word RCW (octal).
4 18-19 Next available character position in the last data word:
00: full word (4 characters) used
01: 1 character used
10: 2 characters used
11: 3 characters used
4 20-23 Not used unless bits are zero.
5 24-29 Logical record media code.
0: not a media conversion record, or no printer slew controls
1: binary card image
2: Hollerith card image
3: print line image
4: reserved for user
5: time-sharing system ASCII
6: standard system format ASCII
7: ASCII print line images, with trailing printer slew control information
8: TSS information record
6 30-35 Report code identifying this record as one belonging to a specific report or punch deck.
May be any combination of 6 bits.
Note: The printing system automatically selects records with media codes 02, 03, and 07 for printing.
HONEYWELL TAPES
10-18 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL

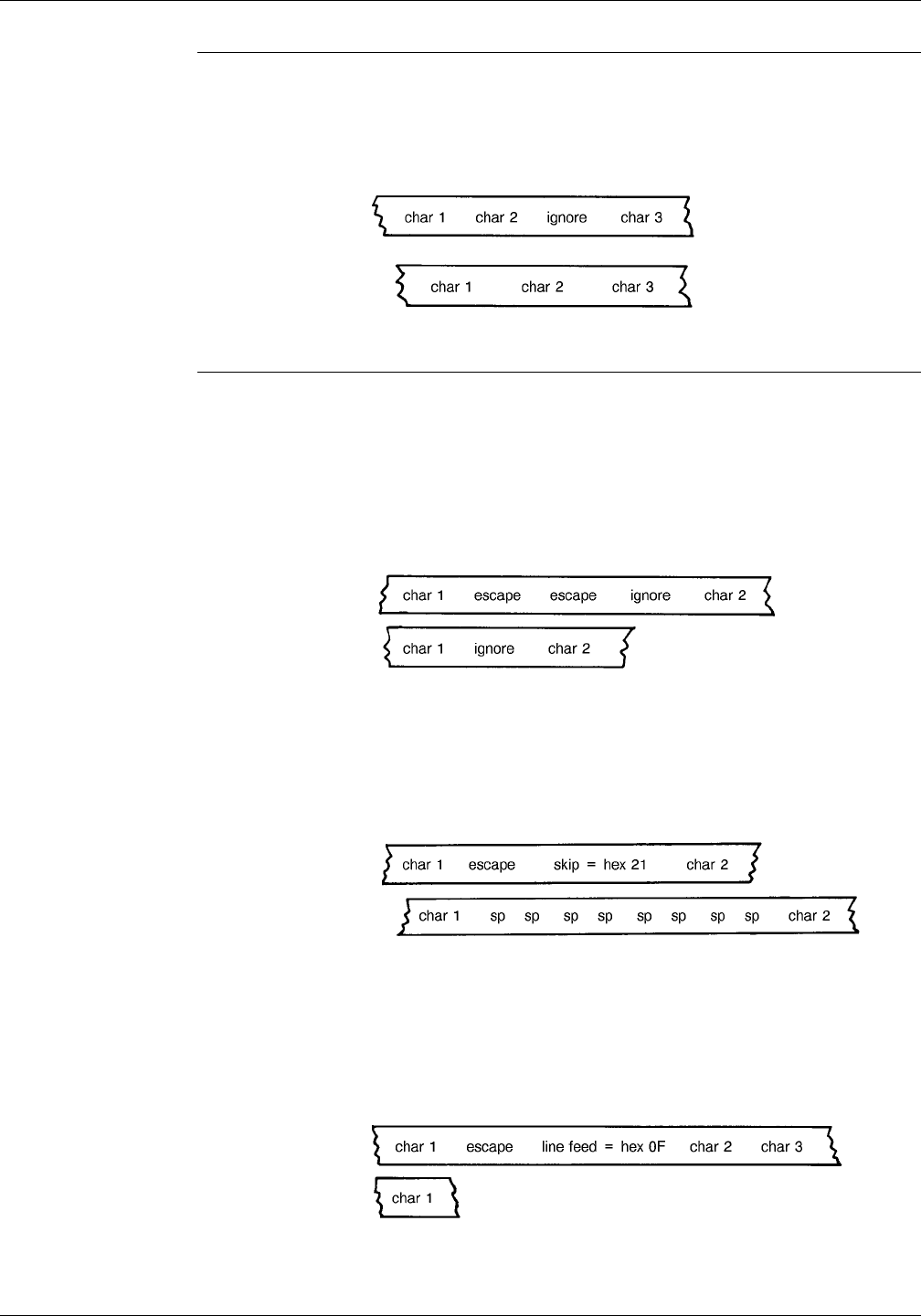

Single control characters
Ignore. The ignore character is an octal 17 (hexadecimal 0F). This
character is deleted from the print line when not preceded by escape-
escape paired control characters. That is, the print character
preceding the ignore character, and the print character following the
ignore character, are printed adjacent to each other.
Paired control characters
The first character of all paired control characters is the escape
character, which is an octal 77 (hexadecimal 3F).
Escape-escape. This pair is an octal 7777 (hexadecimal 3F3F).
These characters are deleted (as in the single ignore character), and
the character following the pair is always printed. When the ignore
character is preceded by this pair of control characters, the pair is
deleted from the print line, and the ignore character is printed.
Escape-skip. This pair is an octal 77 followed by a 6-bit binary
10nnnn (hexadecimal 3F followed by an 8-bit binary 0010nnnn). The
escape-skip pair is deleted from the output print line and causes
spaces to be inserted into the output print line. The 8-bit binary
number, 0nnnn000 (i.e., the binary number nnnn, 0 nnnn 15),
multiplied by 8 is the number of spaces (0-120) to be inserted.
Escape-line feed. This pair is an octal 77 followed by a 6-bit binary
00xxxx (hexadecimal 3F followed by an 8-bit binary 0000xxxx). The
escape-line feed pair, when deleted from the output print line,
terminates the output print line and causes the paper to be fed xxxx
binary number of lines after printing (where 0 xxxx F). Characters
following this pair, but preceding the end of this logical record, are
ignored.
Input print line
Output print line
Input print line
Output print line
Input print line
Output print line
Input print line
Output print line and feed 15 lines after printing this line
HONEYWELL TAPES
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 10-19

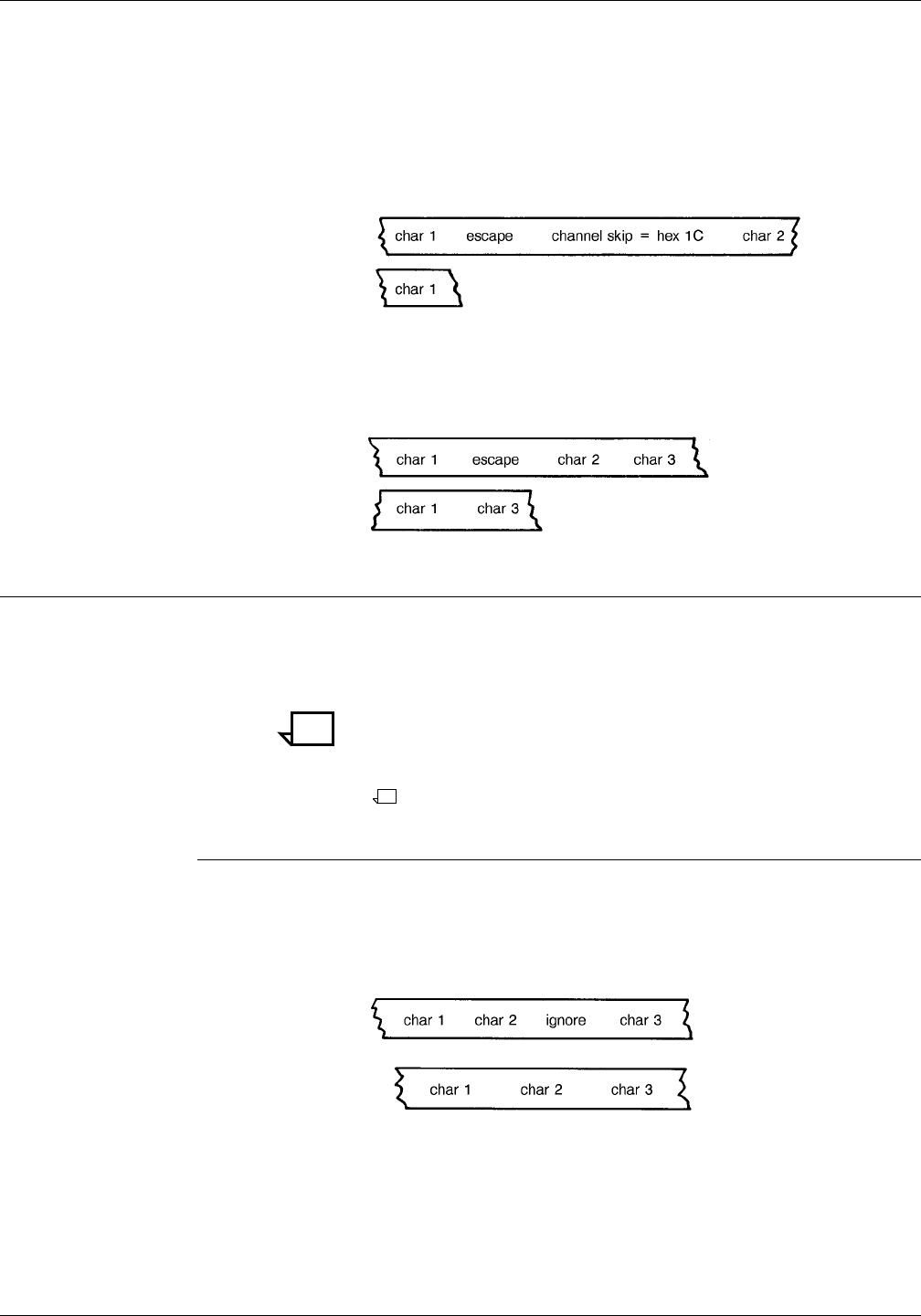

Escape-channel skip. This pair is an octal 77 followed by a 6-bit
binary 01xxxx (hexadecimal 3F followed by an 8-bit binary
0001xxxx). The escape-channel skip pair, when deleted from the
output print line, terminates the output print line and causes a skip to
channel operation after printing (where xxxx is the binary channel
number and 0 xxxx F). Characters following this pair, but preceding
the end of this logical record, are ignored. Input print lineOutput print
lineand skip to channel 12 after printing this line
Escape-“other character”. This pair is an octal 77 followed by a 6-
bit 11xxxx (hexadecimal 3F followed by an 8-bit binary 0011xxxx),
where xxxx is not 1111. The pair is deleted from the output print line
and no other action occurs.
Data format with embedded control characters, normal edit mode (9 x 8 packed ASCII)
Embedded control characters appear within the print line image and
may appear singly or in pairs. These control characters must be
processed on a left-to-right scan basis.
Note: Hexadecimal character codes have the 9-bit octal character
packed into an 8-bit byte with the 9th (high order) bit dropped.
References to character codes refer to the character value prior to
translation to EBCDIC.
Single control characters
Ignore. The ignore character is an octal 177 (hexadecimal 7F). This
character is deleted from the print line when not preceded by escape-
escape paired control characters. That is, the print character
preceding the ignore character, and the print character following the
ignore character, are printed adjacent to each other.
Input print line
Output print line
Input print line
Output print line and skip to channel 12 after printing this line
Input print line
Output print line
HONEYWELL TAPES
10-20 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL

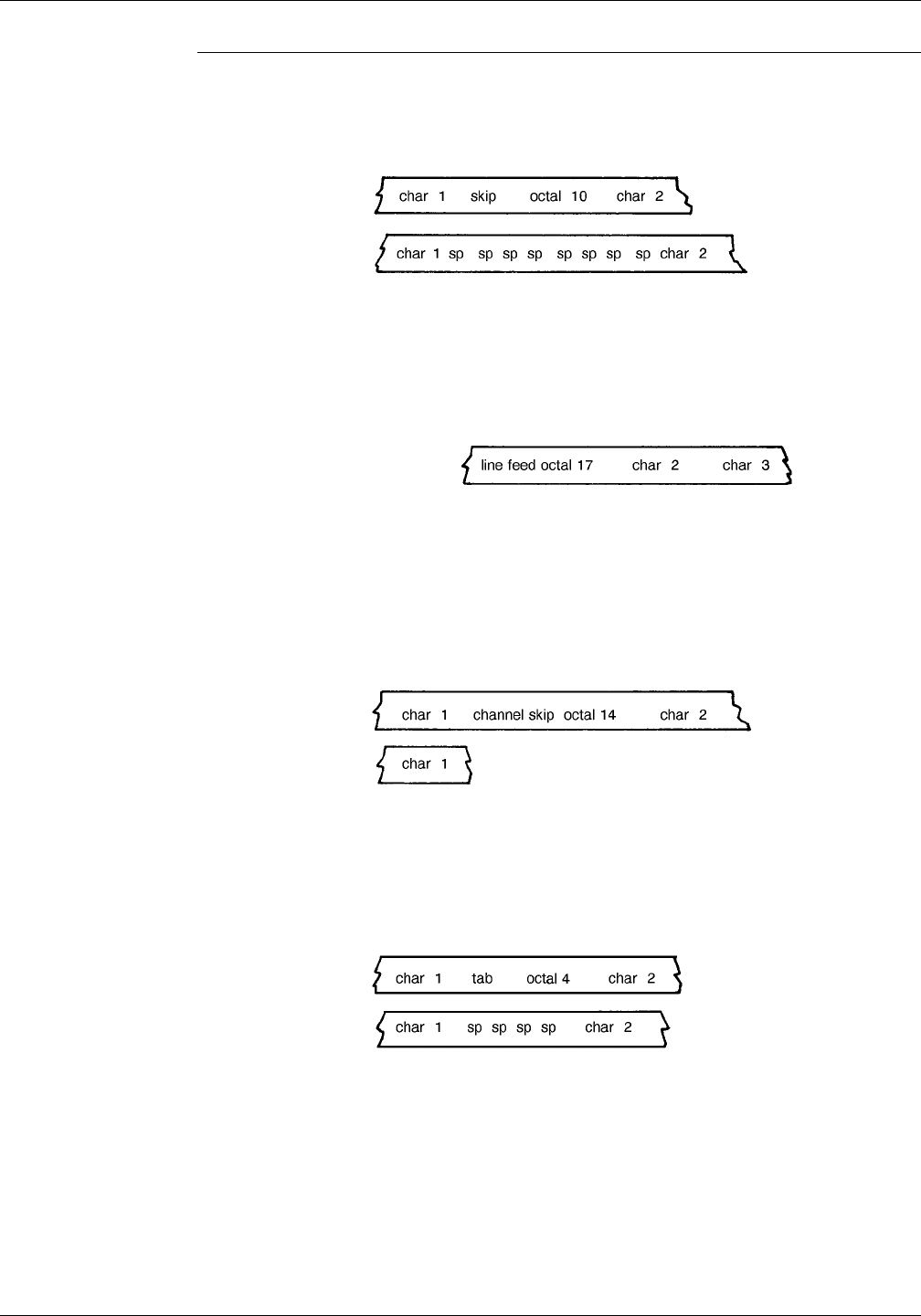

Paired control characters
Skip. This pair is an octal 37 (hexadecimal 1F) followed by a binary
value from 0-127. The skip pair is deleted from the output print line
and causes spaces to be inserted into the output print line. The binary
value is the number of spaces to be inserted.
Line Feed. This pair is an octal 13 (hexadecimal 0B) followed by a
binary value 0-127. The line feed pair, when deleted from the output
print line, terminates the output print line and causes the paper to be
fed xxxx binary number of lines after printing (where 0 xxxx F).
Characters following this pair, but preceding the end of this logical
record, are ignored.
Channel skip. This pair is octal 14 (hexadecimal 0C) followed by a
binary value 0-15. The channel skip pair, when deleted from the
output print line, terminates the output print line and causes a skip to
channel operation after printing (where xxxx is the binary channel
number and 0 xxxx F). Characters following this pair, but preceding
the end of this logical record, are ignored.
Tab. This pair is an octal 11 (hexadecimal 09) followed by a binary
value 0-127. This tab pair, when deleted from the output print line,
causes spaces to be inserted into the output print line. The binary
value 0-127 specifies the print position to which it is desired to tab.
Backward tabbing is allowed and causes print data to be replaced
with blanks.
Input print line
Output print line
Input print line
Output print line
char 1
char 1 and feed 15 lines after printing this line
Input print line
Output print line and skip to channel 12 after printing this line
Input print line
Output print line
HONEYWELL TAPES
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 10-21
Carriage control (Honeywell 600/6000)
Carriage control codes to be paired with an escape character for the
Honeywell 600/6000 normal edit mode are shown in table 10-15.
(Note that the default value of print-and-space-1 is used when a line
has been processed without encountering an escape-line feed or
escape-channel skip pair.)
Table 10-15. Printer carriage control (Honeywell 200/2000
system printer tapes
Code
Octal Hexadecimal Function
00 00 Print, space 0 lines.
01 01 Print, space 1 line.
02 02 Print, space 2 lines.
03 03 Print, space 3 lines.
04 04 Print, space 4 lines.
05 05 Print, space 5 lines.
06 06 Print, space 6 lines.
07 07 Print, space 7 lines.
10 08 Print, space 8 lines.
11 09 Print, space 9 lines.
12 0A Print, space 10 lines.
13 0B Print, space 11 lines.
14 0C Print, space 12 lines.
15 0D Print, space 13 lines.
16 0E Print, space 14 lines.
17 0F Print, space 15 lines.
20 10 Print, skip to channel 0.
21 11 Print, skip to channel 1.
22 12 Print, skip to channel 2.
23 13 Print, skip to channel 3.
24 14 Print, skip to channel 4.
25 15 Print, skip to channel 5.
26 16 Print, skip to channel 6.
27 17 Print, skip to channel 7.
30 18 Print, skip to channel 8.
31 19 Print, skip to channel 9.
Note: An invalid code will be processed as a print and space 1 line.
HONEYWELL TAPES
10-22 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
Processing parameters for Honeywell 600/6000 carriage control are
as follows:
32 1A Print, skip to channel 10.
33 1B Print, skip to channel 11.
34 1C Print, skip to channel 12.
35 1D Print, skip to channel 13.
36 1E Print, skip to channel 14.
37 1F Print, skip to channel 15.
H600/H60009
INITIAL TOF
DEFAULT (OVR, PSP1)
ADVTAPE YES
MASK X’FF’
ASSIGN Use values in table 10-15.
Table 10-15. Printer carriage control (Honeywell 200/2000
system printer tapes (continued)
Code
Octal Hexadecimal Function
Note: An invalid code will be processed as a print and space 1 line.
HONEYWELL TAPES
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 10-23
Honeywell 2000 and 6000 tape JSL samples
The following figure provides a JSL sample.
Figure 10-9. JSL sample for Honeywell 2000 tapes
H2000:JDL; 000010
/* */ 000020
/* SYSTEM FOR HONEYWELL 2000 */ 000030
/* ------------------------- */ 000040
/* */ 000050
/* */ 000060
/* VFU FOR HONEYWELL 2000 SPR TAPES - CHANNEL 2 IS BOF */ 000070
/* */ 000080
V1: VFU ASSIGN=(1,5), ASSIGN=(2,61), ASSIGN=(3,10), 000090
ASSIGN=(4,15), ASSIGN=(5,20), ASSIGN=(6,25), 000100
ASSIGN=(7,30), ASSIGN=(8,35), ASSIGN=(9,40), 000110
ASSIGN=(10,45), ASSIGN=(11,50), ASSIGN=(12,55), 000120
TOF=5, BOF=66; 000130
/* */ 000140
/* */ 000150
/* VFU FOR HONEYWELL 2000 STANDARD TAPES - CHANNEL 12 IS B0F*/ 000160
/* */ 000170
V2: VFU ASSIGN=(1,5), ASSIGN=(2,10), ASSIGN=(3,15), 000180
ASSIGN=(4,20), ASSIGN=(5,25), ASSIGN=(6,30), 000190
ASSIGN=(7,35), ASSIGN=(8,40), ASSIGN=(9,45), 000200
ASSIGN=(10,50), ASSIGN=(11,55), ASSIGN=(12,60), 000210
TOF=5, BOF=66; 000220
/* */ 000230
VOLUME HOST=H2000, LABEL=SPR, CODE=EBCDID LCODE=EBCDIC, 000240
PLABEL=YES; 000250
BLOCK LENGTH=1331, PREAMBLE=1, LTHFLD=0; 000260
RECORD LENGTH=133, LTHFLD=0, STRUCTURE=FB; 000270
LINE DATA=(1,132), PCC=(0,TRAN), PCCTYPE=H2000, 000280
OVERPRINT=(MERGE,NODISP), VFU=V1; 000290
ACCT USER=(BIN,TRAY); 000300
/* */ 000310
/* TABLES AND CRITERIA FOR LOGICAL PROCESSING */ 000320
/* */ 000330
T1: TABLE CONSTANT=('P'); 000340
T2: TABLE CONSTANT=('P0'); 000350
T3: TABLE CONSTANT=('P1'); 000360
T4: TABLE CONSTANT=(O'47'); 000370
/* */ 000380
C1: CRITERIA CONSTANT=(0,1,EQ,T1); 000390
C2: CRITERIA CONSTANT=(0,2,EQ,T2); 000400
C3: CRITERIA CONSTANT=(0,2,EQ,T3); 000410
C4: CRITERIA CONSTANT=(0,1,EQ,T4); 000420
/* */ 000430
/* */ 000440
/* */ 000450
HONEYWELL TAPES
10-24 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
/* HONEYWELL 2000 SPR */ 000460
/* ----------------------------------------- */ 000470
/* */ 000480
/* JDES 1-5 AND 11-15 DEFINE 5 COMMON HONEYWELL 2000 SPR */ 000490
/* LABELED FORMATS. */ 000500
/* THE FORMATS ARE AS FOLLOWS: */ 000510
/* */ 000330
/* */ 000520
/* */ 000530
/* CHARACTERISTICS JOB */ 000540
/* --------------- -------- */ 000550
/* */ 000560
/* BLOCKED 1331, SINGLE BANNER 1 */ 000570
/* BLOCKED 668, SINGLE BANNER, 2 BYTE 2 */ 000580
/* POSTAMBLE */ 000590
/* BLOCKED 1332, DOUBLE BANNER, 3 */ 000600
/* SINGLE REPORT PER FILE */ 000610
/* BLOCKED 1332, DOUBLE BANNER, SELECT 4 */ 000620
/* REPORT 0 IN INTERSPERSED REPORT */ 000630
/* BLOCKED 1332, DOUBLE BANNER, SELECT 5 */ 000640
/* REPORT 1 IN INTERSPERSED REPORT */ 000650
/* */ 000660
/* */ 000670
1:JOB; 000680
VOLUME HOST=H2000, LABEL=SPR ; 000690
BLOCK LENGTH=1331, PREAMBLE=1, LTHFLD=0; 000700
RECORD LENGTH=133, STRUCTURE=FB, LTHFLD=0; 000710
BSELECT TEST=(C1); 000720
2:JOB; 000730
VOLUME HOST=H2000, LABEL=SPR; 000740
BLOCK LENGTH=668, PREAMBLE=1, LTHFLD=0, POSTAMBLE=2; 000750
RECORD LENGTH=133, STRUCTURE=FB; 000760
BSELECT TEST=(C1); 000770
3:JOB; 000780
VOLUME HOST=H2000, LABEL=SPR; 000790
BLOCK LENGTH=1332, PREAMBLE=2, LTHFLD=0; 000800
RECORD LENGTH=133, STRUCTURE=FB; 000810
BSELECT TEST=(C1); 000820
4:JOB; 000830
VOLUME HOST=H2000, LABEL=SPR; 000840
BLOCK LENGTH=1332, PREAMBLE=2, LTHFLD=0; 000850
RECORD LENGTH=133, STRUCTURE=FB; 000860
BSELECT TEST=(C2); 000870
5:JOB; 000880
VOLUME HOST=H2000, LABEL=SPR; 000890
BLOCK LENGTH=1332, PREAMBLE=2, LTHFLD=0; 000900
RECORD LENGTH=133, STRUCTURE=FB; 000910
BSELECT TEST=(C3); 000920
HONEYWELL TAPES
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 10-25
/* */ 000930
/* HONEYWELL 2000 STANDARD, COBOL AND SPR BCD TAPES*/ 000940
/* ------------------------------------------------*/ 000950
/* */ 000960
/* */ 000970
/* JDES 21-26 DEFINE 6 COMMON HONEYWELL 2000 FORMATS */ 000980
/* UTILIZING STANDARD 80-BYTE LABELS AND COBOL 120-BYTE LABELS */ 000990
/* AS WELL AS BCD-CODED SPR LABELED TAPES. THE FORMATS ARE AS */ 001000
/* FOLLOWS: */ 001010
/* */ 001020
/* CHARACTERISTICS JOB */ 001030
/* --------------- -------- - */ 001040
/* */ 001050
/* BCD-CODED SPR LABELS, BLOCKED 1201 21 */ 001060
/* BCD-CODED SPR LABELS, BLOCKED 1332 22 */ 001070
/* EBCDIC-CODED STANDARD LABELS, 23 */ 001080
/* BLOCKED 1340 */ 001090
/* BCD-CODED STANDARD LABELS, BLOCKED 24 */ 001100
/* 1009 */ 001110
/* EBCDIC-CODED COBOL LABELS, BLOCKED 25 */ 001120
/* 1440 */ 001130
/* EBCDIC-CODED COBOL LABELS, BLOCKED 26 */ 001140
/* 1500 */ 001150
/* */ 001160
21:JOB; 001170
VOLUME HOST=H2000, LABEL=SPR, CODE=H2BCD, LCODE=H2BCD, 001180
UNPACK=T4X3H2; 001190
BLOCK LENGTH=1201, PREAMBLE=2, POSTAMBLE=2; 001200
BSELECT TEST=(C4); 001210
22:JOB; 001220
VOLUME HOST=H2000, LABEL=SPR, CODE=H2BCD, LCODE=H2BCD, 001230
UNPACK=T4X3H2; 001240
BLOCK LENGTH=1332, PREAMBLE=2; 001250
BSELECT TEST=(C4); 001260
23:JOB; 001270
VOLUME HOST=H2000, LABEL=STANDARD, CODE=EBCDIC; 001280
BLOCK LENGTH=1340, PREAMBLE=0; 001290
RECORD STRUCTURE=FB, LENGTH=134; 001300
LINE VFU=V2; 001310
24:JOB; 001320
VOLUME HOST=H2000, LABEL=STANDARD, CODE=H2BCD,LCODE=H2BCD, 001330
UNPACK=T4X3H2; 001340
BLOCK LENGTH=1009, PREAMBLE=0, POSTAMBLE=1; 001350
RECORD LENGTH=144, STRUCTURE=FB; 001360
LINE DATA=(8,132), VFU=V2; 001370
25:JOB; 001380
VOLUME HOST=H2000, LABEL=COBOL, 001390
CODE=EBCDIC; 001400
BLOCK LENGTH=1440, PREAMBLE=0; 001410
RECORD LENGTH=144, STRUCTURE=FB; 001420
LINE DATA=(2,132), VFU=V2, PCCTYPE=ANSI, PCC=(1,NOTRAN); 001430
26:JOB; 001440
VOLUME HOST=H2000, LABEL=COBOL, 001450
CODE=EBCDIC; 001460
BLOCK LENGTH=1500, PREAMBLE=0; 001470
RECORD LENGTH=150, STRUCTURE=FB 001480
LINE DATA=(1, 32), VFU=V2, PCCTYPE=H2000 001490
END;END; /*END OF HONEYWELL 2000 JDL */
HONEYWELL TAPES
10-26 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
Figure 10-10.JSL sample for Honeywell 6000 tapes
H6000:JDL; 000010
/* */ 000020
/* HONEYWELL 6000 JOB DESCRIPTOR LIBRARY */ 000030
/* */ 000040
V1: VFU ASSIGN=(1,10), ASSIGN=(2,15), ASSIGN=(3,20), ASSIGN=(4,25), 000050
ASSIGN=(5,30), ASSIGN=(6,35), ASSIGN=(7,40), ASSIGN=(8,45), 000060
ASSIGN=(9,50), ASSIGN=(10,55), ASSIGN=(11,60), ASSIGN=(12,62), 000070
ASSIGN=(0,5), TOF=5, BOF=66; 000080
/* */ 000090
VOLUME HOST=H6000, LABEL=STANDARD, UNPACK=T4X3,CODE=H6BCD, 000100
LCODE=H6BCD, PLABEL=YES; 000110
BLOCK LENGTH=1920, LTHFLD=3, OFFSET=3,ADJUST=6 PREAMBLE=6, 000120
POSTAMBLE=0; 000130
RECORD STRUCTURE=VB, LENGTH=134, LTHFLD=3, OFFSET=0, 000140
ADJUST=6, PREAMBLE=6, POSTAMBLE=0; 000150
LINE DATA=(0,132), PCC=(0,NOTRAN), PCCTYPE=H6000, 000160
OVERPRINT=(MERGE,NODISP), VFU=V1; 000170
ACCT USER=(BIN,TRAY); 000180
/* */ 000190
/* TABLES AND CRITERIA FOR LOGICAL PROCESSING */ 000200
/* */ 000210
C1: CRITERIA CHANGE=(5,1,NE,LAST); 000220
/* */ 000230
/* */ 000240
/* */ 000250
/* HONEYWELL 6000 SSF BCD AND ASCII TAPES */ 000260
/* -------------------------------------- */ 000270
/* */ 000280
/* */ 000290
/* THE FOLLOWING JDES WILL SUPPORT 9 TRACK BCD AND ASCII TAPES*/ 000300
/* FOR HONEYWELL 6000 SSF FORMATS. */ 000310
/* THE JDES ARE AS FOLLOWS: */ 000320
/* */ 000330
/* CHARACTERISTICS JOB */ 000340
/* --------------- -------- */ 000350
/* */ 000360
/* BCD-CODED SSF 1 */ 000370
/* BCD-CODED SSF, STACKED REPORTS 2 */ 000380
/* ASCII-CODED SSF 3 */ 000390
/* ASCII-CODED SSF, STACKED REPORTS 4 */ 000400
/* */ 000410
1:JOB; 000420
VOLUME HOST=H6000, LABEL=STANDARD, CODE=H6BCD, LCODE=H6BCD, 000430
UNPACK=T4X3; 000440
2:JOB; 000450
VOLUME HOST=H6000, LABEL=STANDARD, CODE=H6BCD, LCODE=H6BCD, 000460
UNPACK=T4X3; 000470
RSTACK TEST=(C1), PRINT=NONE; 000480
3:JOB; 000490
VOLUME HOST=H6000, LABEL=STANDARD, CODE=ASCII, LCODE=H6BCD, 000500
UNPACK=T4X3; 000510
4:JOB; 000520
VOLUME HOST=H6000, LABEL=STANDARD, CODE=ASCII, LCODE=H6BCD, 000530
UNPACK=T4X3; 000540
RSTACK TEST=(C1), PRINT=NONE; 000550
END; END;/* END OF HONEYWELL 6000 JDL */ 000560
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 11-1
11. 11Univac SDF tape format
The Univac SDF tape format is created on the Univac Operating
System 1100-OS, level 32, and later versions. It is designed in a fixed
block format with variable length records. This format is
characterized by two types of character representation and packing
interspersed record by record.
Univac ASCII character set
Nine-bit ASCII characters (refer to table 11-1) are recorded in 8 x 9
packing mode. Six-bit Fieldata characters (refer to table 11-2) are
recorded in 4 x 3 packing mode. The characters within a print line are
all either in Fieldata or in ASCII. Records of different translation,
however, may be intermixed in a block. The records are generally
preceded by a 36-bit (Univac) word in Fieldata characters, giving
record length and other control information.
Table 11-1. Univac ASCII character set
Octal Character Octal Character
040 (blank) 064 4
041 ! 065 5
042 " 066 6
043 # 067 7
044 $ 070 8
045 % 071 9
046 & 072 :
047 ’ 073 ;
050 ( 074 <
051 ) 075 =
052 * 076 >
053 + 077 ?
054 ’ 100 @
055 - 101 A
056 . 102 B
057 / 103 C
060 0 104 D
061 1 105 E
UNIVAC SDF TAPE FORMAT
11-2 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
062 2 106 F
063 3 107 G
110 H 144 d
111 I 145 e
112 J 146 f
113 K 147 g
114 L 150 h
115 M 151 i
116 N 152 j
117 O 153 k
120 P 154 l
121 Q 155 m
122 R 156 n
123 S 157 o
124 T 160 p
125 U 161 q
126 V 162 r
127 W 163 s
130 X 164 t
131 Y 165 u
132 Z 166 v
133 [ 167 w
134 \ 170 x
135 ] 171 y
136 ^ 172 z
137 _ 173 {
140 ’ 174 |
141 a 175 }
142 b 176 ~
143 c 177 (null)
Table 11-1. Univac ASCII character set (continued)
Octal Character Octal Character
UNIVAC SDF TAPE FORMAT
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 11-3
The Univac labeled SDF formats offer single and multi-file options on
single and multi-volume tapes. The formats of these options are
shown in figure 11-1.
Univac also produces a labeled ANSI tape format that conforms to
the standard ANSI format for both single- and multi-file, single-
volume formats as shown in figure 11-2. However, the multi-volume
format differs as shown in figure 11-2.
EOT reflector An additional data file is appended following the EOT reflector. The
presence of the EOT reflector is necessary for proper processing of
the multi-volume tape, since the coincidence of the EOT reflector and
the tape mark that terminates a volume spanning file is the signal that
the volume transition is required. The normal SDF format, including
the label control block, is present within the data.
Control and data records Within a file, there are two basic record types: control records and
data records. Control records are identified by the first bit in the
record (bit 35) being set. The control record format is shown in table
11-3; the only control codes supported are shown in this table.
Table 11-2. Fieldata translation table
UNIVAC SDF TAPE FORMAT
11-4 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
Control records
This section provides information about control records.
Label control block The first of the control records, the label control block (type O‘50’) is
actually the first record of the file. The Xerox printer checks to see
that the tape is a print tape (O‘25’ for “P”). It also checks that the
length of the label control block is 6 or 9 Univac words or some other
length. If other than 6 or 9 Univac words in length, the label control
block is assumed to have the same initial structure as the 9 Univac
word record. This provides for processing of label control blocks of
20 Univac words in length as well as other nonstandard lengths that
might be produced by given sites. The label control block is
described in table 11-4.
Processing of other control record
codes Control record codes for continuation of previous data record (O‘51’),
end-of-reel (O‘54’), and end-of-file (O‘77’) are also processed.
Continuation records are discussed in the “Data records” section.
End-of-file or end-of-volume processing is initiated upon recognition
of control image records with code O‘77’ or O‘54’. In either case, the
rest of the current input block is truncated.
Translation mode change control records (type O‘42’) indicate a
character representation change from Fieldata to ASCII (or vice
versa) and are also processed.
UNIVAC SDF TAPE FORMAT
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 11-5

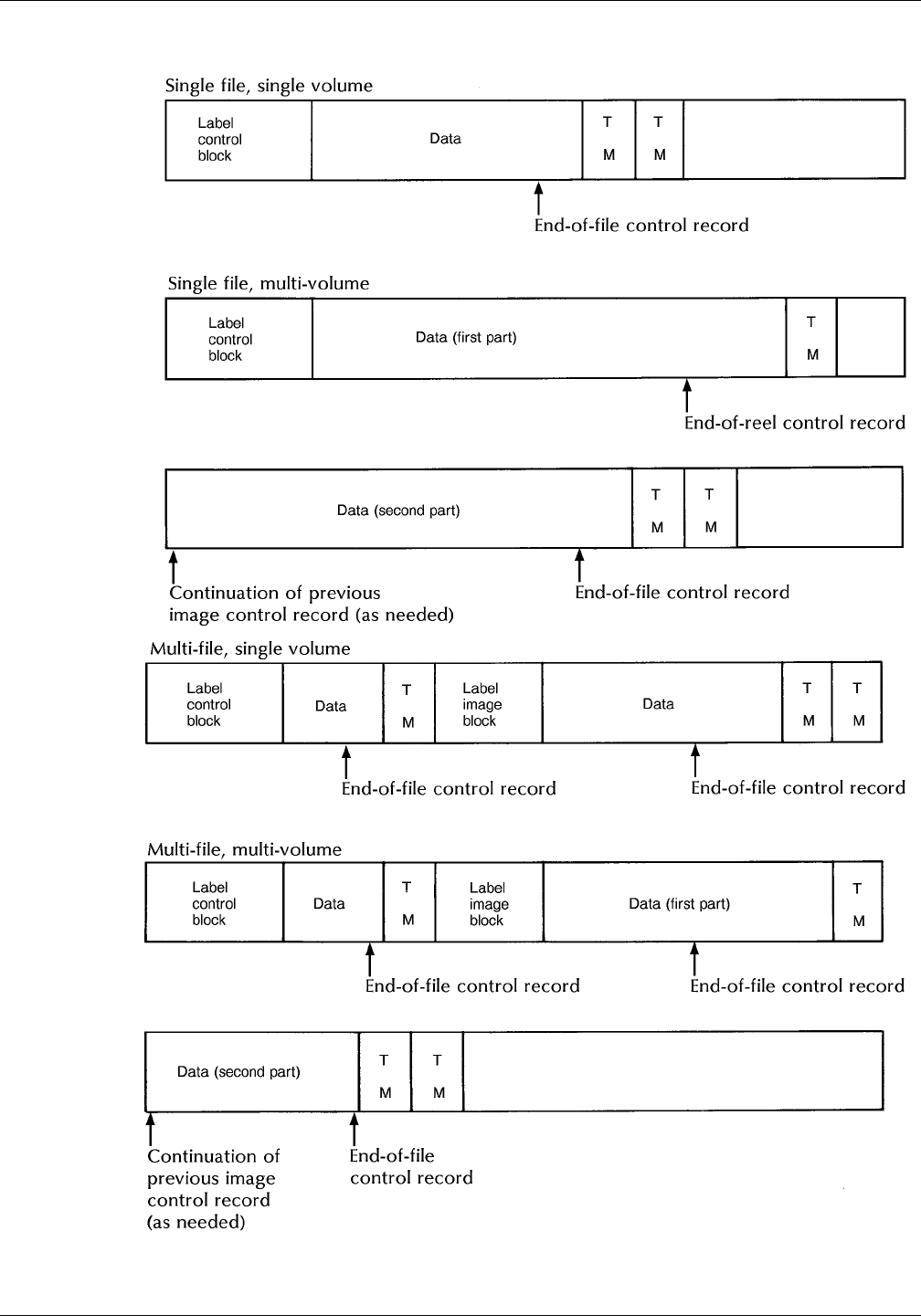

Figure 11-1. Univac unlabeled SDF tape formats
UNIVAC SDF TAPE FORMAT
11-6 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
Figure 11-2. Univac labeled SDF tape formats
UNIVAC SDF TAPE FORMAT
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 11-7
Table 11-3. Univac SDF control record format
Name Character
position(s) Field Description
Control record type code 1 1 Type code of control record
O‘50’ —Label control block
O‘51’ —Continuation record
O‘42’ —Translation mode change
O‘54’ —End-of-reel
O‘60’ —Print image control
O‘77’ —End-of-file
All other codes are ignored
Length field 2 2 Length of record text in Univac words (6 characters
per word). May be zero if only control record is
present.
File type 3 3 File type. Must be “P” for symbiont print file.
Part number 4 4 Sequential file count
Reserved 5 5 Reserved
Code type 6 6 0 —Fieldata
1—ASCII
Record text Variable 7 Text for type codes O‘51‘, O‘50’, and O‘60’.
Table 11-4. Univac SDF label control block
Name Character
position(s) Field Description
Control record type code 1 1 This is O‘50’ for the label control block.
Length field 2 2 This is O‘11’ for the normal 9-word label, O‘06’ for the
6-word label, or O‘24’ for the 20-word label.
File type 3 3 This is O‘25’ (P) for symbiont print file.
Reserved 4-5 4 Unused
Code type 6 5 0 —Fieldata
1 —ASCII
Must be Fieldata for labels.
File name 7-18 6 File name
Device association 19-24 7 Unused.
Run I.D. 25-30 8 Unused.
Date and time 31-36 9 Date portion is used when headings are specified by
the “H” string.
Site I.D. 37-48 10 Unused.
Reserved 49-180 11 Unused.
UNIVAC SDF TAPE FORMAT
11-8 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
Print image control record
The print image control record (type O'60') is also processed. It
consists of strings of commands with letter identifiers. The identifiers
which are recognized and processed by the Xerox/OSS are H, L, S,
and M. A period separates the command strings within the print
image control record. Any identifiers other than H, L, S, and M are
bypassed.
Heading string “H”
The string “H, options, page, text” causes the heading insertion and
automatic pagination by the Xerox/OSS. The options in the “H” string
are “N” for no heading printing, or “X” for page numbering and date
print suppression.
The page parameter gives the beginning page number for the report.
If the page number is not given, page numbering starts at page 1.
The text is a message of up to 96 characters which is printed two
lines above the given top-of-form line number, followed by automatic
spacing down to the top-of-form (TOF). Therefore, there is a Xerox/
OSS generated minimum of one blank line between the heading and
the first print line of the page. Details of processing the “H” string are
summarized below.
•No page numbering or heading is printed if a top-of-form value
is specified, either in the JDE or via the “M” string (which does
not allow two extra lines above it). In other words, the smallest
TOF value that allows page heading and/or numbering is 3.
•If both page heading and numbering are requested, the
heading starts at the left page margin; at position (left margin +
96 + 1), the word “DATE” appears with the date from the label.
“PAGE” is then concatenated to the heading line followed by a
page value of up to five digits.
If a left margin, as specified in the offset part of the JDE
command DATA (offset, length) does not allow sufficient
characters for the full heading line, the line is truncated from the
right margin, as necessary, to be equal to the length.
•If no page heading or page numbering is requested, the space
normally occupied by the field not selected is blank filled.
•If a page number initialization value is not given in the “H”
string, then 1 is used as the base page number value. As this
may give undesirable results from file to file, the user is
encouraged always to specify an initial page number in the “H”
string.
•The page number maintained and incremented by the Xerox/
OSS never exceeds 65,536. If incrementing continues, the
page number returns to 1.
•Within a single report, the page number continues to be
incremented for every page whenever the “H,N” option is in
effect, even though the header record is suppressed. If page
number printing is later turned back on by a subsequent “H”
command in the same report (without specifying a starting page
number), the printed page number includes the counts for all
intervening pages.
UNIVAC SDF TAPE FORMAT
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 11-9
Setup string “S”
The string “S, text message” indicates a special forms request for use
in processing the next part of the print file. Xerox/OSS uses this
record as a report delimiter.
Margin string “M”
The string “M, page length, top, bottom” causes reassignment of the
top- and bottom-of-form line numbers. Top-of-form is the line number
on which the first print line after the heading may occur.
Examples: 1 The option “M, 66, 3, 3” results in a top-of-form at line 4.
Bottom-of-form is the line number below which no print lines may
occur.
2The option “M, 66, 3, 3” results in a bottom-of-form at line 63.
The logical page length is then set to “page length minus top-of-form
minus bottom-of-form”.
3The option “M, 66, 3, 3” results in a logical page length of 60.
Line string “L”
The string “L, line number” causes a skip to the line number
calculated as the given line number plus the top-of-form line number
minus 1. This is an analogous command to a skip to an assigned
channel.
There are some special conditions that apply to “L” string processing:
•If the line number “m” specified in the L string is less than the
current line number, a page overflow occurs and the new
current line number is set to the top-of-form line number + m - 1.
•If the line number “m” is 0, 1, or greater than the logical page
length, the current line number is set to the bottom-of-form, thus
causing the next line to be printed on the top of the next page.
•The line number “m” must be five digits or less.
UNIVAC SDF TAPE FORMAT
11-10 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
Data records
Data records (format is shown in figure 11-3) are identified by the first
field of the record having a positive value. The first 36 bits of the data
record contain the length of the print data, a line spacing value
indicating the number of lines to be spaced before printing, and a
code type indicating whether the print data is Fieldata or ASCII.

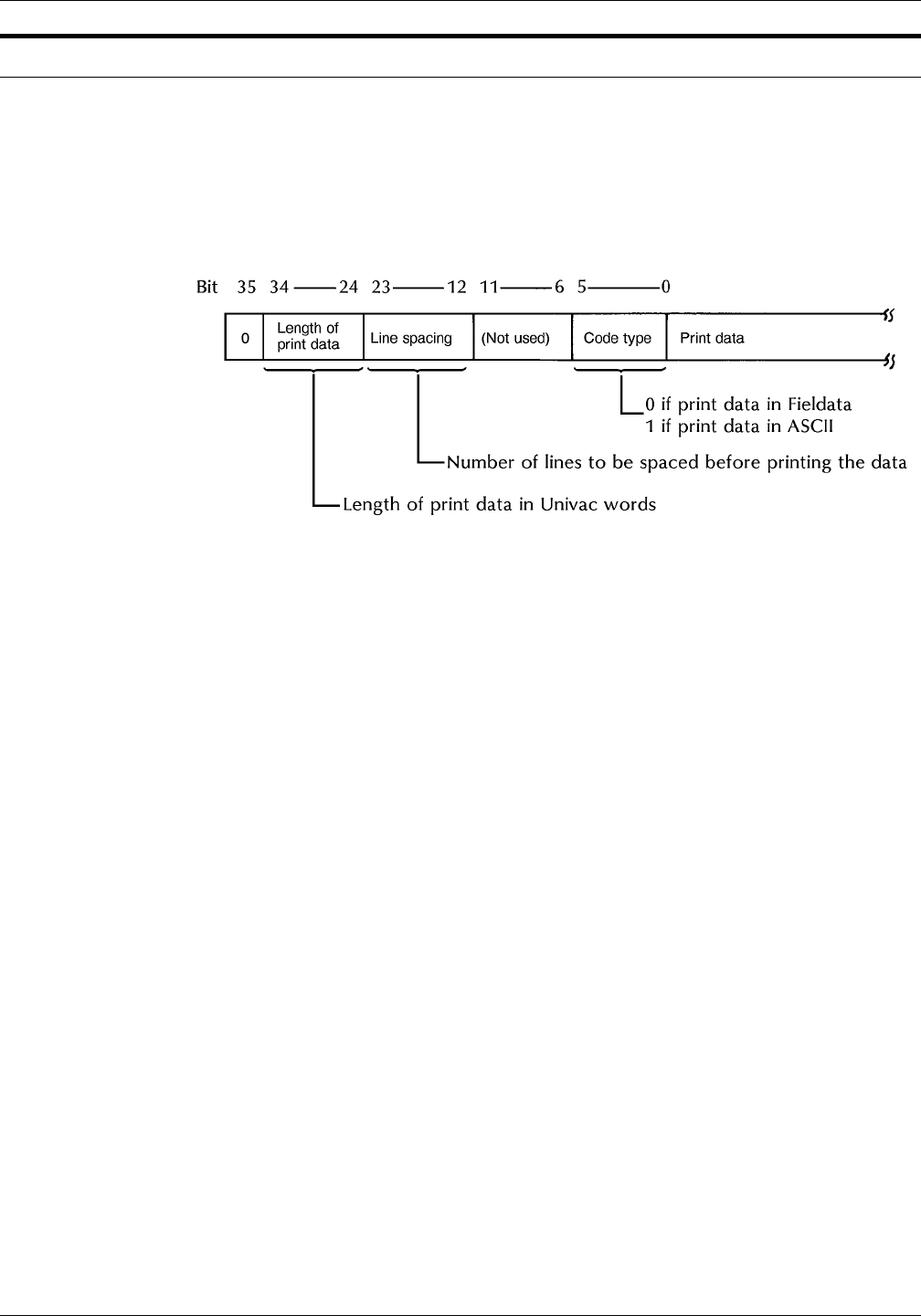

Figure 11-3. Univac SDF data record format
Length Data records are of variable length. At the end of a block that is a
fixed length, a data record probably spans to the next block. The data
record is split into two parts and the second block starts with a
continuation data record (type O'51'). The two parts of the data
record are rejoined and printed as one.
In release levels prior to Level 37 for Univac software, blocks were
always 224 Univac words in length. The continuation data record
(type O‘51’) generally appeared at the beginning of each block. In
release level 37 and above, block sizes have been increased to
multiples of 224 words, up to 1792 words. The O‘51’ record can then
occur on any 224 word boundary within the data block.
Overprint/merge processing On print lines for which carriage control requires overprinting,
overprint/merge processing is handled according to the JDE option
selected.
Spacing Data record spacing of “m” lines is processed as follows:
•In general, the new current line number is set to the old
calculated line number + m.
•If the new current line number is then greater than bottom-of-
form, a page overflow occurs and the new current line number
is set to top-of-form - 1 (to allow the next line to be printed top-
of-form).
UNIVAC SDF TAPE FORMAT
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 11-11
Appropriate JSL coding for Univac tapes
Use the following special guidelines when coding a JDE to handle a
Univac tape format:
•Univac data can be formatted in both Fieldata and ASCII codes
in the same file. To provide for easily managed logical
processing test criteria, all Univac Fieldata is first translated into
ASCII. Thus, when specifying CRITERIA tables for RSTACK,
DJDE prefixes, and other logical processing functions, the user
should define these search criteria with ASCII string tape.
•Some data blocks at the end of a file may have no valid data.
These blocks are identified with an O‘77’ in the first control byte
in the block. Delete any blocks of this type with the BDELETE
command to prevent any printing of transient data. This criteria
test must be coded in octal since this block is not yet translated.
•In the Univac format, the actual print data starts in the first byte
of each record. Therefore, change the DATA parameter for all
Univac JSLs to DATA = (0,132). Failure to specify the initial
value of zero normally results in the loss of the first byte of each
print record.
•Code the Setup string S in the print image control record as an
RSTACK report delimiter.
•When the FONTINDEX option is specified, the font index byte
should be located at the beginning of the record (since Fieldata
and ASCII records can be intermixed).
UNIVAC SDF TAPE FORMAT
11-12 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
Figure 11-4. JSL sample for UNIVAC tapes
UNIVAC:JDL; 000010
/* */ 000020
/* SYSTEM FOR UNIVAC SDF */ 000030
/* */ 000040
V1: VFU TOF=4, BOF=63; 000050
/* */ 000060
VOLUME HOST=UNIVAC, LABEL=STANDARD, UNPACK=T4X3, 000070
CODE=ASCII, LCODE=ASCII; 000080
BLOCK LENGTH=1344, FORMAT=PACK; 000090
RECORD LENGTH=400, FORMAT=PACK, PREAMBLE=6, STRUCTURE=VB, 000100
LTHFLD=1; 000110
LINE DATA=(0,132), PCCTYPE=NONE, VFU=V1; 000120
/* */ 000130
/* TABLES AND CRITERIA FOR LOGICAL PROCESSING */ 000140
/* */ 000150
T1: TABLE CONSTANT=O'77'; 000160
T2: TABLE CONSTANT=O'3056'; 000170
/* */ 000180
C1: CRITERIA CONSTANT=(0,1,EQ,T1); 000190
C2: CRITERIA CONSTANT=(0,2,EQ,T2); 000200
/* */ 000210
BDELETE TEST=(C1); 000220
/* */ 000230
/* */ 000240
/* */ 000250
/* UNIVAC SDF */ 000260
/* */ 000270
/* THE FOLLOWING JDES WILL SUPPORT 9 TRACK LABELED AND NON */ 000280
/* LABELED UNIVAC SDF FORMATS. LABEL=STANDARD IS USED TO */ 000290
/* PROVIDE INPUT PROCESSOR WITH INFORMATION CONCERNING THE */ 000300
/* PRESENCE OF A LABEL CONDITION ONLY. THE LABEL FORMAT IS */ 000310
/* EXPECTED AS UNPACKED. CODE=ASCII IS REQUIRED IN ORDER TO */ 000320
/* OBTAIN THE ASCII TABLE FROM DISC, HOWEVER THE DATA FORMAT */ 000330
/* WITHIN THE REPORTS CAN BE EITHER FIELD DATA OR ASCII. */ 000340
/* PREAMBLE=6 IS REQUIRED IN ORDER TO PROCESS THE UNIVAC */ 000350
/* DATA CONTROL WORD PROCEEDING EACH DATA RECORD. */ 000360
/* BLOCKS SATISFYING CRITERIA C1 WILL BE DELETED. */ 000370
/* */ 000380
/* CHARACTERISTICS JOB */ 000390
/* */ 000400
/* LABELED TAPE 1 */ 000410
/* NON-LABELED, STACKED REPORTS, DJDE'S 2 */ 000420
/* NON-LABELED 3 */ 000430
/* NON-LABELED, RECORD LENGTH=400 4 */ 000440
/* */ 000450
1:JOB; 000460
2:JOB; 000470
VOLUME LABEL=NONE; 000480
RSTACK TEST=(C2); 000490
IDEN PREFIX=O'74', OFFSET=0, SKIP=4; 000500
3:JOB; 000510
VOLUME LABEL=NONE; 000520
4:JOB; 000530
VOLUME LABEL=NONE; 000540
RECORD LENGTH=400; 000550
END;END;/* END OF UNIVAC SDF JDL */ 000560
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 12-1
12. 12IBM OS Writer tape
organization
At IBM OS and OS/VS installations, jobs are categorized by class for
the purpose of scheduling job execution by priority and required
computer resources. Similarly, the job's output may also be assigned
to a certain class, which causes the OS or OS/VS system to buffer
the output data to a relatively high-speed device. This buffering
causes the output reports of one or more jobs to be collected under
a single class identifier. The operator then starts up a special job,
which transfers the output reports to a bulk storage device such as
magnetic tape and/or line printer. The special job, which supervises
the report transfer, is called an OS Writer.
An installation may have one or more writers depending on the
particular site's requirements. Usually, however, there are two
standard writers: the Class A Writer supervises reports destined for
output on a line printer. The Class B Writer supervises reports
destined for output on a card punch. An installation generally assigns
a special class of jobs whose output is to be printed by the Xerox
printing system. An example of report creation under an OS Writer is
explained later in this section.
OS Writer report tape format
An OS Writer report tape is an OS Standard label, single-file tape
consisting of stacked reports. Each report is usually separated from
the preceding report by header banner pages, and is separated from
the succeeding report by optional trailer banner pages.
Banner page format A banner page is distinctively formatted to contain the job name and
MSGCLASS in block letters in the middle of the page. Additionally,
there is a row of asterisks or zeros at the edges of a page on the
fanfold perforations. These perforation lines are often overprinted
several times to provide identification of jobs for the operator who
must burst the fanfold for distribution.
The line printer VFU channel value that causes alignment of the
banner page to the perforation is an installation option, but at most
sites the perforation is assigned to channel 9. The skip to channel 9
command is followed by one or more “space zero lines and print”
commands. It is the skip-to-channel command which enables the
system to determine the location of banner pages, and to separate
stacked reports on the OS Writer report tape.
The trailer banner pages (if any) of one report are generally followed
immediately by the header banner page of the next report, with no
intervening delimiter records, DJDE records, tape marks, or tape
labels.
The JCL used in creating the OS Writer report tape is output by OS
or OS/VS to the MSGCLASS specified on the IBM JOB card.
IBM OS WRITER TAPE ORGANIZATION
12-2 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
Job Descriptor Library (JDL) specification
The Xerox system looks for banner page delineation of OS Writer
stacked reports whenever the HOST=OSWTR left/right parts are
specified in the VOLUME statement. Additionally,
“LABEL=STANDARD” should be specified.
While the HOST and LABEL left/right parts are mandatory, the
VOLUME left/right parts “OSCHN”, “OSTLP”, and “OSHDP” may be
specified at the PDL programmer's discretion, according to the
criteria specified in table 12-1.
The full selection of PDL commands may be used in selecting the OS
Writer option. Generally, however, only the LINE and OUTPUT
commands are needed (in addition to the VOLUME command) due
to the override of BLOCK and RECORD values by the HDR2 label
information contained on these tapes.
Sample report creation under an OS Writer
An installation's management and systems analyst usually determine
how to apply the OS Writer feature of the Xerox system to the
installation's processing scheme. An example of OS Writer report
generation has been included in this section to assist those
unfamiliar with OS and OS/VS Writers. The description is meant to
be illustrative rather than exhaustive, as each OS installation varies
widely in actual application.
Table 12-1. Volume command OS Writer options
Command Left part Right part Default Interpretation
VOLUME HOST = OSWTR, These left/right parts are required of OS Writer
Tapes.
LABEL = STANDARD, The right part “value” is the VFU channel number
which results in the alignment on the fanfold
perforation.
OSCHN = value, 9 The right part “value” is the number of trailer
pages following each report on the OS Writer
report tape.
OSTLP = value, 0 The right part “value” is the number of header
pages which precede the report.
OSHDP = value 0
IBM OS WRITER TAPE ORGANIZATION
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 12-3
Procedure
The following steps are an example to create an OS Writer.
Step 1. The systems analyst begins by creating an OS Writer procedure that
will operate on the chosen job class, Class X. The OS Writer “proc”
for the example is shown in figure 12-.
Figure 12-1. Sample OS Writer “PROC” to create “XEROXWTR”
The Writer‘s name in this example is XEROXWTR. The Writer
creates reports with one header banner page (NUMHDR) and one
trailer banner page (NUMTRL). These values must correspond to the
JDL parameters OSHDP and OSTLP. All the parameters preceded
by an ampersand (&) may be replaced by the operator when he starts
up the Writer. Parameters preceded by an ampersand may also be
replaced by parameters on the EXEC statement of the JCL which
creates an OS Writer report. Note that many of the parameters
correspond to HDR2 label fields, such as record and block length,
and record format or structure. This Writer “proc” is read into the OS
system and catalogued to remain resident for later use.
Step 2. The next step in this procedure is to create the JCL for the job. In
particular, the user must specify a MSGCLASS of Class X on the //
JOB card. The DD statement to direct the report output to the Xerox
printer must also specify Class X, as shown in the following
statement:
//FT02F001 DD SYSOUT=X
This statement also shows that the output directed to device 2 will be
held in class X.
Step 3. The third step is to initialize the tape volume labels, since the OS
Writer updates tape labels but does not create these labels. The
INITT processor may be used for this purpose.
Step 4. The user then runs one or more jobs creating output reports in class
X.
//XEROX2 JOB (T,999,999,XEROX),CLASS=F
// EXEC PGM=IEBUPDTE
//SYSPRINT DD SYSOUT=A
//SYSUT1 DD DSN=SYS1.PROCLIB,DISP=SHR
//SYSUT2 DD DSN=SYS1.PROCLIB,DISP=SHR
//SYSIN DD DATA.DLM='XX'
./ REPL NAME=XEROXWTR,LIST=ALL,SSI=524601B7
./ NUMBER NEWI=1000,INCR=1000
//XEROXWTR PROC IMG=IMG1.SEPNAM=IEF0SC06.NUMHDR=1.NUMTRL=1.
// TRAIN=RN,WCLASS=PX,LABL=SL,
// BLK=1364,REC=136,RECFORM=VBM
//IEFPROC EXEC PGM=IEF0SC01,
// PARM='&WCLASS,&SEPNAM,&NUMHDR. . . .&NUMTRL'
//IEFRDER DD
UNIT=TAPE,LABEL=(.&LABL,EXPDT=98000),DSNAME=SYSOUT,
//
DISP=(NEW,KEEP),UCS=(&TRAIN,FOLD,VERIFY),FCB=(&IMG,VERIFY),
// DCB=(BLKSIZE=&BLK,LRECL=&REC,RECFM=&RECFORM,BUFNO=2)
XX
//
IBM OS WRITER TAPE ORGANIZATION
12-4 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
Step 5. When the time comes to transfer the output to a tape, the operator
mounts the tape and starts up the Xerox Writer by keying in:
S XEROXWTR
The Xerox Writer then copies (to tape) the entire contents of Class X
as a multi-report, single-file, multi-volume job, blocking the output as
described in the OS Writer generation procedure (or as changed by
the operator key-in parameters or by parameters on the EXEC
statements that created the reports–not shown).
Step 6. Finally, the operator dismounts the tape and prints it on the Xerox
printer using the JDL which contains the correct OSTLP, OSHDP,
and OSCHN values and, of course, the HOST=OSWTR and
LABEL=STANDARD left/right parts.
Steps to creating an OS Writer tape
A brief summary of the operations leading to an OS Writer tape is as
follows:
1. Create the Writer “proc” and catalog it in the OS or OS/VS
system.
2. Create the JCL for the job which corresponds to the OS Writer
message class.
3. Initialize the tape volume labels, if necessary.
4. Run the jobs that generate the reports.
5. Start up the Writer with an operator key-in.
6. Unload the tape and print it on the printing system.
IBM OS WRITER TAPE ORGANIZATION
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 12-5
WRITER tape JSL sample
The following figure provides a JSL sample.
Figure 12-2. JSL sample for IBM OS, DOS, ANSI, WRITER tapes
IBMRCA:JDL; 000010
/* */ 000020
/* SYSTEM TO PRINT IBM OS STANDARD AND DOS STANDARD */ 000030
/* LABELED TAPES, IBM ANSI LABELED TAPES, IBM OS */ 000040
/* WRITER TAPES, AND US70 (RCA) LABELED TAPES. */ 000050
/* */ 000060
V1: VFU ASSIGN=(1,5), ASSIGN=(2,10), ASSIGN=(3,15), 000070
ASSIGN=(4,20), ASSIGN=(5,25), ASSIGN=(6,30), 000080
ASSIGN=(7,35), ASSIGN=(8,40), ASSIGN=(9,45), 000090
ASSIGN=(10,50), ASSIGN=(11,55), ASSIGN=(12,60), 000100
TOF=5, BOF=66; 000110
/* */ 000120
/* VFU FOR OS WRITER WITH CHANNEL 9 ASSIGNED TO LINE 66 */ 000130
/* */ 000140
WR: VFU ASSIGN=(1,5), ASSIGN=(2,10), ASSIGN=(3,15), 000150
ASSIGN=(4,20), ASSIGN=(5,25), ASSIGN=(6,30), 000160
ASSIGN=(7,35), ASSIGN=(8,40), ASSIGN=(10,45), 000170
ASSIGN=(11,50), ASSIGN=(12,60), ASSIGN=(9,66), 000180
TOF=5, BOF=66; 000190
/* */ 000200
VOLUME HOST=IBMOS, LABEL=STANDARD, CODE=EBCDIC, PLABEL=YES; 000210
LINE DATA=(1,132), PCCTYPE=ANSI, PCC=(0,NOTRAN), 000220
OVERPRINT=(MERGE,NODISP), VFU=V1; 000230
ACCT USER=(BIN,TRAY); 000240
/* */ 000250
/* CATALOG FOR OS VARIABLE BLOCKED TAPES */ 000260
/* */ 000270
OSVB:CATALOG; 000280
BLOCK LENGTH=2660, PREAMBLE=4, LTHFLD=2, FORMAT=BIN; 000290
RECORD LENGTH=136, PREAMBLE=4, STRUCTURE=VB, 000300
LTHFLD=2, OFFSET=0, FORMAT=BIN; 000310
/* */ 000320
/* CATALOG FOR OS WRITER TAPES */ 000330
/* */ 000340
OS:CATALOG; 000350
VOLUME HOST=OSWTR, OSCHN=9, OSTLP=0, OSHDP=1, 000360
PLABEL=YES; 000370
BLOCK LENGTH=2400, PREAMBLE=4, LTHFLD=2, FORMAT=BIN; 000380
RECORD LENGTH=136, PREAMBLE=4, STRUCTURE=VB, 000390
LTHFLD=2, FORMAT=BIN; 000400
LINE DATA=(1,132), PCCTYPE=ANSI, PCC=(0,NOTRAN), 000410
OVERPRINT=(MERGE,NODISP), VFU=WR; 000420
/* */ 000430
/* CATALOG FOR UNIVAC SERIES 70 */ 000440
/* (FORMERLY RCA) */ 000450
/* */ 000460
US:CATALOG; 000470
VOLUME HOST=US70, LABEL=STANDARD, PLABEL=YES; 000480
BLOCK LENGTH=1330, PREAMBLE=0; 000490
RECORD LENGTH=133, STRUCTURE=FB; 000500
LINE DATA=(1,132), PCCTYPE=US70, PCC=(0,NOTRAN), 000510
OVERPRINT=(MERGE,NODISP), VFU=V1; 000520
IBM OS WRITER TAPE ORGANIZATION
12-6 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
/* */ 000530
/* IBM OS/DOS STANDARD LABELED TAPES */ 000540
/* ------------------------------------------- */ 000550
/* */ 000560
/* THE FOLLOWING JDES PROVIDE SUPPORT FOR IBM OS STANDARD */ 000570
/* AND IBM DOS STANDARD LABELED TAPES */ 000580
/* */ 000590
/* CHARACTERISTICS JOB */ 000600
/* --------------- -------- */ 000610
/* */ 000620
/* OS STANDARD LABELS, 1403 PCC 1 */ 000630
/* OS STANDARD LABELS, ANSI PCC 2 */ 000640
/* OS STANDARD LABELS, 1401 PCC 3 */ 000650
/* OS STANDARD LABELS, NO PCC 4 */ 000660
/* DOS STANDARD LABELS, 1403 PCC 5 */ 000670
/* DOS STANDARD LABELS, ANSI PCC 6 */ 000680
/* DOS STANDARD LABELS, 1401 PCC 7 */ 000690
/* DOS STANDARD LABELS, NO PCC 8 */ 000700
/* */ 000710
1:JOB INCLUDE=(OSVB); 000720
VOLUME HOST=IBMOS, LABEL=STANDARD, CODE=EBCDIC; 000730
LINE PCCTYPE=IBM1403; 000740
2:JOB INCLUDE=(OSVB); 000750
VOLUME HOST=IBMOS, LABEL=STANDARD, CODE=EBCDIC; 000760
LINE PCCTYPE=ANSI; 000770
3:JOB INCLUDE=(OSVB); 000780
VOLUME HOST=IBMOS, LABEL=STANDARD, CODE=EBCDIC; 000790
LINE PCCTYPE=IBM1401; 000800
4:JOB INCLUDE=(OSVB); 000810
VOLUME HOST=IBMOS, LABEL=STANDARD, CODE=EBCDIC; 000820
LINE PCCTYPE=NONE; 000830
5:JOB; 000840
VOLUME HOST=IBMDOS, LABEL=STANDARD, CODE=EBCDIC; 000850
LINE PCCTYPE=IBM1403; 000860
6:JOB; 000870
VOLUME HOST=IBMDOS, LABEL=STANDARD, CODE=EBCDIC; 000880
LINE PCCTYPE=ANSI; 000890
7:JOB; 000900
VOLUME HOST=IBMDOS,LABEL=STANDARD, CODE=EBCDIC; 000910
LINE PCCTYPE=IBM1401; 000920
8:JOB; 000930
VOLUME HOST=IBMDOS, LABEL=STANDARD, CODE=EBCDIC; 000940
LINE PCCTYPE=NONE; 000950
/* */ 000960
/* IBM ANSI LABELED AND OS WRITER TAPES */ 000970
/* ---------------------------------------------- */ 000980
/* */ 000990
/* THE FOLLOWING JDES PROVIDE SUPPORT FOR IBM ANSI LABELED */ 001000
/* TAPES AND OS WRITER TAPES. */ 001010
/* */ 001020
/* CHARACTERISTICS JOB */ 001030
/* --------------- -------- */ 001040
/* */ 001050
/* ANSI LABELS, ASCII CODE, ANSI PCC 21 */ 001060
/* ANSI LABELS, ASCII CODE, NO PCC 22 */ 001070
/* OS WRITER, ANSI PCC 23 */ 001080
/* OS WRITER, 1403 PCC 24 */ 001090
/* */ 001100
IBM OS WRITER TAPE ORGANIZATION
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 12-7
21:JOB; 001110
VOLUME HOST=IBMOS, LABEL=ANSI, CODE=ASCII, LCODE=ASCII; 001120
LINE PCCTYPE=ANSI; 001130
22:JOB; 001140
VOLUME HOST=IBMOS, LABEL=ANSI, CODE=ASCII, LCODE=ASCII; 001150
LINE PCCTYPE=NONE; 001160
23:JOB INCLUDE=(OS); 001170
VOLUME HOST=OSWTR; 001180
LINE PCCTYPE=ANSI; 001190
24:JOB INCLUDE=(OS); 001200
VOLUME HOST=OSWTR; 001210
LINE PCCTYPE=IBM1403; 001220
/* */ 001230
/* US70 (RCA) STANDARD LABELED TAPES */ 001240
/* ------------------------------------------- */ 001250
/* */ 001260
/* JDES 41 AND 42 PROVIDE SUPPORT FOR US70 (FORMERLY RCA) */ 001270
/* STANDARD LABELED TAPES. */ 001280
/* */ 001290
41:JOB INCLUDE=(US); 001300
VOLUME HOST=US70, LABEL=STANDARD; 001310
END;END; 001320
IBM OS WRITER TAPE ORGANIZATION
12-8 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 13-1
13. 13NCR tapes
The Xerox printer accepts NCR Century B1 Operating System tapes
that meet the following criteria:
•ASCII character code
•ANSI standard label or unlabeled
•Four-byte carriage control, as described in this section
•Fixed block format or other supported generalized format
•B1 COM spool tapes or B1 Interim Print Files, as described
below.
The ANSI labels conform to the requirements of ANSI Standard
X3.27–1969 (see chapter 1). The block and record format may be
any of the types that can be described by a JDL.
The print record should not have any embedded control characters
such as those for blank compression. If embedded control characters
are contained in a print record, they cause no carriage control action
to occur and generally print as a blank.
Carriage control conventions
The carriage control is 4 bytes long. Processing parameters for NCR
carriage control, using the PCC definitions from the PDL system
command set, are as follows:
NCR
INITIAL TOF
DEFAULT IGN,SP1P
ADVTAPE NO
MASK X‘FF‘
ASSIGN See “Printer control block codes.”
NCR TAPES
13-2 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
Printer control block codes
Figure 13-1 shows the each position of the printer control block
codes.
Figure 13-1. printer control block codes
Each position of the printer control block has a specific meaning:
•The first position (F) defines the function to be performed.
•The second position (G) defines the graphics set to be used.
•The third position (P) defines the selective print character to be
stored for an interim print-file record.
•The fourth position (S) defines either the bulber of lines to
advance or the line bulber on which printing is to occur.
The first three positions contain character data, and the fourth
position contains a binary-type character.
Function code (F)
The following tables list and describe the various function codes.
Table 13-1. Function codes (B1 Interim Print File
Hex Action
04 TOF (S code is zero)
04 Space “n” lines
06 Space “n” lines and print
Table 13-2. Function codes (B1 COM Spool Tape)
Hex ASCII Action
45 E OVR (non-FX)/TOF (FX)
4C L Skip to line “n” and print
4E N Space “n” lines
4F O Space “n” lines and print
50 P Space “n” lines and print
NCR TAPES
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 13-3
A function code (relative location 0) instructs the printer to perform
one of five possible functions. Each function is identified by a code:
E, L, N, O, P, 04, or 06.
Graphics code (G)
The graphics code (relative location 1) is ignored.
Selective print character (P)
The selective print character (relative location 2) identifies the
individual reports within an interim print file. If multiple reports are
created at the same time, you may use a different selective print
character to identify the records pertaining to each report and store
all reports generated by the program on one tape for printing at a later
time. The selective print character may be any numeric or alphabetic
character (symbol characters and spaces are not permitted).
To print the reports separately, use the RSELECT option in the JDE.
Space code (S)
The space code (relative location 3) specifies either the number of
lines to advance or the actual line number on which printing is to
occur, depending on the function being performed (see the function
code explanation for details). The space code may contain any value
from 0 to 255.
04 or E The E or 04 (with S code of 0) function code causes the
printer to advance the paper to the top of the next form.
Note: The TOF value is used for the E function.
L The L function code causes the printer to advance the
paper to the line number specified by the space code, then
print. If the line number specified is 0, the carriage control
action is space-one-and-print. If the line number specified
is less than the current line number, a skip to the specified
line on the next page occurs. Line numbers are calculated
as follows: physical line number = “N” value + TOF - 1.
04 or N The N or 04 function causes the printer to advance the
paper the number of lines specified by the space code
(without printing).
O The O function code is applicable only to the 640-200/210
printers; it is used to inhibit the automatic one-line advance
so that overprinting can occur with the next print function.
It is treated the same as “P.”
06 or P The P or 06 function code causes the printer to advance
the paper the number of lines specified by the space code,
then print. When using code 06 and the BOF is
encountered, spacing continues on the next page from the
TOF (see the OVR option of the PCC command in the
printing system reference manual).
NCR TAPES
13-4 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
Figure 13-2. JSL sample for NCR tapes
NCR:JDL; 000010
/* */ 000020
/* SYSTEM TO PRINT NCR STANDARD */ 000030
/* LABELED TAPES */ 000040
/* */ 000050
V1: VFU ASSIGN=(1,5), TOF=5, BOF=66; 000060
VOLUME HOST=NCR, LABEL=STANDARD, CODE=EBCDIC; 000070
BLOCK LENGTH=2040; 000080
RECORD LENGTH=136, STRUCTURE=FB; 000090
LINE DATA=(4,132), PCCTYPE=NCR, VFU=V1; 000100
/* */ 000110
/* */ 000120
/* CHARACTERISTICS JOB */ 000130
/* --------------- --- */ 000140
/* CODE=EBCDIC 1 */ 000150
/* CODE=ASCII,LCODE=ASCII 2 */ 000160
/* */ 000170
/* */ 000180
1:JOB; 000190
2:JOB; 000200
VOLUME CODE=ASCII, LCODE=ASCII; 000210
END;END; 000220
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 14-1
14. 14Undefined tapes
To process tapes with labels that are not specifically defined in any
of the other chapters of this manual, the user may specify undefined
host and undefined labels. Labels are identified by virtue of their
length. Minimum and maximum unpacked label lengths can be
specified using the MAXLAB and MINLAB options on the VOLUME
command. If unspecified, label length defaults to include records of
80 to 81 bytes. The operating system software groups together any
combination of label records and their surrounding tape marks at the
beginning of a file. Since these labels are not otherwise defined,
there is no additional checking or use of their contents (other than the
JDE-selected option of printing them).
Unpacking of data and labels may be specified. If unpacking is
specified for the labels, the data must also require the same
unpacking method. The labels do not have to be unpacked even
though the data may require unpacking, if the MINLAB/MAXLAB
parameters are specified properly for the unpacked length.
The data tape blocks must be definable by the JDE parameters of the
BLOCK and RECORD commands.
Note: It should be noted that any data block that is the same length
as a label block is treated as a label; 80 is the minimum and 81 is the
maximum default label size
File format
A file under this system has the following characteristics:
•A file starts at the initial tape position and includes any labels or
single tape marks which precede the first data record. The file
ends on the last data record preceding a tape mark or label
record.
•Since a label record or a tape mark is used to terminate a file,
trailer labels for a given file are considered to be header labels
for the following file, if any.
At the end of processing of a file, the tape is positioned prior to
the tape mark or label record which caused termination of the
file processing. Thus, in the event that a file is terminated by a
single tape mark or a label without any following tape marks,
the preceding file is properly processed and any tape-related
errors (timeout, unreadable block, etc.) do not occur until the
operator starts processing on the nonexistent file.
•At the end of processing of a file, the tape is positioned prior to
the tape mark or label record which caused termination of the
file processing. Thus, in the event that a file is terminated by a
single tape mark or a label without any following tape marks,
the preceding file is properly processed and any tape-related
UNDEFINED TAPES
14-2 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
errors (timeout, unreadable block, etc.) do not occur until the
operator starts processing on the nonexistent file.
•A double tape mark termination leaves the tape positioned after
the second tape mark.
•An EOT coincident with a tape mark causes multi-reel
processing to occur.
Some samples of file structure that may be processed by specifying
undefined Host and undefined labels are shown in figure 14-1.
Figure 14-1. Undefined labeled tape structures
Data format
Any data format that is describable by the BLOCK and RECORD
commands can be processed. The parameters in the JDE take
precedence and control deblocking of data. The LINE command
controls printer carriage control and other print controls. The user
should note that any data block of the same length as a label is
treated as a label.
Key TM Tape mark
Triangles are assumed file breaks
UNDEFINED TAPES
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 14-3
Undefined tape JSL sample
The following figure provides a JSL sample.
Figure 14-2. JSL sample for Xerox tapes
XEROX:JDL; 000010
/* SYSTEM FOR XEROX TAPES */ 000020
/* */ 000030
V1: VFU ASSIGN=(1,5), ASSIGN=(2,10), ASSIGN=(3,15), 000040
ASSIGN=(4,20), ASSIGN=(5,25), ASSIGN=(6,30), 000050
ASSIGN=(7,35), ASSIGN=(8,40), ASSIGN=(9,45), 000060
ASSIGN=(10,50), ASSIGN=(11,55), ASSIGN=(12,60), 000070
TOF=5, BOF=66; 000080
/* */ 000090
VOLUME HOST=XEROX, LABEL=ANSI, CODE=EBCDIC, PLABEL=YES; 000100
BLOCK LENGTH=4096, PREAMBLE=0, LTHFLD=0; 000110
RECORD PREAMBLE=0, STRUCTURE=FB; 000120
LINE DATA=(1,132), PCCTYPE=XEROX, PCC=(0,NOTRAN), 000130
OVERPRINT=(MERGE,NODISP), VFU=V1; 000140
ACCT USER=(BIN,TRAY); 000150
PR:CATALOG; 000160
BLOCK LENGTH=4000, LTHFLD=2, PREAMBLE=4, FORMAT=BIN; 000170
RECORD LENGTH=136, PREAMBLE=4, STRUCTURE=VB, LTHFLD=2, 000180
FORMAT=BIN; 000190
UU:CATALOG; 000200
VOLUME LABEL=NONE; 000210
BLOCK LENGTH=133; 000220
RECORD STRUCTURE=U; 000230
LINE PCCTYPE=NONE, DATA=(0,132); 000240
U4:CATALOG; 000250
VOLUME LABEL=NONE; 000260
BLOCK LENGTH=4096; 000270
RECORD STRUCTURE=U; 000280
LINE PCCTYPE=NONE, DATA=(0,132); 000290
FB:CATALOG; 000300
VOLUME LABEL=NONE; 000310
BLOCK LENGTH=3990; 000320
RECORD LENGTH=133, STRUCTURE=FB; 000330
LINE PCCTYPE=NONE, DATA=(0,132); 000340
/* */ 000350
/* */ 000360
/* XEROX ANSI LABELED AND UNLABELED TAPES */ 000370
/* ------------------------------------------------*/ 000380
/* */ 000390
/* THE FOLLOWING JDES WILL PRINT A VARIETY OF XEROX TAPES - */ 000400
/* BOTH ANSI LABELED AND UNLABELED */ 000410
/* */ 000420
/* CHARACTERISTICS JOB */ 000430
/* --------------- -------- */ 000440
/* */ 000450
/* ANSI-LABELED, FB, BLOCKED 3990, XEROX 11 */ 000460
/* PCC */ 000470
/* ANSI-LABELED, U, BLOCKED 133, XEROX PCC 12 */ 000480
/* UNLABELED, BLOCKED 3990, FB, XEROX PCC 13 */ 000490
/* UNLABELED, BLOCKED 3960, FB, XEROX PCC 14 */ 000500
/* UNLABELED, BLOCKED 133, U, XEROX PCC 15 */ 000510
/* */ 000520
UNDEFINED TAPES
14-4 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
11:JOB; 000530
VOLUME HOST=XEROX, LABEL=ANSI; 000540
BLOCK LENGTH=3990; 000550
RECORD LENGTH=133, STRUCTURE=FB; 000560
12:JOB; 000570
VOLUME HOST=XEROX, LABEL=ANSI; 000580
BLOCK LENGTH=133; 000590
RECORD LENGTH=133, STRUCTURE=U; 000600
13:JOB; 000610
VOLUME HOST=XEROX, LABEL=NONE; 000620
BLOCK LENGTH=3990; 000630
RECORD LENGTH=133, STRUCTURE=FB; 000640
14:JOB; 000650
VOLUME HOST=XEROX, LABEL=NONE; 000660
BLOCK LENGTH=3960; 000670
RECORD LENGTH=132, STRUCTURE=FB; 000680
15:JOB; 000690
VOLUME HOST=XEROX, LABEL=NONE; 000700
BLOCK LENGTH=133; 000710
RECORD LENGTH=133, STRUCTURE=U; 000720
/* */ 000730
/* JDES FOR UTILITY PRINTOUTS */ 000740
/* -------------------------- */ 000750
/* */ 000760
/* THE FOLLOWING JDES WILL ALLOW PRINTOUTS OF MOST TAPES */ 000770
/* WITHOUT ATTEMPTING TO PROPERLY DEBLOCK THE TAPE. */ 000780
/* */ 000790
/* CHARACTERISTICS JOB */ 000800
/* --------------- ------- */ 000810
/* */ 000820
/* UNBLOCKED, NO PCC 31 */ 000830
/* BLOCKED 4096, U, NO PCC 32 */ 000840
/* BLOCKED 3990, FB, NO PCC 33 */ 000850
/* */ 000860
31:JOB; 000870
VOLUME LABEL=NONE; 000880
BLOCK LENGTH=133; 000890
RECORD STRUCTURE=U; 000900
LINE PCCTYPE=NONE, DATA=(0,132); 000910
32:JOB; 000920
VOLUME LABEL=NONE; 000930
BLOCK LENGTH=4096; 000940
RECORD STRUCTURE=U; 000950
LINE PCCTYPE=NONE, DATA=(0,132); 000960
33:JOB; 000970
VOLUME LABEL=NONE; 000980
BLOCK LENGTH=3990; 000990
RECORD LENGTH=133, STRUCTURE=FB; 001000
LINE PCCTYPE=NONE, DATA=(0,132); 001010
END;END; /* END OF JDL */ 001020
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 15-1
15. 15DEC PDP-11 tapes
This chapter describes tape and file formats for the DEC PDP-11
system. It also includes a JSL sample.
Tape formats
The Xerox printing system accepts tapes produced on DEC PDP-11
computers by the FLX utility. These tapes are often defined as the
DOS format available on the PDP-11 computer operating systems.
File formats
Each file on a magnetic tape is followed by a single tape mark, and
two tape marks end the tape. A tape mark encountered in
conjunction with an end-of-tape reflector indicates an end-of-volume
condition. (Refer to figure 15-1.)
Each tape file begins with a tape label record, followed by any
number of data records (generally 512 bytes per record) and ends
with a tape mark. These files may contain zero data records.
The label record is 14 bytes long. The format of the label is shown in
table 15-1. The Xerox/OSS uses the protection code of X‘9B’ or
O‘233’ to verify a DEC PDP-11 label. A BDELETE is used to delete
the label block (see the printing system reference manual for block
deletion).
Table 15-1. FLX label
Field
Character
posistion(s
)Name Length Description
1 1-4 File name 4 2 words stored in RADIX 50 format
2 5-6 File type 2 1 word in RADIX 50
3 7-8 Programmer and project
number 2 —
4 9 Protection code 1 X’9B’ or 0’233’
510 Unused 1—
6 11-12 Creation date 2 Internal date format
7 13-14 Unused 2 —
DEC PDP-11 TAPES
15-2 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
Figure 15-1. DEC PDP-11 FLX tape formats
Interpretation
TM = Tape mark
Data = One or more data blocks
R = Reflectors
DEC PDP-11 TAPES
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 15-3
ANSI labeled tapes
The above format may optionally be bracketed by standard ANSI
labels conforming to the requirements of the ANSI standard X3.27
(see the ANSI tape section at the beginning of this manual).
Data formats
The processing involved by HOST=RSX11 handles tapes having the
following characteristics:
1. Variable record length
2. Data portion of records terminated by a carriage-related control
code (see table 15-3)ASCII character code
3. ASCII character code
4. Records may span blocks.
5. The format for such tapes actually created on a DEC system is
referred to as “FLX.”
Data structure characteristics
The data in the record can be thought of as one long stream of
characters processed serially by the printer. The stream consists of
two types of characters: printable characters and control codes.
Processing of printable characters and
control codes Printable characters are accumulated until either a specified line
length has been reached or one of the carriage-related control codes
is encountered. The carriage-related control codes are intercepted
and used to initiate the appropriate function, such as print or skip to
channel. There can be several consecutive control codes with no
intervening printable data. If the number of printable characters
exceeds the defined print line length, the accumulated line is printed
followed by a space to the next line. The next data character is used
as the first character of the following print line.
The output stream is typically batched onto the tape at 512
characters per block. Any print line and its associated control code
may span from one block to the next.
Null characters Null characters (octal zero) may appear any place in the stream of
characters. The nulls are discarded and are not considered in any
computation of print line length. Additionally, nulls do not terminate
the characters being accumulated as a print line.
Number of bytes selected for printing Generally, all of the printable characters are intended to be printed.
The exception to this is noted in the “FONTINDEX” section. With all
other types of data extraction, the second parameter of the DATA=
statement controls the number of bytes to be selected for printing. In
the RSX11 data extraction process, the second parameter of the
DATA= option indicates the number of bytes to be selected for
printing on a given line. If the record is longer than that value, the
following portion is printed on the next line.
DEC PDP-11 TAPES
15-4 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
Operating system operations
Within the Xerox Printing System Operating System, a record from
the PDP-11 FLX format is considered to be zero or more printable
characters followed by a single carriage-related control code. This
processing is important in relation to the Xerox Printing System
logical processing commands. It is also different from the way the
application program creates the records—as data followed by
multiple carriage codes.
FONTINDEX
To implement a FONTINDEX capability for this data extraction
process, the first parameter of the DATA= statement must be
interpreted differently from other tape formats. Normally, the first
parameter is an offset to the first byte of the record that is selected
for printing. Since multiple lines may result from what might otherwise
appear to be a single data line (as a function of the relation between
the second parameter of the DATA= and the length of the record), the
bytes that are “skipped” at the beginning of the record are saved and
used to provide the font selection control for the following lines, if any.
In basic function the FONTINDEX processing is no different from that
used in any other data extraction; however, the byte used for
specifying the font may apply to several lines instead of just one print
line.
Control codes
The individual control codes are defined in table 15-3. The codes
define skips to defined channels 1-7. These channels are normally
set to the following sets of line numbers to emulate a standard PDP-
11 carriage tape. (These assignments must be included in the Job
Descriptor Entry used to print the tape.)
Table 15-2. DEC PDP-11 suggested channel assignments
Channel Set of line numbers Purpose
1 1 (T-O-F)
2 1, 31 (1/2 page)
3 1, 3, 5..., 59 (every other line)
4 1, 4, 7..., 58 (every third line)
5 1, 2, 3..., 65 (every line without regard for
TOF or BOF)
6 1, 11, 21..., 51 (every ten lines)
7 1, 21, 41 (1/3 of a page)
DEC PDP-11 TAPES
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 15-5
The horizontal tab (octal 11) is set to every eighth position (8, 16, 24,
etc.). When a tab is encountered, spaces are generated to the next
tab position.
Points to note
The following guidelines pertain to the DEC PDP-11:
•The data must be in ASCII. The data extraction process
assumes that the control codes (carriage-related as well as null
and horizontal tab) are in ASCII. Specifying a different code
(VOLUME CODE=) does not modify the control codes for which
the software is searching.
•The initial reference point from which a report performs its first
carriage control function is bottom-of-form (BOF). If it is
necessary to override this default, a PCC user table should be
created and then referenced in the appropriate LINE command.
In the special PCC table, the INITIAL=TOF left-right part may
be used to change the default.
•The second parameter of the DATA= specifies the number of
bytes to be selected for printing on a given line. If the record is
longer than that value, the remaining characters are printed on
the following line.
•HOST=RSX-11 does not automatically process all the possible
formats that might be created on a DEC (or equivalent)
computer. It is intended to process only those tapes in the “FLX”
format.
•One special aspect of the processing associated with RSX-11
is that an attempt is made to eliminate blank pages that may
Table 15-3. DEC PDP-11 control codes
Carriage related
Octal Hex Interpretation
12 0A Line feed (print and space 1)
13 0B Vertical tab (print and skip to channel 7)
14 0C Form feed (print and skip to channel 1)
15 0D Carriage return (print, without spacing)
20 10 Print and skip to channel 2
21 11 Print and skip to channel 3
22 12 Print and skip to channel 4
23 13 Print and skip to channel 5
24 14 Print and skip to channel 6
Other functions
Channel Set of line numbers Purpose
00 00 Null
11 09 Horizontal tab (Move to the
next multiple of 8 bytes.)
DEC PDP-11 TAPES
15-6 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
come at the report's start. With some of the RSX-11 output
generators, the first record generated may be a form feed. If a
form feed is detected as the first record, it is deleted.
•Although “normal” data records may well span blocks, there is a
restriction associated with DJDE, RSTACK, and ACCTINFO
records. These records may not span blocks. The complications
associated with processing these records do not allow any
reasonable provision for spanning blocks. Also, since these
records are most often generated as an “add on” processing to
the rest of the data generation, this restriction is not a handicap
to the system's usage.
DEC PDP-11 TAPES
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 15-7
PDP-11 (RSX) tape JSL sample
The following figure provides a JSL sample.
Figure 15-2. JSL sample for RSX tapes
/* */ 000010
/* RSX.JSL */ 000020
/* */ 000030
/* ( MAINTAINED ON THE RELEASE PACK ) */ 000040
/* */ 000050
/* JDE FUNCTION */ 000060
/* */ 000070
/* DFLT 1-UP WITH OFFSETTING */ 000080
/* NOFSET 1-UP WITHOUT OFFSETTING */ 000090
/* BOTTOM 1-UP WITH HOLES AT THE BOTTOM */ 000100
/* ONEUPD 1-UP DUPLEX OFFSET FOR HOLES */ 000110
/* TWOUP 2-UP PORTRAIT */ 000120
/* 2UPCOV 2-UP PORTRAIT WITH COVER=FRONT*/ 000130
/* HDR ETC. FOR PRINTING HEADERS */ 000140
/* */ 000150
RSX: SYSTEM; 000160
PDE1: PDE FONTS=LAS08B, BEGIN=(1.0,1.5); /*FOR HOLES AT THE TOP!!!*/ 000170
PDE12: PDE FONTS=LAS08B, BEGIN=(.5,.5); /*FOR HOLES AT THE TOP,SHIFT*/ 000180
PDE15: PDE FONTS=LAS08B, BEGIN=(.3,1.5); /*FOR HOLES AT THE BOTTOM!!!*/ 000190
PDE2: PDE FONTS=PAS06B, BEGIN=(.22,.51), PMODE = PORTRAIT; 000200
VFU1: VFU ASSIGN=(1,1), TOF=1, BOF=66; 000210
VFU2: VFU ASSIGN=(1,1,67), TOF=1, BOF=132; 000220
T1: TABLE CONSTANT = (A' '); 000230
T2: TABLE CONSTANT = (A';+?',A'; +'), MASK = A'?'; 000240
T3: TABLE CONSTANT = (A';-?',A'; -'), MASK = A'?'; 000250
C1: CRITERIA CONSTANT = (0,1,NE,T1), LINENUM = (1,2); 000260
C2: CRITERIA CONSTANT = (40,3,EQ,T2); 000270
C3: CRITERIA CONSTANT = (40,3,EQ,T3); 000280
P1: PCC INITIAL=TOF; 000290
RSXT1: TABLE CONSTANT=X'9B'; 000300
RSXC1: CRITERIA CONSTANT=(8,1,EQ,RSXT1); 000310
VOLUME HOST=RSX11, CODE=ASCII; 000320
BLOCK LENGTH=512; 000330
RECORD STRUCTURE=VB, LTHFLD=1; 000340
ACCT USER=NONE; 000350
BDELETE TEST=RSXC1; 000360
LINE PCCTYPE=P1, DATA=0; 000370
DFLT: JOB; 000380
OUTPUT FORMAT=PDE1; 000390
LINE VFU=VFU1; 000400
NOFSET:JOB; 000410
OUTPUT FORMAT=PDE1, DUPLEX=YES, OFFSET = NONE; 000420
LINE VFU=VFU1; 000430
BOTTOM:JOB; /* FOR PRINTING 1-UP WITH HOLES AT THE BOTTOM */ 000440
OUTPUT FORMAT = PDE15; 000450
LINE VFU = VFU1; 000460
TWOUP: JOB; /* PRINTS "DOUBLE-UP" PORTRAIT MODE */ 000470
OUTPUT FORMAT=PDE2, DUPLEX=YES,SHIFT=YES,OFFSET=NONE; 000480
LINE VFU=VFU2; 000490
DEC PDP-11 TAPES
15-8 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
2UPCOV: JOB; /* PRINTS "DOUBLE-UP" PORTRAIT MODE WITH COVERS */ 000500
OUTPUT FORMAT=PDE2,DUPLEX=YES,SHIFT=YES,OFFSET=NONE,COVER=FRONT; 000510
LINE VFU=VFU2; 000520
ONEUPD: JOB; /* Prints one-up duplex with room for holes */ 000530
OUTPUT FORMAT=PDE12,DUPLEX=YES,SHIFT=YES,OFFSET=NONE; 000540
LINE VFU=VFU1; 000550
HDRCAT:CATALOG; 000560
OUTPUT OFFSET = NONE; 000570
LINE VFU = VFU1; 000580
RSUSPEND TEST = C3, BEGIN = NEXT; 000590
RRESUME TEST = C2, BEGIN = CURRENT; 000600
RDELETE TEST = C1; /* WITH PATCHES SKIPS RRE/RSU CHECK */ 000610
ABNORMAL RES = 998; /* FLAG SPECIAL JDE */ 000620
HDR: JOB INCLUDE = HDRCAT; /* FOR HEADERS WITH HOLES AT THE TOP */ 000630
OUTPUT FORMAT = PDE1; 000640
HDRBOT:JOB INCLUDE = HDRCAT; /* FOR HEADERS WITH HOLES AT THE BOTTOM */ 000650
OUTPUT FORMAT = PDE15; 000660
END; END; 000670
/* */ 000680
/* To convert a Xerox character code assignment */ 000690
/* font to the ASCII assignment use these FED */ 000700
/* comands: */ 000710
/* INPUT <fontname-type> */ 000720
/* HEX */ 000730
/* INCLUDE 1E-7A */ 000740
/* RECODE 7B=1A-1D */ 000750
/* OUTPUT <newfontname.type> */ 000760
/* */ 000770
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 16-1
16. 16ICL 2900 VME/B tape format
The Xerox/OSS accepts ICL 2900 tapes of variable and fixed length
blocks.
Tape formats
Each block, including label blocks but not tape marks, is preceded by
the following 6-byte preamble:
Bytes 1 through 4 Block sequence number
Bytes 5 and 6 Block length (including preamble)
Label blocks comply with ANSI label specifications beyond the 6-byte
preamble. (Refer to chapter 1 of this manual.)
Data block formats
ICL 2900 VME/B variable length data blocks include an extra 2-byte
field, in addition to the 6-byte block preamble, which contains the
offset from byte 7 to the first byte in the last or only record in the block.
The record format for a variable block tape has the following 4-byte
record preamble as shown in figure 16-1.
Bytes 1 and 2 Record length (including preamble)
Bytes 3 and 4 File management and record spanning indicators
Figure 16-1. ICL 2900 variable block data format
ICL 2900 VME/B TAPE FORMAT
16-2 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
Bytes 3 and 4 of the record preamble contain information concerning
spanned records, but spanned records are not processed. If spanned
records are encountered, the tape being processed is considered to
have an invalid format, and the job aborts with appropriate messages
displayed.
ICL 2900 VME/B fixed blocks have the following format:
Figure 16-2. ICL 2900 VME/B fixed block data format
Carriage control conventions
The ICL 2900 VME/B tape format allows printer carriage control
codes, called format effectors, to be embedded throughout the user
portion of a record. However, the Xerox/OSS processes only format
effectors that appear and begin in the first four bytes of the user
portion of a record.
Format effectors There are two types of carriage controls: normal format effectors and
embedded format effectors. Normal format effectors are one or two
byte codes which appear and begin in the first four bytes of a record.
Embedded format effectors are also one or two bytes in length, but
can appear anywhere in the user portion of a record.
Format effectors (FE) must adhere to the following restrictions:
•The first or only byte of the first FE in a record must be in the
first byte of the user portion of a record.
•Multiple FEs must be contiguous, as the first byte encountered
that is not a valid FE is considered the start of print data.
•The first or only byte of all format effectors for a record must be
contained in the first four bytes of the user portion of a record.
ICL 2900 VME/B TAPE FORMAT
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 16-3
Each user record can contain zero to four format effectors. The
following table (table 16-1, “Format effector interpretation”) outlines
the action taken depending on the format effectors:
Normal format effectors
Normal format effectors are one- or two-byte codes that may only
appear and begin in the first four bytes of a record. They are
composed of any combination of the following:
X‘22nn’ is used to space to line number ‘nn’ relative to Top-of-Form.
Line numbers must be greater than or equal to one, and cannot
exceed 255. If ‘nn’ is less than or equal to the current line number, a
space to line ‘nn’ on the next page occurs. If X‘21nn’ causes BOF to
be encountered (i.e., line ‘nn’ is greater that BOF minus TOF), the
space is processed as IGN. To process X‘0C’ and X‘2200’ properly,
channel 1 must be assigned a line number by the user; otherwise, a
print-and-space-one carriage control is substituted.
Table 16-1. Format effector interpretation
Formal effector Action
No format effectors or all
FEs are filler Carriage control action is space-one-
and-print.
Multiple FEs Processed left to right. All carriage
control action occurs prior to printing.
Multiple FEs causing
page skips (within a
record or in consecutive
records)
Processed as ADVTAPE = YES*
First FE in report INITIAL = BOF*
All FEs causing bottom-
of-form to be encountered
(except X‘2200’ and
X‘0C’)
Processed as IGN*
* See PCC command in Printing System Reference Manual for
interpretation.
Table 16-2. Normal format effectors
Code Function
X‘07’ Filler
X‘21nn’ Space ‘nn’ lines
X‘22nn’ If ‘nn’ = 0, skip to channel 1 If ‘nn’ = 0,
space to line number ’nn’
X’0C’ Skip to channel 1
ICL 2900 VME/B TAPE FORMAT
16-4 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
Embedded format effectors
On ICL tapes, embedded format effectors (FEs) must appear and
begin within the first four bytes of the user portion of a record, and
comply with the restrictions previously stated under carriage control
conventions in order to be processed correctly. FEs that do not
comply with the restrictions do not cause any printer carriage control
action to occur, and normally print as a blank. A non-blank character
can be generated if the 'nn' portion of an embedded format is greater
than X‘80’.
Embedded format effectors, one or two bytes in length, are
composed of any combination of the following:
If X‘20nn’ causes the maximum line length to be exceeded, the line
is truncated to the maximum line length. Although format effectors
are processed from left to right, horizontal spacing FEs are
performed for the current line of data regardless of any vertical
spacing that follows. If a two-byte FE appears as the fourth byte of a
string of multiple FEs, it is processed normally.
Table 16-3. Embedded format effectors
Code Function
X‘0C’ Skip to channel 1 and print
X‘15’ Space 1 line and print
X‘25’ Space 1 line and print
X‘0D’ Space 0 lines (end line with no advance)
X‘22nn’ If ‘nn’ = 0, skip to channel 1 If ‘nn’ _, space
to line number 'nn’
X‘21nn’ Space ‘nn’ lines and print
X‘20nn’ Insert ‘nn’ spaces horizontally
ICL 2900 VME/B TAPE FORMAT
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL 16-5
ICL tape JSL sample
The following figure provides a JSL sample.
Figure 16-3. JSL sample for ICL tapes
ICL:JDL; 000010
/* */ 000020
/* SYSTEM TO PRINT ICL 2900 VME/B STANDARD */ 000030
/* LABELED TAPES */ 000040
/* */ 000050
V1: VFU ASSIGN=(1,5), TOF=5, BOF=66; 000060
VOLUME HOST=ICL2900, LABEL=STANDARD, CODE=EBCDIC; 000070
BLOCK LENGTH=2054, PREAMBLE=8, LTHFLD=2, OFFSET=4, 000080
FORMAT=BIN; 000090
LINE PCCTYPE=NONE, VFU=V1; 000100
/* */ 000110
/* */ 000120
/* CHARACTERISTICS JOB */ 000130
/* --------------- ----- */ 000140
/* VARIABLE,BLOCKED LTHFLD=2 1 */ 000150
/* VARIABLE,BLOCKED LTHFLD=4 2 */ 000160
/* FIXED,BLOCKED 3 */ 000170
/* */ 000180
/* */ 000190
1:JOB; 000200
BLOCK ZERO=YES; 000210
RECORD LENGTH=168, STRUCTURE=VB, PREAMBLE=4, LTHFLD=2, 000220
OFFSET=0, FORMAT=BIN; 000230
2:JOB; 000240
BLOCK ZERO=YES; 000250
RECORD LENGTH=168, STRUCTURE=VB, PREAMBLE=4, LTHFLD=4, 000260
OFFSET=0, FORMAT=BIN; 000270
3:JOB; 000280
BLOCK LENGTH=2048; 000290
RECORD LENGTH=136, STRUCTURE=FB; 000300
END;END; 000310
ICL 2900 VME/B TAPE FORMAT
16-6 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL GLOSSARY-1
Glossary
A3 Paper size measuring 297 by 420 mm.
A4 Paper size measuring 210 by 297 mm.
abort To terminate the printing of a job or execution of a program before it
completes.
algorithm Computational procedure that can be repeated any number of times.
alignment Positioning of an image on a page for printing.
alphanumeric Set of characters including the letters A through Z, numerals 0
through 9, and all printable special symbols.
AIM Ancillary IOT message processor. System task that initializes the
client layer between the printer and the system controller. It also
displays the Fault, Hint, and information messages.
ASCII American Standard Code for Information Interchange. Standard 7-bit
code that represents alphanumeric information. Each alphanumeric
character and several nonprinting characters are assigned a binary
number, covering 128 possible characters. It is used for information
interchange among data processing systems, data communication
systems, and associated equipment.
application Use to which a computer program or system is put, for example,
sorting employee records.
applications software Host- or LPS-resident software that directs the computer to perform
specific tasks or functions as opposed to the software used to
operate the computer. Common business applications include
payroll, accounting, and inventory.
ascender Portion of alphabetic character that rises above the body of the
character (its x-height portion). See also descender; x height.
H d p x
asynchronous Transmission in data communications controlled by start and stop
elements at the beginning and end of each character. Thus, time
intervals between transmitted characters may be unequal in length.
x height
Ascender
Descender
Baseline
Cap
Height
GLOSSARY
GLOSSARY-2 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
B4 Paper size measuring 250 by 353 mm.
background job Low-priority job, usually batched, that is executed automatically as
system resources become available.
backup file File copied to a storage medium for safekeeping in case the original
is damaged or lost.
band Rectangular area in printer memory into which an image sent to the
printer from a computer is divided.
batch processing Allows for repetitive operations to be performed sequentially on
batched data without much involvement of the computer operator.
baud Measurement of data rate in bits per second. This term is used to
describe information flow between two devices. Unit of data
transmitting and receiving speed is roughly equal to a single bit per
second. Common baud rates are 110, 300, 1200, 2400, 4800, and
9600.
binary Numbering system based on 2 that uses only the symbols 0 and 1.
Binary is used in computers and related devices since information
can be represented with electric pulses (0=off, 1=on). Most computer
calculations are binary.
binary digit (bit) In the binary numbering system, either of the characters 0 or 1. The
“bit” is the base unit of information used by computers. It can take the
form of a magnetized spot, an electric pulse, or a positive or negative
charge. A sequentially stored set of bits represents a character on a
computer.
Multipliers are:
1 or 0 byte = 8 bytes
1 kilobyte(KB) or 1,024 = 8,192 bits
1megabyte(MB) or 1,048,576 = 8,388,608
Computer space equivalents are:
1.5 KB = about 1 single-spaced typed page
30 KB = about 20 typed pages
150 KB = about 100 typed pages
binary synchronous transmission Data transmission in which synchronization of characters is
controlled by timing signals generated at the sending and receiving
stations.
bit Abbreviation for binary digit, the smallest unit of information
recognized by a computer. See also binary digit.
bit map Visual representation of graphic images in which a bit defines a
picture element (pixel); for example, if a bit is 1, the corresponding
pixel is printed.
GLOSSARY
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL GLOSSARY-3
bit mapped Display image generated bit by bit for each point or dot. A software-
driven scanner is used to create characters or graphics.
blocking Process of combining two or more records into a single block of data
which can then be moved, operated upon, or stored, as a single unit
by the computer.
block length Number of characters or bytes contained in a block of data (the block
is treated as a unit within the computer). Block length is usually
invariable within a system and may be specified in units such as
records, words, computer words, or characters.
boot To load the initial instructions of a program into computer memory;
these instructions then direct the loading of the rest of the program.
Booting may require entry of a few commands at the keyboard or the
flip of a switch to begin the process.
bps bits per second. In serial communication, the instantaneous bit speed
with which a device or channel transmits a character.
BSC binary synchronous communication. 1. Communication using binary
synchronous line discipline. 2. Uniform procedure using a
standardized set of control characters and control character
sequences for synchronous transmission of binary-coded data
between stations.
buffer Compartment of memory in which this data is stored during transfer
from one device to another. This is useful for accumulating data into
blocks before storage or processing and for adjusting differences of
speed between devices, or between a device and a communicating
facility.
Bypass Transport Optional module that moves paper from the last stacker bin to a
finishing device.
byte Fixed number of bits (in data processing, usually 8) operated upon as
a unit. A byte may represent a character, a machine instruction, or
some other logical unit of information.
carriage return Control character that causes the printing system to start printing at
the left margin of the current line unless set to be interpreted as a line
end.
channel 1. In data communications, a path or line that enables two or more
devices to communicate (sometimes called a circuit, facility, or link).
2. In computers, a path for communication between the central
processing unit (CPU) and input/output units, or between the CPU
and peripheral devices.
character Single printable letter (A-Z), numeral (0-9), symbol (& % #), or
punctuation mark (, . ! ?) used to represent data. Characters can also
be nonprinting, such as space, tab, or carriage return.
GLOSSARY
GLOSSARY-4 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
character cell Digitized space containing a single character within a font set.
character code Code representing alphanumeric information, for example, ASCII.
character code identifier Code associated with the universal identifier “Xerox” to indicate the
version of the Xerox character code standard used to code Interpress
strings.
character set Number of different characters used by a particular device, including
alphabetic, numeric, and special characters such as symbols.
client layer The software interface used by the AIM task and the Output task to
communicate with the printer, allowing printing commands and fault
and status information to be exchanged.
clocking A method of synchronizing the sending and receiving of data
communications devices. Clocking allows synchronous transmission
at high speeds.
cluster Group of paper feeder trays, usually containing the same size and
type of paper (stock). Each cluster has a name, consisting of one to
six alphanumeric characters. See also stock; stockset.
CME copy modification entry. Entry modifying the output printing
characteristics of a report on a copy-to-copy basis.
code 1. Set of symbols representing data or instructions to a computer. 2.
To write a list of instructions (software) to cause the product/system
to perform specified operations.
code conversion Translation of one type of character or symbol code to another.
collate To arrange or assemble into ordered sets.
column Vertical arrangement of characters.
command User instruction to a computer, using the system controller keyboard
display. Commands are words, mnemonics, or characters that cause
a computer to perform predefined operations. Coded instruction to a
computer or computer-based system.
command language Set of commands that can be used for a system, such as how the
system can be instructed to perform a task.
comment Explanations written with program instructions. They are ignored by
the computer.
communication line Telecommunication line connecting devices at one location with
devices at other locations in order to transmit and receive
information.
GLOSSARY
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL GLOSSARY-5
communication link Physical means, such as data link, connecting one location to
another to transmit and receive information.
communications Ability of two devices to transmit information to each other.
compatibility Characteristic of computer equipment permitting one device to use
the same information or programs as another device without
conversion or code modification.
compiler Software that translates instructions written in high-level language
into machine language for execution by a system.
computer Functional unit capable of performing substantial computations,
including numerous arithmetic or logic operations without human
intervention during a run.
computer language Computer-oriented language consisting solely of computer
instructions. See also machine language.
computer system Central processing unit (CPU) with main storage, input/output
channels and devices, control units, and external storage devices
connected to it.
concatenate To connect or link in a series, as when files are grouped together for
faster processing. See also job concatenation mode.
console Functional unit containing devices used by an operator to
communicate with an operating system. It may consist of a display,
keyboard, and certain switches or other controls.
consumable supplies Supplies such as paper and dry ink that are depleted (used up)
during the course of normal printer operation.
continuous printing Refers to Interpress job integrity under any of the following
conditions: excessive graphics, forms, or font use problems.
control program Program that supports the operating system by monitoring the flow of
jobs, tasks, processing, and so on, within the system; for example, a
data communication program.
coordinate Point on the x and y axis that determines a grid position.
copy To duplicate data in a new location or on an additional storage
medium, for example, to copy files from disk to tape.
copy-sensitive Term used to indicate jobs in which multiple copies of a report will
contain different data, as with paychecks and banking statements.
cpi characters per inch. Designates the number of characters per inch
for a particular typeface. See also pitch.
GLOSSARY
GLOSSARY-6 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
CPU central processing unit. Interprets and executes instructions,
performs all operations and calculations, and controls input and
output units and auxiliary attachments.
data 1. In general, facts, numbers, letters, symbols, and so on, which can
be processed or produced by a computer. 2. In data processing, the
source data or raw data entered for processing, as opposed to the
results obtained by processing.
database Information to meet specific processing and retrieval needs.
Generally applies to integrated file of data, arranged for access by
many subsystems.
data communications Transmission and reception of encoded information over
telecommunication lines.
data file Collection of related data records organized in a specific manner so
that each record is similarly structured, for example, a payroll file set
up with one record for each employee, last name first, indicating the
rate of pay and all deductions.
data processing Operations carried out on data by means of algorithms and programs
to produce information or a specific result. The rearrangement of
data into a suitable form for further use.
data rate In data communications, the rate at which a channel carries data,
measured in bits per second (bps).
data storage Preservation of data on various media, for example, tape, disks,
magnetic bubble memory, and so on.
data transmission Transmission of coded data over telephone or other
telecommunication lines.
debug To detect and correct errors in a program.
decompose To break down into component parts, such as when Interpress
breaks down a Font Interchange Standard (FIS) master to compile
font information.
default Value assigned to a field by the system. Default fields may be used
for such items as document formats, menu selections, input fields,
font selection, and paper or image size. The default value of a field
may be changed.
descender Portion of alphabetic character that extends below the baseline. See
also ascender, x height.
device Any piece of hardware other than the central processing unit (CPU).
GLOSSARY
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL GLOSSARY-7
digitize To express or represent data in digital (binary) form so that it can be
processed electronically.
disk drive Device that can read or write magnetic media.
display Viewing device (monitor) that visually communicates system
warnings, status, and error messages and reflects operator
interaction with the system on a display.
DJDE Dynamic Job Descriptor Entry. Command within an input data stream
used to modify the printing environment dynamically.
document 1. Data medium and the data recorded on it, usually permanent,
which can be read by you or a computer. 2. Collection of information
pertaining to a specific subject or related subjects.
dot Unit of measurement representing a fraction of an inch, for example,
300 dots per inch (dpi). It may also be referred to as a picture element
(pixel) or spot.
download To copy files using communication lines from the host onto LPS
system disks.
dry ink Minute dry particles of resin and carbon black used to create images.
Dry ink can accept an electrical charge.
duplex printing Printing on both sides (front and back) of a page. See also simplex
printing.
EBCDIC Extended Binary Coded Decimal Interchange Code. Coded
character set consisting of 8-bit coded characters. It can
accommodate 256 characters.
edgemarking Use of graphic objects, usually lines or boxes, that bleed off the edge
of the physical page. See also physical page.
electronic publishing Integrated production of documents on demand, using digitally
stored documents, computerized composition, and electronic
printing systems.
elite Smallest size standard typewriter type: 12 characters per horizontal
inch. See also pica.
embedded blanks Blank spaces within a command line.
Ethernet Xerox local area network (LAN) that allows data to be transmitted by
cable from one device to another, enabling it to share the network.
GLOSSARY
GLOSSARY-8 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
extended metrics Measurements used in Interpress to alter the size of fonts, allowing
more precision with character escapement. Used for rendered
characters.
FCB forms control buffer. Buffer for controlling the vertical format of
printed output.
FDL forms description language. LPS-resident source language used for
designing electronic forms. See also FSL; form.
field 1. Part of a record that serves a similar function in all records of that
group, such as name and address field. 2. Area or setting of practical
activity or application.
file Set of records or text that can be stored and retrieved. An organized,
named collection of records treated as a unit. For offline, it is the data
between the two tape marks. For online, it is the data between
banner pages.
file protection To prevent the contents on a disk or tape from being erased or written
over by disabling the write head of a unit.
firmware Permanent programs stored in read-only memory (ROM).
FIS Font Interchange Standard. Standard that defines the digital
representation of fonts and character metrics for the generation of an
entire series of Interpress fonts.
fixed font Font containing characters with fixed spacing. See also proportional
font.
fixed pitch Font set in which every character cell has the same width. In
reference to character sets, this term describes typefaces in which all
character cells are of equal width. Monospaced as opposed to
proportional spaced.
fixed spacing Arrangement of characters on a line so that all characters occupy the
same amount of horizontal space.
floating accent Nonspacing accent characters that can be combined with characters
and printed as a composite.
font Set of images, usually characters and symbols, having common
characteristics such as style, width, height, and weight.
form 1. Compiled forms source library (.FSL) file. 2. Printed or typed
document with blank spaces for inserting information. Specific
arrangement of lines, text, and graphics stored in a computer under
an identifying name. Page of data that, when preceded by proper
commands, is stored on the system disk as a permanent file. It may
be merged with variable data by a form start command. See also
FDL; FSL.
GLOSSARY
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL GLOSSARY-9
format 1. Layout of a document, including margins, page length, line
spacing, typeface, and so on. 2. In data storage, the way the surface
of a disk is organized to store data. 3. To prepare the surface of a disk
for acceptance of data.
form feed Keyboard or printer control character that causes the printer to skip
the top of the next page.
FSL forms source library. Uncompiled collection of user-created files
containing FDL commands. See also FDL; form.
function keys Keyboard keys that produce no character but initiate a particular
machine function, such as delete.
fuse To affix dry ink to paper by heat or pressure or a combination of both.
GCR group code recording mode. Refers to the specific density of data
(such as 6250 bpi) as it is recorded on tape, which is measured in bits
per inch (bpi).
graphics Use of lines and figures to display data, as opposed to using text.
grid Imaginary pattern of evenly spaced horizontal and vertical lines on a
page.
grid unit Smallest rectangle enclosed by horizontal and vertical lines on a grid.
The size of a grid unit is expressed as the length of one side of a
rectangle.
halftone screen A tool used in offset printing, typesetting, and laser printing to convert
a continuous tone (such as photographic) image to dots, which
allows the image to be rendered accurately in these printing
processes.
hardcopy Machine output in permanent form, such as printed reports, listings,
and so on. Output in a permanent form (usually on paper or paper
tape) rather than in temporary form, as on a display. Contains
readable printed copy of machine (for example, computer) output.
hard values Nonoptimal adjustment of particular FIS fonts in terms of point size
and orientation.
hardware Physical components, such as mechanical, magnetic, and electronic
elements of a system, as opposed to programs, procedures, rules,
and associated documentation. Hardware is operated by software
and firmware.
HCF High-capacity feeder. Feeder tray capable of holding 2500 sheets of
20 pound/80 gsm paper. The high-capacity feeder tray is the primary
paper supply for the DocuPrint 96 LPS. It is located in the bottom half
of the feeder/stacker module.
GLOSSARY
GLOSSARY-10 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
HCS high-capacity stacker. Stacker bin capable of holding 2500 sheets of
20 pound/80 gsm paper. In the LPS, the high-capacity stacker bins
are located in the top half of the feeder/stacker modules.
hexadecimal Numbering system with a base of 16. In this system, 10 through 15
are represented by A through F, respectively.
hierarchy Relative priority assigned to arithmetic or logical operations that must
be performed.
high-level language Language consisting of words and symbols that are close to normal
English and, therefore, readily understandable by the user. High-
level languages are oriented to problems or commercial procedures
and are the source languages for most programs.
host Computer accessed by users which serves as a source of high-
speed data processing for workstations with less computer power.
See also mainframe.
host interface Connection between network and host computer.
id identifier. Character used to identify or name data and possibly to
indicate certain properties of that data.
image area Area on a physical page that may contain text or graphics.
information processing Generic term encompassing both word and data processing, used to
describe the entire scope of operations performed by a computer.
initialize 1. To prepare the magnetic surface of a blank diskette so that it can
accept data. 2. To set all information in a computer system to its
starting values (usually the first step is accomplished when a
program is booted).
input Data or text introduced into a computer-based system.
input/output General term encompassing the flow of data into and out of a system.
input processing Formatting control for the pages of a report.
insert To add text or graphics to a document.
interface Device by which two systems connect and communicate with each
other.
interpolation Series of logical rules implemented in the printer to convert a 300 spi
input video stream to a 600 spi output video stream. Interpolation is
functionally analogous to bit doubling (2x scaling), except the logical
rules result in superior output.
GLOSSARY
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL GLOSSARY-11
Interpress Xerox standard that defines digital representation of lines for printing.
Interpress documents can be printed on any sufficiently powerful
printer equipped with Interpress print software.
Interpress font utility (IFU) program Program used to convert FIS fonts to LPS fonts.
Interpress master File written according to the Interpress standard.
IPL initial program load. For the optional open-reel tape drive, the internal
initialization sequence whereby certain functions are loaded into
random access memory (RAM).
JDE job descriptor entry. Collection of job descriptions. See also job; JSL.
JDL job descriptor library. Collection of compiled job descriptions. See
also JSL.
job 1. Set of instructions (JDEs) defining a unit of work for the system. 2.
In setting a separation boundary through the Bin Full Criteria task, job
refers to everything printed as the result of a single start command.
See also JDE.
job concatenation mode In HIP, a mode in which multiple print jobs are processed as reports
in one print job. See also concatenate.
job control Program called into storage to prepare each job or job step to be run.
job management Collective functions of job scheduling and command processing.
JSL job source library. Collection of uncompiled job descriptions. See
also job; JDE; and JDL.
keyboard Group of alphabetic, numeric, and/or function keys used to enter
information into a system.
keyword Required part of a command. See also operator command.
label 1. In data storage, a reference to a file saved on tape or disk, a record
indicating the file name or date created, or other control information.
2. In programming, a name assigned to a particular instruction or
portion of a program as a locational reference (the computer
translates the label into an address).
landscape page orientation Orientation of print lines or top of an illustration parallel to the long
edge of the paper if the sheet is within the standard size range.
(Sheets larger than standard have the reverse print orientation.)
language Defined set of characters and symbols combined together by specific
rules. See also high-level language; low-level language.
GLOSSARY
GLOSSARY-12 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
laser printing Technology that uses a laser to transfer character forms to a page by
direct or indirect means.
latent image Static charge present on the photoconductor before contact with dry
ink particles.
leading 1. Vertical distance between lines (also called line space), measured
from a baseline of one line to the baseline of the next. 2. Extra
spacing between lines of type. 3. In typography, spacing between
lines and paragraphs.
LED light emitting diode. Solid substance that glows when a current is
passed through it. Often used for indicator lights on disk drives or
modems, as well as for displays on other electronic equipment.
LEF long-edge feed. The movement of paper through the printer in the
direction of the paper length (the longer side of a sheet of paper).
legal size Sheet the standard size of legal briefs, 8.5 by 14 inches.
letter size Paper sized 8.5 by 11 inches/216 by 279 mm.
library In data storage, a collection of related files or programs.
line One horizontal flow of characters.
line feed Control character that, unless set to be interpreted as a line end,
causes the printing system to begin printing in the current character
position of the next line.
line tables Internal data structures providing a record in memory of lines to be
drawn on a page.
listing Printout or display of the statements in a program, usually used as a
convenience in examining or editing programs.
literal Alphanumeric beginning with a letter, optionally including an asterisk,
period, colon, or slash, and not enclosed in single quotes.
load To enter data into storage or working registers.
location Place in which data can be stored.
log Collection of messages or message segments placed on an auxiliary
storage device for accounting or data collection purposes.
GLOSSARY
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL GLOSSARY-13
logical page In the Xerox printing systems environment, a formatted page that is
smaller than the physical page. A logical page is defined by an origin,
thus allowing more than one logical page to be placed on a physical
page.
logo Small illustration or design, usually simple, typically used to identify
a company.
log off Procedure by which a user ends a session.
log on Procedure by which a user begins a session between an application
program and a logical unit.
magnetic media Term for all storage devices, such as disks, diskettes, and tape, on
which data is stored in the form of magnetized spots on surface of the
media.
magnetic storage Use of magnetic media to store data, programs, and so on.
magnetic tape Flexible plastic tape, with one side offering a magnetic surface
suitable for storing computer data in the form of magnetized spots.
Magnetic tape is often used for long-term storage since it can
accommodate large volumes of information.
mainframe Central processing unit (CPU) and memory of a large computer.
More often used to denote any large computer of the type that might
be used to control a group of smaller computers, terminals, or other
devices. See also host.
margins White space on each side of printed text.
mask 1. Selection of bits from a storage unit by using an instruction that
eliminates the other bits in the unit. 2. In accessing files, a file name
mask is used to reference one or more files with similar file-id
(identifier) syntax. 3. In Interpress, a mask serves as a template,
indicating the shape and position of an object on a page.
MB megabyte. Unit of one million bytes.
media Vehicles or devices by which information is stored or transmitted.
Classifications include source, input, and output.
medium Object or material on which data is stored, for example, magnetic
tape or floppy disk.
memory Space in a device where information is kept, or the ability of a device
to keep information until needed.
menu List of available functions, commands, and options.
GLOSSARY
GLOSSARY-14 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
message Unit of information transmitted by one facility to another in a form that
the receiving facility can understand and act upon. The standard
message format consists of a header (containing identifying and
control information), followed by the actual message content,
followed by a trailer (indicating that the message is completed).
metacode Same as “native mode.” The method of speaking to and controlling
the image generator. These controls are used by the character
dispatcher to generate scan line information. This information is sent
in the form of character specifications to the image generator, which
uses it to compose the bit stream that modulates the laser.
MHz megahertz. 1. Unit of cycling speed (one million cycles per second)
for an electromagnetic wave (in particular, a radio wave). 2. Sending
and receiving stations of a radio wave transmission must be tuned in
to the same unit of megahertz.
mode Manner in which an activity or process is carried out.
modem Device that converts digital information into an analog signal suitable
for sending over analog telecommunication lines. Also converts an
analog signal from telecommunication lines into digital information.
module Cohesive unit within a program. It is consistent in its level and
identifiable in terms of loading or with other units.
network 1. System of geographically separate computers, linked to one
another over transmission lines. 2. Communication lines connecting
a computer to its remote terminals.
nonimpact printer Printer that forms characters without any strikes of a key or element
against the paper.
object file Source file converted into machine language (binary code).
offline Devices not under the active control of a central processing unit. For
example, a computer makes output to a magnetic tape. The tape is
then used by an offline printing system to produce printed data.
Offline operations are much slower than online operations. See also
online.
offset To place pages currently being printed in slightly different positions
from previous pages.
offset printing Widely-used method of commercial and corporate printing, where ink
is picked up by a metal or paper plate, passed to an offset drum, and
then passed to the paper.
online Devices under the direct control of a central processing unit, for
example a printing system in interactive communication with a
mainframe. See also offline.
GLOSSARY
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL GLOSSARY-15
operating system Basic host- or LPS-resident controlling program that governs the
operations of a computer, such as job entry, input/output, and data
management. The operating system is always running when the
computer is active. Unlike other types of programs, it does not run to
an end point and stop. The operating system of a Xerox LPS is
referred to as the operating system software (OSS).
operation Well-defined action that, when applied to any permissible
combination of known entities, produces a new entity.
operator area The 24-inch exclusive clearance that must be available directly in
front of each component of an LPS for operator activities.
operator command Statement to control a program, issued through a console device or
terminal, causing a control program to provide requested information,
alter normal operations, initiate new operations, or terminate existing
operations.
orientation 1. In reference to image area, orientation describes whether the
printed lines are parallel to the long edge of the paper or the short
edge of the paper. 2. Choice of printing portrait (vertically) or
landscape (horizontally).
origin In reference to image area, this is the upper left corner of a sheet.
output 1. Material produced by a peripheral device of a computer, such as a
printout or a magnetic tape. 2. Result of completed operations.
overprinting Printing more than one character at the same position.
overprint lines Print lines whose carriage control specifies printing with no line
spacing after the last printed line.
overprint ratio Maximum number of variable data and form characters that may be
intersected by a single scan line.
override To take precedence or priority over, to overrule.
overstrike To print characters over each other.
page 1. In computer programming, a block of instruction, data, or both that
can be located in main or auxiliary storage. 2. In word processing, a
defined section of a document.
page orientation Direction in which data is printed on a report. See also landscape
page orientation; portrait page orientation.
parameter Part of a command, other than the keyword. See also keyword;
operator command.
GLOSSARY
GLOSSARY-16 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
pass-through job On systems with XPAF, a job that is sent directly from a host to a
Xerox printer using XPAF, without undergoing XPAF processing.
password Unique word or set of characters that an operator or user must supply
to log on to a system.
patch In programming, to modify a portion of the program at the machine
language level, as opposed to modifying at the source program level.
PDL print description language. Language used to describe printing jobs
to an LPS. PDL describes the input (type, format, characteristics),
performs the processing functions (logical processing), and
describes the output (type, format, font selection, accounting
options).
physical page Sheet of paper on which printing is done. See also edgemarking.
pitch 1. Horizontal character spacing; 10-pitch (10 characters per inch)
spacing is called pica, and 12-pitch (12 characters per inch) spacing
is called elite. 2. The number of page images placed on the
xerographic belt during one revolution. The DocuPrint 96 LPS
operates in a multi-pitch mode, allowing the mode to be adjusted
according to the width of the paper used.
pixel Acronym for picture element. Smallest addressable point of a bit-
mapped screen that can be independently assigned color and
intensity. Pixels are definable locations on a display used to form
images. For graphic displays, more pixels generally provide higher
resolution. Spots, dots, and pixels are used interchangeably.
point Unit of measurement equal to 0.0139 inch. Points are always used to
express type size and leading. There are 12 points to a pica and
about 72 points to every inch. See also pica.
point size Height of character set from the top of its ascenders to the bottom of
its descenders in units (points). Point size does not always include
leading.
portrait page orientation Orientation of print lines or the top of an illustration parallel to the
short edge of the paper if the sheet is within the standard size range.
Sheets larger than standard have the reverse print orientation.
printer Output device that produces hardcopy printouts. Also referred to as
the IOT.
print file Position of the system disk memory (up to 4 MB) received for
temporary storage of formatted pages for printing. Pages are
retained until they are delivered to the output tray.
printout Informal expression referring to almost anything printed by a
computer peripheral device.
GLOSSARY
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL GLOSSARY-17
process 1. To perform a systematic sequence of operations, such as add,
edit, delete. 2. To produce a specific result by manipulating data.
program Complete set of instructions in language compatible with the device
to be used. A program directs a system to perform each operation at
the right time in the proper sequence.
programmer Person involved in designing, writing, and testing computer
programs.
prompt Message or symbol displayed on a system console requiring the
operator to take action.
proportional font Font containing characters that vary in width. See also fixed font.
proportional spacing Text in which each alphanumeric character is given a weighted
amount of space. Such output has print-like appearance.
Proportional spacing allows more space for wide characters and less
space for narrow characters
proportional type Characters that vary in width.
protocol Formal set of conventions governing the format of data and the
control of information exchange between two communication
devices.
purge To delete data from a system.
queue List of documents waiting to be processed.
RAM random access memory. Storage that allows data, such as
documents, to be stored and retrieved directly by address location
without reading through any other data.
raster data Binary data, usually consisting of dots arranged in scan lines,
according to the print order.
rasterization Creation of a page's bit map image for printing.
read/write head Input/output device that reads and writes data in the form of magnetic
dots on the surface of an external storage medium, such as a
magnetic disk.
record Collection of data or words treated as a unit.
recovery Act of overcoming a problem or error during processing. Typically, a
specialized software recovery routine gains control and attempts to
resolve the error without crashing the system.
GLOSSARY
GLOSSARY-18 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
remote access Access to a central computer by terminals or devices geographically
separated from that computer.
replace Process of exchanging one portion of text for another. This process
encompasses two functions: deleting old text and inserting new.
report In setting a separation boundary through the Bin Full Criteria task,
report refers to a subset of a job (a job may consist of one or more
reports).
resolution Number of dots per unit. The LPS imaging system converts a
character from digitized data into a printed image composed of these
tiny dots. The greater the number of dots per inch, that is, the
resolution, the clearer the image that is produced.
ROM read-only memory. Solid-state memory for programs. It cannot be
rewritten.
save To store programs, data, or text for retrieval at a later time.
scale To adjust font or image size according to given proportions.
scroll Manipulation of a display to bring upper or lower portions of a
document page into view when no space is available for the entire
document at once.
scroll bar Part of a window that allows you to view information extending
beyond the window display.
SCSI small computer system interface. Accepted standard for connecting
peripheral devices to computers.
secondary storage Form of storage external to a system, such as magnetic tapes or
floppy disks.
security 1. Procedure for limiting access to the system resources, programs,
or files, to authorized personnel. 2. Protecting programs and files
from unintentional or undesired modification.
SEF short-edge feed. The movement of paper through the printer in the
direction of the paper width (the shorter side of a sheet of paper). For
the DocuPrint 96 LPS, short-edge feed allows larger sizes of paper
(up to 11 by 17 inches/279 by 432 mm) to be printed.
sequential In numeric sequence, usually in ascending order. As applied to a file
organization, describes files in which records are written one after
another and cannot be randomly accessed. For example, the first 99
records in a sequential file-access file have to be read before the
100th record is accessible.
GLOSSARY
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL GLOSSARY-19
set In setting a separation boundary through the Bin Full Criteria task, set
refers to multiple copies of the same report.
simplex printing Printing on one side of the page. See also duplex printing.
software Programs, including operating systems, procedures, utilities, and
applications programs, written for a system. Software can be
supplied by the hardware manufacturer or other firms but does not
include programs written by the user.
sort To rearrange data records according to a particular item (field) which
they all contain, using a predetermined ordering scheme.
source Terminal node at which data enters a network. For example, a
computer transmitting data through telecommunication lines to
several other computers or receiving terminals.
source file File containing source language statements or commands.
source language Language, high-level or low-level, used by a programmer. A source
language must be converted by a compiler to machine language for
the instructions to be executed.
source program Program written in source language
space Blank area between words, recognized as a character by word and
data processing systems.
special processing Commands allowing the user to process special reports, such as
printing certain records, or printing on special paper.
spooling Process of releasing data from main memory and storing it
temporarily until a peripheral device is ready to accept it, for example
storing text before sending it to a printer.
spot Unit of measurement representing a fraction of an inch, for example,
300 spots per inch (spi). May also be referred to as a picture element
(pixel) or dot.
statement Detailed written instructions in a program step. A statement is written
according to specific rules called syntax.
static data Information usually found on preprinted forms or overlays.
stock User-defined name in the JSL that specifies a certain type of paper
for printing a job. See also cluster.
stockset Collection of stocks to be used on a print job. See also stock; cluster.
GLOSSARY
GLOSSARY-20 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
storage Retention of information. Primary storage refers to internal storage
where data and program instructions pertinent to current operations/
jobs are held. Auxiliary storage refers to external media, such as
disks or tapes, for use at a later time.
string Connected sequence of alphanumeric characters treated as one unit
of data by a program.
symbol Character used in a computer language to specify a particular
function.
synchronous Efficient encoding of data suitable for high-speed, block-oriented
data transmission by using equal time elements.
syntax Rules governing the structure of expressions in a programming
language.
syntax error System response to a mistake in a command entry.
system 1. In data processing, a collection of parts and procedures organized
to accomplish a set of specific functions. 2. Assembly of components
united by some form of regulated interaction to form an organized
whole. 3. Operations or procedures through which a business activity
is accomplished.
system controller Part of the LPS that provides interfacing capability, data handling,
formatting, buffering, and operator control for the system. Also
referred to as the “ESS”.
system disk Magnetic disk storage medium, usually of large capacity, that is not
removable as opposed to floppy disk or disk packs.
system file Master software program that keeps all components working
together.
system generation Process whereby the system is made ready to operate. Typically
involves selecting the operative parameters and activating the
relevant software.
system page Maximum area in which text and graphics can be imaged on a
printing system.
system software Software programs that support and/or control system functions by
governing hardware operation and input/output processes,
interpreting source programs and breaking them down into machine
language, distributing tasks among various processors, and so on.
tab To move the cursor on a display or printer to a prespecified column
on the display or paper, most often by using the <TAB> key on a
keyboard.
GLOSSARY
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL GLOSSARY-21
tape Recording media for data or computer programs. Tape can be in
permanent form, such as perforated paper tape. Generally, tape is
used as a mass storage medium in magnetic form and has a far
higher storage capacity than disk storage, but it takes longer to write
or recover data from tape than from disk.
tape density The number of characters that can be stored on magnetic media,
such as how close together data can be recorded. The Xerox LPS
may use either 1600 bpi or 6250 bpi density magnetic media.
tape drive Input/output device that controls the movement of magnetic storage
tape past the read/write head while data is accessed or stored.
task 1. Any major job performed by a computer. 2. One of several
programs being executed by a system.
telecommunications Voice or data communications transmitted and received through
telephone lines.
teleprocessing Sending and receiving data through telecommunication lines for
processing among various remote terminals and the central
processing unit (CPU).
terminal Device equipped with a keyboard and connected to a computer or a
network
testing 1. Process of running a program for the express purpose of
discovering any errors it may contain. 2. For computer-oriented
systems, the process of verifying a system’s ability to meet
performance objectives in a simulated environment or validating its
actual performance in a live environment.
text In communications, the content portion of a transmitted message.
text string Consecutive series of characters to be printed exactly as specified in
a command.
throughput In data processing systems, the amount of data that can be
processed, transmitted, printed, and so on, per a specified unit of
time.
toggle To switch (alternate) from one tray to another. The system switches
from an active feeder or stacker tray to an inactive one to allow
continuous printing when the proper commands are invoked.
trailer In data communications, the last portion of a message that signals
the end.
transaction processing Method of data processing in which files are updated and results are
generated immediately after data entry.
GLOSSARY
GLOSSARY-22 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
translation 1. In data communications, the conversion of one code to another on
a character-by-character basis. 2. In programming, the function of a
language processor which converts a source program from one
programming language to another.
transmission speed In data communications, the rate at which data is passed through
communication lines, usually measured in bits per inch (bpi).
transmit To send data from one place to another.
truncated Cut off before completion, as when data transfer from a host to a
printer is cut off before all data has been transmitted.
two-up Application that prints two logical pages on one side of a physical
page.
typeface 1. All type of a single design. 2. Set of characters with design features
that make them similar to one another.
type size Height of a typeface, measured from the bottom of its descenders to
the top of its ascenders, expressed in points.
type style Italic, condensed, bold, and other variations of typeface that form a
type family.
UCS Universal Character Set. Printer feature that permits the use of a
variety of character
upload To copy files from a remote peripheral device to a host. LPS files are
not copied to the host because one of the LPS functions is to store
files for the host.
utility program General-purpose program that performs activities, such as initializing
a disk or sorting, which are not specific to any application.
validation Process of testing a system's ability to meet performance objectives
by measuring and monitoring its performance in a live environment.
variable Information of a changeable nature which is merged with a standard
or a repetitive document to create specialized or personalized
versions of that document.
variable data Variable data is not a part of a form design. It varies from page to
page.
variable text Text of changing nature, such as various names and addresses
combined with a form letter to make a complete document.
virtual page Page area selected by a forms designer for printing.
GLOSSARY
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL GLOSSARY-23
warning message System-issued message indicating that an error has been
encountered even though the program has not failed.
weight Characteristic of type determined by how light or dark it appears.
wildcard Part of a command (* symbol, / symbol, ? symbol) that represents a
category for which the possible options are requested.
wildcarding In a command, calling out a general category rather than a specific
item within that category. The purpose of wildcarding is to generate
the options within the given category.
write To record data in memory or an external storage medium.
write protection Data protection feature implemented on magnetic media (for
example floppy disk, 9-track tape) to prevent stored data from being
modified, written over, or erased.
x axis Horizontal axis on a forms grid.
xdot Unit of measurement representing a fraction of an inch. It may also
be referred to as a picture element (pixel) or spot, for example, 1/600
spots per inch (spi).
xerographic engine Component of a printer that develops an image, transfers it to paper,
and fuses it for output as hardcopy.
x height Height of lowercase letters without their ascenders or descenders
(height of letter “x”). See also ascender; descender.
y axis Vertical axis on a forms grid
ACT Advanced Customer Training
AFP Advanced Function Printing
ANSI American National Standards Institute
ASCII American Standard Code for Information Interchange
BCD binary coded decimal
BOF bottom of form
BOT beginning of tape
bpi bits per inch
GLOSSARY
GLOSSARY-24 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
bps bits per second
BSC binary synchronous communications
CD character dispatcher
CDC control data communications
CD/IG character dispatcher/image generator
CM control module
CME copy modification entry
cpi characters per inch
CPU central processing unit
CR carriage return
DCE data communications equipment
DDCMP Digital Data Communication Message Protocol
DEC Digital Equipment Corporation
DFA Document Feeding and Finishing Architecture
DJDE dynamic job descriptor entry
DOS disk operating system
dpi dots per inch
DSDD double sided double density
DSU digital signal unit
DSR disk save and restore
DSSD double sided single density
DTE data terminal equipment
EBCDIC Extended Binary Coded Decimal Interchange Code
GLOSSARY
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL GLOSSARY-25
ENET Ethernet network
EOT end of tape
EP electronic publishing
ESS electronic subsystem, also referred to as the system controller
FCB forms control buffer
FCG finishing configuration utility
FCP file control parameter
FDL forms description language
FDR file directory
FFM font file management
FIS Font Interchange Standard
FMS file management subsystem
FPS formatting print service
FSL forms source library
FST font specification table
GCR group code recording
gsm grams per square meter
HCF high-capacity feeder
HCS high-capacity stacker
HFDL host forms description language
HIP Host Interface Processor
hpos horizontal positioning
IBM International Business Machines Corporation
GLOSSARY
GLOSSARY-26 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
IFU Interpress font utility
IG image generator
IGM image generator module
I/O input/output
IOM image output module
IOT input output terminal, also referred to as “printer”
IPD Interpress decomposer
IPFONTS Interpress fonts
IPL initial program load
IPM Interpress mapping
ips inches per second
JCB job control block
JCL job control language
JDE job descriptor entry
JDL job descriptor library
JID job identifier
JSL job source library
LAN local area network
laser light amplification by stimulated emission of radiation
LED light-emitting diode
LEF long-edge feed
LF long-edge feed
lpi lines per inch
GLOSSARY
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL GLOSSARY-27
LPS Laser Printing System
MTU magnetic tape unit (refers to the 9-track magnetic tape drive; also
referred to as “magnetic tape drive”)
OCR optical character recognition
OCS operator communications subsystem
OLI online interface
OS operating system
OSDS operating system diagnostic software
OSEXEC operating system executive
OSS operating system software
PC personal computer
PCC printer carriage control
PDL print description language
PE phase encoded
ppm pages per minute
PQA print quality adjustment
PROM programmable read-only memory
PSC printer subsystem controller
pt point
PWBA printed wiring board assembly
QIC 1/4 inch cartridge
RAM random access memory
ROS raster output scanner
GLOSSARY
GLOSSARY-28 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
SAFES stand-alone field engineering software
SAN software analysis number
sci START command index
SCSI small computer system interface
SDLC synchronous data link control
SEF short-edge feed
SFS status file services
SIF sequence insert file
SNA system network architecture
spi spots per inch
SST system software tape
sysgen system generation
TL/DL text line/display list
TOF top of form
tpi tracks per inch
TPJ test pattern job
TXC total xerographic convergence
UCS Universal Character Set
UCSB Universal Character Set Buffer
UI user interface
VM virtual memory
vpos vertical positioning
VS virtual storage
GLOSSARY
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL GLOSSARY-29
WAN wide area network
XCSC Xerox Customer Support Center
XDGI Xerox DCF and GDDM Interface
XDSS Xerox Documentation and Software Services
XICS Xerox Integrated Composition System
XJCF Xerox Job Control Facility
XMP xerographic mode persistence
XMS xerographic mode switching
XNS Xerox Network Systems
XPAF, XPF Xerox Printer Access Facility
XPMF-VMS Xerox Print Management Facility - VMS Version
XPPI Xerox Pen Plotter Interface
XPS Xerox Publishing System
GLOSSARY
GLOSSARY-30 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL INDEX-1
Index
Numerics
1401 emulation control codes, 2-9
1403 emulation control codes, 2-10
1HDR label
Honeywell 200/2000
COBOL, 10-3
SPR, 10-6
4 x 3 packed BCD, 10-1 to 10-2
Honeywell 600/6000, 10-17 to 10-19
Honeywell 6000, 10-12 to 10-13
4 x 3 packing mode
Fieldata characters, 11-1
9 x 8 packed ASCII, 10-19 to 10-20
9-track tapes, 7-1
A
American National Standards Institute, see ANSI
ANSI
Burroughs systems
medium, 8-2 to 8-3
CP-V, 7-1
DEC PDP-11, 15-3
labels
EOF1, 1-8 to 1-9
EOF2, 1-10
EOF3-9, 1-11
EOV1, 1-8 to 1-9
EOV2, 1-10
HDR1, 1-8 to 1-9
HDR2, 1-10
types, 1-1 to 1-2
UHL, 1-11
UTL, 1-11
UVL, 1-11
VOL1, 1-7
tape marks
doubles, 1-1
placement, 1-1
tapes
JSL sample, 1-13 to 1-15
Univac, 11-3
see also Xerox ANSI
ASCII character set, Univac, 11-1 to 11-3
B
banner page format, OS Writer, 12-1
bannered data format, 10-8
BCD, 10-1 to 10-2
see also 4 x 3 packed BCD
Beginning-of-file label, 1-1 to 1-2
Beginning-of-volume label, 1-1 to 1-2
block
characteristics, POWER II, 4-1 to 4-2
identification, VS and VSE, 5-2
sequence indicator, 1-11
Burroughs systems
large
JSL sample, 9-4 to 9-5
line-up records, 9-2
record format, 9-1 to 9-2
medium
ANSI types, 8-2 to 8-3
carriage control conventions, 8-3 to 8-4
formats, 8-1
JSL sample, 8-5 to 8-6
record structure, 8-1
tape configurations, 8-3
C
carriage control conventions
ANSI, 1-12
Burroughs systems
large, 9-3
medium, 8-3 to 8-4
DEC PDP-11, 15-3
GRASP, 3-3
Honeywell 200/2000, 10-10 to 10-12
Honeywell 600/6000, 10-21 to 10-22
IBM, 2-9 to 2-10
ICL 2900 VME/B, 16-2 to 16-3
NCR, 13-1 to 13-3
US70, 6-10, 6-13
Xerox ANSI, 7-3 to 7-5
carriage control tape, 6-13
channel control word, 3-2
channel skip, control character, 10-20
Class 1 laser products, iii
Class A Writer, 12-1
Class B Writer, 12-1
COBOL
Honeywell tapes, 10-1
labels, Honeywell 200/2000, 10-4 to 10-5
print tapes, formats, 6-10 to 6-11
control characters
INDEX
INDEX-2 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
embedded, 10-17 to 10-19
ignore, 10-19
paired, 10-18 to 10-19, 10-20
single, 10-18
control codes, DEC PDP-11, 15-4 to 15-5
Control Program-Five, see CP-V
control records, Univac, 11-4 to 11-9
CP-V ANSI labels, 7-1
D
data formats
DEC PDP-11, 15-3 to 15-6
Honeywell 200/2000, 10-8 to 10-9
Honeywell 600/6000, 10-16 to 10-20
ICL 2900 VME/B, 16-1 to 16-2
SPR, 10-10
unlabeled tapes, 14-2
US70, 6-9 to 6-10
data records
GRASP tapes, 3-2
Univac, 11-10
DEC PDP-11
ANSI, 15-3
carriage control conventions, 15-3
control codes, 15-4 to 15-5
data formats, 15-3 to 15-6
file formats, 15-1 to 15-2
guidelines, 15-5 to 15-6
tape formats, 15-1
disk buffer size, GRASP, 3-2
documentation, related, v to vi
DOS/360
GRASP tape organization, 3-1 to 3-6
JSL sample, 2-11 to 2-13
labeled tapes, 2-1
E
EBCDIC character set, Burroughs, 9-4
embedded control characters, 10-17 to 10-19
End-of-file label, 1-1 to 1-2
End-of-volume label, 1-1 to 1-2
EOF1
ANSl, 1-8 to 1-9
OS/360, 2-6 to 2-7
EOF2
ANSI, 1-10
OS/360, 2-7 to 2-8
EOF3-9 tape label, 1-11
EOT reflector, 3-2, 11-3
EOV1
ANSI, 1-8 to 1-9
OS/360, 2-6 to 2-7
EOV2
ANSI, 1-10
OS/360, 2-7 to 2-8
escape-"other character, control characters, 10-19
escape-channel skip, control characters, 10-19
escape-escape, control characters, 10-18
escape-line feed, control characters, 10-18
escape-skip, control characters, 10-18
F
FEs, see format effectors, ICL 2900 VME/B,
embedded
Fieldata
characters, 11-1
translation table, 11-3
file formats, DEC PDP-11, 15-1 to 15-2
file header label, US70, 6-2 to 6-4
FLXformat, Xerox operating system, 15-4
label, 15-1 to 15-2
FONTINDEX option, 11-11
format effectors, ICL 2900 VME/B
embedded, 16-4
normal, 16-3
formats
Burroughs systems
large, 9-1 to 9-2
medium, 8-1
COBOL print tapes, 6-10 to 6-11
files, 14-1 to 14-2
Honeywell 200/2000, 10-3 to 10-7
function codes, NCR, 13-2 to 13-3
G
graphics code, NCR, 13-3
GRASP
disk buffer size, 3-2
interspersed block tapes, 3-4
JSL sample, 3-5 to 3-6, 4-4 to 4-5
record format, 3-1
sample data block, 3-3
H
HDR1
ANSI, 1-8 to 1-9
OS/360, 2-6 to 2-7
US70, 6-2
HDR2
ANSI, 1-10
OS/360, 2-7 to 2-8
header label group
ANSI, 1-1
US70, 6-1
heading string "H", 11-8
Honeywell 200/2000
carriage control conventions, 10-10 to 10-12
data formats, 10-8 to 10-9
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL INDEX-3
INDEX
JSL sample, 10-23 to 10-26
label 1hdr, 10-3
record formats
fixed, 10-9
variable, 10-8 to 10-9
tape formats, 10-3 to 10-7
Honeywell 600/6000
4 x 3 packed BCD, 10-17 to 10-19
9 x 8 packed ASCII, 10-19 to 10-20
carriage control codes, 10-21 to 10-22
data formats, 10-16 to 10-20
JSL sample, 10-23 to 10-26
labels, 10-14 to 10-16
record formats, 10-16 to 10-17
tape formats, 10-12 to 10-16
Honeywell tapes
COBOL, 10-1
SPR, 10-1
I
IBM1401 emulation control codes, 2-9
1403 emulation control codes, 2-10
carriage control, 1-12
carriage control conventions, 2-9 to 2-10
see also OS/360; DOS/360; and POWER II
IBM OS Writer, see OS Writer
IBM POWER/VS, see POWER/VS
IBM POWER/VSE, see POWER/VSE
ICL 2900 VME/B
carriage control conventions, 16-2 to 16-3
data formats, 16-1 to 16-2
format effectors
embedded, 16-4
normal, 16-3
JSL sample, 16-5
tape formats, 16-1
identification format, GRASP, 3-2
ignore, control character, 10-18, 10-19
interspersed block tapes, GRASP, 3-4
IOCW (Input/Output Control Word), 9-1
J
JDL specifications, 12-2
Job Descriptor Library, see JDL
JSL sample
ANSI, 1-13 to 1-15
Burroughs systems
large, 9-4 to 9-5
medium, 8-5 to 8-6
GRASP, 3-5 to 3-6, 4-4 to 4-5
Honeywell 2000/6000, 10-23 to 10-26
IBM, 2-11 to 2-13
ICL 2900 VME/B, 16-5
NCR, 13-4
OS Writer, 12-5 to 12-7
PDP-11, 15-7 to 15-8
POWER, 3-5 to 3-6, 5-5 to 5-6
POWER II, 4-4 to 4-5
undefined tapes, 14-3 to 14-4
UNIVAC, 6-14 to 6-15, 11-12
Xerox ANSI, 7-6 to 7-7
JSL, Univac guidelines, 11-11
L
label control block, 11-4 to 11-7
labels
ANSI, 1-1 to 1-11
ANSI tape
EOF1, 1-8 to 1-9
EOF2, 1-10
EOF3-9, 1-11
EOV1, 1-8 to 1-9
EOV2, 1-10
HDR1, 1-8 to 1-9
HDR2, 1-10
UTL, 1-11
UVL, 1-11
VOL1, 1-7
Burroughs systems
large, 9-1 to 9-4
medium, 8-2 to 8-3
CP-V, 7-1
FLX, 15-1 to 15-2
Honeywell 600/6000, 10-14 to 10-16
IBM, 2-1 to 2-9
NCR, 13-1
SDF formats, 11-4 to 11-7
undefined, 14-1
US70, 6-1 to 6-10
Xerox ANSI, 7-1 to 7-2
laser safety, iii
line feed, control character, 10-20
line spacing, US70, 6-12 to 6-13
line string "L", Univac, 11-9
line-up records, 3-2
line-up records, Burroughs systems, large, 9-2
M
margin string "M", 11-9
merge processing, 11-10
N
NCR
carriage control conventions, 13-1 to 13-3
function codes, 13-2 to 13-3
JSL sample, 13-4
labels, 13-1
printer control block codes, 13-2 to 13-3
INDEX
INDEX-4 XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL
null files, 1-1
US70, 6-8
null characters, 15-3
O
operating system labels, 1-1 to 1-2
operation safety, iv
OS Writer
banner page format, 12-1
creating
report sample, 12-2 to 12-4
tapes, 12-4
JSL sample, 12-5 to 12-7
PDL commands, 12-2
tape formats, 12-1
VOLUME command, 12-2
OS/360
JSL tape sample, 2-11 to 2-13
labeled tapes, 2-1
labels
EOF1, 2-6 to 2-7
EOF2, 2-7 to 2-8
EOV1, 2-6 to 2-7
EOV2, 2-7 to 2-8
HDR1, 2-6 to 2-7
HDR2, 2-7 to 2-8
UHL, 2-9
VOL1, 2-5
VOL2, 2-5
overprint processing, 11-10
P
page numbering, Univac, 11-8
PDL commands, OS Writer, 12-2
PDP-11
JSL sample, 15-7 to 15-8
POWER
JSL sample, 3-5 to 3-6, 5-5 to 5-6
POWER II
block characteristics, 4-1 to 4-2
JSL sample, 4-4 to 4-5
tape format, 4-1
tape formats, 4-3
POWER/VS
data formats, 5-2
file formats, 5-1
special block, 5-4
tape formats, 5-1
POWER/VSE
data formats, 5-2
file formats, 5-1
tape formats, 5-1
print image control record, 11-8 to 11-9
printer carriage control conventions, see carriage
control conventions
printer carriage control tape, 6-13
printer control block codes, NCR, 13-2 to 13-3
printer control conventions
US70, ?? to 6-13
printer control conventions, US70, 6-11 to ??
publications, other, v to vi
R
RCA Spectra 70 Magnetic Tapes, see US70
record format
Burroughs systems
large, 9-1 to 9-2
medium, 8-1
record formats
fixed
Honeywell 200/2000, 10-9
POWER VS, 5-4
US70, 6-9
variable
Honeywell 200/2000, 10-8 to 10-9
Honeywell 600/6000, 10-16 to 10-17
record formats, GRASP, 3-1
reflective strip, 1-2
report tape format, OS Writer, 12-1
Report Writer feature, 6-10
S
safety
laser, iii
operating, iv
SDF
control record formats, 11-7
formats, 11-4 to 11-7
heading string, 11-8
label control block, 11-7
selective print character, NCR, 13-3
setup string "S", 11-9
size, physical record, 3-2
skip, control character, 10-20
space code, NCR, 13-3
spacing, Univac, 11-10
SPR
1HDR labels
Honeywell 200/2000, 10-6
data format, 10-10
Honeywell tapes, 10-1
labels, Honeywell 200/2000, 10-4 to 10-5
System Print Type, see SPR
T
tab, control character, 10-20
tape configurations
XEROX LASER PRINTING SYSTEMS TAPE FORMATS MANUAL INDEX-5
INDEX
Burroughs systems, medium, 8-3
DOS/360, 2-1
IBM OS/360, 2-1
US70, 6-6 to 6-7
tape marks
doubles, 14-2
US70, 6-8
tapes
alternate devices, 6-9
ANSI labeled, 1-1 to 1-15
formats
DEC PDP-11, 15-1
Honeywell 600/6000, 10-12 to 10-16
ICL 2900, 16-1
GRASP record format, 3-1
report format< OS Writer>, 12-1
structure
ANSI labels, 2-3
IBM OS/360, 2-3
POWER II, 4-1, 4-3
undefined, 14-1 to 14-2
undefined, JSL sample, 14-3 to 14-4
unlabeled
US70, 6-7
trailer banner pages, 12-1
trailer label group, 1-1
U
UHL
ANSI, 1-11
OS/360, 2-9
US70, 6-4
UNIVAC
JSL sample, 6-14 to 6-15
Univac
control records, 11-4 to 11-9
data records, 11-10
JSL sample, 11-12
line string "L", 11-9
margin string "M", 11-9
page numbering, 11-8
SDF
control record format, 11-7
label control block, 11-7
setup string "S", 11-9
SDF tape format, see also SDF
UNIVAC Series 70, see US70
US70
data formats, 6-9 to 6-10
file header label, 6-2 to 6-4
header label group, 6-1
line spacing, 6-12 to 6-13
null file, 6-8
printer control conventions, 6-11 to 6-13
standard labels, 6-1
tape configurations, 6-6 to 6-7
tape marks, 6-8
unlabeled tapes, 6-7
user header label, 6-4
user trailer label, 6-6
UTL, 6-6
volume labels, 6-2
user header label, US70, 6-4
user labels, 1-1 to 1-2
user trailer label, US70, 6-6
UTLtape label, 1-11
US70, 6-6
UVL tape label, 1-11
V
VOL1
ANSI labeled tape, 1-7
OS/360, 2-5
VOL2
OS/360, 2-5
VOLUME command
OS Writer, 12-2
undefined tapes, 14-1
volume labels, US70, 6-2
X
Xerox 9-track tapes, 7-1
Xerox ANSI
carriage control conventions, 7-3 to 7-5
JSL sample, 7-6 to 7-7
Xerox/OSS, FLX format, 15-4
INDEX
