October 27, 2006

Includes:

•

Xerox Nuvera™ 100/120/144 Digital Production System

•

Xerox Nuvera™ 100/120/144 MX Digital Production System

•

Options

o Scanner Module,

o Second Sheet Feeder Module,

o Insertion Module,

o One or 2 Basic Finishing Modules

o Finishing Transport Module

o Inline Finishing options

o Inline DFA Finishing Options

Copyright protection claimed includes all forms and matters of copyrighted material and information now allowed by statutory or judicial law or hereinafter granted, including

without limitation, material generated from the software programs that are displayed on the screen such as styles, templates, icons, screen displays, looks, etc.

XEROX®, The Document Company®, DocuTech®, DocuSP®, FreeFlow™, Xerox Nuvera™, the digitized X, and all Xerox product names and product

numbers mentioned in this publication are trademarks of XEROX CORPORATION. All non-Xerox brands and product names may be trademarks or registered trademarks

of the respective companies, and are hereby acknowledged.

Product appearance, build status and/or specifications are subject to change without notice.

Xerox Nuvera™ 100/120/144 Digital Production System - Customer Expectations Document

- 2 -

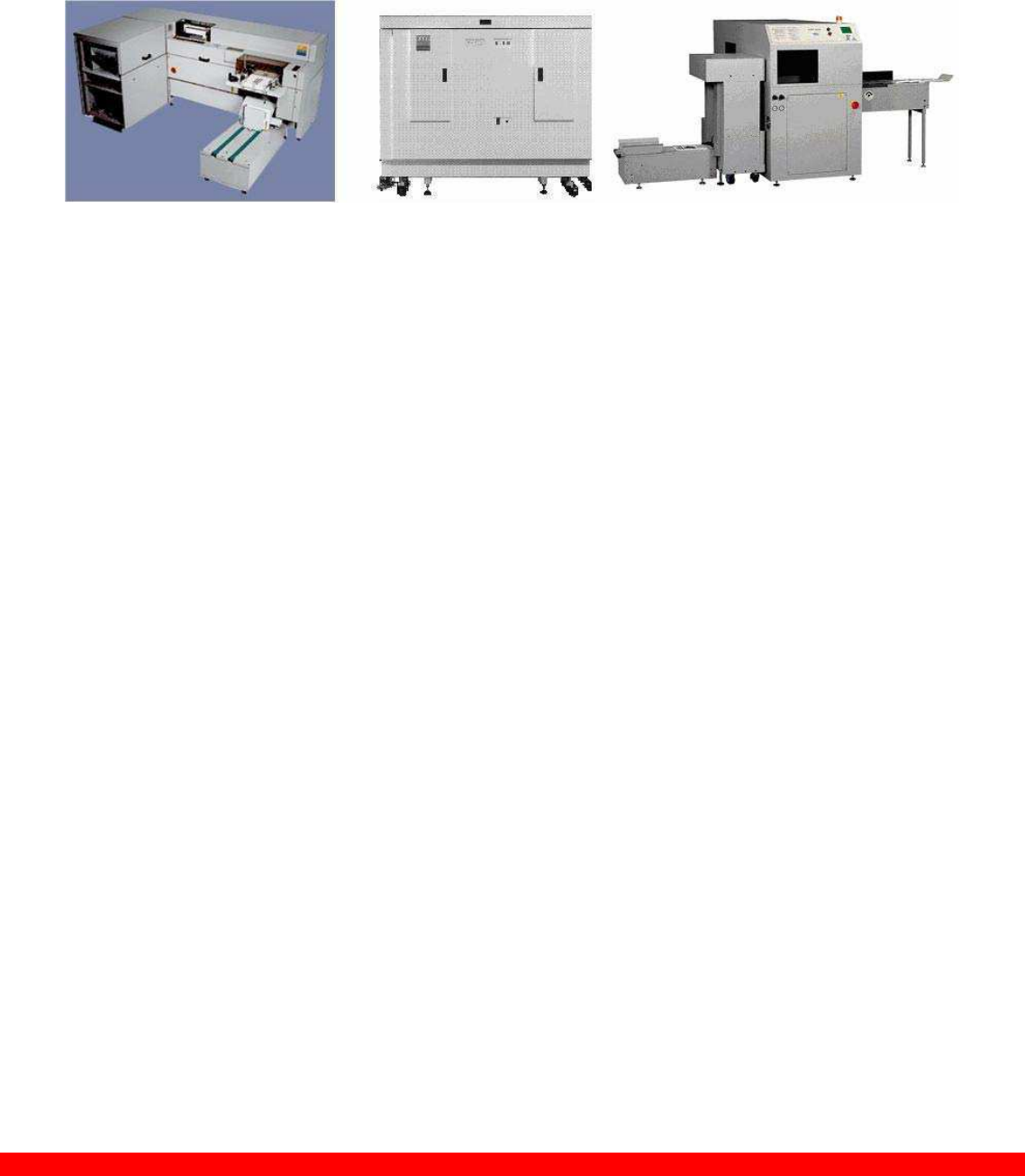

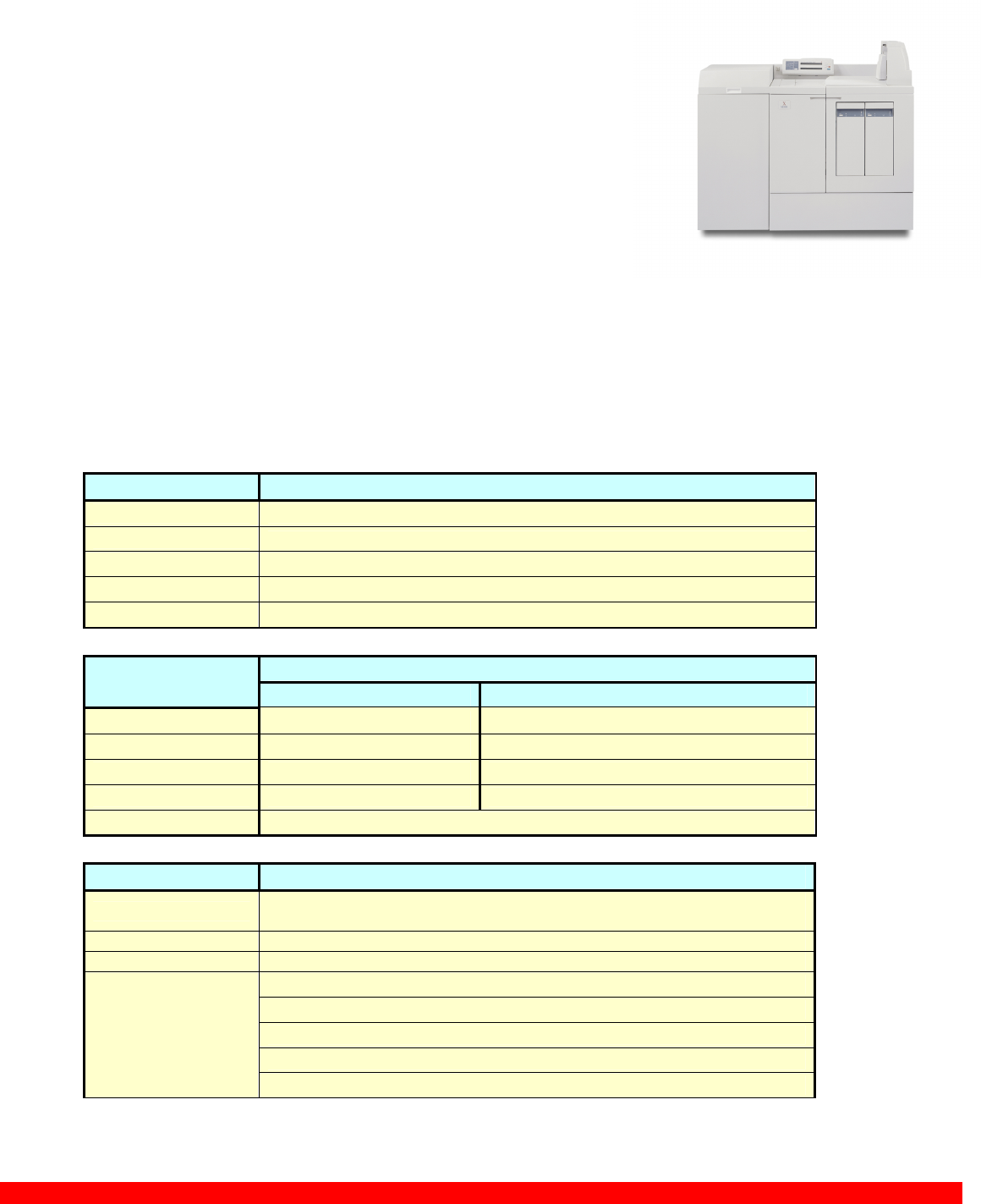

Xerox DS5000

Xerox SquareFold BookletMaker

CP Bourg BDFx BookletMaker w/optional

SquareEdge Module

Xerox DB120-D Document

Binder

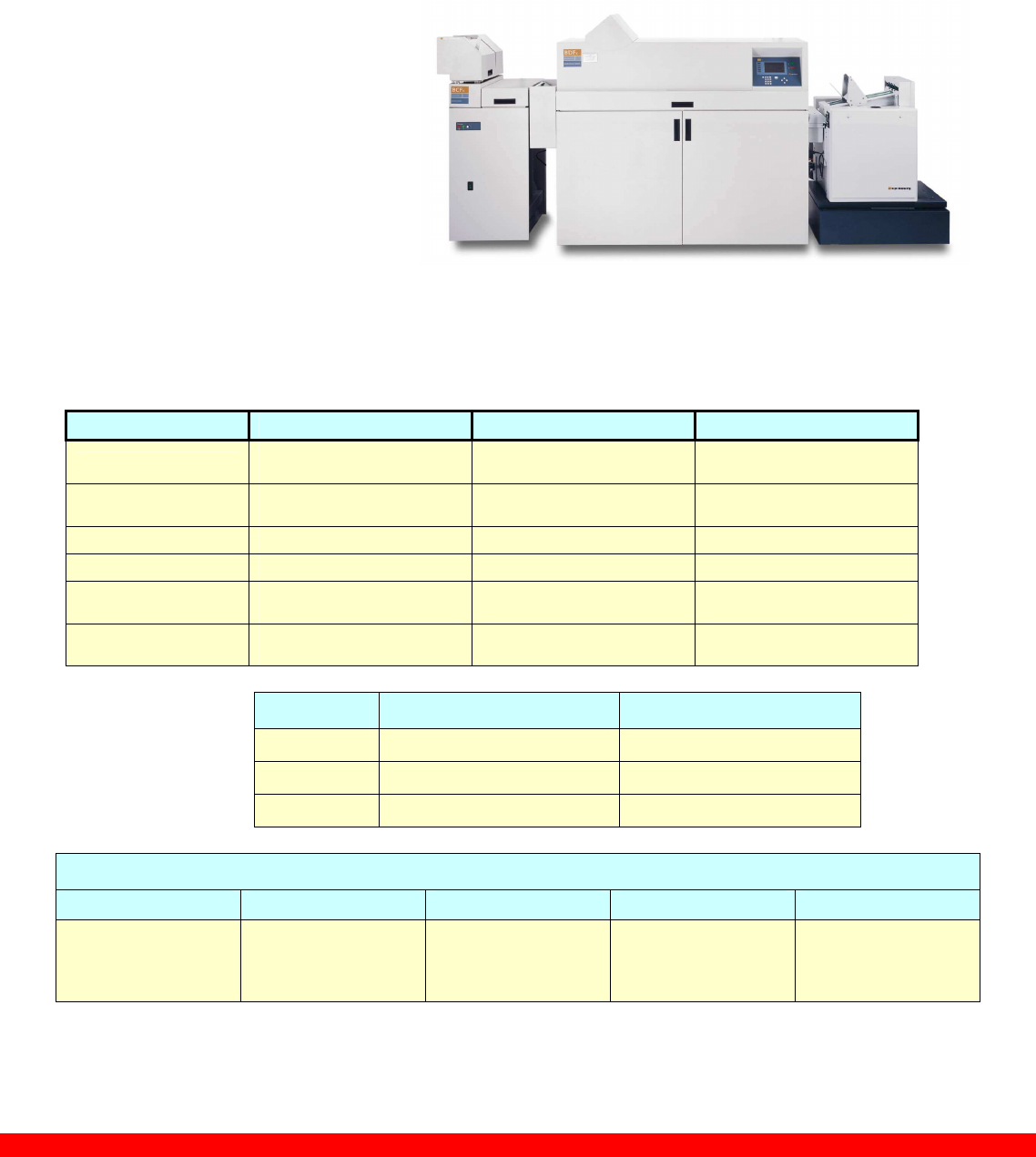

Xerox Manual & Book Factory

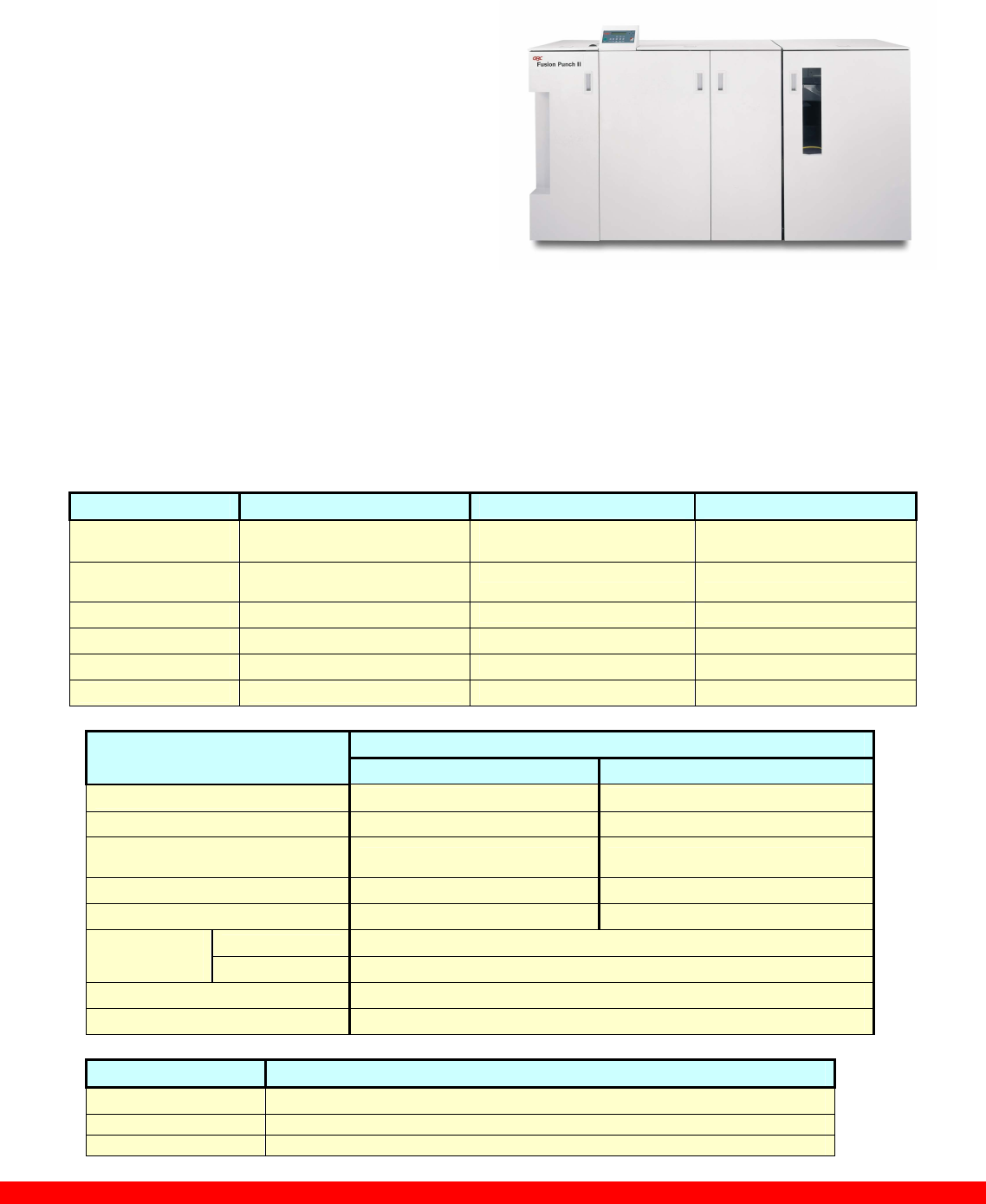

GBC Fusion Punch II

Xerox Nuvera™ 100/120/144 Digital Production System - Customer Expectations Document

- 3 -

Table of Contents

INTRODUCTION .................................................................................................................5

PRODUCT OVERVIEW.......................................................................................................5

CRUCIAL PERFORMANCE EXPECTATIONS...................................................................5

NEW CAPABILITIES WITH XEROX NUVERA™ SYSTEM RELEASE 7.0........................8

OPTIMUM PRODUCT PERFORMANCE ..........................................................................11

ENVIRONMENTAL FACTORS .........................................................................................11

PRODUCT SPACE & POWER REQUIREMENTS ............................................................12

SYSTEM CONFIGURATION AND INSTALLATION .........................................................12

AVAILABILITY ..................................................................................................................14

OPERATIONS...................................................................................................................14

SUPPLIES AND COMPONENT YIELDS ..........................................................................14

XEROX PRODUCTIVITY PLUS (XPP)..............................................................................15

KIT LIMITATIONS .............................................................................................................15

COMPATIBLE MEDIA LIST..............................................................................................16

PRODUCT SPECIFICATIONS OVERVIEW BY SUB-SYSTEM........................................20

FREEFLOW MAKEREADY, WEB SERVICES AND PROCESS MANAGER...................20

VIPP (VARIABLE DATA INTELLIGENT POSTSCRIPT PRINTWARE) ...........................21

NETWORK CONNECTIVITY.............................................................................................22

SCANNER MODULE.........................................................................................................23

DIGITAL FRONT END (DFE) - FREEFLOW™ DOCUSP® ..............................................25

PRINT FROM DIGITAL FILE ............................................................................................27

SCAN TO DIGITAL FILE...................................................................................................27

PRODUCTIVITY IMPACTS...............................................................................................27

LCDS AND IPDS...............................................................................................................28

SHEET FEED MODULES .................................................................................................30

PRINTER MODULE...........................................................................................................32

BASIC FINISHING MODULE (BFM) AND BFM PLUS .....................................................35

SYSTEM PRODUCTIVITY: WITH BASIC FINISHING MODULE .....................................38

FINISHING TRANSPORT MODULE (FTM) ......................................................................39

XEROX DS5000 HIGH CAPACITY STACKER................................................................40

Xerox Nuvera™ 100/120/144 Digital Production System - Customer Expectations Document

- 4 -

C.P. BOURG BDFX BOOKLET MAKER WITH OPTIONAL BCFX COVERS FEEDER AND

SQUAREEDGE MODULE.................................................................................................41

XEROX SQUAREFOLD







BOOKLETMAKER (SQFBM) .................................................43

GBC FUSION PUNCH II WITH OFFSET STACKER ........................................................44

XEROX DB120-D DOCUMENT BINDER ..........................................................................46

XEROX MANUAL AND BOOK FACTORY .......................................................................47

POST-PROCESS USES OF XEROX NUVERA™ 100/120/144 DPS OUTPUT................50

FUTURE FEATURES - XEROX NUVERA™ 100/120/144 DPS........................................50

Xerox Nuvera™ 100/120/144 Digital Production System - Customer Expectations Document

- 5 -

Introduction

The purpose of this document is to help you understand the current features and capabilities of the Xerox

Nuvera™ 100/120/144 Digital Production System (DPS). Review of this material is recommended prior to

your signing an order for a Xerox Nuvera™ 100/120/144 Digital Production System.

This document addresses high-level expectations. Additional details are provided in the training

documentation.

Product Overview

The Xerox Nuvera™ 100/120/144 Digital Production System sets a new benchmark in the world of on-

demand printing. It is a networked printing system comprised of multiple modules. The Xerox FreeFlow™

Document Services Platform (FreeFlow™ DocuSP®) is integrated into the Printer Module. The printer

module may be acquired with simplex, letter size / A4 speeds of 100, 120 or 144 impressions per minute.

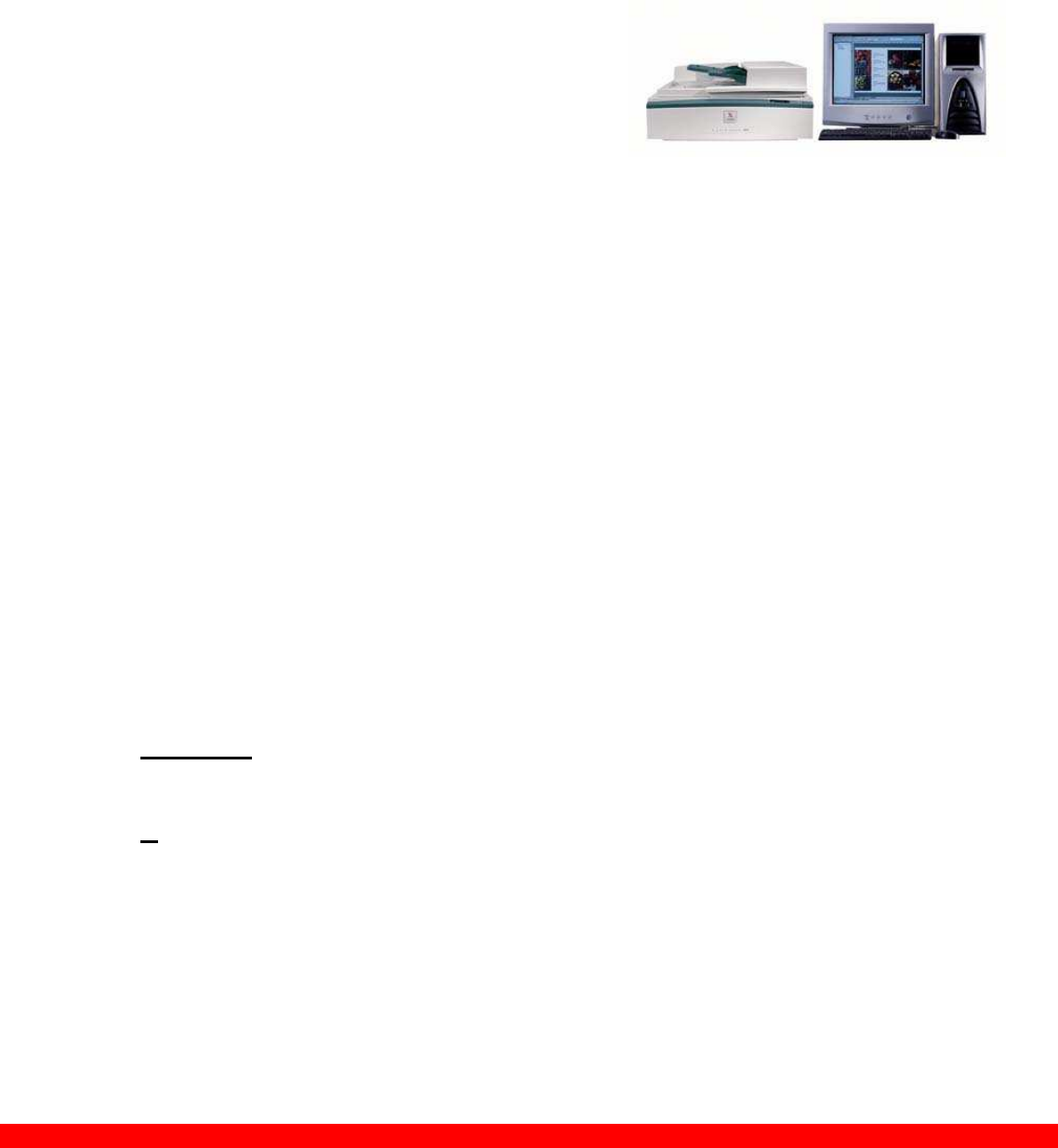

The optional Scanner Module with 300 sheet input tray scans at 120 images per minute, simplex or duplex

at 600 x 600 dpi. Two Sheet Feed Modules (SFM's) are available, one with 4 trays, the other with 2 trays

having more large-format capacity. An SFM may also be installed after the printer module and used as an

inserter. The Xerox Nuvera™ DPS paper latitude includes coated stocks. The Printer module prints at

4800 x 600 dpi utilizing a state of the art dual beam laser raster output scanner (ROS) with dedicated

image processing hardware. The Finishing Transport Module (FTM) provides the capability to interface

with a variety of production inline document finishing architecture (DFA) finishing devices. The Basic

Finishing Module (BFM) stacks and provides stapling in single or dual positions. Up to two BFM modules

(one a BFM Plus) can be used to enable continuous running with unload while run capability. A BFM Plus

module can also be used in tandem with the FTM to enable inline DFA finishing.

Crucial Performance Expectations

The Xerox Nuvera™ 100/120/144 Digital Production System is a “clean-sheet” design utilizing innovative

technologies. It is the new base platform for Xerox monochrome products.

The following expectations should be explicitly set. Please see the appropriate section of this CED for

further detail.

Availability

The Xerox Nuvera™ 100/120/144 Digital Production System will be available on a monthly average 92

– 95%of the time.

•

Availability is defined as all of the time the machine is not being serviced, or waiting for service.

•

Given similar service coverage, DocuTech® / DocuPrint® availability averages up to 95%.

Power Up takes approximately 1 minute longer to complete than in the previous release (about 6½ to 7

minutes total on the current DocuSP® FreeFlow

Controller (x86)).

Media Capability

• The Xerox Nuvera Digital Production system images on a wide range of both coated and uncoated

papers. Results may vary depending on the paper used. We are pleased to consult with you to help

you maximize your objectives.

• Coated papers less than 80 lb text (120 gsm) may experience degraded performance and are not

recommended for high area coverage, for example, greater than 25%.

• Media capabilities vary with finishing options. Please refer to the System Media Capability table in

this document. (p. 8)

• Reinforced stocks should be limited to 90 sheets loaded in a tray at one time

• Jobs must be run with straight (not reverse) collated tabs.

• Envelopes

Xerox Nuvera™ 100/120/144 Digital Production System - Customer Expectations Document

- 6 -

Envelopes should be limited to 60 loaded in a tray at one time. Nuvera feeder trays feed until almost

empty but not until empty, leaving 20~40 sheets remaining. When running envelopes frequent

reloading of the feeder trays will be required.

Very slight wrinkles (1/2 inch long) may occur on the trail edge of envelopes at the corners.

Due to the nature of feeding envelopes with flap open, some mis-stacking may occur in the top tray

as the envelopes catch on the open flaps.

Envelopes can only be sent to the Top Tray.

• DocuCards

DocuCards can only be loaded 100 at a time in a tray. Nuvera feeder trays feed until almost empty

but not until empty, leaving 20~40 sheets remaining. When running DocuCards, frequent reloading

of the feeder trays will be required.

DocuCards can only be run to the Top Tray of the finisher. Some mis-stacking may occur as the

DocuCards catch on the edges of the stacked sheets.

When using DocuCards, it is recommended that you use a Tiltatron (available from CAS).

DocuCards are not supported on the Nuvera MX system.

FreeFlow™DocuSP®

• The Token Ring option is no longer natively supported by DocuSP®. Customers requiring Token

Ring connectivity should acquire a Token Ring to Ethernet bridge for their system.

• The PCI Ultra SCSI SE Host Adaptor kit for the QIC and 4mm tape drives used with previous Xerox

Production Systems including the Xerox Nuvera™ 100 and 120 does not work with the Next

Generation FreeFlow™ DocuSP

Controller now introduced in all Xerox Nuvera™ Production

Systems. A compatible PCI ULTRA SCSI SE Host Adaptor kit for the Next Generation FreeFlow™

DocuSP

Controller is available as an option.

• DFA devices do not support single page offsetting specified within the job or set. Offset at job or set

boundary is supported. Single page job or set will offset.

• There is no floppy drive on Nuvera. Resource loading may be accomplished via the LTO Tape

option, QIC tape or over the network.

• The FreeFlow Print Manager Applet (previously available via clicking on the “Job Submission Applet”

in the Web Browser) is no longer included with the system. Note that the standalone FreeFlow Print

Manger product continues to be available for purchase.

Printer Module

• This is not a print to edge system due to potential image quality defects on the edge of the page.

• Printing on SRA3 can result in inboard and outboard edge image quality defects.

• The Nuvera Digital Production System provides very good support for imaging on pre-printed

materials. However, to obtain best results, please follow the guidelines outlined here:

Design the pre-printed image so that no ink, varnish, or aqueous coating is placed in the area to

be printed on by Nuvera. Toner does not adhere as well to the stock when printing over inks or

varnish. If Nuvera must print over pre-printed ink, results are more likely to be acceptable if the

color is screened back to less than 30%, or an uncoated base stock is used.

Use a laser-compatible printing process for the pre-printed stock. Choose inks, varnishes, and

coatings that are temperature stable and have low levels of petroleum distillates. UV-cured inks

are recommended, to insure complete curing before printing on with Nuvera. Do not use stock

on Nuvera that has been pre-printed on xerographic equipment.

Select base paper stock approved for use on Nuvera (see the Compatible Media List section).

There are other factors that should be taken into account to successfully print on pre-printed stocks.

Refer to the Xerox Nuvera™ DPS Paper Guide, available on Xerox.com, for additional

considerations and performance expectations.

Xerox Nuvera™ 100/120/144 Digital Production System - Customer Expectations Document

- 7 -

• Coated stocks may exhibit issues such as higher jam rates, smearing, loss of halftone image quality,

mottle, light solid areas, and toner scatter.

• Heavier weight stocks (>220 gsm) may experience toner adherence permanence issues depending

on the type of material being used. Please expect degraded performance with parchments, vellums,

and other very smooth or very rough heavy weight stocks. As always, it is important to verify the

application prior to any production run

• Coated stocks should be used in environmental conditions where the ambient temperature is

between 60° and 72°F and the relative humidity is between 20% and 55%

• Images printed on Mylar tabs are typically degraded by toner scatter.

• Approved stocks can be found in the Compatible Media List in this document

• The MICR system, Xerox Nuvera™ MX, does not support printing on DocuCard, DocuClient, Never-

tear, super-gloss, Teslin and transparencies stocks. It also does not support printing on coated (silk

or gloss) stocks above 140 gsm.

• 8½” x 14” paper is loaded short edge feed and runs at 72 pages per minute simplex on 120 and 144

PPM configurations and runs at 60 pages per minute on a 100 PPM configuration. Refer to the

Printer Module Section for a summary of engine speed for various paper sizes.

• Windowed stock is not supported.

• When feeding paper smaller than 8½” (216mm) in the cross process direction, there may be some

degradation of image quality. It is recommended that the customer test their applications for such

cases.

Inserter Module

• LCDS and IPDS applications are currently not able to pull paper stocks from the Insertion Module.

Finishing Devices

Substrates that tend to exhibit curl when being fed through the Xerox Nuvera™ system can cause

functional problems in the finishing devices. It may be necessary to adjust the manual decurler in order

to get the substrate to become flatter, so that the finishing operation can be successfully completed.

The proper decurler setting will vary depending on the substrate and the ambient environmental

conditions. Paper left opened overnight may exacerbate curl.

Finishing Transport Module (

FTM) with Document Finishing Architecture (DFA) finishing

• The DS5000, Bourg BDFx, and Xerox Square Fold Booklet Maker support a specific range of coated

paper; all other supported inline DFA finishing devices do not support coated paper. Refer to

specific solution planning guides for details.

• Paper latitudes are unique for each inline finishing solution.

• The Xerox SquareFold Booklet Maker Covers Insertion Module (CIM) is not supported for the

SquareFold Booklet Maker. As an alternative, the Inserter Module can be used for covers insertion

except when sending LCDS or IPDS jobs. The Bourg BDFx Booklet Maker with the BCFx Covers

Feeder can be used with LCDS or IPDS jobs that require covers.

• Supported Inline DFA Finishing Solutions are compatible with specific Xerox Nuvera configurations.

Consult finisher module details in this document and, for more details, the Solutions Planning

Guideline for the selected DFA Finishing device. The Finishing Solutions Planning Guides can be

accessed by Xerox sales Reps at http://xww.thefic.xerox.com/dsweb/View/Collection-113169.

Basic Finishing Module (BFM) and Basic Finishing Module (BFM Plus)

• The machine may produce curl that will require intervention with the decurler and the paper supply.

Paper handling within the finisher is best if the paper curl is adjusted to be flat or toward the image

direction. See the User Guide: Problem Solving - Paper Curl, Adjust the Decurler.

• The BFM and BFM Plus do not offset paper sizes larger than 11x17" / A3. This means that 12x18,

12x18.5, SRA3 cannot be offset. For these sizes, software ignores any offset programming

selection.

• For reliable stacking, stack size should be limited for certain jobs:

--Stapled sets of 15 sheets or smaller are limited by machine control to 100 sets.

--Stapled sets of coated stocks stack less well, and should be managed to 50 by the operator.

--Stapled sets should be offset stacked.

--The stack height limit can be operator adjusted.

Xerox Nuvera™ 100/120/144 Digital Production System - Customer Expectations Document

- 8 -

• Banner and slip sheets should be greater than or equal to 90 gsm (24 lb bond)

• Slip-sheets must be the same size as the body sheets

• When stapling sets with mixed size stock, the stock must be the same dimension in the Across Feed

direction, and the dimension differences should be within 13mm (½”) in the feed direction.

• Drilled paper must be loaded with the holes leading (e.g. to the left) when using two Basic Finishing

Modules.

FreeFlow

Digital Workflow Collection

•

FreeFlow

Makeready, Web Services and Process Manager, versions 4.0 and higher, provide support for

the Xerox Nuvera™ 100/120 DPS; similarly, versions 5.x provide support for the Xerox Nuvera™ 144 DPS

(compatibility support is provided in versions 4.x). Customers with earlier versions of these applications may

need to upgrade since SPAR support will not be available.

New Capabilities with Xerox Nuvera™ System Release 7.0

• Single and dual BFM, or a single BFM bypass to FTM, on the 144 ppm Nuvera configuration. Use of an

insertion module is also supported in such configurations.

• Basic Finishing Module (BFM, BFM Plus) improvements

o Improved stacking quality for small sets (sets with small number of pages in a set)

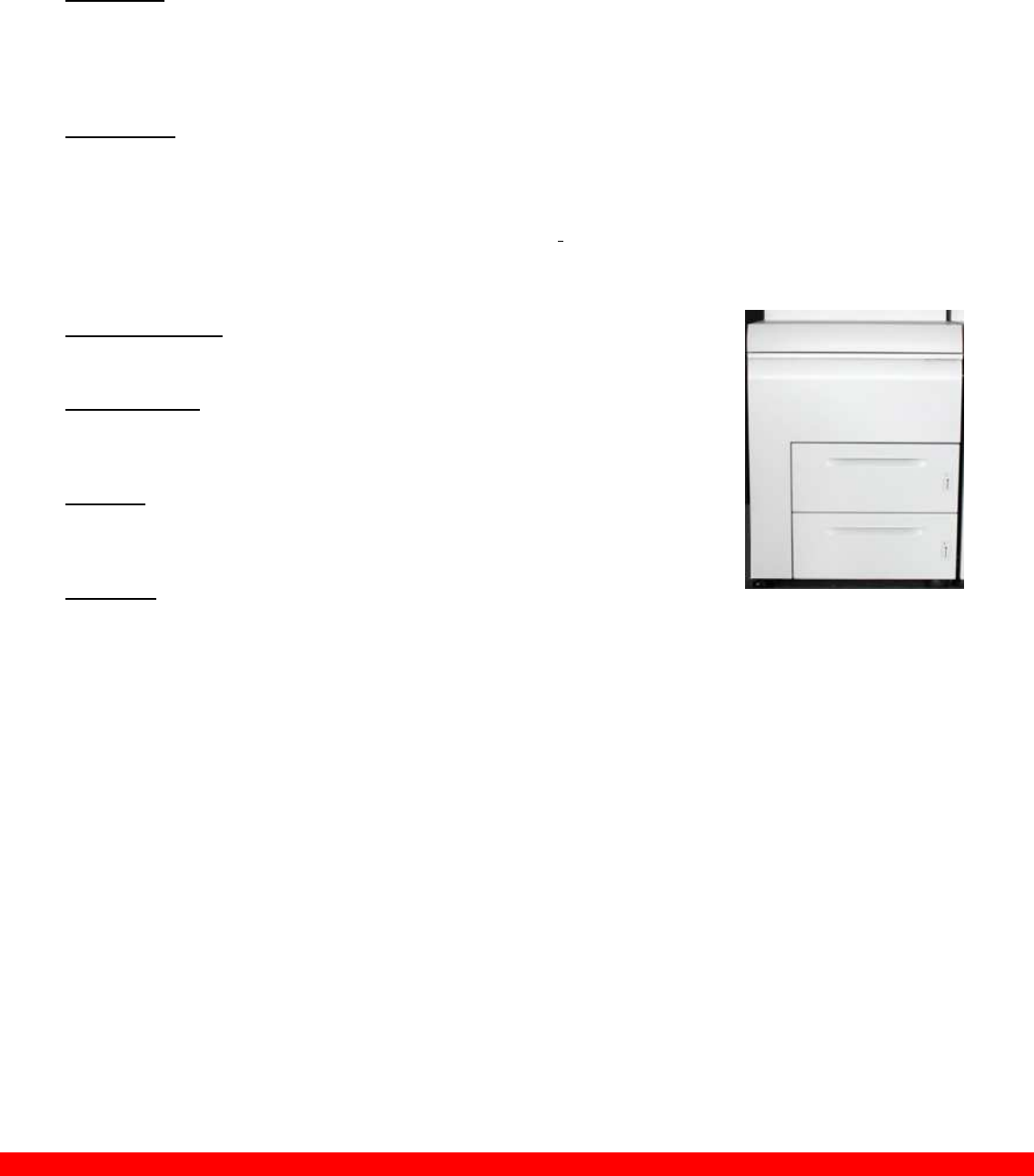

• The Large Format Sheet Feed Module (comes with 2 trays) can now be used as an insertion module.

• Auto Tray Switching enhancement to match legacy DocuTech/DocuPrint behavior, where when a tray goes

empty and a switch occurs, the new tray is fed from until it needs to be re-filled, instead of only until the

previous tray has been refilled.

• Improved compatibility with legacy DocuPrint NPS products

o Emulation of the NPS Duplex activate/deactivate behavior

o The /setpapertray custom NPS operator command is now ignored; thus jobs are no longer

faulted when this command is encountered

o Addition of new 2-sided media attribute setting conflict handling choice of applying side 1

attributes to the side 2 page (existing choices include move side 2 image to next page and apply

side 2 attributes to side 1)

o NPS background forms support enhancements, enabling the choice of using legacy NPS

created forms or DocuSP forms from previous releases. Also included is an NPS form migration

capability.

o Support for resource based scheduling of jobs based on the %%DocumentMedia command,

preventing NPS jobs from running if all specified required media is not present

• LCDS support enhancements

o Inclusion of completion codes on the LCDS accounting sheet

o System Backup and Restore support for tape drives

o Support for LTO-2 tape drives

o DJDE stapling enablement for each individual report within the job

• IPDS support enhancement

o User selection of the half-tone screens available on Nuvera

o Margin settings can be set by media

• PCL support enhancement

o Support for Output Bin Selection command

• Hot Folders -

Provides a general hot folder submission mechanism for data streams (PDF, PS, PCL, TIFF,

VIPP and VIPP Projects are supported), including optional submission of XPIF job tickets.

• Addition of version control to the accounting CSV reports, such that customers can choose which version of

the “Record Layout Definition” (CSV) file format to use when exporting the accounting data

Xerox Nuvera™ 100/120/144 Digital Production System - Customer Expectations Document

- 9 -

System Media Capability– Xerox Nuvera™

With individual Output / Finishing Devices

Dimension Weight Production

System with

various finishing

options

Process

Direction

Cross

Process

Direction

Uncoated stock Coated stock

Basic Finishing

Module (BFM)

7.0 – 18.5 in.

178 – 470 mm

8.0 – 12.0 in.

203 – 305 mm

16 lb. bond – 90 lb. cover

56 – 250 gsm 60 lb text – 90 lb cover

90 – 250 gsm

BFM Top Tray 5.5 – 18.5 in.

140 – 470 mm

6.9 – 12.6 in.

175 – 320 mm

16 lb. bond – 90 lb. cover

56 – 250 gsm 60 lb text – 90 lb cover

90 – 250 gsm

BFM Plus 5.5 – 18.5 in.

140 – 470 mm

8.0 – 12.6 in.

203 – 320 mm

16 lb. bond – 90 lb. cover

56 – 250 gsm 60 lb text – 90 lb cover

90 – 250 gsm

Finishing Transport

Module (FTM)

Top Tray

5.5 – 18.5 in.

140 – 470 mm

8.0 – 12.6 in.

203 – 320 mm

16 lb. bond – 90 lb. cover

56 – 250 gsm 60 lb text – 90 lb cover

90 – 250 gsm

FTM bypass

throughput

without rotation

5.5 – 18.5 in.

140 – 470 mm

8.0 – 12.6 in.

203 – 320 mm

16 lb. bond – 90 lb. cover

56 – 250 gsm 60 lb text – 90 lb cover

90 – 250 gsm

FTM bypass

output

with rotation

10.0 – 12.6 in.

254 – 320 mm

7.0 – 14.3 in.

178 – 363 mm

16 lb. bond – 90 lb. cover

56 – 250 gsm 60 lb text – 90 lb cover

90 – 250 gsm

DS 5000 High

Capacity Stacker 7.0 – 18.5 in.

178 – 470 mm

10.0 – 14.3 in.

254 – 363 mm

16lb bond – 80 lb cover

56 – 220 gsm

80 lb text – 80 lb cover

120 – 220 gsm

CP Bourg BDFx

Booklet Maker

Optional BCFx

Covers Feeder

7.0 – 18.5 in.

178 – 470 mm

10 – 12.6 in.

254 – 320 mm

Body Stock:

16 lb bond – 110 lb index

60 – 200 gsm

Cover Stock:

20 lb. bond – 10 pt cover

80 – 300 gsm

Cover stock from BCFx:

20 lb. bond – 10 pt cover

80 – 300 gsm

Supported per the

specifications included in

the CP Bourg BDFx

Booklet Maker Solutions

planning guide

Xerox

SQUAREFOLD®

Booklet Maker

7.0 – 18.2”

178 – 462 mm

8.0 – 12.6 in.

203 – 320 mm

16 lb bond – 110 lb. index

60 – 200 gsm

Supported per the

specifications included in

the

Xerox

SQUAREFOLD®

Booklet Maker

Solutions

planning guide

GBC Fusion Punch

7.0 – 17.0 in.

178 – 432 mm

10.0 – 11.0 in.

254 – 279 in.

16 lb bond – 90 lb. cover

60 – 200 gsm --

Xerox DB120-D

Document Binder

A4, Letter LEF

210 – 216 mm

A4, Letter LEF

279 – 297 mm

18 lb - 32 lb bond

68 – 120 gsm

(120 gsm should be used only as

cover, dividers and inserts}

Xerox Manual &

Book Factory

BBF2005

No BPRF

With BPRF

5.5 - 12.0 in.

140 – 305 mm

5.5 – 17.0 in.

140 – 432 mm

8.0 – 14.0 in

203 – 356 mm

8.0 – 14.0 in

203 – 356 mm

w/o BPRF (refer to the SPG for

more information)

Book Body:

16 lb – 40 lb bond

60 – 158 gsm

Covers:

30 lb – 90 lb cover

Xerox Nuvera™ 100/120/144 Digital Production System - Customer Expectations Document

- 10 -

Dimension Weight Production

System with

various finishing

options

Process

Direction

Cross

Process

Direction

Uncoated stock Coated stock

BPRF & 18.5 in

fold plate

5.5 – 18.5 in.

140 – 470 mm

8.0 – 14.0 in

203 – 356 mm

63 – 250 gsm

Min. Untrimmed book size:

8.25 x 5.5 in. (210 x 140 mm)

Max. Untrimmed book size:

14.0 x 12.0 in. (356 x 305 mm)

Note. DFA finishing throughput entries assume finisher is immediately downstream from the FTM.

Xerox Nuvera™ 100/120/144 Digital Production System - Customer Expectations Document

- 11 -

System Product Specifications Overview

Optimum Product Performance

Print Volume Range

The Xerox Nuvera™ 100/120/144 Digital Production System is designed for an Average Monthly Print

Volume (AMPV).

System AMPV Conditions

Xerox Nuvera™ 100/120/144

Digital Production System

100K – 1.5M (PS 100/120)

150 K – 2.0M (PS 144)

8.5 in. x 11 in./A4

Maximum Duty Cycle: Up to 3.7 million prints per month with the Xerox Nuvera™ 144.

Duty Cycle is defined as:

The maximum recommended monthly copy / print volume support under standard vendor supplied

service (3 x 7 shift coverage). This defines the upper end of expected customer volume band for the

device.

The Customer should consider higher volume machines or multiple machines if average monthly

volume approaches Duty Cycle on a constant basis.

Prints between service calls on a digital Xerox Nuvera™ DPS are dependent on customer

requirements for volume, applications, and throughput material. Specific customer requirements for

Image Quality may further impact the number of service calls. Xerox Nuvera™ trained operators can

optimize performance output and minimize service calls.

Environmental Factors

Environmental Factor Minimum Maximum

Temperature 50

F (10

(Tested to 60° F (15.6

C))

F (32.2

(Tested to 80° F (26.7

C))

Humidity 15% RH

(Tested to 15%)

85% RH

(Tested to 80%)

Heat Emission (approximate)

(SFM, Print Engine, BFM)

2,470 BTU / HR

(Standby)

18,738 BTU / HR

(Running)

Power Consumption (approximate) 0.723 kw

(Standby)

5.885 kw

(Running)

SFM / PM / BFM 39.2 dBA - Standby 66.1 dBA - Maximum

63.1 dBA - Printing

SFM / PM / FTM 41.5 dBA - Standby 67.5 dBA - Maximum

63.5 dBA - Printing

Noise

(Approximate

sound pressure

level with 9

microphone

average) SFM / PM / FTM / DS5000 54.8 dBA - Standby 69.9 dBA - Maximum

66.2 dBA - Printing

Altitude (above sea level) 0 10,000 ft.

Nominal Voltage (Processor) 200 240

Xerox Nuvera™ 100/120/144 Digital Production System - Customer Expectations Document

- 12 -

Product Space & Power Requirements

Item Xerox Nuvera™ 100/120/144

Digital Production System

Comments

Size – Printer w/

1 SFM & FTM

110” (W) X 29 ” (D) X 46.3 ” (H)

2794 mm x 711.2 mm x 1176 mm

Printer Digital Tower 61.6” (1565 mm) (Height)

DFA finishing devices vary by device*.

Size – Printer w/

1 SFM & BFM

108” (W) X 28 ” (D) X 46.3 ” (H)

2741 mm x 711 mm x 1176 mm

Width of

additional SFM

31.7”, 805mm

Optional

Width of BFM

Plus

48”, 1220mm

Optional, BFM Plus used with BFM (with top

tray) in dual BFM installations.

Service Space 128” (W) x 113” (D)

3251mm x 2870 mm

At least 30” from the wall in rear.

DFA finishing will increase width.

Weight 1545 lb. (701 kg)

Additional SFM – 423 lbs. (192 kg)

With consumables loaded, except media

Power

Requirements

North America

208 Volts / 30 Amp sole use, 60 Hz

Single phase, 3 wire + PE (L1, L2, N,

GND)

• UL & cUL compliant

• Complies with the FEMP (Federal Energy

Management Program) via machine circuit

breaker (CB); with the CB switched off, the

system consumes less than 1 watt.

Power

Requirements

Europe /Japan

200-240 Volts / 25 Amp sole use, 50 Hz

Single phase, 2 wire + PE (L, N, GND)

• Units are compliant with applicable EU

directives and are CE marked

*-Please refer to supported inline DFA finishing devices Solution Planning Guides for Product Space and Power

Requirements.

System Configuration and Installation

Installation Preparation Document

This section should be used in conjunction with the Xerox Nuvera™ 100/120/144 Digital Production

System Installation Planning Guide (IPG), the Xerox Nuvera™ 100/120/144 Digital Production

System Installation Preparation Document (IPD), and the supported inline DFA Finishing Device

Solution Planning Guide, which contain detailed specifications for size, weight, electric, and

environmental conditions. Only the most important requirements are stated here.

Customer Responsibilities

The following must be completed before system delivery and will be assessed in the final site check:

Item Comments

Identify placement of the system

Ensure the printer can be delivered to the

site

Supply the appropriate electrical connections Dedicated power required

Install an exhaust duct to vent hot air to the

air system or the outside if required

Heat vent kit is available. The kit lowers the system’s

output from approximately 18,700 BTU/hour to 8,500

BTU/hr.

Install a network drop for Internet access Automatic upload of data for remote diagnostics

Verify the strength and slope of the floor

Meet room Environmental Specifications for

temperature and relative humidity year round

This is essential to the system’s ability to perform as

expected; Xerox will not be able to resolve

performance problems encountered when the area is

not maintained within this operating range.

Connect system to network including proxy

server information

Xerox Nuvera™ 100/120/144 Digital Production System - Customer Expectations Document

- 13 -

System Installation

Allow up to 9 to 11 hours to complete the system installation. More time may be necessary with some

finishing device configurations.

Xerox Nuvera™ 100/120/144 Digital Production System - Customer Expectations Document

- 14 -

Availability

As with any other printing process, you will not plan production to the raw speed of the printer.

Your Xerox Nuvera™ 100/120/144 Digital Production System will be available to you on a monthly

average 92% to 95% of the time.

•

Availability is defined, as all the time the machine is not being serviced or waiting for service by

Xerox.

•

Given similar service coverage, DocuTech® / DocuPrint® availability averages up to 95%.

Although the service call rate may exceed current DocuTech® products in the same speed range,

overall system availability will become comparable.

Planning for volume requires taking many factors into account in addition to printer availability. These

factors include pre-press workflow efficiency, job type and client expectations, use of qualified stocks,

daily volume and number of jobs, job mix, area coverage, adherence to environmental specifications,

and operator expertise and attention to procedures.

Operations

Item Xerox Nuvera™ 100/120/144

Digital Production System Comment

Power Up 6½ to 7 minutes

If the environment does drift outside the

specified range during the systems powered

down state, some period of image degradation

can be expected at startup.

First Copy Out

Time (FCOT) 7.5 seconds Copy job sent to the top tray; platen scan,

simplex job, 8.5 x 11 LEF fed from tray 1.

First Print Out

Time (FPOT) 9.5 seconds.

Printer should not cycle down as long as it

receives an image to print within 5 seconds of

completing the previous sheet.

Restart Time 5 minutes

Billing Meters Available via the Administration

window.

Vary by operating company / country; ask local

analyst or sales representative to explain your

meter operation.

Automated reading of the billing meter is

available, if Remote Services are enabled.

Print Quality

Adjustments

Automatic, brief pauses for registration or

xerographic process adjustments to

maintain high image quality

Mixed Plex

Printing

Switching between one-sided and two-

sided printing does cause some loss of

productivity. The extent of the loss is

directly related to the frequency of the

switch.

When producing collated sets run 1 to N, the

system already optimizes performance. In

other cases, adding a blank side to the job can

minimize impact, but the sheet is billed.

Supplies and Component Yields

The consumable supplies listed below are engineered specifically for use in the Xerox Nuvera™

100/120/144 Digital Production System and provide the highest and most consistent image quality,

maximum machine productivity, and uptime.

All yield estimates are based on the indicated 6% area coverage at standardized conditions using 8 ½”

x 11” / A4 Xerox 20 lb. bond (75 gsm) stock. Please note that actual yields vary greatly depending on

area coverage, paper stock, and image quality control settings. The current estimates are shown

below.

Xerox Nuvera™ 100/120/144 Digital Production System - Customer Expectations Document

- 15 -

Consumables

Supply Yield Estimates

Toner 110,000 prints/ 10 lb. drum; 2 per system

MICR toner for MX system 90,000 prints/ 11.1 lb drum; 2 per system

BFM 100 Sheet Staple refills

and drivers.

15,000 staples per supply package,

The package contains three 5000 staple refills and 3 drivers

BFM 30 Sheet Staple refills

and drivers

15,000 staples per supply package,

The package contains three 5000 staple refills and 3 drivers

Customer Replaceable Units

CRU Yield Estimates

Waste Toner Bottle 750,000 prints

Waste Developer Bottle 350,000 prints

Disposal Process

All Toner Waste Bottles include a prepaid return shipping label, plastic bag, and tie in the box. This is

the preferred method of disposal.

Empty dry ink containers and waste containers are safe and approved for local recycling with common

commercially used plastics.

More information can be found at www.Xerox.com, under Online Supplies Ordering, Cartridge Recycling

Program.

Xerox Productivity Plus (XPP)

The XPP option provides capability for the advanced customer to carry out certain maintenance activities.

Before this capability can be enabled at a customer location, the customer personnel who will be performing

maintenance need to be trained and certified by Xerox. Training is delivered in two phases. Each phase is one

day of training. Customers may elect to participate only in phase one or in both phases. Phase 1 training

covers use of diagnostic routines, photoreceptor removal and replacement, and power supply filter

replacement. Phase 2 covers fuser and corotrons. A manual and tool kit is provided with the training. Specific

parts will be provided as on-site inventory.

prInteract (formerly Remote Services)

The Xerox Nuvera™ Digital Production System is enabled with Remote Service features, including Automated

Remote Monitoring and On Demand Machine Data Transfer. Remote Services provides the ability for the

Xerox Nuvera™ Digital Production System to securely transport the device’s service and engineering data to a

Xerox support server within Xerox’s firewalled environment. Data is transported through the network using

industry standard 128-bit encryption and Secure Socket Layer (SSL) transport protocols.

Enablement of Remote Data Transfer requires two steps:

• Populating of the customer’s machine serial number into the Xerox server. This occurs at order placement

if the customer selects the CONNECT option.

• Installing the customer’s proxy server or Firewall information address on the machine. (Reference the

System Administration Guide for details.)

To sign up for Meter Assistant, customers or Sales Specialists should visit xerox.com: Customer Resources:

Submit Meter Reads for more information.

Kit Limitations

The Foreign Device Interface (FDI) kit and the Removable Hard drive kit cannot be installed on the same

system.

Xerox Nuvera™ 100/120/144 Digital Production System - Customer Expectations Document

- 16 -

Compatible Media List

The media listed on the following pages have been tested and approved for use in the Xerox Nuvera™

DPS (when using a supported Inline DFA Finishing device, please refer to the individual Inline DFA

Finishing Device Solution Planning Guide for a list of supported media types).

The Xerox Nuvera™ Digital Production system images on a wide range of both coated and uncoated

papers. Results may vary depending on the paper used. We are pleased to consult with you to help

you maximize your objectives.

Coated stocks should be used in environmental conditions where the ambient temperature is between

60° and 72°F and the relative humidity is between 20% and 55%. Coated stocks may exhibit issues

such as higher jam rates, smearing, loss of halftone image quality, mottle, light solid areas, and toner

scatter. Optimized printing may not be possible across the entire weight range of coated papers.

Coated stocks under 120gsm may exhibit degraded performance - avoid any images with greater

than 25% toner area coverage and dark images along the lead edge of sheets; also, machine to

machine variation and tolerance stack ups may result in successful performance on one machine

and not another.

Successful printing on pre-printed stocks is dependent upon many factors. Additional information and

performance expectations are provided in the Xerox Nuvera™ DPS Paper Guide.

The Xerox Supplies Group will be available to test particular media in a customer’s application.

For more information about media, please see the Xerox Nuvera™ Digital Production System Paper

Guide available at www.xerox.com.

For information regarding specific substrates use in the Xerox Nuvera™ DPS, please call Xerox

Supplies at (800) 822-2200.

For More Information and Pricing contact your Xerox Supplies Representative, authorized Xerox merchant, or

visit us on the web at www.xerox.com.

Xerox Nuvera™ 100/120/144 Digital Production System - Customer Expectations Document

- 17 -

Punched Papers

Reorder No. Product Description

3R4904 19-Hole for Binders ≥

≥≥

≥½” (BMP 4200)

3R4905 19-Hole for Binders <½” (BMP 4200)

3R5134 11-Hole (BMP 4200)

3R5818 44-Hole (BMP 4200)

3R12163 2-Hole short edge (BMP 4200)

3R12164 5-Hole short edge (BMP 4200)

3R12165 5-Hole long edge (BMP 4200)

3R4299 3-Hole Ring Tuff (PMP 4024)

Perforated Papers

Reorder No. Product Description

3R4160 0.5” from left 9 x 11 (20# PMP 4024)

3R4175 0.5” from left 8.5 x 11 (20# PMP 4024)

3R4900 3.5” from bottom 8.5 x 11 (24# PMP

4024)

3R4901 3

⁄

⁄⁄

⁄

” from bottom 8.5 x 11 (24# PMP

4024)

3R5125 3.5” from bottom 8.5 x 11 (20# PMP

4024)

3R5126 3

⁄

⁄⁄

⁄

from bottom 8.5 x 11 (24# PMP

4024)

3R12166 5.5” from bottom 8.5 x 11 (20# PMP

4024)

3R5430 Green Check Stock 8.5 x 11 (24# PMP

4024)

3R5431 Blue Check Stock 8.5 x 11 (24# PMP

4024)

Laser/Inkjet Labels

Reorder No. Product Description

3R12050 33-up (label 2.83 x 1.00) 8.5 x 11

3R12051 30-up (label 2.59 x 1.00) 8.5 x 11

3R12052 24-up (label 2.65 x 1.25) 8.5 x 11

3R12053 20-up (label 4.00 x 1.00) 8.5 x 11

3R12055 10-up (label 4.00 x 2.00) 8.5 x 11

3R12056 8-up (label 4.25 x 2.74) 8.5 x 11

3R12057 1-up (label 8.5 x 11) 8.5 x 11

Transparencies

Reorder No. Product Description

3R3108* Removable Stripe

3R6218* 3-Hole Removable Stripe

3R3117* Clear

3R2780* Painted Stripe

3R3028* Paperback

NeverTear Paper

Reorder No. Product Description

3R3109* 8.5 x 11 3-Hole

3R3118* 8.5 x 11

Tabs

Reorder No. Product Description

3R4417 90# white 5-Bank (163 g/m

)

Straight Collated Paper

3R5709 90# clear plastic 5-Bank (163 g/m

)

Straight Collated Plastic

3R12368 60# Xpressions+ white 5-Bank (163

g/m

)

Straight Collated Paper

High Speed Labels

Reorder No. Product Description

3R4476 1-up (label 8.5 x 11) 8.5 x 11

3R3146 6-up (label 4.25 x 3.66) 8.5 x 11

3R4475 8-up (label 4.25 x 2.74) 8.5 x 11

3R5719 14-up (label 4.25 x 1.59) 8.5 x 11

3R4474 24-up (label 2.83 x 1.31) 8.5 x 11

3R3139 33-up (label 2.83 x 1.00) 8.5 x 11

DuraPaper

Reorder No. Product Description

3R12063* 11 x 17

3R12064* 8.5 x 11

3R12065* 8.5 x 11 3-Hole

Document Folders

Reorder No. Product Description

3R4885 90# Docupac

3R5105 65# Laser Docupac

Xerox Nuvera™ 100/120/144

Digital Production Systems

Xerox Paper and Specialty

Media Products

Compatibility Matrix

Note:

* - Items (Reorder Nos.) marked with an *

are not compatible with the Nuvera MX

(MICR) products

Xerox Nuvera™ 100/120/144 Digital Production System - Customer Expectations Document

- 18 -

Color Xpressions+ (98 Bright)

Reorder No. Product Description

3R11540 24# (90 g/m

) 8.5 x 11

3R11541 24# (90 g/m

) 8.5 x 11 3-Hole

3R11542 24# (90 g/m

) 8.5 x 14

3R11543 24# (90 g/m2) 17 x 11 SG

3R11545 28# (105 g/m

) 8.5 x 11

3R11546 28# (105 g/m

) 8.5 x 11 3-Hole

3R11549 28# (105 g/m

) 17 x 11 SG

3R11548 28# (105 g/m

) 18 x 12 SG

3R11550 32# (120 g/m

) 8.5 x 11

3R11551 32# (120 g/m

) 17 x 11 SG

3R11552 32# (120 g/m

) 18 x 12 SG

3R11553 60# Cover (163 g/m

) 8.5 x 11

3R11554 60# Cover (163 g/m

) 17 x 11 SG

3R11555 60# Cover (163 g/m

) 18 x 12 SG

3R11556 80# Cover (216 g/m

) 8.5 x 11

3R11557 80# Cover (216 g/m

) 17 x 11 SG

3R11558 80# Cover (216 g/m

) 18 x 12 SG

Digital Color Elite Gloss C2S

Product Description

3R11450 80# Text (120 g/m

) 8.5 X 11

3R11451 80# Text (120 g/m

) 17 X 11 SG

3R11452 80# Text (120 g/m

) 18 X 12 SG

3R11454 100# Text (140 g/m

) 8.5 X 11

3R11455 100# Text (140 g/m

) 17 X 11 SG

3R11456 100# Text (140 g/m

) 18 X 12 SG

3R11458* 80# Cover (210 g/m

) 8.5 X 11

3R11459* 80# Cover (210 g/m

) 17 X 11 SG

3R11460* 80# Cover (210 g/m

) 18 X 12 SG

Digital Color Select Gloss C2S

Reorder No. Product Description

3R11503* 80# Text (120 g/m

) 17 X 11 SG

3R11504* 80# Text (120 g/m

) 18 X 12 SG

3R11506* 80# Cover (210 g/m

) 17 X 11 SG

3R11507* 80# Cover (210 g/m

) 18 X 12 SG

Digital Color Supreme Gloss C1S

Reorder No. Product Description

3R11430* 8 Point (160 g/m

) 8.5 x 11

3R11431* 8 Point (160 g/m

) 17 x 11 SG

3R11432* 8 Point (160 g/m

) 18 x 12 SG

3R11434* 10 Point (210 g/m

) 8.5 x 11

3R11435* 10 Point (210 g/m

) 17 x 11 SG

3R11436* 10 Point (210 g/m

) 18 x 12 SG

Graphic Xpressions (98 Bright)

Reorder No. Product Description

3R11152 24# (90 g/m

) 8.5 x 11

3R11153 24# (90 g/m

) 8.5 x 11 3-Hole

3R11154 24# (90 g/m2) 17 x 11 SG

3R5529 28# (105 g/m

) 8.5 x 11

3R5530 28# (105 g/m

) 17 x 11 SG

3R5531 28# (105 g/m

) 18 x 12 SG

3R5533 65# Cover (176 g/m

) 8.5 x 11

3R5534 65# Cover (176 g/m

) 17 x 11 SG

3R5535 65# Cover (176 g/m

) 18 x 12 SG

3R5537 80# Cover (216 g/m

) 8.5 x 11

3R5538 80# Cover (216 g/m

) 17 x 11 SG

3R5539 80# Cover (216 g/m

) 18 x 12 SG

3R11164 28# (105 g/m

) 8.5 x 11 Cream White

3R11165 28# (105 g/m

) 8.5 x 11 Warm White

3R11168 28# (105 g/m

) 17 x 11 SG Cream

White

3R11169 28# (105 g/m

) 17 x 11 SG Warm

White

3R11172 28# (105 g/m

) 18 x 12 SG Cream

White

3R11173 28# (105 g/m

) 18 x 12 SG Warm

White

3R11176 80# Cover (216 g/m

) 8.5 x 11 Cream

White

3R11177 80# Cover (216 g/m

) 8.5 x 11 Warm

White

3R11180 80# Cover (216 g/m

) 17 x 11 SG

Cream White

3R11181 80# Cover (216 g/m

) 17 x 11 SG

Warm White

3R11184 80# Cover (216 g/m

) 18 x 12 SG

Cream White

3R11185 80# Cover (216 g/m

) 18 x 12 SG

Warm White

Digital Color Elite Silk C2S

Reorder No. Product Description

3R11470 80# Text (120 g/m

) 8.5 X 11

3R11471 80# Text (120 g/m

) 17 X 11 SG

3R11472 80# Text (120 g/m

) 18 X 12 SG

3R11474 100# Text (140 g/m

) 8.5 X 11

3R11475 100# Text (140 g/m

) 17 X 11 SG

3R11476 100# Text (140 g/m

) 18 X 12 SG

3R11478* 80# Cover (210 g/m

) 8.5 X 11

3R11479* 80# Cover (210 g/m

) 17 X 11 SG

3R11480* 80# Cover (210 g/m

) 18 X 12 SG

Xerox Nuvera™ 100/120/144 Digital Production System - Customer Expectations Document

- 19 -

Business 4200 Paper (92 Bright)

Reorder No. Product Description

3R2047 20# (75 g/m

) 8.5 x 11

3R2641 20# (75 g/m

) 8.5 x 11 3-Hole

3R2051 20# (75 g/m

) 8.5 x 14

3R3761 20# (75 g/m

) 11 x 17

3R2531 24# (90 g/m

) 8.5 x 11

3R3317 24# (90 g/m

) 8.5 x 11 3-Hole

3R3871 24# (90 g/m

) 11 x 17

3R2353 28# (105 g/m

) 8.5 x 11

3R3873 28# (105 g/m

) 11 x 17

3R3041 65# Cover (176 g/m

) 8.5 x 11

3R3004 90# Index (163 g/m

) 8.5 x 11

3R5102 90# Index (163 g/m

) 11 x 17

3R6383 110# Index (203 g/m2) 8.5 x 11

Business Recycled Paper

(30% PCW, 92 Bright)

Reorder No. Product Description

3R6296 20# (75 g/m

) 8.5 x 11

3R6297 20# (75 g/m

) 8.5 x 11 3-Hole

3R6298 20# (75 g/m

) 8.5 x 14

3R6299 20# (75 g/m

) 11 x 17

Digital Color Parchments

Reorder No. Product Description

3R11244 24# (90 g/m

) 8.5 x 11 White

3R11245 24# (90 g/m

) 8.5 x 11 Gold

Carbonless Papers **

Reorder No. Product Description

3R12374 11”, 2 part straight/reverse, w/c

3R12375 11”, 2 part, straight/reverse, w/p

3R12377 14”, 2 part, straight/reverse, w/c

3R12378 17”, 2 part, straight/reverse, w/c

3R12379 11”, 3 part, reverse, p/c/w

3R12380 11”, 3 part, straight, w/c/p

3R12382 14”, 3 part, straight w/c/p

3R12383 17”, 3 part, straight w/c/p

3R12387 9” x 11”, vert Perf 3 part, straight

w/c/p

3R12388 8.5” x 11”, vert Perf 3 part, straight

w/c/p

3R12384 11”, 4 part, reverse, g/c/p/w

3R12385 11”, 4 part, straight, w/c/p/g

3R12386 14”, 4 part, straight, w/c/p/g

**Basic Finisher Module and BFM Plus: use

Reverse Collated Carbonless.

DS 5000 Finisher: use Straight Collated

Carbonless.

Digital Laser Opaque Paper

Reorder No. Product Description

3R5670 18# (67.5 g/m

) 8.5 x 11 White

3R5672 18# (67.5 g/m

) 17 x 11 SG White

3R5664 20# (75 g/m

) 8.5 x 11 White

3R5666 20# (75 g/m

) 17 x 11 SG White

3R5675 20# (75 g/m

) 8.5 x 11 Natural

3R5667 24# (90 g/m

) 8.5 x 11 White

3R5669 24# (90 g/m

) 17 x 11 SG White

3R6279 24# (90 g/m

) 8.5 x 11 Natural

3R5725 28# (105 g/m

) 8.5 x 11 White

3R5673 65# Cover (176 g/m

) 8.5 x 11 White

3R5674 65# Cover (176 g/m

) 17 x 11 SG White

Multipurpose Pastel Colors

20# (75 g/m

)

8.5 x 11 11" 3-

HD 8.5 x 14 11 x 17

Blue 3R11050 3R11062 3R11074 3R11086

Green 3R11051 3R11063 3R11075 3R11087

Pink 3R11052 3R11064 3R11076 3R11088

Yellow 3R11053 3R11065 3R11077 3R11089

Buff 3R11054 3R11066 3R11078 3R11094

Goldenrod 3R11055 3R11067 3R11079 3R11093

Ivory 3R11056 3R11068 3R11080 3R11090

Gray 3R11057 3R11069 3R11081 3R11091

Salmon 3R11058 N/A 3R11084 N/A

Tan 3R11061 N/A 3R11085 N/A

Lilac 3R11059 3R11070 3R11082 3R11092

Cherry 3R11060 N/A 3R11083 N/A

Rainbow 3R11100 N/A N/A N/A

90# Index (163 g/m

) 8.5 x 11

Blue Yellow Green Gray Ivory

3R5294 3R5295 3R5296 3R5297 3R5298

65# Cover (176 g/m

) 8.5 x 11

Blue Yellow Green Gray Ivory

3R5301 3R5302 3R5303 3R5304 3R5305

Multipurpose Solar Flares

24# (90 g/m

)

90# (163 g/m

) Index

Super Nova Blue 3R6389 3R6399

Galactic Green 3R6390 3R6400

Sunset Pink 3R6388 3R6398

Sunflare Yellow 3R6391 3R6401

Fireball Red 3R6392 3R6402

Gamma Green 3R6396 3R6406

Cosmic Orange 3R6397 3R6407

Rainbow 3R6393 3R6403

Xerox Nuvera™ 100/120/144 Digital Production System - Customer Expectations Document

- 20 -

Product Specifications Overview by Sub-System

The following sections give more detailed descriptions of the capabilities and limitations of each of the

major system components.

FreeFlow Makeready, Web Services

and Process Manager

Version 5.0 of FreeFlow Makeready, Web Services and

Process Manager is available and provides support for

Xerox Nuvera™ 100/120/144 Digital Production System

image quality and job ticketing, as well as IQI (Image Quality Interoperability).

Customers with earlier versions of these FreeFlow applications may need to upgrade since SPAR

support will not be available.

Early versions of DigiPath (4.0 or below) have not and will not be changed to support the Xerox

Nuvera™ 100/120 Digital Production System as a “targeted device.” Similarly, DigiPath version 4.1 or

FreeFlow versions prior to 5.0 will not be changed to support the Nuvera 144 Digital Production system

as a “targeted device”.

DigiPath customers with software releases prior to 4.1 may be provided a “best case” print path utilizing

an existing supported printer to optimize image quality.

• When scanning with the “Document Scan and Makeready” application, best Image Quality results

will be achieved using “Generic Write White” when submitting from DigiPath.

• When scanning with the “Scan and Print” application, best Image Quality results will be achieved

using “DT75/90” when submitting from DigiPath.

• When Image Quality is not a primary concern, select the DT6180 printer when submitting a job for

the most comprehensive set of Job Ticket Attributes.

Jobs sent from these DigiPath units will have to be held and re-programmed to ensure correct job

attributes.

Solutions Validation

The following software applications have been validated for the Xerox Nuvera™ DPS with previous

system releases.

Connectivity

• BARR Spool

• LRS VPS/TCP/IP

• Elixir Vitesse (VIPP)

• eXstream Dialogue (VIPP & LCDS/Metacode)

• Lytrod Proform Designer (VIPP)

• Atlas PrintShop Mail (VIPP)

• Banta DesignMerge (VIPP)

• Group1 DOC1 (VIPP & Metacode)

• Printable Technologies Datalogics (VIPP)

• Pageflex Persona (VIPP)

• XMPie PersonalEffect Configuration & Workflow (VIPP)

Xerox Nuvera™ 100/120/144 Digital Production System - Customer Expectations Document

- 21 -

• Press-sense iWay Product Suite VIPP Emitter Module (VIPP)

LCDS

• Elixir DesignPro Tools (LCDS/Metacode Resources)

• RSA EPS Pro

PDF

• Xerox PDF Color Splitter (Prior users of Colorsplitter who upgrade to 5.0 or above will need a new

dot version of Colorsplitter)

MX (MICR) System

• ACOM EZPay Manager

Labels

• Xpert Image Xpert Label

VIPP (Variable Data Intelligent PostScript Printware)

FreeFlow Variable Information (VI) Suite

The FreeFlow VI Software Suite provides a variable data software suite with focus on VIPP (Variable data

Intelligent Postscript Printware) - a Xerox technology building on the power of postscript with the goal of a

powerful Variable Data solution that can make document creation as simple as just sending the data. Print

shop operators and supervisors can also easily print variable data applications in electronic format, as PDF

files, with the VI PDF Originator.

Print Speed/System Performance

In general, the Xerox Nuvera™ 100/120/144 is capable of efficiently handling variable data jobs. The total time

consumed to print a variable data job will vary as a function of variable coverage and element demographics

(size and percentage of variable text vs. images/graphics).

Overall, system performance (click-to-clunk) is dependent upon many factors, including the variable data

application and workflow, network environment, image quality settings, and RIP and print rates. Under certain

circumstances, use of large, high-resolution images printed page-to-page in variable data applications will

degrade RIP performance, in some cases to a degree which may affect system throughput.

Variable Information Software Limitations

Note: The following limitations are specific to variable information, which may not be inclusive of the entire

system independent of whether a job includes variable data.

FreeFlow VI Interpreter

Adobe Portable Document Format (PDF)

PDF cannot be used as a direct input resource for the VI Interpreter. Direct printing of PDF files within

a VIPP workflow is not supported. PDF files can be converted to PostScript (using an Adobe compliant

driver) and the VIPP Resource Converter or other third party PDF to PostScript converter. PostScript

is an input resource supported by the VI Interpreter.

The VI PDF Originator component of the VI Suite can output intelligent, interactive PDF files directly

from a VIPP data file. For more information on the capabilities of the VI PDF Originator, contact your

Xerox representative.

Support for VIPP may also be obtained by contacting the Variable Information and Solutions Services

Group (VISSG). Customers may call (888) 550-6336.

Xerox Nuvera™ 100/120/144 Digital Production System - Customer Expectations Document

- 22 -

FreeFlow Print Manager / IPP

The XDS software has been discontinued. A replacement is FreeFlow Print Manager (FFPM), which is a separate,

standalone product available for purchase.

Network Connectivity

The Xerox Nuvera™ 100/120/144 Digital Production System supports industry standard network

protocols and Page Description Languages (PDL).

Item Xerox Nuvera™ 100/120/

144

Digital Production System

Comments

Connections • Ethernet Interface (10/100 baseT,

1Gb)

• S/370 or S/380 Bus and Tag

− Licensed option

− Optional connection

− Token Ring is not natively supported and requires a bridge

box

Network

Protocols

• TCP/IP

• LPR

• IPP

• HTTP

• Novell (SPX, IPX)

• AppleTalk

• SNMP

− Protocols available with Ethernet license

Scan to

Network Save

Protocols

• SMB

• FTP

• Secure FTP

• NFS

−

PDL's • Adobe PostScript Level 3

• Adobe PDF

• PCL 5e & PCL6

• TIFF

• Multi-Page TIFF

• PPML

• LCDS/Metacode

• IPDS

• ASCII

− PCL is bundled with the Network licenses in order to support

ASCII printing

Document

Submission

• Microsoft Windows 95,98,ME, NT4.0,

2000, XP Printer Drivers

• Apple Macintosh OS8, OS9, OSX

Printer Drivers

Sun Microsystems Solaris 2.6, 7.x,

8.x , 9.0 , 10

• Linux 2.x

• Xerox FreeFlow™ Print Manager for

direct PDL submission from clients

• Xerox Web User Interface

− Windows 95, 98, and ME are supported via PPD only.

− WHQL (Windows Hardware Quality Lab) certified for the

PostScript and PCL 6 drivers.

− Drivers are available for download from the Xerox.com web

site

− Mac OS X Classic Mode supports the drivers and

FreeFlow™ Print Manager.

− Mac OS X version 10.2.6 and above will support FreeFlow™

Print Manager

− Mac OS X version 10.3 and up will support drivers natively in

a future software release.

− PPD files and FreeFlow™ Print Manager for Solaris and

Linux use

Xerox Nuvera™ 100/120/144 Digital Production System - Customer Expectations Document

- 23 -

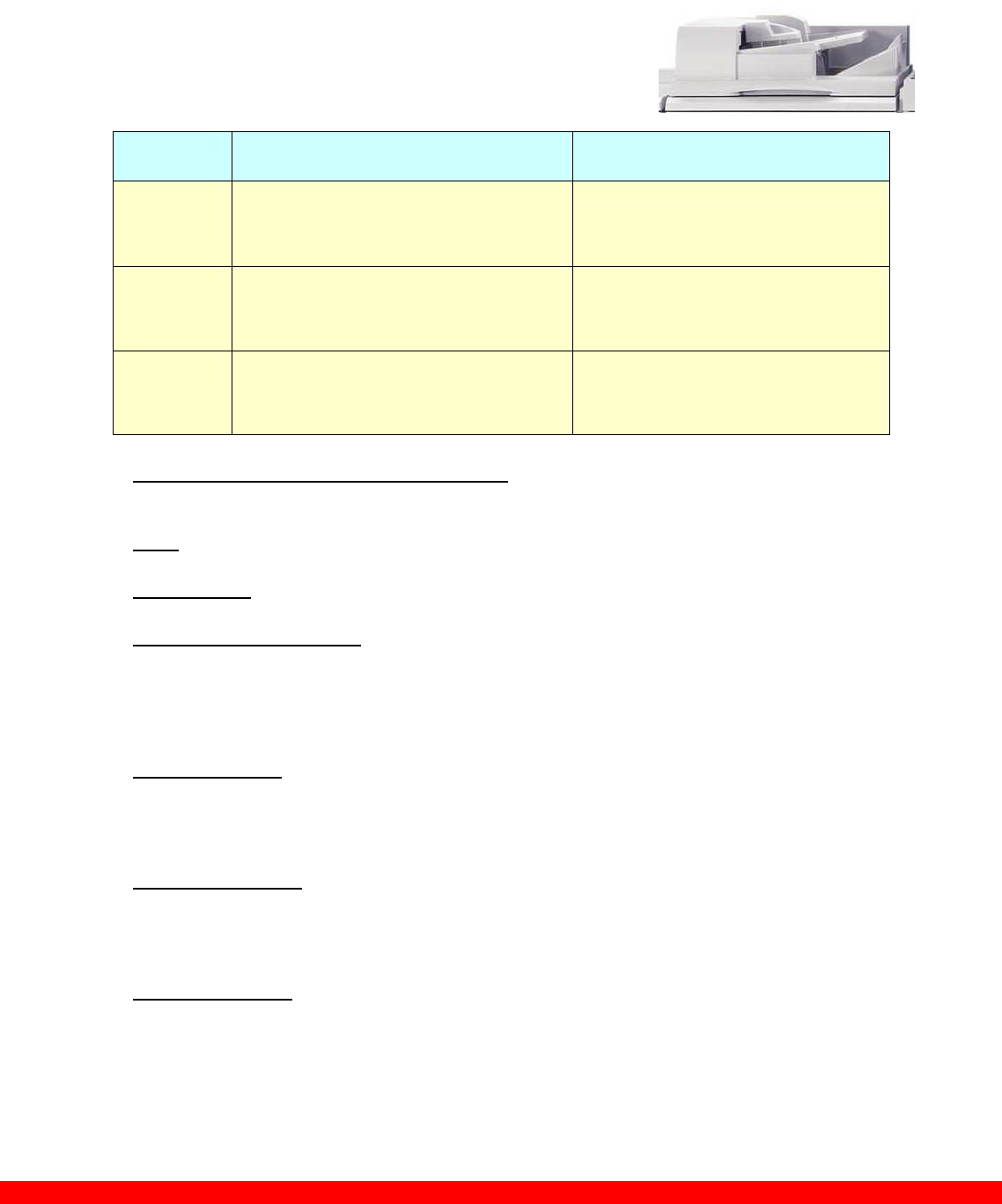

Scanner Module

The optional integrated scanner with document handler utilizes a

Xerox patented Dual scan head array.

Item Xerox Nuvera™ 100/120/144 Digital

Production System

Comments

Automatic

Document

Feeder (ADF)

• 300 sheet capacity (20 lb. bond, 75 gsm)

• 5.5” x 8.5” to 11” x 17” sheets

(140 x 216 to 279.4 mm x 432m m)

• 13 lb. bond to 113 lb. index (49 to 220 gsm)

Scan Speed • 120 images per minute one sided 8.5” x 11”/A4

120 sheets per minute

• 120 images per minute two sided 8.5” x 11”/A4

60 sheets per minute

Scan

Resolution

• 600 x 600 dpi

• 8-bit Gray (256 shades)

− Copy jobs are saved at 1200 x 600 dpi,

1-bit depth

− Copy jobs are not intended for output to

other printers

Maximum Paper Size & Maximum Image Size

The maximum paper size that can be placed on the platen is 12.6” x 18.5” / 320mm x 470mm. The

maximum image size, however, is 12.0” x 18.0” / 305mm x 457mm.

Color

This is not a color scanner.

Scan-to-Email

There is no “scan-to-email” feature for this product.

Input Document substrates

Document substrates that are not recommend for use in the SDDF include envelopes, metallic cover

stock, transparencies, label stock, silver photographic paper, tab stock, Never Tear (or other

manufacturers’ equivalent), and those substrates whose intrinsic characteristics limit or prevent the

separation of documents with friction-retard feeding mechanisms without causing mis-feeds, multi-

feeds, jams or document damage.

Carbonless paper

Carbonless paper passed through the document feeder may be subject to marking in areas where the

document feeder’s paper handling elements come in contact with the carbonless stock due to the

“marking characteristics” of this stock. In extreme cases, this unintended marking could obscure

information from the page being reproduced.

Hole punched paper

The SDDF may not reliably feed GBC and similar type documents without damage to the original and

without geometric errors (skew or mis-registration). The workaround for GBC, spiral-bound and

similarly punched papers is to rotate the documents to feed the unbound edge first, and then rotate the

image.

File Size Limitation

Files saved as Multi-page TIFF are limited to 2GB in size. This limit may be reached after a few

hundred images if the scanned originals contain many images and are scanned at 1200 x 1200

resolution.

Xerox Nuvera™ 100/120/144 Digital Production System - Customer Expectations Document

- 24 -

Scan to Digital

The system is capable of scanning to the hard drive, a NFS mounted drive, any network drive or

desktop, or the CD-RW drive. The following resolutions are supported.

Exported

Resolution

Halftone Screen Frequency

(Photo Mode) Purpose

1200 x 1200 x 1 125 lpi @ 53°, 106 lpi @ 45°, 85 lpi @ 45° Xerox Nuvera™ 100/120/144 remote

printing

1200 x 600 x 1 125 lpi @ 53°, 106 lpi @ 45°, 85 lpi @ 45° Saving Copy jobs

600 x 600 x 1 125 lpi @ 53°, 106 lpi @ 45°, 85 lpi @ 45° DocuTech® 61XX printing

400 x 400 x 1 125 lpi @ 53°, 106 lpi @ 45°, 85 lpi @ 45° Good for some Fax applications

300 x 300 x1 125 lpi @ 53°, 106 lpi @ 45°, 85 lpi @ 45° Minimal file size

Xerox Nuvera™ 100/120/144 Digital Production System - Customer Expectations Document

- 25 -

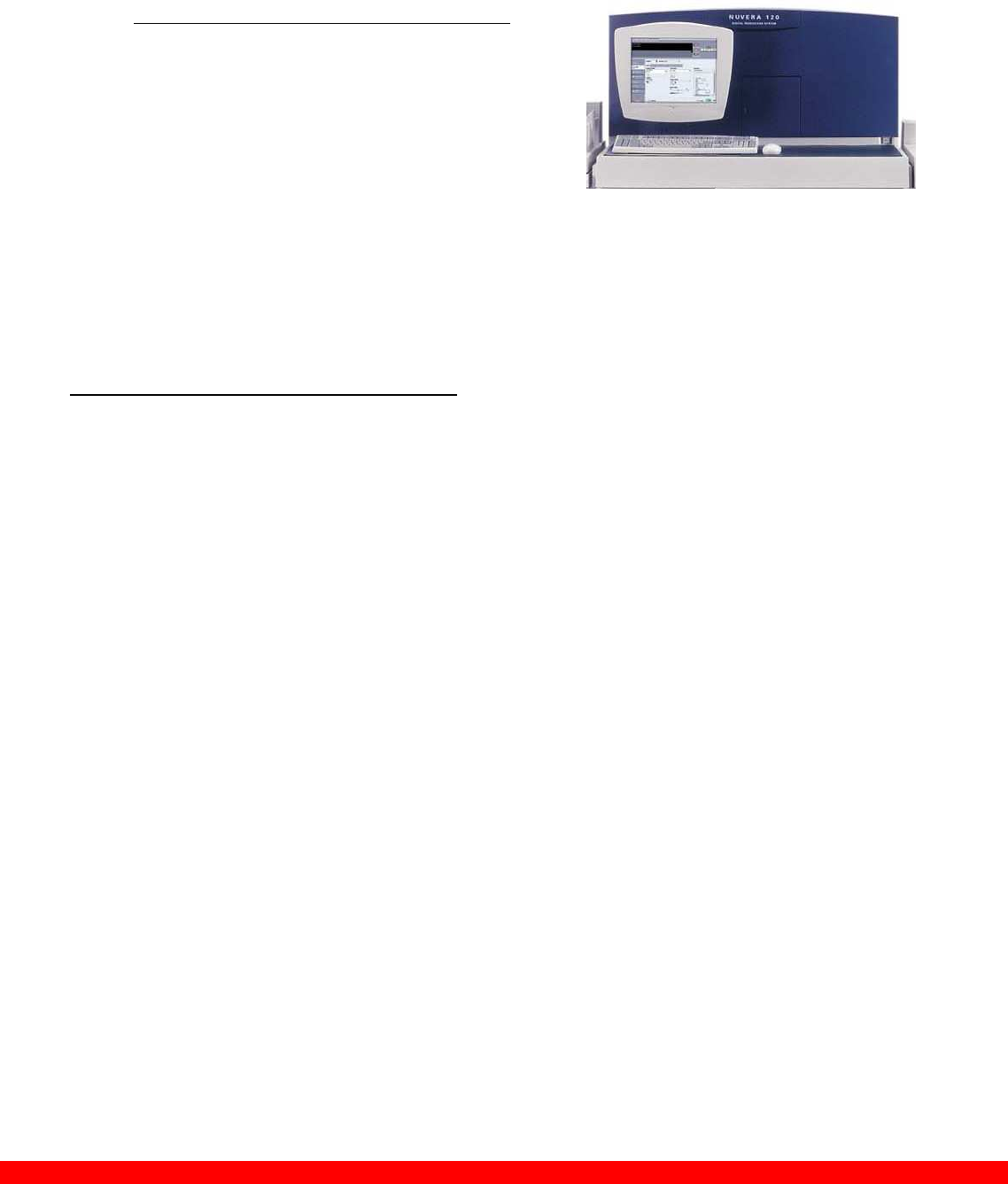

Digital Front End (DFE) - FreeFlow™ DocuSP®

FreeFlow™ DocuSP® Workflow

The workflow is developed around the Xerox

FreeFlow™ Document Services Platform (FreeFlow™

DocuSP®) technology, a very stable technology that

has been developed over the years and installed in

thousands of Xerox devices worldwide. This will allow

training simplicity for current FreeFlow™ DocuSP®

operators.

The FreeFlow™ DocuSP® controls all aspects of the

system – scanning, “ripping,” and printing. It is an intuitive, easy-to-use digital front-end driven by the

graphical user interface (GUI).

Control electronics are located in an integrated tower on the unit, not in a separate server – saving

valuable floor space. They are easily accessible if service is required and have been architected to be

replaced and upgraded if newer technology would improve system performance.

Xerox Nuvera™ System Release 7.0 incorporates DocuSP® release 5.1 SP1.

Key features of FreeFlow™ DocuSP® include:

• Scan/Copy: scan ahead and program ahead capability; save and job edit capability.

• Printer Management: Ability to manage paper supply and printer attributes.

•

Raster image processing (RIP) services: Supports multiple datastreams; PostScript, PDF, ASCII,

PCL, TIFF, PPML, LCDS and IPDS

•

Graphical User Interface:

Provides the user interface to manage various print shop operations;

such as setting up and monitoring: queues, jobs management, administering security and

accounting features, controlling the production process like the ability to manage paper supply and

printer attributes.

• Disk Overwrite: This feature is intended for the high security environments that not only want files

deleted after use, they want them erased, permanently. This implementation uses algorithms

recommended by the Department of Defense (DOD) to ensure complete erasure of all information.

The Disk Overwrite feature is based on the current FreeFlow™ DocuSP® data overwrite feature. In

addition to data overwrite on FreeFlow™ DocuSP® disk partitioning, the function is also applied to

all the other disks in the product including the image disk for copy, and print transient images.

• DocuTech® Emulation Mode: This feature will simulate the image quality of the Xerox

DocuTech® 61XX product and is useful when a reproduction facility splits a job among more than

one output device and requires the appearance of the output from multiple printers to look similar.

This feature is also used when reprinting previously saved DocuTech® 61XX family jobs on the

Xerox Nuvera™ 100/120 Digital Copier/Printer.

• Security:

Transport Layer Security (TLS)/Secure Socket Layer (SSL): When submitting a job from a Web

UI, FreeFlow™ Print Manager or the IPP client, invoking this feature will prevent unauthorized

interception of the job by encrypting the data sent over the network.

BAA Authentication: When enabled, this feature requires users to provide a valid username and

password before being able to access the Web UI interface.

IP Filtering: This feature controls the built-in-firewall, allowing the system administrator to restrict

network access to the system based on the originating IP address. The restriction applies to the

following print submission protocols: LPR, IPP, HTTP, HTTPS, SMB Printing, Raw TCP Printing,

FTP.

Microsoft ADS Authentication: When enabled, a user will be able to authenticate by means of

locally managed user accounts as well as possess the ability to log on locally using an account

defined in a Microsoft ADS domain.

Xerox Nuvera™ 100/120/144 Digital Production System - Customer Expectations Document

- 26 -

CD-RW/DVD Drive

CD-RW/DVD w/quartz white bezel: 32x Record CD-R, 10x Rewrite CD-RW

CD-RW/DVD w/black bezel: 52x Record CD-R, 24x Rewrite CD-RW

DVD drive will read DVD-ROM, DVD-R, DVD-RW, DVD-RAM

Resource Loading.

There is no floppy drive on Nuvera; resource loading via LTO Tape or QIC tape is recommended.

There are other alternatives, for example, by ftp to the controller, import from Unix file system, or from

an NFS mounted directory.

Item Xerox Nuvera™ 100/120/144 Digital

Production System

Comments

Digital Front

End (DFE) and

Raster Image

Processor

(RIP)

computing

platform

Xerox Document Services Platform (FreeFlow™

DocuSP®) 5.1 (System Release 7.0) for Xerox

Nuvera™ 100/120/144 with Release 7.0.

• Solaris 10 OS, update 1

• 2.2 GHz, 1GB of RAM, 160GB SATA Hard

Drive, CD-RW/DVD drive, 15” LCDS display,

USB Keyboard, USB Mouse

Second optional hard drive – 400 GB SATA

Approximately 10 GB of hard drive space available

for customer jobs.

There is no provision for a second processor.

RIP Resolution • 600 x 600 dpi

• 1200 x 600 dpi

• 1200 x 1200 dpi

− The processor can RIP (Raster Image Process

pages for printing) at 600 x 600 dpi, 1200 x 600

dpi, or 1200 x 1200 dpi.

−

Images “ripped” at 600 dpi may provide faster

performance when processing, and will save

files that are smaller in size, however, there

may be some impact to image quality,

Halftone

Screens

• 85 lpi @ 45°, 256 levels of gray

• 106 lpi @ 45°, 256 levels of gray

• 125 lpi @ 53°, 256 levels of gray

• 134 lpi @ 63°, 256 levels of gray

• 156 lpi @ 40°, 256 levels of gray

− Optimized for the Xerox Nuvera™

100/120/144 Digital Production System

− Levels of gray @ 1200 x 1200 dpi

Image Quality

Controls -

Scanning

• Document Type

• Lighter/Darker

• Contrast

• Sharpness

• Background Suppression

• Pictorial Rendering

− Mixed Text & Graphics; Text; Mixed Text &

Halftones; Photo

− Eleven positions

− Seven positions

− On or Off

− Halftone selection

Rendering textures are error diffusion with the

exception of photo mode which is 125 lpi

halftone (189 levels of grey)

Image Quality

Controls -

Printing

• RIP Resolution

• Lighter/Darker

• Toner Saver

− 600 x 600, 1200 x 600, 1200 x 1200 dpi

− Seven positions

− For less demanding image quality applications;

decreases toner consumption by about 50%

Copy Jobs

• Copy jobs can be saved; they consist of two files - a multi-page TIFF and an XPIF ticket.

Xerox Nuvera™ 100/120/144 Digital Production System - Customer Expectations Document

- 27 -

Print From Digital File

Configuration Re-print Job Formats (from DVD/CD) Comments

Digital

Production

System

• Single TIFF

• Multi-page TIFF

• PPML

• PCL

• PostScript

• PDF

• Saved Single Page TIFF

• ASCII

− Saved Single Page TIFF file is the Save

operation performed in FreeFlow™

DocuSP® when selected to save as

single TIFF. This file contains PostScript

that will require PostScript to print the file.

Scan to Digital File

Configuration Save Job Formats Comments

Digital

Production

System

• Multi-Page TIFF

• PDF

• Single Page TIFF

Saving jobs

Jobs submitted electronically, either over the network or via media, can be saved.

• Both the “ripped” (Raster Image Processed) image and the job ticket will be saved.

• Ethernet license must be enabled in order to save job as PDF.

• Set up Instructions for Scan To File with NFS (Network File System) can be found in the Xerox

Nuvera™ Digital Production Systems Hints & Tips.

Productivity Impacts

There are several factors that can affect the performance of the system RIP speed when processing print jobs.

The following is a list of common situations that negatively can impact throughput.

• The default print resolution of the system is 1200 dpi. 600 dpi printing may be adequate for your needs, so

you can try setting that resolution to improve RIP performance of complex 1200 dpi jobs. 1200 dpi results

in 4 times the internal image data of a comparable 600 dpi image that has to be transferred through the

system. When the print resolution is changed from 1200 to 600 dpi, the stroke thickening value may also

need to be changed from 1 to 0 to avoid excessive line thickening.

• It is common to embed logos and watermarks in submitted print files. These are typically bitmap images

that when embedded in a print stream (such as PostScript) can take a long time to process. Note also that

resolution selections (e.g. 600 dpi vs. 1200 dpi) can have a significant further impact to processing of

these types of embedded images. Consider the design of documents and impacts to printing speed in

such cases. There are methods available, through PostScript for example, to cache these embedded

images, process them once, and retain them as a resource for application on each page without having to

render and scale them for each page. Refer to your PostScript reference manuals and DocuSP reference

manuals for information about caching.

• Submission of multiple TIFF images simultaneously is a common application. There are several batch

printing tools available on the market that enable this and most require the selection of a print driver for the

target printer that these images files are submitted through. In these cases, the TIFF files are converted to

a Printer Description Language (PDL, such as PostScript) by the batch tool by using the printer driver and

then submitted to the printer, which in turn RIP that PDL and re-render the TIFF bitmap images back into

bitmaps. This is an inefficient process and can significantly slow the machine down. Xerox Nuvera

includes a native TIFF interpreter and it can process TIFF files sent to it directly. Some of the batch tools

on the market support a native TIFF submission capability. It may be referred to as a bypass mode or

Xerox Nuvera™ 100/120/144 Digital Production System - Customer Expectations Document

- 28 -

something similar. If such a capability is available, the Xerox Nuvera's performance can be significantly

improved by taking advantage of that. (Note that the TIFF interpreter does not automatically determine the

embedded image size and apply it to an appropriate paper size. You can accomplish though by using

printer and queue defaults programming)

LCDS and IPDS

LCDS Print Description Language

The Xerox LCDS Print Description Language (PDL) is a set of commands that you give to the

printing system to define properties such as the appearance, output destination, and paper feed

source for your LCDS print job. You can use LCDS PDL to do all of the following in your print jobs:

• Change and mix font types on a page-to-page, line to line, or character-to-character basis. This

allows you to customize printed output for specific needs; for example, emphasizing important

headings by changing font styles and sizes.

• Change text orientation and positioning on a page-to-page basis. This allows you to print

characters along the width or length of the page with equal ease. The printing system can

switch instantly, at a page boundary, between portrait (tall and narrow) and landscape (wide)

page formats, combining the two styles within a single report.

• Print a number of previously separate logical pages on the same physical page of a document.

• Modify documents on a page to page basis by using copy modification entries (CME's) to

replace selected portions of text with other data, change fonts, or label copies, e.g. as

"confidential."

• Merge variable print data with forms stored on the system disk. This feature eliminates the

need for forms overlays and most preprinted forms, as well as assuring perfect registration.

• Print two different forms back to back (duplex) on one sheet of paper, thereby reducing paper

costs. Additionally, this option offers potential savings in inventory, filing, storage, and mailing

costs for computer generated material.

• Feed paper either short edge first or long edge first to accommodate a variety of paper sizes.

The following are known key limitations specific to LCDS on Nuvera DPS systems. A more

complete set is provided in the Nuvera Hints and Tips document.

• Print on Edge (versus print to edge) is not supported.

• There is no floppy drive on Nuvera; resource loading via LTO Tape or QIC tape is

recommended. Alternatively, resources can be sent over the network by ftp to the controller (or

a UNIX file system) and imported from the file system to DocuSP. Importing from a NFS

mounted directory can also be performed if the resources are already relocated to that directory.

• The TMODE command is ignored as the system always performs at optimum throughput.

Please refer to the following documentation for additional information

• Using LCDS Page Description Language – Generic 701P42242

• LPS Migration Guide. Request copy of Migration Guides from your Xerox Systems Analyst.

Xerox Nuvera™ 100/120/144 Digital Production System - Customer Expectations Document

- 29 -

IPDS Print Description Language

The DocuSP IPDS gateway supports the Intelligent Printer Data Stream as defined by IBM. The IPDS

DataStream performs printer control functions as well as sharing job status information back to the host.

It is configured by means of a GUI, featuring drop-down menus, tabs, and icons from which to manage the

DocuSP IPDS functions. DocuSP IPDS supports the TCP/IP and online channel interfaces.

The following are known key caveats specific to IPDS on Nuvera DPS systems. A full set of caveats and

limitations are provided in the Nuvera Hints and Tips document.

• DocuSP IPDS currently supports the following environments only:

♦ MVS with PSF

♦ OS/400 with PSF/400 (TCP/IP connectivity only)

♦ AIX with InfoPrint Manager

♦ InfoPrint Manager / Windows

♦ Emtex VIP

Even in these opened environments, application validation is a requirement prior to installation. Other

host types and 3rd party solutions are under evaluation and will be become available as validations are

completed.

• Sample current job is not supported for IPDS jobs. The IPDS host presumes full control over the job’s

output, and this feature would cause incorrect page counts to be reported to the host. The DocuSP GUI

currently only supports this capability at the Printer Manager level, and is not able to set this capability

for individual jobs or queues. Therefore, the DocuSP GUI does not prevent selecting Sample Current

Job. However, the request will not be honored for an IPDS job, and no warning message will be

provided.

• DocuPrint IPS 7.x Input Groups and 8.x Virtual Printer Media Lists cannot be imported into DocuSP

IPDS. DocuSP IPDS Job Setups must be recreated.

• The IPS Manager is not automatically informed when physical tray contents are changed at the DocuSP

printer manager. Instead, you must use the Refresh mechanism provided by the IPDS Tray/Bin

Mappings dialog to display the latest mapping information.

• DocuSP Remote Workflow (DRW) does not support the IPS Manager.

• IPDS jobs cannot be deleted or canceled from the DocuSP Job Manager GUI. Instead, it is necessary

to cancel the current IPDS job using the “Cancel Incoming Job” button on the IPS Manager GUI. Note

that this action is made easier now with the ‘Restart IPDS Processing’ option (a DocuSP restart is no

longer required).

•

Please refer to the IPDS User Guide (701P44135, July 2005) for additional information on the support

of IPDS.

Xerox Nuvera™ 100/120/144 Digital Production System - Customer Expectations Document

- 30 -

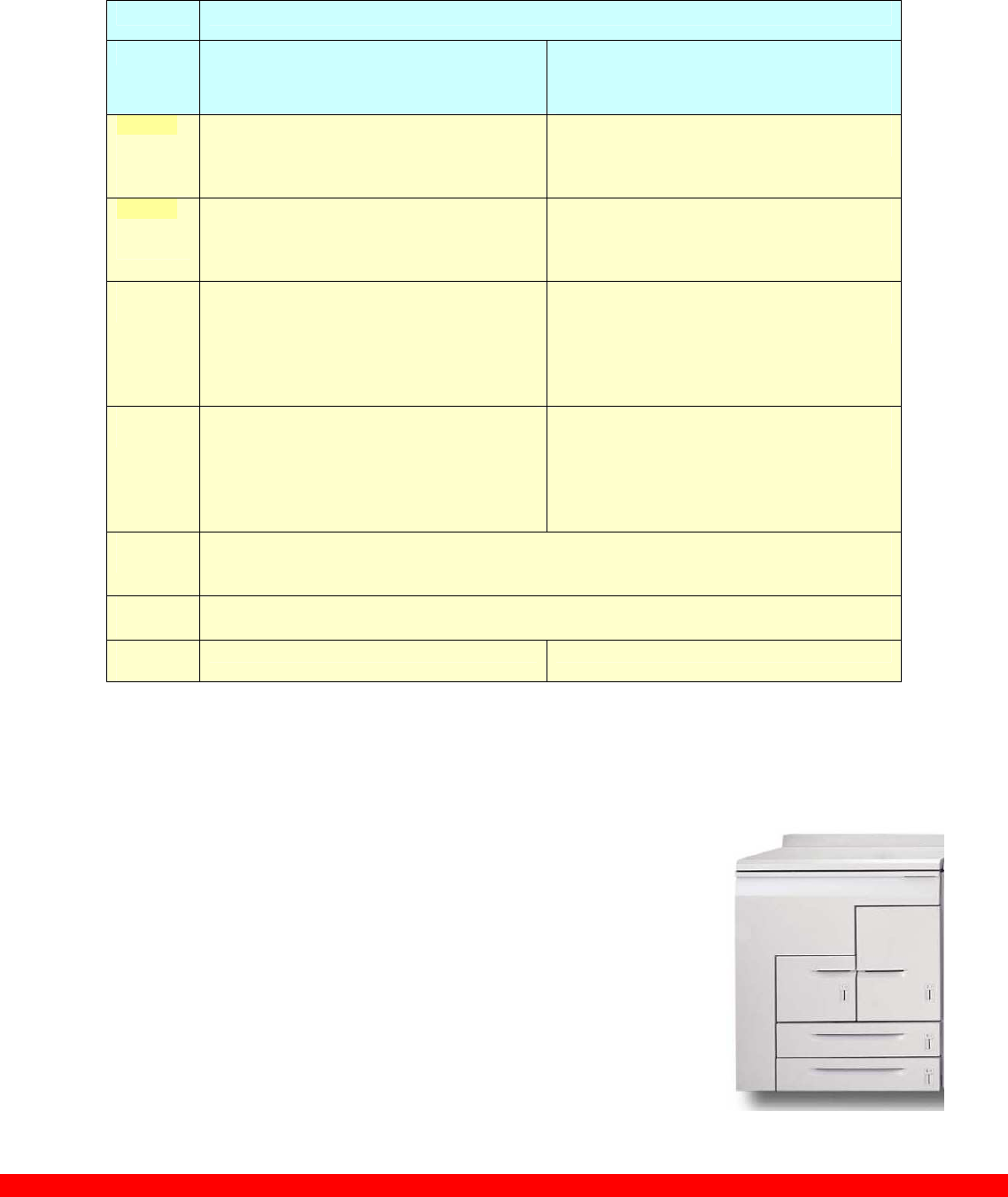

Sheet Feed Modules

Item Xerox Nuvera™ 100/120/144 Digital Production System

Sheet Feed Module (SFM)

4 Tray

Large Format

Sheet Feed Module (LFSFM)

2 Tray

Capacity

20 lb bond

(75 gsm)

• Paper Input Capacity: 5800 sheets

--Tray 1: 1,600 sheets

--Tray 2: 3,100 sheets

--Trays 3 & 4: 550 sheets each

• Paper Input Capacity: 3200 sheets

--Trays 1 & 2: 1,600 sheets

Capacity

80gsm,

0.105 mm

• Paper Input Capacity: 5565 sheets

--Tray 1: 1505 sheets

--Tray 2: 3020 sheets

--Trays 3 & 4: 520 sheets each

• Paper Input Capacity: 3030 sheets

--Trays 1 & 2: 1505 sheets

Minimum

Size

• Trays 1 & 2

--Feed Direction: 5.5 inches (140 mm)

--Across Feed Direction: 8.0 inches (203 mm)

• Trays 3 & 4

--Feed Direction: 7.17 inches (182 mm)

--Across Feed Direction: 8.0 inches (203 mm)

• Trays 1 & 2

--Feed Direction: 7.17 inches (182 mm)

--Across Feed Direction: 8.0 inches (203 mm)

Maximum

Size

• Trays 1 & 2

--Feed Direction: 9.0 inches (229 mm)

--Across Feed Direction: 12.6 inches ( 320 mm)

• Trays 3 & 4

-- Feed Direction: 18.5 inches (470 mm)

--Across Feed Direction: 12.6 inches (320 mm)

• Trays 1 & 2

-- Feed Direction: 18.5 inches (470 mm)

--Across Feed Direction: 12.6 inches (320 mm)

Media

Types

• Bond, Bristol, cover, index, offset, recycled, vellum, tabs and Mylar tabs, transparencies, carbonless,

labels, Never-Tear, pre-printed forms

• Booklet envelopes: 9” x 12”, 228mm x 305 mm , Catalog envelopes: 7” x 10”, 178mm x 254mm

Input

Weight

• Uncoated: 16 lb bond to 90 lb cover (56 gsm to 250 gsm)

• Coated: 90gsm to 250gsm

Feeding

System

• Air shuttle • Air shuttle

COMMENTS

• Auto tray switching & Load while run capability are supported. Do not open trays when the “Drawer in Use”

light is lit.

• Statement tabs and A5 tabs are not supported.

• Paper handling reliability of coated papers is reduced below 120 gsm.

• Trays do not feed to empty. When a feeder empty message is displayed,

there could be as much as 80 sheets of stock remaining in the feeder tray

(based on 20lb. bond / 75 gsm). This is to maintain the best possible reliability

in the feeder mechanisms.

• The use of Xerox media as listed in this document is recommended. Because

there is a difference in technology between offset and digital printing, there is

a difference in media properties required for optimum performance with each

technology. Xerox papers and specialty media are digitally optimized (paper

specs - smoothness, formation, electrical properties, etc., for optimal image

quality, toner adhesion and performance, and also precision sheeted - less

contamination, better registration for use in Xerox digital equipment.

• Two feed modules in tandem may be installed on the input side of the printer.

4-Tray SFM

Xerox Nuvera™ 100/120/144 Digital Production System - Customer Expectations Document

- 31 -

SPECIAL STOCKS

Carbonless

Xerox Carbonless Papers as listed in this document are the only recommended carbonless media. Only

simplex printing is supported on this stock type. Running carbonless paper may require additional cleaning

time by the CSE during service of the machine. This time will vary based on the percentage of carbonless

stock run. In the 100% carbonless usage case, service time could be up to 60 additional minutes per

service call at 150,000 prints

DocuCards®

DocuCards® can only be loaded 100 at a time in a tray. Nuvera feeder trays feed until almost empty but

not until empty, leaving 20~40 sheets remaining. When running DocuCards®, frequent reloading of the

feeder trays will be required.

DocuCards® can only be run to the Top Tray of the finisher. Some mis-stacking may occur as the

DocuCards® catch on the edges of the stacked sheets®.

When using DocuCards, it is recommended that you use a Tiltatron (available from CAS).

DocuCards are not supported on the Nuvera MX system.

Reinforced stocks

Reinforced stocks such as Mylar tabs should be limited to 90 loaded in a tray

at one time.

Transparencies

The tray capacity for removable stripe transparencies is 90 sheets. There is no

constraint for feeding painted striped transparencies or stripeless

transparencies.

Tab Jobs

Running tabs requires proper use of the supplied Tab Guides.

Jobs should be run with straight collated tabs.

Tab stock sizes supported are: Letter, 9” x 11,” 9.5” x 11”, A4

Envelopes

Envelopes should be limited to 60 loaded in a tray at one time. Nuvera feeder

trays feed until almost empty but not until empty, leaving 20~40 sheets

remaining. When running envelopes frequent reloading of the feeder trays will

be required.

Very slight wrinkles (1/2 inch long) may occur on the trail edge of envelopes at the corners.

Due to the nature of feeding envelopes with flap open, some mis-stacking may occur in the top tray as the

envelopes catch on the open flaps

Envelopes should be sent to the Top Tray only.

Inserter Module (IM)

The specifications for the Inserter Module are the same as for the SFMs. Either the 4-tray SFM or the 2-tray

Large Format SFM can be used as an inserter. One inserter may be installed on the output side of the

printer.

COMMENTS

• LCDS and IPDS applications are currently not able to pull paper stocks from the Insertion Module.

2-Tray LFSFM

Xerox Nuvera™ 100/120/144 Digital Production System - Customer Expectations Document

- 32 -

Printer Module

Xerographic monochrome (black and white) print engine. The printer utilizes a Discharged Area

Development (DAD) system, often referred to as “write black.”

Engine speed per paper size – impressions per minute*

Paper dimensions

along process direction

Example sizes Xerox Nuvera™

144 DPS

Xerox Nuvera™

120 DPS

Xerox Nuvera™

100 DPS

5.5”

≤

Paper Size

≤

8.5”

(140mm

≤

Paper Size

≤

216 mm

Letter 8.5”x11”, A4,

Statement

5.5”x8.5”, A5,

6”x9”, 7”x10”,

8”x10”

144 IPM 120 IPM 100 IPM

8.5” < Paper Size

≤

9.0”

(216 mm

Paper Size

≤

229 mm)

9”x11” Covers,

9”x12”,

Letter sized Tabs,

A4 Tabs

120 IPM 120 IPM 100 IPM

9.0” < Paper Size

≤

11.7”

(229mm < Paper Size

≤

297 mm) Letter SEF, A4

SEF, 9.25”x12.5”,

9.5”x12.5”

96 IPM 96 IPM 80 IPM

11.7” < Paper Size

≤

17.0”

(297mm < Paper Size

≤

432 mm) 8.5”x14”, Ledger

11”x17”, A3

72 IPM 72 IPM 60 IPM

17.0” < Paper Size

≤

18.5”

(432 mm < Paper Size

≤

470 mm)

12.5”x18.5” 48 IPM 48 IPM 40 IPM

* - The impressions per minute figures are for the Printer Module; system throughput could be

further constrained by the capabilities of the attached Finishing Module(s); please refer to the

documentation for the individual Finishing Module(s).

Item Xerox Nuvera™ 100/120/144 Digital

Production System

Comments

Image Format Maximum image area -

12.6” x 18.5” (320mm x 470mm)

• All sheets will have a default 3 mm (0.12 in.)

border without printing, regardless of sheet

size.

• Default border can be set to 0 mm, or

Lead Edge Erase only by the SA;

however some image quality degradation

may occur up to 6mm from the edge.

Media size Process Direction: 5.5 – 18.5” (140 – 470 mm)

Cross Process: 8.0 – 12.6” (203 – 320 mm)

Media Weight Uncoated: 16 lb. bond – 90 lb. cover

(56 – 250 gsm)

Coated: 60 lb text – 90 lb cover

(90 – 250 gsm)

Printer

Resolution

4800 x 600 dpi No matter what resolution images are “ripped”

at, the printer uses hardware image

processing to print them at 4800 x 600 dpi.

Fuser 374° F (190° C) – while printing Users may select enhanced permanence for

Xerox Nuvera™ 100/120/144 Digital Production System - Customer Expectations Document

- 33 -

Temperature heavyweight paper by means of the User

Interface.

Developer 99 microns in diameter

Carrier: 90 microns; Toner: 9 microns

Trickle development system

Registration Translating Electronic Registration Benchmark registration system holds image to

sheet alignment at +/- .65mm per side AND

front-to-back on Letter/A4 size papers;

+/- .75mm per side AND front-to-back on

Tabloid/A3 size papers.

Image Quality Expectations

Image Quality

Parameter

Xerox Nuvera™ 100/120/144 Digital

Production System Comment

Image Uniformity

The Xerox Nuvera™ 100/120/144

Digital Production System is designed

to render tints with a high degree of

uniformity, and produce vignettes,

sweeps and gradients that are smooth

and even.

Sophisticated design prevents

unwanted process speed variations

that plague lesser digital printing

systems with banding problems.

Halftoning algorithms and customized

halftone dot designs take full

advantage of the printer’s high

addressability imaging system to

render incredibly sharp, detailed

images.

The most discriminating judges

of print quality may occasionally

perceive a degree of mottle in

large uniform flat tints.

Extremely high humidity, low

document area coverage or

papers with poor formation can

exacerbate mottle.

If excellent uniformity is required,

controlling environmental factors

or an accelerated maintenance

rate can usually satisfy

demanding customers.

Text Quality Black text quality is excellent for sizes as small

as 4 point.

Line Quality

The Xerox Nuvera™ 100/120/144 Digital

Production System can print solid lines all the

way down to 70 microns.

Area Coverage

The Xerox Nuvera™ 100/120/144

Digital Production System uses nested

automated controls of dry ink,

development, tone reproduction, and

the internal environment to assure

consistent printing. These closed loop

process controls continuously test

against the targets and adjust as

required.

The control system is designed to run

within a specific range of quality.

Although some variation may be

noticeable in specific cases, the closed

loop controls will typically deliver very

acceptable quality, consistently,

predictably, and without operator

intervention.

Mylar tabs Images printed on Mylar tabs typically show

degradation due to toner scatter.

Other artifacts

As with any printing process, artifacts will occur

on the Xerox Nuvera™ 100/120/144 Digital

Production System. These include streaks,

mottle, banding, spots and edge deletions. For

most jobs and clients, the expected level of

artifacts is within the normal operational and

component quality ranges of the system and will

not affect the acceptability of the job.

Maintenance procedures are available

to mitigate these artifacts. Artifact-

sensitive jobs should be monitored.

Using stocks on the Recommended

Media List and maintaining your

environment will also help to minimize

the occurrence of these artifacts.

Xerox Nuvera™ 100/120/144 Digital Production System - Customer Expectations Document

- 34 -

Printer Module Capabilities

• Print to Edge

This is not a print to edge system due to potential image quality defects on the edge of the page.

The system default is set to 3 mm border erase. The border erase can be set to 0 mm, but the

printer is subject to image quality limitations - which may be acceptable for some applications.

Some non-standard and custom paper sizes may have a larger border region where image quality

cannot be optimized.

• SRA3 Printing

Printing on SRA3 can result in inboard and outboard edge image quality defects. The defects can

range from slight mottle to high contrast deletions depending on the type and condition of the

substrate being printed on. The reason for this is that the Transfer Assist Blade does not completely

extend to the edges of SRA3 substrates. The blade does not make contact with the last 14mm at

both the inboard and outboard edges of SRA3 substrates.

• Area Coverage

The system is capable of continuous printing of pages up to 33% area coverage. When documents

that exceed 33% area coverage per page are continuously printed, the customer may notice that

the system does not print at the rated speed.

• Xerographic Color Prints

Xerographic color originals cannot be run through the fuser.

Xerox Nuvera™ 100/120/144 Digital Production System - Customer Expectations Document

- 35 -

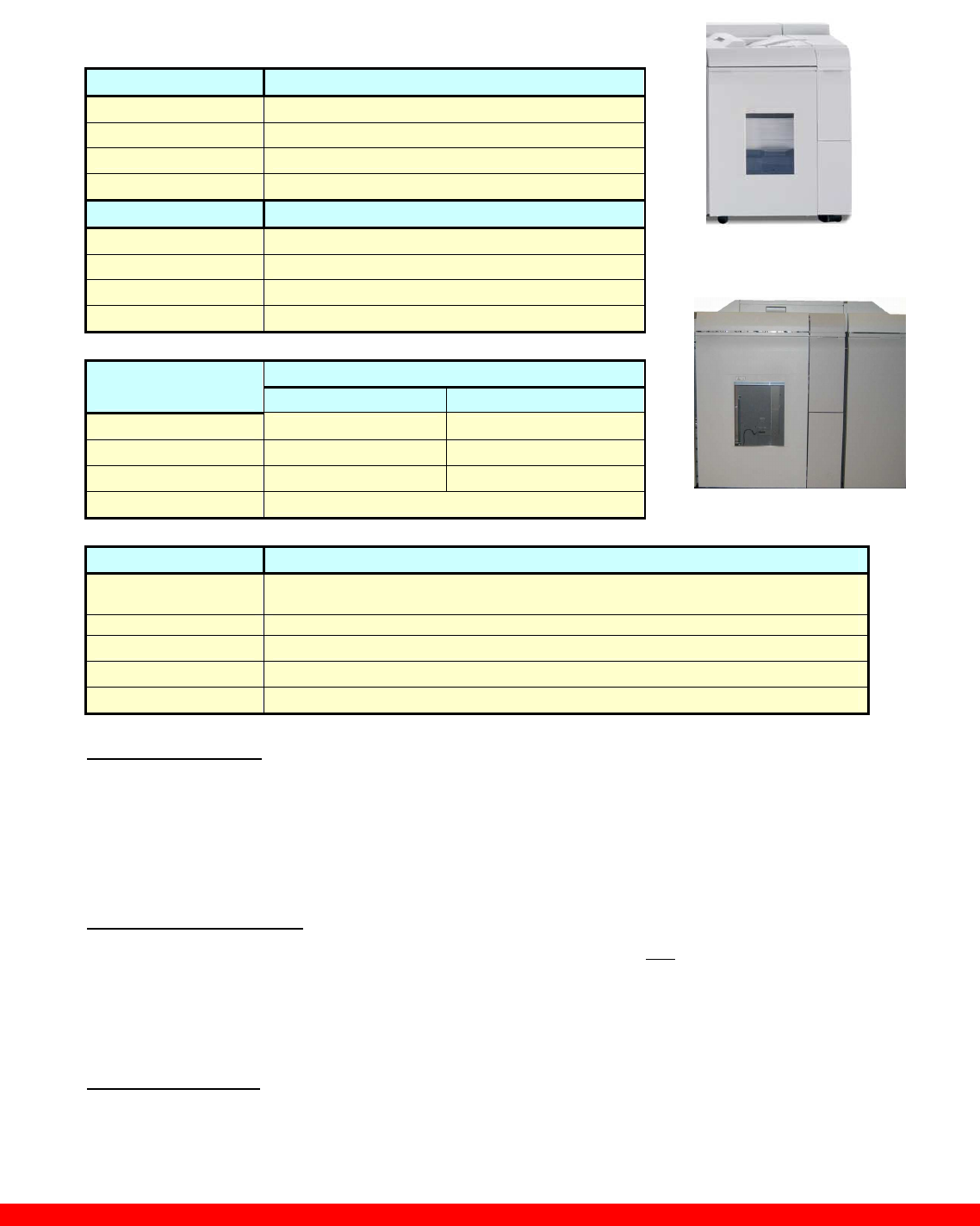

Basic Finishing Module (BFM) and BFM Plus

Dimensions Basic Finishing Module (BFM)

Width X Depth X Height 32.9” X 28” X 44.5” (835.7mm X 711.2mm X 1130.3mm)

Weight 369 lbs. ( 167.4 kg)

Clearance: Operator Minimum 38” in front of module

Clearance: Service Minimum 30” from back wall

Dimensions Basic Finishing Module Plus (BFM Plus)

Width X Depth X Height 48” X 28” X 44.5” (1220mm X 711.2mm X 1130.3mm)

Weight 494 lbs. ( 167.4 kg)

Clearance: Operator Minimum 38” in front of module

Clearance: Service Minimum 30” from back wall

BFM / BFM Plus

Electrical &

Environmental Minimum Maximum

Temperature Range 50° F (10° C) 90° F (32.2° C)

Humidity Range 15% RH 85% RH

Altitude 0 ft 10,000 ft. (3048m)

Power 200 - 240 VAC ± 10%, 50/ 60 Hz, 8Amps

Media Latitude BFM / BFM Plus

Stock Weight Range Uncoated: 16lb. bond to 120lb. index (56 to 250 gsm)

Coated: (90 to 250gsm)

Stock Size Range 7” x 8” to 12” x 18.5” (178 x 203mm to 320mm x 470mm) – See table on following pages

Top Tray Capacity 250 (20 lb. bond / 75 gsm)

Main Stacker 3000 (20 lb. bond / 75 gsm)

Stapler One or two staples, up to 100 sheets (20 lb. bond / 75 gsm)

System Compatibility

There are two models: the BFM has a top tray (also know as purge tray); the BFM Plus includes a bypass

transport over the stacker

Both the BFM and the BFM Plus may be installed to enable continuous running with unload-while-run.

If one of these modules is the only installed finisher, it must be BFM (with the top tray).

A single BFM Plus may be installed if connected to a downstream FTM to add supported inline DFA finishing

BFM / BFM Plus Operation

Continuous operation with unload while run is fully supported with a BFM and BFM Plus installation. When a

stacker is full or not ready (e.g. out of staples) the system can auto switch to another available stacker.

Unloads can be configured to occur automatically at stacker limit, at job boundaries, at set or

partition boundaries, or can be initiated manually via the Stacker Unload button or the GUI. A stacker's limit

can be configured to any value between 200 and 3000 and each BFM stacker can be configured

independently and differently. If desired, operators can also program jobs to specific stacker destinations.

Bypass via BFM Plus

Bypass to a downstream finishing device is a capability of the BFM Plus

BFM

BFM Plus

Xerox Nuvera™ 100/120/144 Digital Production System - Customer Expectations Document

- 36 -

Output

• Paper sizes supported to the main tray (stapled and unstapled):

Process direction - 7.0 to 18.5 in. (178 mm to 470 mm)

Cross Process direction - 8.0 to 12 in. (203 mm to 305 mm)

• Smaller sizes (down to A5 and Statement) or larger sizes (including SRA3) can be run to the top tray.

• Mixed sized output allows stacking of different size pages, both in the process and cross-process

direction, in a single job.

• When stapling sets with mixed size stock, the stock must be the same dimension in the Across Feed

direction, and the dimension differences should be within 13mm (½”) in the feed direction.

• To have the BFM staple correctly, the output must be 1-N facedown.

• Envelopes can only be sent open flap trailing to the Top Tray, and should be limited to 15, or mis-

stacking may occur.

• The BFM / BFM Plus does not offset paper sizes larger than 11”x17" / A3. This means that 12”x18”,

12x18.5”, SRA3 cannot be offset. For these sizes, the software ignores any offset programming

selection, and runs without offsetting.

• Banner and slip sheets should be greater than or equal to 90 gsm (24 lb bond)

• Slip-sheets must be the same size as the body sheets

• Stapler capacity is reduced for coated papers and paper heavier than 20 lb. bond (75 gsm).

• For reliable stacking, stack size should be limited for certain jobs:

--Offset single sheet jobs should be limited to 100 sheets. (20 lb bond or 75 gsm)

--Stapled sets of 15 sheets or smaller are limited by machine control to 100 sets.

--Stapled sets of coated stocks stack less well, and should be managed to 50 by the operator.

--Stapled sets should be offset stacked.

--The stack height limitation can be operator adjusted.

• Automatic bin limits control the number of sheets collected and compiled in the finisher when running

unfinished sets to optimize the set drop performance and improve job recovery.

Tabs

The tabs cross process length must be the same as the body of the document. The tab can be no longer

than 0.5” (13mm) in the process direction beyond the body of the document. Tabs sized for use with 8.5” x

11” and A4 stock, long edge feed, are supported

Transparencies

Transparencies run to the stacker must have a slip-sheet between each one.

Stapling

• The BFM is delivered with a 5000 staple cartridge of 100-sheet staples installed in each of the two

staplers.

• Staples for up to 30 sheets and for up to 100 sheets are available. Stapled jobs over 100 sheets are

inhibited. The machine does not detect staple size. The operator must manage jobs to be within

capability of the loaded staple size.

• Some marking of the staple onto an adjacent set may be seen.

• Not all stapler failure modes are detected by the machine logic. The customer may find some

occurrence of unstapled sets in the output.

Decurler

• The machine may produce curl that will require intervention with the decurler and the paper supply.

Paper handling within the BFM is best if the paper curl is adjusted to be flat or toward the image

direction. See the User Guide: Problem Solving - Paper Curl, Adjust the Decurler (located on

Xerox.com).

Carbonless

• In the DPS BFM configuration, curl that faces up poses more of a problem than curl that faces down.

To avoid up curl, 2, 3 and 4 part Carbonless should be run to the BFM in an N to1 mode and use

reverse collated versions of the recommended Xerox media. See compatible media tables in this

document.

Xerox Nuvera™ 100/120/144 Digital Production System - Customer Expectations Document

- 37 -

Media Size Tables

Table 1: BFM System Main and Top Tray Paper Size Range

BFM / BFM Plus System Standard Paper Sizes

Paper Size Orientation Output Tray

Name Pitch

Inch (WxL) mm (WxL) LEF SEF Top Main

Env., 6x9, LE fc 120 6x9 (152x229) x

Env., 6x9, OB fo 120 6x10.75 (152x273) x

Env., C5, LE fc 120 (6.4x9.0) 162x229 x

Env., C5, OB fo 120 (6.4x10.3) 162x262 x

Env.,7x10, OB fo 120 7x12 (178x305) x

Env., TBD?, OB

120 (7.0x11.3) 178x287 x

Env., 220x312,

LE fc

120 (8.7x12.3) 220x312 x

Envelope, 9x12,

LE fc

120 9x12 (229x305) x

A5 120 (5.8x8.3) 148x210 x

Statement 120 8.5x5.5 (216x140) x

A5 Tab 120 (6.3x8.3) 161x210 x

Statement Tab 120 6.0x8.5 (152x216) x

7x10 120 7x10 (178x254) x

B5 JIS 120 (7.2x10.1) 182x257 x

Executive 120 7.25x10.5 (184x267) x

16K (Taiwan) 120 (7.6x10.5) 194x267 x

8x10 120 8x10 (203x254) x

8x10 96 8x10 (203x254) x

Letter 120 8.5x11 (216x279) x

Letter 96 8.5x11 (216x279) x

Ltr Cover 120 9x11 (229x279) x

Ltr Cover 96 9x11 (229x279) x

Ltr Tab 120 9x11 (229x279) X

210x270 120 (8.27x10.63) 210x270 x

210x270 96 (8.27x10.63) 210x270 x

A4 120 (8.27x11.69) 210x297 x

A4 96 (8.27x11.69) 210x297 x

210x330 72 (8.27x13) 210x330 x

215x275 120 (8.46x10.83) 215x275 x

215x275 96 (8.46x10.83) 215x275 x

215x356 72 (8.46x14.02) 215x356 x

216x273 120 (8.5x10.7) 216x273 x

216x273 96 (8.5x10.7) 216x273 X

A4 Cover 120 (8.78x11.69) 223x297 X

A4 Cover 96 (8.78x11.69) 223x297 x

A4 Tab 120 (8.78x11.69) 223X297 X

Spanish (XE) 120 (8.46x12.4) 215x315 X

Spanish (XE) 72 (8.46x12.4) 215x315 x

8x13 72 8x13 (203x330) x

215x330 72 (8.46x13) 215x330 X

Foolscap (XE) 72 8.5x13 (215x330) X

220x330 72 (8.66x13) 220x330 X

Legal 72 8.5x14 (216x356) x

226x310 120 (8.89x12.2) 226x310 x

226x310 72 (8.89x12.2) 226x310 x

9x14 72 9x14 (229x356) x

Xerox Nuvera™ 100/120/144 Digital Production System - Customer Expectations Document

- 38 -

Table 1: BFM System Main and Top Tray Paper Size Range

BFM / BFM Plus System Standard Paper Sizes

Paper Size Orientation Output Tray

Name Pitch

Inch (WxL) mm (WxL) LEF SEF Top Main

SB4 72 (9.9x14.1) 252x358 x

B4 (JIS) 72 (10.12x14.33) 257x364 x

8K (Taiwan) 72 (10.51x15.2) 267x388 x

A3 72 (11.69x16.54) 297x420 x

Ledger 72 11x17 (279x432) x

12x18 48 12x18 (305x457) x

12x18.5 48 12x18.5 (305x470) x

310x432 72 (12.2x17) 310x432 x

Transparency 120 8.5x11 ( A4) 216x279 x

SRA3 4up A5 48 12.6x17.7 320x450 x

4up 6”x9” 48 12.5x18.5 317.5x470 x

2up 6”x9” 96 12.5x9.5 (317.5x241.3) x

SRA4 2up A5 120 (12.6x8.9) 320x225 x

Media less than 6.85 inches (174 mm) in the process direction are not supported in the BFM stacker.

System Productivity: Xerox Nuvera™ 120 / 144 DPS

with Basic Finishing Module

Productivity will be slightly less for jobs with only 1 or 2 sheets per set.

Output to Top Tray

Simplex to simplex; duplex to duplex

Single-sided sheets printed per minute Double-sided sheets printed per minute

Paper Size 30 page job 10 page job 3 page job 30 page job 10 page job 3 page job

8.5” x 11” 120 / 144 120 / 144 120 / 144 60 / 72 60 / 72 60 / 72

8.5” X 14” ** 72 72 72 36 36 36

11” X 17” 72 72 72 36 36 36

** 8.5” X 14” paper feeds “Short-edge” as defined in the system.

Output to Main Stacker – Stapled (Single and Dual staples) and Unstapled

Simplex to simplex; duplex to duplex

Single-sided sheets printed per minute Double-sided sheets printed per minute

Paper Size 30 page job 10 page job 3 page job 30 page job 10 page job 3 page job

8.5” x 11” 120 / 144 120 / 144 120 / 107 60 / 72 60 / 72 60 / 65

8.5” X 14” ** 67 60 43 34 30 22

11” X 17” 67 60 43 34 30 22

** 8.5” X 14” paper feeds “Short-edge” as defined in the system.

Xerox Nuvera™ 100/120/144 Digital Production System - Customer Expectations Document

- 39 -

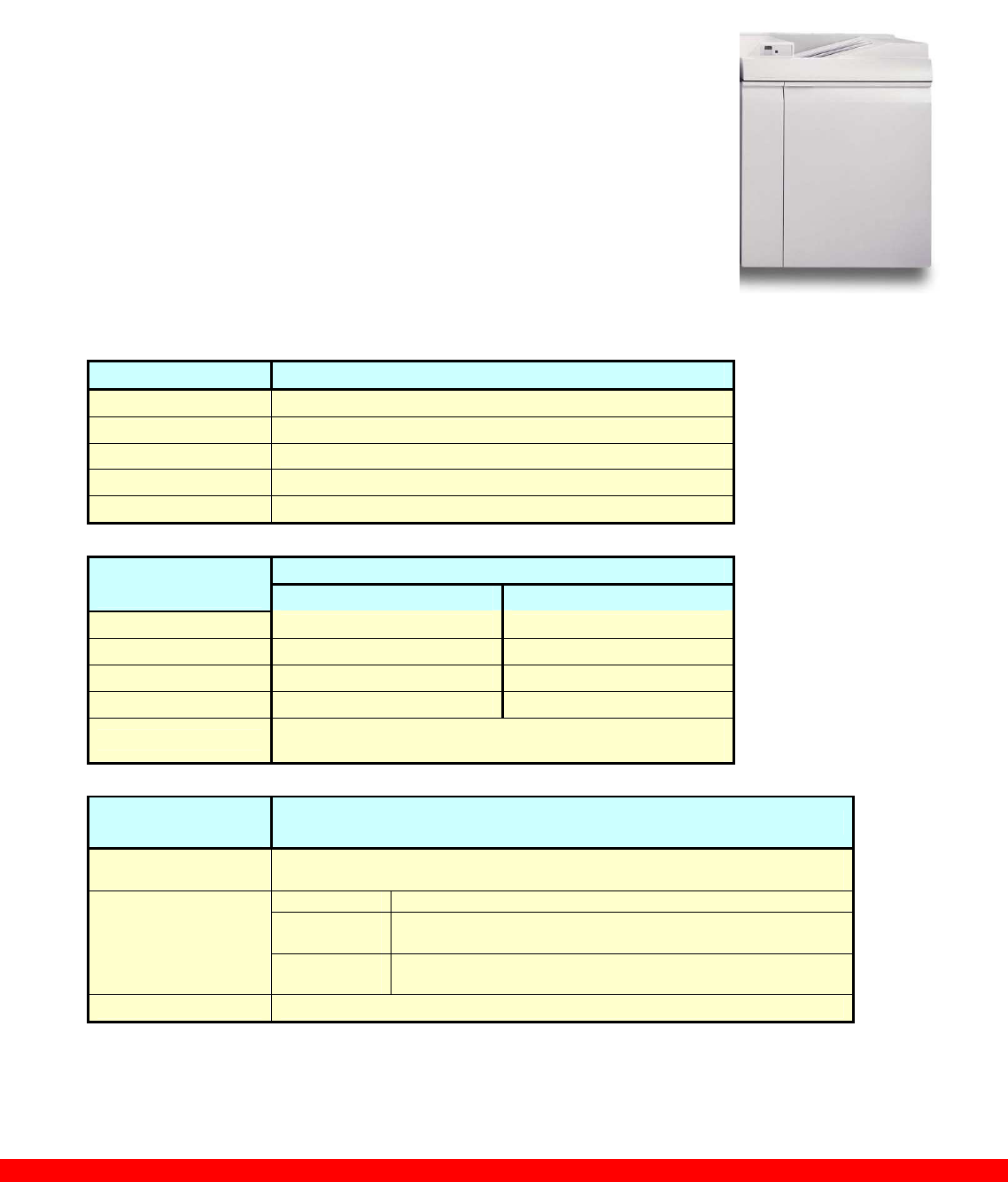

Finishing Transport Module (FTM)

The Finishing Transport Module enables inline finishing by providing document

transport capability and full DFA support to DFA compliant finishing devices.

Key Features include:

•

Dual DFA enabled output heights

•

Center or Edge registered output delivery

•

Varying transport speeds to maximize throughput capability

•

Built-in rotator to maintain productivity when finishing smaller size applications.

Please refer to the Finishing Transport Module (FTM) Solutions Planning

Guide for further site planning information, system dependencies, limitations,

valid configurations and device specifications.

Dimensions Finishing Transport Module (FTM)

Width x Depth x Height 35” x 28” x 44.6” (889mm x 711.2mm x 1133mm)

Bypass Output Heights 34” (860mm) & 40.3” (1024mm)

Weight 389 lbs. (176 kg)

Clearance: Operator Minimum 24” in front of module

Clearance: Service Minimum 30” on all sides

Finishing Transport Module (FTM)

Electrical &

Environmental Minimum Maximum

Temperature Range 41° F (5° C) 95° F (35° C)

Humidity Range 10% RH 85% RH

Altitude - 100 ft (31m) 40,000 ft (123192m)

Sound Emission LpA 57 dBs

Power 120 VAC ± 10%, 60 Hz, 7.5 A

220 VAC ± 10%, 50 Hz, 3.5 A

Media Latitude &

Capacity Finishing Transport Module (FTM)

Stock Weight Range Uncoated: 40 lb. text to 90 lb. cover (56 to 250 gsm)

Coated: dependent on the finishing device attached

Top Tray 7” x 10” to 12.6” x 18.5” (177.8mm x 254mm to 320mm x 470mm)

Bypass with

Rotation 7” x 10” to 12.6” x 14.3” (177.8mm x 254mm to 320mm x 363.2mm)

Stock Size Range

Bypass without

Rotation 7” x 10” to 12.6” x 18.5” (177.8mm x 254mm to 320mm x 470mm)

Top Tray Capacity 250 (20 lb. bond / 75 gsm)

Xerox Nuvera™ 100/120/144 Digital Production System - Customer Expectations Document

- 40 -

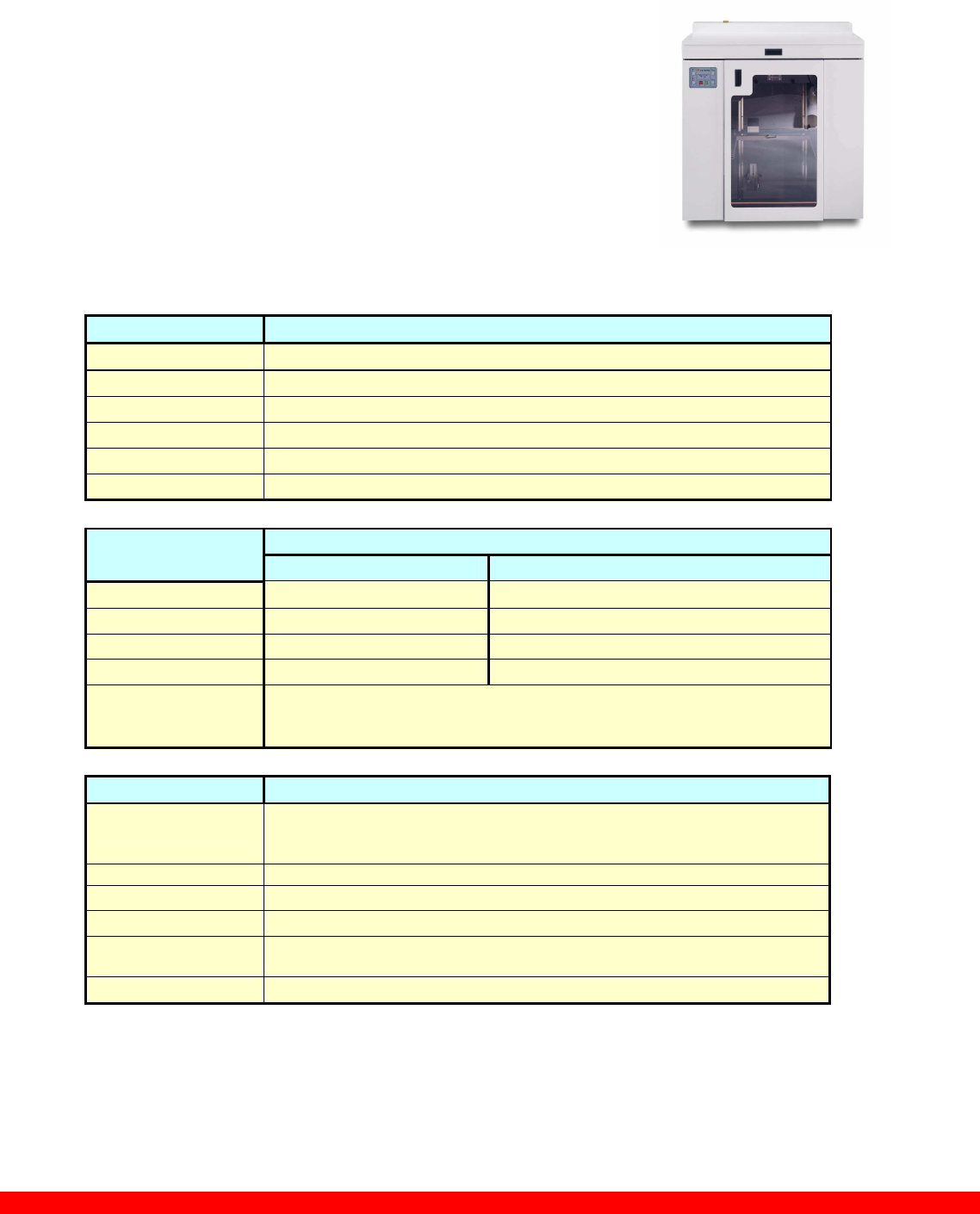

Xerox DS5000 High Capacity Stacker

The DS5000 High Capacity Stacker (HCS) provides long periods of

unattended operation and facilitates transport of accumulated offset stacks

of printed output for post processing. The stacks are easily moved on one

of two wheeled dollies supplied with stacker.. The stackers bypass

capability allows for transporting output to inline 3

party finishing devices.

A Finisher Transport Module is required for in-line connectivity to the printer.

Please refer to the DS5000 Solutions Planning Guide for further site planning

information, system dependencies, limitations, valid configurations and device specifications

Dimensions DS5000

Width X Depth X Height 39.4” x 28.7” x 47.2” (1000mm x 730mm x 1200mm)

Input Height 40.3” (1024mm)

Bypass Output Height 40.3” (1024mm)

Weight 429 lbs. (195 kg) (includes 1 dolly)

Clearance: Operator Minimum 24” in front of module

Clearance: Service Minimum 30” on all sides

DS5000

Electrical &

Environmental Minimum Maximum

Temperature Range 50° F (10° C) 90° F (32° C)

Humidity Range 10% RH 85% RH

Altitude No restriction No restriction

Sound Emission 72 dBs

Power

107 - 127 VAC, 60 Hz, 15 Amps, Single Phase

220/230/240 (Line to Neutral) VAC ± 10%, 50 Hz, 13 AmDPS/10 Amps

GFI Independent Power Cord

Media Latitude DS5000

Stock Weight Range

Uncoated: 16 lb. bond to 110 lb. index (60 to 200 gsm)

Coated, Single Side: 120 – 220gsm

Coated, Two Sides: 120 – 220gsm

Stock Size Range 7.0” x 10.0” to 12.6” x 18.5” (177.8mm x 254mm to 320mm x 470mm)

Specialty Media Carbonless, Tabs, Never Tear, Pre-printed Offset

Top Tray Capacity 250 (20 lb. bond / 75 gsm)

Main Stacker 5000 (20 lb. bond / 75 gsm)

Maximum Stack Height 18.3” (465mm)

Stapler None

Xerox Nuvera™ 100/120/144 Digital Production System - Customer Expectations Document

- 41 -

C.P. Bourg BDFx Booklet Maker with Optional BCFx Covers

Feeder and SquareEdge Module

The C.P. Bourg BDFx is a fully automated signature booklet maker, which produces high quality saddle stitched

booklets inline. The optional cover

insertion module (BCFx) can feed

preprinted cover stock up to 300 gsm in

sheet sizes up to 11” x 17”.

The new SquareEdge (SQEDG) Module

option further expands its capability by

offering an optional square edge spine.

The BDFx can also top or corner stitch

from 2 to 50 sheets. In addition, it can be

used in the fold only mode.

A Finisher Transport Module is required

for in-line connectivity to the printer.

A BFM Plus or a Xerox Document

Stacker 5000 is required for stacking capability.

Please refer to the C.P. Bourg BDFx Booklet Maker Solutions Planning Guide for further site planning

information, system dependencies, limitations, valid configurations and device specifications.

Dimensions Bourg BDFx Bourg BCFx SQEDG

Width x Depth x Height 105” x 30 ” x 71”

(267mm x 76mm x 1803mm)

26.75” x 27” x 52”

(680mm x 687mm x 1320mm)

28” x 29.5” x 49”

(707mm x 745mm x 1242mm)

Input Height 34” (860mm)

40.3” (1024mm)

34” (860mm)

40.3” (1024mm)

34” (860mm)

40.3” (1024mm)

Output Height NA 34” (860mm) NA

Weight 992lbs. (450 kg) 198 lbs. (90 kg) 291 lbs. (132 kg)

Clearance: Operator Minimum 24” (610 mm) in

front of module

Minimum 24” (610 mm) in

front of module

Minimum 24” (610 mm) in

front of module

Clearance: Service Minimum 35” (889 mm) on all

sides

Minimum 35” (889 mm) on all

sides

Minimum 35” (889 mm) on all

sides

Device North America Europe

BDF-X Power 120 VAC (+/- 10%), 60 Hz, 10A 230 VAC (+/- 10%), 50 Hz, 7A

BCF-X Power 120 VAC (+/- 10%), 60 Hz, 5A 230 VAC (+/- 10%), 50 Hz, 3A

SQEDG Power 120 VAC (+/- 10%), 60 Hz, 5A 230 VAC (+/- 10%), 50 Hz, 3A

BDFx / BCFx/ SQEDG Environment

Temperature Humidity Heat Emission Sound Emission Altitude

41 – 85

5 – 29

50-85% BDFx 2560 btu / hr

BCFx 1590 btu / hr

SQEDG 2400 btu / hr

72 dba

(100) – 4000 ft

(31) – 1219 m

Xerox Nuvera™ 100/120/144 Digital Production System - Customer Expectations Document

- 42 -

Stapling / Folding Specifications

BDFx / SQEDG: Uncoated Stock, 16 lbs Bond – 110 lbs Index (60 - 200 gsm)

Uncoated Cover Sheet: Uncoated 20lb - 10 pt cover (80 - 300gsm)

Coated Stock: Please see Solutions Planning Guide

Paper Type /

Weight

BCFx: Uncoated Cover Stock, 20 lbs Bond – 10 pt cover stock (80 – 300 gsm∗)

∗ - for all cover stocks, excluding window cutouts

Coated Stock: Please see Solutions Planning Guide

BDFx / SQEDG 5.5 x 8.5” – 12.6 x 18.5” (140 x 216 mm – 320 x 470 mm)

BDFx w / BCFx in bypass

mode:

8 x 8” – 12.25 x 17” (203 x 203 mm – 310 x 432 mm)

Paper Size

BDFx w / BCFx feeding

covers

8 x 8” – 11.75 x 17” (203 x 203 mm – 298 x 432 mm)

BDFx 5.5 x 4.25” – 12.6 x 9.25” (140 x 108 mm – 320 x 235 mm)

BDFx w / BCFx in bypass

mode

8 x 4” – 12.25 x 8.5” (203 x 101 mm – 310 x 216 mm)

Booklet Sizes

BDFx w / BCFx feeding

covers

8 x 4” – 11.75 x 8.5” (203 x 101 mm – 298 x 216 mm)

BDFx / SQEDG 5.5 x 8.25” – 11.7 x 14” (140 x 210 mm – 297 x 356 mm)

Edge Stapling With BCFx 8 x 10” (SEF) – 11.7 x 12.25” (LEF) (203 x 254 mm – 297 x 310 mm)

8 x 10” – 11.7 x 14” (203 x 254 mm – 297 x 356 mm)

Face Trim 0 – ¾” (0 – 19 mm)

Stitch Head Two to four stitch heads (Hohner or Acme)

Edge / Top / Corner

Stitching

2 – 50 sheets Sheet Capacity

(Stitching)

Saddle Stitching 2 – 22 sheets (20 lb Bond / 80 gsm)

Input Height 34” (860 mm) and 40.2” (1021 mm)

Xerox Nuvera™ 100/120/144 Digital Production System - Customer Expectations Document

- 43 -

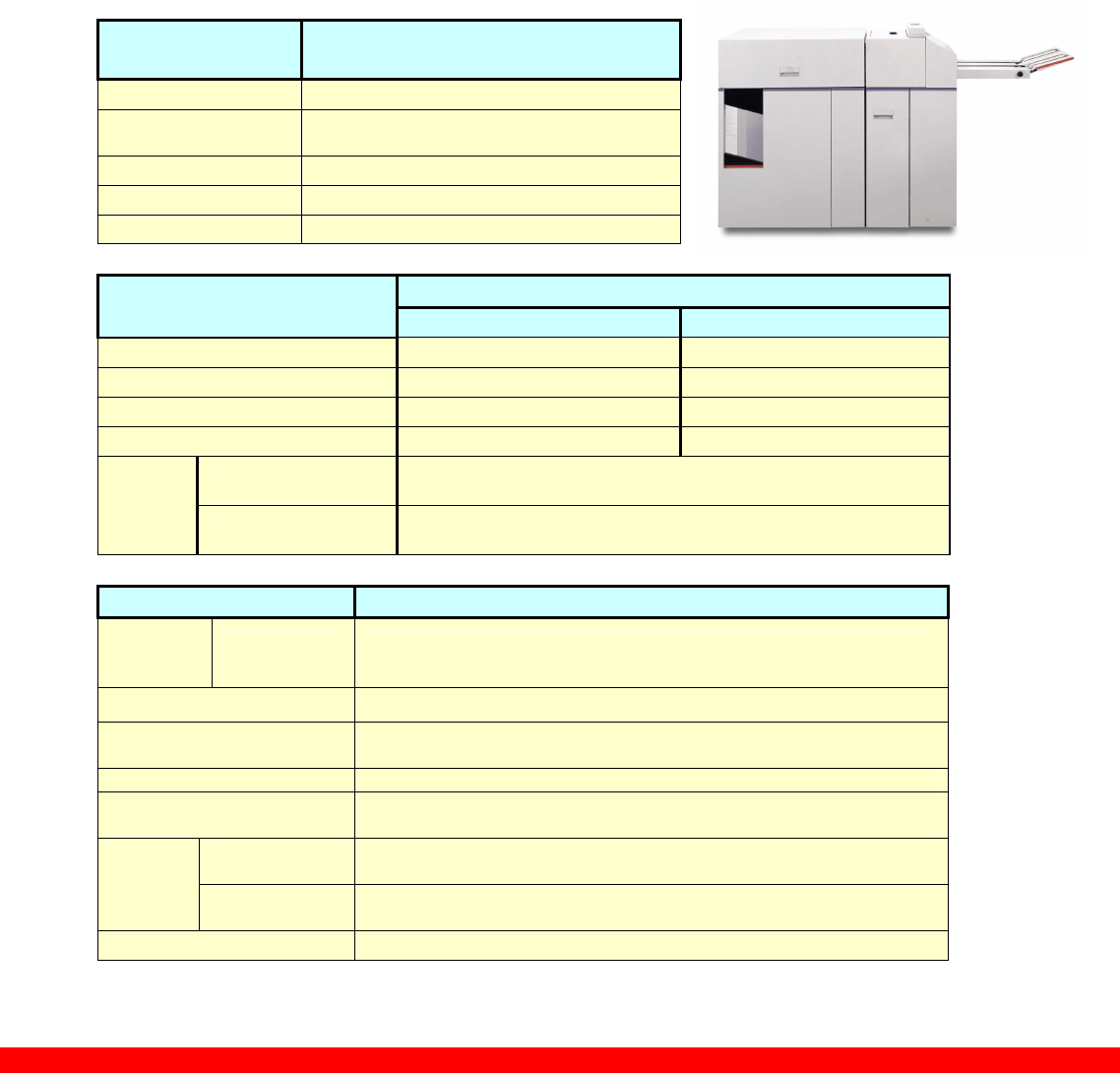

Xerox SquareFold



 BookletMaker (SQFBM)

The Xerox SquareFold Booklet Maker (SQFBM) is a unique Xerox finishing product offering. The SQFBM

has an additional SquareFold Module that flattens the edge of a saddle-stapled booklet to produce the look

and feel of a perfect bound book.

SquareFold booklets stand upright on shelves for easy identification and retrieval, and they stack compactly

to minimize shipping costs. For small size booklets sheets can be rotated in the Finishing Transport module.

Please refer to the Xerox SquareFold Booklet Maker Solutions Planning Guide for further site planning

information, system dependencies, limitations, valid configurations and device specifications.

Dimensions SQUAREFOLD







Booklet Maker

(SQFBM)

Width x Depth x Height 140” x 29” x 50” (3556mm x 740mm x 1270mm)

Input Height 34” (860mm)

40.3” (1024mm)

Weight 1285 lbs. (583 kg)

Clearance: Operator Minimum 24 ” in front of module

Clearance: Service Minimum 30” on all sides

SQUAREFOLD







Booklet Maker (SQFBM)

Electrical & Environmental Minimum Maximum

Temperature Range 50° F (10° C) 90° F (32° C)

Humidity Range 15% RH 85% RH

Altitude TBD ft (m) TBD ft (m)

Sound Emission 50 dBa 70 dBa (continuous)

SQFLD Bookletmaker 110 VAC ± 10%, 60 Hz, 6 Amps

220 – 240 VAC ± 10% , 50 Hz, 3Amps

Power

SQFLD Module 110 VAC ± 10%, 60 Hz, 6 Amps

220 – 240 VAC ± 10% , 50 Hz, 3Amps

Media Latitude SQUAREFOLD







Booklet Maker (SQFBM)

Stock

Weight

Range

SQFLD

BookletMaker

Uncoated: 16 lb. bond to 110 lb. index (60 to 200 gsm)

Coated Stock: Please see Solutions Planning Guide

Specialty Media Not Supported

Stock Size Range -

Booklets

8.5” x 11” to 12.25” x 18.2” (216mm x 280mm to 311mm x 462mm)

Cross Feed: 8.0” to 12.25” (203mm to 463mm)

Booklet Sizes 5.5” x 8.5” to 8.5” x 11” (140mm x 216mm to 216mm x 279mm)

Stock Size Range -

Edge Stapling

7” x 8” to 9.125” x 14.33” (178mm x 203mm to 232mm x 364mm)

Cross Feed: 7” to 14.33” (203mm to 364mm)

Fold or

Staple/ Fold

1 – 22 sheets, 20 lbs (80 gsm)

6 – 22 sheets in SquareFold mode, 20 lbs (80 gsm)

Capacity Edge/ Top/

Corner 2 – 50 sheets, 20 lbs (80 gsm)

Stapling Saddle stapling, 2 staple heads with 5,000 staples

Xerox Nuvera™ 100/120/144 Digital Production System - Customer Expectations Document

- 44 -

GBC Fusion Punch II with

Offset Stacker

The GBC Fusion Punch ll provides inline printer

punching combining printing and punching into one

step. Single sheets are punched and emerge ready to

be finished into lay flat documents. These types of

documents are typically bound with coil, wire or plastic

comb binding and will lay flat when opened.

A wide variety of hole punch patterns are available.

The die sets are lightweight and do not require setup

adjustment time when changed. The operator can easily replace them. The attached stacker can offset stack

up to 2,500 sheets preparing each document for immediate binding. The Fusion Punch II can also be

equipped with an optional Bypass Stacker. This allows the operator to empty one stacker while the other

stacker is in use.

A Finisher Transport Module is required for in-line connectivity to the printer.

Please refer to the GBC Fusion Punch II Solutions Planning Guide for further site planning information,

system dependencies, limitations, valid configurations and device specifications.

Dimensions GBC Fusion Punch II Bypass Stacker Offset Stacker

Width x Depth x

Height

54” x 32 ” x 46 ”

(1372 mm x 813 mm x 1168 mm)

27” x 32” x 46”

(686 x 813 x 1168 mm)

27” x 32 ” x 46”

(686mm x 813mm x 1168mm)

Input Height 34” (860mm)

40.3” (1024mm)

NA NA

Weight 620 lbs. (281 kg) 520 lbs (236 kg) 270 lbs (123 kg)

Weight - Shipping 920 lbs (471 kg) 720 lbs (326 kg)

470 lbs (213 kg)

Clearance: Operator Minimum 24 ” in front of module Minimum 24” in front of module

Minimum 24 ” in front of module

Clearance: Service Minimum 36 ” on all sides Minimum 36” on all sides

Minimum 36 ” on all sides

GBC Fusion Punch II

Electrical & Environmental Minimum Maximum

Temperature Range 41° F (40° C) 104° F (50° C)

Humidity Range 30% RH 95% RH

Heat Output

Punch & Stacker 1198 btu/hr. (115 V 60 Hz) 2150 btu/hr. (230 V 50 Hz)

Altitude 3280ft (1000m)

Sound Emission (with stacker) 64.7 dBs (Idling) 73.7dBs(Running, Punch & Stacker)

Punch 115VAC, 60 Hz, 4.7A (230VAC, 50Hz, 6.8A)

Power

- Dedicated outlet

recommended Stacker 115VAC, 60 Hz, 1.0A (230VAC, 50Hz, 0.25A)

Certification US/Canadian approval by CSA. GS mark by TUV Product Services

Compliance CE for European Union requirement

Media Latitude GBC Fusion Punch II

Stock Weight Range Uncoated: 16 lb. to 90 lb. index (60 to 200 gsm)

Specialty Media Tabs

Stock Size Range 7.0” x 10.0” to 11.0” x 17.0” (178mm x 254mm to 279mm x 432mm)

Xerox Nuvera™ 100/120/144 Digital Production System - Customer Expectations Document

- 45 -

Media Latitude GBC Fusion Punch II

Top Tray Capacity 250

Main Stacker 2500

Stapler None

Xerox Nuvera™ 100/120/144 Digital Production System - Customer Expectations Document

- 46 -

Xerox DB120-D Document Binder

The Document Binder DB120-D uses a unique thermal binding technology

combined with pre-formed covers to create a high quality professionally

bound document. The DB120-D binds 8.5” x 11” or A4 documents up to

120 pages in a variety of attractive covers. You can custom order

imprinted covers with your logo or a particular design. The pre-formed

cover wraps around the internal pages to produce a perfect bound

document with a commercial look and feel. The document pages fit neatly

and uniformly into the bind for the perfect bound look with no trimming

needed. The usability improves due to the hinged spine scoring which

allows pages to lie flat when opened. The book binding adhesive is

reinforced with a special mesh/cloth material to ensure a strong, consistent bind

with no mess or oozing.

A Finisher Transport Module is required for in-line connectivity to the printer.

A BFM Plus or a Xerox Document Stacker 5000 is highly recommended for stacking capability.

Please refer to the Xerox Document Binder 120-D Solutions Planning Guide for further site planning

information, system dependencies, limitations, valid configurations and device specifications

Dimensions Xerox DB120-D Document Binder

Width X Depth X Height 59.25” x 24” x 51” (1423mm x 610mm x 1296mm)

Input Heights 34” (860 mm) and (optionally) 40.2” (1021 mm)

Weight 462 lbs. ( 210 kg)

Clearance: Operator Minimum 24” in front of module

Clearance: Service Minimum 24” on all sides

Xerox DB120-D Document Binder

Electrical &

Environmental Minimum Maximum

Temperature Range 50° F (10° C) 90° F (32° C)

Humidity Range 10% RH 85% RH

Altitude No restriction No restriction

Sound Emission 43.3 dBs 62.3 dBs

Power 115 VAC ± 10%, 60 Hz, 15 – 20 Amps

Media Latitude Xerox DB120-D Document Binder

Stock Weight Range Uncoated: 20 lb. bond to 32 lb. index (75 to 120 gsm)*

* Weights above 32 lb. (120 gsm) should be used only as covers, dividers or inserts.

Specialty Media Flush Cut Tabs

Stock Size Range 8.5” x 11” or A4

1/16” (1.5mm) = 3-15 Sheets** (** - 1-15 sheets in Walk-up Mode)

1/8” (3mm) = 16-30 Sheets

¼ ” (6mm) = 31-60 Sheets

3/8” (9mm) = 61-90 Sheets

Pre-Formed Covers

(Sheet count with

covers based on 20lb

bond (75 gsm)) ½” (13 mm) = 91-120 Sheets

Xerox Nuvera™ 100/120/144 Digital Production System - Customer Expectations Document

- 47 -

Xerox Manual and Book Factory

The Xerox Manual + Book Factory (MBF) is comprised of the:

• C.P. Bourg BBF2005 – perfect binder

• C.P. Bourg BBR – out feed conveyor for the BBF2005

• C.P. Bourg BBF2005 Input – input module for the BBF2005

• C.P. Bourg BPRF – perforate, rotate, fold module (optional)

• Challenge CMT-330 – three-side trimmer (optional)

• C.P. Bourg BDFx (with optional peripherals BCFx, SQEDG, and Gateway) – booklet maker (currently

not available with Nuvera)

Documents flow directly from the Xerox printer to the MBF without the bottleneck associated with the traditional

offline binding process. The CP Bourg BBF2005 Perfect Binder and BPRF module match the output speed of

the digital production press.

The CP Bourg Perforate, Rotate, Fold (BPRF) module receives the printed sheet of paper from the printer and

immediately perforates the sheet with a micro-perforation across it center. The sheet is then turned 90

and

folded on the perforation. The printed, perforated and folded paper then exits the BPRF and enters the

accumulating section (input section) of the Bourg Perfect Binder BBF2005. This process enables productive,

cost effective 2-up duplex signature printing.

The CP Bourg BBF 2005 Perfect Binder is the integrated perfect binder that produces professionally finished

books quickly and easily. The Perfect Binder compiles the pages (book block) from the BPRF, jogs the pages

into position and then vibrates them into alignment. The pages are clamped together and run across a milling

station, which roughs the spine edge for superior adhesive adherence. After the adhesive is applied, the book

block is moved to the cover mounting station. The cover is registered, applied in precise position, clamped to the

book block and delivered to the output tray.

The BBF2005 perfect binder dynamically senses the thickness of the book block during the clamping operation,

making it ideal for printing short runs of books with varying thickness. The book is then ready to be trimmed. As

an option, the Book Factory can also be equipped with an inline trimmer, the Challenge CMT-330. The CMT 330

is a three-side trimmer designed for the on-demand printing environment. It features full digital control of the

trimming process - servomotors control all adjustments normally done by hand with a traditional trimmer.

A Finisher Transport Module is required for in-line connectivity to the printer.

Please refer to theXerox Book Factory Solutions Planning Guide for further site planning information,

system dependencies, limitations, valid configurations and device specifications.

Xerox Nuvera™ 100/120/144 Digital Production System - Customer Expectations Document

- 48 -

Dimensions BBF2005 BPRF BBF2005 Input Unit

Width x Depth x

Height

102” x 43” x 45”

2575 x 1095 x 1143 mm

64” x 31” x 51”

1625 x 787 x 1295 mm

30.5” (38” with bypass option) x

28.5” x 45”

775 x 725 x 1143 mm

Weight 1254 lbs (570 kg) 562 lbs (255 kg) 333 lbs (150 kg)

Weight - Shipping 1738 lbs (788 kg) 824 lbs (373 kg) 407 lbs (184 kg)

Clearance: Operator Minimum 24” (610 mm) in front of

the device

Minimum 24” (610 mm) in front

of the device

Minimum 24” (610 mm) in front

of the device

Clearance: Service Minimum 36” (914 mm) behind

the device

Minimum 30” (763mm) on all

sides of the device

Minimum 30” (763 mm) on all

sides of the device

Dimensions CMT-330 Cooling Tower Conveyors

Width x Depth x

Height

84" x 34.5” x 61”

2134 mm x 876 mm x 1549 mm

21.5” x 37” x 45.5”

550 mm x 950 mm x 116 mm

In-feed: 40" x 29” x 26”

1020 mm x 740 mm x 660 mm

Exit: 47" x 12.2” x 39.5”

1200 mm x 310 mm x 1010 mm

Weight 2540 lbs (1140 kg) 335 lbs (152 kg) In-feed: 150 lbs (68 kg)

Exit: 85 lbs (39 kg)

Weight - Shipping 2850 lbs (1300 kg) 470 lbs (214 kg) 290 lbs (132 kg)

Clearance: Operator Minimum 24” (610 mm) in front of

the device

Minimum 24” (610 mm) in front

of the device

Minimum 24” (610 mm) in front

of the device

Clearance: Service Minimum 30” (763 mm) on all

sides of the device

Minimum 30” (763 mm) on all

sides of the device

Minimum 30” (763 mm) on all

sides of the device

BPRF / BBF2005 / BBF Input Unit / CMT - 330

Electrical & Environmental Minimum Maximum

Temperature Range 41° F (5° C) 85° F (29° C)

Humidity Range 50% RH 85% RH

Altitude -100 ft. (-31m) 4,000 ft. (1,219 m)

Heat Output

BPRF: 3240 btu/hr

BBF2005: 10024 btu/hr

CMT-330: 7500 btu/hr

Sound Emission BPRF / BBF2005 / BBF 2005 Input: 79 db

CMT-330: 80db

BPRF 110 VAC, 60 Hz, 15A

230 VAC, 50 Hz, 10A

Power

BBF2005 220 VAC, 20A, 3 phase

380/400/415 VAC, 50 Hz, 20A

CMT-330 3 Phase, 60 Hz, AC 208/230 Volts, 25 Amps (service size 30 Amps)

Air CMT –330: 80 - 90 PSI, 5 CFM Un-lubricated

Xerox Nuvera™ 100/120/144 Digital Production System - Customer Expectations Document

- 49 -

Media Latitude

BBF2005 with BPRF BBF2205 without BPRF

Stock Weight

Range

Book Body:

Min.: 16 lbs Bond (60 gsm)

Max. (w/o Perforate & Fold): 90 lbs index (160 gsm)

Max. (Perforate, Fold or Perforate & Fold): 24 lbs

Bond (90 gsm)

Cover:

Min.: 30 lbs Cover (80 gsm)

Max.: 90 lbs Cover (250 gsm) *

* - May require creasing.

Book Body:

Min.: 16 lbs Bond (60 gsm)

Max.: 40 lbs Bond (160 gsm)

Cover:

Min.: 30 lbs Cover (80 gsm)

Max.: 90 lbs Cover (250 gsm) *

* - May require creasing.

Stock Size Range

8.5 x 11” – 12.6 x 17” (210 x 280 mm – 320 x 432 mm) *

* - Maximum paper size with optional Fold Plate: 12.6 x

18.5” (320 x 470 mm)

8.25 x 7” – 12.6 x 12” (203 x 140 mm – 320 x 305 mm)

Book Sizes

(Before Trimming)

8.25 x 5.5” – 14 x 12” (210 x 140 mm – 356 x 305 mm)

Walk-up mode:

8.25 x 3.5” – 14 x 12” (210 x 89 mm – 356 x 305 mm)

8.25 x 5.5” – 14 x 12” (210 x 140mm – 356 x 305 mm)

Walk-up mode:

8.25 x 3.5” – 14 x 12” (210 x 89 mm – 356 x 305 mm)

Book Thickness

Min.: 15 sheets duplex or 35 sheets simplex / 20 lbs Bond

(80 gsm)

Max,: 125 sheets (250 book pages) / 20 lbs Bond (80

gsm) 1.6” (40 mm)

Min.: 15 sheets duplexed / 20 lbs Bond (80 gsm)

Max.: 350 sheets / 20 lbs Bond (80 gsm) 1.6” (40 mm)

Xerox Nuvera™ 100/120/144 Digital Production System - Customer Expectations Document

- 50 -

Post-process Uses of Xerox Nuvera™ 100/120/144 Digital

Production System Output

The following post-process characteristics and usages for Xerox Nuvera™ output have been evaluated.

Item Xerox Nuvera™ 100/120/144

Digital Production System Comment

Permanence Xerographic prints are as permanent as the

paper on which they are printed.

The U.S. Patent Office accepts xerographic

prints as permanent records.

Overprint in

xerographic printer

Prints cannot be successfully fed through a

xerographic printer for overprinting.

Any product with a wax-based fusing system

would produce the same result.

Overprint in ink jet

printer

Prints can be successfully overprinted on

an ink jet printer, depending on the area

coverage of the print and the wetting

characteristics of the ink. Wetting issues

are most likely when printing over an area

of high dry ink coverage. They may be

resolved by selecting a different setting on

the ink jet printer to affect the amount of ink

printed or the speed of printing.

Future Features - Xerox Nuvera™ 100/120/144 Digital Production

System

A Customer /Prospect Request (C/PR) is a product feature enhancement request submitted by a Xerox

Representative on behalf of a current or prospective Xerox customer. Currently, C/PR's can be

submitted for PSG products only.

The C/PR web site at xww.cpr.world.xerox.com can be accessed by the Xerox Representative in order

to provide a detailed description of the feature request.

Xerox Nuvera 100 Mx Users Manual DPS CED Release 7.0

If not then 100PSCED Manual: ://.support.xerox.com/pub/docs/Nuvera_100/userdocs/any-os/en/100PSCED

Navigation menu

Versions of this User Manual:

Views

Navigation
