Xetawave 93824-XETA4HP 406 to 512 MHz Wireless Data Transceiver Module User Manual Xetawave
Xetawave LLC 406 to 512 MHz Wireless Data Transceiver Module Xetawave
Xetawave >
Users Manual
1
XETA4m-HP
Licensed Spectrum Wireless Data Transceiver
406 to 512 MHz
Installation Guide
Version Xet4m-HP sp3
2
Contents
Xeta4m-HP Installation ................................................................................................................................ 3
Figure 1. Xeta4m-HP Photo ......................................................................................................................... 3
Figure 2. Botton View of Module .............................................................................................................. 4
3
Xeta4m-HP Installation
Figure 1. Xeta4m-HP Photo
4

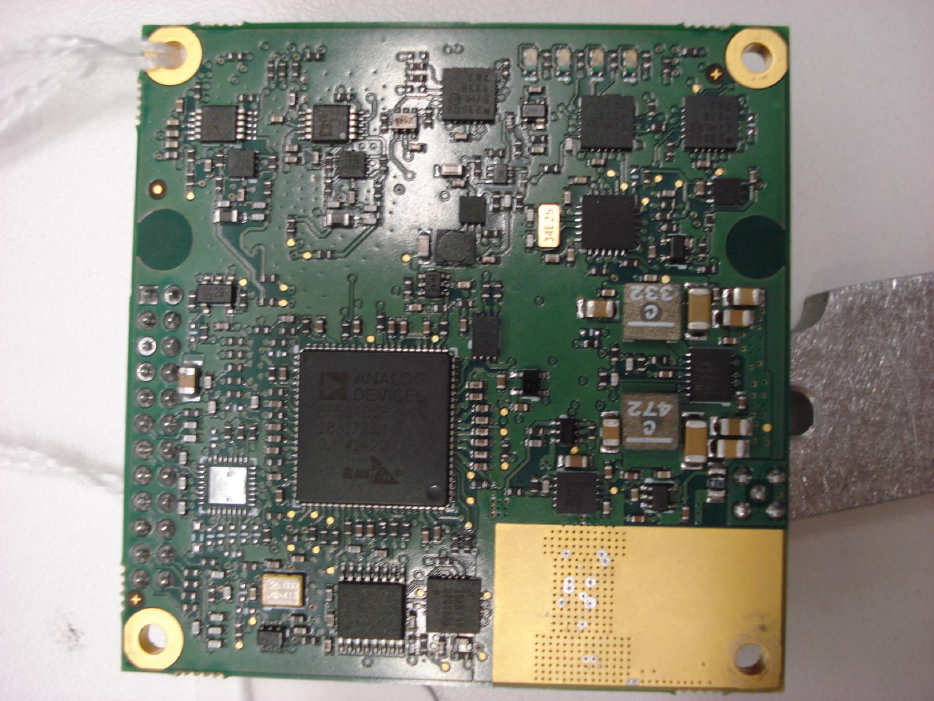

Figure 2. Botton View of Module
1. Plug the module into the 12 pin header socket
2. Connect RF cable
3. Power up the radio
