Xiamen Four Faith Communication Technology F3836 F3836 LTE/WCDMA WIFI Industrial ROUTER User Manual

Xiamen Four-Faith Communication Technology Co., Ltd. F3836 LTE/WCDMA WIFI Industrial ROUTER

Users manual

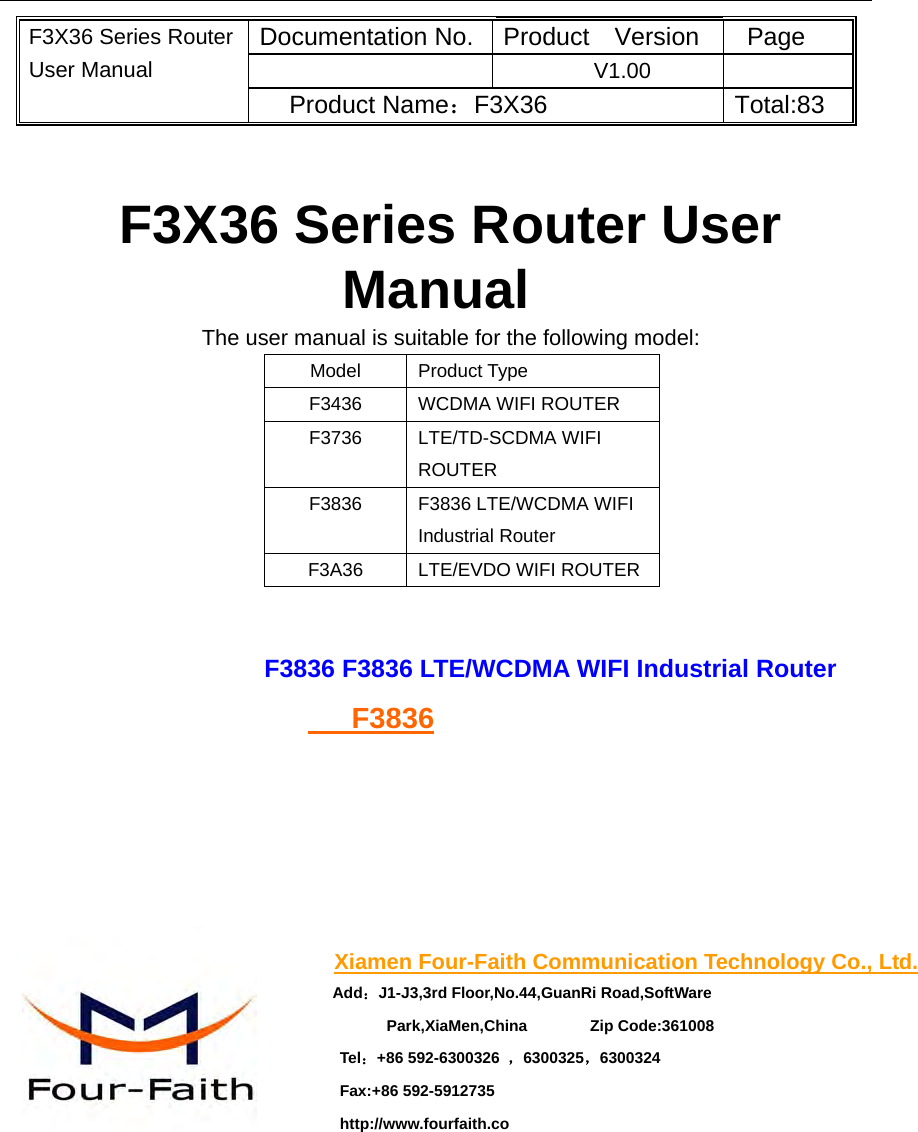

F3X36 Series Router User Manual Documentation No. Product Version Page V1.00 Product Name：F3X36 Total:83 F3X36 Series Router User Manual The user manual is suitable for the following model: Model Product Type F3436 WCDMA WIFI ROUTER F3736 LTE/TD-SCDMA WIFI ROUTER F3836 F3836 LTE/WCDMA WIFI Industrial Router F3A36 LTE/EVDO WIFI ROUTER F3836 F3836 LTE/WCDMA WIFI Industrial Router F3836 Xiamen Four-Faith Communication Technology Co., Ltd. Add：J1-J3,3rd Floor,No.44,GuanRi Road,SoftWare Park,XiaMen,China Zip Code:361008 Tel：+86 592-6300326 ，6300325，6300324 Fax:+86 592-5912735 http://www.fourfaith.co
F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 2 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 Files Revised Record Date Version Remark Author 2014-8-8 V1.00 Initial version ZBQ/WT Copyright Notice

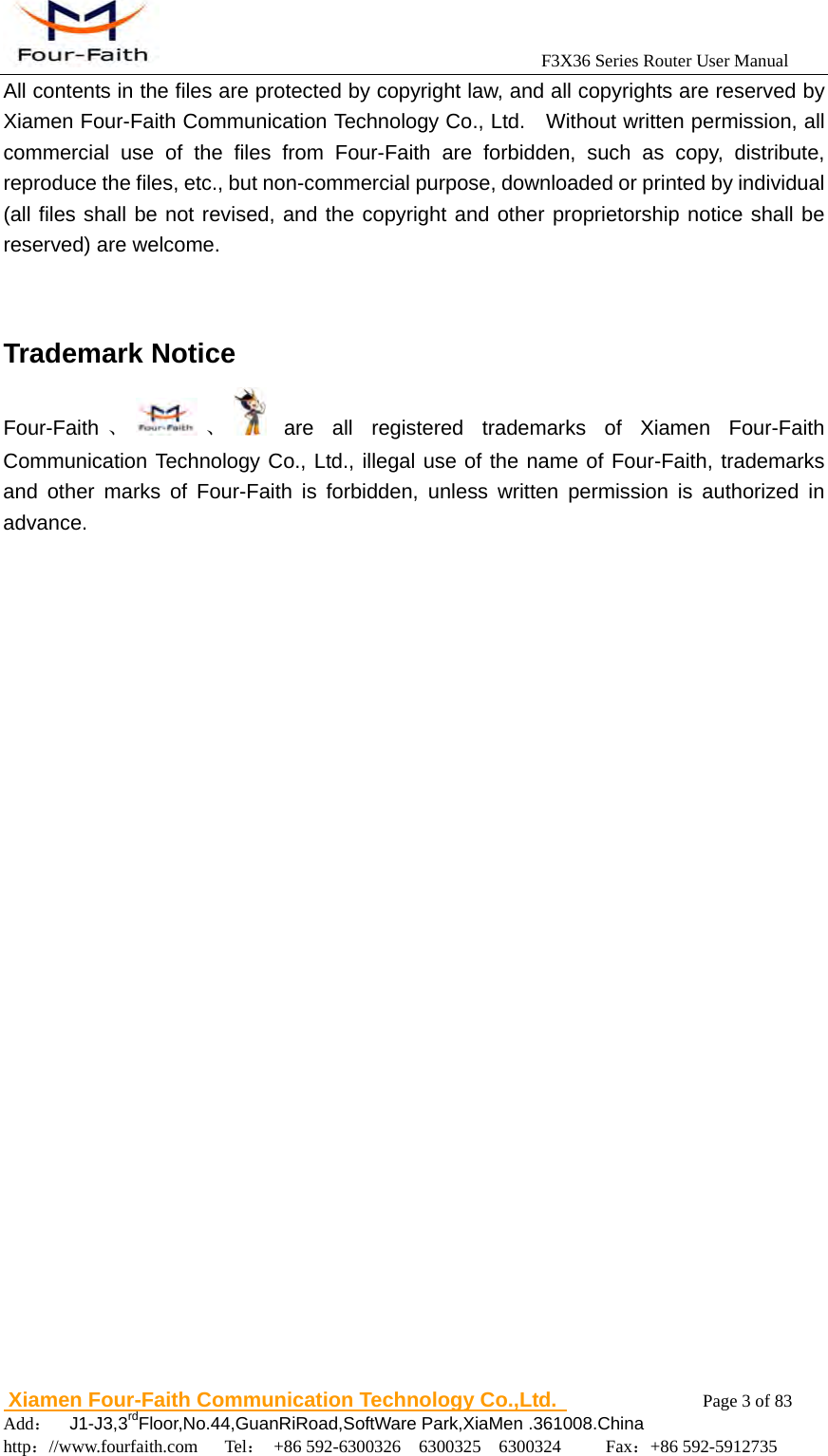

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 3 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 All contents in the files are protected by copyright law, and all copyrights are reserved by Xiamen Four-Faith Communication Technology Co., Ltd. Without written permission, all commercial use of the files from Four-Faith are forbidden, such as copy, distribute, reproduce the files, etc., but non-commercial purpose, downloaded or printed by individual (all files shall be not revised, and the copyright and other proprietorship notice shall be reserved) are welcome. Trademark Notice Four-Faith 、 、 are all registered trademarks of Xiamen Four-Faith Communication Technology Co., Ltd., illegal use of the name of Four-Faith, trademarks and other marks of Four-Faith is forbidden, unless written permission is authorized in advance.

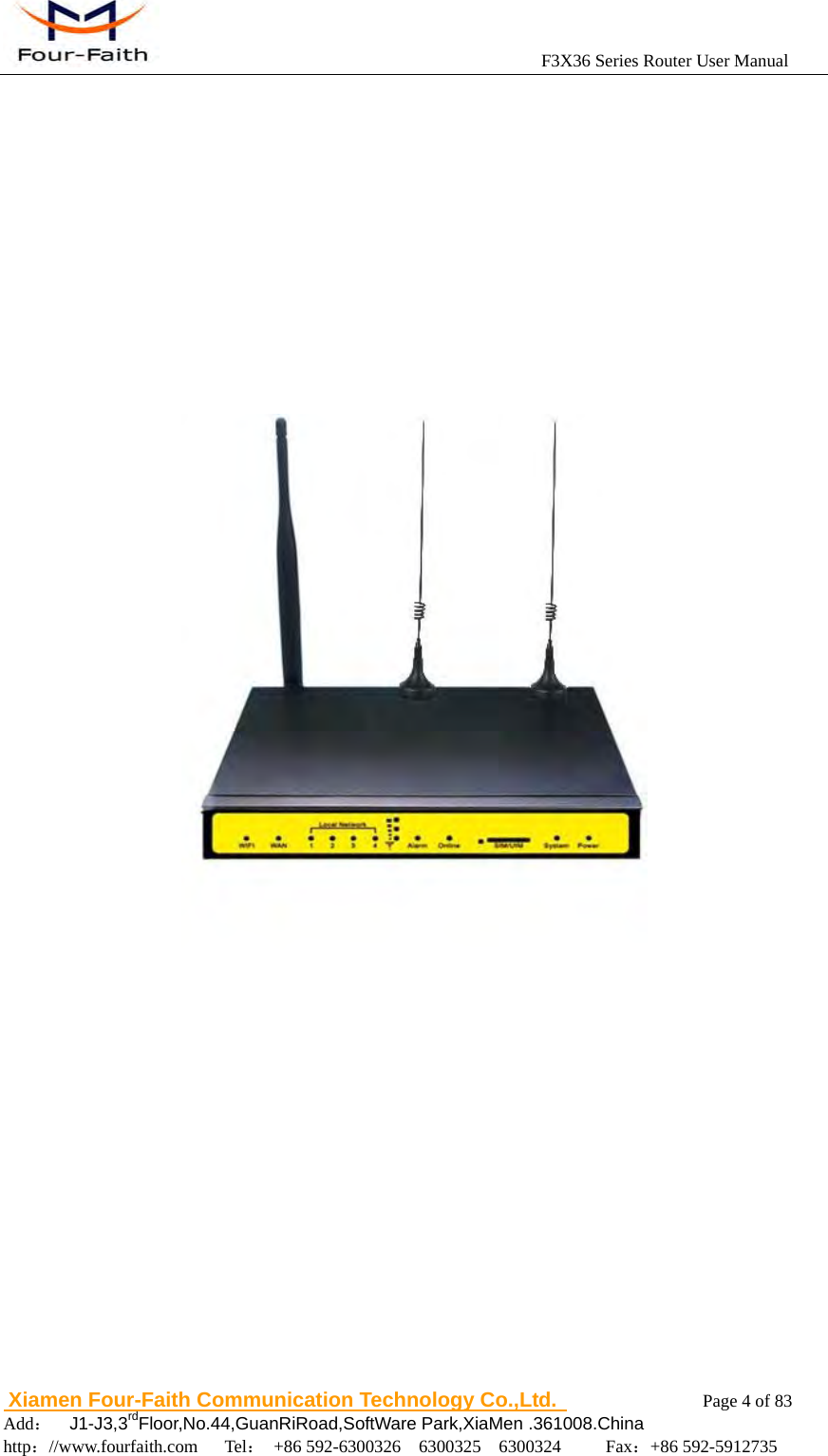

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 4 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735

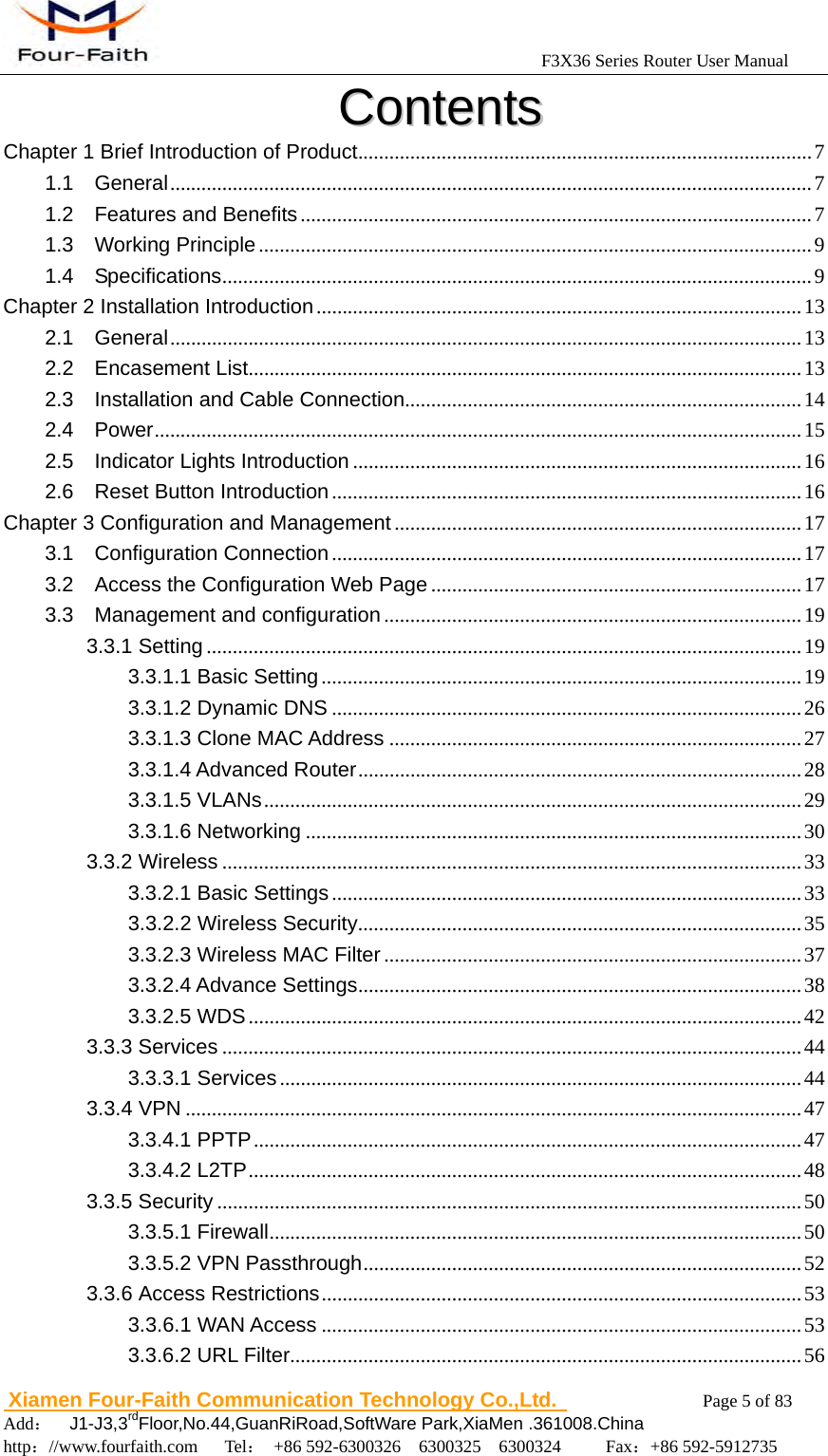

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 5 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 CCoonntteennttss Chapter 1 Brief Introduction of Product ....................................................................................... 7 1.1 General ........................................................................................................................... 7 1.2 Features and Benefits .................................................................................................. 7 1.3 Working Principle .......................................................................................................... 9 1.4 Specifications ................................................................................................................. 9 Chapter 2 Installation Introduction ............................................................................................. 13 2.1 General ......................................................................................................................... 13 2.2 Encasement List .......................................................................................................... 13 2.3 Installation and Cable Connection ............................................................................ 14 2.4 Power ............................................................................................................................ 15 2.5 Indicator Lights Introduction ...................................................................................... 16 2.6 Reset Button Introduction .......................................................................................... 16 Chapter 3 Configuration and Management .............................................................................. 17 3.1 Configuration Connection .......................................................................................... 17 3.2 Access the Configuration Web Page ....................................................................... 17 3.3 Management and configuration ................................................................................ 19 3.3.1 Setting .................................................................................................................. 19 3.3.1.1 Basic Setting ............................................................................................ 19 3.3.1.2 Dynamic DNS .......................................................................................... 26 3.3.1.3 Clone MAC Address ............................................................................... 27 3.3.1.4 Advanced Router ..................................................................................... 28 3.3.1.5 VLANs ....................................................................................................... 29 3.3.1.6 Networking ............................................................................................... 30 3.3.2 Wireless ............................................................................................................... 33 3.3.2.1 Basic Settings .......................................................................................... 33 3.3.2.2 Wireless Security ..................................................................................... 35 3.3.2.3 Wireless MAC Filter ................................................................................ 37 3.3.2.4 Advance Settings ..................................................................................... 38 3.3.2.5 WDS .......................................................................................................... 42 3.3.3 Services ............................................................................................................... 44 3.3.3.1 Services .................................................................................................... 44 3.3.4 VPN ...................................................................................................................... 47 3.3.4.1 PPTP ......................................................................................................... 47 3.3.4.2 L2TP .......................................................................................................... 48 3.3.5 Security ................................................................................................................ 50 3.3.5.1 Firewall ...................................................................................................... 50 3.3.5.2 VPN Passthrough .................................................................................... 52 3.3.6 Access Restrictions ............................................................................................ 53 3.3.6.1 WAN Access ............................................................................................ 53 3.3.6.2 URL Filter .................................................................................................. 56

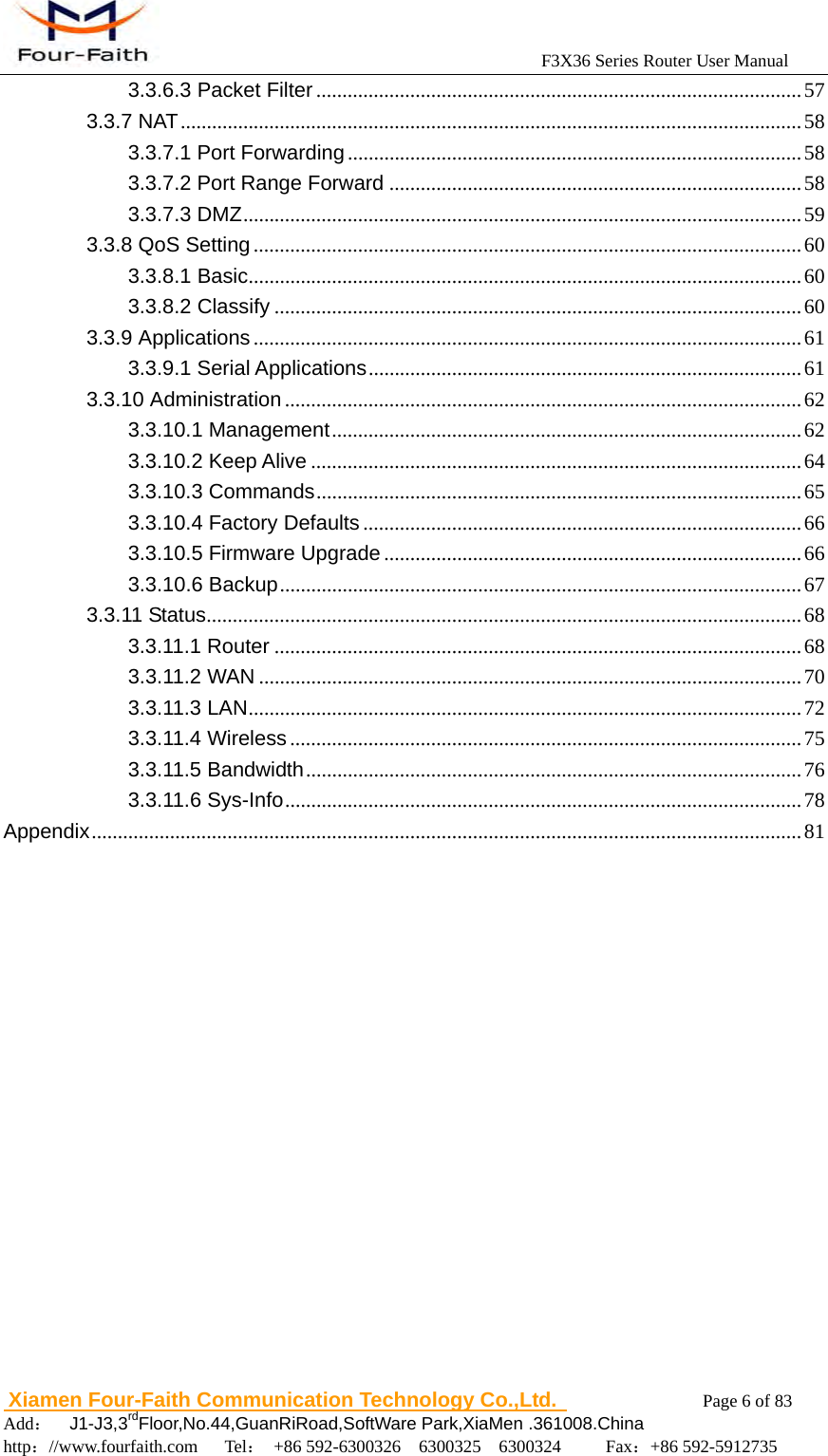

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 6 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 3.3.6.3 Packet Filter ............................................................................................. 57 3.3.7 NAT ....................................................................................................................... 58 3.3.7.1 Port Forwarding ....................................................................................... 58 3.3.7.2 Port Range Forward ............................................................................... 58 3.3.7.3 DMZ ........................................................................................................... 59 3.3.8 QoS Setting ......................................................................................................... 60 3.3.8.1 Basic .......................................................................................................... 60 3.3.8.2 Classify ..................................................................................................... 60 3.3.9 Applications ......................................................................................................... 61 3.3.9.1 Serial Applications ................................................................................... 61 3.3.10 Administration ................................................................................................... 62 3.3.10.1 Management .......................................................................................... 62 3.3.10.2 Keep Alive .............................................................................................. 64 3.3.10.3 Commands ............................................................................................. 65 3.3.10.4 Factory Defaults .................................................................................... 66 3.3.10.5 Firmware Upgrade ................................................................................ 66 3.3.10.6 Backup .................................................................................................... 67 3.3.11 Status .................................................................................................................. 68 3.3.11.1 Router ..................................................................................................... 68 3.3.11.2 WAN ........................................................................................................ 70 3.3.11.3 LAN .......................................................................................................... 72 3.3.11.4 Wireless .................................................................................................. 75 3.3.11.5 Bandwidth ............................................................................................... 76 3.3.11.6 Sys-Info ................................................................................................... 78 Appendix ........................................................................................................................................ 81

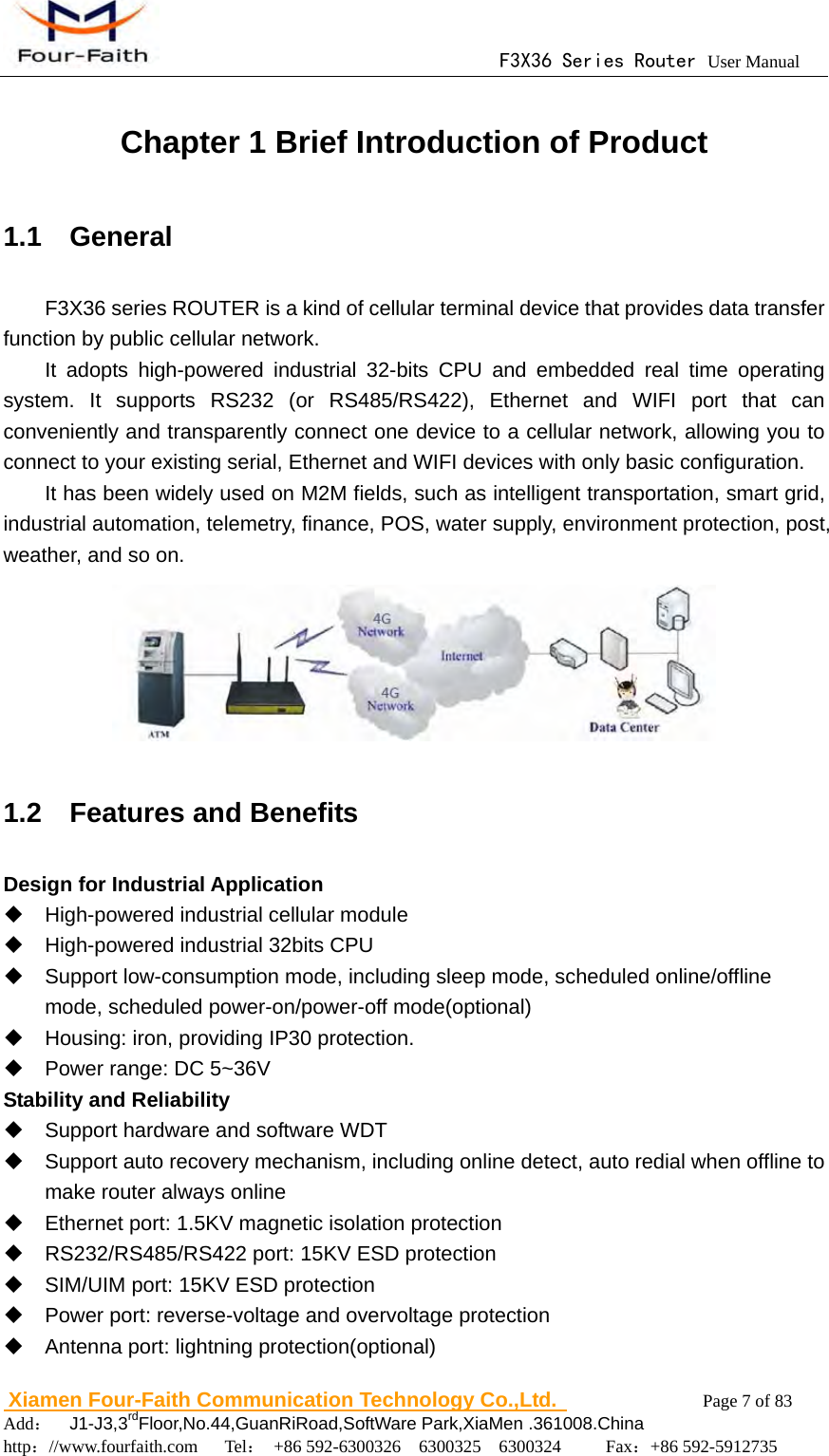

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 7 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 Chapter 1 Brief Introduction of Product 1.1 General F3X36 series ROUTER is a kind of cellular terminal device that provides data transfer function by public cellular network. It adopts high-powered industrial 32-bits CPU and embedded real time operating system. It supports RS232 (or RS485/RS422), Ethernet and WIFI port that can conveniently and transparently connect one device to a cellular network, allowing you to connect to your existing serial, Ethernet and WIFI devices with only basic configuration. It has been widely used on M2M fields, such as intelligent transportation, smart grid, industrial automation, telemetry, finance, POS, water supply, environment protection, post, weather, and so on. 1.2 Features and Benefits Design for Industrial Application  High-powered industrial cellular module  High-powered industrial 32bits CPU  Support low-consumption mode, including sleep mode, scheduled online/offline mode, scheduled power-on/power-off mode(optional)  Housing: iron, providing IP30 protection.  Power range: DC 5~36V Stability and Reliability  Support hardware and software WDT  Support auto recovery mechanism, including online detect, auto redial when offline to make router always online  Ethernet port: 1.5KV magnetic isolation protection  RS232/RS485/RS422 port: 15KV ESD protection  SIM/UIM port: 15KV ESD protection  Power port: reverse-voltage and overvoltage protection  Antenna port: lightning protection(optional)
F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 8 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 Standard and Convenience  Support standard RS232(or RS485/RS422), Ethernet and WIFI port that can connect to serial, Ethernet and WIFI devices directly  Support standard WAN port and PPPOE protocol that can connect to ADSL directly  Support intellectual mode, enter into communication state automatically when powered  Provide management software for remote management  Support several work modes  Convenient configuration and maintenance interface（WEB or CLI） High-performance  Support multiple WAN access methods, including static ip, DHCP, L2TP, PPTP,PPPOE,3G/HSPA/4G.  Support double link backup between cellular and WAN(PPPOE, ADSL) (optional)  Support VPN client(PPTP, L2TP, OPENVPN, IPSEC and GRE)(only for VPN version)  Support VPN server(PPTP, L2TP, OPENVPN, IPSEC and GRE)(only for VPN version)  Support local and remote firmware upgrade,import and export configure file.  Support NTP, RTC embedded.  Support mulitiple DDNS provider service.  Support VLANs, MAC Address clone, PPPoE Server  WIFI support 802.11b/g/n. support AP, client, Adhoc, Repeater, Repeater Bridge and WDS(optional) mode.  WIFI support WEP,WPA,WPA2 encryption,Support RADIUS authentication and MAC address filter.  Support multi online trigger ways, including SMS, ring and data. Support link disconnection when timeout  Support APN/VPDN  Support DHCP server and client, firewall, NAT, DMZ host , URL block, QoS, ttraff,statistics, real time link speed statistics etc.  Full protocol support , such as TCP/IP, UDP, ICMP, SMTP(optional), HTTP, POP3(optional), OICQ(optional), TELNET, FTP(optional), SNMP, SSHD, etc.  Schedule Reboot, Schedule Online and Offline,etc.

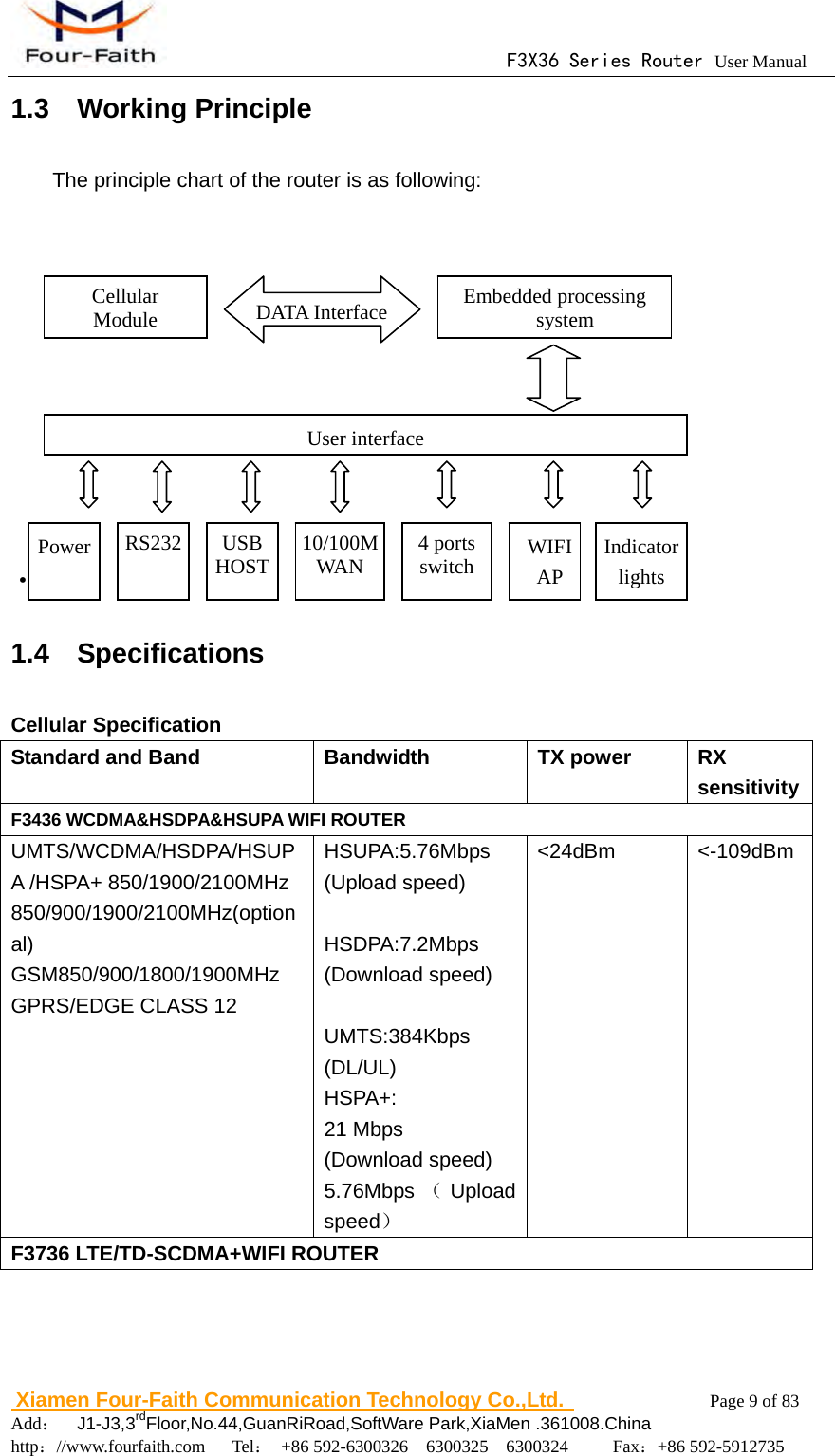

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 9 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 1.3 Working Principle The principle chart of the router is as following: · 1.4 Specifications Cellular Specification Standard and Band Bandwidth TX power RX sensitivity F3436 WCDMA&HSDPA&HSUPA WIFI ROUTER UMTS/WCDMA/HSDPA/HSUPA /HSPA+ 850/1900/2100MHz 850/900/1900/2100MHz(optional) GSM850/900/1800/1900MHz GPRS/EDGE CLASS 12 HSUPA:5.76Mbps (Upload speed) HSDPA:7.2Mbps (Download speed) UMTS:384Kbps (DL/UL) HSPA+: 21 Mbps (Download speed) 5.76Mbps （Upload speed） <24dBm <-109dBm F3736 LTE/TD-SCDMA+WIFI ROUTER Embedded processing system Cellular Module Power RS232 Indicator lights DATA Interface User interface 4 ports switch WIFI AP 10/100M WAN USB HOST
F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 10 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 LTE TDD 2600/1900/2300MHz（Band 38/39/40） 800/1400/1800MHz(Band27/61/62）(optional) TD-SCDMA 2010/1900MHz（A/F frequency band，Band 34/39） GSM/GPRS/EDGE 900/1800/1900MHz LTE TDD(Download speed:68Mbps ，upload speed:17Mbps) /TD-SCDMA :2.2Mbps(upload speed)/2.8Mbps(download speed) <23dBm <-97dBm F3836 LTE/WCDMA+WIFI ROUTER LTE FDD 2600/2100/1800/900/800MHz（Band 1/3/7/8/20） 700/850/1700/1900/2100MHz (Band 2/4/5/13/17/25)(optional) DC-HSPA+/HSPA+/HSDPA/ HSUPA/WCDMA/UMTS 2100/1900/900/850/800MHz (Band 1/2/5/6/8） EDGE/GPRS/GSM 850/900/1800/1900MHz LTE FDD(Download speed:100Mbps，upload speed:50Mbps) /HSUPA:5.76Mbps(upload speed)/ HSDPA:7.2Mbps(download speed:) UMTS:384Kbps (download speed/upload speed) HSPA+: 42Mbps(download speed) 5.76Mbps(upload speed) <23dBm <-93.3dBm F3A36 LTE&EVDO+WIFI ROUTER LTE FDD 700/850/1700/1900/2100MHz (Band 2/4/5/13/17/25) CDMA 1XRTT/EVDO 800/1900MHz （Band Class 0/Class 1/Class 10） LTE(Download speed:100Mbps，upload speed:50Mbps) CDMA2000 1X EVDO Rev A (download speed:3.1Mbps ，upload speed:1.8Mbps) <23dBm <-93.3dBm

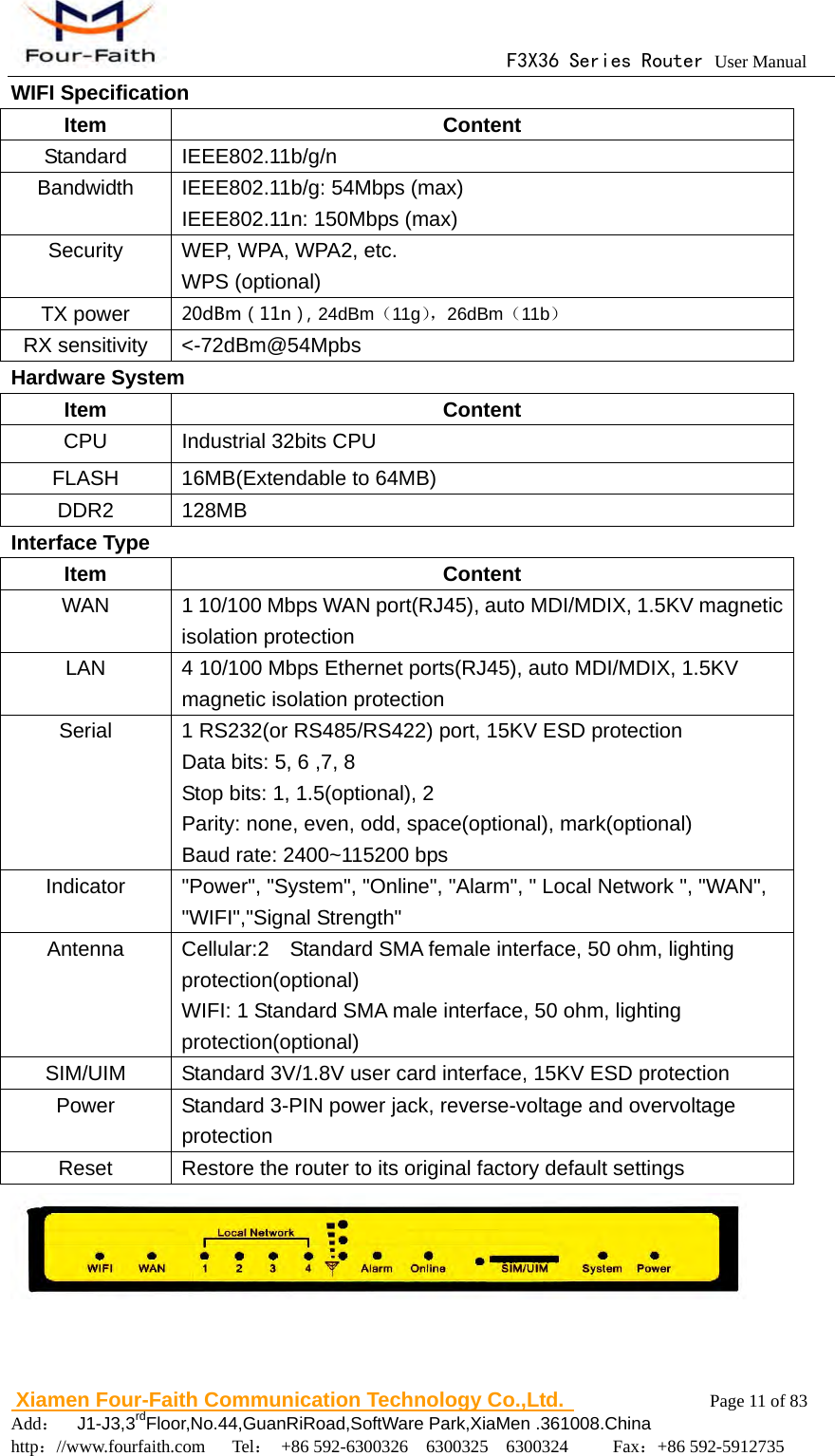

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 11 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 WIFI Specification Item Content Standard IEEE802.11b/g/n Bandwidth IEEE802.11b/g: 54Mbps (max) IEEE802.11n: 150Mbps (max) Security WEP, WPA, WPA2, etc. WPS (optional) TX power 20dBm（11n），24dBm（11g），26dBm（11b） RX sensitivity <-72dBm@54Mpbs Hardware System Item Content CPU Industrial 32bits CPU FLASH 16MB(Extendable to 64MB) DDR2 128MB Interface Type Item Content WAN 1 10/100 Mbps WAN port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection LAN 4 10/100 Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection Serial 1 RS232(or RS485/RS422) port, 15KV ESD protection Data bits: 5, 6 ,7, 8 Stop bits: 1, 1.5(optional), 2 Parity: none, even, odd, space(optional), mark(optional) Baud rate: 2400~115200 bps Indicator "Power", "System", "Online", "Alarm", " Local Network ", "WAN", "WIFI","Signal Strength" Antenna Cellular:2 Standard SMA female interface, 50 ohm, lighting protection(optional) WIFI: 1 Standard SMA male interface, 50 ohm, lighting protection(optional) SIM/UIM Standard 3V/1.8V user card interface, 15KV ESD protection Power Standard 3-PIN power jack, reverse-voltage and overvoltage protection Reset Restore the router to its original factory default settings

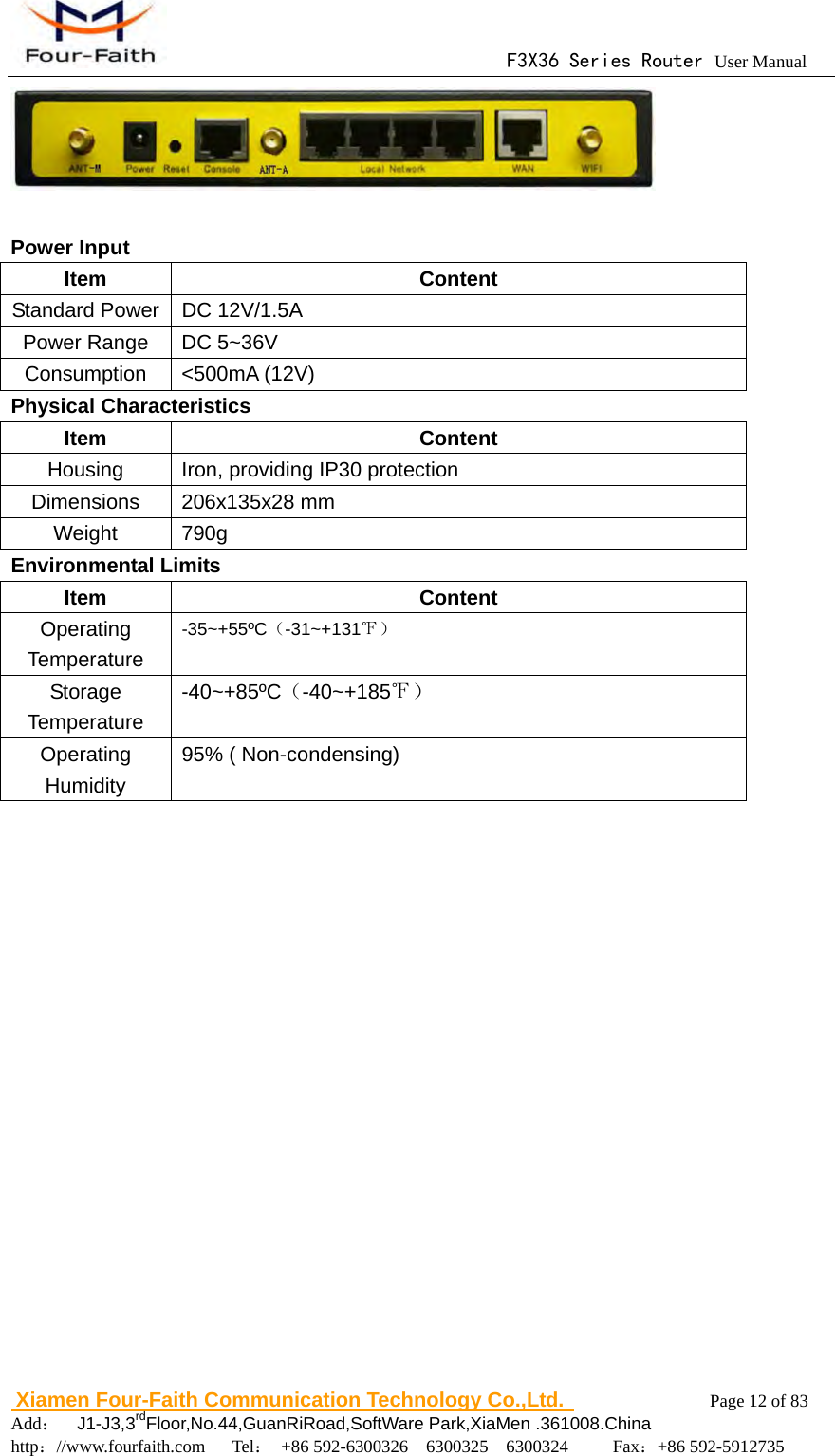

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 12 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 Power Input Item Content Standard Power DC 12V/1.5A Power Range DC 5~36V Consumption <500mA (12V) Physical Characteristics Item Content Housing Iron, providing IP30 protection Dimensions 206x135x28 mm Weight 790g Environmental Limits Item Content Operating Temperature -35~+55ºC（-31~+131℉） Storage Temperature -40~+85ºC（-40~+185℉） Operating Humidity 95% ( Non-condensing)

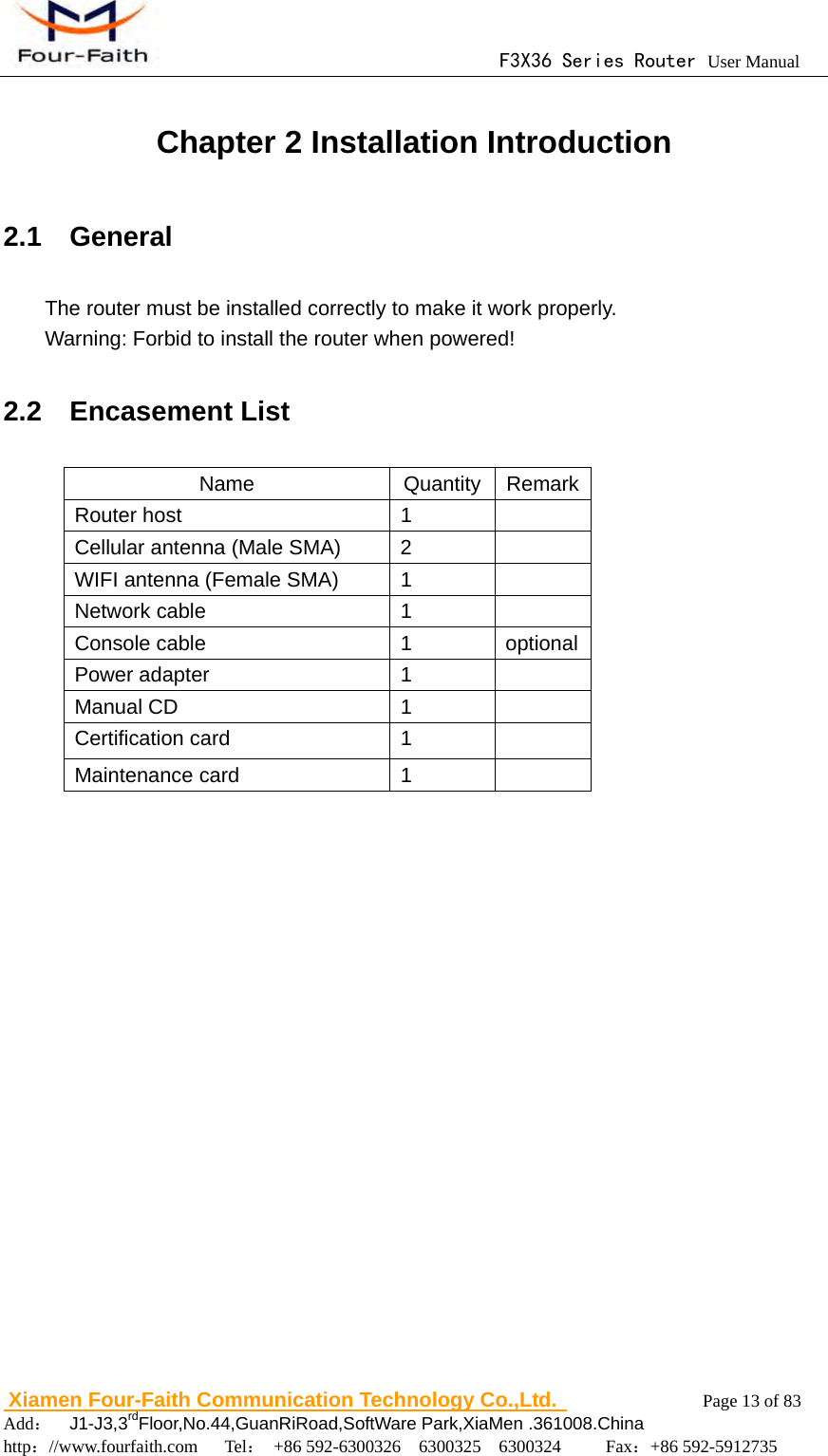

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 13 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 Chapter 2 Installation Introduction 2.1 General The router must be installed correctly to make it work properly. Warning: Forbid to install the router when powered! 2.2 Encasement List Name Quantity Remark Router host 1 Cellular antenna (Male SMA) 2 WIFI antenna (Female SMA) 1 Network cable 1 Console cable 1 optional Power adapter 1 Manual CD 1 Certification card 1 Maintenance card 1

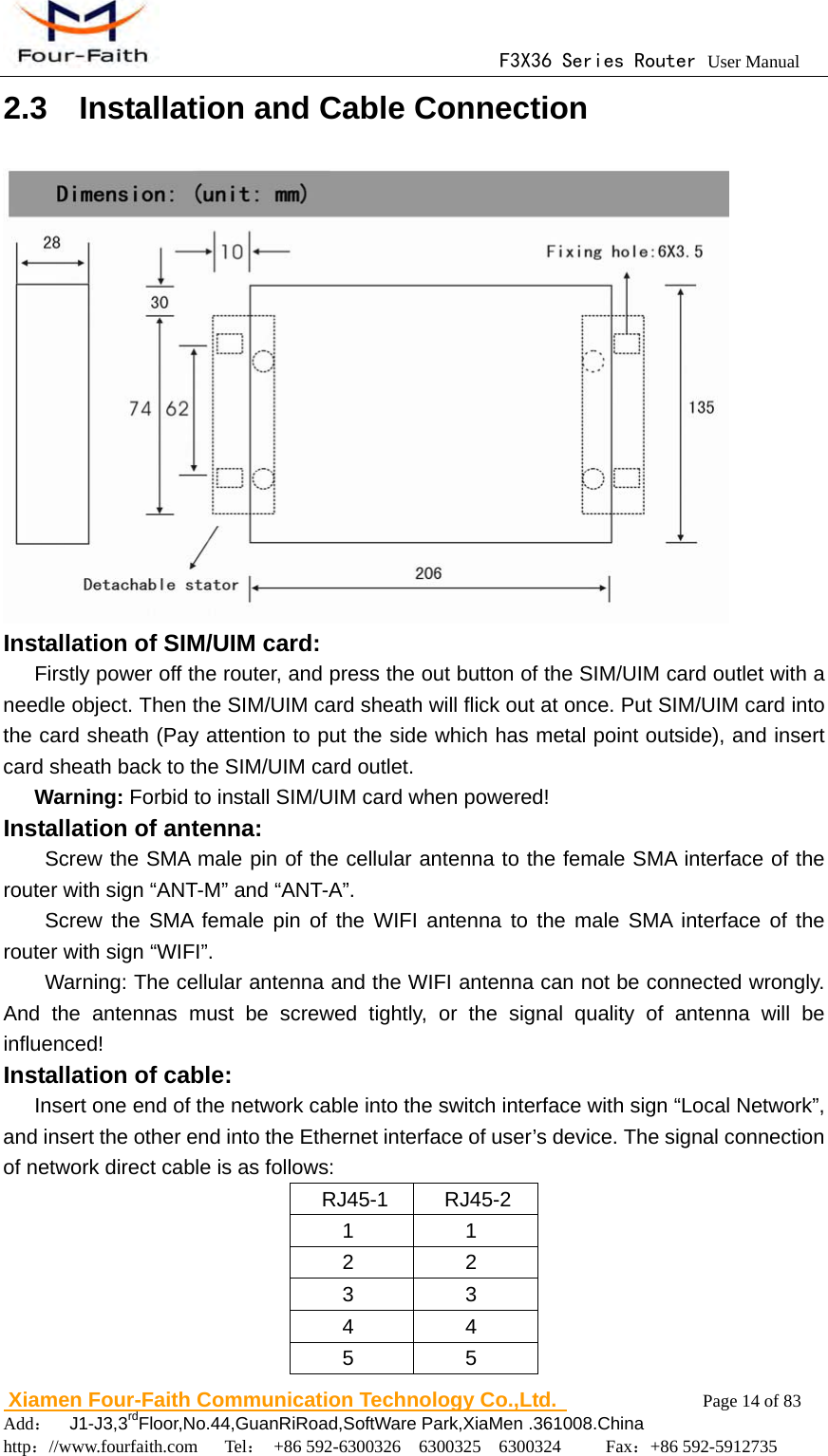

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 14 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 2.3 Installation and Cable Connection Installation of SIM/UIM card: Firstly power off the router, and press the out button of the SIM/UIM card outlet with a needle object. Then the SIM/UIM card sheath will flick out at once. Put SIM/UIM card into the card sheath (Pay attention to put the side which has metal point outside), and insert card sheath back to the SIM/UIM card outlet. Warning: Forbid to install SIM/UIM card when powered! Installation of antenna: Screw the SMA male pin of the cellular antenna to the female SMA interface of the router with sign “ANT-M” and “ANT-A”. Screw the SMA female pin of the WIFI antenna to the male SMA interface of the router with sign “WIFI”. Warning: The cellular antenna and the WIFI antenna can not be connected wrongly. And the antennas must be screwed tightly, or the signal quality of antenna will be influenced! Installation of cable: Insert one end of the network cable into the switch interface with sign “Local Network”, and insert the other end into the Ethernet interface of user’s device. The signal connection of network direct cable is as follows: RJ45-1 RJ45-2 1 1 2 2 3 3 4 4 5 5

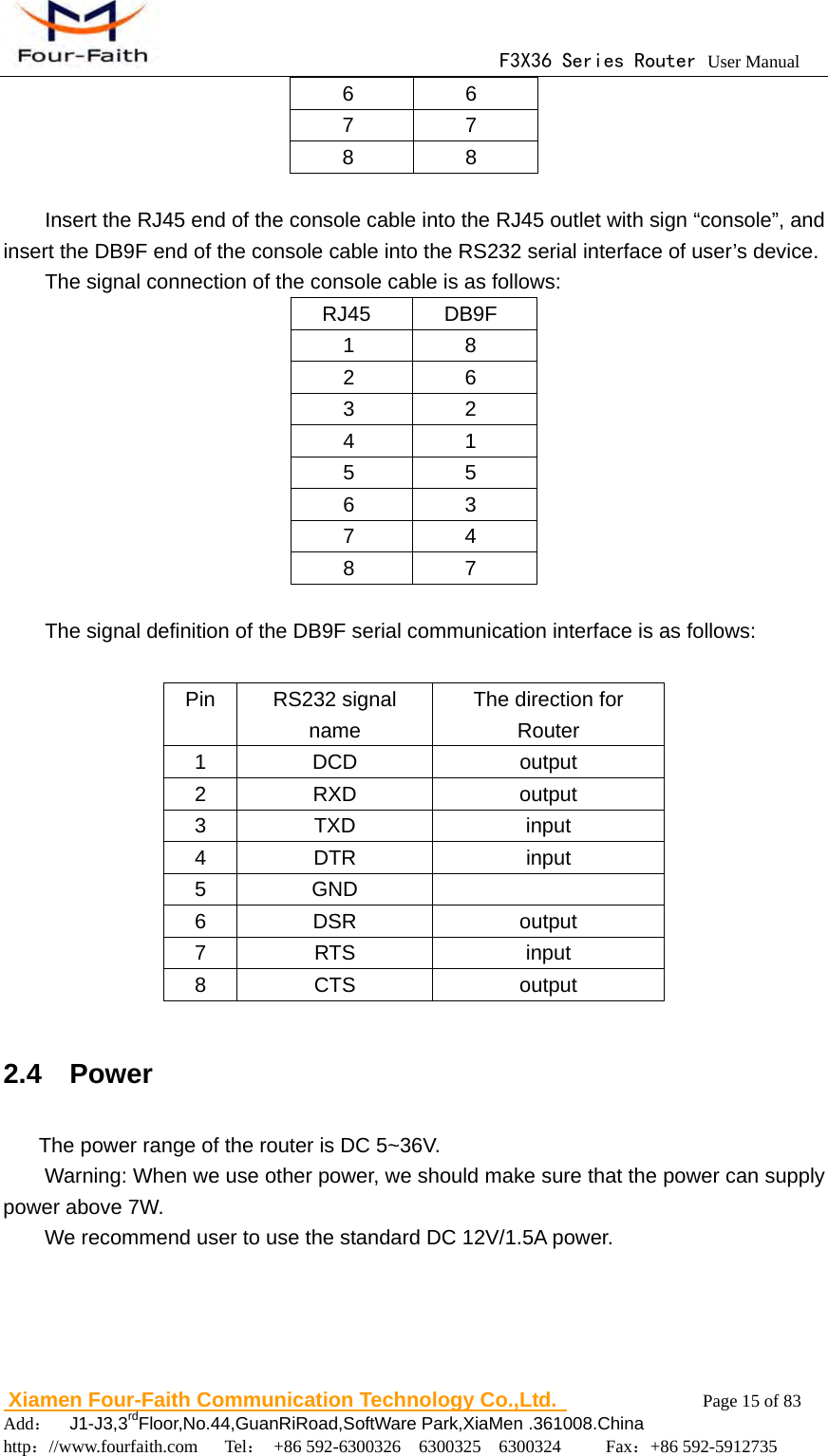

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 15 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 6 6 7 7 8 8 Insert the RJ45 end of the console cable into the RJ45 outlet with sign “console”, and insert the DB9F end of the console cable into the RS232 serial interface of user’s device. The signal connection of the console cable is as follows: RJ45 DB9F 1 8 2 6 3 2 4 1 5 5 6 3 7 4 8 7 The signal definition of the DB9F serial communication interface is as follows: 2.4 Power The power range of the router is DC 5~36V. Warning: When we use other power, we should make sure that the power can supply power above 7W. We recommend user to use the standard DC 12V/1.5A power. Pin RS232 signal name The direction for Router 1 DCD output 2 RXD output 3 TXD input 4 DTR input 5 GND 6 DSR output 7 RTS input 8 CTS output

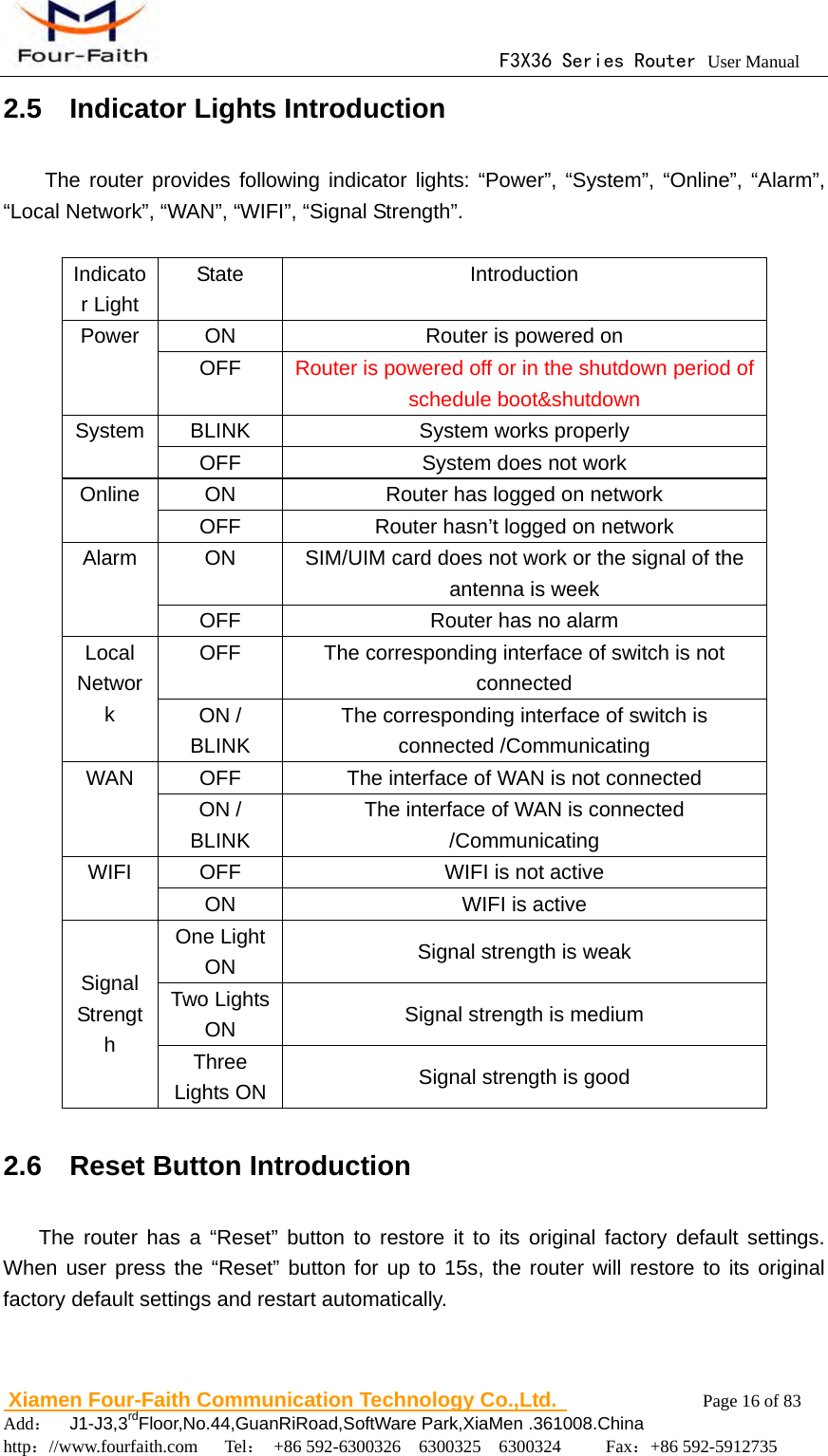

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 16 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 2.5 Indicator Lights Introduction The router provides following indicator lights: “Power”, “System”, “Online”, “Alarm”, “Local Network”, “WAN”, “WIFI”, “Signal Strength”. Indicator Light State Introduction Power ON Router is powered on OFF Router is powered off or in the shutdown period of schedule boot&shutdown System BLINK System works properly OFF System does not work Online ON Router has logged on network OFF Router hasn’t logged on network Alarm ON SIM/UIM card does not work or the signal of the antenna is week OFF Router has no alarm Local Network OFF The corresponding interface of switch is not connected ON / BLINK The corresponding interface of switch is connected /Communicating WAN OFF The interface of WAN is not connected ON / BLINK The interface of WAN is connected /Communicating WIFI OFF WIFI is not active ON WIFI is active Signal Strength One Light ON Signal strength is weak Two Lights ON Signal strength is medium Three Lights ON Signal strength is good 2.6 Reset Button Introduction The router has a “Reset” button to restore it to its original factory default settings. When user press the “Reset” button for up to 15s, the router will restore to its original factory default settings and restart automatically.

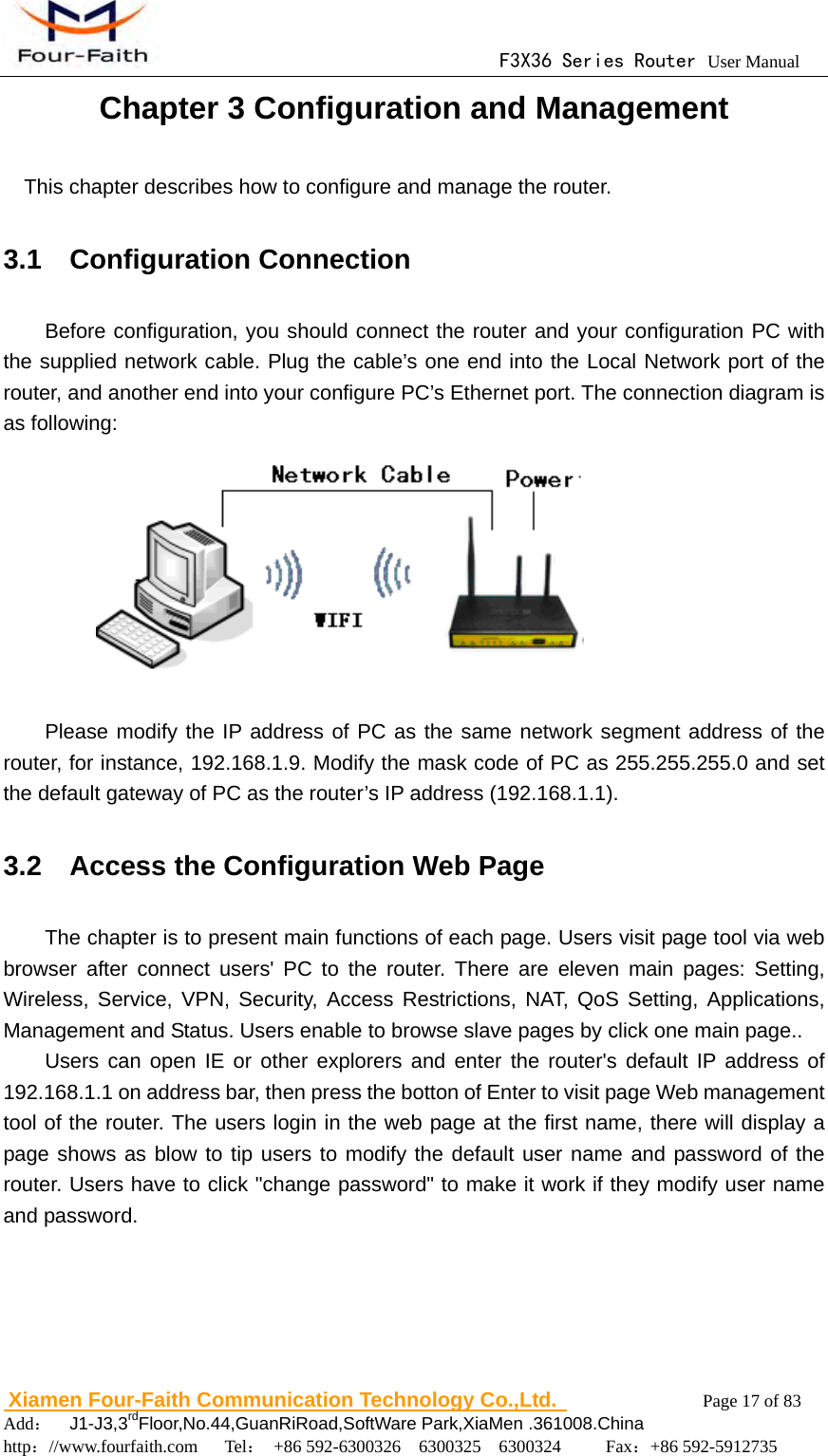

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 17 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 Chapter 3 Configuration and Management This chapter describes how to configure and manage the router. 3.1 Configuration Connection Before configuration, you should connect the router and your configuration PC with the supplied network cable. Plug the cable’s one end into the Local Network port of the router, and another end into your configure PC’s Ethernet port. The connection diagram is as following: Please modify the IP address of PC as the same network segment address of the router, for instance, 192.168.1.9. Modify the mask code of PC as 255.255.255.0 and set the default gateway of PC as the router’s IP address (192.168.1.1). 3.2 Access the Configuration Web Page The chapter is to present main functions of each page. Users visit page tool via web browser after connect users' PC to the router. There are eleven main pages: Setting, Wireless, Service, VPN, Security, Access Restrictions, NAT, QoS Setting, Applications, Management and Status. Users enable to browse slave pages by click one main page.. Users can open IE or other explorers and enter the router's default IP address of 192.168.1.1 on address bar, then press the botton of Enter to visit page Web management tool of the router. The users login in the web page at the first name, there will display a page shows as blow to tip users to modify the default user name and password of the router. Users have to click "change password" to make it work if they modify user name and password.

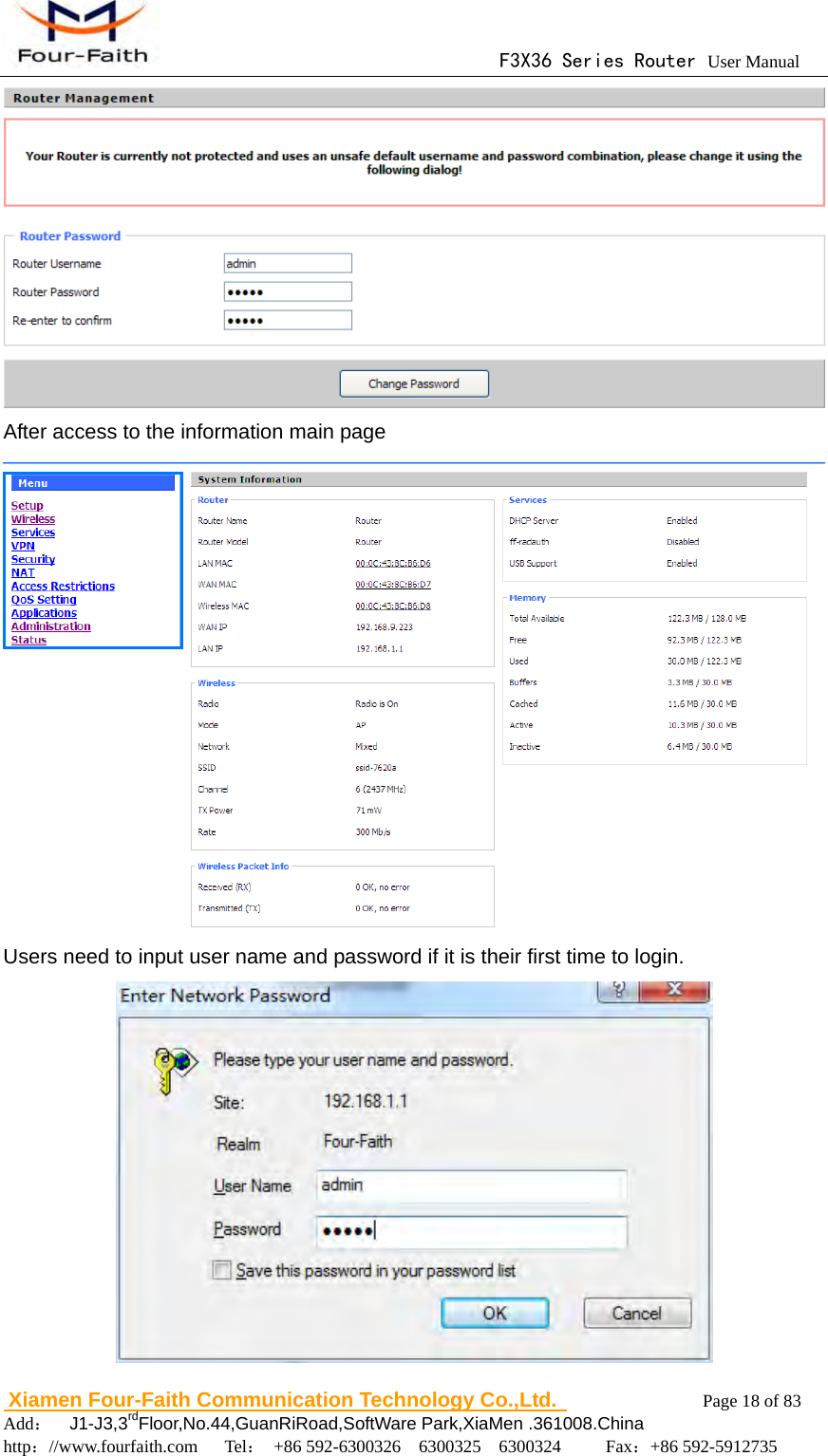

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 18 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 After access to the information main page Users need to input user name and password if it is their first time to login.

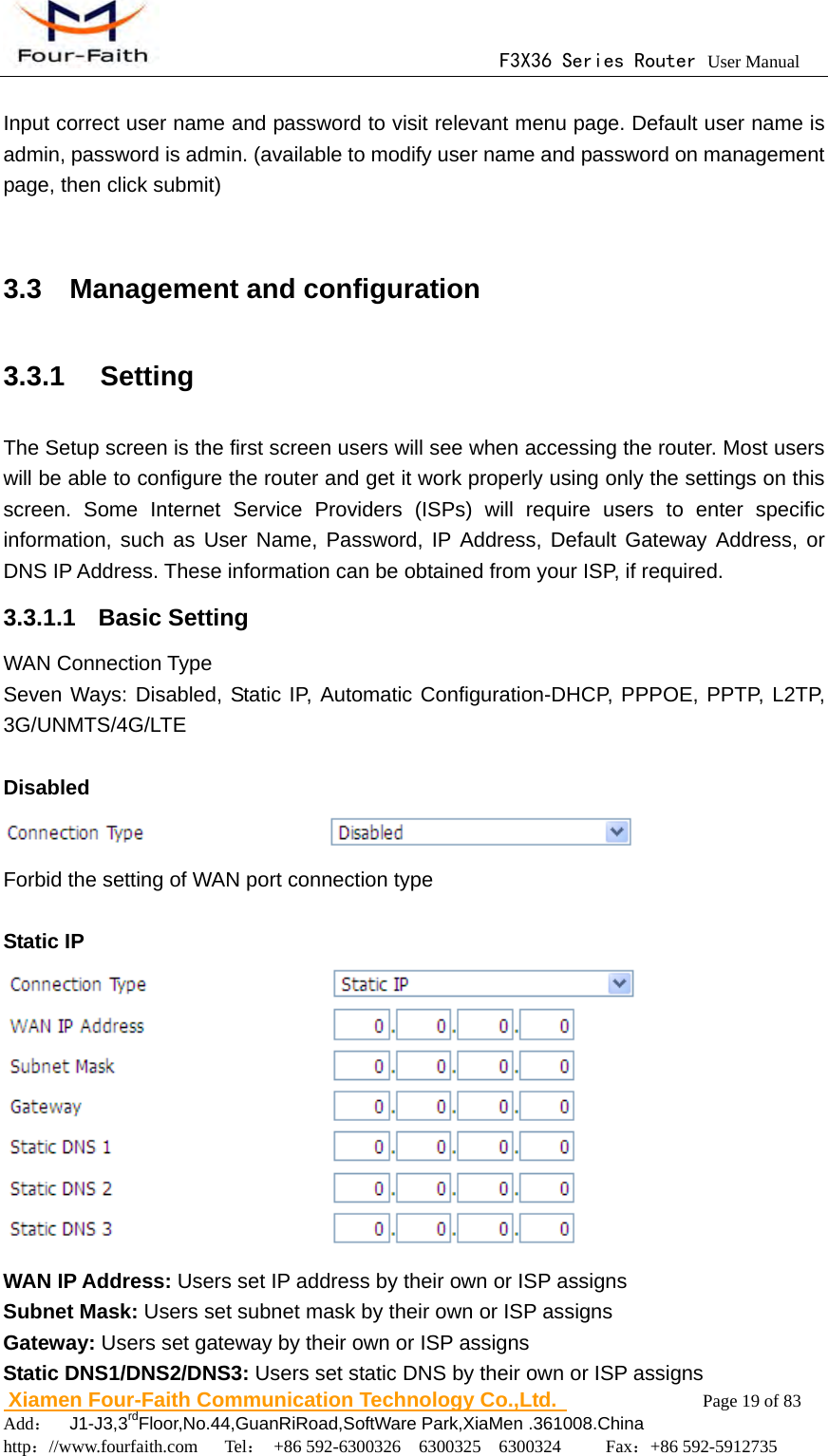

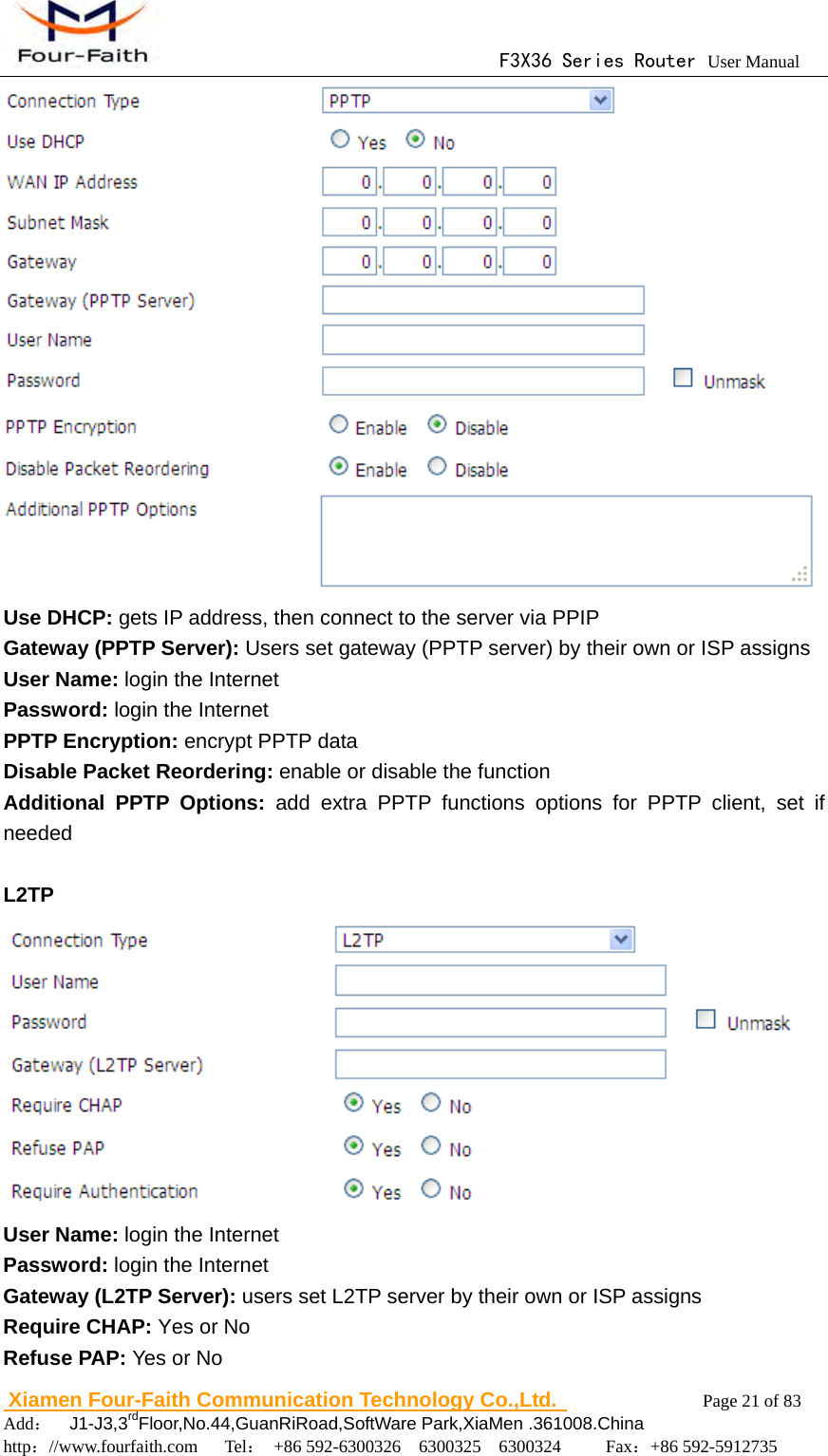

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 19 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 Input correct user name and password to visit relevant menu page. Default user name is admin, password is admin. (available to modify user name and password on management page, then click submit) 3.3 Management and configuration 3.3.1 Setting The Setup screen is the first screen users will see when accessing the router. Most users will be able to configure the router and get it work properly using only the settings on this screen. Some Internet Service Providers (ISPs) will require users to enter specific information, such as User Name, Password, IP Address, Default Gateway Address, or DNS IP Address. These information can be obtained from your ISP, if required. 3.3.1.1 Basic Setting WAN Connection Type Seven Ways: Disabled, Static IP, Automatic Configuration-DHCP, PPPOE, PPTP, L2TP, 3G/UNMTS/4G/LTE Disabled Forbid the setting of WAN port connection type Static IP WAN IP Address: Users set IP address by their own or ISP assigns Subnet Mask: Users set subnet mask by their own or ISP assigns Gateway: Users set gateway by their own or ISP assigns Static DNS1/DNS2/DNS3: Users set static DNS by their own or ISP assigns

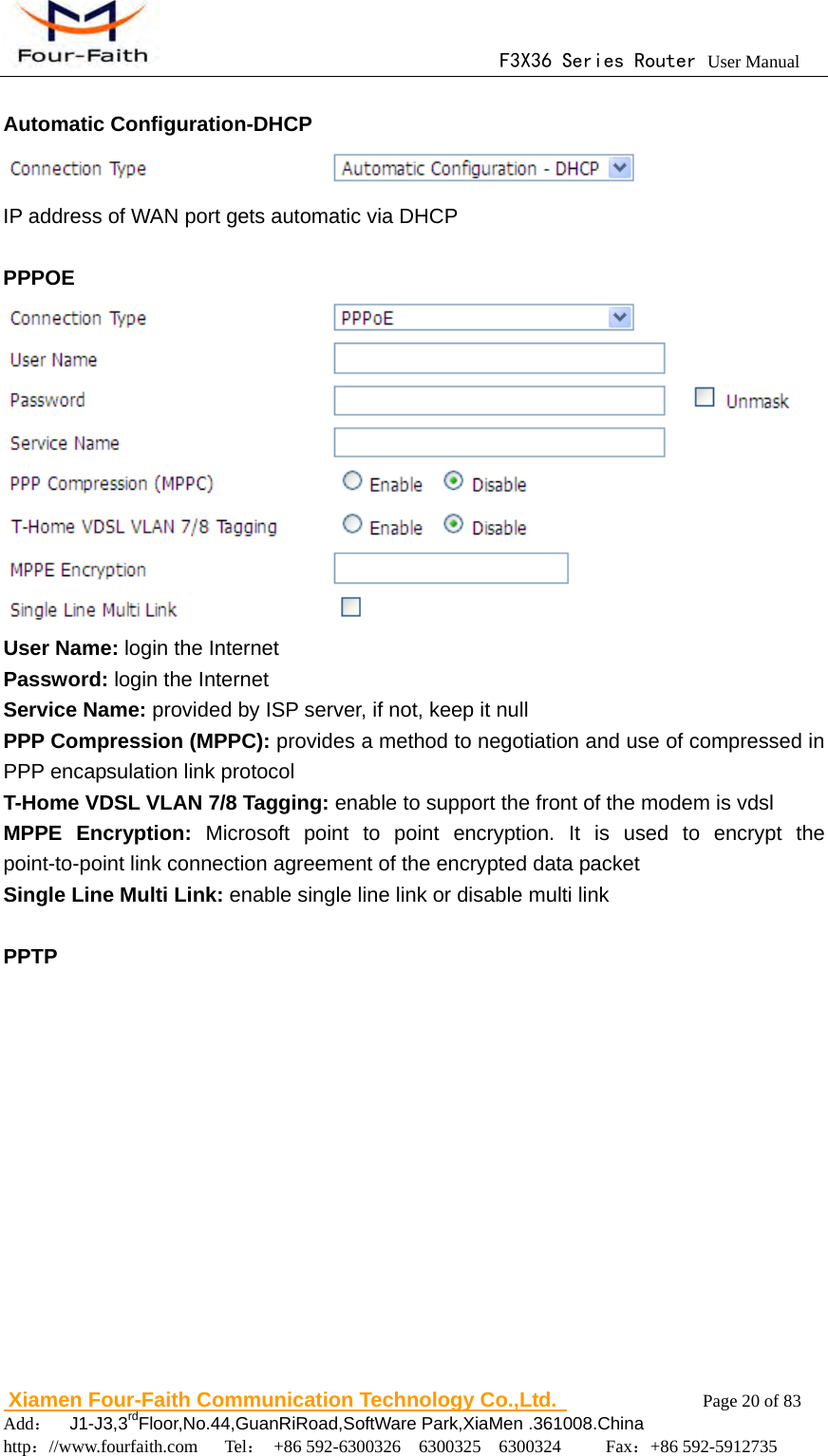

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 20 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 Automatic Configuration-DHCP IP address of WAN port gets automatic via DHCP PPPOE User Name: login the Internet Password: login the Internet Service Name: provided by ISP server, if not, keep it null PPP Compression (MPPC): provides a method to negotiation and use of compressed in PPP encapsulation link protocol T-Home VDSL VLAN 7/8 Tagging: enable to support the front of the modem is vdsl MPPE Encryption: Microsoft point to point encryption. It is used to encrypt the point-to-point link connection agreement of the encrypted data packet Single Line Multi Link: enable single line link or disable multi link PPTP
F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 21 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 Use DHCP: gets IP address, then connect to the server via PPIP Gateway (PPTP Server): Users set gateway (PPTP server) by their own or ISP assigns User Name: login the Internet Password: login the Internet PPTP Encryption: encrypt PPTP data Disable Packet Reordering: enable or disable the function Additional PPTP Options: add extra PPTP functions options for PPTP client, set if needed L2TP User Name: login the Internet Password: login the Internet Gateway (L2TP Server): users set L2TP server by their own or ISP assigns Require CHAP: Yes or No Refuse PAP: Yes or No

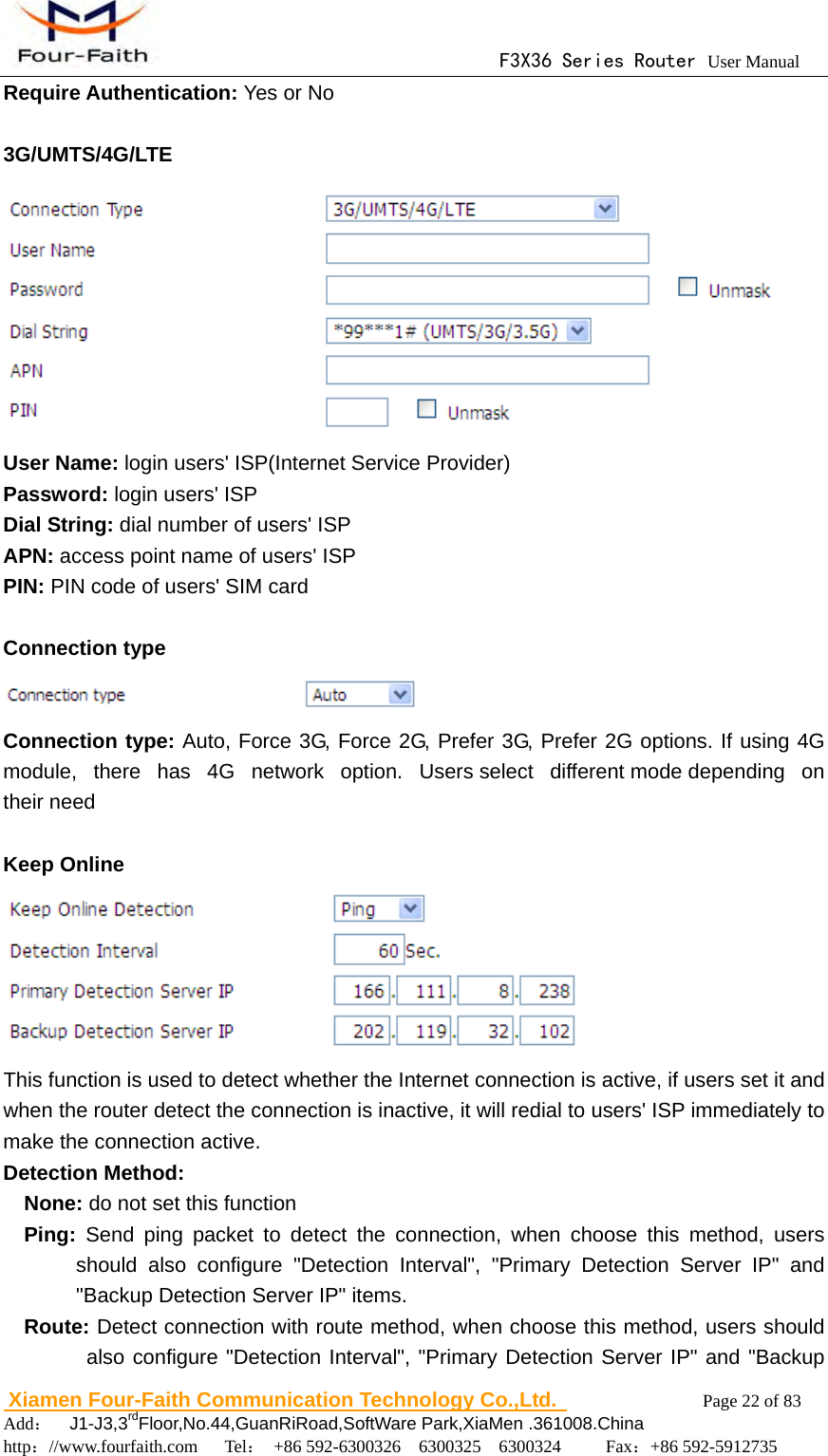

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 22 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 Require Authentication: Yes or No 3G/UMTS/4G/LTE User Name: login users' ISP(Internet Service Provider) Password: login users' ISP Dial String: dial number of users' ISP APN: access point name of users' ISP PIN: PIN code of users' SIM card Connection type Connection type: Auto, Force 3G, Force 2G, Prefer 3G, Prefer 2G options. If using 4G module, there has 4G network option. Users select different mode depending on their need Keep Online This function is used to detect whether the Internet connection is active, if users set it and when the router detect the connection is inactive, it will redial to users' ISP immediately to make the connection active. Detection Method: None: do not set this function Ping: Send ping packet to detect the connection, when choose this method, users should also configure "Detection Interval", "Primary Detection Server IP" and "Backup Detection Server IP" items. Route: Detect connection with route method, when choose this method, users should also configure "Detection Interval", "Primary Detection Server IP" and "Backup
F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 23 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 Detection Server IP" items. PPP: Detect connection with PPP method, when choose this method, users should also configure "Detection Interval" item. Detection Interval: time interval between two detections, unit is second Primary Detection Server IP: the server used to response the router’s detection packet. This item is only valid for method "Ping" and "Route". Backup Detection Server IP: the server used to response the router’s detection packet. This item is valid for method "Ping" and "Route". Note: When users choose the “Route” or “Ping” method, it’s quite important to make sure that the “Primary Detection Server IP” and “Backup Detection Server IP” are usable and stable, because they have to response the detection packet frequently. Connection Strategy Connection Strategy: one way is Connect on Demand, that is the link turnoff automatic under the situation that the ready link is idle and idle time meets users' configuration requirement, but tit will connect again if users visit Internet. The other way is to keep alive, that is the link enable to dial again when reaching the re-dial period users set after disconnection. Force reconnect: this option schedules the pppoe or 3G reconnection by killing the pppd daemon and restart it. Time: needed time to reconnect STP STP (Spaning Tree Protocol) can be applied to loop network. Through certain algorithm achieves path redundancy, and loop network cuts to tree-based network without loop in the meantime, thus to avoid the hyperplasia and infinite circulation of a message in the loop network Optional Configuration

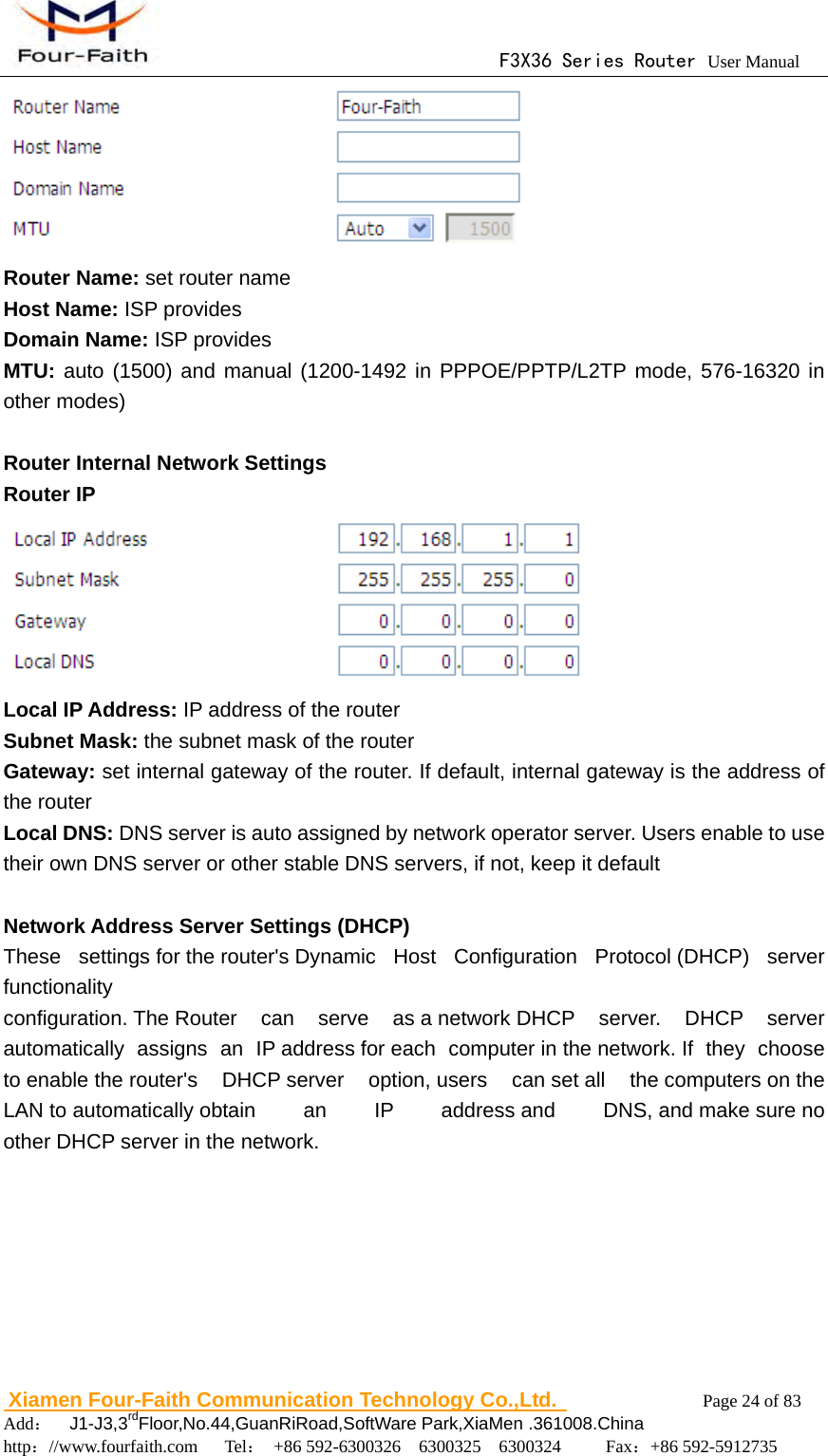

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 24 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 Router Name: set router name Host Name: ISP provides Domain Name: ISP provides MTU: auto (1500) and manual (1200-1492 in PPPOE/PPTP/L2TP mode, 576-16320 in other modes) Router Internal Network Settings Router IP Local IP Address: IP address of the router Subnet Mask: the subnet mask of the router Gateway: set internal gateway of the router. If default, internal gateway is the address of the router Local DNS: DNS server is auto assigned by network operator server. Users enable to use their own DNS server or other stable DNS servers, if not, keep it default Network Address Server Settings (DHCP) These settings for the router's Dynamic Host Configuration Protocol (DHCP) server functionality configuration. The Router can serve as a network DHCP server. DHCP server automatically assigns an IP address for each computer in the network. If they choose to enable the router's DHCP server option, users can set all the computers on the LAN to automatically obtain an IP address and DNS, and make sure no other DHCP server in the network.
F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 25 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 DHCP Type: DHCP Server and DHCP Forwarder Enter DHCP Server if set DHCP Type to DHCP Forwarder as blow: DHCP Server: keep the default Enable to enable the router's DHCP server option. If users have already have a DHCP server on their network or users do not want a DHCP server, then select Disable Start IP Address: enter a numerical value for the DHCP server to start with when issuing IP addresses. Do not start with 192.168.1.1 (the router's own IP address). Maximum DHCP Users: enter the maximum number of PCs that users want the DHCP server to assign IP addresses to. The absolute maximum is 253 if 192.168.1.2 is users' starting IP address. Client Lease Time: the Client Lease Time is the amount of time a network user will be allowed connection to the router with their current dynamic IP address. Enter the amount of time, in minutes, that the user will be "leased" this dynamic IP address. Static DNS (1-3): the Domain Name System (DNS) is how the Internet translates domain or website names into Internet addresses or URLs. Users' ISP will provide them with at least one DNS Server IP address. If users wish to utilize another, enter that IP address in one of these fields. Users can enter up to three DNS Server IP addresses here. The router will utilize them for quicker access to functioning DNS servers. WINS: the Windows Internet Naming Service (WINS) manages each PC's interaction with the Internet. If users use a WINS server, enter that server's IP address here. Otherwise, leave it blank. DNSMasq: users' domain name in the field of local search, increase the expansion of the

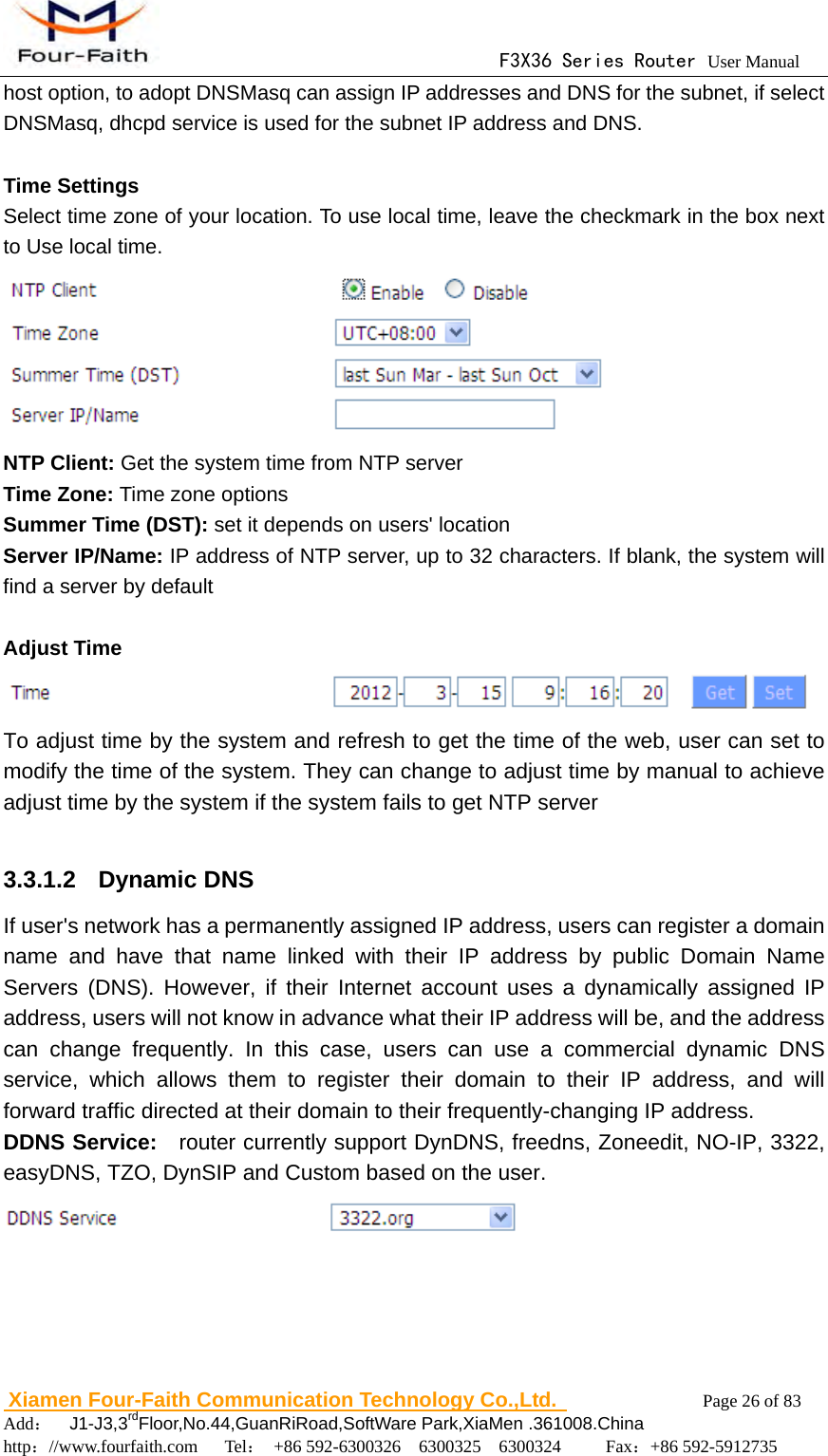

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 26 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 host option, to adopt DNSMasq can assign IP addresses and DNS for the subnet, if select DNSMasq, dhcpd service is used for the subnet IP address and DNS. Time Settings Select time zone of your location. To use local time, leave the checkmark in the box next to Use local time. NTP Client: Get the system time from NTP server Time Zone: Time zone options Summer Time (DST): set it depends on users' location Server IP/Name: IP address of NTP server, up to 32 characters. If blank, the system will find a server by default Adjust Time To adjust time by the system and refresh to get the time of the web, user can set to modify the time of the system. They can change to adjust time by manual to achieve adjust time by the system if the system fails to get NTP server 3.3.1.2 Dynamic DNS If user's network has a permanently assigned IP address, users can register a domain name and have that name linked with their IP address by public Domain Name Servers (DNS). However, if their Internet account uses a dynamically assigned IP address, users will not know in advance what their IP address will be, and the address can change frequently. In this case, users can use a commercial dynamic DNS service, which allows them to register their domain to their IP address, and will forward traffic directed at their domain to their frequently-changing IP address. DDNS Service: router currently support DynDNS, freedns, Zoneedit, NO-IP, 3322, easyDNS, TZO, DynSIP and Custom based on the user.

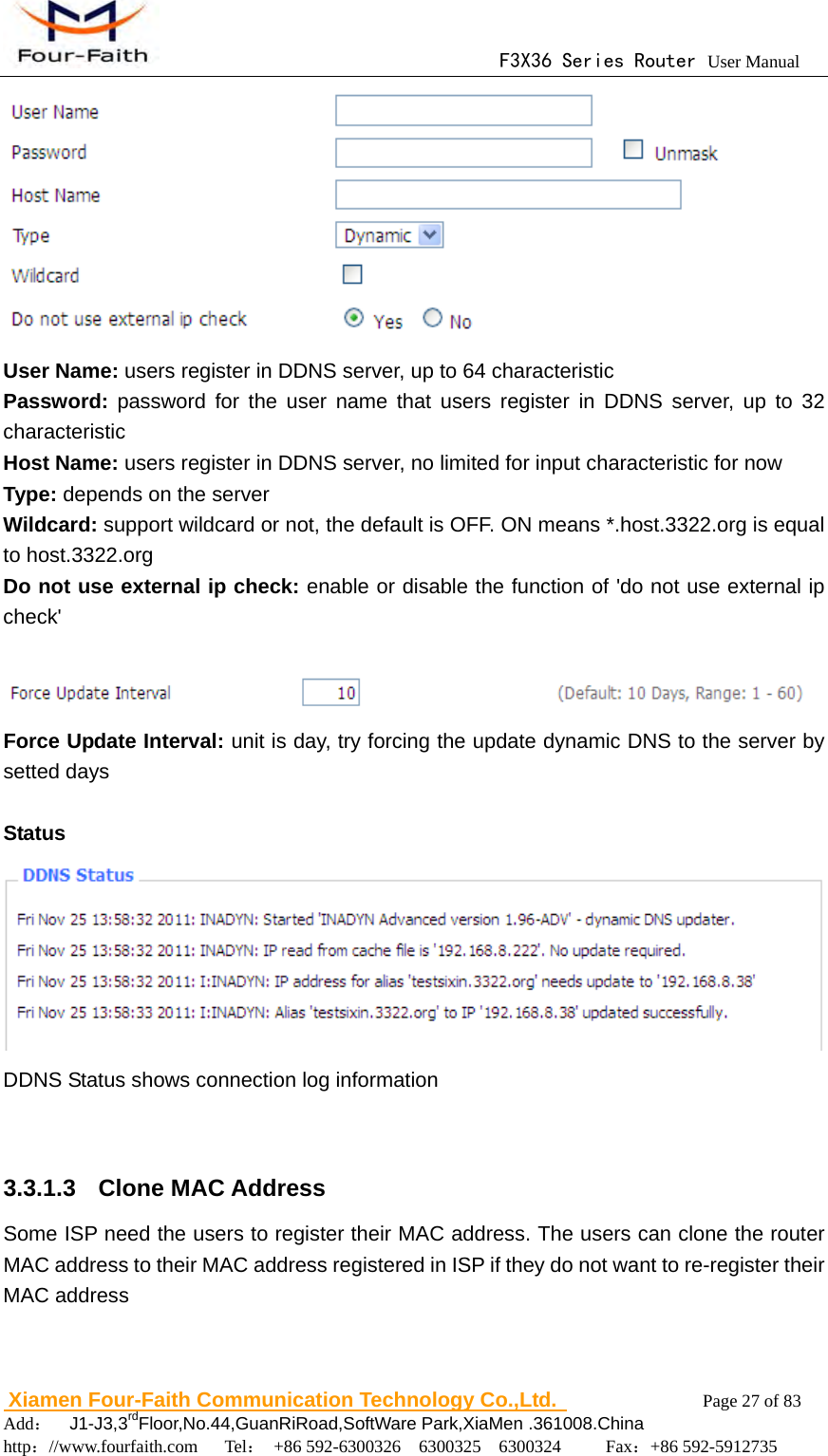

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 27 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 User Name: users register in DDNS server, up to 64 characteristic Password: password for the user name that users register in DDNS server, up to 32 characteristic Host Name: users register in DDNS server, no limited for input characteristic for now Type: depends on the server Wildcard: support wildcard or not, the default is OFF. ON means *.host.3322.org is equal to host.3322.org Do not use external ip check: enable or disable the function of 'do not use external ip check' Force Update Interval: unit is day, try forcing the update dynamic DNS to the server by setted days Status DDNS Status shows connection log information 3.3.1.3 Clone MAC Address Some ISP need the users to register their MAC address. The users can clone the router MAC address to their MAC address registered in ISP if they do not want to re-register their MAC address

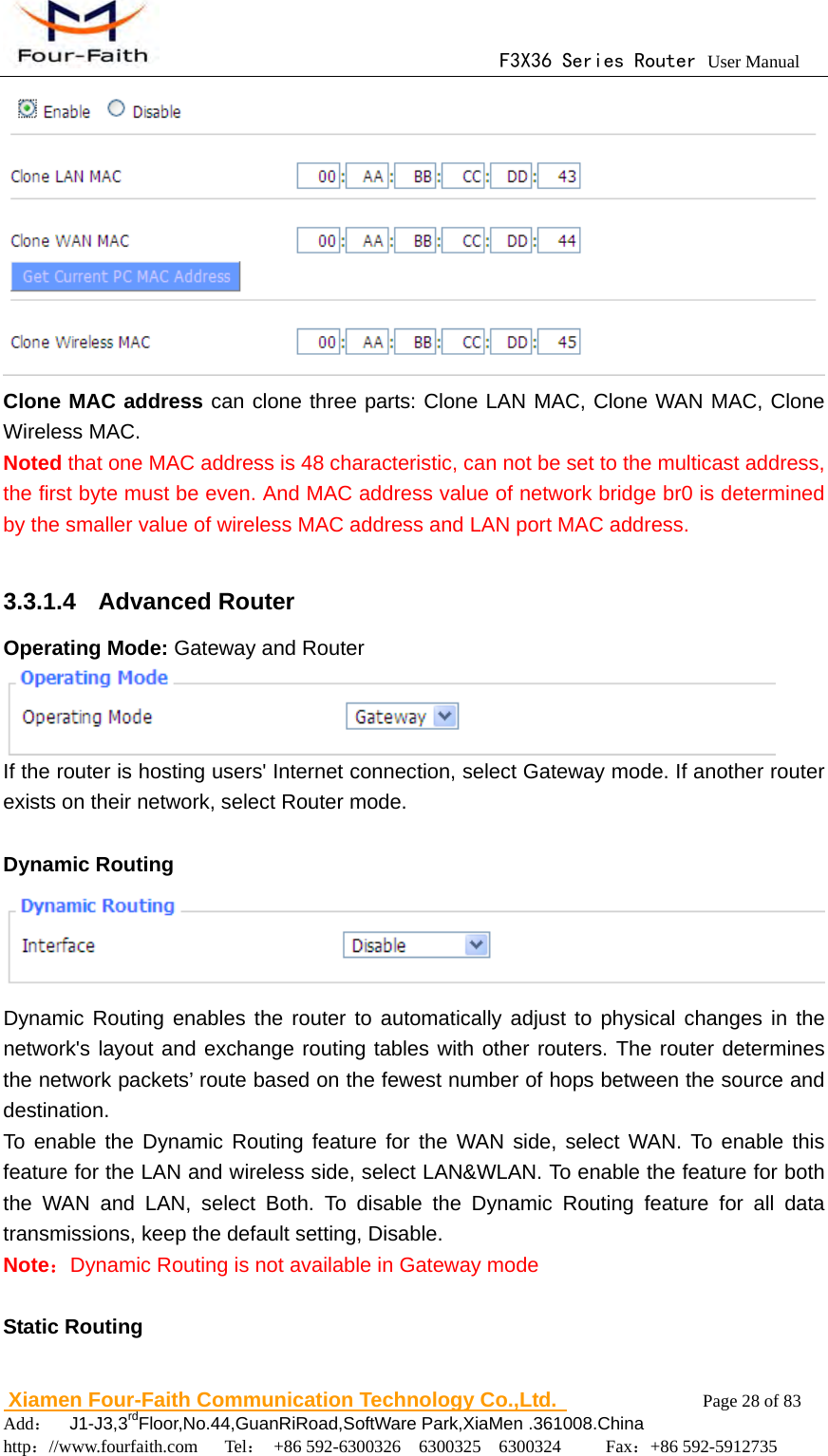

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 28 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 Clone MAC address can clone three parts: Clone LAN MAC, Clone WAN MAC, Clone Wireless MAC. Noted that one MAC address is 48 characteristic, can not be set to the multicast address, the first byte must be even. And MAC address value of network bridge br0 is determined by the smaller value of wireless MAC address and LAN port MAC address. 3.3.1.4 Advanced Router Operating Mode: Gateway and Router If the router is hosting users' Internet connection, select Gateway mode. If another router exists on their network, select Router mode. Dynamic Routing Dynamic Routing enables the router to automatically adjust to physical changes in the network's layout and exchange routing tables with other routers. The router determines the network packets’ route based on the fewest number of hops between the source and destination. To enable the Dynamic Routing feature for the WAN side, select WAN. To enable this feature for the LAN and wireless side, select LAN&WLAN. To enable the feature for both the WAN and LAN, select Both. To disable the Dynamic Routing feature for all data transmissions, keep the default setting, Disable. Note：Dynamic Routing is not available in Gateway mode Static Routing

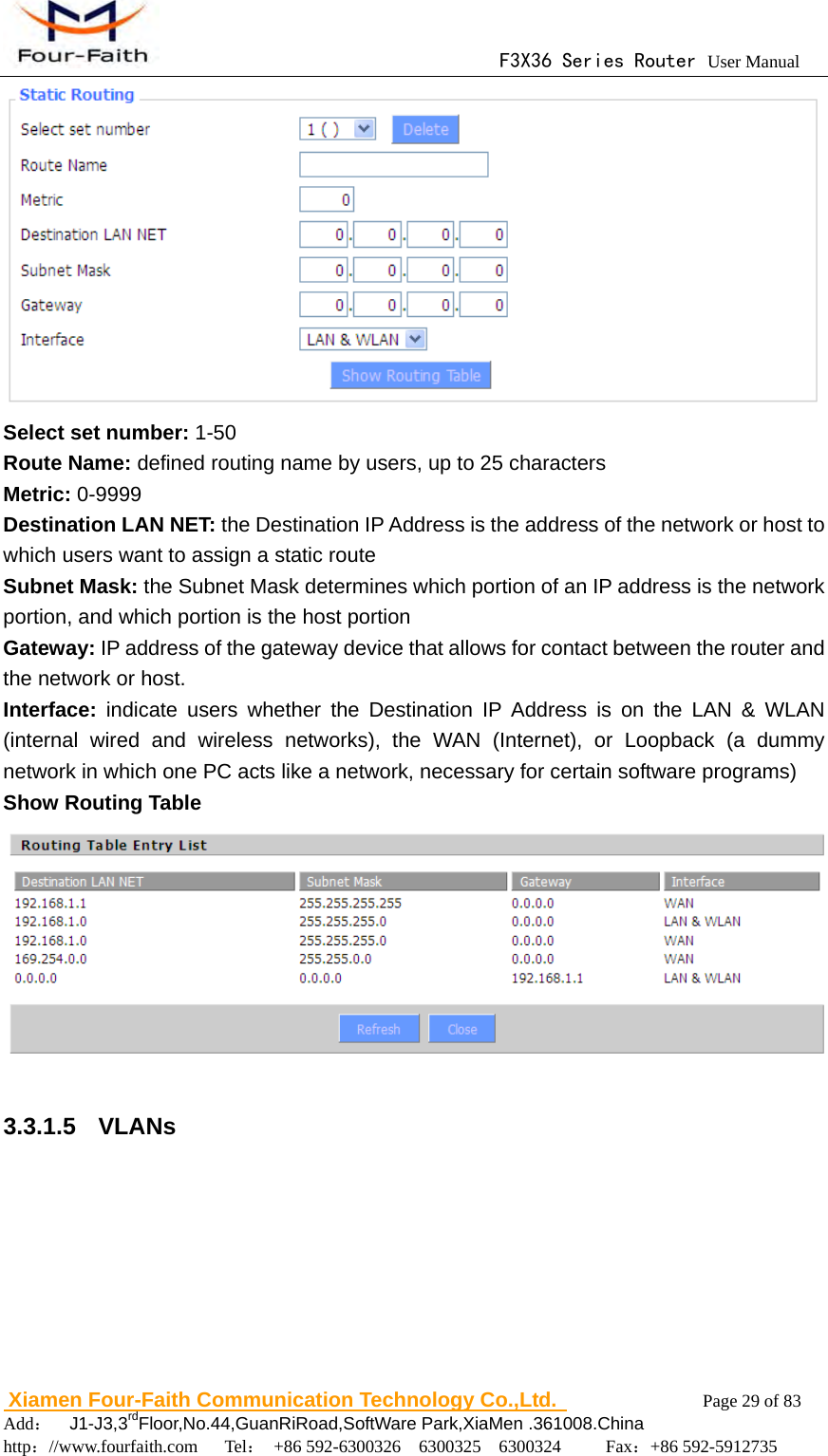

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 29 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 Select set number: 1-50 Route Name: defined routing name by users, up to 25 characters Metric: 0-9999 Destination LAN NET: the Destination IP Address is the address of the network or host to which users want to assign a static route Subnet Mask: the Subnet Mask determines which portion of an IP address is the network portion, and which portion is the host portion Gateway: IP address of the gateway device that allows for contact between the router and the network or host. Interface: indicate users whether the Destination IP Address is on the LAN & WLAN (internal wired and wireless networks), the WAN (Internet), or Loopback (a dummy network in which one PC acts like a network, necessary for certain software programs) Show Routing Table 3.3.1.5 VLANs

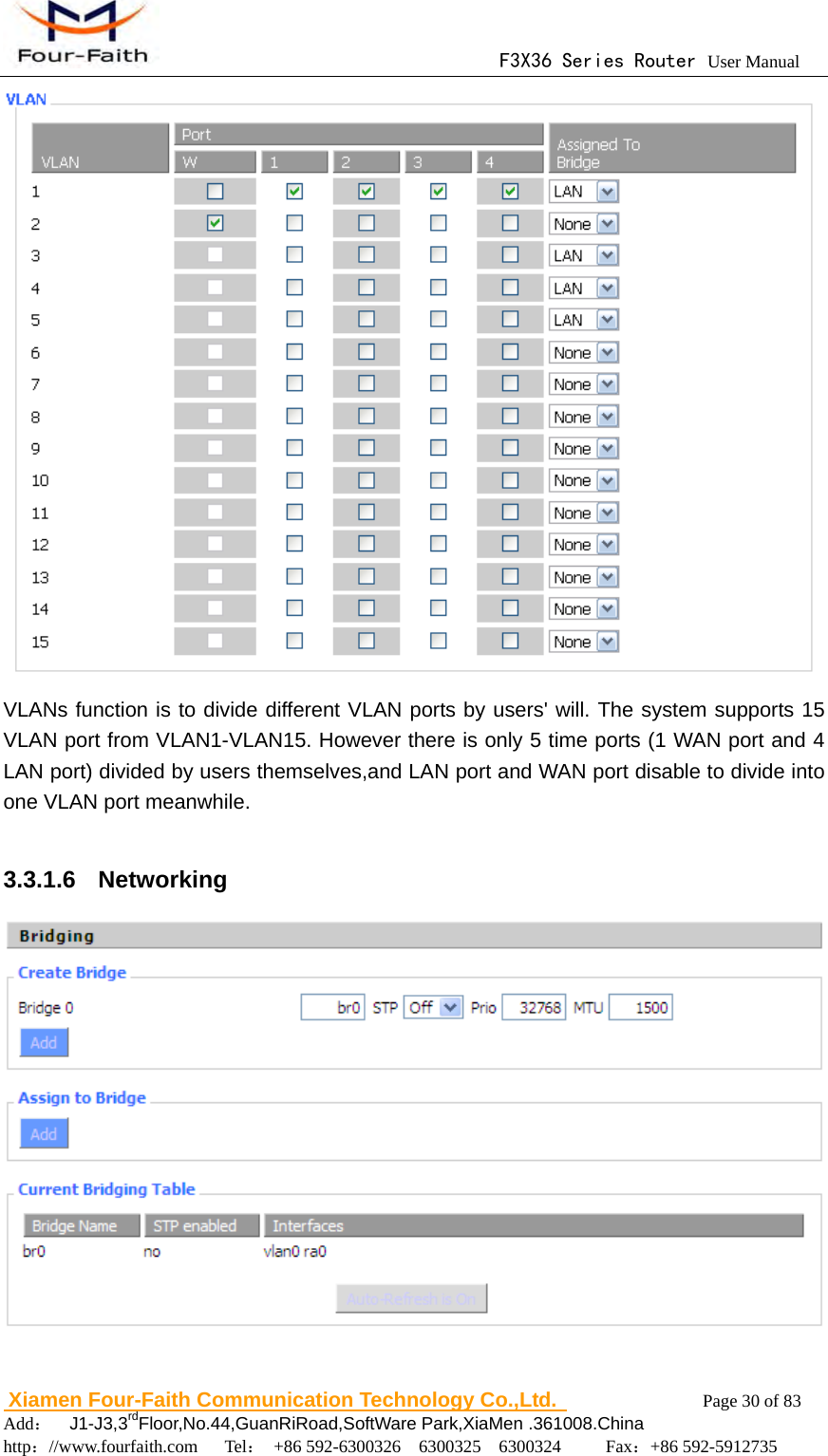

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 30 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 VLANs function is to divide different VLAN ports by users' will. The system supports 15 VLAN port from VLAN1-VLAN15. However there is only 5 time ports (1 WAN port and 4 LAN port) divided by users themselves,and LAN port and WAN port disable to divide into one VLAN port meanwhile. 3.3.1.6 Networking
F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 31 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 Bridging-Create Bridge: creates a new empty network bridge for later use. STP means Spanning Tree Protocol and with PRIO users are able to set the bridge priority order. The lowest number has the highest priority. Bridging - Assign to Bridge: allows users to assign any valid interface to a network bridge. Consider setting the Wireless Interface options to Bridged if they want to assign any Wireless Interface here. Any system specific bridge setting can be overridden here in this field. Current Bridging Table: shows current bridging table Create steps as below: Click 'Add' to create a new bridge, configuration is as below: Create bridge option: the first br0 means bridge name. STP means to on/off spanning tree protocol. Prio means priority level of STP, the smaller the number, the higher the level. MTU means maximum transfer unit, default is 1500, delete if it is not need. And then click 'Save' or 'Add'. Bride properties is as below: Enter relewant bridge IP address and subnet mask, click 'Add' to create a bridge. Note: Only create a bride can apply it. Assign to Bridge option: to assign different ports to created bridge. For example: assign port (wireless port) is ra0 in br1 bridge as below: Prio means priority level: work if multiple ports are within the same bridge. The smaller the number, the higher the level. Click 'Add' to take it effect. Note: corresponding interface of WAN ports interface should not be binding, this bridge function is basically used for LAN port, and should not be binding with WAN port

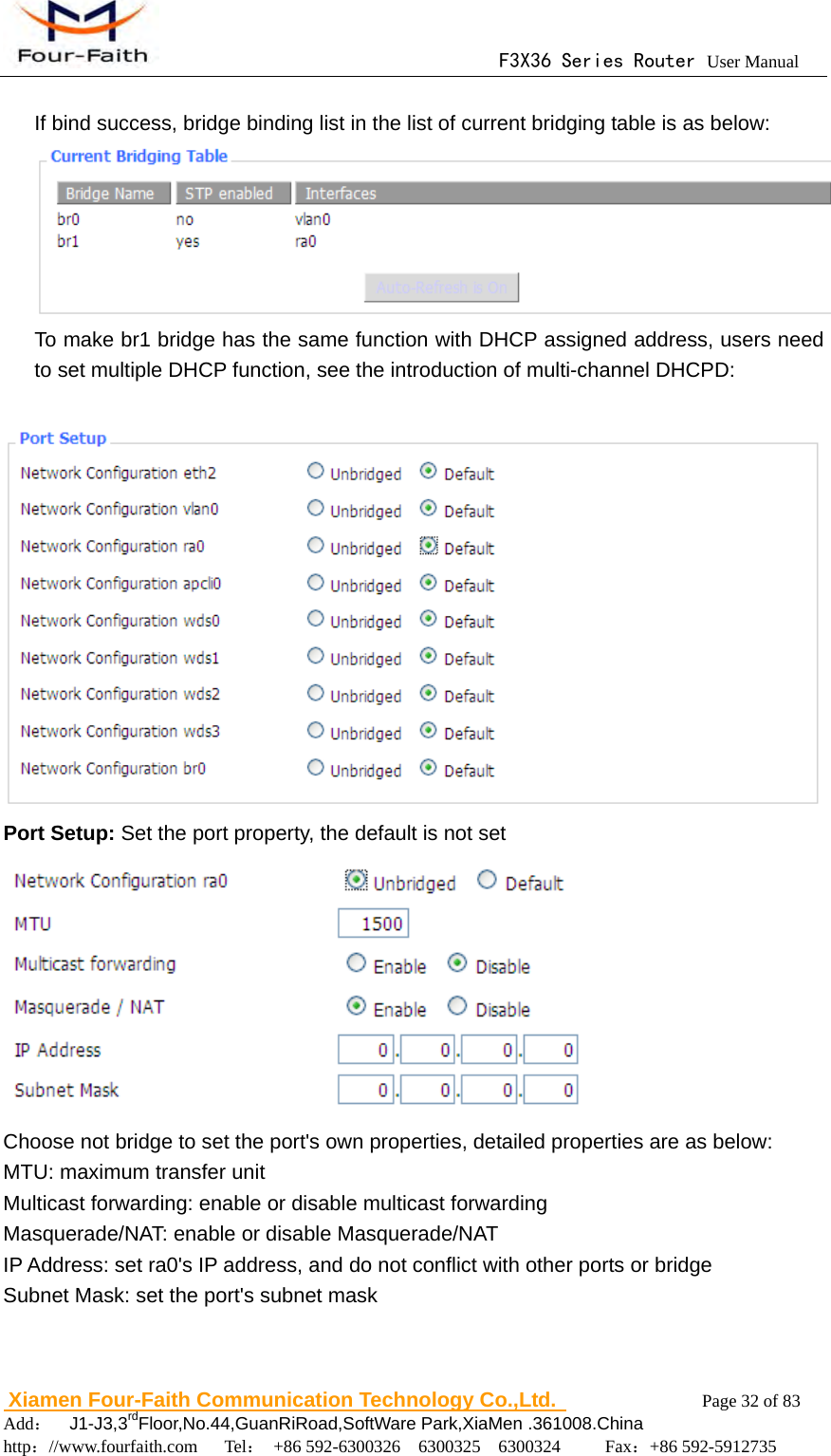

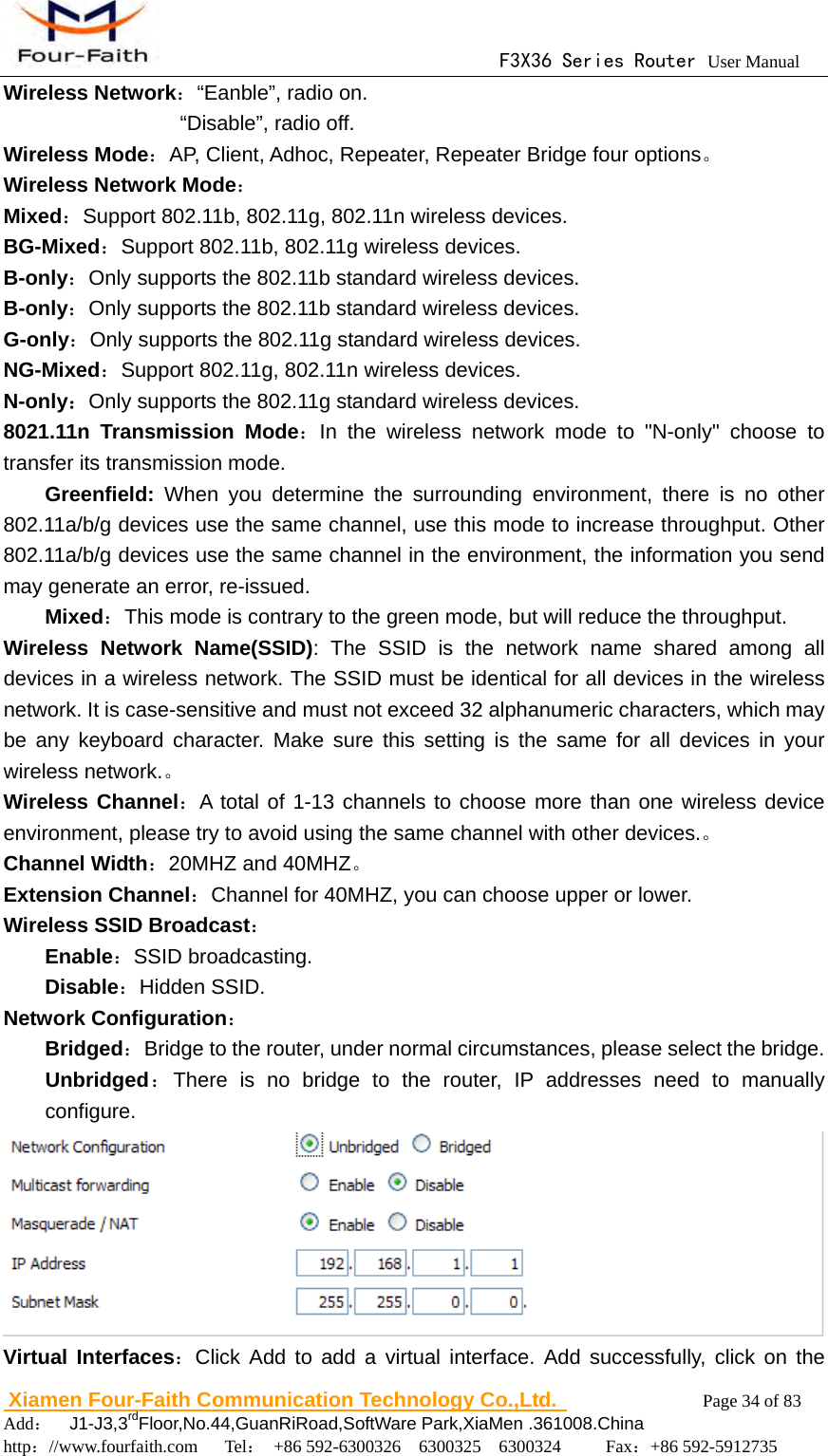

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 32 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 If bind success, bridge binding list in the list of current bridging table is as below: To make br1 bridge has the same function with DHCP assigned address, users need to set multiple DHCP function, see the introduction of multi-channel DHCPD: Port Setup: Set the port property, the default is not set Choose not bridge to set the port's own properties, detailed properties are as below: MTU: maximum transfer unit Multicast forwarding: enable or disable multicast forwarding Masquerade/NAT: enable or disable Masquerade/NAT IP Address: set ra0's IP address, and do not conflict with other ports or bridge Subnet Mask: set the port's subnet mask

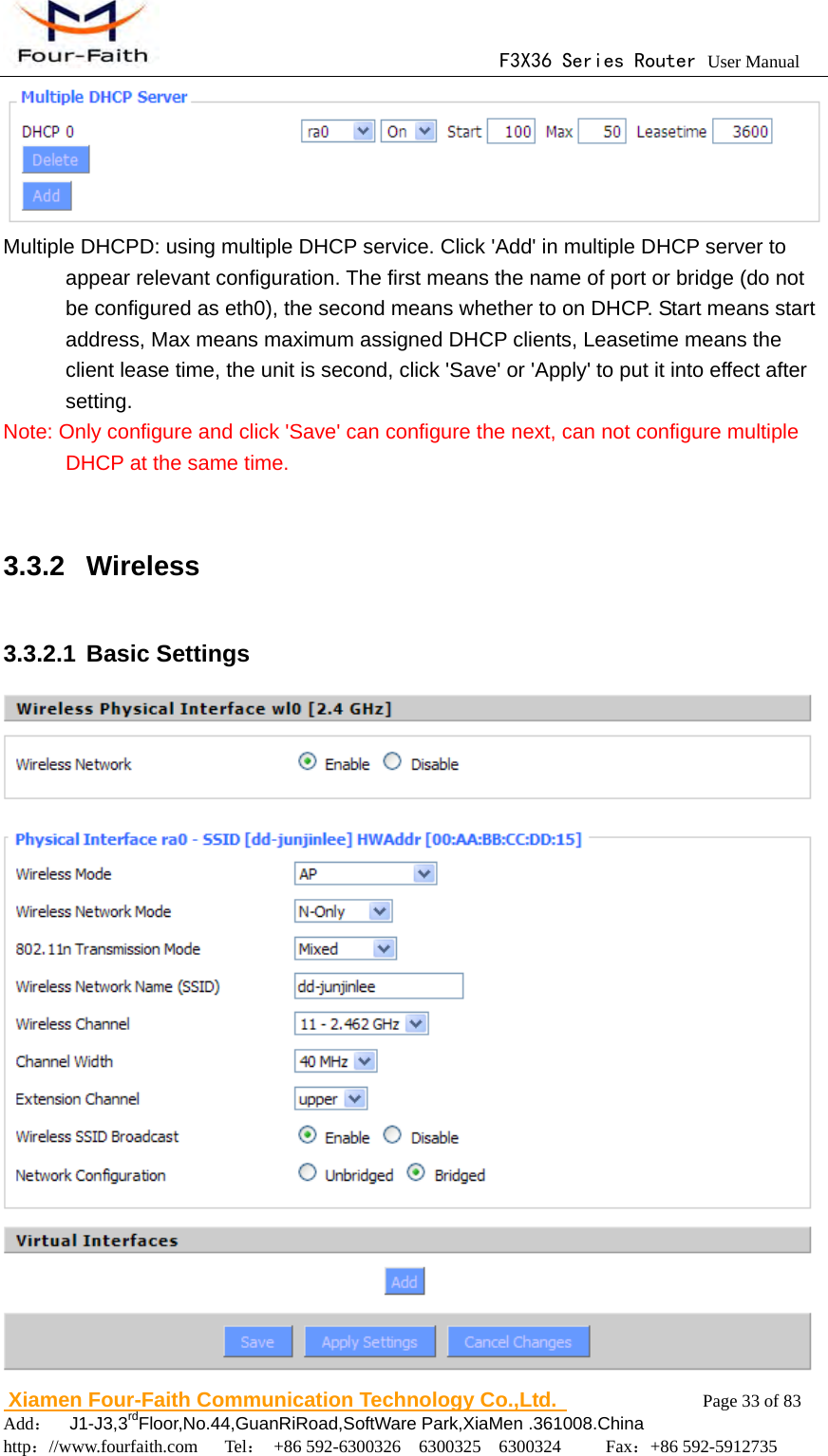

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 33 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 Multiple DHCPD: using multiple DHCP service. Click 'Add' in multiple DHCP server to appear relevant configuration. The first means the name of port or bridge (do not be configured as eth0), the second means whether to on DHCP. Start means start address, Max means maximum assigned DHCP clients, Leasetime means the client lease time, the unit is second, click 'Save' or 'Apply' to put it into effect after setting. Note: Only configure and click 'Save' can configure the next, can not configure multiple DHCP at the same time. 3.3.2 Wireless 3.3.2.1 Basic Settings
F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 34 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 Wireless Network：“Eanble”, radio on. “Disable”, radio off. Wireless Mode：AP, Client, Adhoc, Repeater, Repeater Bridge four options。 Wireless Network Mode： Mixed：Support 802.11b, 802.11g, 802.11n wireless devices. BG-Mixed：Support 802.11b, 802.11g wireless devices. B-only：Only supports the 802.11b standard wireless devices. B-only：Only supports the 802.11b standard wireless devices. G-only：Only supports the 802.11g standard wireless devices. NG-Mixed：Support 802.11g, 802.11n wireless devices. N-only：Only supports the 802.11g standard wireless devices. 8021.11n Transmission Mode：In the wireless network mode to "N-only" choose to transfer its transmission mode. Greenfield: When you determine the surrounding environment, there is no other 802.11a/b/g devices use the same channel, use this mode to increase throughput. Other 802.11a/b/g devices use the same channel in the environment, the information you send may generate an error, re-issued. Mixed：This mode is contrary to the green mode, but will reduce the throughput. Wireless Network Name(SSID): The SSID is the network name shared among all devices in a wireless network. The SSID must be identical for all devices in the wireless network. It is case-sensitive and must not exceed 32 alphanumeric characters, which may be any keyboard character. Make sure this setting is the same for all devices in your wireless network.。 Wireless Channel：A total of 1-13 channels to choose more than one wireless device environment, please try to avoid using the same channel with other devices.。 Channel Width：20MHZ and 40MHZ。 Extension Channel：Channel for 40MHZ, you can choose upper or lower. Wireless SSID Broadcast： Enable：SSID broadcasting. Disable：Hidden SSID. Network Configuration： Bridged：Bridge to the router, under normal circumstances, please select the bridge. Unbridged：There is no bridge to the router, IP addresses need to manually configure. Virtual Interfaces：Click Add to add a virtual interface. Add successfully, click on the

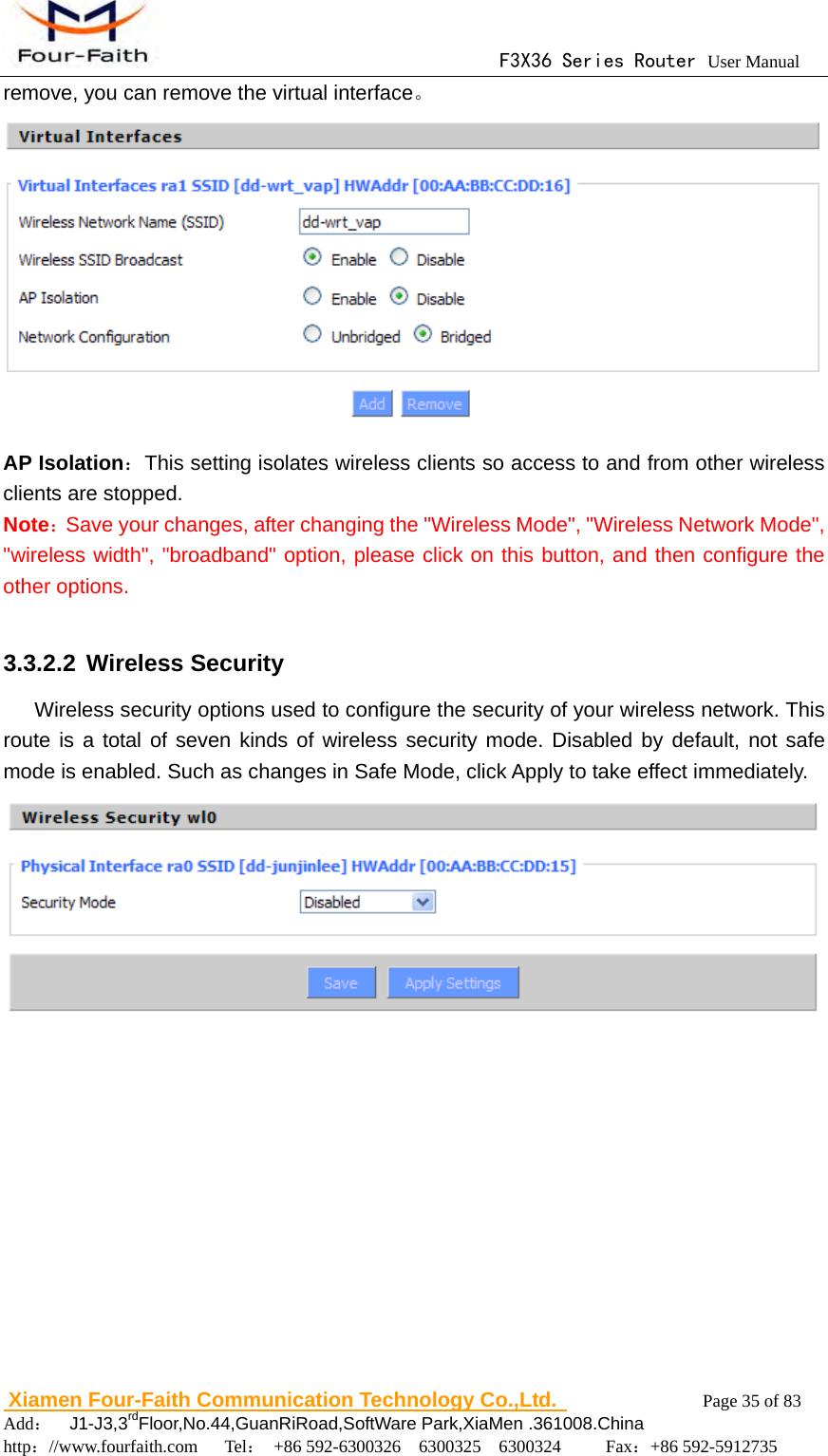

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 35 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 remove, you can remove the virtual interface。 AP Isolation：This setting isolates wireless clients so access to and from other wireless clients are stopped. Note：Save your changes, after changing the "Wireless Mode", "Wireless Network Mode", "wireless width", "broadband" option, please click on this button, and then configure the other options. 3.3.2.2 Wireless Security Wireless security options used to configure the security of your wireless network. This route is a total of seven kinds of wireless security mode. Disabled by default, not safe mode is enabled. Such as changes in Safe Mode, click Apply to take effect immediately.

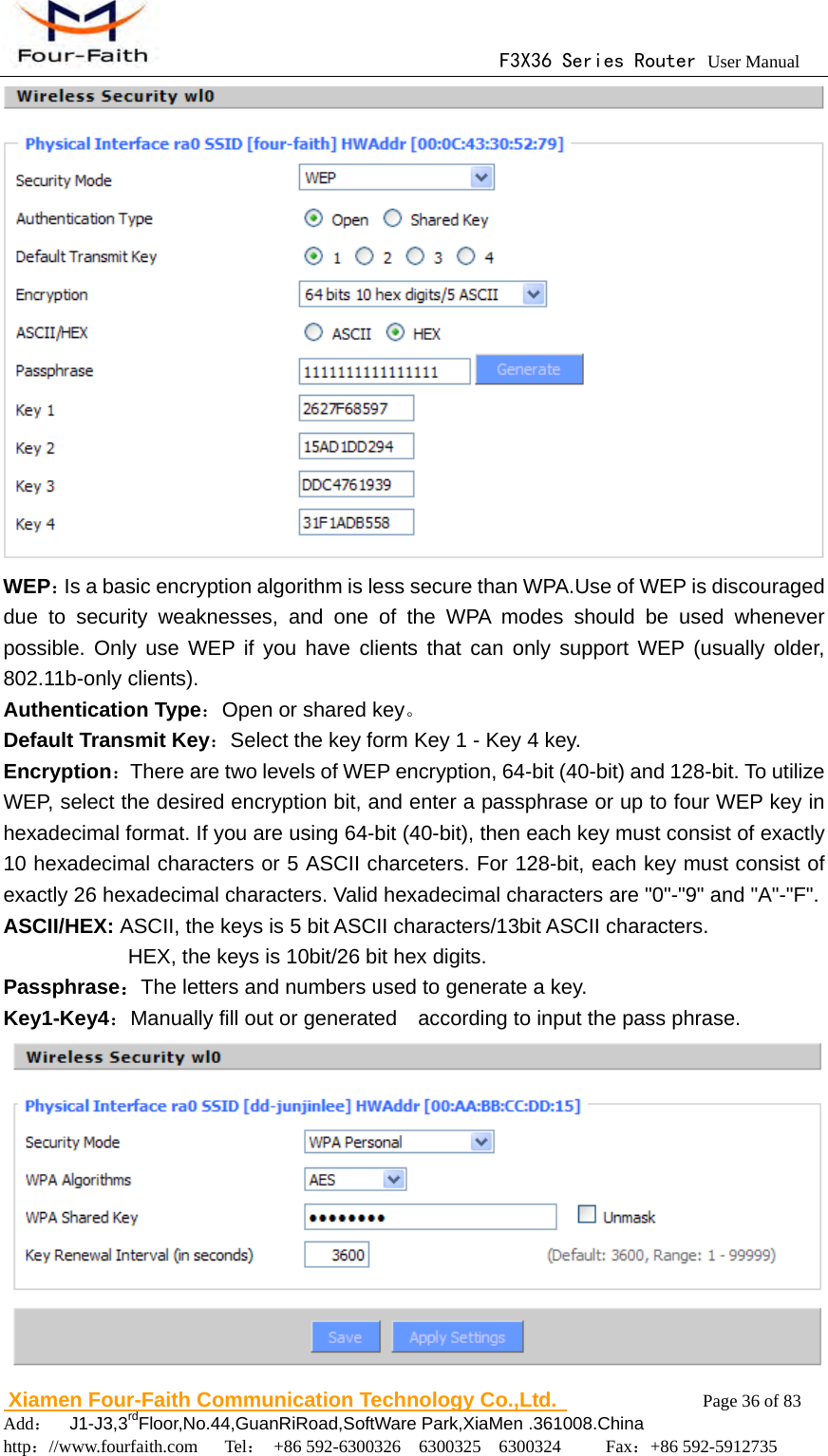

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 36 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 WEP：Is a basic encryption algorithm is less secure than WPA.Use of WEP is discouraged due to security weaknesses, and one of the WPA modes should be used whenever possible. Only use WEP if you have clients that can only support WEP (usually older, 802.11b-only clients). Authentication Type：Open or shared key。 Default Transmit Key：Select the key form Key 1 - Key 4 key. Encryption：There are two levels of WEP encryption, 64-bit (40-bit) and 128-bit. To utilize WEP, select the desired encryption bit, and enter a passphrase or up to four WEP key in hexadecimal format. If you are using 64-bit (40-bit), then each key must consist of exactly 10 hexadecimal characters or 5 ASCII charceters. For 128-bit, each key must consist of exactly 26 hexadecimal characters. Valid hexadecimal characters are "0"-"9" and "A"-"F". ASCII/HEX: ASCII, the keys is 5 bit ASCII characters/13bit ASCII characters. HEX, the keys is 10bit/26 bit hex digits. Passphrase：The letters and numbers used to generate a key. Key1-Key4：Manually fill out or generated according to input the pass phrase.

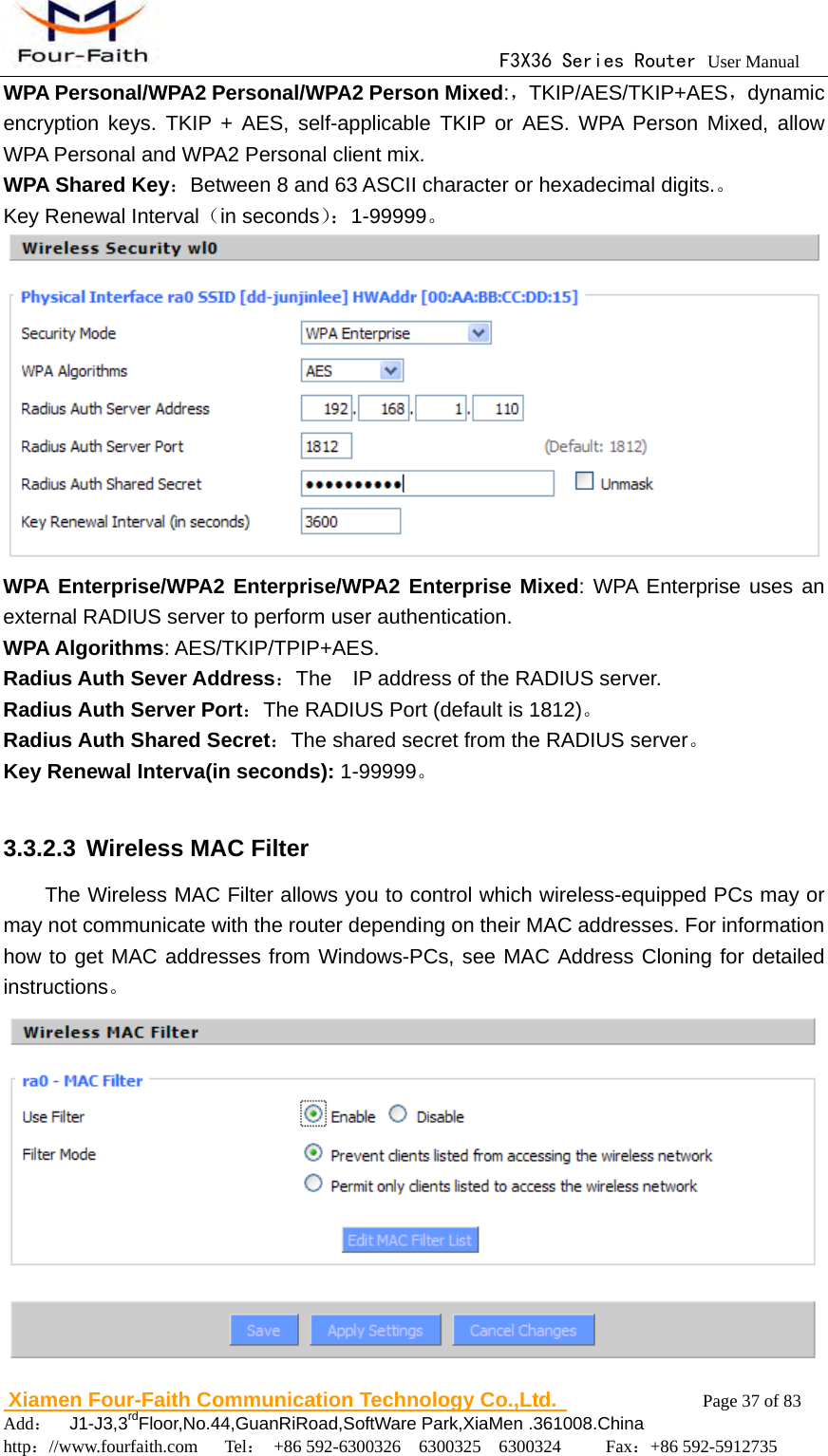

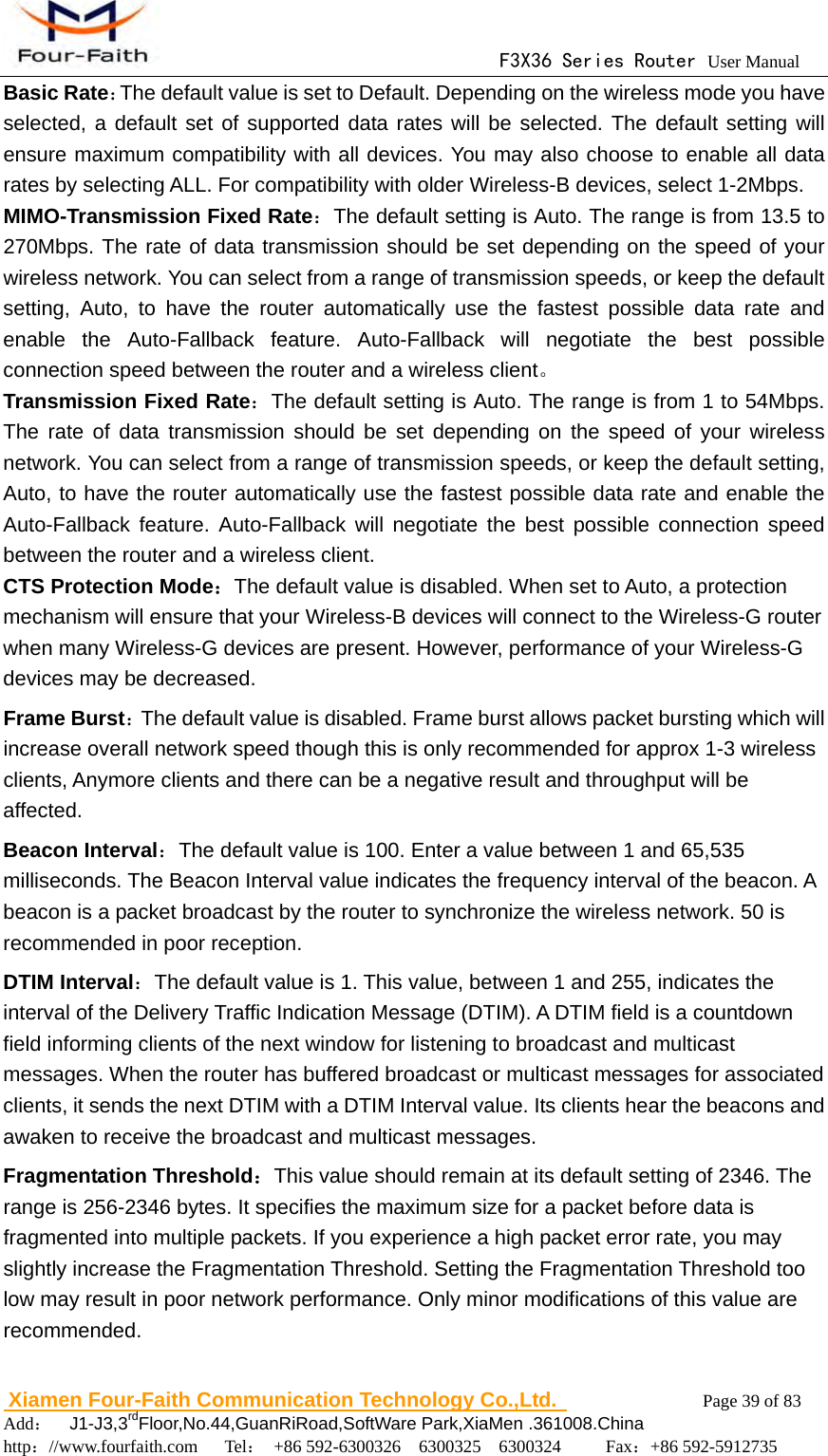

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 37 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 WPA Personal/WPA2 Personal/WPA2 Person Mixed:，TKIP/AES/TKIP+AES，dynamic encryption keys. TKIP + AES, self-applicable TKIP or AES. WPA Person Mixed, allow WPA Personal and WPA2 Personal client mix. WPA Shared Key：Between 8 and 63 ASCII character or hexadecimal digits.。 Key Renewal Interval（in seconds）：1-99999。 WPA Enterprise/WPA2 Enterprise/WPA2 Enterprise Mixed: WPA Enterprise uses an external RADIUS server to perform user authentication. WPA Algorithms: AES/TKIP/TPIP+AES. Radius Auth Sever Address：The IP address of the RADIUS server. Radius Auth Server Port：The RADIUS Port (default is 1812)。 Radius Auth Shared Secret：The shared secret from the RADIUS server。 Key Renewal Interva(in seconds): 1-99999。 3.3.2.3 Wireless MAC Filter The Wireless MAC Filter allows you to control which wireless-equipped PCs may or may not communicate with the router depending on their MAC addresses. For information how to get MAC addresses from Windows-PCs, see MAC Address Cloning for detailed instructions。

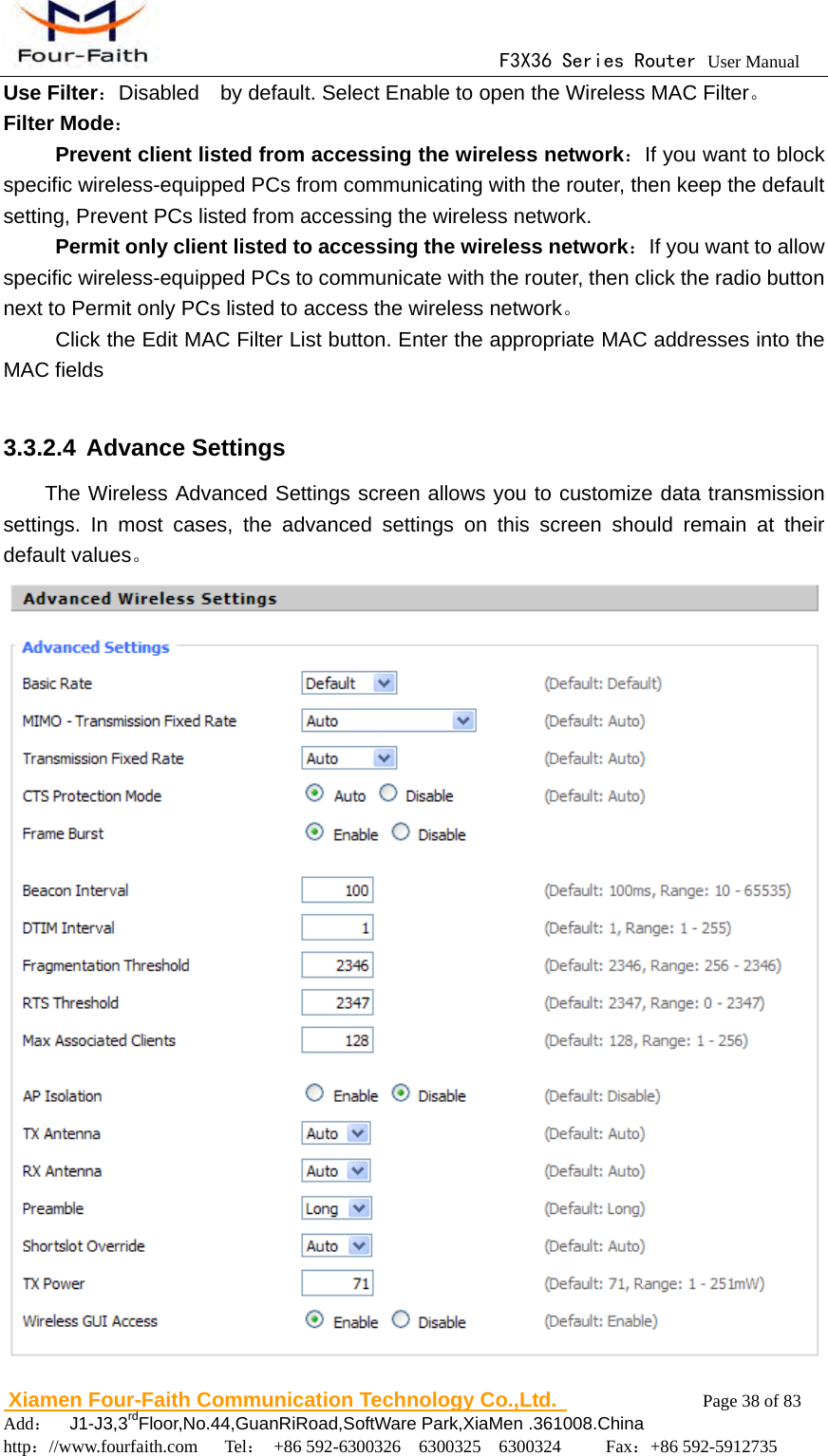

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 38 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 Use Filter：Disabled by default. Select Enable to open the Wireless MAC Filter。 Filter Mode： Prevent client listed from accessing the wireless network：If you want to block specific wireless-equipped PCs from communicating with the router, then keep the default setting, Prevent PCs listed from accessing the wireless network. Permit only client listed to accessing the wireless network：If you want to allow specific wireless-equipped PCs to communicate with the router, then click the radio button next to Permit only PCs listed to access the wireless network。 Click the Edit MAC Filter List button. Enter the appropriate MAC addresses into the MAC fields 3.3.2.4 Advance Settings The Wireless Advanced Settings screen allows you to customize data transmission settings. In most cases, the advanced settings on this screen should remain at their default values。
F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 39 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 Basic Rate：The default value is set to Default. Depending on the wireless mode you have selected, a default set of supported data rates will be selected. The default setting will ensure maximum compatibility with all devices. You may also choose to enable all data rates by selecting ALL. For compatibility with older Wireless-B devices, select 1-2Mbps. MIMO-Transmission Fixed Rate：The default setting is Auto. The range is from 13.5 to 270Mbps. The rate of data transmission should be set depending on the speed of your wireless network. You can select from a range of transmission speeds, or keep the default setting, Auto, to have the router automatically use the fastest possible data rate and enable the Auto-Fallback feature. Auto-Fallback will negotiate the best possible connection speed between the router and a wireless client。 Transmission Fixed Rate：The default setting is Auto. The range is from 1 to 54Mbps. The rate of data transmission should be set depending on the speed of your wireless network. You can select from a range of transmission speeds, or keep the default setting, Auto, to have the router automatically use the fastest possible data rate and enable the Auto-Fallback feature. Auto-Fallback will negotiate the best possible connection speed between the router and a wireless client. CTS Protection Mode：The default value is disabled. When set to Auto, a protection mechanism will ensure that your Wireless-B devices will connect to the Wireless-G router when many Wireless-G devices are present. However, performance of your Wireless-G devices may be decreased. Frame Burst：The default value is disabled. Frame burst allows packet bursting which will increase overall network speed though this is only recommended for approx 1-3 wireless clients, Anymore clients and there can be a negative result and throughput will be affected. Beacon Interval：The default value is 100. Enter a value between 1 and 65,535 milliseconds. The Beacon Interval value indicates the frequency interval of the beacon. A beacon is a packet broadcast by the router to synchronize the wireless network. 50 is recommended in poor reception. DTIM Interval：The default value is 1. This value, between 1 and 255, indicates the interval of the Delivery Traffic Indication Message (DTIM). A DTIM field is a countdown field informing clients of the next window for listening to broadcast and multicast messages. When the router has buffered broadcast or multicast messages for associated clients, it sends the next DTIM with a DTIM Interval value. Its clients hear the beacons and awaken to receive the broadcast and multicast messages. Fragmentation Threshold：This value should remain at its default setting of 2346. The range is 256-2346 bytes. It specifies the maximum size for a packet before data is fragmented into multiple packets. If you experience a high packet error rate, you may slightly increase the Fragmentation Threshold. Setting the Fragmentation Threshold too low may result in poor network performance. Only minor modifications of this value are recommended.
F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 40 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 RTS Threshold：This value should remain at its default setting of 2347. The range is 0-2347 bytes. Should you encounter inconsistent data flow, only minor modifications are recommended. If a network packet is smaller than the preset RTS threshold size, the RTS/CTS mechanism will not be enabled. The router sends Request to Send (RTS) frames to a particular receiving station and negotiates the sending of a data frame. After receiving an RTS, the wireless station responds with a Clear to Send (CTS) frame to acknowledge the right to begin transmission. Max Associated Clients：1-128. AP Isolation：The default value is Off. This setting isolates wireless clients so access to and from other wireless clients are stopped. TX Antenna/ RX Antenna：Values are Auto, Left, Right, default value is Auto. This is used in conjunction with external antennas to give them optimum performance. On some router models left and right antennas may be reversed depending on you point of view. Preamble：Values are Long and Short, default value is Long. If your wireless device supports the short preamble and you are having trouble getting it to communicate with other 802.11b devices, make sure that it is set to use the long preamble. Wireless GUI Access: The default value is Enabled. The setting allows access to the routers setup (GUI) from wireless clients. Disable this if you wish to block all wireless clients from accessing the setup pages. Radio Time Restrictions: The Radio Times Restriction facility constitutes a time switch for the radio. By default, the time switch is not active and the WLAN is permanently on. Enable the time switch, if you want to turn off the WLAN during some hours of the day. Hours during which the WLAN is on are marked in green, while red indicates that the radio is off. Clicking on the respective hour toggles between on and off.

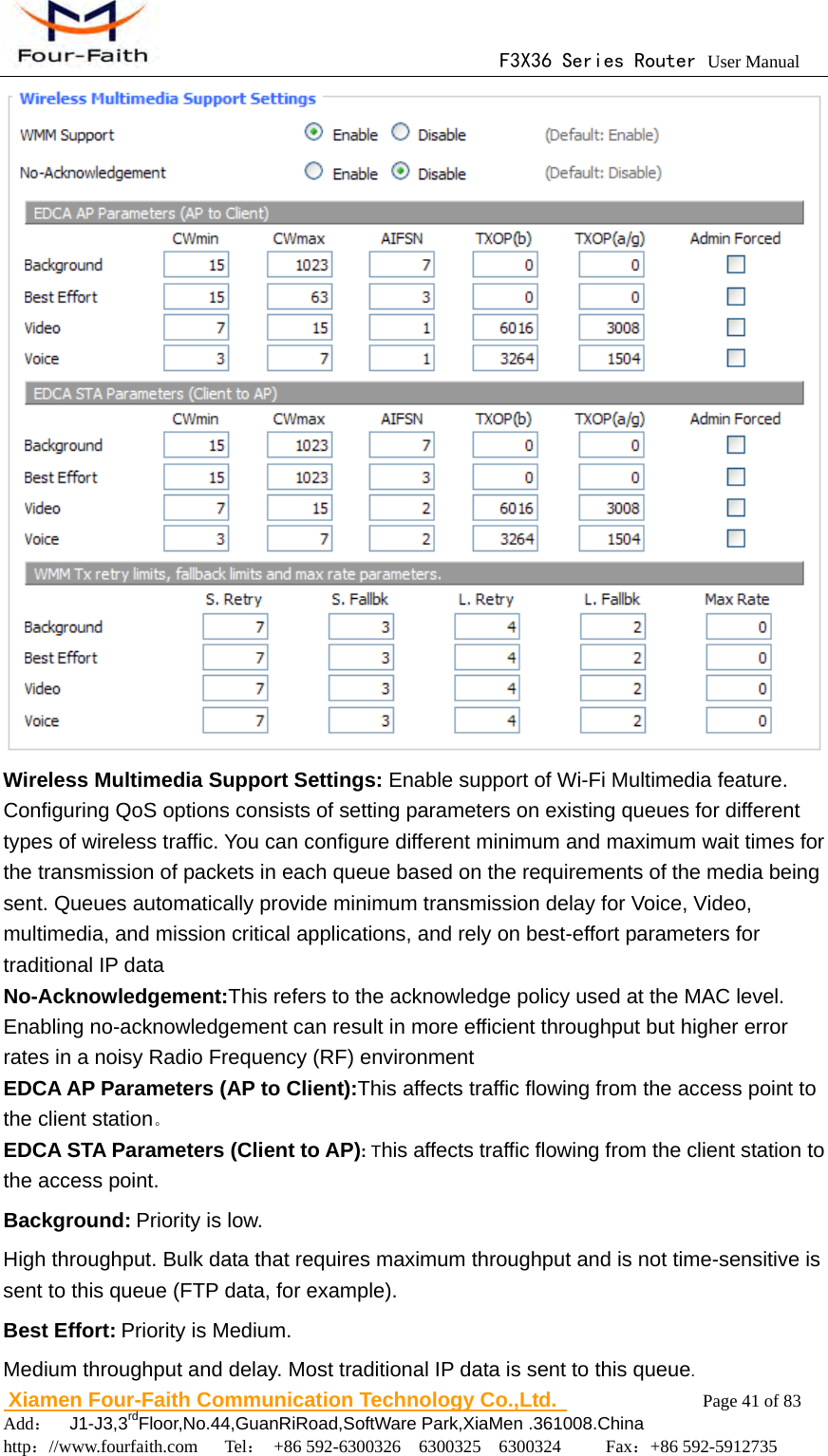

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 41 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 Wireless Multimedia Support Settings: Enable support of Wi-Fi Multimedia feature. Configuring QoS options consists of setting parameters on existing queues for different types of wireless traffic. You can configure different minimum and maximum wait times for the transmission of packets in each queue based on the requirements of the media being sent. Queues automatically provide minimum transmission delay for Voice, Video, multimedia, and mission critical applications, and rely on best-effort parameters for traditional IP data No-Acknowledgement:This refers to the acknowledge policy used at the MAC level. Enabling no-acknowledgement can result in more efficient throughput but higher error rates in a noisy Radio Frequency (RF) environment EDCA AP Parameters (AP to Client):This affects traffic flowing from the access point to the client station。 EDCA STA Parameters (Client to AP): This affects traffic flowing from the client station to the access point. Background: Priority is low. High throughput. Bulk data that requires maximum throughput and is not time-sensitive is sent to this queue (FTP data, for example). Best Effort: Priority is Medium. Medium throughput and delay. Most traditional IP data is sent to this queue.

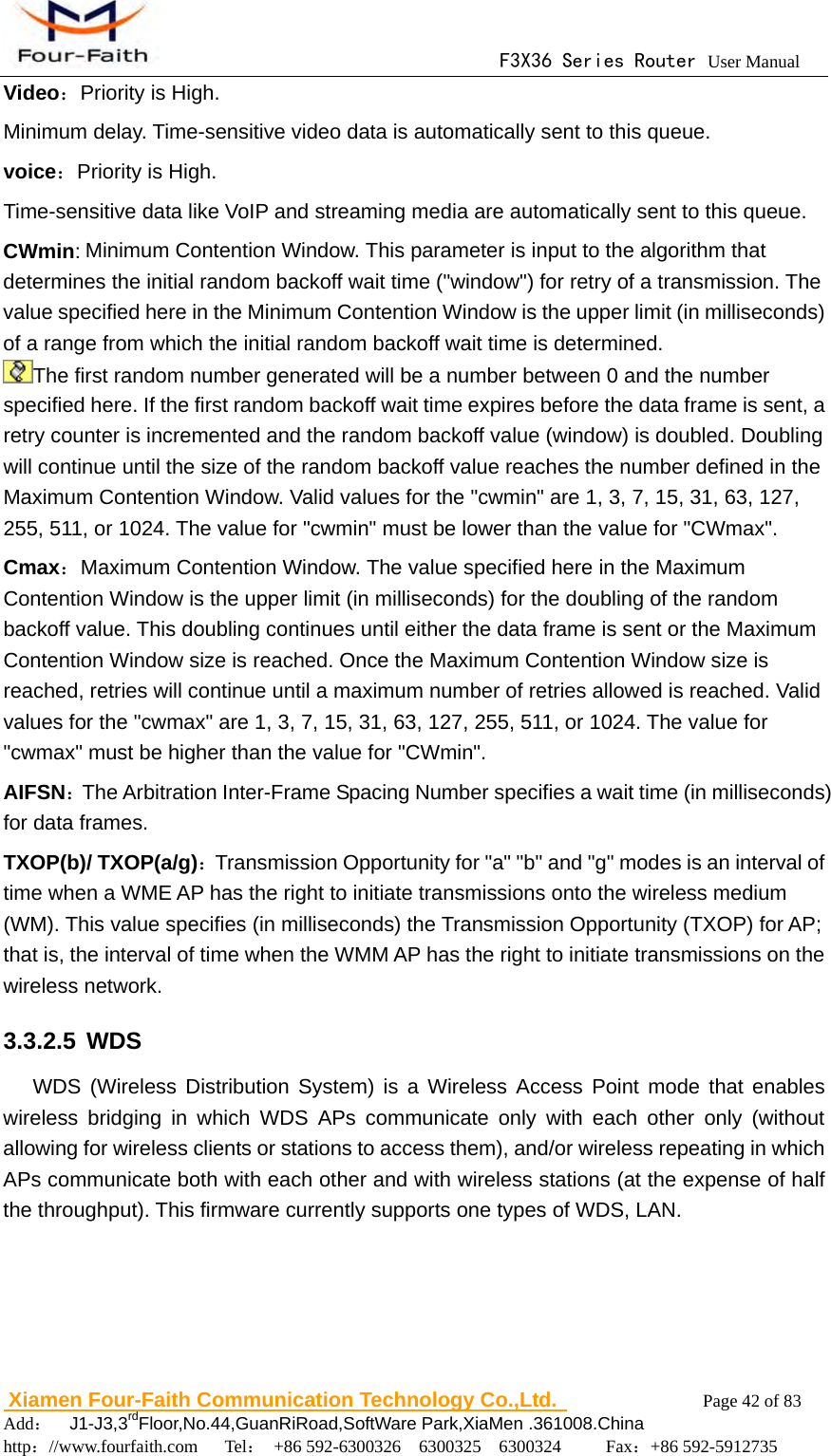

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 42 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 Video：Priority is High. Minimum delay. Time-sensitive video data is automatically sent to this queue. voice：Priority is High. Time-sensitive data like VoIP and streaming media are automatically sent to this queue. CWmin: Minimum Contention Window. This parameter is input to the algorithm that determines the initial random backoff wait time ("window") for retry of a transmission. The value specified here in the Minimum Contention Window is the upper limit (in milliseconds) of a range from which the initial random backoff wait time is determined. The first random number generated will be a number between 0 and the number specified here. If the first random backoff wait time expires before the data frame is sent, a retry counter is incremented and the random backoff value (window) is doubled. Doubling will continue until the size of the random backoff value reaches the number defined in the Maximum Contention Window. Valid values for the "cwmin" are 1, 3, 7, 15, 31, 63, 127, 255, 511, or 1024. The value for "cwmin" must be lower than the value for "CWmax". Cmax：Maximum Contention Window. The value specified here in the Maximum Contention Window is the upper limit (in milliseconds) for the doubling of the random backoff value. This doubling continues until either the data frame is sent or the Maximum Contention Window size is reached. Once the Maximum Contention Window size is reached, retries will continue until a maximum number of retries allowed is reached. Valid values for the "cwmax" are 1, 3, 7, 15, 31, 63, 127, 255, 511, or 1024. The value for "cwmax" must be higher than the value for "CWmin". AIFSN：The Arbitration Inter-Frame Spacing Number specifies a wait time (in milliseconds) for data frames. TXOP(b)/ TXOP(a/g)：Transmission Opportunity for "a" "b" and "g" modes is an interval of time when a WME AP has the right to initiate transmissions onto the wireless medium (WM). This value specifies (in milliseconds) the Transmission Opportunity (TXOP) for AP; that is, the interval of time when the WMM AP has the right to initiate transmissions on the wireless network. 3.3.2.5 WDS WDS (Wireless Distribution System) is a Wireless Access Point mode that enables wireless bridging in which WDS APs communicate only with each other only (without allowing for wireless clients or stations to access them), and/or wireless repeating in which APs communicate both with each other and with wireless stations (at the expense of half the throughput). This firmware currently supports one types of WDS, LAN.

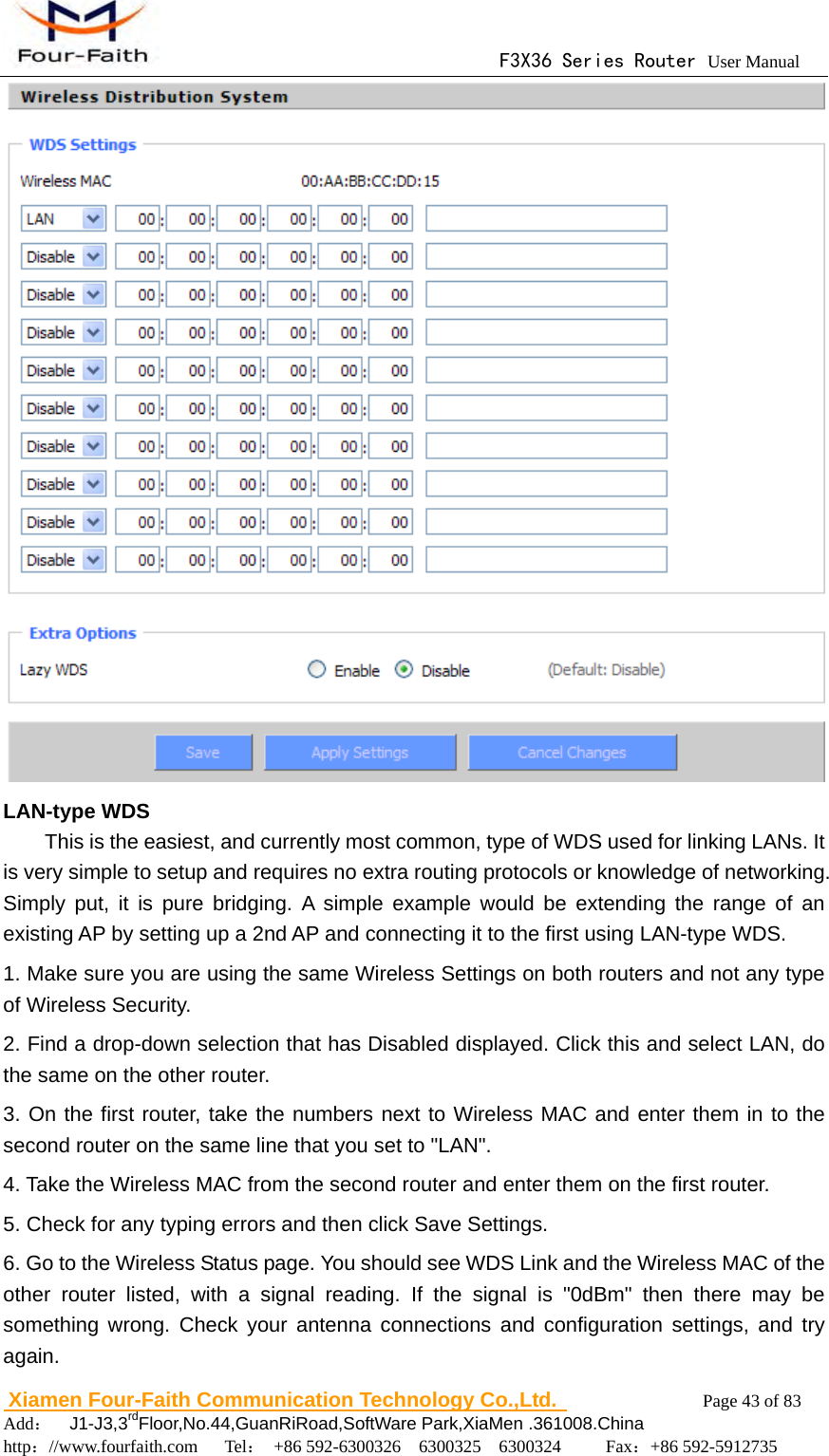

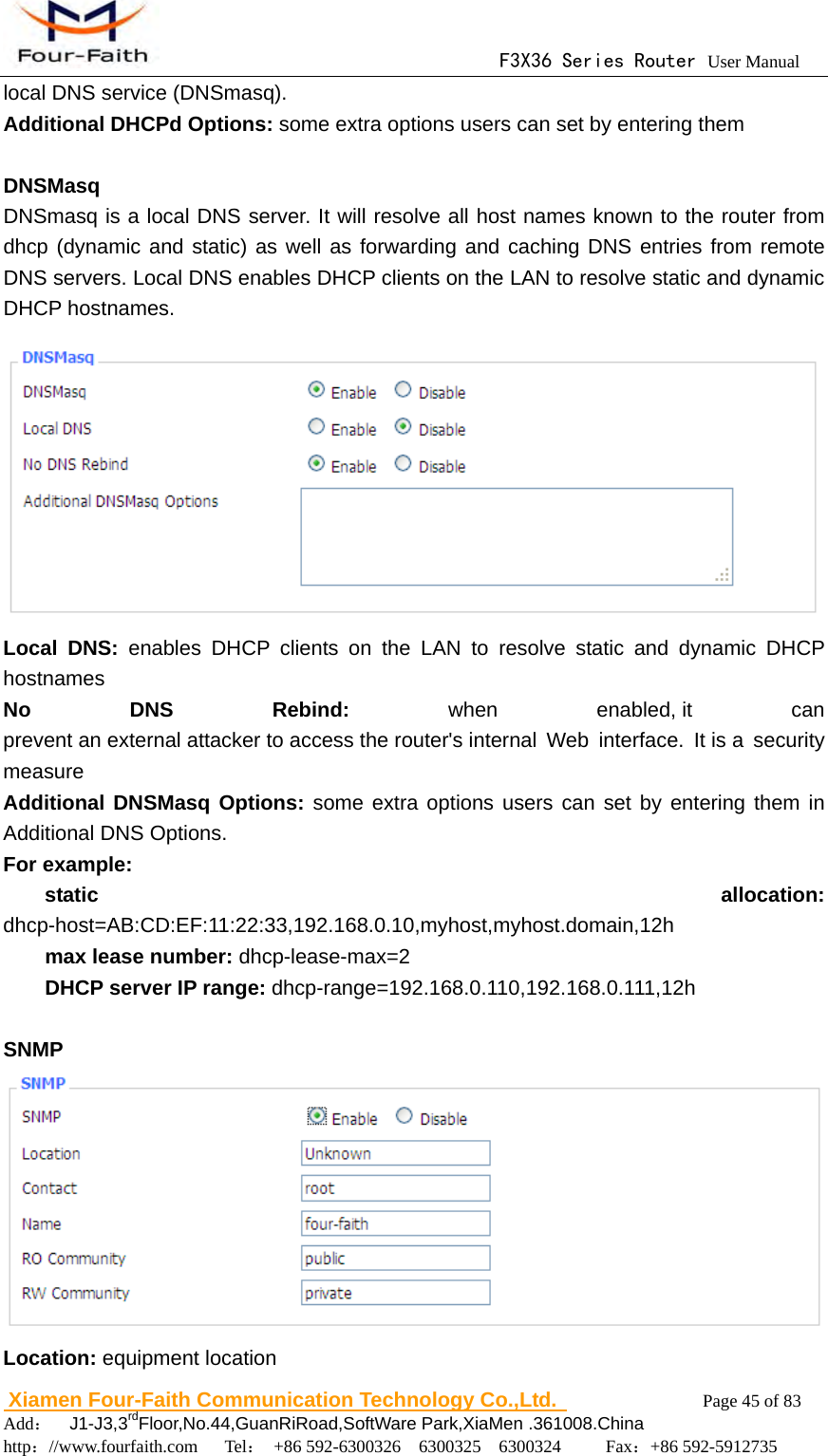

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 43 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 LAN-type WDS This is the easiest, and currently most common, type of WDS used for linking LANs. It is very simple to setup and requires no extra routing protocols or knowledge of networking. Simply put, it is pure bridging. A simple example would be extending the range of an existing AP by setting up a 2nd AP and connecting it to the first using LAN-type WDS. 1. Make sure you are using the same Wireless Settings on both routers and not any type of Wireless Security. 2. Find a drop-down selection that has Disabled displayed. Click this and select LAN, do the same on the other router. 3. On the first router, take the numbers next to Wireless MAC and enter them in to the second router on the same line that you set to "LAN". 4. Take the Wireless MAC from the second router and enter them on the first router. 5. Check for any typing errors and then click Save Settings. 6. Go to the Wireless Status page. You should see WDS Link and the Wireless MAC of the other router listed, with a signal reading. If the signal is "0dBm" then there may be something wrong. Check your antenna connections and configuration settings, and try again.

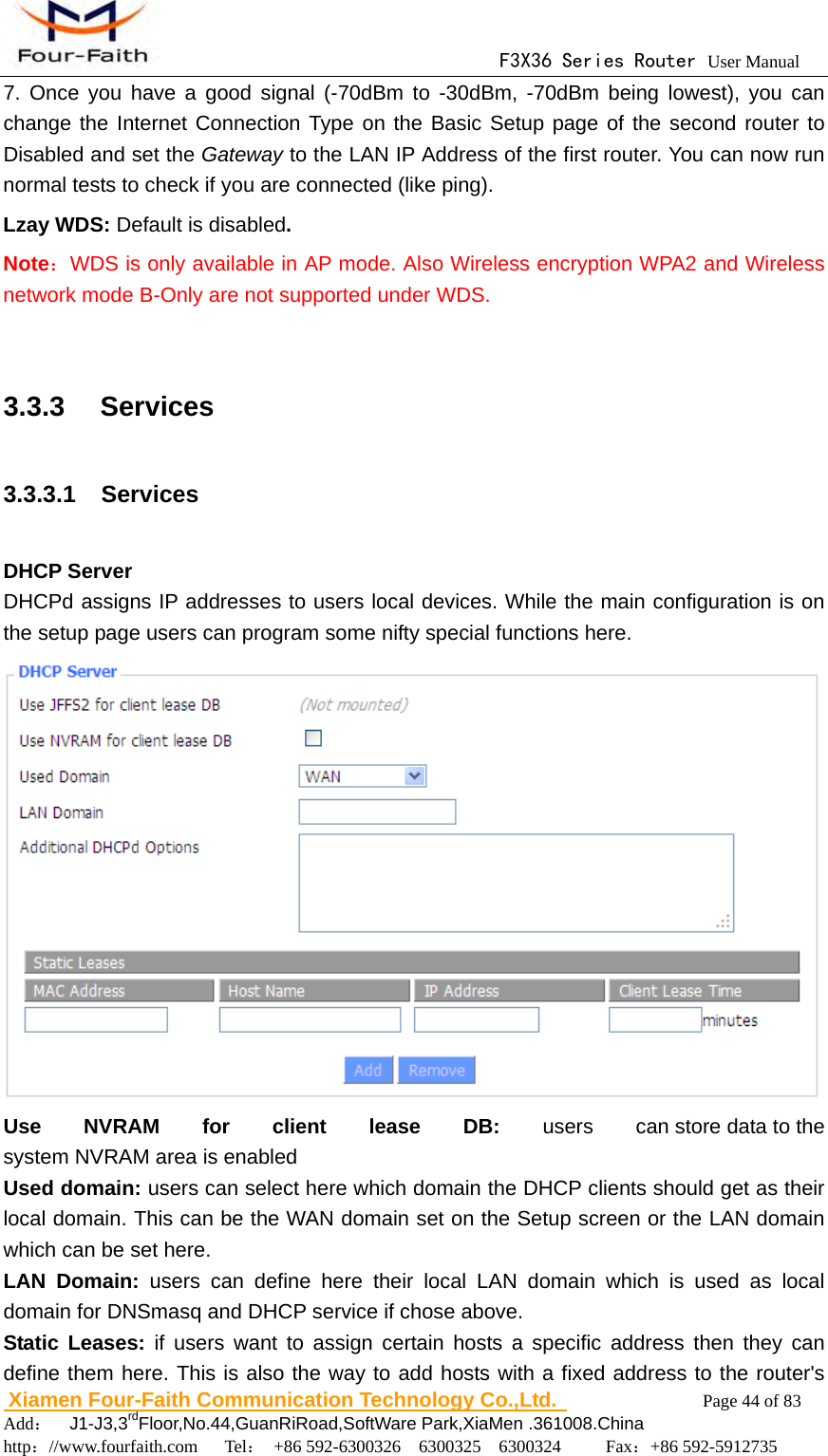

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 44 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 7. Once you have a good signal (-70dBm to -30dBm, -70dBm being lowest), you can change the Internet Connection Type on the Basic Setup page of the second router to Disabled and set the Gateway to the LAN IP Address of the first router. You can now run normal tests to check if you are connected (like ping). Lzay WDS: Default is disabled. Note：WDS is only available in AP mode. Also Wireless encryption WPA2 and Wireless network mode B-Only are not supported under WDS. 3.3.3 Services 3.3.3.1 Services DHCP Server DHCPd assigns IP addresses to users local devices. While the main configuration is on the setup page users can program some nifty special functions here. Use NVRAM for client lease DB: users can store data to the system NVRAM area is enabled Used domain: users can select here which domain the DHCP clients should get as their local domain. This can be the WAN domain set on the Setup screen or the LAN domain which can be set here. LAN Domain: users can define here their local LAN domain which is used as local domain for DNSmasq and DHCP service if chose above. Static Leases: if users want to assign certain hosts a specific address then they can define them here. This is also the way to add hosts with a fixed address to the router's
F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 45 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 local DNS service (DNSmasq). Additional DHCPd Options: some extra options users can set by entering them DNSMasq DNSmasq is a local DNS server. It will resolve all host names known to the router from dhcp (dynamic and static) as well as forwarding and caching DNS entries from remote DNS servers. Local DNS enables DHCP clients on the LAN to resolve static and dynamic DHCP hostnames. Local DNS: enables DHCP clients on the LAN to resolve static and dynamic DHCP hostnames No DNS Rebind: when enabled, it can prevent an external attacker to access the router's internal Web interface. It is a security measure Additional DNSMasq Options: some extra options users can set by entering them in Additional DNS Options. For example: static allocation: dhcp-host=AB:CD:EF:11:22:33,192.168.0.10,myhost,myhost.domain,12h max lease number: dhcp-lease-max=2 DHCP server IP range: dhcp-range=192.168.0.110,192.168.0.111,12h SNMP Location: equipment location
F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 46 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 Contact: contact this equipment management Name: device name RO Community: SNMP RO community name, the default is public, Only to read. RW Community: SNMP RW community name, the default is private, Read-write permissions SSHD Enabling SSHd allows users to access the Linux OS of their router with an SSH client SSH TCP Forwarding: enable or disable to support the TCP forwarding Password Login: allows login with the router password (username is admin) Port: port number for SSHd (default is 22) Authorized Keys: here users paste their public keys to enable key-based login (more secure than a simple password) System log Enable Syslogd to capture system messages. By default they will be collected in the local file /var/log/messages. To send them to another system, enter the IP address of a remote syslog server. Syslog Out Mode: two log mode Net: the log information output to a syslog server Console: the log information output to console port Remote Server: if choose net mode, users should input a syslog server’s IP Address and run a syslog server program on it. Telnet

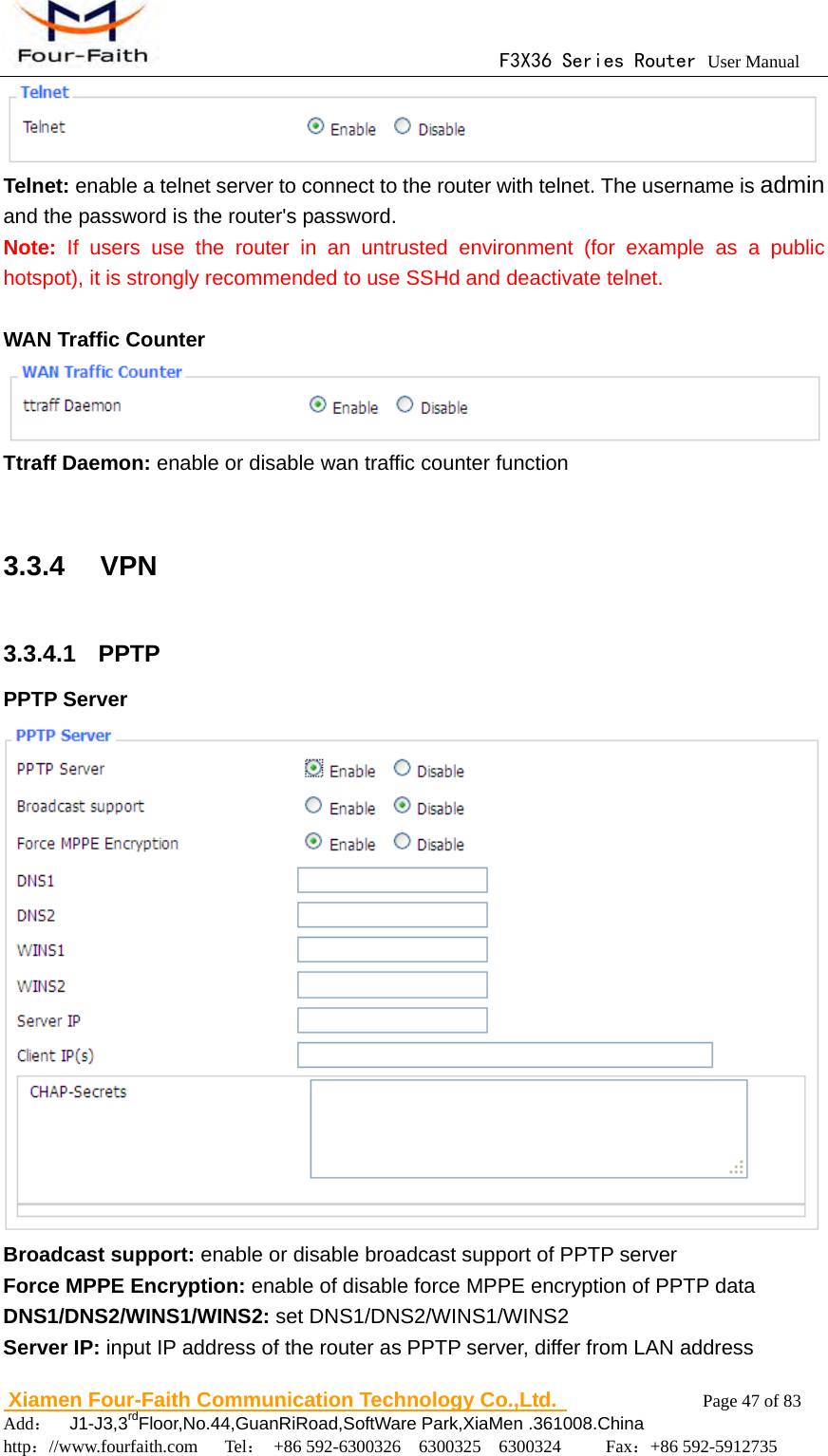

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 47 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 Telnet: enable a telnet server to connect to the router with telnet. The username is admin and the password is the router's password. Note: If users use the router in an untrusted environment (for example as a public hotspot), it is strongly recommended to use SSHd and deactivate telnet. WAN Traffic Counter Ttraff Daemon: enable or disable wan traffic counter function 3.3.4 VPN 3.3.4.1 PPTP PPTP Server Broadcast support: enable or disable broadcast support of PPTP server Force MPPE Encryption: enable of disable force MPPE encryption of PPTP data DNS1/DNS2/WINS1/WINS2: set DNS1/DNS2/WINS1/WINS2 Server IP: input IP address of the router as PPTP server, differ from LAN address

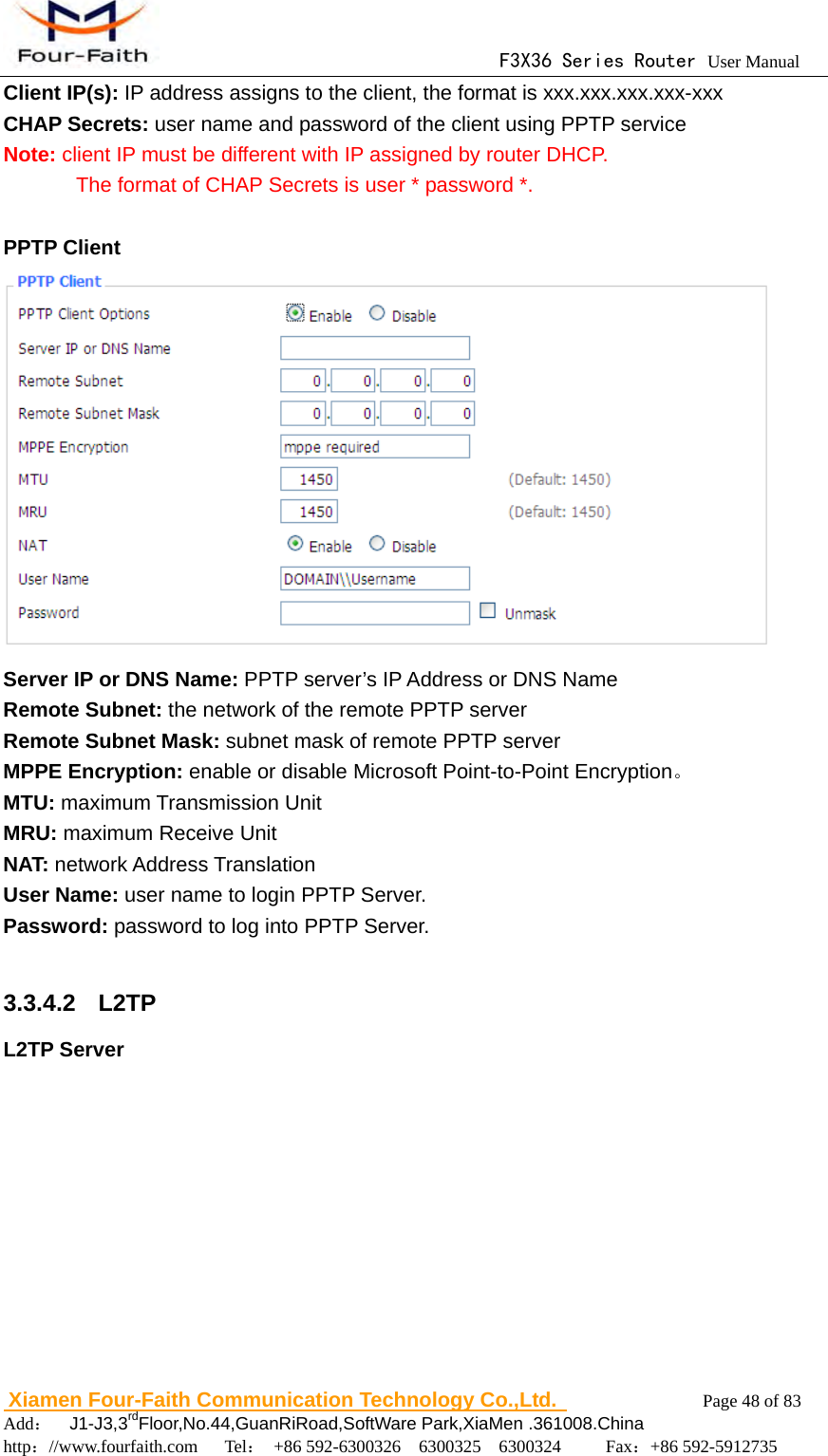

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 48 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 Client IP(s): IP address assigns to the client, the format is xxx.xxx.xxx.xxx-xxx CHAP Secrets: user name and password of the client using PPTP service Note: client IP must be different with IP assigned by router DHCP. The format of CHAP Secrets is user * password *. PPTP Client Server IP or DNS Name: PPTP server’s IP Address or DNS Name Remote Subnet: the network of the remote PPTP server Remote Subnet Mask: subnet mask of remote PPTP server MPPE Encryption: enable or disable Microsoft Point-to-Point Encryption。 MTU: maximum Transmission Unit MRU: maximum Receive Unit NAT: network Address Translation User Name: user name to login PPTP Server. Password: password to log into PPTP Server. 3.3.4.2 L2TP L2TP Server

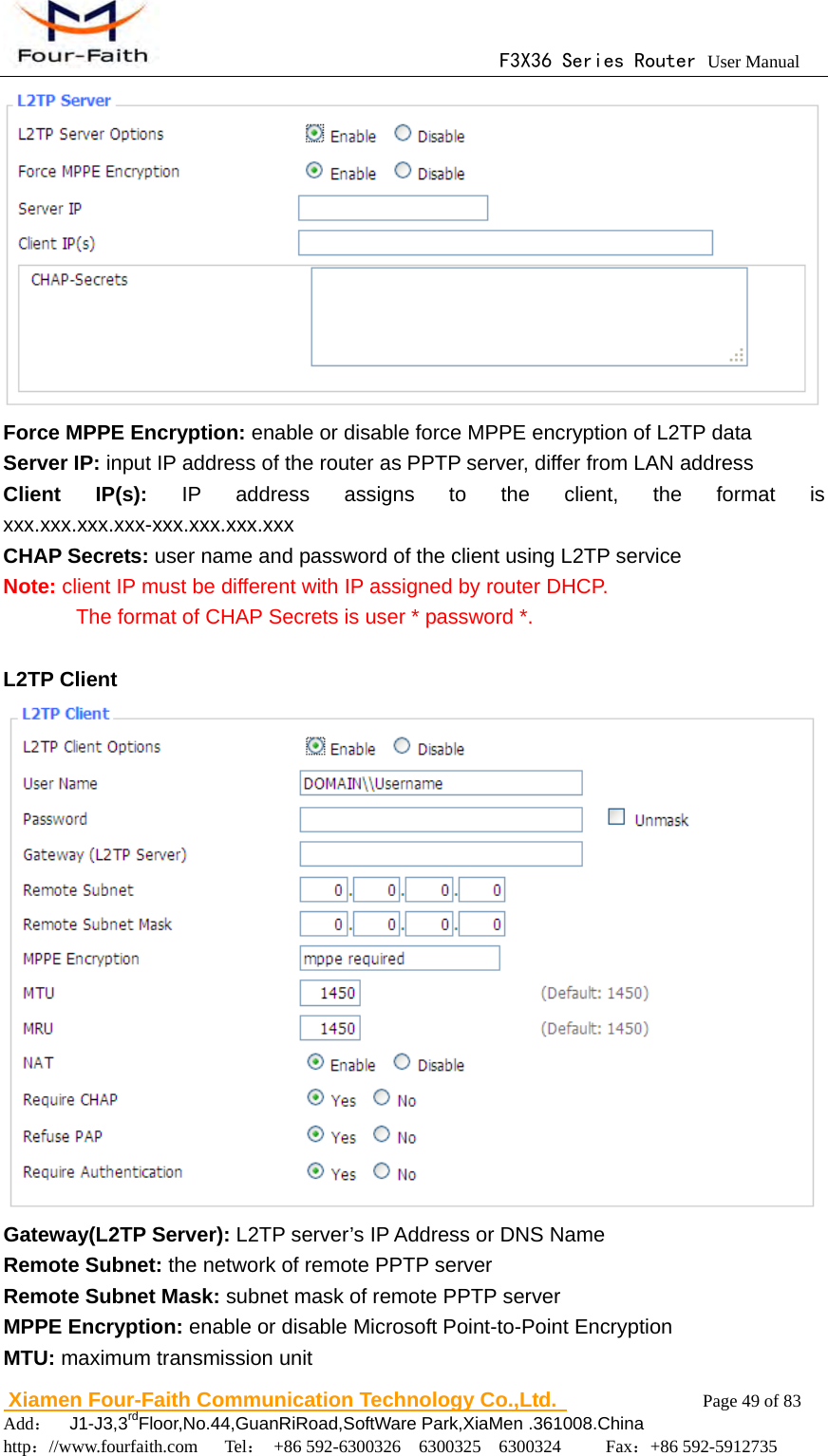

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 49 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 Force MPPE Encryption: enable or disable force MPPE encryption of L2TP data Server IP: input IP address of the router as PPTP server, differ from LAN address Client IP(s): IP address assigns to the client, the format is xxx.xxx.xxx.xxx-xxx.xxx.xxx.xxx CHAP Secrets: user name and password of the client using L2TP service Note: client IP must be different with IP assigned by router DHCP. The format of CHAP Secrets is user * password *. L2TP Client Gateway(L2TP Server): L2TP server’s IP Address or DNS Name Remote Subnet: the network of remote PPTP server Remote Subnet Mask: subnet mask of remote PPTP server MPPE Encryption: enable or disable Microsoft Point-to-Point Encryption MTU: maximum transmission unit
F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 50 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 MRU: maximum receive unit NAT: network address translation User Name: user name to login L2TP Server Password: password to login L2TP Server Require CHAP: enable or disable support chap authentication protocol Refuse PAP: enable or disable refuse to support the pap authentication Require Authentication: enable or disable support authentication protocol 3.3.5 Security 3.3.5.1 Firewall You can enable or disable the firewall, filter specific Internet data types,and prevent anonymous Internet requests,ultimately enhance network security. Firewall Protection Firewall enhance network security and use SPI to check the packets into the network.To use firewall protection, choose to enable otherwise disabled. Only enable the SPI firewall, you can use other firewall functions: filtering proxy, block WAN requests, etc. Additional Filters Filter Proxy: Wan proxy server may reduce the security of the gateway, Filtering Proxy will refuse any access to any wan proxy server. Click the check box to enable the function otherwise disabled. Filter Cookies: Cookies are the website of data the data stored on your computer.When you interact with the site ,the cookies will be used. Click the check box to enable the function otherwise disabled. Filter Java Applets: If refuse to Java, you may not be able to open web pages using the Java programming.. Click the check box to enable the function otherwise disabled. Filter ActiveX: If refuse to ActiveX, you may not be able to open web pages using the ActiveX programming. Click the check box to enable the function otherwise disabled. Prevent WAN Request

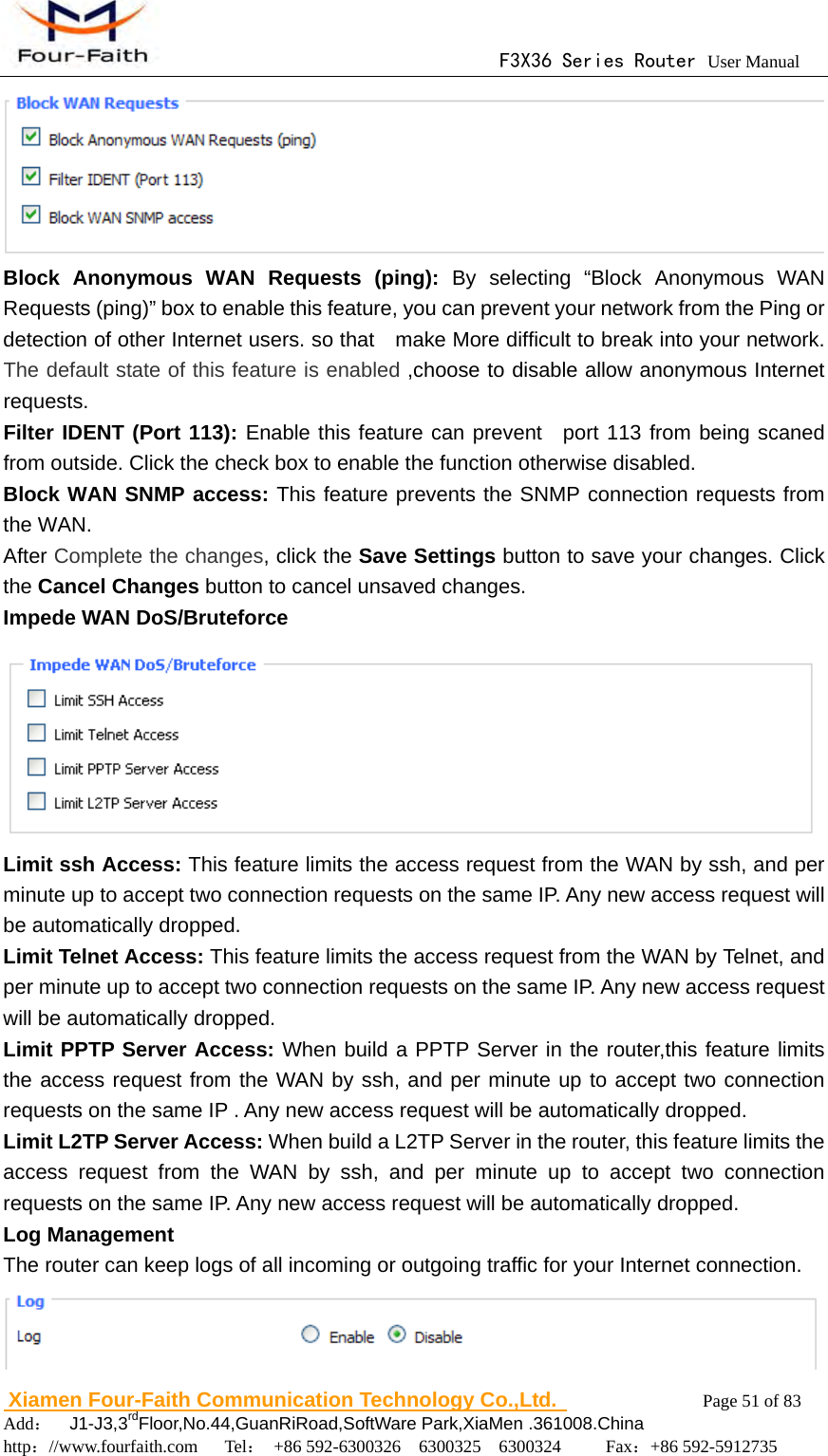

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 51 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 Block Anonymous WAN Requests (ping): By selecting “Block Anonymous WAN Requests (ping)” box to enable this feature, you can prevent your network from the Ping or detection of other Internet users. so that make More difficult to break into your network. The default state of this feature is enabled ,choose to disable allow anonymous Internet requests. Filter IDENT (Port 113): Enable this feature can prevent port 113 from being scaned from outside. Click the check box to enable the function otherwise disabled. Block WAN SNMP access: This feature prevents the SNMP connection requests from the WAN. After Complete the changes, click the Save Settings button to save your changes. Click the Cancel Changes button to cancel unsaved changes. Impede WAN DoS/Bruteforce Limit ssh Access: This feature limits the access request from the WAN by ssh, and per minute up to accept two connection requests on the same IP. Any new access request will be automatically dropped. Limit Telnet Access: This feature limits the access request from the WAN by Telnet, and per minute up to accept two connection requests on the same IP. Any new access request will be automatically dropped. Limit PPTP Server Access: When build a PPTP Server in the router,this feature limits the access request from the WAN by ssh, and per minute up to accept two connection requests on the same IP . Any new access request will be automatically dropped. Limit L2TP Server Access: When build a L2TP Server in the router, this feature limits the access request from the WAN by ssh, and per minute up to accept two connection requests on the same IP. Any new access request will be automatically dropped. Log Management The router can keep logs of all incoming or outgoing traffic for your Internet connection.

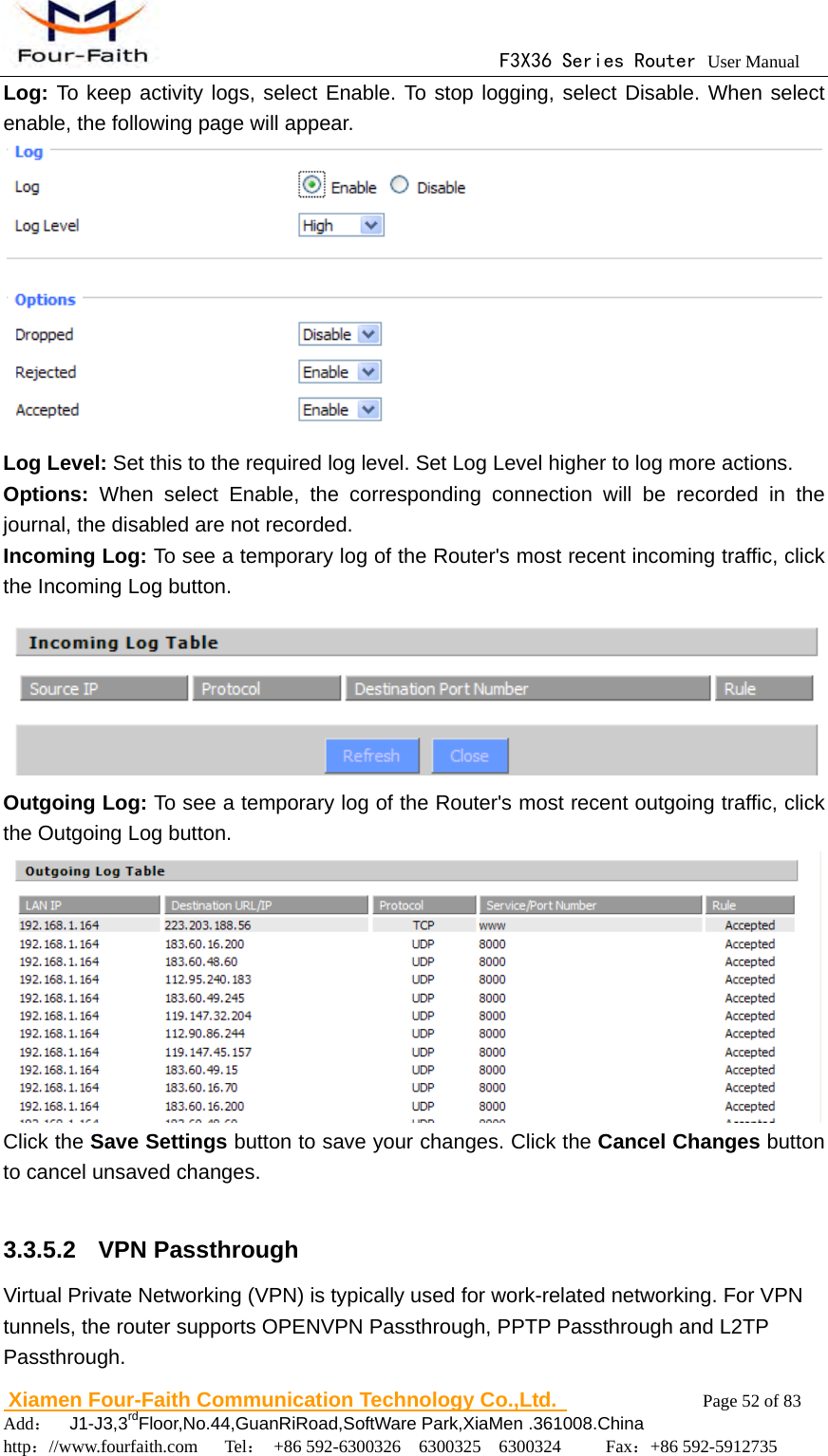

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 52 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 Log: To keep activity logs, select Enable. To stop logging, select Disable. When select enable, the following page will appear. Log Level: Set this to the required log level. Set Log Level higher to log more actions. Options: When select Enable, the corresponding connection will be recorded in the journal, the disabled are not recorded. Incoming Log: To see a temporary log of the Router's most recent incoming traffic, click the Incoming Log button. Outgoing Log: To see a temporary log of the Router's most recent outgoing traffic, click the Outgoing Log button. Click the Save Settings button to save your changes. Click the Cancel Changes button to cancel unsaved changes. 3.3.5.2 VPN Passthrough Virtual Private Networking (VPN) is typically used for work-related networking. For VPN tunnels, the router supports OPENVPN Passthrough, PPTP Passthrough and L2TP Passthrough.

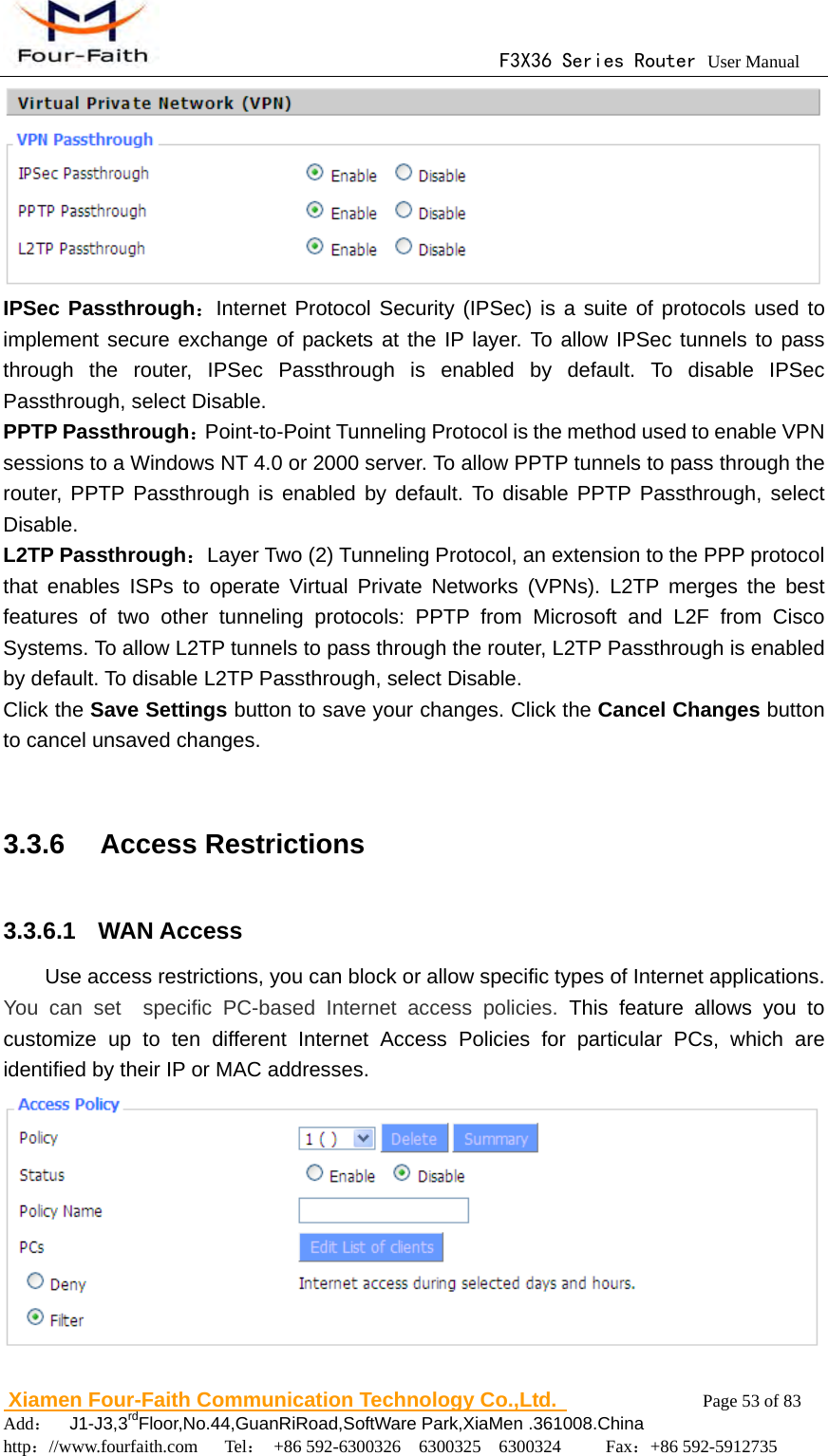

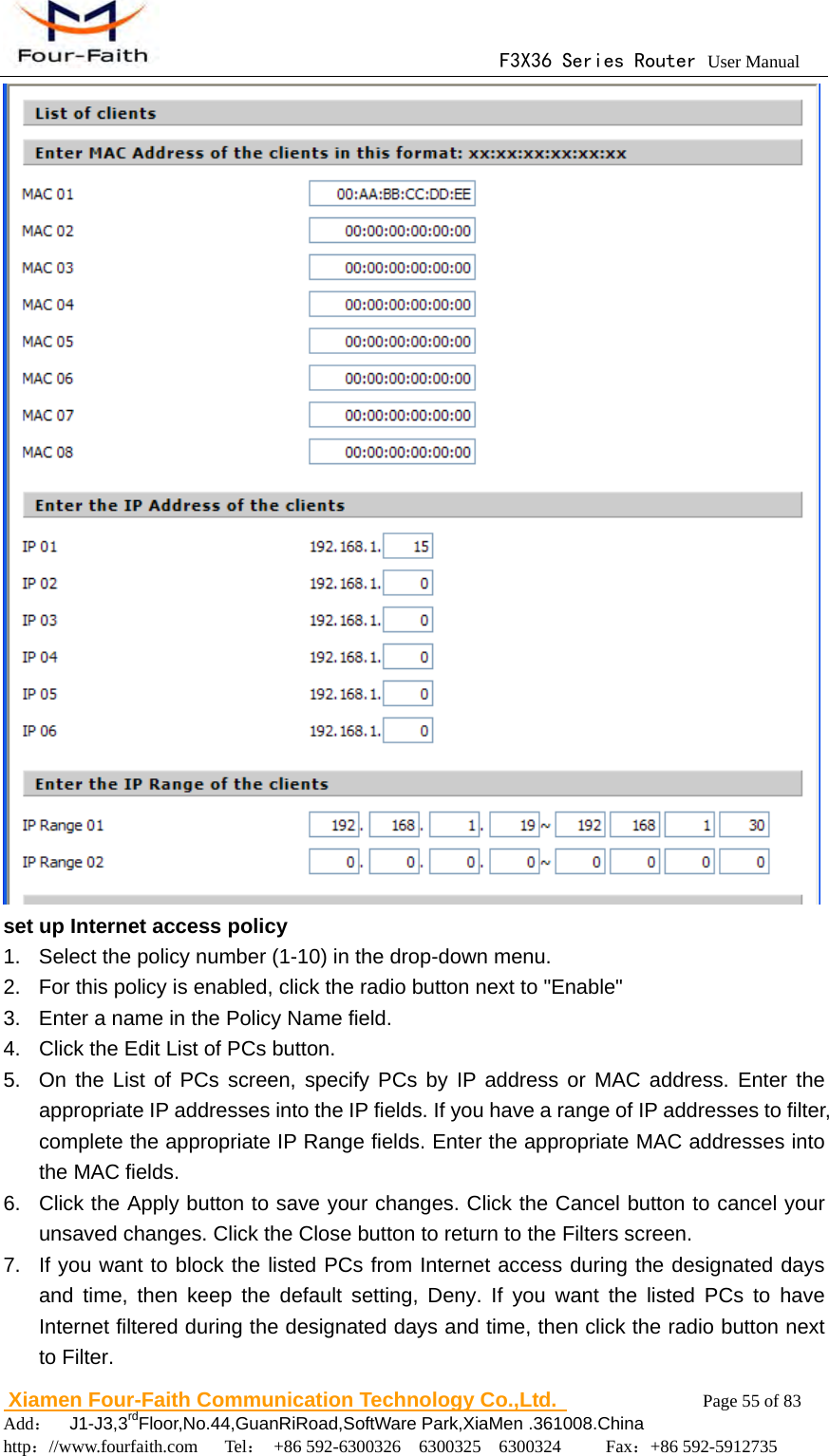

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 53 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 IPSec Passthrough：Internet Protocol Security (IPSec) is a suite of protocols used to implement secure exchange of packets at the IP layer. To allow IPSec tunnels to pass through the router, IPSec Passthrough is enabled by default. To disable IPSec Passthrough, select Disable. PPTP Passthrough：Point-to-Point Tunneling Protocol is the method used to enable VPN sessions to a Windows NT 4.0 or 2000 server. To allow PPTP tunnels to pass through the router, PPTP Passthrough is enabled by default. To disable PPTP Passthrough, select Disable. L2TP Passthrough：Layer Two (2) Tunneling Protocol, an extension to the PPP protocol that enables ISPs to operate Virtual Private Networks (VPNs). L2TP merges the best features of two other tunneling protocols: PPTP from Microsoft and L2F from Cisco Systems. To allow L2TP tunnels to pass through the router, L2TP Passthrough is enabled by default. To disable L2TP Passthrough, select Disable. Click the Save Settings button to save your changes. Click the Cancel Changes button to cancel unsaved changes. 3.3.6 Access Restrictions 3.3.6.1 WAN Access Use access restrictions, you can block or allow specific types of Internet applications. You can set specific PC-based Internet access policies. This feature allows you to customize up to ten different Internet Access Policies for particular PCs, which are identified by their IP or MAC addresses.

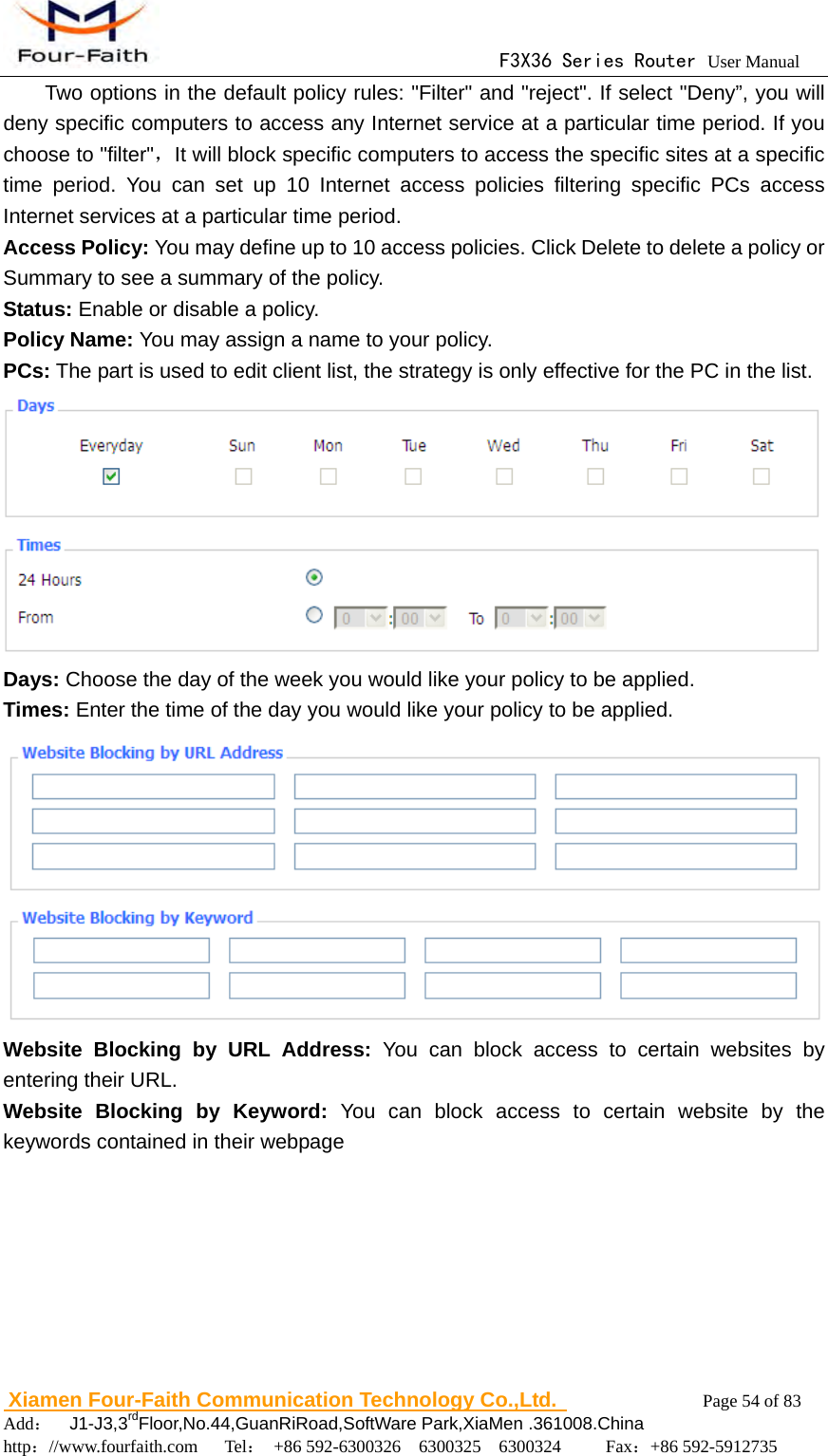

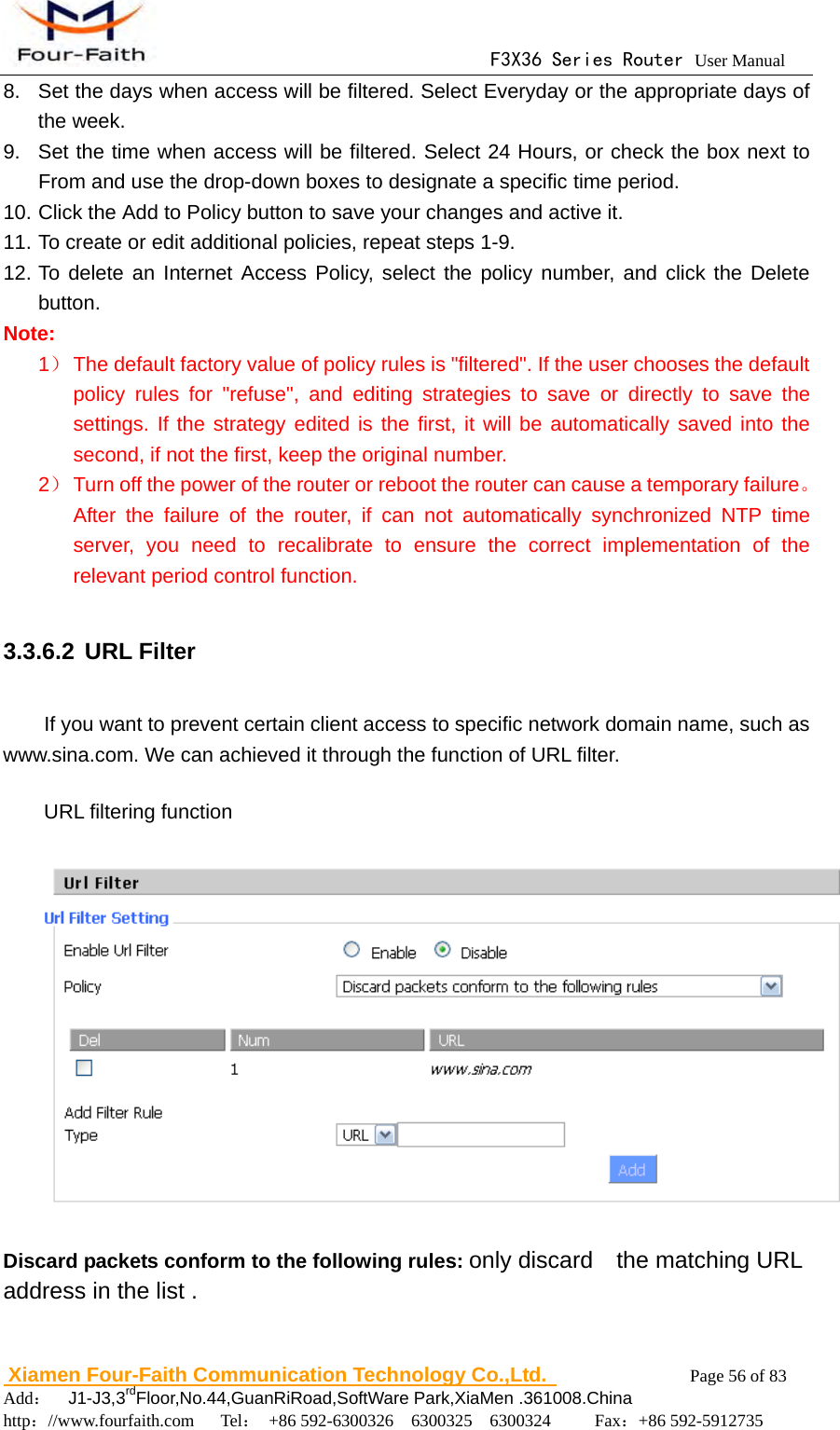

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 54 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 Two options in the default policy rules: "Filter" and "reject". If select "Deny”, you will deny specific computers to access any Internet service at a particular time period. If you choose to "filter"，It will block specific computers to access the specific sites at a specific time period. You can set up 10 Internet access policies filtering specific PCs access Internet services at a particular time period. Access Policy: You may define up to 10 access policies. Click Delete to delete a policy or Summary to see a summary of the policy. Status: Enable or disable a policy. Policy Name: You may assign a name to your policy. PCs: The part is used to edit client list, the strategy is only effective for the PC in the list. Days: Choose the day of the week you would like your policy to be applied. Times: Enter the time of the day you would like your policy to be applied. Website Blocking by URL Address: You can block access to certain websites by entering their URL. Website Blocking by Keyword: You can block access to certain website by the keywords contained in their webpage
F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 55 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 set up Internet access policy 1. Select the policy number (1-10) in the drop-down menu. 2. For this policy is enabled, click the radio button next to "Enable" 3. Enter a name in the Policy Name field. 4. Click the Edit List of PCs button. 5. On the List of PCs screen, specify PCs by IP address or MAC address. Enter the appropriate IP addresses into the IP fields. If you have a range of IP addresses to filter, complete the appropriate IP Range fields. Enter the appropriate MAC addresses into the MAC fields. 6. Click the Apply button to save your changes. Click the Cancel button to cancel your unsaved changes. Click the Close button to return to the Filters screen. 7. If you want to block the listed PCs from Internet access during the designated days and time, then keep the default setting, Deny. If you want the listed PCs to have Internet filtered during the designated days and time, then click the radio button next to Filter.
F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 56 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 8. Set the days when access will be filtered. Select Everyday or the appropriate days of the week. 9. Set the time when access will be filtered. Select 24 Hours, or check the box next to From and use the drop-down boxes to designate a specific time period. 10. Click the Add to Policy button to save your changes and active it. 11. To create or edit additional policies, repeat steps 1-9. 12. To delete an Internet Access Policy, select the policy number, and click the Delete button. Note: 1） The default factory value of policy rules is "filtered". If the user chooses the default policy rules for "refuse", and editing strategies to save or directly to save the settings. If the strategy edited is the first, it will be automatically saved into the second, if not the first, keep the original number. 2） Turn off the power of the router or reboot the router can cause a temporary failure。After the failure of the router, if can not automatically synchronized NTP time server, you need to recalibrate to ensure the correct implementation of the relevant period control function. 3.3.6.2 URL Filter If you want to prevent certain client access to specific network domain name, such as www.sina.com. We can achieved it through the function of URL filter. URL filtering function Discard packets conform to the following rules: only discard the matching URL address in the list .

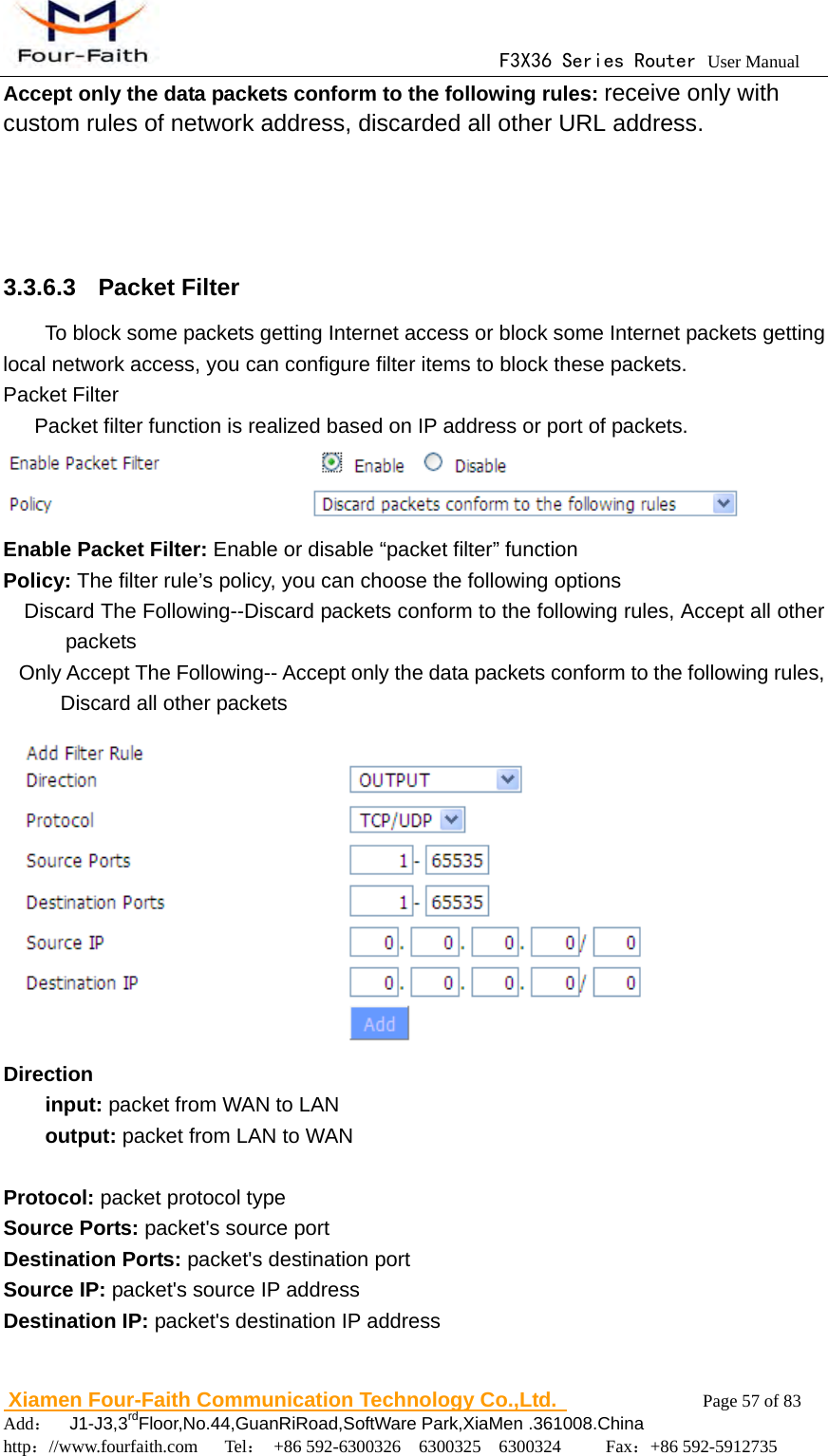

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 57 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 Accept only the data packets conform to the following rules: receive only with custom rules of network address, discarded all other URL address. 3.3.6.3 Packet Filter To block some packets getting Internet access or block some Internet packets getting local network access, you can configure filter items to block these packets. Packet Filter Packet filter function is realized based on IP address or port of packets. Enable Packet Filter: Enable or disable “packet filter” function Policy: The filter rule’s policy, you can choose the following options Discard The Following--Discard packets conform to the following rules, Accept all other packets Only Accept The Following-- Accept only the data packets conform to the following rules, Discard all other packets Direction input: packet from WAN to LAN output: packet from LAN to WAN Protocol: packet protocol type Source Ports: packet's source port Destination Ports: packet's destination port Source IP: packet's source IP address Destination IP: packet's destination IP address

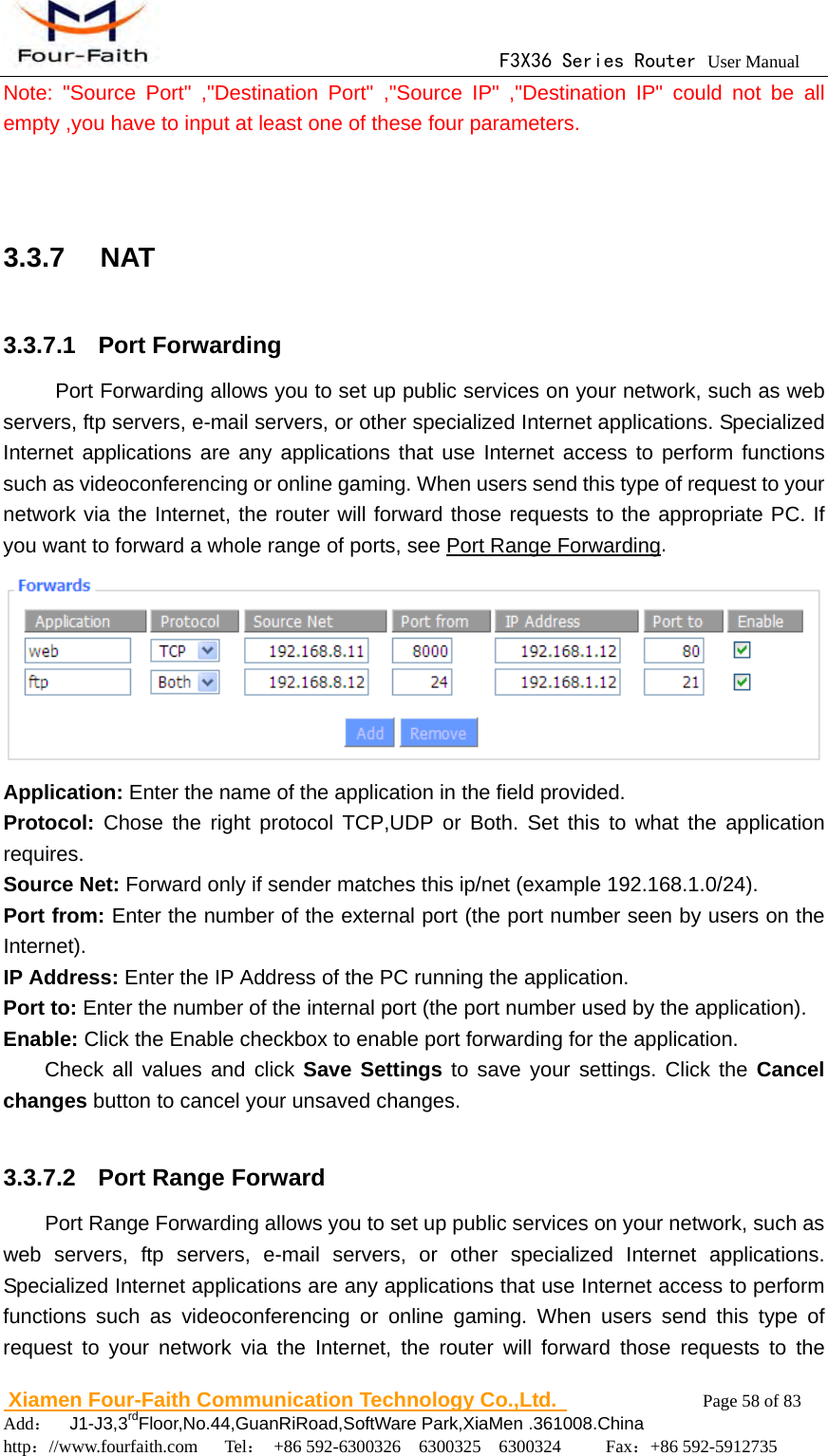

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 58 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 Note: "Source Port" ,"Destination Port" ,"Source IP" ,"Destination IP" could not be all empty ,you have to input at least one of these four parameters. 3.3.7 NAT 3.3.7.1 Port Forwarding Port Forwarding allows you to set up public services on your network, such as web servers, ftp servers, e-mail servers, or other specialized Internet applications. Specialized Internet applications are any applications that use Internet access to perform functions such as videoconferencing or online gaming. When users send this type of request to your network via the Internet, the router will forward those requests to the appropriate PC. If you want to forward a whole range of ports, see Port Range Forwarding. Application: Enter the name of the application in the field provided. Protocol: Chose the right protocol TCP,UDP or Both. Set this to what the application requires. Source Net: Forward only if sender matches this ip/net (example 192.168.1.0/24). Port from: Enter the number of the external port (the port number seen by users on the Internet). IP Address: Enter the IP Address of the PC running the application. Port to: Enter the number of the internal port (the port number used by the application). Enable: Click the Enable checkbox to enable port forwarding for the application. Check all values and click Save Settings to save your settings. Click the Cancel changes button to cancel your unsaved changes. 3.3.7.2 Port Range Forward Port Range Forwarding allows you to set up public services on your network, such as web servers, ftp servers, e-mail servers, or other specialized Internet applications. Specialized Internet applications are any applications that use Internet access to perform functions such as videoconferencing or online gaming. When users send this type of request to your network via the Internet, the router will forward those requests to the

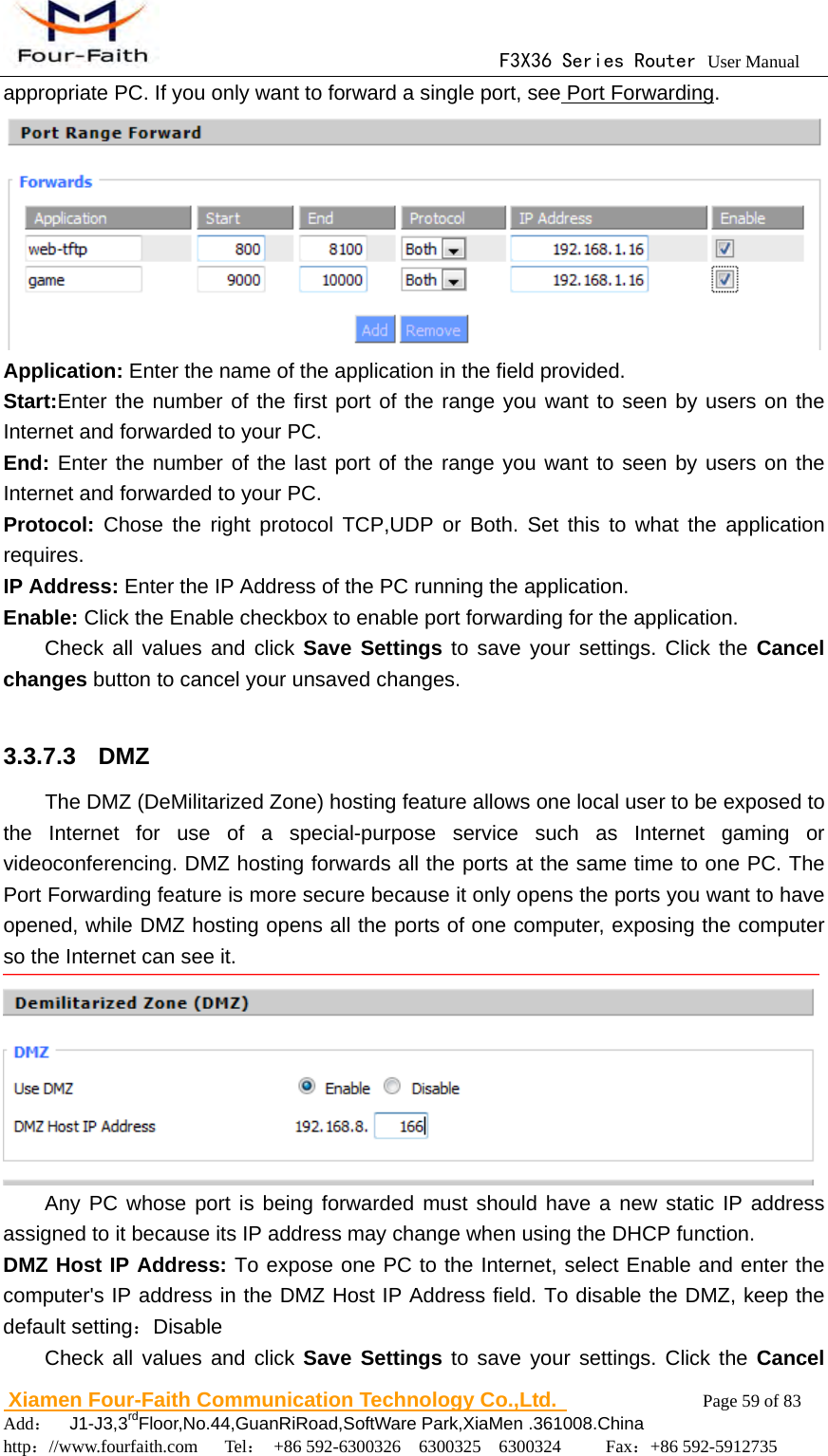

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 59 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 appropriate PC. If you only want to forward a single port, see Port Forwarding. Application: Enter the name of the application in the field provided. Start:Enter the number of the first port of the range you want to seen by users on the Internet and forwarded to your PC. End: Enter the number of the last port of the range you want to seen by users on the Internet and forwarded to your PC. Protocol: Chose the right protocol TCP,UDP or Both. Set this to what the application requires. IP Address: Enter the IP Address of the PC running the application. Enable: Click the Enable checkbox to enable port forwarding for the application. Check all values and click Save Settings to save your settings. Click the Cancel changes button to cancel your unsaved changes. 3.3.7.3 DMZ The DMZ (DeMilitarized Zone) hosting feature allows one local user to be exposed to the Internet for use of a special-purpose service such as Internet gaming or videoconferencing. DMZ hosting forwards all the ports at the same time to one PC. The Port Forwarding feature is more secure because it only opens the ports you want to have opened, while DMZ hosting opens all the ports of one computer, exposing the computer so the Internet can see it. Any PC whose port is being forwarded must should have a new static IP address assigned to it because its IP address may change when using the DHCP function. DMZ Host IP Address: To expose one PC to the Internet, select Enable and enter the computer's IP address in the DMZ Host IP Address field. To disable the DMZ, keep the default setting：Disable Check all values and click Save Settings to save your settings. Click the Cancel

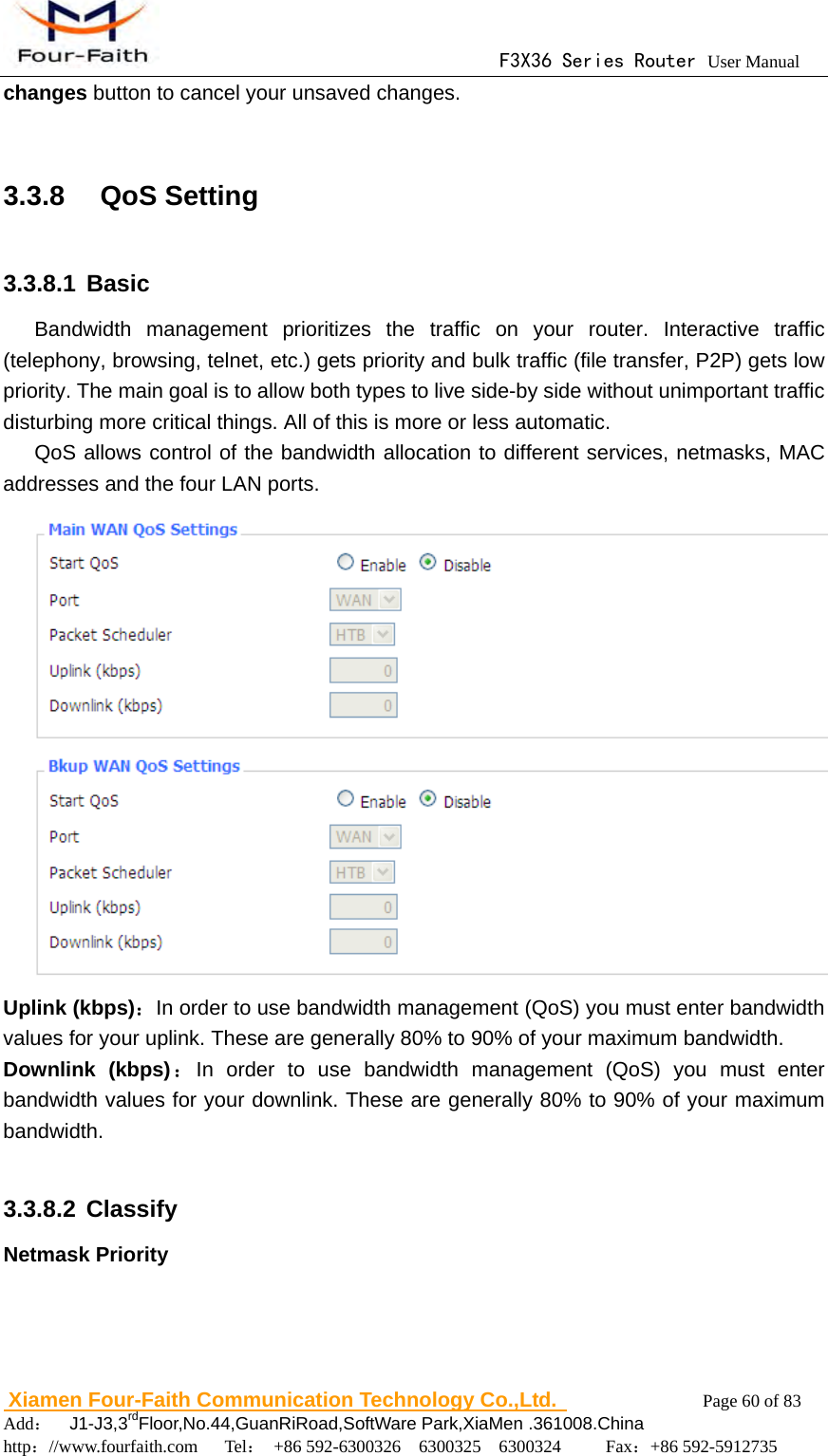

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 60 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 changes button to cancel your unsaved changes. 3.3.8 QoS Setting 3.3.8.1 Basic Bandwidth management prioritizes the traffic on your router. Interactive traffic (telephony, browsing, telnet, etc.) gets priority and bulk traffic (file transfer, P2P) gets low priority. The main goal is to allow both types to live side-by side without unimportant traffic disturbing more critical things. All of this is more or less automatic. QoS allows control of the bandwidth allocation to different services, netmasks, MAC addresses and the four LAN ports. Uplink (kbps)：In order to use bandwidth management (QoS) you must enter bandwidth values for your uplink. These are generally 80% to 90% of your maximum bandwidth. Downlink (kbps)：In order to use bandwidth management (QoS) you must enter bandwidth values for your downlink. These are generally 80% to 90% of your maximum bandwidth. 3.3.8.2 Classify Netmask Priority

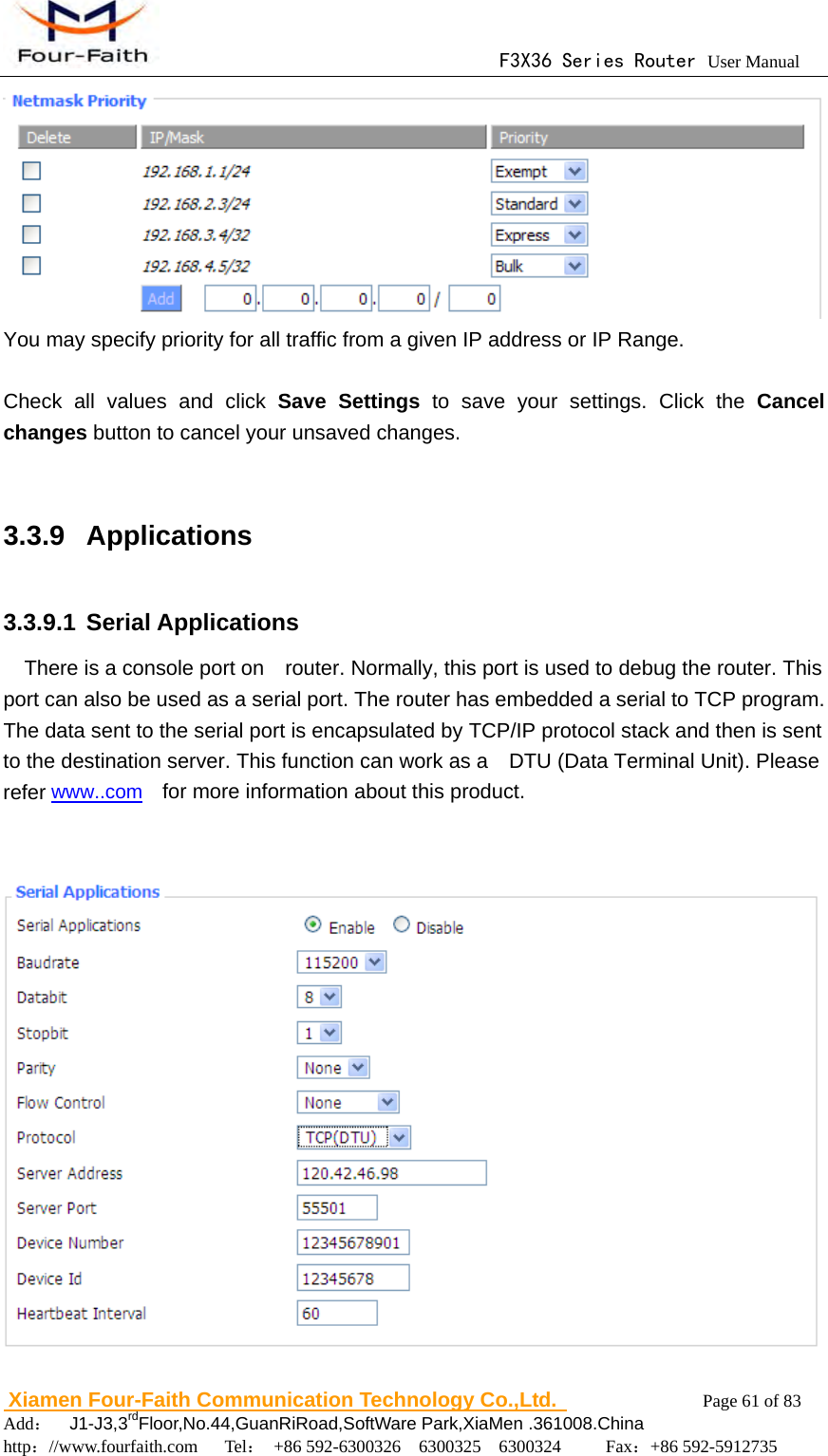

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 61 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 You may specify priority for all traffic from a given IP address or IP Range. Check all values and click Save Settings to save your settings. Click the Cancel changes button to cancel your unsaved changes. 3.3.9 Applications 3.3.9.1 Serial Applications There is a console port on router. Normally, this port is used to debug the router. This port can also be used as a serial port. The router has embedded a serial to TCP program. The data sent to the serial port is encapsulated by TCP/IP protocol stack and then is sent to the destination server. This function can work as a DTU (Data Terminal Unit). Please refer www..com for more information about this product.

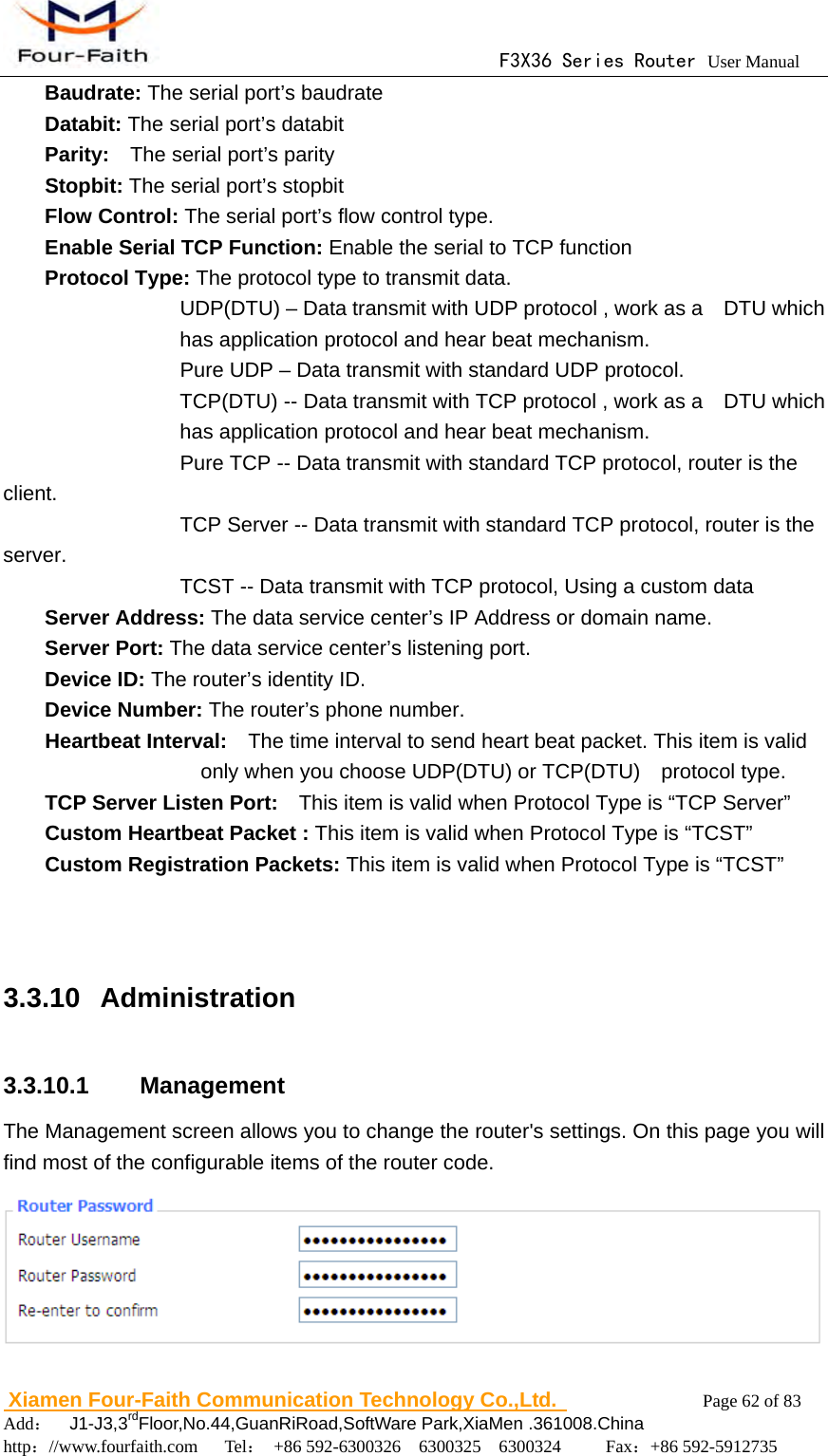

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 62 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 Baudrate: The serial port’s baudrate Databit: The serial port’s databit Parity: The serial port’s parity Stopbit: The serial port’s stopbit Flow Control: The serial port’s flow control type. Enable Serial TCP Function: Enable the serial to TCP function Protocol Type: The protocol type to transmit data. UDP(DTU) – Data transmit with UDP protocol , work as a DTU which has application protocol and hear beat mechanism. Pure UDP – Data transmit with standard UDP protocol. TCP(DTU) -- Data transmit with TCP protocol , work as a DTU which has application protocol and hear beat mechanism. Pure TCP -- Data transmit with standard TCP protocol, router is the client. TCP Server -- Data transmit with standard TCP protocol, router is the server. TCST -- Data transmit with TCP protocol, Using a custom data Server Address: The data service center’s IP Address or domain name. Server Port: The data service center’s listening port. Device ID: The router’s identity ID. Device Number: The router’s phone number. Heartbeat Interval: The time interval to send heart beat packet. This item is valid only when you choose UDP(DTU) or TCP(DTU) protocol type. TCP Server Listen Port: This item is valid when Protocol Type is “TCP Server” Custom Heartbeat Packet : This item is valid when Protocol Type is “TCST” Custom Registration Packets: This item is valid when Protocol Type is “TCST” 3.3.10 Administration 3.3.10.1 Management The Management screen allows you to change the router's settings. On this page you will find most of the configurable items of the router code.

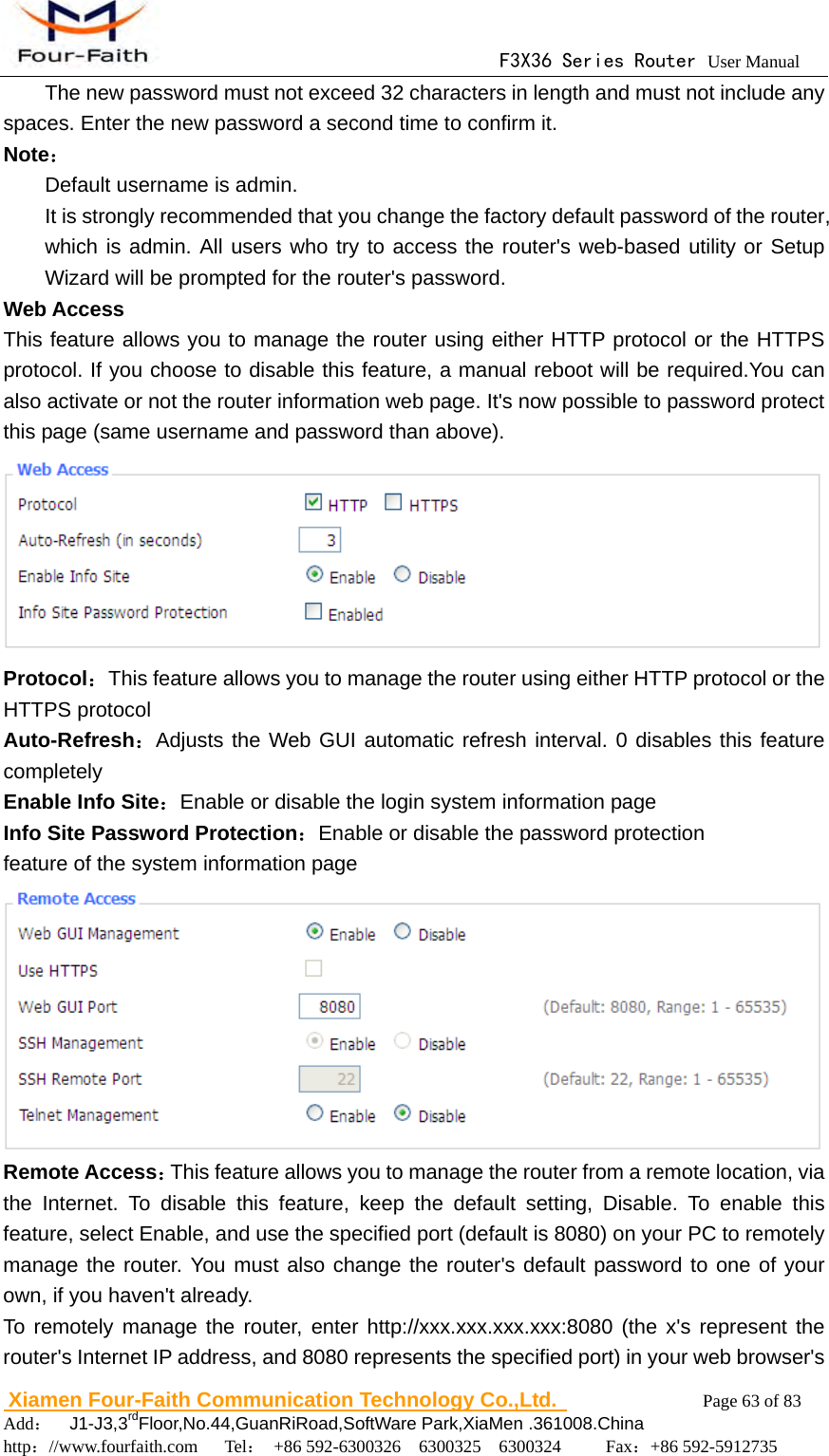

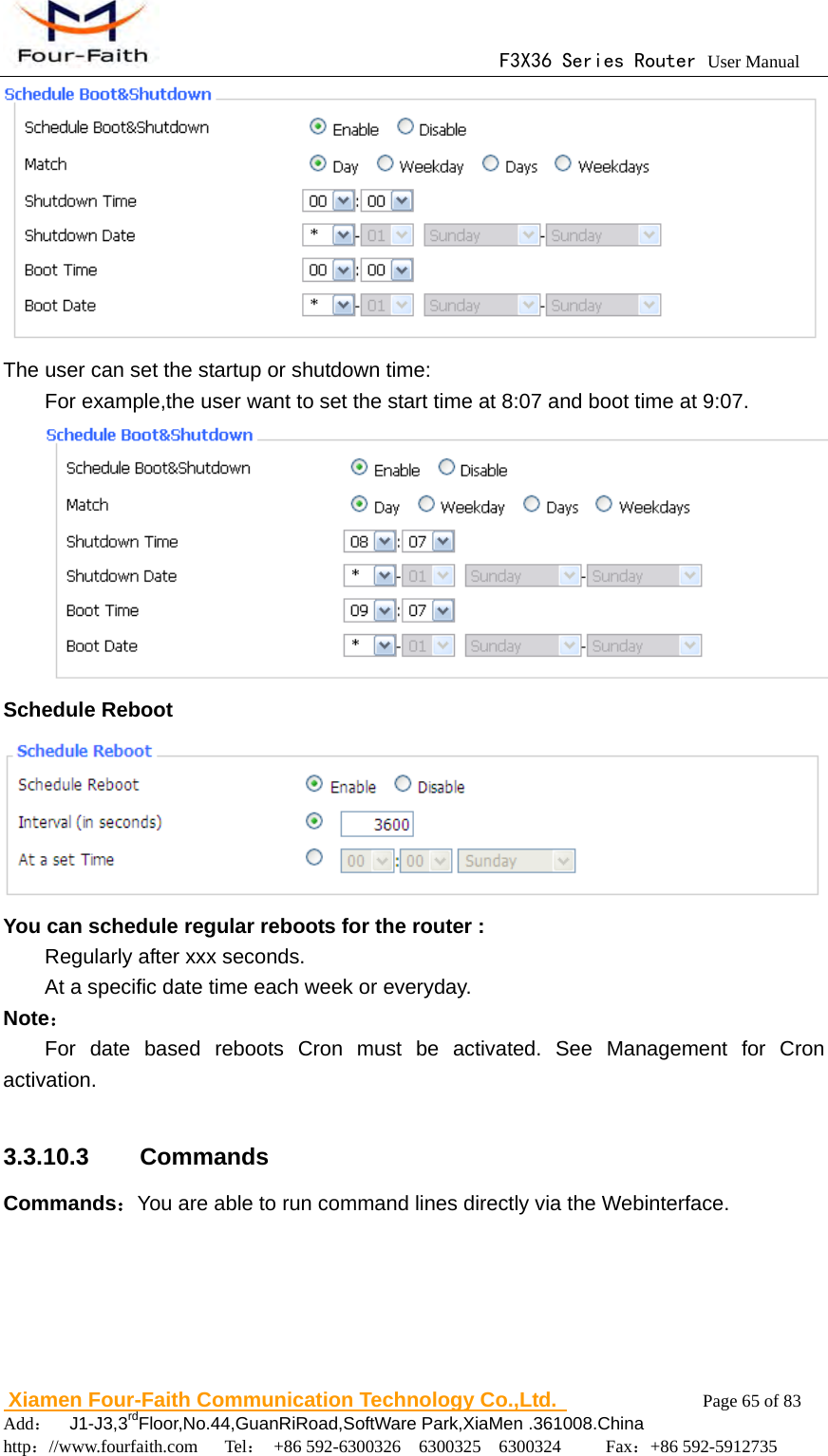

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 63 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 The new password must not exceed 32 characters in length and must not include any spaces. Enter the new password a second time to confirm it. Note： Default username is admin. It is strongly recommended that you change the factory default password of the router, which is admin. All users who try to access the router's web-based utility or Setup Wizard will be prompted for the router's password. Web Access This feature allows you to manage the router using either HTTP protocol or the HTTPS protocol. If you choose to disable this feature, a manual reboot will be required.You can also activate or not the router information web page. It's now possible to password protect this page (same username and password than above). Protocol：This feature allows you to manage the router using either HTTP protocol or the HTTPS protocol Auto-Refresh：Adjusts the Web GUI automatic refresh interval. 0 disables this feature completely Enable Info Site：Enable or disable the login system information page Info Site Password Protection：Enable or disable the password protection feature of the system information page Remote Access：This feature allows you to manage the router from a remote location, via the Internet. To disable this feature, keep the default setting, Disable. To enable this feature, select Enable, and use the specified port (default is 8080) on your PC to remotely manage the router. You must also change the router's default password to one of your own, if you haven't already. To remotely manage the router, enter http://xxx.xxx.xxx.xxx:8080 (the x's represent the router's Internet IP address, and 8080 represents the specified port) in your web browser's

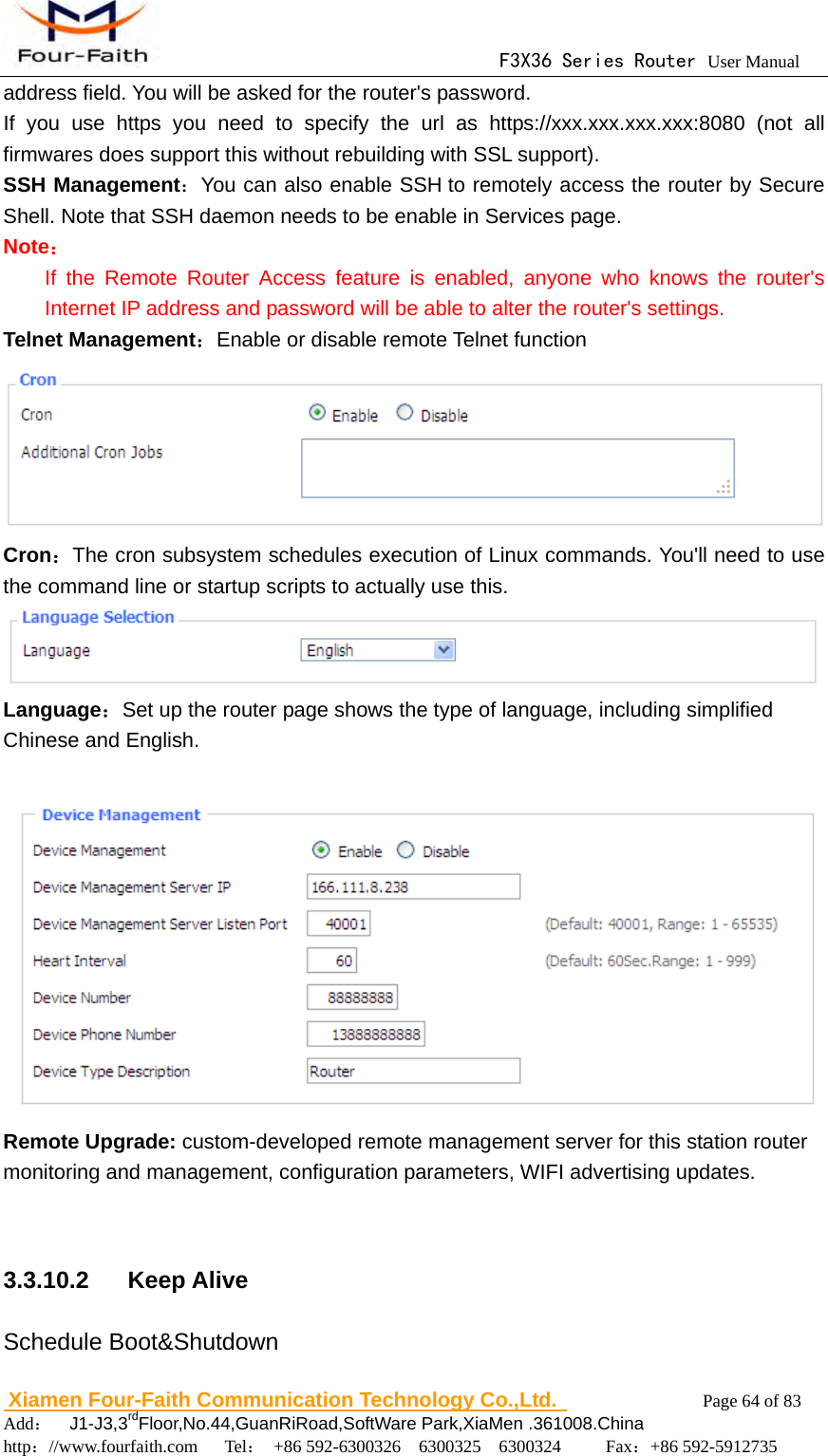

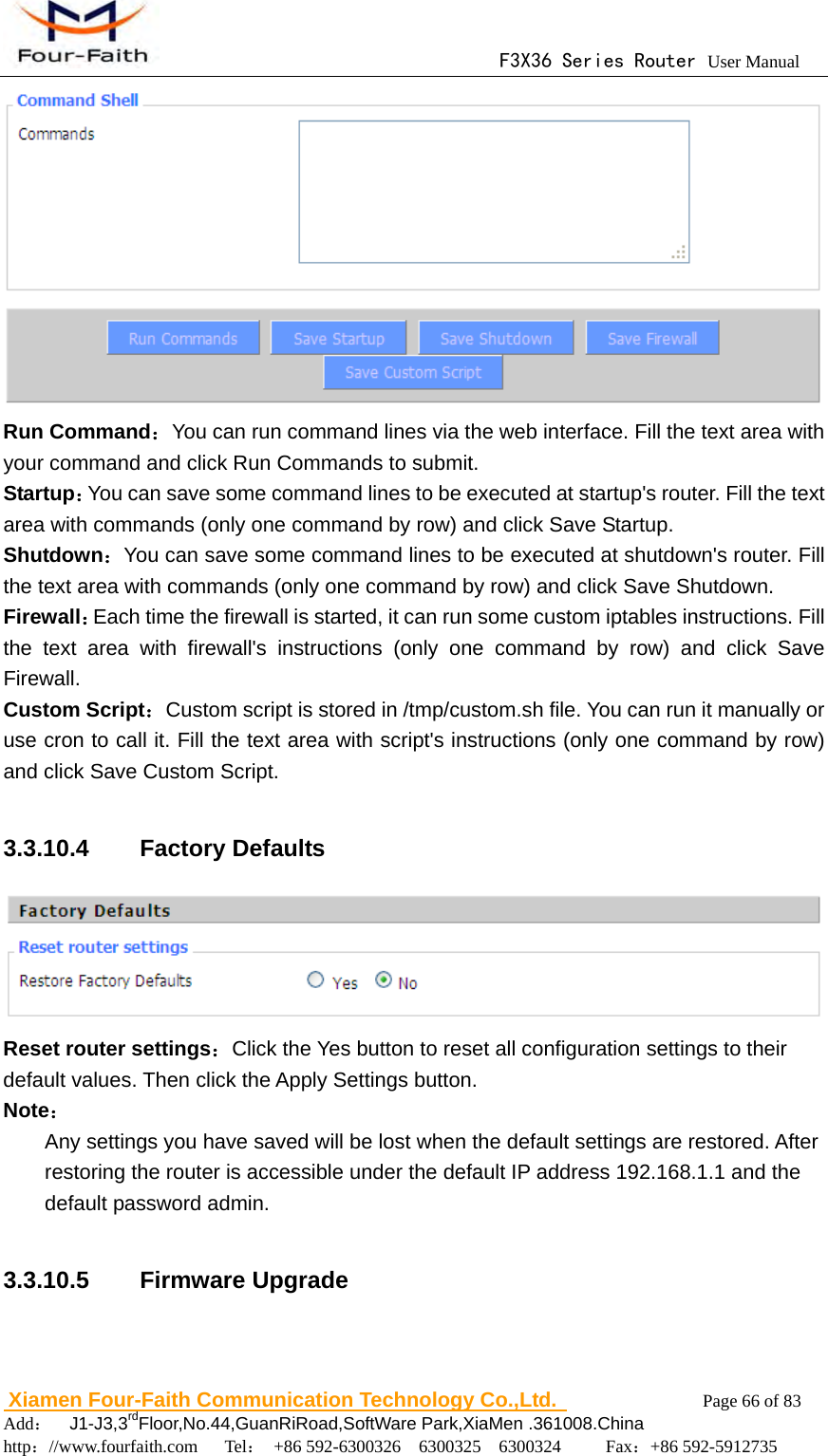

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 64 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 address field. You will be asked for the router's password. If you use https you need to specify the url as https://xxx.xxx.xxx.xxx:8080 (not all firmwares does support this without rebuilding with SSL support). SSH Management：You can also enable SSH to remotely access the router by Secure Shell. Note that SSH daemon needs to be enable in Services page. Note： If the Remote Router Access feature is enabled, anyone who knows the router's Internet IP address and password will be able to alter the router's settings. Telnet Management：Enable or disable remote Telnet function Cron：The cron subsystem schedules execution of Linux commands. You'll need to use the command line or startup scripts to actually use this. Language：Set up the router page shows the type of language, including simplified Chinese and English. Remote Upgrade: custom-developed remote management server for this station router monitoring and management, configuration parameters, WIFI advertising updates. 3.3.10.2 Keep Alive Schedule Boot&Shutdown
F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 65 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 The user can set the startup or shutdown time: For example,the user want to set the start time at 8:07 and boot time at 9:07. Schedule Reboot You can schedule regular reboots for the router : Regularly after xxx seconds. At a specific date time each week or everyday. Note： For date based reboots Cron must be activated. See Management for Cron activation. 3.3.10.3 Commands Commands：You are able to run command lines directly via the Webinterface.
F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 66 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 Run Command：You can run command lines via the web interface. Fill the text area with your command and click Run Commands to submit. Startup：You can save some command lines to be executed at startup's router. Fill the text area with commands (only one command by row) and click Save Startup. Shutdown：You can save some command lines to be executed at shutdown's router. Fill the text area with commands (only one command by row) and click Save Shutdown. Firewall：Each time the firewall is started, it can run some custom iptables instructions. Fill the text area with firewall's instructions (only one command by row) and click Save Firewall. Custom Script：Custom script is stored in /tmp/custom.sh file. You can run it manually or use cron to call it. Fill the text area with script's instructions (only one command by row) and click Save Custom Script. 3.3.10.4 Factory Defaults Reset router settings：Click the Yes button to reset all configuration settings to their default values. Then click the Apply Settings button. Note： Any settings you have saved will be lost when the default settings are restored. After restoring the router is accessible under the default IP address 192.168.1.1 and the default password admin. 3.3.10.5 Firmware Upgrade

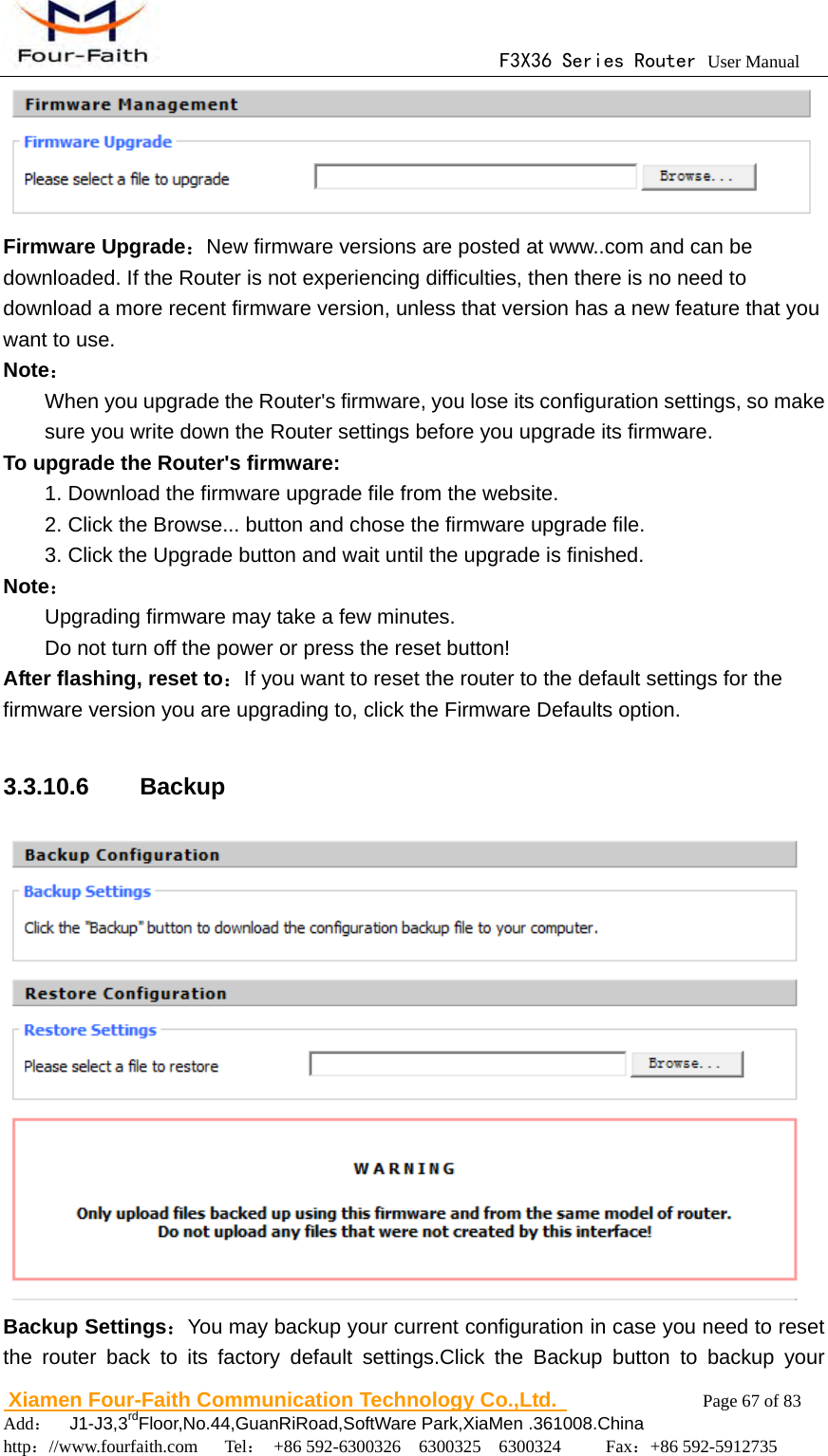

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 67 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 Firmware Upgrade：New firmware versions are posted at www..com and can be downloaded. If the Router is not experiencing difficulties, then there is no need to download a more recent firmware version, unless that version has a new feature that you want to use. Note： When you upgrade the Router's firmware, you lose its configuration settings, so make sure you write down the Router settings before you upgrade its firmware. To upgrade the Router's firmware: 1. Download the firmware upgrade file from the website. 2. Click the Browse... button and chose the firmware upgrade file. 3. Click the Upgrade button and wait until the upgrade is finished. Note： Upgrading firmware may take a few minutes. Do not turn off the power or press the reset button! After flashing, reset to：If you want to reset the router to the default settings for the firmware version you are upgrading to, click the Firmware Defaults option. 3.3.10.6 Backup Backup Settings：You may backup your current configuration in case you need to reset the router back to its factory default settings.Click the Backup button to backup your

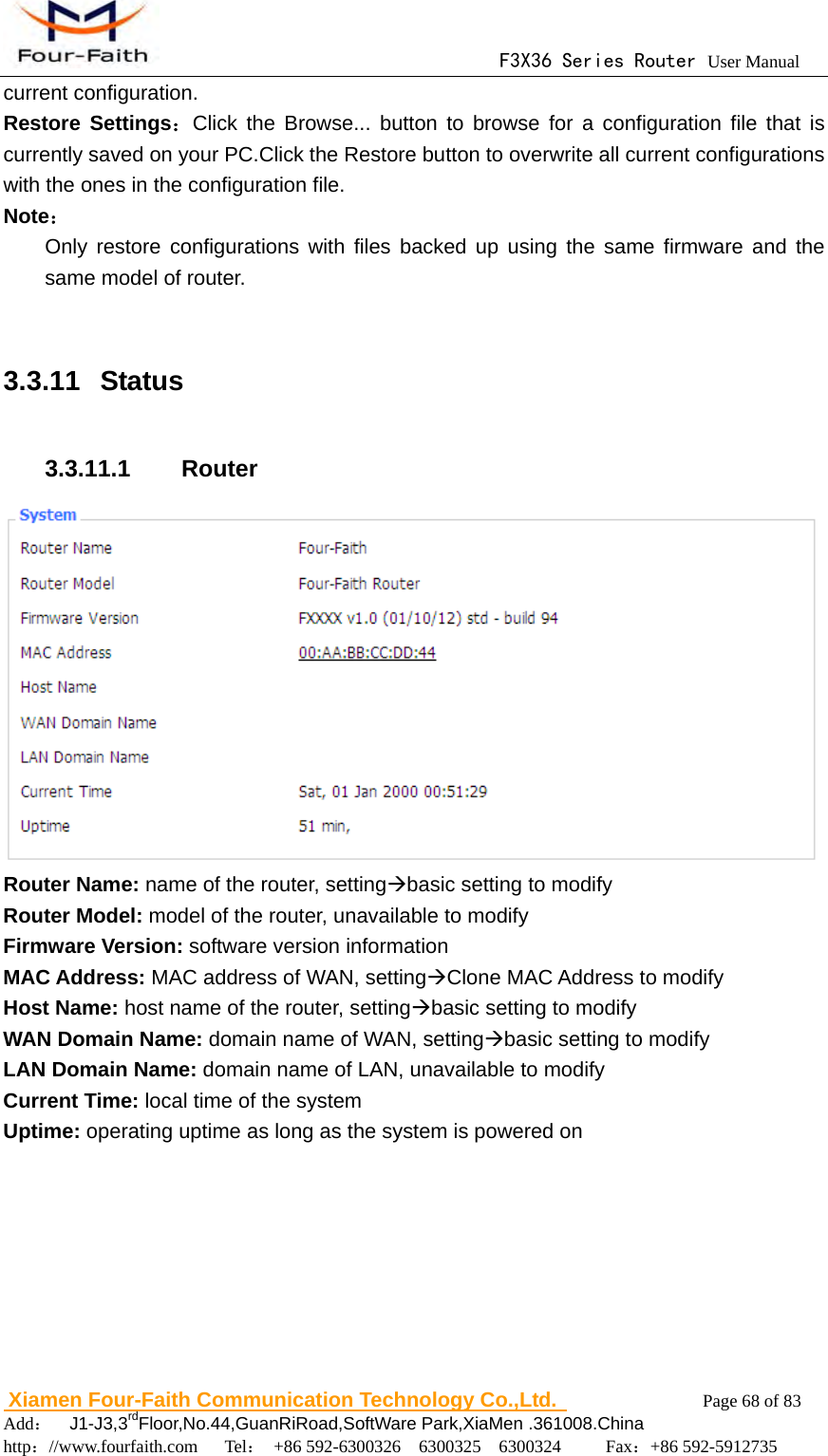

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 68 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 current configuration. Restore Settings：Click the Browse... button to browse for a configuration file that is currently saved on your PC.Click the Restore button to overwrite all current configurations with the ones in the configuration file. Note： Only restore configurations with files backed up using the same firmware and the same model of router. 3.3.11 Status 3.3.11.1 Router Router Name: name of the router, settingbasic setting to modify Router Model: model of the router, unavailable to modify Firmware Version: software version information MAC Address: MAC address of WAN, settingClone MAC Address to modify Host Name: host name of the router, settingbasic setting to modify WAN Domain Name: domain name of WAN, settingbasic setting to modify LAN Domain Name: domain name of LAN, unavailable to modify Current Time: local time of the system Uptime: operating uptime as long as the system is powered on

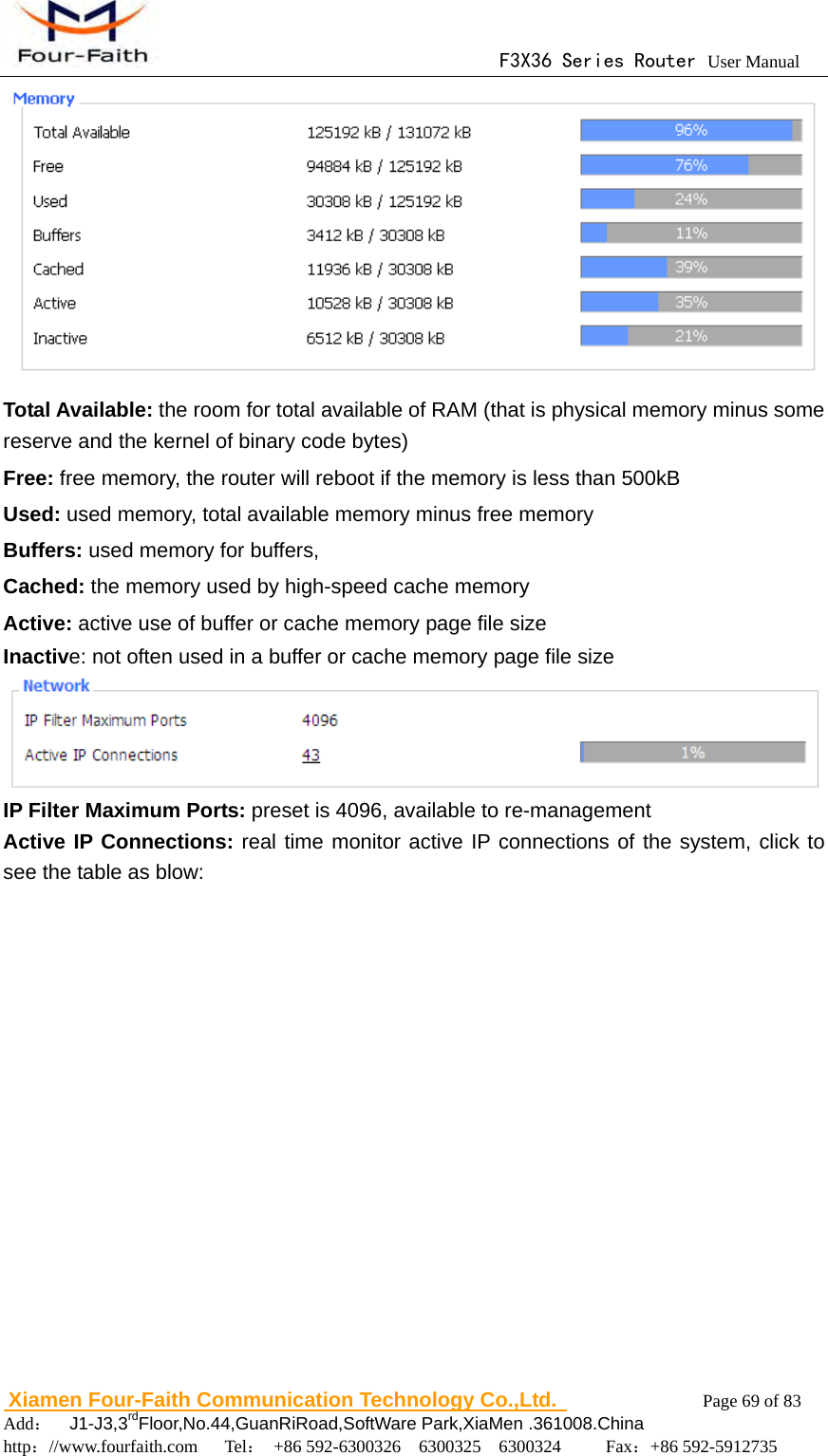

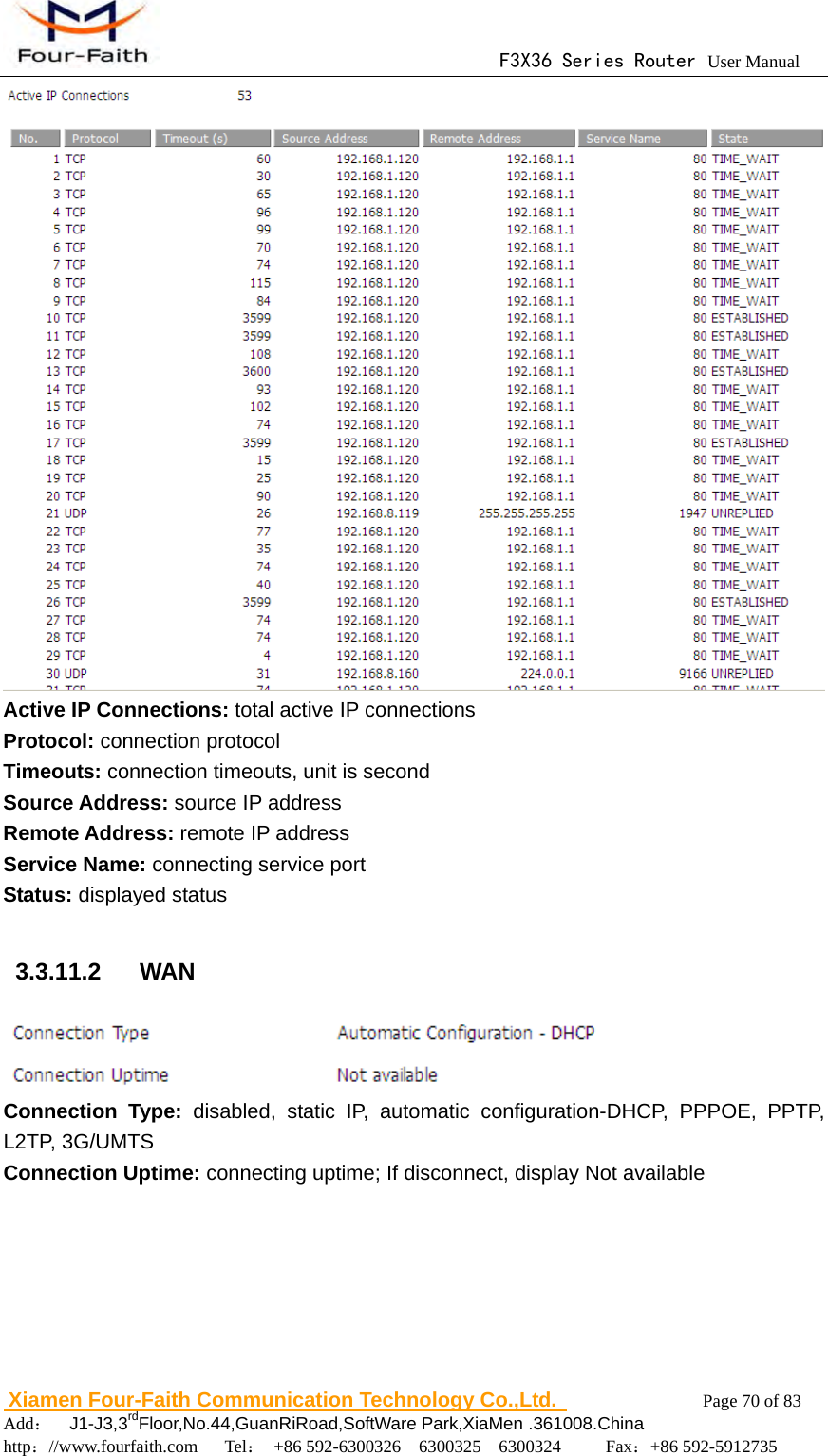

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 69 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 Total Available: the room for total available of RAM (that is physical memory minus some reserve and the kernel of binary code bytes) Free: free memory, the router will reboot if the memory is less than 500kB Used: used memory, total available memory minus free memory Buffers: used memory for buffers, Cached: the memory used by high-speed cache memory Active: active use of buffer or cache memory page file size Inactive: not often used in a buffer or cache memory page file size IP Filter Maximum Ports: preset is 4096, available to re-management Active IP Connections: real time monitor active IP connections of the system, click to see the table as blow:
F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 70 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 Active IP Connections: total active IP connections Protocol: connection protocol Timeouts: connection timeouts, unit is second Source Address: source IP address Remote Address: remote IP address Service Name: connecting service port Status: displayed status 3.3.11.2 WAN Connection Type: disabled, static IP, automatic configuration-DHCP, PPPOE, PPTP, L2TP, 3G/UMTS Connection Uptime: connecting uptime; If disconnect, display Not available

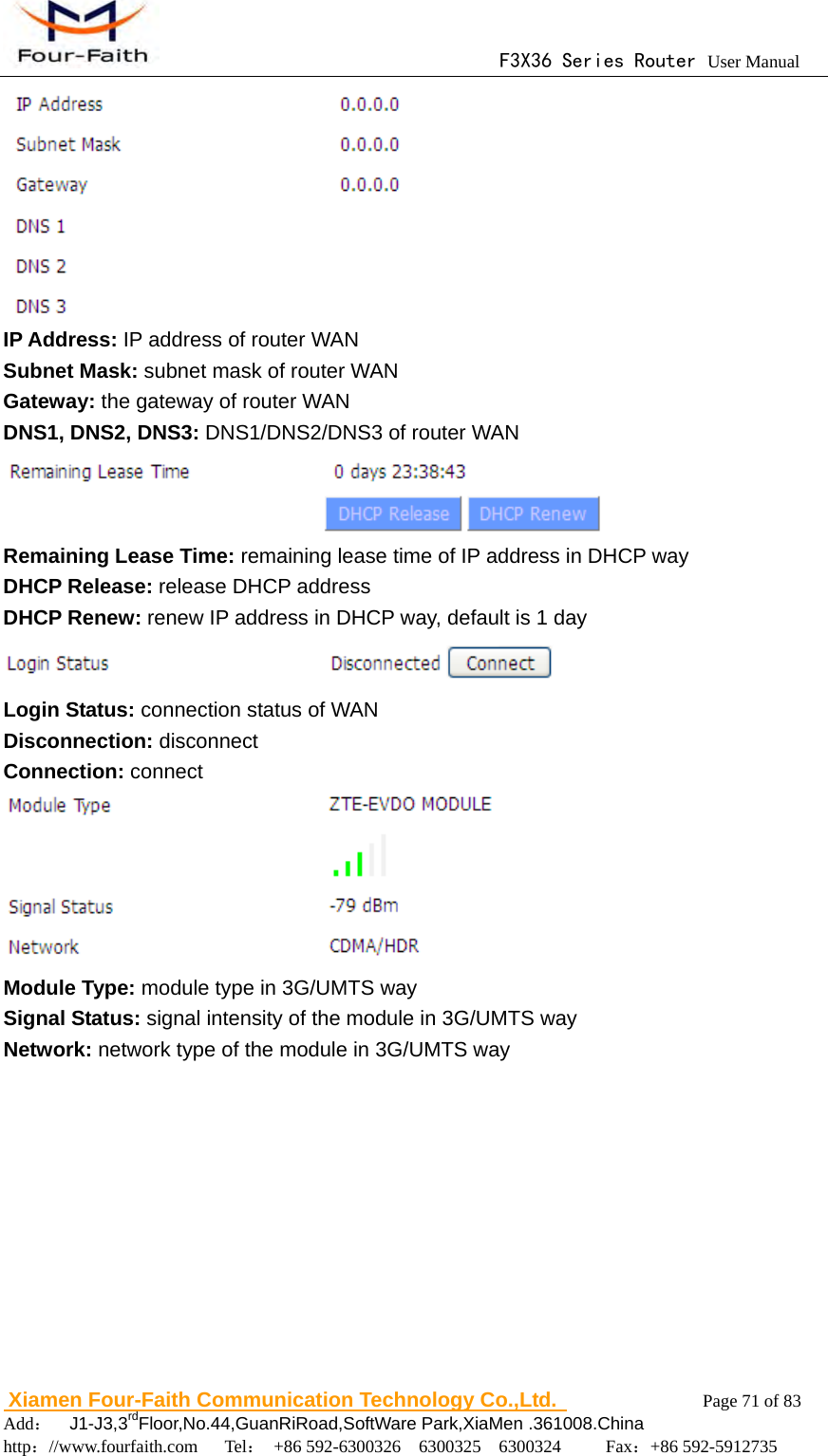

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 71 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 IP Address: IP address of router WAN Subnet Mask: subnet mask of router WAN Gateway: the gateway of router WAN DNS1, DNS2, DNS3: DNS1/DNS2/DNS3 of router WAN Remaining Lease Time: remaining lease time of IP address in DHCP way DHCP Release: release DHCP address DHCP Renew: renew IP address in DHCP way, default is 1 day Login Status: connection status of WAN Disconnection: disconnect Connection: connect Module Type: module type in 3G/UMTS way Signal Status: signal intensity of the module in 3G/UMTS way Network: network type of the module in 3G/UMTS way

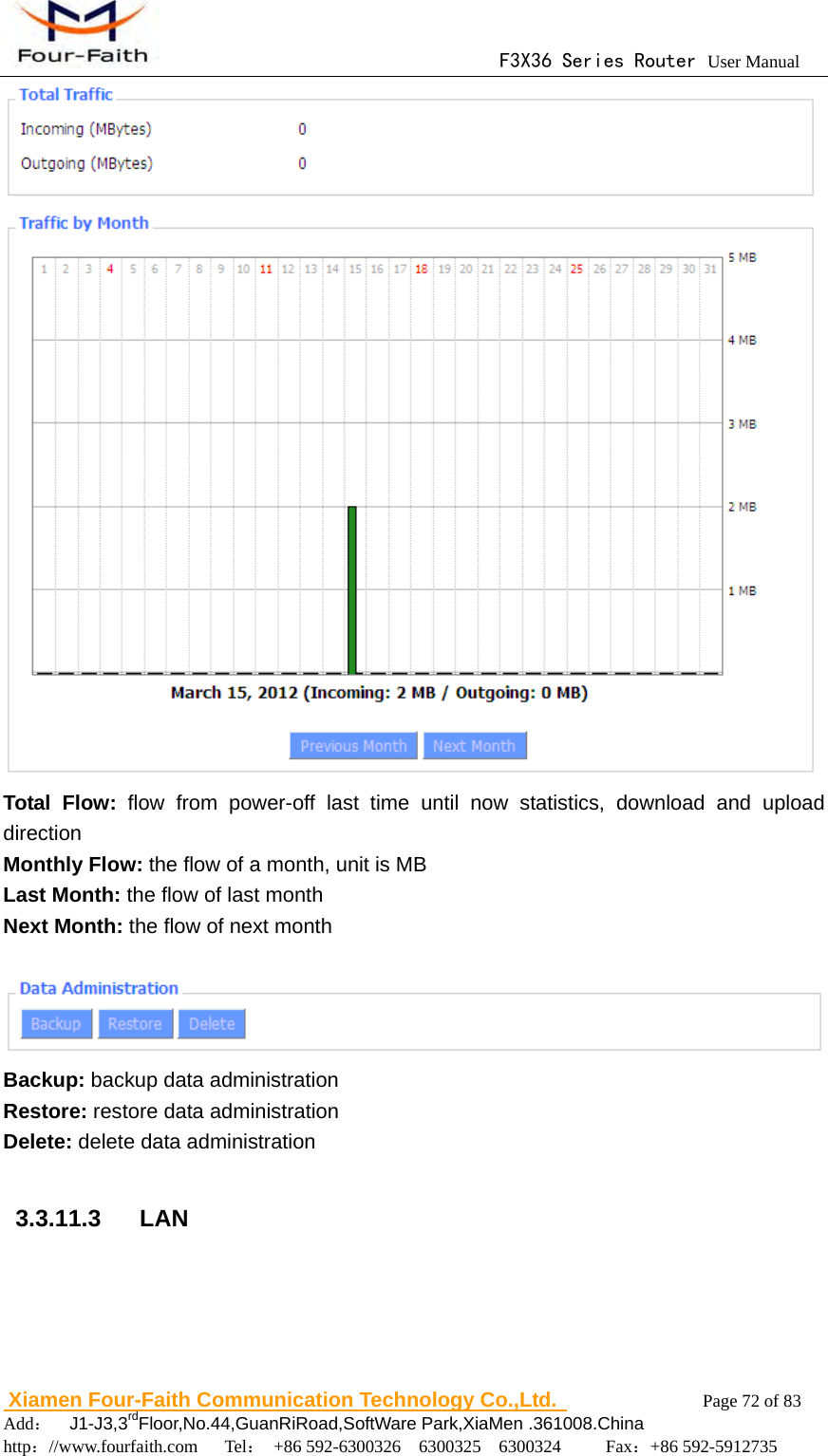

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 72 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 Total Flow: flow from power-off last time until now statistics, download and upload direction Monthly Flow: the flow of a month, unit is MB Last Month: the flow of last month Next Month: the flow of next month Backup: backup data administration Restore: restore data administration Delete: delete data administration 3.3.11.3 LAN

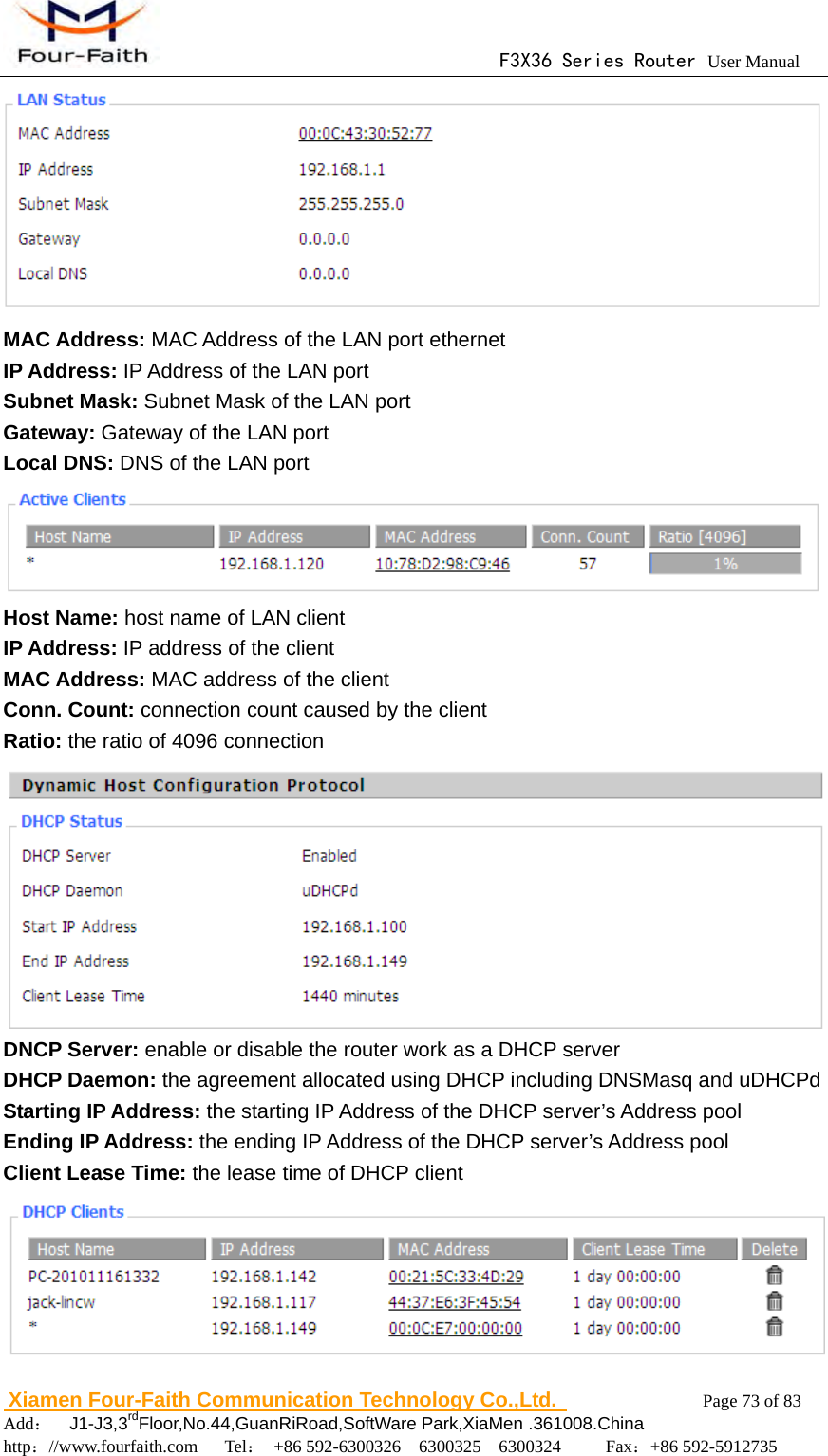

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 73 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 MAC Address: MAC Address of the LAN port ethernet IP Address: IP Address of the LAN port Subnet Mask: Subnet Mask of the LAN port Gateway: Gateway of the LAN port Local DNS: DNS of the LAN port Host Name: host name of LAN client IP Address: IP address of the client MAC Address: MAC address of the client Conn. Count: connection count caused by the client Ratio: the ratio of 4096 connection DNCP Server: enable or disable the router work as a DHCP server DHCP Daemon: the agreement allocated using DHCP including DNSMasq and uDHCPd Starting IP Address: the starting IP Address of the DHCP server’s Address pool Ending IP Address: the ending IP Address of the DHCP server’s Address pool Client Lease Time: the lease time of DHCP client

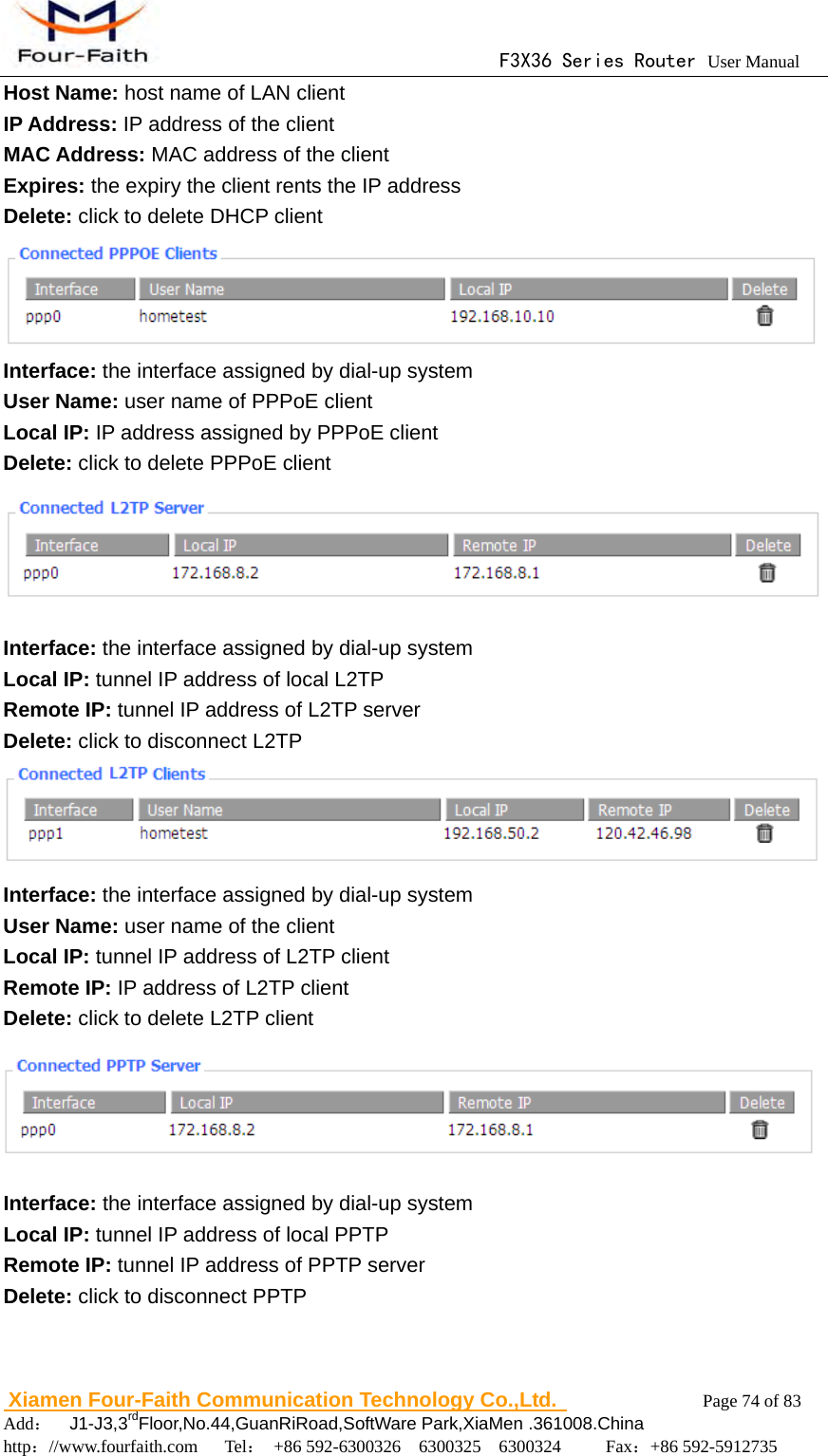

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 74 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 Host Name: host name of LAN client IP Address: IP address of the client MAC Address: MAC address of the client Expires: the expiry the client rents the IP address Delete: click to delete DHCP client Interface: the interface assigned by dial-up system User Name: user name of PPPoE client Local IP: IP address assigned by PPPoE client Delete: click to delete PPPoE client Interface: the interface assigned by dial-up system Local IP: tunnel IP address of local L2TP Remote IP: tunnel IP address of L2TP server Delete: click to disconnect L2TP Interface: the interface assigned by dial-up system User Name: user name of the client Local IP: tunnel IP address of L2TP client Remote IP: IP address of L2TP client Delete: click to delete L2TP client Interface: the interface assigned by dial-up system Local IP: tunnel IP address of local PPTP Remote IP: tunnel IP address of PPTP server Delete: click to disconnect PPTP

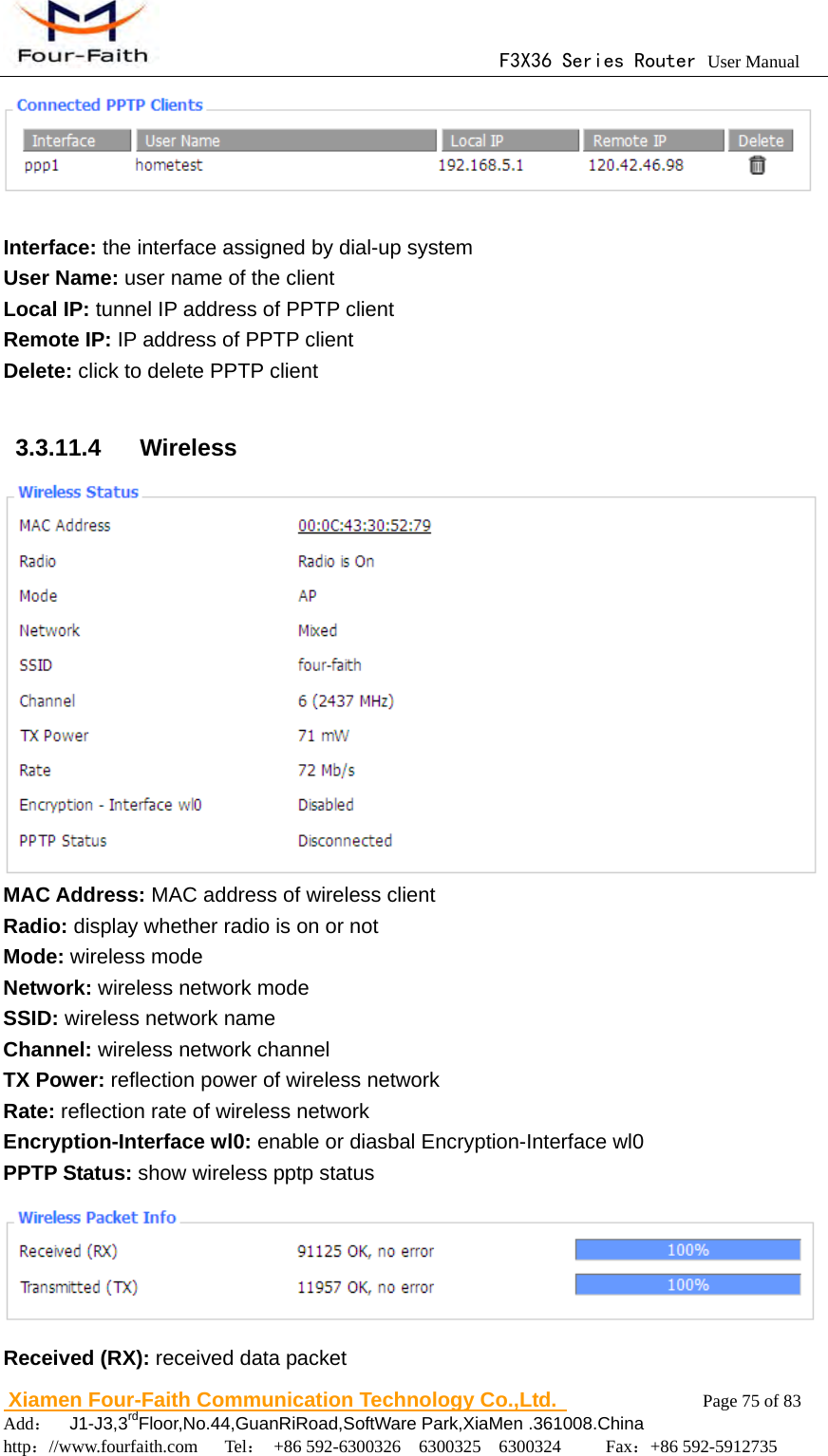

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 75 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 Interface: the interface assigned by dial-up system User Name: user name of the client Local IP: tunnel IP address of PPTP client Remote IP: IP address of PPTP client Delete: click to delete PPTP client 3.3.11.4 Wireless MAC Address: MAC address of wireless client Radio: display whether radio is on or not Mode: wireless mode Network: wireless network mode SSID: wireless network name Channel: wireless network channel TX Power: reflection power of wireless network Rate: reflection rate of wireless network Encryption-Interface wl0: enable or diasbal Encryption-Interface wl0 PPTP Status: show wireless pptp status Received (RX): received data packet

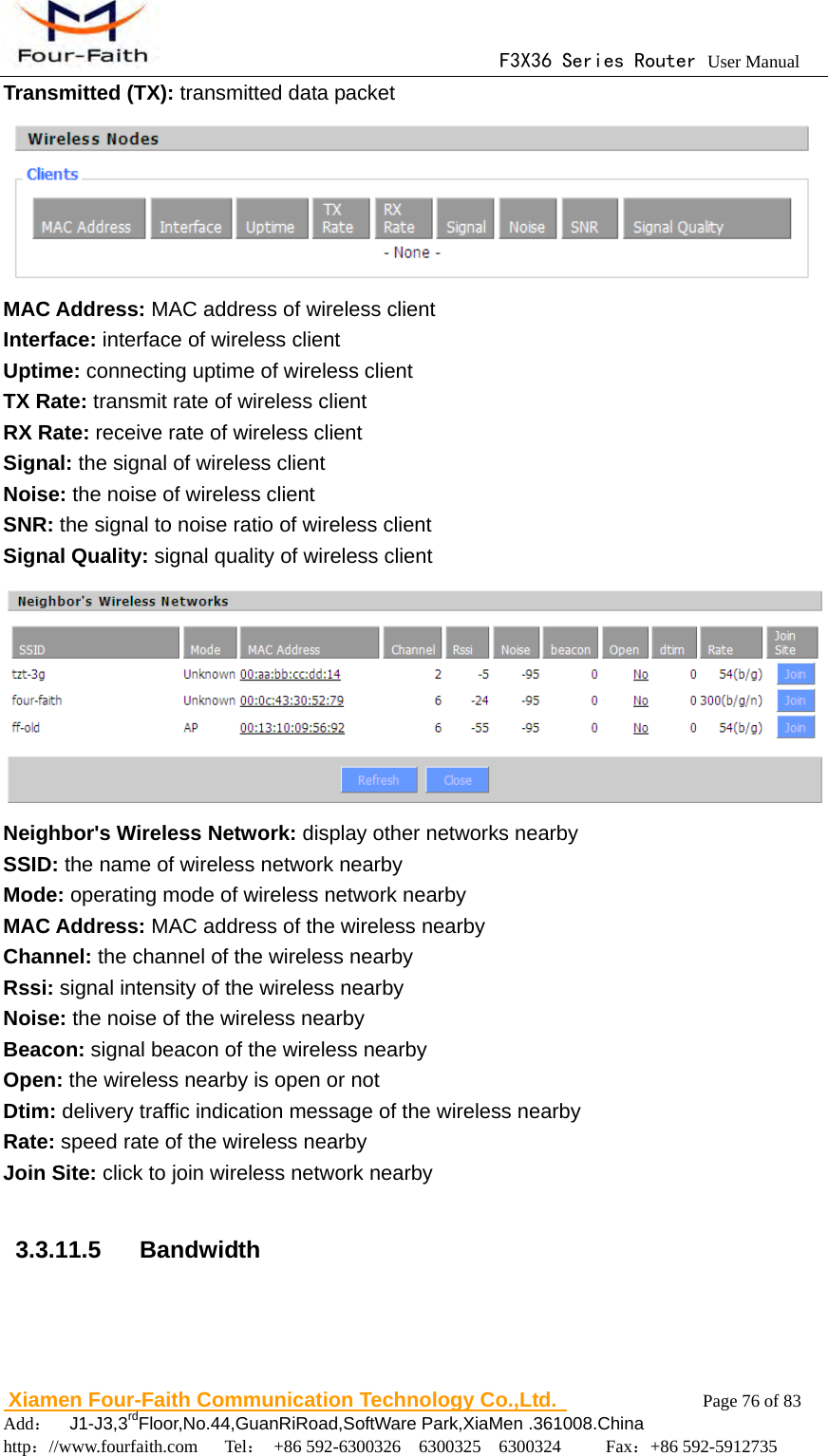

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 76 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 Transmitted (TX): transmitted data packet MAC Address: MAC address of wireless client Interface: interface of wireless client Uptime: connecting uptime of wireless client TX Rate: transmit rate of wireless client RX Rate: receive rate of wireless client Signal: the signal of wireless client Noise: the noise of wireless client SNR: the signal to noise ratio of wireless client Signal Quality: signal quality of wireless client Neighbor's Wireless Network: display other networks nearby SSID: the name of wireless network nearby Mode: operating mode of wireless network nearby MAC Address: MAC address of the wireless nearby Channel: the channel of the wireless nearby Rssi: signal intensity of the wireless nearby Noise: the noise of the wireless nearby Beacon: signal beacon of the wireless nearby Open: the wireless nearby is open or not Dtim: delivery traffic indication message of the wireless nearby Rate: speed rate of the wireless nearby Join Site: click to join wireless network nearby 3.3.11.5 Bandwidth

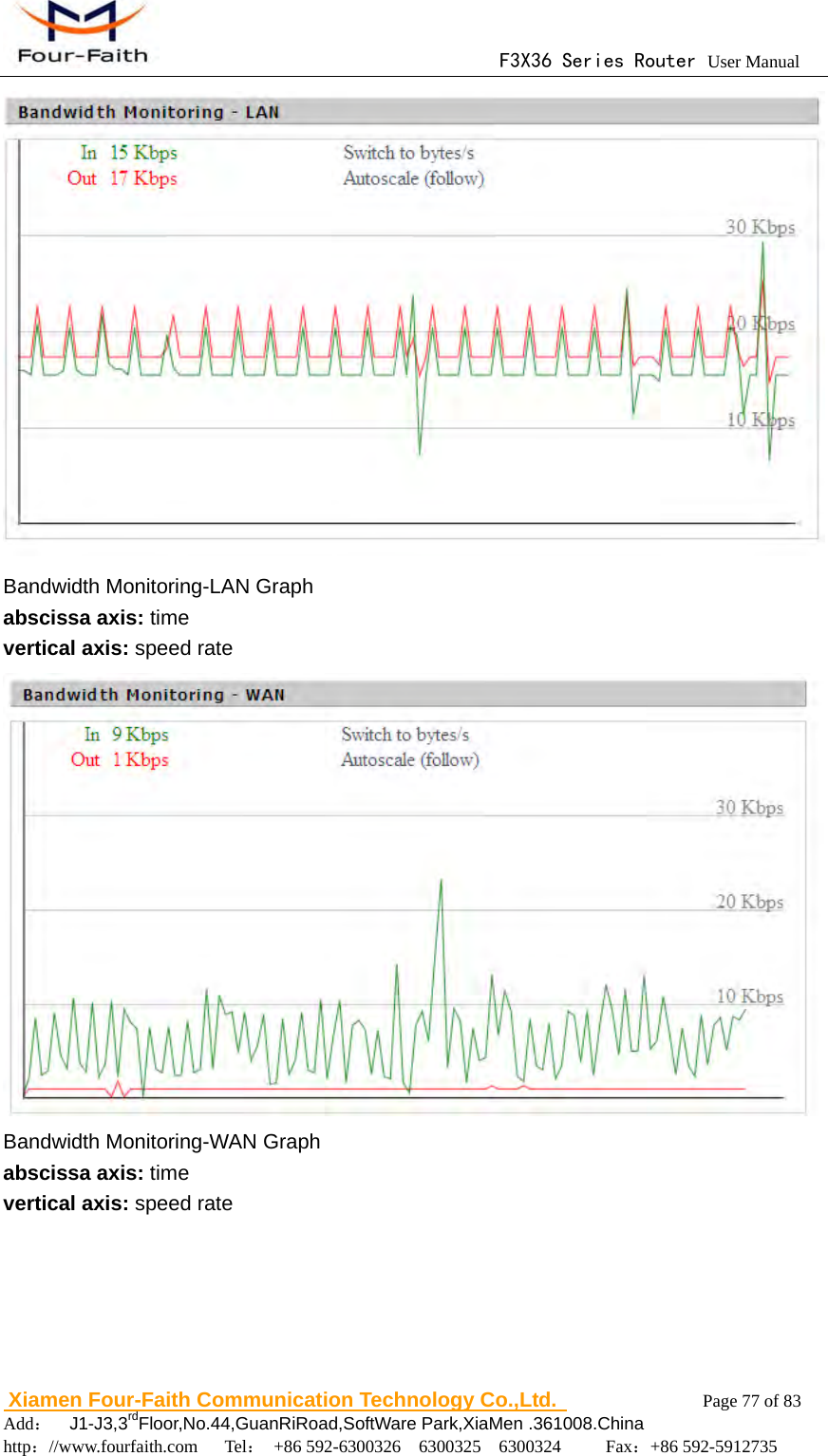

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 77 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 Bandwidth Monitoring-LAN Graph abscissa axis: time vertical axis: speed rate Bandwidth Monitoring-WAN Graph abscissa axis: time vertical axis: speed rate

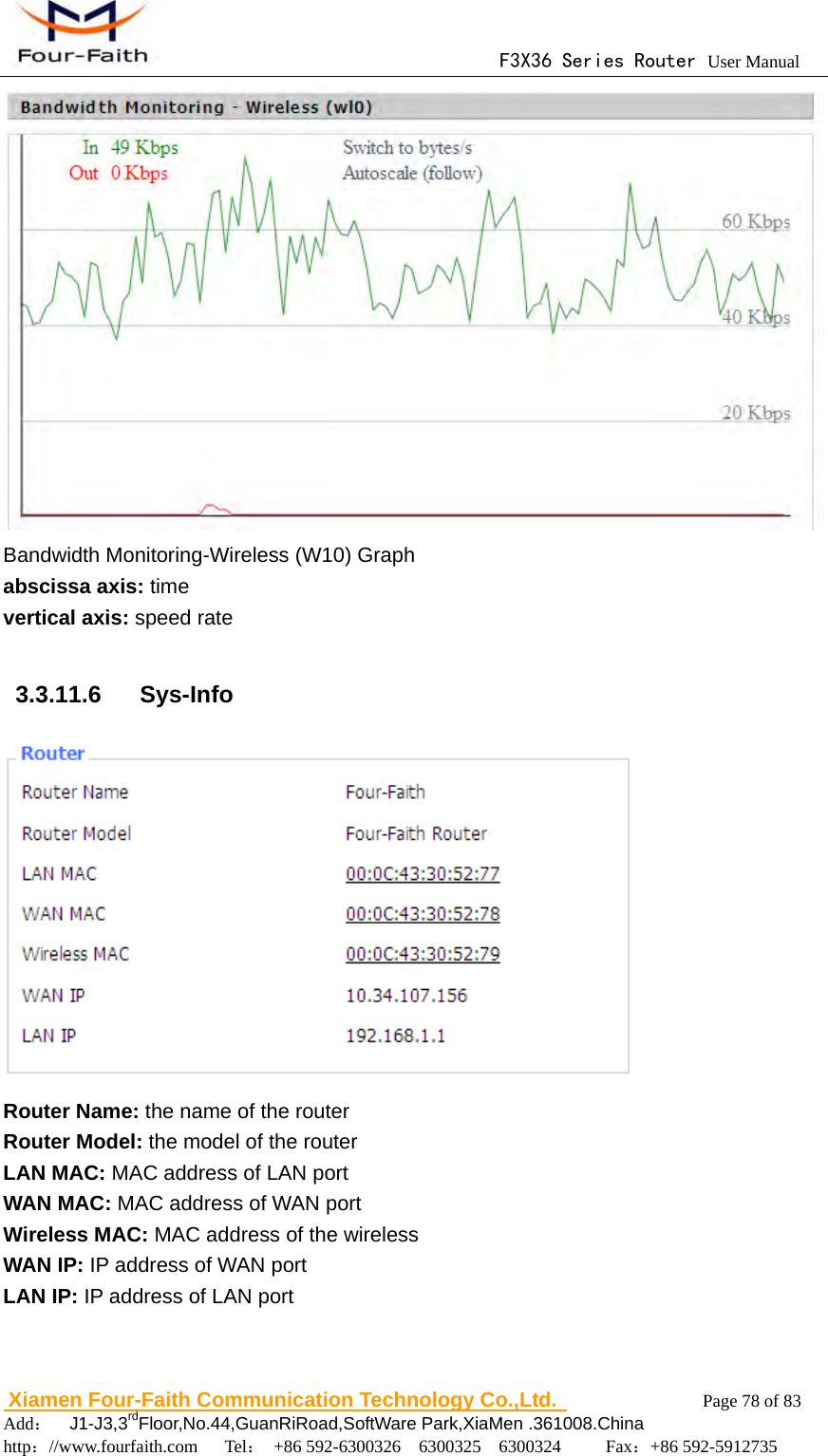

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 78 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 Bandwidth Monitoring-Wireless (W10) Graph abscissa axis: time vertical axis: speed rate 3.3.11.6 Sys-Info Router Name: the name of the router Router Model: the model of the router LAN MAC: MAC address of LAN port WAN MAC: MAC address of WAN port Wireless MAC: MAC address of the wireless WAN IP: IP address of WAN port LAN IP: IP address of LAN port

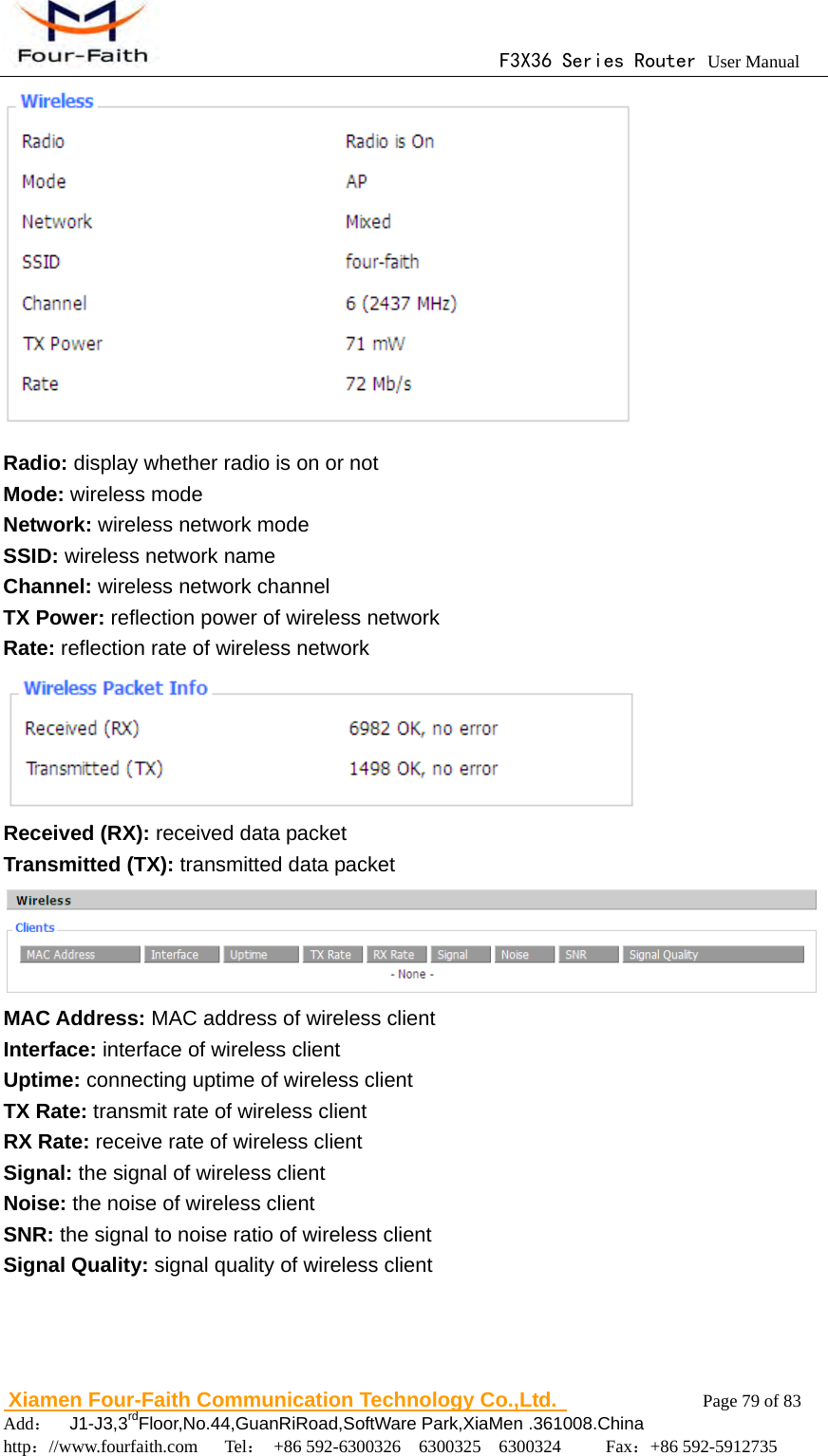

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 79 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 Radio: display whether radio is on or not Mode: wireless mode Network: wireless network mode SSID: wireless network name Channel: wireless network channel TX Power: reflection power of wireless network Rate: reflection rate of wireless network Received (RX): received data packet Transmitted (TX): transmitted data packet MAC Address: MAC address of wireless client Interface: interface of wireless client Uptime: connecting uptime of wireless client TX Rate: transmit rate of wireless client RX Rate: receive rate of wireless client Signal: the signal of wireless client Noise: the noise of wireless client SNR: the signal to noise ratio of wireless client Signal Quality: signal quality of wireless client

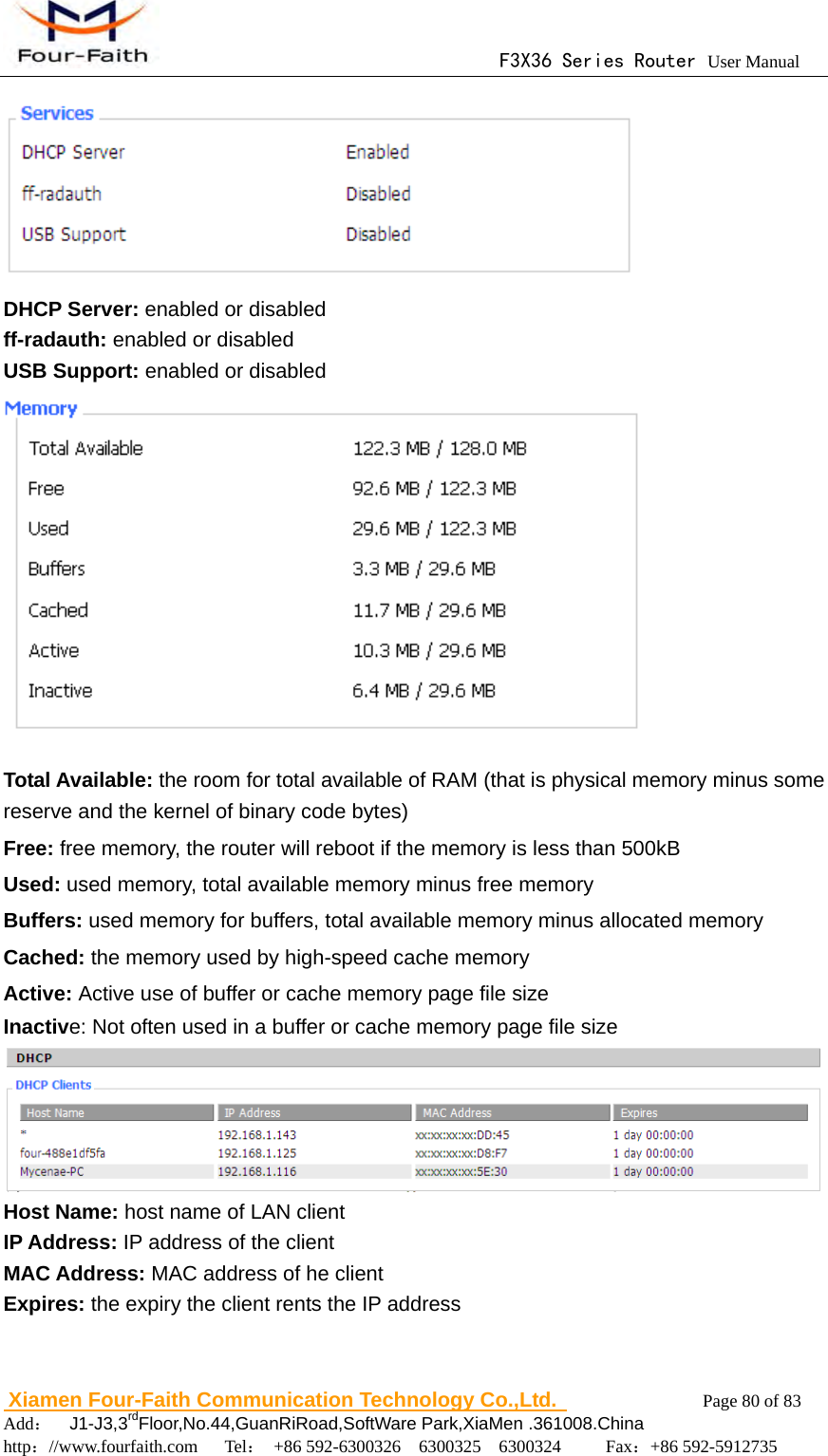

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 80 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 DHCP Server: enabled or disabled ff-radauth: enabled or disabled USB Support: enabled or disabled Total Available: the room for total available of RAM (that is physical memory minus some reserve and the kernel of binary code bytes) Free: free memory, the router will reboot if the memory is less than 500kB Used: used memory, total available memory minus free memory Buffers: used memory for buffers, total available memory minus allocated memory Cached: the memory used by high-speed cache memory Active: Active use of buffer or cache memory page file size Inactive: Not often used in a buffer or cache memory page file size Host Name: host name of LAN client IP Address: IP address of the client MAC Address: MAC address of he client Expires: the expiry the client rents the IP address
F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 81 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 Appendix The following steps describe how to setup Windows XP Hyper Terminal. 1. Press “Start””Programs””Accessories””Communications””Hyper Terminal” 2. Input connection name, choose “OK” 3. Choose the correct COM port which connects to modem, choose “OK” 4. Configure the serial port parameters as following, choose “OK” Bits per second: 115200

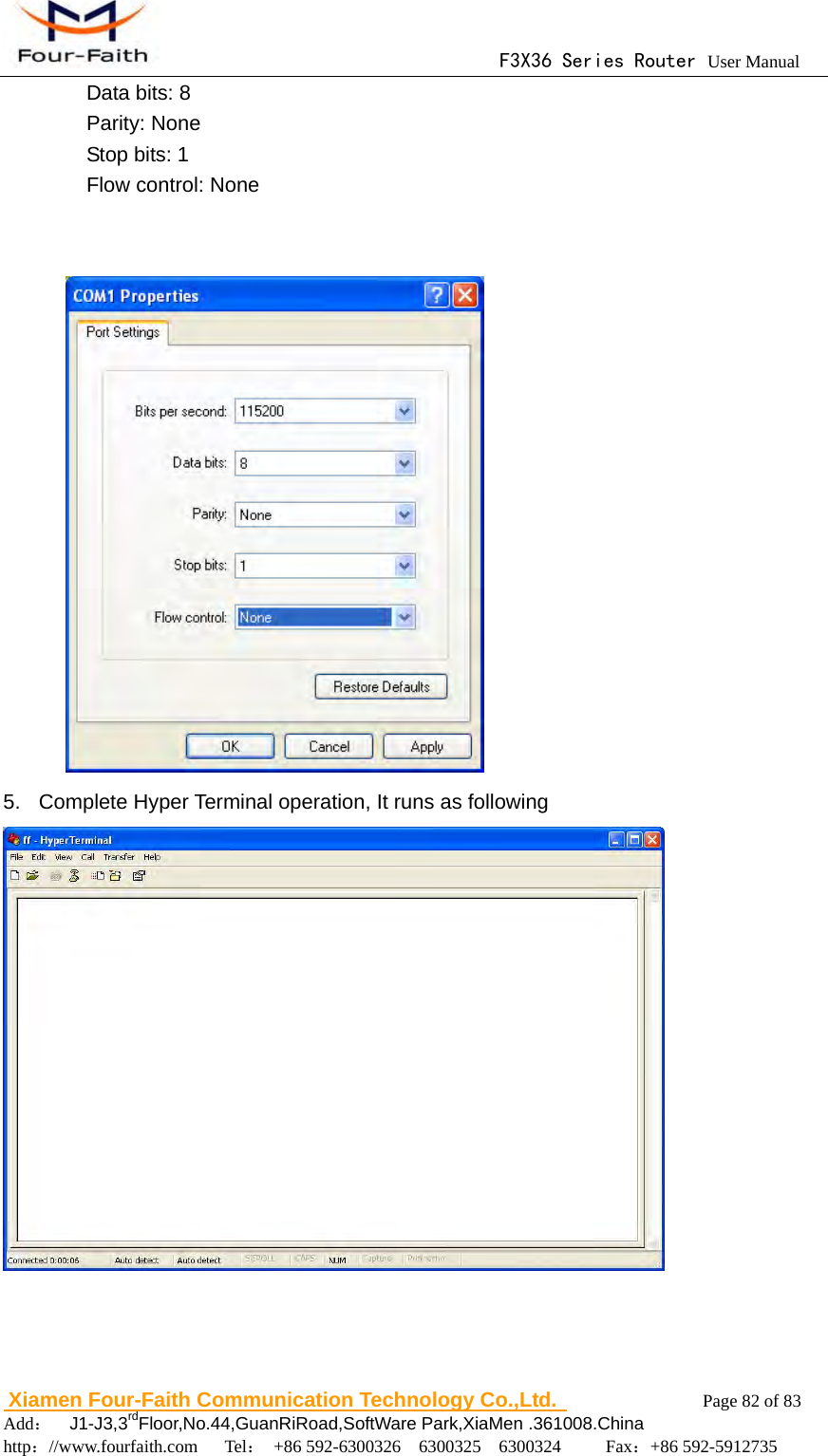

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 82 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 Data bits: 8 Parity: None Stop bits: 1 Flow control: None 5. Complete Hyper Terminal operation, It runs as following

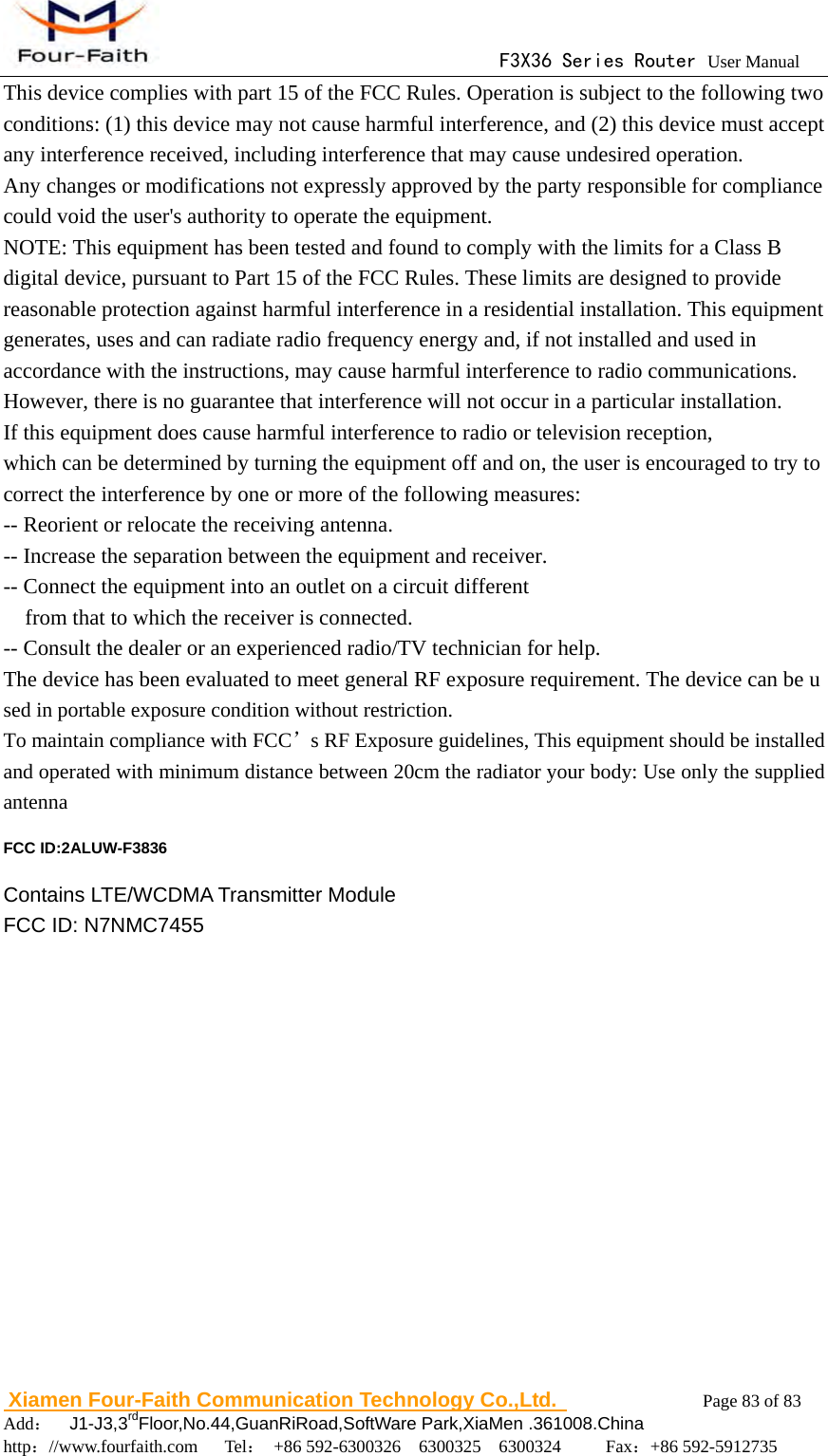

F3X36 Series Router User Manual Xiamen Four-Faith Communication Technology Co.,Ltd. Page 83 of 83 Add： J1-J3,3rdFloor,No.44,GuanRiRoad,SoftWare Park,XiaMen .361008.China http：//www.fourfaith.com Tel： +86 592-6300326 6300325 6300324 Fax：+86 592-5912735 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum distance between 20cm the radiator your body: Use only the supplied antenna FCC ID:2ALUW-F3836 Contains LTE/WCDMA Transmitter Module FCC ID: N7NMC7455
