Xiamen Intretech LS0002 Beehive User Manual

Xiamen Intretech Inc. Beehive Users Manual

Users Manual

Page 1 of 8

Catalog:

1GENERAL...................................................................................................................................2

1.1PRODUCT DESCRIPTION ................................................................................................................2

1.2MODEL # ......................................................................................................................................2

1.3CERTIFICATIONS ...........................................................................................................................2

1.4ROHS..........................................................................................................................................2

1.5PRODUCT MAIN SPECIAL CHARACTERISTIC .....................................................................................2

2ELECTRICAL SPECIFICATION .................................................................................................3

BLOCK DIAGRAM ...........................................................................................................................3

MAIN PARAMETER .........................................................................................................................3

4.2.1SystemFrequencyResponseLimits .................................................................................................................... 5

3SOFTWARE FUNCTION FEATURE...........................................................................................7

3.1BUTTON FUNCTION DESC. .............................................................................................................7

3.2INDICATOR DESC. .........................................................................................................................7

4 FCC WARNING ………………………………………………………………………………………..8

2.1

2.2

Page 2 of 8

1 General

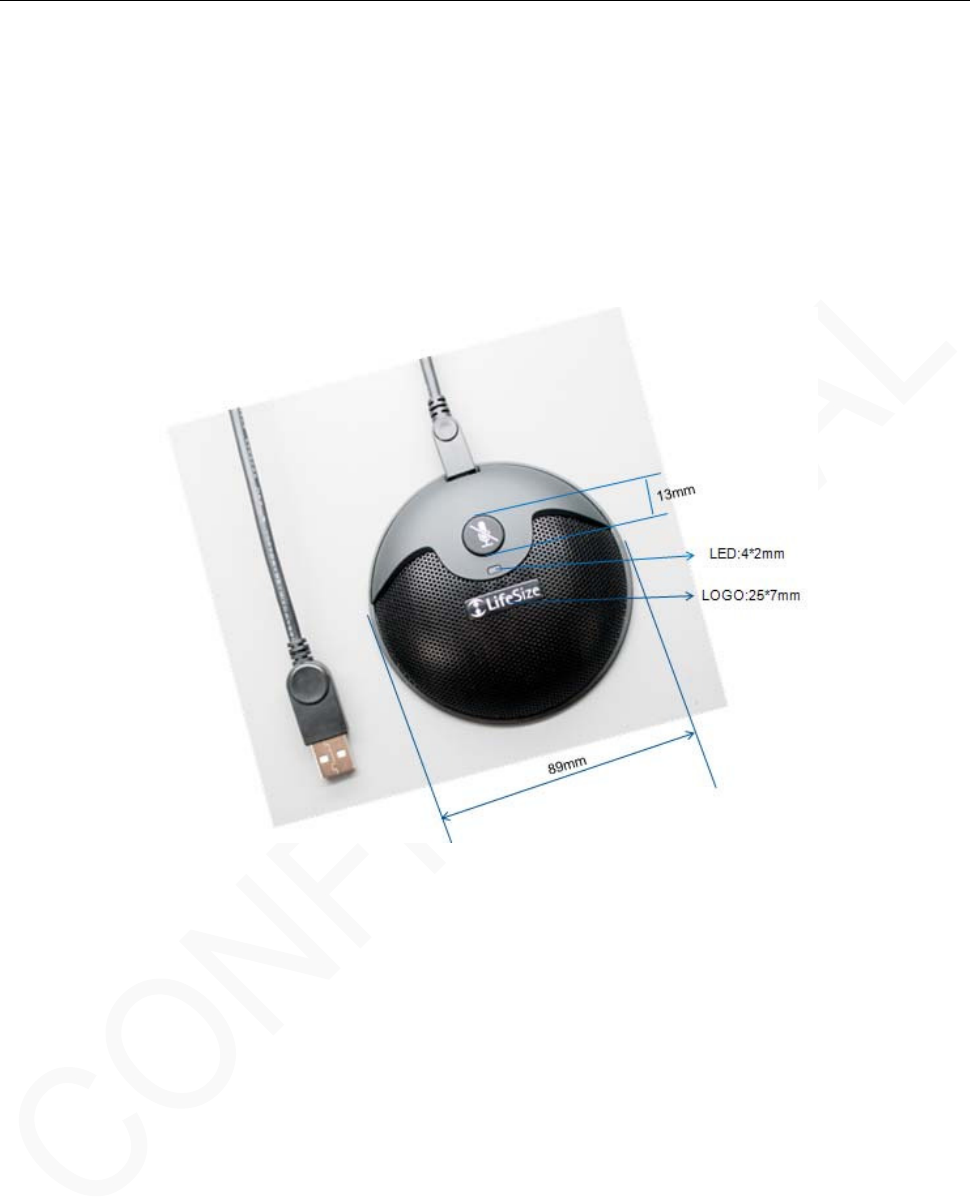

1.1 Product Description

Beehive is the main communicate device for LifeSize Lync Room System (LRS). It is a stereo

device with two Cardioid Mics. Mic is powered and connected through a signal USB cable. It is

required meeting Microsoft Lync Specification Rev. G and designed to be used with Double

Black (LRS codec) only.

1.2 Model #

LS-0002

1.3 Certifications

1.4 RoHS

All material of device should comply with Logitech 10 restricted Phthalates, (Restrictions are

applicable at homogeneous level, at a threshold of less than 1000ppm for each phthalate)

2.4.1 RoHS II

2.4.2 Reach

2.4.3 WEEE

2.4.4 Conflicted material

1.5 Product Main special characteristic

The product should comply with CISPR22/CE/IEC 60950-1..

Page 3 of 8

2 Electrical Specification

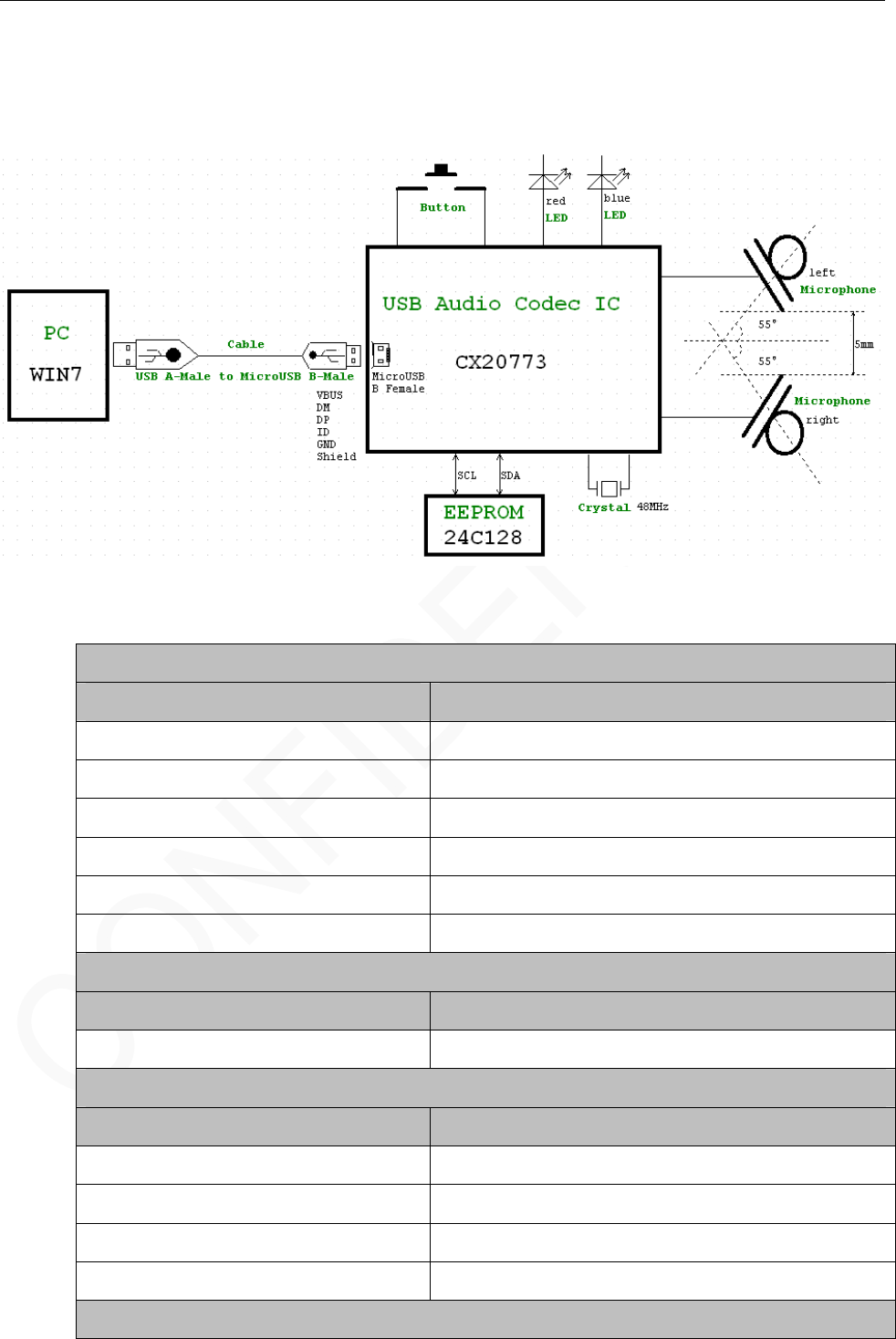

Block diagram

Main parameter

Microphone Features

Item Description

Microphone Type Primo EM175 Back Electret Unidirectional Microphone

Directional Characteristic Uni-directional

Sensitivity -36dB±3dB at 1kHz(0dB=1V/Pa) RL=2KΩ VCC=3V

S/N Ratio >72dB Typ. at 1kHz (1Pa,A-weighted )

Max Input Sound Level 120dB S.P.L

Microphone Frequency Response Limit Per Primo EM175 Specification

Button Feature

Item Description

Mute Function Mute

LED Indicator

Item Description

Idle Blue LED off / Red LED off

In-call Blue LED on / Red LED off

Mute Blue LED off / Red LED on

Suspend Blue LED off / Red LED off

USB Features

2.1

2.2

Page 4 of 8

Item Description

USB Type Micro USB

USB Compliant USB 2.0

USB Cable Length 4m

VID 046D

PID 0A4B

Power Features

Item Description

Connection Type Micro USB Female

USB Voltage 5V±0.25V

Working Current ≤100mA

Suspend Current ≤2mA

System Features

Item Description

Stereophonic Function Support via two Mics

AGC Function Disable

Noise Reduction Disable

Sensitivity -21 dB DFS ± 3 dB

DFS = Peak Sine Wave

Measured with an artificial mouth outputting 94 SPL at

1 kHz at the Mouth Ref Point (MRP). The microphone

is on a 1 square meter table, The artificial mouth is 1

meter away from the microphone and 30 cm above the

table. Measured under anechoic conditions.

Note: Microphone must meet noise and sensitivity

requirements of Lync Room Specification Rev G.

Frequency Response Limit See Frequency Response Limits below.

Sampling Rate 48KHz

Sampling Rate Accuracy <0.04%

Mic EQ Setting Support

Bit Depth 16 bits

Capture Latency <10ms

Capture glitch count per 5 minutes ≤2

DC offset <±15%

Send Noise < -66 dB DFS, A-weighted. DFS = Peak Sine Wave

Send single frequency interference ≤-70 dBm0, A-weighted

Page 5 of 8

Send Harmonic distortion <2%, 250-4000 Hz

Drift between microphone signals The ADCs for the two microphones need to be phase

locked with 0 sample offset between the mics.

Microphone sensitivity mismatch Less than 3dB between the two microphones (including

preamp and ADC)

Microphone phase mismatch Less than 10 degrees between the two microphones

(including preamp and ADC)

Crosstalk between microphone channels <-90dB

Capture stream timestamp The maximum timestamp error must be <0.5ms and the

timestamp error standard deviation must be <0.04ms

PC Operation System WIN7

The on axis response measured at the front of the microphone, with the microphone setting on a

table in anechoic room and using artificial mouth sound source located 1 meter away from the

microphone and 30 cm above the surface of the table the frequency response shall be within the

following limits:

Upper Limit Lower Limit

Hz dB Hz dB

90 0 224 -99

224 0 224 -6

224 2 280 -6

1120 2 280 -4

1120 3 1000 -4

1800 3 1000 -4

1800 4 5600 -4

9000 4 5600 -10

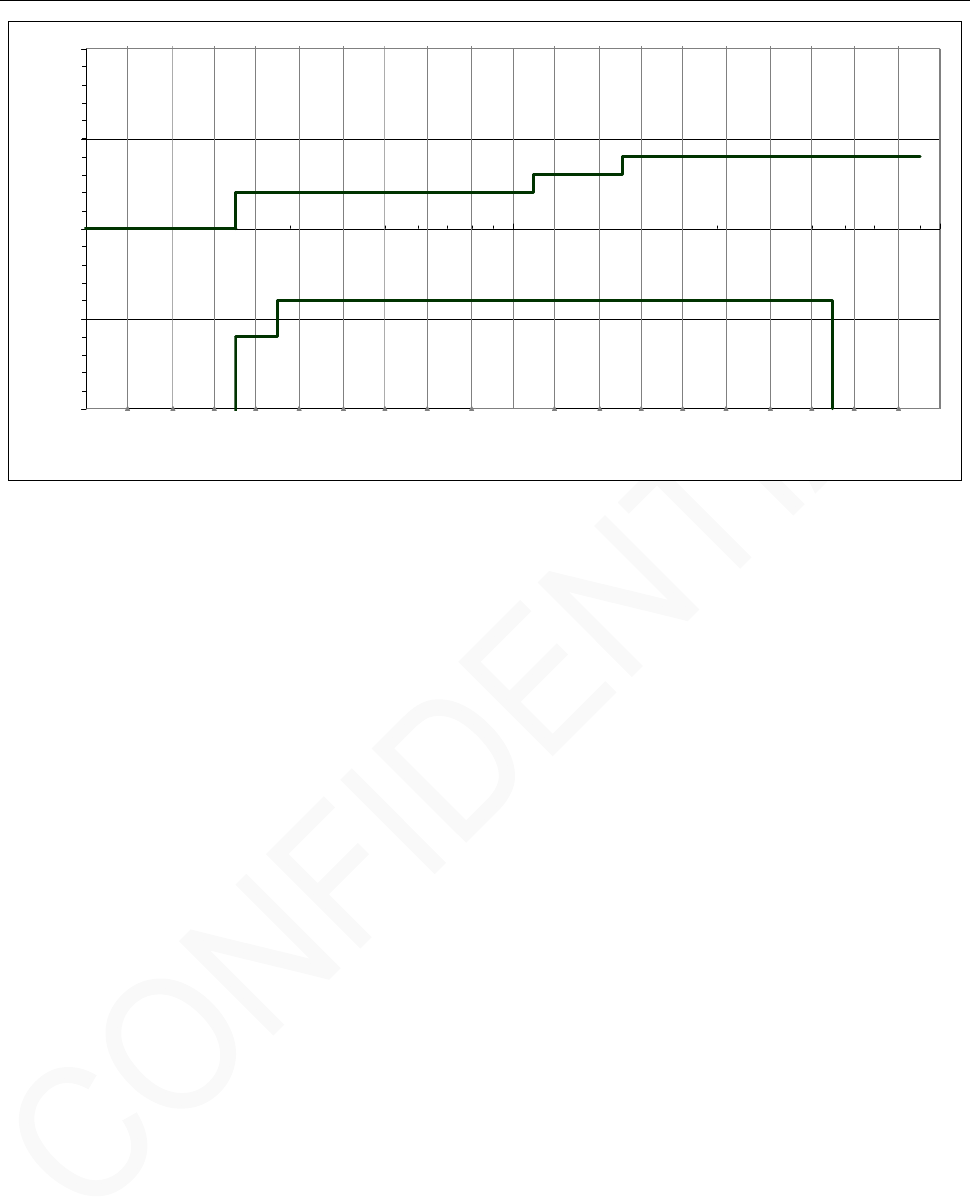

2.2.1 System Frequency Response Limits

Page 6 of 8

125 160 200 250 315 400 500 630 800 1250 1600 2000 2500 3150 4000 5000 6300 8000

-10

-5

100 1000 10000

dB Relative

Page 7 of 8

3 Software function feature

3.1 Button function Desc.

Button name Function

Mute button Mute

3.2 Indicator Desc.

Work status Blue LED Red LED

Mute √

Call √

Page 8 of 8

4. FCC WARNING

FCCStatement

Thisequipmenthasbeentestedandfoundtocomplywiththelimitsfora

ClassBdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsare

designedtoprovidereasonableprotectionagainstharmfulinterference

whentheequipmentisoperatedinacommercialenvironment.This

equipmentgenerates,uses,andcanradiateradiofrequencyenergyand,if

notinstalledandusedinaccordancewiththeinstructionmanual,maycause

harmfulinterferencetoradiocommunications.Operationofthisequipment

inaresidentialareaislikelytocauseharmfulinterferenceinwhichcasethe

userwillberequiredtocorrecttheinterferenceathisownexpense.



FCCCaution

Anychangesormodificationsnotexpresslyapprovedbytheparty

responsibleforcompliancecouldvoidtheuser’sauthoritytooperatethis

equipment.



FCCWarning

Thisequipmenthasbeentestedandfoundtocomplywiththeregulations

foraClassBdigitaldevice,pursuanttoPart15oftheFCCRules.

Operationissubjecttothefollowingtwoconditions:

(1)Thisdevicemaynotcauseharmfulinterference.

(2)Thisdevicemustacceptanyinterferencereceivedincludinginterference

thatmaycauseundesiredoperation.
