Xiamen VBeT Electronic VT9500BT VT9500 Bluetooth Headset User Manual VT9500 BT 0917
Xiamen VBeT Electronic Co.,Ltd. VT9500 Bluetooth Headset VT9500 BT 0917
Users Manual
1
VT9500 BT
User Manual
2
Catalog
1.Welcome..................................................................................................................3
2. Product Overview................................................................................................4
2.1 Box Contents.................................................................................................4
2.2 Headset Overview.......................................................................................... 5
2.3 Charging Cradle ............................................................................................. 6
3.Bluetooth Device Connecting Instruction...............................................................7
3.1 VT9500 BT Pairing with Bluetooth Device .................................................. 7
3.2 VT9500 BT Using ......................................................................................... 9
3.3 VT9500 BT Charging .................................................................................. 10
4.VT9500 Bluetooth Headset Fatures......................................................................10
4.1 Headset multifunction button......................................................................10
4.2Headset Speaker Volume Button ............................................................... 11
4.3 Headphone Mte Button ................................................................................ 11
4.4 Headset LED Indicator ................................................................................ 11
5. Technical Specifications...................................................................................13
5.1 VT 9500 Bluetooth Headset ........................................................................ 13
5.2 Headset battery ............................................................................................ 14
5.3 VT 9500 Bluetooth Headset Charging Base ............................................... 14
5.4 Product Disposal Treatment and FCC statement ......................................... 15
3
1.Welcome
Thank you for using the new VT9500 Bluetooth Headset. We are
confident that you will fully enjoy a range of powerful features this
headset, and also pleasantly surprised to find the headset comfortable to
wear and easy to use.
VT9500 Bluetooth Headset features
• Bluetooth version 3.0 and backward compatible.
• microphone with noise cancellation.
• wideband audio.
• volume and mute control.
• Intuitive headset multifunction button, you can handle the call easily.
• LED indicator.
• 500 hours standby time
• 21 hours talk time
• 10m communication distance
4
2. Product Overview
2.1 Box Contents
Headset Charging base
Power Adapter User's manual
5

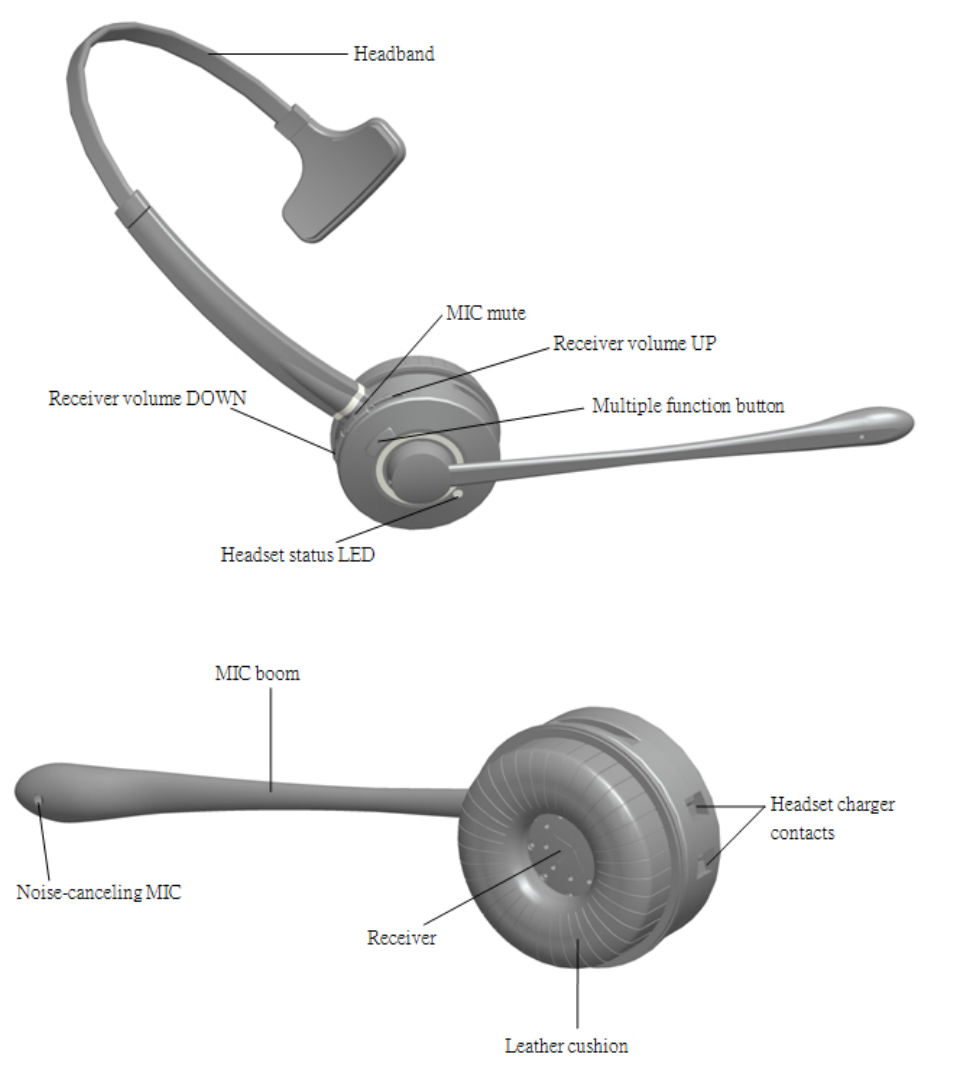

2.2 Headset Overview
6
2.3 Charging Cradle
Head seat
Charge contacts
Power ada
p
ter interface
7
3.Bluetooth Device Connecting Instruction
3.1 VT9500 BT Pairing with Bluetooth Device
1. Verify that the device (mobile phone, IP phones, laptops) with
Bluetooth
2. Start the Bluetooth function on your Bluetooth device (refer to your
device manual).
3. Turn on your headset.
4. Let your headset with your Bluetooth device pairing, press the
multifunction key when pairing than 6s, LED flash alternately red and
blue description appears headset is in pairing mode, the pairing is
successful then the blue light flashes. Follows:
Headset is use a procedure called "pairing" to connect to a Bluetooth
device. By following simple steps, a phone can be paired with a headset
in a few minutes complete.
To VT9500 BT paired with your phone, just need to follow the
following three simple steps:
1) Make sure the headset is in pairing mode (long press the multifunction
key 6S red over blue lights flashing alternately). When you first turn on
the VT9500 BT, the headset will start up in pairing mode automatically -
that is, your Bluetooth devices can find it.
8
2）Setup your Bluetooth phone to 'find the "VT9500 BT, according to
your phone's usage guidelines operation. First make sure that Bluetooth is
activated on your Bluetooth device. Then set your Bluetooth device to let
it find the headset. This operation usually involves Go "setup (settings)"
on your Bluetooth device, "connect" or "Bluetooth" menu and select
"discover (search)" or "add " Bluetooth device option.
3）You will find the VT9500 BT in the Bluetooth device "Bluetooth"
following items. Then your Bluetooth device will ask if you want to pair
with it. Please click "yes " on your phone or "OK (confirm)" button to
accept the pairing, and use the pairing code or PIN = 0000 (4 zeros) to
confirm the pairing. Your phone will confirm when pairing is complete.
Note: Different devices may be paired according click on the icon
VT9500 BT, the situation has paired successfully connected displays. No
longer need to be paired again next connection, just click the icon to
connect to VT9500 BT.
If pairing failure, please let VT9500 BT enter pairing mode manually.
First, make sure the headset is turned off.
Then press and hold the multifunction key for more than about 6 seconds,
until the blue light-emitting diode emits a constant red light flashing
alternately. When the headset is in pairing mode, repeat step 2 and step 3.
9
5. Your Bluetooth device can see the VT9500 BT Bluetooth logo has
connected with Bluetooth headset successfully, you can answer, end
phones, audio players etc..
6. If no Bluetooth devices paired with the VT9500 BT within 120S under
pairing mode, the VT9500 BT will shut down to reduce power
consumption automatically.
3.2 VT9500 BT Using
1.Call Answer:
After cell phone or Bluetooth-enabled phone successful connect with
VT9500 BT, when call coming , the headset will ring, press the
multifunctional key for telephone call answering.
2.Call End
when talking want to end the call, short press the multifunctional key to
end.
3.Microphone mute and mute canceled:
when call answering, short press the MUTE button will make
microphone on mute status,
If short press the MUTE button mute will canceled.
4.Volume Adjustment
short click volume + key, the volume increase; short click volume - key,
the volume decreases.
10
3.3 VT9500 BT Charging
When headset VT9500 BT charging, red light long bright, when charging
is completed, the red light off blue light long bright; leaving the dock the
headset into standby mode, if a long time without mating connector is
shut down automatically to reduce power consumption.
4.VT9500 Bluetooth Headset Features
4.1 Headset multifunction button
Short or long press the Multi-functional button to answer
and end a call .
Multi-function button to
Function Short press Long press
Answer the call √
End the call √
Power on 3s
Paring 6s 以上
Power shutdown 3s
Multi‐functionbutton
11
4.2 Headset Speaker Volume Button
The speaker volume buttons adjust the headset speaker volume.
4.3 Headphone Mte Button
Mute button to make the microphone mute or mute canceled.
4.4 Headset LED Indicator
LED indicates call status
Speaker volume button＂+＂
Speaker volume button＂-＂
Mute button
12
Headset status LED status
Power on Blue light flashes four times (bright 300ms, off 300ms)
Power off Long red flash once (red light 2s)
Pairing mode Blue lights flash alternately red light (red light 750ms,
blue lights 750ms)
Pairing successful Flashing blue light (bright 300ms, off 8s)
Answer the phone and music Flashing blue light (bright 300ms, off 8s)
Charging red light long bright
Charging full Red light off, blue light long bright
Led indicator
13
5. Technical Specifications
5.1 VT 9500 Bluetooth Headset
Working environment:
0 ˚ C to +40 ˚ C; up to 95% relative humidity non-condensing.
Call Control:
Multifunctional button support to answer a call, end the call; listen to audio and video
playback.
Volume control and microphone mute:
Button controls on the headset.
Visual indicators:
LED indicates call status, pairing status and others.
Beep:
Indication tone may indicate volume level, microphone mute, and others。
Sound:
Mic Noise cancelling, sixth generation CVC echo cancellation, noise reduction ﹑
tone control.
Charging :
When VT9500 BT docking the base.
Wireless Standard:
Bluetooth 3.0 backward compatible.
14
Wearing styles:
Headband.
Microphone arm extension by:
Long extension arm.
Speaker:
Broadband speaker.
Microphone:
With noise-canceling microphone functionality.
5.2 Headset battery
Battery Type： Lithium-ion polymer.
Battery capacity： 300 mA per hour standard.
Battery Talk Time： Up to 21 hours.
Battery life： Minimum charge cycle can be repeated 1000 times.
Battery standby time：At least 500 hours.
Operating temperature range： -20 ˚ C to +60 ˚ C.
Battery charging time： Less than 60 minutes to charge 20%.
Less than 90 minutes to charge 50%.
Fully charged in less than 3.5 hours.
Battery storage life：Before needs to be charged, the headset can be stored in a closed
state power six months.
5.3 VT 9500 Bluetooth Headset Charging Base
VT 9500 charging base meets the following specifications.
Size:81 mm x 81 mm x 67 mm.
Using Range: Suitable for VT 9500 BT series headset.
15
5.4 Product Disposal Treatment and FCC statement
5.4.1 Dispose of in accordance with local regulations as headphones and recycling
regulations. Never headset treated as household waste. Do not dispose of the headset
in a fire, this battery may explode. If damaged, the battery may explode.
5.4.2 FCC statement:
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Warning: Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
RF Warning Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. this transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
