XinFuChuang Electronic XF-638 WALKIE TALKIE User Manual
Shenzhen XinFuChuang Electronic Co., Ltd. WALKIE TALKIE
User manual

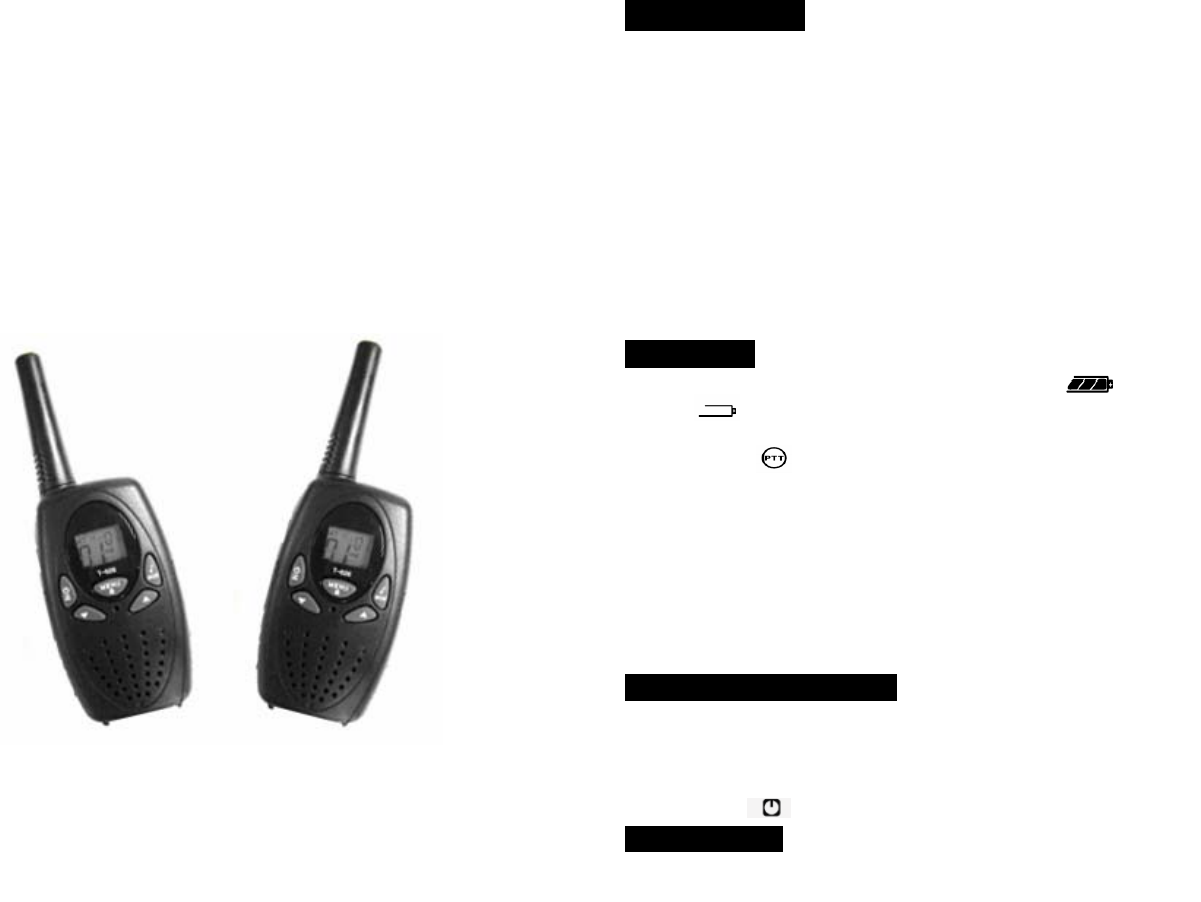

Walkie-Talkie
User Manual and Instruction
Getting Started
Installing the AA Batteries
Your radio uses 3 AA Alkaline batteries.
1. With the back of the radio facing you, lift the battery latch
up to release the battery cover and remove.
2. Insert 3 AA Alkaline batteries as shown on the inside of
the battery compartment.
3. Reposition the battery cover and press down to secure.
The Walkie-Talkie can use a NiMH rechargeable battery instead of 3 AA
Alkaline batteries.
Battery Meter
The battery icon shows the battery charge level, from full to
empty .When the battery is empty, the radio chirps periodically
after releasing . The radio powers off when the voltage drops
below a predetermined level to protect the rechargeable battery.
Note: Remove the batteries before storing your radio for extended periods
of time. Batteries corrode over time and may cause permanent damage to
your radio.
Turning Your Radio On and Off
After you insert batteries turn the radio on, the radio chirps and the display
briefly shows all feature icons available on your radio. The display then
scrolls through the available channels and Interference Eliminator Codes.
Press and hold button turn the radio off.
Setting the Volume
Page 1
- Press the up button to increase the speaker volume.
- Press the down button to decrease the speaker volume.
- The speaker volume level is indicated by the numbers 1-16
displayed.
Get
Setting a Channel
1. With the radio on, press , The current channel flashes.
2. Press up or down to set the channel.
3. Press PTT to save the channel setting.
Getting Started
Control Buttons
Use / to:
• Scan
• Turn radio on/off
Use UP/DOWN to:
• Adjust volume
• Scroll through menus
Use ♪/MON to:
• Transmit call tone
Use to:
• Select menu options
• Exit the menu (when pressed while in a menu)
• Lock and unlock the keypad (when held down and not in a menu)
Use to:
• Talk
• Save a setting
Talking and Listening
To communicate, all radios in your group must be set to the same channel
and Interference Eliminator Code.
To talk, press and hold PTT. Hold the radio 2 to 3 inches away from your
mouth when speaking.
When you finish speaking, release PTT (press to talk, release to listen).
Checking the Channel Before Transmitting
Your radio has multiple channels shared on a “take turn” basis. For
uninterrupted communication, do not talk on a channel if someone else is
currently talking on it.
To check for activity on a channel before you talk, press and hold ♪/MON .
If you hear static, the channel is clear to use.
Special Features
Special Features
Interference Eliminator Code
Interference Eliminator Codes help minimize interference by providing you
with a choice of code combinations. To set the code for a channel:
1. Press until the code starts to flash.
Page 2 Page 3
2. Press UP or DOWN to select the code 0-121 OR 121-0.
3. Press PTT to save the code setting.
You can set a different code for each channel using this procedure.
Note: You must set the Interference Eliminator Code to 0 on an FRS radio
that uses Interference Eliminator Codes to communicate with other FRS
radios that do not have Interference Eliminator Codes.
Push to Talk Timeout Timer
To prevent accidental transmissions and save battery life, the radio emits a
continuous warning tone and stops transmitting if you press PTT for 60
continuous seconds.
Special Features22
Locking the Keypad
To avoid accidentally changing your radio settings, press and hold for
3 seconds or until displays. You can turn the radio on and off, receive,
transmit, send a call tone, and monitor channels. All other
functions are locked.
To unlock the radio, press and hold for 3 seconds or until is no
longer displayed.
Scanning Channels
Use scanning to monitor channels for transmissions or to find someone in
your group who has accidentally changed channels.
To start scanning, briefly press and release . The scan indicator
displays. When the radio detects channel activity, it stops scanning and you
can hear the transmission. To respond to the transmission, press PTT within
5 seconds.
Scan Advance
If the radio stops scanning on a channel you do not want to listen to, briefly
press and release ] or [ to resume scanning for the next active channel.
Removing Channels from the Scan List (Nuisance Delete Feature)
To remove a channel so the radio does not stop on it while scanning, press
and hold UP or DOWN for at least 3 seconds, then release. This temporarily
removes the channel from the scan list.
To restore the channel, turn the radio off and then back on.
Note: You cannot remove the channel your radio was set to when you
started the scan (called your home channel).
Alerts
Setting and Transmitting Call Tones
Your radio can transmit different call tones to other radios in your group so
you can alert them that you want to talk.
To set a call tone:
1. With the radio on, press 3 times. The current call tone setting flashes
and displays.
2. Press UP or DOWN to change and hear the call tone.
3. Press or to set the new call tone.
To transmit your call tone to other radios set to the same channel and
Interference Eliminator Code as your radio, press
Notes
• Setting the call tone to 0 disables the call tone feature.
Page 4 Page 5
Voice Activation (VOX)
Voice activation (VOX) allows you to talk hands-free.
1. Press PTT andTurn the radio on.
2. Turn the radio on. displays.
3. To transmit, speak into microphone. There is a short delay
between the time you start talking and when the radio transmits.
4. To receive, stop talking.
To turn VOX off, press PTT.
Setting the Sensitivity Level
Adjusting your radio’s sensitivity level helps minimize the possibility of
unintended noises triggering a transmission and helps the radio pick up soft
voices.
1. Press until displays.
2. Press UP or DOWN to select the sensitivity level:
3 = High Sensitivity
for quiet environments
2 = Medium Sensitivity
for most environments
1 = Low Sensitivity
for noisy environments
29
Setting the double channel monitor
1. Press until CH displays, The current channel flashes.
2. Press up or down to set the monitor channel.
3. Press PTT to save the double channel monitor setting.
Setting the SQUELCH Level 1-6
1. Press until SL displays.
2. Press UP or DOWN to select the receive sensitivity level:
01 = High receive Sensitivity
02~05 = Medium receive Sensitivity
06 = Low receive Sensitivity
Setting the TX POWER LO/HI
1. Press until pr displays.
1. Press UP or DOWN to select the LO OR HI level.
2. Press PTT to save the TX POWER LO/HI setting.
Safety and General Information
Important Information on Safe and Efficient Operation
Read This Information Before Using Your Radio
The information provided in this document supersedes the general safety
information contained in user guides published prior to July 2000.
Transmit and Receive Procedure
Your two-way radio contains a transmitter and a receiver. To control your
exposure and ensure compliance with the general population/uncontrolled
environment exposure limits, always adhere to the following procedure:
• Transmit no more than 50% of the time.
• To transmit (talk), press the Push to Talk (PTT) button.
Page 6 Page 7
• To receive calls, release the PTT button.
Transmitting 50% of the time, or less, is important because the radio
generates measurable RF energy exposure only when transmitting (in terms
of measuring standards compliance).
Exposure to Radio Frequency Energy
Your radio is designed to comply with the following national and
international standards and guidelines regarding exposure of human beings
to radio frequency electromagnetic energy:
Two-Way Radio Operation
When using your radio as a traditional two-way radio, hold the radio in
a vertical position with the microphone one to two inches (2.5 to
5 cm) away from the lips.
Facilities
To avoid electromagnetic interference and/or compatibility conflicts, turn
off your radio in any facility where posted notices instruct you to do so.
Hospitals or health care facilities may be using equipment that is sensitive
to external RF energy.
Aircraft
When instructed to do so, turn off your radio when on board an aircraft.
Any use of a radio must be in accordance with applicable regulations per
airline crew instructions.
Potentially Explosive Atmospheres
Turn off your radio prior to entering any area with a potentially explosive
atmosphere. Do not remove, install, or charge batteries in such areas. Sparks
in a potentially explosive atmosphere can cause an explosion or fire
resulting in bodily injury or even death.
Note: The areas with potentially explosive atmospheres referred to above
include fueling areas such as below decks on boats, fuel or chemical
transfer or storage facilities, areas where the air contains chemicals or
particles, such as grain, dust or metal powders, and any other area where
you would normally be advised to turn off your vehicle engine. Areas with
potentially explosive atmospheres are often but not always posted.
Blasting Caps and Areas
To avoid possible interference with blasting operations, turn off your radio
when you are near electrical blasting caps, in a blasting area, or in areas
posted: “Turn off two-way radio.” Obey all signs and instructions.
Operational Cautions
Antennas
Do not use any portable radio that has a damaged antenna.
If a damaged antenna comes into contact with your skin, a minor burn can
result.
Safety and General Information
Batteries
All batteries can cause property damage and/or bodily injury such as burns
if a conductive material such as jewelry, keys, or beaded chains touch
exposed terminals.
The conductive material may complete an electrical circuit (short circuit)
and become quite hot. Exercise care in handling any charged battery,
particularly when placing it inside a pocket, purse, or other container with
Page 8 Page 9
metal objects.
Battery Charger Safety Instructions
1. Do not expose the charger to rain or snow.
2. Do not operate or disassemble the charger if it has received a sharp blow,
or has been dropped or damaged in any way.
3. Never alter the AC cord or plug provided with the unit. If the plug will
not fit the outlet, have the proper outlet installed by a qualified electrician.
An improper condition can result in a risk of electric shock.
4. To reduce the risk of damage to the cord or plug, pull the plug rather than
the cord when disconnecting the charger from the AC receptacle.
5. To reduce the risk of electric shock, unplug the charger from the outlet
before attempting any maintenance or cleaning.
6. Use of an attachment, not recommended, may result in a risk of fire,
electric shock, or personal injury.
7. Make sure the cord is located where it will not be stepped on, tripped
over, or subjected to damage or stress.
8. An extension cord should not be used unless absolutely necessary. Use of
an improper extension cord could result in a risk of fire and/or electric
shock. If an extension cord must be used, make sure that:
• The pins on the plug of the extension cord are the same number, size, and
shape as those on the plug of the charger.
• The extension cord is properly wired and in good electrical condition.
• The cord size is 18 AWG for lengths up to 100 feet, and 16 AWG for
lengths up to 150 feet.
Page 10
Technical Specification
1. Operating Frequency: 462.5500MHz-462.7250MHz, 467.5625MHz-467.7125MHz
2. Transmission Power: ≤0.5W
3. Channel Spacing: 12.5kHz
4. Modulation Type: FM
5. Channels: 22
Page 11
Caution:
The information listed above provides the user with information needed to make
him or her aware if a RF exposure, and what to do to assure that this radio operates
within the FCC exposure limits of this radio.
The device complies with RF specifications when the device used at 25mm from
your front face and 0mm from your body. Third-Party belt-clips, hosters,and similar
accessories used by this device should not contain any metallic components.
Body -worn accessories that do not meet these requirements and should be avoided .
Maximun SAR Value(1g):0.604W/Kg.
