XinHuaMei Electronics BTH-159 TWINS BLUETOOTH EARBUDS User Manual

Shenzhen XinHuaMei Electronics Limited Company TWINS BLUETOOTH EARBUDS

User Manual

TWINS STEREO
BLUETOOTH EARBUDS
INSTRUCTION MANUAL
PLEASE READ ALL INSTRUCTIONS
CAREFULLY AND RETAIN FOR FUTURE USE
1
In the Box
Bluetooth earphones × 2pcs
Charging case × 1pcs
Micro USB Charging cable × 1pcs
Instruction Manual × 1pcs
Eartips × 3 pairs
Safety Instructions
Read this manual carefully before putting the
appliance into operation and keep this manual for
future reference.
Do not insert any metal object into the device.
To avoid a static charge, do not use the device in
an extremely dry climate.
Do not attempt to repair the device yourself.
2
Batteries (battery pack or batteries installed) shall
not be exposed to excessive heat such as
sunshine, fire or the like.

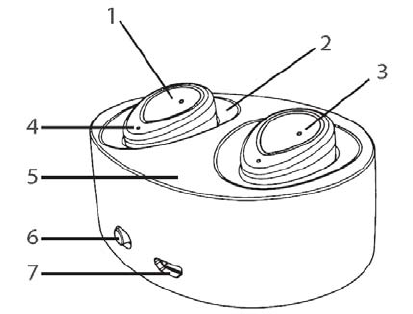

Buttons Function
1 MF (MF) / Phone button
2 Charging Slot
3 LED Light Indicator
4 Built-In Microphone
3
5 Charging LED Indicator
6 Charging Case Power ON/OFF Switch
7 Charging Port
Charging Instructions
The Charging Case and Bluetooth Earbuds come with
a built in rechargeable battery. Before using it for the
first time we recommend you charge the battery fully.
Only use the supplied USB cable for charging.
To charge the Charging Case (without Bluetooth
Earbuds inside the charging slots)
Connect the USB cable to a computer USB port or any
USB charging source, and the Micro USB plug to the
charging port of the Charging Case. The Charging
LED indicator turns red to indicate that its built-in
battery is being charged. It takes 1-2 hours for the
case to charge fully. When the battery is fully charged,
the LED light will turn blue..
To charge the Bluetooth Earbuds
1.After fully recharging the Charging Case, disconnect
4
the USB cable.
2.Put the Bluetooth Earbuds into the charging slots
correctly and securely. See that the terminals built in
the earbuds and in the case, stay in contact.
3.Slide the Power ON/OFF Switch on the Charging
Case to ON position, the LED light indicator built in on
the earbuds turn red to indicate that the battery is
being charged. It takes 1-2 hours for the Earbuds to
fully charge. When the battery is fully charged, the
LED light will turn blue.
Charging case should be charged at least 2hours for
first time use.
To turn on / turn off the bluetooth
1. Turn on: Press and hold the MF button for 4s
untill the blue light up.
2. Turn off: Press and hold the MF button for 3s
then the red lights up while they’re working.
True Wireless mode pairing
1. 1.Press and hold the MF button on both
Earbuds for 4-6 seconds simultaneously until the
5
LED flashes red and blue, then, short press the
MF button on one unit twice to search and pair
with the other unit.
2. .After successful pairing and connecting, the
LED light indicator on the host Earbud will flash
red and blue, and the subordinate Earbud will
flash blue slowly 1 time per cycle.
3. At this point, activate the Bluetooth function on
your mobile device, and search for Bluetooth
devices near you. Your mobile device should
show one of “BTH-159” instead of two in list,
[This is the host Earbud. The reason you don’t
see (subordinate Earbud in the list of available
devices is that it is already paired with the host
Earbud. Choose it to start the stereo pairing
function.
4. If required, enter the password ‘0000 ’ to
confirm & finalize pairing.
5. Once paired successfully, beep sound will be
heard and the LED on both units will flash blue
6
slowly 1 time per cycle.
Pairing the single earbud with Bluetooth
devices (phone or music device)
1. Press and hold the MF button for about 7s to
turn on the bluetooth earbuds.. When the LED
flashes blue and red , the Bluetooth earphones is
ready for pairing.
2. Turn on your Bluetooth enabled device and
activate the Bluetooth function. Search for the
Bluetooth device, “BTH-159” will show up.
3. Pair your Bluetooth enabled device with BTH-159.
If a password is needed, type in “0000”. After the
BTH-159 is paired with your device, connect it to
your device.
Control a phone call via Bluetooth earbuds
Answer a call: Short press the MF button of the host
earbud.
End a call: Short press again the MF button of the
host earbud.
Reject a call: Press and hold the MF button of host
earbud for around 2-3 seconds.
7
Redial the last number: Press twice the MF button of
the host earbud.
Play or Pause: Click the MF button of the host earbud
or subordinate earbud to control pause and play
music.
Note: Other functions including volume
increase/decrease, next/previous track, you may need
to control through your source device.
Specifications
Bluetooth version 4.1
Bluetooth operating
distance
10 meters (equal to 33
feet)
Frequency response 100Hz-20kHz
Earbud size 28*20*28 mm
Net weight 5g
Charging case size: 80*60*30 mm
Charging case weight: 45g
Built-In Battery
Bluetooth Earbud: 40mAh
(each)
Charging Case: 400mAh
Playback time Music time approx. 2 hrs,
8
talk time approx 3 hrs
Charging input power DC 5V
Charging time Approx 1 hours
Note: Battery life & charging time may vary, based on
usage & types of devices used.
FCCInstructions
Thisequipmenthasbeentestedandfoundtocomplywith
thelimitsforaClassBdigitaldevice,pursuanttoPart15of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This product generates, uses and
canradiateradiofrequencyenergyand,ifnotinstalledand
used in accordance with the instructions, may cause
harmfulinterferencetoradiocommunications. 
However, there is no guarantee that interference will not
occurinaparticularinstallation.Iftheproductdoescause
harmfulinterferencetoradioortelevisionreception,which
can be determined by turning the equipment off and on,
theuserisencouragedtotrytocorrecttheinterferenceby
oneormoreofthefollowingmeasures:
9
‐  Reorientorrelocatethereceivingantenna.
‐Increasetheseparationbetweentheproductand
receiver.
‐  Connecttheproductintoanoutletonacircuitdifferent
fromthattowhichthereceiverisconnected.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received,
includinginterferencethatmaycauseundesiredoperation.
Note: modifications to this product will void the user’s
authoritytooperatethisequipment.
