XinHuaMei Electronics BTS-518B Bluetooth Speaker User Manual
Shenzhen XinHuaMei Electronics Limited Company Bluetooth Speaker
User Manual

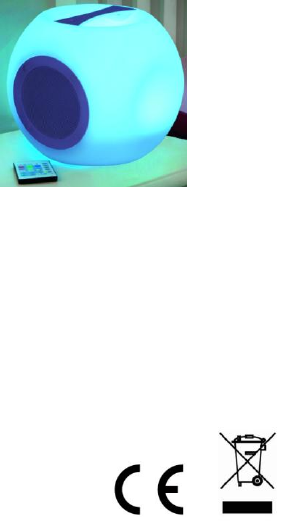

Bluetooth speaker
BTS-518B
INSTRUCTION MANUAL
PLEASE READ ALL INSTRUCTIONS
CAREFULLY AND RETAIN FOR FUTURE USE
1
In the Box
Bluetooth Speaker
Charging Cable
Instruction Manual
Features
Enjoy music wirelessly
Multi-mode LED light
Built-in rechargeable battery.
Clear sound with bass effect.
IPX4 resistance, can be used indoors and
outdoors
Safety Instructions
Read this manual carefully before putting the
appliance into operation and keep this manual for
future reference.
Do not insert any metal object into the device.
To avoid a static charge, do not use the device in
an extremely dry climate.
Do not attempt to repair the device yourself.
2
Batteries (battery pack or batteries installed) shall
not be exposed to excessive heat such as
sunshine, fire or the like.
ABOUT WATER RESISTANCE
This speaker is resistant to water splashes with IPX4
standard. It might be used in a shower and can get wet,
but cannot be submerged in water. Make sure the DC
5V water resistant protector is sealed before coming
into contact with any water.
Description of Parts
3
1
Power ON/OFF button
2
DC 5v input port
3
Bluetooth connect/disconnect
4
Light on/off
5
Power off (Standby)
6
Power on (Valid only when the speaker is in
Standby mode)
7
Color selection
8
White light
9
Increase the light (valid for R/G/B light only)
10
Decrease the light (valid for R/G/B light only)
11
Light mode 1
4
12
Light mode 2
13
Light mode 3
14
One color light dances to the music
15
Multicolor light dances to the music
16
Mute the speaker
17
Play/Pause
18
Volume decrease
19
Volume increase
20
Previous
21
Next
Tips: To save power consumption, please use the
ON/OFF button on the bottom to turn off the speaker
completely. When you use the remote controller to turn
off the speaker, the speaker is actually in Standby
mode.
Charging Instructions
This Bluetooth speaker comes with a built in
rechargeable battery. Before using it for the first time
we recommend you charge the battery fully. Only use
the supplied charging cable to charge the Bluetooth
speaker.
5
1. Connect the charging cable to the DC 5V port on
the unit.
2. Connect the other end of the charging cable to a
USB port on a PC or an AC/DC adapter.
Pairing the Bluetooth speaker with Bluetooth
devices (phone or music device)
1. Turn on the Bluetooth speaker.
2. Turn on your Bluetooth enabled device and
activate the Bluetooth function.
3. Search for the Bluetooth device, “BTS-518C” will
show up.
4. Pair your Bluetooth enabled device with
BTS-518C. If a password is needed, type in “0000”.
After the BTS-518C is paired with your device,
connect it to your device.
Specifications
Bluetooth version
4.2(Not support BLE)
Bluetooth operating
distance
10 meters (equal to 33 feet)
6
Frequency range
2.4-2.48GHz
Frequency response
100Hz-20kHz
Speaker power
1x5w
Distortion
≤1%
Playback time
Approx 3-4 hours
Charging input power
DC 5V
Charging time
Approx 3 hours
IP grade
IPx4 (Splash proof)
Note: Battery life & charging time may vary, based on
usage & types of devices used.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired peration.
Changes or modifications not expressly approved by the
party responsible for compliance could void the user's
authority to operate the equipment.
NOTE: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
7
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and
receiver.
-- Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV
technician for help.
