XinHuaMei Electronics BTS-C18 Bluetooth Speaker User Manual 15 BTS C18 UserMan
Shenzhen XinHuaMei Electronics Limited Company Bluetooth Speaker 15 BTS C18 UserMan
15_BTS-C18 UserMan
1

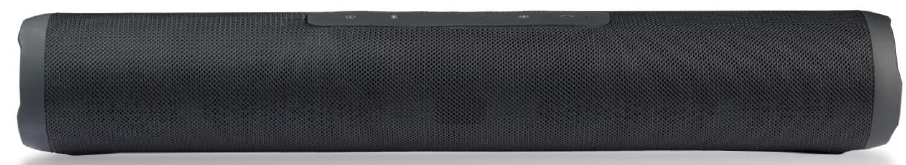

BLUETOOTH SPEAKER
BTS-C18
USER MANUAL
Please kindly read this user manual before using the product carefully, and keep it for future
reference.
2
In the box
1. Bluetooth Speaker: x 1
2. Micro USB Charging Cable: x 1
3. 3.5mm Aux cable : x 1
4. User Manual: x 1
Description of Parts
Charging the speaker
1
ON/OFF Button
2
Requesting Bluetooth Button
3
Previous track/Volume Decrease
4
LED Indicator
5
Next track/Volume Increase
6
Mode Button
7
Play/Pause/Phone Button
8
Built-in Mic
9
AUX-Input
10
USB Slot
11
Micro SD (TF) Card Slot
12
Charge Indicator
13
USB Charging Port
3
To charge the Bluetooth speaker, connect the supplied micro USB cable to the USB charging port and the
other end to your computer or USB charging device.
Make sure you charge your Bluetooth speaker for at least 4 hours before using it for the first time.
Pairing a speaker with phone / Bluetooth enabled device
1. Turn on the Bluetooth speaker.
2. Turn on your Bluetooth enabled device and activate the Bluetooth function.
3. Search for the Bluetooth device, “YM-C18” will show up.
4. If required, enter the password ‘0000’ to confirm to finalize pairing.
5. Connect it with your Bluetooth enabled device
Button functions
USE FM radio
1. Insert the USB cord (included) into the charging port. Leave the other end of the cord open. USB
cord serves as FM Antenna while in FM Radio mode.
2. Short press Mode button each time until FM mode is selected.
Press the Phone once to answer an incoming call.
Then short press the Phone button to end a call.
Press and hold the Phone button for 2 seconds to reject a call.
Press the button to pause a song while playing music, press again
to continue playing.
Mode: Switch between Bluetooth/ Aux/ TF card/USB playing/FM
radio
Press and hold the button to increase the volume,
press shortly to next track
Press and hold the button to decrease the volume;
press shortly to previous track
Press to disconnect bluetooth from your phone, press again to re-
connect with your phone
4
3. Short press Play/Pause/Phone button and the device would automatically search and store all the
FM Radio stations.
4. Short press + or - button to change the FM Radio stations.
Specifications
Bluetooth® Version : 4.2
Working distance : Up to 10 meters in open space
Speaker output : 3W*2
FM frequency range : 87.5-108MHz
Power Input : DC 5V
Play time : about 3-4 hours
Charging Time : about 3 -4 hours
Built-In Rechargeable Battery : 3.7V /1200mAh
Micro SD (TF) Card/USB Drive : Support up to 32GB
Unit Size: 78.7 x 78.7 x 398.8 mm
(Note: Battery life & charging time may vary based on usage, types of devices connected & wireless
distance.)
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation
