XinHuaMei Electronics BTS569 Bluetooth Speaker User Manual
Shenzhen XinHuaMei Electronics Limited Company Bluetooth Speaker
User manual

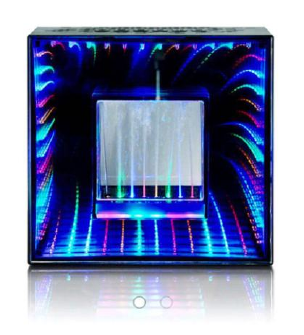

Bluetooth Speaker
USER MANUAL
Model No.: BTS-569
Dear Customer,
Thanks for purchasing our product!
Please kindly read this user manual before using the product carefully, and keep it for
future reference.
Safety Instructions
Please read these instructions before using the product.
Do not insert any metal object into the device.
To avoid a static charge, do not use the device in an extremely dry climate.
Do not attempt to open or repair the device by yourself.
Avoid heavy shocks to the product and do not drop it.
Batteries ( battery pack or batteries installed) shall not be exposed to over heat
condition like sunshine or fire.
Package:
1. Bluetooth Speaker: x 1
2. Micro USB Charging Cable: x 1
3. AUX input cable: x 1
4. User Manual: x 1

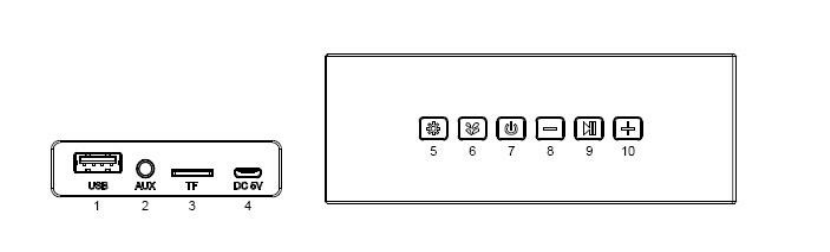

INSTRUCTION OF PRODUCT PANEL AND BACK PANEL
1. Port USB
2. Port Aux
3. Port micro card SD/TF
4. Port micro USB
5. Turn on/off the LED in mirror
6. Turn on/off the LED in fountain
7. ON/OFF/MODE
8. PREV/VOL -
9. Play/Pause
10. PREV/VOL+
OPERATIONS:
Connection Bluetooth Function
1. Make sure the Bluetooth speaker and Bluetooth® enabled device is within 1 meter
during pairing.
2. Long press “ON/OFF” button of product to turn on the unit, RGB LED on mirror
flashes quickly, and the speaker enter into Bluetooth mode.
3. Open your Bluetooth® enabled device, search for “BTS-569”, and select it to
connect the product to your Bluetooth® enabled device. The LED stop flash.
4. Depending on the Bluetooth® enabled device which you are trying to connect it to
the speaker, it may be necessary to type a pass code. Please type “0000” if you are
prompted by the device. Your Bluetooth® enabled device will confirm that the pairing
was completed, and remind you to accept the connection. Please respond YES to
connect the product to your Bluetooth® enabled device.
Note : When you turn on and switch the Bluetooth Speaker to Bluetooth Mode, it will
automatically connect to the paired Bluetooth® enable device if they are in the
required range.
Using Bluetooth Speaker
1. Playing Music of Bluetooth® enabled device
Connect your Bluetooth® Speaker to Bluetooth® enabled device following above
steps. After connected successfully, you can press “PLAY “on your Bluetooth®
device or “Play/Pause” button on the top side of product to play/pause the song. Long
press ”NEXT/VOL+“ or “PREV/VOL-“ to increase or decrease the volume. Short
press” ”NEXT/VOL+“ or “PREV/VOL-“ to select next or previous song.
Note : You may also adjust the volume from your Bluetooth® enabled device's
volume control.
2. Listen to TF card
Insert USB card / TF card into the USB / TF port of speaker, the unit will play the
song of USB card/TF card automatically. Short press “Play/Pause” button on the top
side of product to play/pause the song. Long press ”NEXT/VOL+“ or
“PREV/VOL-“ to increase or decrease the volume. Short press” ”NEXT/VOL+“ or
“PREV/VOL-“ to select next or previous song.
3. Listen to AUX function
Connect one end of AUX cable to the Bluetooth speaker and the other end to the
audio device. The speaker will play the song automatically. Short press “Play/Pause”
button on the top side of product to play/pause the song. Long
press ”NEXT/VOL+“ or “PREV/VOL-“ to increase or decrease the volume. Short
press” ”NEXT/VOL+“ or “PREV/VOL-“ to select next or previous song.
RGB LED light
Press the Light button, turn on/off RGB LED LIGHT.
Charging The Bluetooth® Speaker
Connect the micro USB jack of USB charging cable to the USB port of speaker, and
the other end to your computer’s USB port or an USB wall charger (not included),
The LED indicator will light up in RED, indicating the battery is being charged.
When the speaker is fully charged, the LED indicator will light off (Approx. 3 hours).
TECHNICAL SPECIFICATIONS
Bluetooth® version : V 4.2
Working distance : Up to 10 meters in open space
FM Frequency response : 87.5 Hz – 108Mhz
Output power : 2 x 3 W
Battery Capacity : 1800 mAh
Distortion : ≤ 1.0%
Microphone sensitivity : - 40 dB
Playback time : Music time 2 - 3 hours
Charging input power : DC 5 V (micro USB)
Unit size : L22.2XW8.0XH22.2CM
Note: Battery life & charging time may vary, based on usage & types of devices used.
The product design and specifications may be changed subject of without prior
notice!
FCC Statement
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help
This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions (1)this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
