XinHuaMei Electronics BTS600 BLUETOOTH SPEAKER User Manual

Shenzhen XinHuaMei Electronics Limited Company BLUETOOTH SPEAKER

User Manual

BLUETOOTH SPEAKER
INSTRUCTION MANUAL
Please read all instructions carefully and
retain for future reference
Getting Started
Remove the unit from the box.
Remove any packaging from the product
Please retain all packaging after you have checked and counted all the parts and the
contents against the list.
In the Box
Bluetooth speaker
AC/DC power adapter
Remote control
User manual
Features
Stream wireless music
Built-in FM radio
Multi-colored lights & water fountain dances to the beat of your music, creating stunning
visual effect
Connects to your Bluetooth enabled device
Built-in line in jack
DC adapter included to operate device
Remote control included
Safety instructions
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
Only use attachments/accessories specified by the manufacturer.
Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
Unplug this apparatus during lightning storms or when unused for long periods of time.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.
This equipment is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities or lack of experience or knowledge. They should be given
appropriate supervision and instructions to use the equipment by a person responsible for
their safety.
Do not leave the equipment unattended while connected to the power supply.
Never leave the equipment within reach of children.
Repairs to electrical appliances should only be performed by qualified personnel. Improper
repairs may place the user and/or equipment at serious risk.
This equipment is intend for household use only and should not be used for industrial or
commercial purposes.
Do not operate this appliance with a damaged plug or cord, after a malfunction or after being
dropped or damaged in any way.
Do not use this equipment for anything other than its intended use.
This equipment must be placed on a stable, heat resistant surface.
Do not push objects into any openings as damage to the equipment and/or electric shock
may occur.

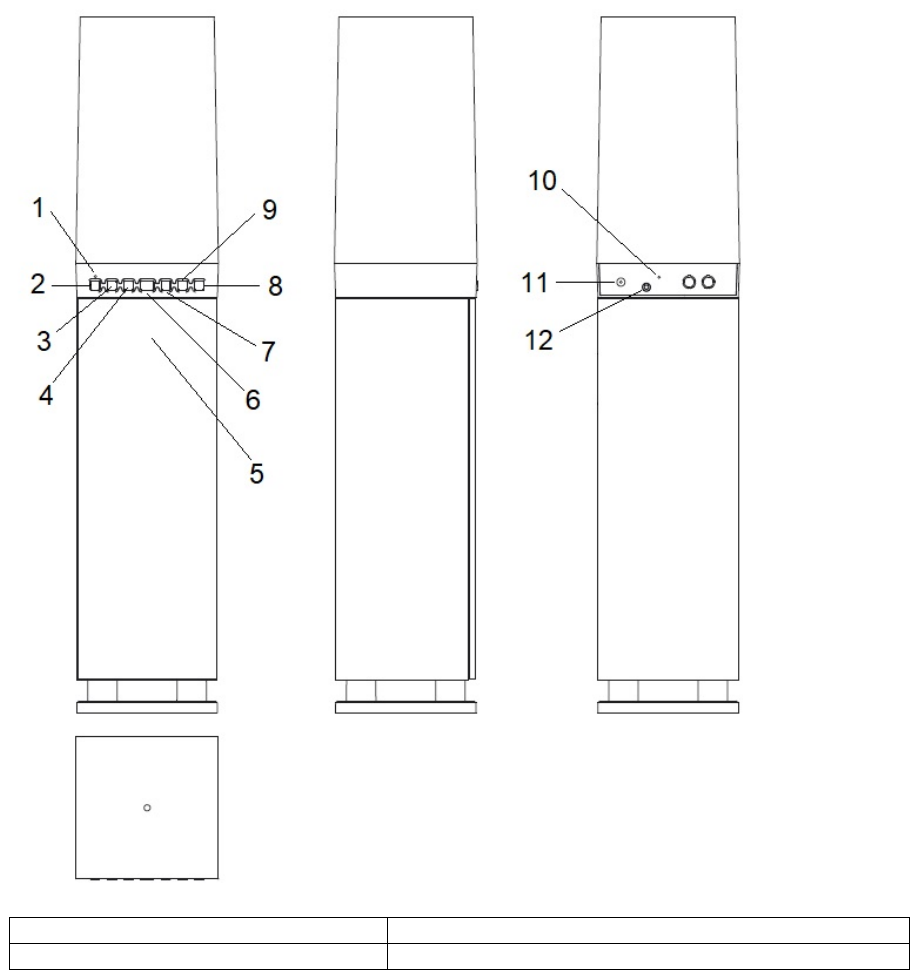

Description of Parts
(Main unit)
1. Power On Indicator
7. VOL Button
2. Power On/Off Button
8. Source/Water Dancing (with multi-colored
lights) Button
3. Previous FM Station/Track
9. VOL + Button
4. Next FM Station/Track
10. Antenna
5. Remote Sensor
11. DC Adapter Input Port
6. Play/Pause/FM Scan Button
12. Aux In Port
(Remote Control)
No
Function
Operation
1
Power On/Off Button
To Turn On/Off the speaker
2
Previous FM Station/Track
Short press the button to the FM station / track
3
VOL -
Press and hold the button will decrease the
volume
4
Source/Water Dancing (with
multi-colored lights) Button
Short press the button to change the playing
source, or press and hold the button to turn
on/off the Water Dancing (with multi-colored
lights)
5
Mute
Short press will off the sound and the next
press will resume the sound
6
Play/Pause/FM Scan Button
Short press will stop the music and the next
press will resume the music, or will search and
store all FM radio stations automatically
7
Next FM Station/Track
Short press the button to the next FM station /
track
8
VOL +
Press and hold the button will increase the
volume
Note: The buttons 2 and 7 are not workable when the product is operated by “AUX IN”.

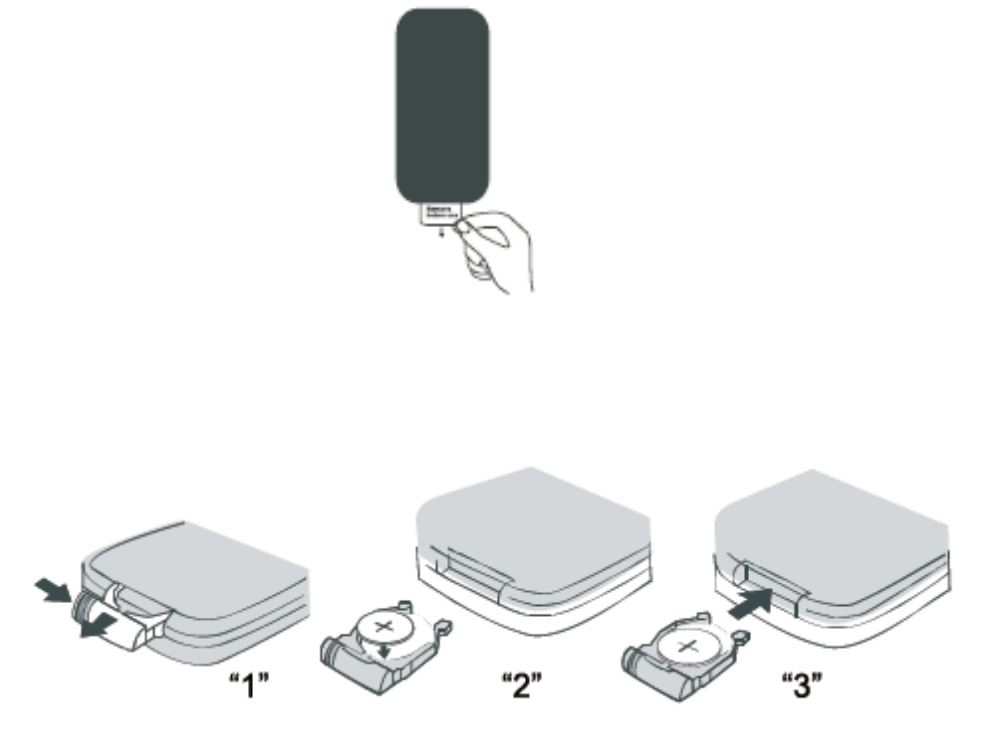

Battery Installation
In first time use, remove the insulation tab from the battery compartment of the Remote Control.
Remote Control includes the battery (1 CR2025 Lithium battery); when battery is drained,
replace battery as below:
1. Pull the battery tray out of the battery compartment of Remote Control.
2. Place new CR2025 button cell battery in the tray slot, as per the indicated polarity.
3. Close the battery tray.
Instructions for Use
Installation
Insert the pin from the supplied AC/DC adapter to DC Adapter Input Port on the rear of the unit.
Plug the AC/DC adapter to a wall power outlet (AC 100-240V 50/60Hz).
General Operation
1. P
ress and hold the Power On/Off Button of the unit for 2-3 seconds to turn on the
unit with blue LED light on.
2. P
ress the Source button repeatedly to select the playback source.
3. P
ress the VOL +/- buttons to adjust volume level.
4. P
ress the Mute button on the remote control to turn off the sound. Press it again to
turn it off.
5. I
f the unit is not used for a long period of time, turn off the unit and pull out the
plug.
Using Bluetooth
1. Keep your Tower Speaker and Bluetooth enabled device within 3 feet of each other
during the pairing process.
2. Press and hold the Power On/Off Button of the unit for 2-3 seconds to turn on the unit
with blue LED light on.
3. You would hear an indication tone.
4. Turn on the Bluetooth on your Mobile Phone or Tablet or Computer.
5. It will search for available Bluetooth devices.
6. Bluetooth Tower Speaker would appear as DANCING TOWER”, in the list of
searched devices. Select it from the available list of devices.
7. If required, enter the password ‘0000’ to confirm pairing.
8. Once paired successfully, you would hear another indication tone.
9. If you fail to pair it within a few seconds or you want to pair it with a new device, please
repeat the steps outlined above.
10. Select your favorite song at the Bluetooth source device and music would now stream
through the speaker.
Play Music from Bluetooth devices.
Make sure the Bluetooth connection between the unit and the device is active.
1. Press Play/Pause button to suspend momentarily the playing track. Press Play/Pause
button again to resume playing.
2. Press Next Track button to skip forward to the next track or Previous Track button to skip
backward to the previous track.
Note: The Bluetooth Tower Speaker will connect automatically with the last paired device when
its Bluetooth function is on.
Listen to the radio by auto search channel function
1. T
urn on the unit.
2. S
hort press Source button on the panel or remote control repeatedly until you hear FM
radio signal/station.
3. S
hort press the FM Scan button on the panel or remote control, then the unit will start to
search all available stations and store into the memory automatically.
To enhance radio reception ability:
FM: Fully unwind the antenna wire and extend it.
Using Aux-in source
1. T
urn on the unit.
2. P
lug one end of 3.5mm Aux cable (not included) to the Aux in port of the speaker, and the
other end of the cable to your device (e.g. iPod / iPad / MP3 player).
3. U
se your device’s controls for music playback.
Note: Once Aux cable is connected to the speaker in Bluetooth mode, music through the
Bluetooth will be stopped. Media can be controlled only through source devices, while playing
music in Auxiliary mode (except VOL+/- and/or Mute).
Water Dancing (with LED Lights) of speaker
While the unit is playing with water dancing (with multi-colored lights), press and hold the
Source/ Water Dancing (with multi-colored lights) Button on the unit or remote control can turn
on/off the flashing LED lights.
Specification
Bluetooth version : 4.2
Speaker output power : 2x3W
FM frequency range : 87.5 108MHz
Size : 21-1/2”(H) x 4-3/8”(W) x 4-3/8”(D)
Weight : 3 lb 2 oz
Power supply : AC/DC adapter (Input: AC 100-240V 50/60Hz 0.3A, Output: DC 5V
1.5A centre positive)
Bluetooth Range : 27 - 33 Feet
Troubleshooting
Problem
Possible Cause
Solution
Low sound level
Source (Tablet, Mobile Phone,
Laptop, etc.) volume too low.
Adjust source volume.
No sound at all.
Source (Tablet, Mobile Phone, and
Laptop.) turned off.
Speaker turned off.
Volume turned down source.
Media paused on source.
Turn the source on.
Turn the speaker on.
Adjust volume source.
Play media from source.
Cannot Pair
Bluetooth Disconnected
Turn OFF the Speaker; and then
Turn ON the speaker after about 30
seconds.
Keep your Bluetooth Speaker and
Bluetooth enabled device within 3
feet of each other during the pairing
process.
After a successful pairing, you would
hear another indication tone.
Care and Maintenance
Clean the unit with a soft, damp cloth. Never use chemicals or hard abrasives.
Keep this unit away from wet or damp surroundings.
FCC Instructions
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This product generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If the
product does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures :
- Reorient or relocate the receiving antenna.
- Increase the separation between the product and receiver.
- Connect the product into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) his device must accept
any interference received, including interference that may cause undesired operation.
Note: Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
