XinHuaMei Electronics BTSL6 BLUETOOTH SPEAKER User Manual

Shenzhen XinHuaMei Electronics Limited Company BLUETOOTH SPEAKER

User Manual

1

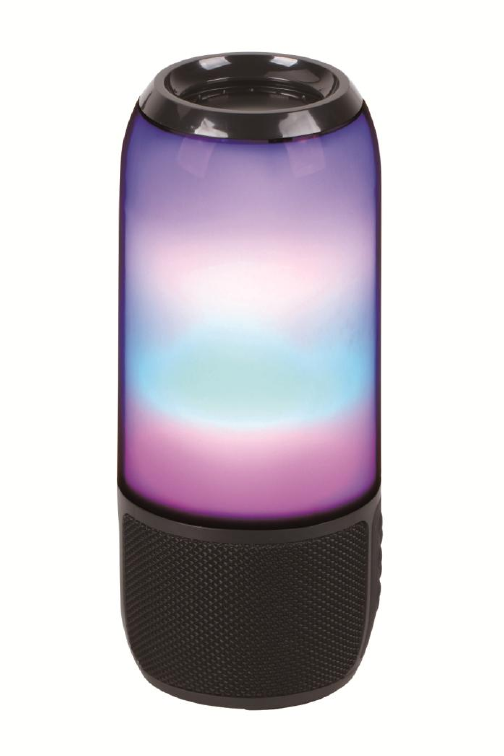

BLUETOOTH SPEAKER
BTS-L6
USER MANUAL
Please kindly read this user manual before using the product carefully, and keep it for future reference.
2
In the box
1. Bluetooth Speaker: x 1
2. Micro USB Charging Cable: x 1
3. 3.5mm Aux cable : x 1
4. User Manual: x 1
Description of Parts
1
ON/OFF Button
2
Mode Button
3
Next track/Volume Increase
4
Play/Pause/Phone Button
3
Charging the speaker
To charge the Bluetooth speaker, connect the supplied micro USB cable to the USB charging port and
the other end to your computer or USB charging device.
Before using it for the first time we recommend you charge the battery fully.
Pairing a speaker with phone / Bluetooth enabled device
1. Turn on the Bluetooth speaker.
2. Open Bluetooth function on your device and search for ”IP-L6”.
3. If required, enter the password ‘0000’ to confirm to finalize pairing.
4. Connect it with your Bluetooth enabled device
Button functions
5
LED button
6
Previous track/Volume Decrease
7
AUX-Input
8
Charging Port
9
TF playing
10
U disk playing
Press and hold the button to turn on/off the unit.
Press the Phone once to answer an incoming call.
Then short press the Phone button to end a call.
Press and hold the Phone button for 2 seconds to reject a call.
Press the button to pause a song while playing music, press again
to continue playing.
Mode: Switch between Bluetooth/ Aux/ TF card/USB playing/FM
radio
Press to disconnect Bluetooth from your phone, press again to re-
connect with your phone
Press and hold the button to increase the volume,
press shortly to next track
Press and hold the button to decrease the volume;
press shortly to previous track
4
Talking using the Bluetooth Speaker
Please ensure that you are paired with the Bluetooth Speaker to use the below functions.
Function
Operation
Answer Incoming
Call
Incoming Call
Reject incoming call
Incoming Call
End Call
Incoming Call
Increase Volume
During a call
Decrease Volume
During a call
Redial last number
Standby mode
and connected
to a device
Play AUX-input music
1. Turn ON the speaker
2. Connect the AUX cable (included) to AUX input jack, you would hear one indication tone, indicating
the Bluetooth speaker is entering into AUX mode.
3. Select your favourite song at the Bluetooth device and music would now stream through Bluetooth
speaker.
Note: In Aux mode, besides the volume increase/decrease, you will need to control through your source
device.
Play TF card or U disk music
1. Turn ON the speaker.
2. Insert the TF card or U disk preloaded with songs, into the TF card or U disk slot of the speaker
respectively. The speaker would automatically start playing songs from TF card or U disk.
Note: TF card or U disk are not included.
3. Short press Next track/Volume Increase button to skip Track Forward .
4. Short press Previous track/Volume Decrease button to skip Track Backwards.
5
5. Short press the Play/Pause button to pause/play the track.
6.Long press Next track/Volume Increase to increase the volume or Previous track/Volume Decrease to
decrease the volume.
Using the Glow LED light
1. Turn on the speaker, the led light will flash from up to down.
2. Short press light button, led light will glow against the beat of music.
3. Short press light button again to enter into black-white color mode.
4. Short press light button again to turn off the led light.
Specifications
Bluetooth® Version : 4.2
Working distance : Up to 10 meters in open space
Speaker output : 3W*2
FM frequency range : 87.5-108MHz
Power Input : DC 5V
Play time : about 5-6 hours
Charging Time : about 3 -4 hours
Built-In Rechargeable Battery : 3.7V /1800mAh
Micro SD (TF) Card/USB Drive : Support up to 32GB
(Note: Battery life & charging time may vary based on usage, types of devices connected & wireless
distance.)
6
FCC Instructions
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
