User Manual

BLUETOOTH® SPEAKER
USER MANUAL
YM-308

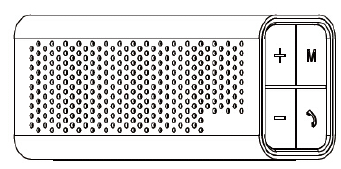

*The picture is only provided for reference. Please refer to the actual
unit!
GETTING STARTED
To make a correct use of the functions and know well about the
system connection and usage, please read this user's manual carefully
before using the product. Keep this manual in a safe place for future
reference.
INTRODUCTION
This Bluetooth® speaker will allow you to listen to your music
wirelessly from your mobile phone, tablet or other Bluetooth® enabled
device. It delivers powerful and clear sound. The built-in microphone
allows you to answer calls from mobile phone.
SAFETY INSTRUCTIONS
Do not insert any metal object in the device.
To avoid a static charge, do not use the device in an extremely dry
climate.
Do not attempt to open or repair the device yourself.
Avoid heavy shocks to the product and do not drop it.
Batteries (battery pack or batteries installed) shall not be exposed to
excessive heat such as sunshine, fire or the like.

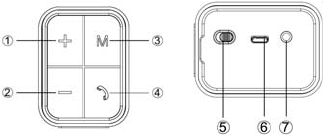

INTRODUCTION OF PRODUCT PANEL AND
FUNCTIONS
1. Vol +/NEXT
2. Vol-/PREV
3. Mode button : Switch between
Bluetooth and AUX playing
4. Play/Pause/Phone.
5. On/Off switch
6. Micro USB charging port
7. AUX input
Box content
YM-308 Speaker
Micro USB charging cable
AUX input cable
User's manual
CHARGING THE BLUETOOTH® SPEAKER
Connect the micro USB port of the USB charging cable into the USB
port on the side of the speaker. Connect the other end of the USB
cable to your computers USB port or an USB wall charger (not
included)
The LED indicator turns RED, indicating the battery is being charged.
The LED indicator will turn off when the speaker is fully
charged. (Approximately 3 hours).
PAIRING THE SPEAKER WITH A BLUETOOTH®
ENABLED DEVICE
Keep your Bluetooth® Speaker and Bluetooth® enabled device within
1 meter of each other during the pairing process.
Turn on your Bluetooth® Speaker. The LED light on the front of the
speaker flashes. Your speaker is now in Pairing Mode.
Set your Bluetooth® enabled device to search for Bluetooth® devices.
When the device finds the YM-308, select it. Select “Pair” to connect
the Bluetooth® Speaker to your bluetooth enabled device.
Depending on which device you are trying to connect the speaker to, it
may be necessary to enter a passcode. Enter passcode “0000” if
prompted by the device.
Your Bluetooth® enabled device will confirm that the pairing was
completed, and prompt you to accept the connection. Please respond
YES to connect the Bluetooth® Speaker to your Bluetooth® enabled
device.
Note : Once the speaker is paired and connected to your Bluetooth®
device, it will automatically connect the next time as long as the
Bluetooth® on your device is turned on.
USING YOUR BLUETOOTH® SPEAKER
PLAYING MUSIC
To enjoy wireless music on your Bluetooth® Speaker, make sure you
are connected to a Bluetooth® enabled device. Once connected you
can press PLAY on your Bluetooth® device or you can press the
Phone button on the YM-308 speaker. Once the music is
playing, you can control it from the control buttons of the YM-308
speaker.
Volume control
Press and hold the “+” or the “-” button to adjust the volume in the
desired level.
Note : You may also adjust the volume from your Bluetooth® enabled
device's volume control.
Play/Pause
Press the Phone button to pause the music. To resume the music, press
this button again.
Changing Songs (with devices that have AVRCP Bluetooth® profile)
Short press the “+” button to go to the next song.
Short press the “-” button to go to the previous song.
TELEPHONE BUTTON FUNCTIONS
Note : You may answer & end call while listening to music. The music
will stop when a call is answered, and will restart when the call is
ended.
Answer / End a call :
To answer a call, short press the Phone button.
To end a call, short press the Phone button again.
To redial the last number called : Press the Phone button twice
quickly. The last number called will be redialed.
TECHNICAL SPECIFICATIONS
Bluetooth® version: 2.1+EDR
Working distance: up to 10 meters in open space
Supporting Profiles: AVRCP, A2DP, Hands-Free Profile (HFP)
and Headset Profile (HSP)
Frequency range: 2.4-2.48Ghz
Output power: 2x3Watts
Distortion: 1.0%
Frequency response: 180Hz – 20Khz
Hands-free function for answering calls from mobile
Microphone sensitivity: -40dB
Playback time: Music time 4-6 hours, talk time 8-10 hours
Charging input power: DC 5V (micro USB)
Charging time: Approx 3 hours
Unit size: 145 x 45 x 60 mm
Unit weight: approx. 320g.
Note: Battery life & charging time may vary, based on usage & types
of devices used.
The product design and specifications may be changed without prior
notice!
FCC Statement:
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio
ortelevision reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to
which the receiver is connected.
This device complies with part 15 of the FCC rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Note: Modifications to this product will void the user’s authority to operate this equipment.
