XinHuaMei Electronics YM-335 Bluetooth Speaker User Manual YM 335 1
Shenzhen XinHuaMei Electronics Limited Company Bluetooth Speaker YM 335 1
User Manual
WATER RESISTANT
BLUETOOTH SPEAKER
YM-335
INSTRUCTION MANUAL
1
PLEASE READ ALL INSTRUCTIONS
CAREFULLY AND RETAIN FOR FUTURE USE
Co
ngratulations on getting your hands on the water
Resistant Bluetooth Speaker YM-335 ! This is
going to be your favorite, go anywhere
multi-function music player ever. Not only is the a
portable Bluetooth speaker, but it’s also a portable
power bank recharging station for your smart
devices utilizing a 5V USB power port. This
speaker was specifically designed for those music
lovers on the go who need to keep the party going
along with a little recharge. Whether you are by
the pool, on the beach, or at a tailgate party in
everywhere, you have the perfect party solution
with you. The YM-335 is the just the right size &
power to keep you going. Even when you are
jamming the tunes via the wireless Bluetooth from
up to 30 feet away, you can take a call with the
hands-free function, or just change music tracks if
you like.There is a built in microphone so it also
2
doubles as a conference phone just in case you
have to pretend you are at the office & not the
beach!
Things Not To Do
We don’t want to sound bossy and we are not your
mother... but here are some common sense things
the Lawyer said we should tell you: Do not throw
or submerge in water- This is “splash-proof” and
not intended for your next SCUBA dive. Sure this
is for the outdoors but never leave electronics in
direct sunlight, near open flame, or on the BBQ
grill. Never open unit up. Internal battery & high
tech electronics are sophisticated things and
should not be tampered with. Even if you can fix a
toaster or you have a fancy degree, internal parts
are NOT user serviceable. Sorry Einstein! This
type of abuse is never covered under warranty
ever. Read on...
Things To Do
All internal battery electronics should be fully
charged before use. Plug this thing in when you
3
first unwrap it until it is fully charged, then unplug.
This will prolong battery life. Use unit until
recharge is required. This will keep the battery
happy and ensure its long life. Enjoy your new
speaker & turn it up! Just keep in mind moderate
levels prolong listening time and reduce distortion
caused by over cranking the volumes on both your
smart device and the Bluetooth speaker. Make
sure you read the rest of the “operational” control
instructions for each function below. Now go enjoy
some tunes and take a well-deserved tropical
vacation with your YM-335 Audio speaker !
In the Box
Bluetooth Speaker
USB Charging Cable
AUX 3.5 cable
Multi Connector Recharge cable
User manual
YM-335 Controls & Features
Your Bluetooth device must support AVRCP in
4
order to operate remote functions (AVRCP is fancy
electronic talk for Audio/Video Remote Control
Profile)
Bluetooth Pairing
Select“YM-335” in your Bluetooth menu on your smart
device.

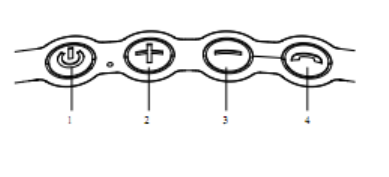

1: Power On/Off:
Hold power button down for 3 seconds.
2: Previous track/ increase Volume :
Short press “+” to play previous track, Long press
“+”to increase Volume
3:Next track/ Decrease Volume :
Short press “-” to play next track, Long press “-” to
5
decrease Volume
4:Answer Call or Pause Music:
Press the “phone“ button to pause music or take a
call.

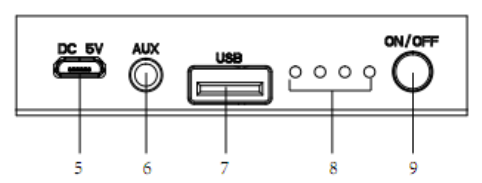

5: Charge YM-335
Charge via the Micro USB & included cable from any
USB power port. Battery indicator lights (4) on rear
show charge status.
6:AUX In Mode
Automatically switches to 3.5mm when cable is
plugged in.
6
7: Charge Other Devices
Simply plug devices in USB port on rear for DC 5V
500mA/
8: Power supply indicator lights:
1 LED indicator light display: with 25% power
supply
2 LED indicator lights display: with 50% power
supply
3 LED indicator lights display: with 75% power
supply
4 LED indicator lights display: with full power supply
9: Switch on/off
7
YM-335 SPEC
Bluetooth Version 4.0
Bluetooth Profiles HSP, HFP, A2DP, AVRCP
Bluetooth Operating
Distance
Approx. 10 meters (33 feet)
Output Power 20 watts
Music Playback Time 5-10 Hours
Water Resistant IPX4
Charging Input DC 5V Micro USB
Charging Output DC 5V USB
Charge Time 6-9 Hours
Power Bank 8000mAh Rechargeable
Note:
Battery life & charging time may vary, based on
usage & types of devices used. Abuse is never
covered under warranty and no one likes a party
pooper.
8
FCC Statement:
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will
not occur in a particular installation. If this equipment
does cause harmful interference to radio ortelevision
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and receiver.
• Connect the equipment to an outlet on a circuit
different from that to which the receiver is connected.
9
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
Note: Modifications to this product will void the
user’s authority to operate this equipment.
