XinHuaMei Electronics YM-S1 Bluetooth speaker with selfie function User Manual
Shenzhen XinHuaMei Electronics Limited Company Bluetooth speaker with selfie function
User manual
1

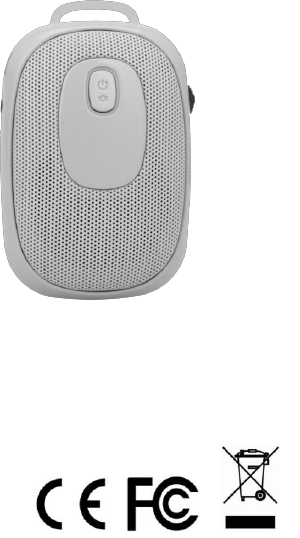

Bluetooth speaker
YM-S1
INSTRUCTION MANUAL
PLEASE READ ALL INSTRUCTIONS CAREFULLY
AND RETAIN FOR FUTURE USE
2
2
Getting started
Remove the Bluetooth speaker & accessories from the box.
Remove all packaging from the Bluetooth speaker.
Place the packaging inside the box to either store or dispose of
safely.
In the Box
Bluetooth Speaker
USB Charging Cable
Instruction Manual
Hanger wire
AUX cable
Features
With Hanger wire
With Selfie function
Enjoy music by micro sd card or Bluetooth or Aux
Built-in mic for hands free phone calls
Volume Control
Media Control (pause/play, previous track/next track)
3
3
Safety Instructions
Read this manual carefully before putting the appliance into
operation and keep this manual for future reference.
Keep the device away from heat, direct sunlight and sharp
edges.
Keep the device away from naked flames.
Do not insert any metal object into the device. Risk of short
circuit!
To avoid a static charge, do not use the device in an extremely
dry climate.
Do not repair the unit yourself but contact an authorized
specialist.
Do not submerge in water.
4
4
Description of buttons
1
5
5
2
3
4
5
6
7
6
6
1: Power on/off button, Selfie button
2: Play/pause, phone pick up/hang up button---short
press, Long press for “M” function, Transfer micro sd card
model & Bluetooth mod or AUX mode
3: Short rotate-PREV, Long Rotate- Volume down
4: Short rotate- NEXT, Long rotate- Volume up
5. Micro sd card
6. Aux jack
7. USB charging jack
Charging Instructions
This Bluetooth speaker comes with a built in rechargeable battery.
Before using it for the first time we recommend you charge the
battery fully.
1. Connect the USB cable to the micro USB port on the unit.
2. Connect the other end of the USB cable to a USB port on a PC
or an AC/DC adapter. The red LED turns on indicating
the battery is being charged. When the battery is
fully charged, the LED will turn off.
7
7
Bluetooth pairing
1. Turn on the Bluetooth speaker.
2. Turn on your Bluetooth enabled device and
activate the Bluetooth function.
3. Search for the Bluetooth device, “YM-S1” will
show up.
4. Pair your Bluetooth enabled device with “YM-S1”.
If a password is needed, type in “0000”. After the
“YM-S1” is paired with your device, connect it to
your device.
Tips:
Once the speaker is paired and connected to your
Bluetooth device, it automatically connects the next
time as long as the Bluetooth on your device is on.
Selfie function
Once the speaker is connect with your mobile phone,
you can use it take photos. It is very convenient and
popular.
Just enjoy it for music and Selfie.
8
8
Specifications
Bluetooth version
3.0+EDR
Bluetooth profiles
HSP, HFP, A2DP and
AVRCP
Bluetooth range
10 meters (equal to 33 feet)
Frequency range
2.402-2.48GHz
Audio Output power
3 watts
Frequency response
100Hz-20kHz
Distortion
≤1%
Microphone sensitivity
-40db
Playback time
4 hours
Charging input power
DC 5V
Charging time
Approx 3 hours
Unit size
52*30*82 mm
Unit weight
Approx. 75g
Battery Capacity
300mAH
Note: Battery life & charging time may vary, based on
usage & types of devices used.
9
9
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two
conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that may
cause undesired operation.
Changes or modifications not expressly approved by the
party responsible for compliance could
void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable
protection against harmful interference in a residential
10
10
installation. This equipment generates, uses
instructions, may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the
equipment off and on, the user is encouraged to try to
correct the interference by one or more of
the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and
receiver.
-- Connect the equipment into an outlet on a circuit
11
11
different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV
technician for help.
IC Warnings:
This device complies with Industry Canada’s
licence-exempt RSSs
Operation is subject to the following two conditions:
(1) This device may not cause interference and (2) this
device must accept any interference, including
interference that may cause undesired operation of the
device.
Le présent appareil est conforme aux CNR d'Industrie
Canada applicables aux appareils radio exempts de
licence.L'exploitation est autorisée aux deux conditions
suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage
12
12
radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
