Smart Switch
User manual
Product Introduction
Smart switch is designed on basis of ZigBee wireless technology.
Relying on its cute and delicate design, it can be easily embedded into
the light device and at the bottom of switch box. With this smart switch
embedded, the traditional light device can be upgraded to be smart one.
Basic Parameters
Input voltage：AC 100~240V
50/60Hz
Rated power：≤1000W
(For capacitive load, the voltage
should be reduced properly to
use)
Working Temp.：-5℃~+50℃
Working Humidity：≤95%RH
(No condensation)
Communication mode：ZigBee
Communication distance:
open place >30m
Size: 50*48*22mm
FAQ
1.Fail to add device.
Make sure that before the switch box networking, the gateway is already set
by the APP to the networking state
2.How to replace the hub/ gateway that has been connected to the switch
box?
To replace the hub/ gateway that has been connected, we can simply
follow “Connect hub/gateway” to activate networking for re-connection, or
delete the switch box in app, and then re-operate “Connect hub/gateway”
NDCK-00
Model No.
ALL
Model & Function
Function
configuration
*Products will be a little different due to different configur ation; th e image is fo r your refe rence
only.
Optional is indicating light, and if without panel switch, you don't need to connect panel switch
either.
*this product is only for indoor use, and should be used together with
gateway (please refer to “connect gateway”)
Reset button
long press 3s
ZigBee networking
connecting the AC zero line
connecting the AC live wire
Output of controlled live wire
Panel switch interface
VCC port (red)
I/O port (blue)
GND port (black)
AC wire interface
1) Long press the RESET
button for 3s
1. Refer to the user manual of hub/gateway, activate the function of “add sub-device” and enter
networking status.
2. Activate the networking mode of the smart switch box: you can select any one of the following 4
operating modes to activate.
1) Long press the RESET button for 3s
2) Over 6 times power on & off within 3 seconds
3) Operate the weak current switch over 6 cycles
4) Over 6 times power on & off within 12 seconds when in load
3. After activated the networking, the prompts will show that you've succeeded in adding the
device, and then you can use it.

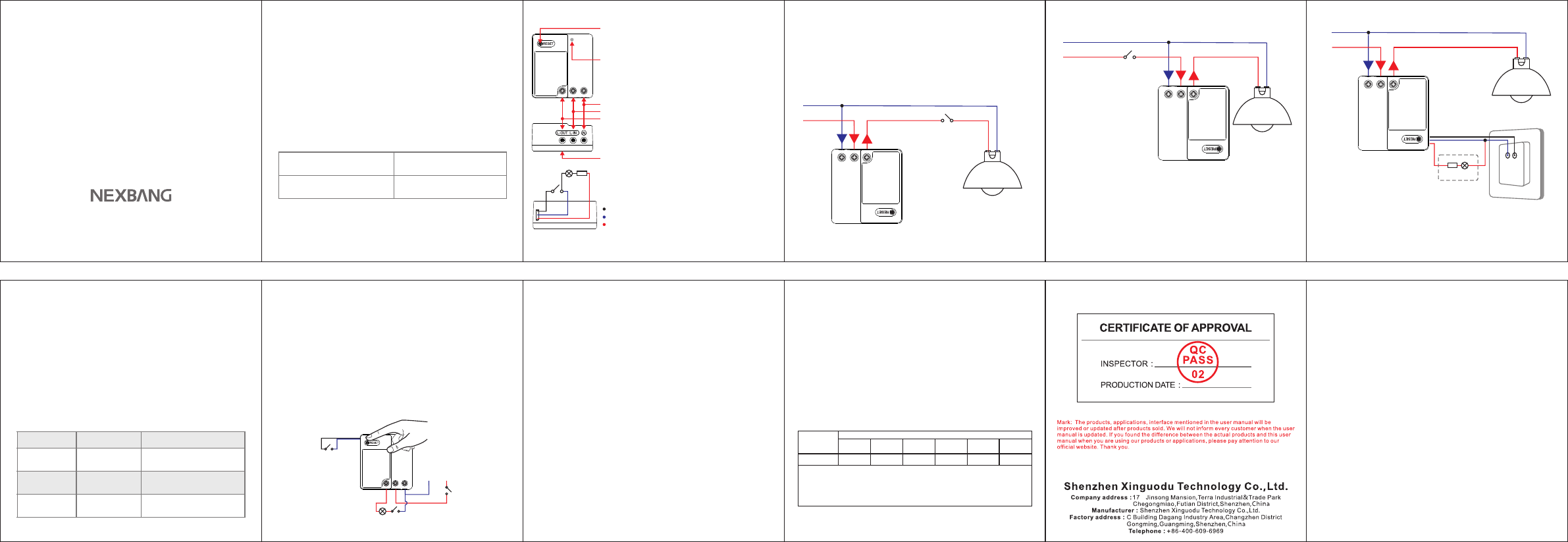

Power off the AC, re-wiring as shown in the diagram below
The back of the product has a magnet, which can be directly adsorbed on the lamp base or iron
products.
Installation
Connect with the hub/gateway
1，Wire connection mode :
After panel switch is connected to the weak current interface of the switch box, we can put the
switch box at the bottom box to achieve simultaneous control of the lamps through both of the
panel switch and the switch box.
*Before installation, make sure that there is enough space in the bottom box to place the smart
switch box. Depending on the panel, the wiring name will be different; simply connect the black
and blue wire to the panel switch terminal would be fine. Optional is indicator, if there is no panel
switch, we could just ignore it. To ensure that the indicator light can be lit, R -the resistor value
should be 560-680 ohm Ω.
N
L-IN
2) Over 6 times power on &
off within 3 seconds
GND I/OVCC
panel switch
R
④
You can press the "RESET" button three times in a row and then press the
button in 12s to select the mode you want to use according to the
status of the indicator light
Switch box default status setting
When first power on or off and then call on again, the live wire controlled by
switch box has three following power modes to choose from:
Default on (factory default): if power off and then call, if will maintain
“power on”
Default off: if power off and then call, it will maintain “power off”
Memory mode: if power off and then call, it will return to the status (on or
off), prior to power off
"RESET"
AC
AC live wire
AC zero line
N
L-IN
L-OUT
Lamp
Just take the lamp for example, as illustrated
above panel switch connecting outside of the
lamp and switch circuit, other lamps or electrical
appliances please refer to the illustration.
The first wiring mode:
Lamp live wire
Lamp zero line
Mode
On mode
Off mode
Memory mode
Indicator status
Status indicator
Always on
Slow flicker
Quick flicker
Mode description
Keep the AC on
Keep the AC off
Return to the status
prior to power off
3) Operate the weak current
switch over 6 cycles
N
L-IN
L-OUT
N
N
L-IN
L-OUT
L1 L2
R
N
* indicator
*Suggestion is to set the smart switch as the connecting mode by default. Under this 2nd connection
mode, the front physical switch can independently control the lamps.
*Note: Be sure to power off before connecting to avoid electric shock.
Original mechanical
switch (rear)
magnet
4) Over 6 times power on & off within 12 seconds when in load
*Bind the remote control button
.
Bind the remote control button: you can easily control the device without
your mobile phone
After smart switch is in normal usage, either switch box power off and then
call on, or APP press 6 times within 3s, as long as one way is within 30s, you
can short press the remote control button to reset and bind, after bound, you
can remote control the smart box.
To replace or delete the bound, simply short press the remote control button
to reset and cancel the bound, and then if re-operation, it could also be bound
again.
*Remote control button is optional
3.
:
APP/Unable to control switch via APP/remote control/panel switch.
Please check if the following occurs
1)AC is power off or been cut off by the original front mechanical switch.
2)whether the hub/gateway is working properly (For details, please refer to
hub/gateway user manual).
3)Whether the device or hub/gateway position moved, so the hub/gateway
Zigbee signal cannot effectively cover the location of the device.
4)whether the device connection is loose.
5)If the above situation has been excluded, and it still cannot work, you can
press the RESET button for more than 6s to restore the factory
settings and then re-connected to the hub/ gateway.
L-OUT
AC
AC live wire
AC zero line
Lamp live wire
Lamp zero line
Original mechanical
switch (rear)
Lamp
Just take the lamp for example, as illustrated
above panel switch connecting between the
lamp and switch, other lamps or electrical
appliances please refer to the illustration.
The second wiring mode:
AC
AC live wire
AC zero line
Lamp live wire
Lamp zero line
Lamp
The third wiring mode:
VCC port (red)
I/O port (blue)
GND port (black)
* indicator
panel switch
