• Observe temperature and humidity restrictions—Refer to the
Specifi cations table.
• Leave slack in the cable—Leave at least 10 ft. (3 m) of slack in
the communication and power cable to allow for adjustments in
the location of the Exciter.
• No user adjustments to internal circuitry—Tampering may
cause component or system failure, or both, and will void the
warranty.
Important Reference Documents
• Hugs Installation Manual (p/n 805I0301)
• Hugs System Manual (p/n 805U1601)
• Exciter Tester Sheet (p/n 806U6301)
Specifi cations
Materials Required
• Exciter. Includes door contact, L-bracket, adhesive mount, cable
ties, and bumpons.
• Facility fl oor plan indicating Exciter position and installation
orientation, and network wiring path.
• 105 Ω network terminator (p/n 805A2401) required to terminate
network. Two provided with each Controller (p/n 805A2201) or
Laptop Controller (p/n 805A2202).
• Mounting hardware, all installations:
• 4 Hollow wall anchors, for No. 10 wood screws
• 4 No. 10 x 1” stainless steel wood screws
• Additional mounting hardware, L-bracket installations:
• 4 No. 10 - 3/32” x 3/4” Philips/Pan head screws
• 4 Stainless steel hex nuts
• 4 No. 10 stainless steel fl at washers
• Optional: Passive infrared sensor for open doorways where door
contact cannot be used. Refer to Chapter 2 of the Hugs Instal-
lation Manual (p/n 805I0301) for important limitations on
using PIR sensors.
Installation Considerations
• Avoid metal—Do not install the Exciter behind or within 2
inches (50 mm) of metal objects, including metal doors. These
objects block the detection area of the Exciter.
• Use door contacts—Door contacts are required to minimize
nuisance alarms.
• Confi gure nearby Exciters as slaves—Exciters installed within
30 feet (9 m) of each other must be confi gured as master and
slave. Up to four slaves may be connected to one master.
Materials Required
Specifi cations
Installation Considerations
Important Reference Documents
Warranty
VeriChip’s products are warranted against defects in materials and work-
manship and shall perform in accordance with published specifi cations
for a period of one year. VeriChip reserves the right to change specifi ca-
tions without notice.
Limitation of Liability
This Product has been designed for use to assist in the prevention of
infant abduction and/or mother/infant mismatching.
The range, accuracy, function and performance of this Product may
vary from the published specifi cations due to many factors, including,
without limitation, site impairments from structural effects, metal objects
in the vicinity, placement of the receiver and transmitter, interference
from other electrical devices, atmospheric effects, installation, and
maintenance. There may be other factors, which also affect performance
of this Product.
VeriChip does not guarantee that this Product will detect 100% of infant
abductions and/or mother/infant mismatches. VeriChip does not guar-
antee that this Product will not return false reports of infant abductions
and/or mother/infant mismatches.
Monthly testing and maintenance of this Product, as described in the
Product documentation, is essential to verify the system is operating
correctly and to ensure that the probability of detecting an alarm and/or
locating the transmitter are maximized.
The failure to undertake regular testing and maintenance will increase
the risk of system failure and failure to detect infant abductions and/or
mother/infant mismatches. The failure to undertake regular testing and
maintenance will increase the risk of false reports of infant abductions
and/or mother/infant mismatches.
VeriChip hereby disclaims all warranties, express or implied, arising out
of or in connection with any of its Products of the use or performance
thereof, including but not limited to, where allowable by law, all other
implied warranties or conditions of merchantable quality and fi tness for
a particular purpose and those arising by statute or otherwise in law or
from a course of dealing or usage of trade.
VeriChip’s liability to you or anyone claiming through or on behalf of
you with respect to any claim or loss arising out of the use or misuse of
VeriChip’s Product, defective products or materials, improper installa-
tion or maintenance of VeriChip’s Product or products or the system
in which they are incorporated, or alleged to have resulted from an act
or omission of VeriChip or any person, negligent or otherwise, shall be
limited to:
a) the repair or replacement of defective Product or materials supplied
by VeriChip during the warranty period as set out in the Product
documentation; or, at the option of VeriChip,
b) refund of the purchase price of the Product supplied by VeriChip.
In no event shall VeriChip be liable for general, specifi c, indirect, con-
sequential, incidental, exemplary or punitive damages or any losses or
expenses suffered by you or anyone else, whether or not VeriChip, or
its employees, offi cers, agents, resellers or installers has been informed
of the risk of such loss or expense and whether or not such losses or
expenses were foreseeable.
Statements
United States—Federal Communication Commission (FCC)
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communica-
tions. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct
the interference at his own expense.
Warning: Changes or modifi cations not expressly approved by VeriChip
could void the user’s authority to operate the equipment.
Canada—Industry Canada
The term “IC:” before the certifi cation/registration number only signifi es
that Industry Canada technical specifi cations were met.
European Union—CE declaration
VeriChip hereby declares that this radio frequency receiver is in compli-
ance with the essential requirements and other relevant provisions of
Directive 1999/5/EC.
Service and Status Lights
The Exciter has a service light and status light, which may be used to
help diagnose problems in its operation. The service light is located
beside the wire terminals, and the status light is located on the
outside of the Exciter.
Service Light
Off Normal operation.
Momentary on Service Pin pressed.
Flashing every 0.5
seconds
Unconfi gured Exciter. Run Auto Confi gure.
On Hardware failure. Download fi rmware to the Exciter
from the LonWorks Device Installation dialog box.
Status Light
Red Alarm or Device Error.
Check for alarms and clear when security measures
have been implemented. If condition persists,
check operation of Exciter. Check the Exciter each
time before moving to the next step.
1 Press the Service Pin located on the front panel
of the Exciter. An alarm should appear in the
software. If not, check the wiring between the
Exciter and the Controller PC.
2 Click on the Test button in the LonWorks Devices
Installation dialog box. This checks the commu-
nications between the Exciter and the Controller.
If a warning message appears, continue with the
following steps.
3 Download fi rmware to the Exciter from the Lon-
Works Device Installation dialog box.
4 Reconfi gure the Exciter. Run Auto Confi gure in
the LonWorks Device Installation dialog box.
5 Reset the Exciter. Select the Exciter in the Lon-
Works Device Installation dialog box and click
the Reset button.
6 Use the Download Neuron command to update
the fi rmware.
If the above procedures do not fi x the Exciter,
replace it and check the replacement for coverage.
Green Armed.
Yellow • Sign In / Sign Out in progress
• Exciter permanently bypassed by the Controller
PC. These Exciterss do not activate alarms but do
send a message to the Controller PC indicating a
tag is within its detection area.
Flashing steady for
1 second, off for two
seconds repeatedly
(any color)
Wink command currently operating. The Controller
PC is in the process of identifying this Exciter on the
LonWorks network.
Frequency 125 kHz
Supply Voltage 12-30 VDC
Current Draw 200 mA @ 24 VDC, 500 mA maximum
Relay Outputs (2) 30 VDC, 1 A, NO or NC
Detection Radius Adjustable, up to 8.5 ft. (2.6 m)
Communications LonWorks two wire
Temperature Operating: 32°F to 120°F (0°C to 49°C)
Storage: -40°F to 176°F (-40°C to 80°C)
Humidity 0-85% RH @ 70°F (21°C), non-condensing
Dimensions Approximately 14.2 x 4.9 x 2 in. (360 x 124 x 50 mm)
Weight Approximately 18.7 oz. (530 g)
Part Number 806A6101

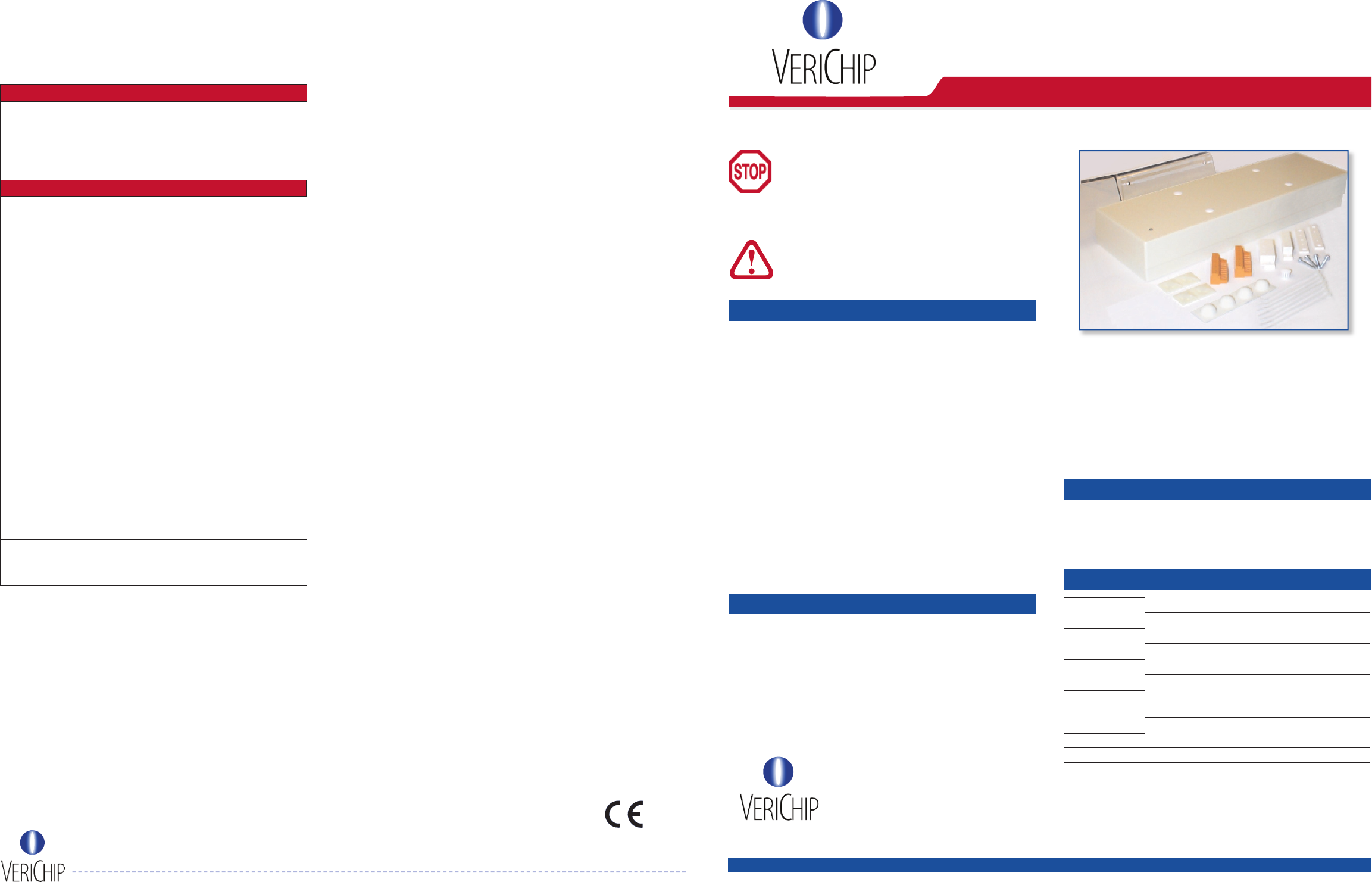

Exciter Installation Guide
Have
you:
• Pulled network and power cable?
• Resolved power supply requirements?
• Selected the location for the Exciter?
If you answered, “No,” to any of these questions, refer to the Hugs
Installation Manual before installing.
Read these instructions thoroughly
before installing the Exciter. Faulty installation can
lead to system failure.
© 2005 VeriChip Corporation. All Rights Reserved.
Hugs
and the Hugs logo are registered
trademarks of VeriChip Corporation Inc. in North America. VeriChip and the VeriChip log
are
trademarks of
VeriChip Corporation
.
All other company and product names may be trademarks of
their respective companies. Printed in Canada. August 2005
.
806U6101
Rev 01.
309 Legget Drive, Ottawa, ON K2K 3A3, Canada
Telephone: 1-866-559-6275 International: +1 613-592-6997 Facsimile: 1-613-592-4296
Web Site: www.verichipcorp.com
Certifi ed to the ISO 9001 Quality Standard
• All Exciters in master/slave group are connected in series through
their M/S and ground terminals using 20 AWG wire, as shown
in the wiring diagrams.
For slave Exciters using their own ID numbers, the following is also
required, as shown in Figure 3:
• The mag lock (or elevator hold) outputs are wired to the relays
on both the master and the slave to ensure that all doors in the
vicinity will lock when a tag is present.
• Door contacts are wired together in series to the door contact
input on both the master and the slave. The result is that when
any door in a master/slave confi guration is open, the system
behaves as if all doors are open: an alarm will occur if a tag is at
a door in the vicinity of a door that is open.
Final Steps
Do not supply power to the Exciter or any other network
device until all connections are complete.
Once all devices are installed, power up the Exciter and other devices.
In the Hugs system software, run Auto Confi gure to install the new
devices, and then confi gure them for operation.
The coverage area of each Exciter must also be checked.
Refer to the Hugs Installation Manual (p/n 805I0301) for
detailed information on how to complete these steps.
Installing the Exciter
• Ensure that the power supply and network are turned
off to prevent electrical shock or damage to equip-
ment.
• Touch your hand to ground to discharge any electro-
static charge before handling the Exciter.

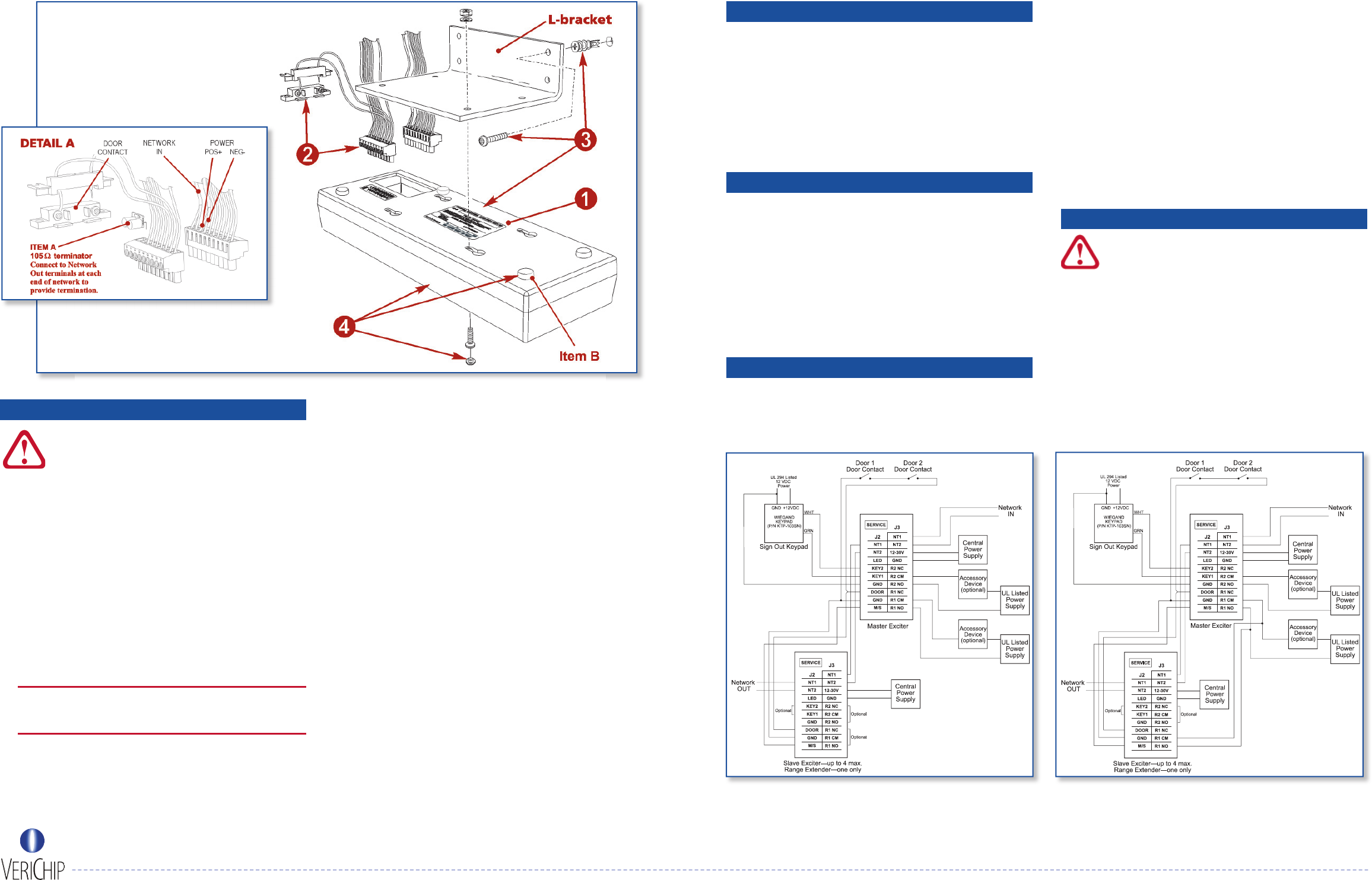

The steps below correspond to the numbers in Figure 1.
1 Locate and record the LonWorks identifi cation number onto the
facility fl oor plan indicating the Exciter’s position and network
wiring path. Use the tear-away sticker on the Exciter’s Neuron
ID label.
2 Install the supplied door contact or PIR sensor according to the
manufacturer’s instructions and connect it to the terminal, as
shown in the wiring diagrams. Connect the LonWorks Network
IN, Network OUT, and Power Supply to the terminal blocks,
as shown in the wiring diagrams. If the Exciter is at the end of
the network, then terminate the network segment with Item A
(105 Ω terminator). Refer to Detail A, and insert the terminals
into the connectors on the Exciter.
Note: If installing keypads or accessory devices, or if using a
master/slave confi guration, proceed to the relevant sections on
the opposite page, and then return to steps 3 and 4.
3 Ensure that the status LED of the Exciter will be visible. Refer to
the facility fl oor plan for location, and using the Exciter L-bracket
as a template mark the location of the four mounting holes. Drill
the holes.
Installing Keypads
A single keypad may be connected to an Exciter to enable an infant
to be signed out at the door. The keypad also releases the Exciter’s
relays, for example, to disengage a magnetic door lock. Hugs uses
the Wiegand-standard KTP-103SN keypad, which offers individual
passwords for each user.
Refer to the Hugs Installation Manual and the manufacturer’s instruc-
tions. Keypads may be connected to either master or slave Exciter.
Note: The keypad requires a separate 12 VDC power supply.
Installing Accessory Devices
Each Exciter has two 30 VDC, 1 Amp, NO or NC relays for con-
trolling accessory devices, such as magnetic door locks and high
output alarms.
Refer to the Hugs Installation Manual and the manufacturer’s instruc-
tions for installation procedures. Devices may be connected to either
master or slave Exciters; connect devices to the master Exciter’s relays
fi rst, then connect additional devices to the slave Exciter, starting
with the closest.
Note: Accessory devices require their own power supply.
Master/Slave Installations
Master and slave Exciters are installed and connected to the Lon-
Works network in the same way as other Exciters, with the following
additions:
4 Mount the Exciter.
L-bracket installations
A Install in the four mounting holes:
4 hollow wall anchors
B Attach the Exciter to the L-bracket, using:
4 No. 10 stainless steel machine screws
4 stainless steel hex nuts
4 No. 10 stainless steel fl at washers
C Attach the assembled Exciter and L-bracket to the previously
installed hollow wall anchors, using:
4 No. 10 wood screws x 1 in. long
Surface mount installations
A Install in the four mounting holes:
4 hollow wall anchors
B Insert into the wall anchors, leaving 3/8 in. (0.5 cm) of the
shaft exposed:
4 No. 10 wood screws x 1 in. long
C If using surface wire conduit, attach the four supplied
bumpons (Item B in Figure 1) to the underside of the
Exciter.
D Align the Exciter with the mounting screws, and while lightly
pressing, slide until it is securely in place. Insert the supplied
screw caps.
Installation is complete. Proceed to Final Steps below. Figure 2: Wiring for an Exciter and Range Extender (or a slave
Exciter that uses the ID of the master)
Figure 3: Wiring for a master Exciter and a slave Exciter that uses
its own ID number
Figure 1: Physical connections for the Exciter
Installing the Exciter
Installing Accessory Devices
Final Steps
Master/Slave Installations
Installing Keypads
