Service Light
The service light is located beside the secondary antenna,
and indicates the current status of the PS Receiver, as
shown in the table below.
LED state Meaning
O Normal operation.
Flashing every
0.5 sec.
Uncongured PS Receiver. Run Auto Congure in the PS
System Manager.
On Hardware failure. Download rmware to the PS Receiver
in the PS System Manager.
Patient Security Receiver Installation Guide
Important!
Have you:
• Pulled network and power cable?
• Resolved power supply requirements?
• Selected the location for the PS Receiver?
If you answered “No” to any of these questions, refer to
the installation manual before installing.
Read these instructions thoroughly before
installing the PS Receiver. Faulty installation
can lead to system failure.
Materials Required
• Patient Security Receiver (p/n 816A0101); includes
antennas, Caddy clip and mounting hardware.
• Facility floor plan indicating PS Receiver position and
network wiring path.
• 105 Ω network terminator (p/n 805A2401) required
to terminate network. Two provided with each Patient
Security Server.
Specications

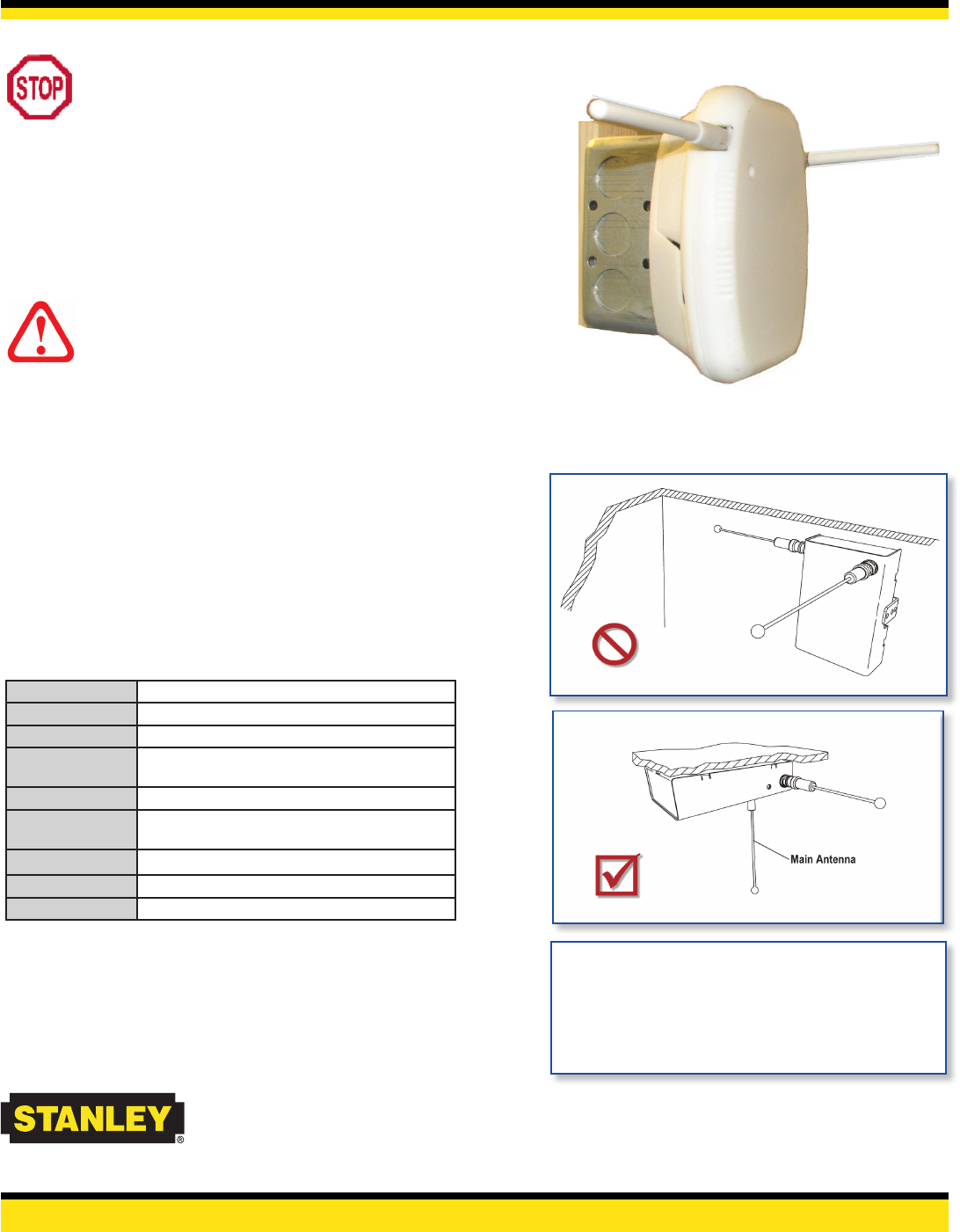

• Main antenna should be pointing downward
into an area free of metal obstructions.
• Ensure that the PS Receiver is at least 2 ft.
(60 cm) from metal objects, such as framing
or air ducts.
Certied to the ISO 9001 Quality Standard
PS Receiver Orientation
Part Number: 816A0101
Frequency 217 MHz
Supply Voltage 12-30 VDC
Current Draw 60 mA @ 12 / 24 VDC, 100 mA max.
Detection Radius 50 ft. (15 m) overlapping PS Receivers
35 ft. (11 m) stand-alone PS Receivers
Communications LonWorks two wire
Temperature Operating: 32°F to 120°F (0°C to 49°C)
Storage: -22° to 158° F (-30° to 70°C)
Humidity 0-85% RH @ 70°F (21°C), non-condensing
Dimensions Approximately 5.2 x 3.3 x 1.5 in. (133 x 84 x 38 mm)
Weight Approximately 9.2 oz. (260 g)
Certied to the ISO 9001 Quality Standard
Patient Security Receiver Installation Guide
Healthcare Solutions
309 Legget Drive Ottawa, ON K2K 3A3 Canada
Telephone: 1.866.559.6275 International: +1 (613) 592.6997 Facsimile: (613) 592.4296
Web site: www.stanleyhealthcare.com
© 2009 Xmark Corporation. All Rights Reserved.
Printed in Canada. January 2009. 981-806004-000 Rev A.
the PS Receiver.
4 Install the Mounting Plate.
Referring to the facility floor plan, decide the position of the
PS Receiver. Do not place near metal objects and structural
frames. Ensure that the service light will be visible and that
space is allowed for the antennas. Unless there is a conduit
tray, run the cables at least 1 ft. (30 cm) up and away from
the PS Receiver.
Install the mounting plate using one of the following
methods.
A Fasten to a suspended ceiling guy wire, using:
• 1 multi-function Caddy clip
• 2 machine screws
• 2 hex nuts
• 2 lock washers, OR
B Install directly to a ceiling or a wall using:
• 2 wood screws
• 2 hollow wall anchors, OR
C Install to a receptacle box, using:
• 2 machine screws
5 Install the PS Receiver to the Mounting Plate.
Plug the wired terminal block into the PS Receiver and
install the PS Receiver onto the Mounting Plate, using the
screw removed in Step 2. DO NOT place excess network
and power supply wires inside the PS Receiver case.
6 Attach the two antennas.
The antennas have a protective covering to prevent them
from touching metal. For best coverage, ensure that they
are at least 2 ft. (60 cm) from metal objects. Do not encase,
wrap, or otherwise cover the antennas.
Installation is complete. Proceed to Final Steps.
Final Steps
Do not supply power to the PS Receiver or any
other network device until all connections are
complete.
Once all devices are installed, power up the PS Receiver
and other devices. In the PS Ssytem Manager, run Auto
Configure to install the new devices, and then configure
them for operation.
The coverage area of the PS Receiver must also be checked.
Installation Considerations
• Position the PS Receiver beneath ceiling obstruc-
tions—When mounting above drop ceilings, mount the
PS Receiver below metal duct work, pipes and foil-backed
ceiling tiles.
• Route cables up and away from the PS Receiver—
When the cable is not in conduit, keep it at least 1 ft.
(30 cm) from the PS Receiver.
• Install the PS Receiver temporarily until testing is
complete—Fastenings should be secure enough that
the PS Receiver can be permanently mounted without
disturbing its orientation.
• Point the secondary antenna into a clear area,
away from metal objects—The main antenna always
points downwards, but the orientation of the second-
ary antenna is adjusted to suit site conditions. Point
it away from metal objects, and make sure it is not
running parallel to cabling in the ceiling.
• Observe temperature and humidity restrictions—
Refer to the Specifications table.
• Leave slack in the cable—Leave at least 10 ft. (3 m) of
slack in the communication and power cable to allow
for adjustments in the location of the PS Receiver.
• No user adjustments to internal circuitry—Tamper-
ing may cause component or system failure, or both,
and will void the warranty.
Installing the PS Receiver
• Ensure that the power supply and network
are turned off to prevent electrical shock or
damage to equipment.
• Touch your hand to ground to discharge
any electrostatic charge before handling the
PS Receiver.
1 Record the LonWorks Neuron ID number.
Locate and record the LonWorks Neuron ID number onto
the facility floor plan indicating the PS Receiver’s position
and network wiring path. Affix one of the supplied Neuron
ID labels on the floor plan and affix the other on the PS
Receiver in a visible location.
2 Remove the Mounting Plate from the PS Receiver.
If the PS Receiver is to be installed to a receptacle box, pass
the network and power supply wires through the hole in
the Mounting Plate. (For other installations, the wires are
passed through the slot on the side of the PS Receiver case
in Step 5.)
3 Wire the terminal block.
Connect the LonWorks Network IN, Network OUT, and
Power Supply to the terminals. If the PS Receiver is at the end of
the network, then terminate the network segment with Item A
(105 Ω terminator). Ensure there is at least 10 ft. (3 m)
of slack in the cable to allow the possible repositioning of
Patient Security Receiver Installation Guide

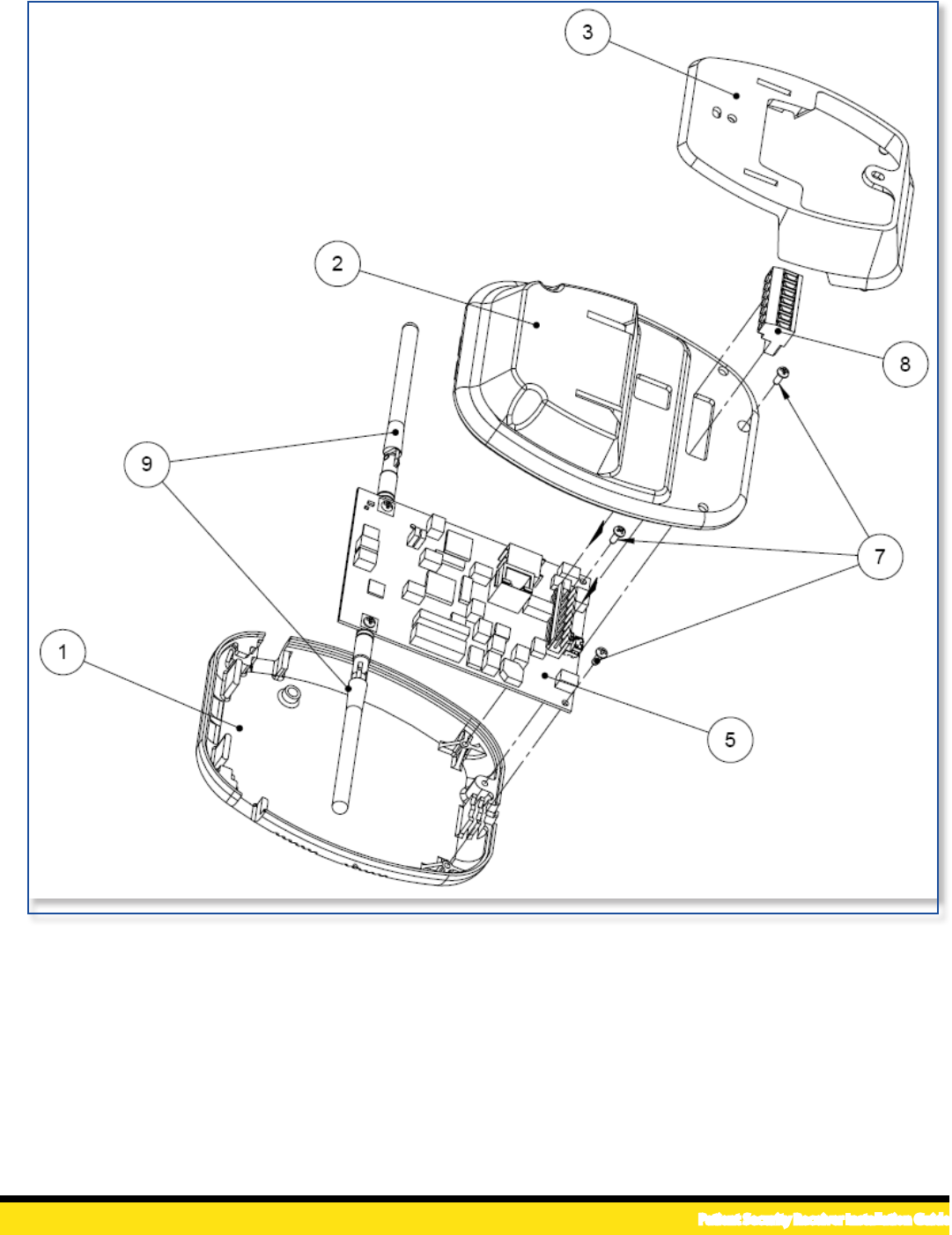

Figure 1: Physical Connections for the PS Receiver
Patient Security Receiver Installation Guide
