Xplore Technologies of America TIRFID7960 MC-C5/MC-F5 User Manual C5v F5v Tablet PC User s Guide
Xplore Technologies Corp of America MC-C5/MC-F5 C5v F5v Tablet PC User s Guide
Contents
- 1. Users Manual 1
- 2. Users Manual 2
Users Manual 1
C5v/F5v Tablet PC
Model CFT-003
User’s Guide
© 2011 Motion Computing, Inc. All rights reserved.
This document contains information protected by
copyright. No part of this document may be
reproduced in any form without written consent from
Motion.
The information in this document is provided “as is”
and is subject to change without notice. Motion is not
liable for errors or omissions in this document.
Motion, Motion Computing, Speak Anywhere, View
Anywhere, and QuickNav are trademarks or registered
trademarks of Motion Computing, Inc. in the U.S.A.
and other countries.
Acrobat is a registered trademark of Adobe Systems
Incorporated.
Bluetooth is a registered trademark owned by the
Bluetooth SIG, Inc., U.S.A. and licensed to Motion
Computing, Inc.
Intel, Intel Atom, Core, vPro, and Centrino are
trademarks or registered trademarks of Intel
Corporation or its subsidiaries in the United States and
other countries.
Computrace is a registered trademark of Absolute
Software Corp.
Knowles and IntelliSonic are trademarks or
registeredtrademarks of Knowles Acoustics, Inc.
OmniPass is a trademark of Softex, Inc.
Realtek is a trademark of Realtek Semiconductor
Corporation.
Microsoft, Windows, and Windows Journal are
trademarks or registered trademarks of Microsoft
Corporation in the United States and/or other
countries.
Qualcomm, Gobi, and Gobi 3000 are trademarks or
registered trademarks of Qualcomm Incorporated.
SigmaTel is a registered trademark and Universal Jacks
is a trademark of SigmaTel Corporation.
Wi-Fi is a registered trademark of the Wi-Fi Alliance.
HDMI, the HDMI logo, and High-Definition Multimedia
Interface are trademarks of HDMI Licensing LLC in the
United States and other countries.
Insyde and InsydeH20 are trademarks of Insyde
Software Corporation.
End users may not loan, rent, lease, lend, or otherwise
transfer the CDs or DVDs provided for recovery
purposes to another user, except as permitted in the
End User License Agreement for such product.
Motion Computing, Inc. has made every effort to
identify trademarked properties and owners on this
page. All brands and product names used in this
document are for identification purposes only and
may be trademarks or registered trademarks of their
respective companies.
The warranties for Motion products are set forth in the
express limited warranty statements accompanying
such products. Nothing in this document constitutes
an additional warranty.
The Motion Computing products and services may be
covered by one or more patent-protected inventions.
Additional patents may also be pending. For more
information, see
www.motioncomputing.com/info/patents.asp.
The end user may access only one operating system
language version.
L'utilisateur final ne peut accéder qu'à une seule
version linguistique du système d'exploitation.
Der Endbenutzer darf nur auf eine Sprachversion des
Betriebssystems zugreifen.
De eindgebruiker heeft slechts toegang tot één
taalversie van het besturingssysteem.
L'utente finale può accedere a una sola lingua del
sistema operativo.
El usuario final sólo podrá acceder a una versión de
idioma del sistema operativo.
Loppukäyttäjä voi käyttää vain yhtä
käyttöjärjestelmän kieliversiota.
Användaren har endast tillgång till en språkversion av
operativsystemet.
Slutbrugeren har kun adgang til ét af
operativsystemets sprogversioner.
Sluttbruker kan aksessere kun én av
operativsystemets språkversjoner.
O utilizador final pode alcançar somente uma versão
de língua do sistema de exploração.
O usuário final pode acessar apenas uma versão de
idioma do sistema operacional.
Model CFT-003
PN 024-02-0207 Revision A04
Contents iii
Contents
Chapter 1 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Optional features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Mobile broadband with GPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Touchscreen Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
View Anywhere display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Other optional features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

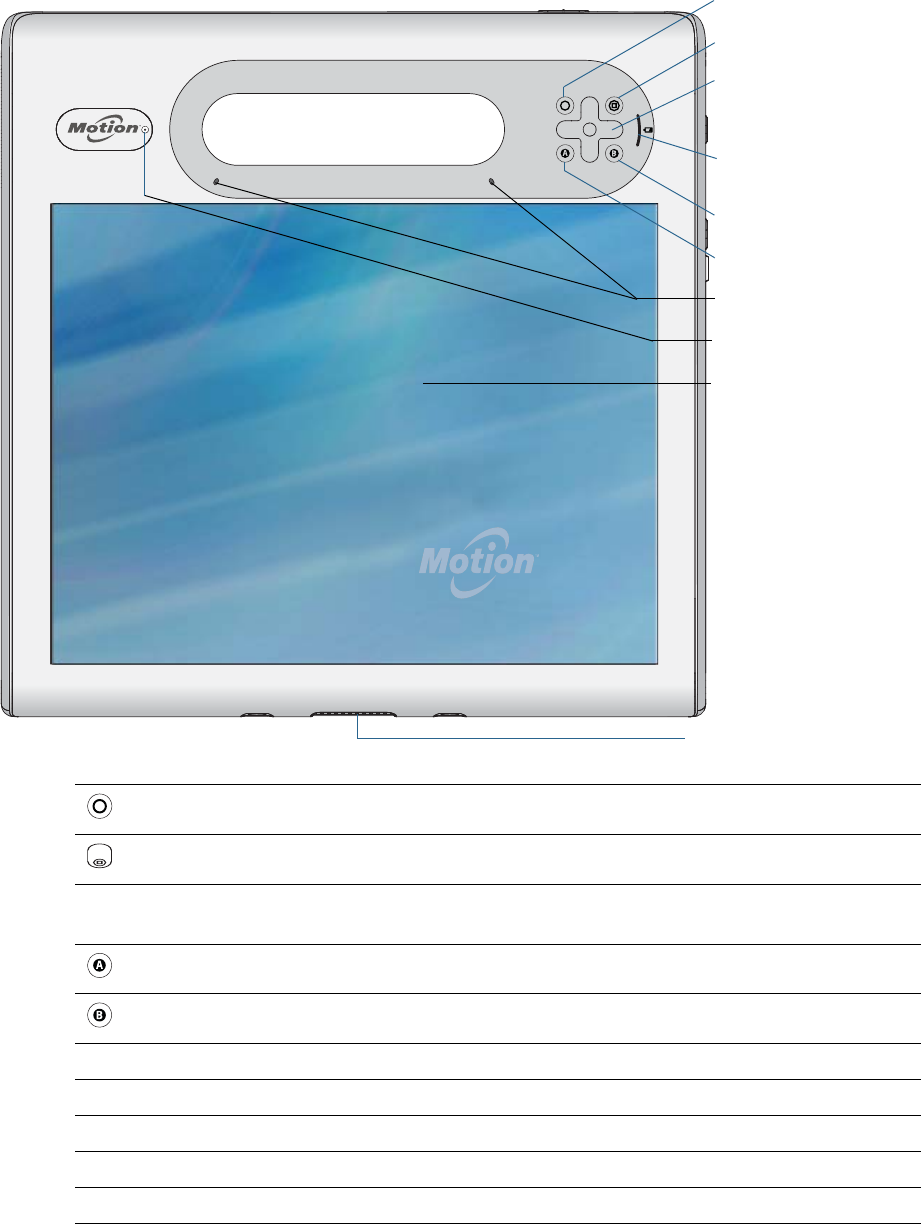

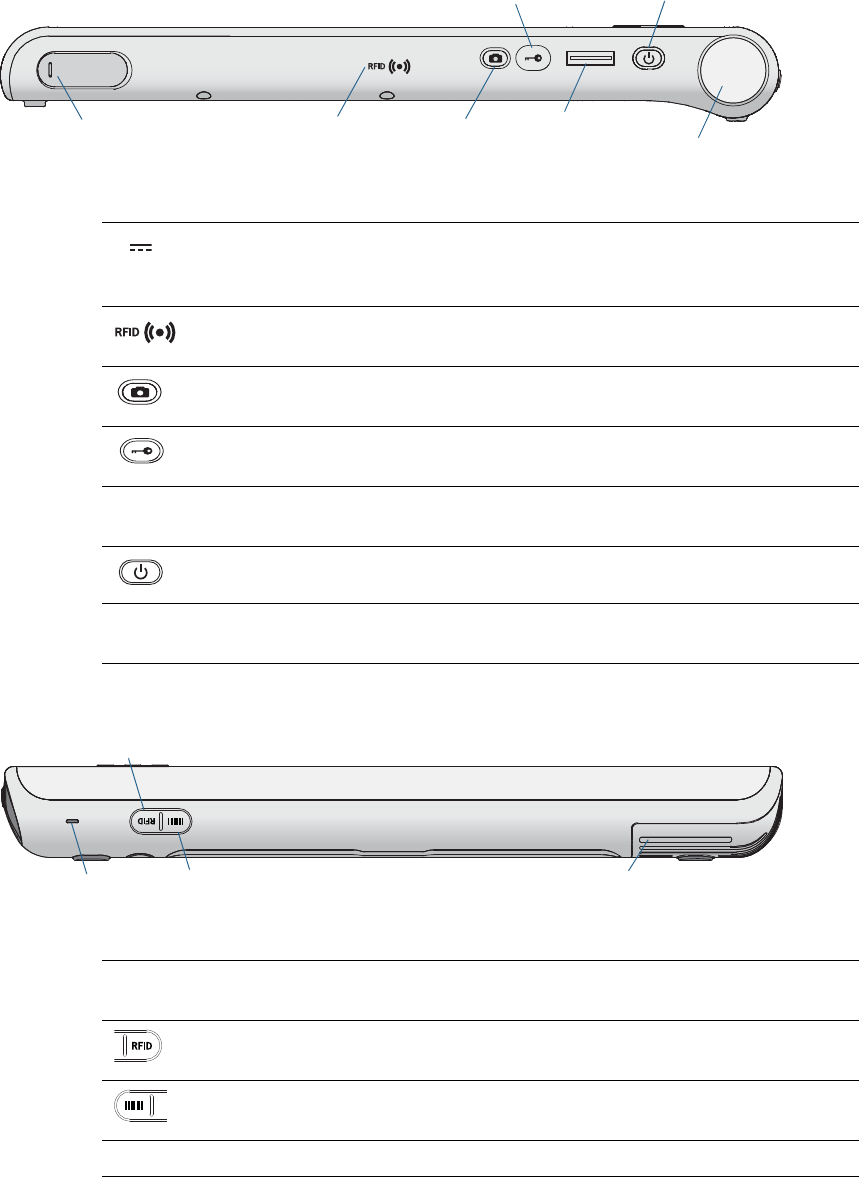

Overview of the C5v/F5v. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

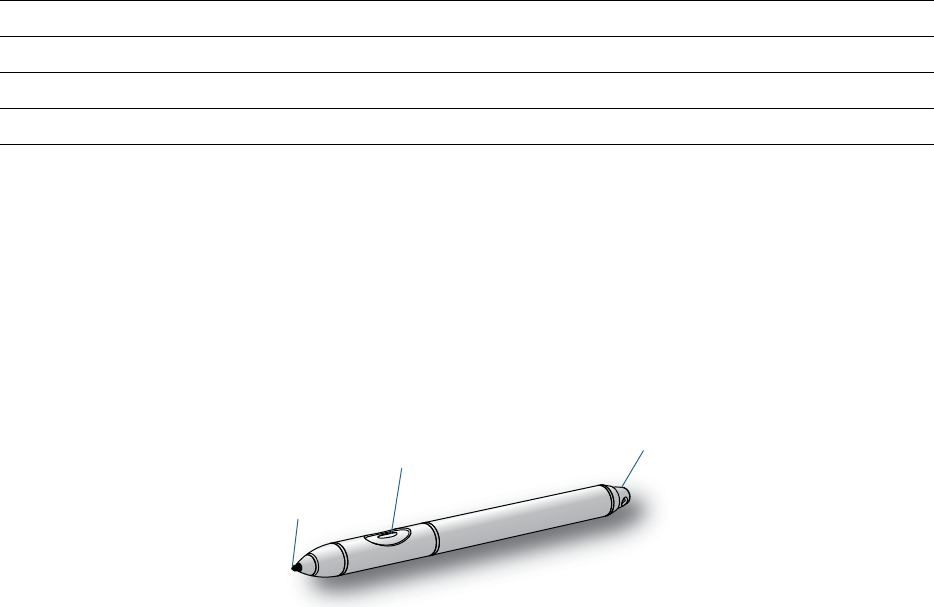

Pen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Where to begin with your C5v/F5v . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

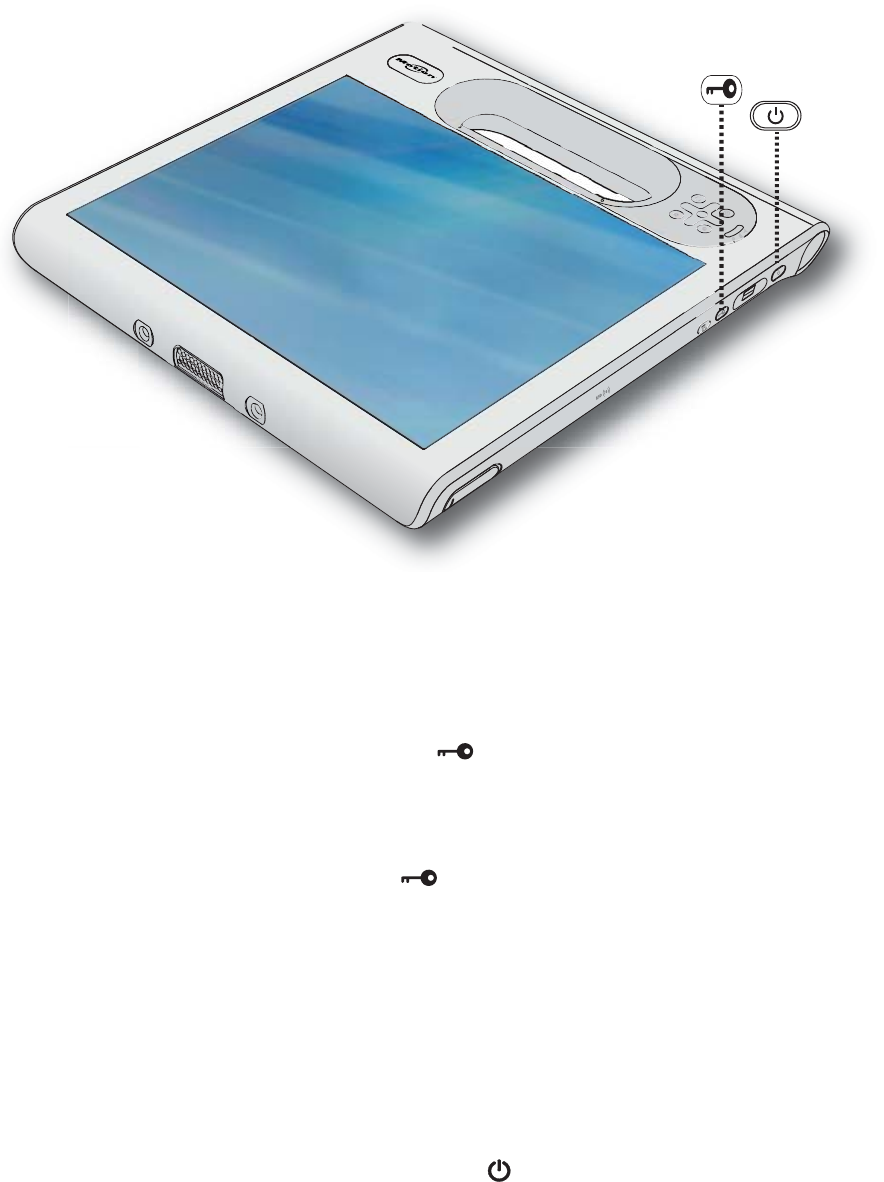

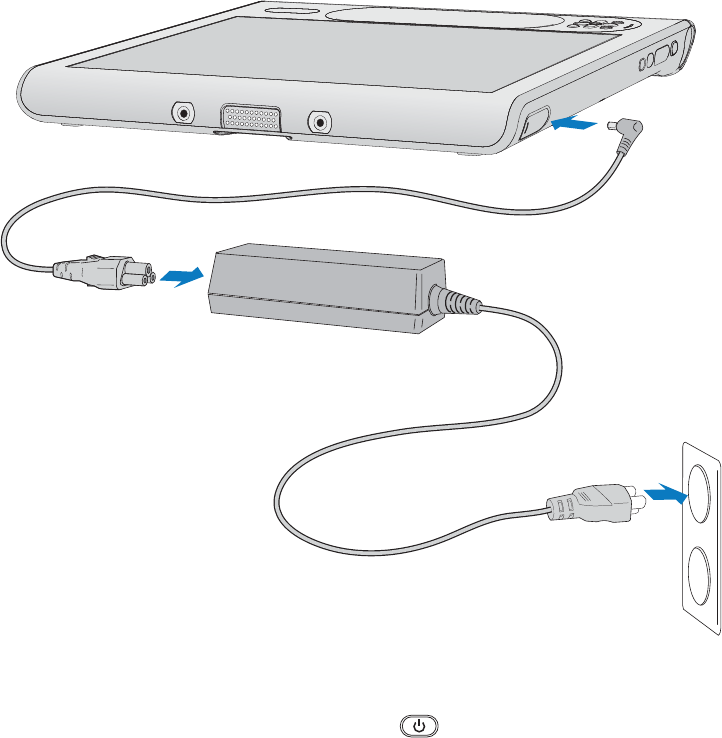

Step 1: Power up the tablet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Step 2: Connect to a wireless network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Step 3: Get familiar with your C5v/F5v Tablet PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Step 4: When you take a break . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Optional setup tasks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Create a recovery image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Attach the pen tether . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Connect the tablet to a docking station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Connect the tablet to a display monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
For more information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Chapter 2 Using your C5v/F5v . . . . . . . . . . . . . . . . . . . . . .17
Introducing the C5v/F5v desktop and applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Changing the taskbar. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Using the Motion Dashboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Accessing Motion tools from Windows notification area . . . . . . . . . . . . . . . . . . . . . . . . . 20
Using touch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Calibrate touch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
How multiple-touch works fingers for gestures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Changing to one-tap open for touch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Configuring touch input mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Adjusting touch settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Adjusting pen settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Adjusting tablet PC settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Entering text and handwriting recognition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Opening and closing the input panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Docking or floating the input panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Entering numbers with numbers pad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Entering special keys with the extended keyboard. . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Using the handwriting recognition program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

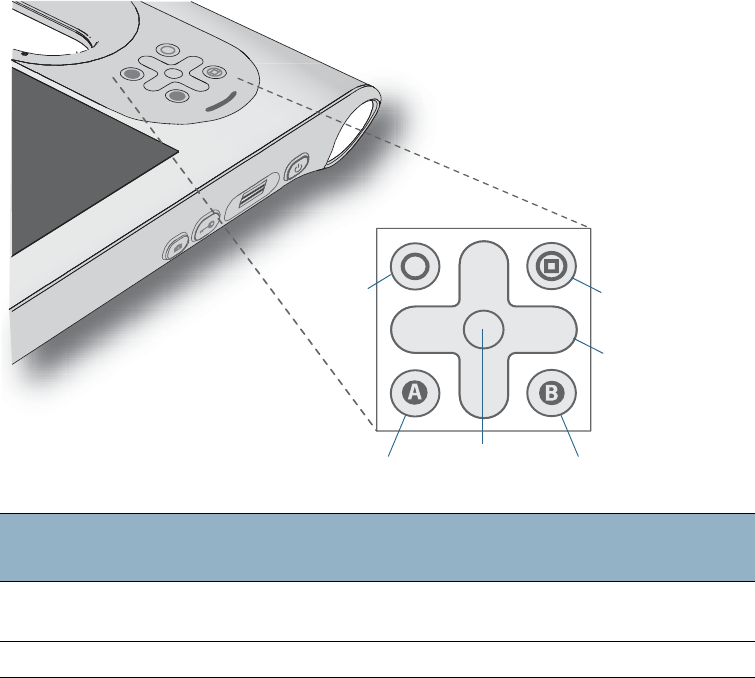

Using front panel buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Configuring front panel buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
iv Contents
Setting display options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Adjusting the display brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Rotating the display orientation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Enabling or disabling automatic rotation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Setting up an external display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Using the built-in microphones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Using speech recognition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Setting up speech recognition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Using dictation and voice commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Using the cameras (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Using the web camera. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Using the documentation camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

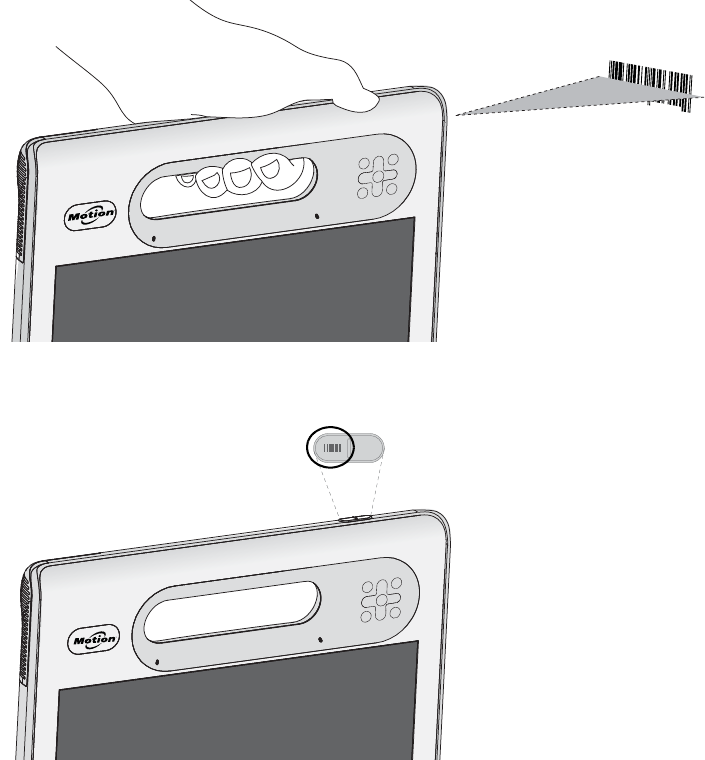

Using the barcode scanner (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Supported barcode types. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Barcode scanner tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Using the RFID reader (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Using the battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

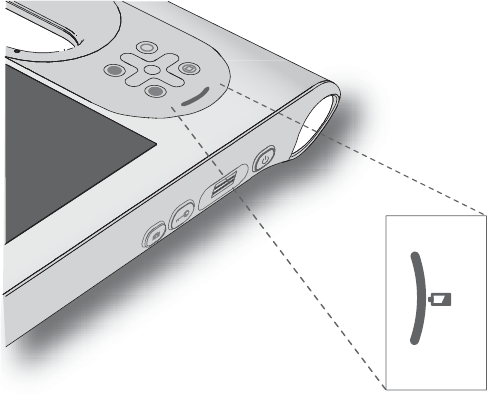

Checking tablet battery power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

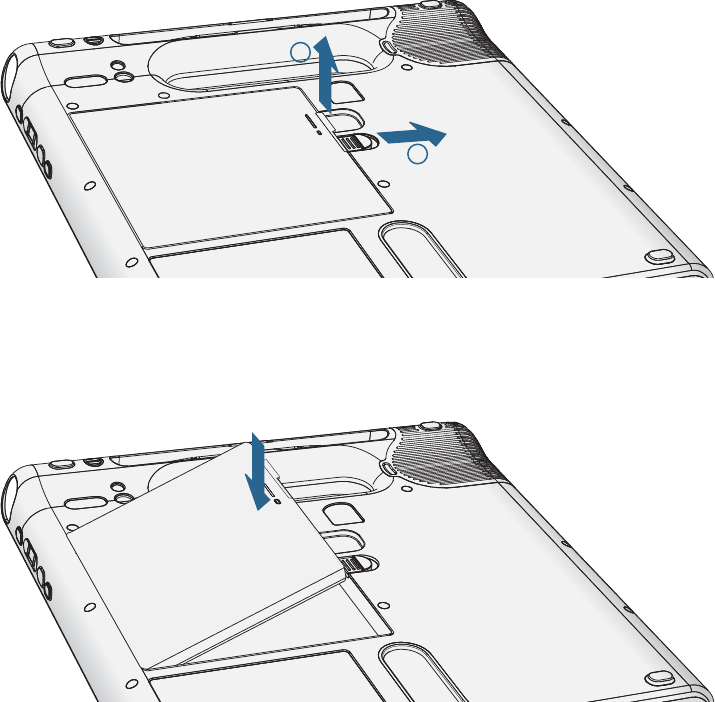

Removing and replacing the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Hot swapping the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Long-term battery storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Disposing of used batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Battery and power management tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Changing the power plan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Changing how the power button functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Using the fingerprint reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Starting the OmniPass application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Create an OmniPass user account. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Replace your passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Setting up strong logon security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Using the smart card reader (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

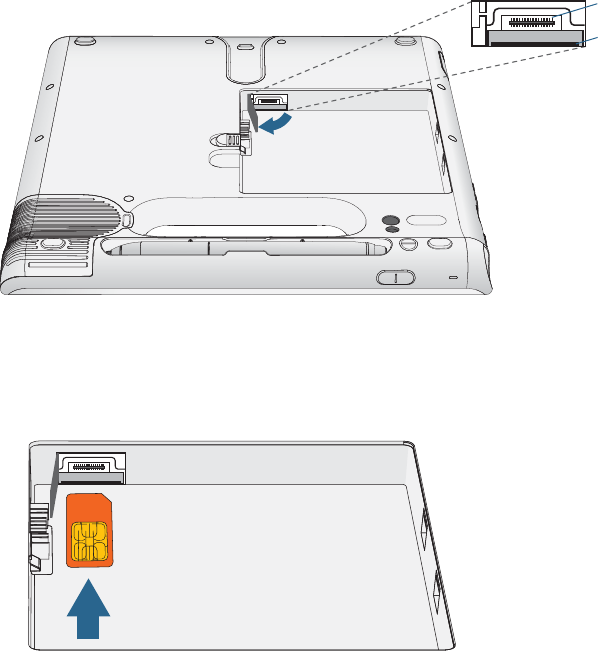

Using the SIM card slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Using Windows Action Center . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Setting up user accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Backing up your system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Restoring your system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Creating a system image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Restoring your system image from Windows Control Panel . . . . . . . . . . . . . . . . . . . 59
Restoring your system image if you can’t start Windows 7 . . . . . . . . . . . . . . . . . . . . 60
Restoring your system without a system image. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Finding other software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Chapter 3 Caring for your C5v/F5v. . . . . . . . . . . . . . . . . .63
General care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Caring for the display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Cleaning solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Caring for the pen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Replacing pen tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Cleaning in a healthcare environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Disinfecting procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Contents v
Training and documentation considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Cleaning the fingerprint reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Caring for the tablet battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Traveling with your C5v/F5v Tablet PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Chapter 4 Troubleshooting and FAQs. . . . . . . . . . . . . . .69
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Power problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Battery problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Display problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Touch or pen problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Ports and connectors problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Network problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Audio problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
System problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Frequently asked questions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81
vi Contents
Chapter 1 Getting Started 1
Getting Started 1
The Motion® C5v/F5v Tablet PCs are rugged, powerful and mobile, providing real-time
access to information in the field.
This is a list of the main features of the C5v/F5v Tablet PC.
•Intel® Core™ i3, i5 or i7 vPro™ Processor
•Supports Windows® 7
•up to 128GB Solid-State Drive (SSD)
•up to 4GB DDR3 800 MHz SDRAM memory
•32-MB to 256-MB video RAM with Intel Dynamic Video Memory Technology
•10.4" XGA TFT LCD with 1024 × 768 native resolution
•Corning® Gorilla® Glass for increased display damage resistance
•Bright AFFS+LED Backlight Display Technology
•Touchscreen display *
•View Anywhere® display for optimal viewing in all lighting conditions *
•Intel Display Power Saving Technology
•Hot-swappable battery
•Integrated Wi-Fi® and Bluetooth®
•Integrated mobile broadband and global positioning system (GPS) receiver *
•Integrated 1.3 megapixel web camera and 3.0 megapixel documentation camera *
•Integrated fingerprint reader
•Integrated 1D/2D Barcode scanner *
•Integrated 13.56-MHz passive RFID reader *
•Smart card reader *; ISO 7816 PC/SC compliant, contact type smart card reader/writer
* Optional features are available when you purchase your tablet.
2 Chapter 1 Getting Started Optional features
Optional features
This section describes the optional features available when you purchase your C5v/F5v.
Mobile broadband with GPS
You can choose to purchase a C5v/F5v Tablet PC with the optional mobile broadband with
GPS module. When installed, the module provides:
•Worldwide mobile broadband support
•Worldwide global positioning (GPS) support
Motion Connection Manager is an application that you use to manage your mobile
broadband and GPS network connections. For information on setting up mobile
broadband, see “Set up mobile broadband with GPS” on page 10.
The GPS receiver uses satellites to determine the current location, altitude, heading and
horizontal velocity of the C5v/F5v. You can use it with your preferred mapping applications
to find your current and desired locations.
Security
Your tablet includes several features that you can use to enhance the security of your data
and serve as the foundation for complementary security technologies. The core security
features include password-protected Phoenix TrustedCore BIOS with HDD locking and
networking control, optional Computrace® tracking software, a built-in fingerprint reader,
Dashboard Security Center, and TPM (Trusted Platform Module) 1.2.
TPM is an embedded security chip that protects the hard drive and guards against
unauthorized access to data. TPM can generate and store passwords, encryption keys and
digital certificates.
TPM is used by enterprise-level software applications to implement advanced security
features such as:
•User and device authentication
•Full disk data encryption
•Restricted network access
System administrators typically configure TPM, which entails enabling TPM in the BIOS and
configuring the accompanying security software provided by the TPM manufacturer,
Infineon.
Touchscreen Display
The C5v/F5v Tablet PCs can be purchased with an optional touchscreen display so that you
can use your finger as well as a pen.
Chapter 1 Getting Started Overview of the C5v/F5v 3
View Anywhere display
The View Anywheredisplay option enhances outdoor viewing and bright-light viewing
environments. The View Anywhere display includes all the features of the standard display
plus:
•A protective layer that improves the sunlight contrast ratio and significantly reduces
reflection and glare.
•Improved sunlight contrast ratio, which enhances viewability at wide viewing angles.
•Reduced reflection and glare and improved light pass-through efficiency.
Other optional features
Other C5v/F5v features are described later:
•Web and documentation cameras,“Using the cameras (optional)” on page 38
•Barcode scanner, “Using the barcode scanner (optional)” on page 40
•RFID reader, “Using the RFID reader (optional)” on page 41
•Smart card reader, “Using the smart card reader (optional)” on page 54
Overview of the C5v/F5v
The following illustrations show the buttons, slots and ports on the C5v/F5v Tablet PC.
4 Chapter 1 Getting Started Overview of the C5v/F5v
Front
Function button Activate secondary functions for other buttons.
Dashboard button Open Motion Dashboard.
Directional pad Use for basic navigation. Equivalent to the arrow keys on a
keyboard. The center button is equivalent to Enter.
A button Set up a custom action.
B button Set up a custom action.
Battery gauge Show battery status.
Microphones Record sounds and use for speech recognition.
Web camera (optional) Interact over the web.
Touchscreen display Use your finger or pen to navigate the tablet. (F5v option)
Docking connector Interact over the web.
directional pad
Dashboard button
A button
B button
battery gauge
docking connector
microphones
function button
web camera
touchscreen display
(F5v only)
Chapter 1 Getting Started Overview of the C5v/F5v 5
Right side

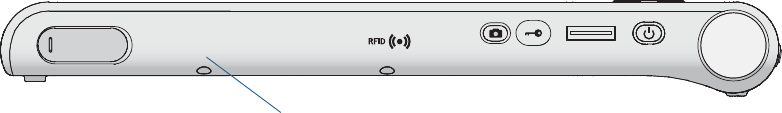

Top side
Power adapter
port, USB port (F5v
only), and cover
Connect the power adapter.

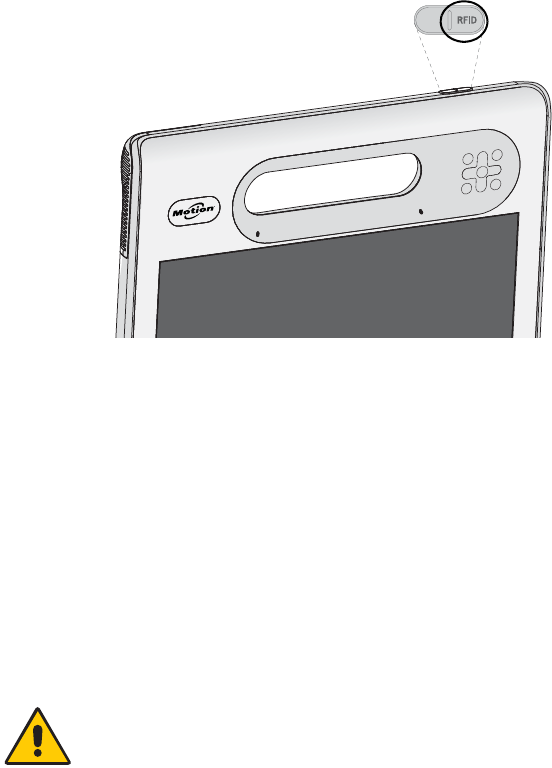

RFID (optional)
antenna area
Scan area for reading RFID tags.

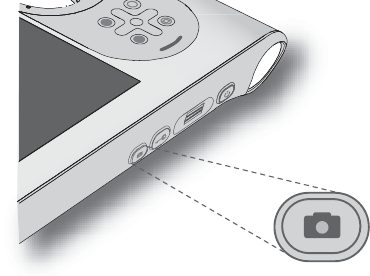

Camera (optional)
button
Use to trigger the built-in documentation camera.
Windows Security
button
Use to log on to or lock the tablet. Equivalent to
Ctrl+Alt+Del on a keyboard.
Fingerprint reader Scan your fingerprints for added security. You can also
use the fingerprint reader as a navigation device.
Power button Turns the tablet on and off.
Barcode scanner
(optional)
Reads codes from barcode labels.
RFID (optional)
status light
Shows the status of the RFID reader.
RFID reader
(optional) button
Use to trigger the RFID reader.
Barcode scanner
(optional) button
Use to trigger the barcode scanner.
Fan cover Protects the fan assembly.
power adapter
port, USB port (F5v),
camera
button
fingerprint
reader barcode scanner
Windows security
button
power
button
RFID antenna
area
and cover
barcode
light
RFID button
scanner button
RFID status fan cover
6 Chapter 1 Getting Started Overview of the C5v/F5v

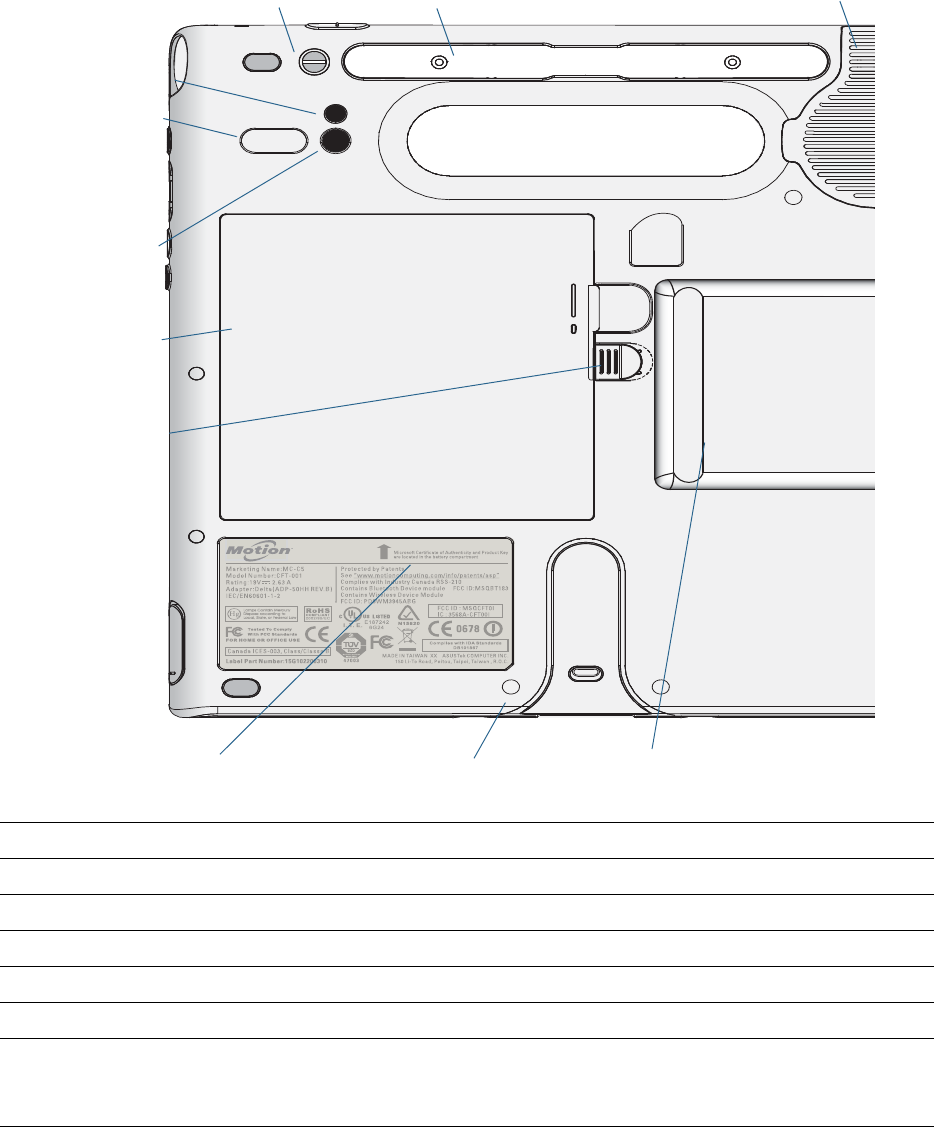

Back
Pen tether Attach the pen tether.
Pen holder Store the pen when not in use.
Fan cover Protects the fan assembly.
Camera (optional) lens Capture images to the hard disk drive.
Camera (optional) light Provides light for the documentation camera.
Speaker Listen to audio.
Battery Powers the tablet when it is not plugged in or docked.
Note: The Microsoft® Windows® Certificate of Authenticity is located
under the battery.
pen tether pen holder
camera light
camera lens
battery
Docking guide
speaker

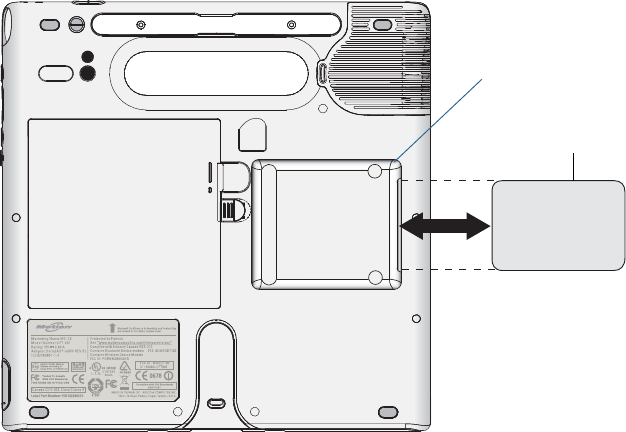

Smart card reader
Battery latch
Hot-swap logo
fan cover
Chapter 1 Getting Started Where to begin with your C5v/F5v 7
Pen
F5v supports touch with a pen as well as your finger. You may find the pen handy when you
want to write a quick email or take notes. The pen is particularly effective for precise data
entry and navigation.
The pen includes a pressure-sensitive tip, a function button, and an eraser. The pen contains
no batteries and requires no external power.
C5v/F5v pen
You can purchase pens from the Motion Computing Accessories page. For more
information on using the pen, see “Using touch” on page 21.
Where to begin with your C5v/F5v
Here are some steps you can follow to power up and get familiar with your C5v/F5v Tablet
PC.
Step 1: Power up the tablet

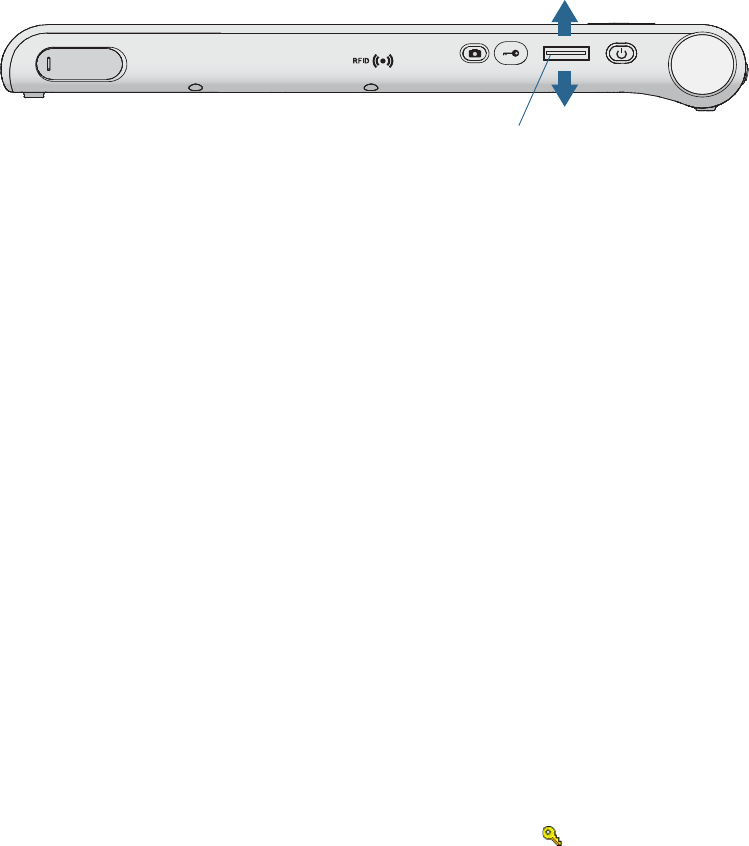

1. Pull out the port door located at the bottom of the right side of the C5v/F5v to expose
the AC adapter port and plug in the AC adapter.
2. Plug the power cord into an outlet.
•The battery gauge turns amber to indicate that the battery is charging.
•Keep the tablet on AC power until the battery is fully charged.
Battery latch Opens the battery compartment’s door.
Hot-swap logo Indicates that you can hot swap the battery.
Docking guide Aligns the unit with the Docking Station.
Smart card reader (optional) Reads and writes information on a smart card.
Tip
function button
eraser
tip
8 Chapter 1 Getting Started Where to begin with your C5v/F5v
Plug in the C5v/F5v

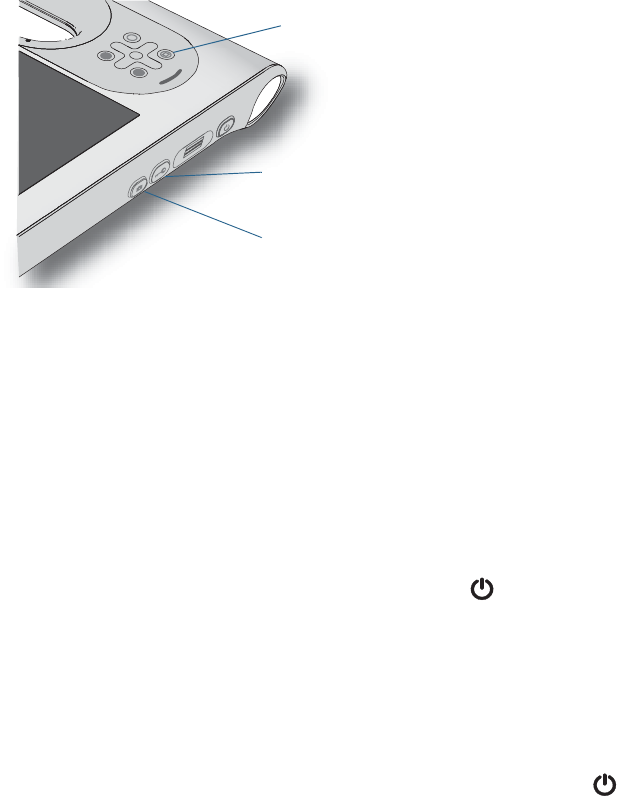

3. Press and release the power button located on the top right side of the C5v/F5v to
turn it on.
4. Follow the on-screen instructions to set up your user account and install Windows 7.
Step 2: Connect to a wireless network
The C5v/F5v comes with built-in Wi-Fi and Bluetooth. Your tablet PC may also be equipped
with mobile broadband for accessing the Internet.
To set up available wireless networks:
•Enable wireless from the Motion Dashboard
•Set up Wi-Fi
•Set up mobile broadband with GPS
•Set up Bluetooth
Chapter 1 Getting Started Where to begin with your C5v/F5v 9

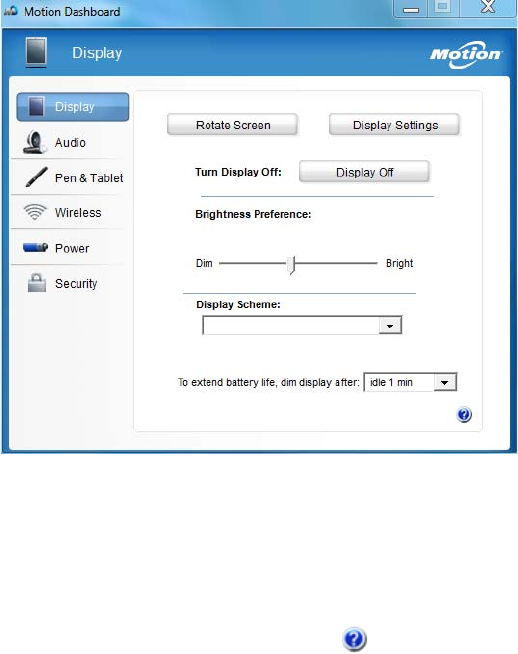

Enable wireless from the Motion Dashboard
The first task when setting up wireless is to enable the wireless network adapters from the
Motion Dashboard. The Dashboard is a Motion Computing application for configuring your
C5v/F5v Tablet PC.
10 Chapter 1 Getting Started Where to begin with your C5v/F5v
To enable wireless adapters
1. Open the Motion Dashboard. From the Windows task bar, tap the Motion Dashboard
icon .
2. Tap Wireless.
3. Tap the check boxes next to all wireless networks you intend to use:
•Enable Bluetooth Internal Wireless
•Enable 802.11 Internal Wireless
•Enable Mobile Broadband with GPS (If this option is not listed, your C5v/F5v does
not have mobile broadband capabilities.)
NOTE:To extend battery life, enable only the wireless devices that you will be using.
Set up Wi-Fi
Connect to the Internet and other computers wirelessly over Wi-Fi.
To set up Wi-Fi
1. Enable Wi-Fi from the Motion Dashboard.

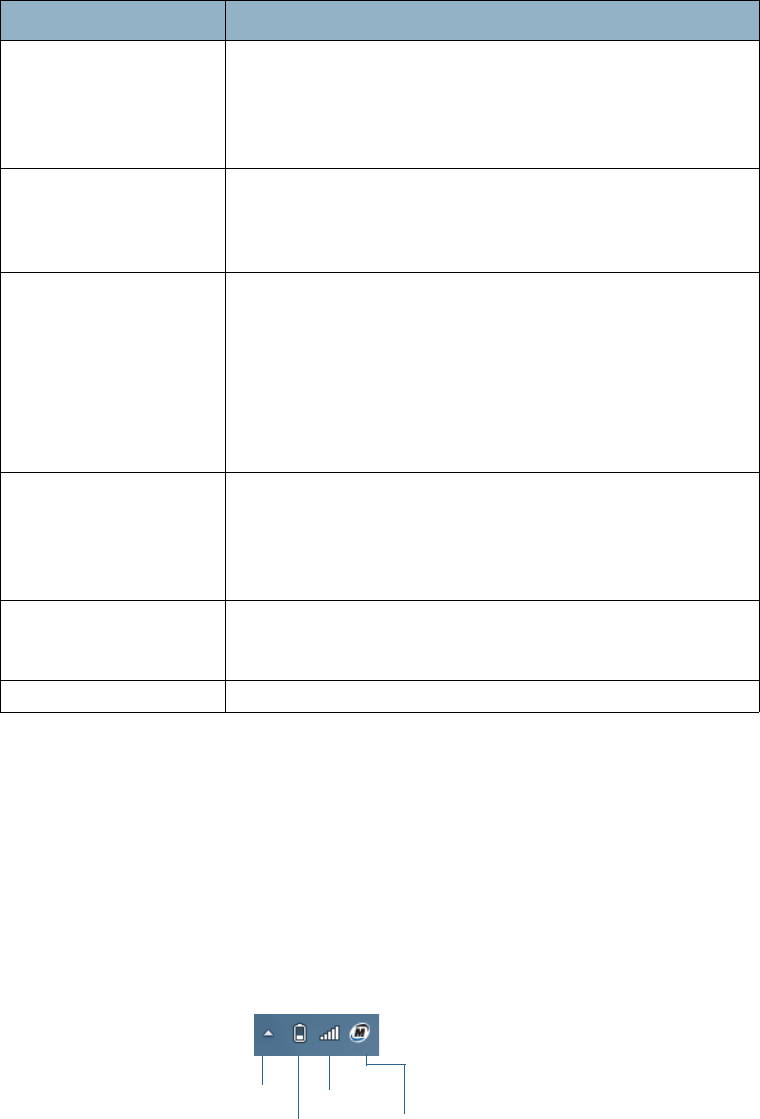

2. From the notification area, tap the wireless network icon .
3. Tap the desired wireless network from the list of available networks.
Set up mobile broadband with GPS
If you purchased your C5v/F5v with the optional mobile broadband module, you can
connect to high-speed cellular networks worldwide. With the mobile broadband module
and a data plan from one of several cellular network providers, you have full Internet access.
To set up mobile broadband
1. Enable mobile broadband from the Motion Dashboard.
2. Start the Motion Connection Manager. From the Start menu, select All Programs >
Motion Computing > Motion CM.
3. Tap the help icon and select the help topic, Setting up mobile broadband.
4. Follow the instructions to set up a network profile and connect to the mobile broadband
network.
NOTE:Before you can connect to a mobile broadband network, you must have an active account
with a cellular network provider. Some providers require a SIM card for mobile broadband
access; if you are not sure whether you need one, contact your mobile broadband provider.
Chapter 1 Getting Started Where to begin with your C5v/F5v 11
Set up Bluetooth
The C5v/F5v has a built-in Bluetooth adapter which provides short-range wireless
connectivity with other Bluetooth enabled devices.
To set up Bluetooth
1. Enable Bluetooth from the Motion Dashboard.
2. Add a Bluetooth device:
a. From the notification area, tap the Bluetooth icon and select Add a Device.
b. Make sure the device is discoverable according to Bluetooth device manufacturer’s
instructions. When a Bluetooth device is discoverable, it is visible to other Bluetooth
devices within range.
c. Select the desired Bluetooth device from the list of available devices.
d. Follow the on-screen instructions to complete the procedure.
3. Make the C5v/F5v discoverable (visible) to other Bluetooth devices:
a. From the notification area, tap the Bluetooth icon and select Open settings.
b. On the Options tab, select Allow Bluetooth devices to find this computer.
Step 3: Get familiar with your C5v/F5v Tablet PC
Once you’ve set up your C5v/F5v, take a few minutes to get familiar with your tablet PC.
•Calibrate touch. If you have a F5v with a touchscreen display, you should adjust the
touch settings for you by calibrating the digitizer. For details, see “Calibrate touch” on
page 22.
•Use Motion Computing tools to customize your tablet according to your work style. See
“Using the Motion Dashboard” on page 18.
•Open the writing pad and provide handwriting samples to improve handwriting
recognition. See “Entering text and handwriting recognition” on page 27.
•Take photos or use the web camera. See “Using the cameras (optional)” on page 38.
•Set up speech recognition. See “Using speech recognition” on page 37.
Step 4: When you take a break
When you go away from your tablet PC for a while, you can lock it to avoid others from
accessing it by pressing the Security button and put it in sleep or hibernate mode to save
power by pressing the Power button.
12 Chapter 1 Getting Started Where to begin with your C5v/F5v
Security and Power Buttons
Lock and unlock the tablet PC
To lock the tablet PC, either
•Press and the security button on the right side of the tablet.
•If a keyboard is attached, enter Ctrl+Alt+Delete.
To unlock the tablet
•Press the security button or Ctrl+Alt+Delete again.
Sleep mode
Place your tablet in sleep mode when you go away for a short period of time. Sleep mode
conserves battery power while you are away and when you return, your desktop is the same
as you left it. Sleep is sometimes called “stand-by.”
To put the tablet in sleep mode
•Save your files.
•Press and release the power button .
Chapter 1 Getting Started Optional setup tasks 13
Note: While in sleep mode, the power button flashes green.
To wake up the tablet from sleep mode
•Press and release the power button .
The tablet quickly resumes activity and your desktop is the same as you left it.
Hibernate mode
If you intend to leave your tablet for several hours or more, you can put the tablet in
hibernate mode. Like sleep, when you return from hibernate, your desktop is the same as
you left it.
It takes longer to start up from hibernate mode than sleep, but it consumes very little
power, saves data to disk beforehand, and is still faster than starting your tablet after
shutting it down.

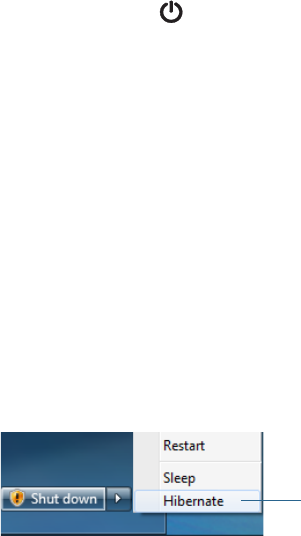

To put the tablet in hibernate mode
•From the Start menu, tap the arrow next to Shut down and select Hibernate.
Hibernate from the Start menu
For more information on power options, see “Changing how the power button functions”
on page 49.
Optional setup tasks
Here are some other tasks you may want to do when you start out with your C5v/F5v.
Create a recovery image
Once you have set up your C5v/F5v the way you like it, including installing your
applications, create a system image on an external USB drive. This is a safety measure in the
unfortunate event that your system stops working.
A system image is an exact copy of a drive and includes Windows 7, your system settings,
programs, and files. For more information, see “Creating a system image” on page 58.
hibernate
14 Chapter 1 Getting Started For more information
Attach the pen tether
The C5v/F5v pen comes with a tether so that you can attach the pen to your tablet or
docking station to avoid misplacing it. The tether is essentially a string with loops at each
end.
To attach the pen tether
1. Slip one end of the tether through the hole at the end of the pen, then pull the pen
through the loop until it is tight.
2. Slip the other end of the tether through the attach point on the C5v/F5v then pull the
pen through the loop until it is tight.
You can purchase pens from the Motion Computing Accessories page.
Connect the tablet to a docking station
The C5v/F5v docking station is a separate accessory that you can purchase from the Motion
Computing Accessories page.
The C5v/F5v docking station adds functionality to your tablet, including port expansion for
Ethernet, VGA monitors, and USB devices such as printers, keyboards, and mice. The
docking station also charges the tablet and includes a charging bay for an extra battery. For
details on installing and using the docking station, see the CFT-Series Docking Station User’s
Guide which accompanies the docking station.
Connect the tablet to a display monitor
Connect a display monitor to your C5v/F5v Tablet PC using the VGA port located on the
CFT-Series docking station.
After connecting the monitor, set up the external display from the Motion Dashboard as
described in “Setting up an external display” on page 33.
For more information
This User’s Guide introduces the full set of C5v/F5v features and provides instructions for
common tasks you’ll perform. The rest of this book is organized as follows:
•Chapter 2 Using your C5v/F5v—Provides instructions for basic C5v/F5v tasks including
how to customize your tablet to fit the way you work using Motion Dashboard, how to
use the cameras, how to set up speech recognition and more.
•Chapter 3 Caring for your C5v/F5v—Provides suggestions for keeping your tablet in
great shape.
•Chapter 4 Troubleshooting and FAQs—Provides answers to common issues you may
encounter as you begin to use your C5v/F5v. Also includes FAQs.
Chapter 1 Getting Started For more information 15
The Getting Started document located on the desktop provides a number of tips to get you
started using the tablet quickly.
You will find other useful information on our website:
•Tablet PC Tips & Tricks
•Motion Computing Support
•Free online training videos
•Knowledge Base
• Motion Computing Accessories
•Motion Computing Store
NOTE:This guide is available in French, German, Spanish and Portuguese from the web site.
16 Chapter 1 Getting Started For more information
Chapter 2 Using your C5v/F5v 17
Using your C5v/F5v 2
This chapter provides information about performing common tablet tasks such as
customizing touch and changing tablet settings.

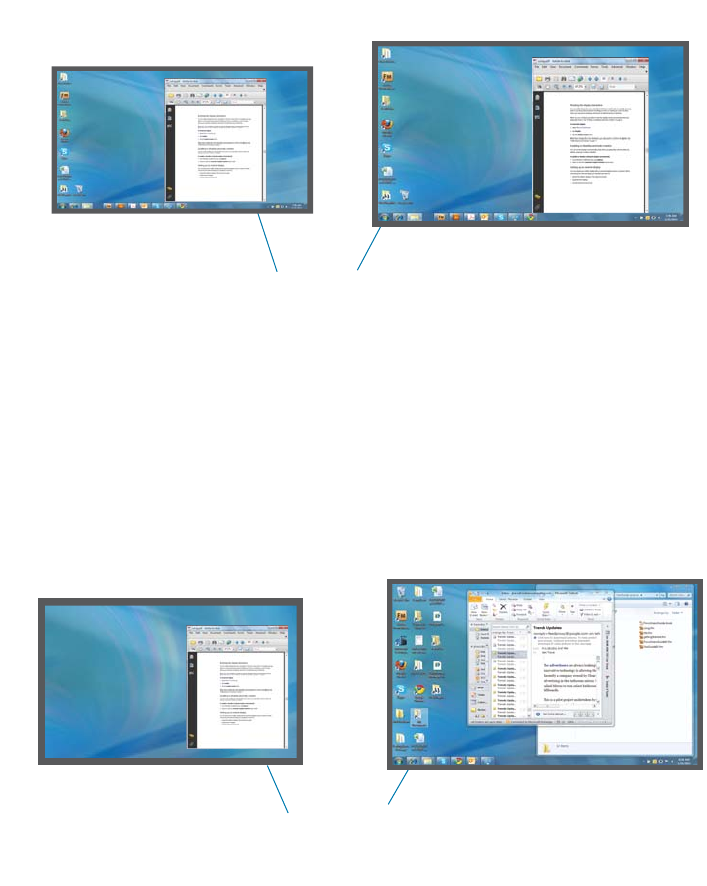

Introducing the C5v/F5v desktop and applications
When you start up the C5v/F5v for the first time, the desktop looks like the following
picture where Motion Computing applications appear in the taskbar and notification area.
Motion Computing desktop
Getting Started
document
taskbar notification area
18 Chapter 2 Using your C5v/F5v Using the Motion Dashboard
The Motion Computing applications are described below.
Changing the taskbar
You may find it convenient to place the Windows taskbar on the left edge of the display,
especially if your tablet PC has a touchscreen display.
To place the taskbar on the left edge of the screen
1. Press and hold the Start menu icon and tap Properties.
2. Tap the Taskbar tab.
3. Make sure that Lock the taskbar is checked.
4. Under Taskbar location on screen, select Left.
5. Tap OK.
TIP:As an option, you can hide the taskbar altogether; it reappears when you tap the area. From
the Taskbar tab, tap the Auto-hide the task bar check box.
Using the Motion Dashboard
The Motion Dashboard provides a convenient way to change common tablet-related
settings.
To open Motion Dashboard
•From the Windows task bar, tap the Motion Dashboard icon .
Motion Getting
Started
Document that contains tips for starting out with the
C5v/F5v Tablet PC.
Motion Dashboard Motion application for changing tablet settings. See
“Using the Motion Dashboard” on page 18.
Chapter 2 Using your C5v/F5v Using the Motion Dashboard 19
Motion Dashboard is organized into categories, which are listed on the left of the
Dashboard. Tap a category to display its settings. In this illustration, Motion Dashboard is
open to Display settings.
Motion Dashboard
The following table lists some of the tasks you can perform using the Motion Dashboard.
NOTE:This is a partial list of tasks that you can perform with Motion Dashboard.
Some of these tasks are described in this chapter; all tasks are described in
Motion Dashboard by tapping the help icon .
20 Chapter 2 Using your C5v/F5v Accessing Motion tools from Windows notification area
Accessing Motion tools from Windows notification area
For convenience, you can access common Motion tools from the Windows notification area.
NOTE:Initially, the Motion icons do not appear in the notification area. Tap the arrow to view more
icons. Tap Customize to have the icons appear in the notification area.
Motion icons in the notification area
Dashboard Category Task
Display • Rotate the display orientation
• Adjust the brightness of the display
• Set advanced graphic properties
• Set up an external display
•Dim the display automatically
Audio • Adjust speaker and microphone volume
• Adjust advanced audio settings
• Suppress background noise
•Balance speakers
Pen & Tablet • Configure touch to use touch only, pen only or both
simultaneously
• Adjust touch to left-handed setting
• Adjust sensitivity to flicks and gestures
• Use the pen function button for erasing digital ink instead
of performing the right-click action
• Personalize your handwriting so that it can be recognized
more accurately
Wireless • Enable and disable Bluetooth, 802.11 Wi-Fi, and mobile
broadband
• Choose to have wireless disabled on Start Up (it is enabled
by default)
• Adjust 802.11 Wi-Fi and Bluetooth properties
Power • Select a power plan
• Change what the power button does when pressed: sleep,
hibernate or shut down
Security • Set up the fingerprint reader and other security options
power
arrow wireless
indicator
indicator
Motion utilities
Chapter 2 Using your C5v/F5v Using touch 21
Tap the Motion icon to display:
•Battery Health—Shows the current battery charge level.
•Motion Dashboard—Opens the Motion Dashboard.
•Options—Lists options you can set:
–Show Hard Drive Activity—When selected, the Motion icon blinks when there is
hard drive activity.
–Automatic Display Rotation—When selected, the C5v/F5v automatically changes
the viewing orientation (landscape to portrait or vice versa) when the tablet is
physically rotated.
Using touch
With the F5v, you can use either your finger, a pen or both to interact with the touchscreen
display. With the C5v, you can use the pen to interact with the display (the C5v does not
have a touchscreen display). While it’s convenient to use your finger most of the time, a pen
allows you more precise control for editing a document or drawing graphics among other
things.
NOTE:The touchscreen display is available as an option for the F5v Tablet PC.
With touchscreen displays, you use your finger or pen as you would use a mouse. For
example, tapping twice is the same as double-clicking a mouse. Tap and holding is the
same as right-clicking a mouse to open context-sensitive menus.
Here are some common ways to perform tasks on a touchscreen:
•Tap—Select something
•Press and hold—Open a menu of options. This is equivalent to right-clicking a mouse to
display the right-click menu.
Note: Press and hold your finger until a circle appears then lift your finger to display the
menu.
•Double-tap—Perform a double-click action
•Tap and drag—Drag and drop
•Pinch fingers together—Zoom in
•Spread fingers apart—Zoom out
•Flick—Scroll through a list or move quickly
•Press and hold the pen’s function button (equivalent to a right-click on a mouse)—
Open a context-sensitive menu
NOTE:If the tablet does not respond when you tap with your finger, try using more area of your
fingertip. Unlike other types of touchscreens, the F5v capacitive touchscreen does not
respond to other input. For example, you can’t tap it with another object such as a credit
card or when wearing gloves.
22 Chapter 2 Using your C5v/F5v Using touch
Calibrate touch
The digitizer is software detects the position of the pen or your finger on the display. You
should calibrate the digitizer the first time you start the Tablet PC. Then recalibrate the
digitizer whenever the pointer does not align with the pen tip or finger.
Note: Touch is an optional feature for the F5v.
To calibrate the digitizer
1. Open Motion Dashboard.
2. Tap Pen & Tablet.
3. Under Pen & Tablet, tap Calibrate Digitizer.
4. Tap your finger on the display to calibrate for touch.
5. Follow the instructions in the calibration program.
6. Repeat the above steps, tapping the pen on the display to calibrate the pen.
Chapter 2 Using your C5v/F5v Using touch 23
How multiple-touch works fingers for gestures
The F5v touchscreen display supports multi-touch which allows you to directly manipulate
items on-screen, such as to navigate websites and view photos. For example, you can use
your fingers to scroll through lists, zoom in and out, rotate, and so on.
Changing to one-tap open for touch
With touch, you may want to change how you select and open items. By default, Windows
folders are set up so that you tap once to select an item and double-tap to open it. For
touchscreen displays, you can change the behavior to point to select an item and open an
item with one tap instead of two.
To change folder options
1. From the Windows Control Panel, tap Appearance and Personalization, Folder
Options, then tap Specify single- or double-click to open.
2. Under Click items as follows, tap Single-click to open an item (point to select).
For more information, open Windows Help and search for “folder options.”
Configuring touch input mode
You can determine how touch input is configured by setting the input mode. You can use:
•Your finger only; no pen input is detected.
•The pen only; no finger input is detected.
•Both your finger and a pen.
•Switch between touch and pen input, in which case you double-tap to switch to touch
input. This is useful to avoid the tablet from responding to unintentional touch input.
To configure touch settings
1. Open Motion Dashboard.
2. Tap Pen & Tablet.
3. Tap Touch Settings.
4. From the Digitizer Options tab, under Input Mode tap the desired mode.
24 Chapter 2 Using your C5v/F5v Using touch
Adjusting touch settings
You can adjust how your finger movements are interpreted in many ways. For example, you
can:
•Adjust how quickly the tablet responds when you double-tap your finger
•Adjust how quickly the tablet responds when you press and hold your finger
•Show the touch pointer when interacting with items on the screen
•Change the touch pointer location, which can be helpful if you are left-handed
• Enable or disable multi-touch gestures and inkings
•Change the location of menus to appear to the right of your hand, which is helpful if you
are left-handed
To change touch settings
1. Open Motion Dashboard.
2. Tap Pen & Tablet.
3. Tap Pen & Input Devices.
4. Tap the Touch tab.
5. To enable Touch, tap Use your finger as an input device.
6. To enable multi-touch gestures, tap Enable multi-touch gestures and inking.
7. To adjust the Double-tap action, under Touch action, tap Double-tap then tap
Settings. Move the slider to make your adjustments.
8. To adjust the Press and hold action, under Touch action, tap Press and hold then tap
Settings. Move the slider to make your adjustments.
9. To display the touch pointer on the screen, tap Show the touch pointer.
10.To change what the touch pointer looks like or where it’s positioned, tap Advanced
Options.
To change the location of menus for left-handed users
1. Open Motion Dashboard.
2. Tap Pen & Tablet.
3. Tap Tablet PC Settings.
4. Tap the Other tab and tap Left-Handed.
Chapter 2 Using your C5v/F5v Using touch 25
Adjusting pen settings
If the pen doesn’t respond as accurately as you would like, you can make adjustments. For
example, you can:
•Use the button on the pen to perform the right-click action or act as an eraser
•Adjust how quickly the tablet responds when you double-tap the pen
•Adjust how quickly the tablet responds when you press and hold the pen button
To change pen settings
1. Open Motion Dashboard.
2. Tap Pen & Tablet.
3. Tap Pen & Input Devices.
4. Tap the Pen Options tab.
5. To adjust the speed and spacial tolerance of the Double-tap action, under Pen action,
tap Double-tap then tap Settings. Move the slider to make your adjustments.
6. To adjust the speed and duration of the Press and hold action, under Pen action, tap
Press and hold then tap Settings. Move the slider to make your adjustments.
7. To enable the function button on the pen, tap Use the pen button as a right-click
equivalent.
8. To enable the eraser, select the Use the top of the pen to erase ink option.
Adjusting tablet PC settings
From Tablet PC Settings, you can change from right-handed to left-handed use.
To change hand orientation
1. Open Motion Dashboard.
2. Tap Pen & Tablet.
3. Tap Tablet PC Settings.
4. Tap the Other tab and make your desired change.
The Configure your pen and touch displays option on the Tablet PC Settings Display
tab is useful for assigning touch to the appropriate display when one or more displays are
connected to the tablet. By default, Windows 7 assumes that an external display is for touch
input. To change this, run Setup from Tablet PC Settings to assign touch to your tablet
display.
NOTE:A keyboard must be connected to the tablet to perform this procedure.
To assign touch to the desired display
1. Open Motion Dashboard.
2. Tap Pen & Tablet.
26 Chapter 2 Using your C5v/F5v Using touch
3. Tap Tablet PC Settings.
4. Tap the Display tab.
5. Tap Setup next to “Configure your pen and touch displays.”
6. Tap Touch Input.
7. Press the Enter key until you see the instructions appear on the display that you want to
use for touch input.
8. Follow the on-screen instructions.
9. Press Esc to end the process.
Chapter 2 Using your C5v/F5v Entering text and handwriting recognition 27
Entering text and handwriting recognition
You can enter text by either tapping characters on an on-screen keyboard or writing on a
virtual writing pad. When you write on the writing pad, your handwriting converts to digital
ink. “Digital inking” refers to the process of converting your handwriting to text. In the
following picture of the writing pad, someone started writing Motion Computing and
“Motion” has already been converted into digital ink.

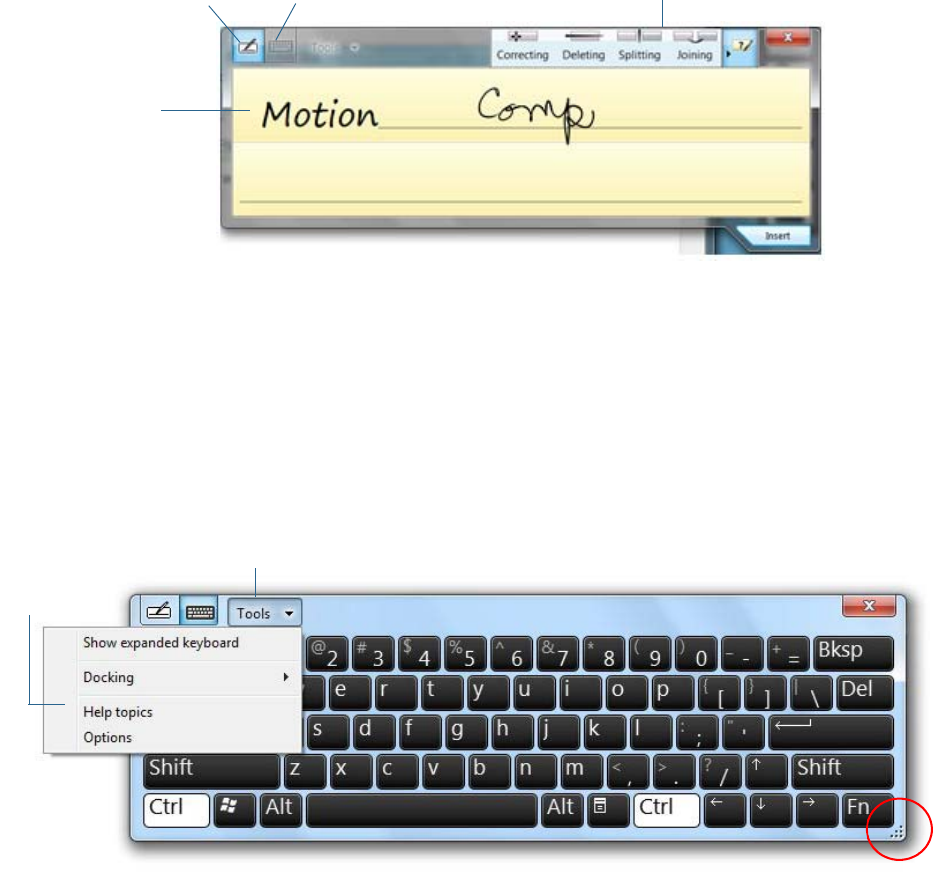

Input panel open to the writing pad
TIP:Tap the icons at the top of the input panel to view videos on making editing gestures. To
hide the video tips, tap the icon on the right.
By tapping the keyboard icon at the top of the pad, the input panel opens to the on-screen
keyboard.
Here’s the input panel open to the on-screen keyboard. Tap the Tools menu for more input
panel options and for viewing Help Topics.
Input panel open to the on-screen keyboard
TIP:Resize the keyboard panel by dragging the handle at the bottom right of the keyboard.
TIP:Use the Ctrl, Alt, Fn, Del and Bksp keys as you do on a normal keyboard.
writing pad icon keyboard icon video demonstrations of writing tips
writing pad
help
tools
28 Chapter 2 Using your C5v/F5v Entering text and handwriting recognition
Opening and closing the input panel
The tablet PC input panel often opens automatically when you tap in a text field. You can
also tap the tab located on the left side of the screen to expand the input panel.
To open the input panel either
•Tap at the place you want to enter text, such as in a text box. Then tap the input panel
icon .
•Tap the input panel tab on the left edge of the screen .
To close the input panel
•Tap the close button at the top-right. The input panel slides back to the edge of
the screen.
Docking or floating the input panel
By default, the input panel is floating and you can move it anywhere on the screen by
placing your finger or pen on the title bar and dragging it.
If you prefer, you can dock the input panel so that, when it is open, it always appears at the
same location, either at the top or bottom of the screen.
To dock or undock the input panel
•At the top of the input panel, tap Tools.
•Select Docking.
•Select either Dock at the top of the screen, Dock at the bottom of the screen or Float.
TIP:If you're left-handed, you can move the input panel to the right edge of the screen to make
it easier to use.

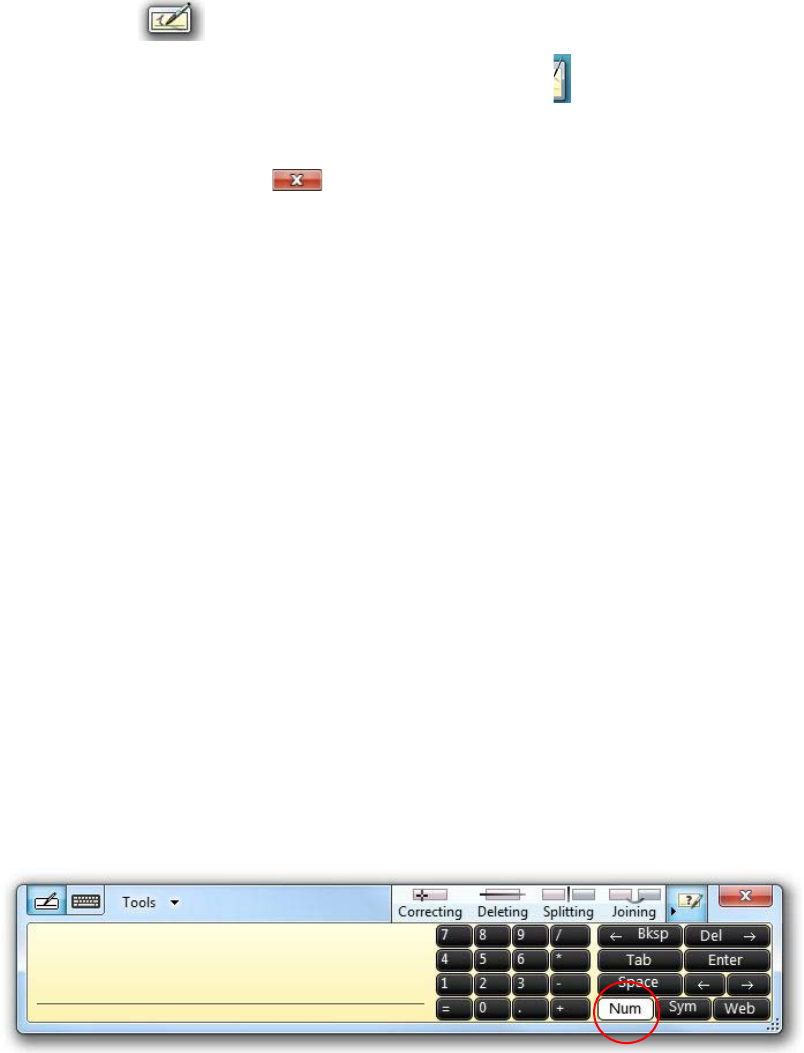

Entering numbers with numbers pad
If you find yourself typing a lot of numbers, use the numbers pad.
To open the numbers pad
•Tap the Num key at the bottom of the writing pad.
Numbers pad
Chapter 2 Using your C5v/F5v Entering text and handwriting recognition 29
Entering special keys with the extended keyboard
You can enter special keys using the on-screen expanded keyboard. Special keys include:
•Home, End, Insert keys
•Page up, Page down keys
•Print screen key
•Pause key
•Scroll lock key
To open the expanded keyboard
•Tap the Tools key at the top of the input panel and choose Show Expanded Keyboard.
Expanded keyboard
Using the handwriting recognition program
The more you write, the quicker your handwriting is recognized because the tablet has an
automatic learning tool that collects data about the words you use and how you write
them. This data is stored under your user profile.
As a option, you can use the handwriting recognition application to train the tablet to
recognize your handwriting style. You supply handwriting samples when prompted.
To start the handwriting recognition program
1. Open Motion Dashboard.
2. Tap Pen & Tablet.
3. Tap Pen & Input Devices.
4. Tap Handwriting and follow the on-screen instructions.
TIP:If you inherit your C5v/F5v from another user, you can reset automatic learning.
To reset handwriting automatic learning
1. Open Motion Dashboard.
2. Tap Pen & Tablet.
tools special keys
30 Chapter 2 Using your C5v/F5v Using front panel buttons
3. Tap Pen & Input Devices.
4. Tap Handwriting.
5. Tap Don’t use automatic learning. The current handwriting profile is deleted.
6. Tap Use automatic learning to begin collecting handwriting data again.
NOTE:You can find other handwriting applications at the Motion Computing Store.
Using front panel buttons
You can use the buttons on the front of the unit to perform many functions without having
to use the pen. The buttons are customizable, so you can modify their functions to suit the
way you work as described next.
Button Primary Secondary
(Function+button)
Function Activates secondary function for
other buttons
N/A
Dashboard Starts Motion Dashboard Opens Windows Journal™
A
B
function Dashboard
A button B button
directional pad
Enter
Chapter 2 Using your C5v/F5v Using front panel buttons 31
The directional pad orientation rotates to match the display orientation. To move the
pointer in a certain direction, press that direction on the pad regardless of orientation. For
example, “up” in landscape orientation becomes “left” in portrait orientation.
Configuring front panel buttons
As you become more familiar with your tablet, you can customize the buttons on the front
panel. You can configure the buttons to start your favorite program, run a command, or
enter a key combination.
To configure the front panel buttons
1. Open Motion Dashboard.
2. Tap Pen & Tablet.
Directional
pad
Moves the pointer or navigates
through documents. Equivalent to
arrow keys on a keyboard.
Left = Shift+Tab
Right = Tab
Up = Page Up
Down = Page Down
Enter Makes a selection—equivalent to
the Enter key
Windows logo key
A Performs application-specific
function
Rotates the display orientation
B Activates the tablet scanner (if
installed)
Cancels the current task—
equivalent to the Esc key
Button Primary Secondary
(Function+button)
A
B
function Dashboard
A button B button
directional pad
Enter
32 Chapter 2 Using your C5v/F5v Setting display options
3. Tap the Tablet PC Settings button.
4. In the Tablet PC Settings window, tap the Buttons tab.
5. Select the button combination you want to change. The currently selected buttons
appear in red.
6. Tap Change.
7. Select the appropriate action for the button.
For some actions, you must enter more information, such as the location of a program to
start. You can select an action for Press and another for Press and hold. For more
information, tap What is press and hold?
NOTE:To reset the buttons to their default values, tap the Reset button.
Setting display options
Use the procedures in this section to customize your display settings. You can adjust the
brightness level, rotate the display and change the order in which the display rotates.
Adjusting the display brightness
You can change the brightness of the display which is useful for conserving battery power.
To adjust the display brightness
1. Open Motion Dashboard.
2. Tap Display.
3. Move the Brightness slider to the desired level.
TIP:For optimal battery conservation and viewability, set the brightness scale to the mid-point
or slightly above.
4. Select one of the following:
•Fixed—Sets the display brightness to a constant level. Move the slider to adjust the
display to the desired brightness level. When set to Fixed, the ambient light sensor is
ignored.
•Dynamic—Uses the ambient light sensor to maintain an appropriate brightness level
for the current lighting condition. The Dynamic setting helps to conserve battery
power.
Chapter 2 Using your C5v/F5v Setting display options 33
Rotating the display orientation
You can easily change the screen orientation to fit your current task. For example, you may
want to use the portrait orientation for filling out forms or reading an e-book. At other
times, you may want a landscape orientation for web browsing or sketching.
To rotate the display
1. Open Motion Dashboard.
2. Tap Display.
3. Tap the Rotate Screen button.
Enabling or disabling automatic rotation
You can set the display to automatically rotate when you physically rotate the tablet. By
default, automatic rotation is disabled.
To enable or disable rotating the display automatically
1. From Windows notification area, tap Options.
2. Select or clear the Automatic Display Rotation check mark.
Setting up an external display
You can use your tablet with an external monitor or projector.
Display settings
When connecting to an external display, specify whether to:
•Duplicate (mirror) the displays
•Extend the tablet’s display to span across the external monitor
•Use the external monitor only or use the tablet only
Mirror display
The “mirror display” theme duplicates the tablet display on both the display and monitor.
This is useful when using your Tablet PC with a projector.
34 Chapter 2 Using your C5v/F5v Setting display options
Extended with monitor primary
The “extended with monitor primary” display theme expands the desktop area across the
tablet and external monitor, where the external monitor as the primary monitor. You can set
the external monitor to use a different display resolution than the tablet PC.
Extended with tablet primary
The “extended with tablet primary” display theme expands the desktop area across the
tablet and external monitor, with the tablet is primary display. You can set the external
monitor to use a different display resolution than the tablet.
Monitor only
The “monitor only” display theme uses the external monitor only.
Tablet only
The “tablet only” display theme uses the tablet display only.
mirror display
tablet PC external monitor
tablet PC external monitor
extended with monitor primary
Chapter 2 Using your C5v/F5v Setting display options 35
Connect an external monitor
To connect an external monitor to the C5v/F5v, you can use the C5v/F5v docking station,
sold separately.
To set up an external monitor
1. Connect the monitor cable from the external monitor into the C5v/F5v docking station
according to the CFT-Series Docking Station User’s Guide.
2. Plug in the external monitor and turn it on.
3. If necessary, install software and drivers for the monitor. See the manufacturer’s
documentation for more information.
4. Open Motion Dashboard.
5. Tap Display.
6. Select a Display Scheme.
7. If your tablet PC does not respond to touch, follow the steps below to enable touch on
the correct display.
Resetting touch after adding other monitors
After setting up an external monitor, touch might be disabled on your tablet because
Windows 7 assumes that the external display is for touch input. You can enable touch on
the correct display from the Motion Dashboard by following the procedure below. You’ll
need a keyboard.
To enable touch when your tablet is connected to an external display
1. If it isn’t already, attach a keyboard to the tablet.
2. Open Motion Dashboard.
3. Tap Pen & Tablet.
4. Tap Tablet PC Settings.
5. Select the Display tab.
6. Tap Setup next to “Configure your pen and touch displays.”
7. Tap Touch Input.
8. Press the Enter key until you see the instructions appear on the display that you want to
use for touch input.
9. Follow the on-screen instructions.
10.Press Esc to end the process.
Resetting the display after returning the tablet to the docking station
If you set up your tablet in a docking station with the display theme expanded across both,
and you remove the tablet temporarily from the docking station, the display theme may
need to be reset when you return the tablet to the docking station.
36 Chapter 2 Using your C5v/F5v Setting display options
TIP:If the display still doesn’t work properly, change the Display Scheme to Tablet Only and
then change it back to the desired scheme.
Chapter 2 Using your C5v/F5v Using the built-in microphones 37
Using the built-in microphones
You can use the built-in array microphones to record audio, dictate notes, and use voice
commands. The two microphones are used at the same time to optimize sound detection
for speech recognition and voice recording.
You can use the Speak Anywhere acoustics software to fine tune the built-in microphones
to suit your environment. The software enables you to use the microphones in a variety of
settings, including small or large groups, noisy environments, or for individual dictation or
voice commands. The software improves the microphone reception by:
•Removing all sounds outside of the user-defined angle of acceptance.
•Minimizing background and ambient noise.
•Removing echo caused by the microphone picking up the speaker output (feedback).
Using speech recognition
You can use speech recognition to interact with your tablet by voice. You can dictate
documents and emails or use voice commands to control programs.
•Dictation mode—With Dictation mode, your tablet listens to everything you say and
converts your words to text. You can use dictation mode to enter text directly into any
document or text box.
•Voice command mode—With Voice command mode, your tablet listens for specific
words that correspond to a list of available voice commands. You can use commands to
switch between programs, save documents, copy, paste or undo.
Setting up speech recognition
Before you can use speech recognition, you must configure the microphones and train the
system for the characteristics of your voice. Then, you can take the available speech tutorial
to learn basic voice commands.
Set up the microphones
For best results, move to a quiet environment.
To set up the microphones
1. In Control Panel, tap the Ease of Access category, then tap Speech Recognition.
2. Tap Set up microphone.
3. If you are using the tablet’s microphone array, select Other.
4. Follow the instructions in the setup program.
5. If the microphones are set to an appropriate level, the meter will stay in the green zone
while you read the sentences. If the level is too low or too high, use Motion Dashboard to
adjust the level (page 18).
38 Chapter 2 Using your C5v/F5v Using the cameras (optional)
Train your tablet to recognize your speech
Use this procedure to improve your tablet’s ability to understand your voice.
To train your tablet to recognize your speech
1. In Control Panel, tap the Ease of Access category, then tap Speech Recognition.
2. Tap Train your tablet to better understand you.
3. Follow the instructions in the setup program.
Taking the speech tutorial
You can use the speech tutorial to learn basic commands and dictation. The tutorial takes
about 30 minutes to complete.
To take the speech tutorial
1. In Control Panel, tap the Ease of Access category, then tap Speech Recognition.
2. Tap Take Speech Tutorial.
3. Follow the instructions in the tutorial program.
Using dictation and voice commands
After you have set up speech recognition, you can open it from Control Panel.
To use Dictation and Voice Commands
1. In Control Panel, tap the Ease of Access category.
2. Under Speech Recognition, tap Start Speech Recognition.
3. Ensure that the Speech Recognition window is open and listening.
4. Do one of the following:
•For voice commands, say the appropriate command. For a list of commands, search
Windows Help and Support for “speech commands.”
•For dictation, open the program you want to use and start speaking.
For more information about speech recognition, search Windows Help and Support for
“speech recognition.”
Using the cameras (optional)
Your tablet may include built-in web and documentation cameras.
Chapter 2 Using your C5v/F5v Using the cameras (optional) 39
Using the web camera
The web camera is a 1.3-megapixel camera that supports color images and streaming video.
It is located on the front of your tablet. You can use the web camera for interacting with
people online.
Use the software of your choosing to operate the web camera.
Using the documentation camera
You can use the built-in documentation camera to take pictures and save them to your hard
drive. The documentation camera is a 3-megapixel, auto-focus camera. The camera lens is
on the back of the tablet, and includes a light to illuminate the subject.
The camera can capture pictures in BMP, JPG, PNG, GIF, and TIFF formats, and it has a
maximum resolution of 2048 × 1536 pixels. By default, the camera captures pictures in BMP
format with a resolution of 1600 × 1200 pixels.
To use the documentation camera
1. Press the Camera button to activate the camera and open the viewfinder.
2. Press the Camera button again to take a picture. If you don’t take a picture after a few
seconds, the viewfinder closes automatically.
3. In the Pictures window, do one of the following:
•To delete the picture, tap Delete. In the confirmation dialog box, tap Yes.
•To copy the picture, tap Copy to Clipboard. You can then paste the picture into an
image editing program.
•To close the Pictures window, tap Close.
•To save the picture, tap Save. In the Save As dialog box, specify a location and a file
format, such as BMP, JPG, or GIF.
A
B
40 Chapter 2 Using your C5v/F5v Using the barcode scanner (optional)
Documentation camera tips
•Hold the camera steady and allow it to focus.
•If your pen is tethered, ensure that the tether is not in front of the camera lens.
•Ensure you have adequate lighting.
•You can use the Pictures window to take and review multiple pictures. Use the slider bar
at the bottom of the Pictures window to switch among active pictures.
Using the barcode scanner (optional)
Your C5v/F5v is available with an optional integrated 1D and 2D barcode scanner that you
can use to retrieve information from barcodes.
A barcode is a series of shapes on a contrasting background that can be optically read by a
barcode scanner. Many applications use barcodes for asset tracking, identification and
process controls.
Supported barcode types
The C5v/F5v barcode scanner supports several different types of barcodes—a minimum set
of barcodes is enabled at the factory.
The following symbologies are enabled by default:
Other barcode types can be enabled by using the MCA Configuration Editor that comes
with the tablet PC. To access the editor, from the Start Menu, select All Programs > Intel >
MCA Platform Driver and tap MCA Configuration Editor.
To use the barcode scanner
1. Open the application that you want to receive the barcode data and place the insertion
point in the appropriate field.
2. Hold the unit by the handle with the scanner lens in front of you.
• Aztec Code • Code 128
•EAN-128 •EAN-UCC-CC-AB
•Code 39 •DataMatrix
•UPC-A •UPC-E
•EAN-8 •EAN-13
• Interleaved 2 of 5 • PDF417
• Micro PDF417 • RSS-14
•RSS Limited
Chapter 2 Using your C5v/F5v Using the RFID reader (optional) 41
3. Aim the scanner lens at the barcode.
4. Press and release the barcode scanner button on the top of the unit. Ensure that the scan
beam covers the entire barcode.
If the scan was successful, the data will appear in the application and you will hear a chime
sound as confirmation.
Barcode scanner tips
•You will typically get the best scans if the lens is six to seven inches from the barcode.
•If you are having trouble scanning a barcode, use two hands to steady the tablet while
you scan.
Using the RFID reader (optional)
Your tablet PC may include an integrated 13.56 MHz RFID (Radio Frequency Identification)
reader that you can use to retrieve information from RFID tags.
42 Chapter 2 Using your C5v/F5v Using the RFID reader (optional)
RFID tags use radio frequency (RF) transmissions to identify a product, animal, or person.
RFID does not require direct contact or line-of-sight scanning, and can be scanned through
many materials, including clothing. An RFID tag can store much more data than a typical
barcode, and some RFID tags can both transmit and record data. RFID can be used for asset
tracking, identification, process control, healthcare, and pharmaceutical applications.
The RFID reader supports the following formats:
•ISO/IEC 14443A/B
•ISO/IEC 15693
•ISO/IEC 18000-3
•MIFARE Classic (available on the F5v Tablet PC with a touchscreen display)
To use the RFID reader
1. Hold the unit by the handle with the right edge in front of you.
2. Aim the right edge of the unit at the RFID tag. Ensure that the tag is 1–1.5 inches (25–40
mm) from the RFID antenna scan area.
1 – 1.5 inches
RFID tag
Chapter 2 Using your C5v/F5v Using the battery 43
3. Press and release the RFID button on the top of the unit. The RFID light will come on to
indicate that the unit is scanning.
The RFID light goes off and the unit beeps to indicate a successful scan. The ASCII and Hex
data appears in the RFID Tag Data window.
NOTE:RFID tags are typically used with specialized applications. See your system administrator for
more information.
Using the battery
The C5v/F5v includes a high-capacity Lithium-ion battery that fits in to the back of the unit.
Under normal conditions, you can run the tablet on battery power for up to four hours.
DANGER: To avoid personal injury, handle the battery with care. Do not open, puncture,
short, or expose it to fire or water. Keep the battery in an environment with ambient
temperature of less than 104°F (40°C). For example, do not leave the battery in a closed car
in hot weather for an extended time. For more information, see the Safety and Regulatory
Guide packaged with the tablet.
Checking tablet battery power
You can check the remaining battery power several ways:
• When the tablet is plugged in to an outlet, the battery gauge shows whether the battery
is fully charged (green) or charging (amber).
•When the tablet is running on battery, pressing the battery gauge button on the front
displays status lights indicating the current level of charge.
•From the Motion Dashboard.
•From the Windows notification area.
44 Chapter 2 Using your C5v/F5v Using the battery
The battery gauge is located on the front of the C5v/F5v Tablet PC as shown:
You can use the battery gauge on the front of the unit to monitor the status of the battery.
To check the remaining battery power while running on the battery
1. Press the battery gauge on the front of the tablet.
2. Count the number of battery gauge lights. Each light represents about 20 percent
increments of a full charge.
When the tablet is on battery power, the lights indicate:
•Four green lights: The battery is three-fourths to fully charged.
•Three green lights: The battery is one-half to three-fourths charged.
•Two green lights: The battery is one-fourth to one-half charged.
•One green light: The battery is one-fourth charged.
•Flashing amber light: The battery is low and requires an immediate charge.
When the tablet is on AC power, the lights indicate:
•One amber light: The battery is less than one-fourth charged.
•Two amber lights: The battery is one-fourth to one-half charged.
•Three amber lights: The battery is one-half to three-fourths charged.
•Four amber lights: The battery is three-fourths charged.
•Four green lights: The battery is fully charged.
To check the remaining battery power from the Motion Dashboard
1. Open Motion Dashboard.
A
B
Chapter 2 Using your C5v/F5v Using the battery 45
2. Tap Power which displays the percentage of remaining battery charge.
To check the remaining battery power from the notification area
•Tap the power indicator, which appears differently depending on whether the tablet is
plugged in.
– If the tablet is plugged in, tap the plug icon .
– If the tablet is on battery power, tap the battery icon .
46 Chapter 2 Using your C5v/F5v Using the battery
Removing and replacing the battery
Before you remove the battery, ensure that the tablet is plugged in, turned off, or in
Hibernate (page 13) or Sleep mode (page 12). If you are hot-swapping the battery
(page 47), you can do so while the tablet is on and running on battery power.
To remove the battery
1. With the back of the unit facing you, slide and hold the battery latch.
2. Insert your finger under the finger grip and remove the battery from the battery
compartment.
To replace the battery
1. Place the tabbed end of the battery into the battery compartment.
2. Press the battery down until it locks in to place.
1
2
Chapter 2 Using your C5v/F5v Using the battery 47
Hot swapping the battery
Changing a tablet battery while the tablet is in use and running on battery power is called
“hot swapping.” You can hot swap a battery only if you have a second charged battery to
replace the battery that is low on power.
While hot swapping the battery, you will notice the following behaviors:
•The tablet’s display gets dimmer. Once the charged battery is in the tablet, the tablet’s
display brightens again.
•The battery gauge’s LED lights turn off. Once the charged battery is in the tablet, the LED
lights turn on again.
•The power button is disabled. (The power button is disabled at any time the tablet has
no battery and is not running on AC power through the power adapter.)
Important: You have one minute to hot swap the battery. If you do not insert a charged
battery within one minute, the tablet goes into hibernate mode. If the tablet is in sleep
mode and you do not insert a battery within one minute, the tablet wakes up, then goes
into hibernate mode.
To hot swap the battery
1. Remove the battery (page 46).
2. Insert the new battery (page 46).
Important: Use only Motion Computing C5v/F5vbatteries with the tablet.
Long-term battery storage
Do not store any batteries with a full charge; this can cause a permanent loss of charging
capacity. For long-term storage, ensure that the charge level is between 20% and 40% (two
contiguous LEDs illuminated), and remove the battery from the tablet. Check stored
batteries every 90 days to determine the charge status. If only one LED or no LED is
illuminated, recharge the batteries to a level between 20% and 40%.
For optimum care, store the battery in a cool, dry environment. Never expose the battery to
temperatures above 60ºC (140ºF).
NOTE:In storage, the batteries will self-discharge at a rate of 10% of the total capacity per month.
Disposing of used batteries
A Lithium-ion (Li-ion) battery should be disposed of at a hazardous materials recycling
center when it is no longer serviceable. Do not throw it in a waste receptacle because the
battery could be deposited in a landfill.
48 Chapter 2 Using your C5v/F5v Using the battery
Battery and power management tips
•To lengthen the battery’s usable life, use AC power when you can. The battery charges
automatically when the tablet runs on AC power.
•For optimal battery life, use AC power when using a USB device such as a DVD player or
external hard disk drive.
•When running on battery power, place the tablet in hibernate or sleep mode if you are
going to leave it unattended for more than a few minutes. For more information on
hibernate and sleep mode, see “Changing how the power button functions” on page 49.
•Remember that the display, processor, wireless cards and accessories all draw on the
battery, so adjust properties and disable unused accessories while running on battery
power.
•Condition your battery once a month. To condition it, run the tablet on battery power
until the battery’s charge level drops below 20 percent.
•When running on battery power, adjust the display to a dimmer setting and enable
Dynamic. Open Motion Dashboard, tap the Display tab and tap Dynamic.
•Turn off wireless devices when they are not being used. Open Motion Dashboard, tap
the Wireless tab, and clear the check box next to the wireless device you want to disable.
Changing the power plan
By default, the C5v/F5v uses the Motion Optimized power plan which is designed
specifically for Motion Computing tablets. It balances the need to save power while
maximizing tablet performance. When the tablet senses no current activity, it goes into
Power Saver mode automatically.
If necessary, you can change the Motion Optimized power plan from the Motion
Dashboard.
To change the power plan
1. Open Motion Dashboard.
2. Tap Power.
3. Tap Power Options.
4. Select a power plan from the list of available plans.
NOTE:Setting the power plan to Power Saver reduces the tablet’s performance.
Chapter 2 Using your C5v/F5v Using the battery 49
Changing how the power button functions
When you press and release the power button it can go into one of the following modes:
•Sleep—The tablet pauses all activity immediately and quickly resumes when awakened.
This saves power when you are away from your tablet for a short time. However, you will
lose unsaved data if there’s a power failure.
•Hibernate—The tablet saves the contents of memory to the solid state drive and shuts
down. Pressing the power button restores the desktop exactly as you left it. Hibernate
consumes about as much power as a night light and takes less time to restart than the
Shut down option.
•Shut down—Tablet shuts down. Pressing the power button reboots the tablet.
By default, the tablet goes to sleep when you press and release the power button . To
wake up your tablet, simply press and release the power button again. You can put the
tablet in hibernate mode or shut it down completely from the Start menu.
You can change how the power button behaves when it is pressed to either hibernate or
shut down or the tablet. You can set the behavior individually—depending on whether the
tablet is running on battery or plugged in.
To change what happens when the power button is pressed
1. Open Motion Dashboard.
2. Tap Power.
3. Under Power Switch on battery, select what you want to happen when the power
switch is pressed while the tablet is running on battery.
4. Under Power Switch plugged in, select what you want to happen when the power
switch is pressed while the tablet is plugged into an outlet.
50 Chapter 2 Using your C5v/F5v Using the fingerprint reader
Using the fingerprint reader
Using the fingerprint reader, you can log on to the tablet by scanning your fingerprint
instead of entering a password. This feature presents another level of security for the tablet.
With the fingerprint reader, you can avoid having to enter passwords for your applications
and websites. For example, instead of entering various passwords to your different website
accounts, you can use your fingerprint to serve as a master password that works for all your
accounts.
The steps to set up a fingerprint password include:
1. Start the Motion OmniPass™ application which you use to define and manage your
fingerprint .
2. Create an Omnipass user account (called enrolling the user). See page 52.
3. Replace passwords for sites by registering OmniPass credentials. After enrolling in
OmniPass, the next time you are prompted for your password you can replace the
password with your OmniPass credentials. See page 53.
4. Set up strong logon security. See page 53.
You can also protect sensitive data stored on your tablet. For details, see the OmniPass help.
Starting the OmniPass application
You use the OmniPass application with the fingerprint reader to create and manage your
fingerprints. After enrolling as an OmniPass user, you use OmniPass to secure files,
applications and websites by requiring a fingerprint swipe.
To start Motion OmniPass
•In the notification area, double-tap the Motion OmniPass icon ( ).
scan fingerprint
fingerprint reader
Chapter 2 Using your C5v/F5v Using the fingerprint reader 51
When you start the application for the first time, the Motion OmniPass application looks like
this:
Motion OmniPass Initial Start Up
After you have enrolled as an OmniPass user, the application opens the OmniPass Control
Center which looks like this:
52 Chapter 2 Using your C5v/F5v Using the fingerprint reader
Create an OmniPass user account
You create (enroll as) a new OmniPass user to register your fingerprint. Before you begin,
read the following tips.
Fingerprint reader tips
•For best results, use the Practice option before enrolling the first time.
•Be consistent. Hold your finger and scan at the same angle each time. For example, if you
enroll your finger with your hand open, hold your hand this way each time you scan.
•The scanner is bi-directional. You can move your finger from right to left or left to right.
•Read the prompts carefully and ensure that you wait for the prompt before you swipe.
•Swiping too fast or too slow can make a capture unsuccessful. Change the swipe speed
until you learn what speed works best.
•When scanning, press hard enough to fully contact both the nickel-colored ring and the
sensor; you do not have to press hard.
•Rub your fingers together to stimulate the natural skin oils so your fingerprint is easier to
detect. Conversely, wipe your finger off so nothing interferes with the scan.
•If you are having trouble enrolling a specific finger, enroll a different finger.
•If you are repeatedly having trouble getting a good scan, you may need to clean the
sensor. See “Cleaning the fingerprint reader” on page 66.
To enroll as a new OmniPass user
1. If you haven’t already done so, Start OmniPass.
2. Tap Enroll New User.
3. Follow the instructions in the setup program. When prompted:
1. Supply your Windows log in user name and password.
2. Select Authentec Fingerprint Device.
3. Choose which finger you want to use as your fingerprint password and swipe your
finger as instructed.
4. Enroll a second fingerprint which you can use if you injure your first finger.
Note: You can enroll another fingerprint at another time from the OmniPass Control
Center.
4. Back up your user profile to an external drive that you can store in a secure location in
the event that your user profile is corrupted.
Chapter 2 Using your C5v/F5v Using the fingerprint reader 53
Replace your passwords
Once you have enrolled in OmniPass, you can use your OmniPass credentials instead of your
password to logon to your accounts that require passwords. This is called password
replacement. You set up password replacement the next time you are prompted for a
password. Instead of entering the password, you register your OmniPass credentials.
To register OmniPass credentials
1. When you encounter a user name and password prompt, enter your user name and
password, but do not log on. (Do not tap Enter, Submit, or OK.)
2. Right-click the OmniPass icon, and select Remember Password. The Windows arrow
pointer changes to the OmniPass golden key.
3. Click the key cursor on the window that has the password that you want OmniPass to
remember.
Note: For some applications, you may have to use the password wizard to register
passwords. If so, from OmniPass Control Center, tap Password Wizard and follow the
instructions.
4. At the Friendly Name prompt, enter a descriptive name to identify the site that you are
registering.
5. Check Automatically enter. This allows you instant access to the site without requiring a
fingerprint scan or password. OmniPass will automatically submit your user name and
password without prompting for verification.
Setting up strong logon security
For an additional level of security, you can enable strong logon security. Strong logon
security forces you to authenticate with a specific security device (such as the fingerprint
reader or a Smart Card) before allowing access to Windows.
Notes:
•After strong logon security is enabled, the Windows Welcome screen and Windows Fast
User Switching are disabled.
•After strong logon security is enabled, if the fingerprint reader or smart card reader fails,
you may not be able to log on to the computer.
To enable strong logon security
1. Start Motion OmniPass (page 50).
2. Tap Change Your OmniPass Settings.
3. Tap the Change System Settings tab.
4. Select the Enable strong logon security check box.
5. Tap Save all changes.
6. Tap OK and restart the computer.
54 Chapter 2 Using your C5v/F5v Using the smart card reader (optional)
After you restart the computer, you should configure the authentication rules for strong
logon security.
To configure authentication rules
1. Start Motion OmniPass (page 50).
2. Tap Change Your OmniPass Settings.
3. Tap Set user authentication rules and policies.
4. Select the appropriate authentication rules.
5. Tap OK.
Using the smart card reader (optional)
Your tablet may include the optional smart card reader located on the back of the tablet
next to the battery. Using smart card software, this device reads information from the smart
card when the card is inserted into the reader.
The smart card is an ISO 7816 PC/SC compliant, contact type smart card reader/writer.
Depending on the smart card software you are using:
•You may receive an acknowledgement for when the smart card is fully engaged in the
reader.
•You may receive a prompt or be required to shut down the software before removing the
smart card.
•Some smart cards may require you to insert the smart card for authentication, and then
remove the smart card when authentication is completed.
•Some smart cards may require keeping the card in the reader while the smart card
software is running.
To insert the smart card
1. Place the smart card in front of the smart card reader with the metal contacts of the
embedded chip facing the back of the tablet.
2. Slide the smart card into the smart card reader until the card is firmly seated in the
reader.
To remove the smart card
1. Depending on your smart card software, you may be required to first shut down the
smart card software before removing the card. With this type of software, removing the
smart card while the tablet is running can result in logging off or shutting down the
tablet.
Chapter 2 Using your C5v/F5v Using the smart card reader (optional) 55
2. Pull the card straight out of the reader.
smart card
smart card reader
56 Chapter 2 Using your C5v/F5v Using the smart card reader (optional)
Using the SIM card slot
The SIM card slot holds one SIM (Subscriber Identity Module) card. A SIM card is a smart
card, about the size of a postage stamp, that stores information about your wireless
account.
You need to use a SIM card only if you are using mobile broadband on a GSM/UMTS/HSPA
network. Contact your service provider for details.
To insert a SIM card
1. Turn off the tablet and remove the battery (page 46).
2. Locate the SIM slot door and open it.
Note: The SIM slot and a diagnostic port are behind the SIM slot door. The SIM slot is
below the diagnostic port.
3. Place the SIM card label side down on the battery tray. Ensure that the notch on the SIM
card is in the upper right corner.
4. Slide the SIM card into the SIM card slot until it clicks into place. You may need to use a
paper clip to push the SIM card all the way in.
To remove a SIM card
1. Turn off the tablet and remove the battery (page 46).
2. Open the SIM slot door.
3. Press the card in slightly until it pops out. You may need to use a paper clip to push the
SIM card in to release it.
SIM slot
diagnostic port
Chapter 2 Using your C5v/F5v Using Windows Action Center 57

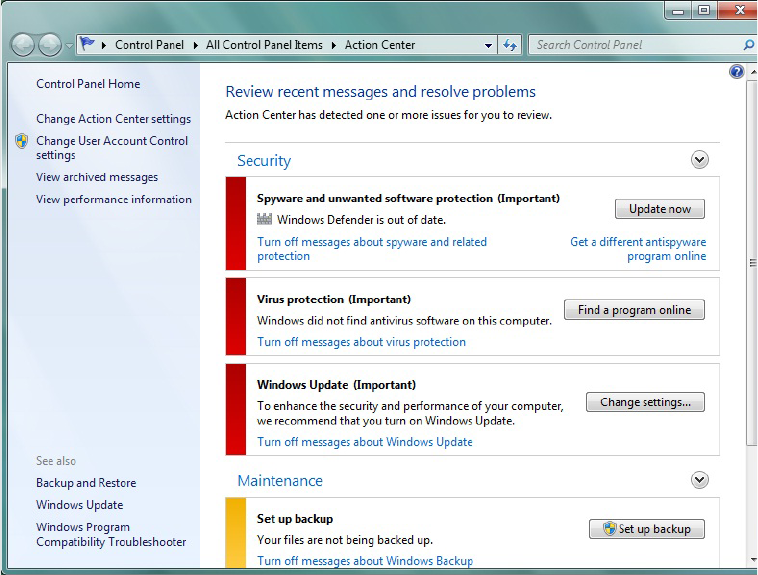

Using Windows Action Center
Windows Action Center provides a central location for you to manage the tablet’s security
settings and learn more about improving security. If a problem is detected (such as an out-
of-date antivirus application), the Action Center sends you an alert and provides
recommendations for how to remedy the situation.
To learn more, open Motion Dashboard to the Security panel, then tap Windows Action
Center.
Setting up user accounts
If you share the tablet with other users, you can set up a user account for each user. User
accounts control which files and programs users can access and what types of changes
users can make to the computer. A user account allows each person to have their own
settings.
If you have an administrator account, you can add new user accounts from the Microsoft
Management Console. For detailed instructions on setting up new users, open Windows
Help and search for “Create a user account.”
58 Chapter 2 Using your C5v/F5v Backing up your system
Backing up your system
To protect against loss or accidental deletion, schedule back ups to occur automatically on a
regular basis. Windows 7 has a back up tool that you can use to set up what you want to
backup and schedule backups on a regular basis.
To schedule back ups
1. From the Control Panel, tap System and Security category then tap Back up your
computer.
2. Tap Set up back up.
Follow the on-screen instructions.
You can restore files from a back up. For more information, open Windows Help and search
for “Restore files from a backup.”
Restoring your system
Windows 7 has specialized tools for restoring your system in case of system failure. This
section covers:
•Creating a system image to use to restore your computer if necessary
•Restoring the computer from a system image using Windows control panel
•Restoring the tablet from BIOS if Windows 7 cannot run
NOTE:System images are designed for restoring your entire system at once when you have a
serious problem with Windows 7. If you want to install particular files, folders or other data,
use Windows Backup.
Creating a system image
You can use a system image to restore the contents of your tablet if it ever stops working. A
system image is an exact copy of a drive and includes Windows 7, your system settings,
programs, and files. The system image requires an external drive, such as a USB flash drive,
on which to store the image.
NOTE:We recommend that you create a system image as soon as you set up your tablet and then
periodically.
To create a system image
1. Locate a USB flash drive or other external drive on which to store your system image.
2. From the Windows Control Panel, tap System and Security category, then tap Back up
your computer.
3. From the navigation bar on the left, tap Create a system image, then follow the
on-screen instructions.
Chapter 2 Using your C5v/F5v Restoring your system 59
For complete instructions, open Windows Help and search for “Back up your programs,
system settings, and files.”
Restoring your system image from Windows Control Panel
Use the Recovery tool from the Control Panel to restore your system if you can still access
Windows 7 or if you are restoring your system image onto a different computer.
To restore your system from Windows Control Panel
1. Locate the external drive that contains your system image.
2. From the Windows Control Panel, tap System and Security category, then tap Backup
your computer.
3. Tap Recover your system settings or your computer, then Advanced Recovery
Methods, then Use a system image...
4. Follow the on-screen instructions.
For more information, open Windows Help and search for “Back up your programs, system
settings, and files.”
60 Chapter 2 Using your C5v/F5v Restoring your system
Restoring your system image if you can’t start Windows 7
If you need to restore your system and cannot access Windows 7, you can access the
recovery tool from the BIOS screen.
NOTE:Before starting, locate the external drive that contains the system image you created
previously (page 58).
To restore your system image from the BIOS screen
1. Locate the USB flash drive or other external drive where you stored your system image.
2. If it isn’t already, attach a keyboard to the tablet.
3. Press the tablet’s power button to start the tablet.
4. Press and hold the F8 key to display the BIOS screen.
You need to press the key as soon as the tablet starts up to access BIOS. If the Windows
logo appears, you need to try again by waiting until the Windows logon prompt
appears, and restarting your tablet from the Start menu.
5. On the Advanced Boot Options screen, select Repair your computer and press Enter.
6. Select a keyboard layout, then tap Next.
7. Select a user name and enter the password, then tap OK.
8. Attach the external drive that contains the system image.
9. On the System Recovery Options menu, tap System Image Recovery.
Follow the instructions to Re-image your computer.
Restoring your system without a system image
If you need to restore your Windows 7 system and you do not have a system image, you can
restore Windows to its original factory image. This does not restore any of your files or any
programs that you have installed.
To reinstall the original factory image
1. If it isn’t already, attach a keyboard to the tablet.
2. Press the tablet’s power button to start the tablet.
3. Press and hold the F8 key to display the BIOS screen.
You need to press the key as soon as the tablet starts up to access BIOS. If the Windows
logo appears, you need to try again by waiting until the Windows logon prompt
appears, and restarting your tablet from the Start menu.
4. On the Advanced Boot Options screen, select Repair your computer and press Enter.
5. Select a keyboard layout, then tap Next.
6. Select a user name and enter the password, then tap OK.
Chapter 2 Using your C5v/F5v Finding other software 61
7. On the System Recovery Options menu, tap Reinstall Windows.
8. Tap Yes to reinstall Windows.
9. Check whether Windows was able to save any data from the tablet. Look in the folder
called Windows.old.
NOTE:If the Reinstall Windows option is not available, the tablet does not contain a recovery
partition. Use the recovery media that came with your computer to restore Windows.
Finding other software
For information about other software for your tablet, go to Motion Computing Accessories
and the Motion Computing Store. You will find links to software solutions for purchase as
well as free downloads from Motion Computing and its service partners.
62 Chapter 2 Using your C5v/F5v Finding other software
Chapter 3 Caring for your C5v/F5v 63
Caring for your C5v/
F5v 3
Proper care and maintenance will keep your C5v/F5v Tablet PC working and in good
condition for a long time. For general information about care of the tablet and its
components and accessories, see the Safety and Regulatory Guide included with your
tablet PC.
WARNING: Follow the guidelines listed below when caring for your tablet PC and its
components. Improper use may damage the tablet PC and its components and void the
warranty.
General care
•Protect the tablet PC from exposure to extreme temperatures, shock, liquids and strong
magnetic fields.
•Do not place heavy objects on top of the tablet PC.
•If you are storing the tablet for a long time, unplug the power adapter and remove the
battery after partially discharging it.
•Do not open the case. Opening the case will void your warranty.
64 Chapter 3 Caring for your C5v/F5v Caring for the display
Caring for the display
Follow these suggestions to keep your display clean:
•Clean fingerprints and smudges from the display surface by wiping it with the display
cloth provided.
•If needed, use a cleaning solution recommended by Motion Computing to clean the
display. Spray the solution on a cloth then wipe the display. Never spray directly onto the
display surface and never use an abrasive cleaner.
•If liquid is spilled on the display, wipe it up immediately with a soft cloth like the one
provided with the tablet.
•Use only the C5v/F5v pen to write on the display. Any other object could damage the
display surface.
•Protect the display surface from unnecessary contact by using a case when transporting
the tablet PC.
•Cover the display with a protective display film.
•Avoid exposing the display to direct sunlight for long periods of time.
•If your tablet comes with a View Anywhere display, clean with any alcohol-based
product recommended for anti-reflective glass. Other cleaning products might leave a
residue.
•You can also purchase protective display films as well as protective cases from the
Motion Computing Accessories page.
Cleaning solutions
Motion Computing maintains a list of C5v chemical disinfectants and F5v chemical
disinfectants on its website.
WARNING: Do not use any corrosive or abrasive cleaners to clean or disinfect the tablet.
Caring for the pen
If you use a pen with your tablet:
•Store the pen in the pen holder when not in use.
•Avoid storing the pen vertically on its tip. It can damage the pen-to-digitizer function.
•Keep the pen away from any liquid because the pen contains electronic components
that could be damaged when wet.
•In certain environments, particles or debris can stick to the pen tip or the tablet PC
display. Make sure you wipe off the pen with a soft cloth to avoid scratching the display.
•Change the tips regularly, especially if you drop the pen onto a rough surface that could
damage the tip or embed debris in it. Damaged pen tips can scratch the display.
Chapter 3 Caring for your C5v/F5v Cleaning in a healthcare environment 65
NOTE:To order pens or new pen tips, go to Motion Computing Accessories.
Replacing pen tips
Pen tips eventually wear down or get damaged, so the pen includes extra tips and a tool for
replacing them.
With typical use, you should change the pen tip every 90 days. If you use the pen in a dirty
environment, you should change the pen tip every 30 days. Particles can become
embedded in the pen tip and scratch the display.
To replace the pen tip
1. Grasp the old tip with the replacement tool. Use the notch on the ring to grab the tip.
2. Pull the old tip out of the pen.
3. Insert a new tip, placing the flat end of the pen tip in first.
4. Apply slight pressure to push the tip in to place.
Cleaning in a healthcare environment
This section describes the cleaning procedures for the tablet PC in a healthcare
environment.
Disinfecting procedures
You should periodically disinfect the tablet according to the institutional polices of surface
and equipment safety and cleanliness. Motion has tested a variety of antimicrobial solvents
and information on specific products is available upon request.
According to the Centers for Disease Control and Prevention, “items that do not ordinarily
touch the patient or touch only intact skin are not involved in disease transmission, and
generally do not necessitate disinfection between uses on different patients”.1 We
recommend using an EPA-approved low-level disinfectant when general cleaning is
required. For a list of cleaning solutions tested by Motion Computing, see “Cleaning
solutions” on page 64.
If the tablet becomes soiled with blood or other body fluids, a hospital-approved low-level
disinfectant that is tuberculocidal/virucidal when used at recommended dilutions and
contact times can be used.
1. Centers for Disease Control and Prevention. “Sterilization or Disinfection of Medical Devices-General
Principles.” 2002.
<www.cdc.gov/ncidod/dhqp/bp_sterilization_medDevices.html> (20 Sept. 2006).
66 Chapter 3 Caring for your C5v/F5v Cleaning the fingerprint reader
Visibly soiled areas should first be cleaned and then disinfected, or a detergent disinfectant
can be used. For disinfection, the cleaned areas should be moistened with the appropriate
germicide and allowed to air dry.1
If the tablet is used with patients who are infected or colonized with vancomycin-resistant
enterococci or other drug-resistant microorganisms judged by the infection control
program (based on current state, regional, or national recommendations, to be of special or
clinical or epidemiologic significance or with highly virulent microorganisms such as Ebola
or Lassa), then the unit should be dedicated to one patient or patient cohort or subjected to
low-level cleaning between patient uses.1
Training and documentation considerations
All users of tablet computers in the healthcare environment should be provided with
training on proper cleaning procedures. Cleaning procedures should be added to the
institution's policies and procedures for infection prevention.
Cleaning the fingerprint reader
Under normal circumstances, you should clean the fingerprint reader once a month, or
whenever necessary.
To clean the fingerprint reader
1. Shut down the tablet, unplug it, and remove the battery.
2. Lightly spray a cotton swab with household window cleaner.
3. Gently rub the sensor surface with the cotton swab, slowly rotating the swab so a new,
