Xplore Technologies IX104-010 Tablet PC with built-in GPRS radio User Manual ix104 handbook for pdf

Xplore Technologies Tablet PC with built-in GPRS radio ix104 handbook for pdf

Users Manual

ix104 USER’S HANDBOOK
iX104 USER'S HANDBOOK
4 iX104 User’s Handbook
Xplore Technologies® has made every effort to ensure the accuracy and
completeness of this document; however, because ongoing development
efforts are made to continually improve the capabilities of our products, we
cannot guarantee the accuracy of the contents of this document. We disclaim
liability for errors, omissions, or future changes herein.
Xplore and the Xplore logo are registered trademarks of Xplore Technologies
Corp.; iX104 is a trademark of Xplore Technologies Corp.
Kensington and MicroSaver are registered trademarks of the Kensington
Technology Group.
Microsoft is a registered trademark of Microsoft Corporation. Windows 2000
Professional, Windows XP Professional, and Windows XP Tablet PC Edition
are trademarks of Microsoft Corporation.
PCMCIA and CardBus are registered trademarks of the Personal Computer
Memory Card International Association.
Intel, Pentium, and SpeedStep are registered trademarks of Intel Corporation.
Wi-Fi is a trademark of the Wireless Ethernet Compatibility Alliance
(WECA).
FireWire is a registered trademark of Apple Computer, Inc.
ISODAMP is a registered trademark of Aearo Company.
All other brands, product names, company names, trademarks and service
marks used herein are property of their respective companies.
Copyright © 2003 Xplore Technologies Corp. All rights reserved. No part of
this publication may be copied, reproduced, or translated, without the prior
written consent of Xplore Technologies. No part of this publication may be
stored or transmitted in any electronic form without the prior consent of
Xplore Technologies. Any unauthorized use is a violation of copyright laws.
PN: 95-01016
Edition: First, April 2003
DECLARATION OF CONFORMITY according to FCC Part 15
Responsible Party Name: Xplore Technologies Corp.
Address: 11675 Jollyville Rd. Suite 150, Austin, Texas 78759
Telephone: 512.336.7797
Declares that product: Model Series: iX104 Complies with Part 15 of the FCC
Rules
iX104 User’s Handbook 5
This device complies with Part 15 of the FCC rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and, (2) This device must accept any interference received,
including interference that may cause undesired operation.
WARNING
Changes or modifications to this unit not expressly approved by the party
responsible for compliance may void the user’s authority to operate this
equipment.
For more information about FCC rules and their applicability to the iX104,
see Appendix E, “Agency Notices.
Warranty Information
The iX104 and iX104-TPC are backed by a standard 12-month International
Limited Warranty. An extended International Limited Warranty is available.
Check the service kit included with your computer for warranty terms and
conditions.
a
6 iX104 User’s Handbook
Important safety information
Before you use the iX104 or the iX104 dock, read these safety
instructions and the operation instructions in this handbook.
Failure to observe all these instructions voids the Limited Warranty and
may lead to suspension or denial of services to the offender, or legal
action, or both.
Follow any special regulations governing the use of the computer and, if
radio-enabled, always switch it off in areas where radio devices are forbidden
or when the radio device can cause interference or danger.
Always follow any safety laws and regulations pertaining to the use of cell
phones and two-way radios, because these laws and regulations typically
apply to the use of the wireless-enabled iX104.
Observe all restrictions on the use of radio equipment in fuel depots (fuel
storage and distribution areas), chemical plants, and wherever blasting
operations are in progress or in any area in which restrictions on radio
transmissions are imposed.
Switch off the iX104 when in an aircraft. The iX104 is not FAA-approved for
use on aircraft. The effect of the use of the iX104 in aircraft is unknown.
Using the iX104 in an aircraft may affect aircraft instrumentation,
communication, and performance; may disrupt the network; and may be
illegal.
Operating the wireless-enabled iX104 may interfere with the functioning of
inadequately protected medical devices such as pacemakers. Consult a
physician or the manufacturer of the medical device if you have any
questions.
Radio signals from your iX104 will not affect the operation of most modern
equipment, but certain electronic equipment, including automotive systems,
may not be shielded against radio signals from your iX104. Check with the
manufacturer of your motor vehicle or the manufacturer’s representative to
determine whether using the iX104 will present any safety issues.
Avoid using the iX104 in any environment that requires your full attention,
such as when driving a vehicle. If you need to use your iX104 while driving,
have a passenger use it for you or find a safe location to halt your vehicle.
iX104 User’s Handbook 7
WARNING
Use only battery types specified in this handbook. Using any other type of
battery can be dangerous and can disable the iX104.
WARNING
Do not use any dock or any other accessory or attachment that is not
manufactured or supplied by Xplore or an authorized Xplore accessories
supplier. Use of any accessory or attachment that is not supplied or approved
for use with the iX104 by Xplore is not permitted because it may cause
hazards.
Operate the iX104 only from the type of power source indicated on the
marking label. (See page 53 for more information about the battery and power
supply.) Route power supply cords so that they are not likely to be walked on
or pinched by items placed upon or against them. Pay particular attention to
cords at plugs and convenience receptacles, and at the point where cords exit
from the computer or its dock. Do not overload wall outlets, extension cords,
or integral convenience receptacles because this can cause fire or electric
shock.
Unplug the iX104 and refer the iX104 and dock for service to qualified
service personnel if any of the following conditions occur:
The power supply cord or plug is damaged.
The iX104 or dock does not operate normally when you follow the
instructions in this book.
The iX104 or dock exhibits a distinct change in performance.
Adjust only controls for which there are instructions in this book. An
improper adjustment of other controls can result in damage and may require
extensive work by a qualified technician to restore the iX104 or dock to
normal operation.
CAUTION
Avoid prolonged physical contact with the exposed metal surfaces on the front
and back of the computer. While the computer may not feel hot to the touch, if
you maintain physical contact with the computer for a long time (for example, if
you rest the computer on your lap for a long time), your skin may suffer low-
heat injury. In addition, be careful when you remove a PC card that has been
used for a long time, because the card may be hot.
a
a
8 iX104 User’s Handbook
iX104 User’s Handbook 9
Contents
Welcome 13
Who this handbook is for . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
About your computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Optional accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Contacting Xplore . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
1Getting Started 19
Getting to know your iX104 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Features and controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

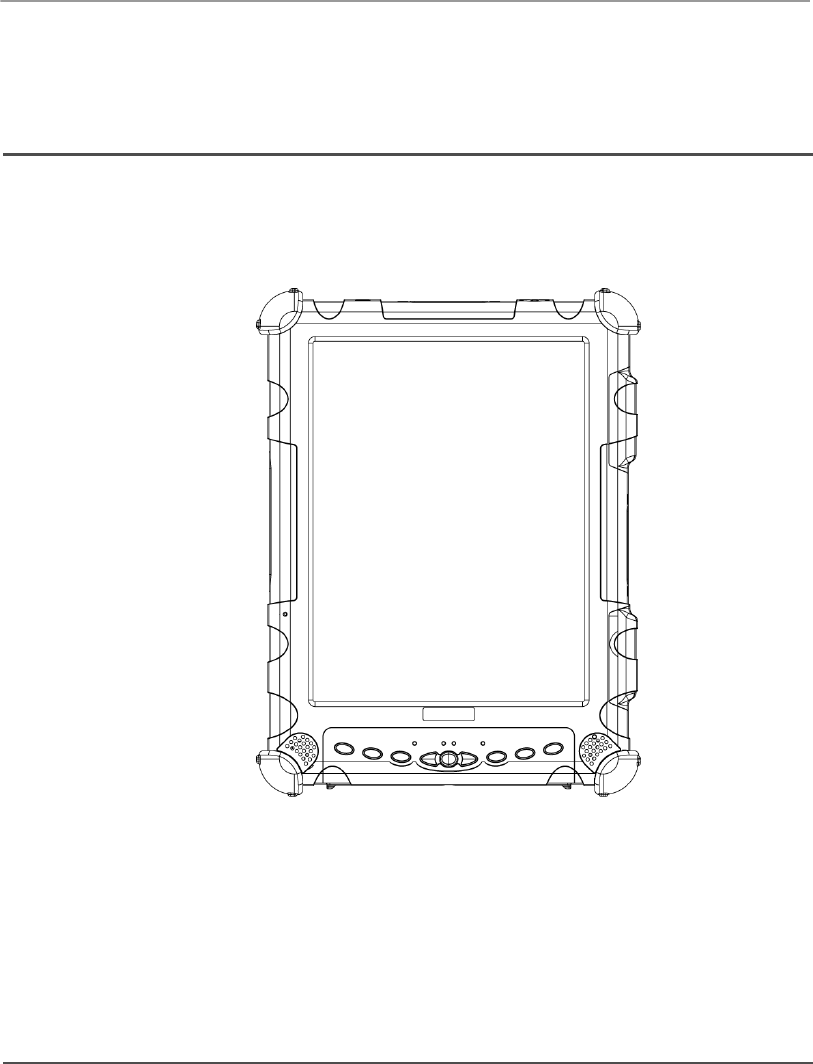

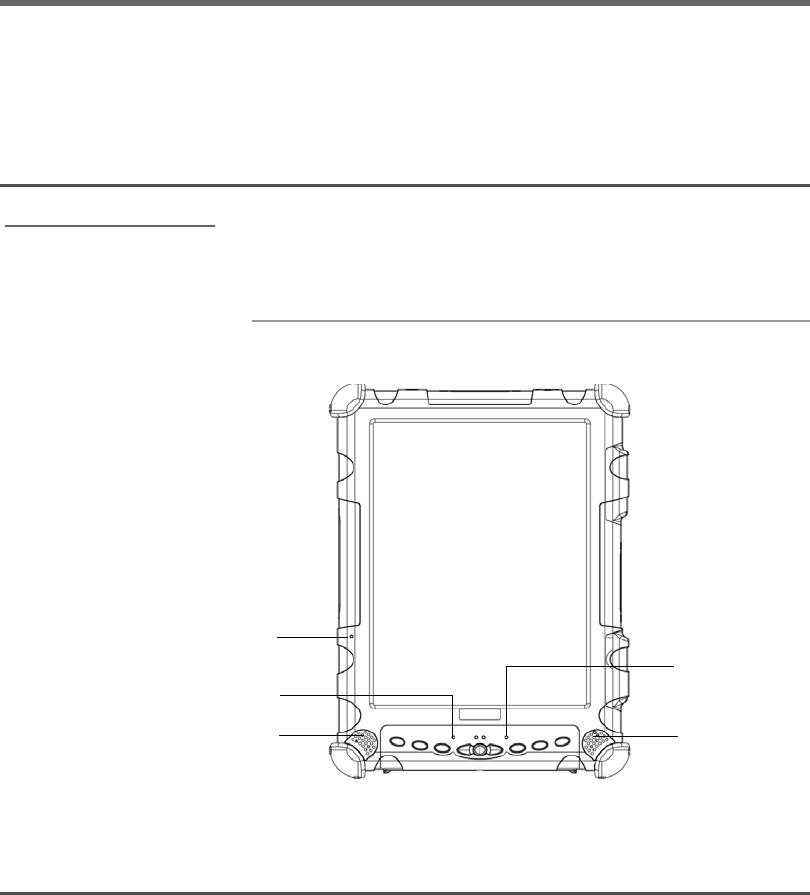

Front view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

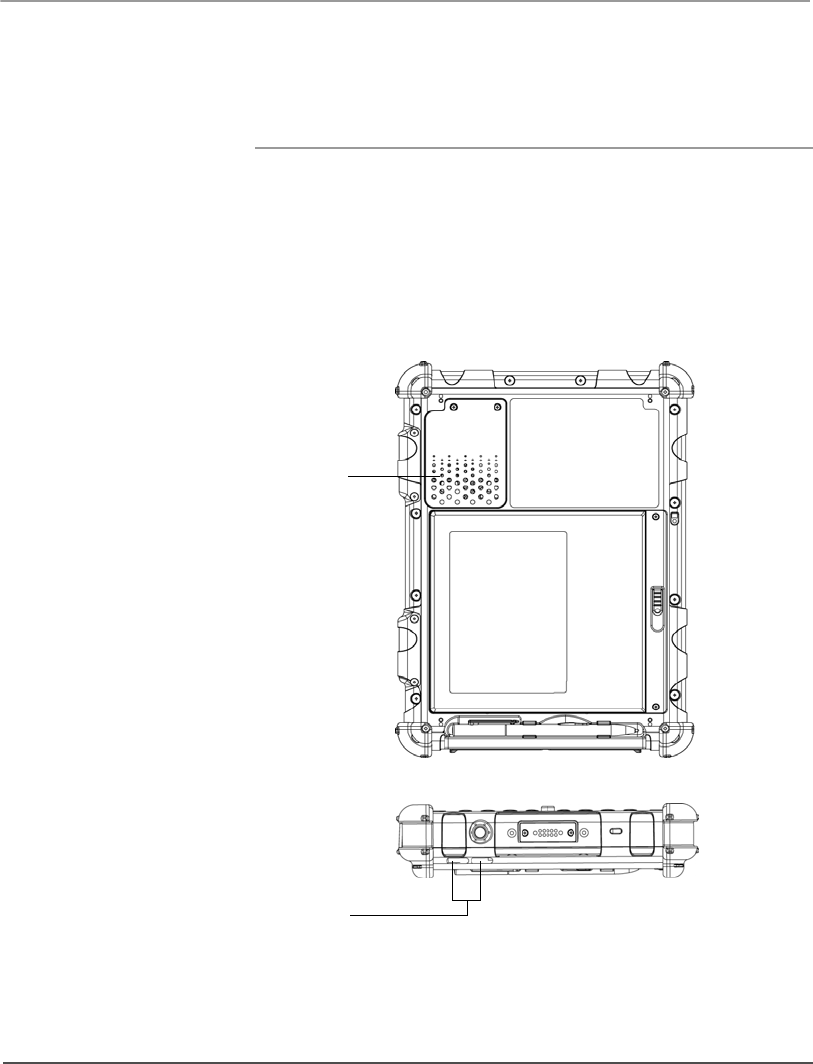

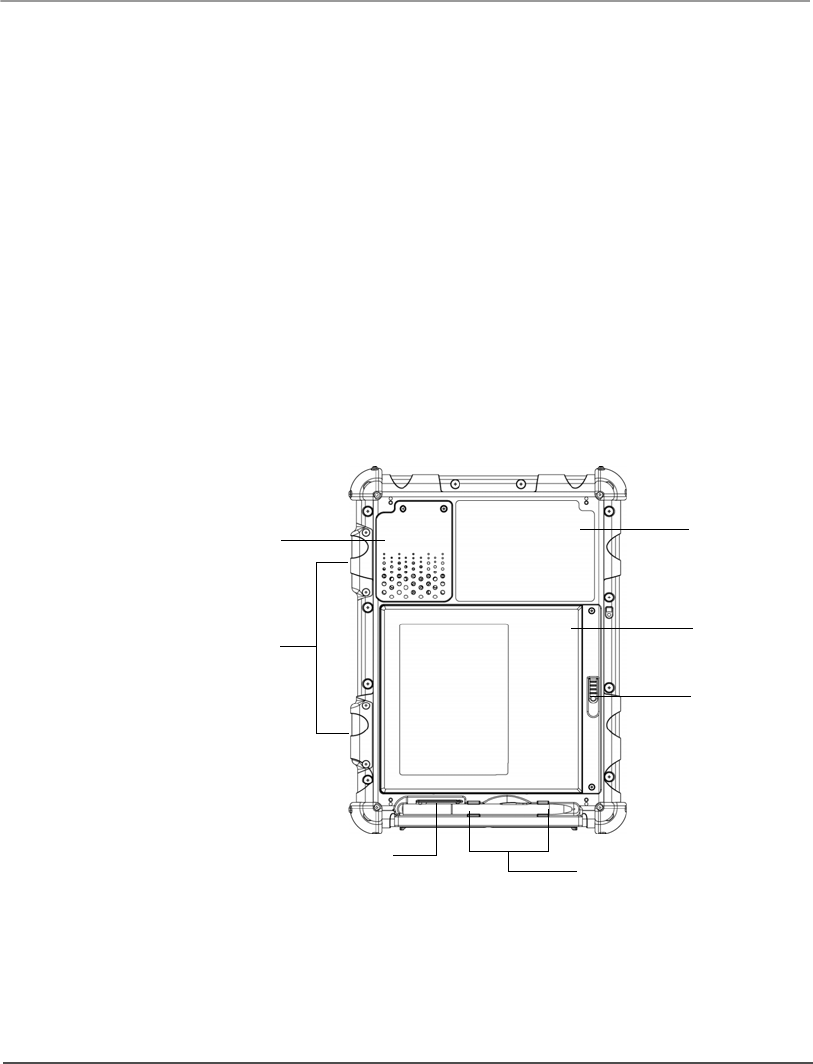

Back view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

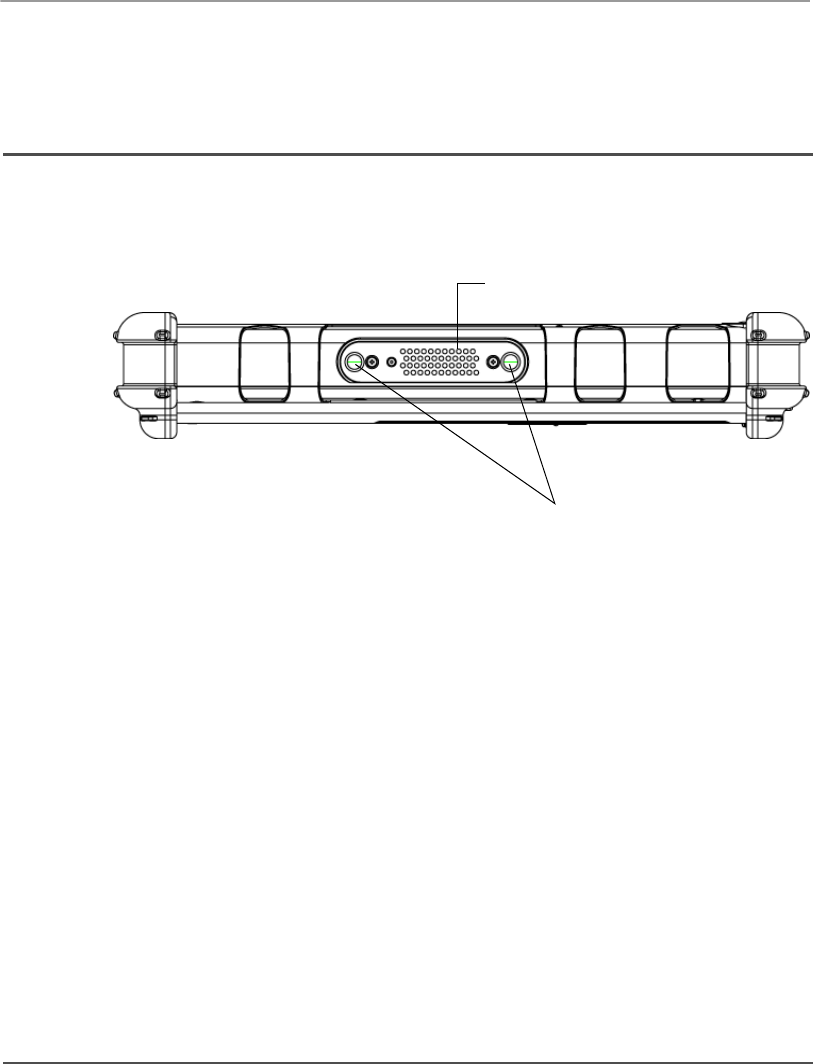

Top view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

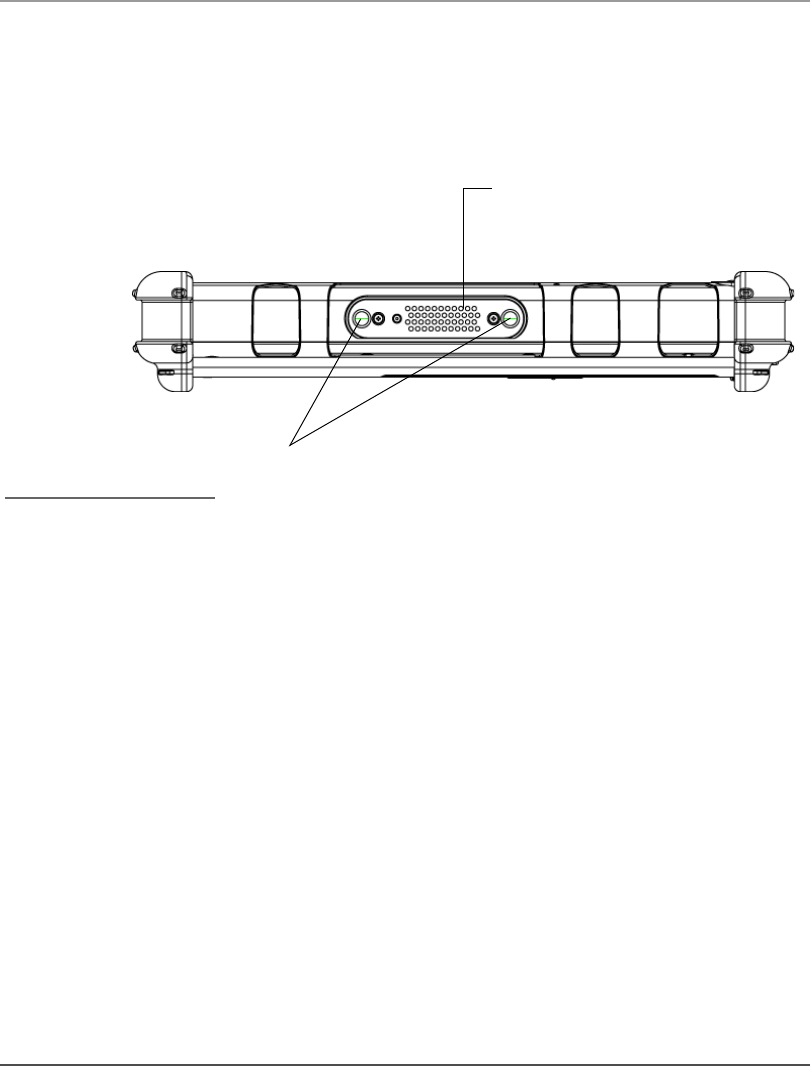

Bottom view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Right side view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Left side view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
LED indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Quick-start guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

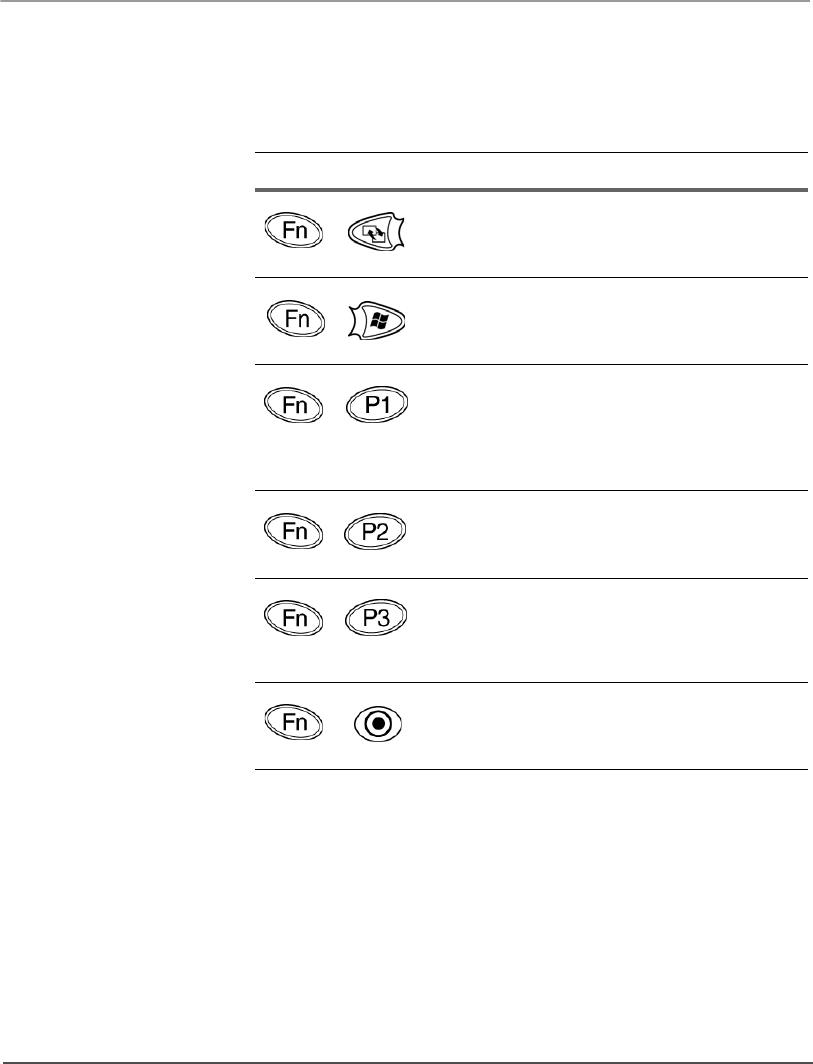

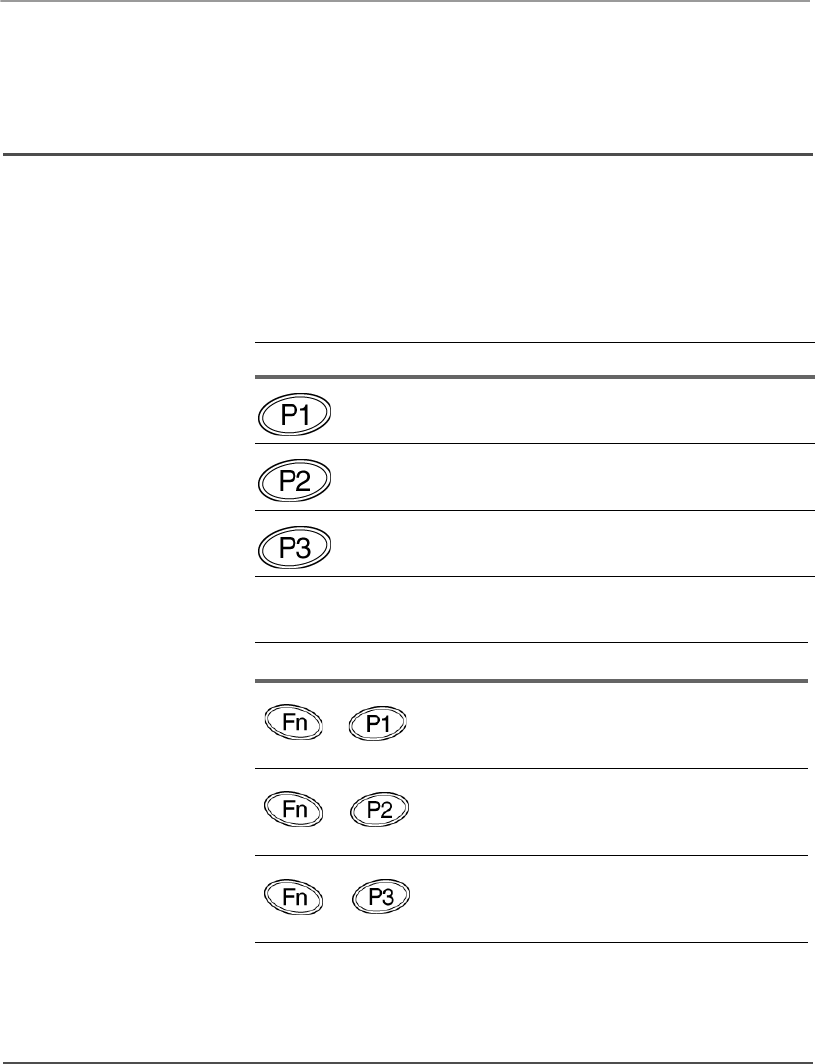

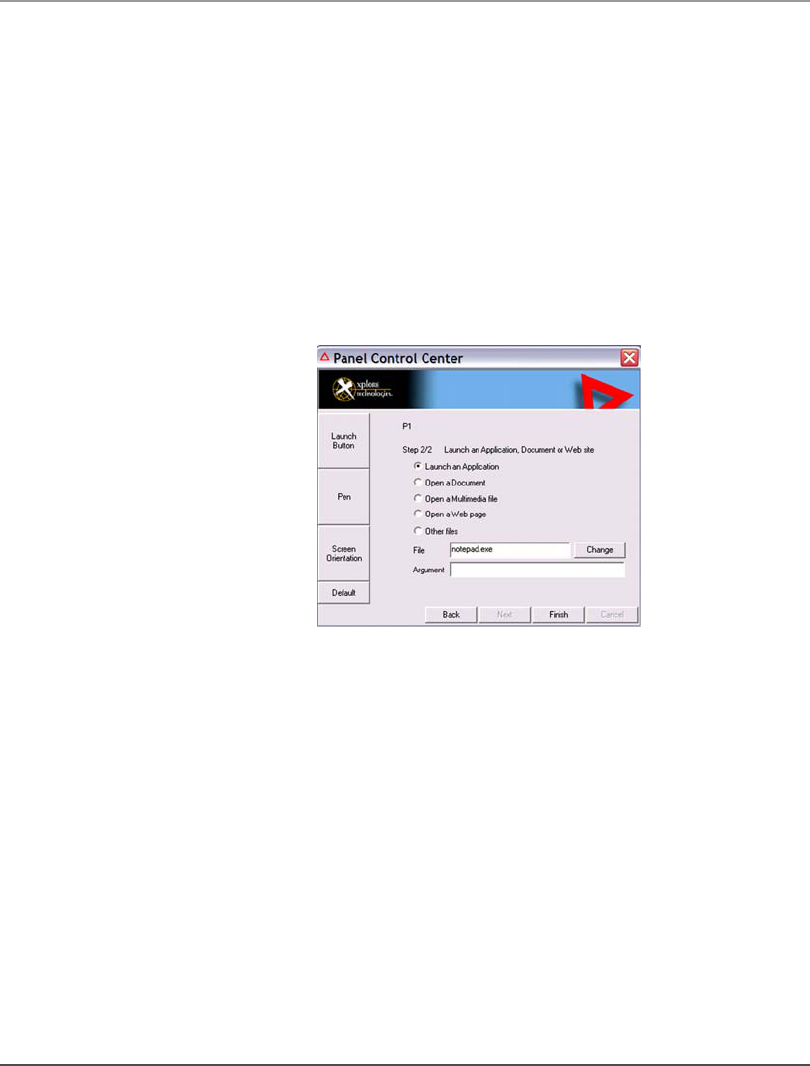

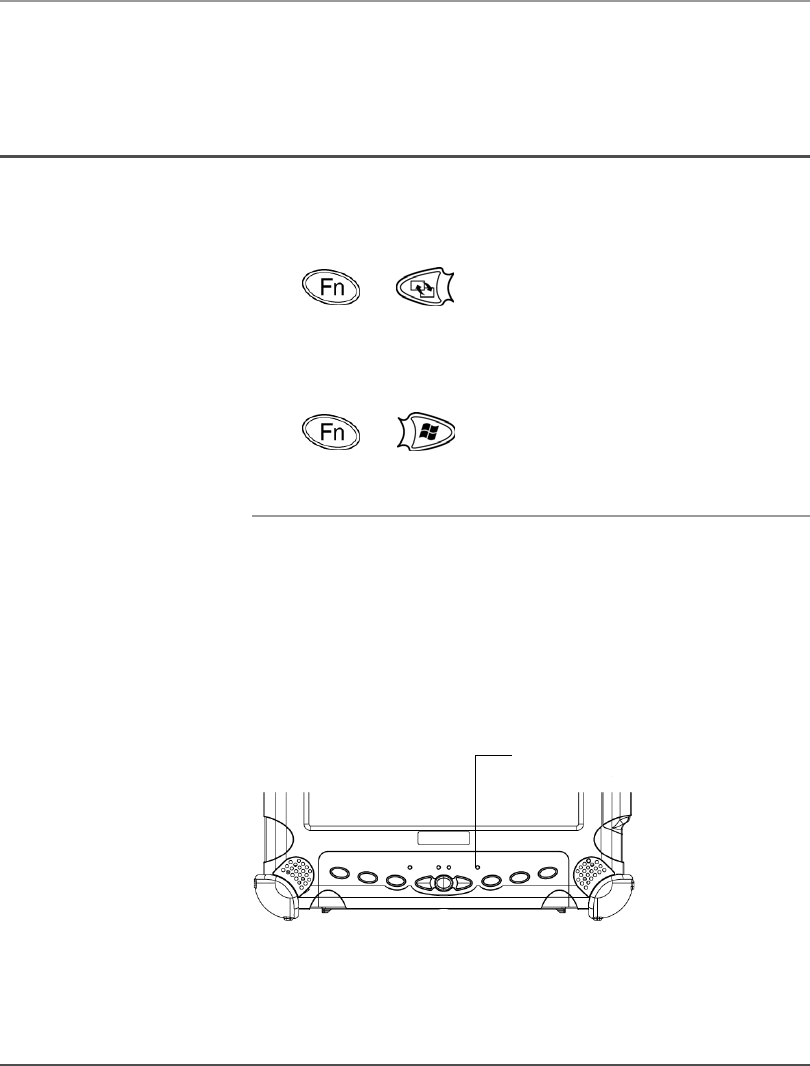

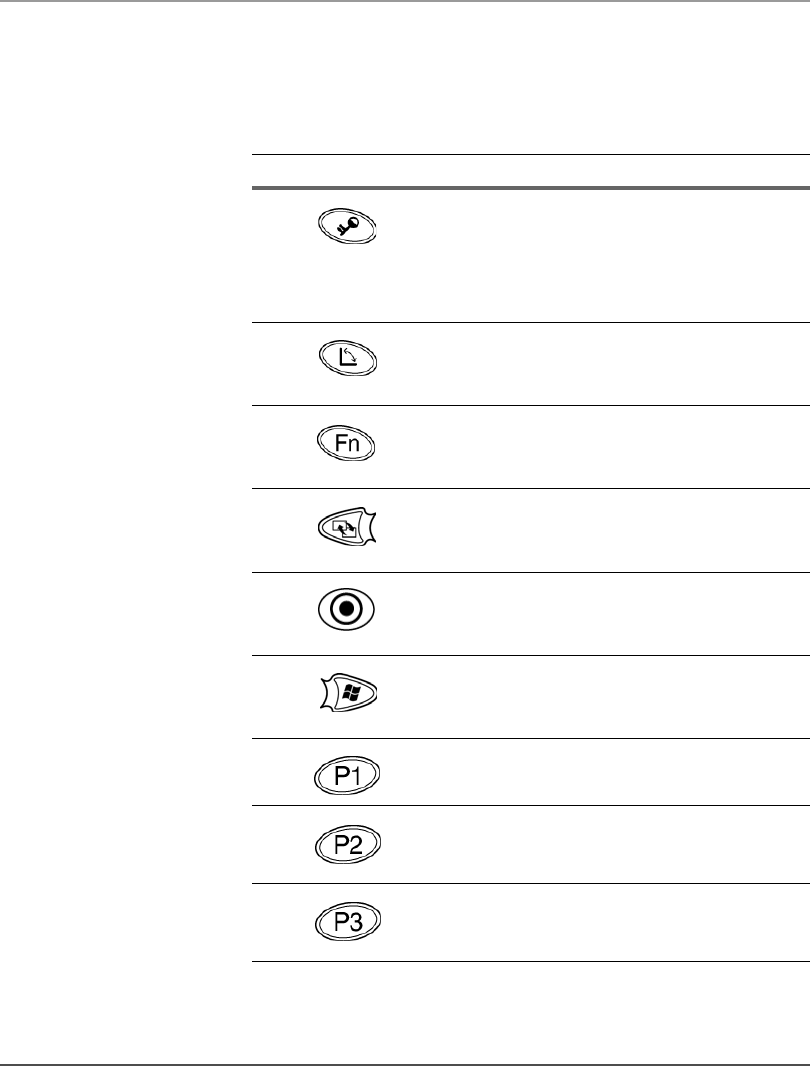

Application, Windows, and hot keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

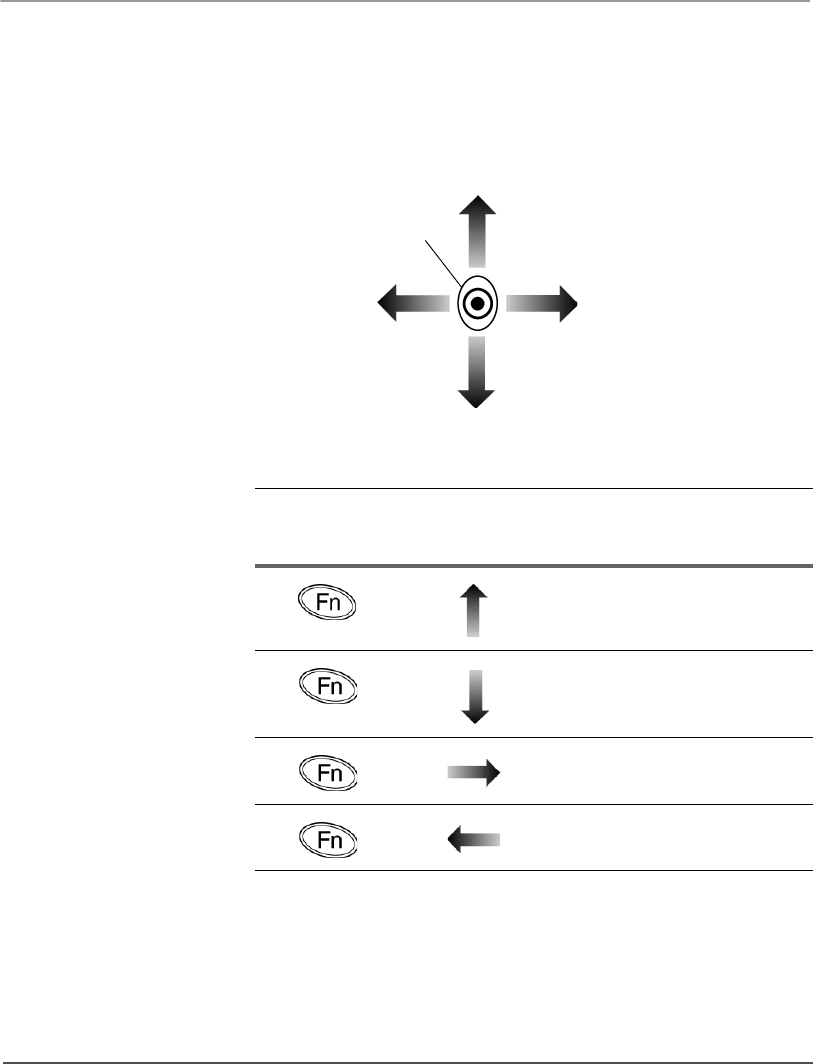

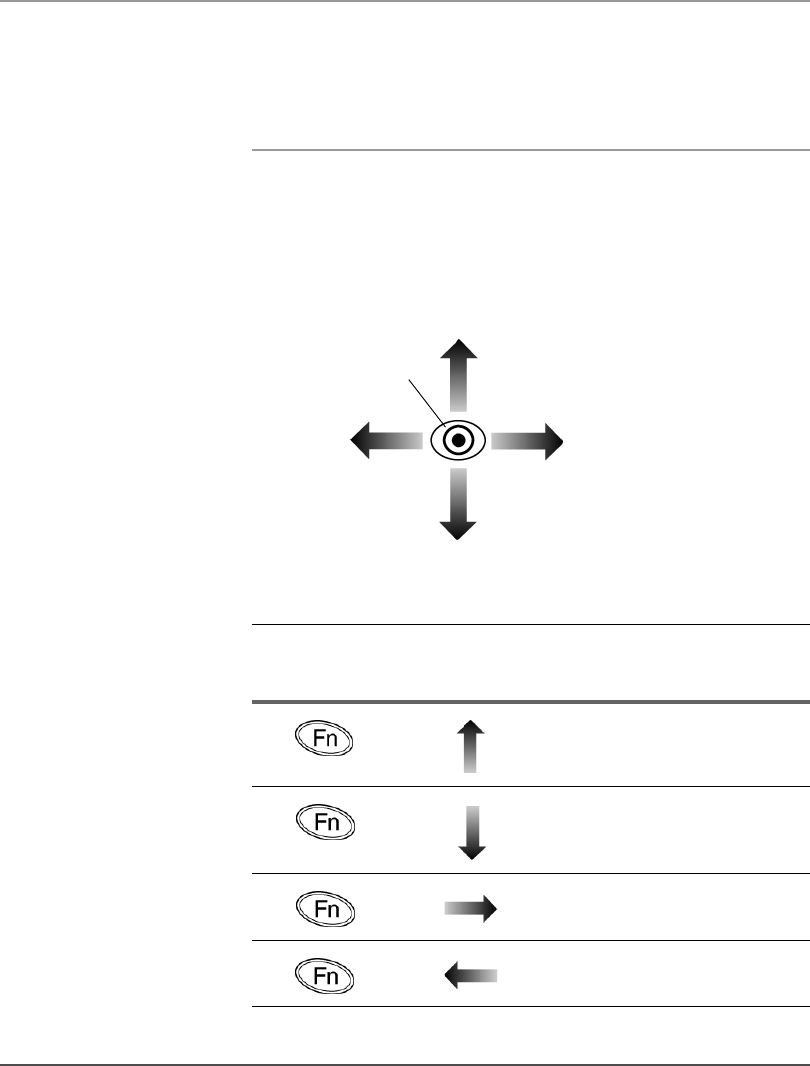

Navigation keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Navigation controls with the tablet in portrait mode . . . . . . . . . . . . . . . 31
Navigation controls with the tablet in landscape mode . . . . . . . . . . . . . 32
Contents
10 iX104 User’s Handbook
2Using the iX104 33
Turning on the computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Turning off the computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Using the Reset switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Suspending and resuming operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Suspending operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Resuming operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Using the pen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Using the pen to perform mouse functions . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Changing the pen double-click speed . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Positioning the pen and pen tether . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Using the joystick (the navigation control key) . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Changing the screen orientation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Adjusting the screen brightness. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

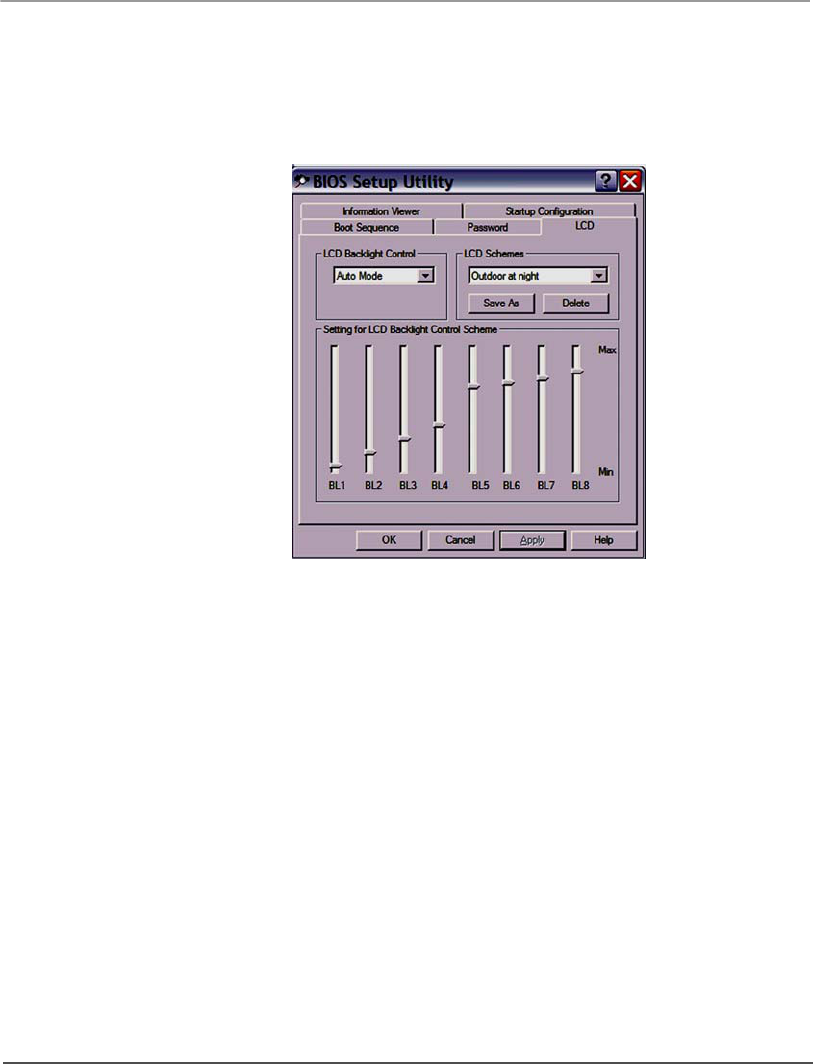

Disabling automatic backlight control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Docking the iX104 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Connecting devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Connecting FireWire devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Connecting to a local area network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Connecting USB-compatible devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

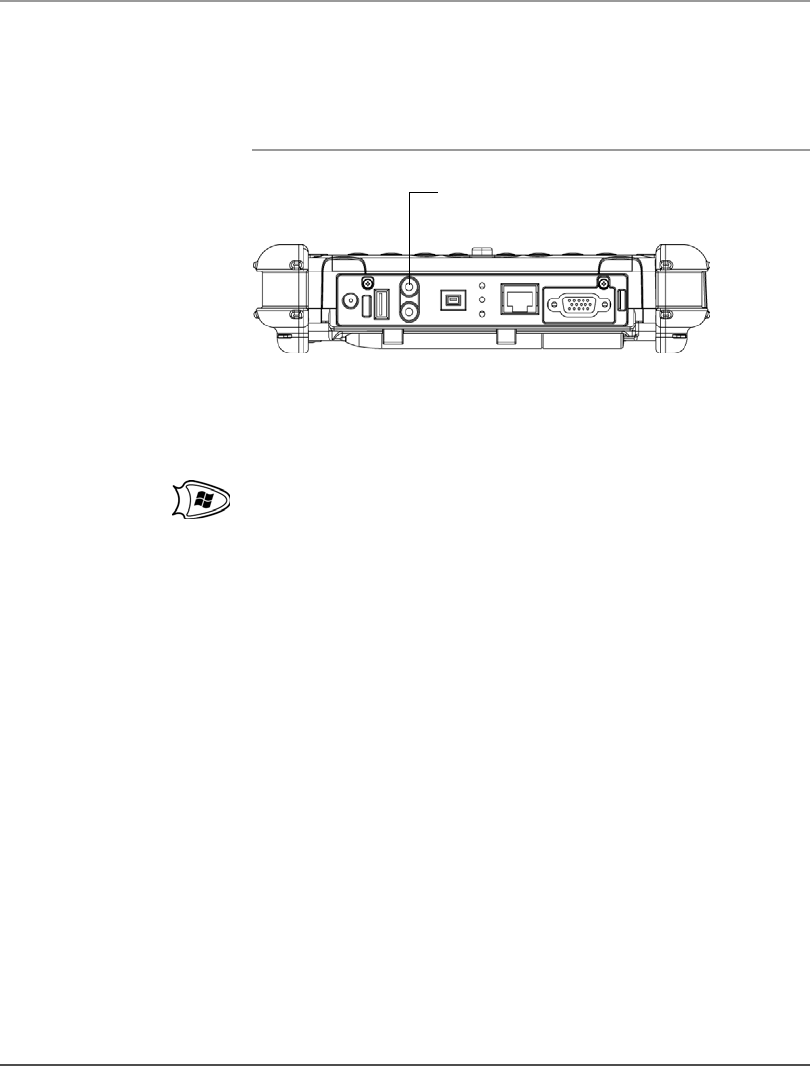

Connecting an external microphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Adjusting microphone volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

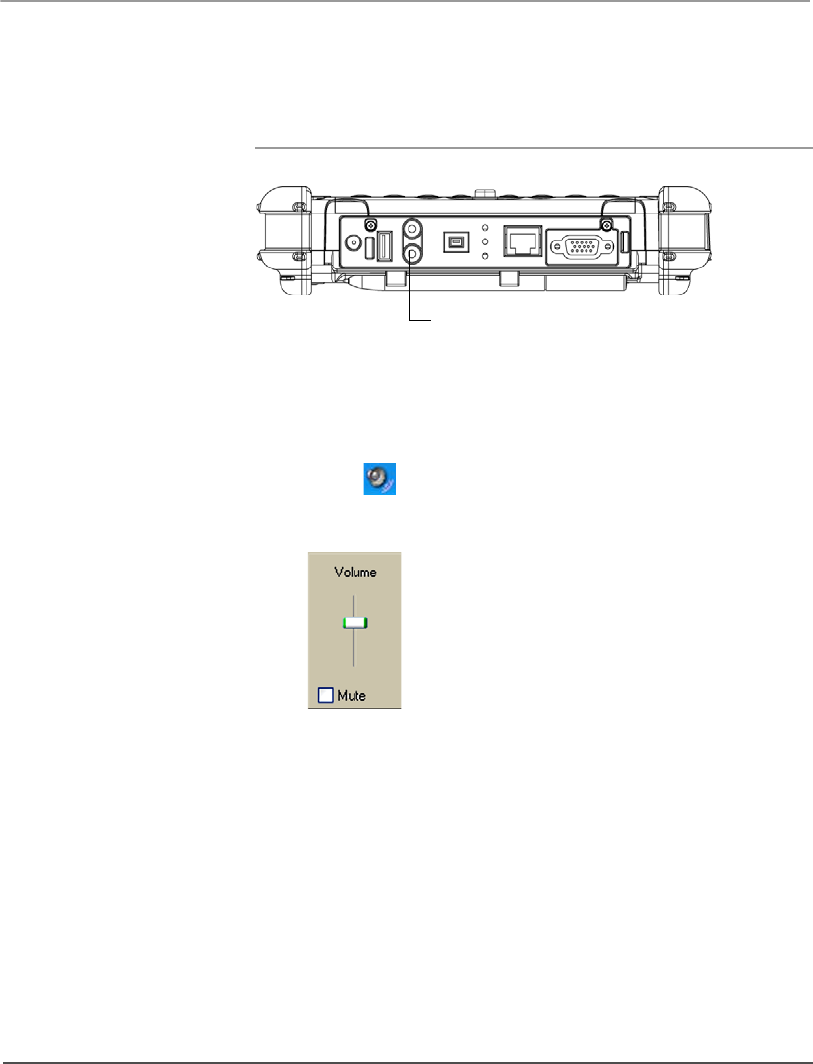

Connecting a headphone or speakers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Adjusting headphone or speaker volume . . . . . . . . . . . . . . . . . . . . . . . . 50

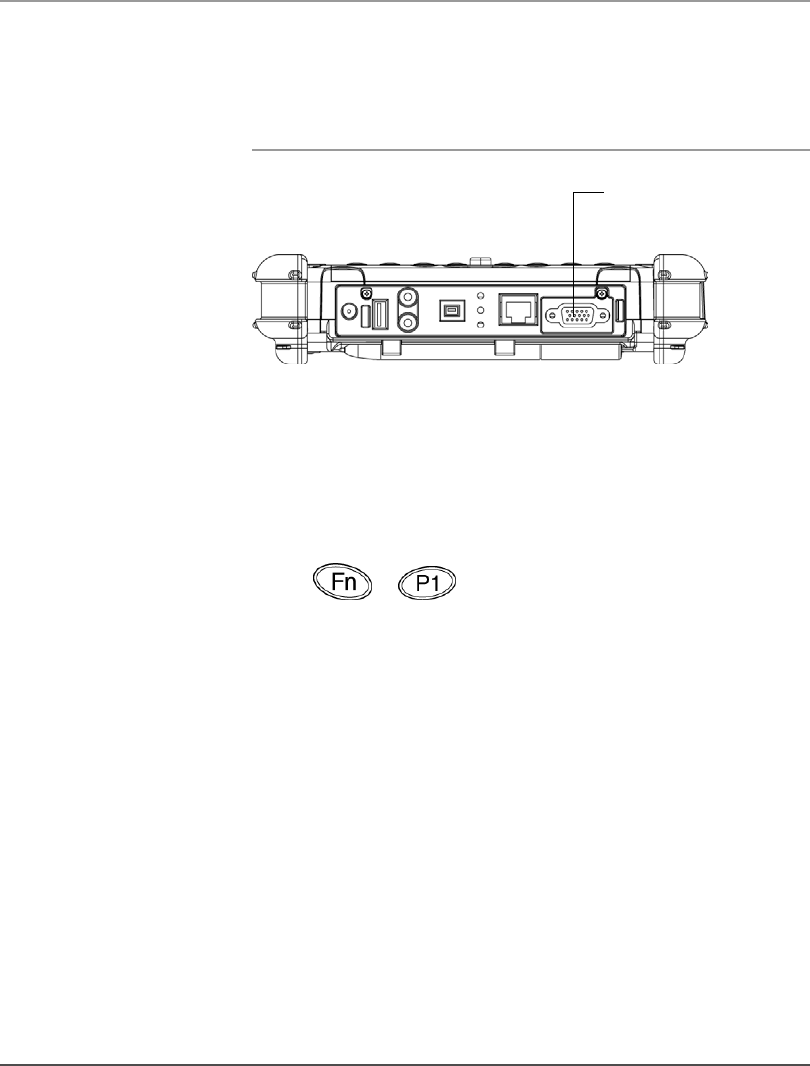

Connecting a monitor or projection panel . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Activating the monitor or projection panel. . . . . . . . . . . . . . . . . . . . . . . 51
Connecting an XPL snap-on expansion module . . . . . . . . . . . . . . . . . . . . . . 52
Contents
iX104 User’s Handbook 11
Using the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Charging the battery pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
If you do not have an external battery charger . . . . . . . . . . . . . . . . . . . . 53
If you have an external battery charger . . . . . . . . . . . . . . . . . . . . . . . . . 54
Removing and installing the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

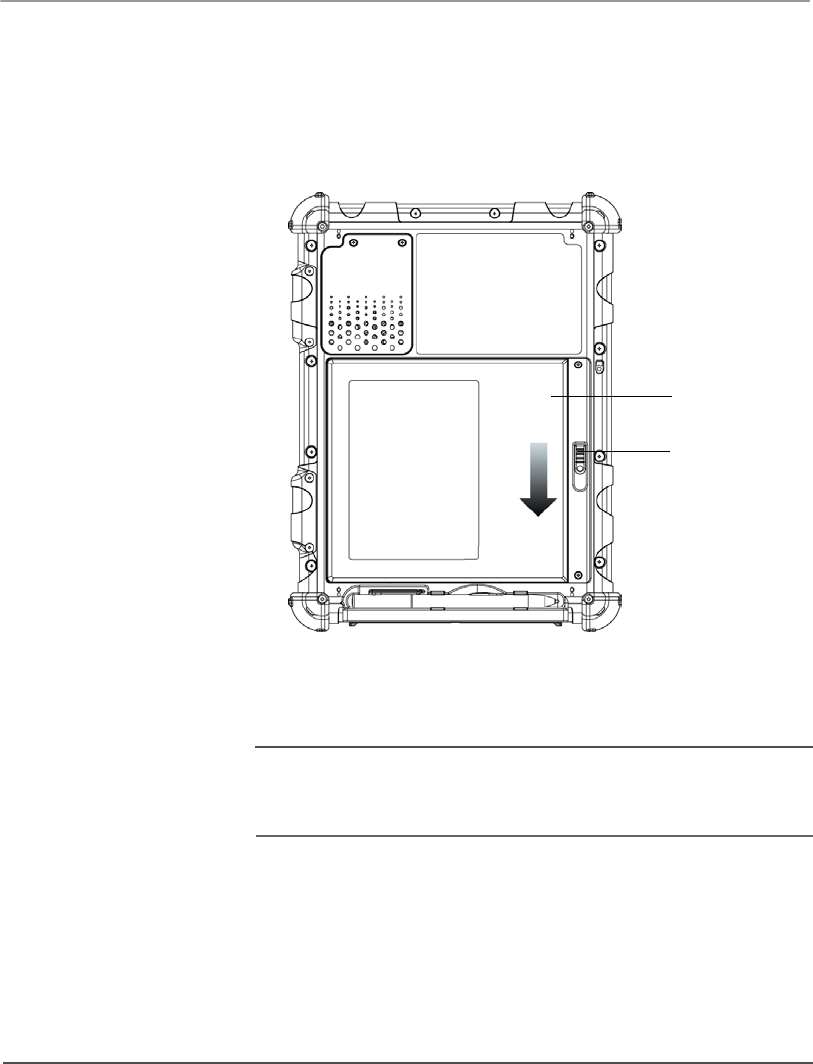

Removing the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Installing the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Discarding a battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Using power options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

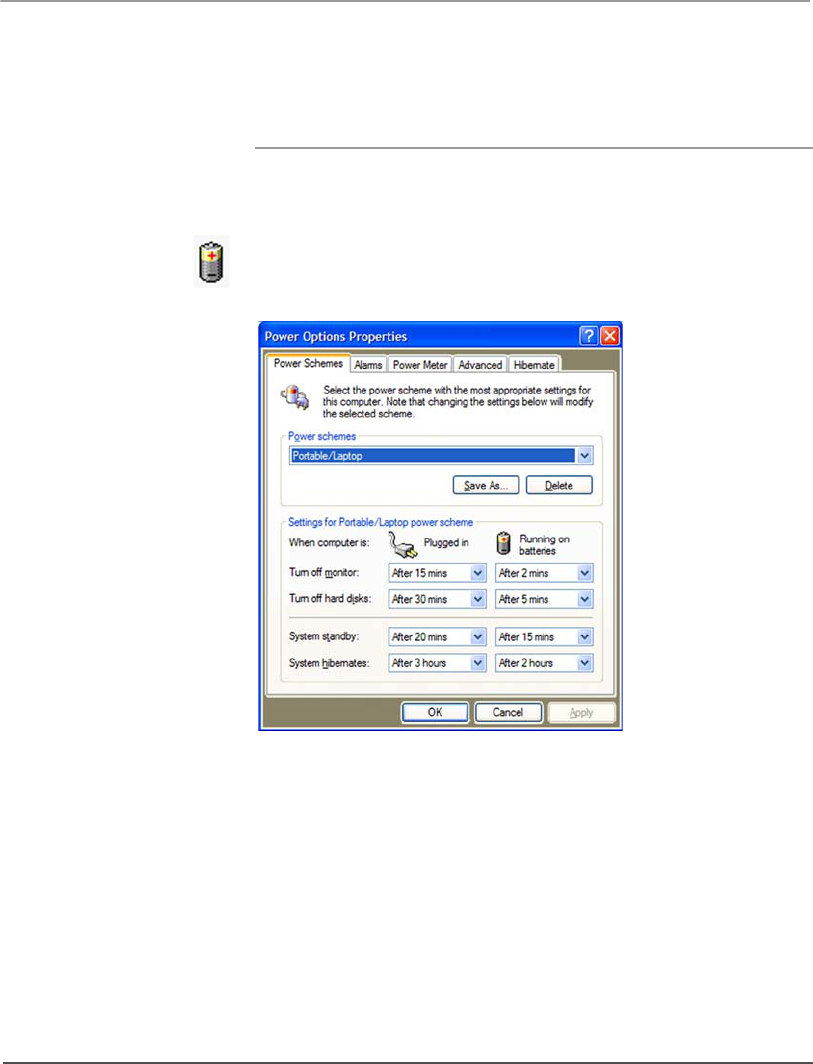

Changing the computer’s power schemes . . . . . . . . . . . . . . . . . . . . . . . 58
Changing battery alarm settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Checking battery power status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Selecting power settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

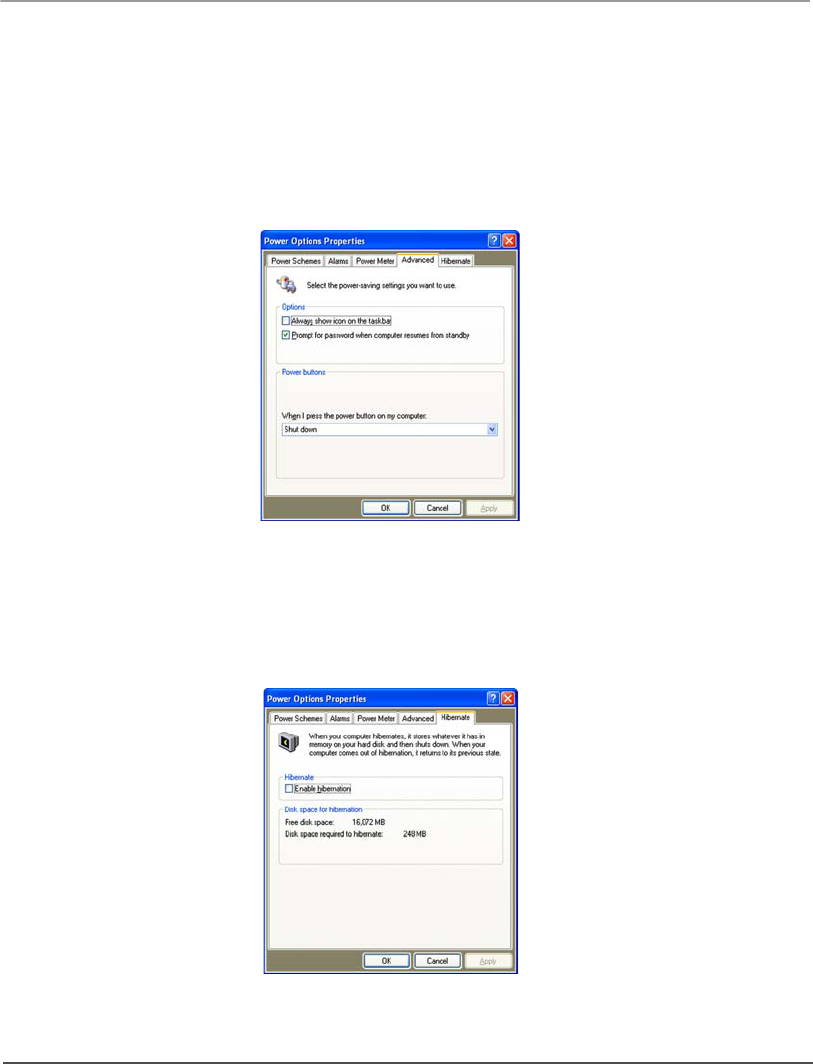

Enabling Hibernation mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Tips for conserving battery power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

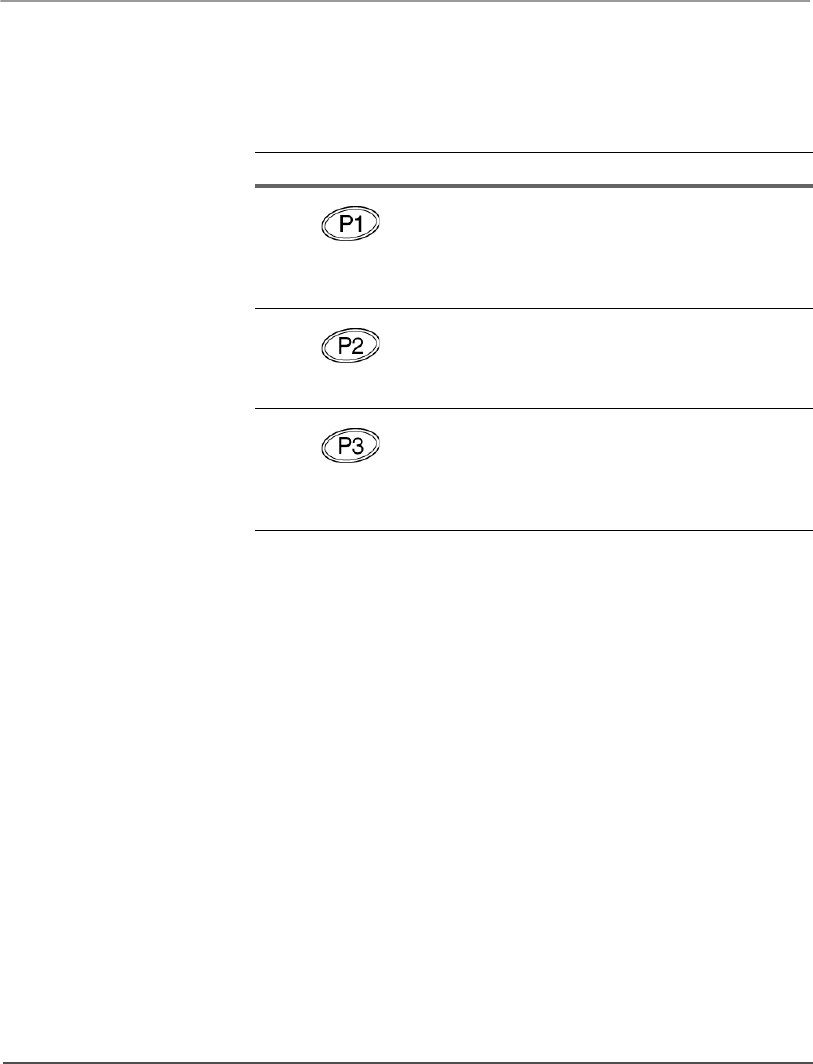

Programming hot keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Programming hot keys to start applications, open documents,
or go to a Web site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

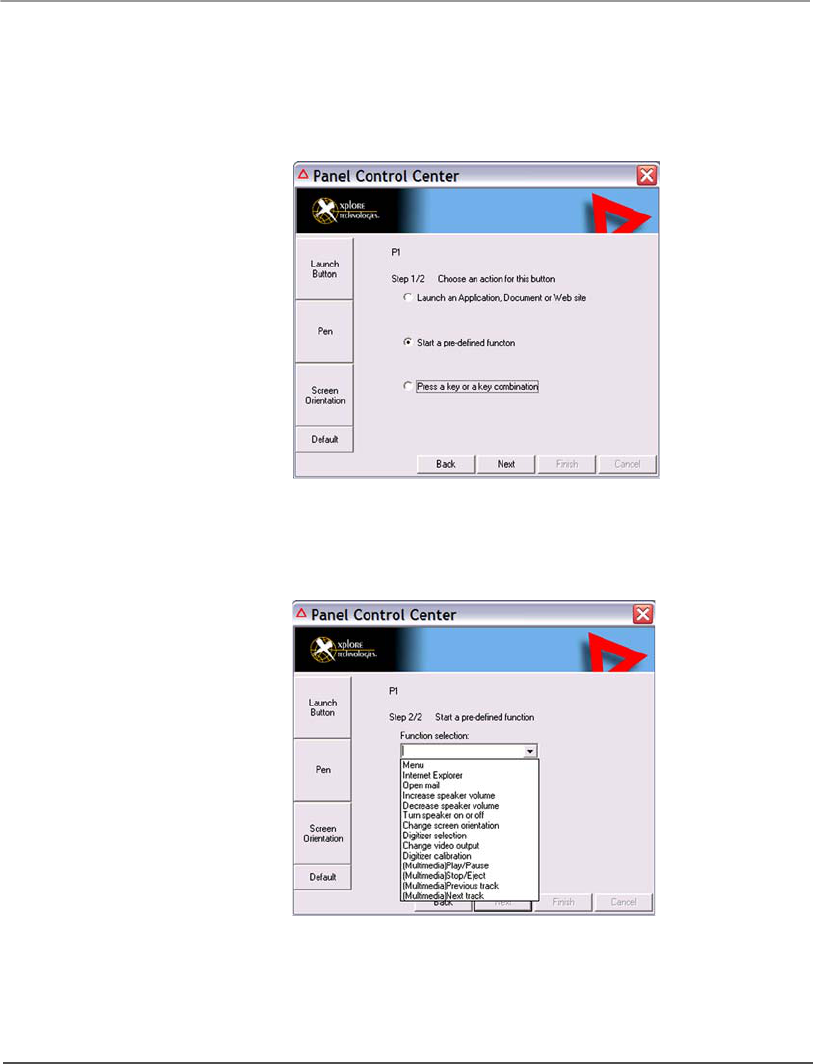

Programming hot keys to perform pre-defined functions . . . . . . . . . . . . . . . 67
Programming hot keys to perform other key functions . . . . . . . . . . . . . . . . . 69
3Maintaining the iX104 73
Caring for the computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Checking power cords and connectors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Protecting the computer from damage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Preventing the computer from overheating . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Storing the computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Caring for the display screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Protecting the display screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Contents
12 iX104 User’s Handbook
Calibrating the pen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Calibrating the pen for an iX104 touch screen . . . . . . . . . . . . . . . . . . . . . . . 79
Calibrating the pen for an iX104-TPC active screen . . . . . . . . . . . . . . . . . . . 81
When to replace the pen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
ATroubleshooting 83

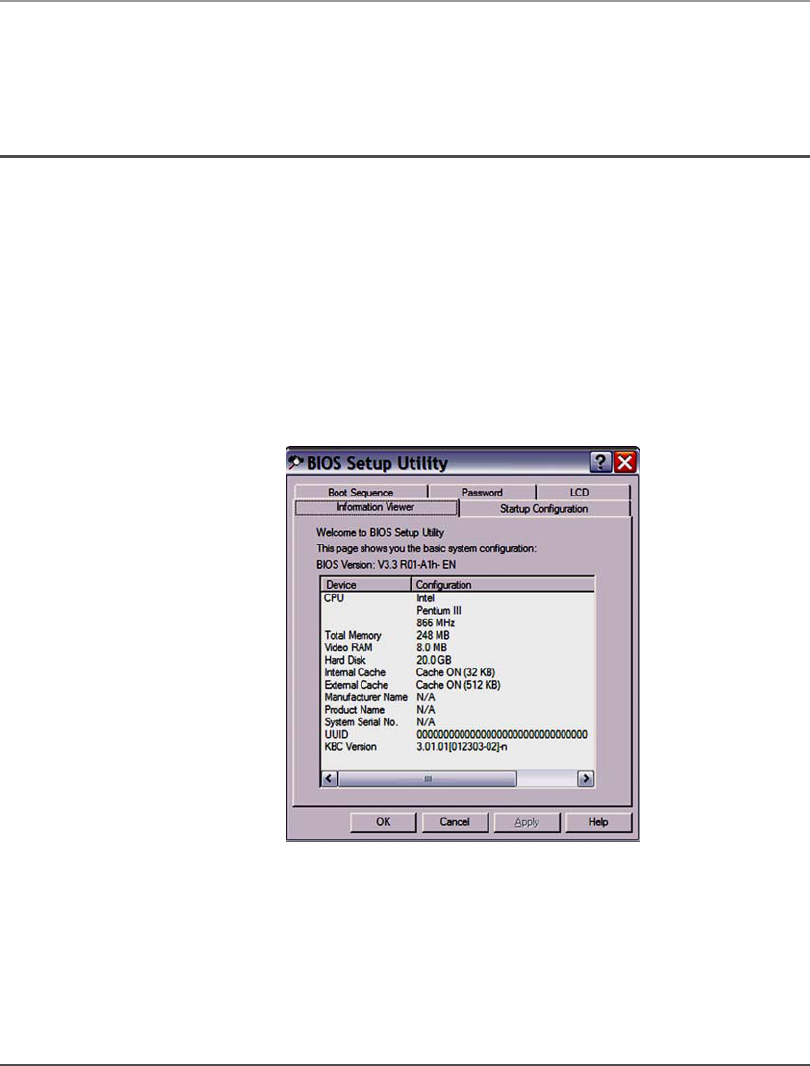

BUsing BIOS and AOS Functions 87
Enabling manual LCD backlight control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
CGlossary 91
DHardware Specifications 95
EAgency Notices 103
Index 109
iX104 User’s Handbook 13
Welcome
Welcome to the Xplore Technologies® iX104, the rugged pen tablet
designed, tested, and manufactured to meet the environmental and
physical real-world challenges faced by today’s mobile workers. The
iX104 not only works the way you do, but can also take the abuses of
everyday wear and tear. The iX104 design is based on years of
experience in rugged mobile applications.
Advanced technology, innovative design, and a rugged case are just a
few highlights of your iX104 system. Equally important is Xplore’s
commitment to ensuring that you are treated with the same respect
and honesty you offer to your customers and peers every day.
Welcome
14 iX104 User’s Handbook
Who this handbook is for
This handbook provides instructions for using the Xplore
Technologies iX104 Pen Tablet (iX104) and iX104 Pen Tablet PC
(iX104-TPC).
This handbook assumes that you have basic experience using
computers and Microsoft® Windows®.
Welcome
iX104 User’s Handbook 15
About your computer
The iX104 and the iX104-TPC are high-performance, pen-based
computers that support Microsoft Windows XP® Professional Tablet
PC Edition, Windows XP Professional, and Windows 2000
Professional operating systems.
The iX104 has a touch screen that you control by using your finger,
the pen included with the iX104, or any suitable pointing device. The
iX104-TPC has an active screen that you control by using the special,
enhanced pen included with the iX104-TPC.
Note
In this handbook, all information applies to both the iX104 and
iX104-TPC unless otherwise noted.
The iX104 and iX104-TPC have been engineered and tested to meet
Military Standards for Environmental Extremes (MIL STD 810F).
Your computer includes the following features that make it
exceptionally rugged and durable:
Durable, long-lasting, dense magnesium enclosure
Interior and exterior multi-layer magnesium frames and cavities
ISODAMP® shock absorbing materials in patented bumpering
system and gasket protection mechanisms
Shock-isolated hard disk
Integrated, protected wireless LAN and WAN antennas for dual
mode operation
Locked in place memory, cables, and connectors
Proprietary thermal management system
Welcome
16 iX104 User’s Handbook
Package contents
Check to make sure your iX104 package includes the following items:
Battery pack
Power cord
AC adapter
Screen protectors (2)
Pen
Pen tether
iX104 pen tablet or iX104-TPC pen tablet PC
Warranty information kit
This handbook
Optional accessories
Your package also includes any optional accessories you ordered.
Optional accessories
Docking options
iX104 office dock
iX104 vehicle dock
Carrying cases
Ballistic nylon hands-free carry case
Ballistic nylon portfolio case
Welcome
iX104 User’s Handbook 17
Storage options
External USB floppy disk drive
External USB CD-ROM drive
Memory
512 MB SODIMM, 133 MHz
40 GB 2.5-inch rugged hard disk
Power options
AC adapter with U.S. cord
Main battery pack (4500 mAh)
Extended life battery pack (9000 mAh)
Auto adapter (cigarette lighter adapter)
Additional accessories
USB non-rugged mini keyboard (83-key)
USB rugged, backlit mini keyboard (83-key)
Screen protectors (12-pack)
Passive stylus (for use with the iX104)
Active stylus (for use with the iX104-TPC)
Pen tether
Hand straps
Optional accessories (continued)
Welcome
18 iX104 User’s Handbook
Contacting Xplore
If you purchased your iX104 from an authorized Xplore dealer,
contact the dealer for service and support.
If you purchased your iX104 directly from Xplore, use any of the
following methods to contact Xplore for service and support:
Before you contact Xplore, have the following information ready so
that the customer support representative can quickly provide a
solution:
Toll free 1-866-296-8541, extension 222
Fax 1-512-336-7791
E-mail support@xploretech.com
Web site http://www.xploretech.com
Product name: iX104
Product serial number
Purchase date
Conditions under which the problem occurred
Any error messages that were displayed
Type of device connected, if any
The serial number is on
the back of the computer.
See page 20.
iX104 User’s Handbook 19
1Getting Started

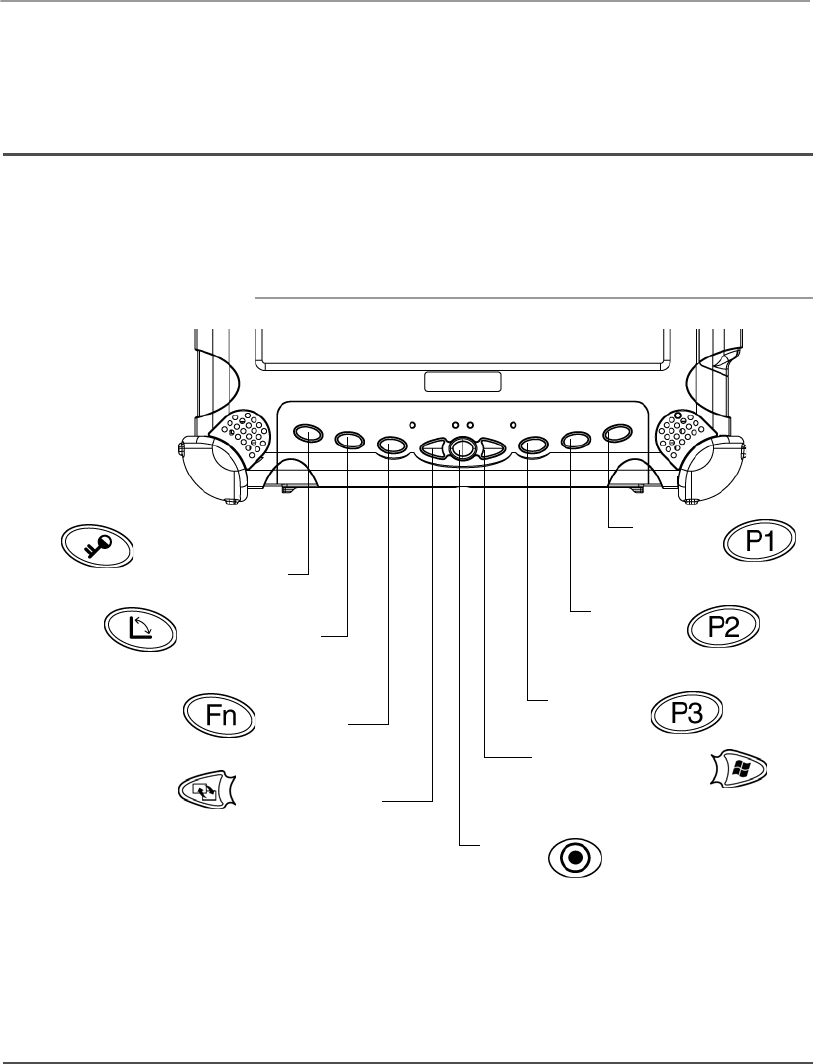

This chapter gives you an overview of your iX104 and includes a
quick-start guide to iX104 keys.
Getting to know your iX104
This section shows the locations of some of your computer’s
important components.
Features and controls
Front view
For more information
about each component,
see Chapter 2.
built-in
microphone
speaker speaker
ambient light
sensor
Reset switch
Chapter 1. Getting Started
Getting to know your iX104
20 iX104 User’s Handbook
Built-in microphone – Enables you to input mono audio. Includes
noise cancellation.
Reset switch – Enables you to turn off the computer when using the
Power On/Off key is not effective. (See page 35.)
Speakers – Enable you to listen to stereo audio files. Sealed to
provide protection from the environment.
Ambient light sensor – Automatically controls the amount of
backlight sent to the screen. Provides optimum brightness for the
lighting conditions in which you are working.
Back view
Convection air flow cover – Magnesium cover over the thermal
transfer bay that manages heat movement out of the computer.
convection
air flow
cover
pen
removable
battery pack
battery
release
latch
pen holder
antenna
covers
compliance
and serial
number label
Chapter 1. Getting Started
Getting to know your iX104
iX104 User’s Handbook 21
Antenna covers – For optional wireless LAN and WAN models,
protect and secure the radio antennas (accessible by authorized
service personnel only).
Pen – The main device you use to enter data and control applications
(instead of a mouse or a keyboard). Also called the stylus. See “Using
the pen” on page 39.
Pen holder – Provides a place to secure the pen when you are not
using it.

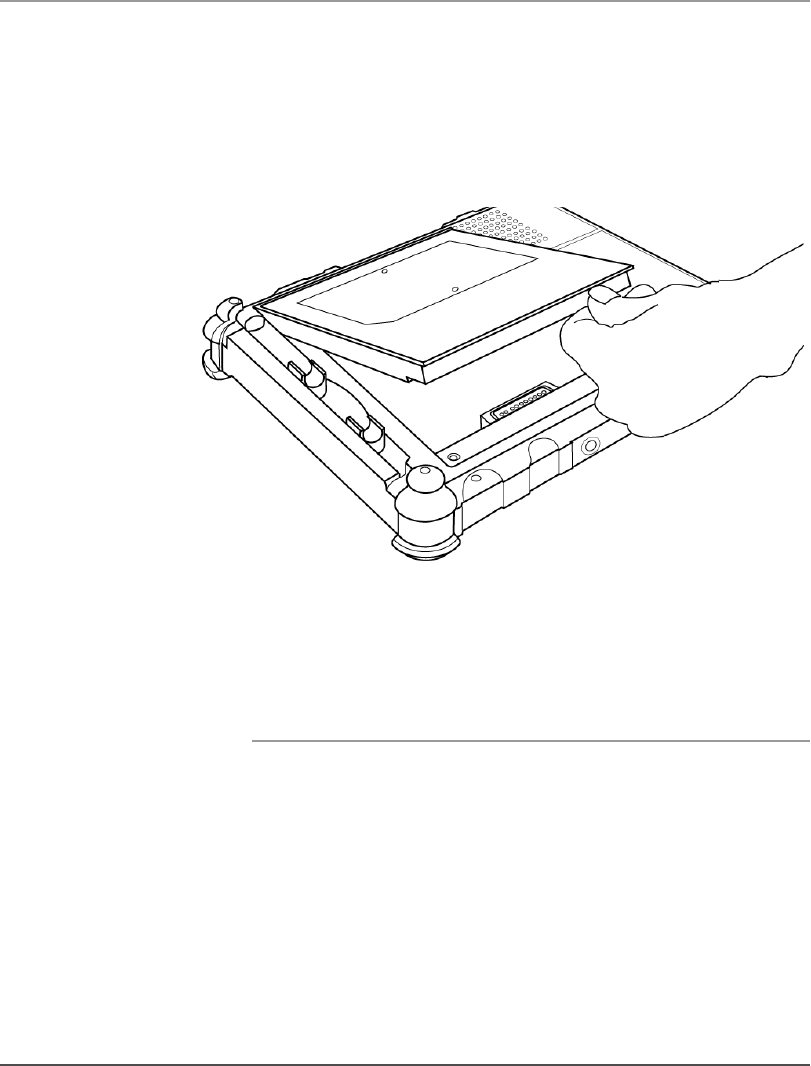

Battery release latch – Provides access to the battery.
Removable battery pack – Battery that runs the computer when
battery power is required.
Compliance and serial number label – Includes regulatory
compliance numbers and the computer’s unique serial number.
Chapter 1. Getting Started
Getting to know your iX104
22 iX104 User’s Handbook

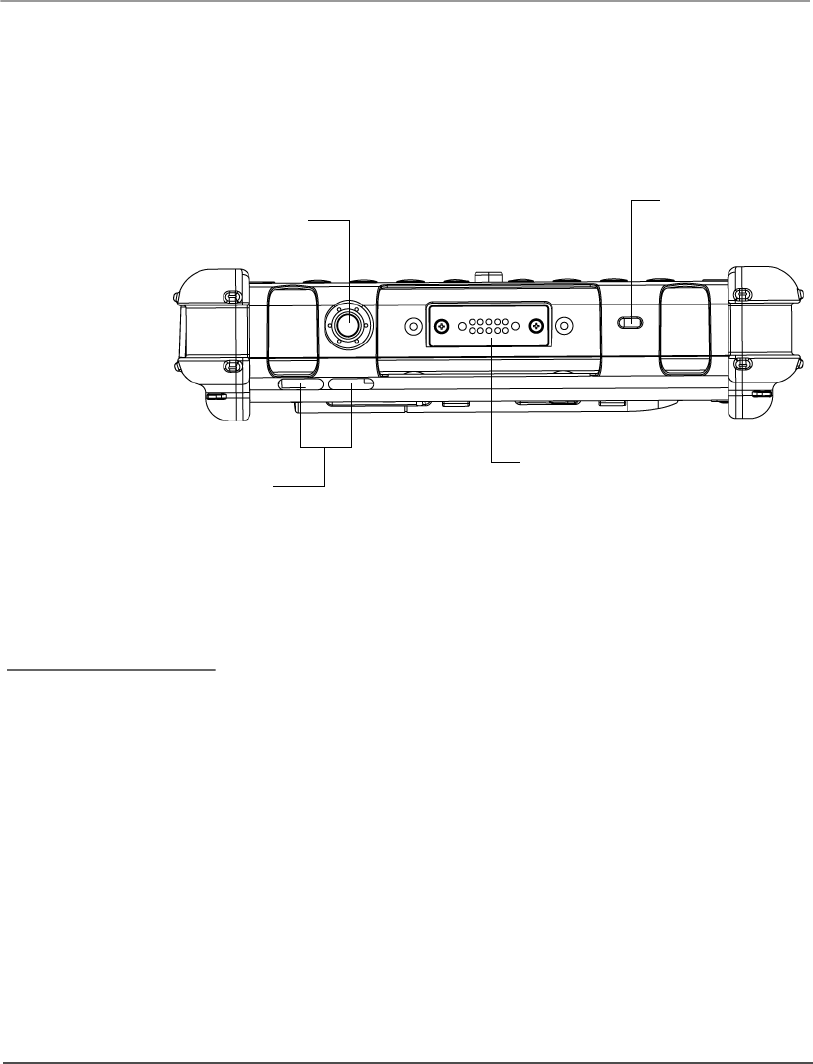

Top view
Power On/Off/Suspend/Resume key – Press the key to turn the
computer on or off, or to suspend or resume operation.
Air flow vents – Helps prevent the computer from overheating by
forcing heat away from the computer. (Do not block the vents.)
XPL expansion port – A USB port (compliant with USB Standard
Revision 1.1) that enables you to connect an XPL snap-on expansion
module for devices such as cameras, radios, and fingerprint scanners.
Kensington lock slot – Connector for the optional Kensington
MicroSaver-compatible security cable.
Power On/Off/
Suspend/Resume
key
air flow
vents
XPL
expansion port
Kensington
lock slot
C
ontact your reseller for
i
nformation about the XPL
e
xpansion module and the
K
ensington security cable.
Chapter 1. Getting Started
Getting to know your iX104
iX104 User’s Handbook 23

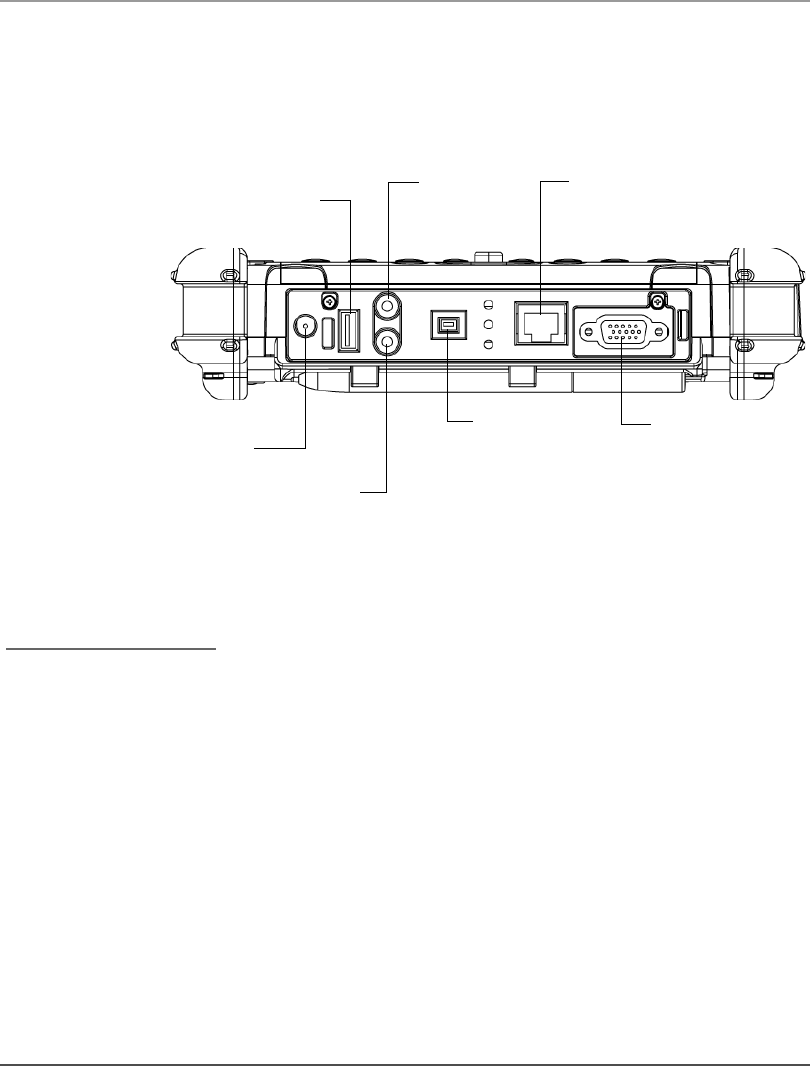

Bottom view
The connectors on the bottom of the computer are located behind the
outer doors.
Power connector – For the optional AC adapter or auto adapter. (See
“Optional accessories” on page 16.)
USB 2.0 port – For Universal Serial Bus devices (compliant with
USB Standard Revision 2.0).
Headphone connector – For stereo headphones or speakers.
Microphone connector – For an external microphone.

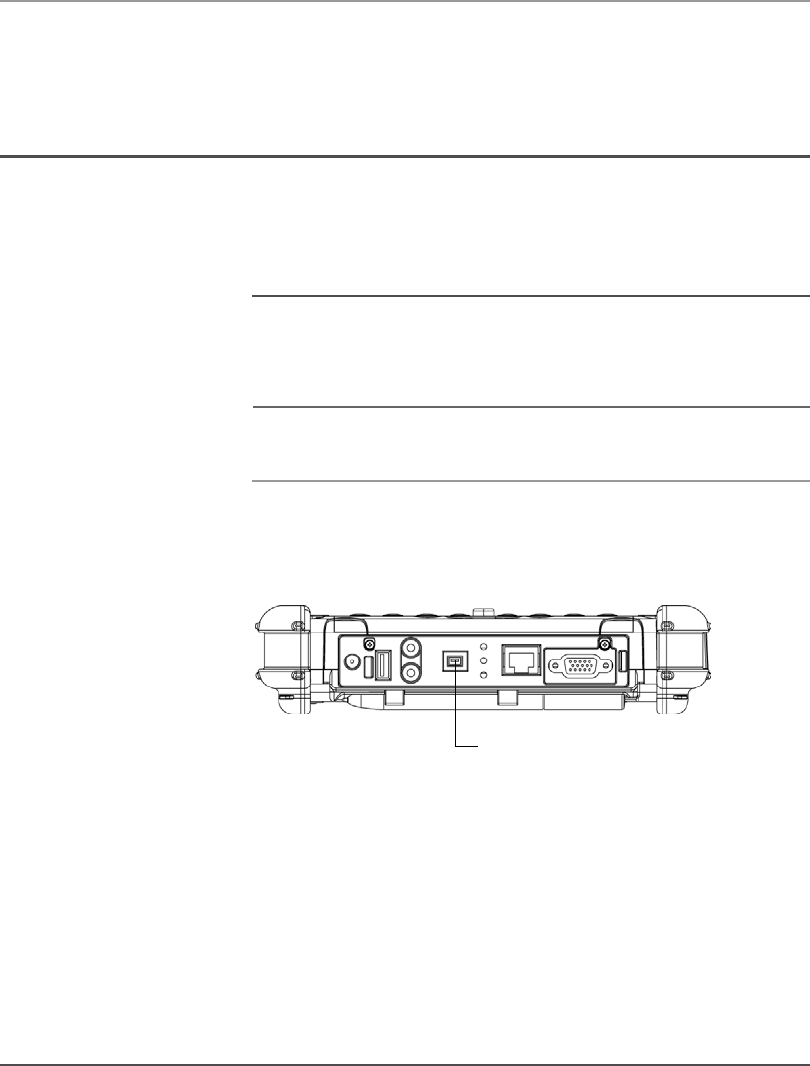

Firewire connector – For FireWire® (IEEE 1394) devices such as
digital video cameras.

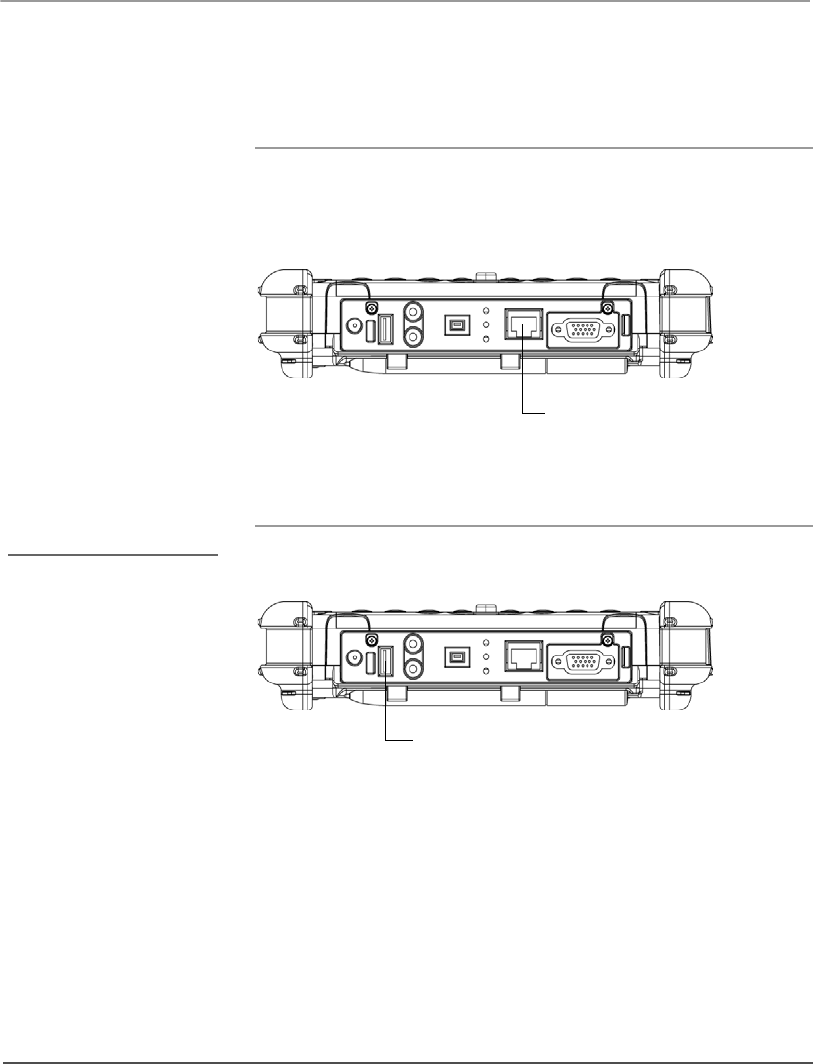

LAN connector – For connecting a standard RJ-45 connector to the
computer’s internal local area network (LAN) card.
External monitor connector – For an external monitor or projection
panel.
microphone
connector
power
connector
external monitor
connector
LAN
connector
USB
port
headphone
connector
FireWire
(IEEE 1394)
connector
The optional Office and
Vehicle Docks include
additional USB ports. See
“Optional accessories” on
page 16.
Chapter 1. Getting Started
Getting to know your iX104
24 iX104 User’s Handbook
Right side view
Bumpers – Fabricated from rugged material. Raised to help protect
the computer from damage.
XPL expansion port – A USB port (compliant with USB Standard
Revision 1.1) that enables you to connect an XPL snap-on expansion
module for devices such as cameras, radios, and fingerprint scanners.
XPL expansion
port
bumpers
C
ontact your reseller for
i
nformation about the XPL
e
xpansion module and the
K
ensington security cable.
Chapter 1. Getting Started
Getting to know your iX104
iX104 User’s Handbook 25

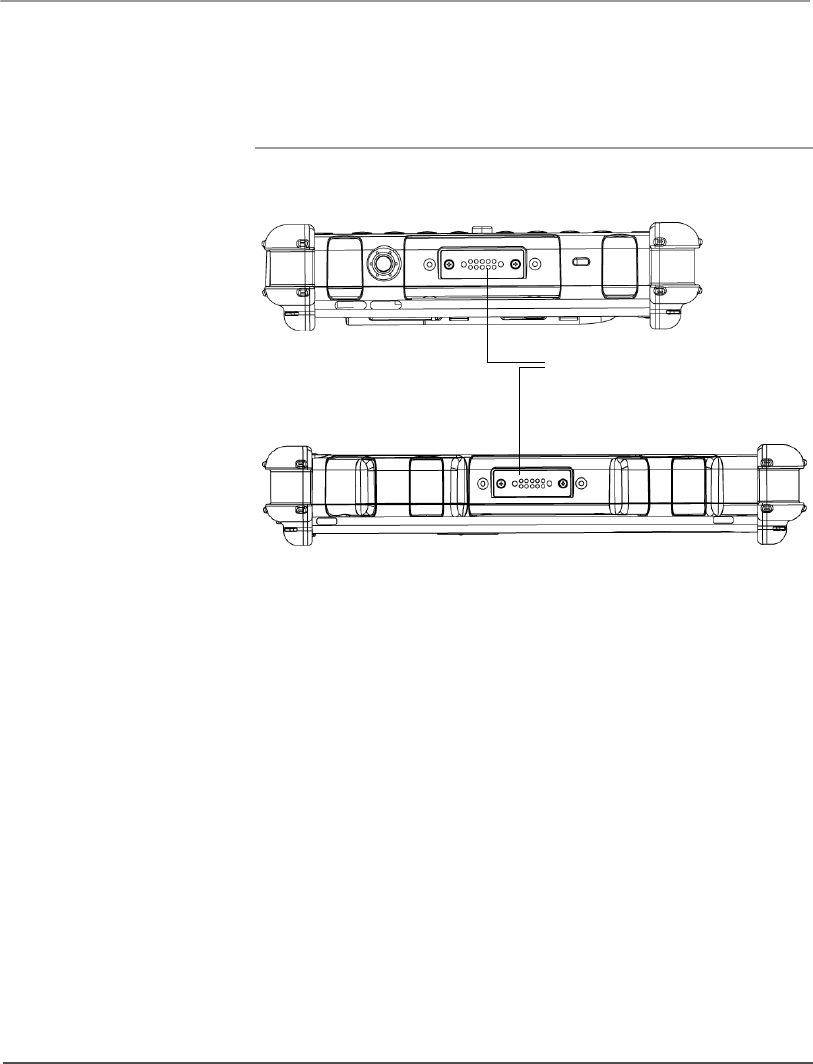

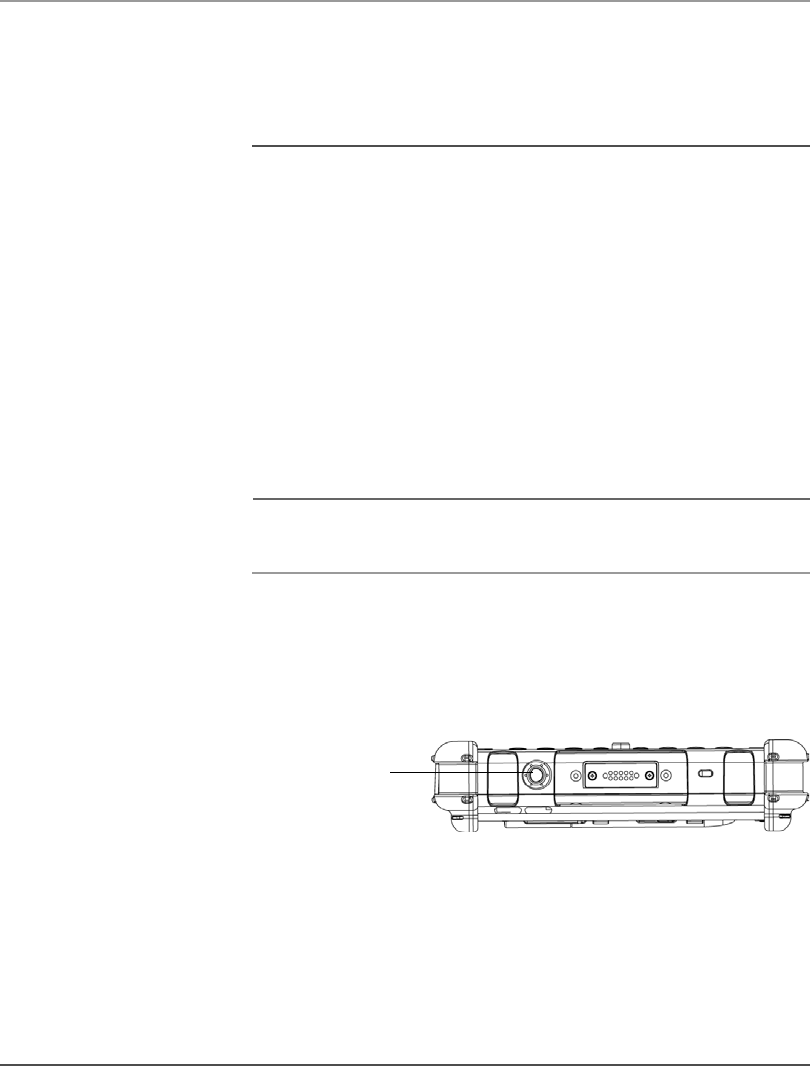

Left side view
Docking connector – Enables you to connect the optional Xplore
Tablet Dock.
Guide pin receptacles – Help assure secure connection of the
optional Xplore Tablet Dock.
guide pin
receptacles
docking connector for
the optional Xplore
Tablet Dock
See “Optional
accessories” on page 16.
Chapter 1. Getting Started
Getting to know your iX104
26 iX104 User’s Handbook

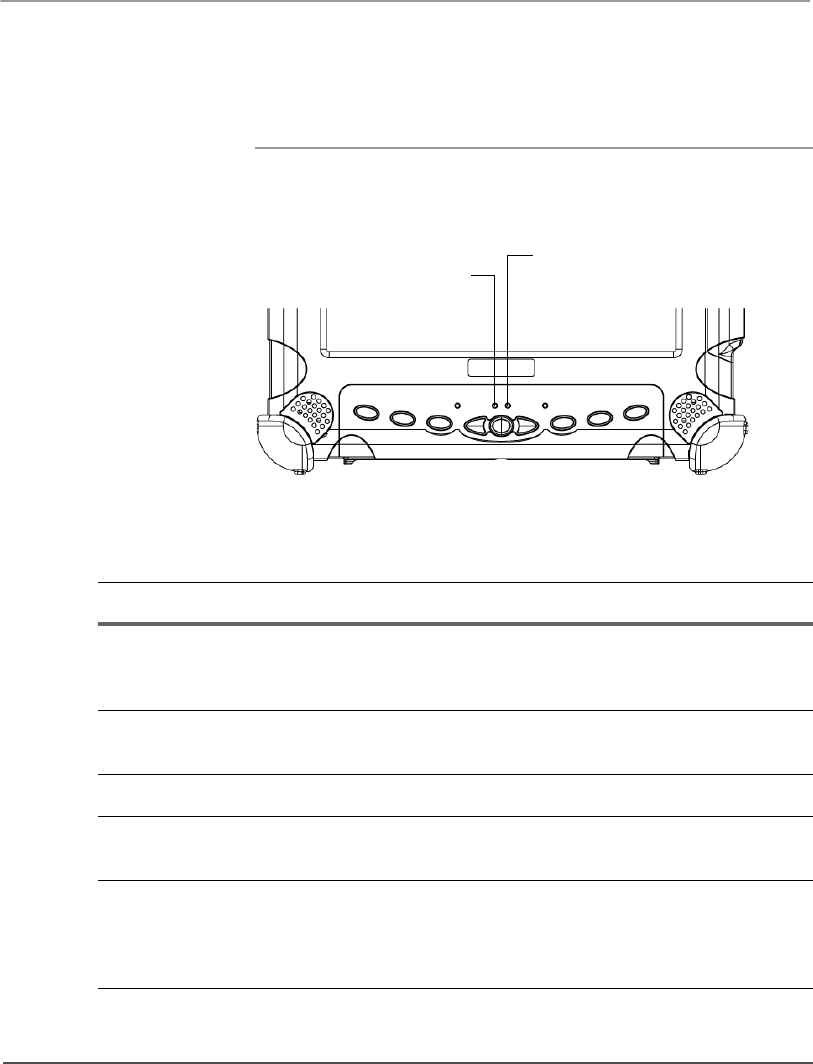

LED indicators
The LED indicator lights show the status of system functions such as
power and battery levels.
The following table defines the various LED states.
Status
LED
Brightness
LED
Table 1 Status LED indicator
Mode/State LED State Meaning
On state green, continuous The computer is on, ready for use, and
functioning normally. The battery is fully
charged.
Charging green, blinking The AC adapter is plugged in and the battery
is charging.
Off state off (no light) The computer is off.
Suspend mode yellow, continuous The computer is on and is in Suspend or
Hibernation mode.
Thermal control yellow, blinking The computer is on and is in Warm-up mode,
with the LCD and backlight off. After the
system has warmed to a safe level, the LCD
and backlight turn on.
Chapter 1. Getting Started
Getting to know your iX104
iX104 User’s Handbook 27
On state red, blinking The computer is powered on, running under
battery power, and the charge level in the
battery is at a minimum warning level. Plug
the computer into an AC/DC power source or
install a charged battery.
On state red, continuous The computer is on, running under battery
power, and the charge level in the battery
has reached a critical level. Plug the
computer into an AC/DC power source or
install a charged battery.
The computer has encountered a fault and
is preventing normal operation. (Contact
your help desk.)
Table 2 Brightness LED indicator
Mode/State LED State Meaning
Auto state yellow, continuous Automatic backlight control is active.
Manual off Manual backlight control is enabled. The
backlight is under your manual control.
Table 1 Status LED indicator (continued)
Mode/State LED State Meaning
Chapter 1. Getting Started
Quick-start guide
28 iX104 User’s Handbook
Quick-start guide
This section is a quick guide to using the main features of your
computer. (See Chapter 2 for detailed information.)
Application, Windows, and hot keys
Ctrl-Alt-Delete
(Secure Attention
Sequence) key

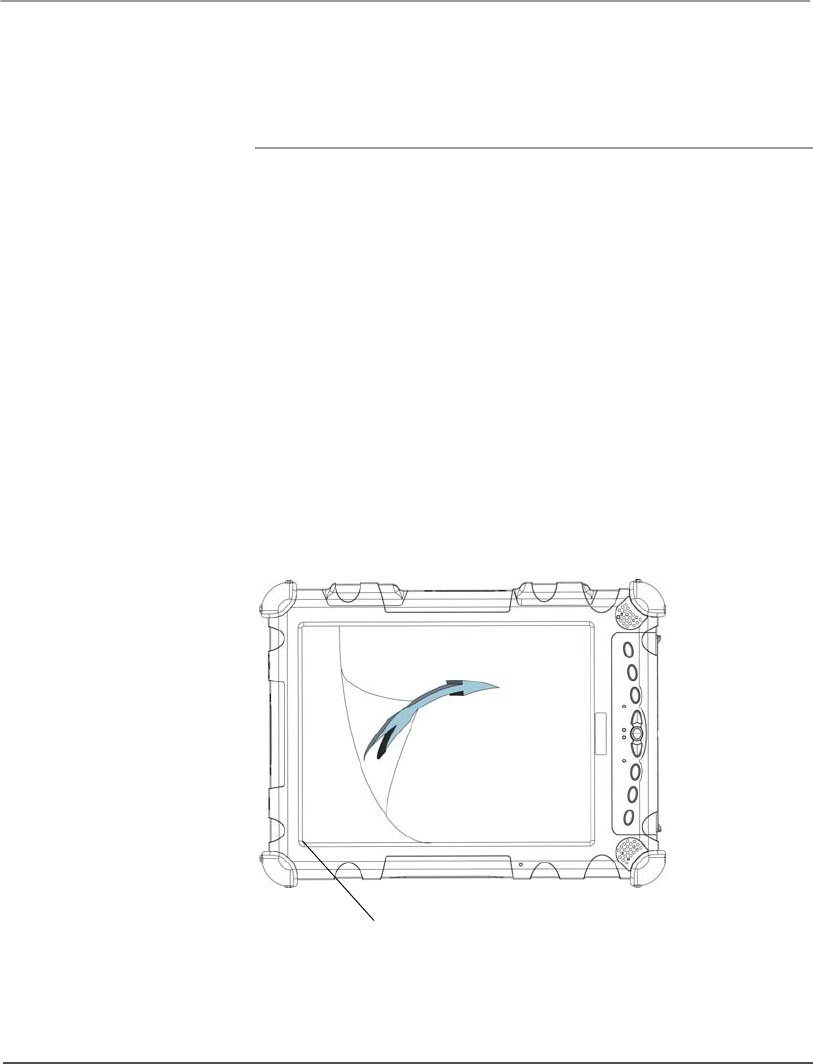

Screen Rotation
key
Function
key
Hot key 1
Hot key 2
Hot key 3
Windows Toggle
(Alt-Tab) key
Enter
key
Windows Start Menu
(Ctrl-Esc) and
Windows toggle key
Chapter 1. Getting Started
Quick-start guide
iX104 User’s Handbook 29
Table 3 Main keys
Press this key... To perform this function
Log on after resuming operation from
power management, powering on, or
locking.
After logging on, launch Windows Task
Manager.
Rotate screen orientation between portrait
(vertical) and landscape (horizontal).
Use in combination with another key to
perform various functions. (See page 30.)
Toggle between programs and/or windows
(the same as pressing Alt-Tab on
a keyboard).
Perform the same functions as the
Enter key on a keyboard.
Open the Windows Start menu.
Open Help, or perform a different function
that you program this key to perform.
Open Internet Explorer, or perform a
different function that you program this key
to perform.
Open your email application, or perform a
different function that you program this key
to perform.
Chapter 1. Getting Started
Quick-start guide
30 iX104 User’s Handbook

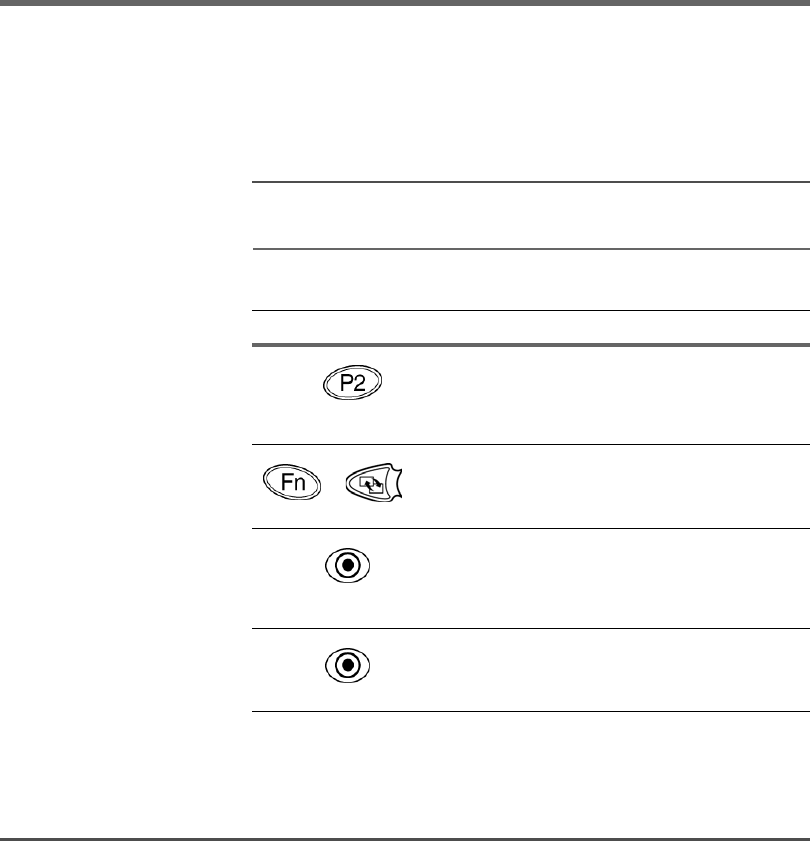

Table 4 Function mode keys
Press these keys... To perform this function
Dim the brightness of the LCD backlight.
Increase the brightness of the LCD
backlight.
Send video display to a monitor or
projection panel connected to the
computer (and back to the computer
again). (This key combination is not
programmable.)
Default function: Select the input device.
You can program this key combination to
perform a different function.
Default function: Open the pen
calibration program. You can program
this key combination to perform a
different function.
Perform the same functions as the Esc
key on a keyboard.
Chapter 1. Getting Started
Quick-start guide
iX104 User’s Handbook 31
Navigation keys
The following illustrations and tables provide a quick reference for
using the navigation keys.
Navigation controls with the tablet in portrait mode
Press the
Function key...
and move the
joystick in this
direction... to perform this function
Page Up
Page Down
Shift+Tab
Tab
scroll up
scroll down
scroll right
scroll left
joystick
Chapter 1. Getting Started
Quick-start guide
32 iX104 User’s Handbook
Navigation controls with the tablet in landscape mode
Press the
Function key...
and move the
joystick in this
direction... to perform this function
Page Up
Page Down
Shift+Tab
Tab
scroll up
scroll down
scroll right
scroll left
joystick
iX104 User’s Handbook 33
2Using the iX104
This chapter contains detailed instructions for using your computer.

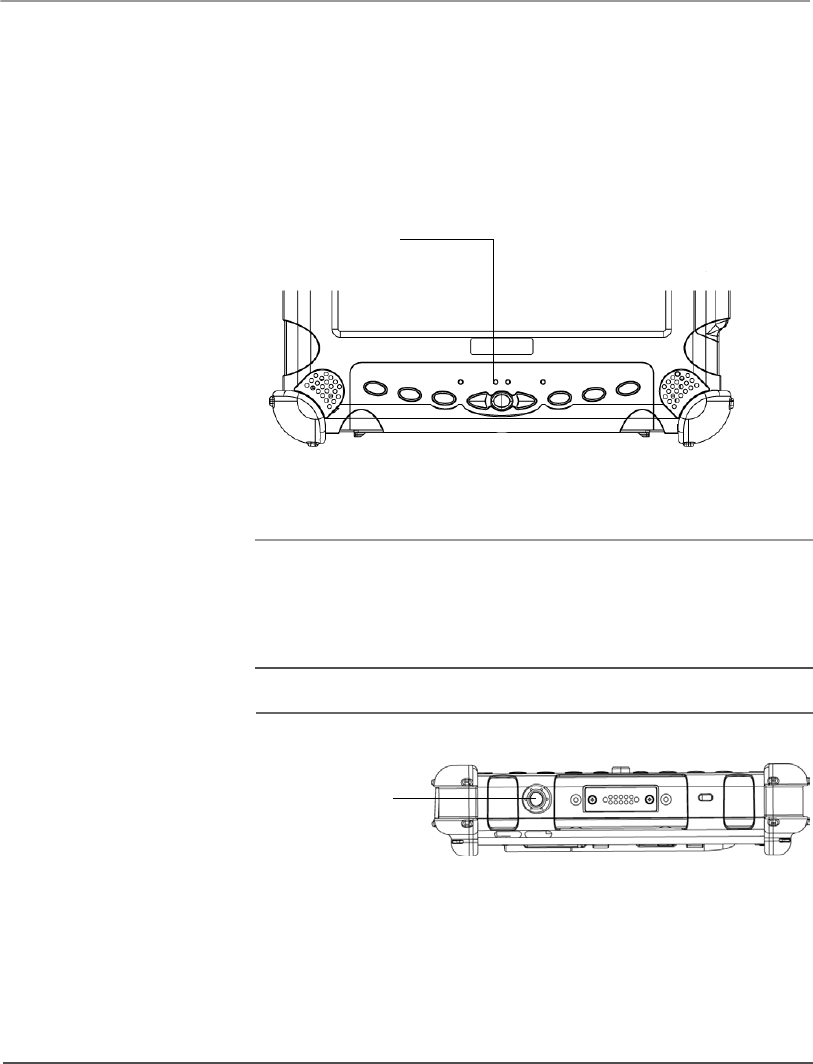

Turning on the computer
1. Make sure the computer is off.
2. Make sure the battery is charged or that the computer is plugged
in to an external power source.
3. Press the Power On/Off/Suspend/Resume button.
When the computer is off,
the Status LED is off.
Power On/Off/
Suspend/Resume
button
Chapter 2. Using the iX104
Turning off the computer
34 iX104 User’s Handbook
Turning off the computer
1. If the computer is in Suspend mode, press the Power On/Off/
Suspend/Resume button to resume operation. (See page 37 for
information about Suspend mode.)
2. Make sure the battery is charged or that the computer is plugged
in to an external power source.
3. Save your work and close all programs.
4. From the Windows Start menu, click Turn Off Computer.
5. The Turn off computer dialog box opens.
6. Click Turn Off.
When the computer is in
Suspend mode, the Status
LED is continuously
yellow.
Power On/Off/
Suspend/Resume
button
Chapter 2. Using the iX104
Turning off the computer
iX104 User’s Handbook 35

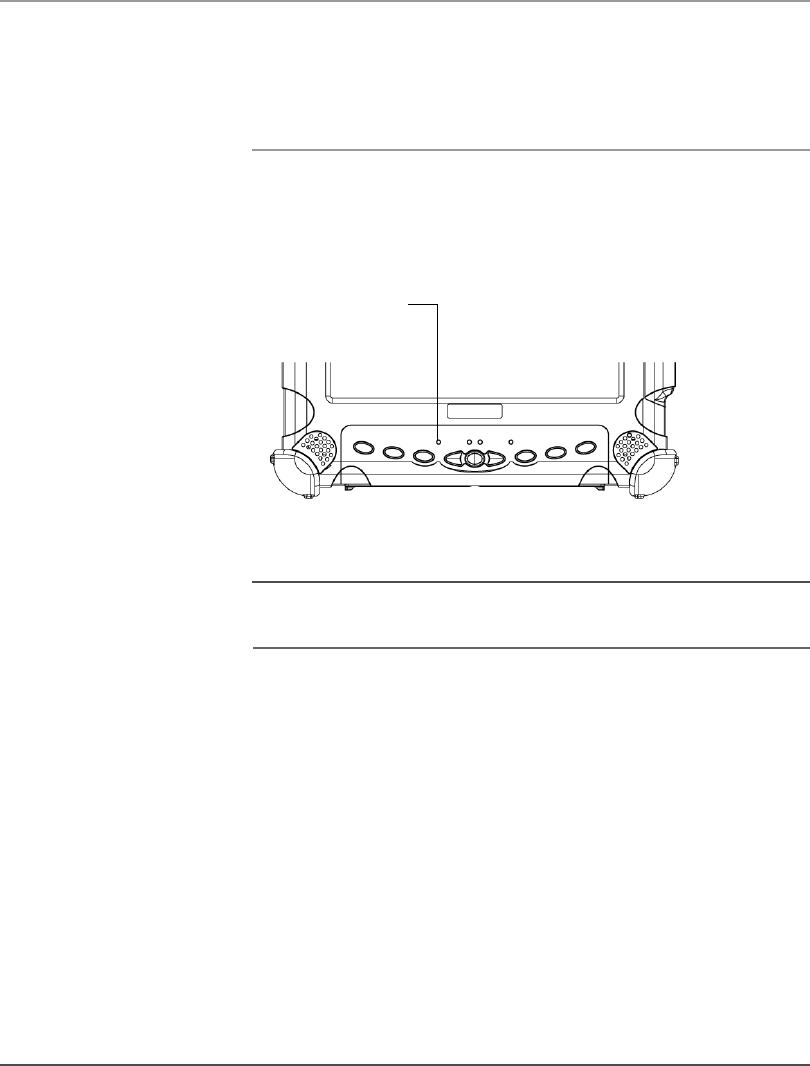

Using the Reset switch
If the computer does not seem to be accepting input and you cannot
turn it off by using the method described in “Turning off the
computer,” press the Reset switch. (Use a ball point pen or similar
instrument to press the switch).
Note
Use the Reset switch only if you cannot turn off the computer by
any other means, because you may lose unsaved data.
Reset switch
Chapter 2. Using the iX104
Suspending and resuming operation
36 iX104 User’s Handbook
Suspending and resuming operation
To conserve battery power when you do not want to turn off the
computer or when you need to install a charged battery pack, put the
computer into Suspend mode. (You can suspend operation without
closing any programs or Windows.)
When you suspend operation:
Programs that are running stop (but do not close).
Active data is saved.
The system enters one of the following low-power modes:
Suspend-to-RAM mode – The Status LED light is
continuously yellow. Active data is saved in RAM and most
other components are turned off.
Although the computer uses very little power when in
Suspend-to-RAM mode, eventually the battery’s power does
run out. If you will not be using the computer for an extended
period of time, turn the computer off instead of using
Suspend-to-RAM mode.
Hibernation mode – Active data is saved on the hard disk and
power usage is reduced to the same level as when the
computer is turned off. In Hibernation mode, there is no
danger of losing data if battery power is lost.
Note
For more information, see “Using power options” on page 58.
Chapter 2. Using the iX104
Suspending and resuming operation
iX104 User’s Handbook 37
Notes
If you have set your computer to turn power off (in the Power
Options utility in Windows Control Panel), you cannot suspend
operation. To change power settings, see “Using power options”
on page 58.
If the Suspend action of the Power On/Off/Suspend/Resume
button has been disabled to prevent accidental interruption,
pressing the button does not suspend the computer. You must
use a software application to suspend the computer. For more
information, contact your help desk or your iX104 dealer.
If your computer is connected to a network, the network may
automatically log you off after a period of inactivity while system
operation is suspended. Contact your help desk or system
administrator to learn your log-off time limit.
Suspending operation
Use one of the following methods to suspend operation:
Method 1
Press the Power On/Off/Suspend/Resume button.
Method 2
1. From the Windows Start menu, press Turn Off Computer.
2. The Turn off computer dialog box opens.
Power On/Off/
Suspend/Resume
button
Chapter 2. Using the iX104
Suspending and resuming operation
38 iX104 User’s Handbook
3. Press Stand By.
When operation is suspended, the Status LED displays a continuous
yellow light.
Resuming operation
To resume operation when the computer is in Suspend mode, press
the Power On/Off/Suspend/Resume button.
Note
Press the button only once.
Status LED
Power On/Off/
Suspend/Resume
button
Chapter 2. Using the iX104
Using the pen
iX104 User’s Handbook 39
After a minute or two, the computer resumes normal operation. When
the Status LED displays a continuous green light, you can begin using
the computer.
Note
Resuming operation from Hibernation mode takes a little longer
than from Suspend-to-RAM mode.
Using the pen
You can use the pen to select items and to navigate through programs.
If your computer is an iX104-TPC (active screen):
Use the special multi-function pen provided with the
computer.
If your computer is an iX104 (touch screen):
Use the pen provided with the computer, another similar
pointing device, or your finger.
WARNING
Do not use items such as a ball point pen or a screwdriver that can
damage the computer. Damage caused by using an item not provided
with the computer is not covered by the iX104 warranty.
Note
Before you use the pen the first time, or if the action you are
trying to perform does not occur when you use the pen, calibrate
the pen as described in “Calibrating the pen” on page 79.
a
Chapter 2. Using the iX104
Using the pen
40 iX104 User’s Handbook
Using the pen to perform mouse functions
To perform this function... Do this
Select an object
(left button click). Tap the pen tip once on the object.
Perform a double-click. Quickly tap the pen tip twice on the
object.
Perform a right-click. If your computer is an iX104
(touch screen):
In the Windows taskbar, press the
right-click icon; then click the object.
If your computer is an iX104-TPC
(active screen):
Hold the pen directly on the object until
the right-click icon appears.
or
Press the right-click button on the pen
while you click the object.
Move or drag an object. Place the pen tip on the object; then
continue to hold the pen tip against the
screen as you move the pen.
right-click
icon
right-click
button
Chapter 2. Using the iX104
Using the pen
iX104 User’s Handbook 41

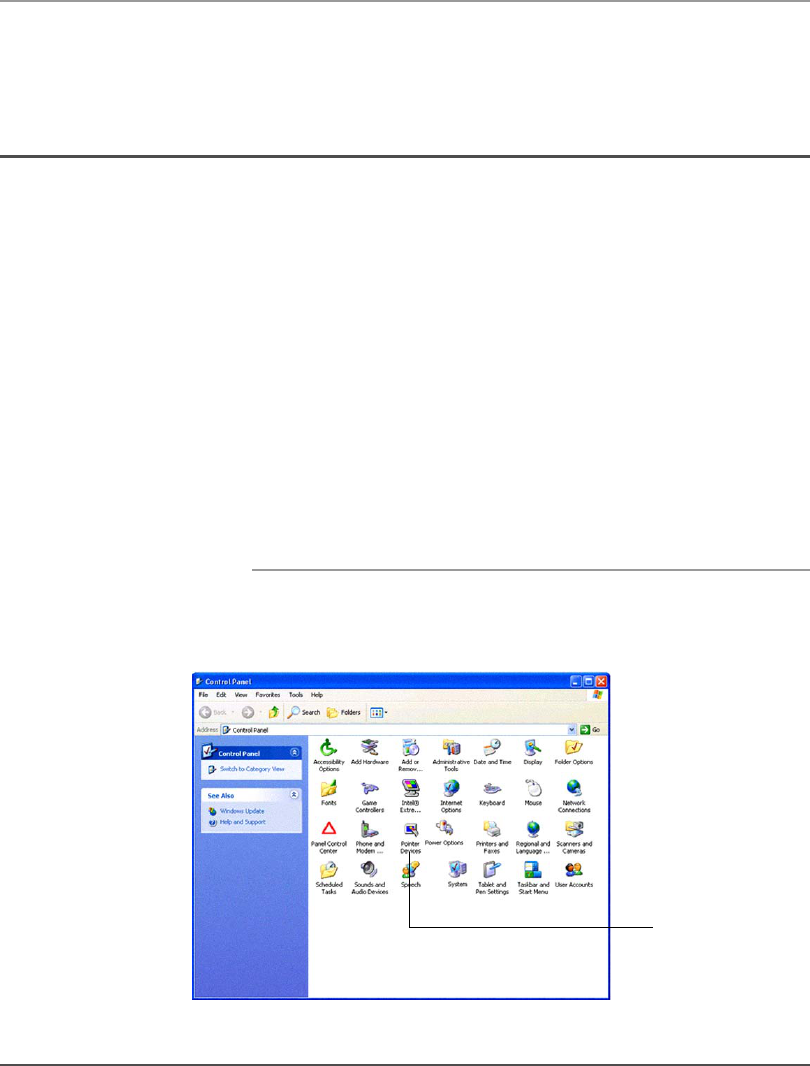

Changing the pen double-click speed
The pen double-click speed is in sync with the mouse double-click
speed. To change the speed:
1. Click the Windows Start button.
2. Click the Settings option.
3. Click the Control Panel option.

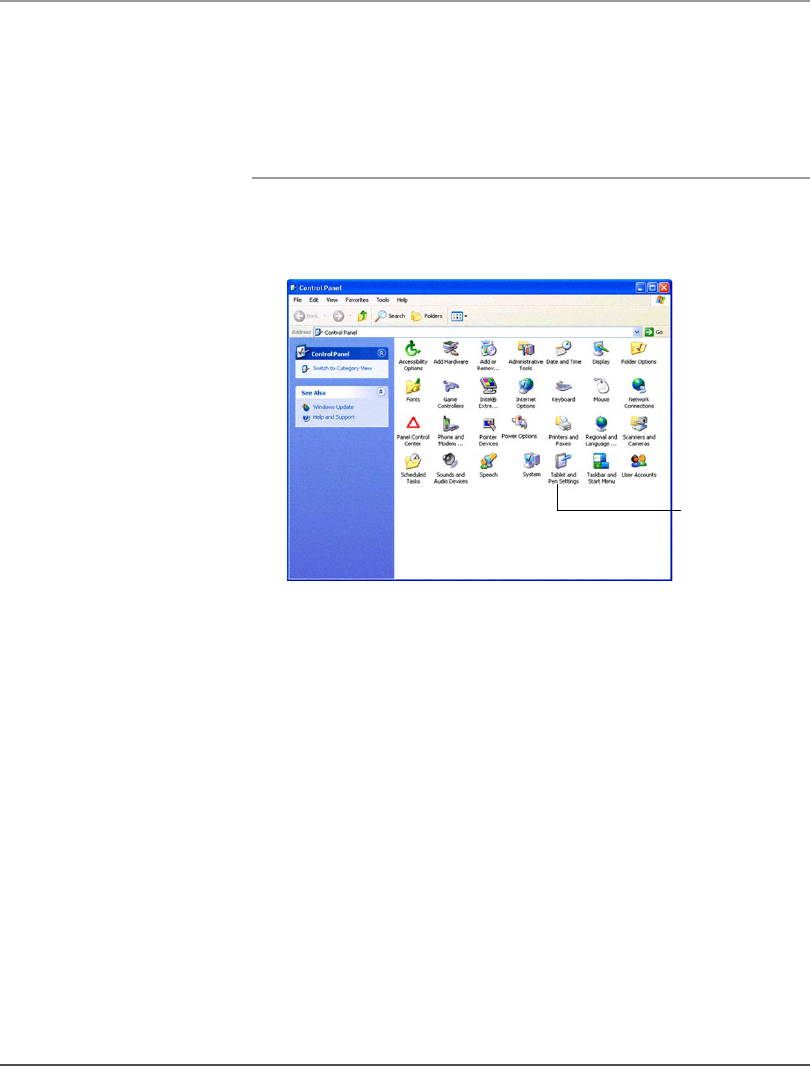

4. In the Control Panel window:
If your computer is an iX104 (touch screen):
Click the Pointer Devices icon.
If your computer is an iX104-TPC (active screen):
Click the Tablet and Pen Settings icon.
5. Click the Windows tab.
6. Follow the instructions that appear in the Windows tab.
Chapter 2. Using the iX104
Using the pen
42 iX104 User’s Handbook

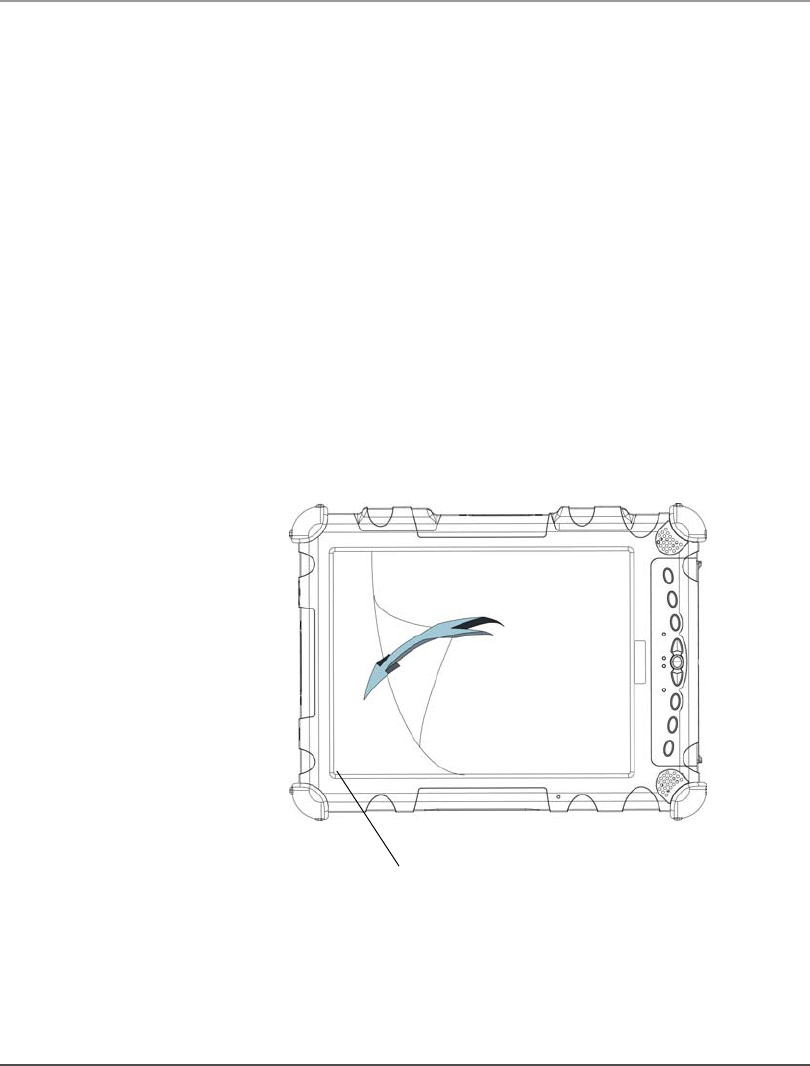

Positioning the pen and pen tether
The pen tether helps prevent the loss of your pen. The following
illustration shows how to position the pen and pen tether.
pen tether
pen
Chapter 2. Using the iX104
Using the joystick (the navigation control key)
iX104 User’s Handbook 43
Using the joystick (the navigation control key)
Press the joystick to perform the same functions as pressing Enter on
a keyboard.
Push the joystick up, down, left or right to move a highlighted item
accordingly (the same as pressing the arrow keys on a keyboard). Use
the Fn key in combination with the joystick to perform other
functions, such as Page Up and Tab.
Note
See page 31 and page 32 for diagrams of how to use the joystick
and other navigation control buttons.
joystick
(navigation
control key)
Chapter 2. Using the iX104
Changing the screen orientation
44 iX104 User’s Handbook
Changing the screen orientation
To rotate the screen orientation from portrait (vertical) to landscape
(horizontal) mode or from landscape to portrait mode, press the
screen rotation key.
Chapter 2. Using the iX104
Adjusting the screen brightness
iX104 User’s Handbook 45
Adjusting the screen brightness
To dim the brightness of the LCD backlight:
Press the Function key and the Windows toggle key.
To increase the brightness of the LCD backlight:
Press the Function key and the Windows Start key.
Disabling automatic backlight control
When the ambient light sensor is enabled, the computer automatically
controls the amount of backlight sent to the screen to provide
optimum brightness for the lighting conditions in which you are
working.
When the ambient light sensor is enabled, the Brightness LED glows
continuously yellow. When the ambient light sensor is disabled and
the backlight is under manual control, the Brightness LED is off.
To disable automatic backlight control, see “Enabling manual LCD
backlight control” on page 89.
Brightness LED
Chapter 2. Using the iX104
Docking the iX104
46 iX104 User’s Handbook
Docking the iX104
If you have the optional Xplore Tablet Dock (see “Optional
accessories” on page 16), connect it to the iX104 at the docking port.
docking port
guide pin receptacles
Chapter 2. Using the iX104
Connecting devices
iX104 User’s Handbook 47
Connecting devices
Refer to the following subsections for information about connecting
external devices to your computer.
Note
If the device you want to use does not appear to be working with
your computer, the device may need to be enabled in the
computer’s configuration program. Contact your local help desk
or Xplore reseller.
Connecting FireWire devices
Connect a FireWire device (such as a digital camera, a digital video
camera, or a CD-ROM or DVD drive) to the Firewire (IEEE 1394)
connector on the computer.
FireWire
(IEEE 1394)
connector
Chapter 2. Using the iX104
Connecting devices
48 iX104 User’s Handbook
Connecting to a local area network
Connect a local area network (LAN) cable’s RJ-45 connector to the
internal LAN interface card. (See your network system administrator
for more information.)
Connecting USB-compatible devices
Connect any USB-compatible device to the computer’s USB port.
LAN
connector
Devices must be in
compliance with USB
Standard Revision 2.0.
USB
port
Chapter 2. Using the iX104
Connecting devices
iX104 User’s Handbook 49
Connecting an external microphone
Adjusting microphone volume
If necessary, adjust the volume of the microphone as follows:
1. Press the Windows Start key.
2. Click the Control Panel option.
3. In the Control Panel window, double-click the Sounds and Audio
Properties icon.
4. In the Sounds and Audio Properties window, click the Audio tab.
5. In the Sound recording area, click the Volume button.
6. Adjust the volume.
7. Click OK.
microphone
connector
Chapter 2. Using the iX104
Connecting devices
50 iX104 User’s Handbook
Connecting a headphone or speakers
Adjusting headphone or speaker volume
1. Click the audio icon in the Status area of the Windows
taskbar.
The volume control area opens.
2. If the Mute check box is checked, uncheck it.
3. Move the slider bar up or down to increase or decrease the
volume.
headphone/speakers
connector
Chapter 2. Using the iX104
Connecting devices
iX104 User’s Handbook 51
Connecting a monitor or projection panel
Activating the monitor or projection panel
To change the video output to the monitor or projection
panel:
Press the Fn-P1 key combination.
To change the video output back to the computer screen:
Press the Fn-P1 key combination again.
Monitor/projection
panel connector
Chapter 2. Using the iX104
Connecting devices
52 iX104 User’s Handbook
Connecting an XPL snap-on expansion module
XPL expansion
port
Top view
Side view
Chapter 2. Using the iX104
Using the battery
iX104 User’s Handbook 53
Using the battery
You can recharge, remove, and replace the battery pack.
Charging the battery pack
If you do not have an external battery charger
Follow these steps to charge the battery while it is installed in the
computer:
1. Connect a power source, such as an AC adapter or cigarette
lighter adapter, to the power connector on the computer.
If the battery charge is below 90%, the battery begins charging
and the Status LED flashes green. (If the battery charge is higher
than 90%, the battery will not charge, preventing battery
overcharge.)
power
connector
Chapter 2. Using the iX104
Using the battery
54 iX104 User’s Handbook
2. Check the level of charge. (See “Checking battery power status”
on page 59.)
The charging process continues until the battery charge reaches
100%.
Table 5 shows the approximate time required to charge the battery
level to 100%.
* Varies according to the application(s) in use.
If you have an external battery charger
1. Remove the battery pack (see page 55).
2. Use the external battery charger to charge the battery.
3. Install the battery (see page 57).
Table 5 Approximate battery charge time
Battery pack
capacity Charge time when the
computer is not in use Charge time when the
computer is in use*
4500 mAh 2.5 hours 3.5 hours
9000 mAh 3.5 hours 5.5 hours
Chapter 2. Using the iX104
Using the battery
iX104 User’s Handbook 55
Removing and installing the battery
You can remove the battery and use an (optional) external charger to
charge it.
Removing the battery
1. To swap with a charged battery:
Use one of the methods described in “Suspending operation”
on page 37 to suspend operation.
If a charged battery is not available:
Save your work and close all running programs; then shut
down the computer or put the computer in Hibernation mode
(see “Suspending operation” on page 37).
Note: To avoid losing unsaved data, wait until the computer
has completed switching to Suspended mode before
removing the battery.
Chapter 2. Using the iX104
Using the battery
56 iX104 User’s Handbook
2. On the computer, slide the battery release latch in the direction
indicated.
3. Pull the battery away from the computer and remove it.
Note
After removing the battery, you must replace the battery
or connect the computer to an external power supply within
3 to 5 minutes or the computer completely loses power.
removable
battery
battery
release
latch
Chapter 2. Using the iX104
Using the battery
iX104 User’s Handbook 57
Installing the battery
1. Orient the battery with the slides in the empty battery tray.
2. Slide the battery into the tray and press it firmly until it is seated.
The battery release latch returns to its original position and locks
the battery in place.
Discarding a battery
Dispose of a spent battery in accordance with your local government
regulations. Under Federal, state, or local law, it may be illegal to put
batteries in the trash. Contact your system administrator or your
municipal solid waste disposal department or provider for
information.
Chapter 2. Using the iX104
Using the battery
58 iX104 User’s Handbook
Using power options
This section explains how to use the Power Options Properties
window to manage the computer’s power use.
On the Windows taskbar, click the battery icon.
The Power Options Properties window opens.
Changing the computer’s power schemes
In the Power Options Properties window, select the Power Schemes
tab; then select options from the drop-down lists.
Chapter 2. Using the iX104
Using the battery
iX104 User’s Handbook 59
Changing battery alarm settings
In the Power Options Properties window (page 58), select the Alarms
tab; then use the slider bars to change the alarm settings.
Checking battery power status
In the Power Options Properties window (page 58), select the Power
Meter tab. The window shows the amount of power left in the battery.
Chapter 2. Using the iX104
Using the battery
60 iX104 User’s Handbook
Selecting power settings
In the Power Options Properties window (page 58), select the
Advanced tab; then select the power settings options you want to use.
Enabling Hibernation mode
In the Power Options Properties window (page 58), select the
Hibernate tab; then check the Enable Hibernation check box.
Chapter 2. Using the iX104
Using the battery
iX104 User’s Handbook 61
Tips for conserving battery power
The following tips help you extend the life of your battery by
conserving battery power:
Use an external power source such as the AC or auto adapter
whenever available.
Suspend operation if you know that you will not be using the
system for a while. (See “Suspending operation” on page 37.)
Turn off the computer if you will not be using it for an extended
period of time.
Adjust power options to automatically conserve power. (See
“Using power options” on page 58.)
Chapter 2. Using the iX104
Programming hot keys
62 iX104 User’s Handbook
Programming hot keys
Xplore pre-programs the P1, P2, and P3 hot keys and Function mode
hot key combinations to perform certain functions by default.
However, you can program them to perform different functions, as
described in this section.
Table 6 Programmable hot keys
Key Default function
Starts Help.
Starts Internet Explorer.
Starts your email application.
Table 7 Programmable Function mode hot key combinations
Key combination Default function
Sends video display to a monitor or
projection panel. (Not programmable.)
Selects the input device.
Starts the pen calibration program.
Chapter 2. Using the iX104
Programming hot keys
iX104 User’s Handbook 63
Programming hot keys to start applications,
open documents, or go to a Web site

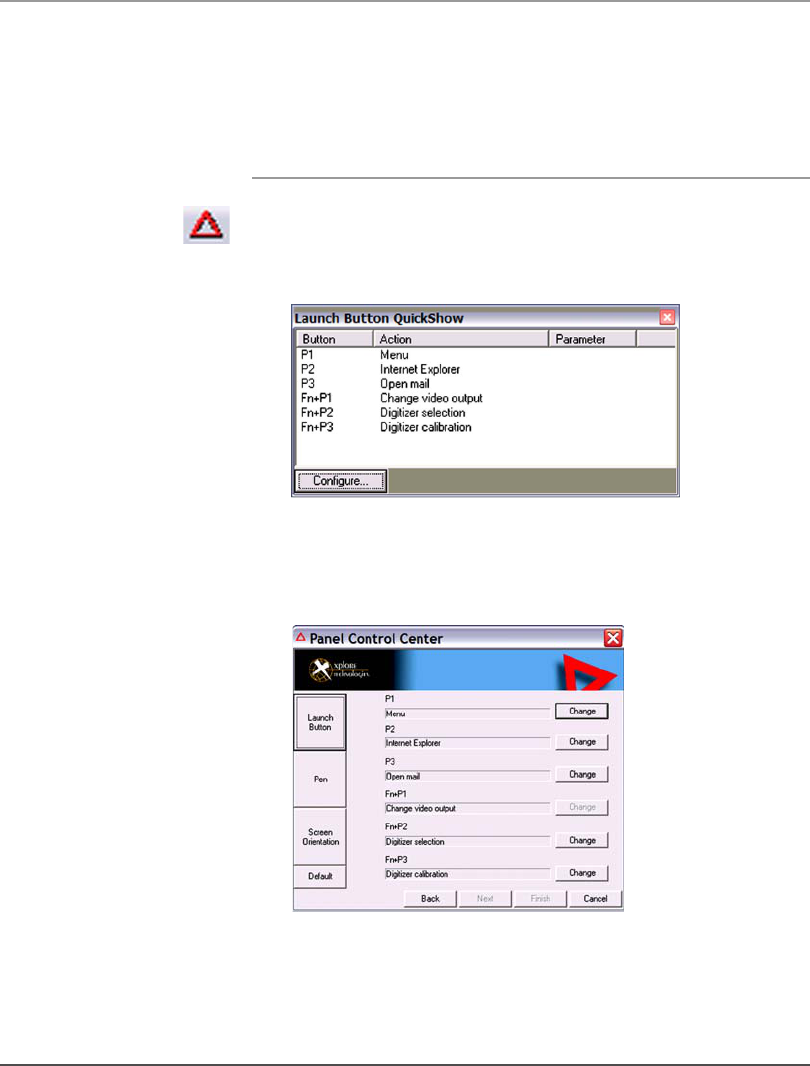

1. In the Status area of the Windows taskbar, click the iX104
Configuration icon.
The Launch Button QuickShow dialog box opens.
2. Click the Configure button.
The Panel Control Center window opens.
Chapter 2. Using the iX104
Programming hot keys
64 iX104 User’s Handbook
3. Click the Change button next to the key or key combination you
want to program.
The following options appear:
4. Click Launch an Application, Document or Web site.
The following options appear:
Chapter 2. Using the iX104
Programming hot keys
iX104 User’s Handbook 65
5. To start an application:
aClick Launch an Application.
bIn the File text box, type the name of the application you want
the hot key or Function mode hot key combination to start.
Note: Type the name of executable file that starts the
application. For example: word.exe, notepad.exe,
excel.exe.
cClick Change.
To open a document:
aClick Open a Document.
bIn the File text box, type the name of the document you want
the hot key or Function mode hot key combination to open.
(For example: spreadsheet.xls, airports.doc,
wiringdiagram.jpg)
cClick Change.
Chapter 2. Using the iX104
Programming hot keys
66 iX104 User’s Handbook
To open a multimedia file:
aClick Open a Multimedia file.
bIn the File text box, type the name of the multimedia file you
want the hot key or Function mode hot key combination to
open. (For example: 911training.dir, demo.ppt)
cClick Change.
To open a Web page:
aClick Open a Web page.
bIn the File text box, type the URL of the Web page you want
the hot key or Function mode hot key combination to open.
(For example: http://www.xploretech.com)
cClick Change.
6. Program more hot keys, or click Finish to close the Panel Control
Center window.
Chapter 2. Using the iX104
Programming hot keys
iX104 User’s Handbook 67
Programming hot keys to perform pre-defined
functions
1. In the Status area of the Windows taskbar, click the iX104
Configuration icon.
The Launch Button QuickShow dialog box opens.
2. Click the Configure button.
The Panel Control Center window opens.
3. Next to the key or key combination you want to program, click
the Change button.
Chapter 2. Using the iX104
Programming hot keys
68 iX104 User’s Handbook
The following options appear:
4. Click Start a pre-defined function.
5. In the Function selection drop-down list, select an option.
6. Program more hot keys, or click Finish to close the Panel Control
Center window.
Chapter 2. Using the iX104
Programming hot keys
iX104 User’s Handbook 69
Programming hot keys to perform other key
functions
1. In the Status area of the Windows taskbar, click the iX104
Configuration icon.
The Launch Button QuickShow dialog box opens.
2. Click the Configure button.
The Panel Control Center window opens.
3. Next to the key or key combination you want to program, click
the Change button.
Chapter 2. Using the iX104
Programming hot keys
70 iX104 User’s Handbook
The following options appear:
4. Click Press a key or key combination.
The following options appear:
Chapter 2. Using the iX104
Programming hot keys
iX104 User’s Handbook 71
5. If you want the hot key or hot key combination to perform the
function of a single key:
aIf the Ctrl, Alt, or Shift boxes are checked, uncheck them.
bClick the key you want the hot key or hot key combination to
perform. (For example: F6, G, or Caps Lock)
If you want the hot key or hot key combination to perform the
function of a key combination:
aCheck the Ctrl, Alt, or Shift box.
bFrom the drop-down list, select the additional key, or click the
key on the keyboard.
Examples
To cause the hot key to perform the print screen function
(Alt-Print Scrn): Check the Alt check box; then select PrtScr
from the drop-down list.
To cause the hot key to perform the paste function (Ctrl-V):
Check the Ctrl check box; then click the V key.
6. Program more hot keys, or click Finish to close the Panel Control
Center window.
72 iX104 User’s Handbook
iX104 User’s Handbook 73
3Maintaining the iX104
This chapter provides instructions for maintaining your computer.
Caring for the computer
This section provides information about how to keep your computer
in top working condition.
Checking power cords and connectors
Check AC and DC power cords and power connectors periodically for
damage. Replace the power cord immediately if you find any damage.
Protecting the computer from damage
Your computer is designed to sustain a multiple-axis drop to a
non-yielding surface. Do not intentionally drop the computer,
because the cumulative effects of multiple drops may damage the
computer.
Do not place heavy objects on the computer.
Do not disassemble the computer.
Keep the computer at least 5 inches (13 centimeters) away from
any electrical appliance that generates a strong magnetic field,
such as a motor, magnet, TV, refrigerator, or large audio speakers.
Chapter 3. Maintaining the iX104
Caring for the computer
74 iX104 User’s Handbook
Preventing the computer from overheating
The computer monitors its internal temperature. As the internal
temperature approaches the tolerable limits of heat-sensitive
components, system functions are automatically limited or turned off
to prevent damage.
To prevent the computer from overheating, do not obstruct the
computer’s air vents.
air vents
air vents
Chapter 3. Maintaining the iX104
Caring for the computer
iX104 User’s Handbook 75
Storing the computer
You can store the computer in the Off state for about 30 days with a
fully charged battery installed. After this period, recharge the battery
or replace it with a charged battery.
If you intend to store the computer for more than 30 days, remove the
battery pack and keep it in a cool place.
Chapter 3. Maintaining the iX104
Caring for the computer
76 iX104 User’s Handbook
Caring for the display screen
To clean the display screen, dampen a soft cotton cloth with water or
isopropyl alcohol and gently wipe the screen surface.
Protecting the display screen
The screen protector is a durable, replaceable writing surface that
protects the display screen from abrasion.
To obtain additional screen protectors, check with your reseller, or go
to the Xplore Web site at www.xploretech.com for ordering
information. Additional information about installation is included
with the screen protectors.
Removing the screen protector
Slide your fingernail under the screen protector at the notch and pull
the protector away from the screen.
notch
Chapter 3. Maintaining the iX104
Caring for the computer
iX104 User’s Handbook 77
Installing a new screen protector
1. If a screen protector is already installed on the display screen,
remove it before installing the new screen protector.
2. Using a soft cotton cloth dampened with isopropyl alcohol,
gently clean the screen. Make sure that you have removed all
residue from the screen before you apply the new screen
protector.
3. Remove the protective coating from the back (the shiny side) of
the screen protector.
4. Orient the screen protector with the shiny side of the protector
facing the display screen and the notched corner oriented as
shown in the following illustration.
notch
Chapter 3. Maintaining the iX104
Caring for the computer
78 iX104 User’s Handbook
5. Place the screen protector on the screen surface. Use your fingers
to apply pressure to the protector, using a continuous wiping
motion along the edges.
To ensure a good seal between the screen protector and the
display, do not lift the screen protector from the display after you
have applied it.
6. Remove the protective plastic cover from the face of the screen
protector.
7. Wipe the screen protector gently with a soft cotton cloth
dampened with isopropyl alcohol to clean any residue left behind
by the protective coating.
Chapter 3. Maintaining the iX104
Calibrating the pen
iX104 User’s Handbook 79
Calibrating the pen
Calibrating the pen adjusts the cursor position on the screen relative to
the position of the pen tip. Calibrate the pen to adjust the distance
error between where the pen is actually touching the screen and where
the computer is registering the pen touch.
You may need to calibrate the pen in the following situations:
You are using the pen for the first time.
The previous user of the computer writes with the opposite hand
or at a different pen angle.
The computer has not been used for some time.
The computer has been serviced.
Calibrating the pen for an iX104 touch screen
1. From the Start menu, select Control Panel.
The Control Panel opens.
Pointer Devices
icon
Chapter 3. Maintaining the iX104
Calibrating the pen
80 iX104 User’s Handbook
2. Click the Pointer Devices icon.
The Pointer Device Properties window opens.
3. Click Calibrate.
The Calibration program starts.
4. Follow the instructions that appear on the screen.
5. When you finish, click OK.
Chapter 3. Maintaining the iX104
Calibrating the pen
iX104 User’s Handbook 81
Calibrating the pen for an iX104-TPC active
screen
1. From the Start menu, select Control Panel.
The Control Panel opens.
2. Click the Tablet and Pen Settings icon.
Tablet and
Pen Settings
icon
Chapter 3. Maintaining the iX104
When to replace the pen
82 iX104 User’s Handbook
The Tablet and Pen Settings window opens.
3. In the Calibration area drop-down list, select the mode for which
you want to calibrate the pen: Landscape or Portrait; then click
Calibrate.
The Calibration program starts.
4. Follow the instructions that appear on the screen.
5. When you finish, click OK.
When to replace the pen
With use, the pen tip may become worn and can scratch the screen.
If your pen exhibits one of the following problems, replace the pen:
The pen does not move freely across the screen.
The pen does not perform as expected.
iX104 User’s Handbook 83
ATroubleshooting
Table 8 contains solutions to some problems. If you cannot solve the
problem by taking the actions described, contact your local help desk
or your reseller for further assistance.
Table 8 Troubleshooting
Problem Possible cause and solution
Computer will not start. The battery may be defective or discharged to a critically low
level. Connect an external power supply (such as the AC
adapter) or install a charged battery. See “Using the battery”
on page 53.
Internal components may be above or below the acceptable
operating range (below -20° C or above 60° C). After the
temperature returns to safe operating range the computer
will start.
The computer will not resume
operation after being suspended. The battery may be defective or discharged to a critically low
level. When the battery reaches a critically low level, the
computer is forced into Suspend- to-RAM mode to avoid a
total system power failure. Connect an external power supply
(such as the AC adapter) or install a charged battery. See
“Using the pen” on page 39 and “Using the battery” on
page 53.
The computer may be at the critical thermal limit. To avoid
damage to heat-sensitive components, the computer enters
Suspend-to-RAM mode when the computer operates above
60° C. Operation automatically resumes when the computer
cools to below 60° C. Move the computer to a cooler
location.
Appendix A. Troubleshooting
84 iX104 User’s Handbook
Display screen is blank or difficult
to read. Confirm that the computer is on (the Power icon is displayed
continuously in the Status area).
The brightness may be set too low, causing the screen to
appear too dark. To change system brightness, press the Fn
and Start keys to open the Xplore menu and adjust the
brightness. (See page 30.)
An external monitor may be selected. Press the Fn and P1
keys to select the computer display screen. (See page 30.)
The video time-out may have expired. Tap the display
screen to reactivate the display.
Note: This is a normal, power-saving feature.
If the Status light is blinking red, the computer is in Suspend-
to-RAM mode because the temperature is below -20° C or
above 60° C. When the temperature returns to a safe
operating range, the display screen automatically comes
back on. If possible, move the computer to a warmer or
cooler location.
If the Status light is continually yellow, the computer is in
Suspend or Hibernate mode. Press the Power On/Off key to
resume.
Cursor is not tracking the pen. Calibrate the pen. See “Calibrating the pen” on page 79.
Computer is not responding to the
pen. Connect an external USB keyboard to the computer. If the
computer does not respond to the external keyboard, the
application or operating system may have been corrupted.
Press the Reset key. (See page 35.) If the system responds to
a keyboard but not to the pen, contact your local help desk or
reseller for further assistance.
Table 8 Troubleshooting (continued)
Problem Possible cause and solution
Appendix A. Troubleshooting
iX104 User’s Handbook 85
Headphone or speaker volume is
too low. The volume may be in Mute mode or set too low. Follow the
instructions in “Adjusting headphone or speaker volume” on
page 50.
Make sure the volume control in your audio software is set to
an audible level.
An external device is not working
with the computer. The device may need to be enabled in the computer’s
configuration program (BIOS Setup). Contact your local help
desk or reseller.
The Status LED is red, continuous. The computer is on, running under battery power, and the
charge level in the battery has reached a critical level. Plug
the computer into an AC/DC power source or install a
charged battery.
The system has encountered a fault and is preventing
normal operation. Contact your local help desk.
The Status LED is red, blinking. The computer is powered on, running under battery power,
and the charge level in the battery is at a minimum warning
level. Plug the computer into an AC/DC power source or install
a charged battery.
Table 8 Troubleshooting (continued)
Problem Possible cause and solution
86 iX104 User’s Handbook
iX104 User’s Handbook 87
BUsing BIOS and AOS
Functions
This appendix explains how to use the application and navigation
buttons with the Basic Input-Output System (BIOS) program and the
Advanced Operating System (AOS) Options menu.
Note
These functions are typically for use only by your system
administrator or by authorized service technicians.
Table 9 Using BIOS and AOS functions
Use this button... To perform this function
To start the BIOS program: When the
computer is booting, press the P2 button
and follow the instructions that appear on
the screen.
Navigate. (You can also use the joystick to
navigate, as described below.)
Push the joystick control up, down, left or
right to move a highlighted item accordingly
(the same as pressing the arrow keys on a
keyboard).
Press the Enter button to perform the same
functions as pressing Enter on a keyboard.
Appendix B. Using BIOS and AOS Functions
88 iX104 User’s Handbook
When the system is displaying a BIOS error
(such as an invalid checksum), press the P1
button to bypass the error message and
attempt a normal boot sequence (the same
as the F1 key on a keyboard).
When the system is displaying the iX104
logo, press the P2 button to run the BIOS
setup utility (the same as the F2 key on a
keyboard).
When the system is displaying the operating
system boot screen, press the P3 button to
open the Advanced Operation System
Options menu (the same as the F8 key on a
keyboard).
Table 9 Using BIOS and AOS functions (continued)
Use this button... To perform this function
Appendix B. Using BIOS and AOS Functions
Enabling manual LCD backlight control
iX104 User’s Handbook 89
Enabling manual LCD backlight control
When the LCD backlight control is in manual mode, the ambient light
sensor is disabled and the computer no longer automatically controls
the screen brightness.
Follow these steps to disable the sensor and enable manual LCD
backlight control:
1. When the computer is booting, press the Function and P2 buttons
to start the BIOS Setup Utility.
The utility starts, displaying the Information Viewer tab.
Appendix B. Using BIOS and AOS Functions
Enabling manual LCD backlight control
90 iX104 User’s Handbook
2. Select the LCD tab.
3. In the LCD Backlight Control drop-down list, select Manual.
4. Click OK.
iX104 User’s Handbook 91
CGlossary
Adapter. A device that provides an interface between two dissimilar
electronic devices. For example, the AC adapter modifies the power
from a wall outlet for use by the computer.
Advanced Power Management (APM). A facility consisting of one
or more layers of software that support power management. The APM
software interface enables applications, operating systems, device
drivers, and the APM BIOS to work together to reduce power
consumption.
Alternating Current (AC). Electric current that reverses its direction
of flow at regular intervals.
Analog signal. A signal with characteristics such as amplitude and
frequency that vary in proportion to (are an analog of) the value to be
transmitted. Voice communications are analog signals.
Application. A program that performs specific tasks on your
computer, such as word processing or creating spreadsheets.
BIOS. Programs that contain such basic hardware operations as an
interaction with diskette drives, hard disk drives, and the memory.
Board. A circuit board. An internal card containing electronic
components called chips, which perform a specific function or
increase the capabilities of the system.
Boot. To load a program or operating system into system memory.
Bits Per Second (BPS). In serial transmission, the instantaneous bit
speed with which a device or channel transmits a character.
Card. Synonym for board; see board.
Appendix C. Glossary
92 iX104 User’s Handbook
Compact Disk-Read Only Memory (CD-ROM). Stores data on
metal-plated plastic discs.
Compatibility. 1.The ability of one computer to accept and process
data in the same method as another computer without modifying the
data or the media upon which it is being transferred. 2.The ability of
one device to connect or communicate with another system or
component.
Configuration. The specific combination of hardware components of
the computer, and their operating status. The configuration of your
computer includes pre-defined memory, type and speed of
microprocessor, type of and size of hard disk drive, etc.
Default. The preset parameter value automatically selected by the
computer when you or a program do not provide instructions.
Device driver. A program that controls communication between a
specific peripheral device and the computer.
Disk drive. The physical device that enables the computer to read
from, and write to, a disk.
Display. An image-producing device used to view computer output.
Double-click. To press and release the pen/stylus twice within a time
frame you define, without moving the pointer off the choice.
Driver. Software that allows an application program to communicate
with a particular piece of equipment, such as a printer or the pen/
stylus.
Hard disk drive (HDD). A sealed mass storage device used for
storage and fast retrieval of programs and data. The factory installs
this disk and only a trained engineer can remove it for servicing.
Hardware. The physical electronic and mechanical components of a
computer system. typically, the computer itself, CPU, memory, etc.
Hertz. A unit of wave frequency that equals one cycle per second.
Appendix C. Glossary
iX104 User’s Handbook 93
Interface. 1. Hardware and/or software components used specifically
to connect one computer or device to another. 2. To physically
connect one system or device to another to exchange information. 3.
The point of contact between user, the computer, and the program (for
example, the pen/stylus or a menu).
Kilobyte (KB). A unit of 1024 bytes measuring storage space,
typically in memory or on storage media such as a diskette or hard
disk drive.
Local area network (LAN). Assembly of separate computers into an
integrated network that connects the various computers together and
to common devices such as printers and fax machines.
Light Emitting Diode (LED). A semiconductor device that emits
light when a current is applied.
Liquid Crystal Display (LCD). liquid crystal sealed between two
sheets of glass coated with transparent conducting material. Applying
a voltage between the glass sheets darkens the liquid crystal to
provide contrast to lighted portions of the display.
Megabyte (MB). A unit of data storage equal to 1024 kilobytes.
Megahertz (MHz). a unit of wave frequency that equals 1 million
cycles per second.
Modem. A device that connects your computer to a telephone line,
allowing it to communicate with another computer at another
location.
PC Card. A plug-in accessory card that conforms to the PCMCIA
standard.
Pen. See stylus.
Peripheral device. An input/output device that is external to the
central processor and/or main memory such as a printer or scanner.
Pixel. Picture elements (tiny dots) that compose a screen image.
Appendix C. Glossary
94 iX104 User’s Handbook
Port. The electrical connection through which the computer sends
and receives data to and from devices or other computers.
Program. A set of instructions a computer can execute to tell the
system what to do and how to do it.
Random Access Memory (RAM). A hardware component of your
computer that temporarily stores active program code and data.
Reset. The act of reloading the operating system.
Resolution. The number of pixels displayed on the screen. A higher
resolution provides greater clarity and allows more information to be
displayed on the screen at once.
Restart. Resetting a computer without turning it off (also called
warm boot or soft reset).
Resume. The act of returning the computer to an active, operational
state.
Read Only Memory (ROM). The portion of your computer’s
memory that contains permanent instructions, and which cannot be
modified.
Status Indicator (LED). a light above the LCD screen which
indicates the current status of a particular device or hardware
component.
Stylus. A writing instrument. For pen computers, the stylus is used to
interface with the LCD and digitizer.
Suspend mode. A power conservation mode in which electrical
current is removed from most components of the computer.
Universal Serial Bus. A serial interface that enables communication
between devices and the computer.
iX104 User’s Handbook 95
DHardware Specifications
This appendix provides specifications for the iX104.
Physical specifications
Processing specifications
* Varies according to your computer’s configuration.
Dimensions 11.20” x 8.25” x 1.6” (WxHxD)
283.9mm x 209.3mm x 40.8mm
Weight 4.45 lbs. (2.02kg)*
CPU Pentium III with SpeedStep technology*
Chip set 133MHz
Processor speed 866 MHz*
Appendix D. Hardware Specifications
96 iX104 User’s Handbook
Memory/storage specifications
* Varies according to your computer’s configuration.
Main RAM 256MB SDRAM (on-board/PC133)
144-pin SODIMM modules
512MB module available.
Special rugged memory modules: conformal
coated and custom locking tabs to protect
against moisture and vibration
L1 Cache (CPU) 32KB on-die
L2 Cache 512KB on-die
BIOS ROM 8Mbit (FWH)
Hard Disk Drive 2.5” HDD shock mounted
Minimum 20GB IDE HDD*
Ultra DMA 100
BIOS ROM 8Mbit (FWH)
Appendix D. Hardware Specifications
iX104 User’s Handbook 97
Display specifications
Display Color LCD
Active Digital Sensor and Pen
• or
Passive Palm Rejection Touch Panel
32-bit True color
10.4” TFT XGA (1024x768), 16M colors
Brightness: 16 levels
Viewing Angle:
Horizontal: 30 degrees (min.)
Vertical: 10 degrees (min.)
Contrast Ratio: Typ. 250:1, Min 100:1
VRAM Intel 830M chipset with 48 MB shared memory
using Unified Memory Architecture (UMA)
delivers low-power, high-performance 3D/2D
graphics, video, and display capabilities.
Dynamic Video Memory Technology (DVMT)
dynamically responds to application
requirements and efficiently allocates the proper
amount of memory (48 MB maximum) for
optimal graphics and system performance.
Appendix D. Hardware Specifications
98 iX104 User’s Handbook
Interface specifications
Wireless Radio Bays One internal Type 1 or Type II PC Card slot
(PCMCIA Cardbus version 3.0)
One Internal mini-PCI slot
One internal OEM radio bay for RIM 1902G
and 1802G GSM/GPRS radios
Integrated Interfaces DC-in
USB (1) 2.0
Microphone Jack
Headset Jack
Firewire (IEEE 1394)
LAN (RJ-45)
15-pin D-SUB connector for external VGA
monitor
KeyPad / User Controls Application buttons with primary and
secondary functions
Power On/Off/Suspend/Resume button
Emergency Shutoff/Reset button
Integrated joystick slew control
Audio ’97 Codec
On-board microphone with noise cancellation
On-board integrated stereo speakers (1W
each)
Status Indicators Power, Charge/DC-in, Warning
Appendix D. Hardware Specifications
iX104 User’s Handbook 99
Power specifications
Main Battery 2 cell
Removable Lithium Ion Polymer
10.8V @ 4500mAh
• Warm-swappable
Recharge Time:
Suspend Life: Min. 5 days
Off State: Approximately 30 days
Optional Spare Battery 4 cell
Removable Lithium Ion Polymer
10.8V @ 9000mAh
• Warm-swappable
Recharge Time:
Suspend Life: Min. 5 days
Off State: Approximately 30 days
Bridge Battery 6-cell Li ION, 45mAh
Life: (with Suspend-to-RAM on bridge battery
only): 3 to 5 minutes from full charge
AC Adapter Auto-sensing 100-240V, supplying 19 VDC, with
a current of 3.75 A
Appendix D. Hardware Specifications
100 iX104 User’s Handbook
Environmental specifications
Temperature • Operating:
-4o to 140o F (-20o to 60o C)
•Storage:
-40o to 167o F (-40o to 75o C)
Humidity 0% to 95% non-condensing
Shock/Drop Three-foot drop to concrete, all surfaces, edges
and corners
Vibration 0.04g^2/Hz, 20 Hz - 1000 Hz
-6dB/octive 1000 Hz - 2000 Hz
Enclosure Class Blowing rain:
4”/hr, 40 mph wind and
MIL-STD-810F Method 506.4 Procedure 1
Drip:
7 gal/ft2/hr
MIL-STD-810F Method 506.4 Procedure III
Sand and dust:
Particle size < 149 µm, 10 + 7 g/m3 particle
density 1.5 m/s to 8.9 m/s wind speed
MIL-STD-810F Method 510.4 Procedure 1
Salt Fog:
5% saline for 48 hr (12 hr wet, 12 hr dry,
2 cycles)
MIL-STD-810F Method 509.4
Contamination by fluids:
Detergents, brake fluid, aromatic hydrocarbons
MIL-STD-810F Method 504
Solar radiation:
1120 W/m2 (355 Btu/ft2/hr) UVB @ 50° C,
7x24 hr cycles
MIL-STD-810F Method 505.4
Appendix D. Hardware Specifications
iX104 User’s Handbook 101
Agency approvals
Operating systems
Emissions EN55022 (CISPR22) Class B
FCC 15, Class B
•DOC Class B
•CE MARK
Immunity • EN55024
FCC 15, Class B
•DOC Class B
Safety UL and cUL Listed, UL 1950, 3rd Edition
TuV T-Mark, EN60950
UL and cUL Listed, UL 1604*
RF exposure OET 65
Radio approvals 47 CFR Part 22, 24
47 CFR Part 15C
Operating Systems Microsoft Windows XP Tablet PC Edition
Microsoft Windows XP Professional
Microsoft Windows 2000 Professional
102 iX104 User’s Handbook
iX104 User’s Handbook 103
EAgency Notices
FCC notices
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Modifications not expressly approved by Xplore Technologies could
void this user’s authority to operate the equipment.
Note
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for
help.
Appendix E. Agency Notices
104 iX104 User’s Handbook
RF eposure
Tests for SAR are conducted using standard operating positions
specified by the FCC with the phone transmitting at its highest
certified power level in all tested frequency bands. Although the SAR
is determined at the highest certified power level, the actual SAR
level of the phone while operation can be well below the maximum
value. This is because the phone is designed to operate at multiple
power levels so as to use only the power required to reach the
network. In general, the closer you are to a wireless base station
antenna, the lower the power output.
Before a phone model is available for sale to the public, it must be
tested and certified to the FCC that it does not exceed the limit
established by the government-adopted requirement for safe
exposure. The tests are performed in positions and locations (e.g., at
the ear and worn on the body) as required by the FCC for each model.
(Body-worn measurements may differ among phone models,
depending upon available accessories and FCC requirements). While
there may be differences between the SAR levels of various phones
and at various positions, they all meet the government requirement for
safe exposure.
For body worn operation, to maintain compliance with FCC RF
exposure guidelines, use only Xplore approved accessories. When
carrying the phone while it is on, use the specific Xplore-supplied or
approved carrying case, holster, or other body-worn accessory.
Use of non-Xplore-approved accessories may violate FCC RF
exposure guidelines and should be avoided.
Appendix E. Agency Notices
iX104 User’s Handbook 105
Health and Safety Information
Exposure to Radio Frequency (RF) Signals
Your wireless phone is a radio transmitter and receiver. It is designed
and manufactured not to exceed the emission limits for exposure to
radio frequency (RF) energy set by the Federal Communications
Commission of the U.S. Government. These limits are part of
comprehensive guidelines and establish permitted levels of RF energy
for the general population. The guidelines are based on the safety
standards previously set by both U.S. and international standards
bodies:
American National Standards Institute (ANSI) IEEE. C95.1-1992
National Council on Radiation Protection and Measurement
(NCRP). Report 86. 1986
International Commission on Non-Ionizing Radiation Protection
(ICNIRP) 1996
Ministry of Health (Canada), Safety Code 6. The standards
include a substantial safety margin designed to assure the safety
of all persons, regardless of age and health.
The exposure standard for wireless mobile phones employs a unit of
measurement known as the Specific Absorption Rate, or SAR. The
SAR limit set by the FCC is 1.6W/kg .
Note
In the U.S. and Canada, the SAR limit for mobile phones used by
the public is 1.6 watts/kg (W/kg) averaged over one gram of
tissue. The standard incorporates a substantial margin of safety
to give additional protection for the public and to account for any
variations in.
Appendix E. Agency Notices
106 iX104 User’s Handbook
DOC (Industry Canada Notices)
Notice to Users of Radio and Television
This Class B digital apparatus meets all requirements of Canadian
Interference-Causing Equipment Regulations
CET appareil numérique de la class B respecte toutes les exigence du
Réglement sur le matérial brouilleur du Canada.
Notice to Users of the Canadian Telephone Network
Notice
This equipment meets the applicable Industry Canada Terminal
Equipment Technical Specifications. This is confirmed by the
registration number. The abbreviation, IC, before the registration
number signifies that registration was performed based on a
Declaration of Conformity indicating that Industry Canada
technical specifications were met. It does not imply that Industry
Canada approved the equipment.
Before connecting this equipment to a telephone line the user should
ensure that it is permissible to connect this equipment to the local
telecommunication facilities. The user should be aware that
compliance with the certification standards does not prevent service
degradation in some situations.
Repairs to telecommunication equipment should be made by a
Canadian authorized maintenance facility. Any repairs or alterations
not expressly approved by Xplore or any equipment failures may give
the telecommunication company cause to request the user to
disconnect the equipment from the telephone line.
Appendix E. Agency Notices
iX104 User’s Handbook 107
Notice
The Ringer Equivalence Number (REN) for this terminal
equipment is 0.0. The REN assigned to each terminal equipment
provides an indication of the maximum number of terminals
allowed to be connected to a telephone interface. The
termination on an interface may consist of any combination of
devices subject only to the requirement that the sum of the
Ringer Equivalence Numbers of all the devices does not exceed
five.
Avis Aux Utilisateurs Du Réseau Téléphonique Canadien
›’’Industrie Canada a approuvé le materiel.
’utilisateur est averti que même la conformité aux normes de
certification ne peut dans certains cas empêcher la dégradation du
service.
’’’’équipement de la ligne téléphonique.
›’’excède pas 5.
UL Notice
This unit requires and AC adapter to operate. Use only UL Listed
Class 2 Adapters with an output rating of 19 VDC, with a current of
3.75 A. AC Adapter output polarity:
Appendix E. Agency Notices
108 iX104 User’s Handbook
For authorized repair technicians only
WARNING
For continued protection against risk of fire, replace only with the same
type and rating fuse.
WARNING
Danger of explosion if Lithium (clock) battery is incorrectly replaced.
Replace only with the same equivalent type recommended by the
manufacturer. Dispose of used batteries according to the
manufacturer’s instruction.
System disposal
In the event of system disposal, observe the following information
regarding proper procedures in the State of Vermont.
The liquid crystal display (LCD) lamps used in this system contain
mercury. In the event of system disposal, be sure to follow local
guidelines.
a
a
iX104 User’s Handbook 109
Index
A
air flow vents, location 22
ambient light sensor
disabling 45
location 19
antenna covers, location 20
B
battery alarm settings, changing 59
battery pack
charge time 54
charging 53
checking charge status 59
checking the charge 54
conserving power 61
discarding 57
installing 57
location 20
removing 55
battery release latch, location 20
BIOS Setup Utility, using 87
C
CD-ROM drive, connecting 47
convection air flow cover, location 20
D
digital camera, connecting 47
digital video camera, connecting 47
docking 46
double-click, performing with pen 40
dragging and dropping, performing with pen 40
DVD drive, connecting 47
E
email, starting 29
F
Firewire (IEEE 1394) connector, location 23
Firewire devices, connecting 47
H
headphone connector, location 23
headphone volume, adjusting 50
headphone, connecting 50
Hibernation mode
description 36
enabling 60
hot keys, programming, see keys,
programming hot keys
I
input device, selecting 30
Internet Explorer, starting 29
iX104
accessories 16
maintaining 73
preventing overheating 74
protecting from damage 73
Index
110 iX104 User’s Handbook
iX104 (continued)
safety procedures 73
storing 75
J
joystick
using 43
using in landscape mode 32
using in portrait mode 31
K
Kensington lock slot, location 22
keys
Alt-Tab
description 29
location 28
Ctrl-Alt-Del 29
description 29
location 28
Ctrl-Esc
description 29
location 28
descriptions 29
Enter
description 29
location 28
Esc, using 30
Function
description 29
location 28
Function mode hot key combinations
default functions 62
descriptions 30
navigation, using 31
keys (continued)
P1
default function 62
description 29
location 28
P2
default function 62
description 29
location 28
P3
default function 62
description 29
location 28
Power On/Off/Suspend/Resume
location 22
programming hot keys 62, 63
to perform other key functions 69
to perform pre-defined functions 67
quick-start diagram 28
Screen Rotation
description 29
location 28
Secure Attention Sequence (SAS) 28
Windows Start Menu
description 29
location 28
Windows Toggle
description 29
location 28
Index
iX104 User’s Handbook 111
L
LAN connector, location 23
LCD backlight
decreasing brightness 30, 45
disabling automatic control 45
enabling manual control 89
increasing brightness 30, 45
LEDs 26
Brightness LED meanings 27
Status LED meanings 26
left button click, performing with pen 40
local area network (LAN), connecting to 48
logging on 29
M
microphone
connecting external 49
connector location 23
location 19
volume, adjusting 49
monitor
activating 51
connecting 51
sending video display to 30
monitor connector, location 23
N
navigating
in landscape mode 32
in portrait mode 31
Navigation 32
navigation control key, see joystick
O
online help, opening 29
P
Page Down
performing in landscape mode 32
performing in portrait mode 31
Page Up
performing in landscape mode 32
performing in portrait mode 31
pen
calibrating 79
double-click speed, changing 41
dragging and dropping 40
holder, location 20
location 20
performing a double-click 40
performing a right-click 40
performing left button click 40
positioning in holder 42
replacing 82
tether, using 42
using 39, 40
pen calibration program
opening 30
using 79
power connector, location 23
Power On/Off/ Suspend/Resume key
location 22
Power Options Properties window
opening 58
power schemes, changing 58
power settings, changing 60
Index
112 iX104 User’s Handbook
power use, managing 58
projection panel
activating 51
connecting 51
sending video display to 30
Q
quick-start guide 28
R
Reset switch
location 19
using 35
resuming operation 38
right-click, performing with pen 40
S
screen
landscape mode 29
portrait mode 29
protecting 76
screen orientation
changing 44
landscape 44
navigating 32
portrait 44
navigating 31
screen protector
installing 77
removing 76
replacing 77
screen, active
about 15
using pen with 39
screen, touch
about 15
using pen with 39
scrolling
performing in landscape mode 32
performing in Portrait mode 31
serial number, location 20
Shift+Tab
performing in landscape mode 32
performing in portrait mode 31
speaker volume, adjusting 50
speakers
connecting 50
location 19
storing the computer 75
support, contacting 18
Suspend mode
description 36
ending 38
starting 37
suspending operation 37
Suspend-to-RAM mode, description 36
T
Tab
performing in landscape mode 32
performing in portrait mode 31
troubleshooting 83
turning off the computer 34
turning on the computer 33
Index
iX104 User’s Handbook 113
U
USB port, location 23
USB-compatible device, connecting 48
V
video output
changing from monitor to computer 51
changing to monitor 51
volume
adjusting headphone 50
adjusting microphone 49
adjusting speaker 50
W
Windows Task Manager, launching 29
X
XPL expansion module, connecting 52
XPL expansion port, location 22, 24
Xplore Tablet Dock
docking connector location 25
using 46
Xplore Technologies, contacting 18
Index
114 iX104 User’s Handbook
95-01016
