Xplore Technologies IX104-152 IX104C4 Rugged Tablet PC User Manual ix104
Xplore Technologies IX104C4 Rugged Tablet PC ix104
Users Manual
iX104C4 User’s Handbook 3
Contents
Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Trademarks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Copyright . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Publication information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Declaration of conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Warranty information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Important safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Welcome 13
About your computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Optional accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Contacting Xplore – service and questions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
1Getting Started 19
Front view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

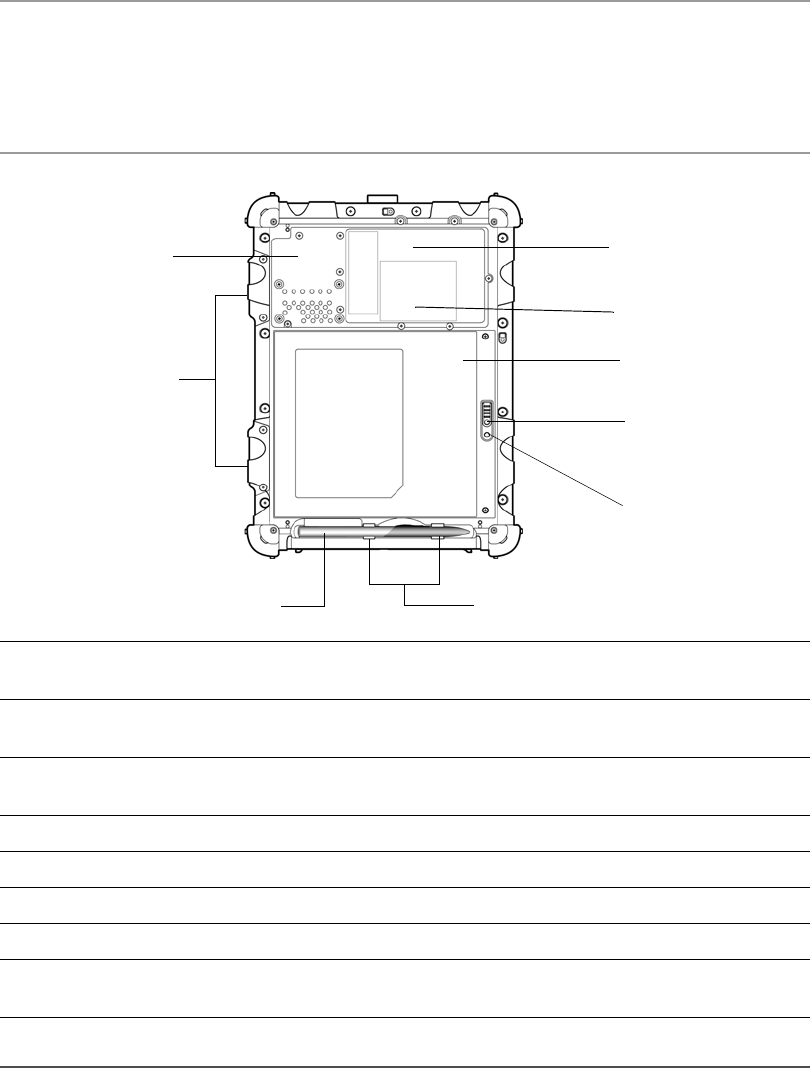

Back view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

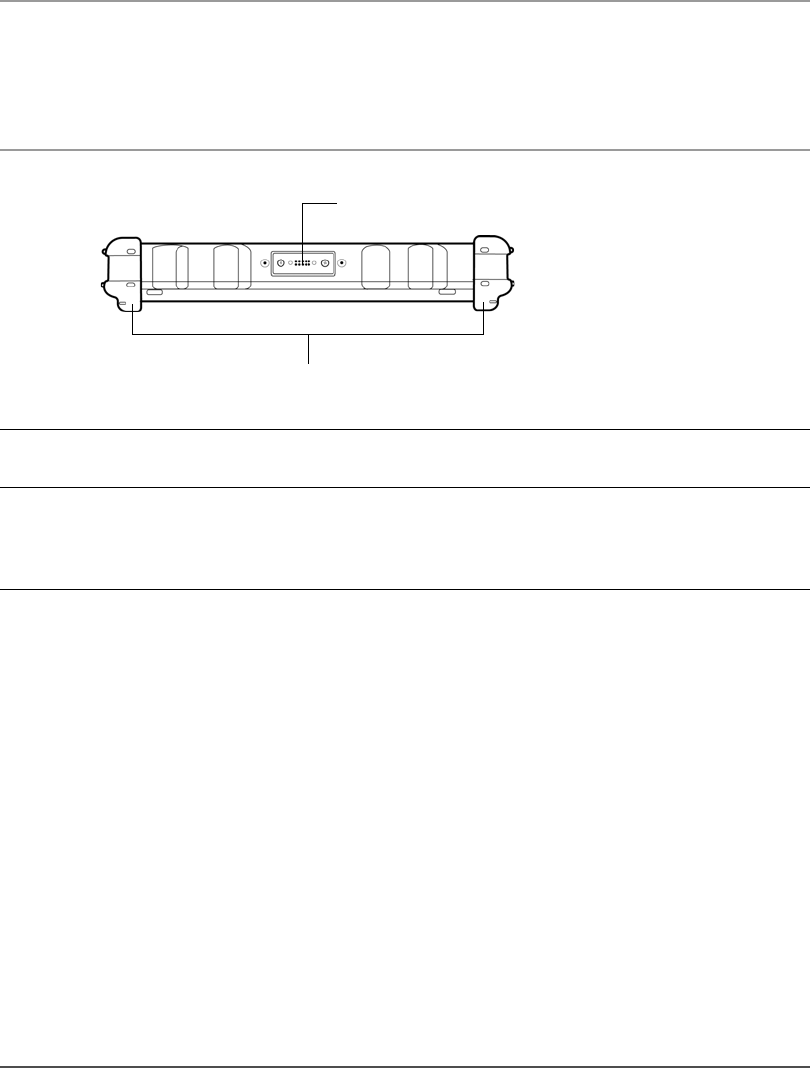

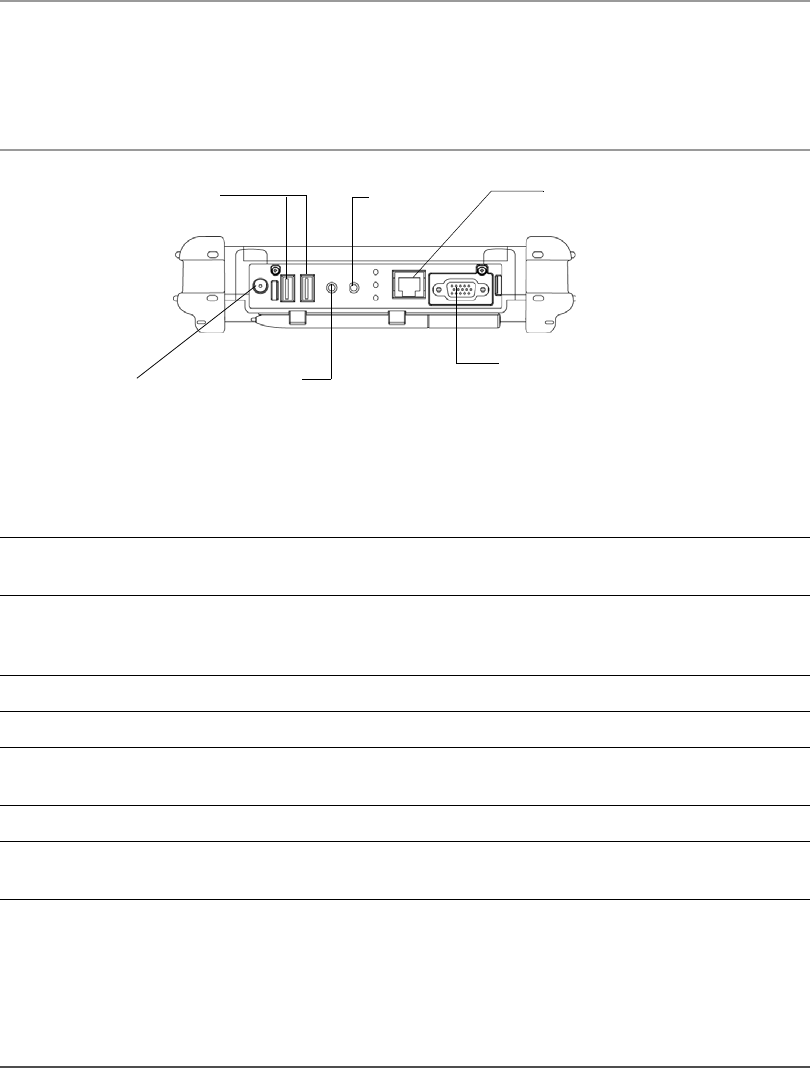

Top view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

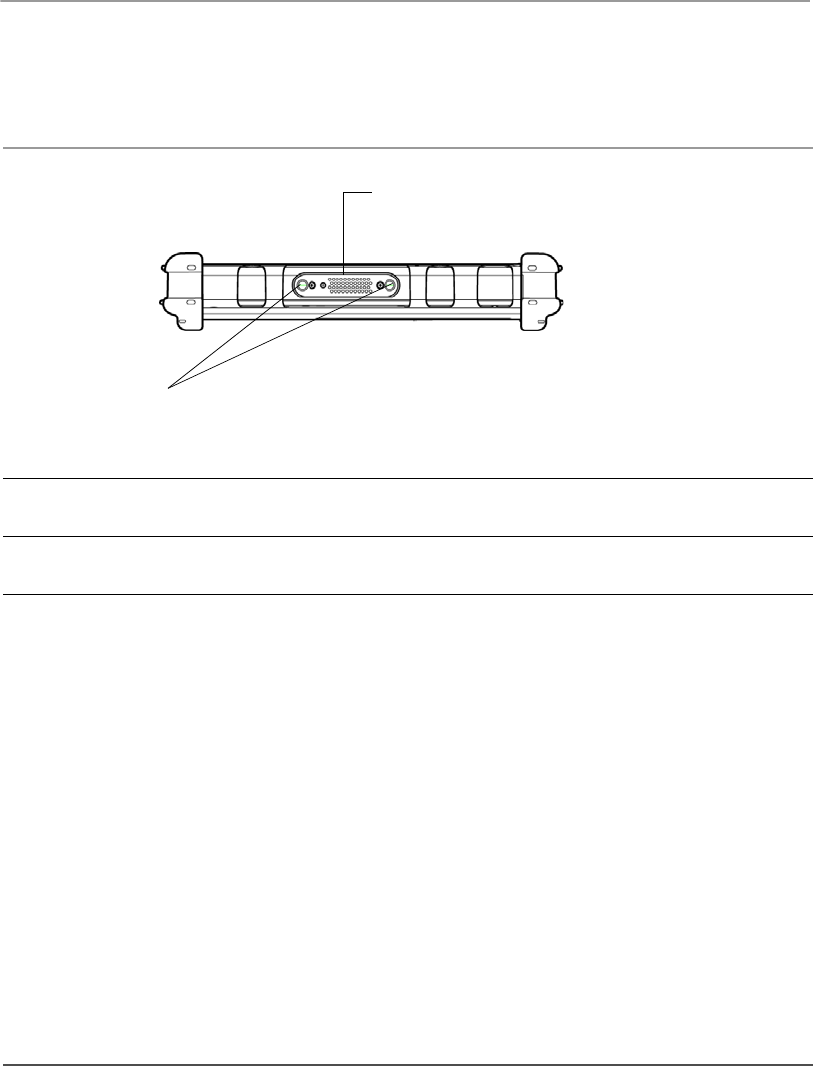

Bottom view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Left side view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Right side view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

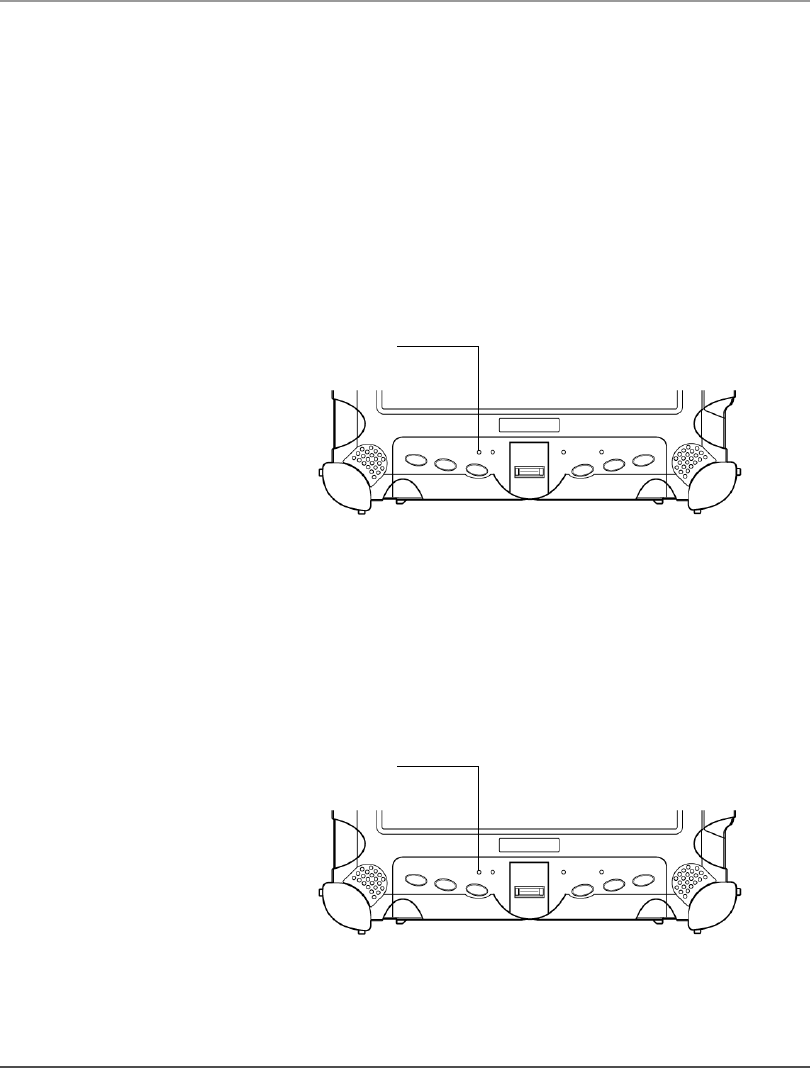

LED indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Quick-start guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

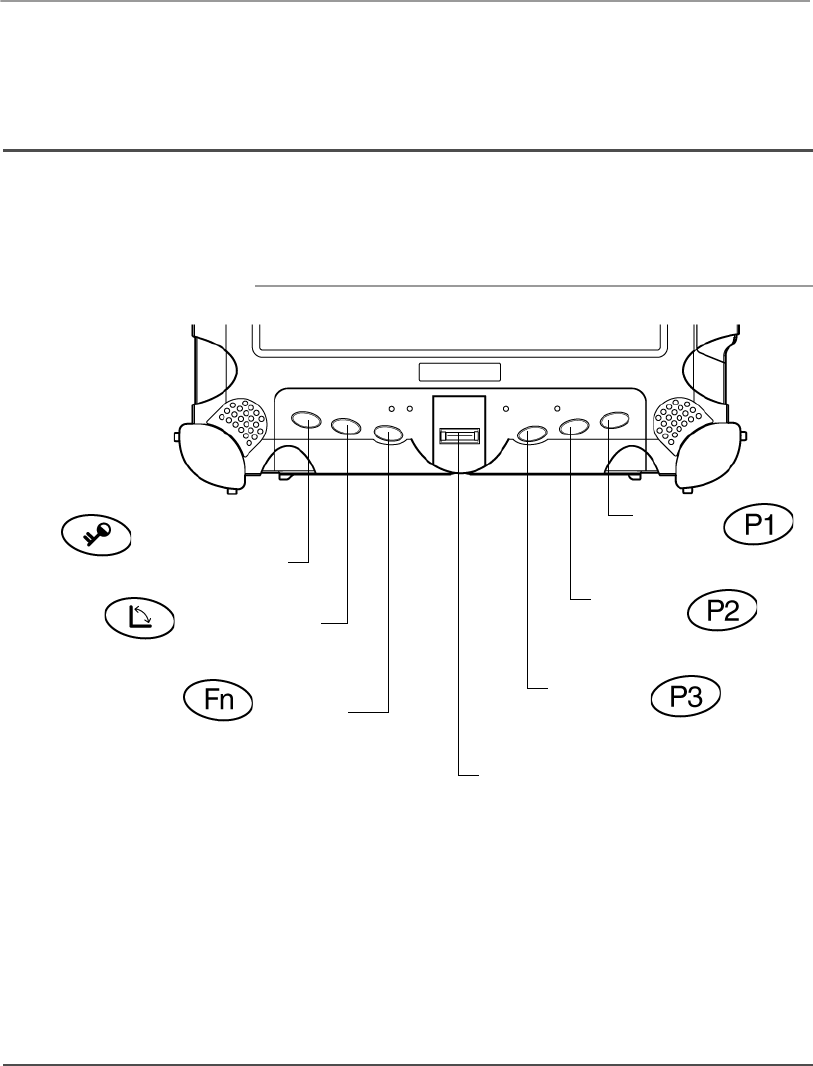

Application, Windows, and hot keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Contents
4 iX104C4 User’s Handbook
2Using the Tablet 31
Turning on the computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Turning off the computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Using the Reset switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Suspending and resuming operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Suspending operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Resuming operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Using the pen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

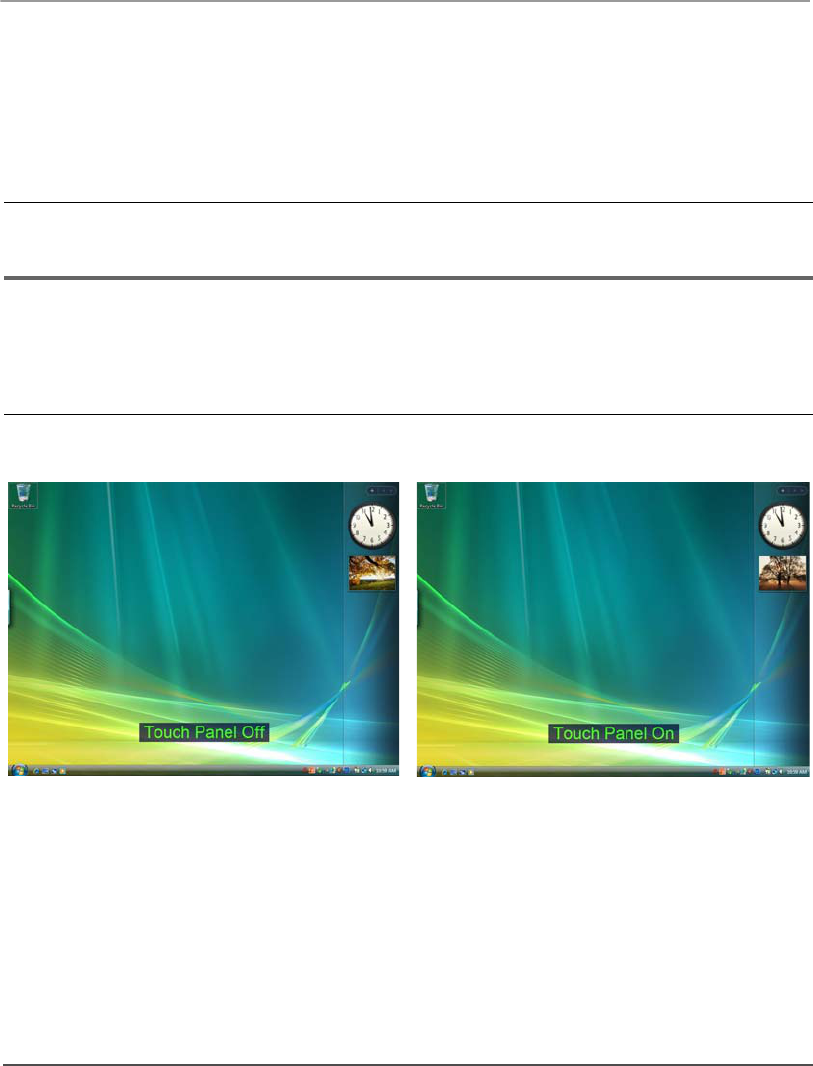

Selecting Auto-Sense, Active, or Touch mode . . . . . . . . . . . . . . . . . . . . . . . 38
Using the digitizer to perform mouse functions. . . . . . . . . . . . . . . . . . . . . . . 39
Changing the pen double-click speed . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Positioning the pen and pen tether . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

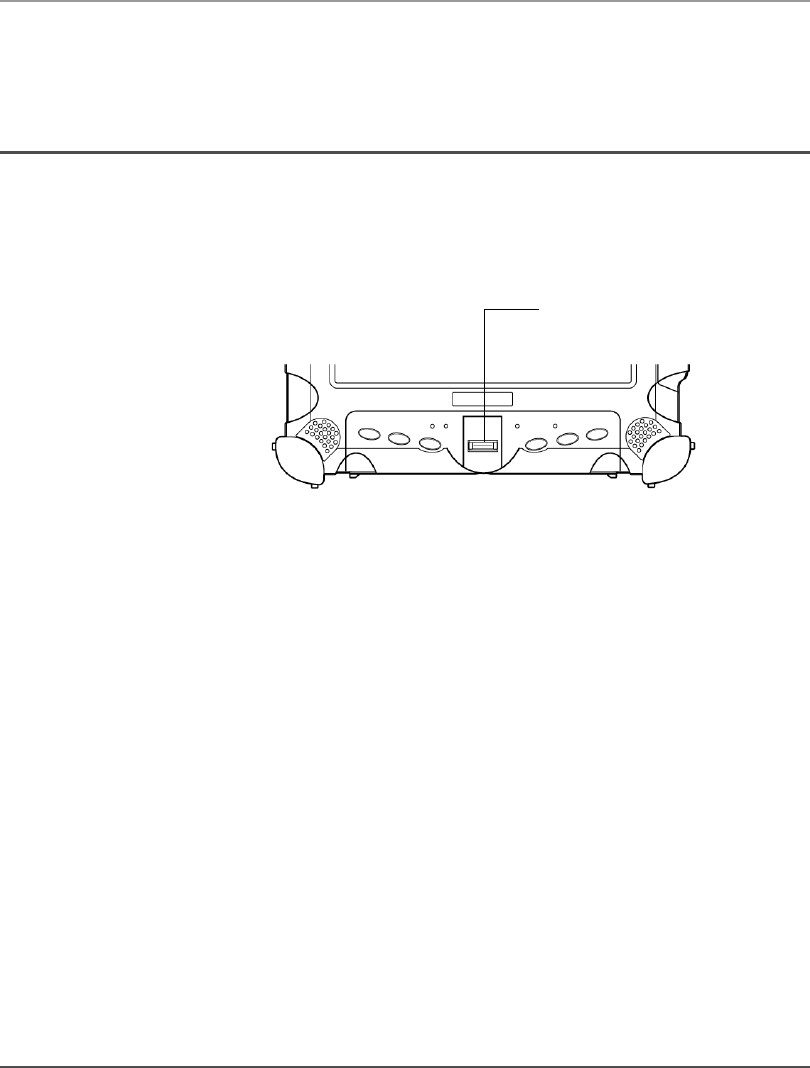

Using the fingerprint scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Changing the screen orientation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

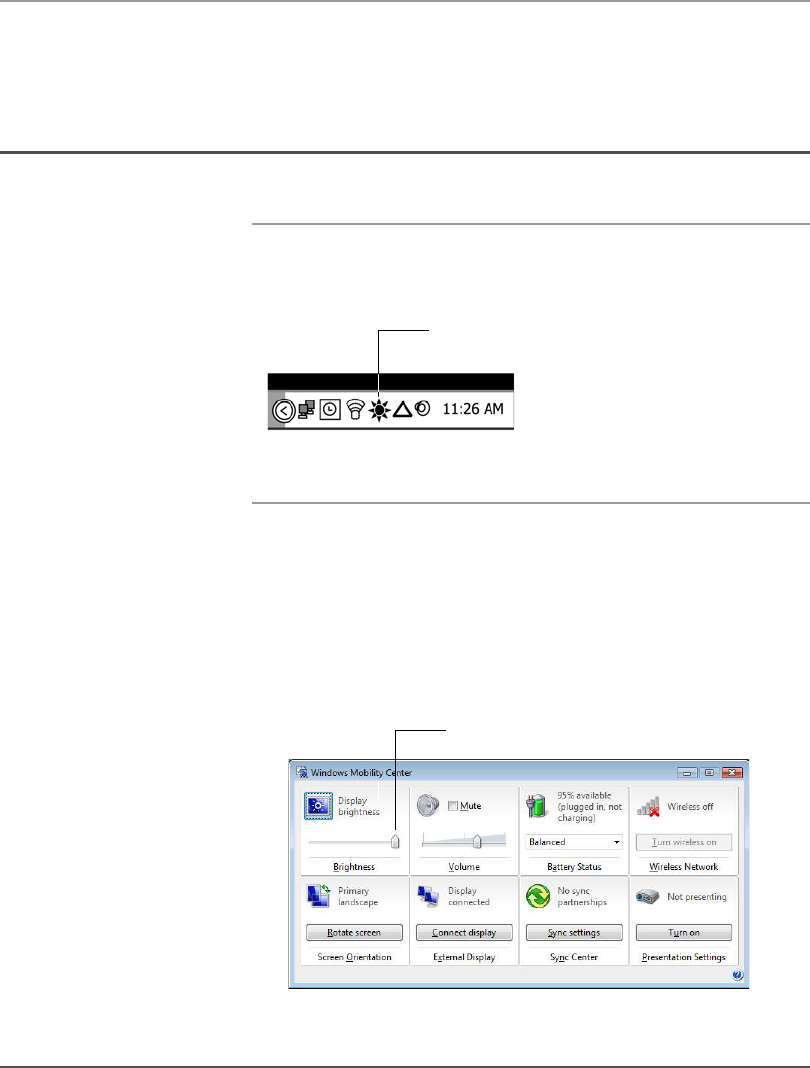

Adjusting the screen brightness. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Windows XP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Windows Vista. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Enabling automatic backlight control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Optimizing screen settings for outdoor use . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Windows XP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Windows Vista . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Docking the tablet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Connecting devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Connecting to a local area network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Connecting USB-compatible devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Connecting an external microphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Adjusting microphone volume – Windows XP . . . . . . . . . . . . . . . . . . . 50
Adjusting microphone volume – Windows Vista. . . . . . . . . . . . . . . . . . 50
Contents
iX104C4 User’s Handbook 5
Connecting a headphone or speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Adjusting headphone or speaker volume – Windows XP . . . . . . . . . . . 51
Adjusting headphone or speaker volume – Windows Vista . . . . . . . . . . 51

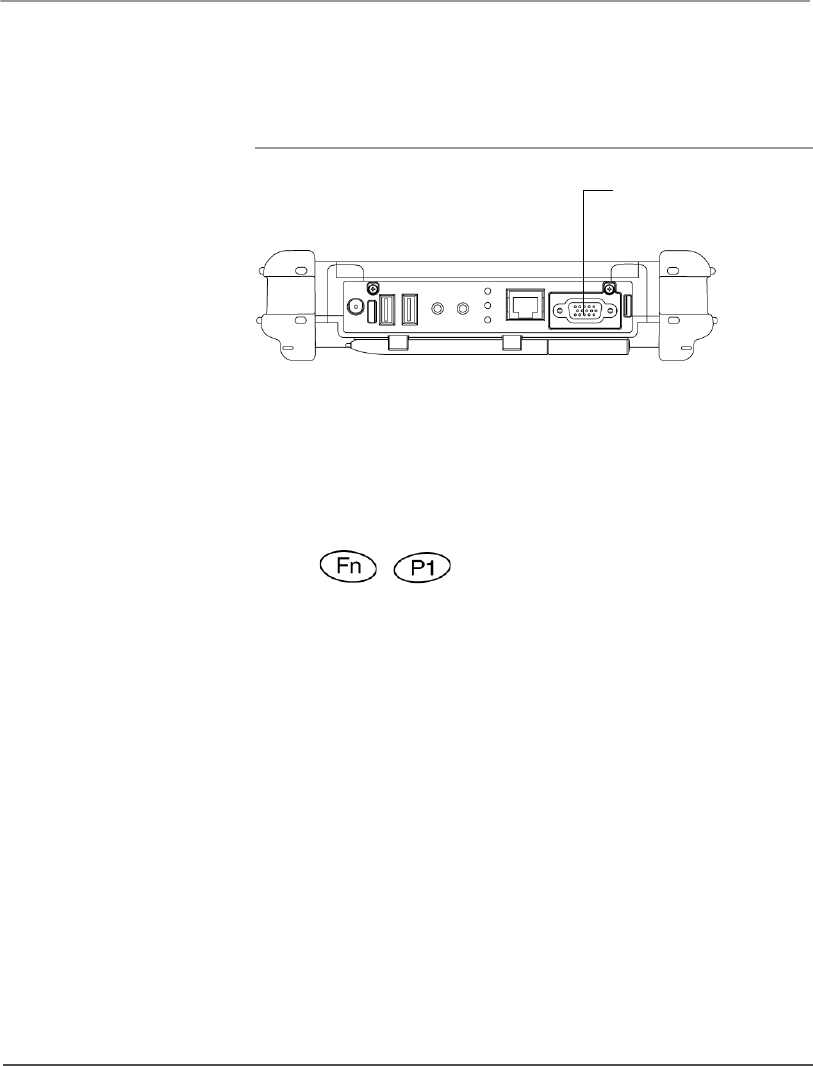

Connecting a monitor or projection panel . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Activating the monitor or projection panel. . . . . . . . . . . . . . . . . . . . . . . 52

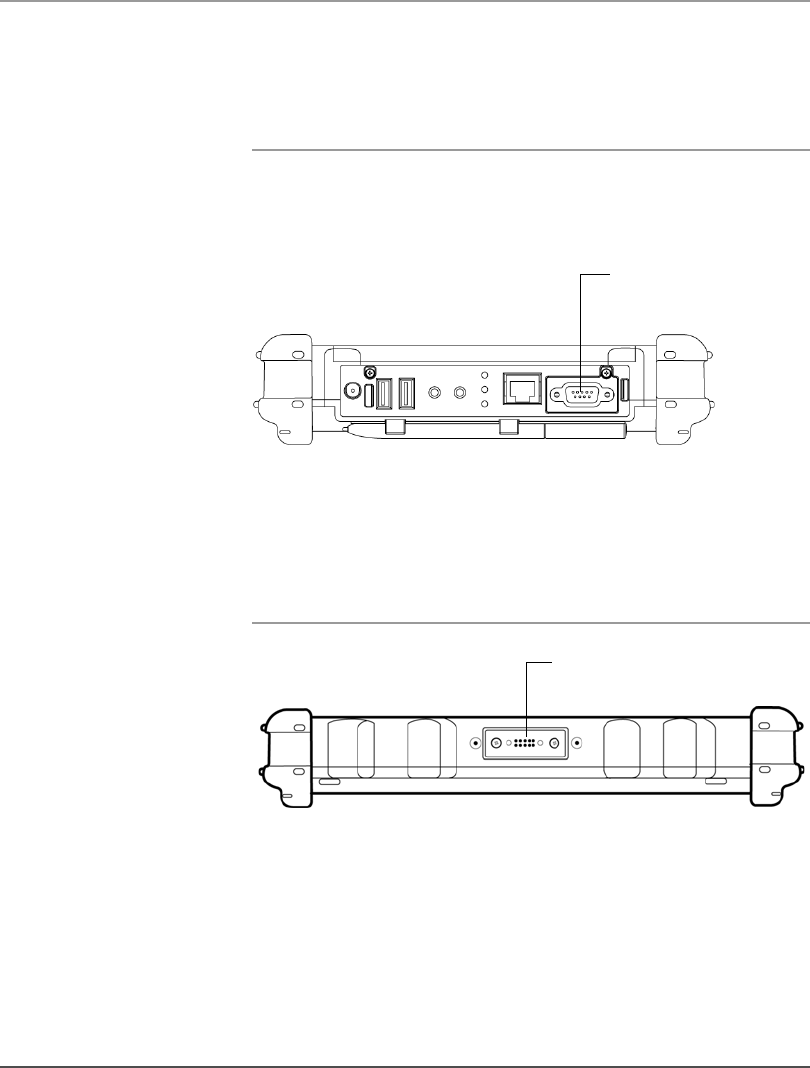

Connecting a device to the optional serial port . . . . . . . . . . . . . . . . . . . . . . . 53
Connecting an XPL snap-on expansion module . . . . . . . . . . . . . . . . . . . . . . 53
Using the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Charging the battery pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
If you do not have an external battery charger . . . . . . . . . . . . . . . . . . . . 54
If you have an external battery charger . . . . . . . . . . . . . . . . . . . . . . . . . 55
Removing and installing the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Removing the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Installing the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Discarding batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

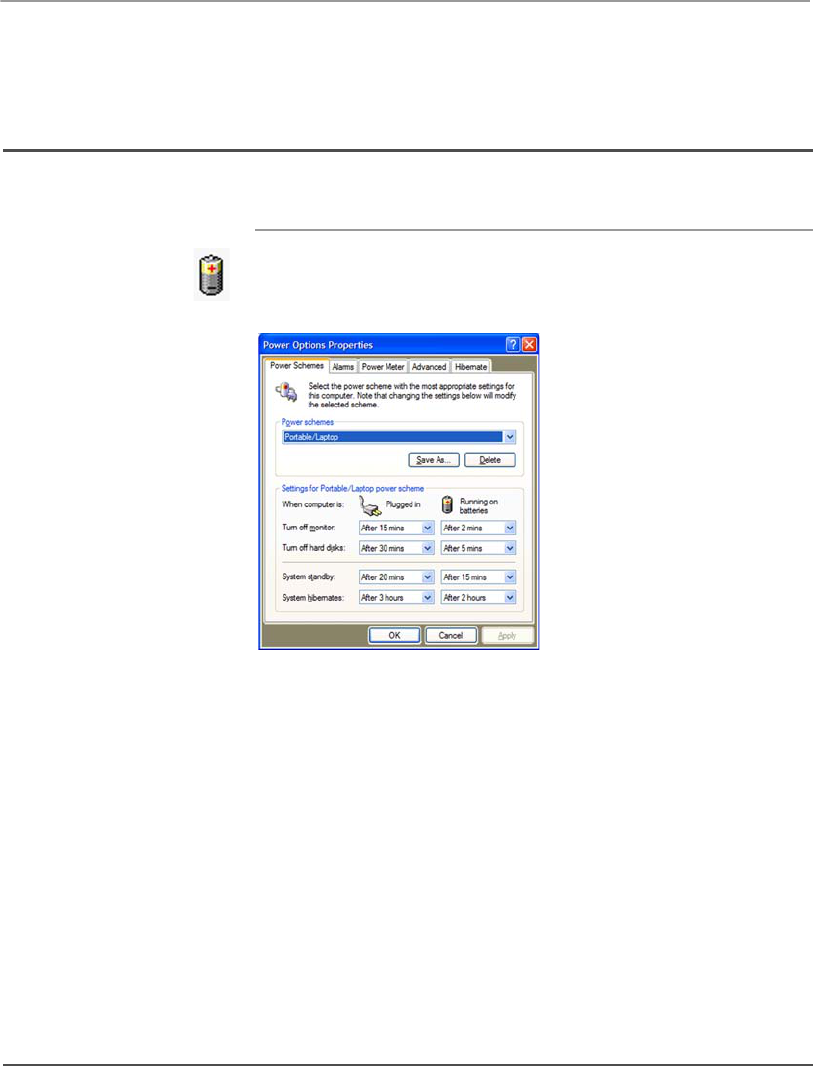

Using power options – Windows XP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Displaying power options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Changing the computer’s power schemes . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Changing battery alarm settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

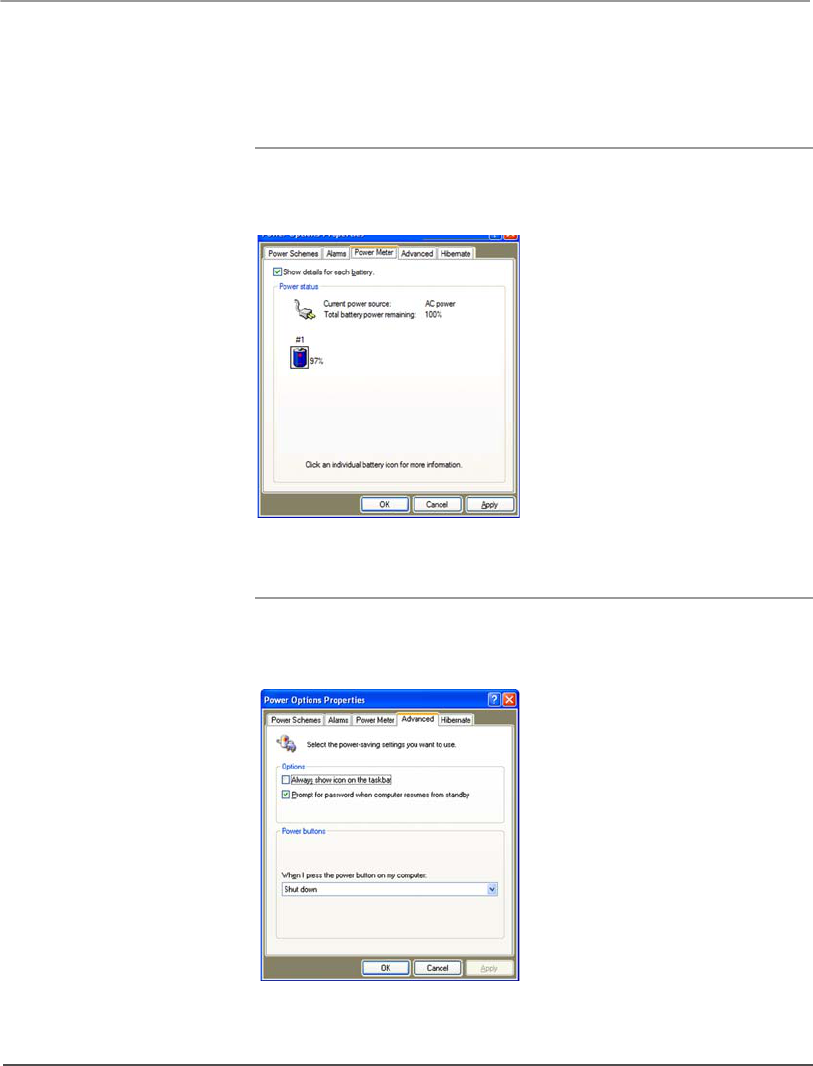

Checking battery power status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Selecting power settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

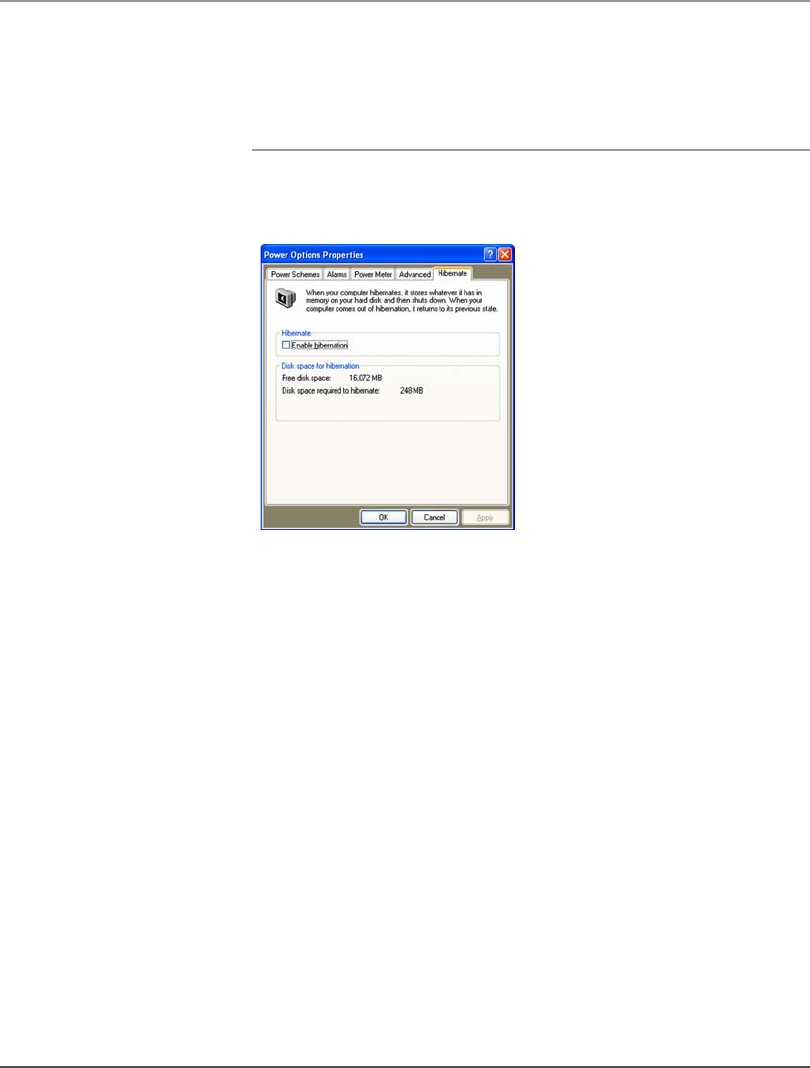

Enabling Hibernation mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Using power options – Windows Vista. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Checking battery power status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Selecting a power plan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Selecting power options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Selecting Power (On/Off)/Backlight(On/Off)/Resume button options . . . . . 64
Tips for conserving battery power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Contents
6 iX104C4 User’s Handbook

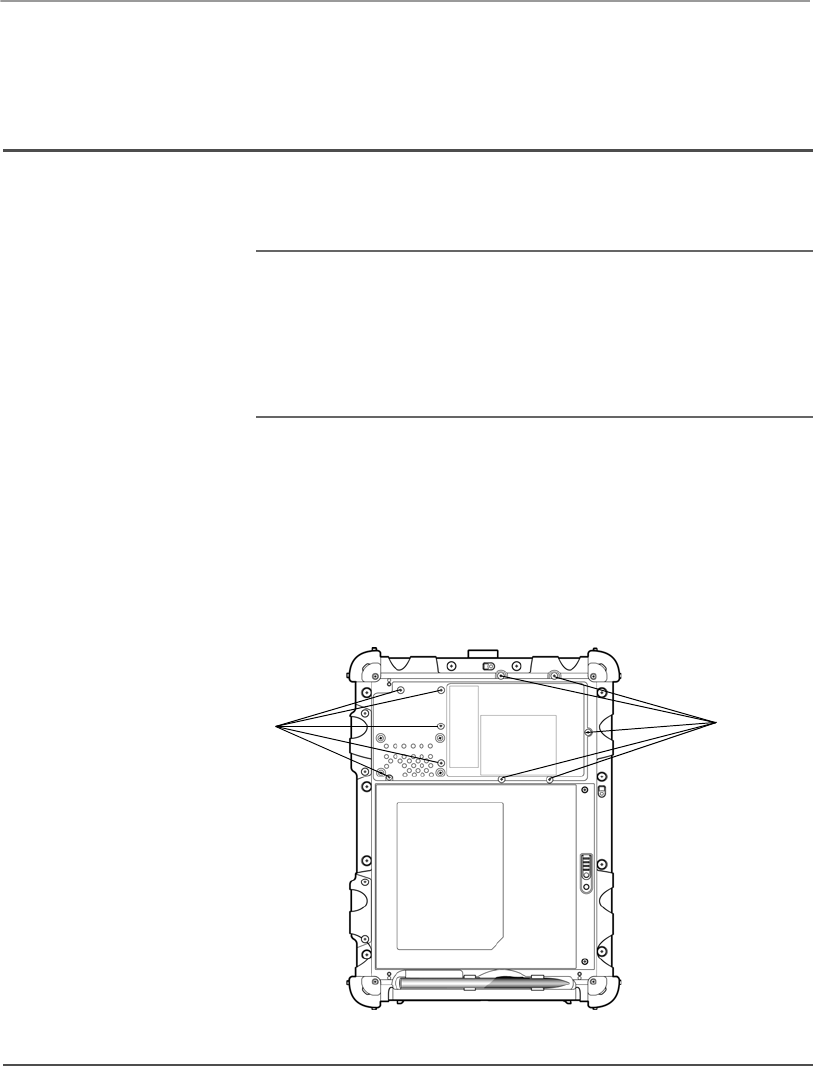

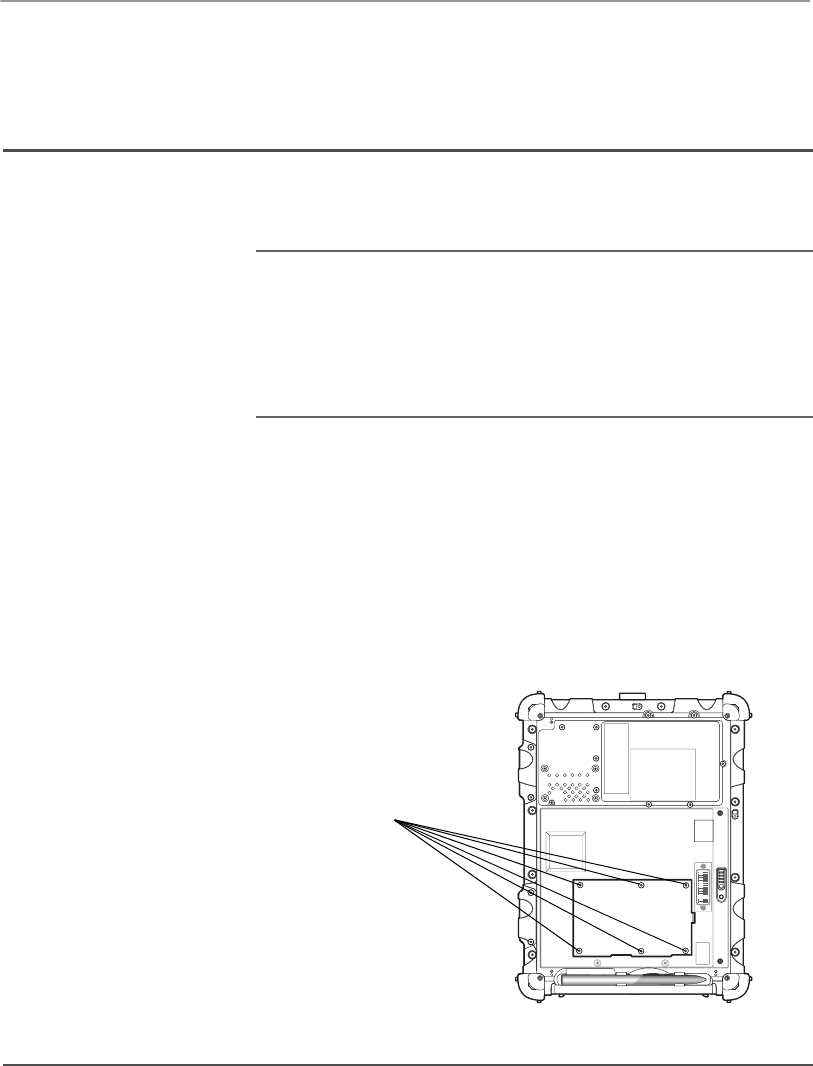

Accessing the hard disk drive compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Re-installing the hard disk drive compartment cover . . . . . . . . . . . . . . . . . . 67
Accessing the PCMCIA compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Re-installing the PCMCIA compartment cover. . . . . . . . . . . . . . . . . . . . . . . 69

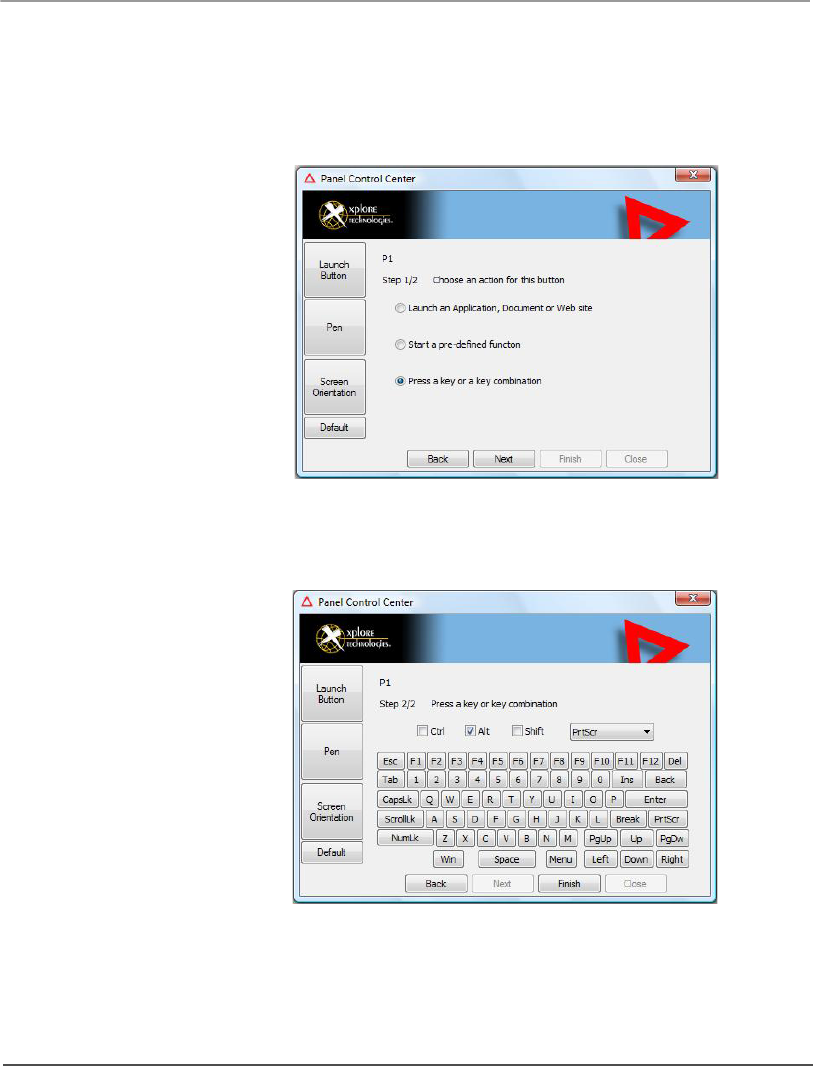

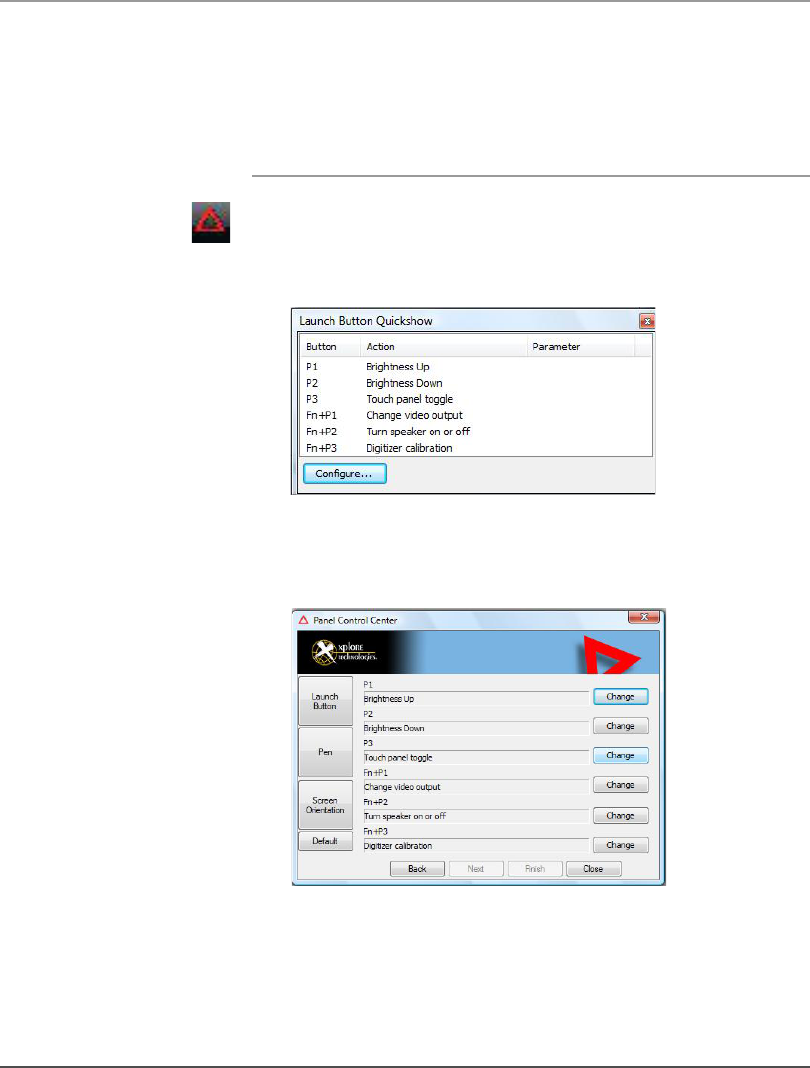

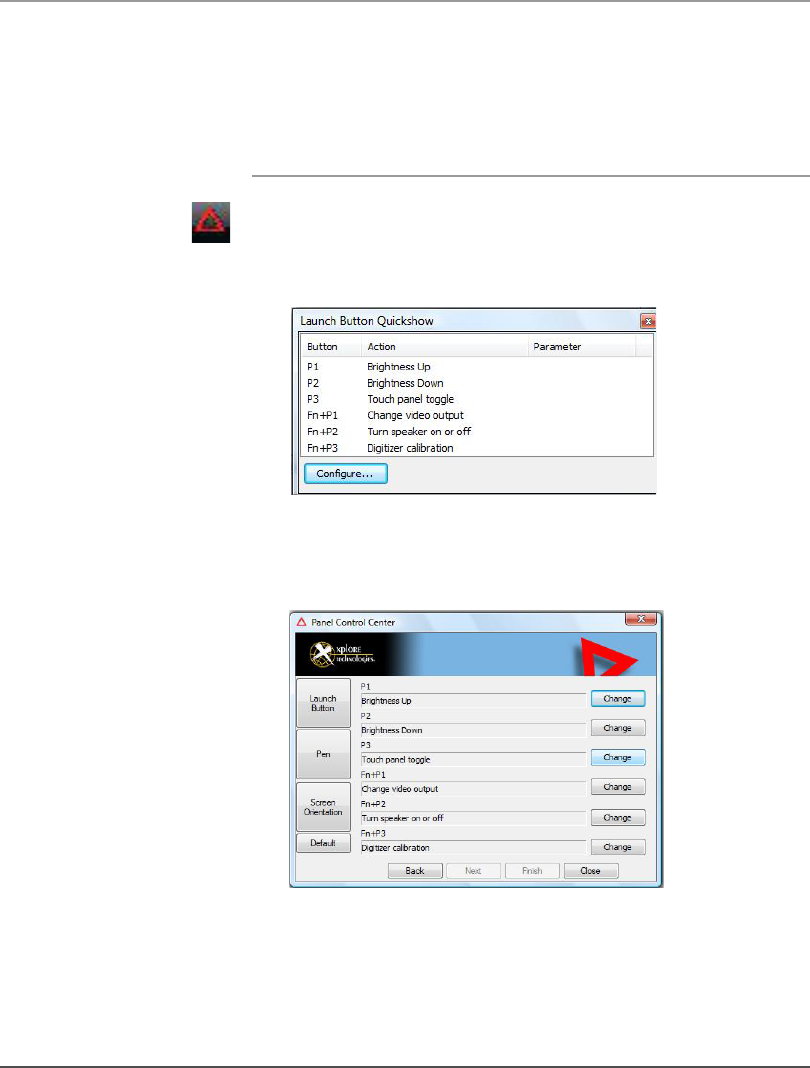

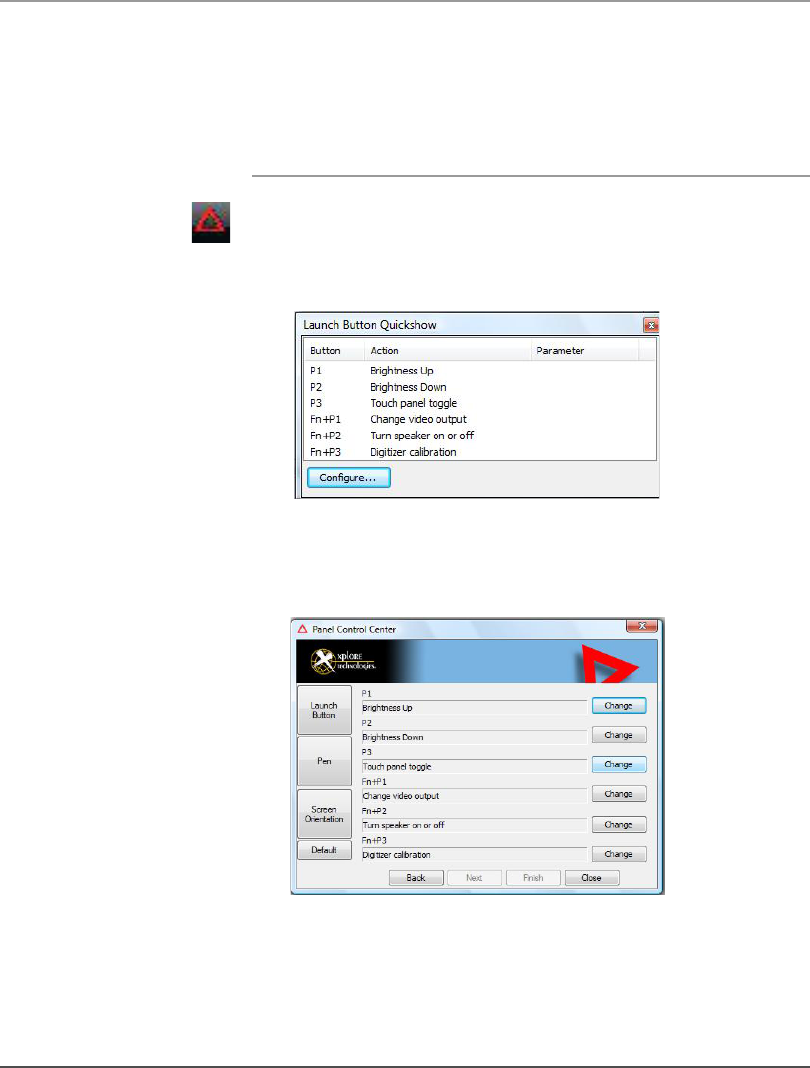

Programming hot keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

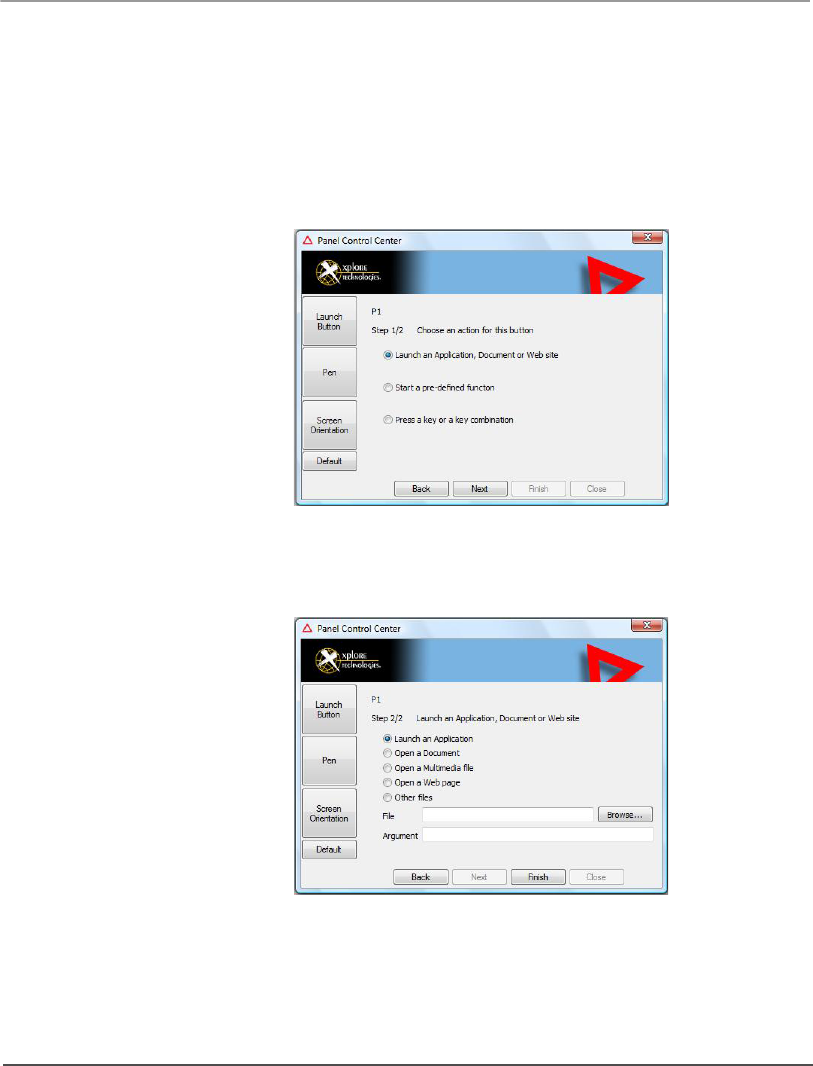

Programming hot keys to start applications, open documents,
or go to a Web site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

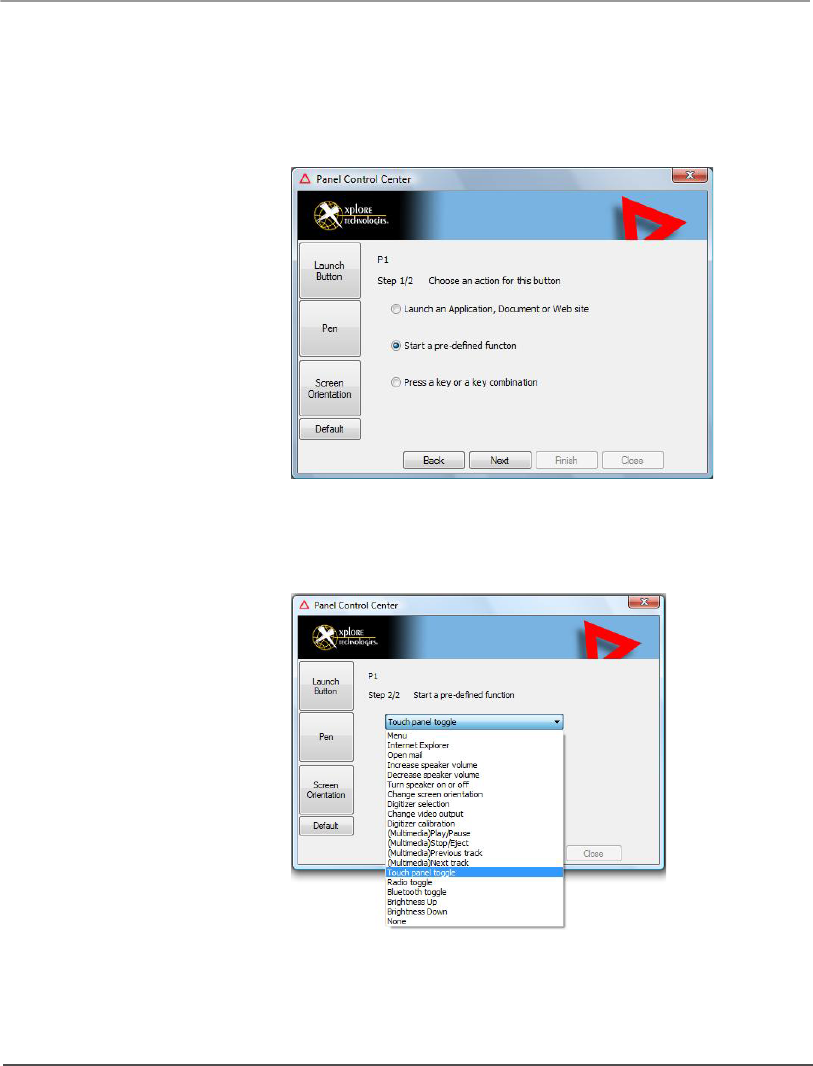

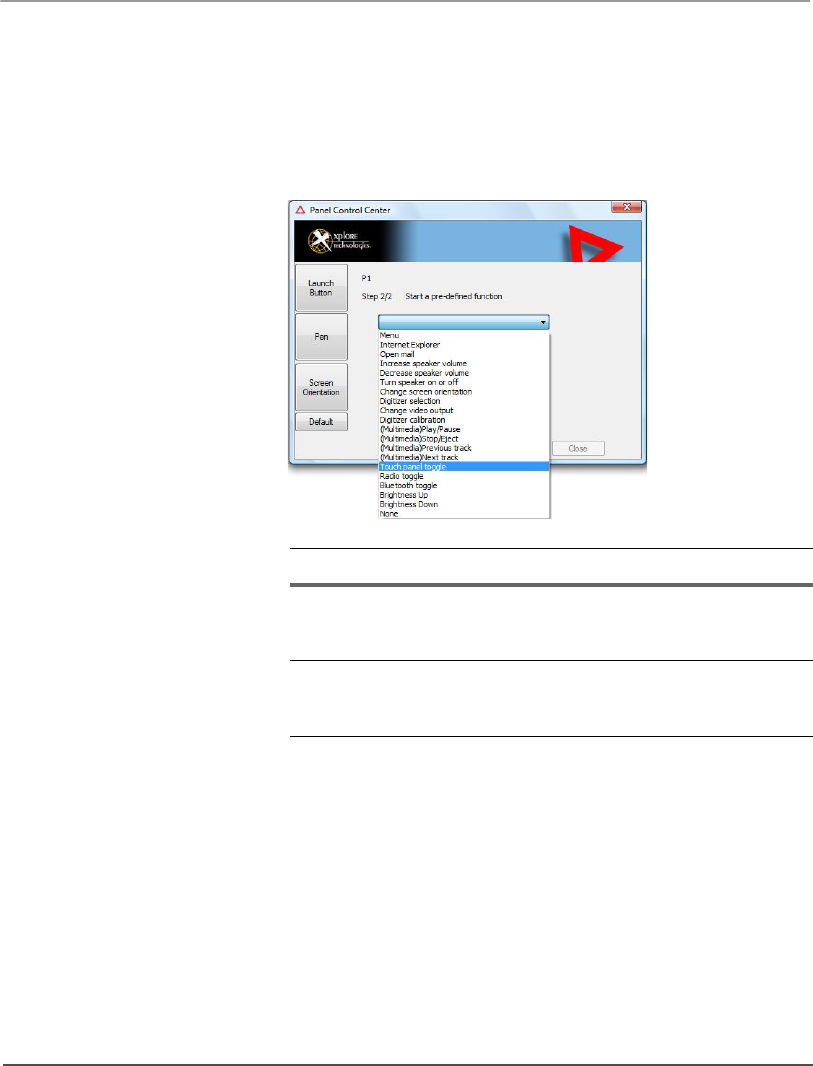

Programming hot keys to perform pre-defined functions . . . . . . . . . . . . . . . 75
Programming hot keys to perform other key functions . . . . . . . . . . . . . . . . . 77
3Maintaining the Tablet 81
Caring for the tablet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Checking power cords and connectors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Protecting the computer from damage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Preventing the computer from overheating . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Storing the computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Caring for the display screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

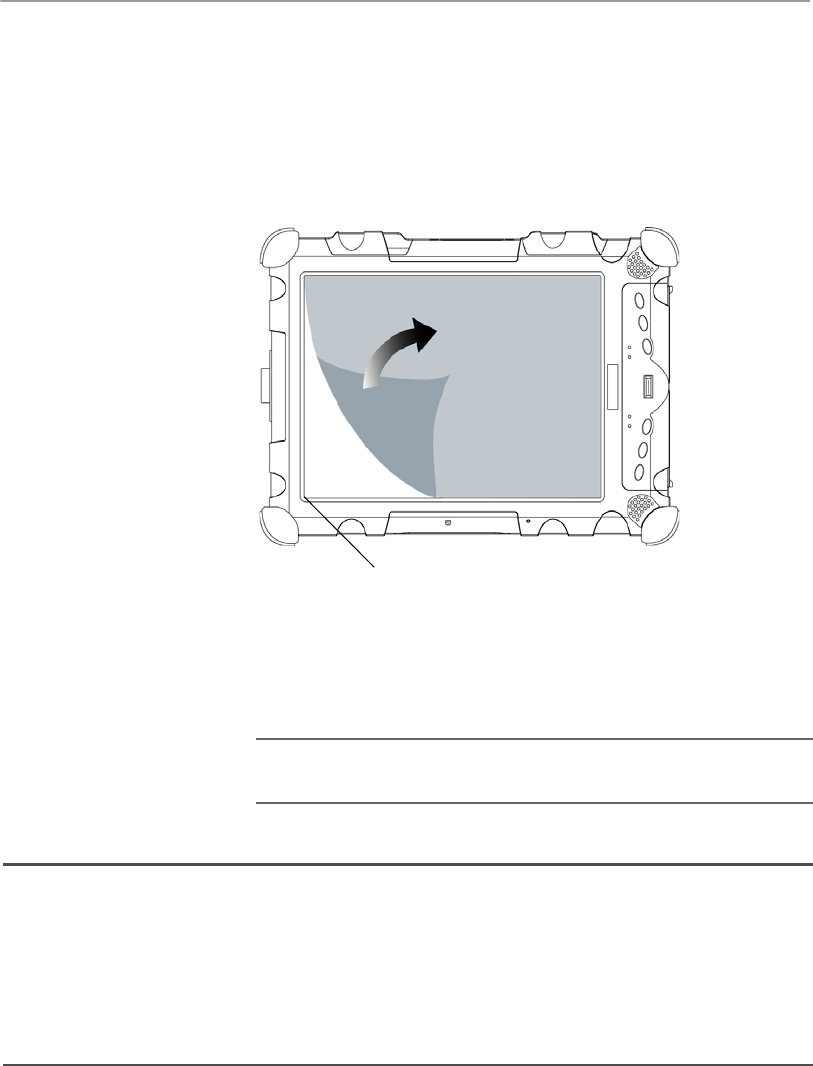

Protecting the display screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
When to replace the pen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

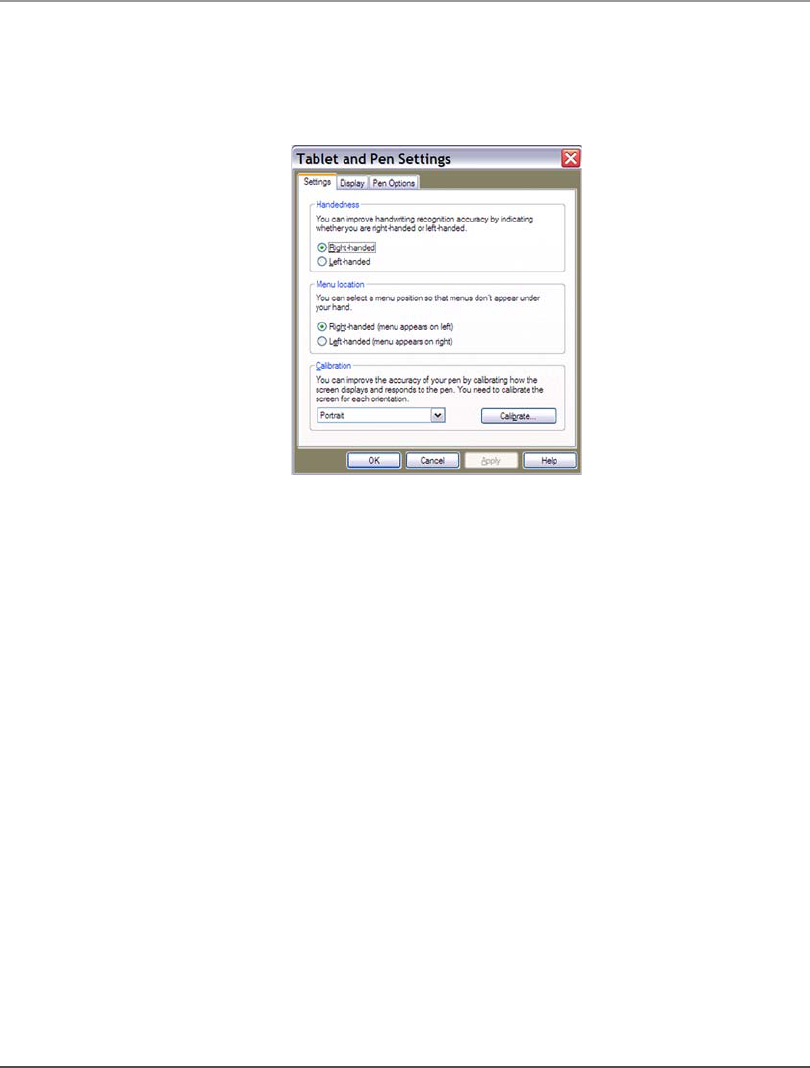

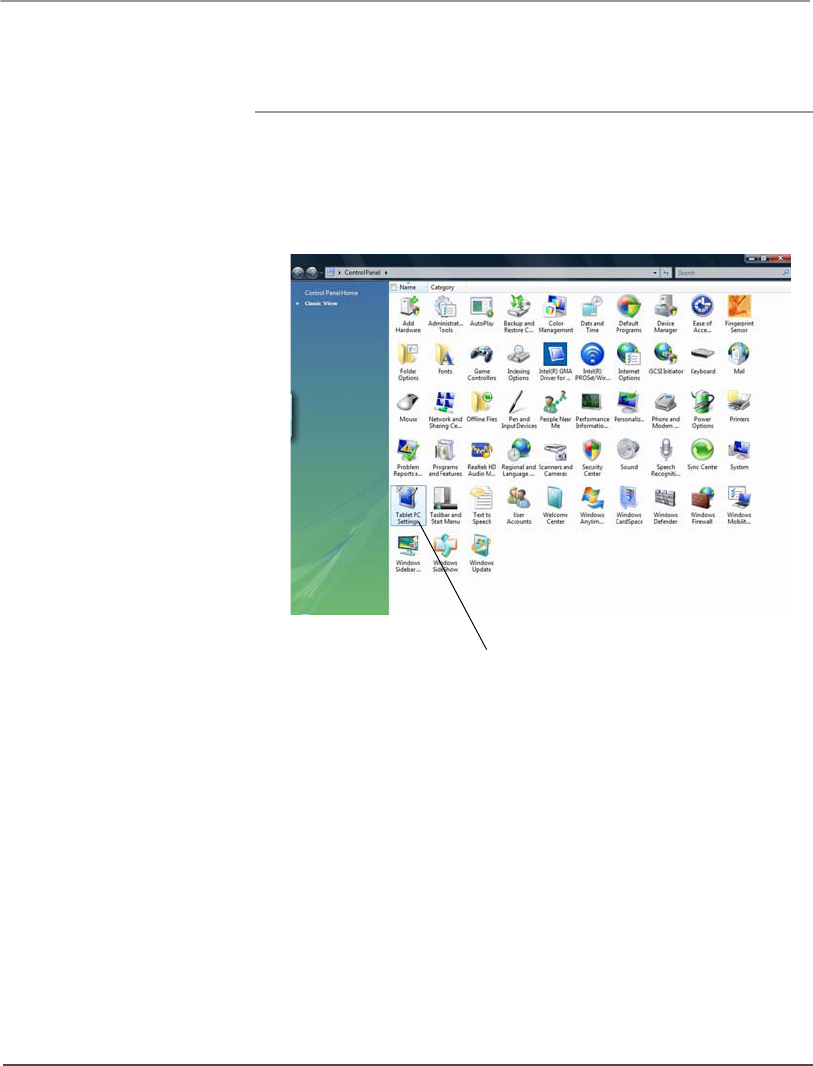

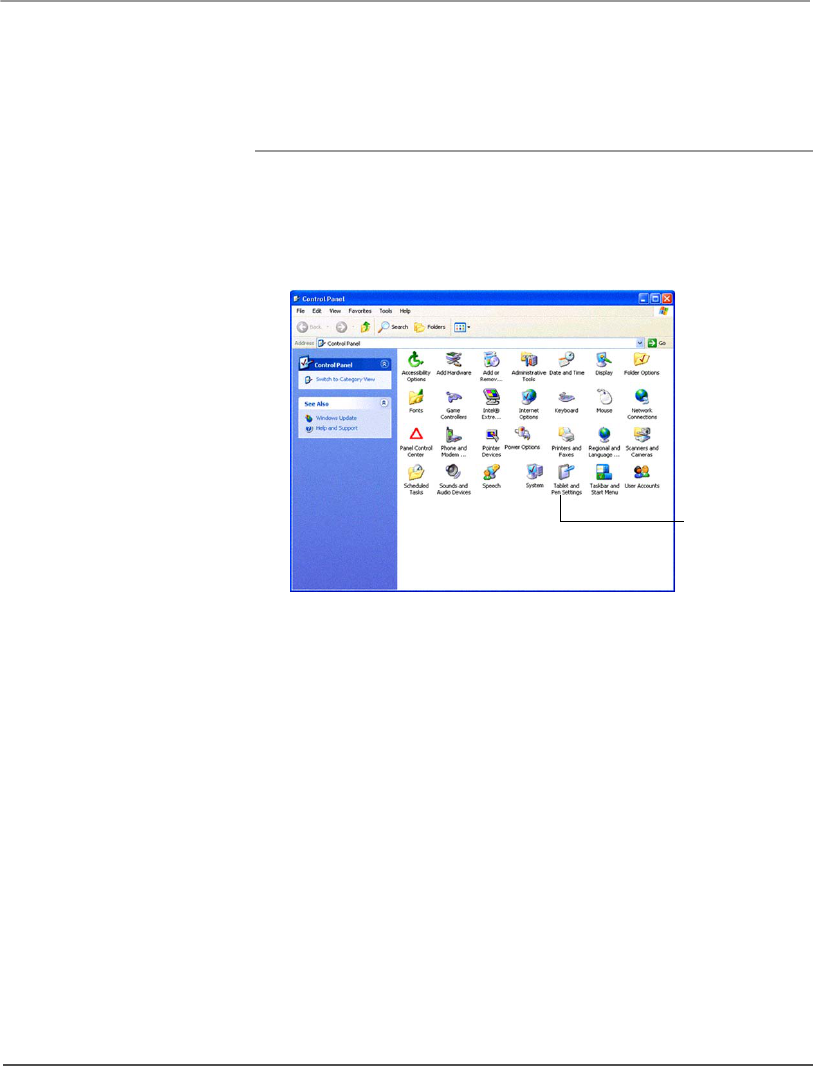

Calibrating the digitizer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Calibrating the digitizer: iX104C4 – Windows XP . . . . . . . . . . . . . . . . . . . . 86

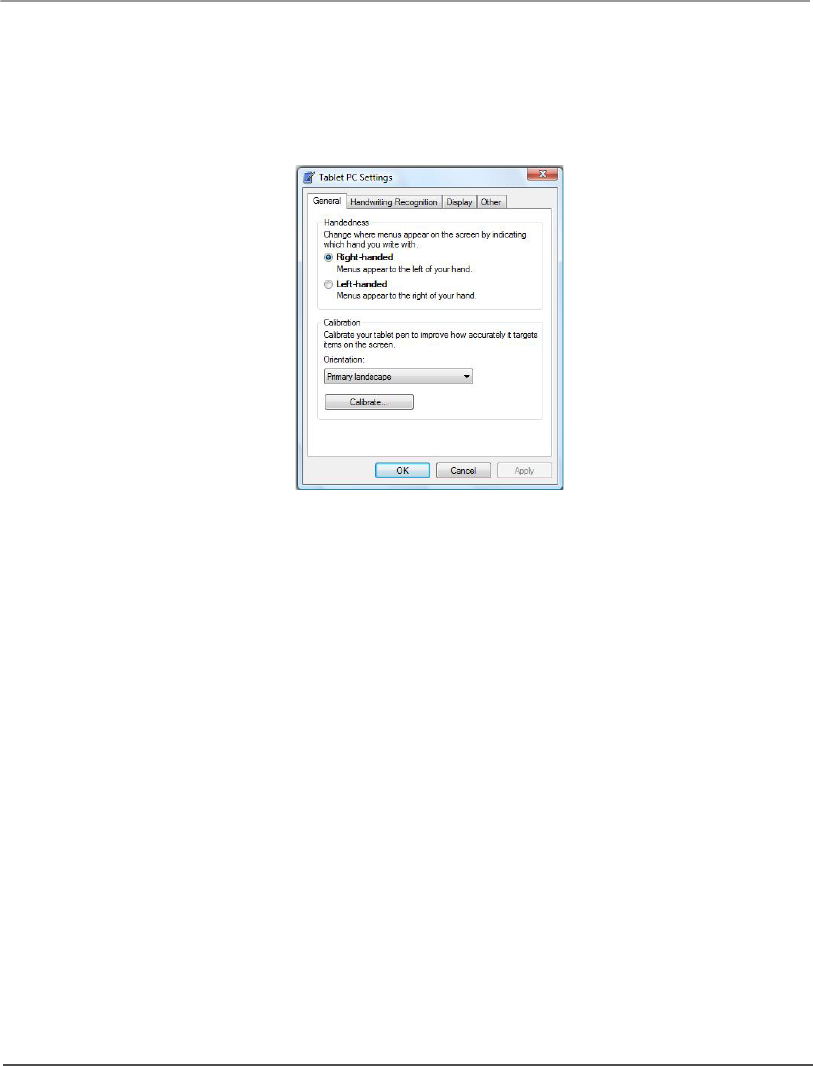

Calibrating the digitizer: iX104C4 – Windows Vista . . . . . . . . . . . . . . . . . . 88
Calibrating the digitizer: iX104C4 Dual Mode – Windows XP . . . . . . . . . . 90
Calibrating the digitizer: iX104C4 Dual Mode – Windows Vista. . . . . . . . . 93
Contents
iX104C4 User’s Handbook 7
ATroubleshooting 97
BUsing BIOS and AOS Functions 99
Disabling the Auto Power feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Enabling automatic LCD backlight control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
CGlossary 101
DHardware Specifications 105
EAgency Notices 111
FConfiguring Dual Mode Tablet Digitizer Input Methods 115

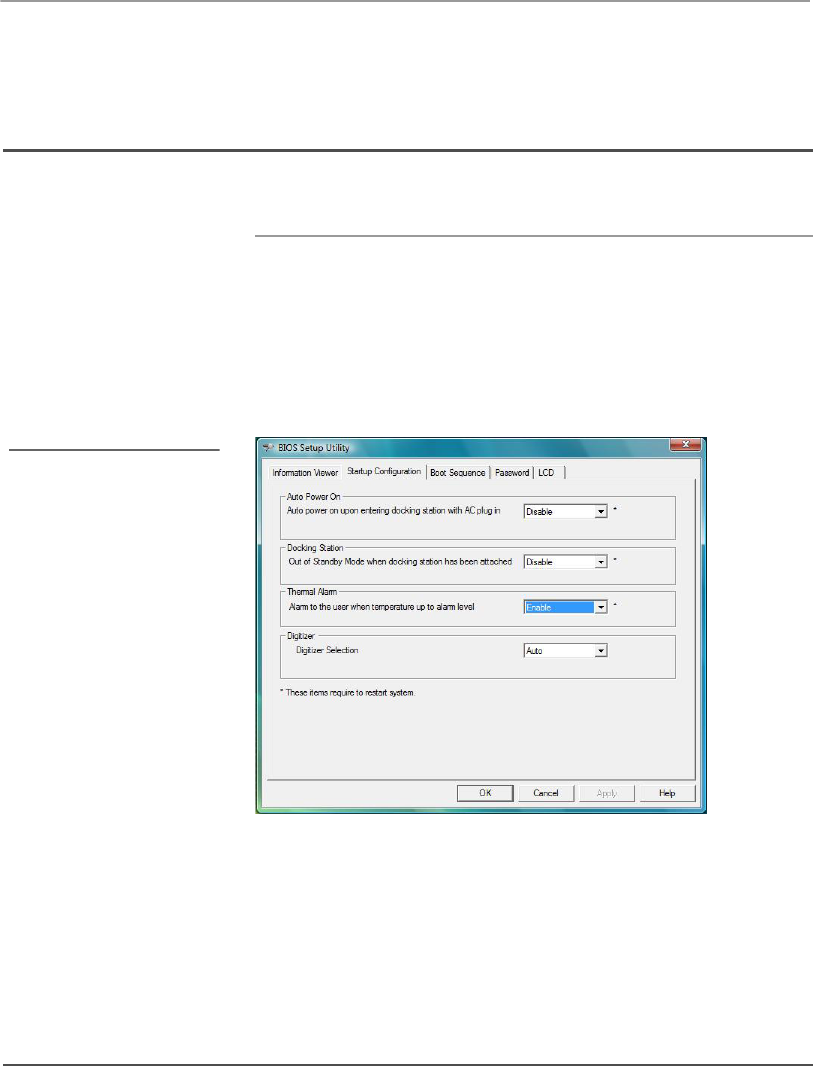

Using the BIOS Setup Utility to set input method defaults . . . . . . . . . . . . . . . . 116
Starting the BIOS Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Selecting the digitizer input method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Setting digitizer input method security . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Using the Panel Control Center to configure temporary changes
to the input method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Summary: Dual Mode digitizer input method settings . . . . . . . . . . . . . . . . . . . . 121
Sample implementations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Sample 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Sample 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Index 129
8 iX104C4 User’s Handbook
iX104C4 User’s Handbook 9
Disclaimer
Xplore Technologies® has made every effort to ensure the accuracy and
completeness of this document; however, because ongoing development
efforts are made to continually improve the capabilities of our products,
we cannot guarantee the accuracy of the contents of this document. We
disclaim liability for errors, omissions, or future changes herein.
Trademarks
Xplore and the Xplore logo are registered trademarks of Xplore
Technologies Corp.; iX104, iX104C4, iX104C4 AllVue, and iX104C4
Dual Mode are trademarks of Xplore Technologies Corp.
Kensington and MicroSaver are registered trademarks of the Kensington
Technology Group. Microsoft is a registered trademark of Microsoft
Corporation. Windows 2000 Professional, Windows XP Professional, and
Windows XP Tablet PC Edition are trademarks of Microsoft Corporation.
PCMCIA and CardBus are registered trademarks of the Personal
Computer Memory Card International Association. Intel, Pentium, and
SpeedStep are registered trademarks of Intel Corporation. Wi-Fi is a
trademark of the Wireless Ethernet Compatibility Alliance (WECA).
FireWire is a registered trademark of Apple Computer, Inc. ISODAMP is
a registered trademark of Aearo Company.
All other brands, product names, company names, trademarks and service
marks used herein are property of their respective companies.
Copyright
Copyright © 2003-2008 Xplore Technologies Corp. All rights reserved.
No part of this publication may be copied, reproduced, or translated,
without the prior written consent of Xplore Technologies. No part of this
publication may be stored or transmitted in any electronic form without
the prior consent of Xplore Technologies. Any unauthorized use is a
violation of copyright laws.
Publication information
PN: 95-01085, Rev. A
July 2008
10 iX104C4 User’s Handbook
Declaration of conformity
DECLARATION OF CONFORMITY according to FCC Part 15
Responsible Party Name: Xplore Technologies Corp.
Address: 14000 Summit Drive, Suite 900, Austin, Texas 78728
Telephone: 512.336.7797
Declares that product: Model Series: iX104C4 complies with Part 15 of the FCC Rules.
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and, (2)
This device must accept any interference received, including interference that may
cause undesired operation.
WARNING
Changes or modifications to this unit not expressly approved by the party responsible for
compliance may void the user’s authority to operate this equipment.
For more information about FCC rules and their applicability to the iX104, see
Appendix E, “Agency Notices.”
Warranty information
The iX104C4 is backed by a standard 36-month International Limited Warranty. An
extended International Limited Warranty is available. Check the service kit included
with your computer for warranty terms and conditions.
Important safety information
Before you use the iX104C4 (referred to as the tablet), read these safety
instructions and the operation instructions in this handbook.
Failure to observe all these instructions voids the Limited Warranty and may lead
to suspension or denial of services to the offender, or legal action, or both.
Follow any special regulations governing the use of the tablet and, if radio-enabled,
always switch it off in areas where radio devices are forbidden or when the radio device
can cause interference or danger.
Always follow any safety laws and regulations pertaining to the use of cell phones and
two-way radios, because these laws and regulations typically apply to the use of the
wireless-enabled tablet.
Observe all restrictions on the use of radio equipment in fuel depots (fuel storage and
distribution areas), chemical plants, and wherever blasting operations are in progress or
in any area in which restrictions on radio transmissions are imposed.
Switch off the tablet when in an aircraft. The tablet is not FAA-approved for use on
aircraft. The effect of the use of the tablet in aircraft is unknown. Using the tablet in an
aircraft may affect aircraft instrumentation, communication, and performance; may
disrupt the network; and may be illegal.
Operating the wireless-enabled tablet may interfere with the functioning of
inadequately protected medical devices such as pacemakers. Consult a physician or the
manufacturer of the medical device if you have any questions.
a
iX104C4 User’s Handbook 11
Radio signals from your tablet will not affect the operation of most modern equipment,
but certain electronic equipment, including automotive systems, may not be shielded
against radio signals from your tablet. Check with the manufacturer of your motor
vehicle or the manufacturer’s representative to determine whether using the tablet will
present any safety issues.
Avoid using the tablet in any environment that requires your full attention, such as
when driving a vehicle. If you need to use your tablet while driving, have a passenger
use it for you or find a safe location to halt your vehicle.
WARNING
Use only battery types specified in this handbook. Using any other type of battery can be
dangerous and can disable the tablet.
WARNING
Do not use any dock or any other accessory or attachment that is not manufactured or
supplied by Xplore or an authorized Xplore accessories supplier. Use of any accessory or
attachment that is not supplied or approved for use with the tablet by Xplore is not
permitted because it may cause hazards.
Operate the tablet only from the type of power source indicated on the marking label.
(See page 54 for more information about the battery and power supply.) Route power
supply cords so that they are not likely to be walked on or pinched by items placed
upon or against them. Pay particular attention to cords at plugs and convenience
receptacles, and at the point where cords exit from the tablet or its dock. Do not
overload wall outlets, extension cords, or integral convenience receptacles because this
can cause fire or electric shock.
Unplug the tablet and refer the tablet and dock for service to qualified service personnel
if any of the following conditions occur:
■The power supply cord or plug is damaged.
■The tablet or dock does not operate normally when you follow the instructions in
this book.
■The tablet or dock exhibits a distinct change in performance.
Adjust only controls for which there are instructions in this book. An improper
adjustment of other controls can result in damage and may require extensive work by a
qualified technician to restore the tablet or dock to normal operation.
CAUTION
Avoid prolonged physical contact with the exposed metal surfaces on the front and
back of the tablet. While the tablet may not feel hot to the touch, if you maintain
physical contact with the tablet for a long time (for example, if you rest the tablet on
your lap for a long time), your skin may suffer low-heat injury. In addition, be careful
when you remove a PC card that has been used for a long time, because the card
may be hot.
a
a
12 iX104C4 User’s Handbook
iX104C4 User’s Handbook 13
Welcome
Welcome to the Xplore Technologies® iX104C4™tablet PC, the
rugged tablet designed, tested, and manufactured to meet the
environmental and physical real-world challenges faced by today’s
mobile workers. Based on years of experience in rugged mobile
applications, the iX104C4 is designed to withstand the abuses of
everyday wear and tear.
Advanced technology, innovative design, and a rugged case are just a
few highlights of your iX104C4 system.
Note: This handbook assumes that you have basic experience
using computers and Microsoft® Windows®.
Welcome
14 iX104C4 User’s Handbook
About your computer
The iX104C4 is a high-performance tablet PC that runs on Microsoft
Windows XP® Professional Tablet PC Edition and Vista Business
operating systems.
The method you use to control the tablet depends on the tablet model,
as follows:
Note: In this handbook, all information applies to all models
unless otherwise noted.
Tablet Model Digitizer/Touchscreen Control Method
iX104C4 Dual Mode Inductive and resistive
touch digitizer
• Special, enhanced pen
(included with the tablet)
• Your finger
• Any suitable pointing
device
iX104C4 Dual Mode
AllVue Xtreme
Sunlight-viewable display
with inductive and
resistive digitizer
• Special, enhanced pen
(included with the tablet)
• Your finger
• Any suitable pointing
device
iX104C4 AllVue
Xtreme
Sunlight-viewable display
with inductive digitizer
• Special, enhanced pen
(included with the tablet)
• Any suitable pointing
device
Welcome
iX104C4 User’s Handbook 15
All iX104C4 tablets have been engineered and tested to meet Military
Standards for Environmental Extremes (MIL STD 810F). Your tablet
includes the following features that make it exceptionally rugged and
durable:
■Durable, long-lasting, dense magnesium enclosure
■Interior and exterior multi-layer magnesium frames and cavities
■ISODAMP® shock absorbing materials in patented bumpering
system and gasket protection mechanisms
■Shock-isolated hard disk
■Integrated, protected wireless LAN and WAN antennas for dual
mode operation
■Locked in place memory, cables, and connectors
■Proprietary thermal management system
Package contents
Check to make sure your package includes the following items:
■Quick Start Guide
■Battery pack
■Power cord
■AC adapter
■Pen
■Pen tether
■iX104C4 tablet PC
■Warranty information kit
Welcome
16 iX104C4 User’s Handbook
Optional accessories
Your package also includes any optional accessories you ordered.
Docking options
■xStand Desktop Docking Station
■xDock Vehicle Docking Station
Carrying cases
■Shoulder cases
■Portfolio case
■Dockable case
Storage options
■External USB floppy disk drive
■External USB CD-ROM drive
Memory
■2 GB RAM
■32 GB 2.5-inch solid state hard drive
Power options
■AC adapter with U.S. cord
■Main battery pack (41 watt hours)
■Extended life battery pack (55 watt hours)
■Auto adapter (cigarette lighter adapter)
Additional accessories
■USB non-rugged mini keyboard (83-key)
■USB rugged, backlit keyboard (83-key)
■Screen protectors (2-pack)
■Active stylus
■Pen tether
Welcome
iX104C4 User’s Handbook 17
Contacting Xplore – service and questions
Note: To troubleshoot problems (including wireless and GPS
problems), before you call, read the FAQ page of the Xplore
Technologies Web site. Go to http://www.xploretech.com; then
select Customer Support; then FAQ.
If you purchased your tablet from an authorized Xplore dealer,
contact the dealer for service and support.
If you purchased your tablet directly from Xplore, use any of the
following methods to contact Xplore for service and support:
Before you contact Xplore, have the following information ready so
that the customer support representative can quickly provide a
solution:
Web site http://www.xploretech.com
E-mail customersupport@xploretech.com
Toll free 1-866-296-8541, extension 222
Fax 1-512-336-7791
Product name: iX104C4
Product serial number
Purchase date
Conditions under which the problem occurred
Any error messages that were displayed
Type of device connected, if any
The serial number is on the
back of the tablet. See
page 21.
18 iX104C4 User’s Handbook
iX104C4 User’s Handbook 19
1Getting Started
This chapter gives you an overview of your tablet and includes a
quick-start guide to tablet keys.

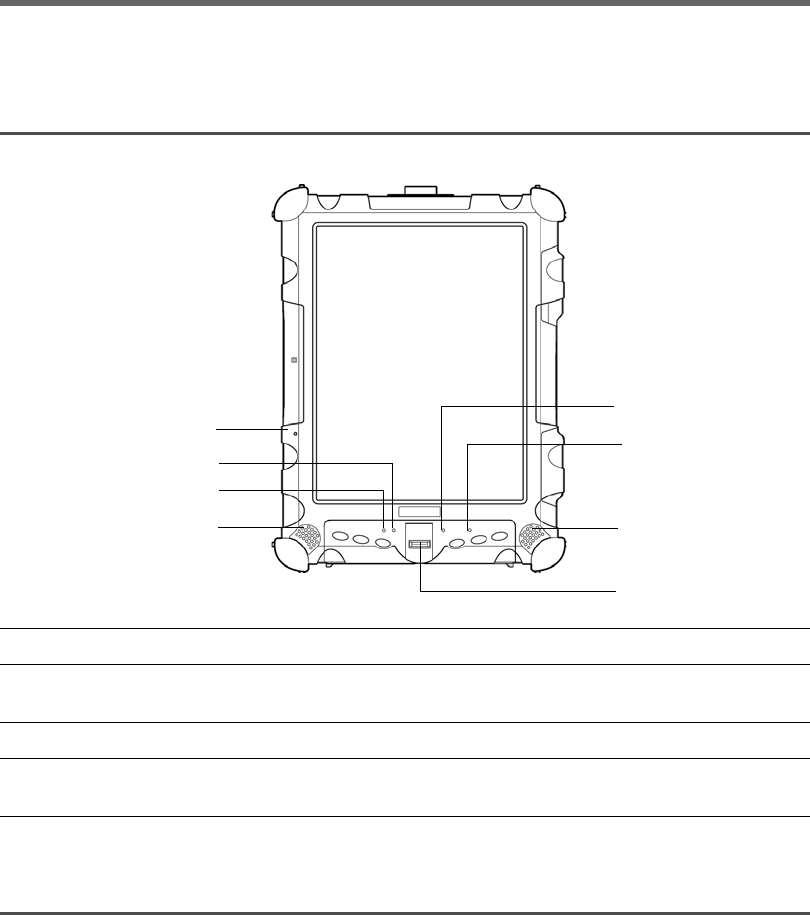

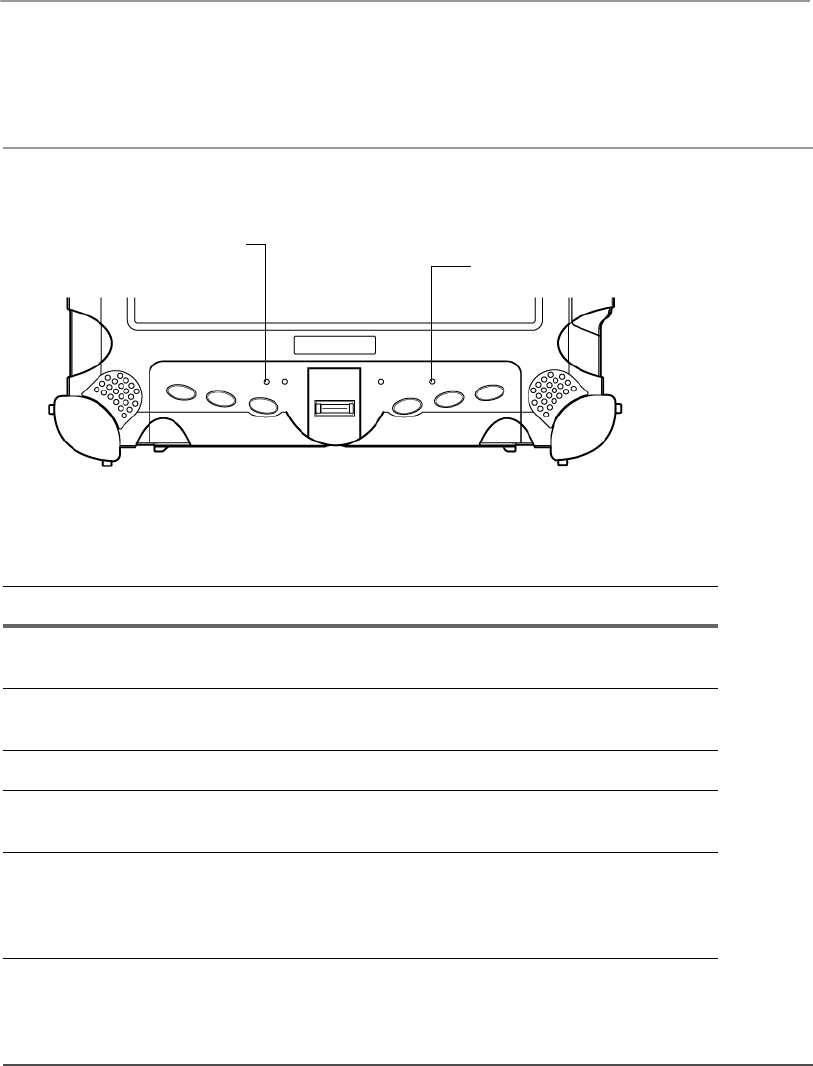

Front view
Built-in
microphone
Speaker Speaker
Auto Light sensor
Reset switch
Status indicator
HDD indicator
Fingerprint scanner
Built-in microphone Enables you to input mono audio with noise cancellation. (See page 50.)
Reset switch Enables you to turn off the computer when using the Power (On/Off)/Backlight
(On/Off)/Resume key is not effective. (See page 32.)
Status indicator Indicates the computer status (on, off, etc.). (See page 26.)
Speakers Enable you to listen to stereo audio files. Sealed to provide protection from the
environment.
Chapter 1. Getting Started
Front view
iX104C4 User’s Handbook 21

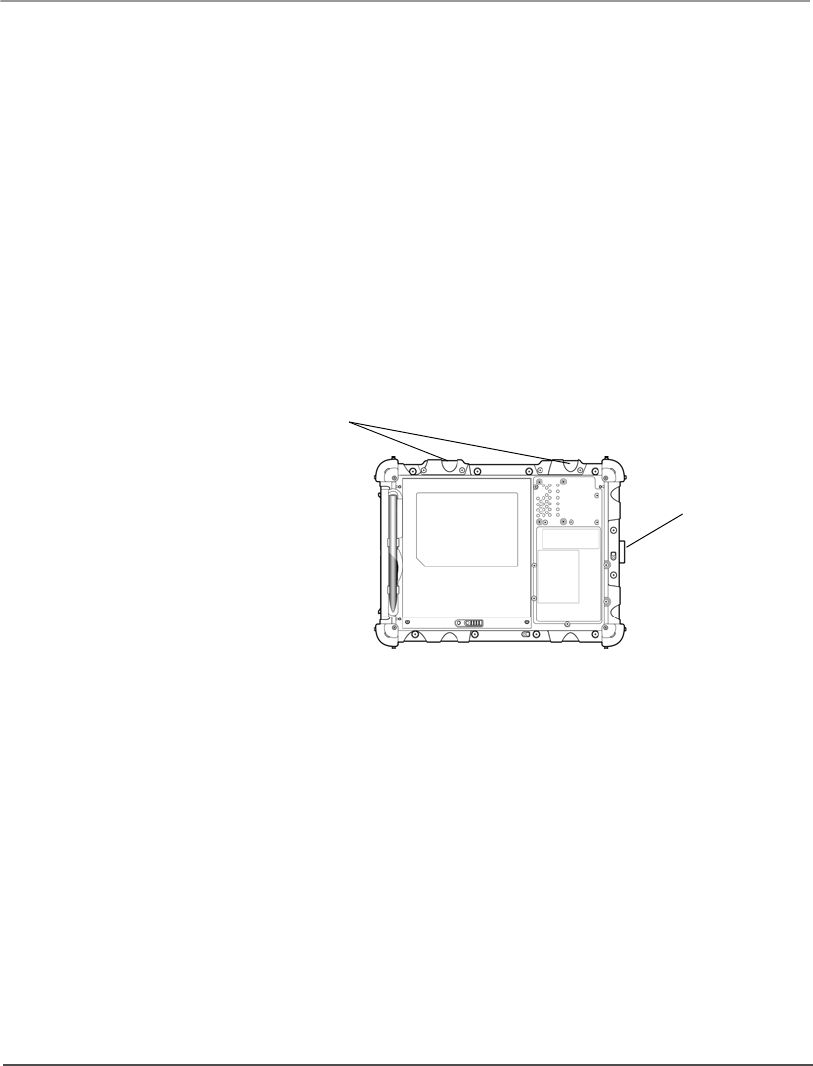

Back view
Convection
air flow
cover
Pen
Removable
battery pack
Battery
release
latch
Pen holder
Antenna
covers
Certificate of
Authentication label
Battery
lock
button
Serial number
Convection air flow cover Magnesium cover over the thermal transfer bay that manages heat movement out
of the computer.
Antenna covers For optional wireless LAN and WAN models, protect and secure the radio antennas
(accessible by authorized service personnel only).
Pen The main device you use to enter data and control applications (instead of a mouse
or a keyboard). Also called the stylus. See “Using the pen” on page 37.
Pen holder Provides a place to secure the pen when you are not using it.
Battery release latch Provides access to the battery.
Battery lock button Secures the battery inside the tablet.
Removable battery pack Powers the computer when AC power is unavailable.
Certificate of Authentication
label and serial number
Label that identifies the tablet’s operation system as being genuine Microsoft
software, and your tablet’s serial number.
Chapter 1. Getting Started
Front view
22 iX104C4 User’s Handbook
Top view
Power (On/Off)/
Backlight (On/Off)/
Resume button
Air flow vents Bluetooth antenna
Kensington
lock slot
Power (On/Off)/
Backlight (On/Off)/
Resume button
Press the button to turn the computer on or off, to turn the backlight on or off, or to
resume operation.
Air flow vents Help prevent the computer from overheating by forcing heat away from the
computer. (Do not block the vents.)
Bluetooth antenna Bluetooth antenna.
Kensington™ lock slot Connector for the optional Kensington MicroSaver™ or equivalent compatible
security cable.
Note: Contact your reseller for information about the Kensington security cable.
Chapter 1. Getting Started
Front view
iX104C4 User’s Handbook 23

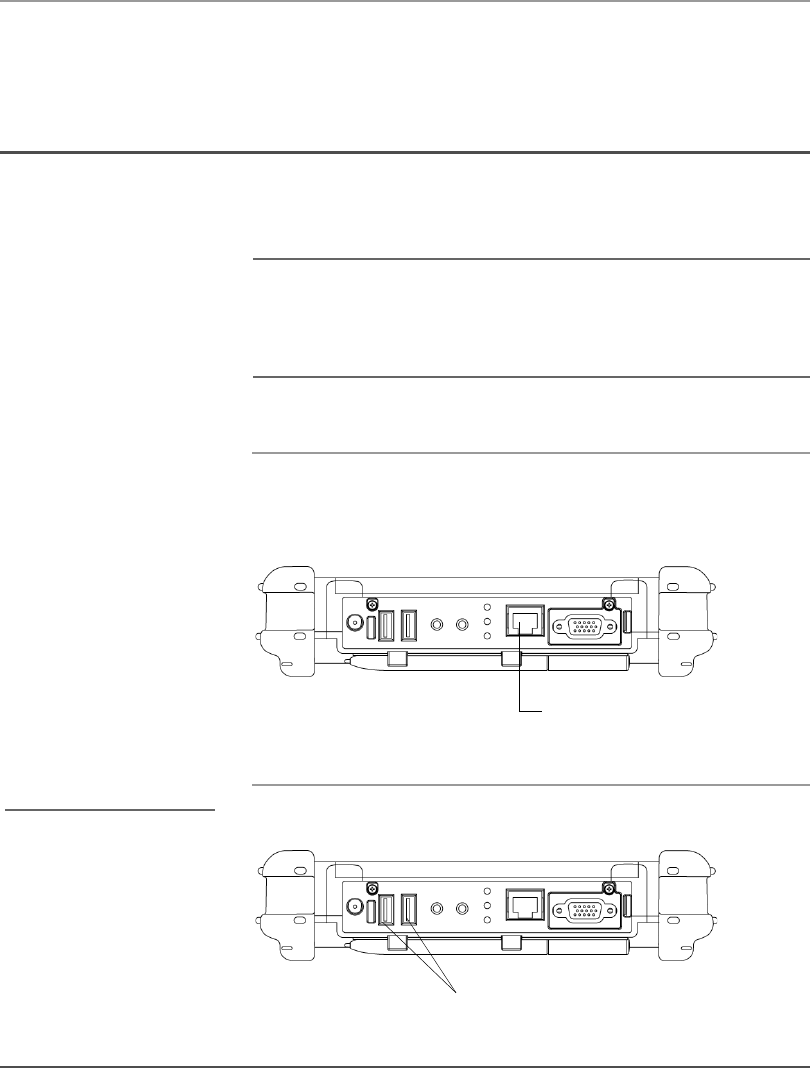

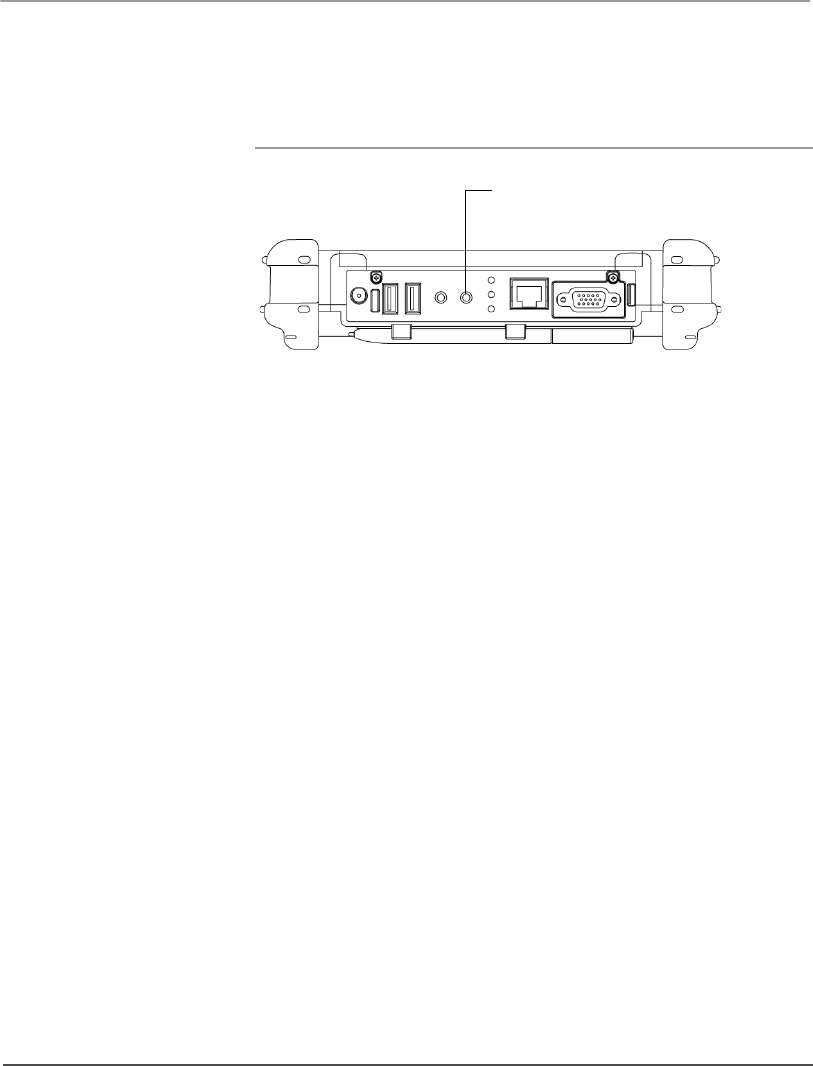

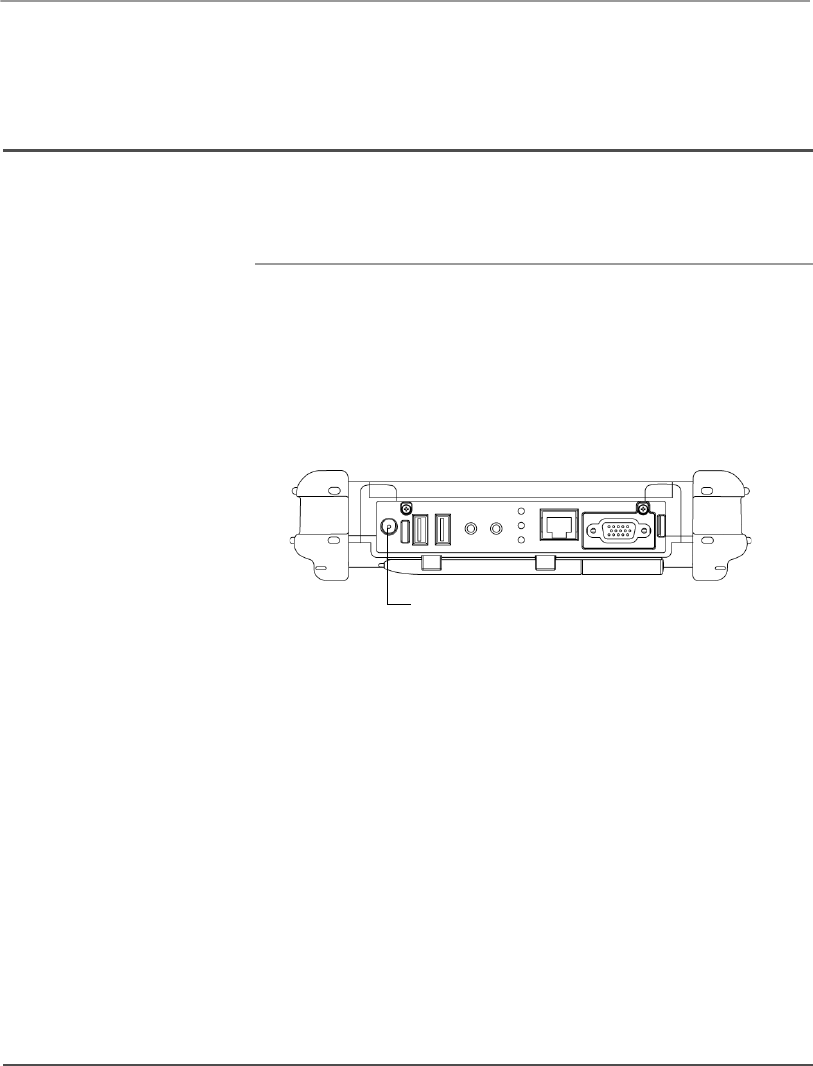

Bottom view
The connectors on the bottom of the computer are located behind the outer doors.
Microphone
connector
Power
connector External monitor
connector
(or optional 9-pin
serial port)
LAN connector
USB ports
Headphone
connector
Power connector For the optional AC adapter or auto adapter. (See “Optional accessories” on
page 16.)
USB 2.0 ports For Universal Serial Bus devices (compliant with USB Standard Revision 2.0).
Note: The optional Office and Vehicle Docks include additional USB ports. See
“Optional accessories” on page 16.
Headphone connector For stereo headphones or speakers.
Microphone connector For an external microphone.
LAN connector For connecting a standard RJ-45 connector to the tablet’s internal local area
network (LAN) card
External monitor connector For an external monitor or projection panel.
(Optional) 9-pin serial port For connecting terminals or other devices that use the RS-232, RS-422, or RS-485
data transfer standard.
Chapter 1. Getting Started
Front view
24 iX104C4 User’s Handbook

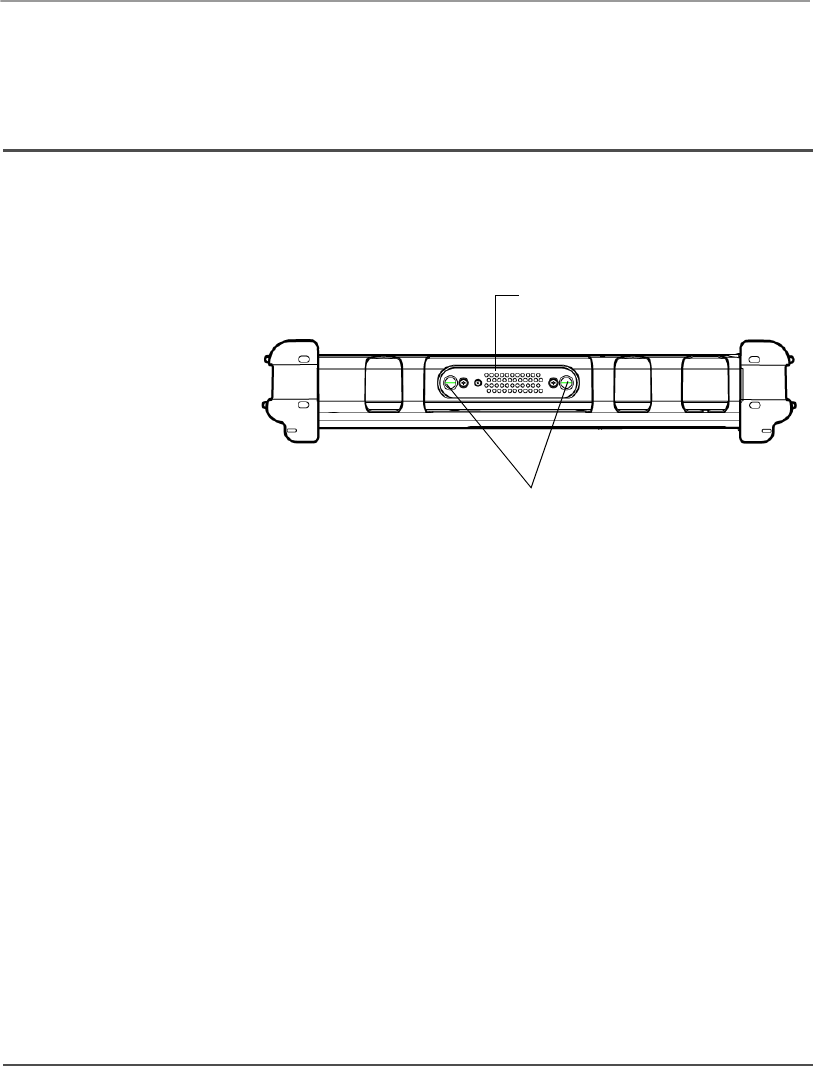

Left side view
Guide pin
receptacles
Docking connector for the
optional Xplore Tablet Dock
Docking connector Enables you to connect the optional xStand Desktop Docking Station or xDock
Vehicle Docking Station.
Guide pin receptacles Help assure a secure connection of the optional xStand or xDock.
Note: See “Optional accessories” on page 16.
Chapter 1. Getting Started
Front view
iX104C4 User’s Handbook 25

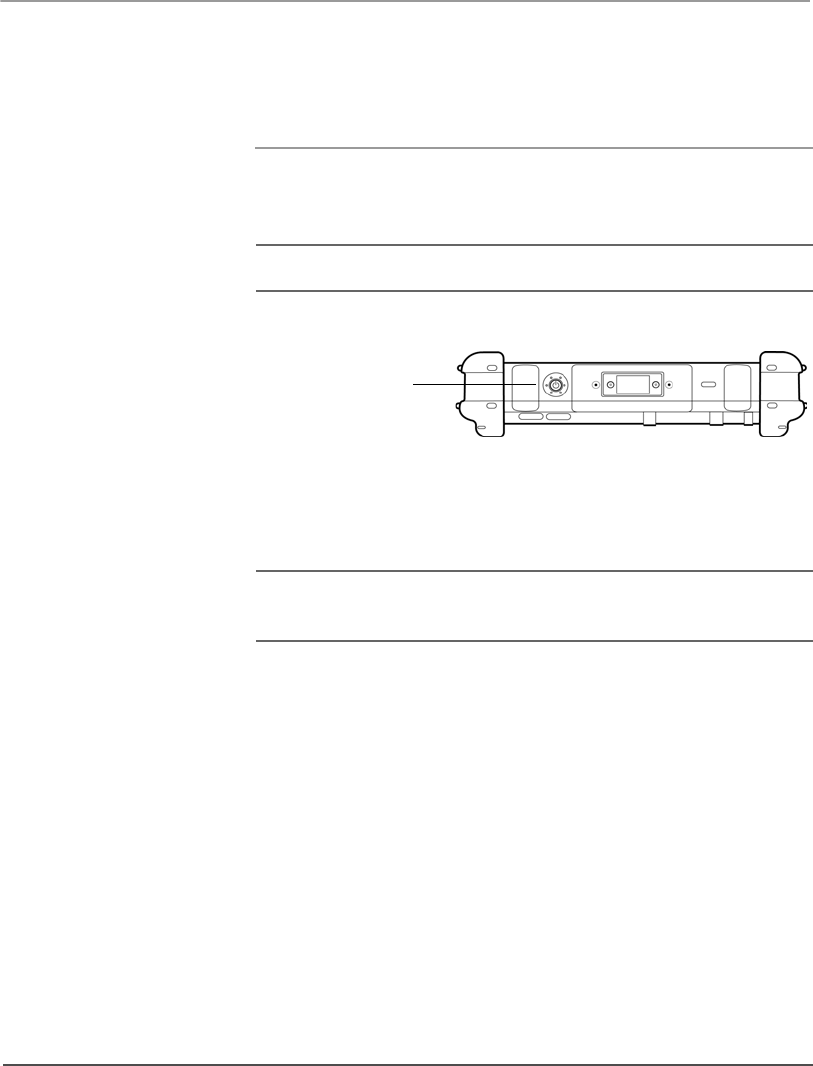

Right side view
XPL expansion port
Bumpers
Bumpers Fabricated from rugged material. Raised to help protect the computer from
damage.
XPL expansion port A USB port (compliant with USB Standard Revision 2.0) that enables you to
connect XPL snap-on expansion modules with additional functionality such as
GPS, barcode scanning, and magnetic stripe reading.
Note: Contact your reseller for information about the XPL expansion module.
Chapter 1. Getting Started
Front view
26 iX104C4 User’s Handbook
LED indicators
The LED indicator lights show the status of system functions.
The following table defines the various LED states.
Status LED
HDD LED
Table 1 Status LED indicator
Mode/State LED State Meaning
On state green, continuous The computer is on, ready for use, and functioning
normally. The battery is fully charged.
Charging green, blinking The AC adapter is plugged in and the battery is
charging.
Off state off (no light) The computer is off.
Suspend mode yellow, continuous The computer is on and is in Suspend or
Hibernation mode.
Thermal control yellow, blinking The computer is on and is in Warm-up mode, with
the LCD and backlight off. After the system has
warmed to a safe level, the LCD and backlight turn
on.
Chapter 1. Getting Started
Front view
iX104C4 User’s Handbook 27
On red, blinking The computer is powered on, running on battery
power, and the charge level in the battery has
reached a minimum warning state. Plug the
computer into an AC/DC power source or install a
charged battery.
On red, continuous The computer is on, running on battery power, and
the charge level in the battery has reached a critical
state. Plug the computer into an AC/DC power
source or install a charged battery.
Or:
The computer has encountered a fault and is not
operating normally. Contact your computer support
personnel, such as your help desk.
Table 1 Status LED indicator (continued)
Mode/State LED State Meaning
Chapter 1. Getting Started
Quick-start guide
28 iX104C4 User’s Handbook
Quick-start guide
This section is a quick guide to using the main features of your tablet.
(See Chapter 2 for detailed information.)
Application, Windows, and hot keys
Ctrl-Alt-Delete
(Secure Attention
Sequence) key
Screen Rotation
key
Function
key
Hot key 1
Hot key 2
Hot key 3
Fingerprint scanner
Chapter 1. Getting Started
Quick-start guide
iX104C4 User’s Handbook 29

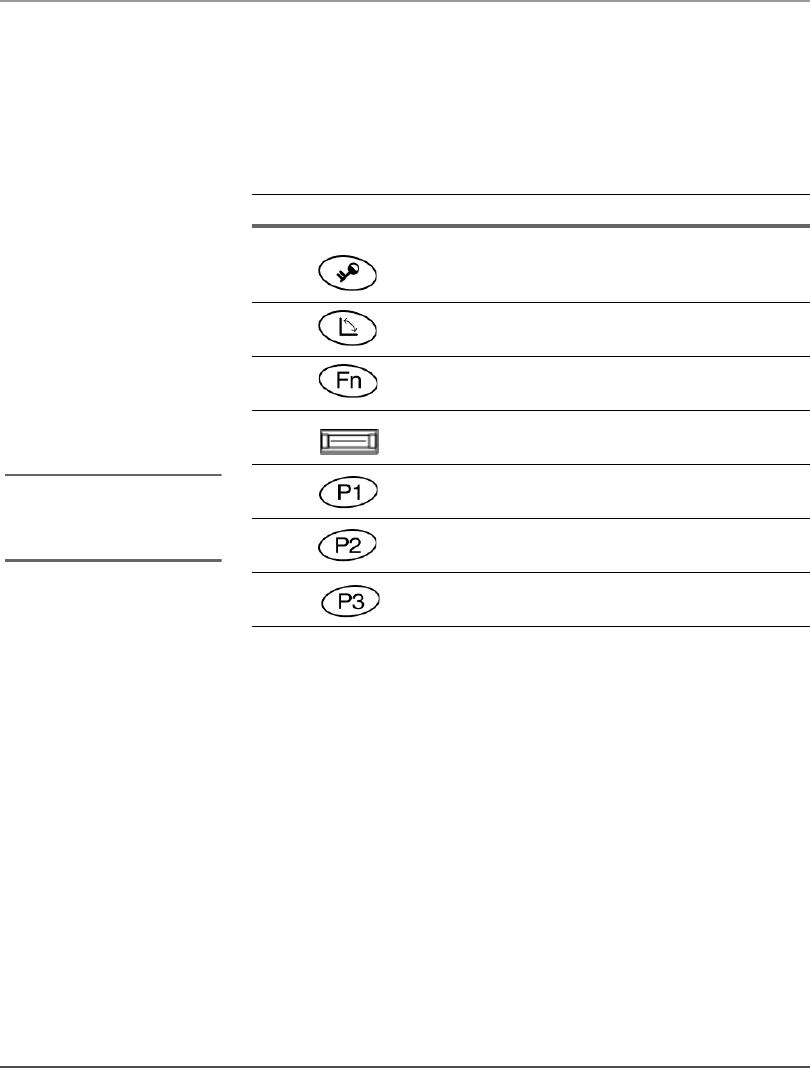

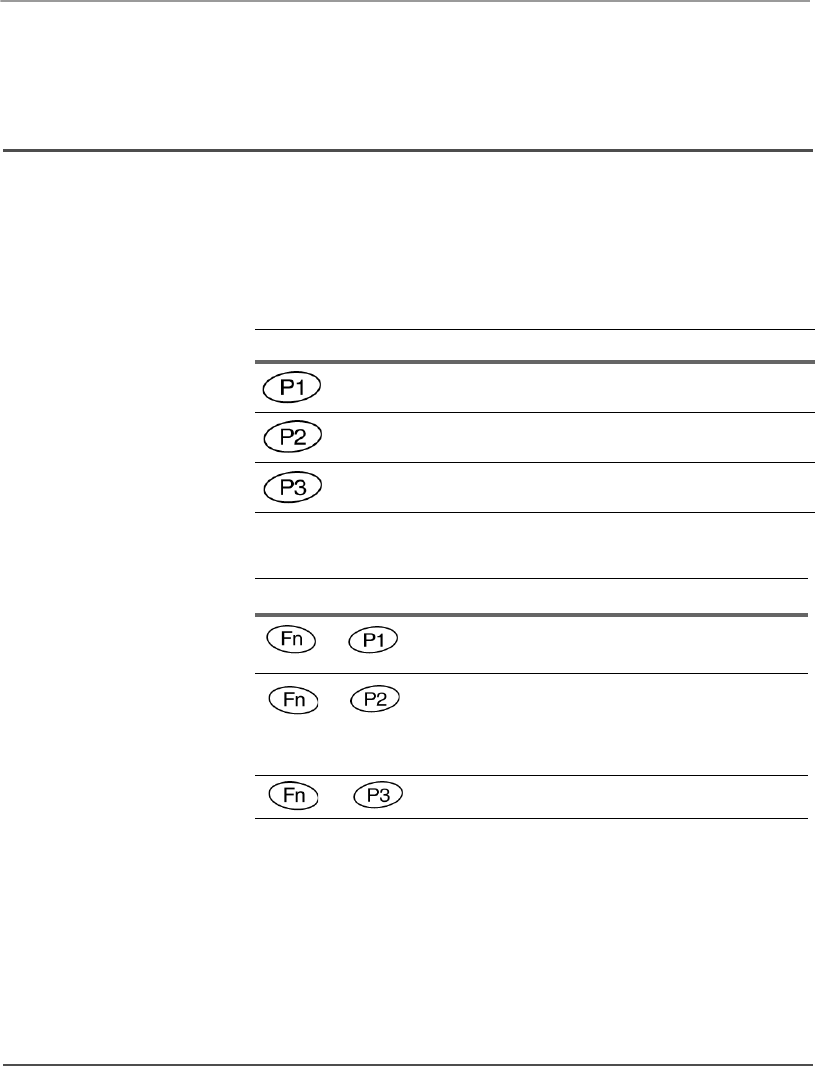

Table 2 Main keys
Press this key... To perform this function
Log on after resuming operation from power
management, powering on, or locking.
After logging on, launch Windows Task Manager.
Rotate screen orientation between portrait
(vertical) and landscape (horizontal).
Use in combination with another key to perform
various functions. (See page 30.)
Fingerprint scanner.
Open Help, or perform a user-definable function.
Open Internet Explorer, or perform a
user-definable function.
Open your email application, or perform a
user-definable function.
To define a function, see
“Programming hot keys” on
page 70.
Chapter 1. Getting Started
Quick-start guide
30 iX104C4 User’s Handbook

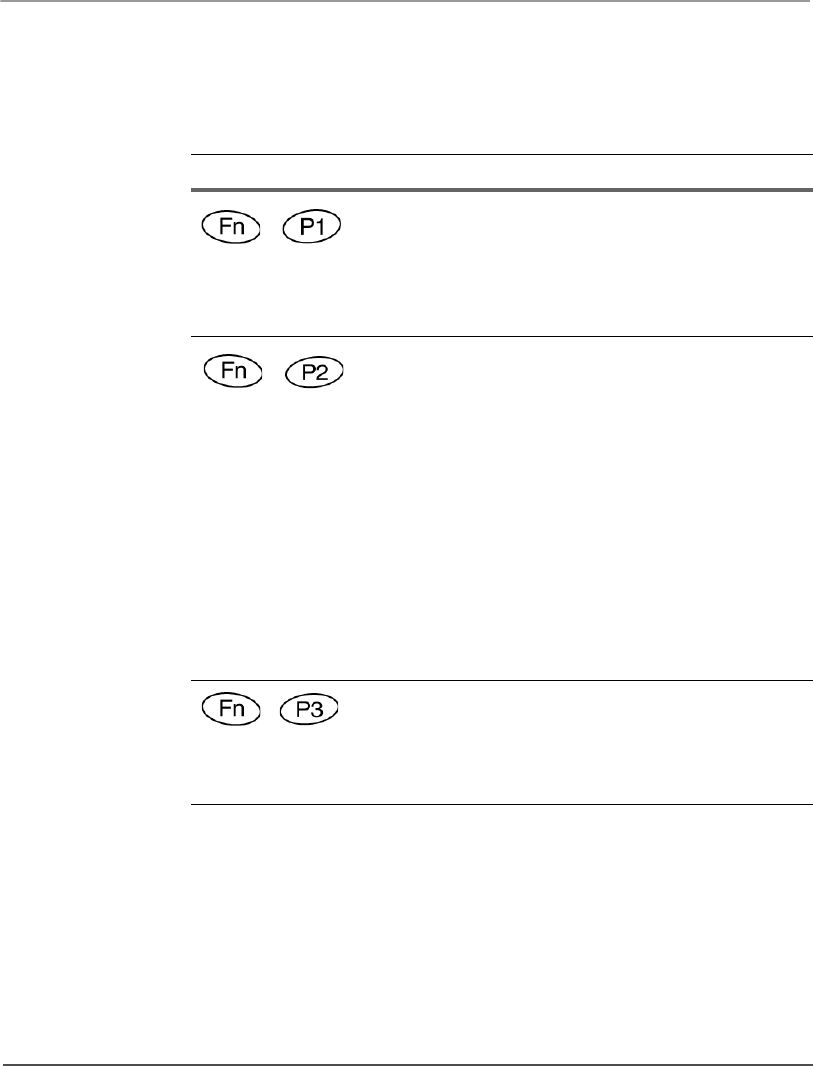

Table 3 Function mode keys
Press these keys... To perform this function
Default function: Send video display to a monitor or
projection panel connected to the computer (and back to
the computer again). You can program this key
combination to perform a different function. (See
“Programming hot keys to start applications, open
documents, or go to a Web site” on page 71.)
Default function:
iX104C4: Open a pre-defined program (see
“Programming hot keys to start applications, open
documents, or go to a Web site” on page 71).

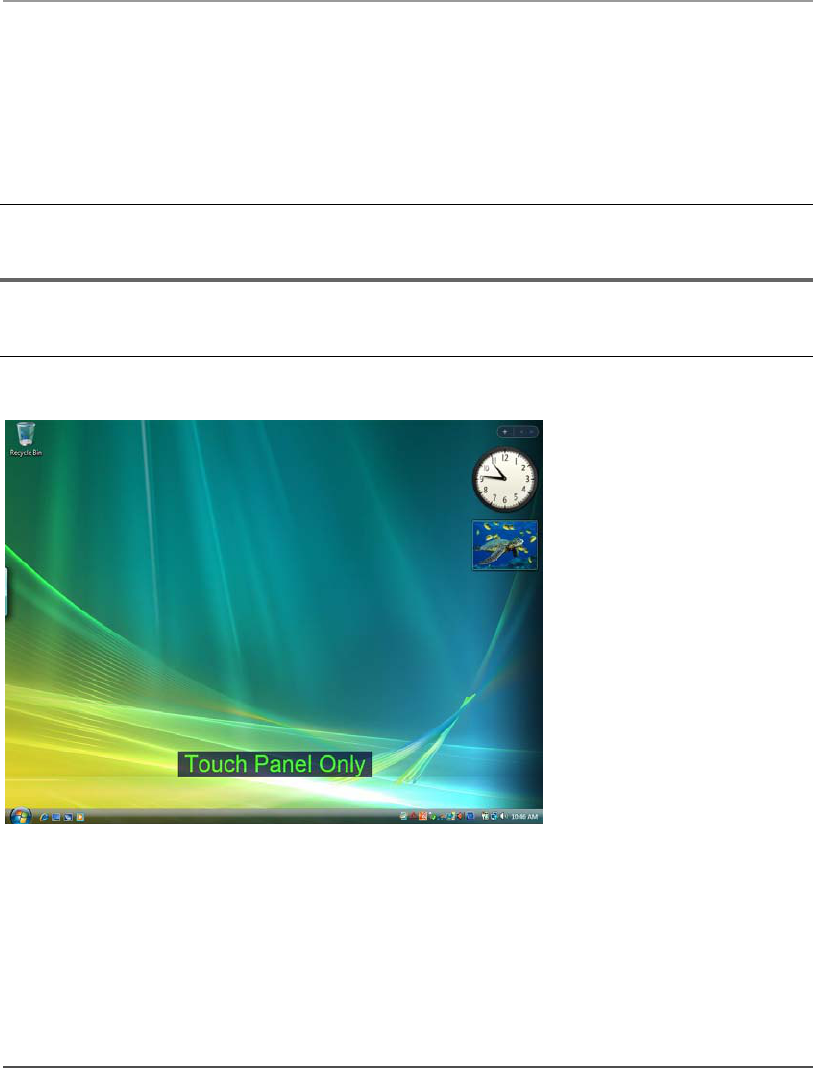

iX104C4 Dual Mode: Select Auto-Sense mode, Active
mode, or Touch mode. This determines the input
devices you can use. In Auto-Sense mode, you can use
the pen, your finger, or another similar device
interchangeably. In Active mode, you can use only the
pen. In Touch mode, you can use your finger or another
similar pointing device. You can program this key
combination to perform a different function. (See
“Programming hot keys to start applications, open
documents, or go to a Web site” on page 71.)
Default function: Open the pen calibration program. You
can program this key combination to perform a different
function. (See “Programming hot keys to start
applications, open documents, or go to a Web site” on
page 71.)
iX104C4 User’s Handbook 31
2Using the Tablet
This chapter contains detailed instructions for using the tablet.
Turning on the computer
1. Make sure the computer is off.
2. Make sure the battery is charged or that the computer is plugged
in to an external power source.

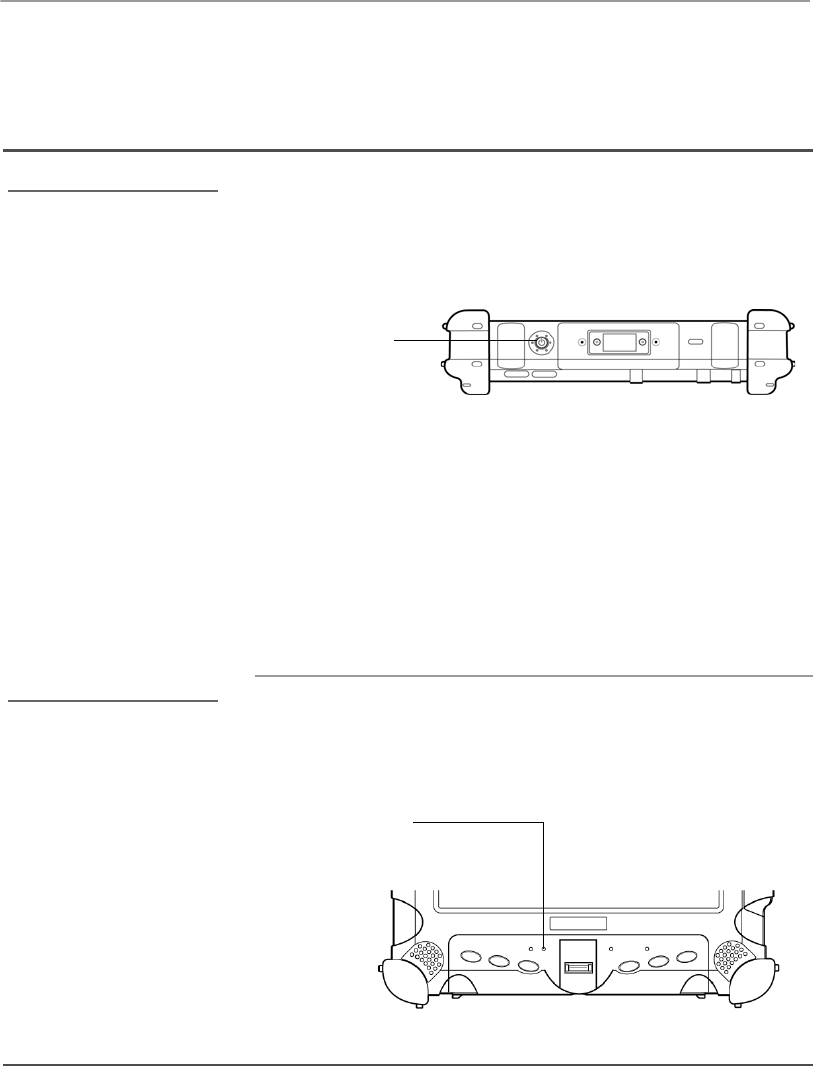

3. Press the Power On/Off/Suspend/Resume button.
When the computer is off,
the Status LED is off.
Power On/Off/
Suspend/Resume
button
Chapter 2. Using the Tablet
Turning off the computer
32 iX104C4 User’s Handbook
Turning off the computer
1. If the computer is in Suspend mode, press the Power On/Off/
Suspend/Resume button to resume operation. (See page 34 for
information about Suspend mode.)
2. Make sure the battery is charged or that the computer is plugged
in to an external power source.
3. Save your work and close all programs.
4. From the Windows Start menu, click Turn Off Computer.
5. The Turn off computer dialog box opens.
6. Click Turn Off.
Using the Reset switch
If the computer does not seem to be accepting input and you cannot
turn it off by using the method described in “Turning off the
computer,” press the Reset switch. (Use the stylus or a similar
instrument to press the switch).
When the computer is in
Suspend mode, the Status
LED is continuously yellow.
Power On/Off/
Resume button
Use the Reset switch only if
you cannot turn off the
computer by any other
means, because you may
lose unsaved data.
Reset switch
Chapter 2. Using the Tablet
Suspending and resuming operation
iX104C4 User’s Handbook 33
Suspending and resuming operation
To conserve battery power when you do not want to turn off the
computer or when you need to install a charged battery pack, put the
computer into Suspend mode. (You can suspend operation without
closing any programs or Windows.)
When you suspend operation:
■Programs that are running stop (but do not close).
■Active data is saved.
■The system enters one of the following low-power modes:
• Suspend-to-RAM mode – The Status LED light is
continuously yellow. Active data is saved in RAM and most
other components are turned off.
Although the computer uses very little power when in
Suspend-to-RAM mode, eventually the battery’s power does
run out. If you do not plan to use the computer for an extended
period of time, turn the computer off or put it in Hibernation
mode instead of using Suspend-to-RAM.
• Hibernation mode – Active data is saved on the hard disk and
power usage is reduced to the same level as when the
computer is turned off. In Hibernation mode, there is no
danger of losing data if battery power is lost.

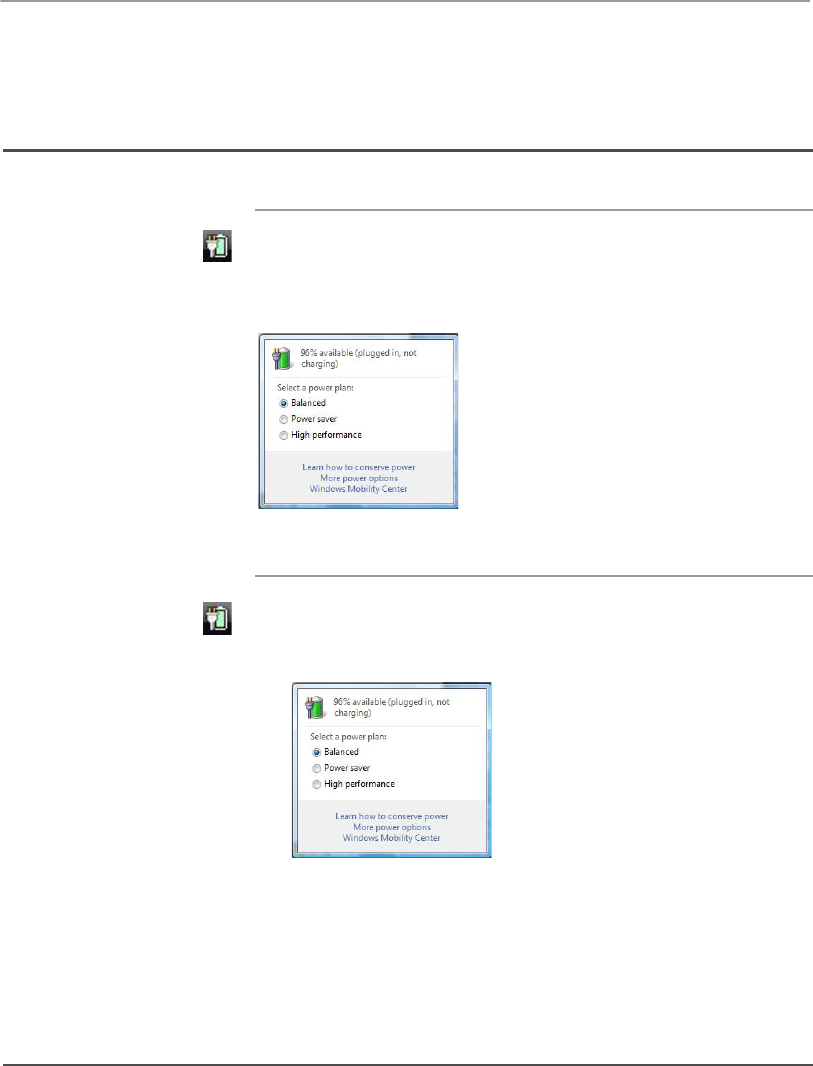

Note: For more information, see “Using power options – Windows
XP” on page 58 or “Using power options – Windows Vista” on page 62.

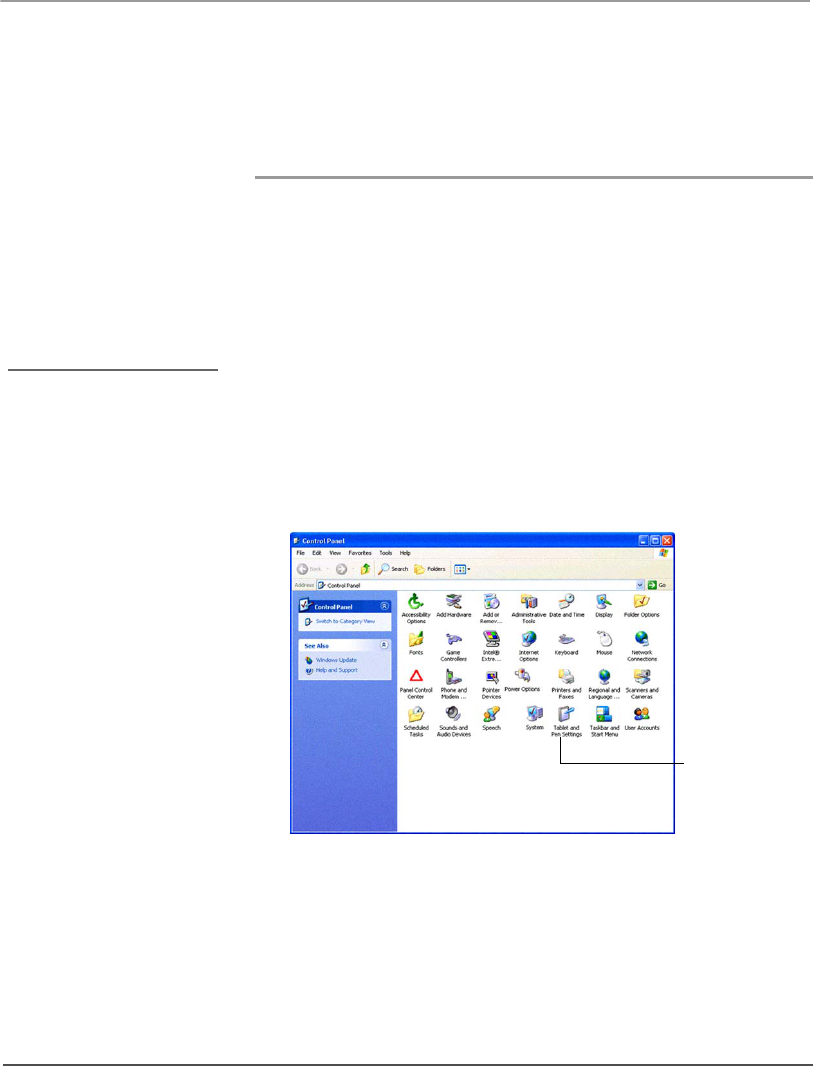

If you have set your computer to turn power off (in the Power Options
utility in Windows Control Panel), you cannot suspend operation. To
change power settings, see “Using power options – Windows XP” on
page 58 or “Using power options – Windows Vista” on page 62.
Chapter 2. Using the Tablet
Suspending and resuming operation
34 iX104C4 User’s Handbook
If the Suspend action of the Power On/Off/Suspend/Resume button
has been disabled to prevent accidental interruption, pressing the
button does not suspend the computer. You must use a software
application to suspend the computer. For more information, contact
your help desk or your iX104C4 dealer.
If your computer is connected to a network, the network may
automatically log you off after a period of inactivity while system
operation is suspended. Contact your help desk or system
administrator to learn your log-off time limit.
Suspending operation
Use one of the following methods to suspend operation:
Method 1

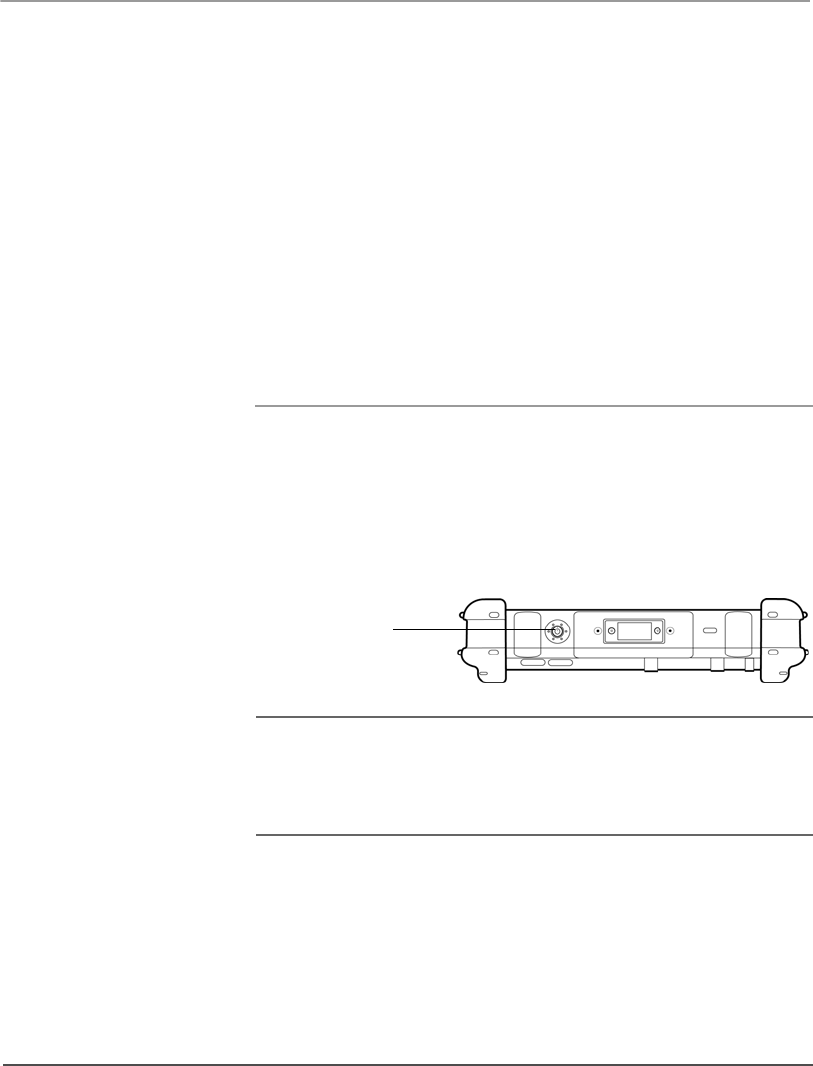

Press and hold the Power (On/Off)/Backlight (On/Off)/Resume button
for 4 seconds.
Note: In order to suspend operation, the Suspend option must be
enabled in Windows Power Options. See “Using power options –
Windows XP” on page 58 or “Using power options – Windows
Vista” on page 62.
Power (On/Off)/
Backlight (On/Off)/
Resume button
Chapter 2. Using the Tablet
Suspending and resuming operation
iX104C4 User’s Handbook 35
Method 2 – Windows XP
1. From the Windows Start menu, press Turn Off Computer.
The Turn off computer dialog box opens.
2. Press Stand By.
When operation is suspended, the Status LED displays a continuous
yellow light.
Method 2 – Windows Vista
1. From the Windows Start menu, press the right arrow in the lower
right corner.
2. Press Sleep.
When operation is suspended, the Status LED displays a continuous
yellow light.

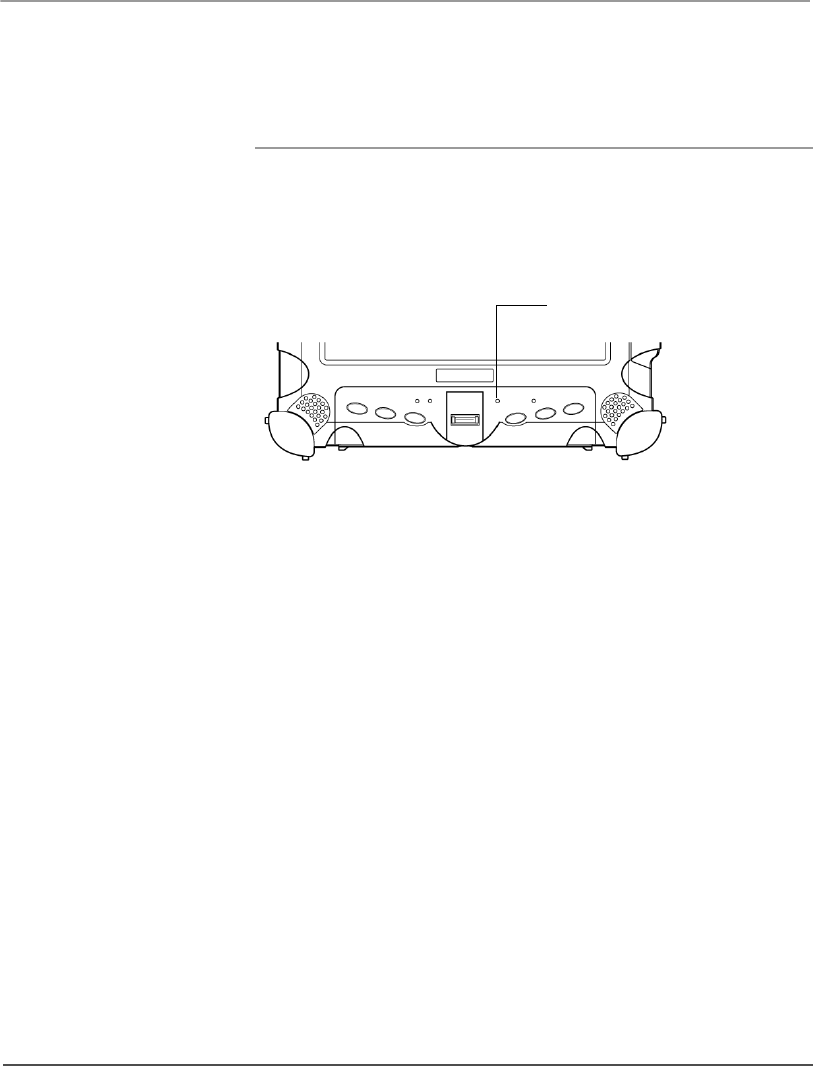

Status LED
Status LED
Chapter 2. Using the Tablet
Suspending and resuming operation
36 iX104C4 User’s Handbook
Resuming operation
To resume operation when the computer is in Suspend mode, press
the Power (On/Off)/Backlight (On/Off)/Resume button.
Note: Press the button only once.
After a minute or two, the computer resumes normal operation. When
the Status LED displays a continuous green light, you can begin using
the computer.
Note: Resuming operation from Hibernation mode takes a little
longer than from Suspend-to-RAM mode.
Power (On/Off)/
Backlight (On/Off)/
Resume button
Chapter 2. Using the Tablet
Using the pen
iX104C4 User’s Handbook 37
Using the pen
You can use the pen to select items and to navigate through programs.
If your computer is an iX104C4:
Use the special multi-function pen provided with the
computer.
If your computer is an iX104C4 Dual Mode:
You can use any of the following input methods:
Auto-Sense mode: Use either the multi-function pen or your
finger interchangeably. The computer distinguishes between
the two input modes and automatically adjusts accordingly.
This is the tablet’s default state.
Active mode: Use only the special multi-function pen
provided with the computer.
Touch mode: Use your finger or another similar pointing
device.
For more information, see “Selecting Auto-Sense, Active, or
Touch mode” on page 38.
WARNING
Do not use items such as a ball point pen or a screwdriver that can
damage the tablet. Damage caused by using an item not provided with
the tablet is not covered by the tablet warranty.
Note: During the first use of the tablet, or if the action you are
trying to perform does not occur when you use the pen or your
finger to touch the screen, calibrate the digitizer as described in
“Calibrating the digitizer” on page 85.
For more information about
Dual Mode tablet input
methods, see Appendix F,
"Configuring Dual Mode
Tablet Digitizer Input
Methods.”
Chapter 2. Using the Tablet
Using the pen
38 iX104C4 User’s Handbook
Selecting Auto-Sense, Active, or Touch mode
If your computer is the iX104C4 Dual Mode or iX104C4 Dual Mode
AllVue Xtreme, use the Fn-P2 key combination to select Auto-Sense
mode (the default mode), Active-only mode, or Touch-only mode.
In Auto-Sense mode, you can use the multi-function pen provided
with the tablet, your finger, or any other similar pointing device
interchangeably, on the fly.
In Active mode, you can use only the special multi-function pen
provided with the tablet.
In Touch mode, you can use your finger or another similar pointing
device.
Note: The input methods available to you depend on the way
your tablet has been configured. See Appendix F, "Configuring
Dual Mode Tablet Digitizer Input Methods.”
Chapter 2. Using the Tablet
Using the pen
iX104C4 User’s Handbook 39
Using the digitizer to perform mouse functions
To perform this function... Do this
Select an object
(left button click).
Tap the pen tip once on the object.
Perform a double-click. Quickly tap the pen tip twice on the object.
Perform a right-click. If your computer is an
iX104C4:
Hold the pen directly on the object for
1 second. The right-click icon appears.
or
Press the right-click button on the pen
while you click the object.
If your computer is an
iX104C4Dual Mode:
Touch mode:
In the Windows taskbar, press the
right-click icon; then click the object.
Active mode:
Hold the pen directly on the object for 1
second. The right-click icon appears.
or
Press the right-click button on the pen
while you click the object.
Move or drag an object. Place the pen tip on the object; then
continue to hold the pen tip against the
screen as you move the pen.
right-click
icon
right-click
button
Chapter 2. Using the Tablet
Using the pen
40 iX104C4 User’s Handbook
Changing the pen double-click speed
The pen double-click speed is in sync with the mouse double-click
speed. To change the speed, follow the instructions below.
Changing the pen double-click speed – Windows XP
1. Click the Windows Start button.
2. Click the Settings option.
3. Click the Control Panel option.
4. In the Control Panel window:
If your computer is an iX104C3 Tablet PC:
Click the Tablet and Pen Settings icon.
If your computer is an iX104C3 Dual Mode:
In Active mode: Click the Tablet and Pen Settings icon.
In Touch mode: Click the Pointer Devices icon.
5. Click the Windows tab.
6. Follow the instructions that appear in the Windows tab.

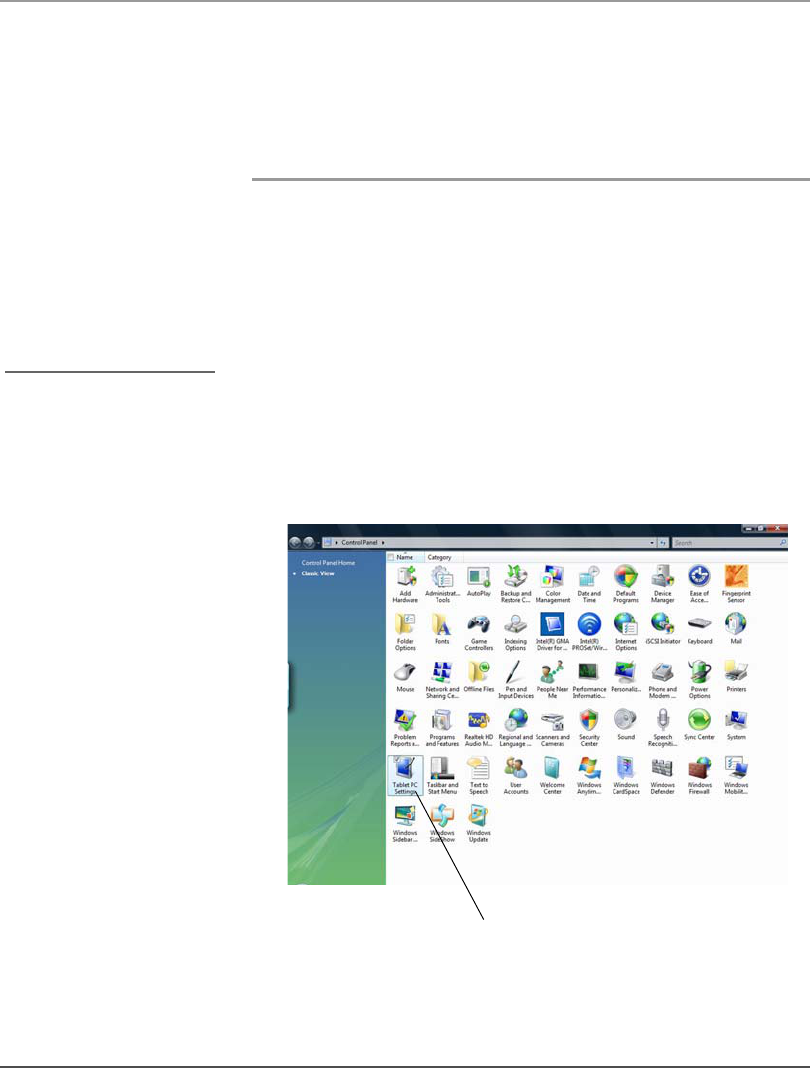

Changing the pen double-click speed – Windows Vista
1. Click the Windows Start button.
2. Click the Control Panel option.
3. In the Control Panel window:
If your computer is an iX104C4:
Click the Pen and Input Devices icon.
If your computer is an iX104C4 Dual Mode:
a. Press the Pen and Input Devices icon.
b. In the Pen Options tab, select Double-tap.
c. Press Settings.
4. Drag the slider to a faster or slower speed; then press OK.
Chapter 2. Using the Tablet
Using the pen
iX104C4 User’s Handbook 41
Positioning the pen and pen tether
The pen tether helps prevent the loss of your pen. The following
illustrations show how to position the pen and pen tether.
Tether anchored at the top
pen tether
pen
Chapter 2. Using the Tablet
Using the pen
42 iX104C4 User’s Handbook
Tether anchored on the side
pen
tether
pen
Chapter 2. Using the Tablet
Using the fingerprint scanner
iX104C4 User’s Handbook 43
Using the fingerprint scanner
The fingerprint scanner and the associated Protector Suite QL
software enable you to use fingerprint verification to protect the
security of your data.
The first step for using fingerprint verification is to enroll your
fingerprint to create an association between your username, password,
and fingerprint.
After fingerprint enrollment you will be able to:
■Use your fingerprint as part of computer login security.
■Register Web pages and Windows applications to use your
fingerprint instead of passwords.
■Launch applications by swiping your finger the sensor.
■Store confidential information in an encrypted form in a
protected folder.
To launch the Enrollment Wizard, select:
Start > All Programs > Protector Suite QL > User Enrollment
and follow the wizard’s instructions.
For more information about using the fingerprint scanner, see the
Protector Suite QL User’s Guide PDF included on your hard disk in
the Protector Suite QL folder.
Fingerprint scanner
Chapter 2. Using the Tablet
Changing the screen orientation
44 iX104C4 User’s Handbook
Changing the screen orientation
To rotate the screen orientation from portrait (vertical) to landscape
(horizontal) mode or from landscape to portrait mode, press the
screen rotation key.
portrait mode landscape mode
Chapter 2. Using the Tablet
Adjusting the screen brightness
iX104C4 User’s Handbook 45
Adjusting the screen brightness
Windows XP

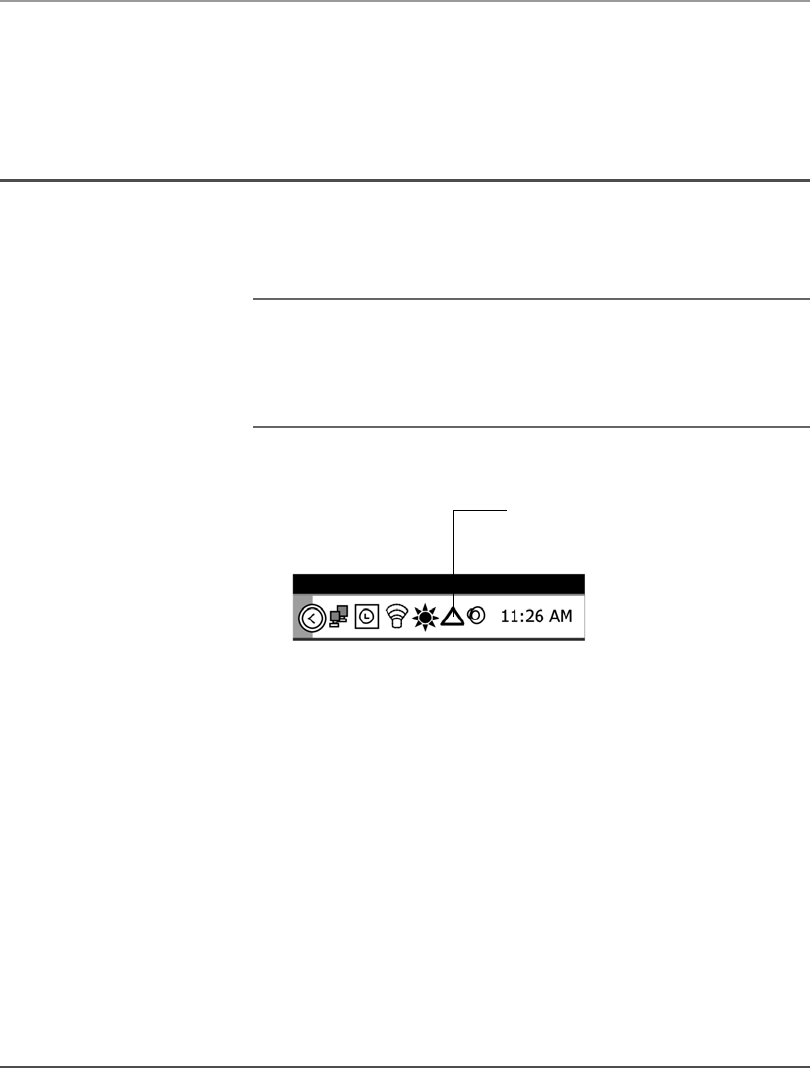

To adjust the screen brightness, click the brightness control icon on
the Windows taskbar; then use the slider bar to make the adjustment.
Windows Vista
To adjust the screen brightness:
1. Click Start.
2. Open the Control Panel.
3. Double-click the Windows Mobility Center icon.
4. Use the Display brightness slider to adjust the brightness.
Brightness control icon
Display brightness slider
Chapter 2. Using the Tablet
Adjusting the screen brightness
46 iX104C4 User’s Handbook
Enabling automatic backlight control
When the Auto Light sensor is enabled, the computer automatically
controls the amount of backlight sent to the screen to provide
optimum brightness for the lighting conditions in which you are
working.
To enable automatic backlight control, see page 100.
Auto Light sensor
Chapter 2. Using the Tablet
Adjusting the screen brightness
iX104C4 User’s Handbook 47
Optimizing screen settings for outdoor use
Windows XP
1. Click Start; then select Control Panel.
2. Click the Desktop tab and set the background to None.
3. In the Control Panel, click Display.
4. Click the Appearance tab.
5. From the drop-down menu, select Windows Classic.
6. From the Windows and buttons drop-down menu, select High
Contrast White.
7. Click the Effects button. Make sure that Use the following method
to smooth edges of screen fonts is checked and that ClearType is
selected from the drop-down list. Click OK.
8. Click the Settings tab. Make sure the Screen resolution setting is
1024 by 768 pixels and that the Color quality setting is Highest (32
bit). Click OK.
Windows Vista
1. Click Start; then select Control Panel.
2. In the Control Panel, click Control Panel Home.
3. Click Appearance and Personalization.
4. Click Change desktop background. In the Location area, select
Solid Colors. For the background color, select white; then click
OK.
5. In the Appearance and Personalization window, click Customize
Colors.
6. Select Frost. Move the Color intensity slider bar to the far right;
then click OK.
Chapter 2. Using the Tablet
Docking the tablet
48 iX104C4 User’s Handbook
Docking the tablet

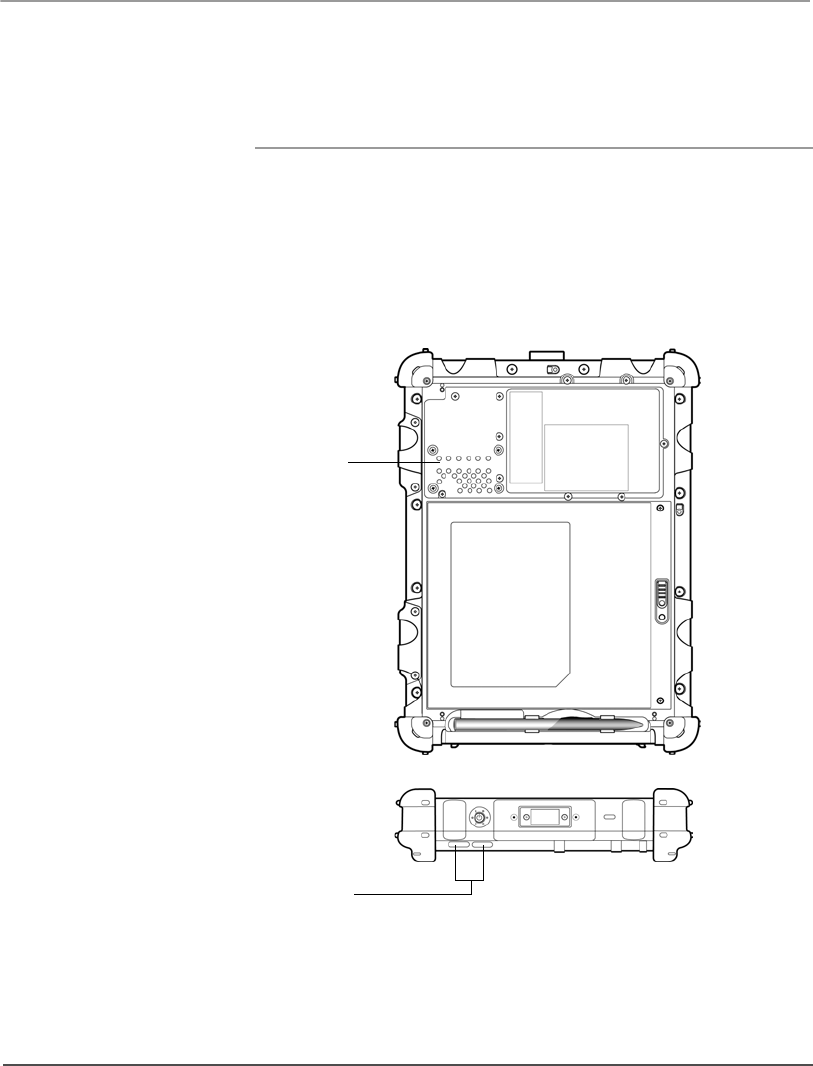

If you have the optional xStand office dock or xDock vehicle dock,
connect it to the tablet at the docking port. (See the iX104 Docking
Stations Handbook.)
Docking port
Guide pin receptacles
Chapter 2. Using the Tablet
Connecting devices
iX104C4 User’s Handbook 49
Connecting devices
Refer to the following subsections for information about connecting
external devices to your computer.
Note: If the device you want to use does not appear to be
working with your computer, the device may need to be enabled
in the computer’s configuration program. Contact your local help
desk or Xplore reseller.
Connecting to a local area network
Connect a local area network (LAN) cable’s RJ-45 connector to the
internal LAN interface card. (See your network system administrator
for more information.)
Connecting USB-compatible devices
Connect any USB-compatible devices to the computer’s USB ports.
LAN connector
Devices must be in
compliance with USB
Standard Revision 2.0.
USB ports
Chapter 2. Using the Tablet
Connecting devices
50 iX104C4 User’s Handbook
Connecting an external microphone
Adjusting microphone volume – Windows XP
If necessary, adjust the volume of the microphone as follows:
1. Press the Windows Start key; then open the Control Panel.
2. In the Control Panel window, double-click the Sounds and Audio
Properties icon.
3. In the Sounds and Audio Properties window, click the Audio tab.
4. In the Sound recording area, click the Volume button.
5. Adjust the volume.
6. Click OK.
Adjusting microphone volume – Windows Vista
If necessary, adjust the volume of the microphone as follows:
1. Press the Windows Start key; then open the Control Panel.
2. In the Control Panel window, double-click the Sound icon.
3. In the Sound Properties window, click the Recording tab.
4. Select Microphone; then press Properties.
5. Select the Levels tab.
6. Adjust the microphone volume or boost.
7. Click OK.
microphone
connector
Chapter 2. Using the Tablet
Connecting devices
iX104C4 User’s Handbook 51
Connecting a headphone or speakers
Adjusting headphone or speaker volume – Windows XP
1. Click the audio icon in the Status area of the Windows taskbar.
The volume control area opens.
2. If the Mute check box is checked, uncheck it.
3. Move the slider bar up or down to increase or decrease the
volume.
Adjusting headphone or speaker volume – Windows Vista
1. Click the audio icon in the Status area of the Windows taskbar.
The volume control area opens.
2. If the Mute button indicates that sound is muted, click the button
to turn on the sound.
3. Move the slider bar up or down to increase or decrease the
volume.
headphone/speakers
connector
Chapter 2. Using the Tablet
Connecting devices
52 iX104C4 User’s Handbook
Connecting a monitor or projection panel
Activating the monitor or projection panel
To change the video output to the monitor or projection
panel:
Press the Fn-P1 key combination.
To change the video output back to the computer:
Press the Fn-P1 key combination again.
Monitor/projection
panel connector
Chapter 2. Using the Tablet
Connecting devices
iX104C4 User’s Handbook 53
Connecting a device to the optional serial port
If your tablet includes the optional serial port, you can connect a
terminal or other device that uses the RS-232, RS-422, or RS-485
data transfer standard.
Connecting an XPL snap-on expansion module
Optional 9-pin
serial port
XPL expansion port
Chapter 2. Using the Tablet
Using the battery
54 iX104C4 User’s Handbook

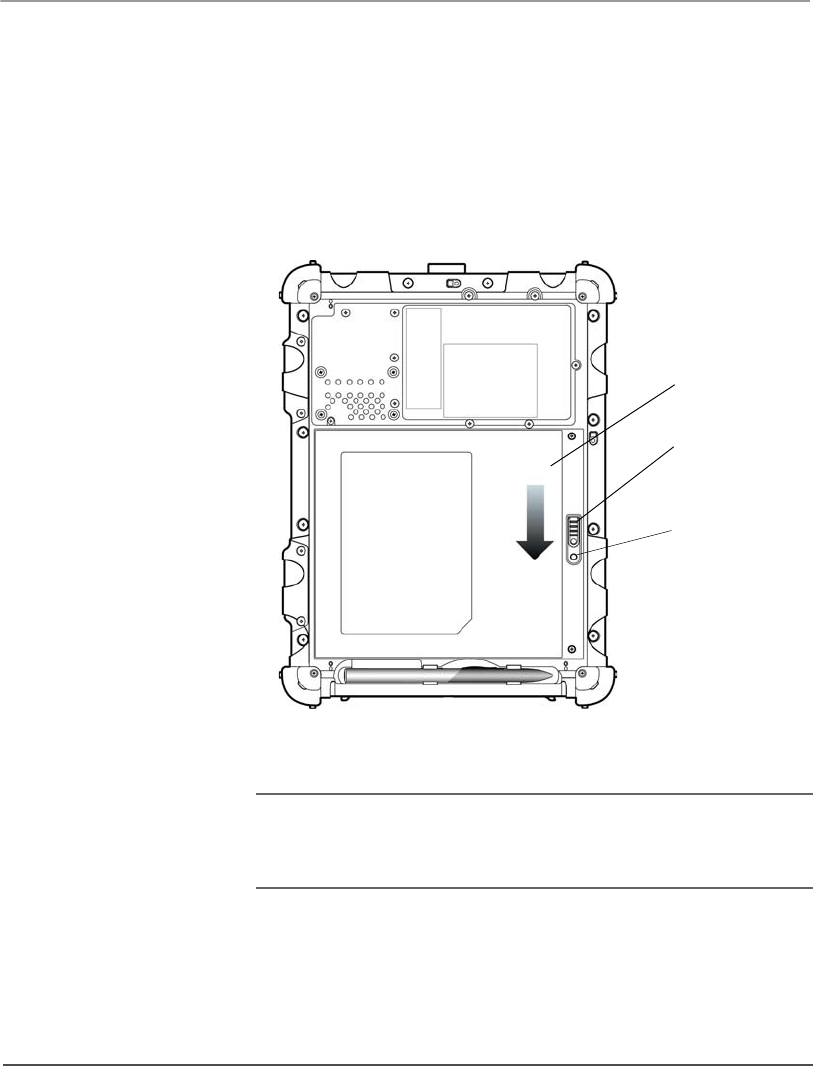

Using the battery
You can recharge, remove, and replace the battery pack.
Charging the battery pack
If you do not have an external battery charger
Follow these steps to charge the battery while it is installed in the
computer:
1. Connect a power source, such as an AC adapter or cigarette
lighter adapter, to the power connector on the computer.
If the battery charge is below 90%, the battery begins charging
and the Status LED flashes green. (If the battery charge is higher
than 90%, the battery will not charge, preventing battery
overcharge.)
2. Check the level of charge. (See “Checking battery power status”
on page 60.)
The charging process continues until the battery charge reaches
100%.
Power
connector
Chapter 2. Using the Tablet
Using the battery
iX104C4 User’s Handbook 55
Table 4 shows the approximate time required to charge the battery
level to 100%.
If you have an external battery charger
1. Remove the battery pack (see page 55).
2. Use the external battery charger to charge the battery.
3. Install the battery (see page 57).
Removing and installing the battery
You can remove the battery and use an (optional) external charger to
charge it.
Removing the battery
1. To swap with a charged battery:
Use one of the methods described in “Suspending operation”
on page 34 to suspend operation.
If a charged battery is not available:
Save your work and close all running programs; then shut
down the computer or put the computer in Hibernation mode
(see “Suspending operation” on page 34).
Note: To avoid losing unsaved data, wait until the computer
has completed switching to Suspended mode before
removing the battery.
Table 4 Approximate battery charge time
Battery pack capacity Charge time
41 watt hours (5700 mAh) 2.5 hours
55 watt hours (7600 mAh) 3.5 hours
Chapter 2. Using the Tablet
Using the battery
56 iX104C4 User’s Handbook
2. Use the stylus or a pen to depress the battery lock button.
3. On the computer, slide the battery release latch toward the lock
button.
The battery unlocks and slightly rises from the computer.
4. Pull the battery away from the computer and remove it.
Note: After removing the battery, you must replace the battery
or connect the computer to an external power supply within
3 to 5 minutes or the computer completely loses power.
Removable
battery
Battery
release
latch
Battery
lock
button
Chapter 2. Using the Tablet
Using the battery
iX104C4 User’s Handbook 57
Installing the battery
1. Orient the battery with the slides in the empty battery tray.
2. Slide the battery into the tray and press it firmly until it is seated.
3. Slide the battery release latch to its original position.
The lock button pops back into the locked position, securing the
battery in place.
Discarding batteries
Dispose of batteries in accordance with your local government
regulations. Under federal, state, or local law, it may be illegal to put
batteries in the trash. Contact your system administrator, municipal
waste disposal department/provider for information.
Chapter 2. Using the Tablet
Using power options – Windows XP
58 iX104C4 User’s Handbook
Using power options – Windows XP
Displaying power options
On the Windows taskbar, click the battery icon.
The Power Options Properties window opens.
Chapter 2. Using the Tablet
Using power options – Windows XP
iX104C4 User’s Handbook 59
Changing the computer’s power schemes
In the Power Options Properties window, select the Power Schemes
tab; then select options from the drop-down lists.
Changing battery alarm settings
In the Power Options Properties window (page 58), select the Alarms
tab; then use the slider bars to change the alarm settings.
Chapter 2. Using the Tablet
Using power options – Windows XP
60 iX104C4 User’s Handbook
Checking battery power status
In the Power Options Properties window (page 58), select the Power
Meter tab. The window shows the amount of power left in the battery.
Selecting power settings
In the Power Options Properties window (page 58), select the
Advanced tab; then select the power settings options you want to use.
Chapter 2. Using the Tablet
Using power options – Windows Vista
62 iX104C4 User’s Handbook
Using power options – Windows Vista
Checking battery power status
On the Windows taskbar, click the battery icon.
The following window opens, displaying the percentage of power
remaining in the battery:
Selecting a power plan
1. On the Windows taskbar, click the battery icon.
The following window opens:
2. Select one of the following power plans:
Balanced – A balance between computer performance and
battery life.
Power Saver – Longer battery life and lower performance.
High performance – Higher performance and shorter battery life.
Chapter 2. Using the Tablet
Using power options – Windows Vista
iX104C4 User’s Handbook 63
Selecting power options
1. On the Windows taskbar, right-click the battery icon.
2. Select Power Options.
The following window opens.
3. Under the selected power plan, press Change plan settings.
4. Select the power options you want to use.
Chapter 2. Using the Tablet
Using power options – Windows Vista
64 iX104C4 User’s Handbook
Selecting Power (On/Off)/Backlight(On/Off)/Resume
button options
To change what happens when you press the button:
1. On the Windows taskbar, right-click the battery icon.
2. Select Power Options.
The following window opens.
3. Press Choose what the power buttons do.
4. Select the options you want to use.
Power (On/Off)/
Backlight (On/Off)/
Resume button
Chapter 2. Using the Tablet
Using power options – Windows Vista
iX104C4 User’s Handbook 65
Tips for conserving battery power
The following tips help you extend the life of your battery by
conserving battery power:
■Use an external power source such as the AC or auto adapter
whenever available.
■Suspend operation if you know that you will not be using the
system for a while. (See “Suspending operation” on page 34.)
■If you do not plan to use the computer for an extended period of
time, turn it off.
Note: If your computer is running Windows XP, you also have
the option of placing it in Hibernation mode. (See
“Enabling Hibernation mode” on page 61.)
■Adjust power options to automatically conserve power. (See
“Using power options – Windows XP” on page 58 or “Using
power options – Windows Vista” on page 62.)
Chapter 2. Using the Tablet
Accessing the hard disk drive compartment
66 iX104C4 User’s Handbook
Accessing the hard disk drive compartment
When you install a new hard disk drive, follow the instructions in this
section to access the hard disk drive compartment.
WARNING Failure to follow this procedure can result in
damage to the case and the cover, which is not
covered under the Xplore Technologies warranty.
Xplore recommends that you use an
approved Xplore Technologies service center
for this procedure.
1. Turn off the computer.
2. Remove all power from the unit, including batteries and other
power sources such as power supplies, cigarette lighter adapters,
and mobile power sources.
3. Use an M1 Phillips screwdriver to remove the 10 screws from the
compartment cover. (Do not use a power screwdriver.)
5 screws
5 screws
Chapter 2. Using the Tablet
Accessing the hard disk drive compartment
iX104C4 User’s Handbook 67
Re-installing the hard disk drive compartment cover
1. Make sure the sealing gasket is properly placed.
2. Reposition the cover on the compartment.
3. Use the M1 Phillips screwdriver and a torque wrench to replace
the 10 screws.
Notes: Use a maximum torque of 3 kg-cm (2.6 lb-in) for each
screw.
Do not use power tools.
Chapter 2. Using the Tablet
Accessing the PCMCIA compartment
68 iX104C4 User’s Handbook
Accessing the PCMCIA compartment
When you install a PCMCIA card, follow the instructions in this
section to access the PCMCIA compartment.
WARNING Failure to follow this procedure can result in
damage to the case and the cover, which is not
covered under the Xplore Technologies warranty.
Xplore recommends that you use an
approved Xplore Technologies service center
for this procedure.
1. Turn off the computer.
2. Remove all power from the unit, including batteries and other
power sources such as power supplies, cigarette lighter adapters,
and mobile power sources.
3. Remove the battery. (See “Removing and installing the battery”
on page 55.)
4. Use an M1 Phillips screwdriver to remove the 6 screws from the
compartment cover. (Do not use a power screwdriver.)
6 screws
Chapter 2. Using the Tablet
Accessing the PCMCIA compartment
iX104C4 User’s Handbook 69
Re-installing the PCMCIA compartment cover
1. Make sure the sealing gasket is properly placed.
2. Reposition the cover on the compartment.
3. Use the M1 Phillips screwdriver and a torque wrench to replace
the 6 screws.
Notes: Use a maximum torque of 3 kg-cm (2.6 lb-in) for each
screw.
Do not use power tools.
Chapter 2. Using the Tablet
Programming hot keys
70 iX104C4 User’s Handbook
Programming hot keys
Xplore pre-programs the P1, P2, and P3 hot keys and Function mode
hot key combinations to perform certain functions by default.
However, you can program them to perform different functions, as
described in this section.
Table 5 Programmable hot keys
Key Default function
Starts Help.
Starts Internet Explorer.
Starts your email application.
Table 6 Programmable Function mode hot key combinations
Key combination Default function
Sends video display to a monitor or projection
panel.
iX104C4: Opens a pre-defined program.
iX104C4 Dual Mode: Selects the input device
(see page 38).
Starts the pen calibration program.
Chapter 2. Using the Tablet
Programming hot keys
iX104C4 User’s Handbook 71
Programming hot keys to start applications, open
documents, or go to a Web site
1. In the Status area of the Windows taskbar, click the iX104C4
Configuration icon.
The Launch Button QuickShow dialog box opens.
2. Click the Configure button.
The Panel Control Center window opens.
Chapter 2. Using the Tablet
Programming hot keys
72 iX104C4 User’s Handbook
3. Click the Change button next to the key or key combination you
want to program.
The following options appear:
4. Click Launch an Application, Document or Web site.
The following options appear:
Chapter 2. Using the Tablet
Programming hot keys
iX104C4 User’s Handbook 73
5. To start an application:
a. Click Launch an Application.
b. Press Browse to find the application you want the hot key or
Function mode hot key combination to start (for example:
word.exe, notepad.exe, excel.exe).
c. Click Change.
6. To open a document:
a. In the Click Open a Document.
b. Press Browse to find the document you want the hot key or
Function mode hot key combination to open. (For example:
spreadsheet.xls, airports.doc, wiringdiagram.jpg)
c. Click Change.
Chapter 2. Using the Tablet
Programming hot keys
74 iX104C4 User’s Handbook
7. To open a multimedia file:
a. Click Open a Multimedia file.
b. Press Browse to find the name of the multimedia file you
want the hot key or Function mode hot key combination to
open. (For example: 911training.dir, demo.ppt)
c. Click Change.
8. To open a Web page:
a. Click Open a Web page.
b. Press Browse to find the URL of the Web page you want the
hot key or Function mode hot key combination to open. (For
example: http://www.xploretech.com)
c. Click Change.
9. Program more hot keys, or click Close to close the Panel Control
Center window.
Chapter 2. Using the Tablet
Programming hot keys
iX104C4 User’s Handbook 75
Programming hot keys to perform pre-defined
functions
1. In the Status area of the Windows taskbar, click the iX104C4
Configuration icon.
The Launch Button QuickShow dialog box opens.
2. Click the Configure button.
The Panel Control Center window opens.
3. Next to the key or key combination you want to program, click
the Change button.
Chapter 2. Using the Tablet
Programming hot keys
76 iX104C4 User’s Handbook
The following options appear:
4. Click Start a pre-defined function.
5. In the Function selection drop-down list, select an option.
6. Program more hot keys, or click Close to close the Panel Control
Center window.
Chapter 2. Using the Tablet
Programming hot keys
iX104C4 User’s Handbook 77
Programming hot keys to perform other key
functions
1. In the Status area of the Windows taskbar, click the iX104C4
Configuration icon.
The Launch Button QuickShow dialog box opens.
2. Click the Configure button.
The Panel Control Center window opens.
3. Next to the key or key combination you want to program, click
the Change button.
Chapter 2. Using the Tablet
Programming hot keys
78 iX104C4 User’s Handbook
The following options appear:
4. Click Press a key or key combination.
The following options appear:
Chapter 2. Using the Tablet
Programming hot keys
iX104C4 User’s Handbook 79
5. If you want the hot key or hot key combination to perform the
function of a single key:
a. If the Ctrl, Alt, or Shift boxes are checked, uncheck them.
b. Click the key you want the hot key or hot key combination to
perform. (For example: F6, G, or Caps Lock)
If you want the hot key or hot key combination to perform the
function of a key combination:
a. Check the Ctrl, Alt, or Shift box.
b. From the drop-down list, select the additional key, or click
the key on the keyboard.
Examples
To cause the hot key to perform the print screen function
(Alt-Print Scrn): Check the Alt check box; then select PrtScr
from the drop-down list.
To cause the hot key to perform the paste function (Ctrl-V):
Check the Ctrl check box; then click the V key.
6. Program more hot keys, or click Close to close the Panel Control
Center window.
80 iX104C4 User’s Handbook
iX104C4 User’s Handbook 81
3Maintaining the Tablet
This chapter provides instructions for maintaining your tablet.
Caring for the tablet
This section provides information about how to keep your tablet in
top working condition.
Checking power cords and connectors
Check AC and DC power cords and power connectors periodically for
damage. Replace the power cord immediately if you find any damage.
Protecting the computer from damage
■Your computer is designed to sustain a multiple-axis drop to a
non-yielding surface. Do not intentionally drop the computer,
because the cumulative effects of multiple drops may damage the
computer.
■Do not place heavy objects on the computer.
■Do not disassemble the computer.
■Keep the computer at least 5 inches (13 centimeters) away from
any electrical appliance that generates a strong magnetic field,
such as a motor, magnet, TV, refrigerator, or large audio
speakers.
Chapter 3. Maintaining the Tablet
Caring for the tablet
82 iX104C4 User’s Handbook
Preventing the computer from overheating
The computer monitors its internal temperature. As the internal
temperature approaches the tolerable limits of heat-sensitive
components, system functions are automatically limited or turned off
to prevent damage.
To prevent the computer from overheating, do not obstruct the
computer’s air vents.
air vent
area
air vents
Chapter 3. Maintaining the Tablet
Caring for the tablet
iX104C4 User’s Handbook 83
Storing the computer
You can store the computer in the Off state for about 30 days with a
fully charged battery installed. After this period, recharge the battery
or replace it with a charged battery.
If you intend to store the computer for more than 30 days, remove the
battery pack and keep it in a cool place.
Caring for the display screen
To clean the display screen, dampen a soft cotton cloth with water
and gently wipe the screen surface.
Note: Do not use isopropyl alcohol to clean the screen. Alcohol
may damage the surface of the screen.
Protecting the display screen
The screen protector is a durable, replaceable writing surface that
protects the display screen from abrasion.
To obtain additional screen protectors, check with your reseller, or go
to the Xplore Web site at www.xploretech.com for ordering
information. Additional information about installation is included
with the screen protectors.
Chapter 3. Maintaining the Tablet
When to replace the pen
84 iX104C4 User’s Handbook
Removing the screen protector
Slide your fingernail under the edge of the screen protector and pull
the protector away from the screen.
Installing a new screen protector
Follow the instructions included with your screen protector
replacement kit.
Note: If a screen protector is already installed on the display
screen, remove it before installing the new screen protector.
When to replace the pen
With use, the pen tip may become worn and can scratch the screen.
If your pen exhibits one of the following problems, replace the pen:
■The pen does not move freely across the screen.
■The pen does not perform as expected.
edge
Chapter 3. Maintaining the Tablet
Calibrating the digitizer
iX104C4 User’s Handbook 85
Calibrating the digitizer
Calibrating the digitizer adjusts the cursor position on the screen
relative to the position of the pen tip or finger. Calibrate the digitizer
to adjust the distance error between where the pen or finger is actually
touching the screen and where the computer is registering the pen or
finger touch.
You may need to calibrate the digitizer in the following situations:
■You are using the computer for the first time.
■The previous user of the computer writes with the opposite hand
or at a different pen angle.
■The computer has not been used for some time.
■The computer has been serviced.
Chapter 3. Maintaining the Tablet
Calibrating the digitizer
86 iX104C4 User’s Handbook
Calibrating the digitizer: iX104C4 – Windows XP
Follow these instructions if your computer is running Windows XP.
1. From the Start menu, select Control Panel.
The Control Panel opens.
2. Click the Tablet and Pen Settings icon.
The Tablet and Pen Settings window opens.
Tablet and
Pen Settings
icon
Chapter 3. Maintaining the Tablet
Calibrating the digitizer
iX104C4 User’s Handbook 87
3. In the Calibration area drop-down list, select the mode for which
you want to calibrate the pen: Landscape or Portrait; then click
Calibrate.
The Calibration program starts.
4. Follow the instructions that appear on the screen.
5. When you finish, click OK.
Chapter 3. Maintaining the Tablet
Calibrating the digitizer
88 iX104C4 User’s Handbook
Calibrating the digitizer: iX104C4 – Windows Vista
Follow these instructions if your computer is running Windows Vista.
1. From the Start menu, select Control Panel.
The Control Panel opens.
2. Double-click the Tablet PC Settings icon.
The Tablet PC Settings window opens.
Tablet PC Settings
icon
Chapter 3. Maintaining the Tablet
Calibrating the digitizer
iX104C4 User’s Handbook 89
3. In the General tab, press the Calibrate button.
4. Follow the instructions that appear on the screen.
5. When you finish, click OK.
6.
Chapter 3. Maintaining the Tablet
Calibrating the digitizer
90 iX104C4 User’s Handbook
Calibrating the digitizer: iX104C4 Dual Mode –
Windows XP
Follow these instructions if your computer is running Windows XP.
In Active mode, you can use only the stylus included with the
computer as the pointing device.
In Touch mode, you can use the stylus, a similar pointing device, or
your finger.
Follow the instructions in the sections below to calibrate the digitizer
for each mode.
Calibrating the digitizer: Active mode
1. From the Start menu, select Control Panel.
The Control Panel opens.
2. Click the Tablet and Pen Settings icon.
The Tablet and Pen Settings window opens.
See “Selecting Auto-Sense,
Active, or Touch mode” on
page 38.
Tablet and
Pen Settings
icon
Chapter 3. Maintaining the Tablet
Calibrating the digitizer
iX104C4 User’s Handbook 91
3. In the Calibration area drop-down list, select the mode for which
you want to calibrate the pen: Landscape or Portrait; then click
Calibrate.
The Calibration program starts.
4. Follow the instructions that appear on the screen.
5. When you finish, click OK.
Chapter 3. Maintaining the Tablet
Calibrating the digitizer
92 iX104C4 User’s Handbook

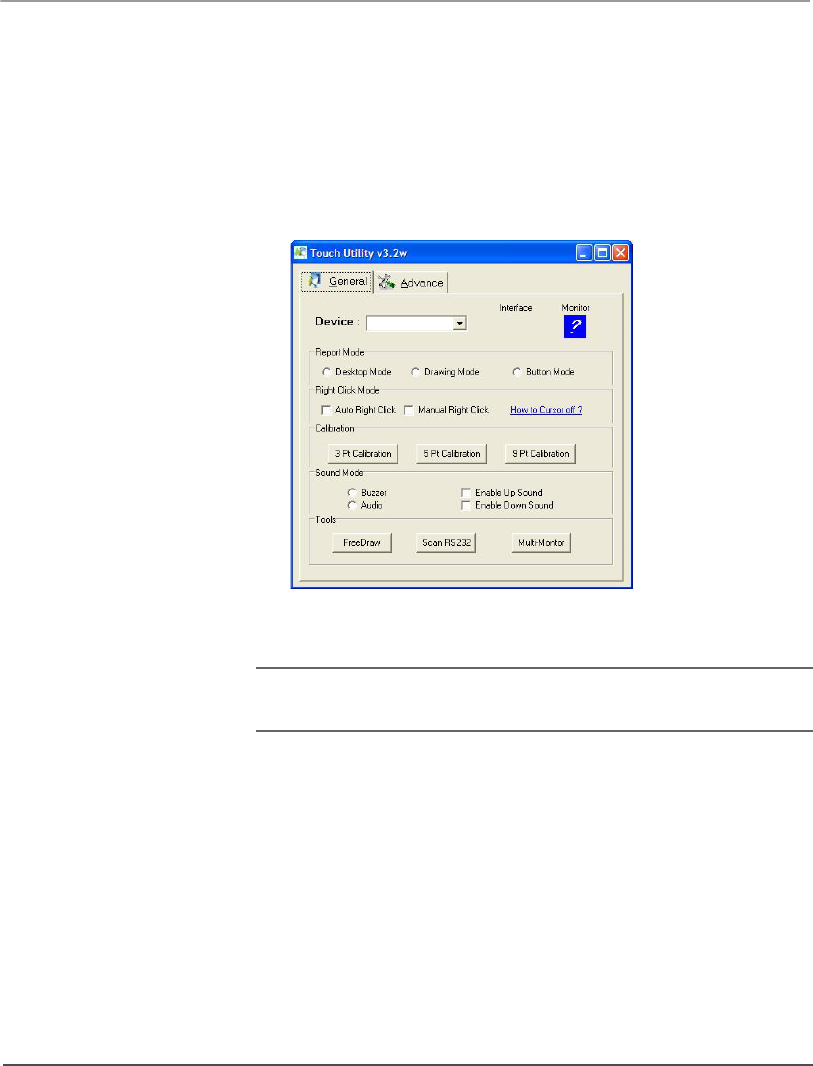

Calibrating the digitizer: Touch mode
1. From the Start menu, select All Programs > Touch Utility.
The Touch Utility window opens.
2. Click the appropriate Calibration button.
Note: Xplore Technologies recommends 5 Pt or 9 Pt calibration, for
greater accuracy.
The Calibration program starts.
3. Follow the instructions that appear on the screen.
4. When you finish, click OK.
Chapter 3. Maintaining the Tablet
Calibrating the digitizer
iX104C4 User’s Handbook 93
Calibrating the digitizer: iX104C4 Dual Mode –
Windows Vista
Follow these instructions if your computer is running Windows Vista.
In Active mode, you can use only the stylus included with the
computer as the pointing device.
In Touch mode, you can use the stylus, a similar pointing device, or
your finger.
Follow the instructions in the sections below to calibrate the digitizer
for each mode.
Calibrating the digitizer: Active mode
1. From the Start menu, select Control Panel.
The Control Panel opens.
2. Double-click the Tablet PC Settings icon.
See “Selecting Auto-Sense,
Active, or Touch mode” on
page 38.
Tablet PC Settings
icon
Chapter 3. Maintaining the Tablet
Calibrating the digitizer
94 iX104C4 User’s Handbook
The Tablet PC Settings window opens.
3. In the General tab, press the Calibrate button.
The Calibration program starts.
4. Follow the instructions that appear on the screen.
5. When you finish, click OK.
Chapter 3. Maintaining the Tablet
Calibrating the digitizer
iX104C4 User’s Handbook 95
Calibrating the digitizer: Touch mode
1. From the Start menu, select All Programs > Touch Utility.
The iTouch window opens.
2. Select the Device tab.
3. Select the appropriate calibration button.
Note: Xplore Technologies recommends 5 Pt or 9 Pt calibration, for
greater accuracy.
4. Press Exit.
Calibration buttons
96 iX104C4 User’s Handbook
iX104C4 User’s Handbook 97
ATroubleshooting
Table 7 contains solutions to some problems. If you cannot solve the
problem by taking the actions described, contact your local help desk
or your reseller for further assistance.
Table 7 Troubleshooting
Problem Possible cause and solution
Computer will not start. • The battery may be defective or discharged to a critically low level.
Connect an external power supply (such as the AC adapter) or install
a charged battery. See “Using the battery” on page 54.
• Internal components may be above or below the acceptable
operating range (below -20° C or above 60° C). After the
temperature returns to safe operating range the computer will start.
The computer will not resume operation
after being suspended.
• The battery may be defective or discharged to a critically low level.
When the battery reaches a critically low level, the computer is
forced into Suspend- to-RAM mode to avoid a total system power
failure. Connect an external power supply (such as the AC adapter)
or install a charged battery. See “Using the battery” on page 54.
• The computer may be at the critical thermal limit. To avoid damage
to heat-sensitive components, the computer enters Suspend-to-
RAM mode when the computer operates above 60° C. Operation
automatically resumes when the computer cools to below 60° C.
Move the computer to a cooler location.
The Status LED is red, continuous. • The computer is on, running under battery power, and the charge
level in the battery has reached a critical level. Plug the computer
into an AC/DC power source or install a charged battery.
• The system has encountered a fault and is preventing normal
operation. Contact your local help desk.
The Status LED is red, blinking. The computer is powered on, running under battery power, and the
charge level in the battery is at a minimum warning level. Plug the
computer into an AC/DC power source or install a charged battery.
Appendix A. Troubleshooting
98 iX104C4 User’s Handbook
Display screen is blank or difficult to
read.
• Confirm that the computer is on (the Power icon is displayed
continuously in the Status area).
• The brightness may be set too low, causing the screen to appear too
dark. To change system brightness, press the Fn and Start keys to
open the Xplore menu and adjust the brightness. (See page 30.)
• An external monitor may be selected. Press the Fn and P1 keys to
select the computer display screen. (See page 30.)
• The video time-out may have expired. Tap the display screen to
reactivate the display.
Note: This is a normal, power-saving feature.
• If the Status light is blinking red, the computer is in Suspend-to-RAM
mode because the temperature is below -20° C or above 60° C.
When the temperature returns to a safe operating range, the display
screen automatically comes back on. If possible, move the computer
to a warmer or cooler location.
• If the Status light is continually yellow, the computer is in Suspend or
Hibernate mode. Press the Power On/Off key to resume.
Cursor is not tracking the pen. Calibrate the pen. See “Calibrating the digitizer” on page 85.
Computer is not responding to the pen. Connect an external USB keyboard to the computer. If the computer
does not respond to the external keyboard, the application or
operating system may have been corrupted. Press the Reset key.
(See page 32.) If the system responds to a keyboard but not to the
pen, contact your local help desk or reseller for further assistance.
Headphone or speaker volume is too
low.
• The volume may be in Mute mode or set too low. Follow the
instructions in “Adjusting headphone or speaker volume – Windows
XP” on page 51.
• Make sure the volume control in your audio software is set to an
audible level.
An external device is not working with
the computer.
The device may need to be enabled in the computer’s configuration
program (BIOS Setup). Contact your local help desk or reseller.
Table 7 Troubleshooting (continued)
Problem Possible cause and solution
iX104C4 User’s Handbook 99
BUsing BIOS and AOS Functions
This appendix explains how to use the application and navigation
buttons with the Basic Input-Output System (BIOS) program and the
Advanced Operating System (AOS) Options menu.
Note: These functions are typically for use only by your system
administrator or by authorized service technicians.
Note: Each button has its
own blue-light LED. No
matter which button you
press, every blue-light LED is
on for about 3 seconds, then
off. When in Shifted mode, all
blue-light LEDs flicker.
Table 8 Using BIOS and AOS functions
In Shifted Mode
Button BIOS Key Function BIOS Key Function
F1 F1 continues message. Up Arrow Navigate up through Multi Boot
options and BIOS menus.
F2 Start the BIOS program: When the
computer is booting, press the P2
button and follow the instructions
that appear on the screen.
Down Arrow Navigate down through Multi
Boot options and BIOS menus.
F8 Prompt Windows to select Safe
mode.
Right Arrow Navigate to the right.
F11
(Lock Fn)
• Press for less than one second for
F11 function.
• Press longer to enable Shifted
mode.
Release
Function
Press once to exit Shifted mode.
F12 Enter Multi Boot mode. F4 Change a BIOS setup value.
Ctrl+Alt+Del Reboot. Enter Enter.
Appendix B. Using BIOS and AOS Functions
Disabling the Auto Power feature
100 iX104C4 User’s Handbook
Disabling the Auto Power feature
When Auto Power is enabled, the tablet automatically turns on if you
dock it and the following conditions exist:
■The tablet is off or in Hibernation or Standby mode.
■The dock or the tablet is connected to an external power source
(including power applied when a vehicle’s ignition is started).
If you dock the tablet and the tablet is off and no power is present, the
tablet turns on as soon as power is applied.
To disable the Auto Power feature:
1. When the computer is booting, press the P2 button to access the
BIOS Setup Utility.
2. Select the Advanced tab.
3. Disable the Dock with Auto Power On option.
Enabling automatic LCD backlight control
When the LCD backlight control is in manual mode, the ambient light
sensor is disabled and the computer does not automatically control the
screen brightness.
Follow these steps to enable automatic LCD backlight control:
1. When the computer is booting, press the P2 button to start the
BIOS Setup Utility.
2. Select the Main tab.
3. In the LCD Backlight Control drop-down list, select Automatic.
4. Click OK.
Note: When the tablet is in
the docking station, it will shut
down or go into Hibernation
or Standby mode the same as
it does when not in the
docking station.
iX104C4 User’s Handbook 101
CGlossary
Adapter. A device that provides an interface between two dissimilar
electronic devices. For example, the AC adapter modifies the power
from a wall outlet for use by the computer.
Advanced Power Management (APM). A facility consisting of one
or more layers of software that support power management. The APM
software interface enables applications, operating systems, device
drivers, and the APM BIOS to work together to reduce power
consumption.
Alternating Current (AC). Electric current that reverses its direction
of flow at regular intervals.
Analog signal. A signal with characteristics such as amplitude and
frequency that vary in proportion to (are an analog of) the value to be
transmitted. Voice communications are analog signals.
Application. A program that performs specific tasks on your
computer, such as word processing or creating spreadsheets.
BIOS. Programs that contain such basic hardware operations as an
interaction with diskette drives, hard disk drives, and the memory.
Board. A circuit board. An internal card containing electronic
components called chips, which perform a specific function or
increase the capabilities of the system.
Boot. To load a program or operating system into system memory.
Bits Per Second (BPS). In serial transmission, the instantaneous bit
speed with which a device or channel transmits a character.
Card. Synonym for board; see board.
Compact Disk-Read Only Memory (CD-ROM). Stores data on
metal-plated plastic discs.
Appendix C. Glossary
102 iX104C4 User’s Handbook
Compatibility. 1.The ability of one computer to accept and process
data in the same method as another computer without modifying the
data or the media upon which it is being transferred. 2.The ability of
one device to connect or communicate with another system or
component.
Configuration. The specific combination of hardware components of
the computer, and their operating status. The configuration of your
computer includes pre-defined memory, type and speed of
microprocessor, type of and size of hard disk drive, etc.
Default. The preset parameter value automatically selected by the
computer when you or a program do not provide instructions.
Device driver. A program that controls communication between a
specific peripheral device (such as a printer or the pen/stylus) and the
computer.
Disk drive. The physical device that enables the computer to read
from, and write to, a disk.
Display. An image-producing device used to view computer output.
Double-click. To press and release the pen/stylus twice within a time
frame you define, without moving the pointer off the choice.
Hard disk drive (HDD). A sealed mass storage device used for
storage and fast retrieval of programs and data. The factory installs
this disk and only a trained engineer can remove it for servicing.
Hardware. The physical electronic and mechanical components of a
computer system. typically, the computer itself, CPU, memory, etc.
Hertz. A unit of wave frequency that equals one cycle per second.
Interface. 1. Hardware and/or software components used specifically
to connect one computer or device to another. 2. To physically
connect one system or device to another to exchange information. 3.
The point of contact between user, the computer, and the program (for
example, the pen/stylus or a menu).
Appendix C. Glossary
iX104C4 User’s Handbook 103
Kilobyte (KB). A unit of 1024 bytes measuring storage space,
typically in memory or on storage media such as a diskette or hard
disk drive.
Local area network (LAN). Assembly of separate computers into an
integrated network that connects the various computers together and
to common devices such as printers and fax machines.
Light Emitting Diode (LED). A semiconductor device that emits
light when a current is applied.
Liquid Crystal Display (LCD). liquid crystal sealed between two
sheets of glass coated with transparent conducting material. Applying
a voltage between the glass sheets darkens the liquid crystal to
provide contrast to lighted portions of the display.
Megabyte (MB). A unit of data storage equal to 1024 kilobytes.
Megahertz (MHz). a unit of wave frequency that equals 1 million
cycles per second.
Modem. A device that connects your computer to a telephone line,
allowing it to communicate with another computer at another
location.
PC Card. A plug-in accessory card that conforms to the PCMCIA
standard.
Pen. See stylus.
Peripheral device. An input/output device that is external to the
central processor and/or main memory such as a printer or scanner.
Pixel. Picture elements (tiny dots) that compose a screen image.
Port. The electrical connection through which the computer sends
and receives data to and from devices or other computers.
Program. A set of instructions a computer can execute to tell the
system what to do and how to do it.
Random Access Memory (RAM). A hardware component of your
computer that temporarily stores active program code and data.
Appendix C. Glossary
104 iX104C4 User’s Handbook
Reset. The act of hard stopping/shutting down the operating system.
Resolution. The number of pixels displayed on the screen. A higher
resolution provides greater clarity and allows more information to be
displayed on the screen at once.
Restart. Resetting a computer without turning it off (also called
warm boot or soft reset).
Resume. The act of returning the computer to an active, operational
state.
Read Only Memory (ROM). The portion of your computer’s
memory that contains permanent instructions, and which cannot be
modified.
Status Indicator (LED). a light above the LCD screen which
indicates the current status of a particular device or hardware
component.
Stylus. A writing instrument. For pen computers, the stylus is used to
interface with the LCD and digitizer.
Subscriber Identity Module (SIM). A smart card inside a GSM
(Global System for Mobile communications) cellular device that
encrypts voice and data transmissions and stores data about the
specific user so that the user can be identified and authenticated by
the network supplying the phone service. A SIM can be moved from
one device to another and/or different SIMS can be inserted into any
GSM radio.
Suspend mode. A power conservation mode in which electrical
current is removed from most components of the computer.
Universal Serial Bus (USB). A serial interface that enables
communication between devices and the computer.
iX104C4 User’s Handbook 105
DHardware Specifications
* Varies according to your computer’s configuration.
* Varies according to your computer’s configuration.
Physical
Dimensions 11.20” x 8.25” x 1.6” (WxHxD)
283.9mm x 209.3mm x 40.8mm
Weight 4.95 lbs. (2.50 kgs)*
Processing
CPU Intel® Pentium® M U2500 processor – Ultra Low
Voltage (5 W)*
Chip set Intel 945GME-533 MHz
Processor speed 1.2 GHz*
Memory/storage
Main RAM • 1GB DDR RAM (standard)
• 144-pin SODIMM modules
2GB modules (optional)
L1 Cache (CPU) 32KB on-die
L2 Cache 2MB on-die
BIOS ROM 8Mbit (FWH)
Hard Disk Drive 2.5” HDD shock mounted
120GB 2.5” IDE HDD
Ultra DMA 100, 5400 RPM
Appendix D. Hardware Specifications
106 iX104C4 User’s Handbook
Display
Display • Color LCD
• Active Digital Sensor and Pen (iX104C4)
and
Resistive Touch Panel (iX104C4 Dual Mode)
• 32-bit True color
• 10.4” TFT XGA (1024x768), 16M colors
• Brightness: 100 levels (min.)
• Viewing Angle:
- Horizontal: 30 degrees (min.)
- Vertical: 10 degrees (min.)
- Contrast Ratio: Typ. 250:1, Min 100:1
VRAM Intel 945GME chipset with 128MB shared memory
using Unified Memory Architecture (UMA) delivers
low-power, high-performance 3D/2D graphics, video,
and display capabilities. Dynamic Video Memory
Technology (DVMT) dynamically responds to
application requirements and efficiently allocates the
proper amount of memory (128MB maximum) for
optimal graphics and system performance.
Appendix D. Hardware Specifications
iX104C4 User’s Handbook 107
Interface
Wireless Radio Bays • One user-accessible Type 1 or Type II PC
Card slot (PCMCIA Cardbus version 3.0)
• Two mini-PCI Express slots
Integrated Interfaces • DC-in
• USB (2) 2.0
• Microphone Jack
• Headset Jack
•LAN (RJ-45)
• 15-pin D-SUB connector for external VGA
monitor (or optional 9-pin serial port)
KeyPad / User Controls • Application buttons with primary and
secondary functions
• Power On/Off/Suspend/Resume button
• Emergency Shutoff/Reset button
Audio • Realtec ACC 262
• On-board microphone with noise cancellation
• On-board integrated stereo speakers (1W
each)
Status Indicators Power, Charge/DC-in, Warning
Power
Main Battery • 6 cell
• Removable Lithium Ion
• 7.4V @ 5700mAh (41Whr)
• Warm-swappable
• Recharge Time: 2.5 hours (90%)
• Life: Up to 3.5 hours. (Battery life is
dependent on operating system, power
management, and applications in use.)
• Suspend Life: Min. 4 days
Appendix D. Hardware Specifications
108 iX104C4 User’s Handbook
Optional Spare Battery • 8 cell
• Removable Lithium Ion
• 7.4V @ 7600mAh (55Wh)
• Warm-swappable
• Recharge Time: 3.5 hours
• Life: Up to 4.5 hours. (Battery life is
dependent on operating system, power
management, and applications in use.)
• Suspend Life: Min. 5 days
• Off State: Approximately 30 days
Bridge Battery • 6-cell Li Ion, 45mAh
• Life: (with Suspend-to-RAM on bridge battery
only): 3 to 5 minutes from full charge
AC Adapter Auto-sensing 100-240V, supplying 19 VDC, with
a current of 3.75 A
Environmental
Temperature • Operating:
-4o to 140o F (-20o to 60o C)
• Storage:
-40o to 167o F (-40o to 75o C)
Humidity 0% to 95% non-condensing
Shock/Drop Four-foot drop to concrete, all surfaces, edges
and corners
Vibration 0.04g^2/Hz, 20 Hz - 1000 Hz
-6dB/octive 1000 Hz - 2000 Hz
Power (continued)
Appendix D. Hardware Specifications
iX104C4 User’s Handbook 109
Enclosure Class Blowing rain:
4”/hr, 40 mph wind and
MIL-STD-810F Method 506.4 Procedure 1
Drip:
7 gal/ft2/hr
MIL-STD-810F Method 506.4 Procedure III
Sand and dust:
Particle size < 149 µm, 10 + 7 g/m3 particle
density 1.5 m/s
to 8.9 m/s wind speed
MIL-STD-810F Method 510.4 Procedure 1
Salt Fog:
5% saline for 48 hr (12 hr wet, 12 hr dry, 2
cycles)
MIL-STD-810F Method 509.4
Contamination by fluids:
Detergents, brake fluid, aromatic hydrocarbons
MIL-STD-810F Method 504
Solar radiation:
1120 W/m2 (355 Btu/ft2/hr) UVB @ 50° C, 7x24
hr cycles
MIL-STD-810F Method 505.4
Agency approvals
EMC • FCC Class B
• European Union Directive 2004/108/EC
Safety • UL and CUL Listed, UL 1950, 3rd Edition
• TuV T-Mark, EN60950
• CSA and UL Listed, UL 1604
Environmental (continued)
Appendix D. Hardware Specifications
110 iX104C4 User’s Handbook
Operating system
Operating Systems • Microsoft Windows XP Professional Tablet
PC Edition
• Microsoft Windows Vista Business
iX104C4 User’s Handbook 111
EAgency Notices
FCC notices
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Modifications not expressly approved by Xplore Technologies could void this
user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
RF exposure
Tests for SAR are conducted using standard operating positions specified by
the FCC with the tablet PC transmitting at its highest certified power level in
all tested frequency bands. Although the SAR is determined at the highest
certified power level, the actual SAR level of the tablet PC while operating
can be well below the maximum value. This is because the tablet PC is
designed to operate at multiple power levels so as to use only the power
required to reach the network. In general, the closer you are to a wireless base
station antenna, the lower the power output.
Appendix E. Agency Notices
112 iX104C4 User’s Handbook
Before a tablet PC model is available for sale to the public, it must be tested
and certified to the FCC that it does not exceed the limit established by the
government-adopted requirement for safe exposure. The tests are performed
in positions and locations (e.g., worn on the body) as required by the FCC for
each model. (Body-worn measurements may differ among tablet PC models,
depending upon available accessories and FCC requirements). While there
may be differences between the SAR levels of various tablet PCs and at
various positions, they all meet the government requirement for safe
exposure.
This device was evaluated and shown to comply with FCC SAR guidelines.
Avoid covering or holding antennas when transmitting. Antenna locations are
shown in the following figure.
Health and Safety Information
Exposure to Radio Frequency (RF) Signals
Your wireless tablet PC is a radio transmitter and receiver. It is designed and
manufactured not to exceed the emission limits for exposure to radio
frequency (RF) energy set by the Federal Communications Commission of
the U.S. Government. These limits are part of comprehensive guidelines and
establish permitted levels of RF energy for the general population. The
guidelines are based on the safety standards previously set by both U.S. and
international standards bodies:
■American National Standards Institute (ANSI) IEEE. C95.1-1992
■National Council on Radiation Protection and Measurement (NCRP).
Report 86. 1986
Antennas
Bluetooth
antenna
Appendix E. Agency Notices
iX104C4 User’s Handbook 113
■International Commission on Non-Ionizing Radiation Protection
(ICNIRP) 1996
■Ministry of Health (Canada), Safety Code 6. The standards include a
substantial safety margin designed to assure the safety of all persons,
regardless of age and health.
The exposure standard for wireless mobile tablet PCs employs a unit of
measurement known as the Specific Absorption Rate, or SAR. The SAR limit
set by the FCC is 1.6W/kg.
Note: In the U.S. and Canada, the SAR limit for mobile tablet PCs used by
the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The
standard incorporates a substantial margin of safety to give additional
protection for the public and to account for any variations.
DOC (Industry Canada Notices)
Notice to Users of Radio and Television
This Class B digital apparatus meets all requirements of Canadian
Interference-Causing Equipment Regulations
CET appareil numérique de la class B respecte toutes les exigence du
Réglement sur le matérial brouilleur du Canada.
Notice to Users of the Canadian Telephone Network
Notice: This equipment meets the applicable Industry Canada Terminal
Equipment Technical Specifications. This is confirmed by the registration
number. The abbreviation, IC, before the registration number signifies that
registration was performed based on a Declaration of Conformity indicating that
Industry Canada technical specifications were met. It does not imply that
Industry Canada approved the equipment.
Before connecting this equipment to a telephone line the user should ensure
that it is permissible to connect this equipment to the local telecommunication
facilities. The user should be aware that compliance with the certification
standards does not prevent service degradation in some situations.
Repairs to telecommunication equipment should be made by a Canadian
authorized maintenance facility. Any repairs or alterations not expressly
approved by Xplore or any equipment failures may give the
telecommunication company cause to request the user to disconnect the
equipment from the telephone line.
Appendix E. Agency Notices
114 iX104C4 User’s Handbook
Notice: The Ringer Equivalence Number (REN) for this terminal equipment is
0.0. The REN assigned to each terminal equipment provides an indication of
the maximum number of terminals allowed to be connected to a telephone
interface. The termination on an interface may consist of any combination of
devices subject only to the requirement that the sum of the Ringer Equivalence
Numbers of all the devices does not exceed five.
UL Notice
This unit requires an AC adapter to operate. Use only UL Listed
Class 2 Adapters with an output rating of 19 VDC, with a current of 3.75 A.
AC Adapter output polarity:
For authorized repair technicians only
WARNING
For continued protection against risk of fire, replace only with the same
type and rating fuse.
WARNING
Danger of explosion if Lithium (clock) battery is incorrectly replaced.
Replace only with the same equivalent type recommended by the
manufacturer. Dispose of used batteries according to the
manufacturer’s instruction.
System disposal
In the event of system disposal, observe the following information regarding
proper procedures in the State of Vermont.
The liquid crystal display (LCD) lamps used in this system contain mercury.
In the event of system disposal, be sure to follow local guidelines.
a
a
iX104C4 User’s Handbook 115
FConfiguring Dual Mode Tablet Digitizer
Input Methods
This section explains how to use the BIOS Setup Utility and the Panel
Control Center to configure the iX104C4 Dual Mode tablet digitizer
input settings.
■Use the BIOS Setup Utility to set the default input method.
■Use the Panel Control Center to set controls for temporary
changes to input methods for single sessions.
The section “Summary: Dual Mode digitizer input method settings”
on page 121 provides an overview of settings to make in the BIOS
Setup Utility and the Panel Control Center to achieve various input
method configurations.
The section “Sample implementations” on page 126 explains how to
set up two sample configurations.
Appendix F. Configuring Dual Mode Tablet Digitizer Input Methods
Using the BIOS Setup Utility to set input method defaults
116 iX104C4 User’s Handbook
Using the BIOS Setup Utility to set input method defaults
Starting the BIOS Setup Utility
If your computer is running Windows XP:
When the computer is starting up, press the P2 key.
If your computer is running Windows Vista:
From the Start menu, select BIOS Setup Utility.
The BIOS Setup Utility window opens.
In this appendix, Windows
VIsta screens are shown. If
your computer is running
Windows XP, your screens
look a little different.
Appendix F. Configuring Dual Mode Tablet Digitizer Input Methods
Using the BIOS Setup Utility to set input method defaults
iX104C4 User’s Handbook 117
Selecting the digitizer input method
1. Select the Startup Configuration tab.
2. In the Digitizer Selection field, select the value from the
drop-down list as follows:
Value Description
Auto Enables automatic sensing (Auto Sense) of inputs
from touch and from the active pen.
Note: This is the default setting.
Touch Only Enables touch input only. Active digitizer, pen
inputs, and Auto Sense are all disabled.
Digitizer Only Enables inputs from the active pen only. Touch
input and Auto Sense are disabled.
Digitizer Selection
field
Appendix F. Configuring Dual Mode Tablet Digitizer Input Methods
Using the BIOS Setup Utility to set input method defaults
118 iX104C4 User’s Handbook
Setting digitizer input method security
Follow these steps to specify whether the tablet user can change the
digitizer input method settings:
1. In the BIOS Setup Utility, select the Password tab.
2. In the Password Setting field, select a value from the drop-down
list as follows:
3. Click OK.
4. Reboot the computer.
Value Description Notes
No passwords set Anyone can change the
digitizer input settings.
This setting is not
controlled by Windows
User groups.
Supervisor
password set only
A supervisor password
must be entered in order
to change the input
settings.
The supervisor
password must be
entered before the BIOS
Setup Utility will open.
User password set The user cannot change
the input settings.
Only the supervisor can
change the input
settings.
Appendix F. Configuring Dual Mode Tablet Digitizer Input Methods
Using the Panel Control Center to configure temporary changes to the input method
iX104C4 User’s Handbook 119
Using the Panel Control Center to configure temporary changes
to the input method
The Panel Control Center enables you to configure temporary,
session-based changes to the Dual Mode tablet input method.
Notes:
Administrator rights are not required to make temporary settings.
When the tablet is restarted, the temporary settings are lost and
the default values set in the BIOS Setup Utility are restored.
1. In the Windows taskbar, click the Panel Control Center icon.
2. Click the Configure button.
3. Click the Change button next to the P key for the function you
want to change.
4. Check Start a pre-defined function; then click Next.
Panel Control Center icon
Appendix F. Configuring Dual Mode Tablet Digitizer Input Methods
Using the Panel Control Center to configure temporary changes to the input method
120 iX104C4 User’s Handbook
5. From the drop-down list, select Digitizer Selection or Touch
Panel Toggle.
6. Click Close.
Value Description
Digitizer Selection If the digitizer input method is set to Auto in the
BIOS Setup Utility, toggles from Auto to Digitizer
Only to Touch Only.
Touch Panel Toggle If the digitizer input method is set to Auto or Touch
Only in the BIOS Setup Utility, temporarily disables
touch only.
Appendix F. Configuring Dual Mode Tablet Digitizer Input Methods
Summary: Dual Mode digitizer input method settings
iX104C4 User’s Handbook 121
Summary: Dual Mode digitizer input method settings
The following tables show the relationships of the BIOS Setup Utility and Panel Control
Center settings.
Table 9 Settings: Digitizer Only
BIOS Setup Utility
Digitizer Selection
value
Panel Control Center
Pre-defined Function
value
On-screen description
when key is pressed Notes
Digitizer Only Digitizer Selection “Digitizer Only” Input is possible only from
peripherals and the digitizer.
Digitizer is functional.
Appendix F. Configuring Dual Mode Tablet Digitizer Input Methods
Summary: Dual Mode digitizer input method settings
122 iX104C4 User’s Handbook
Table 10 Settings: Digitizer Only with Touch Screen disabled
BIOS Setup Utility
Digitizer Selection
value
Panel Control Center
Pre-defined Function
value
On-screen description
when key is pressed Notes
Digitizer Only Touch Screen Toggle “Digitizer Only” Input is possible only from
peripherals and the digitizer.
Touch screen is disabled.
Appendix F. Configuring Dual Mode Tablet Digitizer Input Methods
Summary: Dual Mode digitizer input method settings
iX104C4 User’s Handbook 123
Table 11 Settings: Touch Panel only
BIOS Setup Utility
Digitizer Selection
value
Panel Control Center
Pre-defined Function
value
On-screen description
when key is pressed Notes
Touch Only Digitizer Selection “Touch Panel only” Input is possible only from
peripherals and touch.
Touch is functional.
Appendix F. Configuring Dual Mode Tablet Digitizer Input Methods
Summary: Dual Mode digitizer input method settings
124 iX104C4 User’s Handbook
Table 12 Settings: Touch Panel off/on toggle
BIOS Setup Utility
Digitizer Selection
value
Panel Control Center
Pre-defined Function
value
On-screen description
when key is pressed Notes
Touch Only Touch Panel Toggle “Touch Panel off”
“Touch Panel on”
Turns the Touch Screen on or off.
Note: If Touch Screen is off and the
computer goes into standby or
hibernate mode, Touch Screen
automatically turns on when
operating mode returns to normal.
Appendix F. Configuring Dual Mode Tablet Digitizer Input Methods
Summary: Dual Mode digitizer input method settings
iX104C4 User’s Handbook 125
Table 13 Settings: Auto/Digitizer Only/Touch Only settings
BIOS Setup Utility
Digitizer Selection
value
Panel Control Center
Pre-defined Function
value
On-screen description
when key is pressed Notes
Auto Digitizer Selection “Auto”
“Digitizer only”
“Touch only”
Rotates through each mode,
displaying each mode in turn.
Appendix F. Configuring Dual Mode Tablet Digitizer Input Methods
Sample implementations
126 iX104C4 User’s Handbook
Sample implementations
This section provides settings for two sample configurations. See
“Using the BIOS Setup Utility to set input method defaults” on
page 116 and “Using the Panel Control Center to configure temporary
changes to the input method” on page 119 for information about how
to make the settings.
Sample 1
To set the tablet to the following configuration:
■Default digitizer input control is Touch only.
■The user can turn off the touch screen.
■The user cannot change any digitizer input control settings.
Configure settings as follows:
1. Use the BIOS Setup Utility to set a Supervisor password. (This
protects the digitizer selection and all other BIOS Setup Utility
controls.)
2. In Windows Administrator mode, use the Panel Control Center to
set one of the P keys to Touch Panel Toggle.
3. Use the Add new user function to create a user account.
Note: If the user already exists, the setting the administrator has
set replicates to all the users of the computer.
Sample 2
To set the tablet to the following configuration:
■Default digitizer input control is Auto Sense.
Appendix F. Configuring Dual Mode Tablet Digitizer Input Methods
Sample implementations
iX104C4 User’s Handbook 127
■The user can temporarily change the digitizer input control
settings.
■The user can change the default digitizer input control settings.
Configure settings as follows:
1. Do not use the BIOS Setup Utility to set a Supervisor password.
2. Use the Panel Control Center to set one of the P keys to Digitizer
Selection.
3. Use the Add new user function to create a user account.
Note: If the user already exists, the setting the administrator has
set replicates to all the users of the computer.
128 iX104C4 User’s Handbook
iX104C4 User’s Handbook 129
Index
A
Active mode, selecting 38
air flow vents, location 22
Auto Light sensor
disabling 46
location 19
antenna covers, location 21
Auto Power feature, disabling 100
Auto-Sense mode, selecting 38
B
battery alarm settings, changing 59
battery pack
charge time 55
charging 54
checking charge status 60
checking the charge 54
conserving power 65
installing 57
location 21
removing 55
battery release latch, location 21
BIOS Setup Utility, using 99
C
convection air flow cover, location 21
D
digitizer
calibrating 85
using to perform mouse functions 39
double-click, performing with pen 39
dragging and dropping, performing with pen 39
Dual Mode tablet digitizer input method,
setting up 115
E
email, starting 29
H
headphone connector, location 23
headphone volume, adjusting 51
headphone, connecting 51
Hibernation mode
description 33
enabling 61
hot keys, programming 70
I
input device, selecting 30, 38, 115
input method, Dual Mode tablet digitizer settings
changing 115
Internet Explorer, starting 29
iX104
accessories 16
preventing overheating 82
protecting from damage 81
storing 83
K
Kensington lock slot, location 22
keys
Ctrl-Alt-Del 29
description 29
Ctrl-Alt-Delete
location 28
descriptions 29
Function
description 29
location 28
Index
130 iX104C4 User’s Handbook
keys (continued)
Function mode hot key combinations
default functions 70
descriptions 30
P1
default function 70
description 29
location 28
P2
default function 70
description 29
location 28
P3
default function 70
description 29
location 28
Power (On/Off)/Backlight (On/Off)/Resume
location 22
Power On/Off/Suspend/Resume
location 64
programming hot keys 70, 71
to perform other key functions 77
to perform pre-defined functions 75
quick-start diagram 28
Screen Rotation
description 29
location 28
Secure Attention Sequence (SAS) 28
L
LAN connector, location 23
LCD backlight
disabling automatic control 46
enabling manual control 100
LEDs 26
Status LED meanings 26
left button click, performing with pen 39
local area network (LAN), connecting to 49
logging on 29
M
microphone
connecting external 50
connector location 23
location 19
volume, adjusting 50
monitor
activating 52
connecting 52
sending video display to 30
monitor connector, location 23
mouse functions, performing 39
O
online help, opening 29
P
pen
double-click speed, changing 40
dragging and dropping 39
holder, location 21
location 21
performing a double-click 39
performing a right-click 39
performing left button click 39
positioning in holder 41
replacing 84
tether, using 41
using 37
pen calibration program
opening 30
Power (On/Off)/Backlight (On/Off)/Resume key
location 64
power connector, location 23
Power On/Off/ Suspend/Resume key
location 22
power schemes, changing 59
power settings, changing 60
Index
iX104C4 User’s Handbook 131
power use, managing 58, 62
projection panel
activating 52
connecting 52
sending video display to 30
Q
quick-start guide 28
R
Reset switch
location 19
using 32
resuming operation 36
right-click, performing with pen 39
RJ-45 connector 23
S
screen
landscape mode 29
portrait mode 29
protecting 83
screen orientation
changing 44
landscape 44
portrait 44
screen protector
installing 84
removing 84
replacing 84
serial number, location 21
serial port
compatible devices 53
location 53
speaker volume, adjusting 51
speakers
connecting 51
location 19
storing the computer 83
support, contacting 17
Suspend mode
description 33
ending 36
starting 34
suspending operation 34
Suspend-to-RAM mode, description 33
T
Touch mode, selecting 38
troubleshooting 97
turning off the computer 32
turning on the computer 31
U
USB port, location 23
USB-compatible device, connecting 49
V
video output
changing from monitor to computer 52
changing to monitor 52
volume
adjusting headphone 51
adjusting microphone 50
adjusting speaker 51
W
Windows Task Manager, launching 29
X
XPL expansion module, connecting 53
XPL expansion port, location 25
Xplore Tablet Dock
docking connector location 24
Xplore Technologies, contacting 17
132 iX104C4 User’s Handbook
