Bluetooth Module
QBTM400
User’s Manual
Contents
1. Contents
2. Introduction
3. Bluetooth Basics
4. Installation Overview
4.1 Installation Procedures of Bluetooth Utility
2. Introduction
Thank you for purchasing Bluetooth Module. This manual will assist you with the
installation procedure.
The package you have received should contain the following items:
• Bluetooth Module
• User manual
• CD containing Wireless LAN Management utility and driver software.
Note: if anything is missing, please contact your vendor
The Bluetooth wireless function is based on CSR BlueCore4-ROM Single Chip
Bluetooth System, which implements the full speed class 2 Bluetooth operation with
full 7 slave piconet support. The interface of Bluetooth Module to host system is
USB and full compliant with USB 2.0.
3. Wireless Bluetooth Basics
Wireless Bluetooth systems offer a great number of advantages over a traditional,
wired system. Wireless Bluetooth are more flexible, easier to setup and manage and
often more cost effective than their wired equivalence.
Using radio frequency (RF) technology. Bluetooth transmits and receives data over
the air, minimizing the need for wired connections. Thus, Bluetooth combines data
connectivity with user mobility, and, through simplified configuration, enable
movable LANs.
With wireless Bluetooth, users can access shared information without looking for a
place to plug in and network managers can set up or augment networks without
installing or moving wires. Wireless Bluetooth offers the following productivity,
convenience and cost advantages over traditional wired networks.
• Mobility – Wireless Bluetooth systems can provide LAN users with access to
real-time information anywhere in their organization. This mobility
supports productivity and service opportunities not possible with wired
networks.
• Installation Speed and Simplicity – Installing a wireless Bluetooth system can be
fast and easy and can eliminate the need to pull cable through walls
and ceilings.
• Installation Flexibility – wireless technology allows the network to go where wires
cannot go.
• Reduced Cost-of-Ownership – While the initial investment required for wireless
Bluetooth hardware might be higher than the cost of wired LAN
hardware, overall installation expenses and life-cycle costs will be
significantly lower. Long- term cost benefits are greatest in dynamic
environments requiring frequent moves, adds, and changes.
• Scalability – Wireless Bluetooth systems can be configured in a variety of
topologies to meet the needs of specific applications and installations.
Configurations are easily changed and range from peer-to-peer
networks suitable for a small number of users to full infrastructure
networks of thousands of users that allows roaming over a broad area.
4. Installation and Overview
Here are some steps you will perform in establishing your wireless network
connection:
• Install Bluetooth Utility using the Installation CD.
![](/img.php?id=1059105&img=bg6.png)
4.1 Installation Procedures of Bluetooth Utility

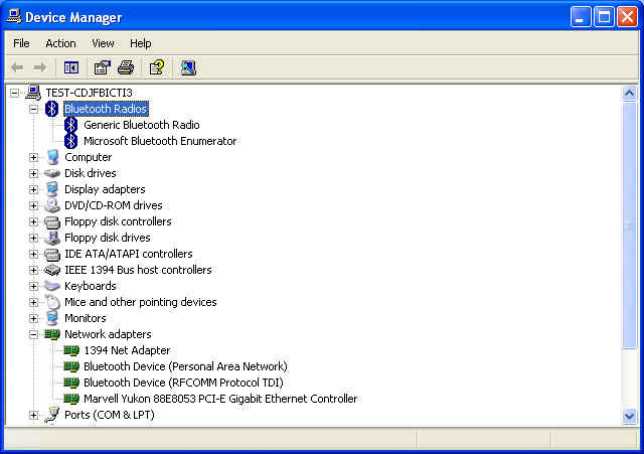

Under your windows environment, go to Start Æ Settings Æ Control Panel Æ
System Æ Hardware Æ Device Management to check whether Bluetooth Radios
is detected.
![](/img.php?id=1059105&img=bg7.png)
4.2 Installation Driver and Bluetooth Utility

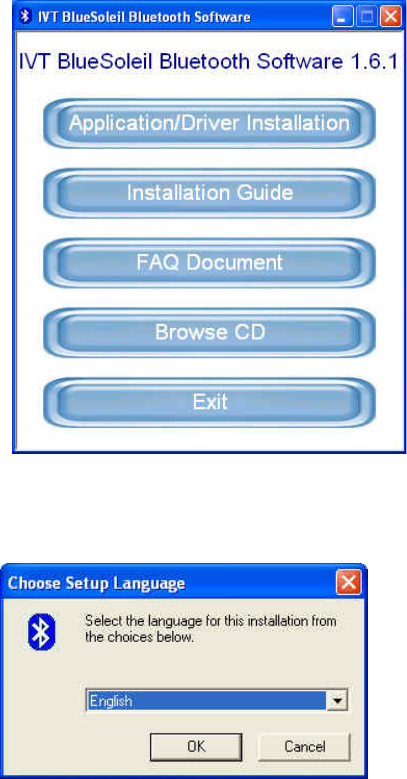

1. Insert the installation CD into your CD-ROM drive.
The Main Menu would display, select Application/Driver Installation.
2. Choose Setup Language
![](/img.php?id=1059105&img=bg8.png)

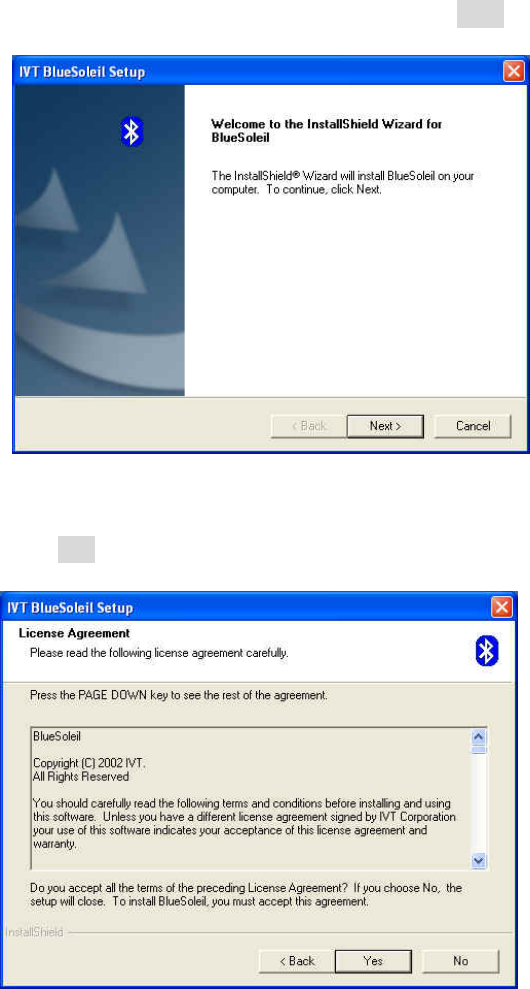

3. The welcome window will appear, please click Next
4. Click Yes button to accept the terms in the license agreement
![](/img.php?id=1059105&img=bg9.png)

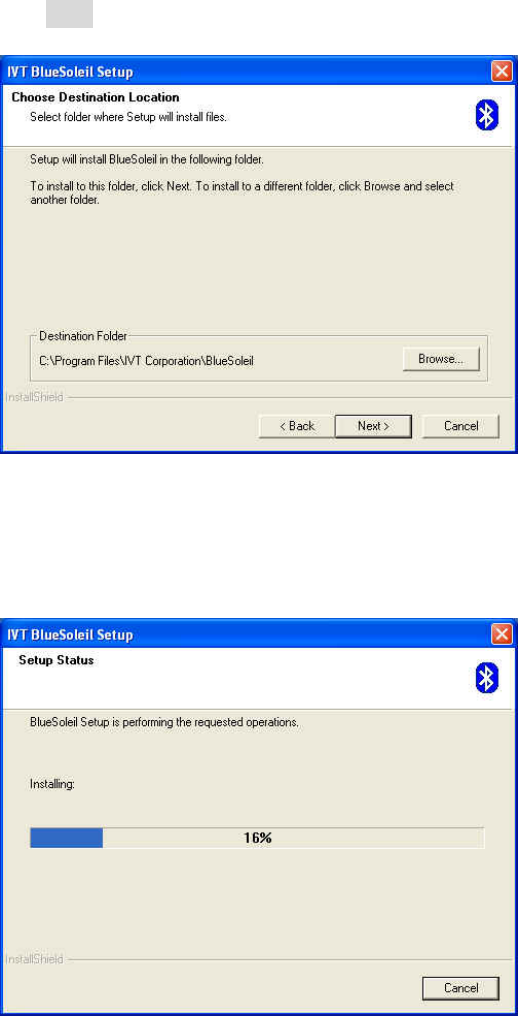

5. Click Next to install to this folder
6. Wait, while BlueSoleil Setup is performing the request operations.
![](/img.php?id=1059105&img=bga.png)

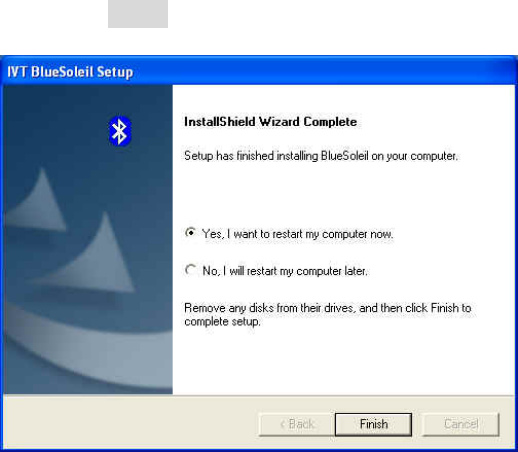

7. Please click Finish to complete the Bluetooth installation
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by
the party responsible for compliance could void the user's authority to
operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment.
This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
![](/img.php?id=1059105&img=bgc.png)
This device is intended only for OEM integrators under the following
conditions:
1) The transmitter module may not be co-located with any other transmitter or
antenna.
As long as conduction above is met, further transmitter test will not be required.
However, the OEM integrator is still responsible for testing their end-product
for any additional compliance requirements required with this module installed
(for Notebook).
IMPORTANT NOTE: In the event that these conditions can not be met (for
example certain laptop configurations or co-location with another transmitter),
then the FCC authorization is no longer considered valid and the FCC ID can
not be used on the final product. In these circumstances, the OEM integrator
will be responsible for re-evaluating the end product (including the transmitter)
and obtaining a separate FCC authorization.
End Product Labeling
The final end product must be labeled in a visible area with the following:
“Contains TX FCC ID: RUJ-QBTM400”.
Manual Information That Must be Included
The OEM integrator has to be aware not to provide information to the end user
regarding how to install or remove this RF module in the users manual of the
end product which integrate this module.
The end users manual for OEM integrators must include the following
information in a prominent location “ IMPORTANT NOTE: To comply with FCC
RF exposure compliance requirements. The antenna must not be co-located
or operating in conjunction with any other antenna or transmitter.
