Y CAM SOLUTIONS YPARE01 Y-cam Protect Remote User Manual
Y-cam Solutions Ltd Y-cam Protect Remote Users Manual
Users Manual
YPARE01 is mini wireless remote controller with 4 keys;
it is one of important accession of our company and has
the function of controlling the wireless products.With special
outlook,it can be decoration and convenient for taking.It
is easy for using,has high sensibility in 120 meters.After
coding with wireless products,it controls wireless products.
Emergency bottom key for you to send out emergency
immediately.For better protection of your security,it is good
choice for your smart home system.
Model number:
Using range: 120m( in the open place)
Frequency: 433MHz
Working voltage: 3V (1*CR2450 button battery)
Quiescent current: ≤1μA
Working current: ≤15mA
Prompt: The LED light is red when transmitting.
Working environment: -10℃-60℃(14℉-140℉)
YPARE01
A.4 independent function keys
B.For fast arm/disarm,easy and convenient,emergency
call,safe and covert.
C.Scientific address code with millions of combination,
which enable all the remote controller to be exclusive
one,without permitting,it is impossible to copy our
wireless products.
E.Low consumption for transmitting,indication for signal
output visible.
F.Compatible with all our 433MHz wireless products.
— 1 —

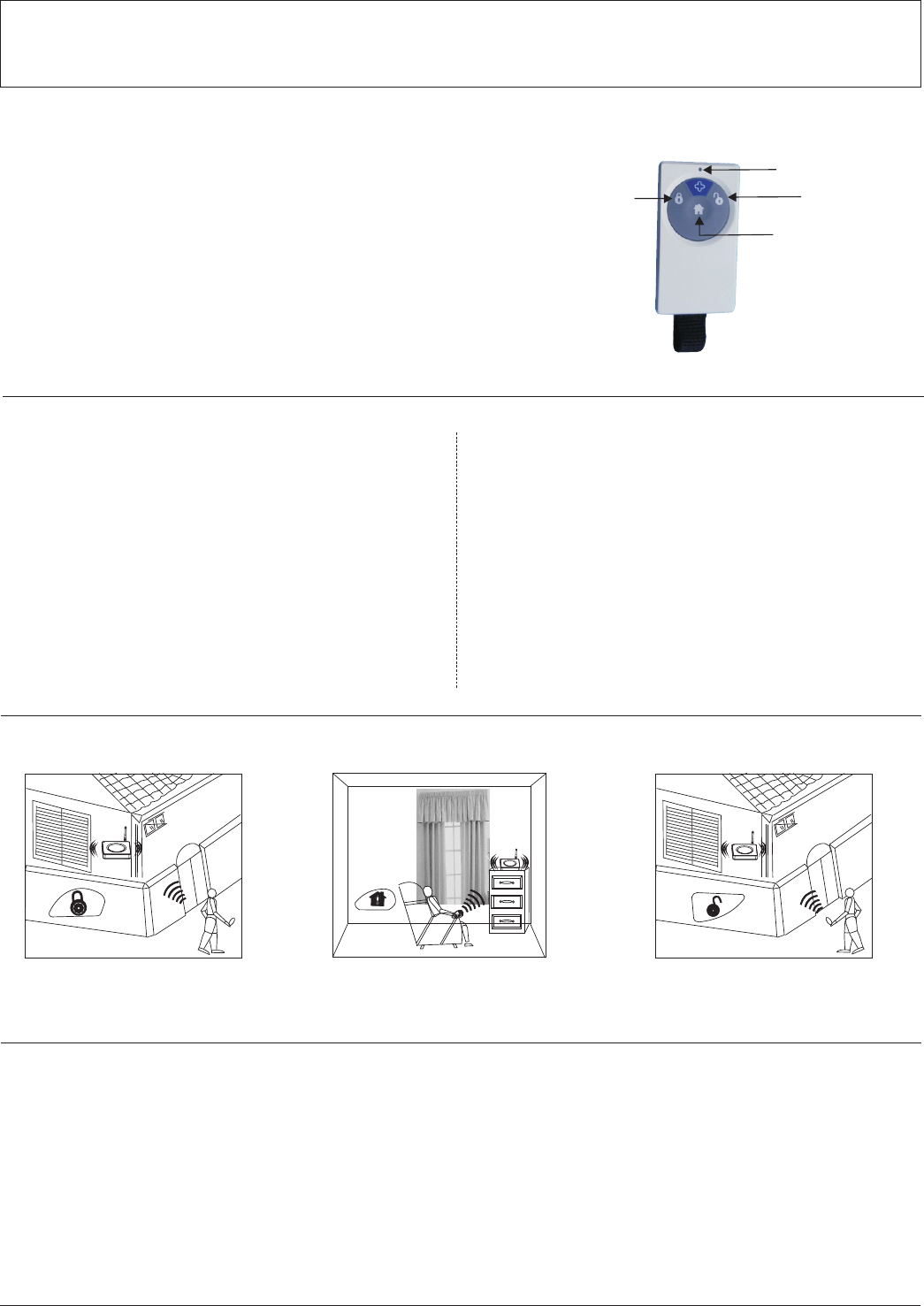

Away Disarm
YPARE01
2.Specification 3. Main function
1.Brief
4.Using
Home
1.For away arm,press the key
AWAY for 2 seconds.
2.For at home arm,press the key
HOME for 2 seconds.
3.For disarm, press the key
DISARM for 2 seconds.
Away Disarm
Home
5.Coding
A. Make enter the working mode,press any button on the remote control to send wireless signal,at the
moment the panel will automatically learn the code of the remote control,then click save.
B. The user can also manually enter the address code directly,so the probability of error will be smaller.For example,
you set the panel on manually adding mode of remote control,then enter the 9-digit address code on the remote control
label.
YPARE01
P/N:20170427A01
LED indicator
— 2 —
6.Test
When finished in the factory, has build-in batteries.Before testing,we will need to code wireless products
with ,for the coding details,please view the CODE SETTING of the manual of wireless products.The testing
process as following:
1.Keep the distance of YPARE01 from the wireless products above 3 meters;press the key with lock picture one the
remote controller for 1 second.
2.Confirm the wireless products have the same response,such as hear the hint voice.
3.Operate in the corner of covered zone of wireless products,such as the place blocked by wall and large object,to
see if the system has the same hint voice.
YPARE01
YPARE01
8.System limited
Our wireless products are reliable,while in certain situation,our system will be limited,the situation can be some
one as below:
1. The receiver signal is blocked or does not match the frequency of the remote control.
2. There is the same frequency interference.
3. The voltage of panel is unstable or the receiving distance is too large.
Note: If the unauthorized operation by the customer cause the problem, our company is not responsible.
7.Change batteries
The batteries should be changed every year,or the signal may fade in the process of transmitting.The batteries
should be 1 piece of CR2450 button battery,please follow the below steps to change the batteries.
1. Use your hand to pry the back cover at the opening on the left lower side of the front of the remote control.
2.Fetch the back cover and pull out the old batteries.
3.Input the new batteries,pay attention to the anode and cathode.
4.Fix the back cover.
5.Test the installed batteries:press any key,the LED lamp on the remote controller lighting.
positive
electrode
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority
to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications.However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help .
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions :
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
FCC WARNING
