USB Card Reader v3 Administrator’s
Guide
Author: Nováek Štpán
Date: August 19, 2016
USB Card Reader v3 Administrator’s Guide YSoft SafeQ 6
3 of 15
Table of Contents
1 INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.1 PURPOSE OF DOCUMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2 VALIDITY OF DOCUMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.3 GOALS AND OBJECTIVES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.4 TERMS AND ABBREVIATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.5 PREREQUISITE KNOWLEDGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.6 DISCLAIMER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2 OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.1 SYSTEM OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.2 HARDWARE COMPONENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.3 USB CARD READER SPECIFICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3 CONFIGURATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
4 Configuration of the USB reader by usbrdrtool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
5 Card reader configuration screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5.1 USB keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5.2 USB serial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
6 Action 3 - Setting card reader protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
6.1 Card reader testing screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
6.2 Card reader Update firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
6.3 Card reader Update Service firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
6.4 Card reader settings for downloadeing the log files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
6.5 Card reader USBRDRTOOL starting with predefined commands . . . . . . . . . . . . . . . . . . . . . . . . . 14
6.6 Information BeeP codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
USB Card Reader v3 Administrator’s Guide YSoft SafeQ 6
4 of 15
1. INTRODUCTION
1.1. PURPOSE OF DOCUMENT
This documentation provides essential information on installation and configuration of YSoft SafeQ® USB
Card Reader verison 3.
1.2. VALIDITY OF DOCUMENT
This document applies to YSoft SafeQ® USB Card Reader v3.
1.3. GOALS AND OBJECTIVES
The YSoft SafeQ® USB Card Reader v3 that could be simply connected to the multi-functional device and
serves for user authentication using card. Card must be assigned to any user in the YSoft SafeQ system.
After the successful authentication the user is able to manipulate with device and perform his print jobs,
copy jobs or scan jobs (depends on the device).
The YSoft SafeQ® USB Card Reader v3 could be also connected to workstations and can be used with the
credit charger application or with the SQ client for authentication.
1.4. TERMS AND ABBREVIATIONS
MFD - Multi-Functional Device
USB Card Reader v3 - YSoft SafeQ® USB Card Reader version 3
1.5. PREREQUISITE KNOWLEDGE
The person who installs USB Card Reader v3 must meet the following requirements:
knowledge of the YSoft SafeQ system (installation / administration / attendance)
knowledge of OS Win 2000, Win 2003 (installation / administration)
1.6. DISCLAIMER
The user that makes changes or modifications not expressly approved by the party responsible for
compliance (Y Soft Corporation a.s.) could void the user’s authority to operate the equipment
NOTE: This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications or changes to this equipment. Such modifications or
changes could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
‐Reorient or relocate the receiving antenna.
‐Increase the separation between the equipment and receiver.
‐Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
‐Consult the dealer or an experienced radio/TV technician for help.
This device complies with Industry Canada’s licence‐exempt RSSs. Operation is
subject to the following two conditions: (1) This device may not cause interference;
and (2) This device must accept any interference, including interference that may
cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions
suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de
l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
USB Card Reader v3 Administrator’s Guide YSoft SafeQ 6
5 of 15
2. OVERVIEW
2.1. SYSTEM OVERVIEW
YSoft SafeQ® USB Card Reader has following characteristics:
Connection and power supply of the card reader via the USB host interface.
Exchange of card reader possible without MFP turning off (hot-plug)
Compatibility with some MFD additions.

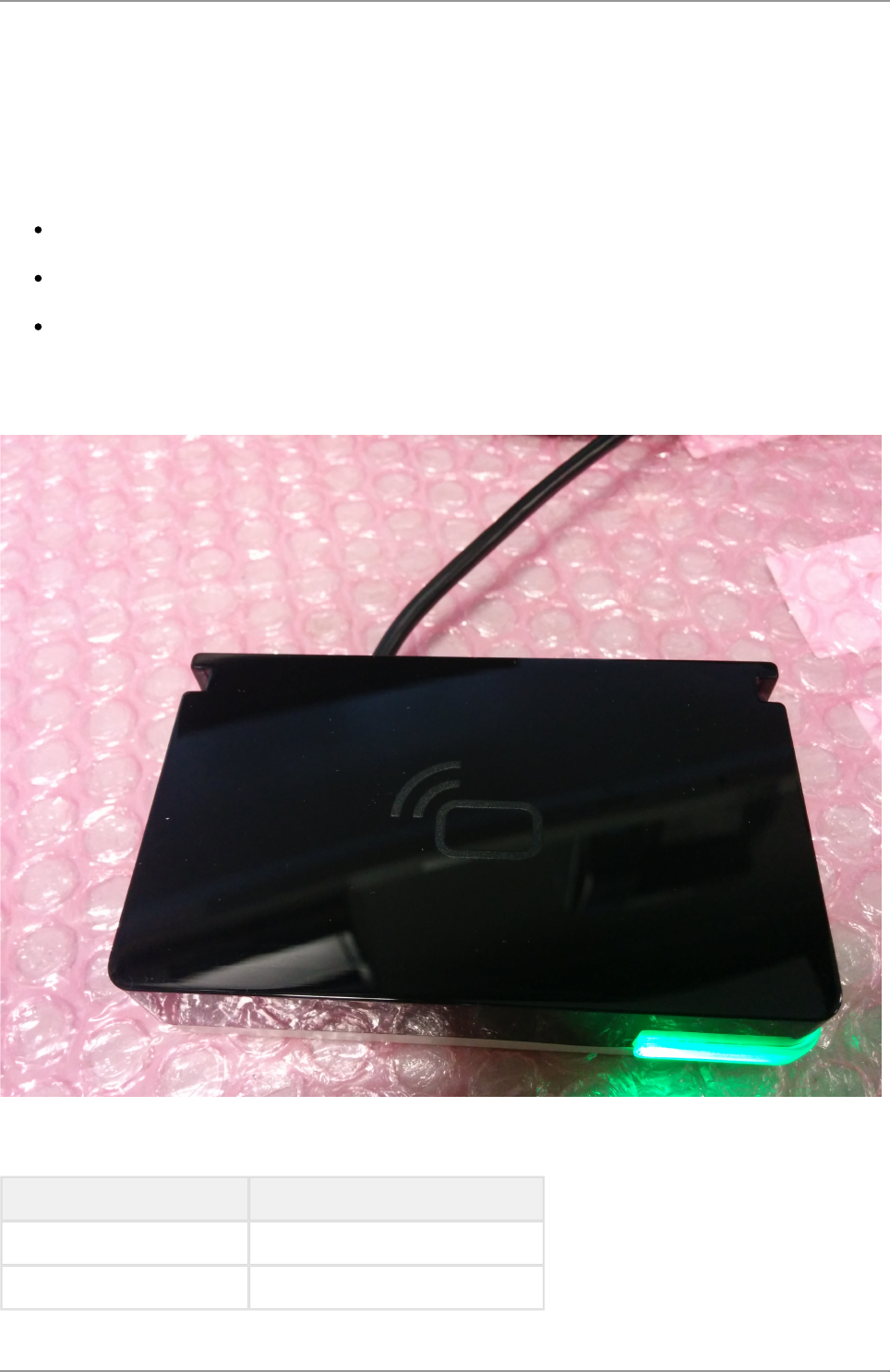

2.2. HARDWARE COMPONENTS
2.3. USB CARD READER SPECIFICATION
Parameter Value
Identification Using a card reader
Voltage 5V DC
USB Card Reader v3 Administrator’s Guide YSoft SafeQ 6
6 of 15
Parameter Value
Maximum current input 0.5A
Working temperature +5°C to +35°C
Storage temperature 0°C to +50°C
Working air humidity 20% to 85% without
condensation
Storage air humidity 8% to 85% without condensation
Resistance to magnetic
field
no added resistance
USB Card Reader v3 Administrator’s Guide YSoft SafeQ 6
7 of 15
3. CONFIGURATION
USB Card reader v2/v3 can be configured only with software utility called "usbrdrtool". The software runs in
a system console. It is not a gui application, it is an application running in text mode.
The configuration tool is designed for USB readers v2/v3 only!
usbrdrtool
The prerequisites:
usbrdrtool
Windows 2000 and higher
Linux kernel 2.4 or higher with glibc 2.3.2 or higher
Root access on Linux or possibility of sudo
usbfs support for libusb-0.12 library on Linux
usbrdrtool.exe (WIN32) or usbrdtool (Linux) exacutable binaries
Note: The program requires "root" privileges under Linux, therefore it must be run as user root or sudo must
be used.
The purpose of the is:
usbrdrtool
Show information about connected USB readers.
Set basic parameters of each reader such as USB reader class type, reader protocol, debug mode
etc.
Card testing for verifying correct reader functionality and reading distance.
Display of card type during testing (with readers where applicable)
Update of USB reader normal firmware.
Update of USB reader service firmware.

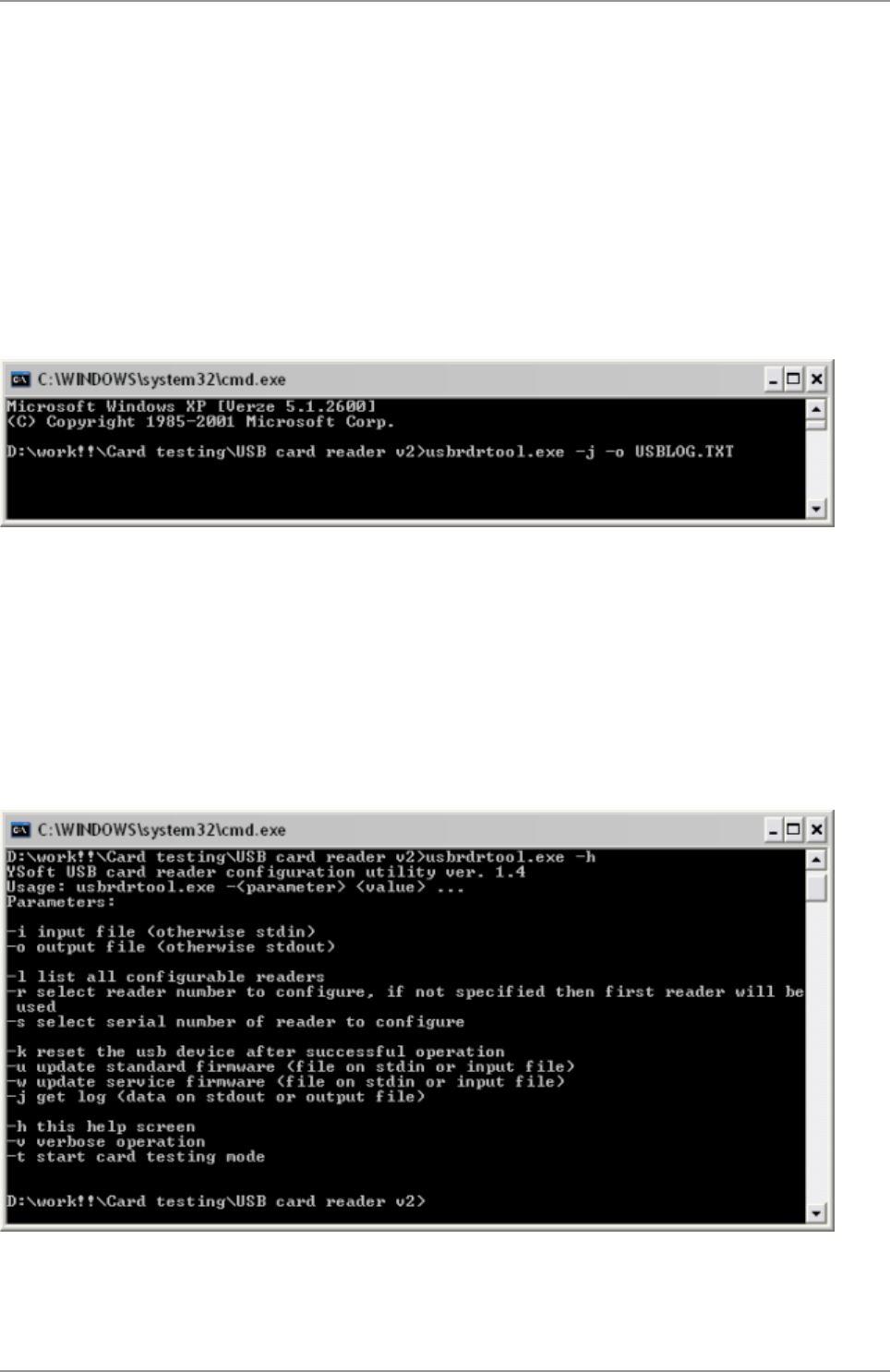

Download log from USB reader for debugging purposes.
USB Card Reader v3 Administrator’s Guide YSoft SafeQ 6
8 of 15
4. Configuration of the USB reader by usbrdrtool
Start the under your operation system. When the program is run without any command line
usbrdrtool
parameter the following screen is shown. The main menu should appear with the selection you want to do.

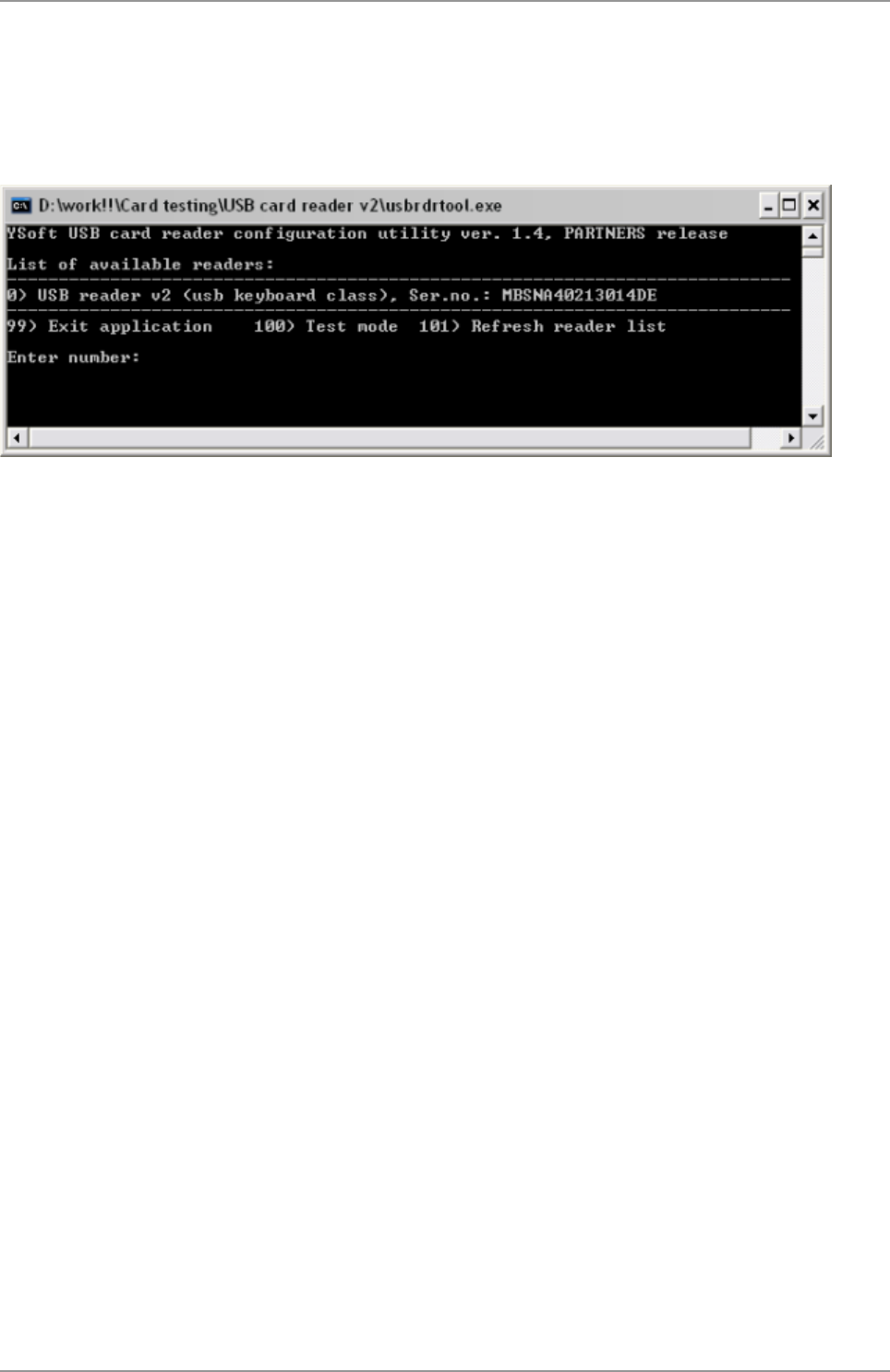

Picture 6 – Main menu
Here can user select the following numbers depends on the intervention administrator wants to do.
USB Card Reader v3 Administrator’s Guide YSoft SafeQ 6
9 of 15
5. Card reader configuration screen
When administrator selects the number of the reader from the reader list, the reader configuration screens
will be shown with general information about reader and following steps for next administration:

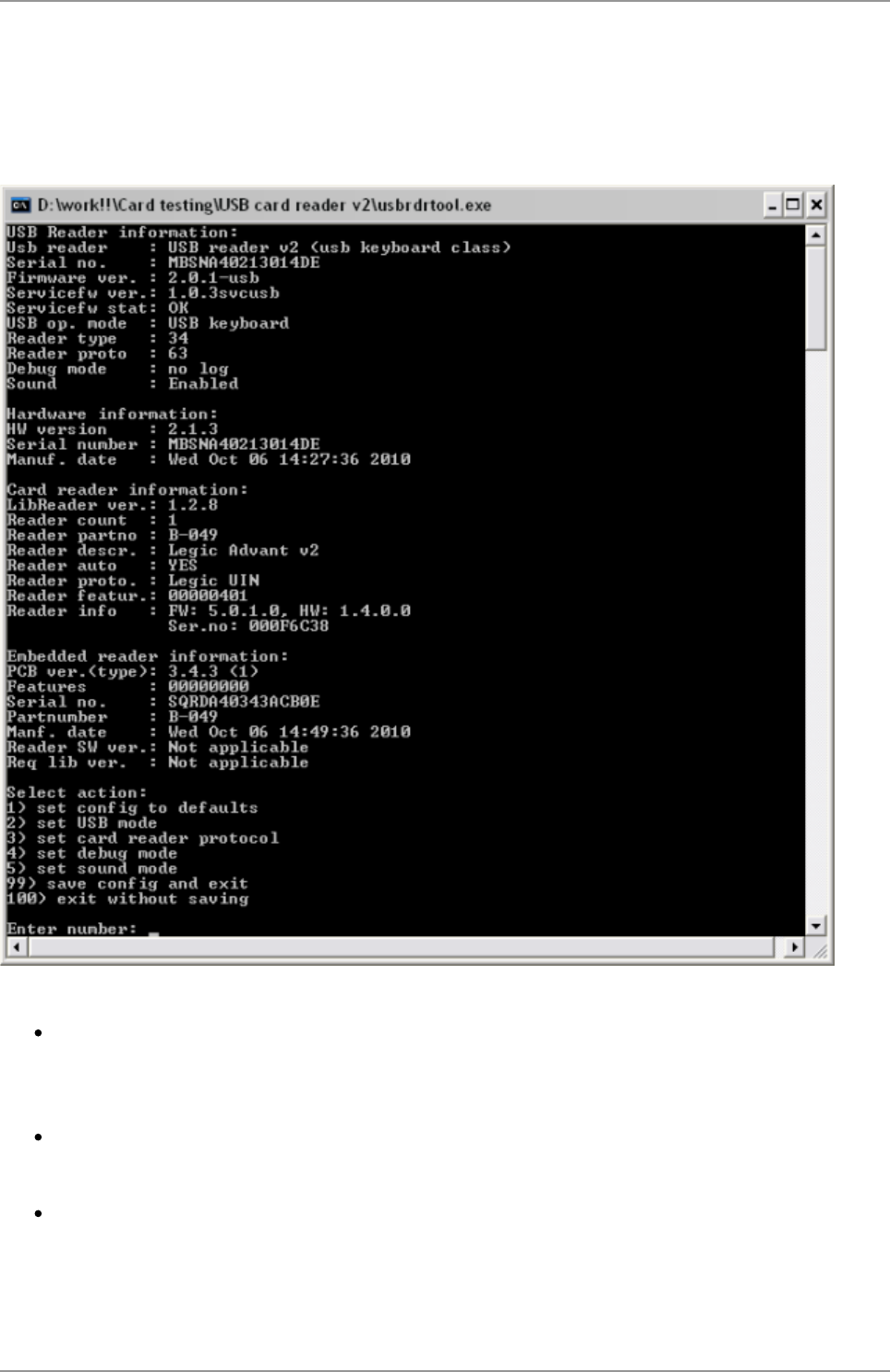

Picture 7 - Reader configuration screen
Action 1 sets the USB reader configuration to defaults. This includes USB mode, reader protocol,
debug mode and other parameters. This option does not format data that are stored on USB reader
internal file system.
Action 2 sets USB mode. This option is available onlyfor specific OEM USB reader type. Available
usb modes are described in chapters 4.2.1 and 4.2.2.
Action 3 sets card reader protocol. For some card readers it is necessary to enable support for
another card types. Default card reader protocol is 0 which means that the reader default protocol will
be used. If invalid card reader protocol is selected then the default protocol will be used.
USB Card Reader v3 Administrator’s Guide YSoft SafeQ 6
10 of 15
Note: Please see Y Soft Card Readers Protocols.pdf for more details about card reader protocols. This*.
pdf
file is always attached to the zip file with released FW of the USB reader.
Action 4 enables debugging in case something goes wrong with the reader (for example hang-up or
reboot or anything similar). Please note that debugging enabled causes wear-out of the internal
flash so enable it only in cases when it is necessary!
Action 5 enables or disables sound on the USB reader. Please note that there is no visual
identification of successful card reading so users in some cases cannot guess what may be
wrong if the card reader makes no sound
Action 99 returns user to the previous menu. If any changes are made, the card reader is rebooted
and the changes are applied.
Action 100 returns user to the previous menu. If any changes in settings are made they are
discarded and original settings remain.
5.1. USB keyboard
USB keyboard – Optional mode
In this mode the USB reader works as a standard USB keyboard and can be switched to mode 3 only.
NOTE:
Typing of the keys is emulated as numeric keypad for 0-9 and A-F keys on standard EN/US keyboard
layout. If the card number contains any other characters, they are ignored. Caps-lock and Num-lock are
enabled and disabled if necessary and returned back to previous state after the card number is read.
The "Shift", "Ctrl", "Alt" keys must not be held during card placing or it will collide with caps-lock
and num-lock setting and incorrect card number will be read
If a national keyboard layout is used (such as French, Russian, Chinese or other) a wrong card
number will be entered. In such cases a switch to US/EN keyboard layout is necessary before
placing the card.
5.2. USB serial
USB serial – Optional mode
This mode emulates operation of COM port and can be switched to mode 1 only.
On Windows platform the installation of the USB reader in this mode requires file. This file is
usb2-reader.inf
distributed along with the application and should be selected in the "new hardware" wizard after
usbrdrtool
the USB reader plugging/reconfiguration.
On Linux platform the driver for the serial port is installed automatically.
Card testing in application will work in this mod
usbrdrtool
USB Card Reader v3 Administrator’s Guide YSoft SafeQ 6
11 of 15
6. Action 3 - Setting card reader protocol
When you are on the main page select appropriate number of the reader. If you want to change card reader
protocol for specified reader type (selected number), then you need to open the value 3 "Set card reader
protocol"

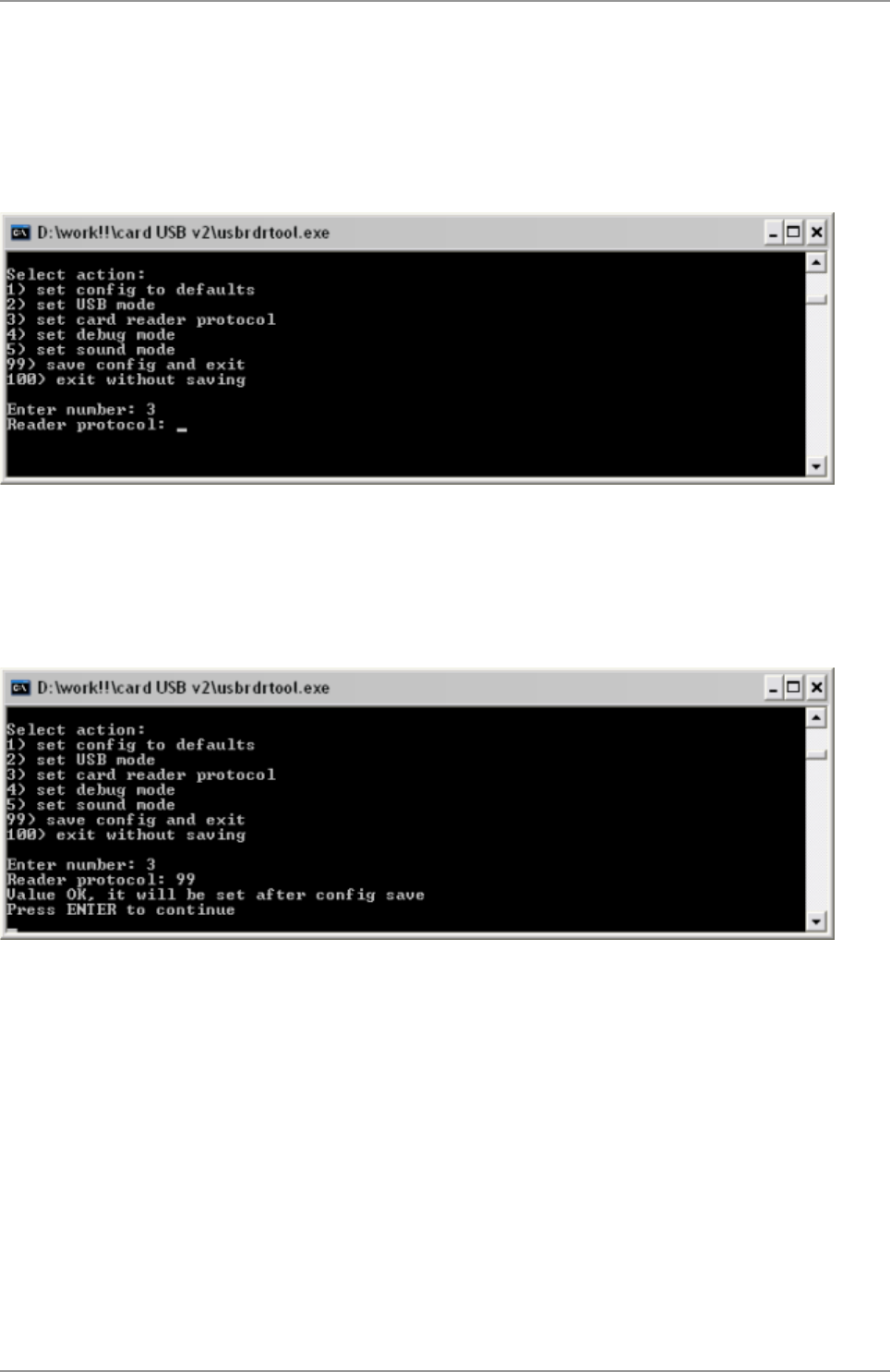

Picture 8 - Selecting of card reader
To choose appropriate reading protocol, please see Y Soft Card Readers Protocols.pdf for more details
about card reader protocols. This*. pdf file is always attached to the zip file with released FW of the USB
reader.
Select the number and confirm by "enter" confirmation.
Picture 9 - Reader protocol confirmation
After selecting the appropriate number of protocol, you will be navigated to submenu page, when you need
to save currently changed settings. Select "99" to save settings for changed reading protocol and confirm.
USB Card Reader v3 Administrator’s Guide YSoft SafeQ 6
12 of 15
Picture 10 - Saving of changes after protocol change
6.1. Card reader testing screen
Card testing screen menu can be started by number 100 from the main menu. See Picture 6 – Main menu.
When testing window will appear you can test the reader by placing a card above the reader.

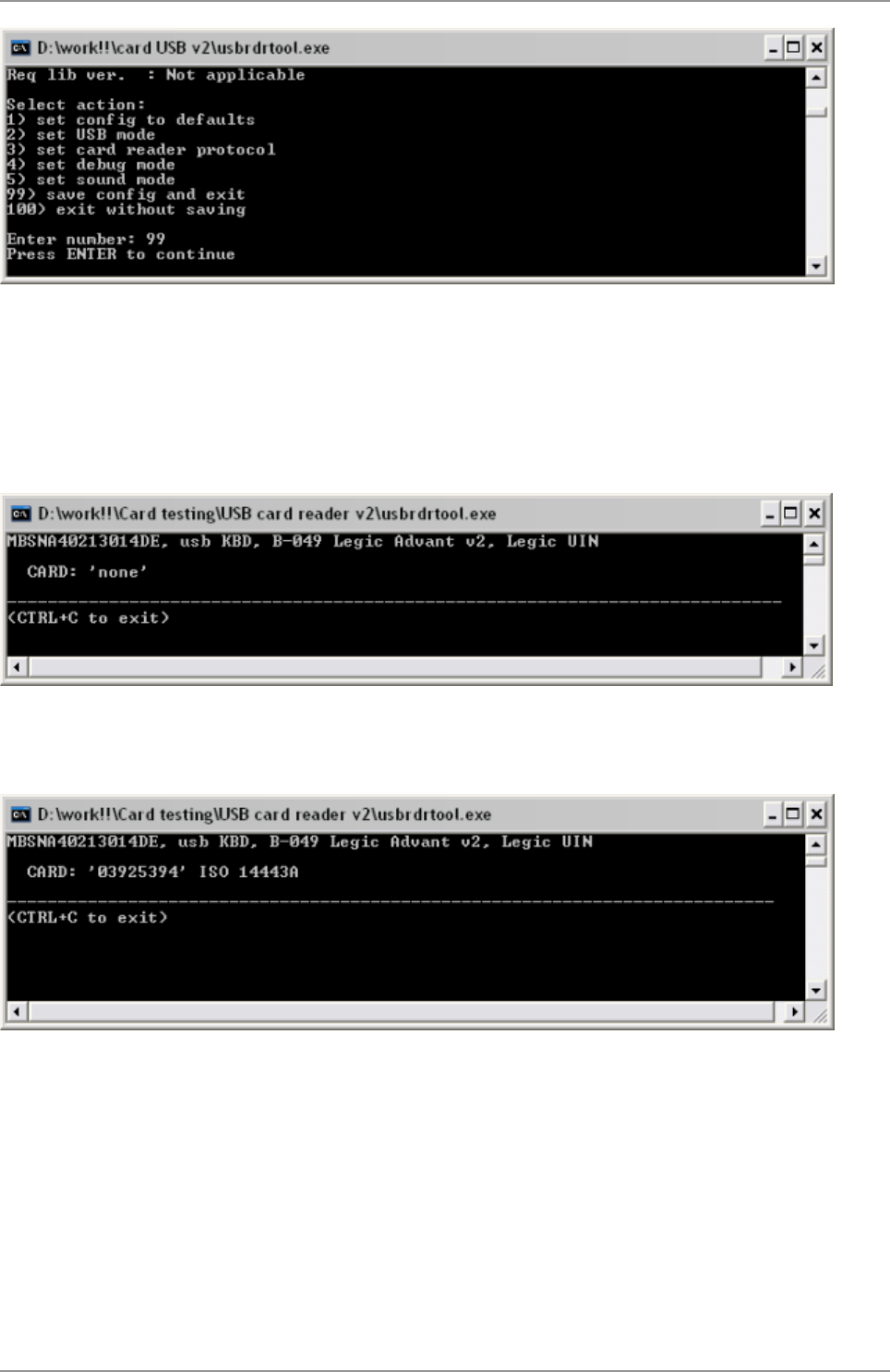

Picture 11 - Test card window 1
Reader should display result from reading inside this window like example on the Picture 12 - Card testing
result.
Picture 12 - Card testing result
Multiple card readers can be tested at once. The screen automatically recognizes disconnected and newly
connected readers so it may be used for mass-production card reader testing.
If the connected reader supports card presence detection then the card number and type is visible only
when the card is placed at the card reader.
If the connected reader does not support card presence detection, a "tmout" is displayed.
USB Card Reader v3 Administrator’s Guide YSoft SafeQ 6
13 of 15
The card number will be automatically erased after a couple of seconds of inactivity. This feature is intended
to make sure that the reader works properly and card numbers are read correctly every time a card is
placed.
Please note that displaying the correct card type depends on card reader used and card reader protocol set.
Before using as a tool for customer card testing please consult USB card reader testing
usbrdrtool
guidelines.
It is also possible to start the card testing screen directly by specifying -t command line option to the
application.
usbrdrtool
6.2. Card reader Update firmware
Update of firmware for USB card reader can be done by issuing the following command in the Windows
command like (CMD) or on Linux OS:
Windows:
usbrdrtool.exe -u -i usb2-2.0.1.fw --k

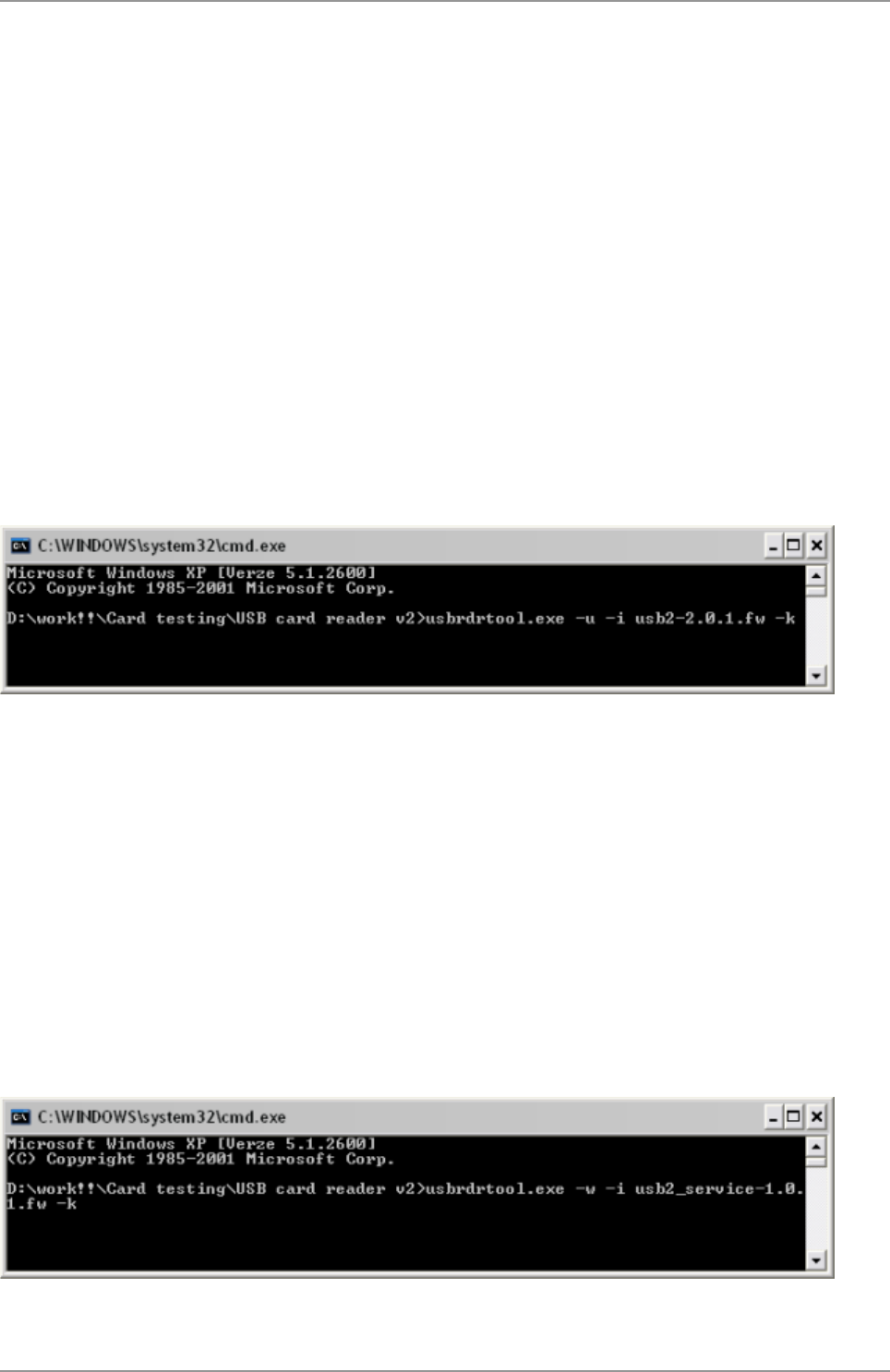

Picture 13 - FW update example
Linux:
sudo ./usbrdrtool -u -i usb2-2.0.1.fw -k
'-k' option will cause the new firmware to be booted after successful update.
Note: This command can be run form CMD windows or Linux, this is not a command inside the usbrdrtool.
6.3. Card reader Update Service firmware
Update of service firmware for USB card reader can be done by issuing the following command in the
Windows command like (CMD) or on Linux OS:
Windows:
usbrdrtool.exe -w -i usb2_service-1.0.1.fw -k
Picture 14 - Example of the service firmware update
USB Card Reader v3 Administrator’s Guide YSoft SafeQ 6
14 of 15
Linux:
sudo ./usbrdrtool -w -i usb2_service-1.0.1.fw --k
'-k' option will cause the new firmware to be booted after successful update.
Note: This command can be run form CMD windows or Linux, this is not a command inside the usbrdrtool.
6.4. Card reader settings for downloadeing the log files
For the configuration of USB card reader to downloading log files from the reader is possible to run following
command in the Windows command like (CMD) or on Linux OS:
Windows:
usbrdrtool.exe -j -o USBLOG.TXT
Picture 15 - Get log enabling
Linux:
sudo ./usbrdrtool -j -o USBLOG.TXT
Note: Please note that logging must be enabled before using this function
6.5. Card reader USBRDRTOOL starting with predefined commands
Administrator can start the USB card reader configuration with predefined usage. The pre-configuration list
is listed bellow as command lines parameters. For example write in cmd windows command line:
Picture 16 -Command line starting with pre-configuration
USB Card Reader v3 Administrator’s Guide YSoft SafeQ 6
15 of 15
In the Linux OS the usage is similar with command:
./usbrdrtool -<parameter> <value> ...Usage:
Parameters:
-i input file (otherwise stdin)
-ooutput file (otherwise stdout)
-l list all configurable readers
-r select reader number to configure, if not specified then first reader will be used
-sselect serial number of reader to configure
-k reset the usb device after successful operation
-u update standard firmware (file on stdin or input file)
-w update service firmware (file on stdin or input file)
-j get log (data on stdout or output file)
-h this help screen
-v verbose operation
-t start card testing mode
6.6. Information BeeP codes
Here is the list of beep codes, which give the result on the behavior of USB reader v2/v3.
Legend:
- Long beep sound
. Short beep sound
Sound Behavior
- Card read error. Please try placing the card again or use the different
card.
...- Hardware configuration damaged cannot continue in booting
.-.- Update of firmware failed.
--.- Software configuration cannot be saved. Probably faulty onboard eeprom.
..-- Software configuration damaged, loading defaults.
.--- Firmware damaged.
-... No reader connected and reader required for correct functionality.
-.-. Service firmware damaged, re restore required.
.--. Error in reader power-up sequence.
Note: This option is available only if sound is enabled
.
