YEALINK T21P IP Phone User Manual

YEALINK (XIAMEN ) NETWORK TECHNOLOGY CO., LTD. IP Phone Users Manual

User Manual

i
ii
Copyright © 2013 YEALINK NETWORK TECHNOLOGY CO., LTD
Copyright © 2013 Yealink Network Technology CO., LTD. All rights reserved. No parts of this
publication may be reproduced or transmitted in any form or by any means, electronic or
mechanical, photocopying, recording, or otherwise, for any purpose, without the express written
permission of Yealink Network Technology CO., LTD. Under the law, reproducing includes
translating into another language or format.
When this publication is made available on media, Yealink Network Technology CO., LTD. gives
its consent to downloading and printing copies of the content provided in this file only for private
use but not for redistribution. No parts of this publication may be subject to alteration,
modification or commercial use. Yealink Network Technology CO., LTD. will not be liable for any
damages arising from use of an illegally modified or altered publication.
THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS GUIDE ARE
SUBJECT TO CHANGE WITHOUT NOTICE. ALL STATEMENTS, INFORMATION, AND
RECOMMENDATIONS IN THIS GUIDE ARE BELIEVED TO BE ACCURATE AND PRESENTED
WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL
RESPONSIBILITY FOR THEIR APPLICATION OF PRODUCTS.
YEALINK NETWORK TECHNOLOGY CO., LTD. MAKES NO WARRANTY OF ANY KIND WITH
REGARD TO THIS GUIDE, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Yealink Network Technology
CO., LTD. shall not be liable for errors contained herein nor for incidental or consequential
damages in connection with the furnishing, performance, or use of this guide.
Hereby, Yealink Network Technology CO., LTD. declares that this phone is in conformity
with the essential requirements and other relevant provisions of the CE, FCC.
This device is marked with the CE mark in compliance with EC Directives 2006/95/EC and 2004/108/EC.
This device is compliant with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired
operation.
iii
Note:
This
device is
tested
and complies
with
the limits for
a
Class
B
digital
device, pursuant
to
Part
15
of the
FCC
Rules.
These
limits
are
designed
to
provide reasonable
protection
against harmful
interference
in
a
residential
installation.
This equipment
generates, uses,
and
can
radiate
radio
frequency
energy
and,
if not
installed
and used
in
accordance
with
the
instructions,
may
cause harmful
interference
to radio
communications.
However, there is
no
guarantee that
interference
will
not
occur
in
a
particular
installation.
If
this equipment
does
cause harmful
interference
to
radio
or
television reception,
which can
be
determined
by
turning
the equipment
off and on,
the
user
is encouraged to
try
to
correct
the
interference by
one
or
more
of
the
following
measures:
1.
Reorient
or
relocate the receiving
antenna.
2.
Increase
the
separation
between
the
equipment
and receiver.
3.
Connect
the
equipment
into
an
outlet
on a
circuit
different
from
that
to
which
the
receiver
is
connected.
4.
Consult
the
dealer
or an experience
radio/TV
technician for help.
To avoid the potential effects on the environment and human health as a result of the
presence of hazardous substances in electrical and electronic equipment, end users of
electrical and electronic equipment should understand the meaning of the crossed-out
wheeled bin symbol. Do not dispose of WEEE as unsorted municipal waste and have to
collect such WEEE separately.
. Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
iv
Yealink SIP-T21P firmware contains third-party software under the GNU General Public License (GPL).
Yealink uses software under the specific terms of the GPL. Please refer to the GPL for the exact terms and
conditions of the license.
The original GPL license, source code of components licensed under GPL and used in Yealink products can
be downloaded online:
http://www.yealink.com/GPLOpenSource.aspx?BaseInfoCateId=293&NewsCateId=293&CateId=293.
About This Guide
v
Thank you for choosing the SIP-T21P IP phone, exquisitely designed to provide business
telephony features, such as Call Hold, Call Transfer, Busy Lamp Field, Multicast Paging
and Conference over an IP network.
This guide provides everything you need to quickly use your new phone. First, verify
with your system administrator that the IP network is ready for phone configuration. Also
be sure to read the Packaging Contents and Regulatory Notices sections in this guide
before you set up and use the SIP-T21P IP phone.
If this is your first time using the SIP-T21P IP phone, we recommend that you first refer to
the and , available online:
http://www.yealink.com/DocumentDownload.aspx?CateId=142&flag=142.
Note
This is the first edition based on firmware version 71. Topics provided in this guide
include:
Chapter 1 Overview
Chapter 2 Getting Started
Chapter 3 Customizing Your Phone
Chapter 4 Basic Call Features
Chapter 5 Advanced Phone Features
Shared Line, Busy Lamp Field List, Network Directory and Network Call Log features are
hidden for IP phones in neutral version, which are designed for BroadWorks environment.
Please contact your system administrator for more information.
User Guide for the SIP-T21P IP Phone
vi
Table of Contents
vii
About This Guide ...................................................................... v
In This Guide ......................................................................................................................... v
Table of Contents ..................................................................... v i i
O v e r v i e w .................................................................................. 1

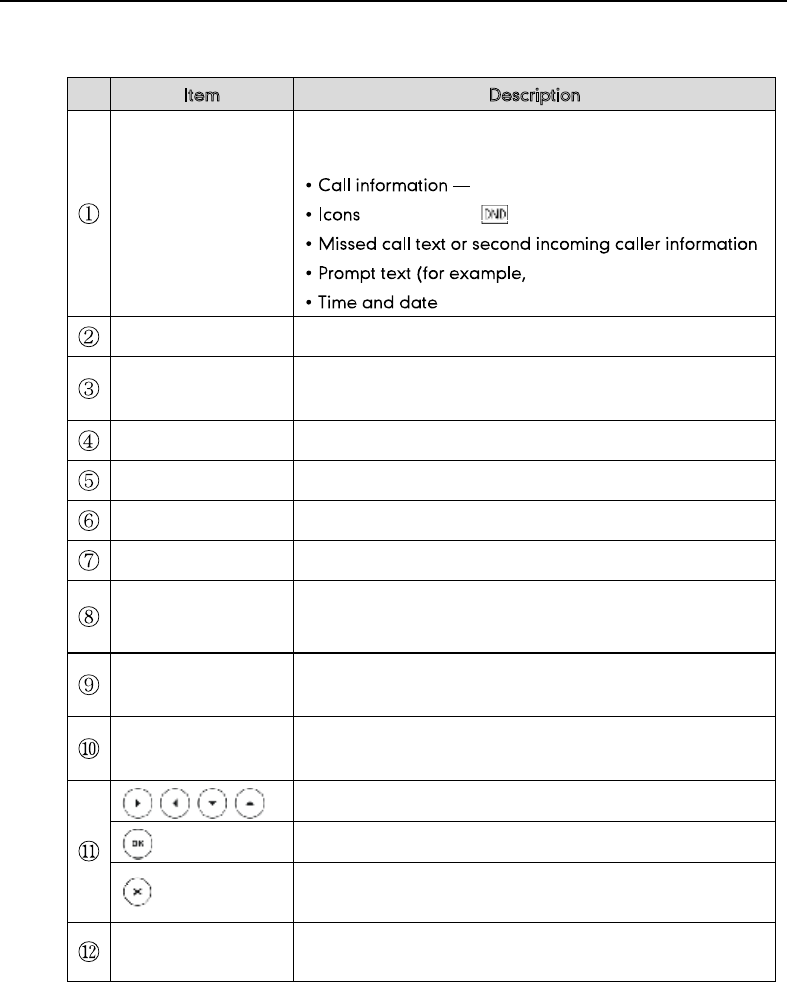

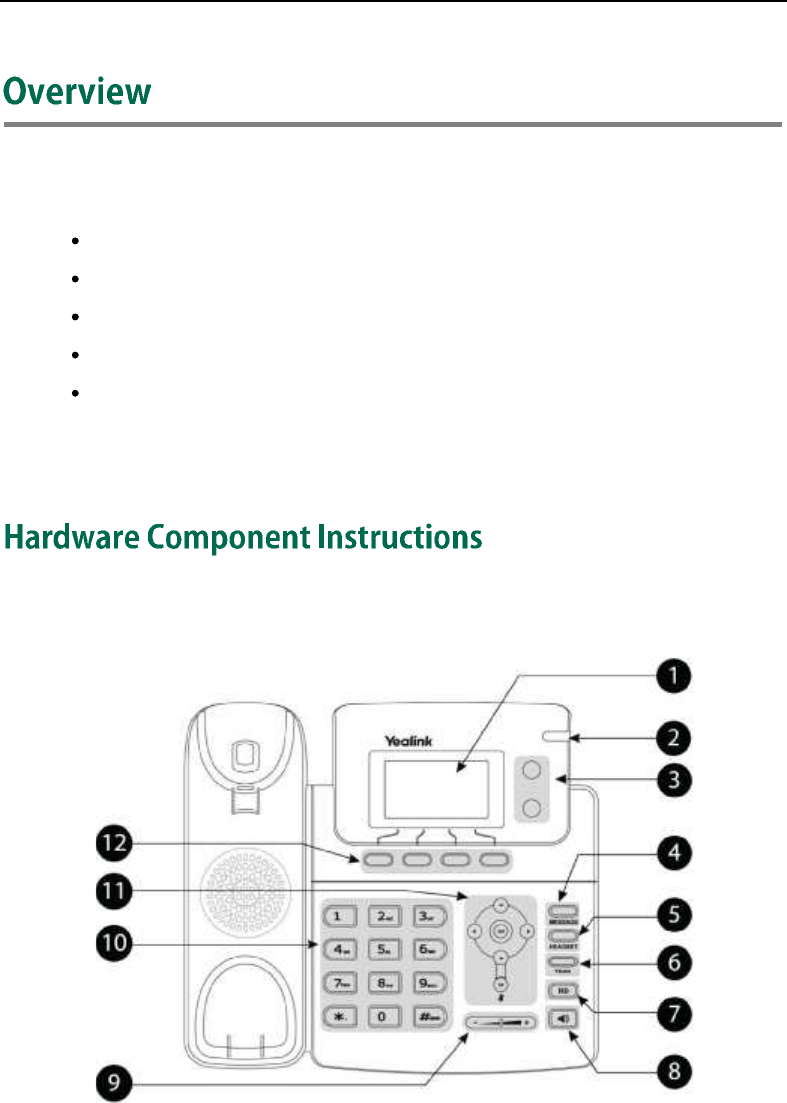

Hardware Component Instructions .................................................................................... 1

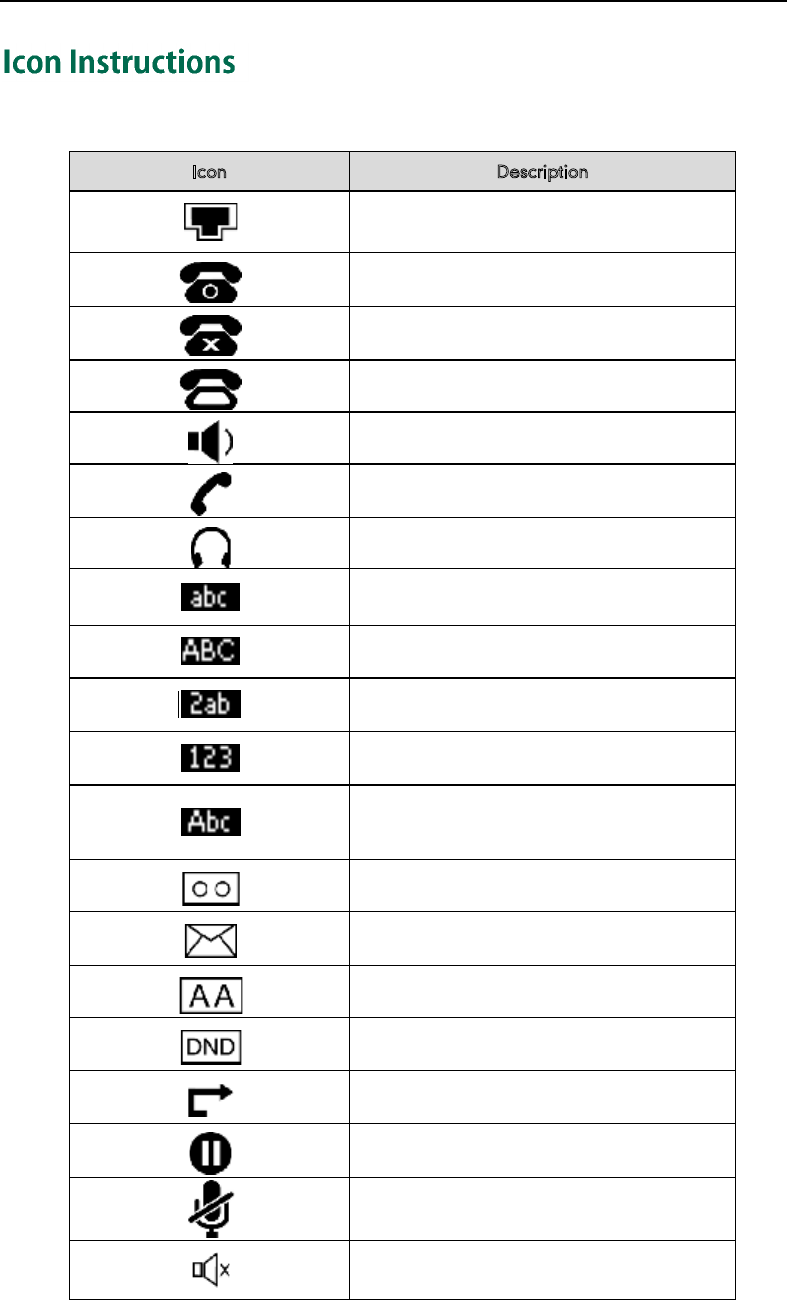

Icon Instructions .................................................................................................................... 3
LED Instructions ..................................................................................................................... 4

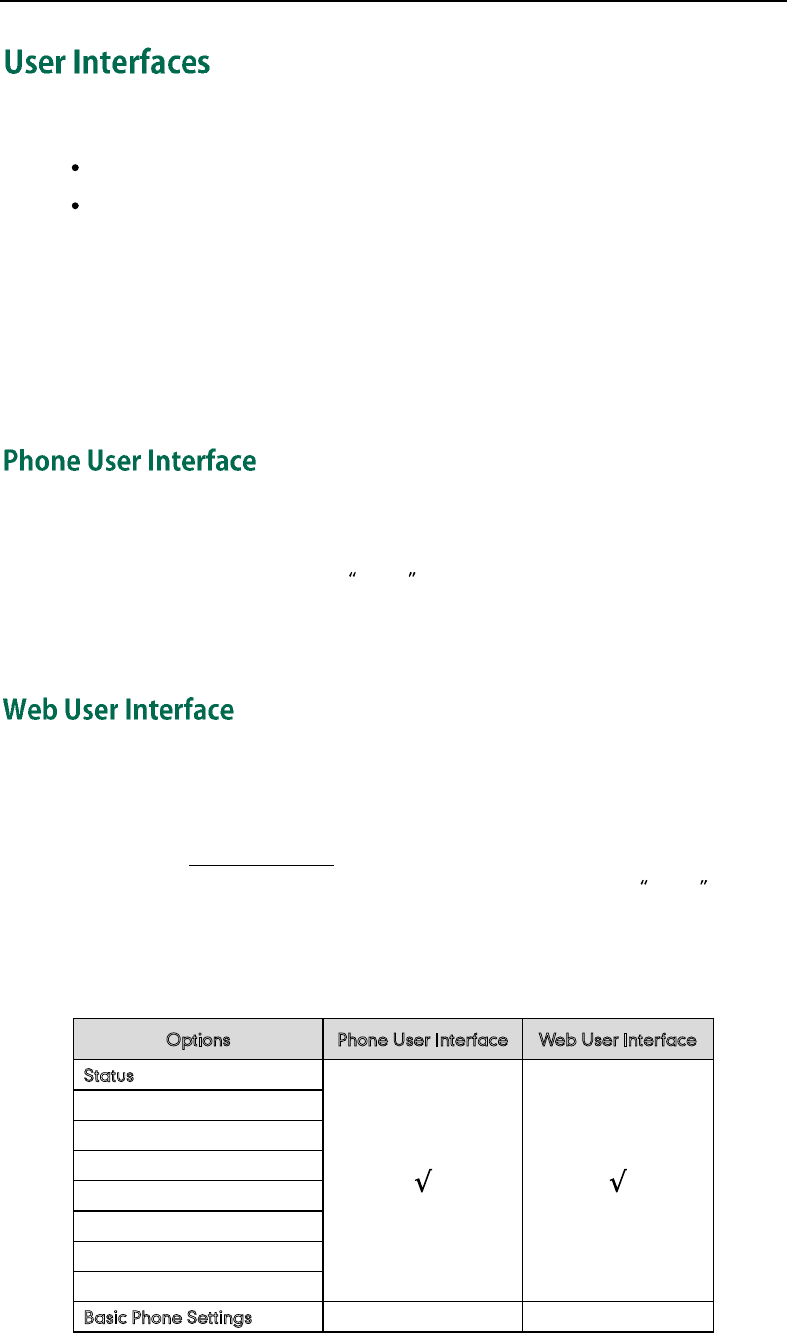

User Interfaces ..................................................................................................................... 5
Phone User Interface ........................................................................................................ 5
Web User Interface ........................................................................................................... 5
Documentations ................................................................................................................... 8
Getting Started ......................................................................... 9

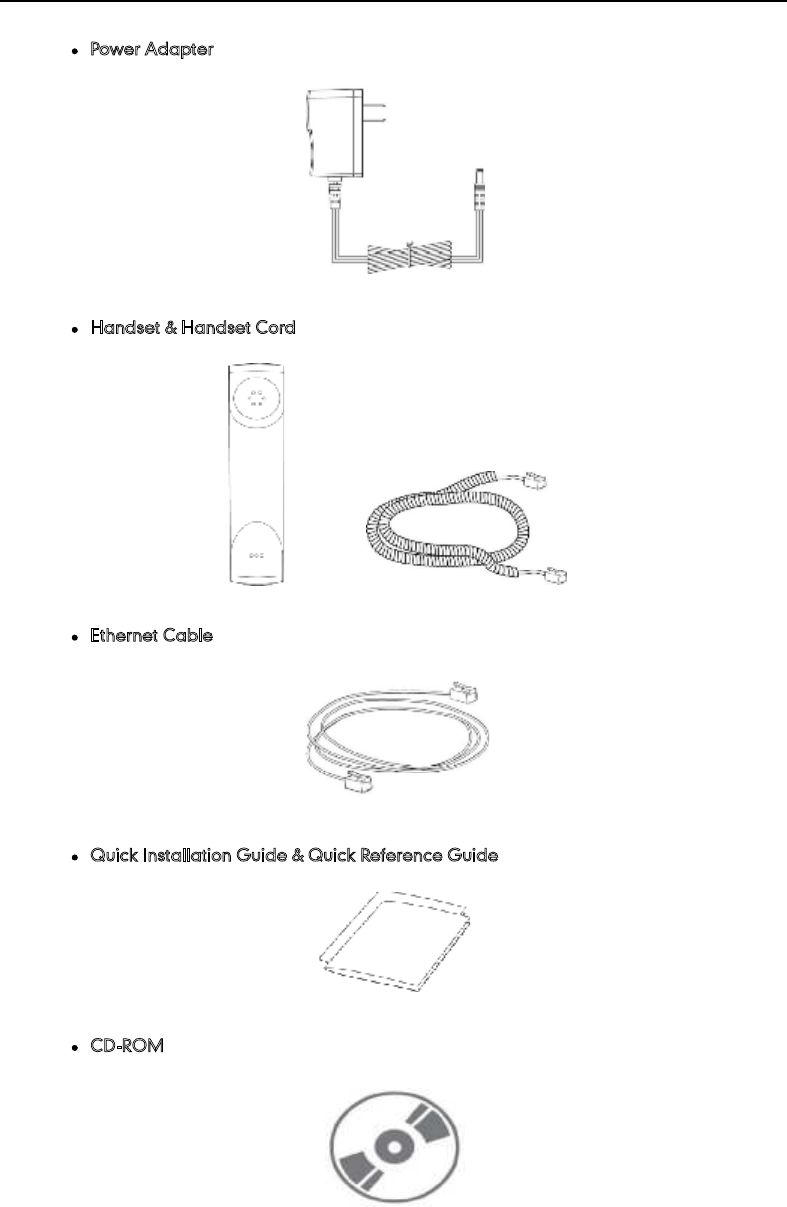

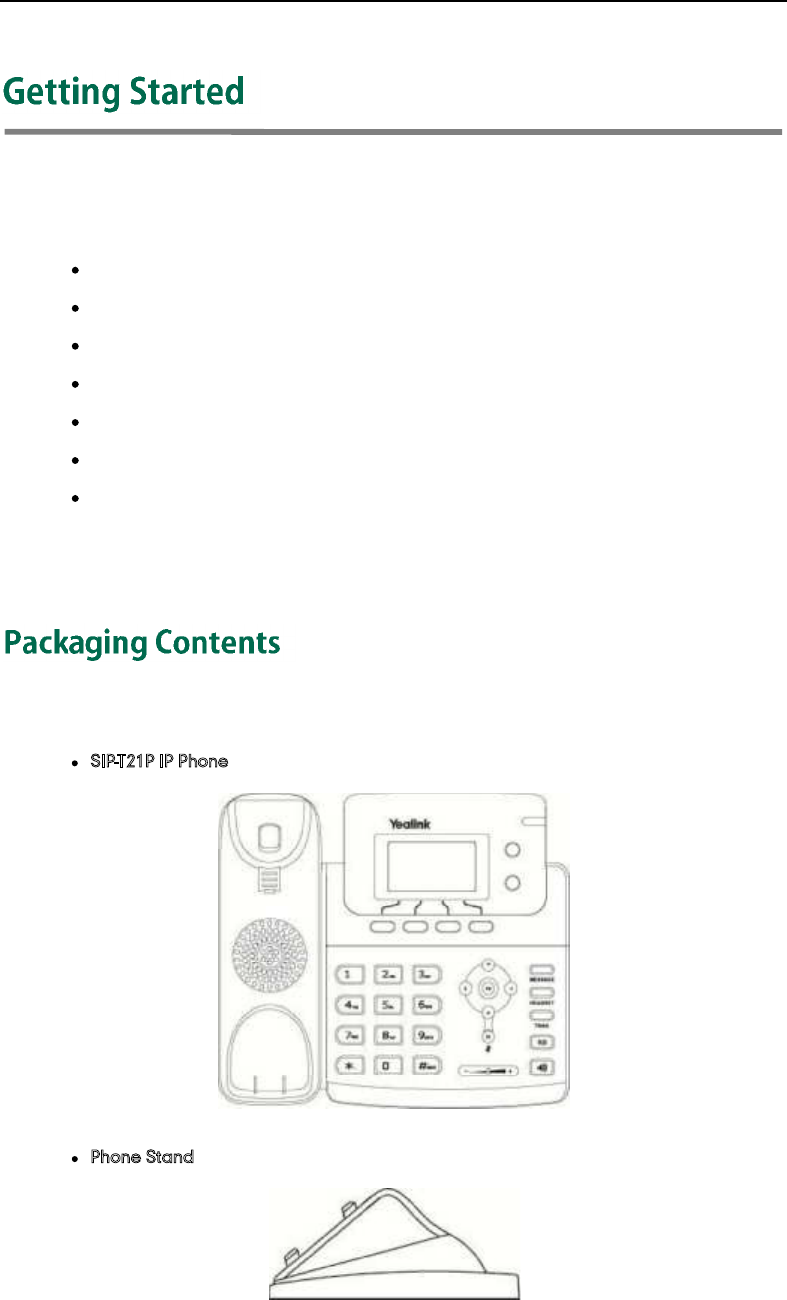

Packaging Contents ............................................................................................................. 9

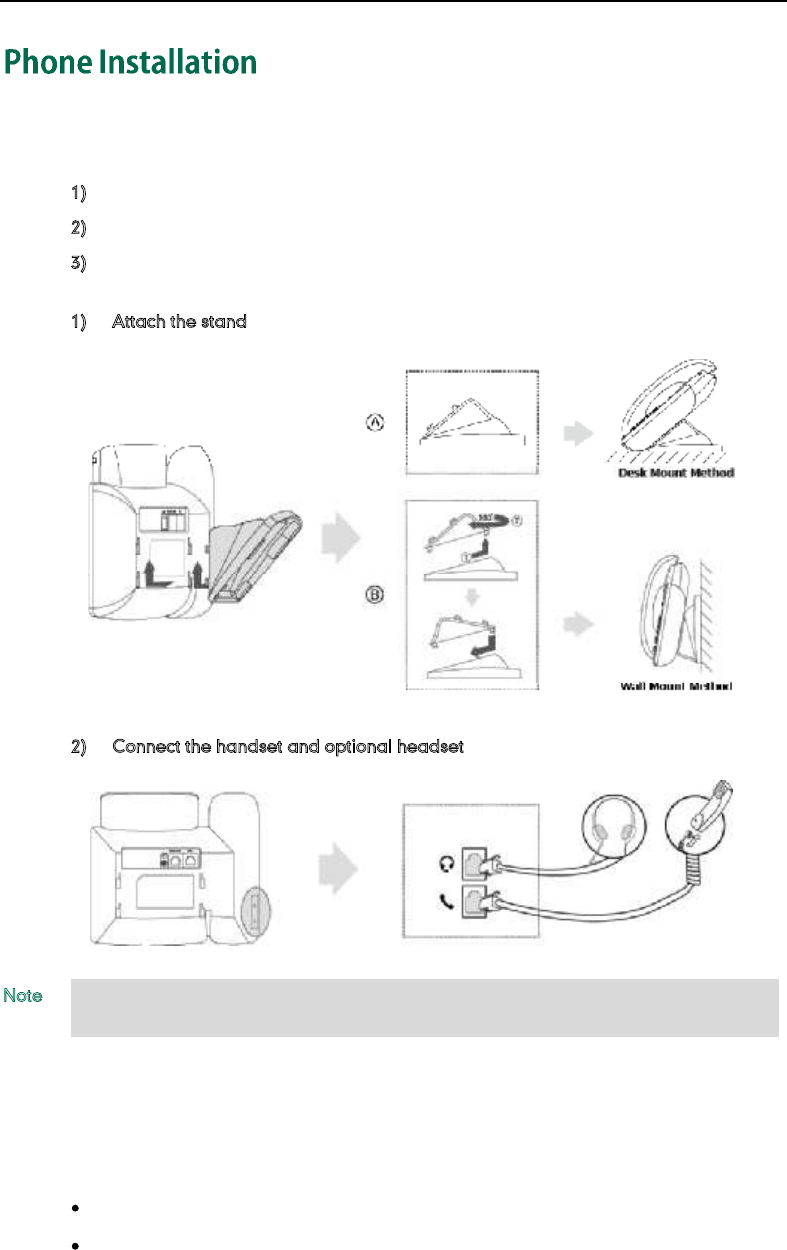

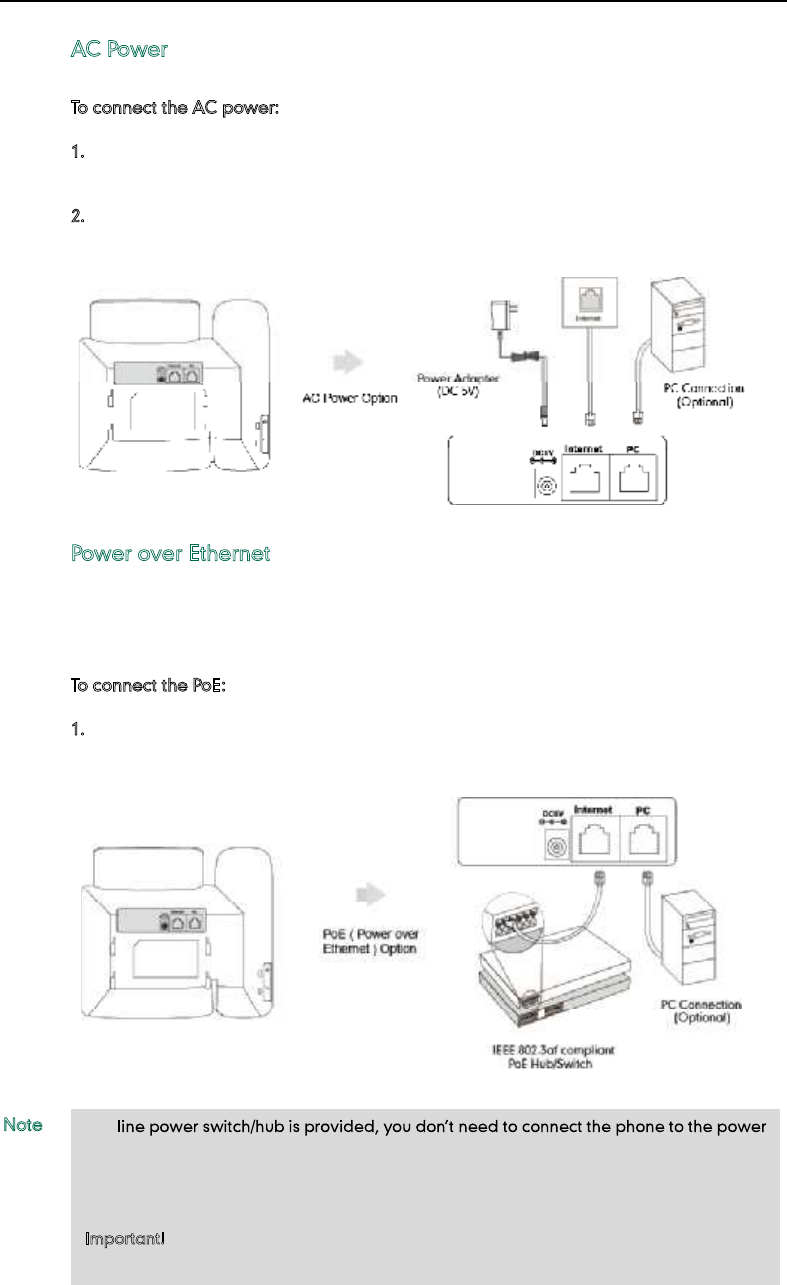

Phone Installation ............................................................................................................... 11
Phone Initialization ............................................................................................................. 13
Phone Status ....................................................................................................................... 13

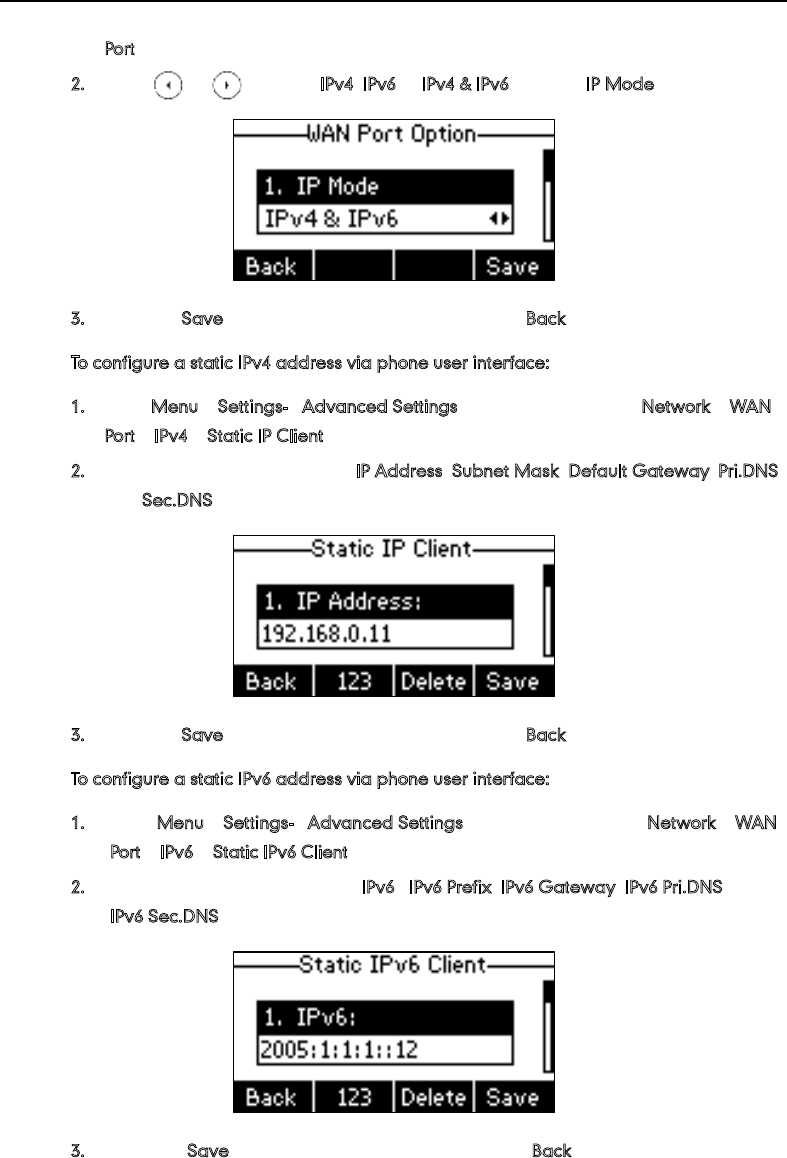

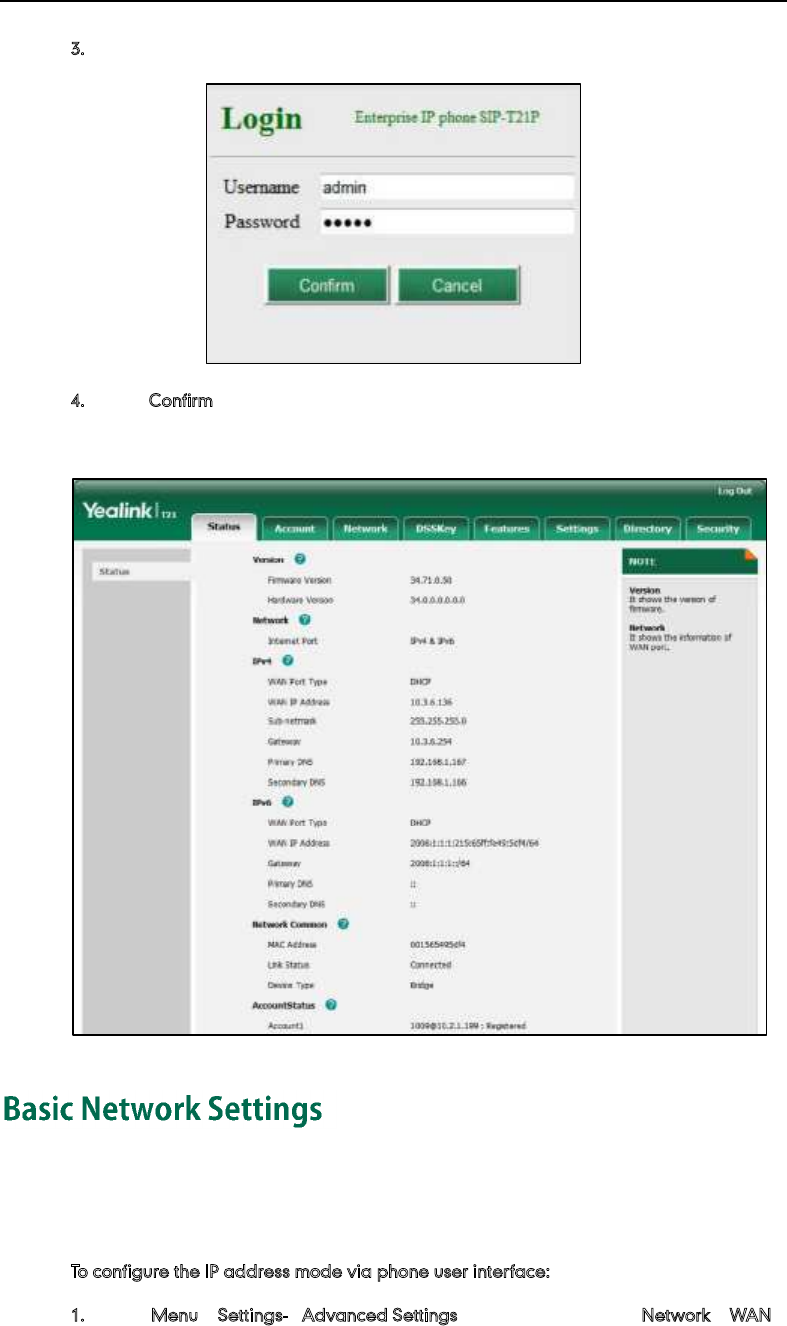

Basic Network Settings ...................................................................................................... 14
Registration ......................................................................................................................... 16
Idle Screen .......................................................................................................................... 16

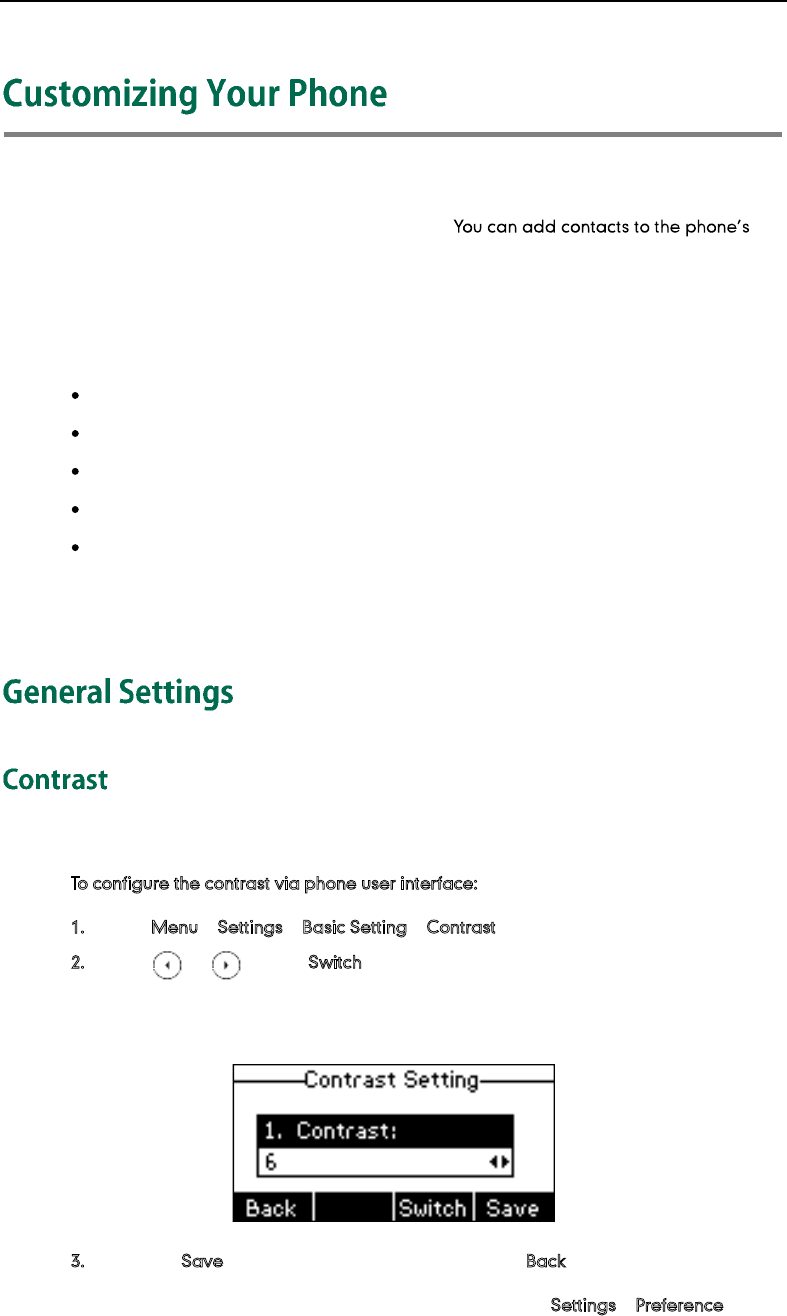

Customizing Your Phone ......................................................... 17
General Settings ................................................................................................................ 17
Contrast ............................................................................................................................ 17
Language ......................................................................................................................... 18

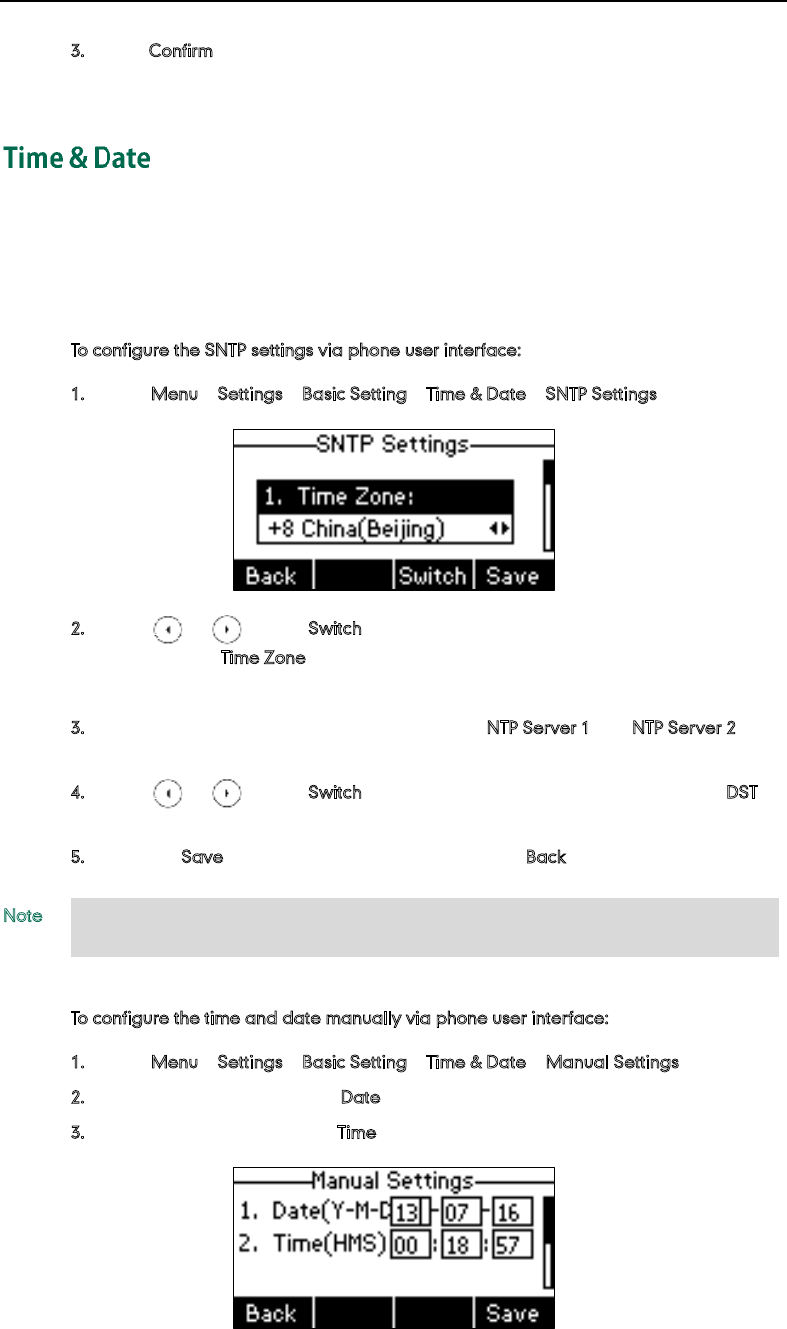

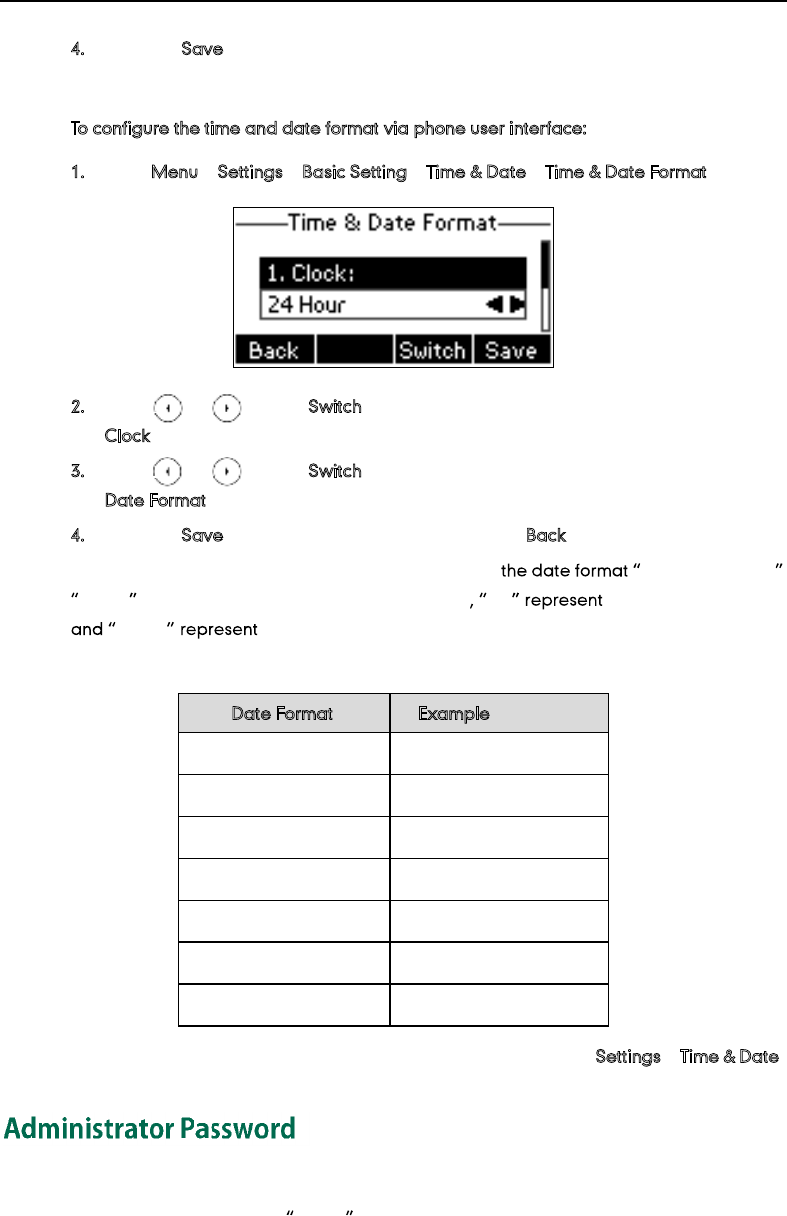

Time & Date ..................................................................................................................... 19

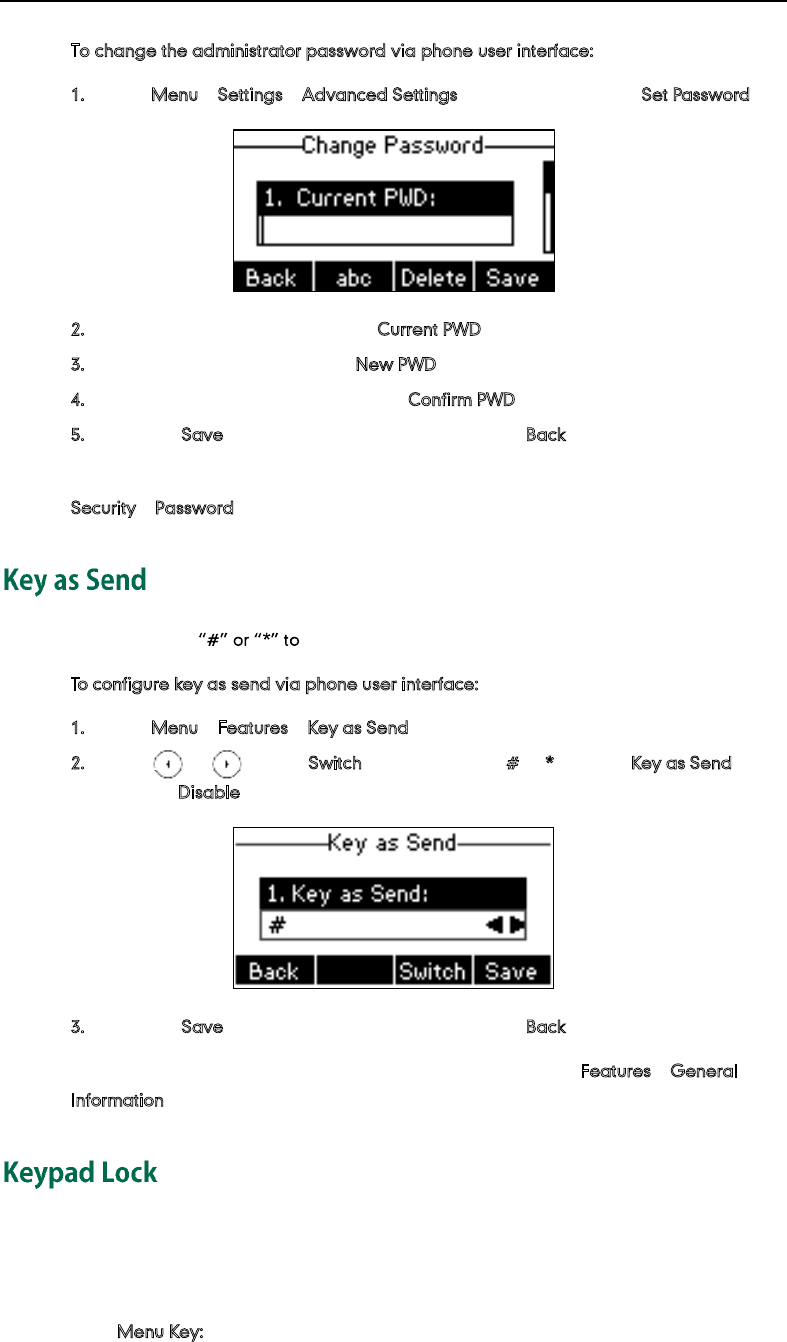

Administrator Password ................................................................................................. 20
Key as Send ..................................................................................................................... 21

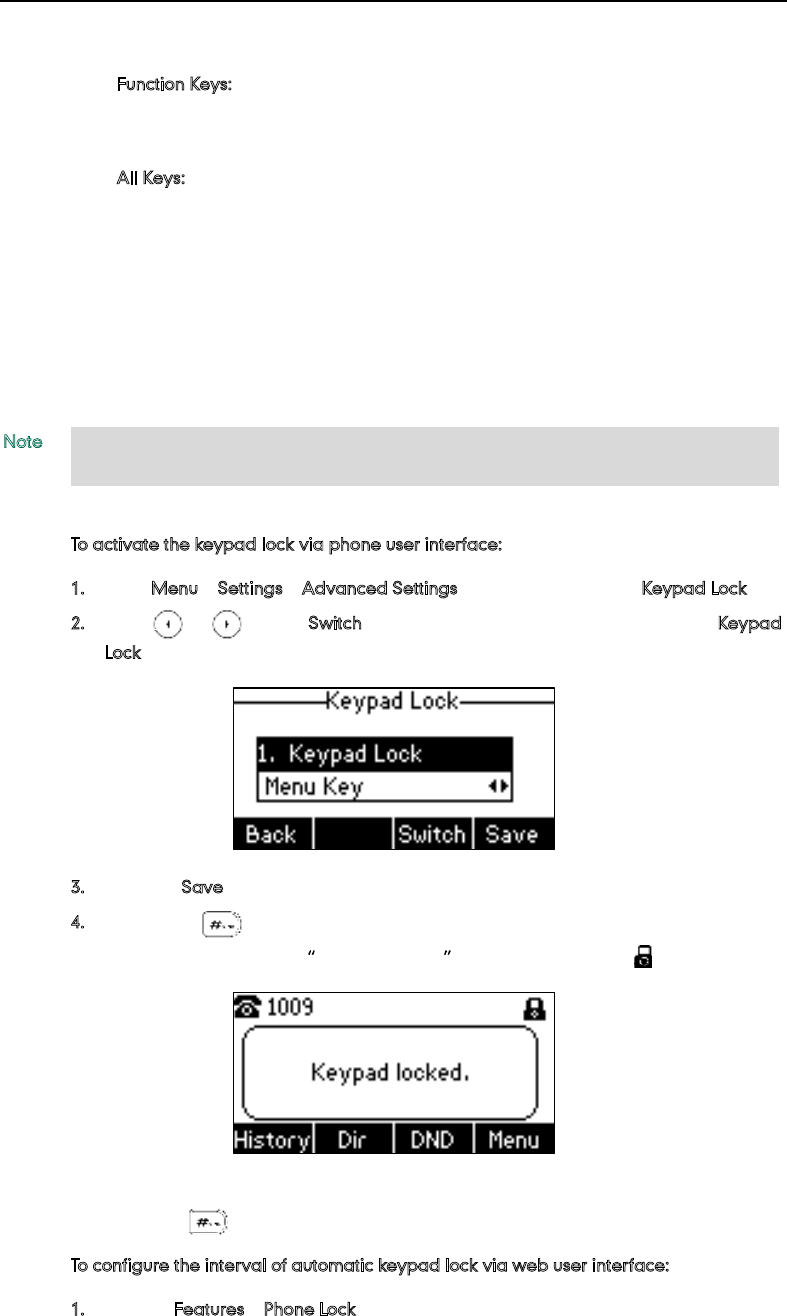

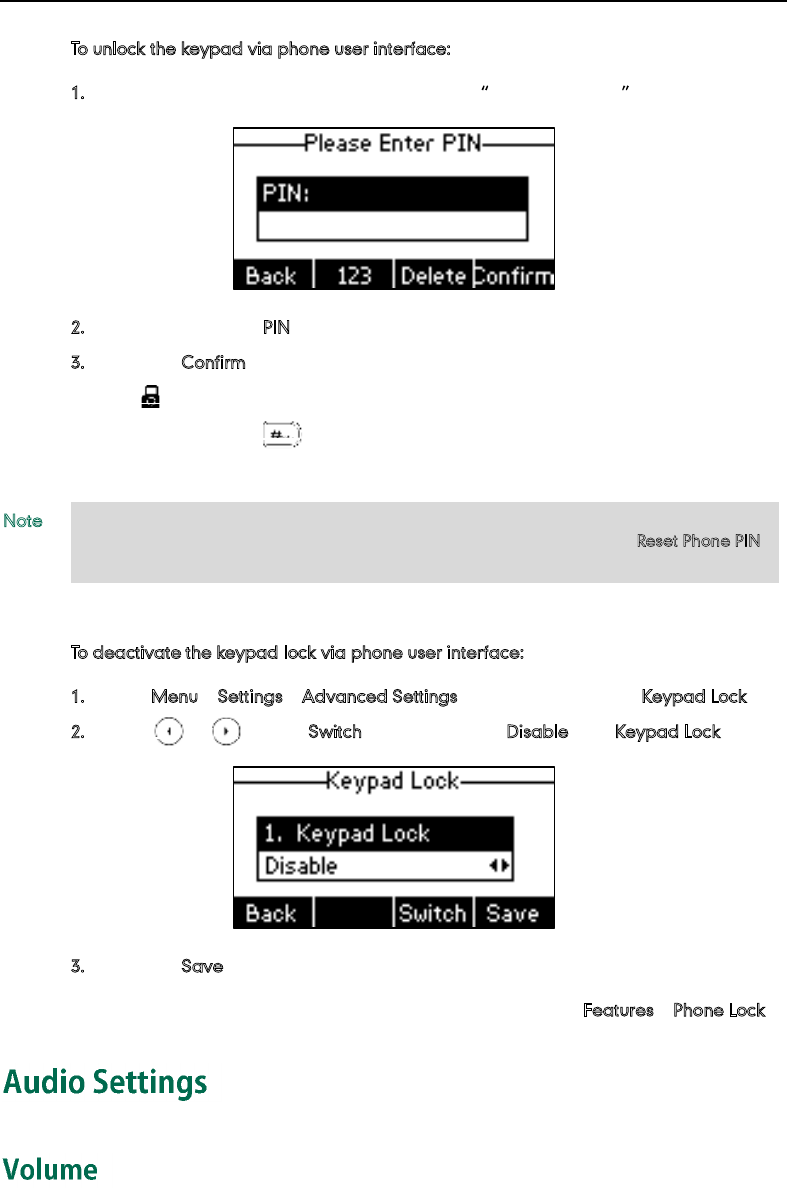

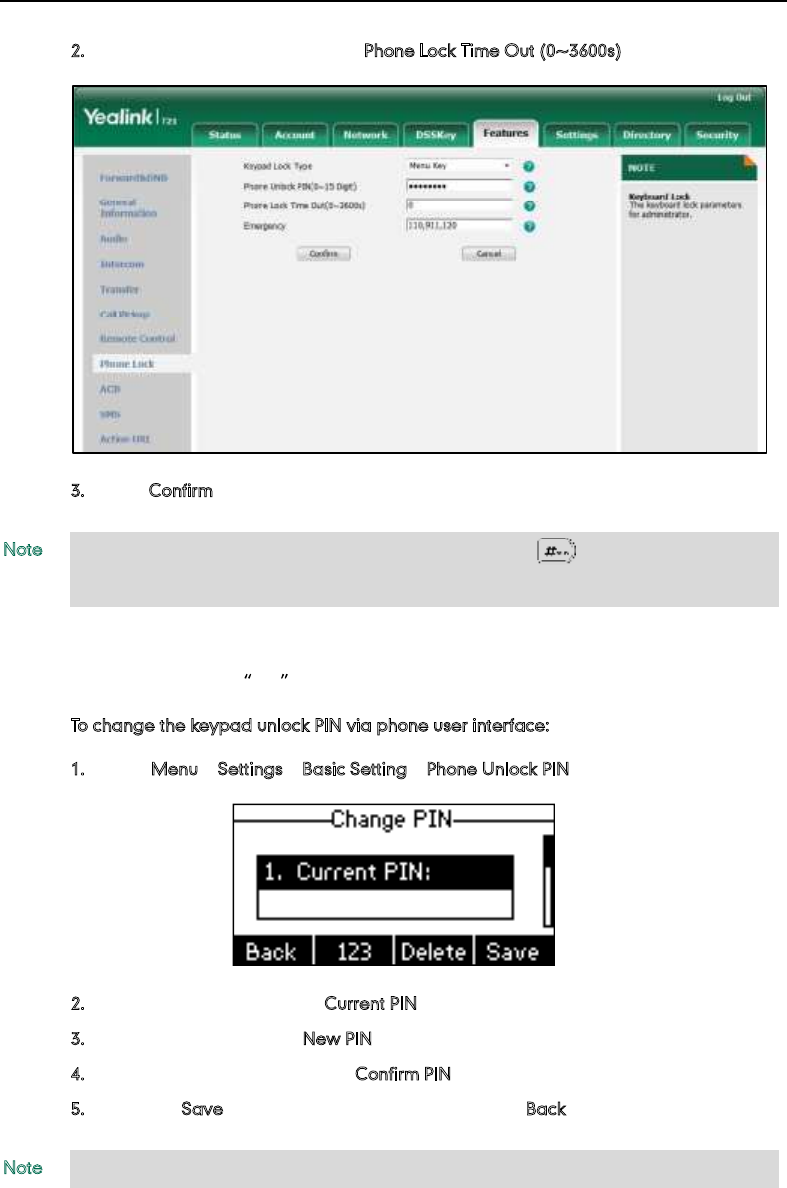

Keypad Lock .................................................................................................................... 21
Audio Settings .................................................................................................................... 24

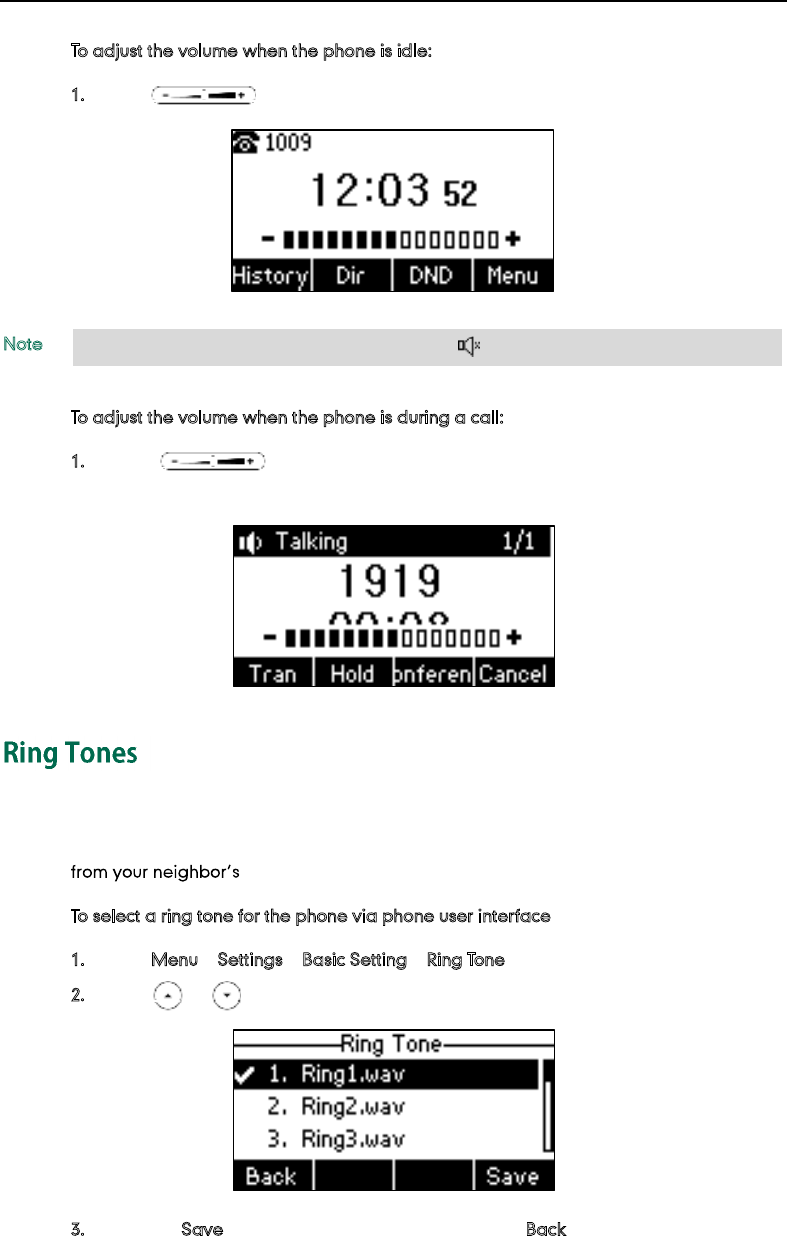

Volume ............................................................................................................................. 24

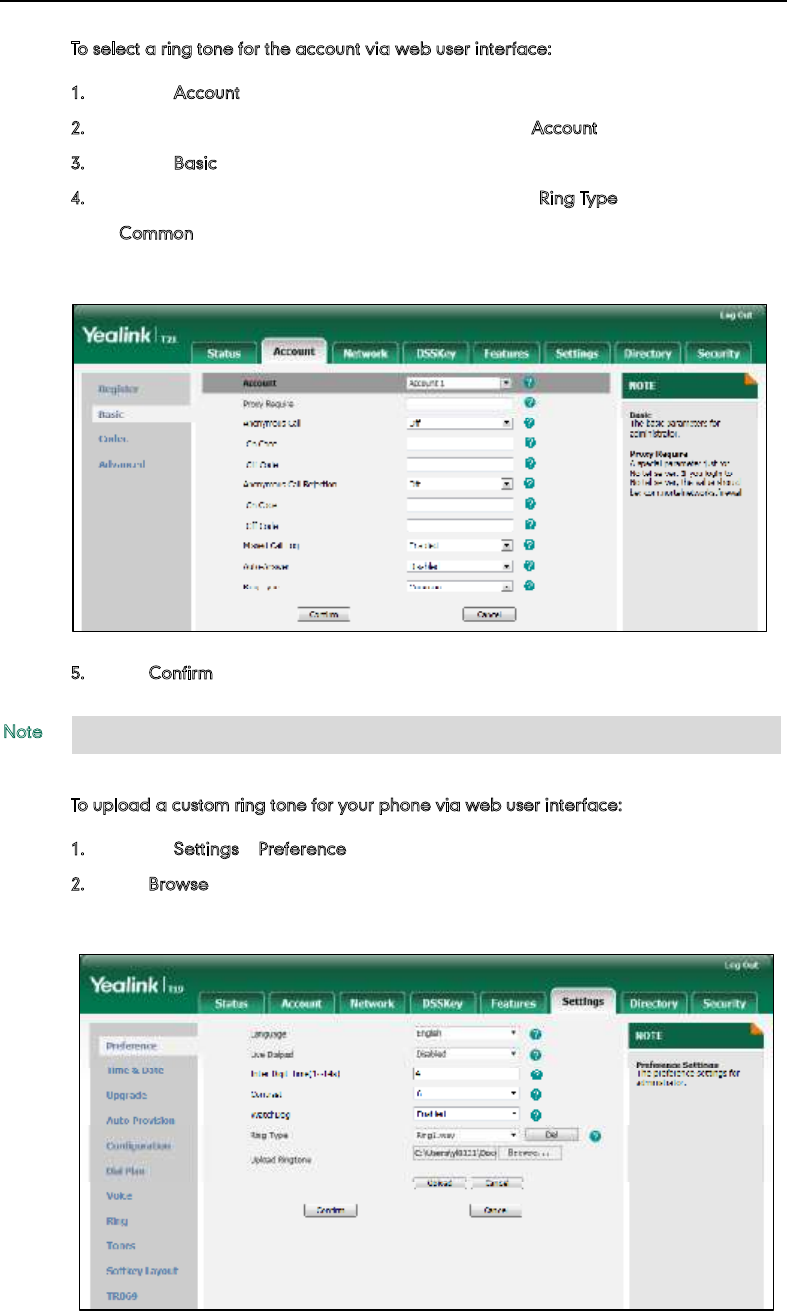

Ring Tones ........................................................................................................................ 25

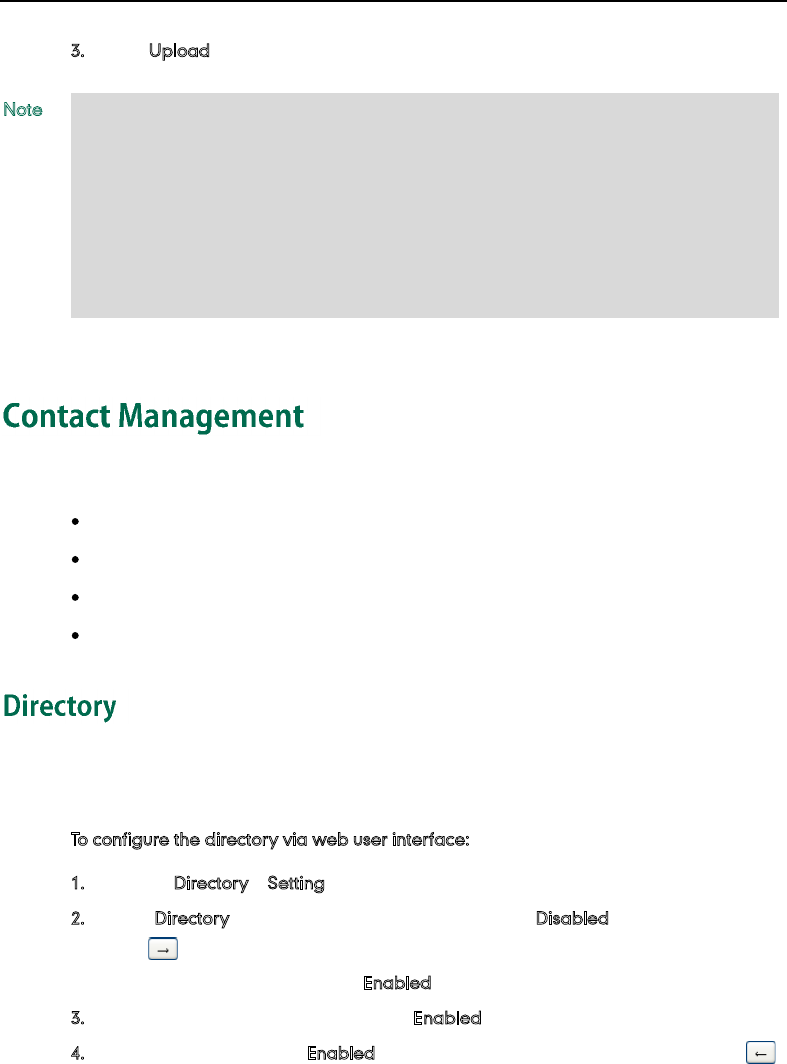

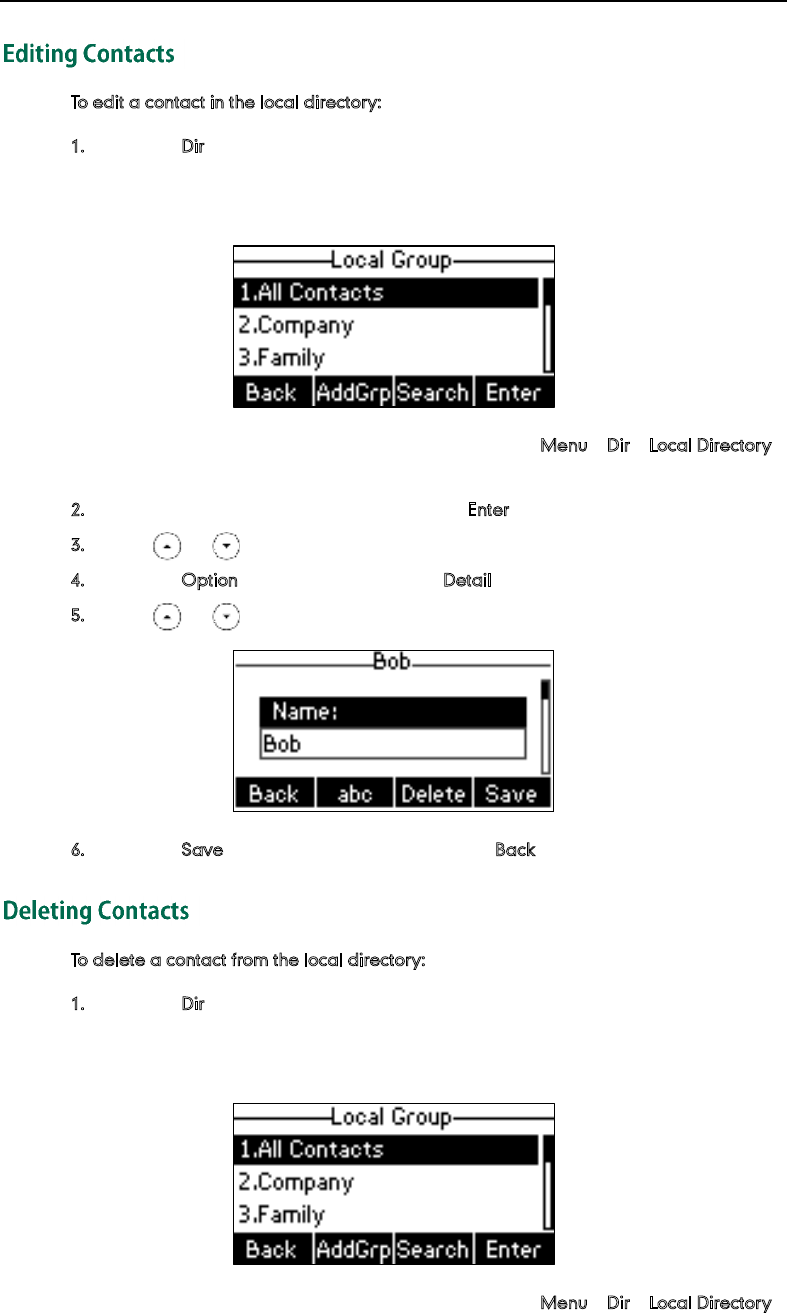

Contact Management ....................................................................................................... 27

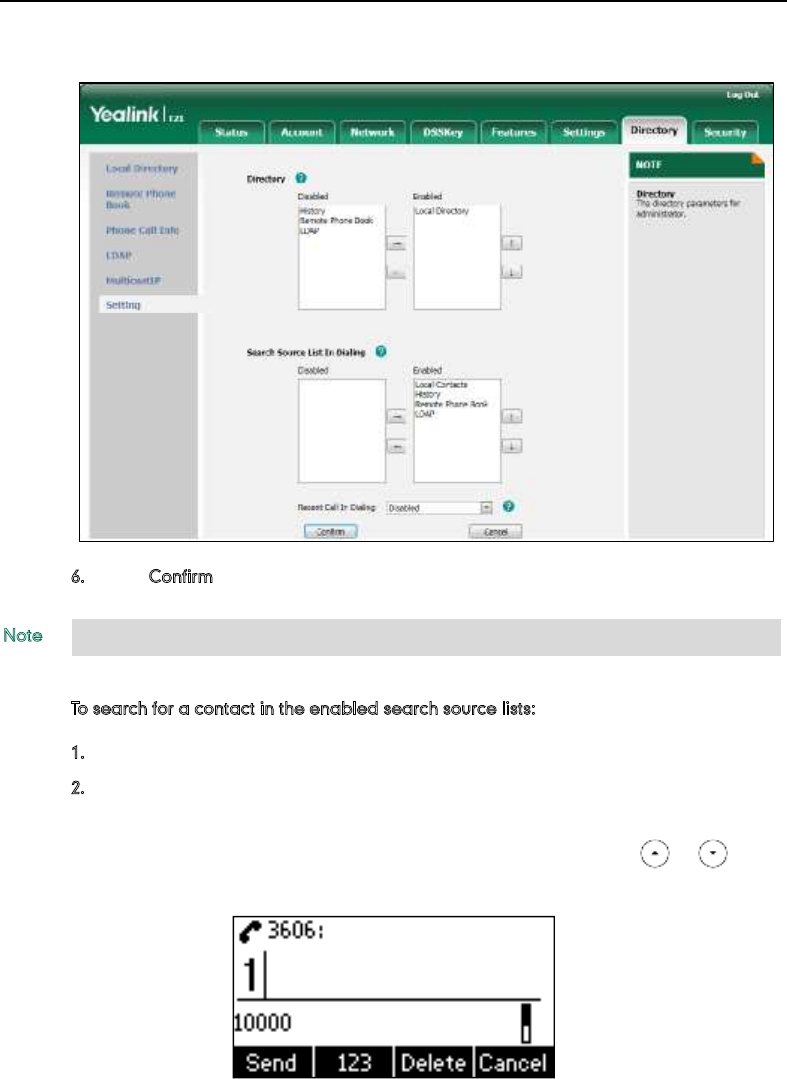

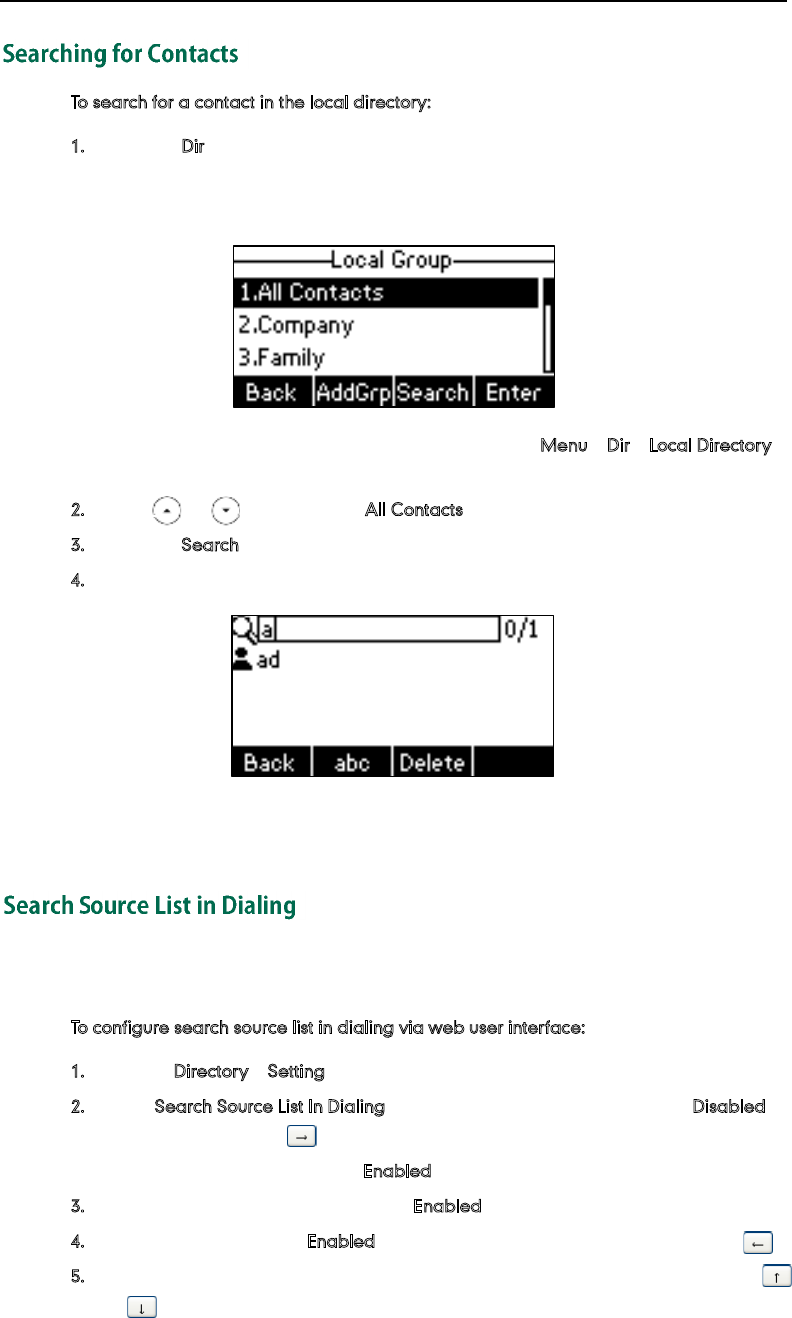

Directory........................................................................................................................... 27
User Guide for the SIP-T21P IP Phone
viii

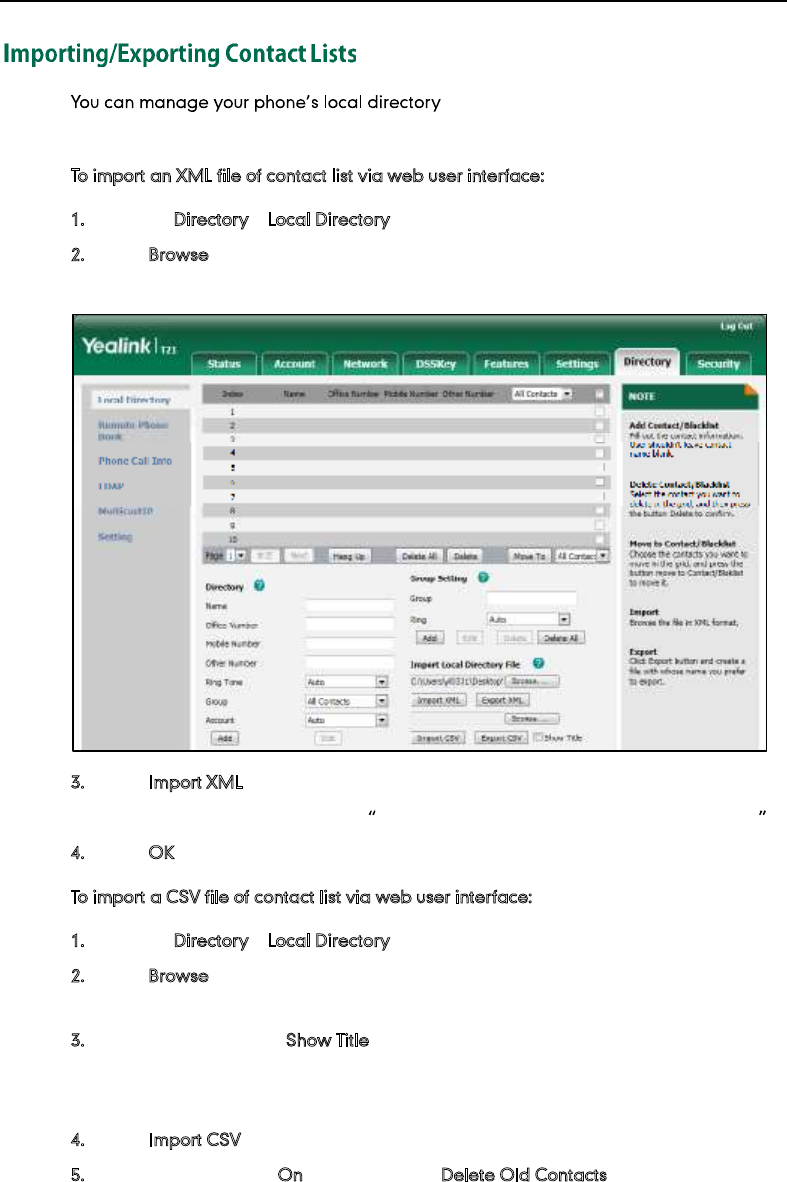

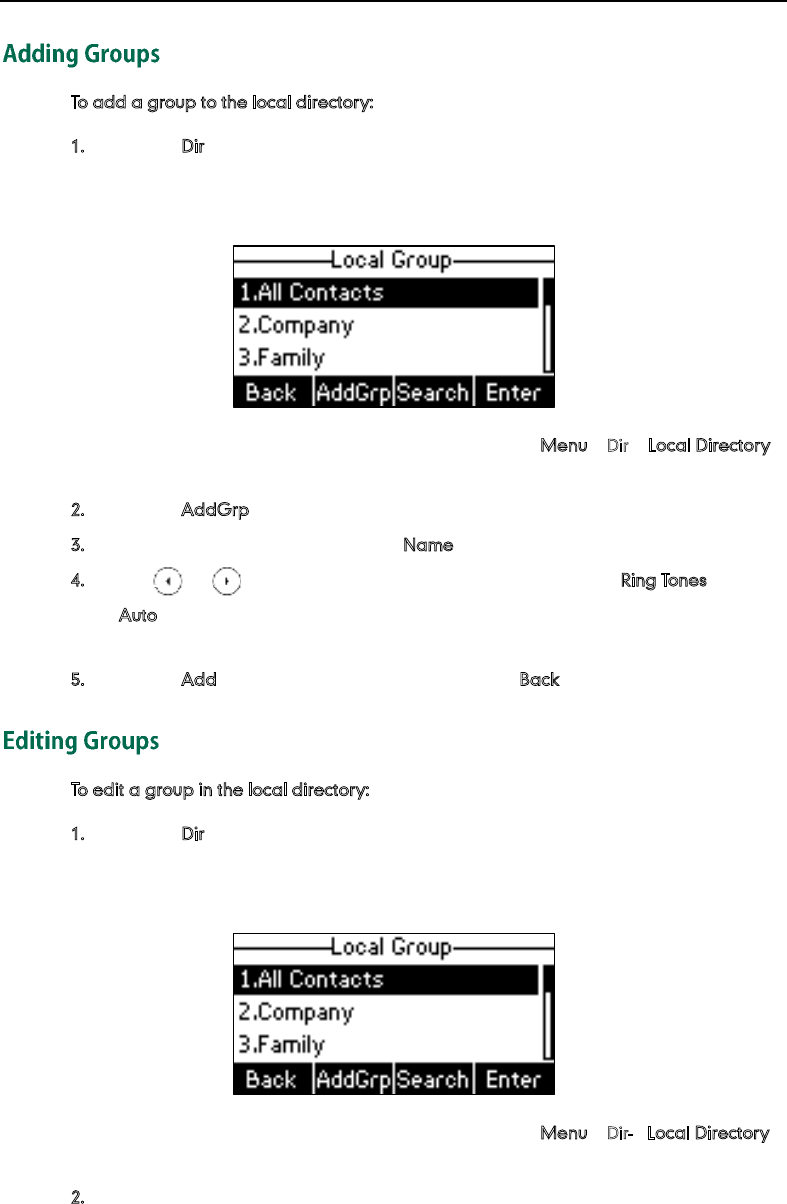

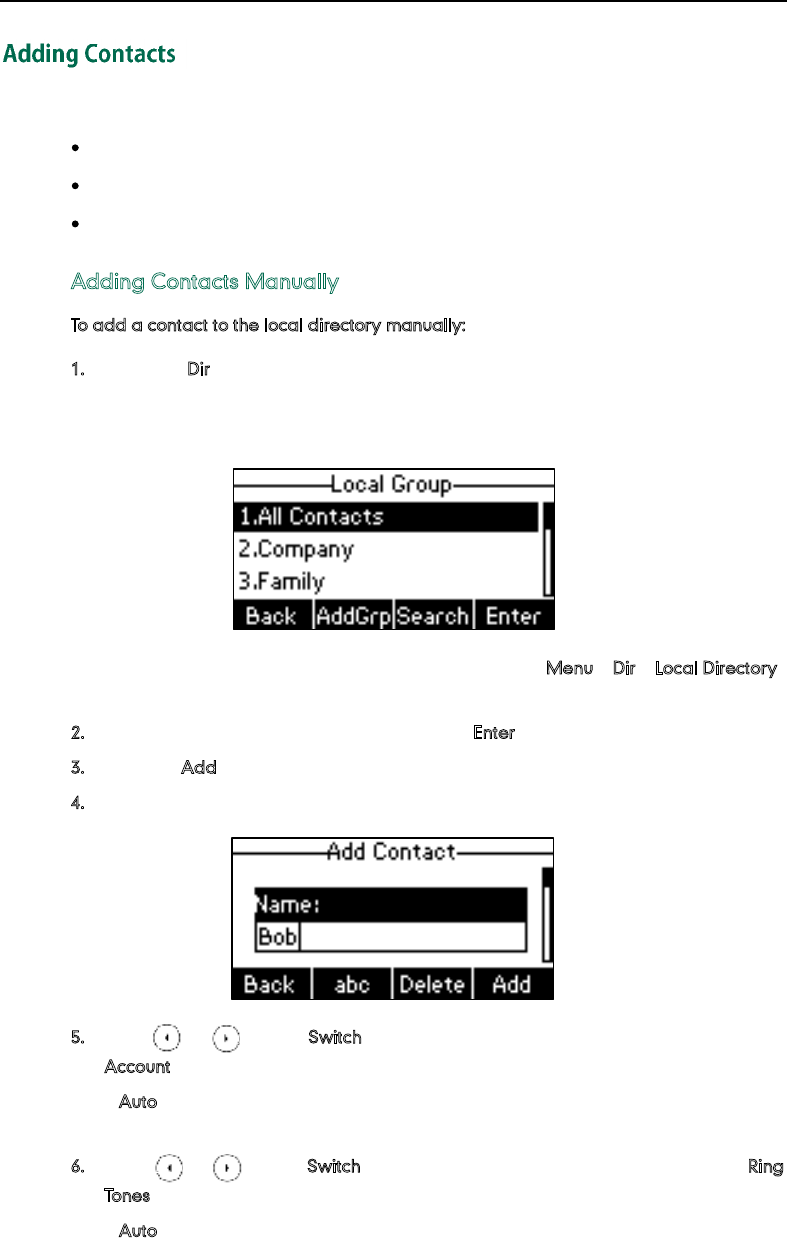

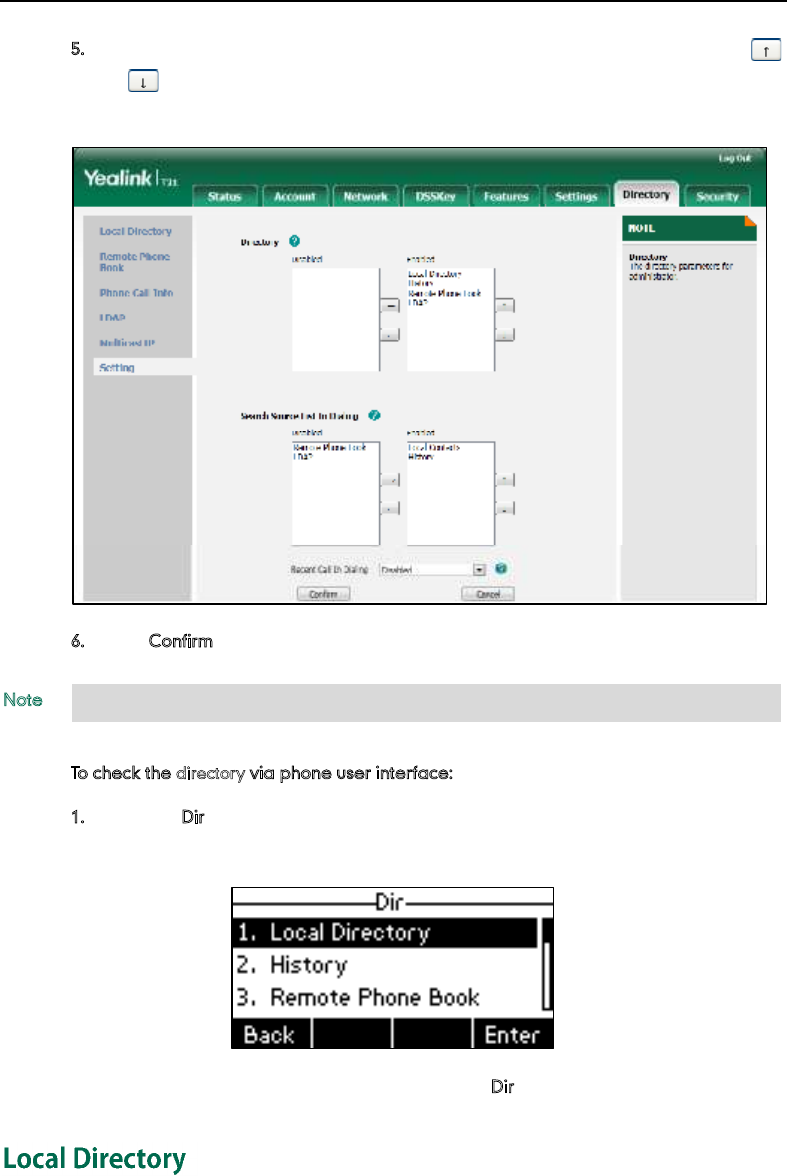

Local Directory ................................................................................................................ 28

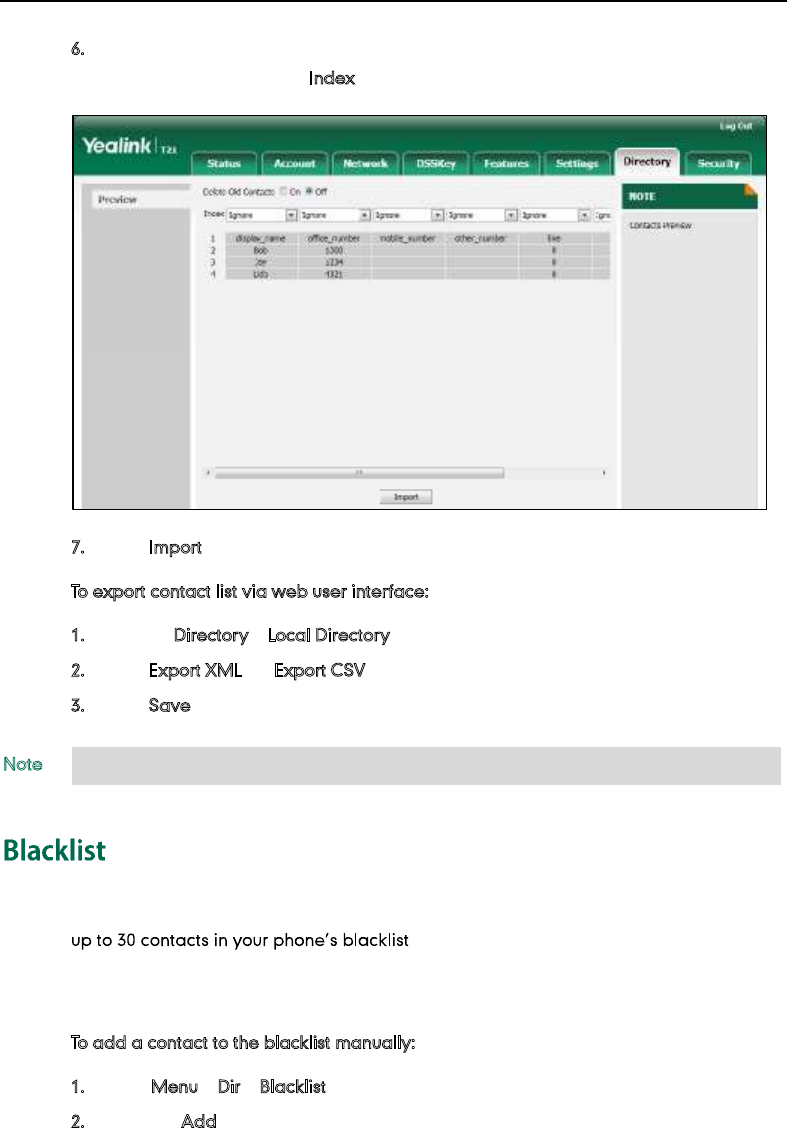

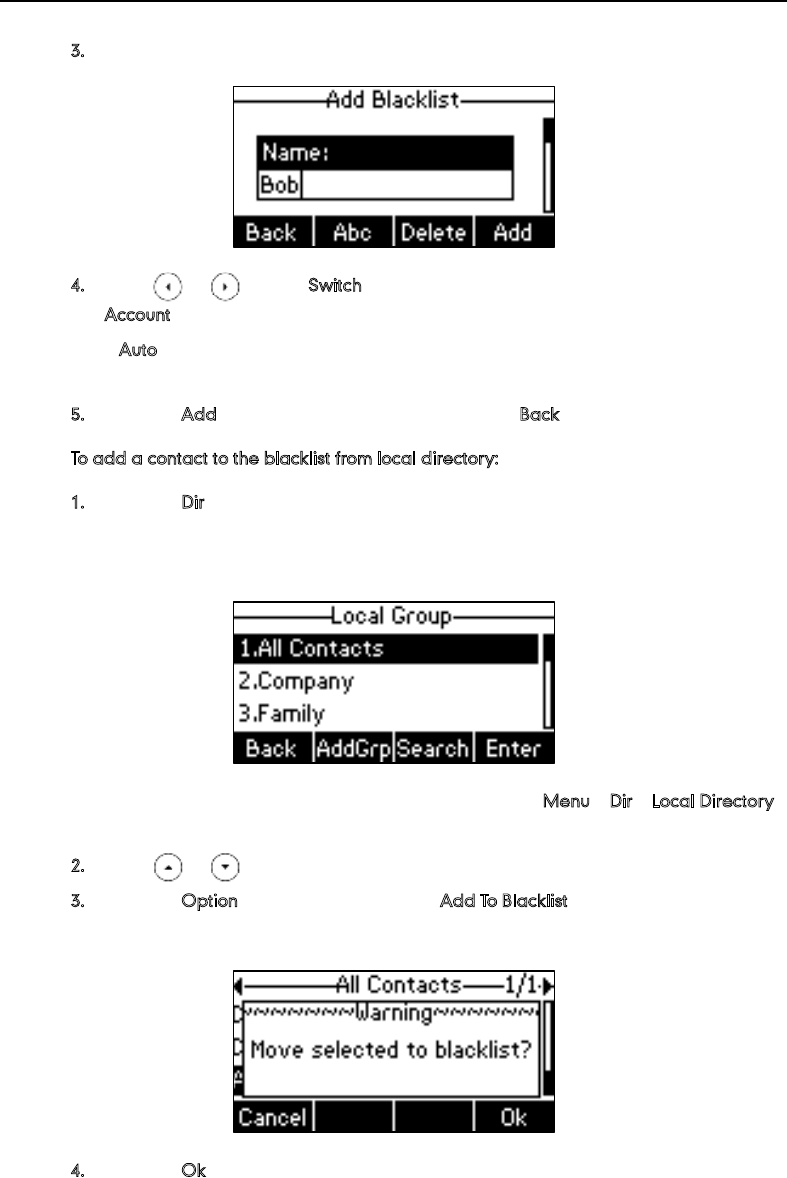

Blacklist ............................................................................................................................ 38

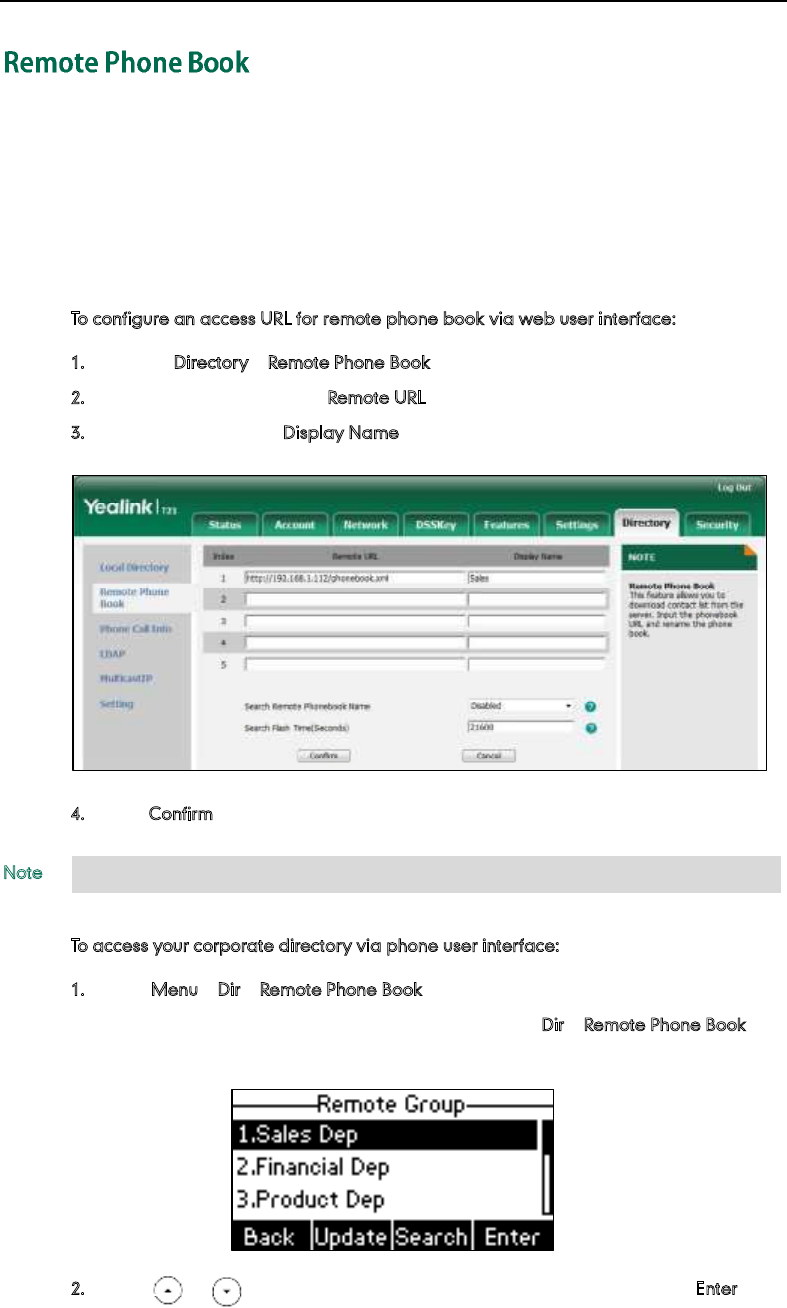

Remote Phone Book ........................................................................................................ 40

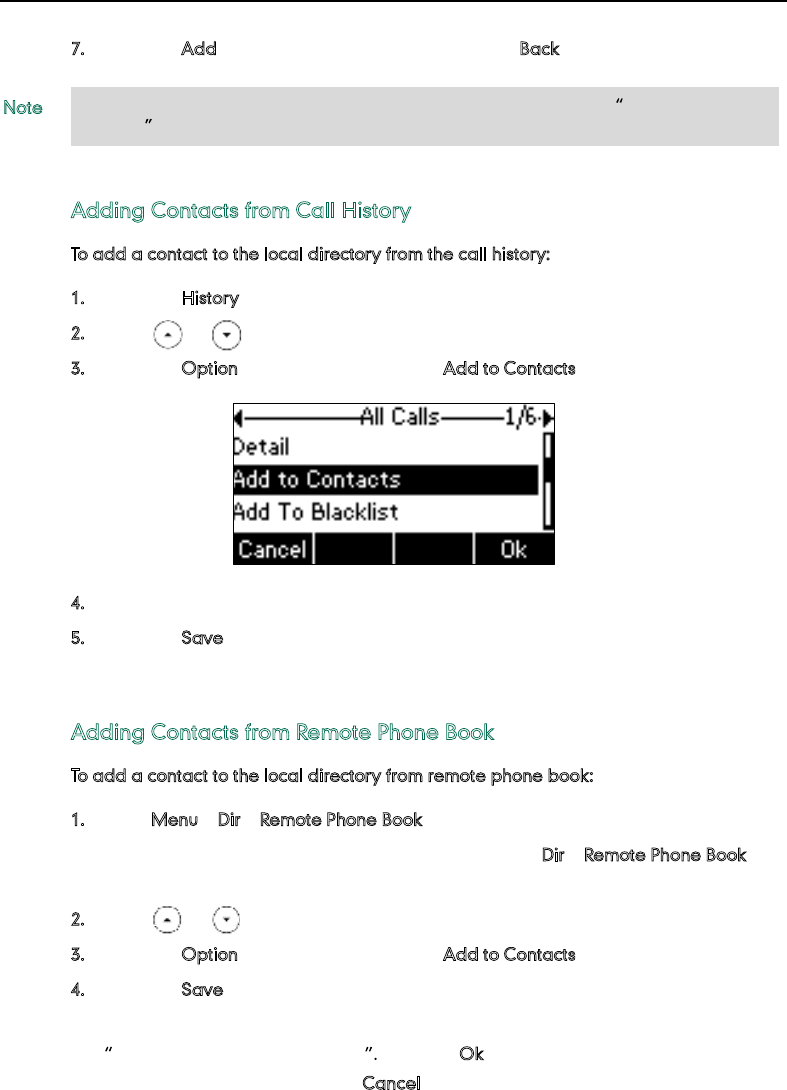

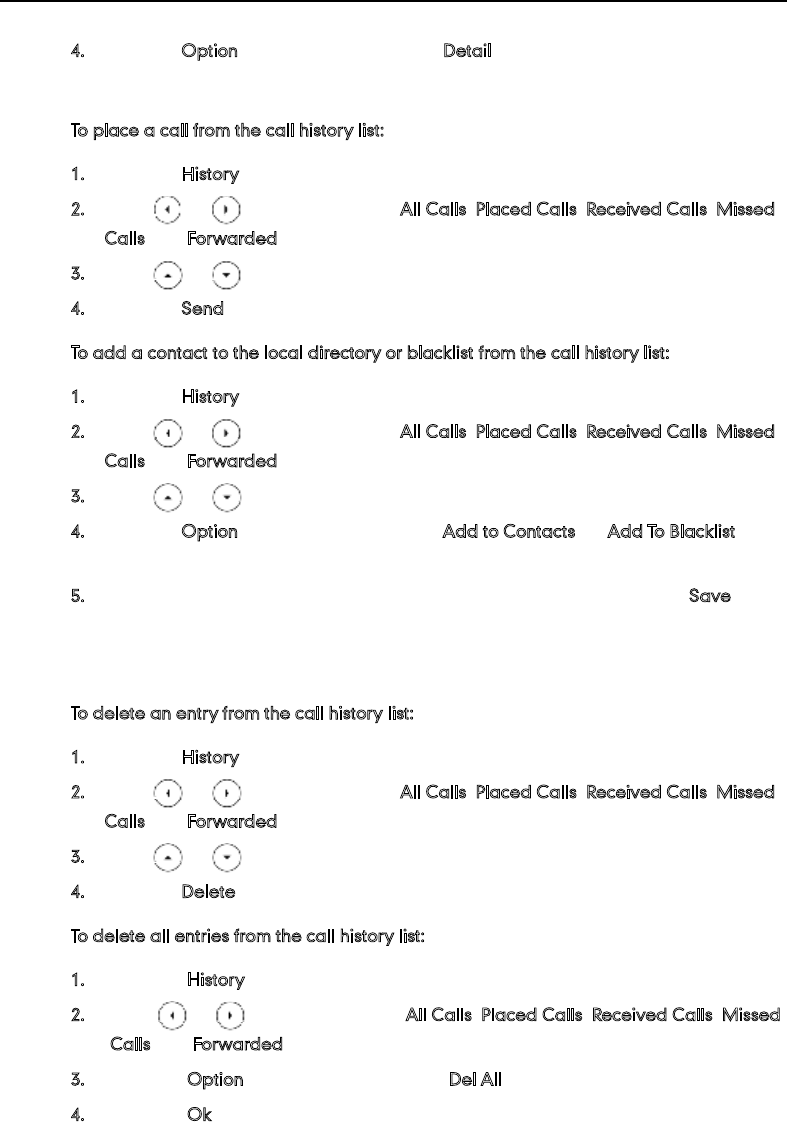

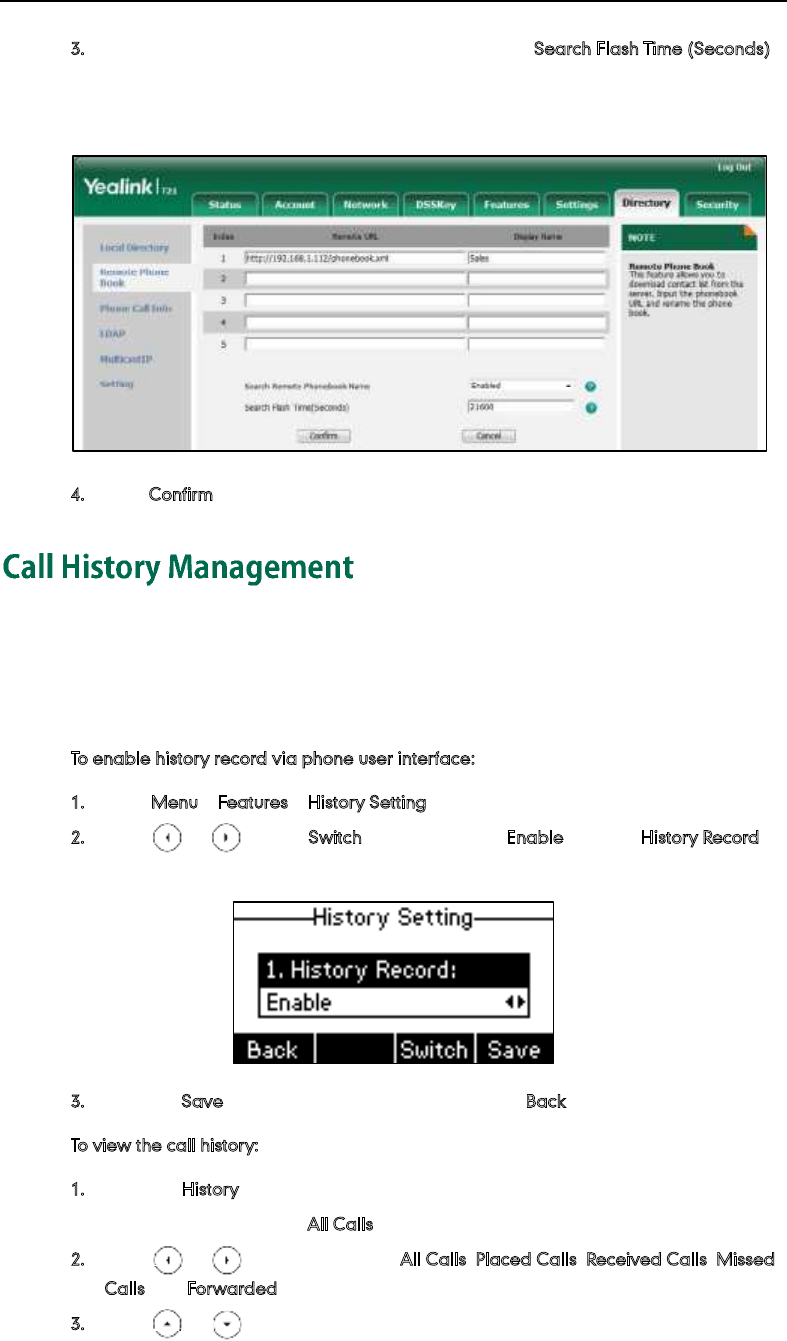

Call History Management ................................................................................................ 42
System Customizations ...................................................................................................... 44

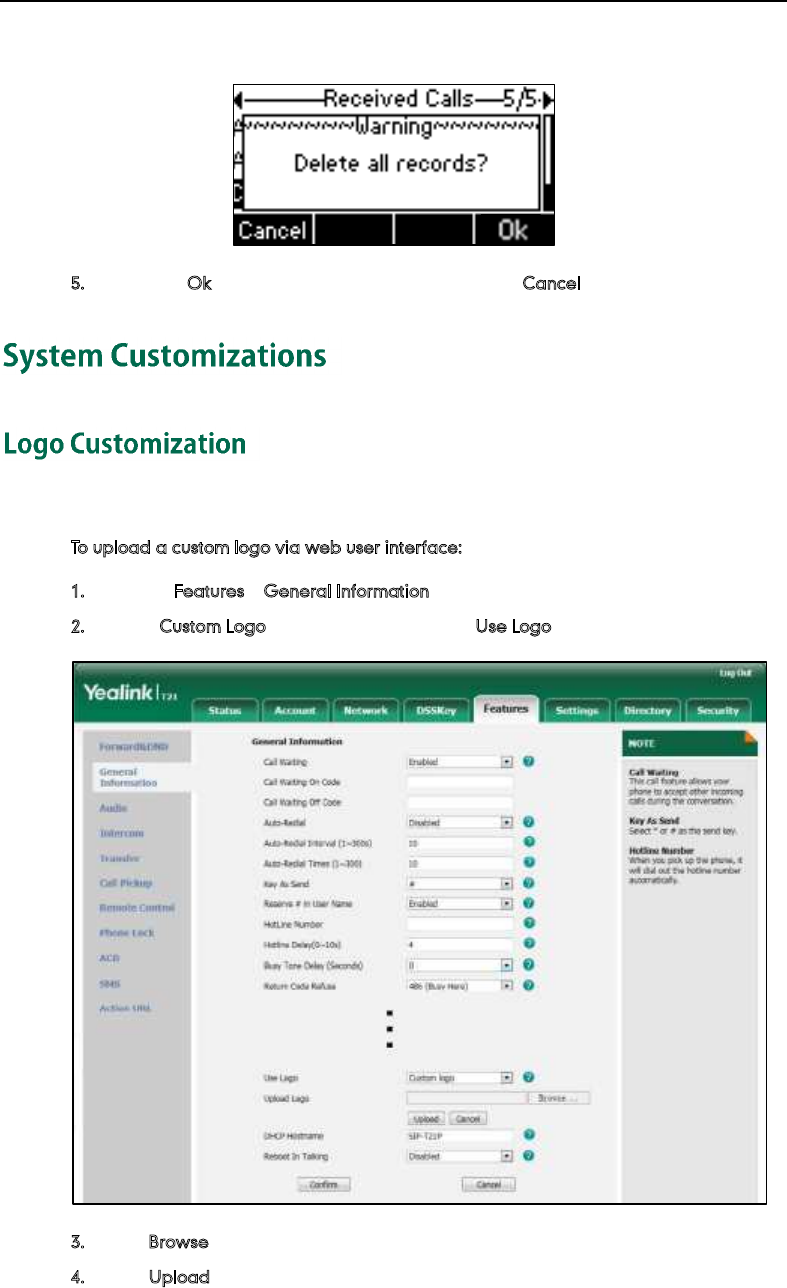

Logo Customization ........................................................................................................ 44

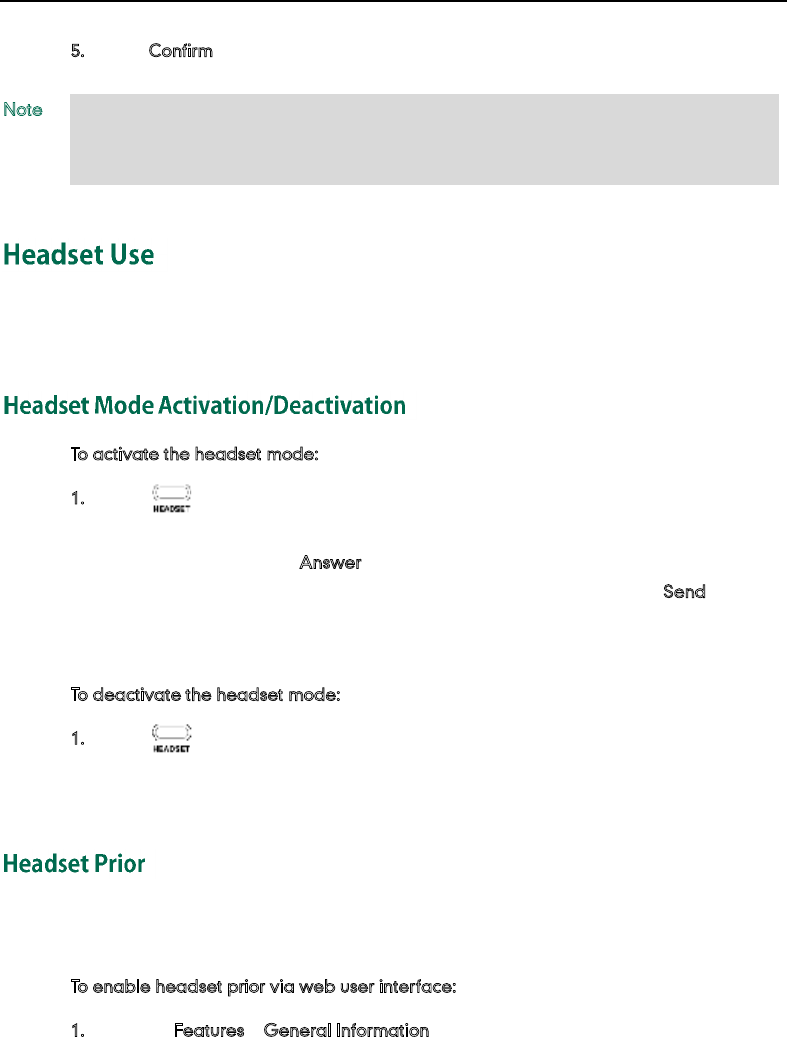

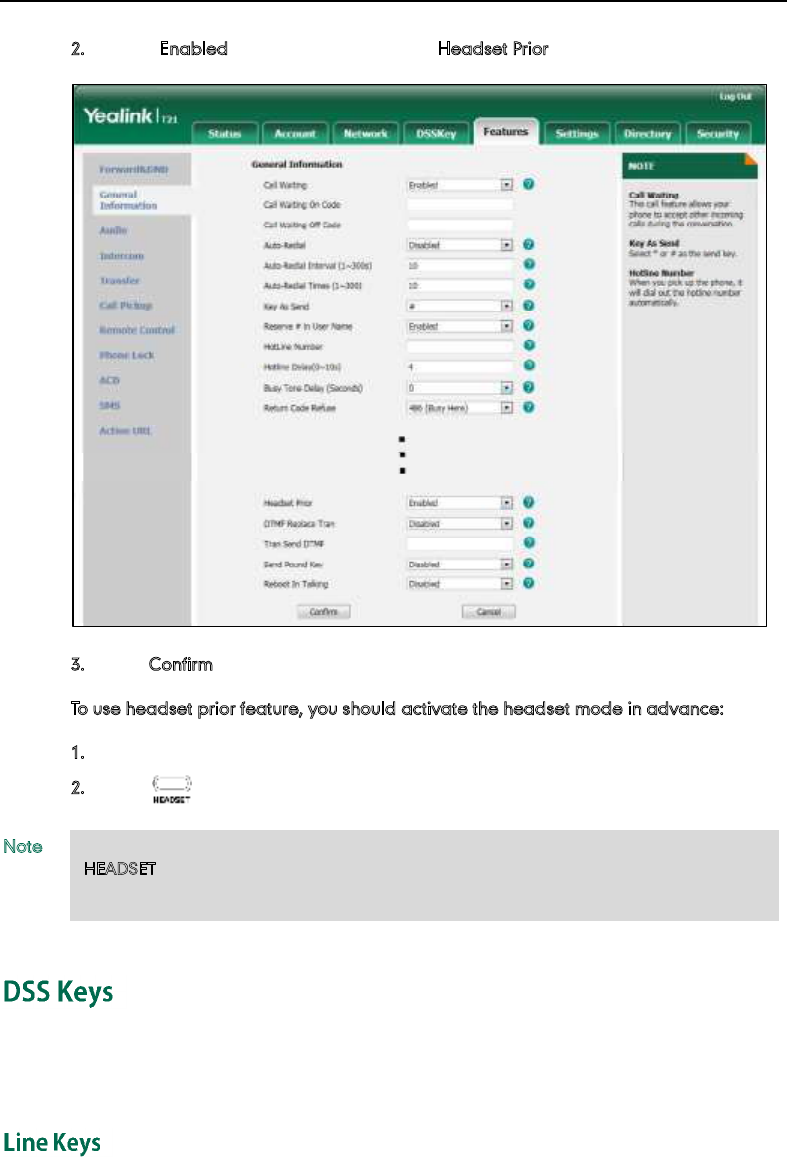

Headset Use .................................................................................................................... 45

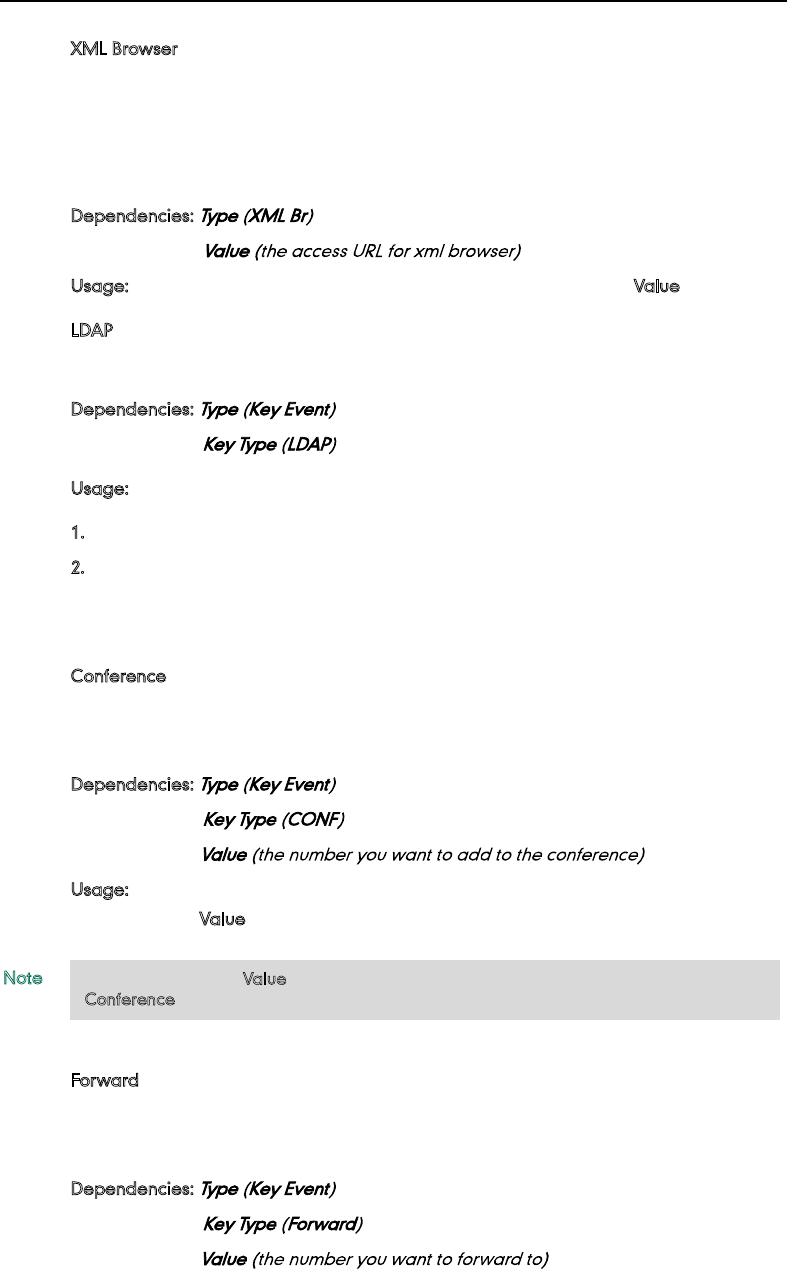

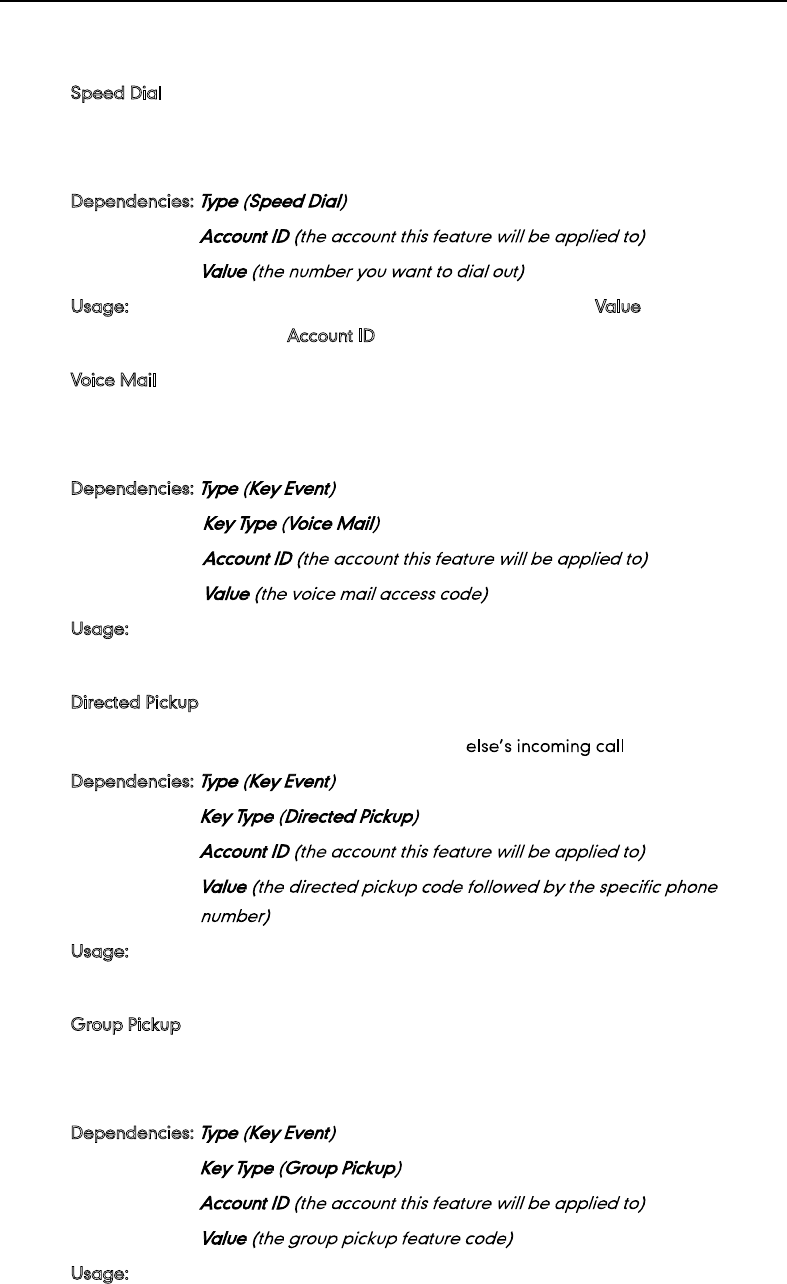

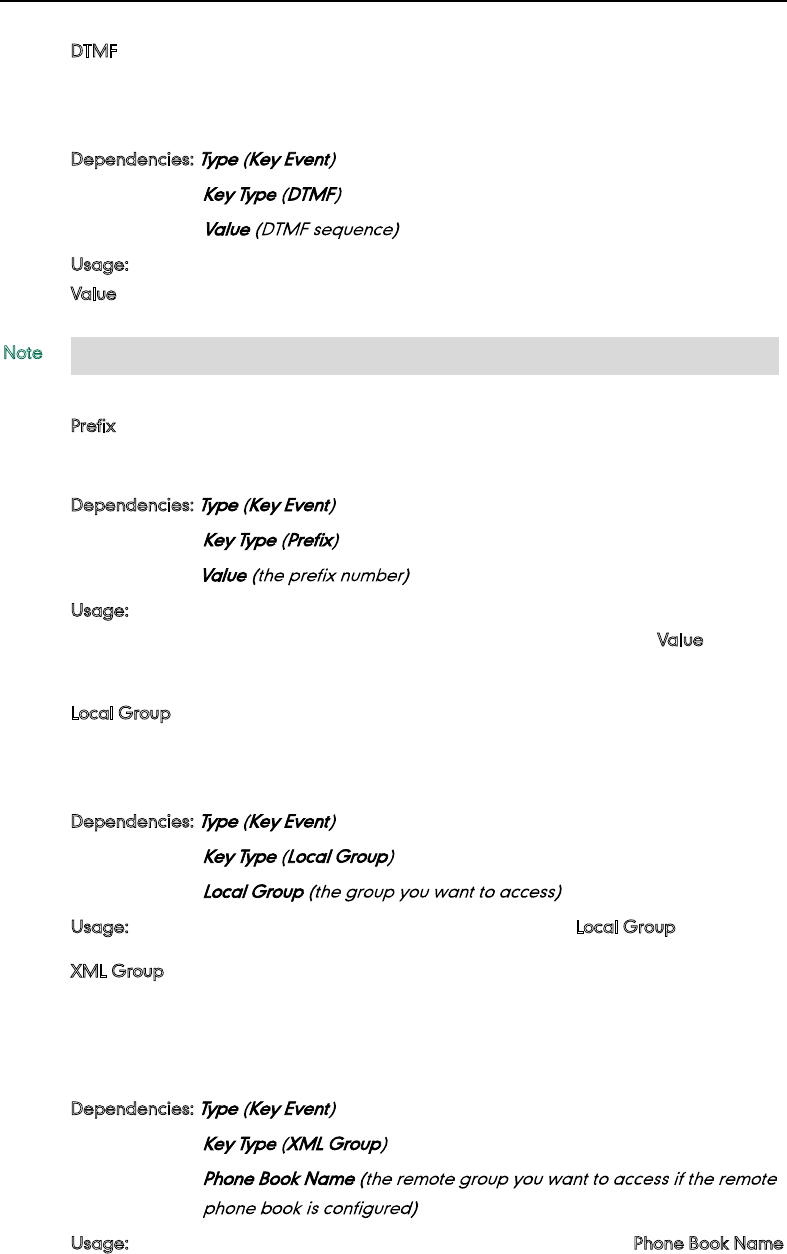

DSS Keys .......................................................................................................................... 46
Account Management ................................................................................................... 54

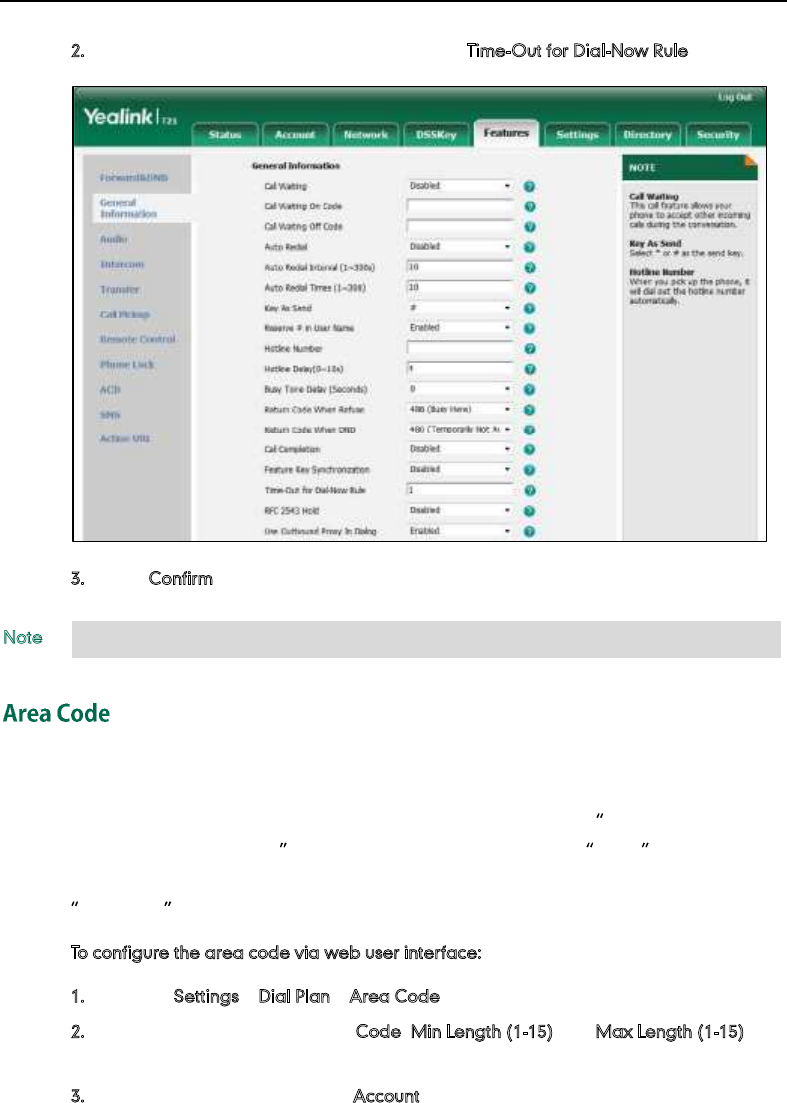

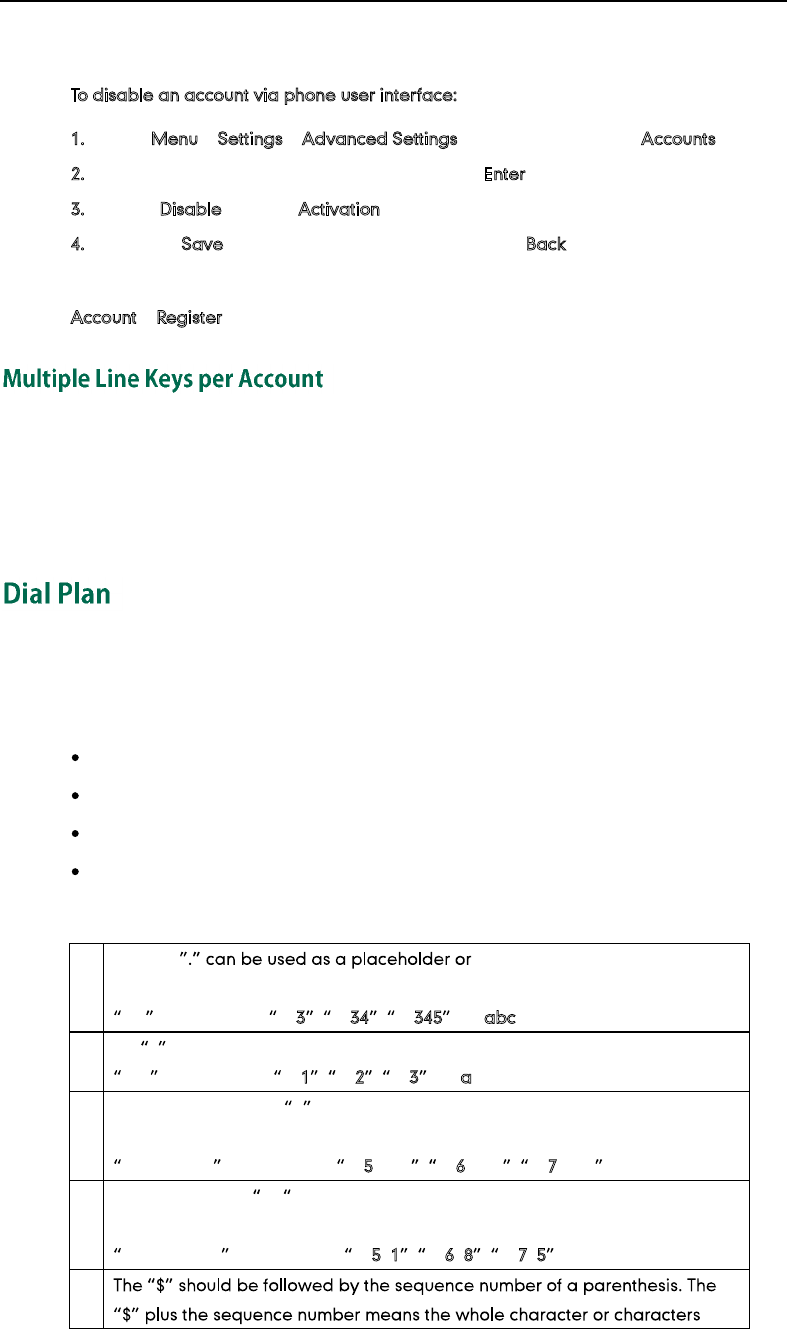

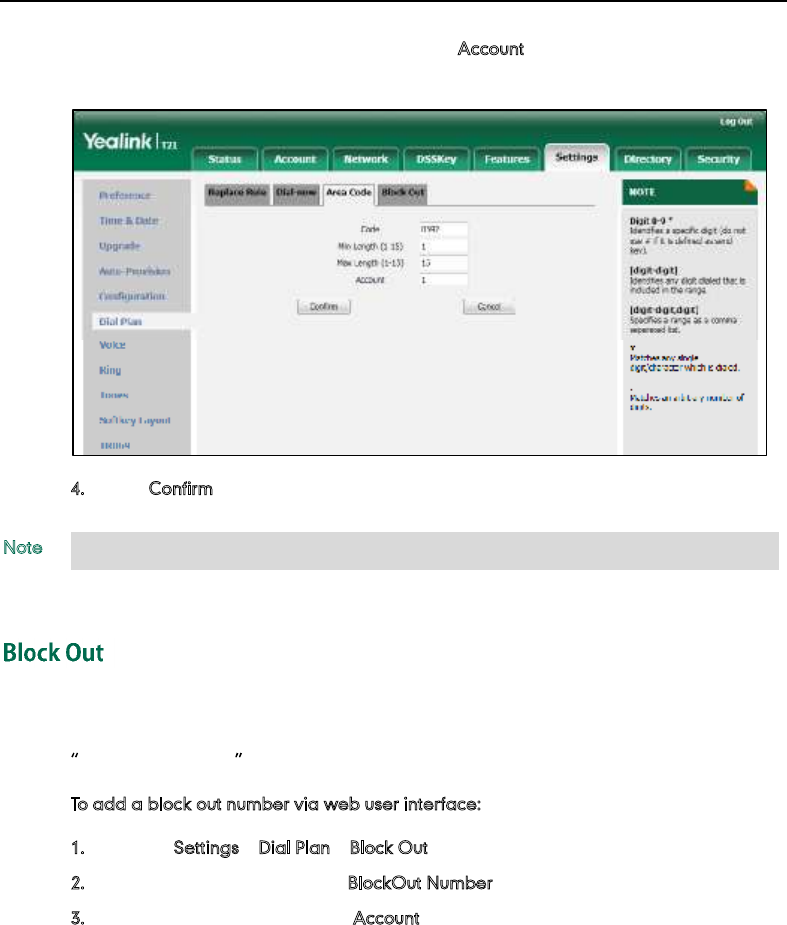

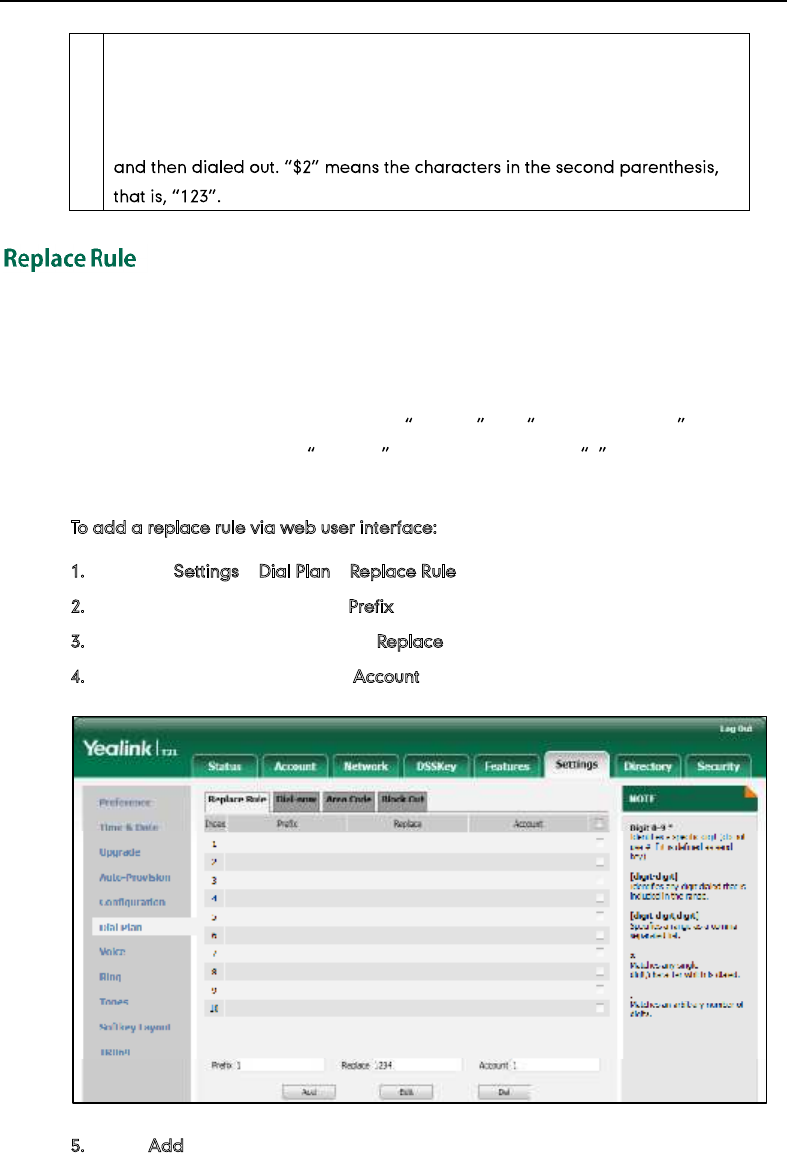

Dial Plan ........................................................................................................................... 55

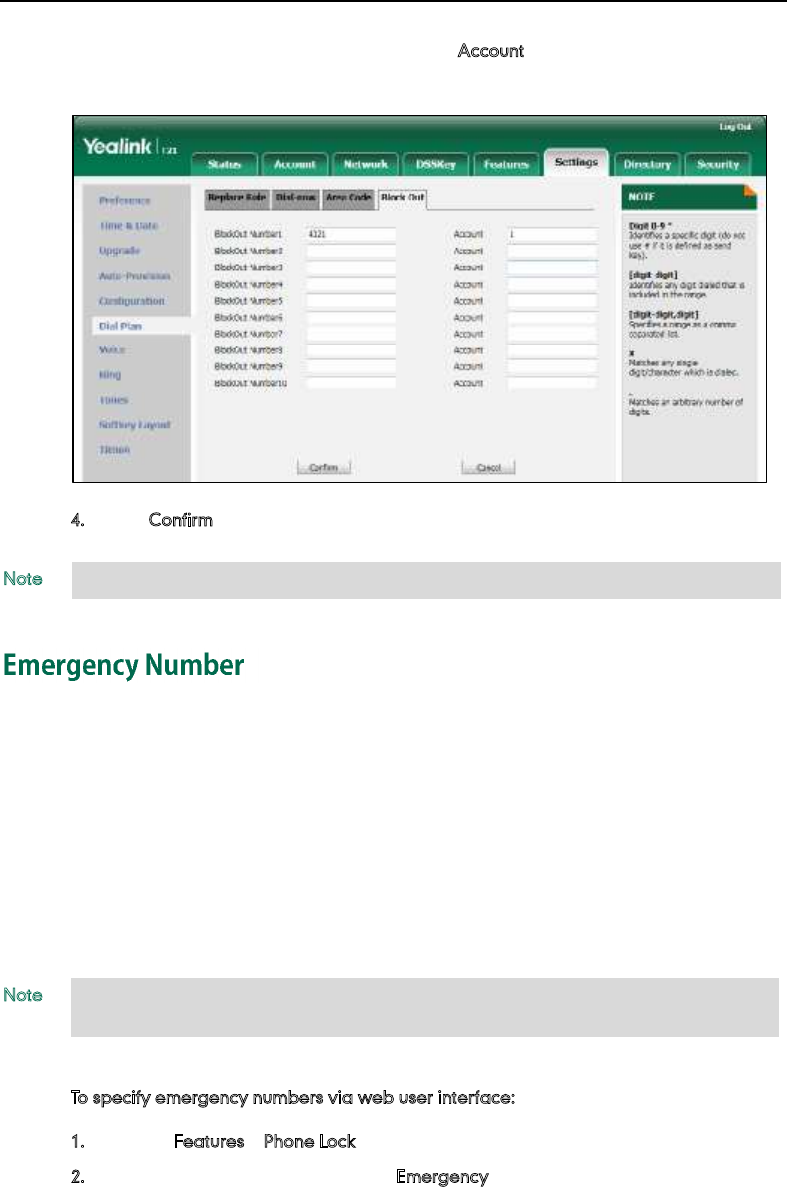

Emergency Number ........................................................................................................ 61

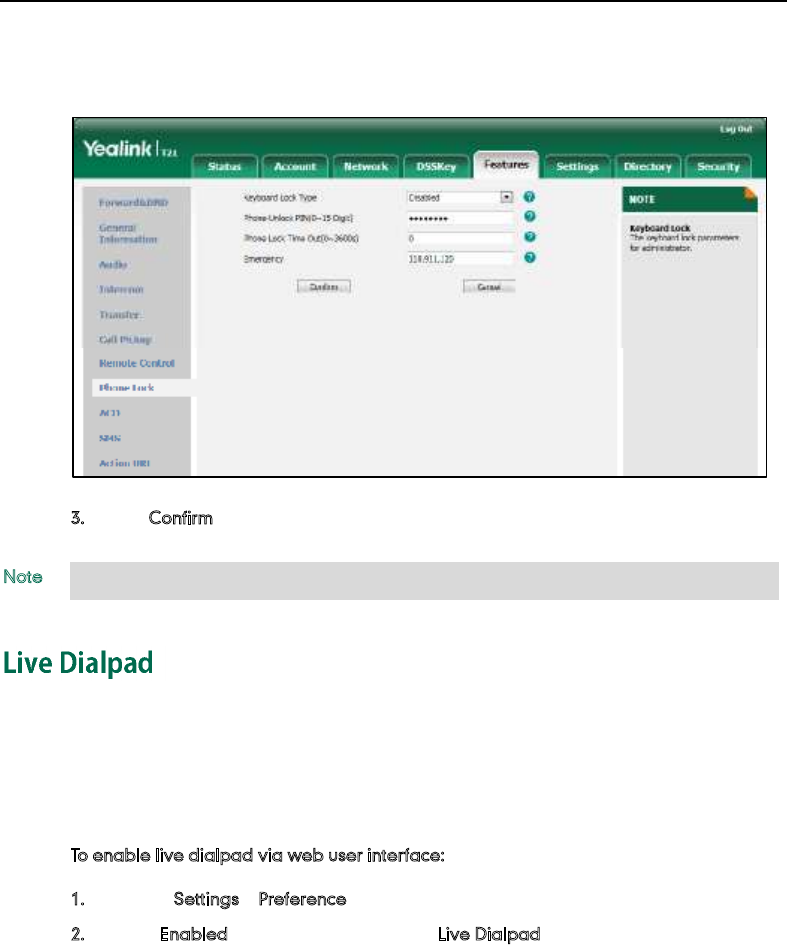

Live Dialpad .................................................................................................................... 62

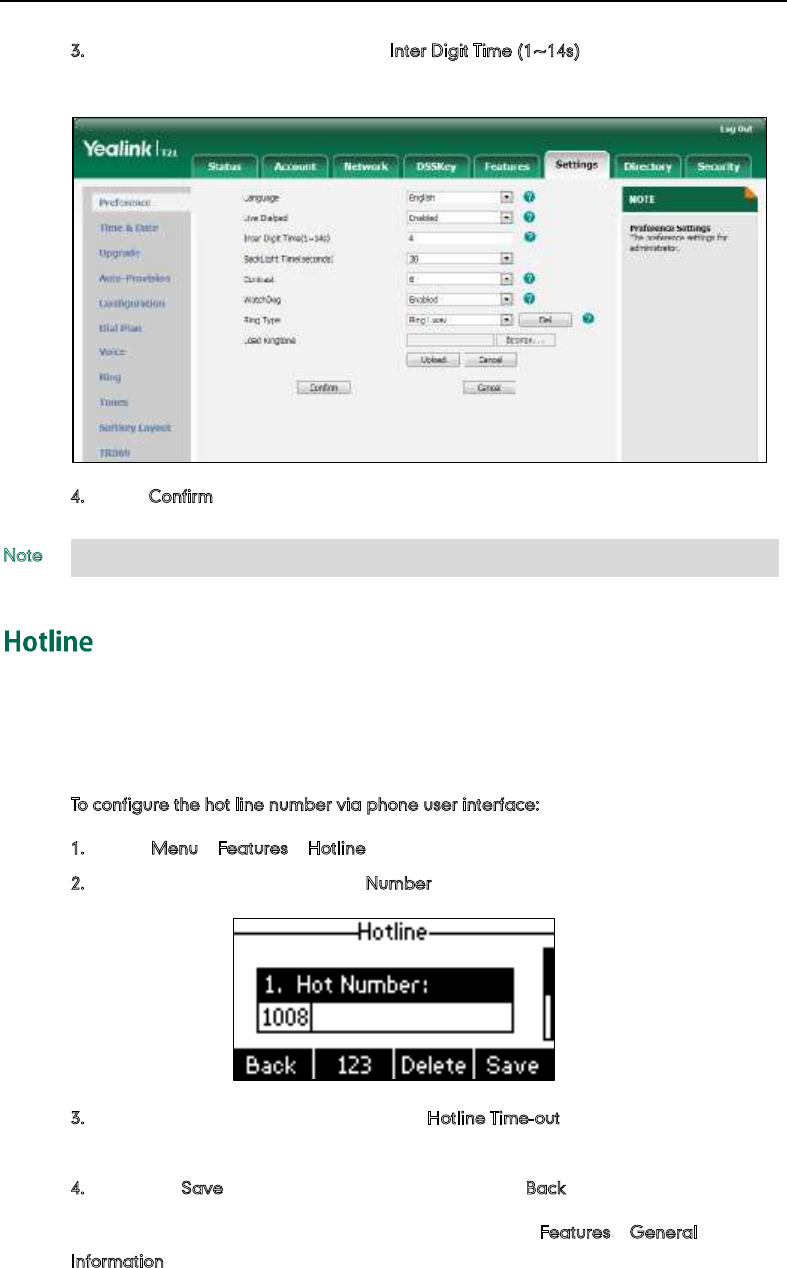

Hotline .............................................................................................................................. 63
Basic Call Features ................................................................. 65

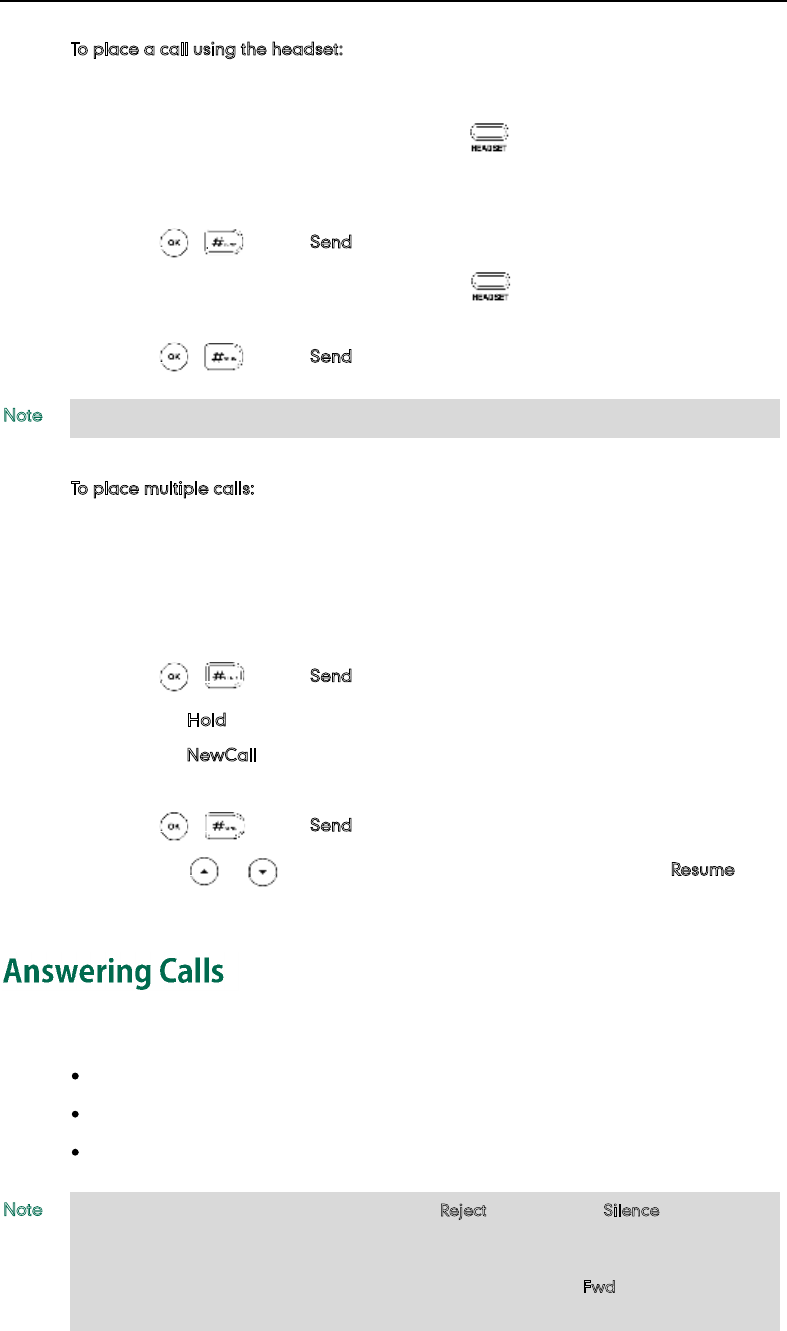

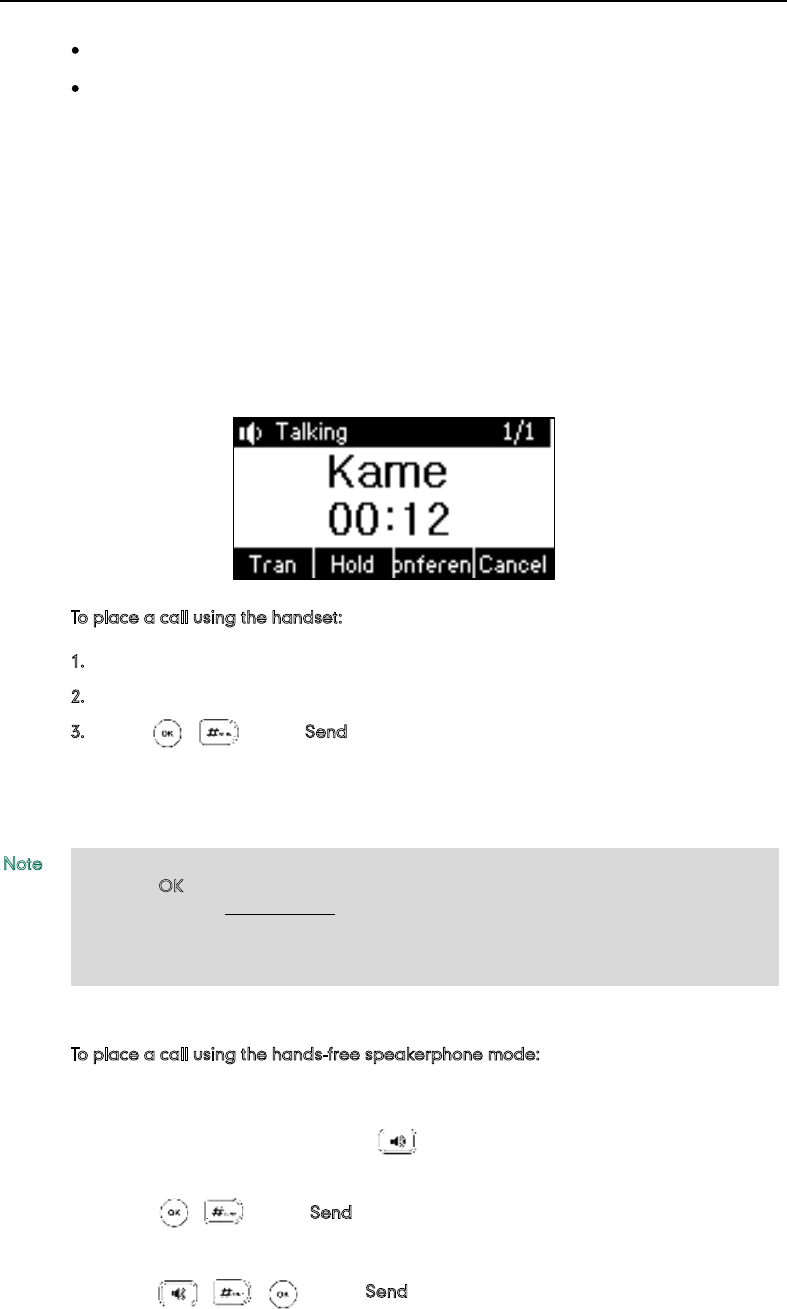

Placing Calls ....................................................................................................................... 65

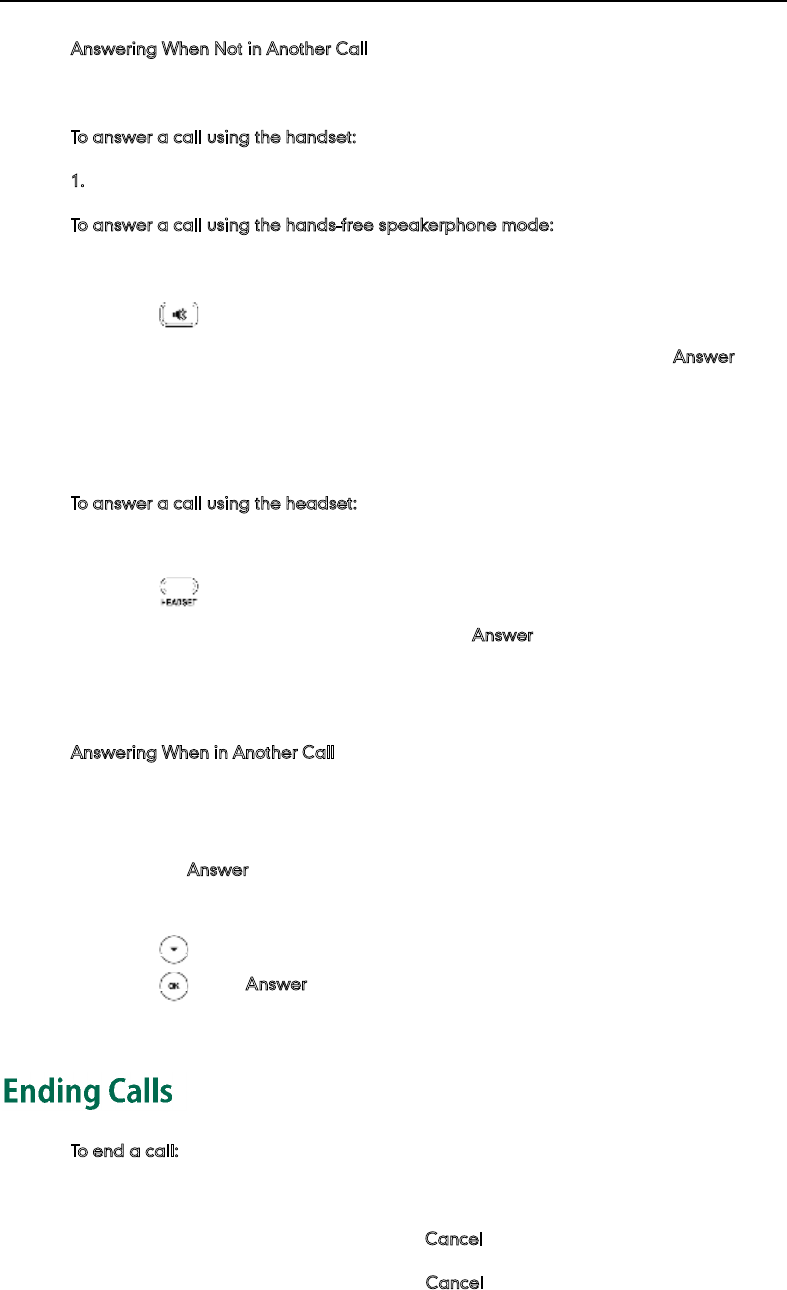

Answering Calls ................................................................................................................. 67
Ending Calls ........................................................................................................................ 68
Redialing Numbers ............................................................................................................ 69
Recent Call In Dialing ........................................................................................................ 69

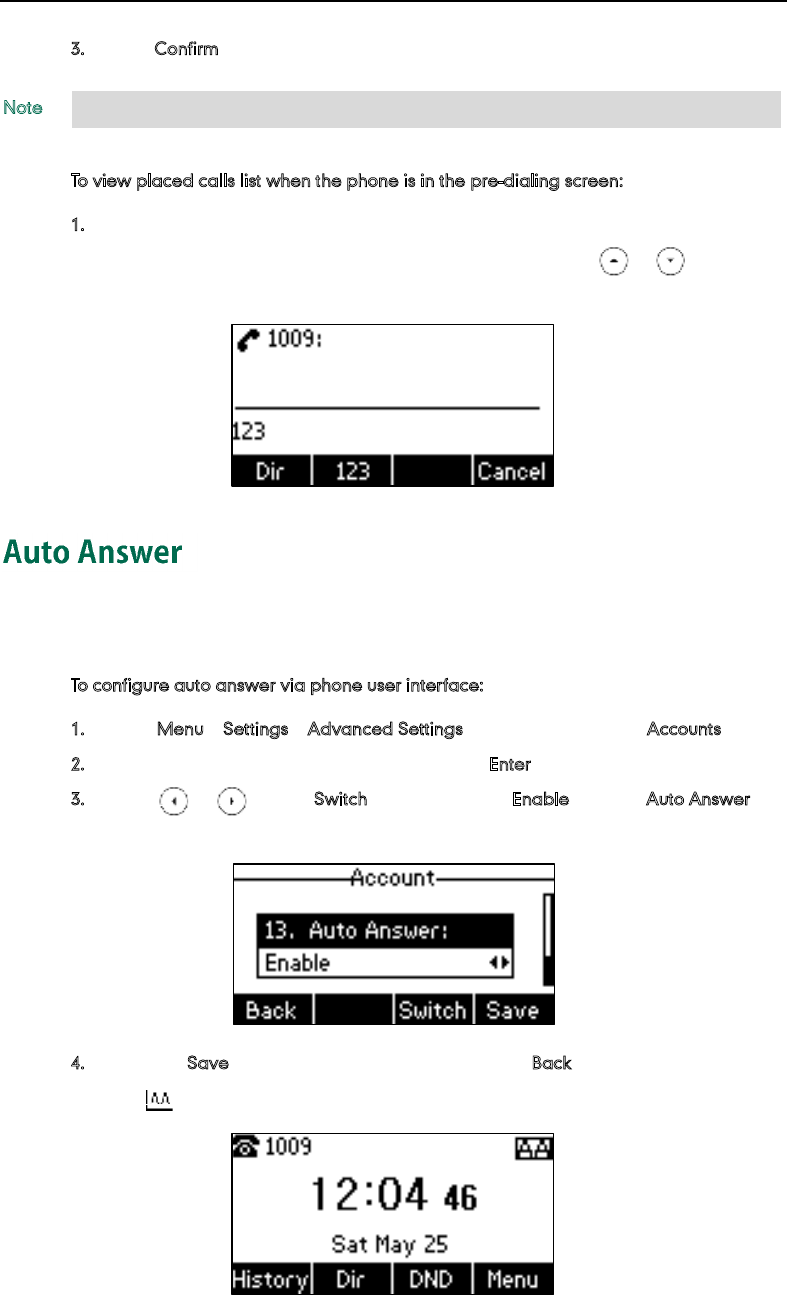

Auto Answer ....................................................................................................................... 70

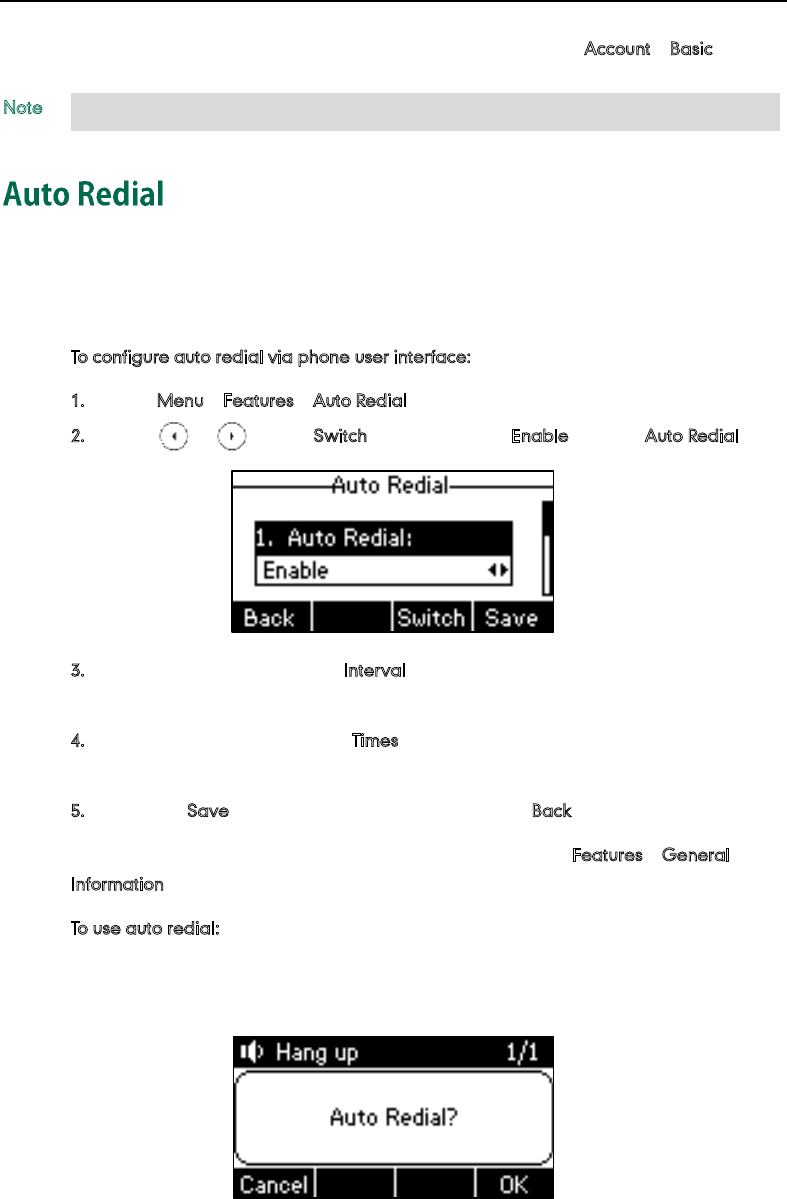

Auto Redial .......................................................................................................................... 71

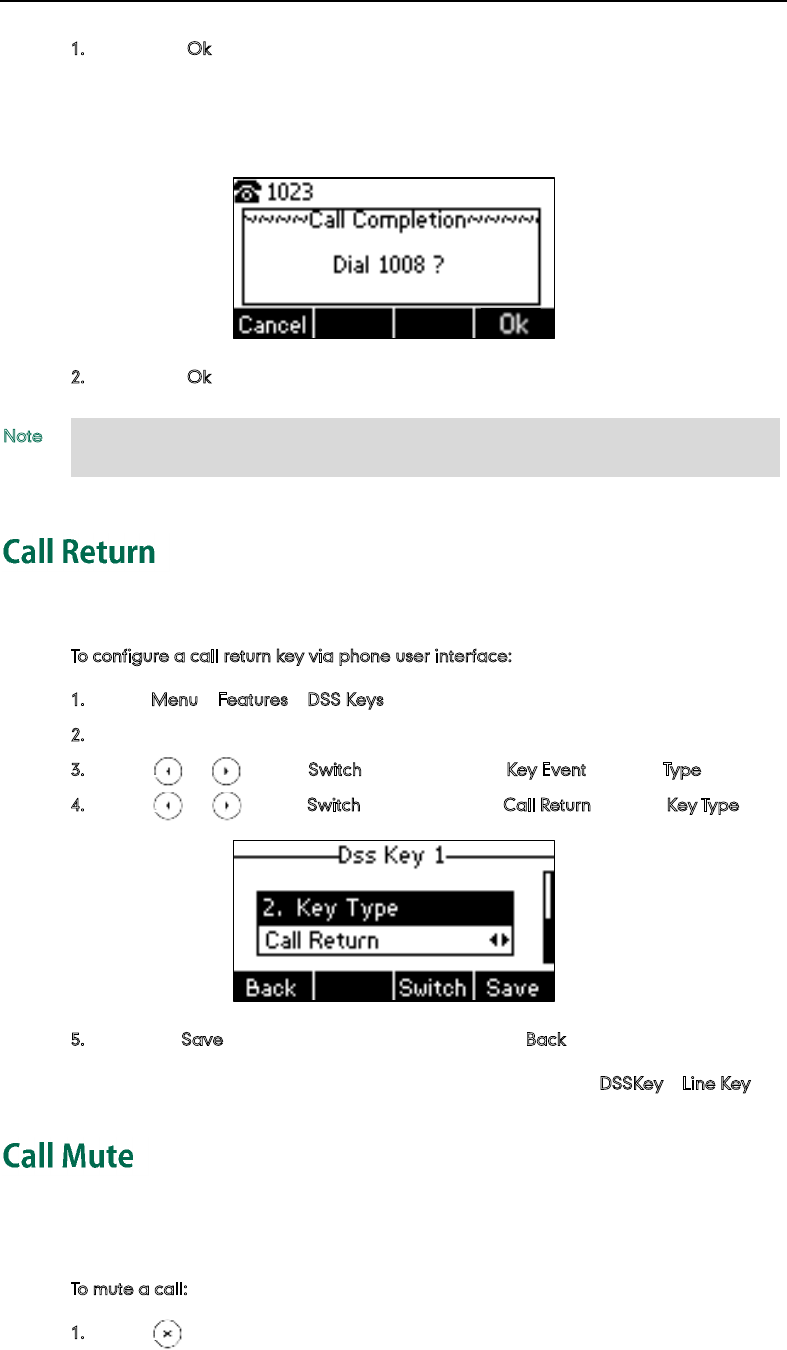

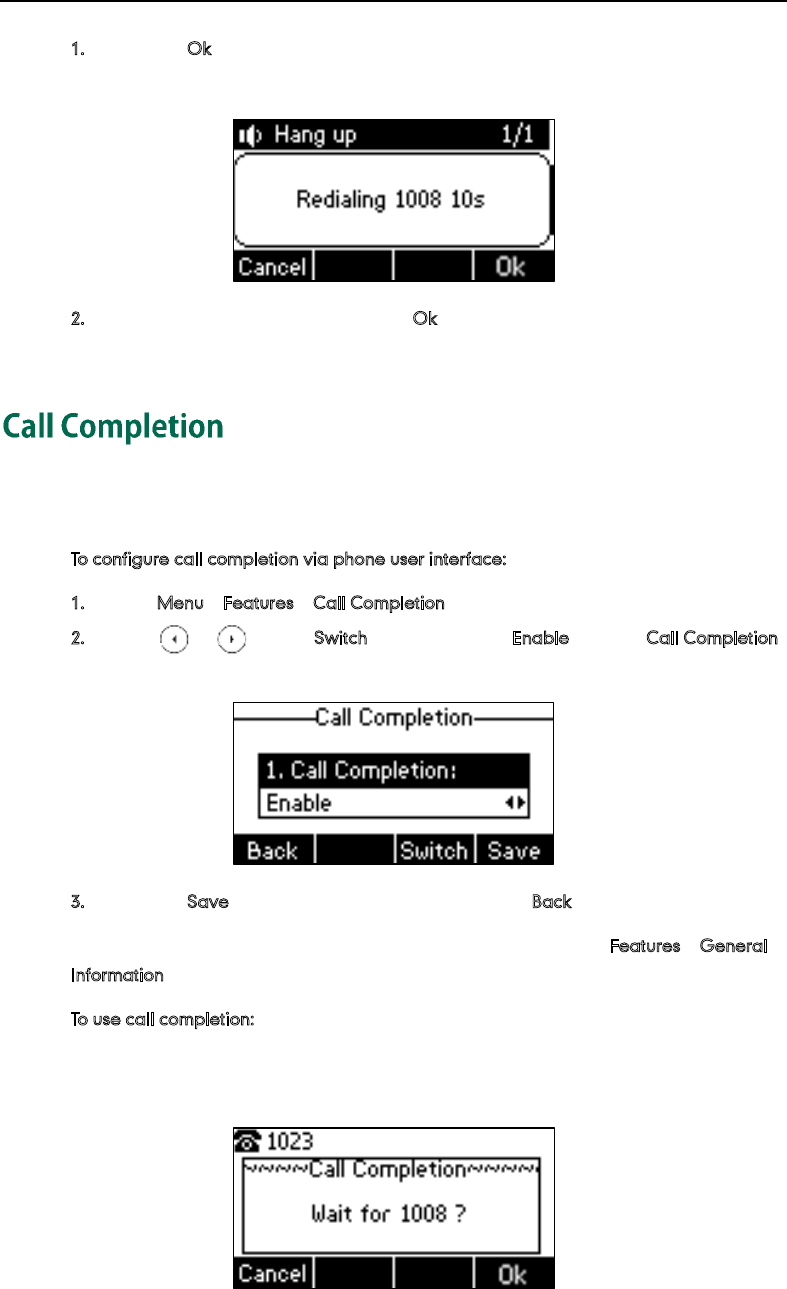

Call Completion ................................................................................................................. 72
Call Return ........................................................................................................................... 73
Call Mute ............................................................................................................................. 73

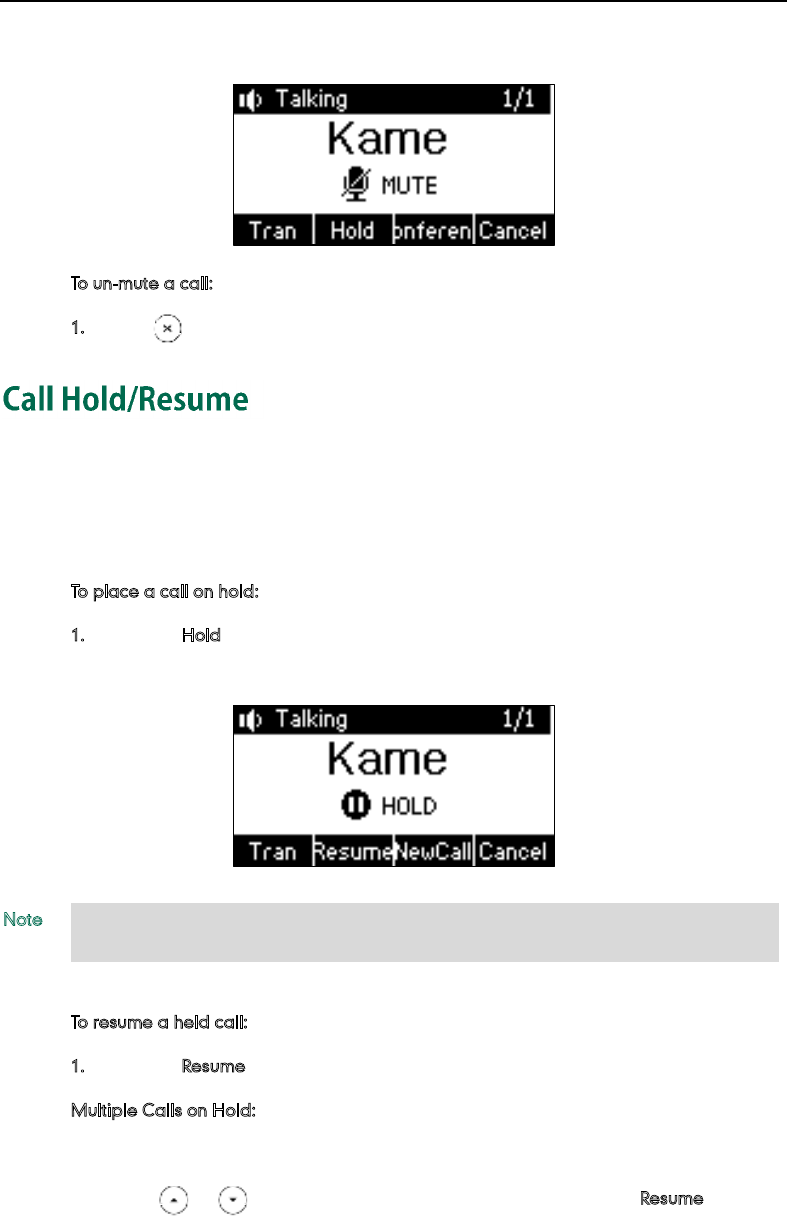

Call Hold/Resume ............................................................................................................... 74

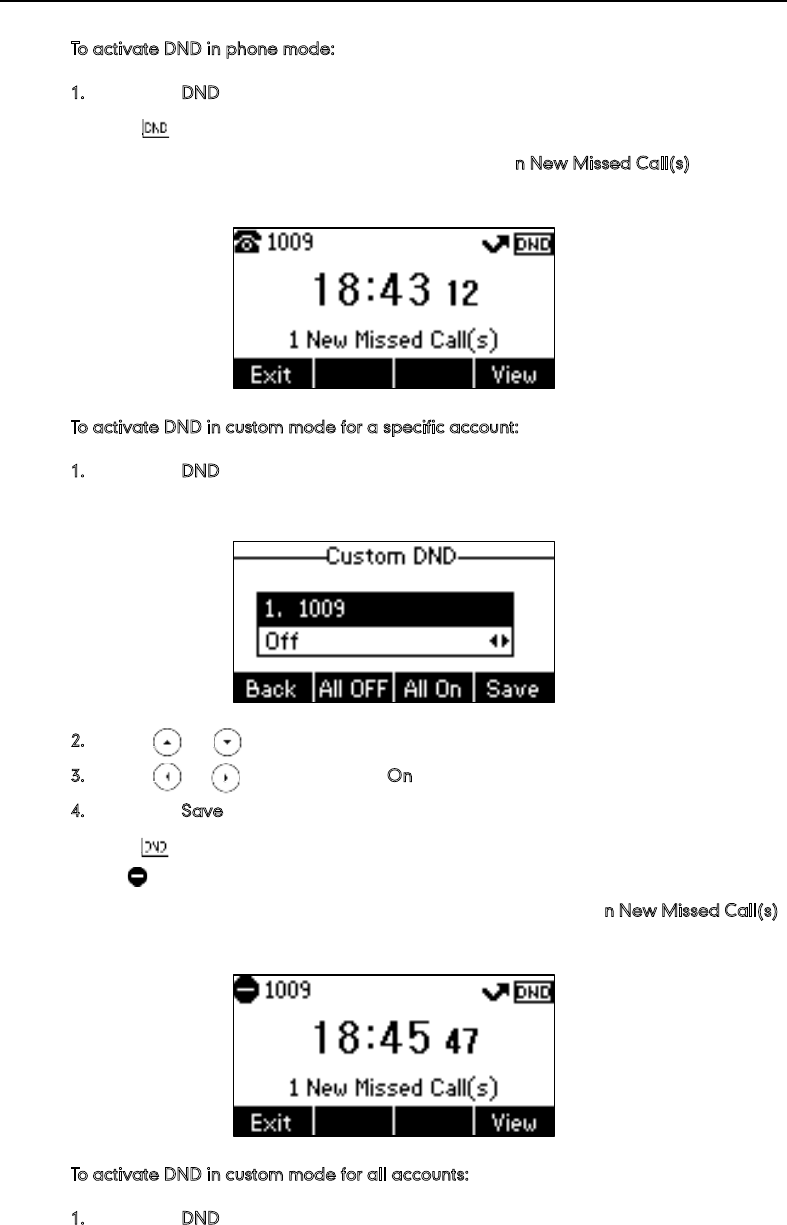

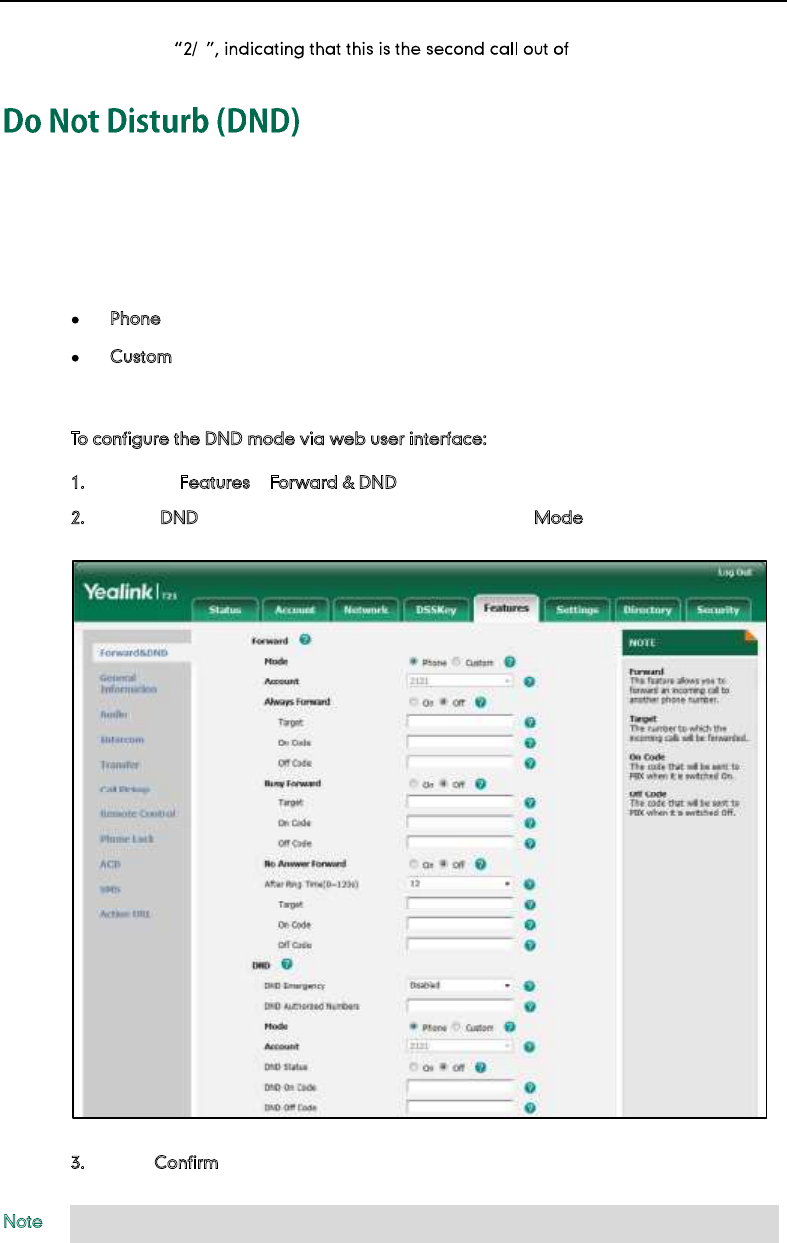

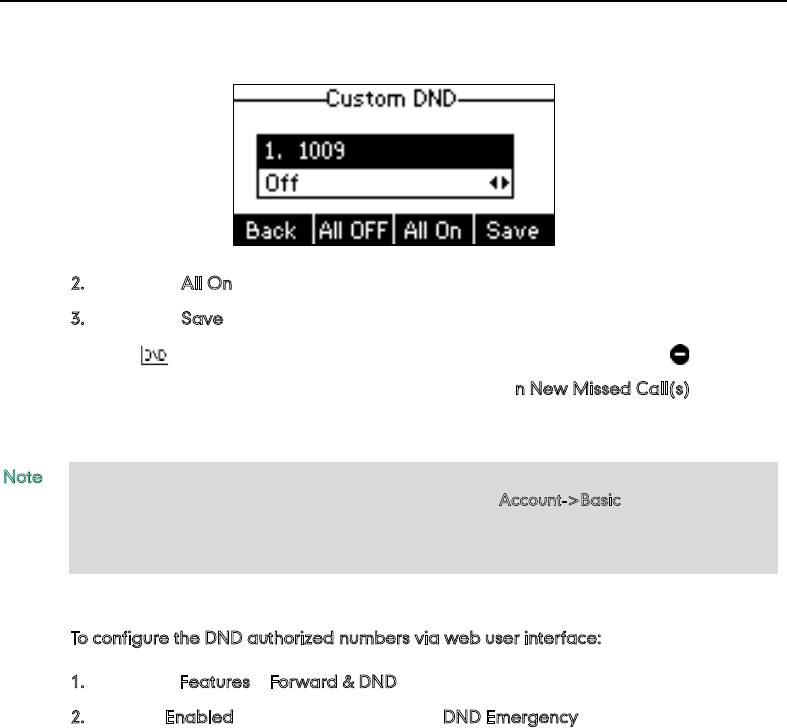

Do Not Disturb (DND) ........................................................................................................ 75

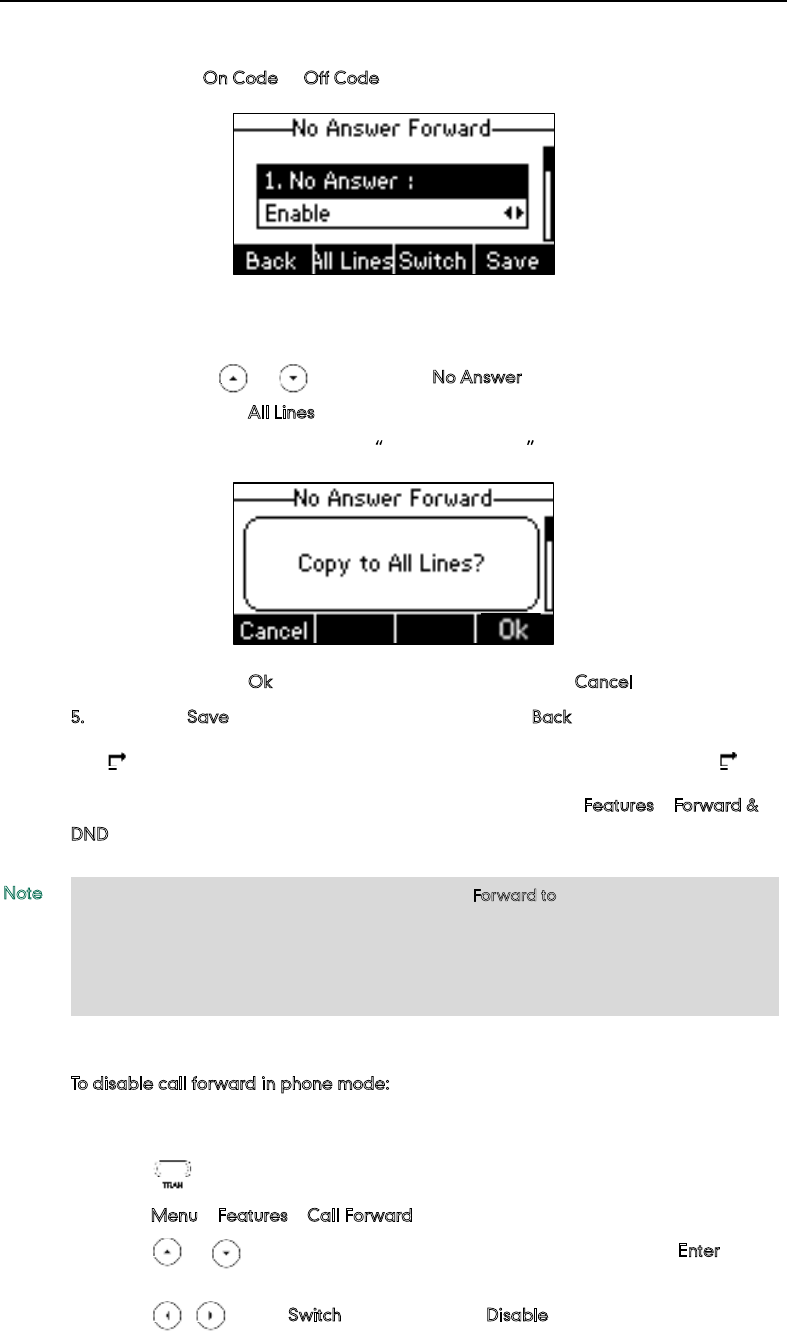

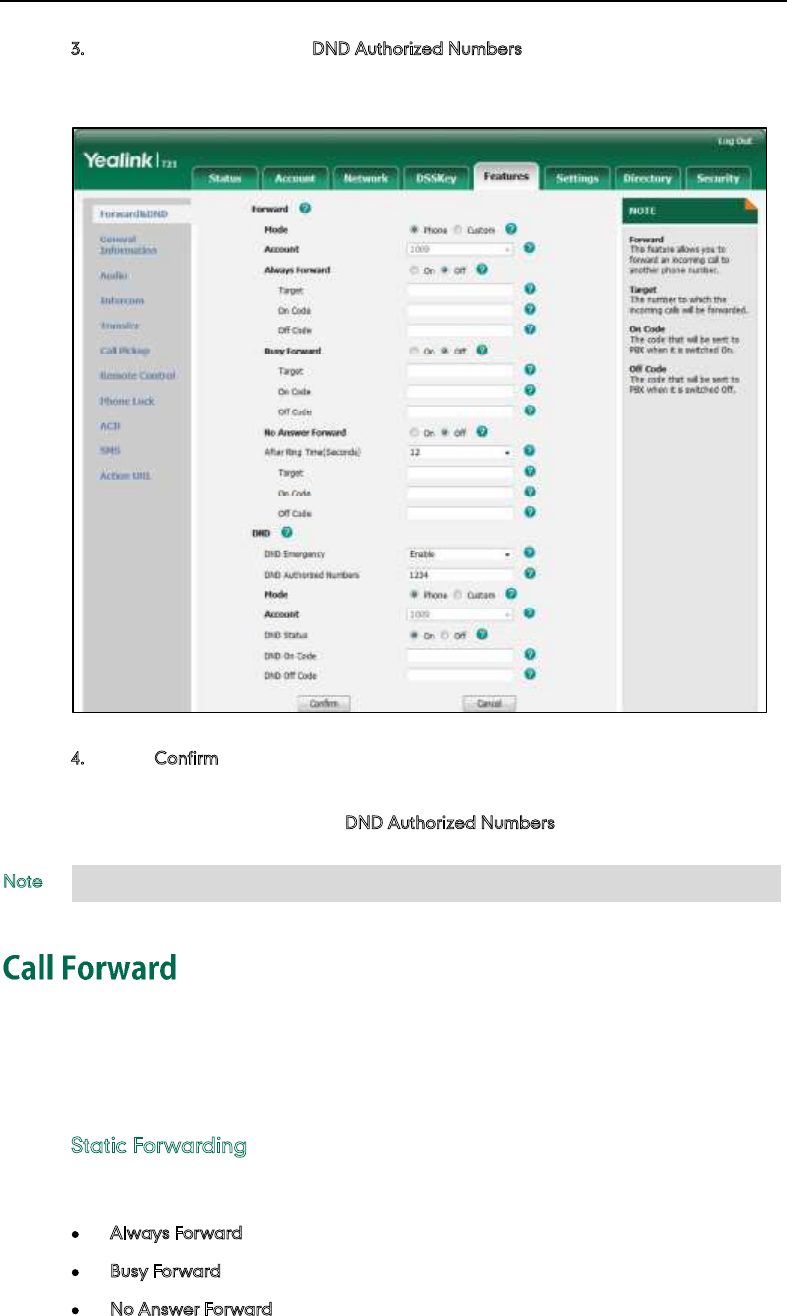

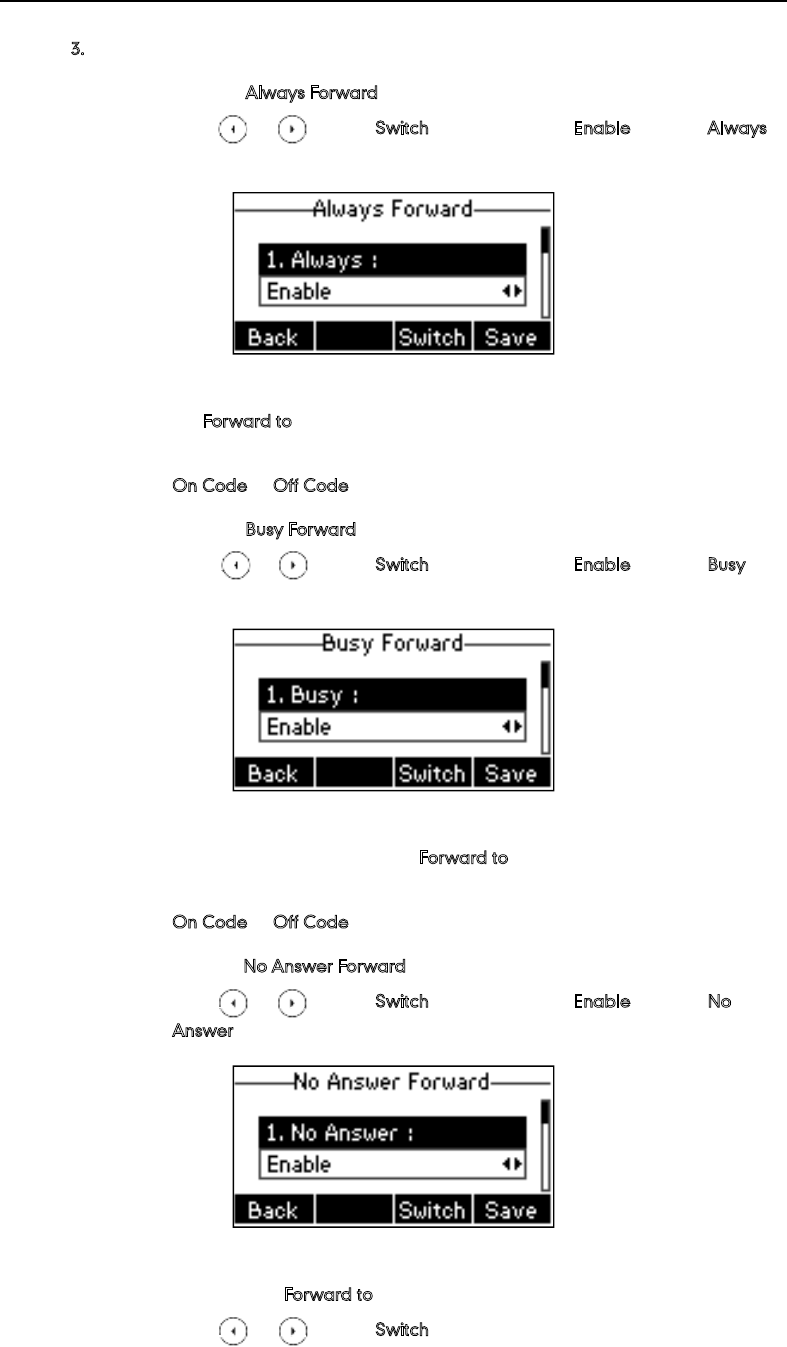

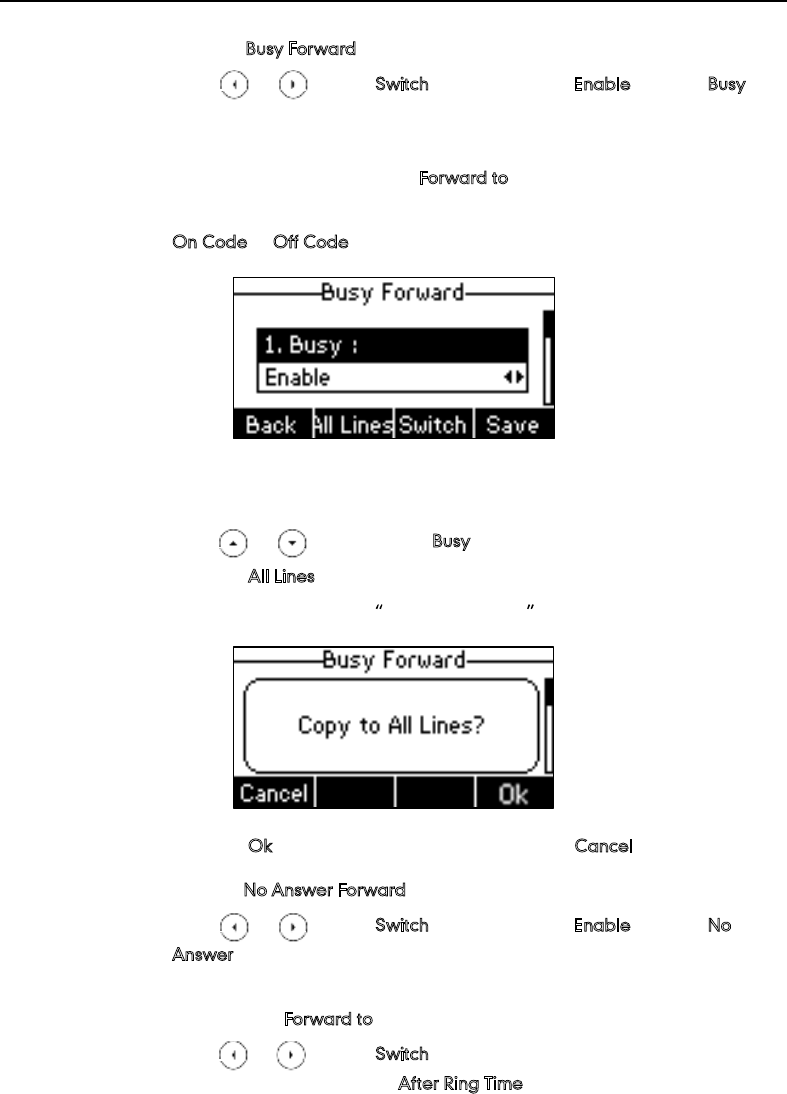

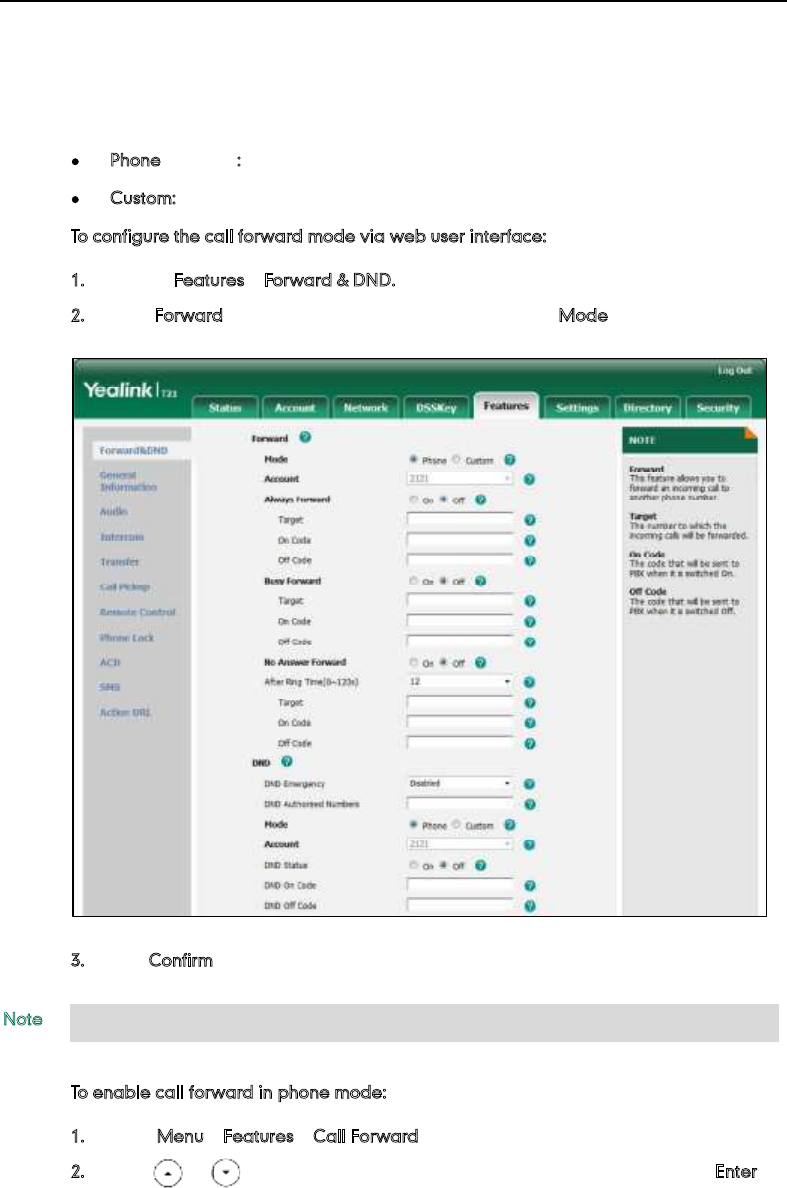

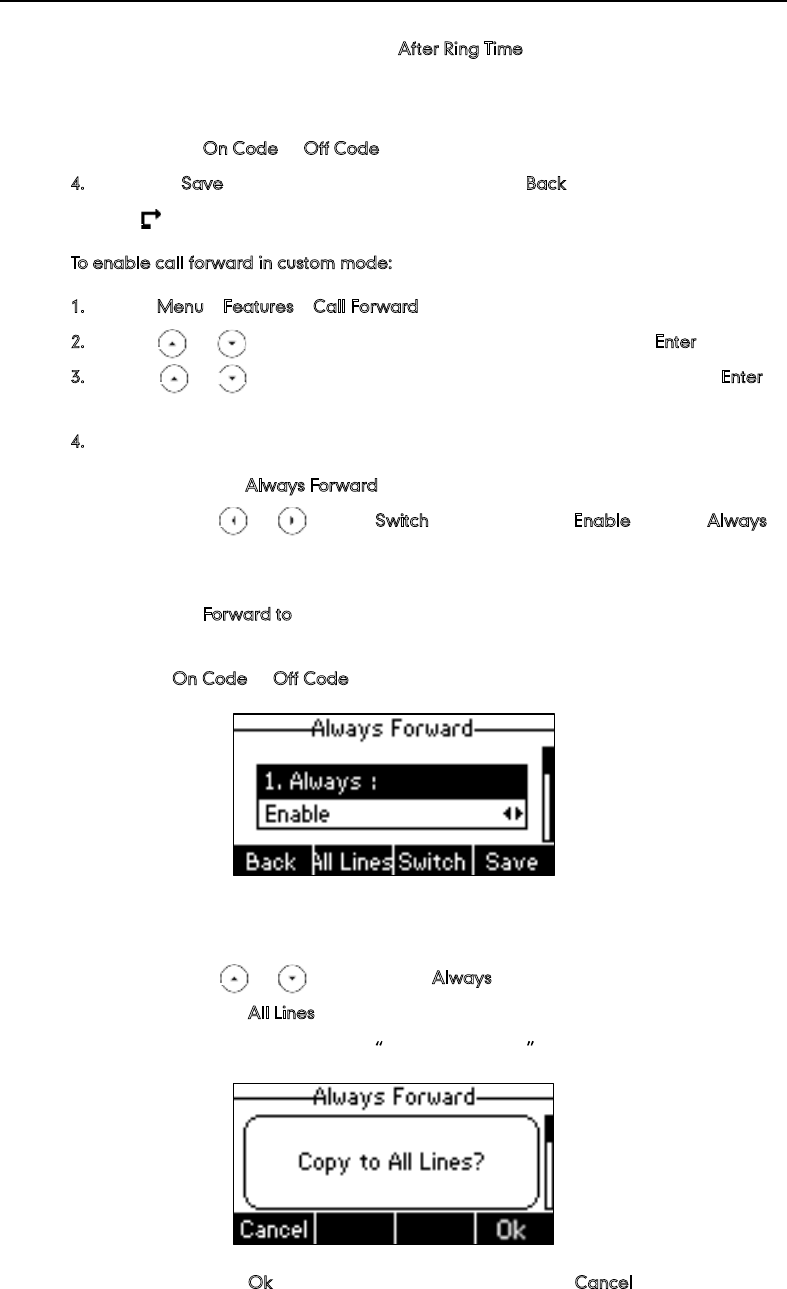

Call Forward ....................................................................................................................... 78

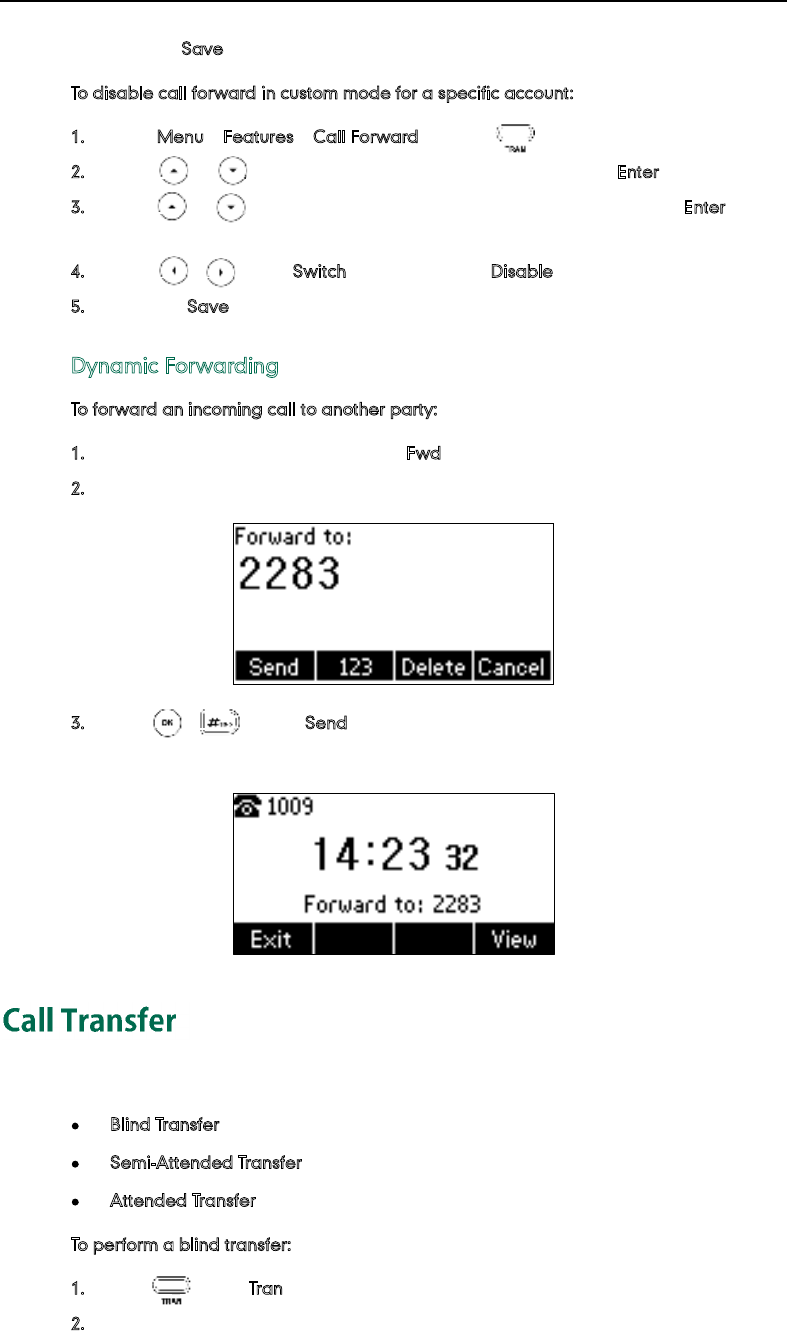

Call Transfer ........................................................................................................................ 84

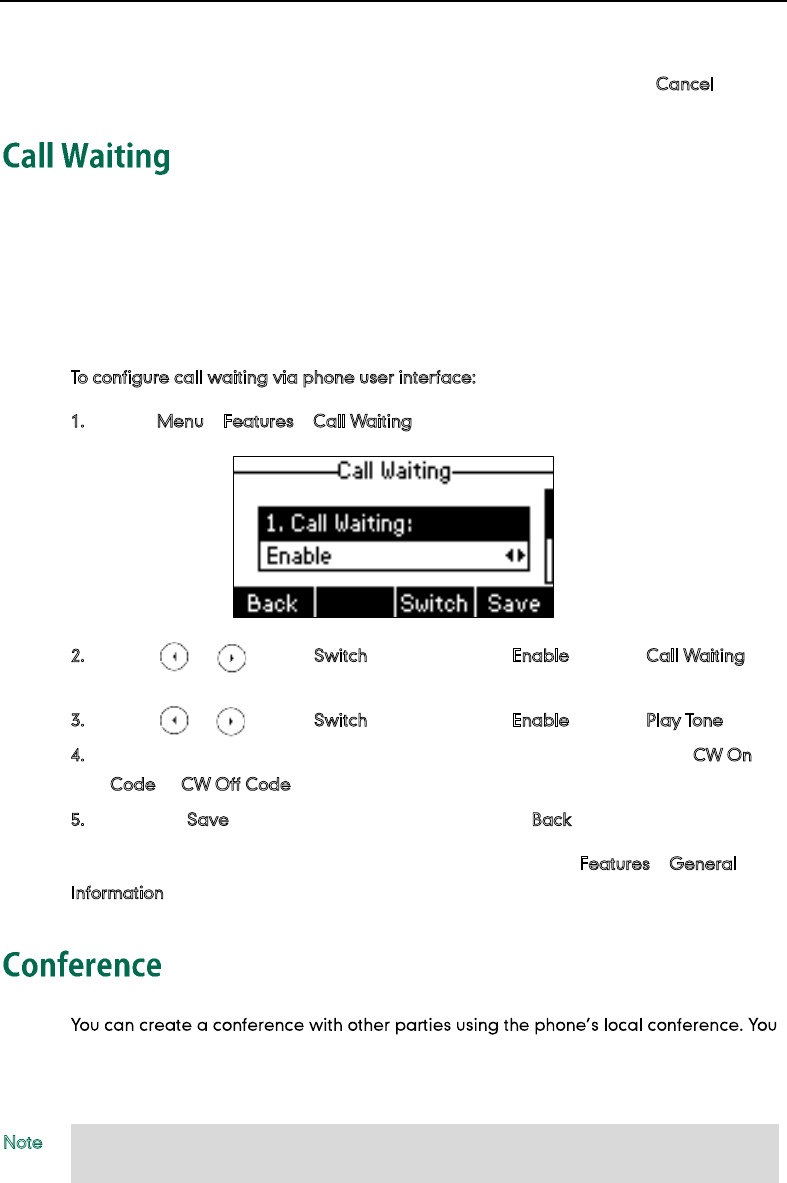

Call Waiting ........................................................................................................................ 86
Conference ......................................................................................................................... 86

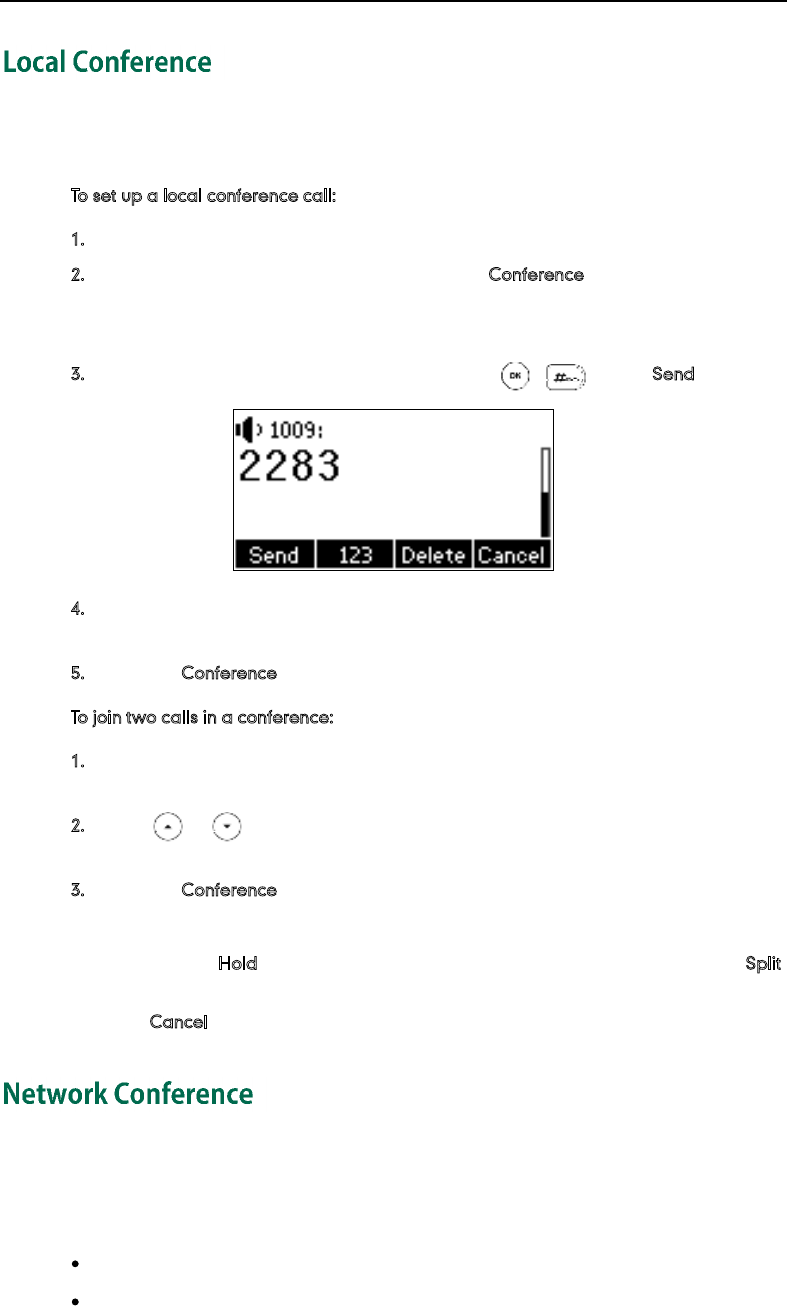

Local Conference ............................................................................................................ 87
Network Conference ...................................................................................................... 87

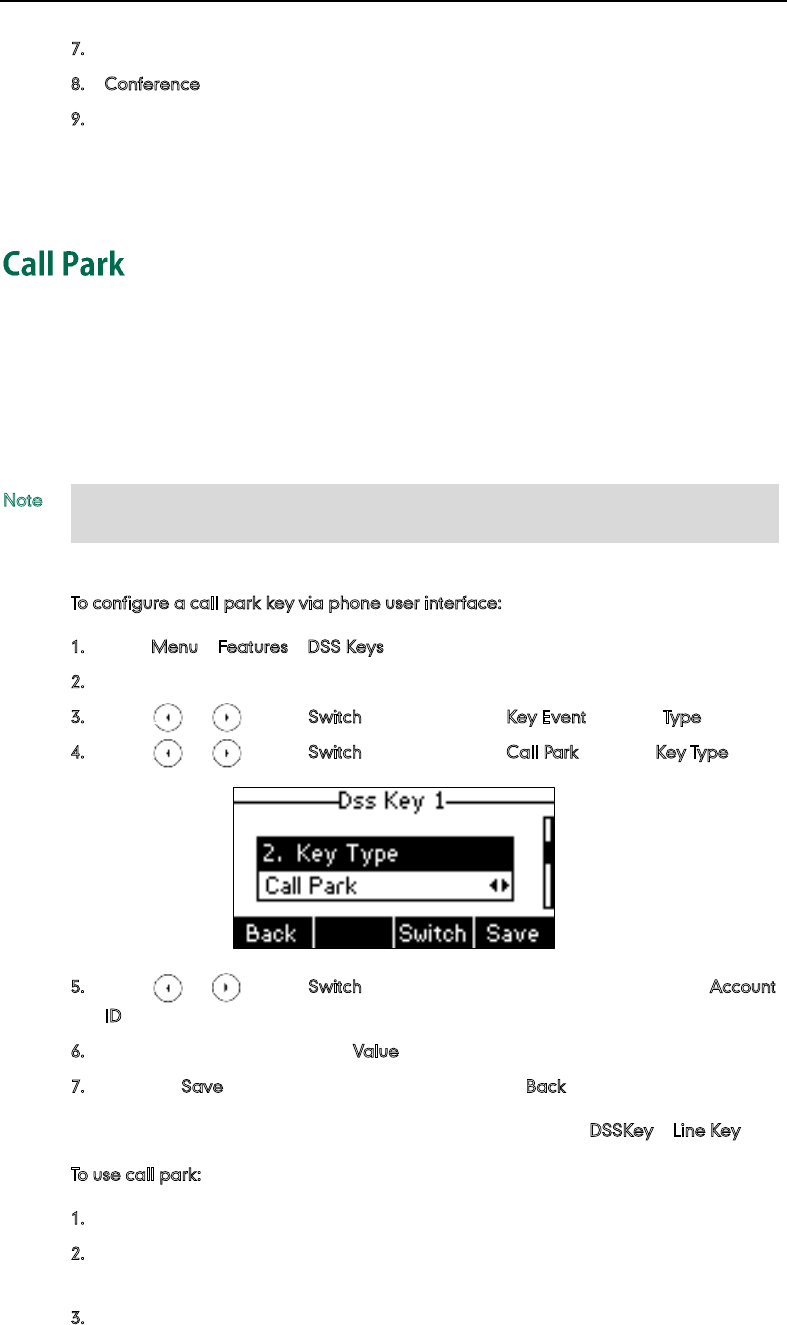

Call Park .............................................................................................................................. 89

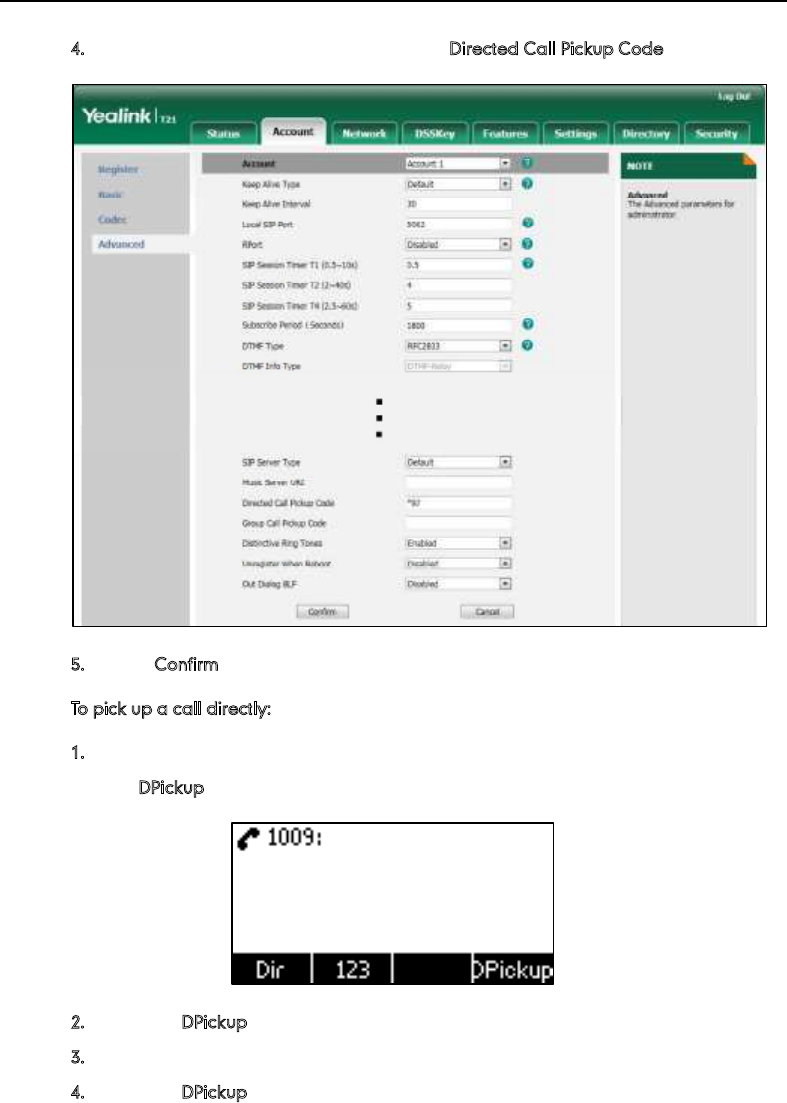

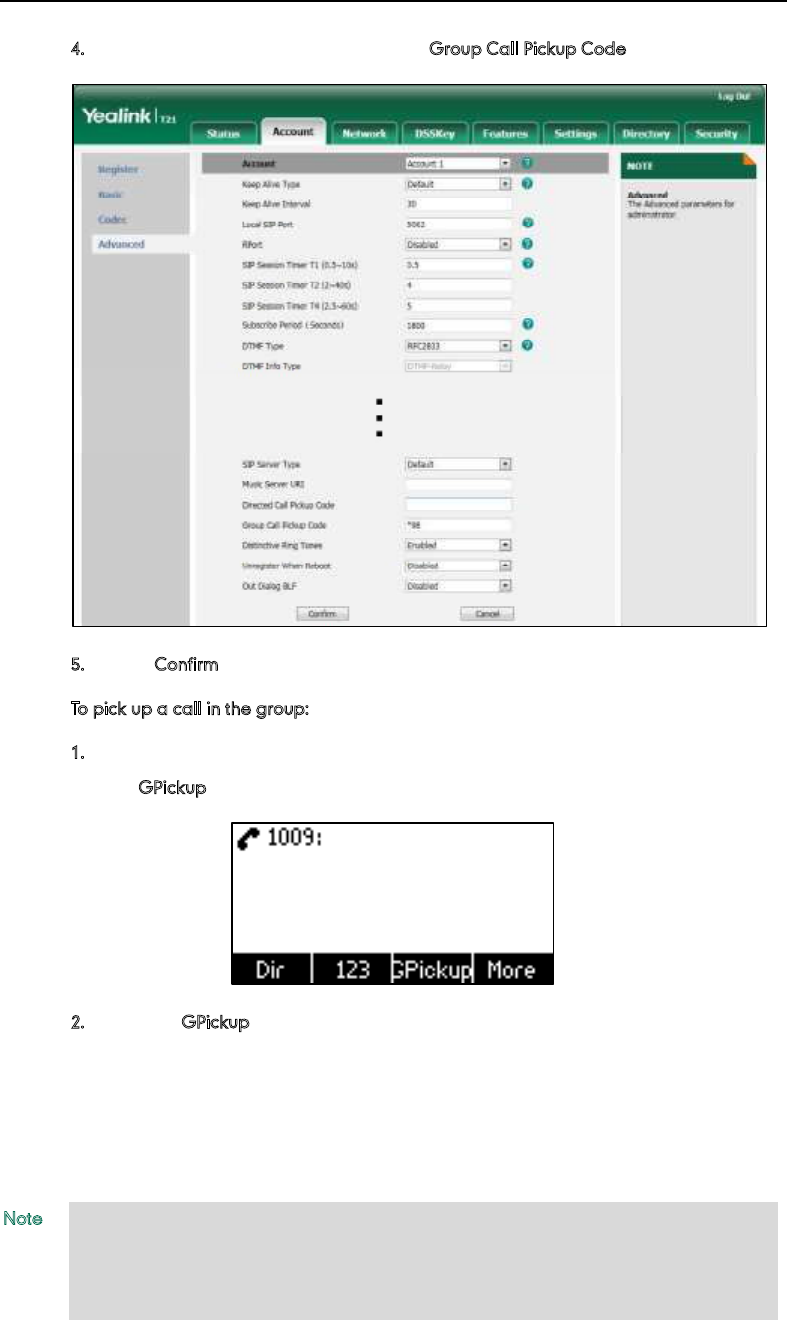

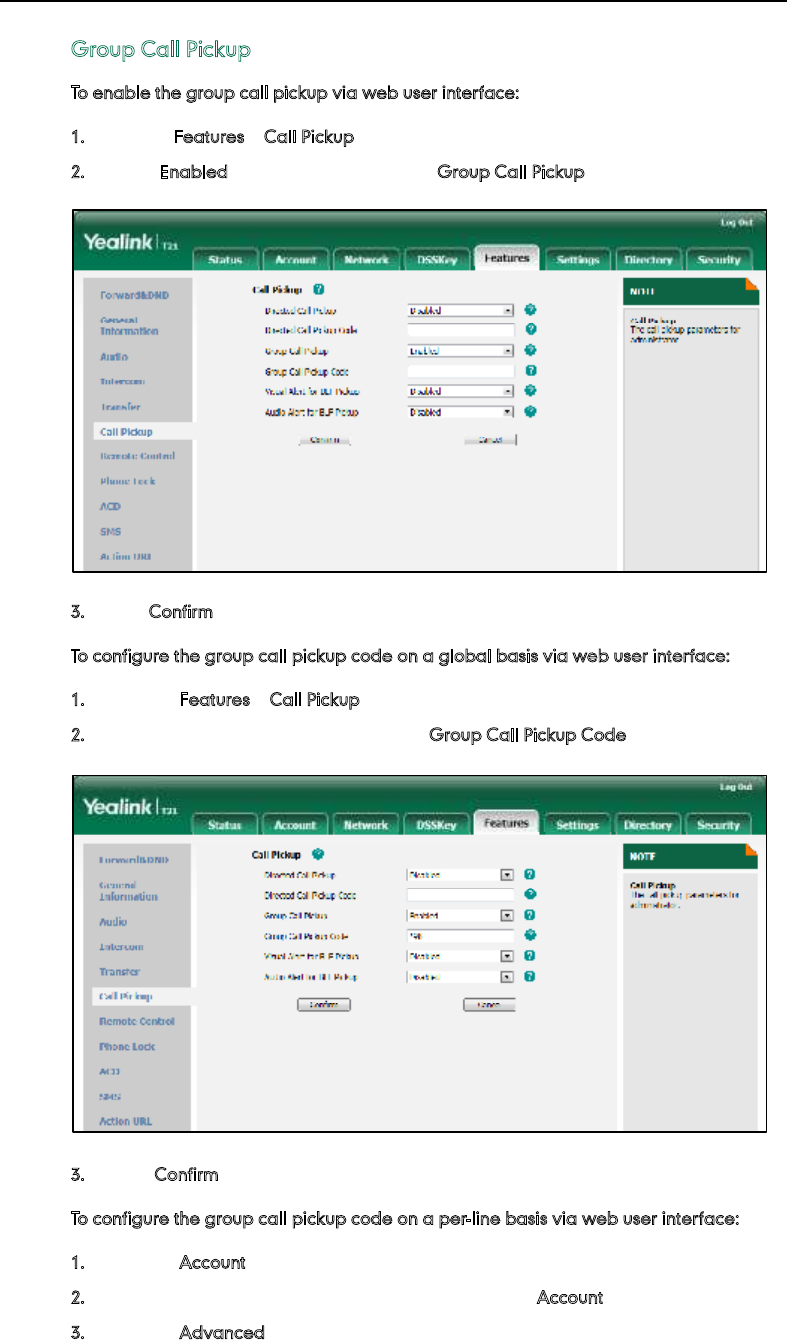

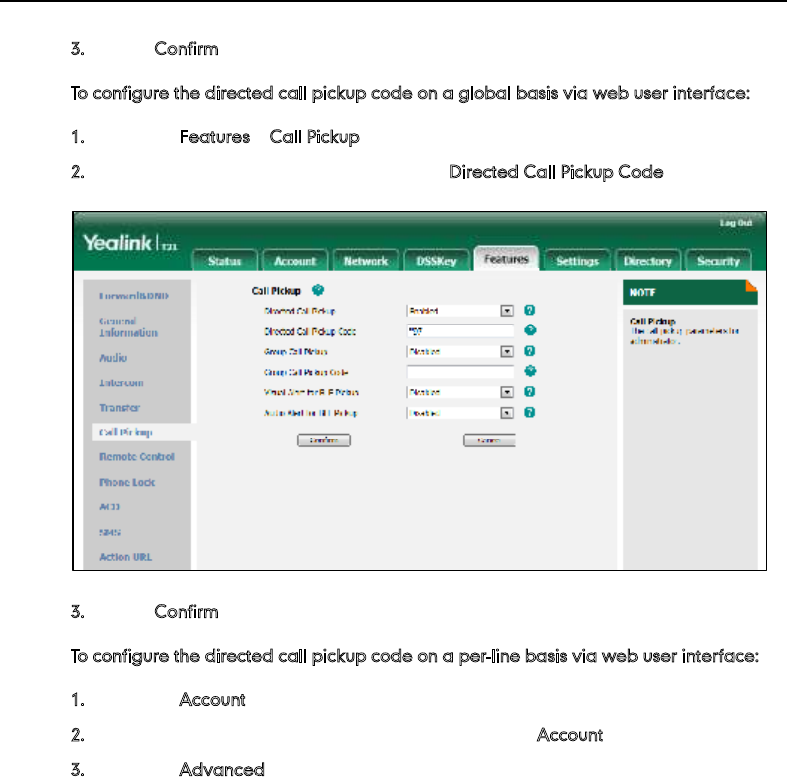

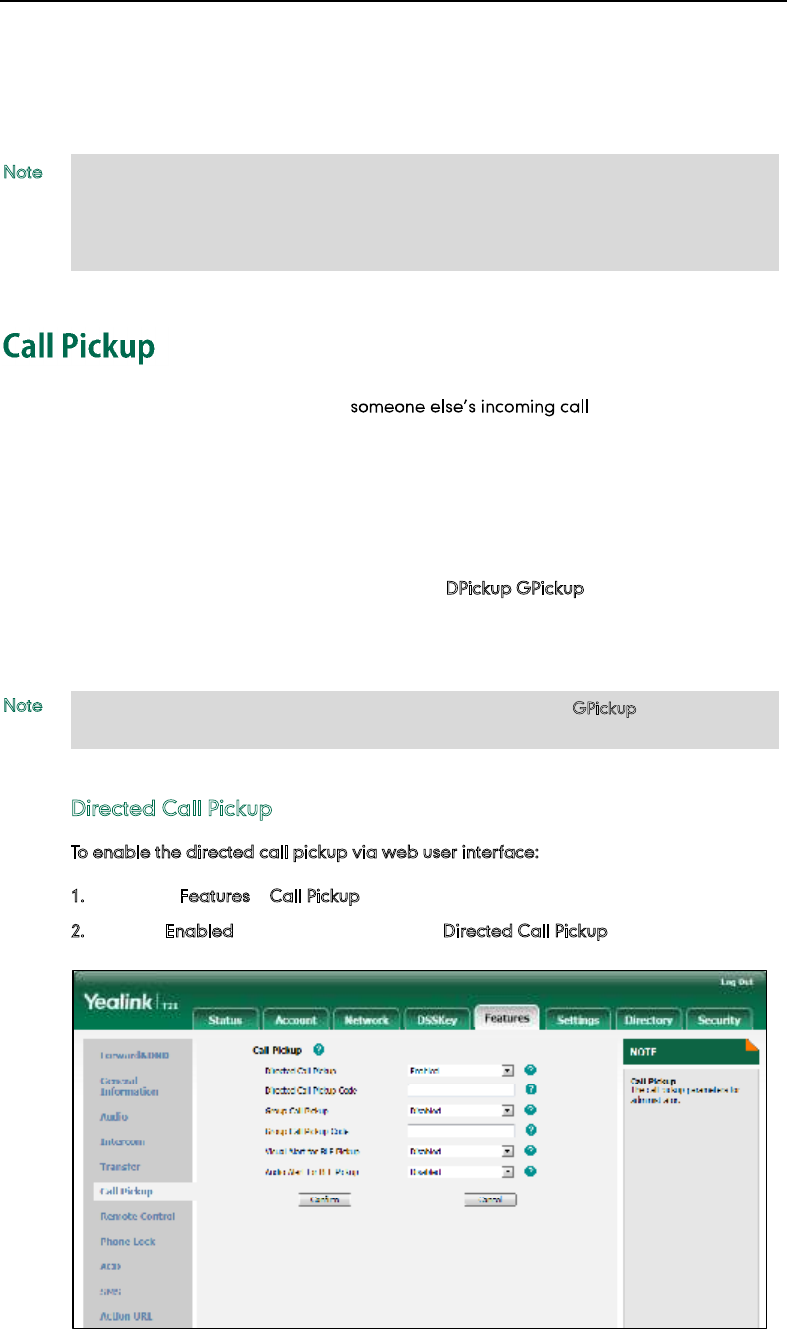

Call Pickup .......................................................................................................................... 90

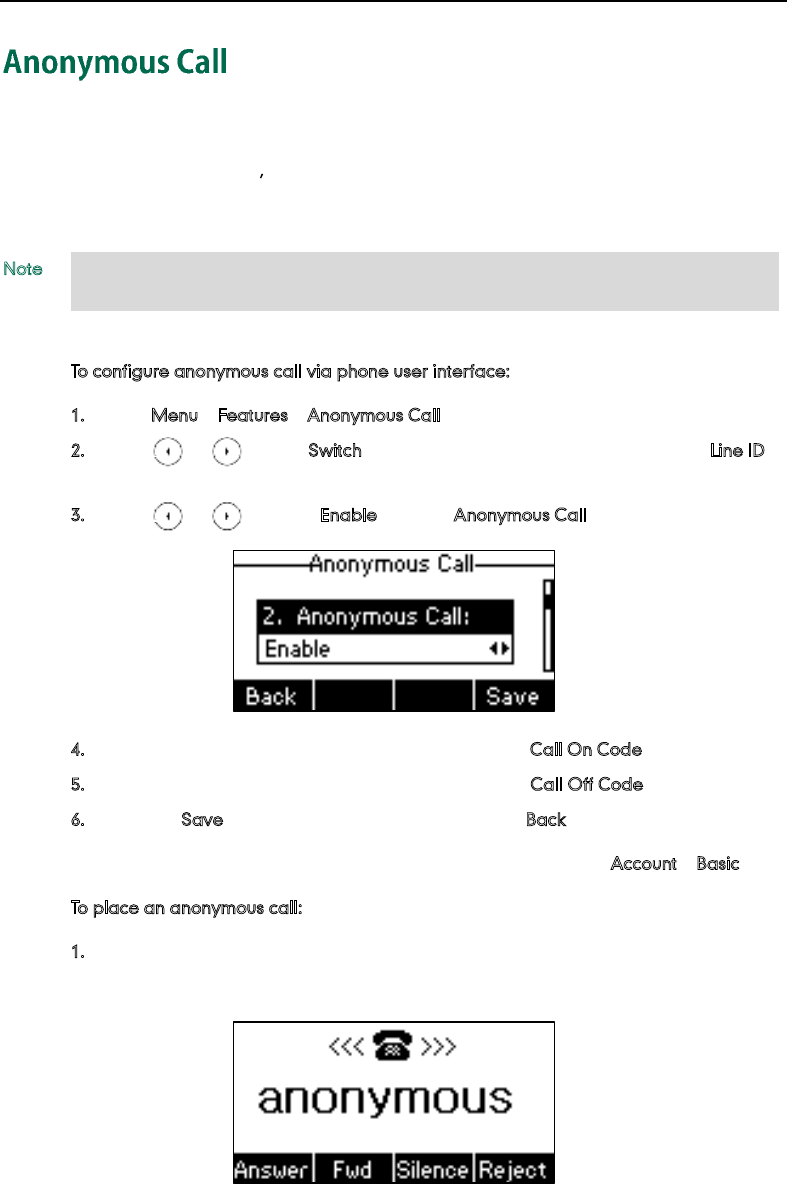

Anonymous Call ................................................................................................................. 95

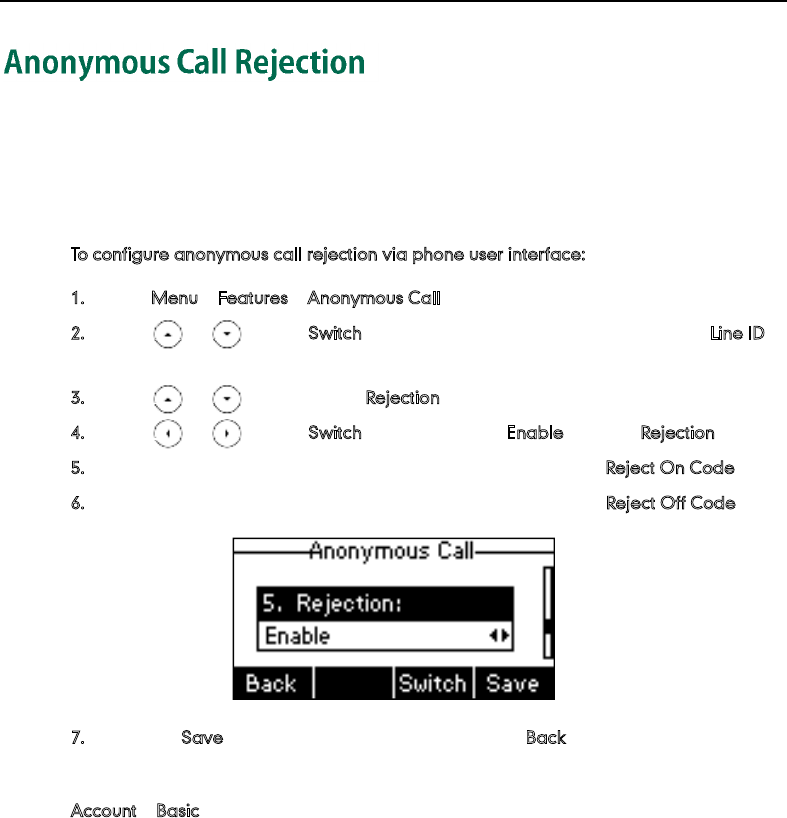

Anonymous Call Rejection ................................................................................................ 96

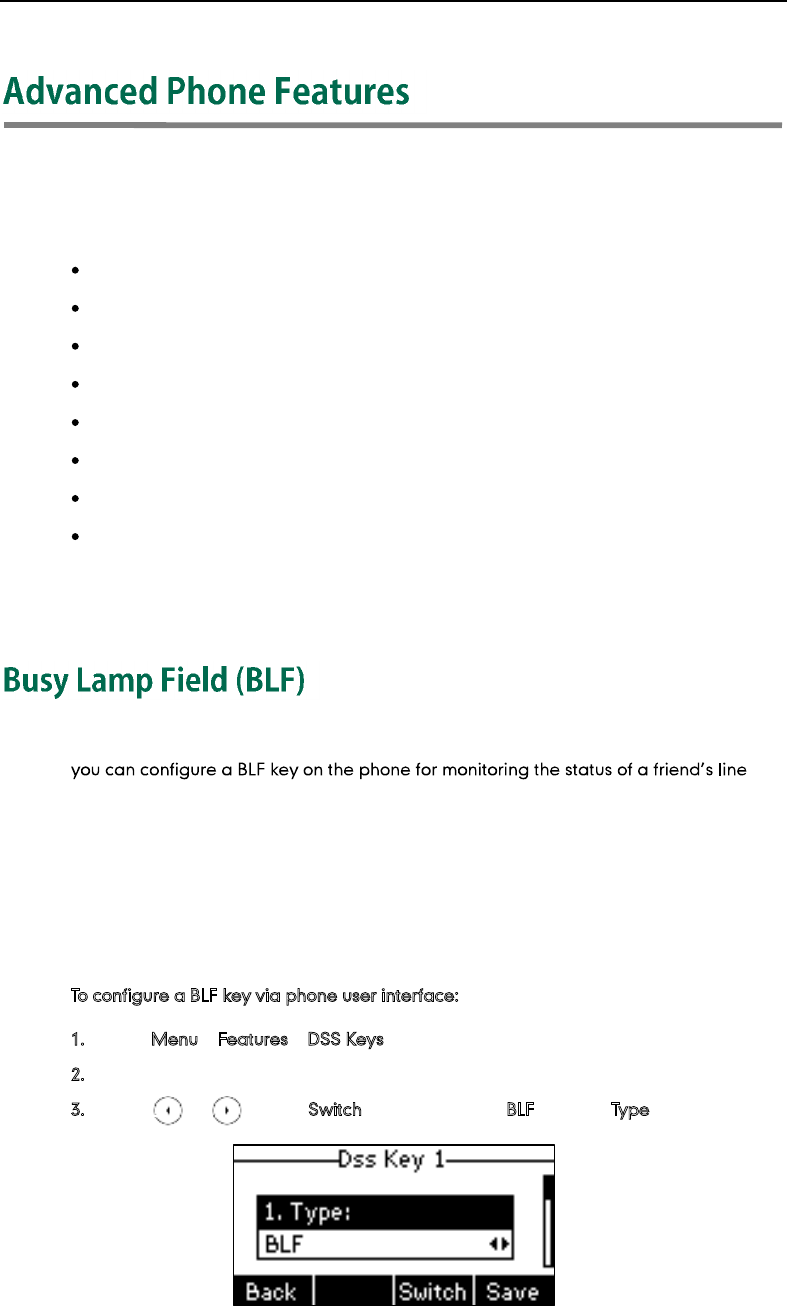

Advanced Phone Features ..................................................... 97
Busy Lamp Field (BLF) ....................................................................................................... 97

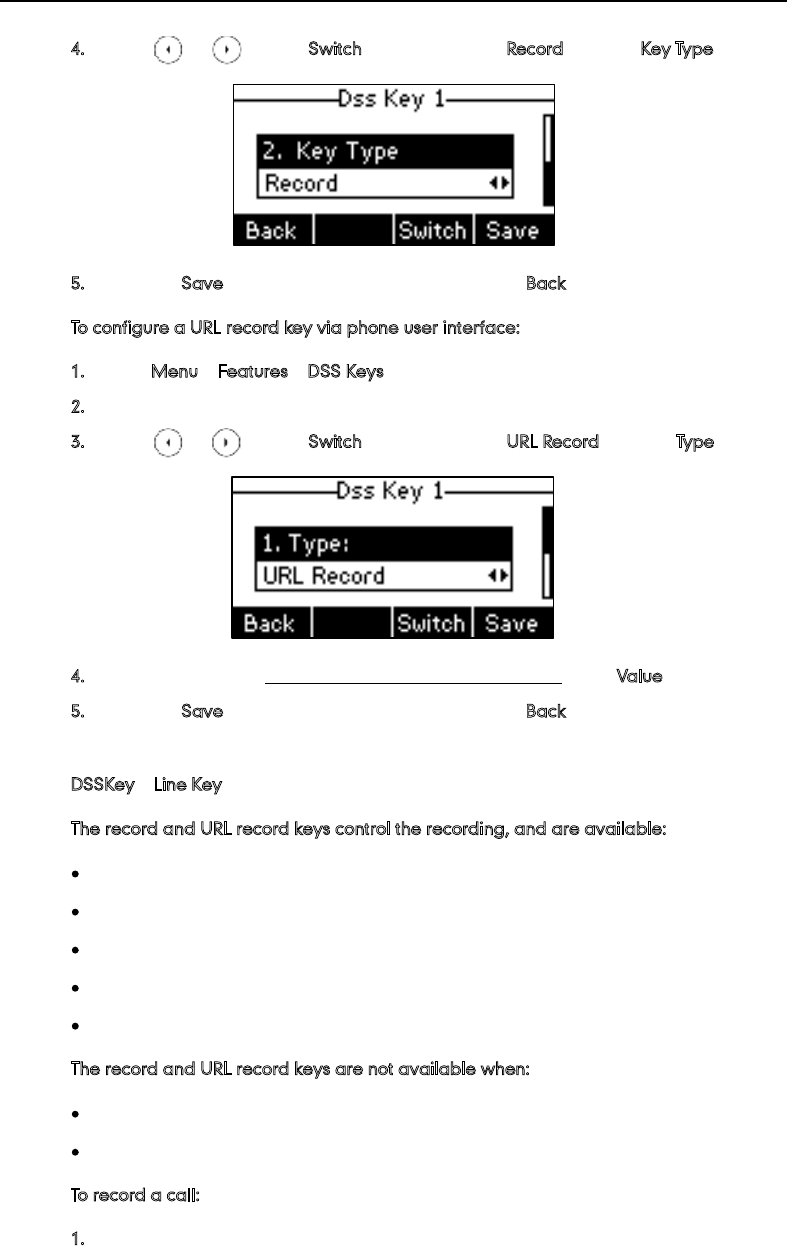

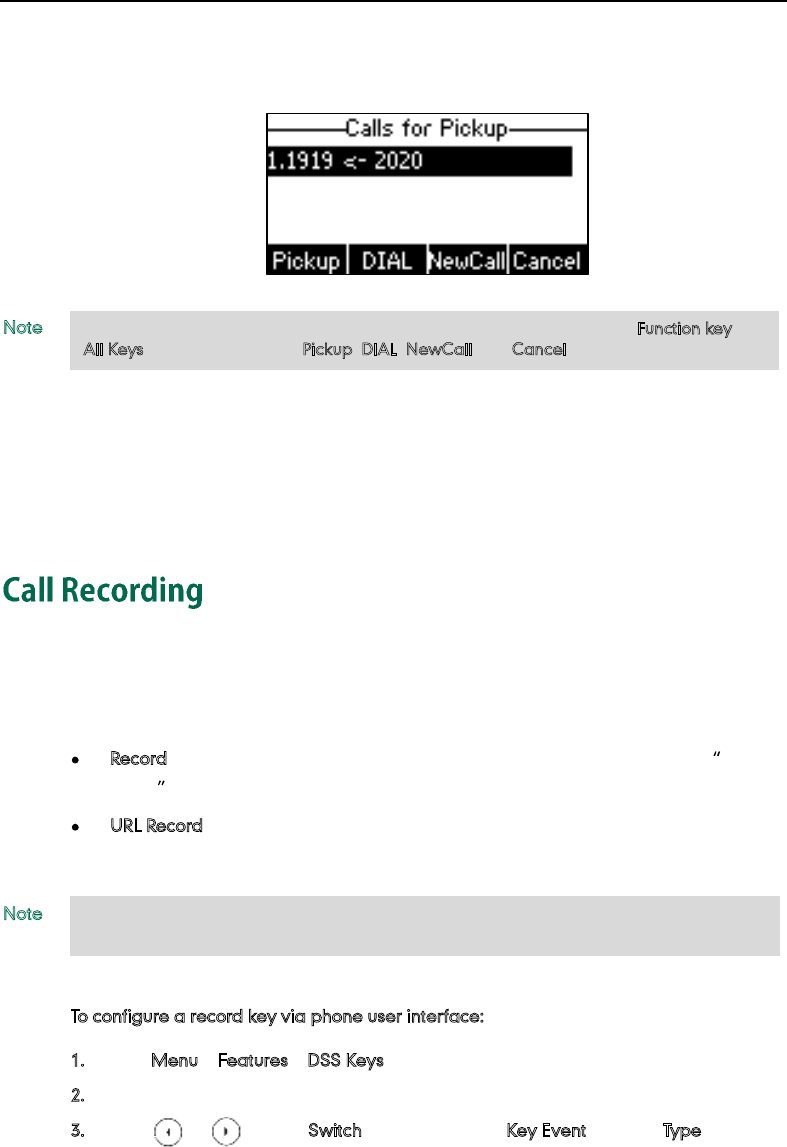

Call Recording .................................................................................................................... 99
Hot Desking ...................................................................................................................... 101

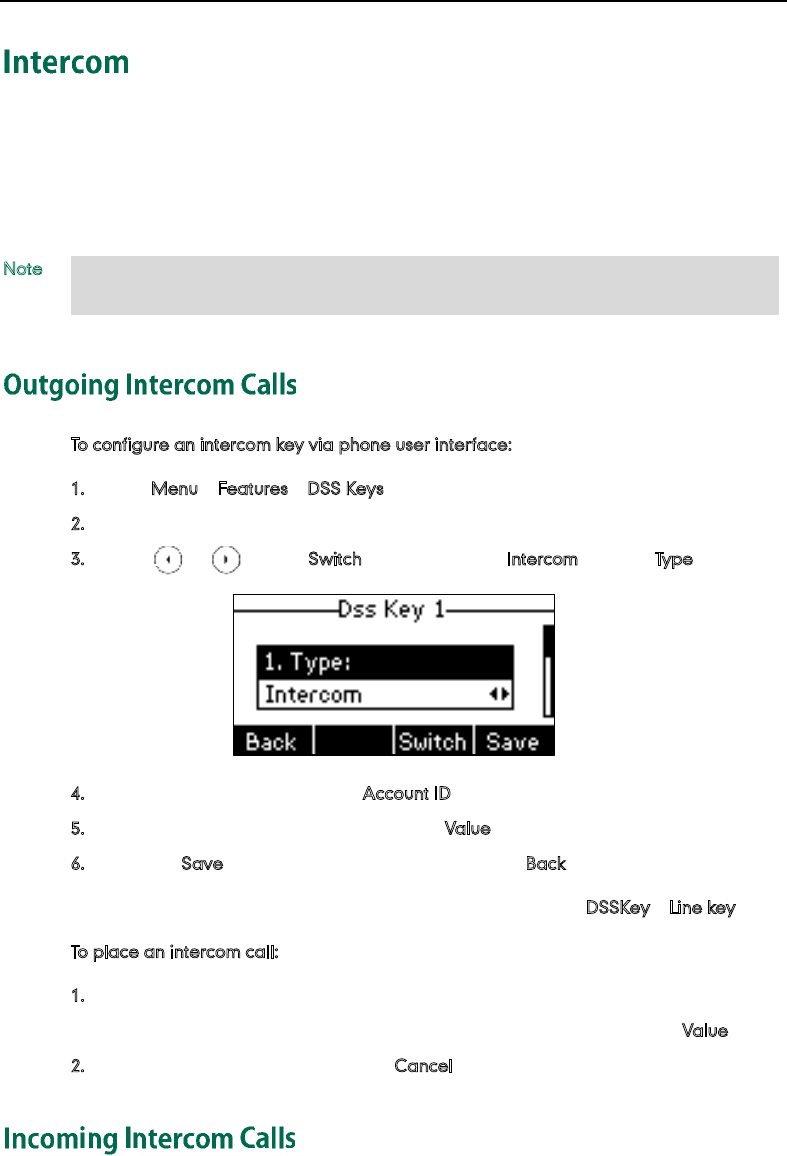

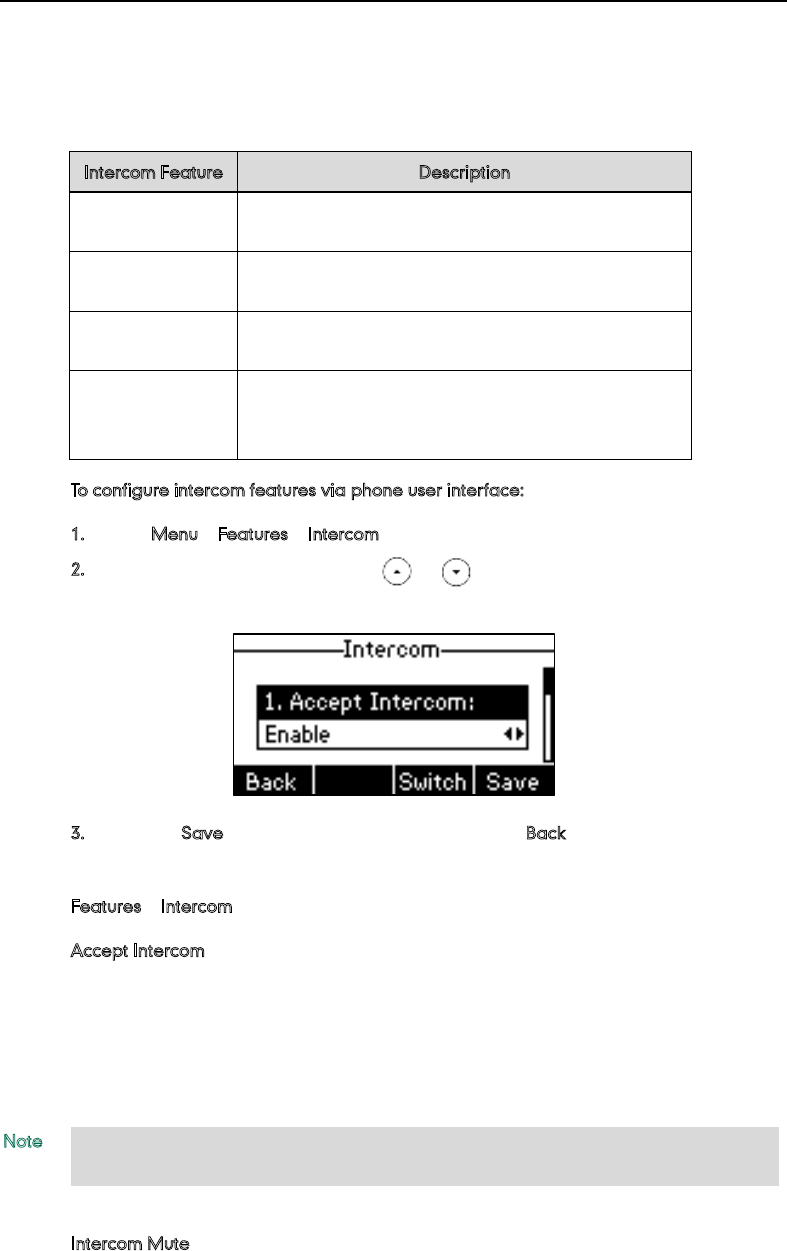

Intercom ............................................................................................................................ 103
Table of Contents
ix
Outgoing Intercom Calls .............................................................................................. 103
Incoming Intercom Calls .............................................................................................. 103

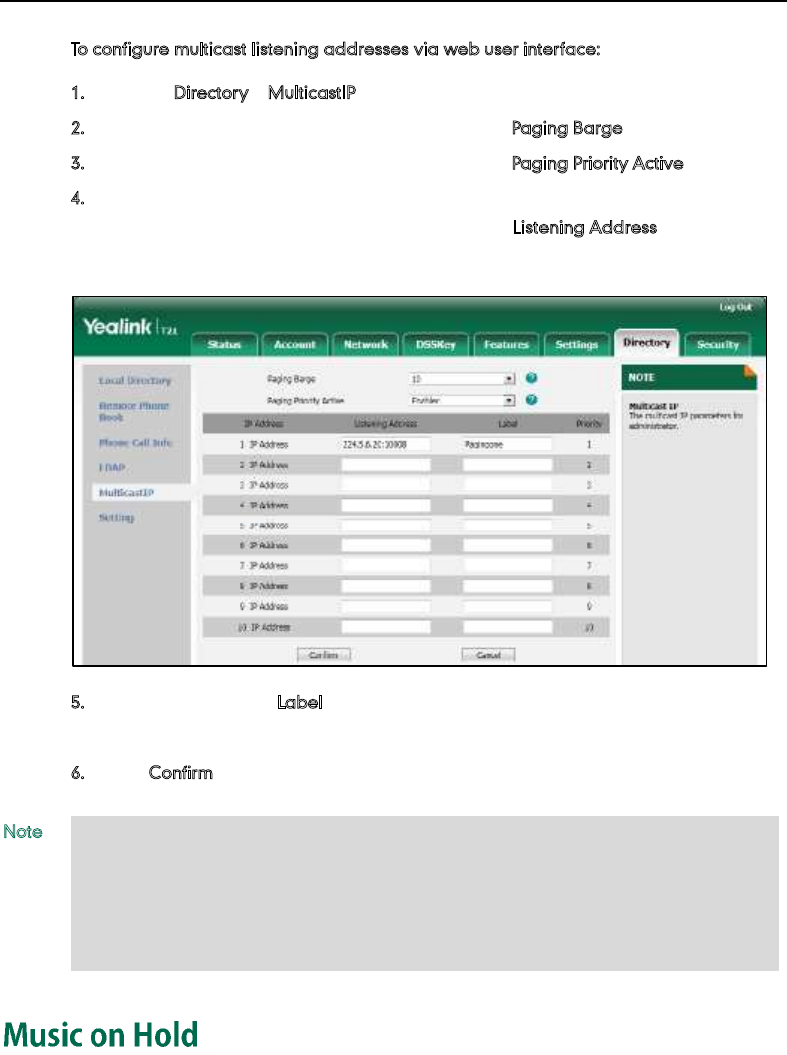

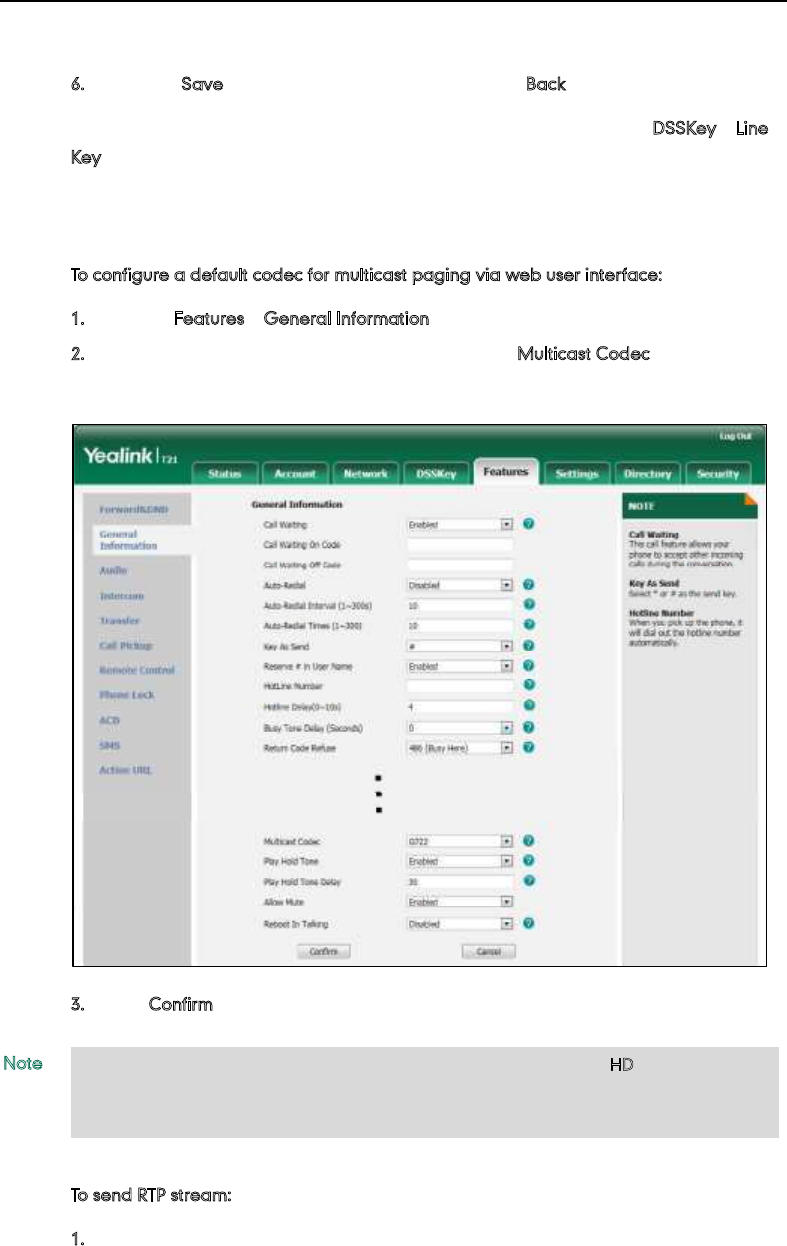

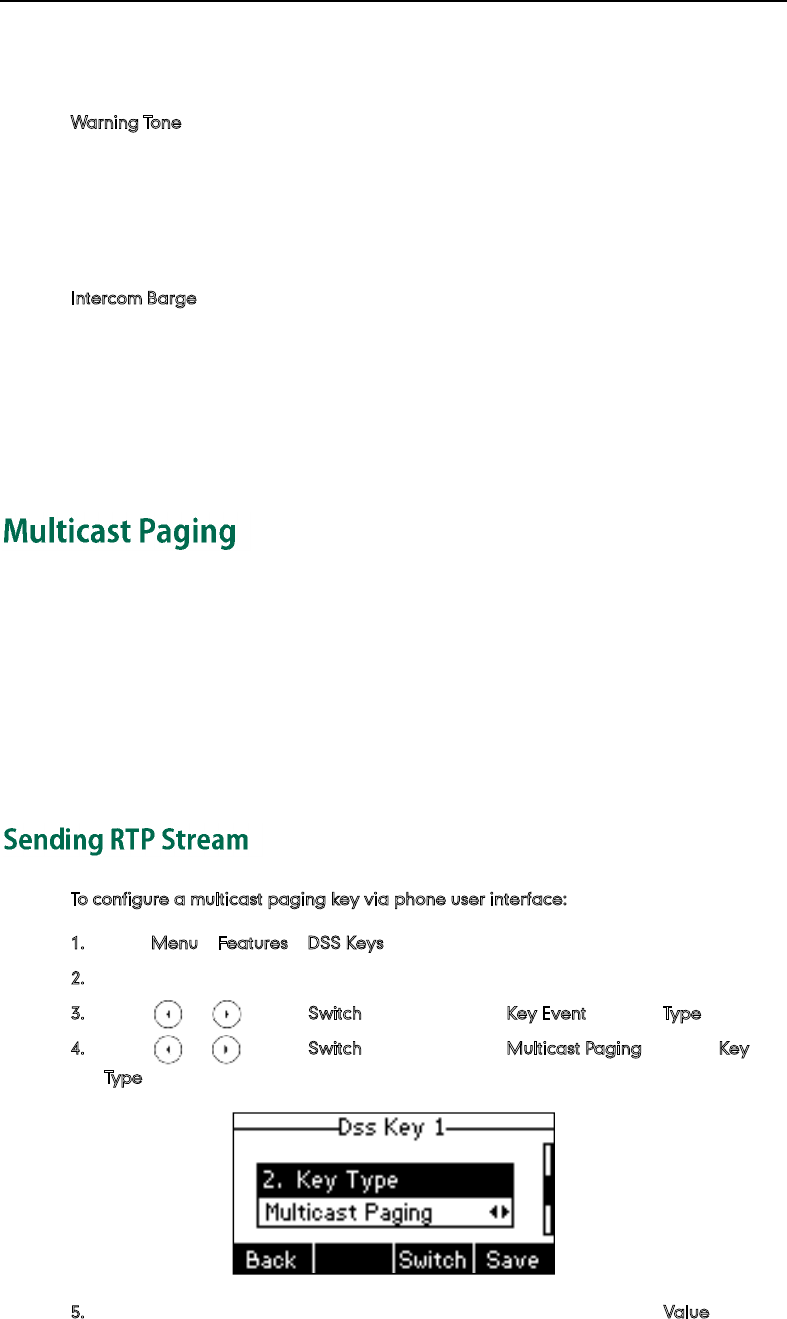

Multicast Paging ............................................................................................................... 105
Sending RTP Stream ..................................................................................................... 105

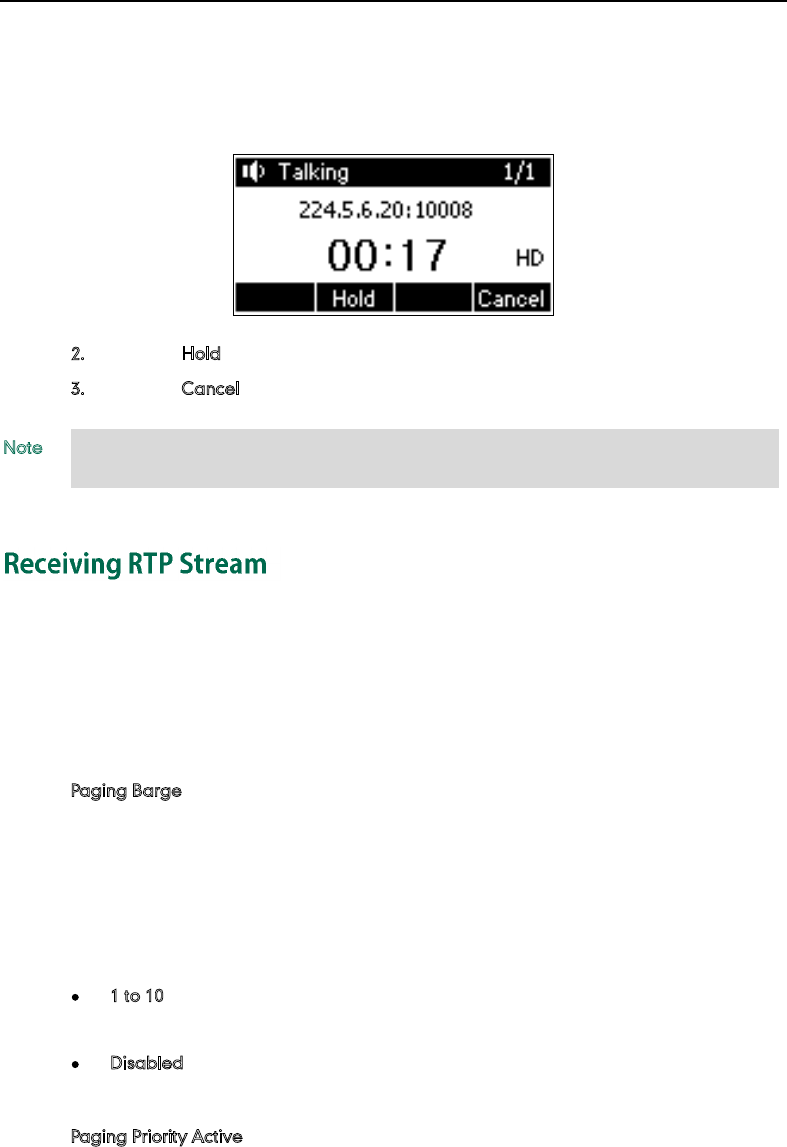

Receiving RTP Stream ................................................................................................... 107

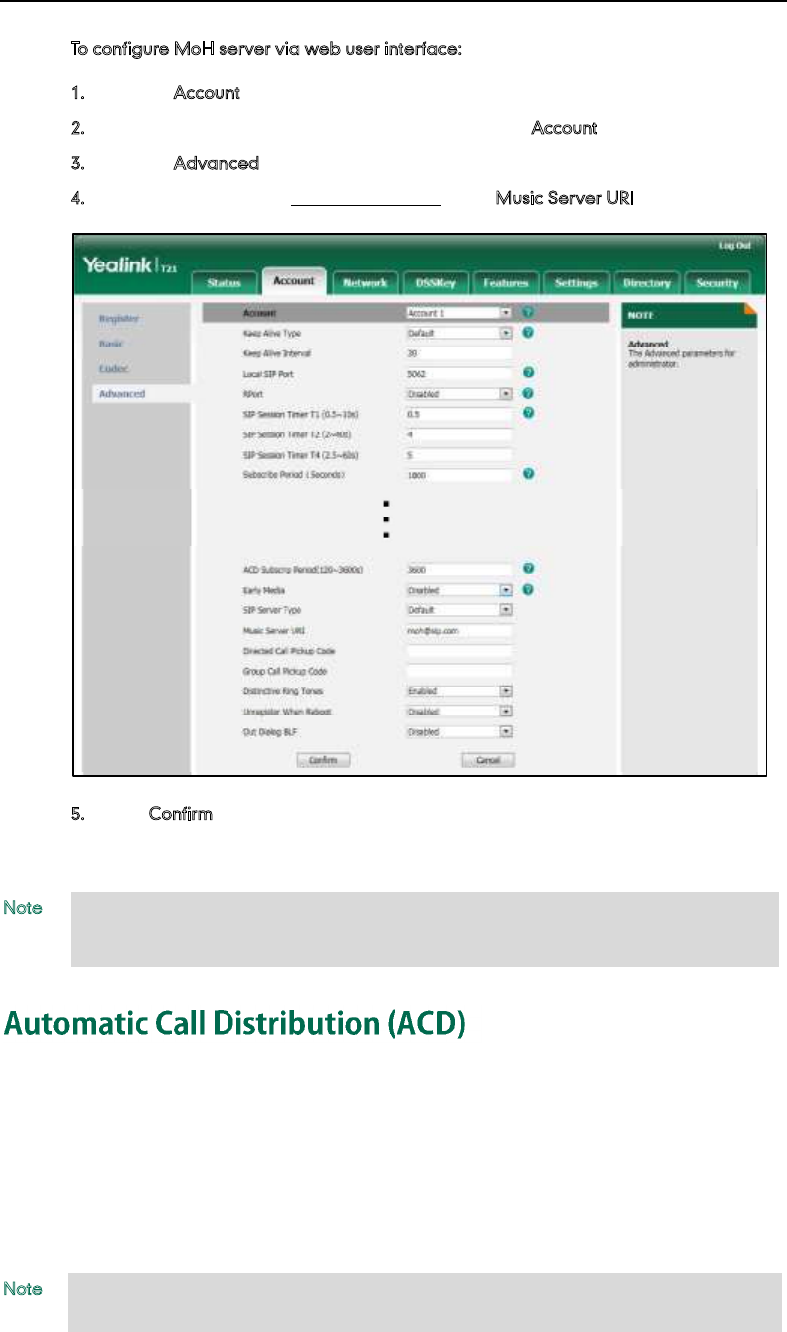

Music on Hold ................................................................................................................... 108

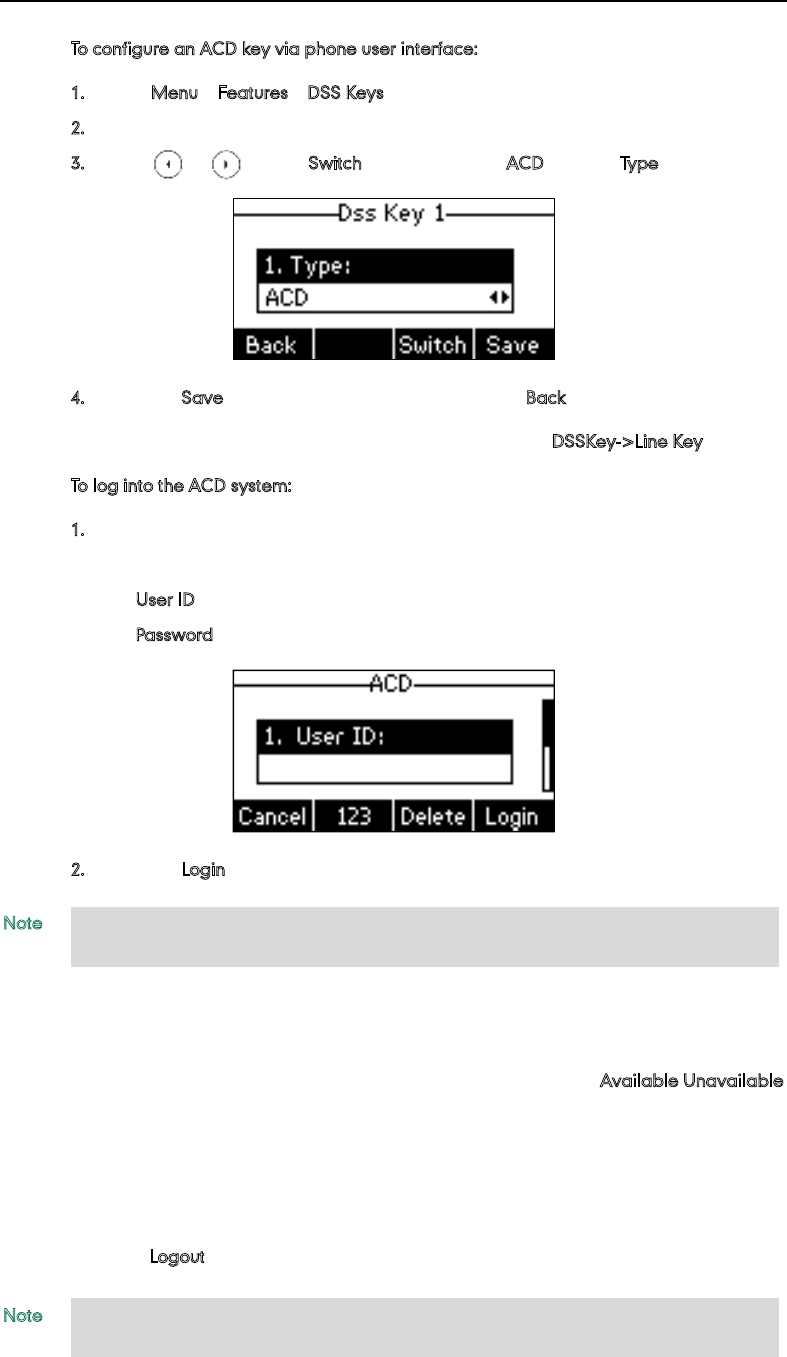

Automatic Call Distribution (ACD).................................................................................. 109
Messages .......................................................................................................................... 111

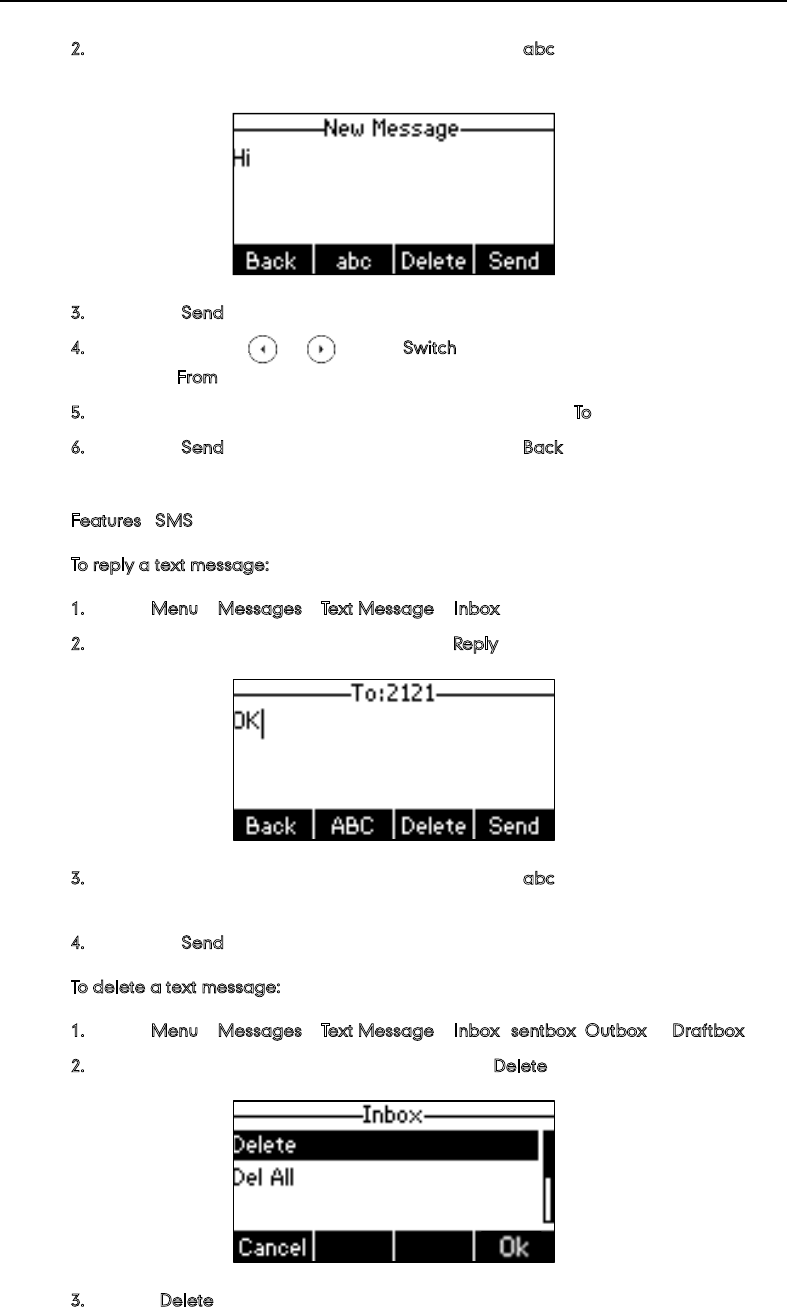

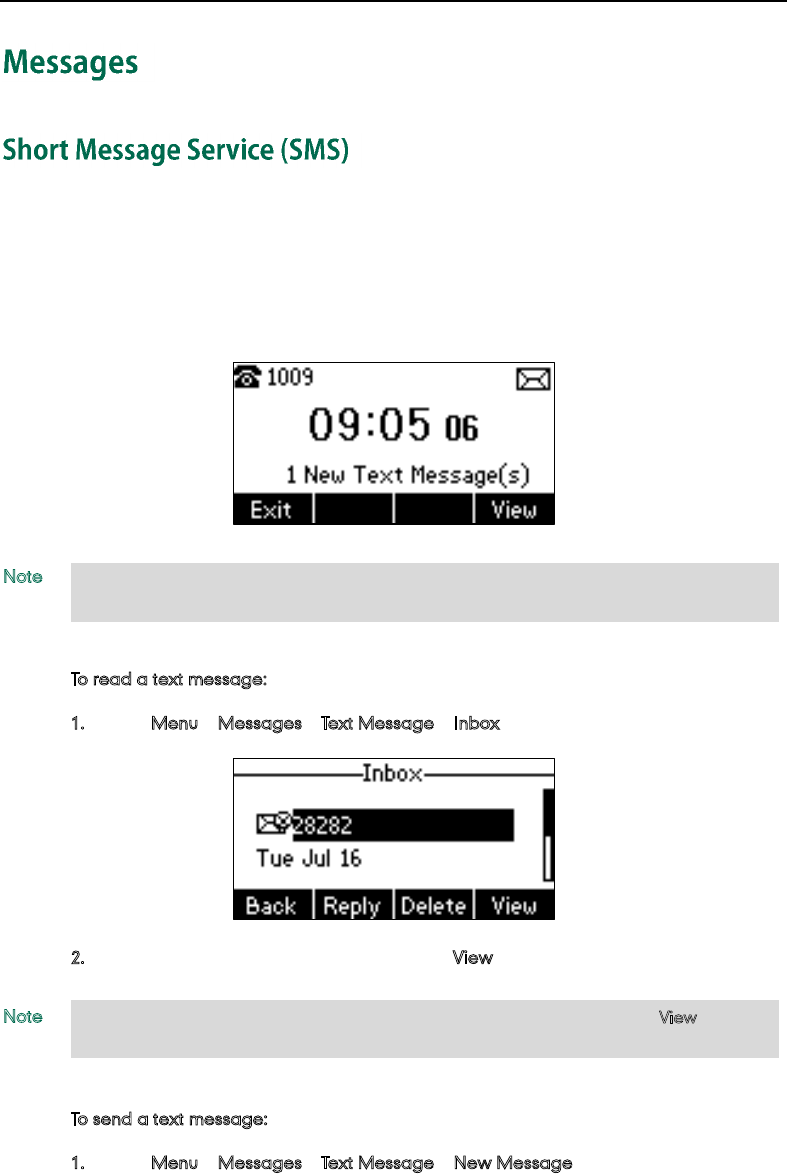

Short Message Service (SMS) .................................................................................... 111

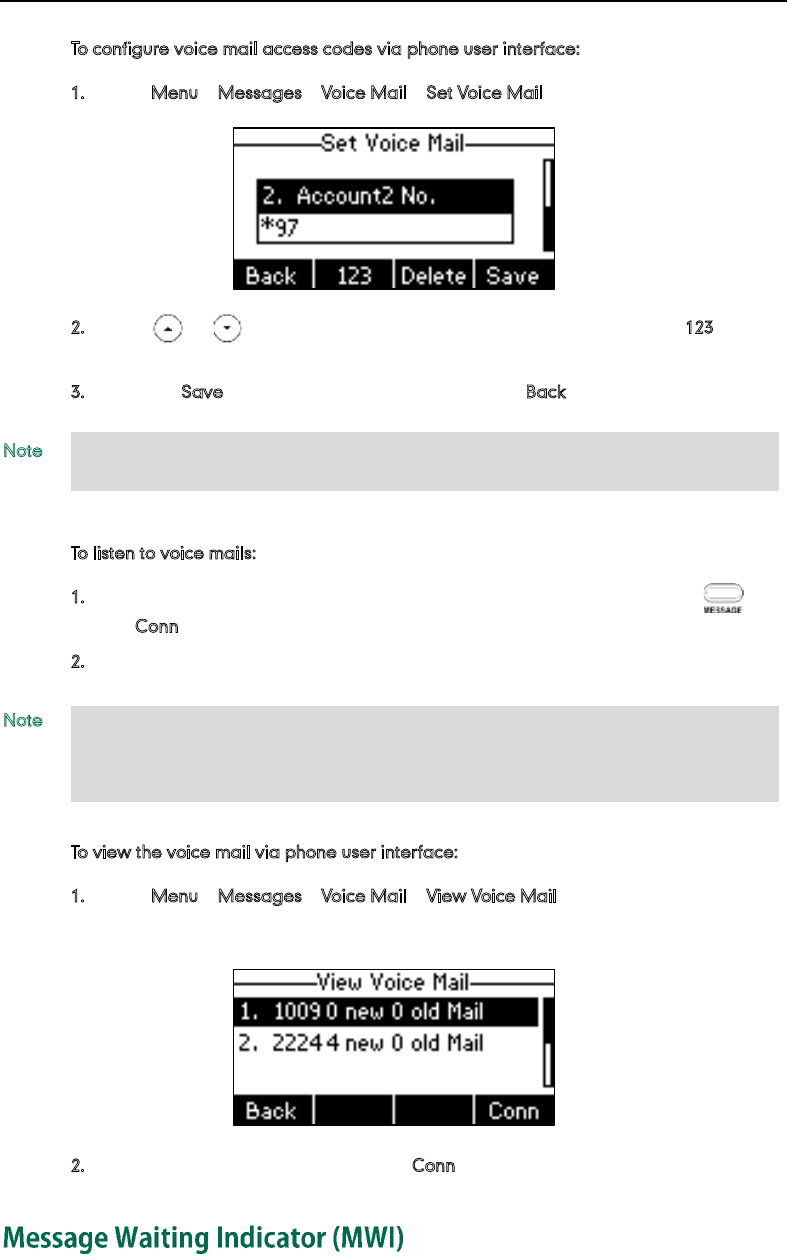

Voice Mail ...................................................................................................................... 113

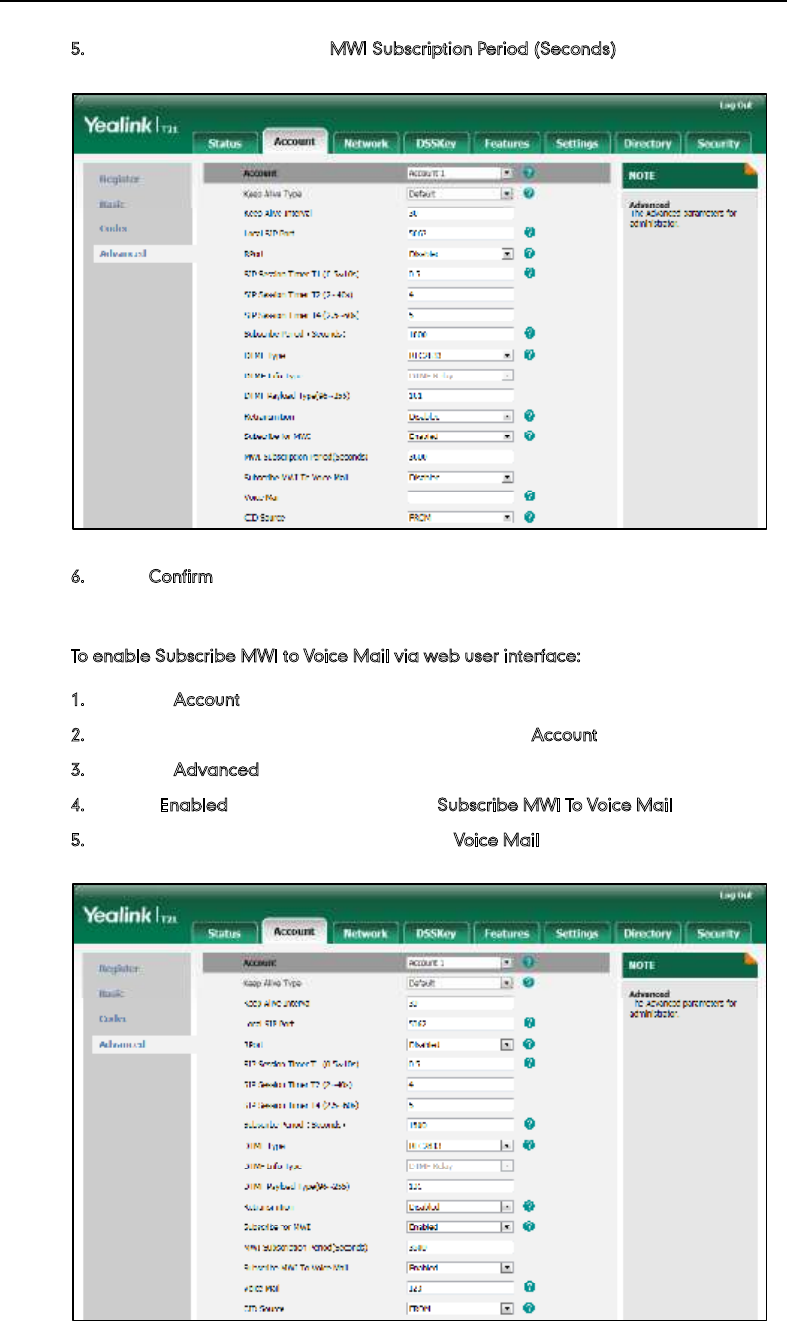

Message Waiting Indicator (MWI) ............................................................................. 114
Troubleshooting .....................................................................119
Regulatory Notices ................................................................129
Service Agreements ........................................................................................................ 129
Limitations of Liability ...................................................................................................... 129
Safety Instructions ............................................................................................................ 129
Appendix A - Time Zones ......................................................131
I n d e x ......................................................................................133
User Guide for the SIP-T21P IP Phone
x
Overview
1
This chapter provides the overview of the SIP-T21P IP phone. Topics include:
Hardware Component Instructions
Icon Instructions
LED Instructions
User Interfaces
Documentations
If you require additional information or assistance with your new phone, contact your
system administrator.
The main hardware components of the SIP-T21P IP phone are the LCD screen and the
keypad.
User Guide for the SIP-T21P IP Phone
2
Hardware component instructions of the SIP-T21P IP phone are:
Item Description
LCD Screen
Shows information about calls, messages, soft keys,
time, date and other relevant data:
caller ID, call duration
(for example, )
"Saving config file!")
Power Indicator LED
Indicates phone power status and phone status.
Line Keys Use these keys to activate up to two accounts and
assign
various features.
MESSAGE Key Indicates and accesses voice mails.
HEADSET Key Toggles the headset mode.
TRAN Key Transfers a call to another party.
RD Key Redials a previously dialed number.
Speakerphone Key Toggles the hands-free speakerphone mode.
Volume Key Adjusts the volume of the handset, headset, speaker,
and ringer.
Keypad Provides the digits, letters and special characters in
context-sensitive applications.
Scroll through the displayed information.
Confirms actions or answers incoming calls.
Cancels actions, rejects incoming calls, mutes or
un-mutes calls.
Soft Keys Label automatically to identity their context-sensitive
features.
Overview
3
Icons appearing on the LCD screen are described in the following table:
Icon Description
Network is unavailable
Registered successfully
Register failed
Registering
Hands-free speakerphone mode
Handset mode
Headset mode
Multi-lingual lowercase letters input mode
Multi-lingual uppercase letters input mode
Alphanumeric input mode
Numeric input mode
Multi-lingual uppercase and lowercase
letters input mode
Voice Mail
Text Message
Auto Answer
Do Not Disturb
Call Forwarded/Forwarded Calls
Call Hold
Call Mute
Ringer volume is 0
User Guide for the SIP-T21P IP Phone
4
Icon Description
Keypad Lock
Received Calls
Placed Calls
Missed Calls
Recording box is full
A call cannot be recorded
Recording starts successfully
Recording cannot be started
Recording cannot be stopped
Line key LED
LED Status Description
Solid green
The line is in conversation.
The line is seized.
Fast flashing green The line receives an incoming call.
Slow flashing green The call is placed on hold.
Off The line is inactive.
Line key LED (configured as BLF key)
LED Status Description
Solid green The monitored user is busy.
Fast flashing green The monitored user receives an incoming call.
Off The monitored user is idle.
The monitored user does not exist.
Overview
5
Two ways to customize configurations of your SIP-T21P IP phone:
The user interface on the IP phone.
The user interface in a web browser on your PC.
The hardware components keypad and LCD screen constitute the phone user interface,
which allows the user to execute all call operation tasks and basic configuration
changes directly on the phone. In addition, you can use the web user interface to
access all configuration settings. In many cases, either the phone user interface and/or
the web user interface interchangeably. However, in some cases, it is only possible to
use one or the other interface to operate the phone and change settings.
You can customize your phone by pressing the Menu soft key to access the phone user
interface. The Advanced Settings option is only accessible to the administrator, and the
default administrator password is admin (case-sensitive). For more information on
customizing your phone with the available options from the phone user interface, refer
to Customizing Your Phone on page 17.
In addition to the phone user interface, you can also customize your phone via web user
interface. In order to access the web user interface, you need to know the IP address of
your new phone. To obtain the IP address, press the OK key on the phone. Enter the IP
address (e.g., http://192.168.0.10 or 192.168.0.10) in the address bar of web browser on
your PC. The default administrator user name and password are both admin
(case-sensitive).

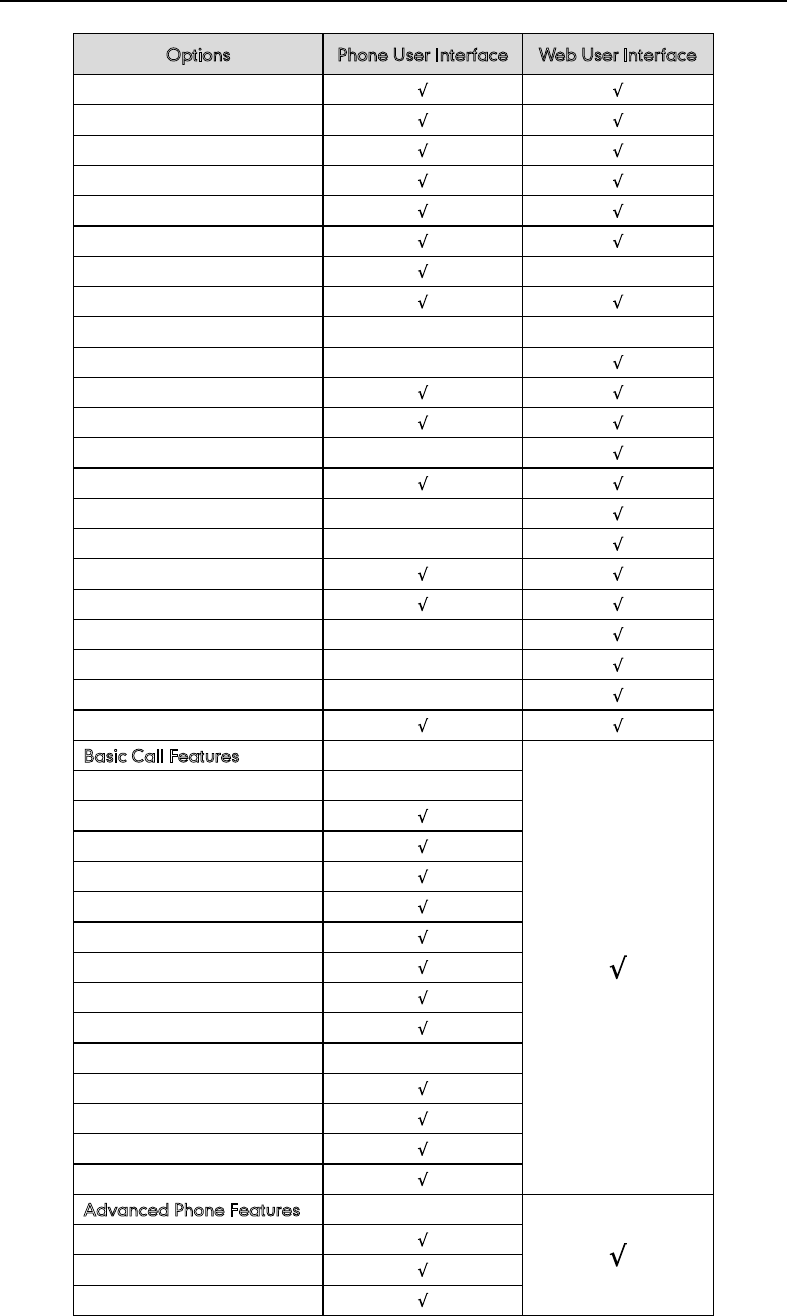

The options you can use to customize the IP phone via phone user interface and/or via
web user interface are listed in the following table:
Options Phone User Interface Web User Interface
Status
--IP Address
--IPv6
--MAC
--Firmware
--Network
--Phone
--Accounts
Basic Phone Settings
User Guide for the SIP-T21P IP Phone
6
Options Phone User Interface Web User Interface
--Contrast
--Language
--Time & Date
--Administrator Password
--Key as Send
--Keypad Lock
-- Volume
--Ring Tones
--Contact Management
--Directory
--Local Directory
--Blacklist
--Remote Phone Book
--Call History Management
--Logo Customization
--Headset Prior
--DSS Keys
--Account Registration
--Dial Plan
--Emergency Number
--Live Dialpad
--Hotline
Basic Call Features
--Recent Call In Dialing
--Auto Answer
--Auto Redial
--Call Completion
--Call Return
--DND
--Call Forward
--Call Transfer
--Call Waiting
--Conference
--Call Park
--Call Pickup
--Anonymous Call
--Anonymous Call Rejection
Advanced Phone Features
--BLF
--Call Recording
--Hot Desking
Overview
7
Options Phone User Interface Web User Interface
--Intercom
--Multicast Paging
--Music on Hold
--ACD
--Messages
SIP Account
--User Options
--Register Status
--Activation
--Label
--Display Name
--Register Name
--User Name
--Password
--SIP Server1/2
--Server Option
--Server Port
--Outbound Status
--Outbound Proxy
--NAT Traversal
--STUN Status
--STUN Server
Note
The
table above
list
most of the
eature options
.
Please refer to the rel
evant
section
s for
more information.
User Guide for the SIP-T21P IP Phone
8
The following table shows documentations available for the SIP-T21P IP phone.
Name Contents Where found Format/Language
Quick Installation
Guide
Basic setup of the
phone
In the
package PDF/English
Quick Reference
Guide
Basic call features and
phone customizations
In the
package PDF/English
User Guide
Phone/Web user
interface settings
Basic call features and
advanced phone
features
CD attached
in the
package
PDF/English
Note
You can also download the latest documentations online:
http://www.yealink.com/DocumentDownload.aspx?CateId=142&flag=142.
Getting Started
9
This chapter provides basic installation instructions and information for obtaining the
best performance with the SIP-T21P IP phone. Topics include:
Packaging Contents
Phone Installation
Phone Initialization
Phone Status
Basic Network Settings
Registration
Idle Screen
If you require additional information or assistance with your new phone, contact your
system administrator.
The following components are included in your SIP-T21P IP phone package:
SIP-T21P IP Phone
Phone Stand
User Guide for the SIP-T21P IP Phone
10
Power Adapter
Handset & Handset Cord
Ethernet Cable
Quick Installation Guide & Quick Reference Guide
CD-ROM
Check the list before installation. If you find anything missing, contact your system
administrator.
Getting Started
11
If your phone is already installed, proceed to Phone Initialization on page 13.
This section introduces how to install the phone:
1) Attach the stand
2) Connect the handset and optional headset
3) Connect the network and power
1) Attach the stand
2) Connect the handset and optional headset
Note
3) Connect the network and power
You have two options for power and network connections. Your system administrator will
advise you which one to use.
AC power
Power over Ethernet (PoE)
A h
eadset is not
included
in the pack
ag
ing
contents
.
ontact your
system administrator
for more information.
User Guide for the SIP-T21P IP Phone
12
AC Power
To connect the AC power:
1. Connect the DC plug on the power adapter to the DC5V port on the phone and
connect the other end of the power adapter into an electrical power outlet.
2. Connect the included or a standard Ethernet cable between the Internet port on the
phone and the one on the wall or switch/hub device port.
Power over Ethernet
With the included or a regular Ethernet cable, the SIP-T21P IP phone can be powered
from a PoE-compliant switch or hub.
To connect the PoE:
1. Connect the Ethernet cable between the Internet port on the phone and an
available port on the in-line power switch/hub.
Note
If in
adapter. Make sure the switch/hub is PoE-compliant.
The phone can also share the network with another network device such as a PC
(personal computer). It is an optional connection.
Important! Do not unplug or remove power to the phone while it is updating firmware
and configurations.
Getting Started
13
After your phone is powered on, the system boots up and performs the following steps:
Automatic Phone Initialization
The phone finishes the initialization by loading the saved configuration. The LCD screen
p
DHCP (Dynamic Host Configuration Protocol)
The phone attempts to contact a DHCP server in your network to obtain valid IPv4 and
IPv6 network settings (e.g., IP address, subnet mask, default gateway address and DNS
address) by default.
Note
You can view phone status via phone user interface or web user interface.
Available information of phone status includes:
Network status (e.g., IPv4 status, IPv6 status, IP mode and MAC address).
Phone status (e.g., device model, hardware version, firmware version, product ID,
MAC address and device certificate status: factory, installed and not installed).
Account status (e.g., the register status of SIP accounts).
To view the phone status via phone user interface:
1. Press , or press Menu->Status.
2. Press or to scroll through the list and view the specific information.
To view the phone status via web user interface:
1. Open the web browser of your computer.
2. Enter the IP addres , and then press Enter.
If your network does not use DHCP, proceed to Basic Network Settings on page 14.
User Guide for the SIP-T21P IP Phone
14
3. Enter the user name (admin) and password (admin) in the login page.
4. Click Confirm to login.
The phone status is displayed on the first page of the web user interface.
If your phone cannot contact a DHCP server for any reason, you need to configure
network settings manually. The IP phone can support either or both IPv4 and IPv6
addresses.
To configure the IP address mode via phone user interface:
1. Press Menu->Settings->Advanced Settings (password: admin) ->Network->WAN
Getting Started
15
Port.
2. Press or to select IPv4, IPv6 or IPv4 & IPv6 from the IP Mode field.
3. Press the Save soft key to accept the change or the Back soft key to cancel.
To configure a static IPv4 address via phone user interface:
1. Press Menu->Settings->Advanced Settings (password: admin) ->Network->WAN
Port->IPv4->Static IP Client.
2. Enter the desired values in the IP Address, Subnet Mask, Default Gateway, Pri.DNS
and Sec.DNS fields respectively.
3. Press the Save soft key to accept the change or the Back soft key to cancel.
To configure a static IPv6 address via phone user interface:
1. Press Menu->Settings->Advanced Settings (password: admin) ->Network->WAN
Port->IPv6->Static IPv6 Client.
2. Enter the desired values in the IPv6 , IPv6 Prefix, IPv6 Gateway, IPv6 Pri.DNS and
IPv6 Sec.DNS fields respectively.
3. Press the Save soft key to accept the change or the Back soft key to cancel.
If you are using an xDSL modem for IPv4 network connection, you can connect your
phone to the Internet via PPPoE mode. Set the WAN port as a PPPoE port. The PPPoE port
will perform a PPP negotiation to obtain the IP address. Contact your system
administrator for the PPPoE user name and password.
User Guide for the SIP-T21P IP Phone
16
To configure PPPoE via phone user interface:
1. Press Menu->Settings->Advanced Settings (password: admin) ->Network->WAN
Port->IPv4->PPPoE IP Client.
2. Enter the user name and password in the corresponding fields.
3. Press the Save soft key to accept the change or the Back soft key to cancel.
Note
Generally, your phone will be deployed with multiple other phones. In this case, your
system administrator will configure the phone parameters beforehand, so that after you
start up your phone, the phone will be registered and ready for use. If your phone is not
registered, you may have to register it. For more information on how to register your
phone, refer to Account Management on page 54.
If the phone has successfully started up, the idle screen will be shown as below:
The idle screen shows the label of current account, time and date, and four soft keys.
Using the wrong network parameters may result in inaccessibility of your phone and may
also have an impact on your network performance. For more information on these
parameters, contact your system administrator.
Customizing Your Phone
17
You can customize your SIP-T21P IP phone by personally configuring certain settings, for
example, contrast, language and time & date.
local directory manually or from call history. You can also personalize different ring
tones for different callers.
This chapter provides basic operating instructions for customizing your phone. Topics
include:
General Settings
Audio Settings
Contact Management
Call History Management
System Customizations
If you require additional information or assistance with your new phone, contact your
system administrator.
You can configure the contrast of the LCD screen to a comfortable level.
To configure the contrast via phone user interface:
1. Press Menu->Settings->Basic Setting->Contrast.
2. Press or , or the Switch soft key to increase or decrease the intensity of
contrast.
The default contrast level is 6.
3. Press the Save soft key to accept the change or the Back soft key to cancel.
Contrast is configurable via web user interface at the path Settings->Preference.
User Guide for the SIP-T21P IP Phone
18
The default language of the phone user interface is English. The phone will detect and
use the same language as which of your web browser for the web user interface. If the
language of your web browser is not supported by the phone, the web user interface
will use English. You can change the language for the phone user interface and the web
user interface respectively.
Note
To change the language for the phone user interface:
1. Press Menu->Settings->Basic Setting->Language.
2. Press or to select the desired language.
3. Press the Save soft key to accept the change.
Text displayed on the LCD screen will change to the selected language.
To change the language for the web user interface:
1. Click on Settings->Preference.
2. Select the desired language from the pull-down list of Language.
Not a
ll
of the
support
ed l
anguages
are
available for selection. The available languages
depend on the language packs currently loaded to the IP phone. Please contact your
system administrator for more information on the available languages of your new
phone.
Customizing Your Phone
19
3. Click Confirm to accept the change.
Text displayed on the web user interface will change to the selected language.
The time and date are displayed on the LCD screen when the phone is idle. If the phone
cannot obtain the time and date from the Simple Network Time Protocol (SNTP) server,
you need to configure the time and date manually. For more information on the SNTP
server, contact your system administrator.
To configure the SNTP settings via phone user interface:
1. Press Menu->Settings->Basic Setting->Time & Date->SNTP Settings.
2. Press or , or the Switch soft key to select the time zone that applies to your
area from the Time Zone field.
The default time zone is "+8 China(Beijing)".
3. Enter the domain names or IP addresses in the NTP Server 1 and NTP Server 2 fields
respectively.
4. Press or , or the Switch soft key to select the desired value from the DST
field.
5. Press the Save soft key to accept the change or the Back soft key to cancel.
Note
To configure the time and date manually via phone user interface:
1. Press Menu->Settings->Basic Setting->Time & Date->Manual Settings.
2. Enter the specific date in the Date field.
3. Enter the specific time in the Time field.
lease refer to
Appendix A
Time Zones
for
the
list of available time zones on the IP
phone.
User Guide for the SIP-T21P IP Phone
20
4. Press the Save soft key to accept the change.
The date and time displayed on the LCD screen will change accordingly.
To configure the time and date format via phone user interface:
1. Press Menu->Settings->Basic Setting->Time & Date->Time & Date Format.
2. Press or , or the Switch soft key to select the desired time format from the
Clock field.
3. Press or , or the Switch soft key to select the desired date format from the
Date Format field.
4. Press the Save soft key to accept the change or the Back soft key to cancel.
There are 7 available date formats. For example, for WWW DD MMM ,
WWW represents the abbreviation of the week DD s the two-digit day,
MMM s the first three letters of the month.
The date formats you need to know:
Date Format Example(2013-1-16)
WWW MMM DD Wed Jan 16
DD-MMM-YY 16-Jan-13
YYYY-MM-DD 2013-01-16
DD/MM/YYYY 16/01/2013
MM/DD/YY 01/16/13
DD MMM YYYY 16 Jan 2013
WWW DD MMM Wed 16 Jan
Time and date is configurable via web user interface at the path Settings->Time & Date.
The Advanced Settings option is only accessible to the administrator. The default
administrator password is admin . For security reasons, you should change the default
administrator password as soon as possible.
Customizing Your Phone
21
To change the administrator password via phone user interface:
1. Press Menu->Settings->Advanced Settings (password: admin) ->Set Password.
2. Enter the current password in the Current PWD field.
3. Enter the new password in the New PWD field.
4. Enter the new password again in the Confirm PWD field.
5. Press the Save soft key to accept the change or the Back soft key to cancel.
Administrator password is configurable via web user interface at the path
Security->Password.
You can set the perform as a send key while dialing.
To configure key as send via phone user interface:
1. Press Menu->Features->Key as Send.
2. Press or , or the Switch soft key to select # or * from the Key as Send field,
or select Disable to disable this feature.
3. Press the Save soft key to accept the change or the Back soft key to cancel.
Key as send is configurable via web user interface at the path Features->General
Information.
You can lock the keypad of your phone temporarily when you are not using it. This
feature helps you to protect your phone from unauthorized use.
Keypad lock consists of the following:
Menu Key: The Menu soft key is locked. You cannot access the menu of the
User Guide for the SIP-T21P IP Phone
22
phone until unlocked.
Function Keys: The function keys are locked. You cannot use the MESSAGE, RD,
TRAN, OK, X, navigation keys, soft keys and line keys until
unlocked.
All Keys: All keys are locked except the Volume key. You are only allowed
to dial emergency numbers, reject incoming calls by pressing
the X key, answer incoming calls by lifting the handset, pressing
the Speakerphone key, the HEADSET key or the OK key, mute an
active call by pressing the X key, place an active call on hold by
pressing the Hold soft key, resume the held call by pressing the
Resume soft key, and end the call by hanging up the handset or
pressing the Speakerphone key.
Note
To activate the keypad lock via phone user interface:
1. Press Menu->Settings->Advanced Settings (password: admin) ->Keypad Lock.
2. Press or , or the Switch soft key to select the desired type from the Keypad
Lock field.
3. Press the Save soft key to accept the change.
4. Long press to lock the keypad immediately when the phone is idle.
The LCD screen prompts Keypad locked. and displays the icon .
You can configure the interval (in seconds) to automatically lock the keypad instead of
long pressing .
To configure the interval of automatic keypad lock via web user interface:
1. Click on Features->Phone Lock.
The emergency number
setting, if desired, must be made before lock
ctivation
For
more information, refer to Emergency Number on page 61.
Customizing Your Phone
23
2. Enter the desired interval in the Phone Lock Time Out (0~3600s) field.
3. Click Confirm to accept the change.
Note
To unlock the keypad, you must know the keypad unlock PIN of the phone. The default
keypad unlock PIN is 123 .
To change the keypad unlock PIN via phone user interface:
1. Press Menu->Settings->Basic Setting->Phone Unlock PIN.
2. Enter the current PIN in the Current PIN field.
3. Enter the new PIN in the New PIN field.
4. Enter the new PIN again in the Confirm PIN field.
5. Press the Save soft key to accept the change or the Back soft key to cancel.
Note
he default interval is 0 second
, that is, you can long press
to lock the keypad only.
The interval of automatic keypad lock is configurable via web user interface only.
The
nlock PIN length must be within 15 characters.
User Guide for the SIP-T21P IP Phone
24
To unlock the keypad via phone user interface:
1. Press any locked key, the LCD screen prompts Please Enter PIN .
2. Enter the PIN in the PIN field.
3. Press the Confirm soft key to unlock the keypad.
The icon disappears from the LCD screen.
You can long press or wait for a period of time (if configured) to lock the
keypad again.
Note
To deactivate the keypad lock via phone user interface:
1. Press Menu->Settings->Advanced Settings (password: admin) ->Keypad Lock.
2. Press or , or the Switch soft key to select Disable from Keypad Lock field.
3. Press the Save soft key to accept the change.
Keypad lock is configurable via web user interface at the path Features->Phone Lock.
You can press the Volume key to adjust the ringer volume when the phone is idle. You
can also press the Volume key to adjust the receiver volume of currently engaged audio
devices (handset, speakerphone or headset) when the phone is in use.
You can also unlock the keypad by administrator password. When you enter the
administrator password to unlock the keypad, the phone will turn to the Reset Phone PIN
screen.
Customizing Your Phone
25
To adjust the volume when the phone is idle:
1. Press to adjust the ringer volume.
Note
To adjust the volume when the phone is during a call:
1. Press to adjust the volume of currently engaged audio device
(handset, speakerphone or headset).
Ring tones are used to indicate incoming calls. You can select different ring tones to
distinguish different accounts registered on your phone, or to distinguish your phone
.
To select a ring tone for the phone via phone user interface:
1. Press Menu->Settings->Basic Setting->Ring Tone.
2. Press or to select the desired ring tone.
3. Press the Save soft key to accept the change or the Back soft key to cancel.
If the ringer volume is adjusted to minimum, the icon will appear on the LCD screen.
User Guide for the SIP-T21P IP Phone
26
To select a ring tone for the account via web user interface:
1. Click on Account.
2. Select the desired account from the pull-down list of Account.
3. Click on Basic.
4. Select the desired ring tone from the pull-down list of Ring Type.
If Common is selected, this account will use the ring tone selected for the phone.
Refer to the above instruction.
5. Click Confirm to accept the change.
Note
To upload a custom ring tone for your phone via web user interface:
1. Click on Settings->Preference.
2. Click Browse to locate a ring tone (file format must be *.wav) file from your local
system.
A ring tone for the account is configurable via web user interface only.
Customizing Your Phone
27
3. Click Upload to upload the file.
Note
This section provides the operating instructions for managing contacts. Topics include:
Directory
Local Directory
Blacklist
Remote Phone Book
Directory provides easy access to frequently used lists. The lists may contain Local
Directory, History, Remote Phone Book and LDAP.
To configure the directory via web user interface:
1. Click on Directory->Setting.
2. In the Directory block, select the desired list from the Disabled column and then
click .
The selected list appears in the Enabled column.
3. Repeat step 2 to add more lists to the Enabled column.
4. To remove a list from the Enabled column, select the desired list and then click .
The ring tone for an incoming call on the phone may be different. For example, when the
phone receives an incoming call from a contact stored in the local directory, it will play
the ring tone assigned to the contact in the contact directory (refer to Adding Contacts).
If no ring tone is assigned to the contact, the phone will play the ring tone assigned to the
associated group (refer to Adding Groups). Otherwise, the phone will play the ring tone
assigned to the account. If no ring tone is assigned to the account, the phone will play the
ring tone assigned for the phone.
All custom ring tone files must be within 100KB. Uploading custom ring tones for your
phone is configurable via web user interface only.
User Guide for the SIP-T21P IP Phone
28
5. To adjust the display order of enabled lists, select the desired list and then click
or .
The LCD screen displays the list(s) in the adjusted order.
6. Click Confirm to accept the change.
Note
To check the directory via phone user interface:
1. Press the Dir soft key when the phone is idle.
The LCD screen displays the list(s) in the directory.
If there is only one list in the directory, press the Dir soft key to enter this list directly.
The built-in phone directory can store contact names and numbers. You can store up to
1000 contacts and 6 groups (including the default All Contacts, Company, Family and
Friend) in your phone's local directory; add new contacts and groups; edit, delete or
search for a contact; or simply dial a contact number from the local directory.
Directory is configurable via web user interface only.
Customizing Your Phone
29
To add a group to the local directory:
1. Press the Dir soft key.
The IP phone enters the local directory directly as there is only Local Directory in the
directory by default.
If Local Directory is removed from the directory, press Menu->Dir->Local Directory
to enter the local directory.
2. Press the AddGrp soft key.
3. Enter the desired group name in the Name field.
4. Press or to select the desired group ring tone from the Ring Tones field.
If Auto is selected, this group will use the ring tone assigned to the account. For
more information on ringtone for an account, refer to Ring Tones on page 25.
5. Press the Add soft key to accept the change or the Back soft key to cancel.
To edit a group in the local directory:
1. Press the Dir soft key.
The IP phone enters the local directory directly as there is only Local Directory in the
directory by default.
If Local Directory is removed from the directory, press Menu->Dir->Local Directory
to enter the local directory.
2. Select the desired group.
User Guide for the SIP-T21P IP Phone
30
3. Press the Option soft key, and then select Detail from the prompt list.
4. Press or to scroll through the group information and then edit.
5. Press the Save soft key to accept change or the Back soft key to cancel.
To delete a group from the local directory:
1. Press the Dir soft key.
The IP phone enters the local directory directly as there is only Local Directory in the
directory by default.
If Local Directory is removed from the directory, press Menu->Dir->Local Directory
to enter the local directory.
2. Select the desired group.
3. Press the Option soft key, and then select Delete from the prompt list.
The LCD screen prompts Delete Selected Group? .
4. Press the Ok soft key to confirm the deletion or the Cancel soft key to cancel.
You can also delete all groups by pressing the Option soft key and then select Del All.
For more information, refer to the above steps.
Customizing Your Phone
31
You can add contacts to the local directory in the following ways:
Manually
From call history
From remote phone book
Adding Contacts Manually
To add a contact to the local directory manually:
1. Press the Dir soft key.
The IP phone enters the local directory directly as there is only Local Directory in the
directory by default.
If Local Directory is removed from the directory, press Menu->Dir->Local Directory
to enter the local directory.
2. Select the desired group and then press the Enter soft key.
3. Press the Add soft key.
4. Enter the name and the office, mobile or other numbers in the corresponding fields.
5. Press or , or the Switch soft key to select the desired account from the
Account field.
If Auto is selected, the phone will use the first available account when placing calls
to the contact from the local directory.
6. Press or , or the Switch soft key to select the desired ring tone from the Ring
Tones field.
If Auto is selected, this contact will use the ring tone assigned to the group.
User Guide for the SIP-T21P IP Phone
32
7. Press the Add soft key to accept the change or the Back soft key to cancel.
Note
Adding Contacts from Call History
To add a contact to the local directory from the call history:
1. Press the History soft key.
2. Press or to select the desired entry.
3. Press the Option soft key, and then select Add to Contacts from the prompt list.
4. Enter the contact name.
5. Press the Save soft key to accept the change.
The entry is successfully saved to the local directory.
Adding Contacts from Remote Phone Book
To add a contact to the local directory from remote phone book:
1. Press Menu->Dir->Remote Phone Book.
If Remote Phone Book is added to the directory, press Dir->Remote Phone Book to
enter remote phone book.
2. Press or to select the desired contact.
3. Press the Option soft key, and then select Add to Contacts from the prompt list.
4. Press the Save soft key to save the contact in the local directory.
If the contact has already existed in the local directory, the LCD screen will prompt
Overwrite the original contact? Press the Ok soft key to overwrite the original
contact in local directory or the Cancel soft key to cancel.
For more information on remote phone book operating, refer to Remote Phone Book on
page 40.
If the contact
has existed
in the directory, the
LCD
screen
will prompt
ontact
Name
existed! .
Customizing Your Phone
33
To edit a contact in the local directory:
1. Press the Dir soft key.
The IP phone enters the local directory directly as there is only Local Directory in the
directory by default.
If Local Directory is removed from the directory, press Menu->Dir->Local Directory
to enter the local directory.
2. Select the desired group and then press the Enter soft key.
3. Press or to select the desired contact.
4. Press the Option soft key, and then select Detail from the prompt list.
5. Press or to scroll through the contact information and then edit.
6. Press the Save soft key to accept change or the Back soft key to cancel.
To delete a contact from the local directory:
1. Press the Dir soft key.
The IP phone enters the local directory directly as there is only Local Directory in the
directory by default.
If Local Directory is removed from the directory, press Menu->Dir->Local Directory
to enter the local directory.
User Guide for the SIP-T21P IP Phone
34
2. Select the desired group and then press the Enter soft key.
3. Press or to select the desired contact.
4. Press the Option soft key, and then select Delete from the prompt list.
The LCD screen prompts Delete Selected Item? .
5. Press the Ok soft key to confirm the deletion or the Cancel soft key to cancel.
To place a call to a contact from the local directory:
1. Press the Dir soft key.
The IP phone enters the local directory directly as there is only Local Directory in the
directory by default.
If Local Directory is removed from the directory, press Menu->Dir->Local Directory
to enter the local directory.
2. Select the desired group and then press the Enter soft key.
3. Press or to select the desired contact.
4. Do one of the following:
- If only one number of the contact is stored in the local directory, press the DIAL
soft key to dial out the number.
- If multiple numbers of the contact are stored in the local directory, press the
DIAL soft key to display a list of numbers.
Press or to select the desired number.
Press the DIAL soft key to dial out the number.
Customizing Your Phone
35
To search for a contact in the local directory:
1. Press the Dir soft key.
The IP phone enters the local directory directly as there is only Local Directory in the
directory by default.
If Local Directory is removed from the directory, press Menu->Dir->Local Directory
to enter the local directory.
2. Press or to scroll to the All Contacts field.
3. Press the Search soft key.
4. Enter a few continuous characters of the contact name or number using the keypad.
The contacts whose name or number matches the characters entered will appear
on the LCD screen. You can dial from the result list.
You can search for a contact in your desired lists when the phone is in the dialing screen.
The lists may contain Local Directory, History, Remote Phone Book and LDAP.
To configure search source list in dialing via web user interface:
1. Click on Directory->Setting.
2. In the Search Source List In Dialing block, select the desired list from the Disabled
column and then click .
The selected list appears in the Enabled column.
3. Repeat step 2 to add more lists to the Enabled column.
4. To remove a list from the Enabled column, select the desired list and then click .
5. To adjust the display order of search results, select the desired list and then click
or .
User Guide for the SIP-T21P IP Phone
36
The LCD screen displays the search results in the adjusted order.
6. Click Confirm to accept the change.
Note
To search for a contact in the enabled search source lists:
1. Pick up the handset, press the speakerphone or press the line key.
2. Enter a few continuous characters of the contact name or number using the keypad.
The contacts in the enabled search source lists whose name or number matches the
characters entered will appear on the LCD screen. You can press or to
select the desired contact and then place a call to the contact.
Search source list in dialing is configurable via web user interface only.
Customizing Your Phone
37
via phone user interface or web user
interface. But you can only import or export the contact list via web user interface.
To import an XML file of contact list via web user interface:
1. Click on Directory->Local Directory.
2. Click Browse to locate a contact list file (file format must be *.xml) from your local
system.
3. Click Import XML to import the contact list.
The web user interface prompts The original contact will be covered, Continue? .
4. Click OK to complete importing the contact list.
To import a CSV file of contact list via web user interface:
1. Click on Directory->Local Directory.
2. Click Browse to locate a contact list file (file format must be *.csv) from your local
system.
3. (Optional.) Check the Show Title checkbox.
It will prevent importing the title of the contact information which is located in the
first line of the CSV file.
4. Click Import CSV to import the contact list.
5. (Optional.) Mark the On radio box in the Delete Old Contacts field.
It will delete all existing contacts while importing the contact list.
User Guide for the SIP-T21P IP Phone
38
6. (Optional.) Select the contact information you want to import into the local directory
from the pull down list of Index.
7. Click Import to complete importing the contact list.
To export contact list via web user interface:
1. Click on Directory->Local Directory.
2. Click Export XML (or Export CSV).
3. Click Save to save the contact list to your local system.
Note
The built-in phone directory can store names and numbers for a blacklist. You can store
; add, edit, delete or search for a contact in
the blacklist; even dial a contact number from the blacklist, but any incoming call from
the blacklist will be rejected automatically.
To add a contact to the blacklist manually:
1. Press Menu->Dir->Blacklist.
2. Press the Add soft key.
Importing/exporting contact lists
are
configurable via web user interface only.
Customizing Your Phone
39
3. Enter the name and the office, mobile or other numbers in the corresponding fields.
4. Press or , or the Switch soft key to select the desired account from the
Account field.
If Auto is selected, the phone will use the first available account when placing calls
to the contact from the blacklist.
5. Press the Add soft key to accept the change or the Back soft key to cancel.
To add a contact to the blacklist from local directory:
1. Press the Dir soft key.
The IP phone enters the local directory directly as there is only Local Directory in the
directory by default.
If Local Directory is removed from the directory, press Menu->Dir->Local Directory
to enter the local directory.
2. Press or to select the desired contact.
3. Press the Option soft key and then select Add To Blacklist from the prompt list.
The LCD screen prompts "Move selected to Blacklist?".
4. Press the Ok soft key to confirm the setting.
For more operating instructions on editing, deleting, placing calls to and/or searching
for contacts in the blacklist, refer to the operating instructions of Local Directory on page
28.
User Guide for the SIP-T21P IP Phone
40
You can access your corporate directory through your phone. You can add local
contacts, search for a contact, or simply dial a contact number from the corporate
directory.
You can configure your new phone to access up to 5 corporate directories. The phone
supports up to 2000 corporate directory entries. For the access URL of the corporate
directory, contact your system administrator.
To configure an access URL for remote phone book via web user interface:
1. Click on Directory->Remote Phone Book.
2. Enter the access URL in the Remote URL field.
3. Enter the name in the Display Name field.
4. Click Confirm to accept the change.
Note
To access your corporate directory via phone user interface:
1. Press Menu->Dir->Remote Phone Book.
If Remote Phone Book is added to the directory, press Dir->Remote Phone Book to
enter remote phone book.
2. Press or to select the desired remote group, and then press the Enter soft
key.
An access URL for remote phone book is configurable via web user interface only.
Customizing Your Phone
41
The phone connects to load the corporate directory, and then the corporate contact
list appears on the LCD screen.
3. Press the Back soft key to back to the previous interface.
To search for a contact in the corporate directory:
1. Press Menu->Dir->Remote Phone Book.
If Remote Phone Book is added to the directory, press Dir->Remote Phone Book to
enter remote phone book.
2. Select the desired remote group, and then press the Enter soft key to load the
corporate directory.
3. Press the Search soft key.
4. Enter a few continuous characters of the contact name or number using the keypad.
The contacts whose name or number matches the characters entered will appear
on the LCD screen. You can dial from the result list.
To place a call from the corporate directory:
1. Press Menu->Dir->Remote Phone Book.
If Remote Phone Book is added to the directory, press Dir->Remote Phone Book to
enter remote phone book.
2. Press or to select the desired remote group, and then press the Enter soft
key to load the corporate directory.
3. Select the desired contact in the corporate directory.
4. Press the DIAL soft key.
In addition, you can enable the phone to present the caller identity stored in the
corporate directory when receiving a call.
To enable the presentation of caller identity stored in remote phone book via web user
interface:
1. Click on Directory->Remote Phone Book.
2. Select Enabled from the pull-down list of Search Remote Phonebook Name.
User Guide for the SIP-T21P IP Phone
42
3. Enter the refresh period of corporate directory in the Search Flash Time (Seconds)
field.
The default value is 21600 seconds.
4. Click Confirm to accept the change.
The SIP-T21P IP phone maintains call history lists of Placed Calls, Received Calls, Missed
Calls and Forwarded Calls. Call history lists support 100 entries in all. You can view the
call history, place a call, add a contact or delete an entry from the call history list. You
should enable history record in advance.
To enable history record via phone user interface:
1. Press Menu->Features->History Setting.
2. Press or , or the Switch soft key to select Enable from the History Record
field.
3. Press the Save soft key to accept the change or the Back soft key to cancel.
To view the call history:
1. Press the History soft key.
The LCD screen displays All Calls list.
2. Press or to switch between All Calls, Placed Calls, Received Calls, Missed
Calls and Forwarded.
3. Press or to select the desired entry.
Customizing Your Phone
43
4. Press the Option soft key, and then select Detail from the prompt list.
The detailed information of the entry appears on the LCD screen.
To place a call from the call history list:
1. Press the History soft key.
2. Press or to switch between All Calls, Placed Calls, Received Calls, Missed
Calls and Forwarded.
3. Press or to scroll to the desired entry.
4. Press the Send soft key.
To add a contact to the local directory or blacklist from the call history list:
1. Press the History soft key.
2. Press or to switch between All Calls, Placed Calls, Received Calls, Missed
Calls and Forwarded.
3. Press or to scroll to the desired entry.
4. Press the Option soft key, and then select Add to Contacts (or Add To Blacklist) from
the prompt list.
5. Enter the desired values in the corresponding fields, and then press the Save soft
key.
For more information, refer to Contact Management on page 27.
To delete an entry from the call history list:
1. Press the History soft key.
2. Press or to switch between All Calls, Placed Calls, Received Calls, Missed
Calls and Forwarded.
3. Press or to scroll to the desired entry.
4. Press the Delete soft key.
To delete all entries from the call history list:
1. Press the History soft key.
2. Press or to switch between All Calls, Placed Calls, Received Calls, Missed
Calls and Forwarded.
3. Press the Option soft key, and then select Del All from the prompt list.
4. Press the Ok soft key.
User Guide for the SIP-T21P IP Phone
44
The LCD screen prompts "Delete all records?".
5. Press the Ok soft key to confirm the deletion or the Cancel soft key to cancel.
You can upload your custom logo which will be shown on the idle screen.
To upload a custom logo via web user interface:
1. Click on Features->General Information.
2. Select Custom Logo from the pull-down list of Use Logo.
3. Click Browse to locate the logo file from your local system.
4. Click Upload to upload the file.
Customizing Your Phone
45
5. Click Confirm to accept the change.
Note
Physically connect your headset and activate the headset mode for use. For more
information on physically connecting a headset, refer to Phone Installation on page 11.
To activate the headset mode:
1. Press on the phone.
The headset icon on the idle screen indicates that the headset mode is activated.
Press the line key or the Answer soft key to answer a call. The call will connect to
your headset automatically. Enter the desired number and press the Send soft key,
then the phone will place a call using the headset automatically. For more
information on using the headset to place a call, refer to Placing Calls on page 65.
To deactivate the headset mode:
1. Press again on the phone.
The headset icon disappears from the idle screen indicates the headset mode is
deactivated.
You can use headset in priority when enabling headset prior. This feature is especially
useful for permanent or full-time headset users.
To enable headset prior via web user interface:
1. Click on Features->General Information.
The logo file format must be
.dob
,
contact
your
system
administrator
or more
information.
Logo customization is configurable via web user interface only.
User Guide for the SIP-T21P IP Phone
46
2. Select Enabled from the pull-down list of Headset Prior.
3. Click Confirm to accept the change.
To use headset prior feature, you should activate the headset mode in advance:
1. Physically connect the headset.
2. Press to activate the headset mode.
Note
Two types of DSS keys: Line Keys and Programmable Keys. The details will be introduced
in the following. The SIP-T21P IP phone supports 2 line keys.
You can assign predefined functionalities to the line keys to have quick access to
features such as call return and voice mail. The line key LEDs will indicate status when
the keys are assigned with particular features, such as BLF. The default key type of each
line key is Line.
If headset prior is enabled, t
he headset
mode
will not
be deactivated until you press the
HEADSET key again.
Headset prior is configurable via web user interface only.
Customizing Your Phone
47
To configure the line key via phone user interface:
1. Press Menu->Features->DSS Keys.
2. Select the desired line key, and then press the Enter soft key.
3. Select the desired key type from the Type field.
4. (Optional.) Select the desired key event from the Key Type field.
5. (Optional.) Select the desired line from the Account ID field.
6. (Optional.) Enter the corresponding value in the Value field.
7. (Optional.) Enter the corresponding value in the Extension field.
8. Press the Save soft key to accept the change or the Back soft key to cancel.
Line key is configurable via web user interface at the path DSSKey->Line Key.
Note
Common used line key features are explained in the following subchapters in detail:
Speed Dial
Voice Mail
Directed Pickup
Group Pickup
DTMF
Prefix
Local Group
XML Group
XML Brower
LDAP
Conference
Forward
Transfer
Hold
DND
SMS
Group Listening
Zero Touch
Keypad Lock
Directory
When the phone is idle, y
ou
can also long press the line key to
configure
it directly on the
phone.
User Guide for the SIP-T21P IP Phone
48
For more information, contact your system administrator.
Speed Dial
You can use this key feature to speed up dialing numbers often used or hard to
remember.
Dependencies:
Usage: Press the DSS key to dial out the number specified in the Value field, using the
account selected from theAccount ID field.
Voice Mail
You can use this key feature to connect voice mail quickly. For more information, refer to
Voice Mail on page 113.
Dependencies:
Usage: Press the DSS key to dial out the voice mail access code, you can follow the
voice prompt to listen to the voice mails.
Directed Pickup
You can use this key feature to answer someone on the phone.
Dependencies:
Usage: Press the DSS key on your phone when the specific phone number receives an
incoming call. The call is answered on your phone.
Group Pickup
You can use this key feature to answer incoming calls in a group that is associated with
their own group.
Dependencies:
Usage: Press the DSS key on your phone when a phone number in the group receives
an incoming call. The call is answered on your phone.
Customizing Your Phone
49
DTMF
You can use this key feature to send the specification of arbitrary key sequences via
DTMF.
Dependencies:
Usage: Press the DSS key during an active call to send the key sequence specified in the
Value field.
Note
Prefix
You can use this key feature to add a specified prefix number before the dialed number.
Dependencies:
Usage: Press the DSS key when the phone is idle, then the phone will enter into the
dialing screen and display the prefix number which you specified in the Value field. You
can enter other digits and then dial out.
Local Group
You can use this key feature to access the group in the local directory quickly. For more
information, refer to Local Directory on page 28.
Dependencies:
Usage: Press the DSS key to access the group specified in the Local Group field.
XML Group
You can use this key feature to access the remote group in your corporate directory
quickly. You should configure remote phone book in advance. For more information,
refer to Remote Phone Book on page 40.
Dependencies:
Usage: Press the DSS key to access the remote group specified in the Phone Book Name
field.
DTMF sequence only contains "0-9", "*", "#" and "A-D".
User Guide for the SIP-T21P IP Phone
50
XML Browser
You can use this key feature to access the XML browser quickly. The XML browser allows
you to create custom services which meet your functional requirements on the server.
You can customize practical applications, such as weather report, stock information,
Google search, etc.
Dependencies:
Usage: Press the DSS key to access the XML browser specified in the Value field.
LDAP
You can use this key feature to access the LDAP search interface quickly.
Dependencies:
Usage:
1. Press the DSS key to access the LDAP search interface.
2. Enter a few continuous characters of the contact name or number using the keypad.
The contacts whose name or number matches the characters entered will appear on
the LCD screen.
Conference
You can use this key feature to set up a conference call. For more information, refer to
Conference on page 86.
Dependencies:
Usage: Press the DSS key during an active call to set up a conference with the number
specified in the Value field.
Note
Forward
You can use this key feature to forward an incoming call to someone else. For more
information, refer to Call Forward on page 78.
Dependencies:
W
hen
you
leav
the
field
blank, t
he DSS key
performs the same function as the
Conference soft key during a call.
Customizing Your Phone
51
Usage: Press the DSS key to forward an incoming call to the number specified in the
Value field.
Note
Transfer
You can use this key feature to handle the call differently depending on the transfer
mode on DSS key when there is an active call on the phone.
Dependencies:
Usage:
When the transfer mode on DSS key is Blind Transfer, press the DSS key to complete
the blind transfer to the number specified in the Value field.
When the transfer mode on DSS key is Attended Transfer, press the DSS key to dial
out the number specified in the Value field, and then you can perform the attended
or semi-attended transfer.
When the transfer mode on DSS key is New Call, press the DSS key to place a new
call to the number specified in the Value field.
Note
Hold
You can use this key feature to place an active call on hold or retrieve a held call.
Dependencies:
Usage:
1. Press the DSS key during an active call to place the call on hold.
2. Press the DSS key again to retrieve the held call.
DND
You can use this key feature to activate or deactivate DND. You can also use this key
feature to access the custom DND interface. For more information, refer to Do Not
Disturb (DND) on page 75.
W
hen
you
leav
the
field
blank, t
he DSS key
performs the same function as the
Fwd soft key when receiving an incoming call.
ransfer mode on DSS key
is configurable via web user interface
at the path
Features->Transfer->Transfer Mode Via Dsskey.
When you leave the Value field blank, the DSS key performs the same function as the
TRAN key or the Tran soft key during a call. For more information, refer to Call Transfer on
page 84.
User Guide for the SIP-T21P IP Phone
52
Dependencies:
Usage:
When DND is in phone mode:
1. Press the DSS key to activate DND.
2. Press the DSS key again to deactivate DND.
When DND is in custom mode:
1. Press the DSS key to access the custom DND interface.
2. Activate or deactivate DND for one or all accounts.
Note
SMS
You can use this key feature to quick access the short message service. For more
information, refer to Short Message Service (SMS) on page 111.
Dependencies:
Usage: Press the DSS key when the phone is idle to access the short message service.
Group Listening
You can use this key feature to activate the Speakerphone and Handset/Headset mode
at the same time. It is suitable for the group conversation which has more than one
person at one side. You are able to speak and listen through the handset/headset,
meanwhile the others nearby can only listen through the speaker.
Dependencies:
Usage:
1. During a call, press the DSS key to activate the group listening mode.
You can then speak and listen through the handset/headset, other persons at your
side can listen through the speaker at the same time.
2. Press the DSS key again to deactivate the group listening mode.
Zero Touch
You can use this key feature to configure auto provision and network parameters quickly.
Dependencies:
Usage:
1. Press the DSS key to access the zero touch screen.
2. Press the Ok soft key in a few seconds.
When DND is activated,
the
incoming calls will be rejected
automatically.
Customizing Your Phone
53
3. Configure the network parameters in the corresponding fields.
4. Press the Next soft key.
5. Configure the auto provision parameters in the corresponding fields.
6. Press the Ok soft key.
The phone will reboot to update configurations.
Keypad Lock
You can use this key feature to immediately lock the keypad of your phone instead of
long pressing . For more information, refer to Keypad Lock on page 21.
Dependencies:
Usage: Press the DSS key to immediately lock the keypad of your phone instead of long
pressing .
Directory
You can use this key feature to easily access frequently used lists. For more information,
refer to Directory on page 27.
Dependencies:
Usage: Press the DSS key to immediately access to frequently used lists.
Note
You can customize the soft keys, navigation keys and function keys on the keypad.
To customize the programmable keys via web user interface:
1. Click on DSSKey->Programmable Key.
he DSS key
performs the same function as the
soft
key
when the phone is idle.
User Guide for the SIP-T21P IP Phone
54
2. Customize specific features for these keys.
3. Click Confirm to accept the change.
You can click Reset to default to reset custom settings to defaults.
Note
You can register one or multiple accounts on the SIP-T21P IP phone. You can also
configure each line key to associate with an account or configure multiple line keys to
associate with an account.
To register an account via phone user interface:
1. Press Menu->Settings->Advanced Settings (password: admin) ->Accounts.
2. Select the desired account and then press the Enter soft key.
3. Select Enable from the Activation field.
4. Enter the desired values in the Label, Display Name, Register Name, User Name,
Password and Sip Server1/2 fields respectively. Contact your system administrator
for more information.
5. Press the Save soft key to accept the change or the Back soft key to cancel.
Programmable keys are configurable via web user interface only.
Customizing Your Phone
55
You can repeat steps 2 to 5 to register more accounts.
To disable an account via phone user interface:
1. Press Menu->Settings->Advanced Settings (password: admin) ->Accounts.
2. Select the desired account and then press the Enter soft key.
3. Select Disable from the Activation field to disable the account.
4. Press the Save soft key to accept the change or the Back soft key to cancel.
Account registration is configurable via web user interface at the path
Account->Register.
You can configure multiple line keys to associate with an account. This enhances call
visualization and simplifies call handling.
Incoming calls to this account will be distributed evenly among the available line keys.
Outgoing calls will be distributed similarly.
Dial plan is a string of characters that governs the way your SIP-T21P IP phone processes
the inputs received from your phone keypad. The SIP-T21P IP phone supports the
following dial plan features:
Replace Rule
Dial-now
Area Code
Block Out
The basic expression syntax you need to know:
.
The dot multiple placeholders for any
character. Example:
12. would match 123 , 1234 , 12345 , "12abc", etc.
x An x can be used as a placeholder for any character. Example:
12x would match 121 , 122 , 123 , "12a", etc.
[]
The square brackets [] can be used as a placeholder for a single character
which matches any of a set of characters. Example:
91[5-7]1234 would match 9151234 , 9161234 , 9171234 .
()
The parentheses ( ) can be
used to group together patterns, for instance, to
logically combine two or more patterns. Example:
91([5-7])1(x) would match 91511 , 91618 , 91715 , etc.
$
User Guide for the SIP-T21P IP Phone
56
placed in the parenthesis. The number directs to the right parenthesis when
there are more than one. Example:
A replace rule configuration: Prefix: "9([5-7]) (.)", Replace: "5$2". When you
enter "96123" to dial out on your phone, the number will be replaced as "5123"
You can configure one or more replace rules (up to 100) to remove the specified string
and replace it with another string. You can configure a pattern with wildcards (refer to
the expression syntax in the table above), so that any string that matches the pattern
will be replaced. This feature is convenient for you to dial out a long number. For
example, a replace rule is configured as Prefix: 1 and Replace: 1234567 . When
trying to dial out the number 1234567 , you just need to enter 1 on the phone and
then press the Send soft key.
To add a replace rule via web user interface:
1. Click on Settings->Dial Plan->Replace Rule.
2. Enter the string (e.g., 1) in the Prefix field.
3. Enter the string (e.g., 1234) in the Replace field.
4. Enter the desired line ID in the Account field or leave it blank.
5. Click Add to add the replace rule.
Customizing Your Phone
57
When you enter the number 1 using the keypad and then press the Send soft key,
the phone will dial out 1234 instead.
Note
To edit a replace rule via web user interface:
1. Click on Settings->Dial Plan->Replace Rule.
2. Select the desired replace rule by checking the check box.
3. Edit the values in the Prefix and Replace fields.
4. Enter the desired line ID in the Account field or leave it blank.
5. Click Edit to accept the change.
To delete one or more replace rules via web user interface:
1. Click on Settings->Dial Plan->Replace Rule.
2. Select one or more replace rules by checking the check box(es).
3. Click Del to delete the replace rule(s).
Note
You can configure one or more dial-now rules (up to 100) on your phone. When the
dialed out number matches the dial-now string, the number will be dialed out
automatically. For example, a dial-now rule is configured as 2xx , then any entered
three-digit string beginning with 2 will be dialed out automatically on the phone.

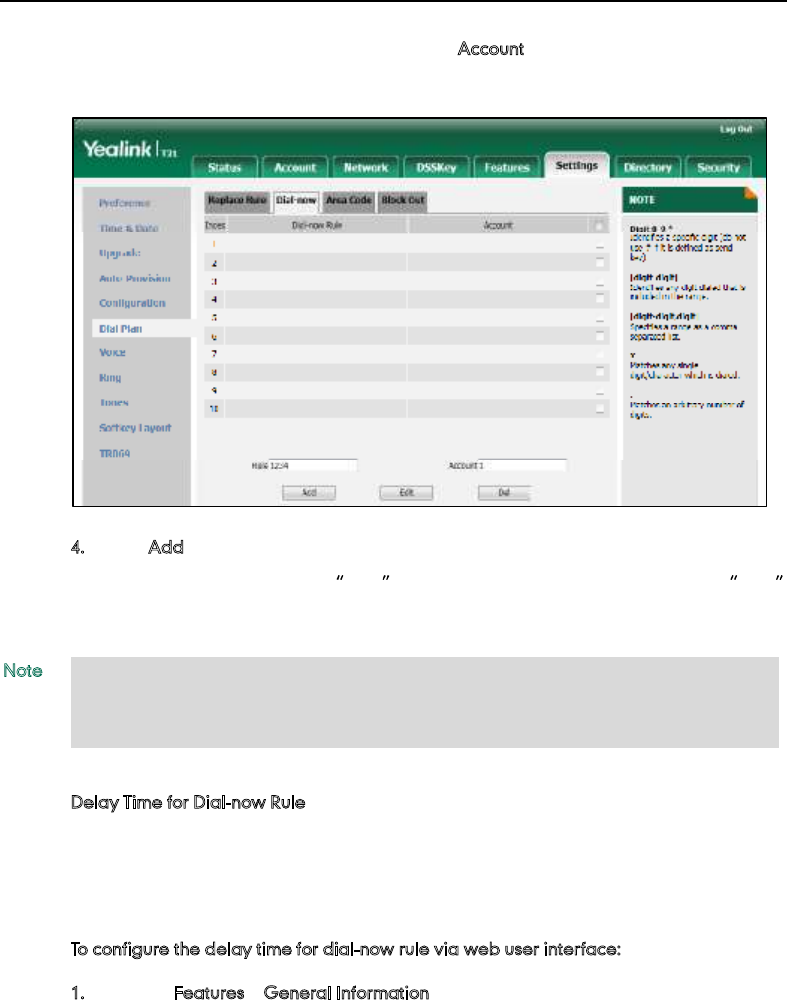

To add a dial-now rule via web user interface:
1. Click on Settings->Dial Plan->Dial-now.
2. Enter the desired value (e.g., 1234) in the Rule field.
3. Enter the desired line ID in the Account field or leave it blank.
The valid
values of
field can be one or two digits among
1 and 2
. Each digit must
be separated by a comma. For example, when you enter the value 1, 2 in the Account
field, this replace rule will apply to account1 and account2.
If you leave the Account field blank or enter 0, the replace rule will apply to all accounts.
Replace rule is configurable via web user interface only.
User Guide for the SIP-T21P IP Phone
58
For more information on the valid values of Account field, refer to Replace Rule on
page 56.
4. Click Add to add the dial-now rule.
When you enter the number 1234 using the keypad, the phone will dial out 1234
automatically without pressing any key.
Note
Delay Time for Dial-now Rule
You can configure the delay time for dial-now rules. That is, you can configure your
phone to dial out the phone number automatically, which matches a dial-now rule, after
the specified delay time.
To configure the delay time for dial-now rule via web user interface:
1. Click on Features->General Information.
You can also edit
or
delete the dial
now rule, refer to
Replace
Rule
on page
56
for more
information.
Dial-now rule is configurable via web user interface only.
Customizing Your Phone
59
2. Enter the time within 1-14 (in seconds) in the Time-Out for Dial-Now Rule field.
3. Click Confirm to accept the change.
Note
Area codes are also known as Numbering Plan Areas (NPAs). They usually indicate
geographical areas in a country. This feature is necessary only when dialing the number
outside the code area. For example, area code is configured as Code: 0592, Min
Length: 4, Max Length: 11 , then when you dial out the number 56789 , which has the
digits between 4 to 11, the phone will add the area code and dial out the number
059256789 . You can only configure one area code rule on your phone.
To configure the area code via web user interface:
1. Click on Settings->Dial Plan->Area Code.
2. Enter the desired values in the Code, Min Length (1-15) and Max Length (1-15)
fields.
3. Enter the desired line ID in the Account field or leave it blank.
Delay time for dial-now rule is configurable via web user interface only.
User Guide for the SIP-T21P IP Phone
60
For more information on the valid values of Account field, refer to Replace Rule on
page 56.
4. Click Confirm to accept the change.
Note
You can block some specific numbers from being dialed on your phone. When you dial
a block out number on your phone, the dialing will fail and the LCD screen will prompt
Forbidden Number . You can add 10 block out rules at most on your phone.
To add a block out number via web user interface:
1. Click on Settings->Dial Plan->Block Out.
2. Enter the desired value in the BlockOut Number field.
3. Enter the desired line ID in the Account field or leave it blank.
Area code is configurable via web user interface only.
Customizing Your Phone
61
For more information on the valid values of Account field, refer to Replace Rule on
page 56.
4. Click Confirm to add the block out number.
Note
Public telephone networks in countries around the world have a single emergency
telephone number (emergency services number), that allows a caller to contact local
emergency services for assistance when necessary. The emergency telephone number
may differ from country to country. It is typically a three-digit number so that it can be
easily remembered and dialed quickly. Some countries have different emergency
numbers for different emergency services.
You can specify the emergency telephone number on the IP phone for contacting the
emergency services in an emergency situation.
Note
To specify emergency numbers via web user interface:
1. Click on Features->Phone Lock.
2. Enter the emergency number in the Emergency field.
Contact your local phone service provider for available emergency numbers in your
area.
Block out number is configurable via web user interface only.
User Guide for the SIP-T21P IP Phone
62
For multiple numbers, enter a comma between every two emergency numbers. The
default emergency numbers are 110, 911 and 120.
3. Click Confirm to accept the change.
Note
You can enable live dialpad on the SIP-T21P IP phone, which enables the IP phone to
automatically dial out the phone number without pressing the send key. You can also
configure a delay, where the phone will dial out the phone number automatically after
the specified period of time.
To enable live dialpad via web user interface:
1. Click on Settings->Preference.
2. Select Enabled from the pull-down list of Live Dialpad.
Emergency number is configurable via web user interface only.
Customizing Your Phone
63
3. Enter the desired delay time in the Inter Digit Time (1~14s) field.
The default delay time is 4s.
4. Click Confirm to accept the change.
Note
You can dial a hotline number immediately upon lifting the handset, pressing the
Speakerphone key or pressing a line key. You can also configure a delay, where the
phone will dial out the hotline number automatically after the specified period of time.
To configure the hot line number via phone user interface:
1. Press Menu->Features->Hotline.
2. Enter the desired number in the Number field.
3. Enter the delay time (in seconds) in the Hotline Time-out field.
The valid values range from 0 to 10.
4. Press the Save soft key to accept the change or the Back soft key to cancel.
Hotline is configurable via web user interface at the path Features->General
Information.
Live dialpad is configurable via web user interface only.
User Guide for the SIP-T21P IP Phone
64
Basic Call Features
65
The SIP-T21P IP phone is designed to be easily used like a regular phone on a public
switched telephone network (PSTN). You can place calls, answer calls, transfer a call to
someone else, or conduct a conference call.
This chapter provides basic operating instructions for the SIP-T21P IP phone. Topics
include:
Placing Calls
Answering Calls
Ending Calls
Redialing Numbers
Recent Call In Dialing
Auto Answer
Auto Redial
Call Completion
Call Return
Call Mute
Call Hold/Resume
Do Not Disturb (DND)
Call Forward
Call Transfer
Call Waiting
Conference
Call Park
Call Pickup
Anonymous Call
Anonymous Call Rejection
If you require additional information or assistance with your new phone, contact your
system administrator.
You can place a call in three ways using your SIP-T21P IP phone:
Using the handset
User Guide for the SIP-T21P IP Phone
66
Using the speakerphone
Using the headset
You can also dial the number first, and then choose the way you want to speak to the
other party.
You can also search and dial a contact from call history, local directory or remote phone
book. For more information, refer to Contact Management on page 27 and Call History
Management on page 42.
During a call, you can alternate between Speakerphone, Headset and Handset modes
by pressing the Speakerphone key, the HEADSET key, or picking up the handset.
The call duration of active call is visible on the LCD screen. In the figure below, the call to
Kame has lasted 9 seconds.
To place a call using the handset:
1. Pick up the handset.
2. Enter the desired number using the keypad.
3. Press , , or the Send soft key.
The # key is configured as a send key by default. You can also set the * key as the send
key, or set neither. For more information, refer to Key as Send on page 21.
Note
To place a call using the hands-free speakerphone mode:
Do one of the following:
- With the handset on-hook, press or the line key to obtain a dial tone.
Enter the desired number using the keypad.
Press , , or the Send soft key.
- With the handset on-hook, enter the desired number using the keypad.
Press , , , or the Send soft key.
You can also dial using the SIP URI or IP address. To obtain the IP address of
the
phone,
press the OK key. The maximum SIP URI or IP address length is 32 characters. For
example, SIP URI: 2210@sip.com, IP: 192.168.1.15.
Your phone may not support direct IP dialing. Contact your system administrator for more
information.
Basic Call Features
67
To place a call using the headset:
Do one of the following:
- With the optional headset connected, press to activate the headset mode.
Press the line key to obtain a dial tone.
Enter the desired number using the keypad.
Press , , or the Send soft key.
- With the optional headset connected, press to activate the headset mode.
Enter the desired number using the keypad.
Press , , or the Send soft key.
Note
To place multiple calls:
You can have more than one call on your SIP-T21P IP phone. To place a new call during
an active call, do one of the following:
- Press the line key. The active call is placed on hold.
Enter the desired number using the keypad.
Press , , or the Send soft key.
- Press the Hold soft key to place the original call on hold.
Press the NewCall soft key.
Enter the desired number using the keypad.
Press , , or the Send soft key.
You can press or to switch between the calls, and then press the Resume soft
key to retrieve the desired call.
When you are not in another call, you can answer a call in three ways:
Using the handset
Using the speakerphone
Using the headset
Note
To permanently enable your headset, refer to
Headset Prior
on page
45
You can ignore incoming calls by pressing the Reject soft key or the Silence soft key. You
can also activate Do Not Disturb mode to ignore all incoming calls without ring on your
phone. For more information, refer to Do Not Disturb (DND) on page 75.
You can forward incoming calls to someone else by pressing the Fwd soft key. For more
information, refer to Call Forward on page 78.
User Guide for the SIP-T21P IP Phone
68
Answering When Not in Another Call
Call duration and destination will always appear on the LCD screen for the active call.
To answer a call using the handset:
1. Pick up the handset.
To answer a call using the hands-free speakerphone mode:
Do one of the following:
- Press .
- With the handset on-hook and headset mode deactivated, press the Answer soft
key.
- With the handset on-hook and headset mode deactivated, press the line key (the
line key LED flashes green).
To answer a call using the headset:
Do one of the following:
- Press .
- With the headset mode activated, press the Answer soft key.
- With the headset mode activated, press the line key (the line key LED flashes
green).
Answering When in Another Call
If you have an active call, and an incoming call arrives on the phone, do one of the
following:
- Press the Answer soft key.
The incoming call is answered and the original call is placed on hold.
- Press to access the new call.
Press or the Answer soft key.
The incoming call is answered and the original call is placed on hold.
To end a call:
Do one of the following:
- If you are using the handset, press the Cancel soft key or hang up the handset.
- If you are using the headset, press the Cancel soft key.
Basic Call Features
69
- If you are using the speakerphone, press or the Cancel soft key.
Note
To redial the last dialed number from your phone:
1. Press twice.
A call to your last dialed number is attempted.
To redial a previously dialed number from your phone:
1. Press when the phone is idle.
2. Press or to select the desired entry, and then press or the Send soft
key.
You can view the placed calls list when the phone is in the pre-dialing screen. To do this,
you should enable recent call in dialing in advance.
To enable recent call in dialing via web user interface:
1. Click on Directory->Setting.
2. Select Enabled from the pull-down list of Recent Call In Dialing.
To end a call placed on hold,
you can press the
soft key
to end the call
directly,
or
press the Resume soft key to resume the call before ending it.
User Guide for the SIP-T21P IP Phone
70
3. Click Confirm to accept the change.
Note
To view placed calls list when the phone is in the pre-dialing screen:
1. Pick up the handset, press the speakerphone or press the line key.
The LCD screen displays the placed calls list. You can press or to select
the desired entry and then place a call to the contact.
You can use auto answer to automatically answer an incoming call on a line. Auto
answer is configurable on a per-line basis.
To configure auto answer via phone user interface:
1. Press Menu->Settings->Advanced Settings (password: admin) ->Accounts.
2. Select the desired account and then press the Enter soft key.
3. Press or , or the Switch soft key to select Enable from the Auto Answer
field.
4. Press the Save soft key to accept the change or the Back soft key to cancel.
The icon appears on the LCD screen.
Recent call in dialing is configurable via web user interface only.
Basic Call Features
71
Auto answer is configurable via web user interface at the path Account->Basic.
Note
You can enable auto redial to redial the phone number automatically when the called
party is busy. You can also configure the times settings for auto redial and the time to
wait between redial attempts.
To configure auto redial via phone user interface:
1. Press Menu->Features->Auto Redial.
2. Press or , or the Switch soft key to select Enable from the Auto Redial field.
3. Enter the desired time in the Interval field.
The default time interval is 10s.
4. Enter the desired times in the Times field.
The default times are 10.
5. Press the Save soft key to accept the change or the Back soft key to cancel.
Auto redial is configurable via web user interface at the path Features->General
Information.
To use auto redial:
When the called party is busy, the following prompt will appear on the LCD screen of the
phone:
Auto answer is only applicable when there is no other call in progress on the phone.
User Guide for the SIP-T21P IP Phone
72
1. Press the Ok soft key to activate auto redial.
The following prompt will appear on the LCD screen of the phone:
2. Wait for a period of time or press the Ok soft key to redial the phone number.
The phone will retry as many times as configured until the called party is idle.
You can use call completion to notify the caller who failed to reach a desired callee
when the callee becomes available to receive a call.
To configure call completion via phone user interface:
1. Press Menu->Features->Call Completion.
2. Press or , or the Switch soft key to select Enable from the Call Completion
field.
3. Press the Save soft key to accept the change or the Back soft key to cancel.
Call completion is configurable via web user interface at the path Features->General
Information.
To use call completion:
When the called party is busy, the following prompt will appear on the LCD screen of the
phone:
Basic Call Features
73
1. Press the Ok soft key, the phone returns to the idle screen and call completion is
activated.
When the called party becomes idle, the following prompt appears on the LCD
screen of the phone:
2. Press the Ok soft key to redial the number.
Note
You can press a call return key to place a call back to the last incoming call.
To configure a call return key via phone user interface:
1. Press Menu->Features->DSS Keys.
2. Select a desired DSS key.
3. Press or , or the Switch soft key to select Key Event from the Type field.
4. Press or , or the Switch soft key to select Call Return from the Key Type field.
5. Press the Save soft key to accept the change or the Back soft key to cancel.
Call return key is configurable via web user interface at the path DSSKey->Line Key.
You can mute the microphone of the active audio device during an active call, and then
the other party cannot hear you.
To mute a call:
1. Press during an active call.
Call completion
is not available on all servers. For more information, contact your system
administrator.
User Guide for the SIP-T21P IP Phone
74
The LCD screen indicates that the call is on mute.
To un-mute a call:
1. Press again to un-mute the call.
You can place an active call on hold. Only one active call can be in progress at any time.
Other calls can be made and received while placing the original call on hold. When you
place a call on hold, your IP PBX may play music on hold to the other party while
waiting.
To place a call on hold:
1. Press the Hold soft key during a call.
The line key LED flashes green. The LCD screen indicates that the call is on hold.
Note
To resume a held call:
1. Press the Resume soft key.
Multiple Calls on Hold:
If multiple calls are placed on hold, do one of the following:
- Press or to switch between the calls, and then press the Resume soft key
to retrieve the desired call.
- Press the corresponding line key to retrieve the desired call.
If more than one call is placed on hold, a numbered prompt appears on the LCD screen,
The phone will beep softly
every
30 seconds to remind you that you still have a call on
hold.
Basic Call Features
75
for example 3 three calls.
You can use DND to reject incoming calls automatically on the phone. Callers will
receive a busy message.
You can enable/disable DND for the phone system, or you can customize DND for each
or all accounts. Two DND modes:
Phone (default): DND is effective for the phone system.
Custom: DND can be configured for each or all accounts.
You can receive incoming calls from authorized numbers when DND is enabled.
To configure the DND mode via web user interface:
1. Click on Features->Forward & DND.
2. In the DND block, mark the desired radio box in the Mode field.
3. Click Confirm to accept the change.
Note
DND mode is configurable via web user interface only.
User Guide for the SIP-T21P IP Phone
76
To activate DND in phone mode:
1. Press the DND soft key when the phone is idle.
The icon on the idle screen indicates that DND is enabled.
Incoming calls will be rejected automatically and "n New Missed Call(s)" ("n"
indicates the number of the missed calls) will appear on the LCD screen.
To activate DND in custom mode for a specific account:
1. Press the DND soft key when the phone is idle.
The LCD screen displays a list of accounts on the phone.
2. Press or to select the desired account.
3. Press or soft key to select On to active DND.
4. Press the Save soft key to accept the change.
The icon appears on the idle screen and the associated line icon changes
to .
Incoming calls on this line will be rejected automatically and "n New Missed Call(s)"
("n" indicates the number of the missed calls) will appear on the LCD screen.
To activate DND in custom mode for all accounts:
1. Press the DND soft key when the phone is idle.
Basic Call Features
77
The LCD screen displays a list of the accounts on the phone.
2. Press the All On soft key to activate DND for all accounts.
3. Press the Save soft key to accept the change.
The icon appears on the idle screen and all line icons change to .
Incoming calls will be rejected automatically and "n New Missed Call(s)" ("n"
indicates the number of the missed calls) will appear on the LCD screen.
Note
To configure the DND authorized numbers via web user interface:
1. Click on Features->Forward & DND.
2. Select Enabled from the pull-down list of DND Emergency.
The prompt message displays only if Missed Call Log for the line is enabled. Missed Call
Log is configurable via web user interface at the path Account->Basic.
Do Not Disturb is local to the phone, and may be overridden by the server settings. For
more information, contact your system administrator.
User Guide for the SIP-T21P IP Phone
78
3. Enter the numbers in the DND Authorized Numbers field.
For multiple numbers, enter a comma between every two numbers.
4. Click Confirm to accept the change.
When DND is enabled on the phone, the phone can still receive incoming calls from
the numbers specified in the DND Authorized Numbers field.
Note
You can configure your phone to forward incoming calls to another party by the static
forwarding. You can also forward calls while your phone is ringing, refer to the dynamic
forwarding.
Static Forwarding
Three types of static forwarding:
Always Forward: Incoming calls are immediately forwarded.
Busy Forward: Incoming calls are immediately forwarded if the phone is busy.
No Answer Forward: Incoming calls are forwarded if not answered after a period
DND authorized number is configurable via web user interface only.
Basic Call Features
79
of time.
You can enable/disable call forward for the phone system, or you can customize call
forward for each or all accounts. Two call forward modes:
Phone (default): Call forward is effective for the phone system.
Custom: Call forward can be configured for each or all accounts.
To configure the call forward mode via web user interface:
1. Click on Features->Forward & DND.
2. In the Forward block, mark the desired radio box in the Mode field.
3. Click Confirm to accept the change.
Note
To enable call forward in phone mode:
1. Press Menu->Features->Call Forward.
2. Press or to select the desired forwarding type, and then press the Enter
soft key.
Call forward mode is configurable via web user interface only.
User Guide for the SIP-T21P IP Phone
80
3. Depending on your selection:
a.) If you select Always Forward:
1) Press or , or the Switch soft key to select Enable from the Always
field.
2) Enter the destination number you want to forward all incoming calls to in
the Forward to field.
3) (Optional.) Enter the always forward on code or off code respectively in the
On Code or Off Code field.
b.) If you select Busy Forward:
1) Press or , or the Switch soft key to select Enable from the Busy
field.
2) Enter the destination number you want to forward all incoming calls to
when the phone is busy in the Forward to field.
3) (Optional.) Enter the busy forward on code or off code respectively in the
On Code or Off Code field.
c.) If you select No Answer Forward:
1) Press or , or the Switch soft key to select Enable from the No
Answer field.
2) Enter the destination number you want to forward all unanswered incoming
calls to in the Forward to field.
3) Press or , or the Switch soft key to select the ring time to wait
Basic Call Features
81
before forwarding from the After Ring Time field.
The default ring time is 12 seconds.
4) (Optional.) Enter the no answer forward on code or off code respectively in
the On Code or Off Code field.
4. Press the Save soft key to accept the change or the Back soft key to cancel.
The icon on the idle screen indicates call forward is enabled.
To enable call forward in custom mode:
1. Press Menu->Features->Call Forward.
2. Press or to select the desired account, and then press the Enter soft key.
3. Press or to select the desired forwarding type, and then press the Enter
soft key.
4. Depending on your selection:
a.) If you select Always Forward, you can enable it for a specific account.
1) Press or , or the Switch soft key to select Enable from the Always
field.
2) Enter the destination number you want to forward all incoming calls to in
the Forward to field.
3) (Optional.) Enter the always forward on code or off code respectively in the
On Code or Off Code field.
You can also enable always forward for all accounts. After always forward was
enabled for a specific account, do the following:
1) Press or to scroll to the Always field.
2) Press the All Lines soft key.
The LCD screen prompts Copy to All Lines? .
3) Press the Ok soft key to accept the change or the Cancel soft key to cancel.
User Guide for the SIP-T21P IP Phone
82
b.) If you select Busy Forward, you can enable it for a specific account.
1) Press or , or the Switch soft key to select Enable from the Busy
field.
2) Enter the destination number you want to forward all incoming calls to
when the phone is busy in the Forward to field.
3) (Optional.) Enter the busy forward on code or off code respectively in the
On Code or Off Code field.
You can also enable busy forward for all accounts. After busy forward was
enabled for a specific account, do the following:
1) Press or to scroll to the Busy field.
2) Press the All Lines soft key.
The LCD screen prompts Copy to All Lines? .
3) Press the Ok soft key to accept the change or the Cancel soft key to cancel.
c.) If you select No Answer Forward, you can enable it for a specific account.
1) Press or , or the Switch soft key to select Enable from the No
Answer field.
2) Enter the destination number you want to forward all unanswered incoming
calls to in the Forward to field.
3) Press or , or the Switch soft key to select the ring time to wait
before forwarding from the After Ring Time field.
The default ring time is 12 seconds.
Basic Call Features
83
4) (Optional.) Enter the no answer forward on code or off code respectively in
the On Code or Off Code field.
You can also enable no answer forward for all accounts. After no answer
forward was enabled for a specific account, do the following:
1) Press or to scroll to the No Answer field.
2) Press the All Lines soft key.
The LCD screen prompts Copy to All Lines? .
3) Press the Ok soft key to accept the change or the Cancel soft key to cancel.
5. Press the Save soft key to accept the change or the Back soft key to cancel.
The icon appears on the idle screen and the associate line icon changes to .
Call forward is configurable via web user interface at the path Features->Forward &
DND.
Note
To disable call forward in phone mode:
Do one of the following:
- Press when the phone is idle.
- Press Menu->Features->Call Forward.
Press or to select the desired forwarding type, then press the Enter soft
key.
Press , , or the Switch soft key to select Disable to disable the call forward.
You can also enter the SIP URL or IP address
in the
w
field
. For more information
on using the SIP URL or IP address, refer to Placing Calls on page 65.
Call forward is local to the phone, and may be overridden by the server settings. Call
forward on code or off code may be different between servers. For more information,
contact your system administrator.
User Guide for the SIP-T21P IP Phone
84
Press the Save soft key to accept the change.
To disable call forward in custom mode for a specific account:
1. Press Menu->Features->Call Forward or press when the phone is idle.
2. Press or to select the desired account, then press the Enter soft key.
3. Press or to select the desired forwarding type, then press the Enter soft
key.
4. Press , or the Switch soft key to select Disable to disable the call forward.
5. Press the Save soft key to accept the change.
Dynamic Forwarding
To forward an incoming call to another party:
1. When the phone is ringing, press the Fwd soft key.
2. Enter the number you want to forward the incoming call to.
3. Press , , or the Send soft key.
The incoming call is forwarded. The LCD screen prompts a call forward message.
You can transfer a call to another party in one of the three ways:
Blind Transfer: Transfer a call directly to another party without consulting.
Semi-Attended Transfer: Transfer a call when the target phone is ringing.
Attended Transfer: Transfer a call with prior consulting.
To perform a blind transfer:
1. Press or the Tran soft key during a call.
2. Enter the number you want to transfer the call to.
Basic Call Features
85
3. Press or the Tran soft key to complete call transfer.
Then the call is connected to the number to which you are transferring.
To perform a semi-attended transfer:
1. Press or the Tran soft key during a call.
2. Do one of the following:
- Enter the number you want to transfer the call to.
- Press the Dir soft key, and then select Local Directory. Select the desired group,
and search for the contact (Directory should be configured in advance. Refer to
Directory on page 27 for more information.).
- Press the Dir soft key, and then select History. Select the desired list and use
or to select the entry (Directory should be configured in advance. Refer to
Directory on page 27 for more information.).
- Press the Dir soft key, and then select Remote Phone Book. Select the desired
group and search for the contact (Directory and remote phone book should be
configured in advance. Refer to Directory on page 27 and Remote Phone Book
on page 40 for more information.).
3. Press or to dial out.
4. Press or the Tran soft key to complete call transfer when receiving the
ringback.
To perform an attended transfer:
1. Press or the Tran soft key during a call.
2. Do one of the following:
- Enter the number you want to transfer the call to.
- Press the Dir soft key, and then select Local Directory. Select the desired group,
and search for the contact (Directory should be configured in advance. Refer to
Directory on page 27 for more information.).
- Press the Dir soft key, and then select History. Select the desired list and use
or to select the entry (Directory should be configured in advance. Refer to
Directory on page 27 for more information.).
- Press the Dir soft key, and then select Remote Phone Book. Select the desired
group and search for the contact (Directory and remote phone book should be
configured in advance. Refer to Directory on page 27 and Remote Phone Book
on page 40 for more information.).
3. Press or to dial out.
4. After the party answers the call, press or the Tran soft key to complete call
transfer.
User Guide for the SIP-T21P IP Phone
86
If you are using a handset, call transfer can be completed by hanging up the handset.
You can cancel call transfer before the call is connected by pressing the Cancel soft key.
You can enable or disable call waiting on the phone. If call waiting is enabled, you can
receive another call when there is an active call on the phone. Otherwise, another
incoming call is automatically rejected by the phone with a busy message when there is
an active call on the phone. You can also enable or disable the phone to play a warning
tone when receiving another call.
To configure call waiting via phone user interface:
1. Press Menu->Features->Call Waiting.
2. Press or , or the Switch soft key to select Enable from the Call Waiting
field.
3. Press or , or the Switch soft key to select Enable from the Play Tone field.
4. (Optional.)Enter the call waiting on code or off code respectively in the CW On
Code or CW Off Code field.
5. Press the Save soft key to accept the change or the Back soft key to cancel.
Call waiting is configurable via web user interface at the path Features->General
Information.
can create a conference between an active call and a call on hold (on the same or
another line) by pressing the Conference soft key.
Note
etwork conference is not available on all servers. For more information, contact your
system administrator.
Basic Call Features
87
The SIP-T21P IP phone supports up to 3 parties (including yourself) in a conference call.
This is the default method of conference called Local Conference.
To set up a local conference call:
1. Place a call to the first party.
2. When the first party answers the call, press the Conference soft key to place a new
call.
The active call is placed on hold.
3. Enter the number of the second party and press , , or the Send soft key.
4. When the second party answers the call, you can consult with him or her before
adding to the conference.
5. Press the Conference soft key again to join all parties in the conference.
To join two calls in a conference:
1. Place two calls using two different accounts on the phone (for example, place the
first call using account 1, and then place the second call using account 2).
2. Press or to select the call for conference and make sure the call is active
(for example, select the call on account 1).
3. Press the Conference soft key to join the two calls in the conference on the selected
account.
You can press the Hold soft key to place the conference on hold. You can press the Split
soft key to split the conference call into two individual calls. To drop the conference call,
press the Cancel soft key.
You can use network conference on the SIP-T21P IP phone to conduct a conference with
multiple participants.
This feature allows you to perform the following:
Join two calls together into a conference call.
Invite another party into an active conference call.
User Guide for the SIP-T21P IP Phone
88
To use this feature, contact your system administrator for the network conference URI in
advance.
To configure network conference via web user interface:
1. Click on Account.
2. Select the desired account from the pull-down list of Account.
3. Click on Advanced.
4. Select Network Conference from the pull-down list of Conference Type.
5. Enter the conference URI (e.g., conference@example.com) in the Conference URI
field.
6. Click Confirm to accept the change.
To set up a network conference call:
1. Place a call to the first party.
2. Press the Conference soft key to place a new call.
The active call is placed on hold.
3. Enter the number of the second party and press , , or the Send soft key.
4. When the second party answers the call, press the Conference soft key to add the
second party to the conference.
5. Press the Conference soft key to place a new call.
The conference is placed on hold.
6. Enter the number of the new party and then press , , or the Send soft key.
Basic Call Features
89
7. When the new party answers the call, press the
8. Conference soft key to add the new party to the conference.
9. Repeat steps 5 to 7 until you have added all intended parties.
The procedures to set up a network conference call for specific servers may be different
from introduced above. Contact your system administrator for more information.
You can use call park to place a call on hold, and then retrieve the call from another
phone in the system (for example, a phone in another office or conference room). You
can park an active call by pressing the call park key on the phone. If the call is parked
successfully, the response is either a voice prompt confirming that the call was parked,
or a visible prompt on the LCD screen.
Note
To configure a call park key via phone user interface:
1. Press Menu->Features->DSS Keys.
2. Select the desired DSS key.
3. Press or , or the Switch soft key to select Key Event from the Type field.
4. Press or , or the Switch soft key to select Call Park from the Key Type field.
5. Press or , or the Switch soft key to select the desired line from the Account
ID field.
6. Enter the call park code in the Value field.
7. Press the Save soft key to accept the change or the Back soft key to cancel.
Call park key is configurable via web user interface at the path DSSKey->Line Key.
To use call park:
1. User on phone A places a call to phone B.
2. User on phone A wants to take the call in a conference room for privacy, then
presses the call park key on phone A.
3. User on phone A walks to an available conference room where the phone is
all
ark is not available on all servers. Contact your system administrator for more
information.
User Guide for the SIP-T21P IP Phone
90
designated as phone C. The user dials the call park retrieve code to retrieve the
parked call.
The system establishes call between phone C and B.
Note
You can use call pickup to answer on the phone. The
SIP-T21P IP phone supports directed call pickup and group call pickup. Directed call
pickup is used for picking up a call that is ringing at a specific phone number. Group call
pickup is used for picking up a call that is ringing at any phone number in the group. The
pickup group should be predefined, contact your system administrator for more
information.
You can pick up an incoming call by using the DPickup/GPickup soft key. To use call
pickup, you need to configure the call pickup code beforehand on a global or per-line
basis via web user interface.
Note

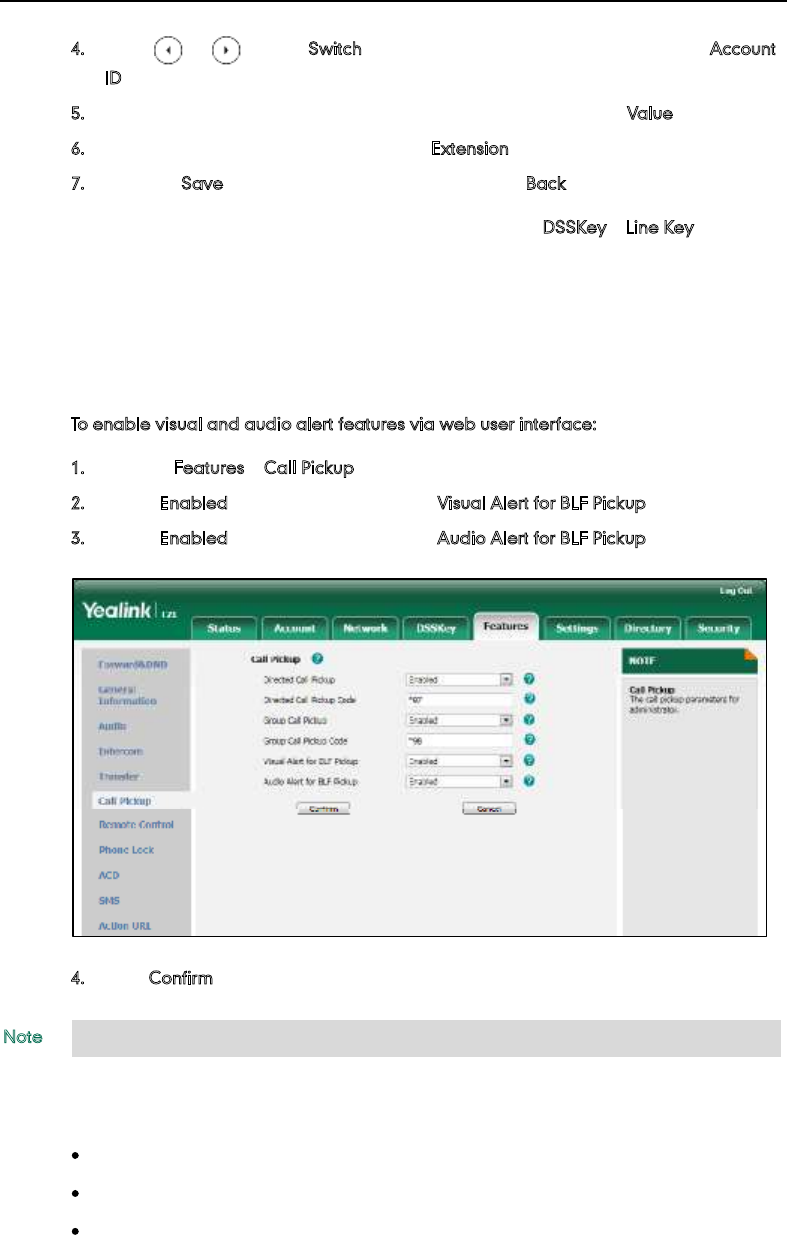

Directed Call Pickup
To enable the directed call pickup via web user interface:
1. Click on Features->Call Pickup.
2. Select Enabled from the pull-down list of Directed Call Pickup.
The
call park code and
call park
retrieve code
are
predefine
on
the system
server
Contact your system administrator for more information.
If the parked call is not retrieved within a period of time assigned by the system, the
phone performing call park feature will receive call back.
If there are many incoming calls at the same time,
press
ing
the
G
soft
key on the
phone will pick up the call that rings first.
Basic Call Features
91
3. Click Confirm to accept the change.
To configure the directed call pickup code on a global basis via web user interface:
1. Click on Features->Call Pickup.
2. Enter the directed call pickup code in the Directed Call Pickup Code field.
3. Click Confirm to accept the change.
To configure the directed call pickup code on a per-line basis via web user interface:
1. Click on Account.
2. Select the desired account from the pull-down list of Account.
3. Click on Advanced.
User Guide for the SIP-T21P IP Phone
92
4. Enter the directed call pickup code in the Directed Call Pickup Code field.
5. Click Confirm to accept the change.
To pick up a call directly:
1. Pick up the handset.
The DPickup soft key appears on the LCD screen.
2. Press the DPickup soft key on your phone when a phone receives an incoming call.
3. Enter the phone number which receives an incoming call.
4. Press the DPickup soft key again.
The call is answered on your phone.
You can also configure a DSS key as directed pickup key via phone user interface or
web user interface.You can pick up acall by pressing the directedpickup key directly.
Basic Call Features
93
Group Call Pickup
To enable the group call pickup via web user interface:
1. Click on Features->Call Pickup.
2. Select Enabled from the pull-down list of Group Call Pickup.
3. Click Confirm to accept the change.
To configure the group call pickup code on a global basis via web user interface:
1. Click on Features->Call Pickup.
2. Enter the group call pickup code in the Group Call Pickup Code field.
3. Click Confirm to accept the change.
To configure the group call pickup code on a per-line basis via web user interface:
1. Click on Account.
2. Select the desired account from the pull-down list of Account.
3. Click on Advanced.
User Guide for the SIP-T21P IP Phone
94
4. Enter the group call pickup code in the Group Call Pickup Code field.
5. Click Confirm to accept the change.
To pick up a call in the group:
1. Pick up the handset.
The GPickup soft key appears on the LCD screen.
2. Press the GPickup soft key on your phone when a phone in the group receives an
incoming call.
The call is answered on your phone.
You can also configure a DSS key as a group pickup key via phone user interface or
web user interface. You can pick up a call by pressing the group pickup key directly.
Note
he
directed call pickup
code and
group call pickup code
are
predefine
on
the system
server. Contact your system administrator for more information.
The call pickup code configured on a per-line basis takes precedence over that
configured on a global basis.
Basic Call Features
95
You can use anonymous call to block the identity and phone number from showing up to
the called party when you call someone. For example, you want to call to consult some
of the services, but don t want to be harassed. Anonymous call is configurable on a
per-line basis.
Note
To configure anonymous call via phone user interface:
1. Press Menu->Features->Anonymous Call.
2. Press or , or the Switch soft key to select the desired line from the Line ID
field.
3. Press or to select Enable from the Anonymous Call field.
4. (Optional.) Enter the anonymous call on code in the Call On Code field.
5. (Optional.) Enter the anonymous call off code in the Call Off Code field.
6. Press the Save soft key to accept the change or the Back soft key to cancel.
Anonymous call is configurable via web user interface at the path Account->Basic.
To place an anonymous call:
1. Using the specific line on the phone to place a call to phone B.
The LCD screen of phone B prompts an incoming call from anonymity.
nonymous call is not available on all servers
Contact your system administrator for the
anonymous call on code and off code.
User Guide for the SIP-T21P IP Phone
96
You can use anonymous call rejection to reject incoming calls from anonymous callers.
Anonymous call rejection automatically rejects incoming calls from callers who
deliberately block their identities and numbers from showing up. Anonymous call
rejection is configurable on a per-line basis.
To configure anonymous call rejection via phone user interface:
1. Press Menu->Features->Anonymous Call.
2. Press or , or the Switch soft key to select the desired line from the Line ID
field.
3. Press or to scroll to the Rejection field.
4. Press or , or the Switch soft key to select Enable from the Rejection field.
5. (Optional.) Enter the anonymous call rejection on code in the Reject On Code field.
6. (Optional.) Enter the anonymous call rejection off code in the Reject Off Code field.
7. Press the Save soft key to accept the change or the Back soft key to cancel.
Anonymous call rejection is configurable via web user interface at the path
Account->Basic.
Advanced Phone Features
97
