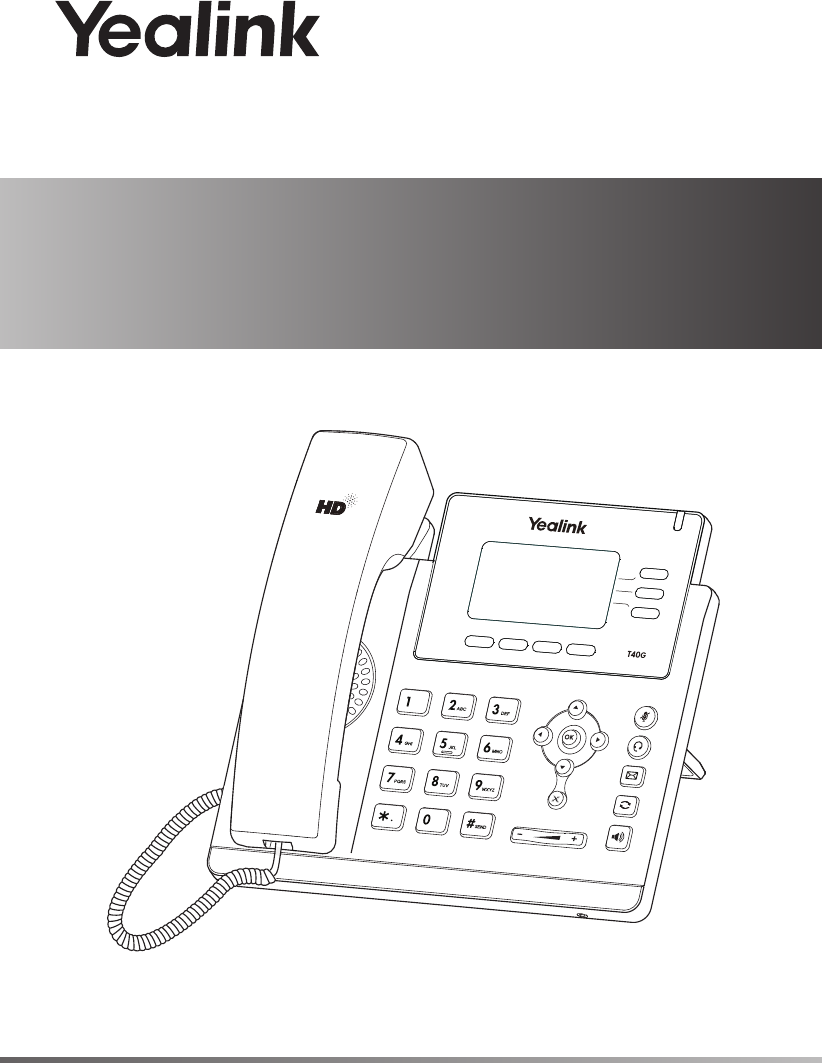

Ultra-elegant Gigabit
IP Phone
SIP-T40G
Assembling the Phone
1
Packaging Contents
The following items are included in your package. If you find anything missing, contact your system administrator.
Packaging Contents
Assembling the Phone

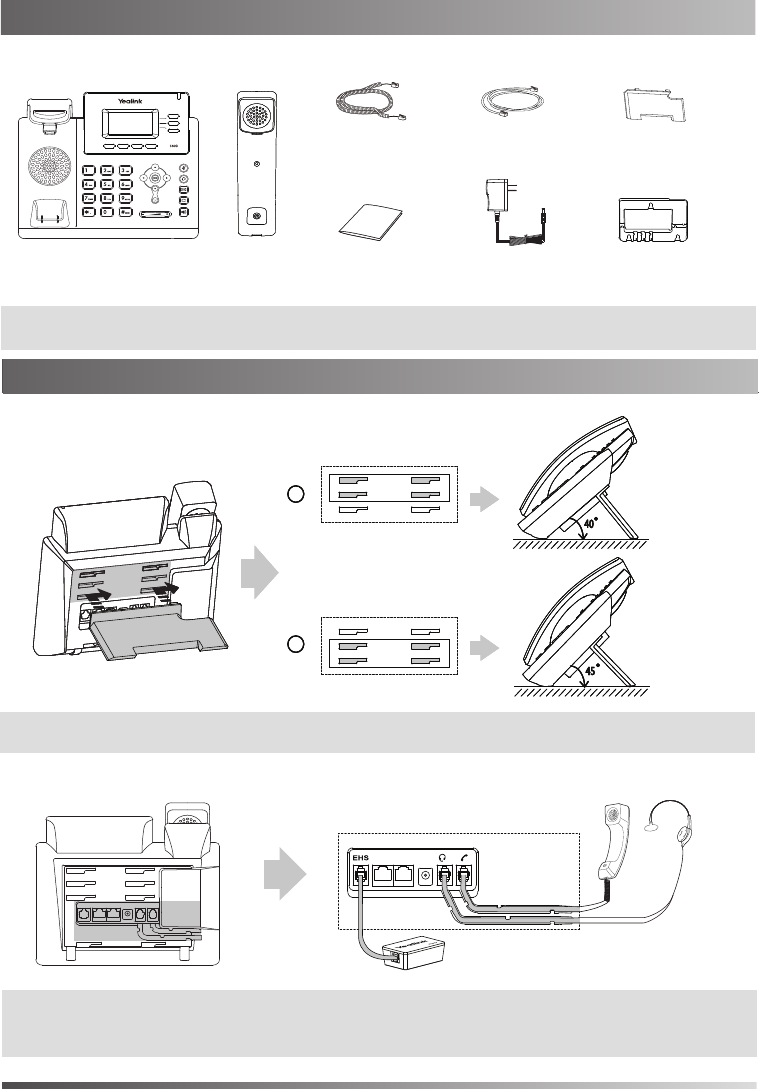

1. Attach the stand, as shown below:
Stand
Handset Cord
Handset
IP Phone
Ethernet Cable
Power Adapter Wall Mount Bracket
(Optional) (Optional)
Quick Start Guide
Desk Mount Method
BBB
404040
AAA
454545
Note:
2. Connect the handset and optional headset, as shown below:
Note: The headset or wireless headset adapter EHS36 should be purchased separately. EHS36 is used for connecting
the phone and a compatible wireless headset. For more information on how to use the EHS36, refer to Yealink
EHS36 User Guide.
Note: We recommend that you use the accessories provided or approved by Yealink. The use of unapproved
third-party accessories may result in reduced performance.
You can also mount the phone to a wall. For more information on how to attach the wall mount bracket,
refer to Yealink Wall Mount Quick Installation Guide for Yealink IP Phones.
Wireless Headset Adapter EHS36
(2m CAT5E FTP Cable)
2
Startup
After the IP phone is connected to the network and
supplied with power, it automatically begins the
initialization process. After startup, the phone is ready
for use. You can configure the phone via phone user
interface or web user interfafce.
Welcome
Initializing... please wait

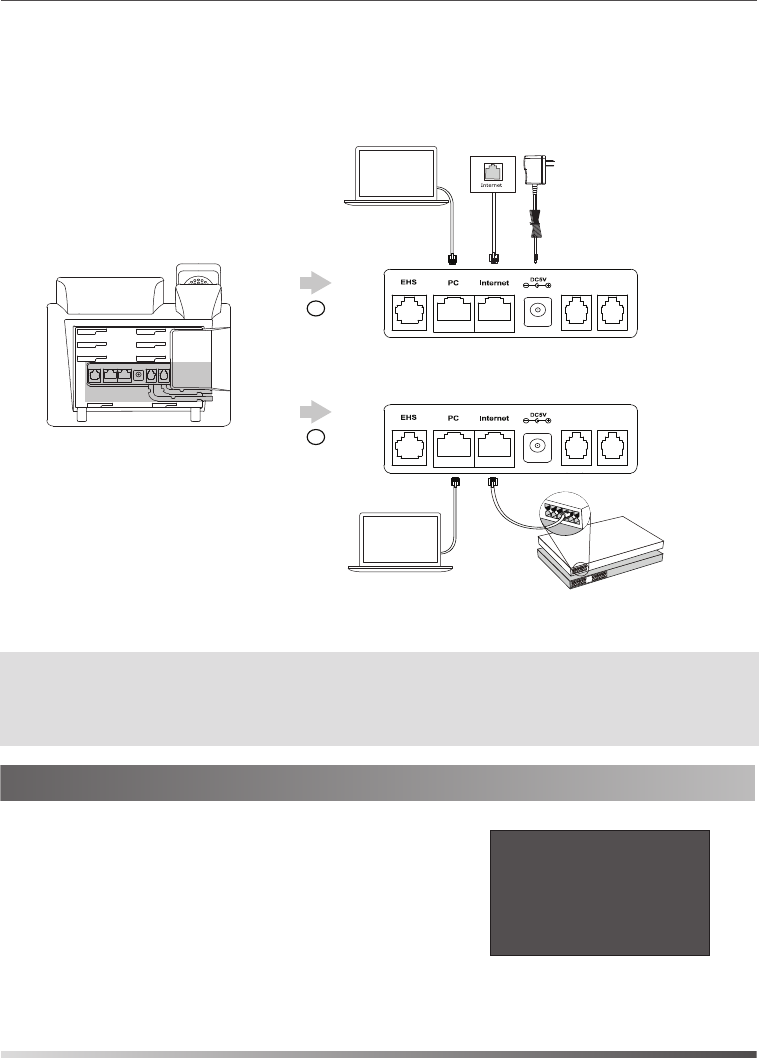

3. Connect the network and power, as shown below:
You have two options for network and power connections. Your system administrator will advise
you which one to use.
Note: The IP phone should be used with Yealink original power adapter (5V/600mA) only. The use of the
third-party power adapter may cause the damage to the phone. If you are connecting a PC to your phone,
we recommend that you use the Ethernet cable provided by Yealink.
If inline power (PoE) is provided, you do not need to connect the power adapter. Make sure the hub/switch
is PoE-compliant.
Power Adapter
(DC 5V)
IEEE 802.3af compliant
PoE Hub/Switch
PC Connection
(Optional)
A
B
AC Power Option
PoE ( Power over
Ethernet ) Option
PC Connection
(Optional)
PC
PC
Configuring Your Phone
Register status icons on the LCD screen:
3
Configuring Your Phone
Configuring via web user interface
Accessing the web user interface:
1. Press the OK key when the phone is idle to obtain the IP address of the phone.
2. Open the web browser of your computer, enter the IP address into the address bar (e.g.,
"http://192.168.0.10" or "192.168.0.10"), and then press the Enter.
3. Enter the user name (default: admin) and password (default: admin) in the login page and click Confirm.
Note: Check with your system administrator if any error appears during the registration process or if a specific
configuration is required for your registration.
Note: The IP phone also supports IPv6, but IPv6 is disabled by default.
The wrong network settings may result in inaccessibility of your phone and may have an impact on the
network performance. Contact your system administrator for more information.
Account Settings: Click on Account->Register->Account X (X=1,2,3)
Parameters of the account:
Register Status:
Line Active:
Label:
Display Name:
Register Name:
User Name:
Password:
Server Host:
It is provided by ITSP for registration (required).
It is provided by ITSP for registration (required).
It is authenticated ID for authentication provided by ITSP (required).
It is shown as Caller ID when placing a call.
It is shown on the LCD screen to identify the account.
You can select Enabled/Disabled to enable/disable the account.
It shows the register status of the current account.
Note: For more information on account parameters, refer to Configuring via web user interface above.
Network Settings: Click on Network->Basic->IPv4 Config
You can configure the network settings in the following ways:
DHCP: By default, the phone attempts to contact a DHCP server in your network to obtain its valid network
settings, e.g., IP address, subnet mask, gateway address and DNS address.
Static IP Address: If your phone cannot contact a DHCP server for any reason, you need to configure the IP
address, subnet mask, gateway address, primary DNS address and secondary DNS address
for the phone manually.
It is provided by ITSP for registration (required).
Configuring via phone user interface
Network Settings:
Press the Menu soft key when the phone is idle, select Settings->Advanced Settings (default password:
admin)->Network->WAN Port/VLAN/Web Server/802.1x/VPN/LLDP/CDP/NAT to configure the network.
Account Settings:
Press the Menu soft key when the phone is idle, select Settings->Advanced Settings (default password:
admin)->Accounts to configure the account.
Registered Register Failed
Registering
Placing a Call
Answering a Call
Ending a Call
Using the handset:
Using the speakerphone:
Using the headset:
Using the handset:
Using the speakerphone:
Using the headset:
Using the handset:
1. With the handset on-hook, press .
1. Pick up the handset.
2. Enter the number, and then press the Send soft key.
1. With the headset connected, press to activate the headset mode.
2. Enter the number, and then press the Send soft key.
2. Enter the number, and then press the Send soft key.
Pick up the handset.
Press .
Hang up the handset or press the EndCall soft key.
Press .
4
Basic Call Features
Note: During a call, you can alternate between the headset, hands-free speakerphone and handset modes by
pressing the HEADSET key, the Speakerphone key or by picking up the handset. Headset mode requires
a headset connected.
Note: You can reject an incoming call by pressing the Reject soft key.
Call Mute and Un-mute
Call Hold and Resume
To place a call on hold:
To resume the call, do one of the following:
Press to mute the microphone during a call.
Press again to un-mute the call.
If there is only one call on hold, press the Resume soft key.
Press the Hold soft key during an active call.
Press twice when the phone is idle to dial out the last dialed number.
Using the speakerphone:
Using the headset:
Press or press the EndCall soft key.
Press the EndCall soft key.
Redial
Press to enter the Placed Calls list, press or to select the desired entry, and then press or
the Send soft key.
If there is more than one call on hold, press or to select the desired call, and then press the Resume
soft key.
5
Call Conference
1. Press the Conf soft key during an active call. The call is placed on hold.
Call Forward
To enable call forward:
Always Forward----Incoming calls are forwarded unconditionally.
Busy Forward----Incoming calls are forwarded when the phone is busy.
No Answer Forward----Incoming calls are forwarded if not answered after a period of time.
2. Select the desired forward type:
4. Press the Save soft key to accept the change.
3. Enter the number you want to forward to. For No Answer Forward, press or to select the desired
ring time to wait before forwarding from the After Ring Time field.
4. Press the EndCall soft key to disconnect all parties.
2. Enter the number of the second party, and then press the Send soft key.
3. Press the Conf soft key again when the second party answers. All parties are now joined in the conference.
Note: You can split the conference call into two individual calls by pressing the Split soft key.
1. Press the Menu soft key when the phone is idle, and then select Features->Call Forward.
Speed Dial
To configure a speed dial key:
To use the speed dial key:
1. Press the Menu soft key when the phone is idle, and then select Features->DSS Keys.
2. Select the desired line key, and then press the Enter soft key.
4. Press the Save soft key to accept the change.
Press the speed dial key to dial out the preset number.
3. Select Speed Dial from the Type field, select the desired line from the Account ID field, enter a label in the
Label field and then enter the number in the Value field.
Semi-Attended Transfer
Attended Transfer
Blind Transfer
Call Transfer
You can transfer a call in the following ways:
1. Press the Tran soft key during an active call. The call is placed on hold.
1. Press the Tran soft key during an active call. The call is placed on hold.
1. Press the Tran soft key during an active call. The call is placed on hold.
2. Enter the number you want to transfer to, and then press .
3. Press the Tran soft key when the second party answers.
2. Enter the number you want to transfer to, and then press .
3. Press the Tran soft key when you hear the ring-back tone.
3. Press the Tran soft key.
2. Enter the number you want to transfer to.
Voice Message
To listen to voice messages:
2. Follow the voice prompts to listen to your voice messages.
Contact Directory
6
Customizing Your Phone
Call History
1. Press the History soft key when the phone is idle, press or to scroll through the list.
If you press the Option soft key, you can also do the following:
Customizing Your Phone
Message waiting indicator on the idle screen indicates that one or more voice messages are waiting at the
message center. The power indicator LED slowly flashes red.
Volume Adjustment
Press when the phone is idle or ringing to adjust the ringer volume.
Note: You can add contacts from call history easily. For more information, refer to Call History above.
Press during a call to adjust the receiver volume of the handset/speakerphone/headset.
Select Detail to view detailed information about the entry.
Select Add to Contact to add the entry to the local directory.
Select Add to Blacklist to add the entry to the blacklist.
Select Delete All to delete all entries from the list.
Press the Send soft key to call the entry.
Press the Delete soft key to delete the entry from the list.
2. Select an entry from the list, you can do the following:
To add a contact:
To edit a contact:
To delete a contact:
1. Press the Dir soft key when the phone is idle, and then select
All Contacts
.
2. Press the Add soft key to add a contact.
1. Press the Dir soft key when the phone is idle, and then select All Contacts.
1. Press the Dir soft key when the phone is idle, and then select All Contacts.
3. Press the OK soft key when the LCD screen prompts “Delete selected item?”.
3. Edit the contact information.
4. Press the Save soft key to accept the change.
4. Press the Add soft key to accept the change.
3. Enter a unique contact name in the Name field, and enter the phone number in the proper field.
2. Press or to select the desired entry, press the Option soft key and then select Detail.
2. Press or to select the desired entry, press the Option soft key and then select Delete.
Ring Tones
1. Press the Menu soft key when the phone is idle, and then select Settings->Basic Settings->Sound->
Ring Tones.
3. Press or to select the desired ring tone.
4. Press the Save soft key to accept the change.
1. Press or the Connect soft key.
2. Press or to select Common or the desired account and then press the Enter soft key.
About us
Founded in 2001, Yealink, a leading provider of VoIP Phone and IP communication solutions, has been focusing on VoIP
products characterized by reliable quality, easy deployment and affordable price for more than a decade. Today,
customers from over 140 countries rely on Yealink as the backbone of global collaboration to extend the value of network
communications.
More about Yealink
Since 2001, Yealink has continued to develop state-of-the art, hi-tech VoIP communication terminals that include IP video
phones, IP phones and USB phones. With a worldwide market in more than 140 countries, the company has also
established a first-class international service network.
Our priorities are quality, functionality, ease-of-use, customer support and competitive pricing. To provide new solutions
for the future in this fast-evolving sector, Yealink’s large, talented and highly-experienced VoIP R&D team is totally
committed to the pursuit of excellence.
To date, we have passed more than 80 interoperability tests and meet certification requirements set by leading VoIP
system and platforms. Yealink works in close partnership with T-Mobile, Telefonica, Portugal Telecom and other leading
telecommunication service providers.
YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD.
Web: www.yealink.com
Addr: 309, 3th Floor, No.16, Yun Ding North Road, Huli
District, Xiamen City, Fujian, P.R. China
Copyright©2016Yealink Inc.All right reserved.
6
938818 301689
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1)This device may not cause harmful interference, and
(2)This device must accept any interference received, including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this
equipment.
