YEALINK T61P IP Phone User Manual SIP T61 T61P T61G Quick Start Guide V80 1
YEALINK (XIAMEN ) NETWORK TECHNOLOGY CO., LTD. IP Phone SIP T61 T61P T61G Quick Start Guide V80 1
YEALINK >
Users Manual
Enterprise IP Phone
SIP-T61 & T61P & T61G
Quick Start Guide
Applies to firmware version 47.0.80.1 or later.
(V80.1)
1. Attach the stand or the wall mount bracket, as shown below:

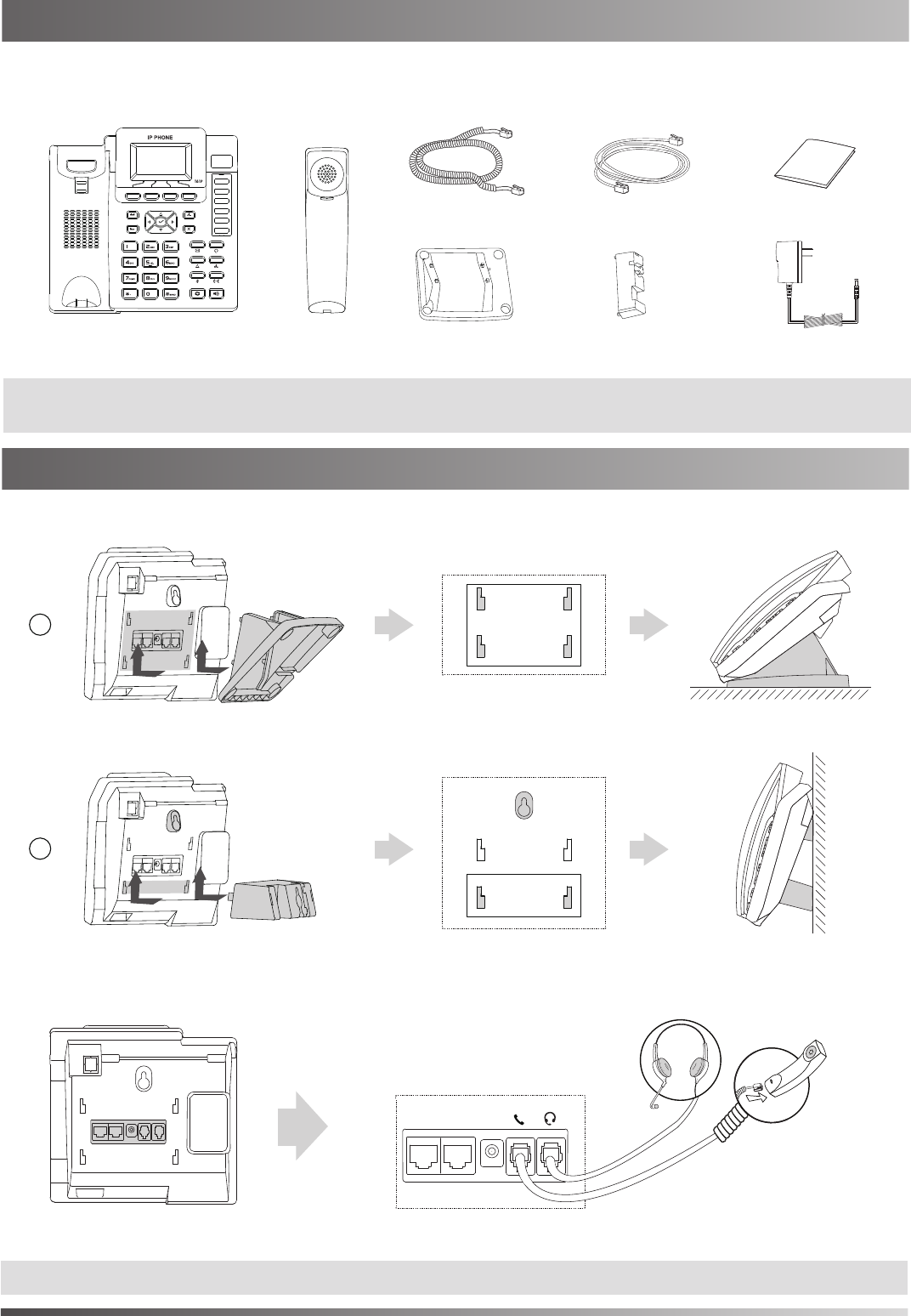

The following items are included in your package. If you find anything missing, contact your system administrator.
Stand Power Adapter
Handset Cord
Handset
IP Phone
Ethernet Cable
2
Quick Start Guide
Packaging Contents
Assembling the Phone
Note: The headset should be purchased separately.
A
B
Desk Mount Method
Wall Mount Method
2.Connect the handset and optional headset, as shown below:
Wall Mount Bracket
Note: The models displayed on the phone differ from each other. The packaging content "IP Phone" listed above
takes a SIP-T61P IP phone as an example.

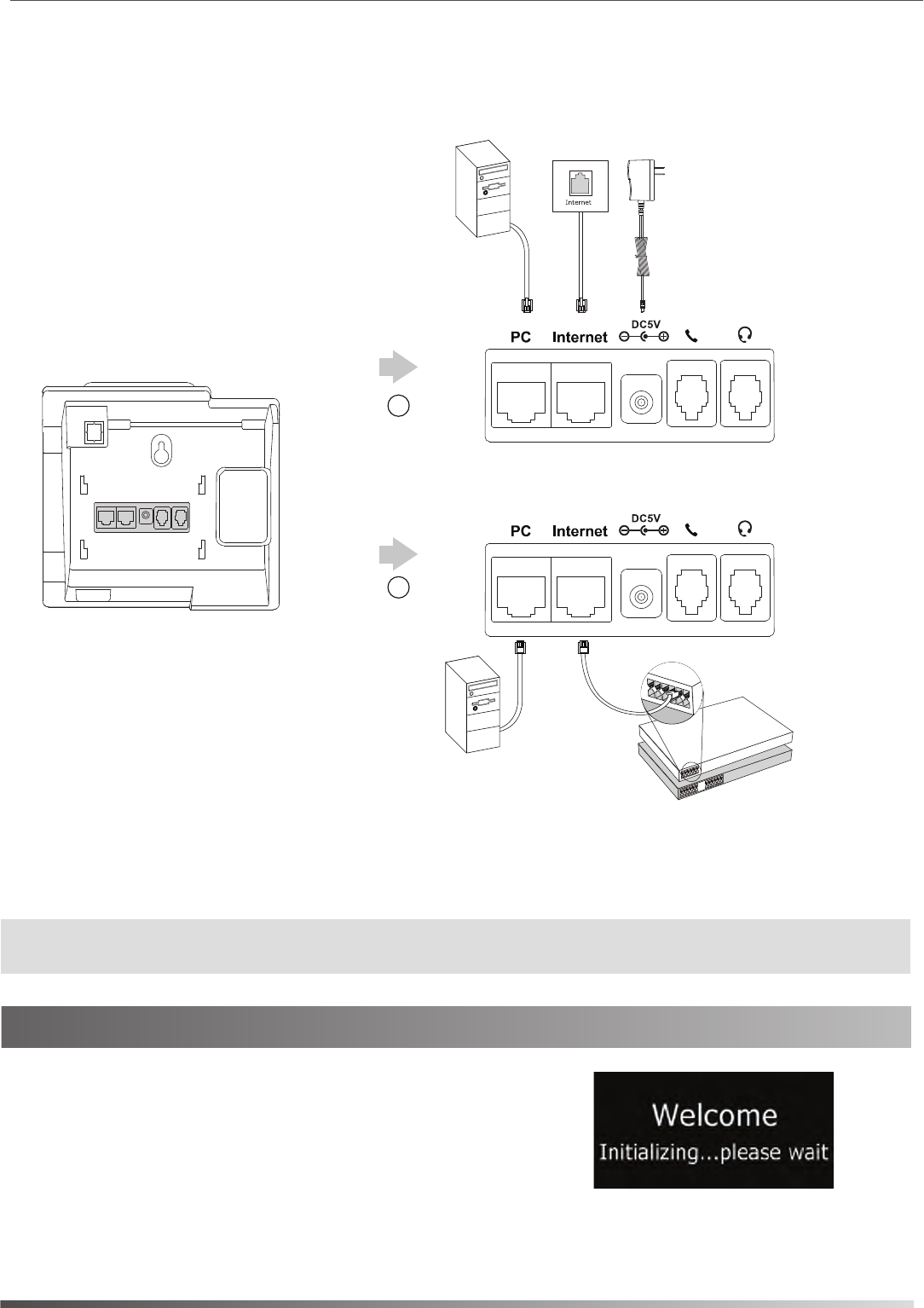

3. Connect the network and power, as shown below:
You have two options for network and power connections. Your system administrator will advise you on which one
to use.
After the IP phone is connected to the
network and supplied with power, it automatically
begins the initialization process. After startup,
the phone is ready for use. You can configure the
phone via web user interface or phone user interfafce.
3
Note: If inline power (PoE) is provided, you do not need to connect the power adapter. Make sure the hub/switch
is PoE-compliant.
Startup
B
PoE ( Power over
Ethernet ) Option
A
AC Power Option
PC Connection
(Optional)
PC Connection
(Optional)
IEEE 802.3af compliant
PoE Hub/Switch
Power Adapter
(DC 5V)
Accessing the web user interface:
Account Settings: Click on Account->Register->Account X (X=1,2,3)
Parameters of the account:
Network Settings:
Account Settings:
Configuring via phone user interface
Configuring via web user interface
Register status icons on the LCD screen:
1. Press when the phone is idle to obtain the IP address of the phone.
You can configure the network in the following ways:
It shows the register status of the current account.
You can select Enabled/Disabled to enable/disable the account.
It is shown on the LCD screen to identify the account.
It is shown as caller ID when placing a call.
It is provided by ITSP for registration (required).
It is an authenticated ID for authentication provided by ITSP (required).
It is provided by ITSP for registration (required).
It is provided by ITSP for registration (required).
DHCP: By default, the phone attempts to contact a DHCP server in your network to obtain its valid network settings,
e.g., IP address, subnet mask, gateway address and DNS address.
Static IP Address: If your phone cannot contact a DHCP server for any reason, you need to configure IP address,
subnet mask, gateway address, primary DNS address and secondary DNS address for the phone
manually.
PPPoE: If you are using an xDSL modem, you can connect your phone to the Internet via PPPoE mode. Contact the
ITSP for the PPPoE user name and password.
Press the Menu soft key when the phone is idle, select Settings->Advanced Settings (default password:admin)->Network->WAN Port/
VLAN/Webserver Type/802.1x Settings/VPN/LLDP/CDP/NAT to configure the network.
Press the Menu soft key when the phone is idle, select Settings->Advanced Settings (default password:admin)->Accounts to
configure the account.
2. Open a web browser on your computer, enter the IP address into the address bar (e.g., "http://192.168.0.10"
or "192.168.0.10") and then press Enter.
Register Status:
Line Active:
Label:
Display Name:
User Name:
Register Name:
Password:
Server Host:
3. Enter the user name (default: admin) and password (default: admin) in the login page and click Confirm.
Network Settings: Click on Network->Basic->IPv4 Config
Registered Register Failed Registering
4
Configuring Your Phone
Note: Wrong network settings may result in inaccessibility of your phone and may have an impact on the network
performance. Contact your system administrator for more information.
Note: Check with your system administrator if any error appears during the registration process or a specific
configuration is required for your registration.
Note: For more information on account parameters, refer to Configuring via web user interface.
Placing a Call
Answering a Call
Ending a Call
Call Mute and Un-mute
Redial
Call Hold and Resume
To place a call on hold:
Using the handset:
Using the speakerphone:
Using the headset:
Using the handset:
Using the speakerphone:
Using the headset:
Using the handset:
Using the speakerphone:
Using the headset:
1. With the handset on-hook, press .
1. Pick up the handset.
2. Enter the number, and then press the Send soft key.
1. With the headset connected, press to activate the headset mode.
2. Enter the number, and then press the Send soft key.
2. Enter the number, and then press the Send soft key.
Pick up the handset.
Press .
Hang up the handset or press the EndCall soft key.
Press .
Press or the EndCall soft key.
Press the EndCall soft key.
Press to enter the Placed Calls list, press or to select the desired entry, and then press or the
Send soft key.
Press twice when the phone is idle to dial the last dialed number.
To resume the call, do one of the following:
Press to mute the microphone during a call.
Press again to un-mute the call.
If there is only one call on hold, press or the Resume soft key.
Press or the Hold soft key during an active call.
5
Basic Call Features
Note: During a call, you can alternate between headset, hands-free speakerphone and handset modes by
pressing the HEADSET key, the Speakerphone key or by picking up the handset. Headset mode requires a
headset connected.
Note: You can reject an incoming call by pressing the Reject soft key.
Semi-Attended Transfer
Attended Transfer
Call Conference
Call Forward
Blind Transfer
Call Transfer
Speed Dial
To configure a speed dial key:
To use the speed dial key:
If there is more than one call on hold, press or to select the desired call, and then press or the
Resume soft key.
You can transfer a call in the following ways:
1. Press or the Tran soft key during a call. The call is placed on hold.
1. Press or the Tran soft key during a call. The call is placed on hold.
1. Press or the Tran soft key during a call. The call is placed on hold.
2. Enter the number you want to transfer to, and then press .
3. Press or the Tran soft key when the second party answers.
To enable call forward:
Always Forward----Incoming calls are forwarded unconditionally.
Busy Forward----Incoming calls are forwarded if the phone is busy.
No Answer Forward----Incoming calls are forwarded if not answered after a period of time.
1. Press the Menu soft key when the phone is idle, and then select Features->Call Forward.
2. Select the desired forward type:
3. Enter the number you want to forward to. For No Answer Forward, press or to select the ring time to wait
before forwarding.
4. Press the Save soft key to accept the change.
1. Press or the Conf soft key during an active call. The call is placed on hold.
2. Enter the number of the second party, and then press the Send soft key.
4. Press the EndCall soft key to disconnect all parties.
1. Press the Menu soft key when the phone is idle, and then select Features->DSS Keys.
2. Select the desired DSS key, and then press the Enter soft key.
4. Press the Save soft key to accept the change.
Press the speed dial key to dial out the preset number.
3. Select Speed Dial from the Type field, select the desired line from the Account ID field, and enter the number in the
Value field.
conference.
3. Press or the Conf soft key again when the second party answers. All parties are now joined in the
2. Enter the number you want to transfer to, and then press .
3. Press or the Tran soft key when you hear the ring-back tone.
3. Press or the Tran soft key.
2. Enter the number you want to transfer to.
6
Note: You can split the conference call into two individual calls by pressing the Split soft key.
Voice Message
Contact Directory
Ring Tones
Volume Adjustment
To add a contact:
To edit a contact:
Call History
To delete a contact:
To listen to voice messages:
Press the Send soft key to call the entry.
Select Detail to view detailed information about the entry.
Select Add to Contacts to add the entry to the local directory.
Select Add to Blacklist to add the entry to the blacklist.
Select Del All to delete all entries from the list.
Press during a call to adjust the receiver volume of the handset/speakerphone/headset.
Press when the phone is idle to adjust the ringer volume.
Press the Delete soft key to delete the entry from the list.
Message waiting indicator on the idle screen indicates that one or more voice messages are waiting at the message
center. The MESSAGE key LED lights up.
1. Press or the Connect soft key.
2. Follow the voice prompts to listen to your voice messages.
1. Press the History soft key when the phone is idle, press or to scroll through the list.
2. Select an entry from the list, you can do the following:
If you press the Option soft key, you can also do the following:
1. Press the Dir soft key when the phone is idle, and then select All Contacts.
2. Press the Add soft key to add a contact.
1. Press the Dir soft key when the phone is idle, and then select All Contacts.
1. Press the Dir soft key when the phone is idle, and then select All Contacts.
3. Press the OK soft key when the LCD screen prompts “Delete selected item?”.
1. Press the Menu soft key when the phone is idle, and then select Settings->Basic Setting->Sound->Ring Tones.
3. Press or to select the desired ring tone.
4. Press the Save soft key to accept the change.
3. Edit the contact information.
4. Press the Save soft key to accept the change.
4. Press the Add soft key to accept the change.
3. Enter a unique contact name in the Name field, and enter the phone number in the proper field.
2. Press or to select the desired entry, press the Option soft key and then select Detail.
2. Press or to select the desired entry, press the Option soft key and then select Delete.
7
Customizing Your Phone
Note: You can add contacts from call history easily. For more information, refer to Call History above.
2. Press or to select Common or the desired account.
